LED TV
*
* Disclaimer
LG LED TV applies LCD
screen with LED backlights.
OWNER’S MANUAL
Click! User Guide
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
P/NO : MFL68027102 (1404-REV02)
Printed in Korea
*MFL68027102*
2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
3 OPEN SOURCE SOFTWARE
NOTICE
3 EXTERNAL CONTROL DEVICE
SETUP
4 SAFETy INSTRUCTIONS
10 Viewing 3D Imaging (Only 3D models)
11 INSTALLATION PROCEDURE
11 ASSEMBLING AND PREPARING

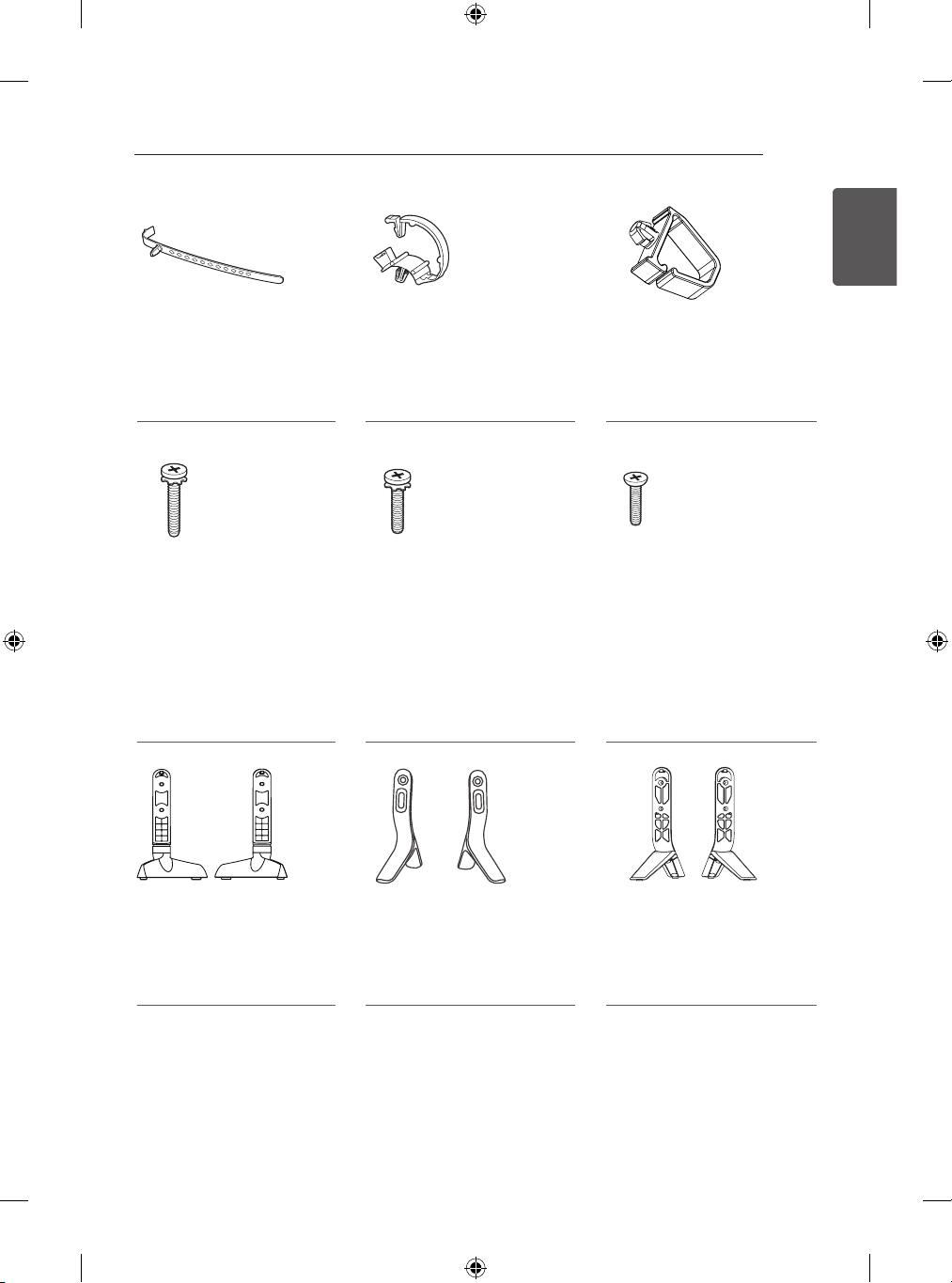

11 Unpacking
15 Separate purchase
16 Parts and buttons
18 - Using the Joystick button

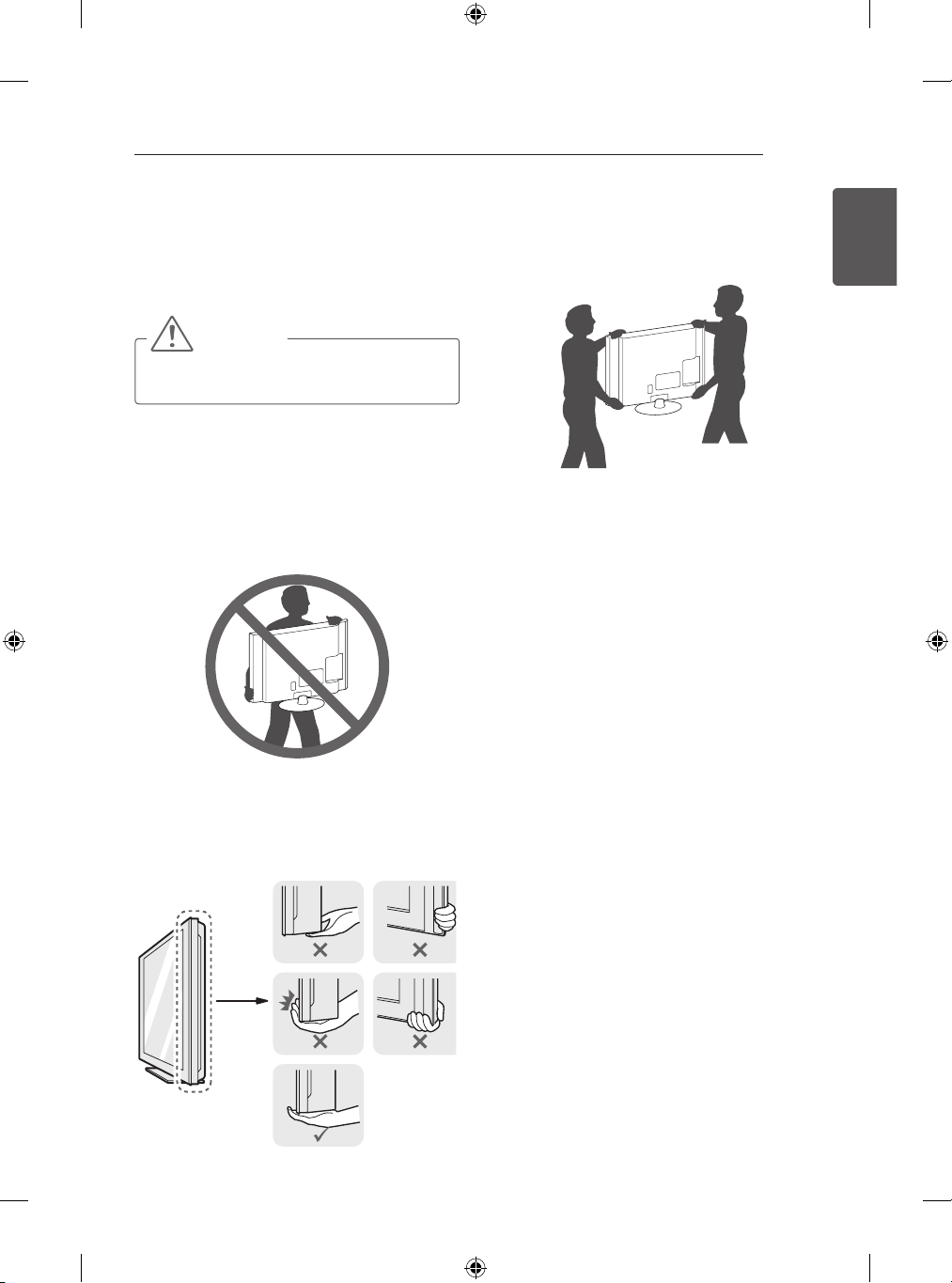

19 Lifting and moving the TV
20 Setting up the TV

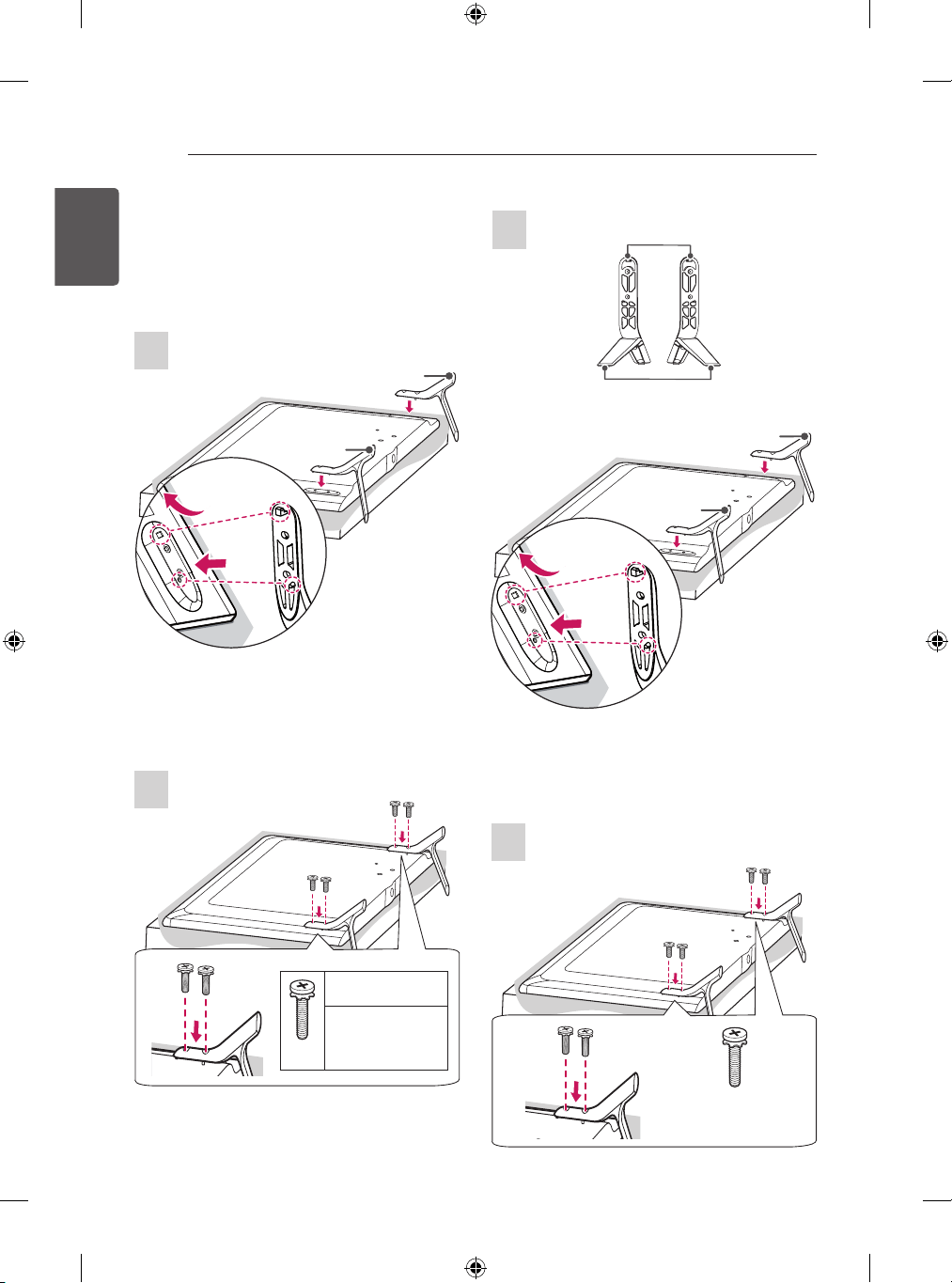

20 - Attaching the stand

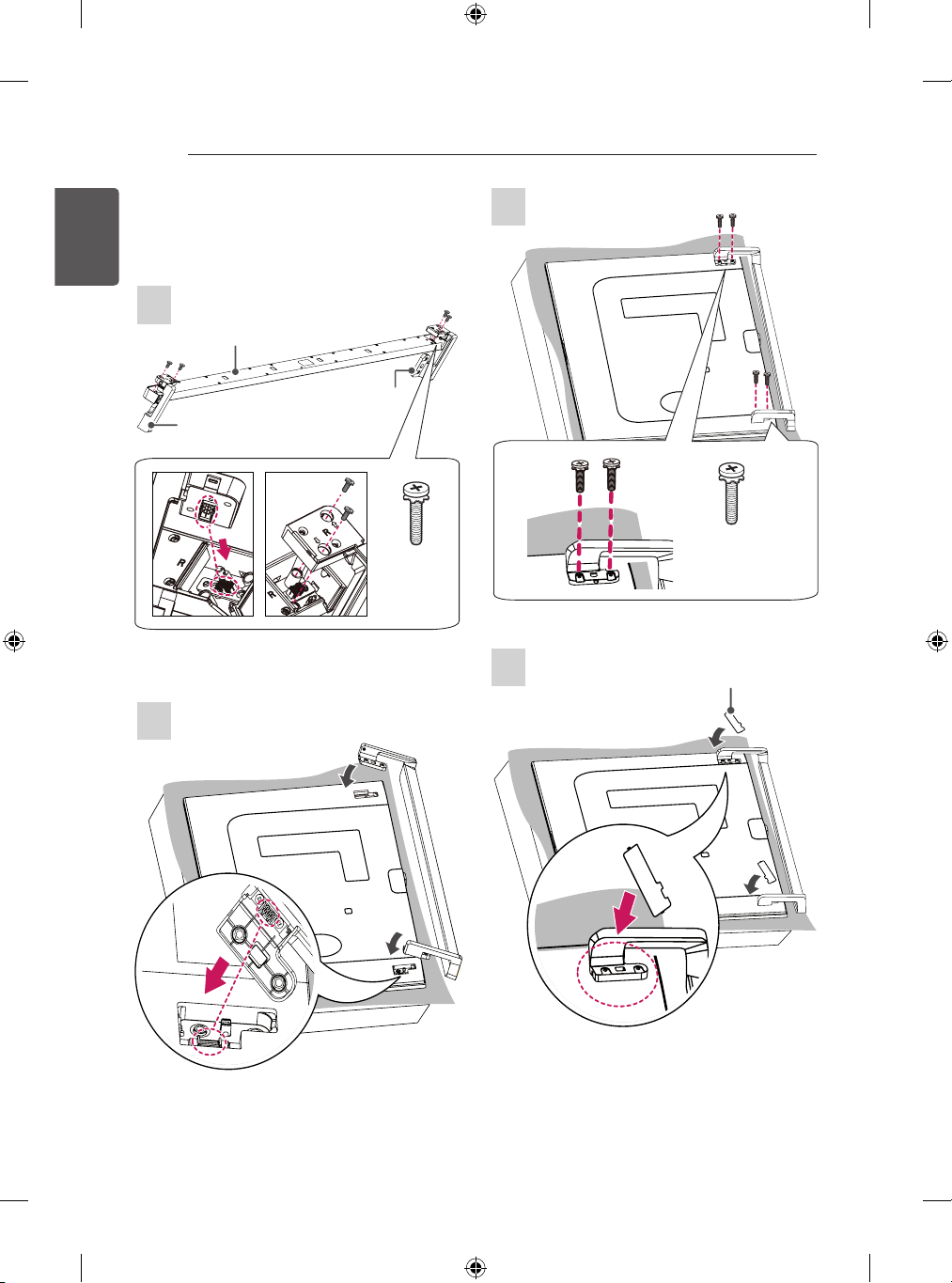

24 - Attaching the Sound Bar Supporter
25 Mounting on a table
27 Mounting on a wall
29 Tidying cables
30 Using Built-in Camera
31 - Preparing Built-in Camera
31 - Name of Parts of Built-in Camera
31 - Checking the Camera’s Shooting
Range
32 MAKING CONNECTIONS

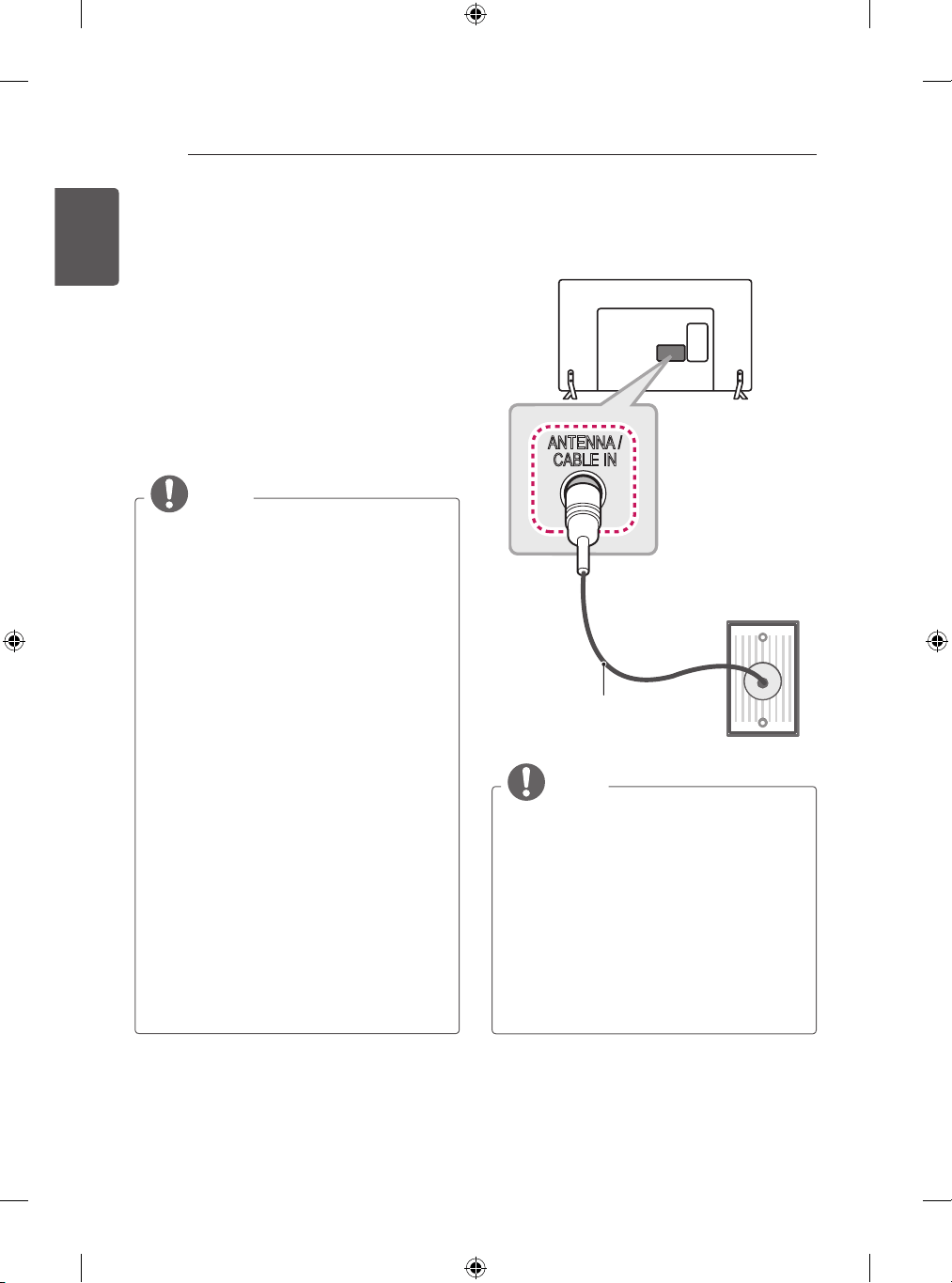

32 Antenna connection

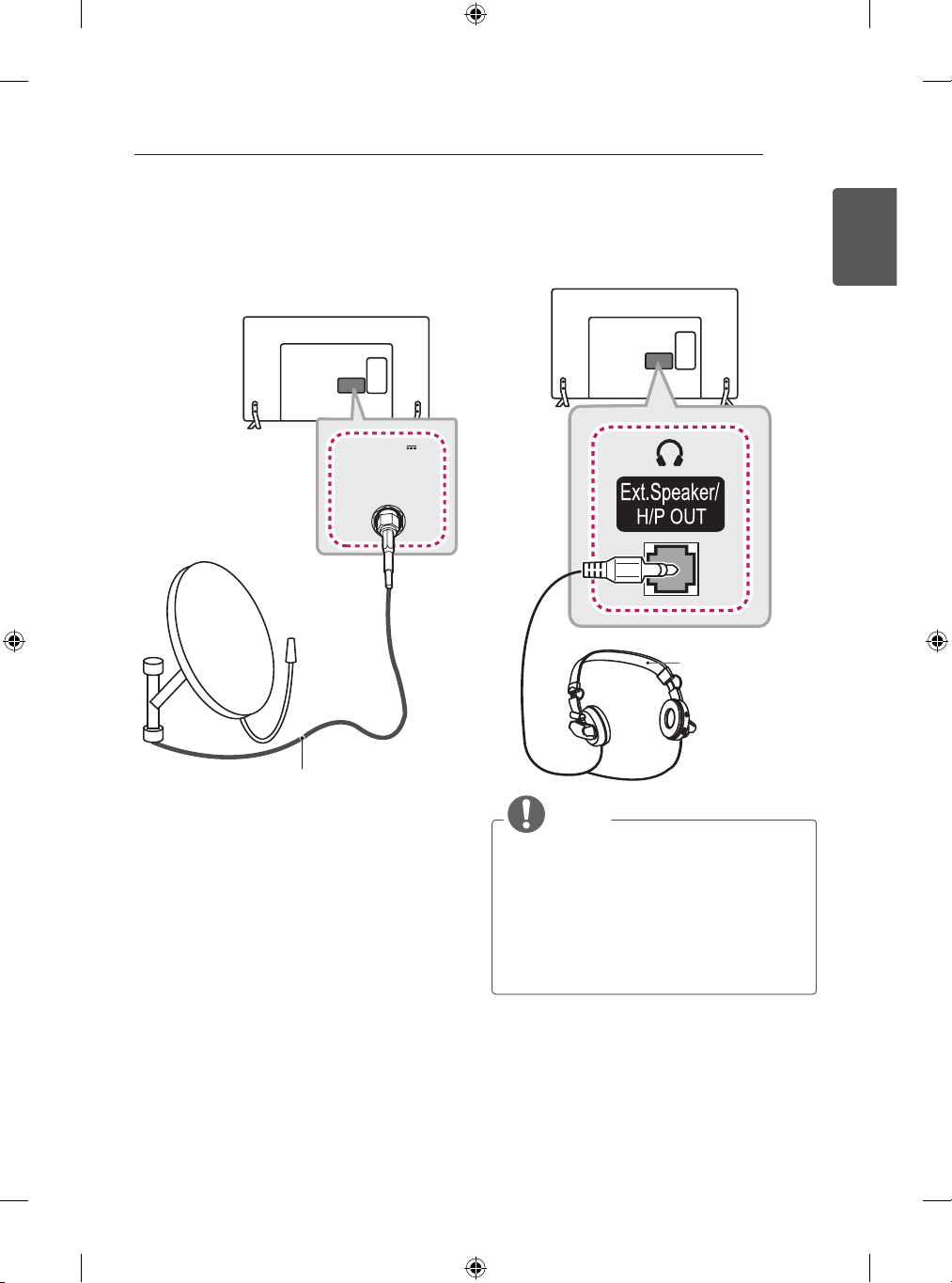

33 Satellite dish connection
33 Headphone connection
34 HDMI connection
35 DVI to HDMI connection
36 Component connection
37 Composite connection
38 Audio connection
38 - Digital optical audio connection
38 USB connection
39 Euro Scart connection
40 MHL connection
41 REMOTE CONTROL
42 MAGIC REMOTE FUNCTIONS
43 Registering Magic Remote
43 How to use Magic Remote
44 Precautions to Take when Using the
Magic Remote
44 USING THE USER GUIDE
45 MAINTENANCE
45 Cleaning your TV
45 - Screen, frame, cabinet and stand
45 - Power cord
45 TROUBLESHOOTING
46 ENVIRONMENTAL INFORMATION
46 WEEE
47 SPECIFICATIONS

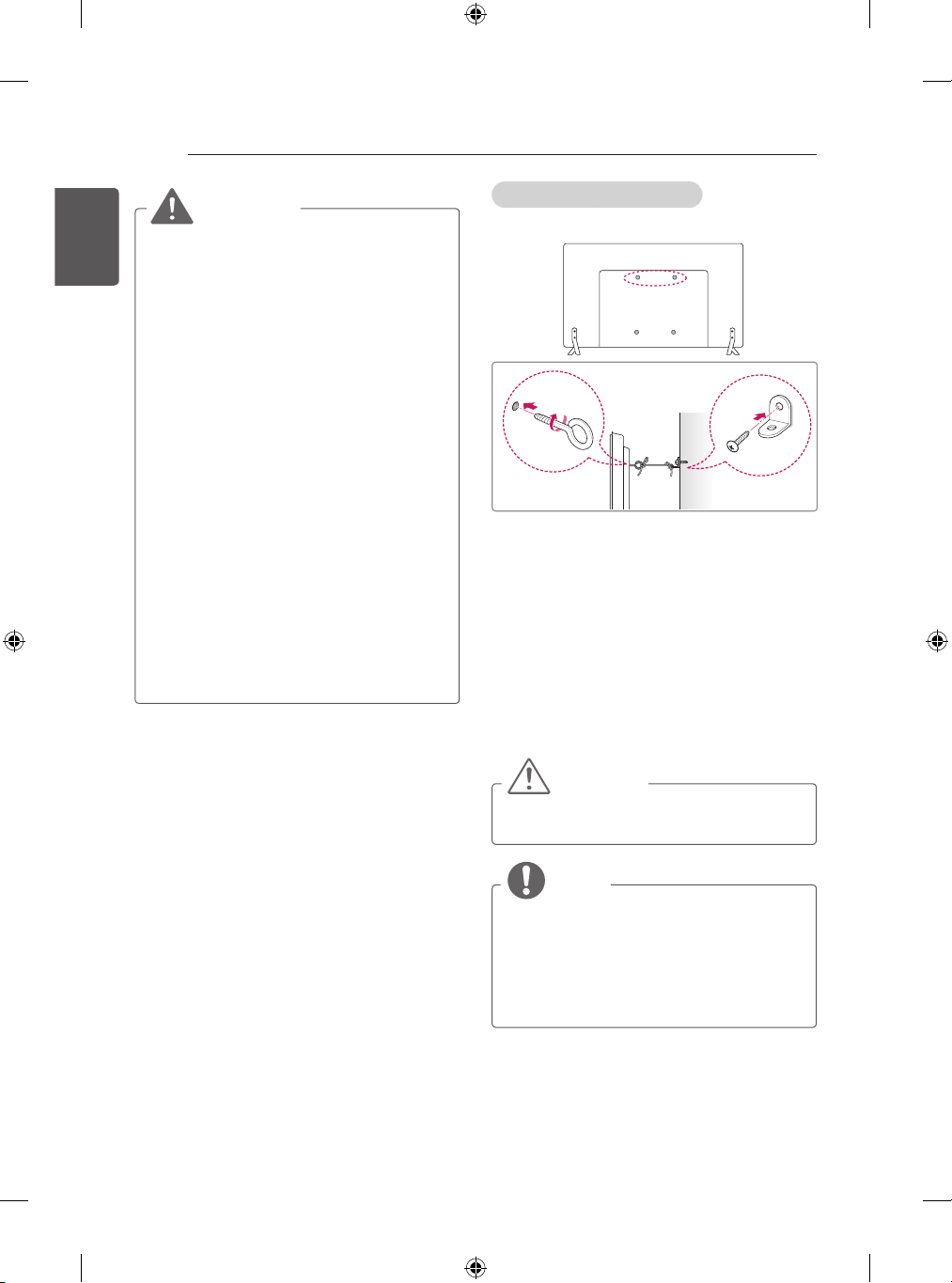

WARNING
y
If you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
CAUTION
y
If you ignore the caution message, you
may be slightly injured or the product may
be damaged.
NOTE
y
The note helps you understand and use
the product safely. Please read the note
carefully before using the product.
3
ENGENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained
in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of media, shipping and handling) upon email request
to [email protected]. This offer is valid for three (3) years from the date on which you purchased
the product.
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www.lg.com.
4
ENG
ENGLISH

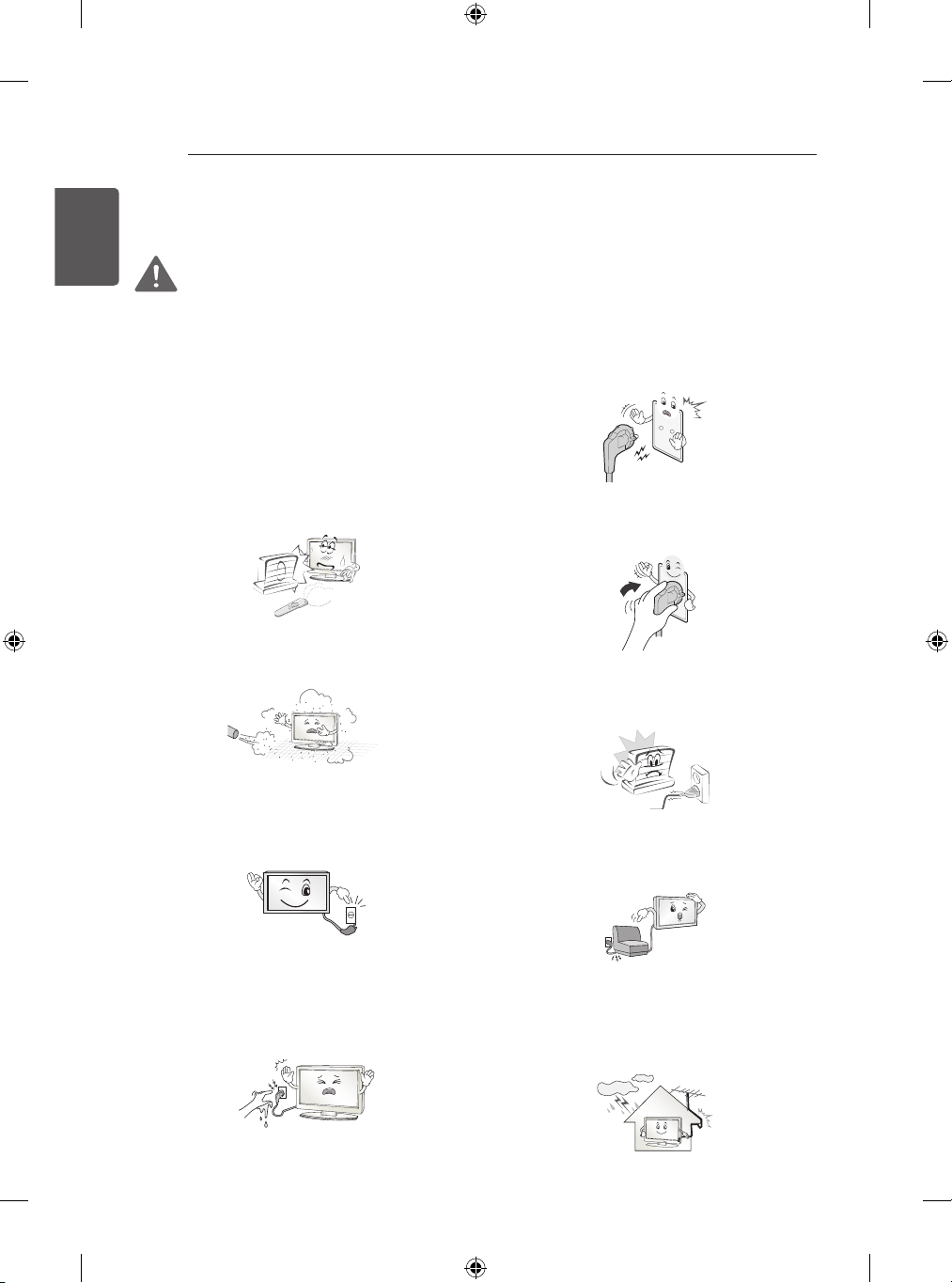

SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
y
Do not place the TV and/or remote control
in the following environments:
- A location exposed to direct sunlight
- An area with high humidity such as a
bathroom
- Near any heat source such as stoves and
other devices that produce heat
- Near kitchen counters or humidifiers
where they can easily be exposed to
steam or oil
- An area exposed to rain or wind
- Near containers of water such as vases
Otherwise, this may result in fire, electric
shock, malfunction or product deformation.
y
Do not place the product where it might be
exposed to dust.
This may cause a fire hazard.
y
Mains Plug is the TV connecting/
disconnecting device to AC mains electric
supply. This plug must remain readily
attached and operable when TV is in use.
y
Do not touch the power plug with wet
hands. Additionally, if the cord pin is wet
or covered with dust, dry the power plug
completely or wipe dust off.
You may be electrocuted due to excess
moisture.
y
Make sure to connect Mains cable to
compliant AC mains socket with Grounded
earth pin. (Except for devices which are not
grounded on earth.) Otherwise possibility you
may be electrocuted or injured.
y
Insert power cable plug completely into wall
socket otherwise if not secured completely
into socket, fire ignition may break out.
y
Ensure the power cord does not come into
contact with hot objects such as a heater.
This may cause a fire or an electric shock
hazard.
y
Do not place a heavy object, or the product
itself, on power cables.
Otherwise, this may result in fire or electric
shock.
y
Bend antenna cable between inside and
outside building to prevent rain from flowing
in.
This may cause water damaged inside the
Product and could give an electric shock.
5
ENGENGLISH

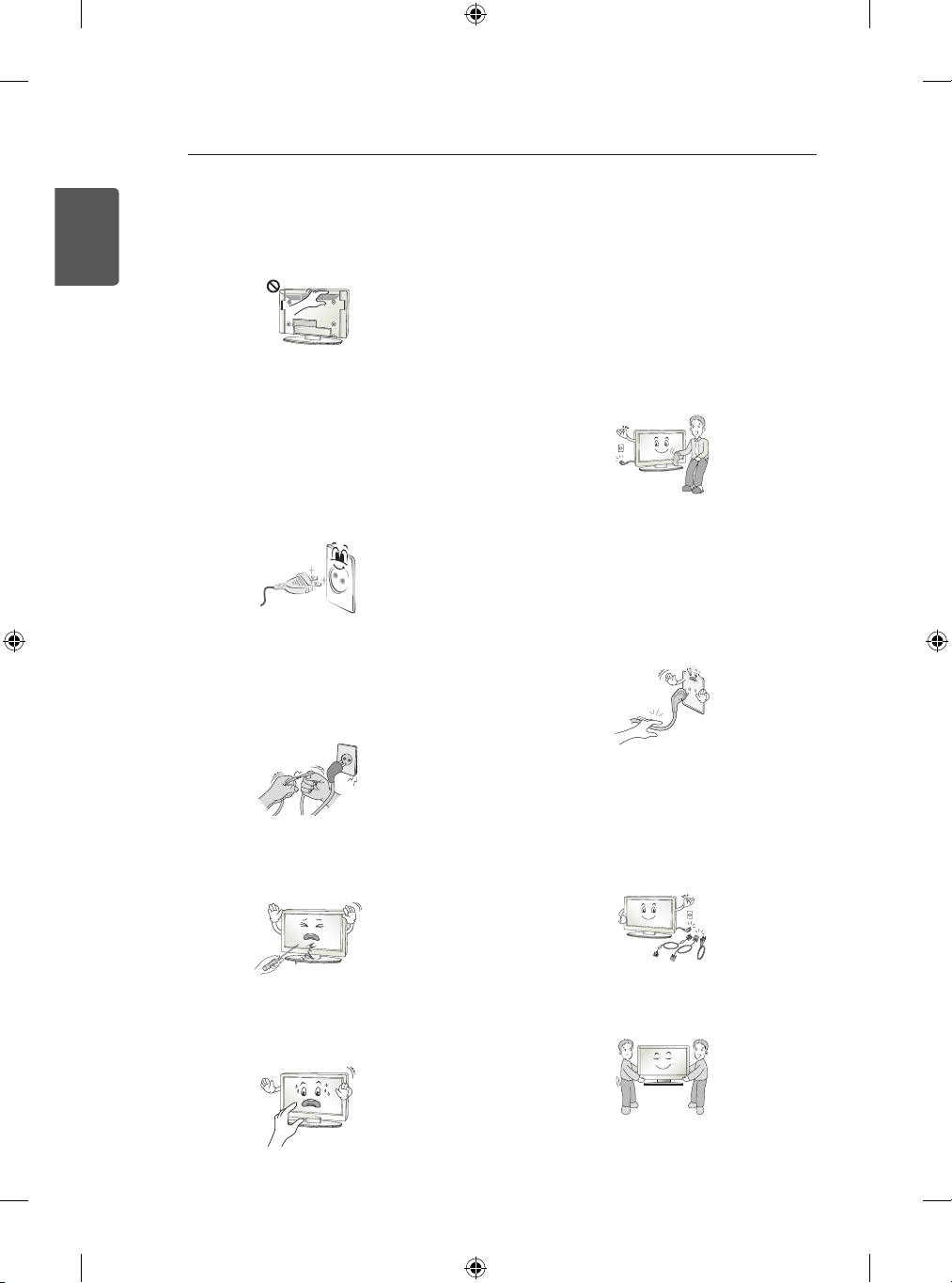

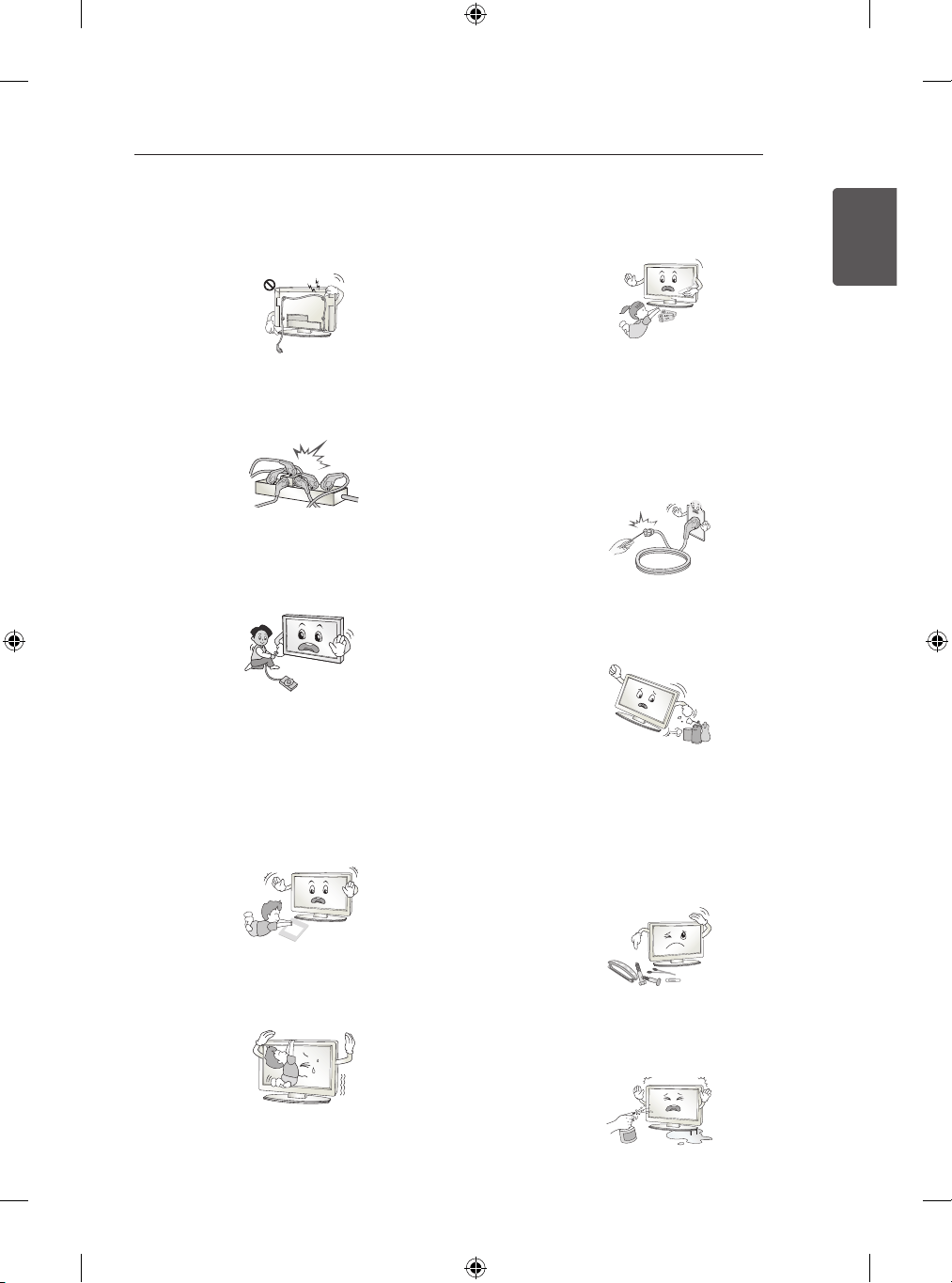

SAFETY INSTRUCTIONS
y
When mounting TV onto wall make sure to
neatly install and isolate cabling from rear
of TV as to not create possibility of electric
shock /fire hazard.
y
Do not plug too many electrical devices into
a single multiple electrical outlet.
Otherwise, this may result in fire due to
over-heating.
y
Do not drop the product or let it fall over
when connecting external devices.
Otherwise, this may result in injury or
damage to the product.
y
Keep the anti-moisture packing material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach
of children.
Desiccant
y
Do not let your children climb or cling onto
the TV. Otherwise, the TV may fall over,
which may cause serious injury.
y
Dispose of used batteries carefully to
ensure that a small child does not consume
them. Please seek Doctor- Medical Attention
immediately if child consumes batteries.
y
Do not insert any metal objects/conductors
(like a metal chopstick/cutlery/screwdriver)
between power cable plug and input Wall
Socket while it is connected to the input
terminal on the wall. Additionally, do not
touch the power cable right after plugging
into the wall input terminal. You may be
electrocuted. (Depending on model)
y
Do not put or store inflammable substances
near the product. There is a danger of
combustion/explosion or fire due to careless
handling of the inflammable substances.
y
Do not drop metallic objects such as
coins, hair pins, chopsticks or wire into
the product, or inflammable objects such
as paper and matches. Children must pay
particular attention. Electrical shock, fire
or injury can occur. If a foreign object is
dropped into the product, unplug the power
cord and contact the service centre.
y
Do not spray water on the product or scrub
with an inflammable substance (thinner or
benzene). Fire or electric shock accident
can occur.
6
ENG
ENGLISH

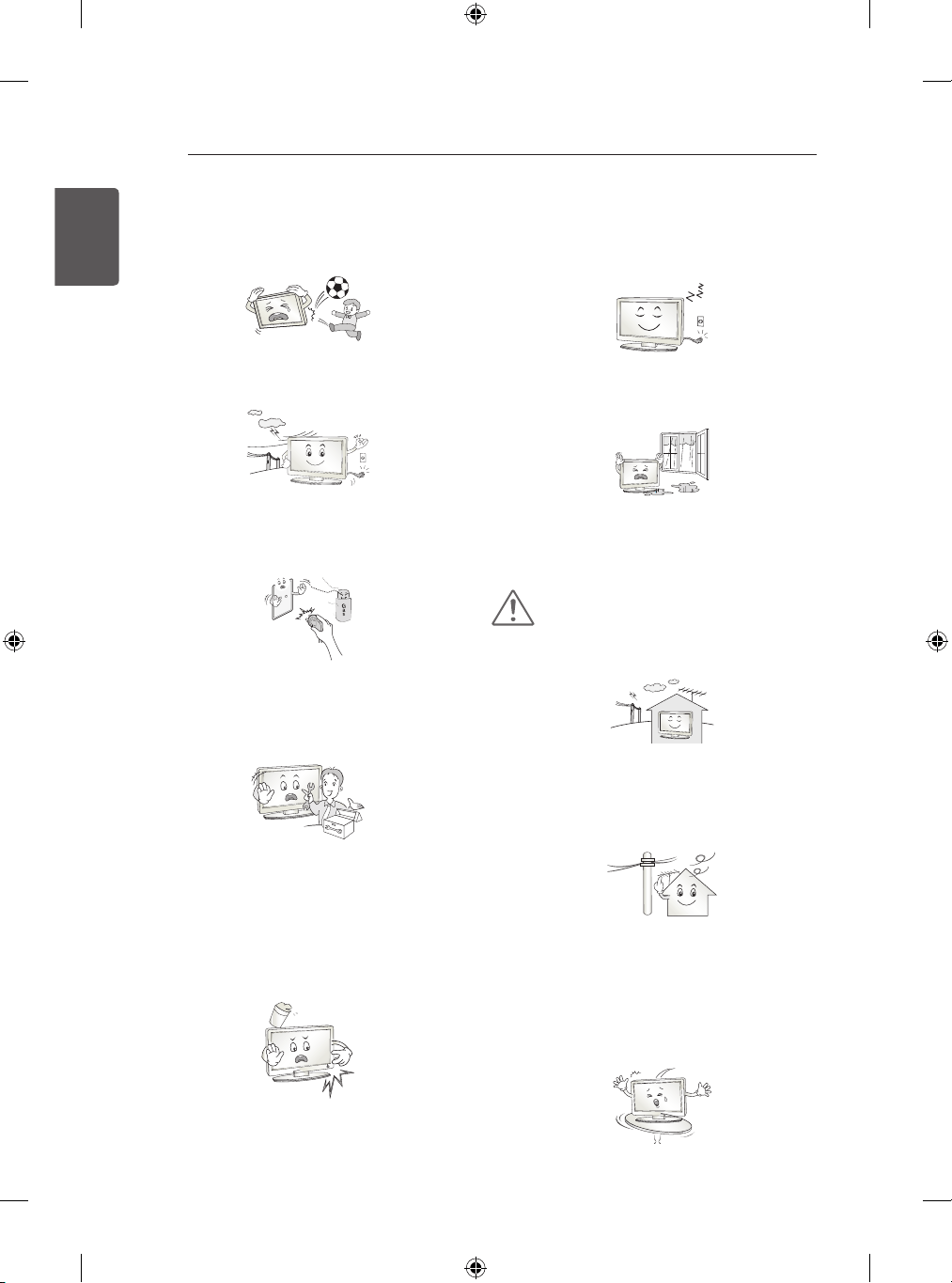

SAFETY INSTRUCTIONS
y
Do not allow any impact, shock or any
objects to fall into the unit, and do not drop
anything onto the screen.
You may be injured or the product can be
damaged.
y
Never touch this product or antenna during
a thunder or lighting storm.
You may be electrocuted.
y
Never touch the wall outlet when there is
leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
y
Do not disassemble, repair or modify the
product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check,
calibration or repair.
y
If any of the following occur, unplug the
product immediately and contact your local
service centre.
- The product has been impacted by shock
- The product has been damaged
- Foreign objects have entered the product
- The product produced smoke or a strange
smell
This may result in fire or electric shock.
y
Unplug the TV from AC mains wall socket
if you do not intend to use the TV for a long
period of time. Accumulated dust can cause
fire hazard and insulation deterioration can
cause electric leakage/shock/fire.
y
Apparatus shall not be exposed to dripping
or splashing and no objects filled with
liquids, such as vases, shall be placed on
the apparatus.
y
Do not install this product on a wall if it
could be exposed to oil or oil mist.
This may damage the product and causeit
to fall.
CAUTION
y
Install the product where no radio wave
occurs.
y
There should be enough distance between
an outside antenna and power lines to
keep the former from touching the latter
even when the antenna falls.
This may cause an electric shock.
y
Do not install the product on places such
as unstable shelves or inclined surfaces.
Also avoid places where there is vibration
or where the product cannot be fully
supported. Otherwise, the product may
fall or flip over, which may cause injury or
damage to the product.
7
ENGENGLISH

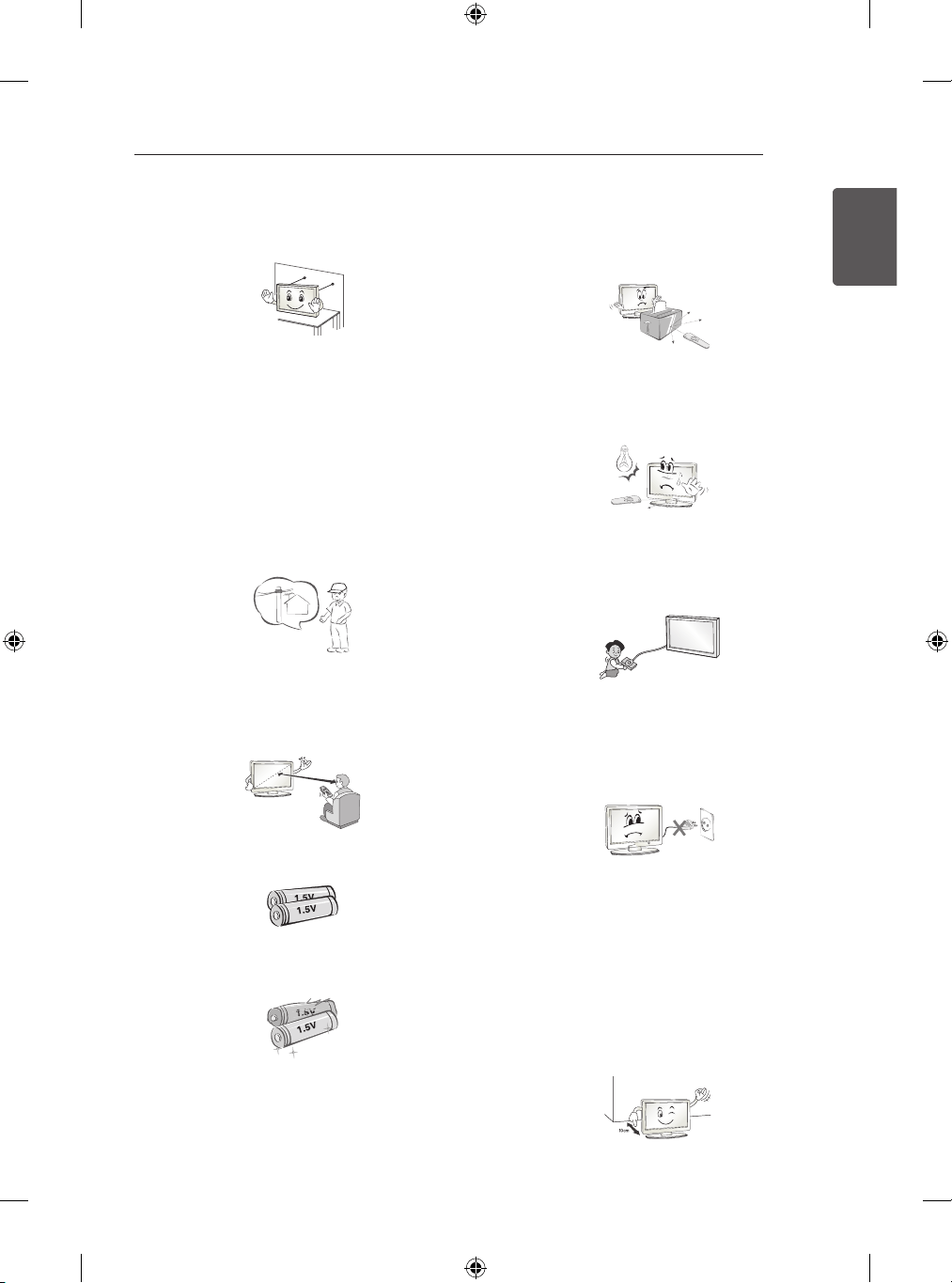

SAFETY INSTRUCTIONS
y
If you install the TV on a stand, you need
to take actions to prevent the product from
overturning. Otherwise, the product may fall
over, which may cause injury.
y
If you intend to mount the product to a wall,
attach VESA standard mounting interface
(optional parts) to the back of the product.
When you install the set to use the wall
mounting bracket (optional parts), fix it
carefully so as not to drop.
y
Only use the attachments / accessories
specified by the manufacturer.
y
When installing the antenna, consult with a
qualified service technician. If not installed
by a qualified technician, this may create a
fire hazard or an electric shock hazard.
y
We recommend that you maintain a
distance of at least 2 to 7 times the diagonal
screen size when watching TV.
If you watch TV for a long period of time,
this may cause blurred vision.
y
Only use the specified type of battery.
This could cause damage to the remote
control.
y
Do not mix new batteries with old batteries.
This may cause the batteries to overheat
and leak.
y
Batteries should not be exposed to
excessive heat. For example, keep away
from direct Sunlight, open fireplace and
electric heaters.
y
Do not place non-rechargeable batteries in
charging device.
y
Make sure there are no objects between the
remote control and its sensor.
y
Signal from Remote Control can be
interrupted due to external/internal lighting
eg Sunlight, fluorescent lighting.If this
occurs turn off lighting or darken viewing
area.
y
When connecting external devices such
as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over, which
may cause injury or damage the product.
y
Do not turn the product On/Off by plugging-
in or unplugging the power plug to the
wall outlet. (Do not use the power plug for
switch.)
It may cause mechanical failure or could
give an electric shock.
y
Please follow the installation instructions
below to prevent the product from
overheating.
- The distance between the product and the
wall should be more than 10 cm.
- Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in a
cupboard).
- Do not install the product on a carpet or
cushion.
- Make sure the air vent is not blocked by a
tablecloth or curtain.
Otherwise, this may result in fire.
8
ENG
ENGLISH
SAFETY INSTRUCTIONS
y
Take care not to touch the ventilation
openings when watching the TV for long
periods as the ventilation openings may
become hot. This does not affect the
operation or performance of the product.
y
Periodically examine the cord of your
appliance, and if its appearance indicates
damage or deterioration, unplug it,
discontinue use of the appliance, and have
the cord replaced with an exact replacement
part by an authorized servicer.
y
Prevent dust collecting on the power plug
pins or outlet.
This may cause a fire hazard.
y
Protect the power cord from physical or
mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits
the appliance.
y
Do not press strongly upon the panel with
a hand or sharp object such as nail, pencil
or pen, or make a scratch on it, as it may
cause damage to screen.
y
Avoid touching the screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary or
permanent distortion/damage to screen.
y
When cleaning the product and its
components, unplug the power first
and wipe it with a soft cloth. Applying
excessive force may cause scratches or
discolouration. Do not spray with water
or wipe with a wet cloth. Never use glass
cleaner, car or industrial shiner, abrasives
or wax, benzene, alcohol etc., which can
damage the product and its panel.
Otherwise, this may result in fire, electric
shock or product damage (deformation,
corrosion or breakage).
y
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if you turn off this
unit by SWITCH.
y
When unplugging the cable, grab the plug
and unplug it, by pulling at the plug. Don’t
pull at the cord to unplug the power cord
from the power board, as this could be
hazardous.
y
When moving the product, make sure
you turn the power off first. Then, unplug
the power cables, antenna cables and all
connecting cables.
The TV set or power cord may be
damaged, which may create a fire hazard
or cause electric shock.
y
When moving or unpacking the product,
work in pairs because the product is heavy.
Otherwise, this may result in injury.
9
ENGENGLISH

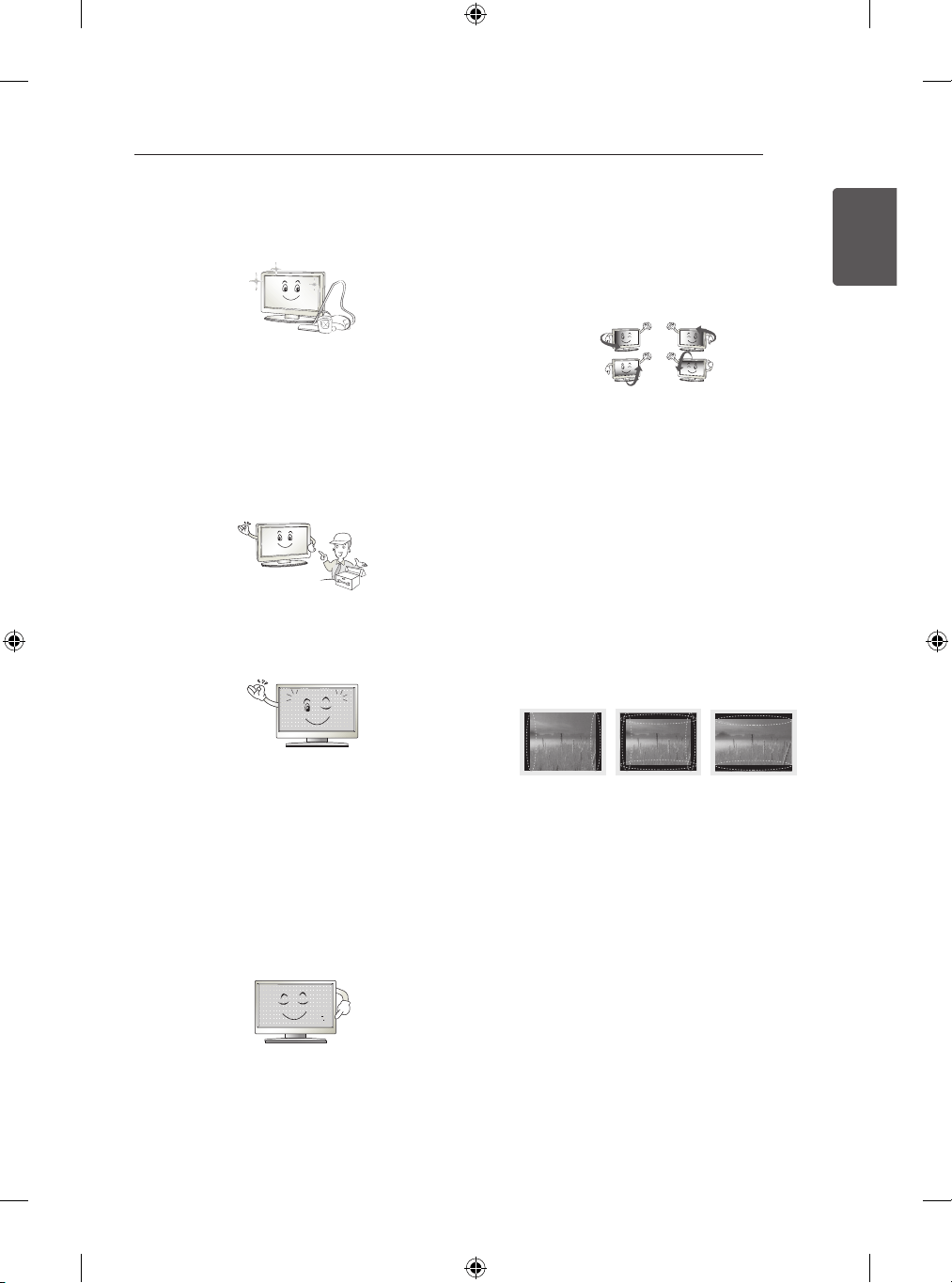

SAFETY INSTRUCTIONS
y
Contact the service centre once a year to
clean the internal parts of the product.
Accumulated dust can cause mechanical
failure.
y
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
y
If the product feels cold to the touch, there
may be a small “flicker” when it is turned on.
This is normal, there is nothing wrong with
product.
y
The panel is a high technology display
product with resolution of two million to six
million pixels. You may see tiny black dots
and/or brightly coloured dots (red, blue or
green) at a size of 1 ppm on the panel. This
does not indicate a malfunction and does
not affect the performance and reliability of
the product.
This phenomenon also occurs in third-party
products and is not subject to exchange or
refund.
y
You may find different brightness and colour
of the panel depending on your viewing
position(left/right/top/down).
This phenomenon occurs due to the
characteristic of the panel. It is not related
with the product performance, and it is not
malfunction.
y
Displaying a still image (e.g., broadcasting
channel logo, on-screen menu, scene from
a video game) for a prolonged time may
cause damage to the screen, resulting in
retention of the image, which is known as
image sticking. The warranty does not cover
the product for image sticking.
Avoid displaying a fixed image on your
television’s screen for a prolonged period (2
or more hours for LCD, 1 or more hours for
Plasma).
Also, if you watch the TV at a ratio of 4:3 for
a long time, image sticking may occur on
the borders of the panel.
This phenomenon also occurs in third-party
products and is not subject to exchange or
refund.
y
Generated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to tempera-ture and humidity. This
noise is common for products where
thermal deformation is required. Electrical
circuit humming/panel buzzing: A low level
noise is generated from a high-speed
switching circuit, which supplies a large
amount of current to operate a product. It
varies depend-ing on the product.
This generated sound does not affect the
performance and reliability of the product.
10
ENG
ENGLISH
SAFETY INSTRUCTIONS
Viewing 3D Imaging
(Only 3D models)
WARNING
Viewing Environment
y
Viewing Time
- When watching 3D contents, take 5 - 15
minute breaks every hour. Viewing 3D
contents for a long period of time may
cause headache, dizziness, fatigue or
eye strain.
Those that have a photosensitive
seizure or chronic illness
y
Some users may experience a seizure or
other abnormal symptoms when they are
exposed to a ashing light or particular
pattern from 3D contents.
y
Do not watch 3D videos if you feel nausea,
are pregnant and/ or have a chronic illness
such as epilepsy, cardiac disorder, or blood
pressure disease, etc.
y
3D Contents are not recommended to those
who suffer from stereo blindness or stereo
anomaly. Double images or discomfort in
viewing may be experienced.
y
If you have strabismus (cross-eyed),
amblyopia (weak eyesight) or astigmatism,
you may have trouble sensing depth and
easily feel fatigue due to double images. It
is advised to take frequent breaks than the
average adult.
y
If your eyesight varies between your right
and left eye, revise your eyesight prior to
watching 3D contents.
Symptoms which require discontinuation or
refraining from watching 3D contents
y
Do not watch 3D contents when you feel
fatigue from lack of sleep, overwork or
drinking.
y
When these symptoms are experienced,
stop using/watching 3D contents and get
enough rest until the symptom subsides.
- Consult your doctor when the symptoms
persist. Symptoms may include
headache, eyeball pain, dizziness,
nausea, palpitation, blurriness,
discomfort, double image, visual
inconvenience or fatigue.
CAUTION
Viewing Environment
y
Viewing Distance
- Maintain a distance of at least twice the
screen diagonal length when watching 3D
contents. If you feel discomfort in viewing
3D contents, move further away from the
TV.
Viewing Age
y
Infants/Children
- Usage/ Viewing 3D contents for children
under the age of 5 are prohibited.
- Children under the age of 10 may
overreact and become overly excited
because their vision is in development (for
example: trying to touch the screen or
trying to jump into it. Special monitoring
and extra attention is required for children
watching 3D contents.
- Children have greater binocular disparity
of 3D presentations than adults because
the distance between the eyes is shorter
than one of adults. Therefore they will
perceive more stereoscopic depth
compared to adults for the same 3D
image.
y
Teenagers
- Teenagers under the age of 19 may
react with sensitivity due to stimulation
from light in 3D contents. Advise them to
refrain from watching 3D contens for a
long time when they are tired.
y
Elderly
- The elderly may perceive less 3D
effect compared to the youth. Do not sit
closer to the TV than the recommended
distance.
Cautions when using the 3D glasses
y
Make sure to use LG 3D glasses. Otherwise,
you may not be able to view 3D videos
properly.
y
Do not use 3D glasses instead of your normal
glasses, sunglasses or protective goggles.
y
Using modied 3D glasses may cause eye
strain or image distortion.
y
Do not keep your 3D glasses in extremely high
or low temperatures. It will cause deformation.
y
The 3D glasses are fragile and are easy to be
scratched. Always use a soft, clean piece of
cloth when wiping the lenses. Do not scratch
the lenses of the 3D glasses with sharp
objects or clean/wipe them with chemicals.
11
ENGENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you
are using.
y
New features may be added to this TV in the future.
y
The TV can be placed in standby mode in order to reduce the power consumption. And the
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
y
The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.

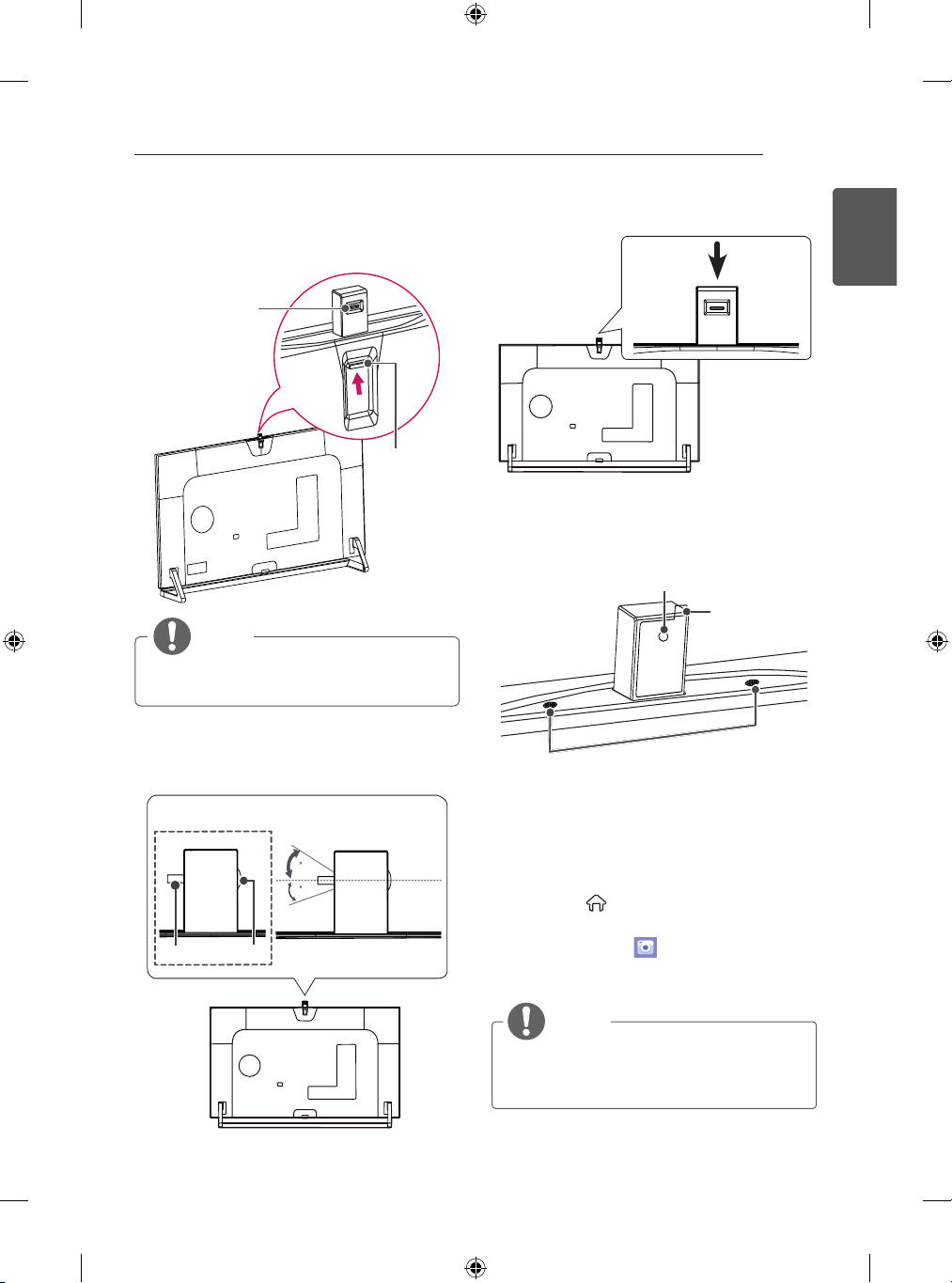

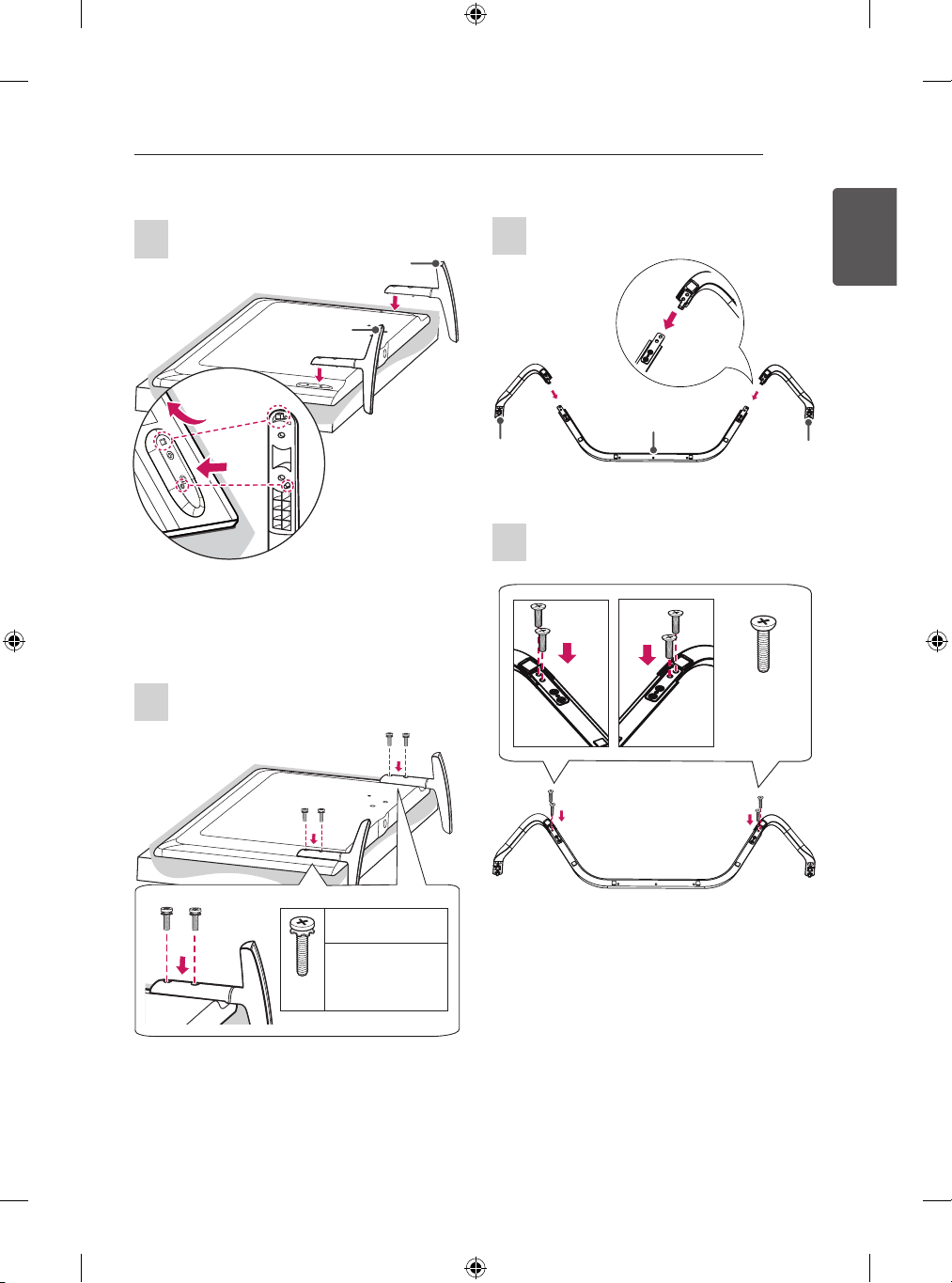

2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
* If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV
may take up to one minute.

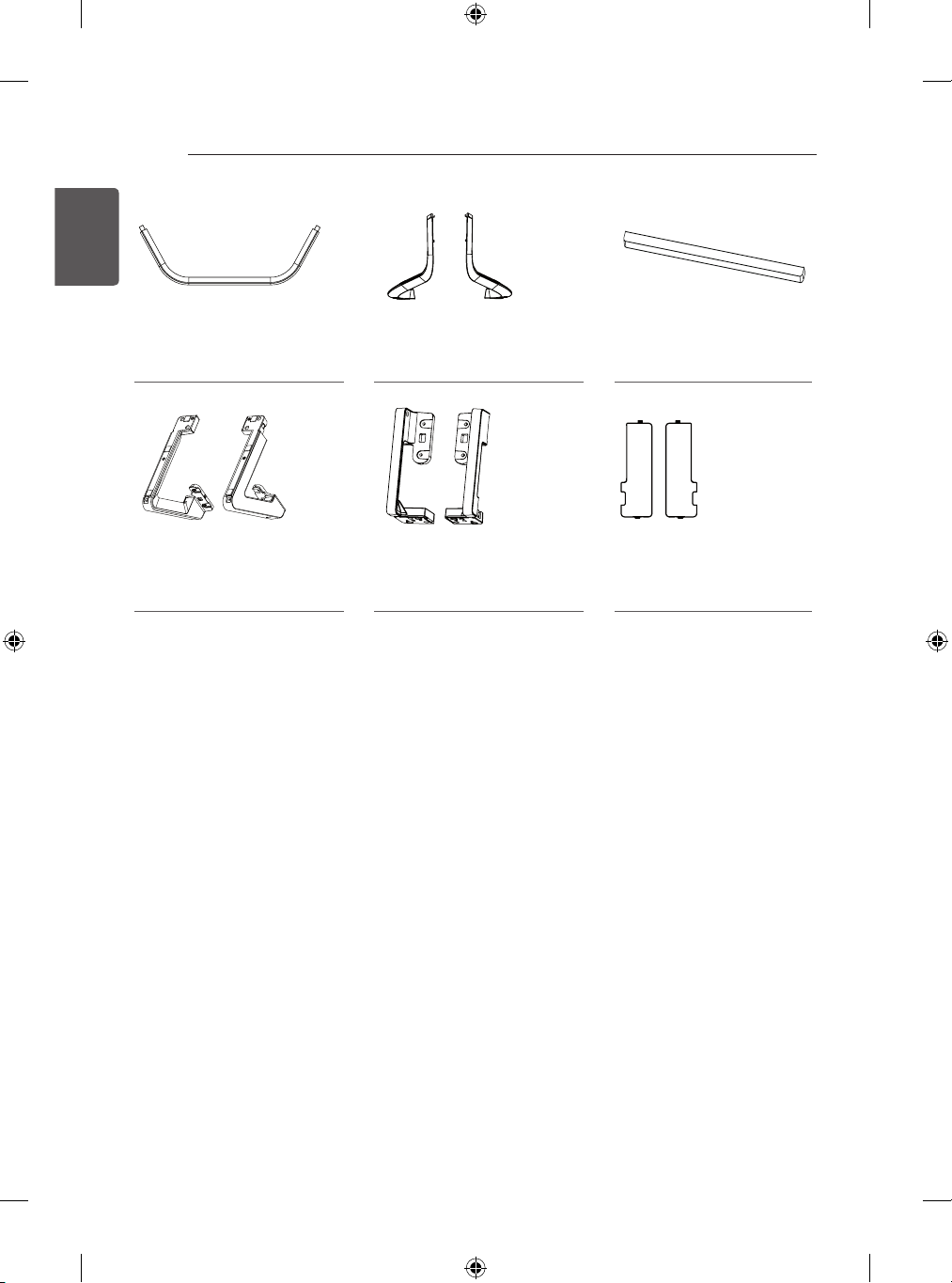

ASSEMBLING AND PREPARING

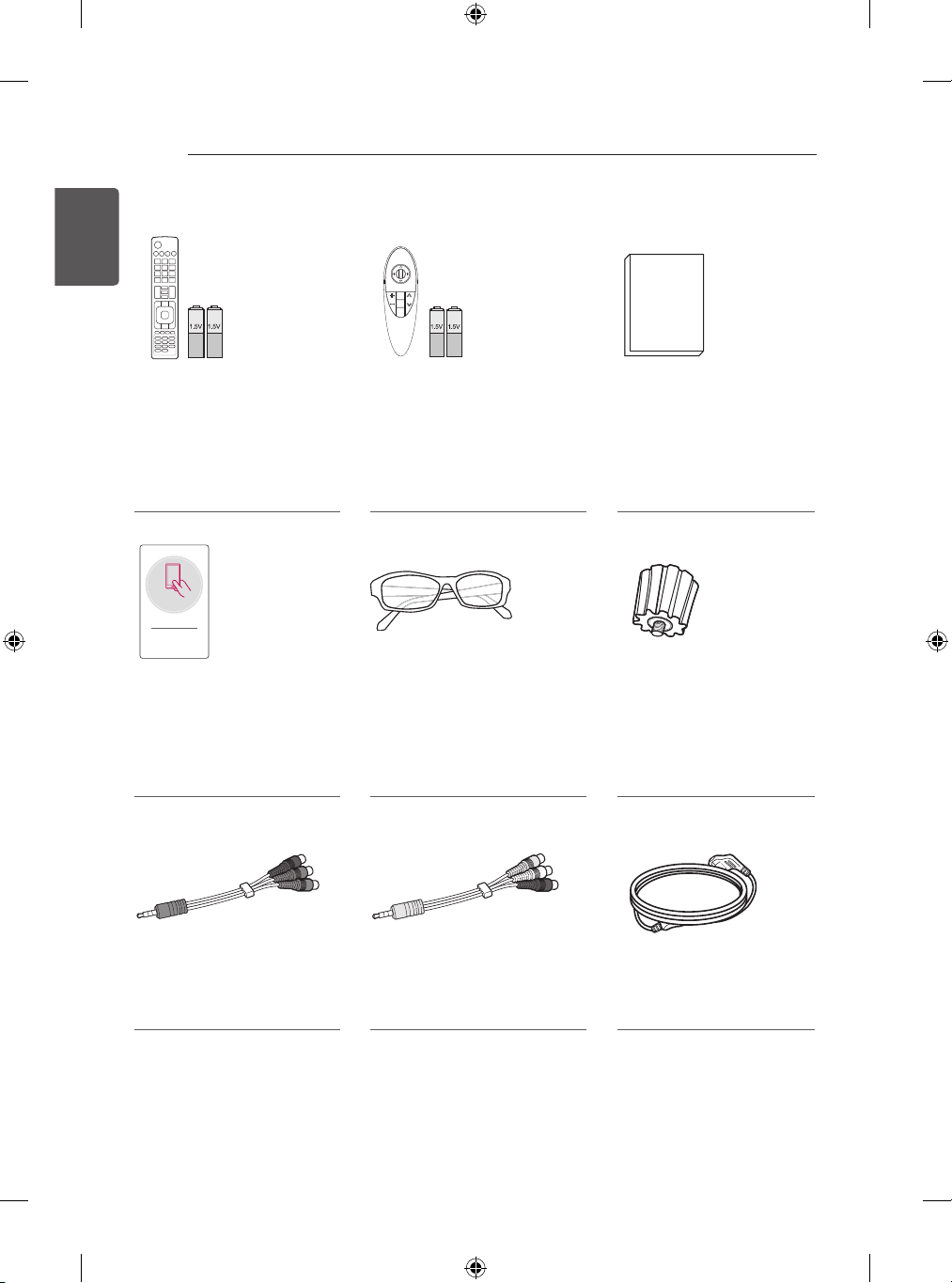

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
y
Do not use any unapproved items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.
y
Some models have a thin film attached on to the screen and this must not be removed.
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
12
ENG
ENGLISH
ASSEMBLING AND PREPARING

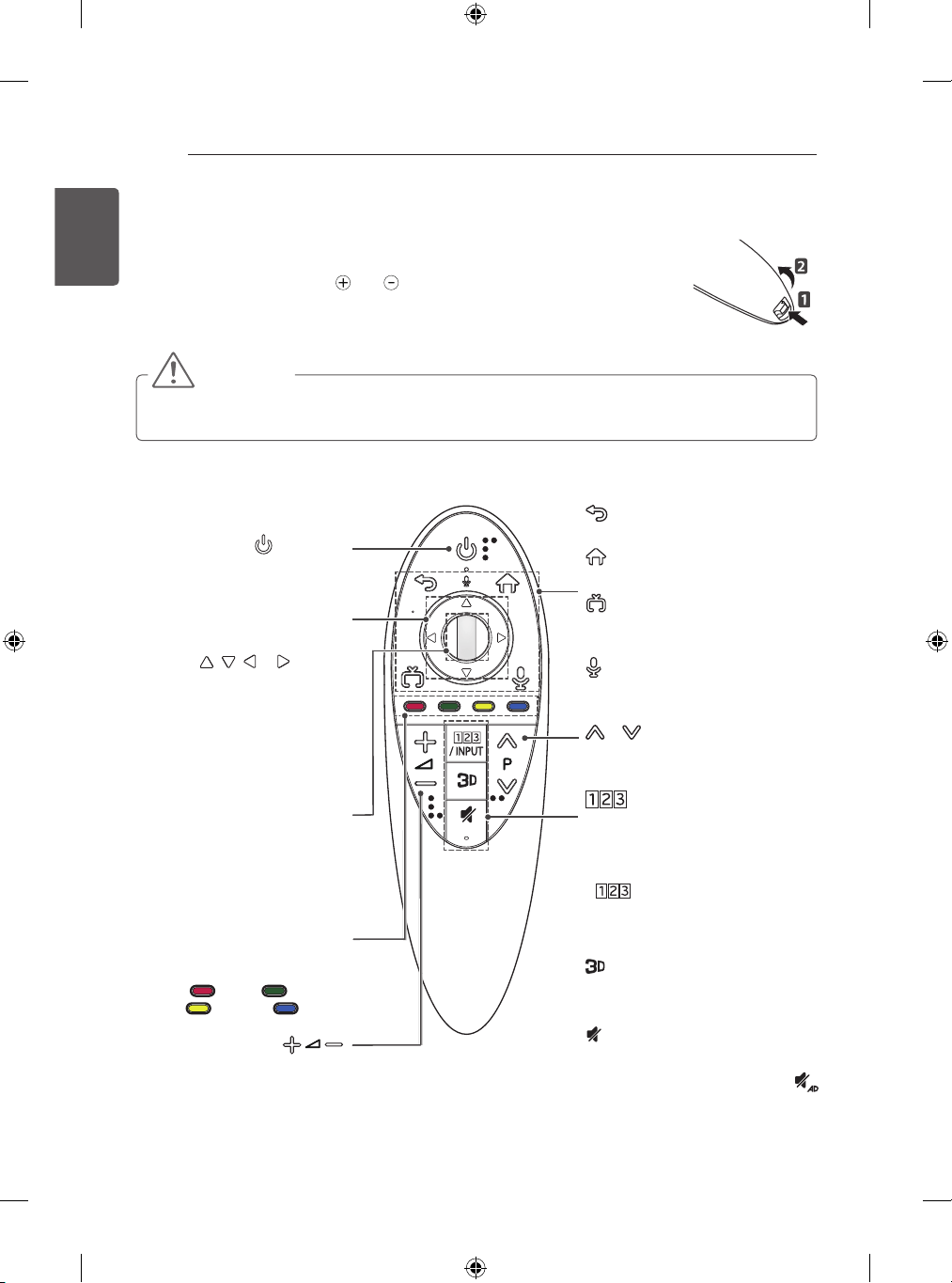

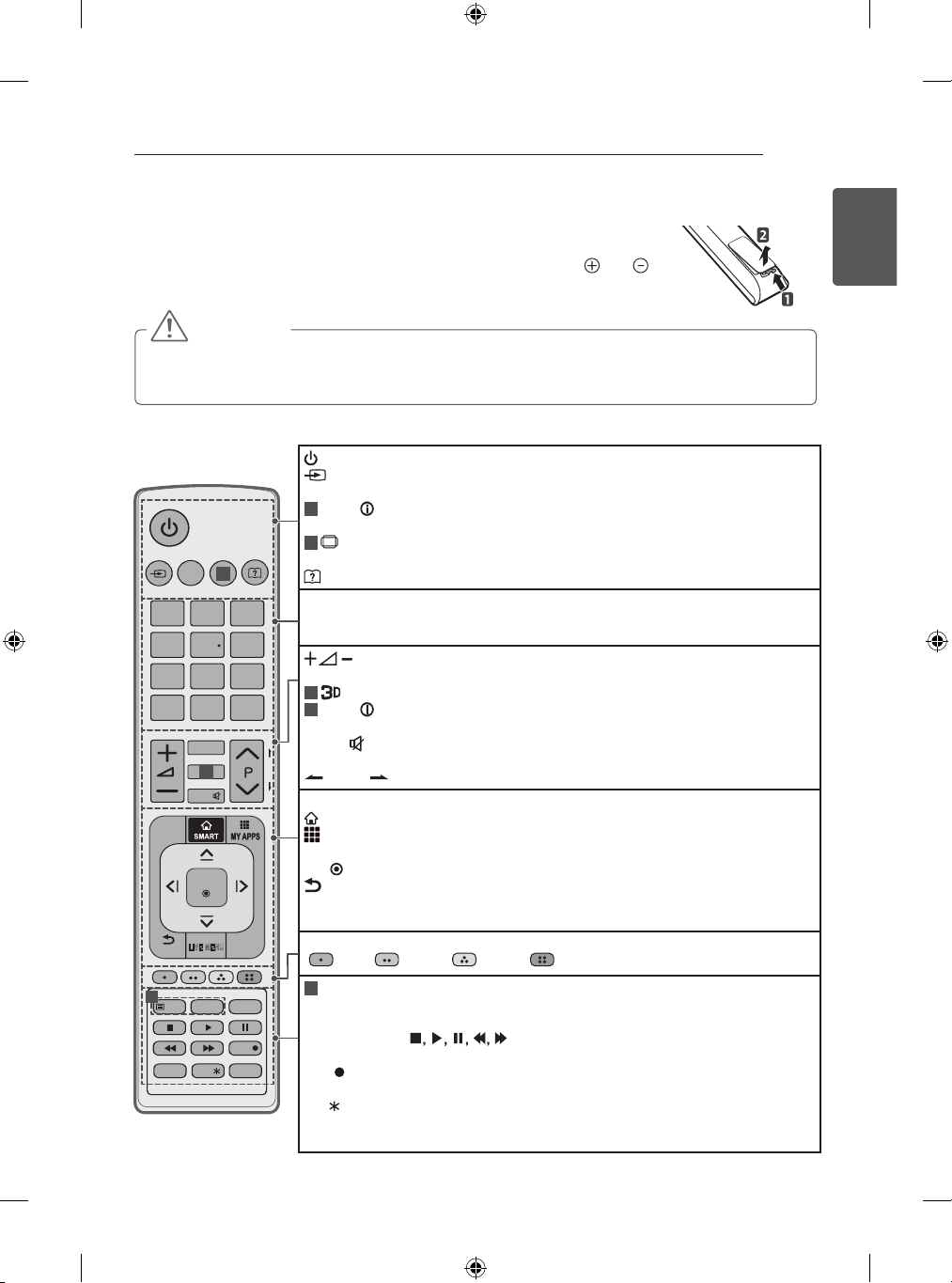

FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
Remote Control, Batteries
(AAA)
The remote control will not
be included for all sales
market.
(Depending on model)
(See p.41)
Magic Remote, Batteries
(AA)
(Only LB63**, LB65**, LB67**,
LB69**, LB72**, LB75**,
LB87**)
(See p.42)
Owner’s Manual
Tag On
Tag on Cinema 3D Glasses
The number of 3D glasses
may differ depending on the
model or country.
(Only LB65**, LB67**, LB69**,
LB72**, LB75**, LB87**)
Wall Mount Spacers
2EA
(Only 42LB63**, 42LB65**)
(See p.28)
Component Gender Cable
(Only LB87**)
(See p.36)
Composite Gender Cable
(Only LB87**)
(See p.36, 37)
Power Cord
13
ENGENGLISH
ASSEMBLING AND PREPARING
Remote Control, Batteries
(AAA)
The remote control will not
be included for all sales
market.
(Depending on model)
(See p.41)
Magic Remote, Batteries
(AA)
(Only LB63**, LB65**, LB67**,
LB69**, LB72**, LB75**,
LB87**)
(See p.42)
Owner’s Manual
Tag on Cinema 3D Glasses
The number of 3D glasses
may differ depending on the
model or country.
(Only LB65**, LB67**, LB69**,
LB72**, LB75**, LB87**)
Wall Mount Spacers
2EA
(Only 42LB63**, 42LB65**)
(See p.28)
Component Gender Cable
(Only LB87**)
(See p.36)
Composite Gender Cable
(Only LB87**)
(See p.36, 37)
Power Cord
Cable Holder
(Depending on model)
(See p.29, 30)
Cable Managements
2EA
(Only LB63**, LB65**,
LB67**, LB69**, LB72**)
(See p.29)
Cable Managements
2EA
(Only LB75**)
(See p.29)
Stand Screws
4EA, M4 x L20
(Only 32LB65**)
(See p.20, 21)
Stand Screws
4EA, M4 x L14
(Only LB63**,
39/42/47/50/55/60/70LB65**,
LB67**, LB69**, LB72**,
LB75**)
8EA, M4 x L14
(Only LB87**)
(See p.20, 21, 22, 23, 24)
Stand Screws
4EA, M4 x L10
(Only LB75**)
(See p.21)
Stand Bases
(Only LB65**-TH)
(See p.21)
Stand Bases
(Only LB63**,
32/39/42/47/50/55/60LB65**
-TA/TB)
(See p.20)
Stand Assys
(Stand Body/Stand Base)
(Only 70LB65**-TA, LB67**,
LB69**, LB72**)
(See p.20)
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Stand Front
(Only LB75**)
(See p.21)
Stand Supporters
(Only LB75**)
(See p.21)
Sound Bar
(Only LB87**)
(See p.22, 24)
Stand Assys
(Only LB87**)
(See p.22)
Sound Bar Supporters
(Only LB87**)
(See p.24)
Screw Covers
(Only LB87**)
(See p.23, 24)
15
ENGENGLISH
ASSEMBLING AND PREPARING
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
AG-F***DP
Dual Play Glasses
AG-F***
Cinema 3D Glasses
AN-MR500
Magic Remote
Tag on AN-VC5**
Video Call Camera
LG Audio Device
Compatibility
LB63**
LB65**, LB67**,
LB69**, LB72**,
LB75**
LB87**
AG-F***DP
Dual Play Glasses
• •
AG-F***
Cinema 3D Glasses
• •
AN-MR500
Magic Remote
• • •
Tag on
• • •
AN-VC5**
Video Call Camera
• •
LG Audio Device
• • •
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
Stand Front
(Only LB75**)
(See p.21)
Stand Supporters
(Only LB75**)
(See p.21)
Sound Bar
(Only LB87**)
(See p.22, 24)
Stand Assys
(Only LB87**)
(See p.22)
Sound Bar Supporters
(Only LB87**)
(See p.24)
Screw Covers
(Only LB87**)
(See p.23, 24)
16
ENG
ENGLISH
ASSEMBLING AND PREPARING

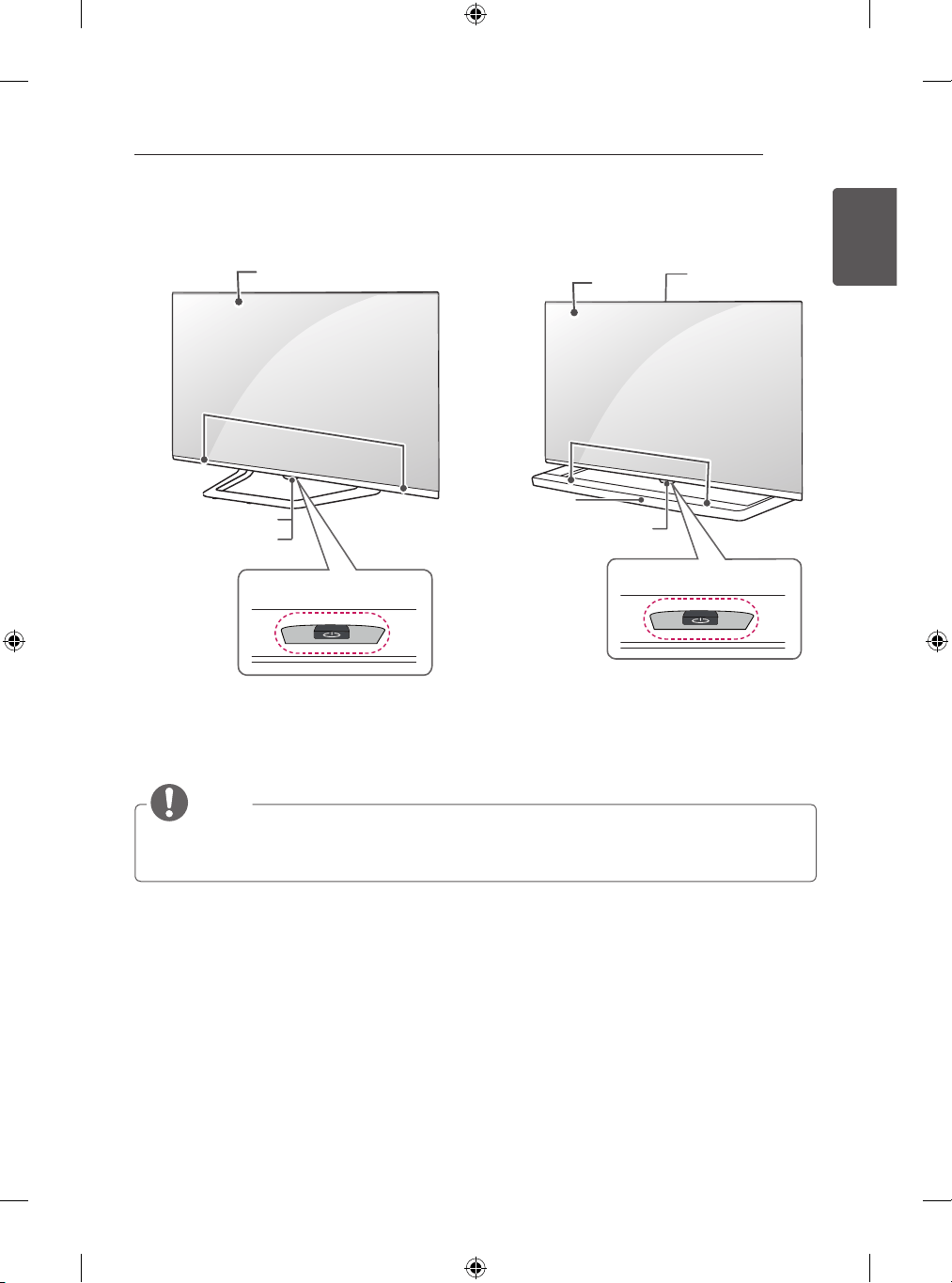

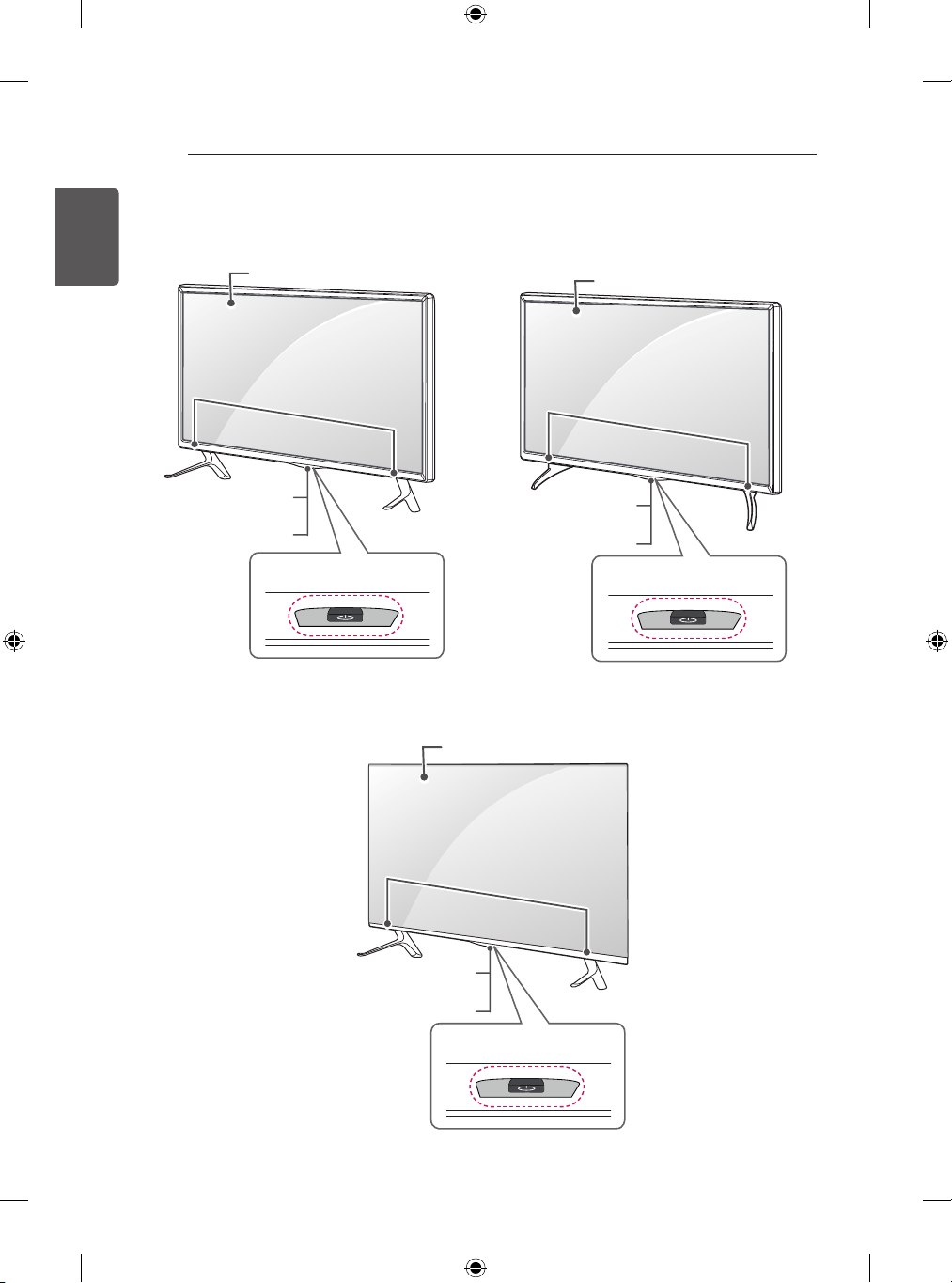

Parts and buttons
A type : LB63**, LB65**-TA/TB
C type : LB67**, LB69**, LB72**
Speakers
Screen
Remote control and
Intelligent
1
sensors
Power Indicator
Joystick Button
2
Speakers
Screen
Remote control and
Intelligent
1
sensors
Power Indicator
Joystick Button
2
B type : LB65**-TH
Speakers
Remote control and
Intelligent
1
sensors
Power Indicator
Joystick Button
2
Screen
17
ENGENGLISH
ASSEMBLING AND PREPARING
E type : LB87**
Speakers
Screen
Remote control and
Intelligent
1
sensors
LG Logo light
Built-in Camera
Joystick Button
2
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button - This button is located below the TV screen.
NOTE
y
You can set the LG Logo light or Power indicator Light to on or off by selecting General in the
main menus. (Depending on model)
Remote control and
Intelligent
1
sensors
Power Indicator
Screen
D type : LB75**
Joystick Button
2
Speakers
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Joystick button
You can simply operate the TV functions by pressing to turn On/Off or sliding your finger over joystick
button moving up, down, left or right.
Basic Functions
Power On
When the TV is turned off, place your finger on the joystick
button and press it once and release it.
Power Off
When the TV is turned on, place your finger on the joystick
button and press it once for a few seconds and release it.
Volume
Control
If you place your finger over the joystick button and move it left
or right, you can adjust the volume level you want.
Programmes
Control
If you place your finger over the joystick button and move it up
or down, you can scrolls through the saved programmes you
want.
NOTE
y
When your finger is over the joystick button and you are sliding finger forward/back, left or right,
be careful not to press down to hard on joystick. If you press down hard on joystick button first
then the adjustment of volume level and programme scroll action will not operate.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items( , , ) moving the joystick button left or right.
TV OFF Turns the power off.
CLOSE
Closes Clears on-screen displays and returns to
TV viewing.
INPUT Changes the input source.
19
ENGENGLISH
ASSEMBLING AND PREPARING
Lifting and moving the TV
Please note the following advice to prevent the
TV from being scratched or damaged and for
safe transportation regardless of its type and
size.
CAUTION
y
Avoid touching the screen at all times, as
this may result in damage to the screen.
y
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
y
Before moving or lifting the TV, disconnect
the power cord and all cables.
y
When holding the TV, the screen should face
away from you to avoid damage.
y
Hold the top and bottom of the TV frame
rmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
y
When transporting a large TV, there should
be at least 2 people.
y
When transporting the TV by hand, hold the
TV as shown in the following illustration.
y
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y
When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
y
Do not apply excessive pressure to cause
exing /bending of frame chassis as it may
damage screen.
y
When handling the TV, be careful not to
damage the protruding joystick button.
20
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
LB63**, 32/39/42/47/50/55/60LB65**-TA/TB
70LB65**-TA, LB67**, LB69**, LB72**
1
4EA
M4 x L14
M4 x L20
(Only 32LB65**)
2
B stand base
1
2
A stand base
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
1
2
Stand Base
Stand Body
M4 x L14
4EA
B stand base
1
2
A stand base
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
21
ENGENGLISH
ASSEMBLING AND PREPARING
LB75**
1
LB65**-TH
A Stand
Supporter
B Stand
Supporter
Stand Front
1
1
2
1
2
B stand base
A stand base
2
1
2
4EA
M4 x L14
M4 x L20
(Only 32LB65**)
1
2
2
M4 x L10
4EA
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
22
ENG
ENGLISH
ASSEMBLING AND PREPARING
2
1
Sound Bar
M4 x L14
4EA
Stand Assy Left
Stand Assy Right
LB87**
3
1
2
4
M4 x L14
4EA
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
23
ENGENGLISH
ASSEMBLING AND PREPARING

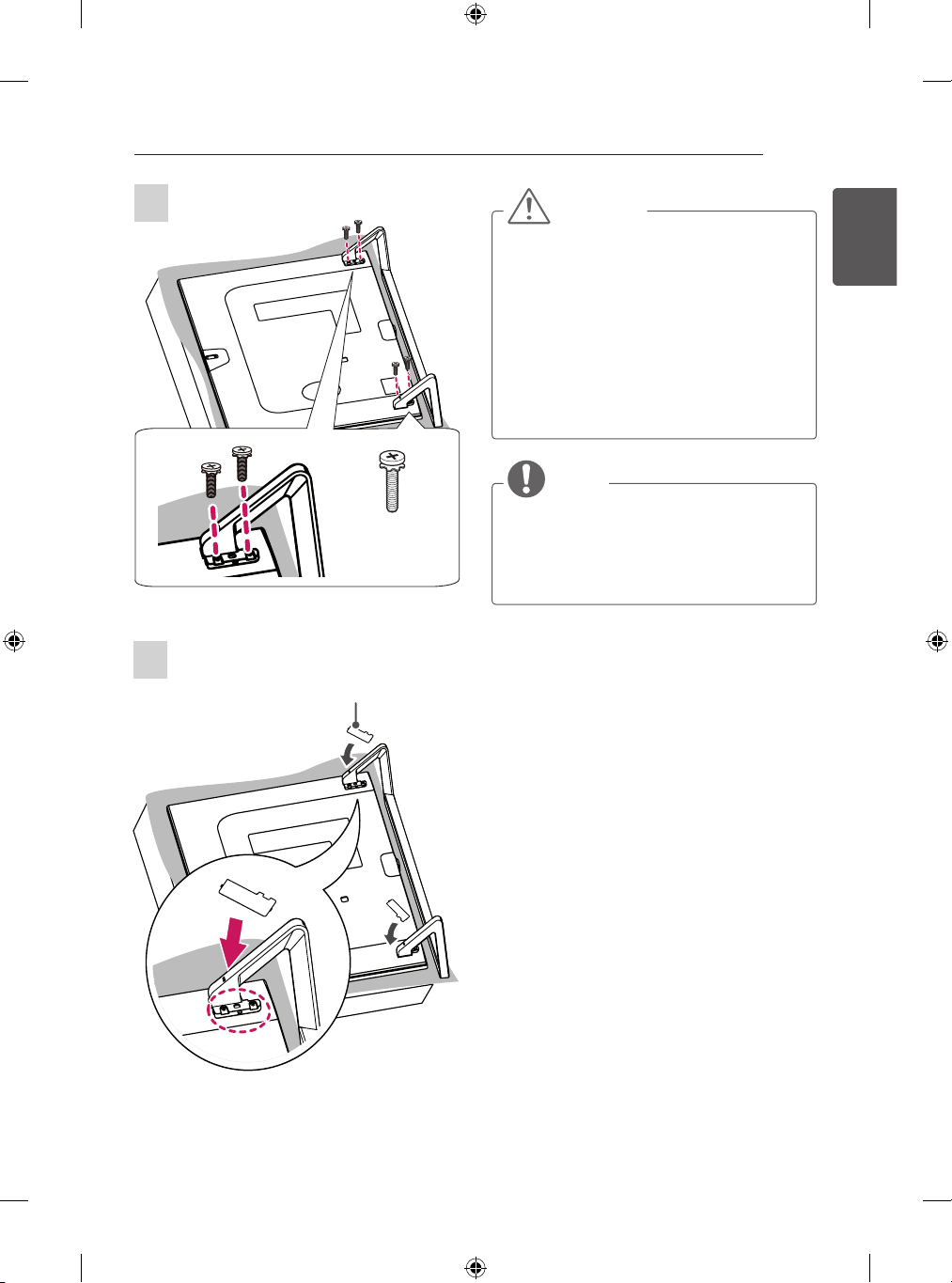

3
M4 x L14
4EA
4
Screw Cover
CAUTION
y
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
y
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.
NOTE
y
Remove the stand before installing the
TV on a wall mount by performing the
stand attachment in reverse.
y
The Screw Cover will protect the opening
from accumulating dust and dirty.
24
ENG
ENGLISH
ASSEMBLING AND PREPARING
4
3
M4 x L14
4EA
LB87**
Screw Cover
1
Sound Bar
Sound Bar Supporter
Right
Sound Bar Supporter
Left
M4 x L14
4EA
2
(In case of mounting on a wall)
Attaching the Sound Bar Supporter
25
ENGENGLISH
ASSEMBLING AND PREPARING

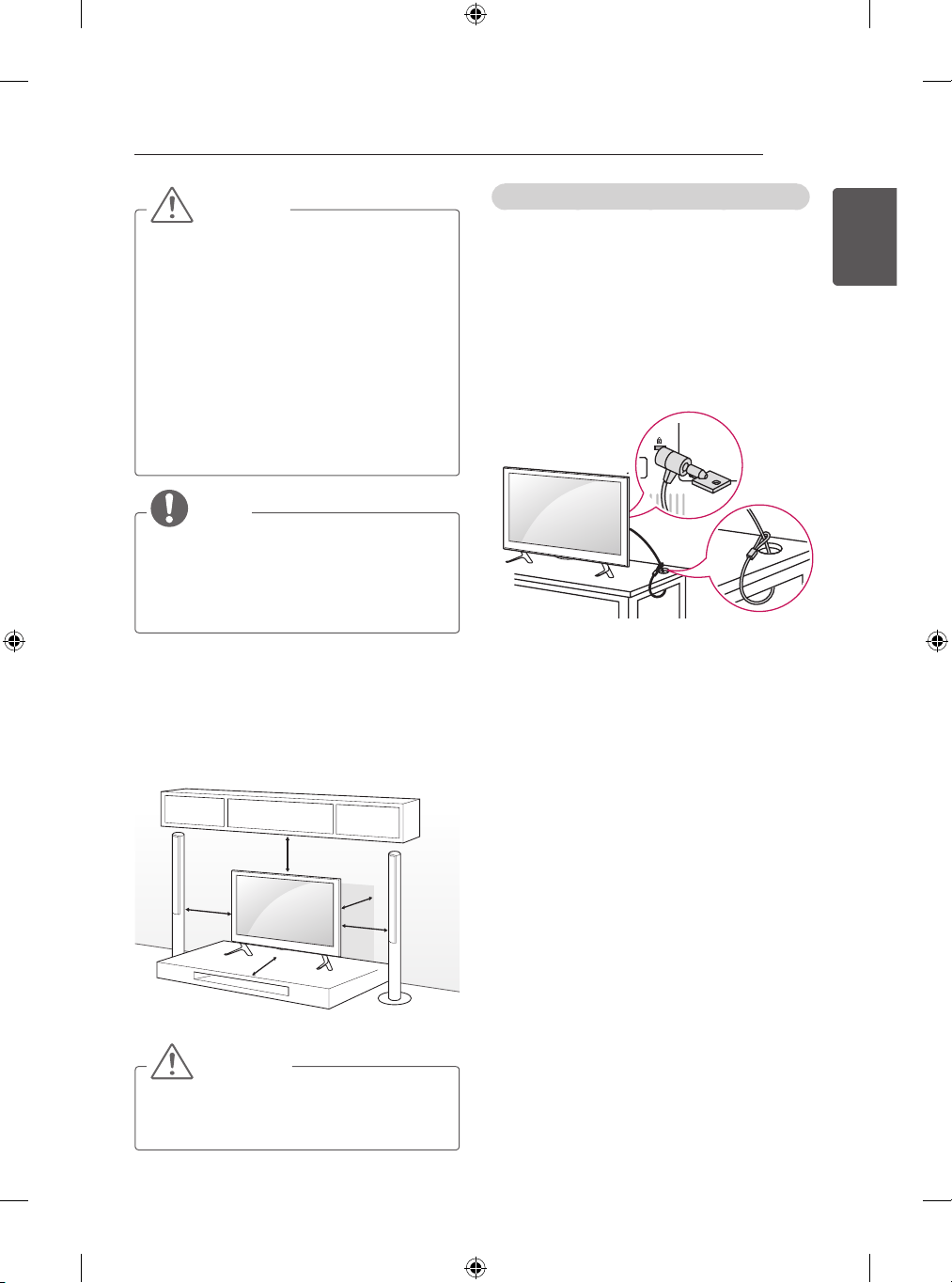

Using the Kensington security system
(This feature is not available for all models.)
y
Image shown may differ from your TV.
The Kensington security system connector
is located at the rear of the TV. For more
information of installation and using, refer to the
manual provided with the Kensington security
system or visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
Mounting on a table
1 Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
y
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION
y
When attaching the Sound Bar Supporter
to the TV set, place the screen facing
down on a cushioned table or flat surface
to protect the screen from scratches.
y
Make sure that the screws are inserted
correctly and fastened securely. (If they
are not fastened securely enough, the TV
may tilt forward after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.
y
The sound bar supporter only uses for
wall mounting.
NOTE
y
Remove the Sound Bar Supporter before
installing the stand by performing the
stand attachment in reverse.
y
The Screw Cover will protect the opening
from accumulating dust and dirty.
26
ENG
ENGLISH
ASSEMBLING AND PREPARING
WARNING
y
If a television is not positioned in a
sufficiently stable location, it can be
potentially hazardous due to falling. Many
injuries, particularly to children, can be
avoided by taking simple precautions
such as:
»
Using cabinets or stands
recommended by the manufacturer of
the television.
»
Only using furniture that can safely
support the television.
»
Ensuring the television is not
overhanging the edge of the
supporting furniture.
»
Not placing the television on tall
furniture (for example, cupboards or
bookcases) without anchoring both
the furniture and the television to a
suitable support.
»
Not standing the televisions on cloth
or other materials placed between the
television and supporting furniture.
»
Educating children about the dangers
of climbing on furniture to reach the
television or its controls.
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-
bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets
tightly with a sturdy rope.
Make sure to keep the rope horizontal with
the flat surface.
CAUTION
y
Make sure that children do not climb on
or hang on the TV.
NOTE
y
Use a platform or cabinet that is strong
and large enough to support the TV
securely.
y
Brackets, bolts and ropes are not
provided. You can obtain additional
accessories from your local dealer.
27
ENGENGLISH
ASSEMBLING AND PREPARING

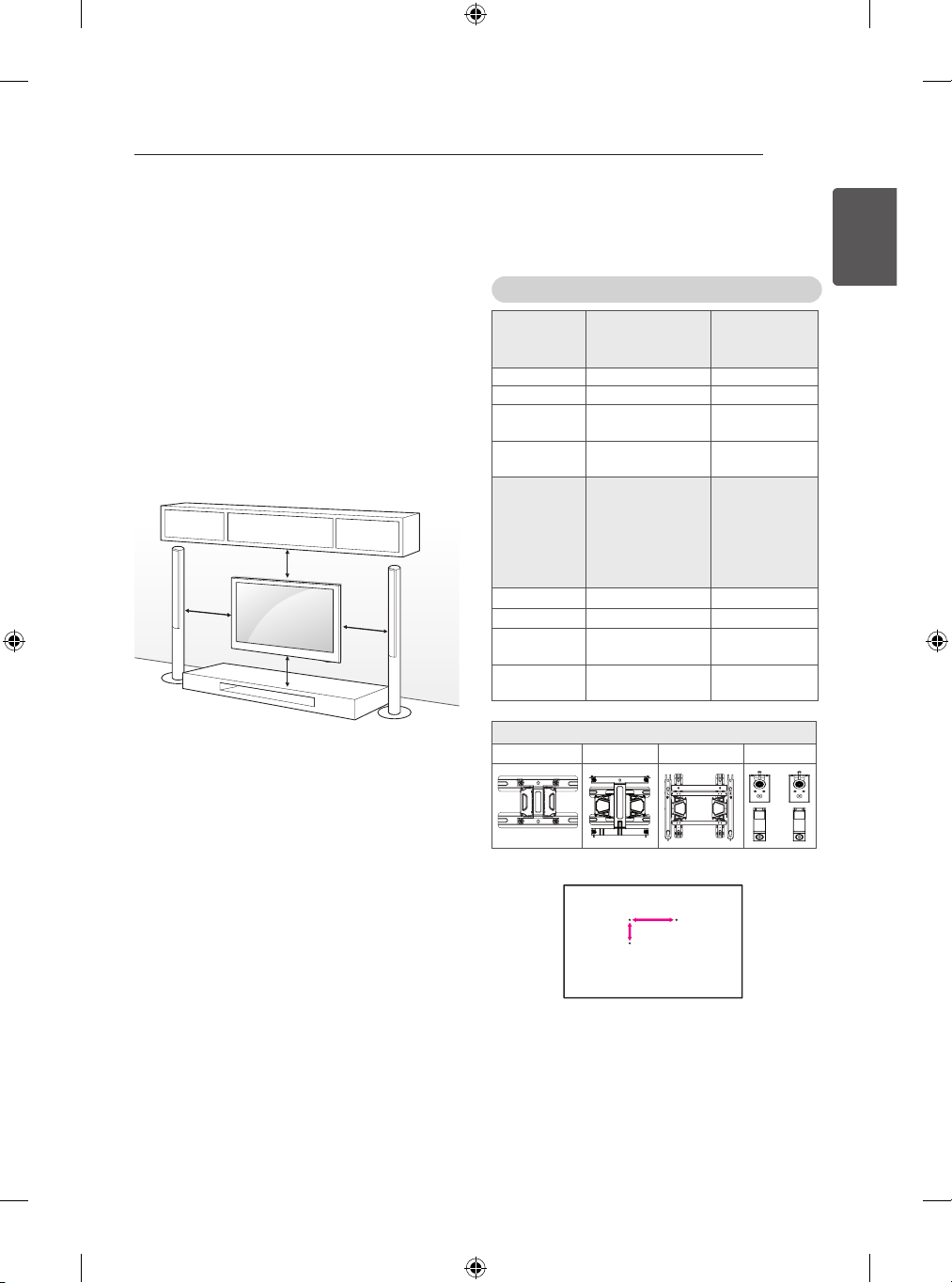

Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
LG recommends that wall mounting be
performed by a qualified professional installer.
We recommend the use of LG’s wall mount
bracket.
When you do not use LG’s wall mount bracket,
please use a wall mount bracket where the
device is adequately secured to the wall with
enough space to allow connectivity to external
devices.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.
Separate purchase (Wall Mounting Bracket)
Model
32/39LB65** 42/47/55LB63**
42/47/50/55LB65**
49/55LB87**
VESA (A x B) 200 x 200 400 x 400
Standard screw
M6 M6
Number of
screws
4 4
Wall mount
bracket
LSW240B
MSW240
LSW440B
MSW240
Model
60LB65**
42/47/50/55LB67**
42/47/55LB69**
42/47/55/60/65LB72**
42/47/55/60/65LB75**
60LB87**
70LB65**
VESA (A x B) 400 x 400 600 x 400
Standard screw
M6 M6
Number of
screws
4 4
Wall mount
bracket
LSW440B LSW640B
Wall mount bracket
LSW240B LSW440B LSW640B MSW240
A
B
28
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
y
Use the screws that are listed on the
VESA standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is not provided.
You can obtain additional accessories
from your local dealer.
y
The length of screws may differ
depending on the wall mount. Make sure
to use the proper length.
y
For more information, refer to the manual
supplied with the wall mount.
y

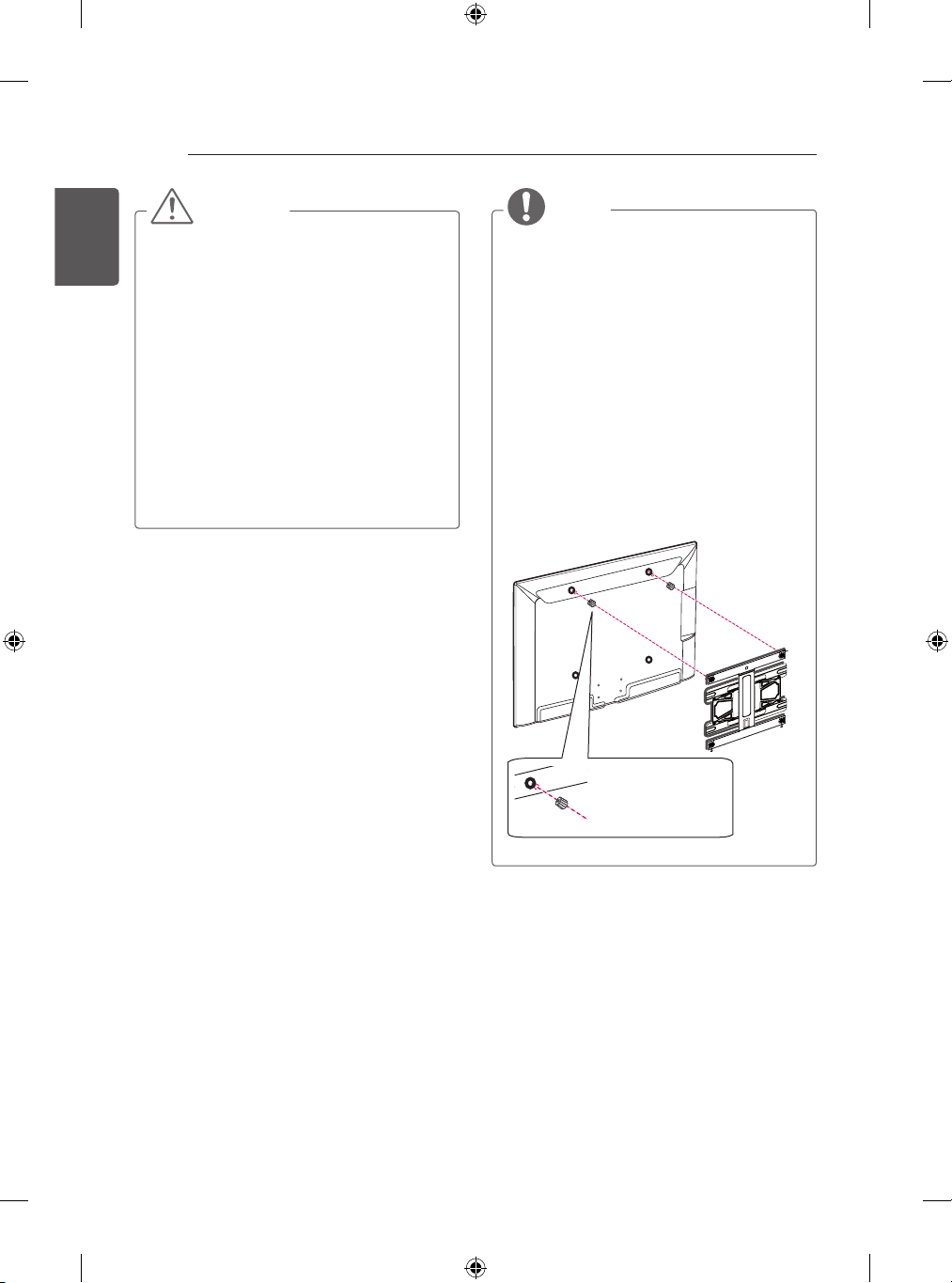

When attaching a wall mounting bracket
to the TV, insert the wall mount spacers
into the TV wall mount holes to adjust the
vertical angle of the TV. (Only 42LB63**,
42LB65**)
Wall Mount Spacer
CAUTION
y
Disconnect the power first, and then
move or install the TV. Otherwise electric
shock may occur.
y
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorised LG wall mount and
contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this
may cause damage to the TV and void
your warranty.
y
Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an
improper accessory are not covered by
the manufacturer’s warranty.
29
ENGENGLISH
ASSEMBLING AND PREPARING

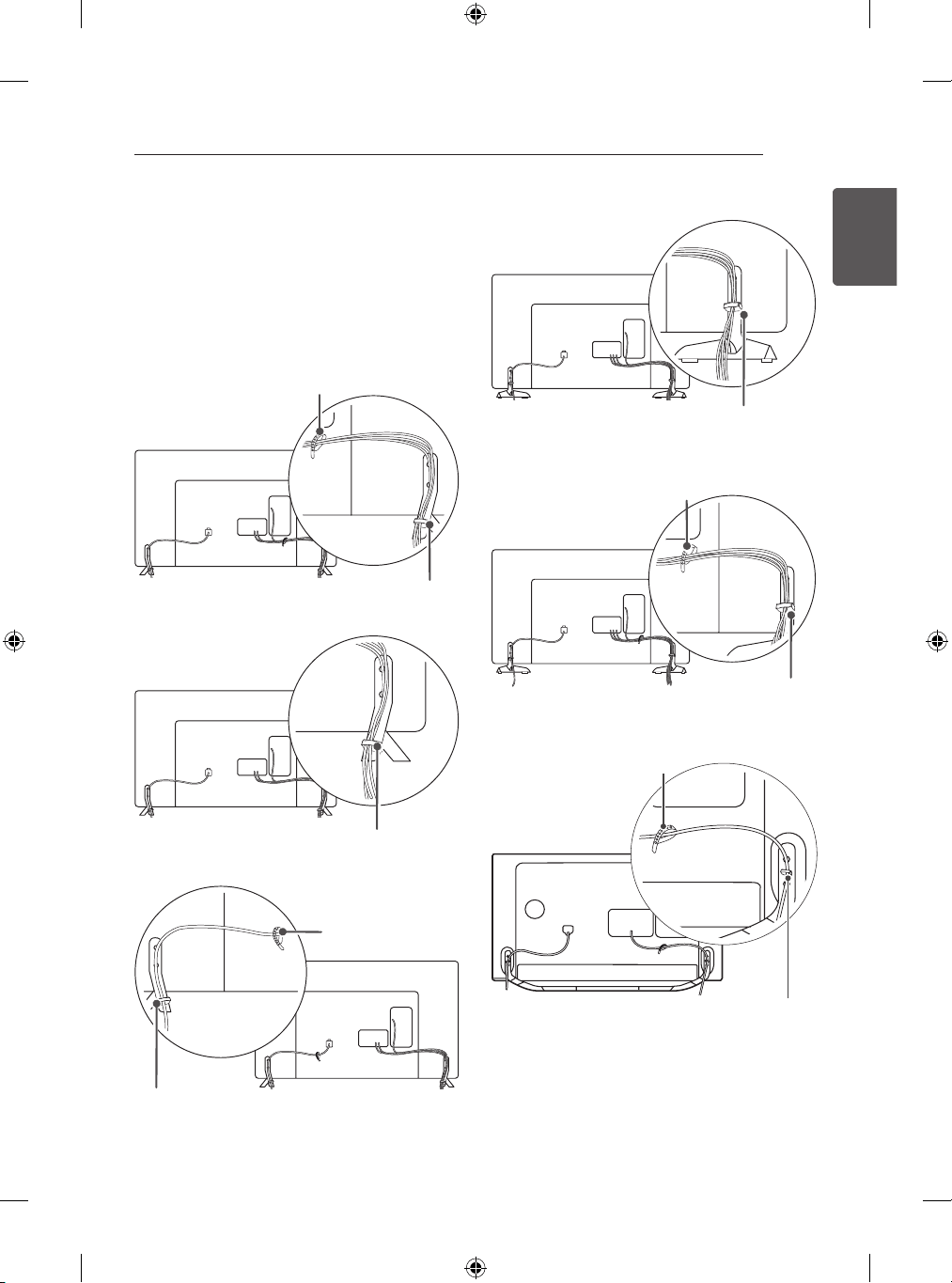

Tidying cables
Image shown may differ from your TV.
1 Gather and bind the cables with the cable
holder. (Depending on model)
2 Fix the Cable Management firmly to the TV.
(Only LB63**, 39/42/47/50/55/60LB65**-TA/TB,
LB67**, LB69**, LB72**)
Cable Holder
Cable Management
(Only 32LB65**-TA/TB)
Cable Management
(Only 70LB65**-TA)
Cable Holder
Cable Management
(Only 32LB65**-TH)
Cable Management
(Only 39/42/47/50/55LB65**-TH)
Cable Holder
Cable Management
(Only LB75**)
Cable Holder
Cable Management
30
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using Built-in Camera
(Only LB87**)
You can make a Skype video call or use the
motion recognition function using the built-in
camera of the TV.
This TV does not support the use of an external
camera.
NOTE
y
Before using the built-in camera, you
must recognize the fact that you are
legally responsible for the use or misuse
of the camera by the relevant national
laws including the criminal law.
y
The relevant laws include the Personal
Information Protection law which
regulates the processing and transferring
of personal information and the law which
regulates the monitoring by camera in a
workplace and other places.
y
When using the built-in camera,
avoid questionable, illegal, or immoral
situations. Other than at public places or
events, consent to be photographed may
be required. We suggest avoiding the
following situations:
(1) Using the camera in areas where the
use of camera is generally prohibited
such as restroom, locker room, fitting
room and security area.
(2) Using the camera while causing the
infringement of privacy.
(3) Using the camera while causing the
violation of the relevant regulations or
laws.
(Only LB87**)
Cable Holder
Cable Management
CAUTION
y
Do not move the TV by holding the cable
holder, as the cable holder may break,
and injuries and damage to the TV may
occur.
31
ENGENGLISH
ASSEMBLING AND PREPARING
Preparing Built-in Camera
1 Pull up the slide at the back of the TV.
5
7
Slide
Angle
Adjustment
Lever
NOTE
y
Remove the protective film before using
the built-in camera.
2 You can adjust the angle of the camera with
the angle adjustment lever on the back of
the built-in camera.
5
7
5
7
5
7
Lever
Lens
<Side View>
3 Push down the built-in camera when you are
not using it.
5
7
5
7
5
7
5
7
Name of Parts of Built-in Camera
5
7
5
7
Camera Lens
Microphones
Protective film
Checking the Camera’s Shooting
Range
1 Press the
(Home) button on the remote
control to display the Home menu.
2 Select CAMERA
and then press the
Wheel(OK) button.
NOTE
y
The optimal distance from the camera
to use the motion recognition function is
between 1.5 m and 4.5 m.
32
ENG
ENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the 42LB67** models.
Connect various external devices to the TV
and switch input modes to select an external
device. For more information of external device’s
connection, refer to the manual provided with
each device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB
storage devices, PC, gaming devices, and other
external devices.
NOTE
y
The external device connection may differ
from the model.
(LB87** : HDMI/DVI IN1/2/3/4)
y
Connect external devices to the TV
regardless of the order of the TV port.
y
If you record a TV programme on a
DVD recorder or VCR, make sure to
connect the TV signal input cable to the
TV through a DVD recorder or VCR. For
more information of recording, refer to
the manual provided with the connected
device.
y
Refer to the external equipment’s manual
for operating instructions.
y
If you connect a gaming device to the TV,
use the cable supplied with the gaming
device.
y
In PC mode, there may be noise
associated with the resolution, vertical
pattern, contrast or brightness. If noise is
present, change the PC output to another
resolution, change the refresh rate to
another rate or adjust the brightness and
contrast on the PICTURE menu until the
picture is clear.
y
In PC mode, some resolution settings
may not work properly depending on the
graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
ANTENNA /
CABLE IN
(*Not Provided)
NOTE
y
Use a signal splitter to use more than 2
TVs.
y
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
y
If the image quality is poor with an
antenna connected, try to realign the
antenna in the correct direction.
y
An antenna cable and converter are not
supplied.
y
Supported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC.
33
ENGENGLISH
MAKING CONNECTIONS
Headphone connection
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
(*Not Provided)
NOTE
y
AUDIO menu items are disabled when
connecting a headphone.
y
Optical Digital Audio Out is not available
when connecting a headphone.
y
Headphone impedance: 16 Ω
y
Max audio output of headphone: 0.624
mW to 1.04 mW
y
Headphone jack size: 0.35 cm
Satellite dish connection
(Only satellite models)
Connect the TV to a satellite dish to a satellite
socket with a satellite RF cable (75 Ω).
LNB
Satellite IN
13/18V
700mA Max
(*Not Provided)
34
ENG
ENGLISH
MAKING CONNECTIONS

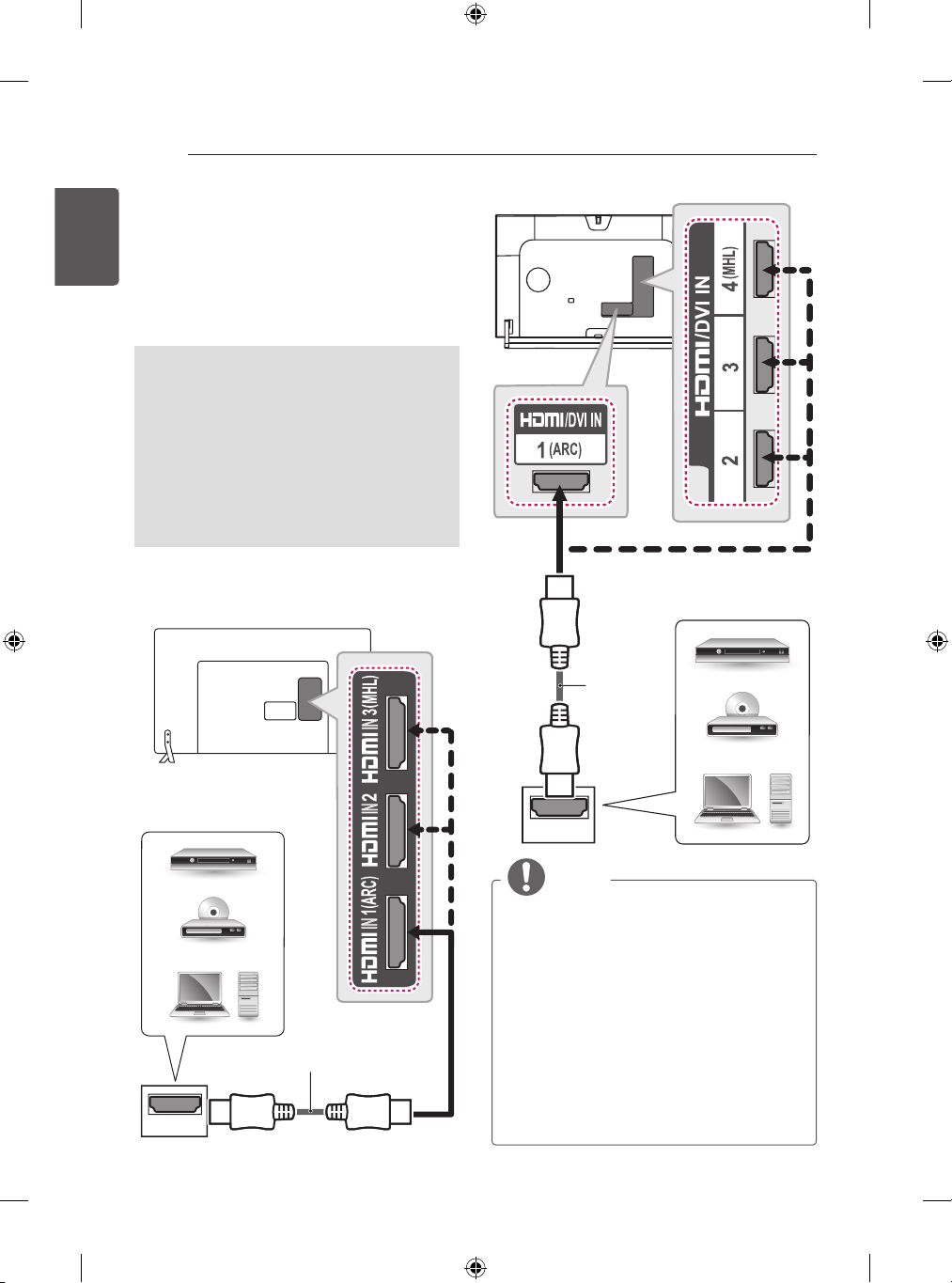

HDMI connection
Transmits the digital video and audio signals
from an external device to the TV. Connect the
external device and the TV with the HDMI cable
as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
ARC (Audio Return Channel)
y
An external audio device that supports
SIMPLINK and ARC must be connected
using HDMI IN 1 (ARC) or HDMI/DVI IN 1
(ARC) port.
y
When connected with a high-speed
HDMI cable, the external audio device
that supports ARC outputs optical SPDIF
without additional optical audio cable and
supports the SIMPLINK function.
(Only LB63**, LB65**, LB67**, LB69**, LB72**,
LB75**)
HDMI
(*Not Provided)
DVD / Blu-Ray / HD Cable
Box / HD STB / PC
(Only LB87**)
HDMI
DVD / Blu-Ray /
HD Cable Box /
HD STB / PC
(*Not
Provided)
NOTE
y
It is recommended to use the TV with
the HDMI connection for the best image
quality.
y
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
y
High Speed HDMI™ Cables are tested
to carry an HD signal up to 1080p and
higher.
y
Supported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192 KHz,
32 KHz/44.1 KHz/48 KHz/88 KHz/96
KHz/176 KHz/192 KHz).
35
ENGENGLISH
MAKING CONNECTIONS

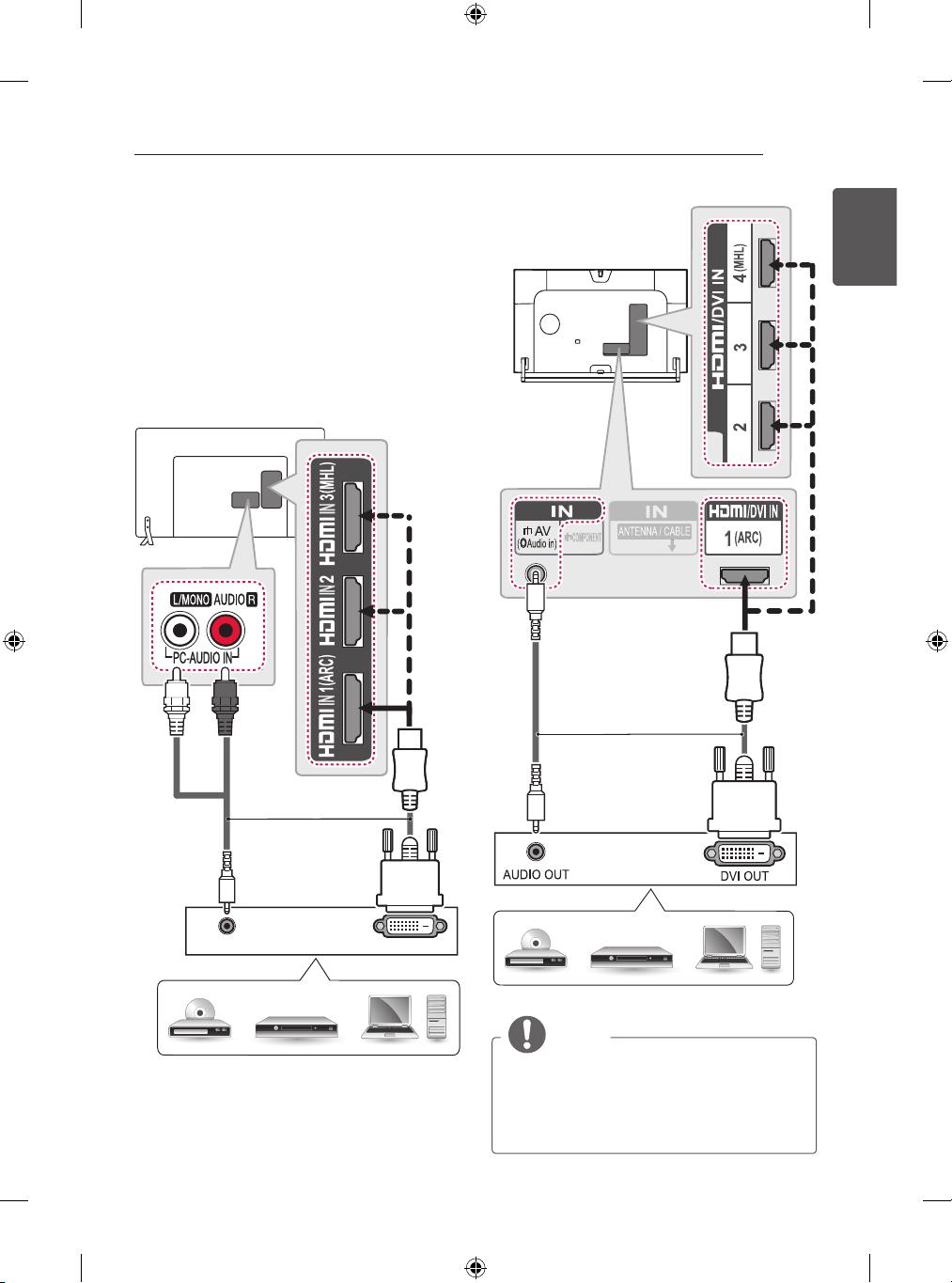

DVI to HDMI connection
Transmits the digital video signal from an
external device to the TV. Connect the external
device and the TV with the DVI-HDMI cable as
shown. To transmit an audio signal, connect an
audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
(Only LB63**, LB65**, LB67**, LB69**, LB72**,
LB75**)
DVI OUT
AUDIO OUT
RED
WHITE
(*Not Provided)
DVD / Blu-Ray / HD Cable Box / PC / HD STB
(Only LB87**)
YELLOW
(*Not Provided)
DVD / Blu-Ray / HD Cable Box / PC / HD STB
NOTE
y
Depending on the graphics card, DOS
mode may not work if a HDMI to DVI
Cable is in use.
y
When using the HDMI/DVI cable, Single
link is only supported.
36
ENG
ENGLISH
MAKING CONNECTIONS

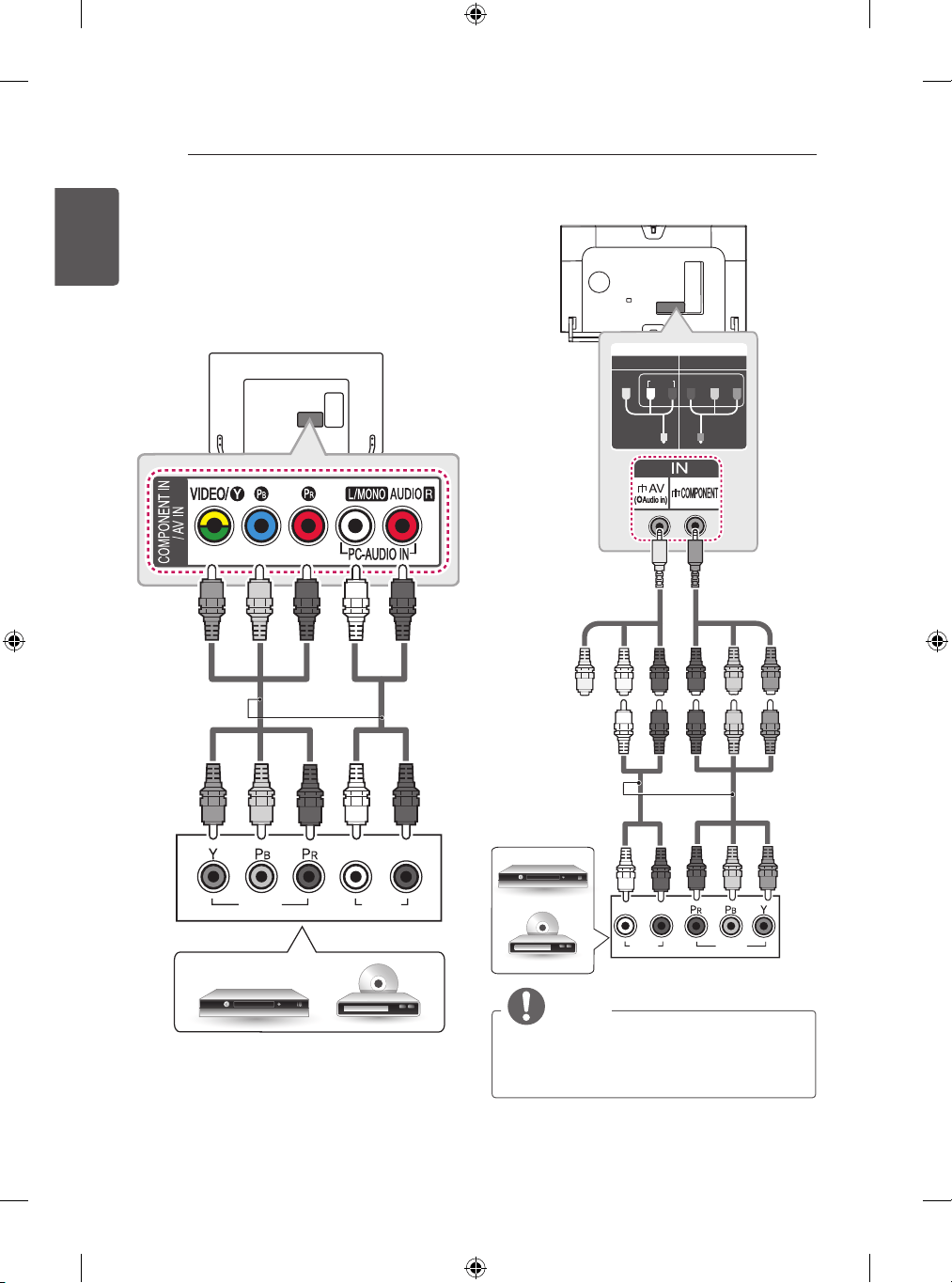

Component connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable as shown.
(Only LB63**, LB65**, LB67**, LB69**, LB72**,
LB75**)
AUDIO
VIDEO
L R
GREEN
BLUE
RED
WHITE
DVD / Blu-Ray / HD Cable Box
RED
GREEN
BLUE
RED
WHITE
RED
(*Not Provided)
(Only LB87**)
VIDEO
AUDIO
L R
IN
COMPONENT
YP
B
AUDIO
AV
P
R
VIDEO
RED
BLUE
GREEN
RED
WHITE
DVD / Blu-Ray /
HD Cable Box
(Use the composite
gender cable provided.)
(*Not Provided)
GREENYELLOW
(Use the
component gender
cable provided.)
RED
RED
BLUE
BLUE
GREEN GREEN
RED RED
WHITE WHITE
YELLOW
NOTE
y
If cables are not installed correctly, it
could cause this image to display in black
and white or with distorted colours.
37
ENGENGLISH
MAKING CONNECTIONS
(Only LB87**)
VIDEO
MONO
( )
AUDIO
L R
COMPONENT
PB
Y
IN
COMPONENT
YP
B
AUDIO
AV
P
R
VIDEO
VCR / DVD / Blu-Ray /
HD Cable Box
RED RED
RED
WHITE
WHITE
WHITE
YELLOW
YELLOW
YELLOW
(Use the composite
gender
cable provided.)
(*Not Provided)
YELLOW

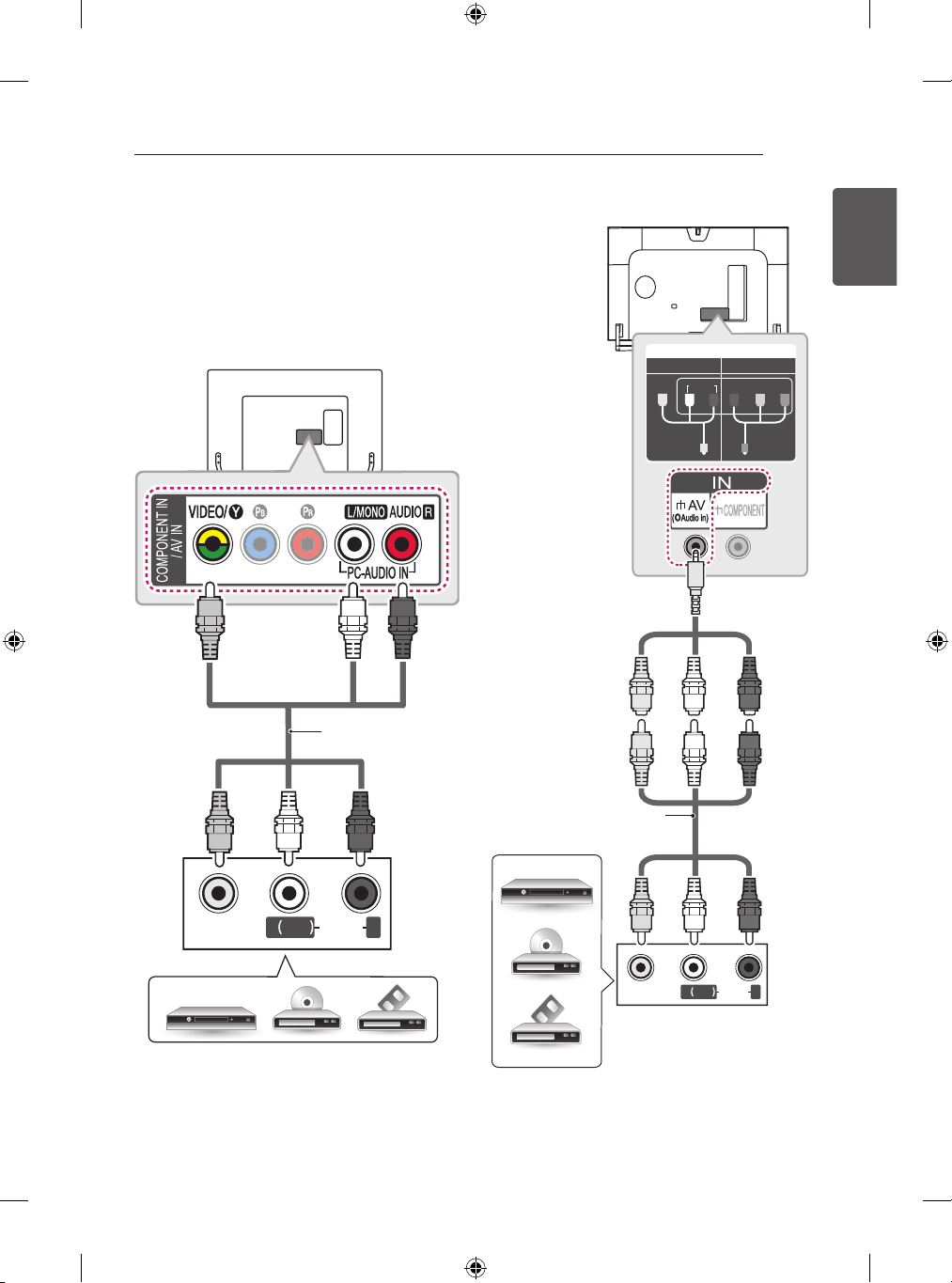

Composite connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown.
(Only LB63**, LB65**, LB67**, LB69**, LB72**,
LB75**)
VIDEO
MONO
( )
AUDIOL R
YELLOW
WHITE
RED
RED
WHITE
DVD / Blu-Ray / HD Cable Box / VCR
YELLOW
(*Not Provided)
38
ENG
ENGLISH
MAKING CONNECTIONS
Audio connection
You may use an optional external audio system
instead of the built-in speaker.

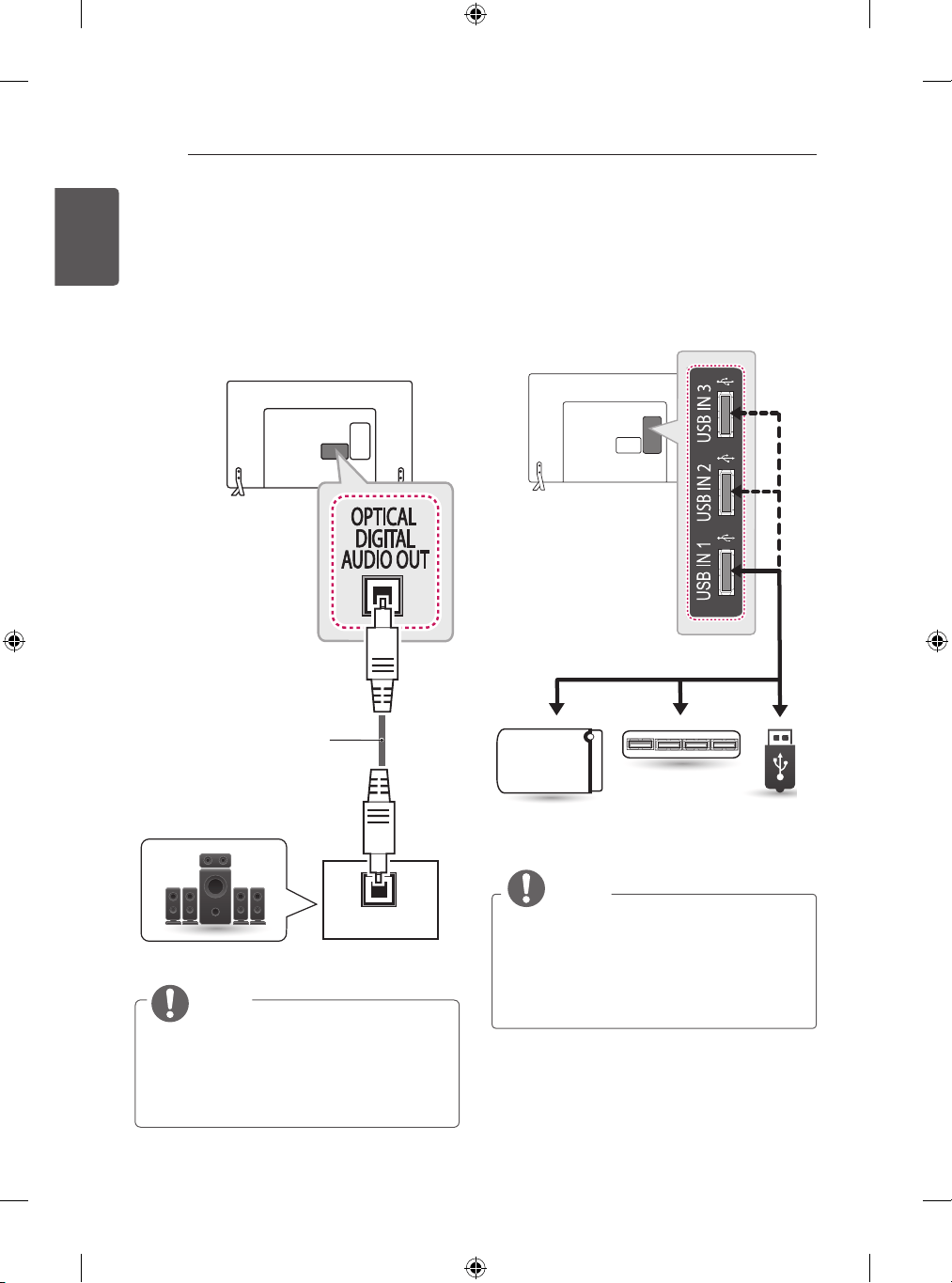

Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
OPTICAL
AUDIO IN
(*Not Provided)
Digital Audio System
NOTE
y
Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
y
Audio with ACP (Audio Copy Protection)
function may block digital audio output.
USB connection
Connect a USB storage device such as a USB
flash memory, external hard drive, or a USB
memory card reader to the TV and access the
SmartShare menu to use various multimedia
files.
(USB 3.0 IN)
HUB
HDD
(*Not Provided)
USB
(*Not Provided)
(*Not Provided)
NOTE
y
Some USB Hubs may not work. If a USB
device connected using a USB Hub is not
detected, connect it to the USB port on
the TV directly.
y
Connect the external power source if your
USB is needed.
39
ENGENGLISH
MAKING CONNECTIONS

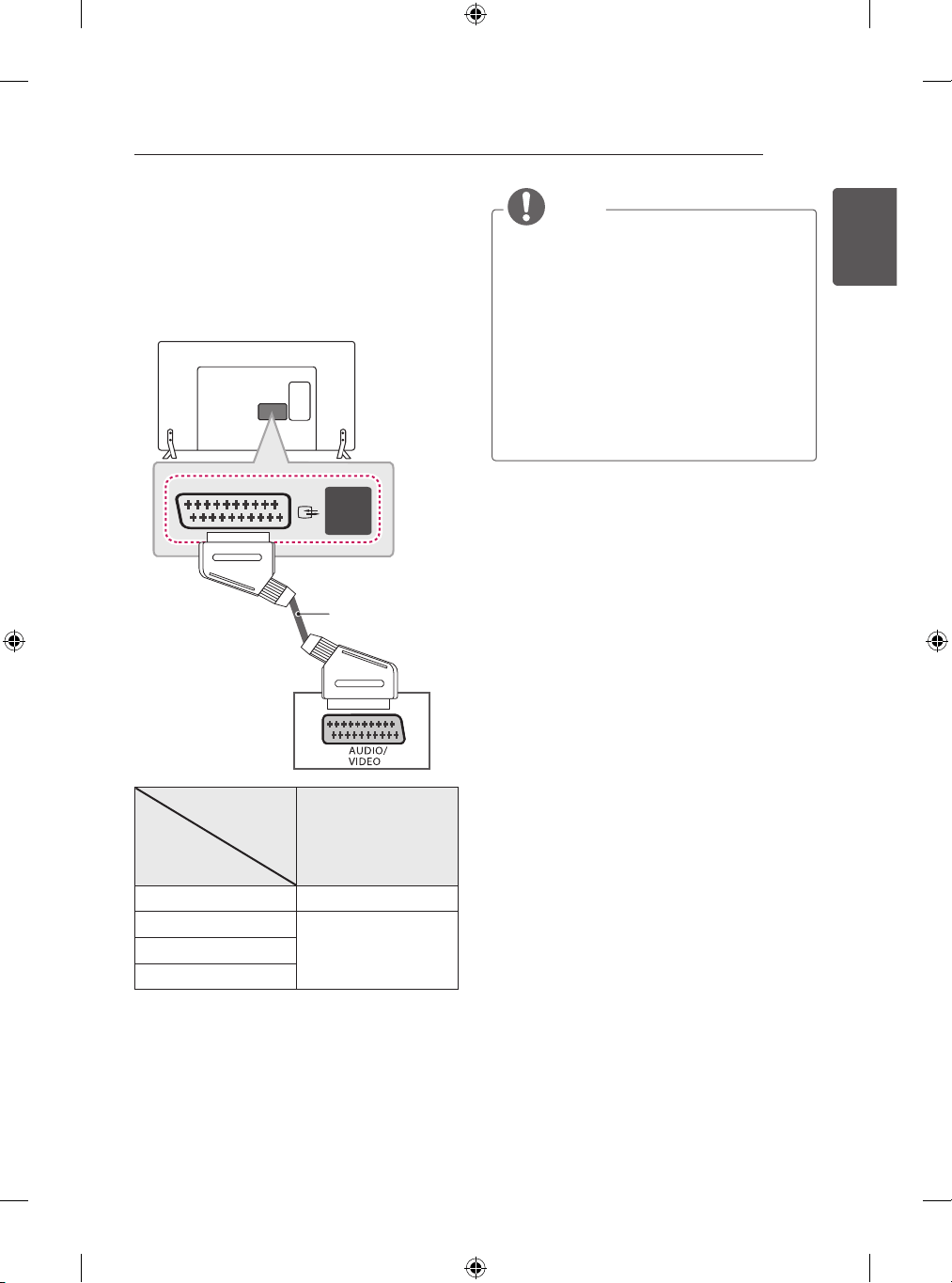

Euro Scart connection
(Only satellite models)
Transmits the video and audio signals from an
external device to the TV set. Connect the ex-
ternal device and the TV set with the euro scart
cable as shown.
AV1
IN/OUT
(*Not Provided)
Output
Type
Current
input mode
AV1
(TV Out
1
)
Digital TV
Digital TV
Analogue TV, AV
Analogue TV
Component
HDMI
1 TV Out : Outputs Analogue TV or Digital TV
signals.
NOTE
y
Any Euro scart cable used must be signal
shielded.
y
When watching digital TV in 3D imaging
mode, only 2D out signals can be output
through the SCART cable. (Only 3D
models)
y
If you set the 3D mode to On while a
scheduled recording is performed on
digital TV, monitor out signals cannot be
output through the SCART cable, and the
recording cannot be performed. (Only 3D
models)
40
ENG
ENGLISH
MAKING CONNECTIONS

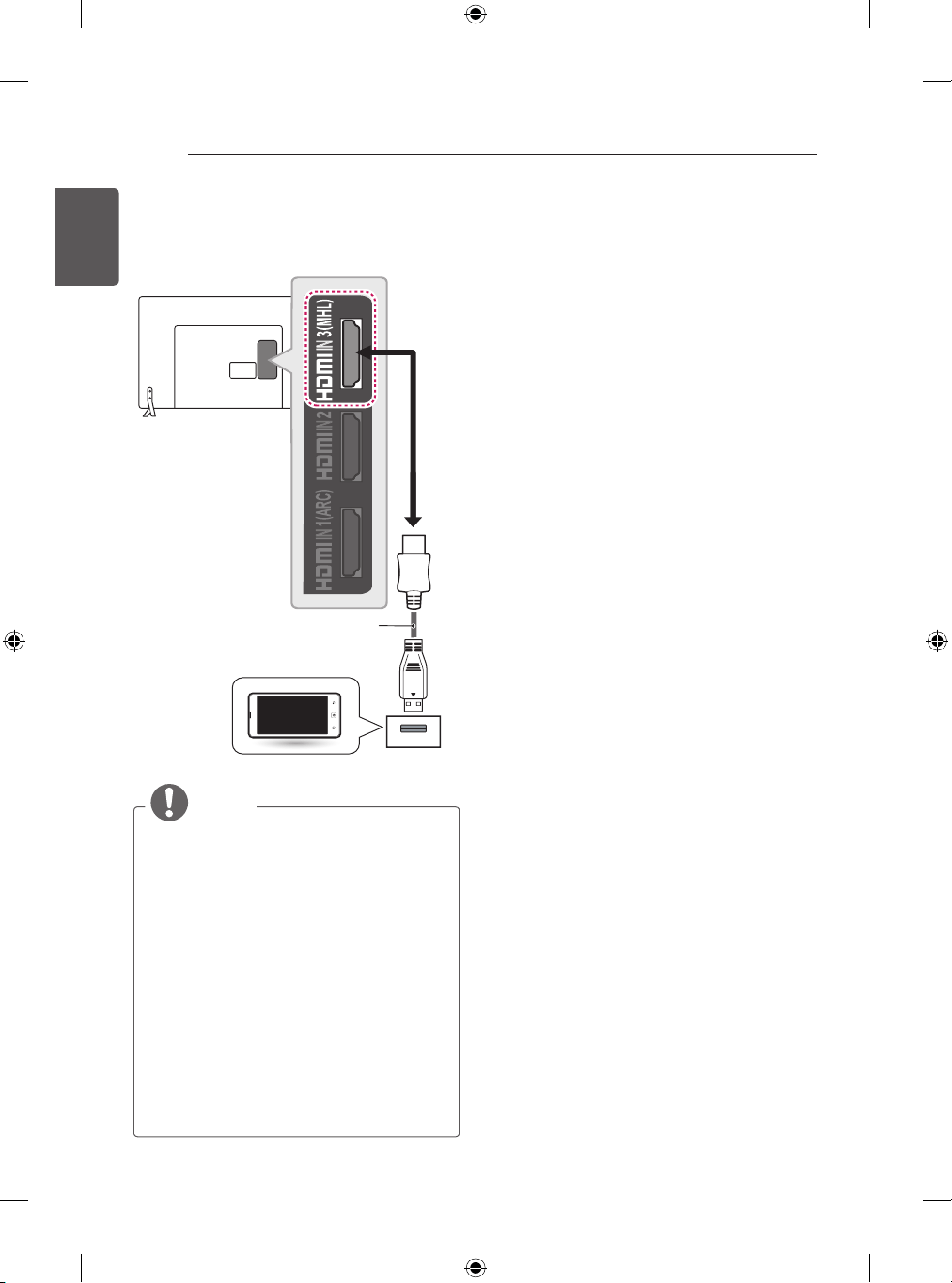

MHL connection
Mobile High-definition Link (MHL) is an interface
for transmitting digital audiovisual signals from
mobile phones to television sets.
MHL passive cable
(*Not Provided)
Mobile phone
NOTE
y
Connect the mobile phone to the HDMI
IN 3 (MHL) or HDMI/DVI IN 4 (MHL) port
to view the phone screen on the TV.
y
The MHL passive cable is needed to
connect the TV and a mobile phone.
y
This only works for the MHL-enabled
phone.
y
Some applications can be operated by
the remote control.
y
For some mobile phones supporting
MHL, you can control with the Magic
Remote.
y
Remove the MHL passive cable from the
TV when:
»
the MHL function is disabled
»
your mobile device is fully charged in
standby mode
41
ENGENGLISH
REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly. To replace batteries,
open the battery cover, replace batteries (1.5 V AAA) matching the
and
ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
CAUTION
y
Do not mix old and new batteries, as this may damage the remote control.
y
In Analogue TV and some countries, some remote control buttons may not work.
y
The remote control will not be included for all sales market.
Make sure to point the remote control toward the remote control sensor on the TV.
(Depending on model)
(POWER)
Turns the TV on or off.
INPUT
Changes the input source.
SETTINGS
Accesses the main menus.
1
INFO
Views the information of the current programme and screen.
(Depending on model)
1
RATIO
Resizes an image. (Depending on model)
Q. MENU
Accesses the quick menus.
(User Guide)
Sees user- guide.
Number buttons
Enters numbers.
GUIDE
Shows programme guide.
Q.VIEW Returns to the previously viewed programme.
Adjusts the volume level.
FAV
Accesses your favourite programme list.
2
Used for viewing 3D video. (Depending on model)
2
INFO
Views the information of the current programme and screen.
(Depending on model)
MUTE
Mutes all sounds.
ꕌ
P
ꕍ
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
RECENT Shows the previous history.
SMART
Accesses the Home menus.
My APPS Shows the list of Apps.
Navigation buttons (up/down/left/right) Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK
Returns to the previous level.
LIVE MENU
Shows the list of Recommended, Programme, Search and Recorded.
EXIT
Clears on-screen displays and returns to TV viewing.
Coloured buttons
These access special functions in some menus.
( :
Red
, :
Green
, :
Yellow
, :
Blue
)
3
Teletext buttons
These buttons are used for teletext.
SLEEP
Sets the sleep timer.
LIVE TV
Returns to LIVE TV.
Control buttons
(
)
Controls the Premium contents, Time Machine or
SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine).
REC Starts to record and displays record menu. (Only Time Machine supported model)
SUBTITLE
Recalls your preferred subtitle in digital mode.
AD/
By pressing the AD button, audio descriptions function will be enabled.
(Depending on model)
TV/RAD
Selects Radio, TV and DTV programme.
1
2 3
4
5
6
7 8
0
9
P
A
G
E
FAV
MUTE
Q.VIEW
EXIT
OK
GUIDE
LIVE TV
REC
TEXT
T.OPT
SLEEP
SUBTITLE
BACK
SETTINGS
RECENT
LIVE MENU
1
2
Q.MENU
INPUT
AD/
TV/RAD
3
42
ENG
ENGLISH
MAGIC REMOTE FUNCTIONS
MAGIC REMOTE FUNCTIONS
When the message “Magic Remote battery is low. Change the battery.” is
displayed, replace the battery. To replace batteries, open the battery cover, replace
batteries (1.5 V AA) matching
and ends to the label inside the compartment,
and close the battery cover. Be sure to point the remote control toward the remote
control sensor on the TV. To remove the batteries, perform the installation actions
in reverse.
CAUTION
y
Do not mix old and new batteries, as this may damage the remote control.
y
In Analogue TV and some countries, some remote control buttons may not work.
(Only LB63**, LB65**, LB67**, LB69**, LB72**, LB75**, LB87**)
(POWER)
Turns the TV on or off.
Navigation buttons
(up/down/left/right)
Press the up, down, left or right
button to scroll the menu.If you
press
, , or buttons
while the pointer is in use, the
pointer will disappear from the
screen and Magic Remote will
operate like a general remote
control. To display the pointer
on the screen again, shake
Magic Remote to the left and
right.
Wheel(OK)
Press the center of the Wheel
button to select a menu. You
can change programmes and
scroll the menu by using the
Wheel button.
Coloured buttons
These access special functions
in some menus.
(
: Red, : Green,
: Yellow, : Blue)
Adjusts the volume level.
(BACK)
Returns to the previous level.
(Home)
Accesses the Home
menu.
(EXIT to LIVE)
Switches among broadcast
(antenna) and various inputs.
(Voice recognition)
(Depending on model)
P
Scrolls through the saved
programmes.
/ INPUT
Displays the Screen Remote.
* Accesses the Universal Control
Menu. (Depending on model)
* Pressing and holding the
/ INPUT button will display
a menu to select an external
device that is connected to the
TV.
Used for viewing 3D video.
(Only 3D models)
(MUTE)
Mutes all sounds.
* By Pressing and holding the
button, audio descriptions
function will be enabled.
(Depending on model)
43
ENGENGLISH
MAGIC REMOTE FUNCTIONS
How to use Magic Remote
y
Shake the Magic Remote
slightly to the right and left
or press (Home), /
INPUT,
buttons to make
the pointer appear on the
screen.
»
The pointer will appear
when you turn the Wheel
button. (Depending on
model)
y
If the pointer has not been
used for a certain period
of time or Magic Remote is
placed on a at surface, then
the pointer will disappear.
y
If the pointer is not
responding smoothly, you
can reset the pointer by
moving it to the edge of the
screen.
y
The Magic Remote depletes
batteries faster than a
normal remote due to the
additional features.
Voice recognition (Depending on model)
Network connection is required to use the
voice recognition function.
1 Press the Voice recognition button.
2 Speak when the voice display window
appears on the left of the TV screen.
• The voice recognition may fail when you
speak too fast or too slow.
• Use the Magic Remote no further than
10 cm from your face.
• The recognition rate may vary
depending on the user’s characteristics
(voice, pronunciation, intonation and
speed) and the environment (noise and
TV volume).
Registering Magic Remote
How to register the Magic Remote
BACK
HOME
P
MY APPS
To use the Magic Remote, first pair
it with your TV.
1 Put batteries into the Magic
Remote and turn the TV on.
2 Point the Magic Remote at your
TV and press the Wheel(OK) on
the remote control.
»
If the TV fails to register the
Magic Remote, try again after
turning the TV off and back
on.
How to deregister the Magic Remote
(BACK)
(Home)
Press the
(BACK) and
(Home) buttons at the same time,
for five seconds, to unpair the
Magic Remote with your TV.
»
Pressing and holding the
(EXIT to LIVE) button will let
you cancel and re-register
Magic Remote at once.
44
ENG
ENGLISH
MAGIC REMOTE FUNCTIONS / USING THE USER GUIDE

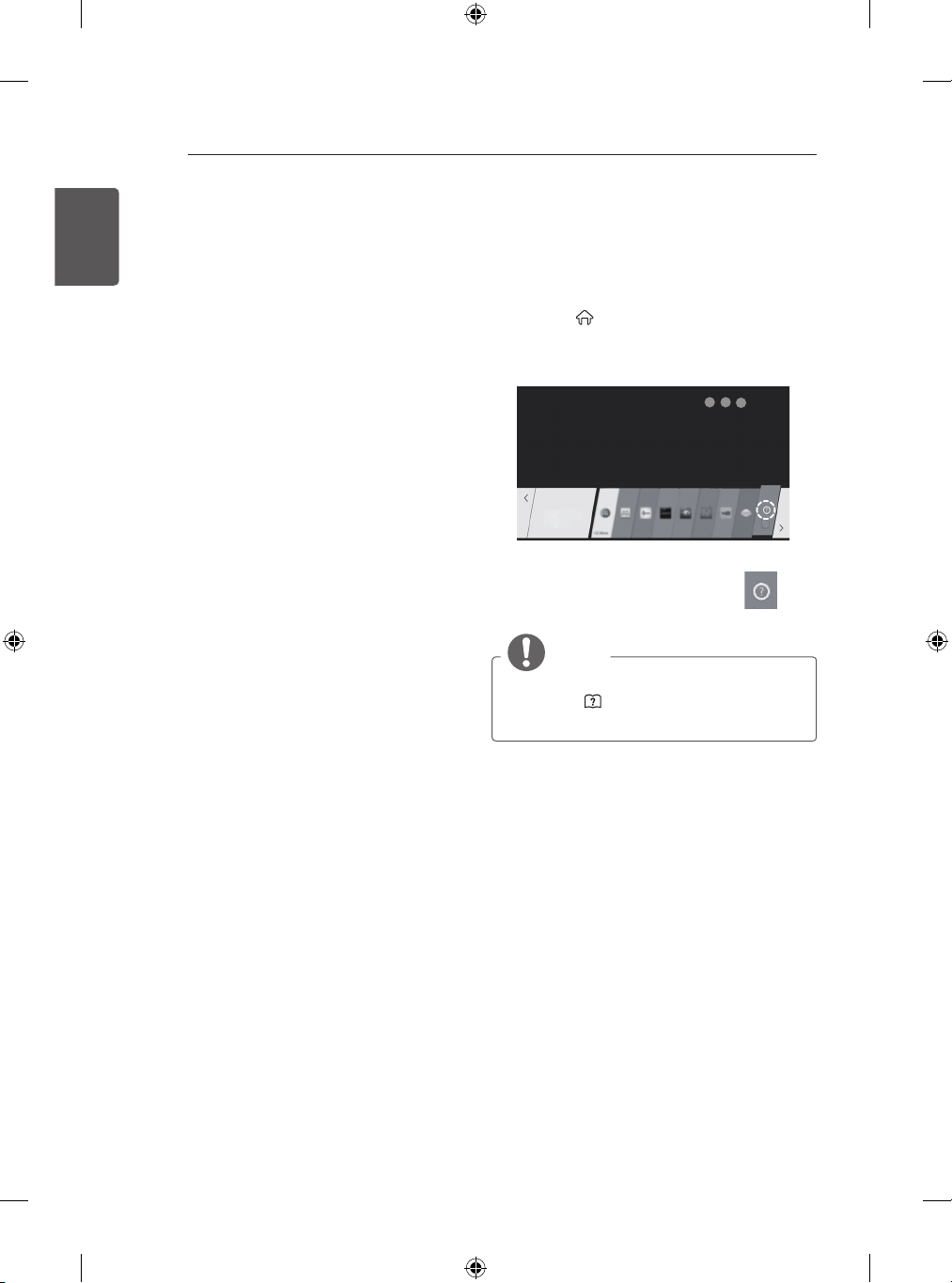

USING THE USER GUIDE
User Guide allows you to more easily access the
detailed TV information.
1 Press the
(Home)
button to access the
Home menu.
2 Select User Guide and press Wheel(OK).
NOTE
y
You can also access the User Guide by
pressing (User Guide) in the remote
control. (Depending on model)
Precautions to Take when Using
the Magic Remote
y
Use the remote control within the
specified range (within 10 m). You may
experience communication failures when
using the device outside the coverage
area or if there are obstacles within the
coverage area.
y
You may experience communication
failures depending on the accessories.
Devices such as a microwave oven
and wireless LAN operate in the same
frequency band (2.4 GHz) as the Magic
Remote. This may cause communication
failures.
y
The Magic Remote may not work properly
if a wireless router (AP) is within 1 meter
of the TV. Your wireless router should be
more than 1 m away from the TV.
y
Do not disassemble or heat the battery.
y
Do not drop the battery. Avoid avoid
extreme shocks to the battery.
y
Inserting the battery the wrong way may
result in explosion.
45
ENGENGLISH
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
y
Make sure to turn the power off and disconnect the power cord and all other cables first.
y
When the TV is left unattended and unused for a long time, disconnect the power cord from the
wall outlet to prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
y
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
y
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted
mild detergent. Then wipe immediately with a dry cloth.
CAUTION
y
Avoid touching the screen at all times, as this may result in damage to the screen.
y
Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may
result in scratches and image distortions.
y
Do not use any chemicals as this may damage the product.
y
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the
TV with the remote
control.
y
Check the remote control sensor on the product and try again.
y
Check if there is any obstacle between the product and the remote control.
y
Check if the batteries are still working and properly installed ( to , to ).
No image display
and no sound is
produced.
y
Check if the product is turned on.
y
Check if the power cord is connected to a wall outlet.
y
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off
suddenly.
y
Check the power control settings. The power supply may be interrupted.
y
Check if the Sleep Timer or Timer Power Off feature is activated in the
Timers settings.
y
If there is no signal while the TV is on, the TV will turn off automatically
after 15 minutes of inactivity.
When connecting to
the PC (HDMI/DVI),
‘No signal’ or ‘Invalid
Format’ is displayed.
y
Turn the TV off/on using the remote control.
y
Reconnect the HDMI cable.
y
Restart the PC with the TV on.
46
ENG
ENGLISH

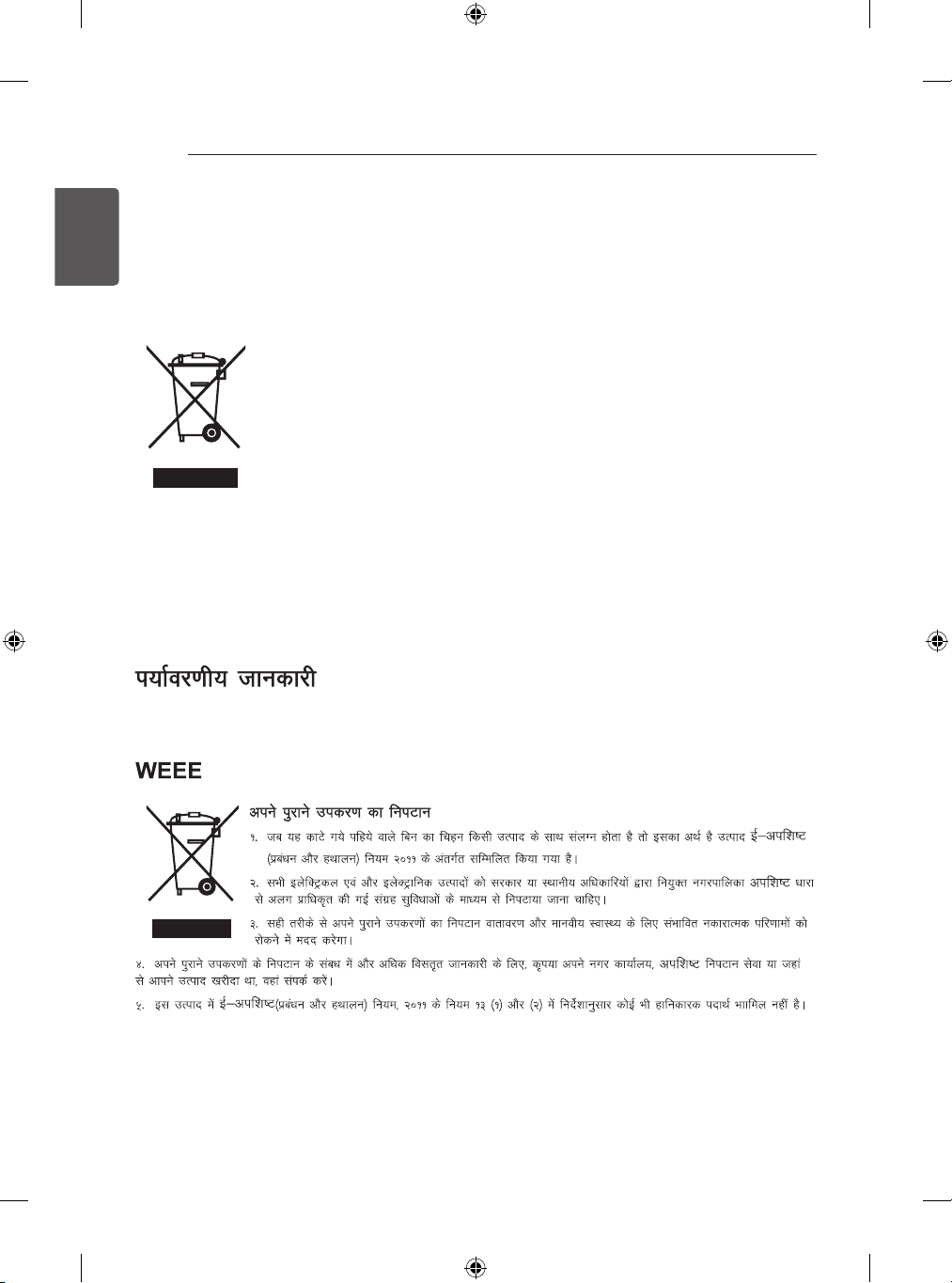

ENVIRONMENTAL INFORMATION
ENVIRONMENTAL INFORMATION
(Only India)
WEEE
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the
product is covered by the e-waste (Management and Handling) Rules, 2011.
2. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office,
waste disposal service or the shop where you purchased the product.
5. This product does not contain any of the hazardous substances as specified in the rule 13 (1) and (2)
of the e-waste (Management and Handling) Rules, 2011.
47
ENGENGLISH
SPECIFICATIONS
SPECIFICATIONS
Wireless module(LGSBW41) Specifications
Wireless LAN Bluetooth
Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 3.0
Frequency
ragne
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
Frequency
ragne
2400 to 2483.5 MHz
Output power
(Max.)
802.11a: 13 dBm
802.11b: 15 dBm
802.11g: 14 dBm
802.11n - 2.4GHz: 16 dBm
802.11n - 5GHz: 16 dBm
Output power
(Max.)
10 dBm or Lower
y
Because band channel used by the country could be different, the user can not change or adjust
the operating frequency and this product is set for the regional frequency table.
y
This device should be installed and operated with minimum distance 20 cm between the device
and your body. And this phrase is for the general statement for consideration of user environment.
0197
0197
48
ENG
ENGLISH
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
MODELS
42LB63** 47LB63** 55LB63**
42LB6310-TC
42LB631T-TC
42LB6330-TD
42LB633T-TD
42LB633Y-TD
47LB6310-TC
47LB631T-TC
47LB6330-TD
47LB633T-TD
47LB633Y-TD
55LB6310-TC
55LB631T-TC
55LB6330-TD
55LB633T-TD
55LB633Y-TD
Dimensions
(W x H x D)
With stand (mm)
960 x 610 x 218 1072 x 677 x 247 1241 x 772 x 247
Without stand (mm)
960 x 567 x 54.5 1072 x 629 x 54.5 1241 x 725 x 55.5
Weight With stand (kg)
9.9 13.4 18.7
Without stand (kg)
9.6 13.0 18.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
32LB65**
32LB6500-TA
32LB650T-TA
32LB650V-TA
32LB6520-TB
32LB652T-TB
32LB652Y-TB
32LB659Y-TB
32LB6500-TH
32LB650T-TH
Dimensions
(W x H x D)
With stand (mm)
731 x 484 x 207
731 x 475 x 207
Without stand (mm)
731 x 437 x 54.5
731 x 437 x 54.5
Weight With stand (kg)
6.5 6.5
Without stand (kg)
6.3 6.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
39LB65**
39LB6500-TA
39LB650T-TA
39LB650V-TA
39LB6520-TB
39LB652T-TB
39LB652Y-TB
39LB659Y-TB
39LB6500-TH
39LB650T-TH
Dimensions
(W x H x D)
With stand (mm)
884 x 569 x 218
884 x 570 x 193
Without stand (mm)
884 x 524 x 54.5
884
x
524
x
54.5
Weight With stand (kg)
8.6 8.6
Without stand (kg)
8.3 8.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
49
ENGENGLISH
SPECIFICATIONS
MODELS
42LB65**
42LB6500-TA
42LB650T-TA
42LB650V-TA
42LB6520-TB
42LB652T-TB
42LB652Y-TB
42LB659Y-TB
42LB6500-TH
42LB650T-TH
Dimensions
(W x H x D)
With stand (mm)
960 x 610 x 218
960 x 612 x 193
Without stand (mm)
960 x 567 x 54.5
960 x 567 x 54.5
Weight With stand (kg)
9.9
9.9
Without stand (kg)
9.6
9.6
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
47LB65**
47LB6500-TA
47LB650T-TA
47LB650V-TA
47LB6520-TB
47LB652T-TB
47LB652Y-TB
47LB659Y-TB
47LB6500-TH
47LB650T-TH
Dimensions
(W x H x D)
With stand (mm)
1072 x 677 x 247
1072 x 675 x 230
Without stand (mm)
1072 x 629 x 54.5
1072 x 629 x 54.5
Weight With stand (kg)
13.4
13.3
Without stand (kg)
13.0
13.0
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
50LB65**
50LB6500-TA
50LB650T-TA
50LB650V-TA
50LB6520-TB
50LB652T-TB
50LB652Y-TB
50LB659Y-TB
50LB6500-TH
50LB650T-TH
Dimensions
(W x H x D)
With stand (mm)
1127 x 710 x 247
1127 x 710 x 230
Without stand (mm)
1127 x 660 x 54.5
1127 x 660 x 54.5
Weight With stand (kg)
14.7
14.6
Without stand (kg)
14.3
14.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
50
ENG
ENGLISH
SPECIFICATIONS
MODELS
55LB65**
55LB6500-TA
55LB650T-TA
55LB650V-TA
55LB6520-TB
55LB652T-TB
55LB652Y-TB
55LB659Y-TB
55LB6500-TH
55LB650T-TH
Dimensions
(W x H x D)
With stand (mm)
1241 x 772 x 247
1241 x 769 x 224
Without stand (mm)
1241 x 725 x 55.5
1241 x 725 x 55.5
Weight With stand (kg)
18.7
18.6
Without stand (kg)
18.3
18.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
60LB65** 70LB65**
60LB6500-TA
60LB650T-TA
60LB650V-TA
60LB6520-TB
60LB652T-TB
60LB652Y-TB
60LB659Y-TB
70LB6560-TA
70LB656T-TA
70LB656V-TA
70LB656Y-TA
70LB659Y-TA
Dimensions
(W x H x D)
With stand (mm)
1351 x 834 x 271 1574 x 964 x 344
Without stand (mm)
1351 x 788 x 57.5 1574 x 919 x 60.2
Weight With stand (kg)
22.4 31.6
Without stand (kg)
21.8 30.1
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
42LB67** 47LB67** 50LB67**
42LB6700-TA
42LB670T-TA
42LB670Y-TA
42LB679Y-TA
47LB6700-TA
47LB670T-TA
47LB670Y-TA
47LB679Y-TA
50LB6700-TA
50LB670T-TA
50LB670Y-TA
50LB679Y-TA
Dimensions
(W x H x D)
With stand (mm)
948.2 x 606.9 x 210.9 1059.9 x 671.9 x 247.5 1116.1 x 704.9 x 247.5
Without stand (mm)
948.2 x 558.2 x 55.1 1059.9 x 621 x 55.1 1116.1 x 652.9 x 55.1
Weight With stand (kg)
10.1 13.2 14.6
Without stand (kg)
9.7 12.7 14.1
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
51
ENGENGLISH
SPECIFICATIONS
MODELS
55LB67** 42LB69** 47LB69**
55LB6700-TA
55LB670T-TA
55LB670Y-TA
55LB679Y-TA
42LB6900-TA
42LB690T-TA
42LB690Y-TA
42LB692V-TB
47LB6900-TA
47LB690T-TA
47LB690Y-TA
47LB692V-TB
Dimensions
(W x H x D)
With stand (mm)
1229.8 x 767.5 x 247.5 949 x 608 x 211 1061 x 670 x 247
Without stand (mm)
1229.8 x 716.6 x 55.1 949 x 560 x 55.1 1061 x 623 x 55.1
Weight With stand (kg)
18.5 10.4 13.3
Without stand (kg)
18 10 12.8
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
55LB69** 42LB72** 47LB72**
55LB6900-TA
55LB690T-TA
55LB690Y-TA
55LB692V-TB
42LB7200-TA
42LB720T-TA
42LB720Y-TA
42LB729Y-TA
47LB7200-TA
47LB720T-TA
47LB720Y-TA
47LB729Y-TA
Dimensions
(W x H x D)
With stand (mm)
1231 x 769 x 247 949 x 608 x 211 1061 x 670 x 247
Without stand (mm)
1231 x 718 x 55.1 949 x 560 x 55.1 1061 x 623 x 55.1
Weight With stand (kg)
19 10.4 13.3
Without stand (kg)
18.5 10 12.8
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
55LB72** 60LB72** 65LB72**
55LB7200-TA
55LB720T-TA
55LB720Y-TA
55LB729Y-TA
60LB7200-TA
60LB720T-TA
60LB720Y-TA
60LB729Y-TA
65LB7200-TA
65LB720T-TA
65LB720Y-TA
65LB729Y-TA
Dimensions
(W x H x D)
With stand (mm)
1231 x 769 x 247 1338.4 x 834.7 x 288.9 1449.5 x 883.7 x 313.9
Without stand (mm)
1231 x 718 x 55.1 1338.4 x 778.8 x 58.1 1449.5 x 840.8 x 58.1
Weight With stand (kg)
19 22.2 27.9
Without stand (kg)
18.5 21.3 26.5
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
52
ENG
ENGLISH
SPECIFICATIONS
MoDELS
42LB75** 47LB75** 55LB75**
42LB7500-TE
42LB750T-TE
47LB7500-TE
47LB750T-TE
55LB7500-TE
55LB750T-TE
Dimensions
(W x H x D)
With stand (mm)
949 x 608 x 213 1061 x 666 x 227 1231 x 766 x 237
Without stand (mm)
949 x 560 x 55.1 1061 x 623 x 55.1 1231 x 718 x 55.1
Weight With stand (kg)
10.7 13.7 19.6
Without stand (kg)
10 12.8 18.5
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MoDELS
60LB75** 65LB75**
60LB7500-TE
60LB750T-TE
65LB7500-TE
65LB750T-TE
Dimensions
(W x H x D)
With stand (mm)
1338.4 x 826.2 x 268.4 1449.5 x 894.4 x 293.1
Without stand (mm)
1338.4 x 778.8 x 58.1 1449.5 x 840.8 x 58.1
Weight With stand (kg)
22.6 27.9
Without stand (kg)
21.3 26.5
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MoDELS
49LB87** 55LB87** 60LB87**
49LB870T-TA
49LB870Y-TA
55LB870T-TA
55LB870Y-TA
60LB870T-TA
60LB870Y-TA
Dimensions
(W x H x D)
With stand (mm)
1091 x 690 x 229 1227 x 769 x 229 1335 x 830 x 261
Without stand (mm)
1091 x 632 x 34.7 1227 x 709 x 34.7 1335 x 770 x 35.7
With sound bar
supporter (mm)
1091 x 688 x 34.7 1227 x 765 x 34.7 1335 x 826 x 35.7
Weight With stand (kg)
17.4 22.6 27.1
Without stand (kg)
16.7 21.9 26.2
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
53
ENGENGLISH
SPECIFICATIONS
CI Module Size
1
(W x H x D)
100.0 mm x 55.0 mm x 5.0 mm
Environment condition
Operating Temperature 0 °C
to
40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 °C
to
60 °C
Storage Humidity Less than 85 %
1 Only Satellite models.
Digital TV
(Depending on Country)
Analogue TV
(Depending on Country)
Television System
DVB-T
3
DVB-T/T2
1
DVB-T/T2/C/S/S2
2
PAL B/B, PAL B/G, PAL D/K, PAL-I
SECAM B/G, SECAM D/K
NTSC-M
Programme Coverage
VHF, UHF
C-Band
2
, Ku-Band
2
VHF, UHF, CATV
Maximum number of
storable programmes
DVB-T/T2 & Analogue TV : 1,500
DVB-S/S2 : 6,000
External Antenna Impedance 75 Ω
1 Only DVB-T2 support models.
2 Only DVB-T2/C/S2 support models.
3 Despite DVB-T model, DVB-T function does not apply in India and Philippines.
Record the model number and serial
number of the TV.
Refer to the label on the back cover and
quote this information to your dealer
when requiring any service.
MODEL
SERIAL
(Only DTV)
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
2
ENG
ENGLISH
2
KEY CODES
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00 CH +, PR + R/C Button 53 List R/C Button
01 CH -, PR - R/C Button 5B Exit R/C Button
02 Volume + R/C Button 60 PIP(AD) R/C Button
03 Volume - R/C Button 61 Blue R/C Button
06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button
07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button
08 Power R/C Button 72 Red R/C Button
09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button
0B Input R/C Button 91 AD (Audio Description) R/C Button
0E SLEEP R/C Button 7A User Guide R/C Button
0F TV, TV/RAD R/C Button 7C Smart / Home R/C Button
10 - 19 * Number Key 0 - 9 R/C Button 7E SIMPLINK R/C Button
1A Q.View / Flashback R/C Button 8E ►►(Forward) R/C Button
1E FAV (Favorite Channel) R/C Button 8F ◄◄(Rewind) R/C Button
20 Text (Teletext) R/C Button AA Info R/C Button
21 T. Opt (Teletext Option) R/C Button AB Program Guide R/C Button
28 Return (BACK) R/C Button B0 ►(Play) R/C Button
30 AV (Audio / Video) Mode R/C Button B1 ꕗ (Stop / File List) R/C Button
39 Caption/Subtitle R/C Button BA
ꕘ (Freeze / Slow Play /
Pause)
R/C Button
40 Λ
(Arrow Key / Cursor Up)
R/C Button BB Soccer R/C Button
41
V (Arrow Key / Cursor
Down)
R/C Button BD ꔄ (REC) R/C Button
42 My Apps R/C Button DC 3D R/C Button
43 Menu / Settings R/C Button 99 AutoConfig R/C Button
44 OK / Enter R/C Button 9F App / * R/C Button
45 Q.Menu R/C Button
4C List, - (ATSC Only) R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
3
ENGENGLISH
3
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C With RS232C Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
The connection interface may differ from your TV.
4
ENG
ENGLISH
4
EXTERNAL CONTROL DEVICE SETUP

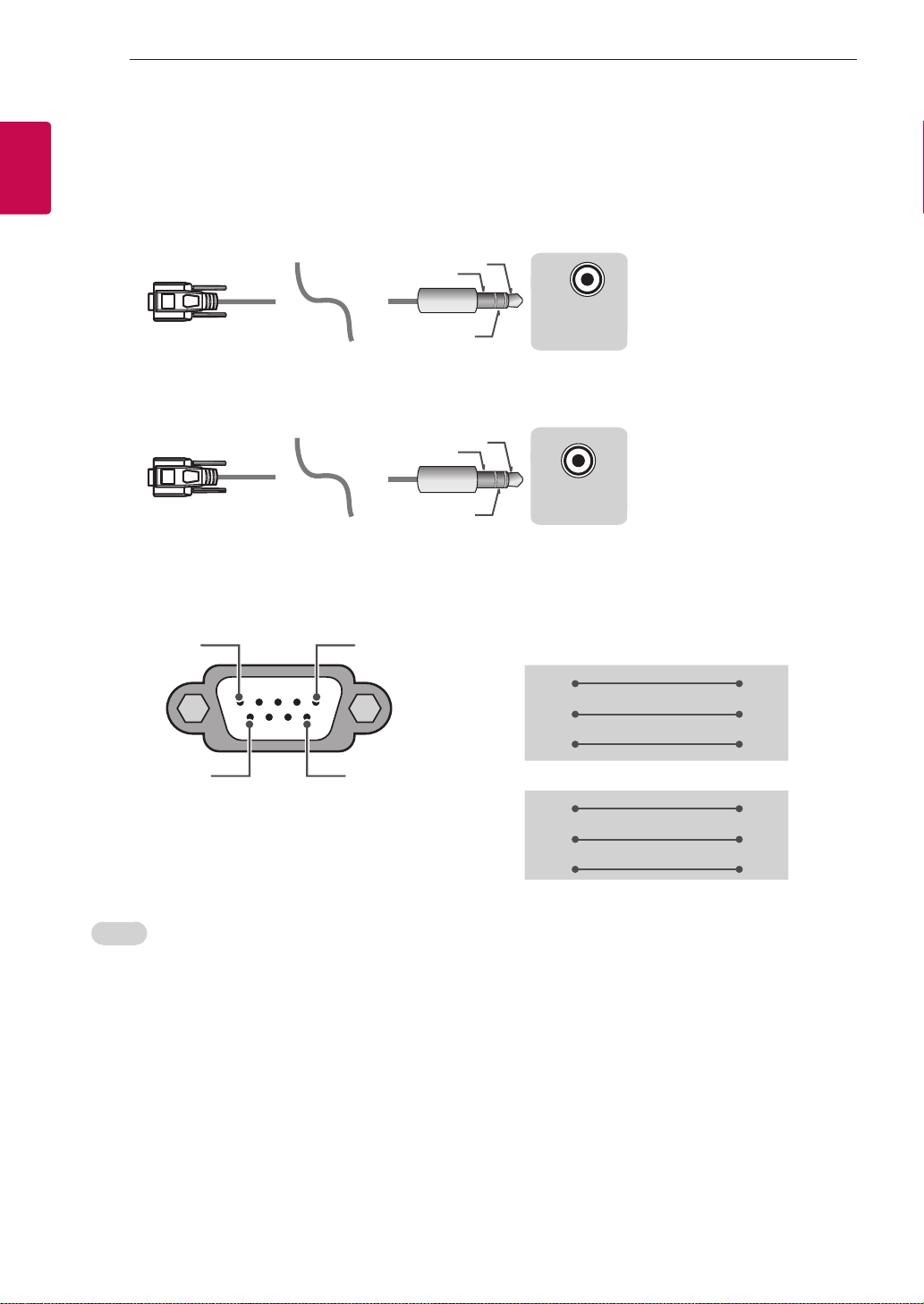

Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)
5
ENGENGLISH
5
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power* k a 00 to 01 15. Balance k t 00 to 64
02. Aspect
Ratio
k c (p.7)
16. Color
(Colour)
Temperature
x u 00 to 64
03. Screen
Mute
k d (p.7)
17. ISM
Method (Only
Plasma TV)
j p (p.8)
04. Volume
Mute
k e 00 to 01 18. Equalizer j v (p.8)
05. Volume
Control
k f 00 to 64
19. Energy
Saving
j q 00 to 05
06. Contrast k g 00 to 64
20. Tune
Command
m a (p.9)
07.
Brightness
k h 00 to 64
21. Channel
(Programme)
Add/Del(Skip)
m b 00 to 01
08. Color/
Colour
k i 00 to 64 22. Key m c Key Codes
09. Tint k j 00 to 64
23. Control
Backlight,
Control Panel
Light
m g 00 to 64
10.
Sharpness
k k 00 to 32
24. Input
select (Main)
x b (p.11)
11. OSD
Select
k l 00 to 01
25. 3D (Only
3D models)
x t (p.11)
12. Remote
Control Lock
Mode
k m 00 to 01
26. Extended
3D (Only 3D
models)
x v (p.11)
13. Treble k r 00 to 64
27. Auto
Configure
j u (p.12)
14. Bass k s 00 to 64
* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not
executed and treated as NG.
With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with
USB-to-Serial converter cable, the command works only if TV is on.
6
ENG
ENGLISH
6
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...
7
ENGENGLISH
7
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power *On or Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off 01 : *Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show TV is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
05 : Zoom 2
(Latin America
except Colombia
Only)
06 : Set by Program/
Original
07 : 14:9
(Europe, Colombia, Mid-East,
Asia except South Korea and
Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, Mid-
East, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1
to 16
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
8
ENG
ENGLISH
8
EXTERNAL CONTROL DEVICE SETUP
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
13. Treble (Command: k r)
► To adjust treble.
You can also adjust in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
14. Bass (Command: k s)
► To adjust Bass.
You can also adjust in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
15. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
16. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
17. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
18. Equalizer (Command : j v)
► Adjust EQ of the set.
Transmission [j][v][ ][Set ID][ ][Data][Cr]
0 0 0 0 0 0 0 0
MSB
Frequency Data
LSB
7 6 5
Frequency
4 3 2 1 0 Step
0 0 0
1st Band
0 0 0 0 0
0(decimal)
0 0 1
2nd Band
0 0 0 0 1
1(decimal)
0 1 0
3rd Band
... ... ... ... ...
...
0 1 1
4th Band
0 0 0 1 1
19(decimal)
9
ENGENGLISH
9
EXTERNAL CONTROL DEVICE SETUP
1 0 0
5th Band
0 0 1 0 1
20(decimal)
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
19. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto (For LCD TV / LED TV) /
Intelligent sensor (For PDP TV)
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
20. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ]
[Data 01][ ][Data 02][Cr]
* Analog Antenna/Cable
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analog)
- 00 : Antenna TV (ATV)
- 80 : Cable TV (CATV)
* Digital Antenna/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Antenna TV (DTV)
- 20 : Antenna Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the Analog antenna (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analog Antenna TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital antenna (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Antenna TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
* Analog Antenna/Cable
Data 00 : Physical Channel Number
- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analog)
- 00 : Antenna TV (ATV)
- 01 : Cable TV (CATV)
* Digital Antenna/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Antenna TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
10
ENG
ENGLISH
10
EXTERNAL CONTROL DEVICE SETUP
Number
- 22 : Antenna TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1. Tune to the Analog cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital antenna (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Antenna/Satellite
Data 00: xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Antenna TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1
Tune to the digital antenna (ISDB-T) channel 17-1
.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Antenna TV = 02
Total = ma 00 00 00 11 00 01 02
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
21. Channel(Programme) Add/Del(Skip)
(Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
22. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
23. Control Backlight (Command: m g)
• For LCD TV / LED TV
► To control the backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
11
ENGENGLISH
11
EXTERNAL CONTROL DEVICE SETUP
24. Input select (Command: x b)
(Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
02 : Satellite DTV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
01 : CADTV
10 : ATV
20 : AV or AV1 21 : AV2
40 : Component1
60 : RGB
41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
25. 3D(Command: x t) (only 3D models)
(Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
* (Depending on model)
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side
02 : Check Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* [Data 02], [Data 03] functions depend on model
and signal.
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03 (2D to 3D), [Data 01] and
[Data 02] have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only.
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O O
01 X X X
02 X X X
03 X O O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
26. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When [Data 00] is 06, 07
00 : Off
01 : On
4) When [Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 2D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
5) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
05 : Auto
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
12
ENG
ENGLISH
12
EXTERNAL CONTROL DEVICE SETUP
27. Auto Configure (Command: j u)
(Depending on model)
► To adjust picture position and minimize image
shaking automatically. It works only in RGB (PC)
mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01 : To set
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
