MULTIMEDIA PROJECTOR
LV-7365/LV-7265/LV-7260/LV-X7
User’s Manual
E
English
The LV-7365 projector's model name indicated on the projector's la-
bel is LV-7365 and LV-7365 (E) respectively.
Both models are referred to as LV-7365 throughout the user's manu-
al except some of the specications pages.
i
Important Information
Safety Cautions
Precautions
Please read this manual carefully before using your Canon LV-7365/LV-7265/LV-7260/LV-X7 projector and keep the
manual handy for future reference. Your serial number is located on the bottom of your projector. Record it here:
CAUTION
To turn off main power, be sure to remove the plug from power outlet.
The power outlet socket should be installed as near to the equipment as possible, and should be eas-
ily accessible.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may be sufcient to cause electrical
shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.
This symbol alerts the user that important information concerning the operation and maintenance of
this unit has been provided.
The information should be read carefully to avoid problems.
WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE
PRONGS CAN BE FULLY INSERTED.
DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING
MUST BE DONE BY QUALIFIED SERVICE PERSONNEL.
Machine Noise Information Regulation - 3. GPSGV,
The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.
CAUTION
Avoid displaying stationary images for a prolonged period of time.
Doing so can result in these images being temporarily sustained on the surface of the LCD panel.
If this should happen, continue to use your projector. The static background from previous images will
disappear.
CAUTION
Do not put the projector on its side when the lamp is turned on.
Doing so may cause damage to the projector.
WARNING TO CALIFORNIA RESIDENTS:
Handling the cables supplied with this product will expose you to lead, a chemical known to the State of Califor-
nia to cause birth defects or other reproductive harm.
ii
Important Information
Federal Communication Commission Notice
Multimedia Projector, Model : LV-7365, LV-7365(E), LV-7265, LV-7260 and LV-X7
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference re-
ceived, including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The cable with the ferrite core provided with the projector must be used with this equipment in order to comply
with Class B limits in Subpart B of Part 15 of the FCC rules.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modications to the equipment unless otherwise specied in the instructions. If
such changes or modications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
Canadian Radio Interference Regulations
This Class B digital apparatus complies with Canadian ICES-003.
Réglementation canadienne sur les intérferences radio
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
European Union (and EEA) only.
This symbol indicates that this product is not to be disposed of with your household waste, ac-
cording to the WEEE Directive (2002/96/EC) and your national law. This product should be
handed over to a designated collection point, e.g., on an authorized one-for-one basis when you
buy a new similar product or to an authorized collection site for recycling waste electrical and
electronic equipment (EEE). Improper handling of this type of waste could have a possible nega-
tive impact on the environment and human health due to potentially hazardous substances that
are generally associated with EEE. At the same time, your cooperation in the correct disposal
of this product will contribute to the effective usage of natural resources. For more information
about where you can drop off your waste equipment for recycling, please contact your local city
ofce, waste authority, approved WEEE scheme or your household waste disposal service.
Your cooperation in the correct disposal of this product will contribute to the effective usage of
natural resources and will avoid incurring administrative sanctions according to art.
50 and following of Italian legislative decree 22/97.
For more information regarding return and recycling of WEEE products, please visit
www.canon-europe.com/environment.
(EEA: Norway, Iceland and Liechtenstein)
iii
Important Information
LAMP HANDLING
PRECAUTIONS
This projector uses a high-pressure mercury lamp which must be handled carefully and properly as mentioned below.
• A lamp may explode with a loud sound or burn out due to a shock, scratch, or expiration of lifetime.
• The lamp life may differ from lamp to lamp and according to the environment of use. There is not guarantee
of the same lifetime for each lamp. Some lamps may fail or terminate their life in a shorter period of time than
other similar lamps.
• A lamp gradually becomes darker with time of use.
• If the projector indicates that the lamp should be replaced (i.e., the LAMP indicator blinks red rapidly), chanc
-
es of explosion become higher. Replace the lamp with a new one immediately.
• Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards
of the lamp.
IF A LAMP EXPLODES
If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come
out of the exhaust vent. The gas contains toxic mercury.
Open windows and doors for ventilation.
If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor
immediately.
If a lamp explodes, its shards may scatter inside the projector. Ask the Canon service representa-
tive to clean and check the inside of the projector and replace the lamp.
DISPOSAL OF WASTE LAMP
Dispose of the mercury lamp of the projector according to the local regulation just like the uores-
cent lamp.
Lamp Replacement
• To replace the lamp, follow all instructions provided on page 58.
• Be sure to replace the lamp when the message [Replace with the new lamp.] appears. If you continue to use
the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass
may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.
If this happens, contact your dealer for lamp replacement.
CAUTION
When removing the lamp from a ceiling-mounted projector, make sure that no one is under the pro-
jector. Glass fragments could fall if the lamp has been burned out.
NOTE FOR CUSTOMERS IN THE US
Hg
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECY-
CLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.
iv
Important Information
10˚
For UK only: In UK, a BS approved power cord with moulded plug has a Black (ve Amps) fuse installed for use
with this equipment. If a power cord is not supplied with this equipment please contact your supplier.
Important Safeguards
These safety instructions are to ensure the long life of your projector and to prevent re and shock. Please read
them carefully and heed all warnings.
Installation
• Do not place the projector in the following conditions:
- on an unstable cart, stand, or table.
- near water, baths or damp rooms.
- in direct sunlight, near heaters or heat radiating appliances.
- in a dusty, smoky or steamy environment.
- on a sheet of paper or cloth, rugs or carpets.
• If you wish to have the projector installed on the ceiling:
- Do not attempt to install the projector yourself.
- The projector must be installed by qualied technicians in order to ensure proper operation and reduce
the risk of bodily injury.
- In addition, the ceiling must be strong enough to support the projector and the installation must be in ac-
cordance with any local building codes.
- Please consult your dealer for more information.
Do Not Use in the Following Environments
Do not install the projector in a humid or dusty place or a place where there is much oily
smoke or cigarette smoke. Optical parts such as a lens and mirror are stained, resulting in
poor picture.
Do not use the projector in a place where the temperature becomes very high or low.
Operating temperature: +5°C to +40°C Storage temperature: -10°C to +50°C
(Quiet mode selected automatically at 95°F to 104°F / 35°C to 40°C)
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other
than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
Fire and Shock Precautions
• Ensure that there is sufcient ventilation and that vents are unobstructed to prevent the build-up of heat in-
side projector. Allow at least 1 m (3.3') of space between your projector and a wall.
• Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated
the projector is turned on and immediately after the projector is turned off.
• Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt
retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or
screwdriver into your projector. If something should fall into your projector, disconnect it immediately and
have the object removed by a qualied service personnel.
• Do not place any objects on top of the projector.
• Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or re.
• The projector is designed to operate on power source voltages indicated on indicated in the rating label on
the projector. Ensure that your power ts this requirement before attempting to use your projector.
v
Important Information
• Do not look into the lens while the projector is on. Serious damage to your eyes could result.
• Keep any items such as magnifying glass out of the light path of the projector. The light being projected
from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the
lens, can cause unpredictable outcome such as re or injury to the eyes.
• Do not cover the lens with the black lens cap or equivalent while the projector is on. Doing so can lead to
melting the cap and possibly burning your hands due to the heat emitted from the light output.
• Do not place any objects, which are easily affected by heat, in front of the projector lens or a projector exhaust
Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from
the output and exhaust.
• Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or re.
- Do not use any power cords than the supplied one.
- Do not bend or tug the power cord excessively.
- Do not place the power cord under the projector, or any heavy object.
- Do not cover the power cord with other soft materials such as rugs.
- Do not heat the power cord
- Do not handle the power plug with wet hands.
• Turn off the projector, unplug the power cord and have the projector serviced by a qualied service person
-
nel under the following conditions:
- When the power cord or plug is damaged or frayed.
- If liquid has been spilled into the projector, or if it has been exposed to rain or water.
- If the projector does not operate normally when you follow the instructions described in this user's manual.
- If the projector has been dropped or the cabinet has been damaged.
- If the projector exhibits a distinct change in performance, indicating a need for service.
• Disconnect the power cord and any other cables before carrying the projector
• Turn off the projector and unplug the power cord before cleaning the cabinet or replacing the lamp.
• Turn off the projector and unplug the power cord if the projector is not to be used for an extended period of
time.
CAUTION
• Do not try to touch the ventilation outlet on the left side (when seen from the front) as it can become heated
while the projector is turned on.
• Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or
hanging on the wall can cause damage to the projector.
• Select [High] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select
[Setup]→ [Options] → [Fan mode] → [High].) Fan noise increases noticeably in High mode.
• Do not turn off the AC power by pressing the main power switch or by unplugging the power cord when the
projector is powered on.
• Do not turn off the AC power for 60 seconds after the lamp is turned on and while the POWER indicator is
blinking green. Doing so could cause premature lamp failure.
vi
Important Information
CARRYING/TRANSPORTING THE PROJECTOR
This projector is a precision machine. Do not give a strong shock to the projector or turn it down.
Thoroughly read "Use Caution When Carrying or Transporting the Projector" below and install the lens cap before car-
rying the projector. When transporting the projector by train or airplane, use a highly crashworthy transport case.

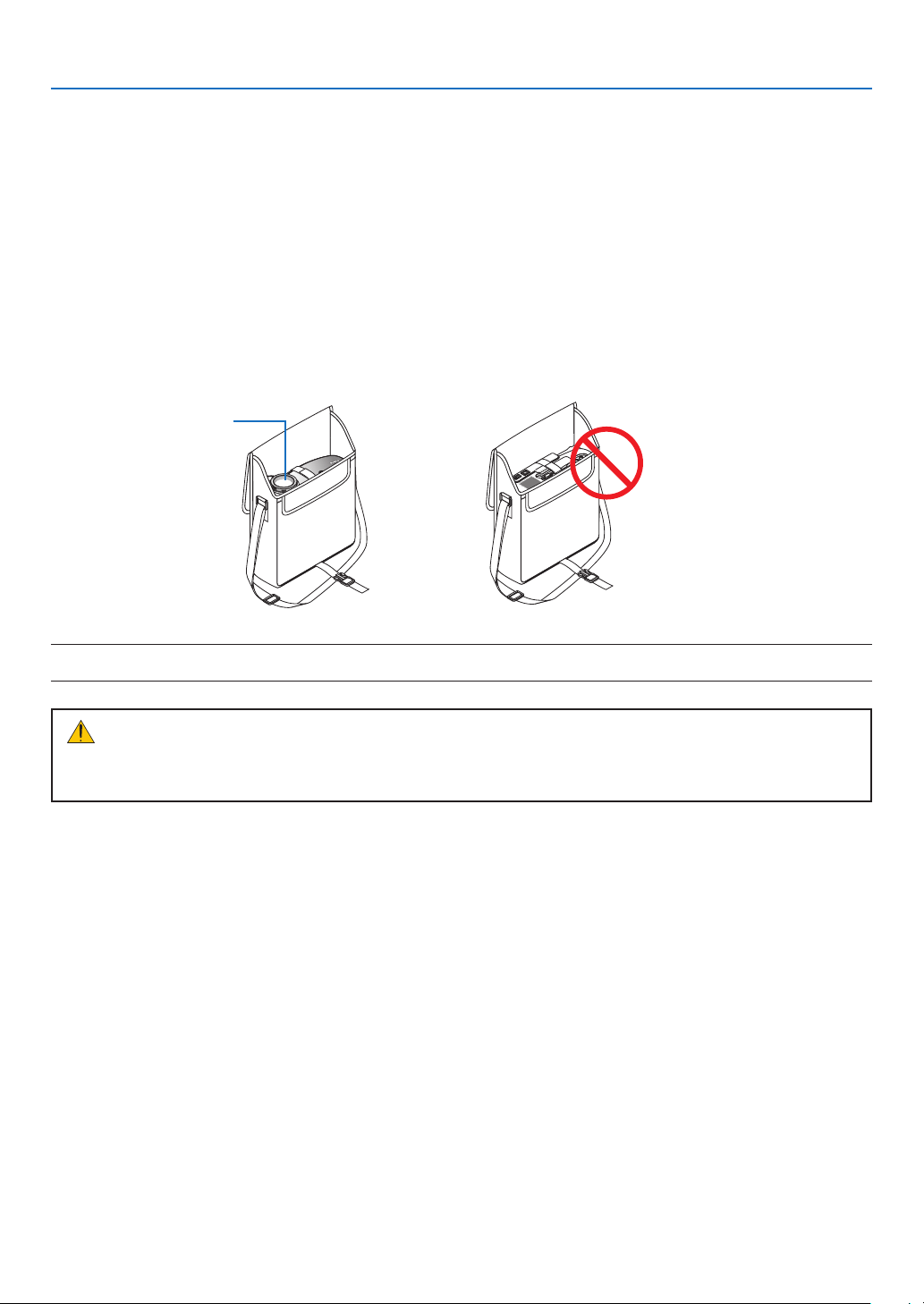

Use Caution When Carrying or Transporting the Projector
The carrying bag is intended for protection from dust and scratches on the surface of the cabinet, and it is not designed
to protect the projector from external shocks. When carrying the projector with it put in the carrying bag, do not give a
shock to it, drop it, or place anything on it.
Do not transport the projector through a courier or transport service with the carrying bag. The projector can damage.
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not heat, take apart, or throw batteries into re.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries' polarity (+/-) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.
About [High altitude] mode
LV-7365
• Set [Fan mode] to [High altitude] when using the projector at altitudes approximately 5500 feet/1600 meters or
higher.
Using the projector at altitudes approximately 5500 feet/1600 meters or higher without setting to [High altitude]
can cause the projector to overheat and the protector could shut down. Furthermore, the projector could not turn
on due to the increased temperature of the lamp after power off. If these happen, wait a couple minutes and
turn on the projector.
• Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [High altitude] can
cause the lamp to overcool, causing the image to icker. Switch [Fan mode] to [Auto].
• Using the projector at altitudes approximately 5500 feet/1600 meters or higher can shorten the life of optical
components such as the lamp.
LV-7265/LV-7260/LV-X7
• On LV-7265, LV-7260, and LV-X7 [Fan mode] menu does not have [High altitude]. Select [High] in [Fan mode] if
you use the projector at a high altitude or under low atmospheric pressure.
vii
Table of Contents
Important Information
......................................................................................... i
1. Introduction
........................................................................................................ 1
❶ What's in the Box? ........................................................................................................ 1
❷ Introduction to the Projector .......................................................................................... 2
❸ Part Names of the Projector .......................................................................................... 4

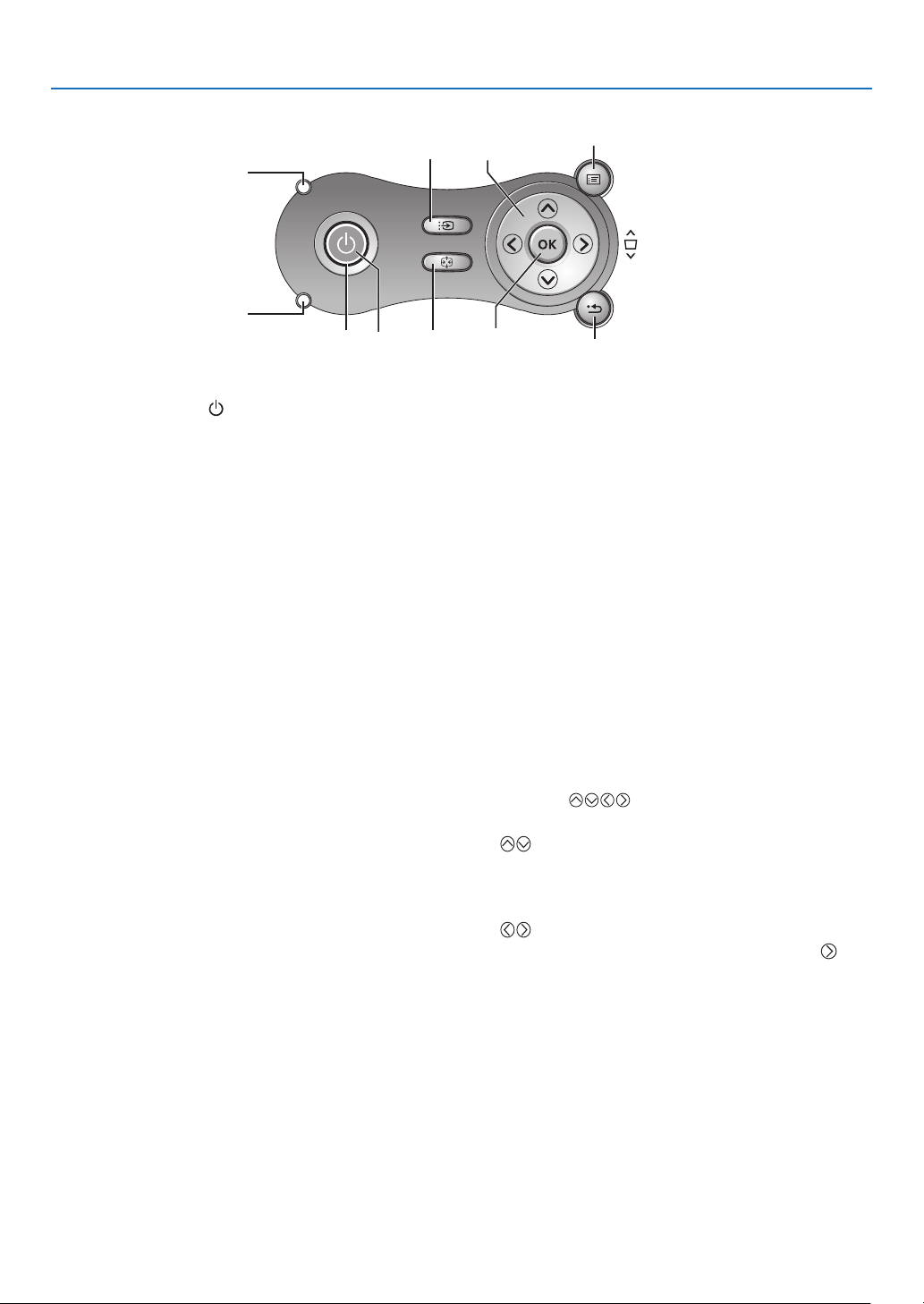

Top Features ........................................................................................................... 6
Terminal Panel Features ......................................................................................... 7
❹ Part Names of the Remote Control ............................................................................... 8

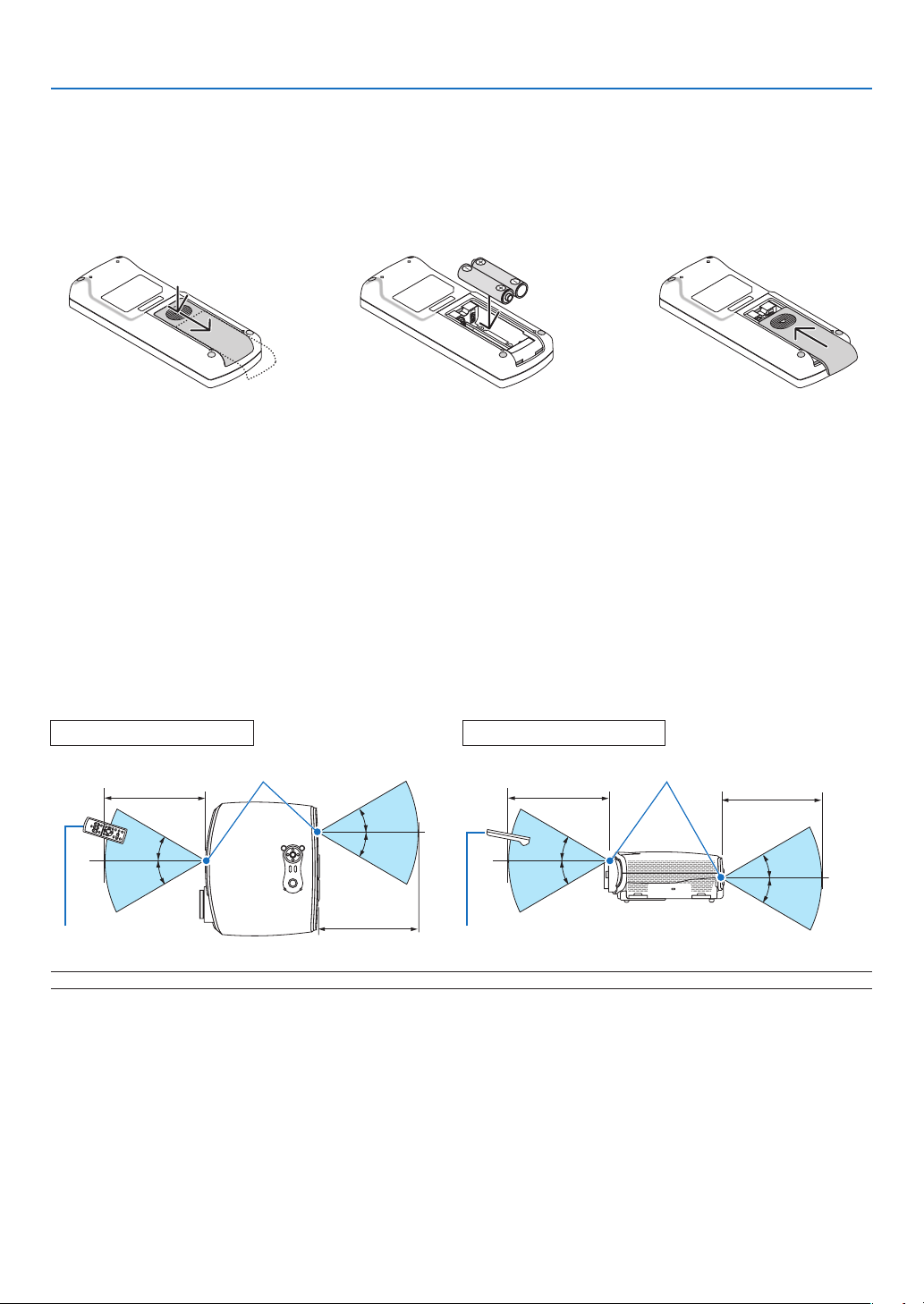

Battery Installation ............................................................................................ 10
Remote Control Precautions ............................................................................ 10
Operating Range for Wireless Remote Control ................................................ 10
2. Installation and Connections
................................................................. 11
❶ Setting Up the Screen and the Projector .................................................................... 12
Selecting a Location (LV-7365/LV-7265) .............................................................. 12
Throw Distance and Screen Size ..................................................................... 12
Selecting a Location (LV-7260/LV-X7) .................................................................. 13
Throw Distance and Screen Size ..................................................................... 13
❷ Making Connections ................................................................................................... 15
Enabling the computer’s external display .............................................................. 15
Connecting Your PC or Macintosh Computer (LV-7365/LV-7265) ........................ 15
Using Two Analog COMPUTER Inputs Simultaneously (LV-7365/LV-7265) ... 16
When Viewing a DVI Digital Signal (LV-7365/LV-7265) ................................... 17
Connecting Your PC or Macintosh Computer (LV-7260/LV-X7) ........................... 18
Connecting an External Monitor ............................................................................ 19
Connecting Your DVD Player with Component Output ......................................... 20
Connecting Your VCR or Laser Disc Player .......................................................... 21
Connecting a Digital Video Signal (LV-7365/LV-7265) ......................................... 22
Connecting the Supplied Power Cord ................................................................... 23
3. Projecting an Image (Basic Operation)
............................................. 24
❶ Turning on the Projector ............................................................................................. 24
Note on Startup Screen (Menu Language Select screen) ..................................... 25
❷ Selecting a Source ...................................................................................................... 26
❸ Adjusting the Picture Size and Position ...................................................................... 27
❹ Correcting Keystone Distortion ................................................................................... 29
❺ Automatically Optimizing on RGB Image .................................................................... 31
❻ Turning Up or Down Volume ....................................................................................... 31
❼ Turning off the Projector ............................................................................................. 32
❽ After Use ..................................................................................................................... 33
viii
Table of Contents
4. Convenient Features
................................................................................... 34
❶ Turning Off the Image and Sound ............................................................................... 34
❷ Freezing a Picture ....................................................................................................... 34

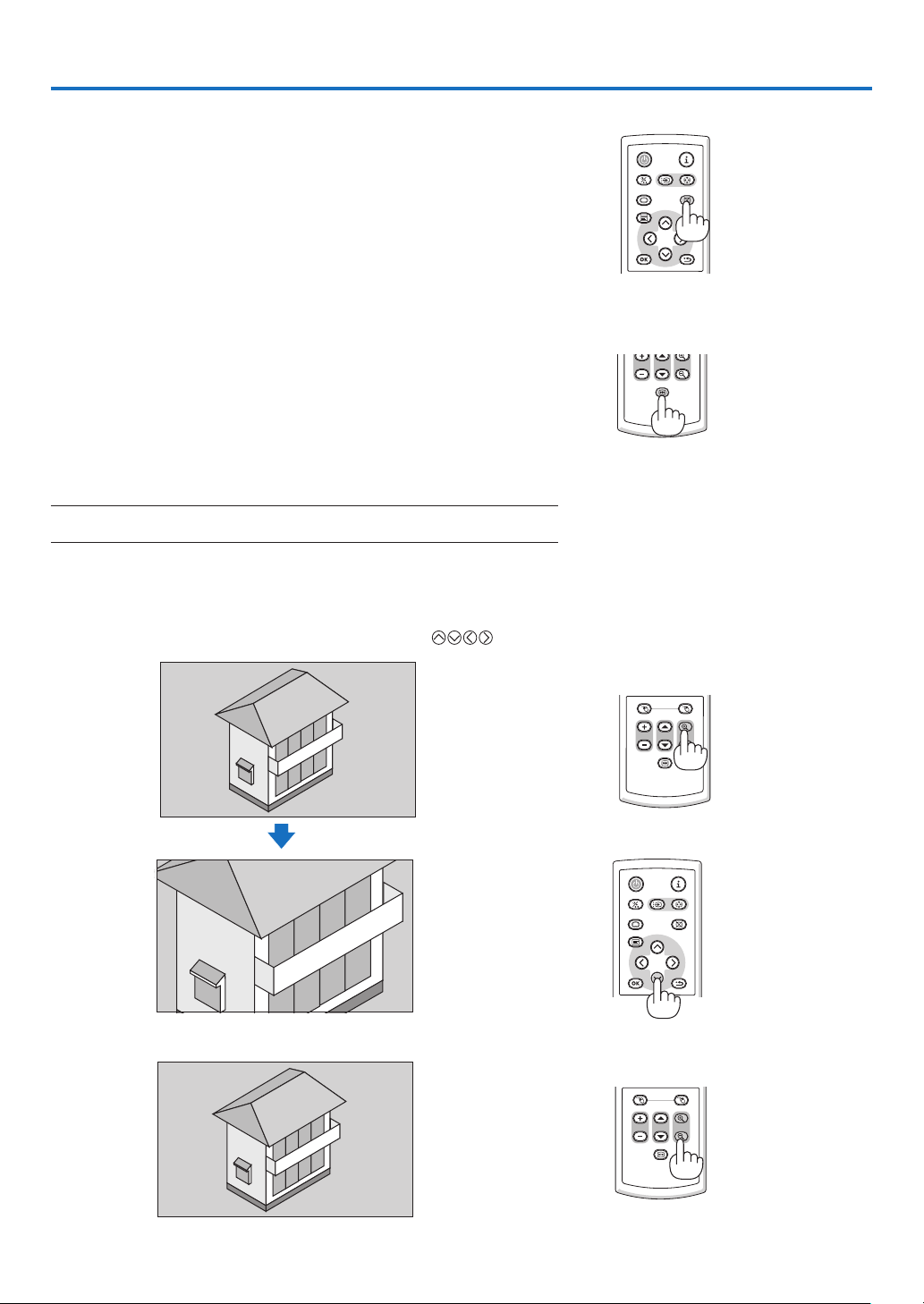

❸ Enlarging and Moving a Picture .................................................................................. 34

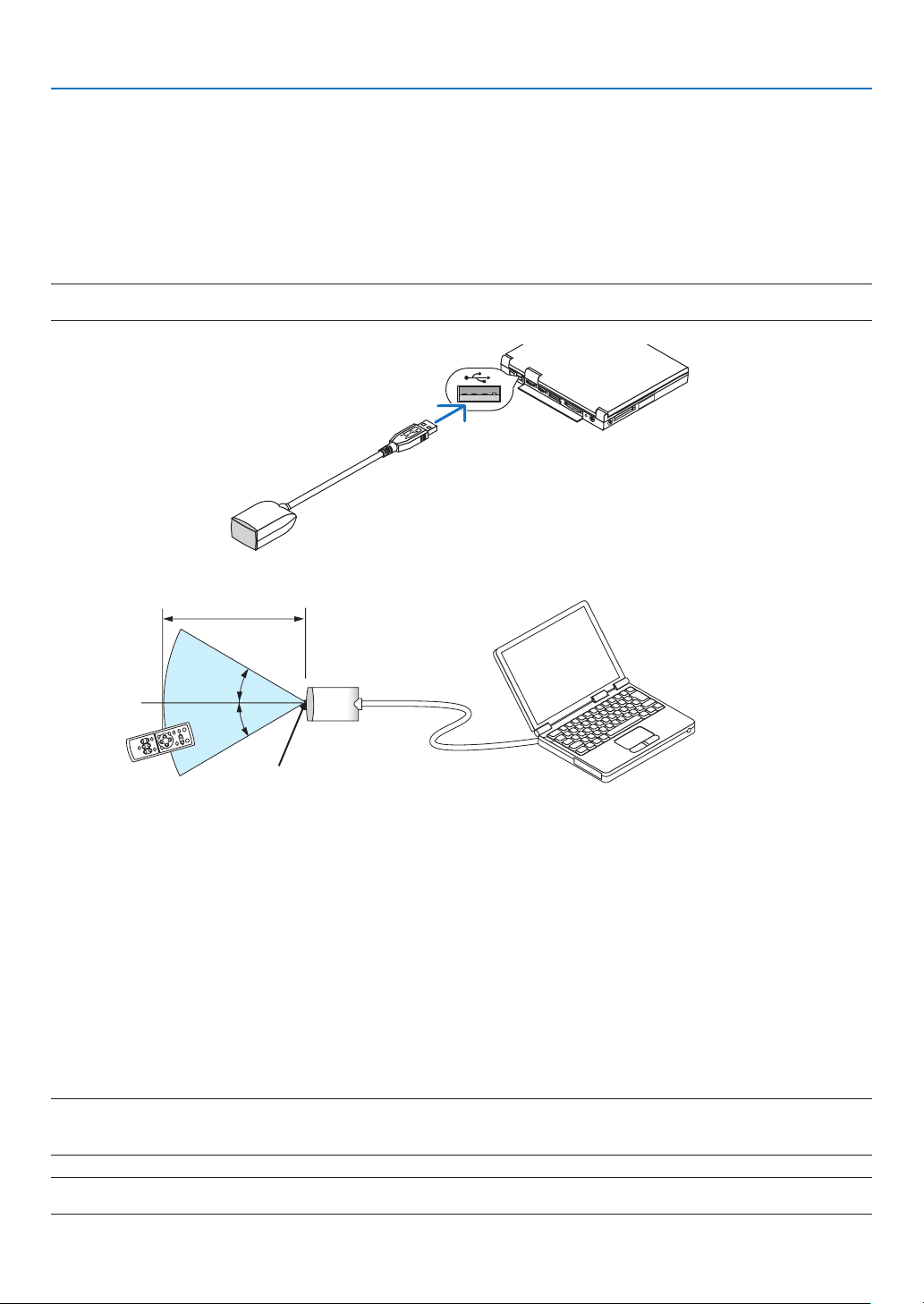

❹ Using the Remote Mouse Receiver (LV-7365/LV-7265/LV-7260) .............................. 35
❺ Preventing the Unauthorized Use of the Projector ...................................................... 37
5. Using On-Screen Menu
.............................................................................. 40
❶ Using the Menus ......................................................................................................... 40
❷ Menu Elements ........................................................................................................... 42
❸ List of Menu Items ....................................................................................................... 43

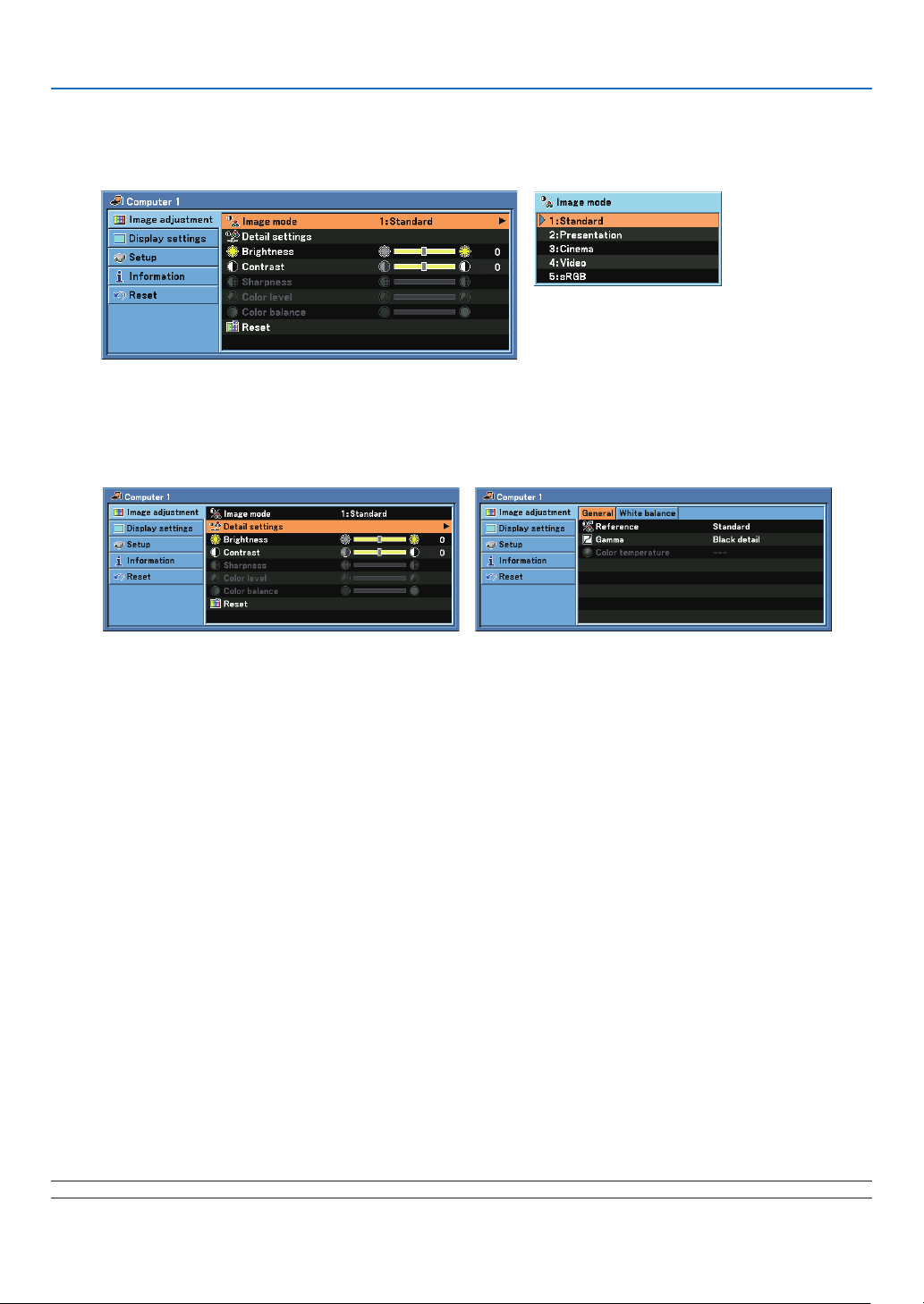

❹ Menu Descriptions & Functions [Image adjustment] ................................................... 45
❺ Menu Descriptions & Functions [Display settings] ...................................................... 46
❻ Menu Descriptions & Functions [Setup] ...................................................................... 48

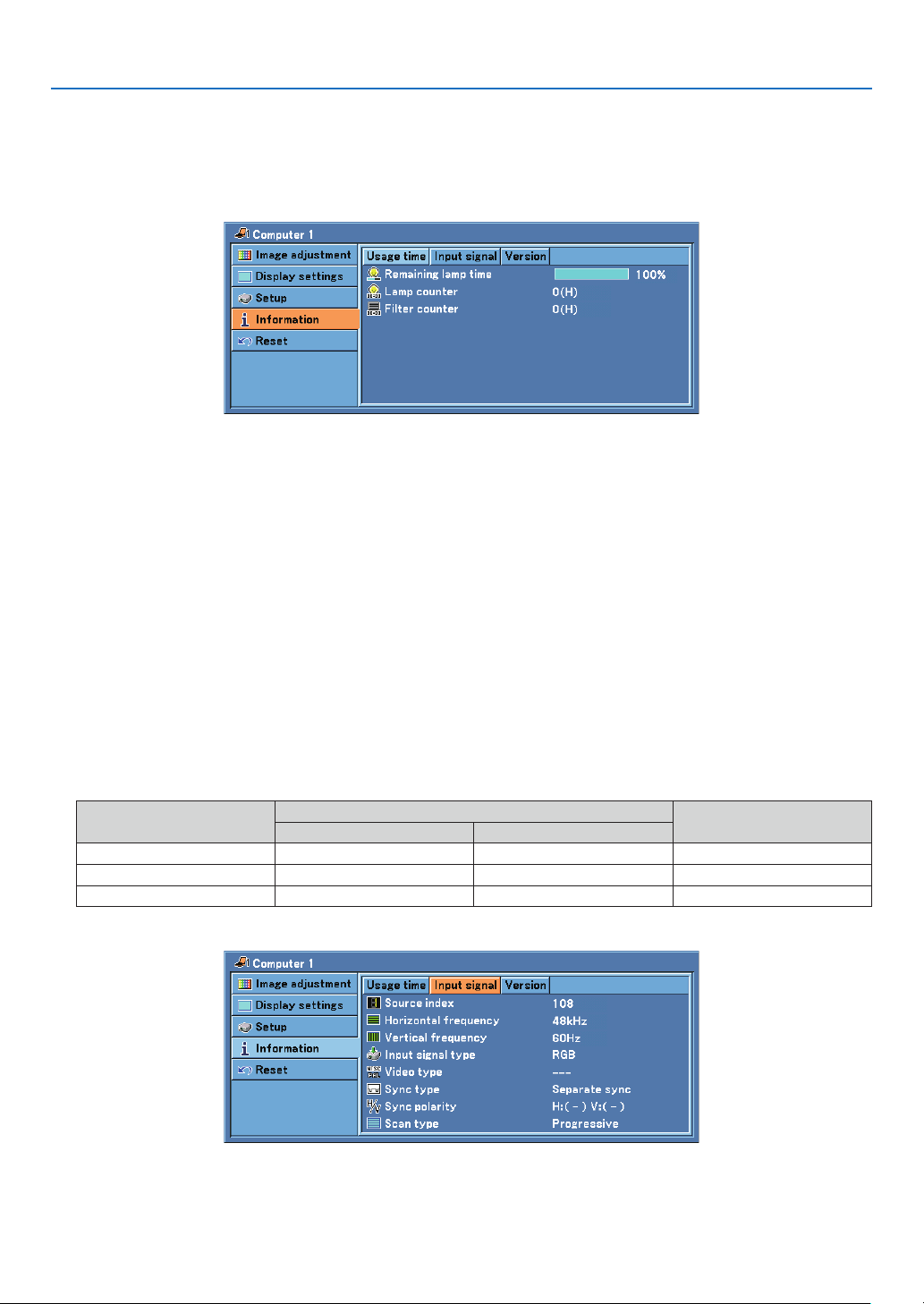

❼ Menu Descriptions & Functions [Information] ............................................................. 54
❽ Menu Descriptions & Functions [Reset] ...................................................................... 55
6. Maintenance
..................................................................................................... 56
❶ Cleaning or Replacing the Filter ................................................................................. 56
❷ Cleaning the Cabinet and the Lens ............................................................................ 57
❸ Replacing the Lamp ................................................................................................... 58
7. Appendix
............................................................................................................. 61
❶ Troubleshooting ......................................................................................................... 61
❷ Specications ............................................................................................................. 64
❸ Cabinet Dimensions ................................................................................................... 66
❹ Pin Assignments of D-Sub ANALOG Input Connector .............................................. 67
❺ Compatible Input Signal List ...................................................................................... 68
❻ Relationship between Screen Size and Projection Distance ..................................... 69
❼ PC Control Codes and Cable Connection ................................................................. 71
❽ Troubleshooting Check List ....................................................................................... 72
❶
What's in the Box?
Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your projector.
M
E
N
U
B
A
C
K
K
EY
S
T
O
N
E
W
A
R
N
I
N
G
P
O
W
E
R
A
U
T
O
P
C
IN
P
U
T
L
A
M
P
-
+
VO
L
V
O
L
Quick
Start
Guide
Important
Information
1. Introduction
For LV-7365/LV-7265
PO
W
ER
I
N
P
U
T
I
M
A
G
E
I
N
F
O
.
AUTO PC
B
A
C
K
R
-
CLICK
L
-
C
L
I
C
K
F
R
E
E
Z
E
R
D
-4
2
8
E
A
S
P
E
C
T
M
E
N
U
NO
SHO
W
V
O
L
D.ZOOM
P
A
G
E
For LV-7365/LV-7265/LV-7260
2
. Introduction
❷
Introduction to the Projector
This section introduces you to your new projector and describes the features and controls.
Congratulations on Your Purchase of The Projector
The LV-7365/LV-7265/LV-7260/LV-X7 is one of the very best projectors available today. The projector enables you
to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh computer
(desktop or notebook), VCR, DVD player, document camera, or a laser disc player.
You can use the projector on a tabletop or cart, from behind a screen, or permanently mounted on a ceiling*
1
. The
remote control can be used wirelessly.
*
1
Do not attempt to mount the projector on a ceiling yourself.
The projector must be installed by qualied technicians in order to ensure proper operation and reduce the
risk of bodily injury.
In addition, the ceiling must be strong enough to support the projector and the installation must be in accor
-
dance with any local building codes. Please consult your dealer for more information.
Features you'll enjoy:
• Auto vertical keystone correction (LV-7365/LV-7265).
• Built-in Wall Color Correction presets provide for adaptive color correction when projecting onto non-white
screen material.
• Quick start & quick cool down.
Eight seconds after turning on the power, the projector is ready to display PC or video images*.
Powering down; The fans stop 30 seconds after turning off the power from the remote control or cabinet con
-
trol panel. The projector can be put away immediately after the projector is powered down.
Also, the main power of the projector can be turned off by pressing the main power switch or unplugging the
power cord even during the cool down period after the projector is turned off.
* If you turn on the projector immediately after the lamp is turned off or when the temperature is high, the fans
runs without displaying an image for some time and then the projector will display the image.
• DVI input connector (DVI-I 29 Pin) with HDCP compatible (LV-7365/LV-7265)
• HDTV (1080i, 720p) and SDTV (576p, 480p) compatibility.
• Color Management system.
• Short focal length lens.
• Display popular wide screen and full screen aspect ratios - 16:9 and 4:3.
• Built-in speaker for an integrated audio solution.
• High resolution display - up to UXGA compatible, XGA native resolution.
• Multiple video mode selections (depending on your source).
• Security feature prevents unauthorized individuals from displaying images.
• You can control the projector with a PC or control system using the PC Control port (SERVICE PORT).
• Easy set up and operation.
• The contemporary cabinet design is light, compact and complements any ofce, boardroom Auditorium.
• You can use the supplied wireless remote control and remote mouse receiver to operate your PC mouse from
across the room. The remote mouse receiver supports almost any PC using a USB connection (LV-7365,
LV-7265 and LV-7260).
3
About this user's manual
The fastest way to get started is to take your time and do everything right the rst time. Take a few minutes now to
review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll
nd an overview. If the section doesn't apply, you can skip it.
• Microsoft, Windows, Windows Vista, and PowerPoint are trademarks or registered trademarks of Microsoft
Corporation in the U.S. and other countries.
• Macintosh, Mac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.
• VESA is a registered trademark of Video Electronics Standards Association.
. Introduction
❸

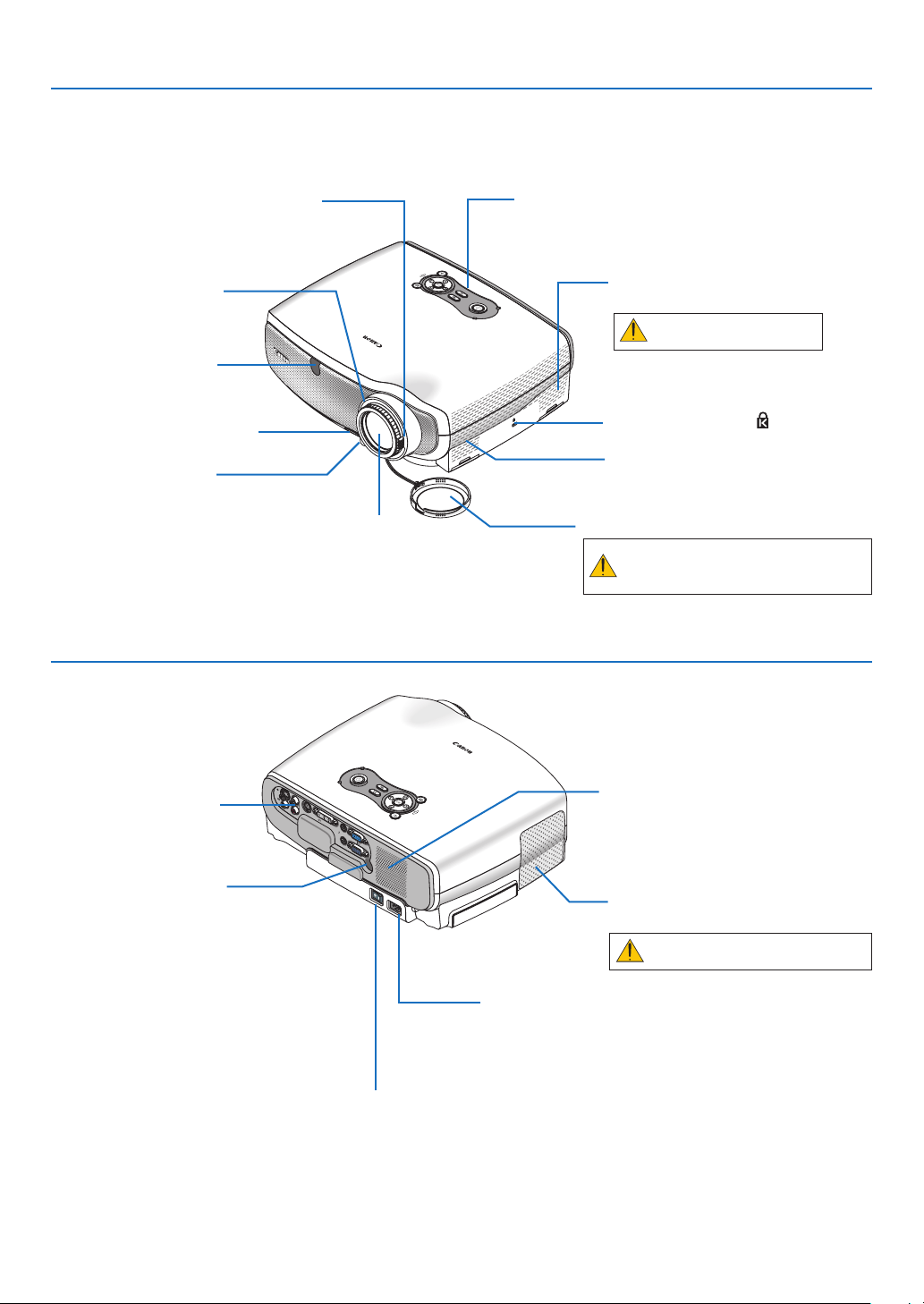

Part Names of the Projector
M
E
N
U
B
A
C
K
K
E
Y
S
T
O
N
E
W
A
R
N
I
N
G
P
O
W
E
R
A
U
TO
P
C
I
N
P
U
T
L
A
M
P
-
+
V
O
L
V
O
L
ME
N
U
B
A
C
K
K
E
Y
S
T
O
N
E
W
A
R
N
I
N
G
P
O
W
E
R
A
U
T
O
P
C
I
N
P
U
T
V
O
L
-
V
O
L
+
LA
M
P
A
U
D
IO
IN
A
U
D
IO
O
U
T
A
N
A
L
O
G
I
N
-
1
D
I
G
I
T
A
L
I
N
/
A
N
A
L
O
G
I
N
-
2
S
-
V
I
D
E
O
I
N
V
ID
E
O
IN
SER
VICE PO
RT
R
L
A
U
D
IO
I
N
Front/Top
Rear
* This security slot supports the MicroSaver ® Security System. MicroSaver ® is a registered trademark of
Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
. Introduction
5
. Introduction
Bottom
HINT: The Canon logo is on the panel of the projector cabinet . When projecting an image with the projector hung from the ceil-
ing, turn the Canon logo upside down.
To turn the logo upside down, follow the steps below.
1. Pushoneendofthelogogently.
2.Pushandholdtheendofthelogogentlyandrotatethelogoby
holdingtheotherend.
3.Releaseyourholdandturnthelogoupsidedown.
6
. Introduction
Top Features
MENU
BACK
KEYSTONE
WARNING
P
O
W
E
R
AUTO PC
INPUT
VOL
-
VOL
+
LAMP
3
4
1
5 8
9
2
10
6
7
. POWER Button ( )
Use this button to turn the power on and off when
the main power is supplied and the projector is in
standby mode.
To turn on the projector, press and hold this button
for about 1 second. To turn off the projector, press
this button twice.
2. POWER Indicator
When this indicator is green, the projector is on; when
this indicator is orange, it is in standby mode. See the
Power Indicator section on page 61 for more details.
3. WARNING Indicator
If this light blinks red rapidly, it indicates that an error
has occurred, the lamp cover is not attached properly
or the projector has overheated. If this light remains
orange, it indicates that you have pressed a cabinet
key while the Key lock is enabled. See the WARNING
Indicator section on page 61 for more details.
. LAMP Indicator
If this light blinks red rapidly, it's warning you that
the lamp has reached the end of its usable life. After
this light appears, replace the lamp as soon as pos-
sible (See page 58). If this is lit green continually, it
indicates that the lamp mode is set to Quiet. See the
Lamp Indicator section on page 61 for more details.
5. INPUT Button
SelectingfromINPUTList
Press and quickly release the INPUT button to dis-
play the INPUT list. Each time the INPUT button is
pressed, the input source will change as follows:
Computer 1* → Computer 2 (Digital)* → Computer 2
(Analog)* → VIDEO → S-VIDEO → Computer 1* → ...
To display the selected source, press the OK button
or allow 2 seconds to elapse.
DetectingtheSignalAutomatically
Press and hold the INPUT button for a minimum
of 2 seconds, the projector will search for the next
available input source. Each time you press and
hold the INPUT button for a minimum of 2 seconds,
the input source will change as follows:
Computer 1* → Computer 2 (Digital)* → Computer 2
(Analog)* → VIDEO → S-VIDEO → Computer 1* → ...
*
LV-7260/LV-X7: Computer → VIDEO → S-VIDEO
→ Computer → ...
6. AUTO PC Button
Use this button to adjust an analog RGB source for
an optimal picture. See page 31.
7. MENU Button
Displays the menu. See page 40, 41.
8. SELECT
/ VOL (+/–) Buttons
See page 40.
: Use these buttons to select the menu of the
item you wish to adjust.
When no menus appear, these buttons work
as a keystone control. See page 29.
: Use these buttons to change the level of a
selected menu item. A press of the but-
ton executes the selection. When no menus
appear, these buttons work as a volume
control. See page 31.
9. OK Button
Executes your menu selection and activates items
selected from the menu.
0. BACK Button
Pressing this button will return to the previous
menu.
While you are in the main menu, pressing this but-
ton will close the menu.
7
. Introduction
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
97 3 128
456
Terminal Panel Features
.
Computer Input Connector [ANALOG IN-] (Computer
Input Connector [ANALOG IN] on LV-7260/LV-X7) (Mini
D-Sub 5 Pin)
Connect your computer or other analog RGB equip-
ment such as IBM compatible or Macintosh com-
puters. Use the supplied VGA cable to connect to
your computer. This also serves as a component
input connector that allows you to connect a com-
ponent video output of component equipment such
as a DVD player. See page 15, 18, 20.
2. Computer 2 Input Connector [DIGITAL IN/ANA
-
LOG IN-2] (DVI-I 29 Pin) (LV-7365/LV-7265)
Connect your computer or other analog RGB equip-
ment such as IBM compatible or Macintosh comput-
ers.
Use the supplied VGA cable to connect to your com-
puter. This also serves as a component input connec-
tor that allows you to connect a component video out-
put of component equipment such as a DVD player.
See page 15, 16.
3.
AUDIO IN Mini Jack (Stereo Mini) (LV-7365/LV-7265)
This is where you connect the audio output from
your computer or DVD player when connected to
the COMPUTER input. A commercially available
audio cable is required. See page 15, 20.
.
Monitor Output Connector [ ] (Mini D-Sub 5 Pin)
You can use this connector to loop your computer im-
age to an external monitor from the RGB input source.
This connector outputs RGB signal in standby
mode. See page 19.
5.
AUDIO OUT Mini Jack (Stereo Mini) (LV-7365/LV-7265)
You can use this jack to output sound from the cur-
rently selected source (COMPUTER, VIDEO or
S-VIDEO). Output sound level can be adjusted in ac-
cordance with the sound level of the internal speaker.
Note that this cannot be used as a headphone jack.
(When audio equipment is connected, the projector
speaker is disabled.)
When a cable mini-plug is inserted into this jack, both the
right and left audio signals are not mixed, but separate.
For example, when a cable mini-plug is inserted into
the left AUDIO IN jack only, only left sound is output.
6. VIDEO IN Connector (RCA)
Connect a VCR, DVD player, laser disc player, or
document camera here to project video. See page 21.
7. S-VIDEO IN Connector (Mini DIN Pin)
Here is where you connect the S-Video input from
an external source like a VCR. See page 21.
NOTE: S-Video provides more vivid color and higher reso-
lution than the traditional composite video format.
8. AUDIO IN Jacks L/R (RCA)
These are your left and right channel audio inputs for
stereo sound from a Video/S-Video source.
These jacks support an analog RGB audio source on
LV-7260/LV-X7. See page 18, 21.
9. SERVICE PORT (Mini DIN 8 Pin)
Use this port to connect a PC or control system to
control the projector via an optional RS-232C serial
cable (LV-CA34). If you are writing your own pro-
gram, typical PC control codes are on page 71.
LV-7365/LV-7265
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN
97
146 8
LV-7260/LV-X7
8
. Introduction
❹
Part Names of the Remote Control
. Infrared Transmitter
Direct the remote control toward the remote sensor
on the projector cabinet.
2. POWER Button
When the main power is on, you can use this button
to turn your projector on.
NOTE: To turn on the projector, press and hold the POWER
button for about 1 second.
You can use this button to turn your projector off.
NOTE: To turn off the projector, press this button twice.
3. INFO. Button
Provides the information on the current signal and
projector settings. See page 54.
. IMAGE Button
Press this button to display the Image adjustment
menu to adjust Image mode, Contrast, Brightness,
Sharpness, Color level and Color balance. See
pages 45 to 46.
BACK
R
-
CLICK
L
-
CLICK
VOL
FREEZE
D.ZOOM
PAGE
MENU
POWER
RD-428E
INPUT
ASPECT
INFO.
NO
SHO
W
AUTO PC
1
2
4
6
7
8
3
5
13
11
15
14
12
17
18
16
9
10
5. INPUT Button
SelectingfromINPUTList
Press and quickly release the INPUT button to dis-
play the INPUT list. Each time the INPUT button is
pressed, the input source will change as follows:
Computer 1* → Computer 2 (Digital)* → Computer 2
(Analog)* → VIDEO → S-VIDEO → Computer 1* → ...
To display the selected source, press the OK button
or allow 2 seconds to elapse.
DetectingtheSignalAutomatically
Press and hold the INPUT button for a minimum
of 2 seconds, the projector will search for the next
available input source. Each time you press and
hold the INPUT button for a minimum of 2 seconds,
the input source will change as follows:
Computer 1* → Computer 2 (Digital)* → Computer 2
(Analog)* → VIDEO → S-VIDEO → Computer 1* → ...
*
LV-7260/LV-X7: Computer → VIDEO → S-VIDEO
→ Computer → ...
6. AUTO PC Button
Use this button to adjust an analog RGB source for
an optimal picture. See page 31.
7. ASPECT Button
Press this button once to display the Aspect select
menu. Keep pressing will change aspect ratios. See
page 46.
8. NO SHOW Button
This button turns off the image and sound for a
short period of time. Press again to restore the im-
age and sound. See page 34.
9. MENU Button
Displays the menu for various settings and adjust
-
ments. See page 40, 41.
0. SELECT
(Mouse) Button
See page 40.
: Use these buttons to select the menu of the
item you wish to adjust.
: Use these buttons to change the level of a
selected menu item. A press of the button
executes the selection.
When an image is magnied, the SELECT
button moves the image. See page 34.
This button also works as a computer mouse when
the supplied remote mouse receiver is connected
with your computer. See page 36. (This button can-
not be used as a computer mouse for LV-X7.)
9
BACK
R
-
CLICK
L
-
CLICK
VOL
FREEZE
D.ZOOM
PAGE
MENU
POWER
RD-428E
INPUT
ASPECT
INFO.
NO
SHO
W
AUTO PC
1
2
4
6
7
8
3
5
13
11
15
14
12
17
18
16
9
10
. Introduction
. OK Button
Use this button to enter your menu selection. It
works the same way as the OK button on the cabi-
net. See page 6.
2. BACK Button
It works the same way as the BACK button on the
cabinet. See page 6.
3. L-CLICK Button
(This button cannot be used for LV-X7.)
This button works as the mouse left button when
the supplied remote mouse receiver is connected
with your computer. See page 36.
. R-CLICK Button
(This button cannot be used for LV-X7.)
This button works as the mouse right button when
the supplied remote mouse receiver is connected
with your computer. See page 36.
5. VOL (+) (–) Button
Press (+) to increase the volume and (–) to de-
crease it. See page 31.
6. PAGE
▲/▼ Button
(This button cannot be used for LV-X7.)
Use these buttons to operate your computer with
the supplied remote mouse receiver. See page 36.
You can use these buttons to scroll the viewing
area of the window or to move to the previous or
next slide in PowerPoint on your computer.
7. D. ZOOM (+) (–) Button
Use this button to adjust the image size up to
400%.
The image is magnified about the center of the
screen. See page 34.
8. FREEZE Button
This button will freeze a picture. Press again to re-
sume motion. See page 34.
0
. Introduction
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not heat, take apart, or throw batteries into re.
• Ensure that you have the batteries' polarity (+/-) aligned correctly.
• If you will not be using the remote control for a long time, remove the batteries.
• Do not place the batteries upside down.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.
Operating Range for Wireless Remote Control
Battery Installation
Press rmly and slide the
battery cover off.
2
Remove both old batteries and
install new ones (AAA). Ensure
that you have the batteries' po-
larity (+/–) aligned correctly.
3
Slip the cover back over the bat-
teries until it snaps into place. Do
not mix different types of batter-
ies or new and old batteries.
• The infrared signal operates by line-of-sight up to a distance of about 7 m (22 feet) and within a 60-degree
angle of the remote sensor on the projector cabinet.
• The projector will not respond if there are objects between the remote control and the sensor, or if strong light
falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.
NOTE: The LV-7260 and LV-X7 do not have the remote sensor on the rear panel.
30°
30°
30°
30°
30°
30°
30°
30°
Horizontal range Vertical range
This section describes how to set up your projector and how to connect video and audio sources.
2. Installation and Connections
Your projector is simple to set up and use. But before you get started, you must rst:
① Set up a screen and the projector. See page 12, 13.
② Connect your computer or video equipment to the projector. See pages 15, 16, 17, 18, 19, 20, 21, 22.
③ Connect the supplied power cord. See page 23.
NOTE: Ensure that the power cord and any other cables are disconnected before moving the projector. When moving the projec-
tor or when it is not in use, cover the lens with the lens cap.
2
2. Installation and Connections
❶
Setting Up the Screen and the Projector
Selecting a Location (LV-7365/LV-7265)
The further your projector is from the screen or wall, the larger the image. The minimum size the image can be
is approximately 25" measured diagonally when the projector is roughly 1.1 m (3.5’) from the wall or screen. The
largest the image can be is 300" when the projector is about 8.4 m (27.6’) from the wall or screen. Use the drawing
below as a guide.
200"
128"
190"
150"
96"
80"
50"
40"
25"
300"
H1
H2
8.4m
5.6m
4.2m
2.2m
1.1m
Zoom (max.)
Zoom (min.)
Optional axis when image is projected
at right angle to the screen.
Throw Distance and Screen Size
Screen
H1 and H2: H1 is the height of the screen from the intersection of optical axis and screen surface, and H2 is the
height of the intersection when an image is projected at right angle to the screen.
Screen size (W×H) cm
25”
51×38
30”
61×46
40”
81×61
60”
122×91
80”
163×122
100”
203×152
150”
305×229
180”
366×206
200”
406×305
250”
508×381
300”
610×457
Projection distance
Zoom (max)
– –
1.1m
(3.6’)
1.7m
(5.4’)
2.2m
(7.3’)
2.8m
(9.1’)
4.2m
(13.7’)
5.0m
(16.5’)
5.6m
(18.3’)
7.0m
(22.9’)
8.4m
(27.6’)
Projection distance
Zoom (min)
1.1m
(3.5’)
1.3m
(4.2’)
1.7m
(5.6’)
2.6m
(8.5’)
3.5m
(11.4’)
4.3m
(14.3’)
6.5m
(21.4’)
7.9m
(25.8’)
– – –
H1
32cm
(1.1’)
39cm
(1.3’)
51cm
(1.7’)
77cm
(2.5’)
103cm
(3.4’)
129cm
(4.2’)
193cm
(6.3’)
231cm
(7.6’)
257cm
(8.4’)
321cm
(10.5’)
386cm
(12.7’)
H2
6cm
(0.2’)
7cm
(0.2’)
10cm
(0.3’)
14cm
(0.5’)
19cm
(0.6’)
24cm
(0.8’)
36cm
(1.2’)
43cm
(1.4’)
48cm
(1.6’)
60cm
(2.0’)
71cm
(2.3’)
3
2. Installation and Connections
Selecting a Location (LV-7260/LV-X7)
The further your projector is from the screen or wall, the larger the image. The minimum size the image can be
is approximately 25" measured diagonally when the projector is roughly 1.1 m (3.6’) from the wall or screen. The
largest the image can be is 300" when the projector is about 8.8 m (28.9’) from the wall or screen. Use the draw-
ing below as a guide.
NOTE:
This projector can be hung from the ceiling (Ceiling mounted) with it turned up side down.
When a translucent screen is used, the projector can project an image from behind the screen (Rear).
When the projector is hung from the ceiling or projector projects an image from behind the screen, the image must be inverted
vertically or horizontally. See page 50.
• When hanging the projector from the ceiling, optional brackets (part No. LV-CL11) are required.
TIP:
• For the relationship between the screen size and projection distance, see the table on page
69, 70.
• The sizes in the above table have been obtained assuming that the aspect ratio is 4:3. They may vary from the actual sizes
depending on the type of the projected image.
• The Zoom lever adjusts the image size (diagonal) +/- 30%.
200"
128"
190"
150"
96"
80"
50"
40"
26"
25"
300"
H1
H2
8.8m
5.9m
4.4m
2.3m
1.2m
1.1m
Zoom (max.)
Zoom (min.)
Optional axis when image is projected
at right angle to the screen.
Throw Distance and Screen Size
Screen
H1 and H2: H1 is the height of the screen from the intersection of optical axis and screen surface, and H2 is the
height of the intersection when an image is projected at right angle to the screen.
Screen size (W x H cm)
25”
51 x 38
30”
61 x 46
40”
81 x 61
60”
122 x 91
80”
163 x 122
100”
203 x 152
150”
305 x 229
180”
366 x 206
200”
406 x 305
250”
508 x 381
300”
610 x 457
Projection distance
Zoom (max)
– –
1.2 m
(3.8’)
1.7 m
(5.7’)
2.3 m
(7.7’)
2.9 m
(9.6’)
4.4 m
(14.4’)
5.3 m
(17.3’)
5.9 m
(19.3’)
7.3 m
(24.1)
8.8 m
(28.9’)
Projection distance
Zoom (min)
1.1 m
(3.6’)
1.3 m
(4.4’)
1.8 m
(5.9’)
2.7 m
(8.9’)
3.6 m
(12.0’)
4.6 m
(15.0’)
6.9 m
(22.5’)
8.3 m
(27.1’)
– – –
H1
33 cm
(1.1’)
39 cm
(1.3’)
52 cm
(1.7’)
78 cm
(2.6’)
105 cm
(3.4’)
131 cm
(4.3’)
196 cm
(6.4’)
235 cm
(7.7’)
262 cm
(8.6’)
327 cm
(10.7’)
392 cm
(12.9’)
H2
5 cm
(0,2’)
6 cm
(0.2’)
9 cm
(0.3’)
13 cm
(0.4’)
17 cm
(0.6’)
22 cm
(0.7’)
32 cm
(1.1’)
39 cm
(1.3’)
43 cm
(1.4’)
54 cm
(1.8’)
65 cm
(2.1’)
2. Installation and Connections
WARNING
• Installing your projector on the ceiling must be done
by a qualified technician. Contact your dealer for
more information.
• Do not attempt to install the projector yourself.
• Only use your projector on a solid, level surface. If
the projector falls to the ground, you can be injured
and the projector severely damaged.
• Do not use the projector where temperatures vary
greatly. The projector must be used at temperatures
between 41˚F (5˚C) and 104˚F (40˚C). (Quiet mode
selected automatically at 95°F to 104°F/35°C to 40°
C).
• Do not expose the projector to moisture, dust, or
smoke. This will harm the screen image.
• Ensure that you have adequate ventilation around
your projector so heat can dissipate. Do not cover
the vents on the side or the front of the projector.
Reecting the Image
Using a mirror to reflect your projector's image en-
ables you to enjoy a much larger image. Contact your
dealer if you need a mirror system. If you're using a
mirror system and your image is inverted, use the
MENU and SELECT buttons on your projec-
tor cabinet or your remote control to correct the orien-
tation. See page 50.
5
2. Installation and Connections
❷
Making Connections
NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby
mode and before turning on the power to the notebook PC.
In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered
up.
* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power man
-
agement software.
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
ANALOG IN-1
DIGITAL IN/
ANALOG IN-2
AUDIO IN
PHONE
PHONE
Connecting Your PC or Macintosh Computer (LV-7365/LV-7265)
NOTE: The ANALOG IN- 1 connector supports Plug & Play (DDC2).
NOTE: For older Macintosh, use a
commercially available pin adapter
(not supplied) to connect to your
Mac's video port.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Enabling the computer’s external display
Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector.
When using a PC compatible laptop, a combination of function keys will enable/disable the external display.
Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come
on or off. For more details, refer to your computer’s owner’s manual.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available
scan converter.
This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following.
* When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly:
Project an image to fill the screen and then press the AUTO PC button on the remote control or the projector cabinet.
6
2. Installation and Connections

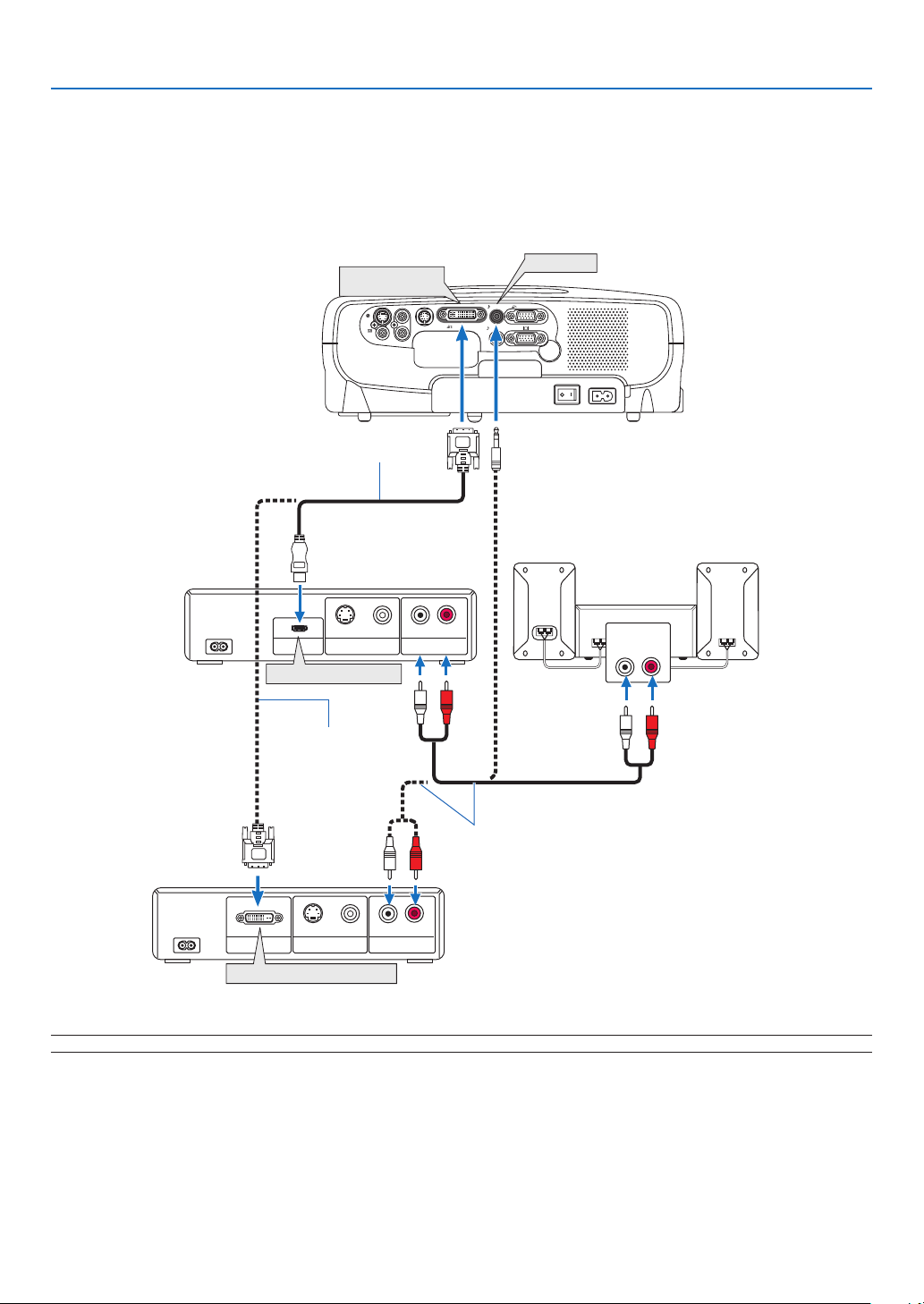

Using Two Analog COMPUTER Inputs Simultaneously (LV-7365/LV-7265)
If you need to use two analog inputs simultaneously, connect a VGA cable as shown below.
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
DIGITAL IN /
ANALOG IN-2
ANALOG IN-1
NOTE: When the DVI to VGA adapter is not to be used for an extended period of time, remove it from the projector. Failure to do
so may cause damage to the connector of the projector.
7
2. Installation and Connections
When Viewing a DVI Digital Signal (LV-7365/LV-7265)
To project a DVI digital signal, be sure to connect the PC and the projector using a DVI digital cable (not supplied)
before turning on your PC or projector. Turn on the projector rst and select Computer 2 (Digital) from the source
menu before turning on your PC.
Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed.
Should this happen, restart your PC.
Do not disconnect the DVI digital cable while the projector is running. If the signal cable has been disconnected
and then reconnected, an image may not be correctly displayed. Should this happen, restart your PC.
NOTE:
• Use a DVI digital cable or the one compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revi
-
sion 1.0 standard. The DVI digital cable should be within 5 m (196") long. Both single and dual types of DVI digital cable can
be used.
• The DVI (DIGITAL) connector accepts VGA (640x480), SVGA (800x600), 1152x864, XGA (1024x768), SXGA (1280x1024 @ up
to 60Hz) and SXGA+ (1400x1050 @ up to 60Hz).
8
2. Installation and Connections
Connecting Your PC or Macintosh Computer (LV-7260/LV-X7)
NOTE: The ANALOG IN connector supports Plug & Play (DDC2).
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN
ANALOG IN
AUDIO IN
PHONE
PHONE
NOTE: For older Macintosh, use
a commercially available pin
adapter (not supplied) to connect
to your Mac's video port.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available
scan converter.
This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following.
• When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly:
Project an image to fill the screen and then press the AUTO PC button on the remote control or the projector cabinet.
9
2. Installation and Connections
Connecting an External Monitor
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
ANALOG IN 1
AUDIO IN
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN
You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB ana-
log image you're projecting.
NOTE: Daisy chain connection is not possible.
NOTE:
• The signal from the DIGITAL IN/ANALOG IN-2 connector cannot be output from the Monitor Output connector on LV-7365/
LV-7265.
• When the Computer 2 (Digital) signal is selected, no signals will be output from the Monitor Output connector on LV-7365/
LV-7265.
• The LV-7260 and LV-X7 do not have the AUDIO OUT connector.
• Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
LV-7260/LV-X7
LV-7365/LV-7265
20
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
AUDIO IN
L R
AUDIO OUT
L R
Component
Y Cb Cr
ANALOG IN-1
AUDIO IN
2. Installation and Connections
A component signal will be automatically displayed. If not, from the menu, select [Setup]
→
[Input signal select]
→
[Computer 1] or [Computer 2 (Analog)] ([Computer] on LV-7260/LV-X7)
→
[COMPONENT].
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.
Connecting Your DVD Player with Component Output
Use audio equipment for stereo sound.
2
2. Installation and Connections
AUDIO IN
L R
AUDIO OUT
L R
VIDEO OUT
S-VIDEO VIDEO
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
VIDEO IN
AUDIO IN
S-VIDEO IN
Connecting Your VCR or Laser Disc Player
NOTE: The AUDIO IN L/MONO and R jacks (RCA) are shared between the Video and S-Video inputs.
NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output require-
ments.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via
a scan converter.
22
Connecting a Digital Video Signal (LV-7365/LV-7265)
To project a source from audio video equipment with a digital video output such as an HDMI or DVI connector,
use a commercially available HDMI-to-DVI cable or the optional DVI digital cable to connect the Computer 2 input
[DIGITAL IN/ANALOG IN-2] connector of the projector as shown below.
To output the sound in stereo, connect to audio equipment.
2. Installation and Connections
AUDIO IN
L R
AUDIO OUT
L R
VIDEO OUT
HDMI OUT
S-VIDEO VIDEO
AUDIO OUT
L R
VIDEO OUT
S-VIDEO VIDEO
DVI OUT
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
AUDIO IN
DIGITAL IN/
ANALOG IN-2
AUDIO IN
(LV-7365 / LV-7265)
NOTE: An image may not be displayed depending on the specifications of the audio video equipment being used.
TIP: For users of audio video equipment with an HDMI connector:
Select “Enhanced” rather than “Normal” if HDMI output is switchable between “Enhanced” and “Normal”.
This will provide improved image contrast and more detailed dark areas.
For more information on settings, refer to the instruction manual of the audio video equipment to be connected.
23
2. Installation and Connections
M
EN
U
B
AC
K
KE
Y
S
TO
NE
WA
RNIN
G
P
O
W
E
R
A
U
T
O
P
C
INPUT
VO
L
-
V
O
L
+
L
A
M
P
A
U
D
IO
IN
A
U
D
I
O
O
U
T
A
N
A
L
O
G
IN
-
1
D
IG
IT
A
L
I
N
/
A
N
A
L
O
G
IN
-
2
S
-
V
I
D
E
O
I
N
V
I
D
E
O
I
N
SER
V
ICE PO
RT
R
L
A
U
D
I
O
I
N
Connecting the Supplied Power Cord
Connect the supplied power cord to the projector.
First connect the supplied power cord's two-pin plug to the AC IN of the projector, and then connect the other plug
of the supplied power cord in the wall outlet.
←
CAUTION:
Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated
while
the projector is turned on and immediately after the projector is turned off.
CAUTION:
Do not turn off the AC power by pressing the main power switch or by unplugging the power cord when the
projector is powered on. Doing so can cause damage to the projector.
TIP: The projector can be turned off (by either the main power switch or by unplugging the power cord)
during its cool down period after it is turned off using the remote control or via the power button on the control panel.
2
3.
Projecting an Image (Basic Operation)
This section describes how to turn on the projector and to project a picture onto the screen.
❶
Turning on the Projector
NOTE:
• The projector has two power switches: a main power switch and a POWER button.
• When plugging in or unplugging the supplied power cord, make sure that the main power switch is pushed to the off (
) po-
sition. Failure to do so may cause damage to the projector.
WARNING
LAMP
1. Toturnonthemainpowertotheprojector,pressthe
MainPowerswitchtotheonposition(I).
• The POWER indicator will light orange.
See the Power Indicator section on page 61 for more
details.
3.PressthePOWERbuttonontheprojectorcabinetor
thePOWERbuttonontheremotecontrolforabout1
second.
The POWER indicator will turn to green and the projec
-
tor will become ready to use.
After you turn on your projector, ensure that the com-
puter or video source is turned on and that your lens
cap is removed.
NOTE: If you turn on the projector immediately after the lamp is
turned off or when the temperature is high, the fans runs without
displaying an image for some time and then the projector will dis-
play the image.
MENU
BACK
KEYSTONE
WARNING
P
O
W
E
R
AUTO PC
INPUT
VOL
-
VOL
+
LAMP
POWER
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
WARNING
LAMP
WARNING
LAMP
WARNING
LAMP
Standby Blinking Power On
S tea d y or-
ange light
Blinking
green light
Steady
green light
See page 61 for more details.
2.Removethelenscap.
CAUTION:
The projector cannot be turned off for 60 seconds after
the lamp is turned on and while the POWER indica-
tor is blinking green. Doing so could cause premature
lamp failure.
M
E
N
U
B
A
C
K
K
E
Y
S
T
O
N
E
W
A
R
N
I
N
G
P
O
W
E
R
A
U
T
O
P
C
I
N
P
U
T
L
A
M
P
V
O
L
-
V
O
L
+
25
VOL
-
VOL
+
MENU
BACK
KEYSTONE
3. Projecting an Image (Basic Operation)
Note on Startup screen (Menu Language Select screen)
When you rst turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select
one of the 21 menu languages.
To select a menu language, follow these steps:
1. UsetheSELECT or buttontoselectone
ofthe21languagesforthemenu.
POWER
BACK
INPUT
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
2.PresstheOKbuttontoexecutetheselection.
After this has been done, you can proceed to the menu op-
eration.
If you want, you can select the menu language later. See
"Language" on pages 43 and 49.
MENU
BACK
KEYSTONE
VOL
-
VOL
+
POWER
BACK
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
NOTE: Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp
lighting is stabilized.
When the Lamp mode is set to Quiet, the LAMP indicator will light green.
If one of the following things happens, the projector will not turn on.
• If the internal temperature of the projector is too high, the projector will not turn on to protect the internal system.
Please wait for the projector's internal components to cool down.
• When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.
• If the lamp fails to light, and if the WARNING indicator ashes on and off in a cycle of six times, wait a full min
-
ute and then turn on the power.
26
3. Projecting an Image (Basic Operation)
❷
Selecting a Source
Selecting the computer or video source
MENU
BACK
KEYSTONE
WARNING
P
O
W
E
R
AUTO PC
INPUT
VOL
-
VOL
+
LAMP
POWER
BACK
INPUT
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
NOTE: Turn on the computer or video source equipment connected to the pro-
jector.
Selecting from INPUT List
Press and quickly release the INPUT button on the projector cabinet
to display the Source list. Each time the INPUT button is pressed,
the input source will change as follows: “Computer 1”, “Computer 2
(Digital/Analog) [LV-7365/LV-7265]”, “Video”, "S-Video", To display the
selected source, allow 1 second to elapse.
Detecting the Signal Automatically
Press and hold the INPUT button for a minimum of 2 seconds, the
projector will search for the next available input source. Each time you
press and hold the INPUT button for a minimum of 2 seconds, the in-
put source will change as follows:
LV-7365/LV-7265
Computer 1
→
Computer 2 (Digital)
→
Computer 2 (Analog)
→
Video
→
S-Video
→
Computer1
→
...
LV-7260/LV-X7
Computer
→
Video
→
S-Video
→
Computer
→
...
TIP: If no input signal is present, the input will be skipped.
TIP: The COMPUTER 2 button on the remote control toggles the Computer 2
source between [Computer 2 (Digital)] and [Computer 2 (Analog)].
Selecting Default Source
You can set a source as the default source so that it will be displayed each time the projector is turned on.
1. Select [Setup]
→ [Options] → [Default
sourceselect]fromthemenu.
2. Select a source as the default source, and
presstheOKbutton.
3.PresstheBACKbuttonafewtimestoclose
themenu.
4.Restarttheprojector.
→
[Menu example for LV-7365]
27
3. Projecting an Image (Basic Operation)
Place your projector on a at level surface and ensure that the projector is
square to the screen.
Lift the front edge of the projector to center the image vertically.
• If the projected image does not appear square to the screen then use
the Keystone feature for proper adjustment. See page 29 to 30.
❸
Adjusting the Picture Size and Position
Adjust the Tilt Foot
1. Liftthefrontedgeoftheprojector.
CAUTION:
Do not try to touch the ventilation outlet during Tilt Foot adjustment as
it can become heated while the projector is turned on and during its
cool down period after it is turned off.
2.Pushandholdtheadjustabletiltfootlockbuttononthefrontofthe
projectortoextendtheadjustabletiltfoot.
M
E
N
U
B
A
C
K
K
E
Y
S
T
O
N
E
W
A
R
N
I
N
G
P
O
W
E
R
A
U
T
O
P
C
I
N
P
U
T
L
A
M
P
V
O
L
-
V
O
L
+
2
1
M
E
N
U
B
A
C
K
K
E
Y
S
T
O
N
E
W
A
R
N
IN
G
P
O
W
E
R
A
U
T
O
P
C
I
N
P
U
T
L
A
M
P
V
O
L
-
V
O
L
+
4
3
Move the projector left to center the image horizontally on the screen.
3.Lowerthefrontoftheprojectortothedesiredheight.
4.Releasetheadjustabletiltfootlockbuttontolocktheadjustabletilt
foot.
There is approximately 10 degrees (up) of adjustment for the front of the
projector.
5. Therearfootheightcanbeadjustedupto10mm/0.4inch.
Rotate the rear foot to the desired height in order to square the image on
the projection surface, but the vertical distance from the bottom to the
desk or oor should be 10 mm/0.4 inch to make the projector horizontal
on the at surface.
NOTE: Rotating the rear foot too much may cause the foot to come out of the pro-
jector.
CAUTION:
Do not use the tilt-foot for purposes other than originally intended.
Misuses such as using the tilt foot to carry or hang (from the wall or
ceiling) the projector can cause damage to the projector.
28
3. Projecting an Image (Basic Operation)
Focus
Use the FOCUS ring to obtain the best
focus.
Zoom
Use the ZOOM lever to nely adjust the im-
age size on the screen.
29
3. Projecting an Image (Basic Operation)
❹
Correcting Keystone Distortion
Correcting Keystone Distortion
If the screen is tilted vertically, keystone distortion becomes large. Proceed with the following
steps to correct keystone distortion
NOTE: The Keystone correction can cause an image to be slightly blurred because the correction is made electronically.
NOTE: The Keystone correction range can be made narrower, depending on a signal or its aspect ratio selection.
NOTE: Turning off the projector will cause your manual keystone adjustments to return to "0". To save your manual keystone ad-
justments, select [Keystone save] from the menu. See page 48.
Adjusting with buttons on the cabinet
1. PresstheSELECTor buttonwithnomenusdisplayed
2.UsetheSELECT
or tocorrectthekeystonedistortion.
NOTE: When the menu is displayed, the above operation is not available. When the menu is displayed, press the MENU button to
close the menu and start the Keystone correction.
From the menu, select [Setup]
→
[General]
→
[Keystone adjustment]. The changes can be saved with [Keystone save]. (
→
page 48)
Adjusting with the Remote Control
1. PresstheMENUbutton.
2.PresstheSELECT
buttontoselect[Setup]andpresstheOKorSELECT button.
3.PresstheSELECT
buttontoselect[Keystoneadjustment]fromthe[General]tab.
4.PresstheSELECT
or button.
5. PresstheMENUbutton.
The menu will be closed.
TIP: The changes can be saved with [Keystone save]. (
→
page 48)
30
3. Projecting an Image (Basic Operation)
Adjusting with the Auto Keystone Function (LV-7365/LV-7265)
The Auto Keystone correction feature will correct the vertical distortion of a projected image on the screen. No
special operation required. Just put the projector on a at surface.
TIP: Even when the menu setting for [Auto keystone] is turned on, [Keystone adjustment] can be adjusted manually.
To turn on [Auto keystone], proceed the following steps.
1. PresstheMENUbutton
2.PresstheSELECT
buttontoselect[Setup]andpresstheOKbutton.
3.PresstheSELECT
button.
4.PresstheSELECT or buttontoselect[On].
5. PresstheMENUbutton.
NOTE:
• Vertical distortions between offset angles of +/- 30 degrees can be corrected.
• The Auto Keystone correction will take effect in 2 seconds after changing the projection angle during projection.
• The left and right (horizontal) keystone correction is not available.
Place the projector so that the lens surface is parallel to the screen.
The rear feet of the projector can be adjusted to level the projector.
NOTE:
• Auto and Manual Keystone correction angle could be less than 30 degrees depending on the signal and/or aspect ratios.
• Using keystone correction can cause the image to be slightly blurred because the correction is made electronically.
NOTE:
• When the menu is displayed, the Keystone Correction operation is not available by using the buttons on the projector cabinet.
When the menu is displayed, press the BACK button to close the menu and then perform the Keystone correction.
• From the menu, select [Setup]
→ [General] → [Keystone adjustment]. The changes can be saved with [Keystone save].
(
→ page 48)
NOTE: If you have one of the following conditions, the projector's Auto
Keystone may not be performed correctly.
- the screen is tilted
- the room temperature is too high or too low
- the optical zoom is maximized or minimized
3
3. Projecting an Image (Basic Operation)
❺
Automatically Optimizing on RGB Image
Adjusting the Image Using Auto PC adjustment
Optimizing an RGB image automatically.
Press the AUTO PC button to optimize an RGB image automatically.
AUTO PC
MENU
BACK
KEYSTONE
WARNING
P
O
W
E
R
AUTO PC
INPUT
VOL
-
VOL
+
LAMP
POWER
BACK
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
Press the AUTO PC button to ne-tune the computer image or to remove any vertical banding that might appear
and to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be
shimmering). This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This
function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident when
part of your image appears to be shimmering.)
This adjustment may be necessary when you connect your computer for the rst time.
NOTE:
Some signals may not be displayed correctly or take time.
• LV-7365/LV-7265: The Auto PC adjustment function does not work for component, video, and DVI digital signals.
• LV-7260/LV-X7: The Auto PC adjustment function does not work for component and video signals.
• If the Auto PC adjustment operation cannot optimize the RGB signal, try to adjust Horizontal/Vertical Position Clock and
Tracking manually. See page 47.
❻
Turning Up or Down Volume
R
-
CLICK
L
-
CLICK
FREEZE
D.ZOOM
PAGE
VOL
Sound level from the speaker can be adjusted.
TIP: When no menus appear, the SELECT and buttons on the projector cabinet work as a volume control.
VOL
-
VOL
+
MENU
BACK
KEYSTONE
32
❼
Turning off the Projector
To turn off the projector:
3. Projecting an Image (Basic Operation)
MENU
BACK
KEYSTONE
WARNING
P
O
W
E
R
AUTO PC
INPUT
VOL
-
VOL
+
LAMP
POWER
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
1. PressthePOWERbuttonontheprojectorcabinetor
the remote control. The “Push POWER buttonagain
toturnoffpower.”messagewillappear.
WARNING
LAMP
WARNING
LAMP
WARNING
LAMP
Power On Fan running Standby
Steady
green light
Blinking
orange light
Steady
orange light
CAUTION:
Parts of the projector will become heated during opera-
tion. Use caution when picking up the projector immedi-
ately after it has been operating.
CAUTION:
• The projector cannot be turned off for 60 seconds
after the lamp is turned on and while the POWER
indicator is blinking green. Doing so could cause pre-
mature lamp failure.
• Do not turn off the AC power by pressing the main
power switch or by unplugging the power cord when
the projector is powered on. Doing so can cause
damage to the projector.
2.Press the OK button or pressthePOWERbutton
again.
ThePOWERindicatorwillgloworange.Afterthepro
-
jector turns off, the cooling fans keep operating for
30seconds(Cooling-offtime).
Immediately after turning on the projector and dis
-
playing an image, you cannot turn off the projector
for60seconds.
3.TurnofftheMainPowerswitch.Thepowerindicator
willgoout.
TIP: The main power of the projector can be turned off by pressing
the main power switch or by unplugging the power cord even
during the cool down period after the projector is turned off.
NOTE: Do not turn off the main power within 10 seconds of making
adjustment or setting changes and closing the menu.
Doing so can cause loss of adjustments and settings.
33
❽
After Use
Preparation: Make sure that the projector is turned off.
1. Unplugthepowercord.
2.Disconnectanyothercables.
3.Retractadjustabletiltfeetifextended.
4.Coverthelenswiththelenscap.
5. Puttheprojectoranditsaccessoriesinthesuppliedsoftcase.
NOTE: When placing the projector in the soft case, retract the tilt feet and the rear feet. Failure to do so may case damage to the
projector.
CAUTION:
Use caution when putting the projector in the soft case immediately after the projector has been operating.
The projector cabinet is hot.
3. Projecting an Image (Basic Operation)
3
POWER
BACK
INPUT
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
4. Convenient Features
❶
Turning off the Image and Sound
Press the NO SHOW button to turn off the image and sound for a
short period of time. Press again to restore the image and sound.
POWER
BACK
INPUT
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
❷
Freezing a Picture
Press the FREEZE button to freeze a projected moving picture such
as DVD. Press again to resume motion.
❸
Enlarging and Moving a Picture
POWER
BACK
R
-
CLICK
L
-
CLICK
VOL
FREEZE
PAGE
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
D.ZOOM
You can enlarge the picture up to 400 percent.
NOTE: The maximum magnification may be less than four times depending on
the signal.
To do so:
1. PresstheD.ZOOM(+)buttontomagnifythepicture.
Tomovethemagnifiedimage,usetheSELECT
button.
2.Returntheimagetotheoriginalsize.
R
-
CLICK
L
-
CLICK
VOL
D.ZOOM
PAGE
FREEZE
POWER
BACK
R
-
CLICK
L
-
CLICK
VOL
FREEZE
PAGE
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
D.ZOOM
35
. Convenient Features
❹
Using the Remote Mouse Receiver
(LV-7365/LV-7265/LV-7260)
The remote mouse receiver enables you to operate your computer’s mouse functions from the remote control. It is
a great convenience for clicking through your computer-generated presentations.
Connecting the remote mouse receiver to your computer
If you wish to use the remote mouse function, connect the mouse receiver and computer.
The mouse receiver can be connected directly to the computer’s USB port (type A).
NOTE: Depending on the type of connection or OS installed on your computer, you may have to restart your computer or change
your computer settings.
30°
30°
When operating a computer via the remote mouse receiver
When connecting using the USB terminal
For PC, the mouse receiver can only be used with a Windows 98/Me/XP*, Windows 2000, Windows Vista or Mac
OS X 10.0.0 or later operating system.
* NOTE: In SP1 or older version of Windows XP, if the mouse cursor will not move correctly, do the following:
Clear the Enhance pointer precision check box underneath the mouse speed slider in the Mouse Properties dialog box [Pointer
Options tab].
NOTE: Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may
not identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals.
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not heat, take apart, or throw batteries into re.
• Ensure that you have the batteries' polarity (+/-) aligned correctly.
• If you will not be using the remote control for a long time, remove the batteries.
• Do not place the batteries upside down.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.
36
. Convenient Features
Operating your computer’s mouse from the remote control
You can operate your computer's mouse from the remote control.
PAGE ▲/▼ Button..................scrolls the viewing area of the window or to move to the previous or next slide in
PowerPoint on your computer.
/ Mouse Buttons ......moves the mouse cursor on your computer.
L-CLICK Button ......................works as the mouse left button.
R-CLICK Button .....................works as the mouse right button.
About Drag Mode
By pressing the L-CLICK or R-CLICK button for 2 or 3 seconds then releasing, the drag mode is set and the
drag operation can be performed simply by pressing the SELECT button. To drop the item, press the
L-CLICK (or R-CLICK) button. To cancel it, press the R-CLICK (or L-CLICK) button.
NOTE: When you operate the computer using the SELECT or button with the menu displayed, both the menu and the
mouse pointer will be affected. Close the menu and perform the mouse operation.
TIP: You can change the Pointer speed on the Mouse Properties dialog box on the Windows. For more information, see the user
documentation or online help supplied with your computer.
37
. Convenient Features
❺
Preventing the Unauthorized Use of the Projector
A password can be set for your projector to avoid operation by an unauthorized user using the Menu. When a
password is set, turning on the projector will display the password input screen. Unless the correct password is
entered, the projector cannot project an image.
To enable the Password function:
1. PresstheMENUbutton.
2.UsetheSELECT
or buttontoselect[Setup]andpresstheOKorSELECT button.
3.UsetheSELECT
or buttontoselect[Installation].
4.UsetheSELECT
or buttontoselect[Password]andpresstheOKorSELECT button.
5. UsetheSELECT
or buttontoselect[On]andpresstheOKbutton.
6.TypeinacombinationofthefourSELECTbuttons
andpresstheOKbutton.
NOTE: A password must be 4 to 10 digits in length. Please make a note of your password.
[Menu example for LV-7365]
[Menu example for LV-7365]
38
NOTE: Do not forget your password. If you forget your password, contact your dealer.
7. TypeinthesamecombinationofSELECTbutton
andpresstheOKbutton.
8.Select[Yes]andpresstheOKbutton.
To turn on the projector when Password is enabled:
1. PresstheMainPowerSwitchtotheOnposition(I).
2.PressandholdthePOWERbuttonforabout1second.
3.PresstheMENUbutton.
4.EnteryourpasswordinthePasswordscreenandpresstheOKbutton.
NOTE: The password disable mode is maintained until the main power is turned off (by setting the main power switch to "O"
or unplugging the power cord). Turning off the main power and turning it back on will require password entry.
To disable the Password function:
1. PresstheMENUbutton.
2.UsetheSELECT
or buttontoselect[Setup]andpresstheOKorSELECT button.
3.UsetheSELECT
or buttontoselect[Installation].
. Convenient Features
39
4.UsetheSELECTor buttontoselect[Password]andpresstheOKorSELECT button.
5. UsetheSELECT
or buttontoselect[off]andpresstheOKbutton.
6.TypeinyourpasswordandpresstheOKbutton.
NOTE:
• If you forget your password, contact your dealer.
• The [Password] setting cannot be cancelled by using the [Reset] of the menu.
. Convenient Features
[Menu example for LV-7365]
0
❶
Using the Menus
NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.
1. PresstheMENUbuttonontheremotecontrolorprojectorcabinettodisplaytheMenu.
5. Using On-Screen Menu
POWER
BACK
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
2.PresstheSELECT or buttonontheremotecontrolortheprojectorcabinettohighlightthemenu
fortheitemyouwanttoadjustorset.
POWER
BACK
INPUT
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
3.PresstheSELECT buttonortheOKbuttonontheremotecontrolortheprojectorcabinettoselecta
submenuoritem.
POWER
BACK
INPUT
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
5. Using On-Screen Menu
POWER
BACK
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
POWER
BACK
INPUTIMAGE
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
POWER
BACK
INPUT
ASPECT
INFO.
MENU
NO
SHO
W
AUTO PC
4.Use the SELECT or button on the remote control or the
projectorcabinettoselecttheitemyouwanttoadjustorset.
5. Adjustingthelevelofaselecteditemorselectinganitem.
ForAdjustingitems(Slidebar)
Slide bar ...............Indicates settings or the direction of adjustment.
• Use the SELECT buttons to adjust the item.
ForSelectingitems(Solidtriangle)
Solid triangle ........Indicates further choices are available. A high-
lighted triangle indicates the item is active.
(1) Use the SELECT
button to select the item.
(2) Use the SELECT
buttons to highlight the item you want to
set.
(3) Press the OK button. The selected item will be displayed.
ForSelectingitems(Radiobutton)
Radio button ........Use this round button to select an option in a dia-
log box.
• Use the SELECT buttons to select the item.
Changes are stored until you adjust it again.
Press the BACK button to return to the previous screen.
6.Repeatsteps2-5toadjustanadditionalitem,orpresstheMENU
buttontoclosethemenu.
2
5. Using On-Screen Menu
❷
Menu Elements
Menu windows or dialog boxes typically have the following elements:
Title .......................................................Indicates the menu title.
Highlight ................................................Indicates the selected menu or item.
Source ...................................................Indicates the currently selected source.
Remaining countdown time ..................Indicates the remaining countdown time when the Off Timer is preset.
Slide bar ................................................Indicates settings or the direction of adjustment.
Tab .........................................................Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.
Radio button .........................................Use this round button to select an option in a display box.
Solid triangle .........................................Indicates further choices are available. A highlighted triangle indicates the item is
active.
Key symbol ............................................Indicates the Key Lock is enabled.
Thermometer symbol ...........................Indicates the lamp is forcibly being cooled down because the internal temperature is
too high.
High altitude symbol (LV-7365 only) .......Indicates the [Fan mode] is set to [High altitude] mode.
[Menu example for LV-7365]
3
5. Using On-Screen Menu
❸
List of Menu Items
Image adjustment Default Item
Image mode 1: Standard, 2: Presentation, 3: Cinema, 4: Video, 5: sRGB
Detail settings General
Reference Standard, Presentation, Cinema, Video, sRGB
Gamma Dynamic, Natural, Black detail
Color temperature XLow, Low, Mid, High
White balance
Brightness RGB, Contrast RGB
Brightness
Contrast
Sharpness
Color level
Color balance
Reset
Display settings Default Item
Aspect * Normal, Wide zoom, Cinema, True size
Cinema position
Horizontal position *
Vertical position *
Clock *
Tracking *
Video lter Off Off, Less, More
Setup Default Item
General
Auto keystone (LV-7365/LV-7265)
On Off, On
Keystone adjustment
Keystone save Off Off, On
Screen color Off Off, Greenboard, Greenboard(Gray), Light yellow,
Light green, Light blue, Sky blue, Light rose, Pink
Lamp mode Normal Normal, Quiet
Language English English, Deutsch, Français, Italiano, Español,
Português, Nederlands, Svenska, Norsk, Suomi,
Čeština
, Magyar, Polski, Türkçe, Pyccкий,
Eληνικά
,
日本語
,
中文
,
한국어
, , Dansk
Beep On Off, On
Installation Image ip H/V None None / Rear, Ceiling mounted / Rear /
Ceiling mounted
Communication speed 19200bps 4800bps, 9600bps, 19200bps
Key lock Off Off, On
Password Off Off, On
Menu color select Color Color, Monochrome
Menu display time 45 sec Manual, 5 sec, 15sec, 45 sec
No signal screen Blue Blue, Black, Canon logo
Filter message (LV-7365 only)
500(H) Off, 100(H), 200(H), 500(H), 1000(H)
Options Off timer Off Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00
Auto PC adjustment Normal Off, Normal, Fine
Direct power on Off Off, On
Power management Off Off, 0:05, 0:10, 0:20, 0:30
Fan mode Auto Auto, High, High altitude (LV-7365 only)
Default source select
LV-7365/LV-7265
Last
Last, Auto, Computer 1, Computer 2 (Digital), Computer 2 (Analog), VIDEO, S-VIDEO
LV-7260/LV-X7
Last Last, Auto, Computer, VIDEO, S-VIDEO
Deinterlace On Off, On
Input signal select
Computer 1 (LV-7365/LV-7265)
RGB/COMPONENT
RGB/COMPONENT, RGB, COMPONENT
Computer 2 (Analog) (LV-7365/LV-7265)
RGB/COMPONENT
RGB/COMPONENT, RGB, COMPONENT
Computer (LV-7260/LV-X7)
RGB/COMPONENT
RGB/COMPONENT, RGB, COMPONENT
VIDEO Auto Auto, NTSC3.58, NTSC4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM
S-VIDEO Auto Auto, NTSC3.58, NTSC4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM
Some menu items are not available depending on the input source.
* The asterisk (*) indicates that the default setting varies depending on the signal.
5. Using On-Screen Menu
Information Item
Usage time Remaining lamp time
Lamp counter
Filter counter
Input signal Source index
Horizontal frequency
Vertical frequency
Input signal type RGB, Component, HDTV, VIDEO, S-VIDEO, HDTV, Digital
Video type NTSC, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM,
Sync type Separate Sync, Composite Sync, Sync on Green, Sync on video
Sync polarity
Scan type Interlace, Progressive
Version Model
Serial number
Firmware version
Data version
Reset Item
Current signal
All data
Lamp counter
Filter counter
5
5. Using On-Screen Menu
❹
Menu Descriptions & Functions [Image adjustment]
[Image mode]
When selecting user adjustable [Image mode], the submenu will be displayed.
You can customize each gamma or color. To do so, rst select [Image mode] and press the OK button, then pro-
ceed using the following steps.
[Detail settings]
Selecting Reference Setting [Reference]
This option allows you to adjust neutral tint for yellow, cyan or magenta. There are ve factory presets optimized
for various types of images, you can set user adjustable settings.
Standard................ Select this to project an image with a similar quality to that of the original image. An image is projected
with a high regard for reproduction of white.
Presentation .......... Select this to project an image with a similar quality to that of the original image. A bright and high-
contrast image is projected.
Cinema .................. Select this to project a moving picture. A picture is projected with a high regard for color tone repro-
duction.
Video ..................... Select this to project a regular picture such as TV program
sRGB ..................... Select this when you want to project an image from a sRGBcompatible digital camera. An image is pro-
jected in the display mode conforming to the sRGB Standard.
Selecting Gamma Correction Mode [Gamma]
Each mode is recommended for:
Dynamic ................ Creates a high-contrast picture.
Natural ................... Natural reproduction of the picture.
Black detail ............ Emphasizes detail in dark areas of the picture.
Adjusting Color Temperature [Color temperature]
This option allows you to select the color temperature of your choice:
XLow, Low, Mid and High.
NOTE: When [Standard] or [Presentation] is selected in [Reference], [Color temperature] is not available.
6
5. Using On-Screen Menu
When 16:9 is selected from
the source (i.e. DVD player),
the following selections will
display:
When 4:3 is selected from
the source (i.e. DVD play-
er), the following selections
will display:
Adjusting White Balance [White balance]
This allows you to adjust the white balance. Brightness for each color (RGB) is used to adjust the black level of the
screen; Contrast for each color (RGB) to adjust the white level of the screen.
Adjusting Brightness, Contrast, Sharpness, Color level and Color balance
You can adjust brightness, contrast, sharpness, color level and color balance.
Brightness ............. Adjusts the brightness level or the black level of the image.
Contrast ................. Adjusts the intensity of the image according to the incoming signal (White level of the image).
Sharpness .............. Controls the detail of the image for Video (not valid for RGB).
Color level .............. Increases or decreases the color saturation level (not valid for RGB).
Color balance ........ Varies the color level from +/- green to +/-blue. The red level is used as reference. This adjustment is
only valid for Video and Component inputs (not valid for RGB).
Reset
The settings and adjustments for [Image adjustment] will be returned to the factory settings with the exception of
the following; numbers and [Reference] within the [Image mode] screen.
The settings and adjustments under [Detail settings] within the [Image mode] screen that are not currently select-
ed will not be reset.
❺
Menu Descriptions & Functions [Display settings]
Selecting Aspect Ratio [Aspect]
Aspect allows you to select the best Aspect mode to display your source image.
You can also display the Aspect menu by pressing the ASPECT button on the remote control.
True size (RGB only): Turns off the scaling feature. The projector displays the current image in its true resolution.
7
5. Using On-Screen Menu
NOTE:
• When you are displaying an RGB image with a higher resolution than the projector's native resolution, the image will be dis
-
played in the projector’s native resolution. In this case [True size] is not available from the menu.
Only when displaying an RGB image with a lower resolution than the projector's native resolution, will the image be able to be
displayed in its true resolution [True size].
When Computer 2 (Digital) is selected, some options of Aspect Ratio are not available depending on the signal.
• You can adjust the image position for Cinema aspect. See [Cinema position] for setting the image position.
Copyright
Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as
a coffee shop or hotel and employing compression or expansion of the screen image with a [Aspect] setting may raise concern
about the infringement of copyrights which are protected by copyright law.
Adjusting the Vertical Position of Image [Cinema position] (for Cinema in Aspect only)
This feature adjusts the vertical position of the image when viewing video with Cinema aspect ratio selected.
When [Cinema] is selected in [Aspect], the image is displayed with black borders on the top and bottom.
You can adjust the vertical position from the top to the bottom of the black area.
NOTE: This option is available only when [Cinema] is selected in [Aspect].
Adjusting Horizontal/Vertical Position, Clock and Tracking (available for RGB signal only)
You can adjust the image manually for position and stability; [Horizontal position], [Vertical position], [Clock] and
[Tracking].
[Horizontal/Vertical position]
Adjusts the image location horizontally and vertically.
[Clock]
Use this item to ne tune the computer image or to remove any vertical banding that might appear. This function
adjusts the clock frequencies that eliminate the horizontal banding in the image. This adjustment may be neces-
sary when you connect your computer for the rst time.
[Tracking]
Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is evident
when part of your image appears to be shimmering.)
Use [Tracking] only after the [Clock] is complete.
NOTE: A projected image may not be displayed correctly during adjustment of [Clock] or [Tracking]. This is normal.
NOTE: The [Horizontal position] and [Vertical position] options can be adjusted for component signals.
Selecting Video Filter Level [Video filter] (not available for Digital RGB, Video and S-Video)
Select one of the three levels for reducing video noise: Off, Less or More.
Off ......................... The low-pass filter is turned off.
Less ....................... The low-pass filter is applied partially.
More ...................... The low-pass filter is applied fully.
NOTE: Selecting [Off] will give best image quality by way of higher bandwidth. Selecting [Less] will soften the image and select-
ing.
8
5. Using On-Screen Menu
❻
Menu Descriptions & Functions [Setup]
[General]
Enabling Auto Keystone [Auto keystone] (LV-7365/LV-7265)
This feature allows the projector to detect its tilt and correct vertical distortion automatically.
To turn off the Auto Keystone feature, select [Off].
Correcting Vertical Keystone Distortion Manually [Keystone adjustment]
You can correct vertical distortion manually.
Saving Vertical Keystone Correction [Keystone save]
This option enables you to save your current keystone settings.
Off .......................... Does not save current keystone correction settings
On .......................... Saves current keystone correction settings
Saving your change once affects all sources. The changes are saved when the projector is off.
NOTE: When [Auto keystone] is set to [On], [Keystone save] is not available. Next time you turn on the power, the Auto keystone
function will work and the data stored with [Keystone save] will be invalid.
Selecting Wall Color Correction Mode [Screen color]
This function allows for quick adaptive color correction in applications where the screen material is not white.
The following nine options are available: Off, Greenboard, Greenboard (Gray), Light yellow, Light green, Light blue,
Sky blue, Light rose and Pink.
LV-7260/LV-X7
LV-7365/LV-7265
9
LAMP
LAMP
5. Using On-Screen Menu
Selecting Lamp Mode [Lamp mode]
This feature enables you to select two brightness modes of the lamp: Normal and Quiet modes. The lamp life can
be extended by using the Quiet mode.
Lamp Mode
Normal Mode
Quiet Mode
Description
This is the default setting (100%
Brightness).
Select this mode to increase the
lamp life (LV-7365:approx 80%,
LV-7265: approx.75%, LV-7260/
LV-X7: approx. 80% Brightness).
Status of LAMP indicator
Off
Steady Green light
NOTE:
• The lamp life remaining and lamp hours used can be checked in [Usage time]. Select [Information]
→
[Usage time].
• If the projector is overheated in Normal mode, there may be a case where the Lamp mode automatically changes to Quiet
mode to protect the projector. This is called “forced cooling operation”. When the projector is in a forced cooling operation,
the picture brightness decreases. When the projector comes back to normal temperature, the Lamp mode returns to Normal
mode.
Thermometer symbol [ ] indicates the lamp mode is automatically set to a forced cooling operation because the internal
temperature is too high. In this condition, changing [Lamp mode] setting in the menu will not affect the actual lamp mode
and the LAMP indicator lights green.
Selecting Menu Language [Language]
You can choose one of 21 languages for the on-screen menu.
Enabling Key Sound and Error Sound [Beep]
This feature turns on or off the keypad sound or alarm when a button on the cabinet and the remote control is
pressed or an error occurs.
50
5. Using On-Screen Menu
[Installation]
Selecting Projector Orientation [Image ip H/V]
This sets your image for your type of projection application. The options are:
front projection, rear projection, ceiling mounted projection and rear ceiling mounted projection.
Selecting Communication Speed [Communication speed]
This feature sets the baud rate of the SERVICE PORT (Mini DIN 8 Pin). It supports data rates from 4800 to 19200
bps.
The default is 19200 bps.
Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud
rate may be recommended for long cable runs).
Your selected communication speed will not be affected even when [Reset] is done from the menu.
Disabling the Cabinet Buttons [Key lock]
This option turns on or off the Key Lock function for cabinet buttons.
NOTE:
• The Key lock setting will not affect the remote control or PC control functions.
• When the cabinet buttons are disabled, pressing and holding the BACK button on the projector cabinet for about 10 seconds
will change the setting to enable.
• The Key lock icon will be displayed at the top right of the menu when Key lock is enabled.
None
Rear, Ceiling mounted
Rear
Ceiling mounted
LV-7265/LV-7260/LV-X7
LV-7365
5
5. Using On-Screen Menu
Enabling Password [Password]
This feature turns on or off the Password function.
Unless the correct password is entered, the projector cannot project an image. (
→
page 37)
Selecting Menu Color [Menu color select]
You can choose between two color modes for menu color: color and monochrome.
Selecting Menu Display Time [Menu display time]
This option allows you to select how long the projector waits after the last touch of a button to turn off the menu.
The preset choices are [Manual], [5 sec], [15 sec], and [45 sec].
Selecting a Color for Background [No signal screen]
Use this feature to display a blue, black screen or the Canon logo screen when no signal is available.
Selecting Interval Time for Filter Message [Filter message] (LV-7365 only)
The projector has a feature that informs you of the timing for cleaning the lters.
This item allows you to select the time preference between displaying the message for cleaning the lters. Clean
the lter when you get the message "Please clean lter." (
→
page 56)
Five options are available: Off, 100(H), 200(H), 500(H), 1000(H)
The default setting is 500(H). Change the interval time depending on the degree of dust and dirt on the lters.
NOTE:
1) The message for lamp replacement and filter cleaning will be displayed under the following conditions:
- one minute after the projector has been powered on.
- when the POWER ON/STAND BY button on the projector cabinet or the POWER OFF button on the remote control is pressed.
To cancel the message, press any button on the projector cabinet or the remote control.
2) Your setting will not be affected even when [Reset] is done from the menu.
[Options]
Setting Off Timer [Off timer]
You can use the Off Timer feature to turn off the projector automatically at a preset time.
Eight preset times can be selected:Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00 and 16:00.
Setting Auto Adjust [Auto PC adjustment]
Selecting [Normal] or [Fine] will automatically execute Auto PC adjustment function at the time of signal switching.
This feature sets the Auto PC adjust mode so that the analog RGB image can be automatically or manually adjust-
ed for noise and stability. You can automatically make adjustment in two ways: Normal and Fine
Off .......................... The RGB image will not be automatically adjusted.
You can manually optimize the RGB image.
Normal ................... Default setting. The RGB image will be automatically adjusted. Normally select this option.
Fine ........................ Select this option if fine adjustment is needed. It takes more time to switch to the source than when [Nor-
mal] is selected.
LV-7265/LV-7260/LV-X7
LV-7365
52
5. Using On-Screen Menu
Enabling Direct Power ON [Direct power on]
Turns the projector on automatically when the power cord is inserted into an active power outlet. This eliminates
the need to always use the POWER button on the remote control or projector cabinet.
To use the [Direct power on] function, you must rst press the main power switch to the position “On” (I) before
plugging the power cord.
Enabling Power Management [Power management]
When this option is selected you can enable the projector to automatically turn off (at the selected time: 5 min., 10
min., 20 min., 30 min.) if there is no operation with no signal received by any input.
Enabling Fan Speed Mode [Fan mode]
This option allows you to select two modes for fan speed: Auto mode and High speed mode.
On LV-7365, you can select [High altitude] as well as [Auto] and [High].
Auto .......................................... The built-in fans automatically run at a variable speed according to the internal temperature.
High .......................................... The built-in fans run at a fixed high speed.
High altitude (LV-7365 only) ..... The built-in fans run at a high speed. Select this option when using the projector in places at
5500 ft./1600 m or higher.
When you wish to cool down the temperature inside the projector quickly, select [High].
NOTE: It is recommended that you select High speed mode if you continue to use the projector for consecutive days.
NOTE [LV-7365]:
• Be sure to select [High altitude] when using the projector at altitudes approximately 5500 feet/1600 meters or higher.
• Using the projector at altitudes approximately 5500 feet/1600 meters or higher without setting to [High altitude] can cause
the projector to overheat and the protector could shut down. Furthermore, the projector could not turn on due to the in-
creased temperature of the lamp after power off. If these happen, wait a couple minutes and turn on the projector.
• Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [High altitude] can cause the
lamp to overcool, causing the image to flicker.
• Your Fan mode setting will not be affected even when [Reset] is done from the menu.
NOTE [LV-7265/LV-7260/LV-X7]:
• Select [High] in [Fan mode] if you use the projector at a high altitude or under low atmospheric pressure because LV-7265,
LV-7260, and LV-X7 do not have the [High altitude] option in [Fan mode].
• Your Fan mode setting will be changed to [Auto] when [Reset] is done from the menu.
Selecting Default Source [Default source select]
You can set the projector to default to any one of its inputs each time the projector is turned on.
Last ....................... Sets the projector to default to the previous or last active input each time the projector is turned on.
Auto ....................... Searches for an active source in order of Computer 1 → Computer 2 (Digital) → Computer 2 (Analog)
→ Video → S-Video → Computer 1 and displays the first found source.
NOTE: The LV-7260/LV-X7 will search for an active source in order of Computer → Video → S-Video →
Computer and displays the first found source.
Computer 1 ........... Displays the RGB source from the Computer 1 Input [ANALOG IN-1] connector every time the projector
is started up. (LV-7365/LV-7265)
Computer 2 (Digital)
... Displays the DVI digital source from the Computer 2 Input [DIGITAL IN/ANALOG IN-2] (Digital) con-
nector every time the projector is started up. (LV-7365/LV-7265)
Computer 2 (Analog)
.. Displays the RGB source from the Computer 2 Input [DIGITAL IN/ANALOG IN-2] (Analog) connector
every time the projector is started up. (LV-7365/LV-7265)
Computer .............. Displays the RGB source from the Computer Input [ANALOG IN] connector every time the projector is
started up. (LV-7260/LV-X7)
Video ..................... Displays the Video source from the VIDEO IN connector every time the projector is started up.
S-Video ................. Displays the Video source from the S-VIDEO IN connector every time the projector is started up.
53
[Input signal select]
Selecting Signal Format
[Computer]*, [Computer 1]*, [Computer 2 (Analog)]*
Allows you to choose [Computer]*, [Computer 1]* or [Computer 2 (Analog)]* for an RGB source such as a comput-
er, or [COMPONENT] for a component video source such as a DVD player. Normally select [RGB/COMPONENT]
and the projector automatically detects a component signal. However there may be some component signals that
the projector is unable to detect. If this is the case, select [COMPONENT].
* [Computer]: LV-7260/LV-X7 only
* [Computer 1] / [Computer 2 (Analog)]: LV-7365/LV-7265
[Video & S-Video System Select]
This feature enables you to select composite video standards automatically or manually.
Normally select [Auto] and the projector will automatically detect the video standard.
In the case where the projector has difculty detecting the video standard, select the appropriate video standard
from the menu.
This must be done for VIDEO and S-VIDEO respectively.
5. Using On-Screen Menu
LV-7260/LV-X7
Enabling the deinterlace [Deinterlace]
Turns on or off the deinterlace function for a telecine signal.
On .......................... Default standard setting.
Off ......................... Select this option if there is any jitter or artifacts in video.
NOTE: This feature is not available for RGB, 480p, 576p, and HDTV signals.
LV-7365/LV-7265
5
5. Using On-Screen Menu
❼
Menu Descriptions & Functions [Information]
Displays the status of the lamp / lter / projector usage and the current signal. This item has three pages. The infor-
mation included is as follows:
[Usage time]
[Remaining lamp time] (%) [Lamp counter] (H)
[Filter counter] (H)
Remaining Lamp/Lamp Counter
The projector has the Quiet mode. The lamp life varies depending on two modes: quiet mode and normal mode.
The [Remaining lamp time] shows the percentage of remaining bulb life. The [Lamp counter] shows the amount of
lamp usage (hours).
• When the remaining lamp time reaches 0%, the “Replace with the new lamp.” message will be displayed. Re-
place with the new lamp.
See page 58 for lamp replacement.
• The message for lamp replacement will be displayed under the following conditions:
- one minute after the projector has been powered on.
- when the POWER ON/STAND BY button on the projector cabinet or the POWER OFF button on the remote
control is pressed.
To cancel the message, press any button on the projector cabinet or the remote control.
• When the remaining lamp time reaches 0%, the Remaining lamp time bar indicator changes from 0% to 100(H)
in red and starts counting down.
When the remaining lamp time reaches 0 hours, the projector will not turn on.
Model
Lamp life(H)
Replacement lamp
Normal Quiet
LV-7365 2000 3000 LV-LP30
LV-7265/LV-7260 2000 3000 LV-LP26
LV-X7 3000 4000 LV-LP27
[Input signal]
[Source index] [Horizontal frequency]
[Vertical frequency] [Input signal type]
[Video type] [Sync type]
[Sync polarity] [Scan type]
55
5. Using On-Screen Menu
[Version]
[Model] [Firmware version]
[Serial number] [Data version]
❽
Menu Descriptions & Functions [Reset]
Resetting settings and adjustments [Reset]
The Reset feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except
the following:
[Current signal]
Resets the adjustments for the current signal to the factory preset levels.
The items that can be reset are: [Image mode], [Brightness], [Contrast], [Sharpness], [Color level], [Color bal-
ance], [Aspect], [Horizontal position], [Vertical position], [Clock], [Tracking] and [Video lter].
[All data]
Reset all the adjustments and settings for all the signals to the factory preset.
All items can be reset except [Language], [Communication speed], [Password], [Filter message]*¹, [Fan mode]*²,
[Remaining lamp time], [Lamp counter] and [Filter counter].
*¹: The Filter message item can be selected on LV-7365 only.
*²: The Fan mode settings will not be reset only on LV-7365.
Clearing Lamp Hour Meter [Lamp counter]
Resets the lamp clock back to zero. Selecting this option displays submenu for a conrmation. Select [Yes] and
press the OK button.
NOTE:Elapsed time of the lamp use will not be affected even when [Reset] is done from the menu.
NOTE: The projector will turn off and go into standby mode after 2100* hours (up to 3100* hours in Quiet mode) of service. If
this happens, press the INFO button on the remote control for ten seconds to reset the lamp clock back to zero. Do this only
after replacing the lamp. * LV-X7: 3100 hours (up to 4100 hours in Quiet mode).
NOTE: Resetting the lamp counter before or without replacing the lamp will not display the exact lamp usage hours. Using the
lamp beyond its service life may cause the lamp to break. Be sure to reset the lamp counter after replacing the lamp.
Clearing the Filter Usage Hours [Filter counter]
Resets the lter usage back to zero. Selecting this option displays submenu for a conrmation. Select [Yes] and
press the OK button.
NOTE: Elapsed time of the filter use will not be affected even when [Reset] is done from the menu.
56
6. Maintenance
M
E
N
U
B
A
C
K
K
E
Y
S
T
O
N
E
W
A
R
N
I
N
G
P
O
W
E
R
A
U
T
O
P
C
IN
P
U
T
L
A
M
P
-
+
V
O
L
V
O
L
This section describes the simple maintenance procedures you should follow to clean the lter and replace the lamp.
❶
Cleaning or Replacing the Filter
The air-lter sponge keeps dust and dirt from getting inside the projector and should be frequently cleaned. If the
lter is dirty or clogged, your projector may overheat.
CAUTION
• Turn off the projector, turn off the main power switch and unplug the projector before replacing the lter.
• Only clean the outside of the lter cover with a vacuum cleaner.
• Do not attempt to operate the projector without the lter cover.
NOTE:
[LV-7365]
• When the projector reaches the usage time (500 hours at the factory) specified with [Filter message] from the menu, each
time you turn on the projector, the "Please clean the filter" message will be displayed (→ page 51). When this message is dis-
played, clean the filters and reset the Filter counter (→ page 55).
• The "Please clean the filter" message will disappear when any button on the projector or the remote control is pressed.
[LV-7265/LV-7260/LV-X7]
• When the Filter counter reaches 100 hours in [Usage time] of [Information] you can select from the menu, each time you turn
on the projector, the "Please clean the filter" message will be displayed. When this message is displayed, clean the filters and
reset the Filter counter (→ page 55).
• The "Please clean the filter" message will disappear when any button on the projector or the remote control is pressed.
To clean the air-lter:
Vacuum the lter through the lter cover.
To replace the lter (sponge):
1. Removethefiltercoverbypushingdownonthecatchofthecoveruntilyoufeelitdetach.
P
U
S
H
P
U
S
H
To reset the lter usage time, from the menu, select [Reset]
→
[Filter counter].
See also page 55 for resetting the lter usage time.
57
6. Maintenance
3.Reinstallthenewfiltercover.
NOTE: Do not wash the filter with soap and water. Soap and water will damage the filter membrane. Before replacing the
filter, remove dust and dirt from the projector cabinet. Keep out dust and dirt during filter replacement.
NOTE: When you replace the lamp, it is also wise to replace the filter. The filter comes in the same package with your re-
placement lamp.
4.Turnontheprojector.
5. ResettheFiltercounter.Seepage
55.
P
U
S
H
❷
Cleaning the Cabinet and the Lens
1. Turnofftheprojectorbeforecleaning.
2.Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use
strongdetergentsorsolventssuchasalcoholorthinner.
3.Useablowerorlenspapertocleanthelens,andbecarefulnottoscratchormarthelens.
M
E
N
U
B
A
C
K
K
E
Y
S
T
O
N
E
W
A
R
N
I
N
G
P
O
W
E
R
A
U
T
O
P
C
IN
P
U
T
LA
M
P
-
+
V
O
L
V
O
L
2.Gentlypeeloffthefilter(sponge)andreplaceitwiththenewone.
58
6. Maintenance
❸
Replacing the Lamp
After your lamp has been operating for 2000*
1
hours (up to 3000*
1
hours in Quiet mode) or longer, the LAMP indi-
cator in the cabinet will blink red and the message “Replace with the new lamp.”*
2
will appear. Even though the
lamp may still be working, replace it at 2000*
1
(up to 3000*
1
hours in Quiet mode) hours to maintain optimal projec-
tor performance. After replacing the lamp, be sure to clear the lamp counter. See page 55.
CAUTION
• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off,
wait 30 seconds, turn off the main power switch and then disconnect the power cord. Allow at least one hour
for the lamp to cool before handling.
• DO NOT REMOVE ANY SCREWS except two lamp case screws. You could receive an electric shock.
• Do not break the glass on the lamp housing.
Keep nger prints off the glass surface on the lamp housing. Leaving nger prints in the glass surface might
cause an unwanted shadow and poor picture quality.
• The projector will turn off and go into standby mode after 2100
*
1
(up to 3100*
1
hours in Quiet mode) hours of
service. If this happens, be sure to replace the lamp. If you continue to use the lamp after 2000*
1
hours (up to
3000*
1
hours in Quiet mode) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the
lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your dealer for
lamp replacement.
*
1
NOTE: Lamp life for LV-X7 is 3000 hours in Normal mode and 4000 hours in Quiet mode.
The projector will turn off and go into standby mode after 3100 (up to 4100 hours in Quiet mode) hours of service.
A lamp may burn out before the LAMP indicator blinks.
*
2
NOTE: This message will be displayed under the following conditions:
- for one minute after the projector has been powered on
- when the POWER button on the projector cabinet or on the remote control is pressed
To turn off the message, press any button on the projector cabinet or the remote control.
To replace the lamp:
IMPORTANT:
Follow the instructions described in this section.
The lamp component might have high voltage and heat. For safety, the lamp part is designed to prevent the
lamp cover from easily becoming detached.
Optional lamp and tools needed for replacement:
• Replacement lamp LV-LP30 (LV-7365), LV-LP26 (LV-7265/LV-7260) or LV-LP27 (LV-X7)
• Phillips screwdriver or equivalent
NOTE: The two lamp houses are slightly different in appearance.
The following explanation uses drawings for the lamp LV-LP26.
1. Placetheprojectoronasoftclothandturnitovertoaccessthelampcoveronthebottom.
59
6. Maintenance
3.Removethelamp.
(1) Loosen the two screws securing the lamp until the phillips screwdriver goes into a freewheeling condition.
The two screws are not removable.
NOTE: Do not remove any screws except these two screws.
(2) Remove the lamp by holding it.
NOTE: There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.
1
1
2
3
2.Removethelampcover.
(1) Press rmly and slide the lamp cover by 1 cm (0.4”)
• Do not force to pull the lamp cover
(2) Push two catches on both sides lightly ① to slide the lamp cover slowly ② until the catch is seen and then
pull up the lamp cover ③.
CAUTION:
DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Before han-
dling, turn the projector off, wait until the cooling fans stop, turn off the main power switch, disconnect
the power cord and then allow at least 60 minutes for the lamp to cool.
60
6. Maintenance
6.Connectthesuppliedpowercord,turnontheMainPowerswitchandturnontheprojector.
7. Finally,selectthemenu
→
[Reset]
→
[Lampcounter]toresetthelampusagehours.
NOTE: When the lamp exceeds 2100* hours (up to 3100* hours in Quiet mode) of service, the projector cannot turn on and the
menu is not displayed.
If this happens, press the INFO. button on the remote control for ten seconds to reset the lamp clock back to zero.
When the lamp time clock is reset to zero, the LAMP indicator goes out.
* LV-X7: 3100 hours (up to 4100 hours in Quiet mode).
2 cm/0.8"
5. Reattachthelampcover.
(1) Place the lamp cover, leaving a space of about 2 cm/0.8" as shown on the drawing.
4.Insertanewlampuntilthelampispluggedintothesocket.
CAUTION
Do not use a lamp other than the replacement lamp LV-LP30 (LV-7365), LV-LP26 (LV-7265/LV-7260) or LV-
LP27 (LV-X7). This may be ordered from your dealer.
Secureitinplacewiththetwoscrews.
Besuretotightenthescrews.
(2) Slide the lamp cover back until it snaps into place.
• Make sure that the catches are aligned with slots.
• Push the lamp cover until it clicks into place.
6
7. Appendix
❶
Troubleshooting
This section helps you resolve problems you may encounter while setting up or using the projector.
WARNING Indicator
LAMP Indicator
Indicator Messages
POWER Indicator
MENU
BACK
KEYSTONE
WARNING
P
O
W
E
R
AUTO PC
INPUT
VOL
-
VOL
+
LAMP
Indicator Condition Projector Condition Note
Off
The main power is off –
Blinking light Green 0.5 sec On,
0.5 sec Off
The projector is getting ready
to turn on.
Wait for a moment.
2.5 sec On,
0.5 sec Off
Off Timer is enabled. –
Orange 0.5 sec On,
0.5 sec Off
T he p ro je c t or i s c o ol in g
down.
Wait for a moment.
Steady light Green The projector is turned on. –
Orange The projector is in Standby. –
Indicator Condition Projector Condition Note
Off Normal –
Blinking light Red 1 c yc le (0 .5 se c
On, 2.5 sec Off)
La mp cover err or or lamp
housing error
Replace the lamp cover or lamp housing correctly.
(
→
page 60)
2 cy cl e (0 .5 s ec
On, 0.5 sec Off)
Temperature error The projector is overheated. Move the projector to a
cooler location.
4 cy cl e (0 .5 s ec
On, 0.5 sec Off)
Fan error Fans will not work correctly.
6 cy cl e (0 .5 s ec
On, 0.5 sec Off)
Lamp error Lamp fails to light. Wait a full minute and then turn on
again.
Green Re-firing the lamp (The pro-
jector is cooling down.)
The projector is re-firing.
Wait for a moment.
Steady light Orange Key lock is on. You have pressed cabinet button when Key lock is on.
(
→
page 50)
Indicator Condition Projector Condition Note
Off Normal –
Blinking light Red Lamp has reached its end of life. Lamp
replacement message will be displayed.
Replace the lamp.
Steady light Red Lamp has been used beyond its limit.
The projector will not turn on until the
lamp is replaced.
Replace the lamp.
Green Lamp mode is set to Quiet mode. –
If a temperature error occurs
If the temperature inside the projector rises too high, the over-temperature protector will automatically turn off the lamp with the
WARNING indicator blinking (2-cycle On and Off.)
Should this happen, do the following:
- Unplug the power cord after the cooling fans stop.
- Move the projector to a cooler location if the room where you are presenting is particularly too warm.
- Clean the ventilation holes if they are clogged with dust.
- Wait about 60 minutes until the inside of the projector becomes cool enough.
62
7. Appendix
Common Problems & Solutions (→ "Power/Status/Lamp Indicator" on page 61.)
Problem Check These Items
Does not turn on or shut
down
• Check that the power cord is plugged in and that the power button on the projector cabinet or the remote control is on. See
pages 23 and 24.
• Ensure that the lamp cover is installed correctly. See page
60.
• Check to see if the projector has overheated or the lamp usage exceeds 2100* hours (up to 3100* hours : Quiet mode). See
page 60. If there is insufficient ventilation around the projector or if the room where you’re presenting is particularly warm,
move the projector to a cooler location.
* LV-X7: 3100 hours (up to 4100 hours in Quiet mode).
• The lamp may fail to light. Wait a full minute and then turn on the power again.
• The lamp has reached the end of its usable life. Replace the lamp.
• When the lamp is turned off, the projector internal temperature is hot. If the power is turned on before the projector has
cooled down, the fan will run a short time before the lamp will turn on. If this happens, wait a couple minutes and turn on the
projector.
[LV-7365]
• Set [Fan mode] to [High altitude] when using the projector at altitudes approximately 5500 feet/1600 meters or higher. Using
the projector at altitudes approximately 5500 feet/1600 meters or higher without setting to [High altitude] can cause the
projector to overheat and the projector could shut down. Also the projector could not turn on due to the increased temperature
of the lamp after power off. If these happen, wait a couple minutes and turn on the projector.
[LV-7265/LV-7260/LV-X7]
• Select [High] in [Fan mode] if you use the projector at a high altitude or under low atmospheric pressure because LV-7265,
LV-7260, and LV-X7 do not have the [High altitude] option in [Fan mode]. Using the projector at a high altitude or under
low atmospheric pressure without setting to [High] can cause the projector to overheat and the projector could shut down.
Furthermore, the projector could not turn on due to the increased temperature of the lamp after power off. If these happen, wait
a couple minutes and turn on the projector.
Will turn off • Ensure that the Power Management or Off timer is off. See page 51, 52.
No picture • Use the INPUT button to select your source (LV-7365/LV-7265: Computer 1, Computer 2, Video or S-Video / LV-7260/LV-X7:
Computer, Video or S-Video). See page 26. If there is still no picture, press the button again.
• Ensure your cables are connected properly.
• Use menus to adjust the brightness and contrast. See page
46.
• Remove the lens cap.
•
Reset the settings or adjustments to factory preset levels using the [Reset] in the Menu. See page 55.
• Enter your registered Password if the Password function is enabled. See page 37.
• When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to
the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting
with the projector.
* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power man
-
agement software.
• See also the next page.
Picture suddenly becomes dark • Move the projector to a cooler location, or set [Fan mode] to [High].
Color tone or Color balance is
unusual
• Check if an appropriate color is selected in [Screen color]. If so, select an appropriate option. See page
48.
• Adjust [Color balance] in [Image adjustment]. See page
46.
Image isn’t square to the
screen
• Reposition the projector to improve its angle to the screen. See page
27.
• Use the Keystone correction function to correct the trapezoid distortion. See page
29.
Picture is blurred • Adjust the focus. See page 28.
• Reposition the projector to improve its angle to the screen. See page
27.
• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See page
12, 13.
• Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on. Should this hap
-
pen, let the projector stand until there is no condensation on the lens.
Picture is distorted • Make sure the VGA cable is connected.
• Press the AUTO PC button on the projector cabinet or the remote control. See page
31.
Flicker appears on screen • Set [Fan mode] to other mode than [High altitude] when using the LV-7365 at altitudes approximately 5500 feet/1600 meters or
lower. Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [High altitude] can cause
the lamp to overcool, causing the image to flicker. Switch [Fan mode] to [Auto] or [High]. See page 52.
Image is scrolling vertically,
horizontally or both
• Use the INPUT button to select your source (LV-7365/LV-7265: Computer 1, Computer 2, Video or S-Video / LV-7260/LV-X7:
Computer, Video or S-Video). See page 26.
• Adjust the computer image manually with the [Horizontal position] or [Vertical position] in the [Display settings]. See page
47.
Remote control does not
work
• Install new batteries.See page
10.
• Make sure there are no obstacles between you and the projector.
• Stand within 7 m (22 feet) of the projector. See page
10.
Indicator is lit or blinking • See the POWER/WARNING/LAMP Indicator on page 61.
Cross color in RGB mode • Press the AUTO PC button on the projector cabinet or the remote control. See page 31.
• Adjust the computer image manually with [Clock] or [Tracking] in [Display settings] in the menu. See page
47.
Whenever the projector is
turned on, a message prompt-
ing you to clean the filter will
be displayed
• Clean or replace the filter and then reset the Filter counter. See page
55, 56.
Press any button on the remote control or the projector cabinet to clear the message.
For more information contact your dealer.
63
7. Appendix
If there is no picture, or the picture is not displayed correctly.
• Power on process for the projector and the PC.
Be sure to connect the VGA cable between the projector and the computer before turning on the computer.
There are some notebook PCs, which do not output signal unless there is a projector or monitor connected
rst.
NOTE: You can check the horizontal frequency of the current signal in the projector’s menu under Information. If it reads
“0kHz”, this means there is no signal being output from the computer. See page 54 or go to next step.
• Enabling the computer’s external display.
Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projec
-
tor. When using a PC compatible laptop, a combination of function keys will enable/disable the external dis-
play. Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display
to come on or off. For more details, refer to your computer’s owner’s manual.
• Non-standard signal output from the computer
If the output signal from a notebook PC is not an industry standard, the projected image may not be displayed
correctly. Should this happen, deactivate the notebook PC’s LCD screen when the projector display is in use.
Each notebook PC has a different way of deactivate/reactivate the local LCD screens as described in the pre-
vious step. Refer to your computer’s documentation for detailed information.
• Image displayed is incorrect when using a Macintosh
When using a Macintosh with the projector, set the DIPswitch of the Mac adapter (not supplied with the projec-
tor) according to your resolution. After setting, restart your Macintosh for the changes to take affect.
For setting display modes other than those supported by your Macintosh and the projector, changing the DIP
switch on a Mac adapter may bounce an image slightly or may display nothing. Should this happen, set the
DIP switch to the 13” xed mode and then restart your Macintosh. After that, restore the DIP switches to a dis-
playable mode and then restart the Macintosh again.
NOTE: A Video Adapter cable manufactured by Apple Inc. is needed for a PowerBook which does not have a mini D-Sub
15-pin connector.
• Mirroring on a PowerBook
* When using the projector with a Macintosh PowerBook, output may not be set to 1024 x 768 unless “mirroring”
is off on your PowerBook. Refer to owner’s manual supplied with your Macintosh computer for mirroring.
• Folders or icons are hidden on the Macintosh screen
Folders or icons may not be seen on the screen. Should this happen, select [View]
→
[Arrange] from the Apple
menu and arrange icons.
6
7. Appendix
❷
Specifications
This section provides technical information about the projector's performance.
Model Number LV-7365/LV-7265/LV-7260/LV-X7
Optical
LCD Panel LV-7365/LV-7265: 0.63" p-Si TFT active-matrix with Micro Lens Array (Aspect 4:3)
LV-7260/LV-X7: 0.6" p-Si TFT active-matrix with Micro Lens Array (Aspect 4:3)
Resolution 1024 x 768 pixels*
1
native, up to UXGA with scaling technology
Lens Manual zoom and manual focus
F1.6 - 2.5 f = 17.7 - 28.3 mm
Lamp
LV-7365: 210W AC lamp (170W Quiet mode)
LV-7265: 200W DC lamp (150W Quiet mode)
LV-7260: 190W DC lamp (150W Quiet mode)
LV-X7: 150W DC lamp (120W Quiet mode)
Brightness
LV-7365: 3000 lm (Presentation mode)
LV-7265: 2500 lm (Presentation mode)
LV-7260: 2000 lm (Presentation mode)
LV-X7: 1500 lm
Contrast Ratio
LV-7265/LV-7260: 600 : 1 (full white : full black) (Presentation mode)
LV-7365/LV-X7: 500 : 1 (full white : full black) (Presentation mode)
Uniformity 85% (Presentation mode)
Image Size (Diagonal) 25" to 300"
Projection Distance
LV-7365/LV-7265: 1.1 m to 8.4 m / 3.5' to 27.6'
LV-7260/LV-X7: 1.1 m to 8.8 m / 3.6' to 28.9'
Projection Angle Tele: 8.3° - 8.6°/ Wide: 9.9° - 10.3°
Keystone Correction +/- 30° Vertical (Auto keystone on LV-7265 only)
Electrical
Inputs LV-7365/LV-7265: 1 RGB/Component (D-Sub 15 Pin), 1 RGB (Digital/Analog)
(DVI-I 29Pin, HDCP*
2
supported), 1 S-Video (DIN 4 Pin), 1 Video (RCA), 1 (Ste-
reo) RCA Audio, 1 Stereo Mini Audio, 1 Service Port (Mini DIN 8 Pin)
Digital TMDS (Transition Minimized Differential Signaling)
LV-7260/LV-X7: 1 RGB/Component (D-Sub 15 Pin), 1 S-Video (DIN 4 Pin), 1
Video (RCA), 1 (Stereo) RCA Audio, 1 Service Port (Mini DIN 8 Pin)
Outputs 1 RGB (D-Sub 15 Pin), 1 Stereo Mini Audio (not available on LV-7260/LV-X7)
Video Compatibility NTSC, NTSC4.43, PAL, PAL-60, PAL-N, PAL-M, SECAM,
1080i, 720p, 480p, 480i / 60Hz
1080i, 576p, 576i / 50Hz
Scan Rate Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over)
Vertical: 50 Hz to 120 Hz
Video Bandwidth RGB: 80 MHz (-3dB)
Color Reproduction 16.7 million colors simultaneously, Full color
*
1
Effective pixels are more than 99.99%.
*
2
What is HDCP/HDCP technology?
HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection
(HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).
If you are unable to view material via the DVI input, this does not necessarily mean the LV-7365/LV-7265 projec-
tor is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is
protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital
Content Protection, LLC).
65
7. Appendix
Horizontal Resolution NTSC / NTSC4.43/PAL/PAL-M/PAL-N/PAL60/YCbCr: 540 TV lines
SECAM: 300 TV lines
RGB: 1024 dots (H)
768 dots (V)
External Control RS232, IR
Sync Compatibility Separate Sync / Composite Sync / Sync on Green / Sync on Video
Built-in Speaker
LV-7365/LV-7265: 5W (monaural)
LV-7260/LV-X7: 1W (monaural)
Power Requirement
LV-7365/LV-7265/LV-7260/LV-X7: 100 - 240V AC, 50 / 60 Hz
LV-7365(E): 200 - 240V AC, 50 / 60 Hz
Input Current
LV-7365: 3.3 - 1.5A
LV-7365(E): 1.7A
LV-7265/LV-7260: 3.1 - 1.3A
LV-X7: 2.4 - 1.0A
Power Consumption
LV-7365: 8W in Standby mode / 295W in Lamp Normal mode / 240W in Lamp
Quiet mode
LV-7265: 9W in Standby mode / 285W in Lamp Normal mode / 220W in Lamp
Quiet mode
LV-7260: 9W in Standby mode / 255W in Lamp Normal mode / 205W in Lamp
Quiet mode
LV-X7: 9W in Standby mode 205W in Lamp Normal mode / 170W in Lamp
Quiet mode
Mechanical
Installation Orientation Front / Rear / Ceiling mounted / Rear, Ceiling mounted
Dimensions 12.2" (W)
4.3" (H)
10.4" (D)
310 mm (W)
109 mm (H)
265 mm (D)
(not including protrusions)
Weight
LV-7365: 7.3 lbs / 3.3 kg
LV-7265: 6.8 lbs / 3.1 kg
LV-7260: 6.6 lbs / 3.0 kg
LV-X7: 6.4 lbs / 2.9 kg
Fan Noise
LV-7365/LV-7265: 35 dB (Normal mode), 29dB (Quiet mode)
LV-7260: 34 dB (Normal mode), 29dB (Quiet mode)
LV-X7: 32 dB (Normal mode), 25dB (Quiet mode)
Environmental Considerations Operational Temperatures : 41° to 104°F (5° to 40°C),
(Quiet mode selected automatically at 95°F to 104°F / 35°C to 40°C)
20% to 80% humidity (non-condensing)
Storage Temperatures : 14° to 122°F (-10° to 50°C),
20% to 80% humidity (non-condensing)
Regulations
UL Approved (UL 60950-1) (except for LV-7365(E))
Meets FCC Class B requirements
UL Approved (CSA 60950-1) (except for LV-7365(E))
Meets DOC Canada Class B requirements
(except for LV-7365)
Meets AS/NZS CISPR.22 Class B
(except for LV-7365)
Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)
Meets Low Voltage Directive (EN60950-1)
The specications are subject to change without notice.
66
7. Appendix
PUSH
MENU
BACK
KEYSTONE
WARNING
P
O
W
E
R
AUTO PC
INPUT
VOL
-
VOL
+
LAMP
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN
❸
Cabinet Dimensions
Unit: mm (inch)
LV-7260/LV-X7
LV-7365/LV-7265
67
Mini D-Sub 15 Pin Connector
❹
Pin Assignments of D-Sub ANALOG Input Connector
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
1
11 1512 1413
6
5
4
32
107 9
8
7. Appendix
* Only ANALOG-1 input connector supported on LV-7365/LV-7265.
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 No Connection
12 Bi-directional DATA (SDA)*
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock*
68
7. Appendix
❺
Compatible Input Signal List
Horizontal: 15KHz to 100KHz (RGB: 24KHz or over)
Vertical: 50Hz to 120Hz
Signal Resolution Frequency H. Refresh Rate
( Dots ) ( kHz ) ( Hz )
NTSC – 15.73 59.94
PAL – 15.63 50.00
PAL60 – 15.73 60.00
SECAM – 15.63 50.00
D VESA 640
480 31.47 59.94
D IBM 640
480 31.48 59.95
D MAC 640
480 35.00 66.67
D VESA 640
480 37.86 72.81
D VESA 640
480 37.50 75.00
D IBM 640
480 39.38 75.00
D VESA 640
480 43.27 85.01
D IBM 720
350 31.47 70.08
D IBM 720
350 39.44 87.85
D IBM 720
400 39.44 87.85
D VESA 800
600 35.16 56.25
D VESA 800
600 37.88 60.32
D VESA 800
600 48.08 72.19
D VESA 800
600 46.88 75.00
D VESA 800
600 53.67 85.06
D MAC 832
624 49.72 74.55
D VESA 1024
768 48.36 60.00
D VESA 1024
768 56.48 70.07
D MAC 1024
768 60.24 74.93
D VESA 1024
768 60.02 75.03
D VESA 1024
768 68.68 85.00
D # VESA 1152
864 67.50 75.00
D # MAC 1152
870 68.68 75.06
D # VESA 1280
960 60.00 60.00
# 1280
960 75.00 75.00
# 1280
960 85.94 85.00
D # VESA 1280
1024 63.98 60.02
D # MAC 1280
1024 64.30 60.38
# MAC 1280
1024 69.87 65.18
# VESA 1280
1024 79.98 75.02
# VESA 1280
1024 91.15 85.02
D # VESA 1400
1050 63.98 60.02
# VESA 1600
1200 75.00 60.00
# VESA 1600
1200 81.25 65.00
# VESA 1600
1200 87.50 70.00
# VESA 1600
1200 93.75 75.00
SDTV(576i)
– 15.63 50.00 Interlace
D
SDTV(576p)
– 31.25 50.00 Progressive
D #
HDTV
(1080i)
1920
1080 33.75 60.00 Interlace
D #
HDTV
(1080i)
1920
1080 28.13 50.00 Interlace
D #
HDTV (720p)
1280
720 45.00 60.00 Progressive
D
SDTV (480p)
720
480 31.47 59.94 Progressive
DVD YCbCr – 15.73 59.94 Interlaced
DVD YCbCr – 15.63 50.00 Interlaced
D : Images in above agged with “D” are supported by the DVI digital signals on LV-7365/LV-7265.
# : Images in above agged with # are compressed with scaling technology.
NOTE: Some composite sync signals may not be displayed correctly.
Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh
rate or resolution on your PC. Refer to Display Properties help section of your PC for procedures.
UXGA (1600 x 1200) is supported for separate sync signal only.
69
7. Appendix
25"
30"
40"
50"
60"
70"
80"
90"
100"
110"
120"
130"
140"
150"
160"
170"
176"
180"
190"
200"
210"
220"
230"
240"
250"
260"
270"
280"
290"
300"
51
61
81
102
122
142
163
183
203
224
244
264
284
305
325
345
358
366
386
406
427
447
467
488
508
528
549
569
589
610
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
38
46
61
76
91
107
122
137
152
168
183
198
213
229
244
259
268
274
290
305
320
335
351
366
381
396
411
427
442
457
1.1m
(3.5')
1.3m
(4.2')
1.7m
(5.6')
2.2m
(7.1')
2.6m
(8.5')
3.0m
(9.9')
3.5m
(11.4')
3.9m
(12.8')
4.3m
(14.3')
4.8m
(15.7')
5.2m
(17.1')
5.7m
(18.6')
6.1m
(20.0')
6.5m
(21.4')
7.0m
(22.9')
7.4m
(24.3')
7.7m
(25.2')
7.9m
(25.8')
8.3m
(27.2')
–
–
–
–
–
–
–
–
–
–
–
23"
28"
37"
46"
55"
64"
73"
83"
92"
101"
110"
119"
129"
138"
147"
156"
162"
165"
174"
184"
193"
202"
211"
220"
229"
239"
248"
257"
266"
275"
51
61
81
102
122
142
163
183
203
224
244
264
284
305
325
345
358
366
386
406
427
447
467
488
508
528
549
569
589
610
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
29
34
46
57
69
80
91
103
114
126
137
149
160
171
183
194
201
206
217
229
240
251
263
274
286
297
309
320
331
343
Screen size at 4:3
aspect ratio
W x D (cm)
Zoomed projection
distance
Max. Min.
H1
H2
Screen size at 16:9
aspect ratio
W x D (cm)
❻
Relationship between Screen Size and Projection distance
–
–
1.1m
(3.6')
1.4m
(4.5')
1.7m
(5.4')
1.9m
(6.4')
2.2m
(7.3')
2.5m
(8.2')
2.8m
(9.1')
3.1m
(10.0')
3.3m
(11.0')
3.6m
(11.9')
3.9m
(12.8')
4.2m
(13.7')
4.5m
(14.7')
4.7m
(15.6')
4.9m
(16.1')
5.0m
(16.5')
5.3m
(17.4')
5.6m
(18.3')
5.9m
(19.3')
6.2m
(20.2')
6.4m
(21.1')
6.7m
(22.0')
7.0m
(22.9')
7.3m
(23.9')
7.6m
(24.8')
7.8m
(25.7')
8.1m
(26.6')
8.4m
(27.6')
32cm
(1.1')
39cm
(1.3')
51cm
(1.7')
64cm
(2.1')
77cm
(2.5')
90cm
(3.0')
103cm
(3.4')
116cm
(3.8')
129cm
(4.2')
141cm
(4.6')
154cm
(5.1')
167cm
(5.5')
180cm
(5.9')
193cm
(6.3')
206cm
(6.8')
219cm
(7.2')
226cm
(7.4')
231cm
(7.6')
244cm
(8.0')
257cm
(8.4')
270cm
(8.9')
283cm
(9.3')
296cm
(9.7')
309cm
(10.1')
321cm
(10.5')
334cm
(11.0')
347cm
(11.4')
360cm
(11.8')
373cm
(12.2')
386cm
(12.7')
6cm
(0.2')
7cm
(0.2')
10cm
(0.3')
12cm
(0.4')
14cm
(0.5')
17cm
(0.5')
19cm
(0.6')
21cm
(0.7')
24cm
(0.8')
26cm
(0.9')
29cm
(0.9')
31cm
(1.0')
33cm
(1.1')
36cm
(1.2')
38cm
(1.3')
40cm
(1.3')
42cm
(1.4')
43cm
(1.4')
45cm
(1.5')
48cm
(1.6')
50cm
(1.6')
52cm
(1.6')
55cm
(1.8')
57cm
(1.9')
60cm
(2.0')
62cm
(2.0')
64cm
(2.1')
67cm
(2.2')
69cm
(2.3')
71cm
(2.3')
LV-7365/LV-7265
70
7. Appendix
25"
30"
40"
50"
60"
70"
80"
90"
100"
110"
120"
130"
140"
150"
160"
170"
176"
180"
190"
200"
210"
220"
230"
240"
250"
260"
270"
280"
290"
300"
51
61
81
102
122
142
163
183
203
224
244
264
284
305
325
345
358
366
386
406
427
447
467
488
508
528
549
569
589
610
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
38
46
61
76
91
107
122
137
152
168
183
198
213
229
244
259
268
274
290
305
320
335
351
366
381
396
411
427
442
457
–
–
1.2 m
(3.8')
1.4 m
(4.7')
1.7 m
(5.7')
2.0 m
(6.7')
2.3 m
(7.7')
2.6 m
(8.6')
2.9 m
(9.6')
3.2 m
(10.6')
3.5 m
(11.5')
3.8 m
(12.5')
4.1 m
(13.5')
4.4 m
(14.4')
4.7 m
(15.4')
5.0 m
(16.4')
5.2 m
(16.9')
5.3 m
(17.3')
5.6 m
(18.3')
5.9 m
(19.3')
6.2 m
(20.2')
6.5 m
(21.2')
6.8 m
(22.2')
7.1 m
(23.1')
7.3 m
(24.1')
7.6 m
(25.1')
7.9 m
(26.0')
8.2 m
(27.0')
8.5 m
(28.0')
8.8 m
(28.9')
1.1 m
(3.6')
1.3 m
(4.4')
1.8 m
(5.9')
2.3 m
(7.4')
2.7 m
(8.9')
3.2 m
(10.4')
3.6 m
(12.0')
4.1 m
(13.5')
4.6 m
(15.0')
5.0 m
(16.5')
5.5 m
(18.0')
5.9 m
(19.5')
6.4 m
(21.0')
6.9 m
(22.5')
7.3 m
(24.1')
7.8 m
(25.6')
8.1 m
(26.5')
8.3 m
(27.1')
8.7 m
(28.6')
–
–
–
–
–
–
–
–
–
–
–
33 cm
(1.1')
39 cm
(1.3')
52 cm
(1.7')
65 cm
(2.1')
78 cm
(2.6')
92 cm
(3.0')
105 cm
(3.4')
118 cm
(3.9')
131 cm
(4.3')
144 cm
(4.7')
157 cm
(5.1')
170 cm
(5.6')
183 cm
(6.0')
196 cm
(6.4')
209 cm
(6.9')
222 cm
(7.3')
230 cm
(7.6')
235 cm
(7.7')
248 cm
(8.2')
262 cm
(8.6')
275 cm
(9.0')
288 cm
(9.4')
301 cm
(9.9')
314 cm
(10.3')
327 cm
(10.7')
340 cm
(11.2')
353 cm
(11.6')
366 cm
(12.0')
379 cm
(12.4')
392 cm
(12.9')
5 cm
(0.2')
6 cm
(0.2')
9 cm
(0.3')
11 cm
(0.4')
13 cm
(0.4')
15 cm
(0.5')
17 cm
(0.6')
19 cm
(0.6')
22 cm
(0.7')
24 cm
(0.8')
26 cm
(0.9')
28 cm
(0.9')
30 cm
(1.0')
32 cm
(1.1')
35 cm
(1.1')
37 cm
(1.2')
38 cm
(1.2')
39 cm
(1.3')
41 cm
(1.3')
43 cm
(1.4')
45 cm
(1.5')
48 cm
(1.6')
50 cm
(1.6')
52 cm
(1.7')
54 cm
(1.8')
56 cm
(1.8')
58 cm
(1.9')
61 cm
(2.0')
63 cm
(2.1')
65 cm
(2.1')
23"
28"
37"
46"
55"
64"
73"
83"
92"
101"
110"
119"
129"
138"
147"
156"
162"
165"
174"
184"
193"
202"
211"
220"
229"
239"
248"
257"
266"
275"
51
61
81
102
122
142
163
183
203
224
244
264
284
305
325
345
358
366
386
406
427
447
467
488
508
528
549
569
589
610
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
29
34
46
57
69
80
91
103
114
126
137
149
160
171
183
194
201
206
217
229
240
251
263
274
286
297
309
320
331
343
Screen size at 4:3
aspect ratio
W x D (cm)
Zoomed projection
distance
Max. Min.
H1
H2
Screen size at 16:9
aspect ratio
W x D (cm)
LV-7260/LV-X7
7
7. Appendix
❼
PC Control Codes and Cable Connection
PC Control Codes
Cable Connection
Communication Protocol
Baud rate 19200 bps
Data length 8 bits
Parity No parity
Stop bit One bit
Communications procedure ...........Full duplex
NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs.
NOTE: Contact your local dealer for a full list of the PC Control Codes if needed.
SERVICE PORT (Mini DIN-8P)
NOTE: Pins 2, 3, 5, 6 and 8 are used inside the projector.
To RxD of PC
To GND of PC
1 2
3
6 7 8
4 5
To TxD of PC
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER-1 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT COMPUTER-2 (Digital) 02H 03H 00H 00H 02H 01H 1AH 22H
INPUT SELECT COMPUTER-2 (Analog) 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
NO SHOW ON 02H 10H 00H 00H 00H 12H
NO SHOW OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
NO SHOW ON 02H 10H 00H 00H 00H 12H
NO SHOW OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
LV-7260/LV-X7
LV-7365/LV-7265
72
Image is flickering.
Still unchanged even though you press the AUTO PC button.
Still unchanged even though you carry out “Reset” in the
projector’s menu.
Image shows flickering or color drift on a computer signal.
Still unchanged even though you change [Fan mode] from
[High altitude] to [Auto]. (LV-7365)
7. Appendix
❽
Troubleshooting Check List
Before contacting your dealer or service personnel, check the following list to be sure repairs are needed, you
may also refer to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your
problem more efciently.
* Print the following pages.
No image is displayed from your PC or video equipment to the
projector.
Still no image even though you connect the projector to the
PC first, then start the PC.
Enabling your notebook PC’s signal output to the projector.
• A combination of function keys will enable/disable the
external display. Usually, the combination of the “Fn” key
along with one of the 12 function keys turns the external
display on or off.
No image (blue background, logo, no display).
Still no image even though you press the AUTO PC button.
Still no image even though you carry out “Reset” in the
projector’s menu.
Signal cable's plug is fully inserted into the input connector
A message appears on the screen.
( _____________________________________________ )
The source connected to the projector is active and available.
Still no image even though you adjust the brightness and/
or the contrast.
Input source's resolution and frequency are supported by
the projector.
Frequency of occurrence
always
sometimes (How often? _____________________)
other ( __________________ )
Power
No power (POWER indicator does not light green) See also
“WARNING Indicator (WARNING)”.
Power cord's plug is fully inserted into the wall outlet.
Main power switch is pressed to the ON position.
Lamp cover is installed correctly .
Lamp counter (lamp operation hours) was cleared after
lamp replacement.
No power even though you press and hold the POWER but-
ton for a minimum of 1 second.
Shut down during operation.
Power cord's plug is fully inserted into the wall outlet.
Lamp cover is installed correctly .
Power Management is turned off (only models with the
Power Management function).
Off timer is turned off (only models with the Off timer func-
tion).
Video and Audio
Image is too dark.
Remains unchanged even though you adjust the brightness
and/or the contrast.
Image is distorted.
Image appears to be trapezoidal (unchanged even though
you carry out the “Keystone adjustment”).
Parts of the image are lost.
Still unchanged even though you press the AUTO PC button.
Still unchanged even though you carry out “Reset” in the
projector’s menu.
Image is shifted in the vertical or horizontal direction.
Horizontal and vertical positions are correctly adjusted on
a computer signal.
Input source's resolution and frequency are supported by
the projector.
Some pixels are lost.
Image appears blurry or out of focus.
Still unchanged even though you checked the signal’s resolu-
tion on PC and changed it to projector’s native resolution.
Still unchanged even though you adjusted the focus.
No sound.
Audio cable is correctly connected to the audio input of the
projector.
Still unchanged even though you adjusted the volume level.
AUDIO OUT is connected to your audio equipment (only
models with the AUDIO OUT connector).
Other
Remote control does not work.
No obstacles between the sensor of the projector and the
remote control.
Projector is placed near a fluorescent light that can disturb
the infrared remote controls.
One or more remote sensors are enabled (only models with
the Remote Sensor Selection function).
Batteries are new and are not reversed in installation.
If present on the remote control, projector selector switch
is not used.
Buttons on the projector cabinet do not work ( only models
with the Key lock function).
Key lock is not turned on or is disabled in the menu.
Still unchanged even though you press and hold the BACK
button for a minimum of 10 seconds.
73
7. Appendix
In the space below please describe your problem in detail.
Information on application and environment where your projector is used
Projector
Model number:
Serial No.:
Date of purchase:
Lamp operating time (hours):
Lamp Mode:
Normal
Quiet
Information on input signal:
Horizontal sync frequency [ ] kHz
Vertical sync frequency [ ] Hz
Sync polarity H
(+)
(–)
V
(+)
(–)
Sync type
Separate
Composite
Sync on Green
WARNING Indicator:
Steady light
Orange
Green
Flashing light [ ] cycles
Remote control model number:
Signal cable
Canon standard or other manufacturer’s cable?
Model number: Length: inch/m
Distribution amplifier
Model number:
Switcher
Model number:
Adapter
Model number:
Installation environment
Screen size: inch
Screen type:
White matte
Beads
Polarization
Wide angle
High contrast
Throw distance: feet/inch/m
Orientation:
Ceiling mount
Desktop
Power outlet connection:
Connected directly to wall outlet
Connected to power cord extender or other (the
number of connected equipment ______________)
Connected to a power cord reel or other (the num
-
ber of connected equipment ______________)
Computer
Manufacturer:
Model number:
Notebook PC
/ Desktop
Native resolution:
Refresh rate:
Video adapter:
Other:
Video equipment
VCR, DVD player, Video camera, Video game or other
Manufacturer:
Model number:
CANON INC. 30- 2, Shimomaruko 3- chome, Ohta- ku, Tokyo 146- 8501, Japan
CANON U. S. A., INC.
One Canon Plaza, Lake Success, NY 11042, U. S. A.
CANON CANADA, INC.
6390 Dixie Road Mississauga, Ontario L5T 1P7 Canada
CANON LATIN AMERICA, INC.
703 Waterford Way Suite 400 Miami, Florida 33126 U. S. A.
CANON MEXICANA, S. de R. L. de C. V.
Boulevard Manuel Avila Camacho, No. 138 PB, Pisos 15, 16 y 17Col. Lomas de
Chapultepec, CP 11000, Mexico D. F., Mexico
CANON EUROPA N. V.
P. O. Box 2262, 1180 EG Amstelveen, The Netherlands
CANON COMMUNICATION & IMAGE FRANCE S. A.
12 Rue De L'Industrie, 92414 Corbevoie, Cedex, France
CANON (UK) LTD.
Woodhatch, Reigate, Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A 10, 47807 Krefeld, Germany
CANON ITALIA S. p. A.
Via Milano, 8 San Donato M. se-20097 (MI), Italy
CANON (Schweiz) A. G.
Industriestrasse 12, 8305 Dietlikon, Switzerland
CANON BELGIUM N. V./ S. A
Bessenveldstraat 7, 1831 Diegem, Belgium
CANON GmbH
Zetschegasse 11, A- 1230 Wien, Austria
CANON ESPANA S. A.
C/ Joaquin Costa 41, 28002 Madrid, Spain
CANON SVENSKA AB
Gustav III:s, Boulevard 26, 169 88 Solna, Sweden
CANON NORGE A/ S
Hallagerbakken 110, P. O. Box 33, Holmlia, N-1201 Oslo, Norway
CANON OY
Huopalahdentie 24, P. O. Box 1, FIN- 00351 Helsinki, Finland
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kln., H. K.
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue #04-01, Keppel Bay Tower Singapore 098632
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney, N. S. W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
CANON DANMARK A/ S
Knud Hoejgaards Vej 1, DK- 2860 Soeborg, Denmark
YT1-7335-002 © CANON INC. 2007
7N951111
