2004 MDX Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction..................................................................................................................................................... i
A Few Words About Safety ..........................................................................................................................ii
Your Vehicle at a Glance...............................................................................................................................2
Driver and Passenger Safety .......................................................................................................................5
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.
Instruments and Controls...........................................................................................................................55
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features.......................................................................................................
103
How to operate the climate control system, the audio system, and other convenience features.
Before Driving ...............................................................................................................................
..............157
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving...........................................................................................................................................................169
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance...............................................................................................................................
..................195
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Taking Care of the Unexpected...............................................................................................................229
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information...............................................................................................................................251
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)......................................................................265
A summary of the warranties covering your new Honda, and how to contact us.
Authorized Manuals (U.S. only)...............................................................................................................
269
How to order manuals and other technical literature.
Index .................................................................................................................................................................I
Service Information Summary
A summary
of information you need when you pull up to the fuel pump.
This Owner’s Manual should be considered
a permanent part of the vehicle, and should
remain with the vehicle when it is sold.
This Owner’s Manual covers all models of
theMDX.Youmayfinddescriptionsof
equipment and features that are not on your
particular model.
The information and specifications included
in this publication were in effect at the time
of approval for printing. Honda Motor Co.,
Ltd. reserves the right, however, to
discontinue or change specifications or
design at any time without notice and
without incurring any obligation whatsoever.
Owner’s Identification
POUR CLIENTS CANADIEN
AVIS IMPORTANT: Si vous avez
besoin d’un Manuel du Conducteur
en français, veuillez demander à
votreconcessionnairede
commander le numéro de pièce
33S3V830
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
Congratulations! Your selection of a 2004 Acura MDX was a wise investment.
It will give you years of driving pleasure.
One of the best ways to enhance the enjoyment of your new Acura is to read
this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new Acura. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your Acura dealer’s
staff is specially trained in servicing the many systems unique to your Acura.
Your Acura dealer is dedicated to your satisfaction and will be pleased to
answer any questions and concerns.
California Proposition 65 Warning
This product contains or emits chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
As you read this manual, you will
find information that is preceded by
a symbol. This information
is intended to help you avoid damage
to your Acura, other property, or the
environment.
Introduction
WARNING:
NOTICE:
i
Main Menu
−
−
−
−
−
−
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
You will find this important safety information in a variety of forms,
including:
preceded by a safety alert symbol and one of
three signal words: , , or .
These signal words mean:
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
how to use this vehicle correctly and safely.
This entire book is filled with important safety information please read it
carefully.
on the vehicle.
AFewWordsAboutSafety
Safety Messages
Safety Headings
Safety Section
Instructions

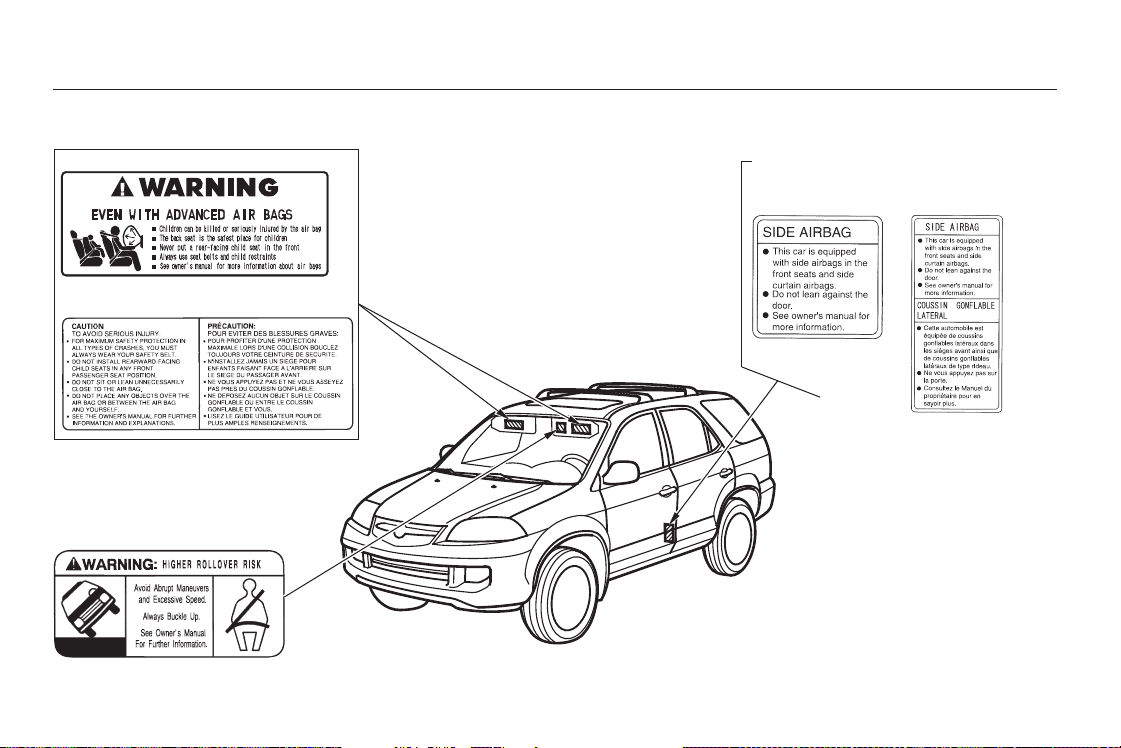

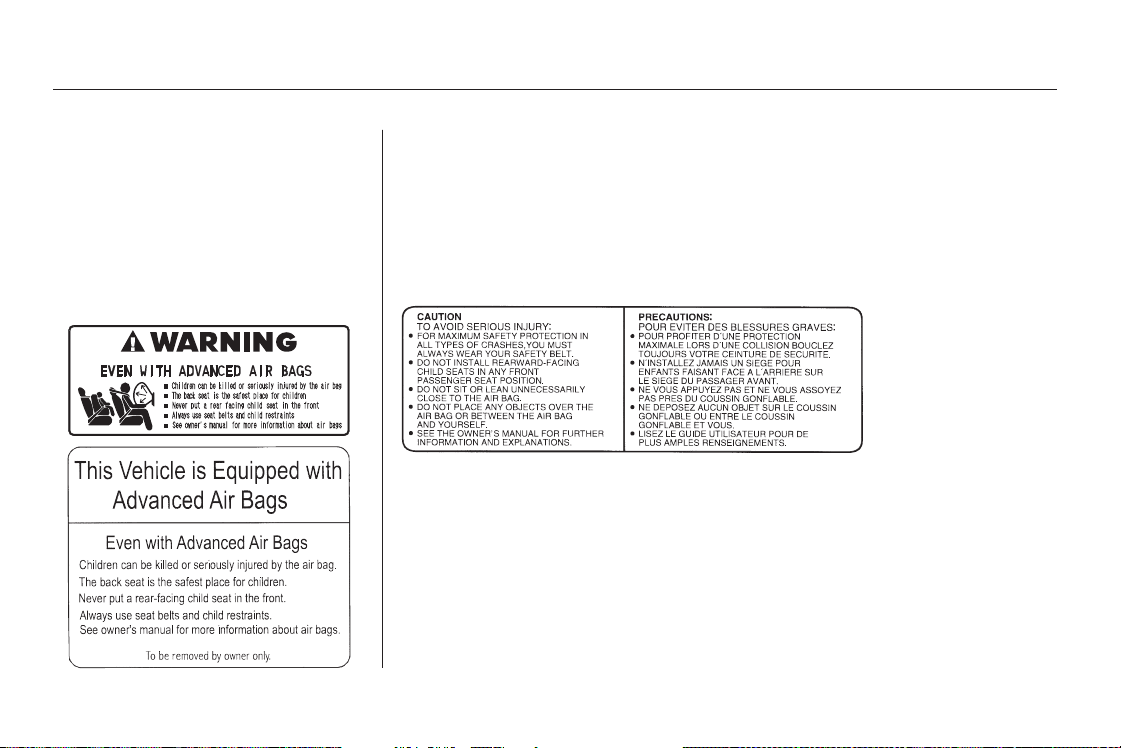

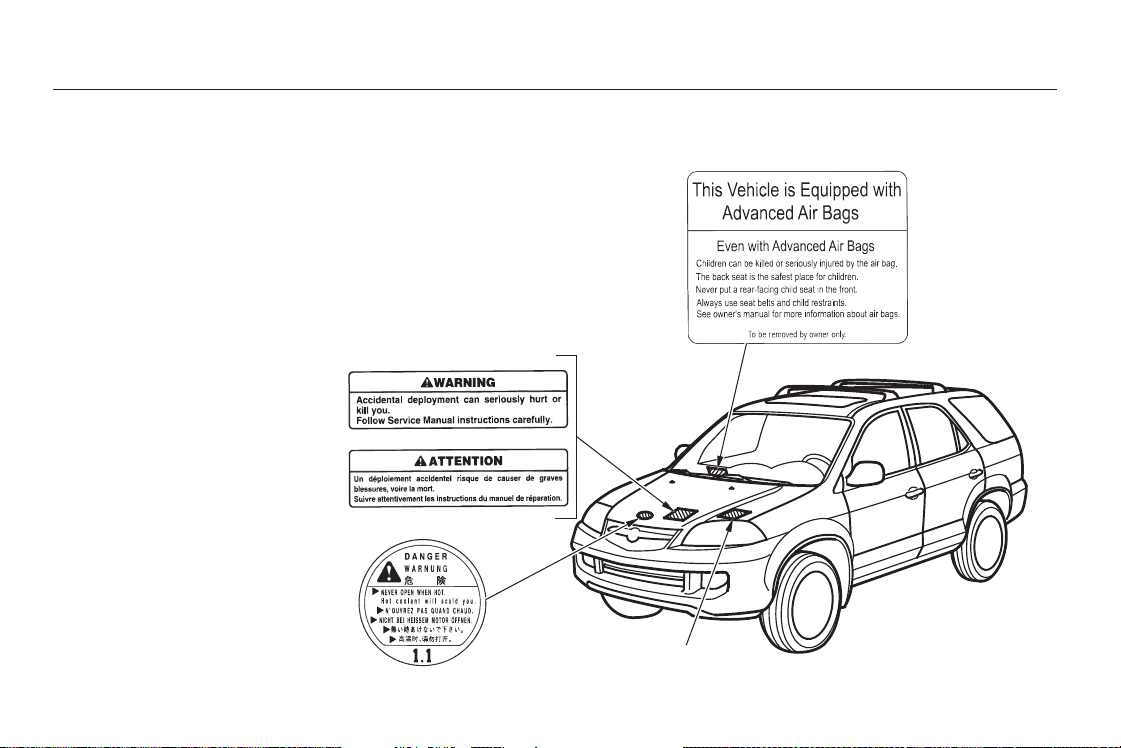

Safety Labels
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Main Menu
Your MDX has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher ground
clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and rough
terrain. It also provides good visibility so you can anticipate problems earlier.
These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high
center of gravity. This means your vehicle can tip or roll over if you make abrupt turns. Utility vehicles have a
significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly
more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear
seat belts.
For information on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page of this manual and the
section on page . Failure to operate this vehicle correctly may result in loss of control or an
accident.
170
192
Off-Highway Guidelines
Important Handling Information
iii
Main Menu

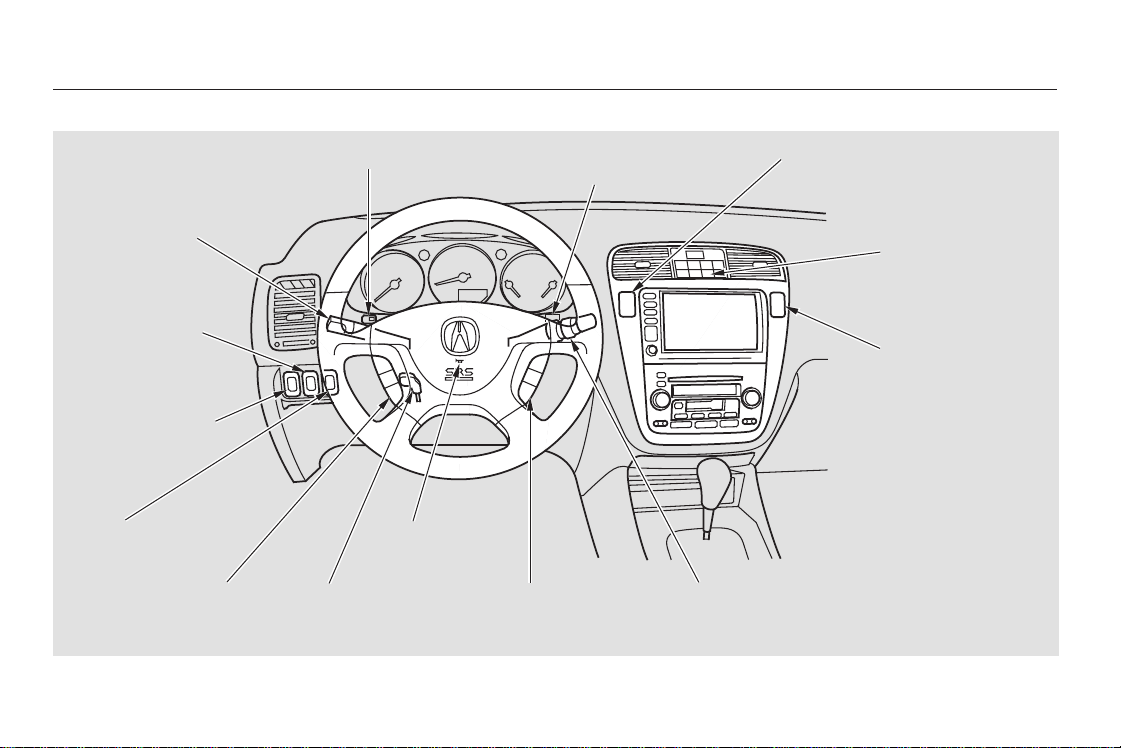

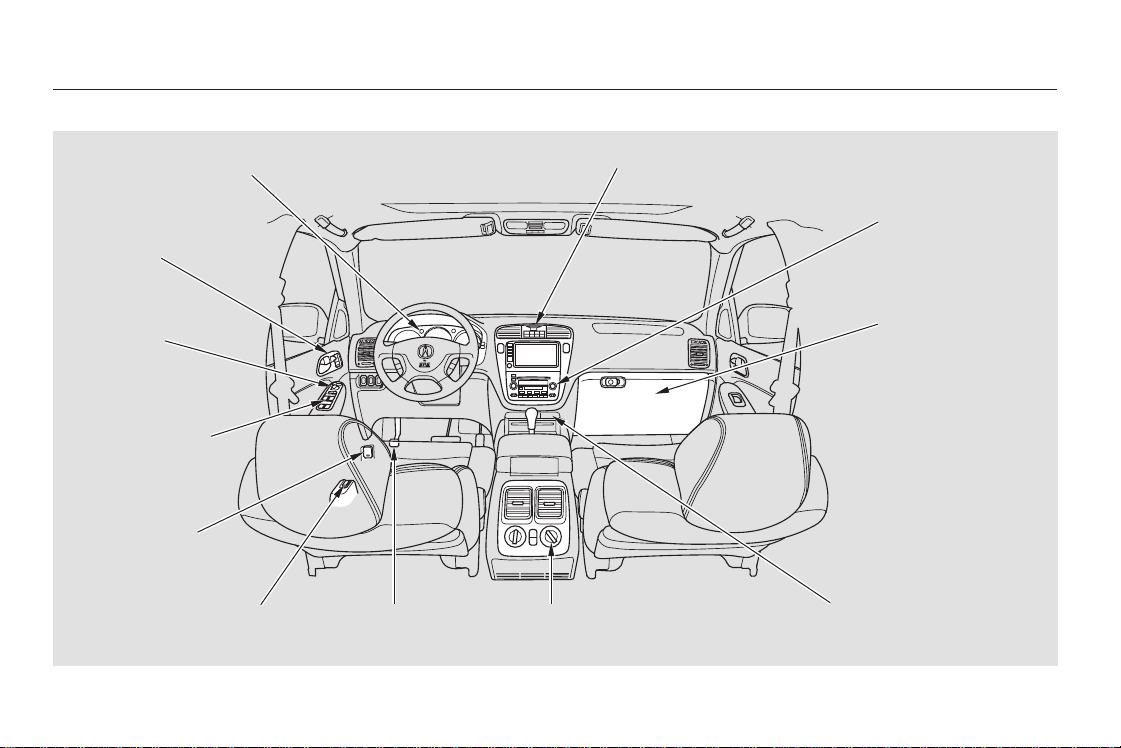

Your Vehicle at a Glance
2
POWER DOOR LOCK
SWITCHES
MIRROR
CONTROLS

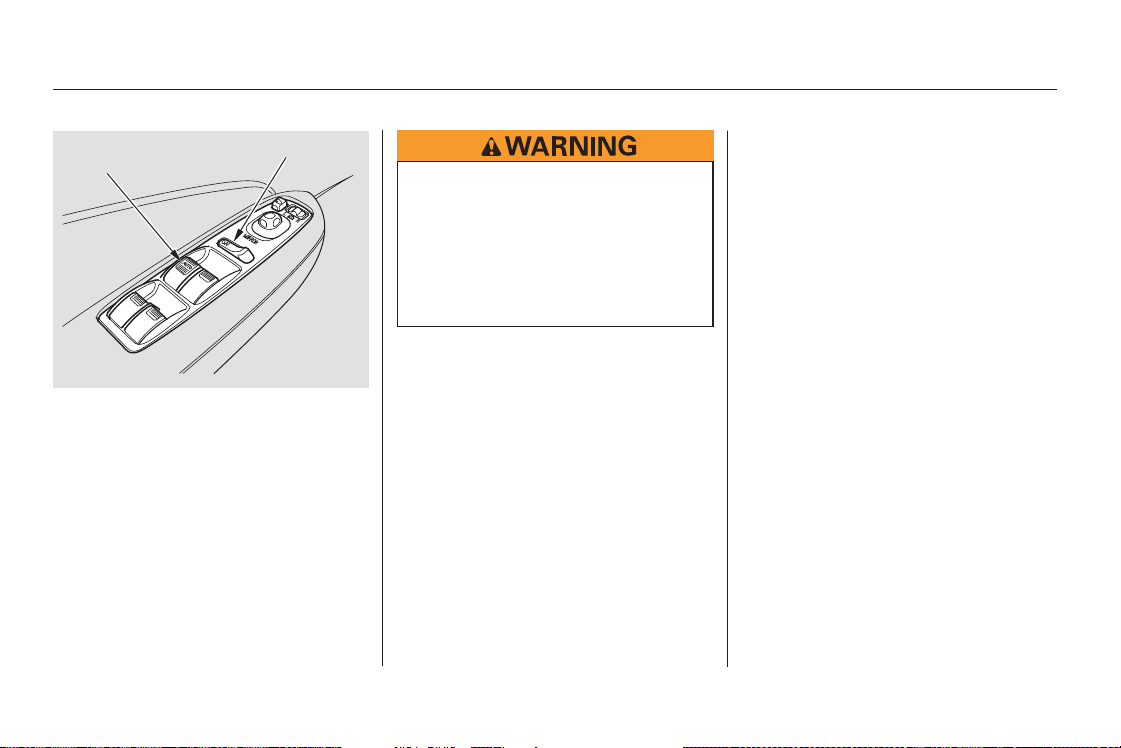

POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLE

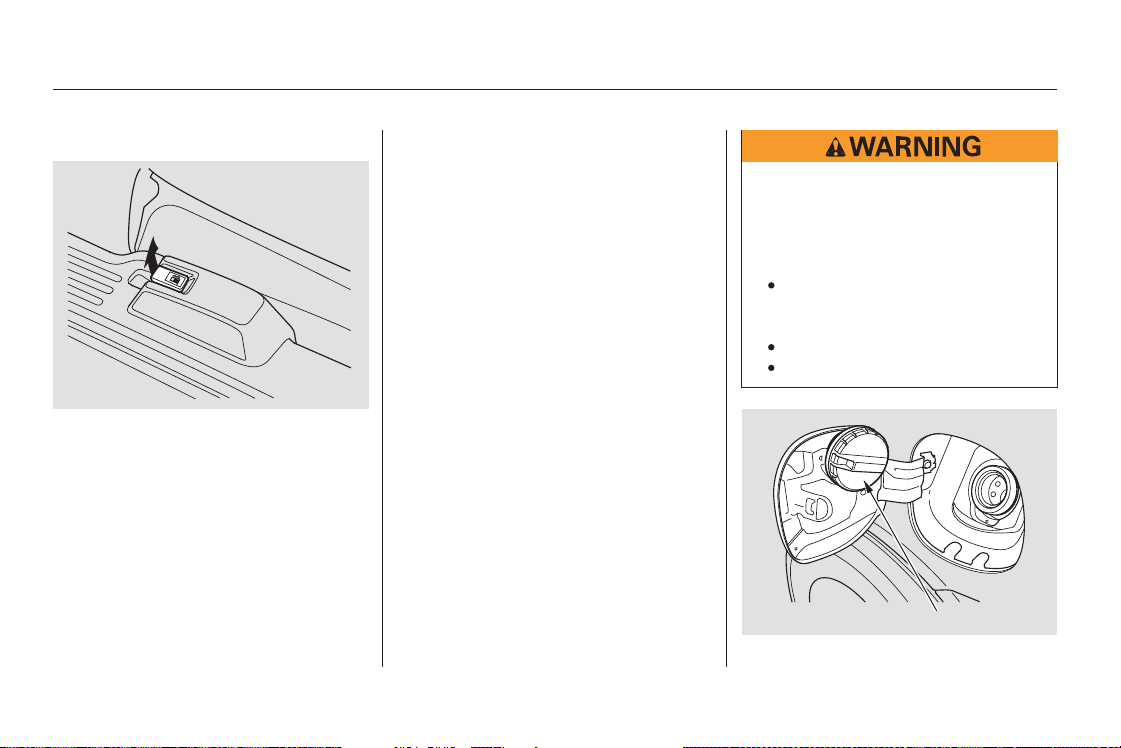

FUEL FILL DOOR
RELEASE
PARKING BRAKE
PEDAL
REAR A/C CONTROL ACCESSORY POWER SOCKET
GLOVE BOX

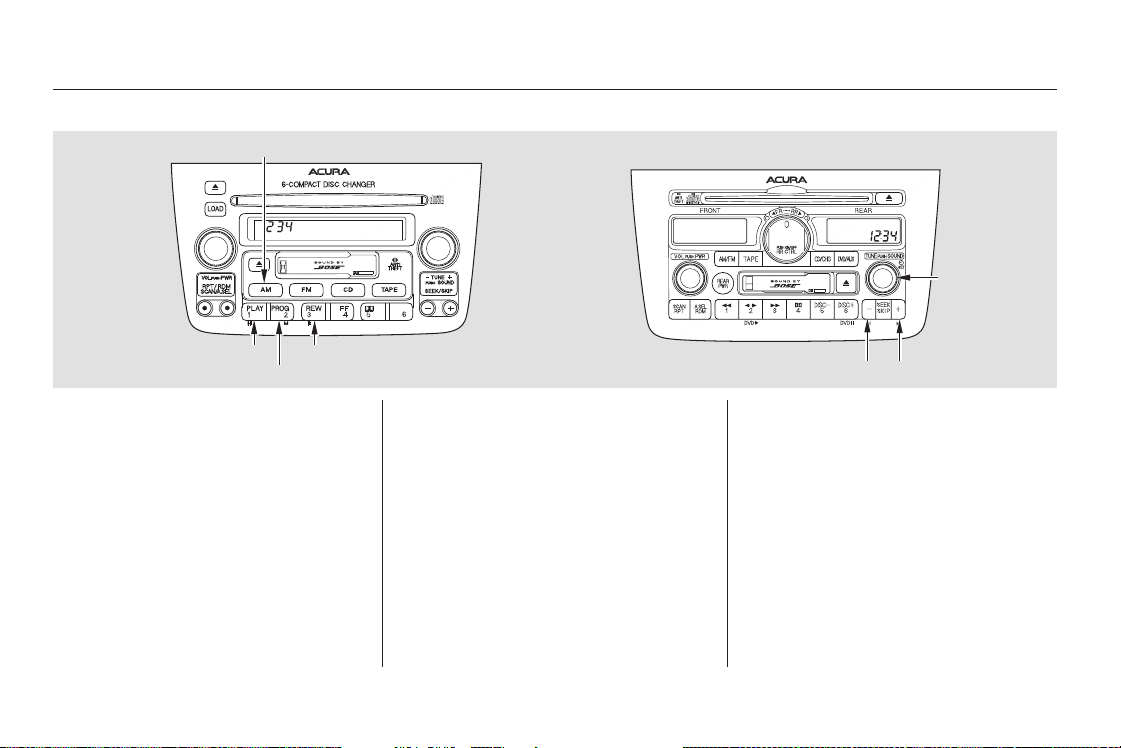

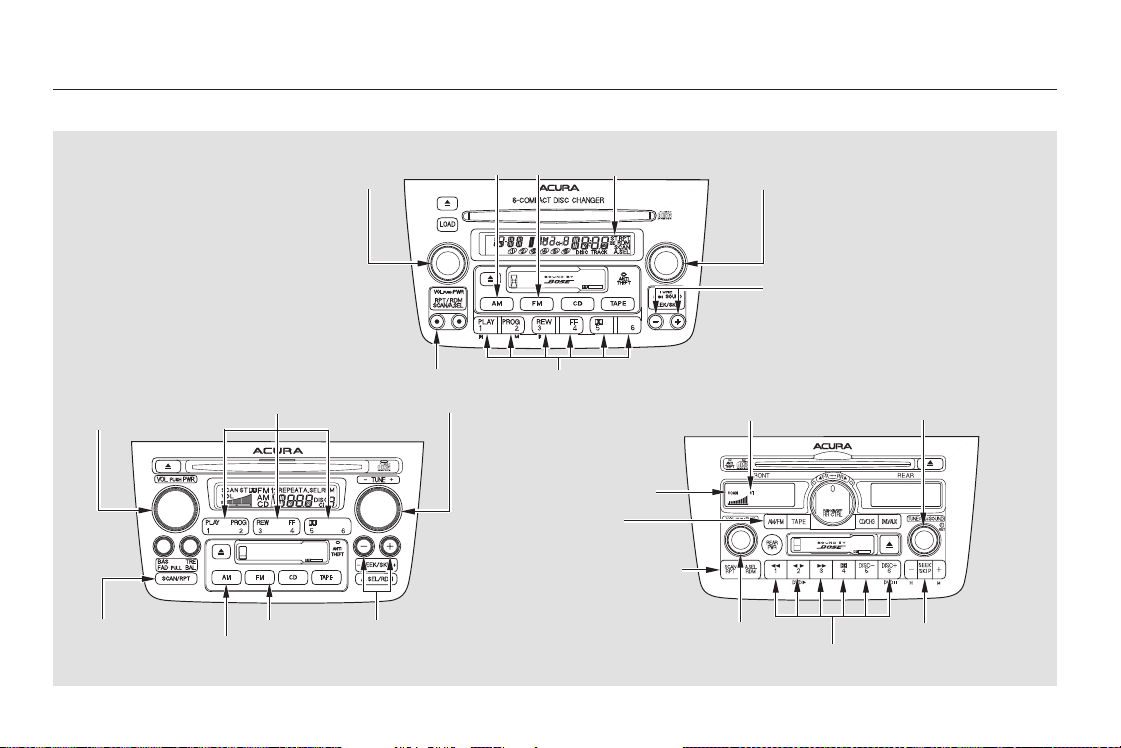

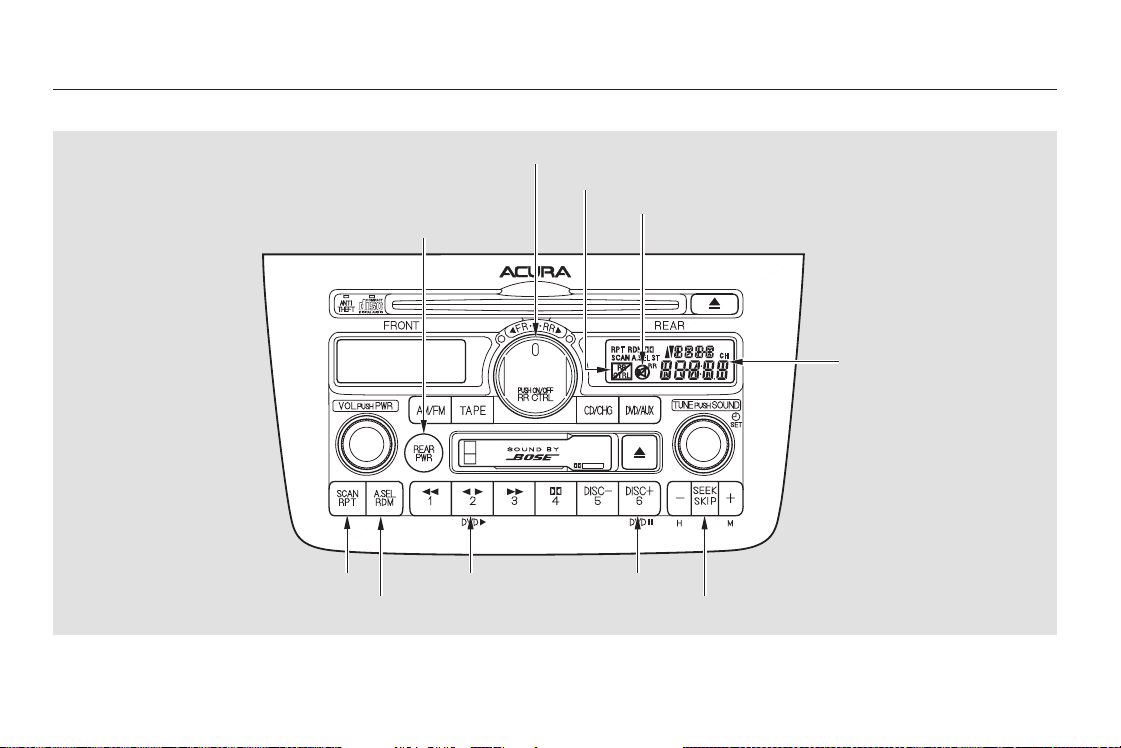

AUDIO SYSTEM
CLIMATE CONTROL SYSTEM
GAUGES

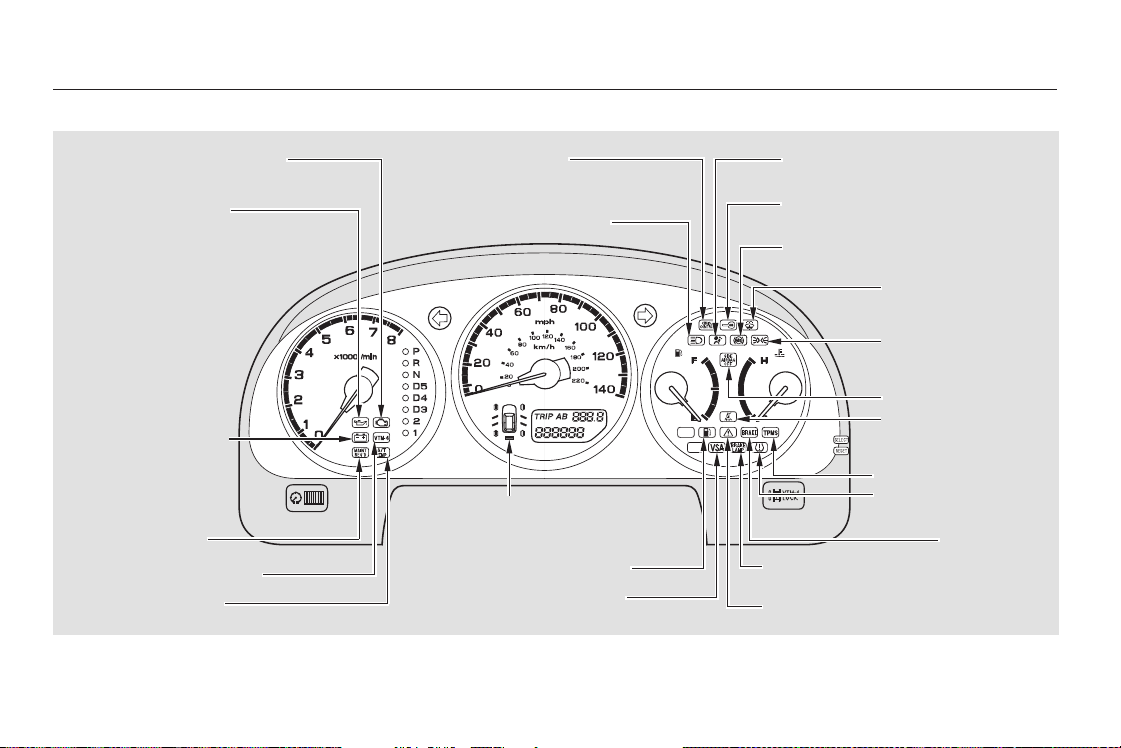

INSTRUMENT PANEL (P.57)
(P.66)
(P.80)
(P.90)
(P.160)
(P.159)
(P.92)
(P.109) (P.101)
(P.99)
(P.110)
(P.104)
(P.92)
Main Menu
＊
＊
To use the horn, press the pad around the ‘‘A’’ logo.:

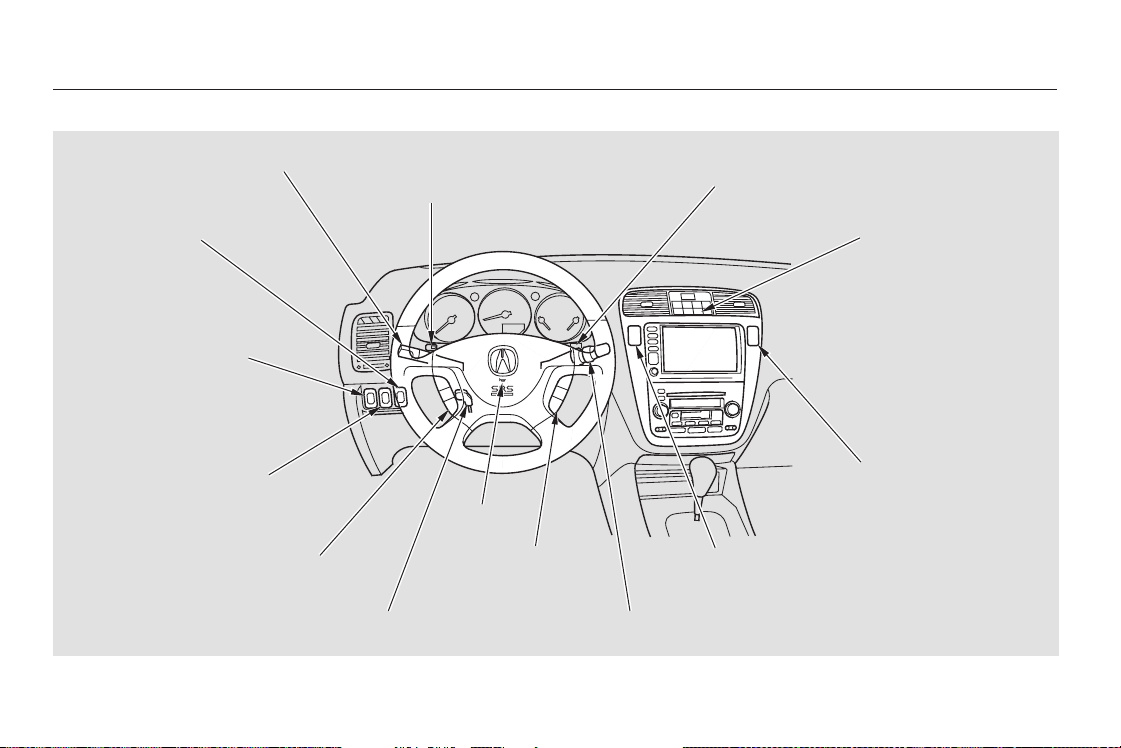

Your Vehicle at a Glance
3

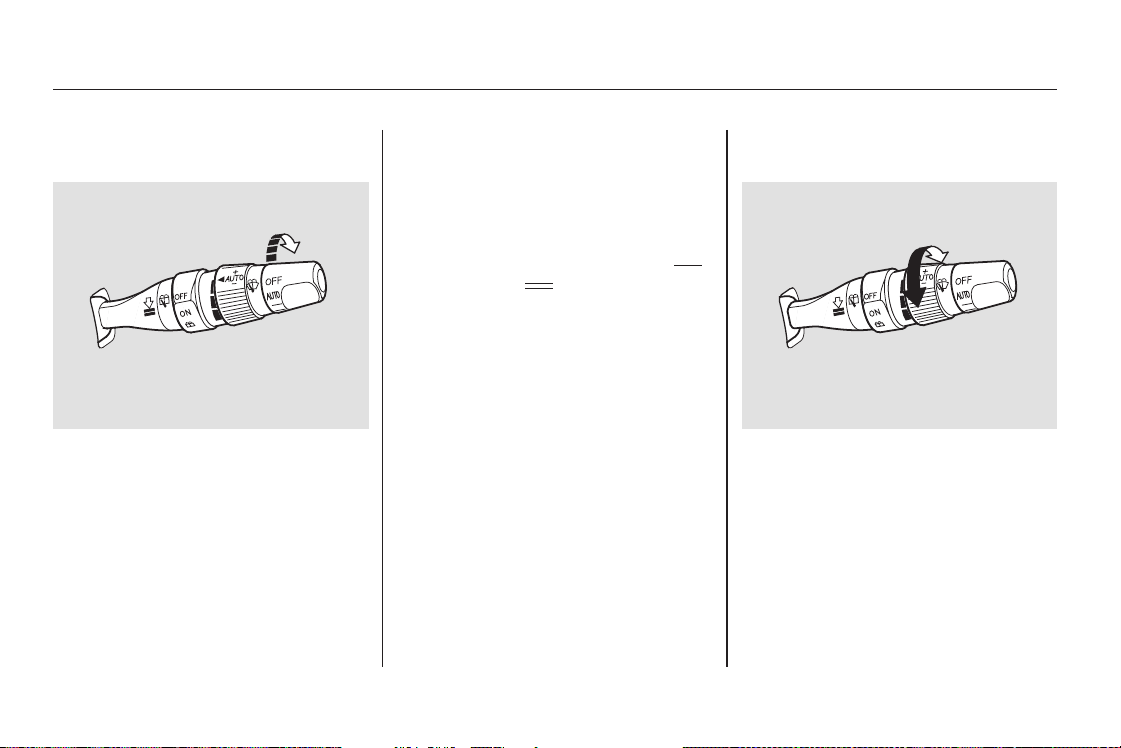

HEADLIGHTS/
TURN SIGNALS
FOG LIGHTS
REMOTE AUDIO
CONTROLS
STEERING WHEEL
ADJUSTMENT
CRUISE CONTROL
HORN
WINDSHIELD WIPERS/WASHERS
VEHICLE STABILITY
ASSIST SYSTEM
OFF SWITCH
CRUISE CONTROL
INSTRUMENT PANEL BRIGHTNESS
REAR WINDOW
DEFOGGER
VTM-4 LOCK
(P.72)
(P.184)
(P.144)
(P.75)
(P.128) (P.76)
(P.144) (P.69)
(P.74)
(P.75)
(P.30)
(P.176)
(P.74)

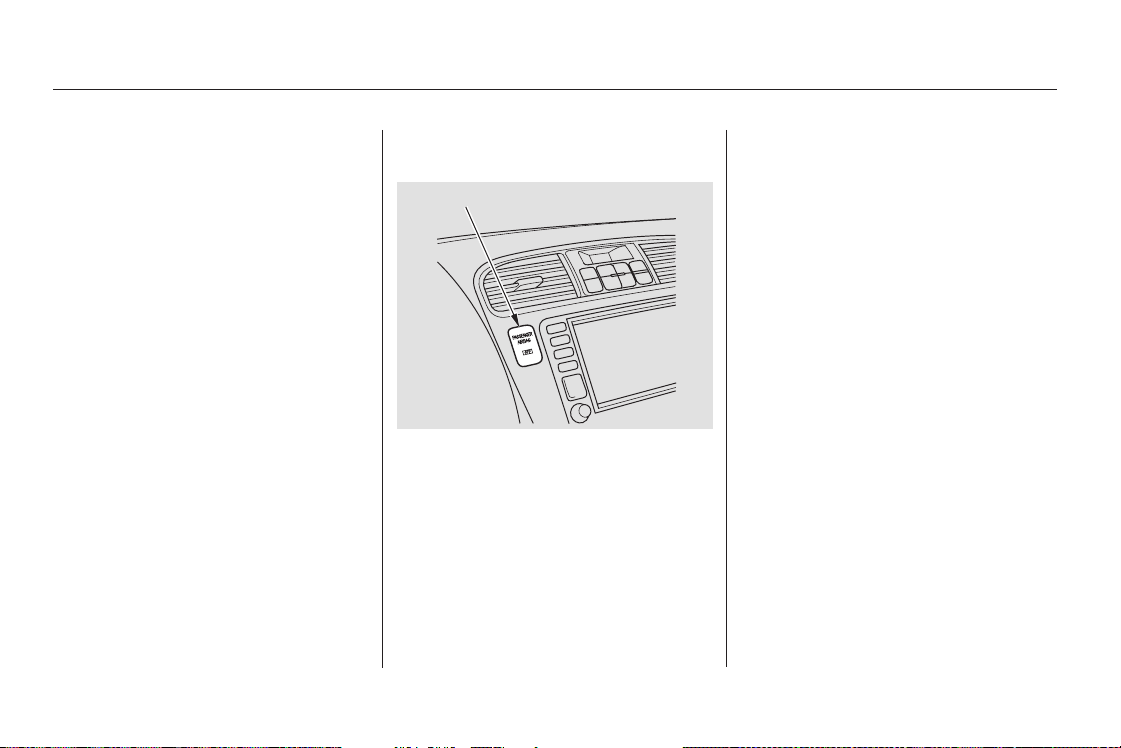

PASSENGER AIRBAG OFF
INDICATOR
HAZARD WARNING
BUTTON
Main Menu
4
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts
properly. It explains how your airbag
work, and it tells you how to properly
restrain infants and children in your
vehicle.
.........Important Safety Precautions . 6
.......Your Vehicle’s Safety Features . 7
.......................................Seat Belts . 8
...........................................Airbags . 9
.........Protecting Adults and Teens . 11
.....1. Close and Lock the Doors . 11

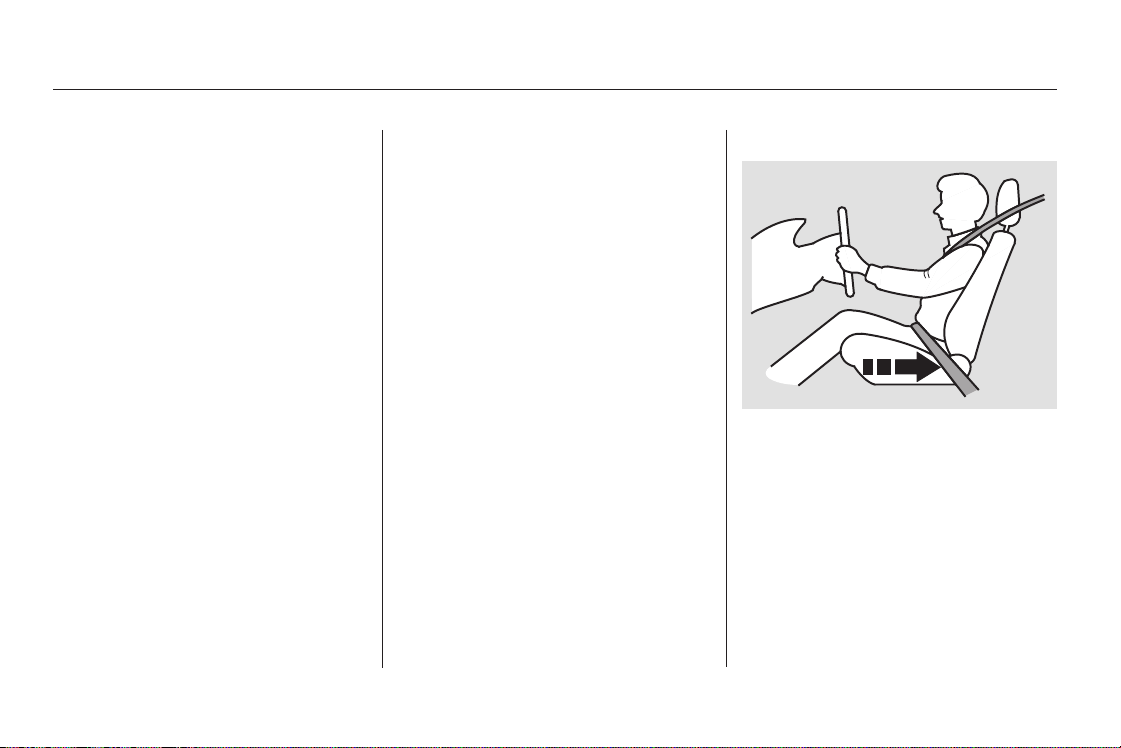

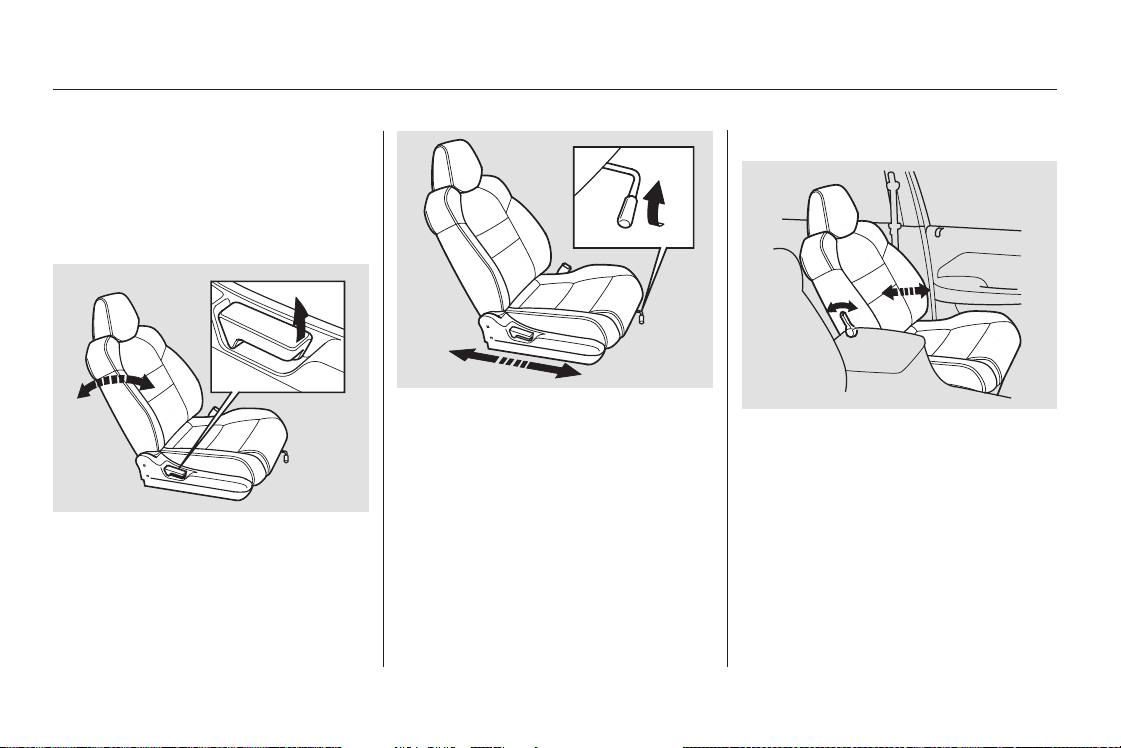

...........2. Adjust the Front Seats . 11

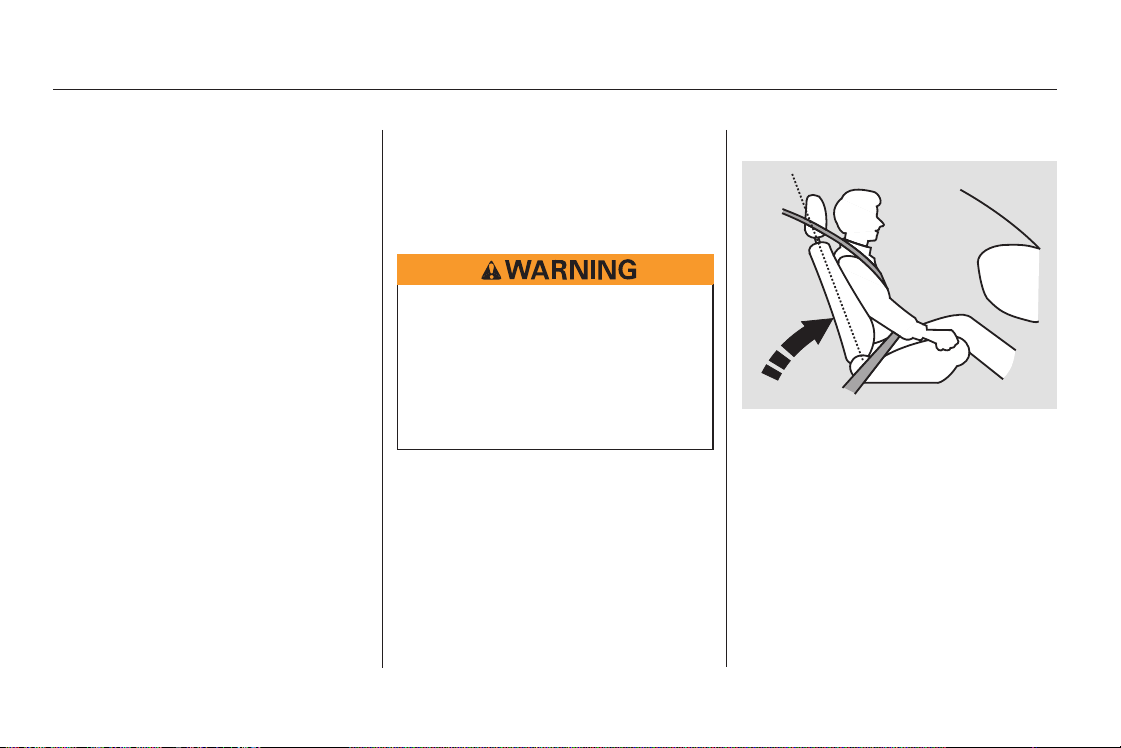

............3. Adjust the Seat-Backs . 12

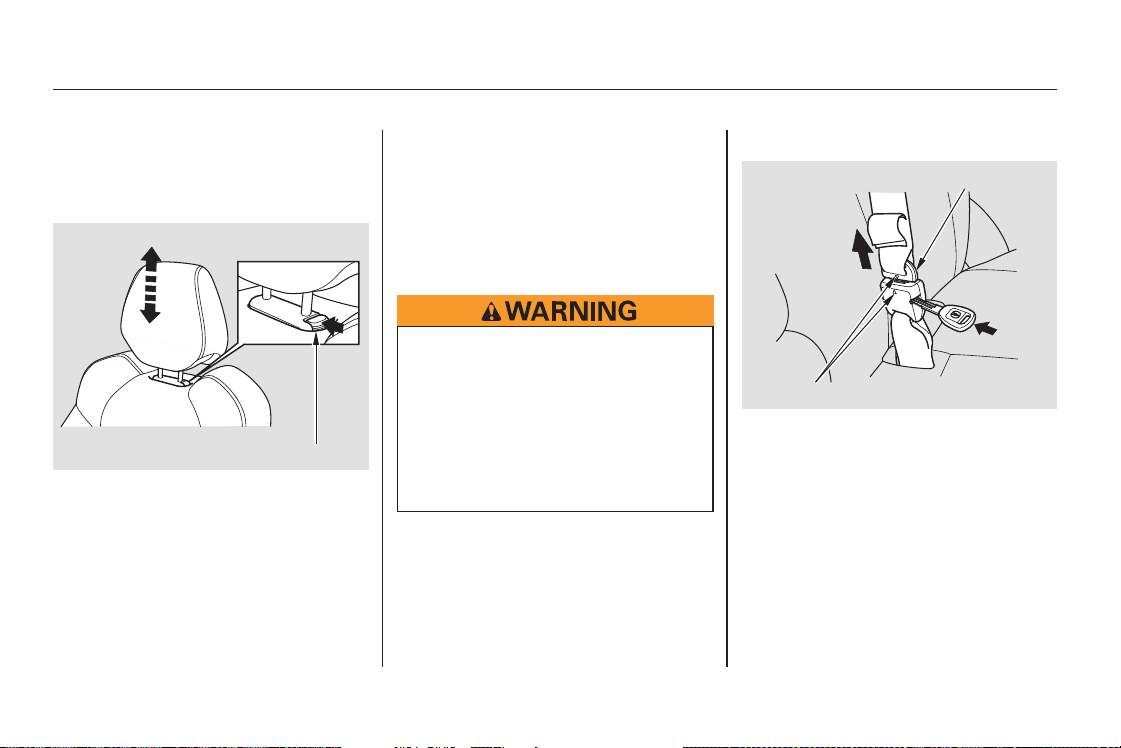

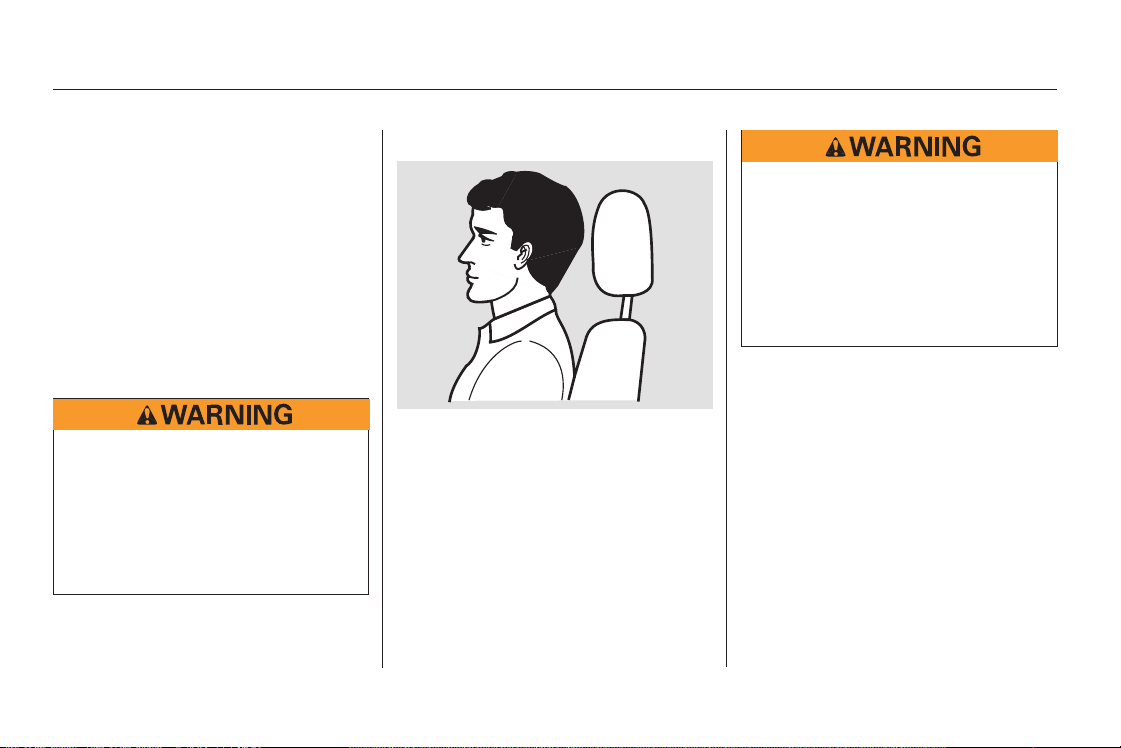

...4. Adjust the Head Restraints . 13
5. Fasten and Position the Seat
.....................................Belts . 14

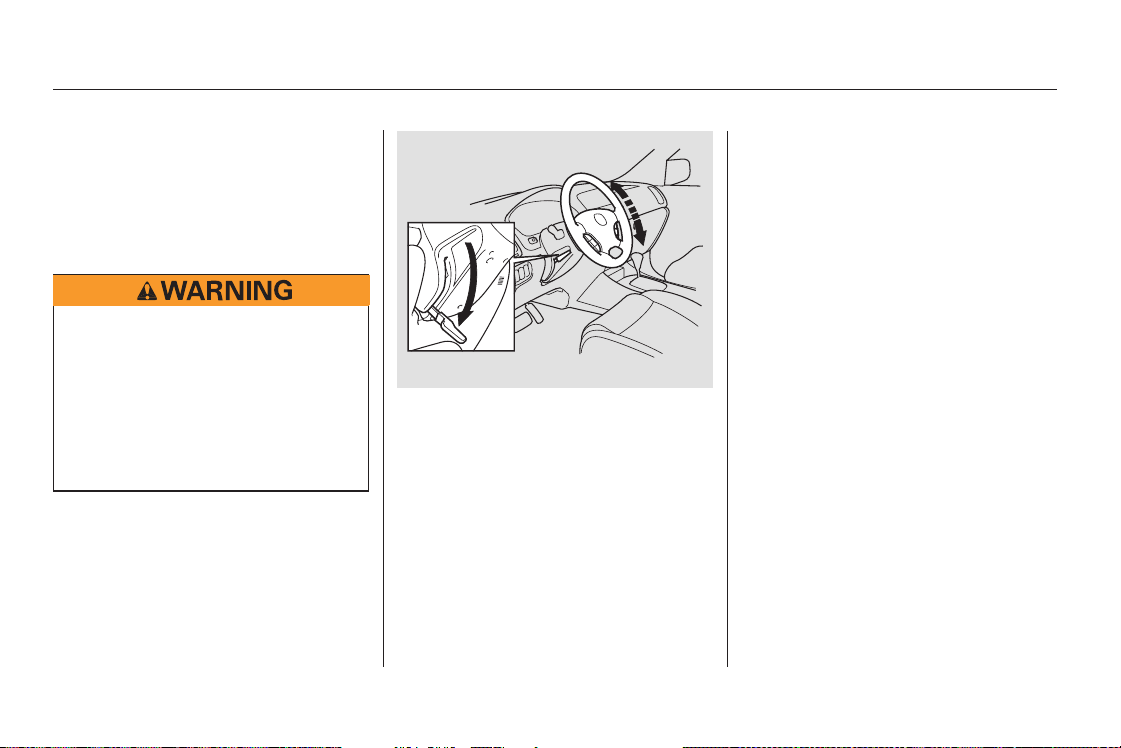

....6. Adjust the Steering Wheel . 16
7. Maintain a Proper Sitting
................................Position . 16

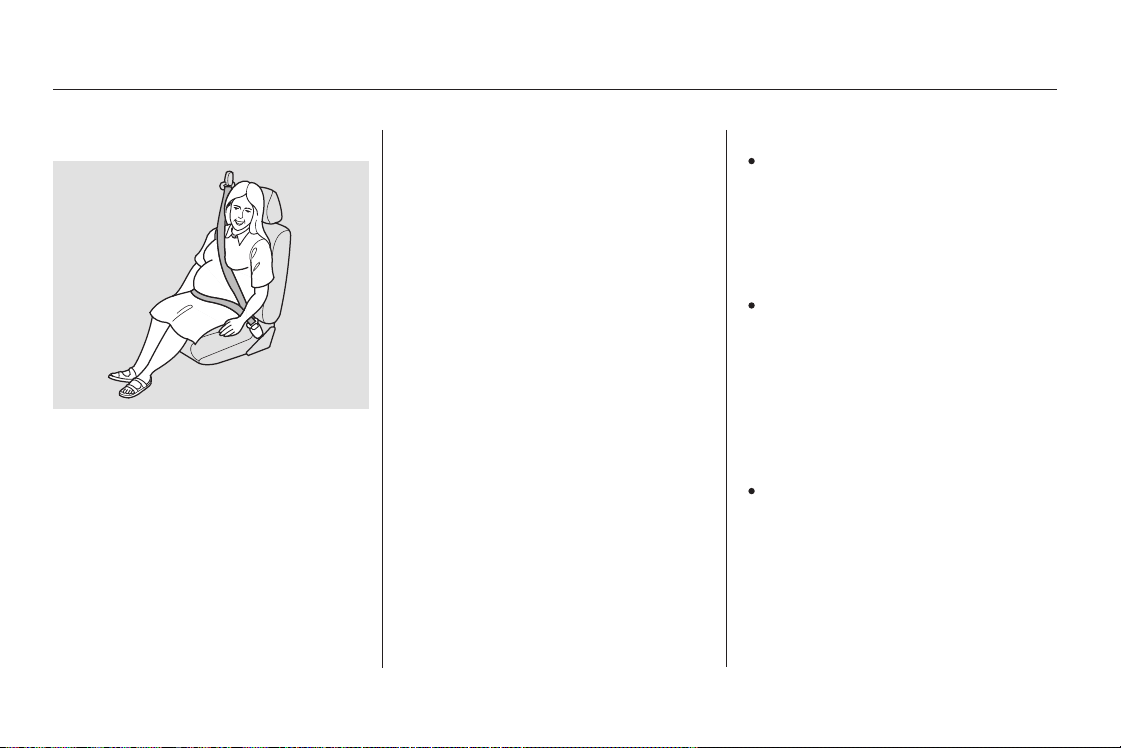

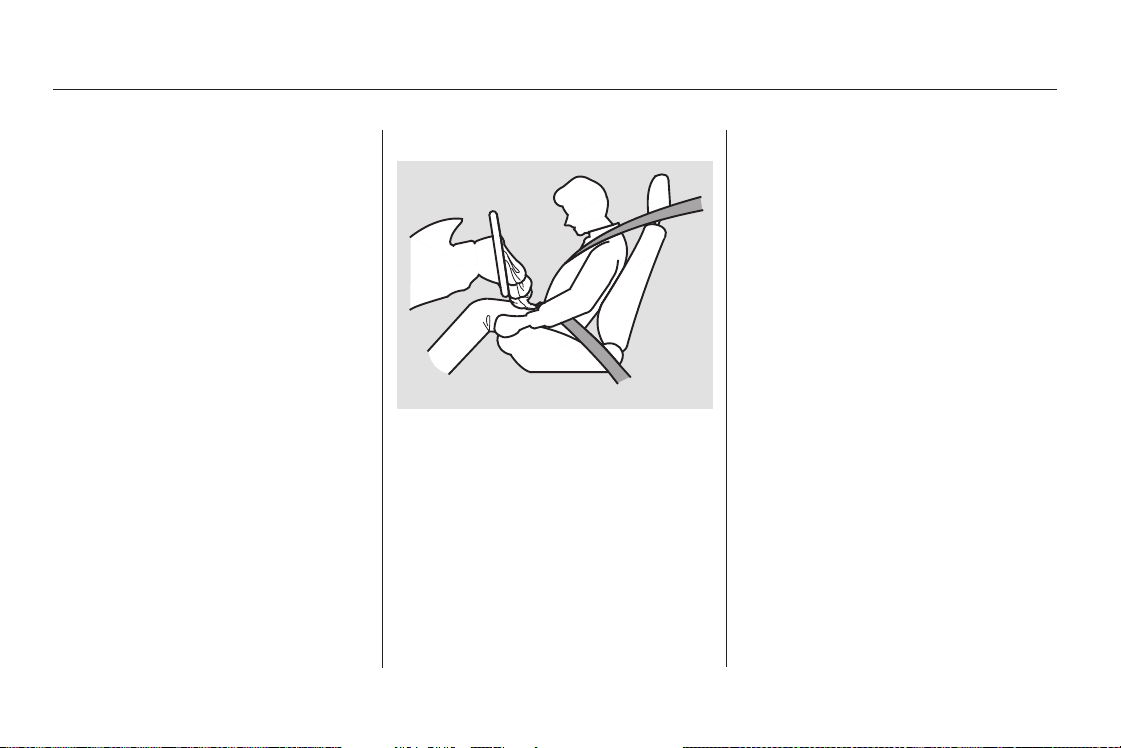

.....Advice for Pregnant Women . 17
...Additional Safety Precautions . 17
Additional Information About Your
.................................Seat Belts . 19

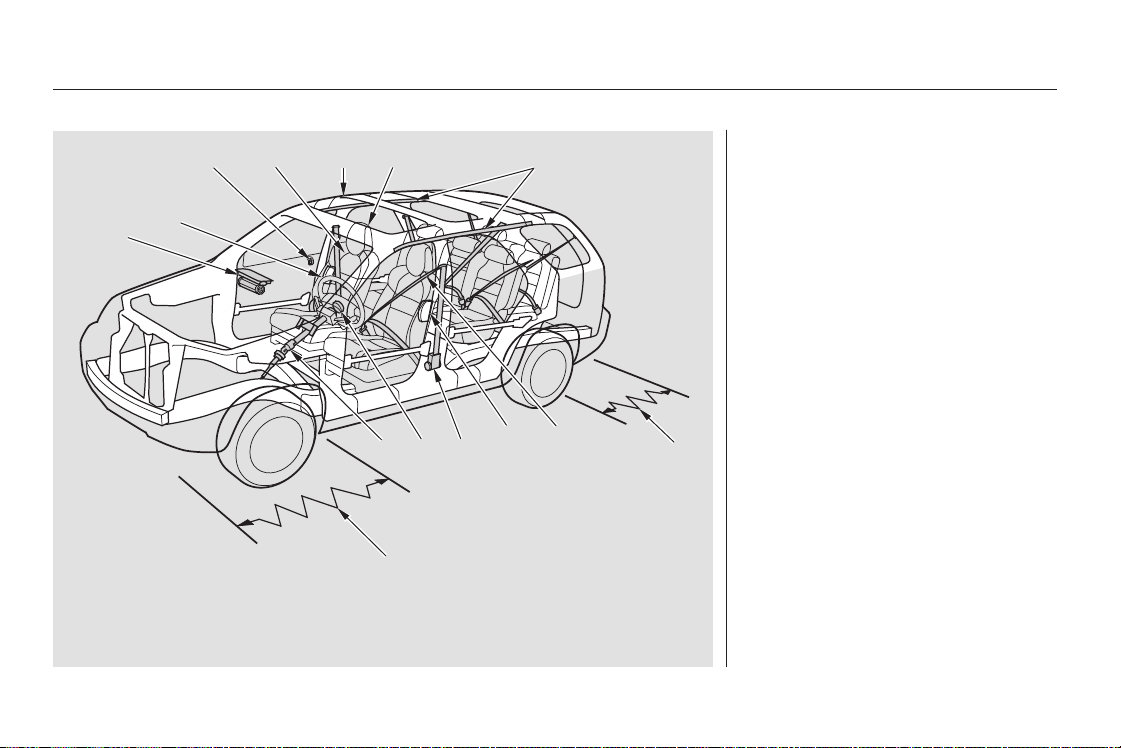

..Seat Belt System Components . 19
......................Lap/Shoulder Belt . 19
........ 20
...............Seat Belt Maintenance . 21
Additional Information About Your
.....................................Airbags . 22

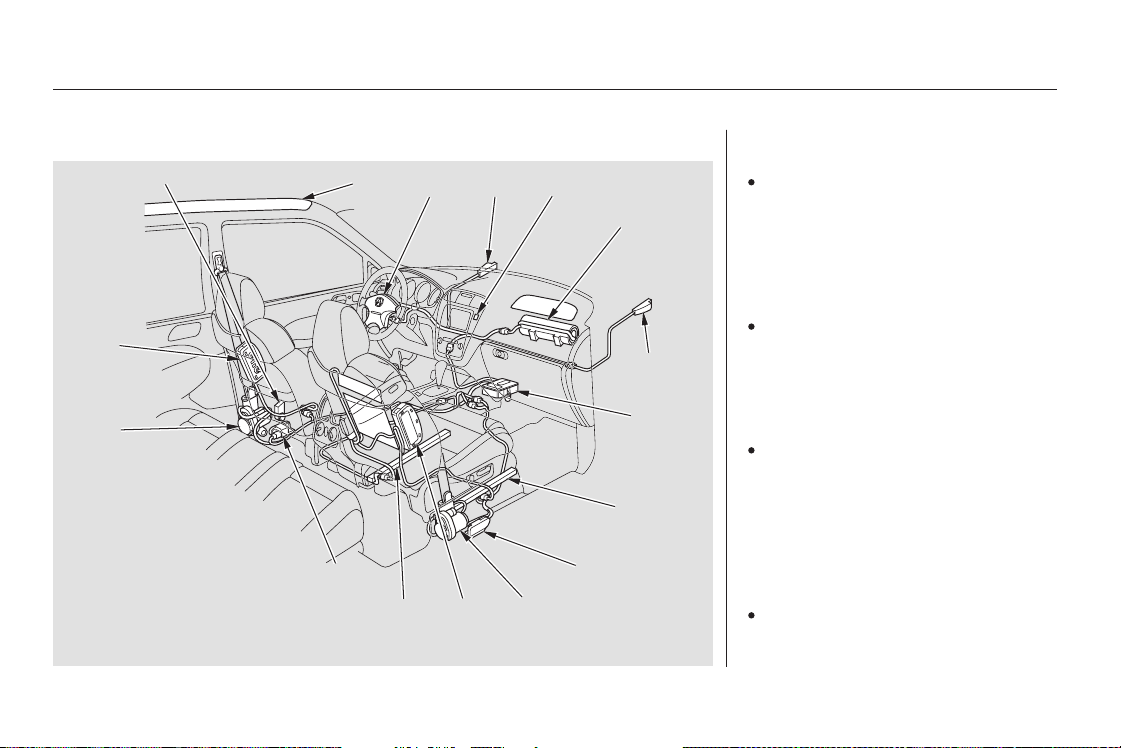

......Airbag System Components . 22
......... 23
........................Advanced Airbag . 25
...How Your Side Airbags Work . 27

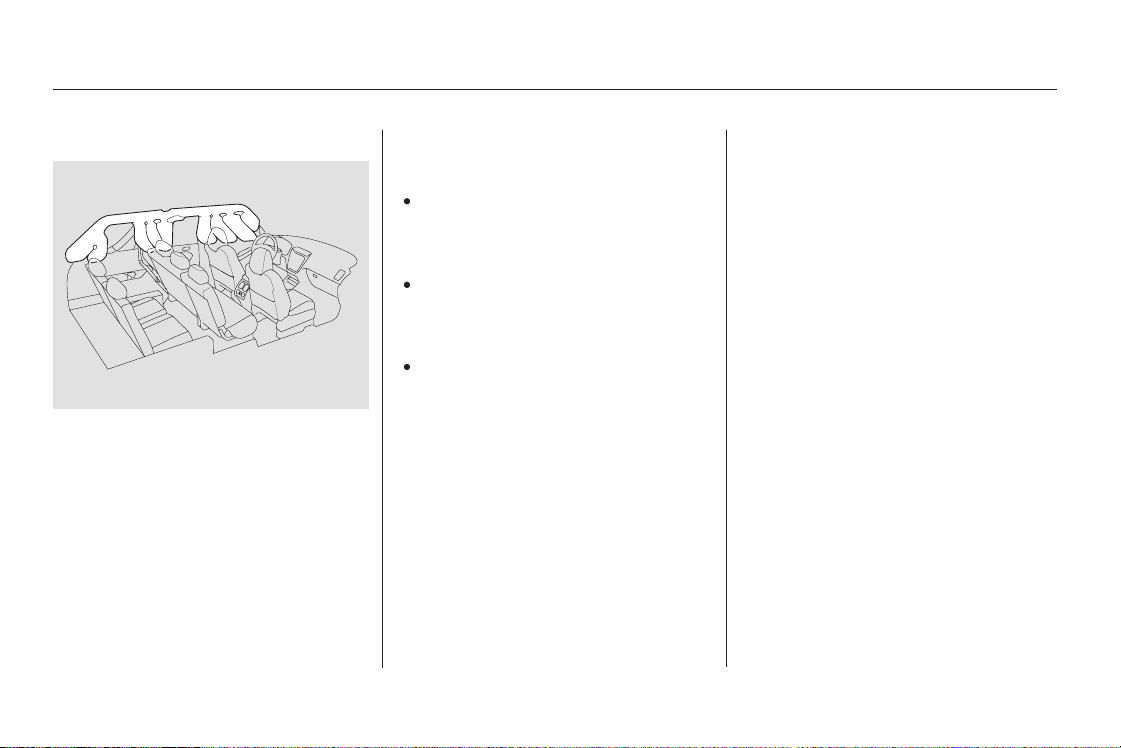

How Your Side Curtain Airbag
.........................................Work . 28
How the SRS Indicator Light
.......................................Works . 28
How The Side Airbag Off
......................Indicator Works . 29
How the Passenger Airbag
...............Off indicator Works . 30
.............................Airbag Service . 31
...Additional Safety Precautions . 32
Protecting Children General
................................Guidelines . 33
All Children Must Be
...............................Restrained . 33
All Children Should Sit in a Back
...........................................Seat . 34
The Passenger’s Front Airbag
Can Pose Serious Risks to
...............................Children . 34
If You Must Drive with Several
...................................Children . 36
If a Child Requires Close
..................................Attention . 36
...Additional Safety Precautions . 36
Protecting infants and
.........................Small Children . 38
.......................Protecting Infants . 38
.........Protecting Small Children . 39
.....................Selecting a Child Seat . 40

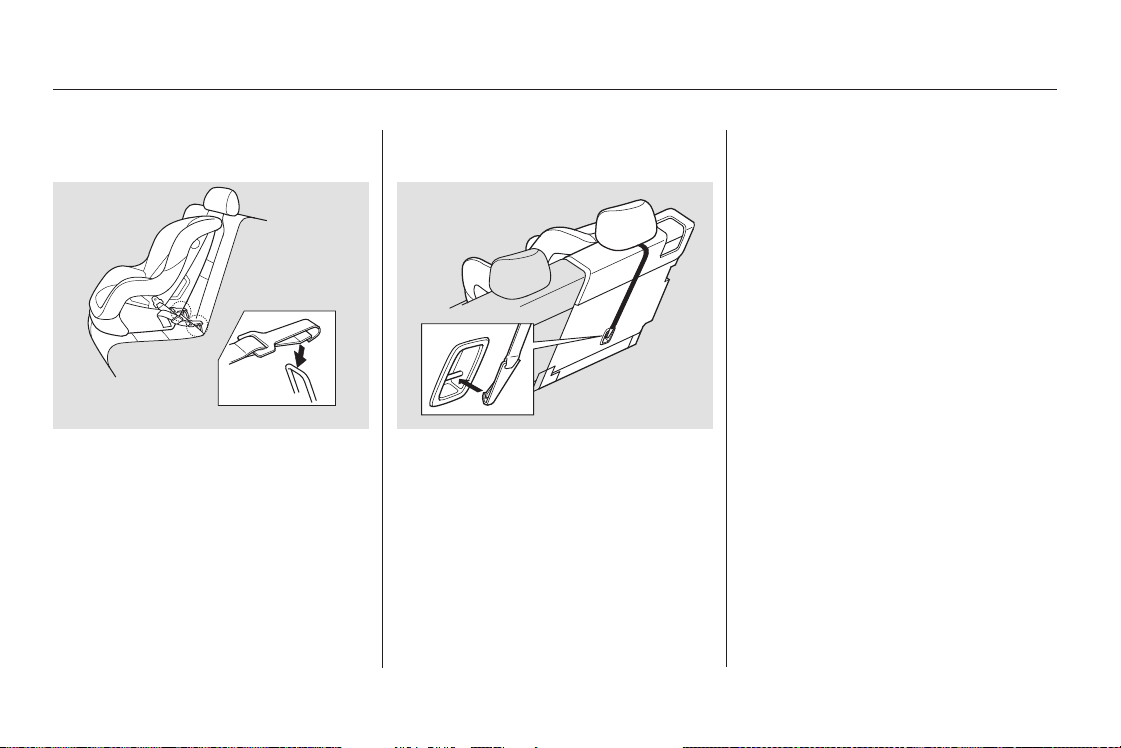

....................Installing a Child Seat . 41

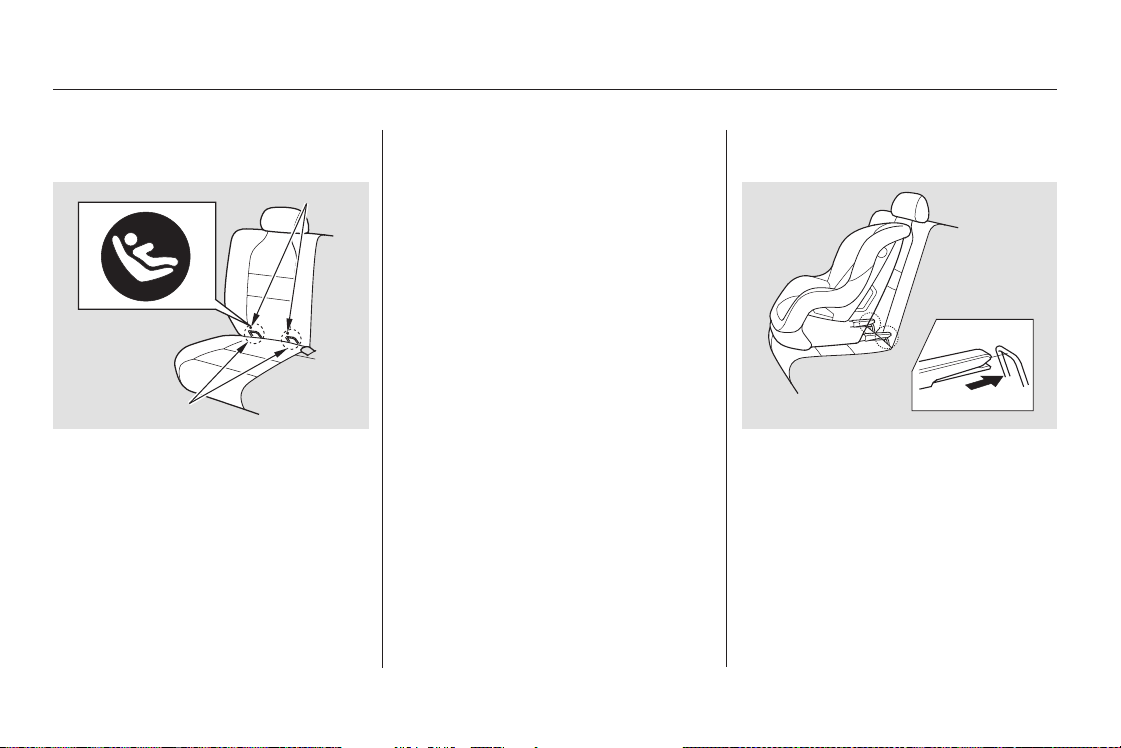

Installing a Child Seat with
.....................................LATCH . 42
Installing a Child Seat with
...............a Lap/Shoulder Belt . 44
Installing a Child Seat with
...................................a Tether . 45
...........Protecting Larger Children . 47
.............Carbon Monoxide Hazard . 51
...................................Safety Labels . 52
Automatic Seat Belt Tensioners

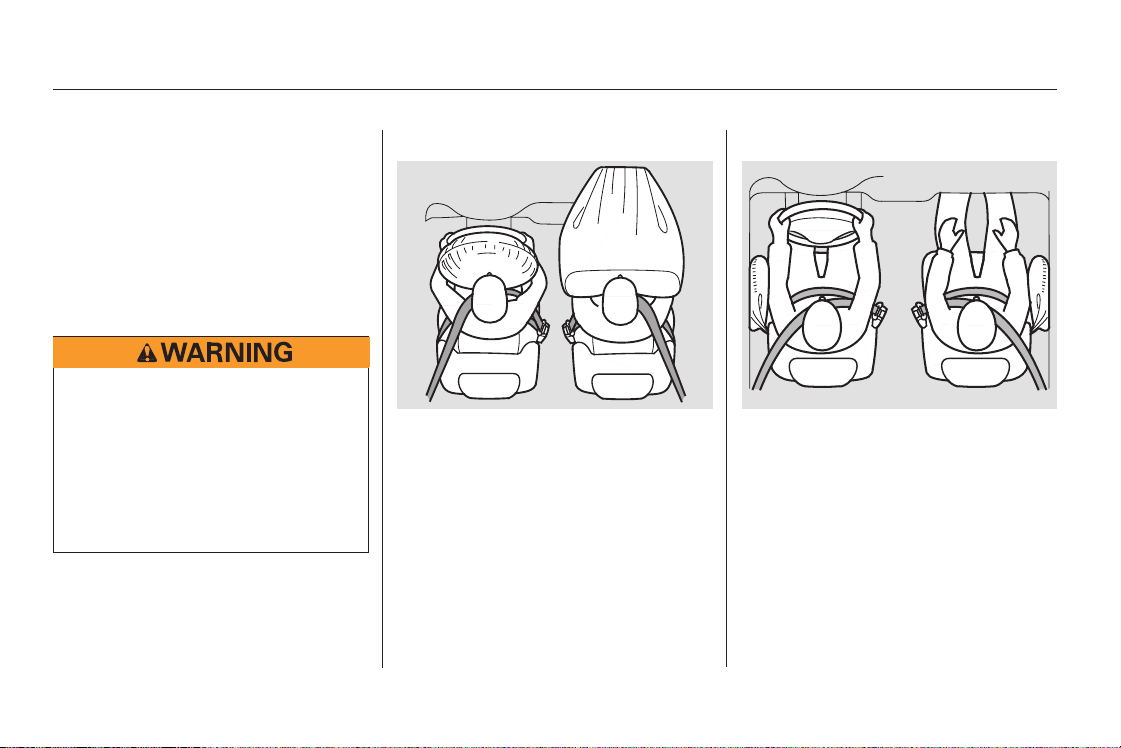

How Your Front Airbags Work
Driver and Passenger Safety
Driver and Passenger Safety
5
Main Menu
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
A seat belt is your best protection in
all types of collisions. Airbags
supplement seat belts, but airbags
are designed to inflate only in a
moderate to severe frontal impact,
side impact, or rollover collision. So
even though your vehicle is equipped
with airbags, make sure you and
your passengers always wear your
seat belts, and wear them properly
(see page ).

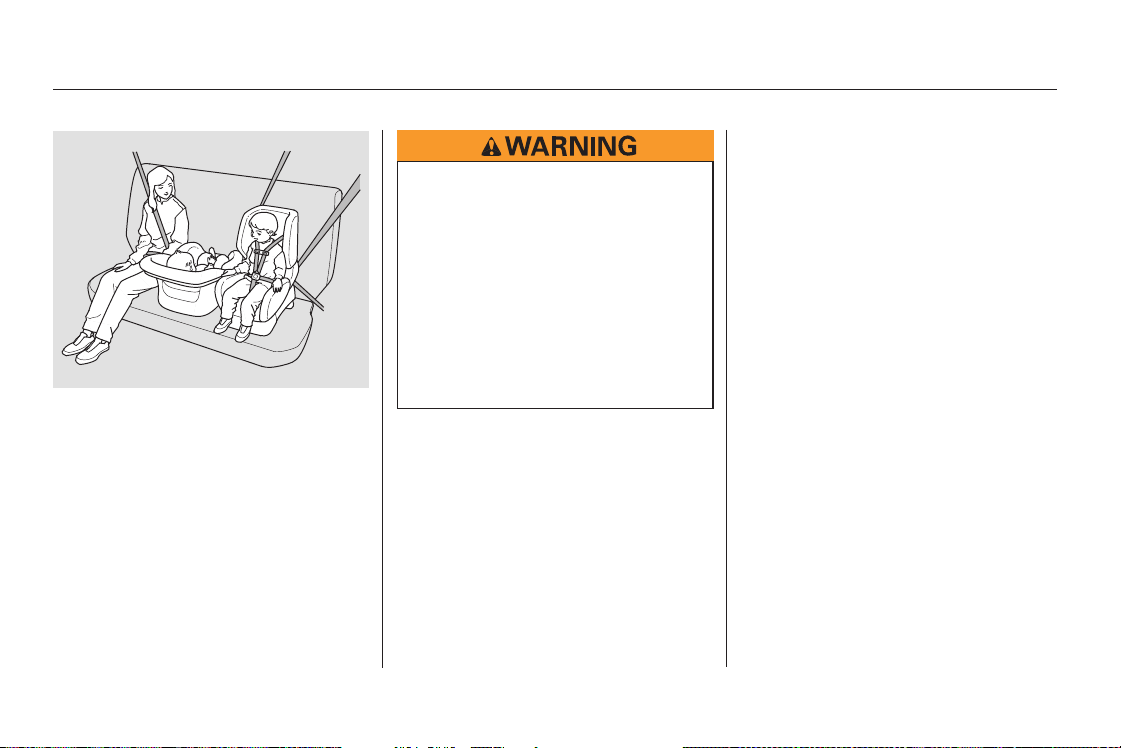

Children age 12 and under should
ride properly restrained in a back
seat. Infants and small children
should be restrained in a child seat.
Larger children should use a booster
and a lap/shoulder belt until they
canusethebeltproperlywithouta
booster (see page ).
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
14
49
197
Always Wear Your Seat Belt
Control Your Speed
Keep Your Vehicle in Safe
Condition
Restrain All Children
Don’t Drink and Drive
Be Aware of Airbag Hazards
Driver and Passenger Safety
Important Safety Precautions
6
Main Menu
Table of Contents
Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
Some safety features do not require
anyactiononyourpart.These
include a strong steel framework
that forms a safety cage around the
passenger compartment; front and
rear crush zones, a collapsible
steering column, and seat belt
tensioners that tighten the front seat
belts in the event of a crash.

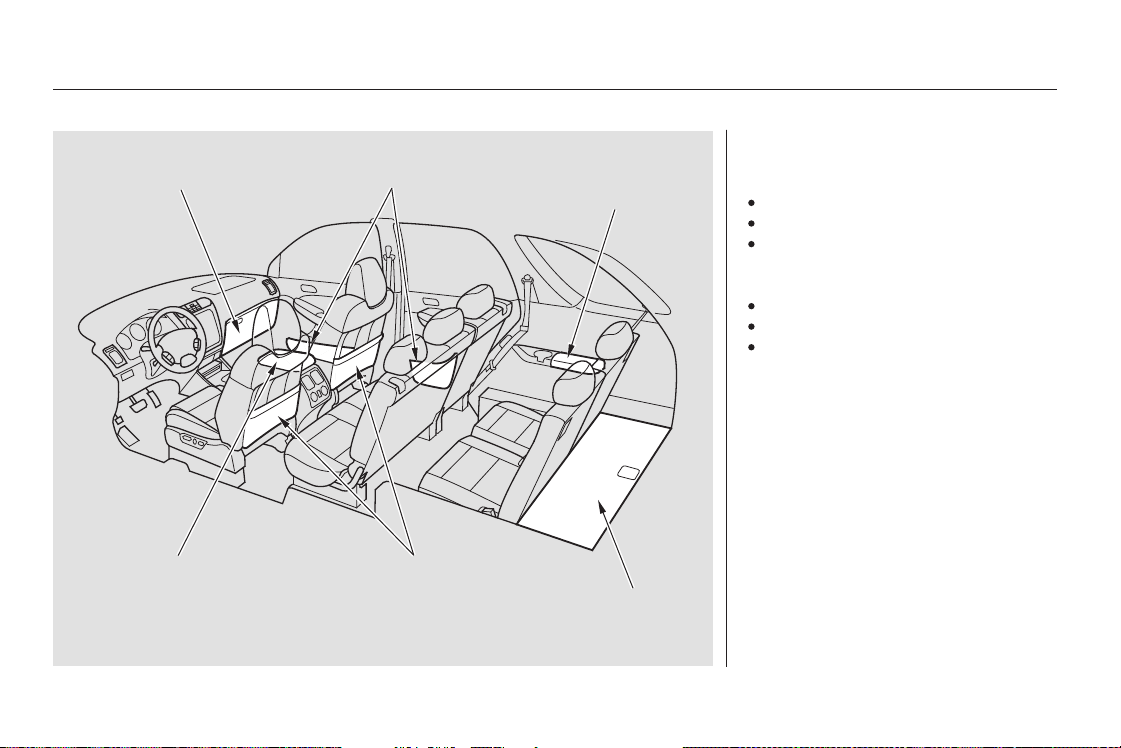

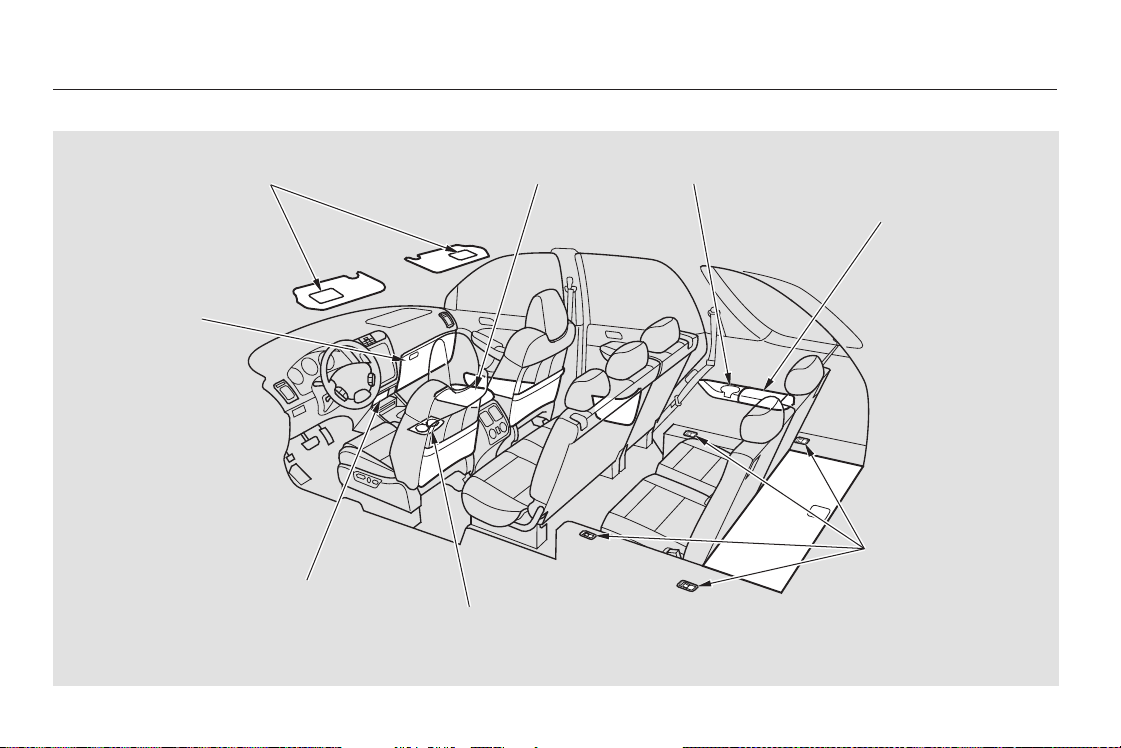

Your Vehicle’s Safety Features
Driver and Passenger Safety
7
(7)
(10)
(9) (3) (1)
(2)
(6)(10)
(7) (8)
(5)
(2)
(11)(4)
(6) Seat Belts
(7) Front Airbags
(8) Front Seat Belt Tensioners
(9) Door Locks
(10) Side Airbags
(11) Side Curtain Airbags
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
Main Menu
Table of Contents
However, you and your passengers
can’t take full advantage of these
safety features unless you remain
sitting in a proper position and
always wear your seat belts properly.
Infact,somesafetyfeaturescan
contribute to injuries if they are not
used properly.
Your vehicle is equipped with seat
belts in all seating positions.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
Your seat belt system also
includes an indicator on the
instrument panel to remind you and
your passengers to fasten your seat
belts.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children (Infants and smaller
children must be properly restrained
in child seats).
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag, and
allows you to get the best
advantage from the airbag.
Driver and Passenger Safety
Why Wear Seat Belts
Seat Belts
Your Vehicle’s Safety Features
8
Main Menu
Table of Contents
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear
your seat belt, and make sure you
wear it properly.
Your vehicle has a Supplemental
Restraint System (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work).
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page for more
information on how your side airbags
work).23
27
CONTINUED
What you should do:
Your Vehicle’s Safety Features
Driver and Passenger Safety
Airbags
9
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
Main Menu
Table of Contents

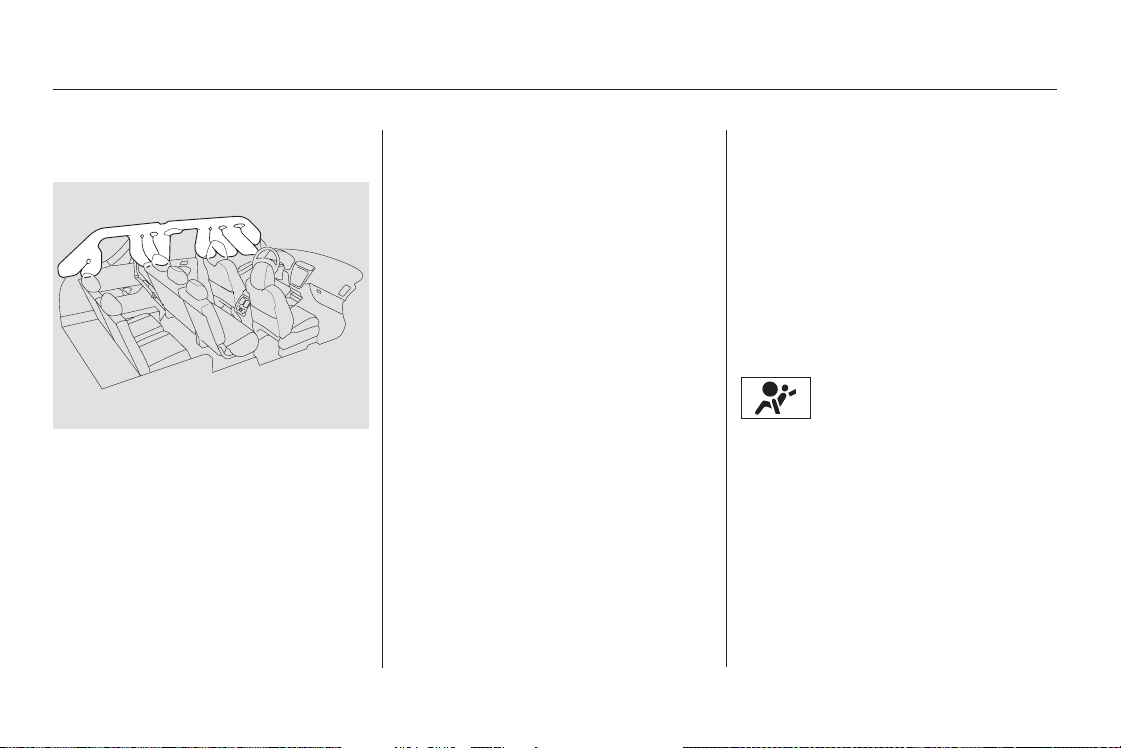

Your vehicle also has side curtain
airbags to help protect the heads of
the driver, front passenger, and
passengers in the outer rear seating
positions during a moderate to
severe side impact or rollover.
(See page for more information
on how your side curtain airbags
work.)
Always wear
your seat belt properly, and sit
upright, and as far back from the
steering wheel while allowing full
control of the vehicle. A front
passenger should move their seat as
far back from the dashboard as
possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in severe
crashes, even when seat belts are
properly worn and the airbags deploy.
The most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts.
To do
their job, airbags must inflate with
tremendous force. So while
airbags help save lives they can
cause minor injuries, or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
28
Your Vehicle’s Safety Features
Driver and Passenger Safety
What you should do:
Airbags do not replace seat belts.
Airbags offer no protection in rear
impacts, rollovers, or minor
frontal or side collisions.
Airbags can pose hazards.
10
Main Menu
Table of Contents
−
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenagers who are large enough
and mature enough to ride in the
front seat. See pages for
important guidelines on how to
properly protect infants, small
children, and larger children who
ride in your vehicle.

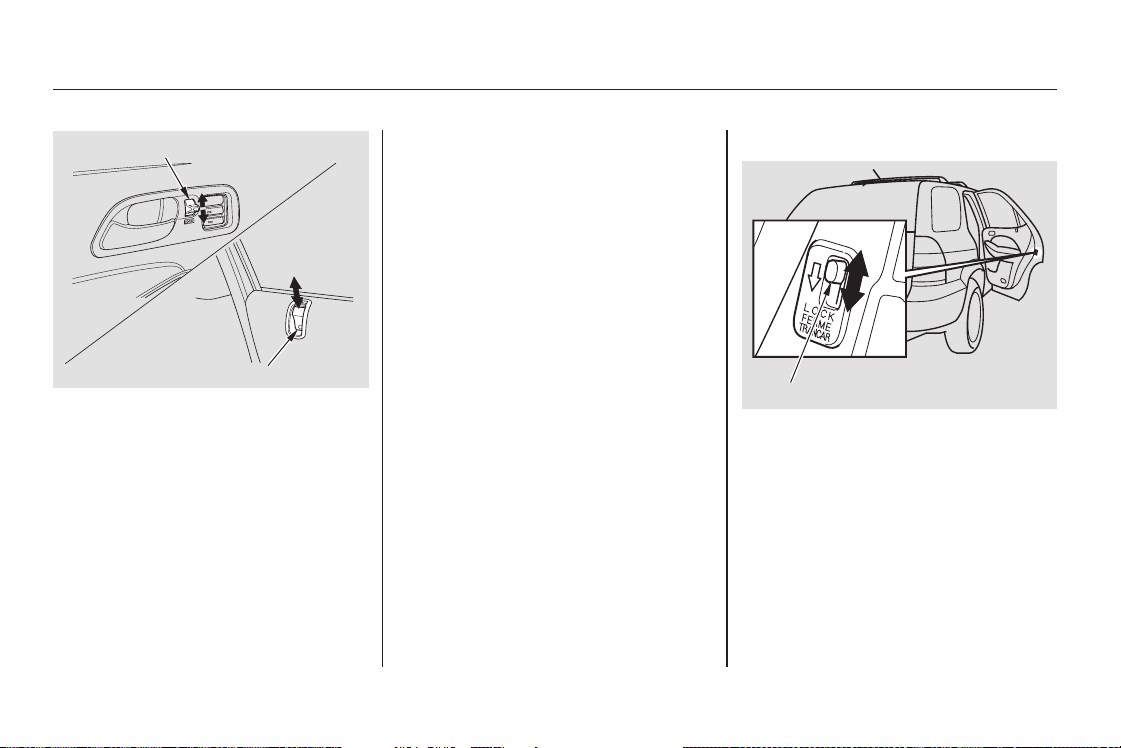

See page for how to lock the
doors, and page for how the
monitor light works.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.

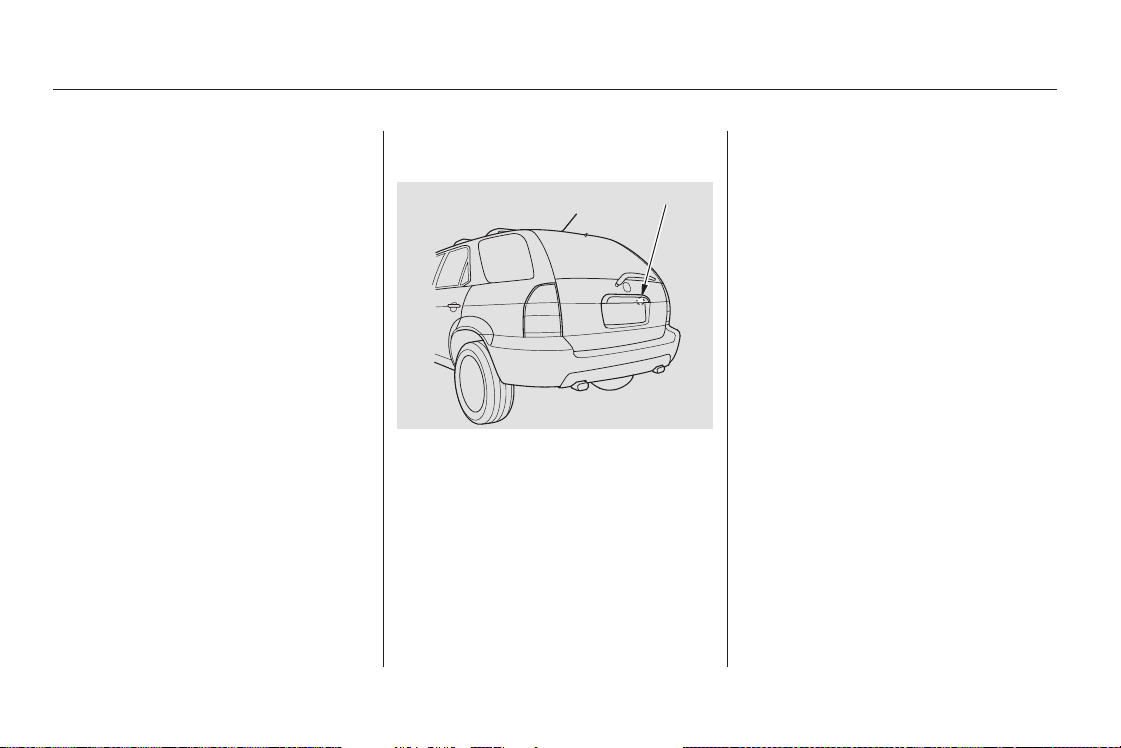

Your vehicle has a door and tailgate
monitor indicator on the instrument
panel to indicate when a specific
door or the tailgate is not tightly
closed.
After everyone has entered the
vehicle, be sure the doors and
tailgate are closed and locked.
Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
33 37
80
60
Protecting Adults and Teens
Introduction Close and Lock the Doors Adjust the Front Seats1. 2.
Driver and Passenger Safety
11
Main Menu
Table of Contents

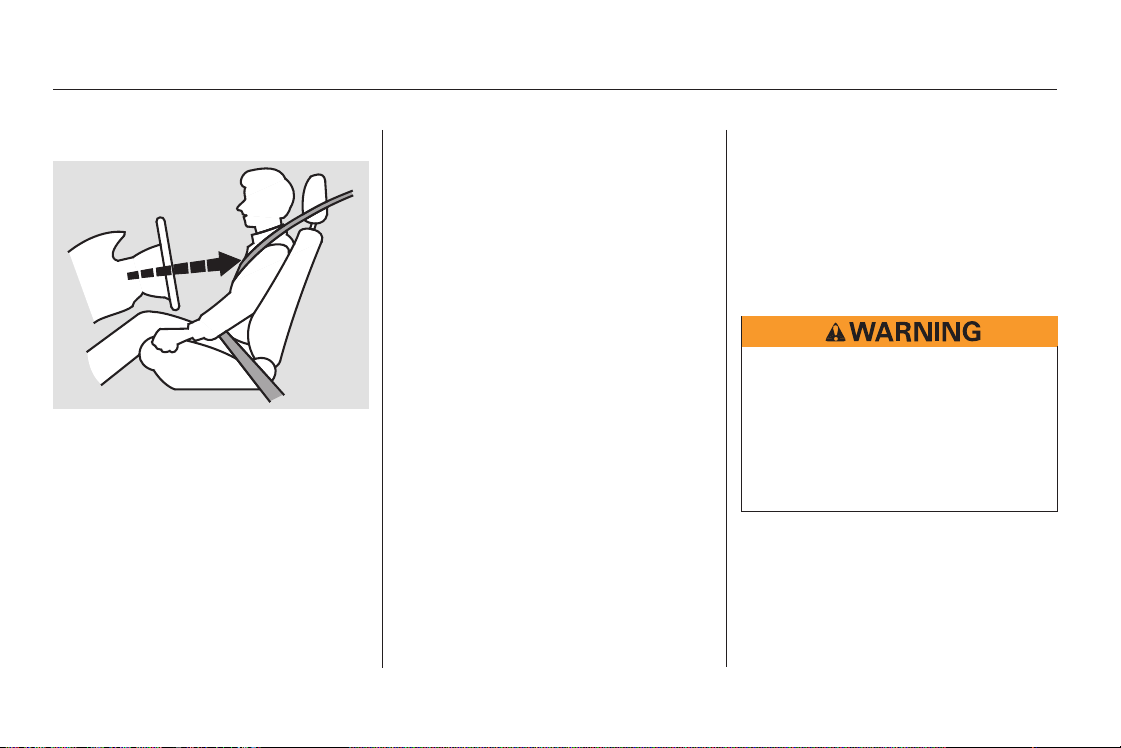

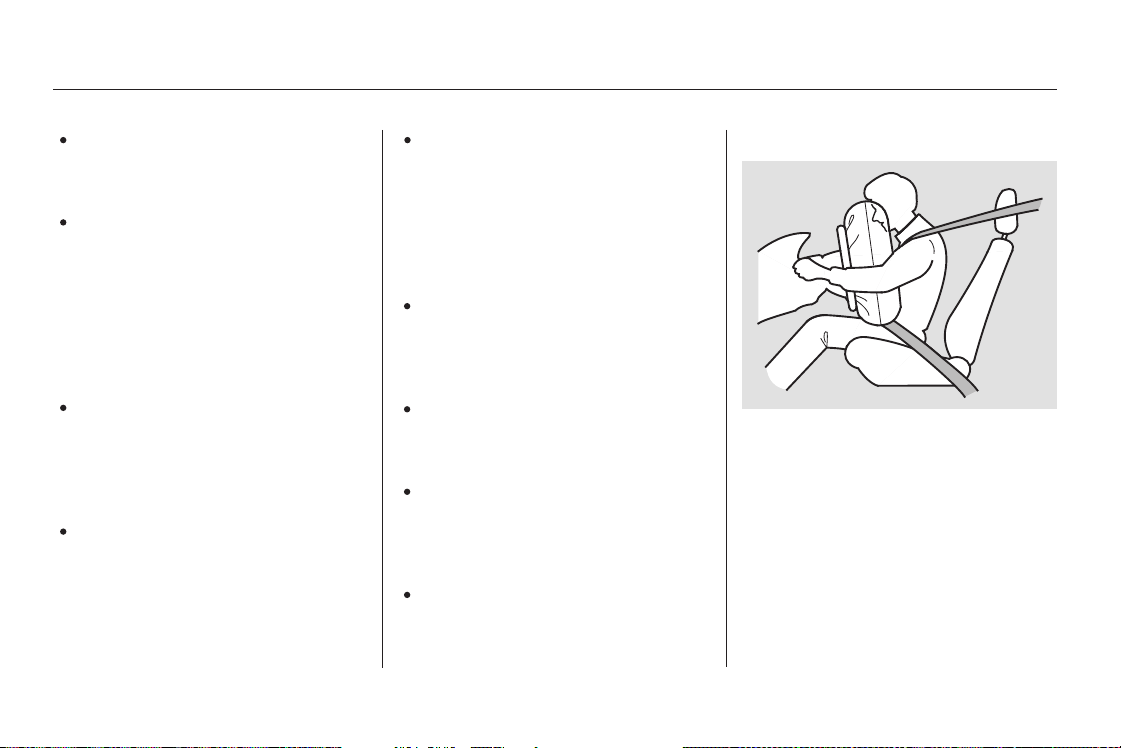

If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
Once your seat is adjusted correctly,
rock it back and forth to make sure
the seat is locked into position. See
page for how to adjust the front
seats.
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
84
Protecting Adults and Teens
Driver and Passenger Safety
Adjust the Seat-Backs3.
12
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Main Menu
Table of Contents
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Have passengers with adjustable
restraints adjust their restraints
properly as well. Taller persons
should adjust their restraint as high
as possible.
See page for how to adjust the
head restraints.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust seat-
backs.
86
84
CONTINUED
Protecting Adults and Teens
Adjust the Head Restraints4.
Driver and Passenger Safety
13
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Main Menu
Table of Contents

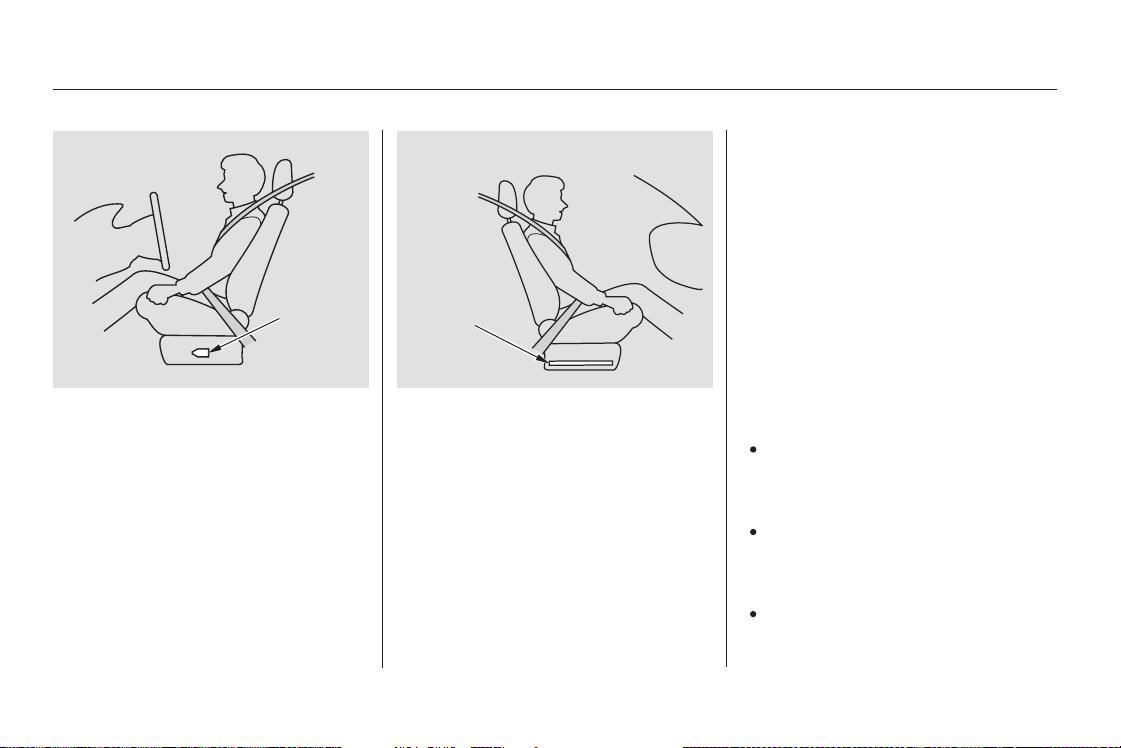

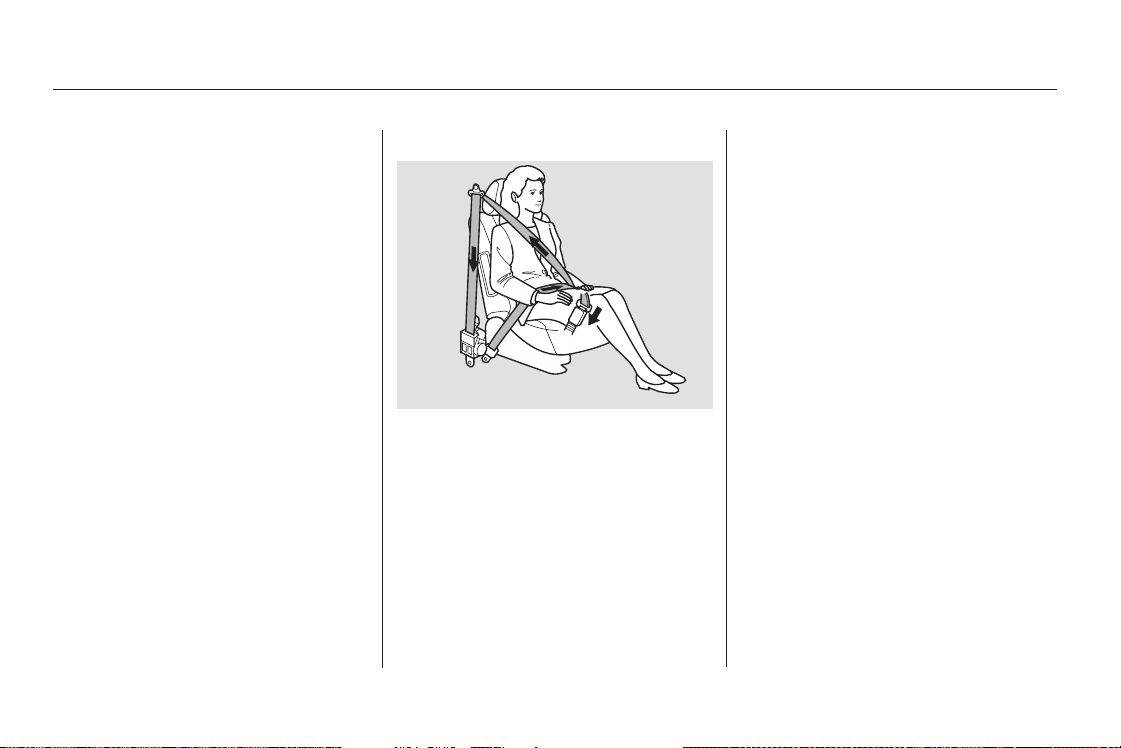

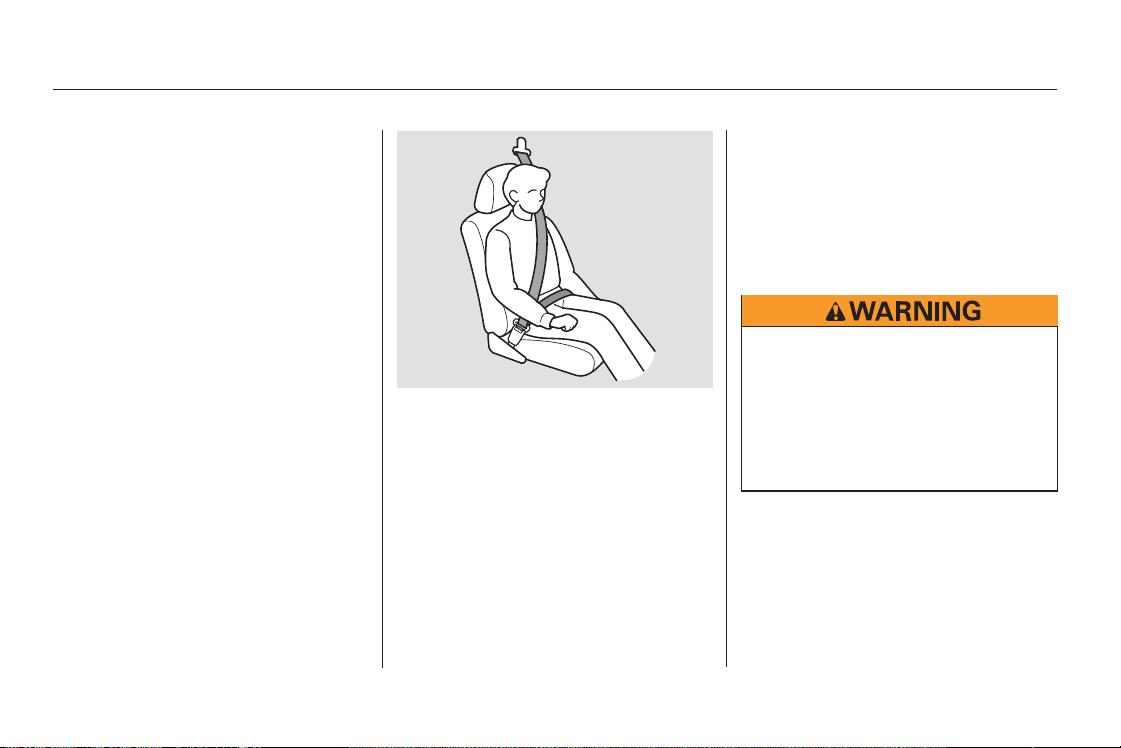

Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
If necessary, pull up on the shoulder
belt again to remove any slack, then
check that the belt rests across the
center of your chest and over your
shoulder. This spreads the forces of
a crash over the strongest bones in
your upper body.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
In the second row center seat and
thethirdrowseats,besurethe
detachable anchors are also latched.
Fasten and Position the Seat
Belts
5.
Protecting Adults and Teens
Driver and Passenger Safety
14
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
as it should, it may not protect the
occupant in a crash.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.

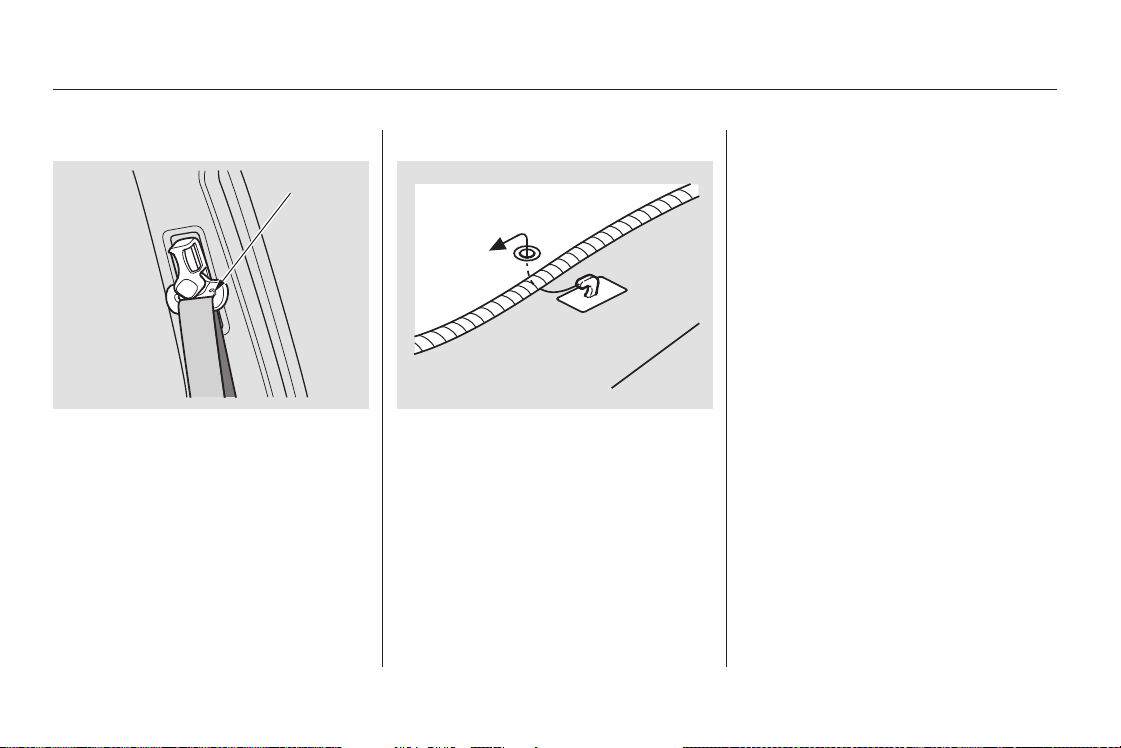

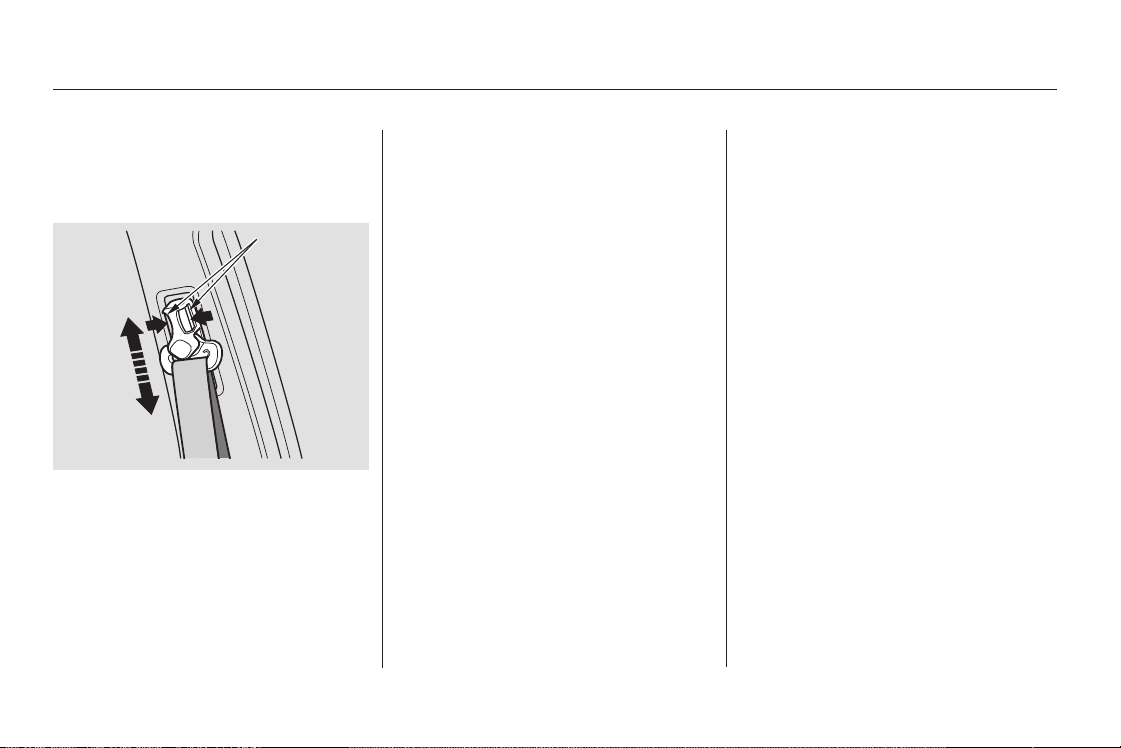

To adjust the height of a front seat
belt anchor, squeeze the two release
buttons and slide the anchor up or
down as needed (it has four
positions).
See page for additional
information about your seat belts
and how to take care of them.
Anyone using a
seat belt that is not working properly
can be seriously injured or killed.
Have your Acura dealer check the
belt as soon as possible.
19
Protecting Adults and Teens
Driver and Passenger Safety
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
No one should sit in a seat with an
inoperative seat belt.
15
RELEASE
BUTTONS
Main Menu
Table of Contents
Adjust the steering wheel, if needed,
so that the wheel points toward your
chest, not toward your face. This
provides optimal protection from the
front airbag.
See page for how to adjust the
steering wheel.
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag. Being struck
by an inflating side airbag can result
in possibly serious injuries.
76
Protecting Adults and Teens
Driver and Passenger Safety
Adjust the Steering Wheel Maintain a Proper Sitting
Position
6. 7.
16
Sitting improperly or out of
position can result in serious
injury or death.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents
If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a check-up, ask
your doctor if it’s okay for you to
drive.
All passengers
must sit in locked, upright seats
andbeproperlyrestrainedbyseat
belts.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
If they do, they
could be very seriously injured in a
crash.
CONTINUED
Protecting Adults and Teens
Driver and Passenger Safety
Advice for Pregnant Women Additional Safety Precautions
Never let passengers ride in the
cargo area or on top of a folded-
down back seat.
Passengers should not stand up or
change seats while the vehicle is
moving.
Two people should never use the
same seat belt.
17
Main Menu
Table of Contents
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp objects in
your mouth, can result in injuries
if your front airbag inflates.
Do not place the rear floor mat
under the front passenger’s seat.
This could make the front
passenger’s weight sensors
ineffective. Make sure the rear
floor mat is hooked over the floor
mat anchor (see page ).
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
If a side airbag or a
side curtain airbag inflates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
This could cause
problems with the driver’s seat
position sensor or the front
passenger’s seat weight sensors.
(See page for more information.)
This could make the driver’s seat
position sensor or the front
passenger’s seat weight sensors
ineffective (see page for more
information).
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
32
32
218
Protecting Adults and Teens
Driver and Passenger Safety
Do not put any accessories on seat
belts.
Do not place hard or sharp objects
between yourself and a front
airbag.
Keep your hands and arms away
from the airbag covers.
Do not attach hard objects on or
near a door.
Do not place any items under the
front seats.
Do not modify the front seats.
Do not attach or place objects on
the front airbag covers.
18
Main Menu
Table of Contents
Your seat belt system includes lap/
shoulder belts in all seven seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
fasten your belts.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals.
The lap/shoulder belts in the center
seat of the second row and both of
the third row seats are equipped with
a detachable anchor that has two
parts: a small latch plate and a
buckle.
The detachable anchor should
normally be latched whenever the
seats-backs are in an upright position.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, push the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper will sound and the
indicator will flash. If you do not
fasten your seat belt before the
beeper stops, the indicator will stop
flashing but remain on.
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
14
Additional Information About Your Seat Belts
Driver and Passenger Safety
Seat Belt System Components Lap/Shoulder Belt
19
Main Menu
Table of Contents
The seat belts in all seating positions
except the driver’s have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt fully retract. To
refasten the belt, pull it out only as
far as needed.
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
The tensioners are designed to
activate in any collision severe
enough to cause a front, side, or side
curtainairbagtoinflate.
However, the tensioners can be
activated during a collision in which
there is no airbag deployment. In
this case, the airbags would not be
needed, but the additional restraint
provided by the tensioners could be
helpful.
44
Automatic Seat Belt Tensioners
Additional Information About Your Seat Belts
Driver and Passenger Safety
20
Main Menu
Table of Contents
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. Any belt not
in good condition or not working
properly will not provide good
protection and should be replaced as
soon as possible.
Acura provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For information on how to clean your
seat belts, see page .218
Acura Warranty Information
Additional Information About Your Seat Belts
Driver and Passenger Safety
Seat Belt Maintenance
21
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Your Airbag System (SRS) includes:
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two SRS (Supplemental Restraint
System) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the front, and
rear pillars and above the windows.
The front and rear pillars on both
sides are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page
).
Automatic seat belt tensioners
(see page ).
23
27
20
28
Additional Information About Your Airbags
Driver and Passenger Safety
Airbag System Components
22
(5)
(3)
(4)
(4)
(5)
(2)
(10)
(8)
(10)
(8)
(9)
(11)
(7)
(9)(1)
(6)
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Seat Belt Tensioners
(5) Side Airbags
(6) Side Curtain Airbags
(7) Driver’s Seat Position Sensor
(8) Front Passenger’s Seat Weight Sensors
(9) Front Impact Sensor
(10) Side Impact Sensors
(11) Passenger Airbag Off Indicator
Main Menu
Table of Contents
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, and driver and
frontpassengerseatbeltusewhen
the ignition is in the ON (II)
position.
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inflate the
driver’s and front passenger’s front
airbags, at the appropriate time and
with the force needed.
Sensors that can detect a
moderate to severe frontal impact,
side impact or rollover.
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force.
Sensors that can detect whether a
child’s head is in the deployment
path of the passenger’s side airbag
and automatically turn the airbag
off (see page ).
Front passenger’s weight sensors
that monitor the weight on the
front passenger’s seat. These
prevent the passenger’s front
airbag from inflating if the weight
is less than about 65 lbs (30 kg)
(see page ).
An indicator on the dashboard that
alerts you that the passenger’s
front airbag has been turned off
(see page ).
An indicator on the instrument
panel that alerts you that the front
passenger’s side airbag has been
turned off (see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
The SRS indicator on the
instrument panel that alerts you to
a possible problem with your
airbags (see page ).
26
29
30
27
28
CONTINUED
Additional Information About Your Airbags
Driver and Passenger Safety
How Your Front Airbags Work
23
Main Menu
Table of Contents
During a frontal crash, your seat belt
help restrains your lower body and
torso and the airbag helps protect
your head and chest.
Although both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
Only the driver’s airbag can deploy if
there is no passenger in the front
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
After inflating, the front airbags will
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
30
Additional Information About Your Airbags
Driver and Passenger Safety
24
Main Menu
Table of Contents
CONTINUED
Your front airbags are dual-stage
airbags. This means they have two
inflation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inflation time
with a little less force.
Your front airbags are also dual-
threshold airbags. Airbags with this
feature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is ,
the airbag will deploy at the same
threshold as a conventional airbag,
because the occupant would need
extra protection.
If the occupant’s belt , the
airbag will inflate at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
Your front airbags are also advanced
airbags. The main purpose of this
feature is to prevent airbag-caused
injuries to short drivers and children
who ride in front.
For the advanced airbags to work
properly, occupants must sit upright
and wear their seat belts properly. If
a child seat is installed in the front, it
must be properly secured.
In addition, do not spill any liquids on
or under the seats, cover the sensors,
or put any cargo or metal objects
under the front seats. Ask second
row passengers to not put their feet
under the front seats. Any of these
actions could damage the sensors or
prevent them from working properly.
Failure to follow these instructions
could damage the sensors or prevent
them from working properly.
Additional Information About Your Airbags
Driver and Passenger Safety
Dual-Stage Airbags
more severe
less severe
Dual-Threshold Airbags
not latched
is latched
Advanced Airbags
25
Main Menu
Table of Contents
The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
positioned too far forward, the
airbag will inflate sequentially,
regardless of the severity of the
impact.
When the airbag is turned off, an
indicator in the center of the
dashboard will come on indicating
‘‘Passenger Airbag Off’’ (see page
).
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
A rear passenger pushing or
pulling on the back of the
passenger’s seat.
Moving the front seat forcibly
back against cargo on the seat or
floor behind it.
Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
If there is no passenger in the front
seat, the but the
indicator .
The passenger’s advanced front
airbag system has weight sensors
under the seat. If the sensors detect
a total weight on the seat of about 65
lbs (30 kg) or less, the system will
automatically turn the passenger’s
front airbag off.If there is a problem with the sensor,
the SRS indicator will come on in the
instrument panel and the airbag will
inflate in the normal manner
regardless of the driver’s seating
position.
30
Additional Information About Your Airbags
Driver and Passenger Safety
do not do anything
that would increase or decrease the
weight on the front passenger’s seat.
airbag will be off
will not come on
26
DRIVER’S
SEAT
POSITION
SENSOR
PASSENGER’S
SEAT WEIGHT
SENSOR
Main Menu
Table of Contents
If you ever have a moderate to
severe side impact, sensors will
detect rapid deceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
The passenger’s side airbag has a
cutoff system designed to turn off
the passenger’s side airbag if a child’s
head is in the airbag’s deployment
path (see page ).
If a short adult leans sideways, or a
larger adult slouches and leans
sideways into the side airbag
deployment path, the system may
also shut off the side airbag.
If the side airbag off indicator comes
on (see page ), have the
passenger sit upright. Once the
passenger is out of the deployment
path of the side airbag, the system
will turn the airbag back on and the
indicator will go out.
There will be some delay between
the moment the passenger moves
into or out of airbag deployment path
and when the indicator comes on or
goes off.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
When you turn the ignition to ON
(II), the indicator should come on
briefly and go out (see page ). If it
doesn’t come on, stays on, or comes
on while driving without a passenger
in the front seat, have the system
checked.
29
29
29
Additional Information About Your Airbags
Driver and Passenger Safety
How Your Side Airbags Work
27
Main Menu
Table of Contents
In a moderate to severe side impact,
sensors will detect rapid deceleration
and signal the control unit to
instantly inflate the side curtain
airbag on the driver’s or the
passenger’s side of the vehicle.
If sensors detect the vehicle is
continuing to roll over to the other
side, the control unit will deploy the
other side curtain airbag.
Side curtain airbags are designed to
help protect the heads of the driver,
front passenger, and passengers in
the outer seating positions of the
second and third rows.
In a rollover toward the passenger’s
side of the vehicle, the side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
To get the best protection from the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
The SRS indicator light
alerts you to a potential
problem with your front airbags, side
airbags, side curtain airbags, or seat
belt tensioners.
When you turn the ignition to ON
(II), this indicator will come on
briefly then go out. This tells you the
system is working properly.
If the impact is on the passenger’s
side, the passenger’s side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
If sensors detect your vehicle is
about to tip over, the control unit will
instantly deploy the side curtain
airbag on the downward side of the
rolling motion.
Additional Information About Your Airbags
Driver and Passenger Safety
How Your Side Curtain Airbags
Work
How the SRS Indicator Works
In a Side Impact
In a Rollover
28
Main Menu
Table of Contents
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the SRS indicator does not come
on after you turn the ignition to
ON (II).
If the indicator stays on after the
engine starts.
If the indicator comes on or
flashesonandoffwhileyoudrive.
If you see any of these indications,
the airbags and the seat belt
tensioners may not work properly
when you need them.
This indicator alerts you
that the passenger’s side
airbag has been automatically shut
off. It does mean there is a
problem with your side airbags.
To reduce the risk of injury from an
inflating side airbag, your vehicle has
an automatic cutoff system for the
passenger’s side airbag.
Although Acura does not encourage
children to ride in front, this system
is designed to shut off the side
airbag if a child leans sideways and
the child’s head is in the side airbag
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to shut off.
CONTINUED
Additional Information About Your Airbags
Driver and Passenger Safety
How the Side Airbag Off
Indicator Works
not
29
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems, or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Main Menu
Table of Contents
To reduce the chance of airbag-
caused injuries, the system shuts off
the passenger’s front airbag when
the total weight on the front
passenger’s seat is about 65 lbs
(30 kg) or less.
If no one is riding in the front
passenger’s seat, the airbag will be
automatically shut off, but the
indicator light will not come on.
However, if the light comes on with
no passenger in the front, or with an
adult in the seat, there may be a
problem with the advanced airbag
system. Have the vehicle checked by
the dealer as soon as possible.
The Passenger Airbag Off indicator
may also come on and off repeatedly
if total weight on the seat is near the
airbag cutoff threshold (65 lbs or 30
kg).
This indicator alerts you that the
passenger’s front airbag has been
shut off. It does not mean there is a
problem with the airbag.
When you turn the ignition switch to
ON (II), the indicator should come
on briefly and go out (see page ).
If it doesn’t light, stays on, or comes
on while driving without a passenger
in the front seat, have the system
checked.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
58
How the Passenger Airbag Off
Indicator Works
Additional Information About Your Airbags
Driver and Passenger Safety
30
PASSENGER AIRBAG OFF INDICATOR
Main Menu
Table of Contents
your dealer
should inspect the driver’s seat
position sensor and the front
passenger’s weight sensors to
make sure they are operating
properly.
Take your vehicle to an
authorized Acura dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Your airbag systems are virtually
maintenance-free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. If a
front airbag inflates, the seat belt
tensioners must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by an Acura dealer or a
knowledgeable body shop.
If this happens, have the passenger
ride properly restrained in a back
seat. If the passenger must ride in
front, move the seat as far to the
rear as possible, have the passenger
sit upright and wear the seat belt
properly.
This indicator may come on and off
repeatedly if objects are placed on
the front passenger’s seat, or if the
interior temperature of the vehicle
changes suddenly when a door is
opened.
See page for more information
about the passenger’s advanced
front airbag.
25
If your vehicle has a moderate to
severe impact, and even if your
airbags do not inflate,
The SRS indicator alerts you to a
problem.
An airbag ever inflates.
Airbag Service
Additional Information About Your Airbags
Driver and Passenger Safety
31
Main Menu
Table of Contents
Pushing or
pulling on the back of the seat,
placing heavy items in the back
seat pocket, pushing cargo against
the seat, or hanging heavy items
on the seat back can interfere with
the proper operation of the
passenger’s advanced front airbag.
Do not remove or modify a front
seat without consulting an Acura
dealer. This could make the driver’s
seat position sensor or the front
passenger’s weight sensors
ineffective. If it is necessary to
remove or modify a front seat to
accommodate a person with
disabilities, first contact Acura
Client Services at 800-382-2238.
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or another liquid
or spilled water soaks into a seat-
back, it can prevent the side airbag
cutoff system from working
properly.
This could make the
driver’s seat position sensor and
the front passenger’s weight
sensors ineffective.
This could make the front
passenger’s weight sensors
ineffective.
Improperly
replacing or covering front seat-
back covers can prevent your side
airbags from inflating during a
collision.
This could make the driver’s seat
position sensor and the front
passenger’s weight sensors
ineffective.
Do not do anything that would
increase or decrease weight on the
front passenger’s seat.
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Do not expose the front seat-backs
to liquid.
Do not place any items under the
front seats.
Do not place the second row floor
mat under the front passenger’s
seat.
Do not cover or replace front seat-
back covers without consulting an
Acura dealer.
Do not modify the front seats.
Additional Safety Precautions
Additional Information About Your Airbags
Driver and Passenger Safety
32
Main Menu
Table of Contents
−
−
−
Children depend on adults to protect
them. However, despite their best
intentions many adults do not know
how to properly protect child
passengers.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages ).
(see pages ).
If you have children, or if you ever
need to drive with a child in your
vehicle, be sure to read this section.
It begins with important general
guidelines, then presents special
information for infants, small
children, and larger children.
38
47
47
50
All Children Must Be Restrained

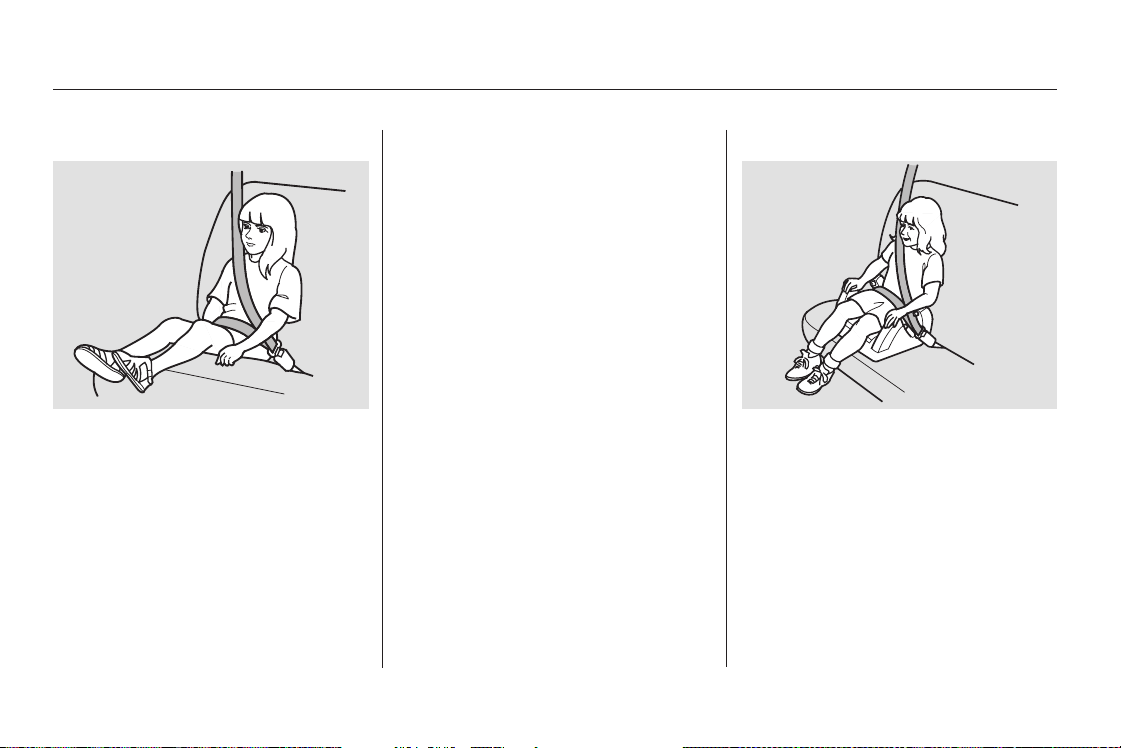

Larger children must be restrained
with a lap/shoulder belt and ride on
a booster until the seat belt fits them
properly
Infants and small children must be
restrained in an approved child seat
that is properly secured to the
vehicle
Protecting Children General Guidelines
Driver and Passenger Safety
33
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster if necessary.
Main Menu
Table of Contents
−
With this system, the front
passenger’s airbag is turned off if
sensors detect a total weight of less
thanabout65lbs(30kg)intheseat.
(See page for additional
information about how the front
passenger’s advanced airbag works.)
Even if the passenger’s front airbag
is turned off, we strongly
recommend that children age 12 and
under ride properly restrained in a
back seat where they will be safer.
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this,
the passenger’s front airbag is quite
large, and it can inflate with enough
force to cause very serious injuries.
To help prevent airbag-caused
injuries to children, this vehicle has
an advanced airbag system.
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in a
back seat. The National Highway
Traffic Safety Administration and
Transport Canada recommend that
all children age 12 and under be
properly restrained in a back seat.
Children who ride in the second or
thirdrowarelesslikelytobeinjured
by striking interior vehicle parts
during a collision or hard braking.
Also, children cannot be injured by
an inflating airbag when they ride in
the back.
25
The Passenger’s Front Airbag
Can Pose Serious Risks
All Children Should Sit in a Back
Seat
Protecting Children General Guidelines
Driver and Passenger Safety
34
Main Menu
Table of Contents
−

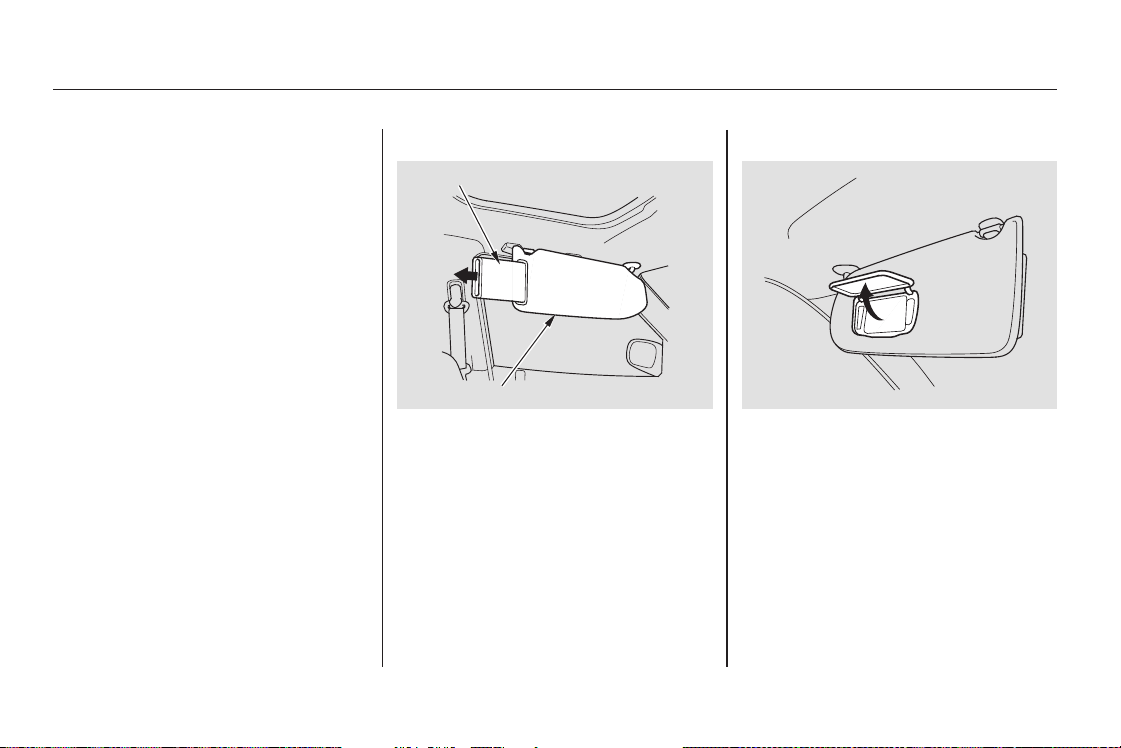

To remind you of the passenger’s
front airbag hazards, and that
children must be properly restrained
in the back seat, your vehicle has
warninglabelsonthedashboardand
on the driver’s and front passenger’s
visors. Please read and follow the
instructions on these labels.
To remind you of the front airbag
hazards, your vehicle has warning
labels on the driver’s and front
passenger’s visors. Please read and
follow the instructions on these
labels.
U.S. Models Canadian Models
Protecting Children General Guidelines
Driver and Passenger Safety
35
Main Menu
Table of Contents
−
Your vehicle has two rows of back
seats where children can be properly
restrained. If you ever have to carry
a group of children, and a child must
ride in front:
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).
Many parents say they prefer to put
an infant or small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
If a child requires close physical
attention or frequent visual contact,
we strongly recommend that another
adult ride with the child in a back
seat. The back seat is far safer for a
child than the front.
If you are not wearing a
seat belt in a crash, you could be
thrown forward and crash the
child against the dashboard or a
seat-back. If you are wearing a
seat belt the child can be torn
from your arms and be seriously
hurt or killed.
During a crash, the belt
could press deep into the child and
cause serious or fatal injuries.
This can prevent children
from accidentally falling out (see
page ).
11
16
14
48
80
If You Must Drive with Several
Children
If a Child Requires Close
Attention
Additional Safety Precautions
Protecting Children General Guidelines
Driver and Passenger Safety
Neverholdaninfantorchildon
your lap.
Never put a seat belt over yourself
or a child.
Use childproof door locks to
prevent children from opening the
doors.
36
Main Menu
Table of Contents
−
This
will prevent children from playing
with the windows, which could
expose them to hazards or distract
thedriver(seepage ).
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. A
child left alone with the key in the
ignition can accidentally set the
vehicle in motion, possibly injuring
themselves or others.
Children
who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the tailgate, which can
lead to accidental injury or death.
90
Protecting Children General Guidelines
Driver and Passenger Safety

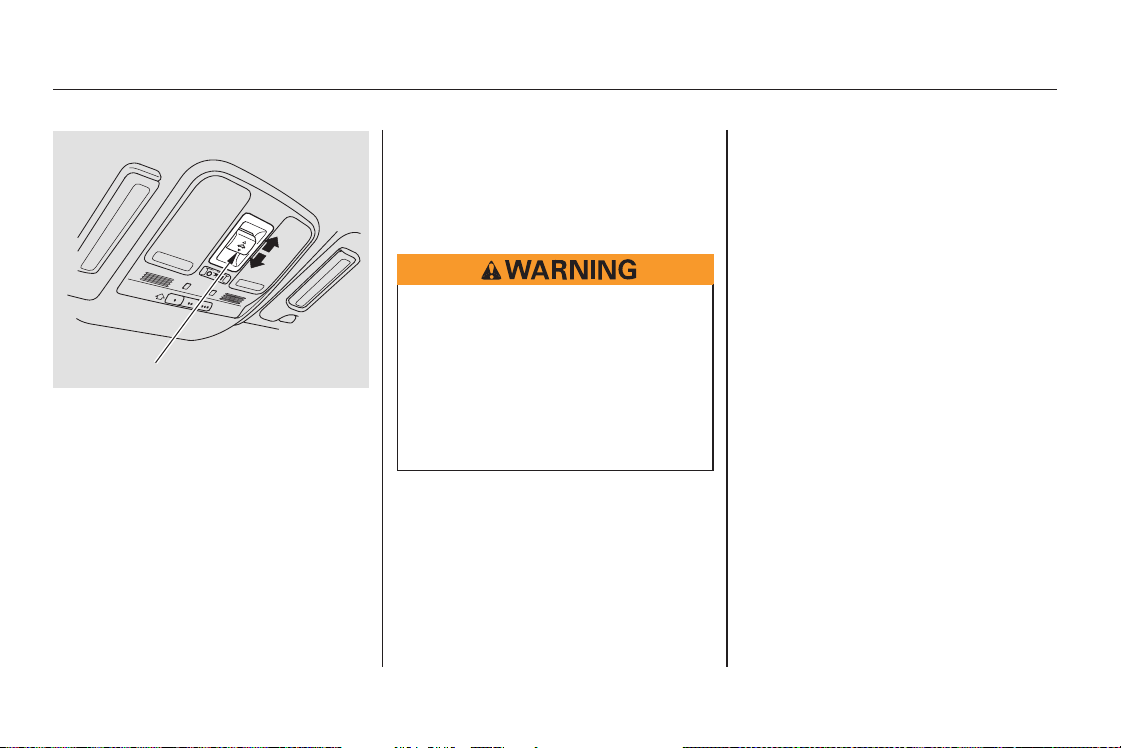

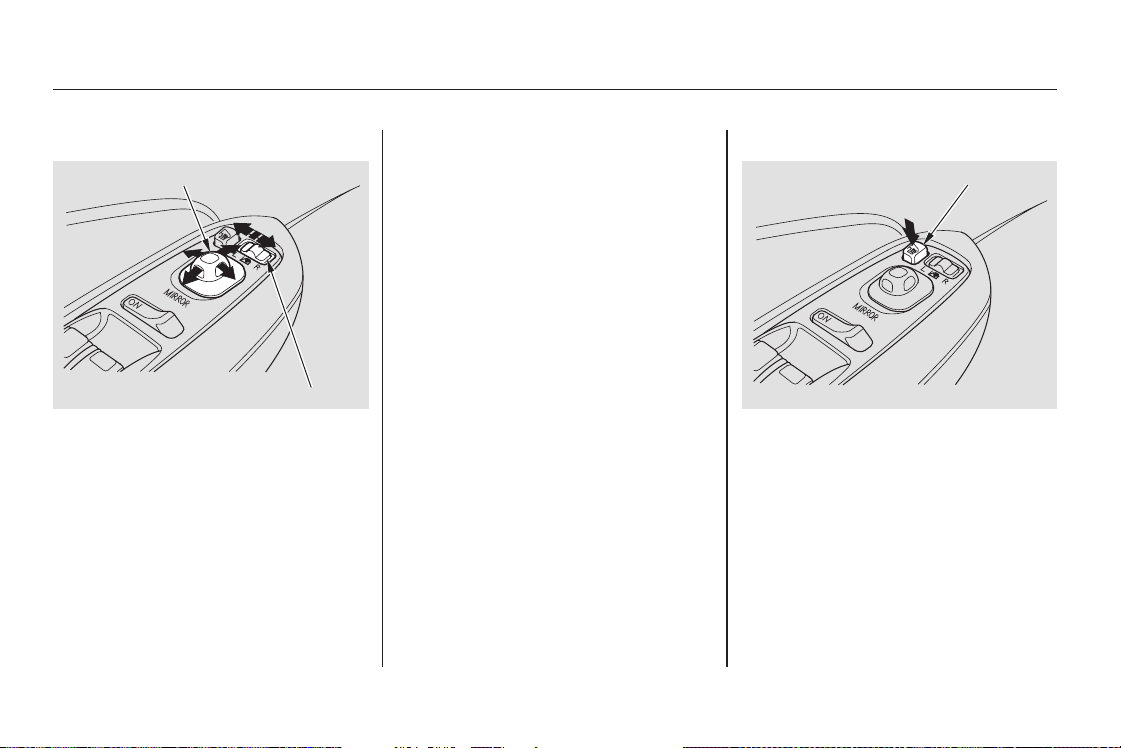

Use the main power window
switch to prevent children from
opening the rear windows.
Do not leave children alone in a
vehicle.
Lock all doors and tailgate when
your vehicle is not in use.
Keep vehicle keys and remote
transmitters out of the reach of
children.
37
Main Menu
Table of Contents

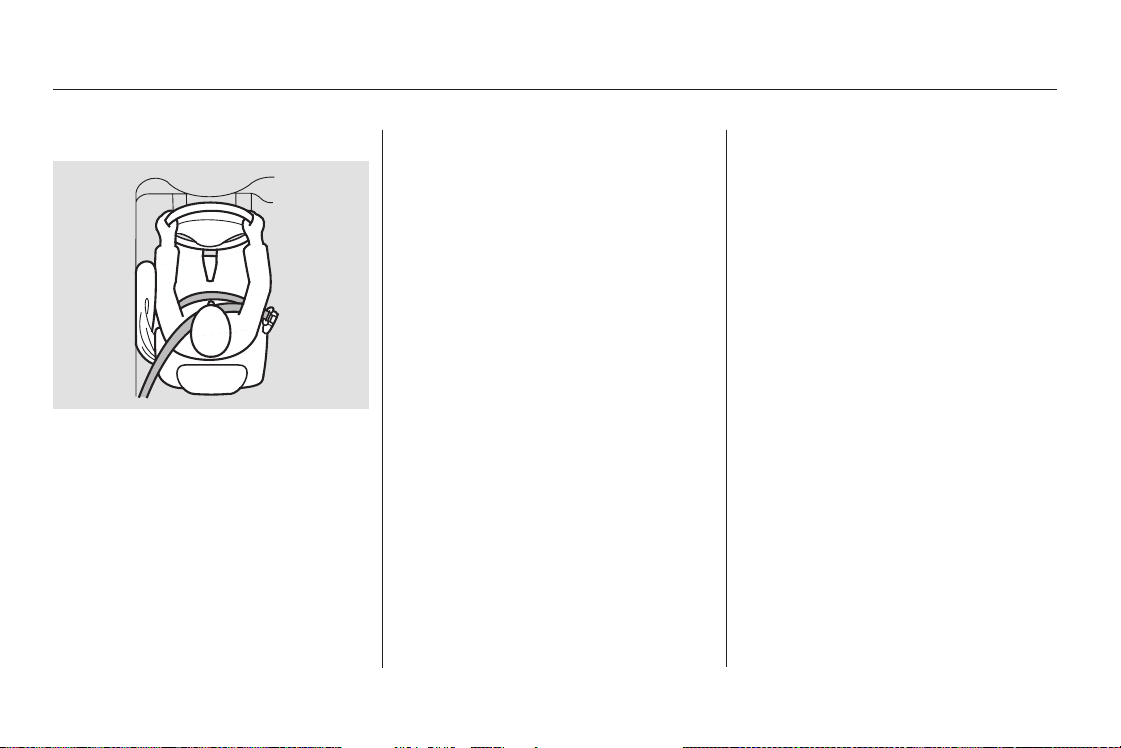

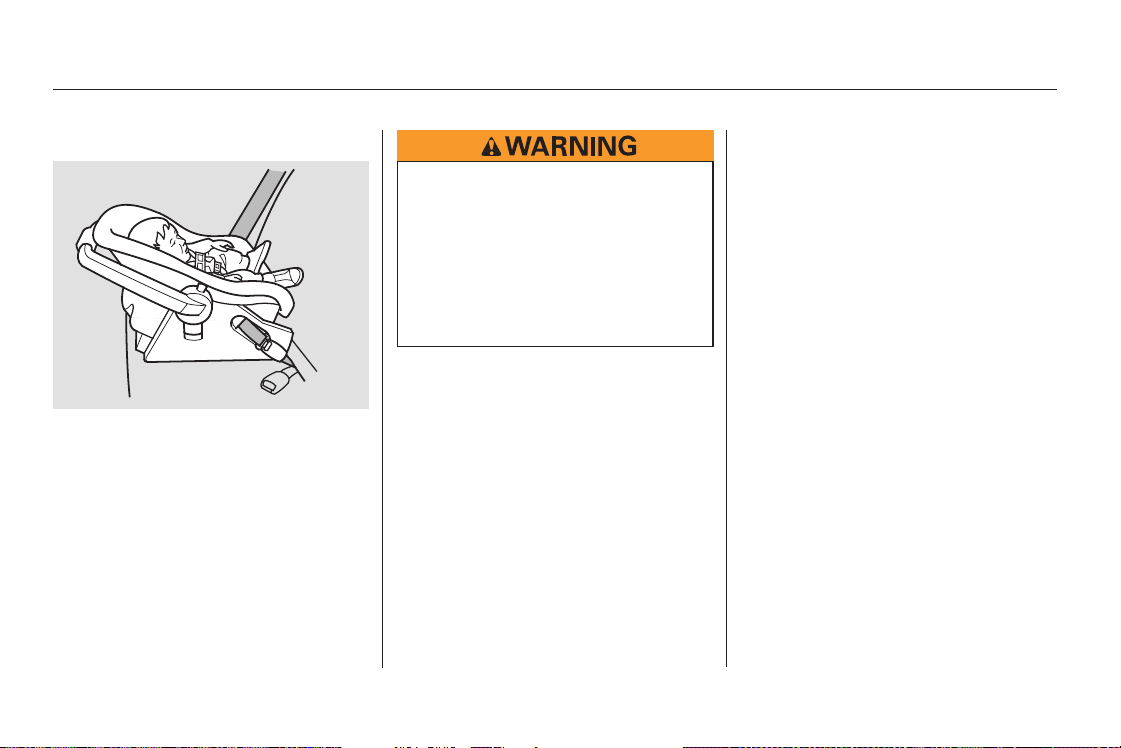

Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back.
An infant must be properly
restrained in a rear-facing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
for the seat, and the child is at least
one year old.
Two types of seats may be used: a
seat designed exclusively for infants,
or convertible seat used in the rear-
facing, reclining mode.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving the seat as far back as
recommended, or from locking the
seat-back in the desired position.
A rear-facing child seat should
always be installed in a back seat, not
in the front. Even with advanced
airbags, which can automatically
turn the passenger’s front airbag off
(see page ), a back seat is the
safest place for an infant.
In either of these situations, we
strongly recommend that you install
the child seat in a different back
seating position or get a smaller rear-
facing child seat.
30
Driver and Passenger Safety
Protecting Infants and Small Children
Protecting Infants
Child Seat Type
Do not put a rear-facing child seat in
a forward-facing position.
Child Seat Placement
38
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
collision.
Always place a rear-facing child
seat in the back seat, not the
front.
Main Menu
Table of Contents
A child who is at least one year old,
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a forward-
facing, upright child seat.

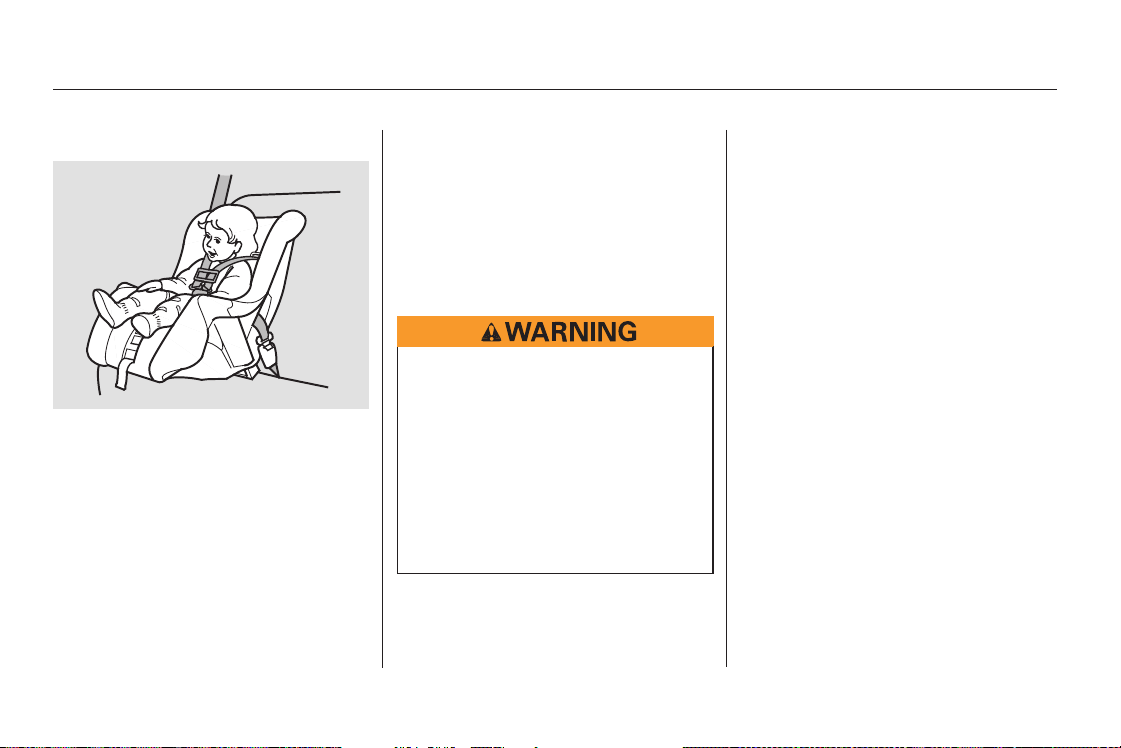

Of the different seats available, we
recommend those that have a five-
point harness system as shown.
We also recommend that a small
child uses the child seat as long as
possible, until the child reaches the
weight or height limit for the seat.
We strongly recommend placing a
forward-facing child seat in a back
seat,notthefront.Evenwith
advanced airbags, which can
automatically turn the passenger’s
front airbag off (see page ), a
back seat is the safest place for a
small child.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, be sure the child seat is
firmly secured to the vehicle, and the
child is properly strapped in the seat.
30
CONTINUED
Driver and Passenger Safety
Protecting Small Children
Child Seat Type
Child Seat Placement
Protecting Infants and Small Children
39
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
Main Menu
Table of Contents
When buying a child seat, you need
to choose between a conventional
child seat, or one designed for use
with the Lower Anchors and Tethers
for Children (LATCH) system.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
facing for small children.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position, or positions,
where the seat will be used.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two second-
row seat.
We also recommend selecting a
LATCH-compatible seat with a rigid,
rather than a flexible, anchor (see
page ).
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
42
Selecting a Child Seat
Driver and Passenger Safety
The child seat should meet U.S. or
Canadian Motor Vehicle Safety
Standard 213.
The child seat should be of the
proper type and size to fit the child.
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
1.
2.
3.
40
Main Menu
Table of Contents

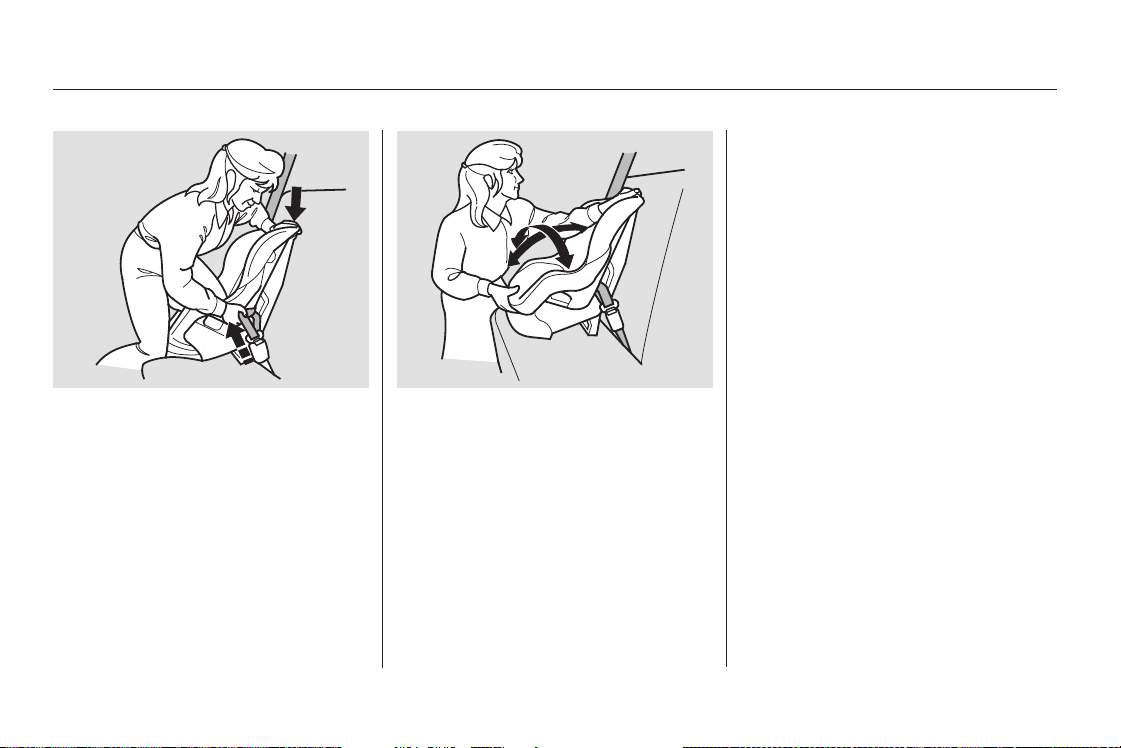

After selecting a proper child seat,
and a good place to install the seat,
there are three main steps in
installing the seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers for Children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
After installing a child
seat, push and pull the seat
forward and from side to side to
verify that it is secure.

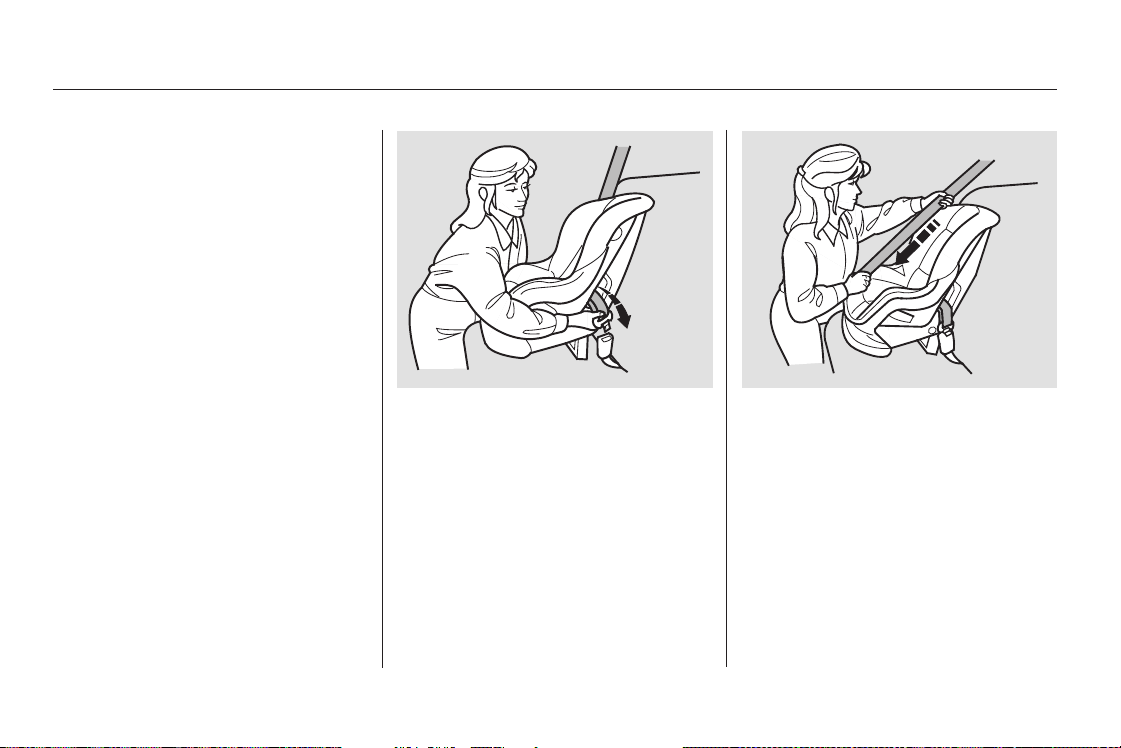

A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be ‘‘rock solid’’. Some side-to-side
movement can be expected and
should not reduce the child seat’s
effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for a rear-
facing child seat.
Installing a Child Seat
Driver and Passenger Safety
Properly secure the child seat to
the vehicle.
Make sure the child seat is firmly
secured.
Secure the child in the back seat.
1.
2.
3.
41
Main Menu
Table of Contents

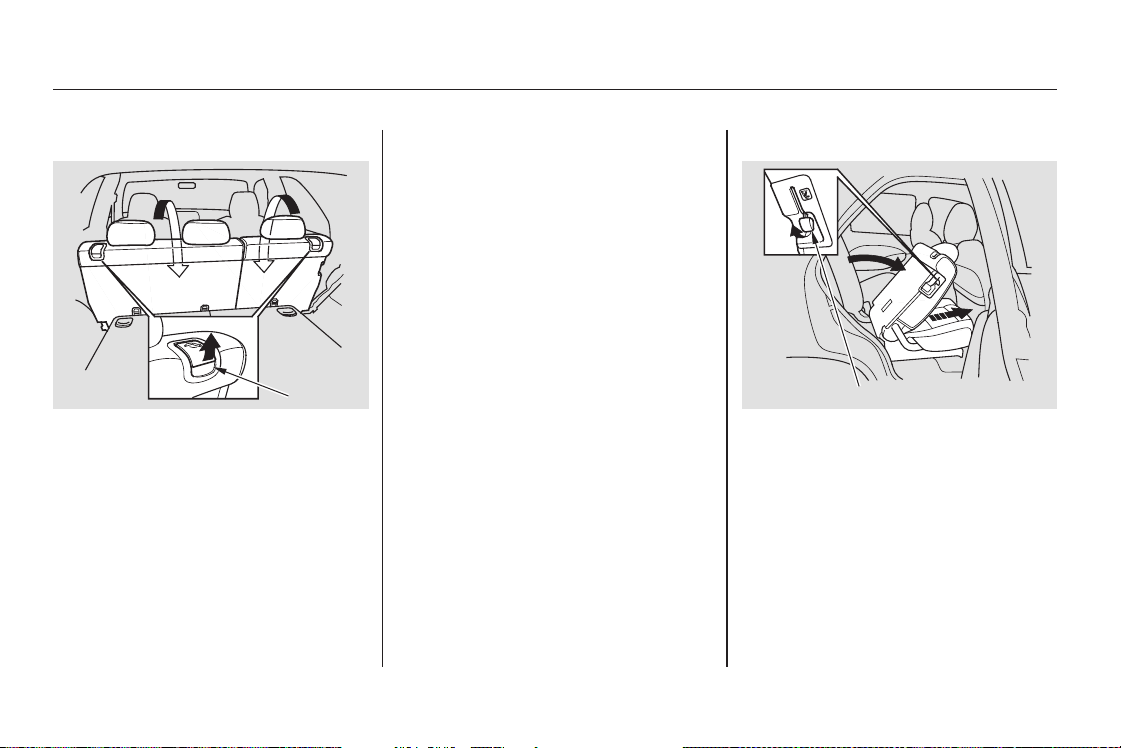

The location of each lower anchor is
marked with a small button above
the point.
To install a LATCH-compatible child
seat:
Move the seat belt buckle or
tongue away from the lower
anchors.
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and
anchors.
Place the child seat on the vehicle
seat, and attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connection as
shown above.
Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers for Children) at the outer
second row seats. The lower anchors
are located between the seat-back
and seat bottom, and are to be used
only with a child seat designed for
use with LATCH.
1.
2.
3.
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat Using
LATCH
42
RIGID TYPELOWER ANCHORS
MARKS
Main Menu
Table of Contents
Make sure the strap is not twisted,
then tighten the strap according to
the child seat maker’s instruction.
Push and pull the child seat
forward and from side to side to
verify that it is secure.
Whatever type you have, follow
the child seat maker’s instructions
for adjusting or tightening the fit.
Other LATCH-compatible seats have
a flexible-type connection as shown
above.

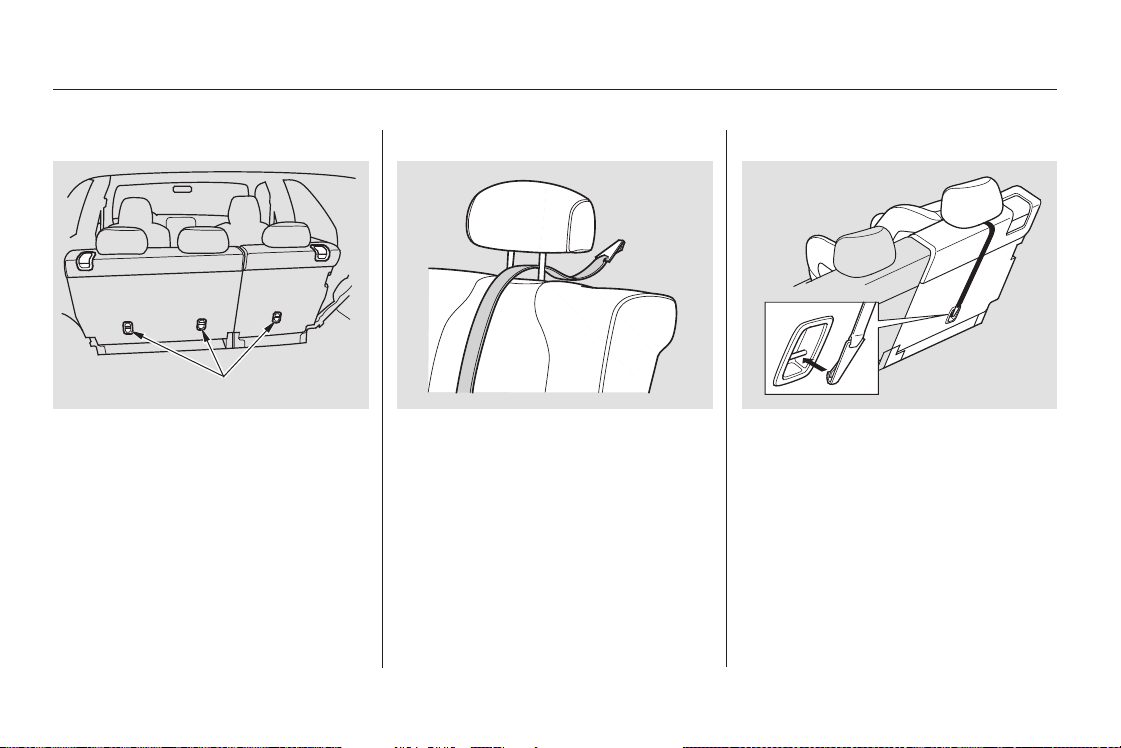

Route the tether strap through the
legs of the head restraint, then
attach the hook to the anchorage
point on the back of the seat back.
6.
4.
5.
7.
Installing a Child Seat
Driver and Passenger Safety
43
FLEXIBLE TYPE
Main Menu
Table of Contents
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
the back seating positions, and in the
front passenger seat, have a locking
mechanism that must be activated to
secure a child seat.
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
1. 2.
3.
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat with a Lap/
Shoulder Belt
44
Main Menu
Table of Contents
CONTINUED
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
Push and pull the child seat
forward and from side to side to
verify that it is firmly secured. If
the child seat is not secure,
unlatch the belt, allow it to retract
fully, then repeat these steps.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
A child seat with a tether can be
installed in any seating position in
the second or third row.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available. (Tethers are required in
Canada.)
Confirm that the belt is locked,
then grab the shoulder part of the
belt near the buckle, and pull up to
remove any slack from the lap part
of the belt. Remember, if the lap
part of the belt is not tight, the
child seat will not be secure.
4. 5.
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat with a
Tether
45
Main Menu
Table of Contents
Each second row seat has a tether
anchorage point behind the seat
back.
After securing the child seat in the
desired position (see page ),
route the tether strap over the top
of the seat-back and between the
head restraint legs.
Attach the tether strap hook to the
anchor as shown above, then
tighten the strap according to the
child seat maker’s instructions.
Make sure the strap is not twisted.
2.1.
44
Driver and Passenger Safety
Installing a Child Seat
Second Row Installation
46
TETHER ANCHORAGE POINT
Main Menu
Table of Contents

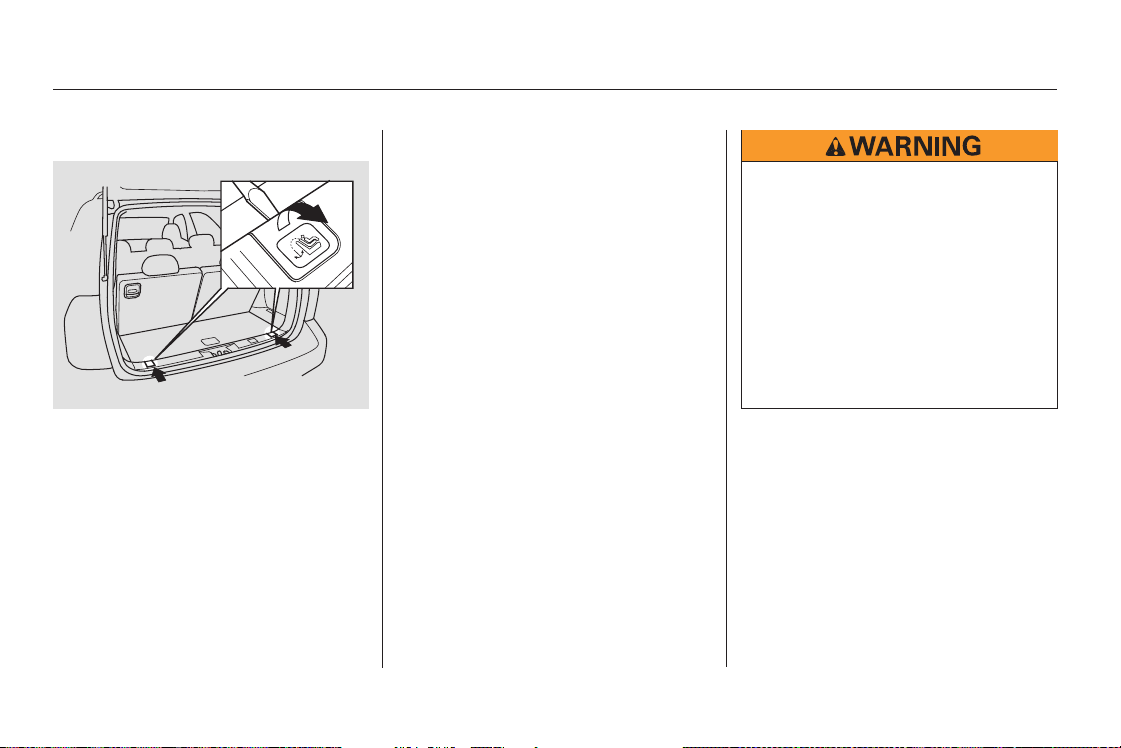

There are two anchorage points on
the tailgate sill.
Select the anchor point you want
to use. Raise the cargo area floor,
and remove the cover with a small
flat-tipped screwdriver or
fingernail file.
Followsteps1and2ofthesecond
row seat installation.
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster and wear a lap/shoulder belt.
The following pages provide
guidelines to help you decide when a
given child may ride in front, and
how to properly protect the child.
2.
1.
Installing a Child Seat, Protecting Larger Children
Driver and Passenger Safety
Third Row Installation
Protecting Larger Children
47
Allowing a larger child age 12 or
under to sit in front can result in
injury or death if the passenger’s
front airbag inflates.
If a larger child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, and have the
child sit up properly and wear
the seat belt properly.
Main Menu
Table of Contents
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster.
1.
2.
3.
4.
5.
Protecting Larger Children
Driver and Passenger Safety
Checking Seat Belt Fit Using a Booster Seat
48
Main Menu
Table of Contents
Some states also require children to
use a booster until they reach a
given age or weight (e.g., 6 years or
60lbs).Besuretocheckcurrent
laws in the state or states where you
intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets federal
safety standards (see page ) and
that you follow the booster seat
maker’s instructions.
If a child who uses a booster must
ride in front, move the vehicle seat
as far to the rear as possible, and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster.
Even then, the child may still need to
use a booster seat. Note that some
states now require children to use
boosters until they reach a certain
ageand/orweight.Besuretocheck
current laws in the state or states
where you intend to drive.
We strongly recommend that a child
whousedaboosterrideinaback
seat,notthefront.Evenifthe
passenger’s front airbag is off, a
back seat is the safest place for the
child.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
ages 12 and under be properly
restrained in the back seat.
Even with advanced front airbag, the
back seat is the safest place for a
child of any age or size.
If the passenger’s front airbag is on,
and it inflates in a moderate to
severe frontal collision, the airbag
can cause serious injuries to a child
who is unrestrained, improperly
restrained, sitting too close to the
airbag, or out of position.
The side airbag also poses risks. If
any part of a larger child’s body is in
the path of a deploying side airbag,
the child could receive possibly
serious injuries.
33
Protecting Larger Children
When Can a Larger Child Sit in Front
Driver and Passenger Safety
49
Main Menu
Table of Contents
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see page ). If the seat
belt does not fit properly, with or
without the child sitting on a booster,
the child should not sit in the front.
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
If they do, they could
be very seriously injured in a crash.
Devices intended to improve a
child’s comfort or reposition the
shoulder part of a seat belt can make
the belt less effective, and increase
the chance of serious injury in a
crash.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front.
There are other important factors
youshouldconsider.
48
Protecting Larger Children
Driver and Passenger Safety
Maturity
Physical Size
Additional Safety Precautions
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back or
under the arm.
Two children should never use the
same seat belt.
Do not put any accessories on a seat
belt.
50
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
Have the exhaust system inspected
for leaks whenever:
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
With the tailgate open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows
and set the heating and cooling
system/climate control system as
shown below.
If you must sit in your parked vehicle,
even in an unconfined area, with the
engine running, adjust the heating
and cooling system/climate control
system as follows:
Select the Fresh Air mode.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Safety
51
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read (except for the U.S.
dashboard label which is removed by
the owner), contact your Acura
dealer for a replacement.
U.S. models only
Safety Labels
Driver and Passenger Safety
52
RADIATOR CAP
HOOD
DASHBOARD
BATTERY LABEL
Main Menu
Table of Contents
U.S. models
Canadian models
Canadian modelsU.S. models
On vehicles with side curtain airbags
Safety Labels
Driver and Passenger Safety
53
SUN VISOR
DOORJAMBS
Main Menu
Table of Contents
54
Main Menu
This section gives information about
the controls and displays that
contribute to the daily operation of
your Acura. All the essential controls
are within easy reach.
...........................Control Locations . 56
............................Instrument Panel . 57
....................Instrument Indicators . 58
.............................................Gauges . 66
Controls Near the Steering
...........................................Wheel . 68
Windshield Wipers and
...................................Washers . 69
Rear Window Wiper and
.....................................Washer . 71
...........Turn Signal and Headlights . 72
........Instrument Panel Brightness . 74
.................Hazard Warning Button . 74
.................Rear Window Defogger . 75
.........................................Fog Light . 75
..........Steering Wheel Adjustment . 76

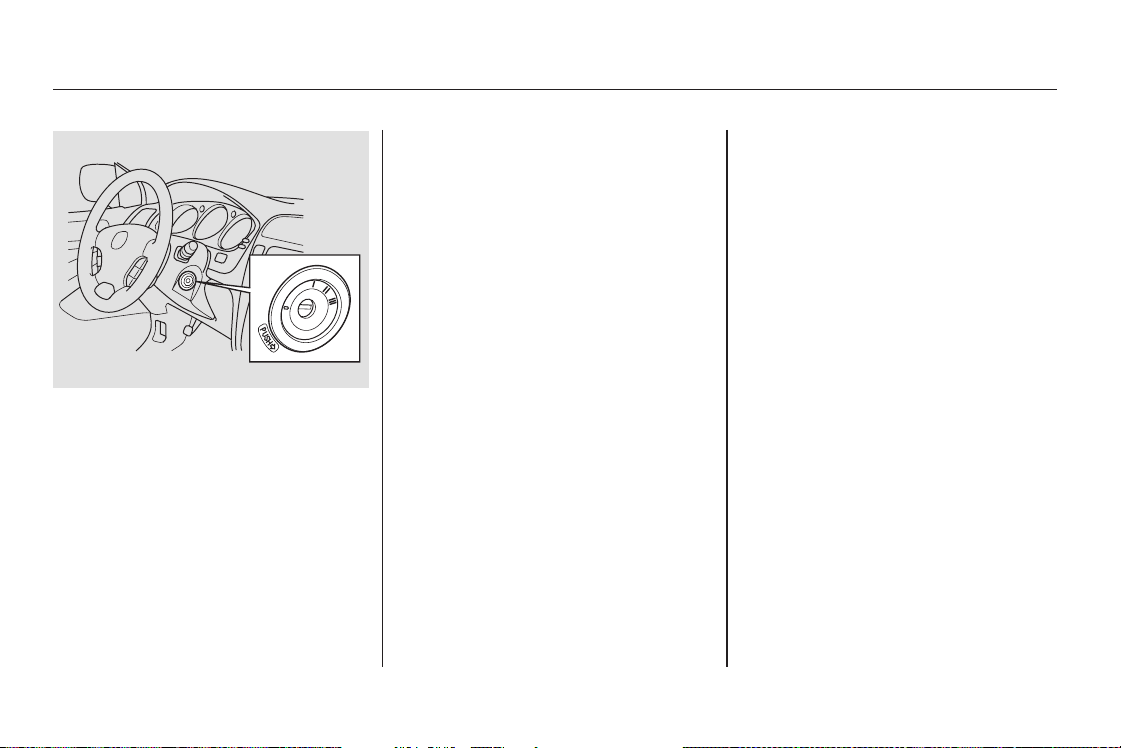

..................................................Keys . 77
........................Immobilizer System . 78
................................Ignition Switch . 79
......................................Door Locks . 80
.......................Remote Transmitter . 81
.................................................Seats . 84
....................................Seat Heaters . 89
..............................Power Windows . 90
.........................................Moonroof . 91
.................................Parking Brake . 92
.............................................Mirrors . 92
Driving Position Memory
..........................................System . 94
.................................Interior Lights . 96
...........Interior Convenience Items . 98
.......................Beverage Holders . 99
...............Console Compartment . 99
....................................Glove Box . 99
...................Rear Compartment . 100
.............................Cargo Hooks . 100
...................................Sun Visor . 100
............................Vanity Mirror . 100
........Accessory Power Sockets . 101
Instruments and Controls
Instruments and Controls
55
Main Menu
Control Locations
Instruments and Controls
56
MIRROR
CONTROLS
HOOD RELEASE
HANDLE
PARKING BRAKE
PEDAL
REAR A/C CONTROL ACCESSORY POWER SOCKET
GLOVE BOX
AUDIO SYSTEM
CLIMATE CONTROL SYSTEM
GAUGES
POWER DOOR LOCK
SWITCHES
POWER WINDOW
SWITCHES
FUEL FILL DOOR
RELEASE
INSTRUMENT PANEL (P.57)
(P.66)
(P.80)
(P.92)
(P.90)
(P.160)
(P.159)
(P.92)
(P.109) (P.101)
(P.110)
(P.99)
(P.104)
Main Menu
Table of Contents
＊
The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
CONTINUED

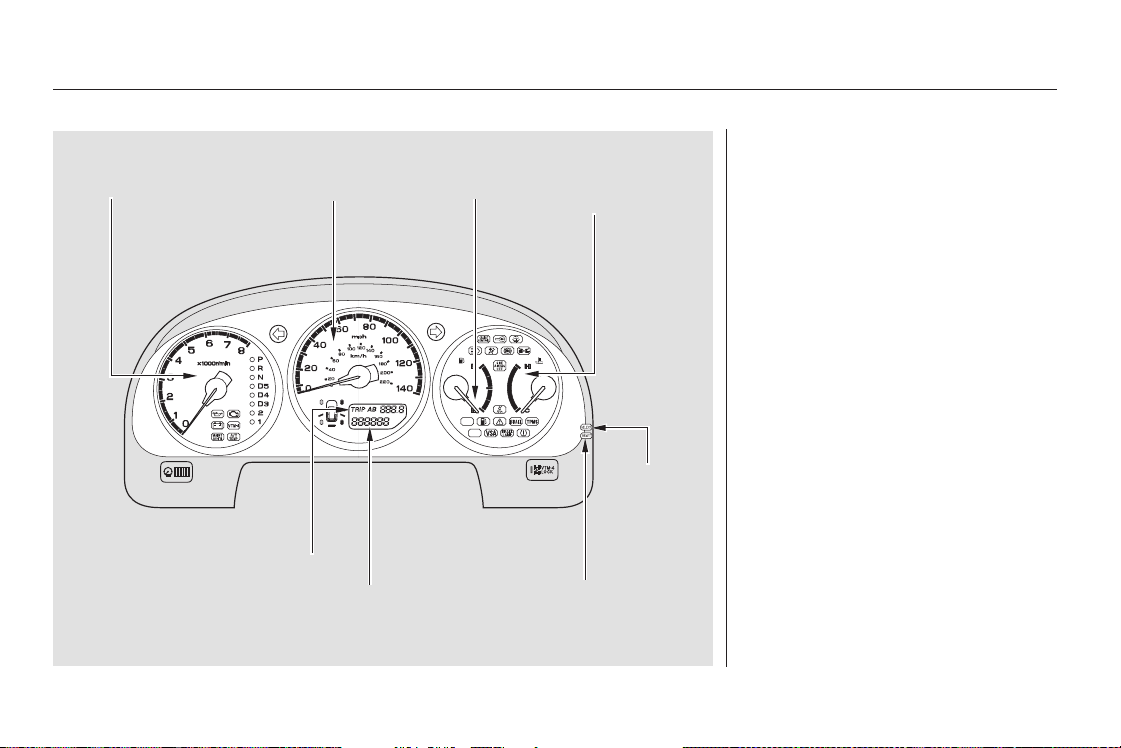

Instrument Panel
Instruments and Controls
57
VEHICLE STABILITY ASSIST
SYSTEM (VSA) INDICATOR
MALFUNCTION INDICATOR
LAMP
LOW OIL PRESSURE
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
DOOR AND TAILGATE
OPEN MONITOR
TIRE PRESSURE MONITOR
LOW FUEL INDICATOR
LIGHTS ON
INDICATOR
WASHER LEVEL
INDICATOR
SEAT BELT
REMINDER
INDICATOR
PARKING
BRAKE AND
BRAKE
SYSTEM
INDICATOR
TPMS INDICATOR
LOW TIRE PRESSURE
INDICATOR
BRAKE LAMP
INDICATOR
VSA ACTIVATION
INDICATOR
SIDE AIRBAG OFF
INDICATOR
ANTI-LOCK BRAKE SYSTEM
INDICATOR
CRUISE CONTROL
INDICATOR
HIGH BEAM INDICATOR
MAINTENANCE
REQUIRED
INDICATOR
VTM-4 INDICATOR
A/T TEMPERATURE
INDICATOR
(P.243)
(P.58)
(P.58)
(P.65)
CHARGING SYSTEM
INDICATOR
(P.62)
(P.62)
(P.60)/
(P.60, 64)
(P.61)
(P.63)
(P.61)
(P.61)
(P.58)
(P.59)
(P.59)
(P.61)
(P.62)
(P.58)
(P.58)
(P.64)
(P.64)
(P.59)
(P.60)
(P.63)
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your vehicle.
This indicator comes on when you
turn the ignition switch to ON (II). It
is a reminder to you and your
passengers to fasten your seat belts.
A beeper also sounds if you have not
fastened your seat belt.
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper sounds and the indicator
flashes. If you do not fasten your
seat belt before the beeper stops, the
indicator stops flashing but remains
on.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals.
See page .
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more information, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your front airbags or automatic seat
belt tensioners. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
driver’s seat position sensor, front
passenger’s weight sensors, or side
curtain airbags. For complete
information, see page .
243
242
242
29
28
Instrument Panel Indicators
Instruments and Controls
Seat Belt Reminder
Indicator
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Supplemental Restraint
System Indicator
Side Airbag Off Indicator
58
Main Menu
Table of Contents
This indicator has two functions:
This indicator comes on when you
turn the ignition switch to ON (II).
It is a reminder to check the
parking brake. A beeper sounds if
you try to drive with the parking
brake not fully released. Driving
with the parking brake not fully
released can damage the brakes
and tires.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, have your
vehicle checked by your Acura
dealer. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock. For more
information, see page .
This indicator comes on for a few
seconds when you turn the ignition
switch to ON (II). It will go off if you
have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch from ON (II) to ACCESSORY
(I) or LOCK (0).
If it remains on after you fully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
1.
2.
244
181
78
Instrument Panel Indicators
Instruments and Controls
Parking Brake and Brake System
Indicator
Anti-lock Brake System
(ABS) Indicator
Immobilizer System
Indicator
59
U.S. Canada
Main Menu
Table of Contents
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out. Replace the bulb as soon
as possible, since other drivers
cannot see that you are signaling
(see page ).
If a brake light does not work, the
indicator comes on
when you push the brake pedal with
the ignition switch to ON (II).
A burned out brake light is a hazard
when drivers behind you cannot tell
you are braking. Replace the bulb as
soon as possible (see page ).
The appropriate indicator comes on
in this display if the tailgate or any
door is not closed tightly.
All of the indicators in the monitor
display come on for a few seconds
when you turn the ignition switch to
ON (II).
When you push the hazard warning
button, both turn signal lights blink.
All turn signals on the outside of the
vehicle should flash.
216
215
Instruments and Controls
Turn Signal and
Hazard Warning
Indicators
Brake Lamp Indicator Door and Tailgate Open Monitor
Instrument Panel Indicators
60
BRAKE LAMP
Main Menu
Table of Contents
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go off if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator comes on with the
high beam headlights. See page
for information on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on as a
reminder that you must refuel soon.
This indicator comes on when the
washer fluid level is low. Add washer
fluidwhenyouseethisindicator
comes on (see page ).
72
74
209
144
Canadian models only
Instruments and Controls
‘‘Daytime Running
Lights’’ Indicator
Cruise Control Indicator
High Beam Indicator
Low Fuel Indicator
Washer Level Indicator
Instrument Panel Indicators
61
Main Menu
Table of Contents
On vehicles with automatic lighting (see
page )
U.S. models only
73

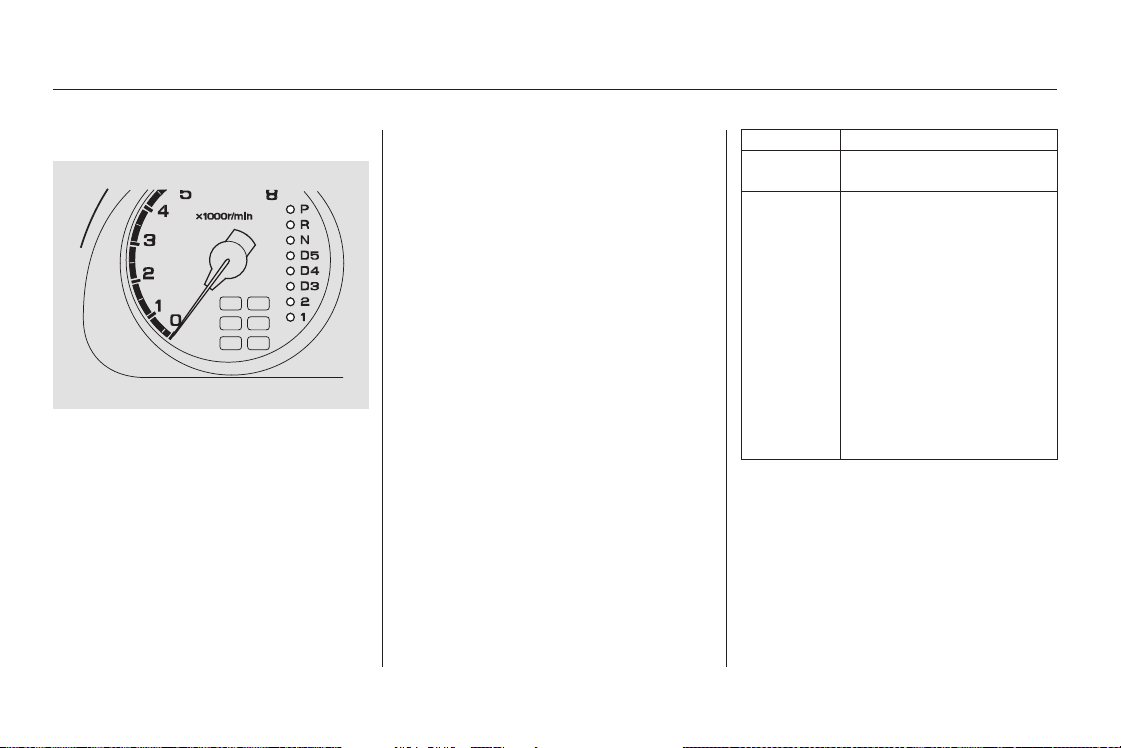

This indicator monitors the
temperature of the automatic
transmission fluid. The indicator
should come on for a few seconds
when you turn the ignition switch to
ON (II). If it comes on while driving,
it indicates the transmission fluid
temperature is too high. Pull to the
side of the road when it is safe, shift
to Park, and let the engine idle until
the indicator goes out.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II). If this
indicator comes on at any other time,
there is a problem in the 4WD
system. Take the vehicle to your
dealer to have it checked.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. This indicator
will also come on when the light
switch is in AUTO and the lights
turn on automatically. If you turn the
ignition switch to ACCESSORY (I)
or LOCK (0) without turning off the
light switch, this indicator will
remain on. A reminder chime will
also sound when you open the driver’s
door.
If the indicator blinks while driving,
pull to the side of the road when it is
safe, shift to Park, and let the engine
idle until the indicator goes out.
Instruments and Controls
Lights On Indicator A/T Temperature
Indicator
VTM-4 Indicator
Instrument Panel Indicators
62
Continuing to drive with the A/T
Temperature indicator lit may cause
serious damage to the transmission.
Continuing to drive with the VTM-4
indicator blinking may cause serious
damage to the system.
Main Menu
Table of Contents
This indicator has three functions:
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II). See page
for more information on the
VSA system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II). It comes on as a reminder that you
have turned off the Vehicle
Stability Assist (VSA) system.Ifitcomesonandstaysonatany
other time, or it does not come on
when you turn the ignition switch to
ON (II), there is a problem with the
VSA system. Have your vehicle
checked by your Acura dealer.
Without VSA, your vehicle still has
normal driving ability, but will not
have VSA traction and stability
enhancement. See page for more
information on the VSA system.
1.
2.
3.
183
183
183
Instruments and Controls
Vehicle Stability Assist
(VSA) System Indicator
VSA Activation Indicator
Instrument Panel Indicators
63
Main Menu
Table of Contents
This indicator normally comes on for
a few seconds when you turn the
ignition to ON (II).
This indicator normally comes on for
a few seconds when you turn the
ignition to ON (II).
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are extremely low on
pressure.
If this happens, pull to the side of the
road when it is safe, check which tire
has lost the pressure on the Tire
Pressure Monitor, and determine the
cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
flat tire repaired as soon as possible.
If two or more tires are underinflated,
call a professional towing service
(see page ). Refer to page
for more information.
The appropriate tire indicator will
come on along with the Low Tire
Pressure Indicator if a tire is
extremely under inflated or has
suddenly lost pressure. See Low Tire
Pressure Indicator for what to do if
this indicator comes on.
If this indicator comes on and stays
on at any other time, or it does not
come on when you turn the ignition
switch to ON (II), there is a problem
with the TPMS. With this indicator
on, the low tire pressure indicator
and the tire pressure monitor will not
come on when a tire loses pressure.
Take the vehicle to your dealer to
have the system checked.231
244
178
Instrument Panel Indicators
Instruments and Controls
Tire Pressure Monitoring
System (TPMS) Indicator
Low Tire Pressure
Indicator
Tire Pressure Monitor
64
Main Menu
Table of Contents
Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km), it will light
for 2 seconds when you first turn the
ignition switch to ON (II), and then
flash for 10 seconds.
If you exceed 7,500 miles (12,000
km) without having the scheduled
maintenance performed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
after completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Acura dealer, reset the indicator as
follows.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Refer to the Maintenance Schedules
for Normal and Severe Driving
Conditions on pages and .
For the first 6,000 miles (9,600 km)
after the Maintenance Required
Indicator is reset, it will come on for
2 seconds when you turn the ignition
switch to ON (II). Turn off the engine.
Press and hold the Select and
Reset buttons on the instrument
panel, then turn the ignition switch
to ON (II).
Hold the buttons for
approximately 10 seconds until the
indicator goes off.
1.
2.
3.
199 200
Instruments and Controls
Instrument Panel Indicators
Maintenance Required
Indicator
65
RESET BUTTON
SELECT BUTTON
Main Menu
Table of Contents
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in the Canadian models.
It is illegal under U.S. federal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition.
Gauges
Instruments and Controls
Odometer
Fuel Gauge
66
NOTICE:
TACHOMETER TEMPERATURE
GAUGE
FUEL GAUGESPEEDOMETER
TRIP METER RESET
BUTTON
TRIP METER
ODOMETER
TRIP METER
SELECT
BUTTON
Avoid driving with an
extremely low f uel level. Running out
of f uel could cause the engine to
misf ire, damaging the catalytic
converter.
Main Menu
Table of Contents
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
mayrisetotheupperwhitemark.If
it reaches the red (Hot) mark, pull
safely to the side of the road. Turn to
page for instructions and
precautions on checking the engine’s
cooling system.
To reset a trip meter, display it, and
then press and hold the Reset button
until the number resets to ‘‘0.0’’.
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select
button repeatedly. Each trip meter
works independently, so you can
keep track of two different distances.
When you turn the ignition switch
ON (II), what you last selected is
displayed.
240
Gauges
Instruments and Controls
Trip Meter Temperature Gauge
67
SELECT BUTTON
RESET BUTTON
Main Menu
Table of Contents
＊
＊
To use the horn, press the pad around the ‘‘A’’ logo.
Instruments and Controls
Controls Near the Steering Wheel
68
REAR WINDOW
DEFOGGER
VTM-4 LOCK
INSTRUMENT PANEL
BRIGHTNESS
FOG LIGHTS
HEADLIGHTS/TURN SIGNALS
REMOTE AUDIO
CONTROLS
HORN
CRUISE CONTROL

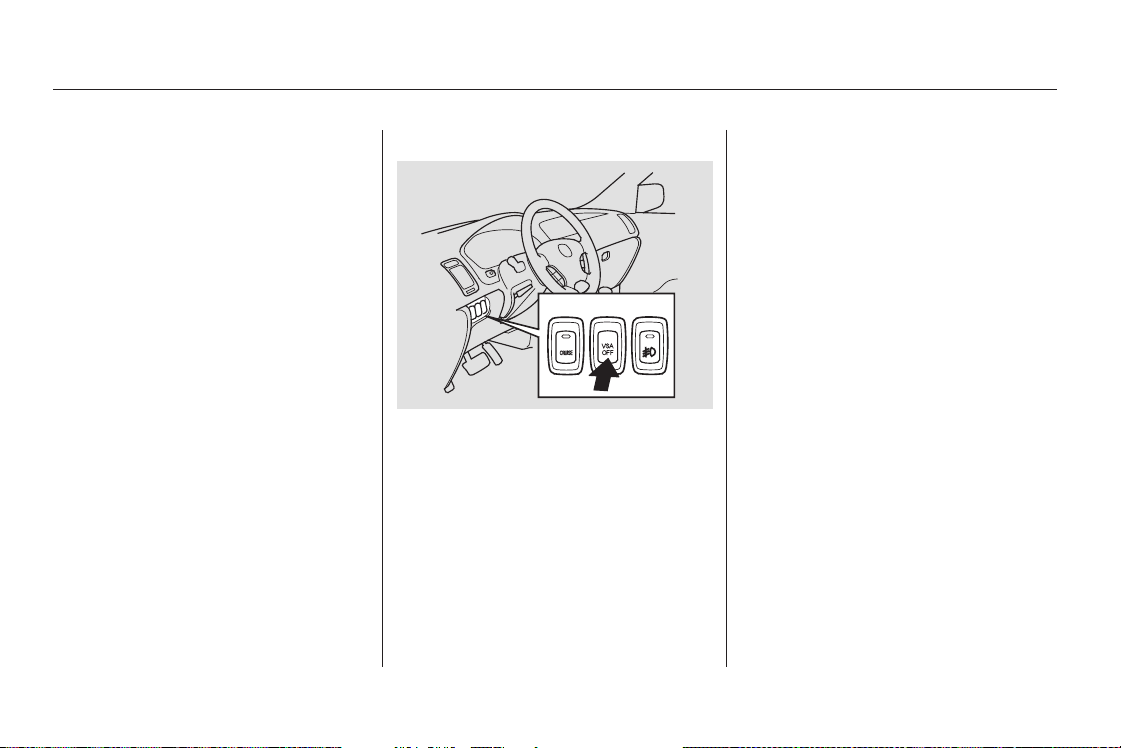

VEHICLE STABILITY
ASSIST SYSTEM OFF
SWITCH
STEERING WHEEL ADJUSTMENT WINDSHIELD WIPERS/WASHERS
(P.72)
(P.75)
CRUISE CONTROL
(P.144)
(P.184)
(P.128)
(P.76)
(P.74)
(P.176)
(P.75)
(P.74)
(P.69)
(P.30)
(P.144)
PASSENGER AIRBAG OFF INDICATOR
HAZARD WARNING
BUTTON
Main Menu
Table of Contents

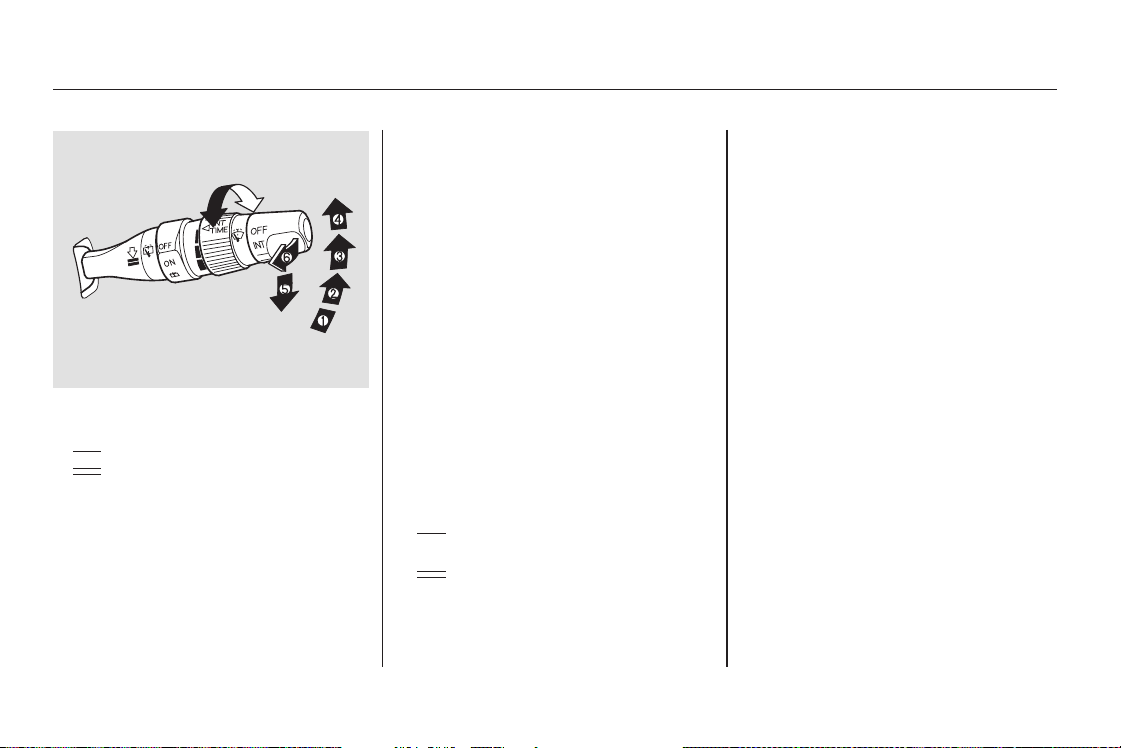

OFF
INT : Intermittent
: Low speed
: High speed
MIST
Windshield Washers
Turntherotaryswitchattheendof
the lever or push down or pull the
lever to select a position.
The wipers are not activated.
The length of the wiper
interval is varied
automatically according to the
vehicle’s speed.
Vary the delay by turning the
INT TIME ring. If you turn it
to the shortest delay, the
wipers will change to low
speed operation when the
vehicle speed exceeds 12 mph
(20 km/h).
: The wipers run at low speed.
: The wipers run at high speed.
The wipers run at high speed
until you release the lever.
:Pullthewiper
control lever toward you and
hold it. The washers spray
until you release the lever.
The wipers run at low speed,
then complete one more
sweep after you release the
lever.
1.
2.
3.
4.
5.
6.
Windshield Wipers and Washers
Instruments and Controls
OFF:
INT:
MIST:
Windshield Washer
69
Main Menu
Table of Contents
Touring Model
The automatic wiper system senses
rainfall and automatically turns on
the windshield wipers. To enable
sensing, turn the rotary switch at the
end of the wiper lever to AUTO.
When the system senses rainfall, it
turns on the windshield wipers and
varies their speed (intermittent, low
speed, or high speed) depending on
how hard it is raining.
Whentherotaryswitchisinthe
(low speed) or (high speed)
position, the windshield wipers run
at that speed. Automatic sensing is
disabled.
You can adjust the sensitivity of the
system by turning the AUTO SENS
ring next to the rotary switch.
Instruments and Controls
Windshield Wipers and Washers
Automatic Wipers
70
Main Menu
Table of Contents

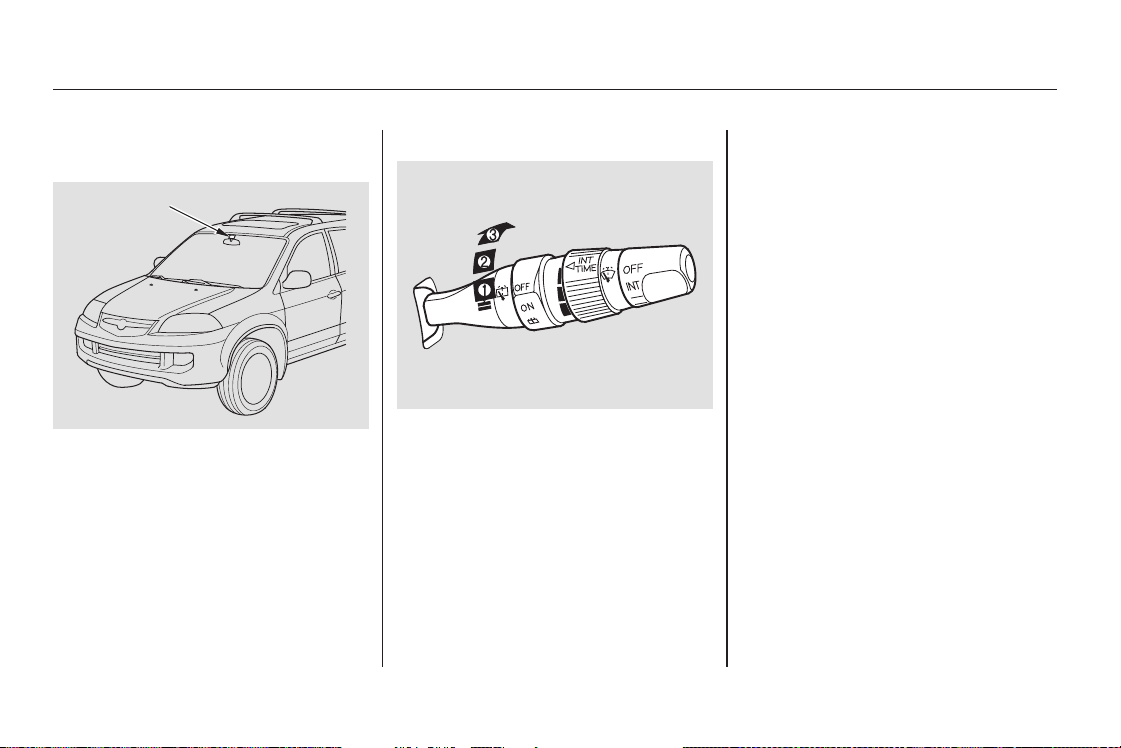

The rainfall sensor is located in the
windshield near the rearview mirror.
If the sensor is covered with mud, oil,
dust, etc., the wipers may not
operate properly or may operate
unexpectedly.
The rear window wiper switch is
located next to the windshield wiper
switch.
Do not put the wiper switch in
AUTO when driving through a car
wash.
OFF
ON
Turnandholdtousethewiper
and washer.
1.
2.
3.
Windshield Wipers and Washers
Instruments and Controls
Rear Window Wiper and Washer
71
RAINFALL SENSOR
Main Menu
Table of Contents
−
−−
Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
When the light switch is in either of
these positions, the Lights On
indicator comes on as a reminder.
This light remains on if you leave the
light switch on and turn the ignition
switch to ACCESSORY (I) or LOCK
(0).
To turn on, pull the
lever back until you hear a click. The
blue high beam indicator will come
on (see page ). Pull it back again
to return to low beams.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Rotating the switch
on the left lever to the ‘‘ ’’
position turns on the parking lights,
taillights, instrument panel lights,
side-marker lights, and rear license
plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the key
removed from the ignition switch,
you will hear a reminder chime when
you open the driver’s door.
Turn signal
Off
Parking and indicator lights
AUTO
Headlights on
High beams
Flashhighbeams
1.
2.
3.
4.
5.
6.
7.
61
Instruments and Controls
Turn Signal and Headlights Turn Signal
High BeamsHeadlights
Turn Signal, Headlights
72
Main Menu
Table of Contents
− The Automatic Lighting
feature turns on the headlights, all
other exterior lights, and the
instrument panel lights when it
senses low ambient light.
To turn on automatic lighting, turn
the light switch to AUTO at any time.
The lights will come on automatically
when the outside light level becomes
low (at dusk, for example). The
Lights On indicator comes on as a
reminder. The lights and indicator
will turn off automatically when the
system senses high ambient light.
The lights will remain on when you
turn off the ignition switch. They will
turn off automatically when you open
the driver’s door. To turn them on
again, either turn the ignition switch
to ON (II) or turn the light switch to
.
Even with the automatic lighting
feature turned on, we recommend
thatyouturnonthelightsmanually
when driving at night or in a dense
fog, or when you enter dark areas,
such as long tunnels or parking
structures.
Do not leave the light switch in
AUTO if you will not be driving the
vehicle for an extended period (a
weekormore).Youshouldalsoturn
off the lights if you plan to leave the
engine idling or the engine off for a
long time.

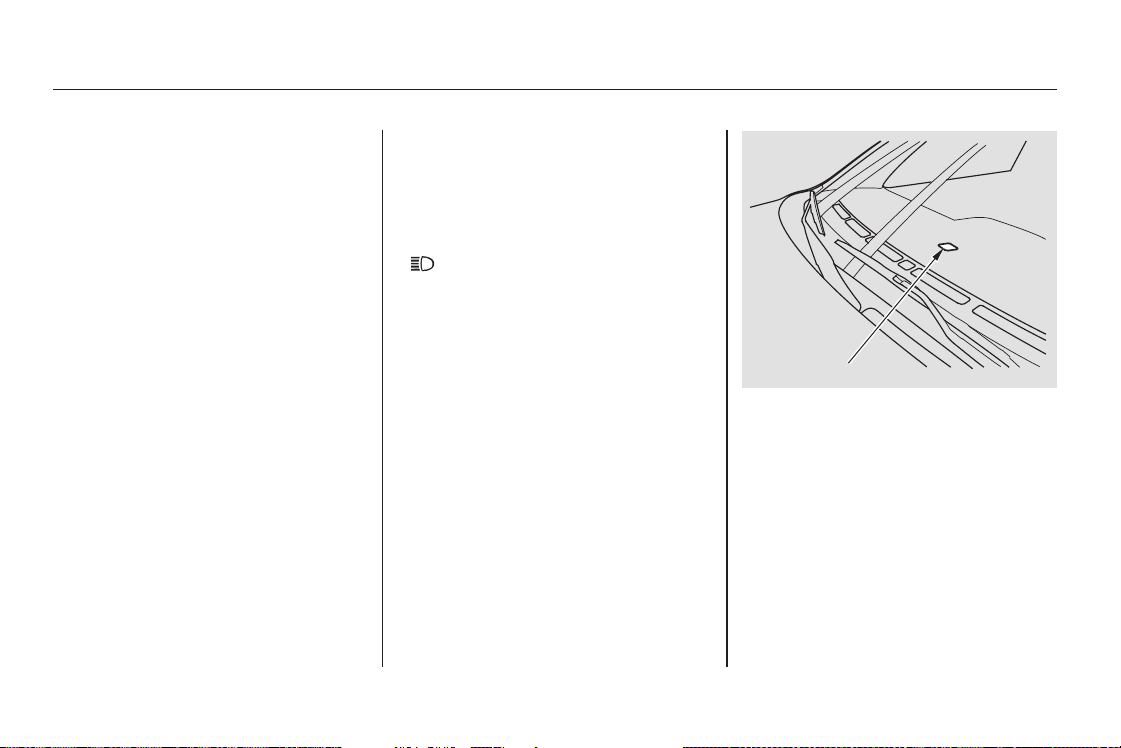

The automatic lighting feature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it.
Headlights
Instruments and Controls
AUTO
73
LIGHT SENSOR
Main Menu
Table of Contents
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
off, even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.

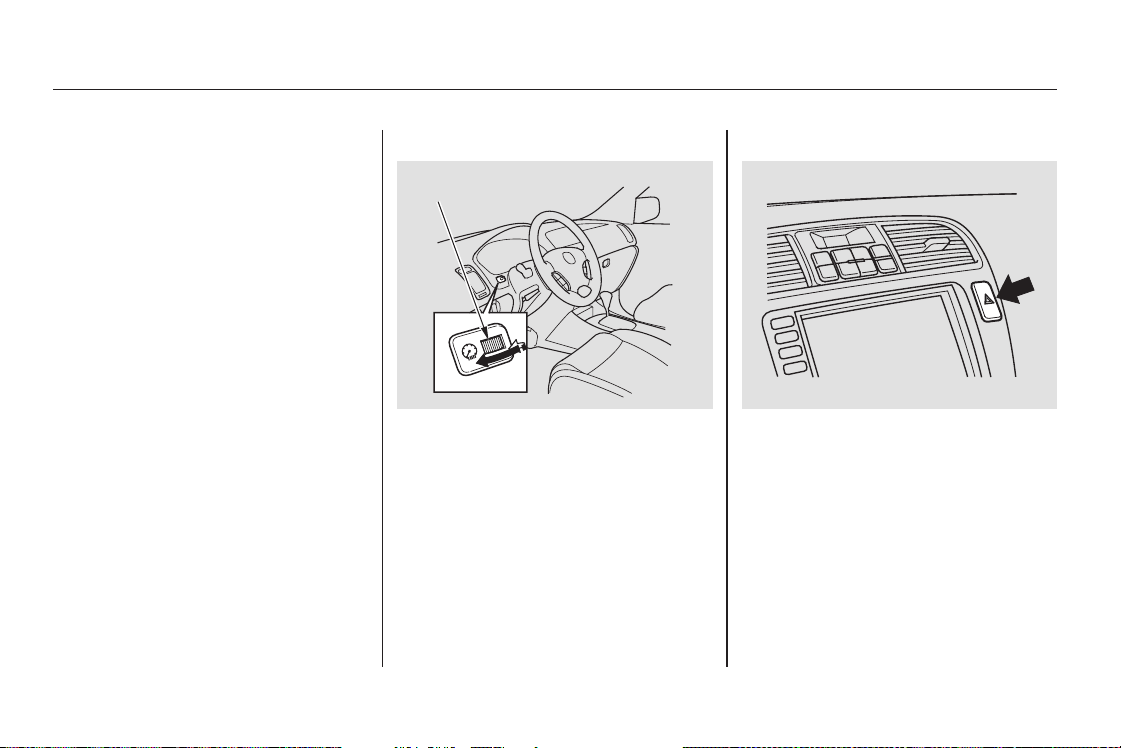

The dial on the instrument panel
controls the brightness of the
instrument panel lights. Turn the dial
to adjust the brightness.
Push the red button to the right of
the display to turn on the hazard
warning lights (four-way flashers).
This causes all four outside turn
signals and both indicators in the
instrument panel to flash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
Canadian Models
Daytime Running Lights Instrument Panel Brightness Hazard Warning Button
Instruments and Controls
Headlights, Instrument Panel Brightness, Hazard Warning Button
74
INSTRUMENT PANEL BRIGHTNESS
CONTROL DIAL
Main Menu
Table of Contents
Make sure the rear window is clear
and you have good visibility before
starting to drive.

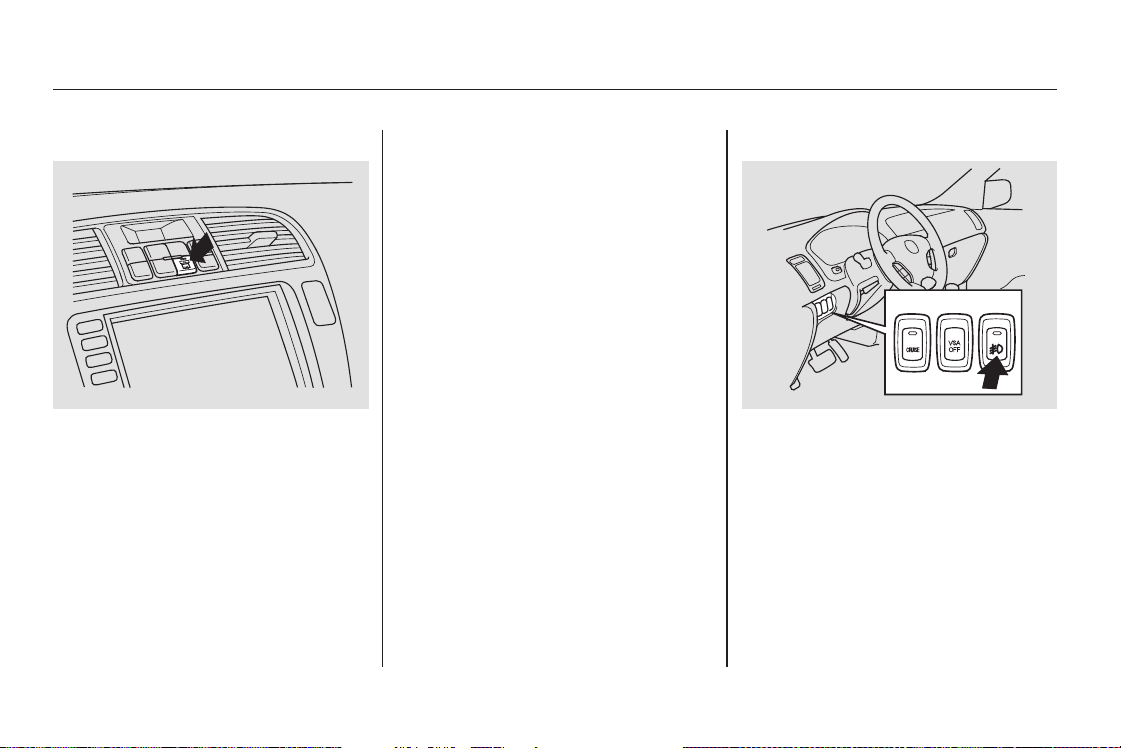

Turn the fog lights on and off by
pressing the button. The indicator in
the button lights to show the fog
lights are on.
You can use the fog lights only when
the headlights are on low beam.
They will go off when you turn the
headlights off or onto high beam.
The rear window defogger will clear
fog,frost,andthinicefromthe
window. Push the defogger button to
turn it on and off. The indicator in
the button lights to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition.
You have to turn it on again when
you restart the vehicle.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window Defogger Fog Lights
Rear Window Defogger, Fog Lights
Instruments and Controls
75
Main Menu
Table of Contents
See page for important safety
information about how to properly
position the steering wheel.
16
Make any steering wheel adjustment
before you start driving.
Push the lever under the steering
column all the way down.
Move the steering wheel so it
points toward your chest, not
toward your face. Make sure you
can see the instrument panel
gauges and indicators.
Push the lever up to lock the
steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
3.
4.
1.
2.
Steering Wheel Adjustment
Instruments and Controls
76
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
Main Menu
Table of Contents
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the glove box
locked when you leave your vehicle
and the valet key at a parking facility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only an Acura-approved key blank.
These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The keys do not contain batteries.
Do not try to take them apart.
Keys
Instruments and Controls
77
KEY
NUMBER
TAG
MASTER
KEYS
(BLACK)
VALET KEY
(GRAY)
Main Menu
Table of Contents
The Immobilizer System protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your Acura dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start the engine, contact your Acura
dealer.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
Instruments and Controls
78
Main Menu
Table of Contents
−
−
−
−
The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly.
If the front wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from ACCESSORY
(I) to ON (II).
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn off the beeper.

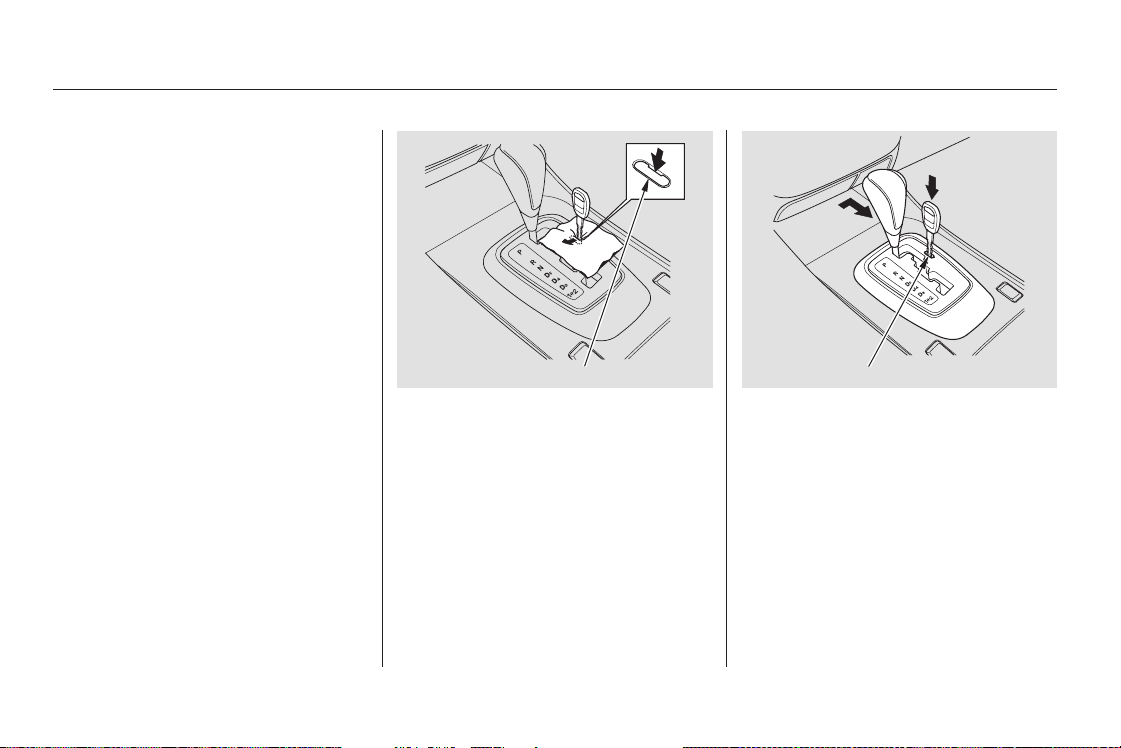

TheshiftlevermustbeinPark
before you can remove the key from
the ignition switch.
LOCK (0)
ACCESSORY (I)
ON (II)
START (III)
Ignition Switch
Instruments and Controls
79
Main Menu
Table of Contents

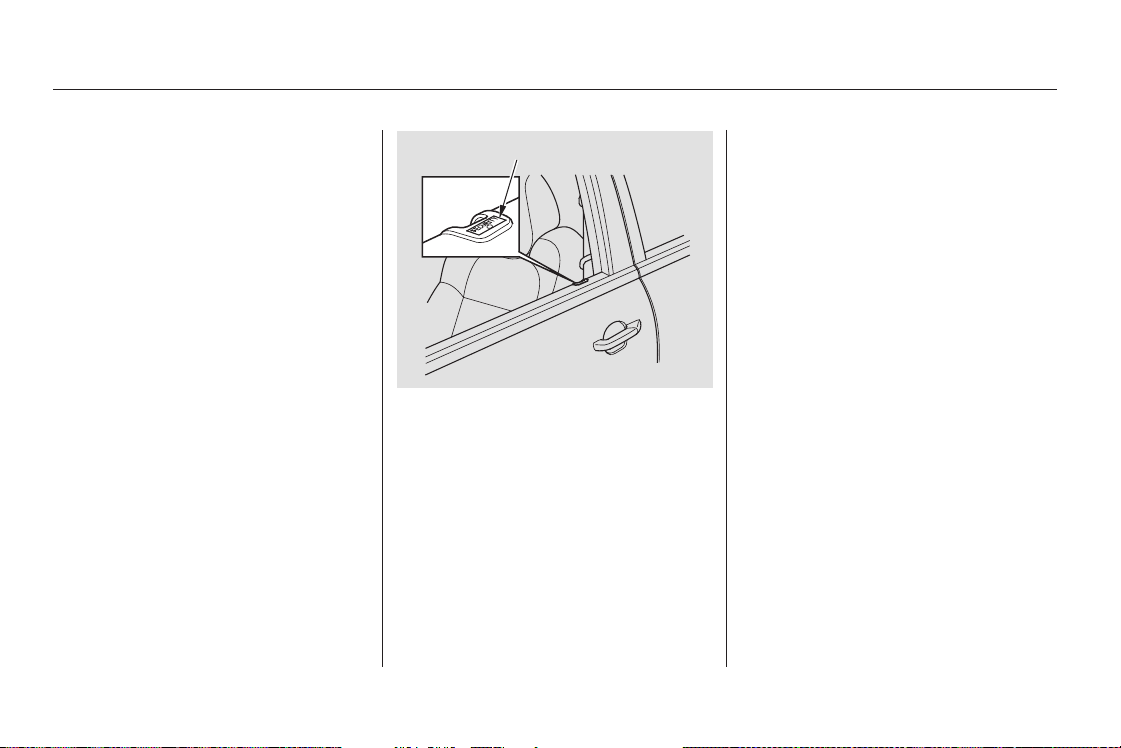

The childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened from the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up and use the outside door
handle.
To lock all doors and the tailgate,
press the master door lock switch on
either front door, press the lock tab
down on the driver’s door, or use the
keyontheoutsidelockonthedriver’s
door.
Pressing up on either master door
lock switch will unlock all of the
doors and the tailgate.
With the driver’s door open and the
key in the ignition, both master door
lock switches are disabled. They are
not disabled if the driver’s door is
closed. Pushing the switch down on
the open passenger’s door will lock
all doors and the tailgate.
To open the tailgate, pull the handle,
then lift up. To close the tailgate, use
the inner handle to pull it down, then
press down on the back edge.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
from getting into the interior. See
on page
.
The lock tab on any door locks and
unlocks that door. To unlock the
driver’s door from the outside, turn
the key and release it. If you turn
and hold it, all doors and the tailgate
unlock.
51
Door Locks
Instruments and Controls
Childproof Door Locks
Tailgate
Carbon Monoxide Hazard
Lockout Prevention
80
LOCK LEVER

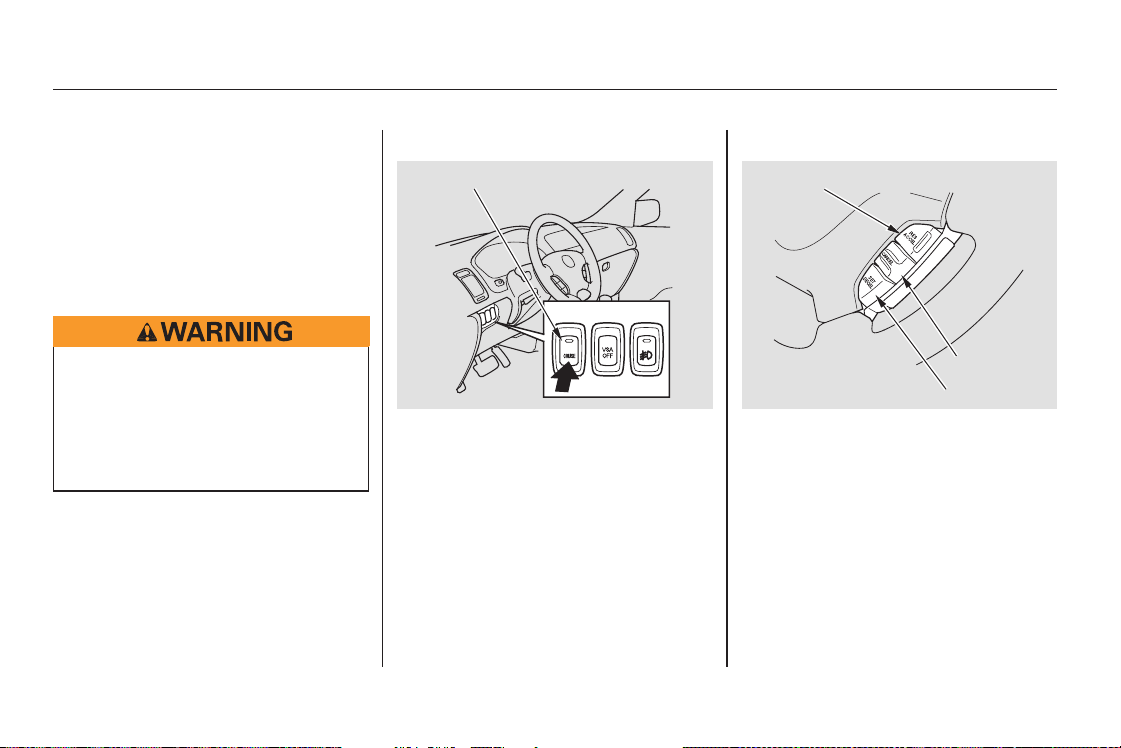

MASTER DOOR LOCK SWITCH
LOCK TAB
Main Menu
Table of Contents
−−
−
Press this button once
to unlock the driver’s door and the
tailgate. Push it twice to unlock the
other doors. Some exterior and
interior lights will flash twice when
you push the button. If you do not
open any door or the tailgate within
30 seconds, they will automatically
relock.
When you press the UNLOCK
button, the front and rear individual
map lights and the cargo area light,
depending on their switch positions,
will come on (see page ). If you
do not open any door or the tailgate,
the lights stay on for about 30
seconds, then go out. If you relock
thedoorsandthetailgatewiththe
remote transmitter before 30
seconds have elapsed, the lights will
go off immediately.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter or turn the ignition
switch to ON (II).
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
Press this button once to
lock all doors and the tailgate. Some
exterior and interior lights will flash.
When you push LOCK twice within 5
seconds, you will hear a beep to
verify that the doors and tailgate are
locked and the security system has
set. This button does not work if any
door or tailgate is not fully closed.
If you lose a transmitter, the
replacement needs to be
reprogrammed by an Acura dealer.
96
Instruments and Controls
Remote Transmitter
UNLOCK PANIC
LOCK
Remote Transmitter Care
81
LED
UNLOCK
BUTTON
PANIC
BUTTON
LOCK
BUTTON
Main Menu
Table of Contents
＋
If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.

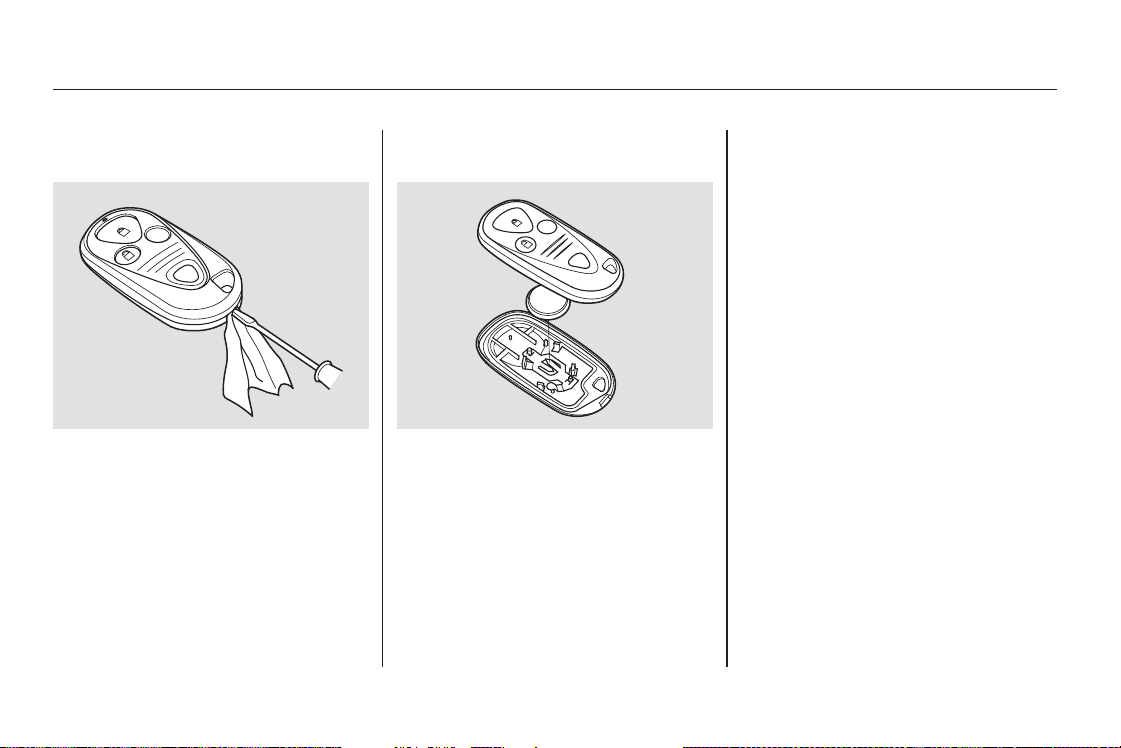

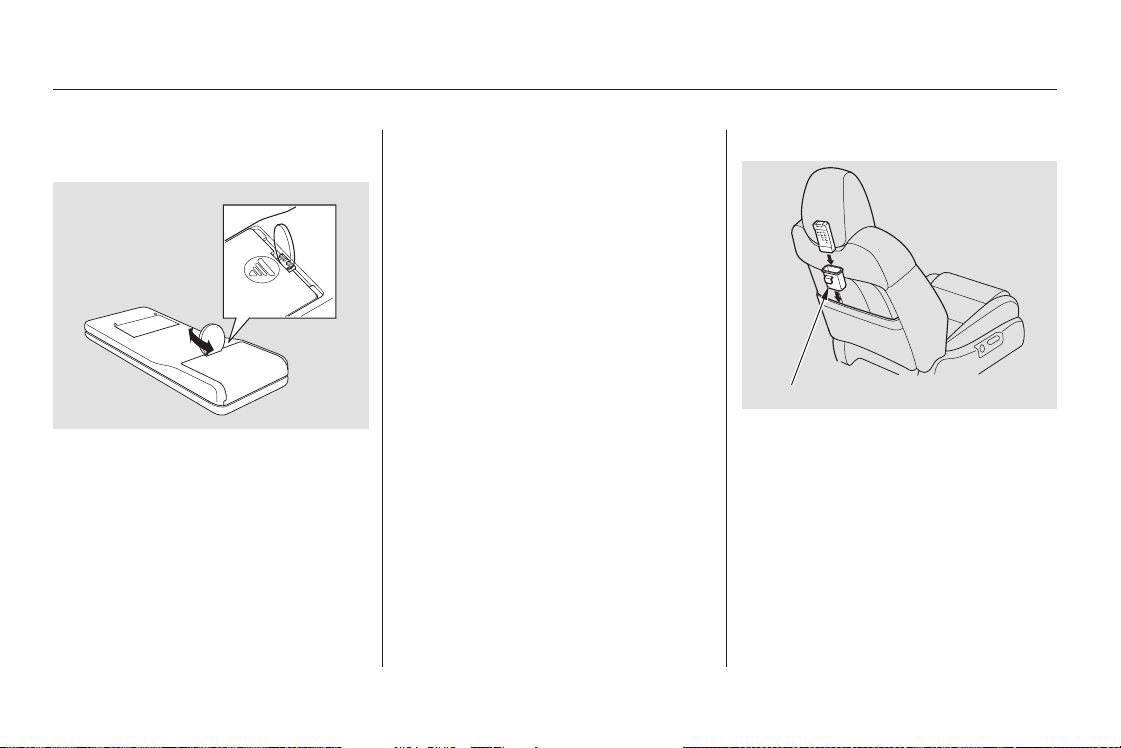

To replace the battery, place a cloth
on the edge of the transmitter and
remove the upper half by carefully
prying on the edge with a small flat-
tip screwdriver. Remove the old
battery and insert a new battery with
the side facing up. Snap the two
halves of the transmitter case back
together.
Battery type: CR2025
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Instruments and Controls
Replacing the Transmitter
Battery
Remote Transmitter
82
Main Menu
Table of Contents
On Touring Model
You can turn the driving position
memory activation off and on. To
turn it off, press and hold the LOCK
and UNLOCK buttons at the same
time for about one second. The LED
in the remote transmitter will blink
twice. Then release the buttons.
To turn it back on, repeat this
procedure. The LED will come on
for one second to indicate the
feature has been turned on.
Each remote transmitter will also
activate the Driving Position
Memory System (see page ).
When you unlock the driver’s door
with the remote transmitter, you will
hear a beep. The driver’s seat and
outside mirrors move to the
positions stored in that memory
location. You will hear two beeps
when the movement is complete.
If the seat and mirrors are already in
the proper positions, you will hear
three beeps when you open the door.

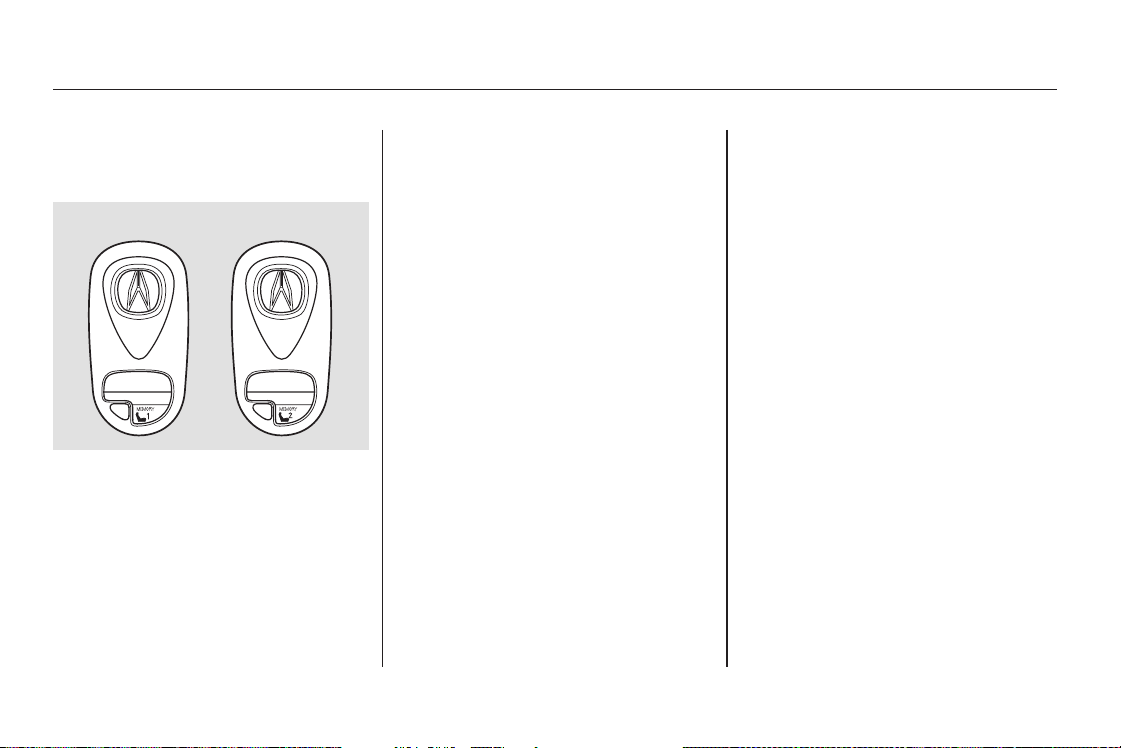

The driving position memory
activated (Memory 1, Memory 2) is
shownonthebackofeach
transmitter. Make sure you store
your desired driving position in the
memory that is activated by the
transmitter you normally carry.
94
Instruments and Controls
Remote Transmitter
Recalling a Memorized Driving
Position
83
With Memory 1 With Memory 2
Main Menu
Table of Contents
−See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
11 12

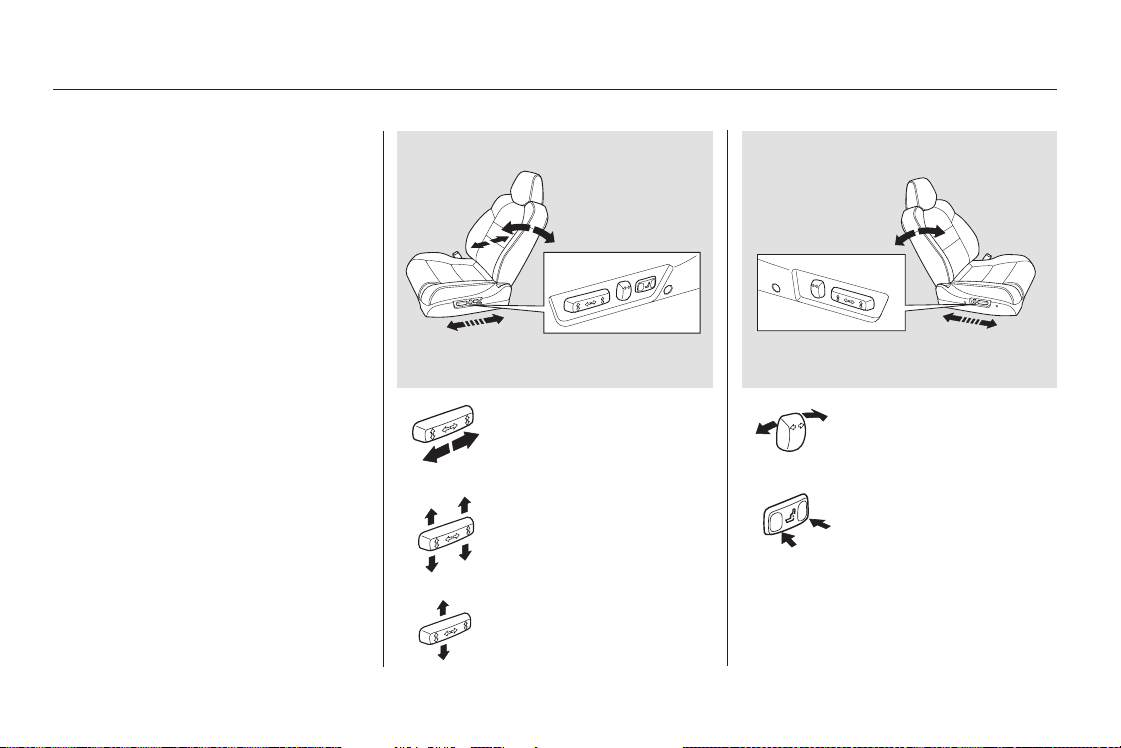

The controls for the power
adjustable front seats are on the
outside edge of each seat bottom.
You can adjust the seats with the
ignition switch in any position. Make
all seat adjustments before you start
driving.
Adjusts the seat-back
angle forward or
backward.
Moves the seat forward
and backward.
On the Touring Package, you can
only adjust the passenger seat-back
angle, lumbar support, and move the
seat bottom forward and backward.
Increases or decreases
the lumbar support.
(Driver’s touring seat
only)
Moves the front of the
seat up or down and the
rear of the seat up or
down.
Raises or lowers the seat.
Seats
Instruments and Controls
Front Seat Power Adjustments
84
Main Menu
Table of Contents
−
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s front edge. Move
the seat to the desired position and
releasethelever.Trytomovethe
seat to make sure it is locked in
position.
Vary the lumbar support by moving
the lever on the right side of the
seat-back. Move the lever forward or
backward to adjust the lumbar
support through its full range.
To change the seat-back angle of the
front seats, pull up on the lever on
the outside of the seat bottom.
Make all seat adjustments before
you start driving.
See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
Without Touring Package
Without Touring Package
11 12
Seats
Instruments and Controls
Driver’s Manual Lumbar SupportPassenger Manual Seat
Adjustments
85
Main Menu
Table of Contents
See page for important safety
information and a warning about how to
properly position the head restraints.
13
Theyaremosteffectivewhenyou
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from whiplash and other
injuries.
The head restraints adjust for height.
You need both hands to adjust the
restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
To unlatch the detachable anchor,
insert a key into the slot on the side
of the small buckle. Line up the
triangle marks on the plate and
buckle when reattaching the belt and
buckle.
Head Restraints Detachable Seat Belt Anchors
Seats
Instruments and Controls
86
RELEASE BUTTON
SMALL LATCH PLATE
TRIANGULAR MARKS
Using a seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.
Main Menu
Table of Contents
The left and right halves can be
folded up separately.
To get into the third row seats, pull
uptheleveronthesideofthe
passenger’s side second row seat-
back. The seat-back will tilt forward,
and the seat will slide forward.
After you return the seat-back to the
upright position, push the whole seat
backwards until it latches. Make
sure the seat is fully latched before
sitting in it.
To change the seat-back angle of the
seats in the second row, pull up on
thehandleontheoutsideoftheseat-
back.
If you are folding the left half of
the seat, use the ignition key to
release the center seat belt from
the detachable anchor. Allow the
seat belt to retract into the roof.

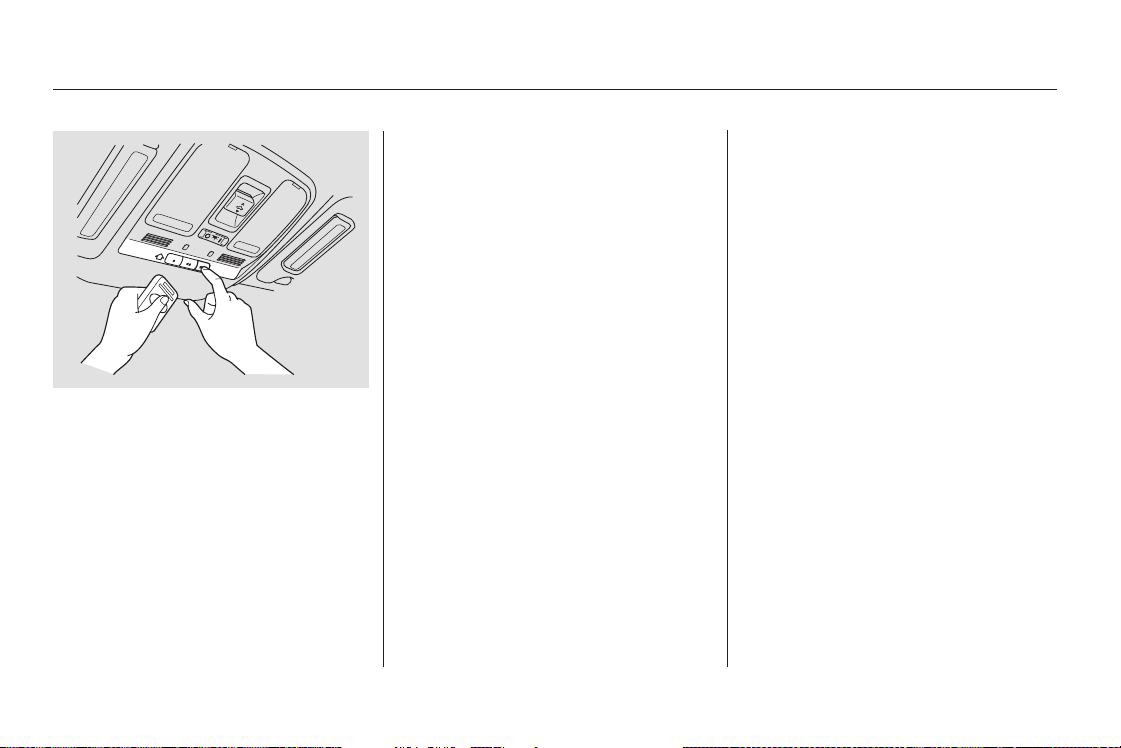

Insert the latch plate into the roof
holder.
Lower the head restraint to its
lowest position.
Pull up the handle on the outside
of the seat-back.
Fold the seat-back forward.
Reverse this procedure to return the
seat to the upright position. Make
sure the seat is locked securely
before driving.
2.
3.
1.
4.
Folding the Second SeatAdjusting the Second Seat Third Row Access
Seats
Instruments and Controls
87
HANDLE
RELEASE LEVER
Main Menu
Table of Contents
Store the head restraints in the
storage compartment. Make sure
the head restraints are face up
(storing them face down can
damage the compartment or the
headrests), then insert the shafts
into the holes in the sides of the
storage compartment.
Pull on the handle on the back of the
seat-back, move the seat-back to the
desired position, and release the
handle. Let the seat-back latch in the
new position.
Use the ignition key to release the
seat belt from the detachable
anchor.

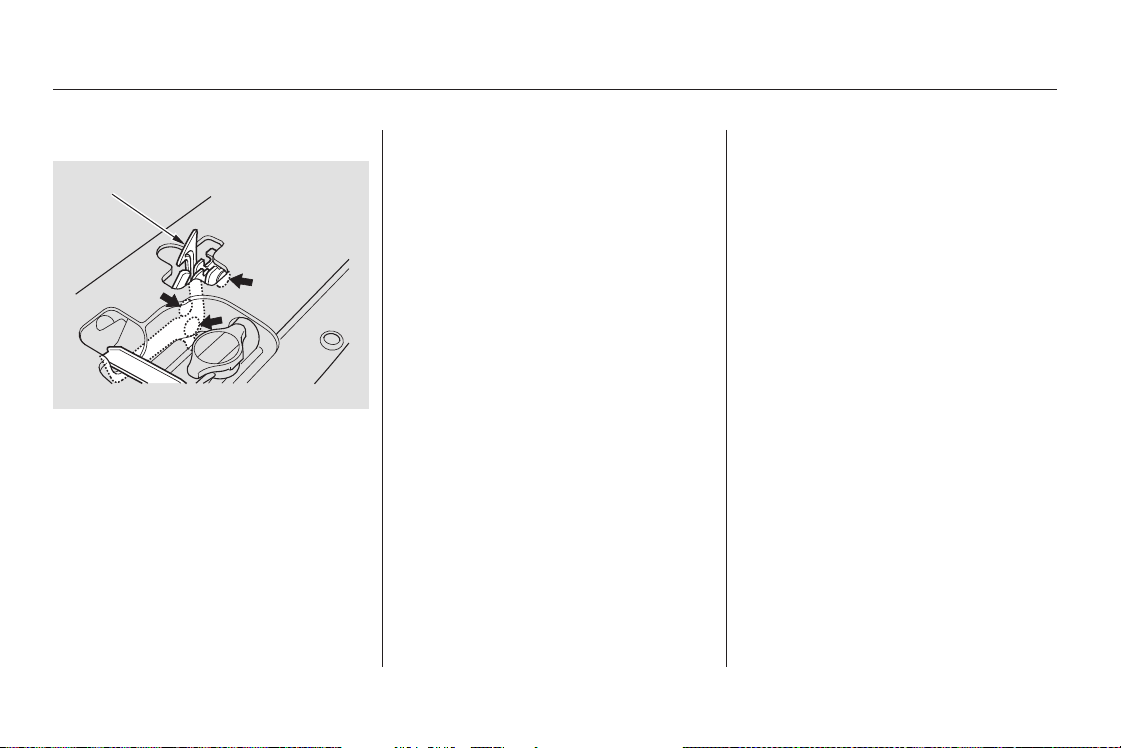

Unlock the seat-back by pulling
the handle. Push the seat-back
forward.
Make sure the outer shoulder belts
are positioned on each hook
whenever the third seat is folded.
Remove the head restraints by
pushing the release buttons and
pulling the restraints out.
To fold the third row seat,
the second row must be folded down
or completely up right.
Reverse this procedure to return the
seat to the upright position. Make
sure the seat is locked securely
before driving. Reinstall the head
restraints. Reconnect the seat belts
to the detachable anchors.
Make sure all items in the cargo area
are secured. Loose items can fly
forward and cause injury if you have
to brake hard. See
on page .
1.
2.
3.
4.
165
Seats
Instruments and Controls
Adjusting the Third Row Seat
Folding the Third Row Seat
Carrying Cargo
88
NOTE:
HANDLE
THIRD
SEAT
Main Menu
Table of Contents

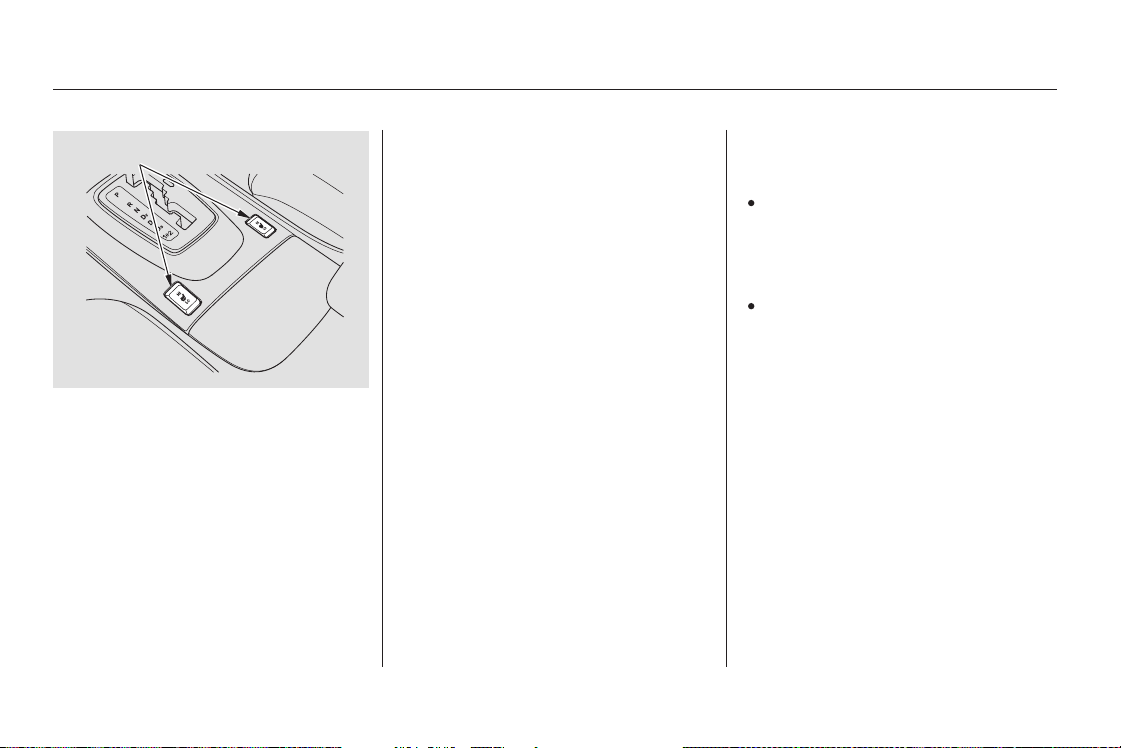

Both front seats are equipped with
seat heaters. The ignition switch
must be in the ON (II) position to
usethem.Pushthefrontofthe
switch, HI, to rapidly heat up the seat.
After the seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
In HI, the heater turns off when the
seat gets warm, and turns back on
after the seat’s temperature drops.
In LO, the heater does not cycle with
temperature change.
Because of the sensors for the side
airbag system, there is no heater in
the passenger’s seat-back.
Follow these precautions when using
the seat heaters:
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current from the
battery.
If the engine is left idling for an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
Seat Heaters
Instruments and Controls
89
SEAT HEATERS
Main Menu
Table of Contents
−
−
Turn the ignition switch to ON (II)
toraiseorloweranywindow.To
open the window, push the switch
downandholdit.Releasetheswitch
when you want the window to stop.
Pull back on the switch and hold it to
close the window. If the MAIN switch is OFF, the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
offwhenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally.
If the driver’s
window runs into any obstacle while
it is closing automatically, it will
reverse direction and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window fuse is removed, the
AUTO function will be disabled. The
power window system needs to be
reset after reconnecting the battery
or installing the fuse.
Start the engine. Push down and
hold the driver’s window switch
until the window is fully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
for a second or two more.
If the power windows do not operate
properly after resetting, have your
vehicle checked by an Acura dealer.
The windows will operate for up to
10 minutes after you turn off the
ignition switch. Opening either front
door cancels this function.
To open/close the driver’s
window, push the window switch
firmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch briefly.
1.
2.
Power Windows
Instruments and Controls
AUTO REVERSE
AUTO
90
DRIVER’S WINDOW
SWITCH
MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
Main Menu
Table of Contents
To open the moonroof, pull back the
moonroof switch firmly.
To close the moonroof fully, push
the switch forward.
To tilt the moonroof up, press the
button in. To closed it, push the
button forward. Make sure everyone’s
hands are away from the moonroof
before opening or closing it.
You can still open and close the
moonroof for up to 10 minutes after
you turn off the ignition. Opening
either front door cancels this
function.
Moonroof
Instruments and Controls
91
NOTICE:
MOONROOF SWITCH
Open
Close
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
If you try to open moonroof
in below-f reezing temperatures, or
when it is covered with snow or ice, you
can damage the moonroof panel or its
motor.
Main Menu
Table of Contents

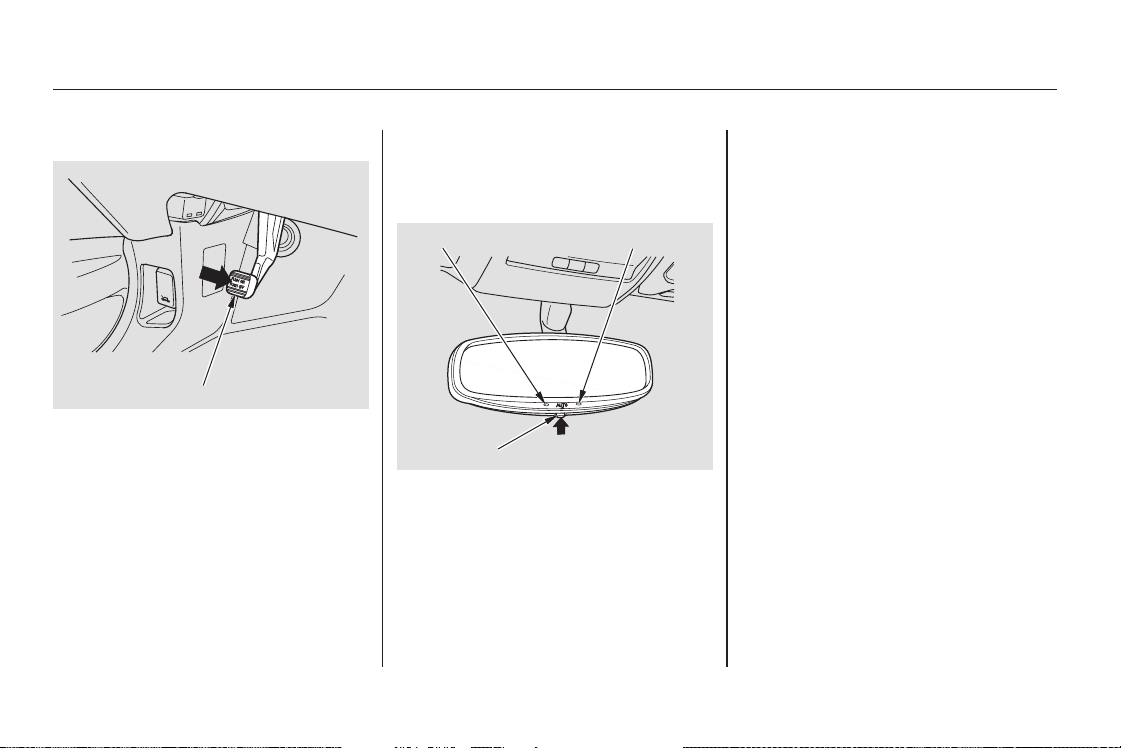

Theinsidemirrorcanautomatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
off this sensing.
To apply the parking brake, push the
pedal down with your foot. To
release it, push on the pedal again.
The parking brake indicator on the
instrument panel should go out when
the parking brake is fully released
with the engine running (see page
).
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
59
Instruments and Controls
Parking Brake
Mirrors
Parking Brake, Mirrors
92
NOTICE:
PARKING BRAKE PEDAL
AUTO SWITCH
SENSOR INDICATOR
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles. A beeper will
sound if the vehicle is put into gear
with the parking brake on.
Main Menu
Table of Contents
Turn the ignition switch to ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you finish, move the
selector switch to the center (off)
position. This turns off the
adjustment switch to keep your
settings.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.
Turn this feature off by leaving the
selector switch in the Left or Right
position.
With the selector switch in the
center (off) position, the passenger’s
side mirror will pivot downward
slightly when you shift the
transmission into Reverse. This
gives you a better view of the side of
the vehicle while parallel parking.
The mirror returns to its original
position when you take the
transmission out of reverse.
1.
2.
3.
4.
Touring model only
Adjusting the Power Mirrors
Mirrors
Instruments and Controls
93
HEATED MIRROR BUTTON
SELECTOR SWITCH
ADJUSTMENT SWITCH
Main Menu
Table of Contents
Touring Model
Seat and outside mirror positions,
canbestoredinseparatememories.
Youselectamemorizedpositionby
pushing the appropriate button or
using the appopriate remote
transmitter (Memory 1 or Memory2).
Store a driving position only when
the vehicle is parked.
Turn the ignition switch to ON (II).
You cannot add a new driving
position in the memory unless the
ignition switch is the ON (II)
position. You can recall a
memorized position with the
ignition switch in any position.
Adjust the seat to a comfortable
position (see page ).
Adjust the outside mirrors for best
visibility (see page ).
Press and release the MEMO
buttononthecontrolpanel.You
will hear a beep. Immediately
press and hold one of the memory
buttons (1 or 2) until you hear two
beeps. The indicator in the
memory button will come on. The
current positions of the driver’s
seat and outside mirrors are now
stored.
Your Acura has a memory feature
for the driver’s seat and outside
mirror positions.
3.
1.
2.
84
93
Storing a Driving Position in Memory
Instruments and Controls
Driving Position Memory System
94
MEMO BUTTON
MEMORY BUTTONS
Main Menu
Table of Contents
Doing any of the following after
pressing the MEMO button will
cancel the storing procedure.
Not pressing a memory button
within 5 seconds.
Readjusting the seat position.
Readjusting the outside mirror
position.
Each memory button stores only one
driving position. Storing a new
position erases the previous setting
stored in that button’s memory. If
you want to add a new position while
retaining the current one, use the
other memory button.
To select a memorized position, do
this:
Make sure the parking brake is set
and the shift lever is in Park.
Press the desired memory button
(1 or 2) until you hear a beep, then
release the button.
The system will move the seat and
outside mirrors to the memorized
positions. The indicator in the
selected memory button will flash
during movement. When the
adjustments are complete, you will
hear two beeps, and the indicator will
remain on.
To stop the system’s automatic
adjustment, do any of these actions:
Press any button on the control
panel: MEMO, 1, or 2.
Push any of the adjustment
switches for the seat.
Shift out of Park.
Adjust the outside mirrors.
If desired, you can use the
adjustment switches to change the
positions of the seat or outside
mirrors after they are in their
memorized position. If you change
the memorized position, the
indicator in the memory button will
go out. To keep this driving position
for later use, you must store it in the
driving position memory.
1.
2.
Selecting a Memorized Position
Instruments and Controls
Driving Position Memory System
95
Main Menu
Table of Contents

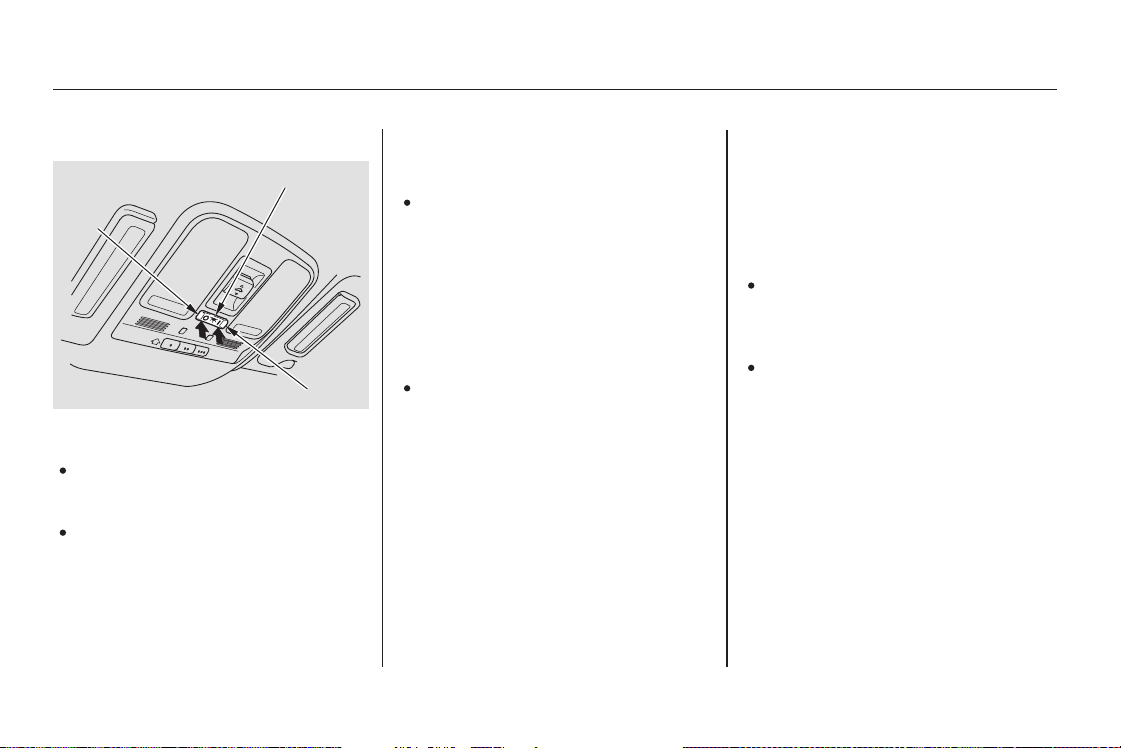

When this switch is in the position:
When the switch is in the
position:
When the light control switch is in the
position:
OFF
None of the lights come on when a
door or the tailgate is opened.
Door
Activated
Withanydoororthetailgateleft
open, the lights stay on about 3
minutes, then go out.
ON
All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position.
The lights go out about six seconds
after all the doors and the tailgate
are closed.
The individual map lights come on
whenanydoororthetailgateis
opened, or when the remote
transmitter is used to unlock the
doors. When the doors and the
tailgate are closed, each light can
be turned on and off by pushing
the lens.
The cargo area (3rd row) light
comes on when any door or the
tailgate is opened if the switch in
the light is in the door activated
position. When the doors and the
tailgate are closed, the cargo area
lightcanbeturnedonwiththe
switch in the light.
The cargo (3rd row) area light
comes on if the switch is in the
door activated position.
The individual map lights in the
front can be turned on and off by
pushing each lens.
Light Control Switch
Interior Lights
Instruments and Controls
96
DOOR ACTIVATED POSITION
ON
OFF
Main Menu
Table of Contents
Turn on the front and second row
individual map lights by pushing the
lens. Push the lens again to turn it
off. You can also operate these lights
with the light control switch (see
page ).
The light in the tailgate has an on-off
switch to control if the light comes
on when the tailgate is opened.
This light also works with the light
control switch (see page ).
The courtesy lights in the front
doors and around the ignition switch
come on when you open any door.
After you close the door, the ignition
switch light stays on for several
seconds.

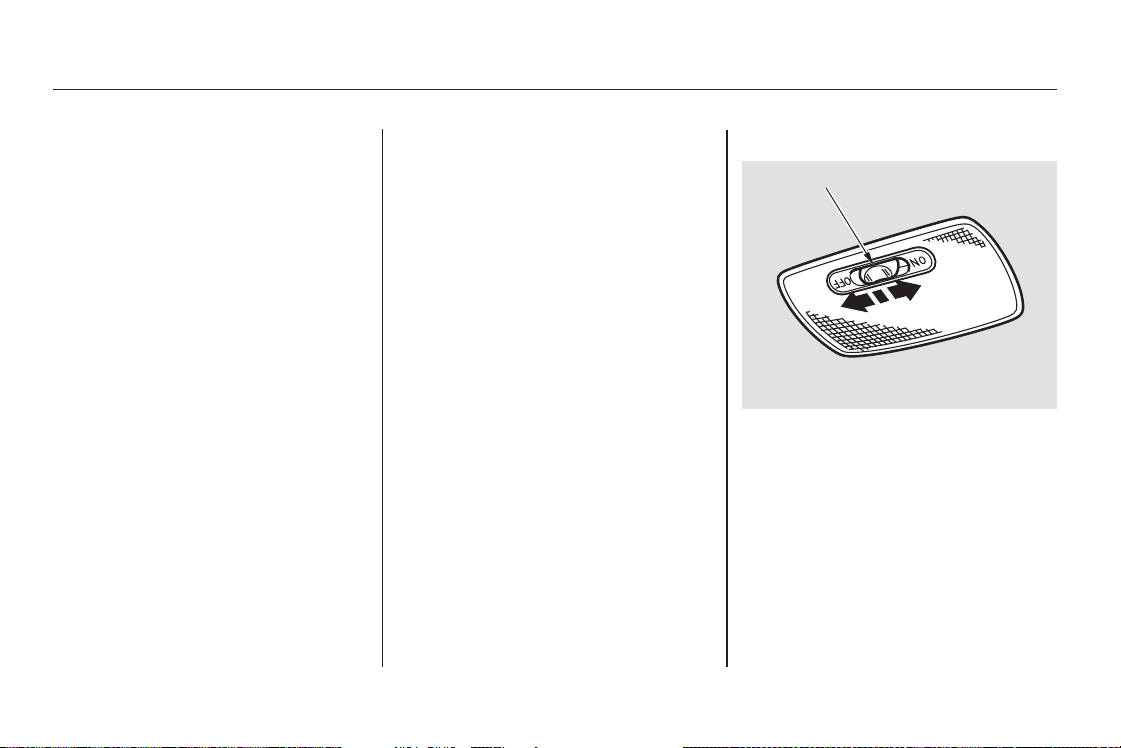

The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, it comes on when
you open the tailgate or doors. In the
ON position, it stays on continuously.
96
96
Individual Map Lights
Tailgate Light
Individual Interior Lights Cargo Area Light
Interior Lights
Instruments and Controls
97
DOOR ACTIVATED
Main Menu
Table of Contents
Interior Convenience Items
Instruments and Controls
98
BEVERAGE HOLDERCONSOLE COMPARTMENT
REAR COMPARTMENT
CARGO HOOKS
COIN BOX
BEVERAGE HOLDER
VANITY MIRROR
GLOVE BOX
Main Menu
Table of Contents

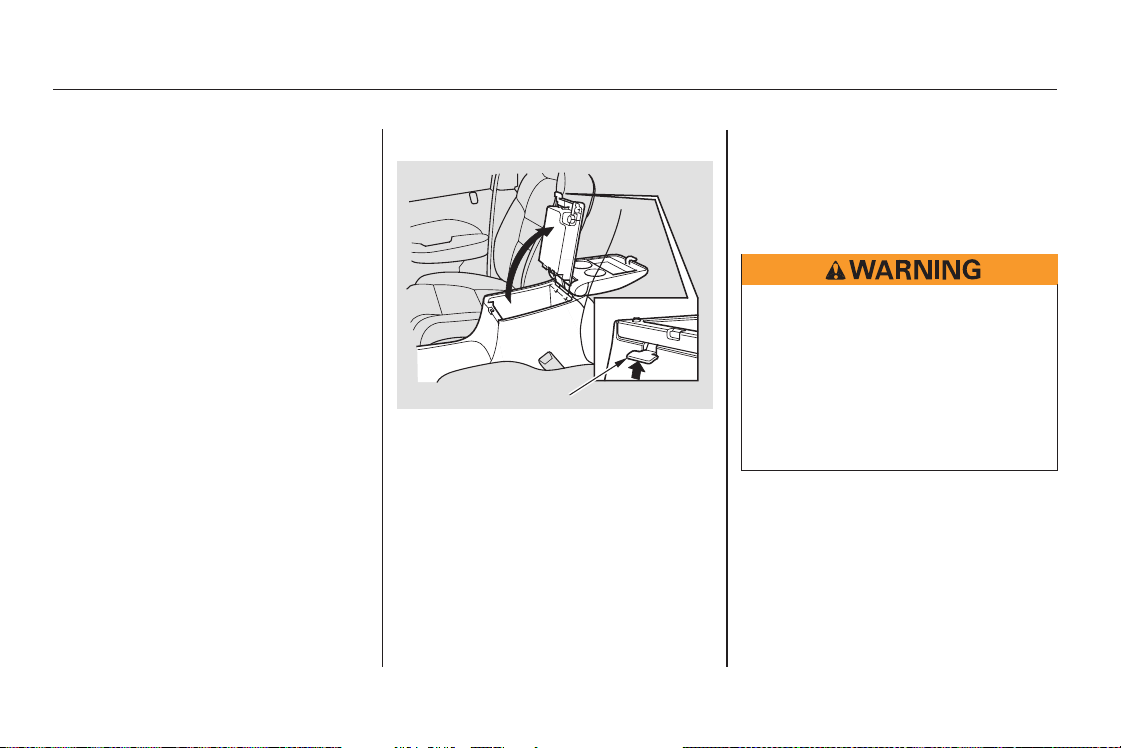

Your vehicle is equipped with a flip-
over center console lid that provides
a tray and a beverage holder for the
second row passengers. To open the
beverage holders, pull up the center
lever on the center console and lift
the lid.
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
Open the glove box by squeezing the
handle. Close it with a firm push.
Lock or unlock the glove box with
the master key.
Open the front beverage holder by
pushing on the lid.
Instruments and Controls
Interior Convenience Items
Beverage Holders Console Compartment Glove Box
99
LEVER
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Main Menu
Table of Contents
Storage compartments are located in
the armrests for the third row seat.
To open a compartment, pull the
lever and lift the lid.
The hooks on the floor of the cargo
area enable you to tie down items
stored in the back. Make sure all
stored items are secured before
driving.
Whenusingthesunvisorforthe
side window, remove the support rod
from the clip and swing it out. Slide
the extension out to get more
coverage on the side window.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle. Do not use
the sun visor extension over the rear
view mirror.
Pull up the vanity mirror cover to use
it.
The light comes on only when the
parking lights or headlights are on.
Rear Compartment
Cargo Hooks
Sun Visor Vanity Mirror
Interior Convenience Items
Instruments and Controls
100
EXTENSION
SUN VISOR
Main Menu
Table of Contents
Your vehicle has three accessory
power sockets. The front accessory
power socket is located under the
audio system. The second socket is
located in the center console
compartment. The rear socket is
behind the third seat on the driver’s
side.
Tousethesocketintheconsole
compartment, pull the cover up.
To use an accessory power socket,
the ignition switch must be in
ACCESSORY (I) or ON (II).
These sockets are intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps).
When both the front and console
sockets are being used, the
combined power rating of both
accessories should be 120 watts or
less (10 amps).
None of the sockets will power an
automotive type cigarette lighter
element.
Interior Convenience Items
Instruments and Controls
Accessory Power Sockets
101
Main Menu
Table of Contents
102
Main Menu
The climate control system in your
Acura provides a comfortable driving
environment in all weather
conditions.
The standard audio system has
many features. This section de-
scribes those features and how to
use them. (If you selected an
optional audio system, refer to the
operating instructions that came
with it.)
Your Acura has an anti-theft audio
system that requires a code number
to enable it.
.............Vents, Heating, and A/C . 104
.............................Airflow Buttons . 105
...................Rear Climate Control . 109
..............Climate Control Sensors . 109
..........................Playing the Radio . 110
............................Radio Reception . 113
..................................Playing a CD . 115
....................Protecting Your CDs . 119
.........CD Player Error Messages . 120
.....CD Changer Error Messages . 122
...............................Playing a Tape . 125
.............Steering Wheel Controls . 128
.................Radio Theft Protection . 129
..........................Setting the Clock . 130
........Rear Entertainment System . 131
............................Security System . 143
...............................Cruise Control . 144
..............................Trip Computer . 146
........................Rear View Camera . 152
HomeLink Universal
................................Transceiver . 153
Comfort and Convenience Features
Comfort and Convenience Features
103
Main Menu

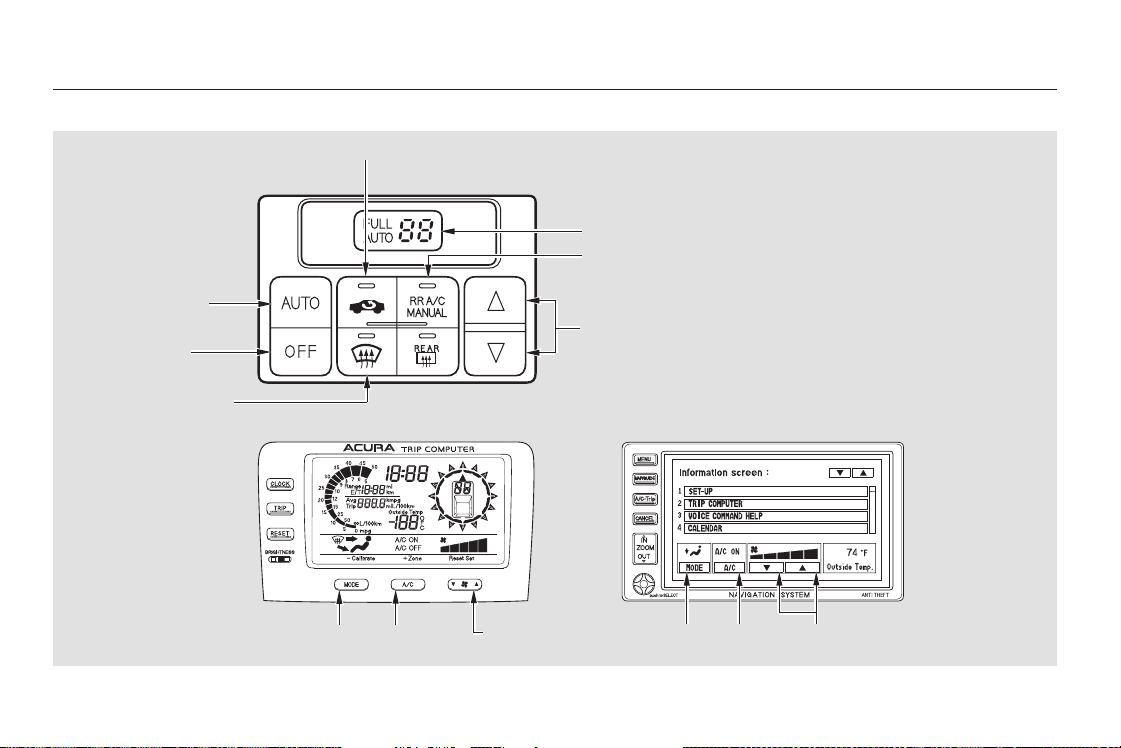

Vents, Heating, and A/C
Comfort and Convenience Features
104
RECIRCULATION BUTTON
TEMPERATURE BUTTONS
TEMPERATURE DISPLAY
AUTO BUTTON
OFF BUTTON
DEFROST BUTTON
REAR A/C CONTROL
(Without Navigation System)
(With Navigation System)
A/C
BUTTON
MODE
BUTTON
FAN SPEED
BUTTON
A/C
ICON
MODE
ICON
FAN SPEED
ICONS
Main Menu
Table of Contents
△
▽
▲
▼
Push the button to increase the
temperature of air flow. Push the
button to decrease it. When you set
the temperature to its lower limit or
its upper limit, the system runs at full
cooling or heating only. It does not
regulate the interior temperature.
This button or icon turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.This button turns the rear window
defogger on and off (see page ).
When the indicator in the button is
on, air from the vehicle’s interior is
recirculated throughout the system.
When the indicator is off, air is
brought in from the outside of the
vehicle (Fresh Air mode).
Push the button or icon to
increase the fan speed and air flow.
Push the button or icon to
decrease it.
Use the mode control button or icon
to select the vents the air flows from.
Air flows from the center
and corner vents in the dashboard.
Airflow is divided between
the vents in the dashboard and the
floor vents.
Air flows from the floor
vents.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
When you select , the system
automatically switches to Fresh Air
mode and turns on the A/C.75
Comfort and Convenience Features
Fan Control Button/Icon
Temperature Control Buttons
Air Conditioning (A/C) Button/
Icon
Recirculation Button
Rear Window Defogger Button
Mode Control Button/Icon
Airflow Buttons
105
Main Menu
Table of Contents
▲▼
△
▽
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
A/CbuttonortouchingtheA/C
icon on the models with navigation
system. A/C ON will be displayed
on the screen.
Make sure the temperature is set
to maximum heat.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the fan to the desired speed.
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.
Set the temperature to maximum.
Make sure the A/C is off.
Select and Fresh Air mode.
Set the fan to the desired speed.
Select and Fresh Air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control buttons.
Press the A/C button to show the
A/C screen.
Select the desired mode by
touching the MODE icon, and set
the fan to the desired speed by
touching the or icon.
Adjustthewarmthwiththe
temperature control buttons ( or
).
1.
2.
3.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
67
Vehicles without Navigation System
Vehicles without Navigation System
Vents, Heating, and A/C
Comfort and Convenience Features
Using the A/CUsing the HeaterVentilation
106
Main Menu
Table of Contents
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
The vehicle has two A/C and
heater units. These units are
controled by the front panel controls,
unless the RR A/C button is turned
on. The rear passengers can also
adjust the direction, and temperature
and amount of the airflow.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
To remove fog from the inside of the
windows:
Switch the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature to your
preference.
When you switch to another mode
from , the A/C stays on.
Press the A/C button to turn it off.
Set the fan to the desired speed, or
high for faster defrosting.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airflow to the
windshield, close the corner vents.
1.
2.
3.
4.
1.
2.
3.
4.
5.
If the interior is very warm,
Vents, Heating, and A/C
Comfort and Convenience Features
Dehumidify the Interior To Defog and Defrost
107
NOTE:
Main Menu
Table of Contents
The Automatic Climate Control
system can adjust the fan speed and
airflow levels to maintain the interior
temperature you select.
Press the AUTO button.
Set the desired temperature with
the temperature control buttons.
You will see FULL AUTO in the
system’s display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature from its current level to
the set temperature. In FULL AUTO
the rear A/C control panel cannot be
used.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
You can manually select various
functions of the Climate Control
system when it is in FULL AUTO.
All other features remain
automatically controlled.
Manually selecting a function causes
thewordFULLinthedisplaytogo
out.
Press the OFF button. However, a
lack of air flow can cause the
windows to fog up. It is
recommended that you keep the fan
on at all times so stale air and
moisture do not build up in the
interior and cause fogging.If you set the temperature to its
lower or its upper limit, the system
runs at full cooling or heating only. It
does not regulate the interior
temperature.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Select .
Set the fan and temperature
controls to maximum level.
To clear the windows faster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield defroster vents. Once the
windshield is clear, select Fresh Air
mode to avoid fogging the windows.
For your safety, make sure you have
a clear view through all the windows
before driving.
1.
2.
1.
2.
3.
Comfort and Convenience Features
Vents, Heating, and A/C
To Remove Exterior Frost or Ice
From the Windows
Manual Operation
To Turn Everything Off
Using Automatic Climate Control
108
Main Menu
Table of Contents

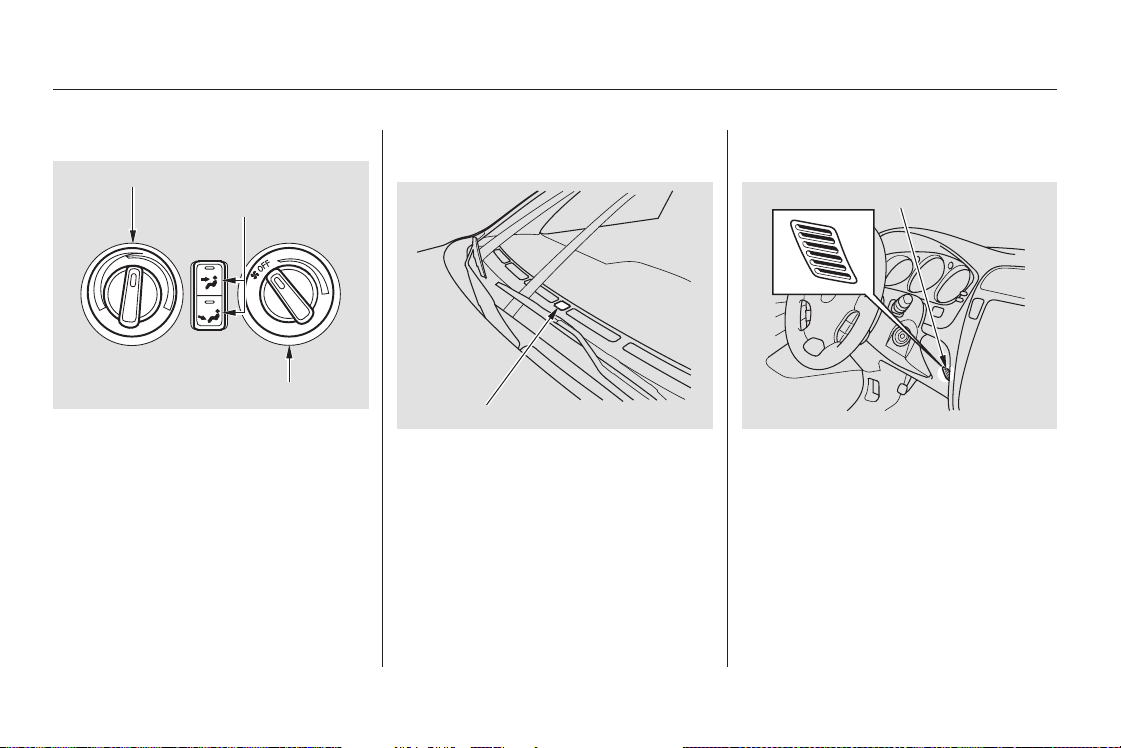

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Press the RR A/C MANUAL button
to enable the rear A/C control panel.
The light in the button will come on.
A passenger in the second row can
then use the temperature control dial,
fan speed dial, and mode buttons to
adjust the temperature and airflow to
their preference. This is limited by
the system’s minimum and
maximum temperature.
Comfort and Convenience Features
Rear Climate Control, Climate Control Sensors
Sunlight and Temperature
Sensors
Using the Rear A/C Unit
109
SUNLIGHT SENSOR
TEMPERATURE SENSOR
TEMPERATURE CONTROL DIAL
MODE BUTTONS
FAN SPEED CONTROL DIAL
Main Menu
Table of Contents
Playing the Radio
Comfort and Convenience Features
110
SCAN BUTTON PRESET BUTTONS
PWR/VOL
KNOB
PWR/VOL
KNOB
PRESET BUTTONS
TUNE KNOB
TUNE KNOB
SEEK BUTTONS
PWR/VOL KNOB
SCAN BUTTON
SCAN
INDICATOR
STEREO INDICATOR
AM/FM
BUTTON
SEEK BAR
AM
BUTTON
STEREO
INDICATOR
FM
BUTTON
(Touring Package)
(Premium Package) (Touring Package with RES)
AM
BUTTON
FM
BUTTON
SEEK BUTTONSSCAN
BUTTON
PRESET BUTTONS
TUNE KNOB
Main Menu
Table of Contents
−
−
＋−
−
−
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and frequency that the
radio was last turned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
Use the TUNE knob to
tune the radio to a desired frequency.
Turn the knob right to tune to a
higher frequency, or left to tune to a
lower frequency.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or SEEK button, then
release it.
The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan for
a station with a strong signal. When
it finds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
then scan for the next strong station
andplayitfor5seconds.Whenit
plays a station that you want to listen
to, press the SCAN button again.
Each preset button can
store one frequency on AM, and two
frequencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset frequencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio fuse is
removed.
You can use any of five methods to
find radio stations on the selected
band: the
preset buttons, and .
1.
2.
3.
4.
CONTINUED
To Play the Radio
TUNE
SEEK
SCAN
Preset
To Select a Station
TUNE,SEEK,SCAN,
AUTO SELECT
Playing the Radio
Comfort and Convenience Features
111
Main Menu
Table of Contents
−
−
−
−
−
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select feature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed if Auto
Select cannot find a strong station
for every preset button.
If you do not like the stations Auto
Select has stored, you can store
other frequencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN function to find stations, then
store them in the preset buttons as
described previously.
press the
A. SEL button. This restores the
presets you originally set.
Adjust the Balance, or side-
to-side strength of the sound.
Adjust the Fader, or the
front-to-back strength of the sound.
AdjusttheTrebleinthe
sound.
Adjust the Bass in the sound.
Push the control knob to get it to pop
out. Turn the appropriate knob to
adjust the Bass or Treble level. Pull
the knob out farther to adjust the
FaderorBalance.Pushtheknob
back in when you are finished.
Press the TUNE knob repeatedly to
display Bass (BAS). Treble (TRE),
Balance (BAL), and Fader (FAD),
setting. Turn the TUNE knob to
adjust the setting. The indicators on
the display will show you the
adjustable range. The system will
return to the audio display in about 5
seconds.
To turn off Auto Select,
Without Touring Package
With Touring Package
Playing the Radio
Comfort and Convenience Features
AUTO SELECT
Adjusting the Sound
BAL
FAD
TRE
BAS
112
Main Menu
Table of Contents
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned off.
Your Acura’s radio can receive the
complete AM and FM bands.
Those bands cover these frequen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned frequencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
How well your Acura’s radio receives
stations is dependent on many
factors, such as the distance from
the station’s transmitter, nearby
large objects, and atmospheric
conditions.
A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
74
CONTINUED
Comfort and Convenience Features
Audio System Lighting
Radio Frequencies Radio Reception
Radio Reception
113
Main Menu
Table of Contents

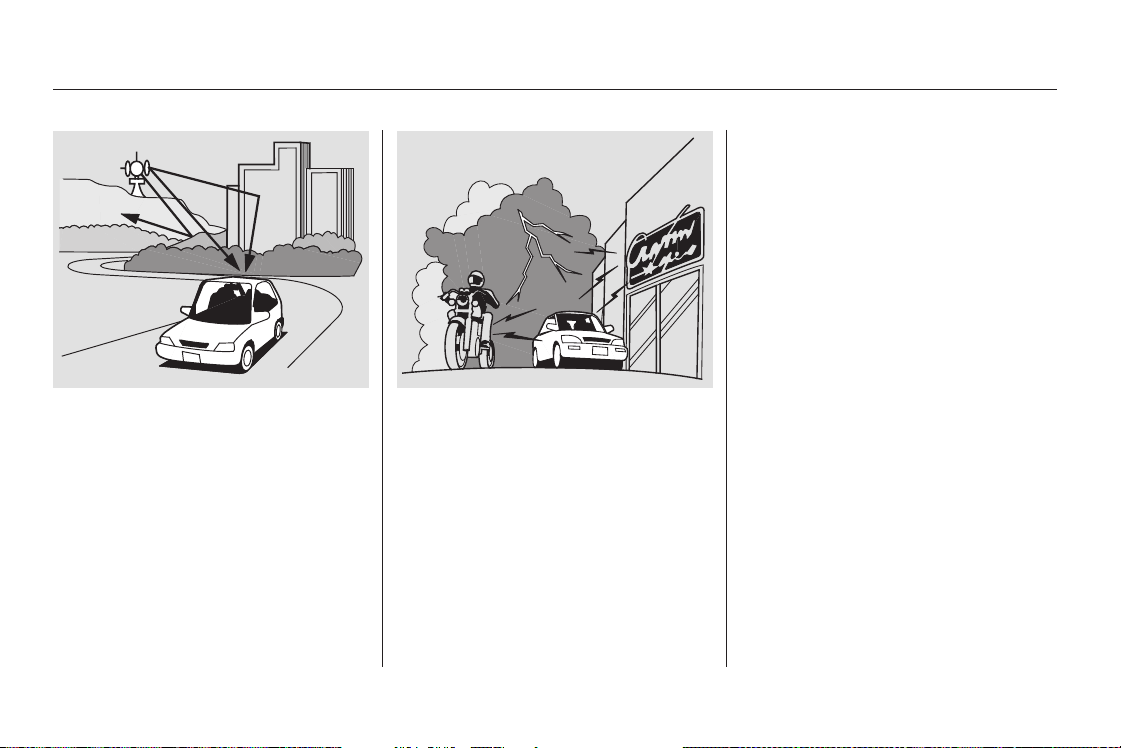

Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Comfort and Convenience Features
Radio Reception
114
Main Menu
Table of Contents

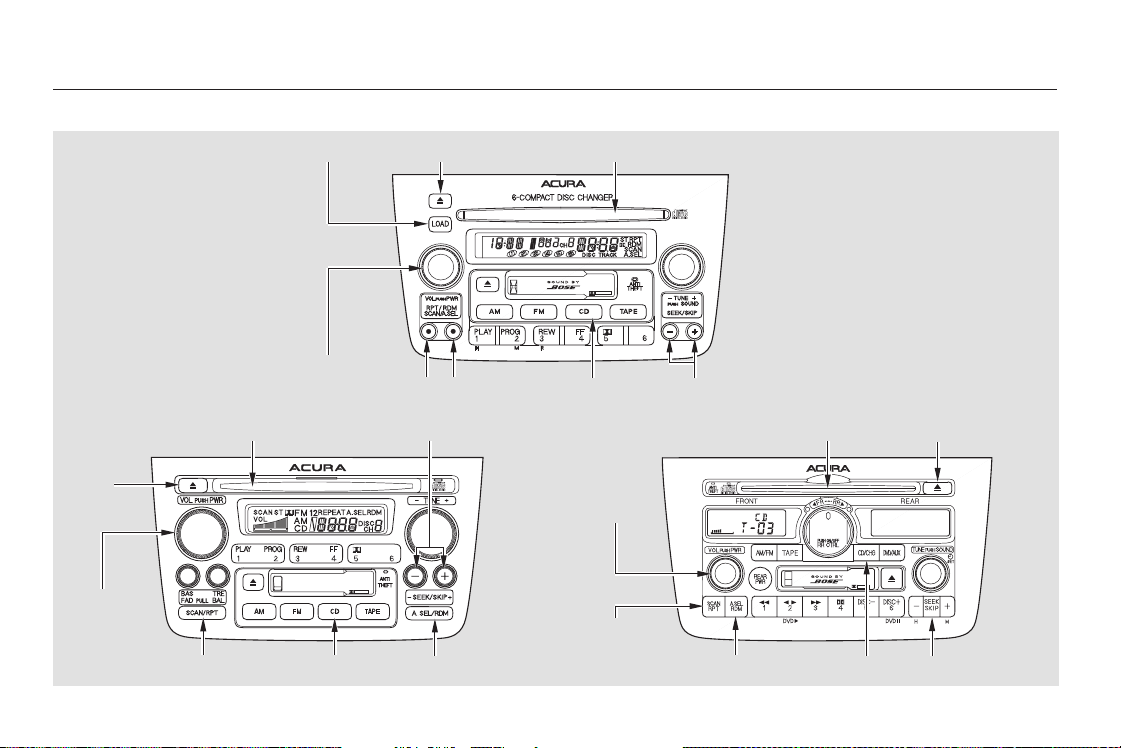

Playing a CD
Comfort and Convenience Features
115
CD SLOT
CD BUTTON
PWR/VOL KNOB
CD EJECT BUTTON
SKIP BUTTONS
SKIP BAR
CD LOAD BUTTON
RANDOM
BUTTON
REPEAT BUTTON CD BUTTON
PWR/VOL
KNOB
(Touring Package with RES)
CD SLOT CD EJECT BUTTON
RANDOM BUTTON
REPEAT
BUTTON
PWR/VOL
KNOB
CD SLOT SKIP BUTTONS
(Premium Package)
(Touring Package)
REPEAT BUTTON RANDOM BUTTONCD BUTTON
CD
EJECT
BUTTON
Main Menu
Table of Contents
−
＋
−
＋−
−
−
With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it.
Press the eject button to remove the
CD. If you eject the CD, but do not
remove it from the slot, the system
will automatically reload the CD
after 15 seconds and put it in pause
mode. To begin playing, press the
CD button.
Press the AM or FM button (AM/
FMbuttononthemodelwithRear
Entertainment System) to switch to
the radio while a CD is playing.
Insert a tape in the player to switch
to the tape while a CD is playing. If a
tape is in the player, press the TAPE
button. Press the CD button again to
switch back to CD player.
An optional six disc CD changer is
available for your vehicle from your
Acura dealer.
This disc changer uses the same
controls used for the in-dash CD
player or the radio.
Load the CDs in the magazine and
load the magazine in the changer
according to the instructions that
came with the unit.
You operate the CD player with the
same controls used for the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes.
Each time you press and
release the skip button the player
skips forward to the beginning of the
next track. Press and release the
skipbuttontoskipbackwardtothe
beginning of the current track. Press
it again to skip to the beginning of
the previous track.
To move rapidly within a track, press
andholdthe or skipbutton.
To continuously replay
a track, press and release the RPT
button. You will see RPT/REPEAT
in the display. Press the RPT button
again to turn it off.
This feature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. Press the RDM button
again to return to normal play.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it left off.
Comfort and Convenience Features
To Play a CD
To Stop Playing a CD Operating the Optional CD
ChangerSKIP
REPEAT
RANDOM
Playing a CD, CD Changer
116
Main Menu
Table of Contents
−
−
＋
CONTINUED
To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a different disc, use the appropriate
preset buttons (1 6). On the model
with Rear Entertainment System,
use the preset 5 (DISC ) button to
select previous disc, or the preset 6
(DISC ) button to select the next
disc in sequence.
If you select an empty slot in the
magazine, the changer will, after
finding that slot empty, try to load
the CD in the next slot. This
continues until it finds a CD to load
and play.
When you see LOAd in the display,
insert the disc into the CD slot.
Insert it only abut halfway, the
drive will pull it in the rest of the
way. You will again see the dashes
in the display as the CD is loaded.
When LOAd appears again in the
display, insert the next disc into
the CD slot. Do not try to insert a
disc until LOAd appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you are not loading CDs into all six
positions, press the Load button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
On the left side of the display, the
CD Loaded indicator for an empty
position will begin blinking.
To load only one CD, press and
release the Load button.
Press and hold the Load button
until you hear a beep and see
‘‘----’’inthedisplay,thenrelease
the button.
You cannot load and play 3-inch (8-
cm) discs in this system.
The audio system on Touring model
has an in-dash CD changer that
holdsuptosixdiscs.
To load CDs or operate CD changer,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
1.
2.
3.
4.
5.
On Touring Model
Comfort and Convenience Features
Operating the In-Dash CD
Changer
Loading CDs in the Changer
CD Changer
117
Main Menu
Table of Contents
If you do not remove the disc from
the slot, the system will reload the
disc after 10 seconds and begin
playing it.
To remove a different CD from the
changer,firstselectitwiththe
appropriate preset button. When that
CD begins playing, press the eject
button.
If you press the Eject button while
listening to the radio or tape, or with
the audio system turned off, the disc
that was last selected is ejected.
After that disc is ejected, pressing
the Eject button again will eject the
next disc in the numerical order. By
doing this six times, you can remove
all the CDs from the changer.
In any mode, if you press the eject
button and hold it until you hear a
beep, the system will eject all of the
discs in the changer.
You can also eject discs when the
ignition switch is off. The disc that
was last selected is ejected first. You
can eject up to six discs, one at a
time.
To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJECT’’ in the display. The
system automatically begins the
Load sequence so you can load
another CD in that position. If you do
not load another CD, after 10
seconds the system begins playing
the next disc in the changer. If the
changer is empty, the system selects
the previous mode (AM, FM, or
Tape).
If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded.
If you stop loading CDs before all six
positions are filled, and you do not
press the Load button, the system
will wait for 10 seconds, then stop
the load operation and begin playing
the last CD loaded.
You can also load a CD into an empty
position while a CD is playing by
pressing the appropriate preset
button. Select an empty position (the
CD Loaded indicator is off), and
press the preset button for that
position (1 to 6). The system will
stop playing the current CD and start
the loading sequence. It will then
play the CD just loaded.
Removing CDs from the Changer
Comfort and Convenience Features
CD Changer
118
Main Menu
Table of Contents
When using CD-R discs, use only
high quality CDs labeled for audio
use.
When recording a CD-R, the
recording must be closed for it to
be used by the CD players.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
When a CD is not being played, store
it in its case to protect it from dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean soft cloth.
Wipe across the CD from the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the re-
cording surface of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert foreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
from fingerprints, liquids, and felt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
Handle your CDs properly to
prevent damage and skipping.
Comfort and Convenience Features
General Information Protecting CDs
Protecting Your CDs
119
Main Menu
Table of Contents
If you see an error message in the
display while playing a CD, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to an Acura dealer.
Without Touring Package
Error Message Cause Solution
FOCUS/CLV Error
Data Read Error
Search Error
Mechanical Error
Control Error
LSI Error
Press the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out or the error
message does not disappear after the CD is
ejected, see an Acura dealer.
Consult your Acura dealer.
CD Player Error Messages
Comfort and Convenience Features
120
Main Menu
Table of Contents
Error Message Cause Solution
FOCUS Error
Mechanical Error or a
DVD has been loaded in
the CD player
High Temperature
Press the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out or the error
message does not disappear after the CD is
ejected, see an Acura dealer.
Will disappear when the temperature returns to
normal.
Models with Rear Entertainment System
CD Player Error Messages
Comfort and Convenience Features
121
Main Menu
Table of Contents
If you see an error message in the
display while operating the CD
changer, find the cause in the
following charts. If you cannot clear
theerrormessage,takeyourvehicle
to an Acura dealer.
Without Touring Package
SolutionError Message Cause
See an Acura dealer.
Press the magazine eject button, and insert an
empty magazine.
If the message disappears within a few seconds,
unit is OK. If it does not, see an Acura dealer.
Press the magazine eject button and pull it out
the magazine, check for error message. Insert
the magazine again. If the magazine can not be
pulled out, see an Acura dealer.
Press the magazine eject button. If the maga-
zine does not eject, see an Acura dealer.
Will disappear when the temperature returns to
normal.
See an Acura dealer.
Insert CD magazine.
Insert CD in magazine.
Disc changer
malfunction.
Disc is in changer
mechanism.
Disc changer
malfunction.
Disc changer
malfunction.
CD magazine ejection
impossible.
High temperature.
Misconnection or
disconnection of CD
changer.
No CD magazine in the
CD changer.
No CD in magazine.
Comfort and Convenience Features
CD Changer Error Messages
122
Main Menu
Table of Contents
Error Messages Cause Solution
Disc changer
malfunction.
High temperature.
Disc changer
malfunction.
High temperature.
See an Acura dealer.
Will disappear when the temperature returns to
normal.
See an Acura dealer.
Will disappear when the temperature returns to
normal.
Touring Model
Comfort and Convenience Features
CD Changer Error Messages
123
Main Menu
Table of Contents
Error Messages Cause Solution
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High Temperature
No CD magazine in the
CD changer
Press the magazine eject button and pull it out,
check for error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see an Acura dealer.
Insert CD.
Press the magazine eject button and pull it out,
check for error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see an Acura dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
Models with Rear Entertainment System
Comfort and Convenience Features
CD Changer Error Messages
124
Main Menu
Table of Contents

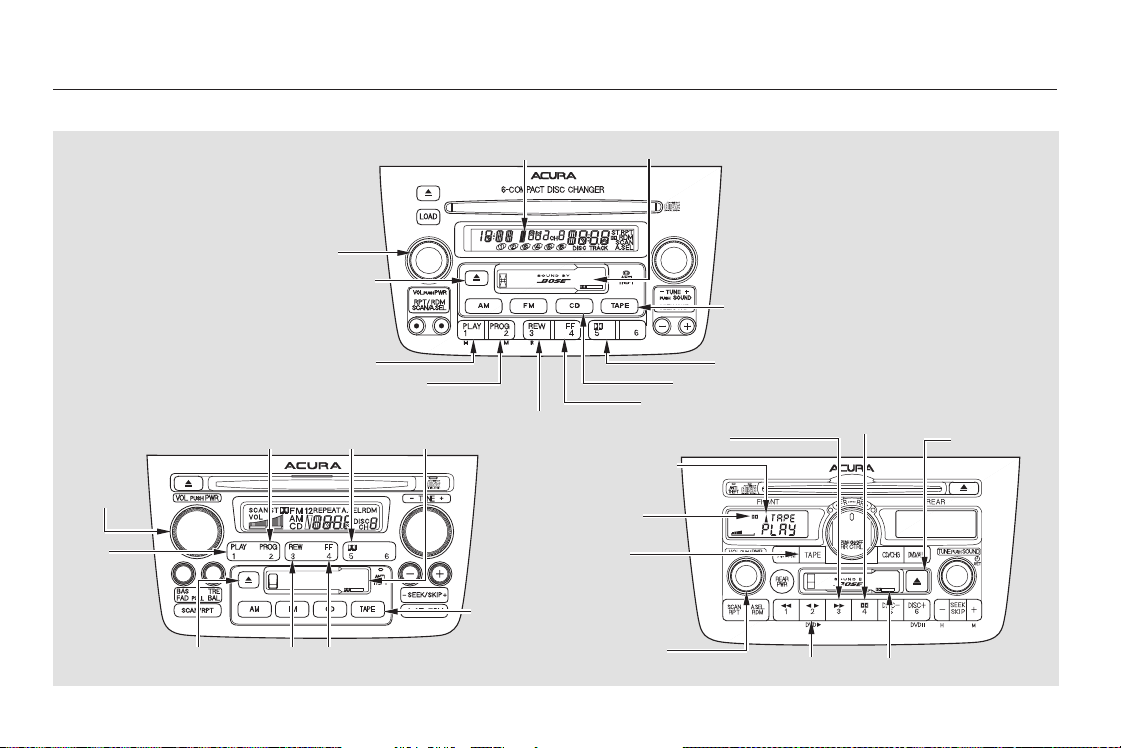

Playing a Tape
Comfort and Convenience Features
125
TAPE EJECT BUTTON
PWR/VOL KNOB
TAPE DIRECTION INDICATOR CASSETTE SLOT
TAPE BUTTON
CD BUTTON
DOLBY BUTTONPLAY BUTTON
PROGRAM BUTTON
FAST FORWARD BUTTON
PWR/VOL
KNOB
PROGRAM BUTTON CASSETTE SLOT
TAPE EJECT
BUTTON
TAPE
BUTTON
DOLBY
INDICATOR
TAPE
DIRECTION
INDICATOR
FAST FORWARD
BUTTON
DOLBY BUTTON
CASSETTE
SLOT
FAST FORWARD
BUTTON
PWR/VOL
KNOB
DOLBY
BUTTON
REWIND BUTTON
REWIND
BUTTON
TAPE
BUTTON
PROGRAM
BUTTON
TAPE EJECT
BUTTON
PLAY
BUTTON
Main Menu
Table of Contents
＊
▲
−
＊
Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PROG
button. When the player reaches the
end of the tape, it will automatically
reverse direction and play the other
side.
Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it off by pressing the
button. Dolby remains off until
you press the button again.
To remove the tape, press the tape
EJECT button. If you want to turn
the player off, press the PWR/VOL
knob or turn off the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it left
off.
To rewind the tape,
push the REW ( ) button. You
will see REW in the display. To fast
forward the tape, push the FF
( ) button. You will see FF
displayed. Press the PLAY/PROG
button to take the system out of
rewind or fast forward.
To switch to the radio while a tape is
playing, press the AM or FM button.
To change back to the tape player,
press the TAPE button.
To Play a Tape
To Stop Playing a Tape
Tape Search Function
FF/REW
Playing a Tape
Comfort and Convenience Features
126
Main Menu
Table of Contents
−
−−
＋
Press the RPT button
to continuously play a song or
passage. You will see RPT/REPEAT
displayed. The track will repeat until
you press the RPT button again.
Store tapes in their cases to protect
them from dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature before
inserting it into the player.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
finger. If the label is peeling off,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Never try to insert foreign object
into the tape player.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your Acura dealer has a
cleaning kit available.
The SKIP and REPEAT
functions use silent periods on the
tape to find the end of a song or
passage. These features may not
work if there is almost no gap
between selection, a high noise level,
or a silent period in the middle of a
selection.
Thetapeplayerpicksupdirtand
oxides from the tape. This
contamination build up over time and
causes the sound quality to degrade.
To prevent this, you should clean the
player after every 30 hours of use.
Press the SKIP button/
bar to find the beginning of the
current song or passage. Press the
SKIP button/bar to find the
beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
Playing a Tape
Comfort and Convenience Features
REPEAT Caring for the Player and Tapes
SKIP
127
NOTE:
Main Menu
Table of Contents
▲▼
The middle button adjusts the
volume up ( ) or down ( ). Press
the top or bottom of the button and
hold it until the desired volume is
reached, then release it.
The CH button has three functions,
depending on whether you are
listening to the radio, or playing a
tape or CD.
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The MODE button changes the
audio mode between FM1, FM2, AM,
CD, and DVD/AUX (if a disc is
inserted).
use the
CH button to change stations. Each
time you press this button, the
system advances to the next preset
station on the band you are listening
to. You will see the number of the
selected preset button in the display.
To change bands, or to change from
FM1 to FM2, press the AM/FM
button.
use the CH
button to advance to the next
selection. You will see ‘‘FF’’ blinking
in the display when you press the CH
button. The system fast forwards
until it senses a silent period, then
resume playing.
the system
skips to the beginning of the next
track each time you push the CH
button. You will see the disc and
track number in the display.
If you are listening to the radio,
If you are playing a tape,
If you are playing a CD,
Steering Wheel Controls
Comfort and Convenience Features
128
CH BUTTON
VOLUME
BUTTON
AM/FM
BUTTON
Main Menu
Table of Contents
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code with
the Preset buttons. Because there
are hundreds of number
combinations possible from the five
digits, making the system work
without knowing the exact code is
nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a safe place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
If your vehicle’s battery is
disconnected or goes dead, the audio
system will disable itself. If this
happens, you will see ‘‘Code’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the Preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
five-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for
one hour before trying again.
Ifthecodecardislost,anAcura
dealer can access your code with
your radio’s serial number. To
access the serial number, turn the
radio on. It must display ‘‘COdE’’,
then turn the radio off. Push the
preset 1, preset 6, and power buttons
at the same time, then quickly
release.
You will have to store your favorite
stations in the Preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
Ifyoushouldhappentolosethecard,
you must obtain the code number
from an Acura dealer. To do this,
you will need the system’s serial
number.
Radio Theft Protection
Comfort and Convenience Features
129
Main Menu
Table of Contents
If your vehicle’s battery is
disconnected or goes dead, you will
need to reset the clock.
For example: 1:06 will reset to 1:00
1:53 will reset to 2:00
You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, pressing and
holding the clock button, then
pressing the R button sets the clock
back to the previous hour. If the
displayed time is after the half hour,
the clock sets forward to the
beginning of the next hour.
Press and hold the CLOCK button
until the number flash. Change the
hours by pressing the H button.
Change the minute by pressing the
M button. When you are finished,
press the CLOCK button again.
Therightdisplayshowsthetime.
Press and hold the SET button until
the numbers flash. Change the hours
by pressing the H button. Change
the minutes by pressing M button.
When you are finished, press the
SET button again.
To set the clock on the model
without Navigation, see page .
148
Model with Rear Entertainment System
and Navigation System
Touring model with Navigation System
Setting the Clock
Comfort and Convenience Features
130
H BUTTON M BUTTON
SET BUTTON
H BUTTON
M BUTTON
R BUTTON
CLOCK BUTTON
Main Menu
Table of Contents
CONTINUED
Rear Entertainment System
Comfort and Convenience Features
131
REAR PWR
BUTTON
RR CTRL SELECTOR KNOB
REAR CONTROL OFF ICON
REAR SPEAKERS OFF ICON
REAR SYSTEM DISPLAY
REPEAT BUTTON
RANDOM BUTTON
PAUSE BUTTON
SEEK/SKIP BAR
PLAY BUTTON
Main Menu
Table of Contents
Press the REAR PWR button. To
turn on the rear controls (ceiling
panel or remote), press the RR
CTRL knob. The system’s icon
shows in the right side display. Your
passengers can then operate the rear
system with the control panel in the
ceiling or with the remote control.
Press the RR CTRL knob again to
turn the rear controls off. You will
seetheRearControlsOfficoninthe
right display.
The rear system selects the source it
waslastsetto.Ifthatsourcehas
been removed (the DVD has been
ejected from the player, for example),
youwillsee‘‘____’’inthedisplay.
You must select another source.
Whenyouturnonthesystem,the
rear speakers are automatically
turned off. You will see the Rear
Speakers Off icon in the display. The
sound for the rear system is sent to
the wireless headphones.
Ifyouwanttoturntherearspeakers
on again, press and hold the REAR
PWR button until the Rear Speakers
Off icon goes off.
The rear speakers are
connected to the front system, so
they will always play the source that
the front system is set to.
With this system, the rear
passengers can enjoy a different
entertainment source (radio, tape
player, CD player, or DVD player)
than the front seat occupants. The
audio is broadcast through the
supplied wireless headphones.
If equipped
Comfort and Convenience Features
Rear Entertainment System
Rear SpeakersTo Turn On the System
132
NOTE:
Main Menu
Table of Contents
＊
＊
CONTINUED
To operate the rear entertainment
system from the front panel, turn the
RR CTRL knob clockwise. The
amber RR LED comes on to show
that the control panel is enabled.
To play the radio or tape, the buttons
for the front entertainment system
have the same functions.
IfaCDisloadedinthemainCD
player or CD changer, select CD/
CHG.IftheCDisloadedinthe
lower player, select DVD/AUX.
The DVD player in your Rear
Entertainment System can play DVD
video discs and CDs. It features
Dolby noise reduction.
Open the overhead screen by
pushingonthebutton.Thescreen
will swing down part-way. Pivot the
screen the rest of the way. If you
pivot the screen too far forward, past
the detent, the display will turn off.
Pivot the screen back to the detent
to turn the display back on. To close
the screen, pivot it up until it latches.
Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Comfort and Convenience Features
Rear Entertainment System
To Select Rear Entertainment
from the Front Control Panel
Operating the DVD Player from
the Front Control Panel
133
REAR CONTROL PANEL
BUTTON
OVERHEAD SCREEN
Main Menu
Table of Contents
−
−
＋
−
−
−
＋
−Turn the RR CTRL knob clockwise.
The amber RR LED will come on to
show that the control panel is now
enabled.
Push the disc in halfway, the drive
will pull it in the rest of the way.
Press the PLAY button
if the DVD does not start playing
automatically.
Press the PAUSE button
to pause the DVD. Press the button
again or press PLAY to resume.
Pause works only with the DVD
player.
Each time you press and release the
side of the SEEK/SKIP bar, the
system skips forward to the
beginning of the next track or
chapter. Press and release the
side of the bar to skip backward to
the beginning of the current track or
chapter. Press it again to skip to the
beginning of the previous track or
chapter.
Press the eject button to
remove the DVD from the drive.
To return front panel control to the
front audio system, turn the RR
CTRL knob counterclockwise.Press and hold the
side to move forward; you will see
‘‘CUE’’ in the display. Press and hold
the sidetomovebackward;you
will see ‘‘REV’’ in the display.
Release the bar when the system
reaches the point you want.
Insert a DVD or CD into the DVD
player below the front panel.
Rear Entertainment System
Comfort and Convenience Features
PLAY
PAUSE
EJECT
To Return to Front Audio
Controls
SEEK/SKIP
134
DVD SLOT EJECT BUTTON
Main Menu
Table of Contents

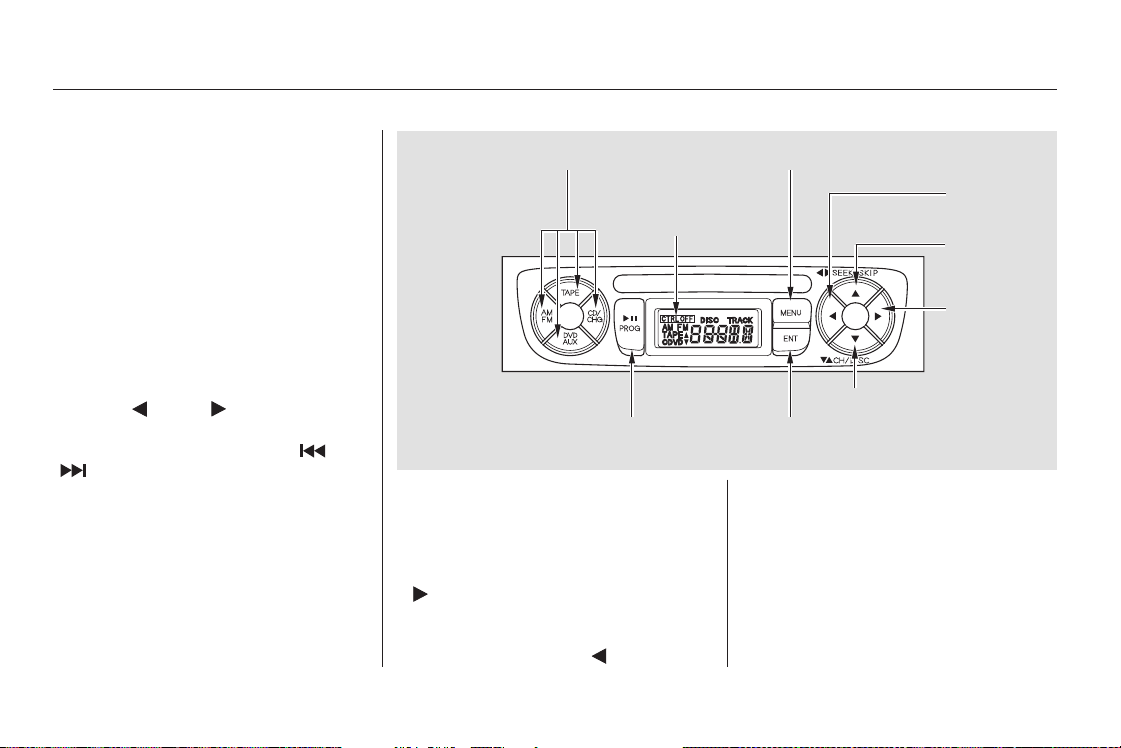

Use these buttons to select the
entertainment source (radio, tape
player, CD player/CD changer, or
DVD player/Auxiliary device). The
selected source will be shown in the
display. Make sure the rear control
operation has not been disabled with
theRRCTRLknobonthefront
panel.
Use the and buttons to
select from the stations on the radio
preset buttons. Pressing the or
button will cause the system to
search up or down the band for a
station with a strong signal. You will
see SEEK in the display. On the rear control panel, use the
PLAY/PAUSE/PROG button to
reverse the tape direction. Press the
button to skip forward to
beginning of the next song or
passage. You will see FF flashing in
the display. Press the button to
skip backward to the beginning of
the current song or passage. You will
seeREVflashinginthedisplay.
Rear Entertainment System
Comfort and Convenience Features
Using the Rear Control Panel
To Play the Radio from the Rear
Control Panel
To Play a Tape from the Rear
Control Panel
135
REAR CONTROLS
OFF BUTTON
SOURCE SELECTION BUTTONS
SEEK/SKIP
BUTTON
CH/DISK
BUTTON
SEEK/SKIP
BUTTON
PLAY/PAUSE/PROG BUTTON
MENU BUTTON
CH/DISK BUTTON
ENTER BUTTON
Main Menu
Table of Contents
−
−
−
−
−
▲
▼
▲
▼
IfaCDisloadedinthemainCD
player or CD changer, select it by
pressing the CD/CHG button. If the
CD is loaded in the DVD player,
press the DVD/AUX button.
Pressthe buttontoskiptothe
beginning of the next track. Press
the button to return to the
beginning of the current track. If the
changer is selected, use the and
buttons to change discs.
Press the RPT button
to continuously replay the current
track. You will see RPT in the display.
Press the button again to turn it off.
To play the tracks within a
CD in random order, press the RDM
button. You will see RDM in the
display. Press the button again to
cancel RDM.
The video screen is for use by rear
seat passengers only. The driver and
front seat passenger should not try
to view the screen while driving.
Press
this button when you want to pause
the DVD. Press this button again to
go back to PLAY.
Press the
button to skip to the beginning
of the next chapter. Press the
buttontoskipbacktothe
beginning of the current chapter.
To select the menu
on the DVD, press the MENU
button. Use the , , ,
and buttons to move to the
desired menu selection, then press
the ENT button to enter your
selection.
Rear Entertainment System
Comfort and Convenience Features
To Play a CD from the Rear
Control Panel
REPEAT
RDM
To Play a DVD from the Rear
Control Panel
PLAY/PAUSE/PROG
SEEK/SKIP
MENU/ENT
136
Main Menu
Table of Contents

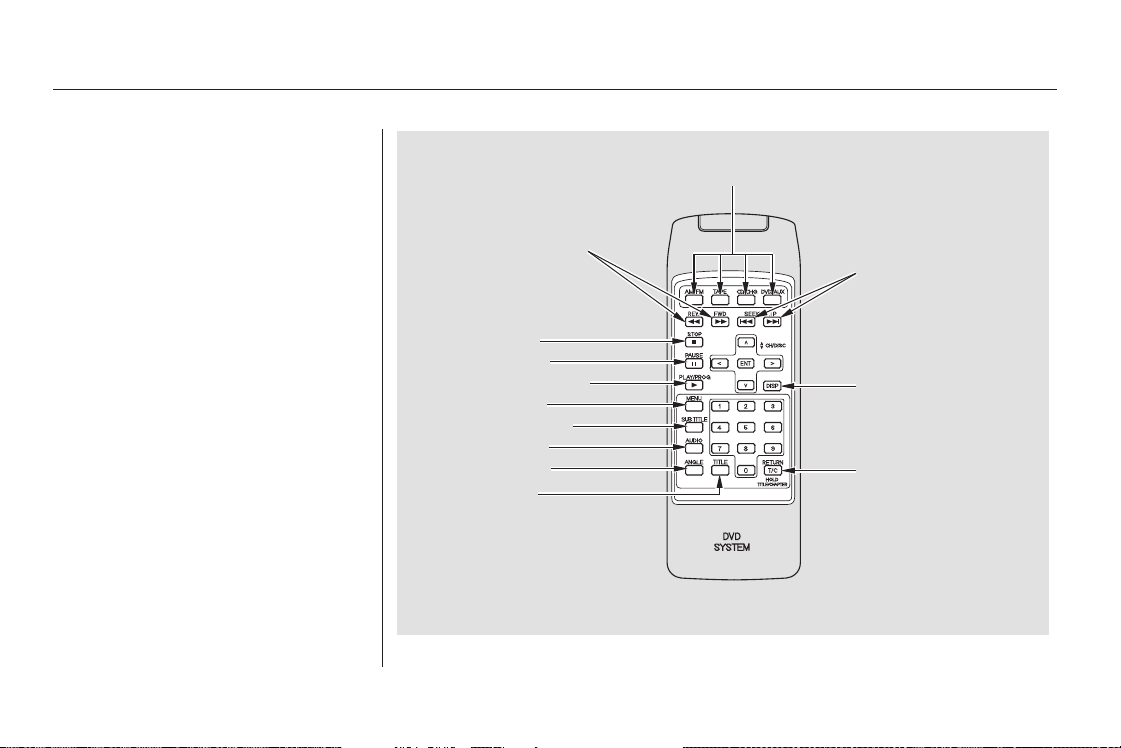

You can use the remote control to
select the entertainment source
(radio, tape player, CD player, or
DVD player/Auxiliary device). The
selected source will be shown in the
display.
Make sure the rear control operation
has not been disabled with the RR
CTRL knob on the front panel.
When using the remote control,
point it at the rear control panel in
the ceiling.
ThePLAY/PROG,PAUSE,SKIP,
and FWD/REW buttons work the
same function as the front and rear
control panel buttons.
ThePLAY/PROG,PAUSE,SKIP,
and FWD/REW buttons work the
same function as the front and rear
control panel buttons.
CONTINUED
Rear Entertainment System
Comfort and Convenience Features
Using the Remote Control
To Play a Tape, CD, or Radio
To Play a DVD
137
STOP BUTTON
REW/FWD BUTTONS
PAUSE BUTTON
SOURCE SELECTION
BUTTONS
SEEK/SKIP BUTTONS
RETURN (T/C) BUTTON
DISP BUTTON
PLAY/PROG BUTTON
MENU BUTTON
SUBTITLE BUTTON
AUDIO BUTTON
ANGLE BUTTON
TITLE BUTTON
Main Menu
Table of Contents
−
−
−
−
−
−
▼
▲
Pressthisbutton
to stop playing a DVD.
Some DVDs have menus that allow
you to select a dubbed language,
subtitles, a chapter list, previews, etc.
Themenucontentswillvaryfrom
DVD to DVD.
Usethe,,,and
buttons to select the desired
menu option. Then press ENT to
enter your selection. Use the
and buttons to change
pages. You can also use the
numbered buttons to enter the two-
digit number of a menu option. You
do not have to press ENT. Press the
button again to close the window.
Many DVDs are recorded with
subtitles or dubbed in multiple
languages. To select subtitles, press
the SUBTITLE button. To select a
different language than the one
being heard, press the AUDIO
button. Continue to press and
release the SUBTITLE or AUDIO
button to scan through all available
languages.
To change the
color, contrast, aspect ratio, and
brightness of the video screen, press
the DISP button. The current setting
of one will be displayed on the
screen each time you press the
button. Use the and
buttons to change the setting
as desired. The display will disappear
from the screen several seconds
after you stop adjusting the setting.
On some DVDs,
the scenes are recorded by more
than one camera, giving different
viewpoints of the same scene. By
pressing the Angle button, you can
select a different viewpoint.
In the
MENU selection mode, pressing the
RETURN button for less than 2
seconds changes the MENU display
to the previous page. Pressing the
RETURN button for more than 2
seconds while a DVD is playing
brings the system into the TITLE
enter mode. When you enter your
selection, the DVD player will start
playing from the selected title.
Rear Entertainment System
Comfort and Convenience Features
STOP Button
MENU and TITLE Buttons
SUBTITLES and AUDIO Buttons
DISP Button
ANGLE Button
RETURN (T/C) Button
138
Main Menu
Table of Contents
The remote control uses two
AA batteries. To replace the
batteries, put a coin in the notch on
the back. Turn it one-quarter, then
slide the cover off. Remove the old
batteries.Makesurethepolarityof
the new batteries is correct when
you install them. Slide the cover on
until it locks.
When you are not using the remote
control, store it in holder in the front
seat-back pocket.
As required by the FCC: This device
complies with Part 15 of the FCC rules.
Operation is subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that
may cause undesired operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210. Operation is
subject to the following two conditions:
(1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Rear Entertainment System
Comfort and Convenience Features
Replacing the Remote Control
Batteries
Storing the Remote Control
139
HOLDER
Main Menu
Table of Contents

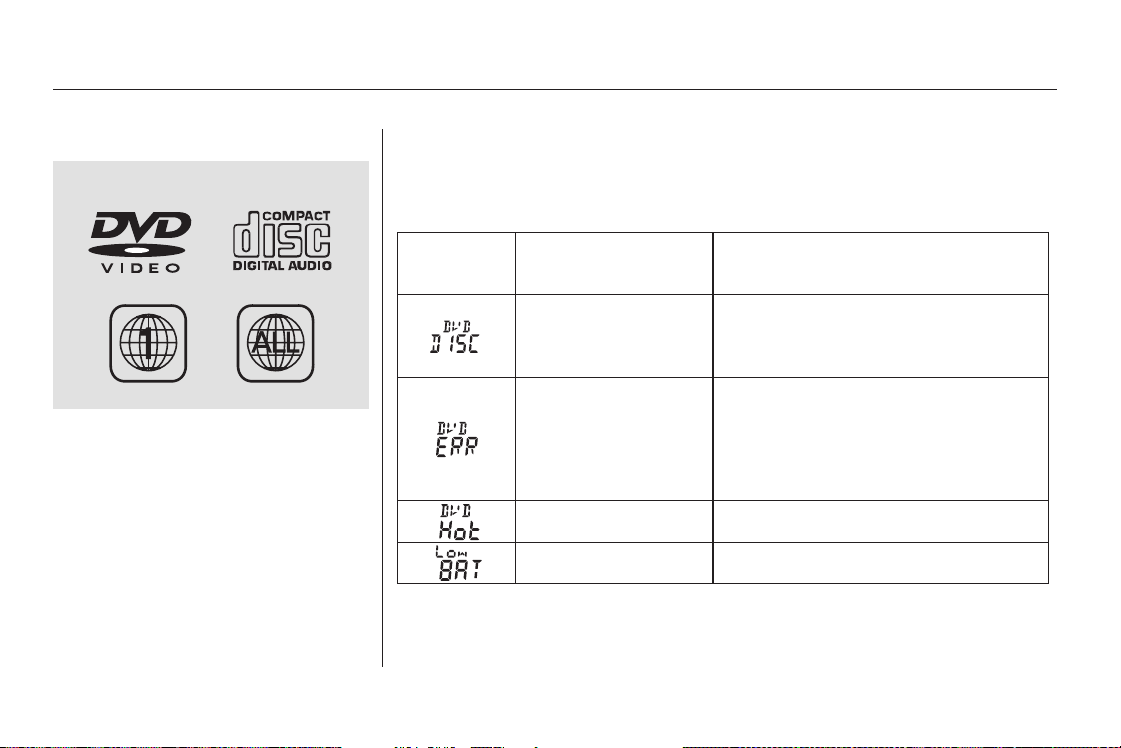

There are various types of DVDs
available. Some of them are not
compatible with your system.
The DVD player in your Rear
Entertainment System can play
DVDs and CDs bearing the above
marks on their packages or jackets.
Those packages or jackets should
also bear the designation of ‘‘1’’ or
‘‘ALL’’. DVD-ROMs cannot be played
in this system.
If you see an error message in the display while operating the DVD player,
find the cause in the chart to the right. If you cannot clear the message, take
your vehicle to an Acura dealer.
Error Message Cause Solution
FOCUS Error
Mechanical Error, or a
DVD has been loaded in
the CD player
High Temperature
Low Vehicle Battery
Voltage
Press the EJECT button and pull out the DVD.
Check if it is inserted correctly in the DVD
Player.MakesuretheDVDisnotscratchedor
damaged.
Press the EJECT button and pull out the DVD.
Check it for damage or deformation.
If the DVD cannot be pulled out, or the error
message does not disappear after the DVD is
ejected, see an Acura dealer.
Do not try to force the DVD out of the player.
Will disappear when the temperature returns to
normal.
Run the engine to recharge the battery.
Playable DVDs DVD Player Error Messages
Rear Entertainment System
Comfort and Convenience Features
140
Main Menu
Table of Contents

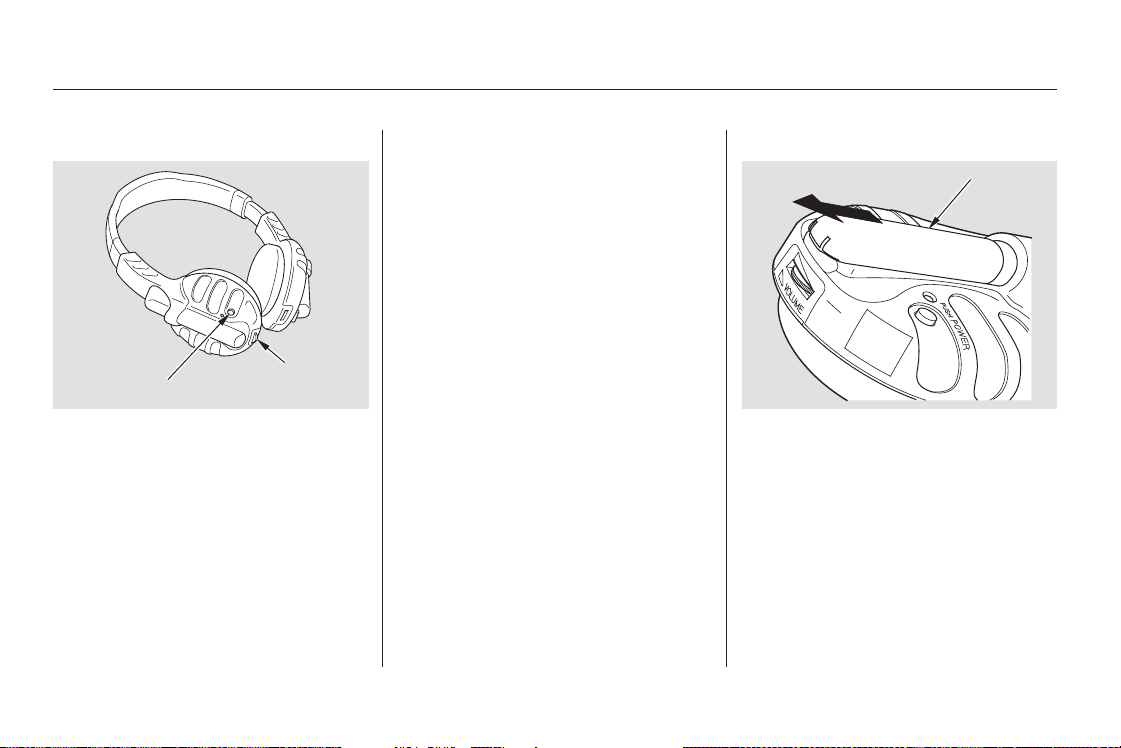

Some state and local goverment
agencies prohibit the use of
headphones by the driver of a motor
vehicle. Always obey applicable laws
and regulations.
The audio for the rear entertainment
system is sent to the wireless
headphones that come with the
system. To turn on the headphones,
presstheredbuttonontheearpiece.
Adjust the volume level with the dial
at the bottom of the same earpiece.
To adjust the comfort of the
headphones, slide the earpieces up
or down the headband.
For greater battery life, turn off the
headphones when they are not in use
by pressing the red button again.
They will turn off automatically if
they do not receive an audio signal
from the system for several minutes.
When not in use, store the
headphones in the pocket on the
back of either front seat.
The batteries are under the domed
covers on the back of each earpiece.
To remove a cover, press down on it
with your thumb, slide it backward
(away from the headband), then lift
it up. Remove the batteries and note
their polarity. Install the new
batteries in the earpiece with the
same polarity. Set the cover in place,
then slide it up until it locks. Each
headphone uses two AAA batteries.
Wireless Headphones
Replacing Batteries
Rear Entertainment System
Comfort and Convenience Features
141
ON/OFF BUTTON
VOLUME
DIAL
COVER
Main Menu
Table of Contents

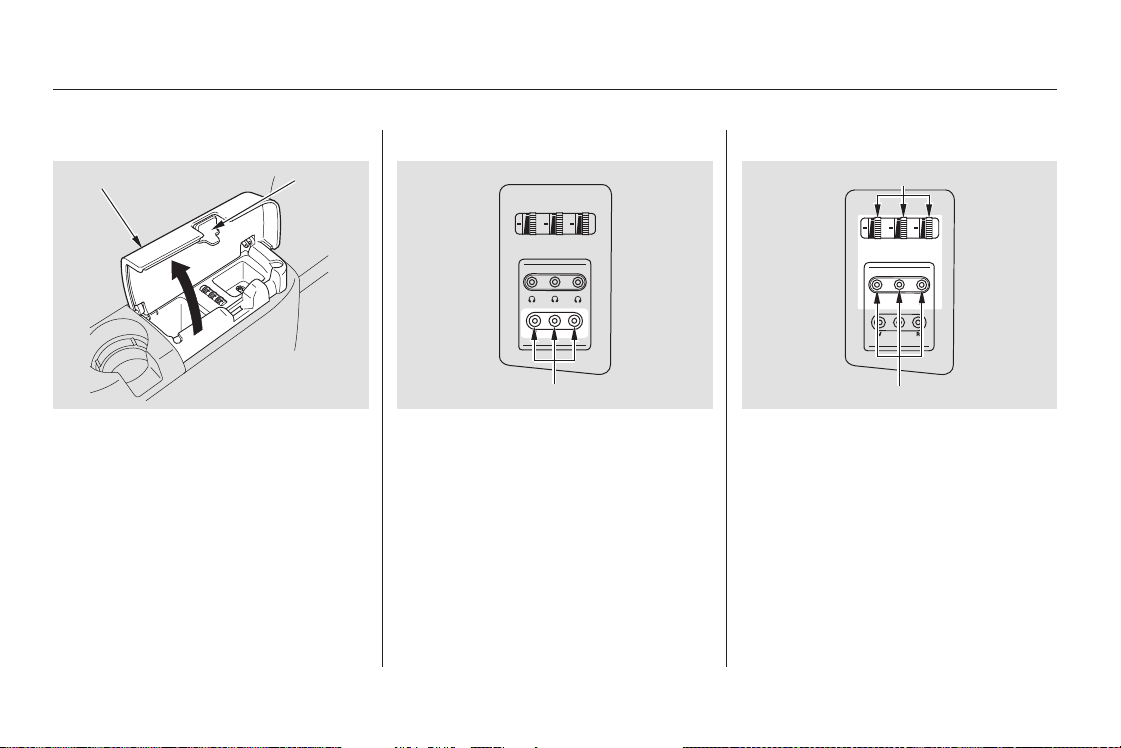

Auxiliary input jacks and headphone
connectors for the rear
entertainment system are under the
third seat armrest on the passenger’s
side. To access these connectors,
open the cover by pulling up on the
lever.
The system will accept auxiliary
inputs from standard video games
and video equipment.
Some video game power supplies
may cause poor picture quality.
V=Videojack
L = Left audio jack
R = Right audio jack
There are three headphone
connectors for the third seat
passengers. Each connector has its
own volume control. These
handphones are not supplied with
the vehicle.
Auxiliary Input Jacks
Rear Entertainment System
Comfort and Convenience Features
142
AUXILIARY INPUT JACKS
ARMREST
LEVER
VOLUME DIALS
HEADPHONE CONNECTORS
Main Menu
Table of Contents
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doors from the outside with the key,
lock tab, door lock switch, or remote
transmitter. The security system
indicator next to the driver’s door
lock starts blinking immediately to
show you the system is setting itself.
The security system will not set if
the hood, tailgate, or any door is not
fully closed. If the system will not set,
check the Door and Tailgate Open
Monitor on the instrument panel
(see page ) to see if the doors and
tailgate are fully closed. Since it is
notpartofthemonitordisplay,
manually check the hood.
Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables from theft.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights flashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues for two minutes,
then the system resets. To reset an
alarming system before the two
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
Once the security system is set,
opening any door or the tailgate
without using the key or the remote
transmitter, or the hood, will cause it
to alarm. It also alarms if the radio,
navigation and DVD components are
removed from the dashboard or the
wiring is cut.
60
Security System
Comfort and Convenience Features
143
SECURITY SYSTEM LIGHT
Main Menu
Table of Contents
Accelerate to the desired cruising
speedabove25mph(40km/h).
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Press and release the SET/
DECELbuttononthesteering
wheel. Indicator on the instrument
panel comes on to show the
system is now activated.
Push in the Cruise Control Master
Switch. The indicator in the switch
will come on.
The cruise control may not hold
the set speed when you are going
up and down hills. If your speed
increases going down a hill, use
the brakes to slow down. This will
cancelthecruisecontrol.To
resume the set speed, press the
RESUME/ACCEL button. The
indicator on the instrument panel
will come back on.
1.
2.
3.
Cruise Control
Comfort and Convenience Features
Using the Cruise Control
144
CRUISE CONTROL MASTER SWITCH
CANCEL
RESUME/ACCEL
SET/DECEL
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
Main Menu
Table of Contents
You can increase the set cruising
speed in any of these ways:
Press and hold the RESUME/
ACCEL button. When you reach
the desired cruising speed, release
the button.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed and press the SET/DECEL
button.
You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Tap the brake pedal lightly with
your foot. The CRUISE
CONTROL indicator on the
instrument panel will go out.
When the vehicle slows to the
desired speed, press the SET/
DECEL button.
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your foot on the brake pedal
will cause the cruise control to
cancel.
Youcancancelthecruisecontrolin
any of these ways:
Tap the brake pedal.
Push the CANCEL button on the
steering wheel.
Press the Cruise Control Master
Switch.
When you push the CANCEL button,
or tap the brake pedal, the system
will remembers the previously set
cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h) and then press and
release the RESUME/ACCEL
button. The CRUISE CONTROL
indicator comes on. The vehicle will
accelerate to the same cruising
speed as before.
Pressing the Cruise Control Master
Switch turns the system completely
off and erases the previous cruising
speed.
To increase your speed in very
small amounts, tap the RESUME/
ACCEL button. Each time you do
this, the vehicle will speed up
about 1 mph (1.6 km/h).
Cruise Control
Changing the Set Speed Cancelling the Cruise Control
Resuming the Set Speed
Comfort and Convenience Features
145
Main Menu
Table of Contents
−
＋

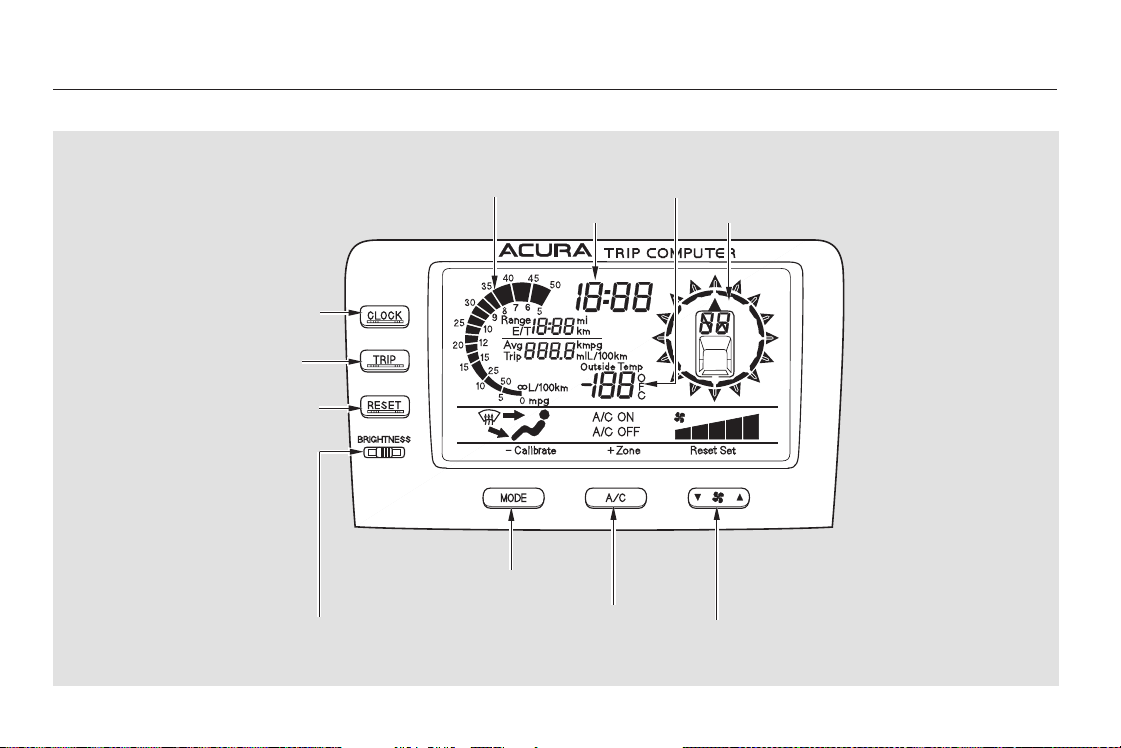

Trip Computer
Comfort and Convenience Features
146
INSTANTANEOUS
FUEL MILEAGE
CLOCK
BUTTON
TRIP
BUTTON
RESET
BUTTON
DISPLAY BRIGHTNESS
CONTROL
/CALIBRATE BUTTON
/ZONE BUTTON
RESET, SET BUTTON
COMPASS
OUTSIDE
TEMPERATURE
CLOCK
Main Menu
Table of Contents
Clock
Direction of travel
Outside temperature
Instantaneous fuel mileage
TheAvgdisplayshowsyouthe
average fuel economy since you
last reset the display.
The E/T is the elapsed time that
the ignition has been on. It
automatically resets to 0.0 when it
reaches twelve hours. This display
can be reset at any time.
The display also has manual
functions for the Climate Control
System. Refer to page .
All models of MDX have a trip
computer. To operate the trip
computer on models with the
navigation system, refer to the
navigation manual.
The Trip Computer displays the
following information.
The temperature sensor is located
in the front bumper, and can be
affected by heat from the road
surface, engine heat, and the
exhaust from the surrounding
traffic. Because of these
conditions, it may take a while for
the temperature to read correctly.
The Range, or estimated distance
you can travel on the fuel
remaining in the tank estimated
from the fuel economy you have
gotten over the last several miles
(kilometers).
The Trip display shows you the
total distance you have driven
since it was last reset.
Press the TRIP button to show either
the range and Avg fuel economy, or
the E/T and Trip odometer.
To reset the Avg fuel economy, E/T,
and Trip odometer, press and hold
the RESET button until you hear a
beep.
The outside temperature, fuel
economy, range, and trip odometer
can be displayed in either English or
Metric units. To change between
units, press the TRIP button and
hold it for five seconds.
104
Trip Computer
Comfort and Convenience Features
(Without Navigation System)
Changing and Resetting the
Display
Changing Units of Measurement
147
Main Menu
Table of Contents

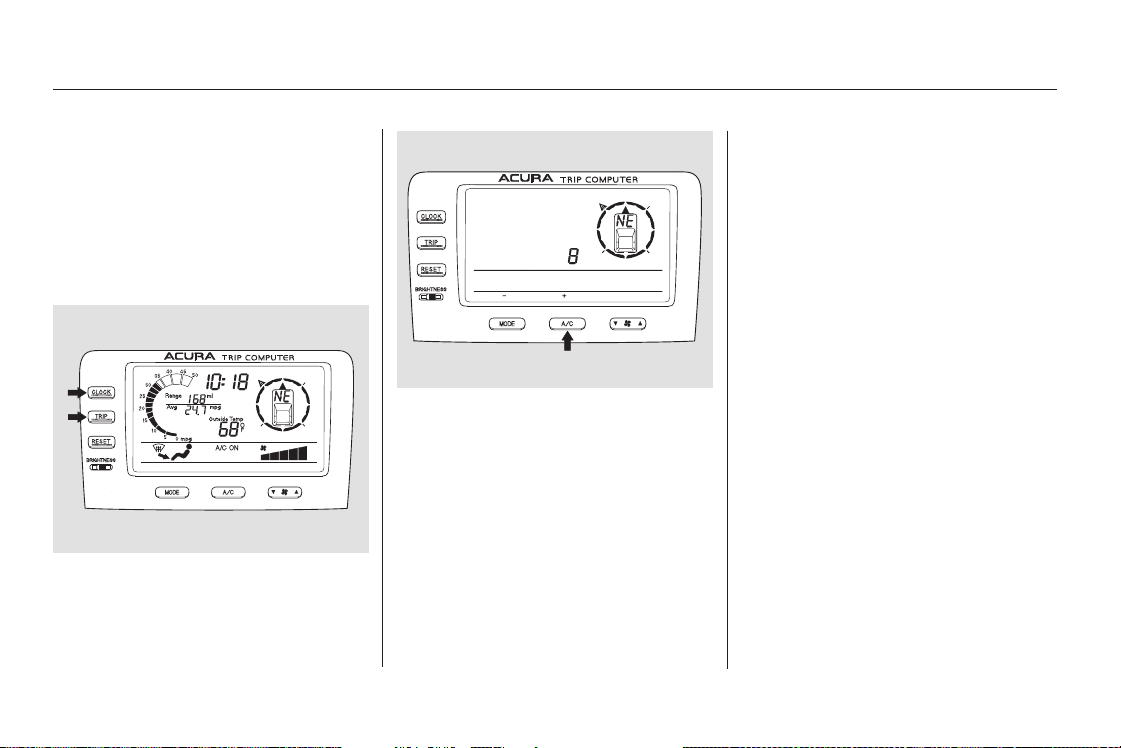

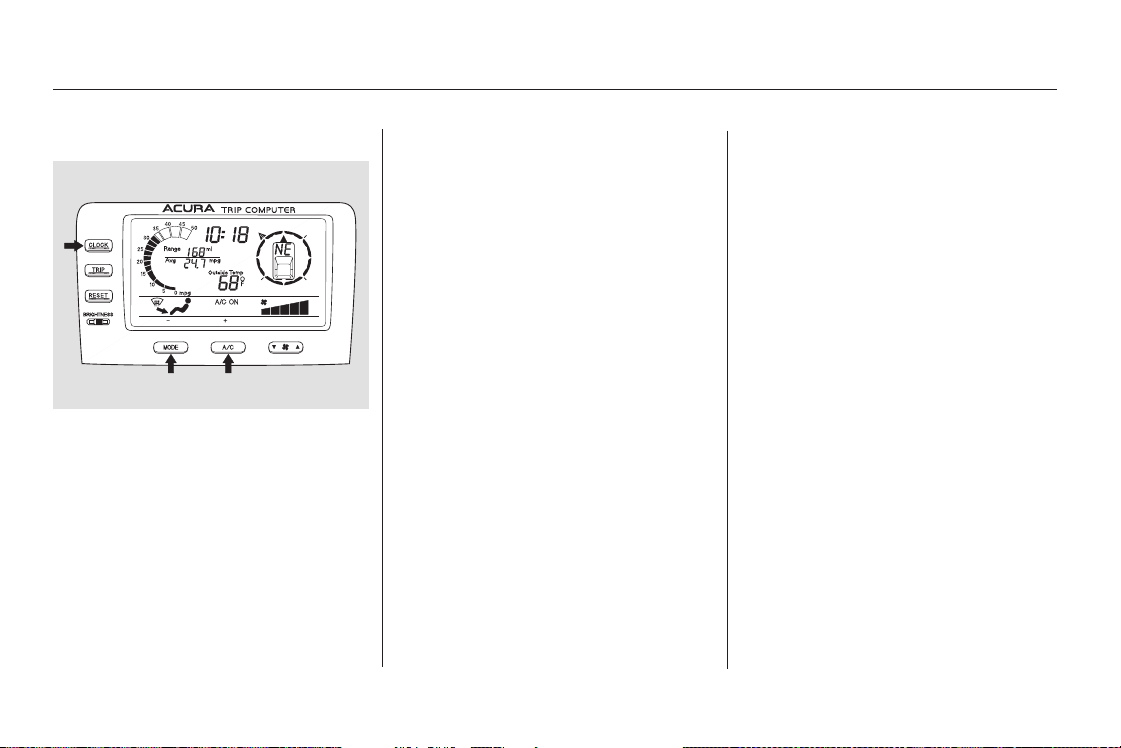

To set the clock:
Push the CLOCK button. The
hours digits will start blinking. If
you want to only set the minutes,
go to step 4.
To change the hours to a lower
number, press and hold the
MODE button. To change the
hours to a higher number, press
andholdtheA/Cbutton.
When the hours reach the desired
number, release the button.
To set the minutes, press the
CLOCK button again. The
minutes digits will start blinking.
Use the MODE or A/C button to
set the minutes to the desired
number.
Press the CLOCK button again.
The clock will return to its normal
display.
For example:
1:06 will reset to 1:00
1:52 will reset to 2:00
You can quickly set the time to the
nearest hour. Press the CLOCK
button, then press the RESET button.
If the displayed time is before the
half hour, it will reset back to the
previous hour. If the displayed time
is after the half hour, it will reset
forward to the next hour.
1.
2.
3.
4.
5.
6.
Trip Computer
Comfort and Convenience Features
Setting the Clock
148
Main Menu
Table of Contents
−−
−−
−−
The compass may need to be
manually calibrated after exposure to
a strong magnetic field. If the
compassseemstobecontinually
showing the wrong direction and is
not self-calibrating, do the following.
You should do this procedure
in an open area, away from buildings,
power lines, and other vehicles.
Press and hold the CLOCK and
TRIP buttons until the display
changes (about 1 second).
Press the Calibrate (MODE)
button.
Press the Set (FAN) button.
‘‘Calibrate’’ will start blinking, and
the direction display will change to
‘‘ ’’.
Drive the vehicle slowly in two
complete circles.
When the display goes from
‘‘ ’’ to an actual heading, the
unit is calibrated.
Press the CLOCK, TRIP, or
RESET button to complete the
calibration and return the display
to normal.
Compass operation can be affected
by driving near power lines or
stations, across bridges, through
tunnels, over railroad crossings, past
large vehicles, or driving near large
objects that can cause a magnetic
disturbance. It can also be affected
by accessories such as antennas and
roof racks that are mounted by
magnets.
If you see ‘‘ ’’ in the direction
display and ‘‘Calibrate’’ is blinking,
the compass is self-calibrating.
1.
2.
3.
4.
5.
6.
CONTINUED
Trip Computer
Comfort and Convenience Features
Compass Operation
Compass Calibration
149
NOTE:
Main Menu
Table of Contents
In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate for this
variation. To check and select the
zone set into the compass, do the
following.
Press and hold the CLOCK and
TRIP buttons until the display
changes (about 1 second).
Press the Zone (A/C) button. The
zone the compass is currently set
to is displayed.
Find the zone for your area on the
map.
If the zone is incorrect, press and
hold the MODE button to get the
number to count down, or the A/C
button to get the number to count
up. If the zone is correct, continue
to step 5.
Press the Set (FAN) button to set
the zone selection.
Press the CLOCK, TRIP or
RESET button to exit the zone
selection and return display to
normal.
1.
2.
3.
4.
5.
6.
Trip Computer
Comfort and Convenience Features
Compass Zone Selection
150
Main Menu
Table of Contents
Trip Computer
Comfort and Convenience Features
151
Main Menu
Table of Contents
The Brightness control has seven
positions. In the middle five positions
the display will dim when you turn
on the parking lights or headlights.
Moving the control to the far left
position turns off the display. It will
come back on for several seconds if
you press any of the buttons.
In the far right (maximum
brightness) position, the display will
notdimwhenyouturnonthe
parking lights.
Always use a soft cloth and mild
glass/plastic cleaner (such as
cleaners for computer monitor
screens) to clean the display.
Whenever you shift to R (Reverse)
with the ignition switch in the ON
(II) position, the rear view is shown
in the navigation system display.
For the best picture, always keep the
rear view camera clean, and do not
cover the camera lens.
When in reverse, the touch screen,
and Navi ‘‘hard’’ buttons are locked
out, except the A/C-INFO button.
Touching the A/C-INFO button
allows you to adjust the brightness of
the rear view camera image. Touch
the A/C-INFO button again to leave
the brightness adjust mode.
The camera brightness
cannot be adjusted by voice control.
Since the rear view camera display
area is limited, you should always
back up slowly and carefully, and
look behind you for obstacles.
When you wipe the screen, some
black lines may appear because of
static electricity build-up. This is
normal. They will disappear in 5 to
10 minutes.
If equipped
Comfort and Convenience Features
BRIGHTNESS control
Cleaning the Display
Rear View Camera and Monitor
Trip Computer, Rear View Camera and Monitor
152
NOTE:
REAR VIEW CAMERA
Main Menu
Table of Contents
−
The HomeLink Universal
Transceiver built into your vehicle
canbeprogrammedtooperateupto
three remotely controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
Always refer to the opening
instructions and safety information
that came with your garage door
opener or other equipment you
intend to operate with the HomeLink
Universal Transceiver. If you do not
have this information, contact the
manufacturer of the equipment.
If you are training the second or
third buttons, go directly to Step 1.
If you are training HomeLink to
operate a garage door or gate, you
should unplug the motor for that
device during training. Repeatedly
pressing the remote control button
could burn out the motor.
The HomeLink transceiver stores
the code in a permanent memory.
There should be no need to retrain
HomeLink if your vehicle’s battery
goes dead or is disconnected. If your
garage door opener was
manufactured before April 1982, you
may not be able to program
HomeLink to operate it. They do not
have the safety feature that causes
the motor to stop and reverse if an
obstacle is detected during closing,
increasing the risk of injury.
If you just
received your vehicle and have not
trained any of the buttons in
HomeLink before, you should erase
any previously learned codes before
training the first button.
Todothis,pressandholdthetwo
outside buttons on the HomeLink
transceiver for about 20 seconds,
until the red light flashes. Release
the buttons, then proceed to Step 1.
CONTINUED
HomeLink Universal Transceiver
Comfort and Convenience Features
General Information
Training HomeLink
Important Safety Precautions
Before you begin
153
Main Menu
Table of Contents
Unplug the garage door opener
motor from the house current.
Holdtheendofthegaragedoor
opener remote control 2 to 5
inches from HomeLink. Make
sure you are not blocking your
view of the red light in HomeLink.
The remote control
you are training from may stop
transmitting after two seconds. This
is not long enough for HomeLink to
learn the code. Release and press the
button on the remote control every
two seconds until HomeLink has
learned the code.
The red light in HomeLink should
begin flashing. It will flash slowly
at first, then rapidly.
When the red light flashes rapidly,
release both buttons. HomeLink
should have learned the code from
the remote control.
Plug in the garage door opener
motor, then test the HomeLink
transceiver button by pushing it. If
the button does not work, repeat
the procedure to train it again. If it
still does not work, you may have a
variable or rolling code garage
door opener. See if you do by
pressing and holding the
HomeLink transceiver button you
just trained. If the red light blinks
for 2 seconds then stays on, you
have a rolling code garage door
opener. Go to ‘‘Training with a
Rolling Code System’’ (see page
).
Repeat these steps to train the
other two HomeLink buttons to
operate any other remotely
controlled devices around your
home (lighting, automatic gate,
security system, etc.).
Press and hold the remote control
button and one of the HomeLink
buttons at the same time.
2.
3.
4.1.
5.
6.
7.
155
Canadian Owners:
HomeLink Universal Transceiver
Comfort and Convenience Features
154
Main Menu
Table of Contents
−
−
For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Information from
the remote control and the garage
door opener are needed before
HomeLink can operate the garage
door opener.
The ‘‘Training HomeLink’’
procedure trains HomeLink to the
proper garage door opener code.
The following procedure
synchronizes HomeLink to the
garage door opener so they send and
receive the correct codes.
Find the ‘‘Training’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer.
Make sure you have properly
completed the ‘‘Training
HomeLink’’ procedure.
Press the Training button on the
garage door opener unit until the
light next to the button comes on,
then release it. The light may blink,
or come on and stay on. You then
have approximately 30 seconds to
complete the following steps.
Press and hold the button on
HomeLink for 3 4 seconds.
Press and hold the HomeLink
button again for 3 4 seconds.
This should turn off the training
light on the garage door opener
unit. (Some systems may require
youtopressthebuttonuptothree
times.)
Press the HomeLink button again.
It should operate the garage door.
6.
2.
4.
5.
1.
3.
Training With a Rolling Code
System
HomeLink Universal Transceiver
Comfort and Convenience Features
155
TRAINING BUTTON
Main Menu
Table of Contents
Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red light
begins to flash, then release the
buttons.
Youshoulderaseallthreecodes
before selling the vehicle.
Totrainanalreadyprogrammed
transceiver button with a new device,
you do not have to erase all the
memory. Train the selected button
over the existing memory code
following the steps under
.
If you have problems with training
the HomeLink Universal Transceiver,
or would like information on home
products that can be operated by the
transmitter, call (800) 355-3515. On
the Internet, go to www.homelink.
com.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
HomeLink Universal Transceiver
Erasing Codes
Training
HomeLink
Customer Assistance
Retraining a Button
Comfort and Convenience Features
156
Main Menu
Table of Contents
Before you begin driving your Acura,
youshouldknowwhatgasolineto
use, and how to check the levels of
important fluids. You also need to
know how to properly store luggage
or packages. The information in this
section will help you. If you plan to
add any accessories to your vehicle,
please read the information in this
section first.
.............................Break-in Period . 158
...............................Gasoline Type . 158
.........Service Station Procedures . 159
...............................Fuel Economy . 162
...Accessories and Modifications . 163
.............................Carrying Cargo . 165
Before Driving
Before Driving
157
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttle starts and rapid
acceleration.
Do not change the oil until the
scheduled maintenance time.
Your Acura is designed to operate on
premium unleaded gasoline with a
pump octane number of 91 or higher.
Useofaloweroctanegasolinecan
cause occasional metallic knocking
noises in the engine and will result in
decreased engine performance.
You should also follow these same
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
Avoidhardbrakingforthefirst
200 miles (300 km).
We recommended using a gasoline
containing detergent additives that
help prevent fuel system and engine
deposits.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
In addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT. Use of
gasoline with these additives may
adversely affect performance, and
cause the Malfunction Indicator
Lamp on your instrument panel to
come on.
If this happens, contact your
authorized Acura dealer for service.
For further important fuel-related
information, please refer to your
Quick Start Guide.
Break-in Period, Gasoline Type
Before Driving
Break-in Period Gasoline Type
158
Main Menu
Table of Contents
Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
even
though the tank is not full, there may
be a problem with your vehicle’s fuel
vapor recovery system. The system
helps keep fuel vapors from going
into the atmosphere. Consult your
dealer.
Open the fuel fill door by pulling
onthehandletotheleftofthe
driver’s seat.
Park with the driver’s side closest
to the service station pump.
1.
2.
3.
4.
If the fuel nozzle keeps clicking off
CONTINUED
Service Station Procedure
Before Driving
Fueling
159
Pull
FUEL FILL CAP
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks, and flames
away.
Handle fuel only outdoors.
Wipe up spills immediately.
Main Menu
Table of Contents
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malfunction Indicator
Lampmaycomeon(seepage
).
Push the fuel fill door closed until
it latches.
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Put your fingers under the front
edge of the hood to the left of
center. Slide your hand to the left
until you feel the hood latch
handle. Push this handle up until it
releases the hood. Lift the hood.
If the hood latch handle moves stiffly,
or if you can open the hood without
lifting the handle, the mechanism
should be cleaned and lubricated
(see page ).
1.
5.
6.
2.
243
214
Service Station Procedure
Before Driving
Opening the Hood
160
HOOD RELEASE HANDLE
LATCH
Main Menu
Table of Contents
Lift the hood up most of the way.
The hydraulic supports will lift it
uptherestofthewayandholdit
up.
Wait a few minutes after turning the
engine off before you check the oil.
Remove the dipstick (orange
handle).
Wipe the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its tube.
Remove the dipstick again and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
Lower the hood to about a foot (30
cm) above the fender, then press
down firmly with your hands. Make
sure it is securely latched.
1.
3.
3.
2.
4.
205
Service Station Procedure
Before Driving
Adding Oil
Oil Check
To Close the Hood
161
DIPSTICK
UPPER MARK
LOWER MARK
Main Menu
Table of Contents
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
Always maintain your vehicle
according to the maintenance
schedule. See
(see page
).
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel.Usethecruisecontrolwhen
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Refer to
on page for information
about checking other items on your
Acura.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
Drive moderately. Rapid
acceleration, abrupt cornering and
hard braking use more fuel.
Always drive in the highest gear
possible.
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses fuel.
208
198
198
For example,
Service Station Procedures, Fuel Economy
Before Driving
Engine Coolant Check
Adding
Engine Coolant
Improving Fuel Economy
Owner’s
Maintenance Checks
Owner’s Maintenance
Checks
162
RESERVE TANK
MAX
MIN
Main Menu
Table of Contents
Modifying your vehicle, or installing
some non-Acura accessories, can
make your vehicle unsafe. Before
you make any modifications or add
anyaccessories,besuretoreadthe
following information.
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as the SRS, TPMS, and anti-lock
brake system.
Although aftermarket accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability. (See
‘‘Modifying Your Vehicle’’ on page
for additional information.)
Your dealer has Acura accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation of your vehicle.
Do not install accessories on the
side pillars or across the rear
windows as these may interfere
with proper operation of the side
curtain airbags.
Have the installer contact your
Acura dealer for assistance before
installing any electronic accessory.
If possible, have your dealer
inspect the final installation.
246
164
Accessories and Modifications
Before Driving
Accessories
163
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
Removing parts from your vehicle,
or replacing components with non-
Acura (aftermarket) components
could seriously affect your vehicle’s
handling, stability, and reliability.
Some examples are:
Lowering your vehicle with an
aftermarket suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Raising your vehicle with an
aftermarket suspension kit can
affect handling and stability.
Aftermarket wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Do not modify your steering wheel
or any other part of your
Supplemental Restraint System.
Modifications could make the
system ineffective. See the safety
precautions on page .
If you plan to modify your vehicle,
consult your Acura dealer.
Any object
attached to or placed on the covers
marked ‘‘SRS AIRBAG’’ in the
center of the steering wheel and
on top of the dashboard, could
interfere with the proper operation
of the airbags. Or, if the airbags
inflate, the objects could be
propelled inside the vehicle and
hurt someone.
This could prevent the
airbag from inflating properly.
If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
vehicle and hurt someone.
32
Accessories and Modifications
Before Driving
Modifying Your Vehicle Additional Safety Precautions
Do not attach or place objects on
the front airbag covers.
Do not place any objects over or
replacetheoutsideedgeofafront
seat-back.
Do not attach hard objects on or
near a front door.
164
Main Menu
Table of Contents
Your vehicle has several convenient
storage areas:
Glove box
Front door and seat-back pockets
Rear cargo area, including the
second and third row seats when
folded flat
Console compartment
Rear compartment
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Roof-rack (if equipped)
Carrying Cargo
Before Driving
165
CARGO AREA
CONSOLE COMPARTMENT SEAT-BACK POCKETS
GLOVE BOX DOOR POCKETS
REAR COMPARTMENT
Main Menu
Table of Contents
×
−
The maximum load for your vehicle
is 1,158 lbs (525 kg). This figure
includes the total weight of all
occupants, cargo, accessories, and
the tongue weight if you are towing a
trailer.
To determine the correct cargo and
luggage load limit:
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 1,158
lbs (525 kg)’’ on your vehicle’s
placard (on the driver’s doorjamb).
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
(Seven is the seating capacity of
your vehicle.)
Subtract the combined weight of
the driver and passengers from
1,158 lbs (525 kg).
The resulting figure equals the
available amount of cargo and
luggage load capacity.
For example, if there will be five 150
lbs (70 kg) occupants in your vehicle,
the amount of available cargo and
luggage load capacity is 408 lbs (175
kg).
5 150 lbs (70 kg) = 750 lbs (350
kg)
1,158 lbs (525 kg) 750 lbs (350 kg)
= 408 lbs (175 kg)
Determine the combined weight
of accessories, luggage, and cargo
beingloadedinthevehicle.The
weight may not safely exceed the
available cargo and luggage load
capacity calculated in step 4 [408
lbs(175kg)inthisexample].
If your vehicle will be towing a
trailer, the load from your trailer
will be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity of
your vehicle.
1.
2.
3.
4.
5.
6.
Carrying Cargo
Before Driving
166
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the pedals or seat operation.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
If you carry large items that
prevent you from closing the
tailgate, exhaust gas can enter the
passenger area. To avoid the
possibility of
, follow the instructions
on page .
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed 165 lbs (75 kg).
If you use an accessory roof rack,
the roof rack weight limit may be
lower. Refer to the information that
came with your roof rack.
Theseparationnetcanbeusedto
hold back soft, lightweight items
stored in the cargo area. Heavy
items should be properly secured on
the floor of the cargo area. The net
may not prevent heavy items from
being thrown forward in a crash or a
sudden stop.
The cargo cover can be used to
cover the cargo area behind the third
row seats. When the third row seats
are folded down, the cargo cover can
be installed in a forward position and
extended over the larger cargo area.
Do not install the cargo cover in the
forward position if the third row
seats are not folded down.
Ifyoufolddownthesecondor
third row seats, follow the
instructions above and be sure to
keep all cargo near the windows
below the bottom of the windows.
If cargo is higher, it could
interfere with proper operation of
thesidecurtainairbags.
51
Carrying Cargo
Before Driving
Carrying Items in the Passenger
Compartment
Carrying Cargo in the Cargo Area
or on a Roof Rack
carbon monoxide
poisoning
Optional Separation Net
Optional Cargo Cover
167
Main Menu
Table of Contents
168
Main Menu
This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmission. It also
includes important information on
parking your vehicle, the braking
system, the VTM-4 System, the VSA
system, Tire Pressure Monitoring
System, and facts you need if you are
planning to tow a trailer.
........................Driving Guidelines . 170
........................Preparing to Drive . 170
.......................Starting the Engine . 171
..............Automatic Transmission . 172
Variable Torque Management
..............................4WD System . 176
..............................VTM-4 Lock . 176
Tire Pressure Monitoring System
......................................(TPMS) . 177
...........................................Parking . 179
.............................Braking System . 180
...........................Anti-lock Brakes . 181
Vehicle Stability Assist (VSA)
........................................System . 183
.................Towing Weight Limits . 185
...........................Towing a Trailer . 188
Towing Your Vehicle Behind a
................................Motorhome . 190
..............Off-Highway Guidelines . 192
Driving
Driving
169
Main Menu
Your vehicle has higher ground
clearance that allows you to travel
over bumps, obstacles, and rough
terrain. It also provides good
visibility so you can anticipate
problems earlier.
Because your vehicle rides higher
off the ground, it has a high center
of gravity that can cause it to roll
over if you make abrupt turns. Utility
vehicles have a significantly higher
roll over rate than other types of
vehicles.
To prevent rollovers or loss of
control:
Take corners at slower speeds
than you would with a passenger
vehicle.
Avoid sharp turns and abrupt
maneuvers whenever possible.
Do not modify your vehicle in any
way that would raise the center of
gravity.
Do not carry heavy cargo on the
roof.
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Make sure the doors and tailgate
are securely closed and locked.
Check the steering wheel
adjustment (see page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the seat adjustment (see
page ).
Check that any items you may be
carrying are stored properly or
fastened down securely.
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
1.
2.
3.
4.
5.
6.
7.
8.
9.
84
92
76
14
57
See page for additional guidelines
for driving off-highway.
192
Driving Guidelines, Preparing to Drive
Driving
Driving Guidelines
Preparing to Drive
170
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Make sure the shift lever is in
Park. Press on the brake pedal.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. If the
engine still does not start, return
to step 5.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in START (III) for more
than 15 seconds at a time. If the
engine does not start right away,
pause for at least 10 seconds
before trying again.
5.
6.1.
2.
3.
4.
Starting the Engine
Driving
171
NOTICE: The engine is harder to start
in cold weather. Also, the thinner air
f ound at altitudes above 8,000 f eet
(2,400 meters) adds to this problem.
Main Menu
Table of Contents
These indicators on the instrument
panel show which position the shift
lever is in.
The ‘‘D ’’ indicator comes on for a
few seconds when you turn the
ignition switch to ON (II). If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission.
If the malfunction indicator lamp
come on along with the ‘‘D ’’
indicator, there is a problem in the
automatic transmission control
system. Avoid rapid acceleration and
havethetransmissioncheckedbyan
Acura dealer as soon as possible.
To shift from any position, press
firmly on the brake pedal. You
cannot shift out of Park when the
ignition switch is in the LOCK (0) or
ACCESSORY (I) position.
5
5
To shift from:
PtoR
RtoN
NtoD
DtoD
DtoD
Dto2
2to1
1to2
2toD
DtoD
DtoD
DtoN
NtoR
RtoP
Do this:
Press the brake pedal, then
move the shift lever.
Move the lever.
5
54
43
3
3
34
45
5
Automatic Transmission
Driving
Shift Lever Position Indicators
Shifting
172
Main Menu
Table of Contents
−−
−−
−
−
CONTINUED
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
To avoid transmission damage, come
to a complete stop before shifting
into Park. The shift lever must be in
Park before you can remove the key
from the ignition switch.
Press the brake
pedal to shift from Park to Reverse.
To shift from Reverse to Neutral,
come to a complete stop and then
shift.
Your vehicle has a reverse lockout so
you cannot accidentally shift to
Reverse from Neutral or any other
driving position when the vehicle
speed exceeds 7 9 mph (12 14
km/h).
If you cannot shift to Reverse when
the vehicle is stopped, press the
brake pedal and slowly shift to
Neutral, and then to Reverse.
If there is a problem in the reverse
lockout system, or your vehicle’s
battery is disconnected or goes dead,
you cannot shift to Reverse. (Refer
to Shift Lock Release on page ).
Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from Neutral to
another gear.
Use this position for
normal driving. The transmission
automatically selects a suitable gear
for your speed and acceleration. You
may notice the transmission shifting
up at higher speeds when the engine
is cold. This helps the engine warm
up faster.
175
175
Automatic Transmission
Driving
Park (P)
Shift Lock Release
Reverse (R) Neutral (N)
Drive (D )
5
173
Main Menu
Table of Contents
−− −These positions
are similar to D , except when you
select the D position, only the first
four gears are selected. When you
select D , only the first three gears
are selected. D can also keep the
transmission from cycling between
fourth and fifth gears in stop-and-go
driving, and D can keep the
transmission from cycling between
third and fourth gears.
This position locks
thetransmissioninsecondgear.It
does not downshift to first gear
when you come to a stop.
Use Second gear:
For more power when climbing.
To increase engine braking when
going down steep hills.
For starting out on a slippery
surface or in deep snow.
When driving downhill with a
trailer.
With the lever in this
position, the transmission locks in
First gear.
If you shift into First position when
the vehicle speed is above 31 mph
(50 km/h), the transmission shifts
into Second gear first to avoid
sudden engine braking.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
Use D to provide engine braking
when going down a steep hill. D
gives you more power and increased
engine braking.
5
4
3
4
3
3
3
Automatic Transmission
Driving
Drive(D,D) Second(2) First(1)
Engine Speed Limiter
43
174
Main Menu
Table of Contents
Set the Parking brake.
Make sure the ignition switch is in
the LOCK (0) position.
To release the Reverse Lockout,
make sure the ignition switch is in
the ACCESSORY (I) position. Put a cloth on the edge of the Shift
Lock Release slot cover. Using a
key, carefully pry on the edge of
the cover to remove it.
Insert the key in the Shift Lock
Release slot.
Push down on the key and move
the shift lever out of Park to
Neutral.
To release the reverse lockout,
move the shift lever from Neutral
to Reverse, then to Park.
Remove the key from the Shift
Lock Release slot, then install the
cover. Press the brake pedal, and
restart the engine.
If you need to use the Shift Lock
Release, it means your vehicle is
developing a problem. Have it
checked by an Acura dealer.
Do this if pushing on the brake pedal
does not shift the transmission out of
Park. This procedure is also used to
release the Reverse Lockout.
1.
2.
3.
4.
5.
6.
Automatic Transmission
Driving
Shift Lock Release
175
COVER SHIFT LOCK RELEASE SLOT
Main Menu
Table of Contents
The Variable Torque Management
4WD System (VTM-4) automatically
transfers varying amounts of engine
torque to the rear wheels under
lower traction conditions.
If more traction is needed when your
MDX is stuck, or is likely to become
stuck, you can use the VTM-4 Lock
button to increase torque to the rear
wheels.
The vehicle must be stopped with
the engine running.
Move the shift lever to First (1),
Second (2), or Reverse (R) gear.
Press the VTM-4 Lock button.
The light in the button will come
on.
To get unstuck, apply light pressure
to the accelerator pedal. Do not spin
the front tires for more than a few
seconds. Because of the amount of
torque applied to the rear tires, they
should not spin. This is normal. If
you are not able to move the vehicle,
stop and reverse direction.
do
one of the following:
Press the VTM-4 Lock button.
Move the shift lever to D , D or
D.
Turn the ignition switch to LOCK
(0).
The VTM-4 Lock will temporarily
disengage when the vehicle speed
exceeds 18 mph (30 km/h). It will
automatically engage again as the
speed slows below 18 mph (30
km/h). The button light will remain
on.
1.
2.
3.
54
3
To Engage the VTM-4 Lock To Disengage the VTM-4 Lock,
VTM-4 System
Driving
176
NOTICE:
NOTICE:
Do not use the VTM-4 Lock
button on dry, paved roads. Driving on
dry, paved roads with VTM-4 Lock ON
may damage the rear dif f erential when
making a turn. Strange noise and
vibration can also result.
Do not continuously spin the
f ront tires of your MDX. Continuously
spinning the f ront tires can cause
transmission or rear dif f erential
damage.
Main Menu
Table of Contents
Your Acura is equipped with a Tire
Pressure Monitoring System
(TPMS) that turns on every time you
start the engine and monitors the
pressure in your tires while driving.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes significantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure indicator and the
appropriate tire on the Tire Pressure
Monitor to come on.
Driving on a significantly under-
inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle’s handling and
stopping ability.
When the tire pressure monitoring
system warning light is lit, one or
more of your tires is significantly
under-inflated. You should stop and
check your tires as soon as possible,
and inflate them to the proper
pressureasindicatedonthevehicle’s
tire information placard.
Each tire, including the spare should
be checked monthly when cold and
set to the recommended inflation
pressure as specified in the vehicle
placard and owner’s manual (see
page ).
Although your tire pressure is
monitored, you must manually check
thetirepressuresmonthly.
If you think you can safely drive a
short distance to a service station,
proceed slowly to the station and
inflate the tire to the recommended
pressure shown on the driver’s
doorjamb.
If the tire is flat, or if the tire
pressure is too low to continue
driving, replace the tire with the
compact spare tire.
222
Tire Pressure Monitoring System (TPMS)
Driving
Low Tire Pressure
Indicator
177
Main Menu
Table of Contents
The appropriate tire indicator and
Low Tire Pressure Indicator will
come on if a tire becomes
significantly underinflated. Follow
the instructions under ‘‘Low Tire
Pressure Indicator’’.
The indicator comes on and stays on
when there is a problem with the
Tire Pressure Monitoring System.
If this happens, the system will shut
off and no longer monitor tire
pressures. Have the system checked
by an Acura dealer as soon as
possible.
If you have a flat tire, the Low Tire
Pressure and Tire monitor indicators
will come on. Replace the indicated
flat tire with the compact spare tire
(see page ).
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is
recommended that you always have
your tires serviced by your Acura
dealer or qualified technician.
After you replace the flat tire, the
Low Tire Pressure indicator will stay
on.Thisisnormal;thesystemisnot
monitoring the spare tire pressure.
Manually check the spare tire
pressure to be sure it is correct.
Never use a puncture-repairing agent
in a flat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyan
Acura dealer as soon as possible.
231
Tire Pressure Monitoring System (TPMS)
Driving
Tire Pressure Monitor Tire Pressure Monitoring
System (TPMS) Indicator
ChangingtheTirewithTPMS
178
Main Menu
Table of Contents
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly or
your vehicle may roll if it is on an
incline.
Set the parking brake before you put
the transmission in Park. This keeps
the vehicle from moving and putting
pressure on the parking mechanism
in the transmission.
Make sure the moonroof and the
windows are closed.
Turn off the lights.
Place any packages, valuables, etc.
in the cargo area, or take them
with you.
Lock the doors.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
If the vehicle is facing uphill, turn
the front wheels away from the
curb.
If the vehicle is facing downhill,
turn the front wheels toward the
curb.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Parking Tips
Parking
Driving
179
Main Menu
Table of Contents
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
Your vehicle is equipped with disc
brakes at all four wheels. A power
assist helps reduce the effort needed
on the brake pedal. The ABS helps
you retain steering control when
braking very hard.
Braking System Design
Brake Wear Indicators
Braking System
Driving
180
Front
Main Menu
Table of Contents
The Anti-lock Brake System (ABS)
helps prevent the brakes from
locking up and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
The ABS also balances the front-to-
rear braking distribution according
to vehicle loading.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’
You will feel a pulsation in the brake
pedal when the ABS activates, and
may hear some noise. This is normal:
it is the ABS rapidly pumping the
brakes. On dry pavement, you will
need to press on the brake pedal
very hard before the ABS activates.
However, you may feel the ABS
activate immediately if you are trying
to stop on snow or ice.
If the ABS indicator comes on, the
anti-lock function of the braking
system has shut down. The brakes
still work like a conventional system,
but without anti-lock. You should
have the dealer inspect your vehicle
as soon as possible.
You should never pump the brake pedal.
Activating the Anti-lock Brakes ABS Indicator
Anti-lock Brakes (ABS)
Driving
181
Main Menu
Table of Contents
If the ABS indicator and the break
system indicator come on together
and the parking break is fully
released, the front-to-rear braking
distribution system may also shut
down.
Test your brakes as instructed on
page . If the brakes feel normal,
drive slowly and have your vehicle
repaired by your Acura dealer as
soon as possible. Avoid sudden hard
braking which could cause the rear
wheels to lock up and possibly lead
to a loss of control.
It only helps with the
steering control during braking.
such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe
speed for the road and weather
conditions.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
244
Important Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle.
ABS will not prevent a skid that
results from changing direction
abruptly,
A vehicle with ABS may require a
longer distance to stop
ABS cannot prevent a loss of
stability.
Anti-lock Brakes (ABS)
Driving
182
Main Menu
Table of Contents
The Vehicle Stability Assist system
helps to stabilize the vehicle during
cornering if the vehicle turns more
or less than desired. It also assists
you in maintaining traction while
accelerating on loose or slippery
road surfaces. It does this by
regulating the engine’s output, and
by selectively applying the brakes.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times.
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety.
When VSA activates, you will see the
VSA Activation indicator blink.
If the VSA system indicator comes
on while driving, pull to the side of
theroadwhenitissafe,andturnoff
the engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on, or comes
back on while driving, have the VSA
system inspected by an Acura dealer.
CONTINUED
VSA Activation Indicator VSA System Indicator
Vehicle Stability Assist (VSA) System
Driving
183
Main Menu
Table of Contents
If the indicator does not come on
when the ignition switch is turned to
ON(II),theremaybeaproblem
with the VSA system. Have an Acura
dealer inspect your vehicle as soon
as possible.
Without VSA, your vehicle will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
This switch is under the left vent.
Press it to turn the Vehicle Stability
Assist system on and off.
VSA is turned on every time you
start the engine, even if you turned it
off the last time you drove the
vehicle.
Driving with varying tire or wheel
sizes may cause the VSA to
malfunction. When replacing tires,
make sure they are of the same size
and type as your original tires (see
page ).
Deactivate the VSA system if you
need to drive with the compact spare
tire installed (see page ).
If you install winter tires, make sure
they are the same size as those that
were originally supplied with your
vehicle. Exercise the same caution
during winter driving as you would if
your vehicle was not equipped with
VSA.
When VSA is off, the VSA Activation
Indicator comes on as a reminder.
224
230
VSA Off Switch
VSA and Tire Sizes
Vehicle Stability Assist (VSA) System
Driving
184
Main Menu
Table of Contents
−
−
To safely tow a trailer, you should
observe the load limits, use the
proper equipment, and follow the
guidelines in this section.
Be sure to read the Off-Highway
Driving Guidelines section on page
if you plan to tow off paved
surfaces.
To help ensure a safe drive to a scale,
or if you cannot get to a public scale,
we recommend that you estimate
your total trailer weight and tongue
load as described next.
The maximum
allowable weight of the vehicle, all
occupants, all cargo and the tongue
load is 5,787 lbs (2,630 kg).
Thebestwaytoconfirmthatall
loads are within limits is to check
them at a public scale.
The GCWR must be reduced 2
percent for every 1,000 feet (305
meters) of elevation.
See page for limits for your
towing situation.
Add the weight of your trailer (as
quoted by the manufacturer) with
everything in or on the trailer. Check
the tables on page that you do
not exceed the limit for your
conditions.
The maximum
allowable weight on the vehicle axles
are 2,882 lbs (1,307 kg) on the front
axle, and 2,992 lbs (1,360 kg) on the
rear axle.
192
187
187
CONTINUED
Estimating Loads
Gross Vehicle Weight Rating
(GVWR)
Load Limits
Gross Axle Weight Ratings
(GAWR)
Total Trailer Weight
To Estimate the Total Trailer Weight
Towing Weight Limits
Driving
185
Exceeding any load limit or
improperly loading your vehicle
and trailer can cause a crash in
which you can be seriously hurt
or killed.
Check the loading of your
vehicle and trailer carefully
beforestartingtodrive.
Main Menu
Table of Contents
The weight that the tongue of a fully
loaded trailer puts on the hitch
shouldbe5to10percentofthetotal
trailer weight for boat trailers, and 8
to 15 percent of total trailer weight
for all other trailers. See page for
limits for your towing situation.
Too much tongue load reduces front-
tire traction and steering control.
Too little tongue load can make the
trailer unstable and cause it to sway.
Park the vehicle on level ground.
Measure and record the distance
from the ground to the bottom of
the trailer hitch.
Connect the fully loaded trailer to
the hitch.
Measure again from the ground to
the same spot on the bottom of the
hitch.
Subtract the second measurement
from the first measurement. Refer
to Fig. 1.
Ifthedifferenceis:
1 ½’’ = 150 lbs (68 kg)
2 ¼’’ = 250 lbs (114 kg)
3’’ = 350 lbs (159 kg)
3 ¾’’ = 450 lbs (204 kg)
4’’ = over 450 lbs (204 kg)
Ifthedifferenceismorethan4’’
you have too much tongue load
at the rear. Move or remove
cargo from the trailer and the
vehicle, and measure again.
If the estimated trailer weight and
tongue load do not exceed the limits,
drive your trailer to a public scale
fully loaded with all occupants and
cargo you plan to take on the road.
1.
2.
3.
4.
5.187
Tongue Load
To Estimate the Tongue Load
Fig.1
Towing Weight Limits
Driving
186
Main Menu
Table of Contents
＊
＊
＊
Number of
Occupants
2
3
4
5
6
7
Equipped with transmission cooler and power steering fluid cooler.
Max. Trailer Weight Max. Tongue Load
Towing is Not Recommended
Number of
Occupants
2
3
4
5
6
7
Equipped with transmission cooler and power steering fluid cooler.
Max. Trailer Weight Max. Tongue Load
Towing is Not Recommended
Towing Weight Limits
Driving
187
4500 lbs (2045 kg)
4500 lbs (2045 kg)
4500 lbs (2045 kg)
4000 lbs (1820 kg)
1700 lbs (770 kg)
450 lbs (205 kg)
410 lbs (185 kg)
310 lbs (140 kg)
215 lbs (100 kg)
90 lbs (40 kg)
3500 lbs (1590 kg)
3500 lbs (1590 kg)
3000 lbs (1365 kg)
2000 lbs (910 kg)
1000 lbs (455 kg)
450 lbs (205 kg)
410 lbs (185 kg)
310 lbs (140 kg)
215 lbs (100 kg)
90 lbs (40 kg)
The corresponding weight limits assume occupants fill seats from the front of the vehicle to the back, each occupant weighs 150 lbs (70 kg) and each has 15lbs(7
kg) of luggage in the cargo area.
Total Trailer Weight and Tongue Load Limits: BOAT TRAILERS
Total Trailer Weight and Tongue Load Limits: OTHER TYPES OF TRAILERS
Main Menu
Table of Contents
Towing generally requires a variety
of supplemental equipment. To
ensure the best quality, we
recommend that you purchase Acura
equipment whenever possible.
Discuss any additional needs with
your trailer sales or rental agency,
and make sure all equipment is
properly installed, maintained, and
also meets state regulations.
A weight distributing hitch is not
recommended for use with your
MDX.
Always use safety chains when you
tow a trailer. Make sure the chains
are secured to the trailer and hitch,
and that they cross under the tongue
and can catch the trailer if it
becomes unhitched. Leave enough
slack to allow the trailer to turn
corners easily, but do not let the
chains drag on the ground.
This device is recommended if your
trailer tends to sway. Your trailer
maker can tell you what kind of sway
control you need and how to install it.
To help prevent overheating, a
heavy-duty transmission fluid cooler
and a heavy-duty power steering
fluid cooler are required for trailer
towing. These coolers are available
only from your Acura dealer.
Acura requires that any trailer with a
total trailer weight of 1,000 lbs (455
kg) or more have its own brakes.
There are two common types of
trailer brakes: surge and electric.
Surge brakes are common for boat
trailers, since the brakes will get wet.
Electric brakes must be
electronically actuated. Do not
attempt to tap into your vehicle’s
hydraulic system. See your brake
manufacturer for more information
on installing electric brakes.
Many states and provinces require
special exterior mirrors when towing
a trailer. Even if they don’t, you
should install special mirrors if you
cannot clearly see behind you, or if
the trailer creates a blind spot.
We strongly recommend that you
have your Acura dealer install an
Acura hitch and use the required
fluid coolers. Using non-Acura
equipment may result in serious
damage to your vehicle.
Towing Equipment and
Accessories
Hitch
Weight Distributing Hitch
Safety Chains
Sway Control
Transmission Fluid Cooler and
Power Steering Fluid Cooler
Trailer Brakes
Trailer Mirrors
Towing a Trailer
Driving
188
Main Menu
Table of Contents
−
Check trailer light requirements for
the areas where you plan to tow.
To get to your vehicle’s trailer
lighting connector, open the tailgate,
remove the cargo cover, then
remove the rear panel trim. The
connector is on the left side. We
recommend that you have your
Acura dealer install an Acura wiring
harness and converter.
If you use a non-Acura trailer
lighting harness and converter, you
cangetthematingconnectorand
pins that mate with the connector in
your vehicle from your Acura dealer.
When towing a trailer, we
recommend that you carry a full-size
spare wheel and tire for your vehicle
and trailer. See page for proper
tire size, page for how to store a
full size wheel and tire, and page
for information on changing a
flat tire.
Remember to unhitch the trailer
before changing a flat. Ask your
trailer sales or rental agency where
and how to store the trailer’s spare
tire.
Foryoursafetyandthesafetyof
others, take time to practice driving
maneuvers before heading for the
open road, and follow the guidelines
below.
Avoid towing a trailer during your
vehicle’s first 600 miles (1,000 km).
Drive slower than normal in all
driving conditions.
Maketurnsmoreslowlyandwider
than normal. The trailer has a
smaller arc and it can hit or run
over something the vehicle misses.
Allow more time and distance for
braking. Do not brake or turn
suddenly the trailer could
jackknife or turn over.
Cennector-98530-00006-00
Terminal Kit-07JAZ-001-030A
224
231
235
CONTINUED
Trailer Lights
Spare Tires
Towing a Trailer
Driving
Driving Saf ely With a Trailer
189
GROUND
(BLACK)
RIGHT TURN
SIGNAL
(GREEN/
YELLOW)
TAILLIGHT
(RED/
BLACK)
BRAKE
LIGHT
(WHITE/
BLACK)
LEFT TURN
SIGNAL
(GREEN/
BLUE)
BACK-UP
LIGHT
(GREEN/
BLACK)
Main Menu
Table of Contents
When driving with a fix-sided (e.g.
camper, utility) trailer, do not
exceed 55 mph (88 km/h). At
higher speeds, the trailer may
sway or affect vehicle handling.
Whenbeingpassedbyatruckor
large vehicle, cross-winds and air
turbulence can disrupt your
steering and cause your trailer to
sway. Keep a constant speed, steer
straight ahead, and do not try to
make quick steering or braking
corrections.
Do not park on an incline unless it
is unavoidable. If you must, turn
the vehicle’s wheels toward the
curb on a downhill or away from
the curb on an uphill. After
parking, place wheel chocks at
each trailer tire on the downhill
side.
Always drive slowly and have
someone guide you when backing up.
Grip the of the steering
wheel; then turn the wheel to the left
to get the trailer to move to the left,
andturnthewheelrighttomovethe
trailer to the right.
If the vehicle’s wheels slip when
retrieving a boat from the water,
shift to first gear, and turn on VTM-4
Lock (see page ). Disengage
VTM-4 Lock as soon as the boat is
out of the water to prevent damage
to the VTM-4 system.
When climbing hills, closely watch
your temperature gauge. If it nears
the red (Hot) mark, reduce speed
and, if necessary, pull to the side of
the road and let the engine cool.
If the transmission shifts frequently
while going up a hill, shift down one
gear.
Ifyoumuststopwhenfacinguphill,
use the foot brake or parking brake.
Do not try to hold the vehicle in
placebypressingontheaccelerator,
this could cause the automatic
transmission to overheat.
When driving down hills, reduce
your speed and shift down to D . Do
not ‘‘ride’’ the brakes.
176
bottom
3
Backing Up
Retrieving a Boat
Driving on Hills
Towing a Trailer
Driving
Remember it
will take longer to slow down and
stop when towing a trailer.
190
Main Menu
Table of Contents
Your MDX can be towed behind a
motorhome at legal highway speeds
up to 65 mph (100 km/h). Do not
exceed 65 mph (100 km/h) or severe
transmission damage will occur. To
avoid damage to the 4WD system, it
must be towed with all four wheels
on the ground (flat towing).
When purchasing a tow bar, make
sure you select a reputable
manufacturer. Follow the
manufacturer’s attachment
instructions carefully.
Perform this procedure every day
immediately before you begin towing.
Otherwise, severe automatic
transmission damage will occur.
Start the engine.
Check the transmission fluid level
(see page ).
Press on the brake pedal. Shift the
lever through all the positions (P,
R,N,D,D,D,2,1).
ShifttoD,thentoN.Letthe
engine run for three minutes, then
turn it off.
Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Make sure the radio and any items
plugged into the accessory power
sockets are turned off so you do
not run down the battery.
If you tow more than 8 hours in one
day, you should repeat the above
procedure at least every 8 hours
(when you stop for fuel, etc.)
210
543
5
Extended Towing
Towing Your Vehicle Behind a Motorhome
Driving
191
NOTICE: The steering system can be
damaged if the steering wheel is locked.
Leave the ignition switch in the
ACCESSORY (I) position, and make
sure the steering wheel turns f reely
bef ore you begin towing.
Main Menu
Table of Contents
To avoid loss of control or rollover,
be sure to follow all precautions and
recommendations.
Be sure to store cargo properly
and do not exceed your cargo load
limits (see page and ).
Your vehicle has been designed
primarily for use on pavement. But
its higher ground clearance and four-
wheel drive VTM-4 system allow you
to occasionally travel on unpaved
roads, to campgrounds, picnic sites,
and similar locations. It is not
designed for trailblazing, mountain
climbing, or other challenging off-
road activities.
If you decide to drive on unpaved
roads, you will find that it requires
somewhat different driving skills.
Your vehicle will also handle
somewhat differently than it does on
pavement. Be sure to pay extra
attention to the precautions and tips
in this section, and get acquainted
with your vehicle before leaving the
pavement.
Whenever you drive, make sure
you and your passengers always
wear seat belts.
Keep your speed low, and never
go faster than the conditions allow.
It’s up to you to continually assess
the situation and drive within the
limits.
166 185
Important Safety Precautions
Off-Highway Driving Guidelines
Driving
192
Improperly operating this
vehicle on or off-pavement can
cause an accident or rollover in
which you and your passengers
could be seriously injured or
killed.
Follow all instructions and
guidelines in the owner’s
manual.
Keep your speed low and
don’t drive faster than
conditions permit.
Main Menu
Table of Contents
Before you leave the pavement, be
sure to do all scheduled maintenance
and service and that you inspect your
vehicle. Pay special attention to the
condition of the tires and check the
tire pressure.
After you return to the pavement,
carefully inspect your vehicle to
make sure there is no damage that
could make driving it unsafe.
Recheck the condition of the tires
and the tire pressure.
The route presents limits (too steep
or bumpy roads). You have limits
(driving skill and comfort). And your
vehicle has limits (traction, stability,
and power).
Driving off-highway can be
hazardous if you fail to recognize
limits and take the proper
precautions.
Forbettertractiononallsurfaces,
accelerate slowly and gradually build
up speed. If you try to start too fast
on wet soil, mud, snow, or ice, you
might not have enough traction to
get underway and you may dig
yourself a hole. Starting with the
shift lever in second gear (2) will
help you have a smoother start on
snow and ice.
Keep in mind that you will usually
need more time and distance to
brake to a stop on unpaved surfaces.
Avoid hard braking. Do not pump
the brakes; let the anti-lock braking
system pump them for you.
Debris in the road can damage your
suspension or other components.
Because your vehicle has a high
center of gravity, driving over a large
obstacle, or allowing a wheel to drop
into a deep hole can cause your
vehicle to tip or roll over.
If you can’t clearly see all road
conditions or obstacles, walk the
slope before you drive on it. If you
have any doubt whether or not you
can safely drive on the slope, don’t
do it. Find another route.
Before driving through water, stop
and make sure that:
The water is not deep enough to
cover your wheel hubs, axles or
exhaust pipe. You could stall and
not be able to restart your engine.
The water can also damage
important vehicle components.
If you are driving up a hill and find
that you cannot continue,
. Your vehicle could roll
over. Slowly back down the hill,
following the same route you took up
the hill.
do not try to
turn around
Check Out Your Vehicle
Remember:
Accelerating and Braking
Avoiding Obstacles
Driving on Slopes
Crossing a Stream
Off-Highway Driving Guidelines
Driving
193
Main Menu
Table of Contents
The banks are sloped so you can
drive out.
The water is not flowing too fast.
Deep rushing water can sweep you
downstream. Even very shallow
rushingwatercanwashthe
ground from under your tires and
cause you to lose traction and
possibly roll over.
The banks and surface under the
water provide good traction. The
water may hide hazards such as
rocks, holes, or mud.
If you decide it is safe to drive
through water, choose a suitable
speed and engage the VTM-4 Lock.
Proceed without shifting or changing
speeds, and do not stop the vehicle
or shut off the engine.
After driving through water, test
your brakes. If they got wet, gently
pump them while driving slowly until
they operate normally.
If the water is deeper than the wheel
hubs, some additional service may
be required. This service is not
covered by your warranties.
If you get stuck, engage the VTM-4
Lock (see page ). Carefully try to
go in the direction (forward or
reverse) that you think will get you
unstuck. Do not spin the tires at high
speeds. It will not help you get out
and may cause damage to the
transmission or VTM-4 system.
If you are unable to free yourself,
your vehicle is equipped with front
and rear tow hooks designed for this
purpose.
Use a nylon strap to attach the MDX
to the recovery vehicle and carefully
take out the slack in the strap. Once
the strap is tight, the recovery
vehicle should apply force.
Remember that the recovery vehicle
needs good traction to avoid
becoming stuck, too.
You should never use a jack to try to
get unstuck. Your vehicle could
easily slip off the jack and hurt you
or someone else.
You may be able to safely tow a
lightweight trailer (such as a
motorcycle or small tent trailer) off-
road if you follow these guidelines.
Do not exceed 1,000 lbs (450 kg)
or a tongue weight of 100 lbs (45
kg).
Trytostayonsmooth,leveldirt
roads, and avoid driving in hilly
terrain.
Allow extra room for starting,
stopping, and turning.
Slow down if you encounter bumps
or other obstacles.
176
If You Get Stuck
Towing a Trailer Off-Road
Off-Highway Driving Guidelines
Driving
194
Main Menu
Table of Contents
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
Maintenance Schedules for normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions for simple maintenance tasks
you may want to take care of
yourself.
If you have the skills and tools to per-
form more complex maintenance
tasks on your Acura, you may want
to purchase the Service Manual. See
page for information on how to
obtain a copy, or see your Acura
dealer.
......................Maintenance Safety . 196
.................Maintenance Schedule . 197
....................Maintenance Record . 201
..............................Fluid Locations . 204
........................Adding Engine Oil . 205
.........Changing the Oil and Filter . 206
..............................Engine Coolant . 208
....................Windshield Washers . 209
....Automatic Transmission Fluid . 210
..........................Differential Fluid . 211
.............Transfer Assembly Fluid . 211
....................................Brake Fluid . 212
....................Power Steering Fluid . 213
....................................Timing Belt . 213
....................................Hood Latch . 214
.............................................Lights . 214
.......................................Seat Belts . 218
.....................................Floor Mats . 218
.................................Wiper Blades . 219
...............................................Tires . 221
...................Checking the Battery . 226
.............................Vehicle Storage . 227
269
Maintenance
Maintenance
195
Main Menu
All service items not detailed in this
sectionshouldbeperformedbyan
Acura technician or other qualified
mechanic.
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air.
Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool
before touching any parts.
Do
not run the engine unless
instructed to do so.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Maintenance Safety
Maintenance
Important Safety Precautions
Potential Vehicle Hazards
Carbon Monoxide poison from
engine exhaust.
Burns from hot parts.
Injury from moving parts.
196
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this
vehicle or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations in this owner’s
manual.
Main Menu
Table of Contents
−
−
The maintenance schedule assumes
you will use your vehicle as normal
transportation for passengers and
their possessions. You should also
follow these recommendations:
Avoid exceeding your vehicle’s
load limit. This puts excess stress
on the engine, brakes, and many
other vehicle parts. The load limit
is shown on the tire information
label on the driver’s doorjamb.
Operate your vehicle on
reasonable roads within the legal
speed limit.
Drive your vehicle regularly over a
distance of several miles
(kilometers).
Always use unleaded gasoline with
theproperoctanerating(seepage
).
Used primarily as a delivery
vehicle or taxi that is driven
mostly in stop-and-go traffic and/
or parked with the engine idling.
Follow the
Maintenance Schedule for Severe
Conditions if you drive your vehicle
MAINLY under one or more of the
following conditions.
Driving less than 5 miles (8 km)
per trip or, in freezing
temperatures, driving less than 10
miles (16 km) per trip.
Driving in extremely hot [over
90°F (32°C)] conditions.
Trailer towing, driving with a roof
rack, or driving in mountainous
conditions.
Driving on muddy, dusty, or de-
iced roads.
If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should follow the Maintenance
Schedule for Normal Conditions.
Follow the
Maintenance Schedule for Severe
Conditions.
158
Maintenance Schedule
Maintenance
Which Schedule to Follow:
U.S. Owners
Canadian Owners
197
NOTE:
Main Menu
Table of Contents
＃
−
−
−
−
−
−
Your authorized Acura dealer knows
your vehicle best and can provide
competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
skilled person to keep your
warranties in effect. Keep all the
receipts as proof of completion, and
have the person who does the work
fill out the Maintenance Record.
Check your warranty booklet for
more information.
We recommend the use of Acura
parts and fluids whenever you have
maintenance done.
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, Acura
recommends that all maintenance
services be performed at the
recommended time or mileage
period to ensure long-term reliability.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Automatic transmission Check
the fluid level monthly. See page
.
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate light monthly. See
page .
U.S. Vehicles:
Brakes Check the fluid level
monthly. See page .
161
162
210
222
212
214
Maintenance Schedule
Maintenance
Servicing Your Vehicle
Owner’s Maintenance Checks
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certified’’ to EPA standards.
198
Main Menu
Table of Contents
＊
＊
＃
＃
＃
＊
＊
＊
Maintenance
199
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 7,500 miles (12,000 km)
Every 3 years (independent of mileage)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
((OOrr eevveerryy 77 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
((OOrr eevveerryy 11 yyeeaarr,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
((OOrr eevveerryy 22 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
At every 15,000 miles (24,000 km) up to 30,000 miles (48,000 km) or every 1 year, then every 30,000 miles (48,000 km) or 2 years.
At 45,000 miles (72,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
See information on maintenance and emissions warranty, middle column, page .
((OOtthheerrwwiissee aaddjjuusstt oonnllyy iiff nnooiissyy))
120
192
135
216
150
240
90
144
75
120
60
96
45
72
30
48
15
24
105
168
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 223 )
Replace engine oil filter
Check front and rear brake wear
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Inspect valve clearance
Replace automatic transmission fluid
Replace transfer fluid
Replace VTM-4 rear differential fluid
Inspect idle speed
Replace spark plugs
Replace timing belt and inspect water pump
Replace engine coolant
Replace brake fluid
1:
2:
: 198
1
1
2
Maintenance Schedule for Normal Conditions
Main Menu
Table of Contents
＊
＊
＊
＃
＃
＃
＊＊
＃＊
Maintenance
200
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 7,500 miles (12,000 km)
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first
7.5
12
15
24
30
48
45
72
60
96
75
120
90
144
105
168
135
216
150
240
((OOrr eevveerryy 11 yyeeaarr,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
((OOrr eevveerryy 22 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
((OOtthheerrwwiissee aaddjjuusstt oonnllyy iiff nnooiissyy))
((OOrr eevveerryy 77 yyeeaarrss,, wwhhiicchheevveerr ccoommeess ffiirrsstt))
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
At every 7,500 miles (12,000 km) up to 15,000 miles (24,000 km) or every 6 months, then every 15,000 miles (24,000 km) or 1 year.
See timing belt on page for replacement information under special driving conditions.
Follow this schedule for rear differential fluid replacement if you use your vehicle for off-highway driving, trailer towing, mainly in stop-and-go driving. Otherwise, use
the fluid replacement schedule in the Maintenance Schedule for Normal Conditions.
See information on maintenance and emissions warranty, middle column, page .
Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
120
192
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 223 )
Check front and rear brake wear
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components, Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks and latches
Inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace automatic transmission fluid
Replace transfer fluid
Replace air cleaner element
Inspect valve clearance
Replace VTM-4 rear differential fluid
Inspect idle speed
Replace spark plugs
Replace timing belt , and inspect water pump
Replace engine coolant
Replace brake fluid
1:
2:
3:
: 198
213
1, 2
,3
Maintenance Schedule for Severe Conditions
Main Menu
Table of Contents
(for Normal and Severe Schedules)
CONTINUED
Maintenance Record
Maintenance
201
3,750 mi
7,500 mi
11,250 mi
15,000 mi
18,750 mi
22,500 mi
26,250 mi
30,000 mi
33,750 mi
37,500 mi
41,250 mi
45,000 mi
48,750 mi
52,500 mi
56,250 mi
60,000 mi
Signature or dealer stamp
6,000 km
12,000 km
18,000 km
24,000 km
30,000 km
36,000 km
42,000 km
48,000 km
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
54,000 km
60,000 km
66,000 km
72,000 km
78,000 km
84,000 km
90,000 km
96,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
199
200
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
202
63,750 mi
67,500 mi
71,250 mi
75,000 mi
78,750 mi
82,500 mi
86,250 mi
90,000 mi
93,750 mi
97,500 mi
101,250 mi
105,000 mi
108,750 mi
112,500 mi
116,250 mi
120,000 mi
102,000 km
108,000 km
114,000 km
120,000 km
126,000 km
132,000 km
138,000 km
144,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
150,000 km
156,000 km
162,000 km
168,000 km
174,000 km
180,000 km
186,000 km
192,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
203
123,750 mi
127,500 mi
131,250 mi
135,000 mi
138,750 mi
142,500 mi
146,250 mi
150,000 mi
198,000 km
204,000 km
210,000 km
216,000 km
222,000 km
228,000 km
234,000 km
240,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
Main Menu
Table of Contents
Fluid Locations
Maintenance
204
ENGINE OIL DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap)
COOLANT
RESERVOIR
POWER STEERING
FLUID (Red cap)
RADIATOR CAP
ENGINE OIL FILL CAP
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
BRAKE FLUID
(Gray cap)
Main Menu
Table of Contents
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda Motor Oil is the preferred
5W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection. Make
sure the API Certification Seal says
‘‘For Gasoline Engines’’.
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is formulated for year-
round protection of your Acura to
improve cold weather starting and
fuel economy.Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil
fill cap and tighten it securely. Wait a
few minutes and recheck the oil level
(see page ). Do not fill above the
upper mark on the dipstick; you
could damage the engine.
161
Recommended Engine Oil
Adding Engine Oil
Maintenance
205
API CERTIFICATION SEAL
Ambient Temperature
ENGINE OIL FILL CAP
Main Menu
Table of Contents
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal
and it is the proper weight. You must
follow the oil and filter change
intervals given in the maintenance
schedule.
Your Acura does not require any oil
additives. Additives may adversely
affect your engine’s or transmission’s
performance and durability.
Open the hood and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
Always change the oil and filter
according to the recommendations in
the maintenance schedule. The oil
and filter collect contaminants that
can damage your engine if they are
not removed regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
1.
2.
Adding Engine Oil, Changing the Oil and Filter
Maintenance
Synthetic Oil
Engine Oil Additives
Changing the Oil and Filter
206
WASHER
DRAIN BOLT
Main Menu
Table of Contents
Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your Acura
dealer) is required.
Install a new oil filter according to
the instructions that come with it.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including filter):
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine and check your work.
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Turn off the engine and let it sit
for several minutes, then check
the oil level on the dipstick. If
necessary, add more oil.
9.
8.
7.
6.
4.
5.
3.
Maintenance
Changing the Oil and Filter
207
NOTICE:
OIL FILTER
4.5 US qt (4.3 )
29 lbf·ft (39 N·m , 4.0 kgf·m)
Improper disposal of engine
oil can be harmf ul to the environment.
If you change your own oil, please
dispose of used oil properly. Put it in a
sealed container, and take it to a
recycling center. Do not discard used
oilinatrashbinordumpitonthe
ground.
Main Menu
Table of Contents
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
Always use Honda All Season
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
If it is not available, you may use
another major-brand non-silicate
coolant as a temporary replacement.
Make sure it is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Engine Coolant
Maintenance
Adding Engine Coolant
208
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
Make sure the engine and radiator
are cool.
When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pourthecoolantslowlyand
carefully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap back on, and
tighten it fully.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
The low washer level indicator will
come on when the level is low (see
page ).
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.
3.
4.
5.
1.
2.
61
Engine Coolant, Windshield Washers
Maintenance
Windshield Washers
209
NOTICE: Do not use engine antif reeze
or a vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
Main Menu
Table of Contents
Check the fluid level with the engine
at normal operating temperature.
Park the vehicle on level ground.
Shut off the engine.
Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
the transmission.
Remove the dipstick and check
the fluid level. It should be
between the upper and lower
marks.
If the level is below the lower
mark, add fluid into the tube to
bring it to the upper mark.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission fluid as a temporary
replacement. However, continued
use can affect the shift quality.
Have the transmission flushed and
refilled with Honda ATF-Z1 as
soon as it is convenient.
To thoroughly flush the
transmission, the technician
should drain and refill it with
Honda ATF-Z1 (Automatic
Transmission Fluid), then drive
the vehicle for a short distance.
Do this three times. Then drain
and refill the transmission a final
time.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
Insert the dipstick all the way back
in the transmission.
If you are not sure how to add fluid,
contact your Acura dealer.
1.
2.
3.
5.
6.
4.
Automatic Transmission Fluid
Maintenance
210
DIPSTICK
DIPSTICK
LOWER MARK
UPPER MARK
Main Menu
Table of Contents
Check the fluid level with the
differential at normal operating
temperature and the vehicle sitting
on level ground. Remove the
differential fluid filler bolt and
washer, and carefully feel inside the
bolt hole with your finger. The fluid
level should be up to the edge of the
bolt hole. If it is not, slowly add
VTM-4 Differential Fluid until it
starts to run out of the hole.
Put a new washer on the filler bolt,
then reinstall the filler bolt. Tighten
it securely. Tightening torque:
Checkthefluidinthetransfer
assembly with the vehicle sitting on
level ground. Remove the filler plug
and check that the fluid level is up to
the edge of the filler plug hole.
The differential should be drained
and refilled with new fluid according
to the recommendations in the
maintenance schedule.
CONTINUED
Differential Fluid, Transfer Assembly Fluid
Maintenance
Differential Fluid Transfer Assembly Fluid
211
FILLER BOLT
CORRECT LEVEL
FILLER PLUG
DRAIN PLUG
33 lbf·ft (45 N·m , 4.6 kgf·m)
Main Menu
Table of Contents
−
−
If it is not, slowly add proper fluid
until it starts to run out of the hole.
Reinstall the filler plug and tighten it
securely.
Tightening torque:
UseaSAE90orSAE80W-90
viscosity hypoid gear oil, API service
classified GL4 or GL5 only, in the
transfer assembly.
Viscosity
The transfer assembly fluid should
be drained and refilled with new fluid
accordingtothetimeanddistance
recommendations in the
maintenance schedule.
Check the fluid level in the brake
fluid reservoir monthly. Replace it
according to the maintenance
schedule recommendations.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement. Using any non-Honda
brake fluid can cause corrosion and
decrease the life of the system. Have
the brake system flushed and refilled
with Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
Tightening torque:
Transfer Assembly Fluid, Brake Fluid
Maintenance
Brake Fluid
212
MAX
MIN
33 lbf·ft (45 N·m , 4.6 kgf·m)
SAE 90: above 0°F ( 18°C)
SAE 80W-90: below 0°F ( 18°C)
Main Menu
Table of Contents
−−
Always use Honda Power Steering
Fluid. You may use another power
steering fluid as an emergency
replacement, but have the power
steering system flushed and refilled
with Honda PSF as soon as possible.
A low power steering fluid level can
indicate a leak in the system. Check
the fluid level frequently, and have
the system inspected as soon as
possible.
The timing belt should be replaced
at the intervals shown in the
maintenance schedule.
Replace the belt at 60,000 miles
(100,000 km) if you regularly drive
your vehicle in one or more of these
conditions:
In very high temperatures
(over 110°F, 43°C).
In very low temperatures
(under 20°F, 29°C).
Frequently tow a trailer.Check the level on the side of the
reservoir when the engine is cold.
The fluid should be between the
UPPER LEVEL and LOWER LEVEL.
If not add power steering fluid to the
UPPER LEVEL mark.
Power Steering Fluid, Timing Belt
Maintenance
Timing BeltPower Steering Fluid
213
NOTICE:
UPPER LEVEL
LOWER
LEVEL
Turning the steering wheel to
f ull lef t or right lock and holding it
there can damage the power steering
pump.
Main Menu
Table of Contents
Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Acura dealer.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer,
readjustment may be required.
Adjustment should be done by an
Acura dealer or other qualified
mechanic.
Your vehicle has halogen headlight
bulbs, two on each side. When
replacing a bulb, handle it by its base
and protect the glass from contact
with your skin or hard objects. If you
touch the glass, clean it with
denaturedalcoholandacleancloth.
Open the hood.1.
Hood Latch, Lights
Maintenance
Hood Latch Replacing a Headlight BulbHeadlight Aiming
214
NOTICE:
LATCH ASSEMBLY
Halogen headlight bulbs get
very hot when lit. Oil, perspiration, or a
scratch on the glass can cause the bulb
to overheat and shatter.
Main Menu
Table of Contents
Push the electrical connector onto
the new bulb.
Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
Turn on the headlights to test the
new bulb.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
To remove a bulb, pull it straight
out of its socket.
Remove the electrical connector
from the bulb by squeezing the
connector to unlock the tab, then
slide the connector off the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
1.
2.
4.
5.
6.
2.
3.
CONTINUED
Lights
Maintenance
Replacing Front Turn Signal/
Parking and Side Marker Light
Bulbs
215
TAB
BULB
CONNECTOR
Main Menu
Table of Contents
Install the new bulb into the
socket.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Open the tailgate. Use a
screwdriver protected with a cloth
to pry open the two covers.
Remove the two screws and
remove the rear light assembly
from the rear pillar.
Determine which of the four bulbs
is burned out: brake/taillight, turn
signal/hazard lights, side marker
light, or back-up light.
Remove the socket by turning it
one-quarter turn counterclockwise.
Remove the burned-out bulb by
pulling it straight out of the socket.
1.
2.
3.
4.
5.
3.
4.
5.
Replacing Rear Bulbs
Lights
Maintenance
216
Main Menu
Table of Contents
Install the new bulb into the
socket.
Push the socket into the light
assembly and turn it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
Install the rear light assembly in
the body. Tighten the two screws.
Snap the covers back into position.
Remove the light assembly cover
by prying carefully with a cloth-
covered screwdriver in the
notches along the top edge. Then
pivot the cover out and down.
Remove the socket from the light
assembly by turning it one-quarter
turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Testthelightstomakesurethe
new bulb is working.
Put the socket back into the light
assembly and turn it clockwise to
lock it in place.
Place the cover back into the light
assembly. Push it up until it locks
in place.
1.
4.
5.
6.
2.
3.6.
7.
8.
9.
Lights
Maintenance
Replacing a High-mount Brake
Light Bulb
217
Main Menu
Table of Contents
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry before
you use the vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s floor mat that came
with your vehicle hooks over the
floor mat anchor. This keeps the
floor mat from sliding forward and
possibly interfering with the pedals.
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
If you use a non-Acura floor mat,
make sure it fits properly and that it
canbeusedwiththefloormat
anchor. Do not put additional floor
mats on top of the anchored mat.
Maintenance
Seat Belts Floor Mats
Seat Belts, Floor Mats
218
LOOP
Main Menu
Table of Contents
Check the condition of the wiper
blades at least every six months.
Replace them if you find signs of
cracking in the rubber, and areas
that are getting hard, or if they leave
streaks and unwiped areas when
used.
To replace a wiper blade:
Raise the wiper arm off the
windshield.
Windshield: Raise the driver’s side
first, then the passenger’s side.
Front only:
Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
2.
1.
CONTINUED
Wiper Blades
Maintenance
219
WIPER ARMS
LOCK TAB
Main Menu
Table of Contents
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Slide the new wiper blade into the
holder until the tabs lock.
Front only:
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Windshield: Lower the passenger’s
side first, then the driver’s side.
Lower the wiper arm down against
the window.
6.
7.
4.
5.
3.
Wiper Blades
Maintenance
220
BLADE
BLADE
REINFORCEMENT
Main Menu
Table of Contents
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to fail
from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,aremore
prone to damage from road hazards,
and wear unevenly.
Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf/cm ) per month.
Remember to check the spare tire at
thesametime.
Add or release air, if needed, to
match the recommended cold tire
pressures on page .
The Tire Pressure Monitoring
System (TPMS) will warn you when
a tire pressure is low. See page
for information on the TPMS.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
Check the pressure in the tires when
they are cold. This means the vehicle
has been parked for at least three
hours, or driven less than 1 mile (1.6
km).
177
222
CONTINUED
Tires
Maintenance
Inflation
221
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
If you check the pressure when the
tires are hot [driven for several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf/cm ) higher than the cold
reading. This is normal; do not
release air to match the cold
pressure.
Tubeless tires have some ability to
self-seal if they are punctured. You
should look closely for punctures if a
tire starts losing pressure.
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
Thecompactsparetirepressureis:
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional technical information
about your tires, see page .
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherortheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
Tire pressure for high speed driving
is the same as for normal driving.
256
Tire Size Cold Tire Pressure
for Normal Driving
Tires
Maintenance
Inspection
222
60 psi (420 kPa , 4.2 kgf/cm )
P235/65R17 103T 32 psi (220 kPa , 2.2
kgf/cm
)
Main Menu
Table of Contents
Your vehicle’s tires have wear
indicators molded into the tread.
When the tread wears down to that
point, you will see a 1/2 inch (12.7
mm) wide band running across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread left on
the tire. A tire that is this worn gives
very little traction on wet roads. You
should replace the tire if you can see
the tread wear indicator in three or
more places around the tire.
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
To help increase tire life and
distribute wear more evenly, rotate
the tires every 7,500 miles (12,000
km). Move the tires to the positions
showninthecharteachtimethey
are rotated. If you purchase
directional tires, rotate only front-to-
back.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
Tires
Maintenance
Tire Maintenance Tire Rotation
223
NOTICE:
Front
(For Non-directional
Tires and Wheels)
Front
(For Directional
Tires and Wheels)
TREAD WEAR INDICATORS
INDICATOR LOCATION MARKS
Improper wheel weights can
damage your vehicle’s aluminum
wheels. Use only genuine Acura wheel
weights for balancing.
Main Menu
Table of Contents
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specifications
match those of the original wheels.
Tires:
Wheel:
See page for DOT tire quality
grading information, and page
for tire size explanation.
Replacement wheels are available at
your Acura dealer.
Replace your tires with radial tires of
the same size, load range, speed
rating and maximum cold tire
pressure rating (as shown on the
tire’s side wall).
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the vehicle. Tire size
and construction can affect wheel
speed and may cause the system to
work.
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a different
size or construction can cause the
ABS to work inconsistently.
256
258
Tires
Maintenance
Replacing Tires
Wheel and Tire Specifications
224
17x61/2JJ
P235/65R17 103T
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
＋Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
Because your vehicle has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners on the rear
tires. Use traction devices only when
required by driving conditions or
local laws. Make sure they are the
correct size for your tires. Metal link-
type ‘‘chains’’ should not be used.
Winter Driving
Snow Tires
Tire Chains
Tires
Maintenance
225
NOTICE: Traction devices that are the
wrong size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
Main Menu
Table of Contents
−
Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
further corrosion.
If additional battery maintenance is
needed, see your Acura dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Checking the Battery
Maintenance
WARNING:
Wash your hands after handling.
226
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
Main Menu
Table of Contents
If you need to park your vehicle for
an extended period (more than one
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the fuel tank.
Change the engine oil and filter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Leave the parking brake off. Put
the transmission in Park.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the front and rear wiper
blade arms with a folded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and tailgate seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If possible, periodically run the
engine until it reaches full
operating temperature (the
cooling fans cycle on and off
twice). Preferably, do this once a
month.
If you store your vehicle for 12
months or longer, have your Acura
dealer perform the inspections called
for in the 24 months/30,000 miles
(48,000 km) maintenance schedule
(Normal Conditions) as soon as you
take it out of storage (see page ).
The replacements called for in the
maintenance schedule are not
needed unless the vehicle has
actually reached that time or mileage.
199
Vehicle Storage
Maintenance
227
Main Menu
Table of Contents
228
Main Menu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 230
....................Changing a Flat Tire . 231
..........If Your Engine Won’t Start . 237
................................Jump Starting . 238
............If Your Engine Overheats . 240
.........Low Oil Pressure Indicator . 242
..........Charging System Indicator . 242
.......Malfunction Indicator Lamp . 243
...............Brake System Indicator . 244
......................Emergency Towing . 244
..............................................Fuses . 245
..............................Fuse Locations . 248
Taking Care of the Unexpected
Taking Care of the Unexpected
229
Main Menu
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced
and put it back on your vehicle as
soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Follow these precautions:
Never exceed 50 mph (80 km/h)
under any circumstances.
This tire gives a harsher ride and
less traction on some road sur-
faces. Use greater caution while
driving.
Do not mount snow chains on a
compact spare.
Do not use the compact spare tire
if you are towing a trailer.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
Compact Spare Tire
Taking Care of the Unexpected
230
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.
2.1.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
231
JACK
TOOLS
SPARE TIRE
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Main Menu
Table of Contents
Open the tailgate.
Thetoolsandjackarebehinda
cover in the cargo area on the
driver’s side. Remove the cover by
pushing the top of the cover.
Take the tools out of the storage
compartment.
The spare tire is stored
underneath the rear cargo area.
Remove the plastic cover on the
cargo area lining to access the
shaft for the spare tire hoist.
Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack.
3.
4.
5.
6.
7.
Changing a Flat Tire
Taking Care of the Unexpected
232
COVER
COVER
Main Menu
Table of Contents
Put the wheel nut wrench on the
hoist shaft. Turn the wrench
counterclockwise to lower the
spare tire to the ground.
Keep turning the wheel wrench to
create slack in the cable.
Remove the bracket from the
spare tire.
Loosen each wheel nut 1/2 turn
with the wheel wrench.
11.
10.
8. 9.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
233
SPARETIREWRENCH
BRACKET
Main Menu
Table of Contents
△
Place the jack under the jacking
point nearest the tire you need to
change. It is pointed to by a
mark molded into the underside of
the body. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Use the extension and wheel
wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Remove the wheel nuts, then
remove the flat tire.
Before mounting the spare tire,
wipe any dirt off the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
12. 13.
14.
15.
Changing a Flat Tire
Taking Care of the Unexpected
234
JACKING POINT
WHEEL WRENCH
EXTENSION
BRAKE HUB
Main Menu
Table of Contents
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
Remove the center cap from the
flat tire.
Place the flat tire face up under
the hoist.
Insert the hoist bracket into the
center hole of the flat tire.
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
Lower the vehicle to the ground
and remove the jack.
20.
21.
18.
19.
17.
16.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
235
80 lbf·ft (108 N·m , 11 kgf·m)
Main Menu
Table of Contents
Store the jack in its holder. Turn
the jack’s end bracket to lock it in
place. Store the tools, and install
the cover.
Slowly turn the wheel wrench
clockwisetotake uptheslackof
the hoist cable. Make sure the
bracketisseatedinthecenter
hole of the spare tire.
Turn the wheel wrench clockwise
until the flat tire rests against the
underbody of the vehicle and you
hear the hoist click.
24.
22.
23.
Changing a Flat Tire
Taking Care of the Unexpected
236
NOTICE:
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
Always raise the spare tire
hoist, even if you are not stowing a tire.
If the hoist is lef t down, it will be
damaged during driving and need to be
replaced.
Main Menu
Table of Contents
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
key to START (III):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check these things:
Check the transmission interlock.
The transmission must be in Park
orNeutralorthestarterwillnot
operate.
Turn the ignition switch to ON (II).
Turn on the headlights, and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See
on page .
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the fuses. If
thefusesareOK,thereis
probably something wrong with
the electrical circuit for the
ignition switch or starter motor.
You will need a qualified
technician to determine the
problem (see
on page ).
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the vehicle
from a booster battery (see page
).
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the dash panel to blink
rapidly(seepage ).
238
244
226
238
78
CONTINUED
If Your Engine Won’t Start
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency Towing
The Starter Operates Normally
Taking Care of the Unexpected
237
Main Menu
Table of Contents
＋
＋
Are you using the proper starting
procedure? Refer to
on page .
Do you have fuel? Check the fuel
gauge; the warning indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
Although this seems like a simple
procedure, you should take several
precautions.
To jump start your vehicle:
You cannot start your Acura by
pushing or pulling it.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or like ice, do not try
jump starting until it thaws.
Turn off all the electrical acces-
sories: heater, A/C, climate
control, audio system, lights, etc.
Put the transmission in Neutral or
Park, and set the parking brake.
Connect one jumper cable to the
positive ( ) terminal on your
Acura’s battery. Connect the other
end to the positive ( ) terminal
on the booster battery.
1.
2.
3.
171
246
244
Starting the
Engine
Emergency
Towing
Jump Starting
Taking Care of the Unexpected
If the Engine Won’t Start, Jump Starting
238
NOTICE:
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme
cold, the electrolyte inside can f reeze.
Attempting to jump start with a frozen
battery can cause it to rupture.
Main Menu
Table of Contents
−
The numbers in the illustration show
you the order to connect the jumper
cables.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Start your vehicle. If the starter
motor still operates slowly, check
that the jumper cables make sure
they have good metal-to-metal
contact.
Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from your vehicle,
then from the booster battery.
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.5.
7.
4.
6.
Jump Starting
Taking Care of the Unexpected
239
BOOSTER BATTERY
Main Menu
Table of Contents
Safely pull to the side of the road.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off all accessories, and turn
on the hazard warning indicators.
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
The pointer of your vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason.
If the vehicle overheats, you should
take immediate action. The only
indication may be the temperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming from under the hood.
1.
2.
3.
Taking Care of the Unexpected
If Your Engine Overheats
If Your Engine Overheats
240
NOTICE:
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature
gauge pointer at the red mark can
cause serious damage to your engine.
Main Menu
Table of Contents
If the temperature gauge stays at
the red mark, turn off the engine.
Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
Start the engine and set the
temperature control dial to
maximum (climate control to
FULL AUTO at 90°F/32°C). Add
coolant to the radiator up to the
base of the filler neck. If you do
not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
refilled with the proper mixture as
soon as you can.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If you don’t find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, before check-
ing the radiator.
Using gloves or large heavy cloth,
turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
4.
5.
6.
7.
8.
10.
11.
9.
244
244
If Your Engine Overheats
Taking Care of the Unexpected
Emergency
Towing
Emergency
Towing
241
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning indicators.
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine and watch the oil
pressure indicator. If it does not go
out within ten seconds, turn off
the engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
GotoanAcuradealeroraservice
station where you can get technical
assistance.
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible and you should
take immediate action.
1.
2.
3.
4.
161
205
244
Low Oil Pressure Indicator
Emergency Towing
Charging System Indicator
Taking Care of the Unexpected
Low Oil Pressure Indicator, Charging System Indicator
242
NOTICE: Running the engine with low
oil pressure can cause serious
mechanical damage almost immediately.
Turn of f the engine as soon as you can
saf ely get the vehicle stopped.
Main Menu
Table of Contents
If your vehicle battery has been
disconnected or gone dead, these
codes are erased. It takes at least
three days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition to ON (II), without starting
the engine. The Malfunction
Indicator Lamp will come on for 20
seconds. If it then goes off, the
readiness codes are set. If it blinks 5
times, the readiness codes are not
set. If possible, do not take your
vehicle for a state emissions test
until the readiness codes are set.
Refer to State Emissions Testing for
more information (see page ).
If this indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle’s performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.
If you have recently refueled your
vehicle, the indicator could come on
because of a loose or missing fuel fill
cap. Tighten the cap until it clicks at
least three times. Tightening the cap
will not turn the indicator turn off
immediately; it takes at least three
days of normal driving.
If the indicator comes on repeatedly,
even though it may turn off as you
continue driving, have the vehicle
checked by the dealer as soon as
possible.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
262
Malfunction Indicator Lamp
Taking Care of the Unexpected
Malfunction Indicator Lamp
Readiness Code
243
NOTICE: If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emission
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
Main Menu
Table of Contents
The brake system indicator
normally comes on when
you turn the ignition switch
to ON (II), and as a
reminder to check the
parking brake. It will stay
on if you do not fully
release the parking brake.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
If the fluid level is low, take the
vehicle to your dealer and have the
brake system inspected for leaks or
worn brake pads.
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inform
them a flat-bed is required.
Refer to
on page
for non-emergency towing
information.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed, and repaired as
soon as possible.
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
212
191
Brake System Indicator Emergency Towing
The only way you can safely tow
your vehicle is with flat-bed
equipment.
Towing Your Vehicle
Behind a Motorhome
Taking Care of the Unexpected
Brake System Indicator, Emergency Towing
244
NOTICE:
Canada
U.S.
Towing your vehicle with
two tires on the ground will damage
parts of the 4WD system. It should be
transported on a flat-bed truck or
trailer.
Main Menu
Table of Contents
To open the passenger’s side, pull
the right edge of the cover.
The primary under-hood fuse box is
locatedonthepassenger’sside.The
secondary fuse box is next to the
battery.
Theinteriorfuseboxesarelocated
under the dashboard on the driver’s
and passenger’s side.
The vehicle’s fuses are located in
five fuse boxes.
Fuses
Taking Care of the Unexpected
245
PASSENGER’S SIDE INTERIOR
UNDER-HOOD (SECONDARY)
DRIVER’S SIDE
INTERIOR
UNDER-HOOD (PRIMARY)
Main Menu
Table of Contents
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine from the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that device. The diagram for
theinteriordriver’ssidefuseboxis
on the kick panel below the fuse box.
Check those fuses first, but check all
the fuses before deciding that a
blown fuse is the cause. Replace any
blown fuses, and check if the device
works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover from the fuse
box.
Check each of the large fuses in
the primary under-hood fuse box
by looking through the top at the
wire inside. Removing these fuses
requires a Phillips-head
screwdriver.
Check the smaller fuses in the
under-hood fuse boxes and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided in the primary
under-hood fuse box.
4.3.
1.
2
148 149
Checking and Replacing Fuses
Fuses
Taking Care of the Unexpected
246
BLOWN
FUSE PULLER
Main Menu
Table of Contents
If the radio fuse is removed, the
audio system will disable itself. The
nexttimeyouturnontheradioyou
will see ‘‘ ’’ in the frequency
display. Use the preset buttons to
enter the five-digit code (see page
).
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit, and have your vehicle
checked by a qualified mechanic.
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
Look for a burned wire inside the
fuse. If it is burned, replace it with
oneofthesparefusesofthesame
rating or lower.
6.
5.
129
Fuses
Taking Care of the Unexpected
247
NOTICE:
BLOWN
Replacing a f use with one
that has a higher rating greatly
increases the chances of damaging the
electrical system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
Main Menu
Table of Contents
−
No. Amps. Circuits Protected No. Amps. Circuits Protected
No. Amps. Circuits Protected No. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
20 A
30 A
20 A
15 A
15 A
20 A
20 A
20 A
40 A
30 A
30 A
40 A
Spare Fuse
Spare Fuse
Right Headlight
ACG S
Hazard
Not used
Stop
Left Headlight
Radio
Power Window Motor
Rear A/C
Rear Defroster
Back Up, ACC
14
15
16
17
18
19
20
21
22
23
24
40 A
40 A
30 A
7.5 A
10 A
15 A
120 A
30 A
7.5 A
50 A
20 A
Power Seat
Heater Motor
Cooling Fan
Spare Fuse
Spare Fuse
Spare Fuse
Battery
Condenser Fan
MG Clutch
IGI Main
Fog Lights
1
2
3
4
5
20 A
40 A
30 A
20 A
20 A
Rear Entertainment System
VSA F/S Relay
VSA Motor
4WD
Rear Accessory Socket
6
7
8
9
10
15 A
15 A
15 A
7.5 A
20 A
ETC
IG Coil
LAF
FI-Back-up
P/W DR
Fuse Locations
Taking Care of the Unexpected
248
PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
＊
＊
−
＊
＊
Circuits ProtectedNo. Amps.
No. No. Circuits ProtectedAmps. Circuits Protected Amps.
Horn
Auto Wipers
1
2
3
7.5 A
7.5 A
7.5 A
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Moonroof
Driver’s Power Seat Sliding
Passenger’s Power Seat
Reclining
Daytime Running Light
Driver’s side Rear Power
Window
Front Passenger’s Power
Window
Front Accessory Socket
Small Light
Interior Light, TPMS
Power Door Lock
Back Up, Clock
Heated Seat
Driver’s Power Window
Passenger’s Side Rear
Power Window
15 A
10 A
7.5 A
7.5 A
10 A
15 A
7.5 A
7.5 A
10 A
7.5 A
15 A
30 A
Fuel Pump
SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Power Mirror
Daytime Running Light /
Rear Wiper
ECU(PCM),CruiseControl
OPDS
ACC Relay
Back-up Lights, Instrument
Lights, TPMS
Turn Signals
IG Coil
Front Wiper
Not Used
30 A
20 A
20 A
20 A
20 A
10 A
20 A
20 A
15 A
15 A
10 A
20 A
7.5 A
20 A
20 A
20 A
: Canadian models
Canadian models:
ELD Unit, Immobilizer Control
Unit, VSA Control Unit, Alternator
Driver’s Power Seat Reclining
Passenger’s Power Seat Sliding
Fuse Locations
Taking Care of the Unexpected
249
Driver’s Side
INTERIOR FUSE BOX
Passenger’s Side
Front
Front
Driver’s Side
Auxiliary
Main Menu
Table of Contents
250
Main Menu
Thediagramsinthissectiongive
you the dimensions and capacities of
your Acura, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 252
................................Specifications . 254
..........DOT Tire Quality Grading . 256
Uniform Tire Quality
..................................Grading . 256
.................................Treadwear . 256
......................................Traction . 256
.............................Temperature . 257
.................................Tire Labeling . 258
.......................Emissions Controls . 259
.....................The Clean Air Act . 259
Crankcase Emissions Control
....................................System . 259
Evaporative Emissions Control
....................................System . 259
Onboard Refueling Vapor
................................Recovery . 259
...Exhaust Emissions Controls . 260
....................PGM-FI System . 260
Ignition Timing Control
................................System . 260
Exhaust Gas Recirculation
...................(EGR) System . 260
Three Way Catalytic
...........................Converter . 260
....................Replacement Parts . 260
..Three Way Catalytic Converter . 261
..............State Emissions Testing . 262
Technical Information
Technical Information
251
Main Menu
Your vehicle has several identifying
numbers located in various places.
The Vehicle Identification Number
(VIN) is the 17-digit number your
Acura dealer uses to register your
vehicle for warranty purposes. It is
also necessary for licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certification label.
Identification Numbers
Technical Information
252
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
Main Menu
Table of Contents
The Engine Number is stamped into
the engine block. It is on the front.
The Transmission Number is on a
label on top of the transmission.
Identification Numbers
Technical Information
253
ENGINE NUMBER
AUTOMATIC TRANSMISSION NUMBER
Main Menu
Table of Contents
−−
＊
＊
＊
＊
＊ ＊
＊
＊
Specifications
Technical Information
254
Dimensions
Weights
Air Conditioning
Capacities
1.88 US gal (7.1 )
2.38 US gal (9.0 )
4.5 US qt (4.3 )
4.2 US qt (4.0 )
5.3 US qt (5.0 )
2.9 US qt (2.7 )
7.7 US qt (7.3
)
19.21 US gal (72.7
)
188.7 in (4,793 mm)
77.0 in (1,955 mm)
68.7 in (1,744 mm)
71.3 in (1,811 mm)
106.3 in (2,700 mm)
66.3 in (1,685 mm)
66.5 in (1,690 mm)
9,835 lbs (4,461 kg)
HFC-134a (R-134a)
24.7 26.5 oz (700 750 g)
ND-OIL8
2.9 US qt (2.7 )
3.0 US qt (2.8
)
0.45 US qt (0.43
)
0.48 US qt (0.45
)
0.16 US gal (0.6 )
4.8 US qt (4.5 )
Excluding the oil remaining in the engine.
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Equipped with transmission fluid cooler and power steering fluid
cooler.
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
See the tire information label atta-
ched to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Rear
differential
fluid
Transfer
assembly
fluid
Windshield
washer
reservoir
The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
Approx.
Front
Rear
1:
2:
Standard
Premium
1:
2:
Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
Change
Total
Change
Total
2 1
1
2
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
Specifications
Technical Information
255
Battery
Fuses
Engine
Alignment
Tires
Lights
60 W (HB3)12 V
10.0 : 1
211.8 cu-in (3,471 cm
)
3.50 x 3.66 in (89.0 x 93.0 mm)
12 V 55 W (H11)
3CP
12 V 28/8 W
12 V 51 W (HB4)
12 V 5 W
12 V 21 W
12 V 21 W/5 W
12 V 21 CP (18 W)
12 V 3 CP
12 V 21 W
12 V 5 W
12 V 5 W
5W
5W
1.1 W
3.8 W
12 V
12 V
12 V
12 V
12 V
12 V 20 AH/5 HRCapacity
Interior
Under-hood
Type
BorexStroke
Displacement
Compression ratio
Spark plugs IZFR5K-11
SKJ16DR-M11
Water cooled 4-stroke SOHC,
V6 gasoline engine
See page 249 or the fuse label
attached to the dashboard.
See page 249 or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 248 or the fuse box
cover.
Toe-in
Camber
Caster
Size
Pressure
0.00 in (0.0 mm)
0.00 in (0.0 mm)
0°50’
0°50’
1°53’
P235/65R17 103T
T155/90D16 110M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm )
Headlights
Front side marker lights
Front turn signal lights/
Parking lights
Fog light
Front foot lights
Rear turn signal/hazard lights
Brake/Taillights
Backup lights
License plate lights
High-mount brake light
Individual map lights
Cargo area light
Tailgate light
Vanity mirror light
Door light
Front/Rear
Spare
Front/Rear
Spare
Front
Rear
Front
Rear
Front
Front
Rear
Driver’s side
Passenger’s side
High
Low
NGK:
DENSO:
Main Menu
Table of Contents
−The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to these
grades.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
Technical Information
DOT Tire Quality Grading (U.S. Vehicles)
256
Main Menu
Table of Contents
−
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance, which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Safety
Standard No. 109. Grades B and A
represent higher levels of
performance on the laboratory test
wheel than the minimum required by
law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
failure.
DOT Tire Quality Grading (U.S. Vehicles)
Temperature A,B,C
Technical Information
257
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identification Number (TIN) is
a group of numbers and letters that
look like the following example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manufacturer’s
identification mark.
Tire type code.
Date of manufacture.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
P
225
55
R
94
V
16
DOT
B97R
FW6X
2202
Tire Labeling
Tire Size
Tire Identification Number
Technical Information
258
DOT B97R FW6X 2202
P225/55R16 94V
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to form photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.
In Canada, Acura vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a Positive
Crankcase Ventilation System. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The Positive Crank-
case Ventilation valve routes them
from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The Onboard Refueling Vapor
Recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
199
Emissions Controls
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Technical Information
259
Main Menu
Table of Contents
The exhaust emissions controls
include four systems: PGM-FI,
Ignition Timing Control, Exhaust
Gas Recirculation and Three Way
Catalytic Converter. These four
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
The PGM-FI System uses sequential
multiport fuel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Powertrain Control Module
(PCM) uses various sensors to
determine how much air is going
into the engine. It then controls how
much fuel to inject under all
operating conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The Exhaust Gas Recirculation
(EGR) system takes some of the
exhaust gas and routes it back into
the intake manifold. Adding exhaust
gas to the air/fuel mixture reduces
the amount of NOx produced when
the fuel is burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), dinitrogen
(N ), and water vapor.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The emissions control systems are
designed and certified to work
together in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Acura replacement parts or their
equivalent for repairs. Using lower
qualitypartsmayincreasethe
emissions from your vehicle.
2
2
Emissions Controls
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Ignition Timing Control System
Exhaust Gas Recirculation (EGR)
System
Three Way Catalytic Converter
Technical Information
260
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Acura part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other flamma-
bles.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
261
THREE WAY CATALYTIC CONVERTER
THREE WAY CATALYTIC CONVERTER
Main Menu
Table of Contents
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle re-tested within the
next two or three days, you can
condition the vehicle for re-testing
by doing the following.
Make sure the gas tank is nearly,
but not completely, full (around
3/4).
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
Keep the vehicle in Park. Increase
the engine speed to 2,000 rpm and
hold it there until the temperature
gauge rises to at least 1/4 of the
scale (approximately 3 minutes).
State Emissions Testing
Testing of Readiness Codes
Technical Information
262
Main Menu
Table of Contents
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D. Do not use the cruise control.
When traffic allows, drive for 90
seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this for a
continuous 90 seconds because of
traffic conditions, drive for at least
30 seconds, then repeat it two
more times (for a total of 90
seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your Acura dealer.
State Emissions Testing
Technical Information
263
Main Menu
Table of Contents
264
Main Menu
Acura dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
Service Manager or General
Manager can help. Almost all
problems are solved in this way.
U.S. Owners:
In Puerto Rico and the U.S. Virgin
Islands:
Vortex Motor Corp.
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel:(787) 250-4327
Canadian Owners:
When you call or write, please give
us this information:
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
If you are dissatisfied with the
decision made by the dealership’s
management, contact the Acura
Customer Service Office.
252
Customer Service Information
Warranty and Customer Relations
266
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÉLE
American Honda Motor Co., Inc.
Acura Client Services
Mail Stop 500-2N-7E
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel:1-888-9-ACURA-9
Fax:Toll-free 1-877-939-0909
Toronto (416) 287-4776
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new Acura is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems, and accessories, against
defects in materials and
workmanship.
these two
warranties cover your vehicle’s emis-
sions control systems. Time, mileage,
and coverage are conditional. Please
read the warranty manual for exact
information.
this warranty gives up
to 100 percent credit toward a
replacement battery.
a seat
belt that fails to function properly is
coveredfortheusefullifeofthe
vehicle.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Acura accessories are covered under
this warranty. Time and mileage
limits depend on the type of
accessory and other factors. Please
read your warranty manual for
details.
covers all Acura
replacement parts against defects in
materials and workmanship.
provides prorated
coverage for a replacement battery
purchased from an Acura dealer.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
Restrictions and exclusions apply to
all these warranties. Please read the
2004 Acura Warranty Information
booklet that came with your vehicle
for precise information on warranty
coverages. Your Acura’s original
tires are covered by their
manufacturer. Tire warranty
information is in a separate booklet.
Please refer to the 2004 Warranty
Manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Original Equipment Battery Limited
Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Replacement Battery Limited
Warranty
Replacement Muffler Lifetime
Limited Warranty
Warranty and Customer Relations
267
Main Menu
Table of Contents
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying Acura Automobile
Division, American Honda Motor Co.,
Inc.
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or Acura
Automobile Division, American
Honda Motor Co., Inc.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
Reporting Safety Defects (U.S. Vehicles)
Warranty and Customer Relations
268
Main Menu
Table of Contents
＊
＊
＊
−
＊
２
０
０
４
Ａ
Ｃ
Ｕ
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356
(credit card orders only)
Valid only for sales within the U.S. Canadian owners should
contact their authorized Acura dealer.
Authorized Manuals
Purchasing Factory Authorized Manuals (U.S. only)
269
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Form Description
2004 Acura MDX Service Manual
2001-04 Acura MDX
Electrical Troubleshooting Manual
2001-03 Acura MDX
Body Repair Manual
2004 Acura MDX Owner’s Manual
2004 Acura MDX
Navigation Manual
2004 Acura MDX Maintenance Journal
2004 Acura MDX Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
Publication
Form Number
61S3V04
61S3V04EL
61S3V30
31S3V630
31S3V830
31S3V910
31S3VQ10
ACU-R
Price
Each
$69.00
$47.00
$44.00
$37.00
$29.00
$12.00
$12.00
FREE
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Prices are subject to change without notice and without incurring
obligation.
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
www. helminc. com
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual complements the Service Manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
270
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
CONTINUED
...Accessories and Modifications . 163
ACCESSORY (Ignition Key
.......................................Position) . 79
............Accessory Power Sockets . 101
....................Additives, Engine Oil . 206
...............................Airbag (SRS) . 9, 22
..............Air Conditioning System . 104
.....................Rear A/C Control . 109
.........................................Usage . 105
.......................Air Outlets (Vents) . 106
.......................Air Pressure, Tires . 221
......................................Antifreeze . 208
Anti-lock Brakes (ABS)
....................Indicator Light . 59, 181
...................................Operation . 181
..............Anti-theft, Audio System . 129
.Anti-theft Steering Column Lock . 79
................Audio System . 110, 115, 125
...Automatic Seat Belt Tensioners . 20
.........................Automatic Lighting . 73
.............Automatic Speed Control . 144
..............Automatic Transmission . 172
..........................Capacity, Fluid . 254
...............Checking Fluid Level . 210
.......................................Shifting . 172
.Shift Lever Position Indicator . 172
................Shift Lever Positions . 172
....................Shift Lock Release . 175
...........................Automatic Wipers . 70
Battery
Charging System
...........................Indicator . 58, 242
............................Jump Starting . 238
..............................Maintenance . 226
............................Specifications . 255
..............................Before Driving . 157
....................................Belts,Seat .8,19
...........................Beverage Holders . 99
..................................Booster Seats . 48
Brakes
...........Anti-lock System (ABS) . 181
.............Break-in, New Linings . 158
...........................................Fluid . 212
....................Bulb Replacement . 216
.........................................Parking . 92
.................System Indicator . 59, 244
........................Wear Indicators . 180
.............................Braking System . 180
.................Break-in, New Vehicle . 158
..Brightness Control, Instruments . 74
........................Brights, Headlights . 72
Bulb Replacement
..........................Back-up Lights . 216
..............................Brake Lights . 216
................Front Parking Lights . 215
........Front Side Marker Lights . 215
.................................Headlights . 214
.........High-mount Brake Light . 217
.................................Rear Bulbs . 216
............................Specifications . 255
....................Turn Signal Lights . 215
..............................Bulbs, Halogen . 214
Index
A
B
I
Main Menu
＊
................DANGER, Explanation of . ii
...................................Dashboard . 2, 56
................Daytime Running Lights . 74
.................................Dead Battery . 238
............Defects, Reporting Safety . 268
................Defogger, Rear Window . 75
..............Defrosting the Windows . 107
..........................Differential Fluid . 211
....................................Dimensions . 254
...............Dimming the Headlights . 72
Dipstick
..........Automatic Transmission . 210
..................................Engine Oil . 161
..........................Directional Signals . 72
........Disc Brake Wear Indicators . 180
.....................Disposal of Used Oil . 207
Doors
..............Locking and Unlocking . 80
....................Lockout Prevention . 80
......................Power Door Locks . 80
................................Cancel Button . 144
............................Capacities Chart . 254
.............Carbon Monoxide Hazard . 51
.............................Carrying Cargo . 165
Cassette Player
............................................Care . 127
...................................Operation . 125
..............CAUTION, Explanation of . ii
.........................................CD Care . 119
..........................CD Changer . 116, 117
.....CD Changer Error Messages . 122
.......................................CD Player . 116
.........CD Player Error Messages . 120
........................Certification Label . 252
...................................Chains, . 225
Change Oil
........................................How to . 206
......................................When to . 197
....................Changing a Flat Tire . 231
...Charging System Indicator . 58, 242
............Checklist, Before Driving . 170
..................Childproof Door Locks . 80
.....................................Child Safety . 33
..............................Booster Seats . 48
.............................Child Seats . 40, 41
.....Important Safety Reminders . 36
..........................................Infants . 38
..........................Larger Children . 47
.........................................LATCH . 42
......................Risks with Airbags . 34
.............................Small Children . 39
..........................................Tether . 45
.........Where Should a Child Sit? . 34
.......................................Child Seats . 40
..........Tether Anchorage Points . 45
...............Climate Control System . 104
..............................................Clock . 130
.....................Code, Audio System . 129
........................CO in the Exhaust . 259
......................Compact Spare Tire . 230
...............Consumer Information . 266
.............Controls, Instruments and . 55
Coolant
........................................Adding . 208
....................................Checking . 162
.........................Proper Solution . 208
...................Temperature Gauge . 67
Crankcase Emissions Control
........................................System . 259
................Cruise Control Indicator . 61
............Cruise Control Operation . 144
.....................................Cup Holders . 99
..........Customer Relations Office . 266
tires
Index
C
D
II
Main Menu
CONTINUED
...................................Fan, Interior . 105
Features, Comfort and
..............................Convenience . 103
....................Filling the Fuel Tank . 159
Filters
...............................................Oil . 206
.............Flashers, Hazard Warning . 74
...................Flat Tire, Changing a . 231
Fluids
..........Automatic Transmission . 210
..........................................Brake . 212
......................Differential Fluid . 211
..........................Power Steering . 213
...................Transfer Assembly . 211
..................Windshield Washer . 209
FM Stereo Radio
...................................Reception . 113
........................................Fog Lights . 75
................Folding the Second Seat . 87
...................Folding the Third Seat . 88
..........................Four-way Flashers . 74
........................................Front Seat . 84
......................................Adjusting . 84
.........................................Airbags . 23
.........................................Heaters . 89
..........DOT Tire Quality Grading . 256
...........Driver and Passenger Safety . 5
...........................................Driving . 169
....................................Economy . 162
Driving Position Memory
..........................................System . 94
..................DVD Error Messages . 140
...................................DVD Player . 133
..............................Economy, Fuel . 162
..................................Emergencies . 229
.............Battery, Jump Starting . 238
...........Brake System Indicator . 244
................Changing a Flat Tire . 231
.....Charging System Indicator . 242
..................Checking the Fuses . 246
.........Hazard Warning Flashers . 74
.....Low Oil Pressure Indicator . 242
...Malfunction Indicator Lamp . 243
..................Overheated Engine . 240
.......................................Towing . 244
...........................Emergency Brake . 92
......................Emergency Flashers . 74
......................Emergency Towing . 244
.......................Emissions Controls . 259
Engine
....Coolant Temperature Gauge . 67
Malfunction Indicator
................................Lamp . 58, 243
........Oil Pressure Indicator . 58, 242
..............Oil, What Kind to Use . 205
...............................Overheating . 240
............................Specifications . 255
............................Speed Limiter . 174
.......................................Starting . 171
...................Engine, . 237
.Evaporative Emissions Controls . 259
...............................Exhaust Fumes . 51
Exhaust Gas Recirculation
........................................System . 260
Expectant Mothers, Use of Seat
........................................Belts by . 17
if it won’t start
Index
E
F
III
Main Menu
.................................................Fuel . 158
......................Fill Door and Cap . 159
...........................................Gauge . 66
................Octane Requirement . 158
...............................Oxygenated . 158
........................Reserve Indicator . 61
........................Tank, Filling the . 159
.....................Fuses, Checking the . 246
.............Halogen Headlight Bulbs . 214
..............Hazard Warning Flashers . 74
........................................Headlights . 72
........................................Aiming . 214
....................Automatic Lighting . 73
............Daytime Running Lights . 74
..................High Beam Indicator . 61
...........High Beams, Turning on . 72
............Low Beams, Turning on . 72
.........................Reminder Chime . 72
........Replacing Halogen Bulbs . 214
...................................Turning on . 72
...................................Headphones . 141
..............................Head Restraints . 86
.................................Heated Mirror . 93
.................................Heaters, Seats . 89
.....................Heating and Cooling . 104
.................High-Low Beam Switch . 72
HomeLink Universal
................................Transceiver . 153
....................................Hood Latch . 214
.......................Hood, Opening the . 160
..................................................Horn . 68
...............Gas Mileage, Improving . 162
.........................................Gasoline . 158
...............Fuel Reserve Indicator . 61
...........................................Gauge . 66
................Octane Requirement . 158
........................Tank, Filling the . 159
................Gas Station Procedures . 159
Gauges
...Engine Coolant Temperature . 67
...............................................Fuel . 66
...............................Speedometer . 66
.................................Tachometer . 66
GAWR (Gross Axle Weight
.......................................Rating) . 185
GCWR (Gross Combined Weight
.......................................Rating) . 185
............Gearshift Lever Positions . 172
........................................Glove Box . 99
GVWR (Gross Vehicle Weight
.......................................Rating) . 185
...Identification Number, Vehicle . 252
Ignition
..............................................Keys . 77
...........................................Switch . 79
............Timing Control System . 260
........................Immobilizer System . 78
.........Important Safety Precautions . 6
.........Indicators, Instrument Panel . 58
...............ABS (Anti-lock Brake) . 59
....................................A/T Temp . 62
Brake (Parking and Brake
....................................System) . 59
.................................Brake Lamp . 60
........................Charging System . 58
.............................Cruise Control . 61
DRL (Daytime Running
......................................Lights) . 61
Index
G
HI
IV
Main Menu
CONTINUED
...................................High Beam . 61
........Key (Immobilizer System) . 59
.....................................Lights On . 62
......................................Low Fuel . 61
........................Low Oil Pressure . 58
......................Low Tire Pressure . 64
...............Maintenance Required . 65
...........................Side Airbag Off . 58
.......................................Seat Belt . 58
...............................................SRS . 58
...............Tire Pressure Monitor . 64
.............................TPMS System . 64
Turn Signal and Hazard
...................................Warning . 60
............................VSA Activation . 63
.................................VSA System . 63
..........................................VTM-4 . 62
..............................Washer Level . 61
....................Individual Map Lights . 97
...............................Infant Restraint . 38
......................................Infant Seats . 38
...................Inflation, Proper Tire . 221
...................................Inside Mirror . 92
.............................Inspection, Tire . 222
........................Instrument Panel . 2, 57
........Instrument Panel Brightness . 74
.................................Interior Lights . 96
........................................Introduction . i
.................Jacking up the Vehicle . 234
.......................................Jack, Tire . 231
................................Jump Starting . 238
..................................................Keys . 77
..................................Maintenance . 195
Owner’s Maintenance
...................................Checks . 198
.................................Record . 201-203
......................Required Indicator . 65
..........................................Safety . 196
.............................Schedule . 197-200
.Malfunction Indicator Lamp . 58, 243
..............Manual Seat Adjustments . 85
.......................Label, Certification . 252
.................Lane Change, Signaling . 72
..................Lap/Shoulder Belts . 14, 19
......................Light Control Switch . 96
Lights
....................Bulb Replacement . 214
.......................................Indicator . 58
.........................................Interior . 96
.........................................Parking . 72
..................................Turn Signal . 72
.............................Load Limit . 166, 185
......LOCK (Ignition Key Position) . 79
Locks
.......Anti-theft Steering Column . 79
............................Fuel Fill Door . 159
....................................Glove Box . 99
....................Lockout Prevention . 80
.................................Power Door . 80
........................Low Coolant Level . 162
.........................Low Fuel Indicator . 61
...Low Oil Pressure Indicator . 58, 242
...Lubricant Specifications Chart . 254
...............Luggage, . 165
storing (cargo)
Index
J
L
K
M
V
Main Menu
.............Memory, Driving Position . 94
...............................Meters, Gauges . 66
..........................Mirrors, Adjusting . 92
...............Modifying Your Vehicle . 164
.........................................Moonroof . 91
...................Neutral Gear Position . 173
..................New Vehicle Break-in . 158
...................NOTICE, Explanation of . i
...............Numbers, Identification . 252
...Octane Requirement, Gasoline . 158
.........................................Odometer . 66
...............................Odometer, Trip . 67
....................Off-Highway Driving . 192
...................Off-Road Precautions . 192
Oil
........................Change, How to . 206
......................Change, When to . 199
......................Checking Engine . 161
..............Pressure Indicator . 58, 242
Selecting Proper Viscosity
......................................Chart . 205
...........ON (Ignition Key Position) . 79
..............................Outside Mirrors . 92
....................Overheating, Engine . 240
....Owner’s Maintenance Checks . 198
.........................Oxygenated Fuels . 158
..............Panel Brightness Control . 74
........................Park Gear Position . 173
...........................................Parking . 179
.................................Parking Brake . 92
.................................Parking Lights . 72
..Parking Over Things that Burn . 261
.............................PGM-FI System . 260
................Power Seat Adjustments . 84
...............Power Socket Locations . 101
.........Pregnancy, Using Seat Belts . 17
.........Protecting Adults and Teens . 11
...Additional Safety Precautions . 17
.....Advice for Pregnant Women . 17
........................Protecting Children . 33
.....................General Guidelines . 33
.......................Protecting Infants . 38
.......Protecting Larger Children . 47
.........Protecting Small Children . 39
Using Child Seats with
.....................................Tethers . 45
.............................Using LATCH . 42
...................Radiator Overheating . 240
Radio/CD/Cassette Sound
.......................System . 110, 115, 125
...............................Rear A/C Unit . 109
............Rear Audio Control Panel . 135
........Rear Entertainment System . 131
..Rear Lights, Bulb Replacement . 216
............................Rear View Mirror . 92
.................Rear Window Defogger . 75
.Rear Window Wiper and Washer . 71
.........Reclining the Seat Backs . 84, 85
...........Reclining the Second Seats . 87
................Reclining the Third Seat . 88
.............................Reminder Lights . 58
................Remote Audio Controls . 128
.................Remote Control (RES) . 137
.......................Remote Transmitter . 81
Index
N
O
P
R
VI
Main Menu
＊
＊
CONTINUED
Replacement Information
................Engine Oil and Filter . 206
..........................................Fuses . 246
................................Light Bulbs . 214
....................................Schedule . 197
................................Timing Belt . 213
...........................................Tires . 221
.............................Wiper Blades . 219
Replacing Seat Belts After a
............................................Crash . 21
...Reserve Tank, Engine Coolant . 162
..................Reverse Gear Position . 173
................................Rotation, Tire . 223
..................................Safety Belts . 8, 19
.........Safety Defects, Reporting . 268
.................................Safety Features . 7
...........................................Airbags . 9
..................................Door Locks . 11
..........................Head Restraints . 13
.................................Seat Belts . 8, 14
...............Seats & Seat-Backs . 11, 12
.............Safety Labels, Location of . 52
...............................Safety Messages . ii
.....................................Seat Belts . 8, 19
...............Additional Information . 19
Automatic Seat Belt
...............................Tensioners . 20
.....................................Cleaning . 218
......................Lap/Shoulder Belt . 19
................................Maintenance . 21
Reminder Light and
................................Beeper . 19, 58
...................System Components . 19
...............Use During Pregnancy . 17
...Wearing a Lap/Shoulder Belt . 14
.................................................Seats . 84
.........Adjusting the Second Seat . 87
...........Adjusting the Third Seat . 88
............Folding the Second Seat . 87
...............Folding the Third Seat . 88
..........................Head Restraints . 86
.......................Third Row Access . 87
...............................Serial Number . 252
...........................Service Intervals . 199
...........................Service Manual . 269
.........Service Station Procedures . 159
Shifting the Automatic
.............................Transmission . 172
.....Shift Lever Position Indicator . 172
........................Shift Lock Release . 175
....................................Side Airbags . 27
......................Side Curtain Airbags . 28
Side Marker Lights, Bulb
.........................Replacement in . 215
...............................Signaling Turns . 72
.....................................Snow Tires . 225
................Sound System . 110, 115, 125
Spare Tire
..............................Inflating . 222, 230
............................Specifications . 255
....................Specifications Charts . 254
................................Speed Control . 144
...................................Speedometer . 66
..........SRS, Additional Information . 22
...Additional Safety Precautions . 32
......Airbag System Components . 22
.............................Airbag Service . 31
..How the SRS Indicator Works . 28
How Your Front Airbags
.........................................Work . 23
...How Your Side Airbags Work . 27
How Your Side Curtain Airbags
.........................................Work . 28
Index
S
VII
Main Menu
.............................SRS Indicator . 28, 58
....START (Ignition Key Position) . 79
.......................Starting the Engine . 171
................With a Dead Battery . 238
........Steam Coming from Engine . 240
Steering Wheel
..................................Adjustment . 76
.............Anti-theft Column Lock . 79
...Stereo Sound System . 110, 115, 125
....................Storing Your Vehicle . 227
........................................Sun Visor . 100
Supplemental Restraint System
......................................Servicing . 31
.........................SRS Indicator . 28, 58
...................System Components . 22
..................................Synthetic Oil . 206
.....................................Tachometer . 66
......Taillights, Changing Bulbs in . 216
.Taking Care of the Unexpected . 229
....................................Tape Player . 125
Technical Descriptions
......DOT Tire Quality Grading . 256
.....Emissions Control Systems . 259
Three Way Catalytic
...............................Converter . 261
.......................Temperature Gauge . 67
...................Tensioners, Seat Belts . 20
............................Theft Protection . 129
..Three Way Catalytic Converter . 261
....................................Timing Belt . 213
....................................Tire Chains . 225
.........Tire, How to Change a Flat . 231
.................................Tire Labeling . 258
Tire Pressure Monitoring
....................System (TPMS) . 178
Low Tire Pressure
...........................Indicator . 64, 177
.......Tire Pressure Monitor . 64, 178
..................TPMS Indicator . 64, 178
...............................................Tires . 221
..............................Air Pressure . 221
.........................Checking Wear . 222
..........................Compact Spare . 230
......DOT Tire Quality Grading . 256
......................................Inflation . 221
..................................Inspection . 222
..............................Maintenance . 223
...................................Replacing . 224
......................................Rotating . 223
...........................................Snow . 225
............................Specifications . 255
................................Tire Chains . 225
Towing
.....................................A Trailer . 188
................Emergency Wrecker . 244
....Equipment and Accessories . 188
.............................Weight Limit . 185
Your Vehicle Behind a
............................Motorhome . 190
.........................Trailer Loading . 185
.................Trailer Towing Tips . 189
.............Transfer Assembly Fluid . 211
Transmission
...............Checking Fluid Level . 210
...........................Fluid Selection . 210
..............Identification Number . 252
.............Shifting the Automatic . 172
.....................................Treadwear . 256
.......................................Trip Meter . 67
....................................Turn Signals . 72
...................Tools, Tire Changing . 231
Index
T
VIII
Main Menu
＊
＊
Unexpected, Taking Care
..........................................of the . 229
....Uniform Tire Quality Grading . 256
........................Unleaded Gasoline . 158
.......Used Oil, How to Dispose of . 207
................................Vanity Mirror . 100
.................Vehicle Capacity Load . 166
......................Vehicle Dimensions . 254
....Vehicle Identification Number . 252
Vehicle Stability Assist (VSA)
....................................System . 183
........VSA System Indicator . 63, 183
...VSA Activation Indicator . 63, 183
.........................VSA Off Switch . 184
.............................Vehicle Storage . 227
.....................................Ventilation . 106
.................................................VIN . 252
..................................Viscosity, Oil . 205
..................................VTM-4 Lock . 176
.............WARNING, Explanation of . ii
........Warning Labels, Location off . 52
..................Warranty Coverages . 267
Washer, Windshield
........Checking the Fluid Level . 209
............................Level Indicator . 61
.....................................Operation . 69
Wheels
...............Adjusting the Steering . 76
......................................Wrench . 233
Windows
..................Operating the Power . 90
...........................Rear, Defogger . 75
Windshield
...................................Defroster . 107
.......................................Washers . 69
Wipers, Windshield
.......................Changing Blades . 219
.....................................Operation . 69
Rear Windshield Wiper and
.....................................Washer . 71
....................................Worn Tires . 222
.....Wrecker, Emergency Towing . 244
: U.S. and Canada only
Index
W
V
U
IX
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Recommended Engine Oil:
Automatic Transmission Fluid:
Power Steering Fluid:
Brake Fluid:
Tire Pressure (measured cold):
Rear Differential Fluid:
Transfer Assembly Fluid:
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
4.5 US qt (4.3
)
Front/Rear:
Compact Spare Tire:
Premium unleaded gasoline,
pump octane number of 91 or
higher.
API Premium grade 5W-20
detergent oil (see page ).
Oil change capacity (including
filter):
Honda ATF-Z1 (Automatic
Transmission Fluid) preferred, or
aDEXRON
III ATF as a
temporary replacement (see page
).
Honda Power Steering Fluid
preferred, or another brand of
power steering fluid as a
temporary replacement. Do not
use ATF (see page ).
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Honda VTM-4 Differential Fluid
(see page ).
SAE 90 or SAE 80W-90 viscosity
hypoid gear oil, API service
classified GL4 or GL5 only (see
page ).
205
210
213
212
211
211
19.21 US gal (72.7 )
Main Menu
