2004 TL Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction..................................................................................................................................................... i
A Few Words About Safety ..........................................................................................................................ii
Your Vehicle at a Glance...............................................................................................................................2
Driver and Passenger Safety .......................................................................................................................5
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.
Instruments and Controls...........................................................................................................................49
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features.......................................................................................................
109
How to operate the climate control system, the audio system, and other convenience features.
Before Driving ...............................................................................................................................
..............163
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving...........................................................................................................................................................175
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance...............................................................................................................................
..................193
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Taking Care of the Unexpected...............................................................................................................229
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information...............................................................................................................................253
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)......................................................................
265
A summary of the warranties covering your new Honda, and how to contact us.
Authorized Manuals (U.S. only)...............................................................................................................269
How to order manuals and other technical literature.
Index .................................................................................................................................................................I
Service Information Summary
A summary
of information you need when you pull up to the fuel pump.
This Owner’s Manual should be considered
a permanent part of the vehicle, and should
remain with the vehicle when it is sold.
This Owner’s Manual covers all models of
theAcuraTL.Youmayfinddescriptionsof
equipment and features that are not on your
particular model.
The information and specifications included
in this publication were in effect at the time
of approval for printing. Honda Motor Co.,
Ltd. reserves the right, however, to
discontinue or change specifications or
design at any time without notice and
without incurring any obligation whatsoever.
Owner’s Identification
POUR CLIENTS CANADIEN
AVIS IMPORTANT: Si vous avez
besoin d’un Manuel du Conducteur
en français, veuillez demander à
votreconcessionnairede
commander le numéro de pièce
33SEPC00.
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
Congratulations! Your selection of a 2004 Acura TL was a wise investment. It
will give you years of driving pleasure.
One of the best ways to enhance the enjoyment of your new Acura is to read
this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new Acura. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your Acura dealer’s
staff is specially trained in servicing the many systems unique to your Acura.
Your Acura dealer is dedicated to your satisfaction and will be pleased to
answer any questions and concerns.
California Proposition 65 Warning
This product contains or emits chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
As you read this manual, you will
find information that is preceded by
a symbol. This
information is intended to help you
avoid damage to your Acura, other
property, or the environment.
Introduction
WARNING:
i
Main Menu
−
−
−
−
−
−
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
You will find this important safety information in a variety of forms,
including:
on the vehicle.
preceded by a safety alert symbol and one of
three signal words: , , or .
These signal words mean:
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
how to use this vehicle correctly and safely.
This entire book is filled with important safety information please read it
carefully.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
AFewWordsAboutSafety
Safety Labels
Safety Messages
Safety Headings
Safety Section
Instructions
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Main Menu

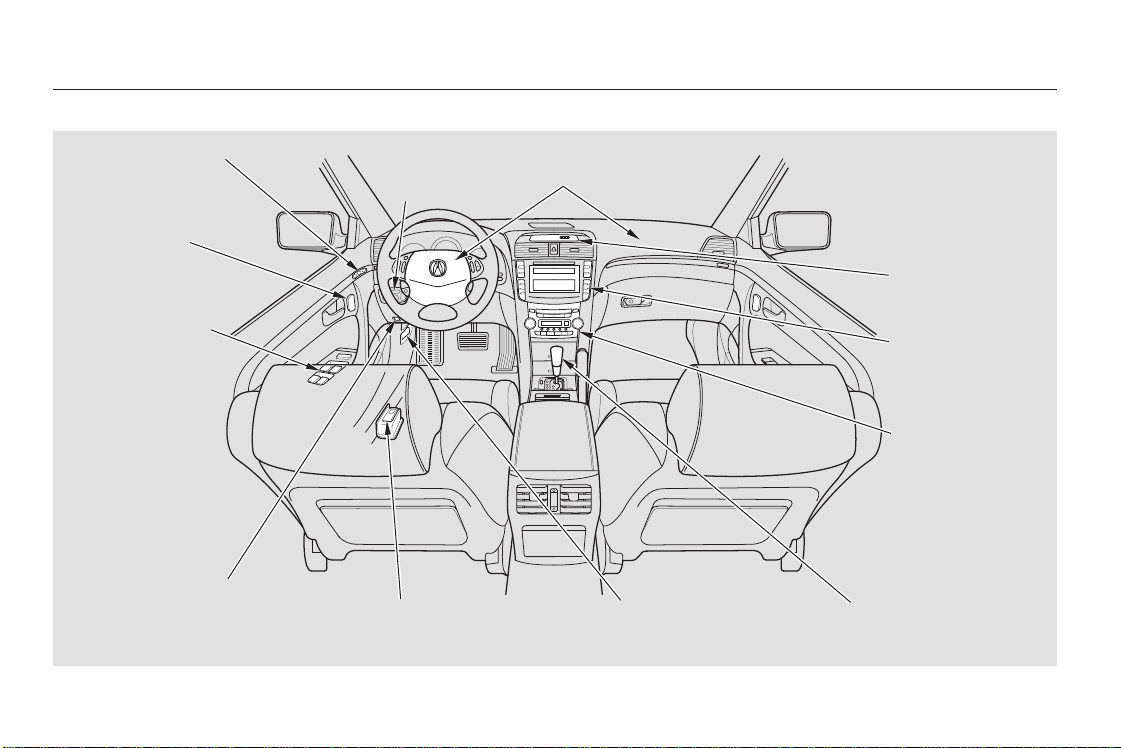

Your Vehicle at a Glance
2
DRIVING POSITION
MEMORY
POWER DOOR
LOCKS
TRUNK RELEASE
BUTTON
FUEL FILL DOOR
RELEASE HANDLE
HOOD RELEASE
HANDLE
AUDIO SYSTEM
CLIMATE CONTROL
SYSTEM
AIRBAGS
MIRROR
CONTROLS
POWER WINDOW
SWITCHES
CLOCK
(P.93)
(P.82)
(P.97)
(P.83)
(P.165)
(P.166)
(P.91)
(P.9, 23)
(P.103)
(P.110)
(P.117)
SHIFT LEVER
(P.178, 181)
Main Menu
Your Vehicle at a Glance
3
INSTRUMENT PANEL
BRIGHTNESS
HORN
WINDSHIELD WIPERS/WASHERS HAZARD WARNING
BUTTON
VEHICLE STABILITY ASSIST
SYSTEM ON/OFF SWITCH
REAR WINDOW
DEFOGGER
SEAT HEATERS
CRUISE
CONTROL
HEADLIGHTS/TURN SIGNALS/
FOG LIGHTS
(P.74)
(P.75)
(P.191)
(P.91)
STEERING WHEEL ADJUSTMENT
(P.78)
(P.96)
(P.142)
(P.77)
(P.76)
(P.73)
MIRROR CONTROLS
Main Menu
4
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts
properly. It explains how your
airbags work. And it tells you how to
properly restrain infants and
children in your vehicle.
.........Important Safety Precautions . 6
.......Your Vehicle’s Safety Features . 7
.......................................Seat Belts . 8
...........................................Airbags . 9
.........Protecting Adults and Teens . 11
.....1. Close and Lock the Doors . 11
...........2. Adjust the Front Seats . 11
............3. Adjust the Seat-Backs . 12
...4. Adjust the Head Restraints . 13
5. Fasten and Position the
...Lap/Shoulder Seat Belts . 14
....6. Adjust the Steering Wheel . 16
7. Maintain a Proper Sitting
................................Position . 16
.....Advice for Pregnant Women . 17
...Additional Safety Precautions . 18
Additional Information About Your
.................................Seat Belts . 19
..Seat Belt System Components . 19
......................Lap/Shoulder Belt . 19
Automatic Seat Belt
...............................Tensioners . 20
...............Seat Belt Maintenance . 21
Additional Information About Your
.....................................Airbags . 22
......Airbag System Components . 22
How Your Front Airbags
.........................................Work . 23
...How Your Side Airbags Work . 25
How Your Side Curtain Airbags
.........................................Work . 26
..How the SRS Indicator Works . 26
How The Side Airbag Cutoff
......................Indicator Works . 27
.............................Airbag Service . 28
...Additional Safety Precautions . 28
Protecting Children General
................................Guidelines . 29
All Children Must Be
...............................Restrained . 29
All Children Should Sit in the
.................................Back Seat . 30
The Passenger’s Front Airbag
................Poses Serious Risks . 30
If You Must Drive with Several
...................................Children . 32
If a Child Requires Close
..................................Attention . 32
...Additional Safety Precautions . 33
...........................Protecting Infants . 34
.............Protecting Small Children . 35
.....................Selecting a Child Seat . 36
....................Installing a Child Seat . 37
Installing a Child Seat Using
.....................................LATCH . 38
Installing a Child Seat with a
..................Lap/Shoulder Belt . 40
Installing a Child Seat with a
......................................Tether . 41
...........Protecting Larger Children . 42
...............Checking Seat Belt Fit . 43
..................Using a Booster Seat . 43
...Additional Safety Precautions . 45
.............Carbon Monoxide Hazard . 46
...................................Safety Labels . 47
Driver and Passenger Safety
Driver and Passenger Safety
5
Main Menu
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
A seat belt is your best protection in
all types of collisions. Airbags
supplement seat belts, but airbags
are designed to inflate only in a
moderate to severe frontal collision.
So even though your vehicle is
equipped with airbags, make sure
you and your passengers always
wear your seat belts, and wear them
properly (see page ).
Children age 12 and under should
ride properly restrained in a back
seat. Infants and small children
should be restrained in a child seat.
Larger children should use a booster
and a lap/shoulder belt until they
canusethebeltproperlywithouta
booster (see page ).
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
14
43
194
Important Safety Precautions
Always Wear Your Seat Belt
Restrain All Children
Be Aware of Airbag Hazards
Don’t Drink and Drive
Control Your Speed
Keep Your Vehicle in Safe
Condition
Driver and Passenger Safety
6
Main Menu
Table of Contents
Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
Some safety features do not require
anyactiononyourpart.These
include a strong steel framework
that forms a safety cage around the
passenger compartment; front and
rear crush zones, a collapsible
steering column, and seat belt
tensioners that tighten the front seat
belts in the event of a crash.
CONTINUED

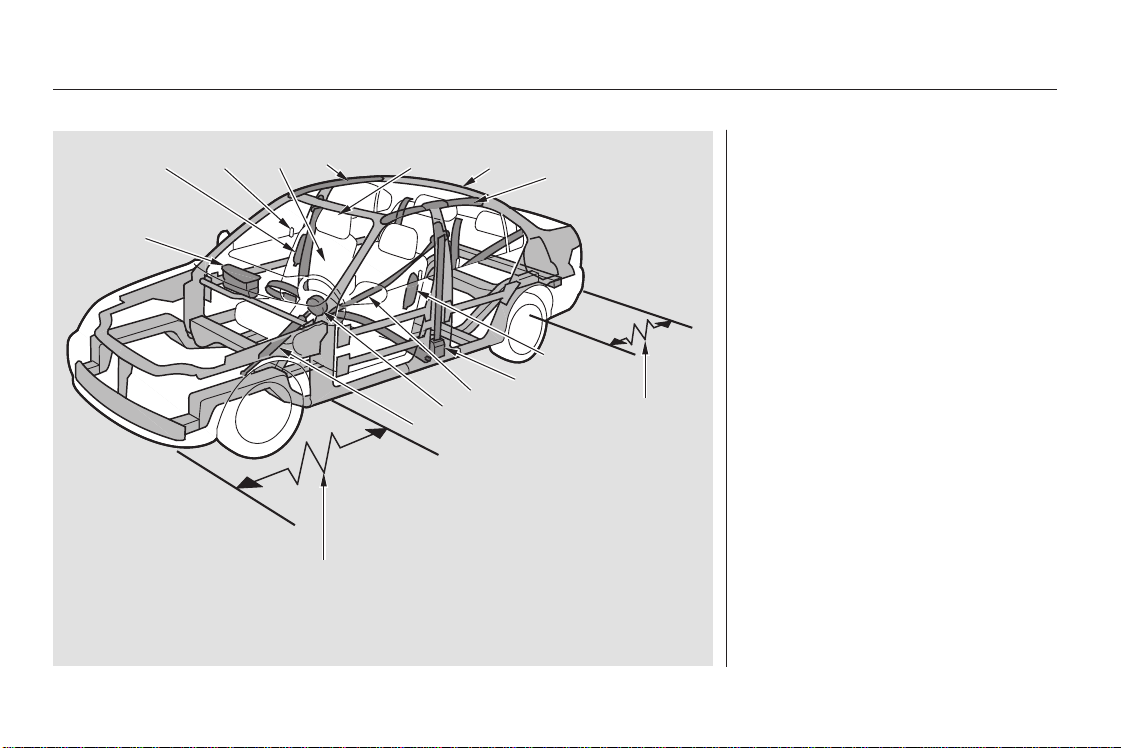

Your Vehicle’s Safety Features
Driver and Passenger Safety
7
(1)(4)(3)
(7)
(2)
(6)
(7)
(5)
(2)
(8) (10)
(9)
(9)
(8)
(11)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Door Locks
(11) Seat Belt Tensioners
Main Menu
Table of Contents
However, you and your passengers
can’t take full advantage of these
safety features unless you remain
sitting in a proper position and
always wear your seat belts properly.
Infact,somesafetyfeaturescan
contribute to injuries if they are not
used properly.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
Your vehicle is equipped with seat
belts in all seating positions.
Your seat belt system also includes
an indicator on the instrument panel
to remind you and your passengers
to fasten your seat belts.
Seat belts have proven to be the
single most effective safety device.
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
When properly worn, seat belts:
Your Vehicle’s Safety Features
Seat Belts
Why Wear Seat Belts
Driver and Passenger Safety
8
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
if you have airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
Main Menu
Table of Contents
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag, and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your vehicle has a Supplemental
Restraint System (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work).

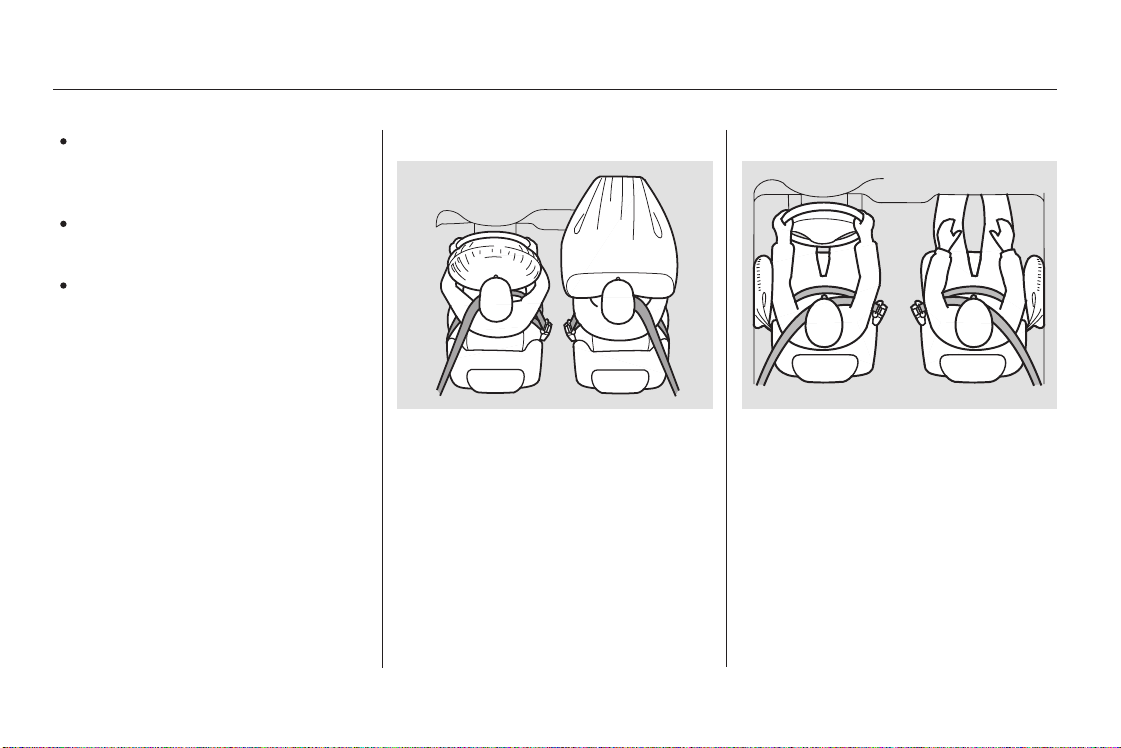

Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact. (See page for more
information on how your side airbags
work.)
25
23
CONTINUED
Your Vehicle’s Safety Features
What You Should Do:
Airbags
Driver and Passenger Safety
9
Main Menu
Table of Contents

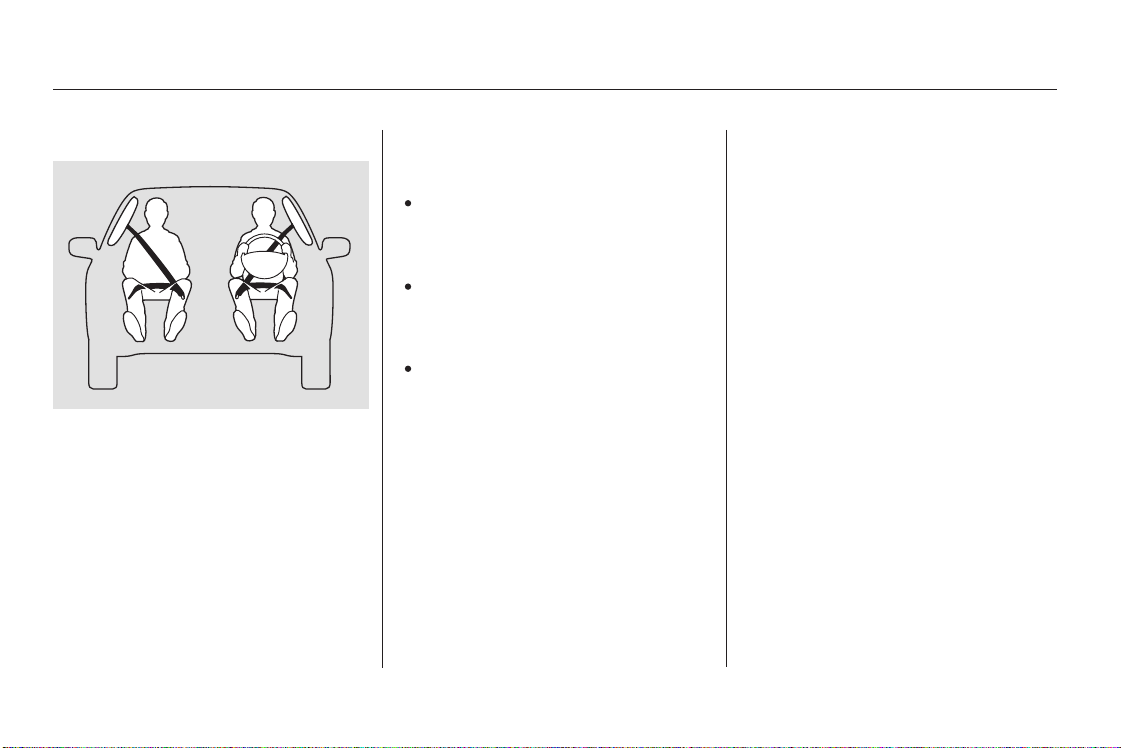

They are designed to supplement
the seat belts.
The most important things you need
to know about your airbags are:
Always wear
your seat belt properly, and sit
upright, and as far back from the
steering wheel while allowing full
control of the vehicle. A front
passenger should move their seat as
far back from the dashboard as
possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember however, that no safety
system can prevent all injures or
deaths that can occur in severe
crashes, even where seat belts are
properly worn and the airbags deploy.

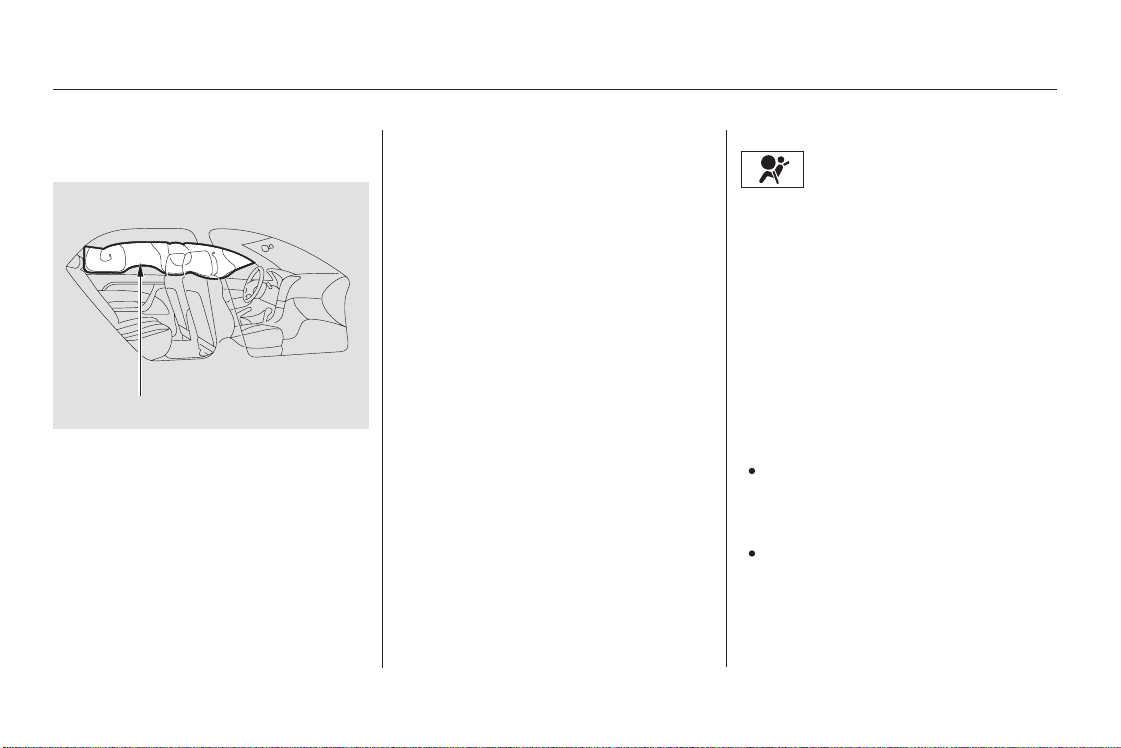

Your vehicle also has side curtain
airbags to help protect the heads of
the driver, front passenger, and
passengers in the outer rear seating
positions. (See page for more
information on how your side curtain
airbags work.)
To do their job, airbags must
inflate with tremendous force. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.26
Your Vehicle’s Safety Features
Airbags offer no protection in rear
impacts, rollovers, or minor
collisions.
Airbags do not replace seat belts.
What you should do:
Airbags can pose serious hazards.
Driver and Passenger Safety
10
Main Menu
Table of Contents
The following pages provide
instructions on how to properly
protect the driver, adult passengers
and teenage children who are large
enough and mature enough to ride in
the front seat.
See page for important guidelines
on how to properly protect infants,
small children, and larger children
who ride in your vehicle.
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
See page for how to lock the
doors.

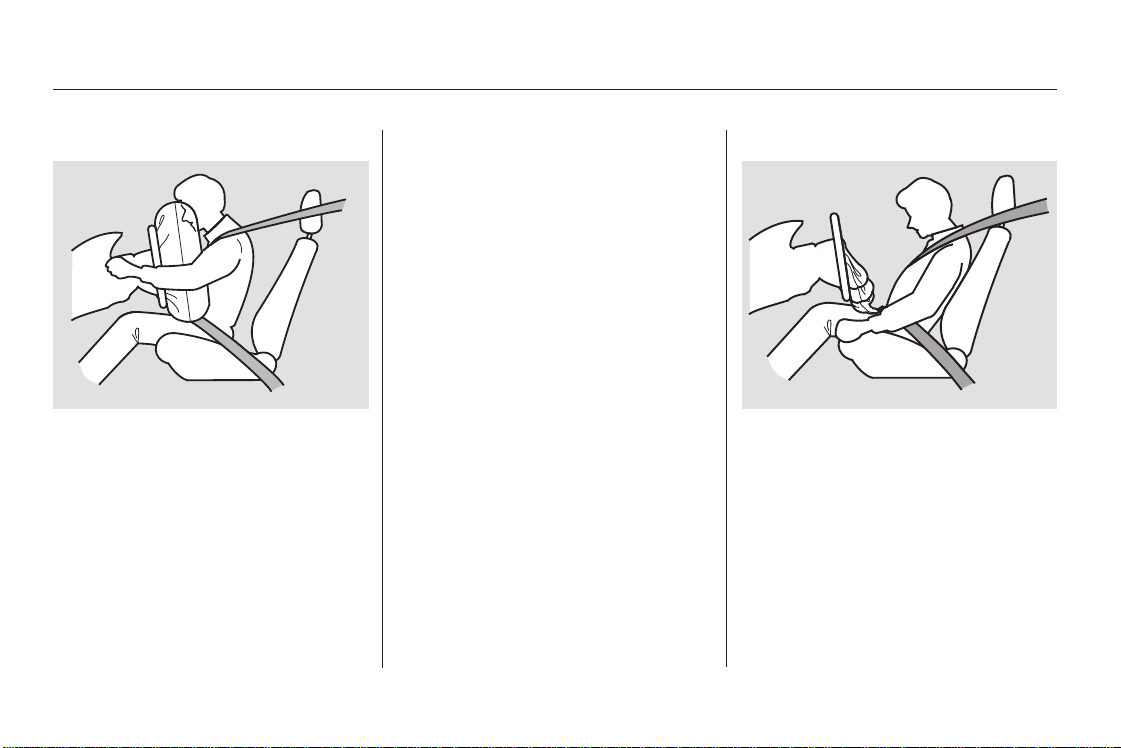

If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.

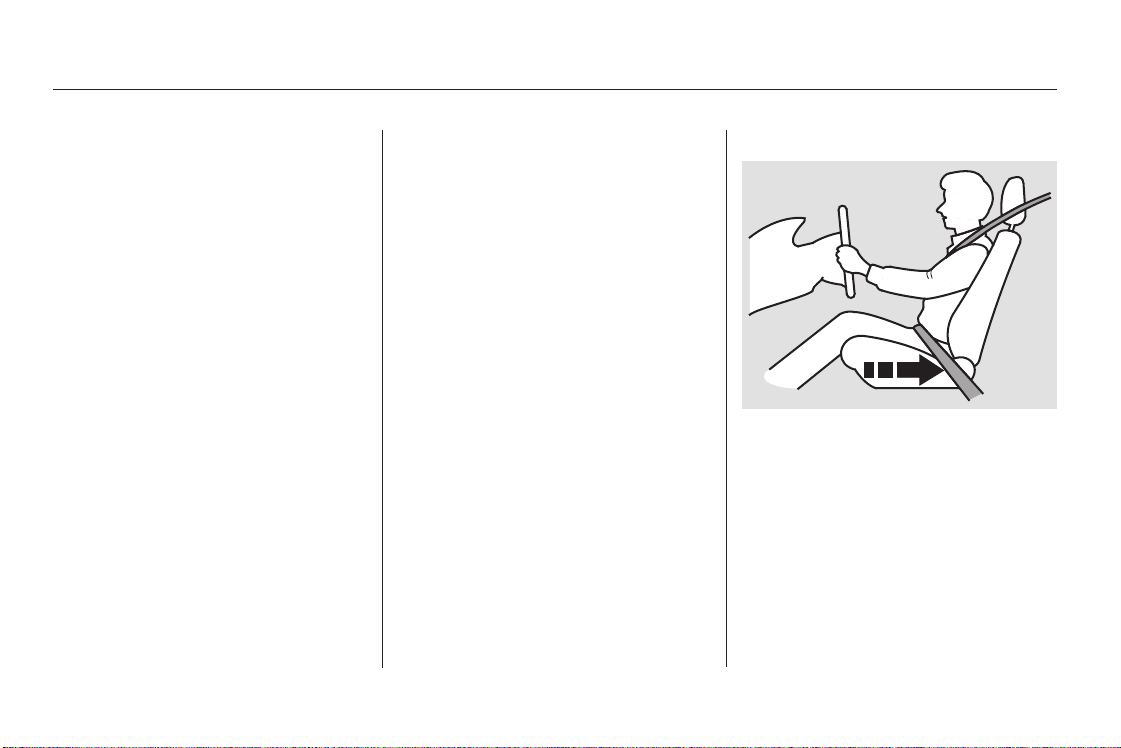

Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain control of the vehicle. Have
your front passenger adjust their
seat as far to the rear as possible.
29
82
CONTINUED
Protecting Adults and Teens
Adjust the Front SeatsClose and Lock the Doors 2.1.
Driver and Passenger Safety
11
Main Menu
Table of Contents
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and forth to make sure it
is locked into position. See page
for how to adjust the front seats.
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
88
Protecting Adults and Teens
Adjust the Seat-Backs3.
Driver and Passenger Safety
12
Sitting too close to an airbag
can result in serious injury or
death if the airbags inflate.
Always sit as far back from the
airbags as possible while
allowing full control of the
vehicle.
Main Menu
Table of Contents

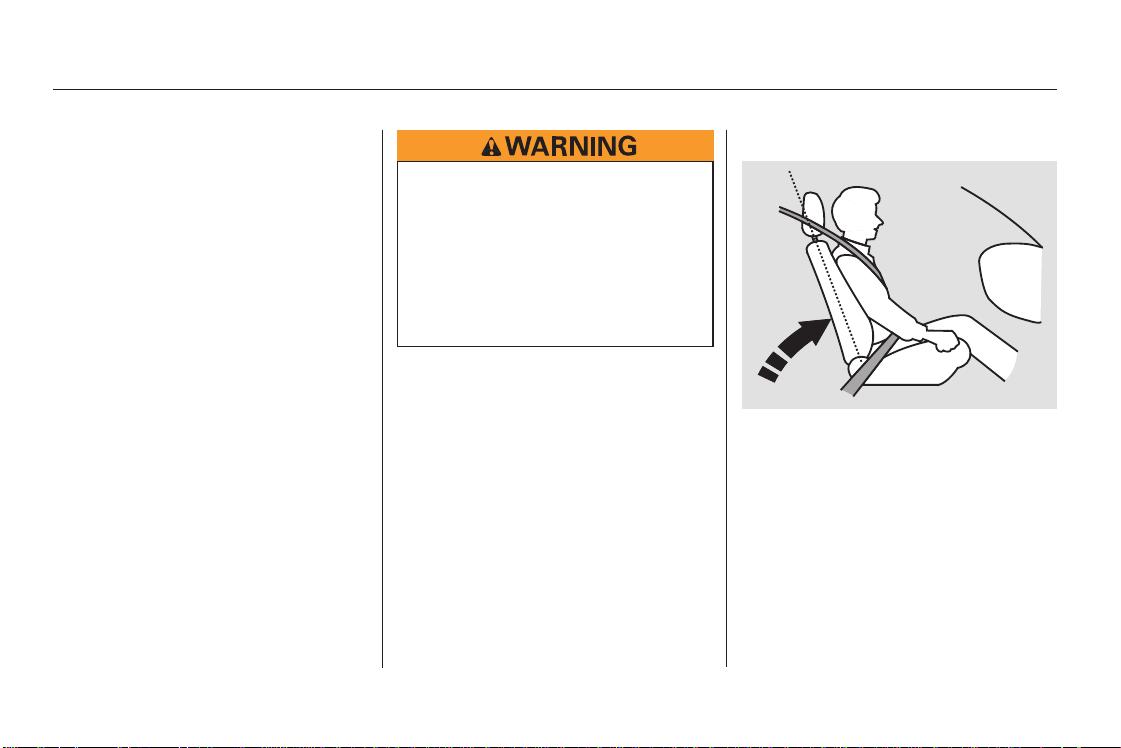

Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust seat-
backs.
Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Have passengers with adjustable
restraints adjust their restraints
properly as well. A taller person
should adjust their restraint as high
as possible.
88
CONTINUED
Protecting Adults and Teens
Adjust the Head Restraints4.
Driver and Passenger Safety
13
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjusttheseat-backtoan
upright position, and sit well
back in the seat.
Main Menu
Table of Contents
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Also check
that the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
thebeltsothelappartfitssnugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
89
Protecting Adults and Teens
Fasten and Position the Seat
Belts
5.
Driver and Passenger Safety
14
Improperly positioning head
restraints reduces their
effectiveness, and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Main Menu
Table of Contents
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the forces of a crash
over the strongest bones in your
upper body.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
This could cause
very serious injuries in a crash.
To adjust the height of a front seat
belt anchor, press and hold the
release buttons, and slide the anchor
up or down as needed (it has four
positions).
CONTINUED
Protecting Adults and Teens
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
Driver and Passenger Safety
15
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents
If a seat belt does not seem to work
as it should, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your Acura dealer check the
belt as soon as possible.
See page for additional
information about your seat belts
and how to take care of them.

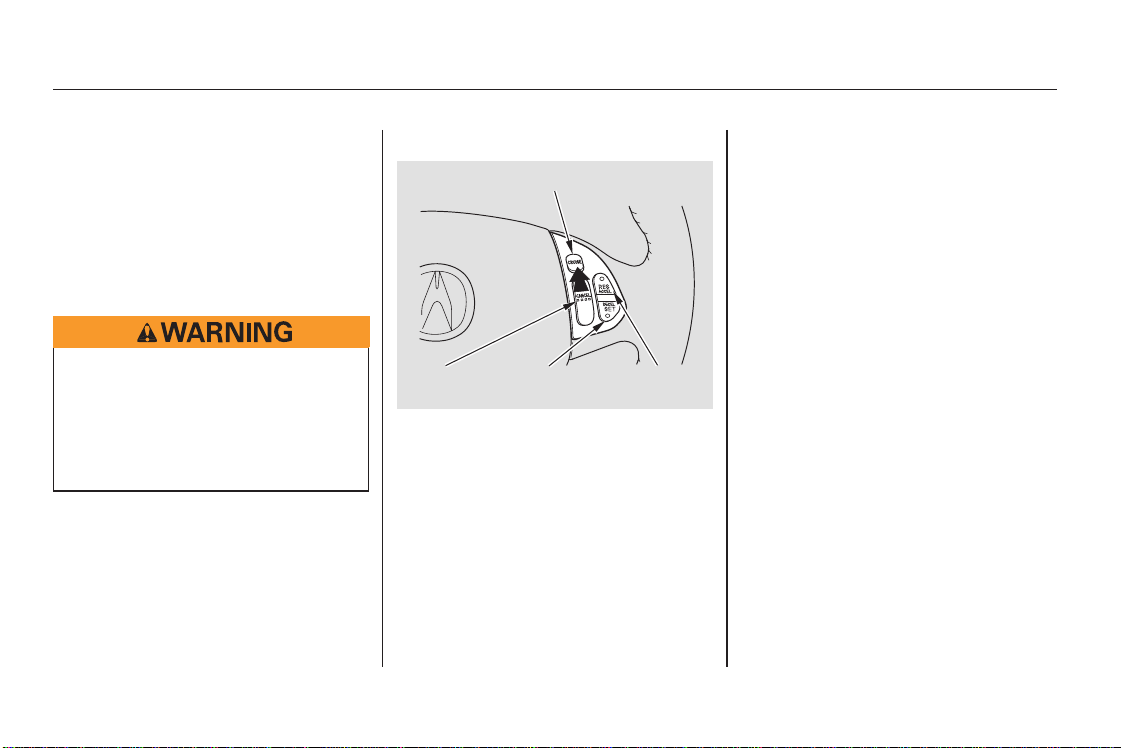

Adjust the steering wheel, if needed,
so that the wheel points toward your
chest, not toward your face. This
provides optimal protection from the
front airbag.
See page for how to adjust the
steering wheel.
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
19
78
Protecting Adults and Teens
No one should sit in a seat with an
inoperative seat belt.
Adjust the Steering Wheel Maintain a Proper Sitting
Position
6. 7.
Driver and Passenger Safety
16
Main Menu
Table of Contents
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating airbag.

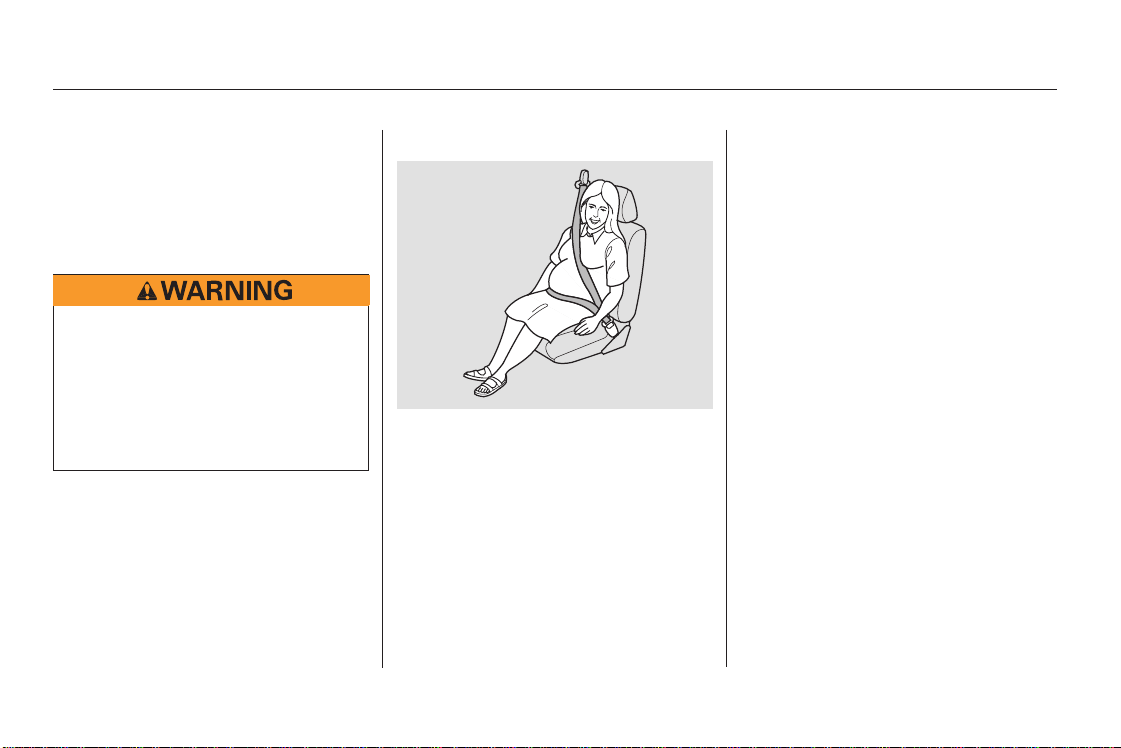

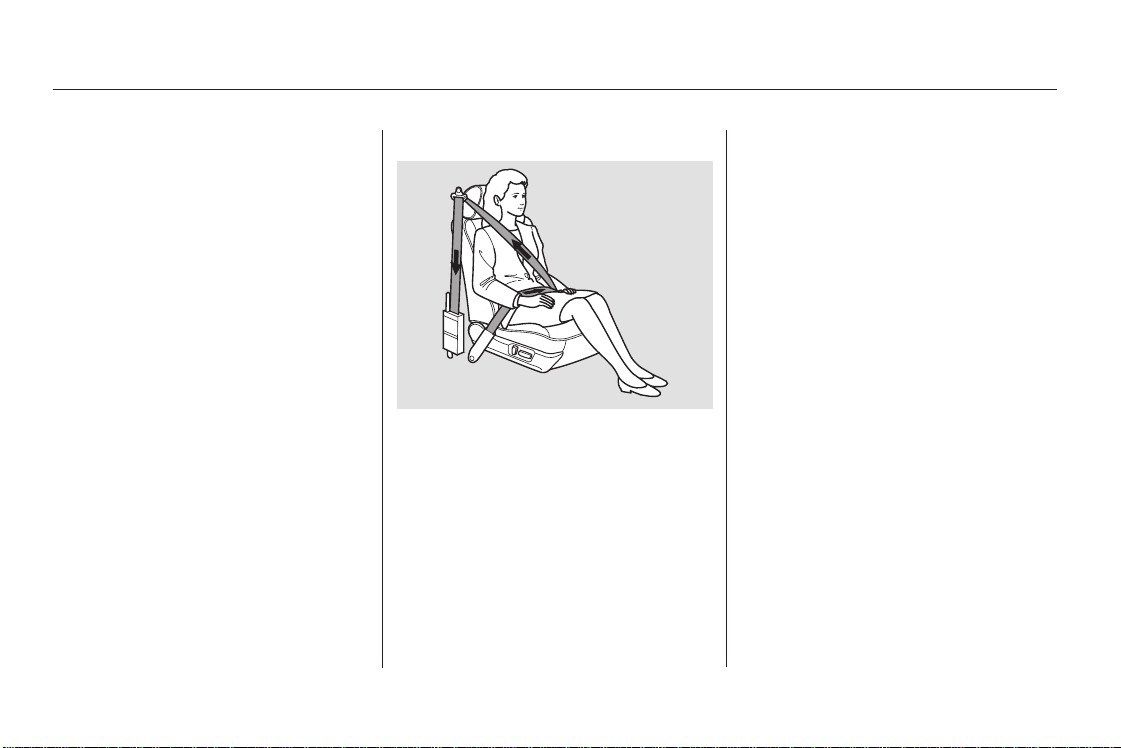

If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
Each time you have a check-up, ask
your doctor if it’s okay for you to
drive.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating airbag.
Protecting Adults and Teens
Advice for Pregnant Women
Driver and Passenger Safety
17
Sitting improperly or out of
position can result in serious
injury or death.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents
If they do, they
could be very seriously injured in a
crash.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your airbags inflate.
Objects on the
covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
If a side airbag
or a side curtain airbag inflates, a
cupholderorotherhardobject
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbags inflate.
Protecting Adults and Teens
Additional Safety Precautions
Two people should never use the
same seat belt.
Do not put any accessories on seat
belts.
Do not place hard or sharp objects
between yourself and a front
airbag.
Do not attach or place objects on
the airbag covers.
Do not attach hard objects on or
near a front door.
Keep your hands and arms away
from the airbag covers.
Driver and Passenger Safety
18
Main Menu
Table of Contents
Your seat belt system includes lap/
shoulder belts in all five seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
The seat belt system
includes an indicator on the
instrument panel to remind you and
your passengers to fasten your belts.
If you turn the ignition switch to ON
(II) without fastening your belt, a
beeper will sound and the indicator
will blink. The beeper will stop after
a few seconds, but the indicator will
stay on until the driver’s seat belt is
fastened.
If you do not fasten your seat belt
before the beeper stops, the
indicator will stop blinking but
remain on. If you continue driving
without fastening your seat belt, the
indicator will start blinking again and
the beeper will sound at regular
intervals.
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, push the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all positions except
the driver’s have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
14
40
CONTINUED
Additional Information About Your Seat Belts
Seat Belt System Components Lap/Shoulder Belt
Driver and Passenger Safety
19
Main Menu
Table of Contents
To deactivate the locking
mechanism, unlatch the buckle, and
let the seat belt fully retract. To
refasten the belt, pull it out only as
far as needed.
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
The tensioners are designed to
activate primarily in frontal collisions,
andtheyshouldactivateinany
collision severe enough to cause
airbag inflation.
However, the tensioners can be
activated during a collision in which
the airbags do not deploy. In this
case, the airbags would not be
needed, but the additional restraint
could be helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
Additional Information About Your Seat Belts
Automatic Seat Belt Tensioners
Driver and Passenger Safety
20
Main Menu
Table of Contents
For safety, you should check the
condition of your seat belts regularly.
Acura provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For information on how to clean your
seat belts, see page .
Pull each belt out fully, and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. Any belt that
is not in good condition or not
working properly will not provide
good protection and should be
replaced as soon as possible.
218
Acura Warranty Information
Seat Belt Maintenance
Additional Information About Your Seat Belts
Driver and Passenger Safety
21
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly,
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Your Airbag System includes:
Two SRS (Supplemental Restraint
System) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG.’’
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘Side
Airbag’’ (see page ).
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the front,
center, and rear pillars. The front
and center pillars on both sides are
marked ‘‘SIDE CURTAIN
AIRBAG’’ (see page ).
Automatic front seat belt
tensioners (see page ).
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags (see
page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
Sensors that can detect a
moderate to severe front impact or
side impact.
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, and driver and
frontpassengerseatbeltusewhen
the ignition is in the ON (II)
position.
25
26
26
20
Airbag System Components
Additional Information About Your Airbags
Driver and Passenger Safety
22
Main Menu
Table of Contents
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inflate
driver’s and front passenger’s front
airbags.
During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
After inflating, the front airbags
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
Although both airbags normally
inflate within split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
CONTINUED
Additional Information About Your Airbags
How Your Front Airbags Work
Driver and Passenger Safety
23
Main Menu
Table of Contents
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
Your front airbags are dual-stage
airbags. This means they have two
inflation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
Your front airbags are also dual-
threshold airbags. Airbags with this
feature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is ,
the airbag will deploy at the same
threshold as a conventional airbag,
because the occupant would need
extra protection.
If the occupant’s belt , the
airbag will inflate at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inflation time
with a little less force.
Additional Information About Your Airbags
Dual-Stage Airbags
more severe
Dual-Threshold Airbags
not latched
is latched
less severe
Driver and Passenger Safety
24
Main Menu
Table of Contents
If you ever have a moderate to
severe side impact, the sensors will
detect rapid deceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
The passenger’s side airbag has a
cutoff system designed to turn off
the passenger’s side airbag if a child’s
head is in the airbag’s deployment
path (see page ).
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
If a short adult leans sideways, or a
larger adult slouches and leans
sideways into the side airbag
deployment path, the system may
also shut off the side airbag.
If the side airbag off indicator comes
on, have the passenger sit upright.
Once the passenger is out of the
deployment path of the side airbag,
the system will turn the airbag back
on, and the indicator will go out.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
27
How Your Side Airbags Work
Driver and Passenger Safety
Additional Information About Your Airbags
25
Main Menu
Table of Contents
In a moderate to severe side impact,
sensors will detect rapid deceleration
and signal the control unit to
instantly inflate the side curtain
airbag on the driver’s or the
passenger’s side of the vehicle. If the
impact is on the passenger’s side, the
passenger’s side curtain airbag will
inflate even if there are no occupants
on that side of the vehicle.
To get the best protection from the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners.
When you turn the ignition switch to
ON (II), this indicator will come on
briefly then go out. This tells you
that the system is working properly.
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the SRS indicator does not come
on after you turn the ignition to
ON (II).
If the indicator stays on after the
engine starts.
Your vehicle is equipped with side
curtain airbags. These airbags are
stored in the front, center, and rear
pillars on both sides. The front and
rear pillars on both sides are marked
‘‘SIDE CURTAIN AIRBAG.’’
Additional Information About Your Airbags
How Your Side Curtain Airbags
Work
How the SRS Indicator Works
Driver and Passenger Safety
26
SIDE CURTAIN AIRBAG
Main Menu
Table of Contents
If the indicator comes on or
flashesonandoffwhileyoudrive.
If you see any of these indications,
the airbags and the seat belt
tensioners may not work properly
when you need them.
This indicator alerts you
that the passenger’s side
airbag has been automatically shut
off. It does mean there is a
problem with your side airbags.
To reduce the risk of injury from an
inflating side airbag, your vehicle has
an automatic cutoff system for the
passenger’s side airbag.
Although Acura does not encourage
children to ride in front, this system
is designed to shut off the side
airbag if a child leans sideways and
the child’s head is in the side airbag
deployment path.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
When you turn the ignition to ON
(II), the indicator should come on
briefly and go out. If it doesn’t come
on, stays on, or comes on while
driving without a passenger in the
front seat, have the system checked.
Additional Information About Your Airbags
How the Side Airbag Off
Indicator Works
not
Driver and Passenger Safety
27
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Main Menu
Table of Contents
Your airbag systems are virtually
maintenance-free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. If a
front airbag inflates, the seat belt
tensioners must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by an Acura dealer or a
knowledgeable body shop.
Take your vehicle to an
authorized Acura dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or another liquid
soaks into a seat-back, it can
prevent the side airbag cutoff
system from working properly.
Improperly
replacing or covering front seat-
back covers can prevent your side
airbags from inflating during a
side impact.
Airbag Service Additional Safety Precautions
Additional Information About Your Airbags
An airbag ever inflates.
The SRS indicator alerts you to a
problem.
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Do not expose the front seat-backs
to liquid.
Do not cover or replace front seat-
back covers without consulting an
Acura dealer.
Driver and Passenger Safety
28
Main Menu
Table of Contents
−
Children depend on adults to protect
them. However, despite their best
intentions many adults do not know
how to properly protect child
passengers.
If you have children, or if you ever
need to drive with a child in your
vehicle, be sure to read this section.
It begins with important general
guidelines, then presents special
information for infants, small
children, and larger children.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
CONTINUED
All Children Must Be Restrained
Driver and Passenger Safety
Protecting Children General Guidelines
29
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster if necessary.
Main Menu
Table of Contents
−
−
−
(see pages ).
(see pages ).
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in the
back seat. The National Highway
Traffic Safety Administration and
Transport Canada recommend that
all children age 12 and under be
properly restrained in the back seat.
If the vehicle seat is too
far forward, or the child’s head is
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
Whenever possible,
larger children should sit in the back
seat, in a booster seat if needed, and
be properly restrained with a seat
belt (see page for important
information about protecting larger
children).
Children who ride in back are less
likely to be injured by striking
interior vehicle parts during a
collision or hard braking.
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this
the passenger’s front airbag is quite
large and it can inflate with enough
force to cause very serious injuries.
If
the airbag inflates, it can hit the back
of the child seat with enough force
to kill or very seriously injure an
infant.
34 35
4542
42
Infants and small children must be
restrained in an approved child seat
that is properly secured to the
vehicle
Larger children must be restrained
with a lap/shoulder belt and ride on
a booster until the seat belt fits them
properly
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with passenger’s front airbag can be
hazardous.
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger’s
front airbag.Never put a rear-facing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag.
All Children Should Sit in the
Back Seat
Small Children
Larger Children
The Passenger’s Front Airbag
Can Pose Serious Risks
Infants
Driver and Passenger Safety
Protecting Children General Guidelines
30
Main Menu
Table of Contents
−

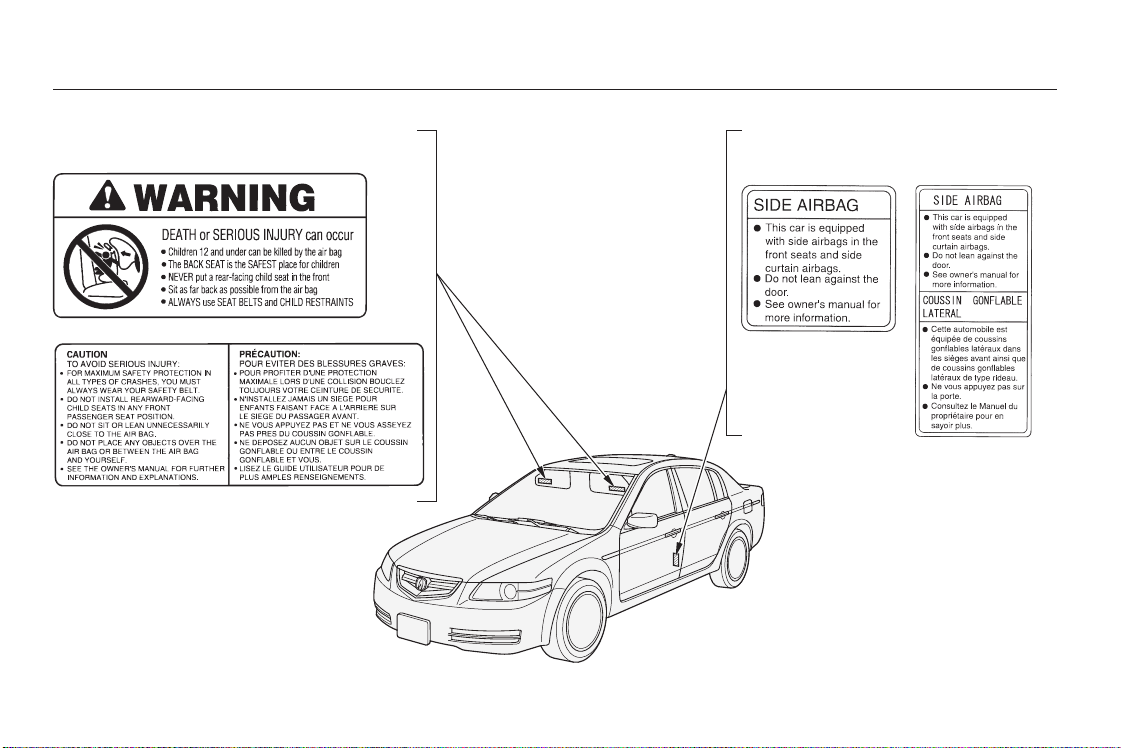

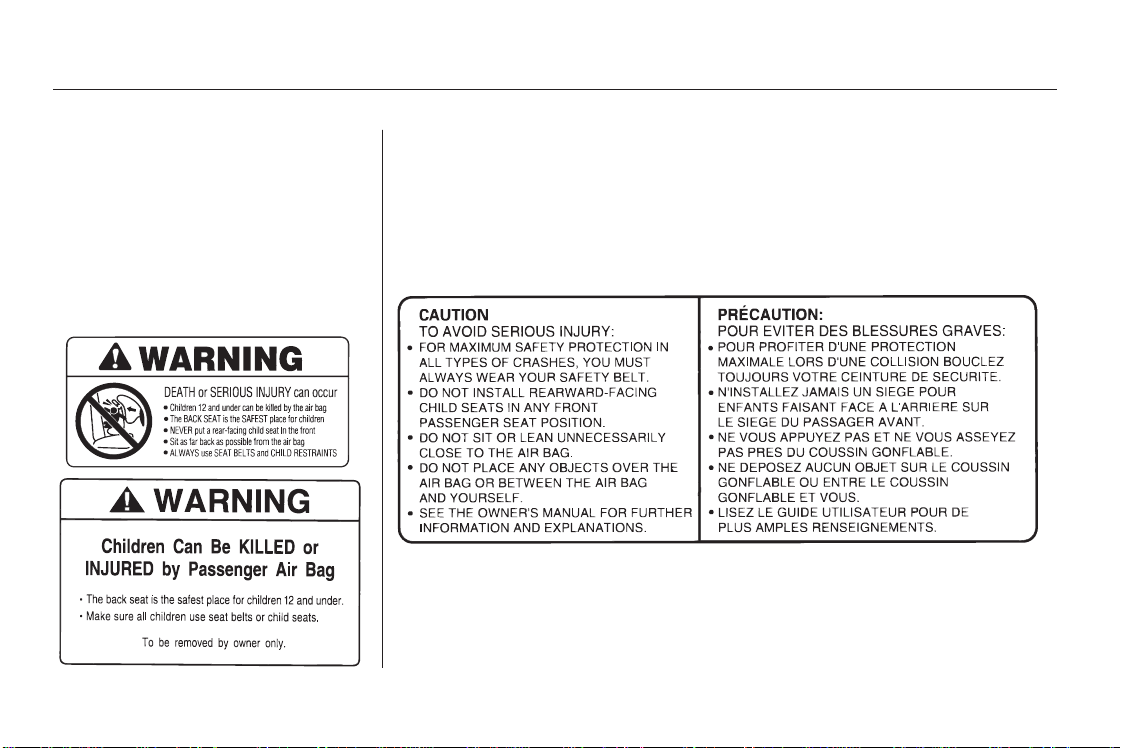

To remind you of the passenger’s
front airbag hazards, and that
children must be properly restrained
in the back seat, your vehicle has
warninglabelsonthedashboardand
on the driver’s and front passenger’s
visors. Please read and follow the
instructions on these labels.
To remind you of the front airbag
hazards, your vehicle has warning
labels on the driver’s and front
passenger’s visors. Please read and
follow the instructions on these
labels.
Protecting Children General Guidelines
Driver and Passenger Safety
U.S. Models Canadian Models
31
Main Menu
Table of Contents
−
Your vehicle has three seating
positions in the back seat where
children can be properly restrained.
If you ever have to carry four
children, and a child must ride in
front:
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).
Many parents say they prefer to put
an infant or small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.

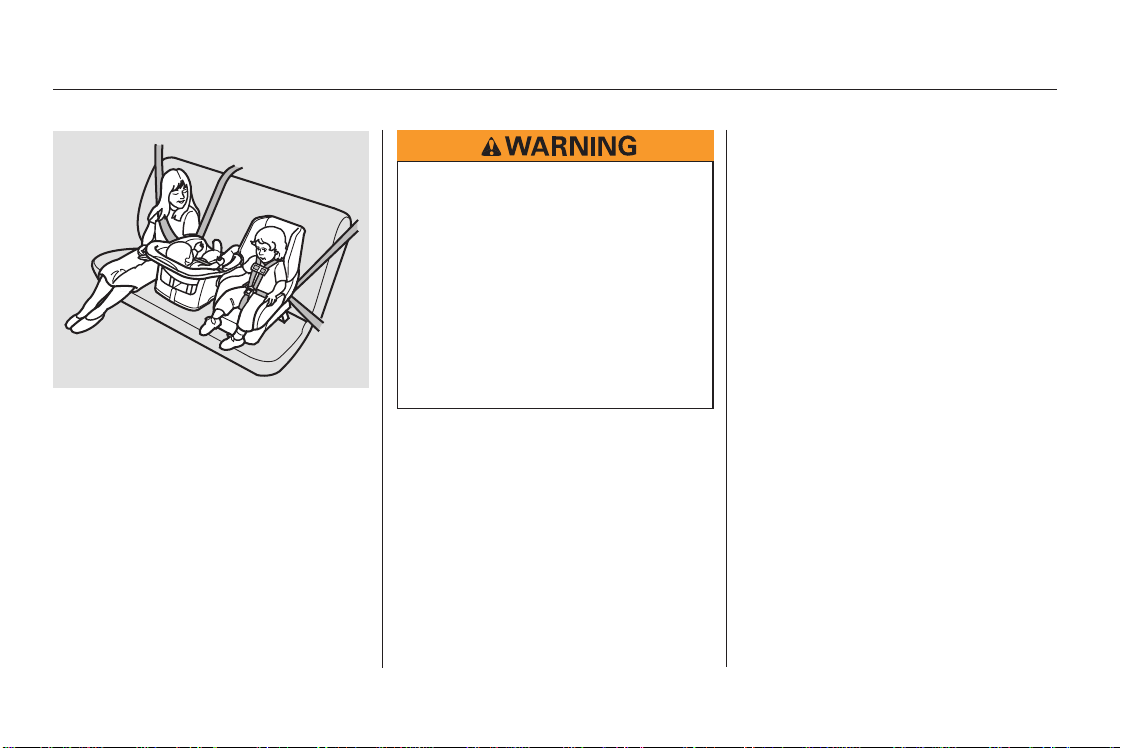

If a child requires physical attention
or frequent visual contact, we
strongly recommend that another
adult ride with the child in the back
seat. The back seat is far safer for a
child than the front.
11
14
16
43
If You Must Drive with Several
Children
If a Child Requires Close
Attention
Driver and Passenger Safety
Protecting Children General Guidelines
32
Main Menu
Table of Contents
−
Neverholdaninfantorchildon
your lap. If you are not wearing a
seat belt in crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt the child can be torn
from your arms and be seriously
hurt or killed.
Never put a seat belt over yourself
or a child. During a crash, the belt
could press deep into the child and
cause serious or fatal injuries.
Never let two children use the
same seat belt. If they do, they
could be very seriously injured in a
crash.
Use childproof door locks to
prevent children from opening the
doors. This can prevent children
from accidentally falling out.
Do not leave children alone in a
vehicle. Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous. For
example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. A
child left alone with the key in the
ignition can accidentally set the
vehicle in motion, possibly injuring
themselves or others.
Lock all doors and the trunk when
your vehicle is not in use. Children
who play in vehicles can
accidentally get trapped inside the
trunk. Teach your children not to
play in or around vehicles. Know
how to operate the emergency
trunk opener and decide if your
children should be shown how to
use this feature (see page ).
Keep vehicle keys and remote
transmitters out of the reach of
children. Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the trunk, which can
lead to accidental injury or death.
84
Protecting Children General Guidelines
Additional Safety Precautions
Driver and Passenger Safety
33
Main Menu
Table of Contents
Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back.
An infant must be properly
restrained in a rear-facing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
for the seat, and the child is at least
one year old.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
In this vehicle, a rear-facing child
seatcanbeplacedinanyseating
position in the back seat, but not in
the front.
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving the seat as far back as
recommended, or from locking the
seat-back in the desired position.
If the passenger’s
front airbag inflates, it can hit the
back of the child seat with enough
force to kill or seriously injure an
infant.
In either of these situations, we
strongly recommend that you install
the child seat in a different back
seating position or get a smaller rear-
facing child seat.
Protecting Infants and Small Children
Protecting Infants
Child Seat Type
Do not put a rear-facing child seat in
a forward-facing position.
Child Seat Placement
Never put a rear-facing child seat in
the front seat.
Driver and Passenger Safety
34
Placing a rear-facing child seat
in the front seat can result in
serious injury or death if the
passenger’s front airbag inflates.
Always place a rear-facing child
seat in the back seat, not the
front.
Main Menu
Table of Contents
A child who is at least one year old,
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a forward-
facing, upright child seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
We also recommend that a small
child stay in the child seat as long as
possible, until the child reaches the
weight or height limit for the seat.
We strongly recommend placing a
forward-facing child seat in a back
seat, not the front.
If the vehicle seat is too
far forward, or the child’s head is
thrown forward during a collision, an
inflating airbag can strike the child
with enough force to cause very
serious or fatal injuries.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, be sure the child seat is
firmly secured to the vehicle, and the
child is properly strapped in the seat.
Protecting Infants and Small Children
Protecting Small Children
Child Seat Type
Child Seat Placement
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with a passenger’s airbag can be
hazardous.
Driver and Passenger Safety
35
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
Main Menu
Table of Contents
When buying a child seat, you need
to choose between a conventional
child seat, or one designed for use
with the Lower Anchors and Tethers
for Children (LATCH) system.
Conventional child seats must be
secured to a car with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two outer
rear seats.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
We also recommend selecting a
LATCH-compatible seat with a rigid,
rather than a flexible, anchor (see
page ).
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
facing for small children.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position, or positions,
where the seat will be used.
39
Selecting a Child Seat
The child seat should meet U.S. or
Canadian Motor Vehicle Safety
Standard 213.
The child seat should be of the
proper type and size to fit the child.
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
1.
2.
3.
Driver and Passenger Safety
36
Main Menu
Table of Contents
After selecting a proper child seat,
and a good place to install the seat,
there are three main steps in
installing the seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers for Children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
After installing a child
seat, push and pull the seat
forward and from side to side to
verify that it is secure.

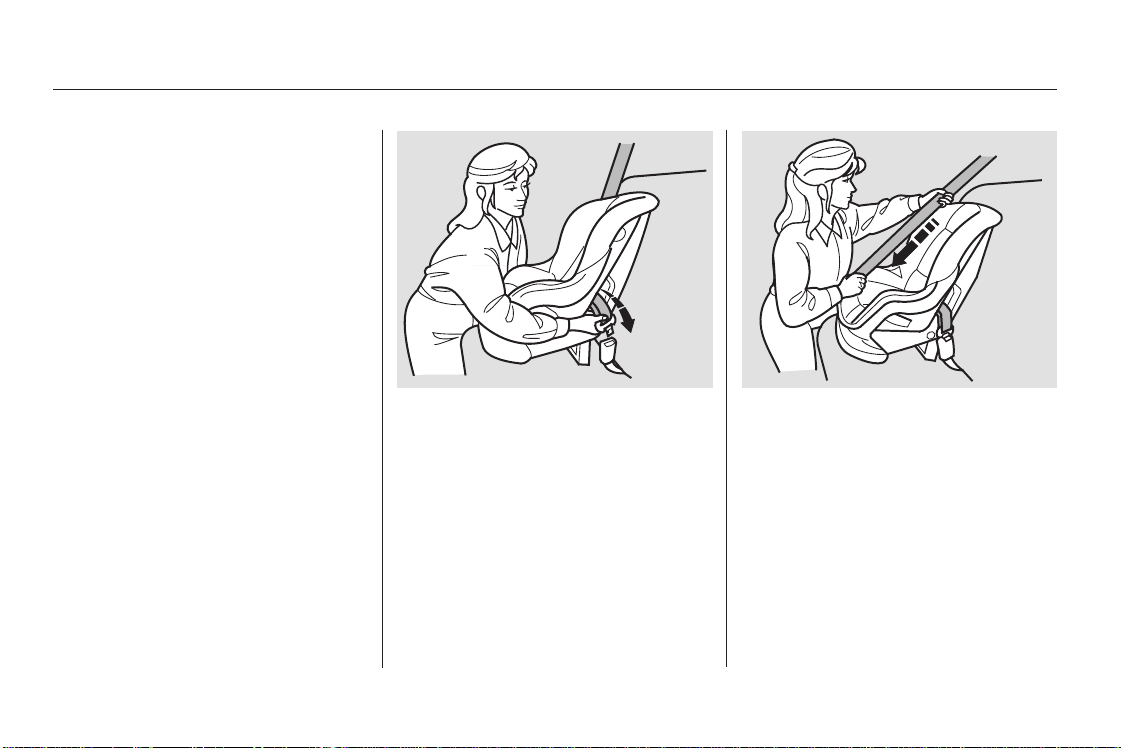

A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be ‘‘rock solid’’. Some side-to-side
movement can be expected and
should not reduce the child seat’s
effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for a rear-
facing child seat.
Installing a Child Seat
Properly secure the child seat to
the vehicle.
Make sure the child seat is firmly
secured.
Secure the child in the child seat.
1.
2.
3.
Driver and Passenger Safety
37
Main Menu
Table of Contents

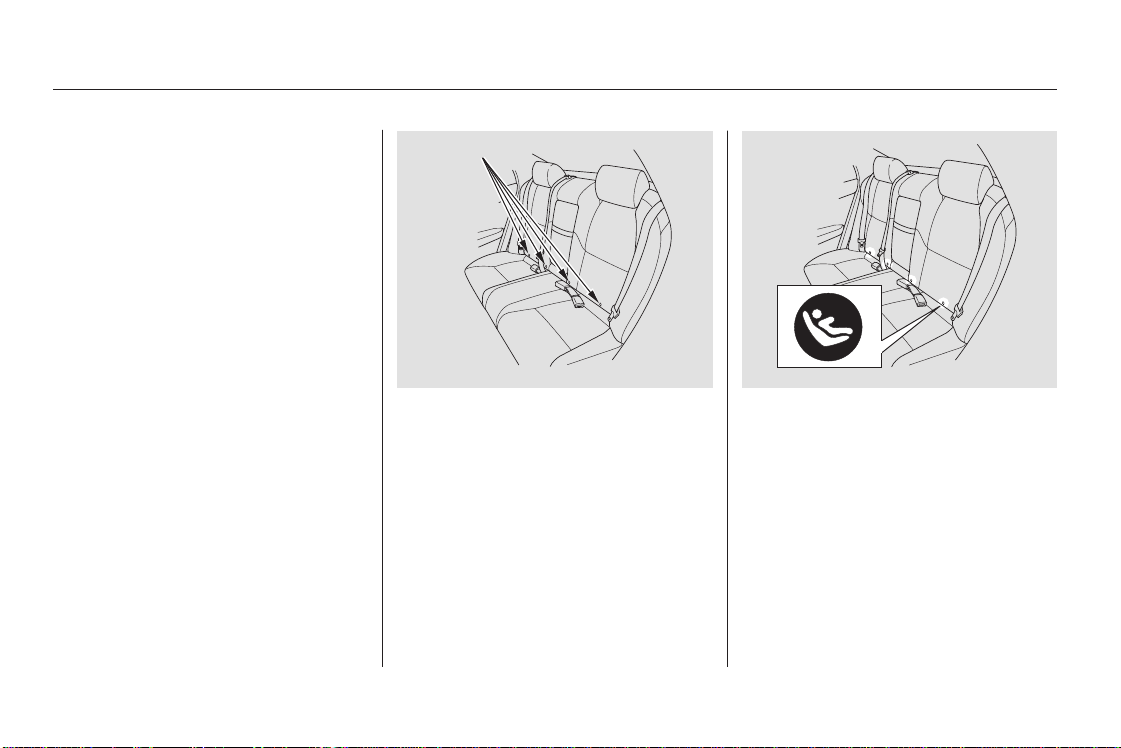

Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers for Children) at the outer
rear seats. The lower anchors are
located between the seat-back and
seat bottom, and are to be used only
with a child seat designed for use
with LATCH.
The location of each lower anchor is
marked with a small button above
the point.
Each button has the symbol shown
above.
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and
anchors.
To install a LATCH-compatible child
seat:
Move the seat belt buckle or
tongue away from the lower
anchors.
1.
2.
Installing a Child Seat
Installing a Child Seat Using
LATCH
Driver and Passenger Safety
38
MARKS
Main Menu
Table of Contents
Place the child seat on the vehicle
seat, and attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connection as
shown above.
Whatever type you have, follow
the child seat maker’s instructions
for adjusting or tightening the fit.
Other LATCH-compatible seats have
a flexible-type connection as shown
above.
Attach the tether strap hook to the
anchor (see page ), then
tighten the strap as instructed by
the child seat maker.
Push and pull the child seat
forward and from side-to-side to
verify that it is secure.
3.
4.
5.
6.
42
Installing a Child Seat
Driver and Passenger Safety
39
Rigid type Flexible type
ANCHORAGE POINT
TETHER STRAP
HOOK
Main Menu
Table of Contents
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
the back seating positions, and in the
front passenger seat, have a locking
mechanism that must be activated to
secure a child seat.
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
1. 2.
3.
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat with a Lap/
Shoulder Belt
40
Main Menu
Table of Contents

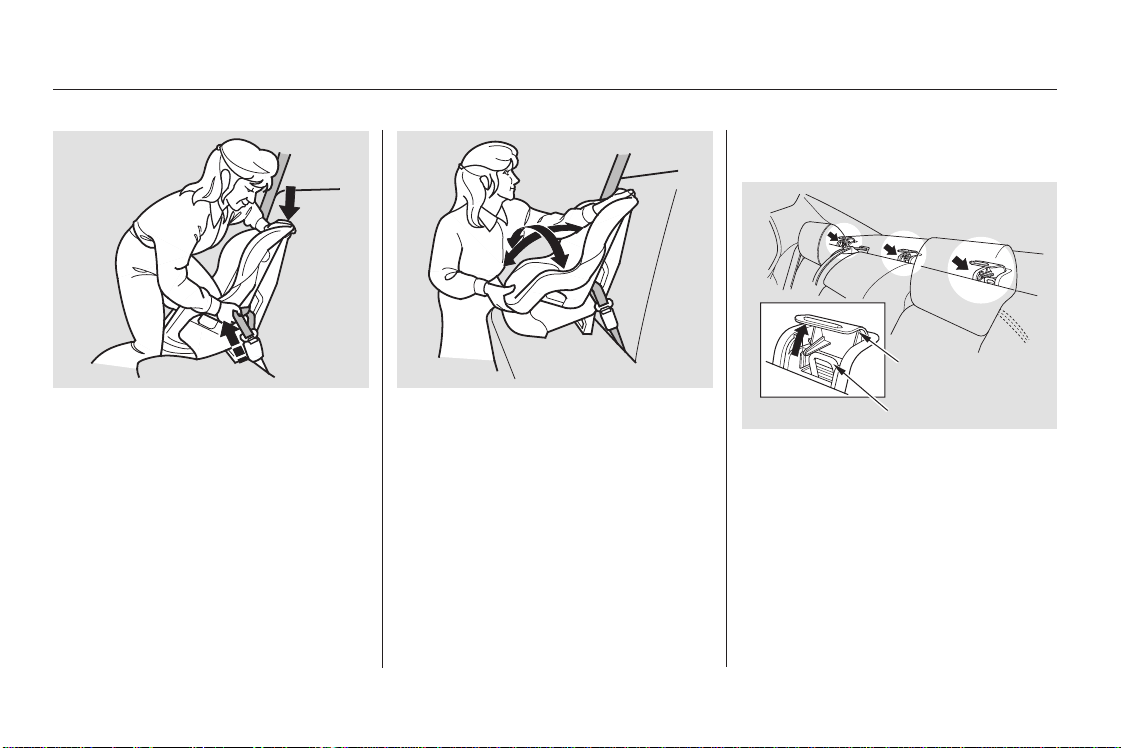

Push and pull the child seat
forward and from side to side to
verify that it is firmly secured. If
the child seat is not secure,
unlatch the belt, allow it to retract
fully, then repeat these steps.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available. (Tethers are required in
Canada.)
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
4. 5.
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat with a
Tether
41
COVER
ANCHORAGE POINT
Main Menu
Table of Contents
Tighten the strap according to the
seat maker’s instructions.
After properly securing the child
seat with the lap/shoulder belt
(see page ), route the tether
strap over the top of the seat-back.
Attach the tether strap hook to the
anchor, making sure the strap is
not twisted, then tighten the strap
according to the seat-maker’s
instructions.
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster and wear a lap/shoulder belt.
The following pages provide
guidelines to help you decide when a
given child may ride in front, and
how to properly protect the child.
After properly securing the child
seat with the lap/shoulder belt
(see page ), route the tether
strap over the top of the seat-back
and through the legs of the head
restraint.
Lift the anchor point lid, then
attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
1.
2.
3.
1.
2.
40
40
Installing a Child Seat, Protecting Larger Children
Using an Outer Anchorage Point Using the Center Anchorage
Point
Protecting Larger Children
Driver and Passenger Safety
42
TETHER STRAP
HOOK
ANCHORAGE POINT
Allowing a larger child age 12 or
under to sit in front can result in
injury or death if the passenger’s
front airbag inflates.
If a larger child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, and have the
child sit up properly and wear
the seat belt properly.
Main Menu
Table of Contents
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster.
1.
2.
3.
4.
5.
CONTINUED
Protecting Larger Children
Checking Seat Belt Fit Using a Booster Seat
Driver and Passenger Safety
43
Main Menu
Table of Contents
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets federal
safety standards and that you follow
the booster seat maker’s instructions.
If a child who uses a booster must
ride in front, move the vehicle seat
as far back as possible, and be sure
the child is wearing the seat belt
properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster.
If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
The side airbag also poses risks. If
any part of a larger child’s body is in
the path of a deploying side airbag,
the child could receive possibly
serious injuries.
Some states also require children to
use a booster until they reach a
given age or weight (e.g., 6 years or
60lbs).Besuretocheckcurrent
laws in the state or states where you
intend to drive.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
ages 12 and under be properly
restrained in the back seat.
Protecting Larger Children
When Can a Larger Child Sit in Front
Driver and Passenger Safety
44
Main Menu
Table of Contents
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in the
front. There are other important
factors you should consider.
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout the ride.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see page ). If the seat
belt does not fit properly, with or
without the child sitting on a booster,
the child should not sit in the front.
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
If they do, they could
be very seriously injured in a crash.
Devices intended to improve a
child’s comfort or reposition the
shoulder part of a seat belt can make
the belt less effective, and increase
the chance of serious injury in a
crash.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
43
Protecting Larger Children
Maturity
Physical Size
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back or
under the arm.
Two children should never use the
same seat belt.
Do not put any accessories on a seat
belt.
Additional Safety Precautions
Comfort and Convenience Features
45
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
With the trunk lid open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows,
and set the climate control system as
shown below.
If you must sit in your parked vehicle,
even in an unconfined area, with the
engine running, adjust the climate
control system as follows:
Select the Fresh Air mode.
Select the mode.
Set the fan speed to high.
Set the temperature control to a
comfortable setting.
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side.
Have the exhaust system inspected
for leaks whenever:
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Safety
46
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read, contact your Acura dealer
for a replacement.
CONTINUED
U.S. models
Canadian models
U.S. models only
Safety Labels
Driver and Passenger Safety
47
HOOD
DASHBOARDRADIATOR CAP
Main Menu
Table of Contents
U.S. models
Canadian models
U.S. models
Canadian models
Safety Labels
Driver and Passenger Safety
48
SUN VISOR
DOORJAMB
Main Menu
Table of Contents
This section gives information about
the controls and displays that
contribute to the daily operation of
your Acura. All the essential controls
are within easy reach.
...........................Control Locations . 50
............................Instrument Panel . 51
..........Instrument Panel Indicators . 52
.............................................Gauges . 57
...................Temperature Gauge . 57
..................................Fuel Gauge . 57

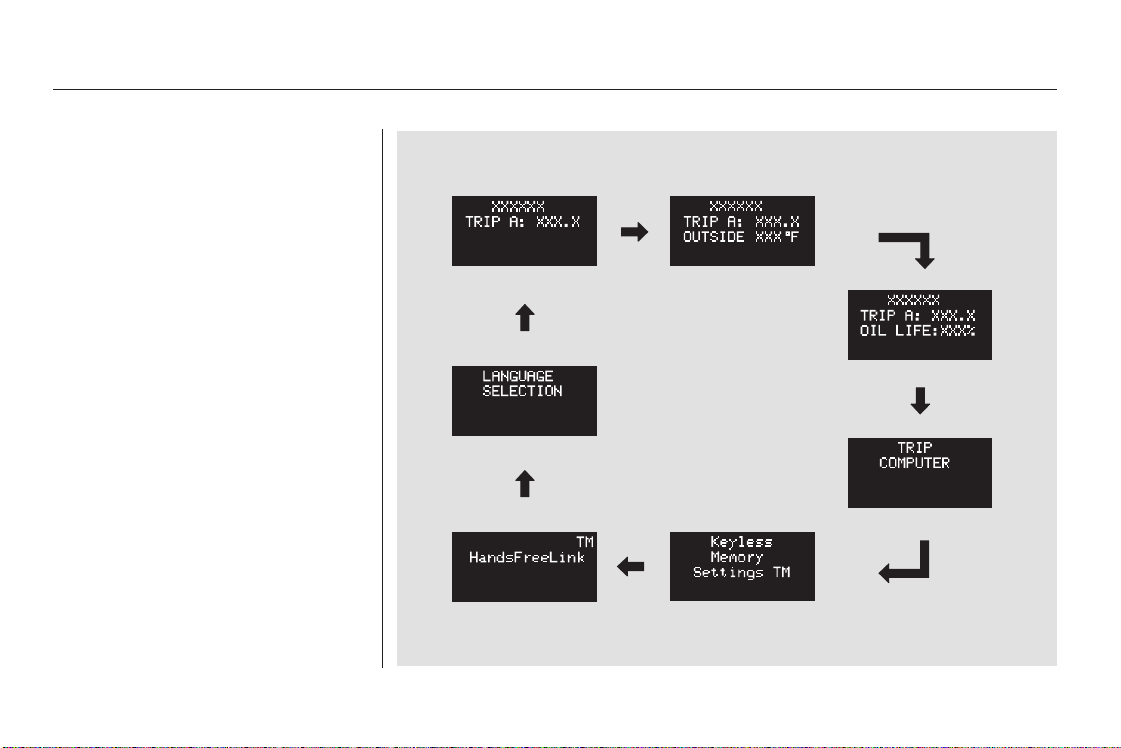

.............Multi-Information Display . 58
......Controls Near Steering Wheel . 72
.Windshield Wipers and Washers . 73
...........Turn Signal and Headlights . 74
........................................Fog Lights . 75
........Instrument Panel Brightness . 75
..................Automatic Lighting Off . 76
.................Hazard Warning Button . 76
.................Rear Window Defogger . 77
..........Steering Wheel Adjustment . 78
..................................................Keys . 79
................................Ignition Switch . 80
........................Immobilizer System . 81
......................................Door Locks . 82
................................................Trunk . 83
............Emergency Trunk Opener . 84
..................Childproof Door Locks . 84
.......................Remote Transmitter . 85
.................................................Seats . 90
............Trunk Pass-through Cover . 90
.............................................Mirrors . 91
Driving Position Memory
..........................................System . 93
....................................Seat Heaters . 96
..............................Power Windows . 97
.......................................Moonroof . 100
..............................................Clock . 103
...............................Parking Brake . 103
...............................Interior Lights . 104
.........Interior Convenience Items . 105
.......................Beverage Holder . 106
.........Accessory Power Socket . 106
..................................Glove Box . 107
.............Console Compartment . 107
....................Front Door Pocket . 108
Instruments and Controls
Instruments and Controls
49
Main Menu
Control Locations
Instruments and Controls
50
DRIVING POSITION
MEMORY
POWER DOOR LOCKS
POWER WINDOW
SWITCHES
MIRROR
CONTROLS
TRUNK RELEASE
BUTTON
CLOCK
CLIMATE CONTROL
SYSTEM
AUDIO SYSTEM
HOOD RELEASE
HANDLE
FUEL FILL DOOR
RELEASE HANDLE
(P.93)
(P.82)
(P.97)
(P.83)
(P.91)
(P.165)
(P.103)
(P.166)
(P.110)
(P.117)
Main Menu
Table of Contents
Instruments and Controls
Instrument Panel
51
HIGH BEAM INDICATOR
CHARGING SYSTEM
INDICATOR
SUPPLEMENTAL
RESTRAINT
SYSTEM INDICATOR
LIGHTS ON
INDICATOR
CRUISE MAIN
INDICATOR
SEAT BELT REMINDER
INDICATOR
CRUISE CONTROL
INDICATOR
VEHICLE
STABILITY
ASSIST (VSA)
SYSTEM
INDICATOR
LOW OIL PRESSURE
INDICATOR
MULTI-INFORMATION
DISPLAY
SIDE AIRBAG OFF
INDICATOR
ANTI-LOCK BRAKE
SYSTEM INDICATOR
LOW FUEL INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
VSA ACTIVATION
INDICATOR
FOG LIGHT
INDICATOR
MALFUNCTION INDICATOR LAMPIMMOBILIZER SYSTEM
INDICATOR
(P.54)
(P.52)
(P.53)
(P.55)
(P.54)
(P.55)
(P.54)
(P.52, 240)
(P.56)
(P.52, 240) (P.56)
(P.52, 243)
(P.53)
(P.59)
(P.56)
(P.52)
(P.53)
(P.54)
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your vehicle.
If you turn the ignition switch to ON
(II) before fastening your belt, the
beeper sounds and the indicator
flashes. If you do not fasten your
seat belt before the beeper stops, the
indicator stops flashing but remains
on.
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
See page .
This indicator has two functions:
Itcomesonwhenyouturnthe
ignition switch to ON (II). It is a
reminder to check the parking
brake. Driving with the parking
brake not fully released can
damage the brakes and tires.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, it can
indicate a problem in the brake
system. For more information, see
page .
If you drive without releasing the
parking brake, a chime will sound,
and you will see a ‘‘RELEASE
PARKING BRAKE’’ message in the
Multi-Information Display.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals, and you
will see ‘‘FASTEN SEAT BELT’’ in
the multi-information display.
1.
2.
243
244
242
242
Instrument Panel Indicators
Instruments and Controls
Seat Belt Reminder
Indicator
Low Oil Pressure
Indicator
Charging System
Indicator
Malfunction Indicator
Lamp
Parking Brake and
Brake System
Indicator
52
Canada
U.S.
Main Menu
Table of Contents
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If this indicator comes
on at any other time, there is a
problem in the ABS. If this happens,
take the vehicle to your dealer to
have it checked. With the indicator
on, your vehicle still has normal
braking ability but no anti-lock. For
more information, see page .
This indicator comes on briefly when
you turn the ignition switch to ON
(II). If it comes on at any other time,
it indicates a potential problem with
your front airbags. This light will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
automatic seat belt tensioners, or
side curtain airbags. For more
information, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more information, see page .27
26
189
Instrument Panel Indicators
Instruments and Controls
Anti-lock Brake System
(ABS) Indicator
Supplemental Restraint
System Indicator
Side Airbag Cutoff
Indicator
53
Main Menu
Table of Contents

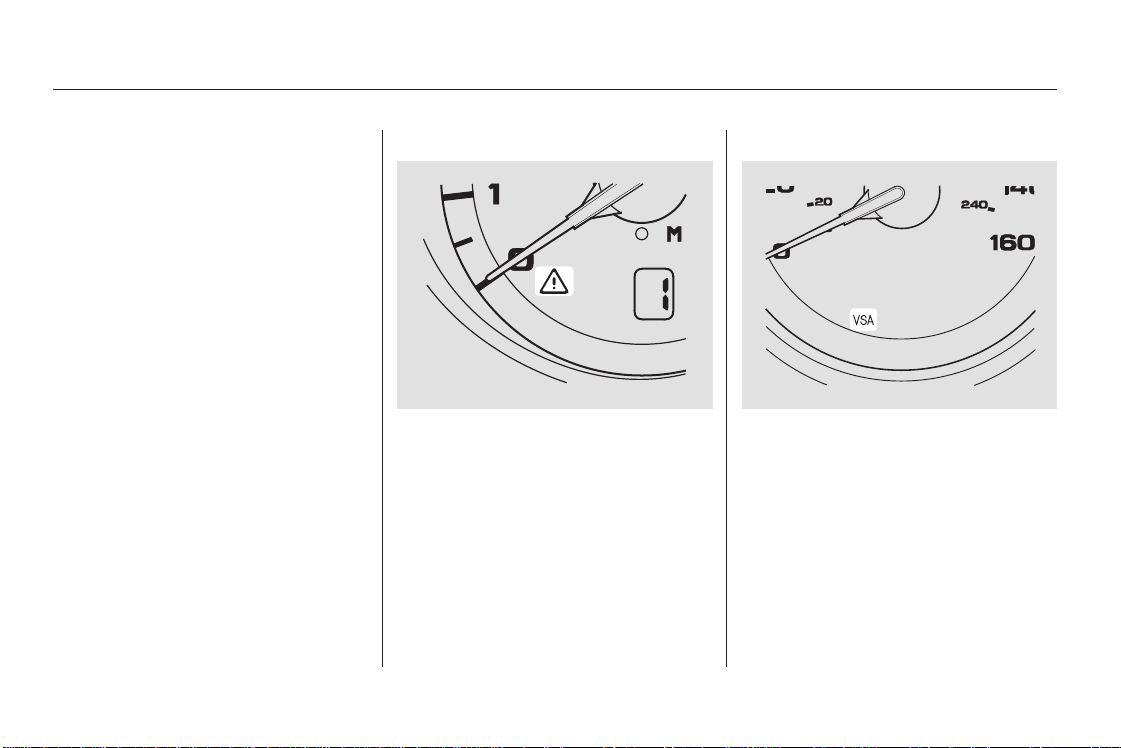

This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II).
Ifitcomesonandstaysonatany
other time, or it does not come on
when you turn the ignition switch to
ON (II), there is a problem with the
VSA system. Take your vehicle to a
dealer to have it checked. Without
VSA, your vehicle still has normal
driving ability, but will not have VSA
traction and stability enhancement.
See page for more information
on the VSA system.
This indicator has three functions.
Itcomesonasareminderthatyou
have turned off the Vehicle
Stability Assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II). See page
for more information on the
VSA system.
This indicator comes on when you
turn on the Cruise Control System
by pressing the Master Button (see
page ).
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
1.
2.
3.
142
142
190
190
190
Vehicle Stability Assist
(VSA) System Indicator
VSA Activation Indicator Cruise Main Indicator
Cruise Control Indicator
Instrument Panel Indicators
Instruments and Controls
54
Main Menu
Table of Contents
The left or right turn signal light
blinks when you signal a lane change
or turn. If the indicators do not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the Hazard Warning
button, both turn signals blink. All
turn signals on the outside of the
vehicle should flash.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to ACCESSORY (I)
or LOCK (0) without turning off the
light switch, this indicator will
remain on. A reminder chime will
also sound when you open the driver’s
door.
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go off if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL.
This indicator comes on with the
high beam headlights. See page
for information on the headlight
controls.
214
74
Canadian models only
Instrument Panel Indicators
Instruments and Controls
Turn Signal and
Hazard Warning
Indicators
‘‘Daytime Running
Lights’’ Indicator
Lights On Indicator
High Beam Indicator
55
Main Menu
Table of Contents
This indicator also blinks several
times when you turn the ignition
switch from ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on for a few
seconds when you turn the ignition
switch to ON (II). It then will go off
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator is in the fuel gauge. It
comesonasareminderthatyou
must refuel soon.
This indicator comes on when you
turn on the fog lights. See page
for information on fog light
operation.
81
75
U.S. models only
Immobilizer System
Indicator
Low Fuel Indicator Fog Light Indicator
Instrument Panel Indicators
Instruments and Controls
56
LOW FUEL INDICATOR
Main Menu
Table of Contents
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (Hot) mark, pull
safely to the side of the road. Turn to
page for instructions and
precautions on checking the engine’s
cooling system.
This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition.
240
Gauges
Instruments and Controls
Temperature Gauge
Fuel Gauge
57
FUEL GAUGE
TEMPERATURE GAUGE
SPEEDOMETERTACHOMETER
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damaging
the catalytic converter.
Main Menu
Table of Contents
The multi-information display in the
instrument panel displays various
information and messages. Some of
the messages help you operate your
vehiclemorecomfortably.
Others help to keep you aware of the
periodic maintenance your vehicle
needs for continued trouble-free
driving.
Here is a list of the messages you
can see. The following pages give
you more information on these
messages.
Driver 1 or 2 Detected
Door and Trunk Open
Fasten Seat Belt
Release Parking Brake
Check Fuel Cap
Odometer
Trip Meter
Outside Temperature
Engine Oil Life
Maintenance Messages
Trip Computer
Keyless Memory Settings
HandsFree Link
Language Selection (Canada only)
With the multi-information display
and the two buttons next to it, you
can also customize these vehicle
control settings to your liking.
Auto door lock conditions
Auto door unlock conditions
Whenever unlocking (driver’s
door, or all doors)
Keyless lock acknowledgment
conditions
Security relock timer
Headlight auto off timer
Interior light dimming time
To customize these control settings,
see page .
Low Windshield Washer Fluid
Level (Canada only)
66
Multi-Information Display
Instruments and Controls
58

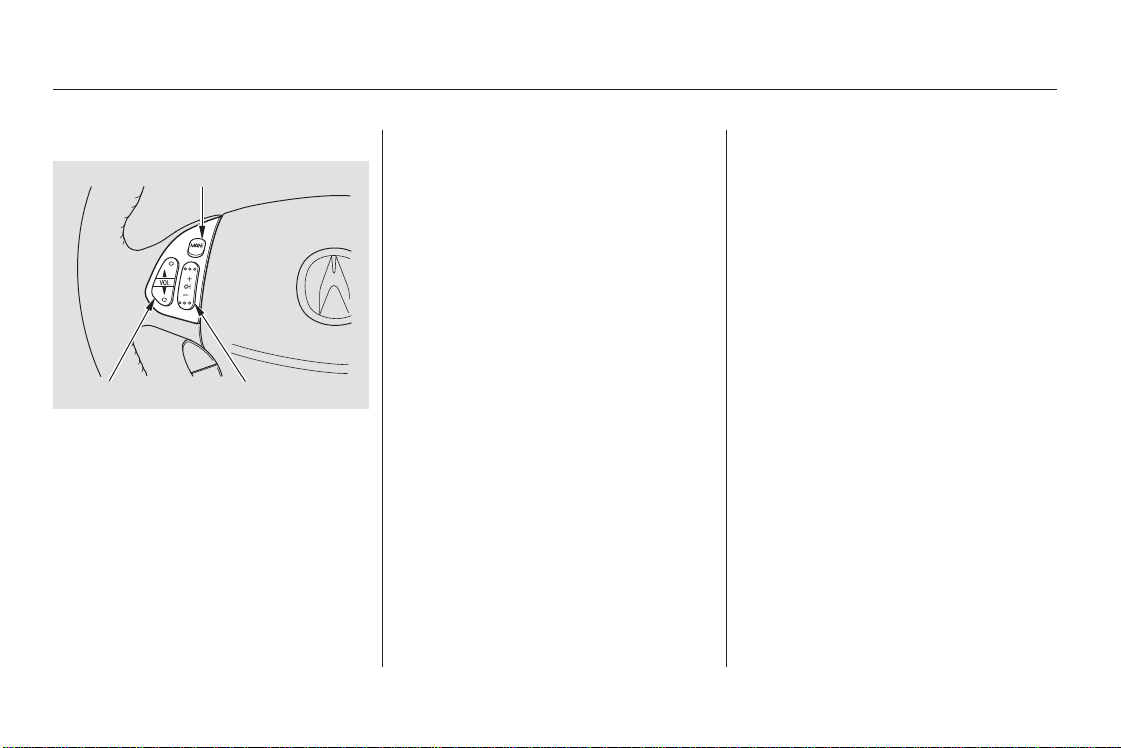

SELECT/
RESET
BUTTON
INFO
BUTTON
TM
TM
Main Menu
Table of Contents
＞
＜
With the ignition switch in the ON
(II) position, the basic display
changes, as shown in the illustration,
each time you press the side of
the INFO button. If you press the
side of the INFO button, the display
returns to the previous message.
On Canadian models, the language in
the multi information display can be
set to English or French. To change
the language see page .71
Multi-Information Display
Instruments and Controls
59
(CANADIAN MODELS ONLY)
Main Menu
Table of Contents
When you unlock and open the
driver’s door with the key, the
display shows ‘‘DRIVER 1
DETECTED’’ or ‘‘DRIVER 2
DETECTED’’, depending on which
remote transmitter was used last.
(The driver’s ‘‘ID’’ is determined by
the transmitter.)

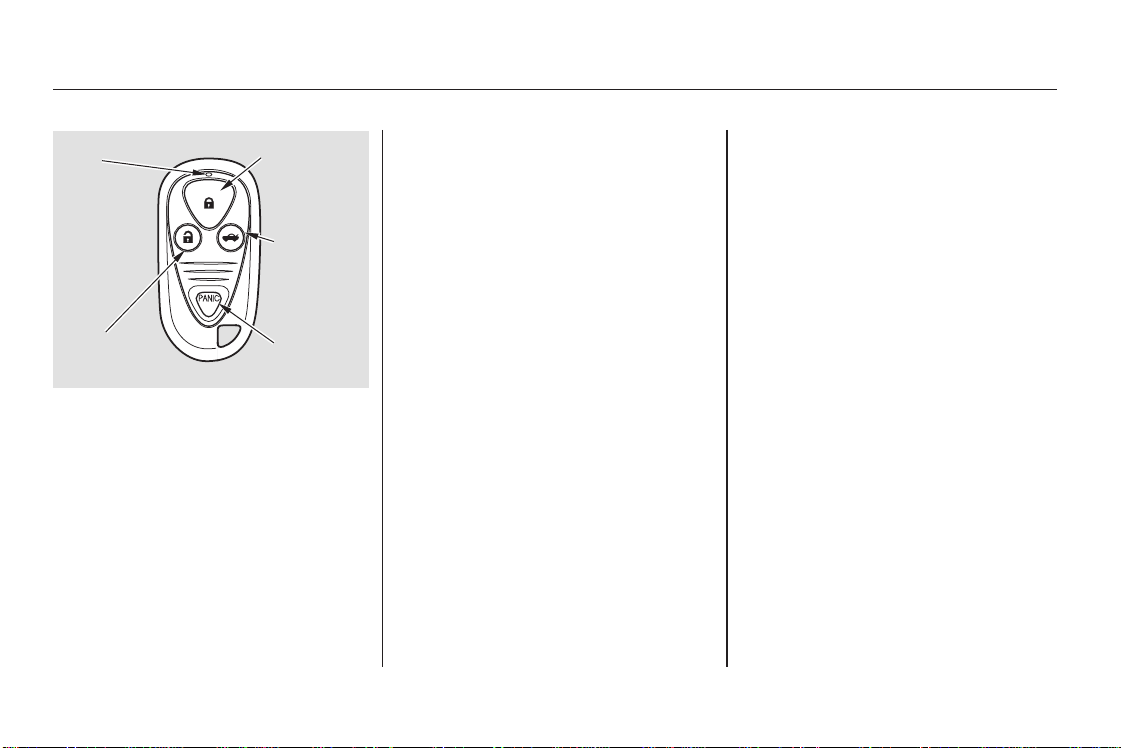

If you use the remote transmitter to
unlock the driver’s door, the display
shows ‘‘DRIVER 1 DETECTED’’ or
‘‘DRIVER 2 DETECTED’’ depending
on which transmitter you use, and
the driver’s seat and outside mirrors
move to the positions stored in that
transmitter (see page ).
If the trunk or any door is not closed
tightly, the display reminds you to
close the open trunk or the door(s)
before you start driving.
In addition to the Seat Belt Reminder
in the instrument panel, the multi-
information display interrupts the
current display and shows ‘‘FASTEN
SEAT BELT’’ for about 6 seconds if
you do not fasten your seat belt
while driving. This message repeats
if you ignore it and do not wear your
seat belt while the vehicle is moving.
93
Multi-Information Display
Instruments and Controls
Driver 1 or 2 Detected
Door and Trunk Open
Fasten Seat Belt
60
Main Menu
Table of Contents
If you start driving without releasing
the parking brake, the multi-
information display interrupts the
current display and shows
‘‘RELEASE PARKING BRAKE!’’.
This message continues, and a
chime sounds, until you release the
parking brake or the vehicle speed
slows down to less than 0.5 mph (0.8
km/h).
If the fuel fill cap is missing or not
tightened properly, you will see
‘‘CHECK FUEL CAP’’. Make sure
the fuel cap is installed and tightened
properly to at least 3 clicks.
The CHECK FUEL CAP message
should go off after tightening the
fuel cap, turning the ignition switch
off and on, then driving over 30 mph
for at least 45 seconds. Due to
different driving conditions, it may
take a few drive trips to make the
message go off.
If a loose or missing fuel cap was not
the cause of the CHECK FUEL CAP
message coming on, the message
will turn off and the Malfunction
Indicator Lamp will come on. If this
happens, have your vehicle checked
by an Acura dealer as soon as
possible.
Multi-Information Display
Instruments and Controls
Release Parking Brake Check Fuel Cap
61
Main Menu
Table of Contents
The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. federal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
This meter show the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it. There
are two trip meters: Trip A and Trip
B. When you first turn the ignition
switch to ON (II), Trip A is displayed.
Switch between Trip A and Trip B by
pressing the Select/Reset button
repeatedly. Each trip meter works
independently, so you can keep track
of two different distances.
If the fluid level in the windshield
washer reservoir gets low, the multi-
information display shows the above
message.
On Canadian models
Multi-Information Display
Low Windshield Washer Fluid
Level
Odometer Trip Meter
Instruments and Controls
62
ODOMETER
TRIP METER
Main Menu
Table of Contents
To reset a trip meter, display it, then
press and hold the Select/Reset
button until the number resets to
‘‘0.0’’.
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
This shows the outside Fahrenheit
temperature in U.S. models, and
Centigrade temperature in Canadian
models.
In certain weather conditions,
temperature readings near freezing
(32°F, 0°C) could mean that ice is
forming on the road surface.
The temperature sensor is in the
front bumper. The temperature
reading can be affected by heat
reflection from the road surface,
engine heat, and the exhaust from
surrounding traffic. This can cause
an incorrect temperature reading
when your speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not fully
acclimatized, therefore it may take
several minutes until the proper
temperature is displayed.
Multi-Information Display
Instruments and Controls
Outside Temperature
63
SELECT/
RESET
BUTTON
Main Menu
Table of Contents
This shows the remaining life of the
engine oil. It shows 100% after the
engine oil is replaced and the display
is reset. The engine oil life is
calculated based on engine operating
conditions and accumulated engine
revolutions.
When the engine oil life reaches 15
percent, the display shows
‘‘SERVICE DUE SOON’’ and the
code for the maintenance items to be
performed.
When the engine oil life reaches 5
percent, the display shows
‘‘SERVICE DUE NOW’’ along with
the same maintenance items.
Have your dealer do the indicated
maintenance as soon as you see this
message, and have them reset the
display after completing the service.
If you do not perform the indicated
maintenance or do not reset the
display, the message changes to
‘‘SERVICE PAST DUE’’ when the
engine oil life becomes 0 percent.
These messages appear on the multi-
information display each time you
turn the ignition switch to ON (II).
For details on engine oil life and
maintenance messages, refer to page
.
Also refer to page for important
maintenance safety precautions.
195
194
Multi-Information Display
Instruments and Controls
Engine Oil Life Maintenance Messages
64
Main Menu
Table of Contents
＞
When the multi-information display
is in the trip computer mode, press
the Select/Reset button. The display
changesasshownabove.
Themessagesinthisdisplay
indicate:
When the display shows the initial
screen of the trip computer, press
the side of the INFO button to
display ‘‘MILES TO EMPTY’’. This
is the estimated distance you can
travelonthefuelremaininginthe
tank. This distance is estimated from
the fuel economy you received over
the last several miles, so it will vary
withchangesinspeed,traffic,etc.
AVG MPG: Average vehicle speed
AVG MPH: Average fuel economy
DIST: Distance traveled
TIME: Time traveled
To reset the values in the trip
computer, press Select/Reset button,
and hold it for about 1 second.
Multi-Information Display
Instruments and Controls
Trip Computer
65
Main Menu
Table of Contents
＞
You can customize some of the
vehicle control settings to your
preference. Here are the settings
you can customize:
Auto door lock conditions
Auto door unlock conditions
Security relock timer
Keyless lock acknowledgment
conditions
Headlight auto off timer
Interior light dimming time
While ‘‘Keyless Memory Settings’’ is
displayed, press the Select/Reset
button. The display will change to
the screen shown above.
Select the menu item you want
(‘‘CHG SETTINGS’’, ‘‘DEFAULT
ALL’’ or ‘‘EXIT’’) by moving the
pointer ‘‘ ’’ with the INFO button.
After selecting a menu item, enter
your selection by pressing the
Select/Reset button.
To exit this mode without changing
the current settings, select ‘‘EXIT’’
and press the Select/Reset button.
The display will move to the next
mode.
If you want to change the settings,
select ‘‘CHG SETTINGS’’, and press
the Select/Reset button. The display
will change to the screen shown in
the middle column of this page.
Multi-Information Display
Instruments and Controls
Keyless Memory Settings
66
TM
Main Menu
Table of Contents
＜＞
＞
＞
If you want the settings as they were
when the vehicle left the factory,
select ‘‘DEFAULT ALL’’ and press
the Select/Reset button. The display
will change to the screen shown
above. Press the Select/Reset button
to select ‘‘OK’’ or press the or
side of the INFO button to cancel.
The first Keyless Memory Setting is
Auto Door Lock conditions. Select
the desired condition by moving the
pointer with the side of the INFO
button. On the display will be next
to the current setting.
Herearethethreepossiblesettings:
OFF: The auto door lock is
deactivated all the time.
SHIFTFROMP:Thedoorswilllock
whenever you move the shift lever
out of P. (Models with automatic
transmission.)
10 MPH: The doors will lock when
the vehicle speed reaches 10 mph.
CONTINUED
Multi-Information Display
Instruments and Controls
67
Main Menu
Table of Contents
＞
＞
The next setting menu is Auto Door
Unlocking conditions.
OFF: The auto door unlock is
deactivated all the time.
SHIFT TO P: The driver’s door or
all doors depending on your
selection in the next step, will
unlock whenever you move the
shift lever to P.
IGN OFF: The driver’s door or all
doors will unlock when you turn
the ignition switch to OFF (0).
Enteryourselectionbymoving
the pointer with the side of the
INFO button.
To designate the door(s) that
unlock under the previous step,
select ‘‘DRIVER’S DOOR’’ or
‘‘ALL DOORS’’ by moving the
pointer with the INFO button.
Then enter your selection by
moving the pointer with the
side of the INFO button.
4.
1.
2.
3.
Multi-Information Display
Instruments and Controls
68
Main Menu
Table of Contents
＞
＞
The next setting menu is ‘‘KEYLESS
LOCK ACKNOWLEDGMENT’’.
If you do not want the beeper to
sound, select ‘‘BEEP OFF’’ and enter
your selection by moving the pointer
with the side of the INFO button.
The next setting menu is
‘‘SECURITY RELOCK TIMER’’.
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors automatically relock and
the security system sets.
The headlights, parking lights,
taillights and licence plate light turn
off after the selected time when you
remove the key from the ignition
switch and close the driver’s door.
You can change this relock time
from 30 seconds to 60 or 90 seconds.
Select the desired relock time by
moving the pointer with the side
of the INFO button.
The last two setting menus are
‘‘HEADLIGHT AUTO OFF TIMER’’
and ‘‘INTERIOR LIGHT DIMMING
TIME’’.
Select the time (‘‘0S, 15S, 30S or 60
S’’) and enter your selection by
pressing the Select/Reset button.
When you push the LOCK button a
second time within 5 seconds after
you lock the doors with the remote
transmitter, a beep will sound to
verify that doors are locked and the
security system has set.
Multi-Information Display
Instruments and Controls
69
Main Menu
Table of Contents
＞
The interior lights fade out when you
close all doors (see page ). Select
how long it takes for the interior
lights to fade out (in seconds) from
5S, 15S, or 30S, and enter your
selection by moving the pointer with
the side of the INFO button.
You can receive or make phone-calls
from your cell phone through your
Acura’s HandsFreeLink (HFL)
system without touching your cell
phone.
To use the system, your cell phone
and the HFL system must be linked.
Not all cell phones are compatible
with this system. Refer to page
for instructions on how to link
your cell phone to the HFL and how
to receive or make phone calls.
154
104
Multi-Information Display
Instruments and Controls
HandsFreeLink
70
TM
Main Menu
Table of Contents
＞
On Canadian models only
You can switch the language of the
multi-information display between
French and English.
When the multi-information display
is in the ‘‘LANGUAGE
SELECTION’’ mode (screen shown
above), press the Select/Reset
button. The display will change to
the selection screen.
Select the desired language, French
or English, by pressing the side of
the INFO button, and enter your
selection by pressing the Select/
Reset button.
Multi-Information Display
Instruments and Controls
Language Selection
71
Main Menu
Table of Contents
Controls Near the Steering Wheel
Instruments and Controls
72
WINDSHIELD
WIPERS/WASHERS
REAR WINDOW
DEFOGGER
INSTRUMENT PANEL
BRIGHTNESS
HAZARD WARNING BUTTON
HEADLIGHTS/TURN SIGNALS/
FOG LIGHTS
STEERING WHEEL
ADJUSTMENT
SEAT HEATERS
(P.74)
(P.75)
(P.191)
(P.91)
(P.78)
(P.96)
(P.142)
CRUISE CONTROL
(P.76)
(P.76)
(P.73)
VEHICLE STABILITY
ASSIST SYSTEM
ON/OFF SWITCH
HORN
MIRROR
CONTROLS
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
MIST
OFF
INT Intermittent
LO Low
HI High
Windshield Washers
Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wipers will
change to low speed operation
when the vehicle speed exceeds 12
mph (20 km/h).
The wipers run at low speed.
The wipers run at high speed.
Pull back
and hold the wiper control lever.
The washers spray until you
release the lever. The wipers run
at low speed, then complete one
more sweep after you release the
lever.
1.
2.
3.
4.
5.
6.
Windshield Wipers and Washers
Instruments and Controls
MIST
OFF
INT
LO
HI
Windshield Washer
73
Main Menu
Table of Contents
−
−
−Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
The rotating switch
on the left lever controls the lights.
Turning this switch to the ‘‘ ’’
position turns on the parking lights,
taillights, instrument panel lights,
side-marker lights, and rear license
plate lights. Turning the switch to
the ‘‘ ’’ position turns on the
headlights. If you leave the lights on
with the key removed from the
ignition switch, you will hear a
reminder tone when you open the
driver’s door.
To switch from low
beams to high beams, push the left
lever forward until you hear a click.
The blue high beam indicator will
come on (see page ). Pull it back
to return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams will stay on as long as you
hold the lever back.
With the headlight switch off, the
daytime running lights come on
when you turn the ignition switch to
ON (II) and release the parking
brake. They remain on until you turn
the ignition off, even if you set the
parking brake.
Turn Signal
Off
Parking and instrument panel
Headlights on
Fog lights off (U.S. models)
Fog lights on (U.S. models)
High beams
Flashhighbeams
1.
2.
3.
4.
5.
6.
7.
8.
55
Turn Signal and Headlights
Instruments and Controls
Turn Signal
Headlights
High Beams
Daytime Running Lights
(Canadian Models)
74
Main Menu
Table of Contents
−
＋
＋
−
Turn the fog lights on and off by
turning the switch next to the
headlight switch.
Adjust the brightness of the
instrument panel by pressing the
or side of the adjustment button.
Press to increase the brightness
and to decrease it. You can adjust
the brightness with the headlight
switch on or off.
The level of brightness is shown on
the multi-information display while
you adjust it. It goes out 5 seconds
after you finish adjusting.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Pressing the MAX
button will bring it to the maximum
level.
You can use the fog lights only when
the headlights are on low beam.
Fog Lights, Instrument Panel Brightness
Instruments and Controls
Fog Lights
(U.S. models only)
Instrument Panel Brightness
75
MAX BUTTON
ADJUSTMENT BUTTON
Main Menu
Table of Contents
The automatic lighting off feature
turns off the headlights, all other
exterior lights, and the instrument
panel lights within 15 seconds of
removing the key from the ignition
switch and closing the driver’s door.
You can change this 15 second timer
to 0, 30, or 60 seconds (see page ).
The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights-on
reminder chime.
Push the button between the center
vents to turn on the hazard warning
lights (four-way flashers). This
causes all four outside turn signals
and both indicators in the instrument
panel to flash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.
The automatic lighting off feature
activates if you leave the headlight
switch in the ‘‘ ’’ or ‘‘ ’’
position, remove the key, open, then
close the driver’s door.
If you remove the key from the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights will turn off
after 10 minutes.
69
Automatic Lighting Off, Hazard Warning Button
Instruments and Controls
Automatic Lighting Off Feature Hazard Warning Button
76
Main Menu
Table of Contents
The rear window defogger clears fog,
frost,andthinicefromthewindow.
Push the defogger button to turn it
on and off. The indicators in the
button comes on to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition.
You have to turn it on again when
you restart the vehicle.
Make sure the rear window is clear
and you have good visibility before
starting to drive.
The defogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side
to side.
Rear Window Defogger
Instruments and Controls
77
Main Menu
Table of Contents

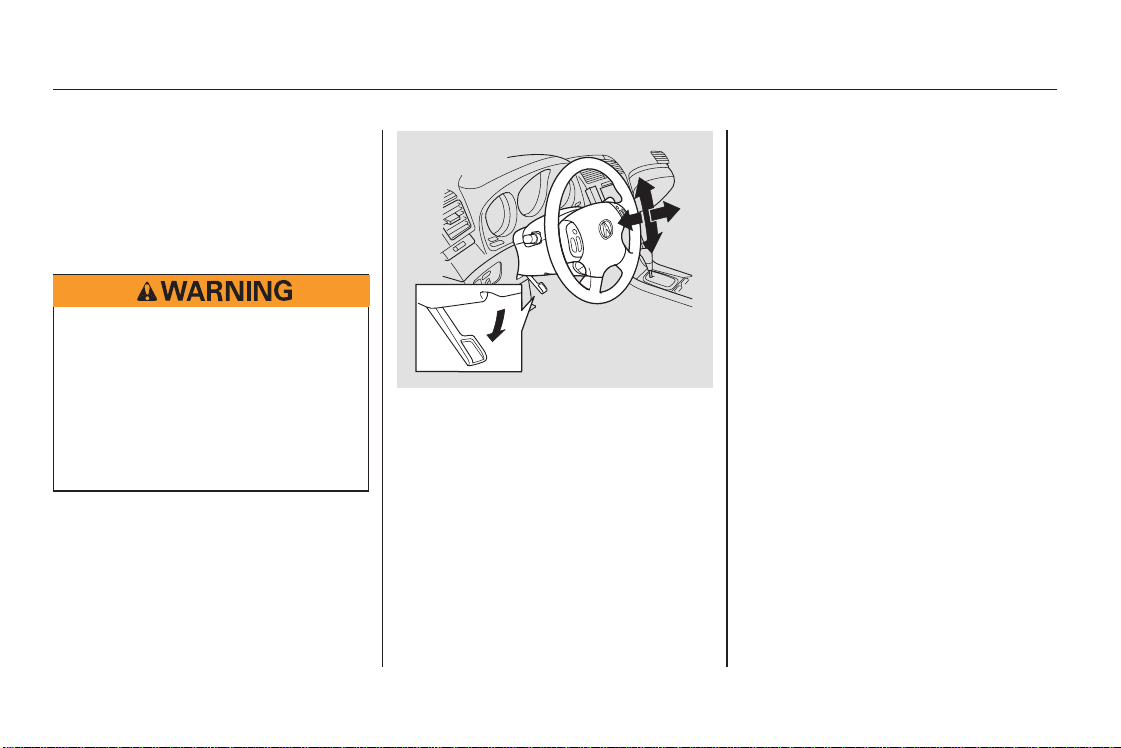

See page for important safety
information about how to properly
position the steering wheel.
16
Make any steering wheel adjustment
before you start driving.
Push the lever up to lock the
steering wheel in that position.
To adjust the steering wheel:
Push the lever under the steering
column all the way down.
Move the steering wheel up or
down, and in or out to the desired
position, making sure the wheel
points toward your chest, not
toward your face. Make sure you
can see the instrument panel
gauges and the indicators.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
1.
2.
3.
4.
Steering Wheel Adjustment
Instruments and Controls
78
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
Main Menu
Table of Contents
The master key fits all the locks on
your vehicle.
The valet key works only in the
ignition and the driver’s door lock.
You can keep the trunk pass-through
cover and the glove box locked when
you leave your vehicle and the valet
key at a parking facility.
Youshouldhavereceivedakey
number tag with your key. You will
need this key number if you ever
have to get a lost key replaced. Use
only an Acura-approved key blank.
These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Donotdropthekeysorsetheavy
objects on them.
Protect the key from direct
sunlight, high temperature, and
high humidity.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The keys do not contain batteries.
Do not try to take them apart.
Keys
Instruments and Controls
79
KEY
NUMBER
TAG
MASTER
KEY
(BLACK)
VALET
KEY
(GRAY)
Main Menu
Table of Contents
−
−
−
−
The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
You can insert or
remove the key only in this position.
To turn the key, you must push the
key in slightly. If your vehicle has an
automatic transmission, the shift
lever must also be in park.
If the front wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from ACCESSORY
(I) to ON (II).
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn off the beeper.
If your vehicle has an automatic
transmission, the shift lever must be
in Park before you can remove the
key from the ignition switch.
Instruments and Controls
LOCK (0)
ACCESSORY (I)
ON (II)
START (III)
Ignition Switch
80
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only when
parked.
Main Menu
Table of Contents
The Immobilizer System protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your Acura dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start the engine, contact an Acura
dealer.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
Instruments and Controls
81
Main Menu
Table of Contents
Each front door has a master door
lock switch. Either switch locks and
unlocks all doors. Push the bottom of
the switch to lock the doors and the
toptounlockthem.
Each door has a lock tab on the top.
Push the tab down to lock the door
and pull it up to unlock. When you
push down the lock tab on the driver’s
door, all the doors lock.
All doors can be locked from the
outsidebyusingthekeyinthe
driver’s door. To unlock only the
driver’s door, insert the key, turn the
key, and release it. The remaining
doors unlock when you turn the key
a second time within a few seconds.
With the driver’s door open and the
key in the ignition, both master door
lock switches are disabled. If you try
to lock an open driver’s door by
pushinginthelocktab,thetabson
all doors pop up.
To lock any door when getting out of
the vehicle, push the lock tab in and
close the door.
Door Locks
Instruments and Controls
Lockout Prevention
82
Main Menu
Table of Contents
To open the trunk, press the trunk
releasebuttonontheleftcornerof
the dashboard. To open the trunk
from the outside, press the trunk
release button on the remote
transmitter.
To close the trunk, press down on
the trunk lid.
If your vehicle’s battery goes dead or
is disconnected, you can open the
trunk from the rear seat by pulling
the trunk release handle. Reach the
handle through the trunk pass-
through.
Keep the trunk lid closed at all times
while driving to avoid damaging it
and to prevent exhaust gas from
getting into the interior. See Carbon
Monoxide Hazard, page .
To protect items in the trunk, you
can disable the trunk-release button
on the dashboard by turning off the
trunk main switch in the glove box,
locking the glove box, and locking
the trunk pass-through cover with
the master key.
If you need to give the key to
someone else, give them the valet
key.
46
Instruments and Controls
Trunk
83
Main Menu
Table of Contents
The childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened from the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up and use the outside door
handle.
As a safety feature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened from inside.
To open the trunk, push the release
lever to the left.
Parents should decide if their
children should be shown how to use
this feature.
Trunk, Childproof Door Locks
Instruments and Controls
Emergency Trunk Opener Childproof Door Locks
84
Main Menu
Table of Contents
−
−−
−
Press this button once to
lock all doors. Some exterior lights
will flash. When you push LOCK
twice within 5 seconds, you will hear
a beep to verify that the doors are
locked and the security system has
set. You cannot lock the doors if any
door is not fully closed or if the key
is in the ignition switch.
Press this button once
to unlock the driver’s door or all the
doors (depending on the Keyless
Memory Setting). Press it twice to
unlock the other doors. Some
exterior lights will flash twice each
time you press the button.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
anydoorswithin30seconds(or
whatever setting the relock timer is
set to), the light fades out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go off
immediately.
Pressthisbuttonfor
about 1 second to open the trunk.
You cannot open the trunk with the
remote transmitter if the trunk main
button is turned off.
Pressthisbuttonfor
about 2 seconds to attract attention:
thehornwillsoundandtheexterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter or turn the ignition
switch to ON (II).
If you unlock the doors with the
remote transmitter, but do not open
anydoorswithin30seconds,the
doors automatically relock and the
security system sets. To change this
setting, refer to Keyless Memory
Settings on page .66
Remote Transmitter
Instruments and Controls
LOCK
UNLOCK TRUNK
PANIC
85
TRUNK
RELEASE
BUTTON
LOCK
BUTTON
UNLOCK
BUTTON
PANIC
BUTTON
LED
Main Menu
Table of Contents
The driving position memory
activated (Driver 1, Driver 2) is
shownonthebackofeach
transmitter. Make sure you store
your desired driving position in the
memory that is activated by the
transmitter you normally carry.
You can turn off this driving position
memory activation. Press and hold
the LOCK and UNLOCK buttons at
thesametime.TheLEDinthe
remote transmitter will blink twice.
Then release the buttons. Doing this
also cancels the keyless memory
settings for that remote and restores
the default settings.
To turn it back on, repeat this
procedure. The LED will come on
for 1 second to indicate the feature
has been turned on.
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your Acura
dealer.
Each remote transmitter also
activates the Driving Position
Memory System and changes the
keyless memory settings related to
that remote (see page ). When
you open the driver’s door after
unlocking it with the remote
transmitter, you will hear a beep.
The driver’s seat and outside mirrors
move to the positions stored in that
memory location. You will hear two
beeps when the movement is
completed.
93
Remote Transmitter
Instruments and Controls
Recalling a Memorized Driving
Position
Remote Transmitter Care
86
With Driver 1
With Driver 2
Main Menu
Table of Contents
−
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR2025
To replace the battery, place a cloth
on the edge of the transmitter and
remove the upper half by carefully
prying on the edge with a small flat-
tip screwdriver. Remove the old
battery and insert a new battery with
the side facing up. Snap the two
halves of the transmitter case back
together.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Remote Transmitter
Instruments and Controls
Replacing the Transmitter
Battery
87
BATTERY
Main Menu
Table of Contents
−See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
1211
The controls for the power
adjustable front seats are on the
outside edge of each seat bottom.
You can adjust the seats with the
ignition switch in any position. Make
all seat adjustments before you start
driving.
Moving the long horizontal switch on
the driver’s seat adjusts the seat
bottom in several directions. On the
passenger’s seat, the long horizontal
switch moves the seat only back and
forth. The short vertical switch
adjusts the seat back angle.
The short horizontal switch on the
driver’s seat adjusts the degree of
lumbar support.
Moves the seat forward
and backward.
Moves the seat up or
down and the rear of the
seat up or down.
(Driver’s seat only)
Raises or lowers the seat.
(Driver’s seat only)
Adjusts the seat-back
angle forward or
backward.
Increases or decreases
the lumbar support.
(Driver’s seat only)
Seats
Instruments and Controls
Front Seat Power Adjustments
88
Main Menu
Table of Contents
See page for important safety
information and a warning about how to
properly position the head restraints.
13
The head restraints help protect you
and your passengers from whiplash
and other injuries. They are most
effective when you adjust them so
the back of the occupant’s head rests
against the center of the restraint. A
taller person should adjust the
restraint as high as possible.
All head restraints adjust for height.
The tilt of the front head restrains is
also adjustable. You need both hands
to adjust the restraint. Do not
attempt to adjust it while driving. To
raise it, pull upward. To lower the
restraint, push the release button
sideways, and push the restraint
down. To adjust the tilt, pivot the
front head restraint to the desired
position.
The lid of the console compartment
canbeusedasanarmrestbymoving
it forward and backward. Make sure
the armrest is securely latched.
Make sure the passenger’s hands or
fingersareawayfromthearmrest
before moving it.
Seats
Instruments and Controls
Head Restraints Armrest
89
RELEASE BUTTON
Main Menu
Table of Contents
Make sure all items in the trunk and
those extending through the pass-
through are secured.
For security, this cover can be
locked and unlocked only with the
master key. To lock the cover, insert
thekeyandturnitclockwise.
Never drive with this cover open and
the trunk lid open.
See on
page .
The trunk pass-through cover can be
opened from either side; it folds
forward onto the center armrest.
Open the cover by sliding the knob
downward and pushing or pulling on
the cover. To close the cover, swing
it up and push firmly on the top.
Make sure it latches properly.
The rear seat armrest is in the
center of the rear seat. Pivot it down
to use it.
46
Carbon Monoxide Hazard
Trunk Pass-through Cover
Seats, Trunk Pass-through Cover
Instruments and Controls
90
KNOB
COVER
Main Menu
Table of Contents

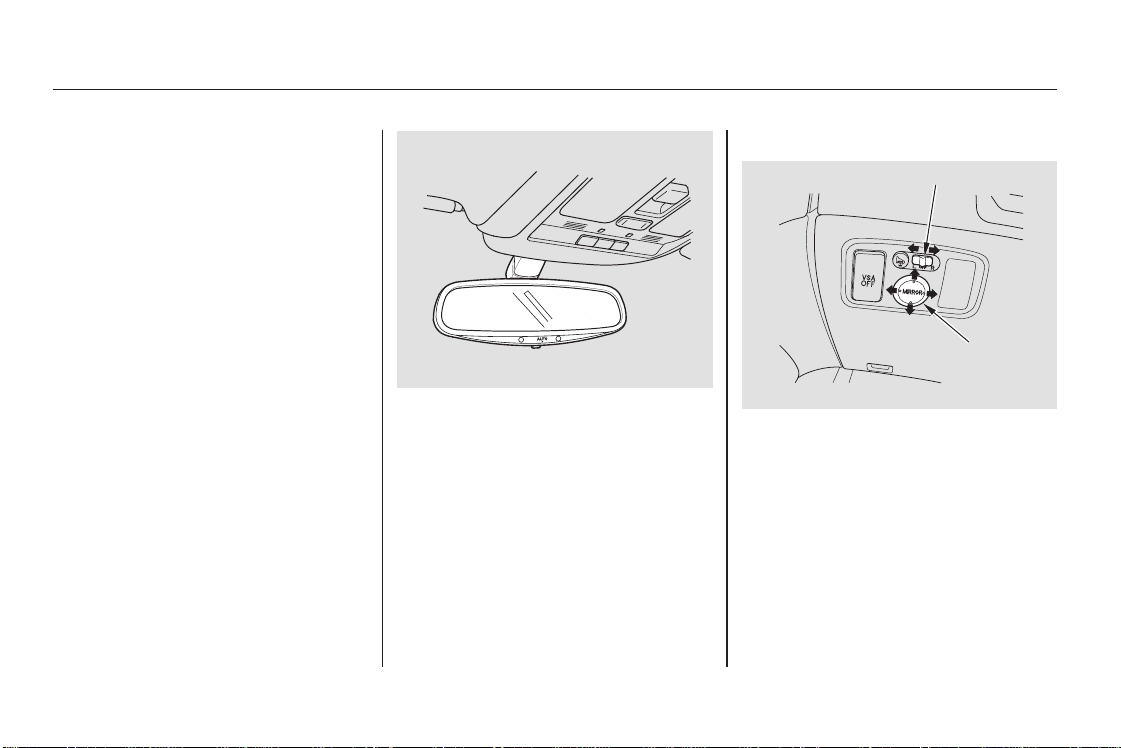

Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror can automatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
off this sensing.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
1.
2.
Mirrors
Instruments and Controls
Adjusting the Power Mirrors
91
SELECTOR SWITCH
ADJUSTMENT
SWITCH
Main Menu
Table of Contents
When you finish, move the
selector switch to the center (off)
position. This turns off the
adjustment switch so you can’t
move a mirror out of position by
accidentally bumping the switch.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.
Depending on the position of the
selector switch, the left or right side
mirror will pivot downward slightly
when you shift the transmission into
reverse. In the Left position, the left
mirror pivots. In the Right position,
the right mirror pivots. This gives
you a better view of that side of the
vehicle while parallel parking. The
mirror returns to its original position
when you take the transmission out
of reverse. To turn this feature off,
leave the switch in the center
position.
Outside mirror positions can be
stored in the driving position
memory system (see page ).
3.
93
Instruments and Controls
Mirrors
92
HEATED MIRROR BUTTON
Main Menu
Table of Contents
Your Acura has a memory feature
for the driver’s seat and outside
mirror positions.
Two seat and outside mirror
positions, can be stored in separate
memories. You select a memorized
position by pushing the appropriate
button or using the appropriate
remote transmitter (Driver 1 or
Driver 2).
Press and release the MEMO
buttononthecontrolpanel.You
will hear a beep. Immediately
press and hold one of the memory
buttons (1 or 2) until you hear two
beeps. The indicator in the
memory button will come on. The
current positions of the driver’s
seat and outside mirrors are now
stored.
Adjust the outside mirrors for best
visibility (see page ).
Adjust the seat to a comfortable
position (see page ).
Turn the ignition switch to ON (II).
You cannot add a new driving
position in the memory unless the
ignition switch is in the ON (II)
position. You can recall a
memorized position with the
ignition switch in any position.
Store a driving position only when
the vehicle is parked.
3.
1.
2.
91
88
CONTINUED
Driving Position Memory System
Instruments and Controls
Storing a Driving Position in
Memory
93
MEMO BUTTON
MEMORY BUTTONS
Main Menu
Table of Contents
Doing any of the following after
pressing the MEMO button will
cancel the storing procedure.
Not pressing a memory button
within 5 seconds.
Readjusting the seat position.
Readjusting the outside mirror
position.
Each memory button stores only one
driving position. Storing a new
position erases the previous setting
stored in that button’s memory. If
you want to add a new position while
retaining the current one, use the
other memory button.
To select a memorized position, do
this:
Make sure the parking brake is set
(M/T) or the shift lever is in Park
(A/T).
Press the desired memory button
(1 or 2) until you hear a beep, then
release the button.
The system will move the seat and
outside mirrors to the memorized
positions. The indicator in the
selected memory button will flash
during movement. When the
adjustments are complete, you will
hear two beeps, and the indicator will
remain on.
You cannot select a memorized
position if the transmission is in
Reverse. Shift to another gear,
then select.
If the parking brake is not set, you
must press and hold the memory
button until the adjustment is
complete.
1.
2.
Notes for vehicles with M/T
Driving Position Memory System
Instruments and Controls
Selecting a Memorized Position
94
MEMORY BUTTONS
Main Menu
Table of Contents
To stop the system’s automatic
adjustment, do any of these actions:
Press any button on the control
panel: MEMO, 1, or 2.
If desired, you can use the
adjustment switches to change the
positions of the seat or outside
mirrors after they are in their
memorized position. If you change
the memorized position, the
indicator in the memory button will
go out. To keep this driving position
for later use, you must store it in the
driving position memory.
Adjust the outside mirrors.
Shift out of Park.
Push any of the adjustment
switches for the seat.
Driving Position Memory System
Instruments and Controls
95
Main Menu
Table of Contents
Both front seats are equipped with
seat heaters. The ignition switch
must be in the ON (II) position to
usethem.PushtheHIsideofthe
switch to rapidly heat up the seat.
After the seat reaches a comfortable
temperature, push the LO side of the
switch. This will keep the seat warm.
The HI or LO indicator stays on until
youturnitoffbypushingthe
opposite side of the switch lightly.
In HI, the heater turns off when the
seat gets warm, and turns back on
after the seat’s temperature drops. It
continues to cycle as long as you
leave it set on HI. The HI indicator
stays on as a reminder that you have
the heater on.
In LO, the heater runs continuously.
It does not cycle with temperature
changes.
Follow these precautions whenever
you use the seat heaters:
Use the HI setting only to heat the
seats quickly. Select the LO
setting when the seats feel warm.
The HI setting draws large
amounts of current from the
battery.
Do not use the seat heaters, even
on the LO setting, if the engine is
left idling for an extended period.
Thiscanweakenthebattery,
causing hard starting.
Because of the sensors for the side
airbag system, there is no heater in
the passenger’s seat-back.
Seat Heaters
Instruments and Controls
96
SEAT HEATERS
Main Menu
Table of Contents
Your vehicle’s windows are electri-
cally-powered. Turn the ignition
switch to ON (II) to raise or lower
any window.
Each door has a switch that controls
its window. To open the window,
push the switch down and hold it.
Release the switch when you want
the window to stop. Close the
window by pulling back on the
switch and holding it.
The driver’s door armrest has a
master power window control panel.
To open any window, push down on
the appropriate switch and hold it
until the window reaches the desired
position. To close the window, pull
back on the window switch. Release
the switch when the window gets to
the position you want.
Power Windows
Instruments and Controls
97
DRIVER’S WINDOW
SWITCH
MAIN
SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
Main Menu
Table of Contents
−
The master control panel also has
these features:
To open either front
window fully, push the window
switch firmly down to the second
detent, then release it. The window
automatically goes down all the way.
To stop the window from going all
the way down, pull back on the
window switch briefly.
To close either front window fully,
pull back the window switch firmly
to the second detent, then release it.
The window automatically goes all
the way up. To stop the window from
going all the way up, push down on
the window switch briefly.
To open or close either front window
partially, push down or pull back on
the window switch lightly to the first
detent and hold it. The window will
stop when you release the switch.
The front passenger’s window switch
also has the AUTO feature.
If either front window runs into any
obstacle while it is closing
automatically, it will reverse
direction, and then stop. To close the
window, remove the obstacle, then
use the window switch again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
before closing it.
The MAIN switch controls power to
the passenger’s windows. With this
switch off, the passenger’s windows
cannot be raised or lowered. The
MAIN switch does not affect the
driver’s window. To cancel this
feature, push on the switch again to
getittopopup.KeeptheMAIN
switch off when you have children in
the vehicle so they do not injure
themselves by operating the
windows unintentionally.
The indicators inside the switches
come on when you turn the ignition
switch to ON (II).
Power Windows
Instruments and Controls
AUTO
Auto Reverse
98
Main Menu
Table of Contents
If your vehicle’s battery is
disconnected or goes dead, or a front
window fuse is removed, the AUTO
function could be disabled. If the
AUTO function is disabled, do the
following:
The power window system has a key-
off delay function. The windows will
stilloperateforupto10minutes
after you turn off the ignition.
Opening either front door cancels
the delay function. You must turn
the ignition switch to ON (II) again
before you can operate the windows.Start the engine. Push down on
the front window switch until the
window is fully open.
Pull back on the front window
switch to close the window
completely, then hold the switch
for a second or two more.
If the power windows do not operate
properly after resetting, have your
vehicle checked by an Acura dealer.
1.
2.
Power Windows
Instruments and Controls
99
Main Menu
Table of Contents
You can open all of the windows and
the moonroof from outside with the
remote transmitter.
You can open and close the windows
and moonroof with the key in the
driver’s door lock.
Turnthekeyclockwiseagain,and
hold it. All four windows and
moonroof start to open. To stop
the windows and the moonroof,
release the key.
Turn the key clockwise, then
release it.
Insert the key in the driver’s door
lock.
To open:
To open the windows and
moonroof further, turn and hold
the key again (within 15 seconds).
NOTE: If the windows and moonroof
stop before the desired position,
repeat steps 2 and 3.
To close the windows and
moonroof further, turn and hold
the key again (within 15 seconds).
Turn the key counterclockwise
again, and hold it. All four
windows and moonroof start to
close. To stop the windows and
moonroof, release the key.
Turn the key counterclockwise,
then release it.
Insert the key in the driver’s door
lock.
To close:
Press the UNLOCK button once
to unlock the driver’s door.
Press the UNLOCK button a
second time, and hold it. The
passenger’s doors unlock, and all
four windows and moonroof start
to open. To stop the windows and
moonroof, release the button.
To open the windows and
moonroof further, press the
button again and hold it. If the
windows and the moonroof stop
before the desired position, repeat
steps 1 and 2.
You cannot close the windows or the
moonroof with the remote
transmitter.
1.
2.
3.
1.
2.
3.
4.
1.
2.
3.
4.
Power Windows, Moonroof
Instruments and Controls
Opening the Windows and
Moonroof with the Remote
Transmitter
Opening/Closing the Windows
and Moonroof with the Key
100
UNLOCK BUTTON
Close
Open
Main Menu
Table of Contents
If the moonroof runs into any
obstacle while it is closing
automatically, it will reverse
direction, and then stop. To close the
moonroof, remove the obstacle, then
use the moonroof switch again.
Auto reverse stops sensing when the
moonroof is almost closed. You
should always check that all
passengers and objects are away
from the moonroof before closing it.
To close the moonroof fully, push
the switch firmly forward. The
moonroof automatically close all the
way. To stop the moonroof from
closing fully, pull back the switch
briefly.
Make sure everyone’s hands are
away from the moonroof before
opening or closing it.
To open or close the moonroof
partially, pull back or push forward
the moonroof switch lightly and hold
it. The moonroof will stop when you
release the switch.
To tilt the moonroof, press straight
up on the center of the switch. To
stop the moonroof from tilting fully
open, press the switch a second time.
To slide the moonroof open, pull
back the moonroof switch firmly.
The moonroof automatically opens
all the way. To stop the moonroof
from opening fully, push the switch
forward briefly.
Moonroof
Instruments and Controls
Auto Reverse
101
MOONROOF SWITCH
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
Main Menu
Table of Contents
You can use the remote transmitter
or the key to operate the moonroof
from the outside. Refer to page
for details.
The moonroof has a key-off delay.
You can still open and close the
moonroof for up to 10 minutes after
you turn off the ignition. The key-off
delay cancels as soon as you open
either front door. You must then
turn the ignition to ON (II) for the
moonroof to operate.
100
Moonroof
Instruments and Controls
Operating the Moonroof with the
Remote Transmitter or the Key
102
If you try to open the moonroof in
below-freezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or its
motor.
Main Menu
Table of Contents
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page ).
The clock displays the time with the
ignition switch in the ON (II)
position. If your vehicle’s battery is
disconnected or goes dead, you will
need to reset the clock.
For example: 1:06 will reset to 1:00
1:52 will reset to 2:00
The clock is set automatically.
Change the hour by pressing and
holding the H button until the
numbers advance to the desired time.
Change the minutes by pressing and
holding the M button until the
numbers advance to the desired time.
You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, press the R
button to set the clock back to the
previous hour. If the displayed time
is after the half hour, the clock sets
forward to the beginning of the next
hour.
52
On models without Navigation System
On models with Navigation System
Clock, Parking Brake
Instruments and Controls
Clock Parking Brake
103
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles.
Main Menu
Table of Contents
The front ceiling light has a three-
position switch; ON, Door Activated,
and OFF.
Whenthe‘‘ ’’sideoftheswitch
is pushed in, both front and rear
ceiling lights are ON all the time.
Whenthe‘‘ ’’sideispushedin,
the lights are off all the time.
When neither side is pushed in
(Door Activated), the lights come on
when you:
Open any door.
Unlock the doors with the key or
remote transmitter.
After all doors are closed tightly,
both front and rear ceiling lights
fade out in 5, 15, or 30 seconds
depending on your custom setting
(see page ).
Both front and rear ceiling lights
work as individual map lights. To
turn a map light on or off, press its
lens. You can use the front map
lights regardless of the position of
the front ceiling light switch.
With the front ceiling light switch in
the OFF position, the rear map lights
do not work, and the interior lights
do not come on when you open a
door.
70
Interior Lights
Instruments and Controls
Ceiling Light
104
Main Menu
Table of Contents
Interior Convenience Item
Instruments and Controls
105
GLOVE BOX
CONSOLE COMPARTMENT
FRONT DOOR POCKET
BEVERAGE
HOLDERS
SEAT-BACK POCKETS
ACCESSORY POWER SOCKETS
Main Menu
Table of Contents
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
Open the front beverage holder by
sliding its cover backward.
The rear beverage holder is in the
rear seat armrest. Open the
beverage holder by pushing the front
of it, and pulling the holder all the
way out.
There are two accessory power
sockets. One is in the front of the
center console under the utility
pocket lid. The other is under the
armrest in the console compartment
storage area.
These sockets are intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps).
Instruments and Controls
Accessory Power SocketsBeverage Holders
Interior Convenience Items
106
Main Menu
Table of Contents
Open the glove box by squeezing the
handle. Close it with a firm push.
Lock or unlock the glove box with
the master key.
You can put small items in the tray
located in the console compartment
lid. To use the tray, pull up on the
left lever and lift up the armrest.
The coin holder inside the console
compartment is removable. To
remove it, pull it up. The coin holder
canalsobestoredineitherfront
door pocket.
To open the console compartment,
pull up on the right lever, and lift the
armrest. To open the console
compartment storage area, pull up
on the left lever, and lift the armrest.
To close, lower the armrest, and
push it down until it latches.
Instruments and Controls
Glove Box Console Compartment
Interior Convenience Items
107
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Main Menu
Table of Contents
The interior of each front door has
an extendable pocket for maps and
other small, light weight items. Each
pocket also has a sunglass holder.
You can remove the sunglass holder
to make more room in the pocket.
Interior Convenience Item
Instruments and Controls
Front Door Pocket
108
Main Menu
Table of Contents
The climate control systems in your
Acura provide a comfortable driving
environment in all weather
conditions.
The standard audio system has
many features. This section de-
scribes those features and how to
use them.
.............Vents, Heating, and A/C . 110
...........................Air Flow Buttons . 112
.............................Climate Control . 115
..........................Playing the Radio . 117
............................Radio Reception . 122
Playing the XM Satellite Radio
............................(U.S. models) . 124
.................................Playing Discs . 129
..................Protecting Your Discs . 134
.....Disc Change Error Messages . 135
...............................Playing a Tape . 136
................................Audio System . 139
.................Radio Theft Protection . 140
............................Security System . 141
...............................Cruise Control . 142
HomeLink Universal
................................Transceiver . 145
.............................HandsFreeLink . 149
Comfort and Convenience Features
Comfort and Convenience Features
109
Main Menu
Vents, Heating, and A/C
Comfort and Convenience Features
110
TEMPERATURE DISPLAY
DRIVER’S SIDE MODE
CONTROL BUTTON
OFF BUTTON
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
Vehicles without Navigation System
DUAL BUTTON
DRIVER’S AUTO BUTTON PASSENGER’S AUTO BUTTON
AIR CONDITIONING BUTTON
RECIRCULATION BUTTON
WINDSHIELD
DEFROST
BUTTON
PASSENGER’S SIDE MODE
CONTROL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
Main Menu
Table of Contents
Vents, Heating, and A/C
Comfort and Convenience Features
111
OFF BUTTON
WINDSHIELD
DEFROST BUTTON
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
Vehicles with Navigation System
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
DUAL BUTTON
RECIRCULATION BUTTON
AIR CONDITIONING
BUTTON
PASSENGER’S SIDE
MODE CONTROL BUTTON
DRIVER’S SIDE MODE
CONTROL BUTTON
PASSENGER’S AUTO BUTTONDRIVER’S AUTO BUTTON TEMPERATURE DISPLAY
Main Menu
Table of Contents
▲
▼
▲
▼
Press the button to increase
the fan speed and air flow. Press the
button to decrease them.
The driver’s side temperature and
passenger’s side temperature can be
set separately. Press either side’s
button to increase the temperature
of air flow. Press either side’s
button to decrease it. When you set
the temperature to its lower limit or
its upper limit, it will be displayed as
‘‘Lo’’ or ‘‘Hi’’.
This button turns the air
conditioning on and off. The A/C
ON indicator comes on in the display
when the A/C is on.
When the indicator in the button is
on, air from the vehicle’s interior is
recirculated throughout the system.
When the indicator is off, air is
brought in from the outside of the
vehicle (Fresh Air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
defogger off and on (see page ).
Air flows from the floor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Airflow is divided between
the vents in the dashboard and the
floor vents.
Air flows from the center
and corner vents in the dashboard.
Use the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes.
Airflow is drivided between
the floor vents and the defroster
vents at the base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
77
Comfort and Convenience Features
Fan Control Buttons
Temperature Control Buttons
Air Conditioning (A/C) Button
Recirculation Button
Rear Window Defogger Button
Mode Control Button
Airflow Buttons
112
Main Menu
Table of Contents
When you select , the system
automatically switches to Fresh Air
mode and turns on the A/C.
Thedriver’ssidemodeand
passenger’s side mode can be
selected separately when the dual
button is pressed. However, when
is selected on the driver’s
side, mode selection on the
passenger’s side is not possible.
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Set the temperature to maximum.
Make sure the A/C is off.
Select and Fresh Air mode.
Set the fan to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Select and Fresh Air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control buttons.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum heat.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the fan to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
When is selected, the
passenger’s temperature cannot be
set separately from the driver’s.
You can set the temperatures and
modes for the driver’s side and the
passenger’s side separately when
this button is pressed (indicator on).
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature and
mode with the driver’s side
temperature control buttons and
mode control button.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.
57
If the interior is very warm,
Vents, Heating, and A/C
Comfort and Convenience Features
Ventilation
Using the Heater
Using the A/C
Dual Button
113
Main Menu
Table of Contents
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Switch the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature to your
preference.
To clear the windshield faster, you
can close the dashboard corner vents
by rotating the wheel below each
vent. This sends more warm air to
the windshield defroster vents. Once
the windshield is clear, select Fresh
Air mode to avoid fogging the
windows.
Select . When you select
, the system automatically
switches to Fresh Air mode and
turns on the A/C. (The A/C ON
indicator will not come on in U.S.
vehicles.)
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
When you switch to another mode
from , the A/C stays on.
Press the A/C button to turn it off.
To remove fog from inside the
windows:
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
(The A/C indicator will not come
on in U.S. vehicles.)
Select .
Set the fan and temperature
controls to maximum level.
For your safety, make sure you have
a clear view through all the windows
before driving.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
Dehumidify the Interior To Defog and Defrost To Remove Exterior Frost or Ice
From the Windows
Comfort and Convenience Features
Vents, Heating, and A/C
114
Main Menu
Table of Contents
▲
When you press a fan control button,
the fan is taken out of AUTO mode
and starts to run at its lowest speed.
Press the button to make
the fan run faster.
You can manually select various
functions of the climate control
system when it is in fully automatic
mode. All other feature remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Press the OFF button. However, a
lack of air flow can cause the
windows to fog up. It is
recommended that you keep the fan
on at all times so stale air and
moisture do not build up in the
interior and cause fogging.
When the AUTO button on the
driver’s side is pressed, the
temperature control buttons on the
passenger’s side are disabled, and
the interior temperature is regulated
to the temperature set on the driver’s
side.WhentheAUTObuttononthe
passenger’s side is pressed,
temperature can be set on the driver’s
side and passenger’s side separately.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your preference.
When you set the temperature to its
lower or its upper limit, the system
runs at full cooling or heating only. It
does not regulate the interior
temperature.
The automatic climate control
system adjusts the fan speed and
airflow levels to maintain the interior
temperature you select.
In the AUTO mode, the vehicle’s
interior temperature is
independently regulated for the
driver and passenger. If the driver’s
side of the vehicle is getting too
much sun, the system will adjust to a
lower temperature.
Press the AUTO button.
Set the desired temperature with
the temperature control buttons.
You will see AUTO in the system’s
display.
1.
2.
On models with Navigation System
Comfort and Convenience Features
Climate Control
To Cool or Heat Automatically
Semi-automatic Operation
To Turn Everything OffUsing Automatic Climate Control
115
Main Menu
Table of Contents
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Climate Control
Comfort and Convenience Features
Sunlight and Temperature
Sensors
116
SUNLIGHT SENSOR
TEMPERATURE SENSOR
Main Menu
Table of Contents
Playing the Radio
Comfort and Convenience Features
117
PRESET BUTTONS
TUNE/SOUND
KNOB
Canadian Models (Without navigation system)
U.S. Models (With navigation system)
AM/FM
BUTTON
SAT RADIO
BUTTON
SEEK
BUTTONS
VOL/PWR KNOB
SCAN
BUTTON
TUNE/SOUND
KNOBPRESET BUTTONS
VOL/PWR KNOB
SCAN
BUTTON
FM
BUTTON
SEEK
BUTTONS
AM BUTTON
AUTO
SELECT
BUTTON
AUTO
SELECT
BUTTON
Main Menu
Table of Contents
−
−
＋−
−
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
VOL/PWR knob or the AM/FM
button (AM or FM button on
Canadian model). Adjust the volume
by turning the same knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button (AM or FM button on
Canadian model). On the FM band,
ST will be displayed if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
You can use any of five methods to
find radio stations on the selected
band: the
preset buttons, and .
Use the TUNE knob to
tune the radio to a desired frequency.
Turn the knob right to tune to a
higher frequency, or left to tune to a
lower frequency.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or SEEK button, then
release it.
If you do nothing, the system will
scan for the next strong station and
play it for 5 seconds. When it plays a
station you want to listen to, press
the SCAN button again.
The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button, or
touch the SCAN icon (models with
navigation system), then release it.
You will see SCAN in the display.
The system will scan for a station
with a strong signal. When it finds
one, it will stop and play that station
for about 5 seconds.
To Play the Radio To Select a Station
TUNE,SEEK,SCAN,
AUTO SELECT
TUNE
SEEK
SCAN
Playing the Radio
Comfort and Convenience Features
118
Main Menu
Table of Contents
−−Each preset button or
preset icon (models with navigation
system) can store one frequency on
AM and two frequencies on FM.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select feature
to find stations in the local area.
Press the A. SEL button or the
AUTO SELECT icon (models with
navigation system). ‘‘A.SEL’’ (AUTO
SEL) flashes in the display, and the
system goes into scan mode for
several seconds. It stores the
frequencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed or see no
station number on the preset icons
after pressing a preset button (icon)
if Auto Select cannot find a strong
station for every preset button.
If you do not like the stations Auto
Select has stored, you can store
other frequencies on the preset
buttons (icons). Use the TUNE,
SEEK, or SCAN functions to find
stations, then store them in the
preset buttons (icons) as previously
described.
press the
A.SEL button (AUTO SELECT icon).
This restores the presets you
originally set.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button (icon).
Pick a preset button (icon), and
hold it until you hear a beep.
1.
2.
3.
4.
To turn off Auto Select,
CONTINUED
Playing the Radio
Comfort and Convenience Features
Preset AUTO SELECT
119
Main Menu
Table of Contents
−
−
−
On models without Navigation System
Bass, Treble, Balance, and Fader are
each adjustable. In addition, you can
adjust the strength of the sound
coming from the center and the
subwoofer speakers.
Press the TUNE/SOUND knob
repeatedly to display the Bass
(BASS), Treble (TREB), Balance
(BAL), Fader (FADE), Center
(CNTR) and Subwoofer (SUBW)
setting.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE/SOUND
knob to adjust the setting to your
liking. When the level reaches the
center, you will see ‘‘C’’ in the display.
The system will automatically return
the display to the selected audio
mode about 5 seconds after you stop
adjusting a mode.
Use the TREB/
BASS modes to adjust the tone to
your liking.
These two
modes adjust the strength of the
sound coming from each speaker.
BAL adjust the side-to-side strength,
and FADE adjusts the front-to-back
strength.
These two
modes adjust the strength of the
sound coming from the center
speaker and the subwoofer speaker.
If you turn the TUNE/SOUND knob
all the way to the left, you will see
‘‘OFF’’inthedisplay,andthecenter
speaker and/or subwoofer speaker
will be off.
Playing the Radio
Comfort and Convenience Features
Adjusting the Sound
Treble/Bass
Balance/Fader
Center/Subwoofer
120
ADJUSTMENT LEVEL
Main Menu
Table of Contents
−
−
−
On models with Navigation System
Bass, Treble, Left/Right Balance,
and Front/Rear Fader are each
adjustable. In addition, you can
adjust the strength of the sound
coming from the center and the
subwoofer speakers.
To adjust them, enter the sound grid
by touching the SOUND icon on the
display or pressing the TUNE/
SOUND knob.
To adjust the
sound from the subwoofer or center
speaker, touch or icon on
each side of the Subwoofer or
Center adjustment bar. Then
continue pressing or , or
turn the TUNE/SOUND knob. The
adjustment bar shows you the
current setting.
To adjust the treble
and bass, touch or on each
side of the Treble or Bass
adjustment bar. Then continue
pressing or , or turn the
TUNE/SOUND knob. The
adjustment bar shows you the
current setting.
These modes adjust
the strength of the sound coming
from each speaker. Left/Right
balance adjust the side-to-side
strength, while Front/Rear fader
adjust the front-to-back strength. To
adjust the left/right balance, touch
the left or right icon on the sound
grid. When you touch an icon, the
yellow bars on the grid turn orange
and move toward the icon, changing
the balance left or right. At this point,
you can also use the TUNE/SOUND
knob to adjust the balance. To
equalize the balance, touch the left
or right icon until each side has an
orange bar at the center of the sound
grid.
To adjust the Front/Rear fader,
touchthefrontorrearicononthe
sound grid. When you touch an icon,
the yellow bars on the grid turn
orange and move toward the icon,
changing the fader to the front or
rear. At this point, you can also use
the TUNE/SOUND knob to adjust
the balance. To equalize the fader,
touch the front or rear icon until
each side has an orange bar at the
center of the sound grid.
To see the audio screen when you
are finished adjusting the sound,
touch the RETURN icon, or wait 5
seconds.
Playing the Radio
Comfort and Convenience Features
Subwoofer/Center
Treble/Bass
Left/Right Balance, and Front/
Rear Fader
121
FADER ADJUST ICON
CENTER ADJUST ICON
SUBWOOFER
ADJUST ICON
BALANCE
ADJUST
ICON
TREBLE
ADJUST
ICON
BASS ADJUST
ICON
Main Menu
Table of Contents
Those bands cover these frequen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz

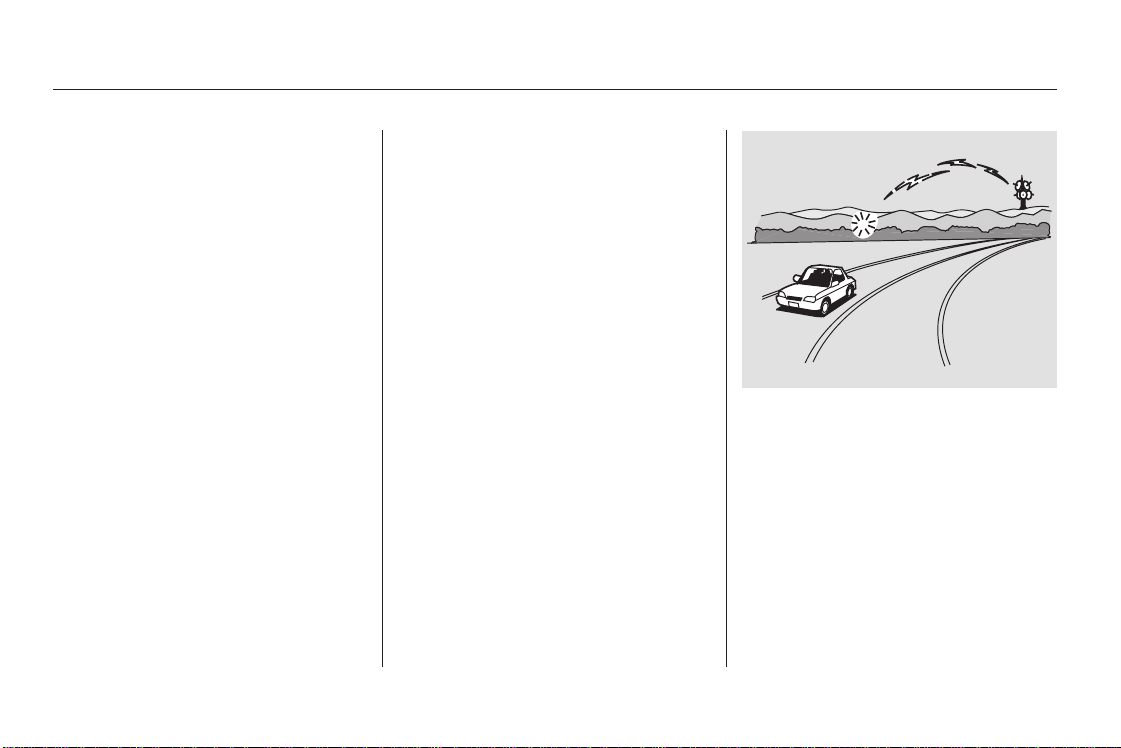

A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
Your Acura’s radio can receive the
complete AM and FM bands.
Radio stations on the AM band are
assigned frequencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
How well your Acura’s radio receives
stations is dependent on many
factors, such as the distance from
the station’s transmitter, nearby
large objects, and atmospheric
conditions.
Radio Frequencies Radio Reception
Radio Reception
Comfort and Convenience Features
122
Main Menu
Table of Contents

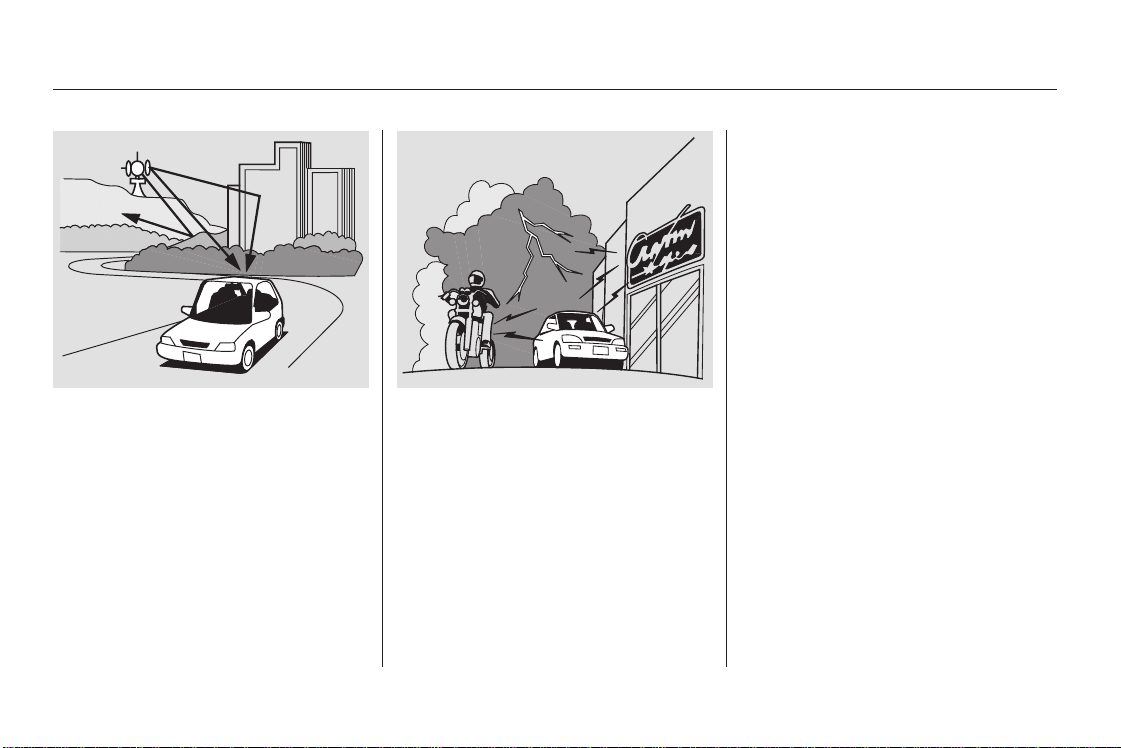

Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Radio Reception
Comfort and Convenience Features
123
Main Menu
Table of Contents
Comfort and Convenience Features
Playing the XM Satellite Radio (U.S. Models)
124
TUNE KNOB
Without navigation system With navigation system
SATELLITE
RADIO
BUTTON
AUDIO
BUTTON
SCAN
BUTTON
PWR/VOL KNOB PRESET BUTTONS
SCAN
ICON
MODE
ICON
DISPLAY/
MODE
BUTTON
CATEGORY
BUTTONS
PRESET BUTTONS
TUNE KNOB
SCAN
BUTTON
SATELLITE
RADIO
BUTTON
DISPLAY/
MODE
BUTTON
CATEGORY
BUTTONS
PWR/VOL KNOB
Main Menu
Table of Contents
−
−
○○−
−＋
Your Acura is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is registered trade mark of XM
Satellite Radio Inc.
Satellite radio receives signals from
two satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
To listen to satellite radio, turn the
ignition switch to ACCESSORY(I) or
ON (II). Push the PWR/VOL knob
to turn on the audio system, and
press the button. Adjust the
volume by turning the PWR/VOL
knob. The last channel you listened
to will show in the display.
To switch between the
channel mode and the category
mode,pressandholdtheDISP/
MODE button until the mode
changes. On models with navigation
system, touch the MODE icon on the
audio display.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the following sequence:
channel name, channel number,
category, artist name, and music title.
You may experience periods when
XM Radio does not transmit the
artist’s name and the song title
information. If this happens, there is
nothing wrong with your system.
On models with navigation system,
push the AUDIO button to display
XM information on the screen.
Turn the TUNE knob left
or right to select channels. In the
category mode, you can only select
channels within that category.
In the
category mode, press either button
to select another category.
Playing the XM Satellite Radio (U.S. Models)
Comfort and Convenience Features
Operating Satellite Radio
MODE
TUNE
CATEGORY ( or )
125
Main Menu
Table of Contents
−
−
The SCAN function gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
SCAN, press the SCAN button or
touch the SCAN icon on the audio
display (models with navigation
system). The system plays each
channel in numerical order for a few
seconds, then selects the next
channel. When you hear a channel
you want to continue listening to,
press the button or touch the icon
again.
To store a channel:
Youcanstoreupto12
preset channel using the six preset
buttons or preset icons (models with
navigation system). Each button
stores one channel from the XM1
band and one channel from the XM2
band.
To store a channel:
Press the button. Either
XM1 or XM2 will show in the
display.
Use the TUNE knob, or the
CATEGORY or SCAN buttons to
tune to a desired channel.
In the category mode, only channels
within that category can be selected.
In the channel mode, all channels
can be selected.
Pick the preset button (icon) you
want for that channel. Press and
hold the button (icon) until you
hear a beep.
Repeat steps 2 and 3 to store the
first six channels.
Press the button again.
The other XM band will show.
Store the next six channels using
steps 2 and 3.
Once a channel is stored, simply
press and release the proper preset
button (icon) to tune to it.
The presets will be lost if your
vehicle’s battery goes dead, is
disconnected, or the radio fuse is
removed.
1.
2.
3.
4.
5.
Playing the XM Satellite Radio (U.S. Models)
Comfort and Convenience Features
SCAN
Preset
126
Main Menu
Table of Contents
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate for this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the farther north you
travel from the equator.
CONTINUED
Playing the XM Satellite Radio (U.S. Models)
Comfort and Convenience Features
127
Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE
GROUND
REPEATER
Main Menu
Table of Contents
Depending on where you drive, you
may experience reception problems.
Interference can be caused by any of
these conditions:
Driving on the south side of an
east/west mountain road
Driving on the north side of a
large commercial truck on an
east/west road
Driving in the tunnels
Driving on a road beside a vertical
wall, steep cliff or hill to the south
of you
Driving on the lower level of a
multi-tiered road
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you
There may be other geographic
situations that could affect satellite
radio reception.
If your XM Radio service has expired
or you purchased your vehicle from
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the button.
A variety of music types and styles
will play.
If you decide to purchase XM
Satellite Radio service, contact XM
Radio at www.xmradio.com, or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
While awaiting activation, make sure
your vehicle remains in an open area
with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display
andyou’llbeabletolistentoXM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from activation request. If the
service has not been activated after
36 hours, contact XM Radio.
After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
for activation. This should take about
30 minutes.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Playing the XM Satellite Radio (U.S. Models)
Comfort and Convenience Features
Receiving Satellite Radio Service
128
Main Menu
Table of Contents
＋
＋
−
−
Comfort and Convenience Features
Playing Discs
129
LOAD
BUTTON
SCAN
BUTTON
REPEAT
BUTTON
DISC
BUTTON
AM/FM
BUTTON
EJECT
BUTTON
LOAD
BUTTON
SEEK
BUTTONS
EJECT
BUTTON
FM
BUTTON
AM
BUTTON
SEEK
BUTTONS
DISC
SLOT
DISC/TAPE
BUTTON
DISC BUTTON
DISC BUTTON
RANDOM BUTTONDISC BUTTONRANDOM BUTTON
REPEAT BUTTON
SCAN BUTTON
DISC
SLOT
CD/DVD BUTTON
U.S. Models (with Navigation system) Canadian Models (without Navigation system)
Main Menu
Table of Contents
Your Acura’s audio system has an in-
dash disc changer that holds up to
six discs. You operate this disc
changer with the same controls used
for the radio. To operate the disc
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position.
With the ignition in ACCESSORY
(I)orON(II),pressandholdthe
LOAD button until you hear a
beep and see ‘‘LOAD’’ in the
display, then release the button.
Insert the disc into the slot. Insert
it only about halfway; the drive will
pull it in the rest of the way.
When the ‘‘DISC LOAD’’ appears
in the display, insert the next disc
into the slot.
Repeat this until all six positions
are loaded. The system will then
begin playing the last disc loaded.
The disc changer can play these disc
formats:
To load multiple discs in one
operation:
If you stop loading discs before all
six positions are filled, the system
will wait for 15 seconds, stop the load
operation, and begin playing the last
disc loaded.
To load a single disc:
Press and release the LOAD
button.
The disc number for an empty
position is highlighted and the
green load indicator comes on.
When you see ‘‘LOAD’’ in the
display, insert the disc into the slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way.
If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded.
CD
CD-R
DVD-A
DTS
DVD-A discs not meeting DVD
verification standards may not be
playable.
The changer cannot play DVD-V,
DVD-R/RW, MP3, or WMA formats.
Some CD-DA and CD-ROM mixed
discs are not playable.
DTS is registered trademark of
Digital Theater System, Inc.
1.
2.
3.
4.
1.
2.
Playing Discs
Loading Discs in the Changer
Comfort and Convenience Features
130
TM
TM
Main Menu
Table of Contents
−＋
−
＋
−
Select the disc changer by pressing
the DISC/TAPE button (U.S.
models) or CD/DVD button
(Canadian models). The system will
begin playing the last selected disc in
the disc changer. You will see the
disc and track numbers displayed.
To select a different disc when all six
positions are loaded, use the preset 5
(DISC ) or preset 6 (DISC )
button. Otherwise, press the
corresponding number on the preset
buttons or icons. On models with
navigation system, you can also
touch the appropriate disc icon (1
6) to select a different disc.
Each time you press and release the
SEEK button, the player skips
forward to the beginning of the next
track. Press and release the SEEK
buttontoskipbackwardtothe
beginning of the current track.
When you press the SCAN button or
touchtheTRACKSCANicononthe
audio display (models with
navigation system), the first track of
the current disc plays for about 10
seconds. You will see SCAN
(TRACK SCAN) highlighted in the
display. To hear the rest of the track,
press the SCAN button or touch
TRACK SCAN again within 10
seconds. If you don’t, the system
advances to the next track, plays
about 10 seconds of it, and continues
through the rest of the tracks the
same way.
WhenyoupressandholdtheSCAN
button until you see D-Scan in the
display, or when you touch the DISC
SCAN icon on the audio display
(models with navigation system), the
first track of the current disc plays
for about 10 seconds. You will see D-
Scan (DISC SCAN) in the display. To
hear the rest of the disc, press the
SCAN button or touch DISC SCAN
again, within 10 seconds. If you don’t,
the system advances to the next disc,
plays about 10 seconds of it, and
continues throughout the rest of the
discs the same way. When the
system reaches the last disc, DISC
SCAN is cancelled, and the disc you
originally had on plays normally.
CONTINUED
Playing Discs
Comfort and Convenience Features
To Play a Disc To Change Tracks
Track Scan
Disc Scan
131
Main Menu
Table of Contents
To take the system out of disc mode,
press the AM/FM button (AM or
FMbuttononCanadianmodels),
press the button (U.S.
models), or insert a tape in the tape
player. To return to disc mode, press
the DISC/TAPE button (CD/DVD
buttononCanadianmodels).
If you turn the system off while a
disc is playing, either with the PWR/
VOL knob or the ignition switch,
play will continue at the same point
when you turn it back on.
When you press the RPT button or
touch the TRACK RPT icon on the
audio display (models with
navigation system), the system
continuously replays the current
track. As a reminder, you will see
REPEAT (TRACK REPEAT) in the
display. To turn this feature off,
press the RPT button, or touch
TRACK REPEAT again.
WhenyoupressandholdtheRPT
button until REPEAT is in the
display, or when you touch the DISC
RPTiconontheaudiodisplay
(models with navigation system), the
system continuously replays the
current disc. As a reminder, D-RPT
(DISC RPT) is highlighted in the
display. To turn this feature off,
press the RPT button or touch DISC
RPT again.
When you press the RDM button or
touch the TRACK RDM icon
(models with navigation system), the
system plays the tracks of the
current disc in random order. You
will see RANDOM (TRACK
RANDOM) in the display. To turn
this feature off, press the RDM
button (touch the TRACK RDM
icon) again.
You can also play DVD-As in your
audio system the same way as
playing discs.
Comfort and Convenience Features
Playing Discs
Track Repeat Random Play To Stop Playing a Disc
Disc Repeat Playing a DVD
132
Main Menu
Table of Contents
To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJECT’’ in the display.
When you remove the disc from the
slot, the system automatically begins
the load sequence so you can load
another disc in that position. If you
do not load another disc, within 15
seconds, the system selects the
previous mode [AM, FM1, FM2,
tape, or Satellite Radio (U.S.
models)].
If you do not remove the disc from
the slot, the system will reload the
disc after 15 seconds and put the
disc changer in pause mode. To
begin playing the disc, press the disc
button.
To remove a different disc from the
changer,firstselectitbypressing
the corresponding number on the
preset button (touching the
appropriate disc icon on models with
navigation system). When that disc
begins playing, press the eject button.
When you press the eject button
while listening to the radio, or with
the audio system turned off, the disc
that was last selected is ejected.
After that disc is ejected, pressing
the eject button again will eject the
next disc in numerical order. By
doing this six times, you can remove
all the discs from the changer.
You can also eject discs when the
ignition switch is off:
To eject one disc, press and release
the eject button.
To eject all discs, press and hold the
eject button until the system beeps.
Playing Discs
Removing Discs from the
Changer
Comfort and Convenience Features
133
Main Menu
Table of Contents
When using CD-R discs, use only
high quality discs labeled for audio
use.
When recording a CD-R, the
recording must be closed for it to
be used by the disc changer.
Play only standard round discs.
Odd-shaped discs may jam in the
driveorcauseotherproblems.
Handle your discs properly to
prevent damage and skipping.
When a disc is not being played,
store it in its case to protect it from
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
To clean a disc, use a clean soft cloth.
Wipe across the CD from the center
to the outside edge.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the
recording surface of the disc,
causing skipping or other problems.
Remove these pieces by rubbing the
inner and outer edges with the side
of a pencil or pen.
Handle a disc by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
from finger prints, liquids, and felt-
tip pens, can cause the disc to not
play properly, or possibly jam in the
drive.
Never try to insert foreign objects in
the disc changer.
General Information Protecting Discs
Comfort and Convenience Features
Protecting Your Discs
134
Main Menu
Table of Contents
Message Cause
If you see an error message in the
display while playing a disc, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to an Acura dealer.
Solution
FOCUS Error.
No CD in the changer.
Mechanical Error.
High temperature.
Press the disc eject button and remove the
disc(s). Check for an error indication. Insert
the disc(s) again. If the code does not disappear
orthedisc(s)cannotberemoved,consultyour
Acura dealer.
Insert CD.
Press the disc eject button and remove the
disc(s). Check for an error indication. Insert
the disc(s) again. If code does not disappear or
the disc(s) cannot be remove, consult your
Acura dealer.
Will disappear when the temperature returns to
normal.
Disc Changer Error Messages
Comfort and Convenience Features
135
Main Menu
Table of Contents

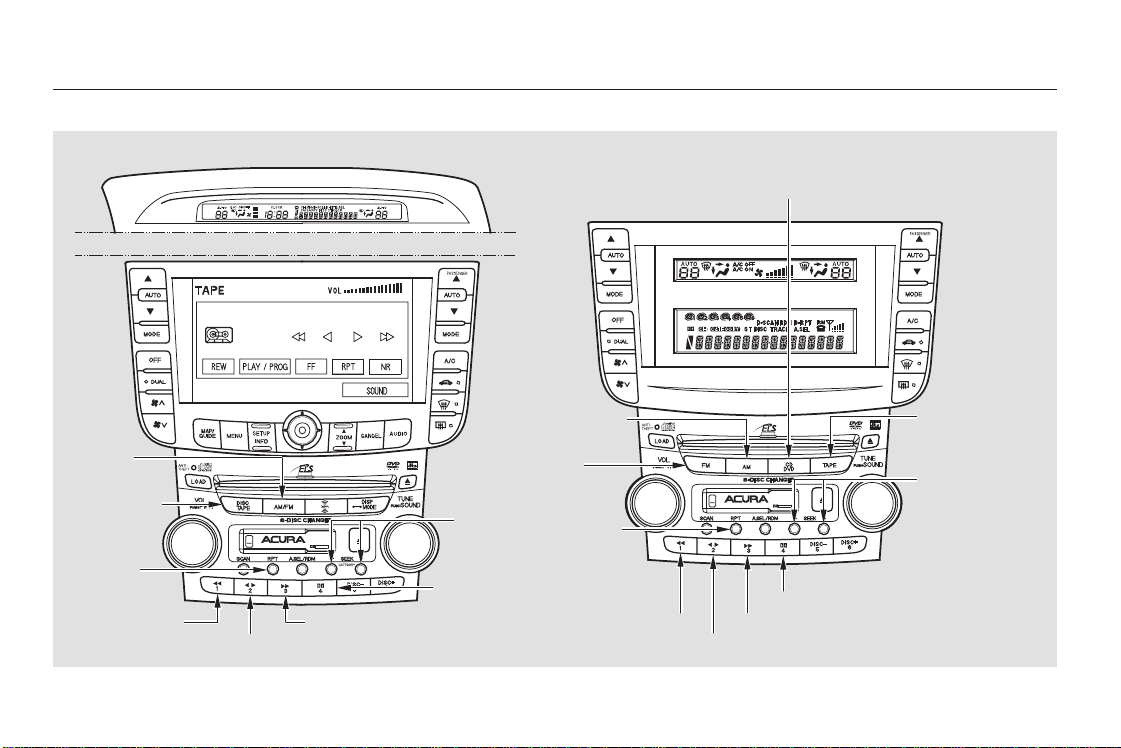

Playing a Tape
Comfort and Convenience Features
136
SEEK
BUTTONS
DOLBY
BUTTON
REPEAT
BUTTON
SEEK
BUTTONS
DISC/TAPE
BUTTON
AM/FM
BUTTON
FM
BUTTON
AM
BUTTON
PLAY/PROG BUTTON
REW BUTTON FF BUTTON REW BUTTON
PLAY/PROG BUTTON
FF BUTTON
DOLBY BUTTON
REPEAT
BUTTON
TAPE BUTTON
CD/DVD BUTTON
U.S. Models (with Navigation system) Canadian Models (without Navigation system)
Main Menu
Table of Contents
▲−
＊
＊
CONTINUED
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PLAY/
PROG (preset2) button or touch the
PLAY/PROGiconontheaudio
display (models with navigation
system). When the player reaches
the end of the tape, it will
automatically reverse direction and
play the other side.
Dolby noise reduction turns on
when you insert a tape. The
indicator and NR icon (models
with navigation system) will come on
in the display. If the tape was not
recorded in Dolby, turn it off by
pressing the (preset 4) button
or touching the NR icon on the audio
display. Dolby remains off until you
press the button (touch the icon)
again.
To remove the tape, press the
EJECT button. If you want to turn
the player off, press the VOL/PWR
knob or turn off the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it left
off.
To switch to the radio, Satellite
Radio (U.S. models) or disc changer
while a tape is playing, press the
AM/FM button (AM or FM button
on Canadian models), button
or DISC/TAPE button (CD/DVD
buttononCanadianmodels).To
change back to the tape player, press
the DISC/TAPE button (TAPE/
AUXbuttononCanadianmodels).
To rewind the tape,
push the (preset 1 ) button or
touch the REW icon on the audio
display (models with navigation
system). You will see REW in the
display (TAPE REW on models with
navigation system). To fast forward
the tape, push the (preset 3)
button or touch the FF icon. You will
seeFFdisplayed(TAPEFFon
models with navigation system).
Press the , , or PLAY/
PROG button (icon) to take the
system out of rewind or fast forward.
Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Playing a Tape
Comfort and Convenience Features
To Play a Tape
To Stop Playing a Tape
FF/REW
Tape Search Function
137
Main Menu
Table of Contents
−−
＋
−
Press the SEEK button
to find the beginning of the current
song or passage. Press the SEEK
button to find the beginning of the
next song or passage. When the
system reaches the beginning of a
song or passage, it begins to play it.
Press the RPT button
or touch the RPT icon on the audio
display (models with navigation
system) to continuously play a song
or passage. You will see RPT
displayed. The track will repeat until
you press the RPT button or icon
again.
Thetapeplayerpicksupdirtand
oxides from the tape. This
contamination build up over time and
causes the sound quality to degrade.
To prevent this, you should clean the
player after every 30 hours of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your Acura dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
finger. If the label is peeling off,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Store tapes in their cases to protect
them from dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature before
inserting it into the player.
Never try to insert foreign objects
into the tape player.
The SKIP and REPEAT
functions use silent periods on the
tape to find the end of a song or
passage. These features may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
Playing a Tape
Comfort and Convenience Features
SKIP
REPEAT
Caring for the Player and Tapes
138
NOTE:
Main Menu
Table of Contents
▲▼
＋
−
＋
−
＋
−
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The VOL button adjusts the volume
up ( ) or down ( ). Press the top
or bottom of the button and hold it
until the desired volume is reached,
then release it.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top ( ) of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
( ) to go back to the previous
station.
IfyouareplayingaCD,thesystem
skips to the beginning of the next
track each time you press the top
( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track. Press
it again to return to the previous
track. You will see the disc and track
numbers in the display.
Ifyouareplayingatape,pressthe
top ( ) of the CH button to advance
to the next selection. Press the
bottom( )togobacktothe
previous selection. The system
senses a silent period, then goes
back to Play mode.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
XM Satellite Radio (U.S. models),
CD (if a CD is loaded), or a tape (if a
tape is loaded).
Comfort and Convenience Features
Audio System
Remote Audio Controls
139
MODE BUTTON
VOL BUTTON CH BUTTON
Main Menu
Table of Contents
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible from five digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a safe place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
Ifyoushouldhappentolosethecard,
you must obtain the code number
from an Acura dealer. To do this,
you will need the system’s serial
number.
If your vehicle’s battery is discon-
nected or goes dead, the audio
system will disable itself. If this
happens, you will see ‘‘CODE’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
five-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour before trying again.
Ifthecodecardislost,anAcura
dealer can access your code with
your radio’s serial number. To
access the serial number, turn the
radio on. It must display ‘‘CODE’’,
then turn the radio off. Push the
preset 1, preset 6, and power buttons
at the same time, then quickly
release. The serial number will
appear in two sets of four digits.
You will have to store your favorite
XM stations in the preset buttons
after the system begins working.
Your original setting were lost when
the power was disconnected.
Radio Theft Protection
Comfort and Convenience Features
Radio Theft Protection
140
Main Menu
Table of Contents
The security system sets
automatically 15 seconds after you
lock the doors, hood, and trunk. For
the system to activate, you must lock
the doors from the outside with the
key, lock tab, door lock switch, or
remote transmitter. The security
system indicator next to the driver’s
door lock starts blinking immediately
to show you the system is setting
itself.
With the system set, you can still
open the trunk with the remote
transmitter without triggering the
alarm. The alarm will sound if the
trunk is opened with the trunk
releasebuttononthedriver’sdoor,
thetrunkreleasehandlebehindthe
trunk pass-through cover, or the
emergency trunk opener.
The security system will not set if
the hood, trunk, or any door is not
fully closed. If the system will not set,
check the Door and Trunk Open
Monitor on the multi-information
display (see page ) to see if the
doors and trunk are fully closed.
Since it is not part of the monitor
display, manually check the hood.
Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables from theft.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights flash if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues for 2 minutes, then
the system resets. To reset an
alarming system before the 2
minutes have elapsed, unlock the
driver’s door with the key or use the
remote transmitter.
Once the security system is set,
opening any door or the hood
without using the key or the remote
transmitter will cause the system to
alarm. It also alarms if the radio is
removed from the dashboard or the
wiring is cut.
60
Security System
Comfort and Convenience Features
141
SECURITY SYSTEM LIGHT
Main Menu
Table of Contents
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Push in the Cruise Control Master
Buttononthesteeringwheel.The
CRUISE MAIN indicator on the
instrument panel will come on.
Accelerate to the desired cruising
speedabove25mph(40km/h).
Press and release the DECEL/
SET button on the steering wheel.
The CRUISE CONTROL indicator
on the instrument panel comes on
to show the system is now
activated.
The cruise control may not hold the
set speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down to the desired speed. This
will cancel the cruise control. To
resume the set speed, press the
RES/ACCEL button. The CRUISE
CONTROL indicator on the
instrument panel comes on.
When climbing a steep hill, the
automatic transmission may
downshifttoholdthesetspeed.
1.
2.
3.Using the Cruise Control
Cruise Control
Comfort and Convenience Features
142
CRUISE CONTROL MASTER BUTTON
RES/ACCEL
BUTTON
CANCEL
BUTTON
DECEL/SET
BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
Main Menu
Table of Contents
You can increase the set cruising
speed in any of these ways:
Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
Push on the accelerator pedal. Ac-
celerate to the desired cruising
speed and press the DECEL/SET
button.
To increase your speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, your vehicle will speed up
about 1 mph (1.6 km/h).
You can decrease the set cruising
speed in any of these ways:
Press and hold the DECEL/SET
button. Release the button when
you reach the desired speed.
Tap the brake or clutch pedal
lightly with your foot. The
CRUISE CONTROL indicator on
the instrument panel will go out.
When the vehicle slows to the
desired speed, press the DECEL/
SET button.
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your foot on the brake or
clutch pedal will cause the cruise
control to cancel.
To slow down in very small
amounts, tap the DECEL/SET
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Cruise Control
Comfort and Convenience Features
Changing the Set Speed
143
Main Menu
Table of Contents
Youcancancelthecruisecontrolin
any of these ways:
Tap the brake or clutch pedal.
PresstheCANCELbuttononthe
steering wheel.
Press the Cruise Control Master
button on the steering wheel.
Pressing the Cruise Control Master
button turns the system completely
off and erases the previous cruising
speed.
When you push the CANCEL button,
or tap the brake or clutch pedal, the
system remembers the previously
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h), then press and release
the RES/ACCEL button. The
CRUISE CONTROL indicator comes
on, the vehicle will accelerate to the
same cruising speed as before.
Cruise Control
Comfort and Convenience Features
Cancelling the Cruise Control
144
CRUISE CONTROL MASTER BUTTON
CANCEL BUTTON
Main Menu
Table of Contents
−
If you are training HomeLink to
operate a garage door or gate, you
should unplug the motor for that
device during training. Repeatedly
pressing the remote control button
could burn out the motor.
The HomeLink Transceiver stores
the code in a permanent memory.
There should be no need to retrain
HomeLink if your vehicle’s battery
goes dead or is disconnected.
If your garage door opener was
manufactured before April 1982, you
may not be able to program
HomeLink to operate it. They do not
have the safety feature that causes
the motor to stop and reverse if an
obstacle is detected during closing,
increasing the risk of injury.
Always refer to the opening
instructions and safety information
that came with your garage door
opener or other equipment you
intend to operate with the HomeLink
Universal Transceiver. If you do not
have this information, contact the
manufacturer of the equipment.
If you just
received your vehicle and have not
trained any of the buttons in
HomeLink before, you should erase
any previously learned codes before
training the first button.
If you are training the second or
third buttons, go directly to Step 1.
Unplug the garage door opener
motor from the house current.
Holdtheendofthegaragedoor
opener remote control 2 to 5
inches from HomeLink. Make
sure you are not blocking your
view of the red light in HomeLink.
The HomeLink
Universal
Transceiver built into your vehicle
canbeprogrammedtooperateupto
three remote controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
Todothis,pressandholdthetwo
outside buttons on the HomeLink
transceiver for about 20 seconds,
until the red light flashes. Release
the buttons, then proceed to Step 1.
1.
2.
HomeLink Universal Transceiver
Comfort and Convenience Features
General Information
Important Safety Precautions
Training HomeLink
Before you begin
145
Main Menu
Table of Contents
Press and hold the remote control
button and one of the HomeLink
buttons at the same time.
The remote control
you are training from may stop
transmitting after 2 seconds. This is
not long enough for HomeLink to
learn the code. Release and press the
button on the remote control every 2
seconds until HomeLink has learned
the code.
The red light in HomeLink should
begin flashing. It will flash slowly
at first, then rapidly.
When the red light flashes rapidly,
release both buttons. HomeLink
should have learned the code from
the remote control.
Plug in the garage door opener
motor, then test the HomeLink
Transceiver button by pushing it.
Repeat these steps to train the
other two HomeLink buttons to
operate any other remotely-
controlled devices around your
home (lighting, automatic gate,
security system, etc.).
For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Information from
the remote control and the garage
door opener are needed before
HomeLink can operate the garage
door opener.
The ‘‘Training HomeLink’’
procedure trains HomeLink to the
proper garage door opener code.
The following procedure
synchronizes HomeLink to the
garage door opener so they send and
receive the correct codes.
If the button does not work, repeat
this procedure to train it again. If it
still does not work, you may have a
variable or rolling code garage
door opener. See if you do by
pressing and holding the
HomeLink transceiver button you
just trained. If the red light blinks
for2seconds,thenstayson,you
have a rolling code garage door
opener. Go to ‘‘Training With a
Rolling Code System’’.
3.
4.
5.
6.
7.
Canadian Owners:
HomeLink Universal Transceiver
Comfort and Convenience Features
Training With a Rolling Code
System
146
Main Menu
Table of Contents
−
−
Make sure you have properly
completed the ‘‘Training
HomeLink’’ procedure.
Find the ‘‘Training’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer.
Press the Training button on the
garage door opener unit until the
light next to the button comes on,
then release it. The light may blink,
or come on and stay on. You then
have approximately 30 seconds to
complete the following steps.
Press and hold the button on
HomeLink for 3 4 seconds.
Press and hold the HomeLink
button again for 3 4 seconds.
This should turn off the training
light on the garage door opener
unit. (Some systems may require
youtopressthebuttonuptothree
times.)
Press the HomeLink button again.
It should operate the garage door.
6.
2.
4.
5.
1.
3.
HomeLink Universal Transceiver
Comfort and Convenience Features
147
TRAINING BUTTON
Main Menu
Table of Contents
Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red light
begins to flash, then release the
buttons.
Youshoulderaseallthreecodes
before selling the vehicle.
Totrainanalreadyprogrammed
transceiver button with a new device,
you do not have to erase all the
memory. Train the selected button
over the existing memory code
following the steps under
.
If you have problems with training
the HomeLink Universal Transceiver,
or would like information on home
products that can be operated by the
transmitter, call (800) 355-3515. On
the Internet, go to www.homelink.
com.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
HomeLink Universal Transceiver
Comfort and Convenience Features
Erasing Codes
Retraining a Button
Training
HomeLink
Customer Assistance
148
Main Menu
Table of Contents
CONTINUED
Your vehicle is equipped with the
HandsFreeLink (HFL). HFL uses
Bluetooth technology as a wireless
link between it and your Bluetooth
compatible cell phone. When you are
in your vehicle and your phone is
linked to the HFL, you’ll enjoy safe,
hands-free phone use. The HFL is
available only in English.
When the HFL is in use, the sound
comes through the vehicle’s front
audio system speakers. If the audio
system is in use while making a call,
the HFL over-rides the audio system.
To change the volume level, use the
audio system volume knob.
The HFL microphone is on the
ceiling, between the front seat
spotlights. On models with
navigation system, the microphone is
shared with the navigation system.
Here are the main components of
the HFL system:
The HFL can store up to 50 names
and phone numbers in its phonebook.
Withalinkedphone,youcanthen
automatically dial any name or
number in the phonebook.
Here are the main features of the
HFL. Instructions for using the HFL
begin on page .
HFL recognizes simple voice
commands, such as phone numbers
and names. It uses these commands
to automatically dial, receive, and
store numbers. For more
information on voice control, see
UsingVoiceControlonpage .
Bluetooth
is a registered trademark
of Bluetooh SIG, Inc.
Bluetooth is the wireless technology
that links your phone to the HFL.
TheHFLusesaClass3Bluetooth,
which means the maximum range
between your phone and vehicle is
30 feet (10 meters) or less.
To use the HFL, your phone must
have Bluetooth capability along with
the Hands Free Profile. This type of
phone is available through many
phone makers and cellular carriers.
You can also find a phone by visiting
In Canada, visit
With a linked phone, the HFL allows
you to send and receive calls in your
vehicle without holding the phone.
152
152
www.acura.com.
www.acura.ca.
HandsFreeLink
Comfort and Convenience Features
Bluetooth Wireless Technology
Audio System
Microphone
Phonebook
Voice Control
Incoming/Outgoing Calls
149
TM
Main Menu
Table of Contents
＊
−
＊
＊
To operate the HFL, use the HFL
Talk and Back buttons on the left
side of the steering wheel. On
navigation-equipped vehicles, there
are two sets of buttons: one for the
navigation, climate control, and audio
systems, and the other for the HFL.
When you are operating the HFL, or
when you manually scroll through
the Multi-Information Display and
select HFL, you will see this
information on the screen:
Signal Strength Indicates the
network signal strength of the
current phone call. Five bars
equals full strength.
Here is the function of each HFL
button:
HFLTalk:Thisbuttonisusedbefore
you give a command, to answer
incoming calls, and to confirm
system information.
HFLBack:Thisbuttonisusedto
end a call, go back to the previous
voice control command, and to
cancel an operation.
HandsFreeLink
HFL Buttons Multi-Information Display
Comfort and Convenience Features
150
NAVIGATION
SYSTEM
BUTTONS
HFL TALK
BUTTON
SIGNAL
STLENGTH
PHONE DIALING
BATTERY LEVEL
STATUS
HFL
MODE
HFL BACK
BUTTON
ROAM STATUS
Refer to your navigation system
Manual.
TM
Main Menu
Table of Contents
＊
＊
＊
＊
−
−
−
−
−
−
−
＊
＊
CONTINUED
This information is displayed
whetherornotthephoneisbeing
used:
ROAM Status (models without
navigation system) Indicates
your phone is roaming.
Phone Indicates a phone is
currently linked to the HFL.
Signal Strength (models without
navigation system) Indicates
the network signal strength of the
current phone call. Five bars
equals full signal strength.
ROAM Status Indicates your
phone is roaming.
Battery Level status Indicates
the power remaining in your
phone’s current battery charge.
Five bars equals full battery
strength.
HFL Mode Indicates when you
are dialing and receiving calls.
Phone Dialing Indicates the
number you entered or the
number of the incoming call.
Some phones will not send this
information to the HFL.
Some phones will not send this
information to the HFL.
:
:
HandsFreeLink
Comfort and Convenience Features
Center Console Display
151
ROAM STATUS
PHONE
SIGNAL
STLENGTH
TM
Main Menu
Table of Contents
TheHFLisoperatedbytheHFL
Talk and Back buttons on the left
side of the steering wheel. The next
few pages provide easy-to-use
instructions for all basic features of
the HFL.
When you finish a command
sequence, the HFL goes back to
its main menu. For example, when
you store the name, ‘‘Eric,’’ the
HFL response is, ‘‘Eric has been
stored.’’ The next time you press
the Talk button, you will be at the
main menu.
To go back one step in a command
process, say, ‘‘Go back,’’ or press
the Back button.
If nothing is said while the HFL is
listening for a command, the HFL
will time out and stop its voice
recognition. The next time you
press the Talk button, the HFL
begins listening from the point at
which it timed out.
To skip a voice prompt, press the
Talk button while the HFL is
speaking. The HFL will then begin
listening for your next command.
To enter a string of numbers in a
Call or Dial command, you can say
them all at once, or you can
separate them in blocks of 3, 4, 7,
10, and 11.
Note: All phones may not operate
identically, and some may cause
inconsistent operation of the HFL.
Here are some guidelines for using
voice control:
To enter a command, press the
Talk button. Then, after the beep,
say your command in a clear,
natural tone.
If the HFL does not recognize a
command, its response is,
‘‘Pardon’’ . If it doesn’t recognize
the command a second time, its
response is, ‘‘Please repeat.’’ If it
doesn’t recognize the command a
third time, it plays the Help
prompt.
Many commands can be spoken
together. For example, you can
say, ‘‘Dial 123-456-7891’’.
To hear a list of available options
at any time, press the Talk button,
wait for the beep, and say, ‘‘Hands
free link help.’’
For best system operation, set the
climate control fan speed to low,
and direct the center vents away
from the microphone in the ceiling.
To end a command sequence at
any time, press and hold the Back
button, or press the Talk button,
wait for the beep, and say, ‘‘Cancel.’’
ThenexttimeyoupresstheTalk
button, the HFL begins from its
main menu.
HandsFreeLink
How to Use the HFL
Using Voice Control
Comfort and Convenience Features
152
TM
Main Menu
Table of Contents
The HFL will accept a numeric, four-
digit passcode that you can use for
security purposes.
Press and release the Talk button.
After the beep, say ‘‘Set passcode.’’
With the ignition in the ON (II)
position, press and release the
Talk button on the steering wheel.
After the beep, say ‘‘Security.’’ The
HFL response is ‘‘Security options
are lock, unlock, and set passcode.’’
The HFL response is ‘‘What is the
new four-digit passcode?’’ (If you
are changing the passcode, you
will first be asked for the current
passcode.)
Press and release the Talk button.
After the beep, say the four-digit
passcode you want to use. For
example,say‘‘1,2,3,4.’’TheHFL
responseis‘‘1,2,3,4.Isthis
correct?’’
Press and release the Talk button.
After the beep, say ‘‘Lock’’ or
‘‘Unlock.’’ means the HFL
will prompt you for your passcode
each time the ignition switch is
turned to ON (II) and you press
the Talk button. You will only be
askedforthepasscodeonceper
ignition cycle. If the HFL is locked,
its response is ‘‘System is locked.
Each time the vehicle is turned on,
the passcode will be required to
use the system.’’ If the HFL is
unlocked, its response is ‘‘The
system is unlocked. Returning to
the main menu.’’
Press and release the Talk button.
After the beep, say ‘‘Yes.’’ The
HFL response is ‘‘The new
passcode has been stored.
Returning to the main menu.’’
Once a passcode is set, you can lock
the HFL so it only operates after the
passcode is entered, or you can
unlock it so anyone using your
vehicle can also use the HFL.
Press and release the Talk button.
After the beep, say ‘‘Security.’’ The
HFL response is ‘‘Security options
are lock, unlock, and set passcode.’’
2.
1.
4.
5.
3.
1.
2.
To set your passcode, do this:
To lock or unlock the HFL, do this:
HandsFreeLink
Comfort and Convenience Features
Setting Your Passcode
Lock
Locking or Unlocking the HFL
153
TM
Main Menu
Table of Contents
ThevoiceoftheHFLcanbesetto
male or female (U.S. models only).
Also, the incoming notification can
be set to a ring tone, a prompt, or no
notification.
Your Bluetooth compatible phone
with HandsFree Profile must be
paired to the HFL before you can
make and receive hands-free call.
HFL does not allow you to pair
your phone if the vehicle is
moving.
For pairing, your phone must be in
its Discovery mode.
Up to six phones can be paired to
the HFL.
The following procedure works for
most phones. If you cannot pair
your phone to the HFL with this
procedure, refer to your phone’s
operating manual, or talk to your
phone retailer.
Press and release the Talk button.
If you say ‘‘Yes’’ after the beep, the
HFL response is, ‘‘Would you like
a ring tone or a prompt?’’ If you
say ‘‘No’’ after the beep, the HFL
returns to its main menu. Saying
‘‘No’’ will result in no ring tone or
prompt playback during an
incoming call. The audio system
will still mute, and a message will
be displayed.
Press and release the Talk button.
After the beep, say ‘‘Ring tone’’ or
‘‘Prompt.’’ If you choose ‘‘Ring
tone’’ you will hear a ring tone
through the audio speakers to
announce an incoming call. If you
choose ‘‘Prompt,’’ you will hear
this message to announce an
incoming call: ‘‘You have an
incoming call.’’
During the pairing process, turn
off any previously paired phones
before pairing a new phone.
Press and release the Talk button.
After the beep, say ‘‘Male’’ or
‘‘Female,’’ depending on the
system voice you want. The HFL
response is, ‘‘Male (Female)
prompts have been selected.
Would you like an audible
notification of an incoming call?’’
Press and release the Talk button.
After the beep, say ‘‘Setup.’’ The
HFL response is ‘‘Would you like
male or female prompts?’’
Press and release the Talk button.
After the beep, say ‘‘System.’’ The
HFL response is, ‘‘System options
are setup and clear.’’
2.
1.
4.
5.
3.
To set up the system, do this:
Setting Up the System Pairing Your Phone
HandsFreeLink
Comfort and Convenience Features
154
NOTE:
TM
Main Menu
Table of Contents
With your phone on and the
ignition in the ACCESSORY (I) or
ON (II) position, press and release
the Talk button. After the beep,
say ‘‘Phone set up.’’ The HFL
response is ‘‘Phone set up options
are status, pair, edit, delete, and
list.’’
Press and release the Talk button.
After the beep, say ‘‘Pair.’’ The
HFL response is ‘‘The pairing
process requires operation of your
mobile phone. For safety, only
perform this function while the
vehicle is stopped. State a four-
digit code for pairing. Note this
code. It will be requested by the
phone.’’
Press and release the Talk button.
After the beep, say the four-digit
code you want to use. For example,
say‘‘1,2,3,4.’’TheHFLresponse
is,‘‘1,2,3,4.Isthiscorrect?’’
Press and release the Talk button.
After the beep, say ‘‘Enter’’. The
HFL response is ‘‘Searching for a
Bluetooth phone.’’
Steps 5 and 6 show a
common way to get your phone into
its Discovery mode. If these steps do
not work on your phone, refer to the
phone’s operating manual.
Follow the prompts on your phone
to get it into its Search mode. The
phone will search for the HFL.
When it comes up, select
HandsFreeLink from the list of
options displayed on your phone.
When asked by the phone, enter
the four-digit code from step 3 into
your phone. The HFL response is
‘‘A new phone has been found.
What would you like to name this
phone?’’
Press and release the Talk button.
After the beep, say the name you
want to use. For example, say
‘‘Eric’s phone.’’ The HFL response
is ‘‘Eric’s phone has been
successfully paired. Returning to
the main menu.’’
If you want to pair another phone,
repeat steps 1 through 7.
1. 4.
5.
6.
7.
2.
3.
8.
CONTINUED
HandsFreeLink
Comfort and Convenience Features
155
NOTE:
TM
Main Menu
Table of Contents
To rename a paired phone do this: To delete a paired phone, do this:
Press and release the Talk button.
After the beep, say ‘‘Phone setup.’’
The HFL response is ‘‘Phone
setup options are status, pair, edit,
delete, and list.’’
Press and release the Talk button.
After the beep, say ‘‘Edit.’’ The
HFL response is ‘‘Which phone
would you like to edit?’’
Press and release the Talk button.
After the beep, say the name of
the phone you want to rename.
For example, say ‘‘Eric’s phone.’’
The HFL response is ‘‘What is the
new name for Eric’s phone?’’
Press and release the Talk button.
After the beep, say the new name
of the phone. For example, say
‘‘Lisa’s phone.’’ The HFL response
is, ‘‘The name has been changed.
Returning to the main menu.’’
Press and release the Talk button.
After the beep, say ‘‘Phone setup.’’
The HFL response is, ‘‘Phone
setup options are status, pair, edit,
delete, and list.’’
Press and release the Talk button.
After the beep, say ‘‘Delete.’’ The
HFL response is, ‘‘Which phone
would you like to delete?’’
Press and release the Talk button.
After the beep, say the name of
the phone you want to delete. For
example say ‘‘Eric’s phone.’’ The
HFL response is ‘‘Would you like
to delete Eric’s phone?’’
Press and release the Talk button.
After the beep, say ‘‘Yes.’’ The
HFL response is ‘‘Preparing to
delete Eric’s phone.’’ Say ‘‘OK’’ to
continue. Otherwise, say ‘‘Go back,’’
or ‘‘Cancel.’’
Press and release the Talk button.
If you say ‘‘OK’’ after the beep, the
HFL response is ‘‘The phone has
been deleted. Returning to the
main menu’’. If you say ‘‘Go back,’’
or ‘‘Cancel,’’ the phone will not be
deleted.
2.
3.
4.
1. 1.
2.
3.
4.
5.
HandsFreeLink
Comfort and Convenience Features
156
TM
Main Menu
Table of Contents
To list all paired phones, do this: To find out the status of the phone being
used, do this:
To change from the currently linked
phone to another paired phone, do this:
Press and release the Talk button.
After the beep, say ‘‘Phone setup.’’
The HFL response is ‘‘Phone
setup options are status, pair, edit,
delete, and list.’’
Press and release the Talk button .
After the beep, say ‘‘Phone setup.’’
The HFL response is ‘‘Phone
setup options are status, pair, edit,
delete, and list.’’
Press and release the Talk button.
After the beep, say ‘‘Next phone.’’
The HFL response is ‘‘Searching
for the next phone.’’ The HFL
then disconnects the linked phone
and searches for another paired
phone. If no other phones are
found, the first phone remains
linked.
Press and release the Talk button.
After the beep, say ‘‘List.’’ The
HFL responds by listing the name
of each paired phone. When all
phones paired to the system have
been read, the HFL response is
‘‘The entire list has been read.
Returning to the main menu.’’
Press and release the Talk button.
After the beep, say ‘‘Status.’’ An
example of the HFL response is,
‘‘Eric’s phone is linked. Battery
strength is three bars. Signal
strength is five bars, and the
phone is roaming. Returning to the
main menu.’’
2.
1.
1.
2.
1.
HandsFreeLink
Comfort and Convenience Features
157
TM
Main Menu
Table of Contents
Press and release the Talk button.
After the beep, say ‘‘Call’’ or ‘‘Dial.’’
The HFL response is ‘‘Calling’’ or
‘‘Dialing.’’ Once connected, you
will hear the person you called
through the audio speakers. To
change the volume, use the audio
system volume knob.
You can make calls using any phone
number, or by using a name in the
HFL phonebook. You can also redial
the last number called. During a call,
theHFLallowsyoutotalkupto30
minutes after you remove the key
from the ignition switch.
With your phone on and the
ignition in the ACCESSORY (I) or
ON (II) position, press and release
the Talk button. After the beep,
say ‘‘Call’’ or ‘‘Dial’.’ The HFL
response is, ‘‘What name or
number would you like to call/
dial?’’
Press and release the Talk button.
After the beep, say the number
you want to call. For example, say
‘‘123 456 7891.’’ The HFL response
is ‘‘123 456 7891. Say call, dial, or
continue to add numbers.’’
To end the call, press the Back
button.
With your phone on and the
ignition in the ACCESSORY (I) or
ON (II) position, press and release
the Talk button. After the beep,
say ‘‘Call’’ or ‘‘Dial.’’ The HFL
response is ‘‘What name or
number would you like to call/
dial?’’
Press and release the Talk button.
After the beep, say the name you
want to call. For example, say
‘‘Eric.’’ The HFL response is
‘‘Would you like to call Eric?’’
Press and release the Talk button.
After the beep, say ‘‘Yes.’’ The
HFL response is ‘‘Calling’’ or
‘‘Dialing.’’ Once connected, you
will hear the person you called
through the audio speakers. To
change the volume, use the audio
system volume knob.
To end the call, press the Back
button.
To redial the last number called by
the phone, press and release the
Talk button. After the beep, say
‘‘Redial.’’ The HFL response is,
‘‘Redialing.’’ Once connected, you
will hear the person you called
through the audio speakers. To
change the volume, use the audio
system volume knob.
1.
3.
3.
1.
2.
2.
4.
4.
To make a call using a phone number,
do this:
To make a call using a name in the HFL
phonebook, do this:
Making a Call
HandsFreeLink
Comfort and Convenience Features
158
TM
Main Menu
Table of Contents
If you receive a call when you are not
on the phone, the HFL interrupts the
audio system (if it is on), and plays
the incoming call notification, if
activated. To answer the call, press
the Talk button and begin speaking.
If you don’t want to answer the call,
press the Back button.
The HFL allow you to send numbers
or names during a call. This is
usefull when you call a menu-driven
phone system. You can also program
account numbers into the HFL
phonebook for easy retrieval during
menu-driven calls.
If your phone has Call Waiting, and
you receive a call when you are on
the phone, press the Talk button to
answer it. When you do this, the
original call is placed on hold. To
return to the original call, press the
Talk button again. If you don’t want
to answer the new call, disregard it,
and continue with your original call.
If you want to hang up the original
call and answer the new call, press
the Back button.
Press and release the Talk button.
After the beep, say ‘‘Send.’’ The
HFL response is, ‘‘What name or
number would you like to send?’’
Press and release the Talk button.
After the beep, say the number
you want to send. For example,
say‘‘1,2,3.’’TheHFLresponseis
‘‘1, 2, 3. Say send, or continue to
add numbers.’’
Press and release the Talk button.
After the beep, say ‘‘Send.’’ The
dial tones will be sent, and the call
will continue.
Press and release the Talk button.
After the beep, say ‘‘Send.’’ The
HFL response is ‘‘What name or
number would you like to send?’’
Press and release the Talk button.
After the beep, say the name you
want to send. For example, say
‘‘Account number.’’ The HFL
response is ‘‘Would you like to
send account number?’’
Press and release the Talk button.
After the beep, say ‘‘Send.’’ The
dial tones will be sent, and the call
will continue.
1.
2.1.
2.
3.
3.
To send a number during a call, do this:
To send a name during a call, do this:
HandsFreeLink
Comfort and Convenience Features
Receiving a CallSending Numbers or Names
During a Call
159
TM
Main Menu
Table of Contents
CONTINUED
Press and release the Talk button.
After the beep, say the name you
would like to delete. For example,
say ‘‘Eric.’’ The HFL response is
‘‘Do you want to delete Eric?’’
Press and release the Talk button.
After the beep, say ‘‘Yes.’’ The
HFL response is, ‘‘The name has
been deleted. Returning to the
main menu.’’
Press and release the Talk button.
After the beep, say ‘‘Phonebook.’’
The HFL response is, ‘‘The
Phonebook options are store, edit,
delete, and list.’’
Press and release the Talk button.
After the beep, say the new
number for Eric. For example, say
‘‘987 654 3219.’’ The HFL response
is, ‘‘987 654 3219.’’
Press and release the Talk button.
After the beep, say ‘‘Enter.’’ The
HFL response is ‘‘The number has
been changed. Returning to the
main menu.’’
Press and release the Talk button.
After the beep, say ‘‘Phonebook.’’
The HFL response is, ‘‘Phonebook
options are store, edit, delete, and
list.’’
Press and release the Talk button.
After the beep, say ‘‘Delete.’’ The
HFL response is, ‘‘What name
would you like to delete?’’
Press and release the Talk button.
After the beep, say ‘‘Enter.’’ The
HFL response is ‘‘Eric (or account
number) has been stored.
Returning to the main menu.’’
Press and release the Talk button.
After the beep, say ‘‘Phonebook.’’
The HFL response is ‘‘Phonebook
options are store, edit, delete, and
list.’’
Press and release the Talk button.
After the beep, say ‘‘Edit.’’ The
HFL response is, ‘‘What name
would you like to edit?’’
Press and release the Talk button.
After the beep, say the name you
would like to edit. For example,
say ‘‘Eric.’’ The HFL response is
‘‘What is the new number for
Eric?’’
2.
1.
4. 3.
4.5.
1.
2.
1.
3.
5.
To list all names in the phonebook, do
this:
To delete a name, do this:
To edit the number of a name, do this:
HandsFreeLink
Comfort and Convenience Features
161
TM
Main Menu
Table of Contents
Press and release the Talk button.
After the beep, say ‘‘Clear.’’ The
HFL response is, ‘‘This process
will clear all paired phones, clear
all entries in the phonebook, and
clear the passcode. Is this what
you would like to do?’’
Press and release the Talk button.
After the beep, say ‘‘Yes.’’ The
HFL response is ‘‘Preparing to
clear all paired phones, all
phonebook entries, and the
passcode. This may take up to 2
minutes to complete.’’ Press and
release the Talk button. After the
beep, say ‘‘OK.’’ to proceed, or say
‘‘Go back’’ or ‘‘Cancel.’’
If you said ‘‘OK,’’ after a short
period of time, the HFL response
is, ‘‘System has been cleared.
Returning to the main menu.’’
Press and release the Talk button.
After the beep, say ‘‘List.’’ The
HFL responds by listing the
names in the phonebook. When
the end of the list is reached, the
HFL response is, ‘‘The entire list
has been read. Returning to the
main menu.’’
Press and release the Talk button.
After the beep, say ‘‘Phonebook.’’
The HFL response is ‘‘Phonebook
options are store, edit, delete, and
list.’’
Press and release the Talk button.
After the beep, say ‘‘List.’’ The
HFL responds by listing the
names in the phonebook. When it
saysthenameyouwanttocall,for
example, Eric, press the Talk
button, and then say ‘‘Call.’’ The
HFL response is, ‘‘Would you like
to call Eric?’’
Press and release the Talk button.
After the beep, say ‘‘Yes.’’ The
HFL response is ‘‘Calling.’’ Once
connected, you will hear the
person you called through the
audio speakers. To change the
volume, use the audio system
volume knob.
This operation clears the HFL of
your passcode, your paired phones,
and all names in the HFL phonebook.
Clearing is recommended before you
sell your vehicle.
Press and release the Talk button.
After the beep, say ‘‘System.’’ The
HFL response is, ‘‘System options
are setup and clear.’’
2.
3.
4.
1.
1.
2.
3.
2.
To call a name from the phonebook list,
do this:
To clear the system, do this:
HandsFreeLink
Comfort and Convenience Features
Clearing the System
162
TM
Main Menu
Table of Contents
Before you begin driving your Acura,
youshouldknowwhatgasolineto
use, and how to check the levels of
important fluids. You also need to
know how to properly store luggage
or packages. The information in this
section will help you. If you plan to
add any accessories to your vehicle,
please read the information in this
section first.
.............................Break-in Period . 164
...............................Gasoline Type . 164
.........Service Station Procedures . 165
...............................Fuel Economy . 168
...Accessories and Modifications . 169
.............................Carrying Cargo . 171
Before Driving
Before Driving
163
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttle starts and rapid
acceleration.
Avoidhardbrakingforthefirst
200 miles (300 km).
Do not change the oil until the
multi-information display indicates
it is needed.
Youshouldfollowthesesame
recommendations with an
overhauled or exchanged engine, or
when the brakes are relined.
Your Acura is designed to operate on
unleaded gasoline with a pump
octane number of 91 or higher.
Useofaloweroctanegasolinecan
cause occasional metallic knocking
noises in the engine and will result in
decreased engine performance.
You may hear a knocking noise from
the engine if you drive the vehicle at
low engine speed (below about 1,000
rpm) in a higher gear. To stop this,
raise engine speed by shifting to a
lower gear.
We recommend gasolines containing
detergent additives that help prevent
fuel system and engine deposits. In
addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT.
Use of gasoline with these additives
may adversely affect performance,
and cause the Malfunction Indicator
Lamp on your instrument panel to
come on. If this happens, contact
your authorized Acura dealer for
service.
For further important fuel-related
information, please refer to your
Quick Start Guide.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
On TL with manual transmission
Break-in Period, Gasoline Type
Break-in Period
Gasoline Type
Before Driving
164
Table of Contents
Main Menu
Park with the driver’s side closest
to the service station pump.
Open the fuel fill door by pulling
onthehandletotheleftofthe
driver’s seat.
even though the tank is not full,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
fuel vapors from going into the
atmosphere. Consult your dealer.
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malfunction Indicator
Lampmaycomeon(seepage
).
Push the fuel fill door closed until
it latches.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the knob on the cap in the
notch on the fuel fill door.
1.
2.
3.
4.
6.
5.
243
If the fuel nozzle keeps clicking off
Service Station Procedures
Before Driving
Fueling
165
Pull
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine, and keep
heat, sparks, and flames
away.
Handle fuel only outdoors.
Wipe up spills immediately.
Main Menu
Table of Contents
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Put your fingers between the front
edge of the hood and the front
grille to locate the hood latch
handle. Push this handle up until it
releases the hood. Lift the hood.
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated (see page ).
Lift the hood up most of the way.
The hydraulic supports will lift it
uptherestofthewayandholdit
up.
Lower the hood to about a foot (30
cm) above the fender, then press
down firmly with your hands. Make
sure it is securely latched.
1.
2. 3.
212
Service Station Procedures
Opening the Hood To Close the Hood
Before Driving
166
HOOD RELEASE HANDLE
LATCH
Main Menu
Table of Contents
If it is near or below the lower mark,
see on page .
Remove the dipstick again and
check the level. It should be
between the upper and lower
marks.
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
Refer to
on page for information
about checking other items on your
Acura.
Wait a few minutes after turning the
engine off before you check the oil.
Remove the dipstick (orange loop).
Wipe off the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its tube.
4.
1.
2.
3
198
204
207
Service Station Procedures
Oil Check
Adding Oil
Engine Coolant Check
Adding
Engine Coolant
Owner’s Maintenance
Checks
Before Driving
167
UPPER MARK
LOWER MARK
DIPSTICK
RESERVE TANK
MIN
MAX
Main Menu
Table of Contents
Always maintain your vehicle
according to the maintenance
messages given by the multi-
information display. See
on page
.
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses fuel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
Always drive in the highest gear
possible.
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel.Usethecruisecontrolwhen
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
198
For example,
Fuel Economy
Improving Fuel Economy
Owner’s
Maintenance Checks
Before Driving
168
Main Menu
Table of Contents
Modifying your vehicle, or installing
some non-Acura accessories, can
make it unsafe. Before you make any
modifications or add any accessories,
be sure to read the following
information.
Your dealer has Acura accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty.
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation.
Have the installer contact your
Acura dealer for assistance before
installing any electronic accessory.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as the SRS and the anti-lock brake
system.
Although aftermarket accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability (see page ).
245
170
Accessories
Before Driving
Accessories and Modifications
169
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
Removing parts from your vehicle,
or replacing components with non-
Acura (aftermarket) components
could seriously affect your vehicle’s
handling, stability, and reliability.
Some examples are:
Lowering your vehicle with an
aftermarket suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Raising your vehicle with an
aftermarket suspension kit can
affect the handling and stability.
Aftermarket wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Do not modify your steering wheel
or any other part of your
Supplemental Restraint System.
Modifications could make the
system ineffective. See the safety
precautions on page .
If you plan to modify your vehicle,
consult your Acura dealer.
28
Modifying Your Vehicle
Before Driving
Accessories and Modifications
170
Main Menu
Table of Contents
Your vehicle has several convenient
storage areas:
Glove box
Front door and seat-back pockets
Console compartment
Trunk
Roof-rack (if installed)
In addition, the trunk pass-through
allows you to carry longer items.
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Before Driving
Carrying Cargo
171
CONSOLE COMPARTMENT FRONT DOOR POCKET
TRUNK SEAT-BACK POCKET GLOVE BOX
Main Menu
Table of Contents
×
−
The maximum load for your vehicle
is 850 lbs (395 kg). This figure
includes total weight of all occupants,
cargo, and accessories.
To determine the correct cargo and
luggage load limit:
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 850 lbs
(395 kg)’’ on your vehicle’s placard
(on the driver’s doorjamb).
Determine the combined weight
of the driver and passengers that
will be riding in the vehicle.
(Five is seating capacity of your
vehicle.)
Subtract the combined weight of
the driver and passengers from
850 lbs (395 kg).
The resulting figure equals the
available load capacity.
For example, if there will be four 150
lbs (70 kg) occupants in your vehicle,
the amount of available cargo and
luggage load capacity is 250 lbs (115
kg).
4 150 lbs (70 kg) = 600 lbs (280
kg)
850 lbs (395 kg) 600 lbs (280 kg) =
250 lbs (115 kg)
Determine the combined weight
of accessories, luggage, and cargo
beingloadedinthevehicle.The
weight may not safely exceed the
available cargo and luggage load
capacity calculated in step 4.
1.
5.
3.
2.
4.
Carrying Cargo
Before Driving
172
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
Distribute cargo evenly on the
floor of the trunk, placing the
heaviest items on the bottom and
as far forward as possible.
If you carry large items that
prevent you from closing the trunk
lid, exhaust gas can enter the
passenger area. To avoid the
possibility of
, follow the instructions
on page .
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed the maximum allowable
weight. Please contact your Acura
dealer for further information.
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the pedals or seat operation.
Do not put any items on top of the
trunk panel. They can block your
view and be thrown around the
vehicle during a crash.
The cargo net can be used to help
hold down items stored in the trunk.
To use the cargo net, hook it to the
buttons on the floor and sides of the
trunk. You can use the cargo net in
several configurations by hooking it
to different buttons. There is also a
side net that can be used on either
side of the trunk.
When you are not using the cargo
net, store it in the pocket in the spare
tire tool case.
46
Carrying Cargo
Before Driving
Carrying Cargo in the Trunk or on
a Roof Rack
carbon monoxide
poisoning
Carrying Items in the Passenger
Compartment
Cargo Nets
173
CARGO NET
TRUNK NET HOOK
SIDE NET
Main Menu
Table of Contents
174
Main Menu
This section gives you tips on
starting the engine under various
conditions, and how to operate the
6-speed manual and the automatic
transmission. It also includes
important information on parking
your vehicle, the braking system and
the Vehicle Stability Assist System.
........................Preparing to Drive . 176
.......................Starting the Engine . 177
....6-Speed Manual Transmission . 178
..............Automatic Transmission . 181
...........................................Parking . 187
.............................Braking System . 188
...............Anti-lock Brakes (ABS) . 189
...Vehicle Stability Assist System . 190
...........................Towing a Trailer . 192
Driving
Driving
175
Main Menu
Youshoulddothefollowingchecks
and adjustments every day before
you drive your vehicle.
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Check that the hood and trunk are
fully closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that any items you may be
carrying with you inside are stored
properly or fastened down
securely.
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page ).
Make sure the doors are securely
closed and locked.
When you start the engine, check
the gauges and indicator lights in the
instrument panel (see page ).
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
3.
2.
1.
4.
5.
6.
7.
8.
9.
88
91
78
14
51
Preparing to Drive
Driving
176
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Push the clutch pedal down all the
way.
Make sure the shift lever is in
Park. Press on the brake pedal.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in START for more than
15 seconds at a time. If the engine
does not start right away, pause
for at least 10 seconds before
trying again.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. If the
engine still does not start, return
to step 5.
1.
2.
3.
4.
5.
6.
Manual Transmission:
Automatic Transmission:
Driving
Starting the Engine
177
NOTICE: The engine is harder to start
in cold weather. Also, the thinner air
found at altitudes above 8,000 feet
(2,400 meters) adds to this problem.
Main Menu
Table of Contents
When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting,
make sure engine speed will not go
into the tachometer’s red zone in the
lower gear.
The manual transmission is
synchronized in all forward gears for
smooth operation. It has a lockout so
you cannot accidentally shift from
fifth to Reverse instead of sixth (see
page ) while the vehicle is
moving. When shifting up or down,
make sure you push the clutch pedal
down all the way, shift to the next
gear, and let the pedal up gradually.
When you are not shifting, do not
rest your foot on the clutch pedal.
This can cause your clutch to wear
out faster.
Come to a full stop before you shift
into Reverse. You can damage the
transmission by trying to shift into
Reverse with the vehicle moving.
Push down the clutch pedal, and
pause for a few seconds before
shifting into Reverse, or shift into
one of the forward gears for a
moment. This stops the gears so
they won’t ‘‘grind.’’
180
The engine can be damaged if
you inadvertently downshift into the
wrong gear (for example, going from
third gear at high rpms to second gear
instead of upshifting to fourth gear; the
rev limiter will not work in this situation).
6-speed Manual Transmission
Driving
178
Note:
Rapid slowing or speeding-up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main Menu
Table of Contents
Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you the best
fuel economy and effective emis-
sions control. The following shift
points are recommended:
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
Before downshifting, make sure the
engine will not go into the
tachometer’s red zone.
Shift up
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
5th to 6th
Normal acceleration
17 mph (27 km/h)
27 mph (43 km/h)
36 mph (58 km/h)
41 mph (66 km/h)
44 mph (71 km/h)
Driving
Engine Speed LimiterRecommended Shift Points
6-speed Manual Transmission
179
Main Menu
Table of Contents
The 6-speed manual transmission
has an electric lockout so you cannot
accidentally shift from Fifth to
Reverse instead of Sixth. If you
cannot shift to Reverse when the
vehicle is stopped:
With the clutch pedal pressed,
move the shift lever to the first/
second gear side of the Neutral
gate, then shift to Reverse.
If you are still unable to shift to
Reverse, apply the parking brake
and turn the ignition key to
ACCESSORY (I) or LOCK (0).
Press the clutch pedal, and shift to
Reverse.
With the clutch pedal still pressed,
start the engine.
If you need to use this procedure to
shift to Reverse, your vehicle may be
developing a problem. Have the
vehicle checked by your Acura
dealer.
1.
2.
3.
4.
Driving
6-speed Manual Transmission
Reverse Lockout
180
Main Menu
Table of Contents
These indicators on the instrument
panel show which position the shift
lever is in. The illuminated number
next to the ‘‘L’’ indicator shows you
the gear you have selected in the
Sequential SportShift mode.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to ON (II). If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission. Avoid
rapid acceleration and have the
transmission checked by an Acura
dealer as soon as possible.
To shift from any position, press
firmly on the brake pedal. You
cannot shift out of Park when the
ignition switch is in the LOCK (0) or
ACCESSORY (I) position.
CONTINUED
Shift Lever Position Indicators Shifting
Automatic Transmission
Driving
181
Main Menu
Table of Contents
−−
−
−
−
−
To avoid transmission damage, come
to a complete stop before shifting
into Park. The shift lever must be in
Park before you can remove the key
from the ignition switch.
Your vehicle has a reverse lockout so
you cannot accidentally shift to
Reverse from Neutral or any other
driving position when the vehicle
speed exceeds 5 6 mph (8 10
km/h).
If you cannot shift to Reverse when
the vehicle is stopped, press the
brake pedal and slowly shift to
Neutral, and then to Reverse.
If there is a problem in the reverse
lockout system, or your vehicle’s
battery is disconnected or goes dead,
you cannot shift to Reverse. (Refer
to Shift Lock Release on page ).
Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from Neutral to
another gear.
Use this position for
your normal driving. The transmis-
sion automatically selects a suitable
gear for your speed and acceleration.
ForfasteraccelerationwheninD,
you can get the transmission to
automatically downshift by pushing
the accelerator pedal to the floor.
The transmission will shift down one,
two or three gears, depending on
your speed.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
Press the brake
pedal to shift from Park to Reverse.
To shift from Neutral to Reverse,
come to a complete stop and then
shift.
185
185
To shift from:
PtoR
RtoN
NtoD
DtoL
LtoD
DtoN
NtoR
RtoP
Do this:
Press the brake pedal, then
move the shift lever.
Move the lever.
Neutral (N)
Drive (D)
Park (P)
Shift Lock Release
Reverse (R)
Automatic Transmission
Driving
182
Main Menu
Table of Contents
−
−
When you accelerate away from a
stop, the transmission will start in
first gear and then automatically
upshift to second gear. You have to
manually upshift between second
and fifth gears. Make sure you
upshift before the engine speed
reaches the tachometer’s red zone.
The transmission remains in the
selected gear (5, 4, 3). There is no
automatic downshift when you push
the accelerator pedal to the floor.
When you move the
shift lever to this position, the
transmission shifts to the lowest
gear that can be selected without
exceeding the engine redline. At
normal speeds, it selects third gear.
As the vehicle slows, it selects
second gear at about 53 mph
(85 km/h), and first gear at about 28
mph (45 km/h). Accelerating in first
gear, the transmission upshifts to
second gear at about 37 mph
(59 km/h). You must move the shift
lever to D for the transmission to
upshift to third gear.
In Sequential SportShift mode, each
time you push forward on the shift
lever, the transmission shifts to a
higher gear. Pull back on the lever to
downshift. The number of the gear
selected is displayed on the
instrument panel.
With
the shift lever in ‘‘D’’ position, you
can select the Sequential SportShift
Mode to shift gears much like a
manual transmission, but without a
clutch pedal.
To enter the Sequential SportShift
Mode, move the shift lever further to
the driver’s side. To return to ‘‘D’’,
move the shift lever to the
passenger’s side.
When you move the shift lever from
‘‘D’’ to the Sequential SportShift
mode, the display shows the selected
gear.
CONTINUED
Automatic Transmission
Driving
Low (L)
Sequential SportShift Mode
183
Down shift
SELECTED GEAR
Main Menu
Table of Contents
→
→
→
→
→
→
→
→
The transmission may automatically
downshift from the higher gear to
the lower gear under these
conditions:
Downshifting gives you more power
when climbing, and provides engine
braking when going down a steep hill.
The transmission will also shift
automatically as the vehicle comes to
a complete stop. It will downshift to
first gear when the vehicle speed is
under 9 mph (15 km/h).
If you try to manually downshift at a
speed that would cause the engine to
exceed the redline in a lower gear,
the transmission will not downshift.
If the vehicle speed slows to below
the redline of the selected lower gear
position while the indicator is
flashing, the transmission will
downshift and the display will show
the selected lower gear.
The table shows the speed ranges
for upshifting and downshifting.
To shift from
43
54
To shift from
43
54
To shift from
12
23
34
45
Thegearindicatorwillflashthe
numberofthelowergearseveral
times, then return to the higher gear.
Speed range
over 0 mph
(0 km/h)
over 9 mph
(15 km/h)
over 18 mph
(29 km/h)
over 37 mph
(60 km/h)
Speed range
under 18 mph
(29 km/h)
under 38 mph
(60 km/h)
Speed range
under 41 mph
(65 km/h)
under 47 mph
(75 km/h)
Driving uphill
Driving on level roads and downhill
Automatic Transmission
Driving
184
Main Menu
Table of Contents
→
→
→
To shift from
32
43
54
When you are in Sequential
Sportshift mode, and the vehicle is
stopped, push forward on the shift
lever to shift to second gear. You will
see ‘‘2’’ in the display. Starting out in
second gear will help to reduce
wheelspin in deep snow or on a
slippery surface.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
This allows you to move the shift
lever out of Park if the normal
method of pushing on the brake
pedal does not work. This procedure
is also used to release the Reverse
Lockout.
Set the Parking brake.
Make sure the ignition switch is in
the LOCK (0) position.
To release the Reverse Lockout,
make sure the ignition switch is in
the ACCESSORY (I) position.
Speed range
under 63 mph
(102 km/h)
under 97 mph
(156 km/h)
under 149 mph
(240 km/h)
1.
2.
CONTINUED
Starting in Second Gear
Engine Speed Limiter
Shift Lock Release
Driving
Automatic Transmission
185
Main Menu
Table of Contents
Put a cloth on the edge of the Shift
Lock Release slot cover next to
theshiftlever.Useasmallflat-
tipped screwdriver or a metal
fingernail file to remove the cover.
Carefully pry on the edge of the
cover.
Push down on the key and move
the shift lever out of Park to
Neutral.
To release the Reverse Lockout,
move the shift lever from Neutral
to Reverse, then to Park.
Remove the key from the Shift
Lock Release slot, then reinstall
thecover.Makesurethenotchon
the cover is on the right side.
Press the brake pedal, and restart
the engine.
If you need to use the Shift Lock
Release, it means your vehicle is
developing a problem. Have the
vehicle checked by an Acura dealer.
Insert a key into the Shift Lock
Release slot.
3.
6.
5.
4.
Automatic Transmission
Driving
186
SHIFT LOCK RELEASE SLOTCOVER
Main Menu
Table of Contents
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly or
your vehicle may roll if it is parked
on an incline.
If your vehicle has an automatic
transmission, set the parking brake
before you put the transmission in
Park. This keeps the vehicle from
moving and putting pressure on the
parking mechanism in the
transmission.
Make sure the moonroof and the
windows are closed.
Turn off the lights.
Place any packages, valuables, etc.,
in the trunk or take them with you.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
If the vehicle is facing uphill, turn
the front wheels away from the
curb. If you have a manual
transmission, put it in first gear.
If the vehicle is facing downhill,
turn the front wheels toward the
curb. If you have a manual
transmission, put it in reverse gear.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Lock the doors.
Parking Tips
Parking
Driving
187
Main Menu
Table of Contents
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
Your Acura is equipped with disc
brakes at all four wheels. A power
assist helps reduce the effort needed
on the brake pedal. The ABS helps
you retain steering control when
braking very hard.
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
Braking System Design
Brake Wear Indicators
Braking System
Driving
188
Front
Main Menu
Table of Contents
such as trying to take a
corner too fast or making a sudden
lane change.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock.
The Anti-lock Brake System (ABS)
helps prevent the brakes from
locking up and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’
You will feel a pulsation in the brake
pedal when the ABS activates, and
may hear some noise. This is normal:
it is the ABS rapidly pumping the
brakes. On dry pavement, you will
need to press on the brake pedal
very hard before the ABS activates.
However, you may feel the ABS
activate immediately if you are trying
to stop on snow or ice.
If the ABS indicator comes on, the
anti-lock function of the braking
system has shut down. The brakes
still work like a conventional system,
but without anti-lock. You should
have the dealer inspect your vehicle
as soon as possible.
it only helps with steering
control during braking.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
You should never pump the brake pedal.
ABS will not prevent a skid that
results from changing direction
abruptly,
A vehicle with ABS may require a
longer distance to stop
ABS Indicator Important Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle;
ABS cannot prevent a loss of
stability.
Anti-lock Brakes (ABS)
Driving
189
Main Menu
Table of Contents
The Vehicle Stability Assist system
helps to stabilize the vehicle during
cornering if the vehicle turns more
or less than desired. It also assists
you in maintaining traction while
accelerating on loose or slippery
road surfaces. It does this by
regulating the engine’s output, and
by selectively applying the brakes.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times.
If the VSA system indicator comes
on while driving, pull to the side of
theroadwhenitissafe,andturnoff
the engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on, or comes
back on while driving, have the VSA
system inspected by an Acura dealer.
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety.
When VSA activates, you will see the
VSA Activation indicator blink.
In manual transmission models, if
the VSA system is off and you
accelerate from a stop, the vehicle
may pull, and it may take extra effort
to return the steering wheel to
center.
VSA Activation Indicator VSA System Indicator
Vehicle Stability Assist (VSA) System
Driving
190
Main Menu
Table of Contents
If the indicator does not come on
when the ignition switch is turned to
ON(II),theremaybeaproblem
with the VSA system. Have an Acura
dealer inspect your vehicle as soon
as possible.
Without VSA, your vehicle will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
This switch is under the left vent.
Press it to turn the Vehicle Stability
Assist system on and off.
When VSA is off, the VSA Activation
Indicator comes on as a reminder.
Pressing the switch again turns the
system back on.
VSA is turned on every time you
start the engine, even if you turned it
off the last time you drove the
vehicle.
Driving with varying tire or wheel
sizes may cause the VSA to
malfunction. When replacing tires,
make sure they are the same size
and type as your original tires (see
page ).
Deactivate the VSA system if you
need to drive with the compact spare
tire installed (see page ).
If you install winter tires, make sure
they are the same size as those that
were originally supplied with your
vehicle. Exercise the same caution
during winter driving as you would if
your vehicle was not equipped with
VSA.
224
230
VSA Off Switch
VSA and Tire Sizes
Vehicle Stability Assist (VSA) System
Driving
191
VSA OFF SWITCH
Main Menu
Table of Contents
Your vehicle is not designed to tow a
trailer. Attempting to do so can void
your warranties.
Towing a Trailer
Driving
192
Main Menu
Table of Contents
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
instructions on how to read the
maintenance messages in the Multi-
Information Display, a Maintenance
Record, and instructions for simple
maintenance tasks you may want to
take care of yourself.
If you have the skills and tools to per-
form more complex maintenance
tasks on your Acura, you may want
to purchase the Service Manual. See
page for information on how to
obtain a copy, or see your Acura
dealer.
......................Maintenance Safety . 194
....................Maintenance Minder . 195
....................Maintenance Record . 200
..............................Fluid Locations . 202
......Engine Compartment Covers . 203
........................Adding Engine Oil . 204
.........Changing the Oil and Filter . 205
..............................Engine Coolant . 207
....................Windshield Washers . 208
....Automatic Transmission Fluid . 209
........Manual Transmission Fluid . 210
................Brake and Clutch Fluid . 211
....................Power Steering Fluid . 212
....................................Hood Latch . 212
.............................................Lights . 213
.......................................Seat Belts . 218
.....................................Floor Mats . 218
.................................Wiper Blades . 219
...............................................Tires . 220
...................Checking the Battery . 226
.............................Vehicle Storage . 227
269
Maintenance
Maintenance
193
Main Menu
All service items not detailed in this
sectionshouldbeperformedbyan
Acura technician or other qualified
mechanic.
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air.
Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool
before touching any parts.
Do
not run the engine unless
instructed to do so.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Maintenance Safety
Maintenance
Important Safety Precautions
Potential Vehicle Hazards
Carbon Monoxide poison from
engine exhaust.
Burns from hot parts.
Injury from moving parts.
194
Improperly maintaining this
vehicle or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations in this owner’s
manual.
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Main Menu
Table of Contents
One of the most convenient and
important features of the Multi-
Information Display on your Acura is
the Maintenance Minder.
Based on engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your Acura calculates the remaining
engine oil life.
When the remaining engine oil life is
15 percent, you will see the message
‘‘SERVICE DUE SOON’’ along with
all maintenance items that are
needed at oil change time. Refer to
page for a complete list of the
maintenance main items and sub
items.
The system also displays the code
for other scheduled maintenance
items needing service. The remaining engine oil life is
displayed on the Multi-Information
Display as a percentage when you
turn the ignition switch to ON (II).
199
CONTINUED
Maintenance Minder
Maintenance
195
MAINTENANCE
MAIN ITEM
MAINTENANCE
SUB ITEMS
Main Menu
Table of Contents
＜＞
＜＞
When the remaining oil life is less
than5percent,youwillseethe
message ‘‘SERVICE DUE NOW’’
with the same maintenance items
you saw when ‘‘SERVICE DUE
SOON’’ was displayed. When you
see this message, have the indicated
maintenance performed as soon as
possible.
Your Acura dealer will reset the
display after completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the display the
next time you turn the ignition
switch to ON (II).
If maintenance service is done by
someone other than your Acura
dealer, reset the display as follows:
Turn the ignition switch to ON (II).
Press the or button
repeatedly until the oil life is
displayed.
Press and hold the Select/Reset
button for 10 seconds. The Multi-
Information Display will ask for a
confirmation.
If you are sure you want to reset
the display, press the Select/
Reset button to select ‘‘OK’’.
If you do not want to reset the
display, press the or
button to select ‘‘Cancel’’.
1.
2.
3.
Maintenance Minder
Maintenance
196
Main Menu
Table of Contents
If you have the required service
performed but do not reset the
display, or reset the display without
performing the service, the system
will not show the proper
maintenance intervals. This can lead
to serious mechanical problems
because you will no longer have an
accurate record of when
maintenance is needed.
If the indicated maintenance service
is not done and the remaining engine
oil life gets less than 0 percent, you
will see the message ‘‘SERVICE
PAST DUE’’ on the display.
Immediately have the service
performed, and make sure to reset
the display as previously described.
Your authorized Acura dealer knows
your vehicle best and can provide
competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
person who is skilled in this type of
automotive service. Keep all receipts
as proof of completion, and have the
person who does the work fill out the
Maintenance Record. Check your
warranty booklet for more
information.
We recommend the use of Acura
parts and fluids whenever you have
maintenance done. These are
manufactured to the same high-
quality standards as the original
components, so you can be confident
of their performance and durability.
CONTINUED
Maintenance Minder
Maintenance
197
Main Menu
Table of Contents
＃
−
−
−
−
−
−
U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, Acura
recommends that all maintenance
services be performed in accordance
with the intervals indicated by the
Multi-Information Display.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Engine oil level Check every
time you fill the fuel tank. See
page .
Automatic transmission Check
the fluid level monthly. See page
.
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
167
167
209
211
222
213
Maintenance Minder
Maintenance
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certified’’ to EPA
standards.
Owner’s Maintenance Checks
198
Main Menu
Table of Contents
＊
＃
＃
＃
＃
＊
Maintenance
Maintenance Minder
199
:
Independent of the maintenance messages in the Multi-Information
Display, replace the brake fluid every 3 years.
If the message ‘‘SERVICE DUE NOW’’ does not appear more than 12 months
after the display is reset, change the engine oil every year.
See information on maintenance and emissions warranty, the first column,
page .
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
NOTE:
1:
198
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Rotate tires
Inspect front and rear brakes
Check parking brake adjustment
Visually inspect these items:
Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and line (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Maintenance Sub Items
Rotate tires
Replace air cleaner element
If you drive primarily in dusty conditions, replace
every 15,000 miles (24,000 km).
Replace dust and pollen filter
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission fluid
Driving in mountainous areas at very low vehicle
speeds results in higher transmission temperatures.
This requires transmission fluid changes more
frequently than recommended by the Maintenance
Minder. If you regulary drive your vehicle under these
conditions, have the transmission fluid changed at
60,000 miles (100,000 km), then every 30,000 miles
(48,000 km).
Replace spark plugs
Replace timing belt and inspect water pump
If you drive regularly in very high temperatures (over
110°F, 43°C), or in very low temperatures (under-20°F,
29°C), replace every 60,000 mile (U.S.)/100,000 km
(Canada)
Inspect valve clearance
Replace engine coolant
A
B
Symbol Symbol
1
2
3
4
5
1
Maintenance Minder
Main Menu
Table of Contents
Maintenance Record
Maintenance
200
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
You or the servicing dealer can record all completed maintenance here. When maintenance is performed, record the mileage, circle the coded item(s)
completed, and write in any other non-coded items (such as brake fluid replacement) below the codes. Keep the receipts for all work done on your
vehicle.
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Mileage
km
km
km
km
km
km
km
Mileage
km
km
km
km
km
km
km
Main Menu
Table of Contents
Maintenance Record
Maintenance
201
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Maintenance
Performed
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
AB12345
Signature
Date
Mileage
km
km
km
km
km
km
km
Mileage
km
km
km
km
km
km
km
Main Menu
Table of Contents
Fluid Locations
Maintenance
202
ENGINE OIL
FILL CAP
ENGINE OIL DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
BRAKE FLUID
(Gray cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGINE
COOLANT
RESERVOIR
RADIATOR CAP
CLUTCH FLUID
(Manual Transmission
only)
Main Menu
Table of Contents
The component parts in the engine
compartment are protected by
several covers. You may need to
remove the covers when you
perform some simple maintenance
work.
Most of the covers can be removed
simply by pulling them straight up.
To remove the left or right cowl
cover, push the tabs inward and pull
the cover straight up.
To remove the front bulkhead cover,
first remove the four holding clips
using a flat-tipped screwdriver.
When reinstalling the covers, make
sure the pins and tabs are in their
proper positions.
Engine Compartment Covers
Maintenance
203
FRONT BULKHEAD COVER
COWL COVERS
Main Menu
Table of Contents
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda Motor Oil is the preferred
5W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection. Make
sure the API Certification Seal says
‘‘For Gasoline Engines’’.
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is formulated for year-
round protection of your Acura to
improve cold weather starting and
fuel economy.Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil
fill cap and tighten it securely. Wait a
few minutes and recheck the oil level
(see page ). Do not fill above the
upper mark on the dipstick; you
could damage the engine.
167
Adding Engine Oil
Maintenance
Recommended Engine Oil
204
ENGINE OIL
FILL CAP
API CERTIFICATION SEAL
Ambient Temperature
Main Menu
Table of Contents
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal
and it is the proper weight. You must
follow the oil and filter change
intervals shown on the Multi-
Information Display.
Your Acura does not require any oil
additives. Additives may adversely
affect your engine’s or transmission’s
performance and durability.
Always change the oil and filter
according to the maintenance
messages shown on the Multi-
Information Display. The oil and
filter collect contaminants that can
damage your engine if they are not
removed regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Open the hood, and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
2.
1.
Adding Engine Oil, Changing the Oil and Filter
Maintenance
Synthetic Oil
Engine Oil Additives
Changing the Oil and Filter
205
DRAIN BOLT
WASHER
Main Menu
Table of Contents
Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your Acura
dealer) is required.
Install a new oil filter according to
the instructions that come with it.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
Refill the engine with the
recommended oil.
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine and check your work.
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Turn off the engine, let it sit for
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
Engine oil change capacity
(including filter):
3.
7.
8.
9.
5.
6.
4.
Changing the Oil and Filter
Maintenance
206
NOTICE:
OIL FILTER
29 lbf·ft (39 N·m , 4.0 kgf·m)
4.5 US qt (4.3
)
Improper disposal of engine
oil can be harmful to the environment.
If you change your own oil, please
dispose of the used oil properly. Put it
in a sealed container, and take it to a
recycling center. Do not discard used
oilinatrashbinordumpitonthe
ground.
Main Menu
Table of Contents
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
Always use Honda All Season
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Engine Coolant
Maintenance
Adding Engine Coolant
207
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pourthecoolantslowlyand
carefully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap back on and
tighten it.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
If the fluid level
is low, a message will be shown on
the Multi-Information Display.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.
3.
1.
2.
4.
5.
On Canadian models:
Engine Coolant, Windshield Washers
Maintenance
Windshield Washers
208
NOTICE:
RADIATOR CAP
Do not use engine antifreeze
or a vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer fluid.
Main Menu
Table of Contents
Check the fluid level with the engine
at normal operating temperature.
Park the vehicle on level ground.
Shut off the engine.
Within 60 to 90 seconds, remove
the dipstick (yellow loop) from the
transmission, and wipe it with a
clean cloth.
Insert the dipstick all the way into
the transmission securely.
Remove the dipstick, and check
the fluid level. It should be
between the upper and lower
marks.
If the level is below the lower
mark, add fluid into the filler hole
to bring it to the upper mark.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission fluid as a temporary
replacement. However, continued
use can affect the shift quality.
Have the transmission flushed and
refilled with Honda ATF-Z1 as
soon as it is convenient.
The transmission should be drained
and refilled with new fluid when this
service is shown on a maintenance
message in the Multi-Information
Display.
To thoroughly flush the
transmission, the technician
should drain and refill it with
Honda ATF-Z1, then drive the
vehicle for a short distance. Do
this three times. Then drain and
refill the transmission a final time.
Insert the dipstick all the way back
in the transmission.
1.
2.
3.
4.
5. 6.
Automatic Transmission Fluid
Maintenance
209
UPPER
MARK
LOWER
MARK
DIPSTICK
Main Menu
Table of Contents
Check the fluid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground. Remove the check
bolt, and look for transmission fluid
coming out of the bolt hole. If a small
amount of fluid drips out of the bolt
hole, reinstall the check bolt.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certification seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
If no fluid comes out, remove the
filler bolt. Slowly add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the check bolt
hole. Let the fluid run out until it
stops, then reinstall the check bolt
and the filler bolt.
The transmission should be drained
and refilled with new fluid when this
service is shown on a maintenance
message in the Multi-Information
Display.
Manual Transmission Fluid
Maintenance
Manual Transmission Fluid
210
CHECK BOLT
DRAIN BOLT
FILLER BOLT
Main Menu
Table of Contents
Check the brake fluid level in the
reservoirs monthly after removing
the engine compartment rear cover
(see page ).
Replace it every 3 years, independent
of mileage.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake fluid to bring it up to that level.
Use the same fluid specified for the
brake system.
A low fluid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
203
Manual Transmission only
Brake and Clutch Fluid
Maintenance
Brake System Clutch System
211
MAX
MIN
MAX
MIN
Main Menu
Table of Contents
Check the level on the side of the
reservoir when the engine is cold,
and the engine compartment right-
side cover is off (see page ). The
fluid should be between the UPPER
LEVEL and LOWER LEVEL. If not,
add power steering fluid to the
UPPER LEVEL mark.
Periodically clean the hood latch
assembly with a mild cleaner, then
lubricate it with a multipurpose
grease. Lubricate all the moving
parts (as shown), including the pivot.
If you are not sure how to do this,
contact your Acura dealer.
A low power steering fluid level can
indicate a leak in the system. Check
the fluid level frequently, and have
the system inspected as soon as
possible.
Always use Honda Power Steering
Fluid. You may use another power
steering fluid as an emergency
replacement, but have the power
steering system flushed and refilled
with Honda PSF as soon as possible.
203
Power Steering Fluid, Hood Latch
Maintenance
Power Steering Fluid Hood Latch
212
NOTICE:
UPPER LEVEL
LOWER LEVEL
PIVOTS
LATCH
ASSEMBLY
Turning the steering wheel to
full left or right lock and holding it
there can damage the power steering
pump.
Main Menu
Table of Contents
CONTINUED
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be performed by
an Acura dealer or other qualified
mechanic.
The headlight bulbs are a type of
high voltage discharge tube. High
voltage can remain in the circuit
even with the light switch off and the
key removed. Because of this, you
shouldnotattempttoexamineor
change a headlight bulb yourself. If a
headlight bulb fails, take your
vehicle to a dealer to have it replaced.
Remove the left or right side
engine compartment cover from
thesideyouareworkingonby
carefully pulling the cover out.
Ifyouarereplacingthebulbon
the driver’s side, remove the air
intake cover by removing the two
fastener pins and pulling the cover
out. Then remove the upper part
of the air intake duct by pulling it
straight up.
1.
Lights
Maintenance
Replacing a Front Fog Light or
Daytime Running Light Bulb
Headlight Aiming
Headlights
213
Main Menu
Table of Contents
Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the fog lights to test the
new bulb.
(Driver’s side)
Install the upper part of the air
intake duct.
(Driver’s side)
Install the engine compartment
corner cover, and secure it with
two fastener pins.
Install the engine compartment
side cover.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Remove the electrical connector
from the bulb by pushing on the
tab and pulling the connector
down.
Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.Ifyouarereplacinga
passenger’s side bulb, turn the
steering wheel to the left. Turn off
the engine.
4.
5.
6.
7.
8.
9.
2.
3.
1.
Lights
Maintenance
Replacing the Front Turn Signal/
Parking Light Bulb
214
Main Menu
Table of Contents
Use a flat-tipped screwdriver to
remove the holding clip from the
middle edge of the inner fender
cover, and pull the inner fender
cover back.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the bulb from the socket
bypushingitinandturningit
counterclockwise until it unlocks.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Push the inner fender cover in
place. Install the holding clip, and
lock it in place by pushing on its
center.
Open the trunk.
Using a small screwdriver, pop up
the pin in the center of the
fastener, then remove the fastener.
Unscrew and remove the cargo
net hook from the fender. Pull
back the trunk lining.
Remove the socket by turning it
one-quarter turn counterclockwise.
3.
2.
4.
5.
6.
7.
8.
1.
2.
CONTINUED
Lights
Maintenance
Replacing the Rear Turn Signal
Bulb (in Fenders)
215
Main Menu
Table of Contents
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
Insert the fastener into the hole on
the side of the trunk lining, and
push in the head of the fastener.
Screw the cargo net hook into the
fender.
Determine which back-up light
is out (left or right), then open
the trunk.
Popupthepininthecenterof
the left or right corner fastener
with a small screwdriver, and
remove the fastener.
Remove the left side
fastener the same way.
Pull out the outside edge of the
rubber stop, then push the stop
outward, and pull it to remove it.
Remove the
screw from the trunk lid inner
handle, and remove the handle
trim.
Pull back the corner of the
trunk lid lining.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
3.
4.
5.
6.
7.
1a.
b.
c.
d.
e.
Left side
only:
Right side only:
Lights
Maintenance
Replacing the Back-up Light Bulb
(in Trunk Lid)
216
RIGHT STOP
CORNER
FASTENER
CORNER
FASTENER
LEFT STOP
TRUNK LID
INNER
HANDLE
LEFT SIDE FASTENER
Main Menu
Table of Contents
Testthelightstomakesurethe
new bulb is working.
Reinstall the trunk lid lining. Make
sure it is installed under the edge
of the trunk seal.
Insert the socket into the light
assembly. Turn it clockwise to
lock it in place.
Install all removed parts.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
2.
3.
4.
5.
6.
7.
Lights
Maintenance
217
Main Menu
Table of Contents
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry before
you use the vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water, or isopropyl alcohol.
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
If you use a non-Acura floor mats,
make sure they fit properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional floor
mats on top of the anchored mats.
The driver’s floor mat that came
with your vehicle hooks over the
floor mat anchors. This keeps the
floor mat from sliding forward and
possibly interfering with the pedals.
Seat Belts, Floor Mats
Maintenance
Seat Belts Floor Mats
218
LOOP
FLOOR MAT ANCHORS
Main Menu
Table of Contents
Check the condition of the wiper
blades at least every 6 months.
Replace them if you find signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.
Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
Raise the wiper arm off the
windshield.
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Slide the new wiper blade into the
holder until the tabs lock.
2.
1.
3.
5.
4.
Wiper Blades
Maintenance
219
LOCK TAB
BLADE
REINFORCEMENT
BLADE
Main Menu
Table of Contents
＋
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information about your tires,
how and when to inspect your tires
for damage and wear, and what to do
when your tires need to be replaced.
Your vehicle is equipped with high
performance all-season tires
(marked All Season or M S on the
sidewalls). These tires provide
excellent handling and braking
performance in most driving
situations.
Your vehicle is equipped with high
performance summer tires. These
tires have a high-traction compound
and tread pattern to provide superior
acceleration, cornering, and stopping
under most driving conditions.
However, these tires are not suitable
for driving on snow or ice, so all-
season or winter tires must be
installed for winter driving
conditions.
See page for winter driving
conditions.
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly.
6.
7.
224
All Models Except 6-Speed with Summer
Tires
6-Speed with Summer Tires
Wiper Blades, Tires
Maintenance
Tires
Tyre Types
Inflation
220
Main Menu
Table of Contents
The following chart shows the
recommended cold tire pressures for
most normal driving conditions and
speed.
Thecompactsparetirepressureis:Because your tires have a low profile,
do not rely on a visual inspection to
determine whether the tires have the
proper air pressure.
Instead, we recommend that you use
a gauge to measure the air pressures
.Eventires
that are in good condition may loose
one to two psi (10 to 20 kPa, 0.1 to
0.2 kgf/cm
)parmonth.
Remember to check the spare tire at
thesametimeyoucheckallthe
other tires.
Acura strongly recommends that you
not drive faster than posted speed
limits and conditions allow. If you
decide it is safe to drive at high
speeds (over 118 mph or 190 kph),
be sure to adjust the cold tire
pressuresasshownbelow.Ifyoudo
not adjust the tire pressure,
excessive heat can build up and
cause sudden tire failure.
CONTINUED
Tire Size Cold Tire Pressure for
Normal Driving
Tire Size Cold Tire Pressure for
Normal Driving Tire Size Cold Tire Pressure for
High Speed Driving
Automatic Transmission Models
Manual Transmission Models
All Models
Tires
Maintenance
Recommended Tire Pressures for
Normal Driving
Recommended Tire Pressures for
High Speed Driving
at least once a month
221
60 psi (420 kPa , 4.2 kgf/cm )
P235/45R17 93W
35 psi (240 kPa ,
2.4 kgf/cm )
32 psi (220 kPa ,
2.2 kgf/cm
)
P235/45R17 93W
235/45R17 93W P235/45R17 93W
235/45R17 93W
39 psi (270 kPa ,
2.7 kgf/cm
)
35 psi (240 kPa ,
2.4 kgf/cm
)
32 psi (220 kPa ,
2.2 kgf/cm
)
32 psi (220 kPa ,
2.2 kgf/cm
)
Front:
Rear:
Front:
Rear:
Front:
Rear:
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
When you return to normal speed
driving, be sure to readjust the tire
pressure for normal driving. You
should wait until the tires are cold
before adjusting the tire pressure.
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional technical information,
see page .
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
If you check the pressures when the
tires are hot (the vehicle has been
driven several miles), you will see
readings 4 to 6 psi (30 to 40 kPa, 0.3
to 0.4 kgf/cm ) higher than the cold
readings.
Add or release air, if needed, to
match the recommended cold tire
pressures on page .
Tubeless tires have some ability to
self-seal if they are punctured. You
should look closely for punctures if a
tire starts losing pressure.
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherortheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
Check the pressure in the tires when
thetiresarecold.Thismeansthe
vehicle has been parked for at least
three hours. If you have to drive the
vehicle before checking pressures,
the tires can still be considered
‘‘cold’’ if you drive less than 1 mile
(1.6 km).
258
221
Tires
Maintenance
Tire Inspection
222
Main Menu
Table of Contents
Your vehicle’s tires have wear
indicators molded into the tread.
When the tread wears down to that
point, you will see a 1/2 inch (12.7
mm) wide band running across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread left on
the tire. A tire that is this worn gives
very little traction on wet roads. You
should replace the tire if you can see
the tread wear indicator in three or
more places around the tire.
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
Move the tires to the positions
shown in the illustration each time
they are rotated. If you purchase
directional tires, rotate only front-to-
back.
Tires
Maintenance
Tire Maintenance Tire Rotation
223
INDICATOR LOCATION MARKS
TREAD WEAR INDICATOR
Front
Front
(Front Directional
Tires and Wheels)
(Front Non-directional
Tires and Wheels)
Main Menu
Table of Contents
＋
Wheels:
Tires:
See page for DOT tire quality
grading information, and page
for tire size information.
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If your vehicle is equipped with
summer tires, be aware that these
tires are not designed for winter
driving conditions. For more
information, consult your Acura
dealer.
If you ever replace a wheel, make
sure that the wheel’s specifications
match those of the original wheels.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
Replace your tires with radial tires of
the same size, load range, speed
rating and maximum cold tire
pressure rating (as shown on the
tire’s side wall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a different
size or construction can cause the
anti-lock brake and the vehicle
stability assist systems to work
inconsistently.
258
259
(All season tire)
(Summer tire)
Tires
Maintenance
Replacing Tires
Wheel and Tire Specifications
Winter Driving
Summer Tires
224
17x8.0JJ
P235/45R17 93W
235/45R17 93W
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
If you mount snow tires on your
Acura, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
Because your Acura has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners on the front
tires. Use traction devices only when
required by driving conditions or
local laws. Make sure they are the
correct size for your tires. Metal link-
type ‘‘chains’’ should not be used.
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Tires
Maintenance
Snow Tires
Tire Chains
225
NOTICE: Traction devices that are the
wrong size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
Main Menu
Table of Contents
−
Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
further corrosion.
If additional battery maintenance is
needed, see your Acura dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Checking the Battery
Maintenance
WARNING:
Wash your hands after handling.
226
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
Main Menu
Table of Contents
If you need to park your vehicle for
an extended period (more than one
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the fuel tank.
Change the engine oil and filter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the front wiper blade
arms with a folded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If possible, periodically run the
engine until it reaches full
operating temperature (the
cooling fan cycles twice).
Preferably do this once a month.
Leave the parking brake off. Put
the transmission in Reverse
(6-speed manual) or Park
(automatic).
Vehicle Storage
Maintenance
227
Main Menu
Table of Contents
228
Main Menu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 230
....................Changing a Flat Tire . 231
.............If the Engine Won’t Start . 236
................................Jump Starting . 238
..............If the Engine Overheats . 240
.........Low Oil Pressure Indicator . 242
..........Charging System Indicator . 242
.......Malfunction Indicator Lamp . 243
...............Brake System Indicator . 244
..............................................Fuses . 245
..............................Fuse Locations . 247
......................Emergency Towing . 249
..........If Your Vehicle Gets Stuck . 251
Taking Care of the Unexpected
Taking Care of the Unexpected
229
Main Menu
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced
and put it back on your vehicle as
soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road sur-
faces. Use greater caution while
driving.
Do not mount snow chains on it.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Turn off the VSA system (see
page ).
Driving with the compact spare
tiremayactivatetheVSAsystem.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.On models with manual
transmission, do not drive for a
long period with the compact
spare tire mounted on a front
wheel; it will damage the limited
slip differential.
191
Compact Spare Tire
Taking Care of the Unexpected
230
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
(The M/T compact spare is shown.)
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or Reverse (manual). Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.
Open the trunk. Raise the trunk
floor by lifting up on the back edge.
Take the tool case out of the spare
tire.
Unscrew the wing bolt and take
the spare tire out of its well.
5.
4.
3.
2.
1.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
231
TOOL CASE
JACK
TRUNK FLOOR
SPARE TIRE
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Main Menu
Table of Contents
Loosen each wheel nut 1/2 turn
with the wheel wrench.
Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.
Use the extension and wheel
wrench as shown to raise the
vehicle until the flat tire is off the
ground.
6.
7.
8.
Changing a Flat Tire
Taking Care of the Unexpected
232
WHEEL WRENCH
WHEEL WRENCH
EXTENSION
Main Menu
Table of Contents
Remove the wheel nuts, then
remove the flat tire. Temporarily
place the flat tire on the ground
with the outside surface of the
wheel facing up. You could scratch
the wheel if you put it face down.
Before mounting the spare tire,
wipeanydirtoffthemounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
9.
10. 11.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
233
BRAKE HUB
Main Menu
Table of Contents
Lower the vehicle to the ground,
and remove the jack.
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
Place the flat tire face down in the
spare tire well.
Remove the spacer cone from the
wing bolt, turn it over, and put it
back on the bolt. Attach the wing
bolt to the bolt extension over the
spacer cone.
Secure the flat tire by screwing
the wing bolt back into its hole.
Remove the center cap before
storing the flat tire in the trunk
well.
12.
13.
14.
15.
16.
17.
Changing a Flat Tire
Taking Care of the Unexpected
234
WING BOLT SPACER
CONE
BOLT
EXTENSION
80 lbf·ft (108 N·m , 11 kgf·m)
Main Menu
Table of Contents
Store the jack and tools in the tool
case. Place the tool case in the flat
tire.
Store the center cap in the trunk.
Lower the trunk floor, and close
the trunk lid.
18.
19.
20.
Changing a Flat Tire
Taking Care of the Unexpected
235
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
Main Menu
Table of Contents
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
key to START (III):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Turn the ignition switch to ON (II).
Turn on the headlights, and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See
on page .
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the fuses. If
the fuses are OK, there is
probably something wrong with
the electrical circuit for the
ignition switch or starter motor.
You will need a qualified
technician to determine the
problem (see
on page ).
Check these things:
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the vehicle
from a booster battery (see page
).
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
automatic transmission, the shift
lever must be in Park or Neutral.
238
226
238
249
IftheEngineWon’tStart
Taking Care of the Unexpected
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency Towing
236
Main Menu
Table of Contents
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Are you using the proper starting
procedure? Refer to
on page .
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
Do you have fuel? Check the fuel
gauge; the warning indicator may
not be working.
56
177
245
249
IftheEngineWon’tStart
The Starter Operates Normally
Starting the
Engine
Emergency
Towing
Taking Care of the Unexpected
237
Main Menu
Table of Contents
＋
＋
−
Although this seems like a simple
procedure, you should take several
precautions.
Turn off all the electrical acces-
sories: heater, A/C, stereo system,
lights, etc. Put the transmission in
Neutral or Park, and set the
parking brake.
Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
You cannot start an Acura with an
automatic transmission by pushing
or pulling it.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or like ice, do not try
jump starting until it thaws.
1.
2.
3.
4.
Jump Starting
Taking Care of the Unexpected
To Jump Start Your Vehicle:
238
NOTICE:
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme
cold, the electrolyte inside can freeze.
Attempting to jump start with a frozen
battery can cause it to rupture.
Main Menu
Table of Contents
Start the vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
Once the vehicle is running,
disconnect the negative cable from
the vehicle, then from the booster
battery. Disconnect the positive
cable from the vehicle, and then
from the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
The numbers in the illustration
show you the order to connect the
jumper cables.
7.
6.
5.
Taking Care of the Unexpected
Jump Starting
239
Main Menu
Table of Contents
If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
Safely pull to the side of the road.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off all accessories, and turn
on the hazard warning indicators.
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
The pointer of the vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If the vehicle overheats, you should
take immediate action. The only
indication may be the temperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming from under the hood.
If the temperature gauge stays at
the red mark, turn off the engine.
Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
1.
2.
3.
4.
5.
249
IftheEngineOverheats
Taking Care of the Unexpected
Emergency
Towing
240
NOTICE:
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature
gauge pointer at the red mark can
cause serious damage to your engine.
Main Menu
Table of Contents
Start the engine and set the
interior temperature to maximum.
Add coolant to the radiator up to
the base of the filler neck. If you
do not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
refilled with the proper mixture as
soon as you can.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Using gloves or large heavy cloth,
turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
If you don’t find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark
(see on
page ).
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, before check-
ing the radiator.
8.
9.
7.
11.
10.
6.
249
207
IftheEngineOverheats
Taking Care of the Unexpected
Emergency
Towing
Adding Engine Coolant
241
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning indicators.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
This indicator should never
come on when the engine is
running. If it starts flashing
or stays on, the oil pressure has
dropped very low or lost pressure.
Serious engine damage is possible
and you should take immediate
action.
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If the charging system
indicator comes on brightly
when the engine is running,
the battery is not being charged.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
1.
2.
3.
4.
167
204
249
Low Oil Pressure Indicator, Charging System Indicator
Taking Care of the Unexpected
Low Oil Pressure Indicator
Emergency Towing
Charging System Indicator
242
NOTICE: Running the engine with low
oil pressure can cause serious
mechanical damage almost immediately.
Turn off the engine as soon as you can
safely get the vehicle stopped.
Main Menu
Table of Contents
To check if they are set, turn the
ignition to ON (II), without starting
the engine. The Malfunction
Indicator Lamp will come on for 20
seconds. If it then goes off, the
readiness codes are set. If it blinks 5
times, the readiness codes are not
set. If possible, do not take your
vehicle for a state emissions test
until the readiness codes are set.
Refer to State Emissions Testing for
more information (see page ).
If the indicator comes on
while driving, it means one
of the engine’s emissions
control systems may have a problem.
Even though you may feel no
difference in your vehicle’s
performance, it can reduce your fuel
economy and cause increased
emissions. Continued operation may
cause serious damage.
If you have recently refueled your
vehicle, the indicator coming on
could be a loose or missing fuel fill
cap. Tighten the cap until it clicks at
least three times. Tightening the cap
will not turn the indicator off
immediately; it takes at least three
days of normal driving.
If the indicator comes on repeatedly,
even though it may go off as you
continue driving, have the vehicle
checked by the dealer as soon as
possible.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If your vehicle battery has been
disconnected or gone dead, these
codes are erased. If takes at least
three days of normal driving to set
the codes again.
263
Malfunction Indicator Lamp
Taking Care of the Unexpected
Readiness Code
243
NOTICE: If you keep driving with the
Malfunction Indicator Lamp on, you
can damage your vehicle’s emission
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
Main Menu
Table of Contents
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
The brake system indicator
normally comes on when
you turns the ignition
switch to ON (II) and as a
reminder to check the
parking brake. It will stay
on if you do not fully
release the parking brake.
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
If the ABS indicator and the VSA
system indicator come on with the
brake system indicator, have your
vehicle inspected by an Acura dealer
immediately.
If the fluid level is low, take your
vehicle to a dealer and have the
brake system inspected for leaks or
worn brake pads.
211
249
Brake System Indicator
Emergency
Towing
Taking Care of the Unexpected
244
Canada
U.S.
Main Menu
Table of Contents
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover from the fuse
box.
Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire
inside. Remove the screws with a
phillips-head screwdriver.
The vehicle’s fuses are in two fuse
boxes. The interior fuse box is on
the driver’s lower left side. To
remove the fuse box lid, put your
finger in the notch on the lid, pull it
toward you, and take it out of its
hinges.
The under-hood fuse box is on the
driver’s side next to the air cleaner
housing.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine from the chart on pages
and or the diagram on the
fuse box lid, which fuses control that
device. Check those fuses first, but
check all the fuses before deciding
that a blown fuse is the cause.
Replace any blown fuses, and check
if the device works.
1.
2.
3.
247 248
CONTINUED
Checking and Replacing Fuses
Fuses
Taking Care of the Unexpected
245
UNDER-HOOD
INTERIOR
FUSE
BLOWN
Main Menu
Table of Contents
Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each fuse with the fuse
puller provided in the under-hood
fuse box.
Look for a burned wire inside the
fuse. If it is burned, replace it with
oneofthesparefusesofthesame
rating or lower.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit, and have your vehicle
checked by a qualified mechanic.
If the radio fuse is removed, the
audio system will disable itself. The
nexttimeyouturnontheradioyou
will see ‘‘CODE’’ in the frequency
display. Use the preset buttons to
enter the five-digit code (see page
).
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
5.
6.
4.
140
Fuses
Taking Care of the Unexpected
246
NOTICE:
BLOWN
Replacing a fuse with one
that has a higher rating greatly
increases the chances of damaging the
electrical system. If you do not have a
replacement fuse with the proper rating
for the circuit, install one with a lower
rating.
Main Menu
Table of Contents
＊
＊
＊＊
No. Amps. Circuits Protected
No. Amps. Circuits Protected
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
15 A
7.5 A
15 A
30 A
20 A
15 A
30 A
7.5 A
20 A
40 A
40 A
15 A
30 A
40 A
40 A
40 A
40 A
100 A
50 A
Right Headlight Low Beam
Back Up
IGP
Condenser Fan
Front Fog Light
Daytime Running Light
Radiator Fan Motor
MG Clutch Relay
Horn, Stop
Rear Defroster
Back UP, ACC
Hazard Warning
VSA Pump Motor Relay
VSA Fail Safe Relay
FI ECU
Power Seat
Heater Motor
Battery
IGI Main
1
2
3
4
5
15 A
30 A
7.5 A
10 A
7.5 A
Left Headlight Low Beam
Rear Defroster Coil
Left Headlight High Beam
Small Light
Right Headlight High Beam
U.S. models Canadian models1: 2:
1
2
Fuse Locations
Taking Care of the Unexpected
247
UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
−
−
No. Amps. Circuits Protected
No. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
15 A
15 A
15 A
20 A
7.5 A
7.5 A
20 A
15 A
DBW
IGI Coil
Not Used
LAF
Radio
Interior Lights
Back Up
Door Lock
Front Accessory Socket
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
7.5 A
30 A
20 A
20 A
20 A
20 A
20 A
15 A
15 A
7.5 A
7.5 A
10 A
7.5 A
20 A
20 A
20 A
20 A
20 A
7.5 A
7.5 A
7.5 A
7.5 A
7.5 A
IGI OPDS
IGI Wiper
Not Used
Driver’s Power Seat (Slide)
Seat Heater
Driver’s Power Seat (Recline)
Passenger’s Power Seat (Slide)
IGI ACG
IGI Fuel Pump
Washer
Meter
SRS
IGP
Rear Left Power Window
Rear Right Power Window
Front Right Power Window
Front Left Power Window
Moonroof
OP1
HAC
OP2
ACC
HAC OP
Passenger’s Power Seat (Recline)
Fuse Locations
Taking Care of the Unexpected
248
INTERIOR FUSE BOX
Main Menu
Table of Contents
−
−
−
There are three popular types of
professional towing equipment.
Shift the transmission to Neutral.
ShifttoD,thentoN.
Turn off the engine.
The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the vehicle
off the ground. Your vehicle’s sus-
pension and body can be seriously
damaged.
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
behind another vehicle with just a
rope or chain. It is very dangerous.
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.
If your Acura cannot be transported
by flat-bed, it should be towed by
wheel-lift equipment with the front
wheels off the ground. If, due to
damage, your vehicle must be towed
with the front wheels on the ground,
do the following:
Release the parking brake.
Start the engine.
Release the parking brake.
Automatic Transmission:
6-speed Manual Transmission:Sling-type Equipment
Flat-bed Equipment
Wheel-lift Equipment
This method of towing
is unacceptable.
This is the best way to
transport your Acura.
This is
an acceptable way to tow your
Acura.
Emergency Towing
Taking Care of the Unexpected
249
NOTICE: Improper towing preparation
will damage the transmission. Follow
the above procedure exactly. If you
cannot shift the transmission or start
the engine (automatic transmission),
your vehicle must be transported with
the front wheels off the ground.
Main Menu
Table of Contents
If your vehicle is equipped with a
front spoiler, remove it before
towing so it is not damaged.
With the front wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If you decide to tow your vehicle
with all four wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described previously, and leave the
ignition switch in the ACCESSORY
(I) position so the steering wheel
does not lock. Make sure the radio
and any items plugged into the
accessory power socket are turned
off so they do not run down the
battery.
Emergency Towing
Taking Care of the Unexpected
250
NOTICE:
NOTICE:
Trying to lift or tow your
vehicle by the bumpers will cause
serious damage. The bumpers are not
designed to support the vehicle’s weight.
The steering system can be
damaged if the steering wheel is locked.
Leave the ignition switch in the
ACCESSORY (I) position, and make
sure the steering wheel turns freely
before you begin towing.
Main Menu
Table of Contents
If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see page ).
Remove the towing hook, hook
extension, and wheel wrench from
the tool case in the spare tire.
Using the wheel wrench, fasten
the extension into the bolt hole in
the anchor.
For very short distances, such as
freeing the vehicle, you can use the
detachable towing hook that mounts
on the anchor in the front bumper.
To use the towing hook:
Remove the cover from the
bumper.
3.
1.
2.
249
CONTINUED
If Your Vehicle Gets Stuck
Taking Care of the Unexpected
251
Main Menu
Table of Contents
Screw the towing hook into the
extension and tighten it securely
by hand.
4.
If Your Vehicle Gets Stuck
Taking Care of the Unexpected
252
NOTICE: To avoid damage to your
vehicle, use the towing hook for
straight, flat ground towing only. Do
not tow at an angle. The tow hook
should not be used to tow the vehicle
onto a flat bed. Do not use it as a tie
down.
Main Menu
Table of Contents
Thediagramsinthissectiongive
you the dimensions and capacities of
your Acura, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 254
................................Specifications . 256
DOT Tire Quality Grading
......................(U.S. Vehicles) . 258
.................................Treadwear . 258
......................................Traction . 258
.............................Temperature . 259
.................................Tire Labeling . 259
.......................Emissions Controls . 260
.....................The Clean Air Act . 260
Crankcase Emissions Control
....................................System . 260
Evaporative Emissions Control
....................................System . 260
Onboard Refueling Vapor
................................Recovery . 260
...Exhaust Emissions Controls . 261
....................PGM-FI System . 261
Ignition Timing Control
................................System . 261
Exhaust Gas Recirculation
...................(EGR) System . 261
Three Way Catalytic
...........................Converter . 261
....................Replacement Parts . 261
..Three Way Catalytic Converter . 262
..............State Emissions Testing . 263
Technical Information
Technical Information
253
Main Menu
Your vehicle has several identifying
numbers located in various places.
The Vehicle Identification Number
(VIN) is the 17-digit number your
Acura dealer uses to register your
vehicle for warranty purposes. It is
also necessary for licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certification label.
Identification Numbers
Technical Information
254
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
Main Menu
Table of Contents
The Engine Number is stamped into
the engine block.
The Transmission Number is on a
label on top of the transmission.
Identification Numbers
Technical Information
255
ENGINE NUMBER
TRANSMISSION
NUMBER
Main Menu
Table of Contents
−−
＊
＊
＊
＊
Specifications
Technical Information
256
Dimensions
Weights
Air Conditioning
Capacities
Capacities
186.2 in (4,730 mm)
72.2 in (1,835 mm)
56.7 in (1,441 mm)
107.9 in (2,740 mm)
62.1 in (1,577 mm)
62.0 in (1,576 mm)
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g)
ND-OIL8
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Manual
transmission
fluid
Windshield
washer
reservoir
2.6 US qt (2.5 )
7.6 US qt (7.2 )
3.1 US qt (2.9 )
5.3 US qt (5.0
)
4.2 US qt (4.0
)
4.5 US qt (4.3 )
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity: 0.16 US gal (0.6
)
Excluding the oil remaining in the engine.
2.3 US qt (2.2
)
2.6 US qt (2.5 )
4.8 US qt (4.5
)
2.14 US gal (8.1
)
2.09 US gal (7.9 )
1.66 US gal (6.3 )
1.69 US gal (6.4 )
Approx.
Front
Rear
1:
2:
Change
Manual
Automatic
Total
Manual
Automatic
Change
Including
filter
Without
filter
Total
Change
Total
Change
Total
U.S. Vehicle
Canada Vehicle
17.09 US gal (64.7 )
1
2
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
−
＊
＊
＊
＊
＊
＊
＊
＊
Specifications
Technical Information
257
Lights
Battery
Fuses
Engine
Alignment
Tires
3.50 x 3.39 in (89.0 x 86.0 mm)
12 V 21/5 W
195.8 cu-in (3,210 cm )
Water cooled 4-stroke
SOHC VTEC 6-cylinder (V6),
gasoline engine
12 V 21 W
12 V 51 W (HB4)
DRL (Canadian models)
Front turn signal/Side marker/
Parking lights
Fog Lights
Rear turn signal lights
Back-up lights
License plate light
Ceiling light
Trunk light
Door courtesy lights
Vanity mirror lights
Spotlights
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21 CP
3CP
5W
5W
2CP
5W
4CP
Capacity 65 AH/20 HR
Interior
Under-hood
12 V
51 W (HB3)12 V
11 : 1
See page 248 or the fuse label
attached to the inside of the fuse
box door on each side of the
dashboard.
See page 247 or the fuse box
cover.
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Toe-in
Camber
Caster
0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°30’
1°00’
3°17’
P235/45R17 93W
235/45R17 93W
IZFR6K-11
SKJ20DR-M11
35 psi (240 kPa , 2.4 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm )
32 psi (220 kPa , 2.2 kgf/cm )
60 psi (420 kPa , 4.2 kgf/cm )
Size
Pressure
T145/70R17 96M
T135/80R16 101M
Front
Rear
Front
Rear
Front
NGK:
DENSO:
Front/Rear
Spare
Front
Rear
Spare
A/T Vehicles:
M/T Vehicles:
All season tire
Summer tire
Vehicles with manual transmission
Vehicles with automatic transmission
1:
2:
3:
4:
1
2
3
4
Main Menu
Table of Contents
−The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT Tire Quality Grading (U.S. Cars)
Technical Information
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
258
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
failure.
Date of manufacture.
Tire type code.
Manufacturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Tire Identification Number (TIN) is
a group of numbers and letters that
look like the following example TIN.
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Load index (a numerical code
associated with the maximum
load the tire can carry).
Rim diameter in inches.
Tire construction code (R
indicates radial).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire width in millimeters.
Vehicletype(Pindicates
passenger vehicle).
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance, which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Safety
Standard No. 109 and No. 139.
Grades B and A represent higher
levels of performance on the
laboratory test wheel than the
minimum required by law.
P
R
DOT
2202
235
45
17
93
W
OBGN
PVC
Temperature A,B,C
Tire Labeling
DOT Tire Quality Grading (U.S. Vehicles), Tire Labeling
Tire Identification NumberTire Size
Technical Information
259
DOT OBGN PVC 2202
P235/45R17 93W
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to form photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
In Canada, Acura vehicles comply
with the Canadian Motor Vehicle
Safety Standards (CMVSS) for
Emissions valid at the time they are
manufactured.
Your vehicle has a Positive
Crankcase Ventilation System. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The Positive Crank-
case Ventilation valve routes them
from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The Onboard Refueling Vapor
Recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
Emissions Controls
Technical Information
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
260
Main Menu
Table of Contents
The exhaust emissions controls
include four systems: PGM-FI,
Ignition Timing Control, Exhaust
Gas Recirculation and Three Way
Catalytic Converter. These four
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
The PGM-FI System uses sequential
multiport fuel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Powertrain Control Module
(PCM) uses various sensors to
determine how much air is going
into the engine. It then controls how
much fuel to inject under all
operating conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The Exhaust Gas Recirculation
(EGR) system takes some of the
exhaust gas and routes it back into
the intake manifold. Adding exhaust
gas to the air/fuel mixture reduces
the amount of NOx produced when
the fuel is burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
designed and certified to work
together in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Acura replacement parts or their
equivalent for repairs. Using lower
qualitypartsmayincreasethe
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
2
2
Emissions Controls
Technical Information
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Ignition Timing Control System
Exhaust Gas Recirculation (EGR)
System
Three Way Catalytic Converter
261
Main Menu
Table of Contents
The three way catalytic converter
contains platinum, palladium, and
rhodium. These metals serve as
catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Acura part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other flamma-
bles.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Keep the engine tuned-up.
Three Way Catalytic Converter
Technical Information
262
THREE WAY CATALYTIC CONVERTER
THREE WAY CATALYTIC CONVERTER
Main Menu
Table of Contents
Make sure the gas tank is nearly,
but not completely, full (around
3/4).
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle re-tested within the
next two or three days, you can
condition the vehicle for re-testing
by doing the following.
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Keep the vehicle in Park
(automatic transmission) or
Neutral (manual transmission).
Increase the engine speed to 2,000
rpm and hold it there until the
temperature gauge rises to at least
1/4ofthescale(approximately3
minutes).
CONTINUED
State Emissions Testing
Testing of Readiness Codes
Technical Information
263
Main Menu
Table of Contents
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T) or 6th (M/T). Do not use
thecruisecontrol.Whentraffic
allows, drive for 90 seconds
without moving the accelerator
pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot
do this for a continuous 90
seconds because of traffic
conditions, drive for at least 30
seconds, then repeat it two more
times (for a total of 90 seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your Acura dealer.
State Emissions Testing
Technical Information
264
Main Menu
Table of Contents
Acura dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
Service Manager or General
Manager can help. Almost all
problems are solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact the Acura
Customer Relations Office.
U.S. Owners:
Canadian Owners: When you call or write, please give
us this information:
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to youIn Puerto Rico and the U.S. Virgin
Islands:
Bella International Corp.
C-1 Bechara St. Segarra Corner
Puerto Nuevo, Puerto Rico 00920
Tel:(787) 620-7020
254
Customer Service Information
Technical Information
266
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÈLE
American Honda Motor Co., Inc.
Acura Client Services
Mail Stop 500-2N-7E
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel:1-888-9-ACURA-9
Fax:Toll-free 1-877-939-0909
Toronto (416) 287-4776
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new Acura is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems, and accessories, against
defects in materials and
workmanship.
these two
warranties cover your vehicle’s emis-
sions control systems. Time, mileage,
and coverage are conditional. Please
read the warranty manual for exact
information.
this warranty gives up
to 100 percent credit toward a
replacement battery.
a seat
belt that fails to function properly is
coveredfortheusefullifeofthe
vehicle.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Acura accessories are covered under
this warranty. Time and mileage
limits depend on the type of
accessory and other factors. Please
read your warranty manual for
details.
covers all Acura
replacement parts against defects in
materials and workmanship.
provides prorated
coverage for a replacement battery
purchased from an Acura dealer.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
Restrictions and exclusions apply to
all these warranties. Please read the
2004 Acura Warranty Information
booklet that came with your vehicle
for precise information on warranty
coverages. Your Acura’s original
tires are covered by their
manufacturer. Tire warranty
information is in a separate booklet.
Please refer to the 2004 Warranty
Manual that came with your vehicle.
Warranty Coverages
Warranty and Customer Relations
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Original Equipment Battery Limited
Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Replacement Battery Limited
Warranty
Replacement Muffler Lifetime
Limited Warranty
267
Main Menu
Table of Contents
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying Acura Automobile
Division, American Honda Motor Co.,
Inc.
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or Acura
Automobile Division, American
Honda Motor Co., Inc.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
Reporting Safety Defects (U.S. Vehicles)
Warranty and Customer Relations
268
Main Menu
Table of Contents
＊
＊
＊
−
＊
２
０
０
４
Ａ
Ｃ
Ｕ
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356
(credit card orders only)
Valid only for sales within the U.S. Canadian owners should
contact their authorized Acura dealer.
Authorized Manuals
Purchasing Factory Authorized Manuals
(U.S. only)
269
Publication
Form Number
61SEP00
61SEP00EL
61SEP30
31SEP600
31SEP700
31SEP700
31SEPQ00
ACU-R
Price
Each
$69.00
$47.00
$44.00
$37.00
$29.00
$12.00
$12.00
FREE
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Form Description
2004 Acura TL Service Manual
2004 Acura TL
Electrical Troubleshooting Manual
2004 Acura TL
Body Repair Manual
2004 Acura TL Owner’s Manual
2004 Acura TL Navigation Manual
2004 Acura TL
Maintenance Journal
2004 Acura TL Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
ORDER TOLL FREE: 1-800-782-4356
OR
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Prices are subject to change without notice and without incurring
obligation.
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
www. helminc. com
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual complements the Service Manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
270
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
CONTINUED
Battery
Charging System
...........................Indicator . 52, 242
............................Jump Starting . 238
..............................Maintenance . 226
............................Specifications . 257
..............................Before Driving . 163
....................................Belts,Seat .8,19
...........................Beverage Holder . 106
Brakes
...........Anti-lock System (ABS) . 189
.............Break-in, New Linings . 164
...........................................Fluid . 211
.......................................Parking . 103
.................System Indicator . 52, 244
........................Wear Indicators . 188
.............................Braking System . 188
........................Break-in, New Car . 164
..Brightness Control, Instruments . 75
........................Brights, Headlights . 74
Bulb Replacement
..........................Back-up Lights . 216
.................................Fog Lights . 213
............................Specifications . 257
............Turn Signal Lights . 214, 215
..............................Bulbs, Halogen . 213
............................Capacities Chart . 256
.............Carbon Monoxide Hazard . 46
............................Carrying, Cargo . 171
Cassette Player
............................................Care . 138
...................................Operation . 136
..............CAUTION, Explanation of . ii
..................................Ceiling Light . 104
........................Certification Label . 254
...................................Chains, . 225
...Accessories and Modifications . 168
................................Accessories . 169
............................Modifications . 170
ACCESSORY (Ignition Key
.......................................Position) . 80
............Accessory Power Sockets . 106
................Adding Engine Coolant . 207
........................Adding Engine Oil . 204
....................Additives, Engine Oil . 205
...............................Airbag (SRS) . 9, 22
...............Additional Information . 22
......................................Servicing . 28
...................System Components . 22
..............Air Conditioning System . 110
.......................Air Pressure, Tires . 221
......................................Antifreeze . 207
Anti-lock Brakes (ABS)
...............................Indicator . 53, 189
...................................Operation . 189
..............Anti-theft, Audio System . 140
.Anti-theft Steering Column Lock . 80
................................Audio System . 117
...Automatic Lighting Off Feature . 76
...Automatic Seat Belt Tensioners . 20
.............Automatic Speed Control . 142
..............Automatic Transmission . 181
..........................Capacity, Fluid . 256
...............Checking Fluid Level . 209
.......................................Shifting . 181
.Shift Lever Position Indicator . 181
.......................................Shifting . 181
....................Shift Lock Release . 185
tires
Index
A
B
C
I
Main Menu
＊
＊＊
＊＊
Changing Oil
........................................How to . 205
......................................When to . 195
....................Changing a Flat Tire . 231
...Charging System Indicator . 52, 242
............Checklist, Before Driving . 176
..................Childproof Door Locks . 84
.....................................Child Safety . 29
..............................Booster Seats . 43
...................................Child Seats . 36
..........................................Infants . 34
............................Large Children . 42
.........................................LATCH . 38
......................Risks with Airbags . 30
.............................Small Children . 35
.........................................Tethers . 41
.........Where Should a Child Sit? . 30
Cleaning
.................................Floor Mats . 218
...................................Seat Belts . 218
...............Climate Control System . 115
..............................................Clock . 103
..........................CO in the Exhaust . 46
.......................Compact Spare . 230
.................Console Compartment . 107
...............Consumer Information . 265
.............Controls, Instruments and . 49
Coolant
........................................Adding . 207
....................................Checking . 167
.........................Proper Solution . 207
...................Temperature Gauge . 57
Crankcase Emissions Control
........................................System . 260
................Cruise Control Indicator . 54
............Cruise Control Operation . 142
...................................Cup Holders . 106
..........Customer Relations Office . 266
................DANGER, Explanation of . ii
...................................Dashboard . 2, 50
............Daytime Running Lights . 74
Daytime Running Light
...................................Indicator . 55
............Defects, Reporting Safety . 268
................Defogger, Rear Window . 77
..............Defrosting the Windows . 114
....................................Dimensions . 256
...............Dimming the Headlights . 74
Dipstick
..........Automatic Transmission . 209
..................................Engine Oil . 167
..........................Directional Signals . 74
........Disc Brake Wear Indicators . 188
.................................Disc Changer . 129
...Disc Changer Error Messages . 135
.....................Disposal of Used Oil . 206
Doors
..............................Monitor Light . 60
......................Power Door Locks . 82
..........DOT Tire Quality Grading . 258
...........Driver and Passenger Safety . 5
...........................................Driving . 175
....................................Economy . 168
Driving Position Memory
..........................................System . 93
..............................Economy, Fuel . 168
............Emergencies on the Road . 229
.............Battery, Jump Starting . 238
...........Brake System Indicator . 244
................Changing a Flat Tire . 231
.....Charging System Indicator . 242
tire
Index
D
E
II
Main Menu
＊
CONTINUED
...............Gas Mileage, Improving . 168
.........................................Gasoline . 164
...............Fuel Reserve Indicator . 56
...........................................Gauge . 57
................Octane Requirement . 164
........................Tank, Filling the . 165
................Gas Station Procedures . 165
...................................Fan, Interior . 122
Features, Comfort and
..............................Convenience . 109
....................Filling the Fuel Tank . 165
........................................Filter, Oil . 205
.............Flashers, Hazard Warning . 76
...................Flat Tire, Changing a . 231
.....................................Floor Mats . 218
Fluids
..........Automatic Transmission . 209
..........................................Brake . 211
.........................................Clutch . 211
..............Manual Transmission . 210
..........................Power Steering . 212
................Windshield Washers . 208
FM Stereo Radio
...................................Reception . 122
.....................................Fog Lights . 75
..........................Four-way Flashers . 76
..............................Front Airbags . 9, 22
......................................Front Seats . 90
......................................Adjusting . 90
.........................................Heaters . 96
.....................................Airbags . 9, 22
.................................................Fuel . 164
......................Fill Door and Cap . 165
...........................................Gauge . 57
................Octane Requirement . 164
........................Reserve Indicator . 56
........................Tank, Filling the . 165
.....................Fuses, Checking the . 245
..................Checking the Fuses . 245
.........Hazard Warning Flashers . 76
......If Your Vehicle Gets Stuck . 249
............................Jump Starting . 238
.....Low Oil Pressure Indicator . 242
...Malfunction Indicator Lamp . 243
..................Overheated Engine . 240
.......................................Towing . 249
.........................Emergency Brake . 103
......................Emergency Flashers . 76
......................Emergency Towing . 249
............Emergency Trunk Opener . 84
.......................Emissions Controls . 260
.............Emissions Testing, State . 263
Engine
....Coolant Temperature Gauge . 57
Malfunction Indicator
................................Lamp . 52, 243
.........................................Oil Life . 64
........Oil Pressure Indicator . 52, 242
..............Oil, What Kind to Use . 204
...............................Overheating . 240
............................Specifications . 257
....................Speed Limiter . 179, 185
.......................................Starting . 177
...................Engine, . 236
......................Ethanol in Gasoline . 164
.Evaporative Emissions Controls . 260
...............................Exhaust Fumes . 46
Expectant Mothers, Use of Seat
........................................Belts by . 17
if it won’t start
Index
F
G
III
Main Menu
＊＊
＊
＊＊
.................Jacking up the Vehicle . 232
.......................................Jack, Tire . 231
................................Jump Starting . 238
Gauges
...Engine Coolant Temperature . 57
...............................................Fuel . 57
...............................Speedometer . 57
.................................Tachometer . 57
Gearshift Lever Positions
..........Automatic Transmission . 181
6-speed Manual
.........................Transmission . 178
......................................Glove Box . 107
...Identification Number, Vehicle . 254
Ignition
..............................................Keys . 79
...........................................Switch . 80
............Timing Control System . 261
........................Immobilizer System . 81
.........Important Safety Precautions . 6
.........................................Indicators . 52
......ABS (Anti-Lock Brake) . 53, 189
Brake (Parking and Brake
............................System) . 52, 244
................Charging System . 52, 242
.............................Cruise Control . 54
DRL (Daytime Running
..................................Lights) . 55
...................................Fog Light . 56
...................................High Beam . 55
........Key (Immobilizer System) . 56
......................................Low Fuel . 56
................Low Oil Pressure . 54, 242
...........................Side Airbag Off . 53
.........................................SRS . 26, 53
Turn Signal and Hazard
...................................Warning . 55
............................VSA Activation . 54
.................................VSA System . 54
...............................Infant Restraint . 34
......................................Infant Seats . 34
..........Tether Anchorage Points . 41
...................Inflation, Proper Tire . 221
...................................Inside Mirror . 91
.............................Inspection, Tire . 222
............................Instrument Panel . 51
..........Instrument Panel Indicators . 52
........Instrument Panel Brightness . 75
...............................Interior Lights . 104
........................................Introduction . i
.......................Halogen Fog Bulbs . 213
..........HandsFree Link (HFL) . 70, 149
..............Hazard Warning Flashers . 76
........................................Headlights . 74
........................................Aiming . 213
Automatic Lighting Off
.....................................Feature . 76
.......Daytime Running Lights . 74
..................High Beam Indicator . 55
.........................Reminder Chime . 74
...................................Turning on . 74
..............................Head Restraints . 89
.................High-Low Beam Switch . 74
HomeLink Universal
................................Transceiver . 145
....................................Hood Latch . 212
.......................Hood, Opening the . 166
Index
H
I
J
IV
Main Menu
CONTINUED
..................................................Keys . 79
...............Keyless Memory Setting . 66
...................Neutral Gear Position . 182
..................New Vehicle Break-in . 164
...................NOTICE, Explanation of . i
...............Numbers, Identification . 254
.......................Label, Certification . 254
.................Lane Change, Signaling . 74
........................Lap/Shoulder Belts . 19
Lights
....................Bulb Replacement . 213
.......................................Indicator . 52
.........................................Parking . 74
..................................Turn Signal . 74
.....................................Load Limit . 172
......LOCK (Ignition Key Position) . 80
........................Lockout Prevention . 82
Locks
.......Anti-theft Steering Column . 80
..................................Glove Box . 107
.................................Power Door . 82
...........................................Trunk . 83
........................Low Coolant Level . 167
...Low Oil Pressure Indicator . 52, 242
...Lubricant Specifications Chart . 256
..............Luggage, . 171
...Octane Requirement, Gasoline . 164
.........................................Odometer . 62
...............................Odometer, Trip . 62
Oil
........................Change, How to . 205
......................Change, When to . 195
......................Checking Engine . 167
..............Pressure Indicator . 52, 242
Selecting Proper Viscosity
......................................Chart . 204
...........ON (Ignition Key Position) . 80
..................................Maintenance . 193
.....................................Messages . 64
........................................Minder . 195
...Owner Maintenance Checks . 198
........................................Record . 200
..........................................Safety . 194
Malfunction Indicator
....................................Lamp . 52, 243
...................Manual Transmission . 178
........Manual Transmission Fluid . 210
.............Memory, Driving Position . 93
...............................Meters, Gauges . 57
..........................Mirrors, Adjusting . 91
...............Modifying Your Vehicle . 170
.......................................Moonroof . 100
.............Multi-Information Display . 59
............................Engine Oil Life . 64
..........................HandsFree Link . 70
.........Keyless Memory Settings . 66
.............Maintenance Messages . 64
.....................................Odometer . 62
.................Outside Temperature . 63
............................Trip Computer . 65
...................................Trip Meter . 62
Storing (Cargo)
Index
K
L
N
O
M
V
Main Menu
＊
..................................Safety Belts . 8, 19
.........Safety Defects, Reporting . 268
.................................Safety Features . 7
...........................................Airbags . 9
..................................Door Locks . 11
..........................Head Restraints . 13
.......................................Seat Belts . 8
.....................Seats & Seat-Backs . 12
.............Safety Labels, Location of . 47
...............................Safety Messages . ii
................................Satellite Radio . 124
.....................................Seat Belts . 8, 19
...............Additional Information . 19
Onboard Refueling Vapor
....................................Recovery . 260
..............................Outside Mirrors . 91
.....................Outside Temperature . 63
....................Overheating, Engine . 240
....Owner’s Maintenance Checks . 198
..............Panel Brightness Control . 75
........................Park Gear Position . 182
...........................................Parking . 187
...............................Parking Brake . 103
Parking Brake and Brake System
...............................Indicator . 52, 244
.................................Parking Lights . 74
..Parking Over Things that Burn . 187
.............................PGM-FI System . 261
...............Power Socket Locations . 106
.........Pregnancy, Using Seat Belts . 17
.........Protecting Adults and Teens . 11
...Additional Safety Precautions . 18
.....Advice for Pregnant Women . 17
........................Protecting Children . 29
Installing a Child Seat Using
........................................Latch . 38
Installing a Child Seat with a
..................Lap/Shoulder Belt . 40
Installing a Child Seat with a
......................................Tether . 41
.................Selecting a Child Seat . 36
.......................Protecting Infants . 34
.......Protecting Larger Children . 42
.........Protecting Small Children . 35
..................Protecting Your Discs . 134
...................Radiator Overheating . 240
Radio/Cassette/Disc Sound
........................................System . 117
...................Readiness Codes . 243, 263
..Rear Lights, Bulb Replacement . 215
..........................Rear Seat Armrest . 89
............................Rear View Mirror . 91
.................Rear Window Defogger . 77
...............Reclining the Seat Backs . 88
.............................Reminder Lights . 52
................Remote Audio Controls . 139
.......................Remote Transmitter . 85
Replacement Information
................Engine Oil and Filter . 205
..........................................Fuses . 245
................................Light Bulbs . 213
...........................................Tires . 224
.............................Wiper Blades . 219
Replacing Seat Belts After a
............................................Crash . 21
...Reserve Tank, Engine Coolant . 167
.........................Restraint, Child . 34, 35
..................Reverse Gear Position . 182
................................Rotation, Tire . 223
Index
P
R
S
VI
Main Menu
＊
CONTINUED
.....................................Tachometer . 57
.Taking Care of the Unexpected . 229
....................................Tape Player . 136
Technical Descriptions
......DOT Tire Quality Grading . 258
.....Emissions Control Systems . 260
Three Way Catalytic
...............................Converter . 262
.......................Temperature Gauge . 57
....................Temperature, Outside . 63
........Temperature, Inside Sensor . 116
..............Tether Anchorage Points . 41
..Three Way Catalytic Converter . 262
..................Tilt the Steering Wheel . 78
..........................Time, Setting the . 103
.....................................Cleaning . 218
................Lap/Shoulder Belt . 14, 19
................................Maintenance . 21
Reminder Light and
................................Beeper . 19, 52
...................System Components . 19
...............Use During Pregnancy . 17
....................................Seat Heaters . 96
........................Seats, Adjusting the . 90
............................Security System . 141
........Sequential SportShift Mode . 183
...............................Serial Number . 254
...........................Service Intervals . 195
...........................Service Manual . 269
.........Service Station Procedures . 165
..........................Setting the Clock . 103
.....Shift Lever Position Indicator . 181
........................Shift Lock Release . 185
...........................................Shifting . 181
................................Side Airbags . 9, 25
........Side Airbag Off Indicator . 27, 53
......................Side Curtain Airbags . 26
...............................Signaling Turns . 74
.....................................Snow Tires . 225
................................Sound System . 117
Spare Tire
......................................Inflating . 230
............................Specifications . 257
....................Specifications Charts . 256
................................Speed Control . 142
..........SRS, Additional Information . 33
...Additional Safety Precautions . 28
....................Airbag Components . 22
.............................Airbag Service . 28
How the SRS Indicator
.......................................Works . 26
How Your Front Airbags
.........................................Work . 23
...How Your Side Airbags Work . 25
How Your Side Curtain Airbags
.........................................Work . 26
.............................SRS Indicator . 26, 53
....START (Ignition Key Position) . 80
.......................Starting the Engine . 177
................With a Dead Battery . 238
..............State Emissions Testing . 263
........Steam Coming from Engine . 236
Steering Wheel
..................................Adjustment . 78
.............Anti-theft Column Lock . 80
...................Stereo Sound System . 117
....................Storing Your Vehicle . 227
........................Sunglasses Holder . 108
....Supplemental Restraint System . 22
......................................Servicing . 28
...............................SRS Indicator . 26
...................System Components . 22
Index
T
VII
Main Menu
＊
.................Vehicle Capacity Load . 172
......................Vehicle Dimensions . 256
....Vehicle Identification Number . 254
Vehicle Stability Assist (VSA)
....................................System . 190
........VSA System Indicator . 54, 190
...VSA Activation Indicator . 54, 190
.........................VSA Off Switch . 191
.............................Vehicle Storage . 227
.................................................VIN . 254
..................................Viscosity, Oil . 204
....................................Tire Chains . 225
.........Tire, How to Change a Flat . 231
...............................................Tires . 220
..............................Air Pressure . 221
.........................Checking Wear . 222
..........................Compact Spare . 230
......DOT Tire Quality Grading . 258
......................................Inflation . 221
..................................Inspection . 222
...................................Replacing . 224
......................................Rotating . 223
...........................................Snow . 225
............................Specifications . 257
.............................Summer Tire . 224
.......................Traction Devices . 225
..........................Winter Driving . 224
...................Tools, Tire Changing . 231
Towing
.....................................A Trailer . 192
................Emergency Wrecker . 249
...........................Traction Devices . 225
Transmission
Checking Fluid Level,
..............................Automatic . 209
.Checking Fluid Level Manual . 210
..................Fluid Selection . 209, 210
..............Identification Number . 254
.............Shifting the Automatic . 190
..................Shifting the Manual . 178
.............................Treadwear . 223, 258
................................Trip Computer . 65
.......................................Trip Meter . 62
................................................Trunk . 80
........Emergency Trunk Release . 84
.................................Opening the . 83
...................Open Monitor Light . 60
....................................Turn Signals . 74
Unexpected, Taking Care
..........................................of the . 229
....Uniform Tire Quality Grading . 258
........................Unleaded Gasoline . 164
.......Used Oil, How to Dispose of . 206
.............WARNING, Explanation of . ii
.........Warning Labels, Location of . 47
..................Warranty Coverages . 267
Washer, Windshield
........Checking the Fluid Level . 208
.......................................Indicator . 62
.....................................Operation . 73
Wheels
...............Adjusting the Steering . 78
............Alignment and Balance . 223
..........................Compact Spare . 230
Windows
..................Operating the Power . 97
...........................Rear, Defogger . 77
Index
U
V
W
VIII
Main Menu
＊
＊
＊＊
Windshield
.......................................Cleaning . 73
...................................Defroster . 114
.....................................Washers . 208
Wipers, Windshield
.......................Changing Blades . 219
.....................................Operation . 73
....................................Worn Tires . 223
.....Wrecker, Emergency Towing . 249
......................XM Satellite Radio . 124
U.S. and Canada only:
: Canada only
Index
X
IX
Main Menu
Service Information Summary
Manual TransmissionGasoline:
Fuel Tank Capacity:
Recommended Engine Oil:
Automatic Transmission Fluid:
Tire Pressure (measured cold):
SpareTirePressure:
Power Steering Fluid:
Brake Fluid:
4.5 US qt (4.3
)
Premium unleaded gasoline,
pump octane number of 91 or
higher.
API Service SJ ‘‘Energy
Conserving’’ oil, SAE 5W-20
viscosity (see page ).
Oil change capacity (including
filter):
Honda ATF-Z1 (Automatic
Transmission Fluid) preferred, or
aDEXRON
III ATF as a
temporary replacement (see page
).
Manual Transmission Models
Front:
35 psi (240 kPa , 2.4 kgf/cm
)
Rear:
Automatic Transmission Models
Front:
Rear:
60 psi (420 kPa , 4.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm
)
Honda Manual Transmission
Fluid preferred, or an SAE 10W-30
or 10W-40 motor oil as a
temporary replacement (see page
).
Capacity:
2.6 US qt (2.5
)
Honda Power Steering Fluid
preferred, or another brand of
power steering fluid as a
temporary replacement. Do not
use ATF (see page ).
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
32 psi (220 kPa , 2.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm
)
209
204
210
212
211
17.09 US gal (64.7 )
Main Menu
