User Manual GE JVX3300SJSS 30" Under The Cabinet Hood

• User Manual - (English, Spanish)
• Quick reference guide - (English)

• Quick Specs - (English)

Table of contents

• USING THE HOOD
• CARE AND CLEANING
• Installation Instructions
• TROUBLESHOOTING TIPS

USING THE HOOD

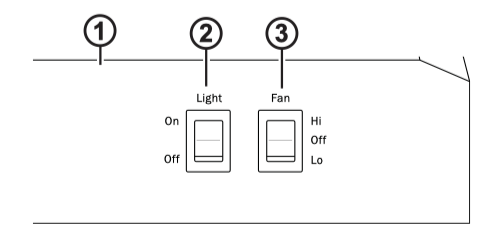

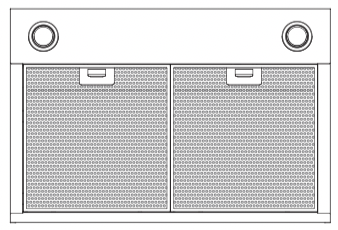

Controls

On Some Models

1. Rangehood Control Panel: The control panel is located on the front of the canopy.

2. Light Switch: Light switch toggles between On and Off.

3. Fan Power Switch: The power switch toggles between fan settings Hi, Lo, and Off.

On Some Models

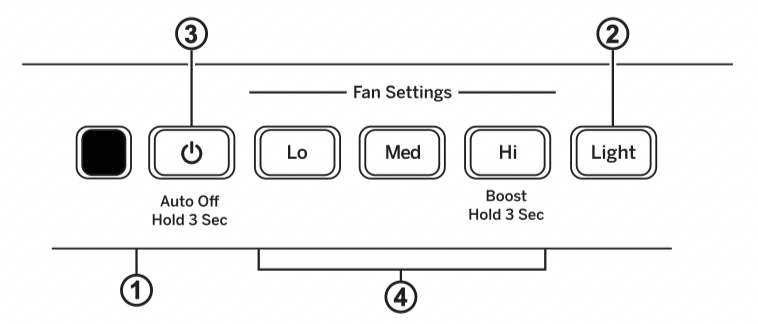

1. Rangehood Control Panel: The control panel is located on the front of the canopy.

2. Light Button: On/Night/Off switch for the lights. Press the LIGHT button to turn the lights on, again to set the lights to night setting, and again to turn off.

3. Fan Off Button: Off switch for the fan. The fan can be operated by pressing any of the fan setting buttons. Hold for 3 seconds to activate auto off after 15 minutes.

4. Fan Settings Buttons: Speed control for fan. Press the button Lo for LOW speed, Med for MEDIUM speed and Hi for HIGH speed. Hold down the Hi button for 3 seconds to activate the BOOST SPEED that will run for 10 minutes.

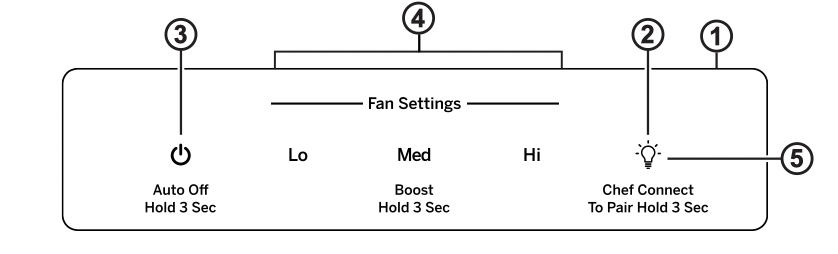

1. Rangehood Control Panel: The glass touch control panel is located on the front of the canopy.

2. Light Pad:On/Night/Off switch for the lights.Press the LIGHT pad to turn the lights on, again to set the lights to night setting, and again to turn off.

3. Auto Off Pad: Off switch for the fan. The fan can be operated by pressing any of the fan setting pads. Hold for 3 seconds to activate auto off after 15 minutes.

4. Fan Settings Pads: Speed control for fan. Press the pad Lo for LOW speed, Med for MEDIUM speed and Hi for HIGH speed. Hold down the Hi button for 3 seconds to activate the BOOST SPEED that will run for 10 minutes.

5. Chef Connect: This is a Bluetooth ® pairing feature for use with other compatible Chef Connect enabled products on a cooktop or a range. When the device is paired, the light and fan will turn ON at the Default Sync Settings upon receiving a command from the range or cooktop. It will remain ON at that setting until the user changes it.

Chef Connect

Chef Connect Operation Bluetooth ® Connection

To pair with another device:

To start the pairing process on the hood, press and hold the Light pad for 3 seconds. The backlight for the Lo Med – Hi – Light will flash in that sequence until the hood is paired with the range or other device. If the pairing is successful, all 4 lights (Lo, Med, Hi, and Light) will flash three times simultaneously and then turn off.

It will time out after 2 minutes if pairing is not completed. After which the pairing sequence will need to be restarted.

To cancel pairing:

To cancel the pairing hold the Light pad for 3 seconds and then turn off the hood.

Default Sync Settings:

The factory default setting for the light will be the brightest.

The factory default setting for the fan sync will be OFF.

The user can change the Default Sync Settings by pressing and holding the Lo pad for 3 seconds. This will enter the Default Settings Mode. Once in this mode, the backlights for all buttons (Lo, Med, Hi, and Light) will blink On/Off indefinitely and the fan and light will switch to the current Default Sync Setting, so the user knows what the current default value is. At this time, set the light and fan to the desired default levels. Once the user is satisfied with the selection, press and hold the Off pad for 3 seconds. This will exit this mode. At that time the backlights will stop blinking and the state of the fan and light will change back to their prior state before entering the Default Settings Mode.

CARE AND CLEANING

Filters

Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

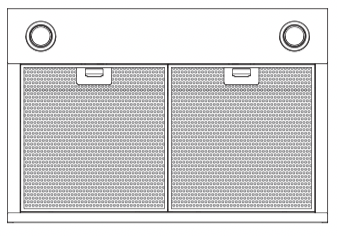

Metal Grease Filter

The metal filters trap grease during cooking.

The filter must ALWAYS be in place when the hood is in use. The grease filter is dishwasher-safe and should be cleaned every 6 months, or as needed.

NOTE: For this configuration one grease filter is only used in the vented mode.

To remove:

Pull downward on the filter lock to release the filter.

To replace:

Fit the tabs at the bottom of the filter into the slots in the back of the filter opening. Lift up the front side of the filter and push gently until the filter locks into place. Make sure the filter lock is in the closed position to secure the filter.

To clean, swish the filter in hot soapy water and rinse in clean water or wash it in the dishwasher. Do not use abrasive cleansers.

NOTE: Some discoloration may occur in the dishwasher.

Charcoal Filter (for recirculation installation only)

If the model is not vented to the outside, the air needs to be recirculated through a disposable charcoal filter that helps remove smoke and odors.

NOTE: DO NOT rinse, or put charcoal filter in an automatic dishwasher.

The charcoal filter cannot be cleaned. It must be replaced. It is recommended that the charcoal filter be replaced every 6-12 months or if it is noticeably dirty or discolored.

To inquire about purchasing replacement charcoal filters or to find the location of a dealer nearest you, please visit GEApplianceParts

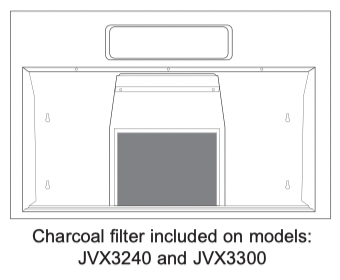

NOTE: For this configuration charcoal filter is installed in place of grease filter.

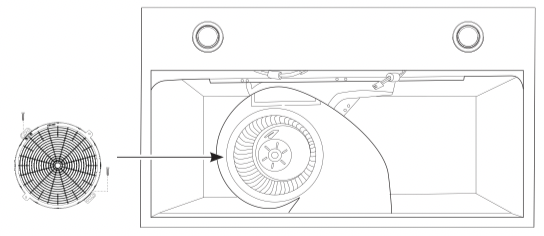

To install (on some models):

1. Remove the metal filters—see Metal Grease Filter section.

2. Place the side of the charcoal filter with the tabs against the bottom of the blower.

3. Drive screws in the 2 locations shown in the picture.

4. Replace the metal filters—see Metal Grease Filter section.

To remove:

1. Remove the metal filters—see Metal Grease Filter section.

2. Remove the 2 screws holding the charcoal filter in place to remove.

Surfaces

Stainless Steel Surfaces (on some models)

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the brush line. Follow the cleaner instructions for cleaning the stainless steel surface. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove surface rust, tarnish, and small blemishes. To receive a $2.00 coupon for a trial sample of Bar Keepers Friend Soft Cleanser™ follow the link below or scan the QR Code.

Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please visit GEApplianceParts.

Painted Surfaces (on some models)

Do not use a steel wool pads or other abrasive cleaners; they will scratch the surface.

Clean grease-laden surfaces of the hood frequently. To clean the hood surface, use a hot, damp cloth with a mild detergent suitable for painted surfaces. About one tablespoon of ammonia may be added to the water. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.

NOTE: When cleaning, take care not to come in contact with filters and other surfaces.

CAUTION

When cleaning the hood surfaces, be certain that you do not touch the light with moist hands or cloth. A warm or hot light may break if touched with a moist surface. Always let the light cool completely before cleaning around it.

Lights

CAUTION

Allow lights to cool before touching.

On Some Models

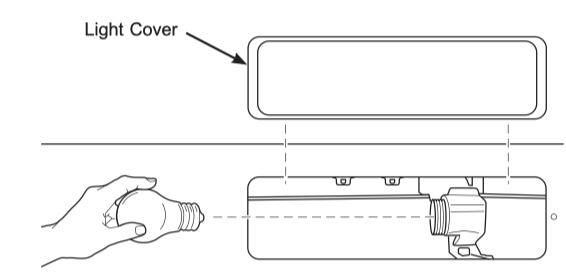

1. Before attempting to replace the lights, make sure that the light switch is turned off.

2. Remove light cover.

3. Unscrew light counterclockwise to unlock light and pull out.

4. Replace with new light of same type (standard incandescent), making sure socket is properly inserted into the housing of the lamp holder.

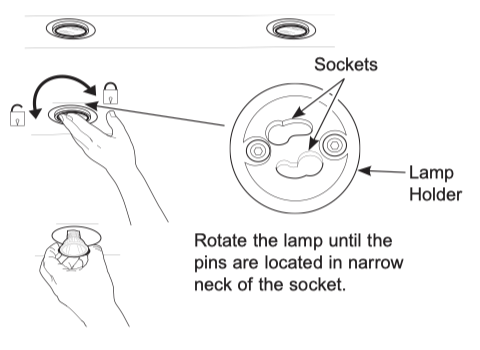

On Some Models

1. Before attempting to replace the lights, make sure that the light switch is turned off.

2. Rotate light counterclockwise to unlock and pull out. Wearing latex gloves may offer a better grip.

3. Replace with new light of same type, making sure pins are inserted properly into the sockets of the lamp holder and turn clockwise to lock.

All lamps need to be GU10 compatible.

Installation Instructions

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector’s use.

• IMPORTANT — Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this vent hood requires basic mechanical and electrical skills.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

FOR YOUR SAFETY

WARNING

Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.

C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

D. Ducted fans must always be vented to the outdoors.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK.

WARNING

Disconnect all electrical power at the main circuit breaker or fuse box before installing.

Installation Preparation

DUCTWORK REQUIREMENTS

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

NOTE: Read the ductwork sections only if you do not have existing ductwork. If you have existing ductwork, skip to the “Damage” section and proceed.

The venting system must exhaust to the outside.

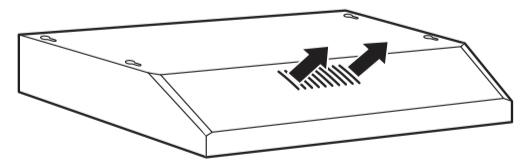

This hood can be vented vertically through upper cabinets or horizontally through an outside wall. Ductwork is not included.

Exhaust connection

This hood is designed to be vented vertically using a 7" round duct or a 3 1 ¼4 ” x 10” rectangular duct or horizontally using a 3 1 ¼4 ” x 10” rectangular duct.

Duct length

The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated air flow.

NOTE: For an ENERGY STAR ® model, unit must be vented mode to be considered ENERGY STAR ® certified. Also, for these models do not use less than 7” diameter duct.

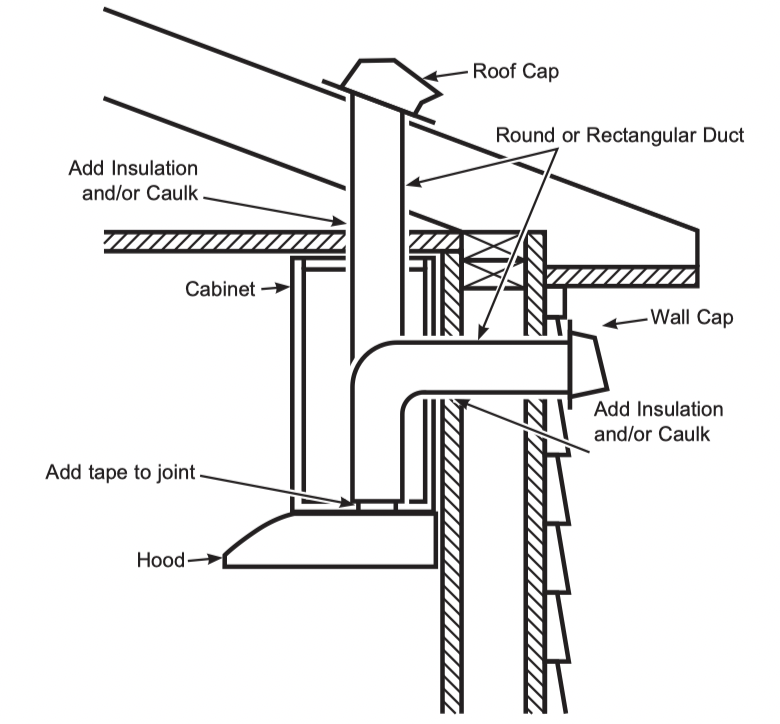

INSULATION AND/OR CAULK AROUND THE DUCTS

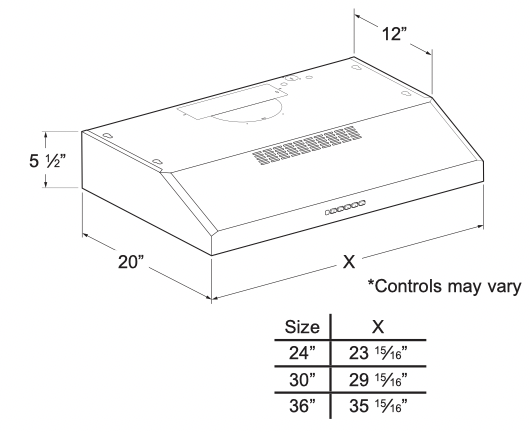

PRODUCT DIMENSIONS

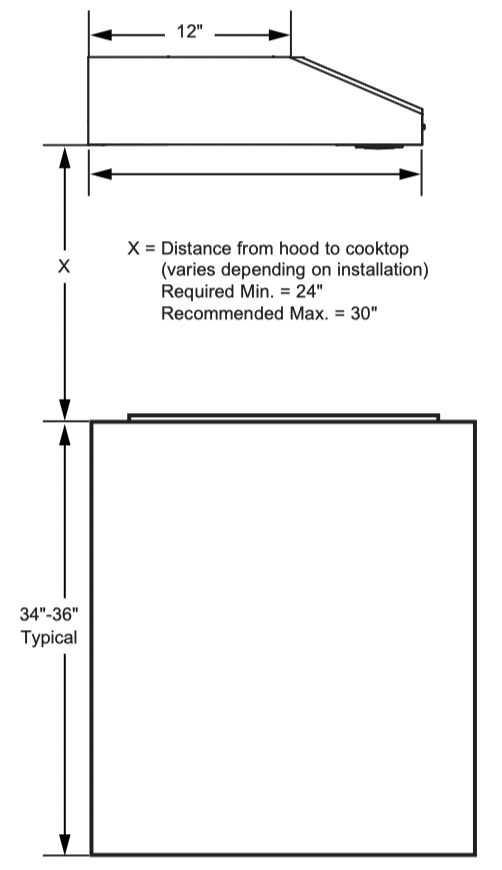

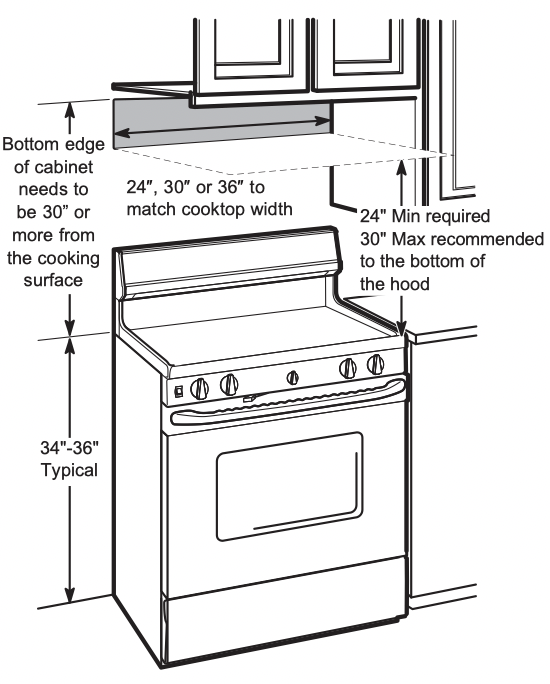

MOUNTING SPACE

NOTES:

• Hood width may be greater than the width of the range or cooktop, but it may not be smaller.

• Installation height should be measured from the cooking surface to the lowest part of the hood. This hood must be installed onto a cabinet. It can be vented to the outdoors, or it can be installed for recirculating operation.

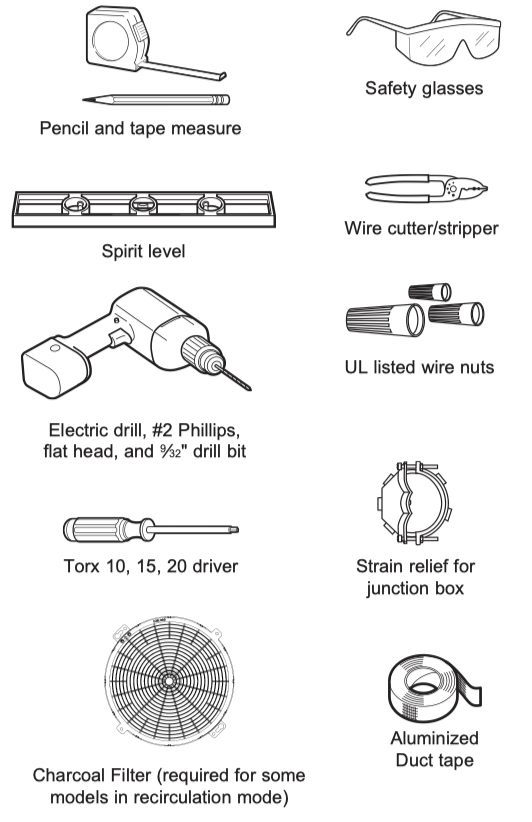

TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED)

REMOVE THE PACKAGING

CAUTION

Wear gloves to protect against sharp edges.

• Remove the hardware bag, literature package and other boxed parts.

• Remove and properly discard the protective plastic wrapping and other packaging materials.

PLAN THE INSTALLATION

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct the air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

PARTS SUPPLIED FOR INSTALLATION

• 1 Hardware Package

• 1 Literature Package

• 1 Vented Mode Deflector Part

PARTS NEEDED FOR INSTALLATION

• 1 Strain Relief

• Power Supply Cable

• 1 Wall or Roof Cap (for external venting only)

• All Metal Ductwork (for external venting only)

NOTE: This range hood can be installed as either ducted or recirculation. In a ducted application, this range hood can be vented through the wall or ceiling. When installed for recirculation, the range hood vents out the front of the hood.

NOTE: Before making any cuts or holes for installation, determine which venting method will be used and carefully calculate all measurements.

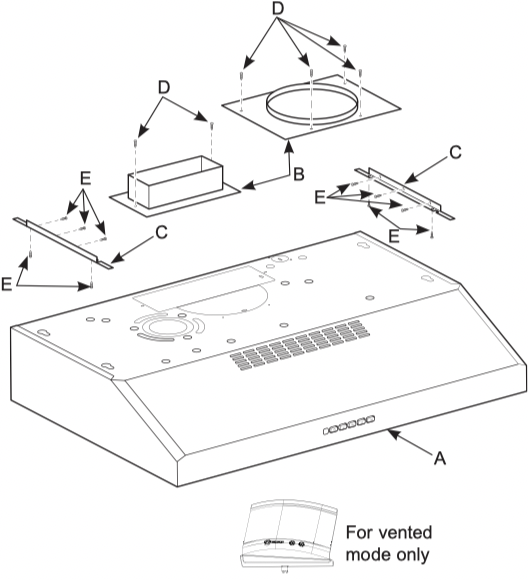

RANGE HOOD COMPONENTS

A. Hood Body

B. Damper/Duct Connector

C. Mounting Bracket

D. Screws (4)

E. Screws (10)

HARDWARE COMPONENTS

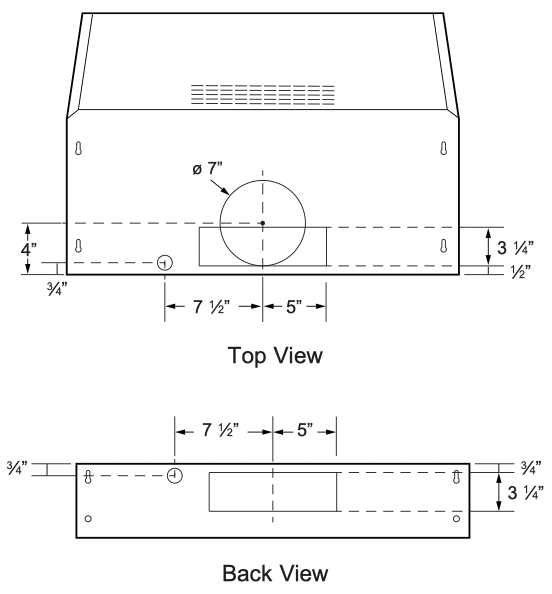

INSTALLATION DIMENSIONS

ADVANCE PLANNING

Vented Install Planning

• This hood is designed to be vented vertically using a 7" round duct or a 3 1 ¼4" x 10" rectangular duct or horizontally using a 3 1 ¼4" x 10" rectangular duct.

• Use metal ductwork only.

• Determine the exact location of the vent hood.

• Plan the route for venting exhaust to the outdoors. To maximize the ventilation performance of the vent system:

1. Minimize the duct run length and number of transitions and elbows.

2. Maintain a constant duct size.

3. Seal all joints with duct tape to prevent any leaks.

4. Do not use any type of flexible ducting.

• Install a wall cap or roof cap at the exterior opening. Purchase the wall or roof cap and any transition and length of duct needed in advance.

• When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances for available makeup air solutions.

Recirculation Install Planning

This hood may be installed in recirculation mode and is shipped in this configuration. The charcoal filter is necessary for recirculation installation. This part may need to be ordered separately depending on model.

Power Supply Planning

The location of the power supply connection is called out in the Prepare for Electrical and Venting section on page 15.

POWER SUPPLY

IMPORTANT – (Please read carefully)

WARNING

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

Remove house fuse or open circuit breaker before beginning installation.

Do not use an extension cord or adapter plug with this appliance. Follow National Electrical Codes or prevailing local codes and ordinances.

Electrical supply

These vent hoods must be supplied with 120V, 60Hz, and connected to a properly grounded branch circuit, and protected by a 15 or 20 amp circuit breaker or time delay fuse.

• Wiring must be 2 wire with ground.

• If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.

• Route house wiring as close to the installation location as possible in the ceiling or wall.

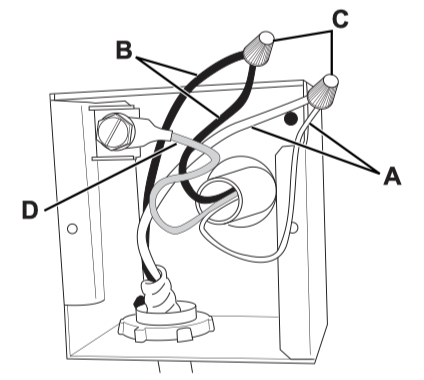

• Connect the wiring to the house wiring in accordance with local codes.

Grounding instructions

The grounding conductor must be connected to a ground metal, permanent wiring system, or an equipment-grounding terminal or lead on the hood.

WARNING

The improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

1. SELECT VENT OPTION THAT YOUR INSTALLATION WILL REQUIRE (A-D)

A. Outside top exhaust (Vertical duct—3 1 ¼4 ” x 10” Rectangular)

B. Outside top exhaust (Vertical duct—7” Round)

C. Outside rear exhaust (Horizontal duct—3 1 ¼4 ” x 10” Rectangular)

D. Recirculating (Unit is configured from factory in this mode)

2. PREPARING MOUNTING

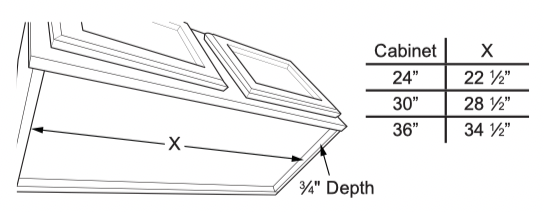

For cabinets with dimensions below, the mounting bracket may be used for any model. Otherwise, the hood must mount directly to bottom of cabinet. Wood shims may be needed for cabinets with a recessed bottom. Skip to step B.

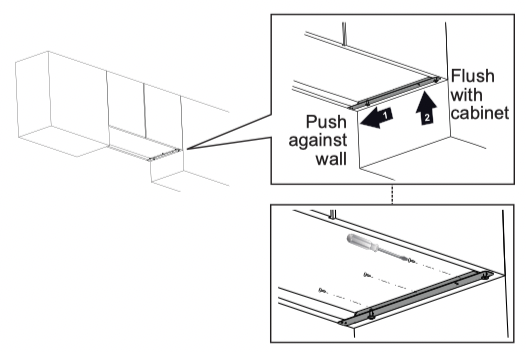

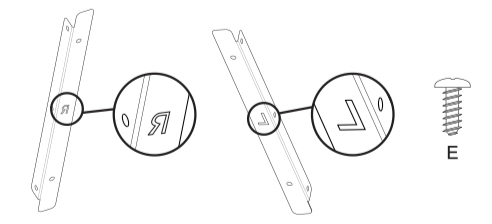

A. To install the mounting bracket

Drive (E) screws in partway into mounting bracket. The bracket labeled "R" will be used on the right side of the cabinet and the bracket labeled "L" will be used on the left side of the cabinet.

Under the cabinet that you are placing the range hood, attach the mounting bracket as shown below with (F) screws. Make sure orientation is correct. Brackets should be located against the back wall and flush with the bottom of the cabinet.

NOTE: Repeat on left side.

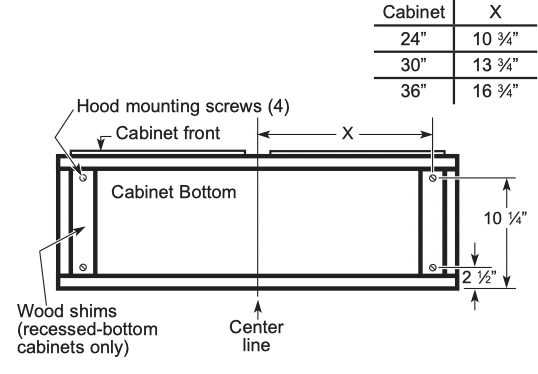

B. To install to the bottom of cabinet

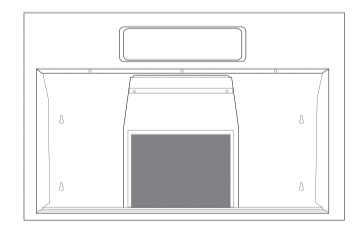

Use the diagram or hood as a template and mark the locations on the cabinet for the keyholes screws.

Drive the 4 (F) screws partway into the bottom of the cabinet (or wood shims).

3. PREPARE FOR ELECTRICAL AND VENTING

Select the vent option that your installation will require and proceed to that section:

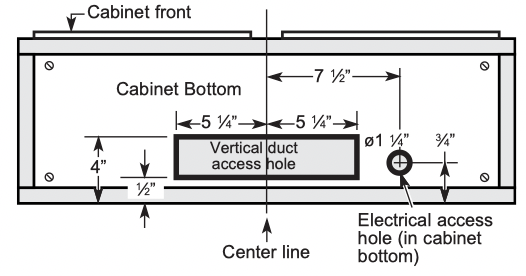

A. Outside top exhaust (Vertical duct–3 1 ¼4 ” x 10” Rectangular)

• Use the diagram as a template and mark the locations on the cabinet for ductwork and electrical wiring.

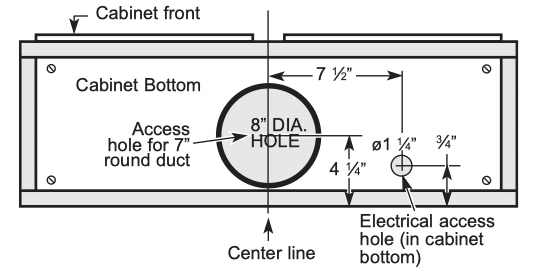

B. Outside top exhaust (Vertical duct–7” Round)

• Use the diagram as a template and mark the locations on the cabinet for ductwork and electrical wiring.

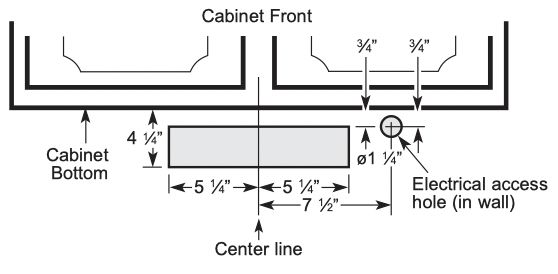

C. Outside rear exhaust (Horizontal duct–3 1 ¼4 ” x 10” Rectangular)

• Use the diagram as a template and mark the locations on the cabinet for ductwork and electrical wiring.

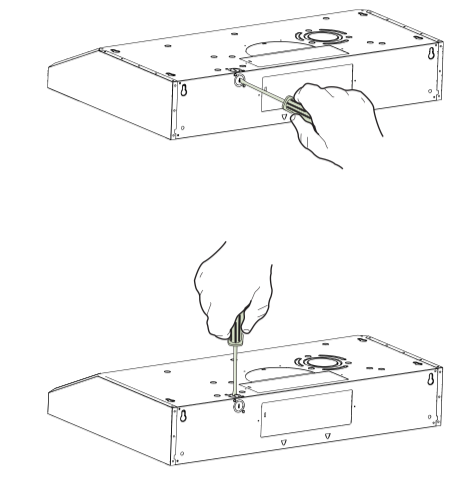

4. REMOVE ELECTRICAL KNOCKOUTS

Use a flat blade screwdriver, remove the appropriate electrical knockout from the back or the top of the hood.

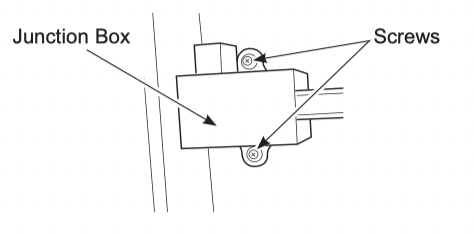

5. REMOVE JUNCTION BOX

Remove junction box from inside the hood. Set the junction box and mounting screws aside.

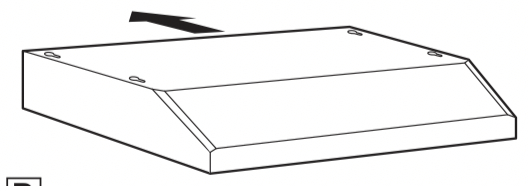

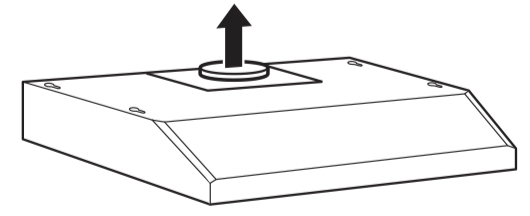

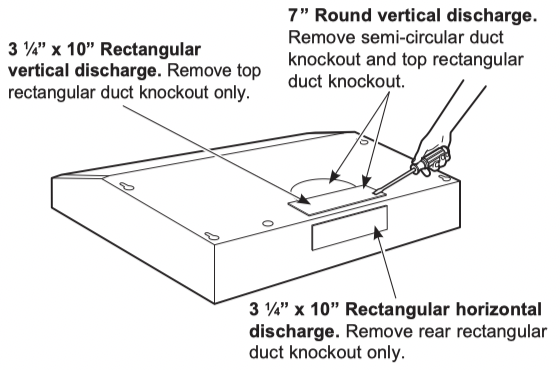

6. REMOVE DUCT KNOCKOUT(S) FOR VENTED INSTALLATION

Determine which ducting option to use. Using a flat blade screwdriver, remove the appropriate duct knockout(s) from the top or back of the hood.

NOTE: If the hood is to be installed in a recirculation, non-vented ductless manner, do not remove any venting knockouts.

NOTE: For an ENERGY STAR ® model, unit must be vented mode to be considered ENERGY STAR® certified.

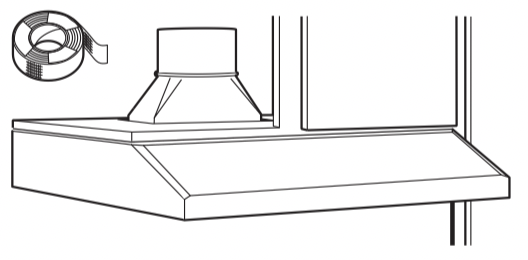

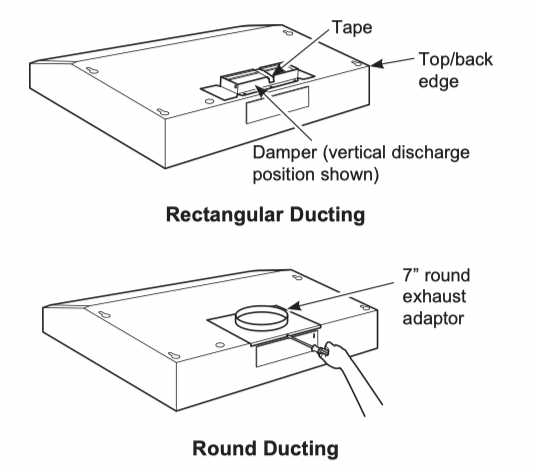

7. ATTACH DAMPER/DUCT CONNECTOR

Attach damper/duct connector over knockout opening with two or four (D) screws. Make sure damper pivot is nearest to top/back edge of hood. Remove any packaging tape to allow damper to move freely.

8. FOR VENTED INSTALLATIONS

On Some Models:

Install with vented mode deflector part.

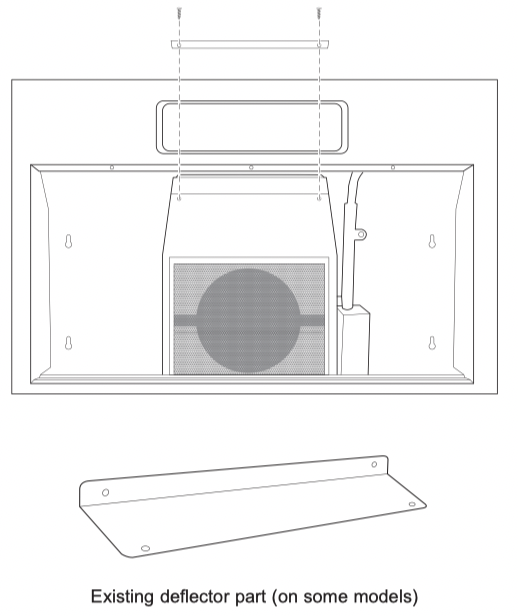

On Some Models:

The existing deflector part must be removed.

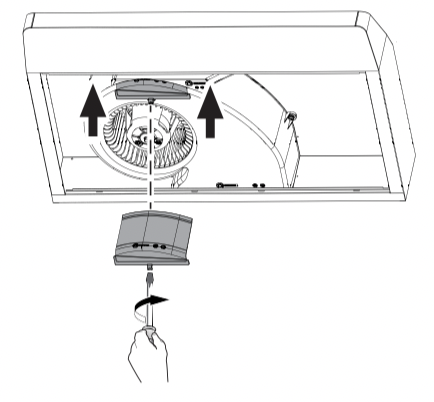

To remove the existing deflector piece, unscrew to remove it. Install the vented mode deflector part included in hardware kit using the screw.

The deflector must be installed to prevent leakage in case of vented installation.

On Some Models:

Remove, rotate, and re-install deflector part for vented mode.

9. FEED IN WIRES

Lift the hood into position and feed the house wiring through the wiring knockout.

10. MOUNT THE UTC

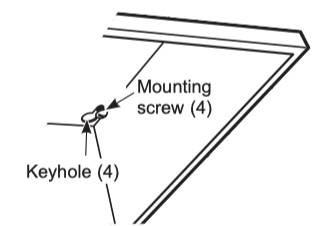

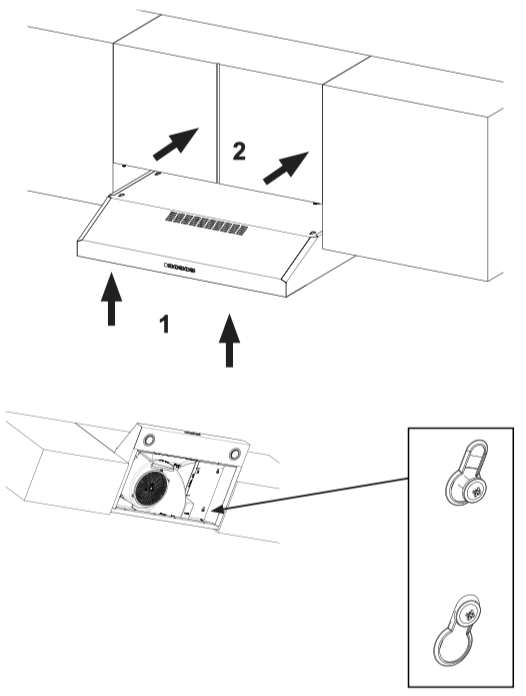

Place the hood onto the partially installed screws using the keyholes and slide the hood back into position.

11. SECURE HOOD

Tighten the mounting screws. Be sure the screw heads are in the narrow neck of the keyhole slot.

12. CONNECT DUCTWORK TO HOOD (Ducted installations only)

Connect ducting to hood. Use duct tape to make joints secure and airtight.

13. ELECTRICAL CONNECTION

1. Connect the Power Supply Cable to the range hood. Attach the white lead of the power supply to the white lead of the range hood (A) with a wire nut (C). Attach the black lead of the power supply to the black lead of the range hood (B) with a wire nut (C). Connect the green (D) ground wire under the green grounding screw.

2. Replace the junction box cover.

14. FINISH THE INSTALLATION

On Some Models:

1. For recirculation: Install the charcoal filter.

2. For ducted installation: Install the grease filters.

On Some Models:

1. For recirculation: Place the charcoal filter (not included) in place and mount using 2 screws. Replace the grease filters.

2. For vented installation: Install the grease filters.

TROUBLESHOOTING TIPS

Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service.
