User Manual
  • User Manual - (English, French, Spanish)
Warranty
  • Warranty - (English)



User Manual

Overview

01. Oven control panel (See page 29 for more information.)

02. Glass surface

03. Oven door

04. Warming drawer

05. Surface control knobs* (See page 24 for more information.)

06. Self/steam clean latch

07. Automatic oven light switch

08. Oven light*

09. Convection fan

10. Shelf position

11. Gasket

12. Partition insert position

Dual Door ™

This oven has a unique Dual Door™ that is hinged in the middle. If you have inserted the partition and divided the oven in two (so it is in twin mode), you only need to open the top half to access the upper cavity. When you’re using the Flex Duo™ capability, you can access the top oven space much more easily and with greater energy efficiency.

How to use the upper door

  1. Hold the handle and the lever, press the lever to release the door latch, and then pull the handle.
  2. This will open only the upper door as shown.

How to use the full door

1. Hold the lever-less area of the handle, and then pull.

2. This will open the whole door as shown.

CAUTION: When opening the whole door, make sure to grasp the handle by the lever-less portion. If the lever is pressed halfway through opening the door, the upper door may open, causing physical injury

NOTE

• Do not put heavy objects on, or apply excessive force, to the upper door.

• Do not let children play with or on the upper door.

Surface cooking

About surface cooking

CAUTION

BEFORE COOKING

  • Do not use the glass cooktop surface as a cutting board.
  • Do not place or store items that can melt or catch fire on the glass cooktop, even when it is not being used.
  • Turn the surface units on only after placing cookware on them.
  • Do not store heavy items above the cooktop surface. They could fall and damage it.

CAUTION

DURING COOKING

  • Do not place aluminum foil or plastic items such as salt and pepper shakers, spoon holders, or plastic wrappings on the range when it is in use. The hot air from the vent could melt plastics or ignite flammable items.
  • Make sure the correct surface unit is turned on.
  • Never cook directly on the glass. Always use cookware.
  • Always place the pan in the center of the surface unit you are cooking on.
  • Never leave surface units unattended while using a high heat setting. Boilovers cause smoking and greasy spillovers that may catch on fire.
  • Turn the surface units off before removing cookware.
  • Do not use plastic wrap to cover food. Plastic may melt onto the surface and be very difficult to remove.
  • The cooling fan can be operated during cooktop cooking.

AFTER COOKING

  • Do not touch the surface units until they have cooled down.
  • The surface may be still be hot and burns may occur if you touch the glass surface before it has cooled down sufficiently.
  • Immediately clean spills on the cooking area to prevent a tough cleaning chore later.
  • If cabinet storage is provided directly above the cooking surface, make sure that the items are infrequently used and can be safely stored in an area subjected to heat. Temperatures may be unsafe for items such as volatile liquids, cleaners, or aerosol sprays.

About the radiant surface elements

The temperature rises gradually and evenly. As the temperature rises, the radiant element will glow red. To maintain the selected setting, the element will cycle on and off. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle. For efficient cooking, turn off the element several minutes before cooking is complete. This will allow residual heat to complete the cooking process.

NOTE

Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to prevent damage to the ceramic cooktop. Cycling at the HI setting is normal and can occur if the cookware is too small for the radiant element or if the cookware bottom is not flat.

NOTE

When you operate the knob, beep sounds once.

Location of the radiant surface elements and controls

The radiant control knobs operate the radiant surface elements on the cooktop as shown below.

01. Left Front: 7", 1800 W (Bridge 2600 W)

02. Left Rear: 7", 1800 W

03. Right Front: 6"/9"/12", 3000 W

04. Right Rear: 6", 1200 W

05. Warming Center: 100 W

06. Hot surface indicator

Hot surface indicator

  • Comes on when the unit is turned on or hot to the touch.
  • Stays on even after the unit is turned off.
  • Glows until the unit is cooled to approximately 150 °F.

Cooking areas

  • The cooking areas on your range are identified by permanent circles on the glass cooking surface. For the most efficient cooking, fit the pan size to the element size.
  • Pans should not extend more than ½˝ to 1˝ beyond the cooking area.
  • When a control is turned on, you can see a glow through the glass cooking surface. The element will cycle on and off to maintain the preset heat setting, even at high settings.
  • For more information on selecting proper types of cookware, refer to the section "Using the proper cookware" on page 27.

How to set the appliance for surface cooking

CAUTION

  • The surface elements may be hot even when off and burns can occur. Do not touch the surface elements until they have cooled down sufficiently.
  • At high or medium-high settings, never leave food unattended. Boilovers cause smoking and greasy spillovers may catch on fire.
  • Be sure you turn the control knob to OFF when you finish cooking.

Single surface unit control knob (left rear, right rear)

  1. Push the knob in.
  2. Turn in either direction to the setting you want.

• At both the off and high settings, the knob clicks into position.

Bridge surface unit control knob (left front)

  1. Push the knob in.
  2. Turn in either direction to the setting you want.
    1. To use the single surface unit, turn the control knob to the single burner setting.
    2. To use the bridge surface unit, turn the control knob to the bridge burner setting.

Choosing the proper cookware

What your cookware is made of determines how evenly and quickly heat is transferred from the surface element to the pan bottom.

  • ALUMINUM - Excellent heat conductor. Some types of food will cause the aluminum to darken. (Anodized aluminum cookware resists staining & pitting.). If aluminum pans are slid across the ceramic cooktop, they may leave metal marks that resemble scratches. Remove these marks as soon as the cooktop cools down.
  • COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (To remove, see above.)
  • STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean, and resists staining.
  • CAST IRON - A poor conductor; retains heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.
  • ENAMELWARE - Heating characteristics will vary depending on the base material. Porcelain enamel coating must be smooth to avoid scratching ceramic cooktops.
  • GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the surface.

Protecting the cooktop

Cleaning

  • Clean the cooktop before using it for the first time.
  • Clean your cooktop daily or after each use. This will keep your cooktop looking good and can prevent damage.
  • If a spillover occurs while you are cooking, immediately clean the spill from the cooking area while it is hot to prevent a tough cleaning chore later. Using extreme care, wipe the spill with a clean, dry towel.
  • Do not allow spills to remain on the cooking area or the cooktop trim for a long period of time.
  • Do not use abrasive cleansing powders or scouring pads which will scratch the cooktop.
  • Do not use chlorine bleach, ammonia, or other cleansers not specifically recommended for use on a glass-ceramic surface.

Preventing marks and scratches

  • Do not use glass cookware. It may scratch the cooktop.
  • Do not place a trivet or wok ring between the cooktop and the pan. These items can mark or scratch the cooktop.
  • Make sure the cooktop and the pan bottom are clean.
  • Do not slide metal pans across the cooktop.

Preventing stains

  • Do not use a soiled dish cloth or sponge to clean the cooktop surface. A film will remain, which may cause stains on the cooking surface after the area is heated.
  • Continuously cooking on a soiled surface can result in a permanent stain.
  • Preventing other damage
  • Do not allow plastic, sugar, or foods with high sugar content to melt onto the hot cooktop. Should this happen, clean immediately.
  • Do not let a pan boil dry as this will damage the cooktop and the pan.
  • Do not use the cooktop as a work surface or cutting board.
  • Do not cook food directly on the cooktop. Always use the proper cookware.

Operating the oven

The oven control panel

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this user manual.

01 DISPLAY: Shows the time of day, oven temperature, whether the oven is in the bake, convection bake/roast, broil, or self-cleaning mode, and the time set for the timer or automatic oven operations.

02 UPPER/LOWER: After you have inserted the partition into the oven so it is in twin mode, use to activate the upper or lower oven cavity for cooking.

03 TIMER ON/OFF: Use to set or cancel the kitchen timer. The kitchen timer does not start or stop cooking.

04 COOKING TIME: Press and then use the number pad to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.

05 DELAY START: Press to set the oven to start and stop automatically at a time you set. (Bake, Conv.bake/Roast, Cooking Time, and self clean only.)

06 CLOCK: Use to set the time of day.

07 OPTIONS: Use to bring up the user preference menu in the display.

08 LAMP: Press to turn the oven light on or off.

09 OVEN OFF: Press to cancel all oven operations except the clock and timer.

10 WARMING DRAWER: Press to turn the warming drawer on or off. (Low, Mid, Hi)

11. CONVECTION BAKE: Use to select the Convection bake function of the oven.

12 CONVECTION ROAST: Use to select the Convection roast function of the single or upper oven.

13 BAKE: Use to select the bake function of the single or lower oven.

14 BROIL: Use to select the broil function of the single or upper oven.

15 TEMP PROBE: Use to activate the temp probe mode.

16 KEEP WARM: Use to select the keep warm function of the single oven to keep cooked foods warm.

17 STEAM CLEAN: Use to select the steam cleaning function of the single oven.

18 SELF CLEAN: Use to select the Self-cleaning function of the single oven.

19 HEALTHY COOK: Press to recall the healthy cook recipe setting of the oven.

20 SMART CONTROL : Use to select the smart control feature.

21 HI+/LO-: Use to raise or lower the temperature and increase or decrease times.

22 NUMBER PAD: Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the start time and length of operation for timed baking, etc.

23 CLEAR: Use to cancel a previously entered temperature or time.

24 START SET: Use to start any cooking or cleaning function in the oven.

25 CONTROL LOCKOUT: Use to disable all oven functions.

26 TOUCH TO WAKE-UP: Press to activate buttons and functions on the display.

Control panel display modes

Sleep Mode

Your control panel will remain in a sleep mode when not in use. Only the clock will display. You will need to wake the control panel to begin any function.

Wake Mode

To wake the control panel, touch the wake-up key. After 2 minutes without activity or one minute when the oven is operating in standby mode), the control panel will return to Sleep mode. User preferences are available in this mode as well as timers, the oven light, and the control lock.

Setting the clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly.

  • The time of day cannot be changed during timed cooking, delay-timed cooking, or a self-cleaning cycle.
  • You can choose between a 12-hour or 24-hour display. The default is 12-hour.

How to set the clock

  1. Press Clock.
  2. Press Clock to select AM or PM. (Skip this step on 24 hour display setting)
  3. Enter the current time in hours and minutes on the number pad, eg. 1, 3, 0, for
  4. Press Clock or START/SET to save the changes.

Setting the kitchen timer

The kitchen timer serves as an extra timer that will beep when the set time has elapsed. It does not start or stop cooking functions. You can use the kitchen timer with any of the other oven functions.

How to set the timer

  1. Press Timer1 On/Off (Timer2 On/Off).
  2. Enter the amount of time you want using the number pad, eg. 1, 5. The timer can be set for any amount of time from 1 minute to 9 hours and 59 minutes. If you make a mistake, press Clear, and then enter the amount of time again.
  3. Press Timer1 On/Off (Timer2 On/Off) or START/SET.
  4. When the set time has elapsed, the oven will beep and the display will show End until you press the Timer1 On/Off (Timer2 On/Off) pad. You can cancel the timer at any time by pressing Timer1 On/Off (Timer2 On/Off).

Control lockout

Control lockout lets you lock the buttons on the touch pad so they cannot be activated accidentally.

Control lockout can only be activated in standby mode.

How to activate the control lockout feature

Press Control Lock Hold 3 Sec. for 3 seconds.

The display will show "Loc" and the Lock icon continuously, as well as the current time.

All functions must be cancelled before Control lockout is activated.

This function is available only when the oven temperature is under 400 °F.

How to unlock the controls

Press Control Lock Hold 3 Sec. for 3 seconds. "Loc" and the Lock icon will disappear from the display.

Timed cooking

In timed cooking, the oven turns on immediately and cooks for the length of time you select. At the end of the cooking time, the oven turns off automatically.

  • You can use the timed cooking feature only with another cooking operation bake, convection bake, convection roast, healthy cook).

How to set the oven for timed cooking

To use twin mode, insert the partition and then press UPPER or LOWER. See page 37 for partition installation instructions. If you are using single mode (no partition), skip this step.

  1. Press the pad for the cooking operation you want, eg. Bake.
  2. The default temperature is 350 °F.
  3. Enter the temperature you want, eg. 375 °F, using the number pad.
  4. Press Cooking Time.
  5. Enter the cooking time you want, eg. 45 min, using the number pad. You can set the cooking time for any amount of time from 1 minute to 9 hours and 59 minutes.
  6. Press START/SET to begin cooking. The temperature display will start to change once the oven temperature reaches 175 °F. The oven will continue to cook until the set amount of time has elapsed, then turn off automatically unless you set the keep warm feature. (Refer to the section on the keep warm feature on page 27.)
  7. You can cancel a cook time at any time by setting the cook time to 0 minutes. (Press Cooking Time -> set cook time to 0 min -> press START/SET)

When timed cooking is done, the range will beep 10 times.

CAUTION

Use caution with the timed cooking or delay start features. Use these features to cook cured or frozen meats and most fruits and vegetables. Foods that can easily spoil, such as milk, eggs, fish, meat, or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.

Delay start

In a delay timed cooking, the oven’s timer turns the oven on and off at times you select in advance.

  • You can use the delay start feature only with another cooking operation (bake, convection bake, convection roast, healthy cook, or self-clean.
  • You can set the oven for a delay start before setting other cooking operations.
  • The clock must be set to the current time.

How to set the oven for delay start

  1. To use twin mode, insert the partition and then press UPPER or LOWER. See page 37 for partition installation instructions. If you are using single mode (no partition), skip this step.
  2. Position the oven rack(s) and place the food in the oven.
  3. Press the pad for the cooking operation you want, eg. Bake. The default temperature is 350 °F.
  4. Enter the temperature you want, eg. 375 °F, using the number pad.
  5. Set the cooking time if you want. (Refer to the section on the timed cooking feature on page 31).
  6. Press Delay Start.
  7. Enter the time you want the oven to turn on, eg. 4:30, using the number pad.
  8. Press START/SET. At the set time, a short beep will sound. The oven will begin to bake.

Turning the oven light on and off

  • The oven light turns on automatically when the door is opened.
  • The oven light turns off automatically when the door is closed.
  • You can turn the oven light on and off manually by pressing the pad.

Minimum and maximum settings

All of the features listed in the table below have minimum and maximum time or temperature settings. A beep will sound each time a pad on the control panel is pressed and the entry is accepted. An error tone will sound in the form of a long beep if the entered temperature or time is below the minimum or above the maximum setting for the feature.

Twin cooking mode temperature setting ranges

When you use the upper and lower ovens at the same time, each oven has a minimum and maximum amount of power available and consequently a minimum and maximum temperature setting. Oven temperatures in the lower oven also limit broil settings in the upper oven. The temperature and broil setting limitations are shown in the table below.

NOTE: The twin cooking mode lets you use different settings for the upper and lower compartments, such as different switch off times, cooking times, and temperatures settings. To apply or modify settings in either compartment, press the respective touch pad.

Using the oven racks

Oven rack positions (single mode)

Recommended rack porition for cooking

Oven rack positions with partition (twin mode)

The upper oven has 2 rack positions (A, B).

The lower oven has 4 rack positions (1-4).

Recessed rack position

If you use the Recessed rack, the recessed ends must be placed in the rack position above the position you want for the food. For example, if you want the food in rack position 2, you need to put the recessed ends in position 3. See the illustration on the left.

Rack and Pan placement

Centering the baking pans in the oven as much as possible will produce better results. If baking with more than one pan, place the pans so each has at least 1 ̋ to 11⁄2 ̋ of air space around it. When baking on a single oven rack, place the oven rack in position 3 or 4.See the figure on the left. When baking cakes and cookies on multiple racks, place the oven racks in positions 3 and 5.

Using Multiple Oven Racks

Before using the racks

The oven has two racks.

Each rack has stops that need to be placed correctly on the supports. These stops will keep the rack from coming completely out.

REMOVING THE RACKS

  1. Pull the rack straight out until it stops.
  2. Lift up the front of the rack, and then pull it out.

REPLACING THE RACKS

  1. Place the end of the rack on the support.
  2. Tilt the front end up and push the rack in.

CAUTION

  • Do not cover a rack with aluminum foil or place aluminum foil on the oven bottom. This will hamper heat circulation, resulting in poor baking, and may damage the oven bottom.
  • Arrange the oven racks only when the oven is cool.

Using the gliding rack

The fully extendable Gliding Rack makes food preparation easier, especially when you are preparing heavier dishes. The Gliding Rack has 2 glide tracks that allow you to extend the rack well out of the oven without touching the sides of the oven walls.

Installing the Gliding rack

With the Gliding rack in the "Closed" position and the oven off, carefully insert the Gliding Rack between the guides until the rack reaches the back.
When using the Gliding Rack in the oven, be sure to pull on the handle of the rack only to slide it in and out. If you grasp the frame while using the rack, the entire Gliding Rack will be removed. Make sure you use oven mitts when handling the Gliding Rack during cooking.

Removing the Gliding rack

With the Gliding rack in the "Closed" position and the oven off and cool, grasp the rack and frame and pull both forward to remove.
CAUTION: Do not install the Gliding rack directly above the Flat rack and Recessed rack. You will not be able to install it properly and the rack could fall.

NOTE: You can install the Gliding rack in any rack positions except the highest (level 7) and lowest (level 1) rack position in the oven.

Using the partition

  • To use twin mode operation, insert the partition.
  • You cannot use the Self-Clean or Steam-Clean functions when the partition is installed in the oven cavity.
  • Handle the partition with both hands.
  • Use oven gloves when inserting or removing the partition.

To Install the Partition into the Oven Cavity

  1. Insert the partition into the 5th rack position of the cavity.
  2. Push the partition in until its back end rests against the back of the cavity.
  3. If the partition is installed correctly, the icon appears on the display.

CAUTION

Range displays "-dC-"

  • Check the partition to see if it is installed correctly.

To Insert the Partition into the Partition Storage Location

1. Open the warming drawer.
2. Tilt the partition up slightly and rest it on the slides on either side of the storage location.
3. Tip the partition down and push it in.

Baking

The oven can be programmed to bake at any temperature from 175 °F to 550 °F. Baking temperature and time will vary depending on the ingredients and the size and shape of the baking pan used. Dark or nonstick coatings may cook faster with more browning.

How to set the temperature

  1. To use twin mode, insert the partition and then press LOWER. If you are using single mode, skip this step.
  2. Press Bake. The default temperature is 350 °F.
  3. Enter the temperature you want on the number pad, eg. 3, 7, 5.
  4. Press START/SET. The temperature display will start to change once the oven temperature reaches 175 °F.
  5. If you want to cancel baking or if you have finished, press OVEN OFF (LOWER OVEN OFF).

Place food in the oven after preheating if the recipe calls for it. Preheating is very important for good results when baking cakes, cookies, pastry, and breads. After the oven has reached the desired temperature, the range will beep 6 times.

NOTE: For performance reasons, the convection fan may be turned on or off during the operation.

How to adjust the temperature while cooking

  1. Press Bake. The display will show the present temperature, eg. 375 °F.
  2. Enter the temperature you want, eg. 425 °F, using the number pad.
  3. Complete the entry by pressing START/SET.

Convection baking

By using the convection bake feature, you will be able to cook faster. Convection baking uses a fan to circulate the oven’s heat evenly and continuously within the oven. This improved heat distribution allows for even cooking and excellent results while using multiple racks at the same time. Foods cooked on a single oven rack will generally cook faster and more evenly with convection baking. Multiple oven rack cooking may slightly increase cook times for some foods, but the overall result is time saved. Breads and pastries brown more evenly. You can program the oven for convection baking at any temperature between 175 °F and 550 °F.

Tips for convection baking

The amount of time you save will vary depending on the amount and type of food you are cooking. When baking cookies or biscuits, you should use pans with no sides or very low sides to allow the heated air to circulate around the food. Using a pan with a dark finish will produce faster cooking times. When using convection baking with a single rack, place the oven rack in position 3 or 4. If cooking on multiple racks, place the oven racks in position 3 and 5. When baking a cake, using the bake mode (not the convection bake mode) will produce better results.

How to set the oven for convection baking

  1. To use twin mode, insert the partition and the press UPPER or LOWER. If you are using single mode (no partition), skip this step.
  2. Press Bake. The default temperature is 350 °F.
  3. Enter the temperature you want, eg. 400 °F, using the number pad.
  4. Press START/SET. The temperature display will start to change once the oven temperature reaches 175 °F. The range will beep 6 times when the oven reaches the adjusted oven temperature.
  5. To turn off or cancel convection baking, press OVEN OFF (UPPER OVEN OFF or LOWER OVEN OFF).

  • The convection oven fan shuts off when the oven door is opened.
  • DO NOT leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element.

NOTE

  • If you leave the oven door open for more than 2 minutes when the oven is on, all heating elements will shut off automatically.
  • When you have finished cooking, the cooling fan will continue to run until the oven has cooled down.

NOTE: For performance reasons, the convection fan may be turned on or off during the operation.

Convection roasting

Convection roasting is good for cooking large tender cuts of meat, uncovered. Heat comes from the top heating element. The convection fan circulates the heated air evenly over and around the food. Meat and poultry are browned on all sides as if they were cooked on a rotisserie. The heated air seals in juices quickly for moist and tender results while, at the same time, creating a rich golden brown exterior.

How to set the oven for convection roasting

  1. To use twin mode, insert the partition and then press UPPER. If you are using single mode (no partition), skip this step.
  2. Press Roast. The default temperature is 350 °F.
  3. Enter the temperature you want, eg. 400 °F, using the number pad.
  4. Press START/SET. The temperature display will start to change once the oven temperature reaches 175 °F. The range will beep 6 times when the oven reaches the adjusted oven temperature.
  5. To turn off or cancel convection roasting, Press OVEN OFF (UPPER OVEN OFF).

  • The convection oven fan shuts off when the oven door is opened.
  • DO NOT leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element.

NOTE

  • If you leave the oven door open for more than 2 minutes when the oven is on, all heating elements will shut off automatically.
  • When you have finished cooking, the cooling fan will continue to run until the oven has cooled down.

NOTE: For performance reasons, the convection fan may be turned on or off during the operation.

Broiling

Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. The high heat cooks quickly and gives a rich, brown outer appearance. Broil mode is best for meats, fish, and poultry up to 1" thick.

How to set the oven for broiling

  1. To use twin mode, insert the partition and then press UPPER. If you are using single mode (no partition), skip this step.
  2. Press Broil once for Hi or twice for Lo. (You can select Hi or Lo by pressing Hi+ or Lo-.) Use Lo to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.
  3. To start broiling, press START/SET. Broil one side until the food is browned. Turn over and broil the other side.
  4. Press OVEN OFF (UPPER OVEN OFF) once you have finished cooking or if you want to cancel broiling.

NOTE

  • This oven is designed for CLOSED DOOR broiling. The oven door must be closed during broiling.
  • If you leave the oven door open for more than 2 minutes when the oven is on, all heating elements will shut off automatically.
  • When you have finished cooking, the cooling fan will continue to run until the oven has cooled down.

CAUTION

Always use this cooking mode with the oven door closed. Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven.

Specialized items

1. Baked potato

Baked potato is specially designed to cook potatoes or sweet potatoes.

2. Grilled chicken

Grilled chicken is specially designed to cook chicken pieces or chicken breasts. To prevent over-browning and drying of the skin, wrap each piece or breast of the chicken in foil.

3. Salmon steak

Salmon steak is specially designed to cook salmon steaks.

4. White fish fillet

White fish fillet is specially designed to cook white fish fillets.

5. Dehydrate (Single Only)

Dehydrate dries food or removes moisture from food via heat circulation. After drying the food, keep it in a cool and dry place. For fruit, adding lemon or pineapple juice or sprinkling sugar on the fruit helps the fruit retain sweetness. See the table below for Dehydrate settings.

6. Bread proof (Single Only)

Bread proof provides an optimal temperature for the bread proofing process, and therefore does not require a temperature adjustment. For the best results, always start the Bread proof option with a cool oven.

CAUTION

  • Do not use Bread proof when the oven temperature is above 125 ̊F. If temperature is above 125 ̊F, this mode won’t be able to use. Wait until the oven cools down.
  • Do not use Bread proof for warming food. The proofing temperature is not hot enough to keep food warm.
  • Place the dough in a heat-safe container on rack position 3 or 4 and cover it with a cloth or with plastic wrap. The plastic wrap may need to be anchored underneath the container so that the oven does not blow the plastic wrap off the dough.
  • To avoid lowering the temperature and extending proofing time, do not open the oven door.

Using the smart control feature

Functions that can be operated from the SmartThings app may not work smoothly if communication condition becomes poor or the product is installed in a place with a weak Wi-Fi signal. Please refer to the following table for the main functions that can be operated from the app.

How to connect the oven

  1. Download and open the SmartThings app on your smart device.
  2. Follow the app’s on screen instructions to connect your range.
  3. Once the process is complete, the connected icon located on your range displays and the app will confirm you are connected.
  4. If the connection icon does not turn on, follow the instruction in the app to reconnect.

To start the oven remotely

  1. Press Smart Control. appears in the display. The oven can now be started remotely with a connected device.

Oven remote control

  • Transfer the oven setting (mode, time, temperature) from the device to the oven.
  • Remotely start the oven (Only available for Electric range).
  • Remotely off the oven.
  • Once cooking starts, you can change the time, temperature remotely.
  • Self clean mode cannot be started remotely.

NOTE

  • Opening the oven door or pressing Smart Control will delete from the display and prevent you from turning the oven on remotely.
  • If is not shown in the display, you can still monitor the oven and cooktop status and turn the oven off.
  • When oven cooking is finished or cancelled, will turn off.

Using the keep warm feature

The keep warm feature will keep cooked food warm for serving up to 3 hours after cooking has finished. After 3 hours, the feature will shut off automatically. You can use the keep warm feature without any other cooking operations or you can set it to activate after a timed or delay timed cooking operation. You should not use this feature to reheat cold food.

How to use the keep warm feature

  1. Press Keep Warm.
  2. Press START/SET.
  3. Press OVEN OFF at any time to turn the feature off.

How to set the oven to activate the keep warm mode after a timed cooking

  1. Set up the oven for Timed cooking. (Refer to the section on the timed cooking feature on page 31.)
  2. Press Keep Warm before pressing START/SET to begin cooking.
  3. Press OVEN OFF at any time to turn the feature off.

Using the options function

This function enables you to control various electronic control options. These options include temp adjust, temp unit, auto conversion, 12 hour or 24 hour time of day, 12 hour energy saving, language, sound on/off, and demo mode. The option menu is only available when the oven is not being used (not cooking).

Temp Adjust

The temperature in the oven has been calibrated at the factory. When first using the oven, be sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, you can correct the temperature in the oven. Before correcting, test a recipe by using a temperature setting that is higher or lower than the recommended temperature. The baking results should help you to decide how much of an adjustment is needed. The oven temperature can be adjusted ±35 °F (±19 °C ).

How to correct the oven temperature

  1. Press Options, and then 1 on the number pad.
  2. Press Options to select higher or lower than the current temperature.
  3. Enter the adjustment you want to make using the number pad. (0-35)
  4. Press START/SET to save the changes.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

Temp Unit (Fahrenheit or Celsius temperature selection)

You can program the oven control to display the temperature in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit.

How to change the display from Fahrenheit to Celsius or Celsius to Fahrenheit

  1. Press Options, and then 2 on the number pad.
  2. Press 1 (Fahrenheit) or 2 (Celsius) on the number pad.
  3. Press START/SET to save the changes.

Auto Conversion

When you use the auto conversion feature, the convection auto conversion feature will automatically convert entered regular baking temperatures to convection baking temperatures. If this feature is activated, the display will show the actual converted (reduced) temperature. For example, if you enter a regular recipe temperature of 350 °F and press Oven Start/Set, the display will show the converted temperature of 325 °F. (Default setting : off)

How to enable or disable the auto conversion feature

  1. Press Options, and then 3 on the number pad.
  2. Press 1 (On) or 2 (Off) on the number pad.
  3. Press START/SET to save the changes.

Time of Day (12hr/24hr)

The oven control can be programmed to display time of day in the 12 hour or 24 hour mode.

The oven has been preset at the factory to display in the 12 hour mode.

How to change between the 12 and 24 hour time of day display

  1. Press Options, and then 4 on the number pad.
  2. Press 1 (12hr) or 2 (24hr) on the number pad.
  3. Press START/SET to save the changes.

12 hour energy saving

If you accidently leave the oven on, this feature will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

How to turn the 12 hour energy saving feature on or off

  1. Press Options, and then 5 on the number pad.
  2. Press 1 (On) or 2 (Off) on the number pad.
  3. Press START/SET to save the changes.

Language

You can select English, French, or Spanish. The default setting is English.

How to change the language on the display

  1. Press Options, and then 6 on the number pad.
  2. Press 1 (EN), 2 (FR) or 3 (SP) on the number pad.
  3. Press START/SET to save the changes.

Sound On/Off

Using Sound On/OFF, you can set the oven controls to operate silently.

How to turn the sound on or off

  1. Press Options, and then 7 on the number pad.
  2. Press 1 (On) or 2 (Off) on the number pad.
  3. Press START/SET to save the changes.

Wi-Fi On/Off

You can turn the range’s Wi-Fi connection on or off.

How to turn the wi-fi on or off

  1. Press Options, and then 8 on the number pad.
  2. Press 1 (On) or 2 (Off) on the number pad.
  3. Press START/SET to save the changes.

NOTE: When you turn the range’s Wi-Fi connection off, Users can’t set to easy setup.

Demo mode

This option is for use by retail establishments for display purposes only. (The heating element does not operate.)

How to enable or disable the demo mode

  1. Press Options, and then 0 on the number pad.
  2. Press 1 (On) or 2 (Off) on the number pad.
  3. Press START/SET to save the changes.

Using the temp probe

For many foods, especially roasts and poultry (beef, chicken, turkey, pork, lamb, etc), measuring the internal temperature is the best way to determine if the food is properly cooked. The temp probe lets you cook meat to the exact internal temperature you want, taking the guess work out of determining whether a piece of meat is done or not. This function can be used with Bake, Convection Bake, or Convection Roast in Single mode.

After the internal temperature of the food reaches 100 °F, the increasing internal temperature will be shown in the display.

How to use the Temp probe

1. Push the tip of the temp probe into the meat as fully as possible, so that the tip is in the center of the meat.

  • Insert the probe completely into the meat as shown in the illustrations. It should not touch bone, fat, or gristle.
  • If you do not fully insert the probe into the meat, the Temp Probe function will not work correctly because the probe will sense the oven temperature, not the temperature of the meat.
  • For bone-in meats, insert the probe into the center of the lowest and thickest portion of the piece.
  • For whole poultry (turkey, large chickens, etc.), insert the probe into the thickest part of the inner thigh, parallel to the leg.
  • If you activate the Keep Warm function to keep the meat warm after you have cooked it using the Temp Probe function, the meat’s internal temperature will exceed the temperature you want.

2. Insert the temp probe plug into the socket on the top side wall of the oven as far as it will go.

3. Select the desired cooking function (Conv.Bake, Conv.Roast, Bake) and temperature.

4. Press Temp Probe to set the desired internal temperature.

5. Set the desired internal temperature by pressing the number pad.

6. If you want to use the Cook time, Delay start, or Keep warm function, set each function.

7. Press START/SET.

8. When the desired internal temperature is reached, the function automatically stops and an alarm sounds.

CAUTION: To protect the temp probe’s tip, be careful not to insert the probe so that the tip protrudes through the surface of the meat. Make sure that the tip is in or near the center of the meat.

CAUTION

  • Do not store the probe in the oven.
  • Do not leave the probe inside the oven during a Self-Cleaing or Broiling cycle.
  • You can permanently damage the probe and it will no longer work.
  • To avoid breaking the probe’s tip, defrost your food completely.
  • Do not use tongs when inserting or removing the probe. Tongs can damage the probe.
  • Use the temp probe for Temp probe function cooking only. Do not use the temp probe for any other purpose.

NOTE

  • If you remove the temp probe while the Temp probe function is operating or insert the temp probe while baking or cooking normally, cooking will stop after 1 minute.
  • If you use the probe to cook frozen food, there are times when it cannot be detected. (Temp probe icon doesn’t show in display.)

Using the sabbath feature

How to use the Sabbath feature

  1. Press Bake. The default temperature is 350 °F.
  2. Enter the temperature you want, eg. 375 °F, by using the number pad.
  3. Press START/SET. The temperature display will start to change once the oven temperature reaches 175 °F.
  4. Press Bake and Touch to Wake-Up at the same time for 3 seconds. The display will show SAb. Once SAb appears in the display, the oven will not beep or display any further changes. You may change the oven temperature once baking has started. Remember that the oven will not beep or display any further changes once the Sabbath feature is engaged.
  5. You can turn the oven off at any time by pressing OVEN OFF. This will turn only the oven off. If you want to deactivate the Sabbath feature, hold down Bake and Touch to Wake-Up at the same time for 3 seconds. Sab will disappear from the display.

You can change the oven temperature, but the display will not change and tones will not sound when a change occurs. (The oven temperature adjustment feature should be used only on Jewish holidays.) After changing the temperature while the unit is in Sabbath mode, there is a 15 second delay before the unit recognizes the change.

You can set the Cook time function before activating the Sabbath feature.

Should you experience a power failure or interruption, the oven will shut off. When power is returned, the oven will not turn back on automatically. SAb will be displayed in the oven control display, but the oven will not operate. Food may be safely removed from the oven while it is still in the Sabbath mode, however the oven cannot be turned back on until after the Sabbath/ Holidays. After the Sabbath observance, turn OFF the Sabbath mode. Press and hold both Bake and Touch to Wake-Up for at least 3 seconds simultaneously to turn the Sabbath mode off. The oven can then be used with all normal functions.

Do not open the oven door or change the oven temperature for about 30 minutes after you have started Sabbath mode to allow the oven to reach the set temperature. Note that, for best performance, the oven fan operates only when the oven temperature is rising.

Do not use the cooktop when the oven is in the Sabbath MODE.

Using the warming drawer

About the warming drawer

The warming drawer will keep hot, cooked foods warm. Always start with hot food. Do not use to warm cold food other than bread, crackers, chips, or dry cereal.

Allow approximately 25 minutes for the warming drawer to preheat.

  • Do not line the warming drawer or pan with aluminum foil. Foil is an excellent heat insulator and will trap heat beneath it. This will impede the performance of the drawer and could damage the interior finish.
  • Do not put liquid or water in the warming drawer.
  • All food placed in the warming drawer should be covered with a lid. When warming pastries or breads, the cover should be vented to allow moisture to escape.
  • Remove serving spoons, etc. before placing containers in the warming drawer.
  • Food should be kept hot in its cooking container or transferred to a heat-safe serving dish.

CAUTION: Plastic containers or plastic wrap will melt if in direct contact with the drawer pan, or a hot utensil. Melted plastic may not be removable and is not covered under your warranty.

Maintaining your appliance

Self-cleaning

This self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off leftover grease and residue completely or reduce them to a finely powdered ash that you can wipe away with a damp cloth.

CAUTION

  • During the self-cleaning cycle, the outside of the range will become very hot to the touch. Do not leave small children unattended near the appliance.
  • Some birds are extremely sensitive to the fumes given off during the self- cleaning cycle of any range. Move birds to another well-ventilated room.
  • Do not line the oven walls, racks, bottom, or any other part of the range with aluminum foil. Doing so will result in poor heat distribution, poor baking results, and cause permanent damage to the oven interior. Aluminum foil will melt and adhere to the interior surface of the oven.
  • Do not force the oven door open. This can damage the automatic door locking system. Use care when opening the oven door after the self-cleaning cycle is complete. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.

Before a self-cleaning cycle

  • We recommend venting your kitchen with an open window or using a ventilation fan or hood during the self- cleaning cycle.
  • Remove the wire rack, broil pan, broil pan insert, all cookware, and any aluminum foil from the oven.
  • Wipe up debris from the oven bottom. (Fig. 1)

-

  • The silver-colored oven racks can be self-cleaned, but they will darken, lose their luster, and become hard to slide.
  • Residue on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled steel-wool pads, or cleansers such as
  • Soft Scrub. Rinse well with clean water and dry.
  • Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, have it replaced. (Fig. 2)
  • Make sure the oven light bulb cover is in place and the oven light is off.

NOTE: Remove oven racks and accessories before starting the self-clean mode.

How to run a self-cleaning cycle

1. Select the length of time for the self-cleaning operation, eg. 3 hours. Press Self Clean once for a 3 hour clean time, twice for a 5 hour clean time, or times for a 2 hour clean time. The default setting is 3 hours.

2. Press START/SET to start the self-cleaning cycle. The motor-driven door lock will engage automatically.

NOTE

  • You will not be able to start a self-cleaning cycle if the control lockout feature is activated or if the oven’s temperature is too hot.
  • The oven door locks automatically. The display will show the cleaning time remaining. It is not be possible to open the oven door until the temperature drops to a safe/cool temperature.
  • The self-cleaning feature will not operate when the warming center is on.

3. When the self-cleaning cycle is done, End will appear in the display and the range will beep 6 times.

How to delay the start of self-cleaning

  1. Press Self Clean. Select the desired self-clean time by pressing Self Clean.
  2. Press Delay Start.
  3. Enter the time you want the clean cycle to start.
  4. Press START/SET. The display will show Delay, Self clean, and the Lock icon. The motor-driven door lock will engage automatically.
  5. The Self-Cleaning cycle will turn on automatically at the set time.

How to turn off the self-cleaning feature

You may find it necessary to stop or interrupt a self-cleaning cycle due to smoke in the oven.

  1. Press OVEN OFF.
  2. You will be able to open the oven door once the oven has cooled down for approximately 1 hour.

After a self-cleaning cycle

  • You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools. (If white spots remain, remove them with a soap-filled steel wool pad and rinse thoroughly with a vinegar and water mixture.)
  • If the oven is not clean after one cycle, repeat the cycle.
  • You cannot set the oven for cooking until the oven is cool enough for the door to unlock.

Steam-cleaning

How to set the oven for steam-cleaning

For light cleaning, the Steam-cleaning function saves time and energy. For heavier- duty cleaning, use the self-cleaning function.

  1. Remove all accessories from the oven.
  2. Pour approximately 10 oz. (300 ml) of water onto the bottom of the empty oven and then close the oven door. Use normal water only, not distilled water.
  3. Press Steam Clean.
  4. Press START/SET. When the operation is complete, the display will blink and a beep will sound.
  5. Press OVEN OFF.
  6. Clean the oven’s interior. There will be a significant amount of water remaining on the bottom of the oven after a steam-cleaning cycle. Remove the residual water with a sponge or soft dry cloth.

NOTE: When steam-cleaning, use exactly 10 oz. of water since this produces the best results.

NOTE: If you press Steam Clean when the oven temperature is above 100 ̊F, Hot will appear in the display. Because this function produces the best results when started while the oven is cool, we recommend that you wait until the oven has cooled down and Hot disappears from the display.

After a steam-cleaning cycle

  • Take care when opening the door before a steam-cleaning procedure has ended. The water on the bottom is hot.
  • Open the oven door and remove the remaining water with a sponge. Do not leave the residual water in the oven for any length of time. Wipe the oven clean and dry with a soft cloth. Do not forget to wipe under the oven door seal.
  • Use a detergent-soaked sponge, a soft brush, or a nylon scrubber to wipe the oven interior. Remove stubborn residue with a nylon scourer. You can remove lime deposits with a cloth soaked in vinegar.
  • If the oven remains dirty, you can repeat the procedure once the oven has cooled.
  • For heavy residue, such as grease left over from roasting, we recommend that you rub detergent into the residue before activating the steam-cleaning function.
  • After cleaning, leave the oven door ajar at a 15° angle to allow the interior enamel surface to dry thoroughly.

Care and cleaning of the oven

Oven vent

  • The oven vent is located below the control panel.
  • This area could become hot during oven use.
  • It is normal for steam to come out of the vent.
  • The vent is important for proper air circulation. Never block this vent.

Cleaning painted parts and decorative trim

  • For general cleaning, use a cloth with hot, soapy water.
  • For more difficult residue and built-up grease, apply a liquid detergent directly onto the area and leave for 30 to 60 minutes. Wipe with a damp cloth and dry. Do not use abrasive cleaners on any of these surfaces. They can scratch.

Cleaning stainless steel surfaces

  1. Shake the bottle of Stainless Steel Appliance Cleaner or Polish well.
  2. Place a small amount of stainless steel appliance cleaner or polish on a damp cloth or damp paper towel.
  3. Clean a small area, rubbing with the grain of the stainless steel if applicable.
  4. Dry and buff with a clean, dry paper towel or soft cloth.
  5. Repeat as necessary.

NOTE

  • Do not use a steel-wool pad. It will scratch the surface.
  • If a mineral oil-based stainless steel appliance cleaner has been used before to clean the appliance, wash the surface with dishwashing liquid and water prior to using the Stainless Steel Appliance Cleaner or Polish.

Oven racks

  • If the racks are left in the oven during a self-cleaning cycle, their color will turn slightly blue and the finish will be dull. After the self-cleaning cycle is complete and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of oil. This will help the racks glide more easily on their tracks.
  • Gliding racks may be cleaned by hand with an abrasive cleaner or steel wool. During cleaning, be careful not to allow water or cleaner to enter the slides on the sides of rack.

NOTE

  • Do not clean in a dishwasher.
  • If the rack becomes hard to remove or replace, lightly wipe the oven rack guides with cooking oil. Do not wipe cooking oil on the slides.
  • If the rack becomes difficult to slide, the rack may need to be lubricated using a graphite lubricant.

To lubricate the slides

1. Remove the rack from the oven. See removing the gliding rack in the USING THE GLIDING RACK section.

2. Fully extend the rack on a table or countertop. Newspaper may be placed underneath the rack for easy cleanup.

3. If there is debris in the slide tracks, wipe it away using a paper towel. (Any graphite lubricant wiped away must be replaced - See steps 4 through 7.
4. Shake the graphite lubricant before opening it. Starting with the left (front and back) slide mechanism of the rack, place four (4) small drops of lubricant on the two (2) bottom tracks of the slide close to the bearing carriers.

5. Repeat for the right (front and back) slide mechanism of the rack.

6. Open and close the rack several times to distribute the lubricant.

7. Replace the cap on the lubricant and shake it again. Turn the rack over and repeat steps 3, 4, 5 and 6.

8. Close the rack, turn rack right- side-up and place in the oven. See installing the gliding rack in the USING THE GLIDING RACK section.

NOTE: Do not spray the gliding rack with cooking spray or other lubricant sprays.

Oven door

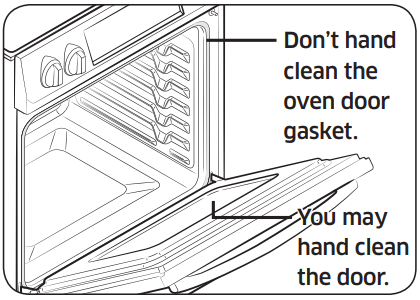

  • Use soap & water to thoroughly clean the top, sides, and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door.
  • DO NOT clean the oven door gasket. The oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.

Care and cleaning of the glass cooktop

Normal daily use cleaning

Use only a ceramic cooktop cleaner. Other creams may not be as effective.

By following these steps, you can maintain and protect the surface of your glass cooktop.

  1. Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.
  2. Daily use of a ceramic cooktop cleaner will help keep the cooktop looking new.
  3. Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
  4. Use a paper towel or a cleaning pad for ceramic cooktops to clean the entire cooktop surface.
  5. Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.

WARNING: DAMAGE to your glass surface may occur if you use scrub pads other than those recommended.

Removing burned-on residue

  1. Allow the cooktop to cool.
  2. Spread a few drops of ceramic cooktop cleaner on the entire burned residue area.
  3. Using a cleaning pad for ceramic cooktops, rub the residue area, applying pressure as needed.
  4. If any residue remains, repeat the steps listed above as needed.
  5. For additional protection, after all residue has been removed, polish the entire surface by applying ceramic cooktop cleaner with a paper towel.

Removing heavy, burned-on residue

  1. Allow the cooktop to cool.
  2. Use a single-edge razor-blade scraper at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to remove the residue.
  3. After scraping with the razor scraper, spread a few drops of ceramic cooktop cleaner on the entire burned residue area. Use a cleaning pad to remove any remaining residue. (Do not scrape the seal.)
  4. For additional protection, after all residue has been removed, polish the entire surface by applying ceramic cooktop cleaner with a paper towel.

Removing metal marks and scratches

  1. Be careful not to slide pots and pans across your cooktop. It will leave marks on the cooktop surface. You can remove these marks by applying ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
  2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop. You should remove this discoloration immediately or it may become permanent.

WARNING: Carefully check the bottoms of pans for roughness that may scratch the cooktop.

Cleaning the cooktop seal

To clean the seal around the edges of the glass, lay a wet cloth on it for a few minutes, then wipe clean with a nonabrasive cleaner.

Potential for permanent damage to the glass surface

  • Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting of the surface of your cooktop. This is not covered under the warranty. You should clean the spill while it is still hot. Take special care when removing hot substances. Refer to the section below.
  • When using a scraper, be sure it is new and the razor blade is still sharp. Do not use a dull or nicked blade.

Cleaning sugary spills and melted plastic

  1. Turn off all surface units. Remove hot pans.
  2. Wearing an oven mitt, use a single-edge razor-blade scraper to move the spill to a cool area of the cooktop. Remove the spill with paper towels.
  3. Any remaining spillover should be left until the surface of the cooktop has cooled.
  4. Don’t use the surface units again until all of the residue has been completely removed.

NOTE: If pitting or indentations in the glass surface have already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.

Removing and re-installing the oven door

How to remove the door

You can remove the upper door the same way you remove the full door.

CAUTION

  • The door is very heavy. Be careful when removing and lifting the door. Do not lift the door by the handle.
  • Turn the power OFF before removing the door.

1. Open the door completely.

2. Pull the hinge locks down toward the door frame to the unlocked position.

3. Firmly grasp both sides of the door at the top. about 5 °

4. Close the door to the door removal position, which is approximately 5 degrees from vertical (Fig. 1).

5. Lift the door up and out until the hinge arm is clear of the slot (Fig. 2).

How to re-install the door

You can replace the upper door the same way you replace the full door.

1. Firmly grasp both sides of the door at the top.

2. With the door at the same angle as the removal position, slide the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully inserted into the bottom of the slot.

3. Open the door fully. If the door will not open fully, the indentation is not inserted correctly in the bottom edge of the slot.

4. Push the hinge locks up against the front frame of the oven cavity into the locked position.

5. Close the oven door.

Removing and re-installing the warming drawer

CAUTION: Turn the power OFF before removing the warming drawer.

How to remove the warming drawer

1. Pull out the drawer until it stops.

2. Locate the locking clips near the back of each full-extension roller guide rail. Using two hands, push down on the left clip and lift up on the right clip to release the clips. Pull the drawer the rest of the way out.

3. Pull the warming drawer away from the range.

How to re-install the warming drawer

1. Position the ends of the full-extension roller guide rails in the side rails of the drawer opening.
2. Push in the drawer to close it and snap the locking clips into place.

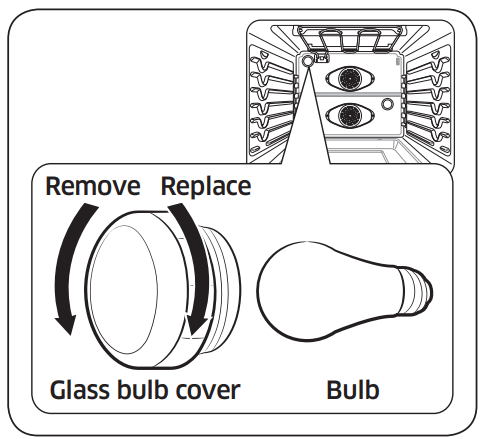

Changing the oven light

The oven light is a standard 40-watt appliance bulb. It will come on when the oven door is open. When the oven door is closed, press the pad to turn it on or off. It will not work during a self-cleaning cycle.

  1. Make sure the oven and the bulb are cool.
  2. Unplug the range or disconnect the power.
  3. Turn the glass bulb cover in the back of the oven counterclockwise to remove.
  4. Turn the bulb counterclockwise to remove it from its socket.
  5. Insert a new 40 watt appliance bulb, and then turn it clockwise to tighten. Replace the bulb cover by turning clockwise.
  6. Plug in the range or reconnect the power.

CAUTION: Before changing your oven light bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel. Make sure the oven and the bulb are cool.

Troubleshooting

Samsung works hard to ensure that you don’t have problems with your new electric range. If you run into unexpected trouble, look first for a solution in the tables below. If you’re still having trouble after trying the suggested solution, call Samsung at 1-800-SAMSUNG (1-800-726-7864).

Installation

ProblemPossible causeSolution
The range is not level.The appliance has been installed improperly.

Place the oven rack in the center of the oven. Place a level on the oven rack. Adjust the leveling legs at the base of the range until the oven rack is level.

Insure the floor is level and strong and stable enough to adequately support the range.

The floor is sagging or sloping.Contact a carpenter to correct the situation.
The kitchen cabinets are not properly aligned and make the range appear to be not level.Insure the cabinets are square and provide sufficient room for installation
The appliance
must be accessed for servicing and cannot be moved easily.
The kitchen cabinets are not square and too close to the appliance.Contact a builder or installer to make the appliance accessible.
Carpet is interfering with movement of the range.Provide sufficient space so the range can be lifted over the carpet.

CONTROL DISPLAY

ProblemPossible causeSolution
The display goes blank.A fuse in your home may be blown or the circuit breaker tripped.Replace the fuse or reset the circuit breaker.
The display flashes.There was a power failure.Reset the clock.

COOKTOP

ProblemPossible causeSolution
The surface units will not maintain a rolling boil or
will not cook
fast enough.
You may be using inappropriate cookware.Use pans which are flat and match the diameter of the surface unit selected.
In some areas, the power (voltage) may be low.Cover the pan with a lid until the desired heat is obtained.
The surface
units will not
turn on.
A fuse in your home may be blown or a circuit breaker may have tripped.Replace the fuse or reset the circuit breaker.
The cooktop controls are set improperly.Check if the correct control is set for the surface unit you are using.
Areas of discoloration on the cooktop.Food spillover was not cleaned.Refer to the section on the care and cleaning of the glass cooktop on page 54.
The surface is hot and the model features a light-colored cooktop.This is normal. The surface may appear discolored when it is hot. This is temporary and will disappear as the glass cools.
The surface
unit frequently
cycles on and
off.
The element will cycle on and off to maintain the power setting.This is normal operation, and not a system failure. Use the range as usual.
The surface
unit stops glowing when
changed to a
lower setting.
This is normal. The unit is still on and hot.
Scratches or abrasions on the cooktop surface.The cooktop is being cleaned improperly.Scratches are not removable. Tiny scratches will become less visible in time as a result of cleaning. Use ceramic glass top cleaning cream. Do not use chemical or corrosive agents. These agents may damage the surface of the product.
Cookware with rough bottoms was used on the cooktop or there were coarse particles (eg. salt or sand) present between the cookware and the surface of the cooktop.To avoid scratches, follow the recommended cleaning procedures. Make sure cookware bottoms are clean before use, and use cookware with smooth bottoms.
Cookware has been slid across the cooktop surface.
Brown streaks
or specks.
Boilovers have been cooked onto the surface.Wait until the surface cools down. Then, use a single-edge razor-blade scraper at approximately a 45° angle against the glass surface to remove the soil.
See the section on the care and cleaning of the glass cooktop on page 54.
Areas of discoloration with metallic
sheen.
Mineral deposits from water and food have been left on the surface of the cooktop.

Remove using a ceramic- glass cooktop cleaning cream.

Use cookware with clean, dry bottoms. Clean the cooktop with a ceramic cleaning agent regularly every week.

"Cracking"
or "popping"
sound.
This is the sound of the metal heating and cooling during both the cooking and self- cleaning functions.This is normal operation, and not a system failure. Use the range as usual.

OVEN

Problem

Possible cause

Solution

The oven will not turn on.The range is not completely plugged into the electrical outlet.Make sure the electrical plug is inserted into a live, properly grounded outlet.
A fuse in your home may be blown or a circuit breaker may have tripped.Replace the fuse or reset the circuit breaker.
The oven controls have been set improperly.See the chapter on operating the oven starting on page 29.
The oven is too hot.Allow the oven to cool.
Incomplete service wiring.Call for service.
Power outage.Check to see if the house lights will turn on. If necessary, call your local
electric company for service.
The oven light will not turn on.The light bulb is loose or defective.Tighten or replace the bulb.
The switch operating the light is broken.Call for service.
The appliance will not turn on.The appliance is not
completely plugged into the electrical outlet or a fuse in your home may be blown or a circuit breaker may have tripped.
Make sure the power cord is plugged into a live, properly grounded outlet. Check the fuse and circuit breakers.
Incomplete service wiring.Call for service.
Power outage.Check to see if the house lights will turn on. If necessary, call your local electric company for service.
The oven
smokes excessively during broiling.
The oven controls have not been set properly.Refer to the section on using the broiler starting on page 40.
The meat has been placed too close to the element.Reposition the rack to provide proper clearance between the meat and the element. Preheat the broil element for searing.
The meat has not been properly prepared.Remove the excess fat from the meat. Cut away fatty edges that may curl, leaving the lean intact.
Grease has built up on oven surfaces.Regular cleaning is necessary when broiling frequently.
Food does not bake or roast properly.The oven controls have not been set correctly.See the chapter on operating the oven starting on page 29.
The oven rack has been positioned incorrectly or is not level.See the section on using the oven racks on page 34.
Incorrect cookware or
cookware of improper size is being used.
The oven sensor needs to be adjusted.See the section on adjusting the thermostat on page 44.
Food does not broil properly.The serving size may not be appropriate.Refer to the cooking guide for serving sizes on page 41, and then try again.
The rack has not been properly positioned.See the broiling recommendation guide on page 41.
The cookware is not suited for broiling.Use suitable cookware.
In some areas, the power (voltage) may be low.

Preheat the broil element for 10 minutes.

See the broiling recommendation guide on page 41.

The oven
temperature is
too hot or too
cold.
The oven sensor needs to be adjusted.See the section on adjusting the thermostat on page 44.
The oven will
not self-clean.
The oven temperature is too high to start a self-clean operation.Allow the range to cool and then reset the controls.
The oven controls have been set incorrectly.See the section on self- cleaning on page 49.
A self-cleaning cycle cannot be started if the oven lockout
feature has been activated or if a radiant surface element is on.
Deactivate the oven lockout (see page 49). Make sure all surface elements are turned off.
Excessive
smoking during
a self-cleaning
cycle.
There is excessive soiling in the oven.Press OFF. Open the windows to rid the room of smoke. Wait until the self-cleaning
cycle is cancelled. Wipe up the excessive soil and then start the self-cleaning cycle again.
The oven door
will not open after a self-
cleaning cycle.
The oven is too hot.Allow the oven to cool.
The oven is not
clean after a
self-cleaning
cycle.
The oven controls were not set correctly.See the section on self- cleaning on page 49.
The oven was heavily soiled.Wipe up heavy spillovers before starting the self- cleaning cycle. Heavily soiled ovens may need to be self- cleaned again or for a longer period of time.
Steam is
coming out of
the vent.
When using the convection feature, it is normal to see
steam coming out of the oven vent.
This is normal operation and not a system failure. Use the range as usual.
As the number of racks or amount of food being cooked
increases, the amount of visible steam will increase.
A burning or
oily odor is
coming from
the vent.
This is normal in a new oven and will disappear in time.

To speed the process, set a self-cleaning cycle for a minimum of 3 hours.

See the section on self- cleaning on page 49.

Strong odor.An odor coming from the insulation around the inside of the oven is normal for the first few times the oven is used.Operate the oven empty on the bake setting at 400 °F for 1 hour.
Fan noise.A convection fan may automatically turn on and off.This is not a system failure
but normal operation.
Oven racks are difficult to slide.The shiny, silver-colored racks were cleaned in a self- cleaning cycle.Apply a small amount of vegetable oil to a paper towel, and then wipe the edges of the oven racks with the paper towel.

DRAWER

Problem

Possible cause

Solution

The drawer does not slide smoothly or dragsThe drawer is out of alignment..Fully extend the drawer and push it all the way in. See the page 48.
The drawer is over-loaded or
the load is unbalanced.
Reduce weight. Redistribute drawer contents.
The Warming
drawer will not
work.
A fuse in your home may be blown or a circuit breaker may have tripped.Replace the fuse or reset the circuit breaker.
The controls are not set correctly.See the chapter on using the warming drawer on page 48.
Excessive
condensation
in the drawer.
There is liquid present in the drawer.Remove the liquid.
Uncovered foods.Cover food with a lid.
The temperature is set too high.Adjust the temperature to a lower setting.
Food dries out
in the warming drawer.
Moisture is escaping.Cover food with a lid.
The drawer is not fully closed.Push the drawer in until the latch engages.

Information codes

OVEN

Displayed
Code
Possible causeSolution
C-d0This code occurs if the control key is short for 1 minute.Press OFF, and then restart the oven. If the problem persists, disconnect all power to the range for at least 30 seconds and then reconnect the power. If
this does not solve the problem, call for service.
C-d1This code occurs if the door lock is mispositioned.
C-F0This code occurs if communication between the Main and Sub PBA is interrupted.
C-F2This code occurs if communication between the Main and Touch is interrupted.
C-20The oven sensor is open when the oven is operating.
The oven sensor is short when the oven is operating.
C-21This code occurs if the internal temperature rises abnormally high.
C-23The temp probe sensor is short when the oven is operating.
C-30The PCB sensor is open when the oven is operating.
The PCB sensor is short when the oven is operating
C-31This code occurs if the PCB
temperature rises abnormally
high.
Call for service
-dC-This code appears if the
partition is inserted or removed while the oven is operating.
Make sure the partition is inserted properly, and then restart the oven.
If the problem persists, disconnect all power to the range for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service.


See other models: NX58K3310SW/AA NX58K3310SB/AA NX58K3310SS/AA NX58K9850SS/AA NX58K9850SG/AA

Samsung NE58K9850WG/AA | File type: PDF | Filename: Samsung NE58K9850WG:AA 5.8 cu. ft. Slide-In Electric Flex Duo™ Range .pdf | Size: 25.09 MB | Language: English, French, Spanish | Other documents: 1 files.

Download User Manual

Product Infomation and Reviews - NE58K9850WG/AA photo

NE58K9850WG AA Photo

Samsung in United States

1-800-726-7864 Mon - Fri: 8AM - 12AM (EST) / Sat - Sun: 9AM - 11PM (EST) Sat - Sun: HOME APPLIANCE 9AM - 6PM (EST)

Samsung NE58K9850WG/AA Questions and Answers

Find answers or Ask a question.
  • Total questions: 1
  • Questions unAnswered : 1

#1 Two questions: is the timer loud enough to hear from another room? Is there a clock on the display and is it big enough. Thanks
No, timer is so very low we cannot hear it in any other room of the house. Have been searching to see if there is an option for volume control.

#2 is there a spill issue of it running down into the controls or down the back?
Yes. Also,the cooktop surface can easily get scratched by placing basic pots or pans on the cooktop.

#3 There are effectively 3 usable ovens. Top small; bottom small; and total oven with divider removed. Can each of these be operated as a conventional oven without the convection feature?
Short answer, yes. If the divider is in, the lower oven will bake or convection bake. with the divider out you have the option of bake, conv. bake, broil, Conv. roast. Top oven is conv. bake/roast only. Also the only way I have found to use probe cook is with the divider out.

#4 My oven is 3months old and the power went off yesterday now my double oven won’t heat up past 175 and keeps flashing “test” the top works just fine? Can you help me figure out what’s going on?
The word "test" displayed on the control panel indicates the unit is in "demo mode". To get the range out of demo mode, follow these steps as outlined on page 45 of the User Manual: 1. Press Options, and then 0 on the number pad. 2. Press 1 (On) or 2 (Off) on the number pad. 3. Press START/SET to save the changes
