Kenmore 74452 5 cu. ft. Gas Range with Convection User Manual

Kenmore®

Gas Range

Use & Care Guide

Guía de uso y cuidada

English / Español

Model/Modelos: 790.7445*

P/N 808530403 Rev E

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

www.sears.com

Table of Contents

Cooking Recommendations........................................................................... 9

Before Setting Surface Controls............................................................... 12

Setting Surface Controls............................................................................. 15

Before Setting Oven Controls ................................................................... 16

Oven Controls ............................................................................................. 17

Self Clean ..................................................................................................25

Care and Cleaning ..................................................................................... 28

Before You Call ........................................................................................... 32

Oven Baking .............................................................................................32

Solutions to Common Problems ..............................................................33

KENMORE LIMITED WARRANTY

WITH PROOF OF SALE the following warranty coverage applies when this appliance is correctly installed, operated and main-

tained according to all supplied instructions.

One Year on Appliance

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective appli-

ance will receive free repair or replacement at option of seller.

Lifetime on Cooktop Gas Burners, Cooktop Electric Elements and Oven Door Glass

FOR AS LONG AS IT IS USED from the date of sale, a free replacement will be supplied for a defective cooktop gas burner, cook-

top electric element or oven door glass. If the defect appears within the first year, a new burner, element or door glass will be

installed at no charge. If the defect appears after the first year, a new burner, element or door glass will be supplied but not

installed at no charge. This Lifetime warranty covers only the burner, element or door glass, and does not apply to any other related

component or mechanism. You are responsible for the labor cost of burner or element installation after the first year from the date

of sale.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

All warranty coverage applies for only 90 DAYS from the sale date if this appliance is ever used for other than private household

purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.

3. Discoloration of cooktop surfaces resulting from normal use.

4. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.

5. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and

maintenance.

6. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with

house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.

7. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including

installation that was not in accord with electrical, gas or plumbing codes.

8. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained

according to all supplied instructions.

9. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse

or use for other than its intended purpose.

10. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners,

chemicals or utensils other than those recommended in all instructions supplied with the product.

11. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.

12. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate

certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied

warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year on the appliance and

for as long as used on cooktop gas burners, cooktop electric elements or oven door glass, or the shortest period allowed by law

Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation

of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these

exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

This manual contains important safety

symbols and instructions. Please pay

attention to these symbols and follow all

instructions given.

Do not attempt to install or operate your

appliance until you have read the safety

precautions in this manual. Safety items

throughout this manual are labeled with a

WARNING or CAUTION statement based on

the risk type.

Warnings and important instructions

appearing in this guide are not meant to

cover all possible conditions and situations

that may occur. Common sense, caution, and

care must be exercised with installing, main-

taining, or operating your appliance.

DEFINITIONS

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this

symbol to avoid possible injury or death.

- Indicates a potentially

hazardous situation which, if not avoided,

may result in death or serious injury.

- Indicates a potentially

hazardous situation which, if not avoided,

may result in minor or moderate injury.

IMPORTANT - Indicates installation, opera-

tion, maintenance, or valuable information

that is not hazard related.

NOTE - Indicates a short, informal reference

– something written down to assist the

memory or for future reference.

If the information in this manual

is not followed exactly, a fire or explosion

may result causing property damage,

personal injury or death.

FOR YOUR SAFETY:

—Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

—WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do

not use any phone in your building.

• Immediately call your gas supplier from

a neighbor's phone. Follow the gas

supplier's instructions.

• If you cannot reach your gas supplier,

call the fire department.

—Installation and service must be

performed by a qualified installer,

servicer or the gas supplier.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR

UNPACKING AND INSTALLATION

IMPORTANT - Read and follow the below

instructions and precautions for unpacking,

installing, and servicing your appliance:

Remove all tape and packaging before using

the appliance. Destroy the carton and plastic

bags after unpacking the appliance. Never

allow children to play with packaging

material. Do not remove the wiring label and

other literature attached to the appliance.

Do not remove model/serial number plate.

Cold temperatures can damage the elec-

tronic control. When using this appliance for

the first time, or when the appliance has not

been used for an extended period of time, be

sure the appliance has been in temperatures

above 32ºF (0ºC) for at least 3 hours before

turning on the power to the appliance.

Never modify or alter the construction of the

appliance by removing the leveling legs,

panels, wire covers, anti-tip brackets/screws,

or any other part of the appliance.

Be sure to have an appropriate foam-type

fire extinguisher available, visible, and easily

accessible located near the appliance.

- Air curtain or other overhead

range hoods which operate that operate by

blowing a downward air flow onto a range

or cooktop, shall not be used in conjunction

with gas ranges or cooktops other than when

the range or cooktop and hood have been

designed, tested, and listed by an indepen-

dent test laboratory for use in combination

with each other.

Tip Over Hazard

To check if the anti-tip bracket is installed

properly, use both arms and grasp the rear

edge of the range back. Carefully attempt

to title range forward. When properly

installaed, the range should not tilt forward.

Refer to the anti-tip bracket installation

instructions supplied with your range for

proper installation.

Range

leveling leg

Anti-tip

bracket

• A child or adult can tip the

range and be killed.

• Verify the anti-tip device

has been installed to ﬂoor or

wall.

• Ensure the anti-tip device is re-engaged to

ﬂoor or wall when the range is moved.

• Do not operate the range without the

anti-tip device in place and engaged.

• Failure to follow these instructions can

result in death or serious burns to children

and adults.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

GROUNDING INSTRUCTIONS

- Avoid fire hazard or electrical

shock. Failure to follow this warning may

cause serious injury, fire, or death.

- Avoid fire hazard or electrical

shock. Do not use an adapter plug, use an

extension cord, or remove grounding prong

from the power cord. Failure to follow this

warning may cause serious injury, fire, or

death.

Proper Installation—Be sure your appliance is

properly installed and grounded by a

qualified technician. In the United States,

install in accordance with the National Fuel

Gas Code ANSI Z223.1/NPFA No. 54, latest

edition and National Electrical Code NFPA

No. 70 latest edition, and local electrical

code requirements. In Canada, install in

accordance with CAN/CGA B149.1 and

CAN/CGA B149.2 and CSA Standard C22.1,

Canadian Electrical code, Part 1-latest

editions and local electrical code require-

ments. Install only per installation instructions

provided in the literature package for this

appliance.

For personal safety, this appliance must be

properly grounded. For maximum safety, the

power cord must be securely connected to an

electrical outlet or junction box that is the

correct voltage, is correctly polarized and

properly grounded, and protected by a

circuit breaker in accordance with local

codes.

It is the personal responsibility of the

consumer to have the appropriate outlet or

junction box with the correct, properly

grounded wall receptacle installed by a

qualified electrician. It is the responsibility

and obligation of the consumer to contact a

qualified installer to assure that the electrical

installation is adequate and is in confor-

mance with all local codes and ordinances.

This appliance is equipped with a 3-prong

grounding plug for your protection against

shock hazard and should be plugged directly

into a properly grounded receptacle. Do not

cut or remove the grounding prong from this

plug.

For personal safety, the appliance must be

properly grounded. For maximum safety, the

power cord must be plugged into an elec-

trical outlet that is correctly polarized and

properly grounded.

If a 2-prong wall receptacle is the only

available outlet, it is the personal responsi-

bility of the consumer to have it replaced

with a properly grounded 3-prong wall

receptacle, installed by a qualified techni-

cian.

Conversion to (L.P.) Gas

This appliance allows for conversion to

Liquefied Petroleum (L.P.) Gas.

- Personal injury or death from

electrical shock may occur if the conversion

to L.P. gas is not made by a qualified installer

or electrician. Any additions, changes or

conversions required in order for this

appliance to satisfactorily meet the applica-

tion needs must be made by a qualified tech-

nician.

If L.P. conversion is needed, contact your

local L.P. Gas provider for assistance.

See the installation instructions packaged

with this appliance for complete installation

and grounding instructions.

Figure 1: Grounding type wall receptacle

Do not cut, remove, or

bypass the grounding

plug under any

circumstances.

Grounding type

wall receptacle

Power supply cord

with 3-prong

grounding plug

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR USING THE

APPLIANCE

- Storage In or On Appliance—

Flammable materials should not be stored in

an oven or microwave, near surface burners

or elements, or in the storage or warmer

drawer (if equipped). This includes paper,

plastic, and cloth items, such as cookbooks,

plastic ware, and towels, as well as

flammable liquids. Do not store explosives,

such as aerosol cans, on or near the appli-

ance.

- Do not leave children alone -

Children should not be left alone or unat-

tended in the area where appliance is in use.

They should never be allowed to sit or stand

on any part of the appliance, including the

storage drawer, lower broiler drawer, warmer

drawer, or lower double oven.

- Do not store items of interest

to children in the cabinets above the

appliance or on the backguards of ranges.

Children climbing on or near the appliance

to reach items could be seriously injured.

- Do not allow children to climb

or play around the appliance. The weight of

a child on an open oven door may cause the

appliance to tip, resulting in serious burns or

other injury. An open drawer when hot may

cause burns.

- Stepping, leaning, or sitting on

the door or drawers of this appliance can

result in serious injuries and also cause

damage to the appliance.

- Never cover any slots, holes or

passages in the oven bottom or cover and

entire rack with materials such as aluminum

foil. Doing so blocks air flow through the

oven and may cause carbon monoxide

poisoning. Aluminum foil linings may also

trap heat, causing a fire hazard.

- Do not use oven or warmer

drawer (if equipped) for storage.

- Never use your appliance as a

space heater to heat or warm the room.

Doing so may result in carbon monoxide

poisoning and overheating of the appliance.

- When heating fat or grease,

watch it closely. Grease may catch fire if it

becomes too hot.

- Do not use water or flour on

grease fires. Smother fire or flame or use dry

chemical or foam-type extinguisher. Cover

the fire with a pan lid or use baking soda.

- Use dry potholders. Moist or

damp potholders on hot surfaces may result

in burns from steam. Do not let potholders

touch hot cooking areas. Do not use towels or

other bulky cloths.

- Do not heat unopened food

containers - Build-up of pressure may cause

container to burst and result in injury.

- Wear proper apparel - Loose-

fitting or hanging garments should never be

worn while using the appliance. Do not let

clothing or other flammable materials

contact hot surfaces.

- Do not touch surface burners

or elements, areas near these burners or

elements, interior surfaces of the oven, or the

warmer drawer (if equipped). Surface

burners and elements may be hot even

though they appear cool. Areas near surface

burners and elements may become hot

enough to cause burns. During and after use,

do not touch, or let clothing or other

flammable materials touch these areas until

they are cool. These areas may include the

cooktop, surfaces facing the cooktop, oven

vent areas, oven door, and oven window.

- Do not attempt to operate the

appliance during a power failure. If the

power fails, always turn off the appliance. If

the appliance is not turned off and the power

resumes, electric surface elements may

resume operation when power is restored.

Once the power resumes, reset the clock and

the oven function.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR USING YOUR

GAS COOKTOP

- Use Proper Flame Size —

Adjust flame size so it does not extend

beyond the edge of the utensil. The use of

undersized utensils will expose a portion of

the burner flame to direct contact and may

result in ignition of clothing. Proper relation-

ship of utensil to flame will also improve effi-

ciency.

Know which knob or key controls each

surface heating area. Place cookware with

food on the cooking area before turning it

on. Turn the cooking area off before

removing the cookware.

Use proper pan size. This appliance is

equipped with one or more surface units of

different sizes. Select cookware with flat

bottoms that match the surface unit heating

element. The use of undersized cookware

may expose a portion of the flame to direct

contact and may result in the ignition of

clothing or other items. Using the proper

cookware on the cooking areas will improve

efficiency.

Always turn knob to the full LITE position

when igniting top burners. Visually check that

burner has lit. Then adjust the flame so it

does not extend beyond the edge of the

utensil.

To reduce the risk of burns, ignition of

flammable materials, and spillage due to

unintentional contact with the utensil, the

handle of the utensil should be positioned so

that it is turned inward, and does not extend

over adjacent surface burners

Never leave surface burners unattended at

high heat settings — Boil overs cause

smoking and greasy spill overs that may

ignite, or a pan that has boiled dry may melt.

Glazed cooking utensils — Only certain

types of glass, glass/ceramic, ceramic,earth-

enware, or other glazed utensils are suitable

for cook top service without breaking due to

the sudden change in temperature. Check the

manufacturer’s recommendations for cook

top use.

When you are flaming foods under a venti-

lating hood, turn the fan on.

IMPORTANT INSTRUCTIONS FOR USING YOUR

OVEN

Protective liners—Do not use aluminum foil,

aftermarket oven liners, or any other

materials or devices to line oven bottom,

oven racks, or any other part of the appli-

ance. Only use aluminum as recommended

for baking, such as lining cookware or as a

cover placed on food. Any other use of

protective liners or aluminum foil may result

in a risk of electric shock or fire or a short

circuit.

Use care when opening oven door, lower

oven door, or warmer drawer (some models).

Stand to the side of the appliance when

opening the door of a hot oven. Let hot air or

steam escape before you remove or replace

food in the oven.

Keep oven vent ducts unobstructed. Touching

surfaces in this area when the oven is on may

cause severe burns. Do not place plastic or

heat-sensitive items on or near the oven vent.

These items can melt or ignite.

Placement of oven racks - Always place oven

racks in desired location while oven is cool. If

rack must be moved while oven is hot, do not

let potholder contact hot burner or element

in oven. Use potholders and grasp the rack

with both hands to reposition. Remove all

cookware and utensils before moving the

rack.

Do not use a broiler pan without its insert.

Broiler pans and inserts allow dripping fat to

drain away from the high heat of the broiler.

Do not cover the broiler insert with aluminum

foil; exposed fat and grease could ignite.

Do not cook food on the oven bottom.

Always cook in proper cookware and always

use the oven racks.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR APPLIANCE

- Before manually cleaning any

part of the appliance, be sure all controls are

turned off and the appliance is cool.

Cleaning a hot appliance can cause burns.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

Clean the appliance regularly to keep all

parts free of grease that could catch fire. Do

not allow grease to accumulate. Greasy

deposits in the fan could catch fire.

Always follow the manufacturer’s recom-

mended directions for use of kitchen cleaners

and aerosols. Be aware that excess residue

from cleaners and aerosols may ignite,

causing damage and injury.

Clean ventilating hoods frequently - Grease

should not be allowed to accumulate on

hood or filter. Follow the manufacturer’s

instructions for cleaning vent hoods.

IMPORTANT INSTRUCTIONS FOR SELF CLEANING

OVENS

Do not clean the oven door gasket. The door

gasket is essential for a good seal. Care

should be taken not to rub, damage, or move

the gasket.

Do not use oven cleaners. No commercial

oven cleaner or oven liner protective coating

of any kind should be used in or around any

part of the appliance.

Use the self clean cycle to clean only the

parts listed in this manual.

Before using self clean, remove the broiler

pan, any food, utensils, and cookware from

the oven, storage drawer or warming drawer

(if equipped). Remove oven racks unless

otherwise instructed.

Some birds are extremely sensitive to the

fumes given off during the self clean cycle of

any oven. Move birds to another well-venti-

lated room.

IMPORTANT INSTRUCTIONS FOR SERVICE AND

MAINTENANCE

Do not repair or replace any part of the

appliance unless specifically recommended

in the manuals. All other servicing should be

done only by a qualified technician. This

reduces the risk of personal injury and

damage to the appliance.

Always contact your dealer, distributor,

service agent, or manufacturer about

problems or conditions you do not under-

stand.

Ask your dealer to recommend a qualified

technician and an authorized repair service.

Know how to disconnect the power to the

appliance at the circuit breaker or fuse box

in case of an emergency.

Remove the oven door from any unused oven

if it is to be stored or discarded.

Do not touch a hot oven light bulb with a

damp cloth. Doing so could cause the bulb to

break. Handle halogen lights (if equipped)

with paper towels or soft gloves. Disconnect

the appliance or shut off the power to the

appliance before removing and replacing

the bulb.

California Residents: for cancer

and reproductive harm information, visit

www.P65Warnings.ca.gov

PRODUCT RECORD

In this space below, record the date of

purchase, model and serial number of your

product. You will find the model and serial

number printed on an identification plate.

See Figure 2 for serial plate location.

Model No. __________________________

Serial No. ___________________________

Date of Purchase _____________________

Save sales receipt for future reference.

To locate the serial plate, open storage

drawer (some models) or warmer drawer

(some models). The serial plate is attached to

the lower right oven frame.

Figure 2: Serial plate location

Cooking Recommendations

Bakeware

The material of bakeware affects how evenly and quickly it transfers heat from the pan to the food.

Material Attributes Recommendation

Shiny metal bakeware Shiny, aluminum, and non-coated bakeware

is the best for even heating. It is suitable for

all baked goods.

Recommended cooking temperatures and

times are based on shiny metal bakeware.

Dark metal bakeware Dark bakeware cooks hotter than shiny

bakeware.

Reduce the cooking temperature by 25° F

(13-14° C) when using dark bakeware.

Glass bakeware Glass bakeware cooks hotter than shiny

bakeware.

Glass is convenient, as the same piece of

bakeware can be used for cooking, serving,

and storing food.

Reduce the cooking temperature by 25° F

(13-14° C) when using glass bakeware.

Insulated bakeware Insulated bakeware cooks cooler than shiny

bakeware.

Insulated bakeware is designed for baking

in gas ovens.

Increase the cooking temperature by 25° F

(13-14° C) when using insulated bakeware.

Cooking Recommendations

Cooking Conditions

Conditions in your kitchen can affect the performance of your appliance when cooking food.

Condition AttributesRecommendation

Aging cookware As pans age and become discolored, cooking

times may need to be reduced slightly.

If food is too dark or overcooked, use the minimum cook

time in the recipe or packaging.

If food is too light or undercooked, use the middle to

maximum cook time in the recipe or packaging.

High altitude Air is drier and air pressure is lower.

Water boils at a lower temperature, and liquids

evaporate faster.

Foods may take longer to bake.

Doughs may rise faster.

Adjust cooking temperature, cooking time, or recipes as

needed.

Increase amount of liquid in baking recipes.

Increase cook time on cooktop. Cover dishes to reduce

evaporation.

Increase bake time or oven temperature.

Reduce amount of baking soda or baking powder in

recipe. Reduce rising time or punch down dough and allow

it to rise twice.

Cooking Results:

Small adjustments may fix a problem with food not being as done as you like.

Result Recommendation

Food too light Use the middle to maximum cook time recommended on packaging or recipe.

Food too dark Use the minimum cook time recommended on packaging or recipe.

Cooking Tips:

Use these additional tips to get the best results from your appliance.

Cooking Tips

Baking

Rack placement Follow the instructions in “Oven Controls” on starting on page 17. When using only one rack, place the rack

so the food is in the center of the oven.

Preheat Fully preheat the oven before baking items like cookies, cakes, biscuits and breads. Insert food immediately

after the beep.

Checking food Use the window and oven light when checking food. Opening the door may reduce baking performance.

Food placement Allow at least 2 inches (5 cm) of space between bakeware for proper air circulation.

Broiling/Roasting

Broiling pan For best results when broiling, use a broil pan with a broil pan insert designed to drain the fat from the food,

help avoid spatter, and reduce smoking. The broiler pan will catch grease spills, and the insert helps prevent

grease splatters.

Note: If a broiler pan and insert are not supplied with this appliance, they may be purchased from Sears.

Call 1-844-553-6667 and order broiler pan kit 5304442087.

Cooking Recommendations

Convection Cooking

Convection

attributes

Convection cooking uses a fan to circulate hot air around the oven and food. It browns food more evenly and

reduces hot spots in the oven.

Convection saves time when using multiple racks or cooking several food items at once.

Convection bake Reduce cooking temperature by 25° F (13-14° C) from the recipe unless the recipe is written for convection

baking.

Preheat the oven for best results.

Cooking Tips

Before Setting Surface Controls

Check burner cap placement before operating the

surface burners

To prevent flare-ups and avoid creation of

harmful by-products, do not use the cooktop without all burner

caps properly installed to insure proper ignition and gas flame

size.

It is very important to be sure that all surface burner caps and

burner grates are properly installed and in the correct locations

before operating the cooktop burners.

Important notes:

• Always keep surface burner caps in place whenever using a

surface burner.

• When placing the burner caps, be sure that all burner caps

are seated firmly and rest level on top of burner heads.

• For proper flow of gas and ignition of burners do not allow

spills, food, cleaning agents or any other material to enter

the gas orifice port opening.

On round style burners, the burner cap lip (See Figure 3) should

fit snug into the center of burner head and rest level.

Refer to Figure 4 for correct and incorrect burner cap place-

ment.

Once in place, you may check the fit by gently sliding the

burner cap from side to side to be sure it is centered and firmly

seated (See Figure 5). When the burner cap lip makes contact

inside the center of the burner head you will be able to hear the

burner cap click. Please note that the burner cap should NOT

move off the center of the burner head when sliding from side to

side.

Check and be sure that all oval style (some models) burner caps

are correctly in place on oval burner heads.

Installing Burner Grates

Surface elements may appear to have cooled

after they have been turned off. The surface element may still

be hot and burns may occur if the surface element is touched

before it has cooled sufficiently.

Make sure the burner grates are properly placed on the cooktop

before using the surface burners. The grates are designed to

rest inside the recess on the cooktop.

Figure 3: Burner cap lip placement

Figure 4: Burner cap placement

Burner cap lip

Burner cap

Burner head

Correct burner cap

placement

Incorrect burner cap

placement

Correct burner cap

placement

Incorrect burner cap

placement

Figure 5: Checking the fit

Figure 6: Burner grates placement

Before Setting Surface Controls

To install burner grates, place grates flat-side down and align

into the cooktop recess. Grates should rest flush against each

other and against the sides of the recess (See Figure 6).

Using proper cookware

Do not place flammable items such as plastic

salt and pepper shakers, spoon holders or plastic wrappings on

the cooktop when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if placed

too close to the range cooktop.

Important:

Do not place aluminum foil, or any material that can melt on the

range cooktop. If these items melt they may damage the

cooktop.

Important:

The size and type of utensil used, and the amount and type of

food being cooked will influence the burner flame setting

needed for best cooking results.

Cookware Material Types

The cookware material determines how evenly and quickly heat

is transferred from the surface element to the pan bottom. The

most popular materials available are:

Aluminum - Excellent heat conductor. Some types of food will

cause it to darken (Anodized aluminum cookware resists staining

and pitting).

Copper - Excellent heat conductor but discolors easily (See

Aluminum).

Stainless - Slow heat conductor with uneven cooking results. Is

durable, easy to clean and resists staining.

Cast Iron - A slow heat conductor however will retain heat very

well. Cooks evenly once cooking temperature is reached.

Porcelain-enamel on metal - Heating characteristics will vary

depending on base material.

Glass - Slow heat conductor.

Setting Proper Burner Flame Size

Never extend the flame beyond the outer edge

of the cooking utensil. A higher flame wastes energy, and

increases your risk of being burned by the flame.

The color of the flame is the key to proper burner adjustment. A

good flame is clear, blue and hardly visible in a well-lighted

room. Each cone of flame should be steady and sharp. Adjust or

clean burner if flame is yellow-orange.

For most cooking: start on the highest setting and then turn to a

lower setting to complete the process. Use the recommendations

in Table 1 as a guide for determining proper flame size for

various types of cooking.)

For deep fat frying: use a thermometer and adjust the surface

knob accordingly. If the fat is too cool, the food will absorb the

fat and be greasy. If the fat is too hot, the food will brown so

quickly that the center will be under cooked. Do not attempt to

deep fat fry too much food at once as the food will neither

brown or cook properly.

For best cooking results, cook-

ware should have flat bottoms

that rest level on the surface

burner grate. Before using

cookware, check for flatness by

rotating a ruler across the bot-

tom of the cookware (See

Figure 7).

Figure 7: Testing cookware

Figure 8: Correct and incorrect flame settings

Table 1: Flame size recommendations

Flame Size* Type of Cooking

High flame Start most foods; bring water to a boil;

pan broiling

Medium flame Maintain a slow boil; thicken sauces;

gravies; steaming

Low flame Keep foods cooking; poach; stewing

*These settings are based for medium-weight metal or

aluminum pans with lids. Settings may vary when using

cookware made from different materials.

correct

flame setting

incorrect

flame setting

Before Setting Surface Controls

Home Canning

Canning can generate large amounts of steam.

Use extreme caution to prevent burns. Always raise the lid to

vent steam away from you. Safe canning requires that harmful

micro-organisms are destroyed and the jars are sealed

completely. When canning in a water bath canner, a gentle but

steady boil must be maintained continuously for the required

time.

Be sure to read and observe all the following points when home

canning with your appliance. Check with the USDA (United

States Department of Agriculture) Web site and be sure to read

all the information they have available as well as follow their

recommendations for home canning procedures.

• Use only quality flat bottom canners when home canning.

Use a straight-edge to check canner bottom.

• Use only a completely flat bottom canner with no ridges

that radiate from the bottom center when home canning.

Heat is spread more evenly when the bottom surface is flat.

• Make sure the diameter of the canner does not exceed 1

inch beyond the surface element markings or burner. It is

recommended to use smaller diameter canners on electric

coil and ceramic glass cooktops and to center canners on

the burner grates.

• Start with hot tap water to bring water to boil more quickly.

• Use the highest heat seating when first bringing the water to

a boil. Once boiling is achieved, reduce heat to lowest

possible setting to maintain that boil.

• Use tested recipes and follow instructions carefully. Check

with your local Cooperative Agricultural Extension Service

or a manufacturer of glass jars for the latest canning infor-

mation.

• It is best to can small amounts and light loads.

• Do not leave water bath or pressure canners on high heat

for an extended amount of time.

• Alternate surface units between each batch to allow the

units and surrounding surfaces to cool down. Try to avoid

canning on the same burner unit all day.

Setting Surface Controls

Setting Surface Burners

Your gas appliance may be equipped with different sized

surface burners. The ability to heat food quicker and in larger

volumes increases as the burner size increases. It is important to

select cookware that is suitable for the amount and type of food

being prepared.

The smaller SIMMER burner (on some models) is best suited for

simmering delicate sauces, etc.

The standard size burners may be used for most surface cooking

needs. Some models are equipped with a center burner.

The larger POWER burners (on some models) or TURBO BOIL

burner (on some models) are recommended for bringing large

quantities of liquid to temperature and when preparing larger

quantities of food.

To set surface burners:

1. Place cooking utensil on center of surface burner grate. Be

sure the cooking utensil sets stable on the burner grate.

2. Push the desired surface control knob in and turn counter-

clockwise out of the OFF position (See Figure 9).

3. Release the surface control knob and rotate to the LITE

position. Visually check that the burner has lit.

4. Once the burner has a flame, push the control knob in and

turn counterclockwise to the desired flame size. Use the

control knob markings and adjust the flame as needed.

Important notes:

• Do not cook with the surface control knob left in the LITE

position. The electronic ignitor will continue to spark if the

control knob setting remains in the LITE position .

• When setting any surface control knob to the LITE position,

all electronic surface ignitors will spark at the same time.

However, only the surface burner you are setting will ignite.

• Never place or straddle a cooking utensil over two different

surface cooking areas at the same time. This can cause

uneven heating results.

• In the event of an electrical power outage, the surface

burners can be lit manually. Use caution when lighting

surface burners manually. To light a surface burner, hold a

lit match to the burner head, then slowly turn the surface

control knob to LITE. After burner lights push in and turn

knob to desired setting.

Do not place flammable items such as plastic

salt and pepper shakers, spoon holders or plastic wrappings on

the cooktop when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if placed

too close to the range cooktop.

Do not place aluminum foil, or ANY material

that can melt on the range cooktop. If these items melt they may

permanently damage the cooktop surface.

When operating the oven, it is possible for

residual heat from the oven to build-up and over time to eventu-

ally transfer to the surface control knobs located directly above

the oven door.

Figure 9: Surface control knob

Before Setting Oven Controls

Oven vent location

The oven vent is located below the control panel (See Figure 10).

When the oven is on, warm air passes through this vent. This

venting is necessary for proper air circulation in the oven and

good baking results. Do not block oven vent.

Do not line the oven walls, racks, bottom or any

other part of the range with aluminum foil. Doing so will destroy

heat distribution, produce poor baking results and cause

permanent damage to the oven interior. Aluminum foil will melt

to the interior of the oven.

Always use pot holders or oven mitts when using

the oven. When cooking, the oven interior and exterior, as well

as the oven racks, will become very hot which can cause burns.

Removing, replacing, and arranging flat or offset oven

racks

To Arrange - Always arrange the oven racks when the oven is

cool (prior to operating the oven).

To Remove - Pull the oven rack straight forward until it reaches

the stop position. Lift up front of oven rack slightly and slide out.

To Replace - Place the oven rack on the rack guides on both

sides of oven walls. Tilt the front of oven rack upward slightly

and slide the oven rack back into place. Be sure oven racks are

level before using.

Oven Rack Descriptions

• Flat oven racks (or the flat handle oven rack) may be used

for most cooking needs and may be placed in most oven

rack positions.

• The offset oven rack (some models) provides additional

stepdown positions from the standard flat rack design. The

offset design positions the base of the rack about 1/2 of a

rack position lower than the flat rack and may be used in

most oven rack positions.

• To maximize oven cooking space, place the bottom oven

rack (some models) in the lowest rack position for baking or

roasting large cuts of meat.

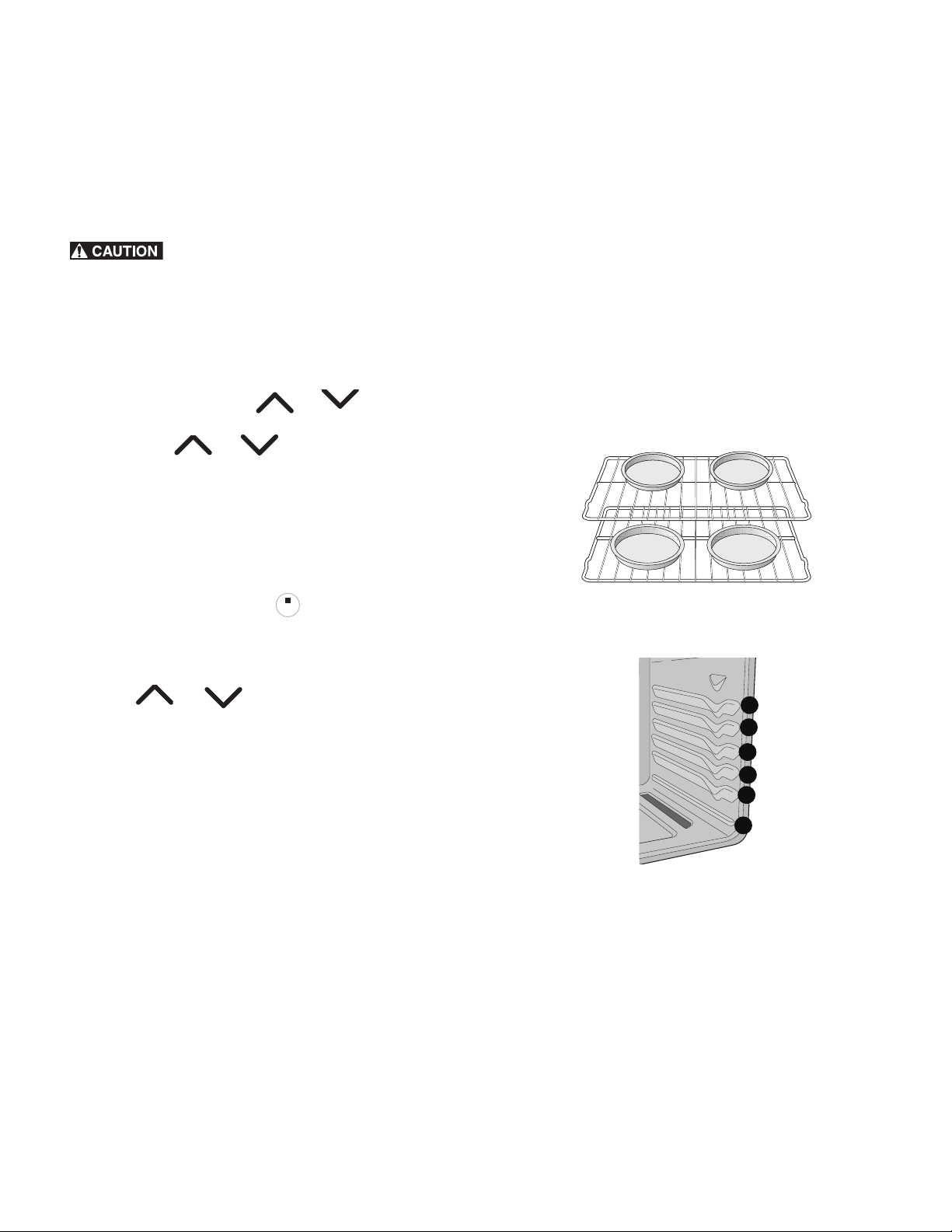

Air circulation in the oven

For best baking results allow 2-4" (5-10 cm) around the

cookware for proper air circulation and be sure pans and

cookware do not touch each other, the oven door, sides or back

of the oven cavity. Hot air must be able to circulate around the

cookware in the oven for even heat to reach around the food.

Figure 10: Do not block oven vent location

oven vent

Figure 11: Oven rack types

at

oven rack

at handle

oven rack

bottom

oven rack

oset

oven rack

Oven Controls

1. Bake - Selects Bake function.

2. Broil - Selects Broil function.

3. Convec Bake - Use to set convection feature.

4. Warm & Hold - Use to keep cooked food warm and at

serving temperature for up to 3 hours.

5. Self Clean - Use to select 2, 3, or 4hr Self-Clean cycle.

6. LIGHT - Use to turn internal oven light on and off.

7. PREHEAT indicator light - Is on when oven is preheating.

Stays on until the oven reaches the desired temperature.

8. OVEN LOCK indicator light - Is on when door locks or

unlocks and when oven lockout is active.

9. OVEN ON indicator light - Glows each time the oven

cycles on to maintain the set oven temperature.

10. START - Use to start all cooking functions.

11. Up / Down arrows - Use with the function keys to accept

settings and adjust temperature and times.

12. STOP - Cancels any active oven function except clock and

timer.

13. Timer ON/Off - Use to set and cancel the timer and to set

the Continuous Bake feature.

14. Add 1 Minute - Use to add one minute to the timer. This

works with the kitchen timer and does not affect any cook

time or start time functions.

15. Cook Time - Use to set a specific amount of time needed

for cooking. Automatically cancels cooking process at end

of set time.

16. Delay Start - Use with Bake and Self Clean functions to

program a delayed start bake or delayed start self clean

cycle.

17. CLOCK - Use with arrow keys to set time of day.

18. Oven Lock - Press and hold for 3 seconds to lock oven door

and oven functions.

Minimum and Maximum Control Settings

All of the features listed have minimum and maximum time and

temperature settings that may be entered into the control. An

entry acceptance beep will sound each time a key is touched

(the Oven Lockout tone is delayed by 3 seconds). An entry error

tone (three short beeps) will sound if the entry of the tempera-

ture or time is below the minimum or above the maximum

settings for the feature.

15 16

Table 2: Minimum and maximum control settings

Feature Min. Temp or Time Max. Temp or Time

Bake 170°F (77°C) 550°F (288°C)

Broil LO Hi

Timer 1 minute 11 hrs. 59 mins.

Self Clean 2 Hours 4 Hours

Warm & Hold 170°F (77°C) 3 Hours

Cook Time 1 Minute 11:59

Delay Time 12 Hr. 1:00 12:59

Delay Time 24 Hr. 0:00 23:59

Convec Bake 300°F (148°C) 550°F (288°C)

Clock 12 Hr. 1:00 12:59

Clock 24 Hr. 0:00 23:59

Oven Controls

Setting Clock

When the appliance is first powered up or when the power sup-

ply to the appliance has been interrupted, 12:00 will flash in

the display. Press STOP or Set Clock to stop the flashing and set

the clock.

The time of day must first be set before operating the oven.

To set the clock

1. Press Set Clock once. CLO appears in display.

2. Press or and the time appears in the display.

Continue to hold arrow key until the correct time of day

appears in the display.

3. Press START to accept time of day.

Important note:

The time of day cannot be changed when the oven is set for

cooking.

Changing Temperature Display (ºF or ºC)

The electronic oven control is set to display °F (Fahrenheit) when

shipped from the factory. The display may be changed to show

either Fahrenheit or ºC (Celsius) oven temperatures.

To change temperature display mode from °F to °C or from

°C to °F

1. Press Broil. HI appears in the display.

2. Press and hold Broil until F or C appears in the display.

3. Press either or to toggle between F or C mode

choices.

4. Press START to accept change. The display will return to

the time of day.

Important note:

The temperature display mode cannot be changed when the

oven is set for cooking.

Changing between continuous bake setting or 12-Hour

Energy Saving feature

The oven control has a factory-preset 12-Hour Energy Saving

feature that will turn the oven off automatically if the oven is

left on for more than 12 hours. The control may be programmed

to override this feature to continuously bake.

To change to continuous bake mode

1. Press and hold Timer On/Off until the control beeps once

(about 6 seconds). 12 hr will appear in display.

2. Use Up/Down key to toggle between continuous bake (- -

hr) and 12hr Energy Saving (12hr).

3. Press START to accept the change.

Oven Lock

The OVEN LOCK feature allows you to lock the oven portion of

the appliance while the oven is not in use.

To activate OVEN LOCK feature:

1. Be sure the door is completely closed.

2. Press and hold OVEN LOCK for 3 seconds. Loc will

appear in the display. The OVEN LOCK indicator light will

flash while the motor driven door latch begins locking the

oven door. Do not open the door during this time. Allow 15

seconds for the door to completely lock. Once oven door is

locked, the time of day will appear in the display.

To cancel the OVEN LOCK feature

1. Press and hold OVEN LOCK for 3 seconds. The OVEN

LOCK indicator light will flash and the motor driven door

latch will begin to unlock. Do not open the door at this time.

The door will unlock completely in about 15 seconds.

2. The oven control keys will be available and the oven door

can be opened again.

Important notes:

• To avoid possible damage to the oven door latch

mechanism, do not attempt to open of close the oven door

whenever the OVEN LOCK indicator light is flashing.

• If a control key is pressed when the OVEN LOCK is active,

Loc will appear in the display as a reminder that the oven

keys are inactive when the OVEN LOCK feature is active.

Oven Controls

Setting Timer

The timer may be set from 1 minute to 11 hours and 59 minutes.

To set the timer

1. Press Timer On/Off .

2. Press and hold to increase the time. Release

when the desired time appears in the display.

3. Press START and timer will begin to count down.

4. When the set time has run out, the Timer will sound with 3

beeps and will continue to beep 3 times every 60 seconds

until Timer On/Off is pressed.

To change time remaining in Timer, press and hold or

to increase or decrease any time remaining.

To cancel the Timer before at any time, press Timer On/Off

once.

Important notes:

• The timer does not start or stop the cooking process. It

serves as an extra timer in the kitchen that will beep when

the set time has run out. The timer may be used alone or

when any other oven function is active.

• The indicator light located above Timer On/Off will glow

when the timer is active.

• The timer will display hours and minutes until 1 hour

remains. When less than 1 hour remains, the display will

count down in minutes and seconds. Once the timer has less

than 1 minute remaining only seconds will display.

• If the timer is active when oven cooking, the minute timer

will show in the display by default. To view information of

any other active oven function, press the key once for the

active function to view status.

Operating Oven Light

The oven light will automatically turn on when the oven door is

opened.

Press LIGHT on the control panel to turn the oven light ON or

OFF whenever the oven door is closed. The oven light will not

operate during a self clean cycle. The oven light is located at

the upper left rear wall of the oven interior and is covered with

a glass shield held in place by a wire holder. The glass shield

protects the bulb from high temperatures and should always be

in place when the oven is in use.

To replace the interior oven light see Replacing oven light in

the Care and Cleaning section.

Silent or audible control mode

The appliance can be set for silent operation. If the silent mode

is selected, most of the sounds associated with adjusting controls

will be silent. But sounds will be heard when the timer ends and,

when a baking function or preheating ends.

To change to the silent mode:

1. Press and hold Delay Start until the control beeps once

(about 3 seconds). The present mode appears as OFF

(silent operation) or ON (for audible operation).

2. Use or to toggle between audible or silent

modes. To save press START when the desired mode of

operation appears in the display

Oven Controls

Setting Bake

Use the bake function whenever the recipe calls for baking

using normal temperatures. A reminder tone will sound when the

set bake temperature is reached. Bake may be programmed

for any temperature from 170°F to 550°F (77°C to 288°C).

The factory preset bake temperature is 350°F (177°C).

Always use pot holders or oven mitts when using

the oven. When cooking the oven interior, oven racks and cook-

top will become very hot which can cause burns.

To set Bake

1. Arrange oven racks and close oven door.

2. Press Bake. 350° appears in display.

3. Within 15 seconds, press or . The display

will show the default oven temperature of 350°F (177°C).

By pressing or , the oven temperature may

be adjusted in 5°F increments (1°C).

4. Press START when the desired temperature appears. The

oven will begin heating to the selected temperature. When

the oven temperature reaches the set temperature, the PRE-

HEAT indicator light will turn off, and the oven control will

beep three times.

To cancel bake at anytime, Press .

To change the oven temperature after Bake has started:

1. Press Bake. The current set oven temperature will display.

2. Press or to increase or decrease the cur-

rent set temperature to the new oven temperature.

Important notes:

• The oven will bake no longer than 12 hours. If you wish to

bake for a longer period, see “Setting Timer” on page 19

for detailed information.

Baking tips

• Fully preheat the oven before cooking items like cookies,

biscuits, and breads.

• When using any single rack, position the rack so that the

food is in the center of the oven.

• For best results when baking cakes or cookies using two

oven racks, place racks in positions 3 and 5 (See Figure 13).

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven temperature

and cook time to prevent overbrowning of some foods. Dark

bakeware is recommended for pies. Shiny bakeware is

recommended for cakes, cookies, and muffins.

• For best results when baking cakes or cookies using two

oven racks, place pans as shown in Figure 12.

STOP

Figure 12: Baking on multiple levels

Figure 13: Oven rack positions

Oven Controls

Setting Cook Time

Use Cook Time to set the amount of time needed for baking.

The oven will turn on immediately and stop automatically after

the set cook time ends.

To program the oven to begin baking immediately and to

shut off automatically:

1. Be sure that the clock displays the correct time of day. and

arrange oven racks and close oven door.

2. Press Bake. 350° appears in display.

3. Within 15 seconds, press or . The display will

show the default oven temperature of 350°F (177°C). By

pressing or , the temperature may be

adjusted in 5°F increments (1°C). Press START to accept.

4. Press Cook Time. 00 will appear in display.

5. Press or to reach the desired cook time.

6. Press START to accept. When the oven temperature

reaches the set temperature, the PRE HEAT indicator light

turns off and the oven control will beep once.

7. To cancel at anytime, press .

When the cook time runs out, End will appear in the display.

The oven control will beep three times every minute as a

reminder until STOP is pressed.

To change the oven temperature or cook time after baking

has started

1. Press Bake (for oven temperature) or Cook Time.

2. To adjust temperature or cook time, press or

and release when the desired temperature or cook time

setting appears in the display.

Important notes:

• Cook Time and Delay Start may be set with Bake but are

not available for use with Broil.

• While baking with Cook Time, press Cook Time to display

any cook time remaining.

• Cook Time and Delay Start can be set with Bake or

Convection (on some models).

• The maximum Cook Time or Delay Start setting is 11 hours

and 59 minutes.

Setting Delay Start

Delay Start allows you to set a delayed starting time to the

oven baking or cleaning functions.

Food Poisoning Hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness. Foods that can easily spoil such as

milk, eggs, fish, meat, or poultry should be chilled in the refrig-

erator first. Even when chilled, they should not stand in the oven

for more than 1 hour before cooking begins and should be

removed promptly when finished cooking.

Always use pot holders or oven mitts when using

the oven. When cooking the oven interior, oven racks and cook-

top will become very hot which can cause burn

To program oven for a delayed starting time and to shut off

automatically

1. Be sure that the clock displays the correct time of day.

2. Arrange oven racks and close oven door.

3. Press Bake. 350° appears in display.

4. Within 15 seconds, press or . The display will

show the default oven temperature of 350°F (177°C). By

pressing or , the oven temperature may be

adjusted in 5°F increments (1°C). When desired tempera-

ture is reached press START to accept.

5. Press Cook Time. 00 will appear in display.

6. Press the or to set the desired cook time. Then

press START to accept.

7. Press Delay Start. The time of day will appear in the dis-

play. Press or until the desired starting time

appears in the display and press START.

8. The oven will turn on at the set delayed starting time and

begin heating. When the oven temperature reaches the set

temperature, the PRE HEAT indicator light will turn off and

the oven control will beep three times.

To cancel at anytime, press .

To change the oven temperature or cook time after baking

has started:

1. Press Bake (for oven temperature) or Cook Time.

2. Press or and release when the desired tem-

perature or cook time setting appears in the display.

When the cook time runs out, End will appear in the display.

The oven control will beep three times every minute until is

pressed.

STOP

STOPSTOP

Oven Controls

Convec Bake

Convection functions use a fan to circulate the oven's heat

uniformly and continuously around the oven. This improved heat

distribution allows for even cooking and browning results. It also

gives better baking results when using multiple oven racks at the

same time. Heated air flows around the food from all sides,

sealing in juices and flavors. Breads and pastry brown more

evenly. Convec Bake may be set for any oven temperature

between 300°F (148°C) and 550°F (288°C).

Suggestions for Convec Bake:

• For optimum cooking results, it is recommended to preheat

the oven when baking foods such as cookies, biscuits, and

breads.

• Reduce oven temperature 25°F from recipe’s recommended

oven temperature. Follow the remainder of the recipe’s

instructions using the minimum recommended cook time.

• For best results when using a single oven rack, place rack in

position 3 or 4 (See Figure 14). When using two oven racks,

place in positions 3 and 5 When using three oven racks,

place in positions 2, 4, and 6 (use offset rack only in

position 6).

• Dark or dull pans absorb more heat than shiny bakeware

resulting in dark or overbrowning of foods. It may be

necessary to reduce the oven temperature or cook time to

prevent overbrowning of some foods. Dark pans are recom-

mended for pies. Shiny pans are recommended for cakes,

cookies, and muffins.

Important notes:

• The convection fan on a gas range will not begin rotating

until Convec Bake has been into the cycle for six minutes.

• If the oven door is opened when Convec Bake is active, the

convection fan will stop rotating until the oven door is

closed. D-0 will appear in the display.

• When using Convec Bake, cook time reductions may vary

depending on the amount and type of food being cooked.

• Glass cookware may require reduced temperature.

Minimize opening of the oven door. Opening the door will

reduce the temperature in the oven.

To set Convec. Bake with a default oven set temperature of

350°F:

1. Arrange oven racks and close oven door.

2. Press Convec Bake. 350 appears in display.

3. By pressing or , the oven temperature may be

adjusted in 5°F increments (1°C). When setting for convec-

tion, be sure to set the oven temperature between 300°F

(149°C) and 550°F (288°C).

To cancel Convec Bake at any time, press .

Figure 14: Air movement using convection

Figure 15: Baking on multiple levels

STOP

Oven Controls

Setting Broil

Use the broil function to cook meats that require direct exposure

to flame heat for optimum browning results. The Broil function is

factory preset to broil at Hi. The suggested broil settings are

recommendations only. Increase or decrease broiling times or

move to a different rack position to suit for doneness.

Always use pot holders or oven mitts when using

the oven. When cooking, the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

Should an oven fire occur, close the oven door

and turn the oven off. If the fire continues, use a fire extin-

guisher. Do not put water or flour on fire. Flour may be explo-

sive.

Important notes:

• Always arrange oven racks when the oven is cool.

• When broiling, always pull the oven rack out to the stop

position before turning or removing food.

• For best results when broiling, use a broil pan with broil pan

insert designed to drain the fat from the food and help

avoid spatter and reduce smoking.

To set Broil:

1. Arrange the oven racks when cool. For optimum browning

results, preheat oven for 5 minutes before adding food.

2. Position cookware in oven. Keep the oven door closed.

3. Press Broil. HI will appear in display.

4. Press or until the desired broil setting level

appears in the display. Press for HI broil or

for LO broil setting.

5. Press START. Broil on one side until food is browned. Turn

and broil food on other side. When finished broiling, press

STOP. .

Figure 16: Broiler pan/insert Figure 17: Rack positions

To purchase them, call Sears at 1-844-553-6667 and order

broil pan kit 5304442087.

Table 3: Suggested Broil Settings

Food Rack Position Setting

Cook time in minutes

1st side 2nd side

Doneness

Steak, 1 inch thick 6th* Hi 6 5 Rare

Steak, 1 inch thick 5th or 6th* Hi 8 6 Medium

Steak, 1 inch thick 4th or 5th* Hi 10 8 Medium-well

Steak, 1 inch thick 4th or 5th* Hi 11 10 Well

Pork Chops, 3/4 inch thick 5th Hi 12 8 Well

Chicken, bone-in 4th Lo 25 15 Well

Chicken, boneless 5th Lo 10 8 Well

Fish 5th Hi as directed Well

Shrimp 4th Hi as directed Well

Hamburger, 1 inch 6th Hi 8 5 Rare

Hamburger, 1 inch 5th or 6th Hi 12 10 Medium

For steaks, cook times are suggestions and should only be used as a guide.

The U.S. Department of Agriculture states, "Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some

food poisoning organisms may survive." (Source: Safe Food Book, Your Kitchen Guide, USDA). The lowest temperature recommended by the

USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC).

Oven Controls

Warm & Hold™

Warm & Hold will keep cooked foods warm and ready for

serving for up to 3 hours after cooking has finished. After 3

hours, Warm & Hold will shut off automatically. Warm & Hold

should only be used with foods that are already at serving

temperatures. Warm & Hold will maintain the oven temperature

at 170°F (77°C).

To set Warm & Hold:

1. If needed, arrange oven racks and place cooked food in

oven.

2. Press Warm & Hold. HLd will appear in the display. If no

other keys are touched within 25 seconds, the request for

Warm & Hold will clear.

3. Press START.

4. Warm & Hold will automatically turn off after 3 hours.

To turn Warm & Hold off at any time, press .

To set Warm & Hold to start after a Timed Bake automatically

1. Press Bake. Press or to set temperature.

2. Press START.

3. Press Cook Time. Press or to set time.

4. Press START.

5. Press Warm & Hold.

6. Warm & Hold is set to turn on automatically after the

Timed Bake or Delay Timed Bake has finished. The Warm &

Hold indicator light will glow indicating that the Warm &

Hold feature is set to start when the timed bake is finished.

Adjusting oven temperature

The appliance has been factory calibrated and tested to ensure

an accurate baking temperature, known as the User Preference

Offset (UPO). For the first few uses, follow your recipe times

and temperature recommendations carefully. If you think the

oven is cooking too hot or too cool for your recipe times, you

may adjust the control so the oven cooks hotter or cooler than

the oven temperature displayed.

The oven temperature may be increased as much as +35°F

(+19°C) or decreased -35°F (-19°C) from the factory cali-

brated settings.

To adjust oven temperature:

1. Press Bake and hold for 3 seconds. The UPO value will

appear in the display with a degree sign.

2. The display now indicates the amount of degrees offset

from the original factory temperature setting. If the control

still has the original factory calibration, the display will

3. The temperature may be adjusted up or down 35°F (19°C),

in 5°F (1°C) increments by pressing and holding or

. Adjust until the desired amount of temperature off-

set appears in the display and press START to save.

4. If the STOP key is pressed during the programming mode,

the UPO value will remain unchanged.

Important notes:

• Oven temperature adjustments made will not change the

Broil or Self-Clean operating temperatures.

• Do not use oven thermometers such as those found in

grocery stores to check the temperature settings inside your

oven. These oven thermometers may vary as much as 20°F

to 40°F degrees from actual temperatures.

• The oven temperature adjustment may be made if your

oven control has been set to display °C temperatures.

Minimum and maximum settings for °C is plus (+) or minus

(-) 19°C.

• If the display mode is set for °C, adjustments made will be

in 1°C increments on each press of or .

STOPSTOP

Oven Controls

Self Clean

A self cleaning oven cleans itself with high temperatures (well

above normal cooking temperatures), which eliminate soils com-

pletely or reduces them to a fine powdered ash you can wipe

away afterwards with a damp cloth.

The Self Clean function allows you to select three different

cleaning times from 2, 3, or 4 hours. A 3-hour cleaning time is

best used for normal cleaning; 2-hour time for light soils, and a

4-hour clean time for heavier stubborn soils.

Read before starting Self Clean. Be sure to read all following

caution and important statements before starting a self clean

cycle.

Do not leave small children unattended near

appliance. During self clean cycle, the outside of the oven can

become very hot and cause burns if touched.

Do not line the oven walls, racks, oven bottom,

or any part of the range with aluminum foil. This will cause per-

manent damage to the oven interior and destroy heat distribu-

tion, and will met to the oven interior.

Do not force the oven door open. This will

damage the automatic door locking system. Use caution when

opening the oven door after the self clean cycle ends. The oven

may still be very hot and cause burns. To avoid possible burns,

stand to side of oven when opening door to allow steam or hot

air to escape.

The health of some birds is extremely sensitive

to fumes given off during the self clean cycle of any range.

Move birds to a well ventilated room.

Important notes:

• Completely remove all oven racks and any accessories

from oven cavity to avoid damage to oven racks. If the

oven racks are not removed they may discolor. Remove all

items from the oven and cooktop including cookware,

utensils and any aluminum foil. Aluminum foil will not

withstand high temperatures from a self clean cycle and

will melt.

• Do not use oven cleaners or oven protective coatings in or

around any part of the oven interior. Clean any soil from

the oven frame, the door liner outside the oven door gasket,

and the small area at the front center of the oven bottom

(See Figure 18). These areas heat sufficiently to burn soil

on. Clean using soap and water prior to starting Self Clean.

• Remove any excessive spills. Any spills on the oven bottom

should be wiped up and removed before starting a Self

Clean cycle. To clean use hot, soapy water and a cloth.

Large spills can cause heavy smoke or fire when subjected

to high temperatures. Do not allow food spills with high

sugar or acid content (such as milk, tomatoes, sauerkraut,

fruit juices, or pie fillings) to remain on the surface as they

may leave a dull spot even after cleaning.

• Do not clean the oven door gasket. The woven material in

the gasket is essential for a good seal. Care should be

taken not to rub, damage, or remove the oven door gasket.

Doing so could cause damage to the door gasket and

compromise the performance of the oven.

Important notes:

• The kitchen area should be well ventilated using an open

window, ventilation fan, or exhaust hood during the first

Self Clean cycle. This will help eliminate the normal odors.

• Do not attempt to open the oven door when the OVEN

LOCK indicator light is flashing. Allow about 15 seconds for

the motorized door latch mechanism to completely lock or

unlock the oven door.

• When the clean time finishes, the oven door will remain

locked until the range has cooled sufficiently. In addition to

the clean time that was programmed, you must allow about

1 additional hour for the oven to cool before you will be

able to open the oven door.

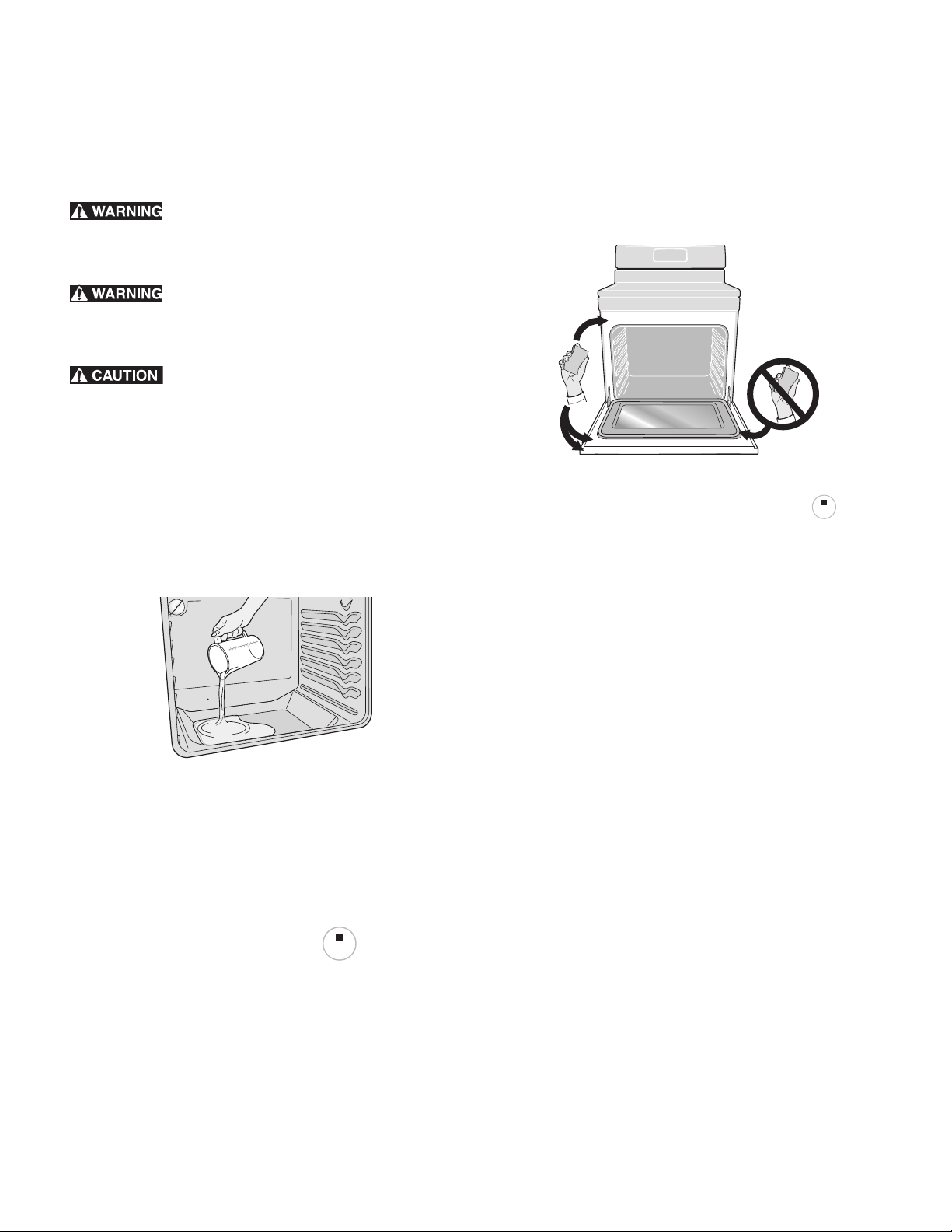

Figure 18: Areas to clean and to avoid

Oven Controls

Setting Self Clean

To set Select Clean to start immediately:

1. Be sure the oven in empty and all oven racks are removed.

Remove all items from the cooktop. Be sure the oven door is

completely closed.

2. Press Self Clean.

3:00 appears in the display.

3. To change to a 2 hour clean time, press . 2:00

appears in the display. To select a 4 hour clean time, press

. 4:00 appears in the display.

4. After selecting the clean time, press START to activate Self

Clean. The OVEN LOCK indicator light will light, and CLn

will appear in the display.

When Self Clean begins the cleaning cycle, the motorized door

latch mechanism will automatically start to lock the oven door,

and the OVEN LOCK indicator light will flash. Do not open the

oven door when the OVEN LOCK indicator light is flashing.

Allow about 15 seconds for the oven door to completely lock.

Once the oven door has locked, the OVEN LOCK indicator light

will glow steady. When CLn will appears in the display, Self

Clean is active.

When Self Clean is finished:

Use caution when opening the oven door after

self cleaning. The oven may still be very hot and can cause

burns. To avoid possible burns, stand to the side of the oven

when opening the oven door to allow hot air or steam to

escape.

1. The time of day will appear in the display window, and the

and the OVEN LOCK indicator light will continue to glow.

2. Once the oven has cooled down (about 1 hour) and the

OVEN LOCK indicator light has turned off, the oven door

may be opened.

3. When the oven interior has completely cooled, wipe away

any residue or powdered ash with a damp cloth or paper

towel.

Delayed Start Self Clean

To start Delay Start Self Clean:

1. Be sure the oven is empty and all oven racks are removed.

Remove all items from the cooktop. Be sure oven door is

completely closed.

2. Be sure the clock shows the correct time of day.

3. Press Delay Start.

4. Press and hold to scroll to the time desired to start

the self clean cycle. Press START when the desired start

time is displayed.

5. Press Self Clean. 3:00 appears in the display.

6. To select a 2 hour clean time, press . 2:00 appears

in the display. To select a 4 hour clean time, press .

4:00 appears in the display.

7. After selecting the desired clean time, press START. Self

Clean is set to activate. The OVEN LOCK indicator light will

turn on, and the oven door will lock in advance of the start-

ing time. Once the starting time is reached, CLn will appear

in the display.

If it becomes necessary to stop Self Clean when active:

1. Press .

2. If Self Clean has heated the oven to a high temperature,

allow enough time for the oven to cool and for the OVEN

LOCK indicator light to turn off. When this indicator light

turns off, the oven door may be opened.

3. Restart Self Clean, if needed.

Important notes:

• If Self Clean is active and a power failure occurs, the oven

may not have thoroughly cleaned. This would depend on

how much cleaning time had elapsed before the power

failure. If needed after power is restored, set Self Clean

again.

STOPSTOP

Oven Controls

Steam Clean

Steam cleaning works best for spot cleaning and light soils on

the oven bottom. Steam clean may also be used before manu-

ally cleaning the oven.

Do not set the cleaning temperature higher than

the temperature listed in these instructions. Higher temperatures

will dry the steam too soon and may lead to burns or serious

injury when cleaning.

Do not attempt to wipe out the oven before the

cooling off period or attempt to shorten the cooling off period.

Doing so may lead to burns or other serious injury when

cleaning.

Do not add ammonia, oven cleaners, or any

other household cleaners or chemicals to the water used for

steam cleaning.

To set the controls for steam clean:

1. Oven should be at room temperature. Remove all racks and

oven accessories.

2. Scrape or wipe loose debris from the oven bottom.

3. Pour 8 oz (235 ml) of distilled or filtered water onto the

oven bottom (See Figure 19). Close the oven door.

4. Press Bake. Enter 170ºF (77ºC) using the arrow keys

5. Set the minute timer for 20 minutes.

6. Allow the oven to heat. Do not open the oven door while the

oven is heating.

7. An alert will sound when the timer is finished. Press Timer

ON/Off to stop the timer and press to return to the

clock.

8. Set the minute timer for 10 minutes to allow for a cool-down

period. Do not attempt to wipe out the oven before a 10

minute cool-down period.

9. An alert will sound when the timer is finished. Press Timer

ON/Off to stop the timer.

10. Stand to the side of the range out of the way of escaping

vapor

when opening the oven door.

11.

Wipe oven cavity and bottom. Do not clean oven door gas-

ket

(See Figure 20).

To stop the steam cleaning cycle at any time, press .

Important notes:

• Always stay close to the oven when steam cleaning, so you

can hear the timer alert.

• For best results, wipe out oven immediately after the cool-

down period is complete.

• Removal of especially stubborn or baked-on soils may

require a manual cleaning.

• Some condensation or water vapor may appear close to

the oven vent, and some water may remain on the oven

bottom. This is normal. Wipe with a soft cloth or sponge

when the cool-down period is complete.

• The oven gasket may become damp; do not wipe dry.

Open door to broil position and allow to air dry.

• Local water sources often contain minerals (hard water) and

will leave deposits on the oven cavity surfaces. If this occurs,

wipe cavity surfaces with diluted vinegar or lemon juice.

Use distilled or filtered water.

• If the door is opened during steam cleaning or cool-down

period, steam will escape and the oven may be more

difficult to clean. Keep oven door closed during steam

cleaning.

Figure 19: Pour water onto the oven bottom

STOP

Figure 20: Do not clean the oven door gasket

STOP

Care and Cleaning

Before cleaning any part of the appliance, be

sure all controls are turned off and the appliance is cool.

If ammonia or appliance cleaners are used, they

must be removed and the appliance must be thoroughly rinsed

before operating. Follow manufacturer's instructions and provide

adequate ventilation.

Remove spills and any heavy soiling as soon as possible.

Regular cleaning will reduce the difficulty of major cleaning

later.

Surface or Area Cleaning Recommendation

Aluminum and vinyl Using a soft cloth, clean with mild dish detergent and water. Rinse with clean water, dry and polish with a

soft, clean cloth.

Painted and plastic control knobs

Painted body parts

Painted decorative trims

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water.

Rinse with clean water, dry and polish with a soft, clean cloth. Glass cleaners may be used, but do not

apply directly to surface; spray onto cloth and wipe.

Control panel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water. Do

not spray liquids directly on the oven control and display area. Do not use large amounts of water on the

control panel - excess water on the control area may cause damage to the appliance. Do not use other

liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will damage the finish.

Control knobs Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water. To

remove control knobs: turn to the OFF position, grasp firmly, and pull off the shaft. To replace knobs after

cleaning, line up the OFF markings and push the knobs into place.

Stainless Steel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water.

Rinse with clean water, dry with a soft clean cloth. Do not use cleaners containing abrasives, chlorides,

chlorine, or ammonia.

Easy Clean Stainless Steel

Black Stainless Steel

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water.

Rinse with clean water, dry with a soft clean cloth. Do not use appliance cleaner, stainless steel cleaner, or

cleaner containing abrasives, chlorides, chlorine, or ammonia. These cleaners may damage the finish.

Porcelain-enameled broiler pan and

insert

Porcelain door liner

Porcelain body parts

Rinse with clean water and a damp cloth. Scrub gently with a soapy, non-abrasive scouring pad to

remove most spots. Rinse with a 50/50 solution of clean water and ammonia. If necessary, cover difficult

spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse and wipe dry with a clean cloth.

Remove all cleaners or future heating could damage the porcelain. Do not allow food spills with a high

sugar or acid content (milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on porcelain

surfaces. These spills may cause a dull spot even after cleaning.

Self-cleaning oven interior Before setting a self-clean cycle, clean soils from the oven frame, areas outside the oven door gasket, and

the small area at the front center of the oven bottom. See “Setting Self Clean” on page 26.

Oven door Use mild dish detergent and water or a 50/50 solution of vinegar and water to clean the top, sides, and

front of the oven door. Rinse well. Glass cleaner may be used on the outside glass of the door. Ceramic

smoothtop cleaner or polish may be used on the interior door glass. Do not immerse the door in water. Do

not spray or allow water or cleaners to enter the door vents. Do not use oven cleaners, cleaning powders,

or any harsh abrasive cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. The oven door gasket is made of a woven material which is essential

for a good seal. Do not rub, damage, or remove this gasket.

Care and Cleaning

General Cleaning

Refer to this chapter for more detailed information about

cleaning specific parts of the range.

Before manually cleaning any part of the

range, be sure all controls are turned off and the range is cool.

The range may be hot and can cause burns.

Ammonia must be rinsed before operating the

oven. Provide adequate ventilation.

Aluminum foil and utensils

Never cover any slots, holes, or passages in the

oven bottom or cover an entire oven rack with materials such as

aluminum foil. Doing so blocks air flow through the oven and

may cause carbon monoxide poisoning. Aluminum foil linings

may trap heat, causing a fire hazard.

Protective Liners — Do not use aluminum foil to

line the oven bottom. Only use aluminum foil as recommended

in this manual. Improper installation of these liners may result in

risk of electric shock, or fire.

• Aluminum foil - Use of aluminum foil on a hot cooktop can

damage the cooktop. Do not use thin aluminum cooking

utensils or allow aluminum foil to touch the surface burners

under any circumstances.

• Aluminum utensils - The melting point of aluminum is much

lower than that of other metals. Care must be taken when

aluminum pots or pans are used on the cooktop. If

aluminum pans are allowed to boil dry when using the

cooktop, the utensil will be damaged or destroyed.

Cleaning the Cooktop and Surface Burners

To avoid possible burns, do not attempt any of

the cooktop cleaning instructions provided before turning OFF

all of the surface burners and allow them to completely cool.

Any additions, changes or conversions required

in order for this appliance to satisfactorily meet the application

needs must be made by an authorized qualified agency.

Routinely clean the cooktop. Wipe with a clean, damp cloth and

wipe dry to avoid scratches. Keeping the surface burner head

ports and slots clean will prevent improper ignition and an

uneven flame.

Cleaning recessed and contoured areas of cooktop

If a spill occurs on or in the recessed or contoured areas, blot up

spill with an absorbent cloth. Rinse with a clean, damp cloth and

wipe dry.

Cleaning surface burner grates

• Clean only after the grates are completely cool.

• Use nonabrasive plastic scrubbing pad and mild abrasive

cleanser or clean in the dishwasher.

• Food soils containing acids may affect the finish. Clean

immediately after the grates are cool.

• Thoroughly dry grates immediately following cleaning.

Cleaning burner caps

• Remove caps from burner heads after they have cooled.

• Clean heavy soils with a plastic scrubbing pad and

absorbent cloth.

• Thoroughly dry burner caps immediately following cleaning

including the bottom and inside of cap.

• Do not use abrasive cleaners. They can scratch porcelain.

• Do not clean burner caps in the dishwasher.

• Do not operate surface burners without burner caps

properly in place. Read important notes.

Cleaning surface burner heads

For proper gas flow it may be necessary to clean the burner

head and slots. To clean, first use a clean DAMP cloth to soak up

any spills. Remove any food from between the burner slots using

a small nonabrasive brush like a toothbrush and afterwards

wipe up using a damp cloth. For stubborn soils located in the

slots, use a small-gauge wire or needle to clean.

Any spill on or around the electrode must be carefully cleaned.

Take care not to hit the electrode with any thing hard or it could

be damaged.

Important note:

Small food particulars on or around the electrode could stop the

burner from lighting.

Burner Cap

Burner Head

Burner Cap Lip

Care and Cleaning

To clean the burner head ignition ports

Each burner head has a small ignition port located as shown.

Should you experience ignition problems it may be that this port

hole is partially blocked with soil. With the burner head in

place, use a small wire gauge needle or the end of a paper clip

to clear the ignition port.

Important notes:

• The surface burner heads are secured to the cooktop and

must be cleaned in place on the cooktop.

• Always keep the surface burner caps in place whenever a

surface burner is in use.

• When replacing the burner caps, be sure the burner caps

are seated firmly on top of the burner heads.

• For proper flow of gas and ignition of burners do not allow

spills, food, cleaning agents or any other material to enter

the gas orifice port opening.

To remove and replace storage drawer (some models)

Use the storage drawer for storing cooking utensils. The drawer

can be removed to facilitate cleaning under the range. Use care

when handling the drawer.

Replacing oven light (some models)

Be sure the range is unplugged and all parts

are cool before replacing oven light. Wear a leather-faced

glove for protection against possible broken glass.

The oven light is located at the rear of the oven cavity and is

covered with a glass shield held by a wire holder. The glass

shield protects the light bulb and must be in place whenever the

oven is in use.

To replace the interior oven light bulb:

1. Turn electrical power off at the main source or unplug the

range.

2. Press wire holder to one side to release the glass shield that

covers the light bulb.

3. Replace light with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder back

into place.

5. Turn power on at the main source (or plug the appliance in).

6. The clock will then need to be reset. To reset, see “Setting

Clock” on page 18.

Figure 21: Open drawer(L)Closed drawer(R)

orifice port

slots

ignition port

ignitor

Figure 22: Replacing the oven light

wire

holder

glass

shield

Care and Cleaning

Removing and replacing the lift-off oven door

To avoid possible injury when removing or

replacing the oven door, follow the instructions below carefully

and always hold the oven door with both hands positioned

away from the door hinge area.

The door is heavy. For safe, temporary storage,

lay the door flat with the inside of the door facing down.

To remove the oven door:

1. Open oven door completely (horizontal with floor -

Figure 23).

2. Pull the door hinge locks on both left and right door hinges

down from the oven frame completely towards the oven

door (Figure 24). A tool such as a small flat-blade screw-

driver may be required.

3. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Figure 25).

4. Close the door to the broil stop position (the oven door will

stop into this position just before fully closing).

5. With the oven door in the broil stop position, lift the oven

door hinge arms over the roller pins located on each side of

the oven frame (Figure 26).

To replace oven door:

1. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Figure 25).

2. Holding the oven door at the same angle as the removal

position, seat the hook of the hinge arm over the roller pins

located on each side of the oven door frame (Figure 26).

The hook of the hinge arms must be fully seated onto the

roller pins.

3. Fully open the oven door (horizontal with floor - Figure 23).

4. Push the door hinge locks up towards and into the oven

frame on both left and right oven door hinges (Figure 24) to

the locked position; then, close the oven door.

Special care instructions

Most oven doors contain glass that can break. Follow these

recommendations:

• Do not close the oven door until all the oven racks are fully

in place inside the oven cavity.

• Do not hit the glass with pots, pans, or any other object.

• Scratching, hitting, jarring, or stressing the glass may

weaken its structure causing an increased risk of breakage

at a later time.

Figure 23: Oven hinge locations

Figure 24: Hinge lock/unlock positions

Figure 25: How to remove door

Figure 26: Hinge pin locations

Oven door

hinge

locations

about

10°

hinge

oven

door

roller

hinge

arm

Before You Call

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies, pastries, et cetera. There is no need to preheat the

oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions

Baking Problems Causes Corrections

Cookies and biscuits burn on

the bottom.

• Cookies and biscuits put into

oven before the preheating

time is completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too

fast.

• Allow oven to preheat to desired temperature before placing

food in oven.

• Choose pan sizes that will permit 2” to 4” of air space (5.1

cm o 10.2 cm) on all sides when placed in the oven.

• Use a medium weight baking sheet.

Cakes too dark on top or

bottom

• Cakes put in oven before

preheating time is completed.

• Rack position too high or too

low.

• Oven too hot.

• Allow oven to preheat to the selected temperature before

placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F (13°C) lower than recommended.

Cakes not done in center

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Set oven temperature 25°F (13°C) lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1 cm to

10.2 cm (2” to 4”) of space on all sides of pan.

Cakes not level.

• Oven not level.

• Pan too close to oven wall or

rack overcrowded.

• Pan warped.

• Oven light left on during

baking.

• Place a marked glass measuring cup filled with water on the

center of the oven rack. If the water level is uneven, refer to

the installation instructions for leveling the oven.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance on

all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Do not leave oven light on while baking.

Foods not done when cooking

time is over.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too

frequently.

• Set oven temperature 25°F (13°C) higher than suggested and

bake for the recommended time.

• Be sure to remove all pans from the oven except the ones to

be used for baking.

• Open oven door only after shortest recommended baking

time.

Before You Call

Solutions to Common Problems

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the

problem listed:

Problem Solution

Poor baking results • Many factors affect baking results. Make sure the proper oven rack position is used. Center

food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set

temperature before placing food in the oven. Try adjusting the recipe's recommended temper-

ature or baking time. If you feel the oven is too hot or cool, see “Adjusting oven temperature”

on page 24. In addition, be sure to make adjustments for cookware types.

Appliance is not level. • Be sure floor is level, strong, and stable enough to adequately support range.

• If floor is sagging or sloping, contact a carpenter to correct the situation.

• Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust

leveling legs at base of appliance until the rack is level.

• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square

and have sufficient room for appliance clearance.

Cannot move appliance easily.

Appliance must be accessible for

service.

• Cabinets not square or are built in too tightly. Contact builder or installer to make appliance

accessible.

• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over

carpet.

• Gas line is hard-plumbed. Have a flexible CSA International approved metal appliance

connector installed.

Entire appliance does not operate. • Make sure power cord is plugged properly into outlet.

• Electrical power outage. Check house lights to be sure. Call your local electric company for

service outage information. In addition, service wiring is not complete. Call 1-844-553-6667

for assistance (See back cover).

Oven portion of appliance does not

operate.

• Be sure regulator gas valve is turned to ON. See installation instructions.

• The time of day is not set. The time of day must first be set in order to operate the oven. See

“Setting Clock” on page 18.

• Be sure the oven controls are set properly for the desired function. See the “Oven Controls”

chapter starting on page 17 and review instructions for the desired cooking function in this

manual or see “Entire appliance does not operate” in this checklist.

Oven light does not work. • Be sure the oven light is secure in the socket. Also see “Replacing oven light (some models)” on

page 30.

Oven smokes excessively when broiling. • Incorrect setting. Follow the “Setting Broil” instructions in Oven Controls chapter on page 23.

• Be sure oven door is closed when broiling.

• Meat too close to the broiler. Reposition the broil rack to provide proper clearance between

the meat and the broiler. Preheat the broiler for searing.

• Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to

prevent curling, but do not cut into lean.

• Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently.

Old grease or food spatters cause excessive smoking.

Flames inside oven or smoking from

oven vent.

•

Excessive spillovers in oven. For example, this will happen for pie spillovers or large amounts

of grease left on the oven bottom. Wipe up excessive spillovers before starting oven. If flames

or excessive smoke are present, follow the “Setting Broil” instructions in Oven Controls chapter

on page 23.

Oven control panel beeps and displays

any F code error.

• Oven control has detected a fault or error condition. Press STOP to clear the error code. Try

Bake or Broil function. If the F code error repeats, remove power from appliance, wait 5

minutes, and then repower appliance and set clock with the correct time of day. Try Bake or

Broil function again. If the fault recurs, press STOP to clear and call 1-844-553-6667 for assis-

tance (See back cover).

Before You Call

Self Clean does not work. • Oven control not set properly. Review the “Self Clean” instructions in Oven Controls chapter

on page 25.

Soil not completely removed after Self

Clean.

• Self Clean was interrupted. Review the “Self Clean” instructions in Oven Controls chapter on

page 25.

• Excessive spillovers on oven bottom. Remove before starting Self Clean.

• Failure to clean soil from the oven frame, the door liner outside the oven door gasket and the

small area at the front center of the oven bottom. These areas are not in the self-cleaning

area, but get hot enough to burn on residue. Clean these areas before the self-cleaning cycle

is started. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon

scrubber. Be careful not to damage the oven gasket.

Oven racks discolored. • Oven racks left in oven cavity during Self Clean. Always remove oven racks from oven cavity

before starting a self-clean cycle. Clean by using a mild, abrasive cleaner following manufac-

turer's instructions. Rinse with clean water, dry and replace in oven.

Surface burners do not ignite. • Surface control knob was not completely turned to LITE. Push in and turn the surface control

knob to LITE until burner ignites and then turn control knob to desired flame size.

• Burner ports are clogged. With the burner OFF, use a small-gauge wire or needle to burner

head slots and ignition ports. See“Cleaning the Cooktop and Surface Burners” in the Care &

Cleaning section on page 29 for additional cleaning instructions.

• Range power cord is disconnected from outlet (electric ignition models only). Be sure power

cord is securely plugged into the power outlet.

• Electrical power outage. Burners may be lit manually. See “Setting Surface Burners” on

page 15.

Surface burner flame uneven or only

part way around burner cap.

• Burner slots or ports are clogged. With the surface burner OFF, clean ports with a small-

gauge wire or needle. Also, moisture is present after cleaning. Lightly fan the flame and allow

burner to operate until flame is full.

• Burner caps are not seated properly. Check that all burner caps are level and seated correctly

on burner heads. See“Cleaning the Cooktop and Surface Burners” in the Care & Cleaning

section on page 29 for additional cleaning instructions.

Surface burner flame is too high. • Surface control knob is set too high. Adjust to lower flame setting. Burner caps are not seated

properly. Check that all surface burner caps are level and seated correctly on surface burner

heads. See“Cleaning the Cooktop and Surface Burners” in the Care & Cleaning section on

page 29 for additional cleaning instructions.

• Incorrect L.P. conversion. Refer to L.P. conversion kit instructions to correct.

Surface burner flame is orange. • Dust particles in main gas line. Allow the burner to operate a few minutes until flame turns

blue. In coastal areas, a slightly orange flame is unavoidable due to salt content in air.

• Incorrect L.P. conversion. Refer to L.P. conversion kit instructions to correct.

The oven control display shows "SCC”

and self-clean is not working.

•

If the cooktop is used during a self-clean cycle, the oven may turn off. The oven control

display will show “SCC". Press STOP to clear the SCC message. The oven door will remain

locked until the oven has cooled down below cleaning temperature. If the oven is below

cleaning temperature, the user can start another clean cycle immediately. If the oven was in

cleaning temperature range, another self-clean cycle can be set once the door unlocks (after

4 hours).

Kenmore

Customer Care Hotline

To schedule in-home repair service

or order replacement parts

Para pedir servicio de reparación

a domicilio, y ordenar piezas

1-844-553-6667

www.

kenmore.

com
