Miele HM 16-80 [D] Rotary iron, electric User Manual

OperatingInstructions

RotaryIron

HM16-80

Topreventaccidents

andmachinedamage

readtheseinstructions

before

installationoruse.

M.-Nr. 10232670

en - US

IMPORTANTSAFETYINSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

GuidetotheRotaryIron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Movingandfoldingtheappliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Transportstrut ..................................................... 9

Beforeusingforthefirsttime. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Preparingtheworkarea ............................................ 13

Preparingthelaundry .............................................. 13

Testingthefingerguard ............................................ 14

Steamsetting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Fillingthewaterreservoir............................................ 15

Emptyingthewaterreservoir ......................................... 16

Ironing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Turningonandoff ................................................. 17

Selectingtheironingtemperature(operationwithoutsteam) ................ 17

Selectingtheironingtemperature(operationwithsteam)................... 18

TurningthesteamsettingONandOFF................................. 18

Selectingtherollerspeed ........................................... 19

Ironing .......................................................... 19

Positioningthelaundry ............................................. 20

Removingthefeedboard ........................................... 20

Afterironing ...................................................... 21

Powerfailure ..................................................... 22

IroningTips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Towels,dishcloths,handkerchiefs,napkins,etc. ......................... 23

Tablecloths ...................................................... 23

Sheetsandbedspreads ............................................ 23

Duvetcovers ..................................................... 24

Pillowcases ...................................................... 24

Shirts ........................................................... 25

Smock-typeaprons ................................................ 27

Apronswithties ................................................... 27

Steam-pressingpants .............................................. 27

Steam-pressingskirts .............................................. 27

Contents

Cleaningandcare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cleaningthewaterreservoir ......................................... 28

Ironingcover ..................................................... 29

Frequentlyaskedquestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Aftersalesservice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Electricalconnection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Technicaldata . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Helpprotectourenvironment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Contents

Readtheoperatinginstructions

carefullybeforeusingthisappliance

forthefirsttime.Theycontain

importantinformationaboutthesafe

operationandcareofyour

appliance.Topreventpersonal

injuryordamagetotherotaryiron,it

isimportantthatyoureadthis

bookletcarefully.

Keeptheinstructionsinasafeplace

forreference,andpassthemonto

anyfutureuser.

Properuse

Useapplianceonlyforitsintended

use.

Useonlyasdescribedinthis

Operatingmanual.

Thisrotaryironisonlyintendedfor

ironingfabricswashedinwater.Check

thefabriccarelabelstobesurethe

materialscanbeironed.

Personswholackphysical,sensory

ormentalabilitiesorexperiencewith

theapplianceshouldnotuseitwithout

supervisionorinstructionbya

responsibleperson.

Technicalandelectricalsafety

Installation,repairandmaintenance

workshouldbeperformedbyaMiele

authorizedservicetechnicianin

accordancewithnationalandlocal

safetyregulationsandtheprovided

installationinstructions.ContactMiele’s

TechnicalServiceDepartmentfor

examination,repairoradjustment.

Repairs and other work by unauthorized

persons could be dangerous and may

void the warranty.

Repairsshouldonlybeperformed

byaMieleauthorizedtechnician.Faulty

componentsshouldbereplacedusing

Mieleoriginalpartsonly.Onlyoriginal

replacementpartsguaranteethesafety

oftheappliance.

Incorrectreassemblyorrepaircould

causeariskoffire,electricshock,or

injurytopersonswhentheapplianceis

used.

Beforesettinguptherotaryiron,

checkforanyvisibledamage.

Donotinstalloruseadamaged

appliance.

Donotoperateappliancewitha

damagedcord,oriftheappliancehas

beendroppedordamaged.

Adamagedapplianceisdangerous.

Turnofftherotaryiron,unplugfromthe

walloutletandcallTechnicalService.

Ifthepowercordisdamagedit

mustbereplacedbyaMieleauthorized

servicetechnician.

IMPORTANTSAFETYINSTRUCTIONS

Beforeconnectingtheappliance,

ensurethattheconnectiondataonthe

dataplate(fusing,voltageand

frequency)matchthehousehold

electricalsupply.Ifindoubt,consultan

electrician.

Toreducethelikelihoodofcircuit

overload,donotoperateanotherhigh

wattageapplianceonthesamecircuit.

Donotmodifythemachinepower

cordorplug.

Toreducetheriskofelectricshock,

donotimmersetheapplianceinwater

orotherliquids.

Allelectricalworkshouldbecarried

outbyaqualifiedelectricianin

accordancewithlocalandnational

safetyregulations.

Toreducetheriskofelectricshock,

donotdisassembleorattempttotepair

theappliance,takeittoaqualifiedser-

vicepersonforexaminationanrepair.

Toguaranteetheelectricalsafetyof

thisappliance,continuitymustexist

betweentheapplianceandaneffective

groundingsystem.Itisimperativethat

thisbasicsafetyrequirementbemet.If

thereisanydoubt,havetheelectrical

systemofthehousecheckedbya

qualifiedelectrician.Themanufacturer

cannotbeheldresponsiblefor

damagescausedbythelack,or

inadequacy,ofaneffectivegrounding

system.

Donotuseanextensioncordto

connectthisappliancetoelectricity.

Extensioncordsdonotguaranteethe

requiredsafetyoftheappliance(e.g.

dangerofoverheating).

Theapplianceiscompletelyisolated

fromtheelectricitysupplywhen:

–

itisturnedoffatthewallswitchand

unplugged,or

–

thecircuitbreakerhasbeen

"tripped".

Donotdamage,remove,orbypass

thesafetycomponentsorcontrol

elementsintheiron.

Onlyoperatetherotaryironwhenall

removableoutercasingsarefittedso

thatitisimpossibletotouchan

electricalcomponentormovingpart.

Thisequipmenthasnotbeen

designedformaritimeuseorforusein

mobileinstallationssuchasaircraftor

recreationalvehicles.However,under

certaincircumstancesitmaybe

possibleforaninstallationinthese

applications.Pleasecontactthe

nearestMieleDealerorMieleTechnical

Servicewithspecificrequirements.

IMPORTANTSAFETYINSTRUCTIONS

Use

Beawareofloosefittingorhanging

clothingwhenusingtherotaryiron.

Itemssuchaswidesleevesorapron

stringscouldbewoundintheroller.

Removealljewleryandtiebacklong

hairbeforeironing.

Donotallowchildrentoplayonor

neartherotaryiron,ortooperateit

themselves.

Closesupervisionisnecessaryfor

anyappliancebeingusedbyornear

children.Donotleaveappliance

unattendedwhileconnected.

Whentherotaryironisheatedthere

isadangerofburns:

– iftheheaterplateistouched.

– ifthefootpedalispresseddown

whilefingersorhandsarepositioned

betweentheraisedheaterplateand

therollertosmoothanitem.

Whenthesteamsettingison, do

not unscrewthecaptothewater

reservoir.Dangerofburns!

Alwaysdisconnectappliancefrom

electricaloutletwhenfillingwithwater

oremptying,andwhennotinuse.

Donotusedistilledwater.Itwill

causepittingcorrosionofthewater

reservoir.

Neverdrapeitemsovertheheater

platewhenitisheated.

Thisisafirehazard.Hanglaundryon

thelaundrybar.

Hanglaundryonthelaundryswing

outbar.Theswingoutbarisonlytobe

usedtohanglaundry.Swingitback

immediatelyafteruse.Takecarenotto

pressdownontherodwhenitisswung

out,asthiscouldcausetheirontotip

over.

Turntheapplianceoffbefore

removingtheplugfromtheelectrical

outlet.

Pullonlyontheplugandnotonthe

powercord.

Donotlaythepowercordoverthe

heaterplatewhenitisheated.This

coulddamagethecord-dangerof

electricshock.

Usethecableholdersattachedtothe

appliancetosecurethecord.

Donotallowcordtotouchhot

surfaces.Letappliancecollcompletely

beforeputtingaway.Loopcordloosely

aroundappliancewhenstoring.

Donotstoretheironinaroom

wherethereisariskoffrostoccurring.

Frozenwaterinthereservoirandsteam

linecandamagetheappliance.

Accessories

Accessoriesshouldonlybeusedif

approvedbyMiele.Ifotherpartsare

used,warranty,performanceand

productliabilityclaimsmaybevoid.

Regardthenationalandlocalcodes

andstandards.

SAVETHESEINSTRUCTIONS

ANDREVIEWTHEM

PERIODICALLY

IMPORTANTSAFETYINSTRUCTIONS

a Temperatureselector

b Emergencyrelease

c Controlpanel

d Releasecatch

e Powercord

f Footpedalswitch

g Ironingtable

h Laundryrod

i Feedboard

j Roller

k Heaterplate

l Fingerguard

m Waterreservoirwithcap

GuidetotheRotaryIron

l m

Controlpanel

a Rollerspeedselector

b On/Offindicator I-0

c On/Offbutton I-0

d Steamswitch Q

e Steamindicator Q

f Temperatureindicator

g Wateremptyindicator a

GuidetotheRotaryIron

Transportstrut

Donotremovethetransportstrut

untiltherotaryironhasbeenplaced

ontothefourrollers.

Pulloutthetransportstrut.

Keepthestrutinasafeplace.Itwill

needtobeattachedeachtimeyou

transporttheappliance.

Movingandfoldingtheappliance

Therotaryironsitson4rollers.

^ Holdtheironbytheironingtableand

pushorpulltomoveit.

Tosteertheironandtohandle

obstaclessuchascarpetedgesand

doorways:

^ Tiptheironslightly.

Theironcanbemovedeitherwhen

foldedorunfolded.

Holdtheironingtableandreleasethe

catch,locatedontheright-handside

attheback,underneaththeironing

table.

Swingthetopsectionoftherotary

irontothesideuntilitclicks

horizontallyintoposition.Donotlet

goofthecatchuntilyouhave

finishedswingingthetop.

Topreventwaterfromspillingover

whenyoufoldormovetheiron,the

caponthewaterreservoirmustbe

firmlytighteneddown.

Movingandfoldingtheappliance

Powercord

Thepowercordiswoundbehindthe

ironingtable.

^ Unwindthecord.

,Donotinserttheplugintothe

electricalsocketyet.

Beforeusingforthefirsttime

Adustcoverisplacedontherollerfor

protectionduringshipping.

^ Firstremovethefeedboardbylifting

itoutoftherighthandholder,then

pullitouttotheleftoftheroller.

^ Plugtheapplianceinandturniton.

Theheaterplatewillrise

automatically.

Theprotectivedustcovercannow

bepulledoff.

Theadhesivefilmsuppliedwithiron

cannowbeplacedaroundthe

temperatureselector.

^ Adherethesticker(included)tothe

temperaturecontrolasshownabove.

Beforeusingforthefirsttime

Preparingtheworkarea

Whenpositioningtherotaryiron,make

sureitislevel.Thiswillensureeven

steamproductionandkeepthe

appliancefromrollingsideways.

Aheight-adjustablechairandaflat

surfaceforstackingcompleteditems

willbeuseful.

Havethefollowingcloseby:

–

totheleftoftheiron,placeabasket

withlaundryreadyforironing,

–

totherightoftheiron,haveasurface

forstackingtheironedarticles.

Shirts,smocks,blouses,etc.,shouldbe

hungonhangersimmediatelyafter

ironing.

Smallitemscanbehungoverthe

swing-outrod.

Havesomewaterhandytore-dampen

thelaundryasneeded.

Preparingthelaundry

Properpreparationofthelaundryis

essentialforgoodresults.

Beforeironing,laundryshouldbe:

–

dampened (for operation without

steam)

–

pulledintoshapeandsmoothedout

–

sorted

Properdampness(foroperation

withoutsteam)

Thelaundryneedstobesufficiently

dampsothatonthefirstpassthrough

therotaryironatthecorrect

temperatureitwillcomeoutsmooth

anddry.Dampenthelaundryasyou

wouldforhandironing;preferably

severalhoursbeforehandsothatthe

articlesachieveauniformdegreeof

dampnessthroughout.

If a tumble dryer is being used, select a

"Machine iron" program.

If preparation time is short, use warm

water to re-dampen.

Material Dampnessforironing

Silk

wrapinadampclothto

avoidwatermarks

Synthetics

e.g.Nylon,

polyester,etc.

slightlydamptodry

Wool

(e.g.,pants)

pressunderadamp

cloth

Cotton

slightlydamp

Linen

quitedamp

Beforeusingforthefirsttime

Pullingintoshapeandsmoothing

out

Pullthedampenedlaundryinto

shapeasusual.

Smoothoutanyribbons,straps,

seams,andhems.

Largeitemssuchastablecloths,bed

linens,etc.,shouldbefolded

lengthwaysintoanumberofpleats

sothattheycanbeironedaseasily

aspossible.

Sorting

Sortthelaundryaccordingtohow

muchheatisrequired,andthen

accordingtoflatandshapedpieces.

Startironingatalowertemperatureand

graduallyincreasethetemperature

accordingtothefabricbeingironed.

MinimumIron

(Perlon,Nylon,etc.) ß

Woolens,Silk ßß

Cottons,Linen ßßß

Ironstarcheditemslasttoavoid

starchdepositsonotheritems.

Usingtheironforthefirsttime:

Youmaynoticesomeunevennesson

theroller.Thisisnormal,andwill

smoothitselfoutafterapprox.3hours

ofuse.

Thiswillkeeptheunderpaddingmostly

freeofcreases.

Testingthefingerguard

Thefingerguardisasafetyfeature,

andshouldbecheckedeverytime

therotaryironisused.

Withtheironturnedon,pressthefoot

pedalallthewaydown.

Theheaterplatecomesdownontothe

rotatingroller.

Ifyouliftthefingerguardnow,the

rollerstopsrotatingandtheheater

platerises.

Letgoofthefingerguardand

removeyourfootfromthefootpedal.

Nowpressthefootpedaldown

again.

Theheaterplatelowersandtheroller

rotates.

Beforeusingforthefirsttime

Forironingdryornearlydrylaundry

items,thesteamsettingcanbeused.

Ironingwithandwithoutsteam

Ifthelaundryitemsarealreadydamp,

usetheironwithoutsteam.Thesteam

settingisintendedforpressingdryor

nearly-drylaundry.

Fillingthewaterreservoir

Beforeturningontheiron,andwith

therollerintheupposition,fillthe

waterreservoirtotheloweredgeof

thespoutwith tapwater approx.1½

pints(0.8l).

DoNOTuse"ironingwater"available

instores.

Thefunnelcanbescrewedinto

placeforeasierfilling.

Donotusedistilledwater.Itwill

causepittingcorrosionofthewater

reservoir.

Onlyeverfillthewaterreservoirto

theloweredgeofthespout.

Topreventwaterfromspillingover

whenyouclosetherollerdown,be

surethecapissecure.

Iftheindicatorlight a "Waterempty"is

red,itistimetore-fillthereservoir.

Ifthesteamsettingisonbutthewater

reservoirisempty,thedisplaylights

Q "Steam"and a "Water"willflash

alternatelyinintervalsofafewminutes.

Caution-hotsteam!

Slowlyloosenthecap.

^ Allowthesteamfromthewater

reservoirtodissipatebeforeopening

thecapentirely,thenaddwateras

needed.

Typicallyyouwillfindsomewaterleftin

thereservoir.Theamountdependson

thewaterhardnessandhowmuchlime

isdeposited.

Afullwaterreservoirwillprovide

approximately40minutesofsteam

ironingtime.Ittakesapprox.4minutes

fortheirontobeginproducingsteam.

Aslimedepositsforminthetank,the

heatingtimemayincrease.

Wheneveryoustopironing,turnoff

thesteamswitch.

Steamsetting

Emptyingthewaterreservoir

Donotattempttoemptythe

waterreservoirunlesstherollerand

waterarebothcool.

Alwaysemptythereservoironceyou

havefinishedironing.Thiswillhelp

preventdamagetothereservoirfrom

damagecausedbystandingexposure

tosuchelementsinthewateras

chlorine,calcium,andcopper.

Unscrewthecap.

Thefunnelcanbescrewedintoplace

foreasieremptying.

Slowlyflipopentherollerwhile

simultaneouslyholdingasuitable

receptacle(e.g.,ameasuringcup)

underthespout.

Letthewaterdrainout.

^ Screwthecapbackontothespout.

Afteruse,returnthefunneltoits

placeinthecordreceptacle.

Steamsetting

Turningonandoff

Usethe I-0 buttontoturntherotaryiron

onandoff.

Toturnon

^ Pressthebuttonin.

Theindicatorlightcomeson.

Toturnoff

Pressandreleasethebutton.

Theindicatorlightgoesout.

Selectingtheironing

temperature(operationwithout

steam)

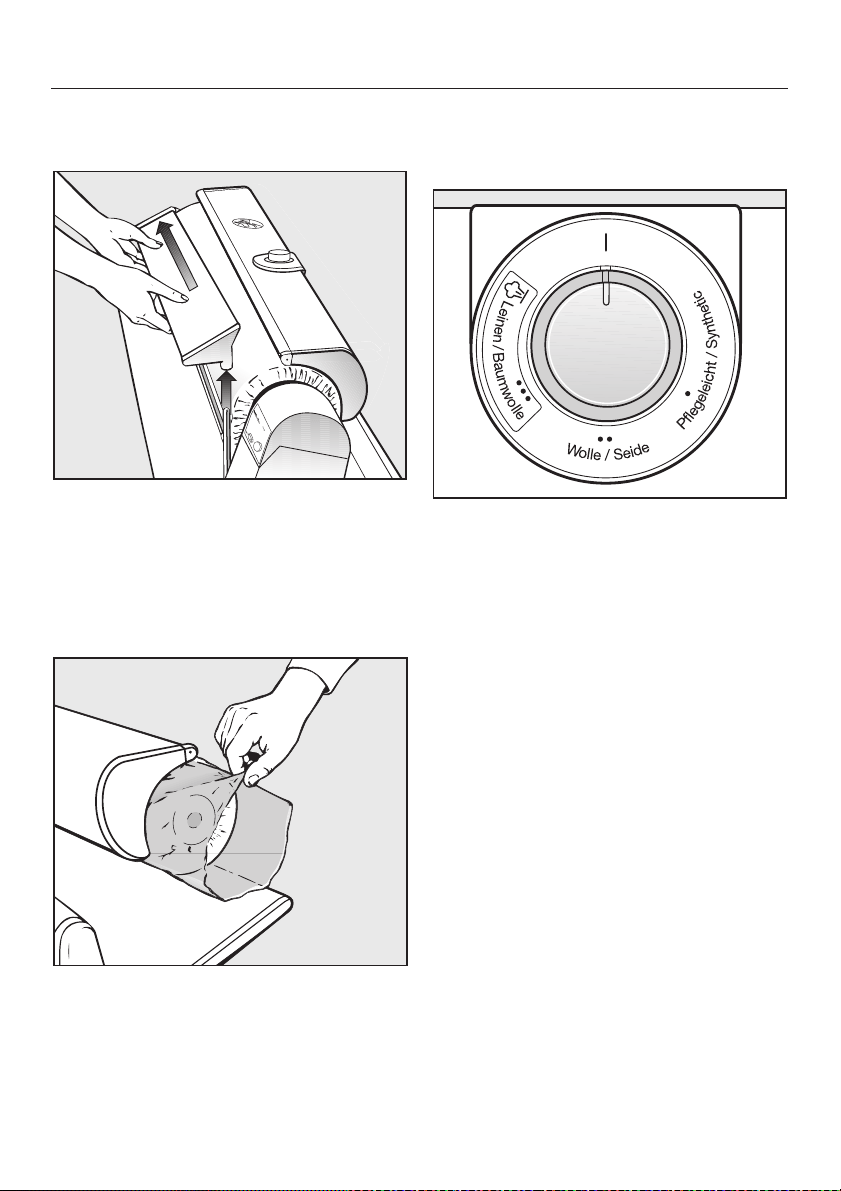

Thetemperatureselectorisusedtoset

theironingtemperature.

Thetemperaturerangeismarkedby

dotsontheringaroundthetemperature

selector.Thesecorrespondwiththe

internationalfabriccaresymbolsfor

ironing.

Material Dotsymbol Temperature

range

Minimum

Iron

ß cooliron

Woolens ßß mediumhotiron

Cotton ßßß hotiron

I 40-60°C

Ironing

Turnthetemperatureselectortothe

desiredtemperature.

The"Temperature"indicator

C willlight

upwhiletherollerisheatingup.

Thelightwillgooutwhenthedesired

temperatureisreached.

Whenironingafabricblend(such

aspoly-cottons),themoredelicate

fiberdeterminestheironing

temperature.Forexample,items

madeofpoly-cottonblendsshould

beironedatthe ßß settingfor

Woolens,ratherthanusingthe

cottonsetting.

Selectingtheironing

temperature(operationwith

steam)

Turnthetemperatureselectortothe

ßßß settingforCottons(hotiron).

Ifthetemperatureselectorissetto ß

or ßß ,nosteamwillbeavailable.

TurningthesteamsettingON

andOFF

Beforeturningonthesteamsetting,you

willneedtoturnthetemperature

selectortothe ßßß setting.

Usethe Q buttonfor"Steam"toturn

thissettingonandoff.

Turningon

Pressthe Q button.

Oncethedesiredrollertemperatureis

reached,theindicatorlightnexttothe

buttonwillcomeon.

Ifthewaterreservoirrunsoutwhile

theironisinoperation,theindicator

light Q for"Steam"willgooutand

thelight a "Waterempty"willturn

red.

Ifthesteamsettingisonandyoudo

notre-fillthewaterreservoir,the

indicatorlights Q "Steam"and

a "Waterreservoir"willflash

alternatelyatintervalsofseveral

minutes.

Turningoff

Pressandreleasethe Q button.

Theindicatorlightnexttothebutton

goesout.

Ironing

Selectingtherollerspeed

Thereare5rollerspeedsettings,from

low(approximately6.5ft/min.[2m/min])

tohigh15ft/min.[4.5m/min]).

Alowerrollerspeedmakesiteasierto

ironcomplicatedarticles,suchasshirts

andblouses.Itisalsobesttoselecta

lowrollerspeedwhenironinglayered

orfoldeditems,whichmayrequire

morethanonepassthroughtherotary

irontogetthemsmoothanddry.

Thinner,single-thicknessarticles,such

ashandkerchiefsordishcloths,canbe

ironedatahigherrollerspeed.

Settherollerspeedselectortothe

desiredspeed.

Ironing

Theironingprocessiscontrolledbythe

footpedal,whichhasthreeoperating

positions:

– rest(heaterplateisraised)

– press

– iron

Toiron:

Pressthefootpedalallthewaydown

tothefloor.

Donotputfingersbetweenthe

heaterplateandtheroller.

Dangerofcrushingandburns!

Topress:

Firstpressthefootpedaldowntothe

floor,thenliftyourfootupalittle,so

thattheheaterplateremainsin

positionbuttherollerdoesnotrotate.

Toraisetheheaterplate:

Takeyourfootoffthepedal.

Ironing

Positioningthelaundry

Arrangethelaundryitemsonthe

feedboardsothattheyarestraight,

andsmooththemoutbyhand.

^ Thenturntherollerbyhanduntilthe

edgeofthearticletobeironedcan

behelbytheheaterplate.

^ Pressdownthefootpedal.

Removingthefeedboard

Thefeedboardcanberemovedwhen

shapedgarmentsarebeingironed,

e.g.skirts(round).

^ Liftthefeedboardoutofthe

right-handholder,thenpullitoutward

towardtheleftoftheroller.

Laundrybar

Ironedlaundrycanbehungoverthe

swingoutbartoavoidcreasing.

Takecarenottopressdownon

thebarwhenitisswungout,this

couldcausetherotaryirontotip

over.

Ironing

Tips

–

Toavoidcreasing:

Stoptheroller,pulltheitemback

towardsyouslightly,andsmoothit

outbyhand.Ifneeded,dampen

againwithawetclothorspraybottle.

–

Ifpossible,alwaysusethewhole

widthoftheroller,tomaintainthe

smooth,elasticsurfaceoftheroller.

–

Forsmallitems,suchas

handkerchiefs,alternatebetweenthe

rightandleft-handsidesoftheroller.

–

Articleswithraisedparts,suchas

buttons,shouldbeironedfacedown

ontotheroller,sothattheyare

pressedintothecushionedsurface.

– Coverzippers,metalbuttonsand

metalhookswithacloth,toprotect

theheaterplate.

– Buttonsthatareverylargeornot

heat-resistantshouldnotbeironed,

astheycandamagetheheater

plate.

–

Whenyouhavenearlyfinished

ironing,youcansetthetemperature

selectorto l andcontinueironing

smallitemsatalowtemperature.

Afterironing

Turntheapplianceoff.

Turnoffthe Q switchfor"Steam".

Turnthetemperatureselectorto I .

Unplugfromtheoutlet.

Tostoretherotaryiron:

Allowtheheaterplatetocool.

Emptythewaterreservoir.

Foldtheiron.

Windupthepowercord.

Putthecoveron.

Donotstoretheironinaroom

wherethereisariskoffrost

occurring.Frozenwaterinthe

reservoirandsteamlinecan

damagetheappliance.

Ironing

Powerfailure

Intheeventofapowerfailure,pull

theemergencyreleaseleverup.

Ifthereisapowerfailurewhiletheiron

isinuse,theheaterplaywillstay

pressedontotheroller.Theitembeing

ironedwillbeheldthere,andcan

becomescorched.

Tofreeatrappeditem:

Pulltheemergencyreleaseleverup.

Thepressureisreduced,andtheitem

canberemoved.

Whenthepowerisrestored(theOn/Off

indicatorcomeson),pushthe

emergencyreleaseleverbackdown.

Continueironingasusual.

Ironing

Towels,dishcloths,

handkerchiefs,napkins,etc.

Laytheitemwiththestraightgrainof

thefabrictothefeedboard.

Thiswillpreventitfromlosingitsshape

andwillbeeasiertofold.

Passhandkerchiefsdiagonallythrough

therotaryironand,ifnecessary,fold

themandthenironagain.

Pleaseusethewholelengthofthe

roller.

Tablecloths

^ Avoidcreasesbyironingthemiddle

first.

Laythetableclothcrossways,sothat

theendshangovertotheleftand

right.

Ironthemiddlesectionfirst.

Foldinhalflengthwise.

Foldinhalfwithunironededges

togetherandplaceovertheleftend

oftherollerwiththeironedmiddle

sectionhangingovertheedgeto

preventcreasing.Thenpassboth

sidesofthenonironedsections

throughtherotaryiron.

^ Ifneeded,makeonemorepassonce

thetableclothisfolded.

Sheetsandbedspreads

Sheetsmaybeironedliketablecloths,

orifalengthwisefoldisacceptable,

foldthesheettogetherlengthwiseand

ironitonbothsides.

Toaccentuateembroideryandraised

patternsonbedspreads,ironfirstin

onedirectionandthenintheother.

IroningTips

Duvetcovers

Iftheduvetcoverhasbuttonsatthe

openend,ironthebuttonsfirst.

Note:Onlypassthisendthroughthe

rotaryironifthebuttonsare

heat-resistant.

^ Startthefirstrunbycarefullyfeeding

thisendinfirstontheleftsideofthe

roller,takingcarenottodamageany

buttons.

Itisbesttoironthecoverintworuns

lengthwise.

Pillowcases

Laythepillowcaseonthefeeder

plate,positionundertheheaterplate

andironinonestep.

Iftheopenendhasbuttons,only

passitthroughtherotaryironifthe

buttonsareheatresistant.

IroningTips

Shirts

Removethefeedboardtoironshirts.

1.Shoulderyoke

^ Arrangetheyoke,collarfirst,onthe

rollerandsmoothout.

^ Hotpresstheyoke.

2.Collar

Thecollarisironedonbothsidesusing

thelefthandendoftheroller.Stop

ironingwhenthebuttoncomestothe

heaterplate.

Thenturndownthecollarandpress

lightly,holdingtaut.

3.Frontsides

^ Laythebuttonholefrontontheleft

handendoftherollerwiththeside

seamalongtheedgeoftheroller.

^ Ironfromthebuttonhemuptothe

armhole.

Nowmovetheshirtoutandironpast

thearmholetothesideseam.

Ironthebuttonsideinsideoutsothe

buttonsarepressedintothe

cushionedsurfaceoftheroller.

IroningTips

4.Back

Startatthesideseam.Pulltheshirt

overtherollerasfarasthearmhole.

Smoothitout.

^ Startingfromthesideseamironpast

thearmhole,thenpulltheshirtfurther

ontotherollerandironthefullback

lengthtothesecondarmhole.

Pulltheshirtfurtherdowntheroller

andironpastthearmhole.

5.Cuffsandsleeves

Firstironbothsidesofthecuffonthe

leftedgeoftheroller.Fold

double-cuffswithonebuttonhole

placedovertheotheroneandpress

lightly.

^ Smoothoutthesleeveandplaceiton

theedgeoftheroller.

Ironthearmfromtheedgeofthecuff

totheunderarm.Shiftdiagonallyto

ironthefullwidthofthearmhole.

IroningTips

Smock-typeaprons

Ironsmocksasyouwouldashirt.

Apronswithties

Ironthetiesonebyoneuptothebib,

thenoverthebibanduptothe

waistband.

Theniron,inpasses,uptothe

waistband,orironcrosswise.Letthe

bibhangovertheleftedgeofthe

roller.

Steam-pressingpants

Layeachpantlegseparatelyonthe

roller.Lettheupperparthangdown

overtheleftedgeoftheroller.

^ Coverwithadampcloth,thenturn

therollerbyhanduntilthepartofthe

pantstobepressediscoveredby

theheaterplate.

^ Presseachlegfrombothsides

startingfromthecrease.

Irontheupperpartfromwaistbandto

inseamofpantsandjeansin

sections.Setonaslowspeed

Steam-pressingskirts

Skirtsarebestironedwithoutthefeed

board,usingtherollerfully.

Pulltheskirtovertherollerfromthe

hemtothewaistband.

Layadampclothoverit.

Ironeachsectionoftheskirtuntil

completed.

IroningTips

Turntheironoffandunplugit

fromtheoutletbeforeperforming

anymaintenancework.

Cleaningtheheaterplate

Checkthatthetemperatureselector

isset" g ".

Allowtheheaterplatetocoolbefore

cleaning.

Pulltheemergencyreleaseleverup

tomakesureeasiercleaning.

Cleanlimeorstarchdepositsfrom

theheaterplateusinganonabrasive

householdcleaner.Avoidspraying

theheaterplate.

Donotuseabrasivecleaners.

Cleaningthecasing

^ Dependingonsoiling,thecasingcan

bewipeddownwithadryordamp

cloth.

Donotuseabrasivecleaners.

Cleaningthewaterreservoir

Ifthesteamnozzlesseemtobe

producinglesssteam,thismaymean

therearelimedepositsinthewater

reservoir,causedbyhardwater.To

removetheselimedeposits,rinsethe

reservoirundertapwater.

Unplugfromthesocket.

Waituntiltheironiscoldbefore

youattempttorinseoutthewater

reservoir.

Dependingonthehardnessofthetap

waterused,thewaterreservoirwill

needtoberinsedoutafter3to10

tankfuls.

Stubborndepositscanberemoved

withalimeremover.

Alwaysfollowthemanufacturer's

instructionsforuseofsuchproducts

(dose,time,etc.).

Fillthewaterreservoirhalfway

3/4pint(400ml)and closethecap.

Rolltheheaterplatebackwardsand

forwardsseveraltimes.

Rinsetwicethoroughlywithtapwater

tohelppreventdamagetolaundry

items.

Seethesectionon"Steam"for

instructionsonfillingandemptyingthe

waterreservoir.

Cleaningandcare

Ironingcover

It is normal for the ironing cover on the

roller to become slightly brown with use.

Washthecoverwithahottemperature

program(140°F[60°C]).

Ifthecoverlookswornandused,itcan

beeasilyreplaced.

Ironingcoversareavailableatyour

MieledealerorMiele.

Replacingtheironingcover

Theironingcovershouldonlybe

changedwhentheapplianceis

cold.

^ Removethefeedboard.

Untietheoldironingcovercordsat

eachendoftheroller.

Unwindtheoldironingcover.

Completelyunwindthecotton

paddingattachedtotherollerandlet

ithangdownsmoothly.

Cleaningandcare

Holdthecornersofthecotton

padding,pulltaut,andlayittaught

overtheheaterplate.

Note:theslotforthecottonpadding

isnowatthetop.

Insertthelongedgeofthenew

ironingcoverintotheretainingslot

withthesideseamsinside(upside

down).Keepsidetieshangingfree

andsmoothout.

Turntherollerbyhandinthe

directionyouiron(seearrow)untilthe

retainingslotisatthebottom.

^ Turntherotaryironon.

Whentheironerisswitchedon,the

heaterplateheatsupimmediately.

Thetemperatureselectormustbe

turnedtothe l setting.

Pressthefootpedaland"iron"the

newclothallthewayaround.

Donotletthecordsgetunderthe

clothasitturns.

Cleaningandcare

Oncetherollerhascompleted3or4

revolutionsandtheendoftheironing

coverisundertheheaterplate:

Turntherotaryironoffwhilekeeping

thefootpedalpresseddown.

Theironingcoverisheldfirmlyinplace

withtheheaterplatewhichisstill

lowered.

^ Tightenthecordsattheleftand

right-handsidesoftheroller,tie

togetherandtuckunderthecover.

Putthefeedboardbackintoplace.

Turntherotaryironon.

Theheaterplatewillrise.

Cleaningandcare

Repairsshouldonlybecarriedoutbyanauthorizedtechnicianin

accordancewithlocalandnationalsafetyregulations.Unauthorizedrepairs

couldcauseinjuryorappliancedamage.Themanufacturercannotbeheld

responsibleforunauthorizedwork.

Therotaryirondoesnotturnon.

Possiblefault Solution

Therotaryironhasnopower. Plugthemachineinandcheckifthe

circuitbreakerhastripped.

Thelaundryisnotproperlyorpoorlypulledin.

Possiblefault Solution

Thistendstohappenwhenironing

delicateitemswithanewmachine.

Continueironing,theissueisusually

resolvedafter5-10minutesofironing.

Newironcover Anewrotaryironcovershouldbe

washedat140°F(60°C)forthelaundry

tobeideallypulledin.

Limeorstarchdepositsontheheater

plate.

Cleanwithhouseholdcleanersor

dishwasherdetergent.

Creases/Foldsoccur

Possiblefault Solution

Theheaterplateissoiled(lime

deposits).

Cleantheheaterplatewithhousehold

cleanersordishwasherdetergent.

Therotaryironcoverisheavilysoiled.

Possiblefault Solution

Deposits Washtheironcoverwithhousehold

detergentat140°F(60°C)orreplace

withanewone.

Theheaterplatedoesnotpressontheroller.

Possiblefault Solution

Theemergencyreleasewasactivated. Presstheemergencyreleasedown

(see"Powerfailure").

Frequentlyaskedquestions

Nosteamisbeingproduced.

Theindicatorlight Q for"Steam"goesoutwhileironing.

Possiblefault Solution

Theirontemperatureistoolowfor

steamproduction.

Setthetemperatureselectorto ßßß and

waituntilthedisplaylightcomeson.

Nosteamisbeingproduced.

Theindicatorlight Q for"Steam"goesoutwhileironing,andtheindicator

a for"Waterempty"isred.

Possiblefault Solution

Thewaterreservoirisempty. Fillthewaterreservoir.

Thesteamnozzlesaresputtering.

Possiblefault Solution

Cleantapwaterwasnotused. Emptythesteamreservoir,rinseitout,then

fillwithtapwater(see"CleaningandCare").

Thesteamnozzlesarenotreleasingenoughwater.

Solution Solution

Therearelimedepositsinthewater

reservoir,fromhardwater.

Toremovetheselimedeposits,rinsethe

reservoirundertapwater(see"Cleaning

andCare").

Frequentlyaskedquestions

Intheeventofafaultwhichyoucannot

easilyfixyourself,pleasecontactthe

MieleTechnicalServiceDepartmentat

theaddressonthebackofthisbooklet.

WhencontactingtheTechnicalService

Department,pleasequotethemodel

andserialnumberofyouappliance

givenonthedataplateunderthefront

sideoftheappliance.

a Model

b Serialnumber

c Voltage/Frequency

d Minimumfuserating(housewiring)

e Powerconsumption(wattage)

Thewiringdiagramislocatedunderthe

rightsideoftheironingtable.

Aftersalesservice

Theapplianceissuppliedwithapower

cordandNEMA6-20Pplugreadyfor

connectiontoa2AC208-240V60Hz

powersupply(seedataplate).

Thefuseratingis2x20amps.

Donotmodifythemachine

powercordorplug,themachineis

approvedforUSandCDN.

Allelectricalworkshouldbecarried

outbyaqualifiedelectricianin

accordancewithlocalandnational

safetyregulations.

Donotconnecttherotaryirontoan

extensioncord.Extensioncordsdo

notguaranteetherequiredsafetyof

theappliance(e.g.dangerof

overheating).

WARNING

THISAPPLIANCEMUSTBE

GROUNDED

Electricalconnection

Height 37

"(folded41

")[95.9(folded105.2)cm]

Width 38

"(folded19

")[98.5(folded50)cm]

Depth 15"[38cm]

Weight 86lbs(39kg)

Waterreservoircapacity 1½pints(800ml)

Voltage seedataplate

Ratedload seedataplate

Minimumfuserating seedataplate

Technicaldata

Disposalofpackingmaterials

Thecardboardboxandpacking

materialsarebiodegradableand

recyclable.Pleaserecycle.

Ensurethatanyplasticwrapping,bags,

etc.aredisposedofsafelyandkeptout

ofthereachofchildren.

Dangerofsuffocation!

Disposalofanoldappliance

Oldappliancescontainmaterialsthat

canberecycled.Pleasecontactyour

localrecyclingauthorityaboutthe

possibilityofrecyclingthesematerials.

Beforediscardinganoldappliance,

disconnectitfromtheelectricalsupply

andcutoffthepowercorddirectly

behindtheappliance,toprevent

misuse.

Helpprotectourenvironment

M.-Nr. 10232670 / 00

3OHDVHKDYHWKHPRGHODQGVHULDOQXPEHU

RI\RXUDSSOLDQFHDYDLODEOHEHIRUH

FRQWDFWLQJ7HFKQLFDO6HUYLFH

86$

0LHOH,QF

1DWLRQDO+HDGTXDUWHUV

)NDEPENDENCE7AY

0RINCETON.*

0HONE

&AX

WWWMIELEUSACOM

7HFKQLFDO6HUYLFH6XSSRUW

1DWLRQZLGH





0HONE

&AX

PROSERVICE MIELEUSACOM







Allrightsreserved/ 2115

Miele HM 16-80 [D] Rotary iron, electric

Product's Documents

User Manual

Specifications

Miele HM 16-80 Questions and Answers

Related Products

Miele 1140183 Front Load Smart Compact WWH660WCS 24 Inch Washer, TWI180WP 24 Inch Electric Dryer, WTV502 Washer-Dryer Stacking Kit, B3847 Ironing Center and B990 Rotary Iron

Miele PRI210 Commercial Rotary Iron with Wide Roller, Finger Guard, Large Touchscreen

Miele 10238590 Professional Rotary Iron With Steam HM1680

Miele 07222730 White Rotary Iron B990

Miele B 990 Rotary Iron with high pressure and a wide heater plate

Miele HM1680D 20 Inch Rotary Iron with Steam Function, Variable Roller Speed, Durable Roller
