Before Start
Contents
Before Start
What's in the box ...............................................................................................3
Part Names
Main Unit (Front Panel) .....................................................................................5
Main Unit (Rear Panel) .....................................................................................6
Remote Controller .............................................................................................7
Main Unit (Display) ............................................................................................8
Sound Bar .........................................................................................................9
Subwoofer .......................................................................................................10
Install
1. Connect the Speakers ................................................................................. 11
2. Connect the TV ...........................................................................................13
3. Connect the HDMI AV Components ............................................................14
4. Connect the Audio Components .................................................................15
5. Connect Other Cables ................................................................................16
Initial Setup
Initial Setup with Auto Start-up Wizard ............................................................17
Playback
AV Component Playback ................................................................................19
Internet Radio .................................................................................................20
Spotify .............................................................................................................21
Music Server ...................................................................................................22
USB Storage Device .......................................................................................24
AirPlay
®
...........................................................................................................26
BLUETOOTH
®
Playback ................................................................................27
Listening to the FM Radio ...............................................................................28
Listening Modes ..............................................................................................30
Quick Menu .....................................................................................................38
Other Functions ..............................................................................................40
Supplementary information
Supplementary information for player functions...............................................41
Advanced Setup
Setup Menu......................................................................................................42
Firmware Update .............................................................................................54
Others
Troubleshooting ...............................................................................................57
General Specifications ....................................................................................62
About HDMI .....................................................................................................64
License and Trademark Information ................................................................65
3
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N

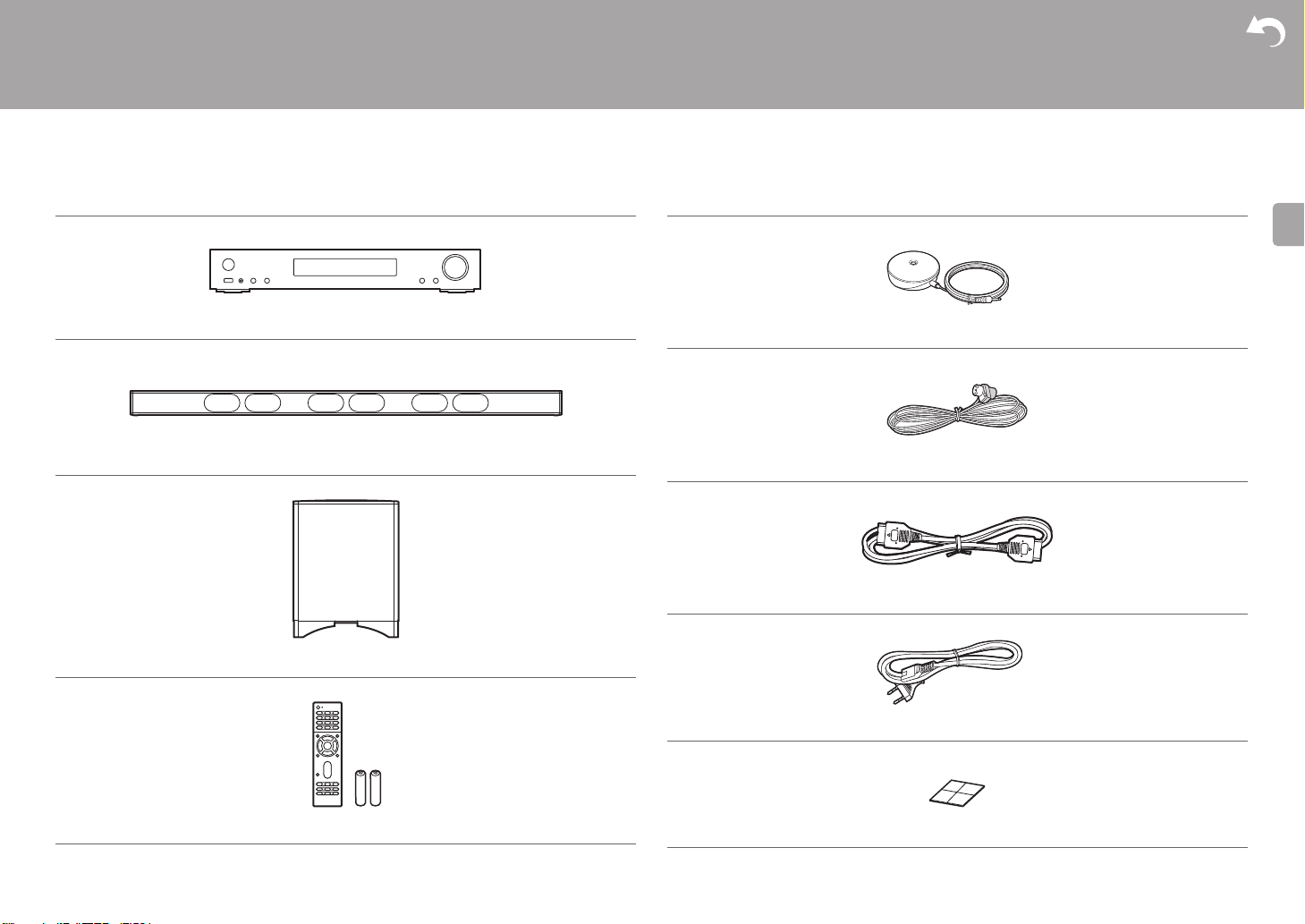

What's in the box
Network AV Receiver (Main unit/HT-L05) (1)
Sound bar (LB-403) (1)
Subwoofer (SLW-403) (1)
Remote controller (RC-941S) (1), batteries (AAA/R03) (2)
Speaker setup microphone (1)
Indoor FM antenna (1)
Sound bar connection cable (1)
Power cord (for subwoofer) (1)
Non-skid pads (4)
4
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
0
The power cord must be connected only after all other cable connections are completed.
0 We will not accept responsibility for damage arising from the connection of equipment
manufactured by other companies.
0 Functionality may be introduced by firmware updates and service providers may cease
services, meaning that some network services and content may become unavailable in
the future. Furthermore, available services may vary depending on your area of
residence.
0 Specifications and appearance are subject to change without prior notice.
0 Quick Start Guide (1)
＊ This document is an online instruction manual. It is not included as an accessory.
> Before Start >Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
5
E
N
Part Names
Main Unit (Front Panel)
1. Í ON/STANDBY button: Turns the unit on or into standby mode.
2. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
are enabled that continue to work when this unit is in standby, such as HDMI Standby
Through (ÄP49) and Network Standby (ÄP52).
3. Display (ÄP8)
4. Remote control sensor
5. Volume dial: Allows you to adjust the volume.
6. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.
7. PHONES jack: Stereo headphones with a mini plug (φ3.5 mm) are connected.
8. INPUT button: Switches the input to be played. (BD/DVD / CBL/SAT / GAME / STRM
BOX / CD / TV / FM / NET / USB / BLUETOOTH)
9. LISTENING MODE button: Allows you to select the listening mode. (ÄP30)
10.
TUNING43buttons: Select the frequency of FM radio stations.
6
> Before Start >Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N

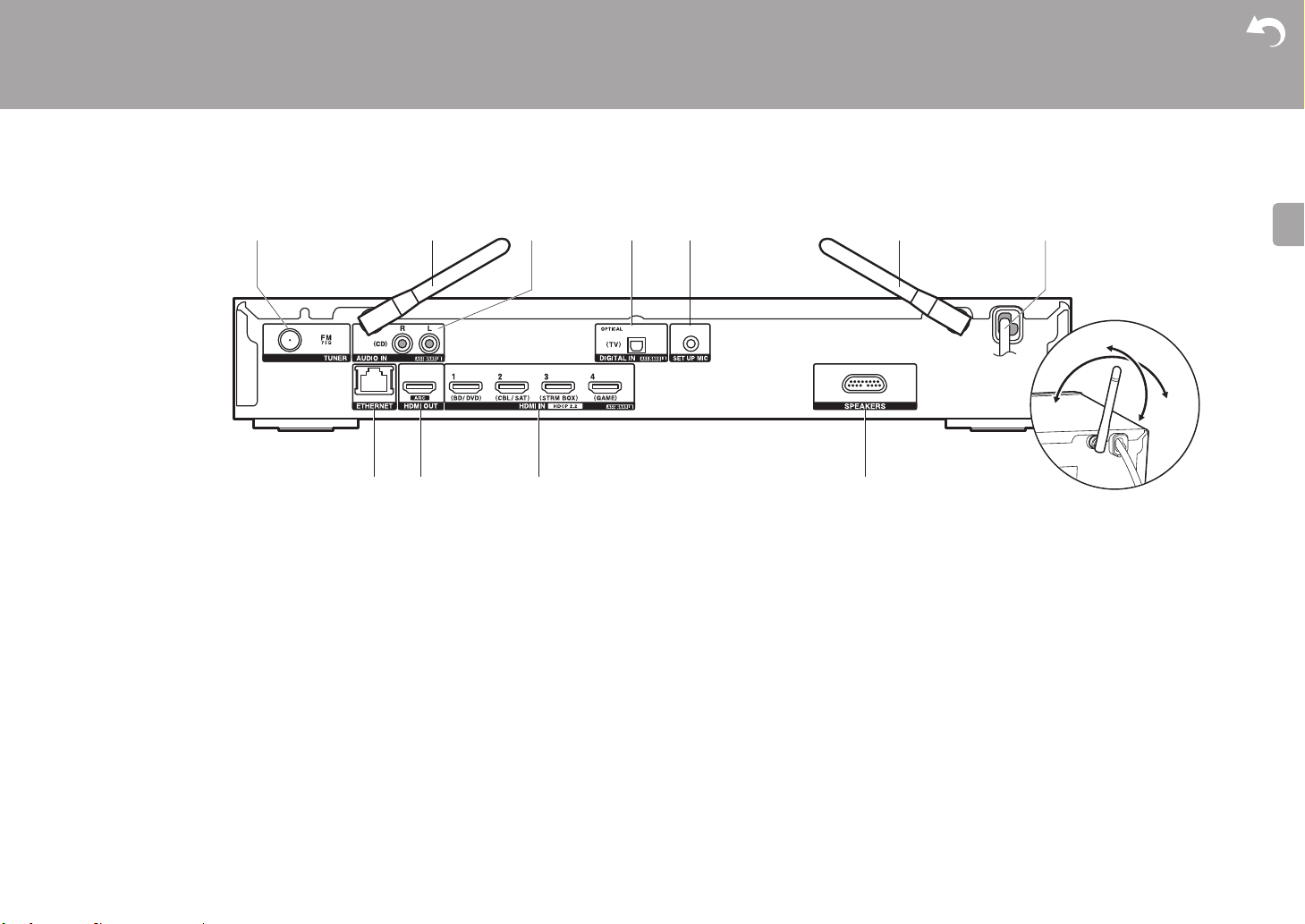

Main Unit (Rear Panel)
1. TUNER FM 75Ω jack: Connect the supplied antenna.
2. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH enabled
device. The diagram shows the movable range for the wireless antenna. Do not try to
force it beyond this range otherwise you may break it.
3. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
4. DIGITAL IN OPTICAL jack: Input digital audio signals from a TV, for example, with a digital
optical cable.
5. SETUP MIC jack: The supplied speaker setup microphone is connected.
6. Power cord
7. ETHERNET port: Connect to the network with an Ethernet cable.
8. HDMI OUT jack: Connect a HDMI cable to transfer video signals and audio signals to a
TV.
9. HDMI IN jacks: Input video signals and audio signals with a HDMI cable connected to an
AV component.
10.
SPEAKERS terminal: Connect the included sound bar using the included sound bar
connection cable.
180°
90°
> Before Start >Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
7
E
N

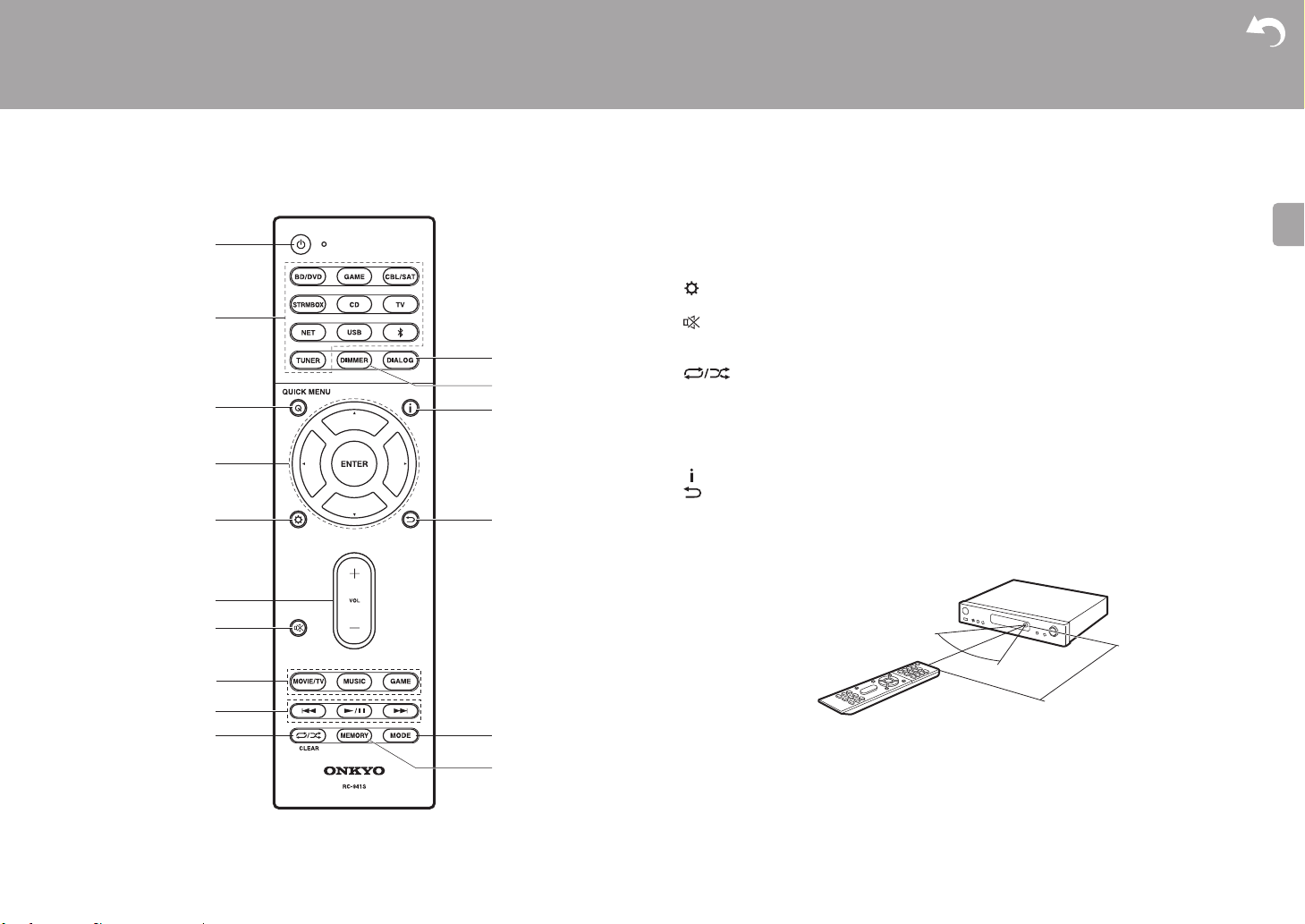

Remote Controller
1. Í button: Turns the unit on or into standby mode.
2. Input selector buttons: Switches the input to be played.
3. Q (QUICK MENU) button: You can perform common settings on the TV screen. (ÄP38)
4. Cursors, ENTER button: Select the item with the cursors and press ENTER to confirm.
5. button: Displays the Setup menu.
(
Ä
P42)
6. Volume buttons: Allows you to adjust the volume. This button also cancels the muting.
7. button: Temporarily mutes audio. Press again to cancel muting.
8. Listening mode buttons: Allows you to select the listening mode. (ÄP30)
9. Play buttons: You can start play of the Music Server or USB.
10.
button: You can start repeat or random play of the Music Server or USB.
CLEAR button: Deletes all characters you have entered when entering text on the TV
screen.
11.
DIALOG button: Switches the Dialog Enhancement setting.
(
Ä
P39)
12.
DIMMER button: You can adjust the brightness of the display in three steps. It cannot be
turned off completely.
13.
button: Switches the information on the display.
14.
button: Returns the display to the previous state during setting.
15.
MODE button: Switches tuning to an FM station between automatic tuning and manual
tuning.
16.
MEMORY button: Used to register FM radio stations.
30°
30°
Approx.5 m
8
> Before Start >Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Main Unit (Display)
1. Lights in the following conditions.
HDMI: HDMI signals are input and selected.
ARC: Audio signals from the ARC compatible TV are input and selected.
USB: When "USB" is selected with the input selector and the unit is connected by USB
and the USB device is selected. Flashes if the USB is not properly connected.
NET: When "NET" is selected with the input selector and the unit is connected to the
network. It will flash if the connection to the network is not correct.
DIGITAL: Digital signals are input and the digital input selector is selected.
2. Lights when operating the "NET" or "USB" input selector indicating remote controller
cursor operations are possible in screens showing list of tracks, for example.
3. Lights when headphones are connected.
4. Lights when operating the "NET" or "USB" input selector when tracks are played or
paused.
5. Lights according to the type of input digital audio signals and the listening mode.
6. Lights in the following conditions.
RDS: Receiving RDS broadcasting.
AUTO: When tuning mode is auto.
TUNED: Receiving FM radio.
FM STEREO: Receiving FM stereo.
SLEEP: Sleep timer has been set.
ASb: When Auto Standby function is enabled. (ÄP52)
7. Flashes when muting is on.
8. Displays various information of the input signals. Characters that cannot be displayed on
this unit are replaced with asterisks ( ＊ ).
> Before Start >Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
9
E
N
Sound Bar
1. Height left speaker
2. Height right speaker
3. Front left speaker
4. Center speaker
5. Front right speaker
6. Speaker jacks: Connect to the main unit using the included sound bar connection cable.
7. Holes for attaching to the wall: The sound bar can be attached to the wall by putting these
holes on wood screws, etc., that are fixed to the wall. The holes for attaching to the wall
are on the rear of the sound bar, in two places 580 mm apart.
0 The wood screws, etc., to fit the brackets to the wall are not included. Consult with a
professional to make sure you select the type, material, length, etc., that will provide
sufficient support. Add a reinforcing plate or anchor if reinforcement is necessary.
0 We accept no responsibility for damage or injury that arises due to incorrect fitting,
incomplete fitting, incorrect use, or acts of nature.
10 mm
5 mm
10
> Before Start >Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Subwoofer
1. LINK LED: Lights when paired with the main unit.
2. LINK button: Used to pair the subwoofer and the main unit.
3. AC INLET: The supplied power cord is connected.
The wireless connection setting between the subwoofer and the main unit was completed at
the time of shipping. You need only connect the power cord to start using the unit.
0 If LINK LED is flashing and you do not hear sound from the subwoofer, go to
"Troubleshooting" and check "The subwoofer produces no sound" (ÄP58).
11
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Install
1. Connect the Speakers
a Non-skid pads
a
1
3
2

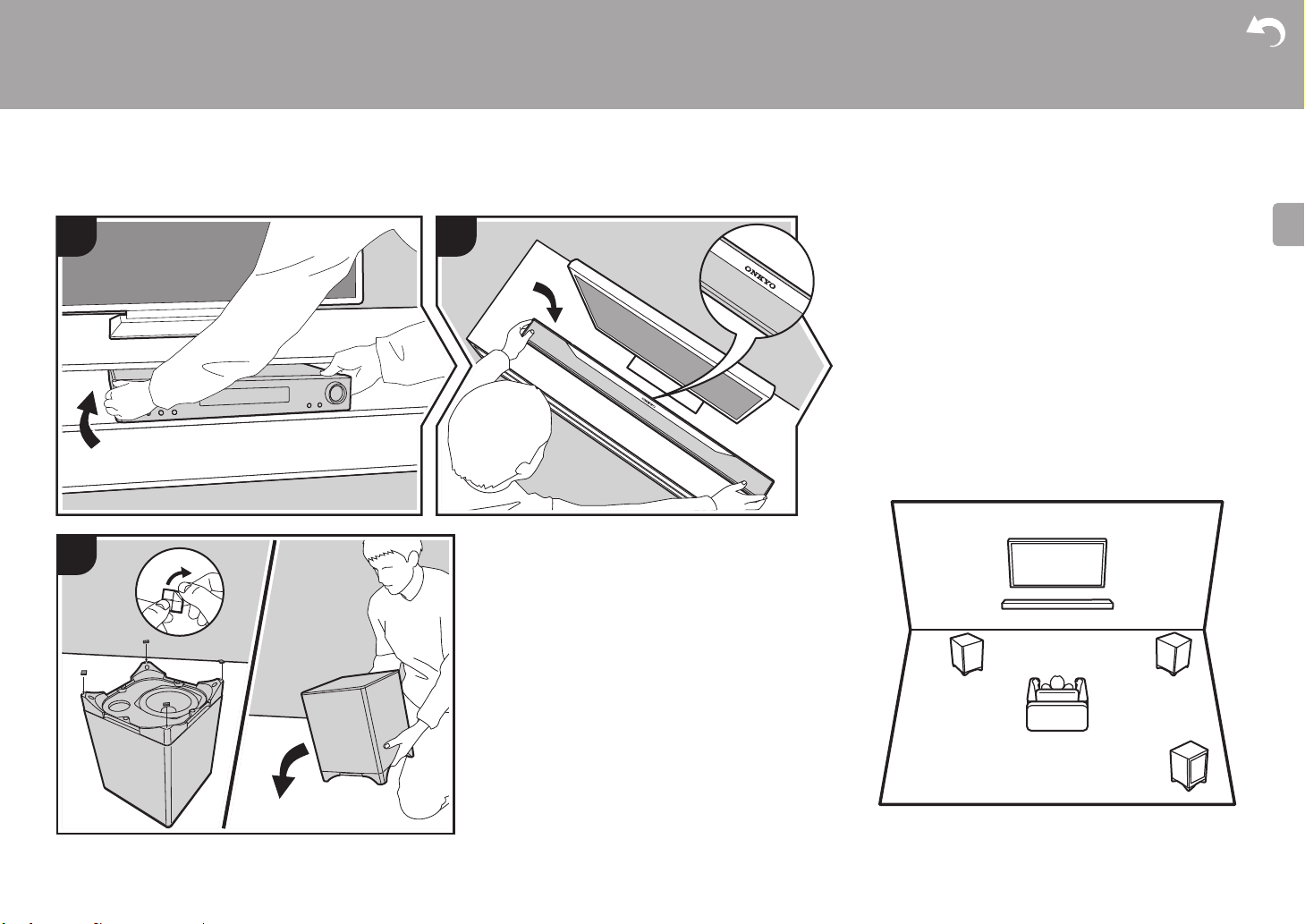

Setting up the sound bar
The sound bar outputs the audio for the front speakers and
center speaker from the front, and the audio for the height
speakers from the top. Set up in front of the TV so the logo
faces up.
Setting up the Subwoofer
Attach the included pads to the four corners of the bases of
the subwoofer. This makes the speakers less likely to slip,
improve the stability of the installation, and enables better
sound. The connection between the main unit and the
subwoofer is wireless. Put the subwoofer within 10 m of the
main unit. Also, place so there are no obstacles such as
walls between the main unit and the subwoofer.
＊
The directionality of subwoofers, where hearing discerns the direction
of sound, is weak, so you will get the same effect from the subwoofer
wherever you decide to put it in the room.
＊
＊
＊
12
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
a Sound bar connection cable
a
1
2
a
a
Connecting the sound bar
Refer to the illustration to connect the sound bar. Match the
facing of the cable connector to the port, and make sure
that it is pushed in all the way.
13
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
2. Connect the TV
a HDMI cable, b Digital optical cable
a
b
DIGITAL
OPTICAL OUT
1
To ARC TV
For a TV that supports the ARC (Audio Return Channel)
(ÄP64) feature, use an HDMI cable and connect according
to illustration "a". Choose an HDMI IN jack on the TV that
supports ARC when connecting.
To Non-ARC TV
For a TV that does not support the ARC (Audio Return
Channel) feature, connect both the HDMI cable in illustration
"a" and the digital optical cable in "b".
Setup
0 Settings are required to use the ARC function. Select
"Yes" in "4. Audio Return Channel" (ÄP18) in the Initial
Setup.
0 Please refer to the TV’s operation manual for directions on
connections and setup for the TV.
14
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
3. Connect the HDMI AV Components
a HDMI cable
e.g. BD
a
HDMI OUT
1
BD/DVD
GAME
a
Cable/Satellite
set-top box
Streaming media
player
This is an example of connection with an AV component
that has an HDMI jack. With connection to an AV
component that conforms with the CEC (Consumer
Electronics Control) standard, you can use features such as
the HDMI CEC feature that links with the input selector, and
the HDMI Standby Through feature which allows you to
play video and audio from AV components on the TV even
when this unit is in standby mode. (ÄP64)
0 To play 4K or 1080p video, use the high speed HDMI
cable.
Setup
0 Settings are required to use the HDMI CEC and HDMI
Standby Through features. (ÄP48, 49) Make settings after
all connections are complete.
0 To enjoy digital surround sound including Dolby Digital,
audio output should be set to "Bitstream output" on the
connected Blu-ray Disc player or other device.

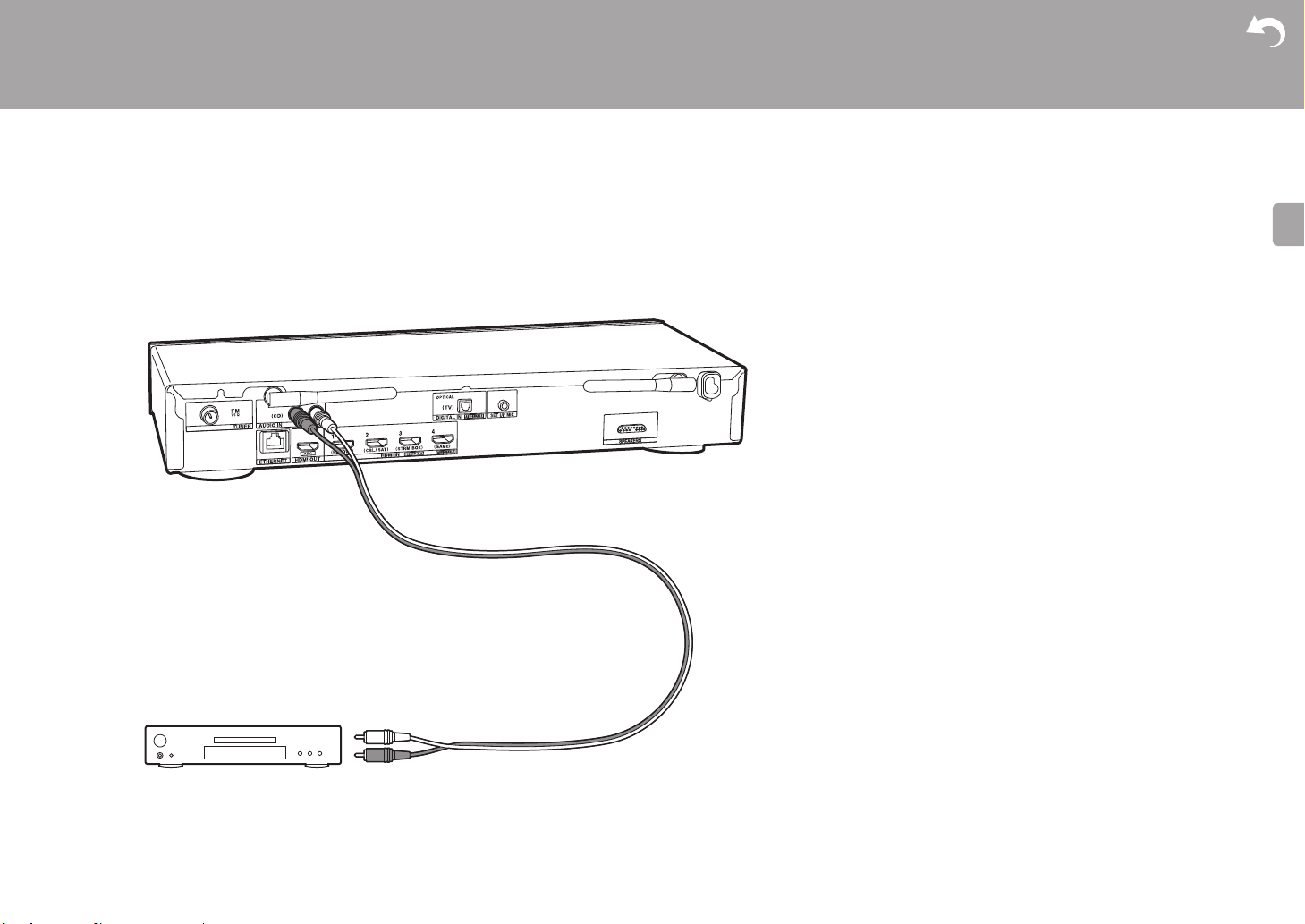

16
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
5. Connect Other Cables
a FM indoor antenna, b Ethernet cable, c Power cord (Main unit), d Power cord (for subwoofer)
b
a
c
d
d
c
1 2
3 4
Antenna Hookup
Connect the supplied FM indoor antenna to the TUNER FM
75Ω terminal. Move the FM indoor antenna around while
playing the radio to find the position with the best reception.
Network Hookup
Connect this unit to the network using wired LAN or Wi-Fi
(wireless LAN). You can enjoy network features such as
internet radio by connecting the unit to the network. If you
connect by wired LAN, connect with an Ethernet cable to the
ETHERNET port as shown in the illustration. To connect by
Wi-Fi, then after selecting "Wireless" in "3. Network
Connection" (ÄP18) in Initial Setup, select the desired
setting method and follow the onscreen instructions to
configure the connection.
Power Cord Hookup
Connect the power cords of the main unit and subwoofer
after all other connections are completed.
17
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
Initial Setup

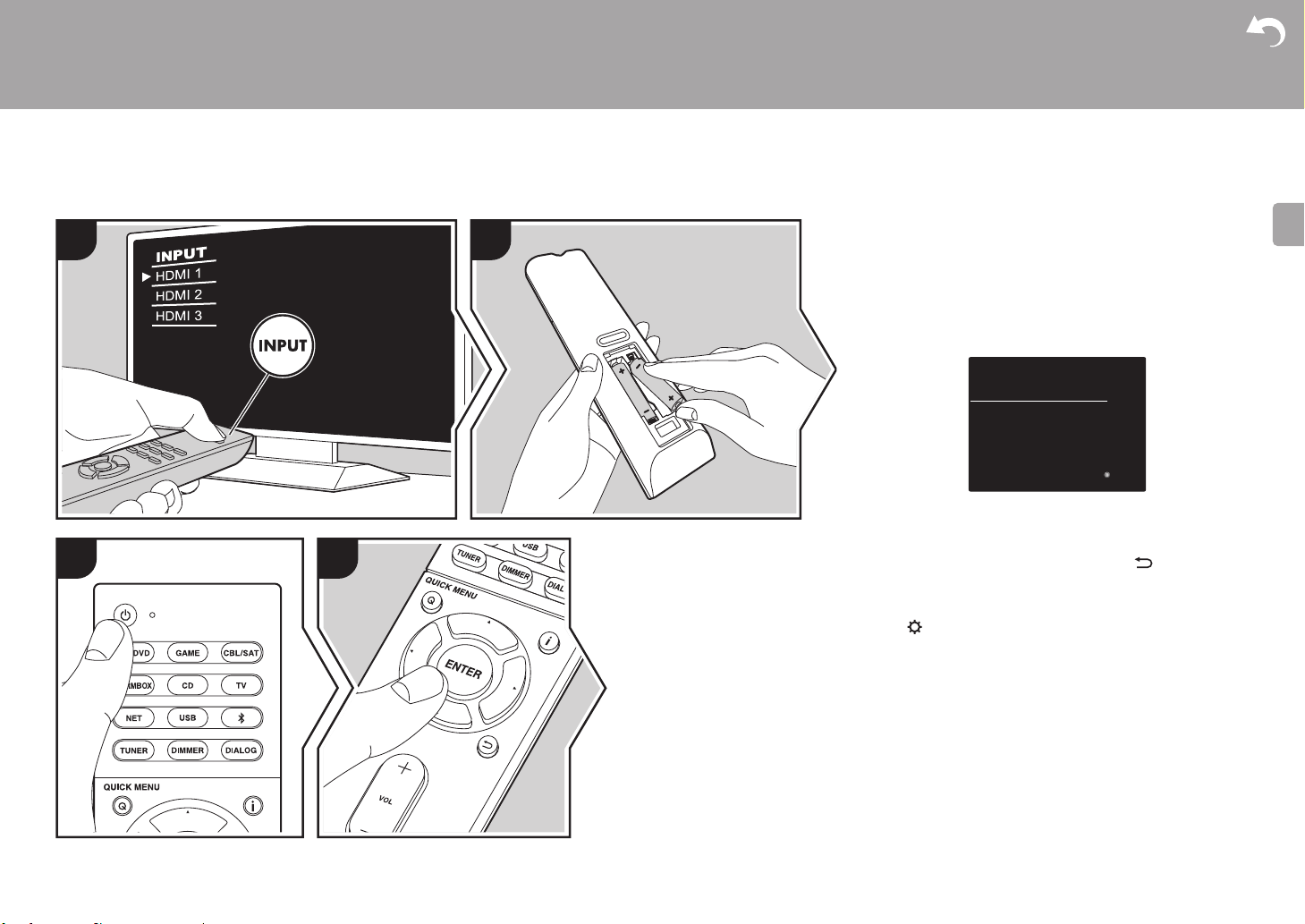

Initial Setup with Auto Start-up Wizard
1
3 4
2
TV's remote controller
Initial Setup starts automatically
1. Switch the input on the TV to that assigned to the unit.
2. Put batteries into the remote controller of this unit.
3. Press Í on the remote controller. When power is turn on
for the first time, an Initial Setup screen is automatically
displayed on the TV to allow you to make settings
required for start up.
4. Follow the on-screen instructions to select the item with
the cursors of the remote controller and press ENTER to
confirm your selection.
0 To return to the previous screen, press .
To redo Initial Setup: If you terminate the procedure on the
way or want to change a setting made during Initial Setup,
press on the remote controller, select "6. Miscellaneous"
- "Initial Setup" in the Setup menu and press ENTER. To
select the language displayed again, change "OSD
Language". (ÄP42)
Exit
Initial Setup
Language Select
English
Deutsch
Français
Español
Italiano
Nederlands
Svenska
Русский язык
中文
18
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
1. AccuEQ Room Calibration
Place the supplied speaker setup microphone in the
listening position, measure the test tones emitted by the
speakers, then the unit automatically sets the optimum
volume level for each speaker and the distance from the
listening position. This also automatically adjusts the
equalizers for the speakers and enables correction of
distortion caused by the acoustic environment of the room.
0 Calibration takes between 3 to 12 minutes to be
completed. The speakers emit the test tone at high
volume during measurement, so be careful of your
surroundings. Keep the room as quiet as possible during
measurement.

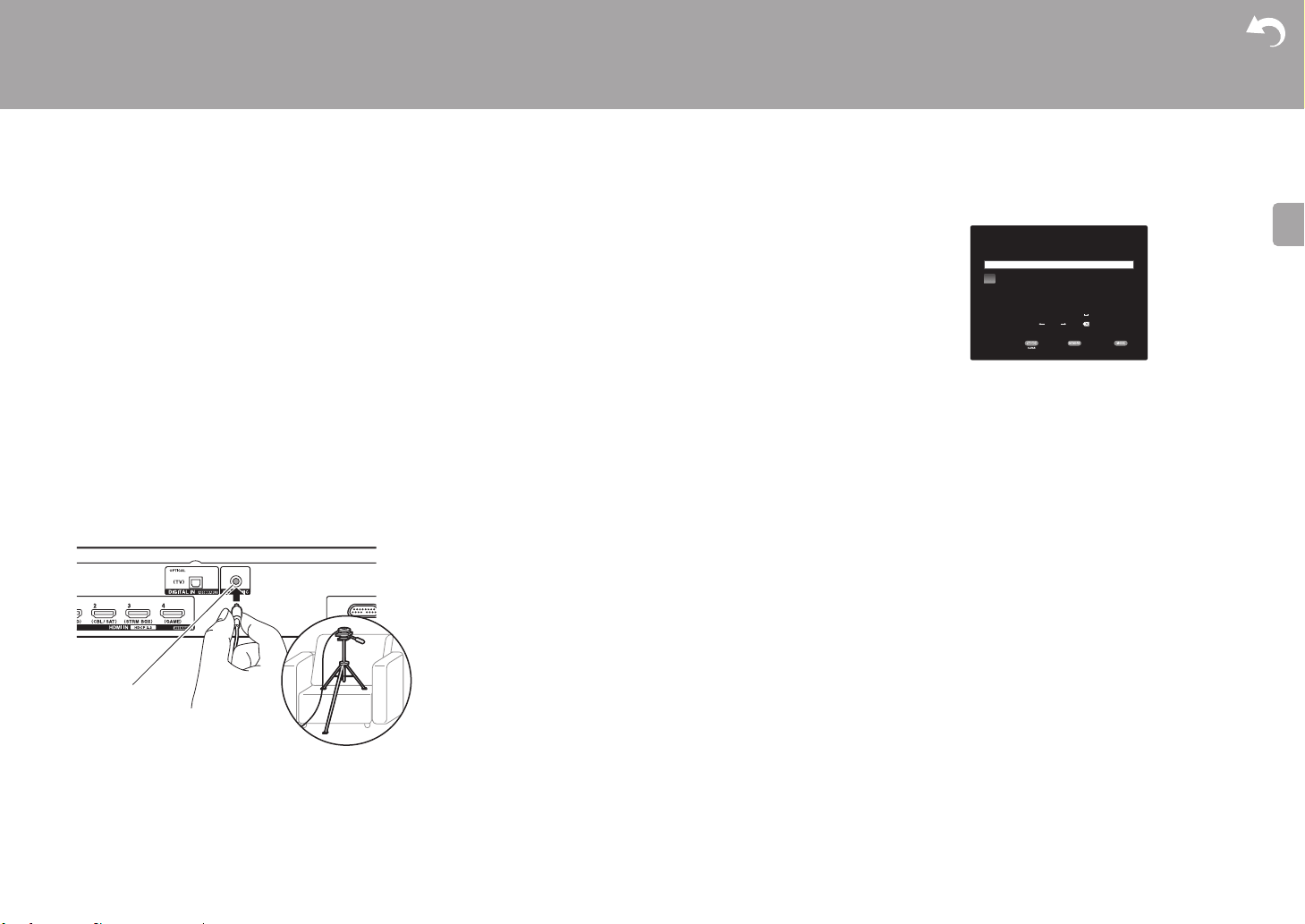

1. Place the supplied speaker setup microphone in the
listening position, and connect to the SETUP MIC jack on
the main unit. A confirmation screen is displayed, so
follow the on screen instructions.
When putting the speaker setup microphone on a tripod,
refer to the illustration when putting it in place.
0 To cancel AccuEQ Room Calibration partway through,
disconnect the speaker setup microphone.
2. Test tones are emitted by the speakers, and firstly the
unit detects the speakers connected and the noise in the
environment.
3. After the results of the above measurements are
displayed, select "Next", press ENTER on the remote
controller, and the test tones are emitted again, and the
unit automatically makes settings such as the optimum
volume level and the distance from the listening position.
4. Disconnect the speaker setup microphone.You cannot
use any other menu options while it is connected.
2. Source Connection
Check that each input source is connected correctly. Follow
the guidance, select the input you want to confirm, start play
of the selected player, and confirm that the images appear
on the TV and that sound is played.
3. Network Connection
Set up Wi-Fi connection with an access point such as a
wireless LAN router. There are the following two methods of
connecting by Wi-Fi:
"Scan Networks": Search for an access point from this
unit. Find out the SSID of the access point beforehand.
"Use iOS Device (iOS7 or later)": Share the iOS device's
Wi-Fi settings with this unit.
If you select "Scan Networks", there are a further two
choices of connection method. Check the following.
0 "Enter Password": Enter the password (or key) of the
access point to connect.
0 "Push Button": If the access point has an automatic
connection button, you can connect without entering a
password.
0 If the SSID of the access point is not displayed, then in
the screen listing the SSIDs, select "Other..." with the X
button on the remote controller and press ENTER, then
follow the on-screen instructions.
Keyboard input: To switch between upper and lower case,
select "A/a" on the screen and press ENTER. To select
whether to mask the password with " ＊ " or display it in
plain text, press MEMORY on the remote controller.
Pressing CLEAR will delete all the input characters.
Privacy policy: A confirmation screen asking you to agree
to the privacy policy is displayed during network setting.
Select "Yes" and press ENTER to indicate agreement.
4. Audio Return Channel
If you have connected a TV that supports ARC, select
"Yes". This unit's ARC setting turns on and you can listen to
the TV's audio through this unit.
0 If you select "Yes", the HDMI CEC function is enabled
and power consumption increases during standby.
SETUP MIC
Wi-Fi Setup
Ðáóó÷ïòä
When finished, select the "OK" key.
A/aAll Erase
OKA/a
a b cdefghi jklm
nopqr s t uvwxy z
1 2 34567890- ^\
, . /;:@[]
Hide/Show
19
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
Playback
AV Component Playback
Basic operations
Play an AV component or TV connected to this unit with an
HDMI cable or other cable.
1. Switch the input on the TV to that assigned to the unit.
2. Press the input selector (a) on the remote controller with
the same name as the jack to which you connected the
player to switch the input.
For example, press BD/DVD to play the player connected
to the BD/DVD jack. Press TV to listen the TV's sound.
0 Note that when the CEC link function works, the input
switches automatically when you have connected a
CEC compliant TV and player to this unit using HDMI
connection.
3. Start play on the player.
4. Use VOL+/– (b) to adjust the volume.
a
b
20
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N

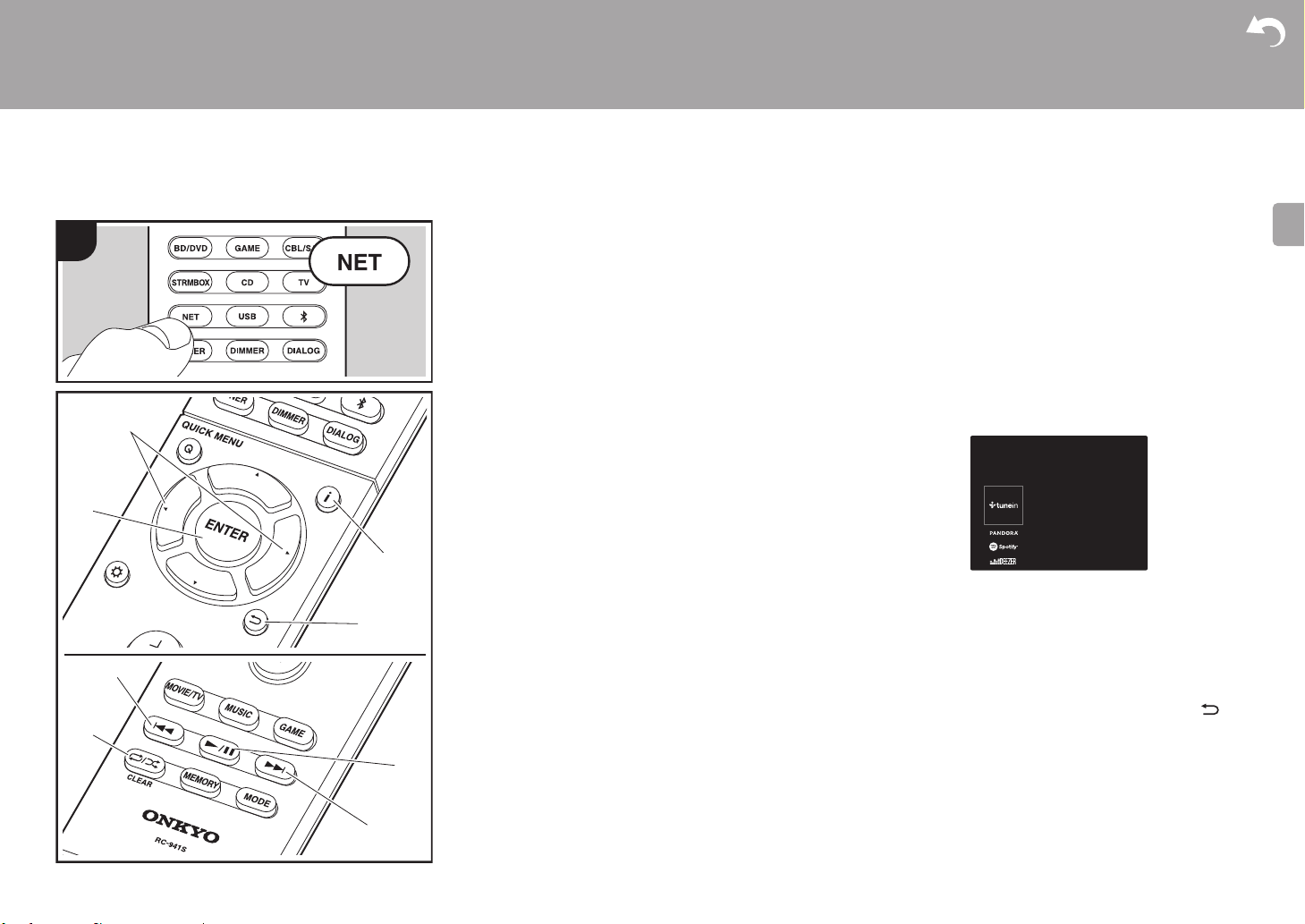

Internet Radio
Basic operations
When this unit is connected to a network, you can listen to
TuneIn or other preregistered Internet radio services.
Depending on the internet radio service, the user may need
to register from their computer first.
1. Switch the input on the TV to that assigned to the unit.
2. Press NET on the remote controller.
3. Follow the on-screen instructions, using the cursors to
select radio stations and programs, then press ENTER
(a) to play. Play starts when 100% is displayed for
buffering.
0 To return to the previous screen, press (b).
0 If you cannot select a network service, it will become
selectable when the network function is started.
Regarding the TuneIn Radio
To display the TuneIn Radio menu during play, press
ENTER (a) on the remote controller.
Add to My Presets:Registers radio stations being
broadcast and programs in "My Presets". Once registered,
"My Presets" is displayed in the level under TuneIn Radio.
To play, select the program you like from "My Presets".
Remove from My Presets:Removes a radio station or
program from "My Presets" in TuneIn Radio.
1
a
b
21
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N

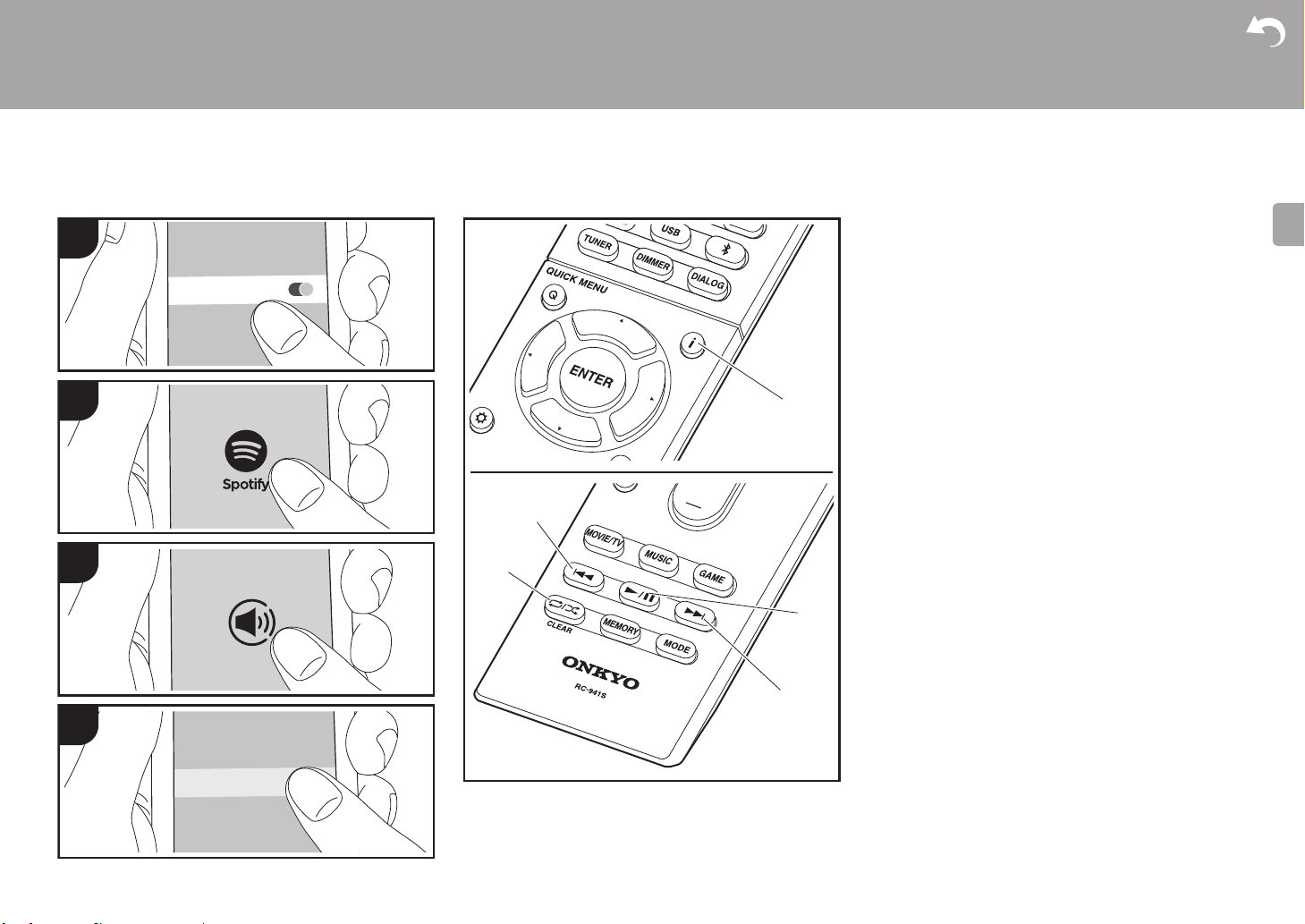

Spotify
Wi-Fi
OnkyoHT-L05XXXX
b
d
e
c
a
1
2
3
4
Basic operations
Spotify Connect play is possible by connecting this unit to
the same network as a smartphone or tablet. To enable
Spotify Connect, install the Spotify application on your
smartphone or tablet and create a Spotify premium account.
1. Connect the smartphone to the network that this unit is
connected to.
2. Click the Connect icon in the track play screen of the
Spotify app.
3. Select this unit.
4. This unit turns on automatically and the input selector
changes to NET and streaming of Spotify starts.
0 If "5. Hardware" - "Power Management" - "Network
Standby" is set to "Off" in the Setup menu, manually turn
the unit on and then press NET on the remote controller.
0 Refer to the following for Spotify settings:
www.spotify.com/connect/
0 The Spotify software is subject to third party licenses
found here:
www.spotify.com/connect/third-party-licenses
The following remote controller operations are also
possible.
(a) Pressed during play, this button changes the displayed
track information.
(b) This button plays the previous track.
(c) This button lets you start repeat or random playback.
Pressing this button repeatedly cycles through the
repeat modes.
(d) Pressed during play this button pauses playback.
Pressed while paused, and it restarts play.
(e) This button plays the next track.
22
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
Music Server
It is possible to stream music files stored on PCs or NAS
devices connected to the same network as this unit. The
network servers this unit is compatible with are those PCs
with players installed that have the server functionality of
Windows Media
®
Player 11 or 12, or NAS that are
compatible with home network functionality. You may need
to make some settings in advance to use Windows Media
®
Player 11 or 12. Note that only music files registered in the
library of Windows Media
®
Player can be played.
Configuring Windows Media
®
Player
■ Windows Media
®
Player 11
1. Turn on your PC and start Windows Media
®
Player 11.
2. In the "Library" menu, select "Media Sharing" to display a
dialog box.
3. Select the "Share my media" check box, and then click
"OK" to display the compatible devices.
4. Select this unit, click "Allow" and put a check mark next to
the icon for this unit.
5. Click "OK" to close the dialog.
0 Depending of the version of Windows Media
®
Player,
there may be differences in the names of items you can
select.
■ Windows Media
®
Player 12
1. Turn on your PC and start Windows Media
®
Player 12.
2. In the "Stream" menu, select "Turn on media streaming"
to display a dialog box.
0 If media streaming is already turned on, select "More
streaming options..." in the "Stream" menu to list players
in the network, and then go to step 4.
3. Click "Turn on media streaming" to list players in the
network.
4. Select this unit in "Media streaming options" and check
that it is set to "Allow".
5. Click "OK" to close the dialog.
0 Depending of the version of Windows Media
®
Player,
there may be differences in the names of items you can
select.
Playing
1. Start the server (Windows Media
®
Player 11, Windows
Media
®
Player 12, or NAS device) containing the music
files to play.
2. Make sure that the PCs and/or NASs are properly
connected to the same network as this unit.
3. Switch the input on the TV to that assigned to the unit.
4. Press NET on the remote controller.
5. With the cursors on the remote controller, select "Music
Server", and then press ENTER (b).
6. Select the target server with the cursors on the remote
controller and press ENTER (b) to display the items list
screen.
7. With the cursors on the remote controller, select the
music file to play, and then press ENTER (b) to start
playback. To return to the previous screen, press (d).
0 If "No Item." is displayed, check whether the network is
properly connected.
0 Depending on the server and share settings, the unit may
not recognize it, or may not be able to play its music files.
Furthermore, the unit cannot access pictures and videos
stored on servers.
0 For music files on a server, there can be up to 20,000
tracks per folder, and folders may be nested up to 16
levels deep.
a
c
d
b
e
f
g
h
1
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
23
E
N
The following remote controller operations are also
possible.
(a) When the folder or file lists are not shown on one screen,
you can change the screen.
(c) Pressed during play, this button changes the displayed
track information. Pressed while a folder or file list is
displayed, this button returns you to the play screen.
(e) This button plays the previous track.
(f) This button lets you start repeat or random playback.
Pressing this button repeatedly cycles through the
repeat modes.
(g) Pressed during play this button pauses playback.
Pressed while paused, and it restarts play.
(h) This button plays the next track.
Controlling Remote Playback from a PC
You can use this unit to play music files stored on your PC
by operating the PC inside your home network. The unit
supports remote playback with Windows Media
®
Player 12.
1. Turn on your PC and start Windows Media
®
Player 12.
2. Open the "Stream" menu and check that "Allow remote
control of my Player..." is checked. Click "Turn on media
streaming" to list players in the network.
3. Switch the input on the TV to that assigned to the unit.
4. Select and right-click the music file to play with Windows
Media
®
Player 12. To remotely play a music file on
another server, open the target server from "Other
Libraries" and select the music file to play.
5. Select this unit in "Play to" to open the "Play to" window
of Windows Media
®
Player 12 and start playback on the
unit. If your PC is running on Windows
®
8.1, click "Play
to", and then select this unit.
If your PC is running on Windows
®
10, click "Cast to
Device", and select this unit. Operations during remote
playback are possible from the "Play to" window on the
PC. The playback screen is displayed on the TV
connected to the HDMI output of the unit.
6. Adjust the volume using the volume bar on the "Play to"
window.
0 Sometimes, the volume displayed on the remote
playback window may differ from that appeared on the
display of the unit. Also, when the volume is adjusted
from this unit, this is not reflected in the "Play to" window.
0 Remote playback is not possible when using a network
service or playing music files on a USB storage device.
0 Depending of the version of Windows
®
, there may be
differences in the names of items you can select.
Supported Audio Formats
This unit supports the following music file formats. Remote
play of FLAC, DSD, and Dolby TrueHD is not supported.
MP3 (.mp3/.MP3):
0 Supported formats: MPEG-1/MPEG-2 Audio Layer-3
0 Supported sampling rates: 44.1 kHz, 48 kHz
0 Supported bitrates: Between 8 kbps and 320 kbps and
VBR.
WMA (.wma/.WMA):
0 Supported sampling rates: 44.1 kHz, 48 kHz
0 Supported bitrates: Between 5 kbps and 320 kbps and
VBR.
0 WMA Pro/Voice/WMA Lossless formats are not
supported.
WAV (.wav/.WAV):
WAV files include uncompressed PCM digital audio.
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 8 bit, 16 bit, 24 bit
AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):
AIFF files include uncompressed PCM digital audio.
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 8 bit, 16 bit, 24 bit
AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/
.3G2):
0 Supported formats: MPEG-2/MPEG-4 Audio
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz
0 Supported bitrates: Between 8 kbps and 320 kbps and
VBR.
FLAC (.flac/.FLAC):
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 8 bit, 16 bit, 24 bit
LPCM (Linear PCM):
0 Supported sampling rates: 44.1 kHz, 48 kHz
0 Quantization bit: 16 bit
Apple Lossless (.m4a/.mp4/.M4A/.MP4):
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 16 bit, 24 bit
DSD (.dsf/.dff/.DSF/.DFF):
0 Supported formats: DSF/DSDIFF
0 Supported sampling rates: 2.8 MHz, 5.6 MHz
0 Variable bit-rate (VBR) files are supported. However,
playback times may not be displayed correctly.
0 Remote playback does not support the gapless playback.
24
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
USB Storage Device
e
g
h
f
a
c
b
d
1
2

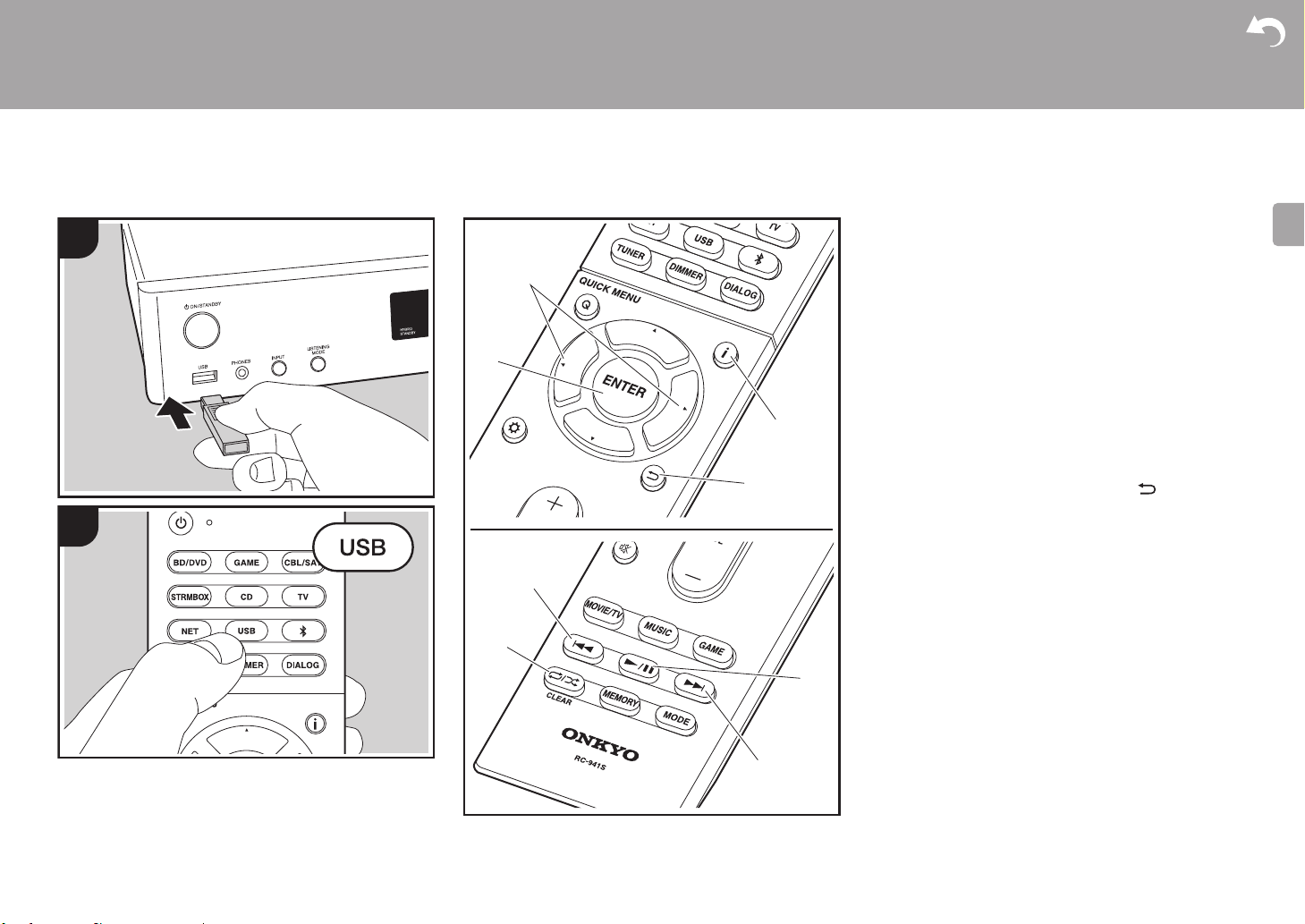

Basic play
Play music files on a USB storage device.
1. Switch the input on the TV to that assigned to the unit.
2. Plug your USB storage device with the music files into
the USB port on the front of the main unit.
3. Press "USB" on the remote controller.
0 If the "USB" indicator flashes on the display, check
whether the USB storage device is plugged in properly.
0 Do not unplug the USB storage device connected to this
unit while "Connecting…" is on the display. This may
cause data corruption or malfunction.
4. Press ENTER (b) on the remote controller in the next
screen. The list of folders and music files on the USB
storage device are displayed. Select the folder with the
cursors and press ENTER (b) to confirm your selection.
0 To return to the previous screen, press (d).
5. With the cursors on the remote controller, select the
music file, and then press ENTER (b) to start playback.
0 The USB port of this unit conforms with the USB 2.0
standard. The transfer speed may be insufficient for
some content you play, which may cause some
interruption in sound.
The following remote controller operations are also
possible.
(a) When the folder or file lists are not shown on one screen,
you can change the screen.
(c) Pressed during play, this button changes the displayed
track information. Pressed while a folder or file list is
displayed, this button returns you to the play screen.
(e) This button plays the previous track.
(f) This button lets you start repeat or random playback.
Pressing this button repeatedly cycles through the
repeat modes.
(g) Pressed during play this button pauses playback.
Pressed while paused, and it restarts play.
(h) This button plays the next track.
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
25
E
N
USB Storage Device Requirements
0 Note that operation is not guaranteed with all USB
storage devices.
0 This unit can use USB storage devices that comply with
the USB mass storage device class standard. The unit is
also compatible with USB storage devices using the
FAT16 or FAT32 file system formats.
0 If the USB storage device has been partitioned, each
section will be treated as an independent device.
0 Up to 20,000 tracks per folder can be displayed, and
folders may be nested up to 16 levels deep.
0 USB hubs and USB storage devices with hub functions
are not supported. Do not connect these devices to the
unit.
0 USB storage devices with security function are not
supported on this unit.
0 If you connect a USB hard disk drive to the USB port of
the unit, we recommend that you use its AC adapter to
power it.
0 Media inserted to the USB card reader may not be
available in this function. Furthermore, depending on the
USB storage device, proper reading of the contents may
not be possible.
0 We accept no responsibility whatsoever for the loss or
damage to data stored on a USB storage device when
that device is used with this unit. We recommend that you
back up your important music files beforehand.
Supported Audio Formats
For server playback and playback from a USB storage
device, this unit supports the following music file formats.
Note that sound files that are protected by copyright cannot
be played on this unit.
MP3 (.mp3/.MP3):
0 Supported formats: MPEG-1/MPEG-2 Audio Layer 3
0 Supported sampling rates: 44.1 kHz, 48 kHz
0 Supported bitrates: Between 8 kbps and 320 kbps and
VBR.
WMA (.wma/.WMA):
0 Supported sampling rates: 44.1 kHz, 48 kHz
0 Supported bitrates: Between 5 kbps and 320 kbps and
VBR.
0 WMA Pro/Voice/WMA Lossless formats are not
supported.
WAV (.wav/.WAV):
WAV files include uncompressed PCM digital audio.
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 8 bit, 16 bit, 24 bit
AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):
AIFF files include uncompressed PCM digital audio.
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 8 bit, 16 bit, 24 bit
AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/
.3G2):
0 Supported formats: MPEG-2/MPEG-4 Audio
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz
0 Supported bitrates: Between 8 kbps and 320 kbps and
VBR.
FLAC (.flac/.FLAC):
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 8 bit, 16 bit, 24 bit
Apple Lossless (.m4a/.mp4/.M4A/.MP4):
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Quantization bit: 16 bit, 24 bit
DSD (.dsf/.dff/.DSF/.DFF):
0 Supported formats: DSF/DSDIFF
0 Supported sampling rates: 2.8 MHz, 5.6 MHz
Dolby TrueHD (.vr/.mlp/.VR/.MLP):
0 Supported sampling rates: 44.1 kHz, 48 kHz, 64 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
0 Variable bit-rate (VBR) files are supported. However,
playback times may not be displayed correctly.
0 This unit supports the gapless playback of the USB
storage device in the following conditions.
When playing WAV, FLAC and Apple Lossless, and the
same format, sampling frequency, channels and
quantization bit rate are played continuously.
26
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
AirPlay
®
Wi-Fi
1
2
OnkyoHT-L05XXXXXX
iPhone
3
4
5
e.g., iOS 10
Basic play
You can wirelessly enjoy the music files on an iPhone
®
,
iPod touch
®
, or iPad
®
connected to the same access point
as this unit.
0 Update the OS version on your iOS device to the latest
version.
0 There may be some differences in the operations
screens and how operations are performed on the iOS
device depending on the iOS version. For details, see the
operating instructions for the iOS device.
1. Connect the iOS device to the access point.
2. Press NET.
3. Tap the AirPlay icon in the play screen of the music
app on the iOS device and select this unit from the list of
devices displayed.
4. Play the music files on the iOS device.
0 The default status is for the Network Standby feature to
be on, so when you do steps 3 and 4 above, this unit
automatically comes on and input switches to "NET". To
reduce the amount of power consumed in standby mode,
press the button on the remote controller, then in the
Setup menu displayed set "5. Hardware" – "Power
Management" – "Network Standby" to "Off".
0 Due to the characteristics of AirPlay wireless technology,
the sound produced on this unit may slightly be behind
the sound played on the AirPlay-enabled device.
You can also play back music files on the computer with
iTunes (Ver. 10.2 or later). Before operation, make sure this
unit and the PC are connected to the same network, then
press NET on this unit. Next, click the AirPlay icon in
iTunes, select this unit from the list of devices displayed,
and start play of a music file.
27
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
BLUETOOTH
®
Playback
Pairing Playing Back
Pairing
1. When you press the button on the remote controller,
"Now Pairing..." is displayed on this unit's display, and the
pairing mode is enabled.
2. Enable (turn on) the BLUETOOTH function of the
BLUETOOTH enabled device, then select this unit from
amongst the devices displayed. If a password is
requested, enter "0000".
0 To connect another BLUETOOTH enabled device, press
and hold the button until "Now Pairing..." is displayed,
then perform step 2 above. This unit can store the data of
up to eight paired devices.
0 The coverage area is 15 meters. Note that connection is
not always guaranteed with all BLUETOOTH enabled
devices.
Playing Back
1. When the unit is on, perform the connection procedure
on the BLUETOOTH enabled device.
2. The input selector on this unit automatically switches to
"BLUETOOTH".
3. Play the music files. Increase the volume of the
BLUETOOTH enabled device to an appropriate level.
0 Due to the characteristics of BLUETOOTH wireless
technology, the sound produced on this unit may slightly
be behind the sound played on the BLUETOOTH
enabled device.
OnkyoHT-L05XXX
1
2
OnkyoHT-L05XXX
1
2
28
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N

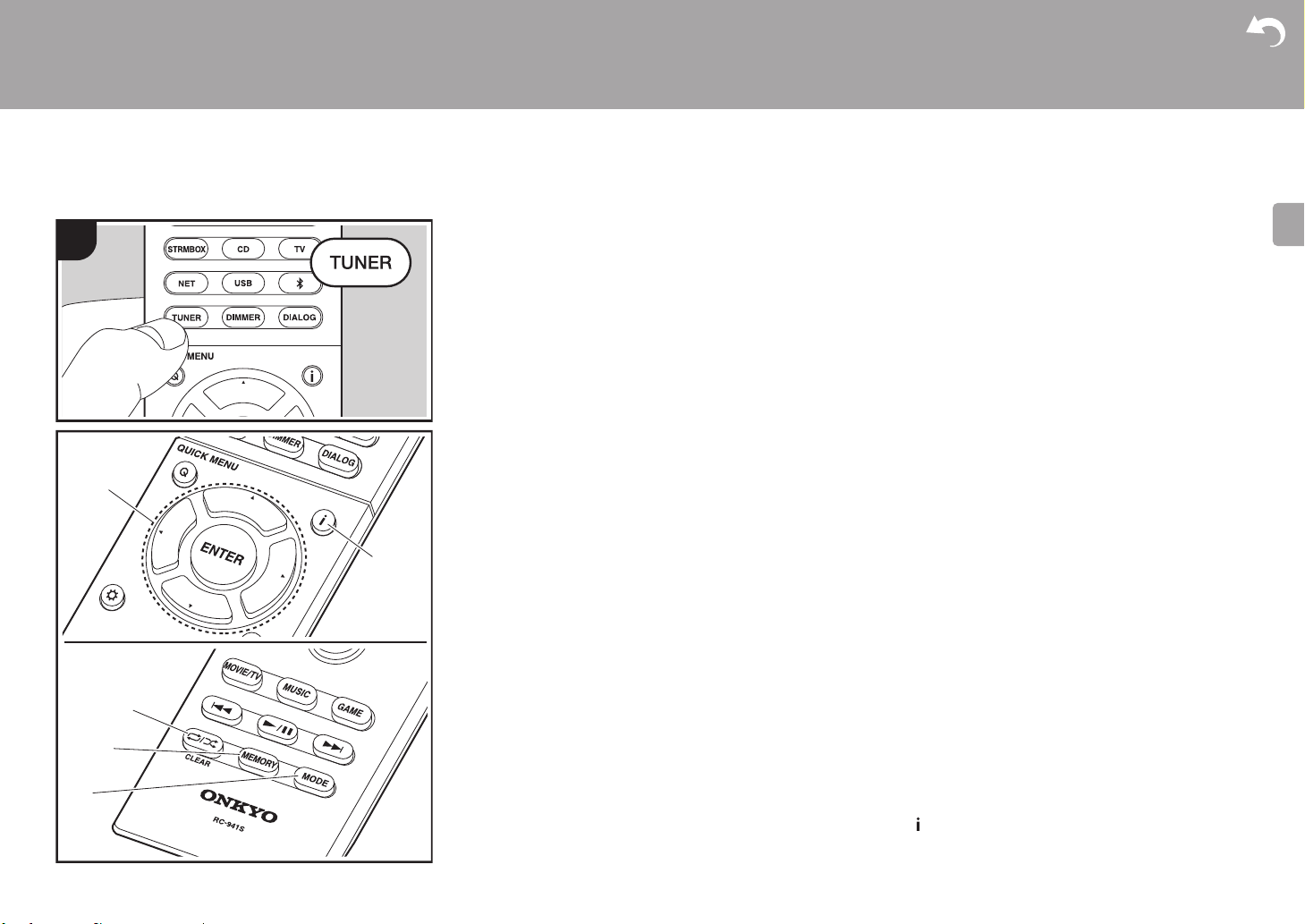

Listening to the FM Radio
Tuning Automatically
1. Press TUNER on the remote controller.
2. Press MODE (e) on the remote controller so that "AUTO"
appears on the display.
3. When you press the cursor S/T buttons (a) on the
remote controller, automatic tuning starts, and searching
stops when a station is found. When tuned into a radio
station, the "TUNED" indicator on the display lights.
When tuned into a stereo FM station, the "FM STEREO"
indicator lights.
0 No sound is output while the "TUNED" indicator is off.
When FM broadcasts reception is poor
Radio waves may be weak depending on the building
structure and environmental conditions. In that case,
perform the procedure as explained below in "Tuning
Manually" to manually select the desired station.
Tuning Manually
1. Press TUNER on the remote controller.
2. Press MODE (e) on the remote controller to turn off
"AUTO" on the display.
3. While pressing the cursor S/T buttons (a) on the remote
controller, select the desired radio station.
0 The frequency changes by 1 step each time you press
the button. The frequency changes continuously if the
button is held down and stops when the button is
released. Tune by looking at the display.
To return to the auto tuning mode
Press MODE (e) on the remote controller again so that
"AUTO" appears on the display. The unit tunes
automatically into a radio station.
Presetting a Radio Station
It allows you to register up to 40 of your favorite radio
stations. Registering radio stations in advance allows you to
tune into your radio station of choice directly.
1. Tune into the radio station you want to register.
2. Press MEMORY (d) on the remote controller so that the
preset number on the display flashes.
3. While the preset number is flashing (about 8 seconds),
repeatedly press the cursor W/X buttons (a) on the
remote controller to select a number between 1 and 40.
4. Press MEMORY (d) on the remote controller again to
register the station. When registered, the preset number
stops flashing.
Selecting a Preset Radio Station
1. Press TUNER on the remote controller.
2. Press the cursor W/X buttons (a) on the remote
controller to select a preset number.
Deleting a Preset Radio Station
1. Press TUNER on the remote controller.
2. Press the cursor W/X buttons (a) on the remote
controller to select the preset number to delete.
3. After pressing MEMORY (d) on the remote controller,
press CLEAR (c) while the preset number is flashing to
delete the preset number.
0 When deleted, the number on the display goes off.
Using RDS
RDS stands for Radio Data System and is a method of
transmitting data in FM radio signals. In regions using RDS,
the radio station name is displayed when you tune into a
radio station broadcasting program information. When you
press (b) on the remote controller in this state, you can
use the following functions.
a
c
d
e
1
b
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
29
E
N
Displaying text information (Radio Text)
1. While the name of the station is being displayed on the
display, press (b) on the remote controller once.
Radio Text (RT) broadcast by the station is displayed
scrolling across the display. "No Text Data" is displayed
when no text information is available.
0 Unusual characters may be displayed when the unit
receives unsupported characters. However, this is not a
malfunction. Also, if the signal from a station is weak,
information may not be displayed.
Search for stations by Program Type
1. While the name of the station is being displayed on the
display, press (b) on the remote controller twice.
2. Press the cursor W/X buttons (a) on the remote
controller to select the Program Type you want to find,
then press ENTER (a) to start the search.
The Program Types displayed are as follows:
None
News (News reports)
Affairs (Current affairs)
Info (Information)
Sport
Educate (Education)
Drama
Culture
Science (Science and technology)
Varied
Pop M (Pop music)
Rock M (Rock music)
Easy M (Middle of the road music)
Light M (Light classics)
Classics (Serious classics)
Other M (Other music)
Weather
Finance
Children (Children's programmes)
Social (Social affairs)
Religion
Phone In
Travel
Leisure
Jazz (Jazz music)
Country (Country music)
Nation M (National music)
Oldies (Oldies music)
Folk M (Folk music)
Document (Documentary)
0 The information displayed may sometimes not match the
content being broadcast by the station.
3. When a station is found, the station flashes on the
display. Press ENTER (a) while this is happening to start
receiving that station. If you don't press ENTER (a), the
unit continues to search for another station.
0 If no stations are found, the message "Not Found" is
displayed.
0 Unusual characters may be displayed when the unit
receives unsupported characters. However, this is not a
malfunction. Also, if the signal from a station is weak,
information may not be displayed.
30
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N

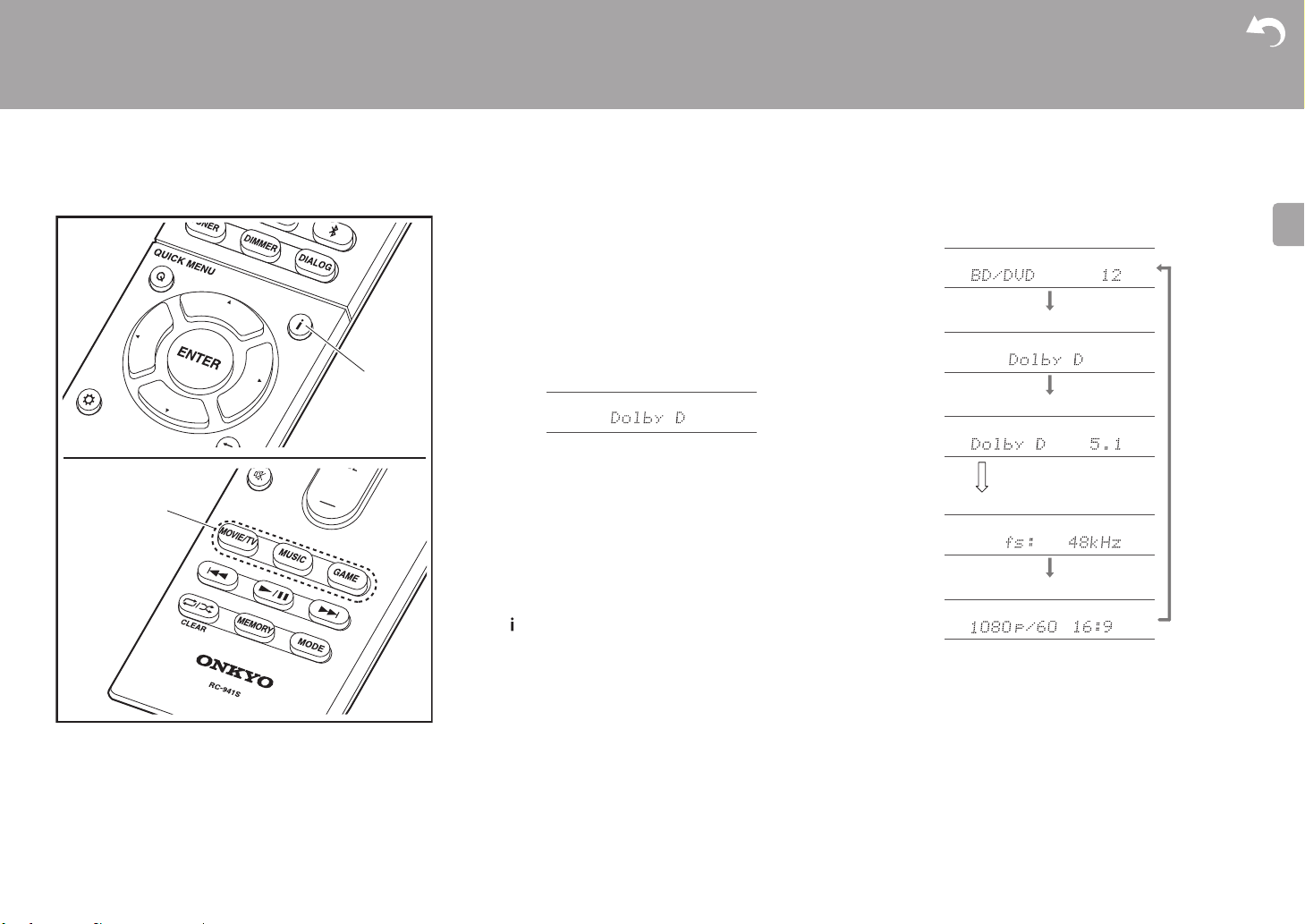

Listening Modes
Selecting Listening Modes
Select the optimum listening mode for movies, TV, music,
and games by repeatedly pressing the MOVIE/TV, MUSIC,
and GAME buttons.
1. During play, press one of the three buttons (b) on the
remote controller.
2. Press the selected button repeatedly to switch the modes
displayed on the display of the unit.
For details on the effects of each of the listening modes see
"Listening Mode Effects" (ÄP31). For listening modes
selectable for each of the audio formats in the input signals,
refer to "Selectable Listening Modes" (ÄP33).
The listening mode last selected for the source is
remembered for each of the MOVIE/TV, MUSIC, and
GAME buttons. If content you play is not supported by the
listening mode you selected last, the listening mode that is
standard for that content is selected automatically.
Press (a) repeatedly to switch the display of the main
unit in order of:
b
a
Input source & volume
Listening mode
Signal format
Sampling frequency
Input signal resolution
The display changes few
seconds later.
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
31
E
N
Listening Mode Effects
In alphabetical order
AllCh Stereo
Ideal for background music. This mode creates a stereo
image by playing stereo sound from all the speakers.
Dolby Atmos
This mode reproduces the sound design recorded in the
Dolby Atmos audio format.
The Dolby Atmos audio format has been implemented in
movie theaters equipped with the latest facilities and
enables a revolutionary sound experience in home theaters.
Unlike existing surround systems, Dolby Atmos doesn't rely
on channels, but rather enables the accurate placement of
sound objects that have independent motion in a three-
dimensional space with even greater clarity. Dolby Atmos is
an optional audio format on Blu-ray Discs and achieves a
three-dimensional sound field by introducing a sound field
above the listener.
0 To enable transfer of this audio format, connect via HDMI
cable and set audio output on the player to bitstream
output.
Dolby D (Dolby Digital)
This mode reproduces the sound design recorded in the
Dolby Digital audio format.
Dolby Digital is a multi-channel digital format developed by
Dolby Laboratories, Inc. widely adopted for use in movie
production. It is also a standard audio format on DVD-Video
and Blu-ray Discs. It is possible to record a maximum of 5.1
channels on a DVD-Video or Blu-ray Disc; two front
channels, a center channel, two surround channels, and the
LFE channel dedicated to the bass region (sound elements
for the subwoofer).
0 To enable transfer of this audio format, connect via digital
cable and set audio output on the player to bitstream
output.
Dolby D ＋ (Dolby Digital Plus)
This mode reproduces the sound design recorded in the
Dolby Digital Plus audio format.
The Dolby Digital Plus format is a revision based on Dolby
Digital, increasing the number of channels and endeavoring
to improve sound quality by giving more flexibility in data bit
rates. Dolby Digital Plus is used as an optional audio format
on Blu-ray Discs, based on 5.1ch, but with additional
channels such as the surround back channel added for a
maximum of 7.1ch.
0 To enable transfer of this audio format, connect via HDMI
cable and set audio output on the player to bitstream
output.
Dolby Surround
This listening mode allows you to expand the playback
signal to multiple channels to suit this unit's speaker
configuration. Along with past speaker setups, this is also
compatible with playback systems for Dolby Atmos that
include Dolby speaker technology.
Dolby TrueHD
This mode reproduces the sound design recorded in the
Dolby TrueHD audio format.
The Dolby TrueHD audio format is a reversible format
expanded based on the lossless compression technology
referred to as MLP, and it makes it possible to reproduce
the master audio recorded in the studio. Dolby TrueHD is
used as an optional audio format on Blu-ray Discs, based
on 5.1ch, but with additional channels such as the surround
back channel added for a maximum of 7.1ch. 7.1ch is
recorded at 96 kHz/24bit, and 5.1ch is recorded at 192 kHz/
24bit.
0 To enable transfer of this audio format, connect via HDMI
cable and set audio output on the player to bitstream
output.
DSD
Mode suitable for playing sources recorded in DSD.
0 This unit supports DSD signals input through HDMI IN.
However, depending on the connected player, better
sound is possible when output from the PCM output of
the player.
0 This listening mode cannot be selected if the output
setting on your Blu-ray Disc/DVD player is not set to
DSD.
DTS
This mode reproduces the sound design recorded in the
DTS audio format.
The DTS audio format is a multi-channel digital format
developed by DTS, Inc. This format is an optional audio
format on DVD-Video and a standard on Blu-ray Discs. It
enables recording of 5.1 channels; two front channels, a
center channel, two surround channels, and the LFE
channel dedicated to the bass region (sound elements for
the subwoofer). The content is recorded with a rich volume
of data, with maximum sampling rate of 48 kHz at a
resolution of 24 bits and a bit rate of 1.5 Mbps.
0
To enable transfer of this audio format, connect via digital
cable and set audio outp
ut on the player to bitstream
output.
DTS 96/24
This mode reproduces the sound design recorded in the
DTS 96/24 audio format.
The DTS 96/24 format is an optional audio format on DVD-
Video and Blu-ray Discs. It enables recording of 5.1
channels; two front channels, a center channel, two
surround channels, and the LFE channel dedicated to the
bass region (sound elements for the subwoofer). Detailed
reproduction is achieved by recording the content at a
sampling rate of 96 kHz at a resolution of 24 bits.
0 To enable transfer of this audio format, connect via digital
cable and set audio output on the player to bitstream
output.
32
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
DTS Express
This mode reproduces the sound design recorded in the
DTS Express audio format.
DTS Express is used as an optional audio format on Blu-ray
Discs, based on 5.1ch, but with channels such as the
surround back channel added for a maximum of 7.1ch. It
also supports low bit rates.
0 To enable transfer of this audio format, connect via HDMI
cable and set audio output on the player to bitstream
output.
DTS-HD HR (DTS-HD High Resolution Audio)
This mode reproduces the sound design recorded in the
DTS-HD High Resolution Audio audio format.
DTS-HD High Resolution Audio is used as an optional
audio format on Blu-ray Discs, based on 5.1ch, but with
additional channels such as the surround back channel
added for a maximum of 7.1ch. It can be recorded at a
sampling rate of 96 kHz with a resolution of 24 bits.
0 To enable transfer of this audio format, connect via HDMI
cable and set audio output on the player to bitstream
output.
DTS-HD MSTR (DTS-HD Master Audio)
This mode reproduces the sound design recorded in the
DTS-HD Master Audio audio format.
DTS-HD Master Audio is used as an optional audio format
on Blu-ray Discs, based on 5.1ch, but with additional
channels such as the surround back channel added for a
maximum of 7.1ch, recorded using lossless audio
reproduction technology. 96 kHz/24bit is supported with
7.1ch, and 192 kHz/24bit is supported with 5.1ch.
0 To enable transfer of this audio format, connect via HDMI
cable and set audio output on the player to bitstream
output.
DTS Neural:X
This listening mode allows you to expand the playback
signal to multiple channels to suit this unit's speaker
configuration.
DTS:X
This mode reproduces the sound design recorded in the
DTS:X audio format.
The DTS:X audio format is a combination of the mixing
methodology based on past channel based formats and
object based dynamic audio mixing, and it is characterized
by the precise positioning of sounds and the ability to
express movement.
0 To enable transfer of this audio format, connect via HDMI
cable and set audio output on the player to bitstream
output.
Full Mono
In this mode, all speakers output the same sound in mono,
so the sound you hear is the same regardless of where you
are within the listening room.
Game-Action
In this mode, sound localization is distinct with emphasis on
bass.
Game-Sports
Suitable for audio source with much reverberation.
Mono
In this mode, monaural sound is played back from the front
left and right speakers during analog or PCM signal input.
Multich (Multichannel)
Mode suitable for playing sources recorded in multichannel
PCM.
Stereo
In this mode, sound is output from the front left and right
speakers and subwoofer.
Surround Enhancer
This mode allows you to enjoy sound with a rich sound field,
enveloping you naturally without relying on reflections from
walls. A virtual surround channel is created to give you a
broader sound field.
T-D (Theater-Dimensional)
In this mode, you can enjoy a virtual playback of
multichannel surround sound with surround speakers
connected. This works by controlling how sounds reach the
listener's left and right ears.
TV Logic
Suitable for TV shows produced in a TV studio. This mode
enhances the surround effects to the entire sound to give
clarity to voices and create a realistic acoustic image.
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
33
E
N
Selectable Listening Modes
You can select a variety of listening modes to suit the audio
format of the signal being input.
0 Listening modes available when headphones are
connected are: Mono or Stereo.
MOVIE/TV button
This is a list of listening modes you can select according to
the audio format of the input signal.
Input Format Listening Mode
Analog Mono
Dolby Surround
Surround Enhancer
DTS Neural:X
TV Logic
Input Format Listening Mode
PCM
Music files (except DSD/
Dolby TrueHD)
Mono
Dolby Surround
Surround Enhancer
DTS Neural:X
TV Logic
Input Format Listening Mode
Multich PCM Multich
Dolby Surround
Surround Enhancer
DTS Neural:X
TV Logic
Input Format Listening Mode
DSD
DSD
＊ 1
Dolby Surround
Surround Enhancer
DTS Neural:X
TV Logic
＊ 1: Cannot be selected when the input format is monaural or
2ch.
Input Format Listening Mode
Dolby Atmos Dolby Atmos
Surround Enhancer
TV Logic
Input Format Listening Mode
Dolby D
Dolby D
＊ 1
Dolby Surround
Surround Enhancer
TV Logic
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
Dolby D+
Dolby D+
＊ 1
Dolby Surround
Surround Enhancer
TV Logic
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
Dolby TrueHD
Dolby TrueHD
＊ 1
Dolby Surround
Surround Enhancer
TV Logic
＊ 1: Cannot be selected when the input format is 2 ch.
34
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
MUSIC button
This is a list of listening modes you can select according to
the audio format of the input signal.
Input Format Listening Mode
DTS
DTS
＊ 1
DTS Neural:X
TV Logic
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS 96/24
DTS 96/24
＊ 1
DTS Neural:X
TV Logic
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS Express
DTS Express
＊ 1
DTS Neural:X
TV Logic
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS-HD HR
DTS-HD HR
＊ 1
DTS Neural:X
TV Logic
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS-HD MSTR
DTS-HD MSTR
＊ 1
DTS Neural:X
TV Logic
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS:X DTS:X
TV Logic
T-D
Input Format Listening Mode
Analog Stereo
Dolby Surround
DTS Neural:X
AllCh Stereo
Full Mono
Input Format Listening Mode
PCM
Music files (except DSD/
Dolby TrueHD)
Stereo
Dolby Surround
DTS Neural:X
AllCh Stereo
Full Mono
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
35
E
N
Input Format Listening Mode
Multich PCM Stereo
Multich
Dolby Surround
DTS Neural:X
AllCh Stereo
Full Mono
Input Format Listening Mode
DSD Stereo
DSD
＊ 1
Dolby Surround
DTS Neural:X
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is monaural or
2ch.
Input Format Listening Mode
Dolby Atmos Stereo
Dolby Atmos
AllCh Stereo
Full Mono
Input Format Listening Mode
Dolby D Stereo
Dolby D
＊ 1
Dolby Surround
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
Dolby D+ Stereo
Dolby D+
＊ 1
Dolby Surround
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
Dolby TrueHD Stereo
Dolby TrueHD
＊ 1
Dolby Surround
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS Stereo
DTS
＊ 1
DTS Neural:X
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS 96/24 Stereo
DTS 96/24
＊ 1
DTS Neural:X
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS Express Stereo
DTS Express
＊ 1
DTS Neural:X
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
36
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
GAME button
This is a list of listening modes you can select according to
the audio format of the input signal.
Input Format Listening Mode
DTS-HD HR Stereo
DTS-HD HR
＊ 1
DTS Neural:X
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS-HD MSTR Stereo
DTS-HD MSTR
＊ 1
DTS Neural:X
AllCh Stereo
Full Mono
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS:X Stereo
DTS:X
AllCh Stereo
Full Mono
Input Format Listening Mode
Analog Dolby Surround
Surround Enhancer
DTS Neural:X
Game-Action
Game-Sports
Input Format Listening Mode
PCM
Music files (except DSD/
Dolby TrueHD)
Dolby Surround
Surround Enhancer
DTS Neural:X
Game-Action
Game-Sports
Input Format Listening Mode
Multich PCM Multich
Dolby Surround
Surround Enhancer
DTS Neural:X
Game-Action
Game-Sports
Input Format Listening Mode
DSD
DSD
＊ 1
Dolby Surround
Surround Enhancer
DTS Neural:X
Game-Action
Game-Sports
＊ 1: Cannot be selected when the input format is monaural or
2ch.
Input Format Listening Mode
Dolby Atmos Dolby Atmos
Surround Enhancer
Game-Action
Game-Sports
Input Format Listening Mode
Dolby D
Dolby D
＊ 1
Dolby Surround
Surround Enhancer
Game-Action
Game-Sports
＊ 1: Cannot be selected when the input format is 2 ch.
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
37
E
N
Input Format Listening Mode
Dolby D+
Dolby D+
＊ 1
Dolby Surround
Surround Enhancer
Game-Action
Game-Sports
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
Dolby TrueHD
Dolby TrueHD
＊ 1
Dolby Surround
Surround Enhancer
Game-Action
Game-Sports
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS
DTS
＊ 1
DTS Neural:X
Game-Action
Game-Sports
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS 96/24
DTS 96/24
＊ 1
DTS Neural:X
Game-Action
Game-Sports
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS Express
DTS Express
＊ 1
DTS Neural:X
Game-Action
Game-Sports
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS-HD HR
DTS-HD HR
＊ 1
DTS Neural:X
Game-Action
Game-Sports
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS-HD MSTR
DTS-HD MSTR
＊ 1
DTS Neural:X
Game-Action
Game-Sports
T-D
＊ 1: Cannot be selected when the input format is 2 ch.
Input Format Listening Mode
DTS:X DTS:X
Game-Action
Game-Sports
T-D
38
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
Quick Menu
By pressing the Q button on the remote controller during
play, you can adjust frequently used settings, such as the
sound quality, using on-screen menus.
1. Press Q on the remote controller.
2. After the Quick Menu is displayed, select the content with
S/T on the remote controller and press ENTER to
confirm your selection.
0 Change the initial values for each of the settings with the
cursors W/X.
0 To return to the previous screen, press .
3. To exit the settings, press Q.
■ Tone
Bass: Enhance or moderate the bass range of the front
speakers.
Treble: Enhance or moderate the treble range of the front
speakers.
■ Level
Center: Adjust the speaker level of the center speaker
while listening to some sound.
Subwoofer: Adjust the speaker level of the subwoofer
while listening to some sound.
0 The adjustment you made will be reset to the previous
status when you turn the unit to standby mode.
■ AccuEQ
AccuEQ Room Calibration: Enable or disable the
equalizer function that corrects for distortion caused by the
acoustic environment of the room. The setting can be
separately set to each input selector.
Cinema Filter: Adjust the soundtrack that was processed to
enhance its high pitch range, in order to make it suitable for
home theater. This function can be used in the following
listening modes: Dolby Digital, Dolby Digital Plus, Dolby
Surround, Dolby TrueHD, Multichannel, DTS, DTS 96/24,
DTS-HD High Resolution Audio, DTS-HD Master Audio,
DTS Neural:X, DTS Express, and DSD.
■ Other
A/V Sync: If the video is behind the audio, you can delay
the audio to offset the gap. Different settings can be set for
each input selector.
Music Optimizer: Improve the quality of the compressed
audio. Playback sound of lossy compressed files such as
MP3 will be improved. The setting can be separately set to
each input selector. The setting is effective in the signals of
48 kHz or less. The setting is not effective in the bitstream
signals.
Late Night: Make small sounds easily heard. It is useful
when you need to reduce the volume while watching a
movie late night. You can enjoy the effect only when playing
Dolby series and DTS series input signals.
0 The setting cannot be used in the following cases.
– If "3. Audio Adjust" - "Dolby" - "Loudness
Management" (ÄP46) in the Setup menu is set to
"Off" when playing Dolby Digital Plus or Dolby TrueHD
– When the input signal is DTS and "Dialog Control" is
other than 0 dB
Dialog Control: You can increase the dialog portion of the
audio in 1 dB steps up to 6 dB so that you can make dialog
easier to hear over background noise.
0 This cannot be set for content other than DTS:X.
0 The effect may not be selectable with some content.
1
BD/DVDQuick Menu
Tone
Level
AccuEQ
Other
Bass
Treble
40
> Before Start > Part Names > Install > Initial Setup >Playback
Supplementary information | Advanced Setup | Others
E
N
Other Functions
Playing Audio and Video from Separate
Sources
It is possible to play audio and video from different sources.
For example, you can play audio from the CD player and
video from the BD/DVD player. The procedure in this case
is as follows:
1. Press BD/DVD.
2. Press CD.
3. Start playback on the BD/DVD player and CD player.
Perform the following steps to play the video from a different
source to suit the audio from a NET, USB or BLUETOOTH
input source.
1. Press NET, USB or to play the audio.
2. Press MODE on the remote controller and the video input
select immediately preceding this operation can be
played.
3. Start play of the video input source.
4. Each press of MODE displays or turns off the video.
41
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Supplementar y information
Supplementary information for player functions
Due to firmware (the software for the system) updates after
you make your purchase or firmware changes during
production of the product, there may be additions or
changes to the features available compared to what is in the
instruction manual.
For information about player functions that have been
added or changed, see the following references.
Supplementary information for player functions
>>> Click here <<<
42
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Advanced Setup
Setup Menu
The unit allows you to configure advanced settings to provide you with an even better
experience.
1. Switch the input on the TV to that assigned to the unit.
2. Press on the remote controller.
3. After the Setup menu is displayed, select the content with S/T on the remote controller
and press ENTER to confirm your selection.
0 Change the initial values for each of the settings with the cursors W/X.
0 To return to the previous screen, press .
4. To exit the settings, press .
1. Input/Output Assign
■ 1. TV Out / OSD
1 2
TV's remote controller
1080p -> 4K Upscaling When using a TV that supports 4K, video signals input at 1080p
can be automatically upscaled to 4K for output.
"Off (Default Value)": When not using this function
"Auto": Use this function
0 Select "Off" if your TV does not support 4K.
Super Resolution When you have set "1080p -> 4K Upscaling" to "Auto", you can
select the degree of video signal correction from "Off" and
between "1" (weak) and "3" (strong).
OSD Language Select the on-screen display language.
English, German, French, Spanish, Italian, Dutch, Swedish,
Russian, Chinese
Setup
1. Input/Output Assign
2. Speaker
3. Audio Adjust
4. Source
5. Hardware
6. Miscellaneous
1. TV Out / OSD
2. HDMI Input
3. Digital Audio Input
4. Analog Audio Input
43
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
■ 2. HDMI Input
You can change input assignment between the input selectors and HDMI IN jacks.
■ 3. Digital Audio Input
You can change input assignment between the input selectors and DIGITAL IN OPTICAL
jack. If you do not assign a jack, select "-----".
0 Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32kHz,
44.1kHz, 48kHz, 88.2kHz, 96kHz/16bit, 20bit, and 24bit.
Impose OSD Set whether or not to display the information on the TV when the
volume is adjusted or input is changed, for example.
"On (Default Value)": OSD displayed on the TV
"Off": OSD not displayed on the TV
0 OSD may not be displayed depending on the input signal
even if "On" is selected. If the operation screen is not
displayed, change the resolution of the connected device.
Screen Saver Set the time to start the screen saver.
Select a value from "3 minutes (Default Value)", "5 minutes", "10
minutes" and "Off".
BD/DVD "HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)": Assign a desired
HDMI IN jack to the BD/DVD input selector. If you do not assign
a jack, select "-----". To select an HDMI IN jack already assigned
to another input selector, change the input selector setting to "---
--" first. (Default Value is "HDMI 1 (HDCP 2.2)")
CBL/SAT "HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)": Assign a desired
HDMI IN jack to the CBL/SAT input selector. If you do not assign
a jack, select "-----". To select an HDMI IN jack already assigned
to another input selector, change the input selector setting to "---
--" first. (Default Value is "HDMI 2 (HDCP 2.2)")
GAME "HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)": Assign a desired
HDMI IN jack to the GAME input selector. If you do not assign a
jack, select "-----". To select an HDMI IN jack already assigned to
another input selector, change the input selector setting to "-----"
first. (Default Value is "HDMI 4 (HDCP 2.2)")
STRM BOX "HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)": Assign a desired
HDMI IN jack to the STRM BOX input selector. If you do not
assign a jack, select "-----". To select an HDMI IN jack already
assigned to another input selector, change the input selector
setting to "-----" first. (Default Value is "HDMI 3 (HDCP 2.2)")
CD "HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)": Assign a desired
HDMI IN jack to the CD input selector. If you do not assign a
jack, select "-----". To select an HDMI IN jack already assigned to
another input selector, change the input selector setting to "-----"
first. (Default Value is "-----")
TV "HDMI 1 (HDCP 2.2)" to "HDMI 4 (HDCP 2.2)": Assign a desired
HDMI IN jack to the TV input selector. If you do not assign a jack,
select "-----". To select an HDMI IN jack already assigned to
another input selector, change the input selector setting to "-----"
first. (Default Value is "-----")
BD/DVD Assign the BD/DVD input selector. (Default Value is "-----")
CBL/SAT Assign the CBL/SAT input selector. (Default Value is "-----")
GAME Assign the GAME input selector. (Default Value is "-----")
STRM BOX Assign the STRM BOX input selector. (Default Value is "-----")
CD Assign the CD input selector. (Default Value is "-----")
TV Assign the TV input selector. (Default Value is "OPTICAL")
44
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
■ 4. Analog Audio Input
You can change input assignment between the input selectors and AUDIO IN jacks. If you
do not assign a jack, select "-----".
2. Speaker
You can make changes to the connection environment of the speakers and change the
volume level. Settings are automatically configured if you use AccuEQ Room Calibration.
This setting cannot be selected if headphones are connected or audio is output from the
speakers of the TV because "5. Hardware" - "HDMI" - "Audio TV Out" is set to "On".
■ 1. Distance
Set the distance from each speaker to the listening position.
0 Distance units can be switched by pressing MODE on the remote controller. When the
unit is set as feet, you can set between 0.1 ft and 30.0 ft in increments of 0.1 ft. When the
unit is set as meters, you can set between 0.03 m and 9.00 m in increments of 0.03 m.
BD/DVD Assign the BD/DVD input selector. (Default Value is "-----")
CBL/SAT Assign the CBL/SAT input selector. (Default Value is "-----")
GAME Assign the GAME input selector. (Default Value is "-----")
STRM BOX Assign the STRM BOX input selector. (Default Value is "-----")
CD Assign the CD input selector. (Default Value is "AUDIO 1")
TV Assign the TV input selector. (Default Value is "-----")
Front Left (Default Value is "3.60m”) This setting cannot be selected. When
the setting for "Center" is changed, this is changed to the same
value.
Center Specify the distance between each speaker and the listening
position. (Default Value is "3.60m")
Front Right (Default Value is "3.60m”) This setting cannot be selected. When
the setting for "Center" is changed, this is changed to the same
value.
Height Left (Default Value is "3.60m”) This setting cannot be selected. When
the setting for "Center" is changed, this is changed to the same
value.
Height Right (Default Value is "3.60m”) This setting cannot be selected. When
the setting for "Center" is changed, this is changed to the same
value.
Subwoofer Specify the distance between each speaker and the listening
position. (Default Value is "3.60m")
45
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
■ 2. Level Calibration ■ 3. Dolby Enabled Speaker
Front Left Select a value between "j12 dB" and "i12 dB" (in 1 dB
increments). A test tone will be output each time you change the
value. Select the desired level (Default Value is "0 dB").
Center Select a value between "j12 dB" and "i12 dB" (in 1 dB
increments). A test tone will be output each time you change the
value. Select the desired level (Default Value is "0 dB").
Front Right Select a value between "j12 dB" and "i12 dB" (in 1 dB
increments). A test tone will be output each time you change the
value. Select the desired level (Default Value is "0 dB").
Height Left Select a value between "j12 dB" and "i12 dB" (in 1 dB
increments). A test tone will be output each time you change the
value. Select the desired level (Default Value is "0 dB").
Height Right Select a value between "j12 dB" and "i12 dB" (in 1 dB
increments). A test tone will be output each time you change the
value. Select the desired level (Default Value is "0 dB").
Subwoofer Select a value between "j15 dB" and "i12 dB" (in 1 dB
increments). A test tone will be output each time you change the
value. Select the desired level (Default Value is "0 dB").
Dolby Enabled
Speaker to Ceiling
Set the distance between the sound bar and the ceiling. Select
between "0.1ft/0.03m" to "15.0ft/4.50m" (0.1ft/0.03m units).
(Default Value is "1.80m")
0 Distance units (feet/meters) can be switched by pressing
MODE on the remote controller.
AccuReflex You can enhance the reflection effect from the ceiling.
"On (Default Value)": Use this function
"Off": Do not use this function
46
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
3. Audio Adjust
■ 1. Multiplex/Mono
■ 2. Dolby
■ 3. DTS
■ 4. LFE Level
Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel
PCM, and DSD signals.
■ 5. Volume
Multiplex Input
Channel
Set the audio channel or language to be output when playing
multiplex audio or multilingual TV broadcasts etc.
"Main (Default Value)": Main channel only
"Sub": Sub channel only
"Main / Sub": Main and sub channels will be output at the same
time.
0 If multiplex audio is being played, "1+1" will be displayed on
the display of the main unit when on the remote controller
is pressed.
Mono Input Channel Set the input channel to use for playing any 2 ch digital source
such as Dolby Digital, or 2 ch analog/PCM source in the Mono
listening mode.
"Left": Left channel only
"Right": Right channel only
"Left + Right (Default Value)": Left and right channels
Loudness
Management
When playing Dolby TrueHD, enable the dialog normalization
function which keeps the volume of dialog at a certain level. Note
that when this setting is Off, the Late Night function that allows
you to enjoy surround at low volumes is fixed to Off when playing
Dolby Digital Plus/Dolby TrueHD.
"On (Default Value)": Use this function
"Off": Do not use this function
DTS Auto Surround When inputting DTS signals that include extended channel
information, the optimum listening mode is automatically
selected according to the extended information contained in the
input signal and the speaker configuration of this unit when
playing in the straight decoding listening mode.
"On (Default Value)": Use this function
"Off": Audio is played using the same amount of channels in the
input signal according to the speaker configuration of this unit.
LFE Level Select the low-frequency effect (LFE) level of each type of signal
from "0 dB (Default Value)" to "j ∞ dB". If the low-frequency
effect sound is too strong, select "j20dB" or "j ∞ dB".
Maximum Volume Set the maximum value to avoid too high volume. Select "Off
(Default Value)" or a value between "30" and "49".
Headphone Level Adjust the output level of the headphones. Select a value
between "j12 dB" and "i12 dB". (Default Value is "0 dB")
47
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
4. Source
■ 1. IntelliVolume
Adjust the volume level difference between the devices connected to the unit. Select the
input selector to configure.
■ 2. Name Edit
Set an easy name to each input. The set name will be shown on the main unit display. Select
the input selector to configure.
0 To name a preset radio station, press TUNER on the remote controller, select FM and
select the preset number.
0 This cannot be set if the "NET", "USB" or "BLUETOOTH" input is selected.
■ Audio Select
Select the priority for input selection when multiple audio sources are connected to one input
selector. The setting can be separately set to each input selector button. Select the input
selector to configure.
0 The setting cannot be changed when "TUNER", "NET", "USB", or "BLUETOOTH" input is
selected.
IntelliVolume Select a value between "j12 dB" and "i12 dB". Set a negative
value if the volume of the target device is larger than the others
and a positive value if smaller. To check the audio, start playback
of the connected device. (Default Value is "0 dB")
Name Edit 1. Select a character or symbol with the cursors and press
ENTER.
Repeat it to input 10 or less characters.
"A/a": Switches between upper and lower cases. (Pressing
MODE on the remote controller also toggles between upper
and lower cases)
" ← " " → ": Moves the cursor to the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
0 Pressing CLEAR on the remote controller will remove all
the input characters.
2. After inputting, select "OK" with the cursors and press
ENTER.
The input name will be saved.
Audio Select "ARC": When giving priority to input signal from ARC compatible
TV.
0 The setting can be selected only when "5. Hardware" - "HDMI"
- "Audio Return Channel" is set to "Auto" and also the "TV"
input is selected.
"HDMI": When giving priority to input signal from HDMI IN jacks
0 The setting can be selected only when the input is assigned to
the HDMI jack in the "1. Input/Output Assign" - "HDMI Input"
setting.
"OPTICAL": When giving priority to input signal from DIGITAL IN
OPTICAL jacks
0 The setting can be selected only when the input is assigned to
the OPTICAL jack in the "1. Input/Output Assign" - "Digital
Audio Input".
"Analog": To always output analog audio independently of the
input signal
0 The setting can be selected only when the input is assigned to
the AUDIO IN jack in the "1. Input/Output Assign" - "Analog
Audio Input" setting.
(Default Value: BD/DVD: HDMI, CBL/SAT: HDMI, GAME: HDMI,
STRM BOX: HDMI, CD: Analog, TV: OPTICAL)
PCM Fixed Mode Select whether to fix input signals to PCM (except multi-channel
PCM) when you have selected "HDMI", or "OPTICAL" in the
"Audio Select" setting. Set this item to "On" if noise is produced
or truncation occurs at the beginning of a track when playing
PCM sources. Select "Off (Default Value)" normally.
0 Changing "Audio Select" changes the setting to "Off".
48
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
■ Video Select
When "TUNER", "NET", "USB", or "BLUETOOTH" input is selected, you can set the input
from which video is displayed on the TV.
0 If the OSD language is set to Chinese, you can only select this setting when "TUNER" is
selected as input.
5. Hardware
■ 1. HDMI
Video Select "Last (Default Value)": Select the video input played immediately
prior.
"BD/DVD", "CBL/SAT", "GAME", "STRM BOX", "CD", "TV": Play
the video from the selected input.
0 This setting is effective for an input selector which is assigned
in "1. Input/Output Assign" - "HDMI Input".
HDMI CEC Setting to "On" enables the input selection link and other link
functions with HDMI connected CEC compliant device.
"On": Use this function
"Off (Default Value)": Do not use this function
When changing this setting, turn off and then on again the power
of all connected components.
0 Depending on the TV set, a link may need to be configured on
the TV.
0 Setting to "On" and closing the on-screen menu displays the
name of the CEC-compatible components and "CEC On" on
the display of this unit.
0 Power consumption in standby mode may increase if "On" is
set. (Depending on the TV status, the unit will enter the
normal standby mode.)
0 If you operate the volume dial on the unit when this setting is
"On" and audio is output from the TV speakers, audio will be
output also from the speakers connected to the unit. If you
want to output from only either of them, change the unit or TV
settings, or reduce the volume of the unit.
0 If abnormal operation occurs when you set the setting to "On",
set it to "Off".
0 When connecting a non-CEC compatible component, or when
you are not sure whether it is compatible, set the setting to
"Off".
49
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
HDMI Standby
Through
When this is set to anything other than "Off", you can play the
video and audio of an HDMI connected player on the TV even if
the unit is in standby mode. Only "Auto" and "Auto (Eco)" can be
selected if "HDMI CEC" is set to "On". If you select anything
else, set "HDMI CEC" to "Off". (Default Value is “Off”)
0 Power consumption in standby mode increases if set to
anything other than "Off".
"BD/DVD", "CBL/SAT", "GAME", "STRM BOX", "CD", "TV": For
example, if you select "BD/DVD", you can play the equipment
connected to the "BD/DVD" jack on the TV even if the unit is in
standby mode. Select this setting if you have decided which
player to use with this function.
"Last": You can play the video and audio of the input selected
immediately prior to the unit being switched to standby on the
TV. When "Last" is selected, you can switch the input of the unit
with the remote controller even in the standby mode.
"Auto", "Auto (Eco)": Select one of these settings when you have
connected equipment that conforms to the CEC standard. You
can play the video and audio of the input selected on the TV,
irrespective of what input was selected immediately prior to the
unit being switched to standby, using the CEC link function.
0 To play players on the TV that do not conform to the CEC
standard, you will need to turn the unit on and switch to the
relevant input.
0 When using TV that complies with the CEC standard, you can
reduce the power consumption in standby mode by selecting
"Auto (Eco)".
Audio TV Out You can enjoy audio through the speakers of the TV while this
unit is on.
"On": Use this function
"Off (Default Value)": Do not use this function
0 The setting is fixed to "Auto" if "HDMI CEC" is set to "On". If
you change this setting, set "HDMI CEC" to "Off."
0 Listening mode cannot be changed while "Audio TV Out" is
set to "On" and audio is being output through the speakers of
the TV.
0 Depending on your TV set or input signal of the component,
audio may not output through the speakers of the TV even if
this setting is set to "On". In such case, audio is output from
the speakers of the unit.
0 If you operate the volume dial on this unit when audio that is
being input through this unit for output from the TV speakers,
audio is output from this unit. If you do not want to output
audio from the unit, change the unit or TV settings, or reduce
the volume of the unit.
Audio Return Channel You can enjoy sound of the HDMI connected ARC compatible
TV through the speakers connected to the unit.
To use this function, set "HDMI CEC" to "On" in advance.
"Auto": When enjoying the TV sound through the speakers
connected to the unit
"Off": When not using the ARC function
Auto Lip Sync This setting automatically corrects any desynchronization
between the video and audio signals based on data from the
HDMI LipSync compatible TV.
"On (Default Value)": Automatic correction will be enabled.
"Off": Automatic correction will be disabled.
50
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
■ 2. Network
0 When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting
automatically. To assign fixed IP addresses to each component, you must set "DHCP" to
"Disable" and assign an address to this unit in "IP Address" as well as set information
related to your LAN, such as Subnet Mask and Gateway.
Wi-Fi Connect the unit to network via wireless LAN router.
"On": Wireless LAN connection
"Off (Wired) (Default Value)": Wired LAN connection
Wi-Fi Setup You can configure wireless LAN settings by pressing ENTER
when "Start" is displayed.
0 Refer to "3. Network Connection" (ÄP18) in Initial Setup for
details.
Wi-Fi Status The information of the connected access point will be displayed.
"SSID": SSID of the connected access point.
"Signal": Signal strength of the connected access point.
"Status": Status of the connected access point.
MAC Address This is the MAC address of this unit.
This value is specific to the component and cannot be changed.
DHCP "Enable (Default Value)": Auto configuration by DHCP
"Disable": Manual configuration without DHCP
If selecting "Disable", you must set "IP Address", "Subnet Mask",
"Gateway", and "DNS Server" manually.
IP Address Displays/Sets the IP address.
Subnet Mask Displays/Sets the subnet mask.
Gateway Displays/Sets the gateway.
DNS Server Displays/Sets the primary DNS server.
Proxy URL Displays/Sets the proxy server URL.
Proxy Port Displays/Sets the proxy server port number when you enter
"Proxy URL".
Friendly Name Change the device name for this unit which is shown on other
devices connected to the network to an easily recognized name.
This is set to Onkyo HT-L05 ＊＊＊＊＊＊ at the time of
purchase. (" ＊ " stand for alphanumeric characters identifying
each unit)
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors and press
ENTER.
Repeat it to input 31 or less characters.
"A/a": Switches between upper and lower cases. (Pressing
MODE on the remote controller also toggles between upper
and lower cases.)
" ← " " → ": Moves the cursor to the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
0 Pressing CLEAR on the remote controller will remove all the
input characters.
3. After inputting, select "OK" with the cursors and press
ENTER.
The input name will be saved.
AirPlay Password You can set a password of up to 31 characters so that only
registered users can use AirPlay.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors and press ENTER.
Repeat it to input 31 or less characters.
"A/a": Switches between upper and lower cases. (Pressing
MODE on the remote controller also toggles between upper
and lower cases.)
" ← " " → ": Moves the cursor to the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
0 To select whether to mask the password with "＊" or display it
in plain text, press MEMORY on the remote controller.
0 Pressing CLEAR on the remote controller will remove all the
input characters.
3. After inputting, select "OK" with the cursors and press ENTER.
The input password will be saved.
51
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
0 Wait for a while if "Network" cannot be selected. It will appear when the network feature is
started.
■ 3. Bluetooth
Usage Data As a means of improving the quality of our products and
services, our company may collect information about your usage
over the network. Select "Yes" if you agree to our collecting this
information. Select "No" if you do not want us to collect this
information. (Default Value is "No")
You can set this after confirming the Privacy Policy. When you
select "Usage Data" and press ENTER, the Privacy Policy is
displayed. (The same screen is displayed once also when
setting up the network connection.) If you agree to the collection
of the information, this setting also becomes "Yes". Note that if
you agree to the Privacy Policy but select "No" for this setting,
the information will not be collected.
Network Check You can check the network connection.
Press ENTER when "Start" is displayed.
Bluetooth Select whether or not to use the BLUETOOTH function.
"On (Default Value)": Enables connection with a BLUETOOTH
enabled device by using the BLUETOOTH function. Select "On"
also when making various BLUETOOTH settings.
"Off": When not using the BLUETOOTH function
Auto Input Change The input of the unit will automatically be switched to
"BLUETOOTH" when connection is made from a BLUETOOTH
enabled device to the unit.
"On (Default Value)": The input will automatically become
"BLUETOOTH" when a BLUETOOTH enabled device is
connected.
"Off": The function is disabled.
0 If the input is not switched automatically, set to "Off" and
change the input manually.
Auto Reconnect This function automatically reconnects to the BLUETOOTH
enabled device connected last when you change the input to
"BLUETOOTH".
"On (Default Value)": Use this function
"Off": Do not use this function
0 This may not work with some BLUETOOTH enabled devices.
Pairing Information You can initialize the pairing information saved on this unit.
Pressing ENTER when "Clear" is displayed initializes the pairing
information stored in this unit.
0 This function does not initialize the pairing information on the
BLUETOOTH enabled device. When pairing the unit again
with the device, be sure to clear the pairing information on the
BLUETOOTH enabled device in advance. For information on
how to clear the pairing information, refer to the BLUETOOTH
enabled device's instruction manual.
Device Displays the name of the BLUETOOTH enabled device
connected to the unit.
0 The name is not displayed when "Status" is "Ready" and
"Pairing".
52
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
0 Wait for a while if "Bluetooth" cannot be selected. It will appear when the BLUETOOTH
function is started up.
■ 4. Power Management
0 Wait for a while if "Network Standby" and "Bluetooth Wakeup" cannot be selected. It will
appear when the network feature is started.
Status Displays the status of the BLUETOOTH enabled device
connected to the unit.
"Ready": Not paired
"Pairing": Paired
"Connected": Successfully connected
Sleep Timer Allows the unit to enter standby automatically when the specified
time elapses. Select from "30 minutes", "60 minutes", and "90
minutes".
"Off (Default Value)": Does not turn the unit to standby
automatically.
Auto Standby This setting places the unit on standby automatically after
20 minutes of inactivity without any video or audio input.
(When "USB Power Out at Standby" or "Network Standby" is on,
this becomes the HYBRID STANDBY mode which reduces the
increase in power consumption to a minimum.)
"On (Default Value)": The unit will automatically enter standby
mode ("ASb" will stay lit).
"Off": The unit will not automatically enter standby mode.
0 "Auto Standby" is displayed on the display of this unit and TV
screen 30 seconds before the Auto Standby comes on.
Auto Standby in HDMI
Standby Through
Enable or disable "Auto Standby" while "HDMI Standby Through"
is on.
"On": The setting will be enabled.
"Off": The setting will be disabled.
0 This setting cannot be set to "On" if "Auto Standby" is set to
"Off".
USB Power Out at
Standby
Devices connected to the USB port are supplied with electricity
even when this unit is in standby mode when this function is
"On". (Default Value is "Off")
0 When using this feature, power consumption increases even
when the unit is on standby, however, the increase in power
consumption is kept to a minimum by automatically entering
the HYBRID STANDBY mode, where only essential circuits
are operating.
Network Standby When this feature is turned "On (Default Value)", you can turn on
the power of the unit via the network using an application that
can control this unit.
0 When "Network Standby" is used, the power consumption
increases even when the unit is on standby. However, the
increase in power consumption is kept to a minimum by
automatically entering the HYBRID STANDBY mode, where
only the essential circuit is operating.
0 "Network Standby", which suppresses power consumption,
may be disabled when the network connection is lost. Use the
power button on the remote controller or the main unit to turn
the unit on if this happens.
Bluetooth Wakeup This function wakes up the unit on standby by connecting a
BLUETOOTH enabled device.
"On": Use this function
"Off (Default Value)": Do not use this function
0 Setting to "On" increases the power consumption even when
the unit is on standby. However, the increase in power
consumption is kept to a minimum by automatically entering
the HYBRID STANDBY mode, where only the essential circuit
is operating.
0 This setting is fixed to "Off" if "5. Hardware" - "Bluetooth" -
"Auto Input Change" is set to "Off".
53
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
6. Miscellaneous
■ 1. Firmware Update
0 Wait for a while if "Firmware Update" cannot be selected. It will appear when the network
feature is started.
■ 2. Initial Setup
You can make the Initial Setup from the Setup menu.
0 Wait for a while if "Initial Setup" cannot be selected. It will appear when the network
feature is started.
■ 3. Lock
■ 4. Load Default
Update Notice Availability of a firmware update will be notified via network.
"Enable (Default Value)": Notify updates
"Disable": Do not notify updates
Version The current firmware version will be displayed.
Update via NET Press ENTER to select when you want to update the firmware
via network.
0 You will not be able to select this setting if you do not have
Internet access or there is nothing to update.
Update via USB Press ENTER to select when you want to update the firmware
via USB.
0 You will not be able to select this setting if a USB storage
device is not connected or there is nothing to update in the
USB storage device.
Setup Parameter Lock the Setup menu to protect the settings.
"Locked": The menu is locked.
"Unlocked (Default Value)": The menu is unlocked.
Load Default Reset the unit to return the settings to the status at the time of
shipment. Reset is complete when "Clear" is displayed on the
display and the unit switches to standby.
Your settings will also be initialized when you reset, so note
down your settings before starting reset.
54
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Firmware UpdateFirmware Update
Firmware Update
Update function of this unit
This unit has functionality to update the firmware (the
system software) over a network or by the USB port. This
enables us to make improvements to a variety of operations
and to add features.
How to update firmware
There are two methods for updating the firmware: via
network and via USB. The update may take about
20 minutes to complete for either method: via network or via
USB. Furthermore, existing settings are guaranteed
regardless of the method used for update.
Note that when this unit is connected to a network, you may
see notifications about firmware updates on the display. To
execute updating, select "Update" with the cursor buttons of
the remote controller and press ENTER. "Completed!" is
displayed when the update is complete.
0 For the latest information on updates, visit our company’s
website. There is no need to update the firmware on this
unit if there is no update available.
0 Before updating, make sure that the speaker setup
microphone is not connected.
0 During an update, do not
– Disconnect and reconnect any cable, USB storage
device, speaker setup microphone or headphones, or
perform any operation on the component such as turn
off its power
– Accessing this unit from a PC or smartphone using an
application
Disclaimer: The program and accompanying online
documentation are furnished to you for use at your own risk.
We will not be liable and you will have no remedy for
damages for any claim of any kind whatsoever concerning
your use of the program or the accompanying online
documentation, regardless of legal theory, and whether
arising in tort or contract.
In no event will we be liable to you or any third party for any
special, indirect, incidental, or consequential damages of
any kind, including, but not limited to, compensation,
reimbursement or damages on account of the loss of
present or prospective profits, loss of data, or for any other
reason whatsoever.
Updating the Firmware via Network
0 Check that the unit is turned on, and the connection to
the Internet is secured.
0 Turn off the controller component (PC etc.) connected to
the network.
0 Stop any playing Internet radio, USB storage device, or
server content.
0 When "5. Hardware" - "HDMI" - "HDMI CEC" in the Setup
menu is set to "On", set it to "Off".
0 The description may differ from the on-screen display but
that will not change the way to operate or the function.
1. Switch the input on the TV to that assigned to the unit.
2. Press on the remote controller.
3. Select "6. Miscellaneous" - "Firmware Update" - "Update
via NET" with the cursors in order, then press ENTER.
0 If "Firmware Update" is grayed out and cannot be
selected, wait for a while until it starts up.
0 You will not be able to select "Update via NET" if there is
nothing to update.
Setup
1. Input/Output Assign
2. Speaker
3. Audio Adjust
4. Source
5. Hardware
6. Miscellaneous
1. TV Out / OSD
2. HDMI Input
3. Digital Audio Input
4. Analog Audio Input
Setup
1. Input/Output Assign
2. Speaker
3. Audio Adjust
4. Source
5. Hardware
6. Miscellaneous
1. Firmware Update
2. Initial Setup
3. Lock
4. Load Default
55
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
4. Press ENTER with "Update" selected to start update.
0 During the update, the TV screen may go black
depending on the updated program. In that case,
check the progress on the display of this unit. The TV
screen will remain black until the update is complete
and the power is turned on again.
0 "Completed!" is displayed when the update is
complete.
5. Press Í ON/STANDBY on the main unit to turn the unit
into standby mode. The process is completed and your
firmware is updated to the latest version.
0 Do not use Í on the remote controller.
If an error message is displayed: When an error occurs,
" ＊ - ＊＊ Error!" is displayed on the display of this unit.
(" ＊ " represents an alphanumeric character.) Check the
following:
0 ＊ -01, ＊ -10: Ethernet cable not found. Connect the
Ethernet cable properly.
0 ＊-02, ＊-03, ＊-04, ＊-05, ＊-06, ＊-11, ＊-13, ＊-14, ＊
-16, ＊ -17, ＊ -18, ＊ -20, ＊ -21: Internet connection
error. Check the following:
– The router is turned on
– This unit and the router are connected via the network
Try to disconnect and then connect again the power to
the unit and router. This may solve the problem. If you
are still unable to connect to the Internet, the DNS server
or proxy server may be temporarily down. Check the
service status with your ISP provider.
0 Others: Disconnect then reconnect the AC power cord,
then repeat from the beginning.
Updating via USB
0 Prepare a 128 MB or larger USB storage device. FAT16
or FAT32 file system format.
– Media inserted in a USB card reader may not be used
for this function.
– USB storage devices with security function are not
supported.
– USB hubs and USB devices with hub function are not
supported. Do not connect these devices to the unit.
0 Delete any data stored on the USB storage device.
0 Turn off the controller component (PC etc.) connected to
the network.
0 Stop any playing Internet radio, USB storage device, or
server content.
0 When "5. Hardware" - "HDMI" - "HDMI CEC" in the Setup
menu is set to "On", set it to "Off".
0 Some USB storage devices may take long to load, may
not be loaded correctly, or may not be correctly fed
depending on the device or their content.
0 We will not be liable whatsoever for any loss or damage
of data, or storage failure arising from the use of the USB
storage device with this unit. Thank you for your
understanding.
0 The description may differ from the on-screen display but
that will not change the way to operate or the function.
1. Connect the USB storage device to your PC.
2. Download the firmware file from our company’s website
to your PC and unzip.
Firmware files are named in the following way:
ONKATM0001_A50000AAAASOAO_ ＊＊＊ .zip
Unzip the file on your PC. The number of unzipped files
and folders varies depending on the model.
3. Copy all unzipped files and folders to the root folder of
the USB storage device.
0 Make sure to copy the unzipped files.
4. Connect the USB storage device to the USB port of the
main unit.
0 If you connect a USB hard disk drive to the USB port of
the unit, we recommend that you use its AC adapter to
power it.
0 If the USB storage device has been partitioned, each
section will be treated as an independent device.
5. Switch the input on the TV to that assigned to the unit.
6. Press on the remote controller.
7. Select "6. Miscellaneous" - "Firmware Update" - "Update
via USB" with the cursors in order, then press ENTER.
0 If "Firmware Update" is grayed out and cannot be
selected, wait for a while until it starts up.
0 You will not be able to select "Update via USB" if there
is nothing to update.
8. Press ENTER with "Update" selected to start update.
0 During the update, the TV screen may go black
depending on the updated program. In that case,
check the progress on the display of this unit. The TV
screen will remain black until the update is complete
and the power is turned on again.
0 During the update, do not turn off, or disconnect then
reconnect the USB storage device.
0 "Completed!" is displayed when the update is
complete.
9. Remove the USB storage device from this unit.
10.
Press Í ON/STANDBY on the main unit to turn the unit
into standby mode. The process is completed and your
Setup
1. Input/Output Assign
2. Speaker
3. Audio Adjust
4. Source
5. Hardware
6. Miscellaneous
1. TV Out / OSD
2. HDMI Input
3. Digital Audio Input
4. Analog Audio Input
Setup
1. Input/Output Assign
2. Speaker
3. Audio Adjust
4. Source
5. Hardware
6. Miscellaneous
1. Firmware Update
2. Initial Setup
3. Lock
4. Load Default
56
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
firmware is updated to the latest version.
0 Do not use Í on the remote controller.
If an error message is displayed: When an error occurs,
" ＊ - ＊＊ Error!" is displayed on the display of this unit.
(" ＊ " represents an alphanumeric character.) Check the
following:
0 ＊ -01, ＊ -10: USB storage device not found. Check
whether the USB storage device or USB cable is
correctly inserted to the USB port of this unit.
Connect the USB storage device to an external power
source if it has its own power supply.
0 ＊ -05, ＊ -13, ＊ -20, ＊ -21: The firmware file is not
present in the root folder of the USB storage device, or
the firmware file is for another model. Retry from the
download of the firmware file.
0 Others: Disconnect then reconnect the AC power cord,
then repeat from the beginning.
57
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Others
Troubleshooting
Before starting the procedure
Problems may be solved by simply turning the power on/off
or disconnecting/connecting the power cord, which is easier
than working on the connection, setting and operating
procedure. Try the simple measures on both the unit and
the connected device. If the problem is that the video or
audio is not output or the HDMI linked operation does not
work, disconnecting/connecting the HDMI cable may solve
it. Turn off the device connected to this unit, then disconnect
and reconnect the cable. When reconnecting, be careful not
to wind the HDMI cable since if wound the HDMI cable may
not fit well.
0 This unit contains a microPC for signal processing and
control functions. In very rare situations, severe
interference, noise from an external source, or static
electricity may cause it to lockup. In the unlikely event
that this happens, unplug the power cord from the wall
outlet, wait at least 5 seconds, and then plug it back in.
0 We are not responsible for reparations for damages
(such as CD rental fees) due to unsuccessful recordings
caused by the unit’s malfunction. Before you record
important data, make sure that the material will be
recorded correctly.
If operation becomes unstable
Try restarting the unit
The issue may be fixed by restarting this unit. After
switching this unit to standby, press and hold Í ON/
STANDBY on the main unit for 5 or more seconds to restart
the unit. (The settings in the unit are maintained.) If
restarting the unit doesn't fix the problem, try to disconnect
and then connect again the power to the unit and other
connected components.
Resetting the unit (this resets the unit settings to the
default)
If restarting the unit doesn't fix the problem, resetting the
unit to the status at the time of shipment may solve the
problem. Your settings will also be initialized when you
reset, so note down your settings before doing the
following.
1. Press on the remote controller, select " 6.
Miscellaneous" - "Load Default" in the Setup screen and
press ENTER.
2. Select "Yes", and then press ENTER.
3. The unit switches to standby and the settings are reset.
■ Power
Cannot turn on the unit
0 Make sure that the power cord is properly plugged into
the wall outlet.
0 Unplug the power cord from the wall outlet, wait
5 seconds or more, then plug it in again.
The unit turns off unexpectedly
0 The unit automatically switches to standby when the "5.
Hardware" - "Power Management" - "Auto Standby"
setting in the Setup menu functions.
0 The protective circuit function may have been activated
because the temperature of the main unit rose
abnormally. If this happens, then the power will continue
to turn off after you have turned the unit on again. Make
sure the unit has plenty of space for ventilation around it,
wait for the main unit to cool down sufficiently, and then
try turning it on again.
WARNING: If smoke, smell or abnormal noise is produced
by the unit, unplug the power cord from the wall outlet
immediately and contact the dealer or our company’s
support.
■ Audio
0 Make sure that the speaker setup microphone is not still
connected.
0 Confirm that the connection between the output jack on
the device and the input jack on this unit is correct.
0 Make sure that none of the connecting cables are bent,
twisted, or damaged.
0 If the MUTING indicator on the display flashes, press
on the remote controller to cancel muting.
0 While headphones are connected to the PHONES jack,
no sound is output from the speakers.
0 When "4. Source" - "Audio Select" - "PCM Fixed Mode" in
the Setup menu is set to "On", no sound is played when
signals other than PCM are input. Change the setting to
Off.
Check the following if the above does not fix the problem:
There is no sound from the TV
0 Change the input selector on this unit to the position of
the terminal to which the TV is connected.
0 If the TV doesn't support the ARC function, along with
connection by HDMI, connect the TV and this unit using a
digital optical cable or analog audio cable.
No sound from a connected player
0 Change the input selector on this unit to the position of
the terminal to which the player is connected.
0 Check the digital audio output setting on the connected
component. On some game consoles, such as those that
support DVD, the default setting is OFF.
0 With some DVD-Video discs, you need to select an audio
output format from a menu.
Sound bar produces no sound
0 Depending on the source and current listening mode, not
much sound may be produced. Select another listening
mode to see if sound is output.
58
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
The subwoofer produces no sound
0 Make sure that the power cord of the subwoofer is
properly plugged into the wall outlet.
0 Check that the subwoofer LINK LED is illuminated. If it is
blinking, follow the below procedure to pair the main unit
and the subwoofer.
1.Press and hold LINK on the rear panel of the
subwoofer until the blinking speed of LINK LED
changes.
2.While pressing TUNING4 on the front of the main
unit, press LISTENING MODE.
"Pairing" is displayed on the main unit display.
3.When "Paired" is displayed on the main unit display
and LINK LED on the subwoofer lights, pairing is
complete.
0 Sound may jump or stop depending on reception. Move
the subwoofer closer to the main unit if you notice this. If
there are obstacles in the way, try moving them.
0 When you play source material that contains no
information in the LFE channel, the subwoofer produces
no sound.
Noise can be heard
0 Using cable ties to bundle RCA cables with power cords,
sound bar connection cable, etc. may degrade the audio
performance, so refrain from doing it.
0 An audio cable may be picking up interference. Try
repositioning your cables.
The beginning of audio received via HDMI cannot be
heard
0 Since it takes longer to identify the format of an HDMI
signal than it does for other digital audio signals, audio
output may not start immediately.
Sound suddenly reduces
0 When the temperature inside the main unit exceeds a
certain temperature for extended periods, the volume
may be reduced automatically to protect the circuits.
■ Listening Modes
0 To enjoy digital surround playback, such as Dolby Digital,
the audio signals need to pass through a connection via
HDMI cable or digital optical cable. Audio output should
be set to bitstream output on the connected Blu-ray Disc
player or other device.
0 Press on the remote controller several times to switch
the display of this unit to check the input format.
Check the following if the above does not fix the problem:
Cannot select a desired listening mode
0 Depending on the connecting status of the speaker,
some listening modes may not be selected. (ÄP30)
There is no sound with Dolby TrueHD, Dolby Atmos,
DTS-HD Master Audio and DTS:X.
0 If you cannot output formats such as Dolby TrueHD,
Dolby Atmos, DTS-HD Master Audio or DTS:X according
to the format of the source, in the Blu-ray Disc player
settings try setting "BD video supplementary sound" (or
re-encode, secondary sound, video additional audio,
etc.) to "Off". Change the listening mode for each source
after changing the setting to confirm.
About DTS signals
0 With media that switches suddenly from DTS to PCM,
PCM playback may not start immediately. In such cases,
you should stop your player for about 3 seconds and then
resume playback.
0 With some CD and LD players, you will not be able to
playback DTS material properly even though your player
is connected to a digital input on the unit. This is usually
because the DTS bitstream has been processed (e.g.,
output level, sampling rate, or frequency response
changed) and the unit does not recognize it as a genuine
DTS signal. In such cases, you may hear noise.
0 Playing DTS program material, using the pause, fast
forward, or fast reverse function on your player may
produce a short audible noise. This is not a malfunction.
■ Video
0 Confirm that the connection between the output jack on
the device and the input jack on this unit is correct.
0 Make sure that none of the connecting cables are bent,
twisted, or damaged.
0 When the TV image is blurry or unclear, power code or
connection cables of the unit may have interfered. In that
case, keep distance between TV antenna cable and
cables of the unit.
0 Make sure the switching of input screens is proper at the
monitor side such as a TV.
Check the following if the above does not fix the problem:
There is no video
0 Change the input selector on this unit to the position of
the terminal to which the player is connected.
There is no picture from a source connected to an HDMI
IN terminal
0 To display video from the connected player on the TV
while the unit is in standby, you need to enable "5.
Hardware" - "HDMI" - "HDMI Standby Through" in the
Setup menu. Refer to (ÄP49) for information about
HDMI Standby Through.
0 Check if "Resolution Error" is displayed on this unit's
display when video input via HDMI IN jack is not
displayed. In this case, the TV does not support the
resolution of the video input from the player. Change the
setting on the player.
0 Reliable operation with an HDMI-to-DVI adapter is not
guaranteed. In addition, video signals from a PC are not
supported.
59
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Images flicker
0 It is possible that the resolution of the player is not
compatible with the TV's resolution. If you have
connected the player to this unit with an HDMI cable, try
changing the output resolution on the player. There also
may be an improvement if you change the screen mode
on the TV.
Video and audio are out of sync
0 Video may be delayed relative to audio depending on the
settings and connections with your television. To adjust,
press Q on the remote controller, and adjust in "Other" -
"A/V Sync" in "Quick Menu".
■ Linked operation
There is no linked operation with CEC compliant
devices, such as a TV
0 In the Setup menu of the unit, set "5. Hardware" - "HDMI"
- "HDMI CEC" to "On".
0 It is also necessary to set HDMI linking on the CEC
compliant device. Check the instruction manual.
■ FM broadcasts
Radio reception is poor or there is a lot of noise.
0 Re-check the antenna connection.
0 Move the antenna away from the sound bar connection
cable or the power cord.
0 Move the unit away from your TV or PC.
0 Passing cars and airplanes can cause interference.
0 Concrete walls weaken radio signals.
0 Listen to the station in mono.
0 FM reception may become clearer if you use the antenna
jack on the wall used for the TV.
■ BLUETOOTH function
0
Try plugging/unplugging the power of the unit and try
turning on/off the BLUETOOTH enabled device. Restarting
the BLUETOOTH enabled device may be effective.
0 The BLUETOOTH enabled devices must support the
A2DP profile.
0 Near components such as microwave oven or cordless
phone, which use the radio wave in the 2.4 GHz range, a
radio wave interference may occur, which disables the
use of this unit.
0 If there is a metallic object near the unit, BLUETOOTH
connection may not be possible as the metal can effect
on the radio waves.
Check the following if the above does not fix the problem:
Cannot connect with this unit
0 Check that the BLUETOOTH function of the
BLUETOOTH enabled device is enabled.
Music playback is unavailable on the unit even after
successful BLUETOOTH connection
0
When the audio volume of your BLUETOOTH enabled
device is set low, the playback of audio may be unavailable.
Turn up the volume on the BLUETOOTH enabled device.
0 Some BLUETOOTH enabled devices may be equipped
with a Send/Receive selector switch. Select Send mode.
0 Depending on the characteristics or specifications of your
BLUETOOTH enabled device, playback on this unit may
not be possible.
Sound is interrupted
0 There may be a problem with the BLUETOOTH enabled
device. Check the information on the internet.
The audio quality is poor after connection with a
BLUETOOTH enabled device
0
The BLUETOOTH reception is poor. Move the BLUETOOTH
enabled device closer to the main unit or remove any
obstacle between the BLUETOOTH enabled device and the
main unit.
■ Network function
0 If you cannot select a network service, it will become
selectable when the network function is started. It may
take about a minute to start up.
0 When NET is blinking, this unit is not properly connected
to the home network.
0 Try plugging/unplugging the power supply of this unit and
the router, and try rebooting the router.
0 If the desired wireless LAN router is not in the access
point list, it may be set to hide SSID or the ANY
connection may be off. Change the setting and try again.
Check the following if the above does not fix the problem:
Cannot access the Internet radio
0 Certain network service or contents available through the
unit may not be accessible in case the service provider
terminates its service.
0 Make sure that your modem and router are properly
connected, and make sure they are both turned on.
0 Make sure that the LAN side port on the router is properly
connected to this unit.
0 Make sure that connecting to Internet from other
components is possible. If connecting is not possible,
turn off all components connected to the network, wait for
a while, and then turn on the components again.
0 If a specific radio station is unavailable for listening, make
sure the registered URL is correct, or whether the format
distributed from the radio station is supported by this unit.
0 Depending on ISP, setting the proxy server is necessary.
0 Make sure that the used router and/or modem is
supported by your ISP.
60
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Cannot access the network server
0 This unit needs to be connected to the same router as
the network server.
0 This unit is compatible with Windows Media
®
Player 11 or
12 network servers or NAS that are compatible with
home network functionality.
0 You may need to make some settings on Windows
Media
®
Player. (ÄP22)
0 When using a PC, only music files registered in the
Windows Media
®
Player library can be played.
Playback stops while listening to music files on the
network server
0 Make sure the network server is compatible with this unit.
0 When the PC is serving as the network server, try quitting
any application software other than the server software
(Windows Media
®
Player 12, etc.).
0 If the PC is downloading or copying large files, the
playback may be interrupted.
■ USB storage device
USB storage device is not displayed
0 Check whether the USB storage device or USB cable is
correctly inserted to the USB port of the unit.
0 Disconnect the USB storage device from the unit, and
then try reconnecting.
0 Performance of the hard disk that receive power from the
USB port of the unit is not guaranteed.
0 Depending on the type of format, the playback may not
be performed normally. Check the type of the file formats
that is supported.
0 USB storage devices with security functions may not be
played.
■ Wireless LAN Network
0 Try plugging/unplugging the power supply of wireless
LAN router and the unit, check the wireless LAN router
power-on status, and try reboot of the wireless LAN
router.
Check the following if the above does not fix the problem:
Cannot access wireless LAN network
0 The wireless LAN router setting may be switched to
Manual. Return the setting to Auto.
0 Try the manual set-up. The connection may succeed.
0 When the wireless LAN router setting is at stealth mode
(mode to hide the SSID key) or when ANY connection is
off, the SSID is not displayed. Change the setting and try
again.
0 Check that the setting of SSID and encryption (WEP,
etc.) is correct. Make sure the network settings of the unit
is properly set.
0 Connection to an SSID that includes multi-byte
characters is not supported. Name the SSID of the
wireless LAN router using single-byte alphanumeric
characters only and try again.
Connected to an SSID different to the SSID selected
0 Some wireless LAN routers allow you to set multiple
SSIDs for one unit. If you use the automatic setting
button on such a router, you may end up connecting with
a different SSID from the SSID you wanted to connect to.
Use the connection method requiring you to enter a
password if this happens.
Playback is interrupted and communication does not
work
0 You may not receive radio waves due to bad radio wave
conditions. Shorten the distance from the wireless LAN
access point or remove obstacles to improve visibility,
and try again. Place the unit away from microwave ovens
or other access points. It is recommended to place the
wireless LAN router (access point) and the unit in the
same room.
0 If there is a metallic object near the unit, wireless LAN
connection may not be possible as the metal can effect
on the radio wave.
0 When other wireless LAN devices are used near the unit,
several issues such as interrupted playback and
communication may occur. You can avoid these issues
by changing the channel of your wireless LAN router. For
instructions on changing channels, see the instruction
manual provided with your wireless LAN router.
0 There may not be enough bandwidth available in
wireless LAN. Connect using an Ethernet cable.
■ Remote Controller
0 Make sure that the batteries are installed with the correct
polarity.
0 Install new batteries. Do not mix different types of
batteries, or old and new batteries.
0 Make sure that the main unit is not subjected to direct
sunshine or inverter-type fluorescent lights. Relocate if
necessary.
0 If the main unit is installed in a rack or cabinet with
colored-glass doors or if the doors are closed, the remote
controller may not work reliably.
■ Display
The display doesn't light
0 The display may go dim while the Dimmer is working.
Press DIMMER button and change the brightness level
of the display.
61
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
■ Others
Strange noises can be heard from this unit
0 If you have connected another unit to the same wall
outlet as this unit, this noise may be an effect from the
other unit. If the symptoms improve by unplugging the
power cord of the other unit, use different wall outlets for
this unit and the other unit.
When performing AccuEQ Room Calibration, the
message "Noise Error" appears
0 This can be caused by a malfunction in your speaker
unit. Check if the unit produces normal sounds.
The connected cables get hot
0 If the cables are bundled, the temperature of the cables
may rise. Do not bundle the cables when using them.
62
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
General Specifications
Network AV Receiver (HT-L05)
Amplifier (Audio) section
Rated Output Power (IEC)
5 ch k 50 W at 4 ohms, 1 kHz, 1 ch driven of 1% THD
Input Sensitivity and Impedance (1 kHz 50 W/4 Ω)
200 mV/47 kΩ (LINE (Unbalance))
Tone Control Characteristics
n10 dB, 90 Hz (BASS)
n10 dB, 7.5 kHz (TREBLE)
Signal to Noise Ratio
80 dB (IHF-A, LINE IN, SP OUT)
Speaker Impedance
4 Ω
Headphone Output Impedance
102 Ω
Headphone Rated Output
85 mW (32 Ω, 1 kHz, 10% THD)
Tuner Section
FM Tuning Frequency Range
87.5 MHz - 108.0 MHz, RDS
Preset Channel
40
Network Section
Ethernet LAN
10BASE-T/100BASE-TX
Wireless LAN
IEEE 802.11 a/b/g/n standard
(Wi-Fi
®
standard)
5 GHz/2.4 GHz band
BLUETOOTH Section
Communication system
BLUETOOTH Specification version 4.1+LE
Frequency band
2.4 GHz band
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles
A2DP 1.2
AVRCP 1.3
HOGP-Host (Client)
HOGP-HID Device (Server)
HID Service (HIDS)
Supported Codecs
SBC
AAC
Transmission range (A2DP)
20 Hz - 20 kHz (Sampling frequency 44.1 kHz)
Maximum communication range
Line of sight approx. 15 m ( ＊ )
＊
The actual range will vary depending on factors such as obstacles
between devices, magnetic fields around a microwave oven, static
electricity, cordless phone, reception sensitivity, antenna’s
performance, operating system, software application, etc.
General
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
60 W
0.38 W (Stand-by)
16 W (No-sound)
2 W (HDMI Standby Through)
2 W (Network Standby)
Dimensions (W k H k D)
435 mm k 70 mm k 325.5 mm
Weight
4 kg
HDMI
Input
IN1 (BD/DVD, HDCP2.2), IN2 (CBL/SAT, HDCP2.2), IN3
(STRM BOX, HDCP2.2), IN4 (GAME, HDCP2.2)
Output
OUT (HDCP2.2)
Supported
Deep Color, x.v.Color
TM
, LipSync, Audio Return Channel,
3D, 4K 60Hz, CEC, Extended Colorimetry (sYCC601,
Adobe RGB, Adobe YCC601), Content Type, HDR
Audio Format
Dolby Atmos, Dolby TrueHD, Dolby Digital, Dolby Digital
Plus, DTS, DTS:X, DTS-HD Master Audio, DTS-HD High
Resolution Audio, DTS 96/24, DTS-HD Express, DSD,
PCM
Maximum Video Resolution
4k 60 Hz (YCbCr 4:4:4)
Audio Inputs
Digital
OPTICAL (TV)
Analog
1 (CD)
Audio Outputs
Speaker Outputs
Special 16-pin connector (FRONT L/R, CENTER,
HEIGHT L/R)
Phones
PHONES (Front, φ3.5 mm)
Others
USB: 1 (Front, Ver.2.0, 5 V/1 A)
Ethernet: 1
Setup Mic: 1
Sound Bar (LB-403)
Type
Full Range Closed Box
Impedance
4 Ω
Maximum Input Power
50 W
63
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
Output Sound Pressure Level
78 dB/W/m (FRONT L/R, CENTER)
78.6 dB/W/m (HEIGHT L/R)
Frequency Response
100 Hz - 20 kHz
Crossover Frequency
180 Hz
Dimensions (W k H k D)
950 mm k 55 mm k 80 mm
Weight
2.3 kg
Drivers Unit
FRONT L/R, CENTER: 4 cm k7 cm cone k2
HEIGHT L/R: 5.8 cm cone
Terminal
Special 16-pin connector (FRONT L/R, CENTER,
HEIGHT L/R)
Subwoofer (SLW-403)
Type
Bass-Reflex
Rated Output Power (IEC)
50 W (4 ohms, 100 Hz, THD 1%)
Output Sound Pressure Level
90 dB/m, 15 mV/each (VOL. MAX)
Frequency Response
30 Hz - 200 Hz
Crossover Frequency
180 Hz
Dimensions (W k H k D)
261 mm k 338 mm k 269 mm
Weight
6.2 kg
Drivers Unit
16 cm cone
Power Supply
AC 220 - 240 V, 50/60 Hz
Power Consumption
15 W
Handling
0 These speakers have no magnetic shielding. You may
observe some color irregularity or distortion on a cathode
ray tube television if you use one near these speakers.
Move the television away from these speakers if this
occurs.
0 Note: Powerful magnets are used in the speakers, so
keep metal objects such as screw drivers away from
them. These objects can damage the diaphragm.
0 Under normal music playback conditions, you should
experience no problems with this unit, but when
particular sounds such as those described below are
introduced, excessive current may occur that cause
circuit burnout.
1 The noise that occurs when FM radio stations are not
tuned
2 High pitched noise from an oscillator, electronic
instrument, etc.
3 Particular signals such as from an audio test CD
4 The howling that occurs with microphones
5 The sound made when cassette tapes are fast-
forwarded
6 When an amplifier oscillates
7 The sharp noise that occurs when plugging or
unplugging pin cables, etc.
64
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
About HDMI
Compatible functions
HDMI (High Definition Multimedia Interface) is a digital
interface standard for connecting TVs, projectors, Blu-ray
Disc/DVD players, set-top boxes, and other video
components. Until now, several separate video and audio
cables have been required to connect AV components. With
HDMI, a single cable can carry control signals, digital video,
and digital audio (2-channel PCM, multichannel digital
audio, and multichannel PCM).
HDMI CEC functionality: By connecting devices and HDMI
cables that comply with the CEC (Consumer Electronics
Control) specification of the HDMI standard, a variety of
linked operation become possible between devices. You
can enjoy features such as linking input switching with the
input selector and players, control volume using the remote
controller of the TV, and automatically switching this unit to
standby when the TV is turned off. The unit is designed to
link with products that comply with the CEC standard, and
that linked operation is not always guaranteed with all CEC
devices.
ARC (Audio Return Channel): By connection a TV that
supports ARC with a single HDMI cable, you can not only
output the audio and video from this unit to the TV, but also
input the audio from the TV to this unit.
HDMI Standby Through: Even if this unit is in standby, the
input signals from AV components are transmitted to the TV.
Deep Color: By connecting devices supporting Deep Color,
video signals input from the devices can be reproduced on
the TV with even more colors.
x.v.Color
™
: This technology realizes even more realistic
colors by broadening the color gamut.
3D: You can transmit 3D video signals from AV components
to the TV.
4K: This unit supports 4K (3840 2160p) and 4K SMPTE
(4096 2160p) video signals.
LipSync: This setting automatically corrects any
desynchronization between the video and audio signals
based on data from the HDMI LipSync compatible TV.
Supported Audio Formats
2-channel linear PCM: 32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit
Multi-channel linear PCM: Maximum 5.1 channels,
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz, 16/20/24 bit
Bitstream: Dolby Atmos, Dolby Digital, Dolby Digital Plus,
Dolby TrueHD, DTS, DTS:X, DTS-HD High Resolution
Audio, DTS-HD Master Audio
DSD: Supported sampling rates: 2.8 MHz
Your Blu-ray Disc/DVD player must also support HDMI
output of the above audio formats.
Supported resolutions
Copyright protection technology: HDCP1.4/HDCP2.2
Color space (Color Depth): 720 480i 60Hz, 720 576i
50Hz, 720 480p 60Hz, 720 576p 50Hz, 1920 1080i
50/60Hz, 1280 720p 24/25/30/50/60Hz, 1680 720p
24/25/30/50/60Hz, 1920 1080p 24/25/30/50/60Hz, 2560
1080p 24/25/30/50/60Hz, 4K (3840 2160p) 24/25/
30Hz, 4K SMPTE (4096 2160p) 24/25/30Hz : RGB/
YCbCr4:4:4 (8/10/12 bit), YCbCr4:2:2 (12 bit)
4K (3840 2160p) 50/60Hz, 4K SMPTE (4096 2160p)
50/60Hz : RGB/YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit),
YCbCr4:2:0 (8/10/12 bit)
65
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
License and Trademark Information
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos,
Dolby Surround and the double-D symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from
DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and
the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the
United States and/or other countries. © DTS, Inc. All Rights Reserved.
“CINEMA FILTER” and “CINEMA FILTER (logo)” are trademarks of Onkyo
Corporation.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance
®
.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in
the U.S. and other countries.
iPad Air and iPad mini are trademarks of Apple Inc.
“Made for iPod”, “Made for iPhone” and “Made for iPad” mean that an electronic
accessory has been designed to connect specifically to iPod, iPhone, or iPad,
respectively, and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone or iPad may affect
wireless performance.
AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac
with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.
The BLUETOOTH
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Onkyo Corporation is under
license. Other trademarks and trade names are those of their respective
owners.
Onkyo Corporation does not guarantee BLUETOOTH compatibility between the
AV receiver and all BLUETOOTH enabled devices.
For compatibility between the AV receiver and another device with
BLUETOOTH technology, consult the device’s documentation and dealer. In
some countries, there may be restrictions on using BLUETOOTH devices.
Check with your local authorities.
Onkyo Corporation ne garantit pas la compatibilité BLUETOOTH entre l'ampli-
tuner AV et tous les appareils compatibles BLUETOOTH.
Pour assurer la compatibilité entre l'ampli-tuner AV et un autre périphérique à
technologie BLUETOOTH, consultez la documentation de l'appareil et le
vendeur. Dans certains pays, il peut exister des restrictions sur l'utilisation
d'appareils BLUETOOTH. Vérifiez auprès des autorités locales.
Onkyo Corporation no garantiza la compatibilidad BLUETOOTH entre el
receptor de AV y todos los dispositivos con tecnología BLUETOOTH.
Para obtener información sobre la compatibilidad entre el receptor de AV y otro
dispositivo con tecnología BLUETOOTH, consulte al distribuidor y la
documentación del dispositivo. En algunos países, es posible que el uso de
dispositivos BLUETOOTH esté restringido. Consulte con las autoridades
locales.
Onkyo Corporation non garantisce la compatibilità BLUETOOTH tra il ricevitore
AV e tutti i dispositivi abilitati al BLUETOOTH.
Per verificare la compatibilità tra il ricevitore AV e un altro dispositivo dotato di
tecnologia BLUETOOTH, consultare la documentazione del dispositivo in
questione o contattare il rivenditore. In alcuni Paesi potrebbero esistere delle
limitazioni per l'utilizzo di dispositivi BLUETOOTH. Verificare le condizioni con le
autorità locali.
Onkyo Corporation garantiert nicht die
BLUETOOTH
Kompatibilität zwischen
dem AV-Receiver und allen
BLUETOOTH
fähigen Geräten.
Zur Kompatibilität zwischen dem AV-Receiver und einem anderen Gerät mit
BLUETOOTH Technologie, schauen Sie in die Dokumentation des Geräts und
fragen Sie den Händler. Es kann sein, dass es in einigen Ländern
Beschränkungen zur Nutzung der BLUETOOTH Geräte gibt. Prüfen Sie das bei
Ihren lokalen Behörden.
Onkyo Corporation garandeert niet de
BLUETOOTH
compatibiliteit tussen de
AV-receiver en alle
BLUETOOTH
apparaten.
Raadpleeg voor compatibiliteit tussen de AV-receiver en een ander apparaat
met
BLUETOOTH
technologie de documentatie van het apparaat of de
verkoper. In sommige landen geldt mogelijk een beperking op het gebruik van
BLUETOOTH
apparatuur. Controleer de wetgeving in het land van gebruik.
Onkyo Corporation garanterar inte BLUETOOTH kompatibilitet mellan AV-
receiver och alla BLUETOOTH aktiverade enheter.
För kompatibilitet mellan AV-receiver och en annan enhet med BLUETOOTH
teknik, se enhetens dokumentation och återförsäljaren. I vissa länder kan det
finnas begränsningar för användandet av BLUETOOTH enheter. Kontrollera
hos de lokala myndigheterna.
PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks
or registered trademarks of Pandora Media, Inc. Used with permission.
This product is protected by certain intellectual property rights of Microsoft. Use
or distribution of such technology outside of this product is prohibited without a
license from Microsoft.
Windows and the Windows logo are trademarks of the Microsoft group of
companies.
QR Code is a registered trademark of DENSO WAVE INCORPORATED.
“x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.
DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and
Thomson.
AccuEQ and Music Optimizer are trademarks of Onkyo Corporation.
®
66
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
“All other trademarks are the property of their respective owners.”
“Toutes les autres marques commerciales sont la propriété de leurs détenteurs
respectifs.”
“El resto de marcas comerciales son propiedad de sus respectivos propietarios”.
“Tutti gli altri marchi di fabbrica sono di proprietà dei rispettivi proprietari.”
“Alle anderen Warenzeichen sind das Eigentum ihrer jeweiligen Eigentümer.”
“Alle andere handelsmerken zijn eigendom van de desbetreffende
rechthebbenden.”
“Alla andra varumärken tillhör deras respektive ägare.”
E
N
*29402744B*
F1711-2
<U.S.A.>
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
For Dealer, Service, Order and all other Business Inquiries:
Tel: 201-785-2600 Fax: 201-785-2650
http://www.us.onkyo.com/
<Germany>
Gutenbergstrasse 3, 82178 Puchheim, Germany
Tel: +49-8142-4401-0 Fax: +49-8142-4208-213
http://www.eu.onkyo.com/
<UK>
Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex,
HA4 6QQ United Kingdom
Tel: +44 (0)871-200-1996 Fax: +44 (0)871-200-1995
<Hong Kong>
Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
Tel: +852-2429-3118 Fax: +852-2428-9039
http://www.hk.onkyo.com/
<PRC>
302, Building 1, 20 North Chaling Rd., Xuhui District, Shanghai, China 200032,
Tel: +86-21-52131366 Fax: +86-21-52130396
http://www.cn.onkyo.com/
<Asia, Oceania, Middle East, Africa>
Please contact an Onkyo distributor referring to Onkyo SUPPORT site.
http://www.intl.onkyo.com/support/
The above-mentioned information is subject to change without prior notice.
Visit the Onkyo web site for the latest update.
For Product Support Team Only:
1-800-229-1687
http://www.us.onkyo.com/
1-10-5 Yokoami, Sumida-ku, Tokyo 130-0015 JAPAN
http://www.onkyo.com/
SN 29402744B
(C) Copyright 2016 Onkyo & Pioneer Corporation Japan. All rights reserved.
http://www.onkyo.com/privacy/
