Bosch NIT5668UC 500 Series Induction Cooktop

Causes of damage

NOTICES

• Scratches on glass ceramic surface: Cookware with rough bottoms will scratch the glass ceramic surface.
• Salt, sugar and sand: Salt, sugar or grains of sand will scratch the glass ceramic surface. Never use the cooktop as a working surface or for setting things down.
• Overheated cookware: Avoid heating pots or pans that are empty.
• Hot cookware: Never set down hot pans and pots on the control panel or frame. This may cause damage.
• Hard and sharp objects: Hard or sharp objects falling on the cooktop may damage it.
• Boiled-over food: Sugar and products containing sugar may damage the cooktop. Immediately eliminate spills of these products with a glass scraper.
• Foils and plastics: Aluminum foil and plastic will melt on the hot cooking zones. Stove protective film isn't suitable for your cooktop.
• Unsuitable cleaning agent: Shimmering metallic discolorations on the glass ceramic surface result from the use of inappropriate cleaning agents and abrasion from cookware.

Protecting the environment

Energy-saving advice

• Always place a fitting lid on cookware. Cooking with an uncovered pan will result in a four-fold increase in energy use. Use a glass lid to provide visibility and avoid having to lift the lid.
• Use cookware equipped with a solid, flat bottom. Curved pan bases increase energy consumption.
• The diameter of the pan base must match the size of the element. If not, energy may be wasted. Note: The manufacturer normally indicates the pan's upper diameter. This is normally greater than the diameter of the pan's base.
• Choose cookware of a size suited to the amount of food you are going to cook. A large pan that is only half full will use a lot of energy.
• Use a small amount of water when cooking. This saves energy, and vegetables retain a larger percentage of their vitamins and minerals.
• Select a lower power level.

Cooking with Induction

Advantages of induction cooking

Induction cooking is very different from traditional cooking methods, as heat builds up directly in the item of cookware. This offers numerous advantages:

• Saves time when boiling and frying.
• Saves energy.
• Easier to care for and clean. Spilled food does not burn on as quickly.
• Heat control and safety – the cooktop increases or decreases the heat supply as soon as the user changes the setting. The induction element stops the heat supply as soon as the cookware is removed from the element, without having to switch it off first.

Cookware

Only use ferromagnetic cookware for induction cooking, such as:

• Cookware made from enameled steel
• Cookware made from cast iron
• Special induction-compatible cookware made from stainless steel.

To check whether your cookware is suitable for induction cooking, refer to the section on "Suitability test of cookware".

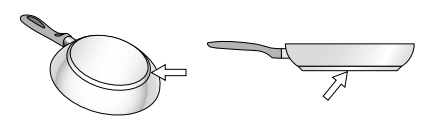

To achieve a good cooking result, the ferromagnetic area on the base of the pan should match the size of the element. If a element does not detect an item of cookware, try placing it on another element with a smaller diameter.

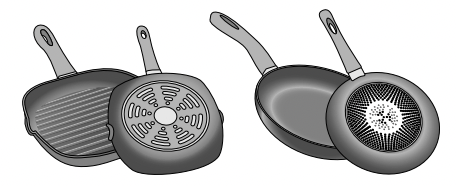

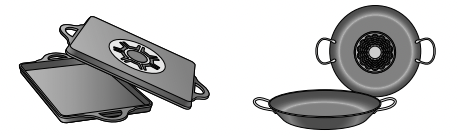

Some induction cookware does not have a fully ferromagnetic base:

• If the base of the cookware is only partially ferromagnetic, only the area that is ferromagnetic will heat up. This may mean that heat will not be distributed evenly. The non-ferromagnetic area may not heat up to a sufficient temperature for cooking.

• The ferromagnetic area will also be reduced if the material of which the base of the cookware is made contains aluminum, for example. This may mean that the cookware will not become sufficiently hot or even that it will not be detected.

Unsuitable cookware

Do not ever use adapter plates for induction or cookware made of:

• Traditional stainless steel
• Glass
• Clay
• Copper
• Aluminum

Properties of the base of the cookware

The material(s) of which the base of the cookware is made can affect the cooking result. Using pots and pans made from materials that distribute heat evenly through them, such as stainless-steel pans with a three-layer base, saves time and energy. Use cookware with a flat base; if the base of the cookware is uneven, this may impair the heat supply

No pan or improper size

If no pan is placed on the selected element, or if it is made of unsuitable material or is not the correct size, the power level displayed on the element indicator will flash. Place a suitable pan on the element to stop the flashing. If you take longer than 90 seconds to place a suitable pan on the element, it will automatically turn off.

Empty pans or pans with a thin base

Do not heat up empty pans, or use pans with a thin base. The cooktop is equipped with an internal safety system. However, an empty pan may heat up so quickly that the automatic switch off" function may not have time to react and the pan may reach very high temperatures. The pan base could melt and damage the cooktop glass. In this case, do not touch the pan and switch the cooktop off. If the cooktop fails to work after it has cooled down, please contact the technical service.

Pan detection

Each element has a lower limit for pan detection. This depends on the diameter of the ferromagnetic area of the cookware and the material of which its base is made. For this reason, you should always use the element that best matches the diameter of the base of the pan.

Automatic detection in double and triple cooking zones

These cooking zones can detect cookware of different sizes. Depending on the material and the properties of the cookware, the cooking zone automatically activates the singe, double or triple cooking zone, supplying the proper power to obtain good cooking results.

Getting familiar with the appliance

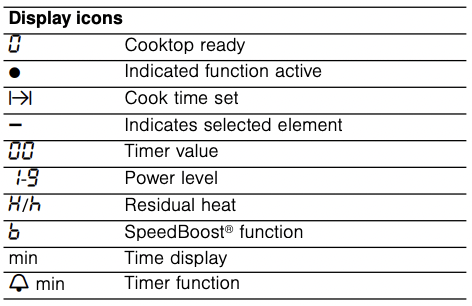

In this section we describe the control panel, elements and displays.

Page 2 contains a list of models and dimensions.

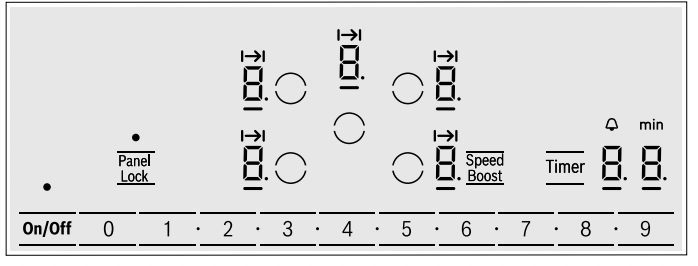

Control panel

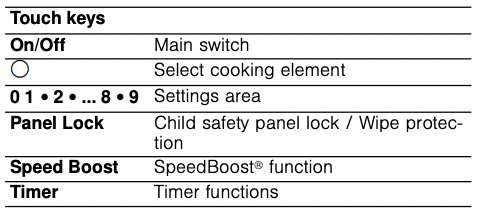

Touch control zone

When you touch a symbol, the corresponding function will be activated.

Notes

• When you touch several symbols at once the settings will not change. This enables you to clean the touch contol zone when food has spilled over.
• Always keep the touch control zone clean and dry. Moisture and dirt can affect proper functioning.

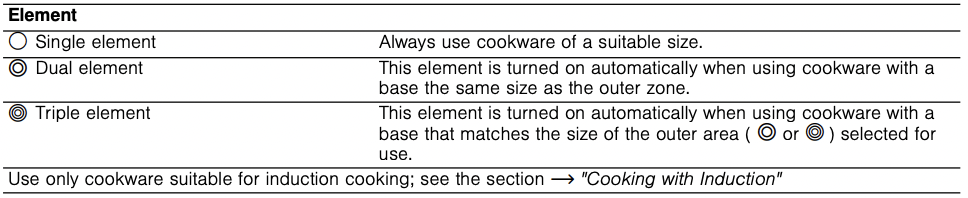

The elements

Residual heat indicator

The cooktop has a residual heat indicator for each element. This indicates that an element is still hot. Do not touch an element while the residual heat indicator is lit up.

The following are shown depending on the amount of residual heat:

• Display : High temperature
• Display : Low temperature

If you remove the cookware from the element during cooking, the residual heat indicator and the selected heat setting will flash alternately.

When the element is switched off, the residual heat indicator will light up. Even after the cooktop has been switched off, the residual heat indicator will stay lit for as long as the element is still warm.

Operation

Main power switch

Use the main switch to turn on the electronic circuitry for the control panel. The cooktop is now ready to use.

Turning the cooktop on

Touch the On/Off touch key until the indicator above the main switch and the temperature level indicatorsnext to the heating elements turn on.

Turning the cooktop off

Touch the On/Off touch key. The __ indicator goes out. The cooktop is switched off. The residual heat indicators will remain on until the elements have cooled off sufficiently.

Note: The cooktop switches off automatically when all the elements have been switched off for more than 20 seconds.

The residual heat indicator remains lit until the elements have cooled down sufficiently. / is displayed next to the corresponding element symbol.

Setting the cooktop

This section will show you how to set the elements. The table contains details on the heat settings for a variety of dishes.

Setting the element

Select the desired heat level using the number keys to 9.

Heat level 1 = minimum power

Heat level 9 = maximum power

Each heat setting has an intermediate level. This level is indicated by . in the element display and is set by touching the symbols between the number keys.

Selecting the heat level

The cooktop must be turned on.

1. Select the desired element with by touching the symbol on the control panel. In the element display and the __ indicator light up.
2. Within the following 10 seconds, set the desired power level using the number keys.

3. To change the power level, select the element and set the desired power level using the number keys. To set an intermediate level touch the symbols between the number keys.

Turning off the element

Select the element and set the heat level to 0. The element is turned off and the residual heat indicator is displayed.

Notes

• If there is no cookware on the induction cooking zone, the heat setting display blinks. After a while, the cooking zone will switch itself off.
• If cookware has been placed on the cooking zone before you turn on the cooktop, it will be detected within 20 seconds after you have touched the main switch and the cooking zone will be selected automatically. Once detected, set the power level within the next 20 seconds, otherwise the cooking zone will turn off.

Even if there are several pots and pans on the cooktop when it is switched on, only one piece of cookware is detected.

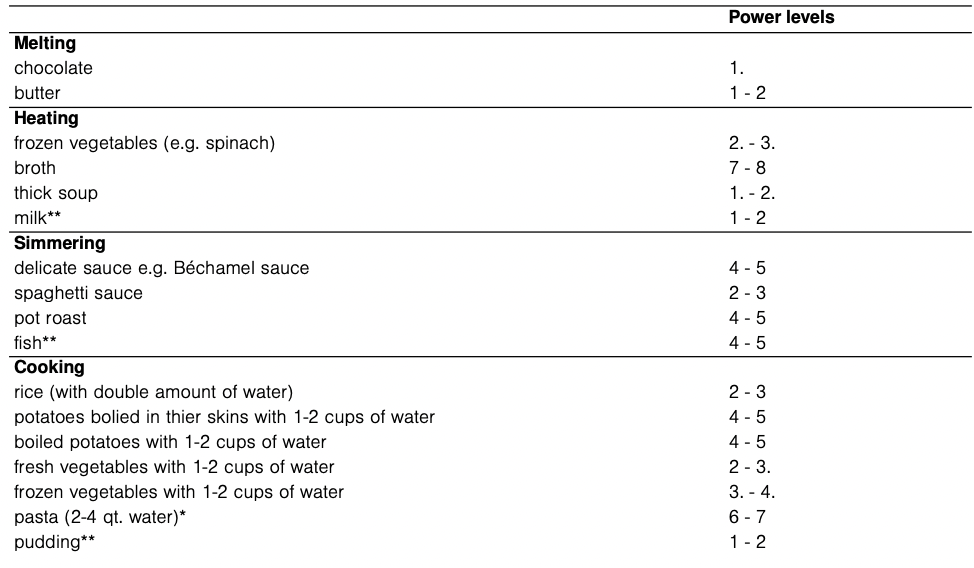

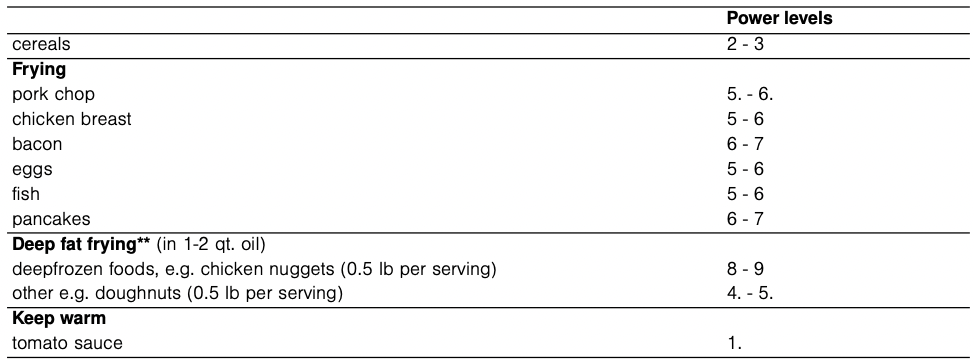

Settings table

The following table provides some examples. Cooking times may vary depending on the type of food, its weight and quality. Deviations are therefore possible.

Recommendations

• When heating up puree, cream soups and thick sauces, stir occasionally.
• Set heat setting 8 to 9 for preheating.
• When cooking with the lid on, turn the heat setting down as soon as steam escapes between the lid and the cookware.
• After cooking, keep the lid on the cookware until you serve the food.
• To cook with the pressure cooker, observe the manufacturer's instructions.
• Do not cook food for too long, otherwise the nutrients will be lost. The kitchen timer can be used to set the optimum cooking time.
• For healthier cooking results, oil or grease should not be heated until it smokes.
• To brown food, fry small portions in succession.
• Cookware may reach high temperatures while the food is cooking. We recommend that you use pot holders.
• You can find recommendations for energy-efficient cooking in section "Protecting the environment"

CAUTION During cooking, stews or liquid meals such as soups, sauces or drinks can heat up too quickly unnoticed and overflow or spatter. For this reason we recommend that you stir continuously, gradually heating the food at a suitable power level.

* ongoing cooking without lid

** without lid

Cook time

You can use the timer function to set a cook time for any element. The element will turn off automatically once the set time has elapsed.

CAUTION

• When using the timer, always keep an eye on the cooktop and do not allow anything to boil over or burn. Boilovers can cause smoke and foods and oils may catch on fire if left on high temperature settings.
• This function should not be used for long periods of time, especially at high heat settings.
• Make sure the cooktop is turned off with the main power switch after each use.

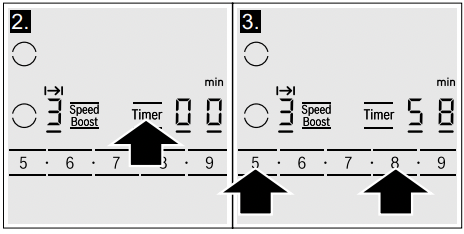

Setting a cook time

The cooktop must be turned on.

1. Select the desired element and power level.
2. Touch the Timer key. The indicator lights up in the element display and is shown in the timer display.
3. Whithin 10 seconds enter the desired cook time using the number keys.

After a few seconds the timer will start to count down.

Changing or cancelling cook time

1. Select the desired element and touch the Timer key.
2. Adjust the cook time using the number keys. To cancel cook time set the timer to.

Once the cook time has elapsed

The element turnes off once the set cook time has elapsed. You will hear a beep. The indicator appears in the element display and the timer display showsfor seconds. The indicator in the element display stays on.

Touch the Timer key, to turn the indicators and the beep off.

Notes

• To set a cooking time of under 10 minutes, always touch 0 before you select the required value.
• If a cooking time was set for several elements, the time information for the selected element is shown in the timer display.
• Select the relevant element to call up the remaining cooking time.
• You can set a cooking time of up to minutes.

Automatic timer

With this function you may select a cook time for all elements. Once an element is turned on, the selected time will begin to count down. The element will automatically turn off when the cook time has elapsed. Instructions on activating the automatic timer are found in the section on "Basic settings"

Note: The cook time can be changed or cancelled for any element: Select the desired element and touch the Timer key twice. The remaining cook time for the element is displayed. Adjust the cook time using the number keys, or deactivate it by setting the the timer value to .

Kitchen timer

The timer can be set for periods of up to 99 minutes. It is independent of the other settings. You can also use the kitchen timer when the cooktop is turned off or locked. This function does not automatically switch off an element.

Setting the kitchen timer

1. Touch the Timer key until the indicator lights up. and min appear on the timer display.
2. Set the desired time using the number keys. The timer start to count down after a few seconds.

Changing or deleting the time

Touch the Timer key repeatedly until the indicator lights up.

Change the time using number keys, or set in order to delete the programmed time.

When the time has elapsed

A beep sounds. appears on the timer display and the indicator lights up. The displays go out after 10 seconds.

When the Timer key is touched, the displays go out and the beep stops.

SpeedBoost® function

The SpeedBoost® function can be used to heat large amounts of water faster than by using heat level Š.

Limitation on use

This function can always be activated for an element, provided the other element in the same group is not in use (see illustration). Otherwise, and will flash in the display for the selected element; heat setting will then be set automatically without activating the function.

Activation

1. Select an element.
2. Touch the Speed Boost key. lights up on the display. The function is activated.

Deactivation

1. Select the element on which SpeedBoost® is set.
2. Touch the Speed Boost key. goes out on the display and the element switched back to heat setting . The function is deactivated.

Note: In certain circumstances, the function may be deactivated automatically to protect the internal electronic components of the cooktop.

Panel lock

You can use the child safety panel lock to prevent children from accidentally turning the cooktop on.

Turning the panel lock on

The cooktop must be turned off.

Touch Panel Lock for 4 seconds. The indicator over Panel Lock lights up for 10 seconds. The cooktop is now locked.

Turning the panel lock off

Touch Panel Lock for 4 seconds. The child lock is now deactivated.

CAUTION

The child lock may be accidentally turned on and off due to:

• water spilled during cleaning
• food that has overflowed
• objects being placed on the Panel Lock key.

Automatic panel lock

With this function, the panel lock is automatically activated whenever you turn off the cooktop. Switching on and off: You can find out how to switch the automatic panel lock on in the section "Basic settings"

Wipe Protection

Cleaning the control panel while the cooktop is on may change the settings. In order to avoid this the cooktop has a wipe protection function.

To activate: Touch the Panel Lock key. The indicator above the key lights up. The control panel is locked for seconds.

You can now clean the surface of the control panel without risk of changing the settings.

To deactivate: To deactivate the function before the time has elapsed, touch the Panel Lock key. The indicator above the key turns off, the function is deactivated.

Notes

• An acoustic signal sounds 30 seconds after activation.
• This indicates that the function is about to finish.
• The wipe protection function does not lock the main switch. The cooktop can be switched off at any time.

Automatic time limitation

If the element is used for prolonged periods of time without changes in the settings being made, the automatic time limitation function is triggered.

The element stops heating. and the residual heat indicator / flash alternately in the display.

The indicator goes out when any symbol is pressed. The element can now be reset.

When the automatic time limitation is activated depends on the selected heat level (from 1 to 10 hours).

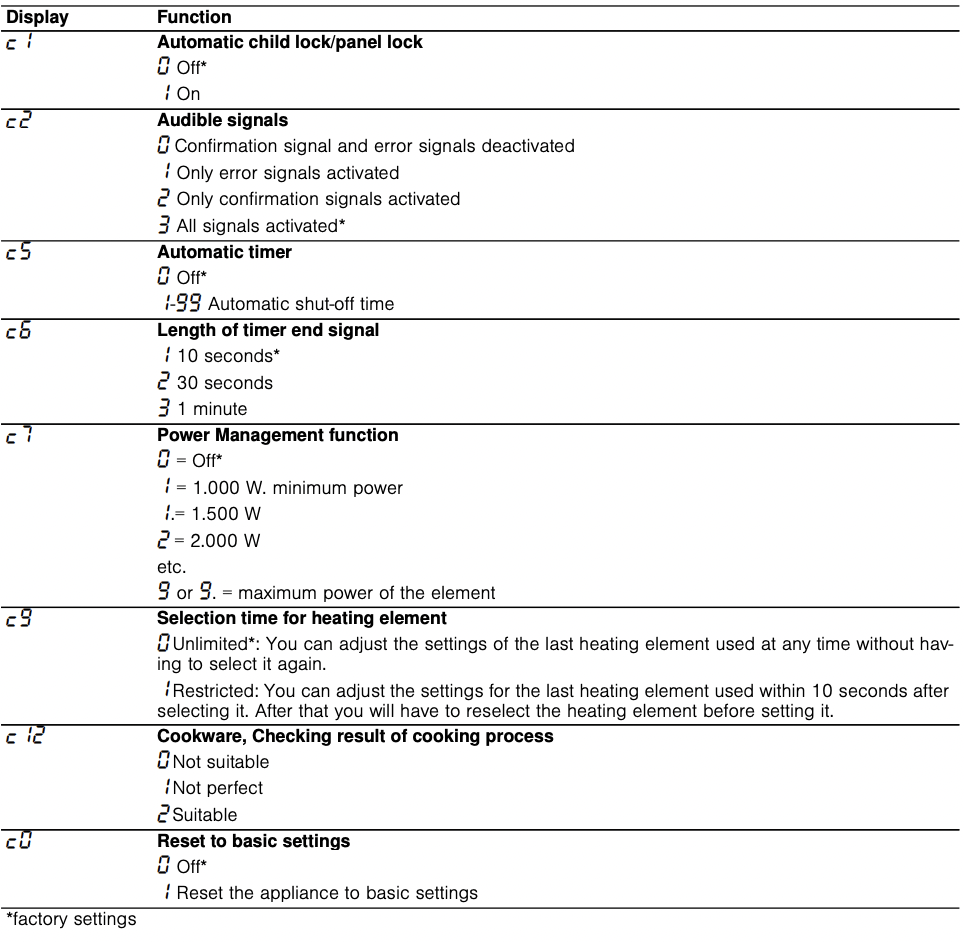

Basic settings

The appliance has various basic settings. You can adjust these settings to the way you usually cook.

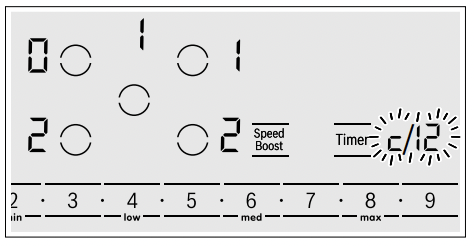

Changing the basic settings

The cooktop must be turned off.

1. Turn on the cooktop with the main switch.
2. Within10 seconds, touch the Timer key for about 4 seconds. The first four displays provide product information. Touch the settings area to view the individual displays.

3. Touching the Timer key again takes you to the basic settings. In the display and ‚ light up alternately and in the timer display lights up as a default setting.

4. Touch Timer repeatedly until the indicator for the desired function appears in the element display.

5. Select the desired setting using the number keys.

6. Touch Timer again for 4 seconds. The setting is stored.

Quit basic settings

Turn the cooktop off with the main switch.

Cleaning and Maintenance

Daily Cleaning

Note: : Bosch cleaners have been tested and approved for use on Bosch appliances. Other recommended cleaners do not constitute an endorsement of a specific brand.

Glass ceramic cooktop

CAUTION

Do not use any kind of cleaner on the glass while the surface is hot, use only the razor blade scraper. The resulting fumes can be hazardous to your health. Heating the cleaner can chemically attack and damage the surface.

Clean the surface when it is completely cool with the following exception: remove dry sugar, sugar syrup, tomato products and milk immediately with the razor blade scraper (see special care chart). Wipe off spatters with a clean, damp sponge or a paper towel. Rinse and dry. Use white vinegar if smudge remains; rinse.

Apply a small amount of the glass ceramic cooktop cleaner. When dry, buff surface with a clean paper towel or cloth.

Cleaning guidelines

When using a cleaner, use only a small amount; apply to a clean paper towel or cloth. Wipe on the surface and buff with a clean dry towel.

For best results, use a glass cooktop cleaner such as the Bosch Glass Cooktop Cleaner (part number 12010030), which can be ordered online at bosch-home/us/store (for U.S. customers only). Other cleaners include Bon Ami®, Soft Scrub® (without bleach), and white vinegar.

Avoid these cleaners

• Glass cleaners which contain ammonia or chlorine bleach. These ingredients may damage or permanently stain the cooktop.
• Caustic cleaners - cleaners such as Easy Off® may stain the cooktop surface.
• Abrasive cleaners.
• Metal scouring pads and scrub sponges such as Scotch Brite® can scratch and/or leave metal marks.
• Soap-filled scouring pads such as SOS® can scratch the surface.
• Powdery cleaners containing chlorine bleach can permanently stain the cooktop.
• Flammable cleaners such as lighter fluid or WD-40.

Cleaning charts

Maintenance

This appliance requires no maintenance other than daily cleaning. For best results, apply cooktop cleaning cream daily

Service

Frequently-asked questions and answers (FAQ)

Using the appliance

Why can't I switch on the cooktop and why is the child lock symbol lit?

The child lock is activated. You can find information about this function in section "Panel lock"

Why are the displays flashing and why can I hear an acoustic signal?

Remove any liquid or food remains from the control panel. Remove any objects from the control panel.

You can find instructions on how to deactivate the audible signal in the section on "Basic settings"

Noises

Why I can hear noises while I'm cooking?

Noises may be generated while using the cooktop depending on the base material of the cookware. These noises are a normal part of induction technology. They do not indicate a defect.

Possible noises:

• A low humming noise like the one a transformer makes:
  • Occurs when cooking at a high heat setting. The noise disappears or becomes quieter when the heat setting is reduced.
• Low whistling noise:
  • Occurs when the cookware is empty. This noise disappears when water or food is added to the cookware.
• Crackling:
  • Occurs when using cookware made from different layers of material or when using cookware of different sizes and different materials at the same time. The volume of the noise can vary depending on the quantity of food being cooked or the cooking method.
• High-pitched whistling noises:
  • Can occur when two elements are used on the highest heat setting at the same time. The whistling noises disappear or become quieter when the heat setting is reduced.
• Fan noise:
  • The cooktop is equipped with a fan that switches on automatically at high temperatures. The fan may continue to run even after you have switched off the cooktop if the temperature detected is still too high.

Cleaning

How do I clean the cooktop?

Using a special glass-ceramic cleaning agent produces the best results. We advise against using harsh or abrasive cleaning agents, dishwater detergent (concentrated) or scouring pads.

You can find more information about cleaning and caring for your cooktop in the section on

Fixing Malfunctions

Malfunctions are usually due to small details. Before calling the Technical Assistance Service, you should consider the following advice and warnings.

CAUTION Repairs should only be done by an authorized servicer. Improper repair of your appliance may result in risk of severe physical injury or death.

Display	Possible cause	Solution
None	The power supply has been disconnected. The device has not been connected in accordance with the connection diagram. Electronics error.	Use other electrical devices to check whether a short-circuit has occurred in the power supply. Ensure that the device has been connected in accordance with the connection diagram. If the error cannot be eliminated, inform the technical after-sales service.
The displays flash	The control panel is damp or an object is covering it.	Dry the control panel or remove the object.
The indicator flashes in the element displays	An error has occurred in the electronics.	To confirm the error, cover the control panel with your hand.
F2 F4	The electronics have overheated and have switched off the corresponding element. The electronics have overheated and have switched off all elements.	Wait until the electronics have cooled down sufficiently. Then touch any symbol on the cooktop. If the warning persists, call the Technical Assistance Service.
F5 + heat setting and acoustic signal	There is a hot pan in the area of the control panel. There is a risk that the electronics will overheat.	Remove the pan. The error display goes out shortly afterwards. You can continue to cook.
F5 and acoustic signal	There is a hot pan in the area of the control panel. To protect the electronics, the element has been switched off.	Remove the pan. Wait for a few seconds. Touch any control. If the error display goes out, you can continue to cook.
F5 and acoustic signal	There is a hot pan in the area of the control panel. To protect the electronics, the element has been switched off.	Remove the pan. Wait for a few seconds. Touch any control. If the error display goes out, you can continue to cook.
F1/F6	The element has overheated and switched itself off to protect the work surface.	Wait until the electronics have cooled down sufficiently and switch the element on again.
F8	The element was operating for an extended period without interruption.	The automatic safety switch-off function has been activated. See section “Automatic time limitation”
E9000 E9010	The supply voltage is incorrect; outside of the normal operating range.	Contact your electrical utility provider.
E9011	The cooktop is not connected properly.	Disconnect the cooktop from the power supply. Ensure that it has been connected in accordance with the connection diagram.

Do not place hot pans on the control panel.

Notes

• If E appears on the display, the sensor for the element in question must be held down in order to be able to read off the fault code.
• If the fault code is not listed in the table, disconnect the cooktop from the power supply, wait 30 seconds, and then reconnect it again. If the display appears again, contact Technical Assistance Service and tell them the precise fault code.

Suitability test of cookware

This function can be used to check the speed and quality of the cooking process depending on the cookware. The result is a reference value and depends on the properties of the cookware and the element being used.

1. With the cookware still cold, fill it with approx. 8 oz. (200ml) of water and place it on the center of the cooking zone with the diameter that most closely matches that of the base of the cookware.
2. Go to the basic settings and select the setting.
3. Touch the settings range. will flash on the cooking zone display. The function has now been activated.

After 10 seconds, the result for the quality and speed of the cooking process will appear on the cooking zone display

Check the result using the table below:

Result

0 : The cookware is not suitable for the element and will therefore not heat up.*

1 : The cookware is taking longer to heat up than expected and the cooking process is not going as well as it ought to.*

2 : The cookware is heating up correctly and cooking is progressing well.

If there is a smaller element available, try the cookware again on the smaller element.

To reactivate this function, touch the settings range.

Notes

• If the diameter of the used cooking zone is much smaller than the diameter of the cookware, only the middle of the cookware can be expected to heat up. This may result in the cooking results not being as good as expected or being less than satisfactory.
• You can find information on this function in the section "Basic settings"
• You can find information on the type, size and positioning of the cookware in the section "Cooking with Induction"

How to Obtain Warranty Service

To obtain warranty service for your Product, you should contact the nearest Bosch authorized servicer.

E number and FD number

When you contact our service, please have the Model (E) number and the FD number for your appliance available.

You can find the identification plate with these numbers:

• in the appliance booklet
• on the underside of the appliance

You can also find the (E) number on the glass ceramic of your cooktop. You can check the Customer Service Index (TK) and the FD number in the basic settings. Please refer to the section on "Basic settings" Questions? Please contact us. We look forward to hearing from you.

Related Products
