T6R-2Z-EN0H 8603 NL01 R0718
2-zone application
2X T6R SMART THERMOSTAT & 2-CHANNEL RECEIVER BOX
APPLICATION MANUAL
With the new 2-channel Receiver box (R6H911RF) and
2x a T6R wireless smart thermostats (T6H700RW)
automatic time and temperature control of 2 heating
zones and a boiler for homes and apartments can be
managed.
It’s compatible with 24-230V on/off and OpenTherm®
appliances such as gas boilers, combi-boilers and heat
pump. Also works with zone valve applications but not
with electric heating (240V).
The solution is designed with the installer in mind.

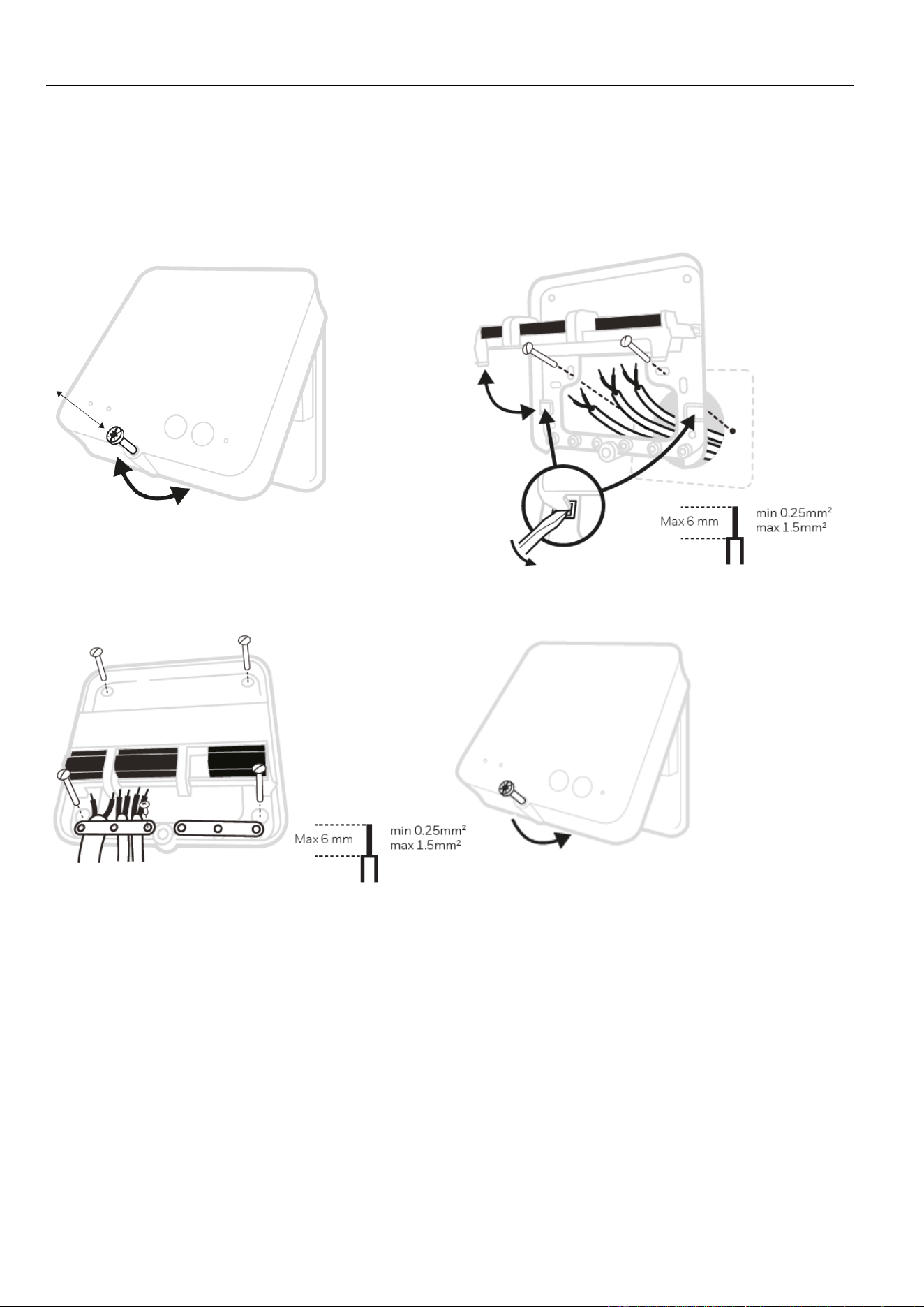

The 2-channel Receiver box offers mounting options for
directly on the wall or on a wall box. Wiring can be from
below or from the back by lifting the terminal platform,
which makes installation quick and easy.
The T6R wireless thermostat has a high contrast PMVA
display with dynamic text line and touch screen buttons.
The thermostat has a simple programming philosophy to
make it easier to install and very user friendly.
The 2-zone solution is ideal for consumers who want to
split the comfort control of their home in 2 areas, like
upstairs and down-stairs or a living and working area.
The solution offers remote comfort control of both zones
via the Honeywell Home app.
FEATURES
T6R Smart Thermostat
Attractive, ultra-modern styled thermostats make it ideal for
any location in any type of home.
Wireless with table stand to fit a new and retrofit
installations.
Wi-Fi communication to connect to the Internet
- Smart Home and Apple HomeKit ready
A dynamic text display on the LCD that gives enhanced
feedback to the user / installer.
High LCD Contrast and backlighting for easier viewing in all
light conditions.
Time out screen with selectable brightness
Factory programmed daily or 5+2 default heating schedule.
Schedule with up to 6 independent time and temperature
pairs to suit the comfort needs.
“Hold until” temperature override of programmed schedule
temperature till the next switch point.
Schedule off mode for manual operation.
Setpoint and room temperature always displayed.
OFF position has an integral frost protection setting at
minimum 5C so that pipes in the house will never freeze in
winter.
Alert messages to assist in fault-finding.
Honeywell Home mobile App for:
- Remote view and change of settings
- Schedule changes
- Smartphone Geolocation temperature control
User menu allows extra functions to be set at the discretion
of the user:
- Language selection
- Wi-FI setup
- Optimisation
- Clock setting
- Resetting the heating program to factory default
- Brightness
- Temperature offset
- Lock function
Advanced menu (Installer Set-Up) allows extra functions to
be set at the discretion of the installer to match the
consumers applications and needs:
- System type
- OpenTherm data
- Upper / Lower Set point Limit Adjust
- Minimum ON time
- Cycle rate
- Factory Reset
- Binding
2-channel Receiver box
Clear LED indication of bound devices
Override button per zone with LED indication
Simple binding via override button
A flip up wiring platform for easy wiring
Pinhole for easy reset.
2 on/off relay outputs
OpenTherm
®
compatible heating control output.
