Instruction Manual
Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of
satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other
things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS ofcial website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!
Instruction Manual
........................................................................................................... 2
EN
3
EN
1. Important Safety Instructions ...........................................................................................................................................4
2. Package Contents ............................................................................................................................................................6
3. Operating and Programming ............................................................................................................................................9
4. Maintenance .....................................................................................................................................................................16
5. Troubleshooting ..............................................................................................................................................................21
6. Technical Specifications .................................................................................................................................................24
Contents
4
EN
1. This Appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
Appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play
with the Appliance.
3. Clear the area to be cleaned. Remove power cords and small
objects from the oor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains
and tablecloths off the oor.
4. If there is a drop off in the cleaning area due to a step or
stairs, you should operate the Appliance to ensure that it can
detect the step without falling over the edge. It may become
necessary to place a physical barrier at the edge to keep the
unit from falling. Make sure the physical barrier is not a trip
hazard.
5. Only use as described in this manual. Only use attachments
recommended or sold by the manufacturer.
6. Please make sure your power supply source voltage matches
the power voltage marked on the Docking Station.
7. For INDOOR household use ONLY. Do not use the Appliance
in outdoor, commercial or industrial environments.
8. Use only the original rechargeable battery and Docking Station
provided with the Appliance from the manufacturer. Non-
rechargeable batteries are prohibited. For battery information,
please refer to Specications section.
9. Do not use without dust bin and/or lters in place.
10. Do not operate the Appliance in an area where there are lit
candles or fragile objects.
11. Do not use in extremely hot or cold environments (below
-5
˚C
/23˚F or above 40
˚C
/104˚F).
12. Keep hair, loose clothing, ngers, and all parts of body away
from any openings and moving parts.
13. Do not operate the Appliance in a room where an infant or
child is sleeping.
14. Do not use Appliance on wet surfaces or surfaces with
standing water.
15. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
16. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in
areas where they may be present.
17. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything
that could cause a re.
18. Do not put objects into the suction intake. Do not use if the
suction intake is blocked. Keep the intake clear of dust, lint,
hair, or anything that may reduce air ow.
19. Take care not to damage the power cord. Do not pull on or carry
the Appliance or Docking Station by the power cord, use the
power cord as a handle, close a door on the power cord, or pull
power cord around sharp edges or corners. Do not run Appliance
over the power cord. Keep power cord away from hot surfaces.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE
SAVE THESE INSTRUCTIONS
1. Important Safety Instructions
5
EN
20. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
21. Do not use the Docking Station if it is damaged. The power
supply is not to be repaired and not to be used any longer if it
is damaged or defective.
22. Do not use with a damaged power cord or receptacle. Do
not use the Appliance or Docking Station if it is not working
properly, has been dropped, damaged, left outdoors, or come
in contact with water. It must be repaired by the manufacturer
or its service agent in order to avoid a hazard.
23. Turn OFF the power switch before cleaning or maintaining the
Appliance.
24. The plug must be removed from the receptacle before cleaning
or maintaining the Docking Station.
25. Remove the Appliance from the Docking Station, and turn OFF
the power switch to the Appliance before removing the battery
for disposal of the Appliance.
26. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
27. Please dispose of used batteries according to local laws and
regulations.
28. Do not incinerate the Appliance even if it is severely damaged.
The batteries can explode in a re.
29. When not using the Docking Station for a long period of time,
please unplug it.
30. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused
by improper use.
31. The robot contains batteries that are only replaceable by
skilled persons. To replace the robot’s battery, please contact
Customer Service.
32. If the robot will not be used for a long time, power OFF the
robot for storage and unplug the Docking Station.
33. WARNING: For the purposes of recharging the battery, only
use the detachable supply unit CH1630A provided with the
Appliance.
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
1. Important Safety Instructions
Correct Disposal of this Product
This marking indicates that this product should not be disposed of
with other household waste throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To recycle your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can safely recycle this product.
For EU Countries
6
EN
2.1 Package Contents
Robot
Quick Start Guide
(4) Side Brushes
Instruction Manual
Docking Station
Direct Suction Option
Main Brush Option
(Pre-installed)
Reservoir
Cleaning Cloth Plate
Sponge Filter and High
Efciency Filter
(2) Washable/Reusable
Microber Cleaning Cloths
Note: Figures and illustrations are reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
2. Package Contents
Multi-function Cleaning
Tool
7
EN
2. Package Contents

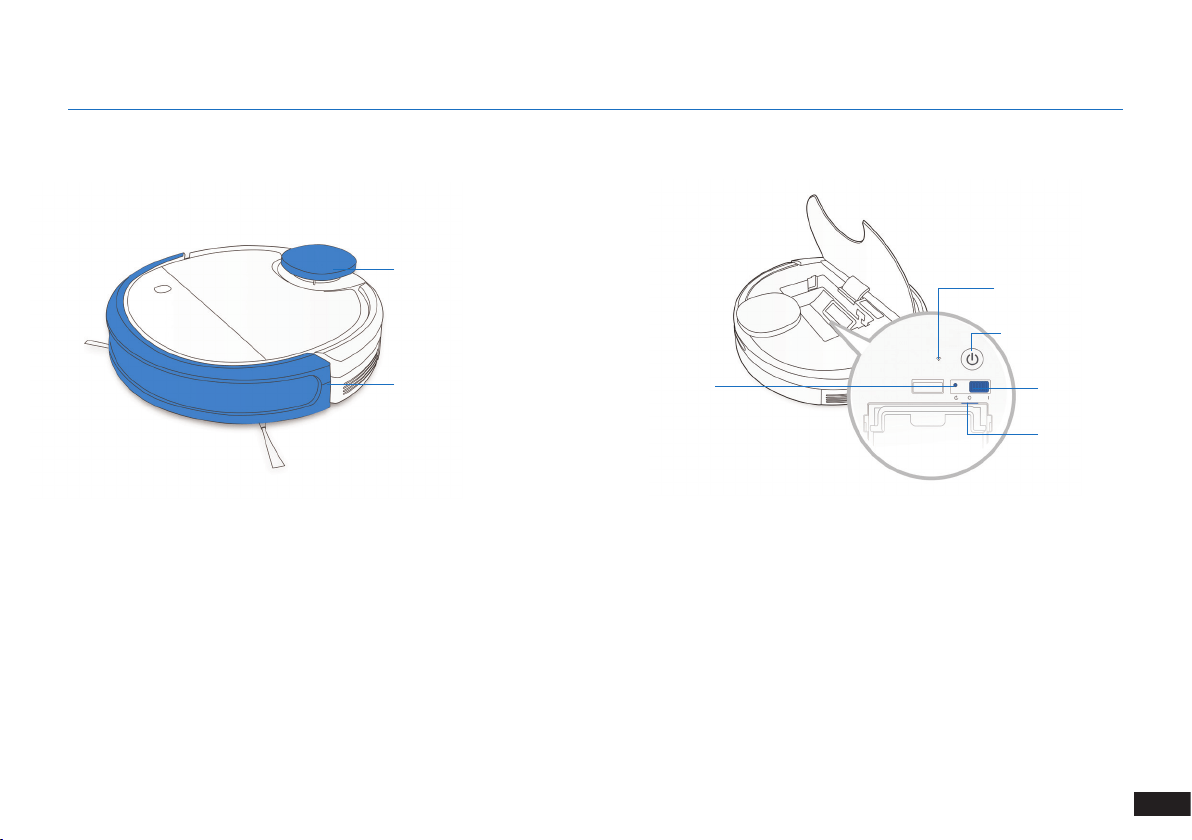

2.2 Product Diagram
Anti-collision Sensors and
Bumper
Robot
LDS (Laser Distance Sensor)
Power Switch
AUTO Mode Button
Wi-Fi Indicator Light
RESET Button
Upgrade Port
8
EN
2. Package Contents
Water Inlet
Cleaning Cloth
Plate
Reservoir Release Button
Washable/Reusable
Microber Cleaning Cloth
Water Inlet Cover
Magnet
Reservoir
Direct Suction Option
Universal Wheel
Side Brushes
Anti-drop Sensors
Main Brush Option
Charging Contacts
Bottom View
9
EN
Before using the product on a rug with tasseled edges, please fold the
rug edges under.
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge.
Remove power cords and small objects from the oor that the robot
could be obstructed by.
3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place.
3. Operating and Programming
10
EN
3. Operating and Programming
1
Remove Protective Strip
2
Docking Station Placement
3
Install Side Brushes
4
Power ON
3.2 Quick Start
11
EN
3. Operating and Programming
Note: When DEEBOT completes the cleaning cycle or when the battery
gets low, DEEBOT automatically returns to the Docking Station to
recharge itself. DEEBOT can also be sent back to the Docking Station
at any time by using the ECOVACS App or by pressing the AUTO
Button on the robot for 3 seconds.
5
Charge DEEBOT
6
Start
7
Pause
8
Power OFF
Note: The robot’s Control Panel stops glowing after the robot is paused
for a few minutes. Press the AUTO Mode Button on DEEBOT to wake
up the robot.
Note: When DEEBOT is not working, it is recommended to keep it
switched ON and charging.
12
EN
3. Operating and Programming
iOS 9.0 or later Android 4.0 or later
2
ECOVACS HOME
Note: For models with App-connectivity, various functions can be performed using the ECOVACS App.
13
EN
3. Operating and Programming

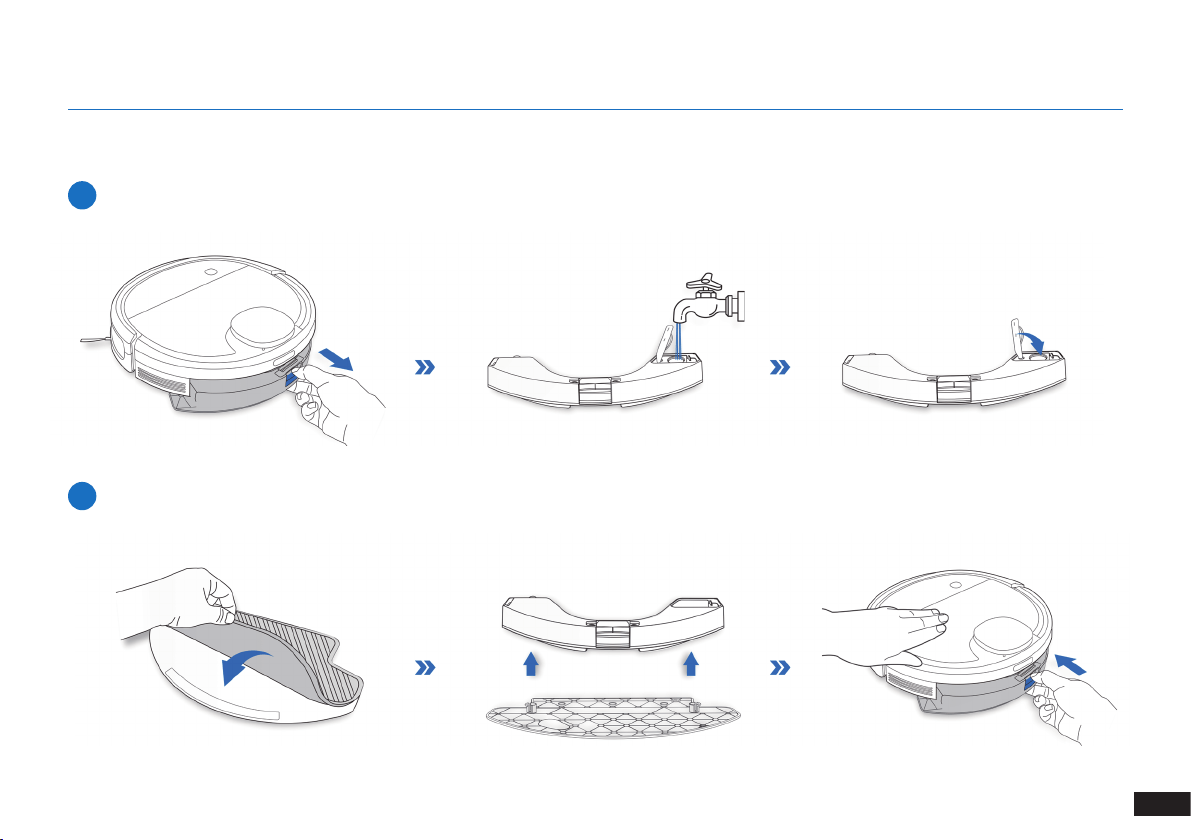

3.3 OZMO Mopping System
1
2
14
EN
Main Brush Option: The best choice for deep cleaning, with a combination
of the Main Brush and strong suction.
Note: Always keep the Reservoir installed when the robot is cleaning
or charging.
Direct Suction Option: The best choice for daily cleaning. This
Suction Option is specically designed to pick up hair without getting
clogged by it, and is ideal for pet owners.
3.4 Choosing a Suction Option
3
3. Operating and Programming
15
EN
3. Operating and Programming
Install the Direct Suction Option
Install the Main Brush Option
1
1
2
2
3
3
16
EN
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.
4.1 OZMO Mopping System
4. Maintenance
1 2 3
4 5 6
17
EN
4. Maintenance
Dust Bin
4.2 Dust Bin and Filters
Sponge Filter
High Efciency Filter
Filter Net
2
4
1
3
5
18
EN
Main Brush
Direct Suction Option Side Brushes
4.3 Main Brush, Direct Suction Option and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1 2 3
4. Maintenance
19
EN
4. Maintenance
Note: Before cleaning the robot’s Charging Contacts
and Docking Station Pins, turn the robot OFF and
unplug the Docking Station.
4.4 Other Components
20
EN
4. Maintenance
4.5 Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Cleaning Cloth After each use Every 50 washings
Reservoir/Cleaning Cloth Plate After each use /
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Docking Station Pins
Once per week /
21
EN
No. Malfunction Possible Causes Solutions
1 DEEBOT is not charging.
DEEBOT is not switched ON. Switch ON DEEBOT.
DEEBOT has not connected to the Docking
Station.
Be sure that the robot’s Charging Contacts have
connected to the Docking Station Pins.
The battery is completely discharged.
Re-activate the battery. Switch ON. Place DEEBOT on
the Docking Station by hand, remove after charging for 3
minutes, repeat 3 times; then charge normally.
2
DEEBOT cannot return to the
Docking Station.
The Docking Station is not correctly placed. Refer to Section 3.2 to correctly place the Docking Station.
3
DEEBOT gets stuck while
working and stops.
DEEBOT is tangled with something on the oor
(electrical wires, curtains, carpet fringing, etc.).
DEEBOT will try various ways to free itself. If it is
unsuccessful, manually remove the obstacles and restart.
4
DEEBOT returns to the
Docking Station before it has
nished cleaning.
When the battery gets low, DEEBOT
automatically switches to Return to Charger
Mode and returns to the Docking Station to
recharge itself.
This is normal. No solution necessary.
Working time varies according to oor
surface, room complexity and the Cleaning
Mode selected.
This is normal. No solution necessary.
5. Troubleshooting
22
EN
5. Troubleshooting
No. Malfunction Possible Causes Solutions
5
DEEBOT does not clean
automatically at the scheduled
time.
Time Scheduling function is cancelled.
Program DEEBOT to clean at specic times using the
ECOVACS App.
The Continuous Cleaning function is turned
ON and DEEBOT has just nished cleaning
the scheduled cleaning area.
This is normal. No solution necessary.
DEEBOT is switched OFF. Switch ON DEEBOT.
The robot’s battery is low.
Keep DEEBOT switched ON and connected to the
Docking Station to make sure it has a full battery to work
at any time.
The robot’s Suction Intake is blocked and/or
there is debris stuck in its components.
Power OFF DEEBOT, clean the Dust Bin and invert the
robot. Clean the robot’s Suction Intake, Side Brushes and
the Main Brush as described in Section 4.
6
DEEBOT does not clean the
whole area.
The cleaning area is not tidy.
Remove small objects from the oor and tidy up the
cleaning area before DEEBOT starts cleaning.
23
EN
No. Malfunction Possible Causes Solutions
7
DEEBOT misses cleaning
spots to be cleaned, or repeats
cleaning the area cleaned.
DEEBOT automatically cleans the area
missed.
This is normal. No solution necessary.
8
DEEBOT is not able to connect
to the home Wi-Fi network.
Incorrect home Wi-Fi username or password
entered.
Enter the correct home Wi-Fi username and password.
DEEBOT is not within range of your home
Wi-Fi signal.
Make sure DEEBOT is within range of your home Wi-Fi
signal.
Network setup started before DEEBOT was
ready.
Turn ON Power Switch. Press the RESET Button using a
needle for 3 seconds. DEEBOT is ready for network setup
when it plays a musical tune and its Wi-Fi Indicator light
ashes slowly.
Your smartphone’s operating system needs to
be updated.
Update your smartphone’s operating system. The
ECOVACS App runs on iOS 9.0 and above, Android 4.0
and above.
5. Troubleshooting
24
EN
6. Technical Specifications
Model DN5G
Working voltage 14.4V DC
Docking Station Model CH1630A
Input
100-240 V AC,
50/60 Hz, 25W
Output 20 V DC, 0.8 A
Note: Technical and design specications may be changed for continuous product improvement.
DN5G-EN01-IM2018R01
Ecovacs Robotics Co., Ltd
No. 18 You Xiang Road, Wuzhong District, Suzhou City,
Jiangsu Province, P.R.China
