Dryer
User manual
DV10K6500EV
DV6500K_DC68-03381E-01_EN.indd 1 11/1/2017 2:56:21 PM
Contents
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Installation requirements 12
Key installation requirements 12
Location considerations 12

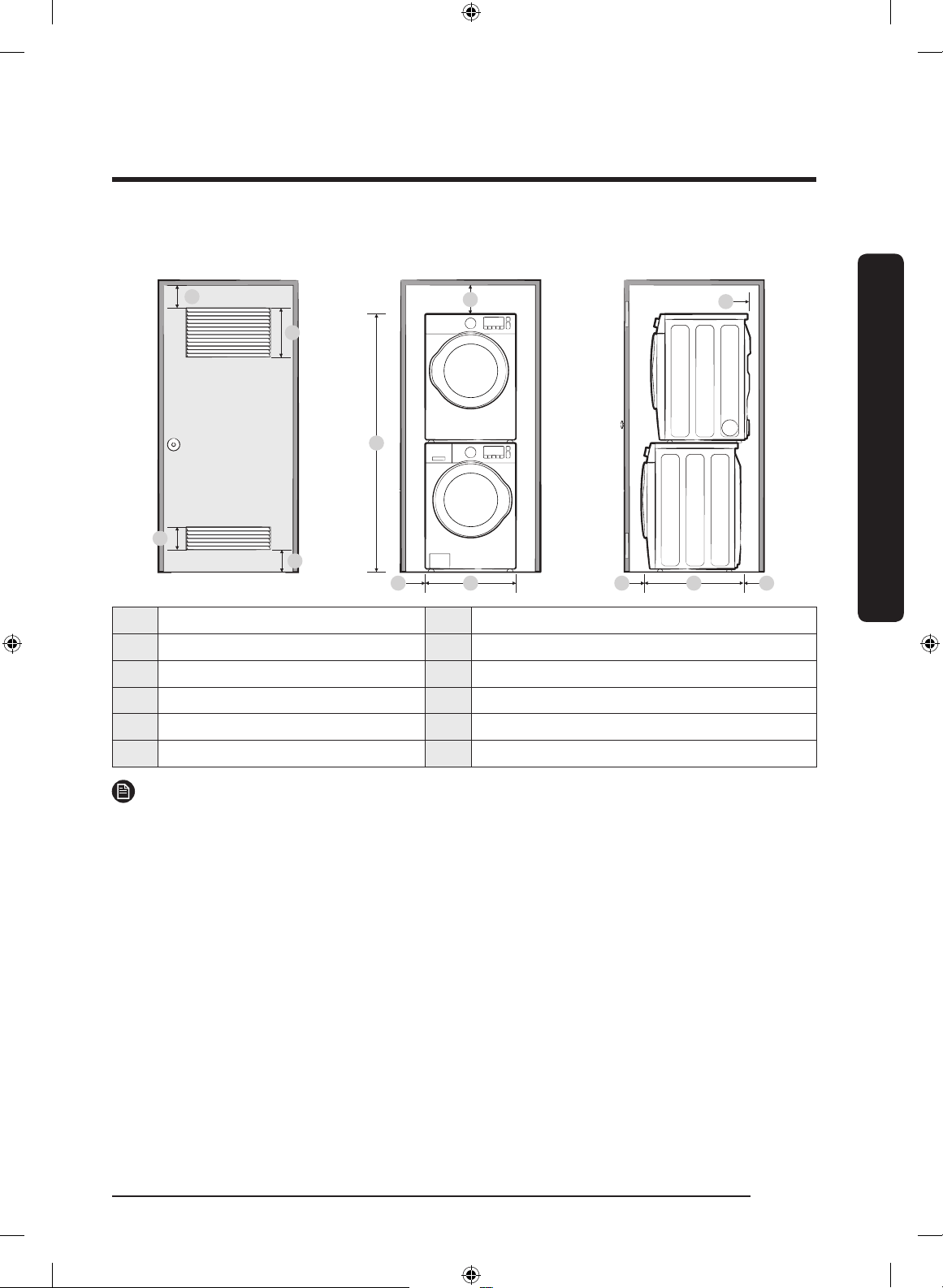

Alcove or closet installations 13
Ducting requirements 16
Exhausting requirements 17
Electrical requirements 18
Installation 19
What’s included 19
Step-by-step installation 21
Vent blockage test 25
Exhaust ducting guide 26
Door reversal 27
Before you start 30
Sort and load 30
Functional prerequisite 30
Rack Dry 31
Operations 33
Feature panel 33
Simple steps to start 36
Cycle overview 37
Drying guide 38
Special features 39
DV6500K_DC68-03381E-01_EN.indd 2 11/1/2017 2:56:21 PM
Contents
English 3
Maintenance 40
Vent sensor 40
Cleaning 41
Troubleshooting 42
Checkpoints 42
Information codes 45
Specications 46
Fabric care chart 46
Protecting the environment 47
Specication sheet 48
Cycle chart 49
Consumption data 50
Sheet of household tumble driers 51
DV6500K_DC68-03381E-01_EN.indd 3 11/1/2017 2:56:21 PM
Safety information
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use, and care of your appliance. Please take the time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
Read the instructions
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied technician.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
DV6500K_DC68-03381E-01_EN.indd 4 11/1/2017 2:56:22 PM
Safety information
English 5
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using
your appliance, follow basic precautions, including the following:
1. This appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
3. Children should be supervised to ensure that they do not play
with the appliance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
6. For appliances with ventilation openings in the base, that a carpet
must not obstruct the openings.
7. For use in Europe: Children of less than 3 years should be kept
away unless continuously supervised.
DV6500K_DC68-03381E-01_EN.indd 5 11/1/2017 2:56:22 PM
Safety information
Safety information
English6
8. CAUTION: In order to avoid a hazard due to inadvertent resetting
of the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the
utility.
9. The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
10. The lint trap has to be cleaned frequently, if applicable.
11. Lint must not to be allowed to accumulate around the tumble
dryer. (not applicable for appliances intended to be vented to the
exterior of the building)
12. Adequate ventilation has to be provided to avoid the back ow
of gases into the room from appliances burning other fuels,
including open res.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine,
waxes and wax removers should be washed in hot water with
an extra amount of detergent before being dried in the tumble
dryer.
15. Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows tted with
foam rubber pads should not be dried in the tumble dryer.
16. Fabric softeners, or similar products, should be used as specied
by the fabric softener instructions.
17. The nal part of a tumble dryer cycle occurs without heat (cool
down cycle) to ensure that the items are left at a temperature
that ensures that the items will not be damaged.
DV6500K_DC68-03381E-01_EN.indd 6 11/1/2017 2:56:22 PM
Safety information
English 7
18. Remove all objects from pockets such as lighters and matches.
19. WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and spread out
so that the heat is dissipated.
20. Exhaust air must not be discharged into a ue which is used for
exhausting fumes from appliances burning gas or other fuels.
21. The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the tumble dryer, in such a way that a full opening of the tumble
dryer door is restricted.
22. WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
Heat pump model only: The instructions shall also include the
substance of the following:
WARNING: In the appliance enclosure or in the built-in structure,
keep ventilation openings clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualied technician or service
company.
• Failure to do so may result in electric shock, re, an explosion, problems with the
product, or injury.
Plug the power cord into a wall socket that meets local electrical specications. Use the
socket for this appliance only, and do not use an extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or re.
DV6500K_DC68-03381E-01_EN.indd 7 11/1/2017 2:56:22 PM
Safety information
Safety information
English8
• Ensure that the power voltage, frequency and current are the same as those of the
product specications. Failure to do so may result in electric shock or re. Failure Plug
the power plug into the wall socket rmly.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or re.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
• If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, re, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in electric shock or re.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualied technician in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug after installation.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
• This may result in electric shock or re.
Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or re.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
Install this appliance in a location with solid, level oor.
• Failing to do so may result in abnormal vibrations, noise or problems with the product.
Since an ingredient in hair spray may degrade the hydrophile property of the heat
exchanger so that dew may appear on the outer surface of the appliance when the cooling
operation is running, do not install the appliance in a beauty salon.
DV6500K_DC68-03381E-01_EN.indd 8 11/1/2017 2:56:22 PM
Safety information
English 9
This appliance should be positioned so that the power plug, the water supply taps, and the
drain pipes are accessible.
Critical usage warnings
WARNING
Do not let children or pets on or into the product. In addition, when disposing of this
product, disassemble the door lock (lever).
• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
• This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Do not dry laundry contaminated by inammable materials such as gasoline, kerosene,
benzene, thinner, alcohol, etc.
• This may result in electric shock, re or explosion.
Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of
the product.
• Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power
cord, ventilate immediately.
• At this time, do not use the ventilating fan.
• A spark may cause an explosion or re.
Do not repair, replace, or attempt to service any part of the appliance unless specically
recommended in the user-repair instructions. You must also have the skills necessary to
service this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
DV6500K_DC68-03381E-01_EN.indd 9 11/1/2017 2:56:22 PM
Safety information
Safety information
English10
• When repairing or reinstalling the appliance is required, contact your nearest service
center.
• Failure to do so may result in electric shock, re, problems with the product, or injury.
The product you have purchased is designed for domestic use only.
The use for business purposes qualies as product misuse. In this case, the product will
not be covered by the standard warranty provided by Samsung and no responsibility can
be attributed to Samsung for malfunctions or damages resulting from such misuse.
If the product generates strange noise, smells of something burning, or generates smoke,
immediately cut-off the power and contact the service center.
• Otherwise, it may cause an electric shock or re as a result.
Do not let children (or pets) play in or on your product. The product door does not open
easily from the inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
• This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
• This may result in electric shock or injury.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
• If forming rubber is heated, it may start a re.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the
oil will not be removed when washing the laundry. In addition, use the Cool Down cycle so
that the laundry is not heated.
• The oxidization heat of the oil may start a re.
Make sure that the pockets of all clothing to be dryed are empty.
• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and
eyelets, button-up covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt ,
apron strings, and underwire bras which can dissolve or break during a cycle.
Recommend against using drying sheets to reduce static electricity as this could lead to
damage to your laundry and also potential damage to the appliance.
DV6500K_DC68-03381E-01_EN.indd 10 11/1/2017 2:56:23 PM
Safety information
English 11
• This may result in damage to the laundry.
Do not use the dryer near dangerous powders such as coal dust, wheat our, etc.
• This may result in electric shock, re or an explosion.
Do not place inammable materials near the product.
• This may result in toxic gases from the product, damage to parts, electric shock, re or
an explosion.
• The appliance should not be placed behind lockable doors etc.
Do not touch the rear side of the appliance during or immediately after drying is
complete.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discolouration, deformation, damage, electric shock or re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or re.
Clean the lter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service
engineer.
Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch
the heat exchanger with your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualied service personnel.
DV6500K_DC68-03381E-01_EN.indd 11 11/1/2017 2:56:23 PM
Installation requirements
English12
Installation requirements
Read through the following instructions before installing the dryer and keep this manual
for future reference.
WARNING
The control board and inlet valve are intentionally not grounded and may present a risk of
electric shock only during servicing.
Service personnel - Do not contact these parts while the appliance is energized.
Key installation requirements
• A grounded electrical outlet.
• A power cord for electric dryers (except
in Canada).
• An exhaust system made of rigid metal
or exible stiff-walled metal exhaust
ducting.
WARNING
Remove the door from all discarded
appliances to prevent a child from
suffocating.
Location considerations
The dryer should be located where there
is enough space at the front for loading
the dryer, and enough space behind for
the exhaust system. This dryer is factory-
ready for the rear exhaust option. To
exhaust out the bottom, right or the left,
use the accessory exhaust kit. Instructions
are included with the kit. Make sure
the room in which the dryer is located
has enough fresh air. The dryer must
be located where there are no air-ow
obstructions. For gas dryers, adequate
clearance must be maintained as noted
on the data plate to ensure adequate
air for combustion and the proper dryer
operation.
The dryer must not be installed or stored
in an area where it will be exposed to
water and/or weather. The dryer area must
be kept clear of combustible materials,
gasoline, and other ammable vapors and
liquids. A dryer produces combustible lint.
The area around the dryer should be kept
lint-free.
DV6500K_DC68-03381E-01_EN.indd 12 11/1/2017 2:56:23 PM
Installation requirements
English 13
Alcove or closet installations
WARNING
• The dryer must be exhausted to the
outside to reduce the risk of re when
installed in an alcove or closet.
• No other fuel-burning appliance should
be installed in the same closet as the
dryer.
Minimum clearances between the dryer and adjacent walls or other surfaces:
Sides 1 in. (25 mm) Rear 5.9 in. (150 mm)
Top 17 in. (432 mm) Closet front 2 in. (51 mm)
A
A
B B
A
C
E
D F
A 1 in. (25 mm) D 2 in. (50 mm)
B 27 in. (686 mm) E 32.4 in. (823 mm)
C 17 in. (432 mm) F 5 in. (127 mm)
DV6500K_DC68-03381E-01_EN.indd 13 11/1/2017 2:56:23 PM
Installation requirements
Installation requirements
English14
Installation with pedestal
A
B
C
D
E F
A 38.7 in. (984 mm) D
53 in. (1345 mm)
B 53.3 in. (1355 mm) E
32.4 in. (823 mm)
C 27 in. (686 mm) F 5 in. (127 mm)
DV6500K_DC68-03381E-01_EN.indd 14 11/1/2017 2:56:23 PM
Installation requirements
English 15
Installation with stacked washing machine and dryer
KJ
I
LHG
E
F
D
C
A
B
A 3 in. (76 mm) G 1 in. (25 mm)
B 48 in
2
. (3100 mm
2
) H 27 in. (686 mm)
C 24 in
2
. (1550 mm
2
) I 5 in. (127 mm)
D 3 in. (76 mm) J 3 in. (76 mm)
E 6 in. (152 mm) K 34.2 in. (869 mm)
F 78.5 in. (1994 mm) L 8 in. (203 mm)
NOTE
• The front of the closet must have two unobstructed air openings (B, C) for a combined
minimum total area of 72 in² (465 cm²) with a minimum clearance of 3 in. (7.6 cm) at
the top (A) and bottom (D).
External exhaust elbow requires additional space (L).
• Stacking (MODEL NO: SKK-7A)
Samsung’s Washer and Dryer can be stacked to maximize usable space. You can
purchase an optional stacking kit from your Samsung retailer.
For details about stacking and compatible models, refer to the user manual included in
the stacking kit you purchase.
DV6500K_DC68-03381E-01_EN.indd 15 11/1/2017 2:56:24 PM
Installation requirements
Installation requirements
English16
Ducting requirements
Recommended Use only for short-run installation
Weather hood
type
4” (10.2 cm)
2.5” (6.4 cm)
No. of 90°
elbows
Rigid
Metallic
exible*
Rigid
Metallic
exible*
0 80 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)
1 68 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)
2 57 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)
3 47 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)
NOTE
* Use a 4-inch (10.2 cm) diameter rigid aluminum or galvanized steel duct.
If you integrate the dryer’s vent system with an existing exhaust system:
• Make sure the exhaust system meets all applicable local, state, and national regulations.
• Verify you are not using exible plastic duct.
• Make sure to check for and remove all lint buildup from inside the existing ducts.
• Conrm the duct is not kinked or crushed.
• Make sure the exhaust hood damper opens and closes freely.
Manometer measurements
The static pressure in any exhaust system must not exceed 0.83 inches of water column
or be less than 0. Note that these values are measured with the dryer running with a
manometer presented to the exhaust duct that connects to the dryer. The dryer tumbler
must be empty and lint lter clean.
DV6500K_DC68-03381E-01_EN.indd 16 11/1/2017 2:56:25 PM
Installation requirements
English 17
Exhausting requirements
The dryer must not be exhausted into a
chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space of a building.
Exhausting the dryer to the outside will
prevent large amounts of lint and moisture
from being blown into the room.
WARNING
• You must exhaust the dryer to the
outside to reduce the risk of re when
you install the dryer in an alcove or
closet.
• Do not use a plastic or non-metal
exible duct.
• If your existing ductwork is plastic, non-
metal, or combustible, replace it with
metal.
• Use only a metal exhaust duct that is
non-ammable to ensure containment
of exhaust air, heat, and lint.
DV6500K_DC68-03381E-01_EN.indd 17 11/1/2017 2:56:25 PM
Installation requirements
Installation requirements
English18
Electrical requirements
The wiring diagram is located on the plate
under the control panel or rear frame.
WARNING
• Improperly connecting the equipment
grounding conductor can result in a
risk of electric shock. Check with a
qualied electrician or serviceman if
you are in doubt as to whether your
dryer is properly grounded. Do not
modify the plug provided with your
dryer – if it doesn’t t the outlet, have
a proper outlet installed by a qualied
electrician.
• To prevent unnecessary risk of re,
electrical shock, or personal injury, all
wiring and grounding must be done in
accordance with local codes.
Grounding
This dryer must be grounded. In the event
of a malfunction or breakdown, the ground
will reduce the risk of electrical shock by
providing a path of least resistance for the
electrical current.
Gas models
WARNING
• Your dryer has a cord with an
equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
• Do not connect the ground wire to
plastic plumbing lines, gas lines, or hot
water pipes.
Electric models
WARNING
• Your dryer has an optional cord with
an equipment-grounding conductor
and a grounding plug. This cord is sold
separately.
• The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
• If a power cord is not used and the
electric dryer is to be permanently
wired, the dryer must be connected to
a permanently grounded metal wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the dryer.
Electrical connections
Before operating or testing, follow all
grounding instructions in the “Grounding”
section. An individual branch (or separate)
circuit serving only your dryer is
recommended.
Do not use an extension cord.
NOTE
The appliances in the UK Must be hard
wired into a spur capable of at least 30 A.
DV6500K_DC68-03381E-01_EN.indd 18 11/1/2017 2:56:25 PM
Installation
English 19
Installation
This dryer must be installed by a qualied technician. The installer is responsible for
connecting the dryer to the main power while observing the relevant safety regulations of
your area.
What’s included
Make sure all the parts are included in the product package. If you have a problem with
the dryer or the accessories, contact a local Samsung service center or the retailer.
Dryer at a glance
01
02
04
03
05
01 Worktop 02 Control panel 03 Filter
04 Door 05 Exhaust duct
DV6500K_DC68-03381E-01_EN.indd 19 11/1/2017 2:56:25 PM
Installation
Installation
English20
Accessories & tools
Provided accessories
Rack Dry
Required tools
Pliers Cutting knife Nut screwdriver Level
Philips screwdriver Duct tape Wrench
WARNING
Packing materials can be dangerous to children. Keep all packing materials (plastic bags,
polystyrene, etc.) out of children’s reach.
DV6500K_DC68-03381E-01_EN.indd 20 11/1/2017 2:56:27 PM
Installation
English 21
Step-by-step installation
Make sure you have a qualied technician install the dryer. Step by step installation
instructions start below.
STEP 1 Install the exhaust system
1. Select a location and move the dryer to the site. For easy access, we recommend you
install the dryer in the same location as your washer.
2. To change the door direction, see “Door reversal”.
3. Install the exhaust system as instructed in the “Exhaust ducting guide” section.
NOTE
• To move the dryer easily, lay two of the carton cushions from the packaging on the
oor. Tip the dryer on its side so it lies across both cushion-tops. Push the dryer so that
it is near its nal location, and then set the dryer upright.
• Secure room around the dryer to facilitate ducting and wiring.
DV6500K_DC68-03381E-01_EN.indd 21 11/1/2017 2:56:28 PM
Installation
Installation
English22
STEP 2 3-WIRE system connections
First, read through the “Electrical requirements” section, and then follow these steps.
1
2
3
Neutral
Earth
Live
1. Center silver-colored terminal block
screw.
2. Strain relief.
a. Loosen the terminal block screws.
b. Connect the earth wire (Green/
Yellow Striped wire) of the power
cord to the center terminal block
screw. Tighten screw.
c. Connect the neutral wire (Blue
wire) of the power cord to the
left terminal block screw. Tighten
screw.
d. Connect the live wire (Brown) of
the power cord to the right terminal
block screw. Tighten screw.
e. Tighten the strain relief screws.
f. Insert the tab of the terminal block
cover into the rear panel slot.
Secure the cover with a hold down
screw.
3. The power cable H05 VV-F (min. 1.9 m,
min. 2.5 mm²) must be of sufcient
length to be connected to the dryer.
WARNING
• The dryer is designed for a 3-wire system connection. The dryer frame is grounded to
the neutral conductor at the terminal block.
• Remove the terminal block cover plate. Insert the power cord through the hole
provided in the cabinet near the terminal block.
• A strain relief must be used. Do not loosen the nuts already installed on the terminal
block. Be sure they are tight. Use a 3/8” (1 cm) deep well socket.
DV6500K_DC68-03381E-01_EN.indd 22 11/1/2017 2:56:28 PM
Installation
English 23

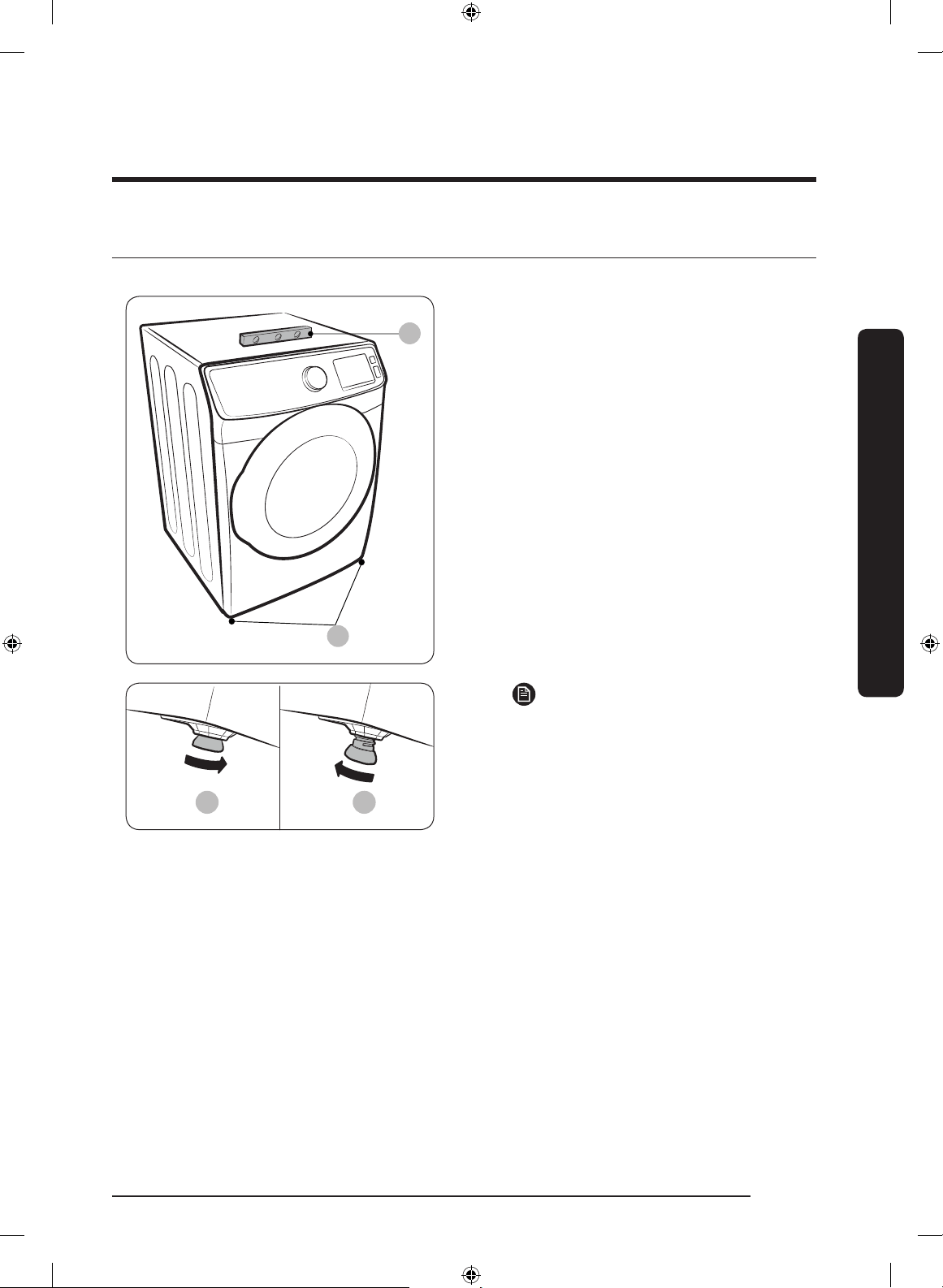

STEP 3 Level the dryer
To ensure optimal performance, the dryer must be level.
B
A
1. Using a level (A), check if the dryer
is level side to side and then front to
back. If the dryer is not level, adjust
the leveling feet (B) at the bottom of
the dryer. Then, check if the dryer is
level again.
A B
NOTE
• To set the dryer to the same height
as your washer, fully retract (A)
the leveling feet by turning them
counterclockwise, then loosen (B)
the feet by turning them clockwise.
Once the dryer is the same height
as the washer, follow the directions
above to level the dryer.
• Adjust the leveling feet only as
much as necessary to level the
dryer. Extending the leveling feet
more than necessary can cause the
dryer to vibrate.
DV6500K_DC68-03381E-01_EN.indd 23 11/1/2017 2:56:28 PM
Installation
Installation
English24
STEP 4 Power on
Make sure, the exhaust line, and all wiring is connected correctly. Then, plug the power
cord into a power source and check the dryer’s installation and operation using the nal
checklist in Step 6 below.
STEP 5 Final check
When installation is complete, conrm that:
• The dryer is plugged into an electrical outlet and grounded properly.
• The exhaust ductwork is connected and the joints are taped.
• You have used rigid or stiff-walled exible metal duct material, not plastic exible duct.
• The dryer is level and is sitting rmly on the oor.
• The dryer starts, runs, heats, and shuts off properly.
DV6500K_DC68-03381E-01_EN.indd 24 11/1/2017 2:56:29 PM
Installation
English 25
Vent blockage test
After the dryer is installed, start the Vent Blockage Test to check if the duct system is
properly installed. The Vent Blockage Test automatically detects the status of the ducts
and reports any blockage or problems. Proper ducting can reduce drying time and save
energy.
NOTE
The Vent Blockage Test must run with the dryer in a cool state. If the dryer warms up
after the installation check, run the AIR FLUFF cycle for several minutes to reduce its
internal temperature.
Running the vent blockage test
1. Make sure the drum is empty, and then close the door.
(If there are any clothes or other items in the drum, the test will not give accurate
results.)
2. Press the POWER button to turn the dryer on, then simultaneously press and hold the
Adjust Time
and Dry level buttons for 3 seconds. “InS” appears in the dryer’s
display. (If you have started other procedures before the Vent Blockage Test, the
dryer will not enter the Vent Blockage Test mode.)
3. Press the START/PAUSE button. The Vent Blockage Test starts immediately. During the
test, the number indicator makes a circle in 6 clockwise steps. The test takes about 2
minutes. Do not open the door during the test.
4. After 2 minutes, when the test is complete, the results is displayed and the dryer
sounds a tone.
If status of the duct system is normal, “0” appears and the dryer sounds a completion
tone.
If the duct system can not exhaust properly, “CLg” appears and the dryer sounds an
alarm tone.
If there are any other problems, an information code appears in the display. For
information about the code, see Information codes section on page 45.
• To stop or cancel the Vent Blockage Test, press the POWER button to turn off your
dryer.
• During the test, if “dc” appears in the display, make sure the door is closed. If
“C1” is displayed, see if there is laundry inside drum. If there is, stop the test and
remove it. Then, start the test again.
• The results remain on the display for about 5 minutes and then automatically turn
off. You can turn the result off immediately by pressing the POWER button.
DV6500K_DC68-03381E-01_EN.indd 25 11/1/2017 2:56:29 PM
Installation
Installation
English26
NOTE
• During or after the test, the internal drum is hot. Use caution to prevent burns.
The Vent Blockage Test is used to check for problems to the current duct system when
the dryer is installed for the rst time.
• If the test result displays “CLg” (the duct system is blocked ), refer to the “Ducting
requirements” section on page 16 and the “Exhaust ducting guide” section below, and
then take proper measures to correct any problems.
If the test is suspended, it could result in incorrect results. Follow the proper
procedures when testing the dryer.
• Even if the test result is normal (“0”), the duct system could be blocked slightly.
Properly install all duct work according to the installation instructions in this manual.
Exhaust ducting guide
Ducting
1. Make sure the dryer is installed properly so the air exhausts freely.
2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection.
Never use lint-trapping screws.
3. To facilitate the exhaust, keep the ducts as straight as possible.
Cleaning
Clean all old ducts before installing the dryer, and make sure the vent ap opens and
closes freely. We recommend that you clean the exhaust system annually or on a regular
basis.
WARNING
• To prevent re, do not use plastic, thin-foil, or non-metal exible ducts of any kind.
• Do not use a poor exhaust system because it slows down the dryer’s performance.
• Do not use excessively long ducts that have multiple elbows.
• Do not use crushed or clogged venting or ducts.
DV6500K_DC68-03381E-01_EN.indd 26 11/1/2017 2:56:29 PM
Installation
English 27
Door reversal
1. Unplug the power cord.
2. Remove two door hinge screws.
3. Lift the door and remove it.
NOTE
There is a screw on the back side of
the hinge that will support the door as
you unscrew the hinge screws.
4. Remove the two screws that are
above and below the cut-out in the
frame front.
5. Remove the two screws above and
below the lever holder on the opposite
side of the door opening.
6. Remove the two screws that hold the
lever holder in place, and then remove
the lever holder.
DV6500K_DC68-03381E-01_EN.indd 27 11/1/2017 2:56:29 PM
Installation
Installation
English28
7. Re-insert the two screws that held
the lever holder into the same screw
holes, and then tighten.
8. Remove the single screw from the
back of the door hinge.
NOTE
This is the screw that supports the
door against the frame so you can
unscrew or screw in the hinge without
needing to support the door yourself.
9. Insert the screw you just removed into
the other screw hole on the back of
the door hinge, and then tighten.
10. Place the door on the other side, and
then reattach it to the dryer.
NOTE
Insert the head of the screw on the
back of the hinge into the hole above
the cut out in the frame, and then slide
the door hinge down until it stops.
Make sure the protrusion on the back
of the hinge is pressed into the cut out
before you tighten the hinge screws.
DV6500K_DC68-03381E-01_EN.indd 28 11/1/2017 2:56:29 PM
Installation
English 29
11. Push the lever holder into the cut out
on the other side of the door opening.
Insert screws, and then tighten as
shown.
12. Re-attach the remaining screws to the
remaining holes above and below the
lever holder, and then tighten.
DV6500K_DC68-03381E-01_EN.indd 29 11/1/2017 2:56:30 PM
Before you start
English30
Before you start
Here are a few things you should know before starting your dryer.
Sort and load
• Put one wash load in the dryer at a
time.
• Do not mix heavy and lightweight items
together.
• To improve drying efciency for one or
two items, add a dry towel to the load.
• For best results, untangle items before
inserting them into the dryer.
• Overloading reduces the tumbling
action, resulting in uneven drying and
wrinkling.
• Unless recommended on the care label,
do not dry woolens or berglass items.
• Avoid drying unwashed items.
• Do not dry items soiled with oil, alcohol,
gasoline, etc.
Functional prerequisite
Lint lter
A
To prevent a risk of re, make sure to
clean the lint lter before or after every
load.
1. Turn off the dryer.
2. Open the door, and pull out the lint
lter (A) from inside the tumbler.
3. Open the lint lter by separating it
at the top. Remove the lint that has
accumulated, and then clean the lint
lter.
4. Close the lint lter, reinsert the lint
lter into the dryer, and then close the
dryer door.
CAUTION
• Do not operate the dryer without the
lint lter in place.
• Do not use a damaged or broken lint
lter. This may reduce performance
and/or cause re.
DV6500K_DC68-03381E-01_EN.indd 30 11/1/2017 2:56:30 PM
Before you start
English 31
Rack Dry
Some models come with a drying rack which is inserted into the drum at the factory.
If your model came with a drying rack, remove the rack from the drum before you use the
dryer for the rst time. To remove the rack, pull the rack straight up, and then take it out
of the drum. Remove the drying rack from its packaging and store the rack for later use.
If a drying rack is not provided, you can
purchase it at a local Samsung service
center. (Part Code : DC61-02705A)
To use the drying rack, follow these steps:
1. Insert the drying rack inside the
tumbler with the lter handle to the
front.
2. Insert the rear legs of the drying rack
into the recessed areas of the rear
wall, and then press down the middle
of the drying rack to secure it in place.
3. Put items to dry on the rack. Make
sure to leave space between the items
for air ow.
4. Press TIME DRY, and then select the
drying time. You can also use Rack Dry
for this purpose.
5. When the items are dry, remove the
them from the dryer, and then remove
the drying rack.
DV6500K_DC68-03381E-01_EN.indd 31 11/1/2017 2:56:30 PM
Before you start
Before you start
English32
Drying rack drying suggestions
Item Cycle settings
Washable sweaters
(block to shape and lay at on rack)
TIME DRY with the Extra Low temperature
setting
Stuffed toys
(cotton or polyester ber-lled)
Stuffed toys (foam or rubber-lled)
AIR FLUFFFoam rubber pillows
Sneakers
WARNING
• Make sure to unpack the drying rack before using it. Otherwise, the dryer can be
damaged or its performance diminished.
• Drying foam rubber, plastic, or rubber on a heat setting may damage the items and
create a re hazard.
DV6500K_DC68-03381E-01_EN.indd 32 11/1/2017 2:56:30 PM
Operations
English 33
Operations
WARNING
To reduce the risk of re, electric shock, or injury, read the “Safety information“ before
operating this appliance.
Feature panel
01
02
03 04 05
06
07
08
09
10
11
12
13
14
01 Cycle Selector
Turn the Cycle Selector to select the desired cycle. The indicator
by the cycle name lights up.
• Sensor Dry cycles: The dryer senses the internal humidity and
uses it to determine the drying time.
• Manual Dry cycles: The drying time is xed.
02 Digital Graphic
Display
Displays all cycle information, including the cycle time,
information code, and operating status.
•
Filter Check
•
Child Lock
• Vent Sensor
• Sound
DV6500K_DC68-03381E-01_EN.indd 33 11/1/2017 2:56:31 PM
Operations
Operations
English34
03 Dry Level
Press Dry Level to select a dry level. This is available only with
the Sensor Dry cycles.
• Larger or bulkier loads may require Very Dry or More Dry for
complete dryness.
• Less Dry is best suited for lightweight fabrics or for leaving
some moisture in the clothing at the end of the cycle.
• Damp Dry is designed to partially dry items. Use for items
that lay at or hang to dry.
NOTE
This option is not available with: WOOL, OUTDOOR, and
SANITIZE.
04 Temp.
Press Temp. to change the temperature of the current cycle.
• High: For sturdy cottons or those labeled Tumble Dry.
• Medium: For permanent press, synthetics, lightweight cottons,
or items labeled Tumble Dry Medium.
• Med Low: For heat lower than Medium. Use to dry synthetic
or washable knit fabrics.
• Low: For heat sensitive items labeled Tumble Dry Low or
Tumble Dry Warm.
• Extra Low: Provides the lowest heated drying temperature
possible.
05 Time
Press Time to select a drying time for the selected cycle. This is
available only with TIME DRY, QUICK DRY, AIR FLUFF, and WRINKLE
RELEASE.
This button is not available for Sensor Dry cycles because exact
drying times are determined by uctuating humidity levels.
06 Rack Dry
Rack Dry is available in the TIME DRY cycle. Temperature will be
set to Extra Low only. See “Rack Dry” on page 31 for details.
07 Small Load Care
To control operation rate for drying a small loads at Sensor Dry
course.
• It is only available with: COTTON, HEAVY DUTY, PERM PRESS,
and DELICATES course.
• It can’t be selected/cancelled when the drying course is
running.
• In order to improve drying effect and control operation rate,
the drum can be paused during operation.
DV6500K_DC68-03381E-01_EN.indd 34 11/1/2017 2:56:31 PM
Operations
English 35
08 Mixed Load Bell
The Mixed Load Bell noties you when the average dry level in
a load is damp dry (80 % dried). This lets you take items that you
don’t want fully dried or that dry quickly out of the dryer early
while letting others continue to dry.
You can select this option in all Sensor Dry cycle except for
WOOL, OUTDOOR, and SANITIZE. Available dry levels are Normal
Dry, More Dry, and Very Dry.
09 Wrinkle Prevent
Wrinkle Prevent provides approximately 180 minutes of
intermittent tumbling in unheated air at the end of the cycle to
reduce wrinkling. Press Wrinkle Prevent to activate this feature.
The load is dry and can be removed at any time during the
Wrinkle Prevent cycle.
10 Adjust Time
You can change the set time for the selected cycle. This is
available only with TIME DRY, QUICK DRY, AIR FLUFF, and
WRINKLE RELEASE. To change the cycle time, press Adjust Time
or Adjust Time until the desired time is displayed.
11 Drum Light
Press Drum Light to turn on the drum light while the dryer is
running. To turn off the drum light, press Drum Light again.
NOTE
After 2 minutes of inactivity, the drum light automatically turns
off.
12 Sound
Press Sound to turn on or off the dryer’s notication beeps and
melodies.
NOTE
This function remains active even after you restart the dryer.
13 POWER Press to turn on/turn off the dryer.
14 START/PAUSE Press to start operation or press to stop operation.
NOTE
Extremely tangled items nished by the washer may degrade the drying efciency or
cause the door to open. We recommend that you untangle the items before drying.
Do not put objects on the dryer, especially on the feature panel.
CAUTION
Do not spray water onto the feature panel. This may cause a system failure.
DV6500K_DC68-03381E-01_EN.indd 35 11/1/2017 2:56:32 PM
Operations
Operations
English36
Simple steps to start
1. Press POWER to turn on the dryer.
2. Turn the Cycle Selector to select a
cycle.
3. Change the cycle settings (Dry Level,
Temp. and Time) as necessary.
4. Optionally, you can activate options
available by pressing the relevant
button (Drum Light, Mixed Load Bell,
Wrinkle Prevent, and/or Small Load
Care).
5. Press START/PAUSE. The dryer
indicator turns on with an estimated
cycle time on the display.
To change the cycle during operation
1. Press START/PAUSE to stop operation.
2. Select a different cycle.
3. Press START/PAUSE to start new cycle.
DV6500K_DC68-03381E-01_EN.indd 36 11/1/2017 2:56:32 PM
Operations
English 37
Cycle overview
Cycle Description
Manual Dry
QUICK DRY A quick drying cycle that runs for 30 minutes
TIME DRY You can specify a cycle time in minutes.
AIR FLUFF Tumbles the load in room temperature air.
WRINKLE
RELEASE
The WRINKLE RELEASE cycle will remove wrinkles from
items that are clean, dry, and only slightly wrinkled, such
as clothes from a full closet, suitcase, or items that have
been in the dryer too long after the cycle has ended.
WRINKLE RELEASE can be used with any temperature
selection.
Sensor Dry
COTTON For most fabrics including cottons and linens.
COTTON
For reducing energy usage. This cycle adjusts the cycle
time and temperature for increased efciency.
TOWELS For bath towels and similar items.
HEAVY DUTY
For drying items made out of heavy fabrics, such as
jeans, corduroys, or work clothes, with high temperature
heat.
PERM PRESS
Dry wrinkle-free cottons, synthetic fabrics, knits, and
permanent press fabrics automatically.
SANITIZE
Use to sanitize items by applying high-temperature heat
to the fabric.
DELICATES For heat-sensitive items at a low drying temperature.
WOOL For machine washable and tumble dryable wool only.
BEDDING For bulky items such as blankets, sheets, and comforters.
OUTDOOR
For active wear and outdoor wear such as sports
jerseys, training pants, water-repellent jackets, and other
performance clothing. Thick fabrics like a zipper or
Velcro closure of a jacket, or training socks may not be
completely dried.
DV6500K_DC68-03381E-01_EN.indd 37 11/1/2017 2:56:32 PM
Operations
Operations
English38
Drying guide
The best way to dry items is to follow the instructions on the care label. If no drying
instructions are provided, see the following table for reference.
Cycle Description
Bedspreads &
Comforters
Follow the care label instructions or dry using BEDDING.
• Make sure the item is thoroughly dry before using or storing.
• May require repositioning in the drum to ensure even drying.
Blankets
Use COTTON and dry only one blanket at a time for best tumbling
action.
• Make sure blankets are is thoroughly dry before using or storing.
Curtains & Draperies
Use PERM PRESS and the Medium temperature setting to help
minimize wrinkling.
• Dry curtains and draperies in small loads for best results and
remove as soon as possible after the cycle is complete.
Cloth Diapers
Use COTTON and the Medium temperature setting for soft, uffy
diapers.
Down–lled Items
(jackets, sleeping bags,
comforters, etc.)
Use COTTON and the Medium temperature setting.
• Add a couple of dry towels to absorb moisture and shorten
drying time.
Foam Rubber (rug
backs, stuffed toys,
shoulder pads, etc.)
Do not dry on a heat setting. Use AIR FLUFF.
WARNING
Drying a rubber item with heat may damage it or cause a re.
Pillows
Use COTTON.
• Add a couple of dry towels and a pair of clean sneakers to help
the tumbling action and to uff the pillows.
• Do not dry kapok or foam pillows using a heated drying cycle.
You can dry these items in the dryer only if you use AIR FLUFF.
Plastics (shower
curtains, outdoor
furniture covers, etc.)
Use AIR FLUFF or TIME DRY and the Low or Extra Low temperature
settings depending on the care label instructions.
WARNING
Do not dry:
• Fiberglass items (curtains, draperies, etc.)
• Woolens, unless recommended on the label
• Items spotted or soaked with vegetable or cooking oils
DV6500K_DC68-03381E-01_EN.indd 38 11/1/2017 2:56:32 PM
Operations
English 39
Special features
Child Lock
Child Lock prevents children from
playing with the dryer. When Child Lock
is activated, all buttons except for the
POWER button are disabled.
To activate/deactivate Child Lock,
simultaneously press and hold Temp. and
Time for 3 seconds.
NOTE
Once Child Lock is activated, it will remain
active even after you restart the dryer.
If other buttons, except for the POWER
button, do not respond, check the Child
Lock indicator. If the indicator is on, follow
the instructions above to turn Child Lock
off.
Smart Care
If the dryer displays an information
code, you can use Smart Care to check
the status of the dryer on a smartphone.
To use Smart Care, you must have the
Samsung Smart Care app installed on your
smartphone.
NOTE
Smart Care is optimized for Samsung
Galaxy and Apple iPhones. (Not compatible
with some models).
Download the Samsung Smart Care app
from the Google Play Store or Apple
App store (Search term: “Samsung Smart
Washer/Dryer”), and install it on your
smartphone.
If an information code appears on the
dryer, follow these steps:
1. Press and hold Sound for 3 seconds to
activate Smart Care. The Smart Care
indicator turns on.
2. Open the Smart Care app on your
smartphone.
3. Put the smartphone’s camera close
to the display of the dryer. The
app automatically recognizes the
information code, and displays
suggestions on your smartphone.
4. If the smartphone fails to recognize
the information code more than twice,
type the information code manually
into the Smart Care app.
CAUTION
• If light is reected on the display of
the dryer, the smartphone may not
recognize the information code.
• If you hold the smartphone at an angle
to the dryer’s display, the smartphone
may not recognize the information
code. For best results, hold the
smartphone so that the front of the
panel and the smartphone are parallel
or nearly parallel.
• After you use this function, the dryer
will delete the record of the information
code from its code log.
DV6500K_DC68-03381E-01_EN.indd 39 11/1/2017 2:56:33 PM
Maintenance
English40
Maintenance
Keep the dryer clean to prevent decreased performance and to lengthen its life.
WARNING
The control board and inlet valve are intentionally not grounded and may present a risk of
electric shock only during servicing.
Service personnel - Do not contact these parts while the dryer is energized.
Vent sensor
The dryer features a vent sensor that detects and noties you when it is time to clean the
ductwork. The indicator lets you know the status of the duct.
Level
Indicator
Status Action
0 Off The ductwork is not clogged.
1 On
• The duct or lint lter is
clogged.
• The pressure applied to
the duct is high because
the duct is too long or
bent.
• Check the lint lter or duct
and clean if necessary.
• Check the duct connections
and shorten or straighten
the duct if necessary.
2 Blinking
• The duct or lint lter is
severely clogged.
• The pressure applied
to the duct is very high
because the duct is too
long or bent.
• Check and clean the lint
lter or duct and make
sure they are not clogged.
• Check the duct connections
and shorten or straighten
the duct work.
If the dryer is in the Level 2 state, the
indicator blinks for 3 hours after the completion
of the current cycle. If you press POWER or open the door, the dryer powers off
immediately.
NOTE
• For duct installation, see “Exhaust ducting guide” on page 28 and “Ducting
requirements” on page 16.
• The dryer may keep running even if the duct is clogged, but the drying time will be
extended.
• If the indicator turns on for the rst time and is solid (not blinking), check and clean the
lint lter and/or duct.
• If the indicator turns on again later, it is because the duct is installed or connected with
some restrictions (it’s too long or has too many bends). This is not a system failure.
However, drying time may be extended or the drying performance may be degraded.
DV6500K_DC68-03381E-01_EN.indd 40 11/1/2017 2:56:33 PM
Maintenance
English 41
Cleaning
Feature panel
• Clean with a soft, damp cloth. Do not
use abrasive substances.
• Do not spray liquid cleaning agents
directly on the display of the dryer.
• Some laundry pre-treatment soil and
stain removers may damage the feature
panel.
• When using liquid cleaning agents,
apply them to the cleaning cloth. Do not
apply them directly to the dryer. Wipe
up any spills or overspray immediately.
Tumbler
• Remove any stains from the tumbler
with an all-purpose cleaner.
• Tumble old towels or rags to remove
any remaining stains or cleaning
substances. Stains may still be visible,
but will not affect subsequent loads.
Stainless steel tumbler
To clean the stainless steel tumbler, use
a damp cloth with a mild, non-abrasive
cleaner suitable for easily marred surfaces.
Remove cleaner residue and dry with a
clean cloth.
Dryer exterior
• Clean with a soft, damp cloth. Do not
use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp
objects or a detergent container on the
dryer. They can scratch or damage the
top cover of the dryer.
• The dryer has a high-gloss nish on the
entire surface. Be careful not to scratch
or damage the surface.
Exhaust system
• Check and clean the exhaust system on
a yearly or regular basis to maintain
optimum performance.
• The external exhaust hood must be
cleaned more frequently to ensure
proper air ow.
DV6500K_DC68-03381E-01_EN.indd 41 11/1/2017 2:56:33 PM
Troubleshooting
English42
Troubleshooting
Checkpoints
If the dryer operates abnormally, rst check the list of problems in the table below and
try the suggested actions.
Problem Action
Does not run.
• Make sure the door is latched shut.
• Make sure the power cord is plugged into a live electrical
outlet.
• Check your home’s circuit breakers or fuses.
• Press or tap START/PAUSE again if the door was opened
during a cycle.
• Clean the lint lter.
Does not heat.
• Check your home’s circuit breakers or fuses.
• Some cycles do not require heat. Check the selected cycle
again.
• Clean the lint lter and exhaust duct.
• The dryer may have moved into the cool-down phase of the
cycle.
Does not dry.
• Check all of the above, plus...
• Make sure the exhaust hood outside your home can open and
close freely.
• Check the exhaust system for lint buildup. Ducting should be
inspected and cleaned annually.
• Use a 4” rigid metal exhaust duct.
• Do not overload. 1 wash load = 1 dryer load.
• Dry heavy items and light weight items separately.
• Large, bulky items, such as blankets or comforters, may
require repositioning to ensure even drying.
• Make sure that your washer is draining properly and
extracting adequate water from the load.
• The load may be too small to tumble properly. Add a few
towels and restart the dryer.
• The load may be too large to tumble properly. Remove some
items and restart the dryer.
• Clean the lint lter.
DV6500K_DC68-03381E-01_EN.indd 42 11/1/2017 2:56:34 PM
Troubleshooting
English 43
Problem Action
Is noisy.
• Check the load for objects such as coins, loose buttons, nails,
etc. Remove promptly.
• It is normal to hear the dryer gas valve or heating element
cycle on and off during the drying cycle.
• Make sure the dryer is leveled properly as outlined in the
installation instructions.
• It is normal for the dryer to hum due to the high velocity of
air moving through the dryer drum, fan, or exhaust system.
Dries unevenly.
• Seams, pockets, and other similarly heavy areas may not
be completely dry when the rest of the load has reached
the selected dryness level. This is normal. You can choose
a higher dryness level or a cycle that involves a higher
dryness level.
• If one heavy item is dried with a light weight load, such as
one towel with sheets, it is possible that the heavy item will
not be completely dry when the rest of the load has reached
the selected dryness level.
• For the best drying results, dry heavy items and light weight
items separately.
Has odors.
• Household odors from paint, varnish, strong cleaners, etc.
may enter the dryer with the surrounding room air. This is
normal as the dryer draws the air from the room, heats it,
pulls it through the tumbler, and exhausts it outside.
• When these odors linger in the air, completely ventilate the
room before using the dryer.
• Use a cycle featuring the Refresh function. If odors persist,
wash and dry the items again.
Lint on clothes.
• Make sure the lint lter is cleaned before every load. For
clothes that naturally build up lint, clean the lter during the
cycle.
• Some fabrics are lint producers (for example, a fuzzy white
cotton towel) and they must be dried separately from clothes
that are lint trappers (for example, a pair of black linen
pants).
• Divide larger loads into smaller loads for drying.
• Check pockets thoroughly before drying, then dry clothes.
• Remove lint inside the drum before drying a load.
DV6500K_DC68-03381E-01_EN.indd 43 11/1/2017 2:56:34 PM
Troubleshooting
Troubleshooting
English44
Problem Action
Items still wrinkled
after Wrinkle release.
• Small loads of 1 to 4 items work best.
• Load fewer items. Load similar-type items.
• Take out the items immediately after drying is complete.
Water drips from
the nozzle when the
Steam cycles starts.
• This is steam condensation. The dripping water will stop after
a short time.
Sprayed water is not
visible during Steam
cycles.
• Sprayed water is difcult to see when the door is closed.
Extended time.
• Sensor Dry automatically senses the moisture in the load
and shuts the dryer off when the selected dryness level is
reached.
The drying time can change according to the type and
amount of laundry. See the cycle chart for reference.
If a problem persists, contact a local Samsung service center.
DV6500K_DC68-03381E-01_EN.indd 44 11/1/2017 2:56:34 PM
Troubleshooting
English 45
Information codes
If the dryer fails to operate, you may see an information code on the display panel. To
determine what you should do, check the list of codes in the table below, and then try the
suggested actions.
Code Action
DC
Operating the dryer with the door open.
• Make sure the door is properly closed.
• Make sure laundry is not caught in the door.
FC
Invalid power source frequency
• Try restarting the cycle.
• If this information code remains, contact a Samsung service
center.
AC
Electronic control problem (Invalid Communication).
• Contact a Samsung service center.
HC
High temperature heating check.
• Clean the lint lter.
• If this information code remains, contact a Samsung service
center.
9C1
The electronic control needs to be checked.
• Check if power is supplied properly.
• If the information code remains, contact a Samsung service
center.
tC
The Thermistor1 resistance is very low or high.
• Check for a clogged lint screen.
• Check if the vent system is restricted.
• If this information code remains, contact a Samsung service
center.
tC5
The Thermistor2 resistance is very low or high.
• Check for a clogged lint screen.
• Check if the vent system is restricted.
• If this information code remains, contact a Samsung service
center.
dF
Incorrect door switch.
• Contact a Samsung service center.
If any information code keeps appearing on the screen, contact a Samsung service center.
DV6500K_DC68-03381E-01_EN.indd 45 11/1/2017 2:56:34 PM
Specications
English46
Specications
Fabric care chart
The following symbols provide garment
care direction. The clothing care labels
include symbols for drying, bleaching,
ironing, and dry cleaning. The use of
symbols ensures consistency among
garment manufacturers of domestic
and imported items. Follow care label
directions to optimize garment life and
reduce laundering problems.
Wash cycle
Normal
Permanent press / Wrinkle
resistant / Wrinkle control
Gentle / Delicates
Hand wash
Water temperature
Hot
Warm
Cold
NOTE
The Water Temperature table lists
appropriate wash water temperatures
for various items. The temperature range
is 106 - 126 °F (41 - 52 °C) for Hot,
84 - 106 °F (29 - 41 °C) for Warm, and
61 - 84 °F (16 - 29 °C) for Cold. (Wash
water temperature must be a minimum of
61 °F (16 °C) for detergent activation and
effective cleaning.)
Bleach
Any bleach (when needed)
Only non-chlorine (color-safe)
bleach (when needed)
Tumble dry
Normal
Permanent press / Wrinkle
resistant / Wrinkle control
Gentle / Delicates
Special instructions
Line dry / Hang to dry
Drip dry
Dry at
Heat setting
High
Medium
Low
Any heat
No heat / Air
DV6500K_DC68-03381E-01_EN.indd 46 11/1/2017 2:56:38 PM
Specications
English 47
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do not wash
Do not wring
Do not bleach
Do not tumble dry
No steam (added to iron)
Do not iron
Dry-clean
Dry-clean
Do not dry-clean
Line dry / Hang to dry
Drip dry
Dry at
Protecting the environment
This appliance is manufactured from
recyclable materials. If you decide to
dispose of this appliance, please observe
local waste disposal regulations. Cut off
the power cord so that the appliance
cannot be connected to a power source.
Remove the door so that animals and small
children cannot get trapped inside the
appliance.
DV6500K_DC68-03381E-01_EN.indd 47 11/1/2017 2:56:41 PM
Specications
Specications
English48
Specication sheet
B
C
D
E
A
NOTE
“A. Height” Spec can vary from 42.4 to
43.3 inches (107.7 - 108.9 cm) depending
on the leveling feet adjustments.
Type
Front loading dryer
DV10K6500EV
Dimensions
A. Height
Product - inches (cm) 38.7 (98.4)
Required for Installation - inches 40.7
B. Width
Product - inches (cm) 27.0 (68.6)
Required for Installation - inches 29.0
C. Depth
Product - inches (cm) 32.4 (82.3)
Required for Installation - inches 37.6
D. Depth with
door open 90°
Product - inches (cm) 53 (134.5)
Required for Installation - inches 58
E. Width with
door open 110°
Product - inches (cm) 39.4 (100)
Required for Installation - inches 44.6
Water pressure - psl (kPa) 20-116 (137-800)
Weight lb (kg) 121.3 (55)
Heater rating Electric (W) 4500-5500
DV6500K_DC68-03381E-01_EN.indd 48 11/1/2017 2:56:41 PM
Specications
English 49
Cycle chart
NOTE
For best results, follow the load size recommendations for each dry cycle.
•
Large load: Fill the drum to about ¾ full. Do not add items over this level as they
need to tumble freely.
•
Medium load : Fill the drum to about ½ full.
•
Small load : Fill the drum with 3-5 items, not more than ¼ full.
Cycle Recommended items
Load
size
Dry Level
COTTON Cottons, work clothes, linens, mixed loads
Normal Dry
(Adjustable)
COTTON
Cottons, work clothes, linens
Normal Dry
(Adjustable)
TOWELS Bath towels and similar items
Normal Dry
(Adjustable)
QUICK DRY Small loads
-
TIME DRY Any load
-
AIR FLUFF Foam, rubber, plastic
-
WRINKLE RELEASE Shirts, trouser, blouses
-
HEAVY DUTY
Heavy Fabrics such as jeans, corduroys, heavy
work clothes
Normal Dry
(Adjustable)
PERM PRESS
Shirts, synthetic fabrics, knits, wrinkle-free
cottons, permanent press
Normal Dry
(Adjustable)
SANITIZE Bedding, Curtains, Children’ clothing
-
DELICATES Underwear, blouses, lingerie
Normal Dry
(Adjustable)
WOOL
For machine washable and tumble dryable wool
only (Maximum: 3 lbs)
Normal Dry
(Not adjustable)
BEDDING
Bulky items such as blankets, sheets, comforters,
pillows
Normal Dry
(Adjustable)
OUTDOOR
Water-repellent wear, performance clothes,
sports wear (Maximum: 2 kg)
Normal Dry
(Not adjustable)
DV6500K_DC68-03381E-01_EN.indd 49 11/1/2017 2:56:42 PM
Specications
Specications
English50
Consumption data
Model Program Load (kg)* Energy (kWh)
Max. Duration
(Minutes)
DV10K6500EV
Cotton + Normal Dry **
10 6.13 84
5 3.23 57
Cotton + Damp Dry ** 10 5.81 77
Perm Press + Normal Dry 5 2.95 39
1. * : Weight of dry laundry
**: EN 61121:2013 test program
2. All data without a “star” against it was calculated using EN 61121:2013
NOTE
Consumption data can vary from the nominal values given above depending in the size
of the load, types of textiles, residual moisture levels after spinning, uctuations in the
electricity supply and any extra options selected.
DV6500K_DC68-03381E-01_EN.indd 50 11/1/2017 2:56:42 PM
Specications
English 51
Sheet of household tumble driers
According to Regulation (EU) No. 392/2012
“*” Asterisk(s) means variant model and can be varied (0-9) or (A-Z).
Samsung
Model Name DV10K6500EV
Capacity kg 10
Type Air-vented
Energy Efciency
A + + + (highest efciency) to D (least efcient) C
Energy Consumption
Annual Energy Consumption (AE_C) kWh/yr 721.0
Automatic dryness detector Yes
Energy consumption (E_dry) standard cotton programme at
full load
kWh 6.13
Energy consumption (E_dry.1/2) standard cotton programme
with partial load
kWh 3.23
Off mode and left-on mode
The power consumption off -mode (P_o) at full load W 0.50
The power consumption in left-on mode (P_l) at full load W 5.00
Duration of the left-on mode min 10
Programs to which the information on the label and the Sheet relate Cotton + Normal Dry
Program duration of the standard program
Weighted Programme time standard cotton programme at full
load and partial load
min 69
Programme Time (T_dry) standard cotton programme at full
load
min 84
Programme Time (T_dry.1/2) standard cotton programme with
partial load
min 57
Airborne noise emissions
Dry at full load dB (A) re 1 pW 67
Built in -
Dimensions
Unit dimensions (mm)
Height 984
Width 686
Depth 823
Net weight kg 55
Electrical connection
Voltage V 220-240
Power consumption W 4500-5500
Current A 20-30
Frequency Hz 50
Name and address of company Samsung Electronics Co., Ltd.
DV6500K_DC68-03381E-01_EN.indd 51 11/1/2017 2:56:42 PM
Specications
Specications
English52
NOTE
1. Energy consumption 721.0 kWh per year, based on 160 drying cycles of the standard
cotton programme at full and partial load, and the consumption of the low-power
modes. Actual energy consumption per cycle will depend on how the appliance is
used.
2. ‘standard cotton programme’ used at full and partial load is the standard drying
programme to which the information in the label and the che relates, that this
programme is suitable for drying normal wet cotton laundry and that it is the most
efcient programme in terms of energy consumption for cotton.
DV6500K_DC68-03381E-01_EN.indd 52 11/1/2017 2:56:42 PM
Memo
DV6500K_DC68-03381E-01_EN.indd 53 11/1/2017 2:56:42 PM
Memo
DV6500K_DC68-03381E-01_EN.indd 54 11/1/2017 2:56:42 PM
Memo
DV6500K_DC68-03381E-01_EN.indd 55 11/1/2017 2:56:42 PM
SAMSUNG ELECTRONICS Co.,Ltd.
(Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do 16677, Korea
Original instructions
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
DC68-03381E-01
DV6500K_DC68-03381E-01_EN.indd 56 11/1/2017 2:56:43 PM
