Instruction Manual
2
EN
Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of
satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other
things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS ofcial website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!
3
EN
1. Important Safety Instructions ...........................................................................................................................................4
2. Package Contents .............................................................................................................................................................8
3. Operating and Programming ..........................................................................................................................................11

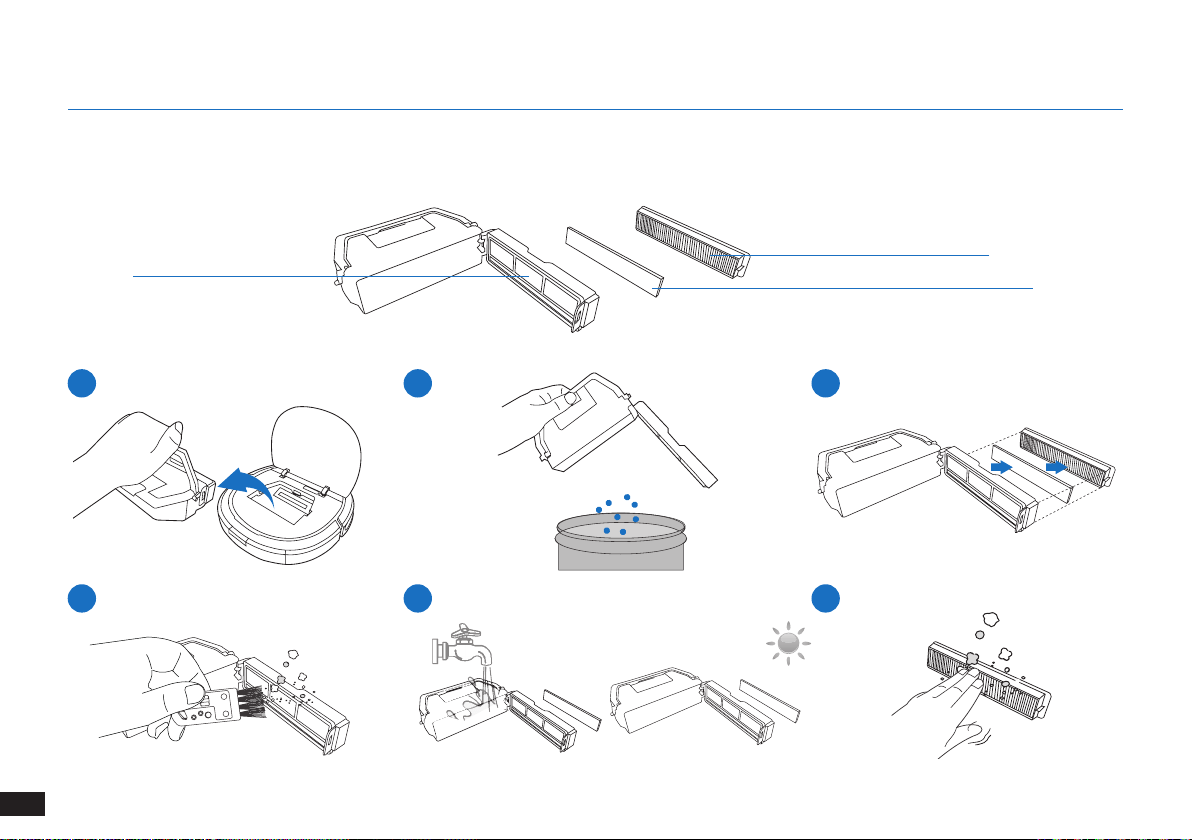

4. Maintenance .....................................................................................................................................................................17
5. Alarm Sounds ..................................................................................................................................................................22
6. Troubleshooting ..............................................................................................................................................................23
7. Technical Specifications .................................................................................................................................................24
Contents
4
EN
1. This Appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the Appliance in a safe way
and understand the hazards involved. Children
shall not play with the Appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
2. Clear the area to be cleaned. Remove power
cords and small objects from the oor that could
entangle the Appliance. Tuck rug fringe under
the rug base, and lift items such as curtains and
tablecloths off the oor.
3. If there is a drop off in the cleaning area due to a
step or stairs, you should operate the Appliance
to ensure that it can detect the step without
falling over the edge. It may become necessary
to place a physical barrier at the edge to keep
the unit from falling. Make sure the physical
barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by the
manufacturer.
5. Please make sure your power supply voltage
matches the power voltage marked on the
Docking Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery and
Docking Station provided with the Appliance
from the manufacturer. Non-rechargeable
batteries are prohibited. For battery information,
please refer to Specications section.
8. Do not use without dust bin and/or filters in
place.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS
1. Important Safety Instructions
5
EN
9. Do not operate the Appliance in an area where
there are lit candles or fragile objects.
10. Do not use in extremely hot or cold
environments (below -5
˚C
/23˚F or above
40
˚C
/104˚F).
11. Keep hair, loose clothing, ngers, and all parts
of body away from any openings and moving
parts.
12. Do not operate the Appliance in a room where
an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or any
item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or
combustible materials such as gasoline, printer
or copier toner, or use in areas where they may
be present.
16. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a re.
17. Do not put objects into the suction intake. Do
not use if the suction intake is blocked. Keep the
intake clear of dust, lint, hair, or anything that
may reduce air ow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power cord
as a handle, close a door on the power cord, or
pull power cord around sharp edges or corners.
Do not run Appliance over the power cord. Keep
power cord away from hot surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is damaged.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or Docking
Station if it is not working properly, has been
dropped, damaged, left outdoors, or come in
contact with water. It must be repaired by the
manufacturer or its service agent in order to
avoid a hazard.
1. Important Safety Instructions
6
EN
22. Turn OFF the power switch before cleaning or
maintaining the Appliance.
23. The plug must be removed from the receptacle
before cleaning or maintaining the Docking
Station.
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery for
disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
26. Please dispose of used batteries according to
local laws and regulations.
27. Do not incinerate the Appliance even if it is
severely damaged. The batteries can explode in
a re.
28. When not using the Docking Station for a long
period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
The manufacturer cannot be held liable or
responsible for any damages or injuries caused
1. Important Safety Instructions
by improper use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace the
robot’s battery, please contact Customer Service.
31. If the robot will not be used for a long time,
power OFF the robot for storage and unplug the
Docking Station.
32. WARNING: For the purposes of recharging the
battery, only use the detachable supply unit
CH1630A provided with the appliance.
33. The Remote Control pre-installs two non-
rechargeable AAA batteries. To replace the
battery of the Remote Control, please turn
over the Remote Control, press and remove
its Battery Cover. Remove the batteries, and
insert the new batteries with the correct polarity.
Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be
recharged.
35. Different types of batteries or new and used
batteries are not to be mixed.
36. Batteries of the Remote Control are to be
inserted with the correct polarity.
7
EN
1. Important Safety Instructions
37. Exhausted batteries are to be removed from the
Appliance and safely disposed of.
38. If the Remote Control is to be stored unused for
a long period, the batteries should be removed.
39. The supply terminals are not to be short-
circuited.
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To recycle your used device,
please use the return and collection systems
or contact the retailer where the product was
purchased. They can safely recycle this product.
To disable Wi-Fi module on DEEBOT, power the
robot ON.
Place the robot on the Docking Station making
sure the Charging Contacts on DEEBOT and the
Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the robot
for 20 seconds until DEEBOT emits 3 beeps.
To enable Wi-Fi module on DEEBOT, power the
robot OFF and then power ON. The Wi- Fi module
is turned on when DEEBOT is restarted.
For EU Countries
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
8
EN
2.1 Package Contents
Robot
(4) Side Brushes
Remote Control with
batteries
Docking Station
Washable/Reusable
Microber Cleaning Cloth
Cleaning Cloth Plate
Sponge Filter and High-
efciency Filter
Instruction Manual+
Quick Start Guide
2. Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
9
EN
Anti-Collision Sensors
and Bumper
RESET Button
Multi-function
Cleaning Tool
2.3 Product Diagram
Robot
AUTO Mode
Button
Bottom View
2. Package Contents
Wi-Fi Indicator
Side Brushes
Reservoir
Universal Wheel
Power Switch
Dust Bin
Anti-Drop Sensors
Direct Suction
Option
Driving Wheel
Charging Contacts
10
EN
2. Package Contents
Infrared Signal Generator
Docking Station Pins
Water Inlet
Cleaning Cloth
Plate
Washable/Reusable
Microber Cleaning Cloth
START/PAUSE Button
Reservoir
Edge Cleaning Mode
Button
Direction Control Buttons
Spot Cleaning Mode Button
Return to Charger
Mode Button
Docking Station
Advanced Mopping System
Remote Control
11
EN
Before using the product on a rug with tasseled edges, please fold the
rug edges under.
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge.
Remove power cords and small objects from the oor that the robot
could be obstructed by.
3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place.
3. Operating and Programming
12
EN
1
Remove Protection Strip
2
Remove Protection Film
3
Docking Station Placement
3.2 Preparation
Note: When DEEBOT completes the
cleaning cycle or when battery power gets
low, DEEBOT automatically returns to the
Docking Station to recharge itself.
4
Install Side Brushes
5
Power ON
6
Charge DEEBOT
3. Operating and Programming
4
13
EN
3. Operating and Programming
3
Docking Station Placement
6
Charge DEEBOT
OR
3.3 Selecting Cleaning Mode
1
AUTO Cleaning Mode
2
Edge Cleaning Mode
3
Spot Cleaning Mode
14
EN

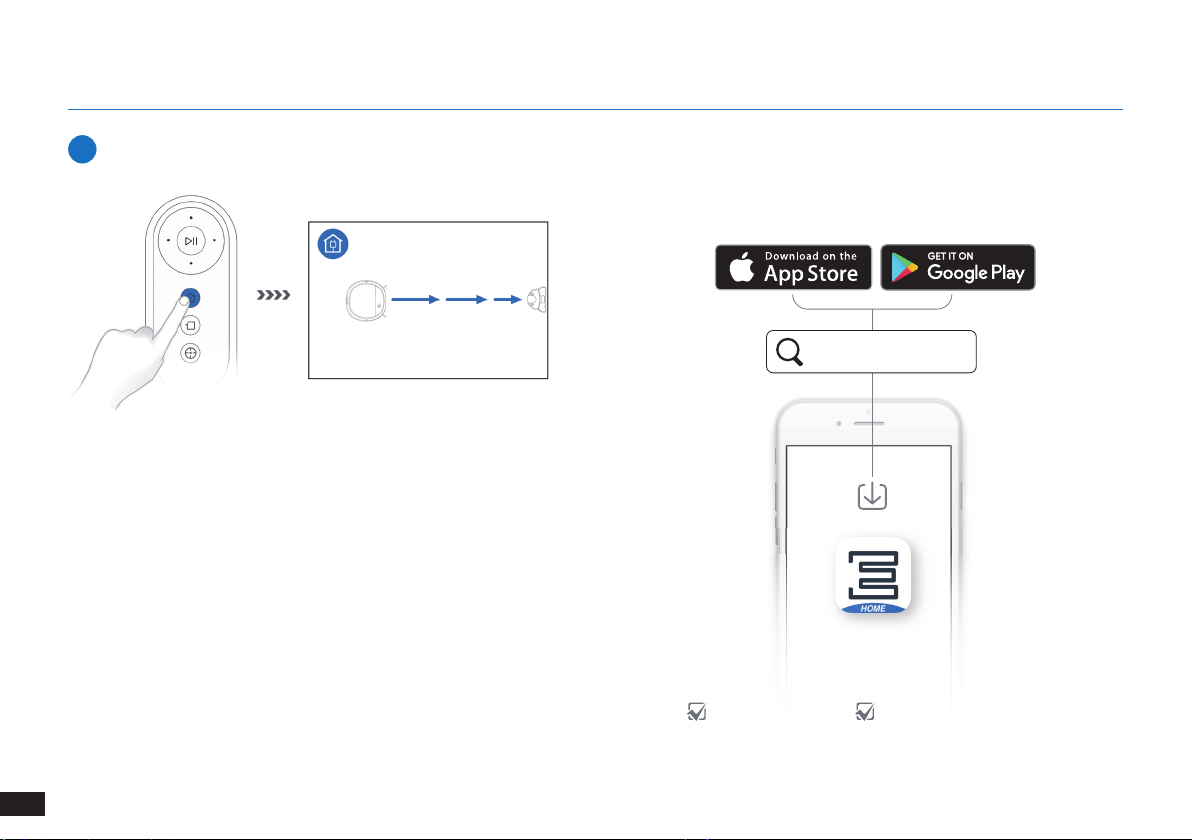

All the functions mentioned above can be enabled on the App.
Download ECOVACS HOME to access more features, including
MAX Mode, Scheduled Cleaning, etc.
4
Return to Docking Station
3. Operating and Programming
iOS 9.0 or later Android 4.0 or later
ECOVACS HOME
15
EN
3. Operating and Programming
3.4 Pause, Wake Up, Power Off
1
Pause
2
Wake Up
Note: The robot’s Control Panel stops glowing after the robot is paused
for a few minutes. Press the AUTO Mode Button on DEEBOT to wake
up the robot.
Press the AUTO button on DEEBOT to wake it up
3
Power OFF
Note: When DEEBOT is not working, it is recommended to keep it
switched ON and charging.
OR
OR
16
EN
3.5 Optional Mopping System
Note: Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet.
When using the mopping system, fold area rug edges under themselves so DEEBOT will avoid the rug.
3. Operating and Programming
OR
Note: After DEEBOT nishes mopping, empty any remaining water from the Reservoir.
17
EN
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.
4.1 Optional Mopping System
4. Maintenance
18
EN
Dust Bin
4.2 Dust Bin and Filters
1
4
2
5 6
3
Sponge Filter
High Efciency Filter
Filter Net
4. Maintenance
19
EN
4. Maintenance
Direct Suction Option Side Brushes
4.3 Direct Suction Option and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1
2 3
20
EN
4.4 Other Components
Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.
4. Maintenance
21
EN
4. Maintenance
4.5 Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Cleaning Cloth After each use Every 50 washings
Side Brush Once every 2 weeks Every 3-6 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors Bumper
Charging Contacts
Docking Station Pins
Once per week /
22
EN
5. Alarm Sounds
Indicator Lights
Alarm Sounds
DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS HOME
and online website.
Scenario Indicator Light
The robot is cleaning AUTO Mode Button glows a solid WHITE
The robot is charging AUTO Mode Button ashes WHITE
The robot has low battery AUTO Mode Button glows a solid RED
The robot has a problem AUTO Mode Button ashes RED
Alarm Sound Problems Solution
One Beep Side Brush is tangled.
Clean Side Brush as mentioned in Section 4
Maintenance.
Two Beeps Anti-Drop Sensor Malfunction
Use a cleaning cloth to wipe the Anti-Drop Sensor
clean.
Three Beeps Dust Bin is not properly installed.
Make sure the Dust Bin has been installed; if it has,
take it out and put it back in properly.
Continuous Beeps
The Robot is suspended or the Driving Wheels are
tangled.
Put the Robot back on the ground or gently pat the
bumper and clean the Driving Wheels as mentioned in
Section 4 Maintenance.
23
EN
No. Malfunction Possible Causes Solutions
1 DEEBOT is not charging.
DEEBOT is not switched ON. Switch ON DEEBOT.
DEEBOT has not connected to the Docking
Station.
Be sure that the robot’s Charging Contacts have
connected to the Docking Station Pins.
The battery is completely discharged.
Re-activate the battery. Switch ON DEEBOT. Place
DEEBOT on the Docking Station by hand, remove after
charging for 3 minutes, repeat 3 times; then charge
normally.
2
DEEBOT cannot return to the
Docking Station.
The Docking Station is not correctly placed. Refer to section 3.2 to correctly place the Docking Station.
3
DEEBOT gets stuck while
working and stops.
DEEBOT is tangled with something on the oor
(electrical wires, curtains, carpet fringing, etc.).
DEEBOT will try various ways to free itself. If it is
unsuccessful, manually remove the obstacles and restart.
4
DEEBOT returns to the
Docking Station before it has
nished cleaning.
When the battery gets low, DEEBOT
automatically switches to Return to Charger
Mode and returns to the Docking Station to
recharge itself.
This is normal. No solution necessary.
Working time varies according to oor
surface, room complexity and the Cleaning
Mode selected.
This is normal. No solution necessary.
6. Troubleshooting
24
EN
6. Troubleshooting
No. Malfunction Possible Causes Solutions
5
DEEBOT does not clean
automatically at the scheduled
time.
Time Scheduling function is cancelled.
Program DEEBOT to clean at specic times using the
ECOVACS HOME.
DEEBOT is switched OFF. Switch ON DEEBOT.
The robot’s battery is low.
Keep DEEBOT switched ON and connected to the
Docking Station to make sure it has a full battery to work
at any time.
The robot’s Suction Intake is blocked and/or
there is debris stuck in its components.
Power OFF DEEBOT, clean the Dust Bin and invert the
robot. Clean the robot’s Suction Intake, Side Brushes and
the Main Brush as described in Section 4.
The robot’s Suction Intake is blocked and/or
there is debris stuck in its components.
Power OFF DEEBOT, clean the Dust Bin and invert the
robot. Clean the robot’s Suction Intake, Side Brushes and
the Main Brush as described in Section 4.
6
DEEBOT does not clean the
whole area.
The cleaning area is not tidy.
Remove small objects from the oor and tidy up the
cleaning area before DEEBOT starts cleaning.
7
The water is not coming out of
the Reservoir when DEEBOT is
mopping.
The Reservoir runs out of water. Add water into the Reservoir.
The water outlets on the bottom of DEEBOT
are clogged.
Check the water outlets on the bottom and clean.
The water inlet lter on the bottom of
Reservoir is clogged.
Unscrew the water inlet on the bottom of Reservoir and
clean the lter.
25
EN
6. Troubleshooting
No. Malfunction Possible Causes Solutions
8
DEEBOT is not able to connect
to the home Wi-Fi network.
Incorrect home Wi-Fi username or password
entered.
Enter the correct home Wi-Fi username and password.
DEEBOT is not within range of your home
Wi-Fi signal.
Make sure DEEBOT is within range of your home Wi-Fi
signal.
Network setup started before DEEBOT was
ready.
Turn ON Power Switch. Press the RESET Button for 3
seconds. DEEBOT is ready for network setup when it
plays a musical tune and its Wi-Fi Indicator light ashes
slowly.
Your smartphone’s operating system needs to
be updated.
Update your smartphone’s operating system. The
ECOVACS HOME runs on iOS 9.0 and above, Android
4.0 and above.
9
Remote Control failure
(Effective control range of the
Remote Control is 5m (16’).
The battery in the Remote Control needs to
be replaced.
Replace with a new battery making sure it is installed
correctly.
DEEBOT is powered OFF or DEEBOT’s
battery is low.
Make sure DEEBOT is powered ON and fully charged.
The infrared signal cannot be transmitted
because the Infrared Emitter on Remote
Control or the Infrared Receiver on DEEBOT
is dirty.
Use clean dry cloth to wipe the Infrared Emitter on
Remote Control and the Infrared Receiver on DEEBOT.
There is other equipment interfering with the
infrared signal to DEEBOT.
Avoid using the Remote Control near other equipment
using infrared signals.
26
EN
7. Technical Specifications
Model DK3G.10
Working voltage 14.4V DC
Docking Station Model CH1630A
Rated Input
100-240 V AC, 50-60 Hz,
25 W
Rated Output 20 V AC, 0.8 A
Remote Control Model RC1633 Working Voltage 3 V DC
Remote Control Battery Type AAA Nominal Voltage 1.5 V DC
Frequency Bands 2.4GHz (2400MHz-2483.5MHz)
Off/Standby Mode Power Less than 0.50 W
Networked Standby Power Less than 2.00 W
Note: Technical and design specications may be changed for continuous product improvement.
RF of Wi-Fi module output power is less than 100mW.
DK3G.10-EU-EN-IM2018R00
Ecovacs Robotics Co., Ltd
No. 18 You Xiang Road, Wuzhong District, Suzhou City,
Jiangsu Province, P.R.China
