Handbook
B618_en_Chap00_couverture_ed01-2016
On-line handbook
If the "MyCITROËN" function is not available on the CITROËN public website for your country, you
can nd your handbook at the following address:
http://service.citroen.com/ddb/
Find your handbook on the CITROËN website, under "MyCITROËN".
Select:
Select one of the following means of access to
view your handbook on-line...
This personal and customisable space allows you to establish direct and special contact with the
manufacturer.
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.
Scan this code for direct access to your handbook.
Referring to the handbook on-line also gives
you access to the latest information available,
easily identied by the bookmark, associated
with this symbol:
Key
safety warning
additional information
contributes to the protection of the environment
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Happy motoring!
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
This handbook has been designed to help you make the
most of your C3 in all circumstances and in complete
safety.
Take the time to read through it so as to familiarise
yourself with your vehicle.
This handbook covers all of the variations in equipment
available across the whole C3 range.
Your vehicle will be fitted with only some of the
equipment described in this document, depending on its
trim level, version and the specification for the country in
which it was sold.
The descriptions and illustrations are given as indications
only.
Automobiles CITROËN reserves the right to modify the
technical characteristics, equipment and accessories
without having to update this edition of the handbook.
This document forms an integral part of your vehicle.
Remember to pass it on to the new owner in the event of
the sale of the vehicle.
.
.
Contents
B618_en_Chap00a_sommaire_ed01-2016
Instrument panels 11
Indicator and warning lamps 15
Indicators 31
Distance recorders 39
Conguration of the equipment on vehicles
without a screen 40
Monochrome screen C 41
Touch screen 44
Trip computer 50
Setting the date and time 54
Instruments
Overview
Remote control 56
Keyless Entry and Starting 59
Back-up procedures 64
Doors 68
Boot 69
Central locking 70
Alarm 72
Electric windows 74
Access
Front seats 76
Rear seats 79
Steering wheel adjustment 82
Ventilation 83
Heating 85
Manual air conditioning 86
Automatic air conditioning 88
Front demist - defrost 92
Rear screen demist - defrost 93
Courtesy lamp 94
Panoramic sunroof 95
Boot lamp 95
Interior ttings 96
Boot ttings 100
Rear parcel shelf (enterprise version) 102
Ease of use and comfort
Mirrors 103
Lighting control 105
Direction indicators 108
Automatic illumination of headlamps 109
Daytime running lamps / Sidelamps 110
Headlamp beam height adjustment 112
Wiper control stalk 113
Automatic rain sensitive wipers 115
Lighting and visibility
General safety recommendations 117
Hazard warning lamps 118
Horn 118
Emergency or assistance 119
Electronic stability control (ESC) 123
Seat belts 126

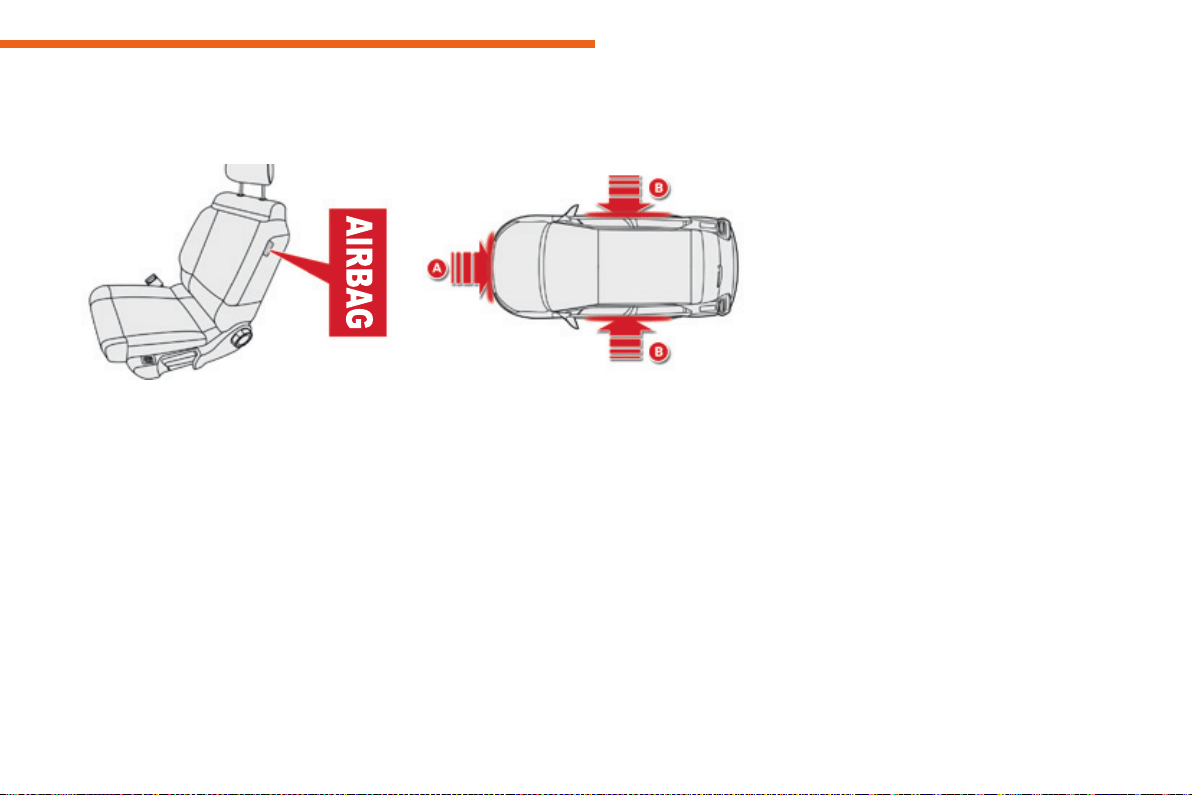

Airbags 129
Child seats 134
Deactivating the passenger front airbag 137
ISOFIX child seats 143
i-Size child seats 147
Child lock 150
Safety
Eco-driving
.
Contents
B618_en_Chap00a_sommaire_ed01-2016
Driving recommendations 151
Starting / Switching off the engine with
the key 153
Starting / Switching off the engine with
Keyless Entry and Starting 156
Parking brake 159
5-speed manual gearbox 160
Automatic gearbox (EAT6) 161
Gear shift indicator 165
Hill start assist 166
Stop & Start 167
Memorising speeds 170
Speed limit recognition 171
Speed limiter 175
Cruise control 178
Fatigue detection system 182
Lane Departure Warning System 183
Blind Spot Monitoring System 184
Parking sensors 187
Reversing camera 189
Under-ination detection 190
ConnectedCAM CITROËN™ 193
Driving
Fuel tank 196
Misfuel prevention (Diesel) 198
Snow chains 200
Very cold climate screen 201
Towing a trailer 202
Energy economy mode 203
Changing a wiper blade 204
Roof bars 205
Bonnet 206

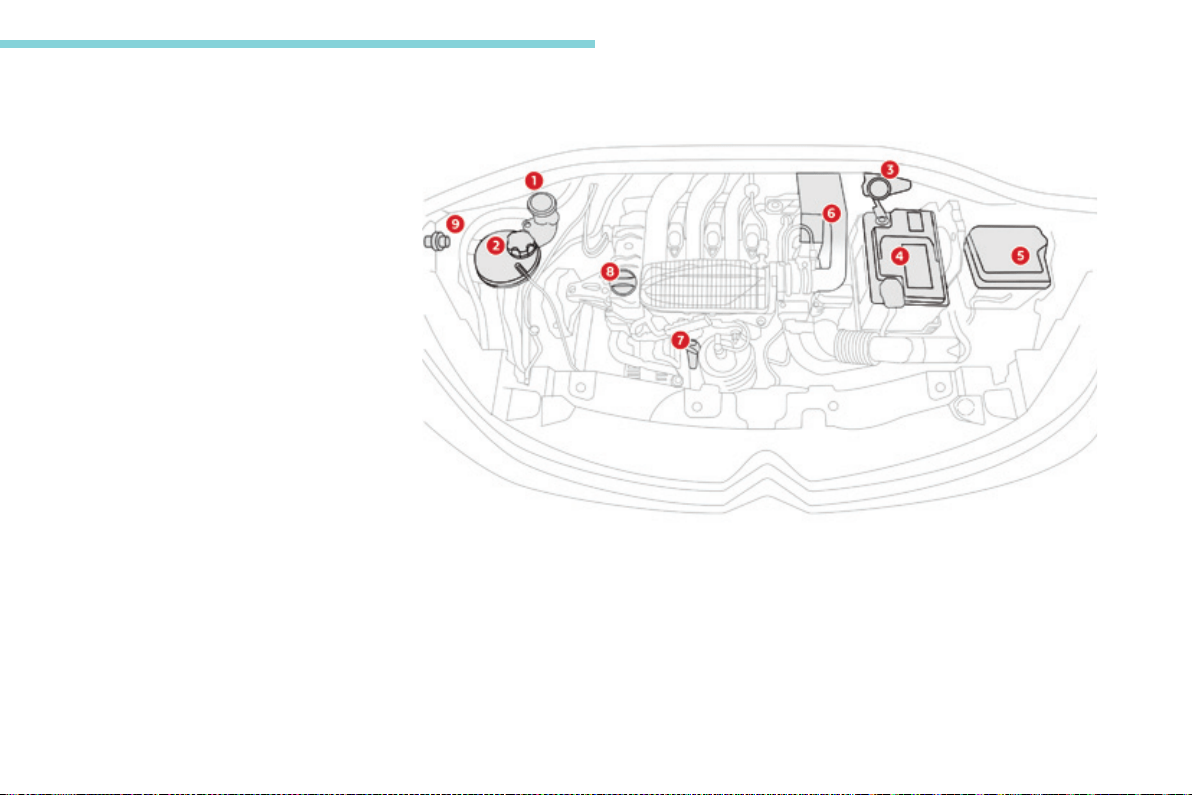

Petrol engines 207
Diesel engines 208
Checking levels 209
Checks 213
AdBlue
®
and SCR system
(BlueHDi Diesel) 215
AIRBUMP
®
protectors 219
Practical information
Warning triangle 220
Running out of fuel (Diesel) 220
Temporary puncture repair kit 221
Spare wheel 226
Changing a bulb 234
Changing a fuse 241
12 V battery 248
Towing 252
In the event of a breakdown
Engines 254
Weights 254
Dimensions 257
Identication markings 258
Technical data
Alphabetical index
For the audio and telematic systems,
refer to the supplement to the handbook
or go to the following internet address:
http://service.citroen.com/ddb/
4
Overview
B618_en_Chap00b_vue-ensemble__ed01-2016
Remove control key / Keyless Entry and
Starting system 56-67
- locking / unlocking
the vehicle
- battery
Starting / switching off the engine
153-158
Exterior
Fuel tank, misfuel prevention
(Diesel) 196-199
Running out of Diesel fuel 220
AdBlue
®
tank 215-218
AIRBUMP
®
protectors 219
Boot 69
- opening / closing
- back-up release
Temporary puncture
repair kit 221-225

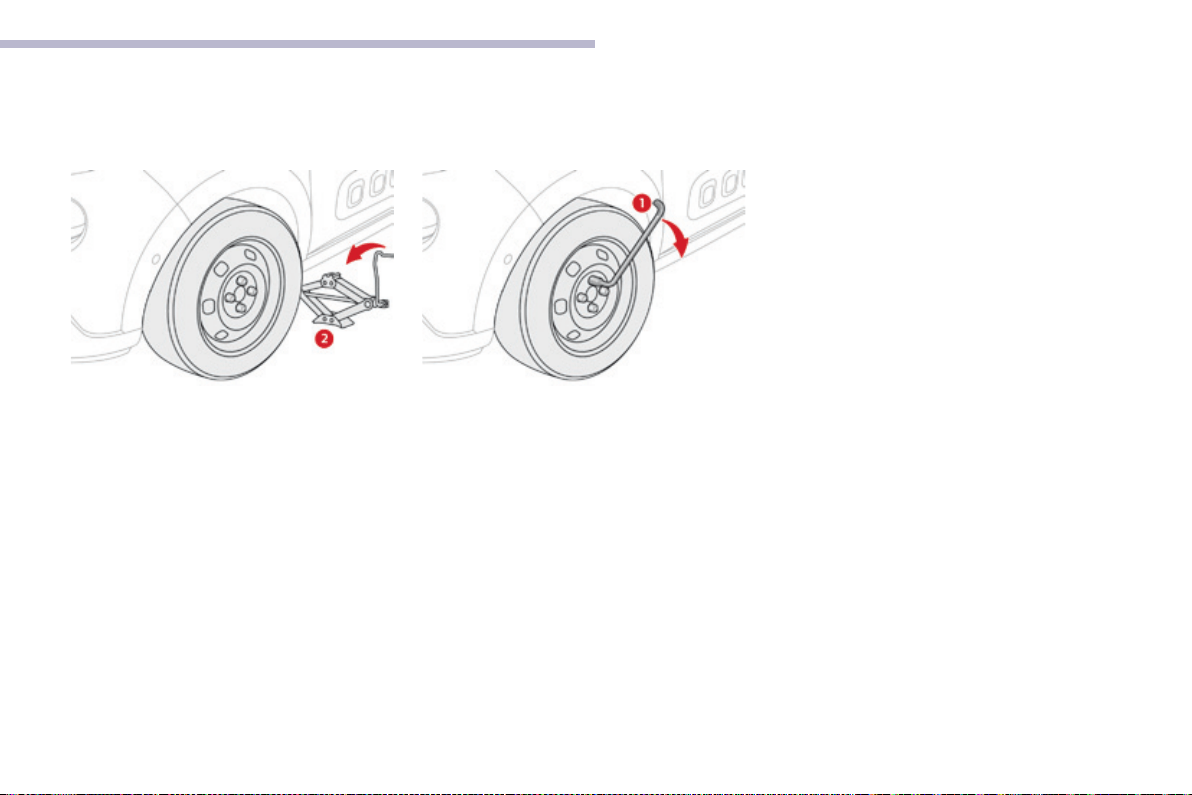

Spare wheel 226-233
- tools
- removing / refitting
Snow chains 200
Changing bulbs 238-239
- rear lamps
- 3
rd
brake lamp
- number plate lamps
Glass panoramic sunroof 95
ConnectedCAM CITROËN™ 193-194
Roof bars 205
Wiper control stalk 113-116
Changing a wiper blade 204
Door mirrors 103
Blind Spot Monitoring
System 184-186
Doors 68
- opening / closing
Central locking 70
Electric windows 74-75
Alarm 72-73
Lighting control stalk 105-112
Guide-me-home lighting 111
Daytime running lamps 110
Headlamp beam height adjustment 112
Changing bulbs 234-237
- front lamps
- foglamps
- direction indicator repeaters
Electronic stability control
(ESC): ABS, EBFD, EBA, ASR, DSC
123-125
Under-inflation detection
190-192
Tyre pressures
258
Reversing camera 189
Parking sensors 187-188
Towbar 152, 202
Towing 252-253
5
.
Overview
B618_en_Chap00b_vue-ensemble__ed01-2016

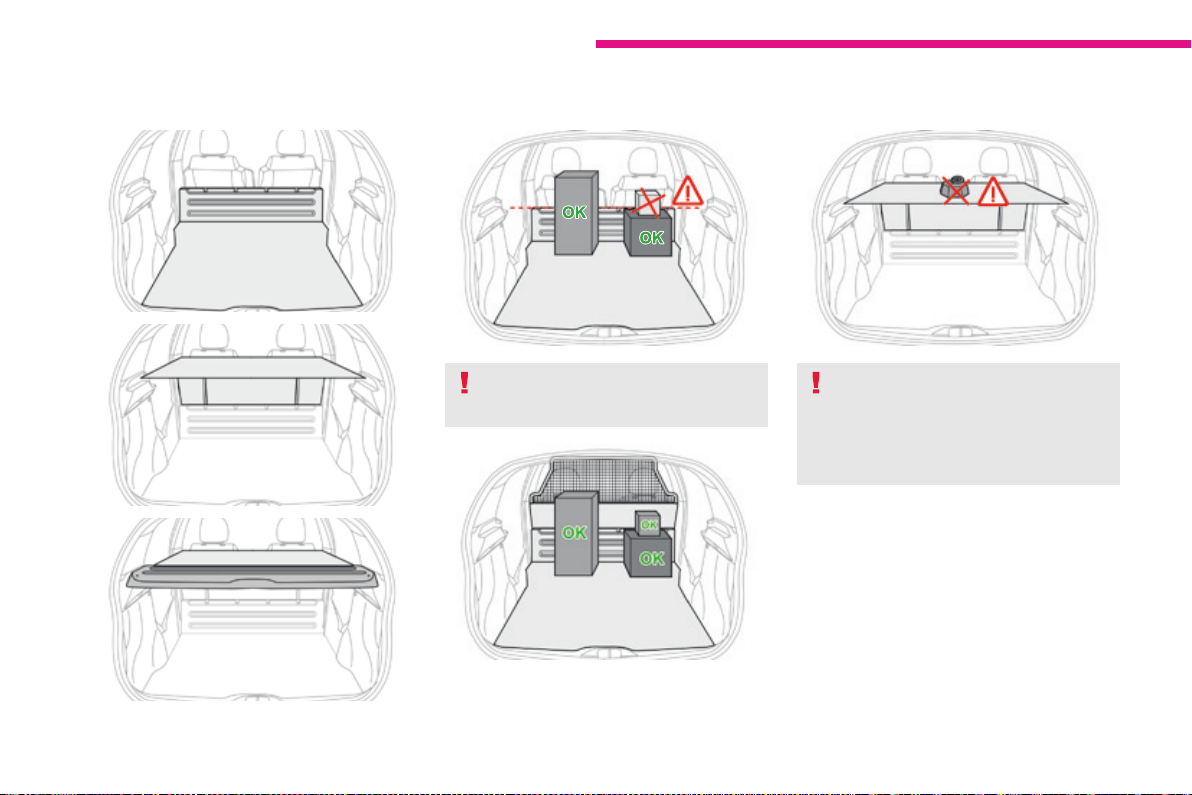

Boot fittings 100-101
- rear parcel shelf
- hooks
- storage box
Boot lamp 95
Warning triangle 220

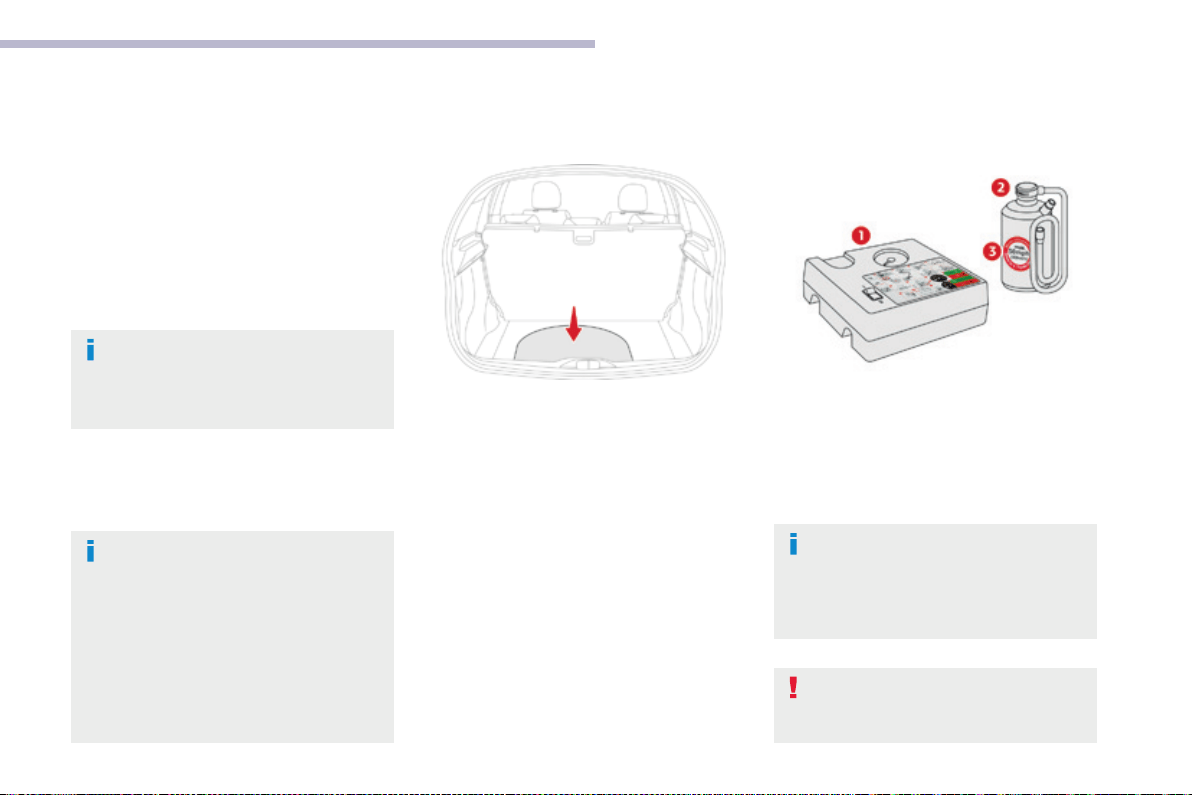

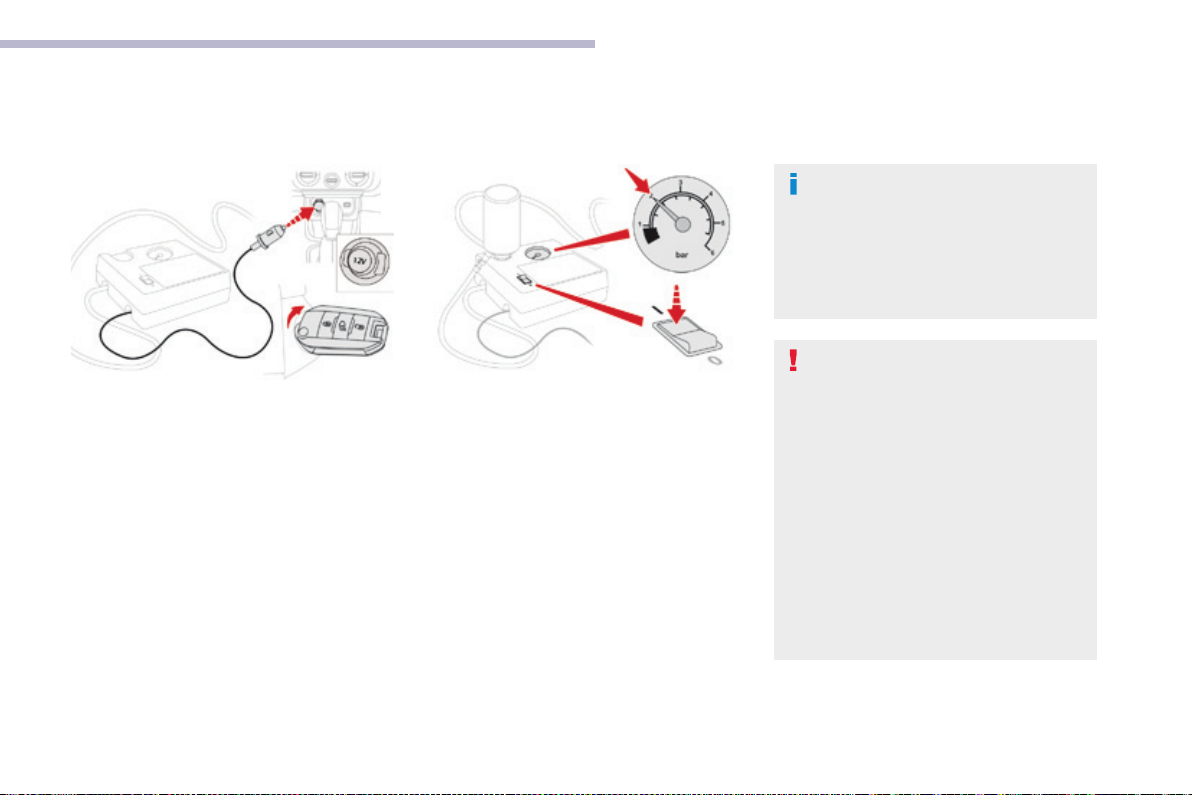

Temporary puncture repair kit 221-225

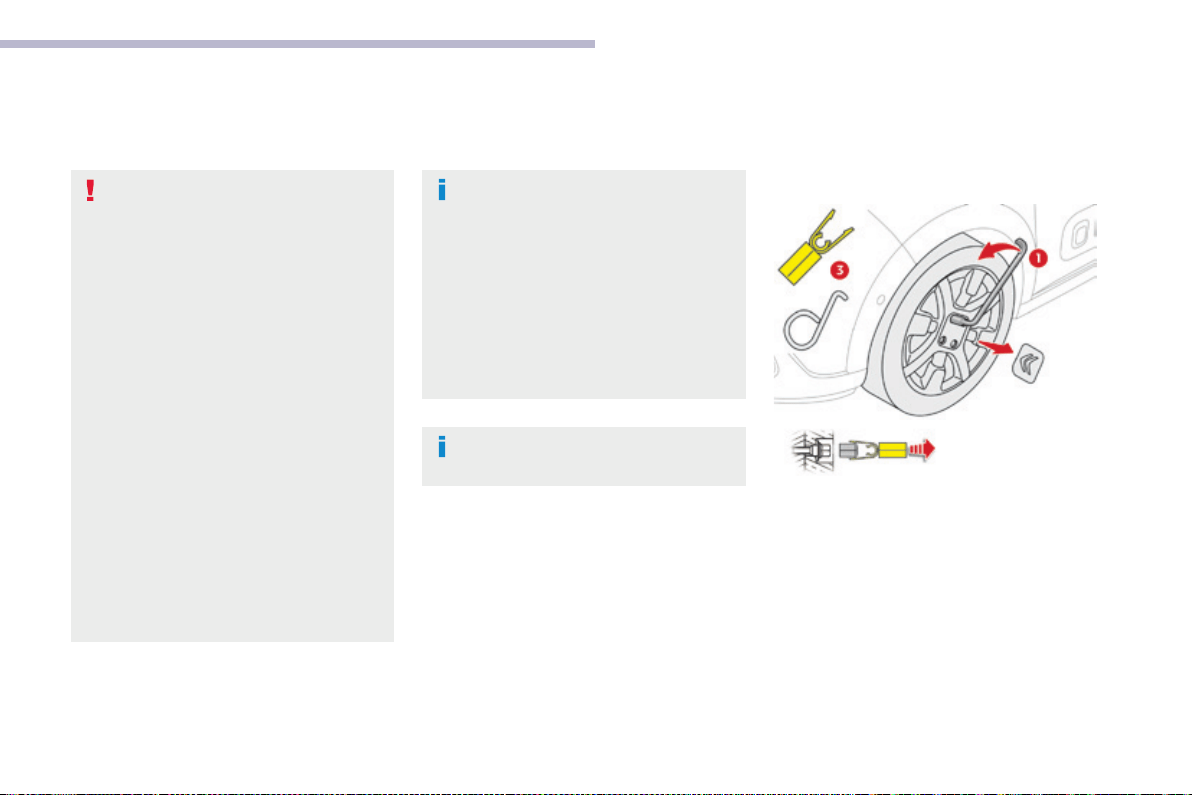

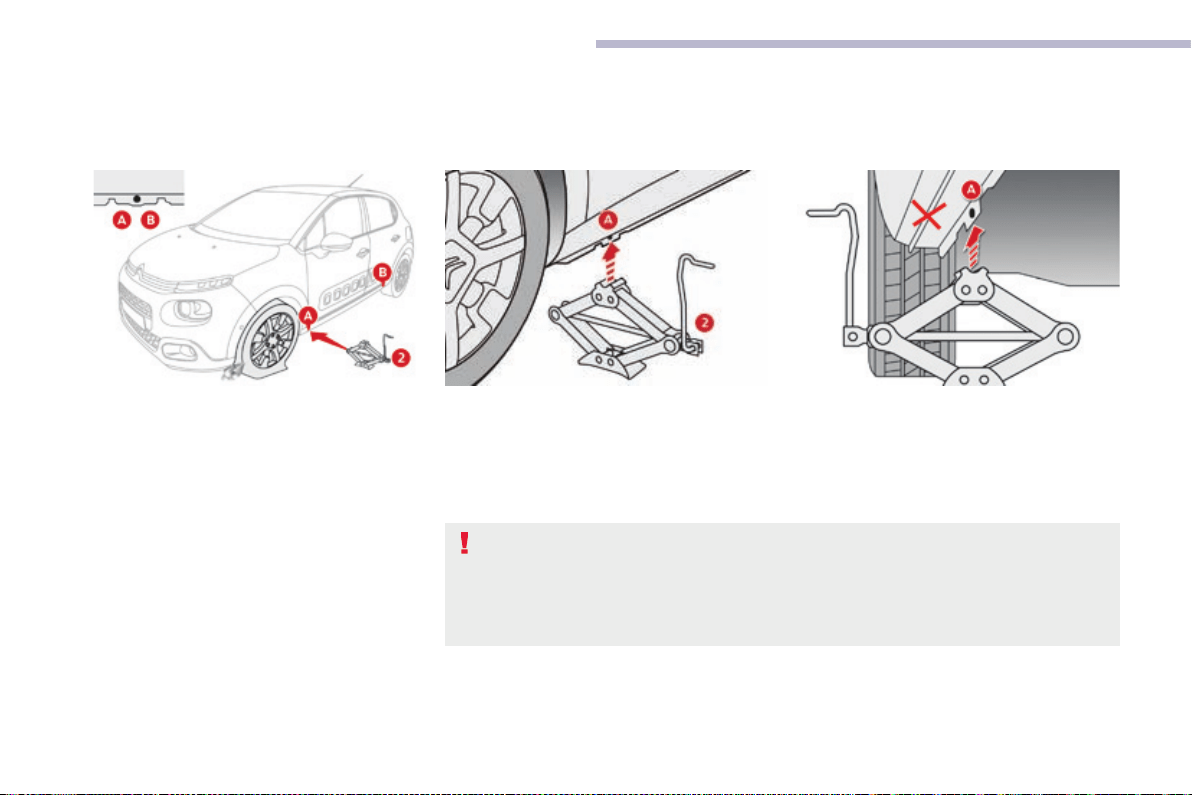

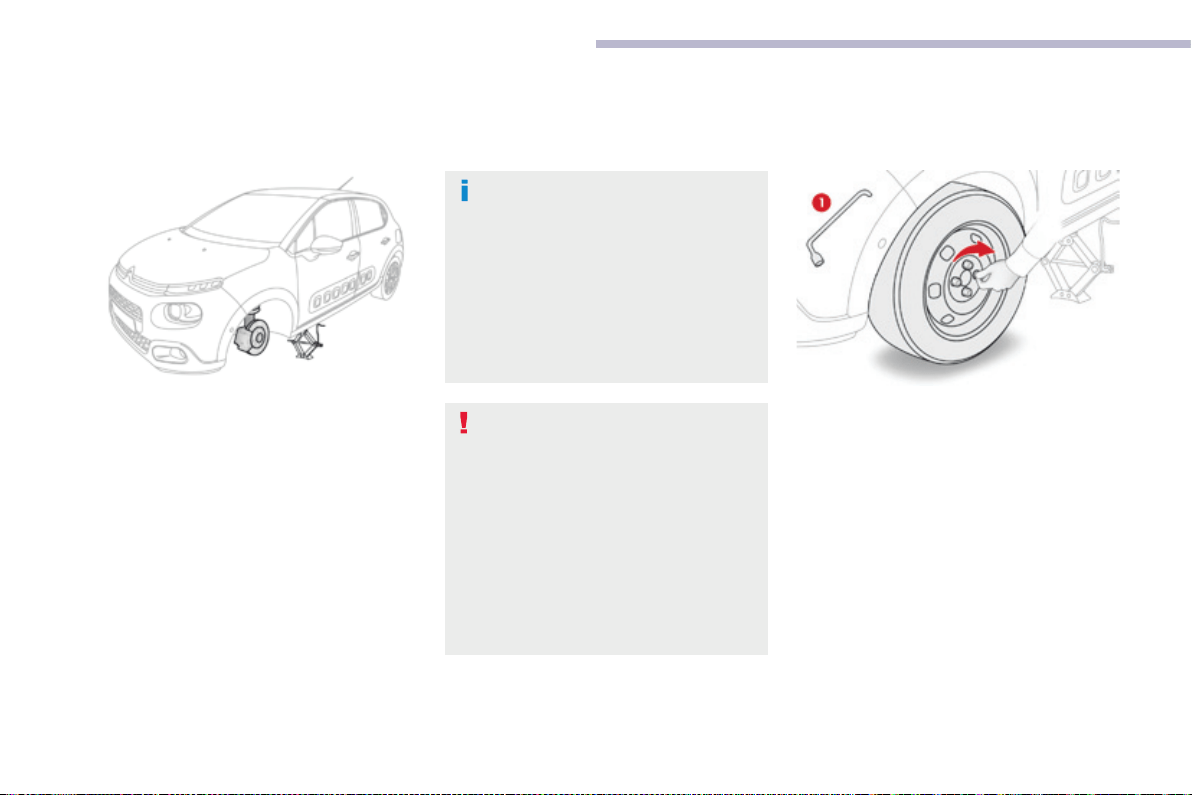

Spare wheel 226-233
Interior
Child seats 134-142, 149
ISOFIX child seats 143-146, 149
i-Size child seats 147-149
Rear seats 79-81

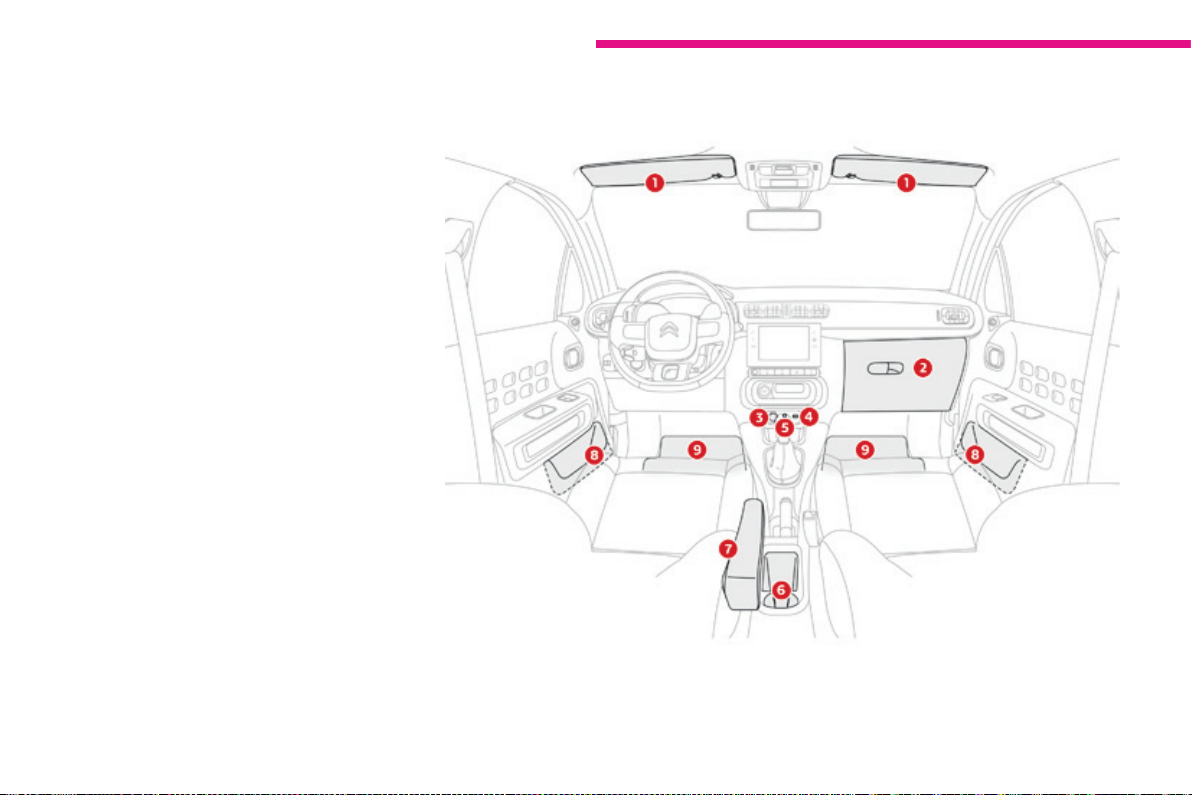

Interior fittings 96-99
- sun visor
- glove box

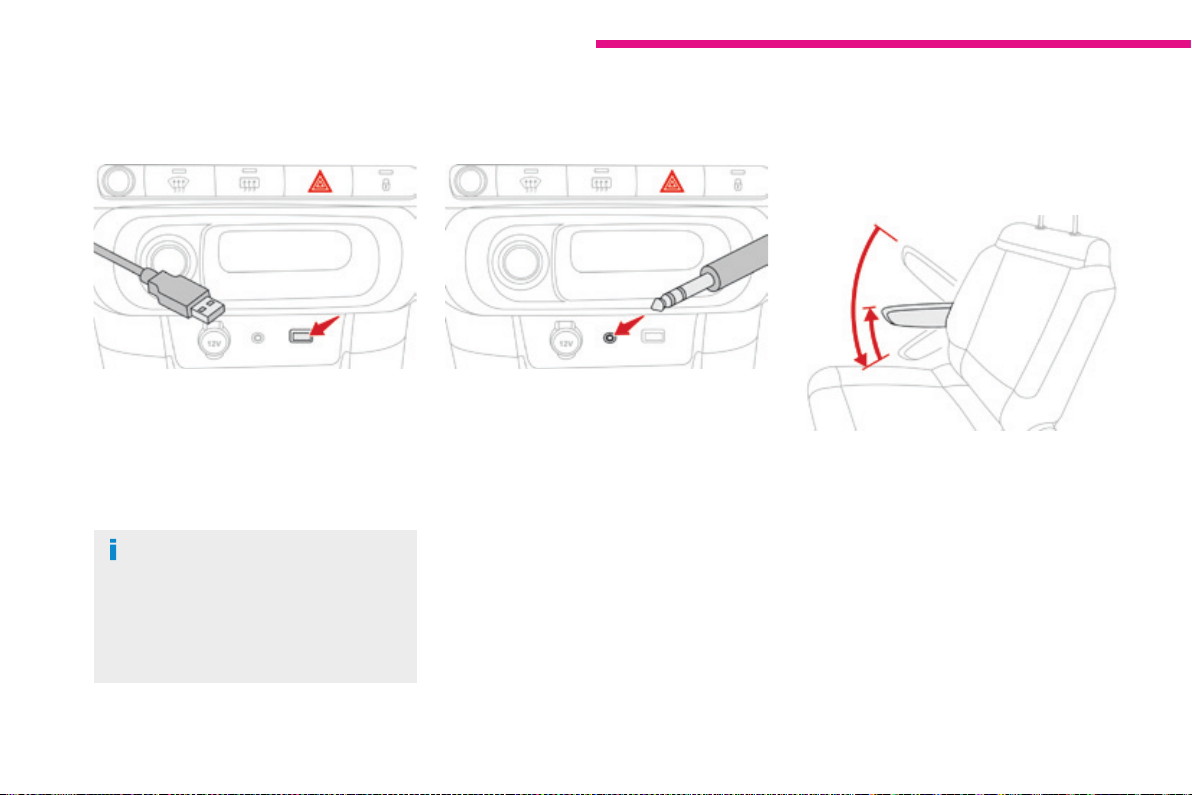

- 12 V accessory socket
- USB port
- auxiliary socket
- front armrest
- coat hooks
Mats 99
Front seats 76-78
Seat belts 126-128
Airbags 129-133
Deactivating the passenger's
front airbag 130
Heated seats 78
Manual child lock 150
6
Overview
B618_en_Chap00b_vue-ensemble__ed01-2016
Instruments and controls
Door mirrors 103
Blind Spot Monitoring
System 184-186
Electric windows 74-75
Opening the bonnet 206
Ventilation 83-84
Heating 85
Manual air conditioning 86-87
Automatic air conditioning 88-91
Front demist / defrost 92
Rear screen demist /
defrost 93
5-speed manual gearbox 160
Automatic gearbox 161-164
Gear efficiency indicator 165
Hill start assist 166
Stop & Start 167-169
Touch screen 44-49

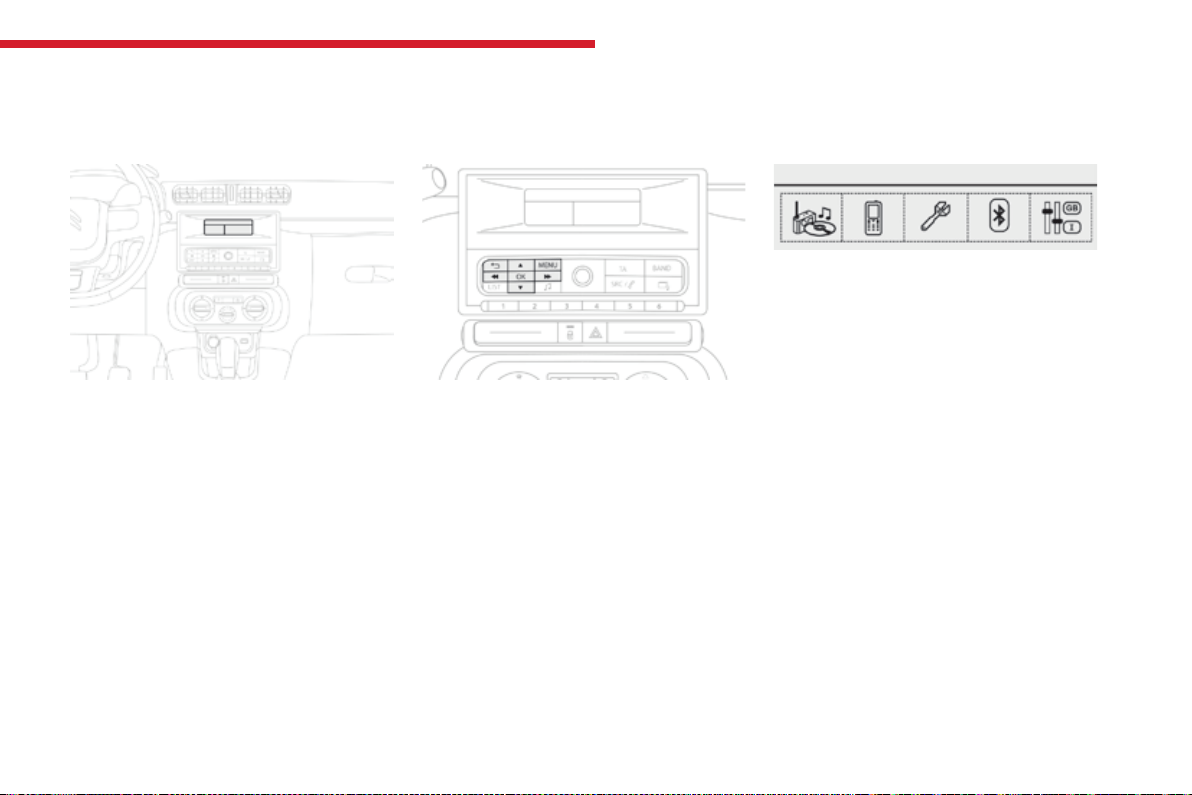

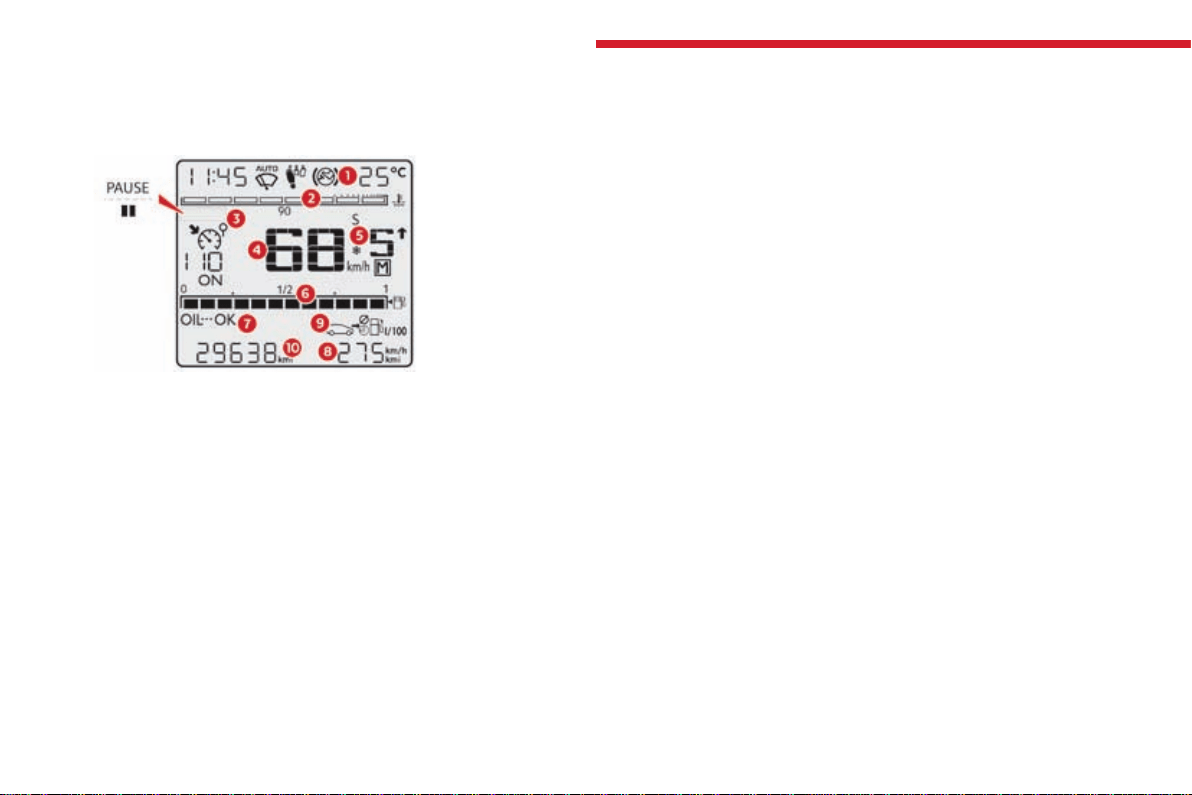

Monochrome screen C 41-43
Setting the date / time 54-55
Parking brake 159
Courtesy lamp 94

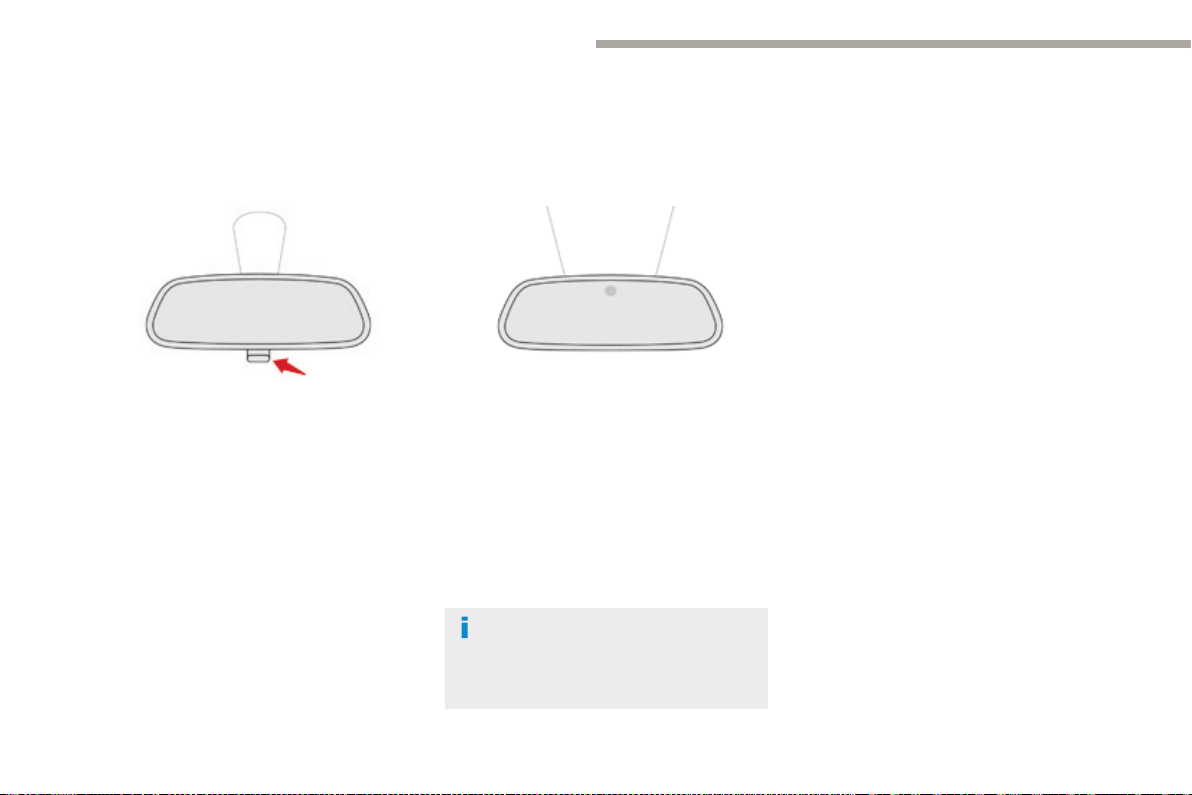

Rear view mirror 104
Emergency or assistance call 119-122
ConnectedCAM CITROËN™ 193-194
7
.
Overview
B618_en_Chap00b_vue-ensemble__ed01-2016
Headlamp beam height adjustment 112
Lighting control stalk 105-112
Direction indicators 108
Dashboard fuses 241-245
Central locking 70
Hazard warning lamps 118
Wiper control stalk 113-116
Trip computer 50-52
Speed limiter 175-177
Cruise control 178-181
Memorising speeds 170
Speed limit
recognition 171-174

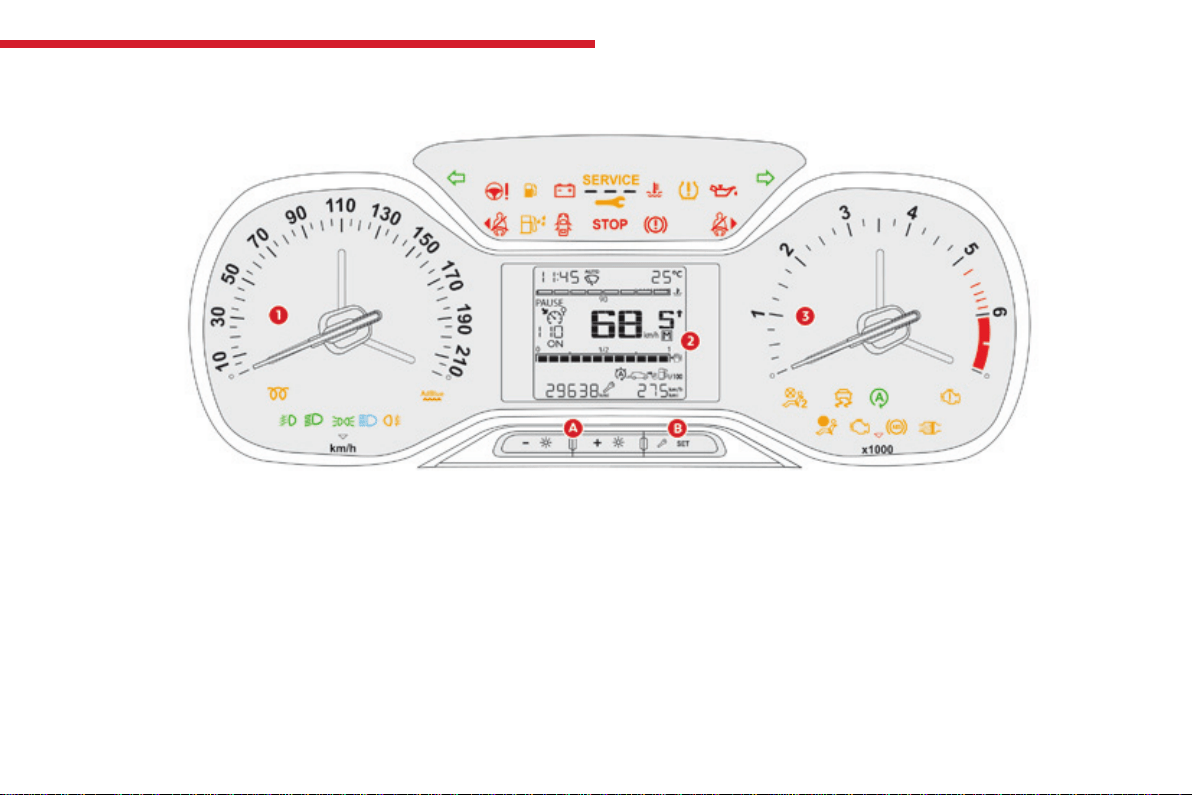

Instrument panels 11-14
Indicator and warning lamps 15-30
Indicators 31-38
Distance recorders 39
Steering wheel adjustment 82
Horn 118
Instruments and controls (cont.)
Starting - switching off the engine 153-158
8
Overview
B618_en_Chap00b_vue-ensemble__ed01-2016
Running out of fuel, Diesel
(priming pump) 220
AdBlue
®
and SCR system
(BlueHDi Diesel) 215-218
Maintenance - Technical data
Checking levels 209-212
- oil
- brake fluid
- coolant
- screenwash fluid
- additive (Diesel with particle filter)
Checking components 213-214
- battery
- air / passenger compartment filter
- oil filter
- particle filter (Diesel)
- brake pads / discs
Changing bulbs 234-240
- front lamps
- rear lamps
- interior lighting
Petrol engines 255
Diesel engines 256
Dimensions 257
Identification markings 258
Opening the bonnet 206

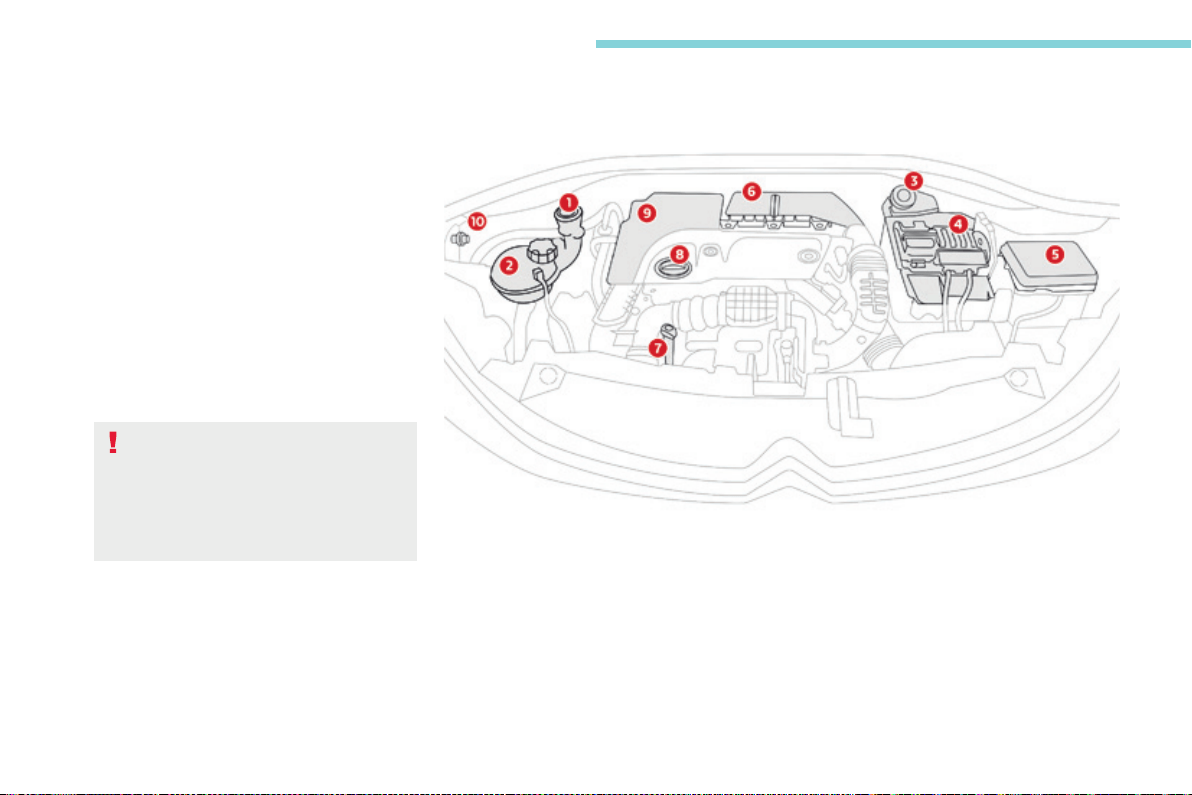

Under the bonnet, petrol 207
Under the bonnet, Diesel 208

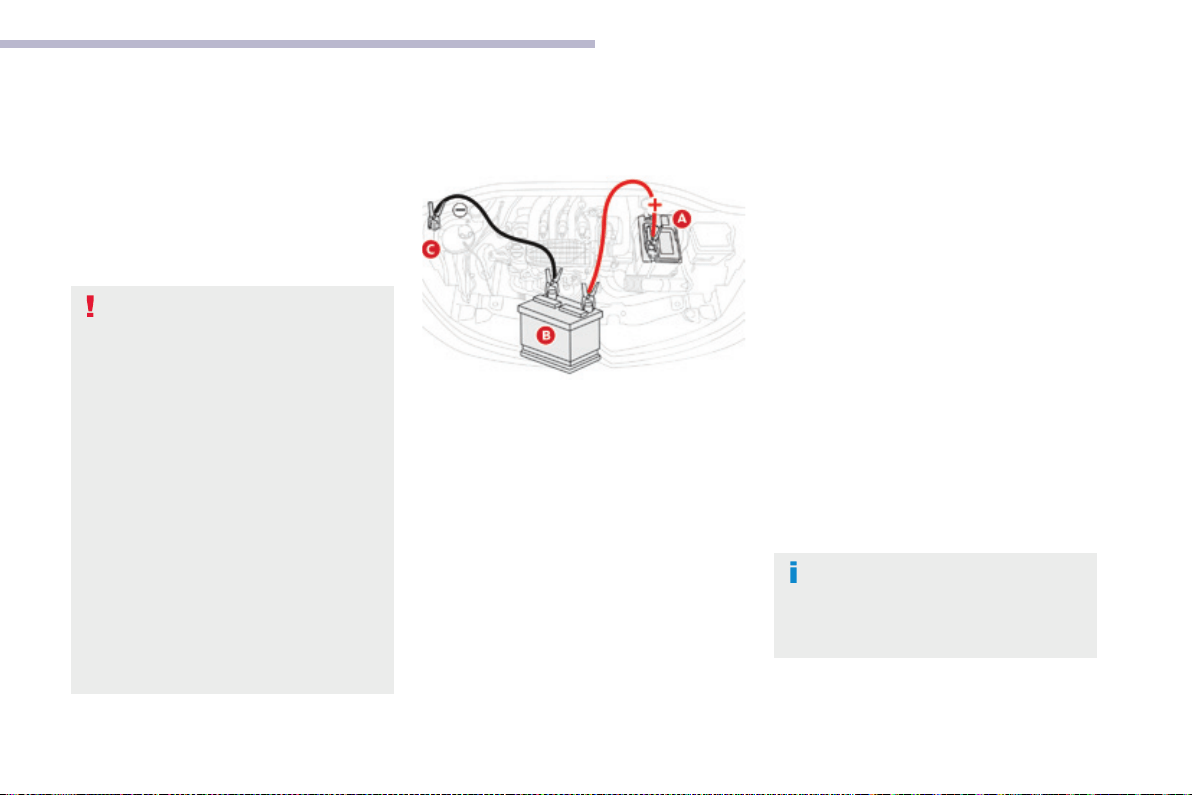

12V battery 248-251
Load reduction, economy mode 203
Engine compartment
fuses 241-242, 246-247
9
.Eco-driving
B618_en_Chap00c_eco-conduite_ed01-2016
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the ambient light
level does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2
emissions.
With an automatic gearbox, give preference to automatic mode and
avoid pressing the accelerator pedal heavily or suddenly.
The gear efficiency indicator invites you to engage the most suitable
gear: as soon as the indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox, this indicator appears
only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and
CO
2
emissions and also help reduce the background traffic noise.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
10
Eco-driving
B618_en_Chap00c_eco-conduite_ed01-2016
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a CITROËN dealer or a qualified workshop
without delay to have the emissions of nitrogen oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
11
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Symbols LCD instrument panel
1. Speedometer (mph or km/h).
2. Display.
3. Rev counter (x 1 000 rpm or tr/min).
Dials Control buttons
A. Main lighting dimmer.
Depending on version: scrolling through a
menu, a list; changing a value.
B. Recall of the servicing information or of the
driving range with the SCR system and the
AdBlue
®
.
Reset of the function selected (service
indicator or trip distance recorder).
Depending on version: access to
the configuration menu (long press),
confirmation of a choice (short press).
12
Instruments
1. Exterior temperature.
2. Engine coolant temperature gauge.
3. Cruise control or speed limiter settings.
4. Digital speedometer (mph or km/h).
5. Gear efficiency indicator and/or gear
selector position, gear and Sport and Snow
modes for an automatic gearbox.
6. Fuel level.
Display
7. Engine oil level indicator (appears for a few
seconds when the ignition is switched on,
then disappears).
8. Service indicator or Range related to the
AdBlue
®
and the SCR system (miles or km)
then, trip distance recorder (miles or km).
9. Trip computer.
10. Total distance recorder (miles or km).
13
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Text LCD instrument panel
Dials Control buttons
1. Speedometer (mph or km/h).
2. Fuel level indicator.
3. Display.
4. Engine coolant temperature gauge.
5. Rev counter (x 1 000 rpm or tr/min).
A. Reset of the service indicator.
Recall of the current servicing information,
or the driving range with the SCR system
and the AdBlue
®
.
Depending on version: go back a level,
abandon the operation in progress.
B. Main lighting dimmer.
Depending on version: scrolling through a
menu, a list; changing a value.
C. Reset of the trip distance recorder and the
trip.
Depending on version: access to
the configuration menu (long press),
confirmation of a choice (short press).
14
Instruments

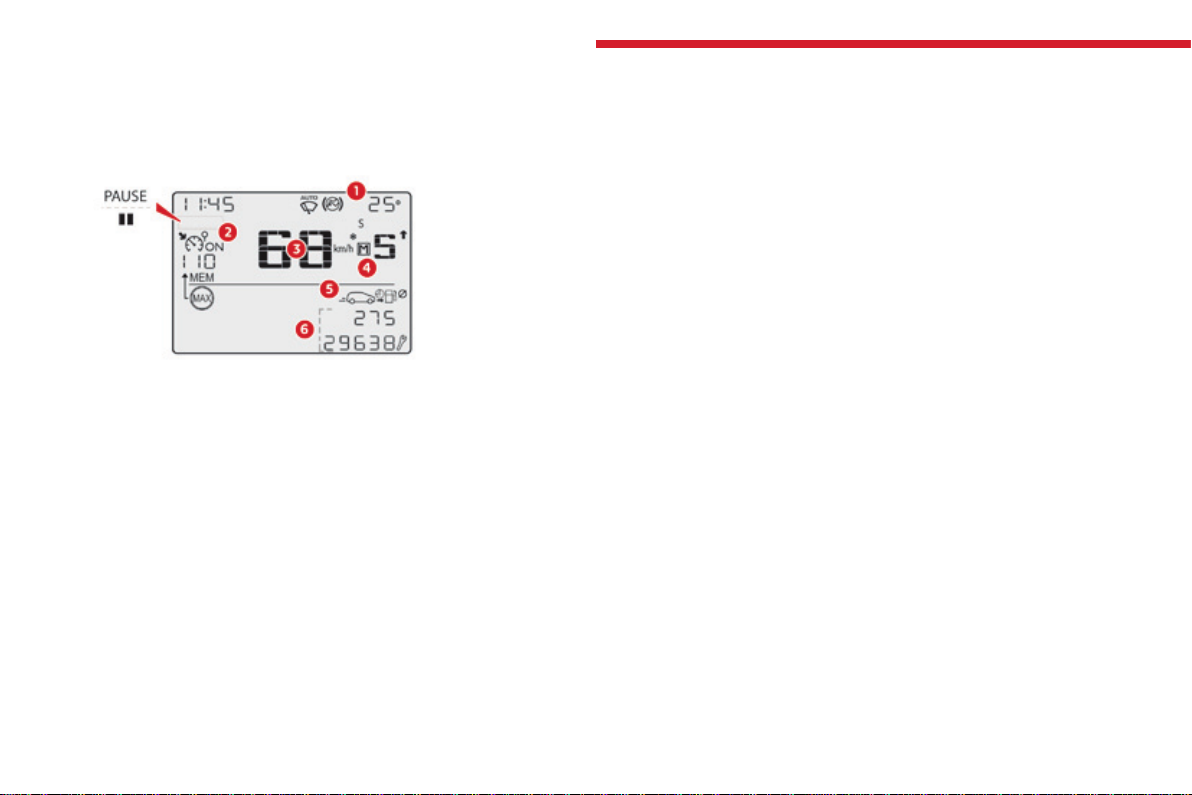

Display
1. Exterior temperature.
2. Cruise control or speed limiter settings.
Speed suggested by the speed limit
recognition system.
3. Digital speedometer (mph or km/h).
4. Gear efficiency indicator and/or gear
selector position, gear and Sport and Snow
modes for an automatic gearbox.
5. Trip computer and Stop & Start time
counter.
6. Display zone: trip distance recorder (miles
or km), service indicator or Range related
to the AdBlue
®
and the SCR system (miles
or km), total distance recorder, warning
messages or system status messages.
If your vehicle is not fitted with an audio system
or a touch screen, you can also configure
certain equipment using this display.
For more information on the Configuration of
the equipment on vehicles without a screen,
refer to the corresponding section.
15
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Visual indicators informing the driver that a system is in operation, switched off or has a fault.
Indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
The switching on of certain warning lamps may
be accompanied by an audible signal and a
message.
The warning lamps may come on continuously
(fixed) or flash.
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred. In the
event of a fault, the illumination of the
warning lamp may be accompanied by
a message.
Refer to the tables in the following
pages for more information.
When switching on the ignition, the
displays in the instrument panel appear
dynamically and progressively. This is
normal operation.
16
Instruments
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the screen.
Left-hand direction
indicator
flashing with buzzer. The lighting stalk has been pushed
down.
Right-hand
direction indicator
flashing with buzzer. The lighting stalk has been pushed
up.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps
fixed. The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps
fixed. The lighting stalk has been pulled
towards you.
Pull the stalk to return to dipped beam headlamps.
For more information on the Lighting control stalk, refer to the corresponding section.
Warning / indicator lamp State Cause Action / Observations
17
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Rear foglamp fixed. The rear foglamp has been switched
on using the ring on the lighting
control stalk.
Turn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.
Diesel engine
pre-heating
fixed. When the ignition is switched on
with a key in the ignition switch or a
starting instruction made using the
"START/STOP" button, the engine
temperature makes engine pre-
heating necessary.
The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
With an ignition switch and key, wait until the indicator
lamp goes off before starting.
With Keyless Entry and Starting, once it goes off,
starting is immediate, on condition that the brake
pedal remains pressed with an automatic gearbox, or
the clutch pedal is pressed fully down with a manual
gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Parking brake fixed. The parking brake is applied or not
properly released.
Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the Parking brake, refer to
the corresponding section.
Warning / indicator lamp State Cause Action / Observations
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk.
Turn the ring on the lighting control stalk rearward
twice to switch off the front foglamps.
18
Instruments
Warning / indicator lamp State Cause Action / Observations
Stop & Start fixed.
When the vehicle stops (red lights,
traffic jams,...) the Stop & Start system
has put the engine into STOP mode.
The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
off.
STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically.
For more information on Stop & Start, refer to the
corresponding section.
Blind spot
monitoring
system*
fixed. The system has been activated. For more information on the Blind spot monitoring
system, refer to the corresponding section.
* Only on the Text LCD instrument panel.
19
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Passenger's
airbag system
fixed. The control switch, located at the
right-hand end of the dashboard is
set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rearward facing
child seat, unless there is an
operating fault with the airbags
(Airbag warning lamp on).
Turn the control switch to the "ON" position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rearward
facing position on the front passenger seat.
Warning / indicator lamp State Cause Action / Observations
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and the display of a message.
20
Instruments
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated message.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.
STOP fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message.
Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.
Warning / indicator lamp State Cause Action / Observations
21
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
or
Service temporarily,
accompanied by the
display of a message.
One or more minor faults for which
there is no specific warning lamp
have been detected.
Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate
the filter by driving at a speed of at least 40 mph
(60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a CITROËN
dealer or a qualified workshop.
fixed, accompanied
by the display of a
message.
One or more major faults for which
there is no specific warning lamp
have been detected.
Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a CITROËN dealer or a qualified workshop.
fixed, associated with the
flashing and then fixed
display of the service
indicator spanner.
The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
22
Instruments
Warning / indicator lamp State Cause Action / Observations
Anti-lock
Braking System
(ABS)
fixed. The anti-lock braking system has a
fault.
The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without
delay.
Dynamic
stability control
(DSC/ASR)
flashing. The DSC/ASR regulation is
operating.
The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed. The DSC/ASR system has a fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
Braking fixed. The brake fluid level has dropped
significantly.
You must stop as soon as it is safe to do so.
Top up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
+
fixed, associated
with the ABS warning
lamp.
The electronic brake force distribution
(EBFD) system has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
23
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Engine
diagnostic
system
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.
flashing. The engine management system has
a fault.
Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed, associated with the
SERVICE warning lamp.
A minor engine fault has been
detected.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed, associated with
the STOP warning
lamp.
A major engine fault has been
detected.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Power steering* fixed. Major power steering fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.
* Only on the Symbols LCD instrument panel.
24
Instruments
Warning / indicator lamp State Cause Action / Observations
Door(s) open fixed, associated with
a message identifying
the door.
Speed below 6 mph (10 km/h), a door
or the boot is not properly closed.
Close the door or boot.
fixed, associated with
a message identifying
the door, together with
an audible signal.
Speed above 6 mph (10 km/h), a door
or the boot is not properly closed.
Foot on the
clutch*
fixed. In the STOP mode of Stop & Start,
changing to START mode is denied
because the clutch pedal is not fully
down.
You must declutch fully to allow the change to engine
START mode.
* Only on the Symbols LCD instrument panel.
25
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Particle filter
(Diesel)
fixed, accompanied
by an audible signal
and a particle
filter clogging risk
message.
This indicates that the particle filter is
starting to become saturated.
As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
For more information on Checks and in particular
those of the particle filter, refer to the corresponding
section.
fixed, accompanied by
an audible signal and
a particle filter additive
level too low message.
This indicates the low level of the
additive reservoir.
Have the reservoir topped up as soon as possible by a
CITROËN dealer or a qualified workshop.
For more information on Checking levels and in
particular the additive level, refer to the corresponding
section.
Lane departure
warning system*
flashing (orange),
accompanied by an
audible signal.
A lane marking is being crossed, on
the right.
Turn the wheel in the other direction to return to the
correct trajectory.
For more information, refer to the corresponding
section.
A lane marking is being crossed, on
the left.
fixed. The lane departure warning system
has a fault.
Have the system checked by a CITROËN dealer or a
qualified workshop.
* Only on the Text LCD instrument panel.
26
Instruments
Warning / indicator lamp State Cause Action / Observations
AdBlue
®
(BlueHDi Diesel)
fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.
The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the AdBlue
®
topped up as soon as possible: go
to a CITROËN dealer or a qualified workshop.
You can add up to 10 litres of AdBlue
®
to its tank.
flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range.
The remaining driving range is
between 0 and 350 miles (600 km).
You must top up the AdBlue
®
to avoid a breakdown
or go to a CITROËN dealer or a qualified workshop.
You can add up to 10 litres of AdBlue
®
to its tank.
flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented.
The AdBlue
®
tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine.
To be able to start the engine, you must top up the
AdBlue
®
or go to a CITROËN dealer or a qualified
workshop.
It is essential to add at least 4 litres of AdBlue
®
to its
tank.
For topping up or for more information on AdBlue
®
and the SCR system, refer to the corresponding section.
27
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
+
+
SCR emissions
control system
(BlueHDi Diesel)
fixed, on switching on the
ignition, associated with
the Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message.
A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range.
After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a CITROËN dealer or a qualified workshop
without delay, to avoid a breakdown.
flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.
You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must call on a
CITROËN dealer or a qualified workshop.
28
Instruments
Low fuel level fixed, accompanied by
an audible signal and
a message.
When it first comes on there remains
approximately 5 litres of fuel in the
tank.
You are then using the fuel reserve.
You must refuel as soon as possible to avoid running
out of fuel.
Until sufficient fuel is added, this warning lamp will
come on every time the ignition is switched on,
accompanied by an audible signal and a message.
This audible signal and message are repeated with
increasing frequency as the level drops towards "0".
Fuel tank capacity:
- Petrol: approximately 45 litres.
- Diesel: approximately 42 or 50 litres (depending
on version).
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Seat belt(s)
not fastened /
unfastened**
fixed
or flashing
accompanied by an
audible signal.
A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
Front left
seat belt not
fastened/
unfastened*
The front occupant's seat belt on the
left has not been fastened or has
been unfastened.
Front right
seat belt not
fastened/
unfastened*
The front occupant's seat belt on the
right has not been fastened or has
been unfastened.
Warning / indicator lamp State Cause Action / Observations
* Only on the Symbols LCD instrument panel.
** Only on the Text LCD instrument panel.
29
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Engine oil
pressure
fixed. There is a fault with the engine
lubrication system.
You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Battery charge fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
Maximum
coolant
temperature
fixed. The temperature of the cooling
system is too high.
Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Warning / indicator lamp State Cause Action / Observations
Water in Diesel* fixed. The Diesel fuel filter contains water. Risk of damage to the injection system on Diesel
engines.
Contact a CITROËN dealer or a qualified workshop
without delay.
Airbags on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault.
Have them checked by a CITROËN dealer or a
qualified workshop.
* Only on the Symbols LCD instrument panel.
30
Instruments
Under-inflation fixed, accompanied by
an audible signal and
a message.
The pressure in one or more tyres is
too low.
Check the tyre pressures as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection,
refer to the corresponding section.
+
flashing then fixed,
accompanied by the
Service warning lamp.
The system has a fault: the tyre
pressures are no longer monitored.
Check the tyre pressures as soon as possible.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Foot on the
brake
fixed. The brake pedal is not pressed
sufficiently.
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Warning / indicator lamp State Cause Action / Observations
31
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Indicators
With the engine running:
- in zone A, the temperature is correct,
- in zone B, the temperature is too high;
this warning lamp and the central STOP
warning lamp come on, accompanied by
the display of a message and an audible
signal.
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Coolant temperature gauge
After first switching off the ignition,
open the bonnet cautiously and check
the coolant level.
For more information on Checking
levels, refer to the corresponding
section.
32
Instruments
Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off; the distance recorder
resumes its normal operation. The screen then
indicates the total distance.
The point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
For BlueHDi Diesel versions, the
degree of deterioration of the engine oil
is also taken into account (depending
on the country of sale).
33
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Service overdue
For 5 seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(300 km).
For 5 seconds after the ignition is switched on,
the screen indicates:
For BlueHDi Diesel versions, this alert
may also be accompanied by the fixed
illumination of the service warning lamp
when the ignition is on.
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
The rate of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.
34
Instruments
Resetting the service indicator
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
Retrieving the service
information

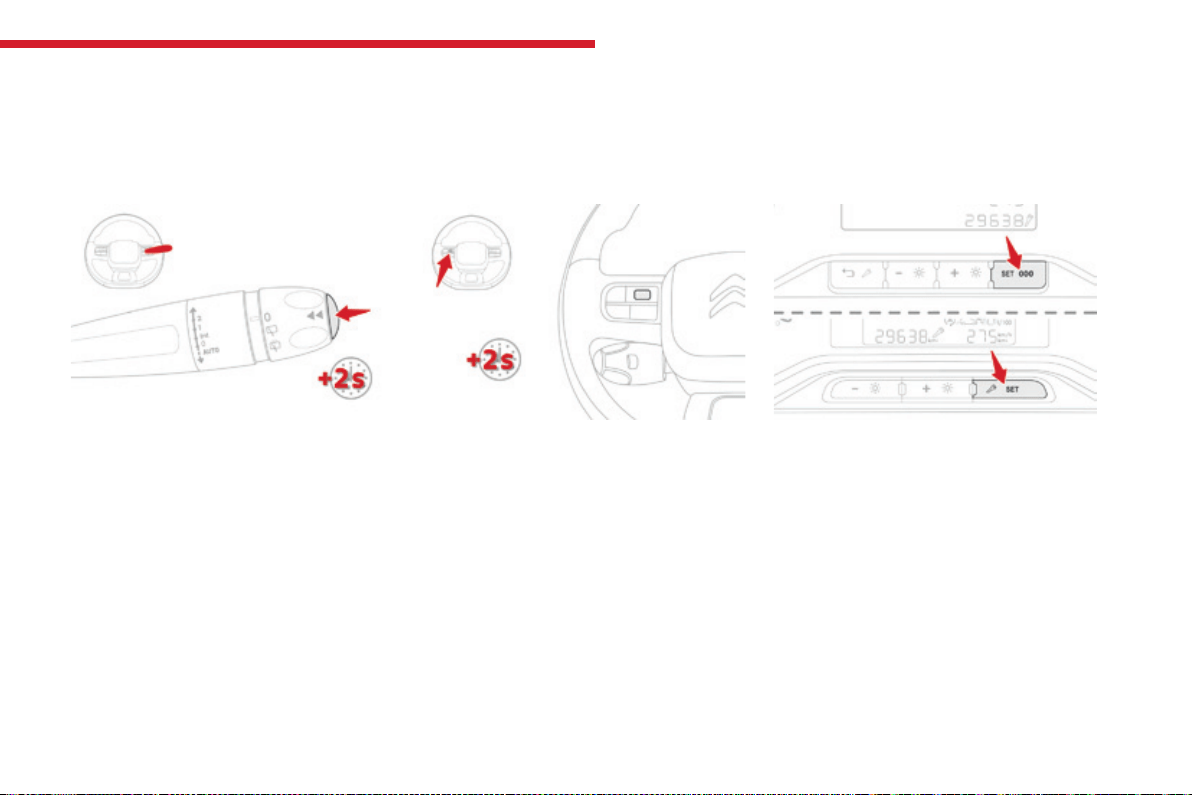

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself, switch off the ignition:
F Press and hold this button,
F Switch on the ignition; the distance
recorder display begins a countdown,
F When the display indicates "=0", release
the button; the spanner disappears.

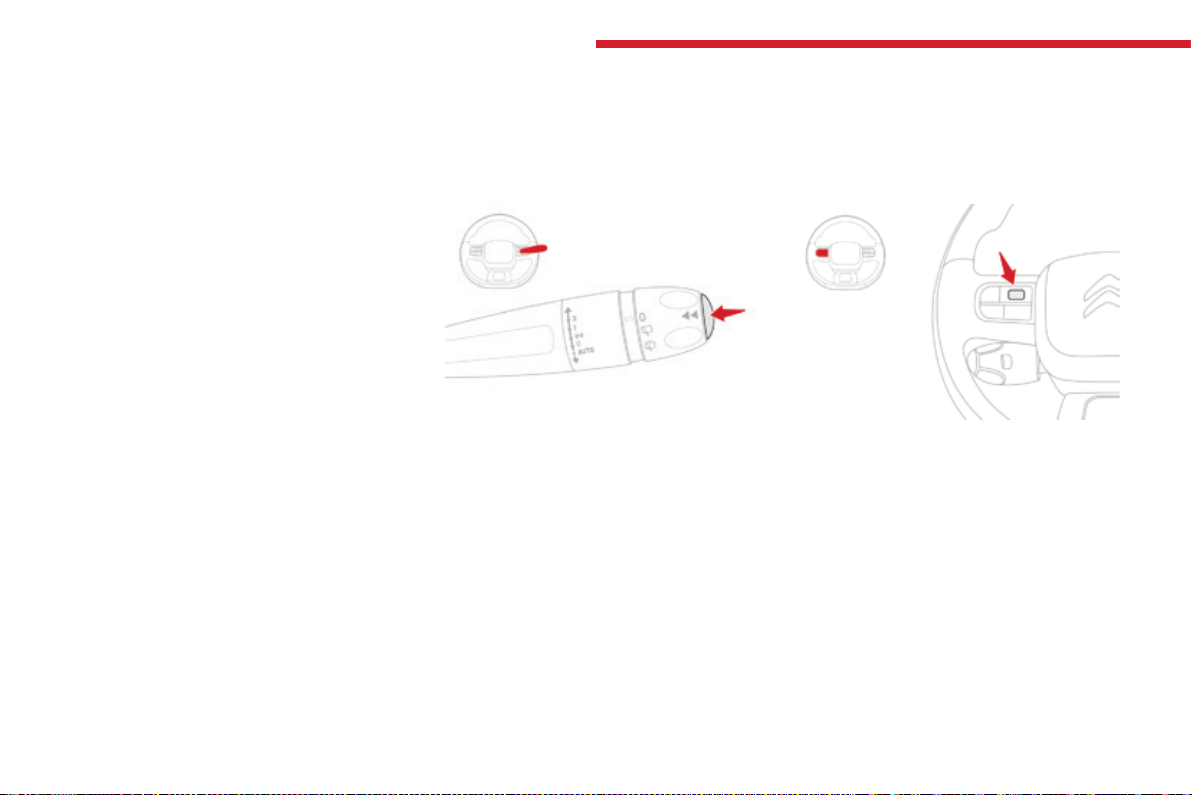

You can access the service information at any
time.
F Press this button.
The service information is displayed for a few
seconds, then disappears.
35
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.
The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.
Oil level correct
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
Oil level indicator fault
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
For more information on Checking
levels, refer to the corresponding
section.
* Depending on version.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels,
refer to the corresponding section.
36
Instruments
AdBlue
®
range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
®
tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
Pressing this button will temporarily
display the remaining range with the
message "AdBlue: range greater than
1 500 miles" and, depending on the
level in the AdBlue tank, followed by
a message indicating that you can
top up with at least 10 litres.
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
®
tank is
empty.
In the event of the risk of non-starting related to a lack of AdBlue
®
Remaining range greater than 1 500 miles (2 400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
37
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Remaining range between 350 and 1 500 miles (600 and 2 400 km)
Remaining range between 0 and 350 miles (0 and 600 km)
To be able to start the engine, it is
essential to add at least 4 litres of
AdBlue
®
to the tank.
When switching on the ignition, the AdBlue
warning lamp comes on, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before
engine starting is prevented (e.g. "NO START
IN 900 miles" means that starting will be
prevented in 900 miles).
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped up.
The reserve level has been reached; it is
recommended that the tank be topped up as
soon as possible.
It is recommended that no more than 10 litres
of AdBlue
®
are added.
For more information on AdBlue
®
and the
SCR system, and in particular on topping up,
refer to the corresponding section.
When switching on the ignition, the SERVICE
warning lamp comes on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before
engine starting is prevented (e.g. "NO START
IN 180 miles" means that starting will be
prevented in 180 miles).
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped up.
It is essential to top up the tank as soon
as possible before it is completely empty;
otherwise, the engine may no longer start.
For more information on AdBlue
®
and the SCR
system, and in particular on topping up, refer
to the corresponding section.
When switching on the ignition, the SERVICE
warning lamp comes on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the temporary display in the
instrument panel of "NO START IN" and 0 km
or miles ("NO START IN 0 miles" means that
starting is prevented).
The AdBlue tank is empty: the system required
by regulations prevents engine starting.
Breakdown related to a lack of AdBlue
®
For more information on AdBlue
®
and the SCR
system, and in particular on topping up, refer
to the corresponding section.
38
Instruments
In the event of detection of a fault with the SCR emissions control system
In the event of detection of a fault During an authorised driving phase
(between 650 miles and 0 miles) (1 100 km and 0 km)
A system that prevents engine starting is activated automatically 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a CITROËN dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after a self-diagnostics test of the SCR
emissions control system.
The AdBlue, SERVICE and engine self-
diagnostics warning lamps come on,
accompanied by an audible signal and the
display of the message "Emissions fault".
The alert is triggered when driving, when
the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), the
SERVICE and engine self-diagnostics warning
lamps come on and the AdBlue warning lamp
flashes, accompanied by an audible signal and
the temporary display in the instrument panel
of "NO START IN" and a distance, indicating
the remaining range expressed in miles or
kilometres before engine starting is prevented
(e.g. "NO START IN 350 miles" means that
starting will be prevented in 350 miles).
While driving, this display appears every 30 seconds
while the fault with the SCR system persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Otherwise, you will not be able to restart your
engine.
Starting prevented
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
Every time the ignition is switched on, the
SERVICE and engine self-diagnostics warning
lamps come on and the AdBlue warning lamp
flashes, accompanied by an audible signal and
the temporary display of "NO START IN" and
0 miles or kilometres ("NO START IN 0 miles"
means that starting is prevented).
39
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset by the driver.
Resetting the trip recorder
F With the ignition on, press the button until
dashes appear.
When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country.
The change of units is done via the
screen configuration menu, with the
vehicle stationary.
40
Instruments
If your vehicle is not fitted with an audio system or a touch screen, you can still configure certain
equipment using the Text LCD instrument panel.
Conguration of the equipment on vehicles without a screen
Control buttons
A brief press on this button gives
access to the configuration menu, a
brief press confirms.
Display menus
- LIGHTING:
● DAYTIME LAMPS (Daytime running
lamps),
● GUIDE LAMPS (Guide-me-home
lighting),
● WELCOME LAMPS (Welcome lighting).
- DRIVE ASSIST:
● CHK PRESSURES|REINITIALISE
(Reinitialisation of the tyre under-
inflation detection system),
● VIGILANCE ALT (Fatigue detection),
● ADVISED SPEED (Speed limit
recognition),
● PARKING (Parking sensors).
For more information on one of these functions,
refer to the corresponding section.
A press on one of these buttons
scrolls through a menu, a list;
changes a value.
A press on this button goes back a
level or abandons the operation in
progress.
41
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Monochrome screen C
This displays the following information:
- time,
- date,
- exterior temperature (this flashes if there is
a risk of ice),
- graphic parking sensor information,
- current audio source,
- telephone or hands-free kit system
information,
- alert messages,
- settings menus for the screen and the
vehicle equipment.
Displays in the screen
From the control panel of your audio system,
press:
F the "MENU" button for access to the main
menu,
F the "5" or "6" buttons to scroll through the
items on the screen,
F the "7" or "8" buttons to change a setting
value,
F the "OK" button to confirm,
or
F the "Back" button to abandon the
operation in progress.
Controls
F Press the "MENU" button for access to the
main menu:
- "Multimedia",
- "Telephone",
- "Trip computer",
- "Connections",
- "Personalisation-configuration",
F Press the "7" or "8" buttons to select the
menu required, then confirm by pressing
the "OK" button.
Main menu
42
Instruments
"Multimedia" menu
"Telephone" menu
"Trip computer" menu
Warning log
This summarises the warning messages for
systems, displaying them on the screen.
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB / FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and telematics"
supplement.
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and telematics"
supplement.
This menu allows you to view information on
the status of the vehicle.
"Connections" menu
With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be paired and the connection mode to be
defined (hands-free, playing audio files).
For more information on the "Connections"
application, refer to the "Audio and telematics"
supplement.
43
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
As a safety measure, the driver must
only perform operations requiring
sustained attention when stationary.
"Personalisation-configuration" menu
Dene the vehicle parameters
This menu permits activation / deactivation of
the following equipment, depending on version
and/or the country of sale:
- "Vehicle lighting":
● "Daytime lights".
- "Interior lighting":
● "Guide-me-home headlamps",
● "Welcome lighting".
- "Comfort":
● Tyre inflation,
● Fatigue Detection System,
● Parking assistance.
- "Driving assistance":
● "Speed recommendation",
● "Blind spot monitoring".
For more information on this equipment, refer
to the corresponding sections.
This menu gives access to the following functions:
- "Define the vehicle parameters",
- "Display configuration".
Display conguration
Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.
This menu gives access to the following
settings:
- "Choice of units",
- "Date and time adjustment",
- "Display personalisation",
- "Choice of language".
44
Instruments
Touch screen
The touch screen gives access to:
- the heating/air conditioning controls,
- menus for adjusting settings for vehicle
functions and systems,
- audio system and telephone controls and
the display of associated information,
For safety reasons, the driver
should only carry out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.
General operation
Recommendations
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Use this button to confirm.
Use this button to return to the
previous page.
Principles
Use the buttons on either side of the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.
Certain functions may be displayed over 1 or
2 pages.
To deactivate/activate a function, press OFF/
ON.
To modify a setting (lighting duration, etc.) or
access additional information, press the symbol
for the function.
After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
and, depending on equipment, allows:
- the display of alert messages and the
visual parking sensors information,
- the permanent display of the time and the
exterior temperature (a blue warning lamp
appears when there is a risk of ice),
- access to the controls for the navigation
system and Internet services, and the
display of associated information.
45
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Driving.
Allows the activation, deactivation and
adjustment of settings for certain functions.
Menus
Connected navigation or Mirror
Screen*.
See "Audio and telematics"
supplement.
Telephone.
See "Audio and telematics"
supplement.
Applications.
Allows the display of the connected
services available.
See "Audio and telematics"
supplement.
Air conditioning.
Allows control of the settings for
temperature, air flow, etc.
Radio Media.
See "Audio and telematics"
supplement.
Certain information is always present in the
upper bar of the touch screen:
- Recall of the air conditioning information,
and access to a simplified menu
(temperature and air flow adjustment only).
- Recall of information from the Radio Media
and Telephone menus and navigation
instructions*.
- Notifications zone (texts and email)*.
Upper bar
Volume / mute.
See "Audio and telematics"
supplement.
- Access to Configuration.
* Depending on equipment.
For more information on Heating, Manual
air conditioning and Automatic air
conditioning, refer to the corresponding
sections.
The functions accessible from this menu are
arranged under two tabs: "Vehicle settings"
and "Driving functions".
46
Instruments
Vehicle settings tab
Driving menu
The functions are grouped into 3 families:
Families Functions
Comfort - "Rear wiper in reverse": activation/deactivation of the rear wiper linked to reverse gear.
Lamps - "Guide-me-home lighting": activation/deactivation of the automatic guide-me-home lighting.
- "Welcome lighting": activation/deactivation of the exterior welcome lighting.
- "Daytime running lamps" (LED): depending on the country of sale.
Security - "Fatigue Detection System": activation/deactivation of the driver fatigue detection system.
- "Recommended speed display": activation/deactivation of the speed limit recognition system.
For more information on one of these functions, refer to the corresponding section.
47
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Driving functions tab
Corresponding function Comments
Stop & Start Activation/deactivation of the function.
Parking sensors Activation/deactivation of the function.
Traction control Activation/deactivation of the function
Blind spot sensors Activation/deactivation of the function.
Under-inflation initialisation Reinitialisation of the under-inflation detection system.
Adjusting Speeds Memorisation of speed settings for the speed limiter or the cruise control.
Diagnostic List of current alerts.
For more information on one of these functions, refer to the corresponding section.
48
Instruments
Button Comments
Turn off the screen.
Adjustment of brightness.
Choice and settings for three profiles.
Settings for the touch screen.
Activation and adjustment of Wi-Fi settings.
Conguration
The functions available through this menu are detailed in the table below. Certain adjustments are accessible in the secondary page.
49
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Button Comments
Adjustment of the display settings (scrolling of text, animations, etc.) and brightness.
Choice of units:
- temperature (°Celsius or °Fahrenheit)
- distance and fuel consumption (l/100 km, mpg or km/l).
Choice of language used for the touch screen.
Setting the date and time.
50
Instruments
Trip computer
System that gives you information on the current journey (range, fuel consumption…).
Display of information
These are displayed in turn:
- Trip distance.
- Range.
- Current consumption.
- Average speed.
- Stop & Start time counter.
- Speed limit recognition information.
F Press the button on the end of the wiper
control stalk.
F Press the thumbwheel on the steering
wheel.
51
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Trip reset
F Press the button on the end of the wiper
control stalk for more than two seconds.
F Press the thumbwheel on the steering
wheel for more than two seconds.
F Press this button for more than
two seconds.
The reset is carried out when the trip is displayed.
52
Instruments
A few definitions…
Range
(miles or km)
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).
This function is only displayed from
20 mph (30 km/h).
Current fuel
consumption
(mpg or l/100 km or km/l)
Distance travelled
(miles or km)
Stop & Start time counter
(minutes / seconds or hours /
minutes)
A time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip computer reset.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.
The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).
Calculated over the last few seconds.
Average speed
(mph or km/h)
Calculated since the last trip computer reset.
Calculated since the last trip computer reset.
53
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
Lighting dimmer control
Two buttons
With the exterior lighting on, press button A
to increase the brightness of the instruments
and controls and the interior mood lighting or
button B to reduce it.
As soon as the lighting reaches the required
level of brightness, release the button.
Touch screen
F In the Configuration menu, select
"Brightness".
F Adjust the brightness using the arrows or
by moving the cursor.
Allows the manual adjustment of the brightness of the instrument panel and touch screen to suit the
ambient light level.
Operates only when the vehicle lighting is on, with the exception of the daytime running lamps.
54
Instruments
Setting the date and time
With audio systemWithout audio system
F Press the MENU button for access to the
main menu.
F Press the "7" or "8" button to select the
"Personalisation-configuration" menu, then
the "OK" button.
F Press the "5" or "6" button to select the
"Display configuration" menu, then the
"OK" button.
F Press the "5" or "6" button to select the
"Date and time adjustment" line, then the
"OK" button.
F Press the "7" or "8" button to select the
setting to change. Confirm by pressing the
"OK" button.
F Adjust the settings one by one, confirming
by pressing the "OK" button.
F Press the "5" or "6" button, then the "OK"
button to select the "OK" box and confirm
or press the "Back" button to cancel.
With CITROËN Connect
Radio
F Select the Settings menu.
F Select "System configuration".
You can set the date and time from the
instrument panel display.
F Select "Date" or "Time".
F Choose the display formats.
F Change the date and/or the time using the
numeric keypad.
F Select "Date and time".
F Press this button to confirm.
F Press and hold this button.
F Press this button briefly to
confirm.
F Press one of these buttons to
select the setting to change.
F Press one of these buttons to
change the setting and confirm
again to save the change.
55
1
Instruments
B618_en_Chap01_Instruments-de-bord_ed01-2016
F Select the Settings menu.
F Press the "OPTIONS" button to go to the
secondary page.
The system does not automatically
manage the change between winter and
summer time (depending on country).
The change between winter and
summer time is done by changing the
time zone.
F Select the "Date" or "Time" tab.
F Set the time or the date using the numeric
keypad.
F Select "Setting the time-date".
F Press this button to confirm.
With CITROËN Connect Nav
The date and time settings are only available
if the synchronisation with the GPS is
deactivated.
Additional settings
You can choose to:
- change the date and time display format
(12hr / 24hr),
- change the time zone,
- activate or deactivate the synchronisation
with the GPS (UTC).
56
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
General points
Remote control
The remote control can be used for the
following functions, depending on version:
- unlocking / locking / deadlocking of the
vehicle,
- opening of the fuel tank cap,
- remote switching on of the lighting,
- activation / deactivation of the alarm,
- locating the vehicle,
- vehicle immobiliser.
In normal operating conditions, it is preferable
to use the remote control.
The key, integral with the remote control, can
be used for the following functions, depending
on version:
- unlocking / locking / deadlocking of the
vehicle,
- turning the child lock on or off,
- activation / deactivation of the passenger's
front airbag,
- back-up door locking,
- switching on the ignition and starting /
stopping the engine.
Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure of
the remote control, the central locking, the
battery...
For more information on the Back-up
procedures, refer to the corresponding
section.
Ejecting the key
Version with Keyless Entry and Starting
F Pull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button.
Version without Keyless Entry and Starting
F Press this button; the key is ejected from its
housing.
To avoid damaging the mechanism, first press
this button to fold it.
57
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
If one of the doors or the boot is not
fully closed, the locking does not take
place. However, if your vehicle has an
alarm, this will be fully activated after
about 45 seconds.
If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically
lock itself again after about 30 seconds.
If the alarm had been previously
activated, it will be reactivated
automatically.
F Press the open padlock to unlock
the vehicle.
Unlocking the vehicle
When the unlocking button is pressed, the
flashing of the direction indicators for a
few seconds signals:
- unlocking of the vehicle for versions
without an alarm,
- deactivation of the alarm for other versions.
Normal locking Deadlocking
F Press this button. F Make a first press on this button.
F Within five seconds, press this
button again to deadlock the
vehicle.
When the locking button is pressed,
illumination of the direction indicators for a few
seconds signals:
- locking of the vehicle for versions without
an alarm,
- activation of the alarm for other versions.
For versions without alarm, deadlocking is
confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button.
Locking the vehicle
Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
58
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Locating your vehicle
This function allows you to identify your vehicle
from a distance, especially when the light is
poor.
F Press this button.
The sidelamps and the dipped headlamps
come on for 30 seconds.
Pressing the button again before the end of this
period switches the lamps off immediately.
59
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Keyless Entry and Starting
System that allows the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.
The electronic key can also be used as
a remote control.
For more information on the Remote
Control, refer to the corresponding
section.
Unlocking the vehicle
F With the electronic key on your person and
in the recognition zone A, pass your hand
behind the door handle of one of the front
doors to unlock the vehicle or press the
tailgate opening control.
The flashing of the direction indicators
for a few seconds signals:
- unlocking of the vehicle for versions
without an alarm,
- deactivation of the alarm for other
versions.
60
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
As a safety measure (children on
board), never leave the vehicle without
taking the electronic key for the Keyless
Entry and Starting system with you,
even for a short period.
Be aware of the risk of theft when the
electronic key for the Keyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.
If one of the doors or the boot is still
open or if the electronic key for the
Keyless Entry and Starting system has
been left inside the vehicle, the central
locking does not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.
If the vehicle is unlocked by mistake
and with no action on the doors or boot,
the vehicle will lock again automatically
after about 30 seconds.
If fitted to your vehicle, the alarm will
also be reactivated automatically.
In order to preserve the battery in the
electronic key and the vehicle's battery,
the "hands-free" functions are put into
long-term standby after 21 days without
use. To restore these functions, press
one of the remote control buttons or
start the engine with the electronic key
in the reader.
For more information on Starting with
Keyless Entry and Starting, refer to
the corresponding section.
61
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Locking the vehicle
Normal locking
F With the electronic key in the recognition
zone A, press with a finger or thumb
on one of the front door handles (at the
markings) to lock the vehicle.
It is not possible to lock the vehicle if one of the
keys is left inside the vehicle.
The lighting of the direction indicators
for a few seconds signals:
- locking of the vehicle for versions
without an alarm,
- activation of the alarm for other
versions.
For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.
Accumulations (water, dust, grime,
salt...) on the inner surface of the door
handle may affect detection.
If cleaning the inner surface of the door
handle using a cloth does not restore
detection, contact a CITROËN dealer or
a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer, …)
may be identified by the system as the
desire to open the vehicle.
62
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Deadlocking renders the interior door
controls inoperative.
It also deactivates the central locking
button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking
F With the electronic key in the recognition
zone A, press a finger or thumb on one of
the front door handles (at the markings) to
lock the vehicle.
F Within five seconds, press the front door
handle again to deadlock the vehicle.
63
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Lost keys, remote control, electronic key
Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the
key code.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
For vehicles with an ignition switch, do not forget to remove the key and turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
64
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Back-up procedures
Total unlocking / locking of the vehicle with the key
Unlocking Normal locking
If the alarm is activated, the siren
sounds on opening the door; switch on
the ignition to stop it.
If your vehicle is fitted with an alarm,
this function will not be activated when
locking with the key.
These procedures should be used in the
following cases:
- remote control battery flat,
- remote control fault,
- vehicle in an area subject to strong
electromagnetic interference.
In the first case, you can also replace the
remote control battery.
Refer to the corresponding section.
In the second case, you can also reinitialise the
remote control.
Refer to the corresponding section.
F Insert the key in the door lock barrel.
F Turn the key towards the rear of the
vehicle.
For versions without alarm, the locking is
confirmed by flashing of the direction indicators
for a few seconds.
F Insert the key in the door lock barrel.
F Turn the key towards the front of the
vehicle.
For versions without alarm, the unlocking is
confirmed by flashing of the direction indicators
for a few seconds.
65
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Deadlocking
Without central locking
These procedures should be used in the
following cases:
- central locking fault,
- battery disconnected or discharged.
Driver's door
F Turn the key towards the rear of the vehicle
to lock it, or towards the front to unlock it.
F Insert the key in the door lock barrel.
F Turn the key towards the rear of the vehicle
to lock it.
F Within five seconds, turn the key towards
the rear of the vehicle again to deadlock it.
For versions without alarm, at the second
manoeuvre the deadlocking is confirmed
by flashing of the direction indicators for a
few seconds.
Passenger doors
Unlocking a door
F Pull the interior opening control for the
door.
Locking
F Open the doors.
F For the rear doors, check that the child lock
is not on.
Refer to the corresponding section.
F Remove the black cap on the edge of the
door, using the key.
F Without forcing, insert the key into the
aperture; then, without turning it, move the
latch sideways towards the inside of the
door.
F Remove the key and refit the black cap.
F Close the doors and check from the
outside that the vehicle is locked.
66
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Changing the battery
A message appears in the instrument panel screen when replacement of the battery is needed.
Version without Keyless Entry and
Starting
Battery type: CR1620 / 3 volts.
F Unclip the cover using a small screwdriver
at the cut-out.
F Lift off the cover.
F Remove the discharged battery from its
housing.
Version with Keyless Entry and
Starting
Battery type: CR2032 / 3 volts.
The remote control must be reinitialised after
replacing the battery.
For more information on reinitialising the
remote control, refer to the corresponding
section.
F Fit the new battery into its housing
observing the polarity.
F Clip the cover onto the casing.
67
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Reinitialising the remote control
Following replacement of the battery or in the event of a remote control fault, it may be necessary to reinitialise the remote control.
F Switch off the ignition.
F Turn the key to position 2 (ignition on).
F Press the closed padlock button for a few
seconds.
F Switch off the ignition and remove the key
from the switch.
The remote control is now fully operational
again.
F Place the electronic key against the back-
up reader on the steering column and hold
it there until the ignition is switched on.
F If your vehicle has a manual gearbox, place
the gear lever in neutral then fully depress
the clutch pedal.
F If your vehicle has an automatic gearbox,
select position P then press the brake
pedal firmly.
Version without Keyless
Entry and Starting
Version with Keyless Entry and
Starting
F Switch on the ignition by pressing
the "START/STOP" button.
The electronic key is now fully operational
again.
If the fault persists after reinitialisation, contact
a CITROËN dealer or a qualified workshop
without delay.
68
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Doors
From outside
F After unlocking the vehicle or with the
electronic key of the Keyless Entry and
Starting system in the recognition zone,
pull the door handle.
Opening
From inside
F Pull the interior control lever of a front door;
this unlocks the vehicle completely.
When a door is not closed correctly:
Closing
- with the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an alert message for a
few seconds.
- with the vehicle moving (speed above
6 mph (10 km/h)), in addition to the warning
lamp and alert message, there is an
audible signal for a few seconds.
69
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Boot
F With the vehicle unlocked or with the
Keyless Entry and Starting electronic key
in the recognition zone, press the tailgate
central control.
F Raise the tailgate.
Closing
F Lower the tailgate using one of the interior
grab handles.
If the tailgate is not closed correctly:
- when the engine is running,
this warning lamp comes on,
accompanied by a message for a
few seconds,
Back-up release
To manually unlock the boot in the event of a
battery or central locking failure.
Unlocking
F Fold back the rear seats to gain access to
the lock from inside the boot.
F Insert a small screwdriver into hole A of the
lock to unlock the tailgate.
F Move the latch to the left.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
Opening
- when the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message for a few seconds.
70
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Central locking
This function allows the doors and boot to be locked or unlocked simultaneously from inside the vehicle.
Locking
F Press this button to lock the vehicle.
The red indicator lamp in the button comes on.
Unlocking
F Press this button again to unlock the
vehicle.
The red indicator lamp in the button goes off.
If one of the doors is open, the central
locking from the inside does not take
place.
When locking / deadlocking
from the outside
When the vehicle is locked or
deadlocked from the outside, the red
indicator lamp flashes and the button is
inactive.
F After normal locking, pull one of the
interior door levers to unlock the
vehicle.
F After deadlocking, it is necessary
to use the remote control, Keyless
Entry and Starting or the integral
key to unlock the vehicle.
Manual mode Automatic mode
This is the automatic central locking of the
vehicle when driving, also called anti-intrusion
security.
For more information on Anti-intrusion
security, refer to the corresponding section.
71
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Anti-intrusion security
This system allows automatic simultaneous locking of the doors and boot as soon as the speed of
the vehicle exceeds 6 mph (10 km/h).
Operation
If one of the doors or the boot is open, the
automatic central locking does not take place.
Activation / Deactivation
You can activate or deactivate this function
permanently.
F With the ignition on, press this button
until an audible signal starts and a
corresponding message is displayed.
The state of the system stays in memory when
switching off the ignition.
This is signalled by the sound of
the locks rebounding, accompanied
by illumination of this symbol in the
instrument panel, an audible signal
and the display of an alert message.
Carrying long or
voluminous objects
If you want to drive with the boot open,
you should press the central locking
button to lock the doors. Otherwise,
every time the speed of the vehicle
exceeds 6 mph (10 km/h), the locks
will rebound and the alerts mentioned
above will appear.
Pressing the central locking button
unlocks the vehicle.
Above 6 mph (10 km/h), this unlocking
is temporary.
Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
72
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
* Depending on the country of sale.
Alarm*
System which protects and provides a deterrent
against theft and break-ins. It provides the
following type of monitoring:
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet, etc.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Following an instruction to lock
the vehicle, the exterior perimeter
monitoring is activated after a delay of
5 seconds.
If an opening (door, boot, etc.) is not
fully closed, the vehicle is not locked but
the exterior perimeter monitoring will be
activated after a delay of 45 seconds.
Locking the vehicle with alarm system
Activation
F Switch off the ignition and get out of the
vehicle.
F Lock the vehicle with the remote control
or with the "Keyless Entry and Starting"
system.
The monitoring system is active: the indicator
lamp in the locking button on the dashboard
flashes once per second and the direction
indicators come on for about 2 seconds.
Deactivation
F Unlock the vehicle with the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the locking button goes off
and the direction indicators flash for about
2 seconds.
If the vehicle automatically locks itself
again (as happens if a door or boot
is not opened within 30 seconds of
unlocking), the monitoring system is
also reactivated automatically.
73
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
30 seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp in
the locking button informs you that the alarm
was triggered during your absence. When the
ignition is switched on, this flashing stops.
Failure of the remote control
F unlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F open the door; the alarm is triggered,
F switch on the ignition; the alarm stops; the
indicator lamp in the button goes off.
When the ignition is switched on, and for
10 seconds, the flashing of the indicator lamp
in the locking button indicates a fault with the
system.
Have it checked by a CITROËN dealer or a
qualified workshop.
Locking the vehicle without
activating the alarm
To deactivate the monitoring functions:
F Lock or deadlock the vehicle using the
key (integral to the remote control) in the
driver's door lock.
Operating fault
74
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Electric windows
1. Left-hand front electric window.
2. Right-hand front electric window.
3. Right-hand rear electric window.
4. Left-hand rear electric window.
5. Deactivating the rear electric window
switches.
Manual operation
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
The electric window switches remain
operational for approximately one
minute after the key has been removed.
Once this time has elapsed, the electric
windows will not operate. To reactivate
them, switch the ignition on again.
Automatic one-touch
operation
(depending on version)
To open or close the window, press or pull
the switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
Safety anti-pinch
(depending on version)
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the window
when closing automatically, press the switch
until the window opens completely, then pull
the switch immediately until the window closes.
Continue to hold the switch for approximately
one second after the window has closed.
The safety anti-pinch function is not active
during this operation.
75
2
Acc ess
B618_en_Chap02_ouvertures_ed01-2016
Deactivating the rear
window controls
Reinitialising the electric
windows
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch is not active during these
operations:
- lower the window completely, then raise
it; it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
- press and hold the switch upwards for
at least one second after reaching this
position, window closed.
For the safety of your children, press switch 5
to prevent operation of the windows of the rear
doors, irrespective of their position.
With the warning lamp on, the rear switches
are deactivated. With the warning lamp off, the
switches are active.
Always remove the key when leaving
the vehicle, even for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
76
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Front seats
F Raise the control A and slide the seat
forwards or backwards.
F Pull the control C upwards to raise the seat
or push it downwards to lower it, as many
times as required, to obtain the desired
position.
F Turn the knob B to adjust the backrest.
Forwards-backwards HeightSeat backrest angle
Adjustments
(driver only)
As a safety measure, adjustments to the driver's seat must only be done when stationary.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat.
There is a risk of trapping or pinching passengers if present in the rear seats or jamming the seat if large objects are placed on the floor behind
the seat.
77
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Adjusting the height
Upward:
F pull the head restraint up to the desired
position; the head restraint can be felt to
click into position.
Downward:
F press the lug A and push the head restraint
down to the desired position.
The adjustment is correct when the
upper edge of the head restraint is level
with the top of your head.
Front head restraints
Never drive with the head restraints
removed; they should be in place and
correctly adjusted for the occupant of
the seat.
Removing a head restraint
F Pull the head restraint up as far as it will
go.
F Press the lug A to free the head restraint
and then pull it fully out.
F Stow the head restraint securely.
Retting a head restraint
F Introduce the head restraint rods into the
guides in the seat backrest.
F Push the head restraint down as far as it
will go.
F Press the lug A to free the head restraint
and push it down.
F Adjust the height of the head restraint.
78
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Heated seats
F With the engine running, use the control
wheel to switch on and select the level of
heating required:
0: Off.
1: Low.
2: Medium.
3: High.
Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the seat and passenger
compartment are at a comfortable
temperature, you can switch off the
function; reducing electric current
consumption also reduces fuel
consumption.
Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
- if wearing damp clothing,
- if child seats are fitted.
To avoid breaking the heating element
in the seat:
- do not place heavy objects on the
seat,
- do not kneel or stand on the seat,
- do not place sharp objects on the
seat,
- do not spill liquids onto the seat.
To avoid the risk of short-circuit:
- do not use liquid products for
cleaning the seat,
- never use the heating function
when the seat is damp.
The front seats can be heated individually.
79
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Rear seats
Bench seat with fixed cushions and split folding backrests (2/3-1/3) to adapt the boot load space.
They have two positions:
- a high position, for when the seat is in
use:
F pull the head restraint fully up.
- a low position, for stowing, when the seat
is not in use:
F press the lug A to release the head
restraint and push it fully down.
Never drive with passengers seated at
the rear when the head restraints are
removed; they must be in place and in
the high position.
The head restraint for the centre seat
and those for the outer seats are not
interchangeable.
To remove a head restraint:
F release the backrest using the control 1,
F tilt the backrest slightly forwards,
F pull the head restraint as far up as it will go,
F press the lug A to release the head
restraint and remove it completely,
F stow the head restraint.
Rear head restraints
The rear head restraints can be removed.
To refit a head restraint:
F introduce the rods of the head restraint into
the guides of the corresponding seat backrest,
F
push the head restraint down as far as it will go,
F press the lug A to free the head restraint
and push it fully down.
80
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Folding the backrests
First:
F lower the head restraints,
F if necessary, move the front seats forward,
F check that nothing or no person might
interfere with the folding of the backrests
(clothing, luggage, etc.),
F check that the outer seat belts are lying
correctly on the backrests.
When the backrest is released, the red
indicator is visible in the release grip.
F Press the backrest release grip 1.
F Guide the backrest 2 down to the horizontal
position.
Folding or unfolding the seat backrests
must only be done with the vehicle
stationary.
81
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Caution, a backrest that has not latched
correctly compromises the safety of
passengers in the event of sudden
braking or an accident.
The contents of the boot may be thrown
forward - Risk of serious injury!
First check that the outer seat belts are
lying vertically alongside the backrest
latching rings.
Returning the backrests to their original position
F Put the backrest 2 in the upright position
and push on it to latch it home.
F Check that the red indicator is no longer
visible in the release grip 1.
F Ensure that the outer seat belts are not
trapped during the manoeuvre.
82
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F Adjust the height and reach to suit your
driving position.
F Push the control lever to lock the
adjustment mechanism.
As a safety measure, these adjustments
should only be carried out with the
vehicle stationary.
Correct driving position
Before taking to the road and to make the most
of the ergonomics of your driving position, carry
out these adjustments in the following order:
- height of the head restraint,
- backrest angle,
- cushion height,
- longitudinal position of the seat,
- height of the steering wheel,
- the interior and door mirrors.
Once these adjustments have been made,
ensure that from your driving position you
can see the instrument panel clearly.
83
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Ventilation
Air intake
The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by the
driver:
- direct arrival in the passenger
compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air
conditioning).
Control panel
1. Windscreen demisting-defrosting vents.
2. Front side window demisting-defrosting
vents.
3. Adjustable side air vent.
4. Adjustable central air vents.
5. Air outlets for the front footwells.
6. Rear air outlets.
Air distribution
Depending on equipment, the
controls of this system are accessible
in the Air conditioning menu of
the touch screen or on the centre
console panel located below the
audio system.
The demisting/defrosting controls for the
windscreen and rear screen are located below
the touch screen or on the centre console
panel located below the audio system.
84
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F Do not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in perfect working order.
F Ensure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F To ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F If the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Start,
refer to the corresponding section.
85
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Heating
The heating system only operates with the engine running.
Temperature adjustment
F Turn the control from blue (cold) to red (hot)
to adjust the temperature to your wishes.
Air distribution adjustment
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function can also be used to speed
up the heating or cooling of the passenger
compartment.
Footwells.
Windscreen and footwells.
Windscreen.
The air distribution can be varied by placing the
control in an intermediate position.
Air intake / Air recirculation
F Press this button to select the
passenger compartment air
intake mode
When the indicator lamp is off, the exterior air
intake function is activated.
When the indicator lamp is on, the air
recirculation function is activated, the intake of
exterior air is inhibited.
Central and side air vents.
Avoid driving for too long without
ventilation (risk of misting and
deterioration of air quality).
Air flow adjustment
F Turn the knob from position 1 to 6 to obtain
the desired flow of air.
86
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Manual air conditioning
The manual air conditioning system operates with the engine running.
Air flow adjustment
F From position 1 to position 6, turn the
thumbwheel to obtain a sufficient air flow
for your comfort.
F Turn the control from blue (cold) to red (hot)
to adjust the temperature to your liking.
Air distribution adjustment
Central and side vents.
Windscreen.
Footwells.
Windscreen and footwells.
The distribution of the air can be
adjusted by placing the control in an
intermediate position.
Avoid driving for too long without
ventilation (risk of misting and
deterioration of air quality).
Temperature adjustment
Air intake / Air recirculation
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function can also be used to speed
up the heating or cooling of the passenger
compartment.
F Press this button to choose the
passenger compartment air
intake mode.
When the indicator lamp is off, the exterior air
intake function is activated.
When the indicator lamp is on, the air
recirculation function is activated, the intake of
exterior air is inhibited.
87
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
Air conditioning On / Off
Switching on
Switching off
The air conditioning does not operate
when the air flow adjustment is set
to off.
F Press this button to switch on the
air conditioning.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting
in winter, above 3°C.
F Press this button again to switch
off the air conditioning.
88
AUTO
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Automatic air conditioning
Operation of the air conditioning and regulation
of temperature, air flow and air distribution in
the passenger compartment are automatic.
Temperature adjustment
F Press this button to increase the
value.
F Press this button to decrease the
value.
F Select the Air conditioning
menu in the touch screen to
display the controls page for the
system.
The air conditioning system operates
automatically: the system manages the
temperature, air flow and air distribution in
the passenger compartment in an optimum
way according to the comfort level you have
selected.
F Press the AUTO button to
activate or deactivate the
automatic mode of the air
conditioning system.
Automatic comfort
programme
Activation / Deactivation
The air conditioning system operates with
the engine running, but the ventilation and its
controls are available with the ignition on.
The value indicated corresponds to a level of
comfort and not to a precise temperature.
89
3
Mode AUTO
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
In cold weather with the engine cold,
the air flow is increased gradually until
the comfort setting has been reached,
in order to limit the delivery of cold air
into the passenger compartment.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort setting requested,
there is no need to alter the value
displayed in order to reach more quickly
the required level of comfort. The
system compensates automatically and
corrects the temperature difference as
quickly as possible.
This setting is associated with AUTO mode
only. However, on deactivation of AUTO mode,
the last setting used remains on.
Changing the setting does not reactivate AUTO
mode if deactivated.
To change the current setting, press the button
several times in succession to access the
desired mode:
"Soft": provides soft and quiet operation by
limiting air flow.
"Normal": offers the best compromise between
a comfortable temperature and quiet operation
(default setting).
"Fast": provides strong and effective air flow.
Automatic programme mode setting
F Go to the secondary page by
pressing this button to vary the
automatic comfort programme,
choosing one of the modes
offered.
90
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Resuming manual control
You can manually adjust the air flow and
distribution.
As soon as you modify a setting, the automatic
comfort programme is deactivated.
F Press the AUTO button to
activate the automatic comfort
programme again.
Air ow adjustment
F Press one of these buttons to
increase or decrease the air flow.
The symbol for air flow (a fan) fills progressively
according to the air flow setting made.
By reducing the air flow to minimum, you are
stopping ventilation.
"OFF" is displayed alongside the fan.
Avoid driving for too long with the
ventilation off (risk of misting and
deterioration of air quality).
Air distribution adjustment
You can vary the distribution of air in the
passenger compartment using these three
buttons.
Windscreen.
Central and side vents.
Footwells.
The three buttons can be activated
simultaneously. In this case, the flows
of air from the central and side vents
and the footwell vents are favoured.
Each press on a button activates or deactivates
the function.
91
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Avoid the prolonged use of interior
air recirculation (risk of misting and
deterioration of air quality).
It allows you:
- in summer, to lower the temperature,
- in winter, above 3 °C, to improve demisting.
F Press this button again to switch
off the air conditioning.
F Press this button to switch on the
air conditioning.
Air conditioning On / Off
The air conditioning is designed to operate
efficiently in all seasons, with the windows closed.
The intake of exterior air avoids and eliminates
misting of the windscreen and side windows.
Air intake / Air recirculation
The recirculation of interior air prevents exterior
odours and smoke from entering the passenger
compartment.
F Press this button to recirculate
the interior air.
F Press this button again to allow
the intake of exterior air.
The air conditioning cannot operate
when the air flow is set to off.
This function also allows faster heating
or cooling of the air in the passenger
compartment.
Ventilation with
"ignition on" function
With the ignition on, you can use the ventilation
system and access the Air conditioning menu
to adjust the air flow and air distribution in
the passenger compartment.
This function is available for a few minutes,
depending on the state of charge of the battery
of your vehicle.
This function does not activate the air
conditioning.
You can make use of the residual heat in the
engine to warm the passenger compartment
using the temperature setting buttons.
Switching on
Switching off
92
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Front demist - defrost
With control panel on the
centre console
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
On
F Put the temperature and air flow controls to
the dedicated marked position.
F Put the air distribution control to the
"Windscreen" position.
Off
F Put the air flow control to the fan position.
These markings on the control panels indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.
During the winter period, direct the side air vents towards the side glasses to optimise
their demisting and defrosting.
With touch screen
On
Off
F Press this button again to switch it off.
The indicator lamp in the button goes off.
F Press this button.
The indicator lamp in the button
comes on.
The system automatically controls the air
conditioning, the air flow and the air intake and
provides optimum distribution of the ventilation
to the windscreen and side windows.
93
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Rear screen demist - defrost
Switching on
Switching off
F Press this button to demist/
defrost the rear screen and
(depending on version) the door
mirrors. The indicator lamp in the
button comes on.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
The rear screen demist - defrost
can only operate when the engine is
running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption.
F It is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing this button
again. The indicator lamp in the button
goes off.
94
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Courtesy lamp
1. Courtesy lamp
2. Map reading lamps
F With the ignition on, press the
corresponding switch.
Map reading lamps
With the "permanent lighting" mode,
the lighting time varies according to the
circumstances:
- with the ignition off, approximately
ten minutes,
- in energy economy mode,
approximately thirty seconds,
- with the engine running, unlimited.
In this position, the courtesy lamp
comes on gradually:
Permanently off.
Permanent lighting.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when opening a door,
- when the remote control locking button is
pressed, in order to locate your vehicle.
Take care to avoid leaving anything in
contact with the courtesy lamp.
Courtesy lamp
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
95
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.
Different lighting times are provided:
- when the ignition is off, approximately
ten minutes,
- in energy economy mode, approximately
thirty seconds,
- when the engine is running, no limit.
Boot lamp
This has a manual blind in two sections which helps to maintain a comfortable temperature and
reduce the noise in the passenger compartment.
Panoramic sunroof
F Pull the blind rearwards until it locks in.
Closing
Opening
F Pull the blind forwards until it locks in.
96
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Interior ttings
1. Sun visor.
2. Glove box.
3. 12 V accessory socket (max. 120 W).
4. USB port.
5. Auxiliary socket.
6. Open storage with double cup holder.
7. Front armrest
(depending on version)
8. Storage trays.
9. Mat.
(depending on version)
97
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Glove boxSun visor
The driver's sun visor is fitted with a vanity
mirror, with concealing flap and a document
(or ticket) holder.
It can be used to hold a water bottle, the
vehicle's handbook pack, etc.
Depending on version, it may have a lid. In this
case:
F To open the glove box, raise the handle.
F To connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
12 V socket
Do not exceed the maximum power
rating of the socket (otherwise there is a
risk of damaging your portable device).
Do not attach or stick anything to the
passenger's sun visor; this could cause
injuries if the front airbag (fitted in the
roof) is deployed.
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.
98
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Auxiliary socketUSB port
For more information on the use of this
equipment, refer to the "Audio and telematics"
supplement.
When the USB port is used, the
portable device charges automatically.
A message is displayed if the power
drawn by the portable device exceeds
the current supplied by the vehicle.
It permits the connection of a portable device
so that you can listen to your music files via the
vehicle's speakers.
The management of the files is done using your
portable device.
It allows the connection of a portable device or
a USB memory stick.
It reads the audio files which are sent to your
audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted or audio system controls.
For more information on using this equipment,
refer to the "Audio and telematics" supplement.
Front armrest
Comfort system for the driver and front
passenger.
Height adjustment
F Fully lower the armrest.
F Raise it to the required position (low,
intermediate or high).
F Once in the high position, lift to release it
and return it to the low position.
99
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Coat hooks
They are located above each rear door.
Mats
Fitting
When fitting the mat for the first time, on the
driver's side use only the fixings provided.
The other mats are simply placed on the
carpet.
Removal
To remove the mat on the driver's side:
F move the seat as far back as possible,
F unclip the fixings,
F remove the mat.
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
- never fit one mat on top of another.
The use of mats not approved by
CITROËN may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
Retting
To refit the mat on the driver's side:
F position the mat correctly,
F refit the fixings by pressing,
F check that the mat is secured correctly.
100
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Boot ttings
1. Rear parcel shelf.
2. Hooks.
3. Storage box.
4. Lighting.
5. Stowing rings.
101
3
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
To remove the shelf:
F unhook the two cords,
F raise the shelf slightly, then remove it.
Rear parcel shelf
There are several options for storing the shelf:
- either upright behind the front seats,
- or flat at the base of the boot.
The hooks can be used to secure shopping
bags.
HooksStorage box
For versions with storage box: it must
be in place before loading the boot.
F Remove the boot carpet for access to the
storage box.
Depending on the configuration, it is laid out for
storing:
- a towing eye,
- a temporary puncture repair kit,
- a warning triangle,
- ...
Take care to secure only light bags.
102
Ease of use and comfort
B618_en_Chap03_Ergonomie-et-confort_ed01-2016
Rear parcel shelf (enterprise version)
This conceals the interior of the vehicle in
combination with the existing shelf.
Do not place objects above the load
stop.
If your vehicle is fitted with a protective grille,
you can place objects above the load stop.
Do not place hard or heavy objects on
the rear parcel shelf.
They could become dangerous
projectiles in the event of sudden
braking or a collision.
To access the spare wheel on the enterprise
versions:
- Remove the tray.
- Raise the hinged floor.
- Remove the shim.
103
4
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Mirrors
Door mirrors
Each fitted with an adjustable mirror glass
providing the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Demisting - Defrosting
Electric adjustment
F Move control A to the right or to the left to
select the corresponding mirror.
F Move control in all four directions to adjust.
F Return control to the central position.
For more information on demisting and
defrosting the rear screen, refer to the
corresponding section.
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.
Manual folding
You can fold the mirrors manually (tight parking
space, narrow garage...).
F Turn the mirror towards the vehicle.
Manual adjustment
F Operate the lever in the four directions to
adjust the angle of the mirror glass.
104
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Rear view mirror
Manual model
Adjustment
F Adjust the mirror so that the glass is
directed correctly in the "day" position.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Day / night position
F Pull the lever to change to the "night" anti-
dazzle position.
F Push the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
105
4
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Lighting control
Main lighting
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility
progressively according to the climatic
conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearly when
the road is clear.
Additional lighting
Other lamps are provided (depending on
version) to meet the requirements of particular
driving conditions:
- a rear foglamp,
- front foglamps,
- daytime running lamps to be more visible
during the day,
- guide-me-home lighting to facilitate your
exit from the vehicle,
- parking lamps as vehicle position markers.
In the event of the failure of one or more
bulbs, a message advises you to check
the lamp(s) in question.
Travelling abroad
For motoring in countries that drive
on the other side of the road, it is
necessary to adapt the adjustment of
the dipped beams so as not to dazzle
the drivers of approaching vehicles.
Contact a CITROËN dealer or qualified
workshop.
Programming
Certain functions can be configured:
- guide-me-home lighting,
- welcome lighting,
- daytime running lamps.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
106
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Without AUTO lighting
With AUTO lighting
Selection ring for main lighting
mode
Turn the ring to position the symbol required
facing the mark.
Lighting off / Daytime running lamps.
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
Pull the stalk to switch the lighting between
dipped / main beam headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Display
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.
107
4
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Foglamp selection ring
The foglamps operate with dipped and main beam headlamps.
Front foglamps and rear
foglamp
When the headlamps switch off with automatic
illumination of headlamps (AUTO model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F Turn the ring rearwards to switch off
the foglamps, the sidelamps will then
switch off.
Rear foglamp only
F To switch it on, turn the ring forwards.
When the lighting is switched off automatically
(with AUTO model), the foglamp and the dipped
beam headlamps will remain on.
F To switch it off, turn the ring rearwards.
Rotate and release the ring:
F forwards a first time to switch on the front
foglamps,
F forwards a second time to switch on the
rear foglamp,
F rearwards a first time to switch off the rear
foglamp,
F rearwards a second time to switch off the
front foglamps.
108
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Switching off the lamps when
the ignition is switched off
On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.
Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of 30 minutes to
avoid discharging the battery.
Direction indicators
F Left: lower the lighting control stalk passing
the point of resistance.
F Right: raise the lighting control stalk
passing the point of resistance.
Three ashes of the direction
indicators
F Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will
flash 3 times.
109
4
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Activation
F Turn the ring to the "AUTO" position.
Activation of the function is accompanied by
the display of a message.
When a low level of ambient light is detected by a sunshine sensor, the number plate lamps, sidelamps and dipped beam headlamps are switched on
automatically, without any action on the part of the driver. They can also come on if rain is detected, at the same time as automatic operation of the
windscreen wipers.
As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Deactivation
F Turn the ring to another position.
Deactivation of the function is accompanied by
the display of a message.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed in
the instrument panel accompanied by
an audible signal and/or a message.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located at the top centre of the
windscreen behind the rear view mirror;
the associated functions would no
longer be controlled.
Contact a CITROËN dealer or a qualified
workshop.
Automatic illumination of headlamps
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
110
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F Depending on version, within one minute
of switching off the ignition, operate the
lighting control stalk up or down depending
on the traffic side (e.g. when parking on
the left, lighting control stalk upwards, the
right-hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position.
The front and rear lamps come on
automatically when the engine is started.
They provide the following functions:
- Daytime running lamps (lighting control
stalk in position "0" or "AUTO" with
adequate light level).
- Sidelamps (lighting control stalk in
position "AUTO" with low light level or
"Sidelamps only" or "Main or dipped beam
headlamps").
The LEDs are brighter when operating
as daytime running lamps.
Daytime running
lamps / Sidelamps
111
4
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F A further "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
"Guide-me-home" lighting
Automatic
When the automatic illumination of headlamps
function is activated (lighting control stalk at
the AUTO position), if the ambient light level
is low, the dipped beam headlamps come on
automatically when switching off the ignition.
Activation or deactivation of the system,
as well as the period of operation of the
guide-me-home lighting is set via the vehicle
configuration menu.
Manual
Automatic exterior
welcome lighting
When the automatic illumination of headlamps
function is activated, if the ambient light
level is low, the sidelamps and dipped beam
headlamps come on automatically when
unlocking the vehicle.
Activation or deactivation of the system,
as well as the period of operation of the
exterior welcome lighting is set via the vehicle
configuration menu.
112
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Headlamp beam
height adjustment
To avoid causing a nuisance to other road users,
the height of the headlamp beams should be
adjusted according to the load in the vehicle.
0. Driver only
or driver + front passenger.
-. Driver + front passenger + rear
passengers.
1. Driver + front passenger + rear
passengers + load in the boot.
-. Driver + front passenger + rear
passengers + load in the boot.
2. Driver only + maximum authorised load in
the boot.
This position is sufficient to avoid causing dazzle.
Higher settings may limit the spread of light from
the headlamps.
The initial setting is position "0".
113
4
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Wiper control stalk
Manual controls
The wipers are controlled directly by the driver.
With AUTO wiping
With manual wiping
Windscreen wipers
Wiping speed control stalk: raise or lower the
stalk to the desired position.
Fast wipe (heavy rain).
Normal wipe (moderate rain).
Intermittent wipe (proportional to the
speed of the vehicle).
Park.
Single wipe (press downwards or pull
the stalk briefly towards you, then
release).
or
Automatic wiping (press down,
then release) or single wipe (pull
the stalk briefly towards you).
Do not operate the wipers on a dry
windscreen. Under extremely hot or
cold conditions, ensure that the wiper
blades are not stuck to the windscreen
before operating the wipers.
In wintry conditions, remove snow, ice
or frost present on the windscreen,
around the wiper arms and blades and
the windscreen seal, before operating
the wipers.
114
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Rear wiper
Park.
Intermittent wipe (proportional to the
vehicle speed).
Wash-wipe (set duration).
Rear wiper selection ring:
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are operating.
Activation or deactivation of this automatic
function can only be set via the touch screen.
Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen wipers,
operate for a pre-determined time.
The screenwash jets are not adjustable.
Do not try to move them (risk of
damage).
F In the Driving menu, select the
"Vehicle settings" tab.
F Select "Comfort" then "Rear
wiper in reverse".
This function is activated by default.
If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, deactivate the
automatic rear wiper.
115
4
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have the system checked by a CITROËN
dealer or a qualified workshop.
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Switching on
Switching off
The automatic rain sensitive windscreen
wipers must be reactivated, by pushing
the control stalk downwards, if the
ignition has been off for more than
one minute.
Briefly push the control stalk
downwards.
A wiping cycle confirms that the
instruction has been accepted.
This symbol appears in the
instrument panel display and a
message is displayed.
Briefly push the control stalk
downwards again, or place the control
stalk in another position (Int, 1 or 2).
Automatic rain sensitive windscreen wipers
This symbol disappears from the instrument
panel display and a message is displayed.
116
Lighting and visibility
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016
Special position of the windscreen wipers
To maintain the effectiveness of the
wiper blades, it is advisable to:
- handle them with care,
- clean them regularly using soapy
water,
- avoid using them to retain
cardboard on the windscreen,
- replace them at the first signs of
wear.
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
wiper blades. It can also be useful, in winter, to
release the wiper blades from the windscreen.
F Any action on the wiper stalk within
one minute after switching off the ignition
places the wiper blades vertically on the
screen.
F To park the wiper blades again, switch on
the ignition and operate the wiper stalk.
117
5
Safety
B618_en_Chap05_securite_ed01-2016
General safety recommendations
Labels are applied at various
points on your vehicle. They carry
safety warnings as well as vehicle
identification information. Do not
remove them: they form an integral part
of your vehicle.
For any work on your vehicle, use
a qualified workshop that has the
technical information, skills and
equipment required, all of which a
CITROËN dealer is able to provide.
We draw your attention to the following points:
- The fitting of electrical equipment or accessories not listed by CITROËN may cause
excessive current consumption and faults and failures with the electrical system of
your vehicle. Contact a CITROËN dealer for information on the range of recommended
accessories.
- As a safety measure, access to the diagnostic socket, used for the vehicle's electronic
systems, is reserved strictly for CITROËN dealers or qualified workshops, equipped
with the special tools required (risk of malfunctions of the vehicle's electronic systems
that could cause breakdowns or serious accidents). The manufacturer cannot be held
responsible if this advice is not followed.
- Any modification or adaptation not intended or authorised by Automobiles CITROËN
or carried out without meeting the technical requirements defined by the manufacturer
would lead to the suspension of the legal and contractual warranties.
Installation of accessory radio communication transmitters
Before installing a radio communication transmitter, you must contact a CITROËN dealer
for the specification of transmitters which can be fitted (frequency, maximum power,
aerial position, specific installation requirements), in line with the Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, certain safety equipment may be
compulsory: high visibility safety vests, warning triangles, breathalysers, spare bulbs, spare
fuses, fire extinguisher, first aid kit, mud flaps at the rear of the vehicle...
118
Safety
B618_en_Chap05_securite_ed01-2016
Hazard warning lamps
Visual warning with all of the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
F Press this button, all of the direction
indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
F You can also switch them off by pressing
the button.
Horn
F Press the central part of the steering
wheel.
119
5
Safety
B618_en_Chap05_securite_ed01-2016
Emergency or assistance call
Localised Emergency Call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you benefit from the CITROËN
Connect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyCITROËN personal space, via
the Internet website for your country.
In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.
The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call.
Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.
Localised Emergency Call immediately locates
your vehicle, makes contact with you in your
language** and - if necessary - organises
sending of the appropriate emergency
services**. In countries where the service is not
operational, or if the locating service has been
expressly declined, the call is directed straight
to the emergency services (112) without
location.
* Depending on the terms and conditions for
the service, available from dealers, and
technological and technical limits.
** Depending on the geographic cover for
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.
The list of countries covered by Telematic
services is available at dealers or at
www.citroen.co.uk.
120
Safety
B618_en_Chap05_securite_ed01-2016
Localised Assistance Call
Operation of the system
If you purchased your vehicle outside
the CITROËN dealer network, we
suggest that you have a dealer check
and, if desired, modify the configuration
of these services.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to carry
out updates to the vehicle's on-board
telematic system.
When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.
If the orange indicator lamp
flashes then goes off: the system
has a fault.
The fault with the system does not
prevent the vehicle being driven.
Press this button for more than
2 seconds to request assistance if
the vehicle breaks down.
** Depending on the geographic cover for
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.
The list of countries covered by Telematic
services is available at dealers or at
www.citroen.co.uk.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
Call" to confirm.
Contact a qualified repairer as soon as
possible.
If the orange indicator lamp is on fixed: the
back-up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
A voice message confirms that the call has
been made**.
121
5
Safety
B618_en_Chap05_securite_ed01-2016
Localised Emergency Call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you benefit from the CITROËN
Connect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyCITROËN personal space, via
the Internet website for your country.
In an emergency, press this
button for more than 2 seconds.
Flashing of the green LED and
a voice message confirm that
the call has been made to the
"Localised Emergency Call" call
centre*.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call.
Pressing this button again immediately cancels
the request.
The green LED goes off.
"Localised Emergency Call" immediately
locates your vehicle, starts communication with
you in your language**, and where necessary
sends the appropriate public emergency
services**. In countries where the service is
not available, or when the locating service has
been expressly declined, the call is sent directly
to the emergency services (112) without the
vehicle location.
* Subject to the general conditions for the
service available from dealers and subject to
technological and technical limitations.
** Depending on the geographical cover of
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.
The list of countries covered and Telematic
services is available from dealers or at
www.citroen.co.uk.
Emergency or assistance call
122
Safety
B618_en_Chap05_securite_ed01-2016
Localised Assistance Call
Operation of the system
If you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes. In
a multi-lingual country, configuration is
possible in the official national language
of your choice.
For technical reasons and in particular
to improve the quality of "Telematic
services" services to customers, the
manufacturer reserves the right to carry
out updates to the vehicle's on-board
telematic system.
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
The red indicator lamp flashes
then goes off: there is a system
fault.
The red indicator lamp is on
continuously: there is a system
fault.
A fault with the system does not prevent
the vehicle being driven.
Press this button for more than
2 seconds to request assistance if
the vehicle breaks down.
** Depending on the geographical cover of
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.
The list of countries covered and Telematic
services is available from dealers or at
www.citroen.co.uk.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
CallLocalisé" to confirm.
The red indicator lamp is on continuously:
replace the back-up battery.
The red indicator lamp flashes: replace the
back-up battery.
A voice message confirms that the call has
been made**.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible.
For Russia, Belarus and Kazakhstan.
For all countries except Russia, Belarus
and Kazakhstan.
123
5
Safety
B618_en_Chap05_securite_ed01-2016
Electronic stability control (ESC) incorporating the following systems:
- anti-lock braking system (ABS) and electronic brake force distribution (EBFD),
- emergency braking assistance (EBA),
- wheel anti-slip regulation (ASR) or traction control,
- dynamic stability control (DSC).
Electronic stability control (ESC)
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
This system improves the stability and
manoeuvrability of your vehicle when braking
and contributes towards improved control on
corners, in particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the event of
emergency braking.
The EBFD manages the braking pressure
wheel by wheel.
Emergency braking assistance
(EBA)
In an emergency, this system enables you to
reach the optimum braking pressure more
quickly and therefore reduce the stopping
distance.
It is triggered according to the speed at which
the brake pedal is pressed. This is felt by a
reduction in the resistance of the pedal and an
increase in the effectiveness of the braking.
Anti-slip regulation (ASR)
The ASR system (also known as Traction
Control) optimises traction in order to limit
wheel slip by acting on the brakes of the driving
wheels and on the engine. It also improves
the directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically acts on the brake of one or more
wheels and on the engine to return the vehicle
to the required path, within the limits of the laws
of physics.
124
Safety
B618_en_Chap05_securite_ed01-2016
When this warning lamp comes on,
coupled with the STOP and ABS warning
lamps, accompanied by an audible signal
and a message, it indicates that there
is a fault with the electronic brake force
distribution (EBFD).
Anti-lock braking system (ABS) and electronic brake force
distribution (EBFD)
The fixed illumination of this warning
lamp indicates that there is a fault
with the ABS.
The vehicle retains conventional
braking. Drive carefully at moderate
speed.
When changing wheels (tyres and
rims), ensure that these are approved
for your vehicle.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal.
In emergency braking, press very
firmly and maintain this pressure.
You must stop as soon as it is safe to do so.
In both cases, have the system checked by a
CITROËN dealer or a qualified workshop as
soon as possible.
125
5
Safety
B618_en_Chap05_securite_ed01-2016
Anti-slip regulation (ASR)
After an impact, have the system
checked by a CITROËN dealer or a
qualified workshop.
Activation
This system is activated automatically each
time the vehicle is started.
It comes into operation in the event of a
problem of grip.
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground, etc.), it may be advisable to deactivate
the ASR system, so that the wheels can turn
freely and regain grip.
This is indicated by the flashing of
this warning lamp in the instrument
panel.
Operating fault
Reactivate the systems as soon as the level of
grip permits.
Deactivation is via the Driving menu
of the touch screen.
It is confirmed by a message.
Reactivation
The system is reactivated automatically every
time the ignition is switched back on or from
30 mph (50 km/h).
Below 30 mph (50 km/h), you can reactivate it
manually.
Reactivation is via the Driving menu
of the touch screen.
It is confirmed by a message.
Illumination of this warning lamp,
accompanied by an audible signal
and a message, indicate a fault with
the system.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
ASR / DSC
These systems offer even greater
safety during normal driving but should
not encourage the driver to take
additional risks or drive at excessively
high speed.
It is when the traction conditions
deteriorate (rain, snow, ice) that the risk
of loss of grip increases. Therefore, for
your safety, it is essential to leave these
systems active in all conditions, and
particularly in difficult conditions.
The operation of these systems
is assured on condition that the
manufacturer's recommendations
concerning the wheels (tyres and rims),
the braking components, the electronic
components and the CITROËN network
fitting and repair procedures are
complied with.
To ensure the effectiveness of these
systems in winter conditions, it is
essential to fit the vehicle with four
snow tyres which will enable the vehicle
to maintain neutral handling.
126
Safety
B618_en_Chap05_securite_ed01-2016
Seat belts
Front seat belts
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
Fastening
F Pull the strap, then insert the tongue in the
buckle.
F Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F Guide the seat belt as it reels in.
Rear seat belts
The rear seats are each fitted with a three-point
inertia reel seat belt.
The side seats have a pretensioning system
and a force limiter.
127
5
Safety
B618_en_Chap05_securite_ed01-2016
From approximately 12 mph
(20 km/h), the warning lamp(s)
flash(es) for two minutes
accompanied by an audible signal.
Once these two minutes have
elapsed, the warning lamp(s)
remain(s) on until the driver or front
passenger fastens their seat belt.
Seat belt not fastened / unfastened warning lamps Front seat belt warning lamps
On switching on the ignition, warning
lamp(s) A and/or B or C (depending
on the instrument panel) come(s)
on in the instrument panel and the
corresponding warning lamp (1 or 2)
comes on in red in the passenger's
seat belt and front airbag warning
lamp display, if the driver's seat belt
or passengers' seat belts are not
fastened or are unfastened.
Symbols LCD instrument panel.
A. Front left seat belt not fastened /
unfastened warning lamp.
B. Front right seat belt not fastened /
unfastened warning lamp.
Rear seat belt warning lamps
The corresponding warning
lamp (3 to 5) comes on in red in the
seat belt and front airbag warning
lamp display, if one or more rear
passengers unfasten their seat belt.
1. Front left seat belt warning lamp.
2. Front right seat belt warning lamp.
3. Rear right seat belt warning lamp.
4. Rear centre seat belt warning lamp.
5. Rear left seat belt warning lamp.
Text LCD instrument panel.
C. Front and rear seat belts not fastened /
unfastened warning lamp.
128
Safety
B618_en_Chap05_securite_ed01-2016
The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfill their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.
In the event of an impact
Depending on the nature and
seriousness of the impact, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
In order to be effective, a seat belt must:
- be tightened as close to the body as
possible,
- be pulled in front of you with a smooth
movement, checking that it does not
twist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modified to avoid
affecting its performance.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on Child seats, refer
to the corresponding section.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
Advice
129
5
Safety
B618_en_Chap05_securite_ed01-2016
Airbags
General information
The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
Deployment of one or more of the
airbags is accompanied by a slight
emission of smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience slight
irritation.
The noise of detonation associated with
the deployment of one or more airbags
may result in a slight loss of hearing for
a short time.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
System designed to contribute towards
improving the safety of the occupants (with
the exception of the rear centre passenger)
in the event of violent collisions. The airbags
supplement the action of the seat belts fitted
with force limiters (all except the centre rear
passenger belt).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
- in the case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle (with the exception of the
rear centre passenger); immediately after
the impact, the airbags deflate rapidly so
that they do not hinder visibility or the exit
of the occupants,
- in the case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt
alone contributes towards ensuring your
protection in these situations.
130
Safety
B618_en_Chap05_securite_ed01-2016
Deactivating the passenger's
front airbag
Only the passenger's front airbag can be
deactivated.
F With the ignition off, insert the key in the
passenger airbag deactivation switch.
F Turn it to the "OFF" position.
F Remove the key keeping the switch in the
new position.
When the ignition is switched on, this
warning lamp comes in the seat belt
warning lamps display screen or in
the instrument panel. It stays on while
the airbag is deactivated.
To assure the safety of your child,
the passenger's front airbag must be
deactivated when you install a rearward
facing child seat on the front passenger
seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Reactivating the passenger's
front airbag
When you remove a rearward facing child
seat, with the ignition off, turn the switch to
the "ON" position to reactivate the airbag and
so assure the safety of your front passenger in
the event of an impact.
Front airbags
Deployment
The airbags are deployed, except the
passenger's front airbag if it is deactivated, in the
event of a serious front impact to all or part of the
front impact zone A, in the longitudinal centreline
of the vehicle on a horizontal plane and directed
from the front to the rear of the vehicle.
The front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steering wheel, driver's side, and the
dashboard, passenger's side, to cushion their
forward movement.
System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
When the ignition is switched on,
this warning lamp comes on in the
seat belt warning lamps display
screen or in the instrument panel for
approximately one minute to signal
that the front airbag is activated.
Operating fault
If this warning lamp comes on in the
instrument panel, you must contact a
CITROËN dealer or a qualified workshop
without delay to have the system
checked. The airbags may no longer be
deployed in the event of a serious impact.
131
5
Safety
B618_en_Chap05_securite_ed01-2016
Lateral airbags
Deployment
A lateral airbag is deployed unilaterally in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel.
System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
132
Safety
B618_en_Chap05_securite_ed01-2016
In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbags may not
be deployed.
In the event of a rear or front collision,
none of the lateral airbags is deployed.
System contributing towards greater protection
for the driver and passengers (with the
exception of the rear centre passenger) in the
event of a serious side impact in order to limit
the risk of injury to the side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.
Curtain airbags
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.
If this warning lamp comes on in the
instrument panel, you must contact
a CITROËN dealer or a qualified
workshop to have the system checked.
Operating fault
The airbags may no longer be deployed in the
event of a serious impact.
133
5
Safety
B618_en_Chap05_securite_ed01-2016
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel, the dashboard or the passenger's
sun visor as this could cause injuries with
deployment of the airbags.
Advice
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.
For the airbags to be fully effective, observe the safety recommendations below:
The vehicle's front door panels include side
impact sensors.
A damaged door or any unauthorised or
incorrectly executed work (modification or
repair) on the front doors or their interior trim
could compromise the operation of these
sensors - Risk of malfunction of the lateral
airbags!
Such work must only be done by a CITROËN
dealer or a qualified workshop.
134
Safety
B618_en_Chap05_securite_ed01-2016
General points relating to child seats
CITROËN recommends that children
should travel on the rear seats of your
vehicle:
- rearward facing up to the age of 3,
- forward facing over the age of 3.
Although one of CITROËN's main criteria when designing your vehicle, the safety of your children
also depends on you.
For maximum safety, please observe the
following recommendations:
- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight, on seats fitted with a seat
belt or ISOFIX mountings*,
- statistically, the safest seats in your
vehicle for carrying children are the
rear seats,
- a child weighing less than 9 kg must
travel in the rearward facing position
both in the front and in the rear.
* The regulations on carrying children are
specific to each country. Refer to the
legislation in force in your country.
135
5
Safety
B618_en_Chap05_securite_ed01-2016
Child seat at the rear
Rearward facing
When a rearward facing child seat is installed
on a rear passenger seat, move the vehicle's
front seat forward and straighten the backrest
so that the rearward facing child seat does not
touch the vehicle's front seat.
Forward facing
When a forward facing child seat is installed
on a rear passenger seat, move the vehicle's
front seat forward and straighten the backrest
so that the legs of the child in the forward
facing child seat do not touch the vehicle's front
seat.
Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that this is in firm contact with
the floor. If necessary, adjust the front
seat of the vehicle.
Centre rear seat
A child seat with a support leg must never be
installed on the centre rear passenger seat.
136
Safety
B618_en_Chap05_securite_ed01-2016
Child seat in the front*
Rearward facing Forward facing
Passenger seat adjusted to the fully back
position.
Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that the support leg is in stable
contact with the floor. If necessary,
adjust the passenger seat.
When a rearward facing child seat is installed
on the front passenger seat, adjust the seat
to the fully back position, with the backrest
straightened.
The passenger's front airbag must be
deactivated. Otherwise, the child would
risk being seriously injured or killed if the
airbag were to inflate.
When a forward facing child seat is installed on
the front passenger seat, adjust the vehicle's
seat to the fully back position with seat backrest
straightened and leave the passenger's front
airbag activated.
* Refer to the current legislation in your country
before installing a child seat on this seat.
137
5
Safety
B618_en_Chap05_securite_ed01-2016
Passenger airbag OFF
The warning label present on both sides of the
passenger sun visor repeats this advice.
In line with current legislation, the following
tables contain this warning in all of the
languages required.
Never install a rearward facing child
restraint system on a seat protected by
an active front airbag.
This could cause the death of the child
or serious injury.
For more information on the Airbags,
refer to the corresponding section.
Deactivating the passenger front airbag
138
AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. Това може да причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CS
NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ.
DA
Brug ALDRIG en bagudvendt barnestol på et sæde, der er beskyttet af en AKTIV AIRBAG. BARNET risikerer at blive ALVORLIGT
KVÆSTET eller DRÆBT.
DE
Montieren Sie auf einem Sitz mit AKTIVIERTEM Front-Airbag NIEMALS einen Kindersitz oder eine Babyschale entgegen der Fahrtrichtung,
das Kind könnte schwere oder sogar tödliche Verletzungen erleiden.
EL
Μη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
EN
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the
CHILD can occur
ES
NO INSTALAR NUNCA un sistema de retención para niños de espaldas al sentido de la marcha en un asiento protegido mediante un
AIRBAG frontal ACTIVADO, ya que podría causar lesiones GRAVES o incluso la MUERTE del niño.
ET
Ärge MITTE KUNAGI paigaldage "seljaga sõidusuunas" lapseistet juhi kõrvalistmele, mille ESITURVAPADI on AKTIVEERITUD. Turvapadja
avanemine võib last TÕSISELT või ELUOHTLIKULT vigastada.
FI
ÄLÄ KOSKAAN aseta lapsen turvaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVATYYNY. Sen
laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAKAVAN LOUKKAANTUMISEN.
FR
NE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GRAVEMENT
HR
NIKADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZRAČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HU
SOHA ne használjon menetiránynak háttal beszerelt gyermekülést AKTIVÁLT (BEKAPCSOLT) FRONTLÉGZSÁKKAL védett ülésen. Ez a
gyermek HALÁLÁT vagy SÚLYOS SÉRÜLÉSÉT okozhatja.
IT
NON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale
ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GRAVI al bambino.
LT
NIEKADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TRAUMUOTAS.
Safety
B618_en_Chap05_securite_ed01-2016
139
5
LV
NEKAD NEuzstādiet uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera sēdvietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS GAISA
SPILVENS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
MT
Qatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla
NL
Plaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waarvan de AIRBAG is INGESCHAKELD. Bij het afgaan van de
airbag kan het KIND LEVENSGEVAARLIJK GEWOND RAKEN
NO
Installer ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE,
BARNET risikerer å bli DREPT eller HARDT SKADET.
PL
NIGDY nie instalować fotelika dziecięcego w pozycji "tyłem do kierunku jazdy" na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETRZNĄ w stanie AKTYWNYM. Może to doprowadzić do ŚMIERCI DZIECKA lub spowodować u niego POWAŻNE OBRAŻENIA
CIAŁA.
PT
NUNCA instale um sistema de retenção para crianças de costas para a estrada num banco protegido por um AIRBAG frontal ACTIVADO.
Esta instalação poderá provocar FERIMENTOS GRAVES ou a MORTE da CRIANÇA.
RO
Nu instalati NICIODATA un sistem de retinere pentru copii, dispus cu spatele in directia de mers, pe un loc din vehicul protejat cu AIRBAG
frontal ACTIVAT. Aceasta ar putea provoca MOARTEA COPILULUI sau RANIREA lui GRAVA.
RU
ВО ВСЕХ СЛУЧАЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье,
защищенном ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНКА или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖДЕНИЙ
SK
NIKDY neinštalujte detské zádržné zariadenie orientované smerom dozadu na sedadlo chránené AKTIVOVANÝM čelným AIRBAGOM.
Mohlo by dôjsť k SMRTEĽNÉMU alebo VÁŽNEMU PORANENIU DIEŤAŤA.
SL
NIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLAZINA pred sprednjim sopotnikovim sedežem
AKTIVIRANA. Takšna namestitev lahko povzroči SMRT OTROKA ali HUDE POŠKODBE.
SR
NIKADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VAZDUŠNIM JASTUKOM ispred njega, jer
mogu nastupiti SMRT ili OZBILJNA POVREDA DETETA.
SV
Passagerarkrockkudden fram MÅSTE vara avaktiverad om en bakåtvänd bilbarnstol installeras på denna plats. Annars riskerar barnet att
DÖDAS eller SKADAS ALLVARLIGT.
TR
KESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya
ÇOK AĞIR YARALANMASINA sebep olabilir.
Safety
B618_en_Chap05_securite_ed01-2016
140
Safety
B618_en_Chap05_securite_ed01-2016
Child seats recommended by CITROËN
Group 0+: from birth to 13 kg Groups 2 and 3: from 15 to 36 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rearward facing position.
L5
"RÖMER KIDFIX XP"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
L6
"GRACO Booster"
The child is restrained by the seat belt.
CITROËN offers a range of recommended child seats which are secured using a three point seat belt.
141
5
Safety
B618_en_Chap05_securite_ed01-2016
Locations for child seats secured using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using the seat belt and universally approved
(a) in relation to the weight of the child and the seat in the vehicle.
Weight of the child / indicative age
Seat
Passenger's
front airbag
Under 13 kg
(groups 0 (b) and
0+)
Up to about 1 year
From 9 to 18 kg
(group 1)
From 1 to about
3 years
From 15 to 25 kg
(group 2)
From 3 to about
6 years
From 22 to 36 kg
(group 3)
From 6 to about
10 years
Row 1 (c) Passenger seat
Deactivated
"OFF"
U U U U
Activated "ON" X UF UF UF
Row 2 (d)
Seat behind the
driver's seat
U U U U
Seat behind the
passenger's
seat
U U U U
Centre rear
seat (e)
U U U U
142
Safety
B618_en_Chap05_securite_ed01-2016
U: seating position suitable for the installation
of a child seat secured using the seat belt
and approved for universal use rearward
facing and/or forward facing.
UF: seating position suitable for the installation
of a child seat secured using the seat belt
and approved for universal use forward
facing.
X: seating position not suitable for installing a
child seat for the weight group indicated.
(a) Universal child seat: child seat which can be
installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats
and "car cots" cannot be installed on the
front passenger seat.
(c) Consult the legislation in force in your
country before installing your child on this
seat.
(d) To install a child seat at the rear, rearward
or forward facing, move the front seat
forward, then straighten the backrest to
allow enough room for the child seat and
the child's legs.
(e) A child seat with a support leg must never
be installed at this seating position.
Remove and stow the head restraint
before installing a child seat with
backrest on a passenger seat.
Refit the head restraint once the child
seat has been removed.
143
5
Safety
B618_en_Chap05_securite_ed01-2016
"ISOFIX" mountings
Your vehicle has been approved in accordance
with the latest ISOFIX regulation.
The seats, represented below, are fitted with
regulation ISOFIX mountings:
- a ring B, located behind the seat and
identified by a marking, referred to as the
Top Tether for fixing the upper strap.
There are three rings for each seat:
- two rings A, located between the vehicle
seat back and cushion, indicated by a
marking,
To secure the child seat to the TOP TETHER:
- remove and stow the head restraint before
installing the child seat on the seat (refit it
once the child seat has been removed),
- pass the upper strap of the child seat
behind the seat backrest, between the
apertures for the head restraint rods,
- fix the hook of the upper strap to the ring B,
- tighten the upper strap.
When fitting an ISOFIX child seat to the left-
hand rear seat, before fitting the seat, first
move the centre rear seat belt towards the
middle of the vehicle, so as to avoid the seat
interfering with the operation of the seat belt.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Follow strictly the fitting instructions
provided by with the child seat.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the summary table.
This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats are fitted with two
latches which are secured on the two rings A.
Some seats also have an upper strap, known
as the Top Tether, which is attached to ring B.
144
Safety
B618_en_Chap05_securite_ed01-2016
ISOFIX child seats recommended by CITROËN
"RÖMER Baby-Safe Plus" and its
ISOFIX base
(size category: E)
Group 0+: from birth to 13 kg
Installed rearward facing using an ISOFIX
base which is attached to the rings A.
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This child seat can also be secured with a
seat belt. In this case, only the shell is used
and attached to the vehicle's seat by the
three-point seat belt.
"RÖMER Duo Plus ISOFIX"
(size category: B1)
Group 1: from 9 to 18 kg
Is installed only in the forward facing
position.
Is attached to the rings A and the upper
ring B, referred to as the TOP TETHER,
using an upper strap.
Three seat body angles: sitting, reclining,
lying down.
This child seat can also be used on seats
not equipped with ISOFIX mountings. In
this case, it must be secured to the vehicle's
seat by the three-point seat belt. Adjust the
position of the vehicle's front seat so that the
child's feet are not touching the backrest.
CITROËN offers a range of ISOFIX child seats listed and type approved for your vehicle.
Refer also to the child seat
manufacturer's fitting instructions for
information on installing and removing
the seat.
145
5
Safety
B618_en_Chap05_securite_ed01-2016
Locations for ISOFIX child seats
In line with European regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
Weight of the child / indicative age
Under 10 kg
(group 0)
Up to about
6 months
Under 10 kg
(group 0)
Under 13 kg
(group 0+)
Up to about 1 year
From 9 to 18 kg
(group 1)
From about 1 to 3 years
Type of ISOFIX child seat Cot Rearward facing Rearward facing Forward facing
ISOFIX size category F G C D E C D A B B1
Seat
Passenger's
front airbag
Row 1 (a) Passenger's seat
Deactivated
"OFF"
X IL-SU IL-SU IUF / IL-SU
Activated "ON" X X X IUF / IL-SU
Row 2
Seat behind
driver's seat
X(1)
IL-SU(3)
IL-SU
IL-SU(3)
IL-SU IUF / IL-SU
Seat behind
passenger's seat
X(1)
IL-SU(2)
IL-SU
IL-SU(2)
IL-SU IUF / IL-SU
Centre rear seat Not ISOFIX
146
Safety
B618_en_Chap05_securite_ed01-2016
(a) Refer to the legislation in force in your
country before installing a child at this
seating position.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
IUF: seating position suitable for the installation
of an Isofix Universal seat, Forward facing
secured using the upper strap.
IL-SU: seating position suitable for the
installation of an Isofix Semi-Universal
seat either:
- rearward facing fitted with an upper strap
or a support leg,
- forward facing fitted with a support leg,
- a cot fitted with an upper strap or a support
leg.
For securing the upper strap using the ISOFIX
mountings, refer to the corresponding section.
X: seating position not suitable for the
installation for an ISOFIX seat or cot of the
weight group indicated.
(1): the installation of the cot at this seating
position may prevent the use of one or
more seats in this row.
(2): adjust the front seat to the fully forward
position.
(3): adjust the front seat to 16 notches minimum
from the fully rearward position.
147
5
Safety
B618_en_Chap05_securite_ed01-2016
Locations for i-Size child seats
The i-Size child seats have two latches that engage on the two rings A.
The i-Size child seats also have:
- either an upper strap which is attached to the ring B
- or a support leg which sits on the vehicle's floor, compatible with the seat approved for i-Size
the role of which is to prevent the child seat from tipping forward in the event of a collision.
For more information on ISOFIX mountings, refer to the corresponding section.
In accordance with the new European regulations, this table indicates the options for installing i-Size child seats on seats in the vehicle fitted with
ISOFIX mountings approved for i-Size.
Seating position Passenger's front airbag i-Size restraint system
Row 1 (a) Passenger seat
Deactivated, "OFF" i-U
Activated, "ON" i-UF
Row 2
Seat behind the
driver's seat
i-U
Seat behind
the front
passenger's seat
i-U
Centre rear seat Not i-Size
148
Safety
B618_en_Chap05_securite_ed01-2016
Remove and stow the head restraint
before installing a child seat on a
passenger seat.
Refit the head restraint once the child
seat has been removed.
i-U: suitable for i-Size restraint systems of
the "Universal" category, forward facing
or rearward facing.
i-UF: only suitable for i-Size restraint systems
in the "Universal" category, forward
facing.
X: seating position not suitable for i-Size
restraint systems in the "Universal"
category.
(a) Refer to the current legislation in your
country before installing a child at this
seating position.
149
5
Safety
B618_en_Chap05_securite_ed01-2016
Advice
Children at the front
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's front airbag
when a rearward facing child seat is installed
on the front passenger seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You must remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
- a child or children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it forwards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
- a rearward facing child seat,
- the child's feet for a child seat fitted
forward facing.
To do this, move the front seat forwards
and, if necessary, move its backrest into the
upright position.
150
Safety
B618_en_Chap05_securite_ed01-2016
Manual child lock
Turning the child lock on
F Using the ignition key or the integral key,
depending on version, turn the red control
as far as it will go:
- to the right on the left-hand rear door,
- to the left on the right-hand rear door.
Turning the child lock off
F Using the ignition key or the integral key,
depending on version, turn the red control
as far as it will go:
- to the left on the left-hand rear door,
- to the right on the right-hand rear door.
Mechanical system to prevent opening of a rear door using its interior control.
The control, red in colour, is located on the edge of each rear door.
It is identified by a marking on the bodywork.
Do not confuse the child lock control,
which is red, with the back-up locking
control, which is black.
151
6
Driving
B618_en_Chap06_conduite_ed01-2016
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
As a safety precaution, the driver must only
carry out actions requiring sustained attention
when the vehicle is stationary.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
Driving on flooded
roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
If you are obliged to drive through water:
- check that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
- deactivate the Stop & Start system,
- drive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10 km/h),
- do not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.
Important!
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park
or leave the engine running over areas
where inflammable substances and
materials are present: grass, leaves,
etc.
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position N or P, depending on the type
of gearbox.
152
Driving
B618_en_Chap06_conduite_ed01-2016
When towing
Distribution of loads
F Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
For more information on Weights, refer to the
corresponding section.
Side wind
F Take into account the increased sensitivity
to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the exterior
temperature.
In all cases, keep a check on the coolant
temperature.
F If the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes, the use of
engine braking is recommended.
Tyres
F Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling
on the trailer and the headlamp beam
height of your vehicle.
For more information on Adjusting the
headlamp beam height, refer to the
corresponding section.
The rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine CITROËN
towbar is used.
If the exterior temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling.
153
6
Driving
B618_en_Chap06_conduite_ed01-2016
Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer if required.
Starting / Switching off the engine with the key
It has 3 positions:
- position 1 (Stop): insert and removing the
key, steering column locked,
- position 2 (Ignition on): steering column
unlocked, ignition on, Diesel preheating,
engine running,
- position 3 (Starting).
Ignition switch
Switching off the engine leads to a loss
of braking assistance.
Ignition on position
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preserve the remaining
battery charge.
Avoid attaching heavy objects to the
key or the remote control, which would
weigh down on its blade in the ignition
switch and could cause a malfunction.
It could adversely affect the deployment
of the front airbag.
154
Driving
B618_en_Chap06_conduite_ed01-2016
F With a Diesel engine, turn the key to
position 2, ignition on, to operate the
engine pre-heating system.
Wait until this warning lamp goes off in the
instrument panel then operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on.
In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death!
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a CITROËN dealer or a qualified
workshop.
Starting the engine
With the parking brake applied and the gearbox
in neutral or position N or P:
F depress the clutch pedal fully (manual
gearbox),
or
F press the brake pedal firmly (automatic
gearbox),
F insert the key into the ignition switch; the
system recognises the code,
F unlock the steering column by simultaneously
turning the steering and the key.
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example).
F With a petrol engine, operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
155
6
Driving
B618_en_Chap06_conduite_ed01-2016
Key left in the "Ignition on"
position
If the key has been left in the ignition
switch at position 2 (Ignition on),
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop), then back to
position 2 (Ignition on).
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle.
When you leave the vehicle, keep the
key with you and lock the vehicle.
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
Switching off the engine
F Stop the vehicle.
F With the engine running at idle, turn the key
to position 1.
F Remove the key from the ignition switch.
F To lock the steering column, turn the
steering until it locks.
F Check that the parking brake is correctly
applied, particularly on sloping ground.
For more information on Energy
economy mode, refer to the
corresponding section.
Energy economy mode
After switching off the engine (position 1-Stop),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps, ...
156
Driving
B618_en_Chap06_conduite_ed01-2016
Starting / Switching off the engine with Keyless Entry and
Starting
Starting the engine
F With a manual gearbox, put the gear lever
into neutral.
F With the electronic key inside the vehicle,
fully depress the clutch pedal.
or
F With an automatic gearbox, place the
gear selector at position P or N.
F With the electronic key inside the vehicle,
fully depress the brake pedal.
If one of the starting conditions is not met,
a reminder message is displayed in the
instrument panel.
In some circumstances, it is necessary
to turn the steering wheel slightly while
pressing the "START/STOP" button to
assist unlocking of the steering column; a
message warns you when this is needed.
The presence of the "Keyless Entry
and Starting" electronic key in the
recognition zone is essential.
If the electronic key is not detected in
this zone, a message is displayed.
Move the electronic key into this zone
so that the engine can be started.
If there is still a problem, refer to the
"Key not detected - Back-up starting"
section.
F Briefly press the "START/
STOP" button while maintaining
pressure on the pedal until the
engine starts.
The steering column unlocks and the engine
starts.
For Diesel engines, in temperatures below
zero and/or with a cold engine, the engine will
not start until the pre-heater warning lamp has
gone off.
If this warning lamp comes on after
pressing the "START/STOP" button:
F With a manual gearbox, you should
keep the clutch pedal fully depressed until
the warning lamp goes off and not press
the "START/STOP" button again until the
engine is running.
or
F With an automatic gearbox, you should
keep the brake pedal fully depressed until
the warning lamp goes off and not press
the "START/STOP" button again until the
engine is running.
As a safety measure, never leave the
vehicle while the engine is running.
157
6
Driving
B618_en_Chap06_conduite_ed01-2016
Switching off the engine
F Immobilise the vehicle, engine at idle.
F With a manual gearbox, put the gear lever
into neutral.
or
F With an automatic gearbox, place the
gear selector at position P or N.
F With the electronic key inside
the vehicle, press the "START/
STOP" button.
The engine stops and the steering column
locks.
Never leave your vehicle with the
electronic key still inside.
If the vehicle is not immobilised, the
engine will not stop.
Switching off the engine leads to a loss
of braking assistance.
Ignition on
(without starting)
With the Keyless Entry and Starting remote
control inside the vehicle, pressing the "START/
STOP" button, with no action on the pedals,
allows the ignition to be switched on.
This also allows the accessories to be used
(for example: audio system, lighting...).
F Press the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F Press the button again to switch off the
ignition and allow the vehicle to be locked.
With the ignition on, the system
automatically goes into energy
economy mode to maintain an adequate
state of charge in the battery.
158
Driving
B618_en_Chap06_conduite_ed01-2016
Key not detected
Back-up starting
A back-up reader is fitted to the steering
column to allow the engine to be started if
the system does not detect the key in the
recognition zone, or when the battery in the
electronic key is discharged.
F Place and hold the remote control against
the reader.
F Press the "START/STOP" button.
The engine starts.
Back-up switch off
When the electronic key is not detected or is
no longer in the recognition zone, a message
appears in the instrument panel when closing a
door or trying to switch off the engine.
Emergency switch-off
In the event of an emergency only, the engine
can be switched off without conditions (even
when driving).
Press the "START/STOP" button for about five
seconds.
In this case, the steering column locks as soon
as the vehicle stops.
F To confirm the instruction to switch off the
engine, press the "START/STOP" button
for about five seconds.
In the event of a fault with the electronic key,
contact a CITROËN dealer or a qualified
workshop.
F If your vehicle has a manual gearbox, place
the gear lever in neutral then fully depress
the clutch pedal.
F If your vehicle has an automatic gearbox,
select position P then press the brake
pedal firmly.
159
6
Driving
B618_en_Chap06_conduite_ed01-2016
Parking brake
Application Release
When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, engage a gear and
switch off the ignition.
When the vehicle is being driven, if this
warning lamp and the STOP warning lamp
come on, accompanied by an audible
signal and a message in the screen, this
indicates that the parking brake is still on
or has not been fully released.
F Pull the parking brake lever up to
immobilise your vehicle.
F Pull the parking brake lever up slightly,
press the release button, then lower the
lever fully.
160
Driving
B618_en_Chap06_conduite_ed01-2016
5-speed manual gearbox
Engaging reverse gear
F Press the clutch pedal fully down.
F Push the gear lever fully to the right then
backwards.
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
- always select neutral,
- press the clutch pedal.
161
6
Driving
B618_en_Chap06_conduite_ed01-2016
Automatic gearbox (EAT6)
1. Gear selector.
2. Button "S" (sport).
3. Button "T" (snow).
4. Gear selector positions graphic.
P. Park.
- Immobilisation of the vehicle, parking
brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle
stationary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, parking
brake on.
- Starting the engine.
D. Automatic operation.
M + / -. Manual operation with sequential
changing of the six gears.
F Push backwards to change up a gear
or
F Push forwards to change down a gear.
Gear selector positions
Displays in the instrument panel
Foot on brake
Six-speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
Two driving modes are available:
- automatic operation with electronic
management of the gears by the gearbox,
with a sport programme for a more
dynamic style of driving and a snow
programme to make driving easier when
grip is poor,
- manual operation for sequential changing
of the gears by the driver.
When you move the selector to select a
position, the corresponding indicator is
displayed in the instrument panel.
P. Park
R. Reverse
N. Neutral
D. Drive (Automatic driving)
S. Sport programme
T. Snow programme
1 2 3 4 5 6. Gears engaged during manual
operation
-. Invalid value during manual operation
F Press the brake pedal when this
indicator lamp is displayed in the
instrument panel (e.g. starting
the engine).
162
Driving
B618_en_Chap06_conduite_ed01-2016
Moving off
When the engine is running at
idle, with the brakes released, if
position R, D or M is selected, the
vehicle moves even without the
accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P.
If position N is selected inadvertently
while driving, allow the engine to
return to idle, then select position D to
accelerate.
If the temperature is below -23°C, the
engine should be left at idle for four
minutes, to ensure the correct operation
and life of the engine and gearbox.
F Apply the parking brake.
F Select position P or N.
F Start the engine.
If these conditions are not met, there is an
audible signal, accompanied by the display of a
warning message.
F With the engine running, press the brake
pedal.
F Release the parking brake.
F Select position R, D or M.
F Gradually release the brake pedal.
The vehicle moves off immediately.
Automatic operation
Never select position N while the
vehicle is moving.
Never select positions P or R unless the
vehicle is completely stationary.
F Select position D for automatic changing
of the six gears.
The gearbox then operates in auto-adaptive
mode, without any intervention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the selector, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.
163
6
Driving
B618_en_Chap06_conduite_ed01-2016
Sport and snow programmes
These two special programmes supplement the
automatic operation in very specific conditions
of use.
S appears in the instrument panel.
Sport programme "S"
F Press button "S", after starting the engine.
The gearbox automatically favours a dynamic
style of driving.
Snow programme "T"
F Press button "T", after starting the engine.
The gearbox adapts to driving on slippery
roads.
This programme improves starting and drive
when traction is poor.
T appears in the instrument panel.
F At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode.
Return to standard
automatic operation
Manual operation
F Select position M for sequential changing
of the six gears.
F Move the selector towards the + sign to
change up a gear.
F Move the selector towards the - sign to
change down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears
engaged appear in succession in the
instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox engages first gear
automatically.
The sport and snow programmes do not
operate in manual mode.
164
Driving
B618_en_Chap06_conduite_ed01-2016
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Before switching off the engine, you can
engage position P or N to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle.
Stopping the vehicle
There is a risk of damage to the
gearbox:
- if you press the accelerator and
brake pedals at the same time,
- if you force the movement of the
selector from the P position to
another position when the battery
is flat.
To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam, etc.), put the
selector in the N position and apply the
parking brake.
If the selector is not in position P,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, a warning
message appears in the screen.
F Return the selector to position P;
the message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking
pace.
Operating fault
When the ignition is on, the lighting
of this warning lamp, accompanied
by an audible signal and a message in the
multifunction screen, indicates a gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P
to R and from N to R. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a CITROËN dealer or a qualified
workshop as soon as possible.
165
6
Driving
B618_en_Chap06_conduite_ed01-2016
Gear efciency indicator*
* Depending on engine.
System which reduces fuel consumption by recommending the most appropriate gear.
Operation
Example:
- You are in third gear.
- You press the accelerator pedal.
- The system may suggest that you engage
a higher gear.
The information appears in the instrument
panel in the form of an arrow.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, etc.)
and the demands of the driver (power,
acceleration, braking, etc.).
The system never suggests:
- engaging first gear,
- engaging reverse gear,
- changing down.
With an automatic gearbox, the system
is only active in manual mode.
On certain BlueHDi Diesel versions with
manual gearbox, the system may suggest
changing into neutral so that the engine can go
into standby (STOP mode with Stop & Start)
in certain driving conditions. In this case, N is
displayed in the instrument panel.
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. Indeed, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the
gear recommended.
166
Driving
B618_en_Chap06_conduite_ed01-2016
Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
It only operates when:
- the vehicle is completely stationary, with
your foot on the brake pedal,
- particular conditions on a slope are met,
- the driver’s door is closed.
This hill start assist system cannot be
deactivated.
On an ascending slope, with the vehicle
stationary, the vehicle is held momentarily
when you release the brake pedal.
On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a fault in the system occurs, this warning
lamp comes on accompanied by a message.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to get out of the vehicle with
the engine running, apply the parking
brake manually. Then check that the
parking brake indicator lamp is on (but
not flashing) in the instrument panel.
With a manual gearbox, if you are in first gear
or neutral.
With an automatic gearbox, if you are in
position D or M.
167
6
Driving
B618_en_Chap06_conduite_ed01-2016
Stop & Start
Going into engine STOP mode
Never refuel with the engine in STOP
mode; you must switch off the ignition.
For your comfort, during parking
maoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
Stop & Start does not affect the
operation of vehicle systems such as
braking, power steering, etc.
The Stop & Start system puts the engine
temporarily into standby - STOP mode - during
stops in the traffic (red lights, traffic jams, etc.).
The engine restarts automatically - START
mode - as soon as you want to move off.
The restart takes place instantly, quickly and
silently.
Perfect for urban use, the Stop & Start system
reduces fuel consumption and exhaust
emissions as well as the noise level when
stationary.
With a manual gearbox, vehicle
stationary, this warning lamp
comes on in the instrument panel
and the engine goes into standby
automatically when you place the
gear lever in neutral and you release
the clutch pedal.
With an automatic gearbox,
vehicle stationary, this warning lamp
comes on in the instrument panel
and the engine goes into standby
automatically when you press
the brake pedal or place the gear
selector in position N.
Stop & Start time counter
(minutes / seconds or hours / minutes)
A time counter calculates the time
spent in STOP mode during a
journey.
It resets to zero every time the ignition is
switched on.
168
Driving
B618_en_Chap06_conduite_ed01-2016
Going into engine START mode
Special cases: START invoked
automatically
As a safety measure or to maintain comfort
levels in the vehicle, START mode is invoked
automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 2 mph
(3 km/h),
- some special conditions (battery charge,
engine temperature, braking assistance,
exterior temperature, etc.) where the
engine is needed to assure control of a
system.
In this case, this warning lamp
flashes for a few seconds, then goes
off.
This operation is perfectly normal.
- you release the brake pedal with the gear
selector in position D or M,
- you are in position N with the brake pedal
released and you move the gear selector to
position D or M,
- you engage reverse.
With a manual gearbox, this
warning lamp goes off in the
instrument panel and the engine
restarts automatically when you fully
depress the clutch pedal.
Special cases: STOP mode not
available
STOP mode is not invoked when:
- the vehicle is on a steep slope (rising or
falling),
- the driver's door is open,
- the driver's seat belt is not fastened,
- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start,
- the engine is needed to maintain a
comfortable temperature in the passenger
compartment,
- demisting is active,
- some special conditions (battery charge,
engine temperature, braking assistance,
exterior temperature, etc.) where the
engine is needed to assure control of a
system.
In this case, this warning lamp
flashes for a few seconds,
then goes off.
This operation is perfectly normal.
With an automatic gearbox, this
warning lamp goes off and the engine
restarts automatically when:
169
6
Driving
B618_en_Chap06_conduite_ed01-2016
In the event of a fault with the system, the
indicator lamp in the button flashes for a
few moments, then remains on.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating fault
In the event of a fault in STOP mode, the
vehicle may stall.
All of the instrument panel warning lamps
come on.
It is then necessary to switch off the ignition
and start the engine again.
In certain circumstances, such as the need
to maintain the temperature in the passenger
compartment, it may be useful to deactivate the
Stop & Start system.
The system can be deactivated at any time,
once the ignition is switched on.
If the engine is in STOP mode, it then restarts.
The Stop & Start system is reactivated
automatically every time the ignition is
switched on.
Deactivation / Reactivation
The Stop & Start system requires
a 12 V battery of specific technology
and specification.
All work on this type of battery must be
carried out only by a CITROËN dealer
or a qualified workshop.
For more information on the 12 V
Battery, refer to the corresponding
section.
Before doing anything under the bonnet,
deactivate the Stop & Start system to
avoid the risk of injury related to an
automatic change to START mode.
Opening the bonnet
Driving on flooded roads
Before driving through a flooded road,
it is strongly recommended that you
deactivate the Stop & Start system.
For more information on Driving
advice, particularly on flooded roads,
refer to the corresponding section.
F Press this switch.
Deactivation is confirmed by the illumination of
the indicator lamp in the control switch and the
display of a message.
Pressing the switch again reactivates the
system.
The indicator lamp in the switch goes off,
accompanied by the display of a message.
With the switch on the dashboard
170
Driving
B618_en_Chap06_conduite_ed01-2016
Memorising speeds
This function allows speeds to be saved, which can then be offered to set the two systems: the speed limiter (to limit the speed of the vehicle) or the
cruise control (for a vehicle cruising speed).
You can memorise up to six speed settings for each of the two systems.
By default, some speed settings are already memorised.
This function is accessible in the
Driving menu of the touch screen.
Modifying a speed setting
As a safety measure, the driver must
only modify the speed settings when
stationary.
F Select the "Driving functions" tab.
F Select "Adjusting Speeds".
F Select the "Speed limiter" or "Cruise
control" tab, depending on the system for
which you want to memorise new speed
settings.
F Select the speed setting you want to
modify.
F Enter the new value using the numerical
keypad and confirm.
F Confirm to save the modifications and quit
the menu.
"MEM" button
This button allows you to select a memorised
speed setting for use with the speed limiter or
the cruise control.
For more information on the Speed limiter or
the Cruise control, refer to the corresponding
section.
171
6
Driving
B618_en_Chap06_conduite_ed01-2016
The units for the speed limits (mph or
km/h) depend on the country you are
driving in.
It should be taken into account so that
you observe the speed limit.
For the system to operate correctly
when you change country, the units for
speed in the instrument panel must be
those for the country you are driving in.
The automatic reading of road signs is a
driving assistance system and does not
always display speed limits correctly.
The speed limit signs present on the
road always take priority over the
display by the system.
The system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
The driver must observe the driving
regulations and must adapt the speed
of the vehicle to suit the weather and
traffic.
It is possible for the system to not
display the speed limit if it does not
detect a speed limit sign within a preset
period.
The system is designed to detect signs
that conform to the Vienna Convention
on road signs.
To maintain correct operation of the
system: regularly clean the area in front
of the camera.
Speed limit recognition
This system allows the speed limit detected by
the camera to be displayed in the instrument
panel.
Specific speed limits, such as those for heavy
goods vehicles, are not displayed.
The display of the speed limit in the instrument
panel is updated as you pass a speed limit sign
intended for cars (light vehicles).
Principles
Using a camera at the top of the windscreen,
this system detects and reads speed limit and
end of speed limit signs.
The system also takes account of information
on speed limits from the navigation system
mapping.
It is necessary to update your
navigation mapping regularly in order to
receive accurate information on speed
limits from the system.
172
Driving
B618_en_Chap06_conduite_ed01-2016
Display in the instrument panel
The system is activated: "MAX" is displayed in
the instrument panel.
The information relating to the speed
limit recognition is displayed after the trip
computer data.
To display it:
The system is active but is not detecting speed
limit information.
On detection of speed limit information,
the system displays the value detected,
accompanied by a message.
Cruise control or speed limiter
activated
Activation / Deactivation
The system is activated or deactivated via the
vehicle configuration menu.
The driver can adjust the speed of the vehicle
according to the information given by the
system.
A message is displayed and "MEM" flashes in
the display.
F Press the thumbwheel on the steering wheel.
F Press the button, located on the end of the
wiper control stalk.
173
6
Driving
B618_en_Chap06_conduite_ed01-2016
Operating limits
The legislation on speed limits is specific to
each country.
The system does not take account of reduced
speed limits in the following cases:
- poor weather (rain, snow),
- atmospheric pollution,
- trailer, caravan,
- driving with a space-saver type spare
wheel or snow chains fitted,
- puncture repair using the temporary
repair kit,
- young drivers,
- ...
The system may be disrupted or not work at all
in the following situations:
- poor visibility (inadequate street lighting,
falling snow, rain, fog),
- windscreen area ahead of the camera dirty,
misty, frosty, covered with snow, damaged
or masked by a sticker,
- fault with the camera,
- obsolete or incorrect mapping,
- hidden road signs (other vehicles,
vegetation, snow),
- speed limit signs that do not conform to the
standard, are damaged or distorted.
Memorising the speed setting
This memorisation is in addition to the display
of Speed limit recognition.
The driver can choose to adapt the speed
setting to the speed limit suggested, by
pressing the memorisation button at the speed
limiter / cruise control switch.
This speed setting then replaces the previous
speed setting for the speed limiter and/or cruise
control.
For more information on the Speed
limiter or the Cruise control, refer to
the corresponding sections.
Steering mounted controls
1. Select speed limiter / cruise control mode.
2. Memorise a speed setting.
Display in the instrument panel
3. Speed limiter indication.
4. Memorise the speed.
5. Current vehicle speed.
6. Current speed setting.
174
Driving
B618_en_Chap06_conduite_ed01-2016
If the difference between the speed setting
and the speed displayed by the recognition
system is less than 6 mph (10 km/h), the
MEM symbol is not displayed.
Memorising the speed
F Switch on the speed limiter / cruise control.
Speed limiter / cruise control information is
displayed.
On detection of a speed limit sign, the system
displays the speed limit value and a message
offering to make it a new speed setting.
"MEM" flashes in the screen for a few seconds.
F Make an initial press on this
button to request saving of the
speed suggested.
F Press this button again to confirm
and save the new speed setting.
After a predetermined period, the screen
returns to the current display.
A message invites you to confirm the request
by pressing again.
175
6
Driving
B618_en_Chap06_conduite_ed01-2016
Steering mounted controls
6. Speed limiter on / pause indication.
7. Speed limiter mode selection indication.
8. Programmed speed setting value.
9. Speed suggested by the speed limit
recognition system.
Speed limiter
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter is a driving aid that
cannot, in any circumstances, replace the
need to observe speed limits or the need
for vigilance on the part of the driver.
1. Select speed limiter mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter On / Pause.
5. Accept the speed suggested by the speed
limit recognition system or, depending on
version,
Display the memorised speed settings.
Displays in the instrument panel
The speed limiter is switched on manually.
The minimum programmed speed is 20 mph
(30 km/h).
The programmed speed remains in the system
memory when the ignition is switched off.
For more information on Memorising speeds
or Speed limit recognition, refer to the
corresponding section.
176
Driving
B618_en_Chap06_conduite_ed01-2016
Switching on
F Turn the thumbwheel 1 to the "LIMIT"
position to select the speed limiter; the
function is paused.
Adjusting the limit speed setting
To modify the limit speed setting:
F in steps of +/- 1 mph (km/h), make
successive short presses on button 2 or 3,
F continuously, in steps of +/- 5 mph (km/h),
press and hold button 2 or 3.
F If the speed setting is suitable (last speed
setting programmed in the system), press
button 4 to switch the speed limiter on.
F Pressing button 4 again temporarily
interrupts the function (pause).
To modify the speed limiter setting using the
speed suggested by the speed limit recognition
system:
F the speed suggested is displayed in the
instrument panel,
F make a first press on button 5; a message
is displayed to confirm the memorisation
request,
F press button 5 again to save the suggested
speed.
This value is then displayed in the instrument
panel as the new speed limiter setting.
To modify the limit speed setting using
memorised speeds and from the touch screen:
F press button 5 to display the six memorised
speed settings,
F press the button for the desired speed
setting.
This setting becomes the new limit speed.
177
6
Driving
B618_en_Chap06_conduite_ed01-2016
On a steep descent or in the event of
sharp acceleration, the speed limiter
will not be able to prevent the vehicle
from exceeding the programmed speed.
Switching off
When the limit speed is exceeded but this is not
due to action by the driver, there is an audible
signal to complete the alert.
Once the speed of the vehicle returns to
the programmed setting, the speed limiter
functions again: the display of the programmed
speed setting becomes steady again.
F If you want to temporarily exceed the
programmed limit speed, press firmly on
the accelerator pedal, going beyond the
point of resistance.
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes.
Temporarily exceeding the
programmed speed
F Turn the thumbwheel 1 to the "0" position:
the display of information on the speed
limiter disappears.
Operating fault
Flashing dashes indicate a fault with the speed
limiter.
Have it checked by a CITROËN dealer or a
qualified workshop.
The use of mats not approved by
CITROËN may interfere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
correctly,
- never fit one mat on top of another.
178
Driving
B618_en_Chap06_conduite_ed01-2016
Steering mounted controls
6. Cruise control mode selected indication.
7. Cruise control pause / resume indication.
8. Programmed cruise speed setting.
9. Speed suggested by the speed limit
recognition system.
Cruise control
System which automatically maintains the cruising speed of the vehicle at a setting programmed by the driver, without any action on the accelerator
pedal.
The cruise control system is a driving aid
that cannot, in any circumstances, replace
the need to observe speed limits, nor the
need for vigilance on the part of the driver.
As a safety measure, you are advised to
keep your feet near the pedals at all times.
1. Select cruise control mode.
2. Set the current speed of the vehicle as the
cruise setting or lower the cruise setting.
3. Set the current speed of the vehicle as the
cruise setting or raise the cruise setting.
4. Pause / Resume cruise control.
5. Accept the speed suggested by the speed
limit recognition system or, depending on
version,
Display the memorised speed settings.
For more information on Memorising speeds
or Speed limit recognition, refer to the
corresponding section.
Displays in the instrument panel
The cruise control is switched on
manually.
It requires a minimum vehicle speed of
25 mph (40 km/h), as well as:
- with a manual gearbox, the
engagement of third gear or higher,
- with an automatic gearbox, the gear
selector in D mode or second gear
or higher in M mode.
Speed regulation remains active after
changing gear on vehicles fitted with a
manual gearbox and Stop & Start.
Switching off the ignition cancels any
programmed speed setting.
The operation of the cruise control can be
interrupted (pause):
- by pressing control 4 or by pressing the
brake pedal,
- automatically, if operation of the dynamic
stability control system is triggered.
179
6
Driving
B618_en_Chap06_conduite_ed01-2016
Switching on
F Turn the thumbwheel 1 to the "CRUISE"
position to select cruise control mode; the
function is paused.
F To start the cruise control and set a cruise
speed, once the vehicle has reached the
desired speed, press button 2 or 3: the
current speed of your vehicle becomes the
cruise speed setting.
You can release the accelerator pedal.
F Pressing button 4 interrupts operation of
the system (pause).
F Pressing button 4 again restores operation
of the cruise control (ON).
Take care: pressing and holding
button 2 or 3 results in a rapid change
in the speed of your vehicle.
Modifying the cruise speed
setting
The cruise control must be active.
To modify the cruise speed setting from the
current speed of the vehicle:
F in steps of + or - 1 mph (km/h), make
repeated short presses on button 2 or 3,
F continuously, in steps of + or - 5 mph
(km/h), press and hold button 2 or 3.
To modify the cruise speed setting using the
speed suggested by the speed limit recognition
system:
F the speed suggested is displayed in the
instrument panel,
F make a first press on button 5; a message
is displayed to confirm the memorisation
request,
F press button 5 again to save the suggested
speed.
This value is then displayed in the instrument
panel as the new cruise speed setting.
180
Driving
B618_en_Chap06_conduite_ed01-2016
When descending a steep hill, the
cruise control system cannot prevent
the vehicle from exceeding the
programmed speed.
As a precaution, it is recommended
that the cruise speed chosen be close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.
When required (overtaking manoeuvre, etc.), it
is possible to exceed the programmed speed
by pressing the accelerator pedal.
The cruise control is temporarily overridden
and the programmed speed setting flashes.
You may have to brake to control the speed of
your vehicle. In this case, the cruise control is
automatically paused.
To activate the system again, with the speed
of the vehicle above 25 mph (40 km/h), press
button 4.
Temporarily exceeding the
programmed speed
To return to the programmed speed, simply
release the accelerator pedal.
Once the vehicle has returned to the
programmed speed, the cruise control takes
over again: the display of the programmed
speed setting becomes steady again.
Switching off
F Turn the thumbwheel 1 to the "0" position:
the cruise control information disappears
from the screen.
To modify the cruise speed setting using
memorised speeds and from the touch screen:
F press button 5 to display the six memorised
speed settings,
F press the button for the desired speed
setting.
This setting becomes the new cruise speed.
181
6
Driving
B618_en_Chap06_conduite_ed01-2016
Operating fault
Flashing dashes indicate a fault with the cruise
control system.
Have it checked by a CITROËN dealer or a
qualified workshop.
Only use the cruise control if the traffic
conditions will allow you to drive for a
certain time at a steady speed and at a
safe distance from the vehicle ahead.
Do not activate the cruise control in
urban areas, in heavy traffic, on winding
or steep roads, on slippery or flooded
roads, or in conditions of poor visibility
(heavy rain, fog, falling snow, etc.).
In some circumstances, it may not be
possible to maintain or reach the cruise
speed set: towing, vehicle heavily
loaded, steep climb, etc.
The use of mats not approved by
CITROËN may interfere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
correctly,
- never fit one mat on top of another.
182
Driving
B618_en_Chap06_conduite_ed01-2016
Fatigue detection system
As soon as the speed of the vehicle
drops below 40 mph (65 km/h), the
system goes into standby.
The driving time is counted again once
the speed is above 40 mph (65 km/h).
It is recommended that you take a break as soon as you feel tired or at least every two hours.
The system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
Do not take the wheel if you are tired.
Driving time warning
The system triggers an alert once it detects that
the driver has not taken a break after two hours
of driving at a speed above 40 mph (65 km/h).
This alert takes the form of the display of a
message encouraging you to take a break,
accompanied by an audible signal.
If the driver does not follow this advice, the
alert is repeated hourly until the vehicle is
stopped.
The system resets itself if one of the following
conditions is met:
- engine running, the vehicle has been
stationary for more than 15 minutes,
- the ignition has been switched off for a
few minutes,
- the driver's seat belt is unfastened and
their door is open.
Activation / Deactivation
The system is activated or deactivated via the
vehicle configuration menu.
For more information on the menu, refer to the
part covering your screen in the "Dashboard
instruments" section.
The state of the system stays in memory when
the ignition is switched off.
183
6
Driving
B618_en_Chap06_conduite_ed01-2016
Lane Departure Warning System
System which, using a camera which
recognises solid or broken lines, detects the
involuntary crossing of longitudinal traffic lane
markings on the ground.
To provide safe driving, the camera analyses
the image then, if the driver's attention drops
and the speed is higher than 37 mph (60 km/h),
triggers a warning if there is an unexpected
change of direction.
This system is particularly useful on motorways
and main roads.
This system is a driving aid that cannot,
in any circumstances, replace the need
for vigilance on the part of the driver.
The detection may be impeded:
- if the markings on the ground are
worn,
- if there is little contrast between the
markings on the ground and the
road surface,
- if the windscreen is dirty,
- in certain weather conditions: fog,
heavy rain, snow, shade, bright
sunlight or direct exposure to the
sun (low sun, leaving a tunnel, etc.).
Activation / Deactivation
Activation and deactivation of the
function is done by pressing this
button.
The status of the system remains in memory
when the ignition is switched off.
Detection
If an unexpected change of direction
is detected, you are alerted by
this warning lamp flashing in the
instrument panel and an audible
signal.
No warning is transmitted if a direction indicator
is active and for approximately 20 seconds
after the direction indicator is switched off.
Operating fault
In the event of a fault, this
warning lamp flashes for approximately
10 seconds then switches off.
Contact a CITROËN dealer or a qualified
workshop.
The indicator lamp in the button indicates the
status of the function:
- On: the function is activated.
- Off: the function is deactivated.
184
Driving
B618_en_Chap06_conduite_ed01-2016
Blind Spot Monitoring System
This system warns the driver of the presence of
another vehicle in the blind spot angle of their
vehicle (areas masked from the driver's field
of vision), as soon as this presents a potential
danger.
A fixed warning lamp appears in the door mirror
on the side in question:
- immediately, when being overtaken,
- after a delay of about one second, when
overtaking a vehicle slowly.
This system is designed to improve safety when driving and is in no circumstances a
substitute for the use of the interior rear view mirror and door mirrors. It is the driver's
responsibility to constantly check the traffic, to assess the distances and relative speeds of
other vehicles and to predict their movements before deciding whether to change lane.
This system is a driving aid that cannot, in any circumstances, replace the need for
vigilance on the part of the driver.
Activation / Deactivation
Activation and deactivation of the system is
done in the vehicle configuration menu.
This indicator lamp comes on in the
instrument panel.
Sensors fitted in the front and rear bumpers
monitor the blind spots.
To deactivate the system, go to the vehicle
configuration menu again.
The indicator lamp goes off.
The system is automatically deactivated
when towing with a towbar approved by
CITROËN.
The status of the system remains in memory on
switching off the ignition.
185
6
Driving
B618_en_Chap06_conduite_ed01-2016
Operation
The alert is given by a warning lamp which
comes on in the door mirror on the side in
question as soon as a vehicle - car, lorry,
bicycle - is detected.
The following conditions must be met for this:
- all vehicles are moving in the same
direction and in adjacent lanes,
- the speed of your vehicle is between 7 and
87 mph (12 and 140 km/h),
- you overtake a vehicle with a speed
difference of less than 6 mph (10 km/h),
- a vehicle overtakes you with a speed
difference of less than 16 mph (25 km/h),
- the traffic is flowing normally,
- in the case of an overtaking manoeuvre,
if this is prolonged and the vehicle being
overtaken remains in the blind spot,
- you are driving on a straight or slightly
curved road,
- your vehicle is not pulling a trailer, a
caravan, etc.
No alert will be given in the following situations:
- in the presence of non-moving objects
(parked vehicles, barriers, street lamps,
road signs, etc.),
- with vehicles moving in the opposite
direction,
- driving on a winding road or a sharp corner,
- when overtaking (or being overtaken by) a
very long vehicle (lorry, coach, etc.) which
is at the same time detected at the rear
in the blind spot angle and present in the
driver's forward field of vision,
- in very heavy traffic: vehicles detected in
front and behind are confused with a lorry
or a stationary object,
- when overtaking quickly.
186
Driving
B618_en_Chap06_conduite_ed01-2016
In the event of a fault, this warning
lamp flashes for a few moments in
the instrument panel, accompanied
by illumination of the Service warning
lamp and the display of a message.
The system may suffer temporary
interference in certain weather
conditions (rain, hail, etc.).
In particular, driving on a wet surface
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud,
ice or snow.
Take care not to cover the warning zone
in the door mirrors or the detection
zones on the front and rear bumpers
with adhesive labels or other objects;
they may hamper the correct operation
of the system.
High pressure jet wash
When washing your vehicle, direct the
lance at least 30 cm away from the
sensors.
Operating fault
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
187
6
Driving
B618_en_Chap06_conduite_ed01-2016
Parking sensors
This system indicates the proximity of an
obstacle (e.g. pedestrian, vehicle, tree, gate)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (e.g. stake,
roadworks cone) detected initially will no longer
be detected at the end of the manoeuvre, if
they are located in blind spots in the sensors'
field of detection.
This system cannot in any circumstances replace
the need for vigilance on the part of the driver.
Rear parking sensors
The system is switched on by engaging reverse
gear.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches the
obstacle.
The sound emitted by the speaker (right-hand
or left-hand) indicates the side on which the
obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Visual assistance
This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.
188
Driving
B618_en_Chap06_conduite_ed01-2016
Deactivation or activation of the system is done
via the vehicle configuration menu.
The system will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fitted on
a towbar (vehicle fitted with a towbar
installed in line with the manufacturer's
recommendations).
In bad or wintry weather, ensure that
the sensors are not covered with mud,
ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
High pressure jet wash
When washing your vehicle, do not
direct the lance within 30 cm of the
sensors.
Deactivation / Activation
In the event of a fault, when reverse
gear is engaged, this warning lamp
lights up in the instrument panel,
accompanied by a message and an
audible signal.
Operating fault
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
189
6
Driving
B618_en_Chap06_conduite_ed01-2016
Reversing camera
The reversing camera is activated automatically
when reverse gear is engaged.
The image is displayed in the touch screen.
The reversing camera cannot, in any
circumstances, replace the need for
vigilance on the part of of the driver.
Opening the tailgate causes the display
to disappear.
The reversing camera function may be
supplemented with parking sensors.
High pressure jet washing
When washing your vehicle, do not
direct the lance within 30 cm of the
camera lens.
Clean the reversing camera regularly
using a soft, dry cloth.
The blue lines represent the general direction
of the vehicle (the gap represents the width of
your vehicle except for the door mirrors).
The red lines represent a distance of about
30 cm beyond the edge of your vehicle's rear
bumper.
The green lines represent distances of
about 1 and 2 metres beyond the edge of your
vehicle's rear bumper.
It is normal to see part of the number plate
displayed at the bottom of the screen.
190
Driving
B618_en_Chap06_conduite_ed01-2016
Driving with under-inflated tyres
increases fuel consumption.
The under-inflation detection system
does not replace the need for vigilance
on the part of the driver.
This system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres impairs
road holding, extends braking distances
and causes premature tyre wear,
particularly under arduous conditions
(high loading, high speed, long journey).
The inflation pressures defined for
your vehicle can be found on the tyre
pressure label.
For more information on the
Identification markings, refer to the
corresponding section.
Snow chains
The system does not have to be
reinitialised after fitting or removing
snow chains.
Under-ination detection
System which automatically checks the pressures of the tyres while driving.
The system monitors the pressures in the four
tyres, once the vehicle is moving.
It compares the information given by the four
wheel speed sensors with reference values,
which must be reinitialised every time the
tyre pressures are adjusted or a wheel
changed.
The system triggers an alert as soon as it
detects a drop in the inflation pressure of one
or more tyres.
Checking tyre pressures
This check should be done when
the tyres are "cold" (vehicle stopped
for 1 hour or after a journey of less than
6 miles (10 km) at moderate speeds).
Otherwise, add 0.3 bar to the pressures
shown on the label.
191
6
Driving
B618_en_Chap06_conduite_ed01-2016
Under-inflation alert Reinitialisation
Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre pressure label.
The under-inflation alert can only
be relied on if the reinitialisation of
the system has been done with the
pressures in the four tyres correctly
adjusted.
The under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
This is given by fixed illumination of
this warning lamp, accompanied by
an audible signal and, depending on
equipment, the display of a message.
It is necessary to reinitialise the system every
time one or more tyre pressures are adjusted,
and after changing one or more wheels.
F Reduce speed immediately, avoid
excessive steering movements and sudden
braking.
F Stop the vehicle as soon as it is safe to
do so.
F If you have a compressor, such as the one
in the temporary puncture repair kit, check
the pressures of the four tyres when cold.
F If it is not possible to make this check
immediately, drive carefully at reduced
speed.
or
F In the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (depending on equipment).
The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check.
The alert is maintained until the system
is reinitialised.
192
Driving
B618_en_Chap06_conduite_ed01-2016
Reinitialisation of the system must be done with
the ignition on and the vehicle stationary:
- in the vehicle configuration menu, for
vehicles fitted with a display screen,
- using the instrument panel display or the
button on the dashboard, for vehicles
without a display screen.
Touch screen
Monochrome screen C
Operating fault
The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
A message appears, accompanied by an
audible signal.
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.
Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.
Instrument panel display
Reinitialisation of the function is done
in the Driving menu.
F In the Driving menu, select the "Driving
functions" tab.
F In the page, select the "Under-inflation
initialisation" function.
F Select "Yes" to confirm.
The reinitialisation is confirmed by the display
of a message and an audible signal.
Reinitialisation of the function is
done in the "Personalisation-
configuration" menu of the screen.
F Select the "Define the vehicle
parameters" menu.
F Make a short press on this button
to access the menu.
F Select the corresponding item
then confirm.
A high tone audible signal confirms the
reinitialisation.
A low tone audible signal indicates that the
reinitialisation was not completed.
Dashboard button
F Make a long press on this button.
A high tone audible signal confirms the
reinitialisation.
A low tone audible signal indicates that the
reinitialisation was not completed.
F Select the "Comfort" menu.
F Select the "Tyre inflation" menu.
F Select the "Reinitialisation" function.
F Select "Yes" to confirm.
The reinitialisation is confirmed by an audible
signal.
193
6
Driving
B618_en_Chap06_conduite_ed01-2016
ConnectedCAM CITROËN™*
This camera, installed at the top of the
windscreen and connected wirelessly, permits:
- the taking of photos and videos by pressing
the dedicated control,
- the sending of the vehicle's GPS
coordinates to a smartphone,
- the recording of secure videos: a sensor
(accelerometer) automatically triggers the
camera in the event of an impact,
- the sharing of photos and videos by
email, text and on social media via the
"ConnectedCAM CITROËN™" application
on a smartphone.
* Depending on the country of sale.
As the use of the ConnectedCAM
CITROËN™ is under your control and
your responsibility, you must ensure
that data protection regulations (images
of other people, vehicle number plates,
protected buildings, etc.), the highway
code and road safety regulations are
complied with. Check first that your
insurance company accepts the films
collected from the ConnectedCAM
CITROËN™ as evidence.
Operation
In order to be able to use all of the functions of
the camera, you must carry out the following
operations:
F download the "ConnectedCAM
CITROËN™" application onto a smartphone,
F pair the smartphone with the camera
following the instructions given by the
application.
Pairing is necessary at the first connection.
After this it will be automatic.
The default pairing code is: ConnectedCam.
On
F
Press and hold this button to switch the
camera on.
The indicator lamp in the button comes on.
Off
F
Press and hold this button to switch the
camera off.
The indicator lamp in the button switches off.
If you switch the camera off manually, it will
remain off even after restarting the vehicle. You
must switch it back on manually.
When the camera is switched on, video
recording is automatic and permanent.
194
Driving
B618_en_Chap06_conduite_ed01-2016
Managing photos and videos
F Press this button briefly to take a
photo.
An audible signal confirms that the request has
been taken into account.
F Press and hold this button to
record a video.
An audible signal confirms that the request has
been taken into account.
Using the "ConnectedCAM CITROËN™"
application, you will then be able to share
your photos and videos automatically and
immediately on social media or by email.
A "micro USB" port also permits retrieval of the
data from the camera onto other media such
as: computers, tablets, etc.
System reset
Operating fault
Pressing and holding these two buttons
simultaneously resets the system.
This action clears all the data recorded on the
camera and resets the camera's default pairing
code.
If a system fault occurs, the indicator
lamp in the button flashes.
Have it checked by a CITROËN dealer or a
qualified workshop.
As a safety precaution, the driver
must not use the ConnectedCAM
CITROËN™ application accessible
from a smartphone while driving. They
must carry out all actions requiring
sustained attention when the vehicle is
stationary.
195
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
TOTAL & CITROËN
Partners in performance and
protecting the environment
Innovation in the search for
performance
For over 40 years, the TOTAL Research and
Development departments have developed lubricants
for CITROËN, to match the latest technical innovations
on CITROËN vehicles, both for competition and for
everyday motoring.
For you, this is an assurance that you will obtain the
best performance from your engine.
Optimum protection for
your engine
By having your CITROËN vehicle
serviced with TOTAL lubricants, you are
contributing towards improving the life
and performance of your engine, while
also protecting the environment.
196
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Fuel tank
Capacity of the tank:
- Petrol: approximately 45 litres.
- Diesel: approximately 42 or 50 litres (depending on version).
Low fuel level Refuelling
When the low fuel level is reached,
this warning lamp in the instrument
panel comes on, accompanied by
an audible warning, a message and
the last bar of the fuel gauge flashes
in red.
To refuel in complete safety:
F You must switch off the engine.
F Open the filler flap.
A label on the inside of the fuel filler flap
reminds you of the type of fuel to use,
depending on your engine type.
Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
When it first comes on, about 5 litres of fuel
remain in the tank.
Until sufficient fuel has been added, this
warning lamp appears every time the ignition
is switched on, accompanied by an audible
warning and a message. This audible warning
and message are repeated with increasing
frequency as the fuel level drops towards "0".
Refuel as soon as possible to avoid running
out.
Opening the filler cap may result in an inrush of
air. This is entirely normal and results from the
sealing of the fuel system.
If your vehicle is fitted with Stop & Start,
never refuel with the engine in STOP
mode; you must switch off the ignition
using the key, or the START/STOP
button if your vehicle has Keyless Entry
and Starting.
For more information on Running
out of fuel (Diesel), refer to the
corresponding section.
F Take care to select the pump that delivers
the correct type of fuel for your vehicle.
F Introduce the key into the cap then turn it to
the left, or turn the cap manually to the left
(depending on version).
197
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
F Remove the cap and place it on its support
(on the filler flap).
F Introduce the filler nozzle and push it in as
far as possible before starting to refuel (risk
of blowback).
F Maintain this position throughout the
refuelling operation.
Once you have finished refuelling:
F Refit the filler cap.
F Turn the key to the right then remove it
from the cap, or turn the cap manually to
the right (depending on version).
F Push the fuel flap to close it.
If you are filling your tank to the top, do not
persist after the 3
rd
cut-off; this could cause
malfunctions.
Your vehicle is fitted with a catalytic converter,
which helps to reduce the level of harmful
emissions in the exhaust gases.
For petrol engines, you must use unleaded
fuel.
The filler neck is narrower, allowing only
unleaded petrol nozzles to be introduced.
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a
collision.
Fuel cut-off
If you have put in the wrong fuel
for your vehicle, you must have the
fuel tank drained and filled with
the correct fuel before starting the
engine.
198
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Misfuel prevention (Diesel)*
When a petrol filler nozzle is introduced into
the fuel filler neck of a Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle.
* Depending on the country of sale.
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
slowly.
Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Not all Diesel vehicles are fitted with
misfuel protection, so before travelling
abroad, we recommend that you check
with the CITROËN dealer network,
whether your vehicle is suitable for the
fuel pumps in the country in which you
intend to travel.
Operation
199
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Fuel used for petrol engines
The petrol engines are compatible with
bio-fuels that conform to current and future
European standards and can be obtained from
filling stations:
Fuel used for Diesel
engines
The Diesel engines are compatible with
biofuels that conform to current and future
European standards and can be obtained from
filling stations:
- Petrol that meets the EN228
standard, mixed with a bio-
fuel meeting the EN15376
standard.
- Diesel fuel that meets
standard EN590 mixed with
a biofuel that meets standard
EN14214 (possibly containing
up to 7 % Fatty Acid Methyl
Ester),
The use of B20 or B30 fuel
meeting standard EN16709
is possible in your Diesel
engine. However, this use,
even occasional, requires
strict application of the special
servicing conditions referred to as
"Arduous conditions".
- Diesel fuel that meets
standard EN16734 mixed with
a biofuel that meets standard
EN14214 (possibly containing
up to 10 % Fatty Acid Methyl
Ester),
- Paraffinic Diesel fuel that
meets standard EN15940
mixed with a biofuel that
meets standard EN14214
(possibly containing up to 7 %
Fatty Acid Methyl Ester).
The use of any other type of (bio)
fuel (vegetable or animal oils, pure
or diluted, domestic fuel...) is strictly
prohibited (risk of damage to the engine
and fuel system).
The only petrol additives authorised for
use are those that meet the B715001
standard.
For more information, contact a CITROËN
dealer or a qualified workshop.
The only Diesel additives authorised for
use are those that meet the B715000
standard.
Travelling abroad
Certain fuels could damage the engine of
your vehicle. In certain countries, the use of
a particular fuel may be required (specific
octane rating, specific sales name…) to
ensure correct operation of the engine.
For any additional information, contact your
dealer.
200
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Type of chain
185/65 R15
Link of 9 mm
maximum
195/65 R15
205/55 R16
205/50 R17
Cannot be fitted with chains
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.
Advice on installation
F If you have to fit the chains during a
journey, stop the vehicle on a flat surface
on the side of the road.
F Apply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F Fit the chains following the instructions
provided by the manufacturer.
F Move off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F Stop your vehicle and check that the snow
chains are correctly tightened.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.
201
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Very cold climate screen
Removable screen which prevents the accumulation of snow at the radiator cooling fan.
Before fitting or removing the screen,
ensure that the engine is off and
the cooling fan has stopped. It is
recommended that the screen be fitted
and removed by a CITROËN dealer or a
qualified workshop.
Fitting
F Offer up the screen to the front of the front
bumper lower grille.
F Press on the screen to engage its fixing
clips.
Removal
F Use a screwdriver as a lever to unclip each
fixing clip in turn.
Do not forget to remove the very cold
climate screen:
- when the exterior temperature
exceeds 10° C (e.g. in summer),
-
when towing,
-
at speeds above 75 mph (120 km/h).
202
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
You must observe the maximum trailer
weight, indicated on the registration
certificate or in the technical
specification for your vehicle.
Towing a trailer
We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
For more information on Driving
advice, particularly when towing, refer
to the corresponding section.
For more information on Weights (and
the towed loads which apply to your
vehicle) refer to the corresponding
section.
Closer
For towing, the closer must be removed if fitted
on your vehicle.
It is located behind the lower air intake grille.
To remove it, consult a CITROËN dealer or a
qualified workshop.
203
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc. for
a maximum combined duration of about
forty minutes.
Energy economy mode
Switching to economy mode
A message appears in the instrument panel
screen indicating that the vehicle has switched
to economy mode and the active functions are
put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth
®
hands-free system of your audio
system.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
- for less than ten minutes, to use the
equipment for approximately five minutes,
- for more than ten minutes, to use the
equipment for up to approximately
thirty minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from
starting.
For more information on the 12 V
battery, refer to the corresponding
section.
204
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Changing a wiper blade
Before removing a front
wiper blade
F Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen,
or
F From one minute after switching off the
ignition, reposition the arms manually.
Fitting
F Put the corresponding new wiper blade in
place and clip it.
F Fold down the wiper arm carefully.
Removing
F Raise the corresponding wiper arm.
F Unclip the wiper blade and remove it.
After fitting a front wiper
blade
F Switch on the ignition.
F Operate the wiper stalk again to park the
wiper blades.
Replacement of the arms must be done
by a CITROËN dealer or a qualified
workshop.
205
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Roof bars
Observe the fitting instructions and the
conditions of use given in the information
provided with the roof bars.
For safety reasons and to avoid damaging the
roof, it is essential to use transverse roof bars
that are approved for your vehicle.
Maximum load, distributed over the roof
bars, for a loading height not exceeding
40 cm: 70 kg.
This value is subject to change, please
check the maximum load stated in the
instructions provided with he roof bars.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the vehicle.
Please refer to national legislation so as
to meet the requirements on carrying
objects that are longer than the vehicle.
To install the roof bars, you must secure
them only to the four anchorage points in the
roof frame. These points are masked by the
vehicle's doors when closed.
The roof bar fixings include a stud that should
be introduced into the aperture at each
anchorage point.
Recommendations
F Distribute the load evenly, avoiding
overloading on one side.
F Arrange the heaviest part of the load as
close as possible to the roof.
F Anchor the load securely and fit a warning
flag if part of it overhangs the vehicle.
F Drive gently, as the vehicle will be more
liable to the effects of side winds (vehicle
stability may be affected).
F Remove the roof bars as soon as they are
no longer needed.
206
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Bonnet
F Open the left-hand front door.
The location of the interior bonnet
release lever prevents opening of the
bonnet when the left-hand front door
is shut.
When the engine is hot, handle the
exterior safety catch and the stay with
care (risk of burns), using the protected
area.
When the bonnet is open, take care not
to damage the safety catch.
F Lift the safety catch and raise the bonnet.
F Unclip the stay from its housing and place
it in the support slot to hold the bonnet
open.
Opening
F Pull the release lever, located at the bottom
of the door aperture, towards you.
The cooling fan may start after switching off the engine: take care with articles and
clothing that might be caught by the fan blades.
Do not open the bonnet under very
windy conditions.
Closing
F Take the stay out of its support slot.
F Clip the stay back into its housing.
F Lower the bonnet and release it at the end
of its travel.
F Pull on the bonnet to check that it has
latched correctly.
Because of the presence of electrical equipment under the bonnet, it is recommended that
exposure to water (rain, washing, ...) be limited.
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
START mode.
207
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
1. Screenwash fluid reservoir.
2. Coolant header tank.
3. Brake fluid reservoir.
4. Battery.
5. Fusebox.
6. Air filter.
7. Engine oil dipstick.
8. Engine oil filler cap.
9. Remote earth point.
Petrol engines
208
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
1. Screenwash fluid reservoir.
2. Coolant header tank.
3. Brake fluid reservoir.
4. Battery.
5. Fusebox.
6. Air filter.
7. Engine oil dipstick.
8. Engine oil filler cap.
9. Priming pump*.
10. Remote earth point.
Diesel engines
* According to engine.
The Diesel fuel system operates under
very high pressure.
All work on the system must only be
carried out by a CITROËN dealer or a
qualified workshop.
209
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Checking levels
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns)
and the cooling fan could start at any
time (even with the ignition off).
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Checking using the dipstick
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless otherwise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
If you find that the level is above the A mark or
below the B mark, do not start the engine.
- If the level is above the MAX mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
- If the level is below the MIN mark, you
must top up the engine oil.
A = MAX
B = MIN
To ensure that the reading is correct,
your vehicle must be parked on a level
surface with the engine having been off
for more than 30 minutes.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).
The location of the dipstick is shown in the
corresponding underbonnet layout view.
F Take the dipstick by its coloured grip and
remove it completely.
F Wipe the end of the dipstick using a clean
non-fluffy cloth.
F Refit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B.
Oil grade
Before topping up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
210
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
After topping up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping up.
Topping up the engine oil level
The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F Unscrew the oil filler cap to reveal the filler
aperture.
F Add oil in small quantities, avoiding any
spills on engine components (risk of fire).
F Wait a few minutes before checking the
level again using the dipstick.
F Add more oil if necessary.
F After checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
The brake fluid level should be close
to the "MAX" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the uid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specication
The brake fluid must conform to the
manufacturer's recommendations.
211
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Coolant level
Check the coolant level regularly.
It is normal to top up this fluid
between services.
When the engine is hot, the temperature of the
coolant is regulated by the fan.
The coolant level should be close to the "MAX"
mark but should never exceed it.
If the level is close to or below the "MIN" mark,
it is essential to top up.
A low coolant level presents a risk of serious
damage to your engine.
Fluid specication
The coolant must conform to the
manufacturer's recommendations.
Fluid specication
For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
In wintry conditions, it is recommended that you
use an ethyl alcohol or methanol based fluid.
Screenwash fluid level
Top up the level when necessary.
The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
be caught by the fan blades.
When the engine is hot, as the cooling system is
pressurised, wait at least one hour after switching
off the engine before carrying out any work.
To avoid the risk of scalding in the event of an
urgent need to top up, with a cloth around the
cap, unscrew it by two turns to allow the pressure
to drop.
Once the pressure has dropped, remove the cap
and top up the level.
To ensure that the measurement is reliable, the
vehicle must be parked on level ground and the
engine must be cold.
212
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Topping up
The reservoir must be topped up without delay
by a CITROËN dealer or a qualified workshop.
Diesel fuel additive level
(Diesel with particle filter)
The additive reservoir low level is
indicated by fixed illumination of this
warning lamp, accompanied by an
audible signal and a message that
the particle filter additive level is too
low.
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used productsAdBlue level
An alert is triggered when the reserve level is
reached.
To avoid statutory immobilisation of the vehicle,
the AdBlue must be topped up.
For more information on AdBlue and the SCR
system, and in particular topping up, refer to
the corresponding section.
213
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Checking components
12 V battery
The battery does not require any maintenance.
However, check regularly that the terminals
are correctly tightened (versions without quick
release terminals) and that the connections
are clean.
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Air filter and passenger compartment filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
Oil filter
Unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Otherwise, have them checked by a CITROËN dealer or a qualified workshop.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g.
city driving), replace them twice as often if
necessary.
A clogged passenger compartment filter may
have an adverse effect on the performance
of the air conditioning system and generate
undesirable odours.
Particle filter (Diesel)
The start of saturation of the particle
filter is indicated by the fixed
illumination of this warning lamp
accompanied by a warning message.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this indicates a
low additive level.
For more information on Checking levels and
the Diesel additive level in particular, refer to
the corresponding section.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is perfectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
For more information and the precautions to
take before starting work on the 12 V battery,
refer to the corresponding section.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.
214
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
Brake pads
For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake disc wear
Only use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Checking this system must be done by a
CITROËN dealer or a qualified workshop.
have the condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
215
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
AdBlue
®
and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
performance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
SCR system
Using a fluid called AdBlue
®
containing urea, a
catalytic converter turns up to 85% of nitrogen
oxides (NOx) into nitrogen and water, which are
harmless to health and the environment.
Once the AdBlue
®
tank is empty, a
system required by regulations prevents
starting of the engine.
If the SCR system is faulty, the level
of emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1 100 km), a system will be triggered
automatically to prevent engine starting.
In either case, a range indicator gives
you the distance you can travel before
the vehicle is immobilised.
The AdBlue
®
is held in a special tank with
a capacity of about 15 litres: this provides
a driving range of about 11 000 miles
(18 000 km). An alert is triggered automatically
to warn you when the reserve level is
reached: you can then drive about 1 500 miles
(2 400 km) before the tank is empty.
Freezing of the AdBlue
®
AdBlue
®
freezes at temperatures below
around -11°C.
The SCR system includes a heater
for the AdBlue
®
tank, allowing you
to continue driving in all weather
conditions.
216
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Precautions in use
Keep AdBlue
®
out of the reach of
children, in its original container or
bottle.
Never transfer AdBlue
®
to another
container: it would lose its purity.
Never dilute AdBlue
®
with water.
Never pour AdBlue
®
into the Diesel fuel
tank.
Never top up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
Use only AdBlue
®
fluid that meets the
ISO 22241 standard.
The supply in a non-drip container or bottle
simplifies topping up. You can obtain 1.89 litre
(half a US gallon) bottles or 5 or 10 litre
containers from a CITROËN dealer or a
qualified workshop.
AdBlue
®
is a urea-based solution. This liquid is
non-flammable, colourless and odourless (kept
in a cool area).
In the event of contact with the skin, wash
the affected area with soap and running
water. In the event of contact with the eyes,
wash (irrigate) the eyes with large amounts of
water or with an eye wash solution for at least
15 minutes. If a burning sensation or irritation
persists, get medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high exterior temperature,
for example), the risk of release of ammonia
cannot be excluded: do not inhale the fluid.
Ammonia vapour has an irritant effect on
mucous membranes (eyes, nose and throat).
Topping up the AdBlue
®
217
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Recommendations on storage
Never store bottles of AdBlue
®
in your
vehicle.
Procedure
Park the vehicle
F Switch off the ignition and remove the key
from the switch to switch off the engine.
or
F With Keyless Entry and Starting, press the
"START/STOP" button to switch off the
engine.
AdBlue
®
freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the fluid can be kept
for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Before topping up, ensure that the vehicle is
parked on a flat and level surface.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
®
may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
Open the ller
F With the vehicle unlocked, open the fuel
filler flap; the blue filler cap for the AdBlue
®
tank is located to the right of the black fuel
filler cap.
F Turn the blue cap a quarter of a turn anti-
clockwise.
F Remove the blue cap.
Do not dispose of AdBlue
®
bottles or
containers in the household waste.
Place them in a container provided for
this purpose or take them to your dealer.
218
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Top up
F Obtain a bottle of AdBlue
®
. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
®
tank.
Important: if your vehicle's AdBlue
®
tank is completely empty - which is
confirmed by the alert messages and
the impossibility of starting the engine -
you must add at least 4 litres and no
more than 10 litres.
If any fluid is spilt or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the fluid has crystallised, clean it off
using a sponge and hot water.
Important: when topping up after
running out of AdBlue, signalled
by the message "Top up AdBlue:
starting impossible", you must wait for
about 5 minutes before switching the
ignition on again, without opening the
driver's door, unlocking the vehicle,
introducing the remote control key
into the ignition switch, or placing
the Keyless Entry and Starting
electronic key inside the vehicle.
Switch on the ignition, then wait for
10 seconds before starting the engine.
F After emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
Ret the ller cap
F Refit the blue cap and turn it a quarter of a
turn clockwise, to its stop.
F Close the filler flap.
219
7
Practical information
B618_en_Chap07_info-pratiques_ed01-2016
Made of TPU (Thermo Plastic Urethane) and enclosing bubbles of air, they act as an impact
absorber.
Located on the sides of your vehicle, they protect the bodywork by reducing the effect of minor
everyday knocks: parking dings, opening doors, scrapes, etc.
AIRBUMP
®
protectors
Care of the AIRBUMP
®
protectors
The AIRBUMP
®
protectors require no
particular care or maintenance.
They are cleaned simply using water or one of
the products available from CITROËN dealers.
To avoid problems of premature ageing of the
AIRBUMP
®
protectors, do not use polish on
them.
220
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Warning triangle
The triangle can be stored on the rear face of
the boot, secured by straps.
Assembling the triangle
As a safety precaution, before leaving your
vehicle to set up and install the triangle, switch
on the hazard warning lamps and put on your
high visibility vest.
Refer to the instructions provided with the
triangle.
Positioning the triangle
Running out of fuel
(Diesel)
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For more information on Misfuel
prevention (Diesel), refer to the
corresponding section.
If the engine does not start first
time, don't keep trying, but start the
procedure again from the beginning.
BlueHDi engines
F Fill the fuel tank with at least five litres of
Diesel.
F Switch on the ignition (without starting the
engine).
F Wait around 6 seconds and switch off the
ignition.
F Repeat the operation 10 times.
F Operate the starter to run the engine.
F Place the triangle behind the vehicle, as
required by local legislation.
Other HDi engines
(except BlueHDi version)
F Add at least five litres of Diesel fuel to the
tank.
F Open the bonnet.
F If necessary, unclip the styling cover for
access to the priming pump.
F Squeeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F Operate the starter to start the engine
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F If the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F Refit the styling cover and clip it in place.
F Close the bonnet.
221
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
1. 12 V compressor, with integral pressure
gauge.
2. Sealant cartridge, with integral hose.
3. Speed limit sticker.
Composition of the kit
The speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.
The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair.
This kit is installed in the storage box, under the
boot floor.
Comprising a compressor and a sealant
cartridge, it allows the temporary repair of
a tyre so that you can drive to the nearest
garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Temporary puncture repair kit
Access to the kit
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
Tyre under-ination detection
After repair of the tyre, the warning
lamp will remain on until the system is
reinitialised.
For more information on Under-
inflation detection, refer to the
corresponding section.
222
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
F Switch off the ignition.
F Secure the speed limit sticker inside the
vehicle.
Repair procedure
Avoid removing any foreign bodies
which have penetrated into the tyre.
F Turn the sealant cartridge and secure it in
the cut-out provided on the compressor.
F Remove the valve cap from the tyre to be
repaired, and place it in a clean area.
F Connect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly.
F Uncoil the pipe stowed under the
compressor.
F Connect the pipe from the compressor to
the sealant cartridge.
223
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
F Check that the compressor switch is at the
"O" position.
F Uncoil fully the electric cable, stowed under
the compressor.
F Connect the compressor's plug to the
vehicle's 12 V socket.
F Switch on the ignition.
If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a CITROËN dealer or a qualified
workshop for assistance.
F Start the compressor by placing the switch
at the "I" position and leave it running until
the tyre pressure reaches 2.0 bar.
The sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains).
Take care, the sealant product is
harmful if swallowed and causes
irritation to the eyes.
Keep this product out of the reach of
children.
The use-by date is marked on the
cartridge.
After use, do not discard the
cartridge by the roadside, take it to
a CITROËN dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a CITROËN
dealer or a qualified workshop.
224
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
F Place the switch in the "O" position.
F Remove the kit.
F Drive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60 km/h)), to plug the puncture.
F Stop to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures
F Remove the valve cap from the tyre and
place it in a clean area.
F Uncoil the pipe stowed under the
compressor.
F Screw the pipe onto the valve and tighten
firmly.
F Check that the compressor switch is at the
"O" position.
F Uncoil fully the electric cable, stowed under
the compressor.
F Connect the compressor's plug to the
vehicle's 12 V socket.
F Switch on the ignition.
225
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on Under-
inflation detection, refer to the
corresponding section.
F Start the compressor by placing the switch
at the "I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
To deflate: press the black button on the
compressor pipe, at the valve connector.
F Once the correct pressure is reached, put
the switch to the "O" position.
F Remove the kit then stow it.
226
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Spare wheel
The tools are installed in the boot under the
floor.
To gain access to them:
F open the boot,
F lift the floor and remove it,
F remove the storage box containing the
tools.
Access to the tools
List of tools
These tools are specific to your vehicle and
may vary according to the level of equipment.
Do not use them for any purpose other than
those detailed below.
1. Wheelbrace.
For removing the wheel trim and removing
the wheel bolts.
2. Jack with integral handle.
For raising the vehicle.
3. Wheel bolt cover removal tool.
For removing the wheel bolt cover on alloy
wheels or the central bolt cover (depending
on version).
4. Removable towing eye.
Procedure for changing a wheel with a punctured tyre for the spare wheel using the tools provided with the vehicle.
For more information on Towing, refer to the
corresponding section.
The jack must only be used to change a
wheel with a damaged tyre.
The jack does not require any
maintenance.
The jack conforms to European
legislation, such as defined in the
Machinery Directive 2006/42/CE.
227
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Taking out the wheel
F Unclip the tool storage box (standard spare
wheel).
F Unscrew the central nut.
F Remove the fixing parts (nut and bolt).
F Raise the spare wheel towards you from
the rear.
F Take the wheel out of the boot.
The spare wheel is installed in the boot under
the floor.
Depending on engine, the spare wheel is
a standard wheel or the space-saver type
(BlueHDi).
Access to the spare wheel
228
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Putting the wheel back in place
F Put the wheel back in its housing.
F Unscrew the nut a few turns on the bolt.
F Position the fixing parts (nut and bolt) in the
middle of the wheel.
F Tighten the central nut until it clicks to
retain the wheel correctly.
F Clip the tool storage box back into place
(standard spare wheel).
If there is no wheel in the well, the fixing
parts (nut and bolt) cannot be refitted.
229
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake, switch off the
ignition and engage first gear* to block
the wheels.
Check that the parking brake warning
lamp in the instrument panel comes on
fixed.
The occupants must get out of the
vehicle and wait where they are safe.
Ensure that the jack is correctly
positioned at one of the vehicle's
jacking points.
Incorrect use of the jack could cause
the vehicle to drop.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Wheel with wheel trim
When removing the wheel, first
remove the wheel trim using the
wheelbrace 1 by pulling at the valve
aperture.
When refitting the wheel, refit the
wheel trim, starting by placing its
cut-out in line with the valve and then
pressing around its edge with the palm
of your hand.
Do not use a jack other than the one
supplied by the manufacturer.
* Position P for an automatic gearbox.
F Remove the wheel bolt cover(s) using the
tool 3 (depending on version).
F Slacken the bolts using the wheelbrace 1
only.
List of operations
230
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
F Place the foot of the jack 2 on the ground
and ensure that it is directly below the
front A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed.
F Extend the jack 2 until its head comes into contact with the jacking point A or B used; the
vehicle’s contact surface at A or B must engage with the central part of the head of the jack.
F Raise the vehicle until there is sufficient space between the wheel and the ground to admit the
spare (not punctured) wheel easily.
Ensure that the jack is stable. If the ground is slippery or loose, the jack might slip or drop - Risk of
injury!
Take care to position the jack only at one of the vehicle’s jacking points A or B under the vehicle,
ensuring that the contact surface of the vehicle’s jacking point is centred on the head of the jack.
Otherwise there is a risk of damage to the vehicle and/or that the jack might drop - Risk of injury!
231
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
F Remove the bolts and store them in a clean
place.
F Remove the wheel.
Stowing the wheel with
punctured tyre
The wheel with punctured tyre can be
stowed under the floor, in the housing
for the standard spare wheel.
To stow an alloy wheel, first remove the
trim from the middle of the wheel so that
the fixing parts (nut and bolt) can be put
in place.
In the case of a "space-saver" type
spare wheel, the wheel with punctured
tyre cannot be stowed under the floor. It
must be stowed in the boot; use a cover
to protect the inside of the boot.
232
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
List of operations
F Put the wheel in place on the hub.
F Screw in the bolts fully by hand.
F Pre-tighten the bolts using the
wheelbrace 1 only.
Fitting a wheel
Fitting the spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the spare wheel.
The wheel is secured by the conical
surface of each bolt.
After changing a wheel
When using a "space-saver" type of
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
233
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
F Lower the vehicle fully.
F Fold the jack 2 and detach it.
F Tighten the bolts using the wheelbrace 1
only.
F Refit the wheel bolt cover (alloy wheels).
F Stow the tools in their box.
234
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Changing a bulb
Front lamps
Model with halogen lamps
1. Daytime running lamps / Sidelamps
(W21/5W).
2. Direction indicators (PY21W).
3. Dipped beam headlamps (H7).
4. Main beam headlamps (H7).
5. Front foglamps (PSX24W).
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps have polycarbonate
lenses with a protective coating:
F do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
F use a sponge and soapy water or a
pH neutral product,
F when using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F Do not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
* LEDs: light-emitting diodes.
Model with LED lamps
1. Daytime running lamps / Sidelamps
(LEDs)*.
2. Direction indicators (PY21W).
3. Dipped beam headlamps (H7).
4. Main beam headlamps (H7).
5. Front foglamps (PSX24W).
235
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Daytime running lamps / sidelamps
F Turn the bulb holder an eighth of a turn
anticlockwise and pull it out.
F Remove the bulb and replace it.
To reassemble, carry out these operations in
reverse order.
Daytime running lamps /
sidelamps (LEDs)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Direction indicators
Amber coloured bulbs, such as the direction
indicators, must be replaced with bulbs of
identical specifications and colour.
F Turn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F Remove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Dipped beam headlamps
F Remove the protective cover by pulling the
tab.
F Disconnect the bulb connector.
F Remove the bulb and change it.
To reassemble, carry out these operations in
reverse order, directing the bulb alignment
lug upwards.
236
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Front foglamps
Contact a CITROËN dealer or a qualified
workshop for the replacement of these bulbs.
Main beam headlamps
F Remove the protective cover by pulling the
tab.
F Disconnect the bulb connector.
F Remove the bulb and change it.
To reassemble, carry out these operations in
reverse order, directing the bulb positioning
lug downwards.
237
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Integrated direction indicator
side repeaters
To reassemble, carry out these operations in
reverse order.
You should contact a CITROËN
dealer or a qualified workshop for the
replacement of these bulbs.
F Press the central tab and remove the side
repeater.
F Pull the bulb holder out and replace the
failed bulb.
F Insert a flat screwdriver between the mirror
glass and its base.
F Use the screwdriver as a lever to extract
the mirror glass.
F Unclip the mirror shell by pressing on the
two retaining clips.
238
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
1. Sidelamps (R10W).
2. Brake lamps (P21W).
3. Direction indicators (PY21W).
4. Reversing lamp (P21W), right-hand side or
Foglamp (PR21W), left-hand side.
Rear lamps
Changing bulbs
To reassemble, carry out these operations in
reverse order.
F Spread the bulb holder retaining tabs and
remove the bulb holder.
F Turn the bulb a quarter turn and change it.
These bulbs are changed from inside the boot.
F Open the boot.
F Remove the access cover on the
corresponding side trim.
F Disconnect the lamp unit connector.
F Slacken and remove the nut (take care not
to drop it inside the wing).
F Unclip the lamp unit and carefully remove
it by pulling it horizontally towards the
outside.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten sufficiently to ensure sealing,
but without damaging the lamp.
It may be necessary to use slip joint pliers or
the wheelbrace (depending on equipment) to
remove the nut.
239
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Third brake lamp (4 T10 W5W
bulbs)
F With the boot open, unclip the plastic
covers.
F Push on the two lugs using a screwdriver.
F Remove the lamp via the exterior of the
tailgate.
F Disconnect the connector.
F Turn the bulb-holder corresponding to
the failed bulb a quarter of a turn and
remove it.
F Pull the bulb and change it.
Number plate lamps (W5W)
To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F Insert a thin screwdriver into the lens cut-
out.
F Lift it to unclip it.
F Remove the lens.
F Change the faulty bulb.
To refit, press on the lens to clip it in place.
To refit, carry out these operations in reverse
order, checking that the screen wash nozzle is
on the left-hand side.
240
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Courtesy lamp (W5W)
F Using a small flat blade screwdriver, unclip
the console assembly surrounding the
courtesy lamp.
F Remove the failed bulb and change it.
F Refit the console around the courtesy
lamp, ensuring that it is clipped in correctly.
Boot (W5W)
F Unclip the lamp by pushing the body from
behind.
F Remove the bulb and change.
F Refit the lamp.
Interior lighting
Courtesy lamp with LEDs
For the replacement of the light-emitting
diodes (LEDs), contact a CITROËN dealer or a
qualified workshop.
241
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
To replace a fuse, you must:
F use the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F always replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
fire).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop.
Good Failed
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop.
Tweezer
Changing a fuse
Changing a fuse
Before changing a fuse:
F the cause of the failure must be identified
and rectified,
F all electrical consumers must be switched
off,
F the vehicle must be immobilised with the
ignition off,
F identify the failed fuse using the tables and
layout drawings in the following pages.
The extraction tweezer is fitted to the back of
the cover of the dashboard fuseboxes.
Access to the tools
F Unclip the cover by pulling at the top left,
then right.
F Disengage the cover completely and turn it
over,
F Remove the tweezer from the back of the
cover.
242
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
243
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Dashboard fuses
The 2 fuseboxes are placed in the lower
dashboard, below the steering wheel.
Fuse
N°
Rating
(A)
Functions
F29 - Not used.
F30 30 Heated rear screen.
F31 10 Heated mirrors.
F32 - Not used.
F33 40 Front electric windows.
F34 40 Rear electric windows.
F35 30 Heated front seats.
F36 - Not used.
F37 - Not used.
F38 - Not used.
F39 - Not used.
F40 - Not used.
Access to the fuses
F Unclip the cover by pulling at top left, then
right.
Upper fusebox
244
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Lower fusebox
Fuse
N°
Rating
(A)
Functions
F1 10
Electrochromatic interior mirror, heated rear screen,
particle filter pump (Diesel), parking sensors, power steering,
LPG system, clutch pedal switch, exterior mirror adjustment.
F10(+) -
F11(Gnd)
30
Locking / unlocking of the doors and fuel filler flap (depending
on engine).
F13 10 Rain and sunshine sensor, air conditioning, front camera.
F14 5 Alarm, telematic unit.
F16 3
Automatic gearbox gear selector, brake pedal switch,
Stop & Start system.
F17 5 Instrument panel, driving school module.
F18 5
Air conditioning, gear selector position indicator (automatic
gearbox).
F19 3 Steering mounted controls.
F21 3 START/STOP switch or button.
F23 5 Seat belts not fastened warning lamps display.
245
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Fuse
N°
Rating
(A)
Functions
F24 5 Parking sensors, rear camera, telematic screen.
F25 5 Airbags control unit.
F29 20 Audio-telematic system.
F31 15 Audio system (accessory).
F32 15 Front 12 V socket.
F35 5
Headlamp height adjustment, diagnostic socket, additional
heating (depending on equipment).
F36 5 Front map reading lamp.
F4 15 Horn.
F6(+) -
F5(Gnd)
20 Front and rear screen wash pump.
F8 20 Rear wiper.
F9 5 Front courtesy lamp.
246
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Engine compartment fuses
Access to the fuses
F Unclip the cover.
F Change the fuse.
F When you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse
N°
Rating
(A)
Functions
F1 40 Air conditioning.
F10 15 Engine management.
F11 20 Engine management.
F12 5 Engine management.
F13 5 Engine management.
F14 5 Battery charge status unit (depending on engine).
F15 5 Not used.
F16 20 Front foglamp.
F17 5 Engine management.
F18 10 Right-hand main beam headlamp.
F19 10 Left-hand main beam headlamp.
F2 60 A BS/ESP.
F20 30 Engine management.
F21 30 Starter motor (depending on engine).
F22 30 Not used.
F23 40 Starter unit (with Stop & Start and depending on engine).
F24 40 Passenger compartment fusebox.
The fusebox is placed in the engine
compartment near the battery.
247
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Fuse
N°
Rating
(A)
Functions
F25 40 Towbar pre-equipment.
F26 15 Automatic gearbox or LPG system.
F27 25 Built-in systems interface (BSI).
F28 30 Diesel emissions control system (AdBlue
®
).
F29 40 Windscreen wipers.
F3 50 Passenger compartment fusebox.
F30 40 Diesel pre-heating unit.
F31 80 Additional heating (depending on equipment).
F32 80 Power steering.
F4 30 ABS/ ES P.
F5 70 Built-in systems interface (BSI).
F6 60 Cooling fan assembly.
F7 80 Built-in systems interface (BSI).
F8 15 Engine management.
F9 15 Engine management.
248
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
12 V battery
The battery is located under the bonnet.
For access to the (+) terminal:
F release the bonnet using the interior lever,
then the exterior catch,
F raise the bonnet and secure it with its stay.
Access to the battery
Procedure for starting the engine using another battery or charging a discharged battery.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.
If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.
General points
Lead-acid starter batteries
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
(+) Positive terminal.
It has a quick-release clamp.
(-) Negative terminal.
As the battery negative terminal is not
accessible, a remote earth point is located on
the structure of the front right wing.
249
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.
Starting using another battery
F Raise the plastic cover on the (+) terminal,
if your vehicle has one.
F Connect the red cable to the positive
terminal (+) of the flat battery A (at
the metal elbow) then to the positive
terminal (+) of the slave battery B or the
booster.
F Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).
F Connect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
F Start the engine of the vehicle with the
good battery and leave it running for a few
minutes.
F Operate the starter on the broken down
vehicle and let the engine run.
If the engine does not start straight away,
switch off the ignition and wait a few
moments before trying again.
Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.
F Wait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F Refit the plastic cover to the (+) terminal, if
your vehicle has one.
F Allow the engine to run for at least
30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
250
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Charging the battery using a battery charger
For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
- if you use your vehicle essentially for short
journeys,
- if the vehicle is to be taken off the road for
several weeks.
Contact a CITROËN dealer or a qualified
workshop.
It is not necessary to disconnect the
battery.
Never try to charge a frozen battery.
If the battery has been frozen, have
it checked by a CITROËN dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.
If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.
Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.
F Switch off the ignition.
F Switch off all electrical consumers (audio
system, lighting, wipers, ...).
F Switch off the charger B before connecting
the cables to the battery, so as to avoid any
dangerous sparks.
F Ensure that the charger cables are in good
condition.
F Raise the plastic cover, if your vehicle has
one, on the (+) terminal.
F Connect the charger B cables as follows:
- the positive (+) red cable to the (+)
terminal of the battery A,
- the negative (-) black cable to the earth
point C on the vehicle.
F At the end of the charging operation, switch
off the charger B before disconnecting the
cables from the battery A.
251
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
Quick-release terminal clamp
Disconnecting the (+) terminal
F Raise the lever A fully to release the
clamp B.
F Remove the clamp B by lifting it off.
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of
the battery (up to about 8 hours).
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Before disconnecting the battery:
F close all openings (doors, boot, windows),
F switch off all electrical consumers (audio
system, wipers, lighting, etc.),
F switch off the ignition and wait for
four minutes.
At the battery, it is only necessary to
disconnect the (+) terminal.
Disconnecting the battery
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself initialise or reset certain systems,
such as:
- the remote control or electronic key
(depending on version),
- the electric windows,
- the date and time,
- the radio preset stations.
Following reconnection of the battery
Reconnecting the (+) terminal
F Raise the lever A fully.
F Refit the open clamp B on the (+) terminal.
F Push the clamp B fully down.
F Lower the lever A to lock the clamp B.
252
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Towing
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing arm;
rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for braking or
steering.
In the following cases, you must always call on a professional recovery service:
-
vehicle broken down on a motorway or fast road,
-
four-wheel drive vehicle,
-
when it is not possible to put the gearbox into neutral, unlock the steering, or release the
parking brake,
-
towing with only two wheels on the ground,
-
where there is no approved towing arm available...
Procedure for having your vehicle towed or for towing another vehicle using the towing eye.
Access to the tools
The towing eye is installed in the boot under
the floor.
To gain access to it:
F open the boot,
F lift the floor and remove it,
F remove the towing eye from its housing.
253
8
In the event of a breakdown
B618_en_Chap08_En-cas-de-panne_ed01-2016
Towing another vehicle
F On the rear bumper, unclip the cover by
pressing at the bottom.
F Screw the towing eye in fully.
F Install the towing bar.
F Switch on the hazard warning lamps on
both vehicles.
F Move off gently, drive slowly and for a short
distance.
F On the front bumper, unclip the cover by
pressing on the left.
F Screw the towing eye in fully.
F Install the towing bar.
F Place the gear lever in neutral (position N
with an automatic gearbox).
Towing your vehicle
Failure to observe this instruction could
result in damage to certain components
(braking, transmission, etc.) and the
absence of braking assistance the next
time the engine is started.
F Unlock the steering by turning the key
in the ignition one notch and release the
parking brake.
F Switch on the hazard warning lamps on
both vehicles.
F Move off gently, drive slowly and for a short
distance.
254
Technical data
B618_en_Chap09_caracteristiques-techniques_ed01-2016
Engines
Engine characteristics
The engine characteristics (capacity, maximum
power, maximum engine speed, fuel, CO
2
emissions, etc.) for your vehicle are given in
the registration document, as well as in sales
brochures.
These characteristics correspond to the
values type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact a CITROËN
dealer or a qualified workshop.
Weights
Weights and towed loads
The maximum weights and towed loads for your
vehicle are given are given in the registration
document, as well as in sales brochures.
These values are also present on the
manufacturer's plate or label.
For more information, contact a CITROËN
dealer or a qualified workshop.
The kerb weight is equal to the unladen
weight + driver (75 kg).
The GTW and towed load values indicated
apply up to a maximum altitude of
1 000 metres; the towed load mentioned
must be reduced by 10 % for every additional
1 000 metres.
The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GVW of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).
GVW: gross vehicle weight, the maximum
authorised vehicle weight.
GTW: gross train weight, the maximum
authorised weight of vehicle plus trailer.
High exterior temperatures may result
in a reduction in the performance of
the vehicle to protect the engine; when
the exterior temperature is higher than
37 °C, limit the towed weight.
Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
Never exceed 60 mph (100 km/h) when
towing (comply with the legislation in
force in your country).
If the exterior temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling.
255
9
Technical data
B618_en_Chap09_caracteristiques-techniques_ed01-2016
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation
(Directive 1999/99/EC).
Engines and towed loads - PETROL
Engine
PureTech 70
manual
PureTech 82
manual
PureTech 110 S&S VTI 115 EAT6
Gearbox
5-speed
manual
(BVM5)
5-speed
manual
(BVM5)
5-speed
manual
(BVM5)
6-speed
automatic
(EAT6)
6-speed
automatic
(EAT6)
Code EB2FB - MA EB2F - MA
EB2DT - BM -
STTd
EB2DT - AT6III -
STTd
EC5F - AT6III
Model code
Wheel 640 = /A...
Wheel 620 = /B…
SXHMP6/B0 -
SXHMP6/A0
SXHMZ6/…
B0 - B1 - A0 -
B0M - A0M
SXHNZ6/A0S SXHNZT/A0S SXNFPT/A0
Capacity (cm
3
) 1 199 1 199 1 199 1 199 1 587
Maximum power: EU standard (kW)* 50 60 81 81 85
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within GTW limit) on a 10 or 12%
gradient (kg)
450 450 600 450 450
Unbraked trailer (kg) 450 450 450 450 450
Recommended nose weight (kg) 26 26 32 32 32
256
Technical data
B618_en_Chap09_caracteristiques-techniques_ed01-2016
Engines and towed loads - DIESEL
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engine BlueHDi 75 S&S manual HDi 90 BlueHDi 100 S&S manual
Gearbox
5-speed manual
(BVM5)
5-speed manual
(BVM5)
5-speed manual
(BVM5)
Code DV6FE - BE - STTd DV6DM - BE DV6FD - BE - STTd
Model code
Wheel 640 = /A...
Wheel 620 = /B…
SXBHW6/…
B0S - B1S - A0S
SX9HJC/B0 - SX9HJC/A0 SXBHY6/B0S - SXBHY6/A0S
Capacity (cm
3
) 1 560 1 560 1 560
Maximum power: EU standard (kW)* 55 66 73
Fuel Diesel Diesel Diesel
Braked trailer (within GTW limit) on a 10 or 12%
gradient (kg)
600 600 600
Unbraked trailer (kg) 450 450 450
Recommended nose weight (kg) 32 32 32
257
9
Technical data
B618_en_Chap09_caracteristiques-techniques_ed01-2016
Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
* Mirrors folded.
258
Technical data
B618_en_Chap09_caracteristiques-techniques_ed01-2016
Identication markings
A. Vehicle identification number (VIN),
under the bonnet.
The number is engraved on the body structure.
- the maximum authorised vehicle weight
(the Gross Vehicle Weight or GVW),
- the maximum authorised vehicle + trailer
weight (the Gross Train Weight or GTW),
- the maximum weight on the front axle,
- the maximum weight on the rear axle.
- the spare tyre pressure.
It also indicates the paint colour code.
B. Vehicle identification number (VIN), on
the dashboard.
The number is on a label, visible through the
windscreen.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.
Different visible markings for the identification of your vehicle.
Low tyre pressures increase fuel
consumption.
Never reduce the pressure of a warm
tyre.
The original tyres fitted to the vehicle
may have a load index or speed rating
higher than those given on the label;
this has no effect on the inflation
pressures.
C. Manufacturer's label.
This self-destructing label is affixed to the right-
hand door aperture.
It bears the following information:
- the name of the manufacturer,
- the European Whole Vehicle Type Approval
number,
- the vehicle identification number (VIN),
D. Tyres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information on the tyres:
- the tyre pressures, unladen and laden,
- the reference, size, type, load index and
speed rating,
259
9
Technical data
B618_en_Chap09_caracteristiques-techniques_ed01-2016
260
Alphabetical index
B618_en_Chap11_index-alpha_ed01-2016
Accessories ...........................................117, 157
AdBlue
®
.....................................26, 36, 215, 216
Adjusting headlamps .................................... 112
Adjusting head restraints ................................77
Adjusting seat .................................................76
Adjusting the air distribution .....................85, 88
Adjusting the air flow .................................85, 88
Adjusting the date .....................................41, 54
Adjusting the height and reach of
the steering wheel ........................................82
Adjusting the temperature ........................85, 88
Adjusting the time ...............................41, 54, 55
Advice on driving .................................. 151, 152
Airbags ............................................29, 129, 137
Airbags, curtain .....................................132, 133
Airbags, front.........................................130, 133
Airbags, lateral ...................................... 131, 133
AIRBUMP
®
....................................................219
Air conditioning ...........................................9, 87
Air conditioning, automatic .......................84, 88
Air conditioning, manual ...........................84, 86
Air intake ...................................................86, 88
Air vents ..........................................................83
Alarm ...............................................................72
Anti-lock braking system (ABS) ....................123
Anti-slip regulation (ASR) .............................123
Anti-theft .......................................................153
Armrest, front ............................................96, 98
Assistance call ...................................... 119, 121
Assistance, emergency braking ...................123
Audio system ...................................................41
Auxiliary socket ...............................................98
A B
Child seats, ISOFIX .......................143-145, 147
CITROËN Connect Box ....................... 119, 121
CITROËN Localised Emergency Call... 119, 121
Closing the boot ........................................57, 69
Closing the doors ..........................57, 60, 61, 68
Coat hanger ....................................................99
Configuration, vehicle .........................41, 44, 46
ConnectedCAM CITROËN™ .......................193
Control, electric windows ................................ 74
Control, emergency boot release ...................69
Control, emergency door ................................64
Control, heated seats ......................................78
Control stalk, lighting ..............16, 105, 106, 110
Control stalk, wipers .............................. 113-115
Courtesy lamp .........................................94, 240
Cruise control ................................ 170, 173, 178
Cruise control by speed limit recognition .....173
Cup holder .......................................................96
Capacity, fuel tank ........................................196
Cap, fuel filler ................................................196
Central locking ....................................60, 61, 70
Changing a bulb ........................... 234, 238, 240
Changing a fuse ............................241, 243, 246
Changing a wheel ................................ 226, 227
Changing a wiper blade ........................116, 204
Changing the remote control battery ..............66
Checking the engine oil level ..........................35
Checking the levels ............................... 209-212
Checking tyre pressures (using the kit) ........221
Checks .................................. 207, 208, 213, 214
Child lock .......................................................150
Children .................................. 141, 143-145, 147
Children (safety) ............................................150
Child seats ............128, 134-136, 140, 141, 149
Child seats, conventional ...................... 140, 141
Child seats, i-Size .........................................147
Date (setting) .............................................41, 54
Daytime running lamps .........106, 110, 234, 235
Deactivating the passenger airbag .......130, 137
Deadlocking .............................................. 57, 62
Demisting - defrosting ...............................92, 93
Dimensions ...................................................257
Dipstick ....................................................35, 209
Direction indicators ...... 108, 110, 234, 235, 238
Display screen, instrument panel .................165
Doors ...............................................................68
Driving economically.........................................9
Driving time warning .....................................182
Dynamic stability control (DSC) ......22, 123, 125
C
D
Battery ................................... 203, 213, 248-251
Battery, charging ...........................................250
Battery, remote control .............................63, 66
Blanking screen (snow shield) ......................201
Blind, panoramic roof ......................................95
Blind spot monitoring system ........................184
Blind spot sensors ..................................18, 184
BlueHDi .....................................32, 36, 215, 220
Bonnet ...........................................................206
Boot .................................................. 69, 95, 100
Brake discs ....................................................214
Brake lamps ..................................................238
Brakes .....................................................22, 214
Bulbs (changing) .................................. 234, 238
261
.
Alphabetical index
B618_en_Chap11_index-alpha_ed01-2016
Earth point, remote ...............................207, 208
Eco-driving (advice) ..........................................9
Economy mode .............................................203
Electronic brake force distribution (EBFD) ...123
Emergency braking assistance (EBA) ..........123
Emergency call ..................................... 119, 121
Emergency switching off ...............................158
Emergency warning lamps ...................118, 220
Emissions control system, SCR .....................27
Energy economy mode .................................203
Engine compartment ............................207, 208
Engine, Diesel .............................. 199, 208, 220
Engine, petrol ........................................199, 207
Engines ................................................. 254-256
Environment ................................................9, 63
Electronic stability control (ESC) ..................123
Gauge, fuel....................................................196
Gearbox, automatic ... 9, 161, 166, 167, 214, 248
Gearbox, manual ........9, 96, 160, 166, 167, 214
Gear efficiency indicator ...............................165
Gear lever .........................................................9
Gear lever, manual gearbox .........................160
Glove box ..................................................96, 97
Hazard warning lamps ..........................118, 220
Headlamps, automatic
illumination ..................................106, 109, 111
Headlamps, dipped beam ............ 105, 234, 235
Headlamps, main beam ............... 105, 234, 236
Head restraints, front ......................................77
Head restraints, rear .......................................79
Heating ..................................................9, 85, 86
Hill start assist ...............................................166
Hooks ............................................................101
Horn............................................................... 118
G
H
I
F
Folding the rear seats .....................................79
Fuel............................................................9, 199
Fuel consumption ..............................................9
Fuel tank........................................................198
Fusebox, engine compartment .....................246
Fuses .............................................241, 243, 246
E
Fatigue detection ..........................................182
Filling the fuel tank ........................196, 198, 199
Filter, air ........................................................213
Filter, Diesel fuel ...........................................208
Filter, oil .........................................................213
Filter, particle ........................................212, 213
Filter, passenger compartment ..................... 213
Fitting a wheel ...............................................229
Fitting roof bars .............................................205
Fittings, boot .........................................100, 102
Fittings, interior .........................................96, 97
Flap, fuel filler ........................................196, 198
Flashing indicators ........................108, 110, 235
Foglamps, rear ......................................107, 238
Foglamps, front .............................107, 234, 236
Ignition .............................................91, 155, 157
Immobiliser, electronic ............................63, 153
Indicator, AdBlue
®
range ...........................26, 36
Indicator, coolant temperature ........................31
Indicator, engine oil level ................................35
Indicator lamps, operation ........................16, 19
Indicators, direction ..............................108, 235
Inflating tyres ....................................9, 221, 258
Instrument panel ....................................... 11, 13
ISOFIX ..................................................143, 144
Key ......................................... 56, 59, 61, 63, 64
Key, electronic ........................................... 59-61
Keyless Entry and
Starting .............................59, 61, 63, 153, 156
Key not recognised .......................................158
Key with remote control ................................153
Kit, temporary puncture repair ..............101, 221
Jack ...................................................... 226, 227
Jump starting ................................................249
K
J
262
Alphabetical index
B618_en_Chap11_index-alpha_ed01-2016
Maintenance (advice) ....................................219
Maintenance, routine ........................................9
Map reading lamps .........................................94
Markings, identification .................................258
Mat ............................................................96, 99
Memorising a speed ..................................... 170
Mirror, rear view ............................................104
Mirrors, door..........................................103, 184
Misfuel prevention .........................................198
Mountings, Isofix ...........................................143
Oil change .....................................................209
Oil consumption ............................................209
OIl, engine .....................................................209
Opening the bonnet ......................................206
Opening the boot ................................57, 59, 69
Opening the doors ..............................57, 59, 68
Pads, brake ...................................................214
Paint colour code ..........................................258
Panoramic glass sunroof ................................95
Parcel shelf, rear ...................................101, 102
Parking brake .................................. 17, 159, 214
Parking sensors, rear....................................187
Plates, identification......................................258
Port, USB ..................................................96, 98
Pre-heater, Diesel ........................................... 17
Pressures, tyres ....................................225, 258
Pre-tensioning seat belts ..............................128
Priming the fuel system ................................220
Protecting children ........................130, 134-136,
141, 143-145, 147
Protectors ......................................................219
Puncture ........................................................221
M
O
P
Number plate lamps ......................................239
N
L
Range, AdBlue ..........................................26, 36
Rear screen, demisting ...................................93
Recharging the battery .................................250
Recirculation, air .......................................86, 88
Reduction of electrical load ..........................203
Regeneration of the particle filter .................213
Reinitialisation of the under-inflation
detection system ................................. 191, 192
Reinitialising the remote control .....................67
Reminder, key in ignition ...............................155
Reminder, lighting on ....................................108
Remote control ........................ 56, 57, 59-61, 63
Removing a wheel ........................................229
R
Labels, identification .....................................258
Lamp, boot ..............................................95, 240
Lamps, parking ............................................. 110
Lane Departure Warning System (LDWS) ...183
LEDs - Light-emitting diodes ........................ 110
Level, AdBlue ................................................212
Level, brake fluid ...........................................210
Level, Diesel additive ....................................212
Level, engine coolant .............................. 31, 211
Level, engine oil ......................................35, 209
Levels and checks .................................207-212
Level, screenwash fluid ................................211
Light-emitting diodes - LEDs ................ 110, 240
Lighting ............................................................16
Lighting, guide-me home .............................. 111
Lighting, interior ..............................................94
Lighting, welcome ......................................... 111
Loading .............................................................9
Load reduction mode ....................................203
Localised Assistance Call ..................... 119, 121
Locating your vehicle ......................................58
Locking ......................................................57, 63
Locking from the inside ...................................70
Low fuel level ................................................196
263
.
Alphabetical index
B618_en_Chap11_index-alpha_ed01-2016
Safety, children .............................130, 134-136,
141, 143-145, 147
Screen, cold climate .....................................201
Screen, monochrome ..................................... 41
Screenwash, front ......................................... 114
Screenwash, rear .......................................... 114
SCR (Selective Catalytic Reduction)
system ................................................... 27, 215
Seat belts .......................................126-128, 140
Seats, front ......................................................76
Seats, heated ..................................................78
Seats, rear .......................................................79
Selector, gear ................................................161
Serial number, vehicle ..................................258
Service indicator .......................................32, 34
Servicing ...........................................................9
Tables of fuses ..............................241, 243, 246
Tank, fuel ...............................................196, 198
Temperature, coolant ......................................31
Third brake lamp ...........................................239
Three flashes (direction indicators) ..............108
Time (setting) ......................................41, 54, 55
S
T
Settings, equipment ......................40, 41, 44, 46
Sidelamps .................... 105, 110, 234, 235, 238
Side repeater ................................................237
Snow chains ..........................................190, 200
Socket, 12 V accessory ............................96, 97
Socket, auxiliary ..............................................98
Sockets, audio ................................................98
Speed limiter ................................. 170, 173, 175
Speed limit recognition ................................. 171
Stability control (ESC)...................................123
Starting the engine .......................153, 156, 161
Starting using another battery ..............158, 249
Stay, bonnet ..................................................206
Steering wheel, adjustment ............................82
Stop .................................................................20
Stopping the vehicle .....................153, 156, 161
Stop & Start .......................... 18, 52, 84, 92, 167,
196, 206, 213, 251
Stop (warning lamp) ........................................20
Storage ............................................................97
Sun visor ...................................................96, 97
Switching off the engine ...............................153
Synchronising the remote control ...................67
Removing the mat ...........................................99
Replacing bulbs ................................... 234, 238
Replacing fuses .................................... 241, 243
Replacing the air filter ................................... 213
Replacing the oil filter ................................... 213
Replacing the passenger
compartment filter ......................................213
Reservoir, screenwash ................................. 211
Resetting the service indicator .......................34
Resetting the trip recorder ..............................39
Reversing camera .........................................189
Reversing lamp .............................................238
Roof bars .......................................................205
Running out of fuel (Diesel) ..........................220
Tools ..................................................... 226, 227
Total distance recorder ...................................39
Touch screen.............................................44, 46
Towbar ...................................................152, 202
Towing another vehicle .................................252
Towing eye ....................................................101
Traction control (ASR) ....................22, 123, 125
Trailer ....................................................152, 202
Triangle, warning...................................101, 220
Trip computer ............................................ 50-52
Trip distance recorder .....................................39
Tyres ..........................................................9, 258
Tyre under-inflation
detection .............................. 30, 190, 192, 225
U
Under floor storage .......................................101
Under-inflation (detection) ............................190
Unlocking .................................................. 57, 59
Unlocking from the inside ...............................70
Updating the date ............................................54
Updating the time ......................................54, 55
264
Alphabetical index
B618_en_Chap11_index-alpha_ed01-2016
Warning and indicator lamps ........15, 16, 19, 20
Warning lamp, braking system .......................22
Warning lamp, Diesel engine pre-heater .......17
Warning lamp, driver's seat belt not
fastened ......................................................127
Warning lamp, low fuel level ...........................28
Warning lamps ................................................20
Warning lamp, seat belts ..............................127
Warning lamp, Service....................................21
Warning lamp, Stop ........................................20
Weights ................................................. 254-256
Wheel, spare .................................226, 227, 258
Window controls .............................................74
Wiper blades (changing) .......................116, 204
Wiper, rear.....................................................114
Wipers ................................................... 113, 115
Wipers, automatic rain sensitive ........... 113, 115
W
V
Ventilation ...................................... 9, 83, 84, 86
06-16
B618_en_Chap12_couverture_n_ed01-2016
Automobiles CITROËN declares, by application of the
provisions of the European legislation (Directive 2000/53)
relating to End of Life Vehicles, that it achieves the
objectives set by this legislation and that recycled materials
are used in the manufacture of the products that it sells.
Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN.
Printed in the EU
Anglais
4Dconcept
Diadeis
Interak
B618_en_Chap12_couverture_n_ed01-2016
16B61.0040
Anglais*16B61.0040*
Transversal-Citroen_en_Chap00_debut
AUDIO AND TELEMATICS GUIDE
Transversal-Citroen_en_Chap00_debut
On-line handbook
If the "MyCITROËN" function is not available on the CITROËN public
website for your country, you can fi nd your handbook at the following
address:
http://service.citroen.com/ddb/
Find your handbook and the audio and telematic systems on the
CITROËN website, under "MyCITROËN".
Find your handbook and the audio and telematic systems on the
CITROËN website, under "MyCITROËN".
Find your handbook and the audio and telematic systems on the
Select:
Select one of the following means of access to view your handbook on-
line...
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.
Referring to the handbook on-line also gives you access to the latest
information available, easily identifi ed by the bookmark, associated with
this symbol:
1
.
Audio and Telematics
CITROËN Connect Nav
GPS satellite navigation - Applications - Multimedia audio - Bluetooth
®
GPS satellite navigation - Applications - Multimedia audio - Bluetooth
®
GPS satellite navigation - Applications - Multimedia audio - Bluetooth
telephone
®
telephone
®
Contents
First steps 2
Steering mounted controls 5
Menus 6
Voice commands 8
Navigation 14
Connected navigation 30
Applications 40
Radio Media 54
Telephone 66
Settings 78
Frequently asked questions 88
The system is protected in such a way
that it will only operate in your vehicle.
Displaying of the
Energy Economy
Mode
message signals that a change
to standby is imminent.
The different functions and settings
described vary according to the version
and configuration of your vehicle.
The link below gives access to OSS
(Open Source Software) codes for the
system.
http://www.psa-peugeot-citroen.com/oss
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
2
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C
Audio and Telematics
First steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.
Volume.
Use the buttons either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen. All
of the touch areas of the screen are white.
Press the cross to go back a level.
Press "OK" to confirm.
The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (spectacles cloth) with
no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.
3
.
12:1318,5 21,523 °C
Audio and Telematics
Select the audio source (depending on
version):
- FM / DAB * / AM * radio stations.
- USB memory stick.
- CD player.
- Media player connected via the auxiliary
socket (Jack, cable not supplied).
- Telephone connected by Bluetooth * using
Bluetooth * audio streaming.
* Depending on equipment.
Certain information is displayed permanently in
the upper band of the touch screen:
- Reminder of the air conditioning
information and direct access to the
corresponding menu.
- Go directly to the selection of the audio
source, to the list of radio stations (or list of
titles depending on the source).
- Go to the message notifications, emails,
map updates and, depending on the
services, the navigation notifications.
- Go to the settings for the touch screen and
the digital instrument panel.
In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes.
The return to normal takes place when
the temperature in the passenger
compartment has dropped.
In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with
the possibility of entering a multitude
of settings (radio presets, audio
settings, navigation history, contact
favourites, ...); these settings are taken
into account automatically.
5
.
Audio and Telematics
Steering mounted controls
Media
(short press): change the
multimedia source.
Telephone
(short press): call.
Call in progress
(short press):
access to telephone menu.
Telephone
(long press): reject an
incoming call, end call, access to
telephone menu.
Decrease volume.
Voice commands
:
Short press, system voice
commands.
Long press, smartphone voice
commands via the system.
Mute / Restore the sound.
Or
Mute by pressing the volume
increase and decrease buttons
simultaneously.
Restore the sound by pressing one of
the two volume buttons.
Radio
(rotate): automatic search for
the previous / next station.
Media
(rotate): previous / next track,
move in a list.
Short press
: confirm a selection;
other than selection, access to
presets.
Radio
: display the list of stations.
Media
: display the list of tracks.
Radio
(press and hold): update the
list of stations received.
Increase volume.
6
12:1318,5 21,523 °C
21,518,5
12:1323 °C 12:1318,5 21,523 °C
12:1318,5 21,523 °C
Audio and Telematics
Connected navigation
Driving
Applications
Enter navigation settings and choose a
destination.
Use services available in real time, depending
on equipment.
Activate, deactivate and configure certain
vehicle functions.
Operate certain applications on a smartphone
connected via CarPlay
®
or MirrorLink
®
or MirrorLink
®
TM
.
Check the state of the Bluetooth
®
and Wi-Fi
®
and Wi-Fi
®
connections.
Menus
Air conditioning
Manage the various temperature and air flow
settings.
A c c o r d i n g t o v e r s i o n
7
.
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C 12:1318,5 21,523 °C 12:1318,5 21,523 °C
Audio and Telematics
Settings
Radio Media
Telephone
Configure a personal profile and/or configure
the sound (balance, ambience, ...) and the
display (language, units, date, time, ...).
Select an audio source, a radio station, display
photographs.
Connect a telephone by Bluetooth
®
, read
messages and emails and send quick
messages.
8
Audio and Telematics
Voice commands
First steps
Steering mounted controls
Information - Using the system
Press the Push To Talk
button and tell me what you'd
like after the tone. Remember
you can interrupt me at any
time by pressing this button. If you
press it again while I'm waiting for you
to speak, it'll end the conversation. If
you need to start over, say "cancel".
If you want to undo something, say
"undo". And to get information and tips
at any time, just say "help". If you ask
to me do something and there's some
information missing that I need, I'll
give you some examples or take you
through it step by step. There's more
information available in "novice" mode.
You can set the dialogue mode to
"expert" when you feel comfortable.
To ensure that voice commands are
always recognised by the system,
please observe the following
recommendations:
- speak in a normal tone without
breaking up words or raising your
voice.
- always wait for the "beep" (audible
signal) before speaking.
- for best operation, it is
recommended that the windows
and opening roof be closed to
avoid extraneous interference
(according to version).
- before making a voice command,
ask other passengers to not speak.
The voice commands, with a choice
of 12 languages (English, French,
Italian, Spanish, German, Dutch,
Portuguese, Polish, Turkish, Russian,
Arabic, Brazilian), are made using the
language previously chosen and set in
the system.
The voice commands in Arabic for:
"Navigate to address" and "Display POI
in the city", are not available.
Alternative synonyms can be used for
some voice commands.
E.g. Guide to / Navigate to / Go to /...
Example of a "voice command" for
navigation:
"Navigate to address 11 Regent
Street, London"
.
Example of a "voice command" for
the radio and media:
"Play artist Madonna"
.
Example of a "voice command" for
the telephone:
"Call David Miller"
.
Pressing this button activates the
voice commands function.
9
.
Audio and Telematics
Global voice commands
These commands can be made from any screen page after pressing the "Voice command" or "Telephone" button located on the steering
wheel, as long as there is no telephone call in progress.
"Voice command"
Help message
Help
There are lots of topics I can help you with.
You can say: "help with phone", "help with navigation", "help with media" or "help with
radio". For an overview on how to use voice controls, you can say "help with voice
controls".
Voice command help
Navigation help
Radio help
Media help
Telephone help
Set dialogue mode as <...>
Select "beginner" or "expert" mode.
Select profile <...>
Select profile 1, 2 or 3.
Yes
Say "yes" if I got that right. Otherwise, say "no" and we'll start that again.
No
10
Audio and Telematics
"Navigation" voice commands
These commands can be issued from any screen page after pressing the "Voice command" or "Telephone" button on the steering wheel, as
long as there is no telephone call in progress.
Depending on the country, give the destination instructions (address) in the language used by the system.
"Voice command"
Help message
Navigate home
To start guidance or add a stopover, say "navigate to" and then the address or contact
name.
For example, "navigate to address 11 Regent Street, London", or "navigate to contact, John
Miller".
You can specify if it's a preferred or recent destination.
For example, "navigate to preferred address, Tennis club", "navigate to recent destination,
11 Regent Street, London". Otherwise, just say, "navigate home".
To see points of interest on a map, you can say things like "show hotels in Banbury" or
"show nearby petrol station".
For more information you can ask for "help with route guidance".
Navigate to work
Navigate to preferred address <...>
Navigate to contact <…>
Navigate to address <...>
Show nearby POI <...>
Remaining distance
To get information about your current route, you can say "tell me the remaining time",
"distance" or "arrival time".
Try saying "help with navigation" to learn more commands.
Remaining time
Arrival time
Stop route guidance
11
.
Audio and Telematics
"Radio Media" voice commands
These commands can be issued from any screen page after pressing the "Voice command" or "Telephone" button on the steering wheel, as
long as there is no telephone call in progress.
"Voice command"
Help message
Tune to channel <...>
You can pick a radio station by saying "tune to" and the station name or frequency.
For example "tune to channel Talksport" or "tune to 98.5 FM". To listen to a preset radio
station, say "tune to preset number". For example "tune to preset number five".
What's playing
To display the details of the current "track", "artist" and "album", you can say "What's
playing"
Play song <...>
Use the command "play" to select the type of music you'd like to hear.
You can pick by "song", "artist", or "album".
Just say something like "play artist, Madonna", "play song, Hey Jude", or "play album,
Thriller".
Play artist <…>
Play album <...>
Media voice commands are available only for a USB connection.
12
Audio and Telematics
"Voice command"
Help message
Call contact <...>
*
To make a phone call, say "call" followed by the contact name, for example: "Call David
Miller".
You can also include the phone type, for example: "Call David Miller at home". To make a
call by number, say "dial" followed by the phone number, for example,
"Dial 107776 835 417".
You can check your voicemail by saying "call voicemail".
To send a text, say "send quick message to", followed by the contact, and then the name of
the quick message you'd like to send.
For example, "send quick message to David Miller, I'll be late". To display the list of calls,
say "display calls".
For more information on SMS, you can say "help with texting".
Dial <...> *
Display contacts
*
Display calls
*
Call (message box | voicemail)
*
* This function is available only if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.
"Telephone" voice commands
If a telephone is connected to the system, these voice commands can be issued from any main screen page after pressing the "Telephone"
button on the steering wheel, as long as there is no telephone call in progress.
If there is no telephone connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.
13
.
Audio and Telematics
"Voice command"
Help message
Send text to <...>
To hear your messages, you can say "listen to most recent message".
When you want to send a text, there's a set of quick messages ready for you to use. Just
use the quick message name and say something like "send quick message to Bill Carter,
I'll be late".
Check the phone menu for the names of the supported messages.
Please say "call" or "send quick message to", and then select a line from the list.
To move around a list shown on the display, you can say "go to start", "go to end", "next
page" or "previous page". To undo your selection, say "undo".
To cancel the current action and start again, say "cancel".
Listen to most recent message
*
"Test message" voice commands
If a telephone is connected to the system these voice commands can be issued from any main screen page after pressing the "Telephone"
button on the steering wheel, as long as there is no telephone call in progress.
If no telephone has been connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.
* This function is only available if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.
The system only sends pre-recorded "Quick messages".
14
12:1318,5 21,523 °C
12:1318,5 21,523 °C
1
12:1318,5 21,523 °C
Audio and Telematics
Navigation
A c c o r d i n g t o v e r s i o n
Level 1
Level 2
Level 3
15
.
Audio and Telematics
Level 1
Level 2
Level 3
Comments
Navigation
Select the orientation of the map; north up,
vehicle direction up or perspective.
Navigation
Display the traffic information available.
Navigation
World map
Manually locate an area on the world map or enter
the latitude and longitude coordinates.
Around the vehicle
Display the location criteria selected.
Around home
Around the destination
2D mode
Switch to a 2D map.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
Start navigation to the current address.
Save the current address.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
16
12:1318,5 21,523 °C
1
2
3
4
5
6
7
12:1318,5 21,523 °C
Audio and Telematics
Level 1
Level 2
Level 3
17
.
7
2
3
4
5
6
Audio and Telematics
Level 1
Level 2
Level 3
Comments
Navigation
Stations
Activate or deactivate the content available
(stations, car parks, risk areas and danger areas).
Car park
Danger area
Map color
Select day or night mode for display of the map.
POI on map
Travel
Select the POIs available.
Active life
Commercial
Public
Geographic
Select all
Select or deselect all.
Save your choice or selection.
View map
Modify city
Select or modify a city.
Weather
Display on the map the content available in non-
connected mode.
Petrol Station
Car park
Traffic
Danger area
Select POI
Select from the POIs available.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
18
Audio and Telematics
Level 3
Level 4
Level 5
19
.
Audio and Telematics
Level 3
Level 4
Level 5
Comments
Zoom in
Zoom in around the city selected.
Around the vehicle
Select a location option.
On the route
At the destination
Weather
Weather information transmitted in TMC mode.
Filling stations
Filling stations around the vehicle
Display the list of POIs.
Filling stations on the route
Filling stations at the destination
Car park
Car parks around the vehicle
Car parks on the route
Car parks at the destination
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
20
Audio and Telematics
Level 3
Level 4
Level 5
21
.
Audio and Telematics
Level 3
Level 4
Level 5
Comments
Traffic
Traffic observed
Traffic information sent in real time.
Danger area
List of danger areas
Display the list of danger areas (roadworks,
breakdowns, accidents, ...).
Select POI
Configure a category of POI to display.
22
1
17
18
8
11
9
12
10
13
16
14
15
Audio and Telematics
Level 2
Level 3
Level 4
23
.
1
1
1
1
17
18
8
11
9
12
10
13
16
14
15
Audio and Telematics
Level 2
Level 3
Level 4
Comments
Navigation
MENU
Enter address
Select the country.
Save the current address.
Confirm the current address.
Navigation
MENU
My destinations
Recent
Display the lists of destinations and start
navigation.
Preferred
My home
My work
Contact
Delete one or more destinations.
Navigation
MENU
Points of interest
Travel
List of categories available.
After selection of category, select the point of
interest.
Active life
Commercial
Public
Geographic
Search
Search for a point of interest.
Navigation
MENU
Search
Point of interest
Enter a point of interest.
Address
Enter the address of a point of interest.
Local
/
Connected
Enter settings for the POI search mode in a local
or connected database depending on the services
subscribed to.
Confirm the entry.
24
1
19
21
20
22
23
24
25
Audio and Telematics
Level 2
Level 3
Level 4
25
.
1
1
1
19
21
20
23
22
24
25
Audio and Telematics
Level 2
Level 3
Level 4
Comments
Navigation
MENU
Guidance criteria
Fast
Select the guidance criteria (motorways, tolls and
how traffic is taken into account).
Short
Compromise
Ecological
See on map
Display the route selected using the criteria.
Save your selections.
Navigation
MENU
Routes / waypoints
Waypoints
Display the waypoints saved.
Route
Display details of the route.
Add waypoint
Add a waypoint
Add a waypoint from a list offered.
Preview
Display the map.
Finish
Press to calculate the route.
Delete one or more waypoints.
Move a waypoint in the list.
Navigation
MENU
Settings
Aspects
Enter choices and select the volume for the voice
and stating the names of streets.
Options
Alerts
Vocal
Mapping
Save the selections adopted.
26
1
1
8
Audio and Telematics
Choosing a new destination
Select "
Enter address
".
Select "
See on map
" to select the
"
Guidance criteria
".
Select the "
Country
".
Press "
OK
" to select the "
Guidance
criteria
".
Press "
OK
" to start navigation.
Press "
OK
" to start navigation.
And / Or
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Towards a new destination
Towards a recent destination
Select "
My destinations
".
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Enter the "
City
", the "
Street
" and the
"
Number
" and confirm by pressing
on the suggestions displayed.
Select the "
Recent
" tab.
Select the address chosen in the list to display
the "
Guidance criteria
".
To use the navigation system, it is
necessary to enter the "
City
", the
"
Street
" and the "
Number
" using the
virtual keypad, or to take them from the
list of "
Contacts
" or from the "
History
"
of addresses.
Without confirmation of the street
number, you will be guided to one end
of the street.
Select "
Position
" to see the point of
arrival geographically.
27
.
1
10
1
1
9
Audio and Telematics
Or
Towards a contact
Select "
My destinations
".
Select the "
Contact
" tab.
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Select a contact in the list offered to start
navigation.
Press "
OK
" to start calculation of the
route.
Towards points of interest (POI)
Points of Interest (POI) are listed in different
categories.
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Select "
Points of interest
".
Select "
Search
" to enter the name
and address of a POI.
Select the "
Travel
", or "
Leisure
"
or "
Commercial
" or "
Public
" or
"
Geographic
" tab.
Or
Or
Towards "My home" or "My
work"
Select "
My destinations
".
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Select the "
Preferred
" tab.
Select "
My home
".
Select "
My work
".
Select a previously saved favourite destination.
28
Audio and Telematics
Towards GPS coordinates
Towards a point on the map
Press
Navigation
to display the
primary page.
Press
Navigation
to display the
primary page.
Explore the map by sliding a finger on the
screen.
Explore the map by sliding a finger on the
screen.
Tap the screen to place a marker and
display the sub-menu.
Or
Or
Or
And
Select the destination by pressing on the map.
Press this button to start navigation.
Press this button to start navigation.
Press this button to display the world
map.
Using the grid, select by zoom the
desired country or region.
Press this button to save the address
displayed
Press this button to save the address
displayed.
Press this button to enter the GPS
coordinates.
Press this button to enter the value
for "
Latitude
" using the virtual
k e y p a d .
Press this button to enter the value
for "
Longitude
" using the virtual
k e y p a d .
A marker is displayed in the middle of
the screen, with the "
Latitude
" and
"
Longitude
" coordinates.
A long press on a point opens a list of
POIs nearby.
29
.
Audio and Telematics
TMC (Traffic Message
Channel)
TMC (Traffic Message Channel)
messages are linked to a European
standard on the broadcasting of traffic
information via the RDS system on FM
radio, transmitting traffic information in
real time.
The TMC information is then displayed
on a GPS Navigation system map and
taken into account straight away during
navigation, so as to avoid accidents,
traffic jams and closed roads.
The display of danger areas depends
on the legislation in force and
subscription to the service.
30
12:1318,5 21,523 °C
Audio and Telematics
Connected navigation
Network connection provided by the vehicle
OR
Network connection provided by the user
Depending on the equipment level of the vehicle
According to version
31
.
Audio and Telematics
As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.
vehicle stationary . vehicle stationary
Connected navigation connection
The principles and standards
are constantly changing. For
communication between your
smartphone and the system to operate
correctly, we recommend that you
keep your smartphone's operating
system up to date, and the time and
date on your smartphone and the
system correct
.
The services offered with connected
navigation are as follows.
A Connected Services pack:
- Weather,
- Filling stations,
- Car park,
- Traffic,
- POI, local search.
A Danger area pack (option).
Activate the Bluetooth function on
the telephone and ensure that it is
visible to all (see the "Connect-App"
section).
Connect the USB cable.
The smartphone is in charge mode
when connected by USB cable.
The system is automatically
connected to the modem included
for the "Emergency or assistance
calls" services and does not require
a connection provided by the user via
their smartphone.
On the arrival of "TOMTOM
TRAFFIC", the services are
available.
For access to connected navigation, you
can use the connection provided by the
vehicle via the "Emergency or assistance
call" services or use your smartphone as
a modem.
Activate and enter settings for
sharing the smartphone connection.
Restrictions of use:
- With CarPlay
®
, connection sharing is
only with a Wi-Fi connection.
- W i t h M i r r o r L i n k
TM
, connection
sharing is only with a USB
connection.
The quality of services depends on the
quality of the network connection.
Select a Wi-Fi connection found by
the system and connect to it (see the
"Connect-App" section).
USB connection
Network connection provided by
the vehicle
Network connection provided by
the user
Bluetooth connection
Wi-Fi connection
32
12:1318,5 21,523 °C
12:1318,521,523 °C
12:1318,521,523 °C
1
12:1318,5 21,523 °C
12:1318,5 21,523 °C
7
27
28
26
29
30
Audio and Telematics
Level 1
Level 2
Level 3
33
.
7
28
27
26
29
30
Audio and Telematics
Level 1
Level 2
Level 3
Comments
Navigation
Select the orientation of the map; north up,
vehicle direction up or perspective.
Navigation
TOMTOM TRAFFIC
On connection of the system to a network,
"TOMTOM TRAFFIC" is displayed instead of
"TMC", for use of all of the options available, in
real time.
Navigation
Weather
Select the options.
The map display the route chosen, depending on
options.
Stations
Car park
Traf fic
Danger area
Map color
Select the display mode for the map.
POI on map
Commercial
Select the POIs available.
Geographic
Leisure
Public
Travel
Save the options.
View map
Modify city
Select or change a city.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
34
31
32
Audio and Telematics
Level 3
Level 4
Level 5
35
.
31
32
Audio and Telematics
Level 3
Level 4
Level 5
Comments
Select city
Select or change a city.
Around the vehicle
Select or change a city.
On the route
At the destination
Weather
Weather information
Display the weather forecast for the day or the
following days.
Filling stations
Filling stations around the vehicle
Display the list of filling stations and the
associated information (address, prices, fuels, ...).
Filling stations on the route
Filling stations at the destination
By distance
By price
Car park
Car parks around the vehicle
Display the list of car parks and the associated
information (address, distance, spaces available,
price, ...).
Car parks on the route
Car parks at the destination
Sort by distance
Sort by spaces
Sort by price
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
36
Audio and Telematics
Level 3
Level 4
Level 5
37
.
Audio and Telematics
Level 3
Level 4
Level 5
Comments
Traffic
Traffic observed
Display traffic information in real time: type,
description and duration (in minutes).
Danger areas
List of danger areas
Display danger areas (roadworks, breakdowns,
accidents, ...) in real time.
Points of interest
Points of
interest
Select POI
Display the list of POIs for the location selected.
38
22
23
1
Audio and Telematics
Settings specific to
connected navigation
For access to connected navigation,
you have to select the option:
"
Authorise sending information
".
Select "
Options
".
Select "
Alerts
".
- "
Allow declaration of danger
areas
"
- "
Guidance to final destination
on foot
"
- "
Authorise sending
information
"
Activate or deactivate:
Activate or deactivate "
Warn of
danger zones
".
The display of danger zones is
conditioned by the legislation in force
and subscription to the service.
The temperature displayed at 6 o'clock in the
morning will be the maximum temperature for the
day.
The temperature displayed at 6 o'clock in the evening
will be the minimum temperature for the night.
Select "
Settings
".
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Display the weather
Select "
Weather
".
Press this button to display the first
level of information.
Press this button to display the
detailed weather information.
Select "
View map
".
Press
Navigation
to display the
primary page.
Press this button to display the list of
services.
39
.
1
Audio and Telematics
To distribute information on the
declaration of danger zones, you
should check the option: "
Allow
declaration of danger areas
".
Declaration of "Danger
areas"
Press
Navigation
to display the
primary page.
Press the "
Declare a new danger
area
" button located in the upper bar
of the touch screen.
Select the option "
Type
" to choose
the type of "Danger area".
Select the "
Speed
" option and enter
it using the virtual keypad.
Press "
OK
" to save and distribute the
information.
You can download the system and map
updates from the Brand's website.
The update procedure can also be
found on the website.
"Danger areas" pack
updates
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
System settings
".
Select "
View
" to view the version of
the various modules installed in the
system.
Select "
Update(s) due
".
Select the "
System info
" tab.
40
12:1318,5 21,523 °C
3
2
1
12:1318,5 21,523 °C
Audio and Telematics
Applications
According to version / according to equipment
Level 1
Level 2
Level 3
41
.
2
2
3
Audio and Telematics
Internet Browser
Connectivity
Applications
Press "
Internet Browser
" to display
the browser home page.
Select your country of residence.
Press "
Connectivity
" to go to the
CarPlay
®
or
®
or
®
MirrorLink
TM
function.
Press "
Connectivity
" to go to the
"
Internet Browser
" function.
Press "
Applications
" to display the
applications home page.
Connection to the internet is via one of
the network connections provided by
the vehicle or the user.
Press
Applications
to display the
primary page.
Press
Applications
to display the
primary page.
Press
Applications
to display the
primary page.
Press "
OK
" to save and start the
browser.
42
12:1318,5 21,523 °C
2
Audio and Telematics
CarPlay
®
CarPlay
®
CarPlay
smartphone connection
®
smartphone connection
®
43
.
2
Audio and Telematics
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a smartphone
allows applications on a smartphone that
are adapted to the CarPlay
®
technology
®
technology
®
to be displayed in the vehicle's screen,
having first activated the CarPlay
®
function in the smartphone.
As the principles and standards are
constantly changing,
it is recommended
that you keep your smartphone's
operating system updated
.
For the list of eligible smartphones, go
to the Brand's internet website in your
country.
Connect a USB cable. The
smartphone charges when
connected by a USB cable.
Connect a USB cable. The
smartphone charges when connecte
d by a USB cable.
Press "
Telephone
" to display the
CarPlay
®
interface.
®
interface.
®
Press "
CarPlay
" to display the
CarPlay
®
interface
®
interface
®
On connecting the USB cable, the
CarPlay
®
function deactivates the
®
function deactivates the
®
system's Bluetooth
®
mode.
®
mode.
®
In the system, press "
Applications
"
to display the primary page.
Or
Press "
Connectivity
" to go to the
CarPlay
®
function.
®
function.
®
44
12:1318,5 21,523 °C
2
Audio and Telematics
MirrorLink
TM
smartphone connection
45
.
2
Audio and Telematics
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM
technology to be displayed
in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between
the smartphone and the system to
work correctly, the smartphone must
be unlocked;
update the operating
system of your smartphone as
well as the date and time in the
smartphone and the system
.
For the list of eligible smartphones,
connect to the Brand's internet website
in your country.
The "
MirrorLink
TM
" function requires
the use of a compatible smartphone
and applications.
There may be a wait for the availability
of applications, depending on the
quality of your network.
When connecting a smartphone to
the system, it is recommended that
Bluetooth
®
be started on the smartphone
®
be started on the smartphone
®
Depending on the smartphone, it may be
necessary to activate the "
MirrorLink
TM
"
function.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.
Connect a USB cable. The
smartphone charges when
connected by a USB cable.
Press "
MirrorLink
TM
" to start the
system's application.
Once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink
TM
t e c h n o l o g y .
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons
From the system, press on
"
Applications
" to display the primary
page.
As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
Press "
Connectivity
" to go to the
MirrorLink
TM
function.
46
12:1318,521,523 °C
Audio and Telematics
Level 1
Level 2
Level 3
47
.
Audio and Telematics
Level 1
Level 2
Level 3
Comments
Applications
MirrorLink
TM
Go to or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink
TM
technology.
Go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up one
level.
"Home": go to or return to the "Car mode" page on
your smartphone.
Go to the primary page of the "Applications"
menu.
48
12:1318,5 21,523 °C
3
3
2
1
4
6
5
Audio and Telematics
According to equipment
Level 2
Level 3
49
.
4
5
6
Audio and Telematics
Level 2
Level 3
Comments
Applications
Trip computer
Instant
System providing information about the current
journey (range, fuel consumption…).
Trip 1
Trip 2
Back to the Applications page.
50
12:1318,5 21,523 °C
7
12
8
13
9
11
10
1
3
2
Audio and Telematics
Level 1
Level 2
Level 3
51
.
1
1
1
1
11
12
13
7
8
9
10
Audio and Telematics
Level 2
Level 3
Comments
Applications
OPTIONS
Bluetooth
connection
All
Display all telephones detected and saved.
Connected
Display all telephones connected.
Search
Start the search for a device to be connected.
Applications
OPTIONS
Wi-Fi network
connection
Secured
Display the secured Wi-Fi networks.
Not secured
Display the not secured Wi-Fi networks.
Stored
Display the stored Wi-Fi networks.
Applications
OPTIONS
Manage connection
Display the status of the subscription to the
connected services, the status of the network
connection and the connection mode.
Applications
OPTIONS
Share Wi-Fi
connection
Activation
Activate or deactivate the Wi-Fi connection
sharing.
Settings
Select a Wi-Fi network found by the system and
connect.
Save the settings.
52
1
Audio and Telematics
Bluetooth
®
connection
®
connection
®
Procedure from the system
Connection sharing
Press on "
Connect-App
" to display
the primary page.
Press on "
Bluetooth connection
".
Select "
Search
".
The list of detected telephones is
displayed.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
"Bluetooth" function in your telephone.
The "
Mobile internet data
" profile
must be activated for connected
navigation (where the vehicle does not
have "Emergency and assistance call"
services), having first activated sharing
of this connection on your smartphone.
The system offers to connect the
telephone with 3 profiles:
- "
Telephone
" (hands-free kit, telephone
only),
- "
Streaming
" (wireless play of audio files
on the telephone),
- "
Mobile internet data
".
Select the name of the chosen
telephone in the list.
Press "
OK
" to confirm.
Select one or more profiles.
Press the "
OPTIONS
" button to go to
the secondary page.
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
Procedure from the telephone
Select the name of the system in the
list of devices detected.
In the system, accept the connection request
from the telephone.
Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).
To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.
Depending on the type of telephone,
you may be asked to accept or not the
transfer of your contacts and messages.
53
.
1
1
1
12
13
Audio and Telematics
Wi-Fi connection
Sharing the Wi-Fi connection
Managing connections
To protect from any piracy and provide
maximum security for your systems,
it is recommended that you use a
security code or a complex password.
The Wi-Fi connection and the sharing
of the Wi-Fi connection are exclusive.
Press "
OK
" to confirm.
Press "
OK
" to start the connection.
Press "
Connect-App
" to display the
primary page.
Network connection by the smartphone Wi-Fi.
Creation of a local Wi-Fi network by the
system.
Press
Connect-App
to display the
primary page.
Press
Connect-App
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Wi-Fi network connection
".
Select "
Share Wi-Fi connection
".
Select "
Manage connection
".
And / Or
Select the "
Secured
", "
Not secured
"
or "
Stored
" tab.
Select the "
Activation
" tab to
activate or deactivate sharing of the
Wi-Fi connection.
Select the "
Settings
" to change the
name of the system network and the
password.
With this function you can view the access
to connected services, the availability of
connected services and modify the connection
mode.
Using the virtual keypad, enter the
"
Key
" for the Wi-Fi network and the
"
Password
".
Select a network.
54
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C
2
1
4
3
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C
AM/531 kHz
PO
kHz
12:1318,5 21,523 °C
2
1
3
4
Audio and Telematics
Radio Media
A c c o r d i n g t o v e r s i o n
Level 1
Level 2
55
.
3
2
4
Audio and Telematics
Level 1
Level 2
Comments
Radio Media
Source
Radio
Select change of source.
USB
iPod
CD
AUX
Bluetooth
Radio Media
Frequency / Presets
Frequency
Carry out an automatic or manual search for radio
stations.
Presets
Make a long press on an empty location to preset
a station.
Radio Media
Band
FM
Press the Band button to change waveband.
DAB
AM
Radio Media
List
Radio stations
Open the list and press a radio station to select it.
56
1
9
6
7
8
5
10
11
13
14
15
12
9
9
6
6
7
7
8
8
5
5
Audio and Telematics
Level 2
Level 3
57
.
5
12
8
6
13
14
15
9
7
10
11
1
1
1
Audio and Telematics
Level 2
Level 3
Comments
Radio Media
OPTIONS
Audio settings
Ambience
Select the sound ambience.
Distribution
Sound distribution by the Arkamys
®
system.
®
system.
®
Sound
Adjust the volume or activate volume linked to
speed.
Voice
Adjust the voice volume.
Ringtone
Adjust the ringtone volume.
Save settings.
Radio Media
OPTIONS
Radio settings
General
Activate or deactivate settings.
Announcements
Save settings.
Radio Media
OPTIONS
Radio stations
FM
Display the list of radio stations for the band
selected.
DAB
AM
Presets
Select a preset radio station.
Frequency
Enter a frequency manually.
Change the screen display mode.
Update the list according to reception.
58
21
1
17
18
19
20
16
Audio and Telematics
Level 2
Level 3
59
.
17
20
18
21
19
1
1
16
Audio and Telematics
Level 2
Level 3
Comments
Radio Media
OPTIONS
Music files
Albums
Choose a selection mode.
Artists
Genres
Playlists
Folders
Radio Media
OPTIONS
Managing photos
USB
Display photos.
The system supports the following image formats:
.gif, .jpg, .jpeg, .bmp, .png, .raw and .tiff with a
maximum file size of 10 Mb per image.
61
.
1
2
2
2
Audio and Telematics
Press
Radio Media
to display the
menu.
Press the "
OPTIONS
" button to go to
the secondary page.
Press "
Frequency
".
Press "
Frequency
".
Enter the values using the virtual
keypad.
First enter the units then click on the
decimals zone to enter the figures
after the decimal point.
Press one of the buttons for an
automatic search for radio stations.
Press
Radio Media
to display the
primary page.
Radio
Selecting a station
Radio reception may be affected by
the use of electrical equipment not
approved by the Brand, such as a USB
charger connected to the 12 V socket.
The exterior environment (hills,
buildings, tunnel, car park, below
ground...) may prevent reception,
even in RDS station tracking mode.
This phenomenon is normal in the
propagation of radio waves and is in no
way indicative of a fault with the audio
system.
Select "
Radio stations
" in the
secondary page.
Or
Or
Move the cursor for a manual search
for frequencies up or down.
Select a radio station or frequency.
(refer to the corresponding section)
Press "
Presets
".
Make a long press on one of the
buttons to preset the station.
Preset a station
Press "
OK
" to confirm.
62
1
1
10
10
11
Audio and Telematics
Press
Radio Media
to display the
primary page.
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Radio settings
".
Select "
Radio settings
".
Select "
General
".
Select "
General
".
Select "
Announcements
".
Activate/deactivate "
Station follow
".
Activate / Deactivate "
Display radio
text
".
Activate / Deactivate "
Traf fic
announcement
".
Activate/ Deactivate RDS
RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
The "Radio Text" function allows
information transmitted by the radio
station, relating to the station or the
song playing, to be displayed.
Display text information
Play TA messages
The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
that carries this type of message. While
traffic information is being broadcast,
the current media is automatically
interrupted so that the TA message can
be heard. Normal play of the media
previously playing is resumed at the
end of the message.
63
.
1
10
3
Audio and Telematics
Select the audio source.
Press
Radio Media
to display the
primary page.
Press "
Band
" to select the "
DAB
"
waveband.
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
DAB-FM auto tracking
"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
"DAB-FM auto tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).
If "DAB-FM auto tracking" is activated,
there is a difference of a few seconds
when the system switches to "FM"
analogue radio with sometimes a
variation in volume.
Once the digital signal is restored, the
system automatically changes back to
" D A B " .
Digital radio provides higher quality
reception.
The different multiplexes offer a
choice of radio stations arranged in
alphabetical order.
If the "DAB" station being listened to
is not available on "FM" ("
DAB-FM
"
option greyed out), or "DAB/FM auto
tracking" is not activated, the sound
will cut out while the digital signal is too
w e a k .
Select "
Radio settings
".
Select "
General
".
Activate / Deactivate "
Station
follow
".
Press "
OK
".
DAB radio (Digital Audio Broadcasting)
Terrestrial Digital Radio
64
Audio and Telematics
Media
USB port
Selecting the source
Select "
Source
".
Press
Radio Media
to display the
primary page.
The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a USB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.
Insert the USB memory stick into the USB port
or connect the USB device to the USB port
using a suitable cable (not supplied).
Auxiliary (AUX) socket
First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.
This source is only available if "Auxiliary input"
has been checked in the audio settings.
(depending on equipment)
Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).
Choose the source.
Bluetooth
®
Bluetooth
®
Bluetooth
audio streaming
®
audio streaming
®
Streaming allows you to listen to music from
your telephone.
The Bluetooth profile must be activated. First
adjust the volume on your portable device (to a
high level).
Then adjust the volume of your audio system.
If play does not start automatically, it may be
necessary to start the audio playback from the
telephone.
Control is from the portable device or by using
the system's touch buttons.
Once connected in streaming mode,
the telephone is considered to be a
media source.
To protect the system, do not use a
USB hub.
CD player
(depending on equipment)
Insert the CD in the player.
65
.
Audio and Telematics
Connecting Apple
®
Connecting Apple
®
Connecting Apple
players
®
players
®
Connect the Apple
®
player to the USB port
®
player to the USB port
®
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts).
The default classification used is by
artist. To modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.
The version of software in the audio system
may not be compatible with the generation of
your Apple
®
player.
®
player.
®
The audio equipment will only play audio
files with ".wma, .aac, .flac, .ogg and .mp3"
file extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
".wma" files must be of the standard wma 9
type.
The sampling rates supported are 32, 44 and
48 KHz.
In order to be able to play a burned CDR or
CDRW, when burning it is preferable to select
standards ISO 9660 level 1, 2 or Joliet.
If the disc is burned in another format, it may
not be played correctly.
It is recommended that the same burning
standard is always used on an individual disc,
with as low a speed as possible (4x maximum)
for the best sound quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.
It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.
Information and advice
Use only USB memory sticks formatted FAT 32
(file allocation table).
The system supports USB mass
storage devices, BlackBerry
®
devices
®
devices
®
or Apple
®
players via USB ports. The
®
players via USB ports. The
®
adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied) or via Bluetooth streaming,
depending on compatibility.
It is recommended that the original USB
cable for the portable device is used.
To protect the system, do not use a
USB hub.
66
12:1318,5 21,523 °C
12:1318,5 21,523 °C
4
1
1
8
14
5
3
9
12
6
2
10
7
11
13
Audio and Telematics
Telephone
A c c o r d i n g t o v e r s i o n
Level 1
Level 2
Level 3
67
.
14
12
13
3
2
5
6
7
4
8
9
10
11
Audio and Telematics
Level 1
Level 2
Level 3
Comments
Telephone
Bluetooth
Contact
All
View contacts according to presentation choices.
Select a contact or a favourite saved in the
system via the profile selected to start the call.
Telephone
Address
Favourites
Sort the contacts by Surname-First name or First
name-Surname.
Update the contacts from the telephone.
Search
Search for a contact in the directory.
Create
Telephone
Create a new contact in the system.
Address
Email
Telephone
Bluetooth
Calls
All
View calls according to choice of presentation.
Select a contact to start the call.
Incoming
Outgoing
Missed
View details for the contact.
68
19
20
21
22
1
15
16
17
18
Audio and Telematics
Level 2
Level 3
69
.
1
1
1
19
20
21
22
15
16
17
18
Audio and Telematics
Level 2
Level 3
Comments
Telephone
OPTIONS
Bluetooth
connection
All
Display all telephones detected and saved.
Connected
Display all connected telephones.
Search
Start the search for a device to connect.
Telephone
OPTIONS
Messages
All
Display messages according to the choice made.
Received
Sent
Telephone
OPTIONS
Email
Received
Display emails according to the choice made.
Sent
Not read
Mailbox
70
23
27
24
28
25
29
26
30
1
23
24
25
26
Audio and Telematics
Level 2
Level 3
71
.
1
1
27
28
29
30
23
24
25
26
Audio and Telematics
Level 2
Level 3
Comments
Telephone
OPTIONS
Settings
Security
Make driving safe.
Voicemail
Enter and save the number for the telephone
voicemail.
Ringtone
Adjust the ringtone volume.
Statistics
Display data for the telephone connected.
Save the options.
Telephone
OPTIONS
Quick messages
Delayed
Select a quick message from the categories, as
required.
My arrival
Not available
Other
72
Audio and Telematics
Pairing a Bluetooth
®
Pairing a Bluetooth
®
Pairing a Bluetooth
telephone
®
telephone
®
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with theBluetooth hands-free
system of your audio system must be
done with the
vehicle stationary
and
the ignition on.
Procedure from the telephone
Select the system name in the list of
devices detected.
In the system, accept the connection request
from the telephone.
Procedure from the system
Press on
Telephone
to display the
primary page.
Press on "
Bluetooth search
".
Select "
Search
".
The list of telephones detected is
displayed.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
"Bluetooth" function in your telephone.
The system offers to connect the telephone
with 3 profiles:
-
Telephone
(hands-free kit, telephone
only),
-
Streaming
(wireless play of audio files on
the telephone),
-
Mobile internet data
.
Depending on the type of telephone,
you may be asked to accept or not
the transfer of your contacts and
messages.
Select the name of the chosen
telephone in the list.
Press "
OK
" to confirm.
Select one or more profiles.
Or
Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).
To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.
The "
Mobile internet data
" profile
must be activated for connected
navigation, having first activated
sharing of the connection on your
smartphone.
Connection sharing
73
.
1
Audio and Telematics
Press
Telephone
to display the
primary page.
Select "
Bluetooth connection
" to
display the list of paired devices.
On return to the vehicle, if the last
telephone connected is present again,
it is automatically recognised and
within about 30 seconds of switching
on the ignition, the connection is
established without any action on your
part (Bluetooth activated).
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used. Check in your telephone's
manual and with your service provider
for the services available to you.
The ability of the system to connect
with just one profile depends on the
telephone.
All three profiles may connect by default.
Go to the Brand's website for more information
(compatibility, additional help, ...).
To modify the connection profile
:
Automatic reconnection
Press the "details" button.
Press the "
OPTIONS
" button to go to
the secondary page.
Press "
OK
" to confirm.
Select one or more profiles.
The profiles compatible with the system
are HFP, OPP, PBAP, A2DP, AVRCP,
MAP and PAN.
74
1
Audio and Telematics
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted
TEL
button to accept an
incoming call.
Make a long press
on the steering mounted
TEL
button
to reject the call.
Or
And
Select "
End call
".
Press on the name of the telephone
chosen in the list to disconnect it.
Press again to connect it.
Select the basket at top right of the
screen to display a basket alongside
the telephone chosen.
Press the basket alongside the
telephone chosen to delete it.
Managing paired telephones
This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.
Press
Telephone
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Bluetooth connection
" to
display the list of paired peripheral
devices.
Deleting a telephone
75
.
2
3
Audio and Telematics
on the steering mounted button.
Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.
Making a call
Calling a new number
Press
Telephone
to display the
primary page.
Enter the phone number using the
digital keypad.
Press "
Call
" to start the call.
Calling a contact
Press
Telephone
to display the
primary page.
Or make a long press
on the steering mounted
TEL
button.
Select "
Contact
".
Select the desired contact from the list offered.
Select "
Call
".
Calling a recently used number
Press
Telephone
to display the
primary page.
Make a long press
Select "
Calls
".
Select the desired contact from the list offered.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Or
76
2
12
13
14
1
Audio and Telematics
The access to "
Messages
" depends on
the compatibility of the smartphone and
the integral system.
Depending on the smartphone, access
to your messages or email may be
slow.
Managing messages
The "
Email
" function allows email
addresses to be entered for a contact,
but the system is not able to send
emails.
Managing contacts / entries
Press
Telephone
to display the
primary page.
Select "
Contact
".
Select "
Create
" to add a new contact.
In the "
Telephone
" tab, enter the
telephone numbers for the contact.
In the "
Address
" tab, enter the
addresses for the contact.
In the "
Email
" tab, enter the email
addresses for the contact.
Press "
Answer
" to send a quick
message stored in the system.
Press
Telephone
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Messages
" to display the list
of messages.
Select the "
All
" or "
Received
" or
"
Sent
" tab.
Select the detail of the message
chosen in one of the lists
Press "
Call
" to start the call.
Press "
Play
" to hear the message.
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used.
Check in the manual for your
smartphone and with your service
provider for the services available to
you.
77
.
1
1
Audio and Telematics
Managing email
Press
Telephone
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Email
" to display the list of
messages.
Select the "
Received
" or "
Sent
" or
"
Not read
" tab.
Select the email chosen in the list.
Press "
Play
" to start playing the
email.
Access to "
Email
" depends on the
compatibility of the smartphone and the
integral system.
Managing quick messages
Press
Telephone
to display the
primary page.
Press on the "
OPTIONS
" button to
go to the secondary page.
Select "
Quick messages
" to display
the list of messages.
Select the "
Delayed
" or "
My arrival
"
or "
Not available
" or "
Other
" tab
with the possibility of creating new
messages.
Select the message chosen in one of
the lists.
Press "
Create
" to write a new
message.
Press "
Transfer
" to select the
addressee(s).
Press "
Play
" to start playing the
m e s s a g e .
78
12:1318,5 21,523 °C
1
2
3
3
4
4
5
5
6
6
7
7
3
4
5
6
7
Audio and Telematics
S e t t i n g s
A c c o r d i n g t o v e r s i o n
Level 1
Level 2
79
.
2
5
6
7
3
4
Audio and Telematics
Level 1
Level 2
Comments
Settings
Color schemes
Color schemes: 1,2,3, ...
Having chosen the color scheme, save the
setting.
Settings
Audio settings
Ambience
Select the sound ambience.
Distribution
Sound distribution by the Arkamys
©
system.
©
system.
©
Sound
Adjust the volume or activate linked to speed.
Voice
Adjust the voice volume.
Ringtone
Adjust the ringtone volume.
Save the settings.
Settings
Turn off screen
Function allowing the display to be switched off.
Pressing the screen reactivates it.
Settings
Profile (1, 2, 3)
Activate the profile selected.
80
1
15
16
15
16
9
8
10
11
12
13
14
Audio and Telematics
Level 2
Level 3
Level 4
81
.
1
15
16
1
1
11
12
13
14
9
8
10
Audio and Telematics
Level 2
Level 3
Level 4
Comments
Settings
OPTIONS
System settings
Units
Distance and fuel
consumption
Set the units used for distance, fuel consumption
and temperature.
Temperature
Factory settings
Reinitialize
Restore the factory settings.
System info
View
View the versions of the different modules
(system, mapping, risk areas) installed in the
system as well as the updates available.
Save the settings.
Settings
OPTIONS
Languages
All
Select the language then confirm.
Europe
Asia
America
Having selected the language, save the setting.
Settings
OPTIONS
Screen configuration
Animation
Activate or deactivate settings.
Brightness
Move the cursor to adjust the brightness of the
screen and/or of the instrument panel.
Save the settings.
82
1
17
18
19
20
21
22
Audio and Telematics
Level 2
Level 3
Level 4
83
.
1
17
18
1
1
20
19
21
22
Audio and Telematics
Level 2
Level 3
Level 4
Comments
Settings
OPTIONS
Setting
the time-date
Date
Date
Enter the date and select the date format.
Date format:
Time
Time
Set the time.
Time Zone
Define the time zone.
Time format:
Select the time format: 12h / 24h.
Synchronisation with
GPS (UTC):
Activate or deactivate synchronisation with the
satellites.
Save the settings.
Settings
OPTIONS
Setting of the
profiles
Profile 1
Enter settings for the profiles.
Profile 2
Profile 3
Common profile
Save the settings.
Settings
OPTIONS
Driver screen
configuration
Personalisation of the
dashboard
Choose and select the display information
required on the dashboard.
Confirm the selections.
84
3
4
5
6
7
1
19
Audio and Telematics
Press
Settings
to display the primary
page.
Profile settings
Audio settings
Press
Settings
to display the primary
page.
Select "
Audio settings
".
Select "
Ambience
".
Or
"
Position
".
Or
"
Sound
".
Or
"
Voice
".
Or
"
Ringtone
".
On-board audio: Arkamys
©
Sound
©
Sound
©
Staging optimises the distribution of
sound in the passenger compartment.
The settings for "
Position
" (All
passengers, Driver and Front only) are
common to all sources.
Activate or Deactivate "
Touch tones
",
"
Volume linked to speed
" and
"
Auxiliary input
".
The sound distribution (or spatialisation
with the Arkamys
©
system) is audio
©
system) is audio
©
processing that allows the quality of the
sound to be adapted according to the
number of passengers in the vehicle.
Available only with the front and rear
speakers configuration.
The audio
Ambience
settings
(6 ambiences available) as well as the
Bass
,
Medium
and
Treble
settings
are different and independent for each
sound source.
Activate or Deactivate "
Loudness
".
Press "
OK
" to save the settings.
Press "
OK
" to confirm.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Profile 1
", "
Profile 2
",
"
Profile 3
" or "
Common profile
".
Select "
Setting of the profiles
".
Press this button to enter a name for
the profile using the virtual keypad.
As a safety measure and because it
requires the sustained attention of the
driver, changes to settings must only be
done with the
vehicle stationary
.
vehicle stationary . vehicle stationary
85
.
3
2
4
5
6
7
Audio and Telematics
Select a "
Profile
" (1 or 2 or 3) to
associate the "
Audio settings
" with
it.
Select "
Audio settings
".
Select "
Ambience
".
Or
"
Distribution
".
Or
"
Sound
".
Or
"
Voice
".
Or
"
Ringtone
".
The location for the photograph is
square; the system deforms the original
photograph if in another format.
Initialisation of the profile selected
activates the English language by default.
Press "
OK
" to save the settings.
Press "
OK
" to accept the transfer of
the photograph.
Press "
OK
" again to save the
settings.
Press this button to add a photograph
to the profile.
Insert a USB memory stick containing
the photograph in the USB port.
Select the photograph.
Press this button to initialise the
profile selected.
86
1
1
1
8
9
10
15
16
1
Audio and Telematics
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
System settings
".
Select "
Screen configuration
".
Select "
Units
" to change the units
for distance, fuel consumption and
temperature.
Select "
Languages
" to change the
language.
Activate or deactivate "
Automatic
scrolling
".
Move the cursor to adjust the
brightness of the screen and/or of the
instrument panel.
Select "
Factory settings
" to return
to the initial settings.
Select "
System info
" to display the
versions of the different modules
installed in the system.
Modifying system settings
Returning the system to factory settings
activates the English language by
default.
Select "
Animation
".
Select "
Brightness
".
Select the language
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Setting the time-date
".
Setting the date
87
.
1
17
18
Audio and Telematics
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Date
".
Select "
Time
".
Select "
Setting the time-date
".
Adjustment of the time and date is only
available if "GPS synchronisation" is
deactivated.
The change between winter and
summer time is done by changing the
time zone.
The system does not automatically
manage the change between winter
and summer time (depending on
country).
Setting the time
Press this button to define the date.
Press this button to adjust the time
using the virtual keypad.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
Press this button to define the time
z o n e .
Select the display format of the date.
Select the display format for the time
(12h / 24h).
Activate or deactivate
synchronisation with the satellites
(UTC).
Every time the color scheme is
changed, the system restarts,
temporarily displaying a black screen.
As a safety measure, the procedure
for changing the color scheme is only
possible with the vehicle stationary.
Press
Settings
to display the primary
page.
Select "
Color schemes
".
Select a color scheme in the list then
press "
OK
" to confirm.
Color schemes
88
Audio and Telematics
The following table groups together the answers to the most frequently asked questions concerning your audio system.
QUESTION
ANSWER
SOLUTION
The route calculation is not
successful.
The route settings may conflict with the current location (exclusion of
toll roads on a toll motorway).
Check the route settings in the "Navigation"
menu.
The POIs do not appear.
The POIs have not been selected.
Select the POIs in the list of POIs.
The audible warning of
"Danger areas" does not
work.
The audible warning is not active.
Activate audible warnings (without the possibility
of adjusting the volume) in the "Navigation" menu.
The system does not
suggest a detour around an
incident on the route.
The guidance criteria do not take account of TMC messages.
Select setting for the "Traffic info" function in
the list of route settings (Without, Manual or
Automatic).
I receive a "Danger area"
alert which is not on my
route.
Other than guidance, the system announces all "Danger areas"
positioned in a cone located in front of the vehicle. It may provide an
alert for "Danger areas" located on nearby or parallel roads.
Zoom in on the map to view the exact position of the
"Danger area". Select "On the route" to no longer
receive alerts other than navigation instructions or
to reduce the time for the announcement.
Frequently asked questions
Navigation
89
.
Audio and Telematics
QUESTION
ANSWER
SOLUTION
Certain traffic jams along
the route are not indicated
in real time.
On starting, it is several minutes before the system begins to receive
the traffic information.
Wait until the traffic information is being received
correctly (display of the traffic information icons
on the map).
In certain countries, only major routes (motorways...) are listed for
the traffic information.
This phenomenon is normal. The system is
dependent on the traffic information available.
The altitude is not
displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly.
Wait until the system has started up completely so
that there is GPS coverage by at least 4 satellites.
Depending on the geographical environment (tunnel...) or the
weather, the conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
90
Audio and Telematics
Radio
QUESTION
ANSWER
SOLUTION
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode.
This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Have the aerial checked by a franchised dealer.
I cannot find some radio
stations in the list of
stations received.
The station is not received or its name has changed in the list.
Press on the "Update list" button in the "Radio
stations" secondary menu.
Some radio stations send other information in place of their name
(the title of the song for example).
The system interprets this information as the name of the station.
The name of the radio
station changes.
91
.
Audio and Telematics
Media
QUESTION
ANSWER
SOLUTION
Playback of my USB
memory stick starts only
after a very long wait
(around 2 to 3 minutes).
Some files supplied with the memory stick may greatly slow down
access to reading the memory stick (multiplication by 10 of the
catalogue time).
Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
The CD is ejected
automatically or is not
played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player does not recognise.
Check that the CD is inserted in the player the
right way up.
Check the condition of the CD: the CD cannot be
played if it is too badly damaged.
Check the content in the case of a recorded CD:
refer to the advice in the "AUDIO" section.
The audio system's CD player does not play
DVDs.
Some recorded CDs will not be played by the
audio system because they are not of adequate
quality.
The CD has been recorded in a format that is not compatible with the player (udf, ...).
The CD is protected by an anti-pirating protection system which is
not recognised by the audio system.
There is a long waiting
period following the
insertion of a CD or
connection of a USB
memory stick.
When a new medium is inserted, the system reads a certain
amount of data (directory, title, artist, etc.). This may take from a few
seconds to a few minutes.
This phenomenon is normal.
The CD player sound is
poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are
unsuitable.
Set the treble or bass level to 0, without selecting
an ambience.
92
Audio and Telematics
QUESTION
ANSWER
SOLUTION
I cannot connect my
Bluetooth telephone.
The telephone's Bluetooth function may be switched off or the
telephone may not be visible.
Check that your telephone's Bluetooth function is
switched on.
Check in the telephone settings that it is "visible
to all".
The Bluetooth telephone is not compatible with the system.
You can check the compatibility of your telephone
at the Brand's website (services).
The volume of the
telephone connected
in Bluetooth mode is
inaudible.
The volume depends both on the system and on the telephone.
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of telephone
communication.
Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, ...).
Telephone
QUESTION
ANSWER
SOLUTION
Some characters in the
media information are not
displayed correctly while
playing.
The audio system does not display some types of characters.
Use standard characters to name tracks and
folders.
Playing of streaming files
does not start.
The peripheral device connected does not support automatic play.
Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio.
The Bluetooth profile does not allow the transfer of this information.
93
.
Audio and Telematics
QUESTION
ANSWER
SOLUTION
Some contacts are
duplicated in the list.
The options for synchronizing contacts are synchronizing the
contacts on the SIM card, the contacts on the telephone, or both.
When both synchronizations are selected, some contacts may be
duplicated.
Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order.
Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order.
Modify the display setting in the telephone
directory.
The system does not receive
SMS text messages.
The Bluetooth mode does not permit sending SMS text messages to
the system.
QUESTION
ANSWER
SOLUTION
In changing the setting
of treble and bass the
equalizer setting is
deselected.
The selection of an equalizer setting imposes the settings for treble
and bass and vice-versa.
Modify the treble and bass or equalizer settings
to obtain the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected.
The selection of a distribution setting imposes the balance settings
and vice-versa.
Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing an
distribution setting,
the balance setting is
deselected.
Settings
94
Audio and Telematics
QUESTION
ANSWER
SOLUTION
There is a difference in
sound quality between the
different audio sources.
For optimum sound quality, the audio settings can be adapted to
the different sound sources, which may result in audible differences
when changing source.
Check that the audio settings are adapted to the
sources listened to. Adjust Balance, Treble, Bass
to the middle position, select the "None" musical
ambience and set the loudness correction to the
"Active" position in CD mode or to the "Inactive"
position in radio mode.
With the engine off, the
system switches off after a
few minutes of use.
When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
The date and time cannot
be set.
Setting of the date and time is only available if the synchronisation
with the satellites is deactivated.
Settings menu / Options / Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).
95
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
CITROËN Connect Radio
Multimedia audio system - Applications - Bluetooth
®
Multimedia audio system - Applications - Bluetooth
®
Multimedia audio system - Applications - Bluetooth
telephone
®
telephone
®
Contents
First steps 96
Steering mounted controls - Type 1 98
Steering mounted controls - Type 2 99
Menus 100
Applications 102
Radio Media 106
Telephone 118
Settings 132
Frequently asked questions 143
The system is protected in such a way
that it will only operate in your vehicle.
The display of the
Energy Economy
Mode
message signals that a change
to standby is imminent.
The different functions and settings
described vary according to the version
and configuration of your vehicle.
The link below gives access to OSS
(Open Source Software) codes for the
system.
http://www.psa-peugeot-citroen.com/oss
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
96
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
First steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.
Volume.
Use the buttons either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen. All
of the touch areas of the screen are white.
Press in the grey zone to go back a level or
confirm.
Press the back arrow to go back a level or
confirm.
The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (spectacles cloth) with
no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.
97
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Select the audio source (depending on
version):
- FM / DAB * / AM * stations.
- Telephone connected by Bluetooth * and
using Bluetooth * audio streaming.
- CD player.
- USB memory stick.
- Media player connected to the auxiliary
socket (Jack, cable not supplied).
* Depending on equipment.
Certain information is displayed permanently in
the upper band of the touch screen:
- Reminder of the air conditioning
information, and direct access to the
corresponding menu.
- Reminder of the Radio Media and
Telephone menu information.
- Access to the Settings of the touch screen
and digital instrument panel.
In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes
The return to normal takes place when
the temperature in the passenger
compartment has dropped.
In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with the
possibility of entering a multitude of
settings (radio presets, audio settings,
ambiences, ...); these settings are
taken into account automatically.
98
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Steering mounted controls - Type 1
Radio
:
Short press: display the list of radio
stations.
Long press: update the list.
Media
:
Short press: display the list of folders.
Long press: display the sorting
options.
Decrease volume.
Radio :
Select the previous / next preset
radio station.
Select the previous / next item in a
menu or a list.
Media:
Select of the previous / next track
Select the previous / next item in a
menu or a list.
Mute / Restore sound by
simultaneously pressing the increase
and decrease volume buttons.
Change audio source (Radio; USB;
AUX (if a device is connected); CD;
Streaming)
Confirm a selection.
Increase volume.
99
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Media
(short press): change the
multimedia source.
Telephone
(short press): call.
Call in progress
(short press):
access to telephone menu.
Telephone
(long press): reject an
incoming call, end call, access to
telephone menu.
Decrease volume.
Voice commands
:
Short press, smartphone voice
commands via the system.
Mute/ Restore the sound.
Or
Mute by pressing the volume
increase and decrease buttons
simultaneously.
Restore the sound by pressing one of
the two volume buttons.
Radio
(rotate): previous / next preset.
Media
(rotate): previous / next track,
move in a list.
Short press
: confirm a selection;
other than selection, access to
presets.
Radio
: display the list of stations.
Media
: display the list of tracks.
Radio
(press and hold): update the
list of stations received.
Increase volume.
Steering mounted controls - Type 2
100
21,518,5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Menus
Radio Media
Applications
Select an audio source or radio station.
Access configurable equipment.
Air conditioning
Manage the different temperature and air flow
settings.
Navigation
Configure the guidance and select your
destination via MirrorLink
TM
or CarPlay
®
.
According to version.
101
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Settings
Driving
Telephone
Configure a personal profile and/or configure
the sound (balance, ambience, ...) and the
display (language, units, date, time, ...).
Activate, deactivate or configure certain vehicle
functions.
Connect a telephone by Bluetooth
®
.
Operate certain applications on a smartphone
connected via MirrorLink
TM
or CarPlay
®
.
102
1
5
6
4
2
3
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Applications
According to version / according to equipment
Level 1
Level 2
Level 3
103
.
1
4
5
6
2
3
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Applications
Temperature
conditioning
State
Activate / deactivate the temperature conditioning.
Settings
Configure the pre-conditioning.
Save the parameters.
Confirm the settings.
Applications
Trip computer
Instant
System providing information about the current
journey (range, consumption…).
Trip 1
Trip 2
Go back to the Applications page.
Applications
Photos
Photo gallery
Photos
Go to the photo gallery.
Go back a level.
Applications
OPTIONS
Bluetooth connection
Search
Start the search for a device to be connected.
Delete
Delete one or more devices.
105
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Insert a USB memory stick in the USB port.
The system can read folders and image files in
the formats: .tiff; .gif; .jpg/jpeg; .bmp; .png.
Viewing photos
Press
Applications
to display the
primary page.
Press "
Photos
".
Select a folder.
Press this button to display the
details of the photo.
Press the back arrow to go back a
level.
Select an image to view.
To protect the system, do not use a
USB hub.
106
2
1
3
4
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Radio Media
According to version
Level 1
Level 2
107
.
1
2
3
4
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Radio Media
SOURCES
Radio
Select change of source.
Bluetooth
CD
AUX
USB
iPod
Radio Media
Frequency
FM / DAB / AM
Display the current radio station.
Radio Media
List
Update the list according to the stations received.
Preset
Make a short press to preset the station.
Radio Media
Preset
Select a preset station or preset a station.
Radio Media
OPTIONS
AM band / DAB band / FM band
Press the Band button to change waveband.
Audio settings
Configure the audio settings.
News
Activate or deactivate the options.
TA
RDS
FM-DAB Follow-up
Radio Media
87.5 MH z
Enter a frequency of the FM and AM bands on the
virtual keypad.
108
1
2
3
4
5
5
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
109
.
1
1
1
2
3
4
5
5
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Radio Media
SOURCES
Radio
Frequency
Display the current radio station.
List
Display the list of stations received.
Preset
Select a preset station or preset a station.
OPTIONS
FM band / DAB band /
AM band
Press the band button to change band.
Audio settings
Configure the audio settings.
News
Activate or deactivate the options.
TA
RDS
FM-DAB Follow-up
Radio Media
SOURCES
Bluetooth
OPTIONS
Audio settings
Configure the audio settings.
Radio Media
SOURCES
CD
Display the details of the music being played.
OPTIONS
Audio settings
Configure the audio settings.
110
1
5
5
6
7
8
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
111
.
1
1
6
7
5
5
8
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Radio Media
SOURCES
AUX
OPTIONS
Audio settings
Configure the audio settings.
Radio Media
SOURCES
USB
Player
Display the details of the music being played.
Tracks list
Display the current selection.
Library
Display the music library.
OPTIONS
Audio settings
Configure the audio settings.
112
4
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Press
Radio Media
to display the
menu.
Press
Radio Media
to display the
primary page.
Press the frequency.
Enter the FM and AM waveband
values using the virtual keypad.
Press one of the buttons for an
automatic search for radio stations.
Radio
Selecting a station
Radio reception may be affected by
the use of electrical equipment not
approved by the Brand, such as a USB
charger connected to the 12V socket.
The exterior environment (hills,
buildings, tunnel, car park, below
ground...) may prevent reception,
even in RDS station tracking mode.
This phenomenon is normal in the
propagation of radio waves and is in no
way indicative of a fault with the audio
system.
Or
Or
Or
Move the cursor for a manual search
for frequencies up or down.
Select a radio station or frequency.
Select a radio station or frequency.
Press "
Preset
".
Press the "
OPTIONS
" button to go to
the secondary page.
Make a short press on the star
outline. If the star is solid, the radio
station is already preset.
Make a long press on one of the
buttons to preset the station.
Press "
Band
" to change waveband.
Press in the grey zone to confirm.
Preset a station
Changing waveband
Press "
OK
" to confirm.
113
.
5
5
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Press in the grey zone to confirm.
Press in the grey zone to confirm.
Press in the grey zone to confirm.
Press
Radio Media
to display the
primary page.
Press
Radio Media
to display the
primary page.
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Activate/deactivate "
RDS
".
Activate / Deactivate "
NEWS
".
Activate / Deactivate "
TA
".
TA ". TA
Activate/ Deactivate RDS
RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.
The "Radio Text" function allows
information transmitted by the radio
station and related to the station or the
song playing to be displayed.
Display text information
Play TA messages
The TA (Traffic Announcement)
function gives priority to TAalert
messages. To operate, this function
needs good reception of a radio station
that carries this type of message. While
traffic information is being broadcast,
the current media is automatically
interrupted so that the TA message can
be heard. Normal play of the media
previously playing is resumed at the
end of the message.
114
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Audio settings
Press
Radio Media
to display the
primary page.
Press "
Audio settings
".
On-board audio: Arkamys
©
Sound
©
Sound
©
Staging optimises the distribution of
sound in the passenger compartment.
The sound distribution (or spatialisation
with the Arkamys
©
system) is audio
©
system) is audio
©
processing that allows the quality of the
sound to be adapted according to the
number of passengers in the vehicle.
On the "
Tone
" tab, the
Ambience
audio
settings and
Bass
,
Medium
and
Treble
are different and independent for each
audio source.
On the "
Balance
" tab, the
All
passengers
,
Driver
and
Driver and Driver
Front only
settings are common to all sources.
On the "
Sound
" tab, activate or
deactivate "
Volume linked to speed
",
"
Auxiliary input
" and "
Touch tones
".
Press the "
OPTIONS
" button to go to
the secondary page.
Select the "
Tone
" or "
Balance
" or
"
Sound
"
or
"
or " or
Ringtones
" tab to
configure the audio settings.
Press the back arrow to confirm.
115
.
5
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
DAB radio (Digital Audio Broadcasting)
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
FM-DAB Follow-up
Terrestrial Digital Radio
"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
the "FM-DAB Follow-up" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).
If the "FM-DAB Follow-up" is activated,
there is a difference of a few seconds
when the system switches to "FM"
analogue radio with sometimes a
variation in volume.
Once the digital signal is restored, the
system automatically changes back to
" D A B " .
Digital radio provides higher quality
reception.
The different multiplexes offer a
choice of radio stations arranged in
alphabetical order.
If the "DAB" station being listened
to is not available on "FM", or if the
"FM-DAB Follow-up" is not activated,
the sound will cut out while the digital
signal is too weak.
Activate / Deactivate "
FM-DAB
Follow-up
".
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press "
Band
" to select "
DAB band
".
Press in the grey zone to confirm.
Press in the grey zone to confirm.
116
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Media
USB port
Selecting the source
Press the "
SOURCES
" button.
Press
Radio Media
to display the
primary page.
The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a USB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.
Insert the USB memory stick in the USB port or
connect the USB device to the USB port using
a suitable cable (not supplied).
Auxiliary socket (AUX)
First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.
This source is only available if "Auxiliary input"
has been checked in the audio settings.
Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).
Choose the source.
Bluetooth Streaming
®
Bluetooth Streaming
®
Bluetooth Streaming
Streaming allows you to listen to music from
your telephone.
The Bluetooth profile must be activated. First
adjust the volume on your portable device (to a
high level).
Then adjust the volume of your system.
If play does not start automatically, it may be
necessary to start the audio playback from the
smartphone.
Control is from the portable device or by using
the system's touch buttons.
Once connected in Streaming mode,
the smartphone is considered to be a
media source.
To protect the system, do not use a
USB hub.
117
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Connecting Apple
®
Connecting Apple
®
Connecting Apple
players
®
players
®
Connect the Apple
®
player to the USB port
®
player to the USB port
®
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts), you can also
use a classification structured in the
form of a library.
The default classification used is by
artist. To modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.
The version of software in the audio system
may not be compatible with the generation of
your Apple
®
player.
®
player.
®
The audio equipment will only play audio
files with ".wav, .wma, .aac, .ogg and .mp3"
file extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
".wma" files must be of the
standard wma 9 type.
The sampling rates supported are 11, 22, 44
and 48 KHz.
It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.
In order to be able to play a burned CDR or
CDRW, select standards ISO 9660 level 1, 2 or
Joliet if possible when burning the CD.
If the disc is burned in another format, it may
not be played correctly.
It is recommended that the same burning
standard is always used on an individual disc,
with the lowest speed possible (4x maximum)
for the best acoustic quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.
Information and advice
Use only USB memory sticks formatted FAT 32
(file allocation table).
The system supports USB Mass
Storage devices, BlackBerry
®
devices
®
devices
®
or Apple
®
players via USB ports. The
®
players via USB ports. The
®
adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied) or via Bluetooth streaming,
depending on compatibility.
It is recommended that the original USB
cable for the portable device is used.
To protect the system, do not use a
USB hub.
118
4
4
4
1
1
1
5
5
5
3
3
3
2
2
2
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Telephone
According to version
Level 1
Level 2
Level 3
119
.
1
2
3
4
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Telephone
Bluetooth
search
PHONE
Bluetooth connection
Search
Start the search for a device to be connected.
Delete
Delete one or more devices.
MirrorLink
Open the MirrorLink function.
CarPlay
Open the CarPlay function.
Telephone
Bluetooth
search
Keypad
Enter a telephone number.
Telephone
Bluetooth
search
Recent calls
All
View the calls according to the presentation
selected.
Select a contact to make the call.
Outgoing
Missed
Incoming
Telephone
Bluetooth
search
Contacts
Search
Confirm
Search for a contact in the contacts directory.
Telephone
Go to the details of the contact sheet.
120
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
121
.
5
5
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Telephone
OPTIONS
On hold (auto)
ON - OFF
Activate or deactivate the automatic placing on
hold of the current conversation.
Telephone
OPTIONS
Sort contacts by name
Sort contacts by
first name
Sort the contacts by Surname-first name or First
name-surname.
Telephone
OPTIONS
Ring volume
Adjust the volume of the ringtone.
122
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
MirrorLink
TM
smartphone connection
123
.
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM
technology to be displayed
in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between
the smartphone and the system to
work correctly, the smartphone must
be unlocked;
update the operating
system of your smartphone as
well as the date and time in the
smartphone and the system
.
For the list of eligible smartphones,
connect to the Brand's internet website
in your country.
T h e " M i r r o r L i n k
TM
" function requires
a compatible smartphone and
applications.
There may be a wait for the availability
of applications, depending on the
quality of your network.
When connecting a smartphone to the
system, it is recommended that "Bluetooth"
®
be started on the smartphone
Depending on the smartphone, it may be necessary
to activate the "
MirrorLink
TM
" function.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.
Connect the USB cable. The
smartphone charges when
connected by a USB cable.
Press "
MirrorLink
TM
"
to start the
application in the system.
Once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to the MirrorLink
TM
t e c h n o l o g y .
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons
Telephone not connected by
Bluetooth
®
Bluetooth
®
Bluetooth
Telephone connected by Bluetooth
®
Telephone connected by Bluetooth
®
Telephone connected by Bluetooth
From the system, press "
Telephone
"
to display the primary page.
From the system, press "
Telephone
"
to display the primary page.
As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
Press the "
PHONE
" button to display
the secondary page.
Press "
MirrorLink
TM
" to start the
application in the system.
124
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
125
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Telephone
MirrorLink
TM
Go to or return to the applications already
downloaded to your smartphone and adapted to
the MirrorLink
TM
technology.
Go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up one
level.
"Home": go to or return to the "Car mode" page on
your smartphone.
Go to the primary page of the "Telephone" menu.
126
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
CarPlay
®
CarPlay
®
CarPlay
smartphone connection
®
smartphone connection
®
127
.
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay
®
technology to be displayed
®
technology to be displayed
®
in the vehicle's screen, having first
activated the CarPlay
®
function in the
®
function in the
®
smartphone.
As the principles and standards are
constantly changing,
it is recommended
that you keep your smartphone's
operating system updated
.
For the list of eligible smartphones, go
to the Brand's internet website in your
country.
Connect the USB cable. The
smartphone charges when
connected by a USB cable.
Connect the USB cable. The
smartphone charges when
connected by a USB cable.
From the system, press
Telephone
to display the Carplay
®
interface.
®
interface.
®
Press "
CarPlay
" to display the
CarPlay
®
interface.
®
interface.
®
On connecting the USB cable, the
CarPlay
®
function deactivates the
®
function deactivates the
®
system's Bluetooth
®
mode.
®
mode.
®
From the system, press
Telephone
to display the primary page.
Press the "
PHONE
" button to go to
the secondary page.
Or
If the smartphone is already
connected by Bluetooth
®
.
You can go to the CarPlay
®
navigation at any time by pressing
the system's
Navigation
button.
128
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Pairing a Bluetooth
®
Pairing a Bluetooth
®
Pairing a Bluetooth
telephone
®
telephone
®
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
Procedure from the telephone
Select the name of the system in the
list of devices detected.
In the system, accept the connection request
from the telephone.
Procedure from the system
Press
Telephone
to display the
primary page.
Press "
Bluetooth search
".
The list of telephones detected is
displayed.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
Bluetooth function in your telephone.
Depending on the type of telephone,
you may be asked to accept or not
the transfer of your contacts and
messages.
Select the name of the chosen
telephone in the list.
Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).
To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.
129
.
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Press
Telephone
to display the
primary page.
Press "
Bluetooth connection
" to
display the list of paired devices.
On return to the vehicle, if the last
telephone connected is present again,
it is automatically recognised and
within about 30 seconds of switching
on the ignition, the connection is
established without any action on your
part (Bluetooth activated).
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used. Check in your telephone's
manual and with your service provider
for the services available to you.
The ability of the system to connect with
just one profile depends on the telephone.
All three profiles may connect by default.
Go to the Brand's website for more information
(compatibility, additional help, ...).
To modify the connection profile
:
Automatic reconnection
Press the "details" button of a paired
device.
Press the "
PHONE
" button to go to
the secondary page.
Press "
OK
" to confirm.
Select one or more profiles.
The profiles compatible with the system
are HFP, OPP, PBAP, A2DP, AVRCP,
MAP and PAN.
The system offers to connect the telephone
with 3 profiles:
- "
Telephone
" (hands-free kit, telephone
only),
- "
Streaming
" (wireless playing of the audio
files on the telephone),
- "
Internet data
".
130
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted
PHONE
button to accept an
incoming call.
Make a long press
on the steering mounted
PHONE
button to reject the call.
Or
And
Press "
End call
".
Press on the name of the telephone
chosen in the list to disconnect it.
Press again to connect it.
Press the basket at the top right
of the screen to display a basket
alongside the telephone chosen.
Press the basket alongside the
telephone chosen to delete it.
Managing paired telephones
This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.
Press
Telephone
to display the
primary page.
Press the "
PHONE
" button to go to
the secondary page.
Press "
Bluetooth connection
" to
display the list of paired peripheral
devices.
Deleting a telephone
Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.
Making a call
Calling a new number
Press
Telephone
to display the
primary page.
Enter the phone number using the
digital keypad.
Press "
Call
" to start the call.
131
.
4
3
5
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
on the steering mounted button.
Calling a contact
Setting the ringtone
Press
Telephone
to display the
primary page.
Or make a long press
on the steering mounted
PHONE
button.
Press "
Contacts
".
Select the desired contact from the list offered.
Press "
Call
".
Calling a recently used number
Press
Telephone
to display the
primary page.
Make a long press
Press "
Recent calls
".
Select the desired contact from the list offered.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Or
Press
Telephone
to display the
primary page.
Press "
Ring volume
" to display the
volume bar.
Press the arrows or move the cursor
to set the ring volume.
Press the "
OPTIONS
" button to go to
the secondary page.
132
3
4
1
2
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
S e t t i n g s
According to version / according to equipment
Level 1
Level 2
Level 3
133
.
1
2
3
4
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Settings
Brightness
Ambience
Move the cursor to adjust the brightness of the
screen and/or of the instrument panel.
Settings
Profiles
Profile 1
Select a profile.
Profile 2
Profile 3
Common profile
Name:
Profile name
modification
Configure the profiles.
Reset the profile
Yes / No
Profile activated
Activate/deactivate the profile selected.
Save the settings.
Settings
Dark
Function which switches off the lit display.
Pressing the screen reactivates it.
134
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
According to equipment
Level 1
Level 2
135
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Settings
Configuration
System configuration
Configure certain system parameters.
Ambience
Select an ambience for the screen integrated in
the system.
Language
Select the display language for the the screen
and/or the instrument panel.
Screen configuration
Set the configuration of the screen and/or the
instrument panel.
Customization
Configure the instrument panel for a personalised
display.
Date and time
Set the date and time and select the display
format.
136
6
5
7
8
9
10
11
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
137
.
6
5
7
8
9
10
11
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Settings
Configuration
System
configuration
Units
Distance and fuel
consumption
Configure the display units for the distance,
consumption and temperature.
Temperatures
Factory settings
Reset
Restore the original settings.
System info
View
Consult the version of the different modules
installed in the system.
Save the parameters.
Settings
Configuration
Ambience
Select an ambience for the screen integrated in
the system.
Confirm the selection and start the change of
ambience.
Settings
Configuration
Language
All
Select the display language for the screen and/or
the instrument panel.
Europe
Asia
America
Save the parameter.
138
14
15
14
15
12
13
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
139
.
12
13
14
15
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Settings
Configuration
Screen
configuration
Brightness
Select the display brightness level.
Animation
Automatic scrolling
Activate or deactivate the parameters.
Animated transitions
Save the parameters.
Settings
Configuration
Temperature conditioning
Customization
Choose and select the display information
required.
Confirm
Confirm the selections.
Settings
Configuration
Date and time
Time
Time
Set the time.
Time Zone
Set the time zone.
AM
Select the display format.
12h
GPS Synchronisation
Activate or deactivate the synchronisation with the
satellites.
Save the settings.
Date
Date
Set the date and select the display format.
Setting the date
Save the settings.
140
1
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Profile settings
Adjust the brightness
Press "
OK
" to save.
Select "
Profile 1
" or "
Profile 2
" or
"
Profile 3
" or "
Common profile
".
Press "
Profiles
".
Press this button to enter a name for
the profile using the virtual keypad
As a safety measure and because it
requires the sustained attention of the
driver, changes to settings must only be
done with the
vehicle stationary
.
vehicle stationary . vehicle stationary
Press this button to activate the
profile.
Press this button to initialise the
profile selected.
Press
Settings
to display the primary
page.
Move the cursor to adjust the brightness
of the screen and/or of the instrument
panel (according to version).
Press
Brightness
.
Press in the grey zone to confirm.
Press the back arrow to confirm.
Press the back arrow again to
confirm.
141
.
5
6
7
12
13
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press "
Configuration
" to go to the
secondary page.
Press "
Configuration
" to go to the
secondary page.
Press "
Configuration
" to go to the
secondary page.
Press "
System configuration
".
Press "
Screen configuration
".
Press "
Units
" to change the units
for distance, fuel consumption and
temperature.
Select "
Language
" to change the
language.
Activate or deactivate: "
Automatic
scrolling
".
Select "
Animated transitions
".
Move the cursor to set the brightness
of the screen and/or instrument panel
(according to version).
Press "
Factory settings
" to return to
the initial settings.
Press "
System info
" to display the
versions of the different modules
installed in the system.
Modifying system settings
Returning the system to factory settings
activates the English language by
default (according to version).
Press "
Animation
".
Press "
Brightness
".
Select the language
Press the back arrow to confirm.
Press the back arrow to confirm.
Press the back arrow to confirm.
142
15
14
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Select "
Date
".
Select "
Time
".
Press "
Date and time
".
Adjustment of the time and date is only
available if "GPS Synchronisation:" is
deactivated.
The change between winter and
summer time is done by changing the
time zone.
The system does not automatically
manage the change between winter
and summer time (depending on the
country of sale).
Setting the time
Press this button to define the date.
Press this button to adjust the time
using the virtual keypad.
Press the back arrow to save the
date.
Press this button to define the time
z o n e .
Select the display format of the date.
Select the display format for the time
(12h / 24h).
Activate or deactivate
synchronisation with satellites (UTC).
Press
Settings
to display the primary
page.
Press "
Date and time
".
Setting the date
Press "
Configuration
" to go to the
secondary page.
Press "
Configuration
" to go to the
secondary page.
Press "
OK
" to save the time.
Press the back arrow to save the
settings.
Press the back arrow again to
confirm.
143
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Radio
QUESTION
ANSWER
SOLUTION
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the "RDS" function by means of the
upper band to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode.
This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Have the aerial checked by a franchised dealer.
I cannot find some radio
stations in the list of
stations received.
The station is not received or its name has changed in the list.
Press the round arrow on the "List" tab of the
"Radio" page.
Some radio stations send other information in place of their name
(the title of the song for example).
The system interprets this information as the name of the station.
The name of the radio
station changes.
Frequently asked questions
The following table groups together the answers to the most frequently asked questions concerning your audio system.
144
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Media
QUESTION
ANSWER
SOLUTION
Playback of my USB
memory stick starts only
after a very long wait
(around 2 to 3 minutes).
Some files supplied with the memory stick may greatly slow down
access to reading the memory stick (multiplication by 10 of the
catalogue time).
Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
Some characters in the
media information are not
displayed correctly while
playing.
The audio system does not display some types of characters.
Use standard characters to name tracks and
folders.
Playing of streaming files
does not start.
The peripheral device connected does not support automatic play.
Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio.
The Bluetooth profile does not allow the transfer of this information.
145
.
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
I cannot connect my
Bluetooth telephone.
The telephone's Bluetooth function may be switched off or the
telephone may not be visible.
Check that your telephone's Bluetooth function is
switched on.
Check in the telephone settings that it is "visible
to all".
The Bluetooth telephone is not compatible with the system.
You can check the compatibility of your telephone
at the Brand's website (services).
The volume of the
telephone connected
in Bluetooth mode is
inaudible.
The volume depends both on the system and on the telephone.
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of telephone
communication.
Reduce the ambient noise level (close the
windows, reduce the booster fan speed, slow
down, ...).
Contacts are not shown in
alphabetical order.
Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order.
Modify the display setting in the telephone
directory.
Telephone
146
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
In changing the setting
of treble and bass the
equalizer setting is
deselected.
The selection of an equalizer setting imposes the settings for treble
and bass and vice-versa.
Modify the treble and bass or equalizer settings to
obtain the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected.
The selection of a distribution setting imposes the balance settings
and vice-versa.
Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing a
distribution setting,
the balance setting is
deselected.
There is a difference in
sound quality between the
different audio sources.
For optimum sound quality, the audio settings can be adapted to
the different sound sources, which may result in audible differences
when changing source.
Check that the audio settings are adapted to the
sources listened to. Adjust the audio functions to
the middle position.
With the engine off, the
system switches off after a
few minutes of use.
When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
Settings
147
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
B l u e t o o t h
®
audio system
Contents
First steps 148
Steering mounted controls - Type 1 149
Steering mounted controls - Type 2 150
Menus 151
Radio 152
DAB (Digital Audio Broadcasting) radio 154
Media 156
Telephone 161
Frequently asked questions 166
Your audio system is coded in such
a way that it will only operate in your
vehicle.
All work on the system must be
carried out exclusively by a dealer or
qualified workshop, to avoid any risk of
electrocution, fire or mechanical faults.
To avoid discharging the battery, the
audio system may switch off after a few
minutes if the engine is not running.
The different functions and adjustments
described vary according to the version
and configuration of your vehicle.
As a safety measure and because it
requires the sustained attention of the
driver, the pairing of your Bluetooth
telephone to the Bluetooth hands-free
audio system must only be carried out
with the
vehicle stationary
and the
ignition on.
148
Audio and Telematics
First steps
Press: On / Off
Rotate: adjust volume.
Short press: change audio source
(Radio; USB; AUX (if a device is
connected); CD; Streaming).
Long press: display the
Telephone
menu (if a telephone is connected).
Radio
:
Short press: display the list of radio
stations.
Long press: update the list.
Media:
Short press: display the list of folders.
Long press: display the sorting
options.
Select the screen display mode,
between:
Date; Audio functions; Trip computer;
Telephone.
Adjust audio settings:
Front/rear fader; left/right balance;
bass/treble; loudness; audio
ambience.
Activation / Deactivation of automatic
volume adjustment (linked to the
speed of the vehicle).
Radio
:
Manual step by step search up /
down for radio stations.
Select previous / next MP3 track.
Media:
Select previous / next folder / genre /
artist / playlist on the USB device.
Scroll in a list.
Abandon the current operation.
Go up one level (menu or folder).
Confirm or display contextual menu.
Buttons 1 to 6.
Short press: select the preset radio
station.
Long press: preset a station.
Radio:
Automatic step by step search up /
down for radio stations.
Media:
Select previous / next CD, USB,
streaming track.
Scroll in a list.
Access to main menu.
Activate / Deactivate TA (traffic
announcements)
Long press: select type of
announcement.
Select waveband: FM / DAB / AM.
149
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
Steering mounted controls - Type 1
Radio
:
Short press: display the list of radio
stations.
Long press: update the list.
Media
:
Short press: display the list of folders.
Long press: display the sorting
options.
Decrease volume.
Radio
:
Select the previous / next preset
radio station.
Select the previous / next item in a
menu or a list.
Media
:
Select of the previous / next track.
Select the previous / next item in a
menu or a list.
Mute / Restore sound by
simultaneously pressing the increase
and decrease volume buttons.
Other than telephone calls
:
Short press: change audio source
(Radio; USB; AUX (if a device is
connected); CD; Streaming), confirm
if the "
Telephone
" menu is open.
Long press: open the "
Telephone
"
menu.
In the event of a telephone call
:
Short press: accept the call.
Long press: reject the call.
During a telephone call:
Short press: open the contextual
telephone menu.
Long press: end the call.
Confirm a selection.
Increase volume.
150
Audio and Telematics
Steering mounted controls - Type 2
Decrease volume.
Mute / Restore sound.
Other than telephone call
:
Short press: change audio source
(Radio; USB; AUX (if a device is
connected); CD; Streaming), confirm
if the "
Telephone
" menu is open.
Long press: open the "
Telephone
"
menu.
In the event of a telephone call:
Short press: accept the call.
Long press: reject the call.
During a telephone call:
Short press: open the contextual
telephone menu.
Long press: end the call.
Increase volume.
Access to the main menu.
Start voice recognition of your
smartphone via the system.
Radio
:
Short press: display the list of radio
stations.
Long press: update the list.
Media:
Short press: display the list of folders.
Long press: display the sorting
options.
Radio:
Select the previous / next preset
radio station.
Select the previous / next item in a
menu or a list.
Media:
Select the previous / next track.
Select the previous / next item in a
menu or a list.
Press the thumbwheel: confirm.
151
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
Menus
"
Multimedia
": Media settings, Radio
settings.
D e p e n d i n g o n v e r s i o n .
Move from one menu to another.
Enter a menu.
"
Trip computer
".
"
Maintenance
": Diagnosis, Warning
log, ...
"
Connections
": Manage
connections, search for devices.
"
Telephone
": Call, Directory
management, Telephone
management, End call.
"
Personalisation-configuration
":
Define the vehicle settings, Choice
of language, Display configuration,
Choice of units, Date and time
adjustment.
Press the "
MENU
" button.
152
Audio and Telematics
RDS
Short procedure
Long procedure
The external environment (hills,
buildings, tunnels, basement car
parks, ...) may block reception,
including in RDS mode. This is a
normal effect of the way in which radio
waves are transmitted and does not
indicate any failure of the audio system.
Press the "
MENU
" button.
Select "
Audio functions
".
Press
OK
.
Select the "
FM waveband
preferences
" function.
Press
OK
.
Select "
RDS
".
Press
OK
, RDS is displayed in the
screen.
In "
Radio
" mode, press the
OK
button to
activate or deactivate RDS directly.
RDS, if activated, enables you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the country as radio stations
do not cover 100 % of the territory. This
explains the loss of reception of a station
that can occur during a journey.
If RDS is not available, the RDS symbol
appears barred in the screen.
Radio
Selecting a station
Press the
SOURCE
button
repeatedly and select the radio.
Press this button to select a
waveband (FM / AM / DAB).
Press one of the buttons to carry
out an automatic search for radio
stations.
Press one of the buttons to carry out
a manual search up / down for radio
frequencies.
Press this button to display the list of
stations received locally.
To update this list, press for more
than two seconds. The sound is cut
while updating.
153
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
Receiving TA messages
Press the
TA
button to activate or
deactivate traffic messages.
The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
transmitting this type of message.
When a traffic report is transmitted, the
current audio source (Radio, CD, ...)
is interrupted automatically to play the
TA message. Normal playback of the
audio source resumes at the end of the
transmission of the message.
Take care when increasing the volume
while listening to TA messages. The
volume may prove too high on return to
the original audio source.
Select "
RadioText (TXT) display
"
and confirm
OK
to save.
Select or deselect categories.
With the radio displayed on the
screen, press
OK
to display the
contextual menu.
Make a long press on this button to
display the list of categories.
Receiving INFO messages
The INFO function gives priority to TA
traffic announcements. To be active,
this function needs good reception
of a radio station that transmits this
type of message. When a message is
transmitted, the current audio source
(Radio, CD, USB, ...) is interrupted
automatically to receive the INFO
message. Normal play resumes at the
end of the message transmission.
Radio text is information transmitted by
the radio station related to the current
programme or song.
Display RADIO TEXT
Activate or deactivate the reception of
the corresponding messages.
154
1
3
5
2
4
6
6 5 4 3
21
Audio and Telematics
Long press: select the desired
categories of announcements from
Transport, News, Entertainment and
Flash special (availability according
to the station).
Change of station within the same
"multiplex service".
Starting of a search for the previous /
next "multiplex service".
Change of band (FM1, FM2, DAB,...)
Digital radio provides a superior audio
quality and also additional categories of
traffic announcements (TA INFO).
The different "multiplex services"
offer a choice of radio stations in
alphabetical order.
Terrestrial digital radio
DAB (Digital Audio Broadcasting) radio
Display options:
if active but not available, the display
will be struck out.
A c c o r d i n g t o v e r s i o n
Preset radio station, buttons 1 to 6.
Short press: select the preset radio
station.
Long press: preset a radio station.
Display the name of the multiplex
service being used.
Display the list of all radio stations
and "multiplexes".
Represents the signal strength for
the band being listened to.
Display RadioText (TXT) for the
current radio station.
Display the name of the current radio
station.
If the current "DAB" radio station is not
available on "FM", "DAB FM" is struck out.
When changing region, an update
of the list of preset radio stations is
advisable.
155
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
Select "
Multimedia
" and confirm.
Select "
DAB / FM auto tracking
"
and confirm
Press the "
MENU
" button.
When the radio station is displayed in
the screen, press on "
OK
" to display
the contextual menu.
(Frequency search (RDS), DAB / FM
auto tracking, RadioText (TXT) display,
Information on the station, ...)
DAB / FM tracking
"DAB" does not have 100% coverage of
the country.
When the digital signal is weak,
"DAB / FM auto tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding analogue "FM" station
(if there is one).
When "DAB / FM auto tracking" is
active, the DAB station will be selected
automatically.
If "DAB / FM auto tracking" is
activated, there will be a difference of
a few seconds in the programme when
the system changes to analogue "FM"
radio, with sometimes a variation in
volume.
If the "DAB" station you are listening
to is not available on "FM" ("
DAB/FM
"
option barred), or if "DAB / FM auto
tracking" is not on, the sound will be cut
when the digital signal is too weak.
156
Audio and Telematics
Media
USB port
This unit consists of a USB port and an
auxiliary Jack socket, depending on version.
Insert a USB memory stick into the USB port
or connect a USB peripheral device to the USB
port using a suitable cable (not supplied).
The system changes automatically to "USB"
source.
The system creates playlists (temporary
memory), which can take from a few seconds
to several minutes on the first connection.
Reducing the number of non-music files and
the number of folders reduces this waiting
time. Playlists are updated every time a new
USB memory stick is connected.
Press this button to display the
contextual menu for the Media
function.
Press this button to select the play
mode.
Press this button to confirm.
Play mode
The play modes available are:
-
Normal
: the tracks are played in order,
depending on the classification of the
selected files.
-
Random
: the tracks in an album or folder
are played in a random order.
-
Random on all media
: all of the tracks
saved in the media are played in random
order.
-
Repeat
: the tracks played are only those
from the current album or folder.
The choice made is displayed at the top of the
screen.
While connected by USB, the portable
device may be charged automatically.
To protect the system, do not use a
USB hub.
Any additional equipment connected
to the system must conform to
the standard of the product or
standard IEC 60950-1.
157
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
Choosing a track to play
F i l e c l a s s i fi c a t i o n
P l a y i n g fi l e s
Make a long press on this button to
display the different classifications.
Choose by "
Folder
" / "
Artist
" /
"
Genre
" / "
Playlist
" * .
Press
OK
to select the desired
classification, then press
OK
again
to confirm.
Make a long press on this button to
display the chosen classification.
Navigate in the list using the left /
right and up / down buttons.
Confirm the selection by
pressing
OK
.
Press one of these buttons to go to
the previous / next track in the list.
Press and hold one of these buttons
for fast forward or fast back.
Press one of these buttons to go
to the next "
Folder
" / "
Artist
" /
"
Genre
" / "
Playlist
" * in the list.
* Depending on availability and the type of
device used.
Press one of these buttons to go to
the previous / next track.
Press one of these buttons to go to
the previous / next folder.
158
Audio and Telematics
Jack auxiliary (AUX) socket
Connect the portable device (MP3 player, …) to
the auxiliary Jack socket using an audio cable
(not supplied).
Press the
SOURCE
button several
times in succession and select
"
AUX
".
First adjust the volume on your portable device
(to a high level). Then adjust the volume on
your audio system. Operation of controls is via
the portable device.
Do not connect a device to both the
Jack auxiliary socket and the USB port
at the same time.
CD player
Insert circular compact discs only.
Some anti-pirating systems, on original discs
or CDs copied using a personal recorder, may
cause faults which are no reflection on the
quality of the vehicle's player.
Insert a CD in the player, play begins
automatically.
To play a disc which has already
been inserted, press the
SOURCE
button several times in succession
and select
CD
.
Press one of the buttons to select a
track on the CD.
Press the
LIST
button to display the
list of tracks on the CD.
Press and hold one of the buttons for
fast forward or fast back.
Playing an MP3 compilation
Insert an MP3 CD compilation in the player.
The audio equipment searches for all of the
music tracks, which may take anything between
a few seconds and several tens of seconds,
before play begins.
On a single disc, the CD player can
read up to 255 MP3 files spread over
8 folder levels.
However, it is advisable to keep to a
limit of two levels to reduce the access
time before the CD is played.
While the CD is being played, the folder
structure is not followed.
All of the files are displayed on a single
level.
External CD players connected via the
USB port are not recognised by the
system.
Any additional equipment connected
to the system must conform to the
standard of the product or standard
IEC 60950-1.
159
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
To play a disc which has already
been inserted, press the
SOURCE
button several times in succession
and select
CD
.
Press one of the buttons to select a
folder on the CD.
Press one of the buttons to select a
track on the CD.
Press the
LIST
button to display
the list of directories of the MP3
compilation.
Press and hold one of the buttons for
fast forward or backward play.
Bluetooth
®
Bluetooth
®
Bluetooth
audio streaming
®
audio streaming
®
Streaming allows music files on the telephone
to be played via the audio system.
Connect the telephone.
(Refer to the "
Pairing a telephone
" section).
Audio files can be selected using the buttons
on the audio system control panel and the
steering mounted controls ** . Contextual
information may be displayed in the screen.
Activate the streaming source by
pressing the
SOURCE
* b u t t o n .
Connecting Apple
®
Connecting Apple
®
Connecting Apple
players
®
players
®
Connect the Apple
®
player to the USB port
®
player to the USB port
®
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the
portable device connected (artists / albums /
genres / playlists).
The version of software in the audio system
may not be compatible with the generation of
your Apple
®
player.
®
player.
®
* In certain cases, play of the audio files must
be initiated from the keypad.
** If the telephone supports the function. The
audio quality depends on the quality of
transmission by the telephone.
160
Audio and Telematics
The CD player can play files with .mp3, .wma,
.wav and .aac file extensions, with a bit rate of
of 32 to 320 Kbps.
It also supports TAG mode (ID3 tag, WMA TAG).
Other file types (mp4, ...) may be played.
Files of the ".wma" type should be to the
wma9 standard.
The sampling rates supported are 11, 22, 44
and 48 KHz.
Via the USB port, the system can play audio
files with the extension ".mp3, .wma, .wav, .cbr,
.vbr" with a bit rate of 32 to 320 Kbps.
No other file types (.mp4, ...) can be played.
Files of the ".wma" type should be to the
wma9 standard.
The sampling rates supported are 11, 22, 44
and 48 KHz.
File names should have less than
20 characters, avoiding special characters
(e.g.: " ? ; ù) so as to avoid any reading or
display problems.
In order to be able to play a recorded CDR or
CDRW, the ISO 9660 level 1. 2 or Joliet file
format is recommended when recording.
If the disc is recorded in another format, it may
not be played correctly.
It is recommended that the same recording
format is always used for an individual disc,
with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the
Joliet format is recommended.
Information and advice
To protect the system, do not use a USB hub.
It is recommended that you use
genuine Apple
®
USB cables for correct
®
USB cables for correct
®
operation.
Use only USB memory sticks formatted
FAT32 (File Allocation Table).
161
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
Telephone
Pairing a Bluetooth
®
Pairing a Bluetooth
®
Pairing a Bluetooth
telephone
®
telephone
®
As a safety measure and because it
requires the sustained attention of the
driver, the pairing of your a Bluetooth
telephone to the Bluetooth hands-free
audio system must only be carried
out with the vehicle stationary and the
ignition on
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth telephone
used.
Refer to the instructions for your
telephone and to your service provider
for the services available to you.
Activate the telephone's Bluetooth
function and ensure that it is "visible to
all" (telephone configuration).
Go to the Brand's website for more
information (compatibility, more
help, ...).
* If your telephone is fully compatible.
The "
Telephone
" menu gives access to the
following functions in particular: "
Directory
" * ,
"
Calls list
", "
View paired devices
".
Depending on the type of telephone, you may
be asked to accept or confirm access by the
system to each of these functions.
If pairing fails, the number of attempts is not
restricted.
A message appears in the screen confirming
the pairing.
Procedure from the telephone
Completing the pairing
Procedure from the system
Select the name of the system in the
list of devices detected.
To complete the pairing, whichever
procedure is used (from the telephone
or from the system), check that the
code displayed in the system and the
telephone is the same and confirm.
Press the
MENU
button.
Select the "
Connections
" menu.
Confirm with
OK
.
A window is displayed with a search in progress
message.
In the list of devices detected, select a
telephone to pair. Only one telephone can be
paired at a time.
Confirm with
OK
.
Select "
Search for a Bluetooth
device
".
Information and advice
162
Audio and Telematics
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
The telephone connection
automatically includes hands-free
operation and audio streaming.
The ability of the system to connect
to just one profile depends on the
telephone. Both profiles may connect
by default.
A number indicates the profile of the
connection with the system:
- 1 for media or 1 for telephone.
- 2 for media and telephone.
When you delete a pairing in the
system, remember to delete it from your
telephone as well.
Indicates that a device is connected.
Indicates the audio streaming profile.
Indicates the hands-free telephone
profile.
Press the
MENU
button.
Managing connections
Select "
Connections
".
Select "
Connections management
"
and confirm. The list of paired
devices is displayed.
Select a telephone.
Then select and confirm:
- "
Connect telephone
" /
"
Disconnect telephone
":
to connect / disconnect the
telephone or the hands-free kit
only.
- "
Connect media player
" /
"
Disconnect media player
":
to connect / disconnect
streaming only.
- "
Connect telephone +
media player
" / "
Disconnect
telephone + media player
":
to connect / disconnect the
telephone (hands-free kit and
streaming).
- "
Delete connection
": to delete
the pairing.
163
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Select the "
YES
Select the " YES Select the "
" tab in the screen
using the buttons.
Confirm with
OK
.
Confirm with
OK
.
Press this button at the steering
mounted controls to accept the call.
Making a call
In the "
Telephone
" menu.
Select "
Call
".
Select "
Calls list
".
Select "
Dial
".
Or
Or
Select "
Directory
".
Press this button for more than
two seconds for access to your
directory, then navigate using the
thumb wheel.
In the "
Telephone
" menu.
Select "
End call
".
Ending a call
During a call, press one of the
buttons for more than 2 seconds.
Confirm with
OK
to end the call.
The system accesses the telephone's
contacts directory, depending on its
compatibility, and while it is connected
by Bluetooth
With certain telephones connected by
Bluetooth, you can send a contact to
the directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
164
Audio and Telematics
During a call, press
OK
to display the
contextual menu.
In the contextual menu, select "
End
call
" to end the call.
Managing calls
Hang up
(so that the caller cannot hear)
In the contextual menu:
- select "
Micro OFF
" to switch off
the microphone.
- deselect "
Micro OFF
" to switch
the microphone on.
In the contextual menu:
- select "
Telephone mode
" to
transfer the call to the telephone
(for example, to leave the vehicle
while continuing a conversation).
- deselect "
Telephone mode
" to
transfer the call to the vehicle.
Microphone off
Telephone mode
If the contact has been cut off, when you
reconnect on returning to the vehicle,
the Bluetooth connection will be restored
automatically and sound returned to the
system (depending on the compatibility of the
telephone).
In some cases telephone mode must be
activated from the telephone.
From the contextual menu, select
"
DTMF tones
" and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
"
Switch
" and confirm to return to a
call left on hold.
Interactive voice response
Dual call
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
165
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
To modify the contacts saved in the
system, press
MENU
then select
"
Telephone
" and confirm.
Select "
Directory management
"
and confirm.
You can:
- "
Consult an entry
",
- "
Delete an entry
",
- "
Delete all entries
".
Make a long press on
SRC/TEL
.
The system accesses the telephone's
contacts directory, depending on
its compatibility, and while it is
connected by Bluetooth.
With certain telephones connected
by Bluetooth you can send a contact
to the directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
Select "
Directory
" to see the list of
contacts.
Directory
Confirm with
OK
.
OR
Voice recognition
This function allows you to use your
smartphone's voice recognition via the system.
To start voice recognition, depending on the
type of steering mounted controls:
Make a long press on the end of the lighting
control stalk.
Press this button.
Voice recognition requires the use of a
compatible smartphone first connected
to the vehicle by Bluetooth.
166
Audio and Telematics
The table below gives answers to the most frequently asked questions on your audio system.
QUESTION
ANSWER
SOLUTION
With the engine off, the
audio system switches off
after a few minutes of use.
When the engine is switched off, the audio system operating time
depends on the state of charge of the battery.
The switch-off is normal: the audio equipment switches to economy
mode and switches off to prevent discharging of the vehicle's
battery.
Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display.
In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction in volume or CD play
stopping.
Switch the audio system off for a few minutes to
allow the system to cool.
Frequently asked questions
QUESTION
ANSWER
SOLUTION
There is a difference in
sound quality between the
different audio sources
(radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience and Loudness) can be adapted to the different
sound sources, which may result in audible differences when
changing source (radio, CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience and Loudness) are adapted to
the sources listened to. It is advisable to set the
audio functions (Bass, Treble, Front-Rear Balance
and Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
Radio
167
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
QUESTION
ANSWER
SOLUTION
The preset stations do
not function (no sound,
87.5 Mhz is displayed...).
An incorrect waveband is selected.
Press the BAND button to return to the waveband
(FM, FM2, DAB, AM) on which the stations are
preset.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information.
The radio station is not part of the regional traffic information
network.
Tune to a radio station which broadcasts traffic
information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, underground car parks...) block
reception, including in RDS mode.
This phenomenon is normal and does not indicate
a fault in the audio system.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or into an underground car park).
Have the aerial checked by a franchised dealer.
Sound cut-outs of 1 to
2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for another
frequency giving better reception of the station.
Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
168
Audio and Telematics
Media
QUESTION
ANSWER
SOLUTION
The Bluetooth connection
is broken.
The state of charge of the device may be too low.
Charge the battery of the portable device.
The message "USB device
error" is displayed in the
screen.
The USB memory stick is not recognised.
The USB memory stick may be corrupt.
Reformat the USB memory stick.
The CD is ejected every
time or is not played.
The CD is upside down, cannot be read, does not contain audio
files or contains audio files of a format not recognised by the audio
system.
The CD is protected by an anti-pirating system not recognised by
the audio system.
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The sound from the CD is
poor.
The CD used is scratched or of poor quality.
Insert a good quality CD and store them in
suitable conditions.
The audio settings (base, treble, ambience) are unsuitable.
Return bass and treble settings to 0, without
selecting an ambience.
I am unable to play
the music files on my
smartphone via the USB
port.
Depending on the smartphone, access by the audio system to music
on the smartphone may have to be approved on the latter.
Manual activate the MTP profile on the
smartphone (USB settings menu).
169
.
Audio and Telematics
Transversal-Citroen_en_Chap03_RD6_ed01-2016
QUESTION
ANSWER
SOLUTION
I am unable to access my
voicemail.
Few telephones or service providers allow the use of this function.
Call your voicemail box, via the telephone menu,
using the number supplied by your service
provider.
I am unable to access my
directory of contacts.
Check the compatibility of your telephone.
You did not give access to your contacts when pairing the telephone.
Accept or confirm access by the system to the
contacts on your telephone.
I am unable to continue a
conversation when getting
into my vehicle.
Telephone mode is activated.
Deselect telephone mode to transfer the call to
the vehicle.
I am unable to pair my
telephone by Bluetooth.
Telephones (models, versions of operating systems) have their own
specific aspects in the pairing procedure and some telephones are
not compatible.
Before starting the pairing procedure, delete the
pairing of the telephone from the system AND of
the system from the telephone, so as to see the
compatibility of the telephones.
Telephone
