DV-R550U Sharp User Manual

VCR/DVD RECORDER

COMBINATION

OPERATION MANUAL

Please read this Operation Manual carefully before using

your VCR/DVD RECORDER COMBINATION.

The region number for

this unit is 1.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

DV-RW550U

Before you start

Español

Recording Disc Playback EditingConnections

Getting started

Changing the Setting menu

VCR functions Others

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 1

Precautions

Before you start

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE

SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITAR LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS

LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET

POUSSER JUSQU’AU FOND.

CAUTION:

THIS UNIT IS A CLASS 1 LASER PRODUCT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECI-

FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

AS THE LASER BEAM USED IN THIS UNIT IS HARMFUL TO THE EYES, DO NOT ATTEMPT TO DISASSEMBLE THE

CABINET.

REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER SER-

VICEABLE PARTS INSIDE. REFER SERVICING TO QUAL-

IFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

For future reference, record the model and serial numbers (located on

the rear of the unit) in the space provided.

Model No.:

DV-RW550U

Serial No.:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(

1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a resi-

dential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

WARNING—FCC Regulations state that any unauthorized changes or modifi-

cations to this equipment not expressly approved by the manufacturer could

void the user’s authority to operate this equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Este aparato digital de la Clase B cumple con la norma ICES-003 de Canadá.

Note to the CATV System Installer :

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National

Electrical Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground

shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

This symbol alerts the user that there are

important operating and maintenance instruc-

tions in the literature accompanying this unit.

This symbol warns the user of uninsulated

voltage within the unit that can cause dan-

gerous electric shocks.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 2

Before you start

Español

Recording

Disc Playback EditingConnections Getting started

Changing the Setting menu

VCR functions Others

Before you start

Precautions (cont’d)

1. Read Instructions - All the safety and operating instructions

should be read before the appliance is operated.

2. Retain Instructions- The safety and operating instructions

should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the

operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions

should be followed.

5. Cleaning - Unplug this video product from the wall outlet

before cleaning.Do not use liquid cleaners or aerosol clean-

ers. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted

service and, that for some specific reason, such as the pos-

sibility of the loss of an authorization code for a CATV con-

verter, is not intended to be unplugged by the user for

cleaning or any other purpose, may exclude the reference

to unplugging the appliance in the cleaning description oth-

erwise required in item 5.

6. Attachments - Do not use attachments not recommended by

the video product manufacturer as they may cause hazards.

Water and Moisture- Do not use this video product near water,

for example, near a bath tub, wash bowl, kitchen sink, or laundry

tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this video product on an unsta-

ble cart, stand, tripod, bracket, or table. The video product

may fall, causing serious injury to a child or adult, and seri-

ous damage to the appliance. Use only

with a cart, stand, tripod, bracket, or table

recommended by the manufacturer, or

sold with the video product.Any mount-

ing of the appliance should follow the

manufacturer's instructions and should

use a mounting accessory recommended

by the manufacturer.

Transportation - A product and cart combination should be

moved with care. Quick stops, excessive force, and uneven sur-

faces may cause the appliance and cart combination to overturn.

10. Ventilation - Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of the video

product and to protect it from overheating,and these open-

ings must not be blocked or covered.The openings should

never be blocked by placing the video product on a bed,

sofa, rug, or other similar surface.This video product should

not be placed in a built-in installation such as a bookcase or

rack unless proper ventilation is provided or the manufac-

turer's instructions have been adhered to.

11.Power Sources - This video product should be operated

only from the type of power source indicated on the mark-

ing label. If you are not sure of the type of power supply to

your home, consult your appliance dealer or local power

company. For products intended to operate from battery

power, or other sources, refer to the operating instructions.

12. Grounding or Polarization - This video product is equipped

with a polarized alternating-current line plug (a plug having

one blade wider than the other). This plug will fit into the

power outlet only one way.This is a safety feature. If you are

unable to insert the plug fully into the outlet, try reversing

the plug. If the plug should still fail to fit, contact your elec-

trician to replace your obsolete outlet. Do not defeat the

safety purpose of the polarized plug.

13. Power Cord Protection - Power supply cords should be

routed so that they are not likely to be walked on or

pinched by items placed upon or against them, paying par-

ticular attention to cords at plugs, convenience receptacles,

and the point where they exit from the appliance.

14. Outdoor Antenna Grounding - If an outside antenna or cable

system is connected to the video product, be sure the anten-

na or cable system is grounded so as to provide some protec-

tion against voltage surges and built-up static charges. Article

810 of the National Electrical Code, ANSI/NFPA No. 70, pro-

vides information with regard to proper grounding of the mast

and supporting structure, grounding of the lead-in wire to an

antenna discharge unit, size of grounding conductors, location

of antenna-discharge unit, connection to grounding electrodes,

and requirements for the grounding electrode (Fig.A).

15. Lightning - For added protection for this video product dur-

ing a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wall out-

let and disconnect the antenna or cable system. This will

prevent damage to the video product due to lightning and

power-line surges.

16. Power Lines - An outside antenna system should not be locat-

ed in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power

lines or circuits.When installing an outside antenna system,

extreme care should be taken to keep from touching such

power lines or circuits as contact with them might be fatal.

17. Overloading - Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry - Never push objects of any kind

into this video product through any openings as they may

touch dangerous voltage points or short-out parts that

could result in a fire or electric shock. Never spill liquid of

any kind on the video product.

19. Servicing - Do not attempt to service this video product

yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to

qualified service personnel.

20. Damage Requiring Service - Unplug this video product from

the wall outlet and refer servicing to qualified service per-

sonnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the video

product.

c. If the video product has been exposed to rain or water.

d. If the video product does not operate normally by follow-

ing the operating instructions. Adjust only those controls

that are covered by the operating instructions as an improp-

er adjustment of other controls may result in damage and

will often require extensive work by a qualified technician to

restore the video product to its normal operation.

e. If the video product has been dropped or damaged in any way.

f. When the video product exhibits a distinct change in per-

formance this indicates a need for service.

1.Replacement Parts - When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer or have the same character-

istics as the original part. Unauthorized substitutions may

result in fire, electric shock or other hazards.

22. Safety Check - Upon completion of any service or repairs

to this video product, ask the service technician to perform

safety checks to determine that the video product is in

proper operating condition.

23. Heat - This video product should be situated away from heat

sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA

LEAD

WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND

CLAMP

GROUND CLAMP

ELECTRIC

SERVICE

EQUIPMENT

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC – NATIONAL ELECTRICAL CODE

S2898A

Important Safeguards

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 3

Precautions (cont’d)

Before you start

Copy Protection

Warning of Dew Formation

This unit supports Macrovision copy protection.

On DVD discs that include a copy protection code, if the contents of the DVD disc are copied using this unit, the copy protec-

tion code prevents the DVD or videotape copy from playing normally.

Moisture may form inside the unit under the following conditions:

• Immediately after a heater is turned on.

• In a steamy or humid room.

• When the unit is suddenly moved from a cold to warm environment.

If moisture forms inside the unit, it may not operate properly or damage the videotape. In such case, turn on the power and

wait for more than two hours for the moisture to evaporate.

Notice for progressive scan outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts

to be displayed in the picture. In case of picture problems with 525p progressive scan output, it is recommended that the user

switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this

model 525p DVD recorder, please contact our customer service center.

U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448; and 6,516,132.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

No Fingers or Other Objects Inside

Do not put your fingers or objects on the disc tray or in the cassette compartment.

Location and Handling

• Do not stand the unit vertically. Install the unit in a horizontal and stable position. Do not place anything directly on top of the

unit. Do not place the unit directly on top of the TV.

• Do not cover or place the unit in enclosed spaces to prevent excessive temperature build up.

• Do not place the unit in direct sunlight, or near heat sources.

• Depending on the use environment, the temperature of the unit may increase slightly.This is not a malfunction.

•Keep the unit away from strong magnetic objects.

• Do not place any object containing water or other liquids on the unit. In the event that liquid should enter the cabinet, unplug

the unit immediately and contact the retailer or service centre approved by SHARP immediately.

• Do not remove the unit cabinet.Touching parts inside the cabinet could result in electric shock and/ or damage to the unit.

For service and adjustment inside the cabinet, call a qualified dealer or service centre approved by SHARP.

• Be sure to remove a disc and videotape, and unplug the AC power cord from the outlet before carrying the unit.

Nonuse Periods

Location and Handling

• When the unit is not being used, switch the unit to the Standby mode.

• When left unused for a long period of time, the unit should be unplugged from the household AC outlet.

• Do not place the unit in direct sunlight, or near heat sources.

Manufactured under license from Dolby Laboratories.“Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Dolby Digital Recording

“Dolby

Digital Recording enables consumers to record high-quality video with stereo sound on recordable DVD

discs.The technology, when utilized instead of PCM recording, also saves recordable disc space, allowing for high-

er video resolution or extended recording time on each DVD. DVDs created using Dolby Digital Recording will

play back on all DVD-Video players.”

Note:

This is true when the players are compatible with actual recordable DVD discs.

is a trademark of DVD Format/Logo Licensing Corporation.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 4

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Precautions (cont’d)

Before you start

SERVICING

1. Please refer to relevant topics in the Troubleshooting on pages 98-101 before returning the product.

2. Do not attempt to service this unit yourself. Instead, unplug it and contact a SHARP Authorized Service Center for inspection.

(See

CONSUMER LIMITED WARRANTY at the end of this manual.)

3. Be sure the service technician uses authorized replacement parts or their equivalents. Unauthorized parts may cause fire, elec-

trical shock, or other hazards.

4. Following any service or repair, be sure the service technician performs safety checks to certify that this unit is in safe operat-

ing order.

CLEANING THE CABINET

¡Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or

abrasive.

CLEANING DISCS

¡When a disc becomes dirty, clean it with a cleaning cloth.Wipe the disc from the center out. Do not wipe in a circular motion.

¡Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic

spray intended for analogue records.

RECOMMENDED MEASURES FOR OPTIMUM PICTURE EXCELLENCE

This unit is a precision device constructed using extremely accurate technology.

¡The disc cannot be played if the disc drive component is worn out or if the internal pick up lens is dirty.

¡If this unit still does not perform properly although you refer to the relevant sections and to Troubleshooting on pages 98-101,

the laser optical pickup unit may be dirty. Consult a SHARP Authorized Service Center for inspection and cleaning of the laser

optical pickup unit.

DISC HANDLING

¡When you handle a disc, hold it by its edge and try not to touch the surface of the disc.

¡Always store a disc in its protective case when it is not used.

AUTO HEAD CLEANING

¡Automatically cleans video heads as you insert or remove a videotape, so you can see a clear picture.

¡Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video

heads after a long period of use, or the usage of rental or worn videotape can cause this problem. If a streaky or snowy picture

appears during playback, the video heads in your unit may need to be cleaned.

1. Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

2. If a Video Head Cleaner does not solve the problem, please call our help line mentioned on page

104 to locate a SHARP

Authorized Service Center.

Maintenance

Others

It is the intent of SHARP that this product be used in full compliance with the copyright laws of the United States and that prior

permission be obtained from copyright owners whenever necessary.

“Licensed under one or more of U.S. Pat. 4,972,484, 5,2

14,678, 5,323,396, 5,530,655, 5,539,829, 5,544,247, 5,606,618,

5,6

10,985, 5,740,317, 5,777,992, 5,878,080, or 5,960,037.”

VCR/DVD RECORDER

COMBINATION

OPERATION MANUAL

Please read this Operation Manual carefully before using

your VCR/DVD RECORDER COMBINATION.

The region number for

this unit is 1.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

DV-RW550U

DIGITAL AUDIO

Supplied Accessory

• Remote control

with two “AA” size

batteries

• Round Coaxial cable • Audio/Video cables • Operation Manual • Quick Use Guide

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 5

Ta b le of contents

Before you start

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Title/Chapter search . . . . . . . . . . . . . . . . . . . . . . . .56

Track search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Time search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Repeat/Random/Program playback . . . . . . . . . .58

Repeat playback . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Random playback . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Program playback . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Selecting a format of audio and video . . . . . . . .60

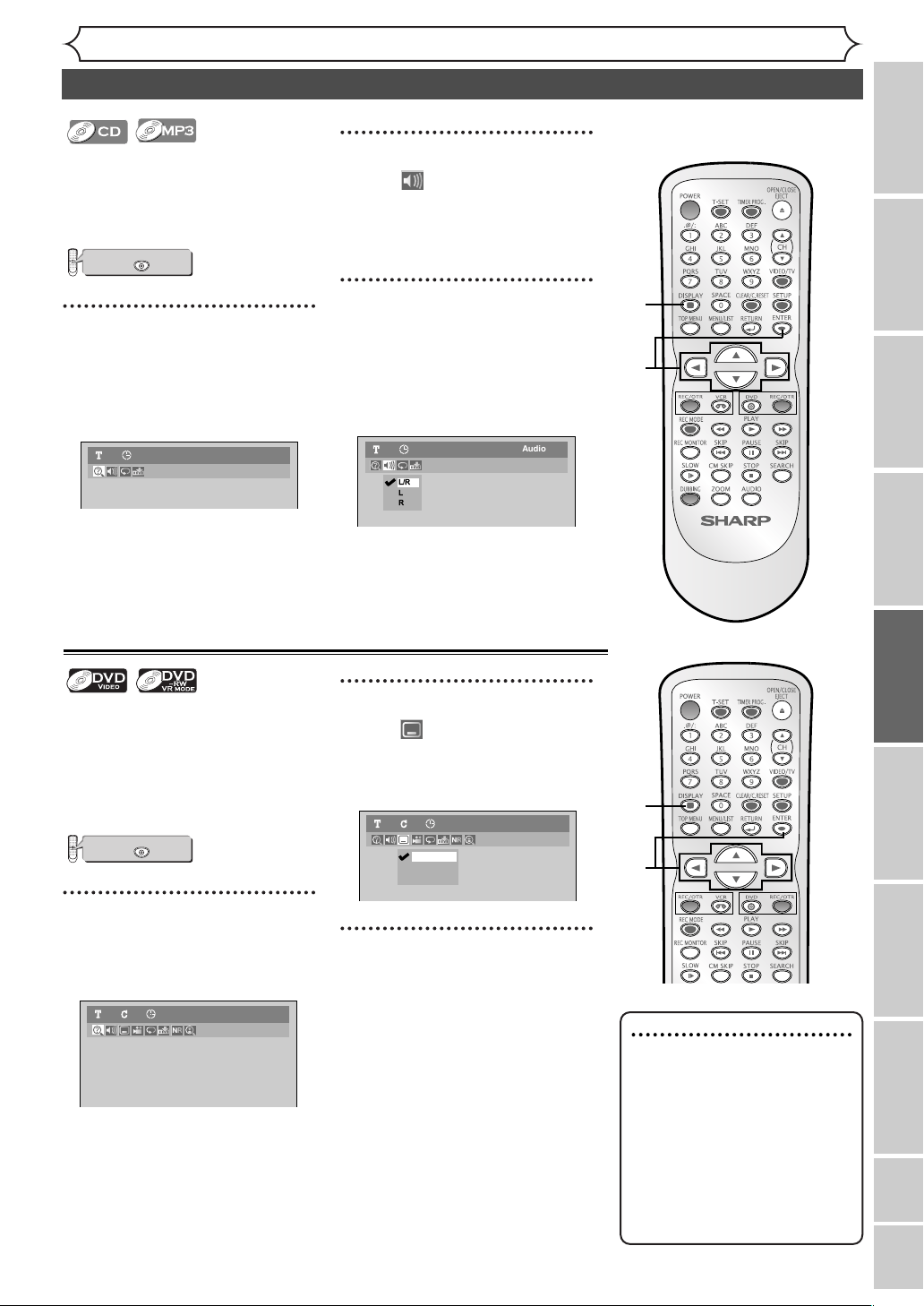

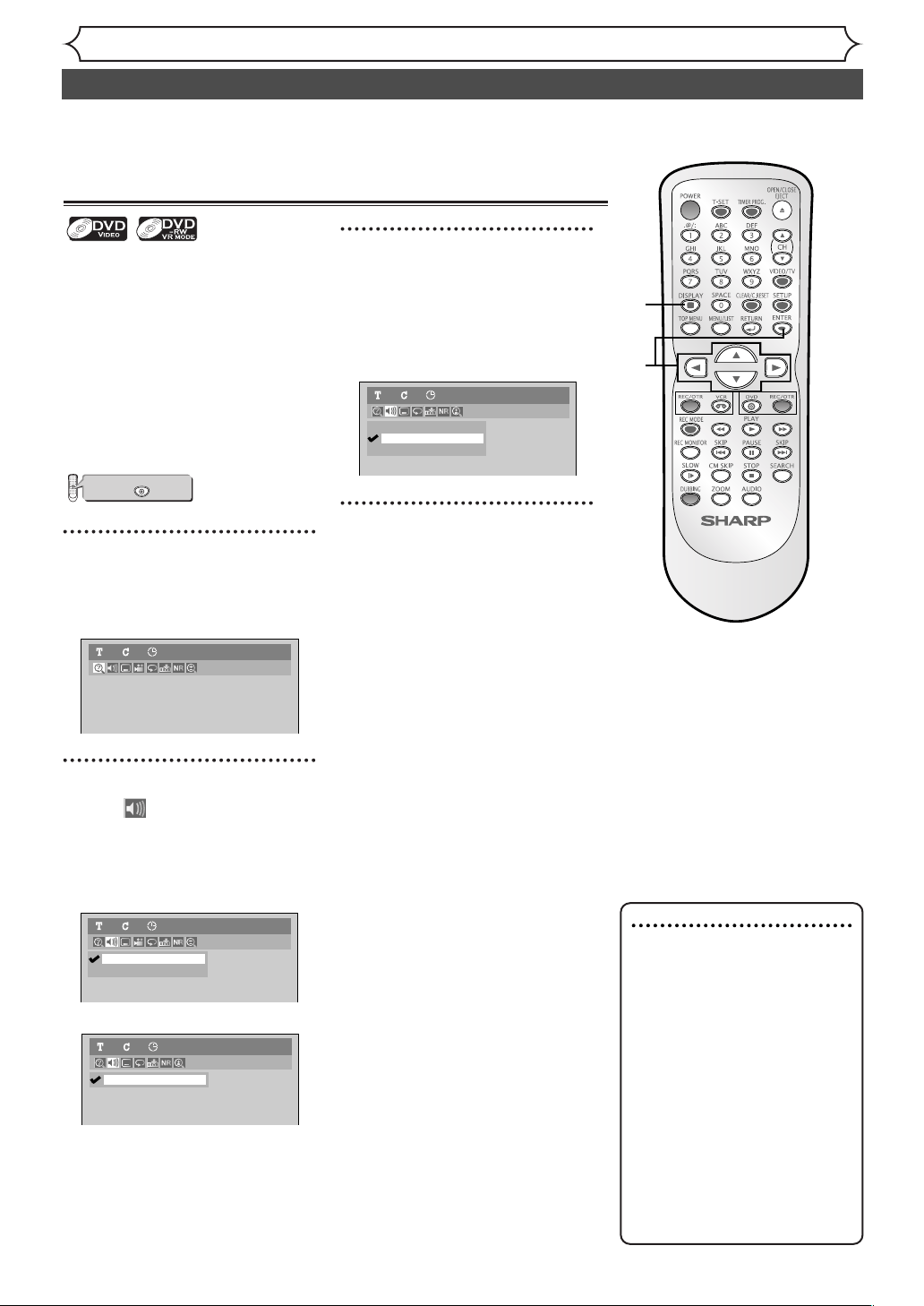

Switching audio soundtracks . . . . . . . . . . . . . . . . . .60

Switching subtitles . . . . . . . . . . . . . . . . . . . . . . . . . .61

Switching camera angles . . . . . . . . . . . . . . . . . . . . . .62

Visual Noise Reduction . . . . . . . . . . . . . . . . . . . . . .62

Editing . . . . . . . . . . . . . . . . . . . . . . . . .63

Information on disc editing . . . . . . . . . . . . . . . . .63

Guide to a Title List . . . . . . . . . . . . . . . . . . . . . . . . .63

Editing discs in Video mode . . . . . . . . . . . . . . . . . . .63

Editing discs in VR mode . . . . . . . . . . . . . . . . . . . . .64

Editing DVD-RW discs in Video mode . . . . . . . .65

Deleting titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Putting names on titles . . . . . . . . . . . . . . . . . . . . . .66

Setting or clearing chapter markers . . . . . . . . . . . . .68

Editing DVD-RW discs in VR mode (Original) . .69

Deleting titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Setting titles to protect . . . . . . . . . . . . . . . . . . . . . .70

Releasing titles from protecting . . . . . . . . . . . . . . . .71

Editing DVD-RW discs in VR mode (Playlist) . . .72

Deleting titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Deleting parts of titles . . . . . . . . . . . . . . . . . . . . . . .7

Putting names on titles . . . . . . . . . . . . . . . . . . . . . .74

Setting or clearing chapter markers . . . . . . . . . . . . .76

Setting pictures for thumbnails . . . . . . . . . . . . . . . . .78

Dividing a title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Combining titles . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Adding titles to a Playlist . . . . . . . . . . . . . . . . . . . . .81

Deleting a Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Editing DVD-R discs . . . . . . . . . . . . . . . . . . . . . .83

Deleting titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Putting names on titles . . . . . . . . . . . . . . . . . . . . . .84

Changing the Setting menu . . . . . . . . .86

Tour of the Setting menu . . . . . . . . . . . . . . . . . .86

Language setting . . . . . . . . . . . . . . . . . . . . . . . . .87

Display setting . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Audio setting . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Settings for Parental lock level . . . . . . . . . . . . . .9

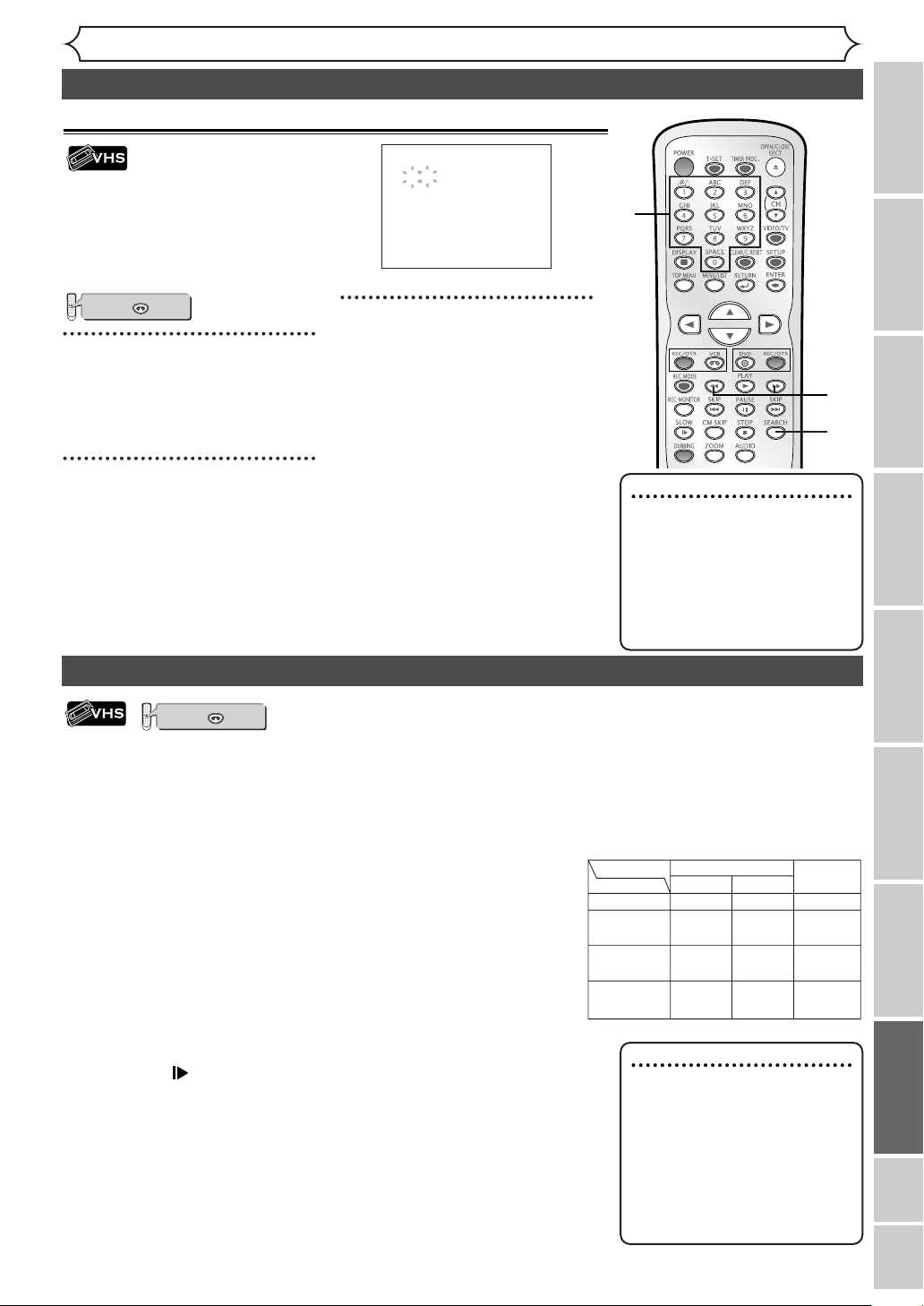

VCR functions . . . . . . . . . . . . . . . . . . .95

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Recording and One-touch Timer Recording . . . .95

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

One-touch Timer Recording . . . . . . . . . . . . . . . . . . .96

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Index search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Time search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Other operations . . . . . . . . . . . . . . . . . . . . . . . .97

Others . . . . . . . . . . . . . . . . . . . . . . . . .98

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .98

RF converter output . . . . . . . . . . . . . . . . . . . . .

101

Language code . . . . . . . . . . . . . . . . . . . . . . . . .102

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

103

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Service Information (For the U.S.) . . . . . . . . . .

104

Español . . . . . . . . . . . . . . . . . . . . . . . .105

Before you start . . . . . . . . . . . . . . . . . . .2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Ta b le of contents . . . . . . . . . . . . . . . . . . . . . . . . . .6

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Symbols in this operation manual . . . . . . . . . . . . . . .7

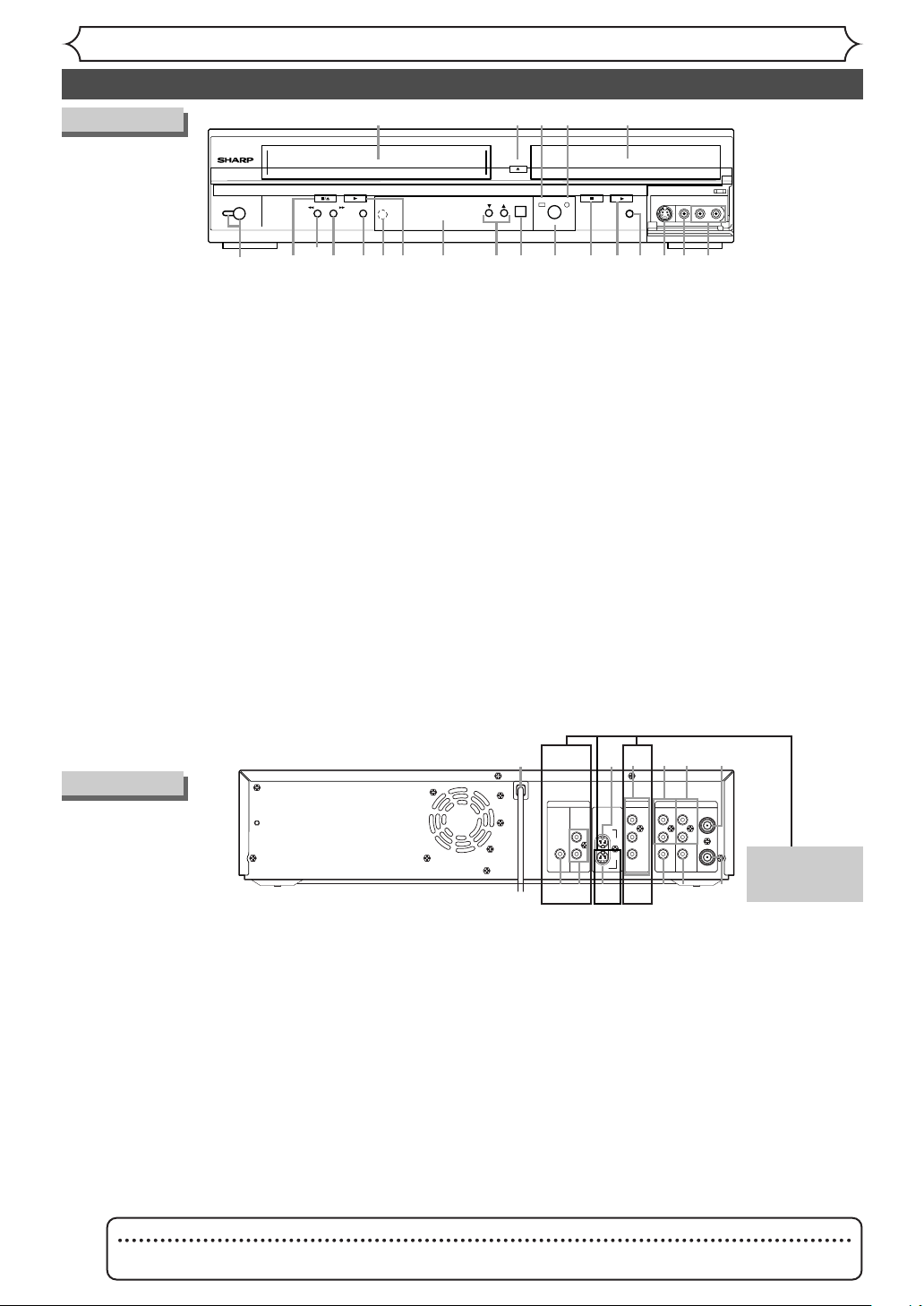

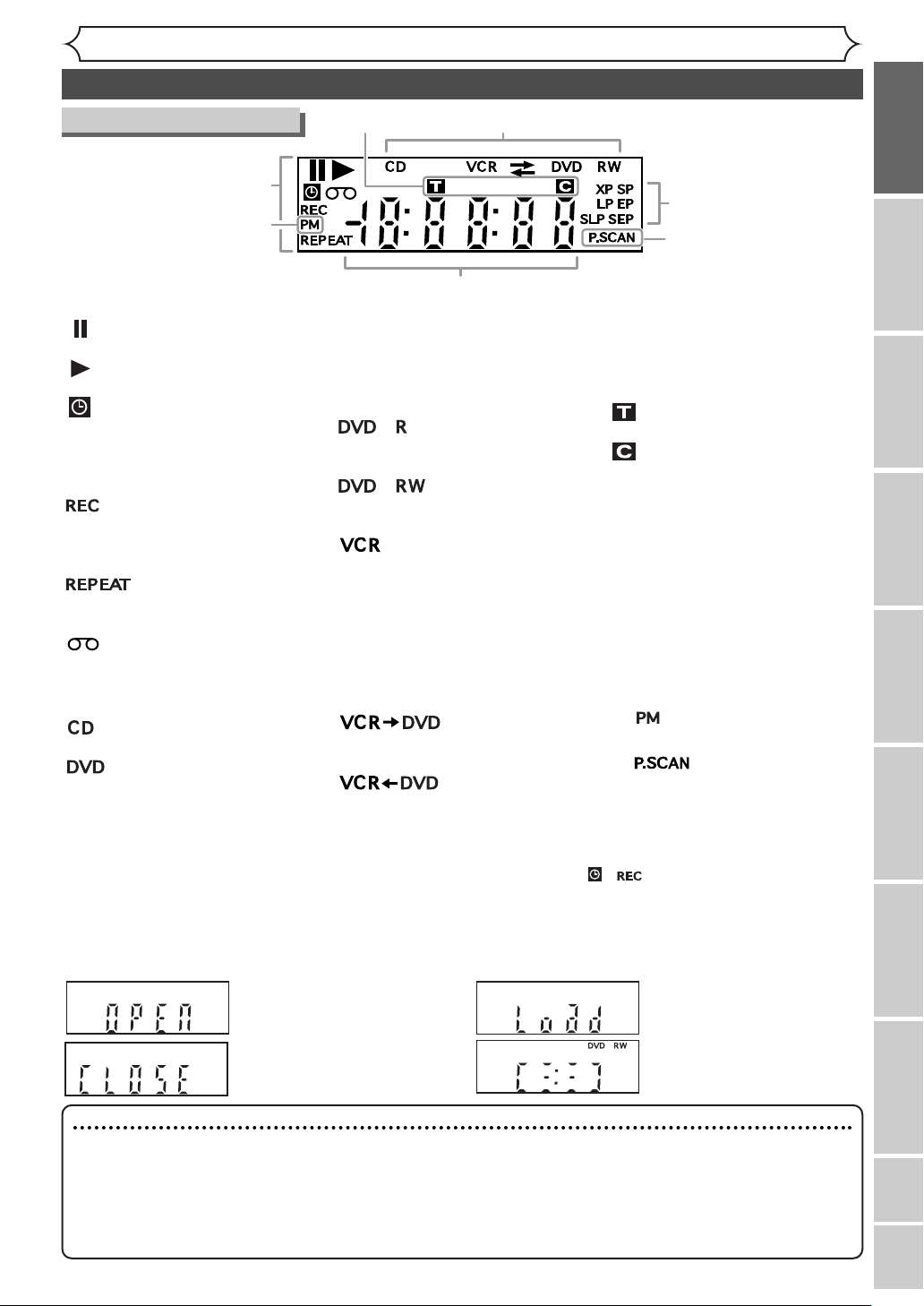

Functional overview . . . . . . . . . . . . . . . . . . . . . . .8

Installing batteries in the remote control . . . . . . . . .10

Using a remote control . . . . . . . . . . . . . . . . . . . . . .

The VCR/DVD recorder Switching . . . . . . . . . . . . . .

Setting/Disc/CD menus . . . . . . . . . . . . . . . . . . . . . . .

DISPLAY menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Connections . . . . . . . . . . . . . . . . . . . . .14

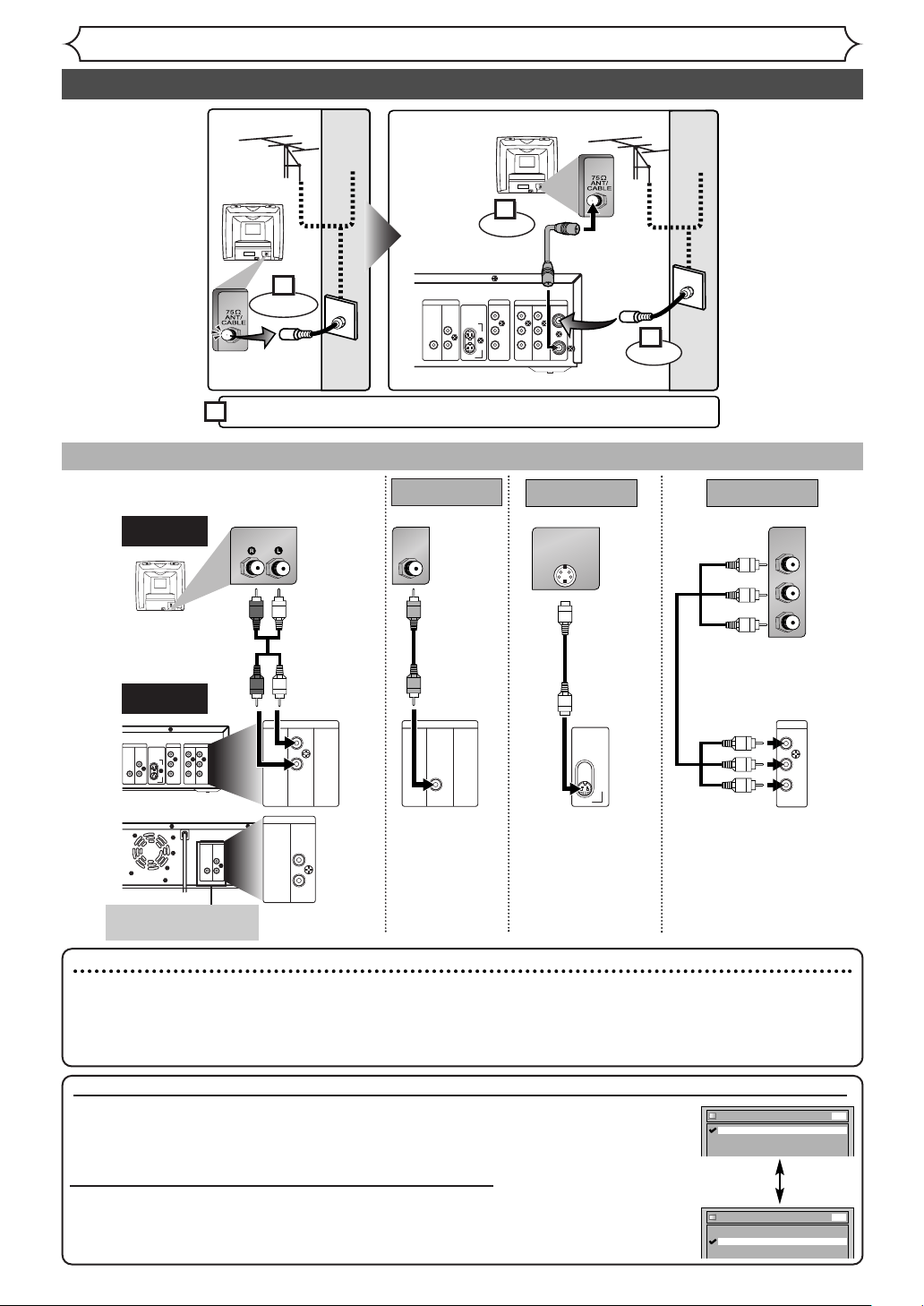

Connection to a TV . . . . . . . . . . . . . . . . . . . . . . .14

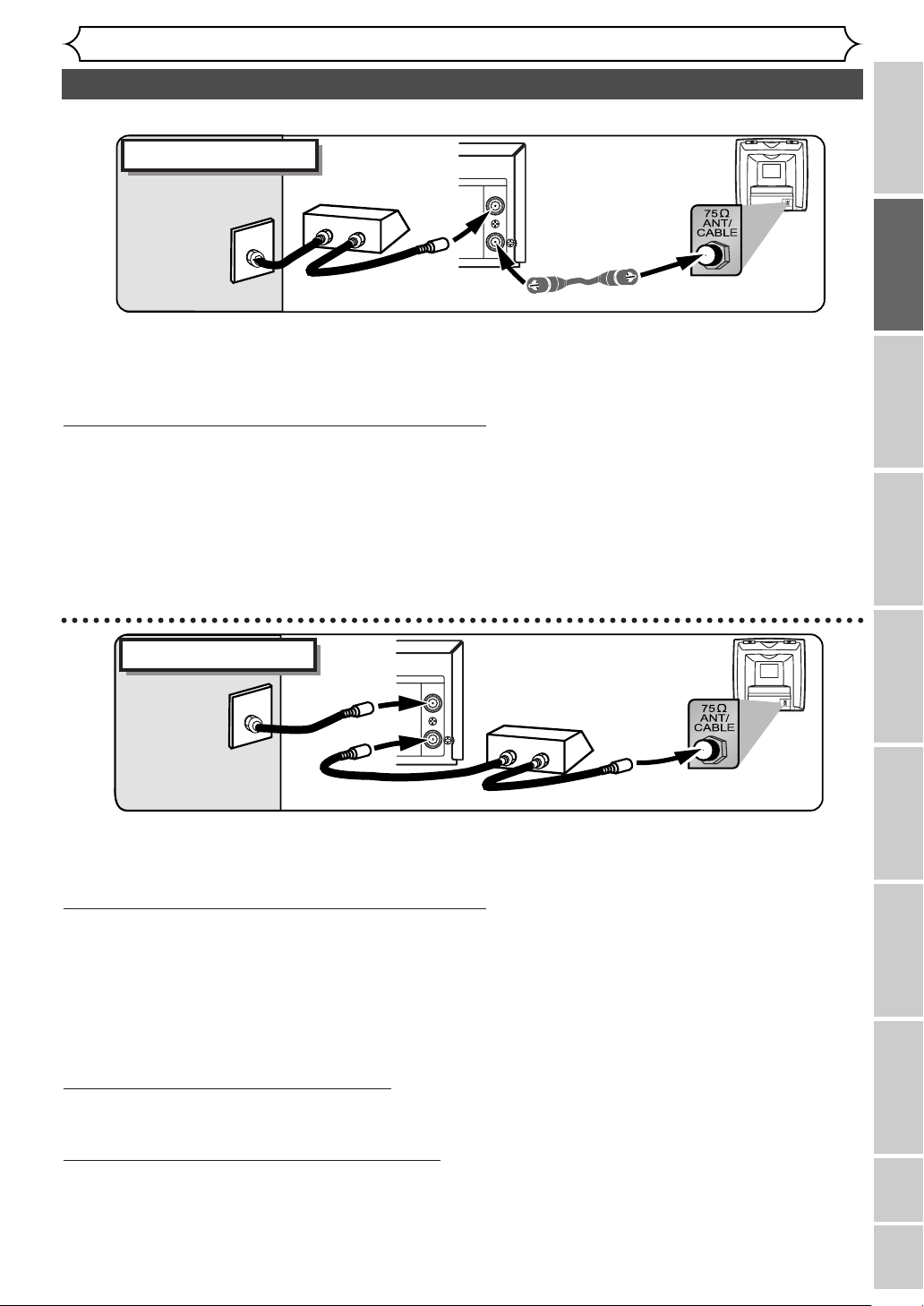

Connection to a cable box or satellite box . . . .

Connection to an Audio System . . . . . . . . . . . . .

Getting started . . . . . . . . . . . . . . . . . . .17

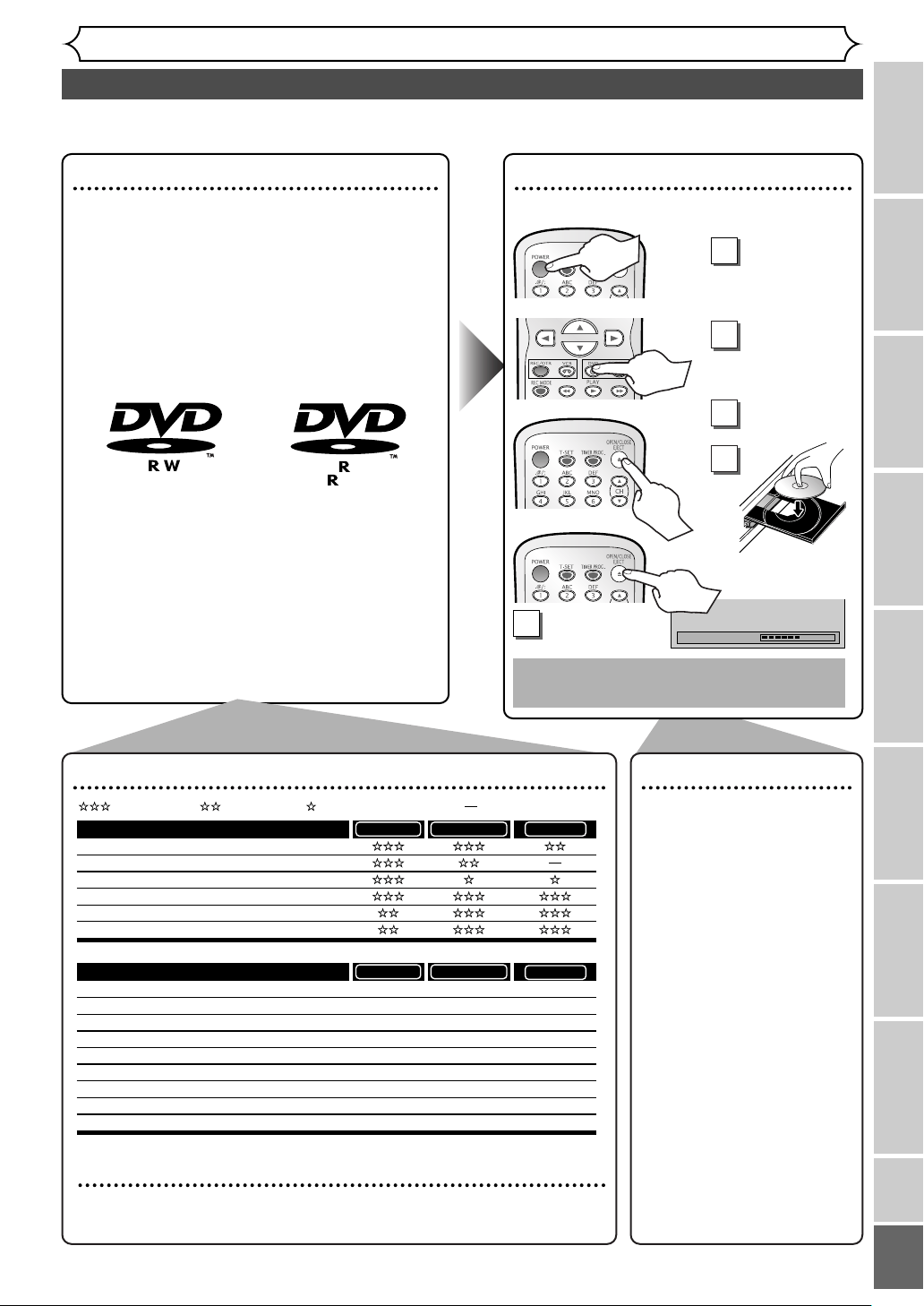

Easy DVD recording . . . . . . . . . . . . . . . . . . . . . .17

Channel setting . . . . . . . . . . . . . . . . . . . . . . . . . .

Getting channels automatically . . . . . . . . . . . . . . . . .19

Adding/Deleting channels . . . . . . . . . . . . . . . . . . . . .20

Selecting the TV Stereo or SAP . . . . . . . . . . . . .21

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . .22

Auto Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . .22

Manual Clock Setting . . . . . . . . . . . . . . . . . . . . . . . .23

Setting the Daylight Saving Time . . . . . . . . . . . . . . . .24

Selecting the TV aspect ratio . . . . . . . . . . . . . . .25

Recording . . . . . . . . . . . . . . . . . . . . . . .26

Information on DVD recording . . . . . . . . . . . . . .26

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Recordable disc . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Recording speed . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Restrictions on recording . . . . . . . . . . . . . . . . . . . .27

Information on copy control . . . . . . . . . . . . . . . . . .27

Making discs playable on other DVD player (Finalize)

. .27

Formatting a disc . . . . . . . . . . . . . . . . . . . . . . . .28

Choosing the recording format of a blank disc . . . .28

Reformatting a disc . . . . . . . . . . . . . . . . . . . . . . . . . .29

Auto Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Recording Audio Select (XP) . . . . . . . . . . . . . . .31

Basic recording . . . . . . . . . . . . . . . . . . . . . . . . . .32

Checking the recording picture and sound quality . .33

One-touch Timer Recording . . . . . . . . . . . . . . . .34

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . .35

Hints for Timer Recording . . . . . . . . . . . . . . . . . . . .39

Settings for an external source . . . . . . . . . . . . . .40

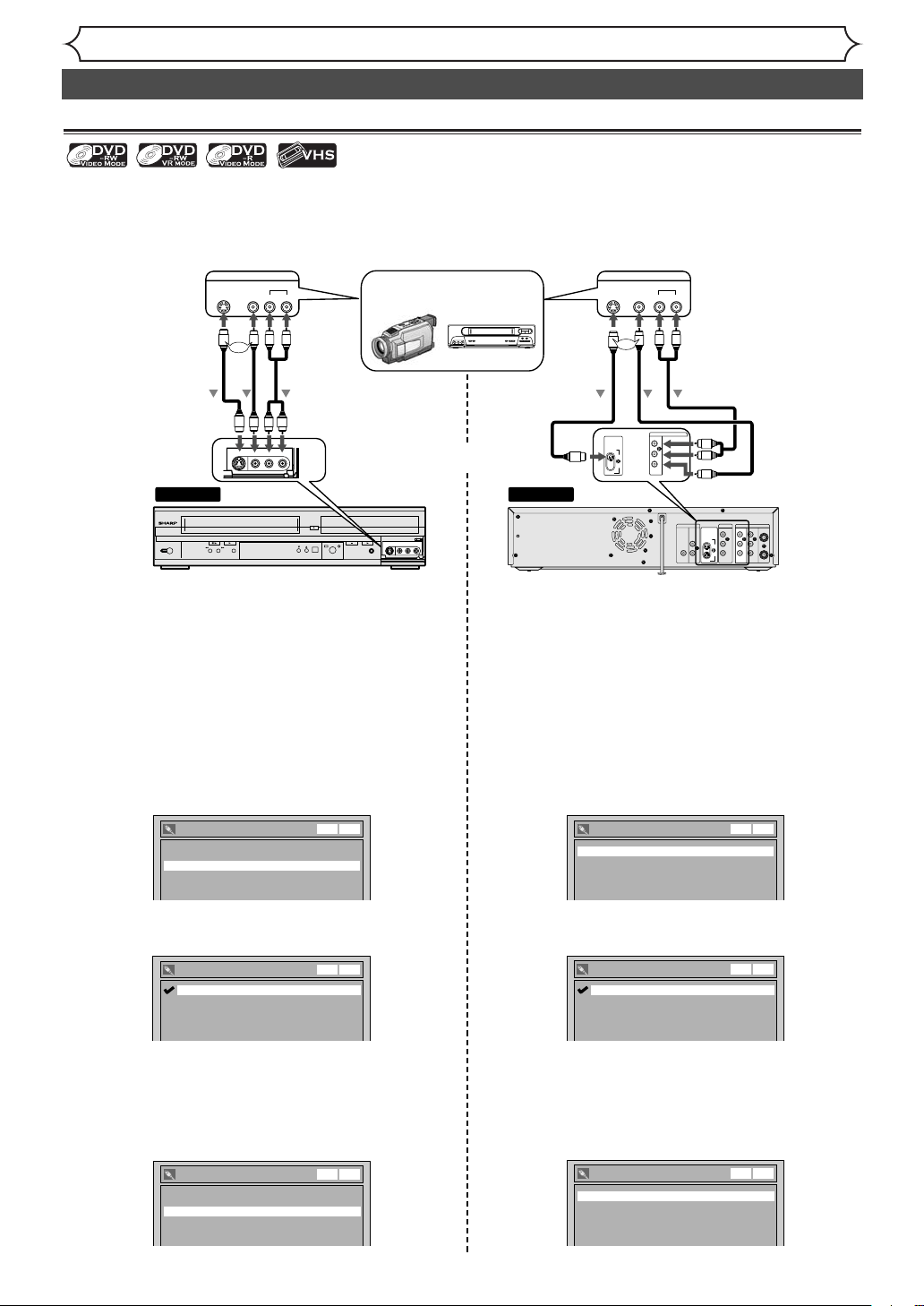

Connection to an external source . . . . . . . . . . . . . .40

Recording from an external source . . . . . . . . . . . . .41

Setting a disc to protect . . . . . . . . . . . . . . . . . . .41

Dubbing Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Finalizing the discs . . . . . . . . . . . . . . . . . . . . . . .4

Auto finalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Disc Playback . . . . . . . . . . . . . . . . . . . .46

Information on DVD playback . . . . . . . . . . . . . .46

Guide to displays . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Basic playback . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Playing back discs using the disc menu . . . . . . . . . . .49

Playing back discs using the title menu . . . . . . . . . . .50

Special playback . . . . . . . . . . . . . . . . . . . . . . . . .51

Resume playback . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Fast forward / Fast reverse . . . . . . . . . . . . . . . . . . .51

Skipping TV commercials during playback . . . . . . . . .52

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Step by step playback . . . . . . . . . . . . . . . . . . . . . . . .5

Slow forward / Slow reverse playback . . . . . . . . . . .53

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Marker Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 6

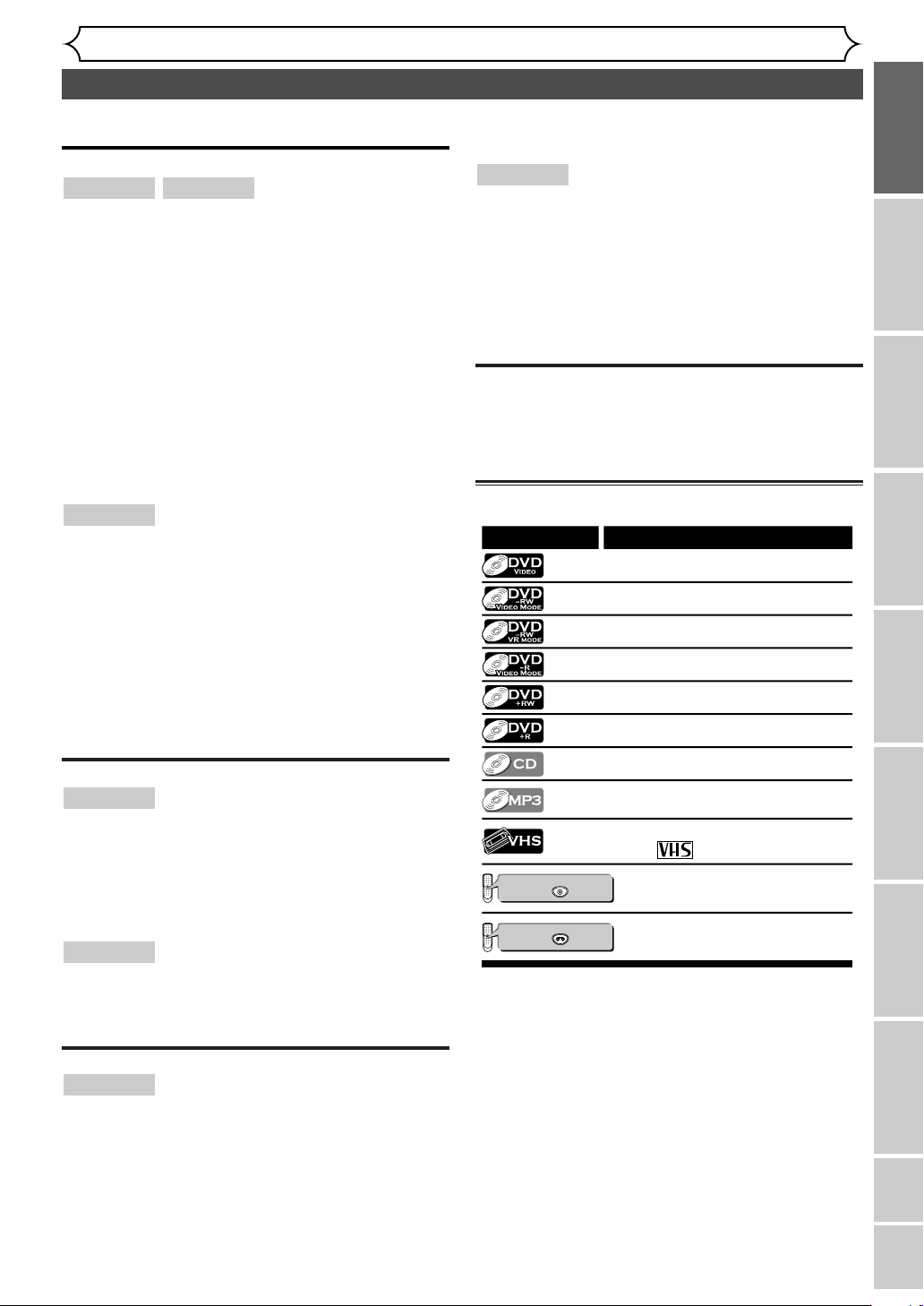

Features

Before you start

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Recording

This unit is compatible with both DVD-RW, which is rewritable repeatedly, and

DVD-R, which is available for one time recording only.Also, this unit allows you

to record to the videotape. You can choose either one for your convenience.

Recording up to 8 programs:

You can program the unit to record up to 8 programs within a month in

advance. Daily or weekly program recordings are also available.

One-touch Timer Recording:

You can easily set recording time as you prefer. Every time REC/OTR on

the remote control or on the front panel is pressed during recording, the

recording time will be increased by 30 minutes up to 8 hours.The record-

ing automatically stops when it reached to the recording time you set.

Dubbing mode:

You can copy a DVD disc to a videotape or copy a videotape to a DVD

disc.This function will be possible only if the DVD disc or a videotape is

not copy protected.

You cannot record on a videotape when its erase-protection tab is

removed.

Left channel stereo recording:

This unit can record the Left channel monaural sound as Left and Right

channel sound automatically.

REC MONITOR:

You can confirm the picture and the sound quality for recording of the current

recording speed which you set. If you want to change the recording speed, press

REC MODE to select a desired recording speed.

Automatic Chapter marker setting:

You can mark each title of recording with chapter markers as you set in

setting menu before recording.

Automatic Title menu making (Video mode):

The unit makes title menus automatically when finalizing the disc.

Automatic Playlist making (VR mode):

A Playlist will be prepared from an Original, so that you can edit titles on a

Playlist as you prefer. An Original is kept as it is.

Automatic finalizing (Video mode):

The unit can finalize discs automatically after finishing all Timer Recordings

or when the disc runs out recordable space.

Playback

Theater quality sound at your home:

When connecting the unit to an amplifier or a decoder which is compatible with

Dolby Digital or DTS, you can experience the theater quality sound environment.

Quick search for what you want to watch:

You can easily find the part you want to watch using title, chapter or time search

functions.

Start playback from Original and Playlist (VR mode):

You can play back titles from either the Original or the Playlist.

Quick search for what you want to watch:

You can easily find the part you want to watch using the Index search/Time search

functions. An index mark will be assigned at the beginning of each recordings you

make. For Time search function, you can go to a specific point on a videotape by

entering the exact amount of time you wish to skip.

Editing

Deleting titles:

You can delete titles which you do not need anymore.

Making your own Playlist (VR mode):

With the Original remains as it is, you can edit titles on various Playlist as

you prefer.

Putting names on titles.

Setting pictures for thumbnails.

Setting/clearing chapter markers.

Dividing/Combining titles.

Deleting parts of titles, etc.

Protecting titles (VR mode):

You can prevent accidental editing or title erasing with protect function.

DVD MODE

VCR MODE

DVD MODE

VCR MODEDVD MODE

Compatibility

Playback of discs recorded in Video mode on a other

DVD player (Video mode):

Discs recorded in Video mode can be played back on other DVD players,

including computer DVD drives compatible with DVD-Video playback*. You

will need to finalize the discs recorded in Video mode to play them back on

other DVD players.

* DVD-Video Format (Video mode) is a new format for recording on DVD-RW/-R

discs that was approved by the DVD Forum in 2000. Adoption of this format is

optional for manufactures of DVD playback devices, and there are DVD-Video

players, DVD-ROM drives or other DVD playback devices that do not play back

DVD-RW/-R discs recorded in the DVD-Video Format.

Others

Progressive scan system

Unlike conventional interlace scanning, the progressive scan system provides

less flickering and higher resolution images than the traditional scanning sys-

tem does.

Symbols in this operation manual

To show what recording speed or disc type applies to each function, the follow-

ing symbols appear at the beginning of each operating item.

Symbol Description

*Available to DVD+RW discs

*Available to DVD+R discs

Available to Audio CDs

Available to VHS tapes

Use only tapes marked with this unit.

Indicates that you need to select the DVD

mode by pressing DVD on the remote

control before proceeding next step.

Indicates that you need to select the VCR

mode by pressing VCR on the remote

control before proceeding next step.

Available to CD-RW/-R discs with

MP3 files

Available to DVD-Video discs

Available to DVD-RW in Video mode

Available to DVD-RW in VR mode

Available to DVD-R in Video mode

press first.

DVD

press first.

VCR

DVD MODE

This unit not only plays back DVDs, CDs and VHS tapes but also offers features for you to record on DVD

discs and edit them after that.The following features are offered with this unit.

* Some DVD+RW/+R discs may not be operated properly because the

unit conforms to the discs recorded in DVD-RW/-R format.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 7

Before you start

Functional overview

Front Panel

POWER

STOP/EJECT

REW F.FWD

REC/OTR

PLAY

DUBBINGCHANNEL

VCR DVD

OUTPUT SELECT

OPEN/CLOSE

STOP PLAY

REC/OTR

(L2)S-VIDEO

VIDEO

L(MONO) - AUDIO - R

19 18

15 11*12*

63* 4

1722

1416 13 10

9 8 7

1.POWER button / indicator (DVD/VCR)

Press to turn on and off the unit.

Red LED lights up when power is on.

2. Cassette compartment (VCR)

Insert a videotape here.

3. OPEN/CLOSE A button (DVD)*

Press to open or close the disc tray.

4. VCR indicator

Appears when the VCR output mode is selected.

5.DVD indicator

Appears when the DVD output mode is selected.

6.Disc tray (DVD)

Place a disc when it is opened.

7.AUDIO INPUT jacks (LINE2) (DVD/VCR)

Use to connect external equipment with standard audio cables.

8.VIDEO INPUT jack (LINE2) (DVD/VCR)

Use to connect external equipment with a standard video cable.

9. S-VIDEO INPUT jack (LINE2) (DVD/VCR)

Use to connect the S-Video output of external equip-

ment with an S-Video cable.

10. REC/OTR button (DVD)

Press once to start recording.

Press repeatedly to start a One-Touch timer Recording.

11. PLAY B button (DVD)*

Press to start or resume playback.

12.STOP C button (DVD)*

Press to stop playback or recording.

Press to stop the proceeding timer recording in DVD.

13. OUTPUT SELECT button (DVD/VCR)

Press to select the component you wish to operate.

14. DUBBING button (DVD/VCR)

Press to start VCR to DVD (DVD to VCR) duplication

which you set in the setting menu.

15. CHANNEL L / K buttons (DVD/VCR)

Press to change the channel up and down.

16. Display

Shows various information and messages.

17. PLAY B button (VCR)

Press to start playback.

18. Remote control sensor (DVD/VCR)

Receive signals from your remote control so that you

can control the unit from a distance.

19. REC/OTR button (VCR)

Press once to start a recording.

Press repeatedly to start a One-Touch timer Recording.

20.F.FWD g button (VCR)

Press to rapidly advance the videotape, or view the picture

rapidly in forward during playback (Forward Search).

21. REW h button (VCR)

Press to rewind the videotape, or to view the picture rapidly

in reverse during the playback mode (Rewind Search)

22.STOP/EJECT C/A button (VCR)

EJECT A

button - Press to remove the videotape from

the cassette compartment when the power is on or off.

STOP C button - Press to stop videotape playback

or recording.

Press to stop the proceeding timer recording in VCR.

Rear Panel

DVD DVD/VCR

ANTENNA

AUDIO OUTAUDIO IN

S-VIDEO

AUDIO

OUT

DIGITAL

AUDIO OUT

COAXIAL

COMPONENT

VIDEO OUT

VIDEO OUTVIDEO IN

(L1)

IN(L1)

OUT

DVD

DVD/VCR

/CB

/CR

OUT

DVD

634521

1112

1.AC Power Cord (DVD/VCR)

Connect to a standard AC outlet to supply power to this unit.

2. S-VIDEO INPUT jack (LINE1)

(DVD/VCR)

Use to connect the S-Video output of external equip-

ment with an S-Video cable.

COMPONENT VIDEO OUTPUT jacks (DVD only)

Use to connect a TV monitor with component video

inputs with component video cables.

4.AUDIO INPUT jacks (LINE1) (DVD/VCR)

Use to connect external equipment with standard

audio cables.

5.AUDIO OUTPUT jacks (DVD/VCR)

Use to connect a TV monitor,AV receiver or other

equipment with standard audio cables.

6. TV ANTENNA IN jack (DVD/VCR)

Use to connect an antenna.

7. TV ANTENNA OUT jack (DVD/VCR)

Use to connect an antenna cable to pass the signal

from the TV ANTENNA IN to your TV monitor.

8. VIDEO OUTPUT jack (DVD/VCR)

Use to connect a TV monitor,AV receiver or other

equipment with a standard video cable.

9. VIDEO INPUT jack (LINE1) (DVD/VCR)

Use to connect external equipment with a standard

video cable.

10. S-VIDEO OUTPUT jack (DVD only)

Use to connect the S-Video input of a TV monitor,AV

receiver or other equipment with an S-Video cable.

11.AUDIO OUTPUT jacks (DVD only)

Use to connect a TV monitor,AV receiver or other

equipment with standard audio cables.

12.COAXIAL DIGITAL AUDIO OUTPUT jack

(DVD only)

Use to connect an AV receiver, Dolby Digital decoder,

DTS decoder or other equipment with a coaxial digi-

tal input jack with a digital coaxial cable.

Note

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent

damage to the unit.

(

) The unit can also

be turned on by

pressing these

buttons.

•

These jacks are

useful only in

DVD mode.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 8

Functional overview (cont’d)

Before you start

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

18*

33*

29*

VCR/DVD RECORDER

COMBINATION

10. E button (DVD/VCR)

• DVD mode

During playback, press to play back

in fast reverse.

Or when playback is paused, press

to play back in slow reverse.

• VCR mode

Press to rewind the videotape or

to view the picture rapidly in

reverse during the playback mode.

11.

REC MONITOR button (DVD)

Press to check the video and

audio signals for recording.

12. SKIP H button (DVD)

During playback, press to skip to

the previous chapter or track.

Or when playback is paused,

press to play back in reverse

step by step.

13. SLOW button (VCR)

During playback, press to view

the videotape in slow motion.

14. CM SKIP button (DVD)

During playback, press to skip to

the 30-second advanced point.

15.

DUBBING button (DVD/VCR)

Press to start VCR to DVD

(DVD to VCR) duplication which

you set in the setting menu.

16. ZOOM button (DVD)

During playback, press to enlarge

the picture on the screen.

17. T-SET button

Press to set the unit in the timer

standby mode. In the timer standby

mode, press to cancel the mode

and to turn the unit on.

18. OPEN/CLOSE EJECT A

button *

• DVD mode

Press to open or close the disc tray.

• VCR mode

Press to remove the videotape

from the cassette compartment

when the power is on or off.

19. TIMER PROG. button

(DVD/VCR)

Press to display the timer pro-

gram setting menu.

20.

CH K / L buttons (DVD/VCR)

• DVD mode

Press to change the channel up

and down.

• VCR mode

Press to change the channel up and

down.

Press to adjust the tracking during

playback or in slow motion of the

videotape. Also while playback is in

still mode, you can adjust the pic-

ture blurred vertically.

21.

VIDEO/TV button (DVD/VCR)

Press to select VIDEO or TV position.

22.

SETUP button (DVD/VCR)

Press to display the setting menu.

POWER button (DVD/VCR)

Press to turn on and off the unit.

Number buttons (DVD/VCR)

Press to select channel numbers.

Press to select a title/chapter/track

on display or a TV channel.

Press to enter values for the set-

tings in the setting menu.

DISPLAY button (DVD/VCR)

Press to display the On-screen

display.

TOP MENU button (DVD)

Press to display the top menu.

MENU/LIST button (DVD)

Press to display the Disc menu.

Press to change Original and

Playlist on the TV screen.

(VR mode only)

6. Cursor K / L / { / B

buttons (DVD/VCR)

Press to select items or settings.

7. VCR button

Press to activate the remote

control in VCR mode.

(Refer to page 10)

Press to select the VCR output

mode.

REC/OTR button (VCR)

Press to activate the remote

control in VCR mode.

(Refer to page 10)

Press once to start a recording.

Press repeatedly to start a One-

Touch timer Recording.

9. REC MODE button

(DVD/VCR)

Press to change the recording

speed.

23. CLEAR/C.RESET button

(DVD/VCR)

Press to clear the program once

entered in the timer recording setting

• DVD mode

Press to clear the password entered,

to cancel the programming for CD, to

clear the highlighted marker number

in the marker setup mode, etc.

• VCR mode

Press to reset the tape counter.

24. ENTER button

(DVD/VCR)

Press to confirm or select menu

items.

25. RETURN button

(DVD/VCR)

Press to return to the previously

displayed menu screen.

26.DVD button

Press to activate the remote

control in DVD mode.

(Refer to page 10)

Press to select the DVD output

mode.

27.

REC/OTR button (DVD)

Press to activate the remote

control in DVD mode.

(Refer to page 10)

Press once to start a recording.

Press repeatedly to start a One-

Touch timer Recording.

28. D button (DVD/VCR)

• DVD mode

During playback, press to play

back in fast forward.

Or when playback is paused,

press to play back slow forward.

• VCR mode

Press to rapidly advance the

videotape or view the picture

rapidly in forward during playback.

29. PLAY B button *

(DVD/VCR)

Press to start or resume playback.

30. SKIP G button (DVD)

During playback, press to skip to

the next chapter or track.

Or when playback is paused,

press to play back in forward

step by step.

31.PAUSE F button

(DVD/VCR)

Press to pause playback or recording.

32. SEARCH button (VCR)

Press to call up the index or

time search menu.

33.STOP C button *

(DVD/VCR)

Press to stop playback or recording.

34.AUDIO button (VCR)

During playback a HiFi videotape,

press to change the AUDIO OUT

setting “HiFi” and “MONO”.

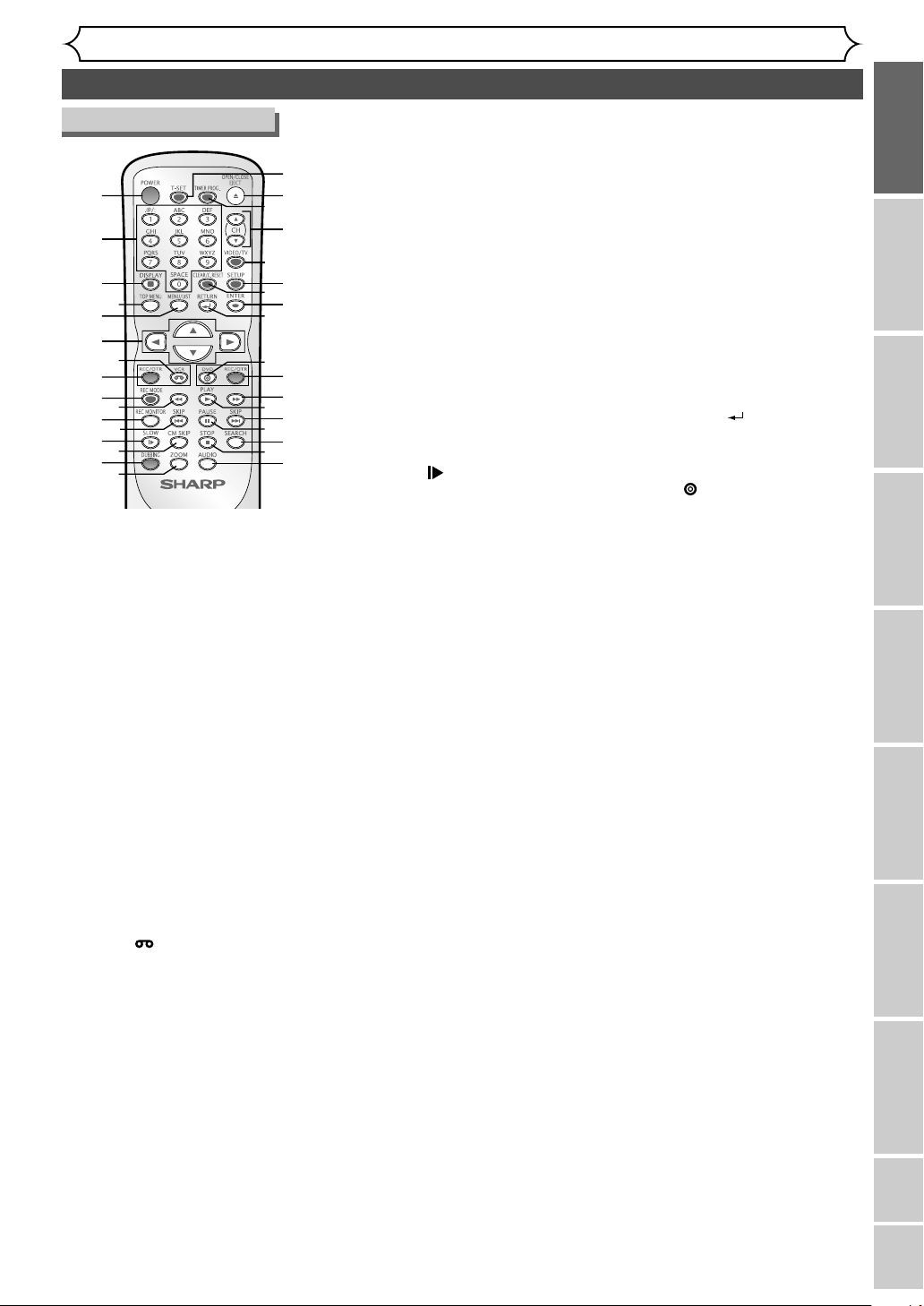

Remote Control

(

) In DVD mode, the unit can also be

turned on by pressing these buttons.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 9

Functional overview (cont’d)

Before you start

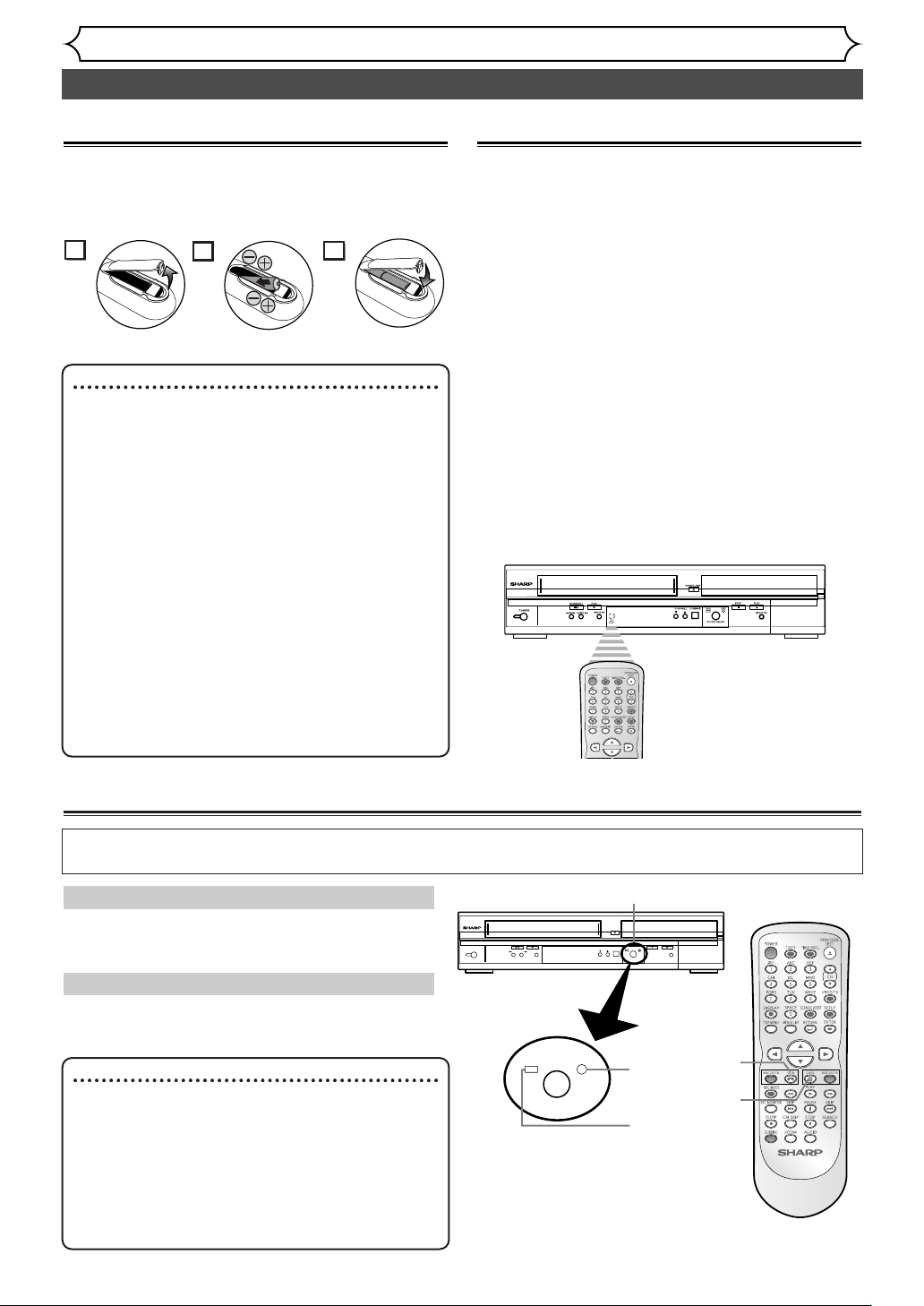

Using a remote control

Keep in mind the following when using the remote

control:

•Make sure that there is no obstacle between the

remote control and the remote sensor of the unit.

• Remote operation may become unreliable if strong

sunlight or fluorescent light is on the remote sen-

sor of the unit.

• Remote control for different devices can interfere

with each other. Avoid using remote control for

other equipment located close to the unit.

•Replace the batteries when you notice a fall-off of

the operating range of the remote control.

• The maximum operable range as follows;

Beeline

:approximately 23 feet

(7m)

Either side of center: approximately 16 feet

(5m) within 30 degrees

Above: approximately 16 feet

(5m) within 15 degrees

Below: approximately 10 feet

(3m) within 30 degrees

Installing batteries in the remote control

Install two “AA” size batteries (supplied), matching

their polarity to those indicated inside battery com-

partment of the remote control.

Because this product is a combination of a VCR and a DVD recorder, you must select first which com-

ponent you wish to operate with OUTPUT SELECT.

VCR/DVD RECORDER

COMBINATION

POWER

STOP/EJECT

REW F.FWD

REC/OTR

PLAY

DUBBINGCHANNEL

VCR DVD

OUTPUT SELECT

OPEN/CLOSE

STOP PLAY

REC/OTR

OUTPUT SELECT button

DVD

indicator

VCR

indicator

DVD

button

VCR

button

VCR DVD

OUTPUT SELECT

Press VCR on the remote control.

(Verify that the VCR indicator is lit.)

VCR MODE

Press DVD on the remote control.

(Verify that the DVD indicator is lit.)

DVD MODE

The VCR/DVD recorder Switching

Note

Incorrect use of batteries can result in hazards

such as leakage and bursting. Please follow the

instruction below.

• Do not mix new and old batteries together.

•Do not use different kinds of batteries together.

Although they may look similar, different batter-

ies may have different voltages.

•Make sure that the plus and minus ends of each

battery match the indications in the battery

compartment.

• Remove batteries from equipment that is not

going to be used for a month or more.

•When disposing of used batteries, please comply

with governmental regulations or public rules for

environmental protection that apply in your

country or area.

• Do not recharge, short-circuit, heat, burn or dis-

assemble batteries.

Note

•Pressing only OUTPUT SELECT on the front

panel DOES NOT switch the mode of the

remote control. You MUST select the correct

mode on the remote control.

•Pressing REC/OTR (DVD) or REC/OTR (VCR)

on the remote control switches immediately it’s

respective mode so that you can start recording

directly on the appropriate media.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 10

Functional overview (cont’d)

Before you start

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Guide to Displays on-screen menu

This unit uses the following on-screen menu for most operations: Easy Setting Menu,Advanced Setting Menu,

Title List, and DISPLAY menu.They allow you to change the playback status of the disc during playback.

The DISPLAY menu also gives you information on the playback status of the disc or a videotape.

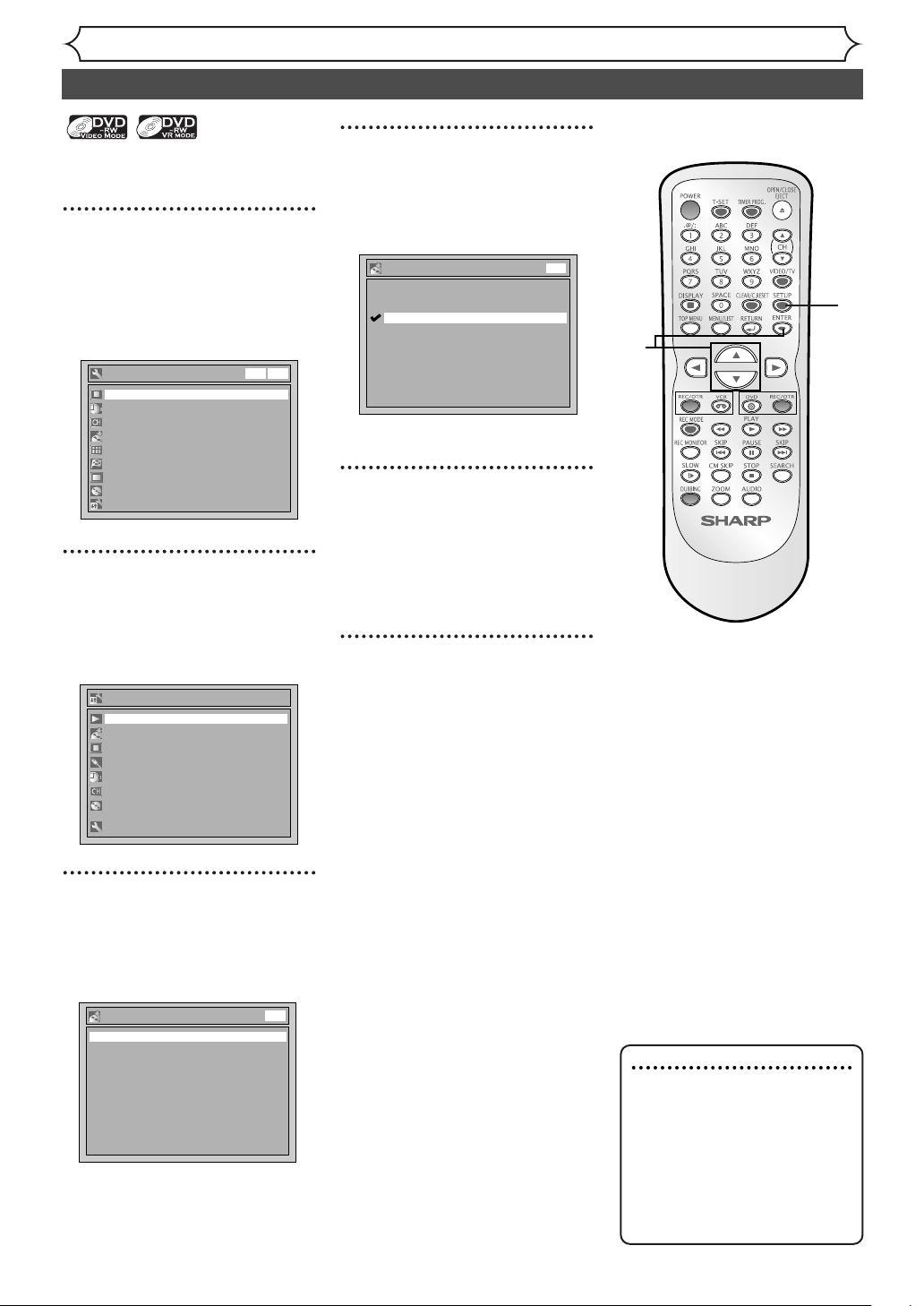

Setting/Disc/CD menus

Press SETUP to display Easy Setting Menu or Advanced Setting Menu. Choose either Menu using

Cursor K / L, then press ENTER to display it.

These menus allow you to perform all main functions and change important settings.

1. Playback:

To set up the unit to play back

discs as you prefer.

2. Recording:

To set up the unit to record on

discs or tapes as you prefer.

3. Display:

To set up the OSD screen and the

front display of the unit as you prefer.

4. Select Video:

To choose a line input to record

on DVD discs or tapes from

other video equipment.

5. Clock:

To set up the clock of the unit.

6. Channel:

To adjust the channel setting of

the unit as you prefer.

7. Disc / CD Playback Mode:

“Disc” is available only when a

DVD-RW and a DVD-R only in

Video mode disc is inserted into

the unit. When a DVD-Video

disc (commercially available), a

new DVD-R disc or a finalized

DVD-R disc is inserted into the

unit, you cannot select “Disc”.

“CD Playback Mode” is avail-

able only when an Audio CD

disc, a CD-RW/-R disc with

MP3 is inserted into the unit.

Title List / Playlist / Original:

Turns on a Title List, Playlist or

Original, which shows the record-

ed titles on the disc.

2. Format (DVD-RW only):

Allows you to erase all of the

recorded content on the disc.

The disc will be completely blank.

•

Erased content cannot be retrieved.

•

A DVD-RW disc formatted with this

unit cannot be used on other DVD

recorders for recording.

•

If you want to use a disc format-

ted with this unit on another

DVD recorder, you have to refor-

mat the disc on that recorder.

3. Finalize / Undo Finalize:

Allows you to finalize a disc with

titles recorded with this unit. Undo

Finalize reverses the finalized condi-

tion to the original, unfinalized one.

•

In Video mode, you cannot Undo Finalize

DVD-RW discs finalized by machines

manufactured by other companies and

any DVD-R discs. Some of our recorder

models may not be able to Undo Finalize

DVD-RW discs finalized by this unit.

•

In VR mode, you can Undo Finalize any

DVD-RW discs, including the ones final-

ized by machines manufactured by other

companies.

•

If you protect a disc by setting Disc

Protect ON after finalizing it, you cannot

use other editing functions (Playlist,

Original, Format, and Undo Finalize).

Disc Protect (VR mode only):

Allows you to protect a disc from

accidental editing or recording.

5. Random Play:

To activate the random playback

feature.

6. Program Play

(Audio CD):

To a c t i vate the programmed play-

back feature.

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

CD Playback Mode

Program Play

Random Play

Disc

Format

Title List

Finalize

Screen for DVD-RW, DVD-R (Video mode):

Screen for DVD-RW (VR mode):

Screen for Audio CD:

Easy Setting Menu consists of the setting menus frequently needed. Items with mark indicate such setting menus.This operation

manual explains operation procedures using Advanced Setting Menu screen. However, you can skip several steps in Advanced Setting

Menu by choosing Easy Setting Menu for the items with mark.The steps which can be skipped are specified next to mark.

Note

• This is an example screen only for explanation. Displayed items are depending on the disc you inserted.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 11

Before you start

Press DISPLAY to call up the

display menu.This menu will give

you the information on the disc.

Some operations are available

while disc is played back.

1. Indicates a disc type and a

format mode.

Note:

In some descriptions on this

manual, only one disc type is

indicated as an example.

2. Indicates a current channel

number and an audio status of

the program.

3. Indicates a recording speed

and possible recording time

left.

4. Indicates a title number, chap-

ter number, and the time

elapsed of disc playback.

5. Each icon means:

6. Indicates current disc status.

: Search

: Audio

: Subtitle

: Angle (except VR mode)

: Repeat

: Marker

: Noise Reduction

: Zoom

DVD-RW

Video mode

CH 8

Stereo

11 - - : - - : - -

XP 0:58

press first.

DVD

DVD mode

DISPLAY menu

Press DISPLAY to call up the

display menu.

1. Indicates current video status.

2. Indicates the current time.

3. Indicates a current channel

number and an audio status of

the program.

4. Indicates a recording or play-

ing speed.

5. Indicates a Tape Counter.

6. Audio status of the current

playing back the videotape.

12:00AM

CH21

STEREO

0:00:00 HIFISP

5 64

press first.

VCR

VCR mode

Functional overview (cont’d)

Note

• This is an example screen

only for explanation.

Displayed items are depend-

ing on the actual mode.

Note

• This is an example screen

only for explanation.

Displayed items are depend-

ing on the actual mode.

• Display function is not avail-

able when the disc is not

inserted.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 12

Before you start

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Functional overview (cont’d)

Front Panel Display Guide

Appears when DVD is in

the timer recording stand-

by mode.

Flashes when a program

cannot be performed for

some reasons.

Appears when a DVD-R

disc is on the disc tray.

Appears when a DVD-RW

disc is on the disc tray.

: Appears when the timer

recording is proceeding in

VCR.

Appears when VCR is in

the timer recording stand-

by mode.

Flashes when a program

cannot be performed for

some reasons.

Appears during VCR to

DVD duplication process.

Appears during DVD to

VCR duplication process.

Display message

3. Recording speed

Indicates the recording speed of

the disc or a videotape.

4. Title/Track and Chapter

mark

: Appears when indicating a

title/track number.

: Appears when indicating a

chapter number.

5. Displays the following

• Played-back time/remaining

time

• Current title/chapter/track

number

• Recording time

• Clock

• Channel number

• VCR tape counter

•

Remaining time for a one-touch

timer recording

6. :

Appears in the afternoon

with the clock display.

7. :

Appears when the pro-

gressive scan system is

activated.

Appears when data is

being recorded on a disc.

Appears when the disc

tray is opening.

Appears when the disc

tray is closing.

Appears when a disc is

loaded on the disc tray.

Note

• Time display during recording/playback

The recording time and playback time of this unit will display about 0.1% faster than the real

recording/playback time.When broadcasting images, 29.9 frames are sent per second.This unit calculates

30 frames as one second. For this reason, time will display about 0.1% faster. For example, if you record

for 1 hour, in reality there will be 1 hour of recorded material. However, the time display on this unit will

be "60 min. X 0.999 = 59.94 min. = 59 min. 56 sec.".

• During Timer Recording or timer standby mode on one component, , mark (during Timer

Recording), DVD,VCR indicator will disappear when the unit switches to the other component.

However, the function indicated by each mark is still working. (It does not mean the cancellation of Timer

Recording or timer standby mode.)

1. Current status of the unit

: Appears when a disc or a

videotape play is paused.

: Appears when playing back

a disc or a videotape.

: Appears when the timer

programming or OTR has

been set and is proceeding.

Flashes when all Timer

Recording have been finished.

: Appears during recording

process.

Flashes when a recording

pauses.

Appears during repeat play-

back (disc playback only).

:Appears when a videotape

is in the unit.

2. Disc type and Current sta-

tus of the unit

Appears when an audio CD

is on the disc tray.

Appears when a DVD disc

is on the disc tray.

Appears when the timer

recording is proceeding in

DVD.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 13

Connections

Connection to a TV

DVD DVD/VCR

ANTENNA

AUDIO OUTAUDIO IN

S-VIDEO

AUDIO

OUT

DIGITAL

AUDIO OUT

COAXIAL

COMPONENT

VIDEO OUT

VIDEO OUTVIDEO IN

(L1)

IN(L1)

OUT

DVD

DVD/VCR

OUT

DVD

(Back of TV)

Plug in the AC power cord of this unit.

Cable

Signal

Connect

Antenna

(Back of this unit)

Round Coaxial Cable

(supplied)

Connect

Cable

Signal

Disconnect

Antenna

(Back of TV)

Make one of the following connections, depending on the capabilities of the equipment you possess.

DVD DVD/VCR

ANTENNA

AUDIO OUTAUDIO IN

S-VIDEO

AUDIO

OUT

DIGITAL

AUDIO OUT

COAXIAL

COMPONENT

VIDEO OUT

VIDEO OUTVIDEO IN

(L1)

IN(L1)

OUT

DVD

DVD/ VCR

OUT

DVD

DVD DVD/VCR

ANTENNA

AUDIO OUTAUDIO IN

S-VIDEO

AUDIO

OUT

DIGITAL

AUDIO OUT

COAXIAL

COMPONENT

VIDEO OUT

VIDEO OUTVIDEO IN

(L1)

IN(L1)

OUT

DVD

DVD/ VCR

OUT

DVD

AUDIO IN VIDEO IN

S-VIDEO IN

COMPONENT

VIDEO IN

S-VIDEO

OUT

DVD

DVD/VCR

VIDEO OUT

DVD/VCR

AUDIO OUT

DVD

AUDIO

OUT

COMPONENT

VIDEO OUT

DVD

AUDIO OUT

Basic Audio

Method 2 Method 3

Better picture Best picture

S-VIDEO OUT

COMPONENT VIDEO OUT

Audio cable

(supplied)

Component

Video cables

(commercially

available)

This unit

Note

• Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be

distorted due to the copy protection system.

• Method 2 and method 3 are only useful in DVD mode.

• Although you can view images when using the connection Method 1 and 2 while progressive scan is acti-

vated, they are in interlace mode.

If your TV is compatible with progressive scan (525p / 480p) and you want to enjoy that high quality picture;

You must select the connection Method 3 above and progressive scan mode.To set

the mode, press

SETUP and set “Progressive” to “ON” on the Easy Setting Menu, or

on the “Playback” sub menu of the Advanced Setting Menu.Then press

ENTER.

“P.SCAN” will appear on the display of this unit.

If your TV is not compatible with progressive scan;

Use this unit in interlace mode. Make sure that no “P.SCAN” is on the display of this

unit. If not, press SETUP and set “Progressive” to “OFF” on the Easy Setting Menu,

or on the “Playback” sub menu of the Advanced Setting Menu.Then press ENTER.

“P.SCAN” on the display of this unit will disappear.

Method 1

Good picture

VIDEO OUT

Video

cable

(supplied)

S-Video

cable

(commercially

available)

•

These jacks are useful

only in DVD mode.

Progressive

OFF

DVD

Progressive

OFF

DVD

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 14

VCR functions Others

Español

Connections

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

Round Coaxial Cable

(supplied)

(Back of this unit)

OUT

(Back of TV)

Cable

Signal

Connection A

(Cable box or

Satellite box)

ANTENNA

OUT

Connection to a cable box or satellite box

Select this connection when you want to view or record a scrambled channel.With this connection, channels

cannot be changed on this unit. You can view or record ONLY the channels you have selected on the cable

box or the satellite box.

• While you are recording, only the recorded channel can be viewed.

To select channels of the cable box or satellite box

1) Turn on this unit by pressing POWER .The “POWER” indicator on the front panel will appear. Then,

press CHANNEL to select channel 3 or 4 (the same channel as the output channel of the cable box or

satellite box).

• If noise appears on the TV screen, press VIDEO/TV on the remote control.

• If you use the channel 4, you will need to change this unit’s RF output to channel 4.

• Refer to “RF converter output” on page 101.

2) At the TV, select channel 3 or 4 (the same channel as you have selected at STEP 1)).

3) At the cable box or satellite box, select the channel you want to view or record.

Round Coaxial Cable (supplied) Round Coaxial Cable

(Back of TV)

OUT

(Cable box or

Satellite box)

Cable

Signal

Connection B

(Back of this unit)

ANTENNA

OUT

Select this connection when you want to change channels on this unit.With this connection, you may watch

one channel while recording another.

• You may not view or record a scrambled channel.

To select channels of the cable box or satellite box

1) At the cable box or satellite box, select channel 3 or 4 (the same channel as this unit’s RF output chan-

nel.)

• Refer to “RF converter output” on page 101.

2) At the TV, select the same channel as the output channel (3 or 4) of the cable box or satellite box.

3) Turn on this unit by pressing POWER. The “POWER” indicator on the front panel will appear.Then,

select the channel you want to view or record.

• If noise appears on the TV screen, press VIDEO/TV on the remote control.

To play back a DVD disc or a videotape

Follow the STEPs 1) to 2) above, to playback a DVD disc or a videotape.

• Refer to “Playback” on pages 47-48, 95.

To view one channel while recording another

1) While you are recording on this unit, press VIDEO/TV.

2) At the cable box or satellite box, select the channel you want to view.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 15

Connections

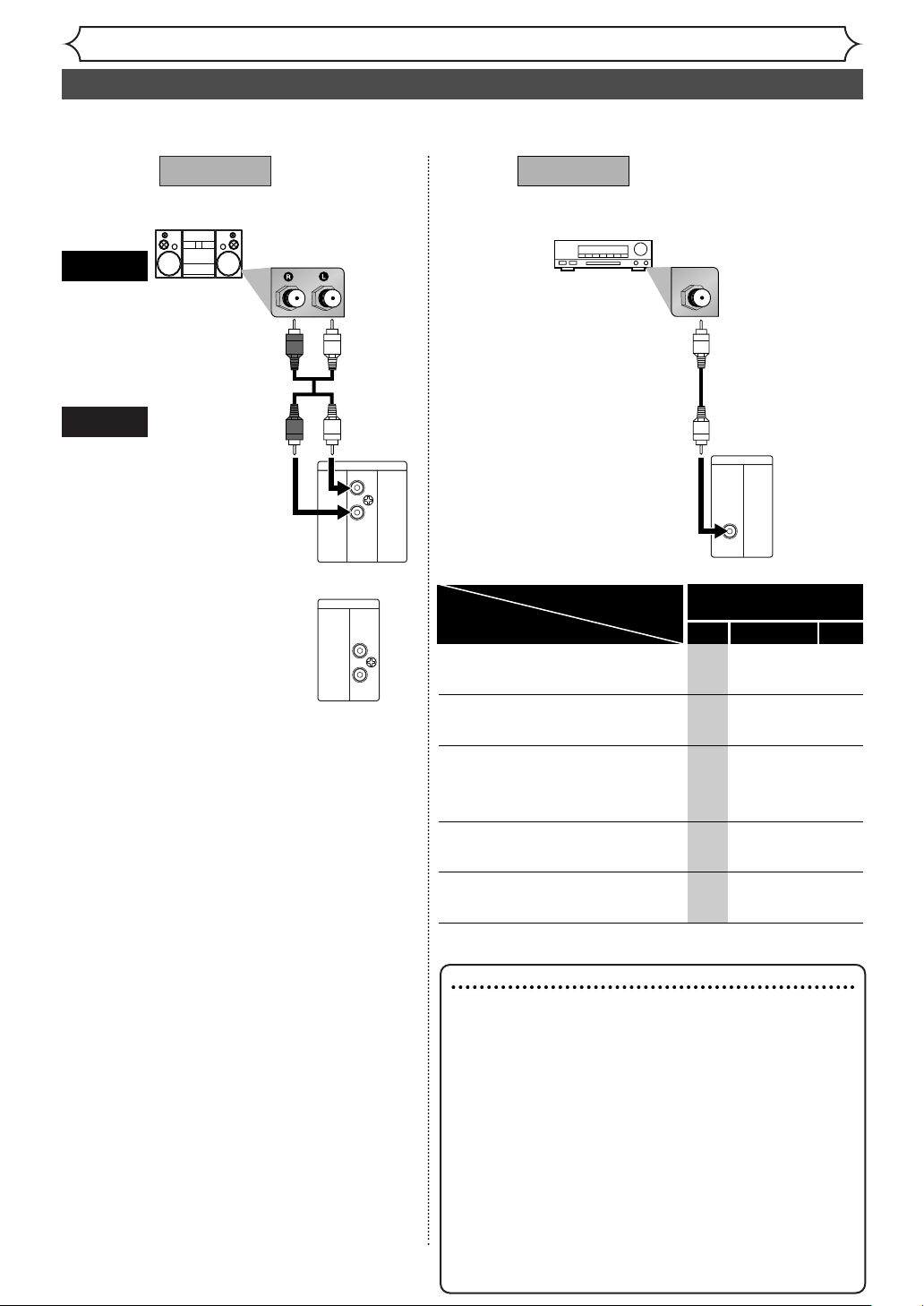

Connection to an Audio System

• When you change the connections, all devices should be turned off.

• Refer to the operation manual accompanying external devices for more information.

DVD/VCR

AUDIO OUT

DVD

AUDIO

OUT

Stereo system

DVD

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

Method 1

Analog audio

input jacks

Digital audio

input jack

AUDIO OUT

DIGITAL

AUDIO OUT

Method 2

Audio cable

(supplied)

Audio Coaxial

Digital cable

(commercially

available)

Dolby Digital decoder, DTS decoder,

MD deck or DAT deck

This unit

* To complete these settings, refer to pages 91-92.

If not connected to any external

devices.

Connecting to an MD deck or DAT

deck.

If output is DTS encoded audio, con-

nect to the DTS decoder.

If output is encoded audio for both

Dolby Digital and DTS, connect to

the decoder which encodes multiple

audio sources.

If output is Dolby Digital encoded

audio, connect to a Dolby Digital

decoder.

Stream

PCM

Stream

PCM

OFF

SETUP>Advanced Setting Menu

>Playback >Digital Out >

PCM

Dolby Digital DTS

Setting

Connection

Note

• By connecting this unit to a Multi-channel Dolby

Digital decoder, you can enjoy high-quality Dolby

Digital 5.1 channel surround sound as heard in the

movie theaters.

• The audio source on a disc in a Dolby Digital 5.1

channel surround format cannot be recorded as digital

sound by an MD or DAT deck.

• By connecting this unit to the DTS decoder, you can

enjoy 5.1 channel Surround System which reproduces

the original sound as truthfully as possible. 5.1 channel

Surround System is developed by the Digital Theater

System Inc.

• Playing back a DVD using incorrect settings may gen-

erate noise distortion and may also damage the speak-

ers.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 16

VCR functions Others

Español

Getting started

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

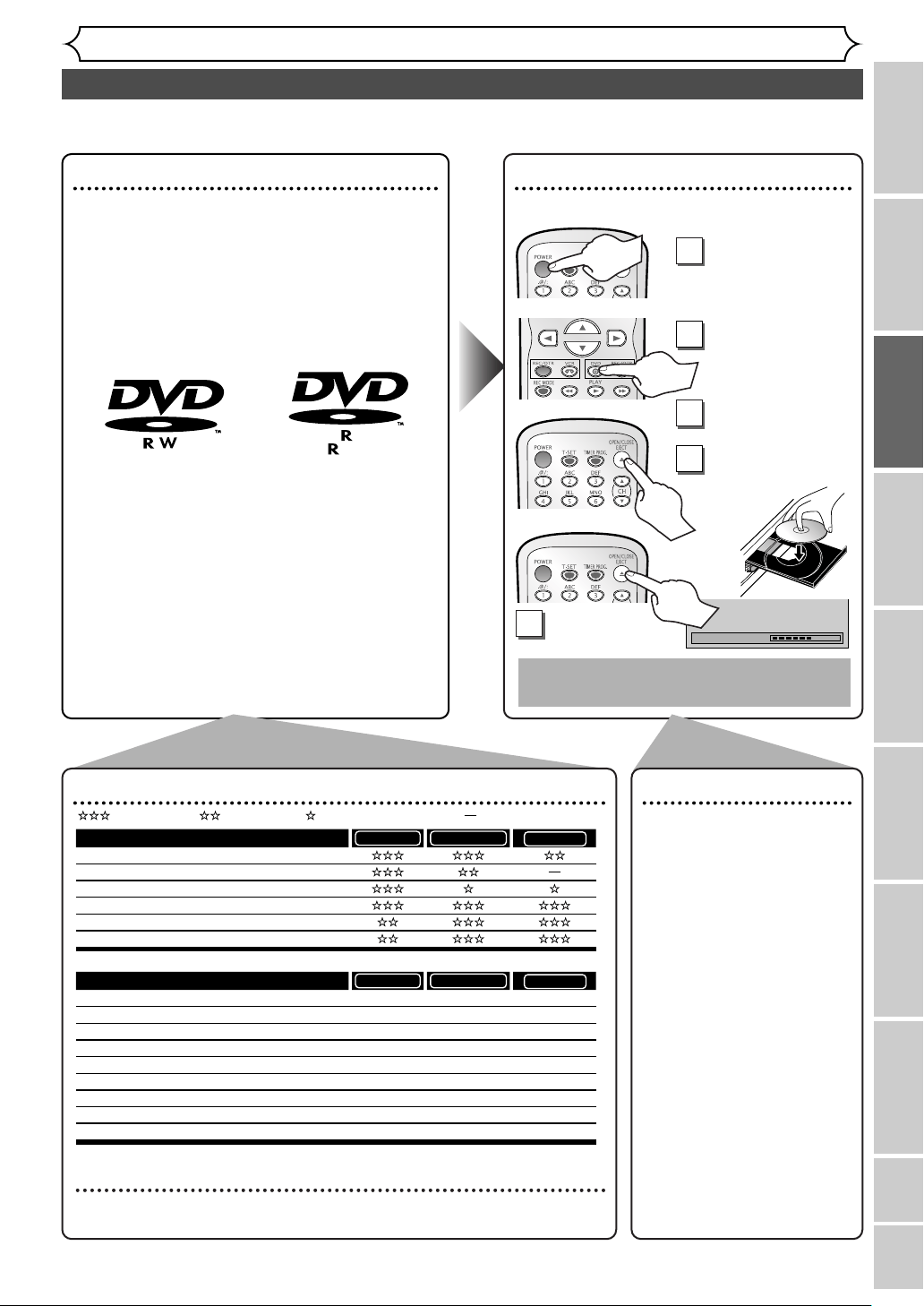

Easy DVD recording

The following will help you to understand easily how to record on DVD discs.

Make sure batteries are in the remote control and you have connected this unit and the TV correctly.

Step 1: Choose a disc type

There are several types of recordable DVD discs

to choose from. Choose a recordable DVD disc

type based on your playback/recording/editing

needs. See “DVD disc types” at the bottom of this

page for more information on the differences

among various compatible media.

This unit can record on the

following type of discs.

For example, when you want to

record repeatedly on the same disc

or when you want to edit the disc

after recording, select the

rewritable DVD-RW type disc.

When you want to save recordings

without any alteration, a non-

rewritable DVD-R can be your

choice.

4.7

Step 2:

Insert a blank disc

Remote Control

Open the disc tray.

Insert a record-

able disc you wish

to record.

Select the DVD

mode.

Format the disc

Insert the disc in the unit.

Then, format the disc from

the setting menu. Video for-

mat (Video mode) or Video

recording format (VR mode)

will be available depending on

the inserted disc type.

Formatting is only neces-

sary to prepare the disc

for recording. Details are

on pages 28-29.

When you format a disc, the

entire contents on that disc

will be erased.

• The unit automatically

starts formatting when an

unused disc is inserted.

DVD disc types

DVD-RW VR DVD-RW Video

You want to

Record TV programs

Reuse by deleting unwanted contents

Edit recorded contents

Edit/Record from connected equipment

Copy discs for distribution

Play on other DVD equipment

DVD-RW VR DVD-RW Video

Features

Recording

Rewritable? Yes Yes

Can create chapters at fixed intervals (auto.) Yes Yes

Can create chapters wherever you like (manual) Yes No

Can record 16:9 size pictures Yes Yes

Can record Copy-Once programs Yes No

Editing

Can perform basic edit functions Yes Yes

Can perform advanced edit functions (Playlist edit) Yes No

Ye s

DVD-RW (VR mode) can only be played on DVD equipment that is VR compatible.

DVD-R Video

: Most suitable. : Can be used. : Some functions are limited. : Cannot be used.

Turn on the unit.

Close the

disc tray.

This operation may take a while to be

recognized.

Note

For details of the above functions and implied restrictions, see the expla-

nations inside this operation manual.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 17

Getting started

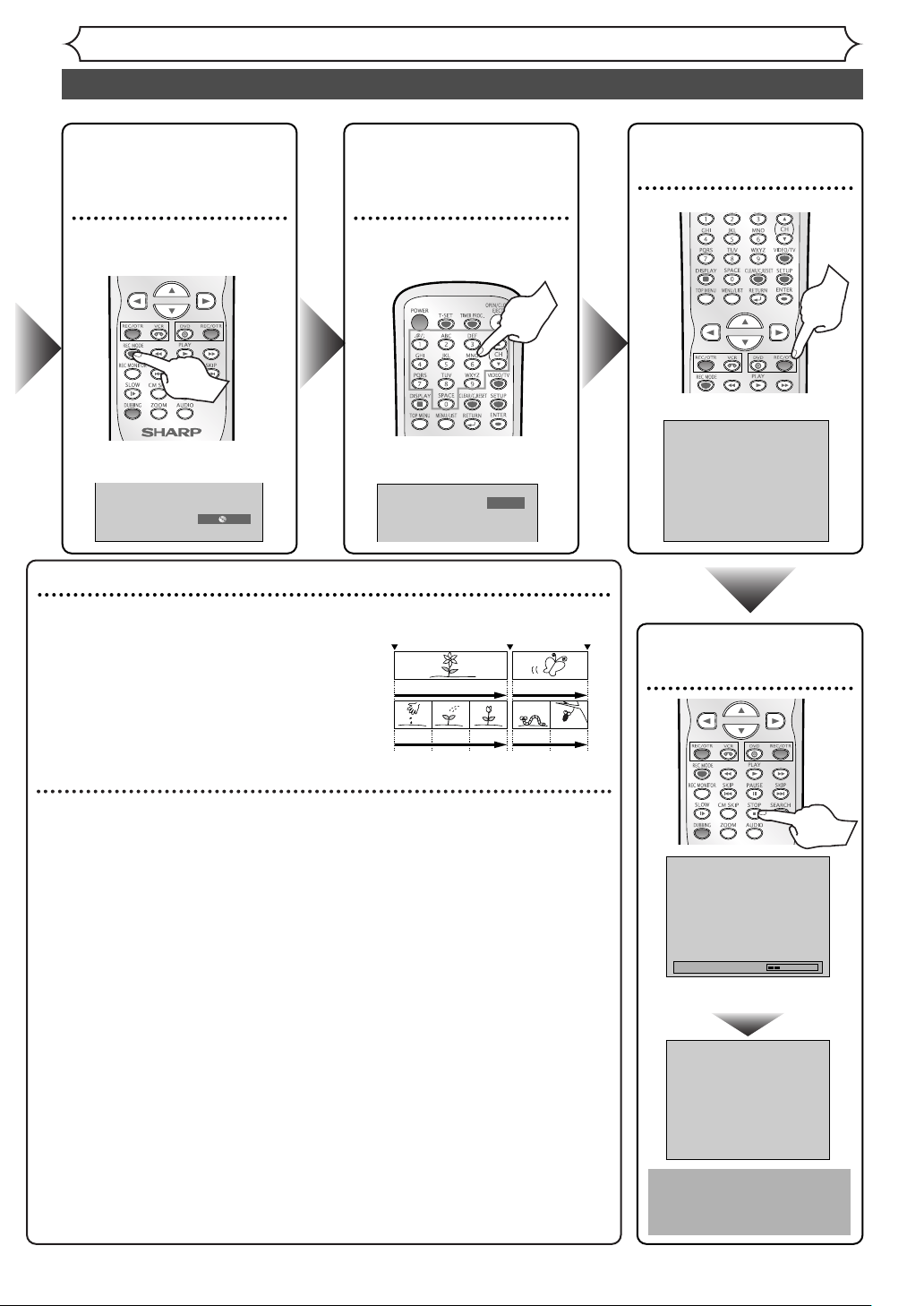

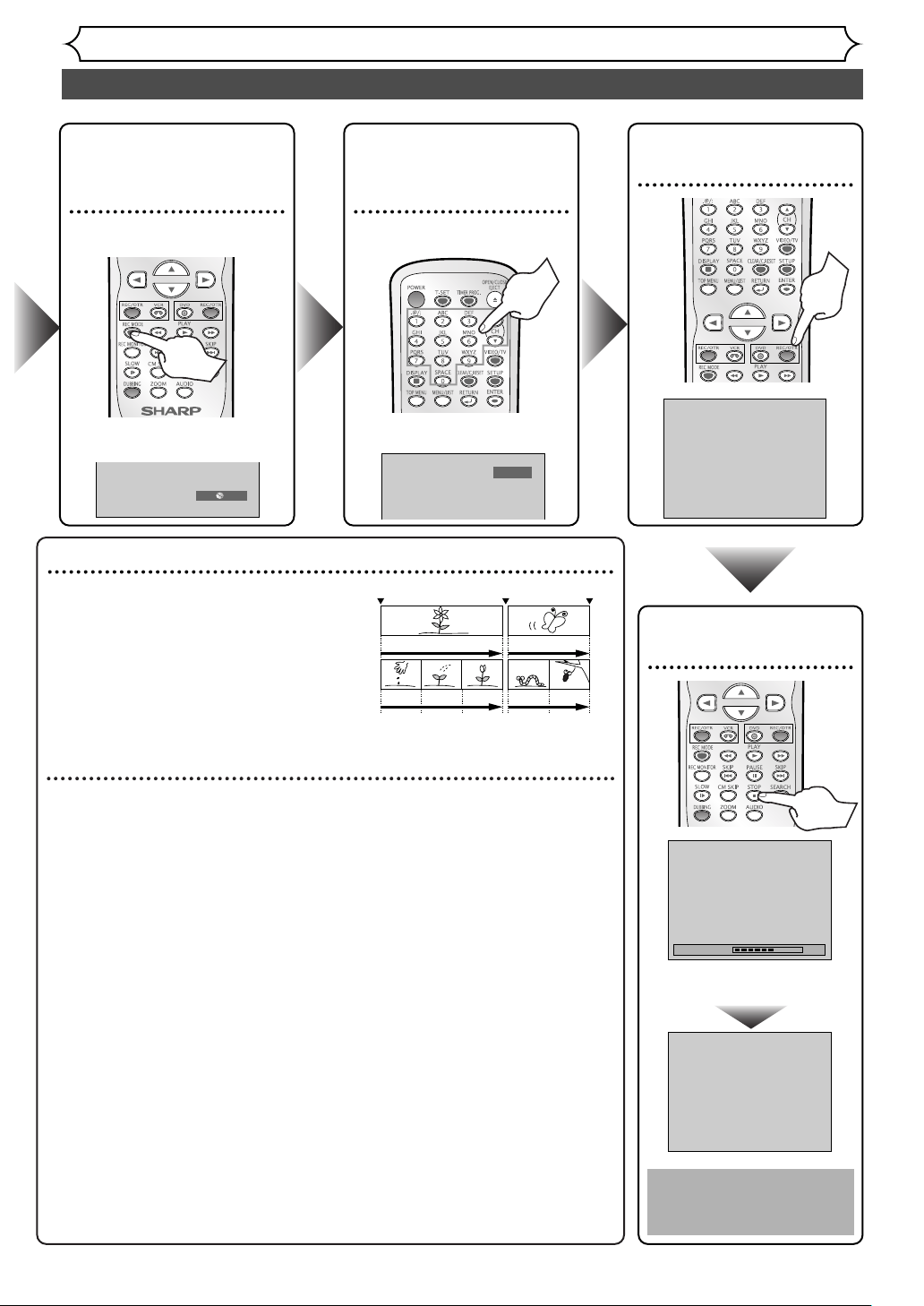

Easy DVD recording (Cont’d)

Step 3: Select the

recording

speed

Step 5: Record to

DVD discs

Step 4: Select the

desired

channel

XP 0:58

Step 6: Stop the

Record

CH 12

Wait for a moment.

Appears only DVD-RW in

VR mode.

Hint 1: Play back the recorded contents

You can select the title you want to play back from a displayed menu and immedi-

ately start playback. Recorded contents are easi-

ly accessible, with simple procedure of choosing

a title on a chapter on the menu screen.

What are titles and chapters?

The contents of a DVD disc are generally

divided into titles.Titles may be further divid-

ed into chapters.

Hint 2: Edit the recorded disc

You will find editing discs is easy.This unit offers convenient editing functions

which are possible only with DVD-RW/-R discs.

Title List offers the following editing functions.

• Putting names on titles

• Setting pictures for thumbnails

• Setting/clearing chapter markers

• Deleting parts of titles or scenes

(Possible editing functions depend on the recording format and editing method.)

Original and Playlist (VR mode)

You can edit the contents on a Playlist without changing the original record-

ings. A Playlist does not take up much disc space.

What “Original” or “Playlist” is for?

Throughout this operation manual, you will find Original and Playlist to refer to

the original content and the edited version.

•

Original content refers to what’s originally recorded on the disc.

•

Playlist content refers to the edited version of the original content.

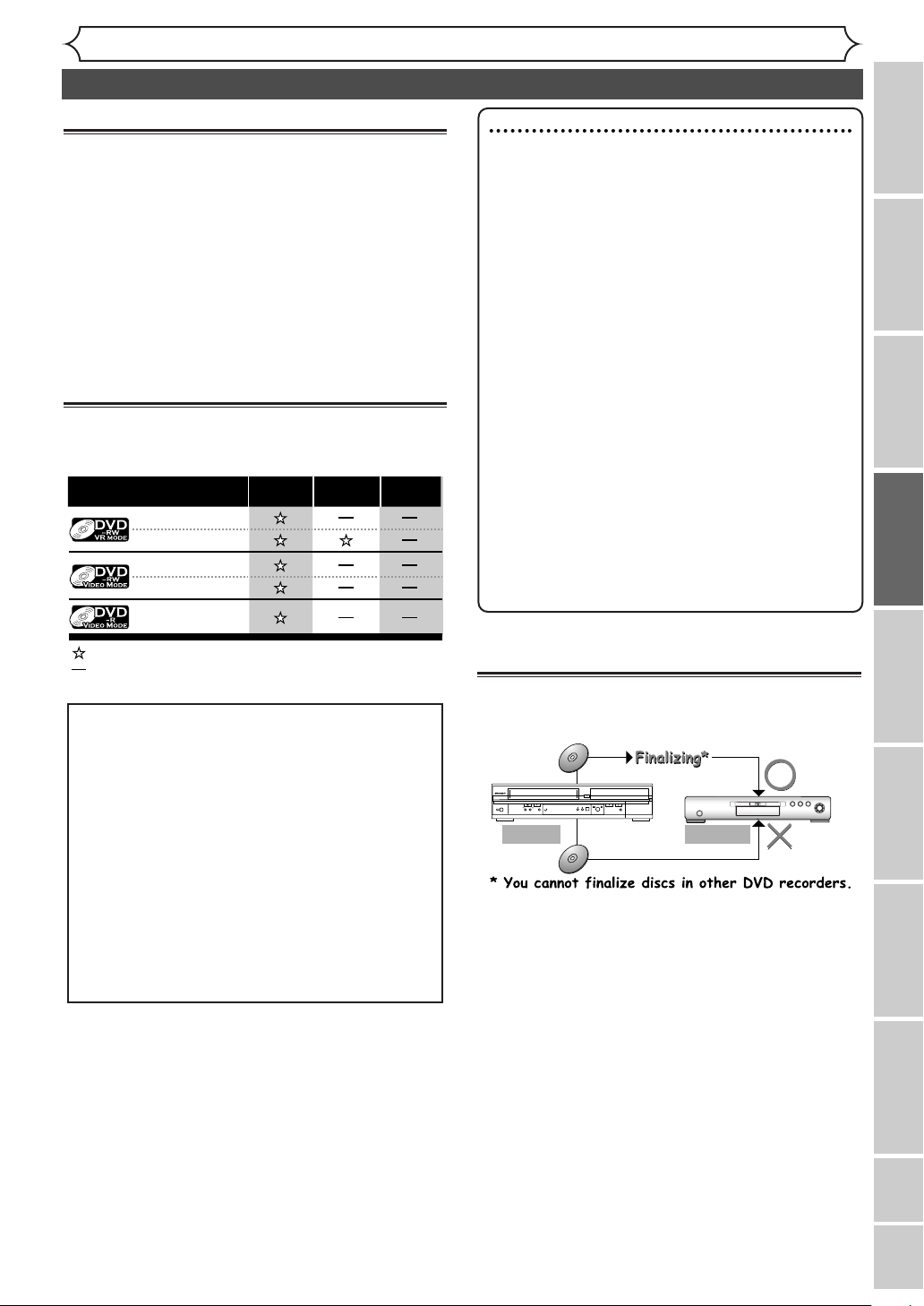

Finalizing a Disc

•You need to record in Video mode and finalize the disc to play it back on other

players.

•

Once you finalize a disc recorded in Video mode, you cannot record or edit any

information on the disc.

• Discs recorded in VR mode can still be edited after finalization.

Start Rec. Stop/Start Stop Rec.

Title 1 Title 2

Chapter 1 Chapter 1Chapter 2 Chapter 3 Chapter 2

This operation may

take a while to be

completed.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 18

VCR functions Others

Español

Getting started

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

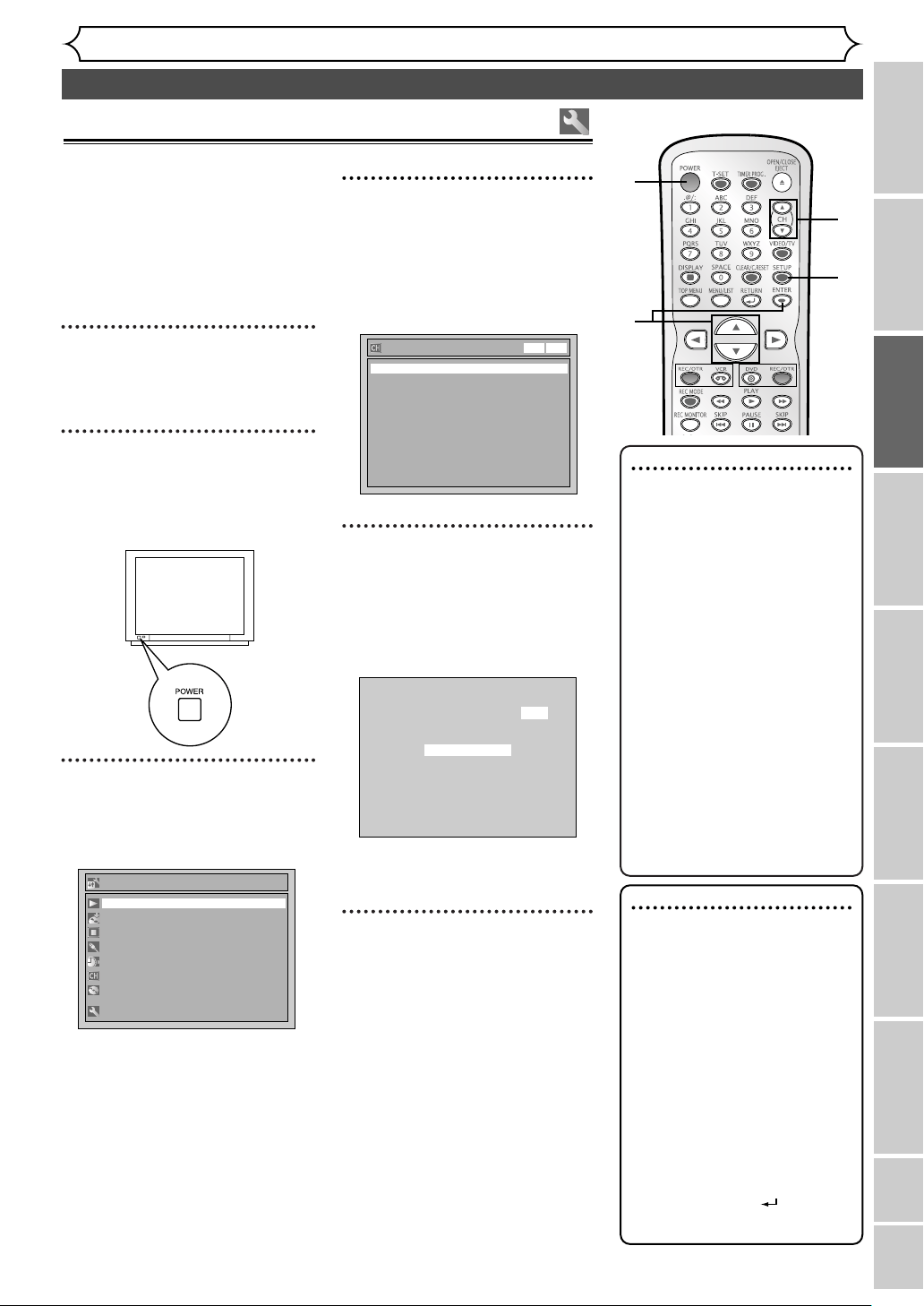

Channel setting

Right after the purchase of the

unit and whenever you move to a

new area, we recommend available

channels in your area be stored

using “Auto Preset” in the

Channel Preset of the setting

menu.

Press POWER to turn on the

unit.

Turn on the TV and be sure to

select the input to which the

unit is connected.

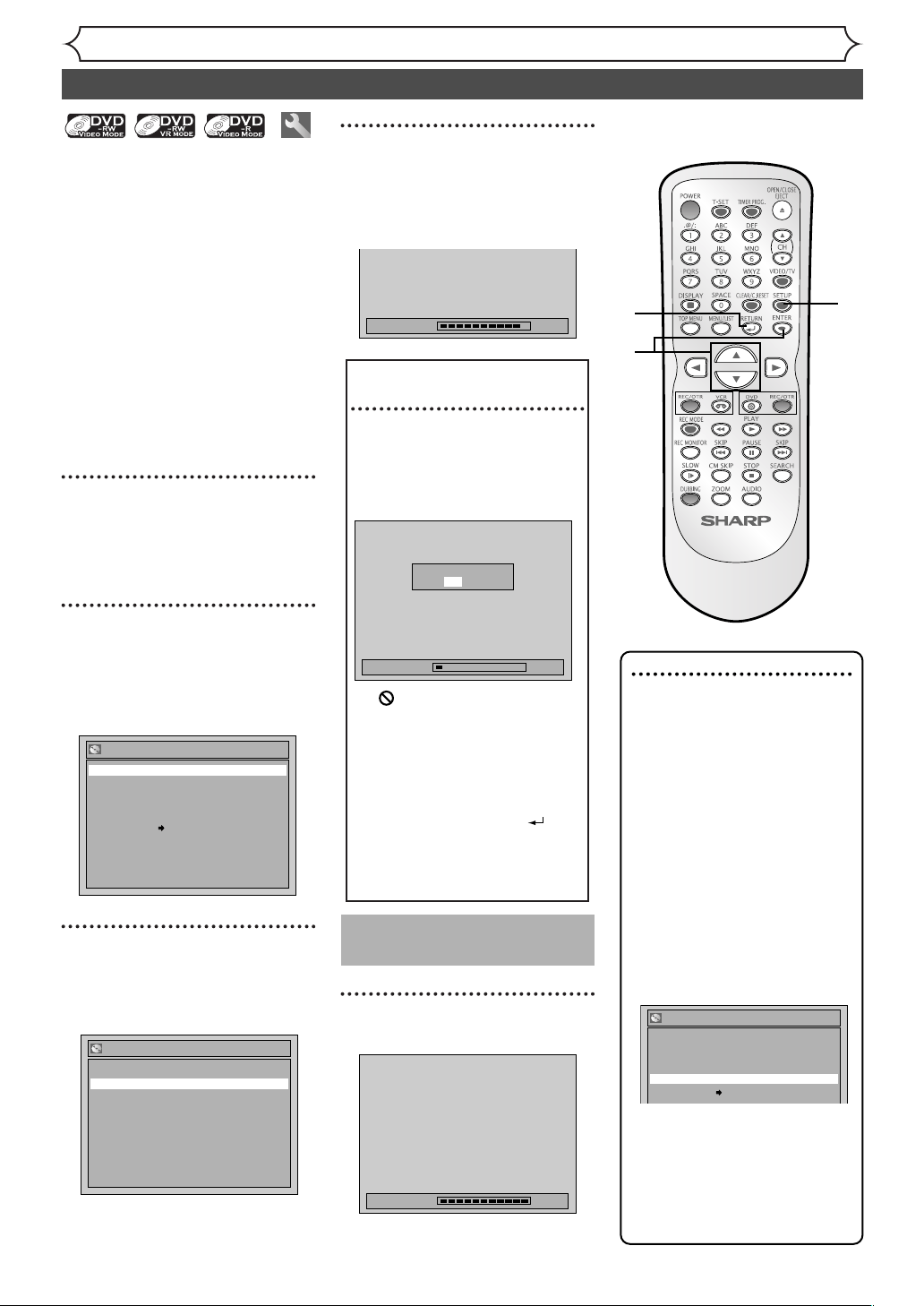

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Select “Channel” using

Cursor K / L, then press

ENTER.

Channel menu will appear.

Screen for Advanced Setting Menu:

Select “Auto Preset” using

Cursor K / L, then press

ENTER.

The unit will start getting chan-

nels available in your area.

Wait for several minutes to finish

channel scanning.

Press SETUP to exit.

•You can select only the channels

memorized in this unit by using

CHANNEL K / L on the front

panel or CH K / L on the

remote control.

Auto Presetting Now

CH 1

Channel

Manual Preset

Auto Preset

DVDVCR

TV Audio Select Stereo

Note

•You cannot change the channel

when one of the components

of the unit (VCR or DVD) is in

the recording, OTR or Timer

Recording mode.

•If the auto presetting is can-

celed during presetting, some

of the channels not yet preset

may not be received.

•The selection will depend on

how you receive the TV chan-

nels.

To cancel the auto preset-

ting during scanning:

Press RETURN or

SETUP to cancel.

To select a channel

You can select a channel by

directly entering channel num-

ber using the Number but-

tons on the remote control.

Notes for using the

Number buttons:

•When selecting cable chan-

nels which are larger than 99,

enter channel numbers as a

three-digit number (For

example: 117, press 1, 1, 7).

•You must precede single-digit

channel numbers with a zero

(For example: 02, 03, 04 and

so on).

•You can select the line input

mode (“L1” or “L2”). To

select, press 0, 0, 1.To select

“L2”, press 0, 0, 2. Details are

on page 41.

Getting channels automatically

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 19

VCR/DVD RECORDER

COMBINATION

Getting started

Channel setting (cont’d)

Select the channel number to

add or delete.

Press Cursor { or CH L to

move to a smaller channel num-

ber.

Press Cursor B or CH K to

move to a larger channel number.

•Press

Cursor { / B to move

through the channels one by

one, including the ones not in

the channel memory, while press

CH K / L to move through the

channels only in the channel

memory.

Press the Number buttons to

select a channel number directly.

Select “Add” or “Delete”

using Cursor K / L, then

press ENTER.

The channel number will be

added or deleted from a channel

memory. Then the next channel

number will appear so that you

can continue adding or deleting

channels.

Press SETUP to exit.

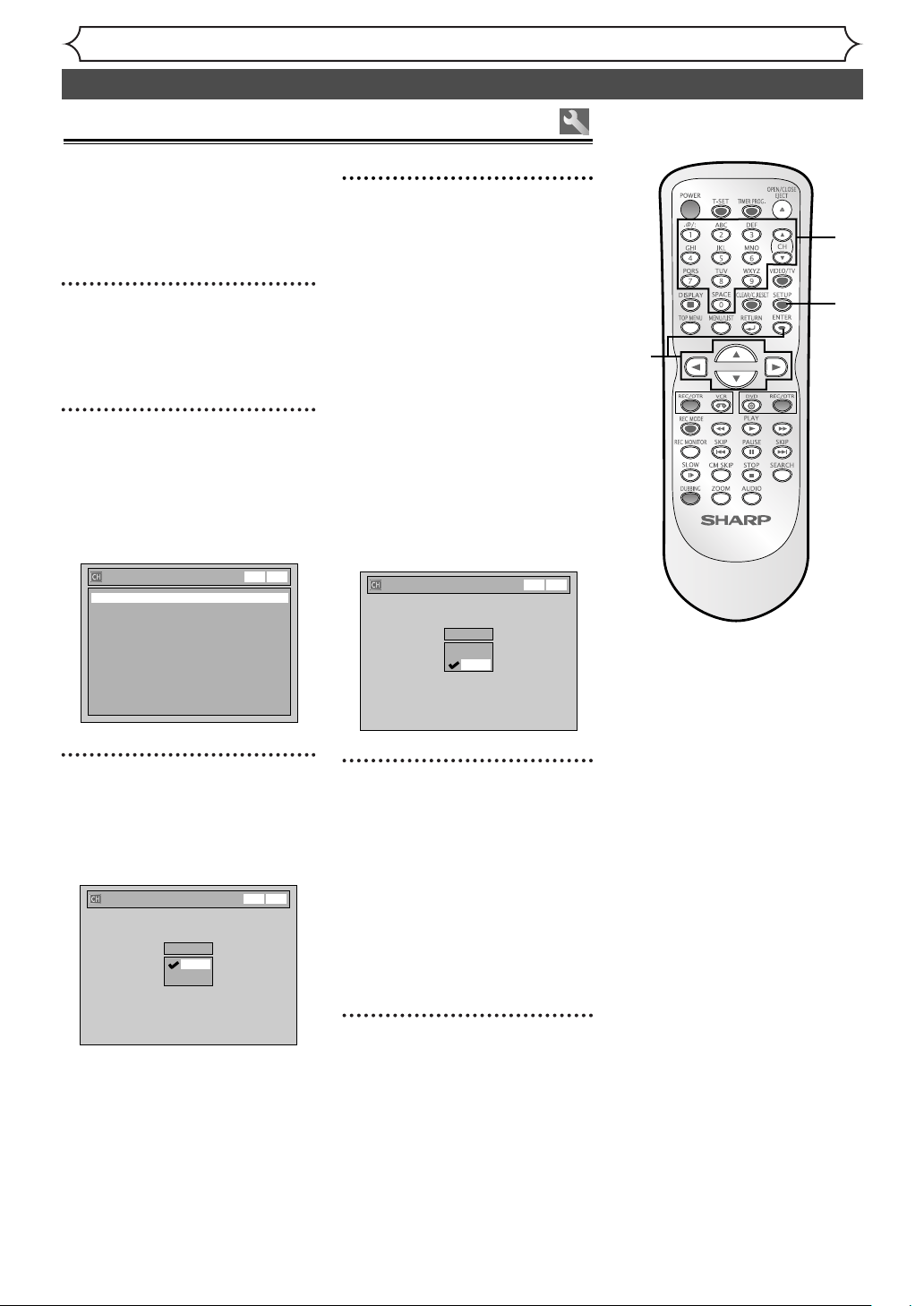

Manual Preset

CH 2

Add

Delete

DVDVCR

The channels you no longer

receive or seldom watch can be

deleted from the memory. You can

also add channels manually into

memory.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

Select “Channel” using

Cursor K / L, then press

ENTER.

Channel menu will appear.

Screen for Advanced Setting Menu:

Select “Manual Preset” using

Cursor K / L, then press

ENTER.

Manual Preset menu will appear.

Manual Preset

CH 2

Add

Delete

DVDVCR

Channel

Manual Preset

Auto Preset

DVDVCR

TV Audio Select Stereo

Adding/Deleting channels

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 20

VCR functions Others

Español

Getting started

Recording

Disc Playback EditingBefore you start Connections Getting started

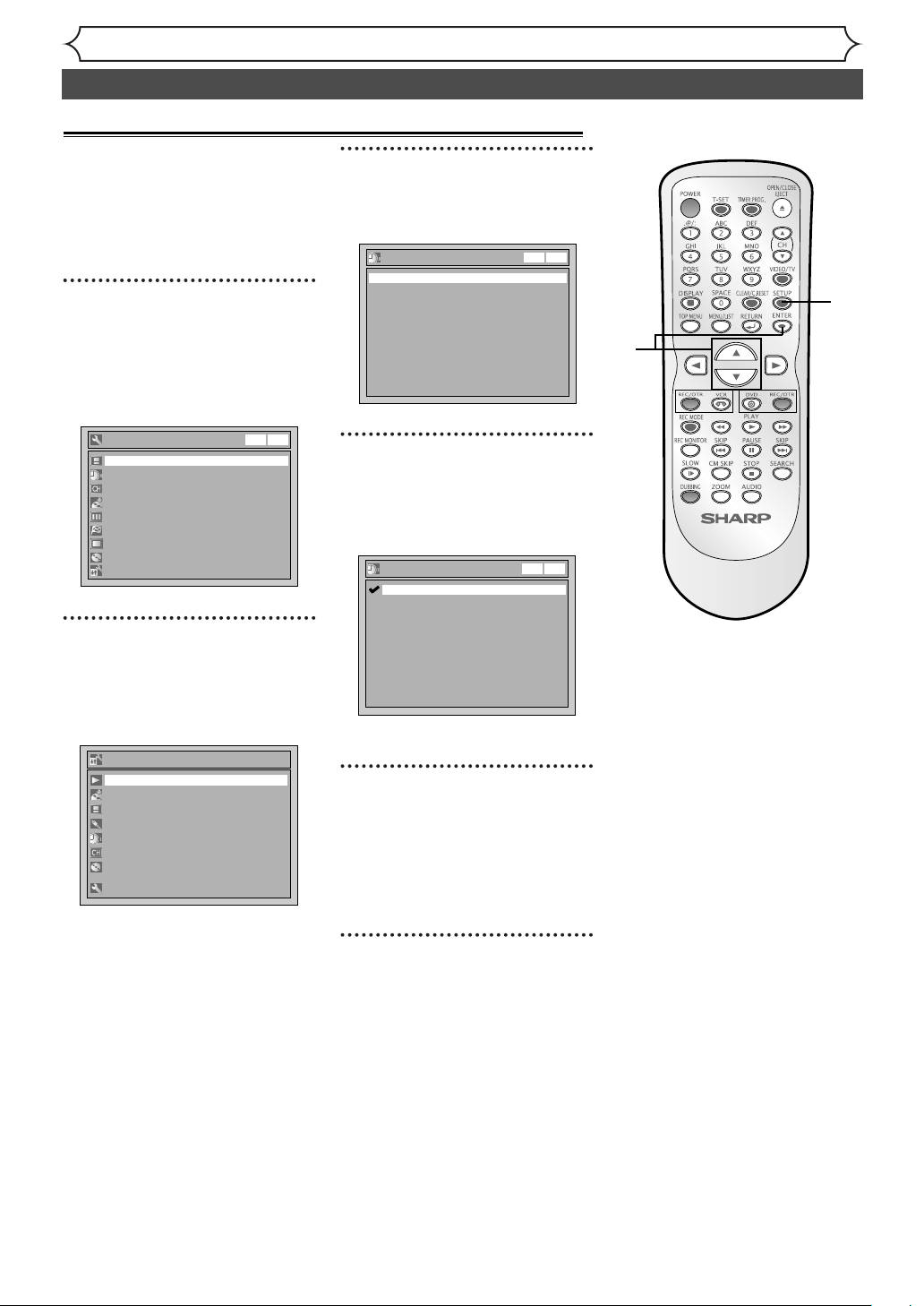

Changing the Setting menu

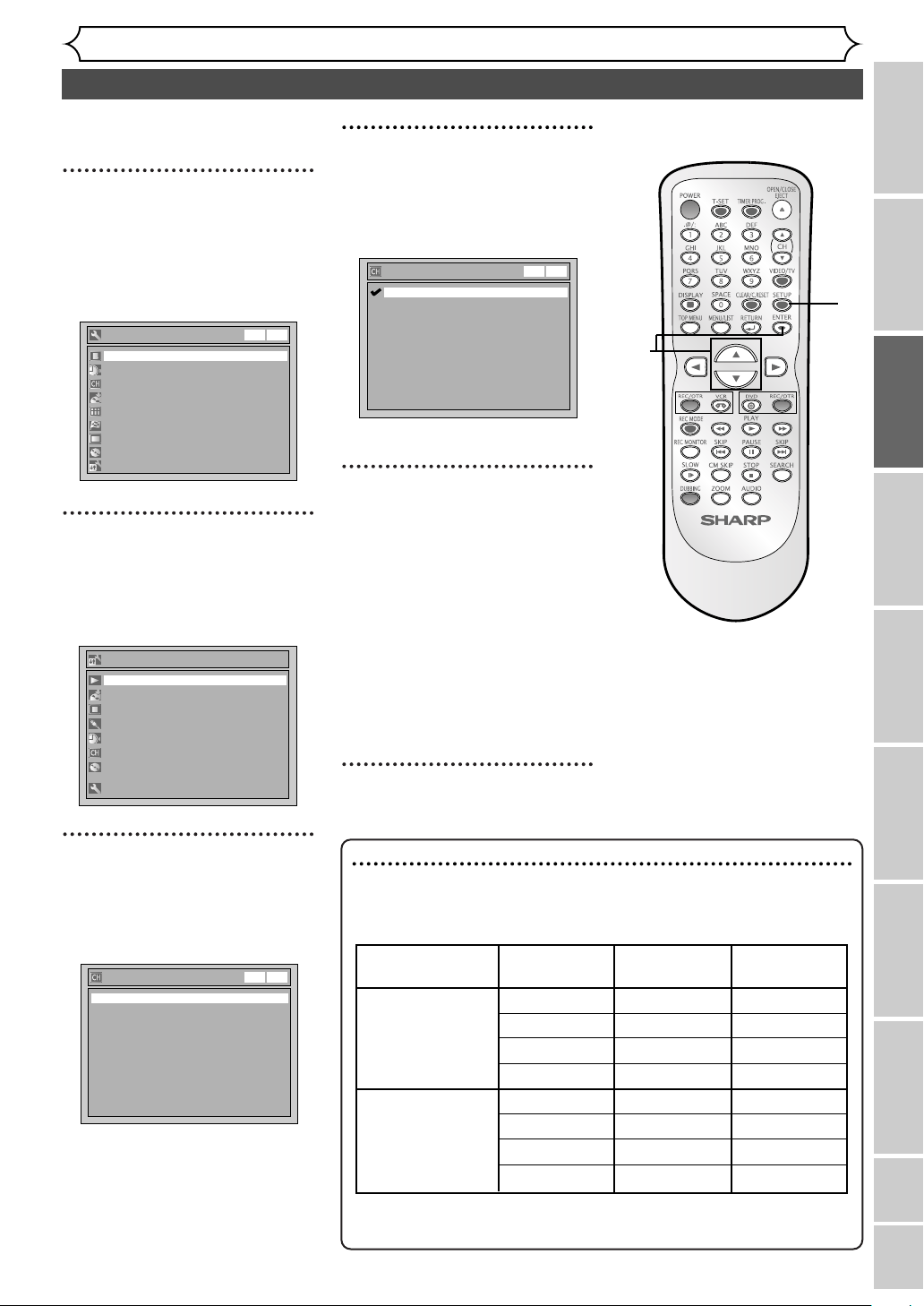

Selecting the TV Stereo or SAP

VCR/DVD RECORDER

COMBINATION

You can select an audio channel

to output from TV.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Advanced Setting Menu is dis-

played, proceed to STEP 3.

Select “Advanced Setting

Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Channel” using

Cursor K / L, then press

ENTER.

Channel menu will appear.

Channel

Manual Preset

Auto Preset

DVDVCR

TV Audio Select Stereo

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Select “TV Audio Select”

using Cursor K / L, then

press ENTER.

Option window will appear.

The default is “Stereo”.

Select “Stereo” or “SAP”

using Cursor K / L, then

press ENTER.

Stereo:

Outputs main-audio.

SAP(Secondary Audio

Program):

Outputs Sub-audio.

Refer to the item in “Glossary”

on page 103 for more informa-

tion.

Press SETUP to exit.

TV Audio Select

SAP

Stereo

DVDVCR

Notes on TV channel audio

• If you want to record a TV program available in second audio or

stereo on a DVD-RW/-R or video tape, you have to select either

Stereo or SAP in the Channel Preset screen beforehand. Refer to

the following table to check an appropriate setting.

•You can only play back the disc in second audio if a TV program is

available in second audio and you set “TV Audio Select” to “SAP”.

Selected audio

Broadcast audio

Disc (Videotape) Audio output

recording

Stereo STEREO+SAP STEREO STEREO

STEREO STEREO STEREO

MONO+SAP MONO MONO

MONO MONO MONO

SAP STEREO+SAP SAP SAP

STEREO STEREO STEREO

MONO+SAP SAP SAP

MONO MONO MONO

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 21

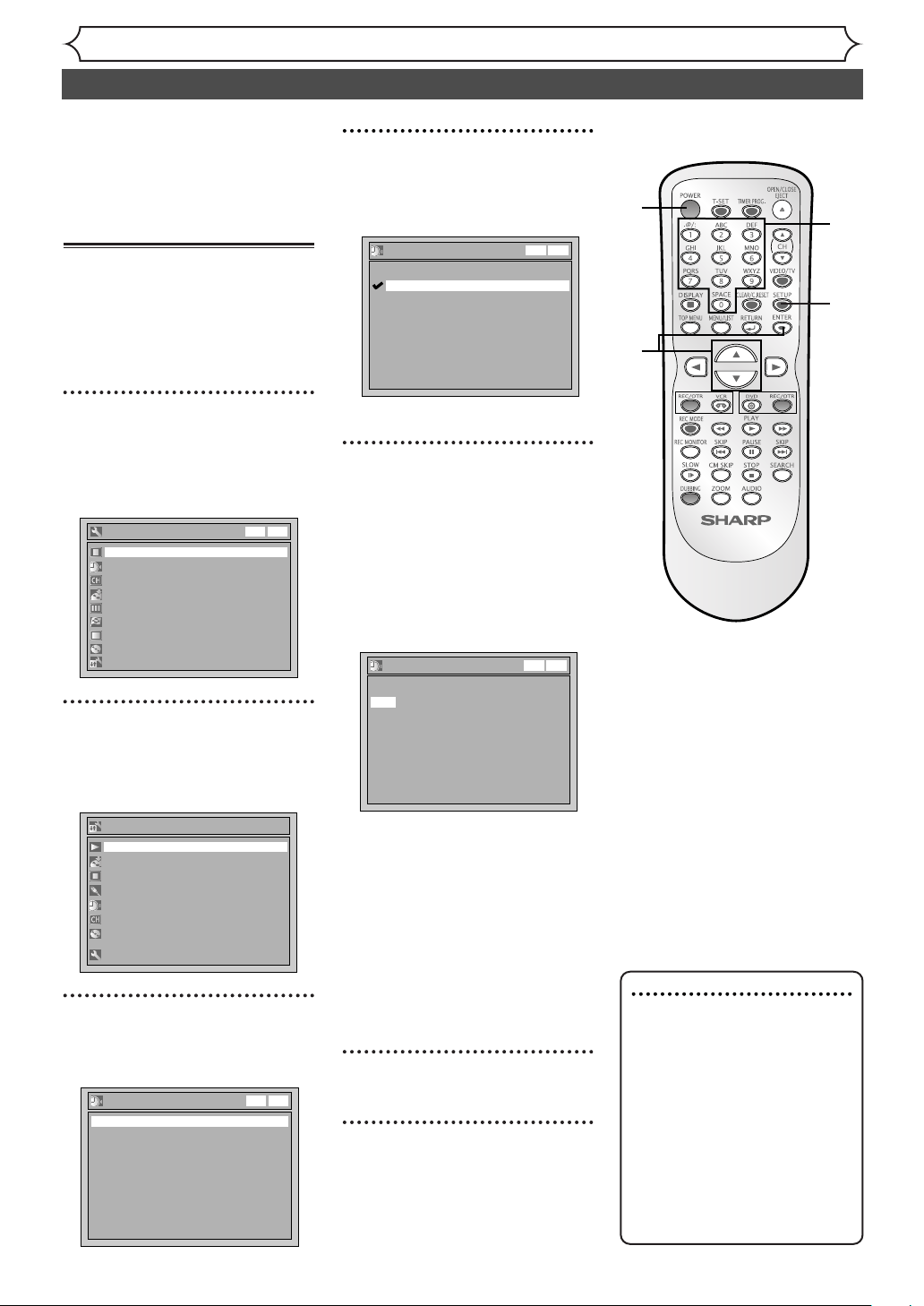

Getting started

Setting the clock

VCR/DVD RECORDER

COMBINATION

Set the correct time before using

Timer Recording. If a Public

Broadcasting Service (PBS) station is

available in your area, follow the Auto

Clock Setting below. If not, follow the

Manual Clock Setting on pages 23.

Auto Clock Setting

Make sure:

• The antenna/CATV connections

are correct.

• If this unit is connected to a

Cable Box or Satellite Box, select

the local PBS station to set the

clock automatically.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Advanced Setting Menu is dis-

played, proceed to STEP 3.

Select “Advanced Setting

Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Clock” using Cursor

K / L, then press ENTER.

Clock menu will appear.

Clock

Daylight Saving Time

Auto Clock Setting

Auto

Clock Setting

DVDVCR

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Select “Auto Clock Setting”

using Cursor K / L, then

press ENTER.

Option window will appear.

The default is “Auto”.

• If you do not know the PBS

channel number in your area,

select “Auto” using Cursor

K / L, then press ENTER.

The setting will be activated.

•

If you know the PBS channel

number in your area, select

“Manual” using Cursor

K / L, then press ENTER.

Enter the PBS channel

number using the Number

buttons or Cursor K / L ,

then press ENTER.

The setting will be activated.

•

If you want to set the clock manu-

ally and cancel the auto clock set-

ting function, select “OFF” using

Cursor

K / L,

then press ENTER.

The auto clock setting function

will be canceled.

Press SETUP to exit.

Press POWER to turn off the unit.

This unit will search for the clock time

only when the power is off. Leave it off for

several minutes to give this unit time to

set the clock on the front display panel.

Auto Clock Setting - Manual

CH 1

Set Channel No.

DVDVCR

Auto Clock Setting

OFF

Manual

Auto

DVDVCR

Note

• The clock may set itself auto-

matically after you connect the

antenna/CATV signal to this

unit and plug in the power

cord. In this case, the current

time will appear on the front

panel display.

• If the current time is not dis-

played or the displayed clock

time is not correct, set the

clock manually.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 22

VCR functions Others

Español

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

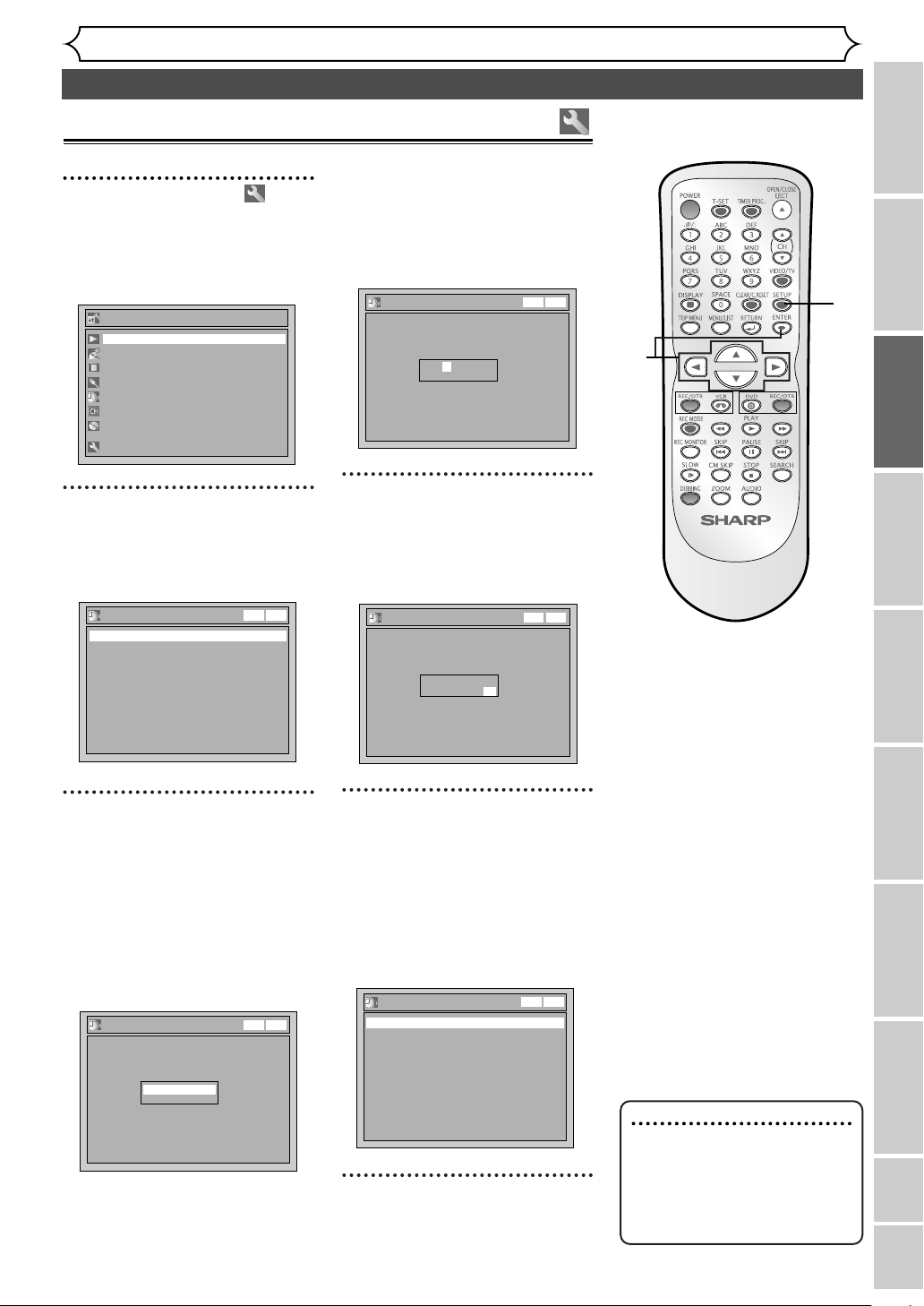

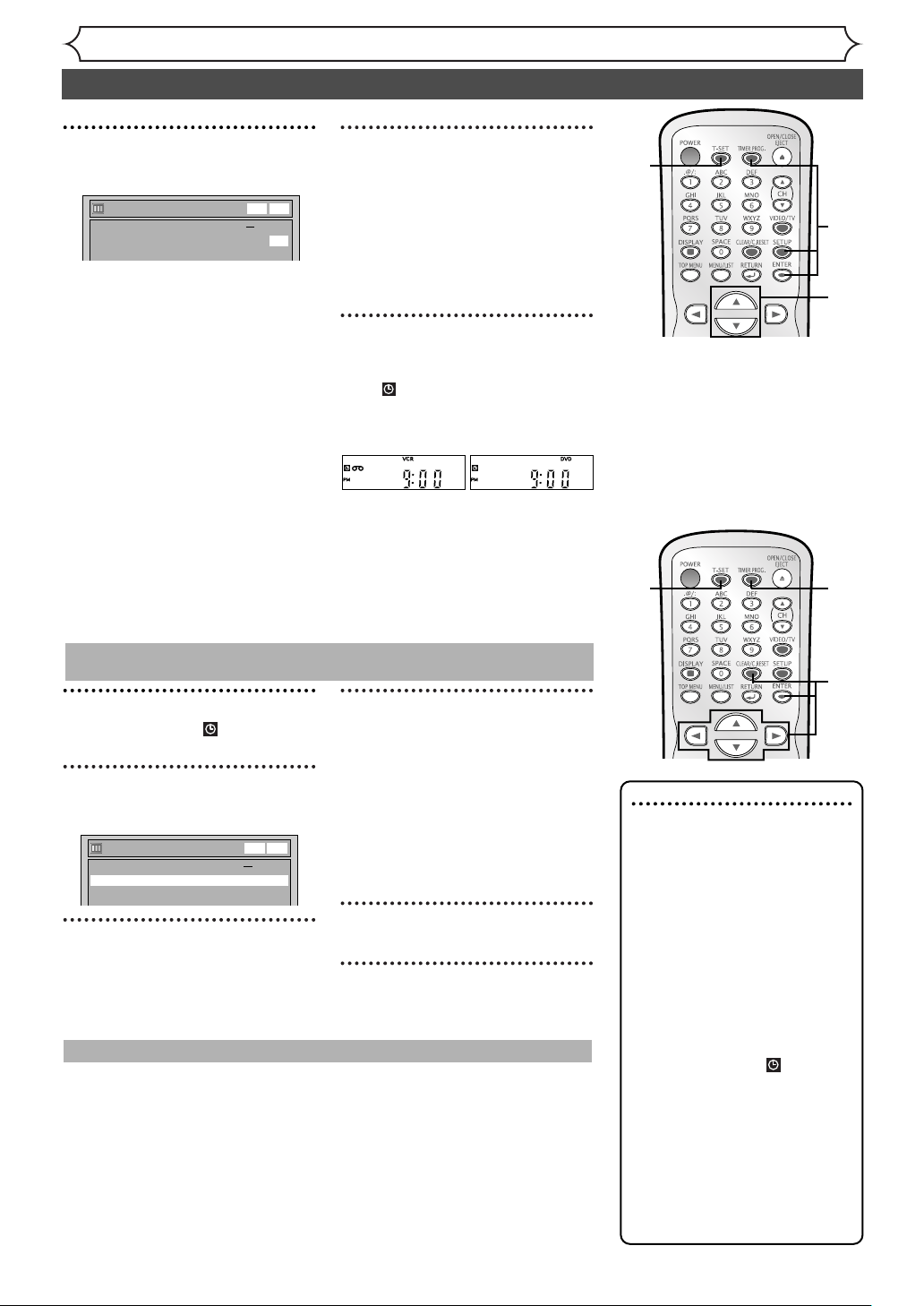

Setting the clock (cont’d)

Getting started

VCR/DVD RECORDER

COMBINATION

SKIP 2

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Easy Setting Menu is displayed,

proceed to STEP 3.

Select “Clock” using Cursor

K / L, then press ENTER.

Clock menu will appear.

When entering from Easy

Setting Menu, select “Clock”

using Cursor

K / L

, then press

ENTER. When entering from

Advanced Setting Menu, select

“Clock Setting” using Cursor

K / L

, then press ENTER.

Clock Setting window will appear.

Press ENTER again.

Default date will appear.

Clock Setting

---- / -- / ---- ( ---- )

-- : ----

DVDVCR

Clock

Daylight Saving Time

Auto Clock Setting

Auto

Clock Setting

DVDVCR

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Enter the date (month / day /

year) using Cursor K / L.

Press Cursor { / B to move

the cursor.

Enter the time (hour /

minute) using Cursor K / L,

then press Cursor { / B.

A cursor will move on AM or PM.

Press Cursor K / L to select

AM or PM, then press ENTER.

Clock menu will appear, then the

settings will be activated.

Although seconds are not displayed,

they will be counted from zero.

Screen for Advanced Setting Menu:

Press SETUP to exit.

Clock

Daylight Saving Time

Auto Clock Setting

Auto

Clock Setting

DVDVCR

Clock Setting

JAN/ 01 / 2005(SAT)

12: 00 AM

DVDVCR

Clock Setting

JAN/ 01 / 2005(SAT)

12: 00 AM

DVDVCR

Note

• Your clock setting will be lost

if either there is a power fail-

ure or this unit has been

unplugged for more than 1

minute.

Manual Clock Setting

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 23

Getting started

Setting the clock (cont’d)

When Daylight Saving Time is

ON, the unit clock will automati-

cally move forward 1 hour on the

first Sunday in April and move

back 1 hour on the last Sunday in

October.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Advanced Setting Menu is dis-

played, proceed to STEP 3.

Select “Advanced Setting

Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Clock” using Cursor

K / L, then press ENTER.

Clock menu will appear.

Select “Daylight Saving Time”

using Cursor K / L, then

press ENTER.

Option window will appear.

The default is “ON”.

Select “ON” or “OFF” using

Cursor K / L, then press

ENTER.

Choose “ON” if you are currently

observing the daylight saving time.

Press SETUP to exit.

Daylight Saving Time

OFF

DVDVCR

Clock

Daylight Saving Time

Auto Clock Setting

Auto

Clock Setting

DVDVCR

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

VCR/DVD RECORDER

COMBINATION

Setting the Daylight Saving Time

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 24

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Getting started

Selecting the TV aspect ratio

VCR/DVD RECORDER

COMBINATION

You can select the TV aspect ratio

to match the formats of what you

are playing back on the unit and

your TV screen (4:3 standard or

16:9 widescreen TV).

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Advanced Setting Menu is dis-

played, proceed to STEP 3.

Select “Advanced Setting

Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Playback” using

Cursor K / L, then press

ENTER.

Playback menu will appear.

Playback

Parental Lock All

TV Aspect 4:3 Letter Box

Subtitle Language OFF

Digital Out

Audio Language Original

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Select “TV Aspect” using

Cursor K / L, then press

ENTER.

Option window will appear.

The default is “4:3 Letter Box”.

Refer to the Note on this

page below.

Select a desired option using

Cursor K / L, then press

ENTER.

Press SETUP to exit.

TV Aspect

4:3 Pan & Scan

16:9 Wide

4:3 Letter Box

DVD

Note

If you have a standard TV:

Select “4:3 Letter Box”, for a

full length picture with black

bars on the top and bottom of

the screen. Select “4:3 Pan &

Scan” for a full height picture

with both sides trimmed.

If you have a widescreen TV:

Select “16:9 Wide”.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 25

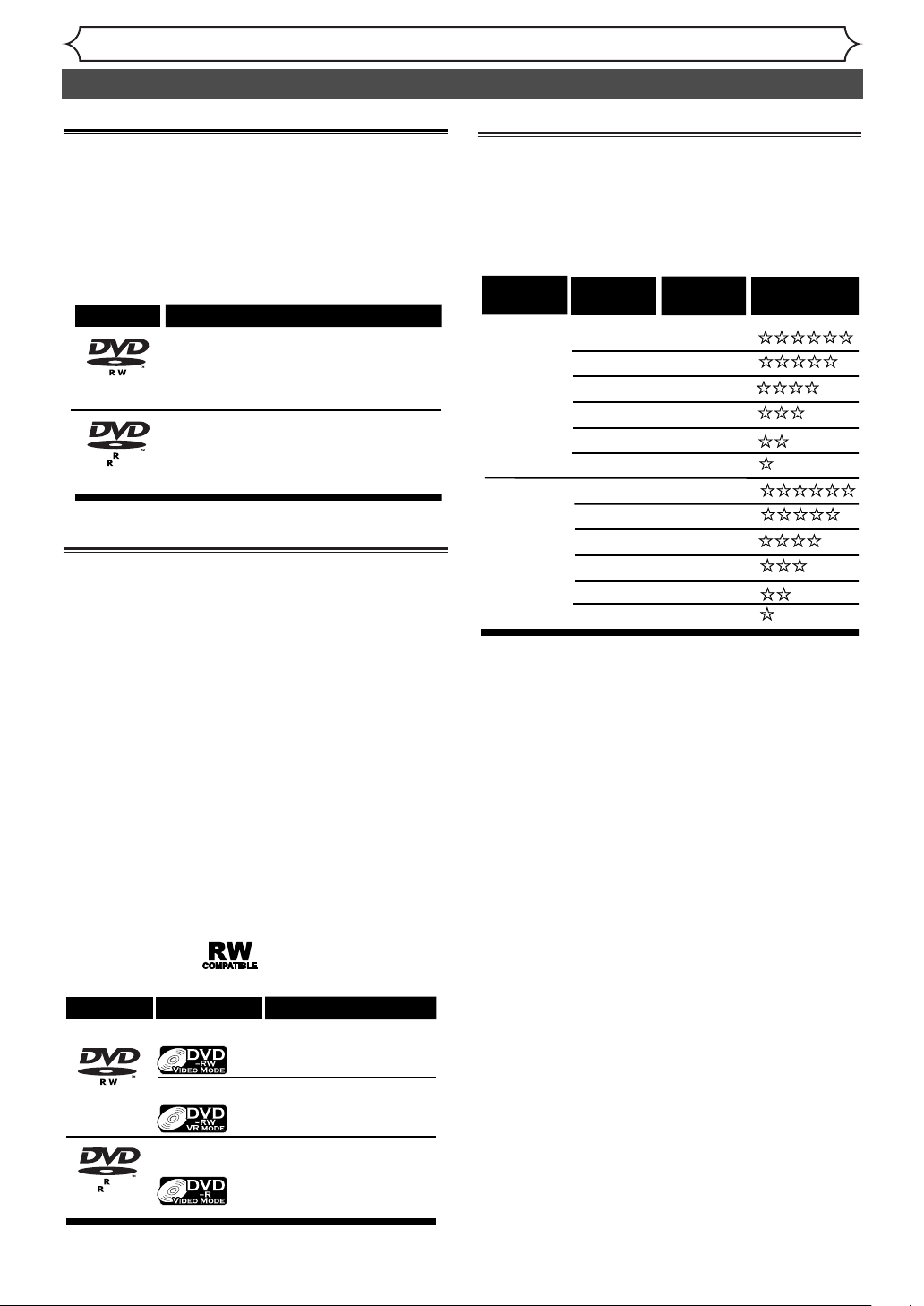

Recording

Information on DVD recording

Information

This unit can record on DVD-RW and DVD-R discs.

DVD-RW discs allow you to record programs

repeatedly, and the recorded contents can be erased.

DVD-R discs allow you to record programs only

once, and the recorded contents cannot be erased.

You can record programs on DVD-R discs only in

Video mode, while recording format for DVD-RW

discs can be either Video mode or VR mode.

Recordable disc

•Discs which can be used with this recorder:

DVD-R: up to 8x (4x disc is recommended)

DVD-RW: 2x and 4x (2x disc is recommended)

•

Discs tested and proven to be compatible

with this recorder:

MAXELL DVD-R TDK DVD-RW 2x

JVC DVD-RW 4x MITSUBISHI DVD-R 8x

About Video mode and VR (Video Recording)

mode

Video mode is the same recording format as DVD-

Video discs purchased locally and played back on most

DVD players.To play back the contents recorded in

this mode on other DVD players, you will need to

finalize them (see page 44). However, you can play back

record additional materials or edit discs recorded in

Video mode with this unit without finalization.

VR (Video Recording) mode is a basic recording for-

mat for DVD-RW. You can record and edit repeatedly.

DVD players with are capable of playing

back DVD-RW recorded in VR mode.

Recording speed

You can select a recording speed among 6 options.

The recording time will depend on the recording

speed you select as follows.

Discs recorded in SLP or SEP on this unit

may not be played back on other DVD

recorders or DVD players.

•The actual recording time may deviate from the

time listed above.

•The audio and video quality is getting poorer as

the recording time becomes longer.

•Each time

REC MODE is pressed, recording time

will change and be displayed.

Recording

speed

SLP

SEP

Recording

time *

18 min

36 min

72 min

108 min

144 min

180 min

Video/Sound

Quality

Disc Size

8 cm Disc

SLP

SEP

60 min

120 min

240 min

360 min

480 min

600 min

12 cm Disc

Disc type Disc format

Video mode

VR mode

Video mode

Functions

Playback, limited recording,

limited editing

Playback, recording,

Original/Playlist editing

Playback, limited recording,

limited editing

DVD-RW

DVD-R

4.7

Logo Attributes

8 cm/12 cm, single-sided, single layer disc

Approx. max. recording time (SEP mode):

600 minutes (4.7GB) (for 12 cm)

180 minutes (1.4GB) (for 8 cm)

8 cm/12 cm, single-sided, single layer disc

Approx. max. recording time (SEP mode):

600 minutes (4.7GB) (for 12 cm)

180 minutes (1.4GB) (for 8 cm)

DVD-RW

DVD-R

4.7

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 26

Recording

Restrictions on recording

You cannot record copy-protected materials using

this unit. Copy-protected materials includes DVD-

Video discs and some satellite broadcasts.

If copy-protected material is encountered during a

recording, recording will be paused or stop automat-

ically and an error message will be displayed on

screen.

When recording a TV broadcast or through an

external input, you can display copy control informa-

tion on screen.

Information on copy control

Some satellite broadcasts include copy-protected

information. For their recording, refer to the follow-

ing.

Making discs playable on other DVD

player (Finalize)

After recording, you must finalize disc in order to

play back on any other unit. (Refer to page 44.)

After finalizing:

• Once DVD-RW/-R (Video mode) is finalized, you

cannot record additional materials or edit.

•You can record additional materials on or edit the

finalized DVD-RW (VR mode).

• When DVD-RW/-R (Video mode) is finalized, title

menu will be created automatically.

Finalize discs recorded on this unit in order to

play them back on other DVD players.

This Unit DVD Player

Not Playable

Playable

POWER

STOP/EJECT

REW F.FWD

REC/OTR

PLAY

DUBBINGCHANNEL

VCR DVD

OUTPUT SELECT

OPEN/CLOSE

STOP PLAY

REC/OTR

What is “CPRM”?

(Content Protection for Recordable Media)

This is a format used to record copy-once pro-

grams. By recording coded data on the area of

DVD discs that ordinary writing software can-

not write, it prevents copy-once programs from

being recorded repeatedly on different media.

This unit is CPRM compatible, which means

that you can record copy-once broadcast pro-

grams, but then you cannot make a copy of

those recordings. CPRM recordings can only be

made on DVD-RW discs formatted in VR mode,

and CPRM recordings can only be played back

on players that are compatible with CPRM.

Disc type / format

Copy-free Copy-once

Copy-

prohibited

Recordable

Not Recordable

ver.1.1, 1.2

ver.1.1, 1.2 CPRM compatible

ver.1.1, 1.2

ver.1.1, 1.2 CPRM compatible

ver.2.0

Note

• This recorder cannot record on CD-RW or

CD-R discs.

•DVD-RW/-R and CD-RW/-R discs recorded on a

personal computer or a DVD or CD recorder

may not be played back if the disc is damaged or

dirty or if there is dirt of condensation on the

player’s lens.

• If you record on a disc using a personal comput-

er, there are cases in which it may not be played

back because of the settings of the application

software used to create the disc even if it is

recorded in a compatible format. (Check with the

software publisher for more detailed informa-

tion.)

• Discs recorded in Video mode on this unit cannot

record any additional materials using other DVD

recorders.

•A DVD-RW disc formatted with this unit cannot be

used on other DVD recorders.

• Since the recording is made by the variable bit rate

(VBR) method, the actual remaining time for record-

ing may be a little bit shorter than the remaining

time displayed on the OSD depending on the pic-

ture you are recording.

Information on DVD recording (cont’d)

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 27

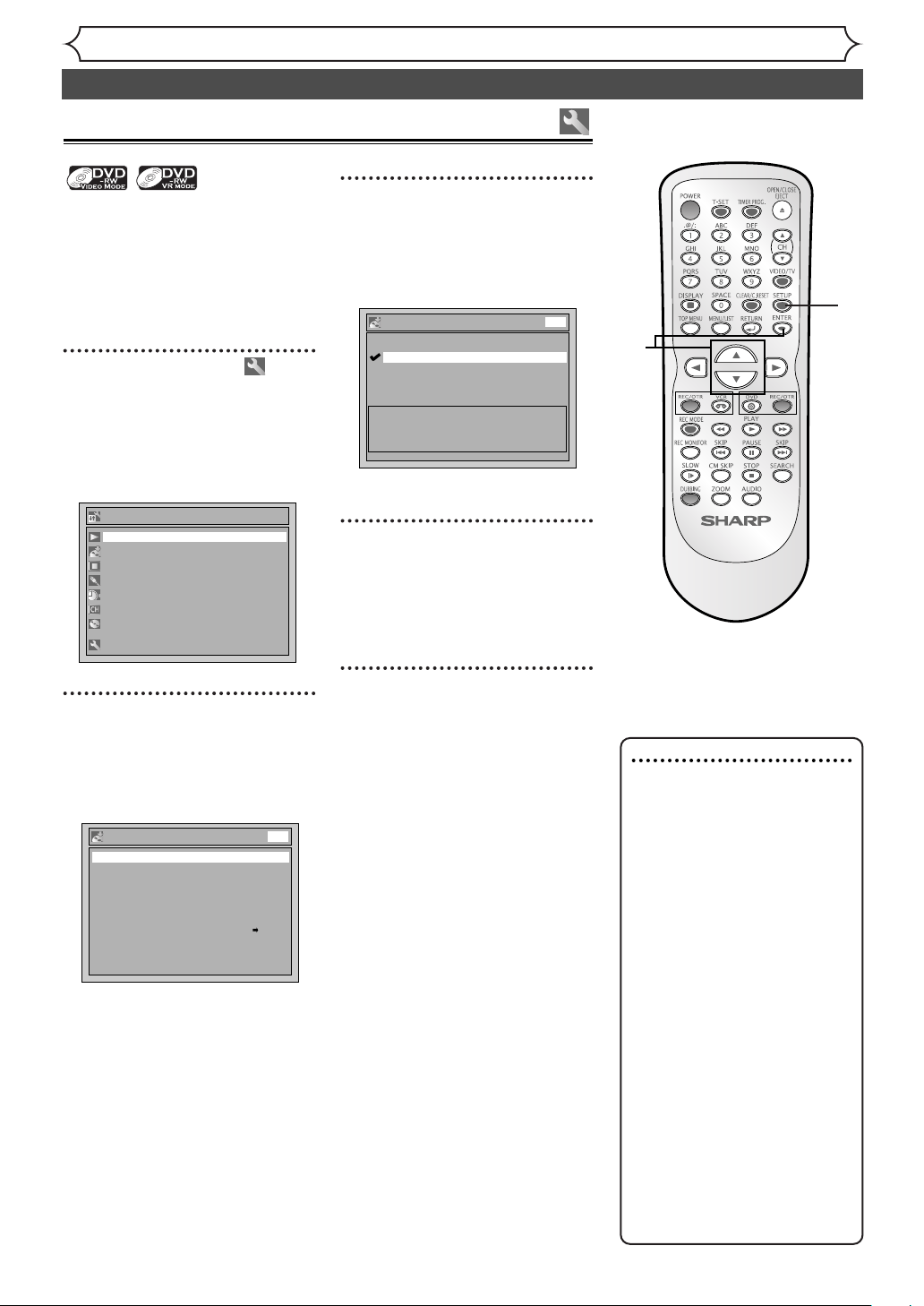

Recording

Formatting a disc

When inserting a blank disc, the

unit starts to initialize it automati-

cally.

After that, you can record on the

disc with a recording format

selected in the setting menu.

SKIP 2

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Easy Setting Menu is displayed,

proceed to STEP 3.

Select “Recording” using

Cursor K / L, then press

ENTER.

Recording menu will appear.

Select “DVD-RW Recording

Format” using Cursor K / L,

then press ENTER.

Option window will appear.

The default is “VR mode”.

Select “Video mode” or “VR

mode” using Cursor K / L,

then press ENTER.

The recording mode will be set.

Press SETUP to exit.

DVD-RW Recording Format

VR mode

Video mode

DVD Player Compatibility mode.

VR mode

Editing possibility mode.

DVD

DVD-RW Recording Format

Timer Programming

Recording Audio Select (XP)

Auto Finalize

Dubbing Mode

Auto Chapter

VR mode

Dolby Digital

VCR DVD

10 minutes

Recording

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Note

• The recording format setting

is effective only for DVD-RW

discs. You cannot change the

recording format for a DVD-

R disc. DVD-R discs will

always be in Video mode.

•

You cannot mix two for-

mats on one DVD-RW disc.

When you load a disc once

recorded before, the

recording format cannot be

changed even if you change

it in the setting menu.

• When inserting a blank

DVD+RW or DVD+R disc,

the error message (“Disc

Error”) will appear. This unit

is not compatible with a

DVD+RW/+R disc for

recording.

• Playlist will be created auto-

matically when recording on

DVD-RW in VR mode.

VCR/DVD RECORDER

COMBINATION

Choosing the recording format of a blank disc

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 28

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

VCR/DVD RECORDER

COMBINATION

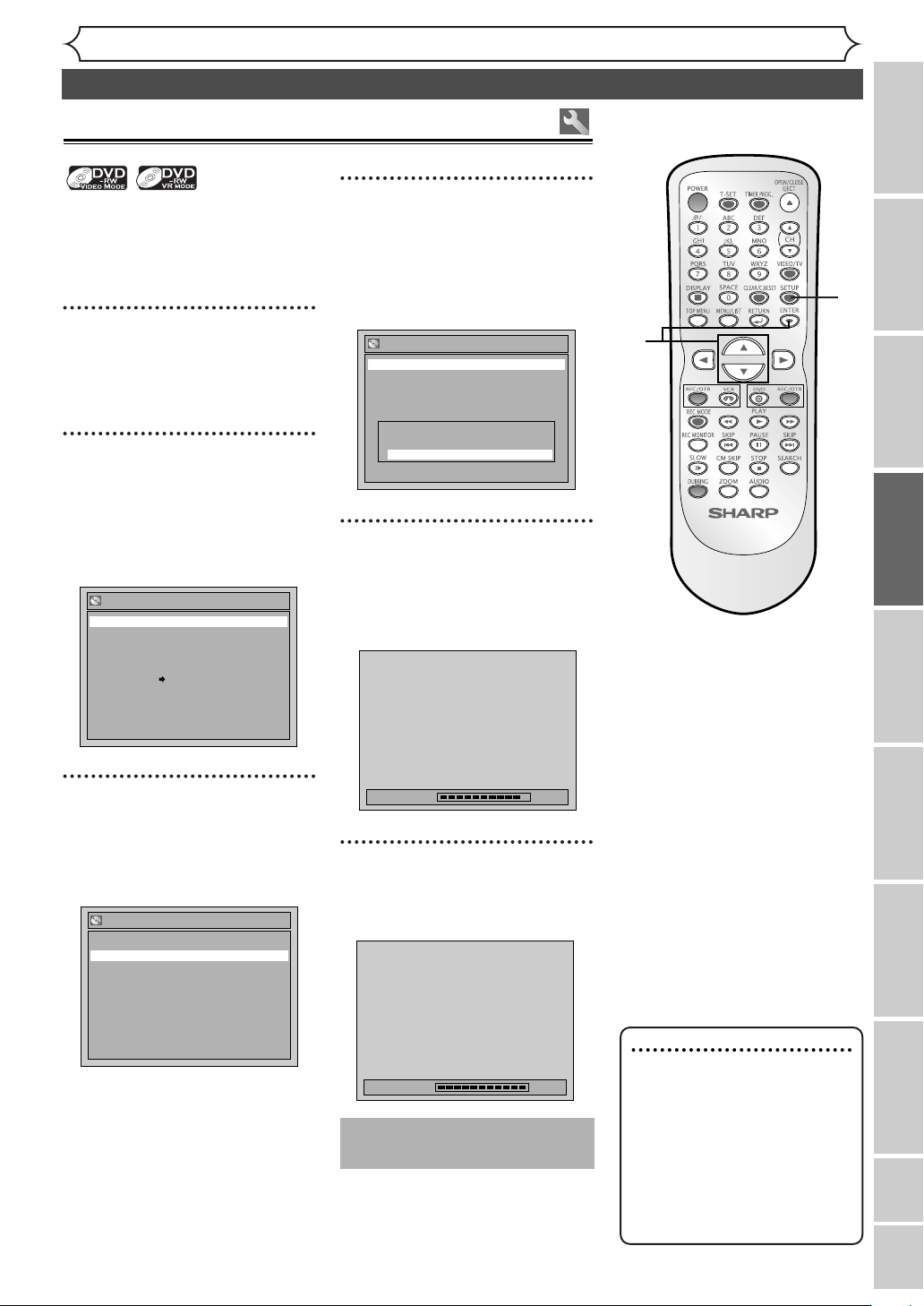

Formatting a disc (cont’d)

VR mode is the default recording

format for DVD-RW. You can

change it to Video mode from the

setting menu.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

Select “Disc” using

Cursor K / L, then press

ENTER.

Disc menu will appear.

Screen for VR mode Disc menu:

Select “Format” using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Select “Yes” using

Cursor K / L, then press

ENTER.

Final confirmation window will

appear.

Select “Yes” using

Cursor K / L, then press

ENTER.

Formatting will start.

Formatting is complete.

“100%” will be indicated.

Formatting 100%

Formatting 90%

Format

Yes

Are you sure?

Yes

Format

Yes

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Note

• When you reformat the disc,

all contents of the disc will be

erased.

•If you want to cancel refor-

matting at STEP 4 or 5, select

“No”.

•A disc once formatted with

this unit cannot be used on

other DVD recorders.

Reformatting a disc

This operation may take a

while to be completed.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 29

Recording

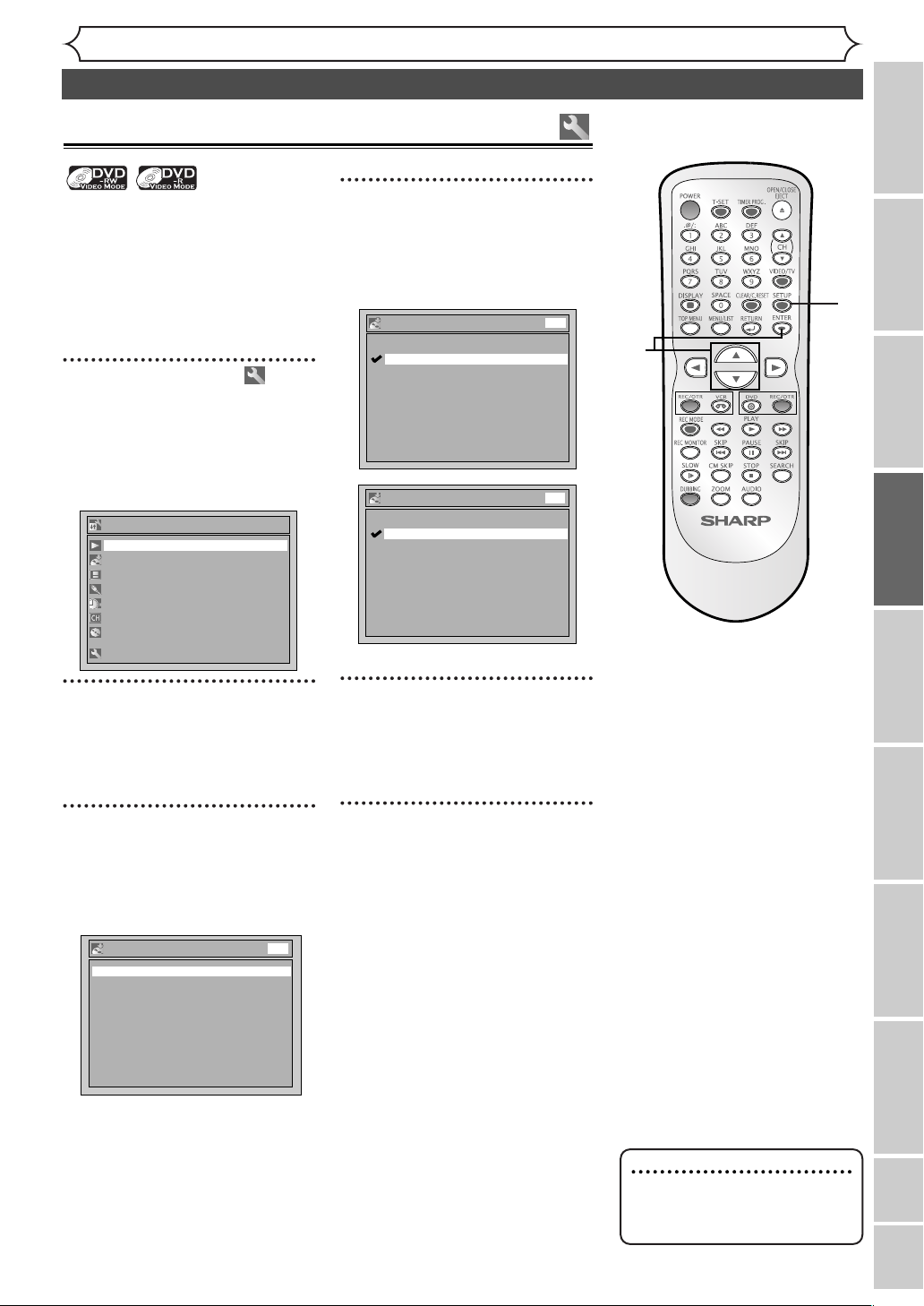

Auto Chapter

You can set specific time interval

for chapter marks.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Advanced Setting Menu is dis-

played, proceed to STEP 3.

Select “Advanced Setting

Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Recording” using

Cursor K / L, then press

ENTER.

Recording menu will appear.

Select “Auto Chapter” using

Cursor K / L, then press

ENTER.

Option window will appear.

The default is “

10 minutes”.

Select a desired time option

using Cursor K / L, then

press ENTER.

Chapter marks will be put as you

specified.

Press SETUP to exit.

Auto Chapter

5 minutes

10 minutes

15 minutes

30 minutes

60 minutes

OFF

DVD

DVD-RW Recording Format

Timer Programming

Recording Audio Select (XP)

Auto Finalize

Dubbing Mode

Auto Chapter

VR mode

Dolby Digital

VCR DVD

10 minutes

Recording

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Note

•The interval for auto chapter

marks may slightly deviate

from the one you specified on

the Auto chapter screen in

Video mode.

•A blank chapter may be creat-

ed depending on the remain-

ing time of the disc.

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 30

Recording Audio Select (XP)

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

VCR/DVD RECORDER

COMBINATION

Recording

You can enjoy high quality sound

recording.This function works

only when the recording speed is

set at XP.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Advanced Setting Menu is dis-

played, proceed to STEP 3.

Select “Advanced Setting

Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Recording” using

Cursor K / L, then press

ENTER.

Recording menu will appear.

Select “Recording Audio

Select (XP)” using

Cursor K / L, then press

ENTER.

Option window will appear.

The default is “Dolby Digital”.

Select “PCM” or “Dolby

Digital” using Cursor K / L,

then press ENTER.

PCM:

Records PCM audio for the best

quality sound.

Dolby Digital:

Records Dolby Digital audio for

good quality sound.

Press SETUP to exit.

PCM

Dolby Digital

Recording Audio Select (XP)

DVD

PCM

Dolby Digital

Recording Audio Select (XP)

DVD

DVD-RW Recording Format

Timer Programming

Recording Audio Select (XP)

Auto Finalize

Dubbing Mode

Auto Chapter

VR mode

Dolby Digital

VCR DVD

10 minutes

Recording

DVD

DVDVCR

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Note

• “PCM” stands for Pulse Code

Modulation. It changes analog

sound to digital sound with-

out compressing audio data.

• When the recording speed is

set at other than XP, the unit

records “Dolby Digital” audio

automatically even if you

selected “PCM”.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 31

Note

• Recording starts immediately

after you press REC/OTR

and continues until the disc is

full or you stop recording.

•When the clock setting has

not been made, the space for

a date and time of title names

in the Original or Playlist will

be blank.

• When you record a TV pro-

gram broadcasted in both

Stereo and SAP audio on a

DVD-RW/-R, you have to

select the TV channel audio

(Stereo or SAP) beforehand.

Only the selected channel

audio will be recorded. Refer

to “Selecting the TV Stereo or

SAP” on page 21 for more

details.

•You cannot mix two for-

mats on one DVD-RW

disc.

When you load a disc

once recorded before, the

recording format cannot

be changed even if you

change it in the setting

menu.

•You cannot change the

recording speed during the

REC pause mode.

•You can change channels dur-

ing the REC pause mode.

Basic recording

VCR/DVD RECORDER

COMBINATION

Follow steps below to record TV

programs.

Turn on the unit and load a

recordable disc.

Make sure that the TV input is set

on the unit.

Select a recording speed

using REC MODE.

Refer to “Recording speed” on

page 26.

Make sure that the recording

format is set to the desired

mode.

Refer to “Formatting a disc” on

pages 28-29.

When a DVD-RW disc is

loaded:

You can choose Video mode or

VR mode from the setting menu.

The default is “VR mode”. Refer

to “Choosing the recording for-

mat of a blank disc” on page 28.

When a DVD-R disc is loaded:

DVD-R discs will be always in

Video mode.

Select a desired channel to

record using CH K / L or

the Number buttons.

Press REC/OTR to start

recording.

“¶” mark will be displayed for 5

seconds.

To pause the recording, press

PAUSE F.Press REC/OTR or

PAUSE F to restart the

recording.

Press STOP C to stop the

recording.

CH 12

XP 0:58

press first.

DVD

Recording

This operation may take a

while to be completed.

This operation may take a

while to be recognized.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 32

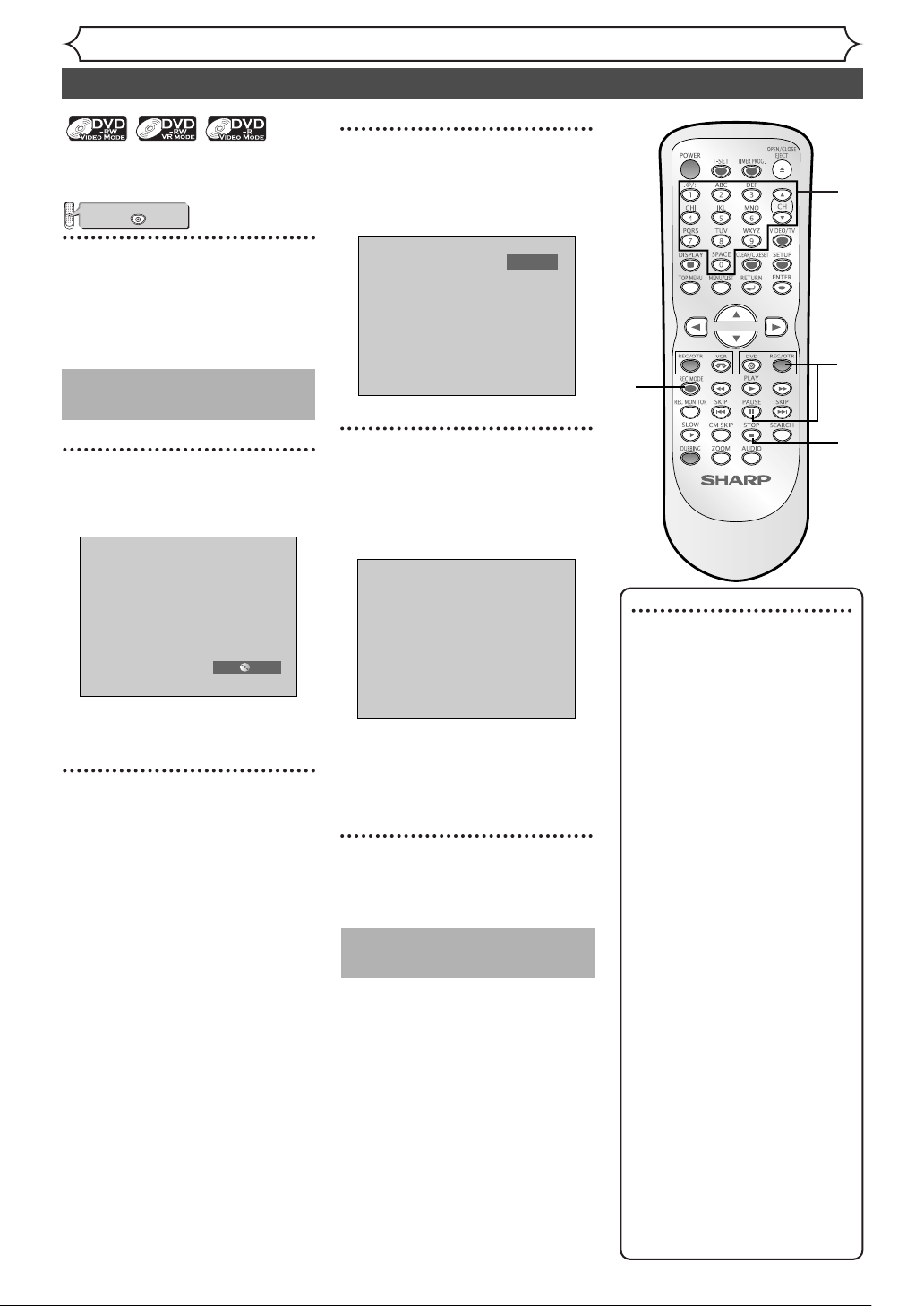

Recording

Checking the recording picture and sound quality

Basic recording (cont’d)

You can confirm the recording pic-

ture and the sound quality for the

recording speed you have selected

before attempting to record on a

DVD disc.

While the unit is in stop

mode or recording mode

with a DVD disc to record

inserted, press

REC MONITOR.

The TV program will be on the

screen in the same picture and

sound quality as it will be for the

recording speed you have select-

ed.

If you want to change the

recording speed, press

REC MODE repeatedly.

The recording speed will be

changed as you press the button

as shown below. Refer to

“Recording speed” on page 26.

•You cannot change the record-

ing speed during recording.

Press REC MONITOR again

to exit.

XP SP LP

EPSLPSEP

Rec Monitor

XP 0:58

VCR/DVD RECORDER

COMBINATION

press first.

DVD

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Note

• If you press REC MONITOR

while receiving the bilingual

broadcast, the sound to be

recorded is output.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 33

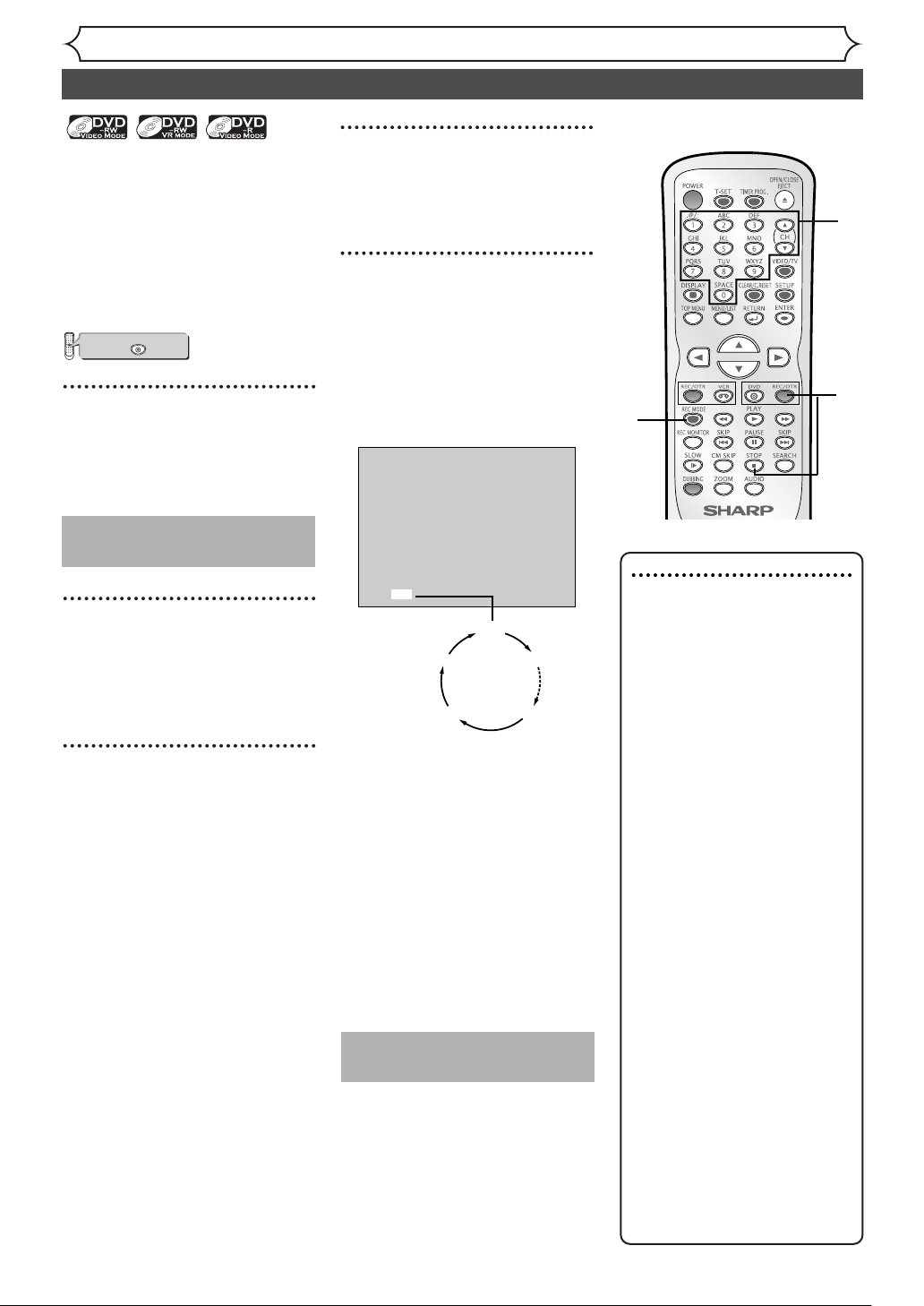

Recording

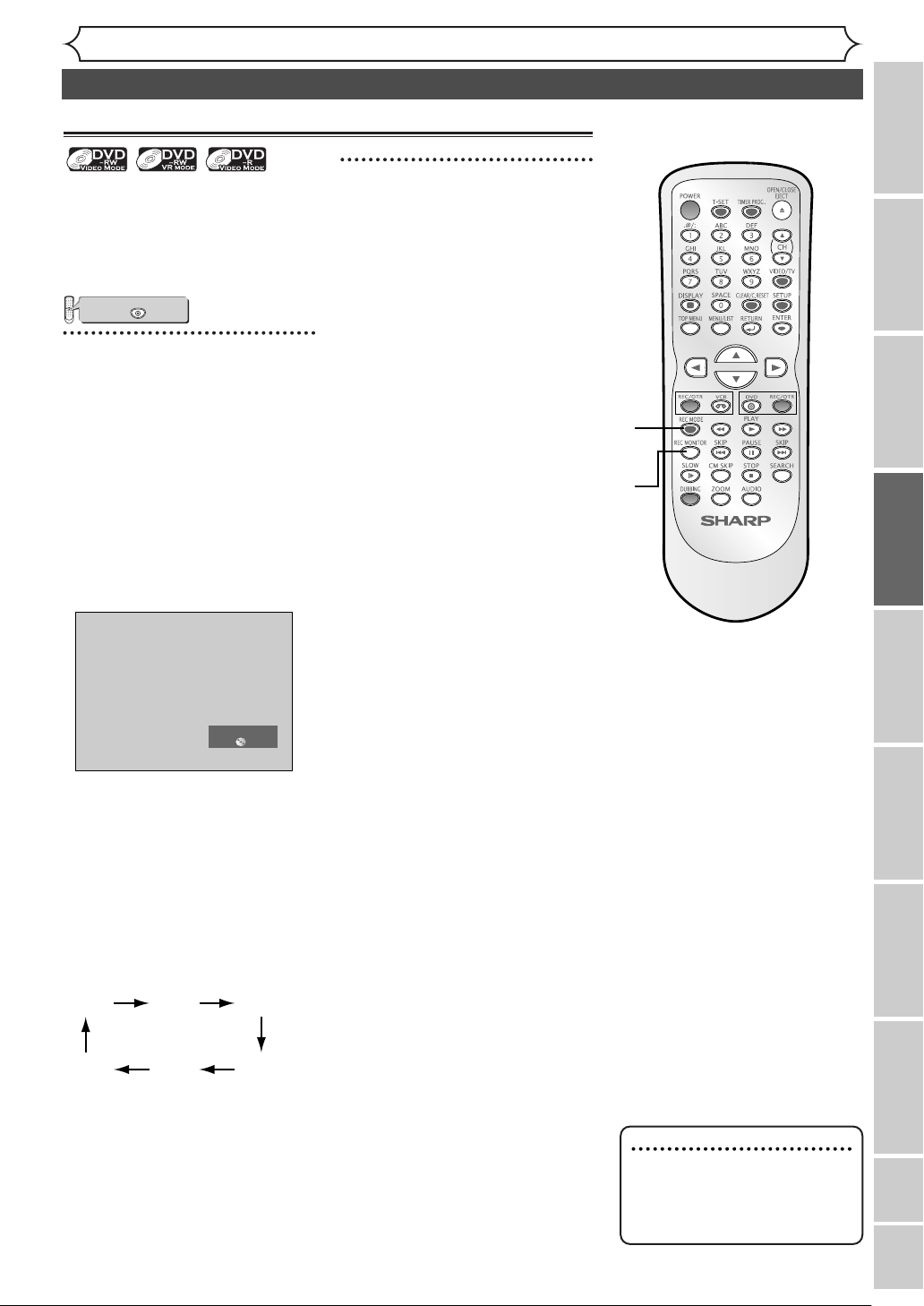

One-touch Timer Recording

Note

• The remaining recording

time will appear on the dis-

play panel during an One-

touch Timer Recording.

Press DISPLAY to see it on

the TV screen.

•You cannot pause a One-

touch Timer Recording.

• Unlike a Timer Recording, you

can perform the following

operations during a One-

touch Timer Recording.

- Turning off the power.

- Using REC/OTR, STOP C.

• The unit will be turned off

automatically under the fol-

lowing conditions.

No space remained on the disc.

When a power failure occurs.

• If OTR is finished in DVD dur-

ing playback or REC mode in

VCR, the DVD will be in stop

mode and the VCR keeps the

current mode.

• When OTR is finished and the

power is turned off, the unit

will switch to the standby

mode automatically if a Timer

Recording has been pro-

grammed. Press T-SET to can-

cel the standby mode for using

the unit continuously.

This is a simple way to set the

recording time in blocks of 30

minutes. Check that the disc has

enough recordable space for the

time you set.

After finishing the recording, the

recorder automatically goes into

standby.

Turn on the unit and load a

recordable disc.

Make sure that the TV input is set

on the unit.

Select a recording speed

using REC MODE.

Refer to “Recording speed” on

page 26.

Make sure that the recording

format is set to the desired

mode.

Refer to “Formatting a disc” on

pages 28-29.

When a DVD-RW disc is

loaded:

You can choose Video mode or

VR mode from the setting menu.

The default is “VR mode”. Refer

to “Choosing the recording for-

mat of a blank disc” on page 28.

When a DVD-R disc is loaded:

DVD-R discs will always be in

Video mode.

Select a desired channel to

record using CH K / L or

the Number buttons.

Press REC/OTR, then press

REC/OTR repeatedly to

select a desired recording

time.

Recording time appears on the TV

screen (30 minutes to 8 hours).

Recording will start.

When the unit reaches the speci-

fied time, it will be turned off

automatically.

To change the recording time dur-

ing the One-touch Timer

Recording, press REC/OTR

repeatedly

until the desired time

appear.

To cancel the One-touch Timer

Recording within the specified

time, press STOP C.

0:30

(Normal Recording)

8:00 7:30

1:00

0:30

press first.

DVD

This operation may take a

while to be recognized.

This operation may take a

while to be completed.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 34

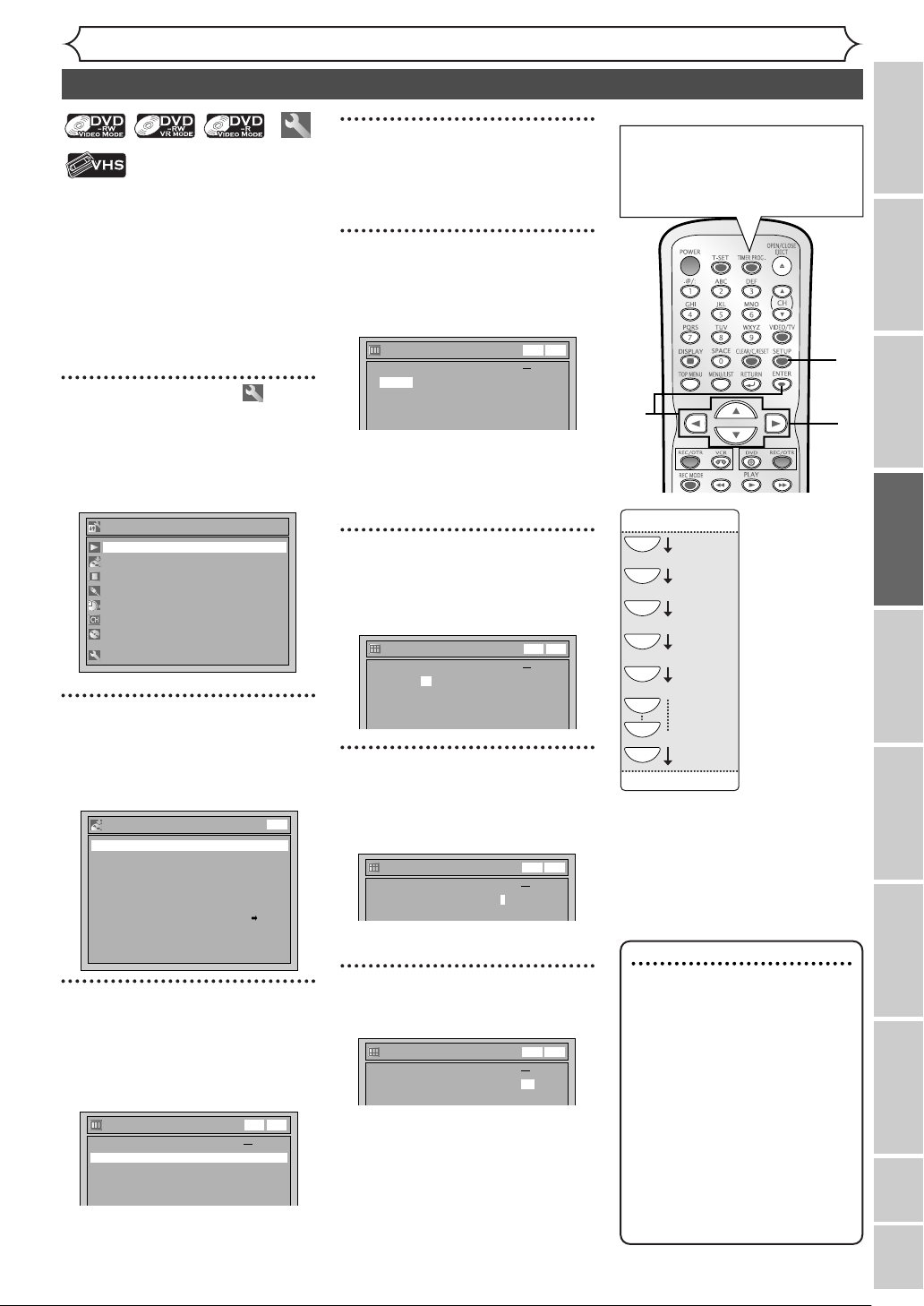

Recording

Timer Recording

You can program the unit to record

up to 8 programs, within a month in

advance. Daily or weekly program

recordings are also available.

• Be sure to set the clock before

programming a timer recording.

• Insert a recordable disc or a

videotape with an erase-protec-

tion tab.

SKIP 2

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Easy Setting Menu is displayed,

proceed to STEP 3.

Select “Recording” using

Cursor K / L, then press

ENTER.

Recording menu will appear.

Select “Timer Programming”

using Cursor

K / L, then press

ENTER.

Timer Programming list will appear.

Select the program which is

not set up using Cursor K / L,

then press ENTER.

Enter a date or a routine

option for Timer Programm-

ing using Cursor K / L.

e.g. January 1st

Cursor K changes date.

Cursor L will give you routine

option as described.

Enter the time to start and to

end using Cursor K / L, then

press Cursor B.

Select the channel number to

record using Cursor

K / L, then

press Cursor

To r ecord from external input, select

1 or L2.

Select a recording media using

Cursor K / L, then press ENTER.

Timer Programming

2. ---

1. JAN/01 12:57AM 1:57AM 8

DVD

Date Start End CH Speed

DVDVCR

DVD

VCR

Timer Programming

2. ---

1. JAN/01 12:57AM 1:57AM 8

DVD

Date Start End CH Speed

DVDVCR

DVD

VCR

Timer Programming

2. ---

3. ---

4. ---

1. JAN/01 12:57AM --:-- L1

DVD

Date Start End CH Speed

DVDVCR

DVD

VCR

Timer Programming

2. ---

3. ---

4. ---

1. JAN/01 --:-- --:-- L1

DVD

Date Start End CH Speed

DVDVCR

DVD

VCR

Timer Programming

2. ---

3. ---

4. ---

1. ---

Date Start End CH Speed

DVDVCR

DVD

VCR

DVD-RW Recording Format

Timer Programming

Recording Audio Select (XP)

Auto Finalize

Dubbing Mode

Auto Chapter

VR mode

Dolby Digital

VCR DVD

10 minutes

Recording

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Note

• If you have not set the

clock yet:

A clock setting window will

appear after STEP 3. Continue

with the STEP 3 in “Auto

Clock Setting” on page 22 or

“Manual Clock Setting” on

page 23 before setting a timer

programming.

•Press Cursor { / B on

move the cursor to the left

and the right on the timer

programming menu.

You can choose the timer pro-

gramming menu by pressing

TIMER PROG. In this case,

continue with STEP 4.

Daily

MON-SAT

JAN/01

JAN/31

MON-FRI

SAT

FRI

SUN

Instructions continue on page 36

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 35

Recording

Timer Recording (cont’d)

Select a recording speed using

Cursor K / L.

Refer to “Recording speed” on page 26.

If you choose Auto, the unit automati-

cally selects the best recording speed to

make the best quality picture according

to the remaining disc space.

• This function works only on the

Program 1 in the DVD recording.

• The recording may be cut short,

when the available recording space

of the disc is too limited.

Press ENTER when all informa-

tion required is entered.

Your program setting will be stored.

•

To set another program, repeat STEPs 4 to 10.

•

To exit, press TIMER PROG. or

SETUP.

•

When programs are overlapped,

“Overlap” and the overlapped program

number will appear on the display.

Press T-SET to turn off.

The unit will be set in the timer standby

mode. indicator will appear on the

front display.

•

Also the DVD or VCR indicates in the

display window which you set.

•

After this step, the available functions for

the other component will be limited to a

playback and basic recording.You can not

use SETUP or change output mode under

such conditions.

Timer Programming

2. ---

1. JAN/01 12:57AM 1:57AM 8

DVD

Date Start End CH Speed

DVDVCR

DVD

VCR

Press T-SET so that indicator

disappears from the front display.

Press TIMER PROG.

Timer Programming list will appear.

Check the information on the

list you will need.

To clear the timer programming,

select the program using

Cursor

K / L.Then, press CLEAR/C.RESET.

To correct the timer program-

ming, select the program using

Cursor K / L. Then, press

ENTER. Next, correct the timer

programming by using

Cursor K / L / { / B.

Finally, press ENTER again.

Press TIMER PROG. to exit.

Press T-SET to return to the

timer standby mode.

Timer Programming

2. ---

1. JAN/01 12:57AM 1:57AM 8

DVD

Date Start End CH Speed

DVDVCR

DVD

VCR

Canceling, or correcting the timer programming information

during the timer standby mode

Press STOP

C to stop the disc recording or STOP/EJECT C/A

to stop the videotape recording on the front panel of the main

unit. STOP

C on the remote control is not effective.

To stop the Timer Recording in progress

Note

•To confirm the timer pro-

gramming, press POWER

first and then TIME PROG.

when the unit is in timer

standby mode. Or, press

TIME PROG. while using

the side of the unit that is

free from Timer Recording

(either DVD or VCR).You

cannot select any programs

for correction or add new

programs while the unit is in

timer standby mode.

•

When all the Timer Recording

is completed, the indicator

flashes.To play or eject the

recorded disc (or the video-

tape), press

T-SET or

POWER first and then press

PLAY

or OPEN/CLOSE

(or STOP/EJECT

•

The unit will be turned on

automatically before the

recording time.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 36

Explanation on the front panel indicator during Timer Recording

Timer Recording (cont’d)

Recording

Playing discs EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Each error number means:

If the timer program did not complete correctly, the error number appears on the timer pro-

gramming list.

Timer Programming

2. ---

3. ---

JAN/01 12:57AM 1:57AM 8

DVD

E22

 Date Start End CH Speed

DVDVCR

DVD

VCR

Note

• If the end of programmed time in DVD and a start of programmed time in VCR are the same

, the indicator

of the front panel may not be switched from DVD to VCR automatically. However, the Timer Recording for VCR

is in progress normally. In such case, press

OUTPUT SELECT on the front panel or

VCR

on the remote

control to activate the display.This is not a malfunction.

E1-22 Recording error other than

E37-39 below

E23-24 Unrecordable disc

E25-28 Copy prohibited program

E29 Disc protected

E30 Disc full

1-32 Already 99 titles recorded

E33 Already 999 chapters recorded

E34 No space for Control information

E35 PCA full

E36 Already finalized Video format

disc

E40 Some portion has not been

recorded because of program

overlapping. Recording did not

start at the start time.

No videotape is inserted.

Videotape ran out during

recording.

1 Power failed

E42 No disc when recording

Note

•A program with the error

number is highlighted in gray

of the asterisked line in the

timer programming list.

• Once the timer programming

list with error indication is dis-

played, the program line(s)

with error will be cleared only

after the programs are can-

celed and reset to the timer

standby mode.

• The current recording pro-

gram will be highlighted in red.

Error number will appear

-An OTR is completed, and there is no other timer recordings in standby.

- The timer standby mode is cancelled by pressing

T-SET.

POWER is pressed during timer standby, and the component that is not

in timer standby mode is turned on.

- The unit entered into the timer standby mode.

-A Timer Recording or an OTR has started.

- When this indicator is on, you cannot use

SET UP.

- All timer recordings are completed.

(CLOCK) mark

VCR mark

DVD mark

- All VCR Timer Recordings are completed, and there is no other timer

recordings in standby.

-A VCR Timer Recording is cancelled by pressing

STOP/EJECT C/A on

the unit.

- The VCR timer standby mode is cancelled by pressing

T-SET.

POWER is pressed during VCR timer standby, and the unit switched to

the DVD mode.

- The VCR entered into the timer standby mode.

- The VCR entered into the timer standby mode when no tape or a tape

without an erase protection tap is in the unit.

- The tape runs out during Timer Recording.

- All DVD Timer Recordings are completed, and there is no other timer

recordings in standby.

The DVD timer standby mode is cancelled by pressing T-SET.only momentarily.

- POWER is pressed during DVD timer standby, and the unit switched to the

VCR mode.

- The DVD entered into the timer standby mode.

- The DVD entered into the timer standby mode when no disc or an

unrecordable disc is in the unit.

- The disc runs out of the space during Timer Recording.

Lights off

Lights on

Flashing

Lights off

Lights on

Flashing

Lights off

Lights on

Flashing

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 37

Timer recording (cont’d)

Recording

• If there is a power failure or the unit has been unplugged for more than 1

minute, the clock setting and all timer settings will be lost.

• If a programmed start and end time are the same, the recording will be set for

24 hours automatically.

• If a start time is earlier and an end time is later than the current time, the

recording will start right after you press T-SET.

• If a disc becomes full during timer recording, the unit turns itself off. In such

case, press

T-SET. Insert a new disc.And then press T-SET again to resume the

timer recording.

• If a tape reaches the end during timer recording, the unit automatically ejects

the tape. In such case, insert a new tape to resume the timer recording.

Timer Recording is in Standby

• Press T-SET.

• You cannot use any functions for either component (even after a timer record-

ing on one component has already began).

• You cannot change output mode or use

SETUP while the other component is

in timer standby.

• You can turn on the side of the unit that is not in timer standby by pressing

POWER,however you cannot use SETUP or change output mode.You only

can play or make a basic recording while the other component is in timer

standby.

• If a basic recording or an OTR is in progress on one component (e.g.VCR) and the timer recording set

for the other component (e.g. DVD) is about to begin, the unit automatically switches to the programmed

channel 2 minutes before the programmed starting time, and the recording in progress (for VCR) will be

cancelled UNLESS their recording channels are the same. If their recording channels are the same, the

timer recording (for DVD) will start without cancelling the recording currently in progress (on the VCR).

In this case, a recording of the same channel will be made on both DVD and VCR.

Timer Recording is in progress

• Press STOP C on the front panel of the Timer Recording side (VCR or DVD).

• The timer recording cannot be performed in DVD and VCR at the same time. If

you make two programmings withe the same channel and time in both compo-

nents, the program with a lower program number will be recorded.

• You cannot change channels.

Both DVD and VCR

DVD

VCR

Both DVD and VCR

Cancelling the Timer

stanby mode.

Either DVD or VCR

Both DVD and VCR

Notes on Timer Recording

Limited Functions during Timer Recording

Other Situations

Cancelling the Timer

Recording.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 38

Recording

Timer recording (cont’d)

PROG. 1

PROG. 2

Actual

recording

PROG. 2

When the recording time is entirely overlapped:

PROG. 1 will not be recorded.

PROG. 1

PROG. 2

Actual

recording

PROG. 2 PROG. 1

When the recording time is partially overlapped:

PROG. 1 will start after PROG. 2 is completed.

The first 30 seconds (at the longest) will be cut off

PROG. 1

PROG. 2

Actual

recording

PROG. 2

A programming set first has priority

When the starting time is same:

A program with a lower program number

(PROG. 1) has priority.

The first 30 seconds (at the longest) will be cut off

PROG. 1

PROG. 2

Actual

recording

PROG. 1 PROG. 2

PROG. 3

When some programmings have been made

around the ending time of the program

currently being recorded:

A program with a lower program number (PROG. 2)

has priority.

The first 30 seconds (at the longest) will be cut off

PROG. 1

Hints for Timer Recording

This unit prioritizes recording as follows if the timer programmings are overlapped.

A Timer Recording of lower priority will be canceled, start from the middle or stop on the way.

Check the overlapped timer programmings and change the priority if necessary.

The priority of overlapped settings

Note for DVD recording

PROG. 1

PROG. 2

Actual

recording

The first 30 seconds (at

the longest) will be cut off.

PROG. 2PROG. 1

When the ending time of the programming currently being recorded

and the starting time of the subsequent program are same:

If PROG. 1 is recorded on a DVD, the beginning of the PROG. 2 may be cut off.

The amount of time cut off differs depending on the recording media. For example, if both PROG. 1

and PROG. 2 are recorded on a DVD, the first 30 seconds (at the longest) of PROG. 2 will be cut off.

•

When the recording time of two

programs are overlapped, or the

ending time of a program and the

starting time of another is same, the

first 30 seconds (at the longest) of

the subsequent program will be cut

off.

•

If the cut-off portion reaches 1

minute or more, this program will

be displayed with error number E40

on the Timer Programming list.

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 39

Recording

Connection to an external source

Connect the external source properly to the unit by using input jacks either LINE2 (Front) or LINE1 (Rear).

When connecting an external equipment of monaural output to this unit, use AUDIO L jack of LINE1 (Rear)

or LINE2 (Front).

Use commercially available S-Video or Video cable and an Audio cable for this type of connection.

1. Press SETUP.

Easy Setting Menu or Advanced Setting Menu will

appear. If Advanced Setting Menu is displayed, pro-

ceed to STEP 3.

2. Select “Advanced Setting Menu” using

Cursor K / L, then press ENTER.

Advanced Setting Menu will appear.

3. Select “Select Video” using

Cursor K / L, then press ENTER.

Select Video menu will appear.

Select “L2 (Front)” using

Cursor K / L

, then

press ENTER.

5. Select the input jack type to connect using

Cursor K / L, then press ENTER.

If you want to use S-VIDEO INPUT, select “S-Video

In”. If you want to use VIDEO INPUT (Composite),

select “Video In”.

Select Video

L2 (Front) S-Video In

L1 (Rear) Video In

DVDVCR

(

Front

)

S-Video In

Video In

DVDVCR

Select Video

(

Front

)

Video In

(

Rear

)

Video In

DVDVCR

1. Press SETUP.

Easy Setting Menu or Advanced Setting Menu will

appear. If Advanced Setting Menu is displayed, pro-

ceed to STEP 3.

2. Select “Advanced Setting Menu” using

Cursor K / L, then press ENTER.

Advanced Setting Menu will appear.

3. Select “Select Video” using

Cursor K / L, then press ENTER.

Select Video menu will appear.

Select “L1 (Rear)” using

Cursor K / L

, then

press ENTER.

5. Select the input jack type to connect using

Cursor K / L, then press ENTER.

If you want to use S-VIDEO INPUT, select “S-Video

In”. If you want to use VIDEO INPUT (Composite),

select “Video In”.

Select Video

L2 (Front) Video In

L1 (Rear) S-Video In

DVDVCR

(

Rear

)

S-Video In

Video In

DVDVCR

Select Video

(

Front

)

Video In

(

Rear

)

Video In

DVDVCR

Settings for an external source

DVD DVD/VCR

ANTENNA

AUDIO OUT

AUDIO

OUT

DIGITAL

AUDIO OUT

COAXIAL

COMPONENT

VIDEO OUT

OUT

DVD

S-VIDEO

IN(L1)

OUT

DVD

DVD/ VCR

(L1)

AUDIO IN

VIDEO IN

Front of this unit Back of this unit

POWER

STOP/EJECT

REW F.FWD

REC/OTR

PLAY

DUBBINGCHANNEL

VCR DVD

OUTPUT SELECT

OPEN/CLOSE

STOP PLAY

REC/OTR

DVD/VCR

AUDIO IN

VIDEO IN

(L1)

S-VIDEO

IN(L1)

OUT

DVD

DVD/ VCR

S-INPUT

VIDEO

L(MONO) - AUDIO - R

S-INPUT

VIDEO

L(MONO) - AUDIO - R

To LINE 2 IN To LINE 1 IN

Another source

(VCR camcorder etc.)

VIDEOS- VIDEO AUDIO

OUTPUT

Audio

cable

S-Video

cable

VIDEOS -VIDEO AUDIO

OUTPUT

S-Video

cable

Audio

cable

Video

cable

Video

cable

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 40

Recording

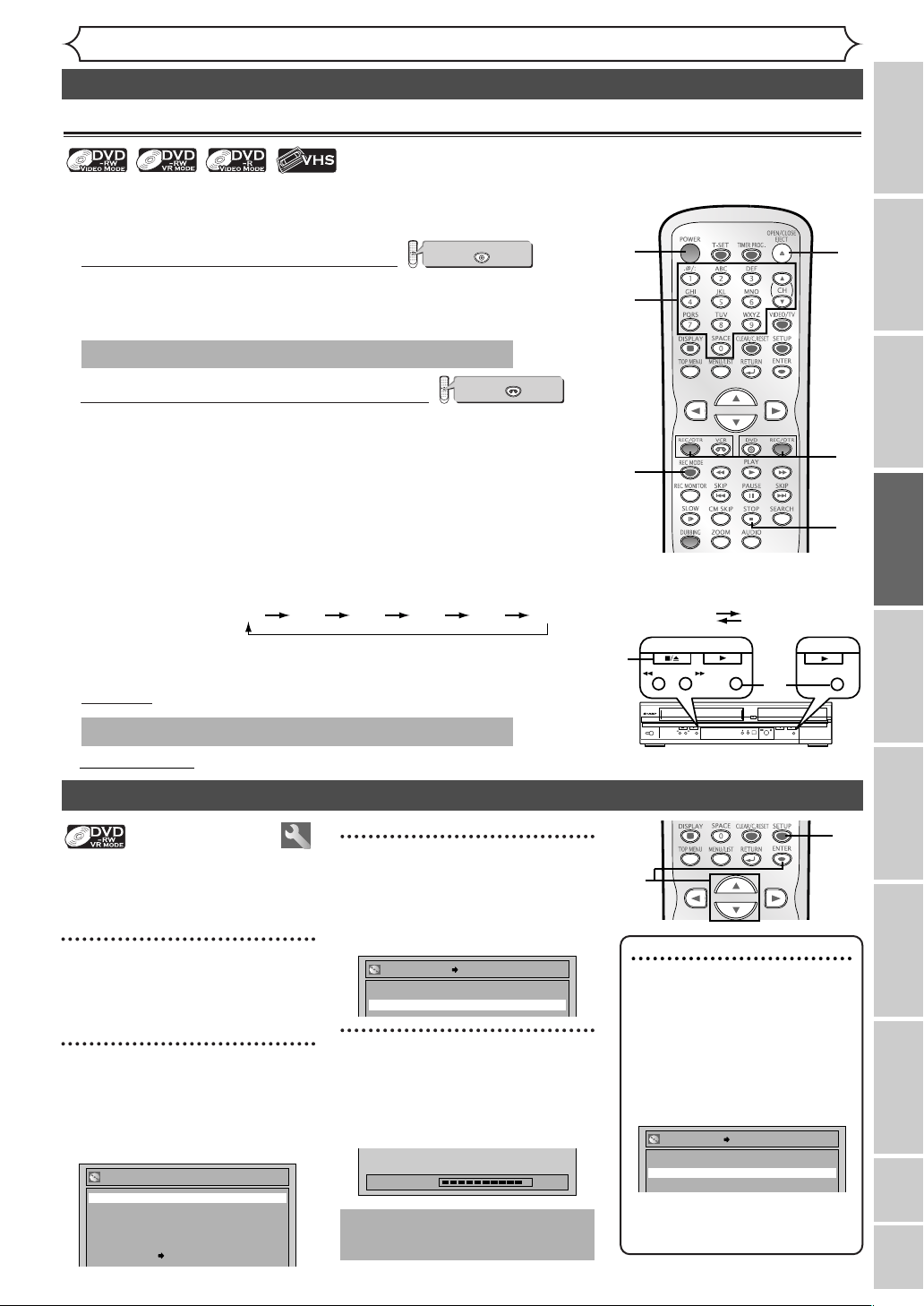

Recording from an external source

Settings for an external source (cont’d)

Before recording from an external source, see the instructions for the connection on page 40.

XP SP LP EP SLP SEP

VCR mode

SP SLP

DVD mode

Setting a disc to protect

To prevent accidental recording,

editing or erasing of the titles,

you can protect them from Disc

menu.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

Select “Disc” using

Cursor K / L, then press

ENTER.

Disc menu will appear.

Select “Disc Protect OFF ➔

ON” using Cursor K / L, then

press ENTER.

Option window will appear.

Select “Yes” using

Cursor K / L, then press

ENTER.

The disc will be protected.

Writing to Disc.

90%

Yes

Disc Protect OFF ON

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Note

• The Disc Protect setting is

available only for a DVD-RW

disc recorded in VR mode.

•

You can select only Disc Protect off

when a protected disc is inserted.

To cancel the disc protect:

•

When you insert a protected

disc in this unit,“Disc Protect

ON → OFF” will appear.

To cancel the protection setting for

the disc, select “Disc Protect ON →

OFF” at STEP 3, then select “Yes”.

Yes

Disc Protect ON OFF

1. Turn on the TV and the unit, and be sure to select the input

of the TV to which the unit is connected.

2.When you want to record to the disc:

Press OPEN/CLOSE EJECT A to open the disc tray, then

place the disc to record.

3. Press OPEN/CLOSE EJECT A to close the disc tray.

When you want to record to a videotape:

Insert the videotape with an erase-protection tab into the cassette

compartment.

4. Select the input of the unit which the external equipment is

connected (L2 or L1).

• To use the input jacks on the back of this unit, select “L1” position by

pressing 0, 0, 1 on the remote control or CH K / L.

• To use the input jacks on the front of this unit, select “L2” position by

pressing 0, 0, 2 on the remote control or CH K / L.

5. Select a recording speed by using REC MODE. Refer to

“Recording speed” on page 26 for DVD or page 95 for VCR.

6.Press REC/OTR to start recording.

7.Press Play on the external source to record from.

8.For disc: Press STOP C to stop recording.

press first.

VCR

This operation may take a while to be recognized.

press first.

DVD

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

For videotape:

Press STOP/EJECT C/A on the unit to stop recording.

This operation may take a while to be completed.

POWER

STOP/EJECT

REW F.FWD

REC/OTR

PLAY

DUBBINGCHANNEL

VCR DVD

OUTPUT SELECT

OPEN/CLOSE

STOP PLAY

REC/OTR

STOP/EJECT

REW F.FWD

REC/OTR

PLAY

REC/OTR

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 41

Recording

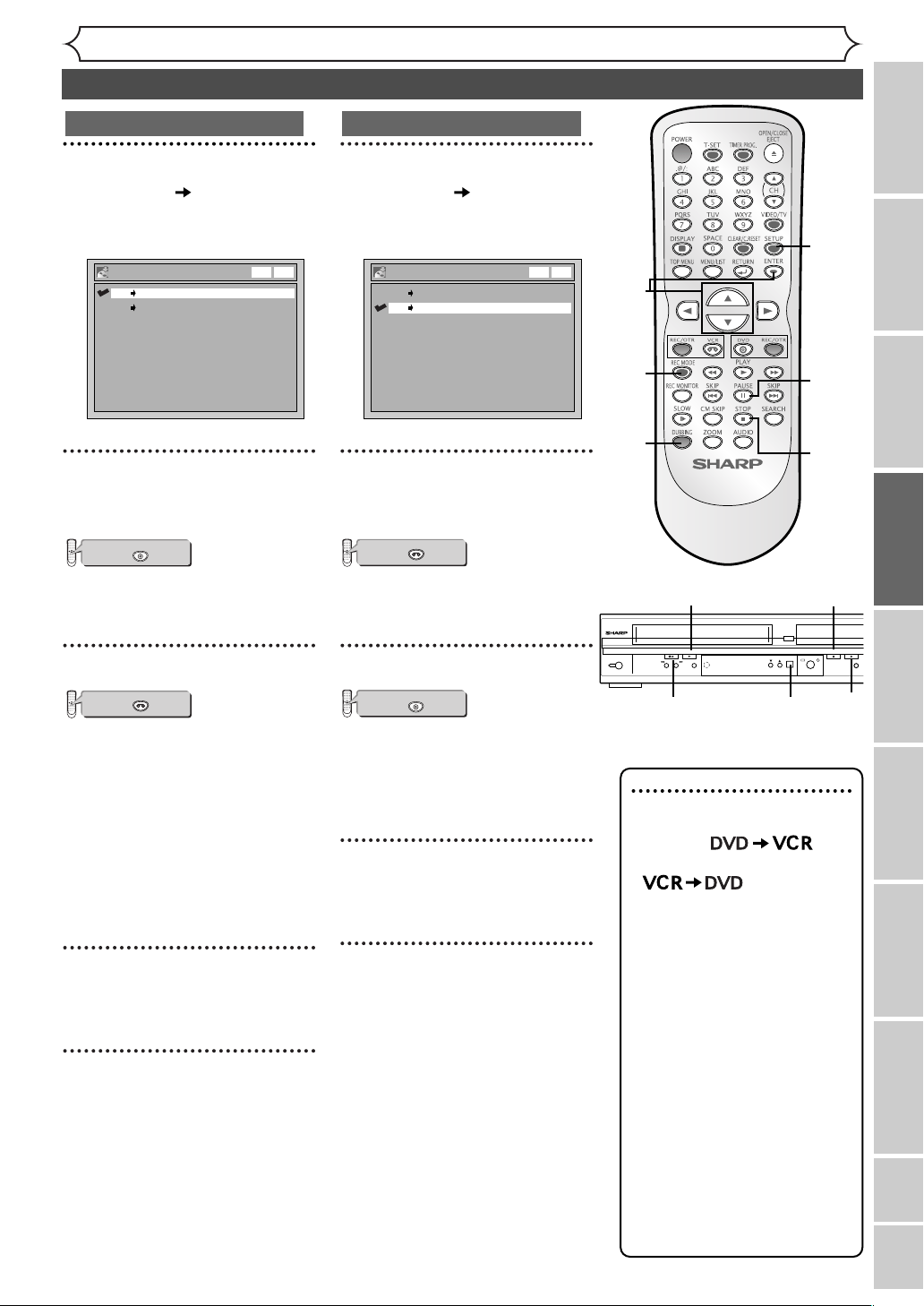

Dubbing Mode

You can copy a DVD disc to a

videotape or copy a videotape to a

DVD disc.This function will be pos-

sible only if the DVD disc or the

videotape is not copy protected.

Before starting this function, pre-

pare for the recording on the

DVD-RW/-R disc or the videotape.

Refer to pages 32-33, 95.

Make sure:

• Insert a recordable disc and a

videotape with an erase-protec-

tion tab.

Note for recording to a

videotape:

• The videotape's erase-protection

tab is intact.

• The remaining time of the video-

tape is long enough.

Note for recording to a disc:

•Make sure that the disc is

recordable. Refer to pages 26-27.

Press SETUP to display set-

ting menu.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Advanced Setting Menu is dis-

played, proceed to STEP 3.

Select “Advanced Setting

Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Recording” using

Cursor K / L, then press

ENTER.

Recording menu will appear.

Select “Dubbing Mode” using

Cursor

K / L, then press

ENTER.

Option window will appear.

Dubbing Mode

DVDVCR

VCR DVD

DVD VCR

DVD-RW Recording Format

Timer Programming

Recording Audio Select (XP)

Auto Finalize

Dubbing Mode

Auto Chapter

VR mode

Dolby Digital

VCR DVD

10 minutes

Recording

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

VCR/DVD RECORDER

COMBINATION

Note

For VCR to DVD duplication:

•After starting VCR to DVD

duplication, the picture may be

distorted because of the auto

tracking function.

This is not a malfunction. Be

advised to play back the video-

tape until the picture is stabi-

lized, then set the starting

point which you wish to start

recording, and start VCR to

DVD duplication.

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 42

Recording

Disc Playback EditingBefore you start Connections Getting started VCR functions Others

Español

Changing the Setting menu

Dubbing Mode (cont’d)

5-a

Select “VCR DVD” using

Cursor

K / L, then press

ENTER.

6-a

Press SETUP to exit Setting

menu.

Select a recording speed using

REC MODE.

7-a

Press PLAY B on the unit,

and then press PAUSE

F at

the point you wish to start

recording.

• Since it takes about a few sec-

onds before the actual dubbing

begins, please allow extra 5 sec-

onds when selecting the starting

point.

8-a

Press DUBBING.

VCR to DVD duplication will start.

9-a

Press STOP C on the unit or

STOP

C on the remote con-

trol to stop the recording.

5-b

Select “DVD VCR” using

Cursor

K / L, then press

ENTER.

6-b

Press SETUP to exit Setting

menu.

Select a recording speed using

REC MODE.

7-b

Press PLAY B on the unit,

and then press PAUSE

F at

the point you wish to start

recording.

8-b

Press DUBBING.

DVD to VCR duplication will start.

9-b

Press STOP/EJECT C/A on

the unit or STOP

C on the

remote control to stop the

recording.

press first.

DVD

press first.

VCR

Dubbing Mode

DVDVCR

VCR DVD

DVD VCR

DVD to VCR

press first.

VCR

press first.

DVD

Dubbing Mode

DVDVCR

VCR DVD

DVD VCR

VCR to DVD

VCR/DVD RECORDER

COMBINATION

6-b

POWER

STOP/EJECT

REW F.FWD

REC/OTR

PLAY

DUBBINGCHANNEL

VCR DVD

OUTPUT SELECT

OPEN/CLOSE

STOP PLAY

REC/OTR

8-b

9-a

9-b

Note

• When you turn off the unit

after setting the Dubbing

Mode to , the

setting will be set to

automatically.

•Dubbing Mode is available

only if the videotape or disc is

not copy protected.

•You cannot change the output

mode during VCR to DVD or

DVD to VCR duplication.

For DVD to VCR duplication:

• Only the Audio CDs can be

copied to a videotape.You can-

not copy MP3 files to a video-

tape.

For VCR to DVD duplication:

• The playback sound mode is

followed by the setting of

VCR playback sound mode on

page 97. Set the playback

sound mode to which you

wish to record to the DVD.

6-a

6-b

6-a

8-b

8-a

5-a

5-b

7-b

7-a

9-a

9-b

7-a

7-b

8-a

E9656UD_EN_1.qx4 05.7.15 11:55 AM Page 43

To cancel finalizing...

(DVD-RW only)

•To cancel finalizing at STEP 4,

press STOP C, select “YES”,

then press ENTER.Finalizing

is canceled and the unit will

be in stop mode.

•

If appear when pressing

STOP C,you cannot cancel

finalizing because the finalizing

has progressed to a certain

point.

•

When selecting “No” and press

ENTER or RETURN ,

finalizing will be continued.

•

You cannot cancel finalizing the

DVD-R disc once it has started.

Recording

Finalizing the discs

Note

• Finalizing discs in Video mode

automatically creates title

menus.

• Once you have finalized a disc

recorded in Video mode, you

can not edit or record any-

thing else on that disc.

Discs recorded in VR mode

can still be recorded and edit-

ed on this unit even after

finalization.

• When you insert a DVD-RW

disc finalized with this unit,

“Undo Finalize” will appear

instead of “Finalize”.

To reverse the finalization of

the disc, select “Undo

Finalize” at STEP 3.

* DO NOT power off during

finalization.This will result in

malfunction.

Disc

Original

Format

Undo Finalize

Disc Protect OFF ON

Playlist

You will need to finalize the discs

recorded in Video mode to play

them back on other DVD players.

Finalizing may take several minutes

up to an hour. (It can take up to

15 minutes for a disc recorded in

Video mode and 60 minutes for a

disc recorded in VR mode.)

A shorter recording period on the

disc will require a longer time

period for finalization. Do not

unplug the power cord during

finalization.

Details are on pages 26-27.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

Select “Disc” using

Cursor K / L, then press

ENTER.

Disc menu will appear.

Select “Finalize” using Cursor

K / L, then press ENTER.

Confirmation window will appear.

Select “Yes” using

Cursor K / L, then press

ENTER.

Finalizing will start.

Finalizing is complete.

Finalizing 100%

Finalizing 90%

Finalize

Yes

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

Finalizing 5%

Do you want to cancel ?

Yes No

This operation may take a

while to be completed.

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 44

Recording

VCR/DVD RECORDER

COMBINATION

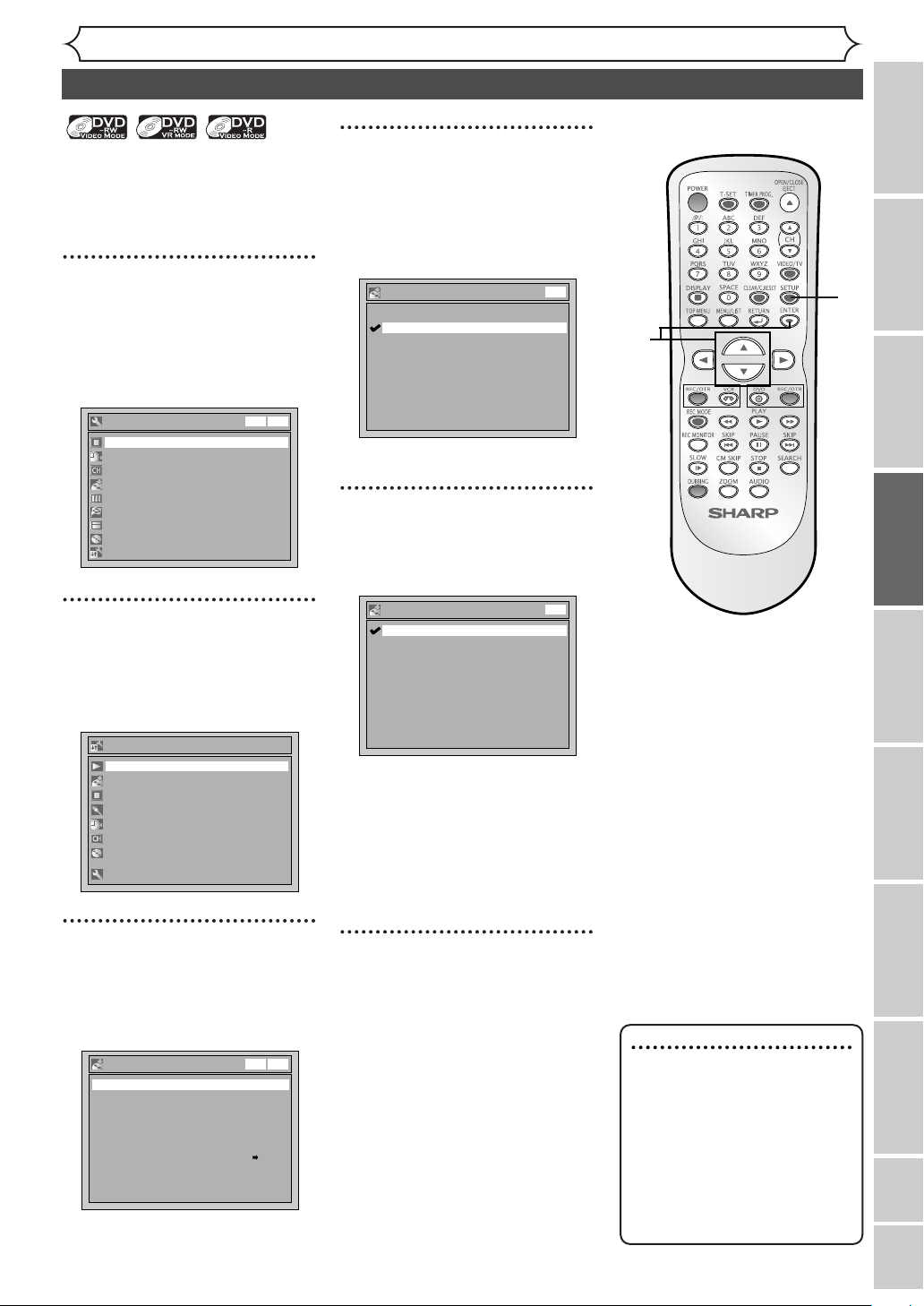

Finalizing the discs (cont’d)

You can finalize discs automatically

using Auto Finalize function. This

function automatically finalizes

discs after all Timer Recordings

are completed or when the disc

space runs out. This function is

available only for DVD-RW/-R

recorded in Video mode.

SKIP 2

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

If Easy Menu is displayed, proceed

to STEP 3.

Select “Recording” using

Cursor

K / L, then

press ENTER.

Recording menu will appear.

Select “Auto Finalize” using

Cursor

K / L, then

press ENTER.

Option window will appear.

Select “Disc Full” or “End of

Timer Rec” using Cursor

K / L, then press ENTER.

Option window will appear.

Select “ON” using Cursor

K / L, then press ENTER.

Your setting will be activated.

Press SETUP to exit.

Auto Finalize - End of Timer Rec

OFF

DVD

Auto Finalize - Disc Full

OFF

DVD

Auto Finalize

End of Timer Rec OFF

Disc Full OFF

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Note

• Auto Finalize function is not

available for discs recorded in

VR mode.

Auto finalize

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 45

Disc Playback

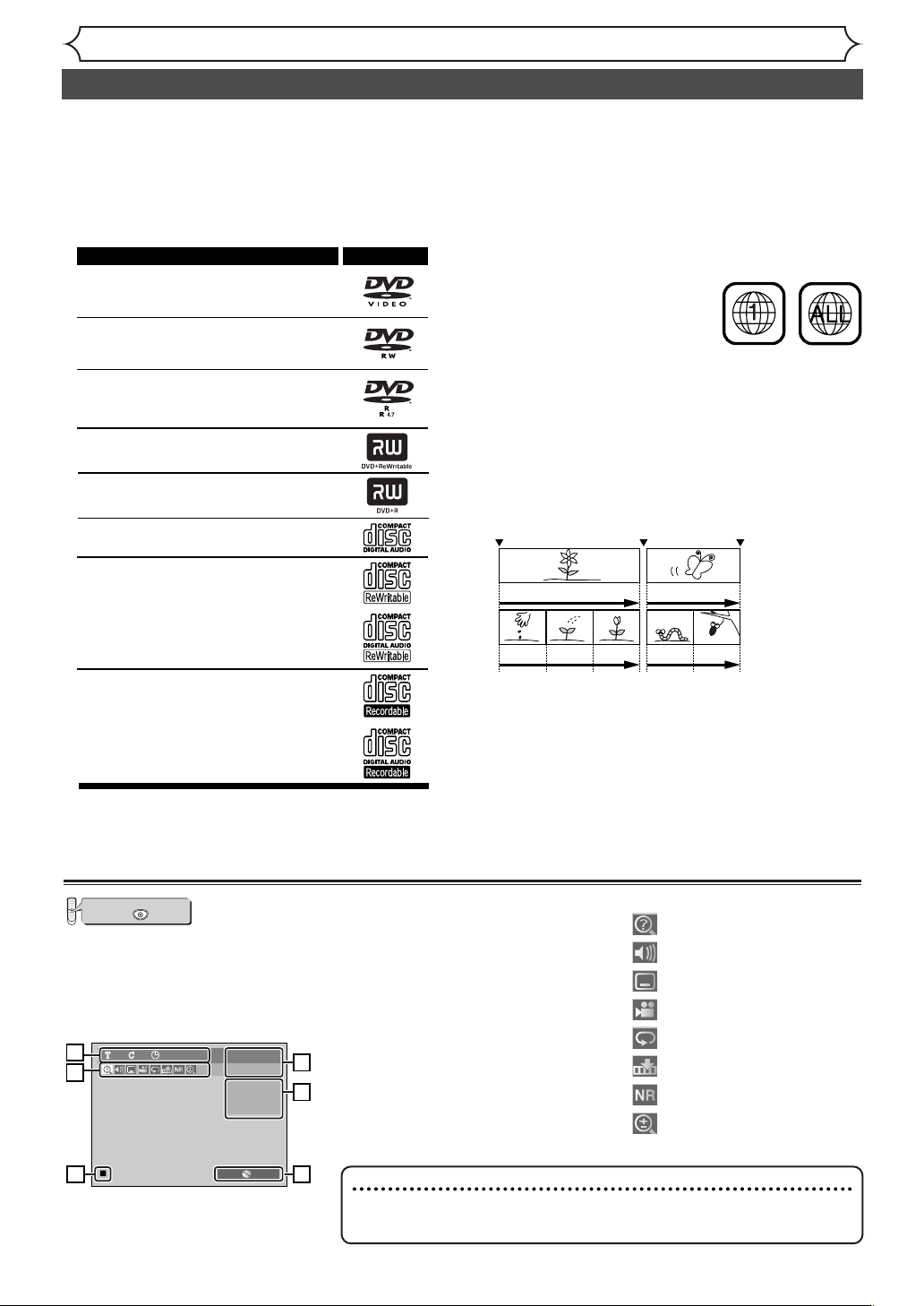

Information on DVD playback

Before you attempt to play back DVD discs, read the following information.

Guide to displays

Playable discs

This unit is compatible with the following discs.

To play back a DVD, make sure that it meets the requirements

for Region Codes and Color Systems as described below.

Discs with the following logos can be played back on the unit.

Other Disc types are not guaranteed to be played back.

* Some DVD+RW/+R discs may not be operated properly because the

unit conforms to the discs recorded in DVD-RW/-R format.

Color systems

DVDs are recorded in different color systems throughout

the world.The most common color system is NTSC

(which is used primarily in the United States and Canada).

This unit uses NTSC. You must use DVDs recorded in

the NTSC system. You cannot play back DVDs recorded

in other color systems.

Region codes

This unit has been designed to play

back DVD discs with Region

One (

1). DVDs must be labeled for

ALL regions or for Region

1.You

cannot play back DVDs labeled for

other regions. Look for the symbols below on your DVDs.

If these region symbols are not on your DVD, you cannot

play back the DVD on this unit.

The number inside the globe refers to region of the world.

A DVD labeled for a specific region can only be played

back on a DVD recorder with the same region code.

Hints for DVD playback

The contents of DVD disc are generally divided into titles.

Titles may be further subdivided into chapters.

Start Rec. Stop/Start Stop Rec.

Title 1 Title 2

Chapter 1 Chapter 1Chapter 2 Chapter 3 Chapter 2

LogoDisc

DVD VIDEO

DVD-RW (VIDEO/VR mode)

DVD-R (VIDEO mode)

CD-DA (AUDIO CD)

CD-R (CD-DA FORMAT, MP3 files)

CD-RW (CD-DA FORMAT, MP3 files)

*DVD+RW

*DVD+R

Press DISPLAY to call up the

display menu.This menu will give

you the information on the disc

currently played back. Some oper-

ations are available during disc

playback.

1. Indicates a disc type and a

format mode.

Note:

In some descriptions on this

manual, only one disc type is

indicated as an example.

2. Indicates a current channel

number and an audio status of

the program.

3. Indicates a recording speed

and possible recording time

left.

4. Indicates a title number, chap-

ter number, and the time

elapsed of disc playback.

5. Each icon means:

6. Indicates current disc status.

: Search

: Audio

: Subtitle

: Angle (except VR mode)

: Repeat

: Marker

: Noise Reduction

: Zoom

11 - - : - - : - -

XP 0:58

DVD-RW

Video mode

CH 8

Stereo

press first.

DVD

Note

• This is an example screen only for explanation.

Displayed items are depending on the actual mode.

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 46

VCR/DVD RECORDER

COMBINATION

Disc Playback

Playback

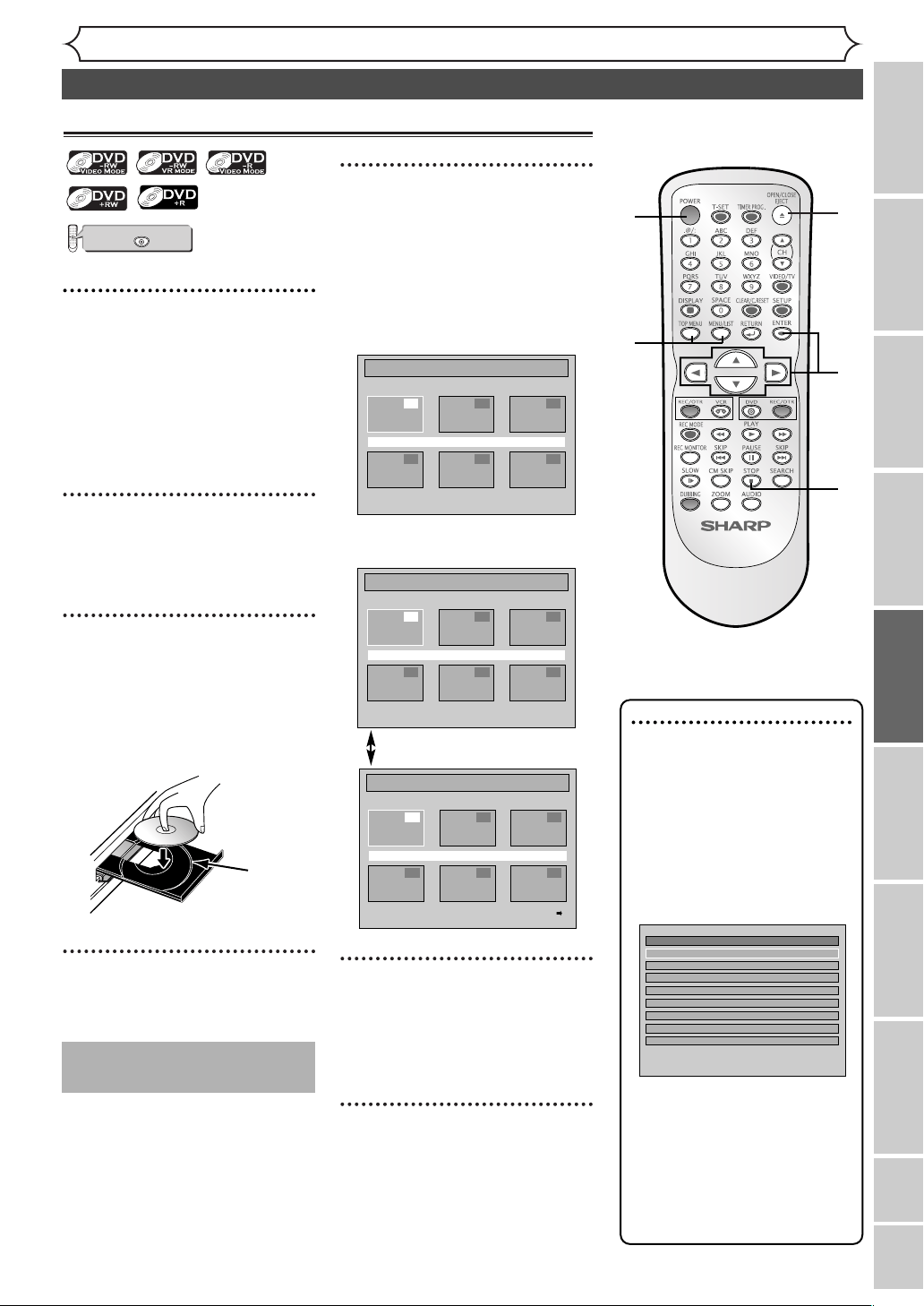

Basic playback

Note

•For DVD-RW (Video mode),

DVD-R (Video mode), and

DVD+R discs which are

already finalized and

DVD+RW discs, a Title Menu

will be displayed instead of

thumbnails.

Screen for the Disc finalized

on this unit:

•You can resume playback

from the point you stopped

playback (Resume playback).

Refer to page 51 for details

about resume playback.

• Some discs may start playback

automatically.

Title Menu

1 CH 10 XP

2 CH 10 XP

3 CH 8 LP

4 CH 8 LP

5 CH 8 EP

Press POWER on the remote

control or the front panel of

the unit.

When you are playing back a

DVD, turn on the TV and be sure

to select the input to which the

unit is connected.

Press OPEN/CLOSE EJECT A

to open the disc tray.

The disc tray will open.

Place the disc on the disc tray

with its label facing up and

make sure to align the disc to

the disc tray guide.

Press OPEN/CLOSE EJECT A

to close the disc tray.

Press TOP MENU to display

the title menu.

You can change “Original” or

“Playlist” of VR mode using

MENU/LIST.

Screen for DVD-RW/-R in

Video mode:

Screen for DVD-RW in VR

mode:

MENU/LIST button

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Playback will start.

Press STOP C to stop play-

back.

To e j ect the disc, press

OPEN/CLOSE EJECT A to

open the disc tray, then remove

the disc before turning off the unit.

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Original

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Title List

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

disc

tray

guide

press first.

DVD

1 2

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

The unit may take a while to

recognize the disc type.

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 47

Disc Playback

Basic playback (cont’d)

Press POWER on the remote

control or the front panel of

the unit.

When you are playing back a

DVD, turn on the TV and be sure

to select the input to which the

unit is connected.

Press OPEN/CLOSE EJECT A

to open the disc tray.

The disc tray will open.

Place the disc on the disc tray

with its label facing up and

make sure to align the disc to

the disc tray guide.

Press PLAY B to start play-

back.

Playback will start.

If you are playing back a DVD-

Video, a menu may appear.

Refer to page 49 for details about

a disc menu.

Press STOP C to stop play-

back.

press first.

DVD

Note

• Some discs may start playback

or bring up the File List auto-

matically.

Note

• The audio source of MP3 files

cannot be recorded as digital

sound by an MD or DAT

deck.

• Files whose extension is

other than “.mp3(MP3)” will

not appear in the File List.

• Some unplayable folders or

tracks may appear in the File

List due to the recording status.

VCR/DVD RECORDER

COMBINATION

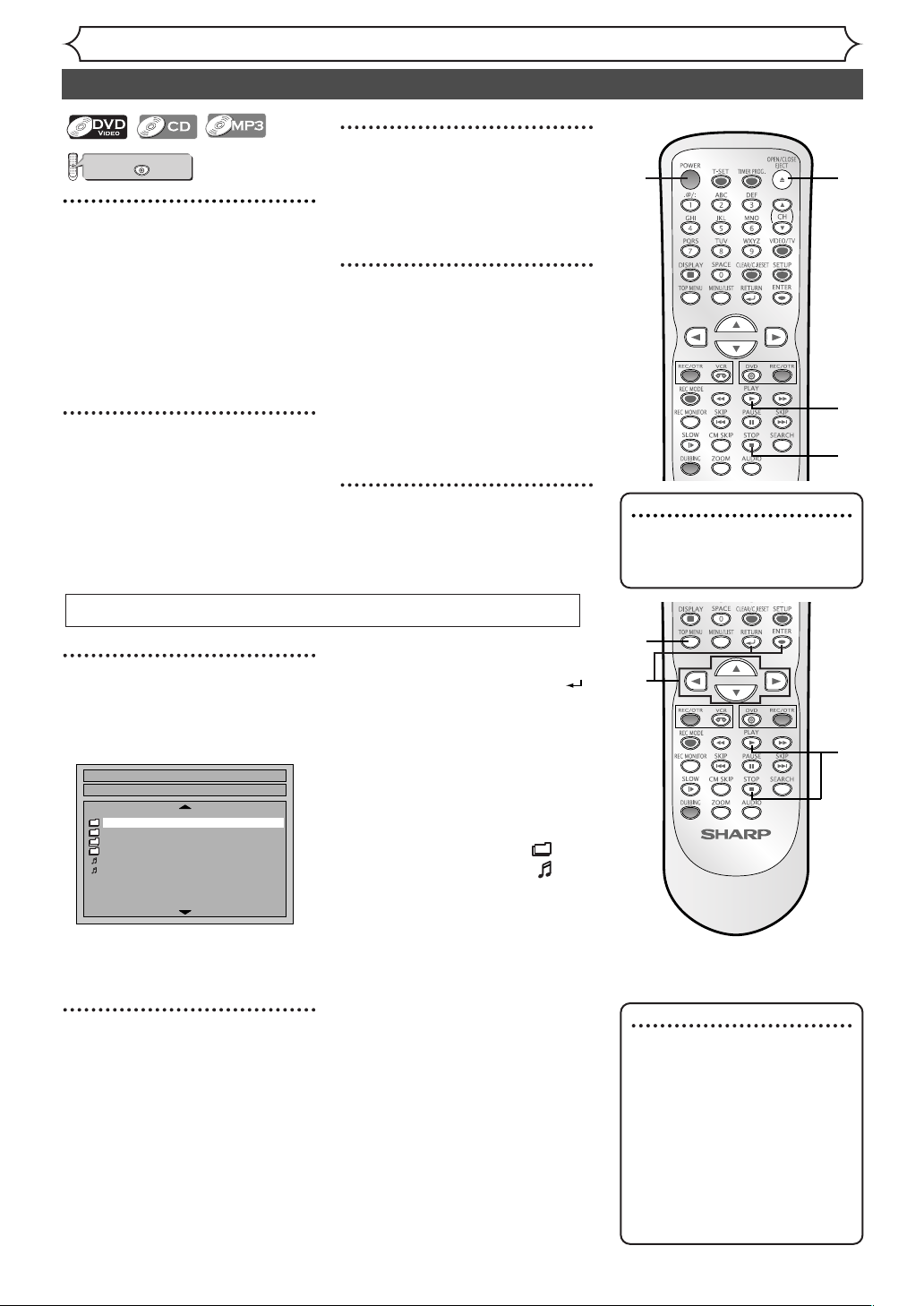

For MP3 playback

In stop mode, press

TOP MENU to call up the

File List.

•To exit the File List, press

TOP MENU again.

Press

Cursor

K / L to select a

desired folder (group) or track,

then press ENTER.

When selecting track:

Playback will start.

When selecting the folder:

The files in folder will appear.

Press Cursor

to select the track

or file you want, then press ENTER.

•

Press PLAY

,ENTER or

Cursor

to move to the lower hierarchies.

•

Press

Cursor

or RETURN

to move back to the previous hier-

archy.

•Press STOP C to return to the

first item.

Hints for MP3 files:

•Folders are known as Groups,

files are known as Tracks.

•

Folders are accompanied by icon.

•

MP3 files are accompanied by icon.

Playback will start from the selected

track and go to the next one in turn.

•

The unit can recognize up to 255 groups

(or folders) and tracks.

•

The name of group and track can

be displayed in up to 29 charac-

ters. Unrecognizable characters

will be replaced with asterisks.

• If there are no files in the folder,

“No Files” will be displayed.

•For MP3 file recorded in Variable

Bit Rate (VBR), the unit may not

display the actual elapsed time.

This unit recommends the files record-

ed under the following circumstances:

•

Sampling frequency: 44.1kHz or 48kHz.

•

Constant bit rate: 112kbps - 320kbps.

File List

DISC NAME

FOLDER NAME 1

FOLDER NAME 2

FOLDER NAME 3

FOLDER NAME 4

3 FILE NAME 3

4 FILE NAME 4

1/2

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 48

Disc Playback

Basic playback (cont’d)

Note

• Menus vary among discs.

Refer to the information

accompanying the disc for

details.

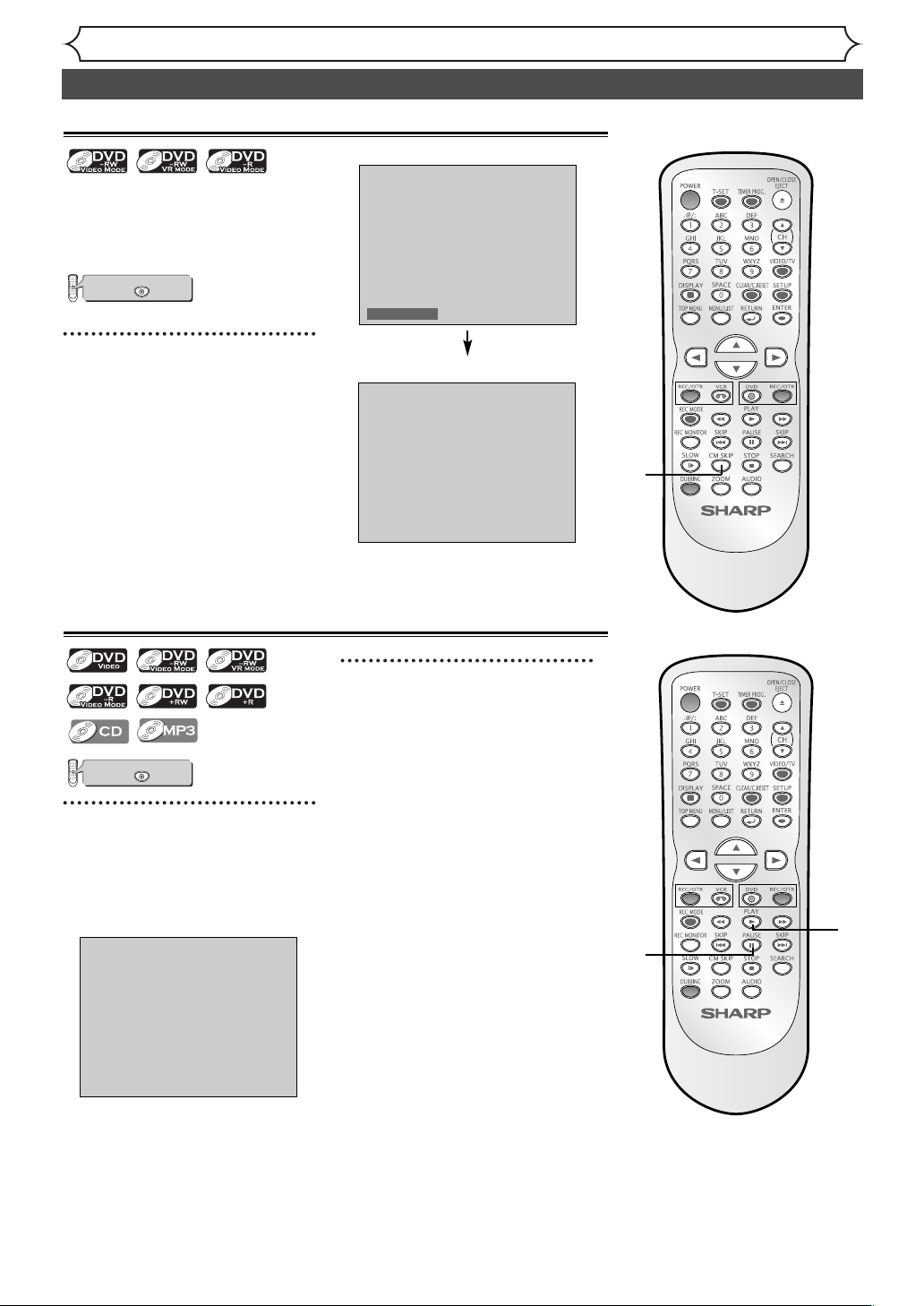

Playing back discs using the disc menu

A DVD disc contains a disc menu

that describes the contents or

allows you to customize the play-

back. For example, the menu may

offer choices for subtitle lan-

guages, special features, or chapter

selection.

Some discs display them automati-

cally when you start playback. For

others, they only appear when

you press MENU/LIST.

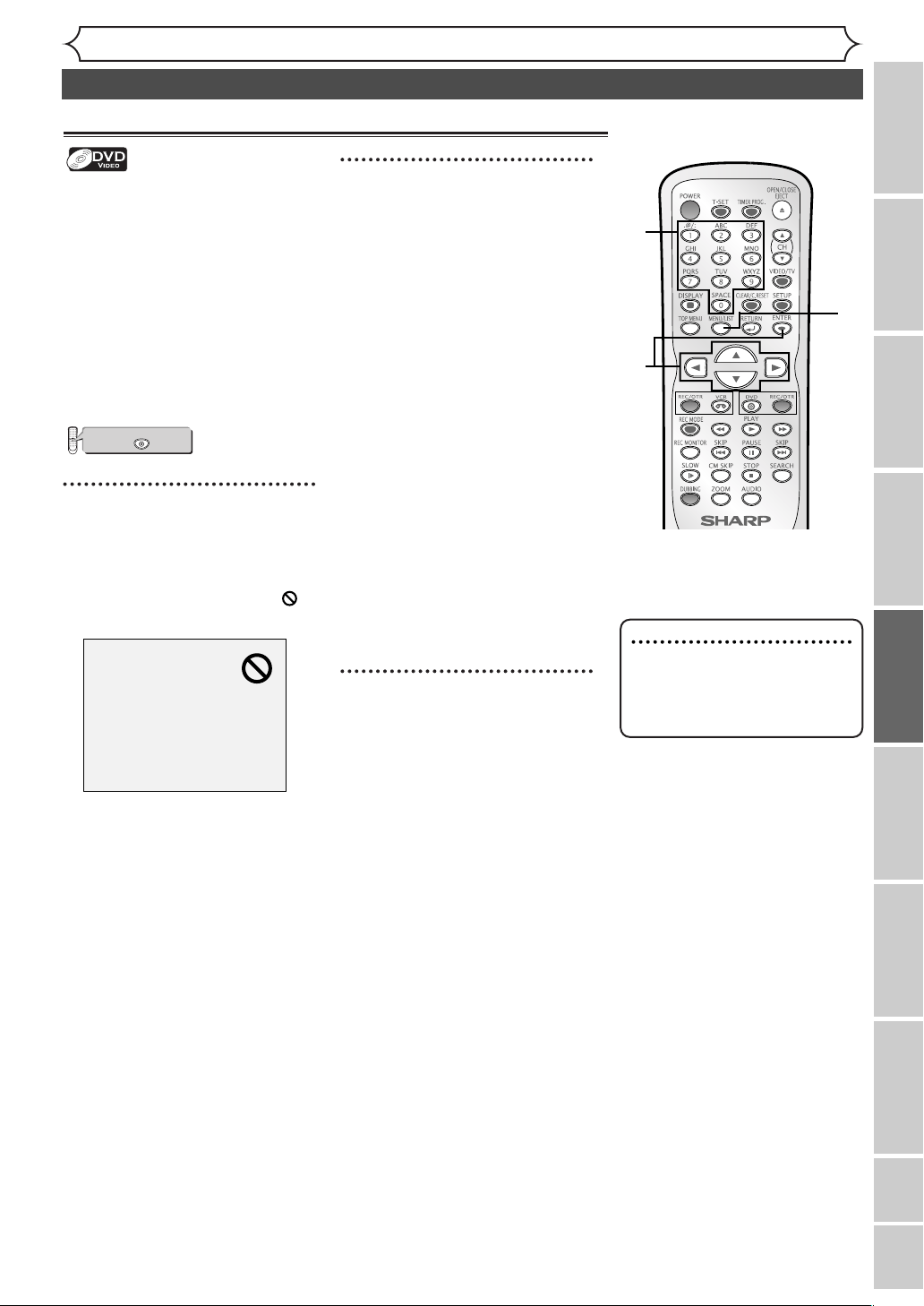

Press MENU/LIST.

The DVD main menu will appear.

If the feature is not available,

may appear on the TV screen.

Select an item using

Cursor K / L / { / B, then

press ENTER to confirm.

Continue this step to set up all

the features you want or to start

playing back the disc from the

menu.

MENU/LIST button:

Displays a DVD disc menu. It may

be the same with the “Title

menu”.

Cursor K / L / { / B buttons:

Moves the cursor on the screen.

ENTER button:

Selects the currently highlighted

menu option.

Number buttons:

Selects a numbered menu option

(available only on certain discs).

(Press ENTER after.)

Press MENU/LIST to exit.

press first.

DVD

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 49

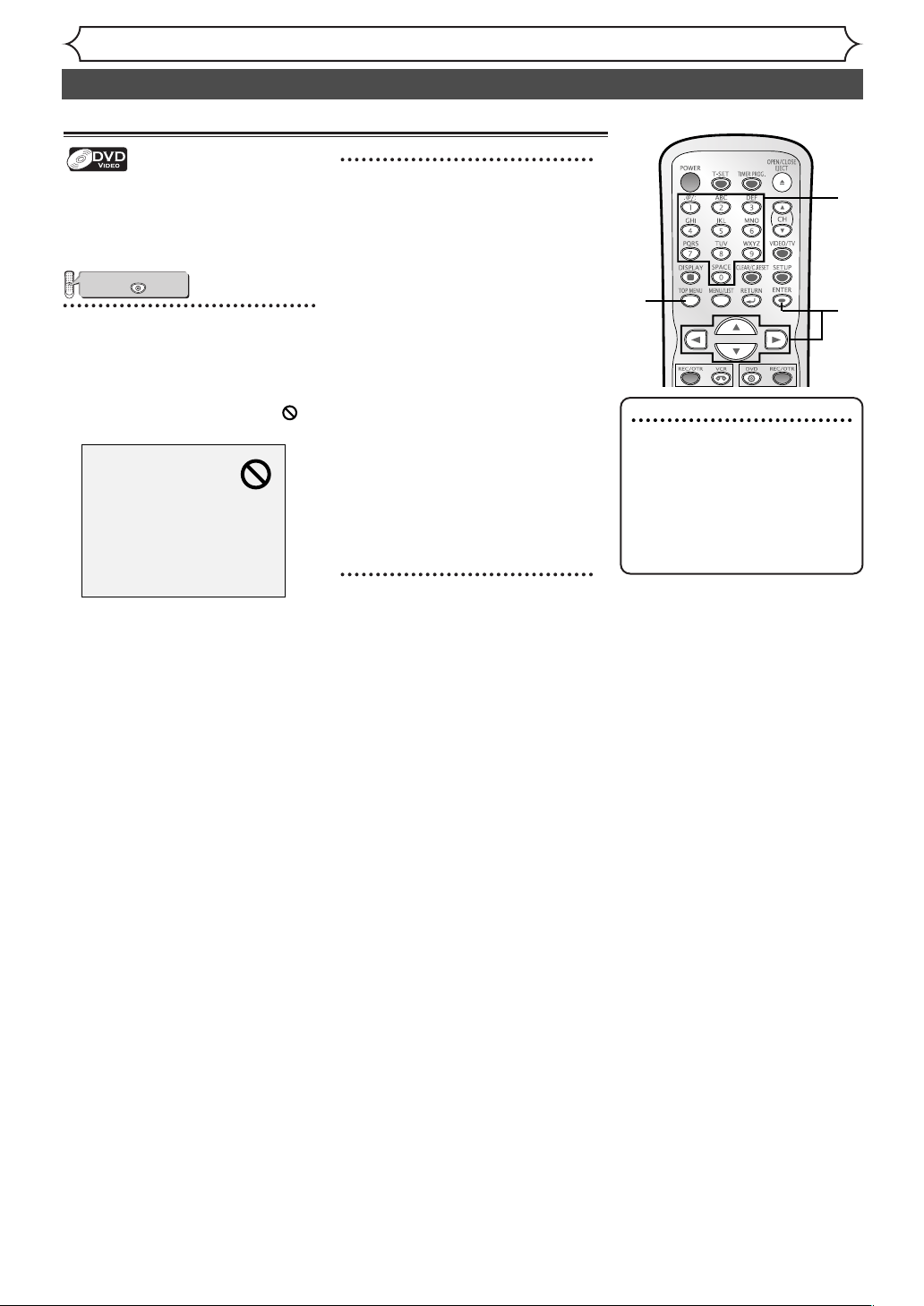

Disc Playback

Basic playback (cont’d)

Note

• The TOP MENU button will

not always be active with all

DVDs.

• Menus vary among discs.

Refer to the information

accompanying the disc for

details.

Playing back discs using the title menu

Some DVDs have a title menu,

which lists the titles available on

them. It helps you to start play-

back of a specific title.

Press TOP MENU.

The title menu will appear.

If the feature is not available,

may appear on the TV screen.

Select a title to play back

using Cursor K / L / { / B,

then press ENTER.

Playback will begin at the title you

selected.

TOP MENU button:

Displays the “Title menu” of a

DVD disc.

Cursor K / L / { / B button:

Moves the cursor on the screen.

ENTER button:

Selects the currently highlighted

menu option.

Number buttons:

Selects a numbered menu option

(available only on certain discs).

(Press ENTER after.)

Press TOP MENU to exit.

press first.

DVD

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 50

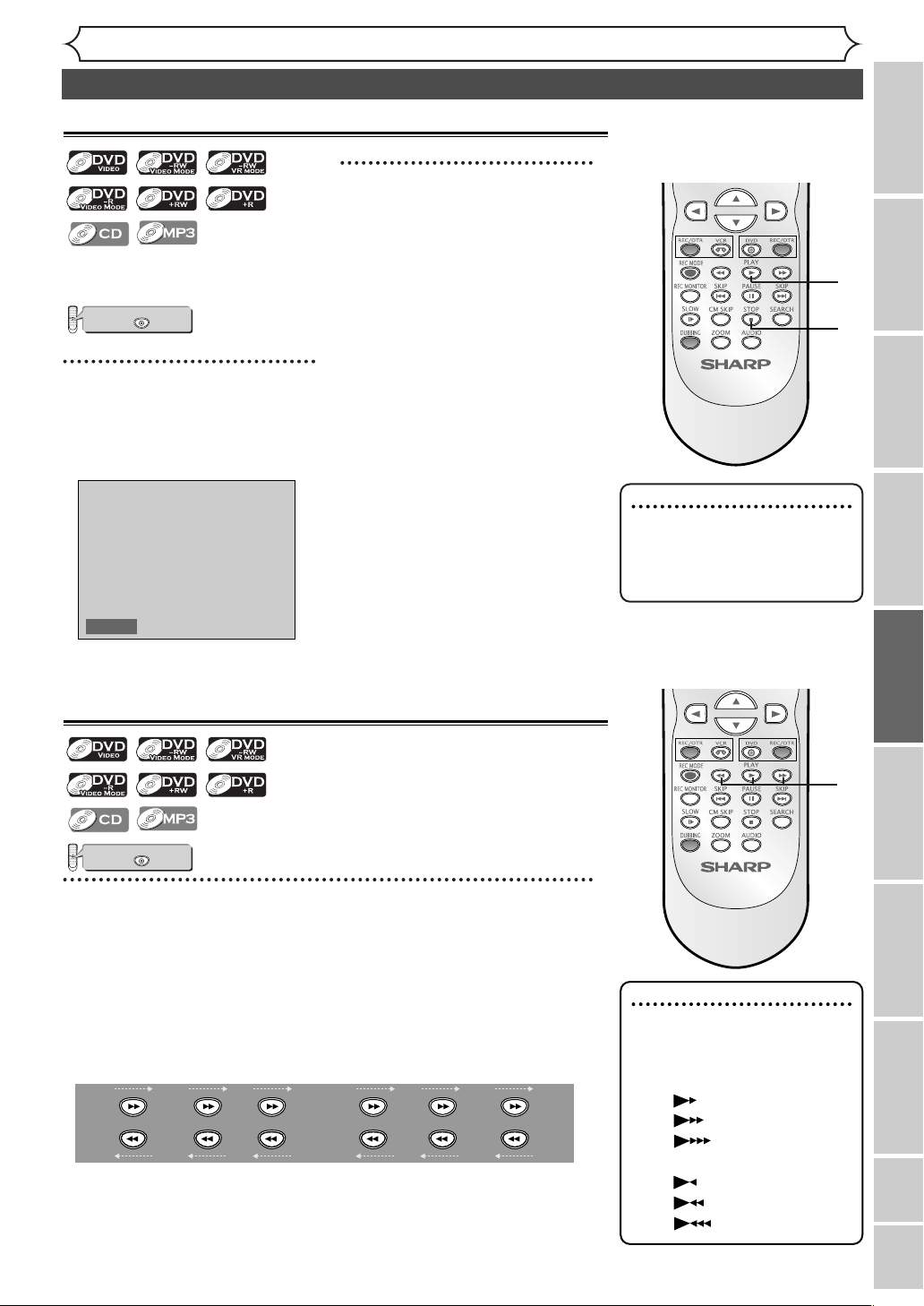

Disc Playback

Special playback

Resume playback

You can resume playback from

where you stopped it last time.

During playback, press

STOP C.

The resume message will appear.

Press PLAY B.

Within a few seconds, playback

will resume from the point at

which it stopped last. You can

resume playback at the same

point even if you turn off the unit.

To cancel resuming and start disc

playback from the beginning, press

STOP C again while the playback

is stopped.

Resume ON

press first.

DVD

Fast forward / Fast reverse

During playback, press D or E.

Every time you press D or E,approximate speed will be changed as

follows. For DVD discs, sound will be output during x1.5 fast forward

only if you set “Fast Forward with Audio” to “ON” at the “Playback”

setting in the setting menu.

Fast forward or fast reverse playback across titles (for DVD discs) or

tracks (for MP3) is not possible.

For Audio CDs, approximate speed is fixed at x8 with sound.

For MP3 files, approximate speed is fixed at x

16.

To r eturn to the normal playback, press PLAY B.

x20

Normal

speed

playback

x1.5 x20x5 x40x40

press first.

DVD

Note

•Forward/reverse speed will be

indicated with icons as fol-

lows.

Forward (Approx. Speed)

1.5

x20:

x40:

Reverse (Approx. Speed)

x5:

x20:

x40:

VCR/DVD RECORDER

COMBINATION

Note

•For MP3 file, playback will

resume from the beginning of

the track which you stopped

playing back.

VCR/DVD RECORDER

COMBINATION

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 51

Disc Playback

Special playback (cont’d)

Skipping TV commercials during playback

You can skip TV commercials by

pressing CM SKIP in order to

enjoy the recorded programs

without interruption.

During playback, press

CM SKIP.

Normal playback will start at 30-

second advanced point from

where you press CM SKIP.

Every time you press CM SKIP,

the playback starting point will be

extended by 30 seconds ahead.

You can press up to 6 times (180

seconds).

e.g. Press

CM SKIP once.

(forwarding 30 seconds.)

Playback will restart automatically.

CM Skip 30sec.

press first.

DVD

Pause

During playback, press

PAUSE F.

Playback will pause and sound will

be muted.

Press PLAY B to resume

playback.

press first.

DVD

VCR/DVD RECORDER

COMBINATION

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 52

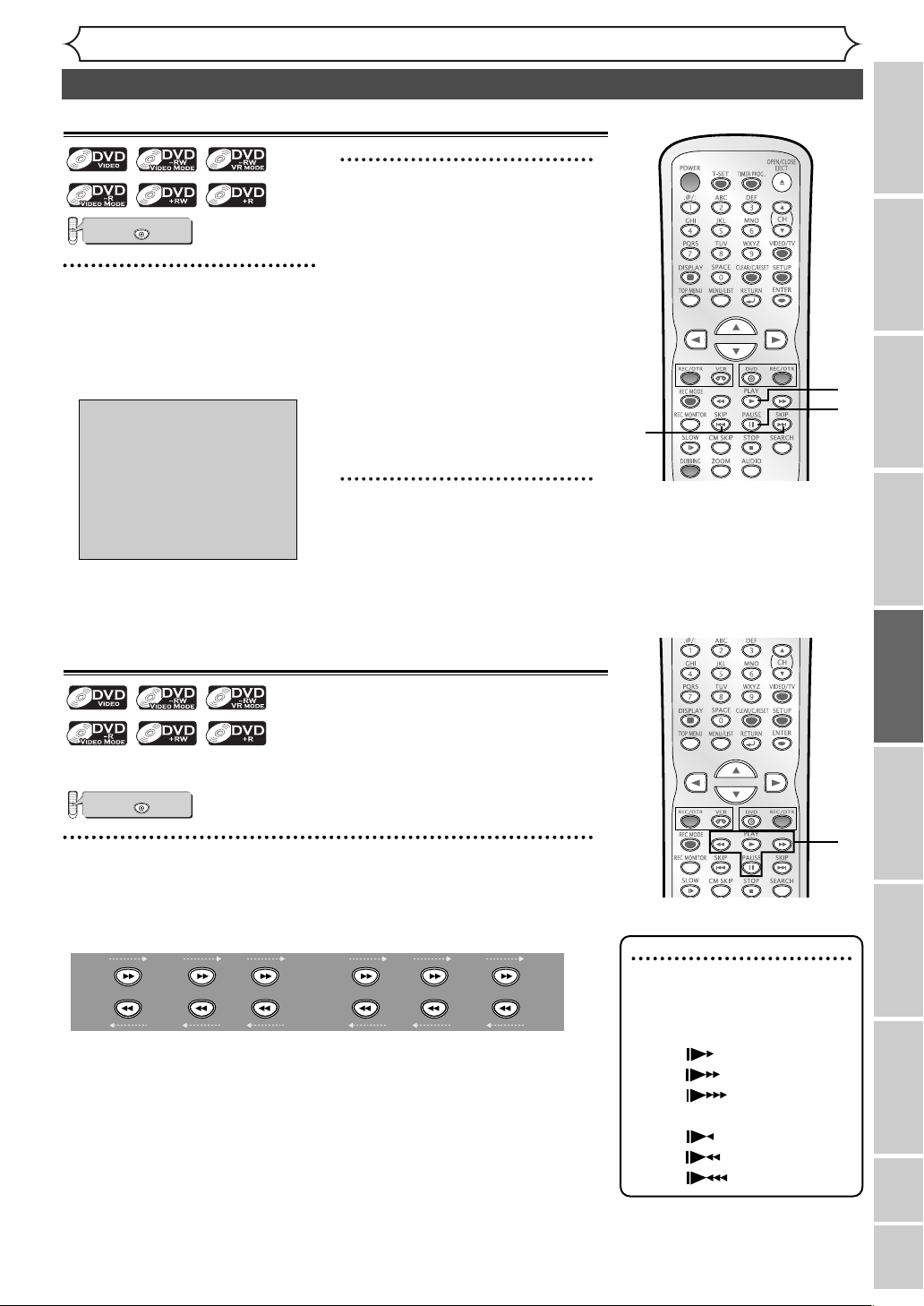

Disc Playback

Special playback (cont’d)

Step by step playback

During playback, press

PAUSE F.

Playback will be paused and sound

will be muted.

Press SKIP G repeatedly.

The playback will advance one

frame (or step) at a time when

you press SKIP G.The sound

will be muted.

To play back step by step

backward:

Press SKIP H repeatedly.

Every time you press the button,

the playback will go backward by

one frame at a time.

Press PLAY B to resume

playback.

press first.

DVD

Slow forward / Slow reverse playback

During playback, press PAUSE k, then press D or E.

Every time you press D or E,approximate speed will change as fol-

lows. (The sound will remain muted.)

To r eturn to the normal playback, press

PLAY B.

x1/8

Pause

x1/16x1/8x1/16x1/2x1/4

press first.

DVD

Note

•Forward/reverse speed will be

indicated with icons as fol-

lows.

Forward (Approx. Speed)

x1/16:

x1/8:

x1/2:

Reverse (Approx. Speed)

x1/16:

x1/8:

x1/4:

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 53

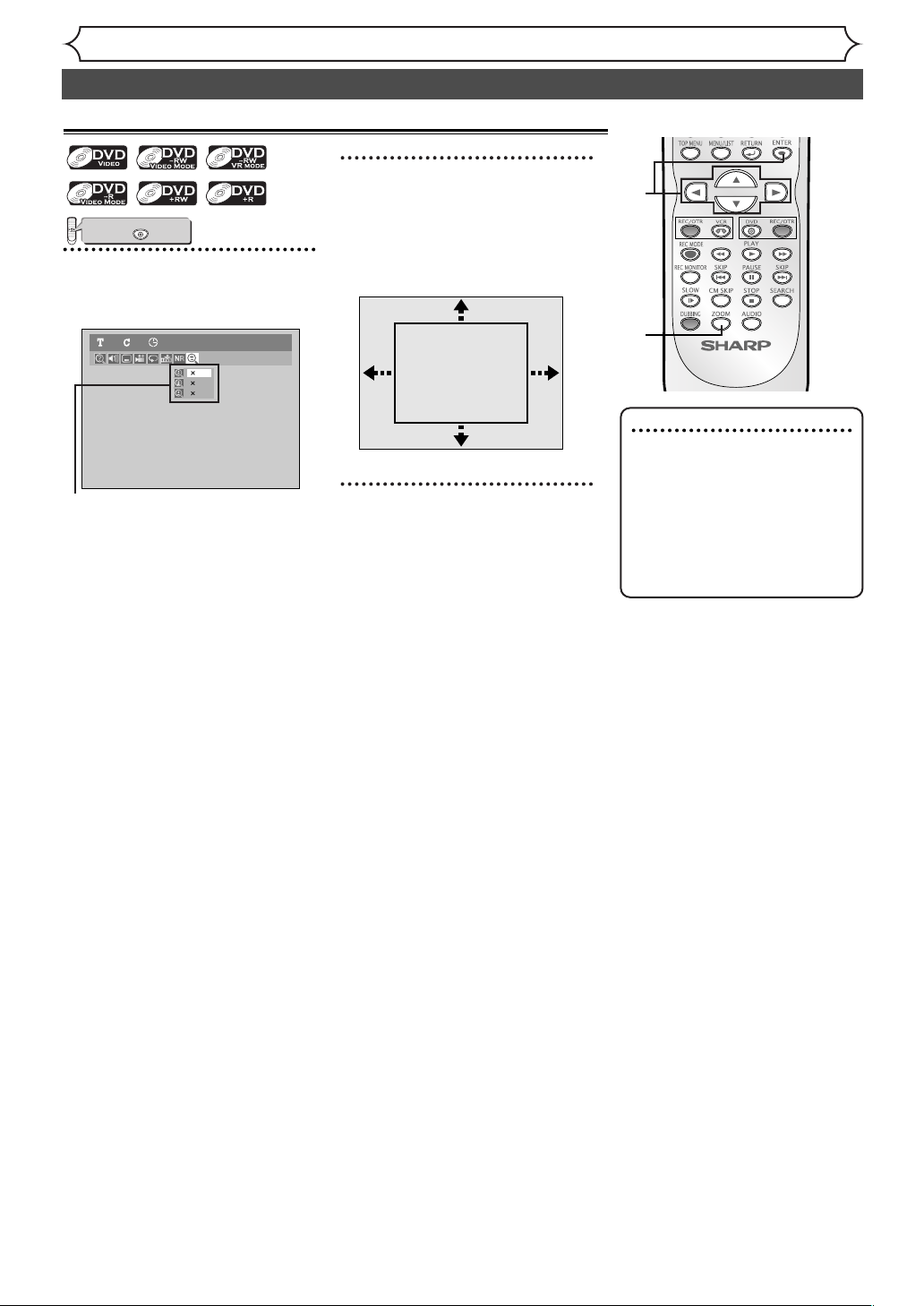

Disc Playback

Special playback (cont’d)

Zoom

During playback, press ZOOM.

Zoom menu will appear.

There are four options (x

1.0, x1.2, x1.5

and x2.0), which will be displayed

excluding the current zoom rate.

Select a desired zoom factor

to zoom using Cursor

K / L

then press ENTER.

The zoom area will be displayed.

Select a desired zoom position

using

Cursor

K / L / { / B, then

press ENTER.

The zoom playback will start.

1.2

1.5

2.0

DVD-Video11 0:00:00

press first.

DVD

Note

•When selecting a smaller factor

than the current one, the zoom

area will not be displayed.

•To remove the zoom menu, press

ZOOM again at STEP 1.

•To cancel the zoom function,

select x1.0 using Cursor

K / L

then press ENTER.

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 54

Disc Playback

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Special playback (cont’d)

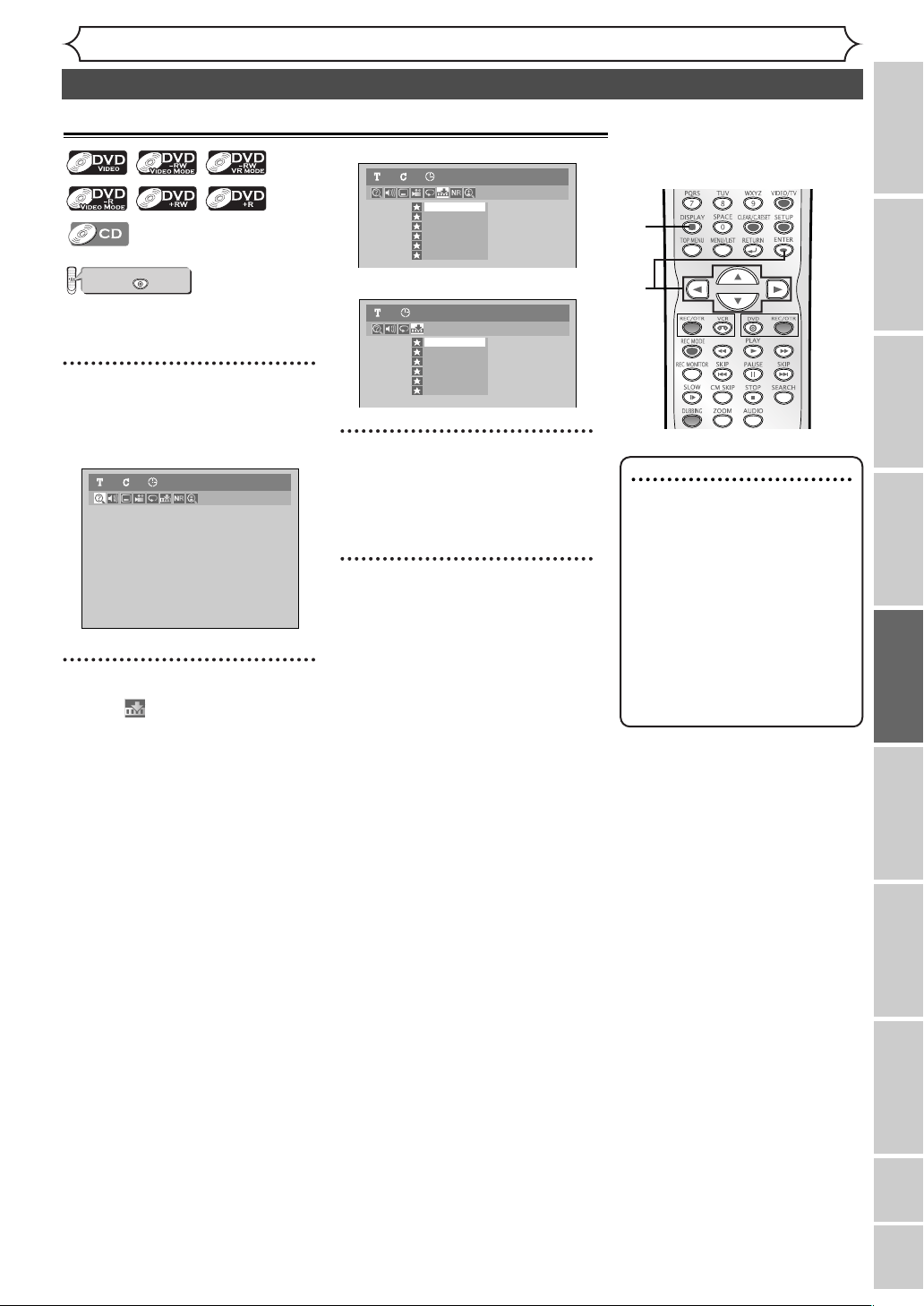

Marker Setup

This feature allows you to assign

a specific point on a disc to be

called back later.

During playback, press

DISPLAY.

The display menu will appear.

Select icon using

Cursor

{ / B

,then press ENTER.

Marker Setting menu will appear.

Screen for DVD:

Screen for Audio CD:

Select a desired marker num-

ber using Cursor

K / L

.When

it reaches the desired point,

press ENTER.

To r eturn to the marker later,

select the desired marker

number using Cursor

K / L

then press ENTER.

Audio CD1 0:00:00

---

DVD-Video11 0:00:00

press first.

DVD

Note

•To clear a marker, select the

marker number to be cleared,

then press CLEAR/C.RESET.

•You can mark up to 6 points.

• All markers will be erased if

you perform the follwing oper-

ations;

– Opening the disc tray.

–Turning off the power.

– making additional recording.

–

Changing the mode between

Original and Playlist (VR mode).

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 55

Disc Playback

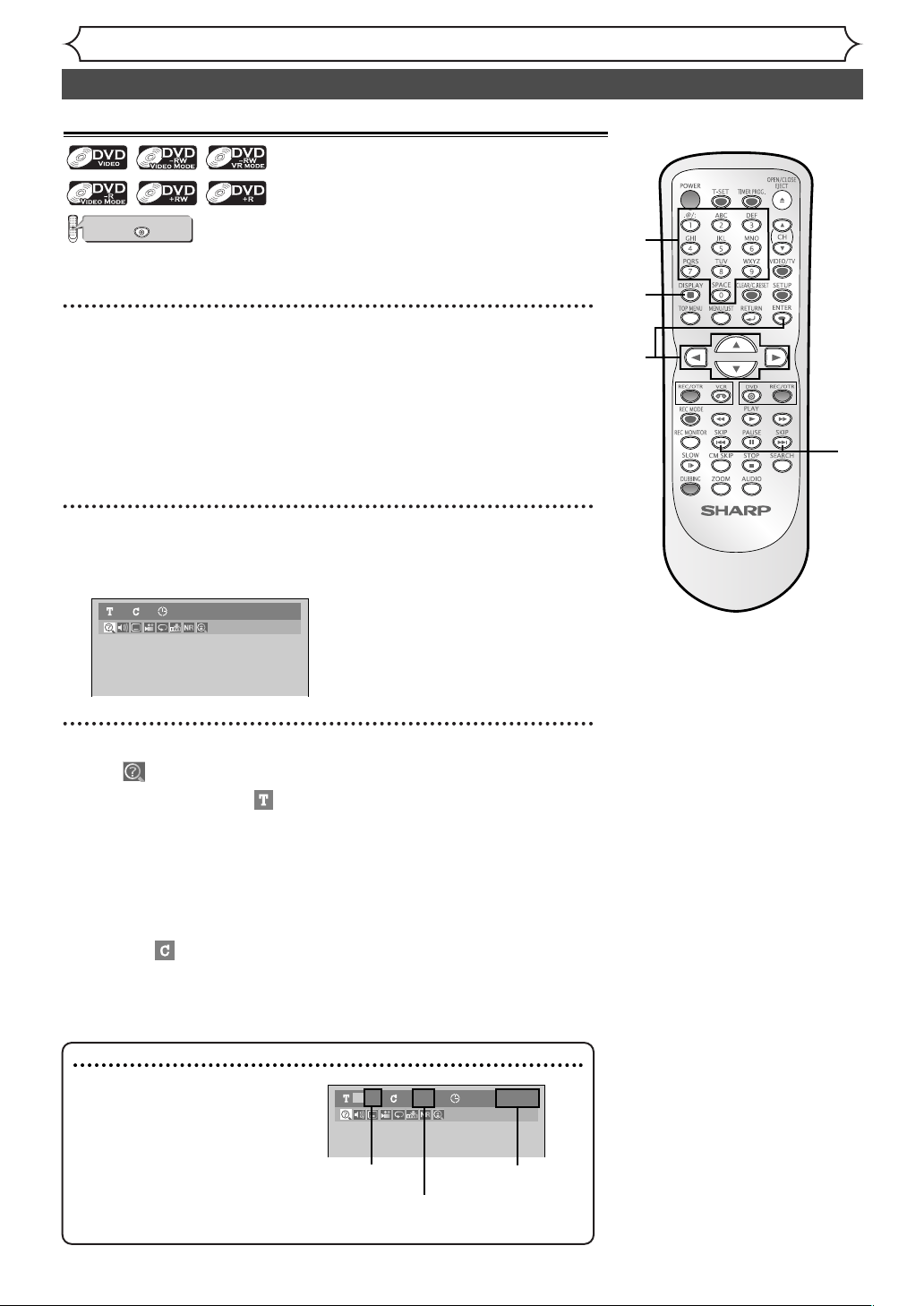

Title/Chapter search

Using SKIP H / G

During playback, press SKIP G to skip the current title or

chapter and move to the next.

To go back to the beginning of the current title or chapter, press

SKIP H.Press it repeatedly to go to the previous titles or chapters.

press first.

DVD

VCR/DVD RECORDER

COMBINATION

Using DISPLAY

During playback, press DISPLAY.

The display menu will appear.

Select icon using Cursor { / B, then press ENTER.

The title number next to will be highlighted.

Title:

Enter a desired title number to search using Cursor K / L or

the Number buttons, then press ENTER.

Title search will start.

Chapter:

To move to for chapter, press Cursor B.

Enter a desired chapter number to search using Cursor K / L

or the Number buttons, then press ENTER.

Chapter search will start.

DVD-Video11 0:00:00

Note

•In search mode display, total

numbers of each search contents

(title/chapter/time) are shown as

a denominator.

001/028 00:00:00/02:18:3301 /01

Total number

of titles

Total number

of chapters

Total time

of titles

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 56

Disc Playback

Search (cont’d)

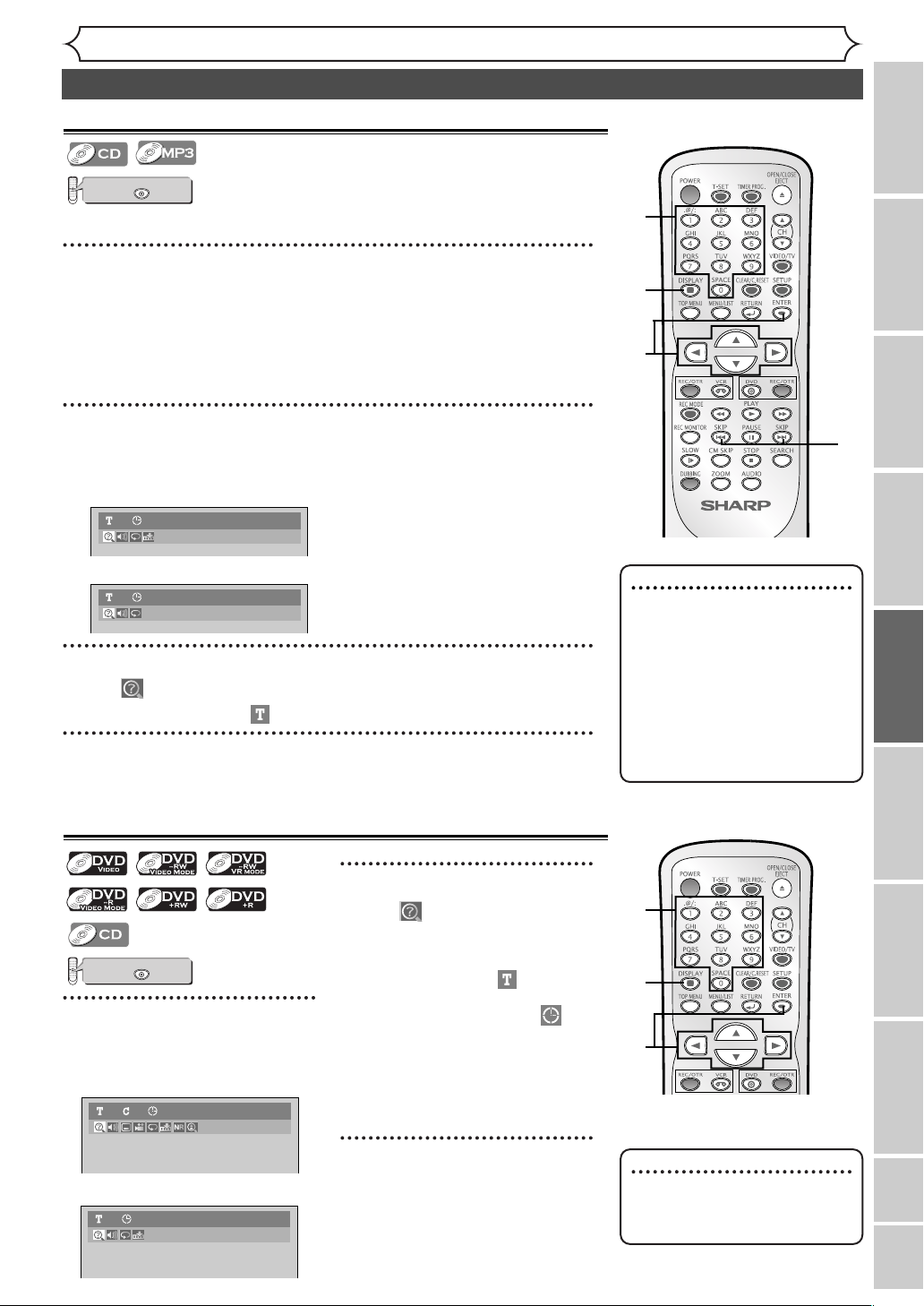

Track search

Using SKIP H / G

During playback, press SKIP G to skip the current track and move to the next.

To go back to the beginning of the current track, press SKIP H.Press

it repeatedly to go to the previous tracks.

press first.

DVD

Time search

Note

• Time search function is avail-

able only within the same

track or title.

Using DISPLAY

During playback, press DISPLAY.

The display menu will appear.

Screen for Audio CD:

Screen for MP3:

Select icon using

Cursor

{ / B, then press ENTER.

The track

number next to

will be highlighted.

Enter a desired track number to search using Cursor K / L or

the Number buttons, then press ENTER. Track search will start.

MP3 1 0:15:25

Audio CD1 0:15:25

VCR/DVD RECORDER

COMBINATION

Note

• During Audio CD playback

you can enter a track number

directly using the Number

buttons for Track search

without displaying the menu.

•For Audio CDs and MP3,

Track search is not available

for programmed or random

playback.

During playback, press DISPLAY.

Display menu will appear.

Screen for DVD:

Screen for Audio CD:

Select icon using

Cursor { / B, then press

ENTER.

The number next to will be

highlighted.

To move to the clock icon ,

press Cursor B.

When time search is not available

“- - : - - : - - /- - : - - : - -”

(“0:00:00/0:00:00” for Audio CD)

is displayed instead of time count.

Enter a desired time to search

using Cursor K / L or the

Number buttons, then press

ENTER. Time search will start.

Audio CD1 0:15:25

DVD-Video11 0:00:00

press first.

DVD

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 57

Disc Playback

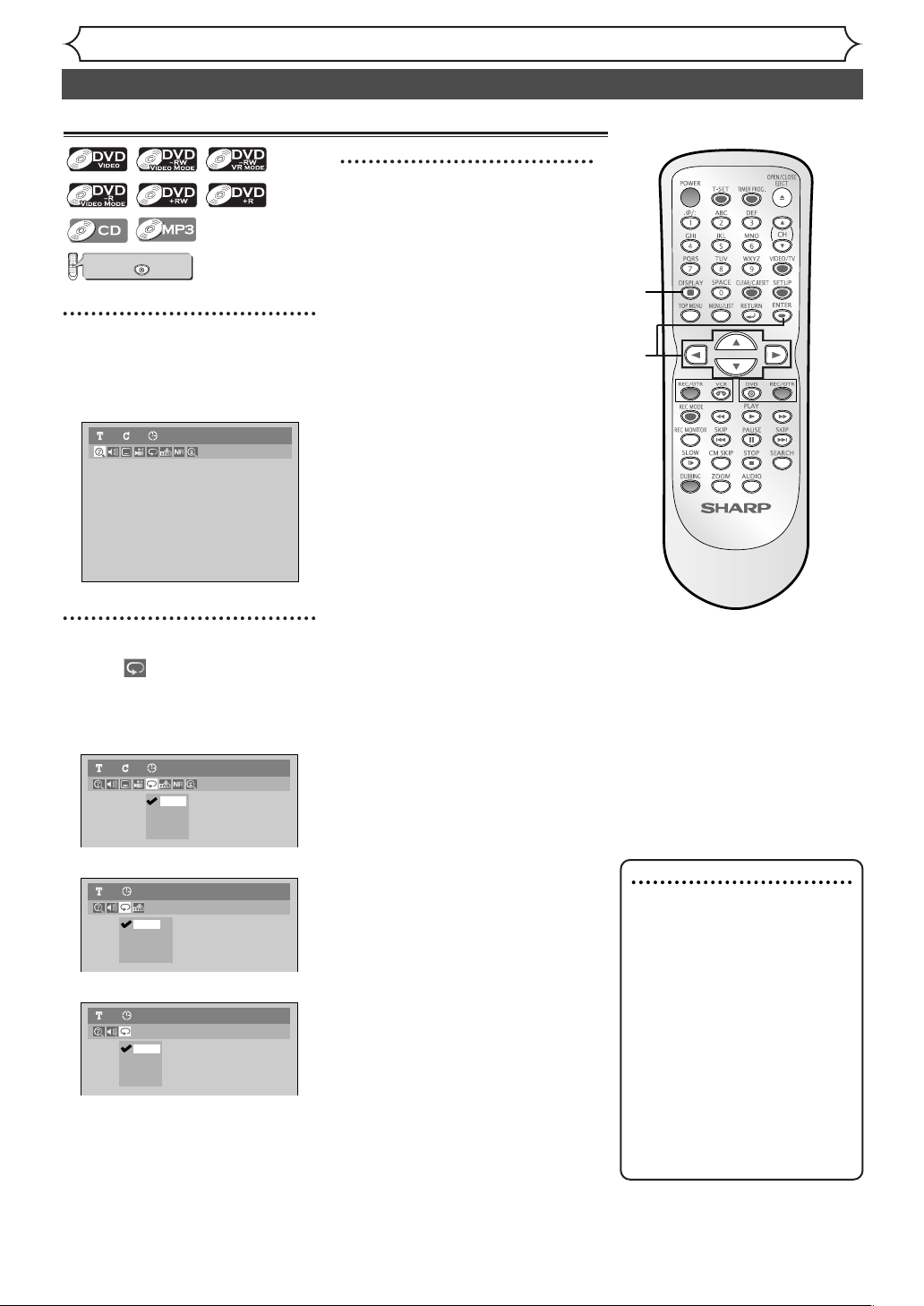

Repeat/Random/Program playback

Note

• The A-B Repeat playback can

only be set within the cur-

rent title (for DVDs), or cur-

rent track (for Audio CDs).

•To cancel the repeat play-

back, select OFF at STEP 2.

The repeat setting will be

also cleared when you stop

playback.

•You cannot select “Group”

for repeat playback during

the random playback of MP3

file.

Repeat playback

During playback, press

DISPLAY.

Display menu will appear.

Select icon using Cursor

{ / B

, then press ENTER.

Repeat menu will appear.

Screen for DVD:

Screen for Audio CD:

Screen for MP3:

Select a desired option for

repeat playback using Cursor

K / L, then press ENTER.

The selected repeat playback will

start.

Title:

The current title will be played

back repeatedly (DVD only).

Chapter:

The current chapter will be played

back repeatedly (DVD only).

All:

The current disc will be played

back repeatedly (DVD-RW (VR

mode),Audio CD and MP3 only).

A-B:

The A-B point will be played back

repeatedly.

When pressing ENTER while

A-B is highlighted, the unit

becomes ready for the input.

Press ENTER again to decide the

starting point (A).

Press ENTER again to select the

ending point (B) (DVD and Audio

CD only).

Track:

The current track will be played

back repeatedly (Audio CD and

MP3 only).

Group:

The current group will be played

back repeatedly (MP3 only).

Track

All

Group

OFF

MP31 0:15:25

Track

All

A-B

OFF

Audio CD1 0:15:25

Title

Chapter

A - B

OFF

DVD-Video11 0:15:25

DVD-Video11 0:00:00

press first.

DVD

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 58

Disc Playback

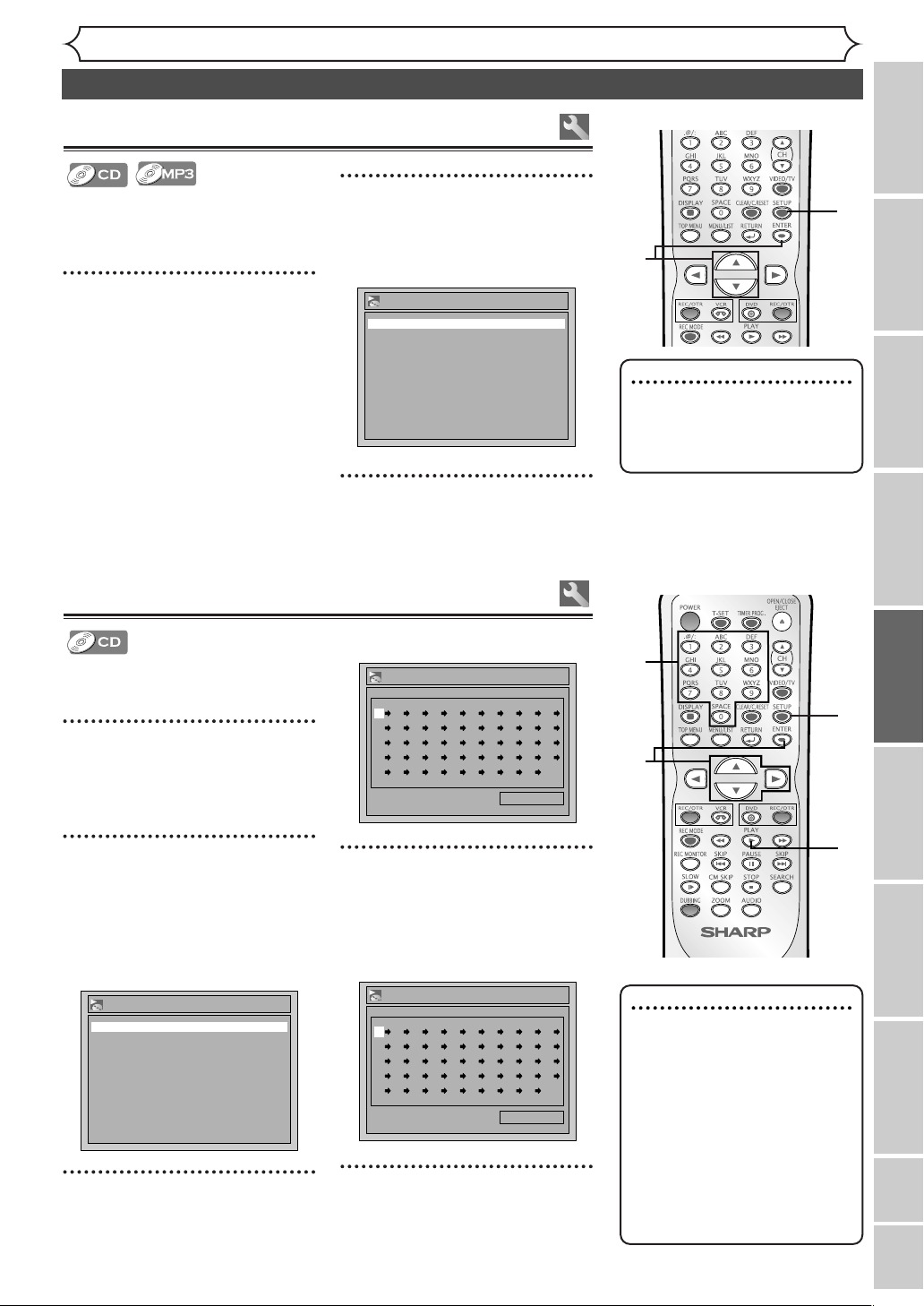

Repeat/Random/Program playback (cont’d)

Note

•To erase tracks you selected,

press CLEAR/C.RESET.

•You can make program set-

tings up to 50.

•To cancel program playback,

press STOP C twice during

program playback.“Playmode

OFF” appears on the screen.

•You may also select a desired

track using the Number

buttons at STEP 4.

Program playback

You can program a playback

sequence in your desired order.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

Select “CD Playback Mode”

using Cursor K / L, then

press ENTER.

CD Playback Mode menu will

appear.

Screen for Audio CD:

Select “Program Play” using

Cursor K / L,then press ENTER.

Program Play list will appear.

Select a desired track using

Cursor K / L or the Number

buttons, then press ENTER or

Cursor B.

A cursor will move to next.

Press PLAY B to start pro-

gram playback.

Program playback will start.

Program Play

0:06:11Total

-- -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- --

Program Play

0:00:00Total

-- -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- --

CD Playback Mode

Program Play

Random Play

VCR/DVD RECORDER

COMBINATION

Note

•To cancel random playback,

press STOP C twice during

random playback.“Playmode

OFF” appears on the screen.

Random playback

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

With this function, you can play

back a disc randomly instead of

playing back in the original order.

Press SETUP.

Easy Setting Menu or Advanced

Setting Menu will appear.

Select “CD Playback Mode” using

Cursor

K / L

,then press ENTER.

CD Playback Mode menu will appear.

Screen for Audio CD:

Select “Random Play” using

Cursor K / L, then press ENTER.

Random playback will start.

CD Playback Mode

Program Play

Random Play

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 59

Disc Playback

Selecting a format of audio and video

Note

•

Some discs will only allow

you to change the sound-

track from the disc’s menu.

PressTOP MENU or

MENU/LIST to display the

disc’s menu.

•

On DVD-RW discs recorded

in VR mode with both main

and sub audio, you can switch

to main (L), sub audio (R) or

a mix of both (L/R).

•

This unit CANNOT record

in both stereo and SAP

(Secondary Audio Program)

at the same time.

You can select a desired audio and video format. Selections depend on

the contents of the disc you are playing back.

Switching audio soundtracks

When playing back a DVD-Video

disc recorded with two or more

soundtracks (these are often in

different languages), you can

switch between them during play-

back.

On DVD-RW discs recorded in

VR mode, you can switch to main

(L), sub audio (R) or a mix of

both (L/R).

During playback, press

DISPLAY.

Display menu will appear.

Select icon using

Cursor

{ / B, then press

ENTER.

Audio menu will appear.

Screen for DVD-Video:

Screen for DVD-RW VR mode:

Select a desired audio sound-

track using

Cursor

K / L,

then press ENTER.

Audio soundtrack will change.

Screen for DVD-RW VR mode:

Select a desired audio chan-

nel using

Cursor

K / L, then

press ENTER.

Audio channel will change.

L/R

DVD-RW

VR Playlist

11 0:00:00

1.Dolby Digital Dual L/R

DVD-RW11 0:00:00

VR Playlist

2.Dolby Digital 2ch Japanese

1.Dolby Digital 5.1ch English

DVD-Video11 0:00:00

press first.

DVD

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 60

Disc Playback

Selecting a format of audio and video (cont’d)

Note

• Some discs will only allow

you to change subtitles from

the disc menu. Press

TOP MENU or

MENU/LIST to display the

disc menu.

• If a 4-digit language code

appears in the subtitle menu

at STEP 2, please refer to the

Language code on page 102.

When playing back Audio CDs or

MP3 files, you can switch among

stereo, the left channel only and

the right channel only.

During playback, press

DISPLAY.

Display menu will appear.

Screen for Audio CD:

Select icon using

Cursor

{ / B, then press

ENTER.

Audio menu will appear.

Select a desired audio chan-

nel using

Cursor

K / L, then

press ENTER.

Audio channel will change.

Screen for Audio CD:

L/R

Audio CD1 0:00:00

Audio CD1 0:15:25

press first.

DVD

Switching subtitles

Many DVD Video discs have subti-

tles in one or more languages –

they usually tell you which subtitle

languages are available. You can

switch subtitle languages anytime

during playback.

During playback, press

DISPLAY.

Display menu will appear.

Select icon using

Cursor { / B, then press

ENTER.

Subtitle menu will appear.

Select a desired subtitle lan-

guage using Cursor K / L,

then press ENTER.

Subtitles will be displayed in the

selected language.

When selecting “OFF”, subtitles

will disappear.

OFF

1.English

2.Japanese

DVD-Video11 0:00:00

press first.

DVD

VCR/DVD RECORDER

COMBINATION

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 61

Selecting a format of audio and video (cont’d)

Disc Playback

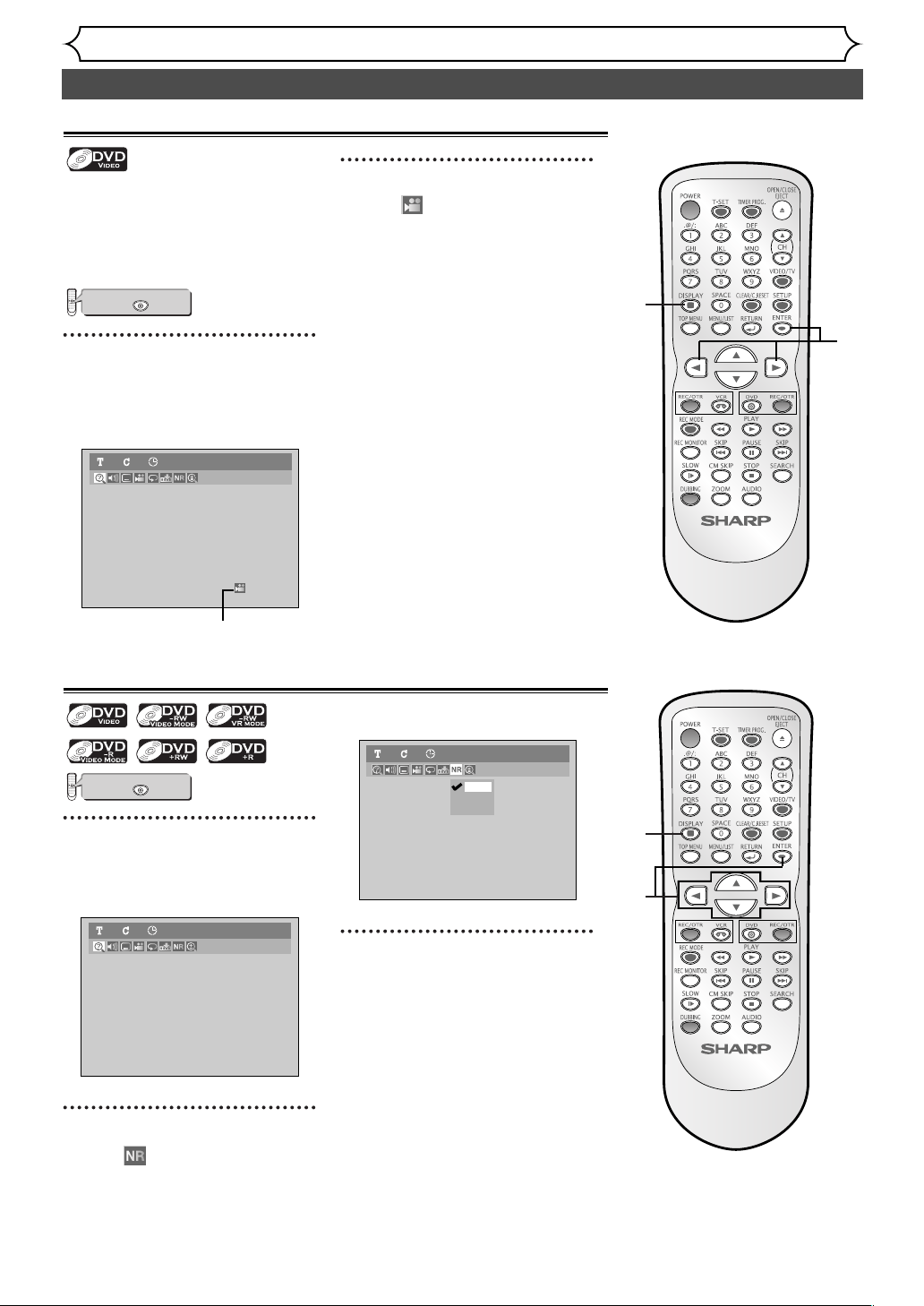

Switching camera angles

Some DVD Video discs feature

scenes shot from two or more

angles.The disc package should be

marked with an angle icon if it

contains multi-angle scenes.

During playback, press

DISPLAY.

Display menu will appear.

Screen for DVD:

Angle icon appears when differ-

ent camera angles are available.

Select icon using

Cursor { / B, then press

ENTER.

Angle will switch each time you

press ENTER.

DVD-Video11 0:00:00

press first.

DVD

Visual Noise Reduction

During playback, press DISPLAY.

Display menu will appear.

Screen for DVD:

Select icon using

Cursor

{ / B,then press ENTER.

Noise Reduction menu will appear.

Screen for DVD:

Select a desired option using

Cursor K / L, then press

ENTER.

Your setting will be activated.

This function reduces visual noise.

When playing back discs recorded

in long time mode such as SLP or

SEP mode, select “Type 1” or

“Type 2”. (“Type 2” is more

effective.)

When playing back discs with a

few noises such as DVD-Video

discs, select “OFF”.

Type 1

Type 2

OFF

DVD-Video11 0:00:00

press first.

DVD

VCR/DVD RECORDER

COMBINATION

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_1.qx4 05.7.15 11:56 AM Page 62

Editing

Information on disc editing

Title List allows you to check the titles recorded on

the disc easily. You can choose a title to play back

from this screen and easily edit the titles as you prefer.

1. Titles recorded on the disc can be selected for

editing by pressing ENTER with the Cursor on

the title.

2. Protect icon, which appears when the title has

been protected (Original title only).

3. The arrow icon, which means the Title List has

a next or a previous page. Press Cursor { / B

or SKIP H / G by following direction of

the icon.

4. The menus for selecting function for editing

titles.The available menus depends on the disc

type and the format type.An unavailable item is

grayed out.

5. The details of the title.Title name can be

changed on the Playlist.

6. Time status bar of the title.

After exiting the edit mode, you can resume

playback from that point you stopped for edit-

ing.

7. The thumbnail of the title selected from the

Title List.

• The selected title will be played back automat-

ically.

8. Playback status of the current disc.

You can edit discs with Video mode for the follow-

ing items. Be sure that once you edit titles, you can-

not change them back to the original ones.

•Deleting titles (Refer to page 65)

• Putting names on titles (Refer to pages 66-67)

• Setting or clearing chapter markers (Refer to page

68)

Guide to a Title List Editing discs in Video mode

Original

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Original

Ptotect

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

7 4

6 5

2 3

Note

• Once a disc is finalized, editing the disc or

recording to the disc will not be available.

(Except DVD-RW discs in VR mode.)

•A playlist is not available for the DVD-R discs

and DVD-RW discs in Video mode.

After you finish all editing, press SETUP to exit the editing mode.“Writing to Disc” appears momentarily.

If you open the disc tray, or press POWER to turn off the unit, or when a recording error occurs after

editing,“Writing to Disc” also appears.

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 63

Editing

Information on disc editing (cont’d)

Editing original titles

The following items are available for editing of the

original titles.

•Deleting titles (Refer to page 69)

• Setting titles to protect (Refer to page 70)

• Releasing titles from protecting (Refer to page 71)

Editing playlists

You can create a playlist from original titles, in order

to edit as you prefer without losing original titles.

The following items are available for editing on a

Playlist.

•Deleting titles (Refer to page 72)

• Deleting parts of titles (Refer to pages 73-74)

• Putting names on titles (Refer to pages 74-75)

• Setting or clearing chapter markers (Refer to

pages 76-77)

• Setting pictures for thumbnails (Refer to page 78)

• Dividing a title (Refer to page 79)

• Combining titles (Refer to page 80)

•Adding titles to a Playlist (Refer to page 81)

• Deleting a Playlist (Refer to page 82)

Editing discs in VR mode

For discs with VR mode, you can use either “Original” menu or “Playlist” menu, which is created from the

original for editing.

Note

• Once-edited original titles will not remain as recorded originally.When you want to leave the original as it

is, edit the Playlist.

After you finish all editing, press SETUP to exit the editing mode.“Writing to Disc” appears momentarily.

If you open the disc tray, or press POWER to turn off the unit, or when a recording error occurs after

editing,“Writing to Disc” also appears.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 64

This operation may take a

while to be completed.

Editing

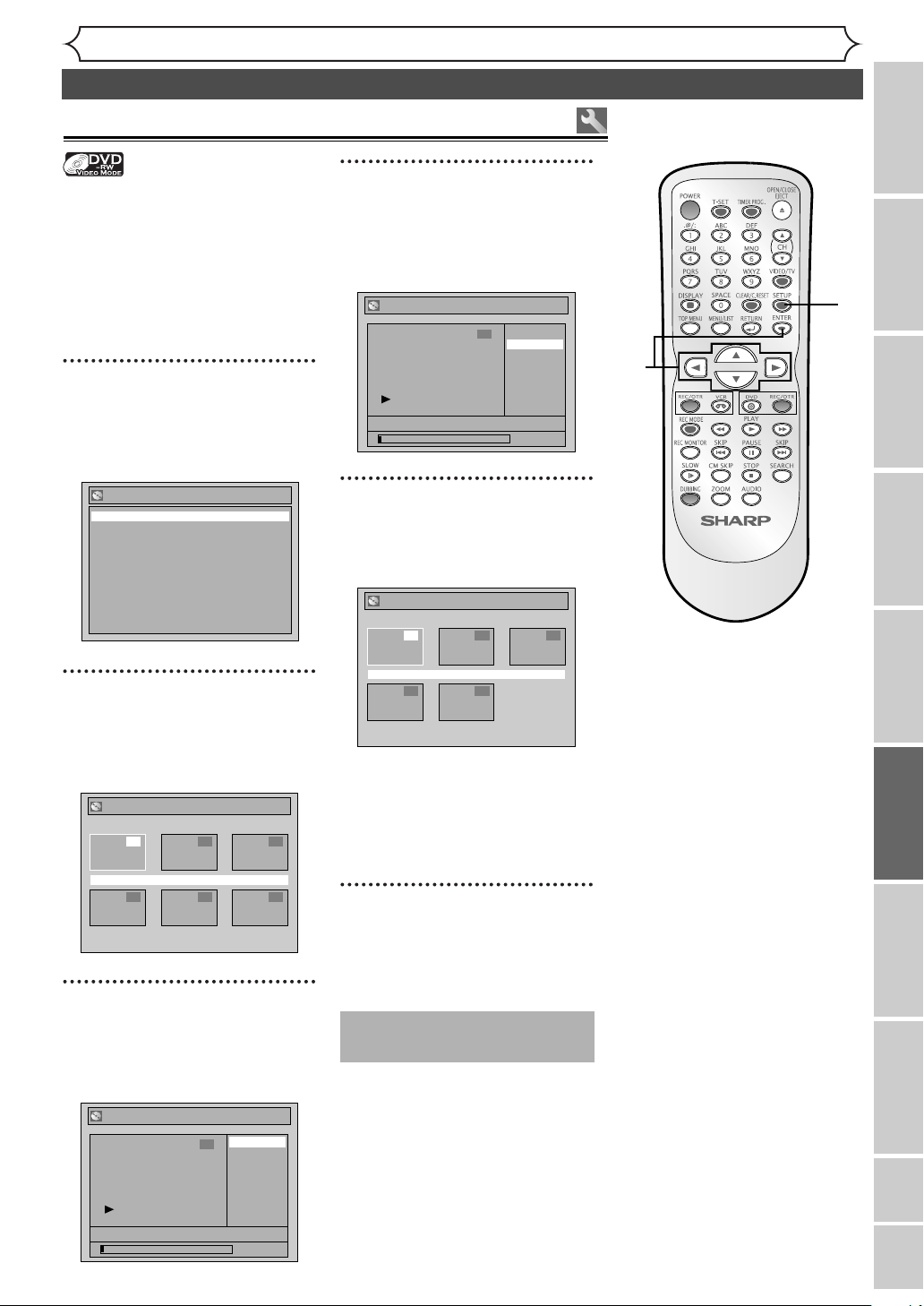

Editing DVD-RW discs in Video mode

Deleting titles

You can delete titles which you

do not need anymore.

Be advised that the titles once

deleted cannot be recovered.

In Video mode, recordable disc

space of DVD-RW disc will

increase when the last title on

the Title List is deleted.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Title List” using

Cursor K / L, then press

ENTER.

Title List will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Title Delete” using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

Title will be deleted.

When the only one title is

recorded, the Disc menu will not

appear after this operation and

the unit starts writing the data on

the disc automatically.

Press SETUP to exit.

Writing the data on the disc will

start momentarily.

Title List

JAN/1 1:00AM CH12 XP

4 5

1 2 3

Title List - Title Delete

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Title List

Edit Title Name

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

Chapter MarkChapter Mark

Title List

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Format

Title List

Finalize

VCR/DVD RECORDER

COMBINATION

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 65

Editing

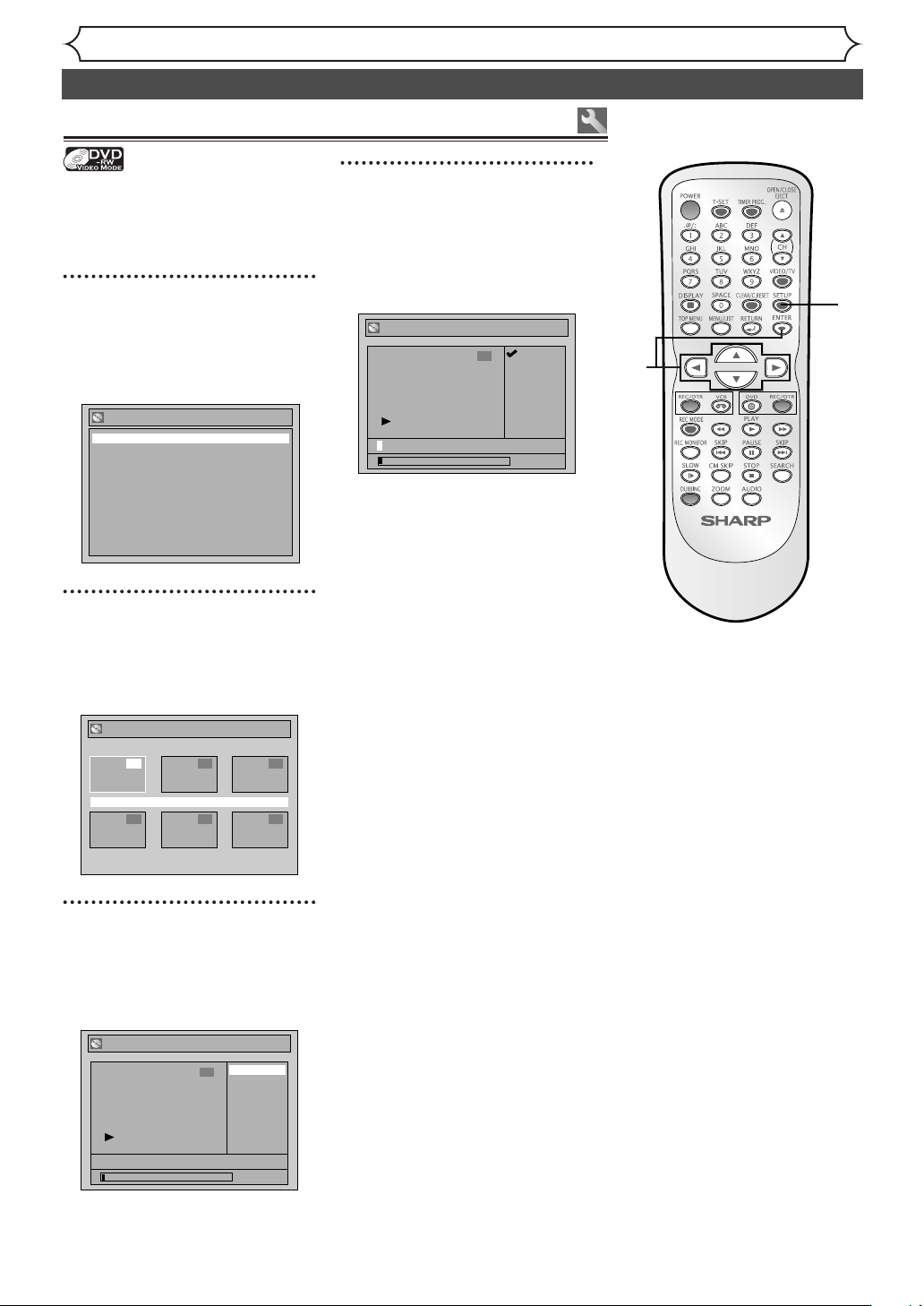

Putting names on titles

Editing DVD-RW discs in Video mode (cont’d)

You can name titles and change

the names from this menu.

The names you put on the titles

will be displayed on a Title List.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Title List” using

Cursor K / L, then press

ENTER.

Title List will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Edit Title Name”

using Cursor K / L, then

press ENTER.

A window for entering a title

name will appear.

Title List - Edit Title Name

abc

ABC

123

@! ?

0:00:59

JAN/1 1:00AM CH12 XP

Title List

Edit Title Name

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

Chapter MarkChapter Mark

Title List

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Format

Title List

Finalize

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 66

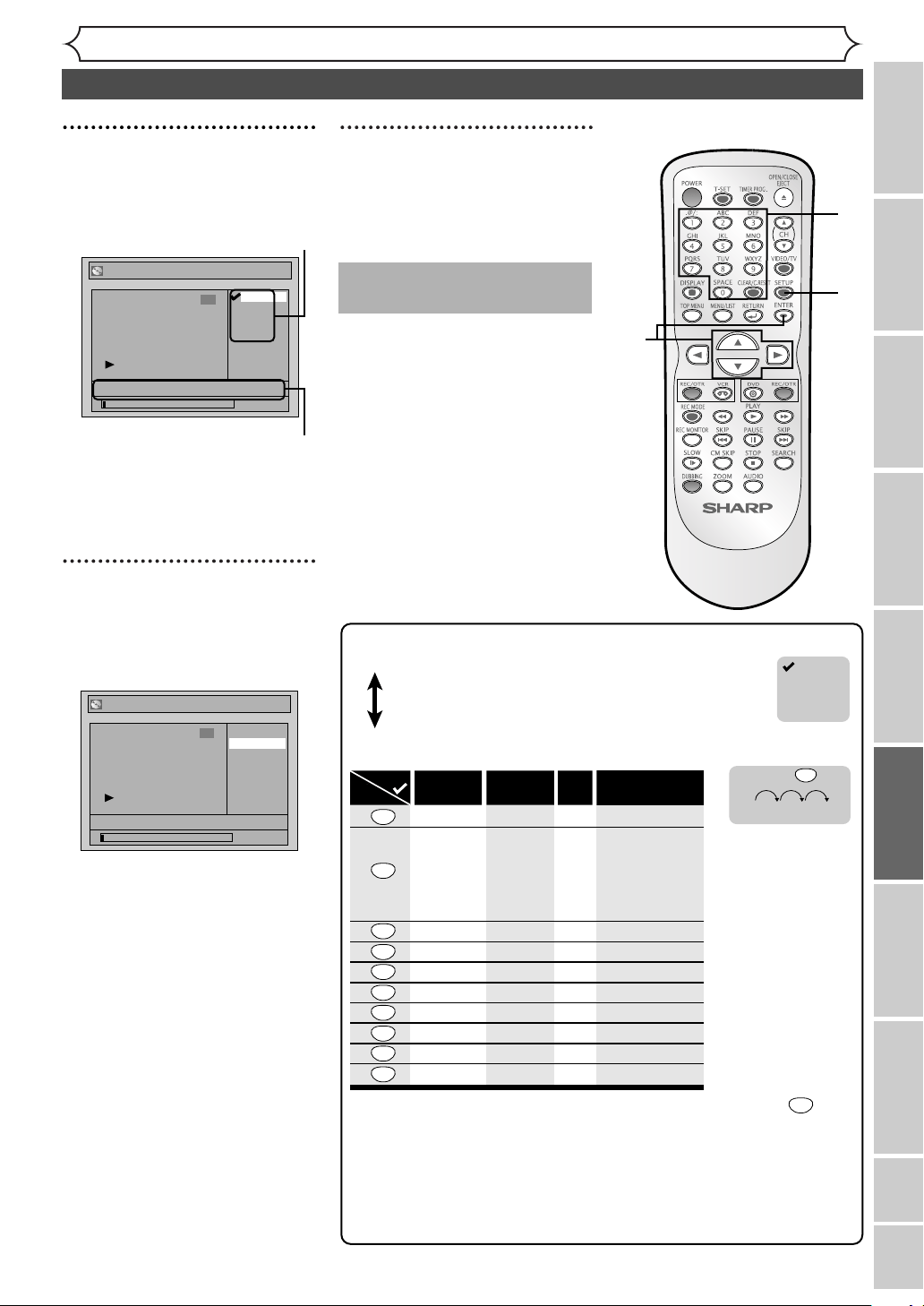

Editing

Editing DVD-RW discs in Video mode (cont’d)

To enter a title name, follow

the STEPs of “Guide to edit

title name” on this page.

character set

area for entering title names

When you finish entering a title

name, press ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

The name you entered will be

activated.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Title List

Edit Title Name

Title Delete

MY FAVORITE

0:00:59

Chapter MarkChapter Mark

Title List - Edit Title Name

abc

ABC

123

@! ?

JAN/1 1:00AM CH12 XP

0:00:59

VCR/DVD RECORDER

COMBINATION

Press

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

<space>

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

! ” # $ % & ’ ( )

+ , - . / : ; < = >

? @ [ ] ^ _ { | }

ABC

abc

Select

@ ! ?

123

•Character set will be changed to the “@!?” automatically if you press after

you selected the “ABC” or “abc” mode.

• If you want to mix different character sets in one title, repeat

STEP

[

]

and

[

]

above.

[

STEP1

]

Select a desired character set using Cursor K

then press

ENTER.

[

STEP2

]

: Follow the list below, press the Number buttons repeatedly until the

desired letter appears.

[

Guide to edit title name

]

A B C

a b c

1 2 3

@ ! ?

•To delete letters, press CLEAR/C.RESET repeatedly. Hold

CLEAR/C.RESET to delete all letters.

•To go on to the next entering area for letters, press Cursor B.

•You can enter up to 30 letters.

e.g. character set : A B C

A B C A

...

press

Note:

Undefined letters in a

title name are shown

by “

”. If you delete

them, adjoining letters

may change to “

” or

other.

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 67

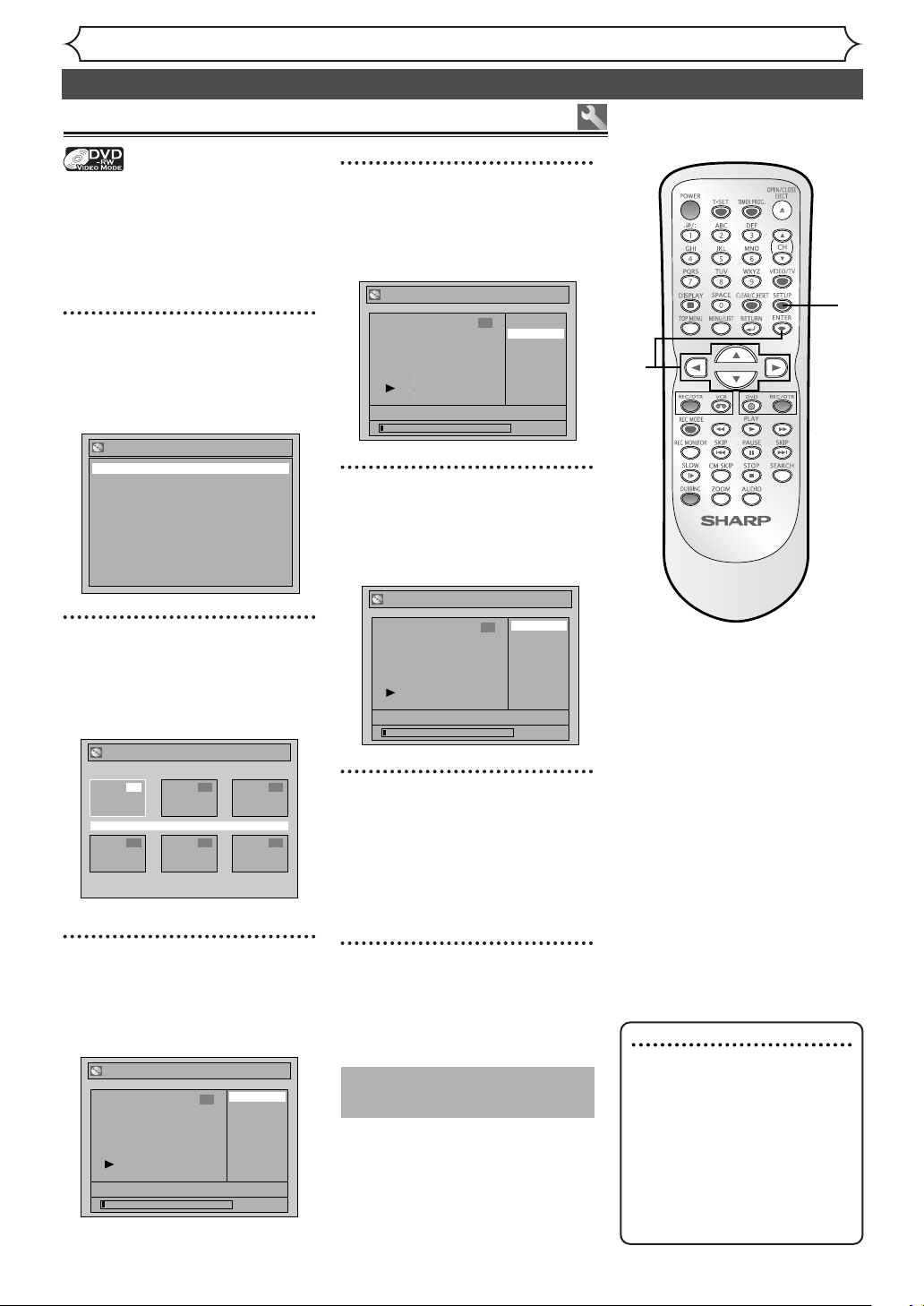

Editing

Editing DVD-RW discs in Video mode (cont’d)

Note

•You cannot select a time

internal for markers beyond a

length of the title.

•The interval between markers

may slightly deviate from the

one specified at the STEP 5.

•A chapter marker may be

delayed according to the

recording content.

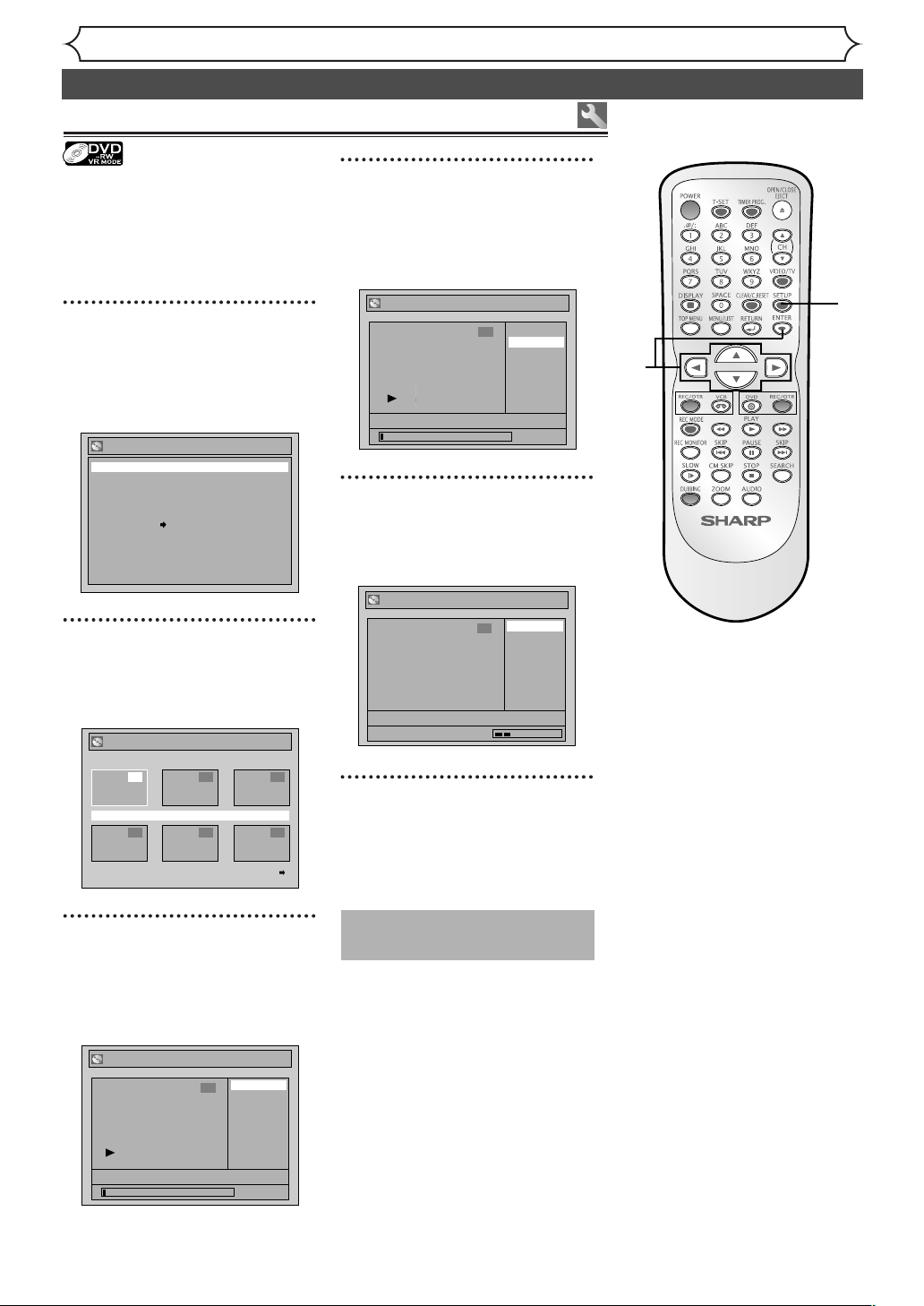

Setting or clearing chapter markers

You can put chapter markers on

each title and use them for the

chapter search feature.

You can specify time internal for

chapter markers for titles last

more than 5 minutes.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Title List” using

Cursor K / L, then press

ENTER.

Title List will appear.

Select a desired title using

Cursor

K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Chapter Mark” using

Cursor K / L, then press

ENTER.

Option window will appear.

Select a desired time using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

Chapter markers will be added.

If you select “OFF” at STEP 5, all

the chapter markers will be

erased.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Title List - Chapter Mark - 5 minutes

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Title List - Chapter Mark

5 minutes

10 minutes

15 minutes

30 minutes

60 minutes

OFF

JAN/1 1:00AM CH12 XP

0:00:59

Title List

Edit Title Name

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

Chapter MarkChapter Mark

Title List

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Format

Title List

Finalize

VCR/DVD RECORDER

COMBINATION

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 68

Editing

VCR/DVD RECORDER

COMBINATION

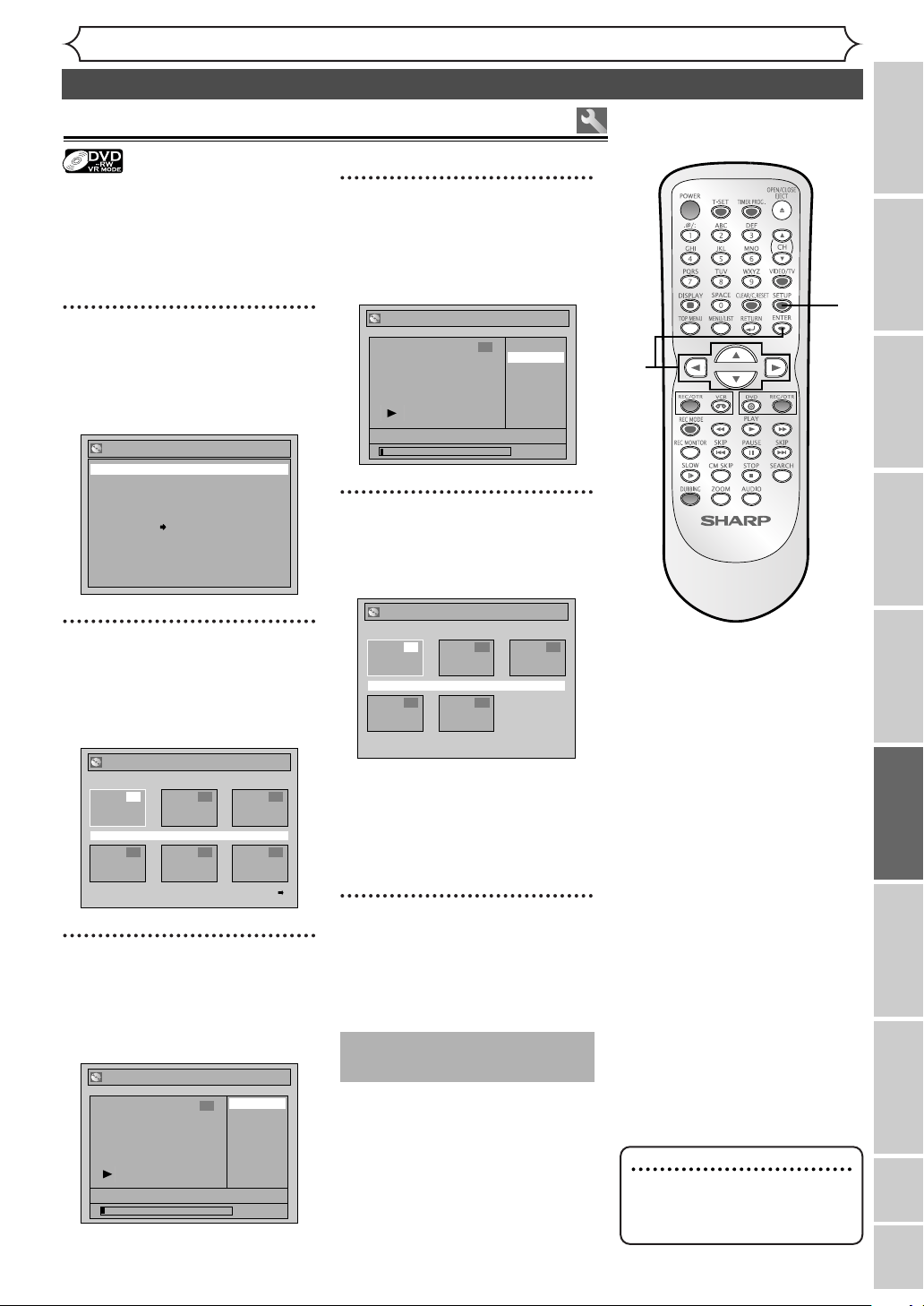

Deleting titles

Editing DVD-RW discs in VR mode (Original)

When a title is deleted from an

Original in VR mode, the record-

able disc space will increase.

Be advised that the titles once

deleted cannot be recovered.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Original” using

Cursor K / L, then press

ENTER.

Original list will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Title Delete” using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

Title will be deleted.

When the only one title is

recorded, the Disc menu will not

appear after this operation and

the unit starts writing the data on

the disc automatically.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Original

JAN/1 1:00AM CH12 XP

4 5

1 2 3

Original - Title Delete

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Original

Protect

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Original

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Note

• When a title is deleted from

an Original, the title on the

Playlist will be also deleted.

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 69

Editing

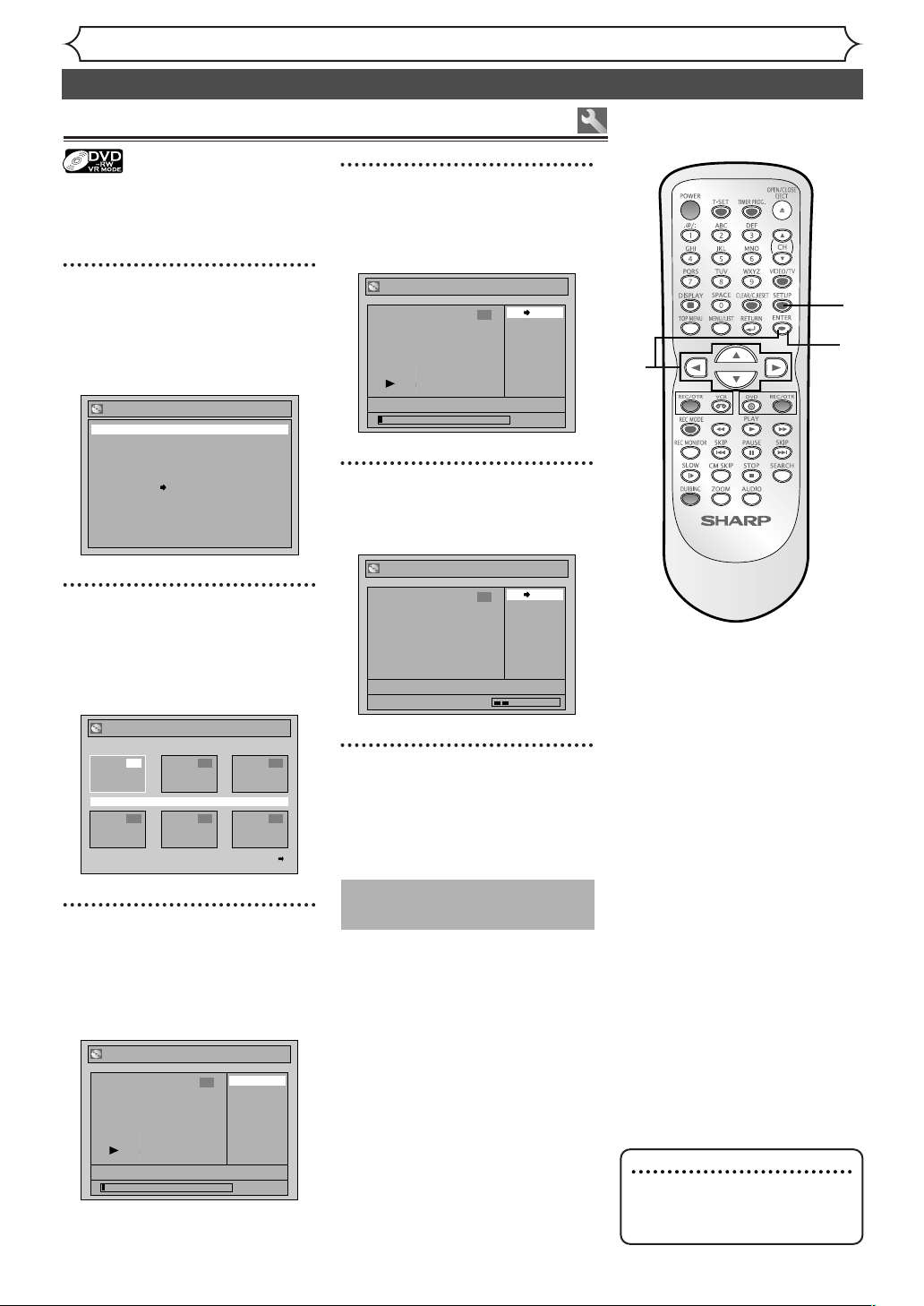

Setting titles to protect

Editing DVD-RW discs in VR mode (Original) (cont’d)

To prevent accidental editing or

title erasing, you can protect the

contents in the Original menu.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Original” using

Cursor K / L, then press

ENTER.

Original list will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Protect” using Cursor

K / L, then press ENTER.

Confirmation window will appear.

Confirm the indication

“OFF ➔ ON”. Press ENTER.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

To protect a whole disc

(DVD-RW VR mode Only):

Select “Disc Protect OFF ➔ ON”

from Disc menu, then select

“Yes”.

Refer to “Setting a disc to pro-

tect” on page 41.

Original - Protect

OFF ON

JAN/1 1:00AM CH12 XP

Wait for a moment.

Original - Protect

OFF ON

JAN/1 1:00AM CH12 XP

0:00:59

Original

Protect

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Original

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

Note

• The protected title will be

marked with a key icon on

the Original.

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 70

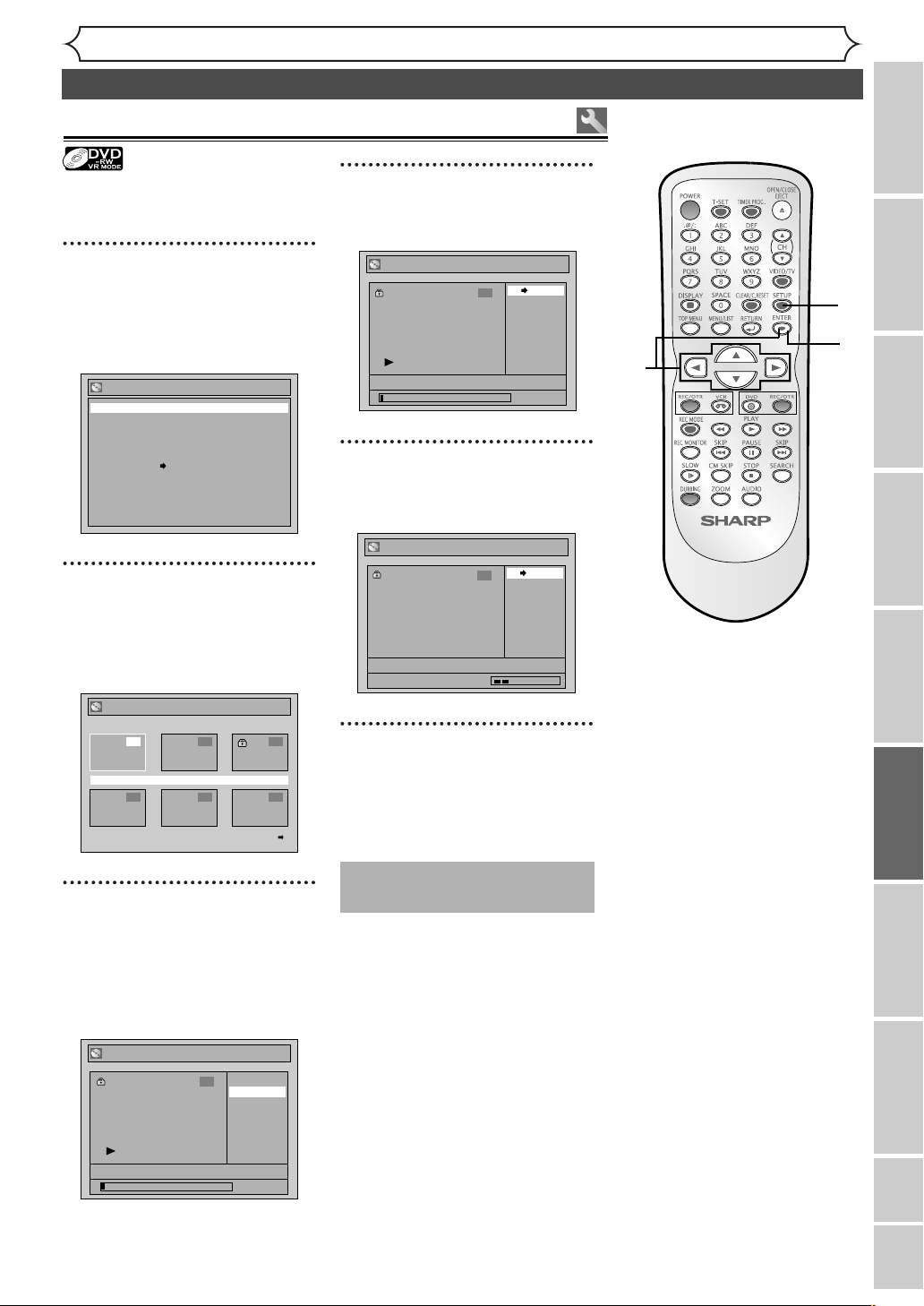

Editing

You can cancel the

titles-protecting feature.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Original” using

Cursor K / L, then press

ENTER.

Original list will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

“Protect” is already highlighted.

Press ENTER.

Confirmation window will appear.

Confirm the indication

“ON ➔ OFF”. Press ENTER.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Original - Protect

ON OFF

JAN/1 1:00AM CH12 XP

Wait for a moment.

Original - Protect

ON OFF

JAN/1 1:00AM CH12 XP

0:00:59

Original

Protect

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Original

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Releasing titles from protecting

Editing DVD-RW discs in VR mode (Original) (cont’d)

VCR/DVD RECORDER

COMBINATION

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 71

Editing

Deleting titles

Editing DVD-RW discs in VR mode (Playlist)

In VR mode, even if a title is delet-

ed from a Playlist, the original title

will remain on the Original.

The recordable disc space will not

increase.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Title Delete” using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L

then press ENTER.

Title will be deleted.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Playlist - Title Delete

Yes

JAN/1 1:00AM CH12 XP

Wait for a moment.

Playlist - Title Delete

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 72

Editing

VCR/DVD RECORDER

COMBINATION

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

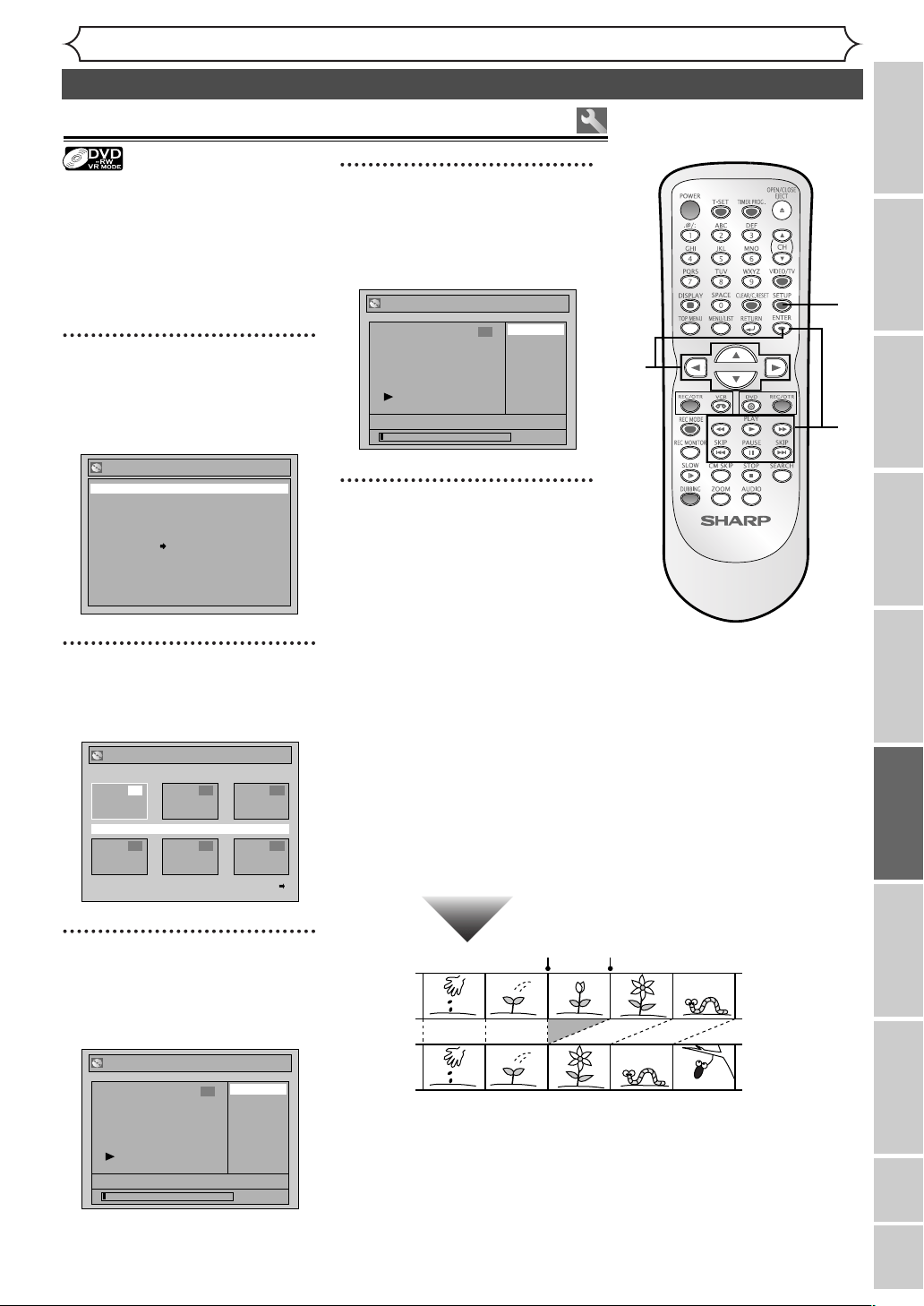

Deleting parts of titles

You can delete a specific part of a

title.

Even if a part of a title is deleted

from the Playlist, the original title

will remain as it was, and the

recordable disc space will not

increase.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Scene Delete” using

Cursor K / L, then press

ENTER.

Option window will appear.

Use SKIP H / G, E / D,

PLAY B, and PAUSE F to

decide the start point, then

press ENTER.Then use SKIP

H / G,E / D, PLAY B,

and PAUSE F again to move

to the end point, and press

ENTER. Press ENTER again

to start the preview.

The cursor will move to

“Preview.”

You can check the preview by

pressing ENTER.

The bar at the bottom of the

screen indicates the total and the

elapsed time of the title.The area

selected for deletion will be indi-

cated in red during the preview.

Playlist - Scene Delete

End

Start

Preview

Delete

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Before

editing

Edited

Start point End point

Instructions continue on page 74

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 73

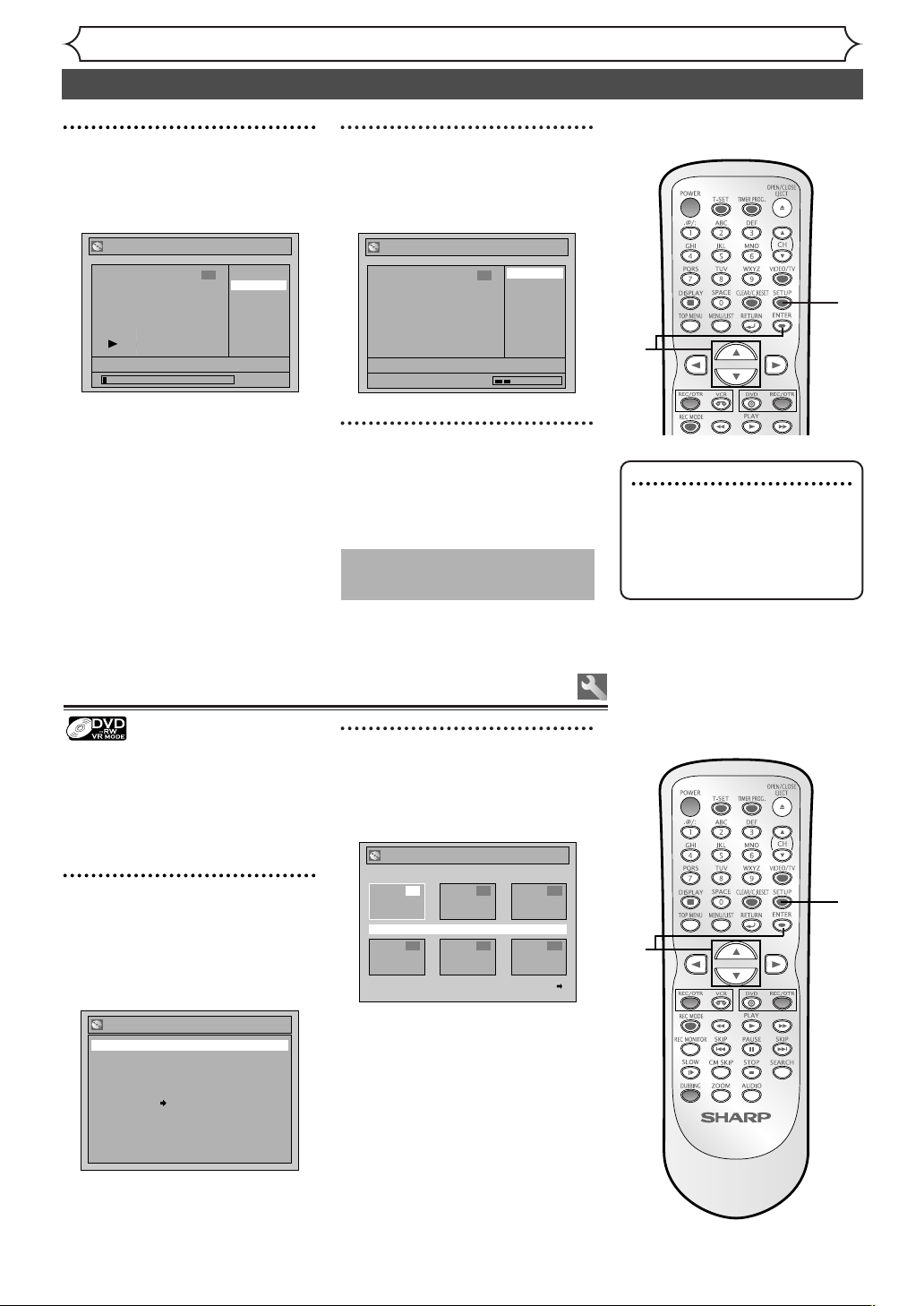

Editing

Putting names on titles

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

Select “Delete” using Cursor

K / L, then press ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

Part of a title will be deleted.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Playlist - Scene Delete

Yes

JAN/1 1:00AM CH12 XP

Wait for a moment.

Playlist - Scene Delete

Yes

JAN/1 1:00AM CH12 XP

0:00:59

You can name the titles and

change the names from this

menu.

The names you put on the titles

will be displayed on a Title List.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

Note

•You cannot select “Scene

Delete” when the number of

chapter markers in the

Original or Playlist exceeds

900.

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 74

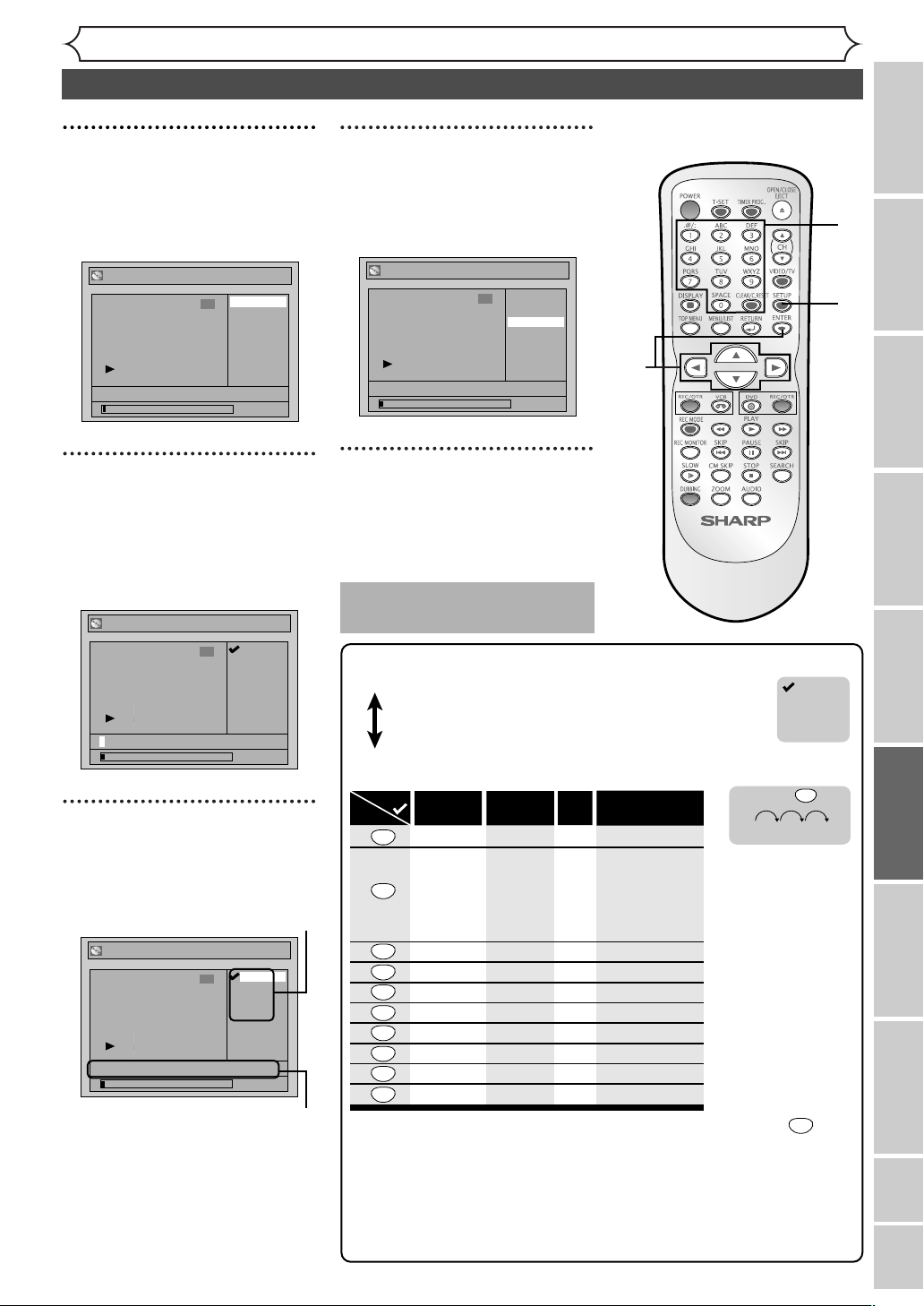

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Edit Title Name”

using Cursor K / L, then

press ENTER.

A window for entering a title

name will appear.

To enter a title name, follow

the STEPs of “Guide to edit

title name” on this page.

character set

area for entering title names

When you finish entering a title

name, press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

The name you entered will be

activated.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

MY FAVORITE

0:00:59

Playlist - Edit Title Name

abc

ABC

123

@! ?

JAN/1 1:00AM CH12 XP

0:00:59

Playlist - Edit Title Name

abc

ABC

123

@! ?

0:00:59

JAN/1 1:00AM CH12 XP

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

JAN/1 1:00AM CH12 XP

0:00:59

VCR/DVD RECORDER

COMBINATION

Press

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

<space>

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

! ” # $ % & ’ ( )

+ , - . / : ; < = >

? @ [ ] ^ _ { | }

ABC

abc

Select

@ ! ?

123

•Character set will be changed to the “@!?” automatically if you press after

you selected the “ABC” or “abc” mode.

• If you want to mix different character sets in one title, repeat

STEP

[

]

and

[

]

above.

[

STEP1

]

Select a desired character set using Cursor K

then press

ENTER.

[

STEP2

]

: Follow the list below, press the Number buttons repeatedly until the

desired letter appears.

[

Guide to edit title name

]

A B C

a b c

1 2 3

@ ! ?

•To delete letters, press CLEAR/C.RESET repeatedly. Hold

CLEAR/C.RESET to delete all letters.

•To go on to the next entering area for letters, press Cursor B.

•You can enter up to 30 letters.

e.g. character set : A B C

A B C A

...

press

Note:

Undefined letters in a

title name are shown

by “

”. If you delete

them, adjoining letters

may change to “

” or

other.

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 75

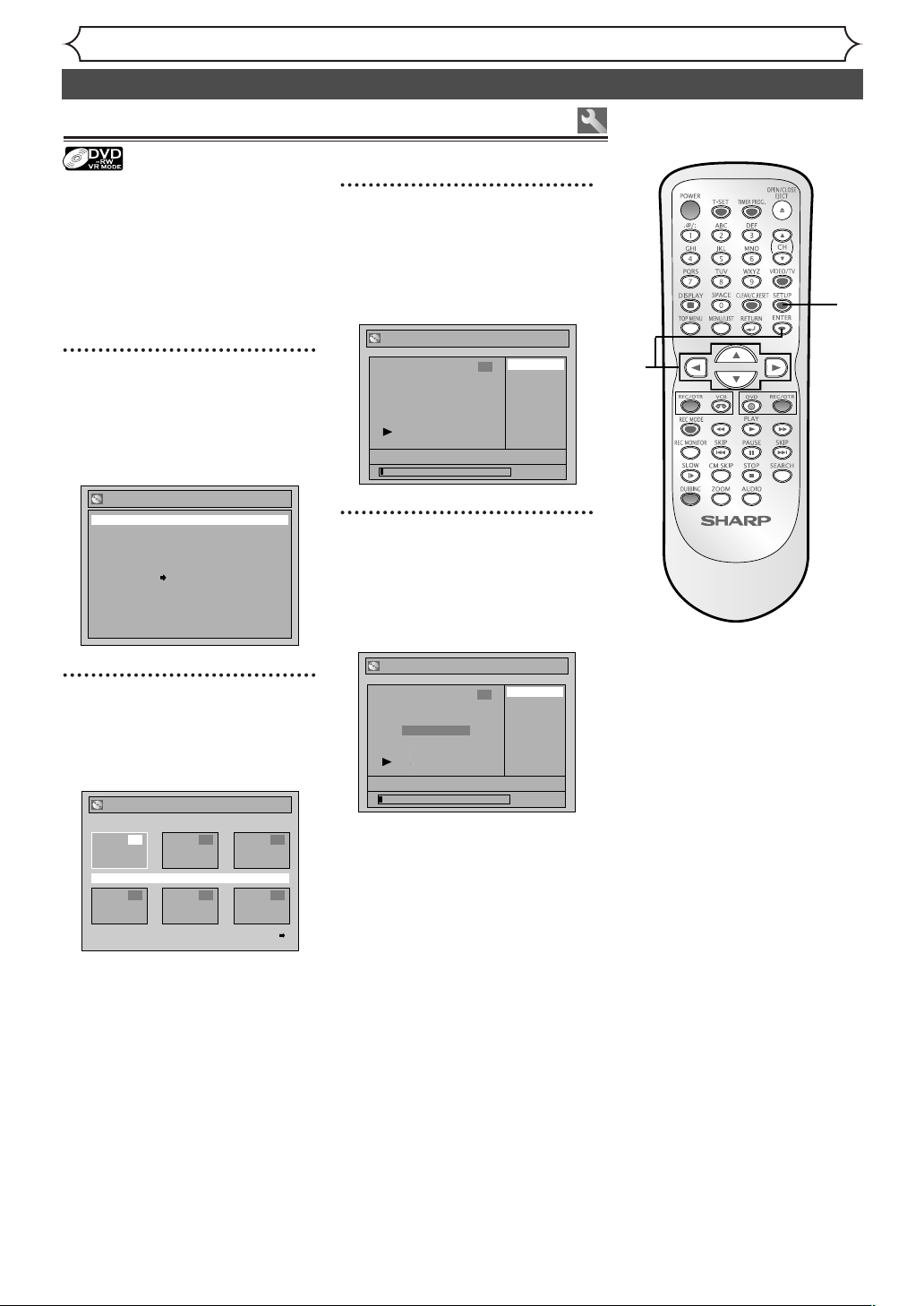

Editing

Setting or clearing chapter markers

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

You can put chapter markers on

each title and can use them for

the chapter search feature.

You can put a chapter marker

anywhere you want until the total

number of the markers reaches

999.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Chapter Mark” using

Cursor K / L, then press

ENTER.

Option window will appear.

Playlist - Chapter Mark

Delete

Add

JAN/1 1:00AM CH12 XP

0:00:59

Chapter 2/ 2

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 76

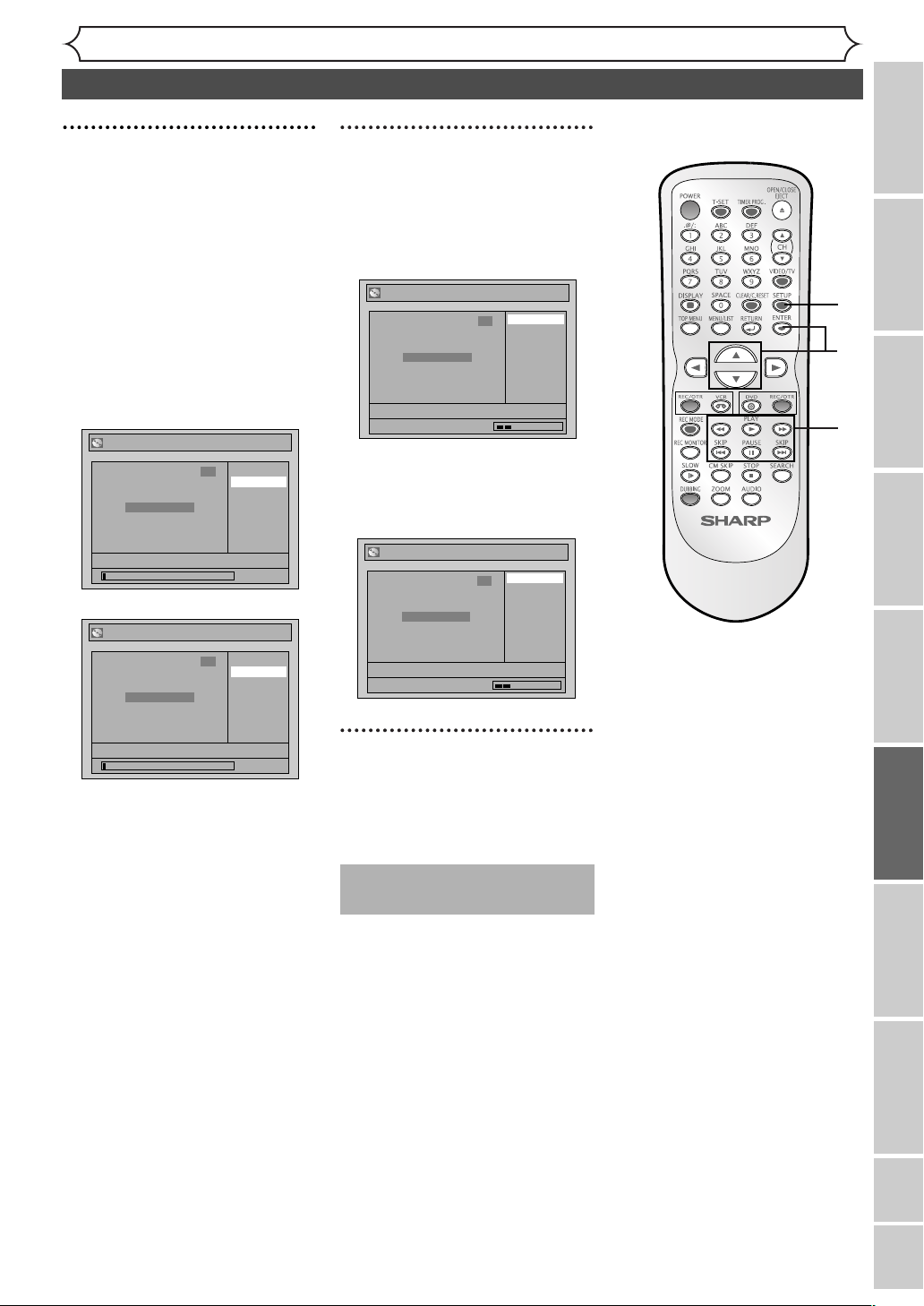

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

Use SKIP H / G, E / D,

PLAY B, and PAUSE F to

decide the point for a new

chapter marker. Or, use

SKIP H / G to decide a

chapter marker that you will

delete. Select “Add” or

“Delete” accordingly using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Screen for Add:

Screen for Delete:

You cannot delete the first chap-

ter of each title.

Select “Yes” using Cursor

K / L, then press ENTER.

A chapter marker will be added at

the point you have decided.

Screen for Add:

When you select “Delete” at

STEP 5, the chapter marker you

have selected will be deleted.

Screen for Delete:

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Chapter 2/ 2

Playlist - Chapter Mark - Delete

Yes

JAN/1 1:00AM CH12 XP

Wait for a moment.

Chapter 2/ 2

Playlist - Chapter Mark - Add

Yes

JAN/1 1:00AM CH12 XP

Wait for a moment.

Playlist - Chapter Mark - Delete

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Chapter 2/ 2

Playlist - Chapter Mark - Add

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Chapter 2/ 2

VCR/DVD RECORDER

COMBINATION

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 77

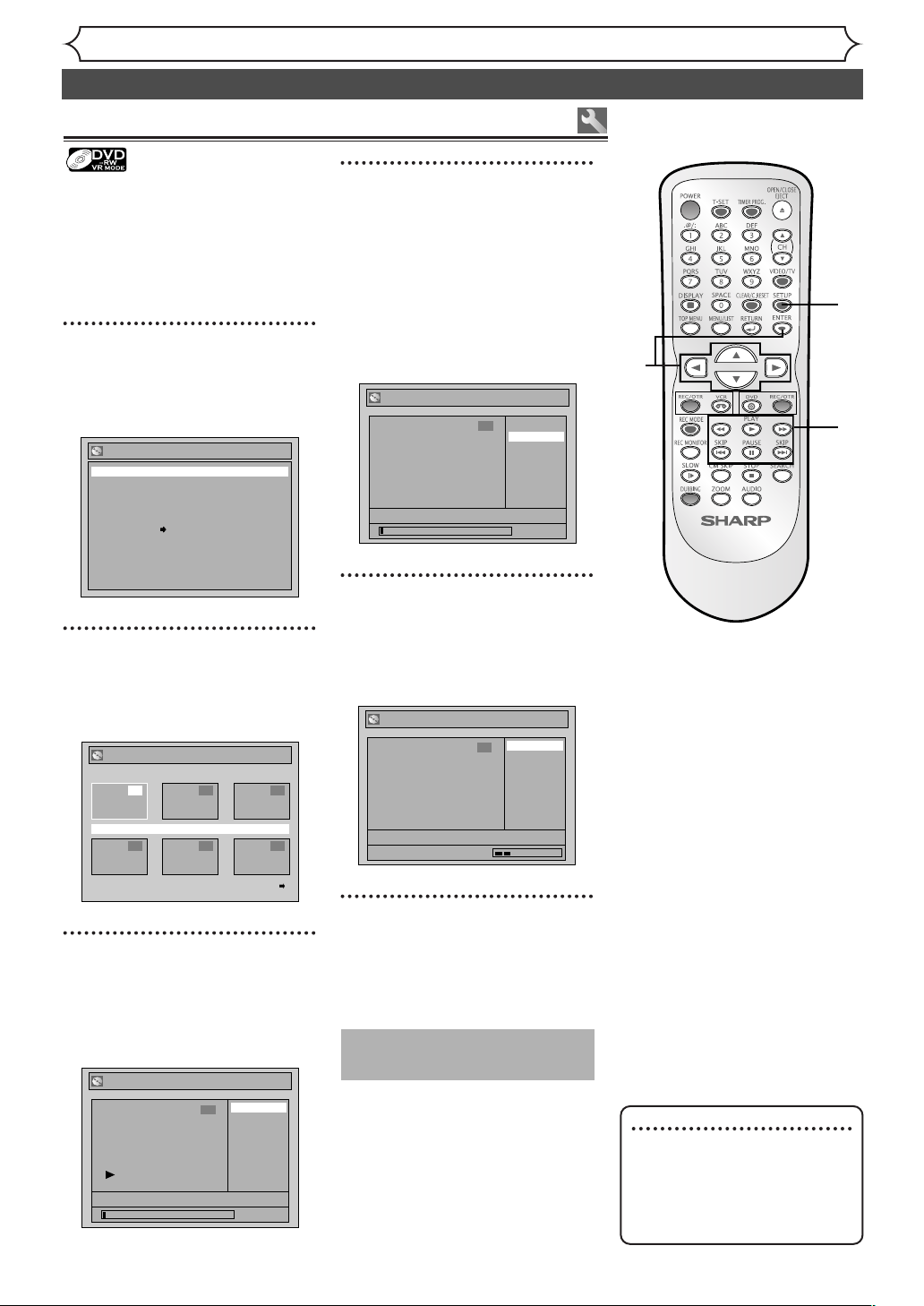

Setting pictures for thumbnails

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

You can set an image picture to

each title as thumbnail. It helps

you remember the contents of the

title during playback.The default

setting chooses the first scene of

each title as the thumbnail.

Press SETUP. Select “Disc” using

Cursor K / L, then press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Index Picture” using

Cursor K / L. Use SKIP

H / G, E / D, PLAY B,

and PAUSE F to decide the

picture you want to select as

thumbnail.Then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

A picture for thumbnail will be

set.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Playlist - Index Picture

Yes

JAN/1 1:00AM CH12 XP

Wait for a moment.

Playlist - Index Picture

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

Note

• If a selected picture as

thumbnail is deleted by delet-

ing a part of a title, a default

picture will automatically

replace it.

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 78

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

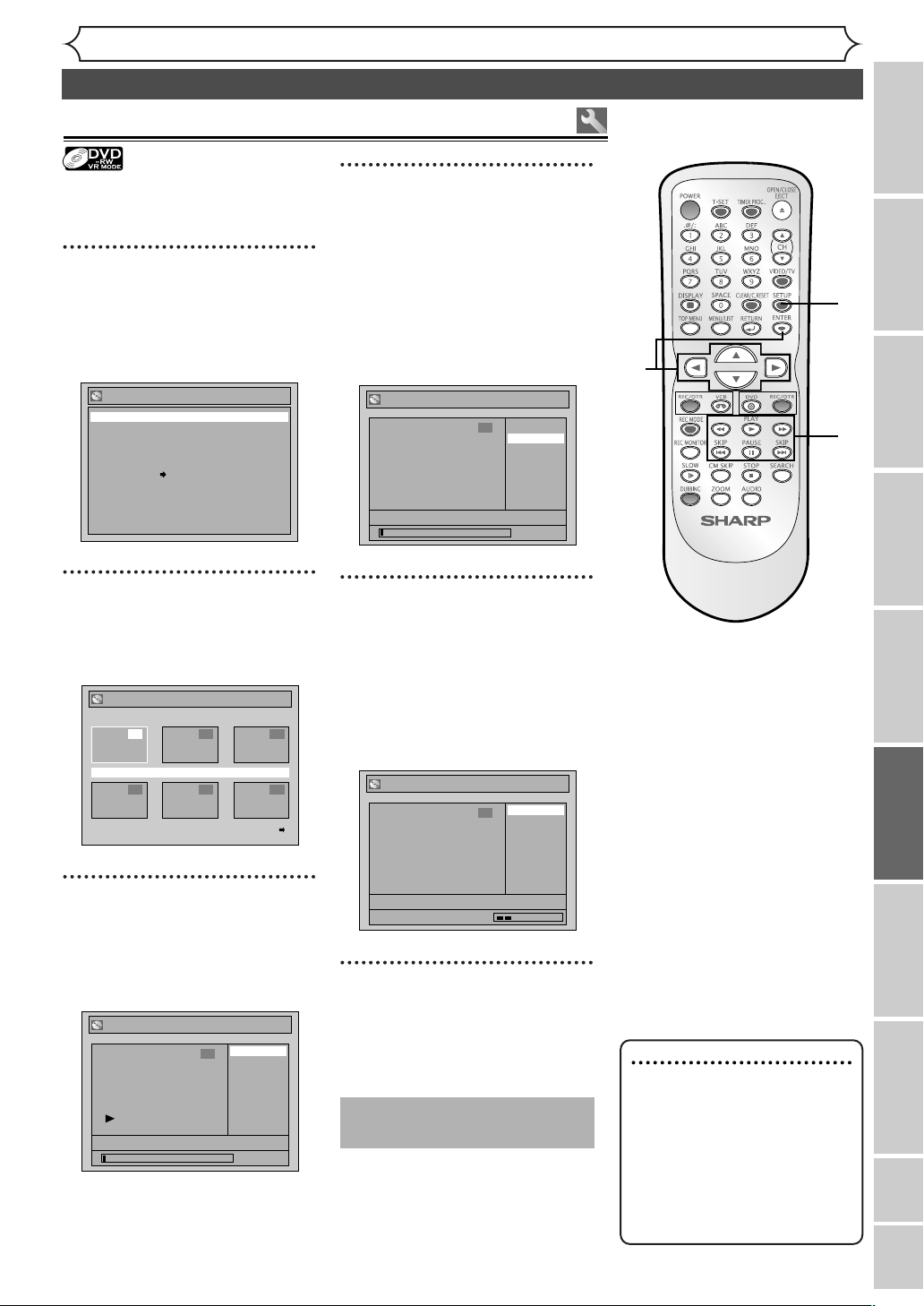

Dividing a title

You can divide a title into two

new titles.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Use SKIP

PLAY

and PAUSE

to decide

the point at which you will divide

the title.

Select “Title Dividing” using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

The title will be divided into two

new titles.

Both title names are identical, and

index pictures are reset to the

first scene of each title.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Playlist - Title Dividing

Yes

JAN/1 1:00AM CH12 XP

Wait for a moment.

Playlist - Title Dividing

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Note

• If a disc contains the maxi-

mum number of recording

(99), you cannot divide any

titles.

•You cannot divide the titles if

the total number of the chap-

ters have already reached

999.

VCR/DVD RECORDER

COMBINATION

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 79

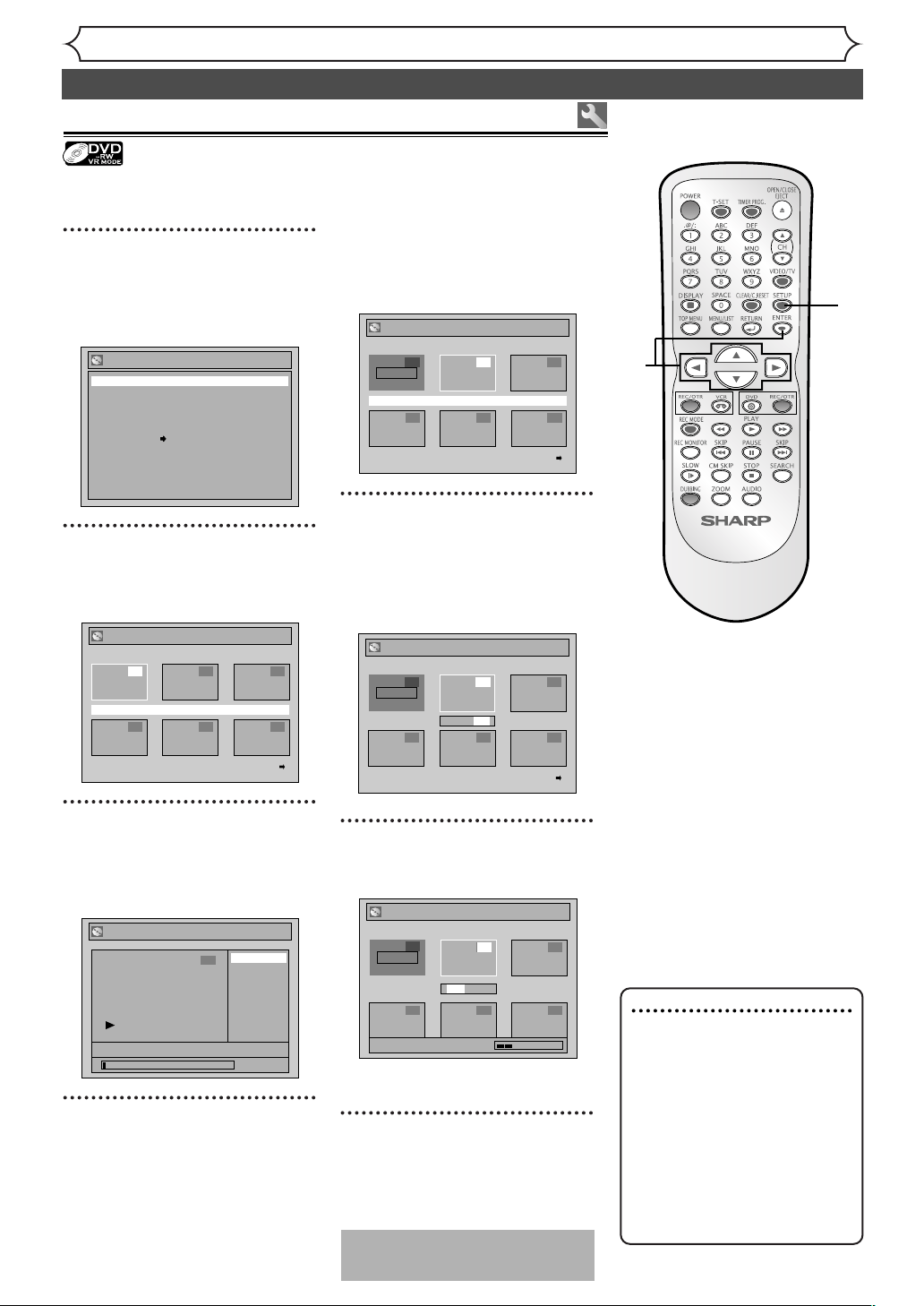

Editing

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

Combining titles

You can combine two titles into a

single title.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

Select “Title Combining”

using Cursor K / L, then

press ENTER.

Title Combining setting window

will appear.

If you select the title 1 as the first

title for Title Combining, it will be

grayed out and the title 2 will be

highlighted in yellow. If you select

another title as the first title, the

title 1 will be highlighted in yellow.

Select another title to com-

bine using Cursor

K / L / s / B, then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

s / B, then Press ENTER.

Tw o titles will be combined into a

single title.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

4 5 6

Yes No

Playlist - Title Combining

Wait for a moment.

1 + 2

Yes No

Playlist - Title Combining

2 3

1 + 2

4 5 6

Playlist - Title Combining

JAN/1 1:00AM CH12 XP

2 3

1 +

4 5 6

Playlist

Scene Delete

Title Delete

Edit Title Name

Chapter Mark

Index Picture

Title Dividing

Title Combining

JAN/1 1:00AM CH12 XP

0:00:59

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

Note

• If either one of the two com-

bined titles is deleted from

the original list, the combined

title in the Playlist is also

deleted.

• The name of the title selected

first will become the name of

the combined title.

•The title selected first will be

the first part of the combined

title.

VCR/DVD RECORDER

COMBINATION

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 80

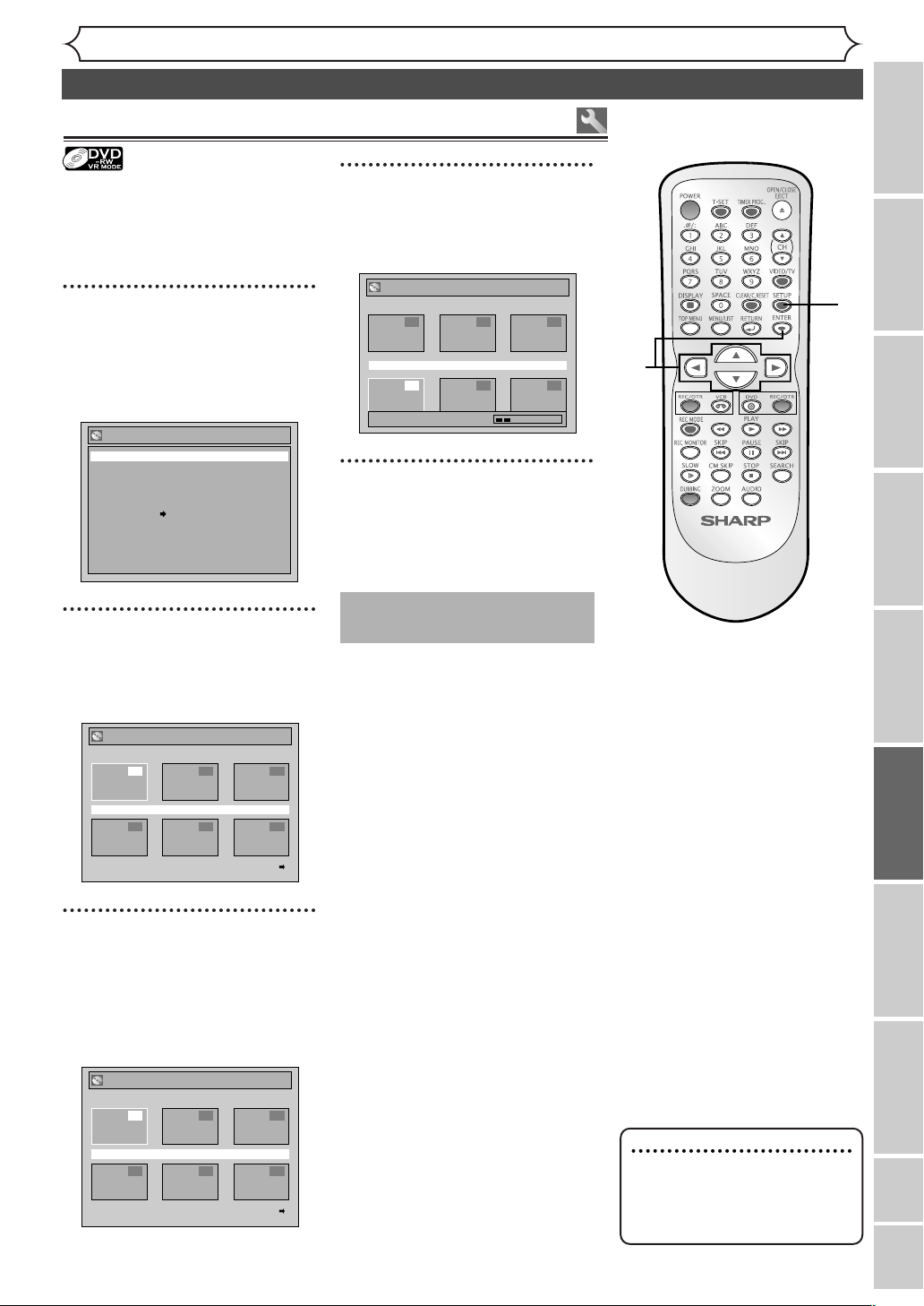

Editing

Adding titles to a Playlist

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

You can add or delete a title on

the Playlist as you prefer.

You can add up to 99 titles to a

Playlist.

Press SETUP. Select “Disc”

using Cursor K / L , then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L, then press ENTER.

Playlist will appear.

Use Cursor K / L / { / B to

select “Add New Title” at the

end of the titles. Then, press

ENTER.

Original will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

To delete a title from Playlist,

refer to “Deleting titles” on page

72.

To delete a Playlist, refer to

“Deleting a Playlist” on page 82.

Playlist - Add New Title

JAN/1 1:00AM CH12 XP

2 3

5 6

Wait for a moment.

Playlist - Add New Title

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

Note

•When a Playlist contains 99

titles or more, or 999 chap-

ters or more, Add New Title

cannot be selected.

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 81

Editing

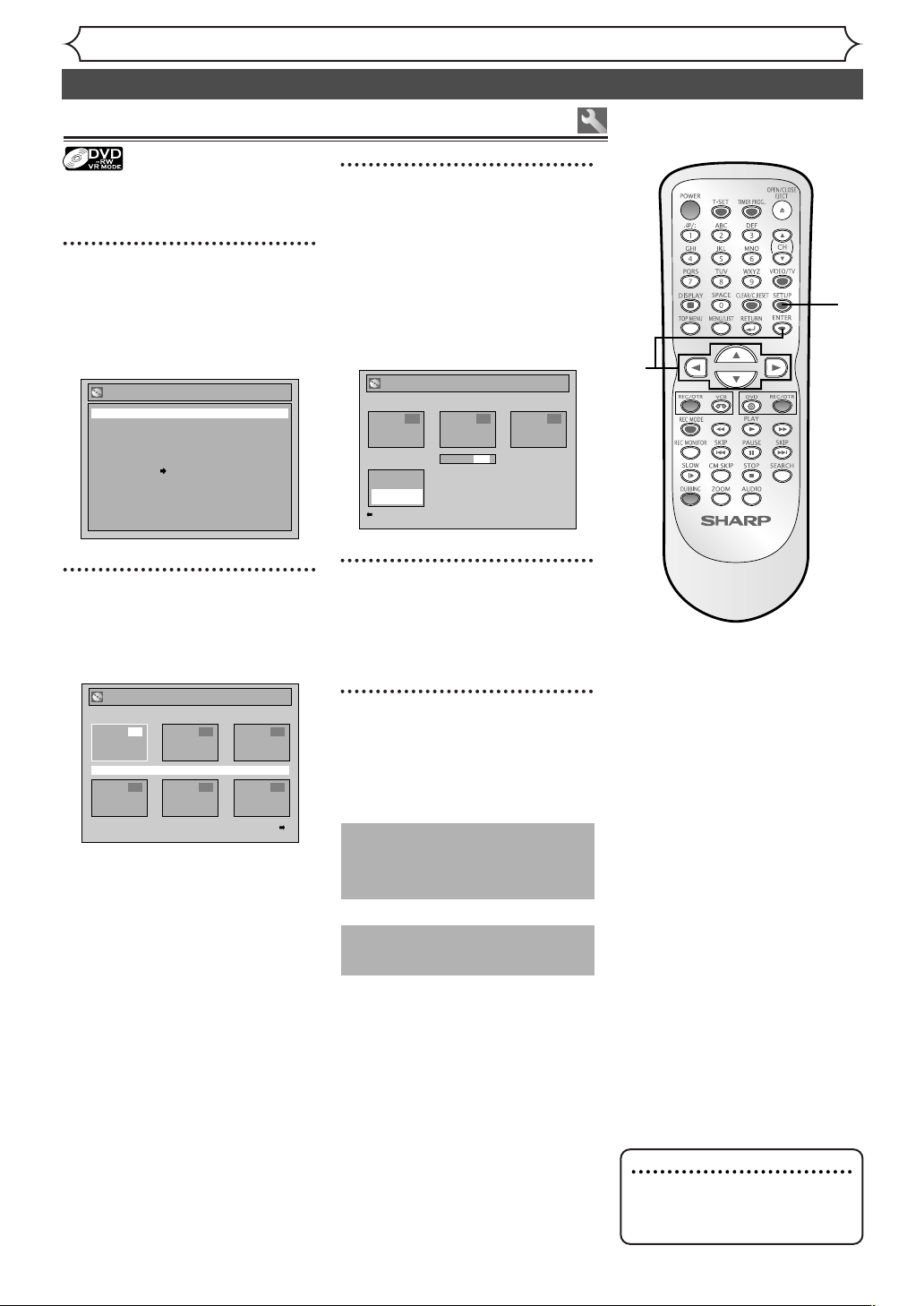

Deleting a Playlist

Editing DVD-RW discs in VR mode (Playlist) (cont’d)

Note

• Deleting a Playlist will not

increase the recordable disc

space.

A Playlist can be deleted if no

longer needed.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Playlist” using Cursor

K / L , then press ENTER.

Playlist will appear.

Use Cursor K / L / { / B to

select “Add New Title” at the

end of the titles. Then, select

“Delete Playlist” using

Cursor K / L , then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

{ / B, then press ENTER.

A Playlist will be erased.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

7 8 9

Add New

Title

Delete

Playlist

Playlist - Delete Playlist

Yes No

Playlist

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Original

Format

Finalize

Disc Protect OFF ON

Playlist

VCR/DVD RECORDER

COMBINATION

The unit will be in stop

mode after exiting the Disc

menu automatically.

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 82

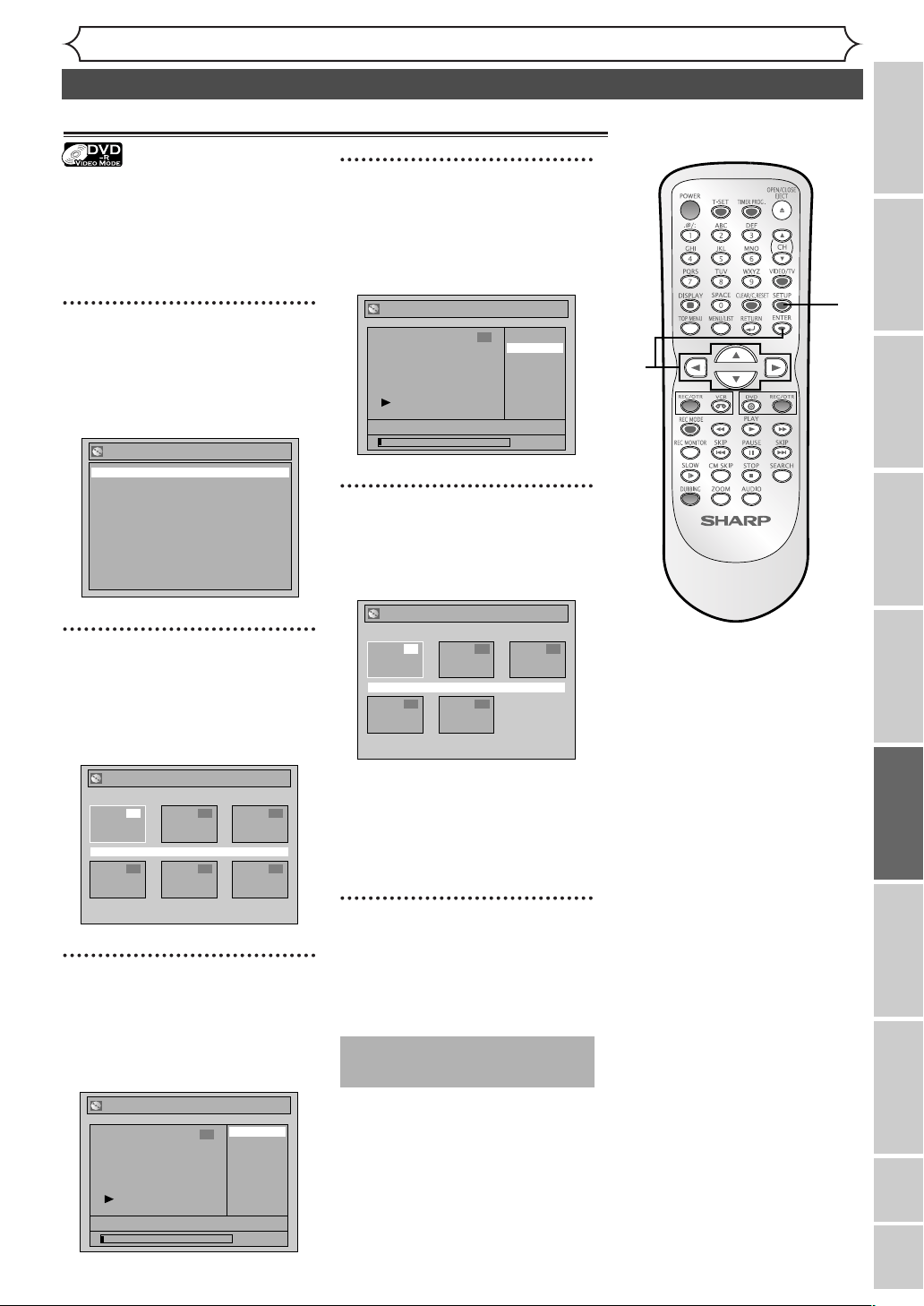

Editing

Deleting titles

Editing DVD-R discs

You can delete titles which you

no longer need.The recordable

disc space will not change.

The deleted titles cannot be

recovered.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Title List” using

Cursor K / L, then press

ENTER.

Title List will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

You cannot select “Chapter Mark”.

Select “Title Delete” using

Cursor K / L, then press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

Title will be deleted.

When the only one title is

recorded, the Disc menu will not

appear after this operation and

the unit starts writing the data on

the disc automatically.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Title List

JAN/1 1:00AM CH12 XP

4 5

1 2 3

Title List - Title Delete

Yes

JAN/1 1:00AM CH12 XP

0:00:59

Title List

Edit Title Name

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

Chapter MarkChapter Mark

Title List

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Format

Title List

Finalize

VCR/DVD RECORDER

COMBINATION

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 83

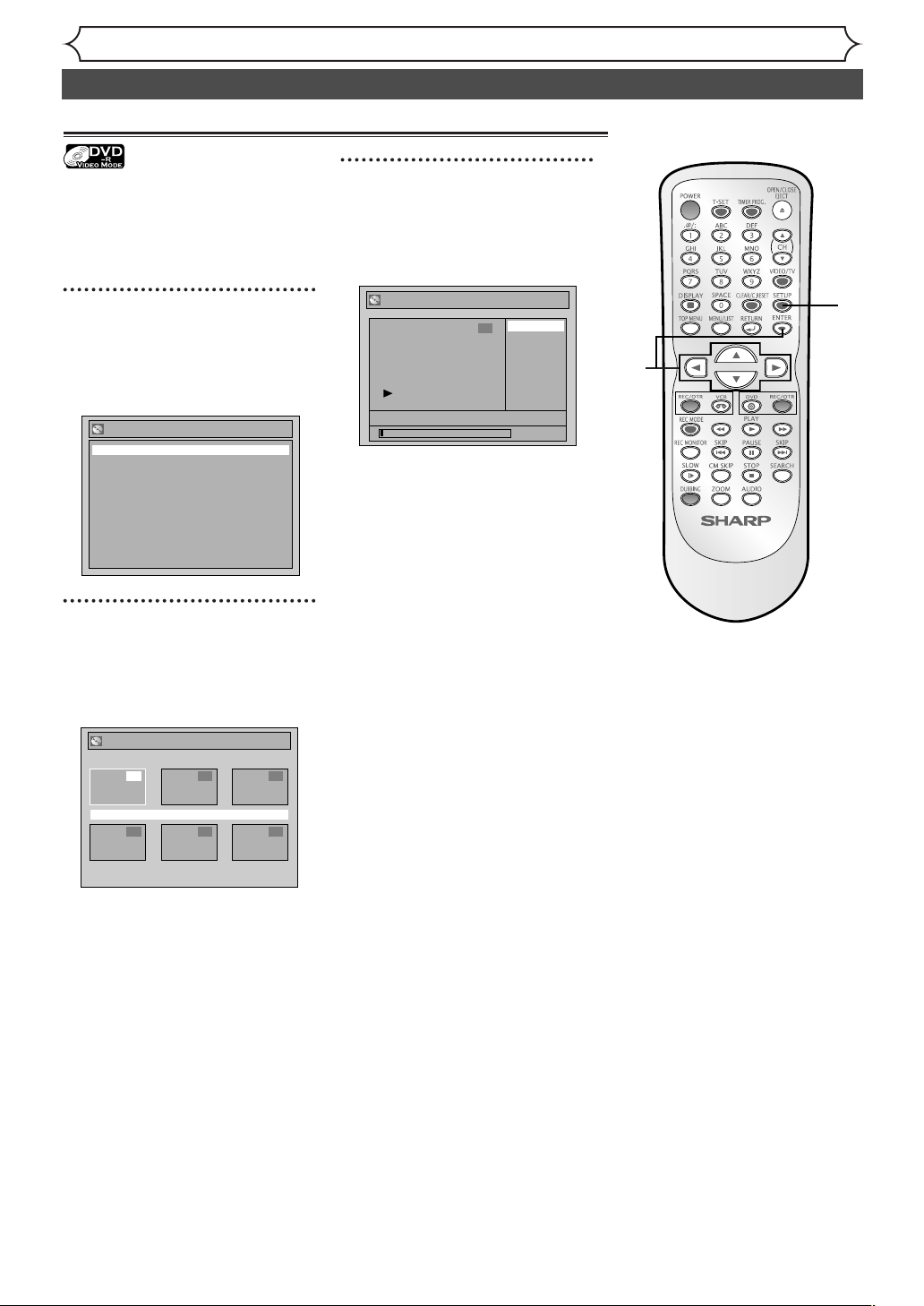

Editing

Putting names on titles

Editing DVD-R discs (cont’d)

You can name the titles and

change the names from this menu.

The names you put on the titles

will be displayed on a Title List.

Press SETUP. Select “Disc”

using Cursor K / L, then

press ENTER.

Disc menu will appear.

Select “Title List” using

Cursor K / L, then press

ENTER.

Title List will appear.

Select a desired title using

Cursor K / L / { / B, then

press ENTER.

Edit menu will appear.

You cannot select “Chapter Mark”.

Title List

Edit Title Name

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

Chapter MarkChapter Mark

Title List

JAN/1 1:00AM CH12 XP

4 5 6

1 2 3

Disc

Format

Title List

Finalize

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 84

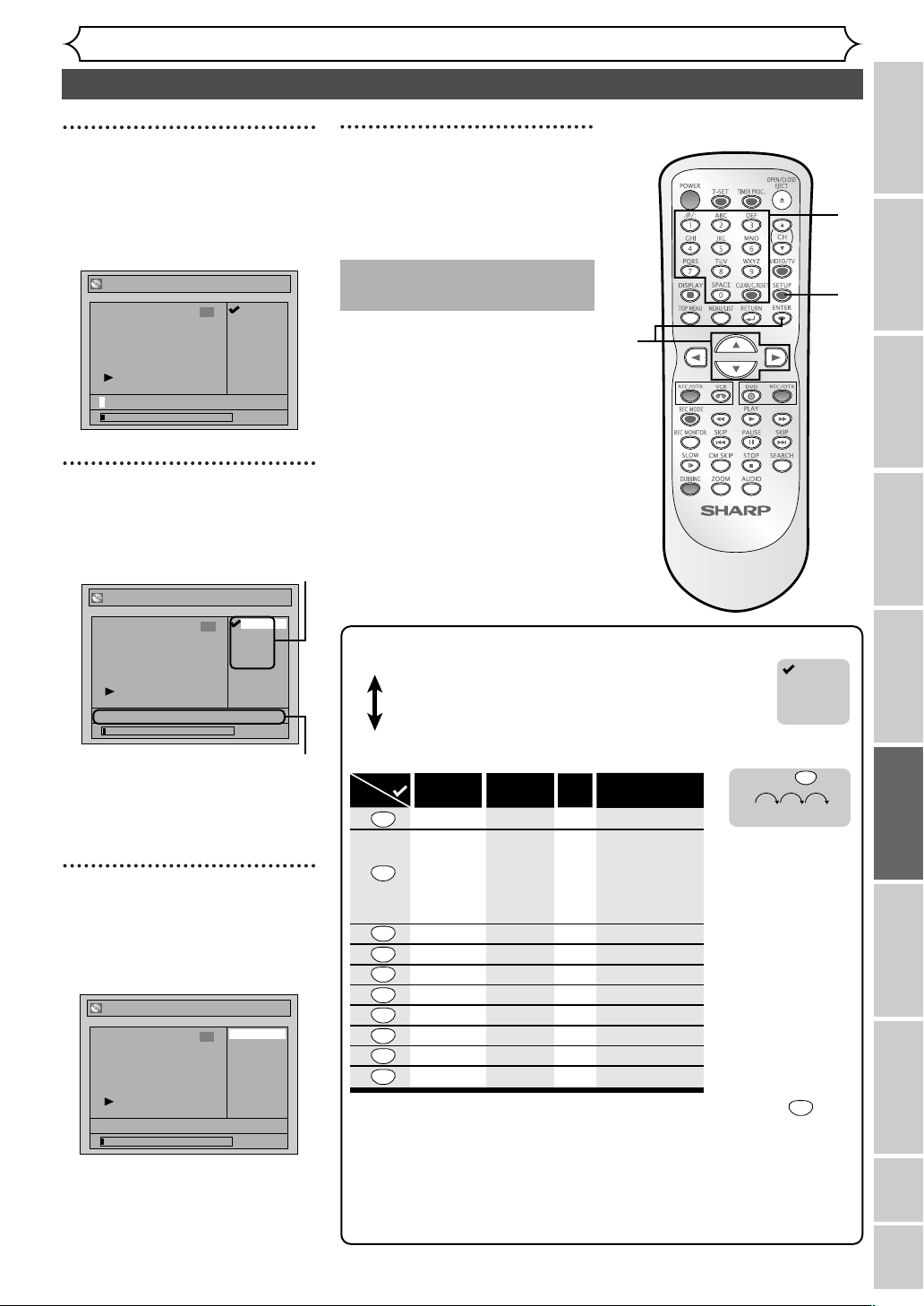

Select “Edit Title Name”

using Cursor K / L, then

press ENTER.

A window for entering a title

name will appear.

To enter a title name, follow

the STEPs of “Guide to edit

title name” on this page.

character set

area for entering title names

When you finish entering a title

name, press

ENTER.

Confirmation window will appear.

Select “Yes” using Cursor

K / L, then press ENTER.

The name you entered will be

activated.

After this operation is com-

pleted, press SETUP to exit.

Writing the data on the disc will

start momentarily.

Title List

Edit Title Name

Title Delete

JAN/1 1:00AM CH12 XP

0:00:59

Chapter MarkChapter Mark

Title List - Edit Title Name

abc

ABC

123

@! ?

JAN/1 1:00AM CH12 XP

0:00:59

Title List - Edit Title Name

abc

ABC

123

@! ?

0:00:59

JAN/1 1:00AM CH12 XP

Editing DVD-R discs (cont’d)

Editing

VCR/DVD RECORDER

COMBINATION

Press

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

<space>

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

! ” # $ % & ’ ( )

+ , - . / : ; < = >

? @ [ ] ^ _ { | }

ABC

abc

Select

@ ! ?

123

•Character set will be changed to the “@!?” automatically if you press after

you selected the “ABC” or “abc” mode.

• If you want to mix different character sets in one title, repeat

STEP

[

]

and

[

]

above.

[

STEP1

]

Select a desired character set using Cursor K

then press

ENTER.

[

STEP2

]

: Follow the list below, press the Number buttons repeatedly until the

desired letter appears.

[

Guide to edit title name

]

A B C

a b c

1 2 3

@ ! ?

•To delete letters, press CLEAR/C.RESET repeatedly. Hold

CLEAR/C.RESET to delete all letters.

•To go on to the next entering area for letters, press Cursor B.

•You can enter up to 30 letters.

e.g. character set : A B C

A B C A

...

press

Note:

Undefined letters in a

title name are shown

by “

”. If you delete

them, adjoining letters

may change to “

” or

other.

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

This operation may take a

while to be completed.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 85

Tour of the Setting menu

Changing the Setting menu

Note

•If you change the settings in the set-

ting menu, the information of con-

tents stays on even after the power

is switched off.

• An item which is not currently avail-

able is grayed out in setting menu.

1. Language setting

Pages 87-88

Pages 89-90

Pages 91-92

Pages 93-94

2. Display setting

3. Audio setting

4. Parental setting

Setting menu ContentsItems (highlight is the default)

Disc Menu Language

Audio Language

Subtitle Language

Set the language for disc menu.

Set the language for audio.

Set the language for subtitles.

Set the language for OSD

(On-Screen Display).

Set the brightness of front display.

Set the idling time before the screen saver

starts.

Set whether or not DTS signal will be

output.

Compress the range of sound volume.

Set whether or not to output sound

during fast forward playback.

Set the parental level for DVD playback.

Set and change the password.

OSD Language

FL Dimmer

Screen Saver

Digital Out

Dynamic Range

Control

Fast Forward with

Audio

Parental Lock

(Change password)

English

French

Spanish

Original

English

French

OFF

English

French

OFF

5 minutes

10 minutes

English

Français

Español

Auto

Bright

Dark

OFF

Set the type of sound signal output from

the digital audio output jack.

Dolby Digital

PCM

Stream

DTS

OFF

All

level 8 to 1

Enter the current

four-digit password

Set whether the sound recorded in 96kHz

will be down sampled in 48kHz.

PCM

48kHz

96kHz

The following table shows the items which you can change the settings and their default settings.

Refer to the following table for your convenience.

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 86

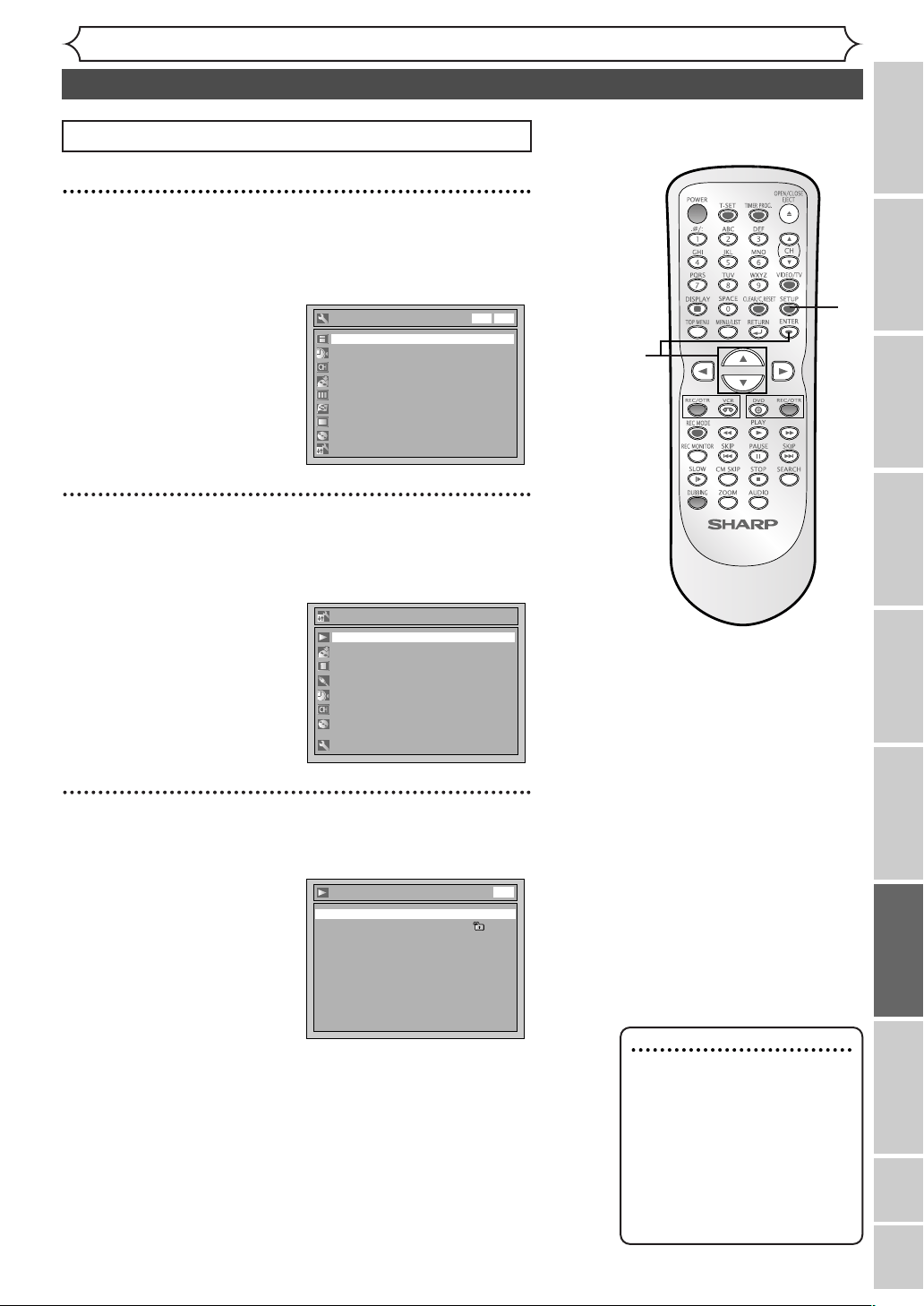

Changing the Setting menu

Language setting

Press SETUP.

Easy Setting Menu or Advanced Setting Menu will appear.

If Advanced Setting Menu is displayed, proceed to STEP 3.

Select “Advanced Setting Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Playback” using Cursor K / L, then press ENTER.

Option window will appear.

Playback

Parental Lock All

Subtitle Language OFF

Digital Out

Audio Language Original

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

TV Aspect 4:3 Letter Box

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Note

• Only the languages supported

by the disc can be selected.

• Audio Language setting may

not be available on some

discs.

•You can also change or switch

off the subtitles on a DVD

disc from the disc menu if it

is available.

VCR/DVD RECORDER

COMBINATION

Press STOP

if you are playing back a disc.

Instructions continue on page 88

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_2.qx4 05.7.15 11:58 AM Page 87

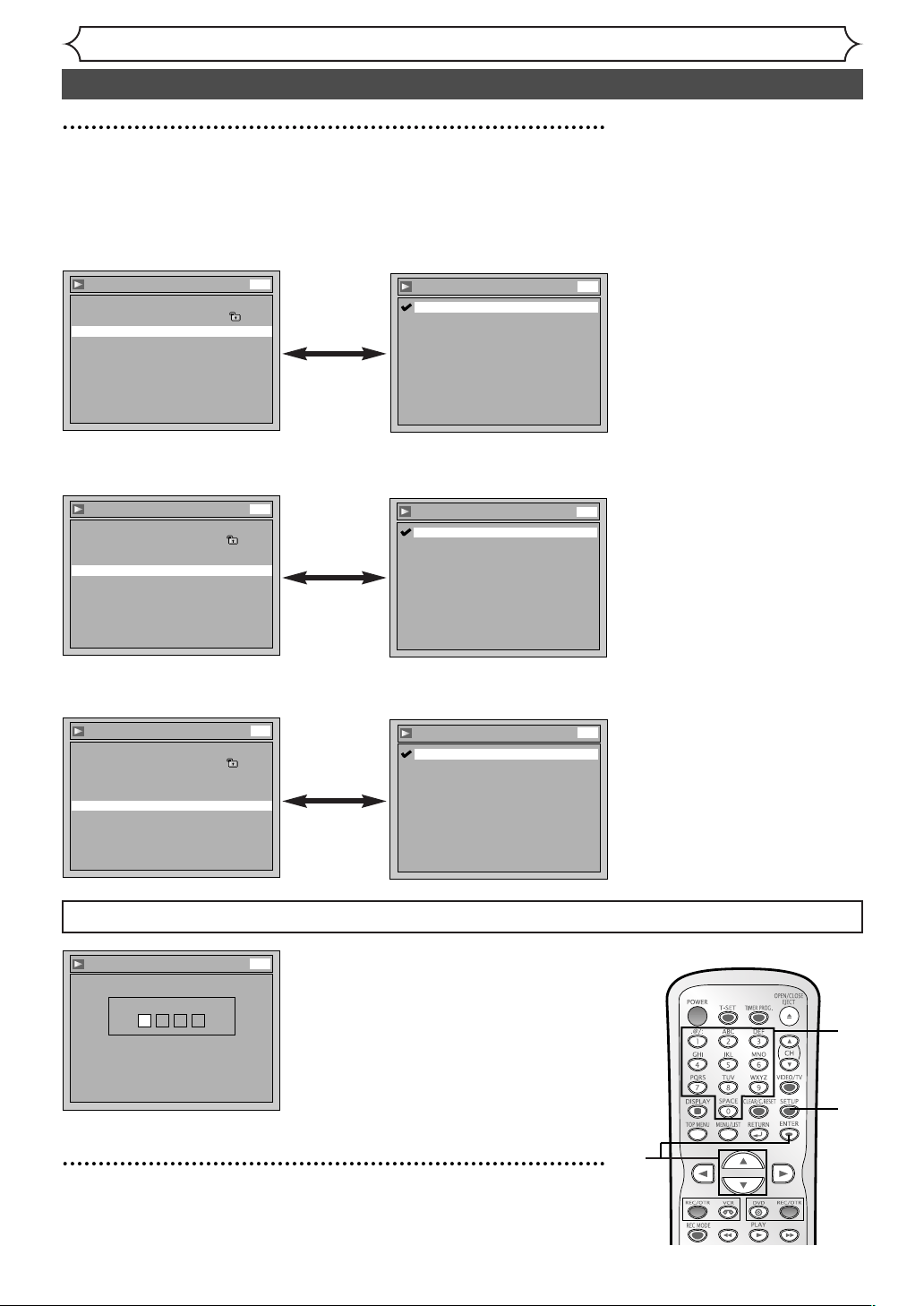

Changing the Setting menu

Language setting (cont’d)

Playback

Parental Lock All

TV Aspect 4:3 Letter Box

Subtitle Language OFF

Digital Out

Audio Language Original

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

DVD

Playback

Parental Lock All

TV Aspect 4:3 Letter Box

Subtitle Language OFF

Digital Out

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

Audio Language Original

DVD

Playback

Parental Lock All

TV Aspect 4:3 Letter Box

Digital Out

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

Audio Language Original

Subtitle Language OFF

DVD

Disc Menu Language

French

Spanish

Other

English

DVD

Audio Language

English

French

Spanish

Other

Original

DVD

Subtitle Language

OFF

French

Spanish

Other

English

DVD

Disc Menu Language (Default : English)

Set the language for Disc Menu.

•

Select a setting using

Cursor K / L, then press

ENTER.

Your setting will be activated.

•

Select a setting using

Cursor K / L, then press

ENTER.

Your setting will be activated.

•When Original is selected, the

audio language will be the

disc’s default language.

•

Select a setting using

Cursor K / L, then press

ENTER.

Your setting will be activated.

Audio Language (Default : Original)

Set the Audio language.

Subtitle Language (Default : OFF)

Set the Subtitle language.

If “Other” is selected, press 4-digit code using the Number buttons.

Disc Menu Language

Code Input

----

DVD

•

When you finish entering

the code, press ENTER.

Refer to the language

code table on page 102.

Press SETUP to exit.

Select a desired item using Cursor K / L, then press ENTER.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 88

VCR/DVD RECORDER

COMBINATION

Changing the Setting menu

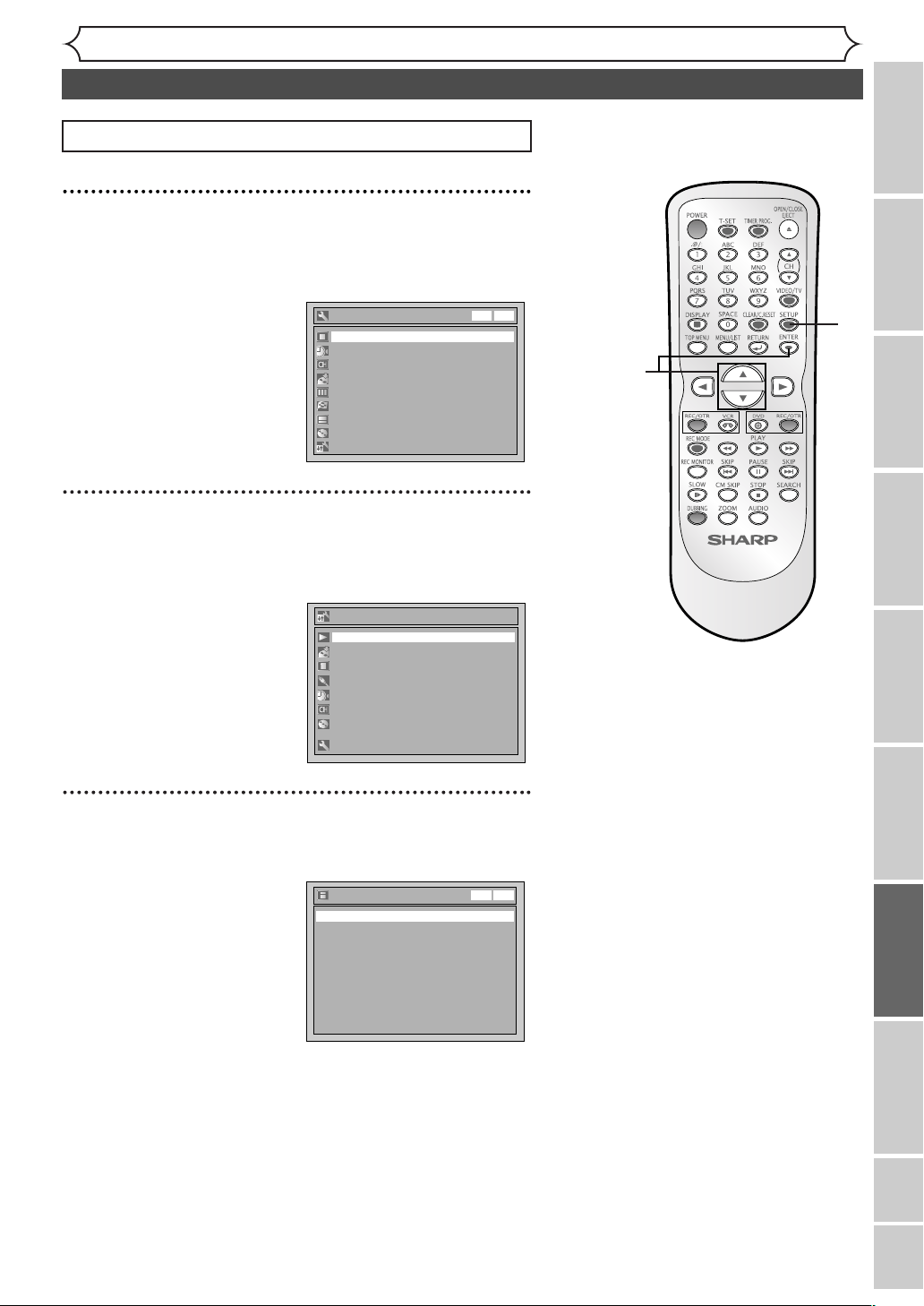

Display setting

Press SETUP.

Easy Setting Menu or Advanced Setting Menu will appear.

If Advanced Setting Menu is displayed, proceed to STEP 3.

Select “Advanced Setting Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Display” using Cursor K / L , then press ENTER.

Option window will appear.

Display

OSD Language English

FL Dimmer Bright

Screen Saver 10 minutes

DVDVCR

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

Press STOP C if you are playing back a disc.

Instructions continue on page 90

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 89

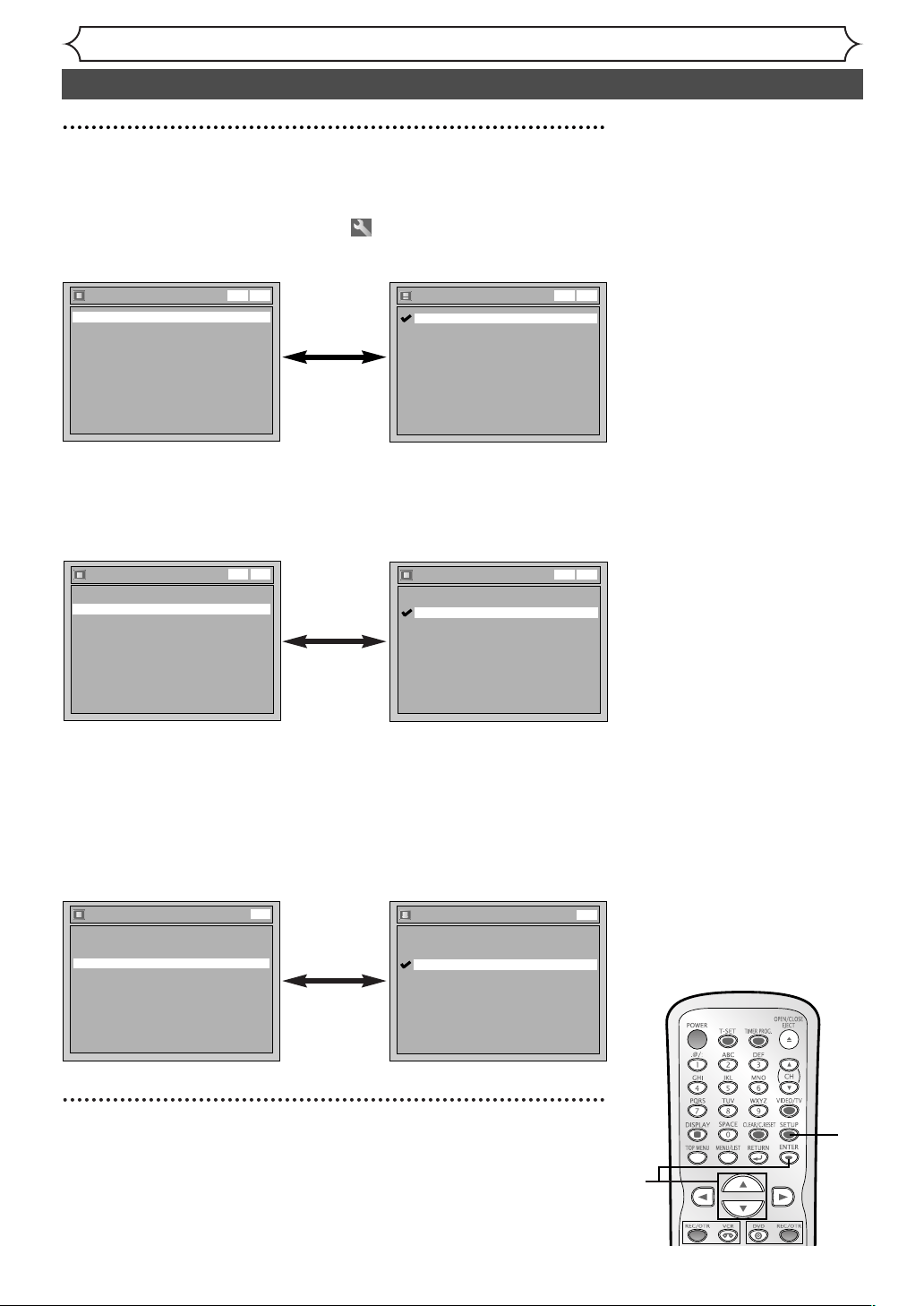

Changing the Setting menu

Display setting (cont’d)

Display

OSD Language English

FL Dimmer Bright

Screen Saver 10 minutes

DVDVCR

OSD Language

Français

Español

English

DVDVCR

•

Select a setting using

Cursor K / L, then press

ENTER.

Your setting will be activated.

OSD Language (Default : English) SKIP 2 and 3

Set the language for OSD (On-Screen Display).

You can also choose this setting from the Easy Setting Menu.

Display

OSD Language English

FL Dimmer Bright

Screen Saver 10 minutes

DVDVCR

FL Dimmer

Bright

Dark

Auto

DVDVCR

•

Select a setting using

Cursor K / L, then press

ENTER.

Your setting will be activated.

FL Dimmer (Default : Bright)

Set the brightness of front display.

You can choose one among “Auto”,“Bright” and “Dark”.

If “Auto” is selected, the display will be shown brighter when the power is

on, and darker when the power is off.

Display

OSD Language English

FL Dimmer Bright

Screen Saver 10 minutes

DVD

Screen Saver

5 minutes

10 minutes

OFF

15 minutes

30 minutes

DVD

•

Select a setting using

Cursor K / L, then press

ENTER.

Your setting will be activated.

Screen Saver (Default : 10 minutes)

This feature displays simplified animation on the screen to prevent the

screen of your TV from getting burned. Screen saver will be activated auto-

matically when the unit is left untouched for a certain amount of time with

some screens such as; Easy Setting Menu,Advanced Setting Menu or Timer

Programming list displayed on the screen.You can set the idling time before

the screen saver's activation. If you select “OFF”, the screen saver is not

effective.

Press SETUP to exit.

Select a desired item using Cursor K / L, then press ENTER.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 90

Changing the Setting menu

Audio setting

Press SETUP.

Easy Setting Menu or Advanced Setting Menu will appear.

If Advanced Setting Menu is displayed, proceed to STEP 3.

Select “Advanced Setting Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Playback” using Cursor K / L, then press ENTER.

Option window will appear.

Select a desired item using Cursor K / L, then press

ENTER.

Playback

Parental Lock All

Subtitle Language OFF

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

Audio Language Original

Digital Out

TV Aspect 4:3 Letter Box

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

VCR/DVD RECORDER

COMBINATION

Choose the appropriate Audio settings for your equipment.

Note

• Dynamic Range Control func-

tion is available only on the

discs which are recorded in

the Dolby Digital format.

Playback

Parental Lock All

TV Aspect 4:3 Letter Box

Subtitle Language OFF

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

Audio Language Original

Digital Out

DVD

Digital Out

Dolby Digital Stream

PCM 48kHz

DTS OFF

DVD

Digital Out

Set the digital audio output.

•

Select a setting using

Cursor K / L, then press

ENTER.

Option window will appear.

Proceed to STEP A, B or C.

Press STOP

if you are playing back a disc.

Instructions continue on page 92

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 91

Changing the Setting menu

Audio setting (cont’d)

Playback

Parental Lock All

TV Aspect 4:3 Letter Box

Digital Out

Fast Forward with Audio ON

Progressive OFF

Disc Menu Language English

Audio Language Original

Subtitle Language OFF

Dynamic Range Control ON

DVD

Playback

Parental Lock All

TV Aspect 4:3 Letter Box

Digital Out

Disc Menu Language English

Audio Language Original

Subtitle Language OFF

Dynamic Range Control ON

Fast Forward with Audio ON

Progressive OFF

DVD

Dynamic Range Control

OFF

DVD

Fast Forward with Audio

OFF

DVD

•

Select a setting using Cursor

K / L, then press ENTER.

Your setting will be activated.

•

Select a setting using Cursor

K / L, then press ENTER.

Your setting will be activated.

Dynamic Range Control (Default : ON)

Set to “ON” to compress the range between soft and loud sounds.

Fast Forward with Audio (Default : ON)

Set to “ON” to output the sound during playback in x1.5 fast forward.

Press SETUP to exit.

Settings for Dolby Digital (Default : Stream)

Digital Out - Dolby Digital

Stream

PCM

DVD

•

Select a setting using Cursor K / L, then

press ENTER.

Your setting will be activated.

PCM : Convert the Dolby Digital into PCM

(2 channel).

When your amplifier/decoder is NOT com-

patible with Dolby Digital, s

et to “PCM”

Stream : Outputs Dolby Digital signals.

When your amplifier/decoder is compatible

with Dolby Digital,

set to “Stream”.

Settings for PCM (Default : 48kHz)

Digital Out - PCM

96kHz

48kHz

DVD

•

Select a setting using Cursor K / L, then

press ENTER.

Your setting will be activated.

48kHz : If your amplifier/decoder is NOT com-

patible with 96kHz PCM, select “48kHz”.

96kHz sound will be output in 48kHz.

96kHz : If your amplifier/decoder is compatible

with 96kHz PCM, select “96kHz”.

: 96kHz sound will be output.

Note

When playing back disc with

•Even if you select “96kHz”, the

sound will be down sampled at

48kHz.

Note

When playing back a DVD-RW

disc recorded in VR mode

• If the audio on a disc is record-

ed in Dolby Digital format, set

“Dolby Digital” to “PCM” so

that you can switch to main (L),

sub audio (R), or a mix of both

(L/R) with your

amplifier/decoder.

Settings for DTS (Default : OFF)

Digital Out - DTS

OFF

DVD

•

Select a setting using Cursor K / L, then press ENTER.

Your setting will be activated.

ON : Outputs DTS signals.

When your amplifier/decoder is compatible with DTS, set to “ON”.

OFF : No DTS signal is output.

When your amplifier/decoder is NOT compatible with DTS, set to

“OFF”.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 92

Changing the Setting menu

Settings for Parental lock level

Press SETUP.

Easy Setting Menu or Advanced Setting Menu will appear.

If Advanced Setting Menu is displayed, proceed to STEP 3.

Select “Advanced Setting Menu” using Cursor K / L,

then press ENTER.

Advanced Setting Menu will appear.

Select “Playback” using Cursor K / L, then press ENTER.

Option window will appear.

Playback

Parental Lock All

Subtitle Language OFF

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

Disc Menu Language English

Audio Language Original

Digital Out

TV Aspect 4:3 Letter Box

DVD

Advanced Setting Menu

Recording

Display

Select Video

Clock

Channel

Disc

Easy Setting Menu

Playback

Easy Setting Menu

Clock

Channel

DVD-RW Recording Format VR mode

Timer Programming

Auto Finalize

Progressive OFF

Advanced Setting Menu

OSD Language English

Disc

DVDVCR

VCR/DVD RECORDER

COMBINATION

Press STOP

if you are playing back a disc.

Some DVD-Video discs feature a Parental Lock level. Playback

will stop if the disc’s general rating exceeds the level you set. It

will require you to enter a password before the disc will be

played back.This feature prevents your children from viewing

inappropriate materials.

Note

• Parental lock function may

not be available on some

discs.

•For some DVDs, it may be

difficult to find if they are

compatible with parental lock.

Be sure to check if the

parental lock function oper-

ates in the way that you have

set.

• Record the password in case

you forget it.

Instructions continue on page 94

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 93

Changing the Setting menu

Settings for Parental lock level (cont’d)

Playback

Parental Lock All

Disc Menu Language English

TV Aspect 4:3 Letter Box

Subtitle Language OFF

Digital Out

Audio Language Original

Fast Forward with Audio ON

Progressive OFF

Dynamic Range Control ON

DVD

Parental Lock

All

DVD

Parental Lock

Password Input

----

DVD

Parental Lock (Default :All)

Set the Parental Lock level.

•

Change the parental level

using Cursor K / L, then

press ENTER.

Option window will appear.

Proceed to STEP A or B.

•

Select “Yes” using Cursor

K / L , then enter a new

password (except for 4, 7,

3, 7) using the Number

buttons, then press ENTER.

Your setting will be activated.

Press SETUP to exit.

A password has been set already

Parental Lock

Password Input

----

DVD

Parental Lock

Password Input

****

DVD

Change the password

• If you

select “No”, proceed to STEP 5.

Ye s

Note

•

Press

CLEAR/C.RESET

erase numbers entered incorrectly.

•

When you forget the

password or you want to clear

all settings in Parental lock,

enter 4, 7, 3, 7 using

the Number buttons in

input window at STEP B.

Password will be cleared and

parental levels will be set to All.

• If you

want to change the

password select “YES”.

• If you don’t need to

change the password,

select “No”, and proceed

to STEP 5.

•

Enter the current password

using the Number buttons.

A password has not been set yet

Parental Lock

Yes

Change Password?

DVD

Parental Lock

Yes

Change Password?

DVD

•

Select “Yes” using Cursor

K / L, then enter a new

password (except for 4, 7, 3,

7) using the Number but-

tons, then press ENTER.

Your setting will be activated.

Select “Parental Lock” using Cursor K / L, then press ENTER.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 94

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Recording

VCR functions

Playback

Press POWER on the remote

control or the front panel of

the unit.

When you are playing a video-

tape, turn the TV on and be sure

to select the input to which the

unit is connected.

Insert a prerecorded video-

tape, then press PLAY B to

begin playback.

During playback, press

PAUSE F .

Playback will pause and sound will

be muted.

Press PLAY B to resume

playback.

Press STOP C to stop play-

back.

Press OPEN/CLOSE/EJECT A

(or STOP/EJECT C / A on the

front panel of the unit) to

eject the videotape.

press first.

VCR

Note

• When a videotape without

erase-protection tab is insert-

ed, the unit will start playback

automatically.

•Tracking will be automatically

adjusted upon playback.To

adjust the tracking manually,

press CHANNEL

K / L

the front panel of the unit or

K / L

on the remote

control.

Accidental erasure prevention

To prevent accidental recording

on a recorded videotape,

remove its erase-protection

tab.To record on it later, cover

the hole with cellophane tape.

Recording and One-touch Timer Recording

Before recording, make sure:

•

The desired channel is selected

by pressing the Number

buttons or

K / L

on the

remote control or CHANNEL

K / L

on the front panel of the

unit.

•

A videotape with an erase-pro-

tection tab is in the unit.

•

The desired recording speed is

selected in SP (standard playback)

or SLP (super long playback)

mode by pressing REC MODE

on the remote control.

Recording speed:

•

Stereo or SAP is selected. Refer

to page 21.

•

Refer to pages 35-39 for instruc-

tions on Timer Recording.

Press REC/OTR to begin the

recording.

To temporarily stop recording or

to resume it, press PAUSE F.

After the unit has been in Pause

mode for 5 minutes, it will stop

automatically to protect the

videotape and the video head

from damage.

Press STOP C when the

recording is completed.

press first.

VCR

Note

•To view one channel while

recording another

While you are recording on

the unit, press VIDEO/TV.

2) At the cable box or satel-

lite box, select the channel

you want to view.

If you have connected the

unit to a cable box or satellite

box, refer to “Connection to

a cable box or satellite box”

section on page 15.

Ta pe speed

Type of tape

T160T120

Recording/Playback Time

T60

2-2/3hours2hours

1hourSP mode

8hours6hours3hoursSLP mode

Erase-protection tab

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 95

VCR functions

Recording and One-touch Timer Recording (cont’d)

This feature allows you to set the

recording length simply by pressing

REC/OTR on the remote control

or the front panel of the unit.

During normal recording,

press REC/OTR to begin one-

touch timer recording.

You can select a fixed recording

time by pressing REC/OTR

repeatedly.

When one-touch timer recording

is finished, the unit will turn off

automatically.

To change the recording length

during the one-touch timer

recording, press

REC/OTR

repeatedly until the desired length

appear.

To cancel the one-touch timer

recording within the specified

time, press

STOP C.

press first.

VCR

One-touch Timer Recording

(0:30) (1:00)

(Normal recording)

(7:30)(8:00)

An index mark will be assigned at

the beginning of each recording

you make. You may skip to a spe-

cific marked point by following the

steps below.

Press SEARCH so that the

index search menu appears.

Enter the number of record-

ings you wish to skip using

the Number buttons within

30 seconds.

Press h / g to start index

search.

If you want to go in the forward

direction, press

If you want to go in the reverse

direction, press

After index search, the VCR will

play the videotape automatically.

Pro.1 Pro.2 Pro.3 Pro.4 Pro.5

02 01 01 02 03

Beginning

of tape

End

of tape

CURRENT PROGRAM

INDEX MARK

INDEX SEARCH

press first.

VCR

Index search

VCR/DVD RECORDER

COMBINATION

Note

•Every time a videotape is

recorded, an index mark is

written on the videotape.

•You can make the index mark

up to 20.

Note

•

The remaining recording time

will appear on the display panel

during an one-touch timer

recording. Press DISPLAY to

see it on the TV screen.

•

Yo u cannot pause a one-

touch timer recording.

•

If OTR is finished in VCR during

playback or REC mode in DVD, the

VCR will be in STOP mode and

the DVD keeps the current mode.

•

Unlike a timer recording, you can

perform the following operations

during a one-touch timer recording.

Turning the power off.

Using REC/OTR or STOP

•

When OTR is finished and the power is

turned off, the unit will switch to the

standby mode automatically if a Timer

Recording has been programmed. Press

T-SET to cancel the standby mode for

using the unit continueously.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 96

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Other operations

Fast forward:

When the unit is in stop mode, press g to fast forward the videotape.

Rewind:

When the unit is in stop mode, press h to rewind the videotape.

To cue or review picture during playback (Picture Search):

Press h / g during playback.

Press it again and the unit will search in super high speed. (in the SLP mode only)

To freeze the picture on TV screen during playback (Still mode):

Press PAUSE F. Each time you press the button, the picture will be

forwarded by one frame.

• If the picture begins to vibrate vertically during the still mode, stabi-

lize the picture by pressing CHANNEL K / L or CH K / L.

• If the picture is distorted or rolling vertically, adjust the vertical hold

control on your TV, if equipped.

Counter Reset:

Press CLEAR/C.RESET.

To play back in slow motion:

Press SLOW during playback or the still mode.

• If the noise bars appear on the TV screen, you can reduce it by press-

ing CHANNEL K / L or CH K / L.

Automatic Rewind:

When a videotape is played or fast forwarded to its end, the videotape

will rewind to the beginning, stop, and eject itself.

When you play back a videotape recorded in Hi-Fi stereo:

Press AUDIO on the remote control to select Hi-Fi or MONO for

playback sound mode.

• If you have connected a stereo TV to this unit, select “Hi-Fi”.

• If you have connected a monaural TV to this unit, select “MONO”.

press first.

VCR

Note

•Still/Slow/Pause mode will be

automatically canceled after 5

minutes to prevent damage to

the videotape and the video

head.

•To return to playback from

the Picture Search/Still/Slow

mode, press PLAY B.

VCR functions

Search (cont’d)

Hi-Fi

Your Selection

Type of recorded tape

non Hi-Fi tapes

Hi-Fi tapes

recorded in

Hi-Fi stereo

Hi-Fi tapes

recorded second

audio program

Hi-Fi tapes

recorded main

audio program

MONO

Monaural

L+R

Main audio

program

Second audio

program

Monaural

R-channelL-channel

Main audio

program

Second audio

program

Monaural

Main audio

program

Second audio

program

Time search

Note

• These functions are not avail-

able during recording.

•Press STOP C to stop the

search.

• If the end of the videotape is

reached during a Search, this

unit will cancel the search and

rewind the videotape.

This feature allows you to go to a

specific point on a videotape by

entering the exact amount of time

you wish to skip in order to reach

the point.

Press SEARCH repeatedly so

that the Time search menu

appears.

Enter your desired time to skip

using the Number buttons

within 30 seconds.

You can set the time up to 9:59.

Press h / g to start time

search.

If you want to go in the forward

direction, press

If you want to go in the reverse

direction, press

After time search, the unit will play

the videotape automatically.

TIME SEARCH

2:50

press first.

VCR

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 97

Others

Troubleshooting

Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing.

Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

Symptom Remedy

The power does not turn on. • Check that the AC power cord is connected securely.

• (In case of power failure) Check the breaker.

•Press T-SET to cancel the timer standby mode.

There is no picture. • Re-connect the connecting cord securely.

• The connecting cords are damaged.

• Check the connection to your TV (page 14).

• Check the RF output channel when you view a TV program

using RF connection.

• Switch the input selector on your TV (such as to “LINE1”) so

that the signal from this unit appears on the TV screen.

TV program pictures are distorted. • Adjust TV antenna.

• Adjust the picture (see the TV's instruction manual).

• Place the unit and TV farther apart.

• Place the TV and any bunched antenna cables farther apart.

TV program reception does not fill the

screen.

•Try to set the channels with “Auto Preset” in the setting menu

(page 19).

•

Select a channel of any TV program using CH

buttons.

•Press VIDEO/TV if necessary.

The playback picture or TV program from

the equipment connected through the

unit is distorted.

•

If the playback picture output from a DVD player, VCR, or tuner goes

through the unit before reaching your TV, the copy-protection signal

applied to some programs could affect picture quality. Disconnect the

playback equipment in question and connect it directly to your TV.

Playback picture is distorted. • Keep the equipment which may cause electrical disturbances,

such as a cellular phone, away.

There is no sound. • Re-connect all connections securely.

• The connecting cord is damaged.

• Check the connections to the amplifier input.

• The input source setting on the amplifier is incorrect.

• The unit is in pause mode or in Slow-motion Playback mode.

• The unit is in fast forward or fast reverse mode.

TV channels cannot be changed. • Switch the input to TV.

• Connect the antenna cable correctly (page 14).

The channel cannot be changed from the

channel you are recording.

• Set the TV's input to “TV”.

Nothing was recorded even though you

set the timer setting correctly.

• There was a power failure during recording.

• The internal clock of the unit stopped due to a power failure

that lasted for more than 30 seconds.

Reset the clock (pages 22-24).

•

Disconnect the AC power cord from the AC outlet, and connect it again.

•

The program contains copy protection signals that restricts copying.

• The timer setting overlapped with another setting that was set

later or has priority (page 39).

Timer recording is not completed or did

not start from the beginning.

• The timer setting overlapped with another setting that was set

later or has priority (page 39).

• Disc space was not enough or tape reaches the end.

Timer recording is impossible.

•

Make sure indicator appears on the front display of this unit.

If not, press T-SET.

•

The remote control does not function. • Batteries are weak.

• There are obstacles between the remote control and the unit.

• The remote control is far from the unit.

• There are no batteries in the remote.

•Turn on the unit.

•

The remote control is not pointed at the remote sensor on the unit.

•

Press DVD or VCR, whichever you need. Then, try again.

•Press T-SET to cancel the timer standby mode.

• If above remedies do not solve the problem, please call the

Service Center for help.

The unit does not operate properly.

• When static electricity, etc., causes the unit to operate

abnormally, unplug the unit and then plug it again.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 98

Others

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Troubleshooting (cont’d)

Symptom Remedy

The unit starts playing back the disc

automatically.

• The DVD-Video features an auto playback function.

Some functions such as Stop, Search, or

Slow-motion Playback cannot be performed.

•

Depending on the disc, you may not be able to do some of these

operations. See the instruction manual supplied with the disc.

The language for the sound track cannot

be changed.

• Multilingual tracks are not recorded on DVD-RW or DVD-R

being played back.

• The DVD-Video prohibits the changing of the language for the

sound track.

•Try changing the language using the DVD-Video's menu.

The subtitle language cannot be changed

or turned off.

• Multilingual subtitle are not recorded on the DVD-Video.

• The DVD-Video prohibits changing of the subtitles.

•Try changing the subtitles using the DVD-Video's menu.

The disc does not start playback from the

beginning.

• Resume playback was activated (page 51). Press STOP C twice.

•You have inserted a disc whose Title menu or DVD menu

automatically appears on the TV screen when it is inserted for

the first time.

This unit does not play back the disc. • No disc is inserted.

•A blank disc is inserted.

•

The disc is upside down. Insert the disc with the labeled side facing up.

• The disc is not correctly inserted.

• The unit cannot play back certain discs (such as a CD-ROM)

(page 46).

• The region code on the DVD-Video does not match the ones

on the unit (page 46).

• Moisture has condensed inside the unit. Remove the disc and

leave the unit turned on for about two hours until the moisture

evaporates (page 4).

• If the disc was recorded on another recorder, the unit cannot

play back the disc unless it is finalized (page 44).

Sound is noisy. • The disc is dirty or flawed.

There is no picture. • The Setup Display appears. Press SET UP or RETURN to

turn off the display.

• Check if the INTERLACE/PROGRESSIVE mode is set correctly

(page 14).

Picture noise appears. • The disc is dirty or flawed.

•

If the picture output signal from the unit passes through your VCR

before reaching your TV, or if you are connected to a combination

TV/VIDEO player, the copy-protection signal applied to some DVD

programs could affect picture quality. If you still experience this

problem even when you connect the unit directly to your TV, try

connecting the unit to your TV's S-VIDEO input.

There is no sound. •

If the audio signal does not come through the DIGITAL AUDIO OUT

(COAXIAL) jack, check the Audio Setup settings (page 16).

• The disc is dirty or flawed.

Playback image freezes for a second. • During the playback of two layered disc, picture may freeze for

a moment when the 1st layer switches to the 2nd layer. This is

not a malfunction.

The angles cannot be changed. • Multi-angles are not recorded on the DVD-Video being played

back.

• The angle-change operation is possible as long as the disc

contains a multi-angle portion. Actual change can be performed

when the portion has come up.

• The DVD-Video prohibits changing angles.

•Try changing the angles using the DVD-Video's menu.

Recording does not stop immediately

after you press STOP C.

• It will take a few seconds for the unit to input disc data before

recording can stop.

Recording does not start immediately

after you press REC/OTR.

• An unused DVD-RW or DVD-R was inserted. It takes a while

for the unit to automatically format a DVD-RW.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 99

Disc Error

Recording Error

Region Error

Parental Lock On

Recording Error

--- Please eject the disc. ---

Playback feature may not be

available on this Disc.

--- Please eject the disc. ---

Playback is not authorized in your

region.

--- Please eject the disc. ---

The current selected parental level

prohibits playback.

This program is not allowed

to be recorded.

Recording Error

This program is not

recordable in Video mode.

This program is not allowed to

be recorded on this disc.

Unplayable disc is inserted

in the unit.

The disc is upside down.

Insert the standardized disc which

bears the marks on page 46.

Insert the disc with the labeled side

facing up.

Recording Error

This disc is protected and not

recordable.

Can not record on this disc.

CauseError message Solution

The region of the DVD-Video

disc does not match the ones on the

unit.

The current selected parental

level in the setting menu

prohibits playback.

The recording function encountered

a copy prohibited program.

You are trying to record a copy-

once program on the DVD-RW

disc in Video mode.

You are trying to record on the

disc which is unrecordable, or the

disc status is unable to record.

The disc is dirty.

The disc is damaged.

You are trying to record a copy-

once program on the DVD-RW

disc which is not compatible with

CPRM.

You are trying to record on the

protected disc.

Insert the DVD-Video disc with

region code 1 or ALL.

Check the “Parental Lock” setting

(pages 93-94).

You cannot record copy prohibited

programs.

Set “DVD-RW Recording Format”

to “VR mode” (page 28).

Cancel the disc protect setting

in the Disc setting menu (page 41).

Insert a recordable disc, and

ensure the disc status satisfies the

recording requirements (pages 26-27).

Clean the disc with a cleaning cloth.

Replace the disc.

Insert a

ver.1.1 or 1.2 CPRM

compatible DVD-RW disc.

Recording Error

Disc is full.

(No area for new recording)

You are trying to record on the

disc with no recording space left.

Insert the recordable disc with

enough recording space.

100

Others

Troubleshooting (cont’d)

Symptom Remedy

The tape does not play.

• No videotape is inserted.

Recording does not start immediately

after you press REC/OTR.

• Make sure the videotape has a record tab when you record to a

videotape. If needed, cover the hole with cellophane tape.

The remote control does not function.

• Check if a videotape is in this unit.

The motor rotates even when playback /

recording is stopped.

• The motor may rotate for the duration of approximately 5

minutes for efficient operation. This is not a malfunction.

Picture noise appears.

• Head cleaning for VCR may be necessary.

Refer to “AUTO HEAD CLEANING” (page 5).

• Adjust tracking control for better picture by pressing

CHANNEL K / L on this unit or CH K / L while you are

playing a videotape.

• It may take a few seconds for the disc tray to open after you

have recorded or edited a disc. This is because the unit is adding

disc data to the disc.

“Repairing” appears on the display.

The disc tray does not open when you

press OPEN/CLOSE A.

• If there is a power failure or unplugging during recording,

finalizing, formatting or editing, a Repairing process will begin

automatically soon after turning the unit on again.

It may take several minutes up to about four hours.

Repairing

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 100

101

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

You can watch the TV programs with

the tuner of the unit. (Usually channel

3 or 4 of the TV is available for the

RF converter setting.) Be sure to con-

nect the unit to a TV using the Round

Coaxial cable. Refer to page 14.

Select channel 3 on your TV.

Press VIDEO/TV on the

remote control.

•

If noise appears, change the RF

output channel of the unit to CH

4 by pressing VIDEO/TV for 3

seconds.The RF output channel

will alternate between CH3 and

CH4 as follows.

•

Every time the RF output channel

is changed, CH3 or CH4 will

appear on the front panel display.

(

RF ON

)

CH4

3 seconds

(

RF ON

)

CH3

(

RF ON

)

CH4

3 seconds

RF converter output

Others

for more than

3 seconds

VCR/DVD RECORDER

COMBINATION

Troubleshooting (cont’d)

Recording Error

You cannot record more

than 99 titles on one disc.

Recording Error

You cannot record more than

999 chapters on one disc.

Recording Error

You cannot record on this disc

as Control Information is full.

Recording Error

You cannot record on the

disc as Power Calibration

Area is full.

Recording Error

This disc is already finalized.

CauseError message Solution

You are trying to record on the

disc on which the number of

recording titles already reached the

maximum (99).

You are trying to record on the

VR mode DVD-RW disc on which

the number of recording chapters

already reached the maximum (999).

This disc has no space to write

the Control Information when

recording or deleting contents.

When editing has been repeatedly

performed, the control Information

area may become full even if the

recording area still has enough space.

When recordings are performed

repeatedly on an unstable disc,

this area may become full.

Every time you insert a disc for

recording, the disc's working area

will be taken up. And if you repeat

this frequently, it will be used up

sooner and you may not be able

to record full 99 titles.

You are trying to record on

the disc already finalized.

Delete unnecessary titles

(pages 65, 69).

This unit cannot delete the original

chapter. Delete unnecessary chapter

marker using other DVD recorders.

Delete unnecessary titles from the

Original

(page 69).

Delete unnecessary titles

(pages 65, 69).

Insert a new disc.

Undo finalizing of the disc

(page 44).

(The maximum is 99)

(The maximum is 999)

* If you are still having trouble with this unit after checking Troubleshooting, write down the error code and the error

description, and call a SHARP Authorized Service Center for inspection. (See Service Information on page 104.)

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 101

102

Others

Language code

Language Code Language Code Language Code

(Afan) Oromo 6159

Abkhazian 4748

Afar 4747

Afrikaans 4752

Albanian 6563

Amharic 4759

Arabic 4764

Armenian 5471

Assamese 4765

Aymara 4771

Azerbaijani 4772

Bashkir 4847

Basque 5167

Bengali;Bangla 4860

Bhutani 5072

Bihari 4854

Bislama 4855

Breton 4864

Bulgarian 4853

Burmese 5971

Byelorussian 4851

Cambodian 5759

Catalan 4947

Chinese 7254

Corsican 4961

Croatian 5464

Czech 4965

Danish 5047

Dutch 6058

English 5160

Esperanto 5161

Estonian 5166

Faroese 5261

Fiji 5256

Finnish 5255

French 5264

Frisian 5271

Galician 5358

Georgian 5747

German 5051

Greek 5158

Greenlandic 5758

Guarani 5360

Gujarati 5367

Hausa 5447

Hebrew 5569

Russian 6467

Samoan 6559

Sangho 6553

Sanskrit 6547

Scots Gaelic 5350

Serbian 6564

Serbo-Croatian 6554

Sesotho 6566

Setswana 6660

Shona 6560

Sindhi 6550

Singhalese 6555

Siswat 6565

Slovak 6557

Slovenian 6558

Somali 6561

Spanish 5165

Sundanese 6567

Swahili 6569

Swedish 6568

Tagalog 6658

Tajik 6653

Tamil 6647

Tatar 6666

Telugu 6651

Thai 6654

Tibetan 4861

Tigrinya 6655

Tonga 6661

Tsonga 6665

Turkish 6664

Turkmen 6657

Tw i 6669

Ukrainian 6757

Urdu 6764

Uzbek 6772

Vietnamese 6855

Volapuk 6861

Welsh 4971

Wolof 6961

Xhosa 7054

Yiddish 5655

Yoruba 7161

Zulu 7267

Hindi 5455

Hungarian 5467

Icelandic 5565

Indonesian 5560

Interlingua 5547

Interlingue 5551

Inupiak 5557

Irish 5347

Italian 5566

Japanese 5647

Javanese 5669

Kannada 5760

Kashmiri 5765

Kazakh 5757

Kinyarwanda 6469

Kirghiz 5771

Kirundi 6460

Korean 5761

Kurdish 5767

Laothian 5861

Latin 5847

Latvian; Lettish 5868

Lingala 5860

Lithuanian 5866

Macedonian 5957

Malagasy 5953

Malay 5965

Malayalam 5958

Maltese 5966

Maori 5955

Marathi 5964

Moldavian 5961

Mongolian 5960

Nauru 6047

Nepali 6051

Norwegian 6061

Occitan 6149

Oriya 6164

Panjabi 6247

Pashto; Pushto 6265

Persian 5247

Polish 6258

Portuguese 6266

Quechua 6367

Rhaeto-Romance 6459

Romanian 6461

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 102

103

Others

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Glossary

Analog audio

An electrical signal that directly

represents sound. In contrast, digi-

tal audio can be an electrical sig-

nal, but is an indirect representa-

tion of sound. See also Digital

audio.

Aspect ratio

The width of a TV screen relative

to its height. Conventional TVs are

4:3 (in other words, the screen is

almost square); widescreen models

are 16:9 (the screen is almost

twice as wide as it is high).

Chapter

Just as a book is split up into sev-

eral chapters, a title on a DVD

disc is usually divided into chap-

ters. See also Title.

Component video output

This is a video signal format that

conveys each of three principal

colors of light (red, blue and

green) through different signal

lines.This allows the viewers to

experience picture colors as origi-

nal as it is.There are several signal

formats, including Y/PB/PR and

Y/CB/CR.

CPRM

(Content Protection for

Recordable Media)

This is a format used to record

copy-once programs. By recording

coded data on the area of DVD

discs that ordinary writing soft-

ware cannot write on, it prevents

copy-once programs from being

recorded repeatedly on different

media.

Digital audio

An indirect representation of

sound by numbers. During record-

ing, the sound is measured at dis-

crete intervals (44, 100 times a

second for CD audio) by an ana-

log-to-digital converter, generating

a stream of numbers. On playback,

a digital-to-analog converter gen-

erates an analog signal based on

these numbers. See also Sampling

frequency and Analog audio.

Dolby Digital

The system developed by Dolby

Laboratories to compress digital

sound. It offers you sound of

stereo(2ch) or multi-channel

audio (up to 5.1ch).

DTS (Digital Theater System)

DTS is a 5.1 channel surround

sound system, but it is different

from Dolby Digital.The formats

were developed by Digital Theater

System, Inc.

Finalize

To make recorded contents on

DVD discs possible to be played

back on DVD players.With this

unit, it is possible to finalize

DVD-RW/DVD-R discs.

MP3 (MPEG Audio Layer 3)

MP3 is a method of compressing

files.You can copy MP3 files on

CD-RW/-R discs from the com-

puter and play back the files on

this unit.

PCM

(Pulse Code Modulation)

PCM is a format that converts

audio into digital data. It is mainly

used for Audio CDs and DAT.This

unit can play back sounds as real-

istic as possible by converting

even compressed Dolby Digital

and MPEG audio to PCM.

Playlist

From this list you can play back

contents of a disc in your desired

order or sequence.Also it allows

to search a specific scene directly.

Progressive scan (480p)

A type of display that does not

split each frame into fields, and

instead scans directly through all

the scanlines of each frame in

order. Progressive scan provides

less flickering and higher image

resolution than traditional (480i)

TV signals. Refer to page 14 for

instructions on selective progres-

sive scan mode.

Regions code

Regions associate discs and play-

ers with particular areas of the

world.This unit will only play back

discs that have compatible region

codes.You can find the region

code of your unit by looking at

the rear panel. Some discs are

compatible with more than one

region (or all regions).

Sampling frequency

The rate which sound is measured

by a specified interval to turn it

into digital audio data.The num-

bers of sampling in one second

defines as sampling frequency.The

higher the rate, the better the

sound quality is.

SAP

(Secondary Audio Program)

Sub-audio channel which is deliv-

ered separately from main-audio

channel.This audio channel is used

as an alternate in bilingual broad-

casting.

S-Video output

It delivers independently each sig-

nal of color(C) and luminance(Y)

to TV as video signals, so that

higher-quality picture will be

materialized.

Title (DVD only)

A collection of chapters on DVD

disc. See also Chapter.

Track

Audio CDs use tracks to divide

the content of a disc.The DVD

equivalent is called a chapter. See

also Chapter.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 103

104

Others

Specifications

Recording

Input/Output

Recording format

Recordable discs

Video Recording format (DVD-RW only), Video format (DVD-RW, DVD-R)

DVD-ReRecordable, DVD-Recordable

Audio recording format

Sampling frequency

Compression format

Video recording format

Sampling frequency

Compression format

13.5MHz

MPEG

48kHz

Dolby Digital

Video input

Input level

Jacks

Video output

Output level

Jacks

Component video output

Output level

Jacks

S-Video input

Y (Iuminance) - Input level

C (color) - Input level

Jacks

Audio input

During audio input

Jacks

Audio output

During audio output

Jacks

S-Video output

Y (Iuminance) - Output level

C (color) - Output level

Jacks

VHF/UHF antenna input/output terminal

Input 1 (rear), 2 (front)

1 Vp-p (75Ω)

RCA jack

1 Vp-p (75Ω)

RCA jack

Y: 1.0 Vp-p (75Ω), P

B/CB, PR/CR: 0.7 Vp-p (75Ω)

RCA jacks

Input 1 (rear), 2 (front)

1 Vp-p (75Ω)

286 mVp-p (75Ω)

4 pin mini DIN

Input 1 (rear), 2 (front) L/R

2V rms (47kΩ)

RCA jacks

Output 1,2 L/R

2V rms (47kΩ)

RCA jacks

Digital audio output

Output level

Jacks

500 mVp-p (75Ω)

RCA jack

1 Vp-p (75Ω)

286 mVp-p (75Ω)

4 pin mini DIN

VHF/UHF set 75Ω

System

VCR video heads

Power requirements

Power consumption

Weight

Dimensions (width x height x depth)

Operating temperature

Operating humidity

TV format

DVD-Video, DVD-RW/-R, CD-DA, CD-RW/-R,

VHS Video Cassette Tape

Four heads

AC120 V, 60 Hz

30W (standby: 3.0 W)

9.48 lbs ( 4.3 kg )

17 3/16" x 2 5/8" x 9 5/8" (435 x 99.5 x 260 mm)

41Fº to 104Fº (5ºC to 40ºC)

Under 80%

NTSC

General

Receivable channels

VHF

UHF

CATV

RF Converter

Converter output

2-13ch

14-69ch

C1-C125ch

Built-in VHF converter

VHF channel 3 or 4

Tuner

Note: The specifications and design of this product are subject to change without notice.

For the location of the nearest SHARP Authorized Service Center, or to obtain product literature, accessories,

supplies or customer assistance, please call 1-800-BE-SHARP (1-800-237-4277) or visit SHARP’s website

(http://www.sharpusa.com).

Service Information (For the U.S.)

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 104

105

Español

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

AVISO: PARA REDUCIR EL RIESGO DE INCENDIO O ELECTROCHOQUE

NO EXPONGA ESTE APARATO A LA HUMEDAD.

Este dispositivo cumple con la Parte 15 de las reglas de la FCC (Comisión Federal de Comunicaciones). La operación

se encuentra sujeta a las dos condiciones siguientes:

(

1) Este dispositivo no debería producir interferencias perjudiciales, y

(2) este dispositivo debe aceptar cualquier interferencia recibida, incluyendo las que puedan producir una operación

indeseable.

INFORMACION

Este equipo se ha sometido a todo tipo de pruebas y cumple con las normas establecidas para dispositivo digital de

Clase B, de conformidad con la Parte

15 de las reglas de la FCC (Comisión Federal de Comunicaciones). Estas reglas

están diseñadas para asegurar una protección razonable contra interferencias perjudiciales en las instalaciones resi-

denciales. Este equipo genera, utiliza y puede emitir energía de radiofrecuencia y, si no se instala y utiliza debidamente,

es decir, conforme a las instrucciones, podrían producirse interferencias perjudiciales en las radiocomunicaciones. Sin

embargo, no se garantiza que estas interferencias no se produzcan en una instalación determinada. Si este equipo oca-

siona interferencias en la recepción de radio o televisión, lo cual puede comprobarse con sólo apagar y encender el

equipo, intente corregir el problema mediante una o una combinación de las siguientes medidas:

— Reoriente la antena receptora o cámbiela de lugar.

— Aumente la separación entre el equipo y el receptor.

— Enchufe el equipo a una toma de corriente situada en un circuito distinto del receptor.

— Consulte a su distribuidor o a un técnico experto en radio/televisión.

PRECAUCION:

ESTA UNIDAD HA SIDO CLASIFICADA COMO PRODUCTO CLASS 1 LASER.

EL USO DE MANDOS O AJUSTES O LA REALIZACION DE PROCEDIMIENTOS DISTINTOS DE LOS INDICADOS EN LA

PRESENTE IMPLICA EL RIESGO DE EXPOSICION A UNA RADIACION PELIGROSA.

COMO LOS RAYOS LASER UTILIZADOS EN ESTA UNIDAD PUEDEN RESULTAR PERJUDICIALES PARA SUS OJOS, NO

INTENTE DESARMAR EL GABINETE. SOLICITE EL SERVICIO UNICAMENTE A PERSONAL CUALIFICADO.

ADVERTENCIA—Las reglas de la FCC (Comisión Federal de Comunicaciones) estipu-

lan que cualquier modificación o cambio a este equipo no aprobado expresamente por

el fabricante podrá anular la autorización del usuario para operar este equipo.

Este símbolo previene al usuario del voltaje

aislado dentro de la unidad que puede provo-

car descargas eléctricas peligrosas.

Este símbolo advierte al usuario que existen

instrucciones de operación y de mantenimien-

to en la literatura incluida en esta unidad.

PRECAUCION:

TPARA REDUCIR EL RIESGO DE DESCARGA ELECTRICA,

NO QUITE LA CUBIERTA. EL USUARIO NO DEBERA DAR

NINGUN TIPO DE SERVICIO A NINGUNA PARTE INTER-

NA. DEBERA SER REALIZADO SOLO POR PERSONAL DE

SERVICIO CALIFICADO.

PRECAUCION

PELIGRO DE DESCARGA ELECTRICA NO

ABRIR DECLARACIÓN DE CONFORMIDAD

Para futura referencia, anote los números de modelo y de serie (indica-

dos en la parte posterior esta unidad) en el espacio provisto.

No. de modelo:

DV-RW550U

No. de serie:

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Este aparato digital de la Clase B cumple con la norma ICES-003 de Canadá.

PRECAUCIÓN: PARA EVITAR DESCARGAS ELÉCTRICAS, HAGA QUE LA PALETA

ANCHA DEL ENCHUFE COINCIDA CON LA RANURA ANCHA E

INTRODÚZCALA HASTA EL FONDO.

Precaciones

Aviso al instalador del sistema CATV:

Este aviso tiene la finalidad de llamar la atención del instalador del sistema CATV para que tenga en cuenta el Artículo

820-40 de NEC, que ofrece instrucciones para realizar una conexión a tierra apropiada y, en particular, especifica que

el cable de puesta a tierra deberá conectarse al sistema de puesta a tierra del edificio tan cerca del punto de entrada

del cable como sea posible.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 105

106

Importantes Medidas de Seguridad y Precauciones

1) Lea las instrucciones - Lea detenidamente todas las instruc-

ciones de seguridad y operación antes de usar el producto.

2) Conserve las instrucciones - Conserve las instrucciones de

seguridad y operación para consultas futuras.

3) Respete las advertencias - Observe estrictamente todas las

advertencias impresas en el producto y las incluidas en el

manual de instrucciones.

Siga las instrucciones - Siga todas las instrucciones de operación.

5) Limpieza - Desconecte el producto del tomacorriente mural

antes de limpiarlo. No use limpiadores líquidos ni aerosol.

Use un paño húmedo para la limpieza del producto.

6) Enchufes - No use enchfes no recomendados por el fabri-

cante del producto, ya que podría ser peligroso.

7) Agua y humedad - No use este producto cerca del agua, por

ejemplo, cerca de una bañera o lavamanos, cerca del fre-

gadero de la cocina o lavandería, en un piso mojado, cerca de

una piscina, etc.

8) Accesorios - No instale este producto en un carro, soporte,

trípode o mesa inestables. El grabador de videocassettes

podría caerse, causando serias lesiones a un niño o adulto,

resultando también severamente dañado. Uselo sólo el un

carro, soporte, trípode o mesa recomendados por el fabri-

cante, o vendidos con el producto.Toda instalación del pro-

ducto deberán hacerse de acuerdo a las instrucciones del

fabricante, empleando los accesorios de instalación recomen-

dados por el mismo.

9) La combinación de producto y

carro debe ser movida con cuida-

do. Las detenciones bruscas, la

fuerza excesiva y las superficies

disparejas podrán hacer que el

producto y el carro se vuelquen.

10)

Ventilación - El gabinete del produc-

to tiene renuras y aberturas de ven-

tilación que garantizan el funcionamiento confiable del producto,

evitando que se recaliente. Estas aberturas no deberán ser blo-

quear las aberturas, nunca setúe el grabador de videocassettes

encima de una cama, sofá, alfombra u otra superficie similar. El

grabador de videocassettes no debe ser instalado en un mueble

emportado, como una repisa para libros o bastidor, a menos que

se pueda garantizar una ventilación adecuada, o cuando las

instrucciones del fabricante así lo especifiquen.

11)

Alimentación - Este grabador de videocassettes sólo debe ser

operado mediante el tipo de fuente de alimentación especifica-

do en la etiqueta indicadora. Si no seta seturo del tipo de fuente

de alimentación que tiene en su casa, consulte a su distribuidor

o a la compañía de electricidad local En el caso de grabador de

doseñados para funcionar a pilas o con otras fuentes de ali-

mentación, consulte el manuel de instrucciones respectivo.

12) Conexión a tierra o polarización - Este producto está equipa-

do con una clavija polarizada de corriente alterna (una clavi-

ja que tiene una espiga más ancha que la otra). Esta clavija

solamente pordá ser insertada en el tomacorriente en una

sola dirección. Esta es una medida de seguridad. Si no

puediera insertar completamente la clavija en el tomacorri-

ente, vuelva a intentarlo invirtiendo la clavija. Si aún no fuera

posible insertar la clavija, tome contacto con un electricista

para que repare su tomacorriente obsoleto. No modifique las

características de seguridad de la clavija polarizada.

13) Protección del cable de alimentación - Los cables de ali-

mentación deberán ser tendidos de manera tal que la proba-

bilidad de que sean pisados o aplastados por otros objetos sea

mínima. Preste especial atención a las clavijas de los cables, a

los receptáculos, y al punto por donde salen del producto.

14)

Conexión Tierra de una Antena Exterior: Si una antena exterior o

sistema de cable es conectado al aparato de vídeo, asegúrese de

que la antena o el cableado tenga conexión tierra para conseguir

de esta manera una protección contra voltajes no deseados y car-

gas estáticas. El artículo 810 del Código de Electricidad Nacional

ANSI/NFPA número 70, proporciona información acerca de la

manera adecuada de conexiones a tierra de la estructura del

mástil y la estructura soporte, sobre la unidad del cable del interi-

or de cobre de antena, tamaño de los conductores tierra, ubi-

S3125A

ADVERTENCIA SOBRE EL USO

DE CARROS PORTÁTILES

cación de la unidad de descarga de la antena, conexión a los elec-

trodos tierra, y requerimientos de los electrodos tierra (Fig.A).

15) Tormentas eléctricas - Como medida adicional de protección

durante tormentas eléctricas, o cuando el producto per-

manezca sin uso durante períodos prolongados de tiempo,

desconéctelo del tomoacorriente mural y desconecte la ante-

na o sistema de cable. Esto evitará que el grabador de video-

cassettes resulte dañado por tormentas eléctricas o sobreten-

siones en la línea de alimentación.

16) Líneas de alimentación - Un antena exterior no debe ser

instalada en la cercanía de líneas de alimentación aéreas ni de

otros circuitos de potencial para iluminación eléctrica, o

donde pueda caerse y hacer contacto con tales líneas o cir-

cuitos.Al instalar un sistema de antena exterior, enta mucho

cuidado de no tocar tales líneas o circuitos de alimentación,

ya que el contacto con ellos podría será fatal.

17) Sobrecarga - No sobrecargue los tomacorrientes murales ni

los cables de extensión, ya que esto podría causar incendios o

descargas eléctricas.

18) Entrada de objetos y líquidos - Nunca introduzca objetos de

ningún tipo por las aberturas de sete producto, ya que pordría

tocar peligrosos puntos de alta tensión o cortocircuitar

partes, provocando incendios o descargas elécticas. Nunca

derrame ningún tipo de líquido sobre el producto.

19) Servicio - No intente reparar el producto usted mismo; al

abrir o desmontar las cobiertas usted se expondrá a alta ten-

sión y a otros peligros. Solicite todo servicio a personal califi-

cado.

20) Daños que requieran reparación - En los siguientes casos,

desconecte el producto del tomacorriente mural y llame a un

técnico de servicio calificado:

a) Cuando el cable de alimentación o la clavija estén dañados,

b) Si se ha derramado líquido sobre la unidad, o si algún obje-

to ha caído dentro del producto,

c) Si el producto ha sido expuesto a la lluvia o al agua,

d) Cuando a pesar de haber sebuido las instrucciones de

operación, el producto no funcione normalmente. Ajuste

solamente los controles mencionados en el manual de

instrucciones; el ajuste incorrecto de otros controles

podrá causar daños a la unidad, la que por lo general

requerirá de un prolongado trabajo de reparación (por un

técnico calificado) para que sus condiciones normales de

operación puedan ser restablecidas,

e) Si el producto se ha caído o si el gabinete se ha dañado.

f)Cuando el producto muestre un cambio notorio en su

rendimiento.

21) Piezas de requesto - Cuando sea necesario reemplazar piezas,

asegúrese de que el técnico de servicio emplee las piezas de

requesto especificadas por el fabricante, o piezas que tengan

las mismas características que las piezas originales. Las susti-

tuciones no autorizadas podrán causar incendios, descargas

eléctricas y otoros problemas.

22) Revisión de seguridad - Al finalizar cualquier servicio de man-

tenimiento o reparación de este producto, solicítele al técni-

co que efectúe comprobaciones de seguridad para determinar

si el producto se encuentra o no en condiciones óptimas de

operación.

23) Calor - Este producto debe colocarse fuera del alcance de

fuentes de calor tales como radiadores, rejillas de calefacción,

estufas o cualquier otro producto destinado a producir calor,

incluyendo los amplificadores.

Precaciones (cont.)

FIGURA A

EJEMPLO DE CONEXIÓN A TIERRA DE ANTENA DE

ACUERDO CON EL CÓDIGO ELÉCTRICO NACIONAL.

CABLE DE COBRE

PARA LA ANTENA.

UNIDAD PARA LA DESCARGA

DE LA ANTENA

(NEC SECCIÓN 810-20)

CONDUCTORES TIERRA

(NEC SECCIÓN 810-21)

ABRAZADERA

DE LA ANTENA.

ABRAZADERA A TIERRA.

EQUIPO PARA EL

SERVICIO

ELÉCTRICO

SISTEMA DE ELECTRODOS PARA EL

SUMINISTRO DE TOMA A TIERRA

(NEC ARTÍCULO 250, PARTE H)

CÓDIGO DE NEC NATIONAL ELECTRIC

S2898A

Español

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 106

107

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Fácil grabación de DVD

Español

Estas instrucciones le ayudarán a entender fácilmente cómo grabar discos DVD.

Asegúrese que las pilas están en el mando a distancia y que ha conectado correctamente esta unidad y el TV.

Paso 1:Elija un tipo de disco

Puede elegir entre distintos tipos de discos DVD

grabables. Elija un tipo de disco DVD grabable de

acuerdo con sus necesidades de

reproducción/grabación. Vea los “Tipos de disco

DVD” en la parte inferior de esta página para más

detalles sobre las diferencias entre los distintos

medios compatibles.

Este grabador de DVD puede grabar los

siguientes tipos de discos.

Por ejemplo, cuando desea grabar repetida-

mente en el mismo disco o cuando desea

editar el disco después de grabar, selec-

cione el disco de tipo regrabable DVD-RW.

Cuando desea guardar grabaciones sin

alterarlos, un DVD no regrabable DVD-R

puede ser más conveniente.

4.7

Paso 2: Coloque un disco en blanco

Mando a distancia

Para abrir.

Formato del disco

Coloque el disco en el

grabador. Haga el formato

del disco del menú Setting,

existen los formatos de

video (modo de Video) o de

grabación de video (modo

VR) según el tipo de disco

colocado.

Esto es necesario para

preparar el disco para

grabación. Vea los

detalles en las páginas

28-29.

Al formatear, todo el con-

tenido de ese disco se

borarán.

• La unidad empieza a for-

matear automáticamente

cuando se inserta un disco

no usado.

Tipos de disco DVD

DVD-RW VR DVD-RW Video

Desea

Grabar programas de TV

Volver a utilizar borrando partes no deseadas

Editar las grabaciones

Editar/grabar de equipos conectados

Copiar discos para distribución

Reproducir en otro equipo de DVD

DVD-RW VR DVD-RW Video

Detalles

Grabación

¿Regrabable? Sí Sí

Puede crear capítulos a intervalos fijos (auto.) Sí Sí

Puede crear capítulos donde desee (manual) Sí No

Puede grabar imágenes de tamaño 16:9 Sí Sí

Puede grabar un programa de Copia-una-vez Sí No

Edición

Puede hacer funciones de edición básica Sí Sí

Puede hacer funciones de edición avanzadas (edición de lista a reproducir)

Sí No

Sí

El DVD-RW (modo VR) sólo puede reproducirse en equipos de DV compatibles con VR.

: Más adecuado : Puede utilizar :

Algunas funciones son limitadas

: No puede utilizar

DVD-R Video

Cargando

Esta operación puede demorar en

reconocerse.

Para cerrar.

Nota

Para más detalles sobre las funciones anteriores y las limitaciones implíc-

itas, lea las explicaciones en este manual.

Para

encender.

Selecione el

modo DVD.

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 107

108

Fácil grabación de DVD (cont.)

Español

Paso 3: Seleccione la

velocidad de

grabación

Paso 5: Grabe en

discos DVD

Paso 4: Seleccione

el canal

deseado

Paso 6: Pare la

grabación

Sugerencia 1: Reproduzca el contenido grabado

Puede seleccionar el título que desea reproducir de

un menú indicado y empiece a reproducir inmedi-

atamente. El contenido grabado se puede acceder

fácilmente con un simple procedimiento de elegir

un título en un capítulo en la pantalla del menú.

¿Qué son títulos y capítulos?

El contenido de un disco DVD se divide

generalmente en títulos. Los títulos pueden dividirse a su vez en capítulos.

Sugerencia 2: Edite el disco grabado

La edición de discos es fácil. Esta unidad ofrece convenientes funciones de

edición que sólo son posibles con discos DVD-RW/-R.

Puede editar lo siguiente de la lista de títulos.

•Poniendo nombres en títulos

•Seleccionando imágenes para índices

• Seleccionando/borrando marcadores de capítulos

• Borrado de partes de títulos o escenas

(Las funciones editables dependen del modo de grabación y forma de edi-

ción.)

Original y Playlist (modo VR)

Puede editar las grabaciones en la lista a reproducir sin cambiar las grabaciones

originales. Cualquier lista a reproducir no ocupa mucho espacio en el disco.

¿Qué significa “Original” o “Playlist” ?

A lo largo de este manual encontrará Original y Playlist que se refieren a las

grabaciones reales y la versión editada.

• La grabación Original se refiere a la grabación real en el disco.

•

El Playlist se refiere a la versión editada del disco; cómo se va a reproducir la versión Original.

Finalización de un disco

• Para reproducir el disco en un reproductor DVD diferente, grade el disco

en el modo de video y finalizelo.

•Después de finalizar un disco grabado en el modo de vídeo, usted no podrá

editar ninguna Información que se encuentre on este disco.

• Para un disco grabado en el modo VR, la edición podrá realizarse incluso

después de la finalización.

Inicio de Grab. Parada/Incio Parada Grab.

Título 1 Título 2

Capítulo 1 Capítulo 1Capítulo 2 Capítulo 3 Capítulo 2

Esta operación puede

demorar en comple-

tarse.

Aparece sólo en el modo

DVD-RW VR

XP 0:58

CH 12

Escrit de datos 58%

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 108

109

Recording

Disc Playback EditingBefore you start Connections Getting started

Changing the Setting menu

VCR functions Others

Español

Reproducción con videograbadora

Español

Presione POWER en el

mando a distancia o el panel

frontal de la unidad.

Cuando reproduzca una cinta,

conecte el TV y asegúrese de

seleccionar la entrada donde se

conecta la unidad.

Coloque una cinta pregraba-

da y presione PLAY

B para

empezar la reproducción.

Durante la reproducción, pre-

sione PAUSE

Se hará una pausa de reproduc-

ción y se silenciará el sonido.

Presione PLAY B para con-

tinuar la reproducción.

Presione STOP C para deten-

er la reproducción.

Presione STOP/EJECT C / A

en el panel frontal de la

unidad para expulsar la cinta.

press first.

VCR

Nota

•Cuando se coloca una cinta

sin la lengüeta de grabación, la

unidad empezará a reproducir

automáticamente.

•El seguimiento se ajustará

automáticamente para la

reproducción. Para ajustar

manualmente el seguimiento,

presione CHANNEL K / L

en el panel frontal de la

unidad o CH K / L en el

mando a distancia.

VCR/DVD RECORDER

COMBINATION

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 109

110

Español

Nota

• Para ver un canal mientras

graba en otro

1) Mientras está grabando en

la unidad, presione

VIDEO/TV.

2) En la caja de cable o caja de

satélite, seleccione el canal que

desea ver.

Si se conectó la unidad a una

caja de cable o caja de satélite,

consulte la sección de

“Connection to a cable box or

satellite box” en la página 15.

Esta función permite seleccionar

la longitud de la grabación simple-

mente presionando REC/OTR en

el mando a distancia o en el panel

frontal de la unidad.

Durante la grabación normal,

presione REC/OTR para

empezar la grabación con

temporizador de un toque.

Puede seleccionar un tiempo de

grabación determinado presionan-

do repetidamente

REC/OTR.

Cuando termina la grabación

con temporizador de un

toque, la unidad se desconec-

tará automáticamente.

Para cambiar la longitud de

tiempo durante la grabación con

temporizador de un toque,

presione repetidamente

[REC/OTR] hasta que aparezca

la longitud deseada.

Para cancelar la grabación con

temporizador de un toque dentro

del tiempo especificado, presione

STOP C.

press first.

VCR

Grabación con temporizador de un toque (OTR)

(0:30) (1:00)

(Canal a grabar)

(7:30)(8:00)

Grabación y grabación con temporizador de un toque (VCR)

Grabación

Prevención contra borrado accidental

Para evitar una grabación por

accidente en un casete grabado,

rompa la lengüeta de grabación.

Para volver a grabar posterior-

mente, cubra el orificio con

cinta adhesiva.

Antes de grabar, asegúrese de que:

•

Se seleccionó el canal deseado

presionando los botones

numéricos en el mando a dis-

tancia o

CHANNEL

K / L

el panel frontal de la unidad.

•

Hay una cinta con la lengüeta

para grabación intacta en la

unidad.

•

Se seleccionó la velocidad de

grabación deseada en SP (repro-

ducción estándar) o SLP (repro-

ducción de super larga duración)

presionando

REC MODE en el

mando a distancia.

Velocidad de grabación:

•

Se selecciona Estéreo o SAP.

Presione REC/OTR para

empezar la grabación.

Para detener temporalmente la

grabación o continuarla, presione

PAUSE F. Después de que la

unidad haya estado en el modo de

pausa durante 5 minutos, se

detendrá automáticamente para

proteger al cinta y el cabezal de

video contra cambios.

Presione

STOP C

cuando se complete la

grabación.

press first.

VCR

Velocidad

de la cinta

Tipo de cinta

T160T120

Tiempo de

grabación/reproducción

T60

2-2/3 horas2 horas

1 horaModo SP

8 horas6 horas3 horasModo SLP

Lengüeta de

grabación

Nota

•

El tiempo de grabación remanente apare-

cerá en la pantalla durante una grabación

con temporizador de un toque.

Presione DISPLAY para que

aparezca en la pantalla de TV.

•

No puede hacer una pausa en una

grabación con temporizador de un toque.

•

Si se termina el OTR en la

videograbadora durante el modo

de reproducción o REC en DVD,

la videograbadora estará en el

modo STOP y la DVD se

mantiene en el modo actual.

•

A diferencia de una grabación con tem-

porizador, durante una grabación con

temporizador de un toque usted puede

realizar las operaciones siguientes.

Desconectar la alimentación.

Utilizar REC/OTR o STOP

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 110

111

Note

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 111

Printed in China

CONSUMER LIMITED WARRANTY

(Valid for warranty service in the U.S. only)

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the

“Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it

will, at its option, either repair the defect or replace the defective Product or part thereof with a new or

remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth

below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper

voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or

construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and

provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law.

ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE

LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow

limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those

described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of

Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and

exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described

herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to

the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or

otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which

were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp

be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not

allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY

FROM STATE TO STATE.

Model Specific Section

Your Product Model Number & Description:

Warranty Period for this Product:

Additional Item(s) Excluded from warranty

Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

DV-RW550U VCR/DVD Recorder Combination

(Be sure to have this information available when you need service

for your Product.)

One (1) year parts and ninety (90) days labor from date of purchase.

Non-rechargeable batteries.

Call Sharp Electronics corporation toll free at 1-800-BE-SHARP for

instructions on how to obtain service on your VCR/DVD Recorder

combination.

Ship your product, prepaid, as per the instruction given by the Sharp

representative at the toll free number (1-800-BE-SHARP). BE sure to

have your proof of purchase available. Be sure to ship the product

securely packaged and insured against shipping damage.

Osaka, JapanOsaka, Japan

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, GO TO OUR WEBSITE AT www.sharpusa.com

OR CALL 1-800-BE-SHARP.

9HS1VMN20561

E9656UD★★★★★

1VMN20561

E9656UD_EN_2.qx4 05.7.15 11:59 AM Page 112
