LG Electronics BH200-N Super Blu-ray Player User Manual

Super Blu Player

Owner’s Manual

Model: BH200

Before connecting, operating or adjusting this product,

please read this instruction booklet carefully and completely.

For service/

support Call:

Toll Free Number

1-800-243-0000

(http://us.lgservice.com)

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 1

This lightning flash with arrowhead symbol with-

in an equilateral triangle is intended to alert the

user to the presence of uninsulated dangerous

voltage within the product’s enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral tri-

angle is intended to alert the user to the pres-

ence of important operating and maintenance

(servicing) instructions in the literature accom-

panying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a confined

space such as a book case or similar unit.

CAUTION:

Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventila-

tion and to ensure reliable operation of the product and to

protect it from over heating.

The openings should never be blocked by placing the

product on a bed, sofa, rug or other similar surface.This

product should not be placed in a built-in installation such

as a bookcase or rack unless proper ventilation is provided

or the manufacturer’s instruction have been adhered to.

CAUTION:

This product employs a Laser System.

To ensure proper use of this product, please read this

owner’s manual carefully and retain it for future reference.

Should the unit require maintenance, contact an authorized

service center.

Use of any controls, adjustments, or procedures other than

those specified herein may result in hazardous radiation

exposure.

To prevent direct exposure to laser beam, do not try to

open the enclosure. Visible laser radiation when open. DO

NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water

(dripping or splashing) and no objects filled with liquids,

such as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a

dedicated circuit;

That is, a single outlet circuit which powers only that appli-

ance and has no additional outlets or branch circuits.

Check the specification page of this owner’s manual to be

certain.

Do not overload wall outlets. Overloaded wall outlets, loose

or damaged wall outlets, extension cords, frayed power

cords, or damaged or cracked wire insulation are danger-

ous. Any of these conditions could result in electric shock

or fire. Periodically examine the cord of your appliance,

and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the

cord replaced with an exact replacement part by an autho-

rized servicer.

Protect the power cord from physical or mechanical abuse,

such as being twisted, kinked, pinched, closed in a door, or

walked upon. Pay particular attention to plugs, wall outlets,

and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains

cord plug. When installing the product, ensure that the plug

is easily accessible.

FCC WARNING: This equipment may generate or use radio

frequency energy. Changes or modifications to this equip-

ment may cause harmful interference unless the modifica-

tions are expressly approved in the instruction manual. The

user could lose the authority to operate this equipment if an

unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when

the product is operated in a residential installation. This

product generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to

radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If

this product does cause harmful interference to radio or

television reception, which can be determined by turning

the product off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

•

Increase the separation between the product and receiver.

• Connect the product into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV techni-

cian for help.

FCC COMPLIANCE: The responsible party for this prod-

uct’s compliance is:

LG Electronics U.S.A., Inc.,1000 Sylvan Avenue,

Englewood Cliffs, NJ.

Phone: 1-201-816-2000.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 2

Introduction

Important Safety

Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience recepta-

cles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the appara-

tus. When a cart is used, use caution

when moving the cart/apparatus combi-

nation to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally,

or has been dropped.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . .5-12

About the Symbol Display . . . . . . . . . . . . .5

Symbols Used in this Manual . . . . . . . . . . . . .5

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . .5

Moisture Condensation . . . . . . . . . . . . . . . . .5

Handling the Unit . . . . . . . . . . . . . . . . . . . . . .5

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . .6

Regional Code . . . . . . . . . . . . . . . . . . . . . . .6

BD-ROM Disc Features . . . . . . . . . . . . . . . . .7

HD DVD Disc Features . . . . . . . . . . . . . . . . .8

Compatibility Notes . . . . . . . . . . . . . . . . . . . .8

Certain System Requirements . . . . . . . . . . . .8

Using an USB Flash Drive . . . . . . . . . . . . . . .9

Using the Home Menu . . . . . . . . . . . . . . . . . .9

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . .10

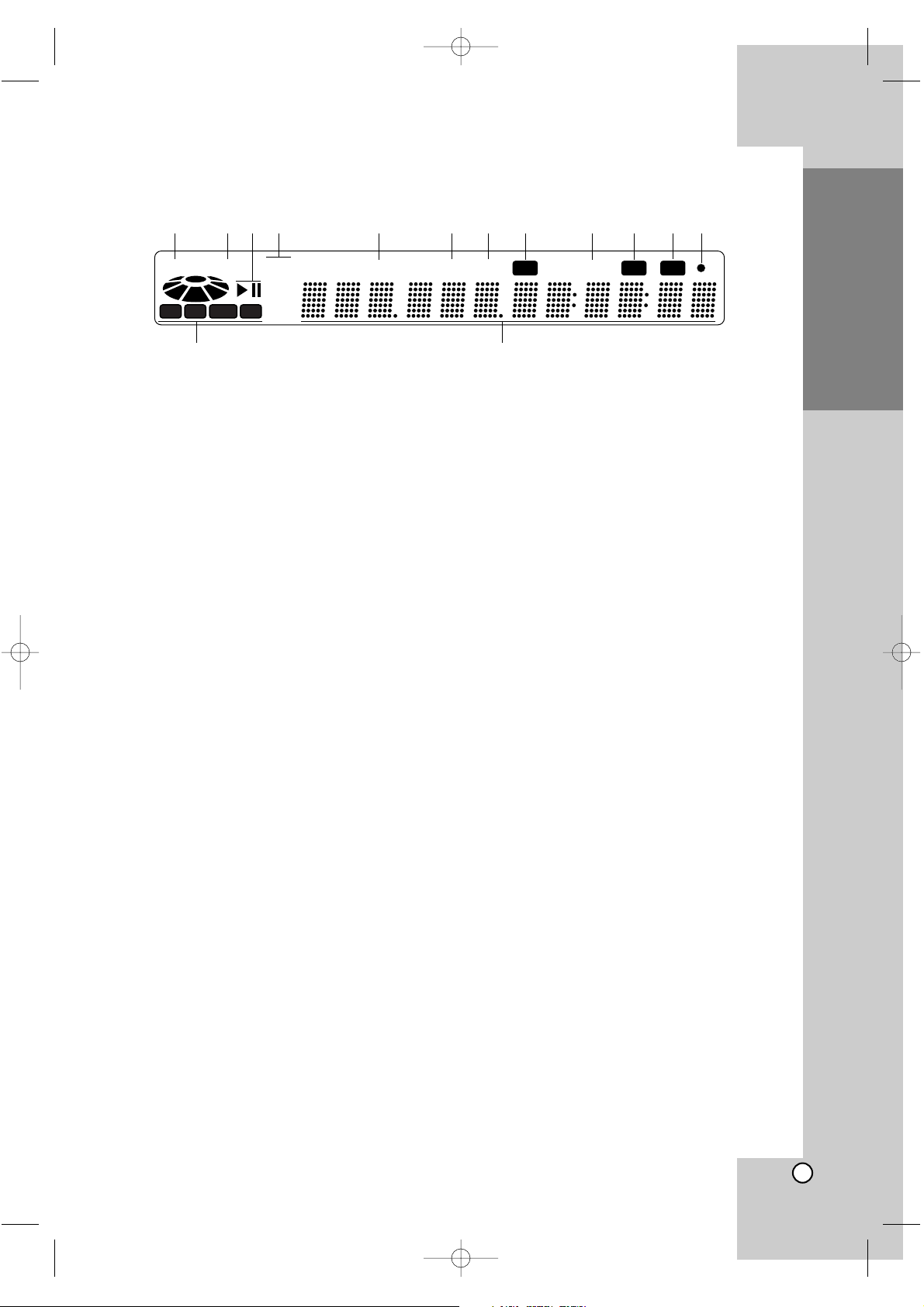

Display Window . . . . . . . . . . . . . . . . . . . . . .11

Remote Control . . . . . . . . . . . . . . . . . . . . . .12

Remote Control Operation . . . . . . . . . . . . . .12

Installation and Setup . . . . . . . . . . . . . . . .13-24

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . .13

HDMI connection . . . . . . . . . . . . . . . . . . . .14

Connections to Your TV . . . . . . . . . . . . . . . .15

Connecting to an Amplifier . . . . . . . . . . . . . .16

Internet connection . . . . . . . . . . . . . . . . . . .17

Resolution Setting . . . . . . . . . . . . . . . . . . . .18

Initial Settings . . . . . . . . . . . . . . . . . . . . . . .19

- General Operation . . . . . . . . . . . . . . . .19

- [DISPLAY] Menu . . . . . . . . . . . . . . .19-20

- [LANGUAGE] Menu . . . . . . . . . . . . . .20

- [AUDIO] Menu . . . . . . . . . . . . . . . . . .21

- [LOCK] Menu (Parental Control) . . . . . .22

- [NETWORK] Menu . . . . . . . . . . . . . . . .23

- [OTHERS] Menu . . . . . . . . . . . . . . . . .24

Operations . . . . . . . . . . . . . . . . . . . . . . . . .25-30

General playback features . . . . . . . . . . .25-26

If a disc menu screen is displayed . . . . . . . .27

Time Search . . . . . . . . . . . . . . . . . . . . . . . .27

Marker Search . . . . . . . . . . . . . . . . . . . . . . .27

Screen Saver . . . . . . . . . . . . . . . . . . . . . . .27

Using Color (A, B, C, D) Buttons . . . . . . . . .27

Displaying Disc Information On-Screen . . . .27

Hybrid Discs . . . . . . . . . . . . . . . . . . . . . . . .28

Last Scene Memory . . . . . . . . . . . . . . . . . . .28

Using the cursor function . . . . . . . . . . . . . . .28

Internet connection feature . . . . . . . . . . . . .28

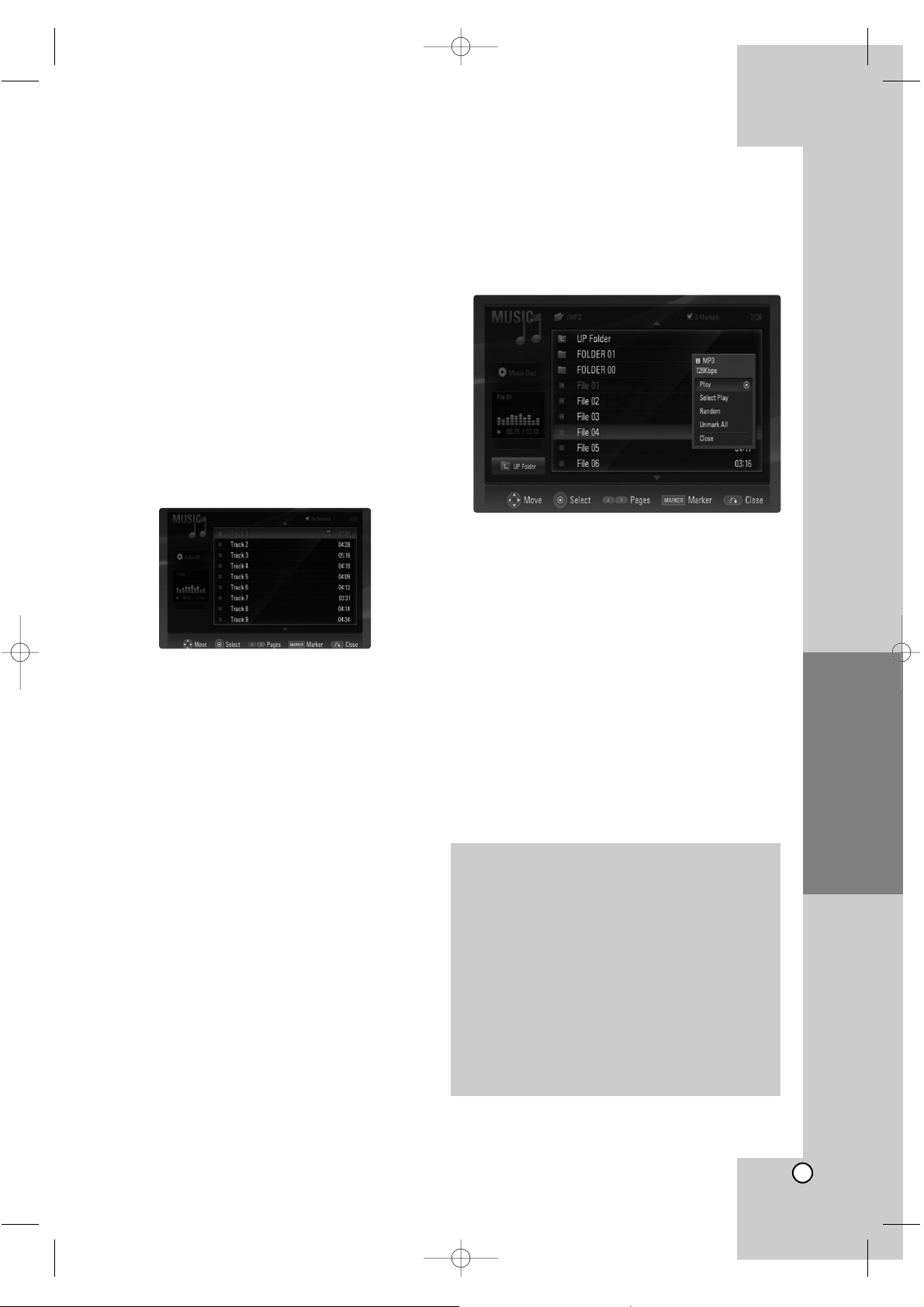

Playing an Audio CD or MP3/WMA files . . . .29

MUSIC menu options . . . . . . . . . . . . . . . . .29

Viewing a JPEG file . . . . . . . . . . . . . . . . . . .30

Reference . . . . . . . . . . . . . . . . . . . . . . . . . .31-38

Controlling a TV with the Supplied

Universal Remote Control . . . . . . . . . . . . . . . .

To program the remote to control the TV

using the manufacturer code . . . . . . . . . . . .31

Code numbers of controllable TVs . . . . . . . .32

Language Codes . . . . . . . . . . . . . . . . . . . . .33

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . .33

Troubleshooting . . . . . . . . . . . . . . . . . . . . . .34

Customer Support . . . . . . . . . . . . . . . . . . . .34

Specifications . . . . . . . . . . . . . . . . . . . . . . .35

This unit’s Audio Output Specifications . . . . .36

Open source software notice . . . . . . . . . . . .37

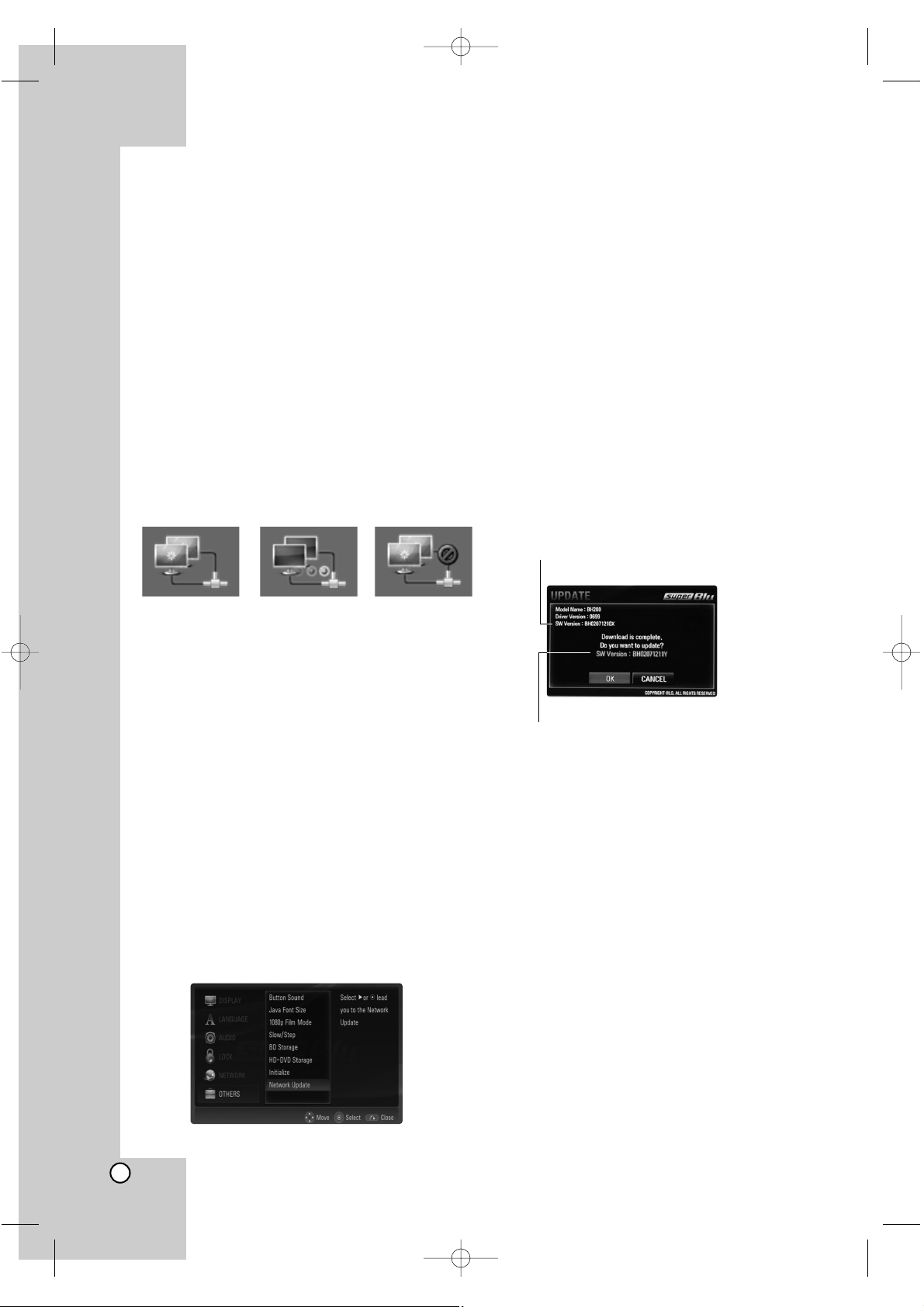

Network Update . . . . . . . . . . . . . . . . . . . . . .38

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 3

Notes on Copyrights

 Because AACS (Advanced Access Content

System) is approved as content protection sys-

tem for BD and HD DVD format, similar to use of

CSS (Content Scramble System) for DVD format,

certain restrictions are imposed on playback, ana-

log signal output, etc., of AACS protected con-

tents. The operation of this product and restric-

tions on this product may vary depending on your

time of purchase as those restrictions may be

adopted and/or changed by AACS after the pro-

duction of this product.

Furthermore, BD-ROM Mark and BD+ are addi-

tionally used as content protection systems for

BD format, which imposes certain restrictions

including playback restrictions for BD-ROM Mark

and/or BD+ protected contents. To obtain addi-

tional information on AACS, BD-ROM Mark, BD+,

or this product, please contact an authorized

Customer Service Center.

 Many HD DVD/BD-ROM/DVD discs are encoded

with copy protection. Because of this, you should

only connect your player directly to your TV, not

to a VCR. Connecting to a VCR results in a dis-

torted picture from copy-protected discs.

 This product incorporates copyright protection

technologies that are protected by certain U.S.

patents and other intellectual property rights

owned by Macrovision Corporation and other

rights owners. Use of this copyright protection

technology must be authorized by Macrovision

Corporation and is intended for home and other

limited viewing uses only, unless otherwise autho-

rized by Macrovision Corporation. Reverse engi-

neering or disassembly is prohibited.

 Under the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording,

use, display, distribution, or revision of television

programs, videotapes, HD DVDs, BD-ROM discs,

DVDs, CDs and other materials may subject you

to civil and/or criminal liability.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

Manufactured under license under U.S. Patent #’s:

5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,487,535 & other U.S. and worldwide patents

issued & pending. DTS and DTS Digital Surround

are registered trademarks and the DTS logos and

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI licensing LLC.

Qdeo, QuietVideo and the Qdeo trademarks are

registered trademarks of Marvell or its affiliates.

What is SIMPLINK?

Some functions of this unit are controlled by the

TV’s remote control when this unit and LG TV’s

with SIMPLINK are connected through HDMI con-

nection.

• Controllable functions by LG TV’s remote control;

Play, Pause, Scan, Skip, Stop, Power Off, etc.

• Refer to the TV owner’s manual for the details of

SIMPLINK function.

• LG TV’s with SIMPLINK function have the logo as

shown above.

Note:

Depending on the disc type or playing status, some

SIMPLINK operation may differ from your purpose

or not work.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 4

Introduction

To ensure proper use of this product, please read

this owner’s manual carefully and retain for future

reference.

This manual provides information on the operation

and maintenance of your player. Should the unit

require service, contact an authorized service loca-

tion.

About the Symbol Display

“ “ may appear on your TV display during opera-

tion and indicates that the function explained in this

owner’s manual is not available on that specific

media.

Symbols Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following sym-

bols are applicable only to the disc represented by

the symbol.

BD-ROM disc

HD DVD-Video disc

DVD-Video disc

Audio CDs

MP3 files

WMA files

JPEG files

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the

disc by the edges so that fingerprints do not get on

the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not

expose the disc to direct sunlight or sources of heat

and never leave it in a parked car exposed to direct

sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor

picture quality and sound distortion. Before playing,

clean the disc with a clean cloth. Wipe the disc from

the center out.

Do not use strong solvents such as alcohol, ben-

zine, thinner, commercially available cleaners, or

anti-static spray intended for older vinyl records.

Moisture Condensation

Never operate this product immediately after moving

it from a cold location to a warm location. Leave it

for two or three hours without operating it. If you use

this product in such a situation, it may damage discs

and internal parts.

Handling the Unit

When shipping the unit

Please save the original shipping carton and pack-

ing materials. If you need to ship the unit, for maxi-

mum protection, re-pack the unit as it was originally

packed at the factory.

Keeping the exterior surfaces clean

Use the supplied cloth for cleaning the surfaces of

the player.

• Do not use volatile liquids such as insecticide

spray near the unit.

• Wiping with strong pressure may damage the

surface.

• Do not leave rubber or plastic products in con-

tact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the sur-

faces are extremely dirty, use a soft cloth lightly

moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine,

or thinner, as these might damage the surface of the

unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the opti-

cal pick-up lens and disc drive parts are dirty or

worn, the picture quality could be diminished.

For details, please contact your nearest authorized

service center.

JPEG

WMA

MP3

ACD

DVD

HD DVD

Introduction

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 5

Playable Discs

Blu-ray Disc

Discs such as movies that can be pur-

chased or rented

HD DVD Disc

Discs such as movies that can be pur-

chased or rented

DVD-VIDEO (8 cm / 12 cm disc)

Discs such as movies that can be pur-

chased or rented

DVD-R (8 cm / 12 cm disc)

Video mode and finalized only

Supports the dual layer disc also

DVD-RW (8 cm / 12 cm disc)

Video mode and finalized only

DVD-RAM (8 cm / 12 cm disc)

Standard version 2.0 only

DVD+R

Finalized disc only

Supports the dual layer disc also

DVD+RW

Video mode and finalized only

Audio CD (8 cm / 12 cm disc)

Music CDs or CD-Rs/CD-RWs in music

CD format that can be purchased

CD-R/CD-RW (8 cm / 12 cm disc)

CD-R/CD-RW discs that contain audio

titles, MP3, WMA, or JPEG files.

Regional Code

This unit has a regional code printed on the rear of

the unit. This unit can play only BD-ROM, HD DVD,

or DVD discs labeled same as the rear of the unit or

“ALL”.

Notes:

 Depending on the conditions of the recording

equipment or the CD-R/RW (or DVD±R/RW) disc

itself, some CD-R/RW (or DVD±R/RW) discs can-

not be played on the unit.

 Do not attach any seal or label to either side (the

labeled side or the recorded side) of a disc.

 Do not use irregularly shaped CDs (e.g., heart-

shaped or octagonal). Doing so may result in

malfunctions.

 Depending on the recording software & the final-

ization, some recorded discs (CD-R/RW or

DVD±R/RW) may not be playable.

 DVD±R/RW and CD-R/RW discs recorded using

a personal computer or a DVD or CD Recorder

may not play if the disc is damaged or dirty, or if

there is dirt or condensation on the player’s lens.

 If you record a disc using a personal computer,

even if it is recorded in a compatible format, there

are cases in which it may not play because of the

settings of the application software used to create

the disc. (Check with the software publisher for

more detailed information.)

 This player requires discs and recordings to meet

certain technical standards in order to achieve

optimal playback quality. Pre-recorded DVDs are

automatically set to these standards. There are

many different types of recordable disc formats

(including CD-R containing MP3 or WMA files)

and these require certain pre-existing conditions

to ensure compatible playback.

 Customers should note that permission is

required in order to download MP3 / WMA files

and music from the Internet. Our company has no

right to grant such permission. Permission should

always be sought from the copyright owner.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 6

BD-ROM Disc Features

BD-ROM Discs can store 25 GB (single layer) or

50 GB (dual layer) on a single sided disc - about

5 to 10 times the capacity of a DVD.

BD-ROM Discs also support the highest quality HD

video available in the industry (up to 1920 x 1080) -

Large capacity means no compromise on video

quality. Furthermore, a BD-ROM disc has the same

familiar size and look as DVD.

• The following BD-ROM disc features are disc

dependent and will vary.

• Appearance and navigation of features will also

vary from disc to disc.

• Not all discs will have the features described

below.

•

BD-ROM, Hybrid disc have both BD-ROM and

DVD (or CD) layers on one side. Because this

type of disc is a technology currently in develop-

ment, such discs may not operate properly in this

player.

Video highlights

The BD-ROM format for movie distribution supports

three highly advanced video codecs, including

MPEG-2, MPEG4 AVC (H.264), and SMPTE VC1.

HD video resolutions are also available:

• 1920 x 1080 HD

• 1280 x 720 HD

For High-Definition Playback

To view high-definition contents from BD-ROM discs,

an HDTV is required. Some discs may require HDMI

OUT for viewing of high-definition contents. Ability to

view high-definition contents in BD-ROM discs may

be limited depending on the resolution of your TV.

Graphic planes

Two individual, full HD resolution (1920x1080)

graphic planes (layers) are available, on top of the

HD video layer. One plane is assigned to video-

related, frame accurate graphics (like subtitles), and

the other plane is assigned to interactive graphic

elements, such as buttons or menus.

For both planes, various wipes, fades and scroll

effects may be available.

Menu sounds

When you highlight or select a menu option, sounds

can be heard such as button clicks or a voice-over

explaining the highlighted menu choice.

Multi-page/PopUp Menus

With DVD-Video, playback is interrupted each time a

new menu screen is accessed. Due to BD-ROM

disc’s ability to preload data from the disc without

interrupting playback, a menu can consist of several

pages.

You can browse through the menu pages or select

different menu paths, while the audio and video

remain playing in the background.

Interactivity

Certain BD-ROM Discs may contain animated

menus and/or trivia games.

User Browsable Slideshows

With BD-ROM Discs, you can browse through vari-

ous still pictures while the audio remains playing.

Subtitles

Depending on what is contained on the BD-ROM

disc, you may be able to select different font styles,

sizes and colors for some subtitles. Subtitles may

also be animated, scrolled or faded in and out.

BD-J Interactive Capability

The BD-ROM format supports Java for interactive

functions. “BD-J” offers content providers almost

unlimited functionality when creating interactive

BD-ROM titles.

BD-ROM Disc Compatibility

This player supports BD-ROM Profile 1 version 1.1

only. Other profiles (i.e., BD-ROM Profile 2) could be

supported through updating player’s firmware later.

It may be required to update the firmware in case of

playing a certain newly released commercial BD-

ROM disc. For updating player’s firmware, please

refer to http://us.lgservice.com

or contact LG

Electronics customer care center at 1-800-243-0000.

Introduction

Graphic

Plane

HD Video

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 7

HD DVD Disc Features

HD DVD video discs are high-density, high-capacity

discs.



There are 2 types of HD DVD disc; one is stan-

dard content disc and the other is advanced con-

tent disc. Standard content disc is pure extension

of DVD Video. Advanced content disc realizes

more interactivity in addition to the extension of

audio and video realized by standard disc.



The HD DVD disc standard has been approved

by the DVD forum.



HD DVD (single layer): Maximum capacity of 15 GB

HD DVD (dual layer): Maximum capacity of 30 GB

A single layer single sided disc (15 GB) has

capacity of about

maximum

8 hours in 1125 line

high definition picture; about

maximum

48 hours

in 525 line standard definition picture (depending

on bitrate of pre-recorded contents).



HD DVD Twin Format Discs have both HD DVD

and DVD layers on one side. HD DVD

Combination DVD Discs have HD DVD material

on one side and standard DVD material on the

other side. Because this type of disc is a technol-

ogy currently in development, such discs may not

operate properly in this player.



Some titles may be played back with black “letter-

box bars” because the title is recorded with bars

by the contents provider.

Compatibility Notes



Because BD-ROM and HD DVD are a new for-

mat, certain disc, digital connection and other

compatibility issues are possible. If you experi-

ence compatibility problems, please contact an

authorized Customer Service Center.



Viewing high-definition content and up-converting

standard DVD content may require an HDMI-

capable input or HDCP-capable DVI input on

your display device.



Some BD-ROM, HD DVD and DVD discs may

restrict the use of some operation commands or

features.



Dolby TrueHD, Dolby Digital Plus and DTS-HD

are supported with

maximum

7.1 channels if you

use HDMI connection for the audio output of the

unit.



This player includes memory that is used to store

some disc related information, including down-

loaded on-line content. The disc you are using

will control how long this information is retained.

Certain System Requirements

For high definition video playback:



High definition display that has COMPONENT or

HDMI input jacks.



BD-ROM or HD DVD disc with high definition

content.



HDMI or HDCP capable DVI input on your display

device is required for some content (as specified

by disc authors).



For up-conversion of standard definition DVD, an

HDMI or HDCP capable DVI input on your display

device is required for copy protected content.

For Dolby

Digital Plus, Dolby TrueHD and DTS-HD

multi-channel audio playback:



An amplifier/receiver with a built-in (Dolby Digital,

Dolby Digital Plus, Dolby TrueHD, DTS or

DTS-HD) decoder.



Main, center, surround speakers and subwoofer

as necessary for chosen format.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 8

Using an USB Flash Drive

This unit can play the MP3 / WMA / JPEG files con-

tained in the USB Flash Drive.

Inserting/Removing the USB Flash

Drive

Inserting the USB Flash Drive

Insert straight-in until it fits into place.

Removing the USB Flash Drive

Withdraw the USB Flash Drive carefully.

Notes:

 This unit supports only USB Flash Drives with

FAT16 or FAT32 format.

 Do not extract the USB Flash Drives during opera-

tion (play, etc.).

 A USB Flash Drive which requires additional pro-

gram installation when you have connected it to a

computer, is not supported.

 USB Flash Drive: USB Flash Drive that support

USB1.1 and USB2.0.

Using the USB Flash Drive

1. Connect a USB Flash Drive.

2. Press HOME on the Remote Control.

3. Select [Music] or [Photo] option then press

ENTER.

4. Select [USB] then press ENTER.

MUSIC (or PHOTO) menu will appear.

Details for the menu are on page 29-30.

Using the Home Menu

From the Home Menu screen you can access all the

Media for playback and setting of the unit.

1. Press HOME and the Home Menu appears.

2. Use b / B to select the desired option then

press ENTER.

[Movie] – Start video media’s playback.

[Photo] – Displays PHOTO menu.

[Music] – Displays MUSIC menu.

[Setup] – Displays Setup menu.

Tip:

If you select the [Photo] or [Music] option when the

USB Flash Drive is connected and a disc is inserted

simultaneously, the menu for selecting a media will

appear. Select a media then press ENTER.

For example:

Notes:

• The unit will be in complete stop mode then

HOME menu will appear if you press HOME dur-

ing playback.

• If you insert a DVD or an unplayable disc that is

formatted as ISO9660 or UDF, the [Photo] or

[Music] option can be selected in the HOME

menu. But you cannot play it

Introduction

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 9

a POWER Button

Switches the unit ON or OFF.

b Disc Tray

Insert a disc here.

c Blu-ray Disc Indicator

Indicates when a BD-ROM disc is loaded.

d HD DVD Indicator

Indicates when an HD DVD disc is loaded.

e Display Window

Shows the current status of the player.

f Remote Sensor

Point the Remote Control here.

g Z (OPEN/CLOSE)

Opens or closes the disc tray.

h N / X (PLAY / PAUSE)

Starts playback.

Pause playback temporarily, press again to exit

pause mode.

i x (STOP)

Stops playback.

j . / > (SKIP)

Go to next or previous track/chapter.

k USB Port

Connect a USB Flash Drive.

Tip:

Z, N / X , x, . and > buttons are operated

with a slight/brief touch.

Precautions in using the touch buttons



Use the touch buttons with clean and dry hands.



Do not press the touch buttons with too much

force.



Do not touch the button with any conductive

material such as metallic object (Disc, etc). It may

cause a malfunction.

Front Panel

abcdef

ghi jk

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 10

Introduction

Display Window

a HDMI Indicator

Indicates when the HDMI output is available.

b YPbPr Indicator

Indicates when the component video output is

available.

c Status Indicator

N: Playing

X: Paused

d Video Output Resolution Indicator

Displays the video output resolution currently

selected.

480i: 480 interlace

480p: 480 progressive

720p: 720 progressive

1080i: 1080 interlace

1080p: 1080 progressive

e TITLE Indicator

Indicates current title number.

f TRK (Track) Indicator

Indicates current track number.

g CHAP (Chapter) Indicator

Indicates current chapter number.

h Repeat Mode Indicator

Indicates when playing in repeat mode.

i A-B Repeat Mode Indicator

Indicates when playing in A-B repeat mode.

j RDM (Random) Indicator

Indicates when playing in random order.

k AGL (Angle) Indicator

Indicates when playing a scene recorded with

multi angles.

l Remote Control Indicator

Indicates when Remote Control signal is

received.

m Disc Indicator

BD: Indicates when an BD-ROM disc is loaded.

HD DVD: Indicates when an HD DVD disc is

loaded.

DVD: Illuminates when a DVD disc is loaded.

CD: Illuminates when a Audio CD, MP3/WMA or

JPEG disc is loaded.

n Character Indicators

Indicates total playing time, elapsed time, title

number, chapter number or message, etc.

HDMI YPbPr 1080

TITLE CHAPTRK

A-B

720

480

RPT RDM AGL

BD HD CDDVD

abcd e fgh ijkl

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 11

    

POWER: Switches the player ON

or OFF.

TV POWER: Switches the TV ON

or OFF.

OPEN/CLOSE (Z): Opens and

closes the disc tray.

MARKER: Marks any point dur-

ing playback.

SEARCH: Displays Marker

Search menu.

AUDIO ( ): Selects an audio

language or audio channel.

SUBTITLE ON/OFF: Switches

the subtitle on or off.

SUBTITLE ( ): Selects a

subtitle language.

REPEAT: Repeat a desired sec-

tion.

A-B: Repeat sequence.

ANGLE ( ): Selects a disc

camera angle, if available.

    

Color (A, B,C, D) buttons: Are

used for some BD-J or HD DVD

interactivity applications.

They are also used for [PHOTO]

and [MUSIC] menu.

DISPLAY: Accesses On-Screen

Display.

HOME: Accesses the Home

Menu.

DISC MENU: Accesses menu on

a disc.

Direction buttons: Select an

option in the menu.

ENTER ( ): Acknowledges

menu selection.

RETURN (O): Exits the menu.

CLEAR: Removes a mark on the

Marker Search menu or a number

when setting the password.

CURSOR*: Use while a HD DVD

with support for cursor use is

playing.

TITLE/POP UP: Displays the

DVD or HD DVD’s title menu or

BD-ROM’s popup menu, if avail-

able.

    

x (STOP): Stops playback.

N (PLAY): Starts playback.

X (PAUSE/STEP): Pauses

playback.

RESUME PLAY*: Resumes play-

back from the location last

stopped when a disc menu

appears.

m / M (SCAN): Search

backward or forward.

. / > (SKIP): Go to next or

previous chapter.

    

TV Control Buttons: See page

31.

0-9 numerical buttons: Select

numbered options in a menu.

VIDEO PIP*: Switches PIP func-

tion on or off, if available

(BD-ROM only).

RESOLUTION: Sets the output

resolution for HDMI and

COMPONENT VIDEO OUT

jacks.

* Depending on a disc type or

the pre-recorded contents of

the HD DVD and BD, different

functions may be executed

than other media or there are

no responses when pressing

some buttons.

Remote Control

Remote Control Operation

Point the Remote Control at the remote sensor and

press the buttons.

Caution

Do not mix old and new batteries. Never mix different

types of batteries (standard, alkaline, etc.).

Remote Control Battery Installation

Remove the battery cover on

the rear of the Remote Control,

and insert two R03 (size AAA)

batteries with and

matched correctly.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 12

Installation and Setup

a AC IN connector

Connect the supplied power cord.

b COMPONENT VIDEO OUT (Y Pb Pr)

Connect to a TV with Y Pb Pr inputs.

c DIGITAL AUDIO OUT (OPTICAL)

Connect to digital (optical) audio equipment.

d HDMI OUT (Type A)

Connect to TV with HDMI inputs. (Interface for

digital audio and video)

e LAN port

Connect a network with an always-on

broadband connection.

f VIDEO OUT

Connect to a TV with video inputs.

g 2CH AUDIO OUT (Left/Right)

Connect to a TV with 2 channel audio inputs.

Installation and Setup

Rear Panel

abcde

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 13

HDMI connection

If you have a HDMI TV or monitor, you can connect

it to this player using a HDMI cable.

1. Connect the HDMI jack on the player to the HDMI

jack on a HDMI compatible TV or monitor (H).

2. Set the TV’s source to HDMI (refer to TV’s

Owner’s manual).

Notes:

 You must select a HDMI audio output and a

maximum sampling frequency that your TV

accepts using [HDMI] and [Sampling Freq.]

options on the setup menu (See page 21).



If a connected HDMI device does not accept the

audio output of the unit, the HDMI device’s audio

sound may be distorted or may not output.

Tip:

When you use HDMI connection, you can change

the resolution for the HDMI output. (Refer to

“Resolution Setting” on page 18.)

Cautions

 Changing the resolution when the connection has

already been established may result in malfunc-

tions. To solve the problem, turn off the player and

then turn it on again.

 When the HDMI connection with HDCP is not veri-

fied, a message appears on the TV screen or TV

screen is changed to black screen. In this case,

check the the HDMI connection, or disconnect the

HDMI cable.

 If there is noise or lines on the screen, please

check the HDMI cable (length is generally limited

to 15ft).

Additional Information for HDMI

 When you connect a HDMI or DVI compatible

device make sure of the followings:

- Try switching off the HDMI/DVI device and this

player. Next, switch on the HDMI/DVI device

and leave it for around 30 seconds, then switch

on this player.

- The connected device’s video input is set cor-

rectly for this unit.

- The connected device is compatible with

720x480p, 1280x720p, 1920x1080i or

1920x1080p video input.

 Not all HDCP-compatible DVI devices will work

with this player.

- The picture will not be displayed properly with

non-HDCP device.

- This player does not playback and a message

appears on TV screen.

Rear of the player

HDMI

HDMI compatible TV

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 14

Installation and Setup

Connections to Your TV

Make one of the following connections, depending

on the capabilities of your existing equipment.

Tips



Depending on your TV and other equipment you

wish to connect, there are various ways you

could connect the player. Use only one of the

connections described below.



Please refer to the manuals of your TV, Stereo

System or other devices as necessary to make

the best connections.

Caution

– Make sure the player is connected directly to the

TV. Tune the TV to the correct video input chan-

nel.

– Do not connect the player’s AUDIO OUT jack to

the phono in jack (record player) of your audio

system.

– Do not connect your player via your VCR. The

image could be distorted by the copy protection

system.

Component Video Connection

Connect the COMPONENT VIDEO OUT jacks on

the player to the corresponding input jacks on the

TV using Y Pb Pr cables (C).

Tip:

When you use COMPONENT VIDEO OUT connec-

tion, you can change the resolution for the output.

(Refer to “Resolution setting” on page 18.)

Video Connection

Connect the VIDEO OUT jack on the player to the

video in jack on the TV using a video cable (V).

Note: With Film Mode “On”, composite video

(yellow video jack) is not active.

Audio (Left/Right) Connection

Connect the left and right AUDIO OUT jacks of the

player to the audio left and right IN jacks on the TV

using the audio cables (A).

AUDIO INPUT

VIDEO

INPUT

COMPONENT VIDEO INPUT

Rear of TV

Rear of the

player

A CV

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 15

Connecting to an Amplifier

Make one of the following connections, depending

on the capabilities of your existing equipment.

Note:

Since many factors affect the type of audio output,

see “The unit’s Audio Output Specifications” on page

36 for details.

Connecting to an Amplifier via 2 Channel

Audio Output

Connect the Left and Right 2CH AUDIO OUT jacks

on the player to the audio left and right in jacks on

your amplifier, receiver, or stereo system, using

audio cables (A).

Connecting to an Amplifier via Digital Audio

Output (Optical)

1. Connect the player’s DIGITAL AUDIO OUT jack

to the corresponding in jack on your amplifier.

Use a digital audio cable (O).

2. You will need to activate the player’s digital out-

put. (See “[AUDIO] Menu” on pages 21.)

Connecting to an Amplifier via HDMI Output

1. Connect the player’s HDMI OUT jack to the cor-

responding in jack on your amplifier. Use an

HDMI cable (H1).

2. You will need to activate the player’s digital out-

put. (See “[AUDIO] Menu” on pages 21.)

Tip:

Connect the amplifier’s HDMI output jack to HDMI

input jack on your TV using an HDMI cable (H2) if

your amplifier has HDMI output jack.

Digital Multi-channel sound

A digital multi-channel connection provides the best

sound quality. For this you need a multi-channel

Audio/Video Receiver that supports one or more of

the audio formats supported by your player. Check

the receiver manual and the logos on the front of the

receiver. (PCM Stereo, PCM Multi-Ch, Dolby Digital,

Dolby Digital Plus, Dolby TrueHD, DTS and/or

DTS-HD)

Notes:



You must select a digital audio output and a

maximum sampling frequency that your Amplifier

(or AV receiver) accepts using [SPDIF], [HDMI]

and [Sampling Freq.] options on the setup menu

(See page 21).



With digital audio connection (SPDIF or HDMI),

Disc Menu button sounds of BD-ROM or HD DVD

may not be heard if the [SPDIF] or [HDMI] option

is set to [Primary Pass-Thru].



If the audio format of the digital output does not

match the capabilities of your receiver, the receiver

will produce a strong, distorted sound or no sound at

all.

 Multi-channel Digital Surround Sound via digital

connection can only be obtained if your receiver is

equipped with a Digital Multi-channel decoder.

 To see the audio format of the current disc in the

on-screen display, press AUDIO.

AUDIO INPUT DIGITAL INPUT

OPTICAL

HDMI INPUT

HDMI OUTPUT

Amplifier (Receiver)

Rear of the player

A O H1

HDMI

HDMI compatible TV

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 16

Internet connection

This player can be connected to a local area net-

work (LAN) via the LAN port on the rear panel.

After making the physical connection the player

needs to be set up for network communication. This

is done from the [Setup] menu — see “[NETWORK]

Menu” on page 23 for detailed instructions.

This connection is used to access special HD DVD

or BD-ROM sites.

Connect the player’s LAN port to the corresponding

port on your Modem or Router using a LAN cable.

Use a commercially available straight LAN cable

(Category 5/CAT5 or better with RJ45 connector).

Cautions:



When plugging or unplugging the LAN cable, hold

the plug portion of the cable. When unplugging,

do not pull on the LAN cable but unplug while

pressing down on the lock.



Do not connect a modular phone cable to the

LAN port.



Since there are various connection configura-

tions, please follow the specifications of your

telecommunication carrier or internet service

provider.

Notes:

• Depending on the internet service provider (ISP),

the number of devices that can receive internet

service may be limited by the applicable terms of

service. For details, contact your ISP.

• Our company is not responsible for any malfunc-

tion of the player and/or the internet connection

feature due to communication errors/malfunc-

tions associated with your broadband internet

connection, or other connected equipment.

• Our company is not responsible for any trouble

in your internet connection.

• If you wish to use a wireless network to connect

the player, you will need to use a wireless LAN

ethernet adapter to connect the player to the net-

work.

• The features of HD DVD or BD-ROM discs made

available through the Internet Connection feature

are not created or provided by our company, and

our company is not responsible for their function-

ality or continued availability. Some disc related

material available by the Internet Connection

may not be compatible with this player. If you

have questions about such content, please con-

tact the producer of the disc.

• Some internet contents may require a higher

bandwidth connection.

• Even if the player is properly connected and con-

figured, some internet contents may not operate

properly because of internet congestion, the

quality or bandwidth of your internet service,

problems at the provider of the content or com-

patibility issues.

• Some internet connection operations may not be

possible due to certain restrictions set by the

Internet service provider (ISP) supplying your

broadband Internet connection.

• Any fees charged by an ISP including, without

limitation, connection charges are your responsi-

bility.

• A 10 Base-T or 100 Base-TX LAN port is

required for connection to this player. If your

internet service does not allow for such a con-

nection, you will not be able to connect the play-

er.

• You must use a Router to use xDSL service.

• A DSL modem is required to use DSL service

and a cable modem is required to use cable

modem service. Depending on the access

method of and subscriber agreement with your

ISP, you may not be able to use the internet con-

nection feature contained in this player or you

may be limited to the number of devices you can

connect at the same time. (If your ISP limits sub-

scription to one device, this player may not be

allowed to connect when a PC is already con-

nected.)

• The use of a “Router” may not be allowed or its

usage may be limited depending on the policies

and restrictions of your ISP. For details, contact

your ISP directly.

• Your ISP may protect this player from being con-

nected to network when confirming MAC

ADDRESS. In that case, contact your ISP to

request to initialize MAC ADDRESS.

Installation and Setup

Router

Broadband

Service

Rear of the player

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 17

Resolution Setting

The player provides several output resolutions for

HDMI OUT and COMPONENT VIDEO OUT jacks.

You can change the resolution using [Setup] menu

or pressing the RESOLUTION button in complete

stop mode.

Auto – If the HDMI OUT jack is connected for

TVs providing display information (EDID), auto-

matically selects the resolution best suited to the

connected TV (1080p, 1080i, 720p or 480p).

(only for HDMI connection)

1080p – Outputs 1080 lines of progressive

video. (only for HDMI connection)

1080i – Outputs 1080 lines of interlaced video.

720p – Outputs 720 lines of progressive video.

480p – Outputs 480 lines progressive video.

480i – Outputs 480 lines of interlaced video.

(only for COMPONENT VIDEO OUT connec-

tions)

How to change the resolution using

RESOLUTION button

Press RESOLUTION button in complete stop mode.

How to change the resolution using

Setup menu

1. Press HOME and the Home Menu appears.

2. Select [Setup] and press ENTER. The Setup

menu appears.

3. Use v / V to select [DISPLAY] option then press

B to move to the second level.

4. Use v / V to select the [Resolution] option then

press B to move to the third level.

5. Use v / V to select the desired resolution then

press ENTER to confirm your selection.

Available resolution according to

connection

HDMI OUT connection

• Auto, 1080p, 1080i, 720p and 480p are available.

• 480i is not available.

• If you select a resolution manually and then con-

nect the HDMI jack to TV and your TV does not

accept it, the resolution setting is set to [Auto].

• If you select a resolution that your TV does not

accept, the warning message appears for a while

then it disappear. You must select a resolution that

your TV does accept.

• The 1080p video output frame rate may be auto-

matically set to either 24Hz or 60Hz depending

both on the capability and preference of the con-

nected TV and based on the native video frame

rate of the content on the Blu-ray disc or HD DVD.

COMPONENT VIDEO OUT connection

• 1080i, 720p, 480p and 480i are available.

• The resolution may be limited depending on the

title in BD-ROM and HD DVD.

• If the disc is copy protected, the resolution will be

changed to 480p automatically.

• 1080p is not available.

VIDEO OUT connection

• The resolution of the VIDEO OUT jack is fixed to

480i.

• With Film Mode “On”, composite video (yellow

video jack) is not active.

Notes:

• Depending on your display, some of the resolution

settings may result in the picture disappearing or

an abnormal picture appearing. In this case, press

STOP twice then RESOLUTION repeatedly until

the picture re-appears.

• This player supports simultaneous output of video

on its HDMI OUT and COMPONENT VIDEO OUT

jacks. The resolution on the HDMI output will be

the same as the resolution output on the compo-

nent video output. Thus, because the HDMI output

can change automatically to match the maximum

available resolution of your display when

[Resolution] option is set to [Auto] on the setup

menu, if you connect both the HDMI output and

component video output, the resolution on the

component video output will change if the HDMI

output Auto-adjusts.

RESOLUTION button

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 18

Initial Settings

By using the Setup menu, you can make various

adjustments to items such as picture and sound.

You can also set a language for the subtitles and the

Setup menu, among other things. For details on

each Setup menu item, see pages 19 to 24.

To display and exit the Menu:

Press HOME and the Home Menu appears. Select

[Setup] then press ENTER, and Setup menu

appears.

Press RETURN or HOME to exit the Setup menu.

To go to the next level:

Press B on the Remote Control.

To go back to the previous level:

Press b on the Remote Control.

General Operation

1. Press HOME and the Home Menu appears.

2. Select [Setup] and press ENTER. The Setup

menu appears.

3. Use v / V to select the desired option then press

B to move to the second level. The screen

shows the current setting for the selected item,

as well as alternate setting(s).

4. Use v / V to select the second desired option

then press B to move to the third level.

5. Use v / V to select the desired setting then

press ENTER to confirm your selection. Some

items require additional steps.

6. Press RETURN or HOME to exit the Setup

menu.

[DISPLAY] Menu

TV Aspect Ratio

[4:3 Letter Box] – Select when a standard 4:3

TV is connected. Displays theatrical images with

masking bars above and below the picture.

[4:3 Pan Scan] – Select when a standard 4:3 TV

is connected. Displays pictures cropped to fill

your TV screen. Both sides of the picture are cut

off.

[16:9 Wide] – Select when a 16:9 wide TV is

connected.

Note:

You cannot select [4:3 Letter Box] and [4:3 Pan

Scan] option when the resolution is set to higher

than 720p.

Resolution

Sets the output resolution of the Component and

HDMI video signal.

Refer to “Resolution Setting” on page 18 for details

about the resolution.

Installation and Setup

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 19

[DISPLAY] Menu (Continued)

Video Mode

Select the video mode during play.

[Default] – The video is adjusted automati-

cally. Qdeo delivers rich high-definition video

quality through a suite of advanced QuietVideo™

technologies. You cannot adjust other video

adjustment options.

[User] – You can make further adjustments for

video using [Video Adjustment],

[Color Adjustment], [White NR], [Block NR], and

[Mosquito NR] options.

Video Adjustment

You can adjust Contrast, Brightness, Sharpness or

Color.

1. Select [Video Adjustment] option then press

ENTER.

The menu for video adjustment will appear

2. Use v / V to select a desired option then use

b / B to adjust the value.

• Select [Default] option then press ENTER to

reset the video adjustment.

• Select [Close] option then press ENTER to exit

the [Video Adjustment] menu.

Color Adjustment

You can adjust picture’s color.

1. Select [Color Adjustment] option then press

ENTER.

The menu for color adjustment will appear

2. Use v / V to select a desired option then use

b / B to adjust the value.

• Select [Default] option then press ENTER to

reset the color adjustment.

• Select [Close] option then press ENTER to exit

the [Color Adjustment] menu.

White NR (White Noise Reduction)

Enhance the video quality by reducing the white

(random) noise of the digital video.

The higher White NR level makes the video softer.

Block NR (Block Noise Reduction)

Set to [On] to reduce the block noise, which may

appear especially on fast-moving pictures, produced

in the MPEG compression process.

Mosquito NR (Mosquito Noise Reduction)

Set to [On] to reduce the mosquito (scattering) noise

produced in the MPEG compression process.

Black Level

You can adjust the black level of the output signal.

[Off] – Normal black level. (7.5 IRE)

[On] – To display deeper, richer black than in

[Off] setting. (0 IRE)

Note:

Black Level control is only valid in component 480i

case.

[LANGUAGE] Menu

Display Menu

Select a language for the Setup menu and on-

screen display.

Disc Menu / Disc Audio / Disc Subtitle

Select the language you prefer for the audio track

(disc audio), subtitles, and the disc menu.

[Original] – Refers to the original language in

which the disc was recorded.

[Other] – To select another language, press

number buttons then ENTER to enter the corre-

sponding 4-digit number according to the lan-

guage code list on page 33.

[Off] (for Disc Subtitle) – Turn off Subtitle.

Note:

Depending on a disc, your language setting may not

be worked for some disc.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 20

Installation and Setup

[AUDIO] Menu

Each disc has a variety of audio output options. Set

the player’s Audio options according to the type of

audio system you use.

Note:

Since many factors affect the type of audio output,

see “The unit’s Audio Output Specifications” on page

36 for details.

HDMI / SPDIF (Digital Audio Output)

Select the output sound format when a device

equipped with an HDMI or Digital Audio input jack is

connected to the HDMI OUT or DIGITAL AUDIO

OUT jack on this player.

[PCM Stereo] – Select if you connect this unit’s

HDMI OUT or DIGITAL AUDIO OUT jack to a

device with two-channel digital stereo decoder.

[PCM Multi-Ch] (HDMI only) – Select if you

connect this unit’s HDMI OUT jack to a device

with multi-channel digital decoder.

[DTS Re-Encode] – Select if you connect this

unit’s HDMI OUT or DIGITAL AUDIO OUT jack to

a device with DTS decoder.

[Primary Pass-Thru] – Select if you connect this

unit’s DIGITAL AUDIO OUT and HDMI OUT jack

to a device with LPCM, Dolby Digital, Dolby

Digital Plus, Dolby TrueHD, DTS and DTS-HD.

Notes:

• When [HDMI] option is set to [PCM Multi-CH], the

audio may output as PCM Stereo if the PCM

Multi-Ch information is not detected from HDMI

device with EDID.

• When [HDMI] and [SPDIF] options are set to

[DTS Re-Encode], the DTS audio will output on

BD and HD DVD advanced disc, and the original

audio will output on the other discs (like [Primary

Pass-True]).

Sampling Freq. (Maximum Sampling Frequency)

[192KHz] – Select this if your A/V Receiver or

Amplifier is capable of handling 192 KHz signals.

[96KHz] – Select this if your A/V Receiver or

Amplifier is NOT capable of handling 192 KHz

signals. When this choice is made, this unit auto-

matically converts any 192 KHz signals to

96 KHz so your system can decode them.

[48KHz] – Select this if your A/V Receiver or

Amplifier is NOT capable of handling 192 KHz

and 96 KHz signal. When this choice is made,

this unit automatically converts any 192 KHz and

96 KHz signals to 48 KHz so your system can

decode them.

Check the documentation for your A/V Receiver or

Amplifier to verify its capabilities.

DRC (Dynamic Range Control)

During the disc encoded in Dolby Digital or Dolby

Digital Plus is playing back, you may wish to com-

press the dynamic range of the audio output (the dif-

ference between the loudest sounds and the qui-

etest ones). This allows you to listen to a movie at a

lower volume without losing clarity of sound. Set

DRC to [On] for this effect.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 21

[LOCK] Menu (Parental Control)

Password

You can enter or change the password.

1. Select [Password] option on the [LOCK] menu

then press B.

2. To create new password, press ENTER when the

[New] option is highlighted. Input new password

and press ENTER. Enter it again and press

ENTER to verify.

To change the password, press ENTER when the

[Change] option is highlighted, then input old

password and press ENTER. Input new password

and press ENTER. Enter it again and press

ENTER to verify.

To delete the password, select [Delete] option

then press ENTER, then input old password and

press ENTER. The password is deleted.

Tip:

If you make a mistake before pressing ENTER,

press CLEAR. Then input the correct password.

If you forget your password

If you forget your password, you can clear it using

the following steps:

1. Remove any disc that might be in the player.

2. Select [Password] option.

3. Use Number buttons to enter the 6-digit number

“210499”.

The “PIN CLEAR” appears in the display window

and the password is deleted.

Rating

Blocks playback of rated disc based on their con-

tent. (Not all discs are rated.)

1. Select [Rating] on the [LOCK] menu then

press B.

2. To access this option, you must input the pass-

word you have created. If you have not yet

entered password, you will be prompted to do so.

Input a password and press ENTER. Enter it

again and press ENTER to verify. If you make a

mistake before pressing ENTER, press CLEAR.

3. Select a rating from 1 to 8 using the v / V but-

tons.

[Rating 1-8] – Rating one (1) has the most

restrictions and rating eight (8) is the least

restrictive.

[Unlock] – If you select unlock, parental control

is not active and the disc plays in full.

4. Press ENTER to confirm your rating selection.

BD Age

Set an age limit of BD-ROM play.

1. Select [BD Age] on the [LOCK] menu then

press B.

2. Follow step 2 as shown above (Rating).

3. Use number buttons to input an age limit for

BD-ROM viewing.

[255] – All BD-ROM can be played.

[0-254] – Prohibits play of BD-ROM with corre-

sponding ratings recorded on them.

4. Press ENTER to confirm your selection.

Area Code

Enter the code of the area whose standards were

used to rate the DVD video disc, based on the list

on page 33.

1. Select [Area Code] on the [LOCK] menu then

press B.

2. Follow step 2 as shown above (Rating).

3. Select the first character using v / V buttons

then press ENTER.

4. Select the second character using v / V buttons

then press ENTER to confirm your selection.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 22

[NETWORK] Menu

Some HD DVD or BD-ROM discs may enable you to

access special HD DVD or BD-ROM sites, if you

connect the player to the Internet. For example, if an

HD DVD or BD-ROM site includes content such as

links to future movie trailers, you can watch the

downloaded on-line content on the player.

You do not need to connect to a PC to use this func-

tion.

Preparations:

• This feature requires an always-on broadband

internet connection. (See page 17.)

• An BD-ROM or HD DVD disc compatible with

this feature is required. Not all BD-ROM or

HD DVD discs are compatible.

IP Mode

If there is a DHCP server on the local area network

(LAN), this player will automatically be allocated an

IP address. If you’re using a broadband router or

broadband modem that has a DHCP (Dynamic

Host Configuration Protocol) server function, select

[Dynamic IP]. The IP address will automatically be

determined.

If there is no DHCP server on the network and you

want to set the IP address manually, select

[Static IP] then set the [IP Address], [Subnet Mask],

[Gateway] and [DNS Server] using [IP Setting]

option.

Note:

The [IP Mode] menu shows if the internet is con-

nected or not. “ ” will appear when connection is

failed.

IP Setting

This option is available only if [IP Mode] option is set

to [Static IP].

Use the v / V / b / B buttons to select a field; use

the number buttons to enter a value. Press ENTER

when [OK] is highlighted to finish and exit the

screen.

User Information

Although not directly related to the Internet connec-

tion, some BD-ROM or HD DVD discs may require

the following settings to be configured.

1. Select [User Information] on the [NETWORK]

menu then press B.

2. Input characters for user ID by pressing v / V.

To shift the position, press b / B .

Up to 10 characters can be input.

3. Press ENTER to shift to [Password] option.

4. Input characters for password by pressing v / V.

To shift the position, press b / B .

Up to 10 characters can be input.

Tip:

If you make a mistake, press CLEAR. Then input

the correct characters.

Network Speed

Select a speed according to the specification of your

LAN.

[Low Speed] – Lower than 1 Mbps

[Mid Speed] – 1-10 Mbps

[High Speed] – Higher than 10 Mbps

Cookie Setting

Select whether you wish to accept “cookies” or not.

[Accept] – Cookies are accepted.

[Not Accept] – Cookies are rejected. This may

disable some services on web pages.

Note:

If you select to accept “cookies”, the BD-ROM or

HD DVD internet services you use may record or

track information about your use of the player and/or

those sites. If you do not choose to allow cookies,

some or all features of a site may not properly func-

tion.

Installation and Setup

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 23

[OTHERS] Menu

Button Sound

You can hear beep sound when you press a touch

button on the front panel. Set [On] for this effect.

Java Font Size

You can adjust the default text size displayed for

the BD-J contents during BD-ROM playback.

This setting is only valid when BD-J contents do not

set the size of text.

Please select a font size bigger than 24 when the

player is connected with an HD TV.

1080p Film Mode

When the resolution is set to 1080p, select [On] for

smooth presentation of film material (1080/24p or

720/24p video) with an HDMI-equipped display com-

patible with 1080/24p input.

Notes:

• When you select [On], you may experience some

picture disturbance when the video switches video

and film material. In this case, select [Off].

• Even when [1080p Film Mode] is set to [On], if your

TV is not compatible with 1080/24p, the actual

frame frequency of the video output will be 60 Hz.

• With Film Mode “On”, composite video

(yellow video jack) is not active.

Slow/Step

You can set up the operations of the X (Pause) and

M (Forward Scan) while the playback is paused.

[Off] – If you press X while the playback is

paused and the picture play backs in normal.

If you press M while the playback is paused

and the picture play backs in fast forward.

[On] – If you press X while the playback is

paused and the picture play backs in frame-by-

frame.

If you press M while the playback is paused

and the picture play backs in slow motion.

Note:

We recommend setting the [Slow/Step] option to

[Off] for HD DVD interactivity.

BD Storage

This player includes memory that is used to store

some BD-ROM disc related information, including

downloaded on-line content. The disc you are using

will control how long this information is retained.

[Built-In Memory] – Saves the downloaded on-

line contents in built-in memory.

[USB Memory] – Saves the downloaded on-line

contents in the USB Flash Drive if connected.

HD-DVD Storage

You can erase the downloaded on-line content for

HD DVD in the built-in memory.

1. Select [HD-DVD Storage] on the [OTHERS]

menu then press B.

The [Persistence Storage] menu will appear.

2. Select [Built In Memory] then press B.

[Built-In Memory] – Shows the contents in the

built-in memory.

3. Select a folder then press press B.

The contents in the folder will appear.

4. Highlight an option and then press ENTER.

[Delete] – Deletes the contents in the built-in

memory.

[Close] – Returns to the [Persistence Storage]

menu.

5. Select an option then press ENTER.

Note:

The [Common Area] folder is created by default if

this folder is not existed in the [Built-In Memory].

Initialize

You can reset the player to its original factory set-

tings and initialize the BD Storage or HD-DVD

Storage.

1. Select [Initialize] option then press B.

2. Press v / V to select the desired option then

press ENTER.

The confirm message will appear.

[Factory Set] – If you need to, you can reset the

player to all its factory settings. Some options

cannot be reset. (Rating, Password, Area Code

and BD/HD Storage)

[BD Flash Format] – Initializes the BD contents

from the built-in memory: BD contents recorded

on the built-in memory will be erased.

[HD-DVD Flash Format] – Initializes the

HD-DVD contents from the built-in memory: HD-

DVD contents recorded on the built-in memory

will be erased.

3. Use b / B to select [Yes] or [No] then press

ENTER.

Network Update

You can update the firmware by connecting the unit

directly to the S/W update server. (See page 38.)

HD DVD

BDHD DVDDVD

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 24

Operation

Operations

General playback features

1. Load your chosen disc in the tray, with the playback side down.

2. Start playback using the HOME menu (See page 9).

Buttons Operations

OPEN / CLOSE (Z) Opens or closes the disc tray.

x (STOP) Stops the playback.

The unit records the stopped point, depending on the

disc. “Xx” appears on the screen briefly. Press

N (PLAY) to resume playback (from the scene point). If

you press STOP (x) again or unload the disc (“x”

appears on the screen.), the unit will clear the stopped

point. (Xx = Resume Stop, x = Complete Stop)

Note:

The resume point may be cleared when a button is

pressed (for example; POWER, OPEN/CLOSE, etc).

On HD DVD advanced title and BD interactive title, the

unit will be in Complete Stop mode if you press STOP

once during playback.

RESUME PLAY Disc menu will appear if you press DISC MENU once.

To resume playback, press RESUME PLAY.

Notes:

• The RESUME PLAY may not work on some discs.

• On other disc, RESUME PLAY is operated as

N (PLAY).

X (PAUSE) During playback, press X to pause playback.

Tip: During Audio CD or MP3/WMA playback, press X

once again to resume playback.

Press X repeatedly to play Frame-by-Frame.

Note: X (PAUSE) button’s operation are differ depend-

ing on the [Slow/Step] option setting on the setup menu.

(See page 24.)

. / > (SKIP) During playback, press . or > to go to the next

chapter/track/file or to return to the beginning of the cur-

rent chapter/track/file.

Press . twice briefly to step back to the previous

chapter/track/file.

m / M (SCAN) During playback, press SCAN (m or M) repeatedly

to select the required scan speed.

- DVD, HD DVD, BD: 5 steps,

- Audio CD, MP3, WMA: 3 steps

While the playback is paused, press SCAN M repeat-

edly to play in slow motion (4 steps, forward only).

Note: M (SCAN) button’s operation are differ depend-

ing on the [Slow/Step] option setting on the setup menu.

(See page 24.)

Continued t

Discs

All Discs

BDHD DVDDVD

BDHD DVD

WMA

MP3ACDDVD

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 25

General playback features (Continued)

Buttons Operations

REPEAT During playback, press REPEAT repeatedly to select a

desired repeat mode.

DVD, HD DVD, BD: Chapter/Title/Off

Audio CD, MP3, WMA: Track/All/Off

Note:

If you press > once during Repeat Chapter/Track

playback, the repeat playback cancels.

A-B During playback, each press of A-B button to select

point A and point B and repeats a sequence from point A

(Starting point) to point B (End point).

To cancel the sequence, press A-B.

TITLE/POP UP If the current DVD, HD DVD or BD-ROM disc has a

menu, the Title menu or Popup menu appears on the

screen. Depending on the disc, the menu may not be

available.

DISC MENU The menu appears on the screen. Depending on the

disc, the menu may not be available.

ANGLE ( ) During playback of the disc contains scenes recorded at

different camera angles, press ANGLE repeatedly to

select a desired angle.

Note:

When you are playing a disc containing scenes recorded

at different camera angles, the angle indicator will

appear on the TV screen for a while and display window

during scenes recorded at different angles as an indica-

tion that angle switching is possible.

SUBTITLE ( ) During playback, press SUBTITLE repeatedly to select a

desired subtitle language.

SUBTITLE ON/OFF During playback, press SUBTITLE ON/OFF to switch

the subtitle on or off.

AUDIO ( ) During playback, press AUDIO repeatedly to hear a dif-

ferent audio language or audio track.

Notes:

• Some discs allow you to change audio selections only

via the disc menu. If this is the case, press

TITLE/POPUP or DISC MENU button and choose the

appropriate audio from the selections on the disc

menu.

• Immediately after you have switched sound, there

may be a temporary discrepancy between the display

and actual sound.

• On BD-ROM disc, the multi audio format (5.1CH or

7.1CH) is displayed with [MultiCH] in the on-screen

display.

Notes on general features:

• When you turn on the player or replace a disc, the player returns to the initial default setting. Depending

on a disc, a specific type of audio the disc has is output.

• Depending on the pre-recorded contents of the HD DVD or BD, some functions may not be available or

may be operated differently than other media.

Discs

BDHD DVDDVD

ACDBDDVD

WMAMP3

ACDBDDVD

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 26

Operation

If a disc menu screen is displayed

The menu screen may be displayed first after loading

a disc which contains a menu.

Use the b / B / v / V buttons to select the title/chap-

ter you want to view, then press ENTER to start

playback.

Time Search

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback.

2. Press v / V to select the time clock icon and

“--:--:--” appears.

3. Input the required start time in hours, minutes,

and seconds from left to right. For example, to

find a scene at 2 hours, 10 minutes, and

20 seconds, enter “21020” and press ENTER. If

you enter the wrong numbers, press CLEAR to

remove the numbers you entered. Then input the

correct numbers.

4. Press ENTER to confirm. Playback starts from

the selected time.

Note:

This function may not work on some disc or titles.

Marker Search

To enter a Marker

You can start playback from up to nine memorized

points. To enter a marker, press MARKER at the

desired point on the disc. The Marker icon appears

on the TV screen briefly. Repeat to enter up to nine

markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The mark-

er search menu appears on the screen.

2. Within 10 seconds, press b / B to select a mark-

er number that you want to recall or clear.

3. Press ENTER and playback starts from the

marked scene. Or, Press CLEAR and the marker

number is erased from the list.

4. You can play any marker by inputting its number

on the marker search menu.

Notes:

• This function may not work on some disc or

titles.

• All marked points are cleared if you press

STOP (x) twice or unload the disc. (complete

stop).

Screen Saver

The screen saver appears when you leave the play-

er in Stop mode for about five minutes.

Using Color (A, B, C, D) Buttons

These buttons are available only during BD-J

contents playback or during HD DVD interactivity

contents playback. Use the appropriate buttons as

indicated by the display. Depending on the disc

contents, the functions of each button may differ.

Note:

On HD DVD disc, a menu or on-screen display may

be disappeared after a while depending on the disc

information.

Displaying Disc Information On-Screen

You can display various information about the disc

loaded on-screen.

1. Press DISPLAY to show various playback infor-

mation.

The items displayed differ depending on the disc

type or playing status.

2. During BD-ROM or DVD playback, you can

select an item by pressing v / V and change or

select the setting by pressing b / B.



Title – Current title number/total number of

titles.



Chapter – Current chapter number/total num-

ber of chapters.



Time – Elapsed playing time.



Audio – Selected audio language or channel.



Subtitle – Selected subtitle.



Angle – Selected angle/total number of angles.

Notes:

• If no button is pressed for a few seconds, the on-

screen display disappears.

•

A title number cannot be selected on some discs.

• An item may not be available on some discs or

titles.

• If HD DVD interactivity or BD interactive title is

playing back, some setting information is

displayed on the screen but prohibited to be

changed.

BDHD DVDDVD

HD DVDBD

BDDVD

BDHD DVDDVD

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 27

Hybrid Discs

If you insert a Hybrid Disc, you must select a layer

to play back.

Hybrid Disc?

- HD DVD Twin Format Disc with both HD DVD and

DVD layers on one side

- BD-ROM Disc with both BD and DVD (or CD) lay-

ers on one side

1. Insert a Hybrid Disc.

The choice menu will appear.

2. Select the primary format (HD DVD or BD) or

secondary format (DVD or CD) on the menu

then press ENTER.

The selected playback format begins.

Notes:

• To change the format, press HOME then select

[Movie] option and press ENTER. The choice

menu will appear.

To play back the CD layer on the Hybrid Disc,

select [Music] option on the HOME menu.

• You can only use b / B, ENTER, OPEN/CLOSE

and POWER buttons when the choice menu is

displayed.

• You cannot change the format during playback.

Last Scene Memory

This unit memorizes last scene from the last disc

that is viewed. The last scene remains in memory

even if you remove the disc from the unit or switch

off the unit. If you load a disc that has the scene

memorized, the scene is automatically recalled.

Notes:

• Settings are stored in memory for use any time.

• This unit does not memorize settings of a disc if

you switch off the unit before commencing to

play it.

• Last Scene Memory function for a previous DVD

title is erased once a different DVD title is

played.

Using the cursor function

Some HD DVD discs may include game software

and drawing software. If they do you can use the

cursor function for some software.

1. Press CURSOR while a disc with support for

cursor use is playing.

2. Use the eight direction buttons to move the cur-

sor.

Tip:

Example: Game/drawing software

Move the cursor to select the game target or selec-

tion item. For details on actual operations, also

refer to the operations guide for the disc.

Internet connection feature

Some HD DVD or BD-ROM discs may enable you to

access special HD DVD or BD-ROM sites, if you

connect the player to the Internet. For example, if an

HD DVD or BD-ROM site includes content such as

links to future movie trailers, you can watch the con-

tent on the player via the Internet.

1. Check the internet connection and configure.

(See pages 17 and 23.)

2. Insert an HD DVD or BD-ROM disc with this fea-

ture and start the playback.

3. Select an item from the menu.

HD DVDBD

HD DVD

DVD

HD DVDBD

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 28

Operation

Playing an Audio CD or

MP3/WMA files

The player can play Audio CDs and MP3/WMA files.

Before playing MP3/WMA files, read “MP3/WMA

audio file requirement” on right.

1. Insert Audio CD or a disc containing MP3/WMA

files, or connect the USB Flash Drive containing

MP3/WMA files

2. Press HOME and Home Menu appears.

3. Select [Music] then press ENTER.

The MUSIC menu appears on the TV screen.

Note:

When the USB Flash Drive is connected and a

disc is inserted simultaneously, the menu for

selecting a media will appear. Select a media

then press ENTER.

Example) Audio CD

4. Use v/V to select a track or file then press

N (PLAY). Playback starts.

You can use variable playback functions. Refer

to pages 25-26.

5. To stop playback at any time, press STOP (x).

Tips:

• The playback may start automatically if the

Audio CD inserted.

• Select a folder then press ENTER and you can

view the files in the folder. If you want to move to

the upper directory, use v/V to highlight

[UP Folder]

and press ENTER.

• On the MUSIC menu, use red or blue color but-

ton to move to the previous or next page.

• The equalizer indicator is not coupled with the

music in play back.

• If there is impossible code to express in the file

name, it may be displayed as illegible.

MUSIC menu options

1. Use v / V to select a track or file on the MUSIC

menu then press ENTER.

The menu options appear.

2. Use v / V to select an option, then press

ENTER.

• [Play] Starts playback the selected track or

file.

• [Select Play] Plays back only the marked

track(s) or file(s). Use MARKER for selecting

the multiple files or tracks.

• [Random] Starts or stops random playback.

By pressing > during random playback, the

unit selects another track and resumes ran-

dom playback.

• [Unmark All] Unmarks all marked files or

tracks.

• [Close] Exits menu options. Also you can dis-

appear it by pressing RETURN button.

Note:

You cannot use [Select Play] and [Random]

functions simultaneously.

MP3/WMA audio file requirement

File extensions: “.mp3”, “.wma”.

Sampling frequency: 8 - 48 kHz

Bit rate: 8 - 320kbps

CD-R, DVD±R/RW/RAM, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format.

Maximum Files/Disc:

Less than 1999 (total number of files and folders)

Notes on MP3/WMA file

Depending on the size and number of the

MP3/WMA files, it may take several minutes to

read the contents of the media.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 29

Viewing a JPEG file

This unit can play JPEG files. Before playing JPEG

recordings, read “Photo file requirement” on below.

1. Insert a disc containing JPEG files, or connect

the USB Flash Drive containing JPEG files

2. Press HOME and Home Menu appears.

3. Select [Photo] then press ENTER.

The PHOTO menu appears on the TV screen.

Note:

When the USB Flash Drive is connected and a

disc is inserted simultaneously, the menu for

selecting a media will appear. Select a media

then press ENTER.

4. Use v V b B to select a file and press ENTER.

The selected image is displayed in full screen.

5. To stop viewing at any time, press STOP (x).

The PHOTO menu appears.

Tips:

• You can advance to the previous or next file by

pressing . or > during viewing a photo file

in full screen.

• You can start the slide show by pressing

N (PLAY) while the PHOTO menu appears.

• Select a folder then press ENTER and you can

view the files in the folder. If you want to move to

the upper directory, use v/V to highlight

[UP Folder]

and press ENTER.

• On the PHOTO menu, use red or blue color but-

ton to move to the previous or next page.

• If there is impossible code to express in the file

name, it may be displayed as illegible.

Options during viewing a photo file

in full screen

1. Follow steps 1-4 as shown left (Viewing a JPEG

file).

2. You can use variable options during viewing a

picture.

3. Use v V b B to select an option.

a Use b/B to advance to the previous or next

file.

b Use ENTER to start or pause the slide show.

c Use ENTER to play or pause the background

music. This option is available after the back-

ground music is selected using [Music Select]

option.

d Use ENTER to rotate the picture clockwise.

This option is not available during slide show.

e Use ENTER to set the Slide Show speed.

f Selects the background music.

1) Press ENTER and the menu will appear.

2) Use v V b B to select a media or folder

that there are music file(s).

3) Press ENTER to confirm your selection.

g Press ENTER to exit the option menu.

To appear the menu again, press ENTER.

Photo file requirement

File extensions: “.jpg”, “.jpeg”, “.png”

Recommended size:

Less than 3,000 x 3,000 x 24 bit/pixel

Less than 3,000 x 2,250 x 32 bit/pixel

CD-R, DVD±R/RW/RAM, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format.

Maximum Files/Disc:

Less than 1999 (total number of files and folders)

Notes on JPEG file

 Progressive and lossless compression JPEG

image files are not supported.

 Depending on the size and number of the JPEG

files, it may take several minutes to read the

contents of the media.

bcdefg

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 30

Reference

Controlling a TV with the

Supplied Universal Remote

Control

You can control the volume, input source, and power

state of your TV with the supplied Universal Remote

Control.

If your TV is listed in the table on page 32, set the

appropriate manufacturer code. Follow steps 1-2 as

shown right.

You can control your TV using the buttons below.

By pressing You can

TV POWER Turn the TV on or off.

INPUT Switch the TV’s input source

between the TV and other input

sources.

CH +/– Scan up or down through

memorized channels.

VOL +/– Adjust the volume of the TV.

MUTE Temporarily turns TV sound

OFF, press again to restore.

Note:

Depending on the unit being connected, you may

not be able to control your TV using some of the

buttons.

To program the remote to control

the TV using the manufacturer code

If your TV is listed in the table on the next page, set

the appropriate manufacturer code.

1. While holding down TV POWER button, press

the number buttons to select the manufacturer

code for your TV (Refer to table on the next

page).

• If more than one code number is listed, try

entering them one at a time until you find the

one that works with your TV.

2. Release TV POWER button.

Notes:

• Depending on your TV, some or all buttons may

not function on the TV, even after entering the

correct manufacturer code.

• If you enter a new code number, the code num-

ber previously entered will be erased.

• When you replace the batteries of the remote,

the code number you have set may be reset to

the default setting. Set the appropriate code

number again.

TV Control

Buttons

TV POWER

Button

Number

Buttons

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 31

Manufacturer Code Number

A MARK 112 143

ADMIRAL 072 081 161

AKAI 006 146

AMPRO 073 167

AMSTRAD 052

ANAM 026 043 054 056 080 104

108 112 115 118 121 131

AOC 004 006 058 112

BLAUPUNKT 088

CANDLE 002 003 004 006

CAPEHART 058

CETRONIC 043

CITIZEN 002 003 004 006 043 101

103 143

CLASSIC 043

CONCERTO 004

CONTEC 039 043 050 051

CORONADO 143

CRAIG 043 054

CROWN 043 143

CURTIS MATHES 004 006 101 116 143

CXC 043

DAEWOO 004 016 017 043 044 055

071 076 103 107 111 114

117 120 123 125 127 128

136 143

DAYTRON 004 116 143

DYNASTY 043

DYNATECH 062

ELECTROHOME 024 077 143

EMERSON 004 005 006 028 043 047

048 050 051 096 116 143

151 153 154 155

FISHER 007 057

FUNAI 028 043

FUTURETECH 043

GE 004 006 008 009 034 056

073 074 091 116 130 144

155 160 161 165

HALL MARK 004 116

HITACHI 004 006 009 010 011 012

023 041 075 143 158 163

166 187

INFINITY 164

INKEL 129

JBL 164

JCPENNY 004 006 008 009 024 030

065 101 143 156 160

JENSEN 013

JVC 034 038 070 083 145

Manufacturer Code Number

KEC 043

KENWOOD 006 070

KLOSS 002 059

KMC 143

KTV 006 043 143 154

LG 001(Default) 004 102 106

110 112 113 116 119 122

127 137 143

LODGENET 072

LOGIK 072

LUXMAN 004

LXI 007 015 052 081 160 164

166

MAGNAVOX 003 004 006 022 059 060

061 063 064 127 143 160

164

MARANTZ 006 077 164

MATSUI 164

MEMOREX 004 007 072 116

METZ 088

MGA 004 006 024 028 042 049

077 116

MINERVA 088

MITSUBISHI 004 006 024 028 040 042

109 116 124 146

MTC 004 006 062 101

NAD 015 025

NEC 006 007 016 019 024 040

056 130 132 134

NIKEI 043

ONKING 043

ONWA 043

OPTONICA 019 081

PADIO SHACK 004

PANASONIC 034 056 080 092 164

PHILCO 003 004 006 024 043 056

059 060 063 064 127 143

164

PHILIPS 003 004 005 006 038 059

070 093 143 160 164

PIONEER 006 018 023 025 027 116

135 176

PORTLAND 004 143

PROSCAN 144 160 161 165 167

PROTON 004 058 116 131 143 171

173

QUASAR 034 056 092

RADIO SHACK 019 043 047 116 127 143

RCA 004 006 023 024 056 065

074 144 152 156 160 161

165

Manufacturer Code Number

REALISTIC 007 019 043 047

ROCTEC 186

RUNCO 168 169

SAMPO 004 006 058 116

SAMSUNG 004 050 089 101 105 113

116 127 133 137 143 160

SANYO 007 020 021 033 039 053

057 082 166

SCOTT 004 028 043 048 116 143

SEARS 004 007 015 028 030 057

082 094 101 116 143 160

SHARP 004 014 019 022 028 029

081 143 170 175

SIEMENS 088

SIGNATURE 072

SONY 041 070 079 085 126 139

147 185

SOUNDESIGN 003 004 028 043 116

SPECTRICON 112

SSS 004 043

SUPRE MACY 002

SYLVANIA 003 004 006 044 059 060

063 064 116 127 140 160

164

TANDY 081

TATUNG 056 062

TECHNICS 034 080 084

TECHWOOD 004

TEKNIKA 002 003 004 006 024 028

031 043 072 077 101 103

143

TELEFUNKEN 037 046 086 087

TELERENT 072

TERA 172

TMK 004 116

TOSHIBA 007 015 030 040 051 062

101 138

TOTEVISION 143

UNIVERSAL 008 009

VIDEO CONCEPTS 146

VIDIKRON 174

VIDTECH 004 116

WARDS 004 008 009 019 028 060

061 063 064 072 074 116

143 164

YAMAHA 004 006

YORK 004 116

YUPITERU 043

ZENITH 001 072 073 095 103 157

ZONDA 112

Code numbers of controllable TVs

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 32

Reference

Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Area Code

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Herd and Mcdonald Islands

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Area Code

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Netherlands Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Area Code

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Area Codes

Choose an Area code from this list.

Language Code

Abkhazian 6566

Afar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6589

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Cambodian 7577

Catalan 6765

Chinese 9072

Corsican 6779

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Language Code

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Javanese 7487

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laothian 7679

Latin 7665

Latvian, Lettish 7686

Language Code

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maltese 7784

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Language Code

Singhalese 8373

Slovak 8375

Slovenian 8376

Somali 8379

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Tatar 8484

Telugu 8469

Thai 8472

Tibetan 6679

Tigrinya 8473

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Language Codes

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 33

Symptom

No power.

The power is on, but

the player does not

work.

No picture.

No sound.

The player does not

start playback.

The Remote Control

does not work properly.

Possible Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD sig-

nal output.

• The video cable is not connected

securely.

• The selected resolution is not capa-

ble with your TV.

• The equipment connected with the

audio cable is not set to receive disc

signal output.

•

The power of the equipment connect-

ed with the audio cable is turned off.

• The [AUDIO] options are set to the

wrong position.

• An unplayable disc is inserted.

• The rating level is set.

•

The Remote Control is not pointed at

the remote sensor on the player.

• The Remote Control is too far from

the player.

Correction

• Plug the power cord into the wall out-

let securely.

• Insert a disc. (Check the disc indica-

tor in the display window is lit.)

• Select the appropriate video input

mode on the TV.

• Connect the video cable securely.

• Select another resolution using

RESOLUTION button.

• Select the correct input mode of the

audio receiver so you can listen to

the sound from the player.

• Turn on the equipment connected

with the audio cable.

• Set the [AUDIO] options to the cor-

rect position. (See page 21)

• Insert a playable disc. (Check the

disc type and regional code.)

• Change the rating level.

• Point the Remote Control at the

remote sensor of the player.

• Operate the Remote Control closer to

the player.

Troubleshooting

Customer Support

You can update the Player using the latest software to enhance the products operation and/or add new features.

To obtain the latest software for this player (if updates have been made), please contact the following:

Call 1 (800) 243-0000 or

Visit http://us.lgservice.com and click on PRODUCT SUPPORT → Device Driver.

Resetting the Player

If you observe any of the following symptoms...



When the Player is plugged in, but the power will

not turn on or off.



When the display window is not working.



When the Player does not operate normally.

You can reset the Player as follows:



Press and hold the POWER button for more

than five seconds. This will force the Player to

power off. Press the POWER button again to

turn the Player back on.



Unplug the power cord and then plug the power

cord again after more than five seconds.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 34

Reference

Specifications

General

Power requirements: AC 120 V~, 60 Hz

Power consumption: 25W

Dimensions (W x H x D): Approx. 16.9 x 3.0 x 10.6 inches (430 x 77 x 269 mm)

Net Weight (Approx.): 8.3 lbs (3.8 kg)

Operating temperature: 41 °F to 95 °F (5 °C to 35 °C)

Operating humidity: 5 % to 90 %

Outputs

VIDEO OUT: 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

COMPONENT VIDEO OUT: (Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

HDMI OUT (video/audio): 19 pin (HDMI standard, Type A)

ANALOG AUDIO OUT: 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

DIGITAL OUT (OPTICAL): 3 V (p-p), Optical jack x 1

System

Laser: Semiconductor laser, wavelength: 405nm / 650 nm

Signal system: Standard NTSC Color TV system

Frequency response: 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)

Signal-to-noise ratio: More than 100 dB (ANALOG OUT connectors only)

Harmonic distortion: Less than 0.008%

Dynamic range: More than 95 dB

LAN port: Ethernet jack x 1, 10BASE-T/100BASE-TX

Accessories: Component video cable (1)

Video cable (1)

Audio cable (1)

Remote control (1)

Batteries (2)

Cloth for cleaning the surfaces of the player (1)

Note: Design and specifications are subject to change without prior notice.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 35

The unit’s Audio Output Specifications

HDMI OUT

PCM PCM DTS Primary

Source Format Stereo Multi-Ch *

Re-encode *

Pass-Thru *

Dolby Digital PCM 2ch PCM 5.1ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch PCM 7.1ch DTS Dolby Digital Plus

Dolby TrueHD PCM 2ch PCM 7.1ch DTS Dolby TrueHD

DTS PCM 2ch PCM 5.1ch DTS DTS

DTS-HD PCM 2ch PCM 5.1ch DTS DTS-HD

Linear PCM 2ch PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 5.1ch PCM 2ch PCM 5.1ch DTS PCM 5.1ch

Linear PCM 7.1ch PCM 2ch PCM 7.1ch DTS PCM 7.1ch *

MPEG PCM 2ch PCM 2ch PCM 2ch PCM 2ch

SPDIF (DIGITAL AUDIO OUT) *

PCM DTS Primary

Source Format Stereo Re-encode *

Pass-Thru *

Dolby Digital PCM 2ch PCM 2ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch PCM 2ch DTS Dolby Digital

Dolby TrueHD PCM 2ch PCM 2ch DTS PCM 2ch

DTS PCM 2ch PCM 2ch DTS DTS

DTS-HD PCM 2ch PCM 2ch DTS DTS

Linear PCM 2ch PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 5.1ch PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 7.1ch PCM 2ch PCM 2ch DTS PCM 2ch

MPEG PCM 2ch PCM 2ch PCM 2ch PCM 2ch

Analog

Output

Stereo

Notes:

*1 The secondary and interactive audios may not be included in the output bitstream if [SPDIF] or [HDMI]

option is set to [Primary Pass-Thru]. (Except LPCM Codec : the output always include interactive and

secondary audio.)

*2 This player automatically selects the HDMI audio according to the decoding capability of the connected

HDMI device if [HDMI] option is set to [Primary Pass-Thru].

*3 The [PCM Multi-CH]/[Primary Pass-Thru] setting of the [HDMI] option and [DTS re-encode] setting of the

[SPDIF] option cannot be set together. If you set the [HDMI] option to [PCM Multi-CH] or

[Primary Pass-Thru], the [SPDIF] option is set to [PCM Stereo] automatically. Also, if you set the [SPDIF]

option to [DTS Re-encode] and the [HDMI] option is set to [PCM Stereo] automatically.

*4 The audio source recorded at 192kHz sampling frequency will be outputted as stereo sound.

*5 On the PCM audio output, the sampling frequency of HDMI/SPDIF (DIGITAL AUDIO OUT) is limited to

96 kHz.

*6 If the [HDMI] or [SPDIF] option is set to [DTS re-encode], the audio output is limited to 48 kHz and 5.1 ch.

If the [HDMI] or [SPDIF] option is set to [DTS re-encode], the DTS Re-encode audio is outputted for BD and

HD DVD advanced discs, and the original audio is outputted for the other discs (like [Primary Pass-True]).

• The audio output for the DTS-HD/Dolby Digital Plus/Dolby TrueHD source through the SPDIF (DIGITAL

AUDIO OUT) jack is limited to “PCM 2ch” if HDMI output is DTS-HD/Dolby Digital Plus/Dolby TrueHD

bitstream.

• The audio output for the Dolby Digital Plus/Dolby TrueHD source through the SPDIF (DIGITAL AUDIO

OUT) jack is limited to “PCM 2ch” if HDMI output is set to PCM Multi-Ch and [SPDIF] option is set to

[Primary Pass-Thru].

• The audio is always output as PCM 48kHz/16 bit during Audio CD or MP3/WMA file is playing back.

• The MPEG audio source is always output as PCM 2ch.

Jack/

Setting

Jack/

Setting

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 36

Reference

Open source software notice

The following GPL executables and LGPL/MPL libraries used in this product are subject to the

GPL2.0/LGPL2.1/MPL1.1 License Agreements:

GPL EXECUTABLES:

Linux kernel 2.6, bash, busybox, sysutils, net-tools, dhcpcd, tinylogin, mtd-utils

LGPL LIBRARIES:

uClibc, DirectFB, GnuTLS, iconv, cairo

MPL:

Mozilla 1.0

LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing

such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics at:

[email protected]

This offer is valid for a period of three(3) years from the date of the distribution of this product by LG

Electronics.

You can obtain a copy of the GPL, LGPL licenses from http://www.gnu.org/licenses/

and a copy of MPL license from http://www.mozilla.org/MPL/

Thomas G. Lane.

This product includes

• cryptographic software written by Eric Young ([email protected]).

• software written by Tim Hudson ([email protected]).

• software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

This product includes other open source software.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated

documentation files (the “Software”), to deal in the Software without restriction, including without limitation

the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and

to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PAR-

TICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT

HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF

CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFT-

WARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 37

Network Update

You can update the Player using the latest software

to enhance the products operation and/or add new

features. You can update the firmware by connecting

the unit directly to the S/W update server.

Step 1: Check the Network Connection

See pages 17.

Step 2: Configuring Network Settings

See pages 23.

Step 3: Checking Network Configuration

1. Select [NETWORK] on the [Setup] menu.

2. Select [IP Mode] option on the [NETWORK]

menu.

3. Check the Network status indicator shown above

the menu. (The Network status indicator

changes according to Network configuration.)

Step 4: Updating Firmware

Cautions:

• Before updating the firmware in your player,

remove any disc and USB Flash Drive from the

player.

• Before updating the firmware in your player, turn

the player off and then turn it back on.

• During the firmware update procedure, do not

turn off the player or disconnect AC power, or

do not press any button.

• If you cancel the update. turn off the power and

turn it on for stable performance.

1. Press Home

2. Use b / B to select the [Setup] then press

ENTER.

3. Select [Network Update] option on the

[OTHERS] menu then press B or ENTER.

4. On the UPDATE window, press B or ENTER to

check for the newest update.

Caution: Pressing ENTER while checking for

the update will end the process.

Note: If there is no update available, the

Message, “No update is found.” appears. Press

ENTER to return to the Home Menu.

5. If newer version exists, the message “A new

update is found. Do you want to download it?”

appears.

6. Select OK to download the update. (Selecting

[CANCEL] will end the update.)

7. The player starts downloading the newest

update from the server. (Downloading will take

about 80 seconds at the network speed of

4Mbps Speed.)

8. When downloading is completed, the message,

“Download is complete. Do you want to update?”

appears.

9. Select OK to start updating.

(Selecting [CANCEL] will end the update and

downloaded file will not be re-usable. To update

firmware the next time, the network update

procedure has to be started from the beginning

again.)

Caution: Do not turn off the power during the

firmware update.

Note: If the firmware includes the driver update,

disc tray may open during the process.

10. When update is completed, the message,

“Update is complete.” will appear, and the power

will turn off automatically after 5 seconds.

11. Turn the power back on. The system now oper-

ates with the new version.

12. After completing the update process, repeat

procedures 1-4 in Step 4 and check if there are

no more updates available.

Able to use network Testing Network Unable to use network

Current software version

Downloaded software version

BH200-N_AUSALLK_ENG 4/18/08 9:28 AM Page 38

This LG Electronics product, will be repaired or replaced, at LG’s option, if it proves to be defective in material or

workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date

(“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original pur-

chaser of the product and effective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED

WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG ELEC-

TRONICS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES

OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT LIMITATION, LOST

REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED

IN CONTRACT, TORT OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential dam-

ages or limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty

gives you specific legal rights and you may also have other rights that may vary from state to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

• Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration,

maintenance or failure to maintain, or separate system components; and

• Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside

environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident,

lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or

voltage, reception problem caused by inadequate home antenna or faulty antenna connections, computer

software, institutional or commercial use, or other causes not arising out of defect in material or workmanship.

Therefore, the cost of repair or replacement of such defective product shall be borne by the consumer.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

WARRANTY PERIOD:

LABOR: 90 days from the Date of Purchase.

PARTS: One Year from the Date of Purchase.

* Parts replaced are warranted for the remaining portion

of the original warranty period.

HOW SER

VICE IS HANDLED:

Call 1-800-243-0000 for instructions on getting the

defective unit repaired or replaced.

Please retain dated sales receipt and your box to

return the unit to LG for repair or replacement.

Shipping both ways will be paid by LG during the

Warranty Period. After the Warranty Period, you pay

inbound shipping charges and LG pays return shipping

charges.

Visit our website at: http://us.lgservice.com

For nearest Authorized Service Center, Where to buy,

Product Assistance, or Customer Assistance

Call 1-800-243-0000 (24 hours a day, 365 days per year)

and select appropriate options from the menu.

Or visit our website at http://us.lgservice.com

LG Electronics, Inc.

Limited Warranty - USA

LG ELECTRONICS U.S.A., INC.

1000 SYLVAN AVENUE

ENGLEWOOD CLIFFS, NJ

P/N: MFL36364166

Issue O

Printed in Korea
