525i
530i
540i
sedan
sport wagon
BMW recommends Castrol
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Congratulations, and thank you for choosing a BMW.
Thorough familiarity with your vehicle will provide you with enhanced control and
security when you drive it. We therefore have this request:
Please take the time to read this Owner's Manual and familiarize yourself with the
information that we have compiled for you before starting off in your new car. It
contains important data and instructions intended to assist you in gaining maximum
use and satisfaction from the unique range of technical features on your BMW. The
manual also contains information on care and maintenance designed to enhance
operating safety and contribute to maintaining the value of your vehicle throughout
an extended service life.
This Owner's Manual should be considered a permanent part of this vehicle.
It should stay with the vehicle when sold to provide the next owner with important
operating, safety and maintenance information.
This manual is supplemented by a Service and Warranty Information Booklet
(US models) or a Warranty and Service Guide Booklet (Canadian models).
We recommend that you read this publication thoroughly.
Your BMW is covered by the following warranties:
– New Vehicle Limited Warranty
– Limited Warranty Rust Perforation
– Federal Emissions System Defect Warranty
– Federal Emissions Performance Warranty
– California Emission Control System Limited Warranty
Detailed information about these warranties is listed in the Service and Warranty
Information Booklet (US models) or in the Warranty and Service Guide Booklet
(Canadian models).
We wish you an enjoyable driving experience.
BMW AG
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
© 2000 BMW AG
Munich, Germany
Reprinting, including excerpts, only with the
written consent of BMW AG, Munich.
Order No. 01 41 0 155 420
US English I/2001
Printed in Germany
Printed on environmentally friendly paper
(bleached without chlorine, suitable for recycling).
4n
Notes on the Owner's Manual
We have made every effort to ensure
that you are able to find what you need
in this Owner's Manual as quickly as
possible. The fastest way to find certain
topics is by using the detailed index at
the end. If you desire an initial overview
of your vehicle, this can be found in the
first chapter. The detailed table of con-
tents that directly follows the summary
of contents is intended to stimulate
your curiosity regarding your BMW and
to encourage you to read the manual.
Should you wish to sell your BMW at
some time in the future, please remem-
ber to hand over the Owner's Manual to
the new owner; it is part of the vehicle.
If you have any additional questions, an
authorized BMW center will be glad to
advise you.
Symbols used
Indicates instructions or precau-
tions that must be followed pre-
cisely in order to avoid the possibility of
personal injury and serious damage to
the vehicle.
<
Contains information that will as-
sist you in gaining the optimum
benefit from your vehicle and enable
you to care more effectively for your
vehicle.
<
Refers to measures that can
be taken to help protect the
environment.
<
<
Marks the end of a specific item of
information.
*
Indicates special equipment, coun-
try-specific equipment and optional
extras.
t
Indicates index entries that refer to
owner service and maintenance proce-
dures
Identifies systems or components,
which your BMW center can either
activate or adapt to suit an individual
driver's requirements ("Car Memory",
"Key Memory"). Refer to page 60.
<
The individual vehicle
On buying your BMW, you have de-
cided in favor of a model with individu-
alized equipment and features. This
Owner's Manual describes all models
and equipment that BMW offers within
the same group.
We hope you will understand that
equipment and features are included
which you might not have chosen for
your vehicle. Any differences can easily
be identified, since all optional acces-
sories and special equipment are
marked with an asterisk
*
.
If your BMW features equipment which
is not described in this Owner's Manual
(car radio, for instance), Supplementary
Owner's Manuals are enclosed. We ask
you to read these manuals as well.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
5n
Status at time of printing
BMW pursues a policy of continuous,
ongoing development that is conceived
to ensure that our vehicles continue to
embody the highest quality and safety
standards combined with advanced,
state-of-the-art technology. For this
reason, it is possible that the features
described in this Owner's Manual could
differ from those on your vehicle. Nor
can errors and omissions be entirely
ruled out. You are therefore asked to
appreciate that no legal claims can be
entertained on the basis of the data,
illustrations or descriptions in this
manual.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
6n
For your own safety
Use unleaded gasoline only. Fuels
containing up to 10% ethanol or
other oxygenates with up to 2.8% oxy-
gen by weight (that is, 15% MTBE or
3% methanol plus an equivalent
amount of co-solvent) will not void the
applicable warranties with respect to
defects in materials or workmanship.
Field experience has indicated signifi-
cant differences in fuel quality (volatility,
composition, additives, etc.) among ga-
solines offered for sale in the United
States and Canada. The use of poor-
quality fuels may result in driveability,
starting and stalling problems, espe-
cially under certain environmental con-
ditions, such as high ambient tempera-
ture and high altitude.
Should you encounter driveability pro-
blems that you suspect could be rela-
ted to the fuel you are using, we recom-
mend that you respond by switching to
a recognized high-quality brand.
Failure to comply with these recom-
mendations may result in unscheduled
maintenance.
Follow the relevant safety rules when
you are handling gasoline.
<
Important safety information!
For your own safety, use genuine parts
and accessories approved by BMW.
When you purchase accessories tested
and approved by BMW and Original
BMW Parts, you simultaneously acquire
the assurance that they have been
thoroughly tested by BMW to ensure
optimum performance when installed
on your vehicle.
BMW warrants these parts to be free
from defects in material and workman-
ship.
BMW will not accept any liability for
damage resulting from installation of
parts and accessories not approved by
BMW.
BMW cannot test every product from
other manufacturers to verify if it can be
used on a BMW safely and without risk
to either the vehicle, its operation, or its
occupants.
Original BMW Parts, BMW Accessories
and other products approved by BMW,
together with professional advice on
using these items, are available from all
BMW centers.
Installation and operation of non-BMW
approved accessories such as alarms,
radios, amplifiers, radar detectors,
wheels, suspension components, brake
dust shields, telephones (including
operation of any portable cellular phone
from within the vehicle without using an
externally-mounted antenna) or trans-
ceiver equipment (for instance, CBs,
walkie-talkie, ham radio or similar ac-
cessories) may cause extensive da-
mage to the vehicle, compromise its
safety, interfere with the vehicle's elec-
trical system, or affect the validity of the
BMW Limited Warranty. Visit your BMW
center for additional information.
<
Maintenance, replacement, or re-
pair of the emission control de-
vices and systems may be performed
by any automotive repair establishment
or individual using any certified auto-
motive part.
<
Symbol on vehicle parts
Indicates that you should consult
the relevant section of this
Owner's Manual for information on a
particular part or assembly.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
7n
The following only applies to vehicles owned and operated in the US.
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying BMW of
North America, LLC, P.O. Box 1227, Westwood, New Jersey 07675-1227, Telephone (201) 307-4000.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in
individual problems between you, your BMW center, or BMW of North America, LLC.
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in
Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You
can also obtain other information about motor vehicle safety from the Hotline.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
8n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index
Advanced technology
9n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Contents
Overview
Controls and features
Cockpit 16

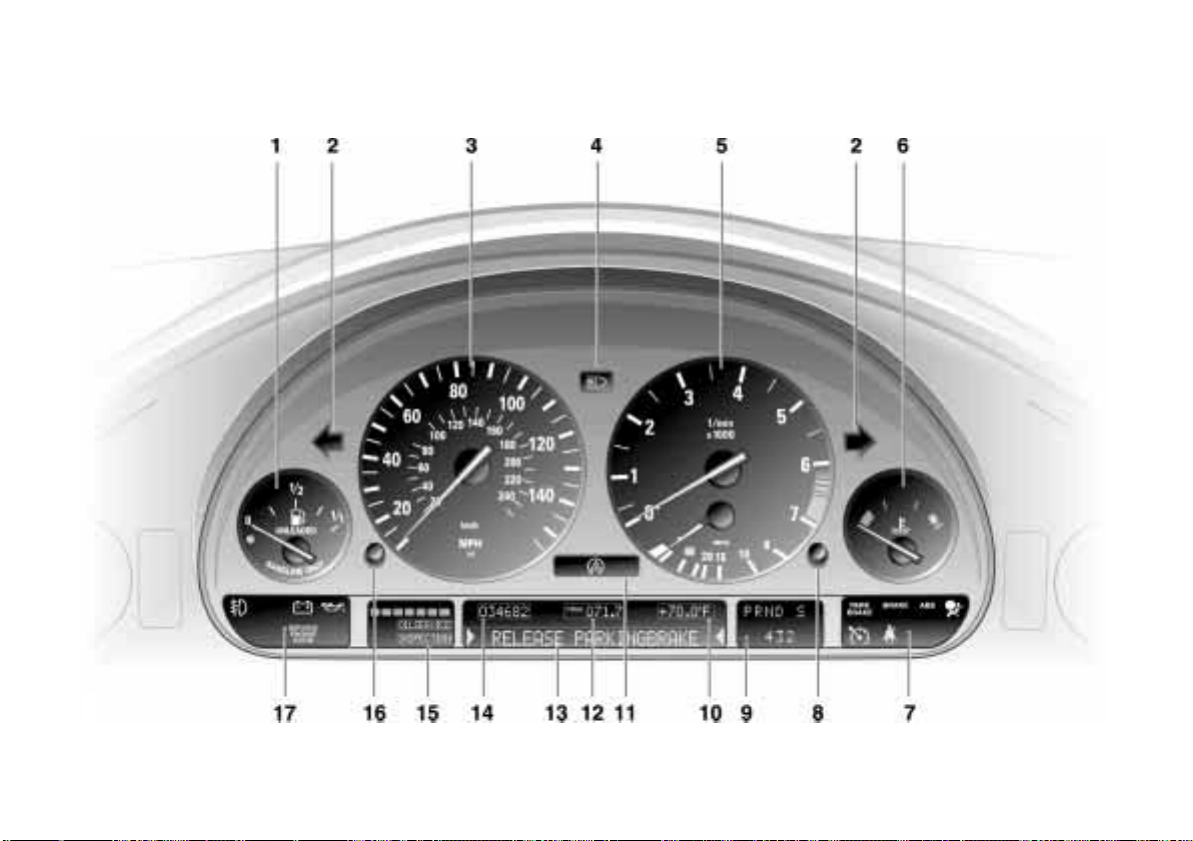

Instrument cluster 18
Indicator and warning lamps 22
Multifunction steering wheel
(MFL) 25
Sports steering wheel 26
Hazard warning flashers 27
Warning triangle 27
First-aid kit 27
Refueling 28
Fuel specifications 29
Tire inflation pressure 29
Locks and security systems:
Keys 36
Electronic vehicle
immobilizer 37
Opening and closing –
from the outside 38
With the key 38
With the remote control 39
Opening and closing –
from the inside 42
Luggage compartment lid/
Tailgate 43
Rear window 43
Luggage compartment 46
Alarm system 47
Electric power windows 49
Sliding/Tilt sunroof 50
Adjustments:
Seats 52
Steering wheel 56
Mirrors 56
Seat, mirror and steering wheel
memory 58
Car Memory, Key Memory 60
Passenger safety systems:
Safety belts 61
Airbags 62

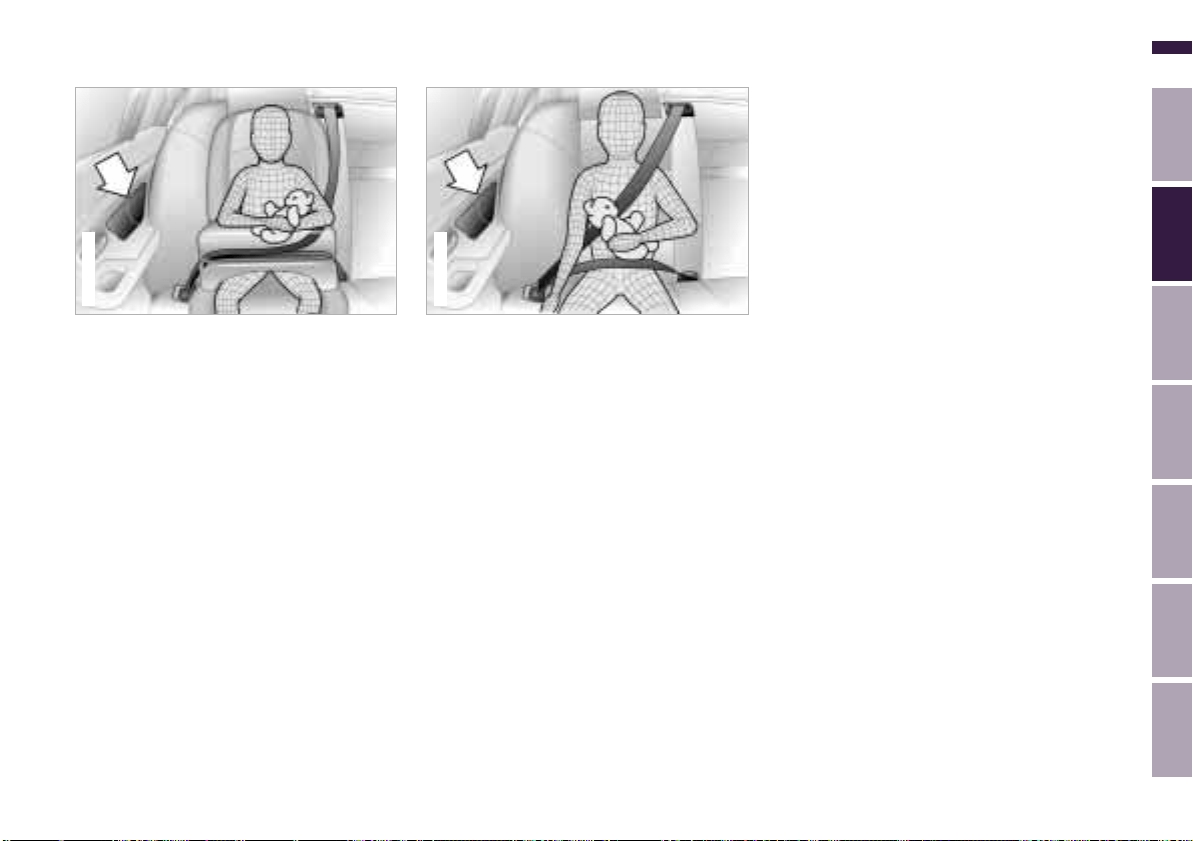

Transporting children safely 66
Driving:
Steering/Ignition lock 68
Starting the engine 68
Switching off the engine 69
Parking brake 70
Manual transmission 70
Automatic transmission 72
Automatic transmission with
Steptronic 75
Indicator/Headlamp flasher 78
Wiper/Washer system 78
Rear window defroster 80
Cruise control 81
Everything under control:
Odometer, outside temperature
display 83

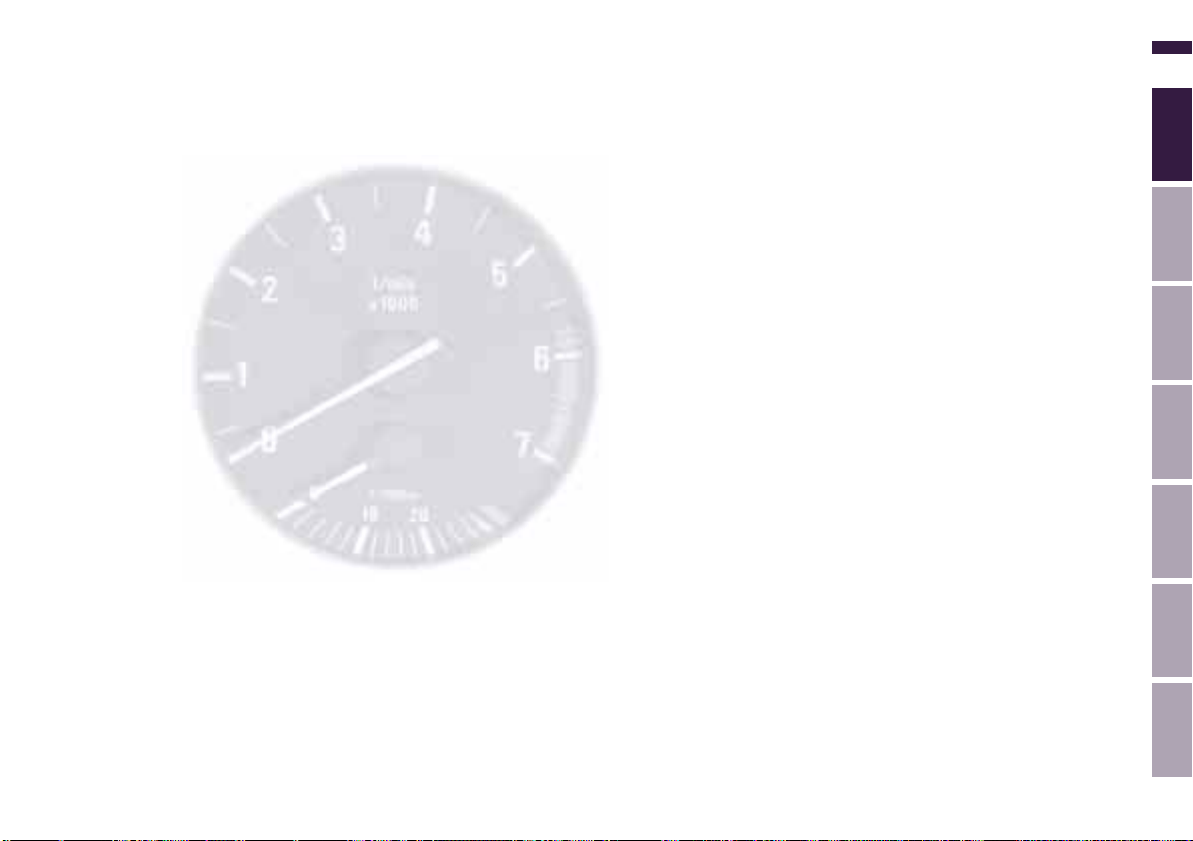

Tachometer 84
Energy control 84
Fuel gauge 84

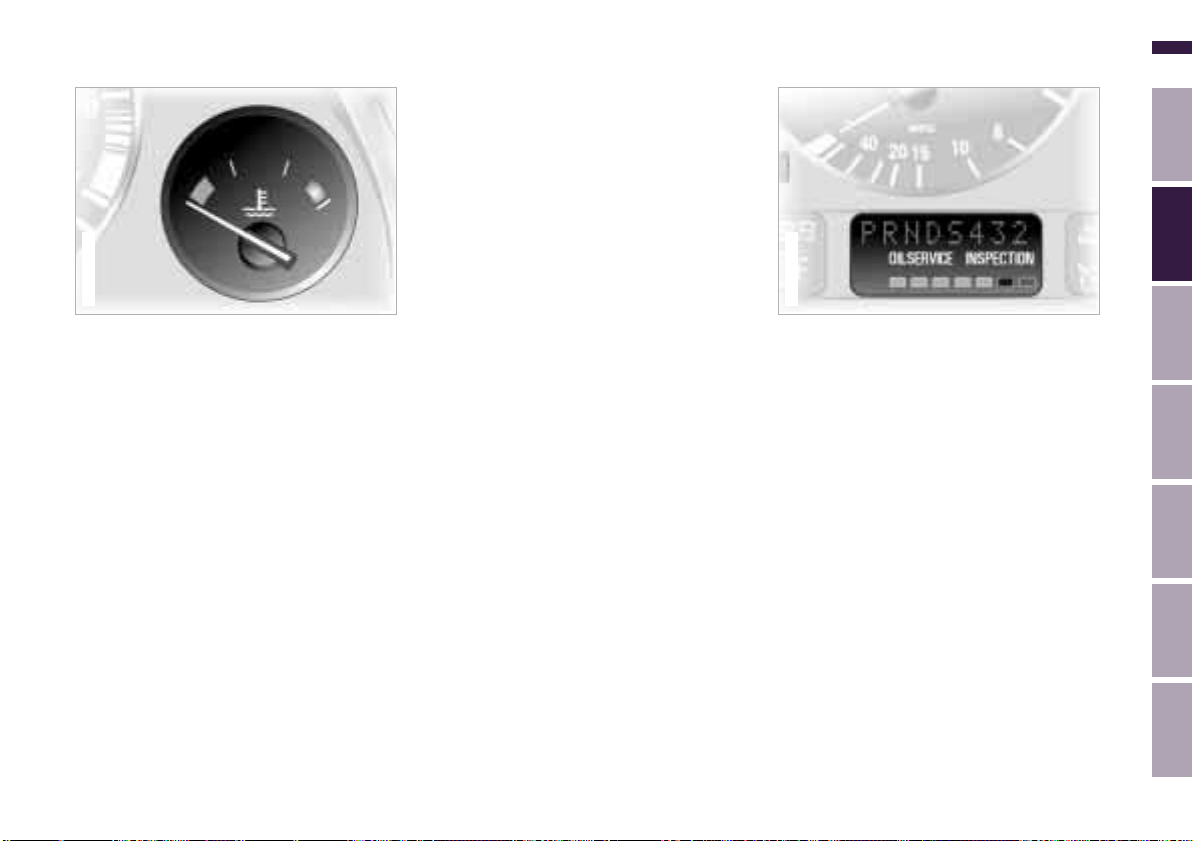

Coolant temperature gauge 85

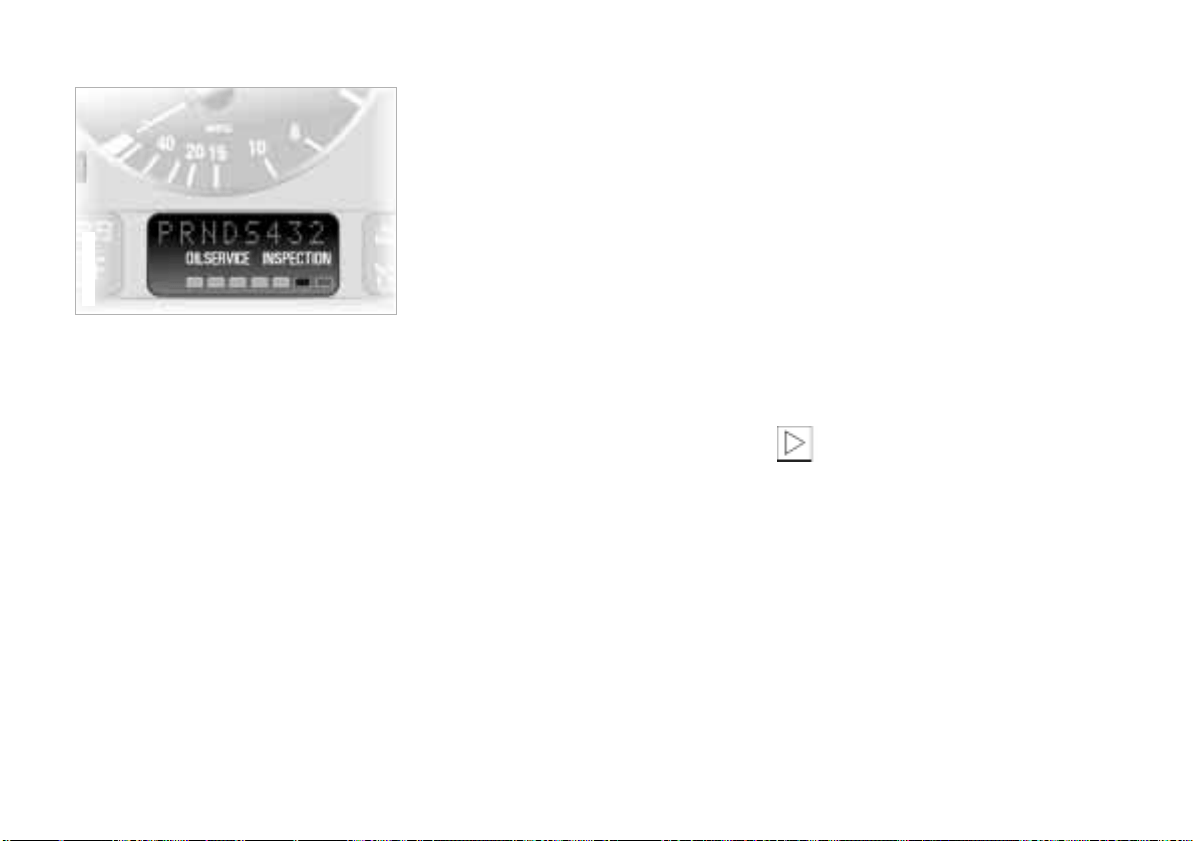

Service Interval Display 85
Check Control 86

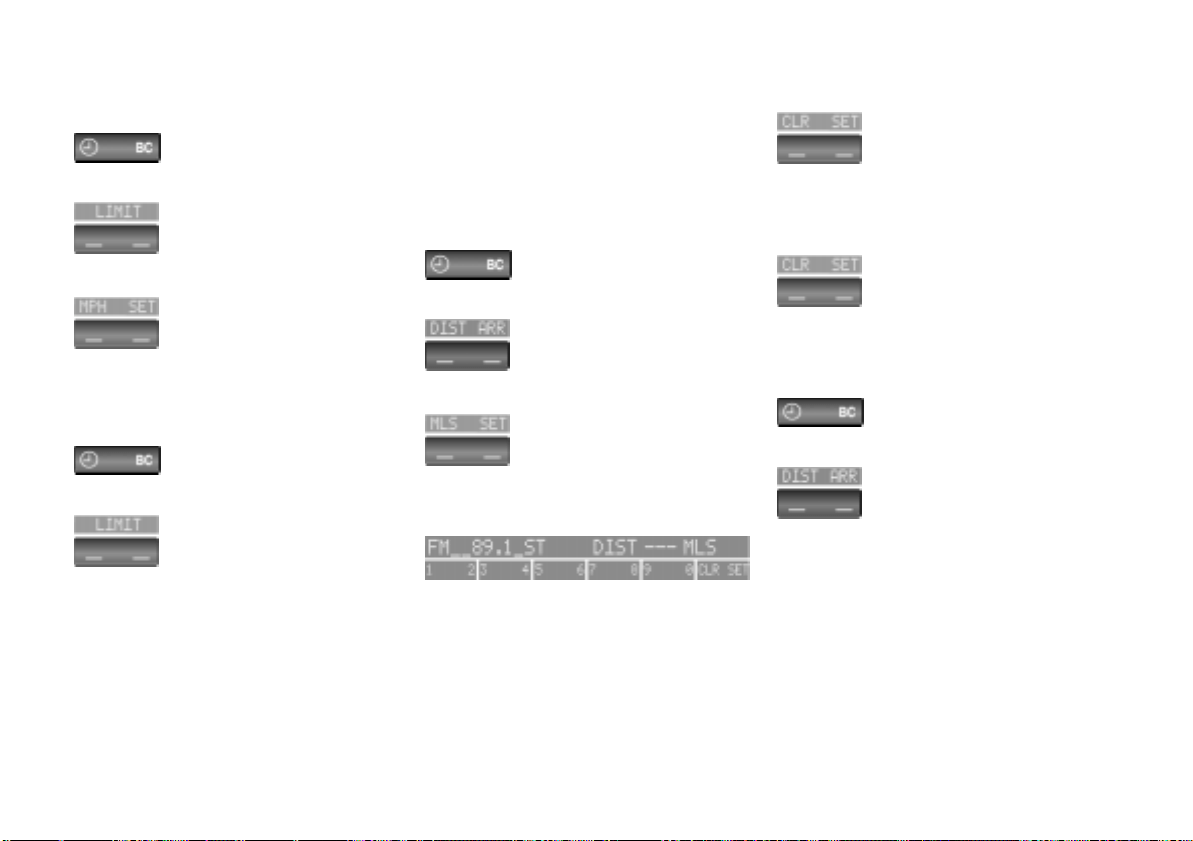

Computer 89
Multi-information display
(MID) 91
Digital clock in the MID 92
Computer in the MID 95
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
11n
Controls and features
Operation, care and maintenance
Technology for safety and
driving convenience:
Park Distance Control
(PDC) 100
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC) 102
Tire Pressure Control (RDC) 103
Lamps:
Parking lamps/Low beams 105
Instrument lighting 105
High beams/Parking lamps 106
Fog lamps 106
Interior lamps 106
Reading lamps 107

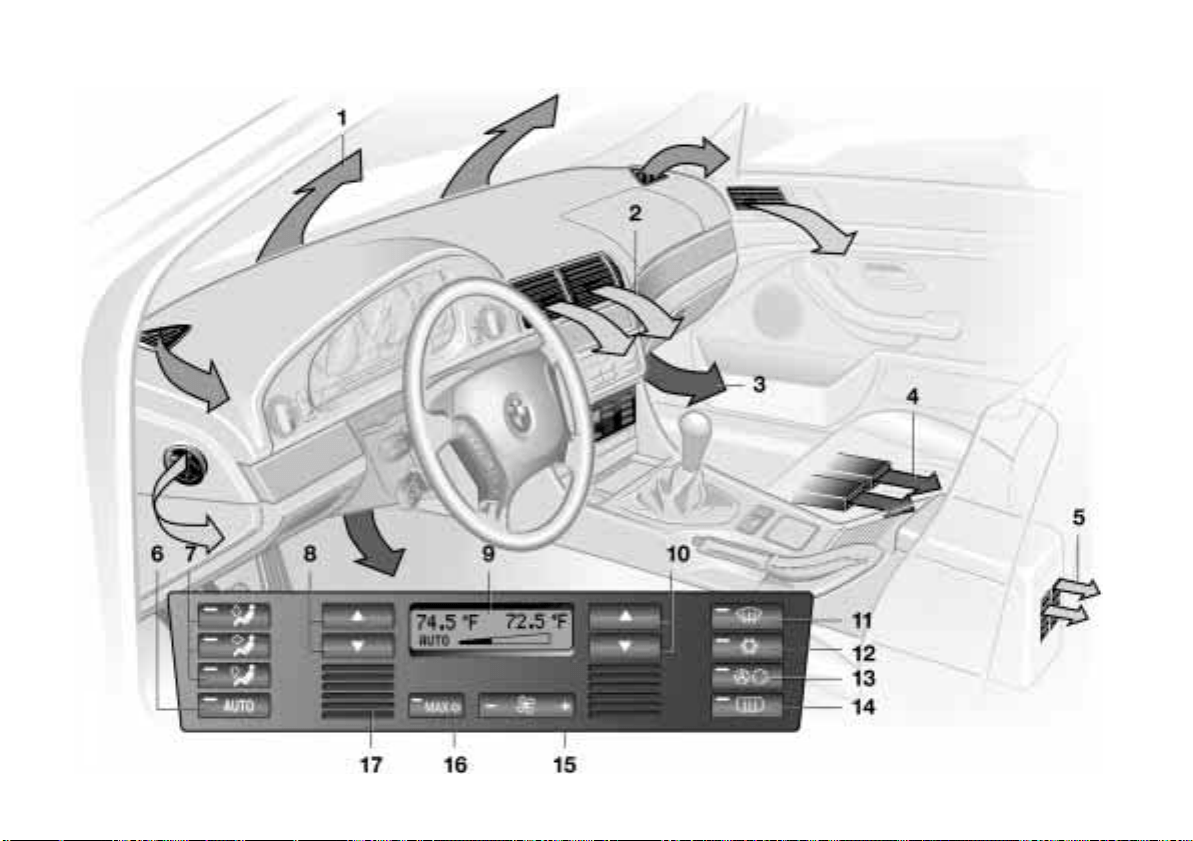

Controlling the climate for
pleasant driving:
Air conditioner 108
Automatic climate control 114
Seat heating 119
Steering wheel heating 120
Roller sun blind 120
Independent ventilation
system 120
Cabin convenience:
BMW Universal Transmitter 121
Glove compartment 124
Storage facilities 124
Cellular phone 125
Beverage holder 125
Ashtray, front 126
Cigarette lighter 126
Ashtray, rear 127
Loading and transporting
cargo:
Through-loading system 128
Ski bag 129
sport wagon:
Luggage compartment 132
Roll-up cover 132
Partition net 132
Storage areas in the luggage
compartment 133
Cargo loading 136
Roof-mounted luggage rack 137
Special operating instructions:
Break-in procedure 140
Driving notes 141
Catalytic converter 142
Antilock Brake System
(ABS) 143
Disc brakes 144
Brake system 146
Winter operation 146
Power steering 148
Level control system 148
Cellular phone 149
Radio reception 149
Wheels and tires:
Tire inflation pressure 150
Tire condition 150
Tire replacement 151
Tire rotation 152
Wheel and tire
combinations 153
Winter tires 154
Snow chains 155
Approved wheel and tire
specifications 156
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Contents
Operation, care and maintenance
Owner service procedures
Advanced technology
Under the hood:
Hood 159
Engine compartment 160
Washer fluids 164
Washer nozzles 164
Engine oil 165
Coolant 167
Brake fluid 168
Vehicle Identification
Number 169
Care and maintenance:
The BMW Maintenance
System 170
Caring for your car 171
Airbags 176
Vehicle storage 176
Laws and regulations:
Technical modifications 177
California Proposition
65 Warning 177
OBD interface socket 178
Replacement procedures:
Onboard tool kit 182
Wiper blades 182
Lamps and bulbs 183
Changing a wheel 190
Battery 193
Fuses 196
In case of electrical
malfunction:
Fuel filler door 198
Sliding/Tilt sunroof 198
Tailgate 199
Assistance, giving and
receiving:
Jump-starting 200
Towing the vehicle 201
Airbags 206
Adaptive Transmission Control
(ATC) 207
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC) 208
BMW active seat 210
Safety belt tensioner 210
DSP sound system 211
Mirrors with automatic
dimmer 211
Rain sensor 212
Tire Pressure Control (RDC) 213
Integrated rear suspension 214
Level control system 214
Xenon lamps 215
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
14n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index
Advanced technology
15n
Cockpit 16
Instrument cluster 18
Indicator and warning lamps 22
Multifunction steering wheel
(MFL) 25
Sports steering wheel 26
Hazard warning flashers 27
Warning triangle 27
First-aid kit 27
Refueling 28
Fuel specifications 29
Tire inflation pressure 29
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
16n
390us712
Cockpit
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
17n
1 Parking lamps/Low beams 105
2
>
Turn signal 78
>
Parking lamps 106
>
High beams 106
>
Headlamp flasher 78
>
Computer 89
3 Fog lamps 106
4 Wiper/Washer system 78
5 Central locking system 38
6 Hazard warning flashers 27
7 Rear window defroster 80
8 Horn 25, 26
9 Adjusting the steering wheel 56
Cockpit
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
18n
Instrument cluster
390us338
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
19n
Instrument cluster
There are two versions, depending on
the equipment on your vehicle.
1 Fuel gauge with indicator lamp for
fuel reserve 84
2 Indicator lamp for turn signals 24
3 Speedometer
4 Indicator lamp for high beams 24
5 Tachometer and
Energy Control 84
6 Coolant thermometer with
"Coolant temperature too high"
warning lamp 85
7 Indicator and warning lamps for:
>
Parking brake/Brake hydraulic
system, Dynamic Brake Control
(DBC)
*
22, 23
>
Antilock Brake System (ABS) 23
>
Brake pads 23
>
Tire Pressure Control (RDC)
*
23
>
Airbags 23
>
Automatic transmission
*
23
>
Please fasten safety belts 23
>
Cruise control 24
8 Selector lever and program display
for automatic transmission
*
72, 75
9 Service Interval Display 85
10 Display for the computer
(operation via the turn signal lever,
refer to page 89):
>
Outside temperature
>
Average fuel consumption
>
Cruising range
>
Average speed
11 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability
Control (DSC)
*
24
12 Indicator lamp for level control
system
*
23
13 Odometer and trip odometer 83
14 Indicator for Check Control 86
15 Reset button for trip odometer 83
16 Indicator and warning lamps for:
>
Fog lamps 24
>
Battery charge current 22
>
Engine oil level/Engine oil
pressure 22, 23
>
Engine electronics 24
>
Service Engine Soon 24
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
20n
Instrument cluster
*
390us339
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
21n
Instrument cluster
*
There are two versions, depending on
the equipment on your vehicle.
1 Fuel gauge with indicator lamp for
fuel reserve 84
2 Indicator lamp for turn signals 24
3 Speedometer
4 Indicator lamp for high beams 24
5 Tachometer and
Energy control 84
6 Coolant temperature gauge 85
7 Indicator and warning lamps for:
>
Parking brake 23
>
Brake hydraulic system, Dynamic
Brake Control (DBC)
*
22, 23
>
Antilock Brake System (ABS) 23
>
Airbags 23
>
Please fasten safety belts 23
>
Cruise control 24
8 CHECK button 86
9 Selector lever and program display
for automatic transmission
*
72, 75
10 Outside temperature display 83
11 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability
Control (DSC)
*
24
12 Trip odometer 83
13 Check Control display 86
14 Odometer 83
15 Service Interval Display 85
16 Reset button for trip odometer 83
17 Indicator and warning lamps for:
>
Fog lamps 24
>
Battery charge current 22
>
Engine oil pressure 22
> Service Engine Soon 24
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
22n
Indicator and warning lamps
Technology that monitors itself
Many of the systems of your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "●" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this below.
Red: stop immediately
Battery charge current ●
The battery is no longer being
charged. There is a malfunction
of the alternator V-belt or in the charg-
ing circuit of the alternator. Please con-
tact the nearest BMW center.
If the ribbed V-belt is defective, do
not continue driving. The engine
could be damaged due to overheating.
If the ribbed V-belt is defective, in-
creased steering effort is also re-
quired.<
Engine oil pressure ●
Comes on while the engine is
running and the "STOP!ENGINE
OILPRESS" message appears in the
Check Control: stop vehicle immedi-
ately and switch off engine. Check level
of oil in engine, top up as required. If oil
level is correct: please contact the
nearest BMW center.
Do not continue driving. The en-
gine could be damaged because
of inadequate lubrication.<
Tire Pressure Control (RDC)* ●
In addition, there is an acousti-
cal warning signal: a tire failure
has occurred. Reduce vehicle speed
immediately and stop the vehicle. Avoid
hard brake applications. Do not over-
steer. For additional information: refer
to page 103.
Parking brake
*,
brake hydraulic system ●
Comes on when you engage the
parking brake. For additional informa-
tion: refer to page 70.
Comes on although the parking brake is
released: have the brake fluid level
checked. Before driving further, be
sure to read the notes on pages 146
and 168.
Also comes on with the message
"CHECK BRAKE PADS" in the Check
Control.
Parking brake
* warning lamp/
Brake hydraulic system for
Canadian models.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
23n
Indicator and warning lamps
Red: an important reminder
Parking brake*
Comes on when you engage the
parking brake.
For additional information: refer to
page 70.
Parking brake
* warning lamp for
Canadian models.
Please fasten safety belts ●
Together with an acoustic signal
or a message
* in the Check
Control. Comes on until the safety belts
are fastened. For additional information
on safety belts: refer to page 61.
Airbags ●
Please have the system in-
spected by your BMW center.
For additional information: refer to
page 62.
Yellow: check as soon as possible
Antilock Brake System (ABS) ●
ABS has been deactivated in
response to system malfunction.
Conventional braking efficiency is avail-
able without limitations. Please have
the system inspected by your BMW
center.
For additional information: refer to
page 143.
Antilock Brake System (ABS)
warning lamp for Canadian
models.
Engine oil level
*
Comes on while driving: the oil
level is at the absolute mini-
mum; refill as soon as possible. Do not
drive more than approx. 30 miles
(50 km) until you add oil.
For additional information: refer to
page 165.
Engine oil level
*
Comes on after the engine has
been shut off: add oil at the
earliest opportunity (when you stop to
refuel).
For additional information: refer to
page 165.
Automatic transmission*
Because of a malfunction, the
automatic transmission shifts
only in the emergency program. Please
consult the nearest BMW center.
For additional information: refer to
pages 74, 77.
Brake pads
* ●
Have the brake pads checked.
For additional information: refer
to page 146.
Dynamic Brake Control
(DBC)
* ●
Fault in the DBC system. Con-
ventional braking efficiency is available
without limitations.
For additional information: refer to
page 145.
Dynamic Brake Control (DBC)
warning lamp for Canadian
models.
Tire Pressure Control (RDC)
* ●
Check the tire inflation pressure.
Refer to pages 29, 103.
Level control system
* ●
The level control system is
inactive. Please consult the
nearest BMW center.
For additional information: refer to
page 148.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
24n
Indicator and warning lamps
Automatic Stability Control plus
Traction (ASC+T)/Dynamic Sta-
bility Control (DSC)
* ●
The ASC+T/DSC has been switched off
or has been deactivated because of a
malfunction. In the event of a malfunc-
tion, have the system checked by your
BMW center.
For additional information: refer to
page 102.
Engine electronics
*
There is a fault in the engine's
electronic control system. The
electronics allow for continued driving
with reduced engine output or rpms.
Please have the system inspected by
your BMW center.
Service Engine Soon ●
If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a fault in the emis-
sions-related electronic systems.
Although the vehicle remains opera-
tional, you should have the systems
checked by your BMW center at the
earliest possible opportunity.
For additional information: refer to
page 178.
Service Engine Soon warning
lamp for Canadian models.
Green: for your information
Turn signal
Flashes when the turn signals
are in operation. Rapid flashing
indicates a system malfunction.
For additional information: refer to
page 78.
Cruise control
Lights up when the cruise con-
trol is activated. Available for
operation via the multifunction steering
wheel.
For additional information: refer to
page 81.
Fog lamps
Lights up whenever you switch
on the fog lamps.
For additional information: refer to
page 106.
Blue: for your information
High beams
Lights up when the high beams
are on or the headlamp flasher
is actuated.
For additional information: refer to
pages 78 and 106.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
25n
Multifunction steering wheel (MFL)
The controls integrated in the multi-
function steering wheel (MFL) are pro-
vided so that you can operate a number
of accessories quickly and without be-
ing distracted from traffic conditions.
You may operate:
> Selected functions of the radio as
well as the CD and cassette modes,
> the recirculated air mode of the air
conditioner or
> the steering wheel heater
*,
> the cruise control,
> selected cellular phone functions and
> the voice recognition
*
In order to operate a system via
the MFL, the corresponding
systems must be switched on.<
The illustration shows the maximum
possible number of controls, corre-
sponding to a full range of optional
equipment. Refer to the individual
accessory manuals for more detailed
descriptions.
1 Press briefly:
Receive a phone call, initiate dialing,
terminate a call.
Press longer:
Turn voice recognition on and off
2 Radio/Cellular phone: select
3 Radio/Cellular phone: scan backward
or scan station keys or scroll through
the phone listings.
Rewind on the CD and cassette
modes
4 Radio/Cellular phone: volume
380de702
5 Radio/Cellular phone: scan forward
or scan station keys or scroll through
the phone listings.
Fast forward on the CD and cassette
modes
6 Horn: the entire surface
7 Cruise control: activate stored
setting (resume)
8 Cruise control: store and
accelerate (+); decelerate and
store (–)
9 Cruise control: activate/interrupt/
deactivate
10 Recirculated-air mode and AUC or
steering wheel heater: switch on
and off
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
26n
Sports steering wheel*
The controls integrated in the sports
steering wheel are provided so that you
can operate a number of accessories
quickly and without being distracted
from traffic conditions. You may oper-
ate:
> Selected radio functions as well as
the CD and cassette modes,
> the cruise control,
> selected cellular phone functions and
> the voice recognition
*
In order to operate a system via
the sports steering wheel, the cor-
responding systems must be acti-
vated.<
The illustration shows the maximum
possible number of controls, corre-
sponding to a full range of optional
equipment. Refer to the individual
accessory manuals for more detailed
descriptions.
1 Radio/Cellular phone: select
2 Press briefly:
Receive a phone call, initiate dialing,
and terminate a call.
Press longer:
Turn voice recognition on and off
3 Radio/Cellular phone: volume
4 Radio/Cellular phone: scan backward
or scan station keys or scroll through
the phone listings.
Rewind on the CD and cassette
modes
46cde085
5 Radio/Cellular phone: scan forward
or scan station keys or scroll through
the phone listings.
Fast forward on the CD and cassette
modes
6 Horn: the entire surface
7 Cruise control: resume stored setting
8 Cruise control: store and
accelerate (+); decelerate and
store (–)
9 Cruise control: activate/interrupt/
deactivate
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
27n
Hazard warning flashers Warning triangle* First-aid kit*
The button flashes rhythmically when
the hazard warning flashers are on.
To help you locate the switch in an
emergency, the button is also illumi-
nated whenever the car's headlamps
are on.
390de039
The hazard warning triangle is quickly
available, stored in the onboard tool kit
mounted on the inside of the luggage
compartment lid/tailgate.
To open the container, loosen the wing
screw.
Comply with legal requirements
which cover the availability of a
hazard warning triangle in the car.<
394de053
The first-aid kit is located under the
front passenger's seat.
To remove: lift the release lever on the
front (arrow) and pull the first-aid kit for-
ward out of its support.
To store: place the back of the kit into
the support, then push back until the le-
ver engages.
Some of the articles in the first-aid
kit may be used within a limited
time only. For this reason, check the
expiration dates of each of the items
regularly, and replace any whose expi-
ration dates have passed. You can
acquire replacements in any drugstore
or pharmacy.
Comply with legal requirements which
cover availability of a first-aid kit in your
vehicle.<
390de086
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
28n
Refueling
Fuel filler door
Before refueling, shut the engine
off. If the engine is running, fuel
cannot be filled into the tank and the
Service Engine Soon lamp may come
on.<
To open the filler door, press on the
front edge.
To unlock the filler door if the central
locking system fails, refer to page 198.
When handling fuels, comply with
all of the applicable safety precau-
tions and regulations pertaining to
fuels.
Never carry spare fuel containers in
your vehicle. Whether empty or full,
these containers can leak, cause an ex-
plosion, or lead to fire in the event of a
collision.<
394de011
Simple and friendly to the environment
Open the filler cap carefully to
prevent fuel from spraying out.
Fuel spray may cause injury.
Do not top off. Topping off may cause
fuel spillage.<
Keep the filler cap in the bracket
attached to the fuel filler door.
390de603
When refueling, insert the filler nozzle
completely into the filler pipe. Pulling
the nozzle out of the pipe during refuel-
ing
> results in premature pump shutoff
> and will reduce the effect of the vapor
recovery system on the pump.
As long as the filler nozzle is used prop-
erly, the fuel tank is full whenever the
nozzle shuts off the first time.
Tank capacity: refer to page 223.
Close the filler cap carefully after
refueling until a "click" is heard.
While closing, be sure not to squeeze
the strap which is fastened to the cap.
A loose or missing cap will activate the
message "CHECK FILLER CAP" in the
Check Control
* or the Service Engine
Soon lamp.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
29n
Fuel specifications Tire inflation pressure
The engine uses lead-free gasoline
only.
Required fuel:
> Premium Unleaded Gasoline,
min. 91 AKI
AKI = Anti Knock Index
Do not use leaded fuels. The use
of leaded fuels will cause perma-
nent damage to the system's oxygen
sensor and the catalytic converter.<
The inflation pressures are indicated on
a sticker attached to the B-pillar behind
the driver's door (visible with door
open).
Check tire pressures
All pressure specifications are indicated
in psi (kilopascal) for tires at ambient
temperature (refer also to the next
pages).
For vehicles with Tire Pressure Control
(RDC)
*:
After a correction of the tire inflation
pressure, reactivate the system. Refer
to page 103.
390de351
Check tire inflation pressures reg-
ularly – at least every two weeks
and before beginning a longer trip.
Incorrect tire pressure can lead to tire
damage and accidents.
Check the inflation pressure of the
spare tire also. Inflate the spare tire to
the highest inflation of any tire on your
vehicle.<
Comply with tire approval
specifications
The inflation pressures in the table
apply to tires from BMW approved
manufacturers. Your BMW center is
familiar with these pressures. Higher
pressures may be specified for tires
from other manufacturers. You will find
a list of approved tires beginning on
page 156.
Your vehicle is equipped with tires that
meet US standards as well as European
standards. We recommend the exclu-
sive use of BMW approved tires.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
30n
Tire inflation pressure
sedan Tires
All pressure specifications in
the table are indicated in psi
(kilopascal) with cold tires
(cold = ambient temperature)
525i
225/60 R 15 96 H M+S
225/55 R 16 95 H M+S
225/60 R 15 96 W
225/55 R 16 95 W
235/45 R 17 94 W/Y
205/65 R 15 94 Q M+S
225/60 R 15 96 Q M+S
225/55 R 16 95 Q M+S
235/45 R 17 94 Q M+S
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/Y
–
29 (200)
–
33 (230)
33 (230)
33 (230)
41 (280)
41 (280)
530i
225/55 R 16 95 H M+S
225/55 R 16 95 W
235/45 R 17 94 W/Y
225/55 R 16 95 Q M+S
235/45 R 17 94 Q M+S
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/Y
–
29 (200)
–
33 (230)
33 (230)
33 (230)
41 (280)
41 (280)
(outside US/CDN)
(outside US/CDN)
(US/CDN)
(US/CDN)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
31n
Tire inflation pressure
sedan Tires
All pressure specifications in
the table are indicated in psi
(kilopascal) with cold tires
(cold = ambient temperature)
540i
225/55 R 16 95 W
235/45 R 17 94 W/Y
35 (240) 39 (270) 41 (280) 48 (330)
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/Y
35 (240)
–
–
39 (270)
41 (280)
–
–
48 (330)
225/55 R 16 95 Q/T/H M+S
235/45 R 17 94 Q/T/H M+S
30 (210) 35 (240) 36 (250) 44 (300)
540iA
225/55 R 16 95 H M+S
225/55 R 16 95 W
235/45 R 17 94 W/Y
225/55 R 16 95 Q M+S
235/45 R 17 94 Q M+S
30 (210) 35 (240) 36 (250) 44 (300)
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/Y
30 (210)
–
–
35 (240)
36 (250)
–
–
44 (300)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
32n
Tire inflation pressure
sport
wagon
Tires
All pressure specifications in
the table are indicated in psi
(kilopascal) with cold tires
(cold = ambient temperature)
525i
225/55 R 16 95 H M+S
225/60 R 15 96 H M+S
225/60 R 15 96 W
225/55 R 16 95 W
235/45 R 17 94 W/Y
30 (210) 35 (240) 36 (250) 44 (300)
225/60 R 15 96 Q M+S
225/55 R 16 95 Q M+S
235/45 R 17 94 Q M+S
33 (230) 38 (260) 39 (270) 46 (320)
540i
225/55 R 16 95 H M+S
225/55 R 16 95 W
235/45 R 17 94 W/Y
30 (210) 35 (240) 36 (250) 44 (300)
225/55 R 16 95 Q M+S
235/45 R 17 94 Q M+S
33 (230) 38 (260) 39 (270) 46 (320)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
33n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
34n
Locks and security systems:
Keys 36
Electronic vehicle
immobilizer 37
Central locking system 38
Opening and closing –
from the outside 38
With the key 38
With the remote control 38
Opening and closing –
from the inside 42
Luggage compartment lid/
Tailgate 43
Rear window 44
Luggage compartment 46
Alarm system 47
Electric power windows 49
Sliding/Tilt sunroof 50
Adjustments:
Seats 52
Steering wheel 56
Mirrors 56
Seat, mirror and steering wheel
memory 58
Car Memory, Key Memory 60
Passenger safety systems:
Safety belts 61
Airbags 62
Transporting children safely 66
Driving:
Steering/Ignition lock 68
Starting the engine 68
Switching off the engine 69
Parking brake 70
Manual transmission 70
Automatic transmission 72
Automatic transmission with
Steptronic 75
Indicator/Headlamp flasher 78
Wiper/Washer system 78
Rear window defroster 80
Cruise control 81
Everything under control:
Odometer, outside temperature
display 83
Tachometer 84
Energy control 84
Fuel gauge 84
Coolant temperature gauge 85
Service Interval Display 85
Check Control 86
Computer 89
Multi-information display
(MID) 91
Digital clock in the MID 92
Computer in the MID 95
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index
Advanced technology
35n
Technology for safety and
driving convenience:
Park Distance Control
(PDC) 100
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC) 102
Tire Pressure Control (RDC) 103
Lamps:
Parking lamps/Low beams 105
Instrument lighting 105
High beams/Parking lamps 106
Fog lamps 106
Interior lamps 106
Reading lamps 107
Controlling the climate for
pleasant driving:
Air conditioner 108
Automatic climate control 114
Seat heating 119
Steering wheel heating 120
Roller sun blind 120
Independent ventilation
system 120
Cabin convenience:
BMW Universal Transmitter 121
Glove compartment 124
Storage facilities 124
Cellular phone 125
Beverage holder 125
Ashtray, front 126
Cigarette lighter 126
Ashtray, rear 127
Loading and transporting
cargo:
Through-loading system 128
Ski bag 129
sport wagon:
Luggage compartment 132
Roll-up cover 132
Partition net 132
Storage areas in the luggage
compartment 133
Cargo loading 136
Roof-mounted luggage rack 137
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
36n
Keys
1 The master keys with remote control
determine the functions of the Key
Memory. Refer to page 60.
There is an extended-life battery
in every master key that is
charged automatically in the ignition
lock as you drive.
For this reason, if you have a master
key that is otherwise not used, use that
key approximately once every year
while driving for an extended period to
charge the battery. Refer also to
page 39.<
2 Spare key for storage in a safe place
such as in your wallet. This key is not
intended for continuous use.
463de023
3 Door and ignition key
The locks for the luggage compart-
ment lid/tailgate, rear backrest and
glove compartment cannot be oper-
ated with this key. This is useful for
valet parking, for instance.
Replacement keys
Replacement keys are available exclu-
sively through your authorized BMW
center. Your BMW center is obligated
to ensure that a person requesting a
key is authorized to do so since the
keys belong to a security system (refer
to "Electronic vehicle immobilizer" on
page 37).
If possible, take all of the master
keys that belong to the vehicle
with you when you pick up your re-
placement key.
Whenever you receive a new replace-
ment key, turn that key to position 2 in
the ignition lock once (ignition switched
on) and then back. This allows the elec-
tronic vehicle immobilizer to "learn" the
new key.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
37n
Electronic vehicle immobilizer
The key to security
Your BMW is equipped with a passive
anti-theft system. This electronic immo-
bilization system is designed to reduce
the susceptibility of your vehicle to theft
by making it impossible to start the en-
gine using any means other than the
special keys furnished with the vehicle.
Your BMW center can cancel the elec-
tronic system authorization for individ-
ual keys (in the event of loss, for in-
stance). A deactivated key can no
longer be used to start the engine.
463de042
How the electronics work
At the heart of this system is an elec-
tronic chip which is integrated into the
key. The lock mechanism itself is actu-
ally a dual-function device, simulta-
neously serving as a communications
interface designed to allow the security
system to maintain a continuous stream
of variable, vehicle-specific signals with
the electronic circuitry in the key. The
system will not release the ignition, fuel
injection and starter unless it recog-
nizes an "authorized" key.
Force applied to the key can dam-
age the integrated electronic cir-
cuitry. A damaged key can no longer be
used to start the engine.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
38n
Central locking system Opening and closing – from the outside
The concept
The central locking system is ready for
operation as soon as you close the front
doors. The system engages and re-
leases the locks on the
> doors
> luggage compartment lid/tailgate
and rear window
*
> fuel filler door.
The central locking system can be
operated
> from outside via the driver's door lock
as well as via the remote control
> from inside via the central locking
system button.
The fuel filler door remains unlocked
when you activate the system from in-
side the vehicle (refer to page 42). The
anti-theft system is automatically armed
whenever you activate the central lock-
ing system from outside the vehicle.
The alarm system is also activated or
deactivated.
If looked from inside, the central locking
system unlocks automatically (only
those doors which were not locked
separately with the safety lock buttons)
in the event of an accident. Refer to
page 42. In addition, the hazard warn-
ing flashers and interior lamps come on.
With the key
One turn of the key in the driver's door
lock unlocks the driver's door only.
Turning the key a second time unlocks
all of the remaining doors, the luggage
compartment lid/tailgate and the fuel
filler door.
You can have a signal set as an
acknowledgment message that
the vehicle is closed correctly.<
390de627
Convenience operation
You can also operate the windows and
sliding/tilt sunroof via the door lock.
> To open: with the door closed, turn
the key to the "Unlock" position and
hold it.
> To close: with the door closed, turn
the key to the "Lock" position and
hold it.
Watch the closing process care-
fully and be sure that no one is
trapped by the closing motion. The win-
dows/sunroof stop moving immediately
when you release the key.<
Manual operation
(in the event of an electrical malfunc-
tion)
Turn the key all the way to the left or
right to unlock/lock the door.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
39n
Opening and closing – from the outside
With the remote control
The remote control makes opening and
locking the doors of your vehicle very
convenient. Furthermore, it provides
three additional functions which you
can only execute via the remote control:
> To switch on interior lamps, refer to
page 40
With this function, you can also
"search for" your vehicle, when
parked in an underground garage, for
instance.
> To open the luggage compartment/
tailgate, refer to page 41
The luggage compartment lid/tailgate
will open slightly, regardless of
whether it was previously locked or
unlocked.
> Panic mode
In case of danger, you can trigger the
alarm.
When the vehicle is unlocked, the anti-
theft system is simultaneously deacti-
vated, the alarm system is disarmed
and the interior lamps are switched on.
Locking the vehicle activates the anti-
theft and alarm systems and switches
the interior lamps off.
You can have a signal set as an
acknowledgment message that
the vehicle is closed correctly.<
Master keys
Keys with a transmitter for remote
control are master keys. Refer to
page 36.
Since children might be able to
lock the doors from the inside,
take the vehicle's keys with you so that
the vehicle can be opened again from
the outside at any time.<
390us604
Master keys that are used repeat-
edly are always ready for opera-
tion, since the battery in the key is
charged automatically in the ignition
lock as you drive.
If it is no longer possible to unlock the
vehicle via the remote control, the
battery is discharged. Use this key
while driving for an extended period in
order to charge the battery. Refer also
to page 36.
To prevent unauthorized use of the
remote control, surrender only the door
and ignition key 3 or the spare key 2
(refer to page 36) when leaving the
vehicle for valet parking, for example.
In the event of a system malfunction,
please contact your BMW center. You
can also obtain replacement keys
there.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
40n
Opening and closing – from the outside
Unlocking and convenience
opening mode
To release: press button 1.
Press the button once to unlock the
driver's door only; press a second time
to unlock all remaining doors as well as
the luggage compartment/tailgate and
fuel filler door.
Convenience opening mode: press and
hold button 1. The windows and the
sliding/tilt sunroof are opened.
463de025
To lock and secure
Press button 2.
463de027
Deactivate the alarm system tilt
sensor and interior motion sensor
After locking the vehicle press button 2
again.
For additional information: refer to
page 48.
To switch on the interior lamps
With the vehicle locked, press button 2.
380us646
463de027
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
41n
Opening and closing – from the outside
To open the luggage
compartment lid/tailgate
Press button 3.
The luggage compartment lid/tailgate
opens slightly, regardless of whether it
was previously locked or unlocked.
Before and after a trip, be sure
that the luggage compartment lid/
tailgate has not been opened uninten-
tionally.<
Panic mode
By pressing and holding button 3 for
two to five seconds, you can trigger the
alarm system if there is an impending
danger (the system must be armed).
The alarm is deactivated by pressing
button 1.
463de026
External systems
External systems or devices may cause
local interference in the functions of the
remote control.
If this should occur, you can unlock and
lock the vehicle via the door lock with a
master key.
For US owners only
The transmitter and receiver units
comply with part 15 of the FCC (Federal
Communication Commission) regula-
tions. Operation is governed by the
following:
FCC ID: LX8EWS
LX8FZVS
LX8FZVE
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
> This device may not cause harmful
interference, and
> this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications to
these devices could void the
user's authority to operate the equip-
ment.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
42n
Opening and closing – from the inside
You can operate the central locking
system with this button when the
driver's door is closed. With this button,
only the doors, the luggage compart-
ment lid/tailgate and rear window are
unlocked or locked. The anti-theft
system is not activated. Also, the fuel
filler door remains unlocked to allow
refueling.
The central locking system can be
locked automatically as soon as
you begin to drive if you desire. You
may also have this adjusted so that it is
specific to keys.<
390de016
If only the driver's door was un-
locked from the outside and you
press the button
> all other doors, the luggage compart-
ment lid/tailgate and rear window
and the fuel filler door will be
> unlocked if the driver's door is open
> the driver's door will be locked again
when it is closed.<
To unlock and open the doors
> Either unlock the doors together
with the button for the central locking
system and then pull the door handle
above the armrest or
> pull the release handle for each door
twice: the first pull unlocks the door,
and the second one opens it.
To engage locks
> Use the central locking button to lock
all doors at once, or
> press the individual door lock buttons
down. As an added design feature to
prevent the driver from being inad-
vertently locked out of the vehicle,
the driver's door lock button will not
engage as long as the door is open.
When the vehicle is moving, do
not lock the doors with their lock
buttons since doors locked in this
manner would not open automatically in
the event of an accident.
Children might be able to lock the
doors from the inside. For this reason,
you should always remove the key and
take it with you to be sure that you will
be able to unlock the car from the out-
side at all times.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
43n
Luggage compartment lid/Tailgate
Lock – sedan only
Only the master keys (refer to page 36)
fit in the lock of the luggage compart-
ment lid.
Opening separately
Turn the master key to the left in the
luggage compartment lock clear to the
stop – the luggage compartment lid will
open slightly.
The luggage compartment is locked
again as soon as you close the lid.
394de624
Secure separately
Turn the master key to the right past the
resistance point and then pull it out in
the horizontal position.
This locks the luggage compartment lid
and disconnects it from the central
locking system. This feature can be
used to prevent unauthorized access to
the luggage compartment when you
hand over the door and ignition key
(refer to page 36) for valet parking, for
instance.
394de064
To open from the outside
Press the button (arrow): the luggage
compartment lid/tailgate opens slightly.
Manual operation
(in the event of an electrical malfunc-
tion)
sedan:
Turn the master key to the left in the
luggage compartment lock clear to the
stop – the luggage compartment lid will
open slightly.
The luggage compartment is locked
again as soon as you close the lid.
sport wagon:
Refer to page 199.
394de009
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
44n
Luggage compartment lid/Tailgate
Opening from inside the car
You can use this button to open the
luggage compartment lid/tailgate when
the vehicle is stationary (not possible, if
the luggage compartment lid/tailgate
has been locked separately).
When the tailgate of the sport
wagon is opened, the clearance
from the ground to the upper edge is
more than 6.6 ft (two meters). Please
keep this in mind when opening the tail-
gate (in a garage, for example).<
For additional details concerning the
luggage compartment, please refer to
"Luggage compartment – sport wagon"
beginning on page 132.
390de652
Rear window – sport wagon
Small items can be loaded or unloaded
quickly if the rear window is opened
separately.
Press the button (arrow): the rear win-
dow opens slightly. It can now be tilted
up.
Push the window down to close it.
If pointed or sharp-edged objects
could strike the rear window while
driving, be sure to provide protection
around all edges. If you do not do this,
the heating conductors of the rear win-
dow could be damaged.<
392de159
Closing – sedan
The handle recess (arrow) next to the
lock mechanism is designed to assist
you in closing the luggage compart-
ment lid.
394de128
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
45n
Luggage compartment lid/Tailgate
Closing – sport wagon
You can pull the tailgate down by
placing both hands in the handle
recesses (arrows).
To close the tailgate, merely press it
down gently. The closing process will
then be carried out automatically.
392de160
To avoid injuries, be sure that the
travel path of the luggage com-
partment lid/tailgate is clear when it is
closed, as with all closing procedures.
Operate the vehicle only when the
luggage compartment lid/tailgate is
completely closed. Otherwise, exhaust
fumes could penetrate the interior of
the vehicle. Should it be absolutely
necessary to operate the vehicle with
the luggage compartment lid/tailgate
open:
> Close all windows. Shut the sliding/
tilt sunroof.
> Increase the air supply for the air
conditioner or automatic climate
control to a high level. Refer to
page 108 or 114.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
46n
Luggage compartment
Luggage straps
Use the straps on the floor of the
luggage compartment to secure smaller
items of luggage.
Movement is reduced, when objects
are placed on the straps.
The fittings at the corners of the
luggage compartment provide you
with a convenient means of attaching
luggage nets
* and flexible straps for
securing suitcases and luggage.
Refer also to "Cargo loading" on
page 136.
394de302
Hanger
On the left-hand side of the luggage
compartment is a hanger for fastening
shopping bags, packages or similar
items.
394de144
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
47n
Alarm system
The concept
The vehicle alarm system responds:
> When a door, the hood or the lug-
gage compartment lid/tailgate is
opened.
> To movement inside the vehicle
(interior motion sensor).
> To variations in the vehicle tilt sensor
such as occur during attempts to
steal the wheels or tow the vehicle.
> To interruption of battery voltage.
The system responds to unauthorized
vehicle entry and attempted theft by
simultaneously activating the following:
> Sounding an acoustical alarm for
30 seconds.
> The hazard warning flashers are
activated for approx. five minutes.
> The high beams flash on and off in
the same rhythm.
To arm and disarm the
alarm system
When the vehicle is locked or unlocked
with the key or the remote control, the
alarm system is also simultaneously
armed or disarmed.
The interior motion sensor is activated
approx. 30 seconds after you have fin-
ished locking the car.
The system indicates that it has been
correctly armed by switching on the
hazard flashers for a single cycle and by
emitting an acoustical signal.
You can have different acknowl-
edgment signals set to confirm
arming and disarming.<
When the system is armed, you can still
gain access to the luggage compart-
ment lid/tailgate by pressing button 3
on the remote control (refer to page 41).
When you close the luggage compart-
ment lid/tailgate, it locks again.
Indicator lamp displays
> The indicator lamp below the interior
rearview mirror flashes continuously:
the system is armed.
> The indicator lamp flashes during
arming: door(s), the hood or luggage
compartment lid/tailgate are not
completely closed. Even if you do not
close the alerted area, the system
begins to monitor the remaining ar-
eas, and the indicator lamp flashes
continuously after 10 seconds. How-
ever, the interior motion sensor is not
activated.
> If the indicator lamp goes out when
the system is disarmed: no manipula-
tion or attempted intrusions have
been detected in the period since
the system was armed.
390de020
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
48n
Alarm system
> If the indicator lamp flashes for
10 seconds when the system is
disarmed: an attempted entry has
been detected in the period since the
system was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.
Avoiding unintentional alarms
The tilt alarm sensor and interior motion
sensor may be switched off at the same
time to prevent a false alarm from being
triggered (in garages with elevator
ramps, for instance), or when the
vehicle is transported by trailer or train:
Lock the vehicle (arm the alarm system)
twice in succession: press button 2 on
the remote control transmitter twice
(refer to page 40), or turn the key in the
door lock to the right (lock) twice in
succession (refer to page 38).
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are deactivated for as long as the
system remains armed.
Interior motion sensor
The illustration depicts the transmitter
and receiver of the interior motion
sensor.
In order for the interior motion sensor to
function properly, the windows and
sliding/tilt sunroof must be completely
closed.
Nevertheless, you should deactivate
the interior motion sensor (refer to the
previous column) if you intend to leave
the windows or sliding/tilt sunroof
open.
390de153
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
49n
Electric power windows
Open and close windows
From ignition key position 1:
> Depress the rocker switch until you
feel resistance:
The window continues moving for as
long as you maintain pressure on the
switch.
> Press the rocker switch beyond the
resistance point:
The window moves automatically.
Press the switch a second time to
stop the window.
390de055
After the ignition has been switched off:
> You can still operate the windows as
long as neither of the front doors has
been opened. To open the window,
press the switch beyond the resis-
tance point.
Remove the key from the ignition
when you leave the vehicle, so
that children cannot operate the power
windows and possibly injure them-
selves.<
For the convenience mode via the door
lock or the remote control, refer to
pages 38 or 40.
Safety feature
A contact strip is integrated into the
inner side of each of the upper window
frame sections. If pressure is exerted
against this contact strip while a
window is being raised, the system
will respond by stopping the window
and then retracting it a small distance.
Despite this safety feature, be
extremely careful that the closing
path of the window is not obstructed
whenever it is closed. Otherwise, an
object might not touch the contact strip
in some situations (very thin objects, for
instance).
You can override this safety feature by
pressing the switch beyond the resis-
tance point and holding it.
Because the power windows are sealed
at high pressure to prevent wind noise
when closed, a powerful motor is
required for efficient closing. When
closing the windows, always be sure
that they are not obstructed in any way.
Unsupervised use of these systems can
result in serious personal injury.
Remove the ignition key to deactivate
the electric power windows whenever
you leave the car. Never leave the keys
in the vehicle with unsupervised chil-
dren.
Never place anything that could
obstruct the driver's vision on or next
to the windows.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
50n
Electric power windows Sliding/Tilt sunroof*
Safety switch
With the safety switch, you can prevent
the rear windows from being opened or
closed via the switch in the rear pas-
senger area (by children, for example).
Press the safety switch whenever
children are riding in the rear of
the vehicle. Careless use of the power
windows can lead to injury.<
390de131
To prevent injuries, exercise care
when closing the sliding/tilt sun-
roof and keep it in your field of vision
until it is shut.
Before leaving the car, switch off the
electric sunroof mechanism by taking
out the ignition key. Do not leave chil-
dren unattended in the vehicle with ac-
cess to vehicle keys. Use of the key can
result in starting of the engine and op-
eration of vehicle systems such as
power sunroof, etc. Unsupervised use
of these systems can result in serious
personal injury.<
You can avoid pressure or drafts in the
passenger compartment when the sun-
roof is open or lifted by keeping the air
vents in the instrument panel open and
increasing the air supply as required.
Refer to pages 108 or 114.
If the sunroof is completely open, air
disturbances may be caused in the ve-
hicle when you are driving at higher
speeds. Close the roof as far as is nec-
essary until this natural phenomenon
ceases.
For the convenience mode via the door
lock or the remote control, refer to
page 38 or 40.
Lifting – opening – closing
From ignition key position 1, press the
switch or slide it to the desired direction
until you feel resistance.
When lifting, the headliner retracts
several inches.
If the sliding/tilt sunroof is up, then
the headliner cannot be closed.<
After the ignition has been switched off,
you can still operate the sliding/tilt sun-
roof as long as neither of the front
doors has been opened.
390de636
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
51n
Sliding/Tilt sunroof*
Automatic* opening and closing
Press the appropriate end of the control
switch past the resistance point and
then release it.
Other automatic operations are:
> With the sunroof open, press the
switch briefly toward "Lift:" the sun-
roof automatically extends to its fully
raised position.
> With the sunroof lifted, press the
switch briefly toward "Open:" the
sunroof automatically opens all the
way.
Pressing the switch again briefly stops
the motion.
Safety feature
If the sliding/tilt sunroof encounters
resistance at a point roughly past the
middle of its travel when it is closing,
the closing cycle is interrupted and the
sliding/tilt sunroof will open again
slightly.
Despite this safety feature, be
extremely careful that the closing
path of the sunroof is not obstructed
whenever it is closed. Otherwise, trig-
gering the closing-force limitation may
not be ensured in some situations (with
very thin objects, for instance). You can
override this safety feature by pressing
the switch beyond the resistance point
and holding it.<
Sliding/tilt sunroof with glass
moonroof
*
The options and control procedures are
essentially the same as those previ-
ously described for the sliding/tilt sun-
roof. In order to open the raised roof,
press the control switch towards
"Open" until the roof has reached the
desired position.
The headliner insert slides back some-
what when you raise the sunroof. When
the sunroof is opened the headliner
retracts with it. The headliner will then
automatically remain in its retracted
position, but can be repositioned as
desired.
Power loss or malfunction
After interruptions in the electrical
supply (when the battery is discon-
nected, for instance), the sunroof may
only lift. To reinitialize the mechanism:
1 Raise the sliding/tilt sunroof all
the way.
2 Press and hold the switch for
approx. twenty seconds.
In the event of an electrical malfunction,
you can also operate the sliding/tilt
sunroof manually. Refer to page 198.
390de637
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
52n
For maximum safety, please comply
with the following instructions when ad-
justing a seat:
Never try to adjust your seat while
operating the vehicle. The seat
could respond with unexpected move-
ment, and the ensuing loss of vehicle
control could lead to an accident.
Wear the safety belt firmly against your
body at all times. In the event of a fron-
tal impact, a loose lap belt could slide
over your hips, leading to abdominal
injury. In addition, the safety belt's
restraint effectiveness is reduced if the
belt is worn loosely.
Never ride with the backrest reclined to
an extreme horizontal angle (especially
important for front passengers to
remember). Keep the backrest relatively
upright to minimize the risk of "sliding
under" the safety belt and sustaining
injury in an accident.
Do not slide the seats to the rear
when the vehicle is at an extreme angle
(on garage ramps or steep slopes, for
instance), to prevent the shoulder
strap's automatic height adjustment
mechanism from disengaging.<
Correct sitting posture
To reduce strain on the spinal column,
sit all the way back in the seat and rest
your back fully against the backrest.
The ideal sitting posture is achieved
with your head extending from your
spine in a straight line.
For long-distance driving, you may wish
to increase the backrest tilt-angle
slightly to reduce muscular tension.
Please remember that you should
always remain able to grasp the entire
periphery of the steering wheel without
straightening your arms.
1 Tilt angle (only driver's side)
2 Forward/backward adjustment
3 Cushion height
4 Backrest angle
5 Head restraint height
Adjust the angle of the head restraints
by tilting the head restraint, refer to
page 53.
Read and comply with the adjust-
ment instructions in the previous
column. Failure to do so can result in
diminished personal safety.<
Lumbar support*
Refer to the BMW comfort seat on
page 54.
380de023
Seat adjustment Electric power seat(s*)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
53n
Mechanical seat
1 Forward/backward adjustment
Pull the lever and slide the seat to the
desired position.
After releasing the lever, apply pres-
sure to the cushion to ensure that the
latch engages securely
2 Cushion height
Pull the lever and apply weight to
or remove weight from the seat as
required
390de682
3 Backrest angle
Pull the lever and apply weight to or
remove weight from the backrest to
reach the desired position
Comply with the adjustment in-
structions on page 52. Failure to
do so could result in diminished perso-
nal safety.<
390de683
Head restraints
To adjust the angle of the front head
restraints: adjust by tilting the head
restraint.
To adjust the height of the front pas-
senger and rear head restraints: adjust
by pulling up or pressing down.
Head restraints reduce the risk
of spinal injury in the event of an
accident.
Adjust the head restraint so that its
center is approximately level with your
ears.
Leave the center rear head restraint in
the fully-lowered position at all times,
since pulling it out limits its function.<
390de065
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
54n
BMW comfort seat*
This seat allows you to make additional
adjustments for:
1 Lumbar support
2 Shoulder support
Lumbar support
You can adjust the backrest's contour
for additional support in the curvature
of your spine's lumbar region.
380de024
The upper hips and spinal column
receive supplementary support to help
you maintain a relaxed, upright posture.
> Press the front/rear of the switch:
Increase/decrease curvature.
> Press the upper/lower end of the
switch:
Increase the upper/lower curvature.
Comply with the adjustment
instructions on page 52. Failure
to do so could result in diminished
personal safety.<
Shoulder support
You can use the adjustable upper back-
rest for supplementary support in the
shoulder region. This provides a
relaxed sitting posture and helps relieve
stress on the shoulder muscles.
Press the rocker switch: the support
angle of the upper backrest section is
adjusted.
To obtain an optimal seating posture,
we recommend:
Driver and front passenger:
1 Adjust the upper backrest section
to its extreme rear position.
2 Adjust to the optimal sitting posture
as shown on page 52 under "Correct
sitting posture."
3 Bring the upper backrest section
forward until your shoulders enjoy
firm support.
380de064
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
55n
BMW comfort seat* BMW sports seat* BMW active seat*
Front passenger's seat adjusted for
relaxed traveling:
1 Adjust the upper backrest section
to its extreme rear position.
2 Increase the seat cushion tilt.
3 Tilt the backrest more.
4 Bring the upper backrest section
forward.
Make corrections in the forward/
backward adjustment of the seat
to ensure that the safety belt still fits
firmly against your body. If you do not
do this, the protection provided by the
safety belt may be reduced.<
With this seat, you can also adjust the
thigh support. To do that, press the
switch.
390de634
Active changes in the seat's surface
help to avoid muscle cramps, pain in
the spine's lumbar region and fatigue.
To activate the seat, press the button
(arrow).
For additional details concerning the
BMW active seat, please refer to the
chapter describing "Advanced
technology" on page 210.
390us715
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
56n
Adjusting the steering wheel Mirrors
The steering wheel can be moved in
any of four directions. Adjust by moving
the control lever in the desired direc-
tion.
Do not adjust the steering wheel
while the vehicle is moving. There
is a risk of accident from unexpected
movement.<
To store the steering wheel setting,
refer to "Seat, mirror and steering
wheel memory" on page 58.
390de028
Automatic steering wheel
adjustment
In order to make it easier to get into and
out of the car, the steering wheel auto-
matically moves into the top position
and returns to the driving (memory)
position.
This automatic feature is controlled by
the position of the ignition key and by
the driver's door.
Exterior mirrors
1 Mirror switch for 4-way adjustment
2 Left/right selection switch
You can also adjust the mirrors manu-
ally by pressing against the outer edges
of their lenses.
To store the mirror settings: refer to
"Seat, mirror and steering wheel
memory" on page 58.
390us605
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
57n
Mirrors
The mirror on the passenger's
side features a lens with a more
convex surface than the mirror installed
on the driver's side. When estimating
the distance between yourself and
other traffic, bear in mind that the
objects reflected in the mirror are
closer than they appear. This means
that estimations of the distance to
following traffic should not be regarded
as precise.<
Electric heaters
Both mirrors are heated automatically
with the ignition key in position 2.
Interior rearview mirror
To reduce glare from vehicles behind
you after dark, tilt the mirror by moving
the small lever.
Lighted vanity mirror
Fold down the sun visor and slide the
cover panel to the side as required.
The mirror lamps operate from ignition
key position 1.
Sun visors
These can be folded down toward the
windshield or swiveled out against the
side windows.
390de030
Interior rearview mirror with
automatic dimmer
*
By responding to the effects of ambient
light and the glare from following traffic,
this mirror automatically dims through
an infinitely-variable range.
The mirror automatically reverts to its
clear, undimmed setting whenever you
select "Reverse."
For proper functioning of the mirror, be
sure that the two photocells are unob-
structed and clean. One of the photo-
cells (arrow) is positioned in the mirror's
glass, while the other is slightly offset
on the opposite side of the mirror.
For an explanation of the electro-chro-
mic technology used in this mirror, refer
to page 211.
390de031
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
58n
Seat, mirror and steering wheel memory
You can store and call up three different
seat, exterior mirror and steering wheel
positions. The illustration shows the
buttons on the driver's door for making
these position adjustments.
The adjustment for the lumbar support
is not stored in the memory.
390de032
To store
1 Ignition key at position 1 or 2.
2 Adjust the desired positions for the
seat, door mirror and steering wheel.
3 Press the
MEMORY button: the indi-
cator lamp in the button comes on.
4 Press memory button 1, 2 or 3, as
desired: the indicator lamp goes out.
To select a stored setting
Convenience function:
1 The driver's door remains open after
unlocking or the ignition key is in
position 1.
2 Briefly press memory button 1, 2 or 3,
as desired.
Movement stops immediately when
one of the seat adjustment or
memory buttons is activated during
the adjustment process.
Security function:
1 The driver's door is closed and the
ignition key is either removed or in
position 0 or 2.
2 Press and hold the desired memory
button (1, 2 or 3) until the adjustment
process is completed.
If you press the
MEMORY button
accidentally: press the button a second
time; the indicator lamp goes out.
Do not call up a position from the
memory while the vehicle is
moving. There is a risk of accident from
unexpected movement of the seat or
steering wheel.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
59n
Seat, mirror and steering wheel memory
Passenger side exterior mirror tilt
function
(automatic curb monitor)
1 Move the mirror selector switch
(arrow) to the "driver's mirror"
position.
2 When the selector lever is placed in
"Reverse," the passenger-side mirror
tilts downward to help the driver
monitor the area directly adjacent to
the car during parking (curbs, etc.).
You can deactivate this automatic
feature by setting the mirror selection
switch to the "passenger side" position.
390de147
Your BMW center can adjust your
vehicle's systems in such a man-
ner that your personalized settings are
automatically called up for the seat,
mirror and steering wheel positions
when you unlock the vehicle with the
remote control of your personal key.<
If you make use of this setting
mode, be sure that the footwell
behind the driver's seat is unobstructed
before unlocking the vehicle. If you fail
to do so, any persons or objects behind
the seat could be injured or damaged
by a rearward movement of the seat.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
60n
Car Memory, Key Memory
How the system functions
You have probably frequently wished
that you could configure individual
functions of your vehicle to reflect your
own personal requirements. In engi-
neering your vehicle, BMW has included
several user-defined functions in the
vehicle's design. Your authorized BMW
center can make these settings for you.
There are settings related to the vehicle
("Car Memory") and settings related to
individuals ("Key Memory"). You can
have two different basic positions con-
figured for two different persons. The
only requirement is that each person
uses his or her own remote control key.
463de029
When your vehicle is unlocked with the
remote control, the vehicle recognizes
the individual user by means of a data
exchange with the key, and makes
adjustments accordingly.
In order for you to distinguish between
different keys, colored decals are
supplied together with the keys.
What the system can do
Your authorized BMW center can
provide you with details on the capabili-
ties of the Car Memory and Key
Memory systems.
You will see this symbol through-
out the Owner's Manual. It is to
remind you at appropriate places of the
settings that are available to you.<
An example of Key Memory is the auto-
matic adjustment of the driver's power
seat with stored settings for the individ-
ual person when the vehicle is un-
locked.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
61n
Drive with your safety belt on
Fasten your safety belt at the beginning
of every trip.
To fasten: make sure you hear the lock
engage in the belt buckle.
To release: press the red button in the
buckle. Hold the belt and guide it back
into its reel.
The shoulder belt anchor automatically
adjusts to continue providing an opti-
mum fit when you move the seat for-
ward or back.
The two rear safety belt buckles which
are integrated in the rear seat are for
passengers sitting on the left and right.
The belt buckle with the word "CENTER"
is intended exclusively for passengers
sitting in the middle.
For care instructions, refer to page 174.
390de653
For your safety, comply with the
following instructions for wearing
safety belts. If you do not, the safety
belts may not be able to provide their
maximum protection. All passengers in
the vehicle should be aware of and com-
ply with this information:
Never allow more than one person to
wear a single safety belt. Never allow in-
fants or small children to ride in a pas-
senger's lap.
Avoid twisting the belt while routing it
firmly across the hips and shoulder,
wear it as snugly against your body as
possible. Do not allow the belt to rest
against hard or fragile objects. Do not
route the belt across your neck, or run it
across sharp edges. Be sure that the
belt does not become caught or
jammed.
Avoid wearing bulky clothing and pull on
the belt periodically to re-tension it over
your shoulders. In the event of a frontal
impact, a loose lap belt could slide over
your hips, leading to abdominal injury. In
addition, the safety belt's restraint effec-
tiveness is reduced if the belt is worn
loosely.
Expectant mothers should always wear
their safety belts, taking care to position
the lap belt against the lower hips,
where it will not exert pressure against
the abdominal area.<
sedan with through-loading
system
*: please comply with the
instructions for the center safety belt on
page 128.
sport wagon: if the center safety belt
cannot be pulled out, the larger rear
backrest section is not engaged. Refer
to page 132.<
If the safety belt system has been
subjected to the stresses in-
volved in an accident or otherwise
damaged: have the entire safety belt
mechanism replaced by your BMW
center, including the safety belt ten-
sioner. In addition, have your BMW
center inspect the safety belt anchors.
If a child restraint system was in the ve-
hicle during an accident, consult the
manufacturer's instructions regarding
replacement.c
Safety belts
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
62n
Airbags
Child restraint systems*
Never install a rear-facing child
restraint device on the front pas-
senger seat. Otherwise, injuries could
occur when the airbag is triggered in
the event of an accident.
Children should always ride in the rear
and the restraint systems should be
secured with the outer belts.
The centre seat belt should only be
used when it is necessary to secure
three child restraint systems.
Do not attempt to modify child restraint
systems. If you do this, the protection
provided by these systems could be
impaired.<
1 Front airbags on the driver and
passenger sides
2 Side Impact Head Protection System
on the driver and passenger sides
(front and rear
*)
3 Side airbags on the driver and
passenger sides (front and rear
*)
Protective effect
The front airbags protect the driver and
passenger in the event of a head-on
collision where the protection provided
by the safety belt alone would not be
adequate. The Head Protection System
and side airbags help provide protec-
tion in the event of a collision from the
side. Each of the side airbags is de-
signed to help support the seat occu-
pant's upper body.
380de643
The side airbags in the rear pas-
senger area
* of your vehicle may
already have been deactivated, either
at the time of manufacture or by a BMW
center. You may have them activated if
you desire to do so. Please contact
your authorized BMW center for addi-
tional information.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
63n
Airbags
The illustration depicts schematically
the primary directions of vehicle impact
which initiate an airbag deployment.
The airbags will not be triggered in
the event of a minor accident, a
vehicle roll-over, or collisions from the
rear.c
390de142
Operational status
The indicator lamp displays the
operational status of the airbag
system from ignition key posi-
tion 1.
System operational:
> The indicator lamp comes on briefly
then goes out.
System malfunction:
> The indicator lamp fails to come on.
> The indicator lamp comes on briefly
before going out and then lighting up
again.
A system malfunction could prevent the
system from responding to an impact
occurring within its normal response
range.
Have the system checked by your
BMW center immediately.
Sitting correctly with airbags
For your safety, comply with the
following instructions for the
airbags. If you do not, the airbags may
not be able to provide their maximum
protection. All passengers in the vehicle
should be aware of and comply with
this information:
Even though there is an airbag, wear a
safety belt every time you get in the
vehicle, because airbags enhance
safety by providing added protection.
Make sure you are seated comfortably
in your seat, in such a way that you al-
ways maintain control, and are not too
close to the steering wheel.
Always hold the steering wheel by the
rim to keep any chance of injury to
hands or arms to an absolute minimum,
should the airbag be deployed.
No one and nothing is to come between
the airbag and the seat occupant.
Do not use the cover panel above the
front passenger-side airbag as a
storage area.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
64n
Airbags
Do not apply adhesive materials to the
cover panels of the airbags, cover them
or modify them in any other way.
Do not install a rear-facing child re-
straint system in the front passenger
seat of this car.
Children under 13 years of age and
children less than 5 ft (150 cm) tall
should ride only in the rear seat.
Infants or small children should never
be held on the lap of a passenger.
If your car is equipped with side airbags
in the rear passenger area, be sure that
child restraints are mounted correctly
and provided with the greatest-possible
distance between the airbags in the
side trim panels. Do not allow children
to lean out of the child's seat in the di-
rection of the side trim panels. If they
do so, serious injuries can occur if the
airbag is triggered.<
At all times, occupants should sit
upright and be properly restrained
(infants and small children in appropri-
ate child restraint systems; larger chil-
dren and adults using the safety belts).
Never let an occupant's head rest near
or on a side airbag because the inflating
airbag could cause a serious or fatal in-
jury. Please note that the word "Airbag"
imprinted on the door trim panel indi-
cates the airbag's location.
Accident research shows that the
safest place for children in an automo-
bile is in the rear seat. However, a child
sitting in the rear seat and not properly
restrained may place his or her head on
or near the side airbag, if so equipped.
For example, a child – even though
belted – may fall asleep with his or her
head against the side airbag. It may be
difficult for a driver to ensure that chil-
dren in the rear seat will remain prop-
erly positioned at all times and not
place their heads on or near the side
airbag.
Therefore, we recommend that the rear
seat side airbags, if provided, be deac-
tivated if you plan to transport children
in the rear seat.
The rear seat side airbags may already
have been deactivated, either at the
time of manufacture or by a BMW cen-
ter. Labels in the rear door opening
should indicate the status of your rear
seat side airbags. If your are uncertain
of their status, or wish to have the air-
bags activated or deactivated, please
contact your BMW center.<
Even when all these guidelines are
followed, there is still a small residual
risk of injuries to the face, hands and
arms occurring from airbag deployment
in isolated instances. The ignition and
inflation noise may provoke a mild tem-
porary hearing loss in extremely sensi-
tive individuals.
Airbag warning information is also
provided on the sun visors.
For additional information concerning
the airbag system, refer to pages 176
and 206.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
65n
Airbags
This is the right way for a child to sit in a
child restraint when rear side airbags
(arrow) are provided.
380de637
This is the right way for a larger child to
sit wearing the safety belt when rear
side airbags (arrow) are provided.
380de638
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
66n
Transporting children safely
Commercially-available child restraint
systems are designed to be secured
with a lap belt or with the lap belt por-
tion of a combination lap/shoulder belt.
Improperly or inadequately installed re-
straint systems can increase the risk of
injury to children. Always read and fol-
low the instructions that come with the
system.
380us123
If you use a child restraint system with
a tether strap, three additional tether
anchorage points (refer to the arrows –
the illustration shows the sport wagon)
have been provided. Depending on the
location selected for seating in the rear
passenger area, attach the tether strap
to the corresponding anchorage point
to secure the child restraint system. Re-
move the cover first on the middle loca-
tion.
If the respective seating position is fit-
ted with a headrest lift the headrest and
pass the tether strap between the head
rest and the seat back.
Adjust the tether strap according to the
child restraint manufacturer's instruc-
tions.
392au001
Before installing any child restraint
device or child seat, please read
the following:
Never install a rear-facing child restraint
system in the front passenger seat of
this car.
Your car is equipped with an airbag
supplemental restraint system for the
front passenger. Because the backrest
on any rear-facing child restraint
system (of the kind designed for infants
under 1 year and 20 Ibs./9 kg) would be
within the airbag's deployment range,
you should never mount such a device
in the front passenger seat, since the
impact of the airbag against the child
restraint's backrest could lead to
serious or fatal injuries. If it is necessary
for a child (not an infant) to ride in the
front seat, certain precautions should
be taken. First, move the passenger
seat as far away from the dashboard as
possible. This important precaution is
intended to maximize the distance
between the airbag and the child.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
67n
Transporting children safely
Older children should be tightly secured
with a safety belt. Younger children
should be secured in an appropriate
forward-facing child restraint system
that has first been properly secured
with a safety belt. Never install a rear-
facing child restraint system in the front
passenger seat.
We strongly urge you to carefully read
and comply with the instructions for in-
stallation and use provided by the child
restraint's manufacturer whenever you
use such a device.
Be sure that all occupants (of all ages)
remain properly and securely restrained
at all times.<
All rear seating positions in your
vehicle meet the recommendations
of SAE J1819, an industry-recom-
mended practice for securing child
restraint systems in motor vehicles.
Child restraint installation
All of the rear belt retractors and the
front passenger's safety belt can be
locked for mounting and securing child
restraint systems. A label with the ap-
propriate instructions for this is located
in the immediate vicinity of the buckle
latch of each safety belt.
Lock the safety belt
Pull the entire length of the belt from
the inertia reel mechanism. Allow the
reel to retract the belt somewhat and
engage the buckle, then tighten the belt
against the child restraint system. The
retraction mechanism is now locked.
Unlock the safety belt
Release the safety belt, remove the
child's seat and retract the safety belt
to its end position on the belt retractor.
365us146
Child-safety locks
Insert the key to the slot of a rear door
lock and turn it outward:
The door can now be opened from the
outside only.
390de019
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
68n
0 Steering lock engaged
This is the only position in which the
ignition key can be inserted and
removed.
After removing the key, turn the steer-
ing wheel slightly to the left or right until
you hear the lock engage.
Once the ignition has been switched off
(ignition key in position 0 or pulled out),
the radio functions are still available for
approx. 20 minutes. Turn the radio back
on to use it.
Vehicles with automatic transmis-
sion:
Do not move the selector lever from
position "P" until the engine is running
(ignition key position 2).
390de010
Your vehicle is equipped with an inter-
lock. Therefore, the ignition key cannot
be turned to position 0 and removed
until the selector lever is in position "P"
(Interlock).<
1 Steering lock disengaged
You will find that it is often easier to turn
the ignition key from position 0 to posi-
tion 1 when you move the steering
wheel slightly to help disengage the
lock.
2 Ignition on
All electrical equipment and accesso-
ries are available for use.
3 Starting the engine
Before starting
> Engage the parking brake.
> Put the manual-shift gear lever in idle
or in P for an automatic transmission.
> Step on the clutch pedal.
Do not allow the engine to run in
enclosed spaces. The exhaust
gases contain carbon monoxide, an
odorless and colorless, but highly toxic
gas. Breathing the exhaust gases poses
an extreme health risk, and can lead to
unconsciousness and death.
Never leave the vehicle unattended
with the engine running. An unattended
vehicle with a running engine repre-
sents a potential safety hazard.<
Steering/Ignition lock Starting the engine
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
69n
Starting the engine Switching off the engine
Starting the engine
> Start the engine. Do not press the
accelerator pedal.
Do not actuate the starter for too
short a time. Do not turn it for
more than approx. 20 seconds. Release
the ignition key immediately as soon as
the engine starts.
Do not allow the engine to warm up by
leaving it running while the vehicle re-
mains stationary. Instead, begin driving
immediately at a moderate engine
speed.
BMW 540i with automatic transmission:
Your BMW is equipped with the conve-
nience starting feature. Simply turn the
key to position 3 (starter) and then re-
lease it immediately.
The starter continues to operate auto-
matically.
The automatic starting mode will not
operate if the battery voltage is low.
Should this condition arise, it remains
possible to jump-start the engine (refer
to page 200).<
Should the engine fail to start on the
first attempt (if it is very hot or cold, for
instance):
> Press the accelerator pedal halfway
down while engaging the starter.
Cold starts at extremely low tempera-
tures, from approx. +57 (–156)
and at elevations above 3,300 ft
(1,000 meters):
> Be sure to let the starter remain
engaged somewhat longer the first
time (approx. 10 seconds).
> Press the accelerator pedal halfway
down while engaging the starter.
Engine idle speed is controlled by the
engine computer system. Increased
speeds at start-up are normal and
should decrease as the engine warms
up. If engine speed does not decrease,
service is required.
To prevent the battery from discharg-
ing, always deactivate electrical de-
vices which are not in use. Switch the
ignition off when the vehicle is not
being driven.
Turn the ignition key to position 1 or 0.
Never remove the ignition key
while the vehicle is rolling. The
steering locks, making it impossible to
steer the vehicle.
Always remove the ignition key and en-
gage the steering lock before leaving
the vehicle.
Vehicles with manual transmission:
Always engage the parking brake
when parking on slopes and inclined
surfaces, since not even placing the
lever in 1st gear or reverse may not
provide adequate resistance to rolling.
Vehicles with automatic transmission:
Place the selector lever in "Park."<
Vehicles with automatic transmission
*:
The vehicle must be stationary and the
selector lever in "Park" before you can
remove the ignition key.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
70n
Parking brake Manual transmission
The parking brake is primarily designed
to prevent the vehicle from rolling while
parked. It operates against the rear
wheels.
To engage
The lever engages automatically and
the "PARK BRAKE" or "BRAKE" (in
Canada "P") indicator lamp comes on in
the instrument cluster in ignition key
position 2. Refer to pages 22 and 23.
To release
Pull up slightly on the lever, press the
button and lower the lever.
390de042
If, in exceptional circumstances, it
should be necessary to engage
the parking brake while the vehicle is in
motion, do not pull it with excessive
pressure. Keep your thumb pressed
against the release button while care-
fully pulling up the lever to apply mod-
erate pressure.
Excessive pressure can lead to over-
braking and loss of traction (fishtailing)
at the rear.
The brake lamps do not come on when
the parking brake is applied.
Vehicles with manual transmission:
Always engage the parking brake
when parking on slopes and inclined
surfaces, since not even placing the
lever in 1st gear or reverse may not
provide adequate resistance to rolling.
Vehicles with automatic transmission:
Place the selector lever in "Park."<
To avoid corrosion, apply the parking
brake lightly from time to time when
coasting to a standstill (at a traffic sig-
nal, for instance), provided that it is safe
to do so.
BMW 525i, BMW 530i
Every time you shift gears, always
depress the clutch pedal all the way
down, pushing the manual-shift gear
lever into the respective end position.
Depress the clutch even when starting
the engine, otherwise, a lock will pre-
vent the engine from being started.
The shift lever's neutral gate (dot in the
illustration) is located between 3rd and
4th gears.
When shifting from each gear into
"Neutral," the shift lever returns auto-
matically to this neutral position be-
cause of its spring loading.
360de044
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
71n
Manual transmission
BMW 540i
Every time you shift gears, always
depress the clutch pedal all the way
down, pushing the manual-shift gear
lever into the respective end position.
Depress the clutch even when starting
the engine, otherwise, a lock will pre-
vent the engine from being started.
The shift lever's neutral gate (dot in the
illustration) is located between 3rd and
4th gears.
When shifting from each gear into
"Neutral," the shift lever returns auto-
matically to this neutral position be-
cause of its spring loading.
380de044
When shifting gears in the 5th/
6th-gear plane, be sure to press
the gear lever to the right in order to
prevent inadvertent selection of a gear
in the 3rd/4th-gear plane.<
Reverse
Select "Reverse" only when the vehicle
is stationary. Press the shift lever to the
left to overcome the resistance.
As you do this, the backup lamps will
turn on automatically when the ignition
key is in position 2.
Do not hold the vehicle in place on
slopes by slipping or "riding" the
clutch. Use the parking brake instead.
Riding the clutch causes increased
clutch wear.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
72n
Automatic transmission*
The automatic transmission of your
BMW is equipped with Adaptive Trans-
mission Control (ATC), a system which
reacts with precision to your individual
driving style and the driving conditions.
To achieve this, different driving pro-
grams are automatically engaged.
For details concerning ATC, please
refer to the chapter describing
"Advanced technology" on page 206.
390us625
Selector lever positions
P R N D 4 3 2
The transmission range display varies
according to model (refer to illustra-
tions).
Starting engine
The selector lever must be in "Park" or
"Neutral" before it is possible to start
the engine.
390us045
Range selection
A detent prevents inadvertent shifts into
some selector lever positions. To
release the shift-lock mechanism, press
the button on the front of the selector
handle (arrow).
While the vehicle is stationary and
before shifting out of "Park" or
"Neutral," depress the footbrake in
order to disengage the selector lever's
lock mechanism (Shiftlock).
Hold the footbrake down until starting
off. Otherwise the vehicle will "creep"
when a drive position is engaged.<
390de046
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
73n
Automatic transmission*
Before leaving the vehicle when
the engine is running, shift the
selector lever to the "Park" or "Neutral"
position and apply the parking brake.
The vehicle could move if this is not
done.
Never leave the vehicle unattended
with the engine running. An unattended
vehicle with a running engine repre-
sents a potential safety hazard.
If you should accidentally select
"Neutral" while traveling at high speed,
remove your foot from the accelerator
pedal immediately. Allow the engine
speed to drop to idle before selecting
the desired drive position. Damage
could otherwise occur due to excessive
engine speed.<
P Park
Select "Park" only when the vehicle is
stationary. The transmission locks to
prevent the rear wheels from turning.
R Reverse
Select "Reverse" only when the vehicle
is stationary.
N Neutral
Select "Neutral" only if your journey is
interrupted for a long period.
D Drive
(automatic shift program)
This position is designed for driving
under all normal operating conditions.
All forward gears are available.
4 – Sport Program
This position is recommended if you
wish to select a performance-oriented
driving style.
3 and 2 – shift limiter
Select this range when you wish to limit
gear changes (on steep uphill or down-
hill slopes, for instance). The transmis-
sion shifts up only as far as the selected
gear.
"Kickdown"
In the "Kickdown" mode, you achieve
maximum performance.
To activate this mode, depress the
accelerator pedal beyond the full-
throttle position, at which a resistance
point must be overcome.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
74n
Automatic transmission*
Electronic transmission control
module
If the indicator lamp comes on
or if the message "TRANS.
FAILSAFE PROG" appears in
the Check Control
*, there is a malfunc-
tion in the transmission system.
Bring the vehicle to a stop, select the
"Park" position, apply the parking brake
and shut the engine off (ignition key po-
sition 0). Restart the engine after a few
seconds. If the indicator lamp goes out
again after a few seconds, the normal
transmission functions have been re-
stored. You may continue to drive as
usual.
If the indicator lamp does not go out,
you can place the selector lever in all
positions. However, the vehicle will now
only drive forward with limited gear
selection.
Under these circumstances, avoid ex-
treme engine loads and consult the
nearest BMW center.
Do not work in the engine com-
partment when a drive gear (for-
ward or reverse) is engaged. If you do
this, the vehicle could move.<
For jump-starting, towing and tow-
starting, refer to pages 200 and 201.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
75n
Automatic transmission with Steptronic*
You can drive just as you do with a nor-
mal automatic transmission, including
Adaptive Transmission Control (ATC),
but in addition, you can also shift manu-
ally.
For individual gear selection, move the
selector lever from the "D" position to
the left and into the M/S range. This
selects the Sport Program of the auto-
matic transmission. As soon as you
move the selector lever in the "+" or "–"
direction, Steptronic changes the gear.
If you wish to utilize the automatic driv-
ing position once again, move the se-
lector lever to the right and into posi-
tion "D."
For details concerning ATC, please re-
fer to the chapter describing "Advanced
technology" on page 207.
Selector lever positions
P R N D M/S
Starting engine
The engine can only be started in selec-
tor lever positions P ("Park") or N ("Neu-
tral").
390us607
Range selection
A detent prevents inadvertent shifts to
the "Reverse" or "Park" selector lever
positions. To disengage the detent,
press the button on the front of the shift
knob (arrow).
While the vehicle is stationary and
before shifting out of "Park" or
"Neutral," depress the footbrake in
order to disengage the selector lever's
lock mechanism (Shiftlock).
Hold the footbrake down until starting
off. Otherwise the vehicle will "creep"
when a drive position is engaged.<
390de140
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
76n
Automatic transmission with Steptronic*
Before leaving the vehicle when
the engine is running, shift the se-
lector lever to the "Park" or "Neutral"
position and apply the parking brake.
The vehicle could move if this is not
done. Do not leave the car unattended
with the engine running. An unattended
vehicle with a running engine repre-
sents a potential safety hazard.
If you should inadvertently select "Neu-
tral" while traveling at high speed, re-
move your foot from the accelerator
pedal immediately. Allow the engine
speed to drop to idle before selecting
the desired drive position. Damage
could otherwise occur due to excessive
engine speed.<
P Park
Select "Park" only when the vehicle is
stationary. The transmission locks to
prevent the rear wheels from turning.
R Reverse
Select "Reverse" only when the vehicle
is stationary.
N Neutral
Select "Neutral" only if your journey is
interrupted for a long period.
D Drive
(automatic shift program)
This position is designed for driving un-
der all normal operating conditions. All
forward gears are available.
"Kickdown"
In the "Kickdown" mode, you achieve
maximum performance.
To activate this mode, depress the ac-
celerator pedal beyond the full-throttle
position, at which a resistance point
must be overcome.
M/S Manual mode and
Sport Program
When you change from "D" to "M/S,"
the Sport Program is activated. This is
indicated by "D S" in the gear selection
display. The Sport Program is designed
for performance-oriented driving.
With the first brief touch, the automatic
transmission shifts from the Sport Pro-
gram to the manual mode. Whenever
you move the selector lever forward in
the "+" direction, the transmission shifts
up, and when you move it backward in
the "–" direction, the transmission will
shift down. M1...M5 will be displayed in
the gear indicator.
390de323
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
77n
Automatic transmission with Steptronic*
Upshifts or downshifts will be carried
out by the ATC only at appropriate
engine speeds and road speeds. For
instance, if engine speed is too high, a
downshift will not be executed. The
gear selected will appear briefly in the
instrument cluster followed by the
current gear.
If you are driving in the manual
mode and wish to accelerate
rapidly from low road speeds (when
passing, for instance), you must shift
down manually or with the "Kickdown"
function.<
You can only change from "M/S" to
selector lever positions "P," "R," and
"N" via the "D" position.
In the following situations, the Step-
tronic "thinks" for you in the manual
mode:
> In order to prevent engine over-
speeding, the transmission shifts
automatically to the next higher gear.
shortly before the RPM cutoff point
> At low speeds, the transmission
shifts down automatically – you do
not have to act.
> In the "Kickdown" mode, the trans-
mission shifts down to the lowest
gear which is possible, depending on
the engine speed.
> According to the situation, for
instance in wintry conditions, the
vehicle can be started in 2nd or
3rd gear.
Electronic transmission control
module
If the indicator lamp comes on
or the message "TRANS.FAIL-
SAFE PROG" appears in the
Check Control
*, there is a fault in the
transmission system.
Bring the vehicle to a stop. Move the
transmission selector lever to "P." Set
the parking brake and turn the engine
off (ignition key to position 0).
Wait a few seconds, then start the
engine.
If the indicator lamp goes out after a
few seconds, normal transmission
performance has been restored. You
may continue to drive as usual. If the
indicator lamp does not go out, you can
place the selector lever in all positions.
However, the vehicle will now only drive
forward with limited gear selection.
If this happens, avoid extreme engine
loads and consult the nearest BMW
center.
Do not work in the engine com-
partment when a drive gear (for-
ward or reverse) is engaged. If you do
this, the vehicle could move.<
For jump-starting, towing and tow-
starting, refer to pages 200 and 201.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
78n
Indicator/Headlamp flasher Wiper/Washer system
1 High beam (blue indicator lamp)
2 Headlamp flasher
(blue indicator lamp)
3 Turn signal indicator
(green indicator lamp accompanied
by periodic clicking sound from the
relay)
If the indicator lamp and the clicking
from the relay are both faster than
normal, one of the turn signal indicators
has failed.
To signal briefly
Press the lever up to but not beyond
the detent. It then returns to the center
position when released.
390de335
0 Wipers retracted
1 Intermittent mode or rain sensor
*
2 Normal wiper speed
3 Fast wiper speed
4 Brief wipe
5 Cleaning windshield
6 Intensive cleaning
*
7 Rotary dial for control of the wipe in-
terval or the sensitivity of the rain
sensor
*
394de041
1 Intermittent mode or
rain sensor*
Intermittent mode:
You can set the wipe interval to four
stages with rotary dial 7.
In addition, the wipe interval is varied
automatically depending on road
speed.
Rain sensor:
When the rain sensor is activated, the
windshield wiper is controlled automati-
cally, depending on the degree of wet-
ness of the windshield (in both snow
and rain). You do not have to be con-
cerned with switching the windshield
wiper on or off or adjusting the wipe in-
terval between intermittent and full
wipe. Instead, you can concentrate fully
on the traffic conditions. This is espe-
cially important under adverse weather
conditions.
The rain sensor is positioned on the
windshield, directly ahead of the inte-
rior rearview mirror.
To activate the rain sensor:
From ignition key position 1 and up,
move the lever to position 1. The wipers
travel once across the windshield,
regardless of the weather.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
79n
Wiper/Washer system
You can leave the lever permanently in
position 1. It is then only necessary to
activate the rain sensor from ignition
key position 1 and up. To do this
> turn rotary dial 7 briefly or
> use either the cleaning windshield 5
or the intensive cleaning 6.
To modify the sensitivity of the rain
sensor:
Turn rotary dial 7.
To deactivate the rain sensor:
Move lever to position 0.
Turn the rain sensor off in auto-
matic car washes. Failure to do so
could result in damage caused by un-
desired wiper activation.<
2 Normal wiper speed
The wipers automatically revert to inter-
mittent operation when the vehicle is
stationary (not on vehicles with rain
sensor
*).
3 Fast wiper speed
The wipers automatically revert to nor-
mal speed when the vehicle is station-
ary (not on vehicles with rain sensor
*).
5 Cleaning windshield
The system sprays washer fluid against
the windshield and activates the wipers
for a brief period.
If you only pull the lever briefly, the sys-
tem sprays washer fluid onto the wind-
shield without activating the wipers.
6 Intensive cleaning*
As in setting 5. In addition, an intensive-
action washer fluid is first sprayed on
the windshield.
For changing the wiper blades, refer to
page 182.
Cleaning headlamps*
If they are on, the headlamps will also
be cleaned every fifth time you activate
cleaning windshield (5) or intensive
cleaning (6).
Do not use the washers if there is
any danger that the fluid will
freeze on the windshield, otherwise vi-
sion could be obscured. For this rea-
son, use an antifreeze agent. Refer to
page 164.
Do not use the washers when the reser-
voir is empty, since this could cause
damage to the washer pump.
Windshield washer jets
The windshield washer jets are warmed
automatically when the ignition key is in
position 2.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
80n
Wiper/Washer system Rear window defroster
Rear window wiper – sport wagon
0 Rest position of the rear window
wiper
1 Rear window wiper in intermittent
operation. When reverse gear is
engaged, continuous operation is
switched on automatically
2 Cleaning rear window
You can also program the interval:
> Switch briefly from position 0 to
position 1.
> The time until reactivation (from
position 0 to 1) is the programmed
interval (max. 30 seconds).
392de158
Programming is cleared:
> Approx. 10 seconds after the lever is
placed in position 0 or
> after the engine is switched off.
When the rear window is opened, the
rear window wiper is switched off. It
must be switched on again after the
window has been closed.
For changing the wiper blade, refer to
page 182.
To activate
Press the button: as long as the indica-
tor lamp remains on, the rear window
defroster continues at high-output
(rapid thaw).
After the indicator lamp goes out, the
defroster continues operating at re-
duced power for a limited period before
deactivating automatically.
Vehicles with automatic climate control:
For the selection button refer to
page 116.
To deactivate
If the indicator lamp is on, press the
button.
390us714
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
81n
Cruise control
You can store and automatically main-
tain any desired vehicle speed above
approx. 20 mph (30 km/h).
Do not use cruise control on twis-
ting roads, when high traffic den-
sity prevents driving at a constant
speed, or when the road surface is slick
(snow, rain, ice) or loose (rocks or gra-
vel, sand).<
390de654
To activate the system
In ignition key position 1 or 2:
Press button 1; the indicator lamp in the
instrument cluster comes on.
You can now use the cruise control.
To store and maintain speed
or to accelerate
Press button 2 briefly:
The system stores and maintains the
current vehicle speed. Every time you
tap the button, the speed increases by
0.6 mph (1 km/h).
Press and hold button 2:
The vehicle accelerates without
pressure on the accelerator pedal.
When you release the button, the
system stores and maintains the
current speed.
If, on a downhill gradient, the
engine braking effect is not suffi-
cient, the controlled speed can be
exceeded. Speed can drop on uphill
grades if the engine output is insuffi-
cient.<
To decelerate
Press button 3 briefly:
When cruise control is active, every tap
of the button reduces the speed by
approx. 0.6 mph (1 km/h).
Press and hold button 3:
With the cruise control active, the
system automatically reduces the
throttle opening to slow the vehicle.
When you release the button, the
system registers and maintains the
current speed.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
82n
Cruise control
To interrupt the cruise control
When the system is activated, press
button 1. The indicator lamp stays on.
You can use the cruise control again as
desired.
In addition, the system is also automati-
cally deactivated in response to the
following conditions:
> When you apply pressure to the
brake pedal.
> When you apply pressure to the
clutch pedal, and when you move
the automatic transmission selector
lever from "Drive" to "Neutral".
> If you exceed or fall below the
programmed speed for an extended
period (by depressing the accelera-
tor, for example).
To resume the stored setting
Press button 4:
The vehicle accelerates to and main-
tains the last speed stored. When you
turn the ignition key to position 0, the
stored speed is deleted from the sys-
tem's memory and the system is deacti-
vated.
To deactivate the system
When the cruise control has been inter-
rupted, press button 1 again. The indi-
cator lamp goes off and the stored
speed is canceled.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
83n
1 Odometer
You can activate the displays shown in
the illustration with the ignition key in
position 0 by pressing the button in the
instrument cluster (arrow).
The range of available displays varies
according to your individual vehicle's
equipment.
2 Trip odometer
To reset the trip odometer to zero,
press the button (arrow) with the
ignition key in position 1 or 2.
390us608
3 Outside temperature display
The outside temperature appears in the
display panel as soon as you turn the
ignition key to position 1.
You can change the units of measure
(7/6) by
1 pressing and holding down the
button (arrow) with the ignition key
in position 1
2 turning the ignition key to 0.
Refer also to page 89.
Ice warning
If the outside temperature drops to ap-
prox. +37.57 (+36), a warning signal
sounds and the display flashes briefly.
The warning is repeated whenever the
temperature climbs to at least +437
(+66) and then drops again to
+37.57 (+36).
The ice warning does not alter the
fact that surface ice can form at
temperatures above +37.57 (+36),
on bridges or shaded road surfaces, for
instance.<
Odometer, outside temperature display
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
84n
Tachometer Energy control Fuel gauge
Never allow the engine to operate with
the needle in the red overspeed zone of
the gauge.
To protect the engine, the engine-man-
agement system automatically inter-
rupts the fuel supply in this range; the
resulting effect resembles that associ-
ated with a sudden loss of power.
390us004
Indicates current fuel consumption in
mpg (in liters per 100 km on Canadian
vehicles). This instrument shows
whether your current driving style is
conducive to fuel economy with mini-
mum exhaust emissions.
When the vehicle is stationary, the dis-
play goes to "Maximum" (zero on Cana-
dian models).
390us005
When you switch on the ignition, the in-
dicator lamp comes on briefly to con-
firm that the system is operational.
If the indicator lamp stays on, there are
approx.
>
2.0
gal (8 liters) –
BMW 525i, BMW 530i
> 2.5 gal (10 liters) – BMW 540i
remaining in the tank.
Tank capacity: refer to page 223.
Certain operating conditions (such
as those encountered in mountainous
areas) may cause the needle to fluctu-
ate slightly.
Please refuel early, since driving
to the last drop of fuel can result in
damage to the engine and/or catalytic
converter.<
390us006
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
85n
Coolant temperature gauge Service Interval Display
Blue
The engine is still cold. Drive at moder-
ate engine and vehicle speeds.
Red
When you switch on the ignition, the
warning lamp
* comes on briefly to con-
firm that the system is operational.
If the the warning lamp lights up while
driving, or the message "Coolant tem-
perature" shows up in the Check Con-
trol
*, then the engine has overheated.
Switch the engine off immediately and
allow it to cool down.
390de007
Between the blue and red zones
Normal operating range. It is not un-
usual for the needle to rise as far as the
edge of the red zone in response to
high outside temperatures or severe
operating conditions.
Checking coolant level: refer to
page 167.
The precise layout varies according to
the individual model version.
Green lamps
The number of illuminated lamps de-
creases as the time for your next main-
tenance visit approaches.
Yellow lamp
This field appears together with
OILSERVICE or INSPECTION.
Maintenance is due. Please contact
your BMW center for an appointment.
Red lamp
The maintenance deadline has been
passed.
390us702
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
86n
Check Control
Graphic display*
The following alerts or status messages
are displayed symbolically from ignition
key position 2 and up until the defects
are corrected:
1 Check headlamps
2 Add washer fluid
(goes out after approx. 1 minute)
3 Door open
4 Luggage compartment lid/tailgate
open
5 Check brake and tail lamps.
A defective center tail lamp is indica-
ted by the upper symbol
When you open the door after stopping,
a warning signal sounds without a vi-
sual indicator for:
> LIGHTS ON and
> KEY IN IGNITION LOCK.
390de121
Alphanumeric display*
Text messages are used to alert the
driver to system malfunctions when the
ignition key is turned to position 2. The
alert is accompanied by a gong.
1 Status report symbol
2 Display
3 CHECK button
Messages concerning system faults are
differentiated based on two priorities:
390us111
Priority 1
These defects are immediately indi-
cated by a gong and a flashing warning
symbol 1. Simultaneous defects will be
displayed consecutively. These status
reports remain in the display until the
defects are corrected. It is not possible
to delete them by pressing the CHECK
button 3:
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
87n
Check Control
> RELEASE PARKINGBRAKE
> COOLANT TEMPERATURE
The coolant is overheated. Stop the
vehicle immediately and switch off
the engine. Refer to pages 85
and 167.
> STOP!ENGINE OILPRESS
The oil pressure is too low. Stop the
vehicle immediately and switch off
the engine. Refer to page 22.
> CHECK BRAKE FLUID
Indicates that brake fluid is down to
roughly minimum level. Top up the
brake fluid at the next opportunity.
Refer to page 168. Have the source
of the brake fluid loss diagnosed and
corrected by your BMW center.
> TIRE DEFECT
*
Reduce vehicle speed immediately
and stop the vehicle. Avoid hard
brake applications. Do not oversteer.
Refer to page 104.
> SELFLEVEL SUSP.INACT
Please consult the nearest authorized
BMW center. Refer to page 148.
> SPEED LIMIT
*
Display if the programmed speed
limit has been exceeded.
Priority 2
These displays appear for 20 seconds
when the ignition key is turned to posi-
tion 2. The warning symbols remain
after the message disappears. You can
display the messages again by pressing
the CHECK button 3:
> TRUNKLID OPEN
Message appears only when the
vehicle is initially set in motion.
> DOOR OPEN
This message appears after a mini-
mal defined road speed has been ex-
ceeded.
> FASTEN SEAT BELTS
*
In addition to this message, a
warning lamp with the safety belt icon
appears and an acoustical signal
sounds.
> WASHER FLUID LOW
Too low; top up fluid at the next
opportunity. Refer to page 164.
> CHECK ENGINE OIL LEV
The oil level is at the absolute mini-
mum, and therefore engine oil should
be added as soon as possible. Refer
to page 165. Until then, do not drive
more than approx. 30 miles (50 km)
> CHECK FILLER CAP
Check that the filler cap is closed
correctly, refer to page 28. A loose or
missing cap will activate the message
"CHECK FILLER CAP" in the Check
Control
* or the Service Engine Soon
lamp.
> OUTSIDE TEMP. +207 (–56)
This display is only an example. The
current temperature is displayed at
outside temperatures of +37.57
(+36) and below. Refer also to
page 83.
> SET TIRE PRESSURE
*
The RDC has imported the current in-
flation pressure in the tires as the tar-
get values which the system will
monitor. Refer to page 103.
> CHECK TIRE PRESSURE
*
Check and correct the tire inflation
pressure to specifications at the earli-
est opportunity (next stop for fuel).
Refer to page 104.
> TIRECONTROL INACTIVE
*
A temporary interference of the RDC
or a system fault. Refer to page 104.
> CHECK BRAKE LIGHTS
A lamp has failed or the electrical cir-
cuit has a fault. Refer to pages 186
and 196 or consult a BMW center.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
88n
Check Control
> CHECK LOWBEAM LIGHTS
CHECK SIDE LIGHTS
CHECK REAR LIGHTS
CHECK FRONT FOGLAMPS
CHECK LICPLATE LIGHT
CHECK HIGHBEAM LIGHTS
CHECK BACK UP LIGHTS
Defective bulb or circuit. Refer to
pages 183 and 196 or consult your
BMW center.
> TRANS. FAILSAFE PROG
Please consult the nearest BMW
center. Refer to pages 74, 77.
> CHECK BRAKE LININGS
Have the brake pads inspected by
your BMW center. Refer to page 146.
> CHECK COOLANT LEVEL
Coolant too low, top up at the next
opportunity. Refer to page 167.
> ENGINE FAILSAFE PROG
*
The electronics allow for continued
driving with reduced engine output or
rpms.
Please have the system inspected by
your BMW center.
Displays after completion of trip
All of the malfunctions registered during
the trip appear consecutively when the
key is turned to position 0.
One of the following displays may ap-
pear:
> LIGHTS ON
> KEY IN IGNITION LOCK
> CHECK ENGINE OIL LEV
Add engine oil at the next opportunity
(next stop for fuel). Refer to page 165.
Display appears when you open the
driver's door after parking the vehicle.
A supplementary gong is also heard.
Status reports remain available for a
period of approx. three minutes after
the display goes out and the key is re-
moved from the ignition. Press the
CHECK button. If there were multiple
reports, press the CHECK button re-
peatedly to view them all in sequence.
To check the Check Control
Press the CHECK button 3 with the
ignition key in position 2:
CHECK CONTROL OK appears in the
display.
No malfunctions are present in the
monitored systems.
You can have the Check Control
messages displayed in a different
language.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
89n
Computer
Mode selection
From ignition key position 1 and up, you
can call up information from the com-
puter using the button in the turn signal
lever. By pressing the button briefly in
the direction of the steering column,
you can call up a new function for dis-
play.
The displays appear in the following
order: outside temperature, average
fuel consumption, cruising range, aver-
age speed.
Starting with ignition key position 1, the
last active setting is displayed.
The range of available displays varies
according to your individual vehicle's
equipment.
390de336
Outside temperature and
average fuel consumption
You can change the units of measure
(7/6) for the outside temperature dis-
play by
1 pressing and holding the trip odome-
ter reset button (in ignition key posi-
tion 1)
2 and then turning the ignition key to 0.
Refer also to page 83.
390us126
Cruising range and
average speed
The computer bases its calculations
of the cruising range on the previous
driving style and conditions.
The computer ignores any time spent
with the vehicle stationary and the
engine off in its average speed calcula-
tions.
390us703
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
90n
Computer
Cancel display
If the button in the turn signal lever is
pressed briefly while the average speed
is displayed, the computer display can
be hidden.
To restart calculations
If you continue to press the button in
the turn signal lever, the average values
which were just displayed for fuel con-
sumption and speed will be recalcu-
lated from that point (the engine must
be running for this).
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
91n
Multi-Information Display (MID)*
Central display
The MID serves as the central display
and operation for the following onboard
systems:
> Digital clock (e.g. time display, date)
> Audio systems (radio, cassette, CD)
> Computer (e.g. fuel consumption,
cruising range)
> Cellular phone (e.g. dialing)
You will find explanations and notes
for operating the digital clock and the
computer on the following pages.
Please refer to the separate Owner's
Manual for operating the audio
systems, the cellular phone and the
onboard monitor.
Any unrealistic numerical entries
will not be accepted.
All stored data will be lost if the power
supply is interrupted. Time display,
switch-on times for independent
heating and ventilation, distance and
cruise control speed limit may have to
be reset once the power supply has
been re-established.<
1 Function button for audio systems
2 Function button for the cellular
phone
*
3 Indicator lamp for independent
ventilation
*
> remains on if switch-on time is
active
> flashes while operating
4 Function button for the digital clock
and computer
5 Indicator display for the various
computer systems
390us705
6 Display for the entry and display but-
tons. Depending on the operating
mode, the functions and alternatives
which can be selected at the buttons
are displayed here
7 Entry and display buttons for operat-
ing the various computer systems
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
92n
Digital clock in the MID*
Only make inputs when the vehi-
cle is standing still – to avoid
endangering yourself or other road
users.<
To call up time or date
Press the left side of the button.
Display shows:
You can have the time displayed in
12 or 24 hours.
To change the display:
Press the left side of the button.
If the 12-hour time display is in use, AM
or PM appear after the time.
Changing the time display
Press the left side of the button.
Press on the right side:
The dots flash in the display.
To alter the setting:
Press on the left or right, or hold the
button down.
To store the input:
Press the right side of the button.
To change the date
Press the left side of the button.
Press.
Press on the right side:
The dots and the DATE display flash.
To alter the setting:
Press on left or right, or hold the button
down.
To store the input:
Press the right side of the button.
The clock takes leap years into account
and therefore does not have to be reset
manually.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
93n
Digital clock in the MID*
Reminder signal
You can program a reminder signal
(Memo) to be heard every hour, so that
you are sure not to miss a news
broadcast.
Press the left side of the button.
Press.
MEMO OFF appears in the display for
entry and query buttons, and the tone
symbol will appear in the upper right of
the display.
A signal is then heard 15 seconds be-
fore each hour.
Timer
Press the left side of the button.
Press.
Display shows:
To start the stopwatch function:
Press the right side of the button.
To take an intermediate time reading:
Press.
Press.
The stopwatch display can be seen
counting up; the stopwatch continues
to run.
To halt the stopwatch:
Press the right side of the button.
The stopwatch is halted when the
ignition switch is turned back to 0,
but starts to run again when the ignition
key is turned to 1.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
94n
Digital clock in the MID*
Enter the switch-on times for the
independent ventilation*
You can enter two different switch-on
times.
The ventilation will shut off
automatically after 30 minutes.
Please follow the instructions for
operating the independent ventila-
tion that start on page 120.<
Press the left side of the button.
Press on the left/right.
Display shows:
Press on the right:
Display flashes, e.g. TIMER 1.
To input the time:
Press on the left or right, or hold the
button down.
To confirm the input:
Press the right side of the button.
The activated time is marked with an
asterisk.
The switch-on times remain memorized
until new inputs are made.
You can change switch-on times that
have already been memorized by
making a new time input as described
above.
When the switch-on time is active, the
LED comes on in the MID. During actual
operation of the ventilation, the LED
flashes. The LED goes out when the
system is switched off.
To activate/deactivate the time:
Press twice.
Directly switching the indepen-
dent ventilation* on and off
The independent ventilation func-
tion can only be called up in igni-
tion key position 1.<
Press the left side of the button.
Press.
or
Press.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
95n
Computer in the MID*
Only make inputs when the
vehicle is standing still – to avoid
endangering yourself or other road
users.<
Computer calculations begin at the
start of the journey.
Information can also be called up in the
display by remote control, refer to
page 99.
Speed limit
Speed limit input:
You can input the road speed here
at which you wish to hear and see a
reminder signal: a signal will sound, the
word LIMIT will flash, and for a moment,
the speed limit warning stored in the
memory will appear on the instrument
cluster as an alphanumeric display
*,
along with the Check Control.
The speed limit reminder is only
repeated if the vehicle has in the
meantime been driven at least 3 mph
(approx. 5 km/h) slower.
Press the right side of the button.
Press.
Press the right side of the button.
Display shows:
Input the limit by pressing the function
buttons.
To correct an entry:
Press on the left and repeat the input.
To store the input:
Press the right side of the button.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
96n
Computer in the MID*
Adopting the current speed as the
speed limit:
Press the right side of the button.
Press.
Press twice at right.
Deactivating the speed limit:
Press the right side of the button.
Press.
The LIMIT display goes out, but the
memorized value is not lost and can be
re-activated by pressing the LIMIT but-
ton.
Distance from destination
The remaining distance to the destina-
tion will be displayed on the screen.
This is of course only possible if you en-
tered the entire distance before starting
the journey.
Input:
Press the right side of the button.
Press the left side of the button.
Press the right side of the button.
Display shows:
You can input the distance by pressing
the function buttons.
To correct an entry:
Press on the left and repeat the input.
To store the input:
Press the right side of the button.
Checking memorized value:
Press the right side of the button.
Press the left side of the button.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
97n
Computer in the MID*
Estimated time of arrival
When you have input the distance from
your destination, you can obtain an
estimated time of arrival display which
is continuously updated by the com-
puter as your average driving period
varies.
Press the right of the button.
Press on the right:
The estimated time of arrival is
displayed.
Cruising range
The distance which the vehicle should
cover on the remaining fuel in the tank
is displayed.
Press the right of the button.
Press.
The display shows the probable range.
When you have only enough fuel
left to drive fewer than 30 miles
(50 km), then refuel, as otherwise the
engine or the catalytic converter could
be damaged.<
The computer will only register fuel
amounts over 1.8 gal (6 liter).
Fuel consumption
You can have the average fuel
consumption displayed for two different
distances, for example a complete
journey and part of the journey.
To start the calculation, select the
CONS function with the engine running.
Press the right side of the button.
Press on the left or right:
The display will show the average fuel
consumption.
To restart the fuel consumption
calculation:
Press on the left or right.
Press the right side of the button.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
98n
Computer in the MID*
Speed
You can call up a display of the
vehicle's average speed.
To start the calculation, select the
SPEED function with the engine
running.
Press the right side of the button.
Press.
The display shows the average speed.
To recalculate the speed:
Press the right side of the button.
Extended immobilizer function
You can establish a code that will pre-
vent the engine from being started un-
less the code is entered.
If you do not have access to the code,
the emergency de-activation proce-
dure will have to be carried out.
Establishing and activating the code:
Press the right side of the button.
Press the left side of the button.
Display shows:
Enter the code with the function
buttons.
To correct an entry:
Press on the left and repeat the input.
To store the input:
Press the right side of the button.
Turn the ignition key to position 0.
Deactivate the code.
When you are asked to input the code
(ignition key in position 1 or 2):
> Input the code at the function
buttons.
Press the right side of the button.
After the code has been input correctly
and confirmed with the SET button, the
time display appears.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
99n
Computer in the MID*
After three incorrect code inputs, or
three attempts to start the engine with-
out a code input, the alarm will sound
for 30 seconds on vehicles fitted with
an alarm.
Deactivating the alarm in an
emergency:
If you have forgotten the code, proceed
as follows:
1 Disconnect the battery, wait approx.
2 minutes, then reconnect it. Note
that on vehicles with an alarm, this
will sound.
2 Set the ignition key to position 1:
The time display will count down for
the next ten minutes.
3 After ten minutes, start the engine.
If the code becomes available
again in the meantime, it can be
input during the waiting period after
pressing the CODE button.<
Remote control
The button on the turn signal indicator
lever can be used to select the items of
computer information which are to be
displayed.
To do this, press
> the button on the lever until PROG 1
shows on the display
> the MID buttons in the order in which
you wish the information to be dis-
played.
Each time an entry is stored, the pro-
gram number appears on the display.
To terminate the selection procedure:
Press the right side of the button.
390de336
To have all the available information
displayed, press
> the button on the lever until the dis-
play shows PROG 1
> the SET button.
To obtain individual items of informa-
tion, press the button in briefly as often
as necessary.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
100n
The concept
The PDC assists you when you are
parking. A signal warns you of the real
distance to an obstacle. To do this, four
ultrasonic sensors in the front and rear
bumpers measure the distance to the
nearest object. The monitoring range
for the front and both rear corner sen-
sors extends approx. 2 ft (60 cm) be-
yond the bumper. The range for the
center rear sensors extends approx. 5 ft
(1.50 meters).
Automatic operation
The system starts to operate automati-
cally approx. one second after you se-
lect reverse or move the selector lever
into the "R" position with the ignition
key in position 2.
Turn on manually
Press the button (arrow), the indicator
lamp comes on.
After driving more than approx. 160 ft
(50 meters) or exceeding approx.
20 mph (30 km/h), the system switches
off and has to be switched back on
when you want to use it again.
390us713
Acoustic signals
The distance to an object is indicated
by a high beeping sound in the front
and a low beeping sound in the back.
As the distance between vehicle and
object decreases, the intervals between
the tones become shorter. A continu-
ous tone indicates the presence of an
object less than 1 ft (30 cm) away.
The warning signal will be canceled af-
ter approx. 3 seconds if the distance to
the obstruction remains constant during
this time (if you are moving parallel to a
wall, for instance).
Malfunction in the PDC system:
The indicator lamp flashes and a brief
continuous signal tone is heard
> when the PDC system is actived via
the button
> when you first select reverse or move
the selector lever into the "R" posi-
tion after switching on the ignition
> when there is a malfunction while the
PDC system is active.
Switch the system off and have the
cause of the malfunction corrected by
your BMW center.
Park Distance Control (PDC)*
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
101n
Park Distance Control (PDC)*
The PDC does not remove the
driver's personal responsibility
for evaluating the distance between the
vehicle and any obstacles. Even when
sensors are involved, there is a blind
spot in which objects cannot be de-
tected. This applies especially in those
cases where the system approaches
the physical limits of ultrasonic mea-
surement, as occurs with tow bars and
trailer couplings, and in the vicinity of
thin and painted objects.
Certain sources of sound, such as a
loud radio, could drown the PDC signal
tone.<
Keep the sensors clean and free
of ice or snow in order to ensure
that they continue to operate effectively.
Do not apply high pressure spray to the
sensors for a prolonged period of time.
Maintain an adequate distance of more
than approx. 4 in (10 cm).<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
102n
ASC+T/DSC*
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC)
*
These systems contribute to additional
vehicle stability, especially during
acceleration and when cornering.
The DSC system enhances the benefits
of the ASC+T. In addition to optimizing
vehicle stability and traction during
acceleration or when starting from a
standstill, a further benefit is realized in
cornering. This, of course, is true only
within physically feasible limits.
The system activates automatically
each time you start the engine.
To deactivate the system
Press the button (arrow). The indicator
lamp will come on.
Depending on equipment options, the
button is marked with ASC or DSC.
With deactivated ASC+T/DSC you are
driving with conventional, unregulated
torque transfer.
In the following exceptional situations,
it may be effective to deactivate the
ASC+T/DSC for a brief period:
> When rocking the vehicle or starting
off in deep snow or on loose sur-
faces.
> When driving with snow chains.
Refer also to page 147.
390us716
Indicator lamp
The indicator lamp in the instru-
ment cluster goes out shortly
after you switch on the ignition.
Refer to page 24.
Indicator lamp flashes:
The system is active and governs drive
and braking forces.
If the indicator lamp fails to go out after
the engine is started, or if it comes on
during normal driving:
There is a system malfunction or the
system was deactivated with the but-
ton. You can still drive the vehicle
normally without ASC+T/DSC. Please
consult your BMW center for repairs.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
103n
ASC+T/DSC* Tire Pressure Control (RDC)*
To reactivate the system
Press the button again; the indicator
lamp goes out.
The laws of physics cannot be
repealed, even with ASC+T/DSC.
An appropriate driving style always
remains the responsibility of the driver.
We therefore urge you to avoid using
the additional safety margin of the
system as an excuse for taking risks.<
For additional details concerning
ASC+T/DSC, please refer to the
chapter describing "Advanced
technology" on page 207.
The concept
RDC monitors the tire pressures at all
four wheels, even when the vehicle is
moving. The system provides an alert
whenever the inflation pressure drops
significantly below the specified pres-
sure in one or more tires.
In order for the system to "learn" the
correct tire inflation pressure, check the
inflation pressure in all tires. Refer to
the table of "Tire inflation pressures"
beginning on page 29 and make any
necessary corrections. Then activate
the system.
This indicator lamp in the in-
strument cluster or the Check
Control will inform you if the
tire pressure is not correct.
Activate the system
1 Turn the ignition key to position 2 (do
not start the engine).
2 Press and hold the button (arrow) un-
til the yellow indicator lamp in the in-
strument cluster comes on for a few
seconds or the message "SET TIRE
PRESSURE" appears in the Check
Control.
3 After you have driven for a few min-
utes, the RDC will import the current
inflation pressure in the tires as the
target values which the system will
monitor.
You will only have to repeat this proce-
dure if the tire inflation pressure must
be corrected. Otherwise, the RDC func-
tions automatically when the ignition
key is in position 2, and thus operates
whenever the vehicle is driven.
390de320
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
104n
Tire Pressure Control (RDC)*
Loss of tire pressure
If, after a certain period of time, the air
pressure has gone down significantly
(which is normal for any tire), the yellow
indicator lamp comes on or the mes-
sage "CHECK TIRE PRESSURE" ap-
pears in the Check Control.
This alerts you that you should have the
tires inflated to the specified pressures
as soon as possible.
If you are prompted to check the
tire pressure shortly after a cor-
rection has been made, this indicates
that the corrected values were not ac-
curate. Please check the inflation pres-
sure again and make corrections ac-
cording to the inflation pressure table.<
Flat tire
If there is a tire failure with a loss of air
pressure, the red indicator lamp comes
on or the message "TIRE DEFECT" ap-
pears in the Check Control. In addition,
a gong sounds.
If this occurs, reduce vehicle speed im-
mediately and stop the vehicle in a safe
location. Avoid hard brake applications.
Do not oversteer. Replace the flat tire.
The spare tire which is available in
your vehicle as standard equip-
ment is equipped with the electronics
required for RDC and, following activa-
tion of the system, is also monitored af-
ter it is mounted.<
The RDC cannot alert you to se-
vere and sudden tire damage
caused by external factors.<
Have the tires changed by your
authorized BMW center.
Your BMW center has the information
needed for working with RDC and is
equipped with the necessary special
tools.<
System interference
During the period of the malfunction,
the yellow indicator lamp comes on
or the message "TIRECONTROL
INACTIVE" appears in the Check
Control.
You will also see the same message
> in the event of a system fault
> if a wheel is mounted without the
RDC electronics
> if, in addition to the spare tire,
additional wheels with RDC
electronics are on board.
Please contact your BMW center for
additional information.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
105n
Parking lamps
(side marker lamps)
With the switch in this position,
vehicle lighting is illuminated on
both sides. For lighting on one
side for parking as an additional fea-
ture, refer to page 106.
Low beams/Xenon lamps*
When the ignition is switched off
and the low beams are on, only
the parking lamps (side marker
lamps) remain on.
390de034
"Follow-me-home lighting:"
If you actuate the headlamp
flasher after you have parked the
vehicle and shut off the engine, the low
beams will remain on for a brief period.
You may also have this function deacti-
vated if you wish.<
Xenon lamps*
For additional details, refer to
page 184.
"LIGHTS ON" warning
In ignition key position 0, a buzzer
sounds for a few seconds after the
driver's door is opened if the head-
lamps have not been switched off
.
On vehicles with alphanumeric
Check Control
*:
The reminder is given through the
Check Control.
Daytime-driving lamp*
The headlamps are automatically
switched on for daylight driving at
ignition key position 2.
Turn the rotary dial to adjust the illumi-
nation intensity.
390de036
Parking lamps/Low beams Instrument lighting
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
106n
High beams/Parking lamps
Fog lamps Interior lamps
1 High beam (blue indicator lamp)
2 Headlamp flasher
(blue indicator lamp)
3 Parking lamps
Parking lamp, left or right
As an additional feature, you can
illuminate your vehicle on either side
for parking, if you wish to do so:
With the ignition key in position 0, push
the lever in the appropriate direction.
The lever engages in the turn signal
position.
390de335
Front fog lamps
A green indicator lamp comes
on in the instrument cluster to
indicate that the front fog lamps
are on.
If the high beam is switched on, the fog
lamps go out.
390us037
The interior lamps operate automati-
cally.
Switching interior lamps on
and off
Press the button (arrow).
If you want the interior lamps to remain
off at all times, press and hold the
button for approx. 3 seconds.
Press the button briefly to revert to
normal operation.
The luggage compartment lamps in
the sport wagon function in the same
manner.
390de638
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
107n
Interior lamps Reading lamps
Footwell lamps
The footwell lamps operate in the same
way as the interior lamps.
The reading lamps are located in the
front near the interior lamp. There are
also reading lamps in the rear. They can
be switched on and off with the switch
(arrow) adjacent to each lamp.
In order to conserve the battery,
all of the lamps in the vehicle
are switched off automatically approx.
15 minutes after the ignition key is
turned to position 0.<
394de301
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
108n
390us706
Air conditioner
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
109n
Air conditioner
1 Air flow directed toward the wind-
shield and side windows
2 Air flow for the upper body
The side rotary dials allow you to
open and close the air supply over
an infinitely-variable range, while
the levers change the airflow direc-
tion. The center rotary dial controls
the temperature of the air as it flows
out, refer to page 111
3 Front footwell ventilation
4 Rear footwell ventilation
5 Airflow for the upper body in
the rear 111
6 Temperature 110
7 Air distribution toward
> the windows
> the upper body
> the footwell
All intermediate settings are
possible. Refer to page 110
8 Air supply 110
The climate control is active when
the blower is switched on
9 Rear window defroster 110
10 Cooling 110
11 Recirculated air mode 111
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
110n
Air conditioner
Tips for a pleasant driving
experience
Temperature 6 is recommended for a
comfortable setting at 707 (226).
Turn the air distribution 7 to the
"6 o'clock" position. Adjust the air sup-
ply 8 to the center setting. Set the out-
lets 2 so that the air flows past you and
is not directed straight at you. Set the
rotary dial between the outlets 2 for the
upper body to a central position so that
cooler air helps prevent fatigue during
the journey.
The following description will lead you
through additional individual adjust-
ments.
Temperature
The graduations on the dial
provide general reference val-
ues for the interior tempera-
ture. We recommend 707
(226) as a comfortable setting. When
you start the vehicle, this system ad-
justs the air to the selected temperature
as quickly as possible, and then main-
tains that temperature constantly.
Air distribution
You can direct air to flow onto
the windows , toward the
upper body and into the
footwell . You can also
select all intermediate settings. In the
setting, there is a low flow of air onto
the windows to keep them free of con-
densation. The "6 o'clock" setting is
recommended for normal conditions
(refer to the illustration and overview on
page 108).
Air supply
You can adjust the air supply
over an infinitely-variable
range. The heating and venti-
lation become increasingly
effective as the air supply settings are
increased. In the "0" setting, the blower
and climate control are switched off
and the outside air supply is blocked.
Rear window defroster
When the rear window de-
froster is activated, the indi-
cator lamp comes on. The rear window
defroster switches off automatically.
Cooling
The air is cooled and dehu-
midified and – depending on
the temperature setting – warmed again
with the air conditioner system
switched on. Depending on the
weather, the windshield may fog over
briefly when the engine is started.
Switch off the air conditioner at outside
temperatures below approx. 427
(56). This will help to prevent the
windows from fogging up.
If the windows fog over after switching
the air conditioner off, switch it back
on.
Condensation forms in the air
conditioner system during opera-
tion, which then exits under the vehicle.
Traces of condensed water of this kind
are thus normal.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
111n
Air conditioner
Recirculated air mode
If there are unpleasant
odors in the outside air, you
can temporarily block the flow of air.
The system then recirculates the air
currently within the vehicle
If you have a multifunction steering
wheel with the button for recirculated
air, you can also use this button to
switch to the recirculated air mode
(refer to page 25).
If the windows fog over in the re-
circulated air mode, switch the re-
circulated air off and increase the air
supply as required.<
Draft-free ventilation
You can adjust the blower controls for
the upper body area to select the opti-
mum airflow rates and directions for
your personal requirements:
Use the rotary dials 1 to open and close
the air outlets over an infinitely-variable
range. You can adjust the direction of
the airflow using the rotary dial 2.
Set the air outlets so that the air flows
past you and is not directed straight at
you.
Rotary dial 3 allows you to control the
temperature of the airflow from these
outlets as desired:
> Turn toward blue – colder.
> Turn toward red – warmer.
390de051
Rear passenger area ventilation
Rotary dial 1 opens the outlets over an
infinitely-variable range. You can
change the direction of the airflow
with the levers 2.
The air that flows out here is somewhat
cooler than the air delivered to the foot-
well.
390de355
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
112n
Air conditioner
Microfilter
The microfilter removes dust and pollen
from the incoming air. Your BMW cen-
ter will replace it during routine mainte-
nance. A substantial reduction in airflow
indicates that the filter needs to be re-
placed early.
Cooling
1 You can specify an interior tempera-
ture comfortable for you, e.g. 707
(226) by turning the rotary tempera-
ture dial.
2 Switch on the air conditioner.
3 Set the air distribution rotary dial
to .
4 Set the blower/air supply rotary dial
to the middle zone.
5 Open the air outlets for the upper
body.
6 Select a temperature that is
comfortable for you with rotary dial 3.
Refer to "Draft-free ventilation" on
page 111.
390us707
Rapid ventilation
1 You can specify an interior tempera-
ture comfortable for you, e.g. 707
(226), by turning the rotary temper-
ature dial.
2 Switch on the air conditioner and
recirculated air mode.
3 Set the air distribution rotary dial
to .
4 Turn the blower/air supply rotary dial
completely to the right.
5 Open the air outlets for the upper
body.
6 Set rotary dial 3 to cold (blue).
Refer to page 111.
390us708
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
113n
Air conditioner
Rapid heating
1 You can specify an interior tempera-
ture comfortable for you, e.g. 707
(226), by turning the rotary temper-
ature dial.
2 Set the air distribution rotary dial
to .
3 Turn the blower/air supply rotary dial
completely to the right.
4 Close the air outlets in the rear
passenger area.
390us709
To defrost windows and remove
condensation
1 You can specify an interior tempera-
ture comfortable for you, e.g. 707
(226), by turning the rotary temper-
ature dial.
2 Set the air distribution rotary dial
to .
3 Turn the blower/air supply rotary dial
completely to the right.
4 Close the air outlets in the rear
passenger area.
5 Switch on the rear window defroster
to defrost the rear window.
390us710
Heating
When the windows are free of ice and
condensation, we recommend the fol-
lowing settings:
1 You can specify an interior tempera-
ture comfortable for you, e.g. 707
(226), by turning the rotary temper-
ature dial.
2 Set the air distribution rotary dial
to .
3 Set the blower/air supply rotary dial
to the middle zone.
4 Close the air outlets in the rear
passenger area.
390de127390us711
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
114n
390us704
Automatic climate control*
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
115n
Automatic climate control*
1 Airflow directed toward the
windshield and side windows
2 Airflow for the upper body
The side rotary dials provide
infinitely-variable regulation of
the air supply, while the levers
change the airflow direction.
The center rotary dial controls the
temperature of the air as it
flows out 118
3 Front footwell ventilation
4 Rear footwell ventilation
5 Airflow for the upper body in
the rear 118
6 Automatic air distribution 116
7 Individual air distribution 116
8 Temperature control –
left-hand side 116
9 Display for temperature and
air supply 116, 117
10 Temperature control –
right-hand side 116
11 To defrost windshield and
windows 117
12 Air conditioner 117
13 Automatic recirculated air control
AUC 117
14 Rear window defroster 80, 118
15 Air supply 117
16 Maximum cooling 117
Residual heating mode 118
17 Air grill for interior temperature
sensor – please keep clear and
unobstructed
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
116n
Automatic climate control*
Tips for pleasant driving
Use the automatic system, that is,
press AUTO button 6. Select an interior
temperature that is comfortable for you
– we recommend 707 (226). When
the outside temperature is above 417
(56), you can also use the air condi-
tioner 12. This will dry the air and pre-
vent the window from fogging (for ex-
ample if people are wearing damp
clothes in the vehicle). Set the outlets 2
so that the airflows past you and is not
directed straight at you. Set the rotary
dial between the outlets 2 for the upper
body to a central position. This will pro-
vide cooler air, and help to prevent fa-
tigue during the journey.
Detailed setting options are described
for you in the following section.
You can make the settings of your
vehicle in such a manner that,
when you unlock the vehicle with the
remote control of your personal key,
your own personalized setting for the
automatic climate control is initiated.<
Automatic air distribution
The AUTO program assumes
the adjustment of the air
distribution and the air supply for you
and also adapts the temperature to
external influences (summer, winter) to
meet preferences you can specify. This
program maintains a comfortable in-car
climate regardless of the season. Select
an interior temperature that is pleasant
for you – we recommend 707 (226).
The selected temperature and AUTO
for the airflow appear in the display 9.
Refer to the overview on page 114.
Open the ventilation outlets for the
upper body. Switch on the air condi-
tioner 12 in warm weather. The maxi-
mum cooling capacity is achieved when
you set the rotary dial 3 (refer to
page 118) to cold.
Individual air distribution
You can cancel the AUTO
program by selecting specific
distribution patterns to suit
your own individual require-
ments. You can direct air to flow onto
the windows , toward the upper body
and into the footwell .
Temperature
You can make individual
temperature settings on the
driver's side or the front
passenger side. Your settings will be
shown in the display 9. The displayed
temperatures are reference values for
the interior temperature. We recom-
mend 707 (226) as a comfortable
setting, whether the air conditioner is
operating or not. When you start the
vehicle, the system ensures that the
selected temperature is achieved as
quickly as possible. It then maintains
this temperature, regardless of the
season.
Set the rotary dial 3 (refer to "Draft-free
ventilation" on page 118) to a medium
position to provide somewhat cooler
air. This helps to promote driving with-
out fatigue. Make use of this means of
mixing air especially for making minor
adjustments for personal comfort.
You can set uncontrolled heater
output at up to 90 7 (326). Full
cooling output is available from the air
conditioner down to 60 7 (166).<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
117n
Automatic climate control*
Air supply
In the "AUTO" program, the
airflow is controlled automati-
cally. AUTO will appear in the display 9
(refer to the overview on page 114).
Use "+" and "–" to vary the airflow.
When your setting is displayed by bars,
the automatic airflow is switched off.
Automatic air distribution maintains its
setting. You can reactivate the auto-
matic airflow by pressing the "AUTO"
button.
When you press "–" during operation at
minimum blower speed all displays are
canceled: the blower, heating and air
conditioner are switched off. The out-
side air supply is closed. By pressing
any button of the automatic climate
control (except the "MAX" button 16),
you can switch the system back on.
To defrost windshield and
windows
This program quickly re-
moves ice and condensation
from the windshield and the side win-
dows.
Air conditioner
The air is cooled and dehu-
midified and – depending on
the temperature setting – warmed again
when the air conditioner system is
switched on. Depending on the
weather, the windshield may fog over
briefly when the engine is started.
Use the button to switch off the air con-
ditioner at outside temperatures below
approx. +417 (+56). This will help to
prevent the windows from fogging up.
If the windows fog over after switching
the air conditioner off, switch it back
on.
Condensation forms in the air
conditioner system during opera-
tion, which then exits under the vehicle.
Traces of condensed water of this kind
are thus normal.<
Maximum cooling
You will get maximum
cooling capacity using this
program if the engine is running and
the outside temperature is above
+41 7 (+5 6).
The temperature display 9 jumps to
+61 7 (+16 6), the system switches
over to the recirculated-air mode, and
the air will only stream out of the venti-
lation grill with the maximum amount of
air flow. That is why you need to keep
these open if you select this program.
Automatic recirculated-air
control (AUC)
You can respond to unpleas-
ant external odors by tempo-
rarily stopping the flow of outside air.
The system then recirculates the air
currently within the vehicle. Press the
button repeatedly to run through the
following control sequence:
> Indicator lamps off: outside airflow
operational.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
118n
Automatic climate control*
> Left-hand indicator lamp on – AUC
mode: the system recognizes pollut-
ants in the outside air and blocks the
flow of air when necessary. The sys-
tem then recirculates the air currently
within the vehicle.
Depending on the air quality, the au-
tomatic system then switches back
and forth between outside air supply
and recirculation of the air within the
vehicle.
> Right-hand indicator lamp on: the
flow of external air into the vehicle is
permanently blocked. The system
then recirculates the air currently
within the vehicle.
If you have a multifunction steering
wheel with the recirculated-air button
(refer to page 25), you can also use it to
switch between "Off" and the recircu-
lated-air mode or AUC and the recircu-
lated-air mode.
If the windows should fog over in
the recirculated air mode, switch
the recirculated air mode off and in-
crease the air supply as required.<
Rear window defroster
When the rear window de-
froster is activated, the indica-
tor lamp comes on. The rear window
defroster switches off automatically.
Residual heating mode
The heat which is stored in
the engine is utilized for
heating the interior when the engine
has been switched off (while waiting at
a railroad crossing, for instance).
In ignition key position 1, you can alter
the settings of the automatic climate
control. In ignition key position 0, the
system automatically directs heated air
to the windshield, side windows and
footwells.
This function may be activated
when the outside temperature is
below approx. 597 (156), the engine
is at operating temperature, and the
battery is adequately charged. The LED
on the button will light up when all con-
ditions have been met.<
Draft-free ventilation
You can adjust the blower controls for
the upper body area to select the opti-
mum airflow rates and directions for
your personal requirements:
Use rotary dial 1 to open and close the
airflow through an infinitely-variable
range. You can also use the levers 2 to
change the direction of the airflow.
Set the outlets so that the air flows past
you and does not flow directly onto you.
Rotary dial 3 allows you to adjust the
airflow from these outlets by adding
heat or cooling as desired:
Turn toward blue – colder.
Turn toward red – warmer.
390de051
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
119n
Automatic climate control
*
Seat heating*
Rear passenger area ventilation
Rotary dial 1 opens the outlets in an in-
finitely-variable range. You can vary the
temperature of the air as it flows out us-
ing rotary dial 3 in the same manner as
for the front rotary dial.
You can change the direction of the air-
flow with levers 2.
390de354
Microfilter, activated-charcoal
filter
The microfilter removes dust and pollen
from the incoming air. The activated-
charcoal filter provides additional
protection by filtering gaseous pollut-
ants from the outside air. Your BMW
center replaces this combined filter as a
standard part of your scheduled main-
tenance. A substantial reduction in air-
flow indicates that the filter must be
replaced before scheduled mainte-
nance.
The seat cushion and backrest can
be heated with the ignition key in posi-
tion 2.
You can call up different heating modes
by repeatedly pressing the keys.
The highest heating mode is on when
the three indicator lamps are lit; one
lamp is lit for lowest heating. Tempera-
ture regulation in each mode is with a
thermostat.
You can also switch the higher heating
modes off directly:
Press the key and hold it slightly longer.
390us717
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
120n
Steering wheel heating* Roller sun blind* Independent ventilation*
To activate and cancel the steering
wheel heater, press the button (arrow)
with the ignition key in position 2.
The lamp within the button lights up
when the steering wheel heater is in
operation.
If you have a multifunction steering
wheel without steering wheel heating,
the button for the recirculated-air mode
is in this location (refer to page 25).
390de656
To operate, press the key briefly with
the ignition key in position 1 or 2.
Roller sun blinds for rear side
windows
*
Use the strap to extract the blinds, then
hook them in the attachment provided.
390us718
This system allows you to ventilate the
interior and lower its temperature, using
the blower of the automatic climate
control.
The independent ventilation system is
operated via the Multi-Information Dis-
play (MID) – refer to page 94 – or the
onboard monitor. Refer to the separate
Owner's Manual.
You can set two different times for the
system to start; it will remain active for
30 minutes. You can also turn it on and
off directly. Since the system uses a
substantial amount of electrical current,
you should not activate it twice in suc-
cession without allowing the battery to
be recharged in normal operation
between use.
When a preselected activation time is
set, the independent ventilation system
is operational at outside temperatures
above 607 (166), or by direct switch
activation. It cannot be switched on
when the vehicle is moving.
The air emerges via the vent outlets for
the upper body. Therefore, the vents
must be open for the system to oper-
ate.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
121n
The concept
The BMW Universal Transmitter re-
places up to three hand-held transmit-
ters that control different devices such
as a garage door opener, alarm sys-
tems or a door locking system. The
BMW Universal Transmitter recognizes
and "learns" the transmitted signal from
each of the original hand-held transmit-
ters.
The signal of an original hand-held
transmitter can be programmed to one
of three channel buttons. Following
that, each of the devices can be oper-
ated with the channel button that you
have programmed for it. A transmission
of the signal is indicated by the indica-
tor lamp.
Before you sell your vehicle, the pro-
grammed channel buttons should be
cleared. Refer to page 123 for the de-
scription of this process.
To prevent potential injuries or
damage during the programming
operation and before every remote trig-
gering of a programmed device using
the BMW Universal Transmitter, be sure
that there are no persons, animals or
objects within the range of movement
of the respective device.
Read and comply with the safety in-
structions for the original hand-held
transmitter also.<
To Canadian residents:
During programming, your hand-
held transmitter may automatically stop
transmitting after two seconds. This
may not be long enough to program the
BMW Universal Transmitter. If you are
programming from one of these hand-
held transmitters, the Universal Trans-
mitter's lamp may begin to flash in a se-
ries of double flashes. If this occurs,
continue to hold the button on the Uni-
versal Transmitter while you reactivate
your hand-held transmitter. You may
have to repeat this function several
times while programming.<
Before programming, read the
"User's information" section on
page 123.<
The original hand-held transmitter
If this symbol is depicted on the
packaging or in the user's in-
structions for the original hand-
held transmitter, it may be assumed
that this original hand-held transmitter
is compatible with the BMW Universal
Transmitter.
Checking for the change code
In order to determine whether the origi-
nal hand-held transmitter is equipped
with a change code system, you may
either refer to the instructions for the
original hand-held transmitter or pro-
gram a channel button as described in
the left column on page 122 under
"Programming."
Following that, press and hold the pro-
grammed channel button of the BMW
Universal Transmitter. If the indicator
lamp of the BMW Universal Transmitter
flashes rapidly for two seconds and
then stays on continuously, the original
hand-held transmitter is equipped with
a change code system. If the change
code system is available, program the
channel buttons as described in the
right-hand column on page 122 under
"Programming a hand-held transmitter
with change code."
If you have additional questions,
please consult your BMW center
or call 1-800-355-3515.<
BMW Universal Transmitter*
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
122n
BMW Universal Transmitter*
Programming
1 Channel buttons
2 Indicator lamp
3 Receiver for programming
Read and comply with the safety
precautions on page 121.<
1 Ignition key in position 2.
2 For initial operation: press and hold
the two outer buttons 1 until the indi-
cator lamp 2 flashes. Release the
buttons. The three channel buttons
are cleared.
390de640
3 Hold the original hand-held transmit-
ter at the receiver 3 a maximum of
2 in (5 cm) away.
4 Simultaneously press the transmitting
key of the original hand-held trans-
mitter (arrow 2) and the desired chan-
nel button of the BMW Universal
Transmitter (arrow 1). Release both
buttons as soon as the indicator lamp
flashes rapidly.
5 To program other original hand-held
transmitters, repeat steps 3 and 4.
The corresponding channel button is
now programmed with the signal of the
original hand-held transmitter.
380de712
Programming a hand-held
transmitter with change code
Read and comply with the safety
precautions on page 121.<
Consult the operating instructions for
the individual device when program-
ming the BMW Universal Transmitter.
Read and comply with the following
programming instructions for the use of
the BMW Universal Transmitter with a
change code system:
A second person simplifies pro-
gramming of the BMW Universal
Transmitter.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
123n
BMW Universal Transmitter*
1 Program the BMW Universal Trans-
mitter as described above under
"Programming."
2 Press and hold the programming but-
ton on the receiver of the device for
about two seconds or until the pro-
gramming lamp on the device comes
on.
3 Press the desired channel button of
the BMW Universal Transmitter three
times.
If you have additional questions,
please consult your BMW cen-
ter.<
Clearing the channel buttons
Read and comply with the safety
precautions on page 121.<
Individual channel buttons cannot be
cleared. However, the three channel
buttons can be cleared together in the
following manner:
> Press and hold the two outer channel
buttons of the BMW Universal Trans-
mitter until the indicator lamp flashes,
and then release the buttons.
All channel buttons are cleared.
User's information
Do not use this BMW Universal Trans-
mitter with any garage door opener that
lacks safety "stop" and "reverse" fea-
tures as required by federal safety stan-
dards (this includes any garage door
opener model manufactured before
April 1, 1982).
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any inter-
ference received, including interference
that may cause undesired operation.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
124n
Glove compartment Storage facilities
To open
Pull the handle and the lamp comes on.
To close
Fold the cover up.
To lock
Use one of the master keys to lock the
vehicle. A master key is also required
for unlocking.
For example, if you turn over only
your door and ignition keys for va-
let parking (refer to page 36), access to
the glove compartment is not possi-
ble.
<
390de060
To prevent injury in the event of an
accident, close the glove com-
partment immediately after use.
<
Rechargeable flashlight
*
Located on the left-hand side of the
glove compartment.
Features integral overload-protection,
so it can be left in its holder continu-
ously.
Be sure that the flashlight is
switched off when it is inserted
into its holder. Failure to comply with
this precaution could lead to over-
charging and damage.
<
The cover of the storage compartment
on the vertical surface of the center
console can be pushed open or closed
(illustration). If your vehicle is equipped
with a cassette holder
*
,
open each
cassette compartment by pressing on
the small button.
Storage compartment on the center
console between the front seats: to
open, reach into the recess at the front
and pull upward.
You will find a coin holder in the door
pocket on the driver's side.
You will find additional storage com-
partments in all of the doors as well as
on the backrests of the front seats.
390de043
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
125n
Cellular phone* Beverage holder*
Handsfree system
On vehicles with a telephone hookup*,
the handsfree speaker is positioned in
the headliner.
For further information on the cellular
phone, refer to the separate Owner's
Manual.
390de639
Two holders for canned drinks have
been provided in the front center con-
sole (illustration).
Press to open; fold back inward to
close.
390us719
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
126n
Ashtray, front Cigarette lighter*
To open
Press briefly in the direction indicated
by the arrow.
To extinguish a cigarette, tap off the
ash and gently press the tip into the
funnel.
390de061
To empty
Open the lid and press down (arrow):
You can now pull the ashtray upward
for removal.
On vehicles equipped for non-
smokers, the insert is removed in
the same way.
390de062
Press the cover panel for access
(arrow), then push the lighter down.
As soon as the lighter jumps back out, it
can be removed
Hold or touch the hot cigarette
lighter by the knob only. Holding
or touching it in other areas could result
in burns.
The cigarette lighter remains opera-
tional when the ignition key has been
removed. Therefore, do not leave
unsupervised children in the vehicle.<
390us720
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
127n
Cigarette lighter* Ashtray, rear
Cigarette lighter socket
Suitable for attaching power supplies
for flashlights, car vacuum cleaners,
etc., up to a rating of approx. 200 watts
at 12 volts. Avoid damage to the socket
caused by inserting plugs of different
shapes or sizes.
Non-smoker's equipment
package
On vehicles with the non-smoker's
equipment package, the socket is
concealed by a cover.
For access to the socket: lift off the
cover.
To open
Press the recess in the lid.
To empty
Press the edge of the cover (arrow).
You can now pull the ashtray upward
for removal.
390de063
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
128n
Through-loading system*
The backrest of the rear seat is divided
into two portions, one-third and two-
thirds of the seat respectively. For stor-
ing longer objects, you can fold down
either side individually.
To open:
Reach into the recess and pull forward
(arrow 1).
When you close the backrest, be sure
that the catch engages securely. The
red slide (arrow 2) must go underneath.
394de117
The central belt has an additional small
buckle.
> If you connect the two belt sections,
you can use the central belt as any
normal 3-point belt.
> It is easier to fold the rear seat back-
rest up and down if you unbuckle the
belt (arrow).
394de303
With a master key, you can lock each
backrest in the rear seat.
This also prevents access to the lug-
gage compartment from the interior of
the vehicle when you turn over the door
and ignition key 3 to someone else
(refer to page 36), for valet parking for
instance.
394de118
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
129n
Ski bag*
Designed for safe, convenient transport
of up to 4 pairs of standard skis or up to
2 snowboards.
The length of the ski bag and the addi-
tional space provided in the luggage
compartment make it possible to carry
skis with a length of up to 6.8 ft
(2.10 meters). Because of the tapered
shape of the bag, the ski bag can only
accommodate two pairs of skis with a
length of 6.8 ft (2.10 meters).
Removing the center armrest
(Not for vehicles with the through-load-
ing system and for the sport wagon.
Refer to page 131.)
1 Fold the center armrest completely
outward.
2 Loosen the trim from the upper
Velcro® fastener and place it on the
armrest.
3 Grasp the front of the armrest with
one hand, then use your other hand
to reach down behind the armrest
and pull up sharply (arrow).
394de067
Installing the center armrest
Guide the armrest into position from
above, then apply pressure until you
hear it snap into position.
When removing and installing the
center armrest, be sure that the
seat covers are not damaged by the
side pins.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
130n
Ski bag*
Loading
1 Press the release button (arrow 1) to
unlock the cover panel in the luggage
compartment.
2 Press the detent levers (arrows 2) in-
ward and fold the cover to the front.
3 Extend the ski bag between the front
seats. The zipper provides conve-
nient access to the inside of the bag,
and can also be left open to promote
drying.
394de068
4 Use the magnetic retainers to attach
the cover panel to the upper surface
(metal surface below rear tray) of the
luggage compartment.
To store the ski bag, perform the above
steps in reverse sequence.
An unsecured ski bag could lead
to loss of vehicle control and in
case of an accident to personal injury.<
380de069
Secure the bag's contents by
tightening down the attached
strap at the buckle.<
Please ensure that the skis are clean
before loading them into the bag. Take
care to avoid damage from sharp edges.
380de070
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
131n
Ski bag*
With through-loading system
1 Fold the center armrest outward.
Loosen the trim from the upper
Velcro® fastener and place it on the
armrest.
2 Press button 1 downward and swing
the cover forward.
3 Press knob 2: the cover in the
luggage compartment is unlocked.
394de119
In the sport wagon
1 Fold the center armrest outward.
Loosen the trim from the upper
Velcro® fastener and place it on the
armrest.
2 Press button 1 downward and swing
the cover forward.
3 Press button 2: the cover in the lug-
gage compartment is unlocked.
392de176
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
132n
Luggage compartment – sport wagon
Fold down the rear backrests
Reach into the recess and pull upward
(arrow).
The rear backrest is divided into two
sections, one-third and two-thirds of
the seat respectively. You can fold ei-
ther section of the backrest down sepa-
rately in order to increase luggage com-
partment capacity.
When you close the backrest, be
sure that the catch engages se-
curely. The red warning indicator disap-
pears in the recess when the retainer is
locked.
The center safety belt can be retracted
only when the larger backrest is en-
gaged.<
392de161
Roll-up cover
Pull the roll-up cover out and hook it
into the rear bracket.
The cover will support light objects
such as items of clothing.
Do not place heavy or bulky
objects on the roll-up cover,
otherwise, they could endanger occu-
pants while braking hard, during eva-
sive maneuvers, or in an accident, for
example.
Do not allow the cover to snap back,
since this could damage it.<
For storing the case, refer to the next
page.
392de162
Partition net
Pull out the partition net by the strap
and hold the bar firmly in the other
hand. Then grasp the bar on both sides,
pull it up and engage it in the holders. It
is easiest to do this from the back seat.
Do not allow the partition net to
snap back. Doing so could pose a
risk of injury and the partition net could
be damaged.<
When the rear backrests are folded
down, you can store the case in front of
the rear seats, pull the partition net out
from there and insert it in the front hold-
ers (refer to the next page).
392de163
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
133n
Luggage compartment – sport wagon
Removing the roll-up cover and
partition net
1 Press on the buttons (arrow 1) to re-
lease the case on both sides.
2 Holding the case straight, pull out to
the rear (arrow 2).
Installation
Simply slide the case forward in the two
side holders until it engages.
392de164
Storage
There are holders for the case in front
of the rear seats.
Guide the case in from the side as
shown in the illustration. The strap of
the partition net must be directed up-
ward, while the end of the roll-up cover
must be laid around and under the case
to the rear.
You can pull the partition net out and
insert it in the holders above it in the
upper roof area.
392de165
Side covers
Open the side covers by pressing the
button.
392de166
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
134n
Luggage compartment – sport wagon
Floor compartment
To open: press the handle in the recess
and fold the cover upward on the han-
dle (large arrow).
You can lock the cover with a master
key.
The dividers in the compartment can be
rearranged. If you remove the divider
and turn the divider retainer to the left
and remove it, you have a level storage
compartment.
392de167
Fold up the floor panel
Lift up the black retainer on the lower
side of the panel and hook it into the
upper frame of the tailgate cutout.
Before you fold the floor panel down,
return the retainer to its original posi-
tion.
392de168
Fold up the spare tire cover
Lift up the cover and hook it into the red
retainer on the floor panel (arrow).
Before you fold the cover down, return
the retainer to its original position.
392de169
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
135n
Luggage compartment – sport wagon
Raise the cargo floor
For access to the compartment under
the floor or to the spare tire, etc.:
> Raise the cargo floor and secure it
with the support rod (arrow).
> Open the quick-release fasteners on
the spare tire cover.
392de175
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
136n
Cargo loading
Stowing cargo
When transporting loads in your BMW:
> Position heavy loads as far forward
as possible – directly behind the
backrests or the luggage compart-
ment partition panel – and at the bot-
tom (the illustration shows the sport
wagon).
> Cover sharp edges and corners
> Do not pile objects higher than the
top edge of the backrest.
> Pull out the partition net
* (refer to
page 132) and ensure that carried
items cannot pass through the parti-
tion net.
> For very heavy loads when the rear
seat is not occupied, secure each
safety belt in the opposite buckle.
392de177
Securing the load
> Secure smaller, light pieces with the
retaining straps or a luggage net
*, or
use elastic straps (refer to page 46).
> For large, heavy pieces, visit your
BMW center for load-securing de-
vices
*. Lashing eyes are provided at
the corners of the luggage compart-
ment for attaching these load-secur-
ing devices (the illustration shows the
sport wagon).
> Comply with the information en-
closed with the load-securing de-
vices.
392de178
Always position and secure the
load correctly, otherwise it can
endanger the passengers during brak-
ing or evasive maneuvers.
Do not exceed the permissible gross
vehicle weight and the permissible axle
loads (refer to page 221). If you do, the
operating safety of the vehicle is no
longer ensured and you are in violation
of the law.
Do not carry hard or heavy objects
unsecured in the passenger compart-
ment. If you do so, they may be pro-
jected through the air during braking
and evasive maneuvers, thus endan-
gering vehicle occupants.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
137n
Roof-mounted luggage rack
Mounting points
Access to the mounting points:
To fold up the cover (arrow), please use
the tool which is provided with the lug-
gage system.
A special luggage system is available
as an option for your BMW. Please
comply with the precautions included
with the installation instructions.
Because roof racks raise the center of
gravity of the car when loaded, they ex-
ercise a major effect on its handling and
steering response.
394de369
You should therefore always remember
not to exceed the approved roof
weight, the approved gross vehicle
weight or the axle weights when load-
ing the rack. You will find the specifica-
tions under "Technical data" on
page 221.
Make sure that the load is not too bulky,
and attempt to distribute it evenly.
Always load the heaviest pieces first (on
the bottom). Be sure that adequate
clearance is maintained for raising the
sliding/tilt sunroof, and that objects do
not project into the opening path of the
luggage compartment lid/tailgate.
Secure the roof luggage correctly and
tightly to prevent it from shifting or be-
ing lost during driving (danger to follow-
ing traffic).
Drive smoothly. Avoid sudden accelera-
tion and braking maneuvers. Take cor-
ners gently.
The roof load increases aerodynamic
resistance: increased fuel consumption
and stress on the roof are the immedi-
ate results.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
138n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index
Advanced technology
139n
Special operating instructions:
Break-in procedure 140
Driving notes 141
Catalytic converter 142
Antilock Brake System
(ABS) 143
Disc brakes 144
Brake system 146
Winter operation 146
Power steering 148
Level control system 148
Cellular phone 149
Radio reception 149
Wheels and tires:
Tire inflation pressure 150
Tire condition 150
Tire replacement 151
Tire rotation 152
Wheel and tire
combinations 153
Winter tires 154
Snow chains 155
Approved wheel and tire
specifications 156
Under the hood:
Hood 159
Engine compartment 160
Washer fluids 164
Washer nozzles 164
Engine oil 165
Coolant 167
Brake fluid 168
Vehicle Identification
Number 169
Care and maintenance:
The BMW Maintenance
System 170
Caring for your car 171
Airbags 176
Vehicle storage 176
Laws and regulations:
Technical modifications 177
California Proposition
65 Warning 177
OBD interface socket 178
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
140n
Break-in procedure
To ensure that your vehicle provides
maximum economy throughout a long
service life, we request that you ob-
serve the following.
Engine and differential
Up to 1,200 miles (2,000 km):
Drive at varying engine speeds and
road speeds, but do not exceed
4,500 rpm and the following road
speeds during this initial period:
BMW 525i, 530i: 100 mph (160 km/h)
BMW 540i: 106 mph (170 km/h)
Obey your local and state maximum
speed limits.
Refrain from using full throttle and avoid
pressing the accelerator beyond the
kickdown point.
Once you have driven 1,200 miles
(2,000 km), engine and vehicle speeds
can gradually be increased.
You should also comply with these
break-in procedures if the engine or dif-
ferential is replaced later in the course
of the vehicle service life.
Tires
Due to technical factors associated
with their manufacture, tires do not
achieve their full traction potential until
an initial break-in period has elapsed
for this reason, drive with extra care
during the initial 200 miles (300 km).
Obey your local and state maximum
speed limits.
When the vehicle is operated on
wet or slushy roads, a wedge of
water may form between the tire and
the road surface. This phenomenon is
referred to as aquaplaning, or hydro-
planing, and can lead to partial or com-
plete loss of traction, vehicle control
and braking effectiveness. Reduce your
speed on wet roads.<
Brake system
Approximately 300 miles (500 km) must
elapse before the brake pads and ro-
tors achieve the optimal pad-surface
and wear patterns required for trouble-
free operation and long service life later
on.
To break in the separate parking brake
drums, apply the parking brake lightly
when coasting to a standstill (at a traffic
signal, for instance), provided that traf-
fic conditions allow you to do so. To
avoid corrosion, repeat this procedure
from time to time.
The brake lamps do not come on
when the parking brake is applied.
Vacuum for the brake system servo unit
on your BMW is available only when the
engine is running. When you move the
car with the engine shut off – when
towing, for instance – substantially
higher levels of pedal force will be
required to brake the vehicle.<
Clutch
The clutch will also begin to function
optimally after about 300 miles
(500 km). Engage the gears carefully
during the break-in period.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
141n
Driving notes
Brakes:
Do not drive with your foot resting
on the brake pedal. Even light but con-
sistent pedal pressure can lead to high
temperatures, brake wear and possibly
even brake failure.
Aquaplaning:
When driving on wet or slushy roads,
reduce road speed. If you do not, a
wedge of water can form between tires
and road surface. This phenomenon is
referred to as aquaplaning or hydro-
planing. It is characterized by a partial
or complete loss of contact between
the tires and the road surface. The ulti-
mate results are loss of steering and
braking control.
Driving through water:
Do not drive through water more than
1 ft (30 cm) deep. Drive only at walking
speed. Driving at a faster speed could
cause damage to the engine, the elec-
trical system and the transmission.
Rear parcel tray:
Do not use the rear parcel tray to store
heavy or bulky objects. They could
pose a danger to the occupants during
braking, evasive maneuvers, or in an
accident.
Clothes hooks:
Hang items of clothing from the hooks
so that they will not obstruct the driver's
vision. Do not hang any heavy objects
on the hooks, as otherwise passengers
could be injured, e.g. during any hard
braking or evasive maneuvers, or dur-
ing an accident.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
142n
Catalytic converter
The catalytic converter reduces harmful
exhaust emissions, and is designed for
use with unleaded fuel only.
Even minute quantities of lead would be
enough to permanently damage both
the catalytic converter and the system
oxygen sensor.
To ensure efficient, trouble-free engine
operation and avoid potential damage:
> Be sure to comply with the scheduled
maintenance requirements.
> Fill the fuel tank well before it is
empty.
> Tow-start the vehicle only when the
engine is cold, since unburned fuel
may otherwise reach the catalytic
converter. It is better to start the vehi-
cle with an outside starting aid.
> Avoid other situations in which the
fuel is not burned, or burns incom-
pletely, such as engaging the starter
frequently or for extended periods, or
repeated start attempts in which the
engine does not start (stopping and
restarting an engine which is running
properly does not present a problem).
Never let the engine run with any of
the spark plug cables disconnected.
Be sure to comply with the in-
structions above to prevent un-
burned fuel from reaching the catalytic
converter. Otherwise there is danger of
overheating and damage to the cata-
lytic converter.
Extreme temperatures occur at the cat-
alytic converter on this and every cata-
lyst-equipped vehicle. Heat shields are
installed adjacent to some sections of
the exhaust system. Never remove
these shields; do not apply undercoat-
ing to their surfaces. When driving,
standing at idle, and parking the vehi-
cle, take care to avoid contact between
the exhaust system and flammable ma-
terials (grass, hay, leaves, etc.). Such
contact could lead to a fire, resulting in
personal injury and property damage.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
143n
Antilock Brake System (ABS)
The concept
ABS enhances active safety by helping
to prevent the wheels from locking un-
der braking. The reason: locked wheels
are dangerous, because the vehicle
cannot be steered when the front
wheels slip, and loss of traction at the
rear wheels can cause the rear end to
break into an uncontrolled skid.
ABS is designed to meet two essential
requirements during every brake appli-
cation:
> To help provide vehicle stability.
> To help retain steering and maneu-
vering capability on all types of road
surface (asphalt, concrete, dirt,
moisture, snow and ice).
With ABS, the shortest possible braking
distances are achieved under most
conditions (on straight-aways and in
curves, with different road surfaces).
Braking with ABS
The system becomes operative once
the vehicle exceeds a speed of approx.
6 mph (10 km/h). The ABS is deacti-
vated whenever the vehicle's speed
drops back below approx. 4 mph
(6 km/h). This means that the wheels
can lock in the final phase of a brake
application – a factor of no significance
in actual use.
The ABS system works best in situa-
tions requiring maximum pressure on
the pedal (full braking). Since the vehi-
cle maintains steering responsiveness,
you can nevertheless avoid possible
obstacles with a minimum of steering
effort.
The ABS closed-loop control circuit cy-
cles in fractions of a second. A pulsing
of the brake pedal, combined with the
sounds associated with the hydraulic
controls, tells you that the brake system
is within its maximum limit range and
reminds you that you should adapt your
vehicle's speed to road conditions.
On road surfaces which have a loose
layer on a firm base (on gravel or snow,
for instance), the braking distances with
ABS may be longer than with the
wheels locked. This also applies to
driving with snow chains. However,
ABS continues to provide enhanced
vehicle stability and steering response
under these conditions.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
144n
Antilock Brake System (ABS) Disc brakes
Information for your safety
Not even ABS can suspend the laws of
physics. The consequences of brake
applications with inadequate safety
clearances between vehicles, exces-
sive speed or if aquaplaning occurs are
always the responsibility of the driver.
You should never allow the added
safety margin of ABS to mislead you
into taking risks of any kind.
Do not make any modifications to
the ABS system.
Service procedures on ABS are to be
performed by authorized technicians
only.<
In the event of a fault
The ABS warning lamp in the in-
strument cluster comes on, refer
to page 23. The brake system
then reverts to conventional op-
eration as on vehicles without
ABS. However, have the brake
system checked by your BMW center
as soon as possible. To prevent unde-
tected defects and cumulative faults
from adversely affecting the brake sys-
tem, refer any problems to your BMW
center at the earliest opportunity.
Disc brakes furnish optimum decelera-
tion and braking control and greater
fade resistance under heavy use.
When the vehicle is driven only occa-
sionally, during extended periods when
the vehicle is not used at all, and in
operating conditions where brake appli-
cations are less frequent, there is an
increased tendency for corrosion of the
rotors and accumulation of contamina-
tion on the brake pads. This occurs
because the minimal pressure which
must be exerted by the pads during
brake applications to clean the rotors is
not reached.
If the brake rotors are corroded, they
will tend to respond to braking with a
pulsating effect which even extended
application will fail to cure.
For your own safety: use only
brake pads that BMW has
approved for your specific vehicle
model. BMW cannot evaluate non-
approved brake pads to determine if
they are suited for use, and therefore
cannot ensure the operating safety of
the vehicle if they are installed.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
145n
Disc brakes
Driving notes
When driving in wet conditions and in
heavy rain, it is effective to apply light
pressure to the brake pedal every few
miles (kilometers). Watch traffic condi-
tions to ensure that this maneuver does
not endanger other road users. The
heat which is generated by the brake
applications helps to dry the brake
pads and rotors.
Maximum braking force is obtained
while the wheels continue to rotate,
peaking when the wheels remain on the
verge of locking without actually doing
so. ABS maintains this state automati-
cally. If the ABS fails, you should revert
to the staggered braking technique
described below (refer to page 147).
Extended or steep mountain descents
should be driven in the gear in which
only minimal periodic brake applica-
tions is required. This avoids excessive
strain on the brakes and possible im-
pairment of the braking effect.
The braking effect of the engine can be
further increased by downshifting, into
first gear, if necessary. In the manual
mode of the automatic transmission,
you can also downshift into first gear.
Refer to page 76.
Should engine braking prove inade-
quate, you should still avoid extended,
continuous braking. Instead of main-
taining low to moderate pressure over
an extended period of time, you should
decelerate by applying more substantial
pressure to the brake pedal (watch for
following traffic!), then releasing the
pedal, then repeating the application.
This staggered braking technique
allows the brakes to cool in the intervals
between active braking phases,
preventing overheating and ensuring
that full braking capacity remains avail-
able at all times.
Do not coast with the clutch de-
pressed or with the transmission
or selector lever in Neutral. Do not
coast with the engine shut off. The
engine provides no braking effect when
the clutch is depressed or the transmis-
sion is in neutral, and there is no
power-assist for braking or steering
when the engine is not running.
Never allow floor mats, carpets or any
other objects to protrude into the area
around the accelerator, clutch and
brake pedals and obstruct their move-
ment.<
Dynamic Brake Control (DBC)*
If you apply the brakes rapidly, this
system automatically produces the
maximum braking force boost and thus
helps to achieve the shortest possible
braking distance during "panic stops."
All of the benefits of the ABS system
are exploited under these circum-
stances.
Do not reduce the pressure on the
brake pedal for the duration of the
brake application. When the brake
pedal is released, the DBC is deacti-
vated.
In the event of a malfunction, the yellow
warning lamp comes on. Conventional
braking efficiency is available without
limitations.
Have the system checked and repaired
at your BMW center as soon as possi-
ble.
For "Information for your safety"
covering the ABS system, refer to
page 144. This information also gener-
ally applies for DBC.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
146n
Brake system Winter operation
Brake fluid level
The warning lamp for the brake
hydraulic system comes on, or
the "CHECK BRAKE FLUID"
message appears in the Check
Control.
The brake fluid level is too low in the
reservoir (refer to page 168).
If the brake fluid level is too low and
brake pedal travel has become notice-
ably longer, there may be a defect in
one of the brake system's hydraulic
circuits.
Proceed to the nearest BMW
center. Higher brake application
pressure may be necessary under these
conditions, and brake pedal travel may
be significantly longer. Please remem-
ber to adapt your driving style accord-
ingly.<
The warning lamp comes on together
with the "CHECK BRAKE PADS" mes-
sage in the Check Control.
Brake pads
The warning lamp for the brake
pads comes on, or the "CHECK
BRAKE LININGS" message
appears in the Check Control:
The brake pads have reached their
minimum pad thickness. Proceed to the
nearest BMW center as soon as possi-
ble to have the pads replaced.
For your own safety: use only
brake pads that BMW has
approved for your specific vehicle
model. BMW cannot evaluate non-
approved brake pads to determine if
they are suited for use, and therefore
cannot ensure the operating safety of
the vehicle if they are installed.<
The onset of winter is often accompa-
nied by rapid changes in weather.
Adaptations in driving style should be
accompanied by preparations on the
vehicle itself to ensure that your vehicle
operation through the winter remains
safe and trouble-free.
Coolant
Ensure that the coolant mixture con-
tains the year-round ratio of 50:50 of
water and antifreeze/corrosion inhibitor.
This mixture provides protection
against freezing down to approx. -347
(-376). Replace the coolant every four
years.
Locks
BMW door lock deicer can be used to
free the locks if they are frozen. This
deicer also contains lubricant.
After using deicer, treatment with BMW
lock barrel grease is recommended.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
147n
Winter operation
Rubber seals and components
In order to prevent the weather-strip-
ping from freezing, apply BMW rubber
treatment or silicone spray to the seals
on the doors, hood and luggage com-
partment lid/tailgate.
A full range of car-care products is
available from your BMW center.<
Snow chains
BMW snow chains* can be mounted on
both summer and winter tires. Mount
them in pairs on the rear wheels only
and comply with the manufacturer's
safety precautions. Do not exceed a
maximum speed of 30 mph (50 km/h).
For maximum traction, we recommend
that you manually deactivate the
ASC+T/DSC
* when driving with snow
chains mounted. Refer to page 102.
Starting off
We recommend that you use the
manual control switch to deactivate
ASC+T/ DSC
* when starting off in deep
snow or when rocking the car to free it
(refer to page 102).
Driving on low-traction road
surfaces
Use smooth, gentle pressure to control
the accelerator pedal. Avoid excessive
engine speeds and shift to the next
higher gear at an early point. Adapt
your speed and driving style when ap-
proaching grades or slopes. Maintain
an adequate distance between yourself
and the vehicle ahead.
Brakes
Winter road conditions substantially
reduce the amount of traction available
between the tires and the road surface.
The resulting increases in braking dis-
tance are considerable and should be
kept in mind at all times.
ABS is intended to prevent the wheels
from locking during brake applications,
thus helping to maintain vehicle stability
and steering response.
If the ABS does not respond in a critical
braking situation and the wheels lock:
reduce the pressure on the brake pedal
until the wheels just start to roll again
while still maintaining enough force to
continue braking.
Following that, increase pedal pressure
again. Reduce the pressure as the
wheels lock, then reapply pressure.
Repeat this procedure.
This type of staggered braking will
reduce the braking distance, and the
vehicle still remains responsive to
steering.
You can then attempt to steer around
hazards after you have reduced pres-
sure on the brake pedal.
Do not shift down on slick road
surfaces. Doing so could cause
the rear wheels to lose traction and
skid, which could result in the loss of
vehicle control.<
Depress the clutch during hard
braking on road surfaces which
provide only poor or uneven traction.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
148n
Winter operation Power steering Level control system*
Skid control
Release the accelerator pedal and
depress the clutch pedal. Countersteer
carefully and attempt to regain control
of the vehicle.
Parking
Engage 1st or reverse gear. If your
vehicle is equipped with an automatic
transmission, place the selector lever in
"Park." On vehicles with manual trans-
mission, also apply the parking brake
when parking on inclined surfaces. In
order to prevent the parking brake pads
from locking due to frost or corrosion,
dry them by gently applying the parking
brake as the vehicle is coming to a
stop. Make sure that following traffic is
not endangered.
The brake lamps do not come on
when the parking brake is
applied.<
If there is a change in steering behavior,
for instance greater steering effort or if
steering becomes lighter as speed
increases in vehicles equipped with
Servotronic
*:
Contact your BMW center for an
inspection.
If the power steering fails,
increased effort will be required
to steer the vehicle.<
The warning lamp for the level
control system comes on, or the
message "LEVEL CONTROL
INACTIVE" appears in the Check
Control
*: there is a malfunction in the
level control system.
Stop and inspect the vehicle. If it is
riding significantly lower in the rear than
in the front, or if it is sitting at an incline
(left rear compared to right rear),
consult the nearest authorized BMW
center. Drive with appropriate caution
in the meantime. The vehicle has
reduced ground clearance or driving
comfort is noticeably reduced.
Even if the attitude of the vehicle is
normal, you should consult the nearest
BMW center if the warning lamp indi-
cates a system fault.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
149n
Cellular phone* Radio reception
Mobile communications systems (cellu-
lar phone, radio, etc.) are permitted
with an output of up to 10 watts only.
Even these systems may trigger mal-
functions in the operation of your vehi-
cle if they are not specifically designed
for use with the vehicle. BMW can nei-
ther test nor assume responsibility for
every individual product being offered
on the market. We recommend that you
consult your BMW center before pur-
chasing any device of this kind.
To ensure that your BMW continues to
provide reliable and trouble-free opera-
tion, do not use a cellular phone or
other radio device with an antenna
located inside the passenger compart-
ment. The antenna should always be
mounted on the outside of the vehicle.
Before loading the vehicle on a
car-carrier train or driving it
through a car wash, remove the
antenna.<
The reception and sound quality
obtained from mobile radios varies
according to a variety of factors, includ-
ing the broadcast range of the transmit-
ter and the directional orientation of the
antenna. Interference factors such as
high-tension power lines, buildings and
natural obstructions can all lead to
unavoidable reception interference,
regardless of how well the vehicle
sound system is operating.
Climatic factors such as intense solar
radiation, fog, rain and snow can also
interfere with reception.
Cellular phones without official BMW
approval can also generate interfer-
ence. This phenomenon assumes the
form of a low-pitched hum emanating
from the speaker system.
Please refer to the Owner's Manual
provided with your audio system for
detailed information on its use.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
150n
Information for your safety
The factory-approved radial tires are
matched to the car and have been
selected to provide optimum safety and
driving comfort on your vehicle.
It is not merely the tire's service life, but
also driving comfort and – above all else
– driving safety which depend on the
condition of the tires and the mainte-
nance of the specified tire pressure.
Incorrect inflation pressure is a frequent
cause of tire damage. It also signifi-
cantly influences the roadholding ability
of your BMW.
Check tire inflation pressures –
including the spare tire – regularly
(refer to page 29), at least every two
weeks and before beginning a longer
trip. If this is not done, incorrect tire
pressures can cause driving instability
and tire damage, ultimately resulting in
accidents.<
Tire tread – tire damage
Inspect your tires frequently for tread
wear, signs of damage and for foreign
objects lodged in the tread. Check the
tread depth.
Tread depth should not be allowed to
go below 0.12 in (3 mm), even though
the legally specified minimum tread
depth is only 0.063 in (1.6 mm). At a
tread depth of 0.063 in (1.6 mm), tread
depth indicators (arrow) in the tread-
groove base indicate that the legally
permissible wear limit has been
reached. Below 0.12 in (3 mm) tread
depth, there is an increased risk of
aquaplaning, even at relatively moder-
ate speeds and with only small amounts
of water on the road.
390de331
Do not drive on a deflated (flat)
tire. A flat tire greatly impairs
steering and braking response, and can
lead to complete loss of control over
the vehicle.
Avoid overloading the vehicle so that
the permitted load on the tires is not
exceeded. Overloading can lead to
overheating and increases the rate at
which damage develops inside the
tires. The ultimate result can assume
the form of a sudden air loss.
Unusual vibrations encountered during
normal vehicle operation can indicate
tire failure or some other vehicle defect,
as can variations in normal vehicle
response, such as a pronounced ten-
dency to pull to the left or right. Should
this occur, respond by immediately
reducing your speed and carefully
proceeding to the nearest BMW center
or professional tire center, or having the
vehicle towed in to have it and its tires
inspected.
Tire damage (up to and including blow-
outs) can endanger the lives of both the
vehicle occupants and other road
users.<
Tire inflation pressure Tire condition
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
151n
Tire replacement
To maintain good handling and vehicle
response, use only tires of a single
tread configuration from a single manu-
facturer. BMW tests and approves
wheel/tire combinations. Refer to
page 153.
DOT Quality Grades
Treadwear
Traction AA A B C
Temperature A B C
All passenger car tires must con-
form to Federal Safety Require-
ments in addition to these grades.<
Treadwear
The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled condi-
tions on a specified government test
course.
For example, a tire graded 150 would
wear one and one-half (1g) times as
well on the government course as a tire
graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm due
to variations in driving habits, service
practices and differences in road char-
acteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B and C.
Those grades represent the tire's ability
to stop on wet pavement as measured
under controlled conditions on speci-
fied government test surfaces of as-
phalt and concrete. A tire marked C
may have poor traction performance.
The traction grade assigned to
this tire is based on straight-
ahead braking traction tests, and does
not include acceleration, cornering, hy-
droplaning, or peak traction character-
istics.<
Temperature
The temperature grades are A (the
highest), B and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.
Sustained high temperature can cause
the material of the tire to degenerate
and reduce tire life, and excessive tem-
perature can lead to sudden tire failure.
The grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal Mo-
tor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels
of performance on the laboratory test
wheel than the minimum required by
law.
The temperature grade for this tire
is established for a tire that is
properly inflated and not overloaded.
Excessive speed, underinflation, or ex-
cessive loading, either separately or in
combination, can cause heat buildup
and possible tire failure.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
152n
Tire replacement Tire rotation
Uniform Tire Quality Grading
Quality grades can be found where ap-
plicable on the tire sidewall between
tread shoulder and maximum section
width. For example:
Treadwear 200 Traction AA
Temperature A
Do not use retreaded tires, since
driving safety may be impaired.
This is due to the possible variations in
casing structures and, in some cases,
to their extreme age, which can lead to
a decrease in their durability.<
Tire age
The date on which the tire was manu-
factured is indicated by the code on the
sidewall:
DOT ... 2600 indicates that the tire was
manufactured in Week 26 of 2000.
BMW recommends the replacement of
all tires when the tires are no more than
6 years old, even if a tire life of 10 years
is possible.
Spare tires over 6 years old should be
used only in case of emergency. Such a
tire should be replaced by a new tire
immediately, and should not be
mounted together with new tires.
Between the axles
The tread wear patterns at the front end
differ from those at the rear – the actual
patterns will vary according to individ-
ual driving conditions. In the interests of
safety and maintaining optimal handling
characteristics, interaxle tire rotation is
not recommended.
If a proposed interaxle rotation of tires
is based on economic considerations,
one should consider whether the costs
for the rotation are likely to be recap-
tured by any increase in the service life
of the tires which might be realized. In
principle, interaxle tire rotation should
be performed at short intervals, with a
maximum of 3,000 miles (5,000 km).
Consult your BMW center for more
information.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
153n
Tire rotation Wheel and tire combinations
Should you decide to rotate the tires, it
is essential to comply with the follow-
ing: rotate tires on the same side only,
since braking characteristics and road
grip could otherwise be adversely
affected.
Following tire rotation, correct the tire
inflation pressure.
If different tire sizes are mounted
on the front and rear axles (refer to
page 156), the wheels may not be
rotated from one axle to the other.<
The right choice
Use only tires approved by BMW.
Refer to the information beginning on
page 156.
Because of the high speeds this vehicle
can reach, the use of specific tire
brands, specifications and dimensions
is mandatory. Consult any BMW center
for details.
Comply with national, state, or province
regulations.
The correct wheel-tire combina-
tion affects different systems such
as ABS, ATC, ASC+T/DSC. The func-
tion of these systems is impaired if im-
proper wheel-tire combinations are
used.
For this reason, use only tires of the
same brand and tread pattern. In the
event of a flat tire if you have mounted
winter tires, for example, remount the
approved wheel-tire combination as
soon as possible.<
Codes on tires and wheels
The tire codes will aid you in selecting
the correct tire.
Codes on radial tires:
The speed rating indicates the ap-
proved maximum speed for the tire.
Summer tires:
S = up to 112 mph (180 km/h)
T = up to 118 mph (190 km/h)
H = up to 130 mph (210 km/h)
V = up to 150 mph (240 km/h)
W = up to 167 mph (270 km/h)
Y = up to 186 mph (300 km/h)
ZR= over 150 mph (240 km/h)
Example:
Nominal width
in mm
Aspect ratio in %
Radial tire code
Rim diameter in inches
Load rating
(not on ZR tires)
Speed rating
(before R on ZR tires)
235/60 R 16 100W
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
154n
Wheel and tire combinations Winter tires
With all-season and winter tires:
Q M+S = up to 100 mph (160 km/h)
T M+S = up to 118 mph (190 km/h)
H M+S = up to 130 mph (210 km/h)
Codes stamped on light-alloy wheels:
Protect valve inserts against dirt using
screw-on valve stem caps. Dirt in the
valves frequently leads to slow leaks.
Example:
Rim width
in inches
Code letter for
flange type
Symbol for full-drop
center rim
Rim diameter in inches
Hump on the 2 rim shoulders
8x16H2J
Choosing the right tire
BMW recommends winter tires (M+S
radial tires) for driving in adverse winter
road conditions. While tires known as
all-season tires (M+S designation) pro-
vide better winter traction than summer
tires with load ratings H, V, W, Y and
ZR, they generally do not achieve the
performance of winter tires.
In the interests of safe tracking and
steering response, install radial tires
made by the same manufacturer and
with the same tread configuration on all
four wheels if you elect to mount winter
tires.
Mount only winter tires which have
been approved by BMW. Any BMW
center will be glad to provide you with
information for selecting the best winter
tires for your particular driving condi-
tions.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
155n
Winter tires Snow chains*
Do not exceed specified
maximum speeds
Never exceed the maximum
speed for which the tires are
rated.
Unprofessional attempts by laymen to
service tires can lead to damage and
accidents.
Have this work performed by skilled
professionals only. Any BMW center
has the required technical knowledge
and the proper equipment and will be
happy to assist you.<
Tire condition, tire pressure
Winter tires display a perceptible loss in
their ability to cope with winter driving
conditions once the tread wears to be-
low 0.16 in (4 mm), and should thus be
replaced.
Comply with the specified tire inflation
pressures – and be sure to have the
wheel and tire assemblies balanced
every time you change the tires.
Storage
Store tires in a cool, dry place, away
from light whenever possible. Protect
the tires against contact with oil, grease
and fuel.
Use narrow-link BMW snow chains
on
summer or winter tires only in pairs and
only on the rear wheels. Comply with all
manufacturer's safety precautions
when mounting the chains.
It is not possible to mount snow
chains on tires with 17-inch
wheels.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
156n
Approved wheel and tire specifications – sedan
Pay attention to the specifications for
tires and wheels in the vehicle's docu-
ments. If sizes not approved by the
manufacturer are mounted, an entry in
the vehicle's documents may be neces-
sary. Comply with local legislation.
Tire specifications Steel rim
(wheel rim)
Light-alloy wheel
BMW 525i
All season tires
225/60 R 15 96 H M+S – 7Jx15
225/55 R 16 95 H M+S – 7Jx16
Summer tires
225/60 R 15 96 W – 7Jx15
225/55 R 16 95 W – 7Jx16
235/45 R 17 94 W/Y – 8Jx17
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/Y
–
–
8Jx17
9Jx17
Winter tires (M+S)
205/65 R 15 94 Q 6.5Jx15
7Jx15
6.5Jx15
7Jx15
225/60 R 15 96 Q 7Jx15 7Jx15
225/55 R 16 95 Q – 7Jx16
235/45 R 17 94 Q – 8Jx16
The use of rims and wheel bolts
that do not meet the specifica-
tions of the original factory-installed
equipment will affect the safe operation
of your vehicle and may cause an acci-
dent and personal injury.
Never mix tires of different design, such
as steel-belted radials with radial bias-
belted or bias-ply tires, etc. Mixing tire
types will adversely affect roadholding
and can lead to loss of vehicle con-
trol.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
157n
Approved wheel and tire specifications – sedan
Pay attention to the specifications for
tires and wheels in the vehicle's docu-
ments. If sizes not approved by the
manufacturer are mounted, an entry in
the vehicle's documents may be neces-
sary. Comply with local legislation.
Snow chains*
For tires on 17-inch wheels, it is not
possible to mount snow chains.
Tire specifications Steel rim
(wheel rim)
Light-alloy wheel
BMW 530i, 540i:
All season tires (BMW 530i, 540iA only)
225/55 R 16 95 H M+S – 7Jx16
Summer tires
225/55 R 16 95 W – 7Jx16
235/45 R 17 94 W/Y – 8Jx17
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/Y
–
–
8Jx17
9Jx17
Winter tires (M+S)
225/55 R 16 95 Q/T/H – 7Jx16
235/45 R 17 94 Q/T/H – 8Jx17
The use of rims and wheel bolts
that do not meet the specifica-
tions of the original factory-installed
equipment will affect the safe operation
of your vehicle and may cause an acci-
dent and personal injury.
Never mix tires of different design, such
as steel-belted radials with radial bias-
belted or bias-ply tires, etc. Mixing tire
types will adversely affect roadholding
and can lead to loss of vehicle con-
trol.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
158n
Approved wheel and tire specifications – sport wagon
Tire specifications Steel rim
(wheel rim)
Light-alloy wheel
BMW 525i
All season tires
225/60 R 15 96 H M+S – 7Jx15
225/55 R 16 95 H M+S – 7Jx16
Summer tires
225/60 R 15 96 W – 7Jx15
225/55 R 16 95 W – 7Jx16
235/45 R 17 94 W/Y – 8Jx17
Winter tires (M+S)
225/60 R 15 96 Q 7Jx15 7Jx15
225/55 R 16 95 Q – 7Jx16
235/45 R 17 94 Q – 8Jx17
BMW 540i
All season tires
225/55 R 16 95 H M+S – 7Jx16
Summer tires
225/55 R 16 95 W – 7Jx16
235/45 R 17 94 W/Y – 8Jx17
Winter tires (M+S)
225/55 R 16 95 Q – 7Jx16
235/45 R 17 94 Q – 8Jx17
Pay attention to the specifications for
tires and wheels in the vehicle's docu-
ments. If sizes not approved by the
manufacturer are mounted, an entry in
the vehicle's documents may be neces-
sary. Comply with local legislation.
Snow chains*
For tires on 17-inch wheels, it is not
possible to mount snow chains.
The use of rims and wheel bolts
that do not meet the specifica-
tions of the original factory-installed
equipment will affect the safe operation
of your vehicle and may cause an acci-
dent and personal injury.
Never mix tires of different design, such
as steel-belted radials with radial bias-
belted or bias-ply tires, etc. Mixing tire
types will adversely affect roadholding
and can lead to loss of vehicle con-
trol.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
159n
Hood
To unlock
Pull the lever located under the left-
hand side of the instrument panel.
Do not work on your vehicle with-
out appropriate skills. Switch off
the engine and allow it to cool down
before working in the engine compart-
ment. Always disconnect the battery
before working on any electrical
systems or equipment, especially when
these are located within the engine
compartment. Comply with all applica-
ble instructions and warnings. Failure to
work in an informed, professional
manner when servicing components
and materials constitutes a safety
hazard for vehicle occupants and other
road users. If you are not familiar with
the guidelines, please have the opera-
tions performed by your authorized
BMW center.<
390de071
To open
Pull the release handle and open the
hood.
390de072
To close
Allow the hood to fall from a height
of about 12 in (30 cm) so that it audibly
engages.
To avoid injuries, be sure that the
travel path of the hood is clear
when it is closed, as with all closing
procedures.
If it is determined that the hood is not
completely closed while driving, stop
immediately and close it securely.<
390de677
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
160n
390de649
Engine compartment – BMW 525i, 530i
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
161n
1 Auxiliary terminal for jump
starting 200
2 Reservoir for brake fluid (under the
housing of the microfilter) 168
3 Engine oil dipstick 165
4 Coolant expansion tank 167
5 Engine oil filler neck 165
6 Reservoir for intensive-cleaning
system
* 164
7 Reservoir for windshield and
headlamp washer system
* 164
Engine compartment – BMW 525i, 530i
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
162n
Engine compartment – BMW 540i
390us621
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
163n
Engine compartment – BMW 540i
1 Reservoir for brake fluid (under the
housing of the microfilter) 168
2 Auxiliary terminal for jump
starting 200
3 Engine oil dipstick 165
4 Engine oil filler neck 165
5 Coolant expansion tank 167
6 Reservoir for intensive-cleaning
system
* 164
7 Reservoir for headlamp washer
* and
windshield washer system 164
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
164n
Washer fluids Washer nozzles
Headlamp* and windshield
washer system
Capacity in US quarts (liters).
Windshield washer:
approx. 3.7 (3.5) – sedan
approx. 6.3 (6.0) – sport wagon
Incl. headlamp washing system:
approx. 6.3 (6.0)
Fill with water and – if required – with a
washer antifreeze (according to manu-
facturer's recommendations).
We recommend that you mix the
washer fluid before adding it to
the reservoir.<
390de082
Intensive-cleaning washer
reservoir
*
Capacity approx. 1.1 US quarts
(1.0 liter).
Fill with intensive-cleaning washer fluid.
It resists freezing to approx. -17 7
(-276) and is available from your
BMW center.
Antifreeze agents or intensive-
cleaning washer fluids for the
washer systems are highly flammable.
For this reason, keep them away from
sources of flame and store them only in
their original containers. Store them so
that they are inaccessible to children.
Comply with the instructions on the
containers.<
390de083
Windshield washer
Windshield:
The spray from the nozzles should
be directed so as to ensure effective
cleaning, even at high speeds. Use
a needle to adjust the nozzles as
required, or have them adjusted at
your BMW center.
Rear window:
Have this system adjusted by your
BMW center as required.
Headlamp washer system
Have the nozzles adjusted by your
BMW center as required.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
165n
Engine oil
Checking oil level
1 Park the vehicle on a level surface.
2 Shut the engine off after it has
reached normal operating
temperature.
3 After approx. 5 minutes, pull the
dipstick out and wipe it off with a
clean lint-free cloth, paper towel, or
similar material.
4 Carefully push the dipstick all the way
into the guide tube and pull it out
again.
5 The oil level should be in between the
two marks on the dipstick.
As with fuel economy, oil consumption
is directly influenced by your driving
style and vehicle operating conditions.
390de647
The oil volume between the two marks
on the dipstick corresponds to approx.
1.1 US quarts (1 liter). Do not fill beyond
the upper mark on the dipstick. Excess
oil will damage the engine.
460de189
To add oil
Wait until the level has dropped to just
above the lower mark before adding oil.
However, do not wait until the oil level
drops below the lower mark.
BMW engines are designed to op-
erate without oil additives; the use
of additives could lead to damage in
some cases. This is also true for the
manual transmission, the automatic
transmission, the differential, and the
power steering system.<
390de646
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
166n
Engine oil
Specified engine oils
The quality of the engine oil selected
has critical significance for the opera-
tion and service life of an engine. Based
on extensive testing, BMW has
approved only certain engine oils.
Use only approved "BMW High
Performance Synthetic Oil."
If you are unable to obtain "BMW High
Performance Synthetic Oil," you can
add small amounts of synthetic oil in
between oil changes. Only use oils with
the API SH specification or higher.
Ask your BMW center for details
concerning the specific "BMW
High Performance Synthetic Oil" or
"synthetic oils" which have been
approved.<
You can also call BMW of North
America at 1-800-831-1117 or visit
this website: www.bmwusa.com to
obtain this information.
Viscosity ratings
Viscosity is the oil flow rating as estab-
lished in SAE classes.
The selection of the correct SAE class
depends on the climatic conditions in
the area where you typically drive your
BMW.
Approved oils are in SAE classes
5W-40 and 5W-30.<
These oils may be used for driving in all
ambient temperatures.
530us200
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
167n
Engine oil Coolant
Comply with the applicable envi-
ronmental laws regulating the dis-
posal of used oil.<
Recommendation: have the oil changed
by your BMW center.
Continuous exposure to used oil
has caused cancer in laboratory
testing. For this reason, any skin areas
that come into contact with oil should
be thoroughly washed with soap and
water.
Always store oil, grease, etc., out of
reach of children. Comply with all warn-
ing labels and information on lubricant
containers.<
Do not add coolant to the cooling
system when the engine is hot. If
you attempt to do so, escaping coolant
can cause burns.
To avoid the possibility of damage later
on, never use anything other than fac-
tory-approved, nitrite and amino-free
extended-duty antifreeze with corrosion
inhibitor. Your authorized BMW center
is familiar with the official specifica-
tions.
Antifreeze and anticorrosion agents are
hazardous to health. You should always
store them in their original container
and in a location which is inaccessible
to children.
Extended-duty antifreeze with corro-
sion inhibitor contains the flammable
substance ethylene glycol. For this rea-
son, do not spill antifreeze with corro-
sion inhibitor on hot engine parts. It
could catch fire and cause serious
burns.<
Comply with the applicable envi-
ronmental laws regulating the dis-
posal of extended-duty antifreeze with
corrosion inhibitor.<
Checking coolant level
Correct coolant level when the engine
is cold (approx. 687/206):
Unscrew the cap from the expansion
tank.
The coolant level is correct when the
upper end of the red float is at least
even with the upper edge of the filler
neck (refer to the arrow in the illustra-
tion), but no more than 0.8 in (2 cm)
above it – that is, up to the second mark
on the float (refer also to the schematic
diagram next to the filler neck).
380de081
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
168n
Coolant Brake fluid
Adding coolant
Wait until the engine cools before
removing the cap from the expansion
tank. The needle of the coolant temper-
ature gauge in the instrument cluster
must be located in the blue zone; other-
wise, there is a danger of scalding.
1 Start by turning the cap counter-
clockwise. Pause to allow any
accumulated pressure to escape,
then open.
2 If the coolant is low, slowly add
coolant until the correct level is
reached – do not overfill.
The coolant is a mixture of water and
extended-duty antifreeze with corrosion
inhibitor. Always maintain the pre-
scribed all-season 50:50 mixture ratio
for year-round protection against inter-
nal corrosion. No other additives are re-
quired.
Replace the coolant every four years.
If the indicator lamp for the
brake hydraulic system comes
on or if the "CHECK BRAKE
FLUID" warning appears in the
Check Control
*: the brake fluid
level is too low in the reservoir.
The brake fluid reservoir is located
under the microfilter housing on the
driver's side of the car. Should you de-
termine that the brake fluid is low, refer
the problem to your BMW center, who
can trace and rectify any sources of
leakage when refilling the reservoir.
Your BMW center is familiar with the
specifications for approved brake
fluids (DOT 4).
Brake fluid loss results in extended
pedal travel. For this situation, refer to
the notes on page 146.
Brake fluid is hygroscopic, that is,
it absorbs moisture from the air
over time.
In order to ensure the safety and
reliability of the brake system, have
the brake fluid changed every two years
by an BMW center. Refer also to the
Service and Warranty Information
Booklet (US models) or to the Warranty
and Service Guide Booklet (Canadian
models).
Brake fluid is toxic and damages the
vehicle's paint. You should always store
it in its original container and in a loca-
tion which is out of reach of children.
Do not spill the fluid and do not fill the
brake fluid reservoir beyond the "MAX"
mark. The brake fluid could ignite upon
contact with hot engine parts and
cause serious burns.<
Comply with the applicable
environmental laws regulating the
disposal of brake fluid.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
169n
Vehicle Identification Number
In the engine compartment, stamped
on the right-hand strut dome (arrow)
and on the upper edge of the instru-
ment panel on the left-hand side.
390de074
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
170n
The BMW Maintenance System has
been designed as a reliable means of
providing maximum driving and operat-
ing safety – and as cost-effectively as
possible for you.
Please keep in mind that regular main-
tenance is not only necessary for the
safety of your vehicle, but also plays a
significant role in maintaining the resale
value of the vehicle.
Service Interval Display
Advanced technology is employed to
calculate the optimal maintenance in-
tervals, which are then indicated in the
Service Interval Display. While conven-
tional systems rely on distance traveled
alone to determine when service is due,
the BMW Maintenance System has for
years considered the actual conditions
under which the vehicle operates, be-
390us702
cause mileage can be accumulated in
very different ways.
From a maintenance standpoint,
62,000 miles (100,000 km) accumulated
in short-distance urban driving are not
the equivalent of the same distance
covered at moderate speeds in long-
distance highway travel.
The BMW Maintenance System
includes the Engine Oil Service and
Inspections I and II.
Determining the maintenance intervals
according to the actual loads on the
vehicle covers every kind of operating
situation. However, even those who
drive only short distances – significantly
less than 6,000 miles (10,000 km) annu-
ally – should have the engine oil
changed at least every 2 years since oil
deteriorates over time, regardless of
use.
Service and Warranty Information
Booklet (US models) or Warranty
and Service Guide Booklet (Cana-
dian models)
Please refer to the Service and War-
ranty Information Booklet (US models)
or to the Warranty and Service Guide
Booklet (Canadian models) for addi-
tional information on maintenance inter-
vals and procedures.
As a precaution against rust, it might be
a good idea to have the body checked
for damage from rocks or gravel at the
same time, depending upon operating
conditions.
Have your BMW center do the
maintenance and repair.
Your BMW center is always informed on
the latest maintenance work and repair
techniques and equipped with the re-
quired special tools. In addition, check-
ing parts known from experience to be
subject to wear is a permanent part of
the maintenance specifications.
Be sure that all maintenance work is
confirmed in the Service and Warranty
Information Booklet (US models) or in
the Warranty and Service Guide Book-
let (Canadian models).
These entries will constitute your proof
that the vehicle has received regular
maintenance. They are also required in
the event of a warranty claim.<
The BMW Maintenance System
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
171n
Caring for your car
Washing your car
You can have your new BMW washed
in an automatic car wash. Car wash
systems that do not employ brushes
are preferable.
Wipe away tough dirt and loosen and
remove dead insects before washing
the vehicle.
To prevent spots, avoid washing when
the hood is still warm, or immediately
after and during exposure to strong
sunlight.
When using an automatic car wash, be
sure that:
> The car wash system is suited for the
dimensions of your vehicle.
> No damage will occur on vehicles
with attached body accessories (such
as spoilers or antennas). If you are
uncertain, consult the manager of the
car wash.
> The wheels and tires of your vehicle
cannot be damaged by the convey-
ance devices of the car wash system.
> The vehicle is cleaned with minimum
brush pressure, and that ample water
is available for washing and rinsing.
Vehicles with rain sensor
*:
Clean the windshield regularly. Wax
from automatic car washes or insects,
for example, can cause malfunctions in
the function of the rain sensor.
Turn the rain sensor off in auto-
matic car washes. If you do not,
damage may occur if the wipers switch
on unintentionally.<
Parts of the vehicle which are inacces-
sible to the automatic washer – such as
door sills, door and hood edges, etc. –
should be cleaned by hand.
In the winter months, it is especially im-
portant to ensure that the vehicle is
washed on a regular basis. Large quan-
tities of dirt and road salt are difficult to
remove, and they also cause damage to
the vehicle.
If spray wands or high-pressure
washers are used, be sure to
maintain an adequate distance between
the spray source and the vehicle's sur-
face. Inadequate distance and exces-
sive pressure can damage or weaken
the finish, making it more susceptible to
subsequent attack. In addition, mois-
ture could penetrate to vehicle compo-
nents, leading to long-term damage.<
When cleaning the headlamps,
please observe the following:
> Do not wipe dry (scratches). Never
use abrasives or strong
solvents to clean the covers
> Remove dirt and contamination (such
as insects) by soaking with BMW Car
Shampoo and then rinsing with plenty
of water
> Always use a deicer spray to remove
accumulated ice and snow – never
use an ice scraper.<
After washing the car, apply the
brakes briefly to dry them. Braking
efficiency might otherwise be reduced
by the moisture, and the brake rotors
could also be corroded.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
172n
Caring for your car
Exterior finish
To provide effective corrosion protec-
tion, multilayer paintwork is applied at
the factory. Cataphoretic immersion
priming techniques are supplemented
using special body-cavity protectants,
with the application of specially-devel-
oped and extensively tested materials.
A layer of flexible PVC is first applied to
the undercarriage. Following this, a
comprehensive undercoating treat-
ment with a wax-based protectant is
applied.
Regular maintenance makes an impor-
tant contribution to maintaining the
safety and value of your vehicle.
Increasing awareness of the effects of
harmful environmental factors on vehi-
cle finishes have led paint and vehicle
manufacturers to initiate ongoing pro-
grams designed to further improve the
durability of their finishes. Despite this,
environmental factors that occur locally
or regionally can have negative effects
on the finish of your vehicle. These
should guide you in determining the fre-
quency and extent of your efforts to
maintain the vehicle finish.
Depending upon material and type of
impact (perforation of paint layer), phys-
ical stresses from sand, road salt,
gravel, etc., can cause corrosion to
start extending beneath the finish, start-
ing at the point of impact.
Road dirt, tar spots, dead insects, ani-
mal droppings (strong alkali effect) and
tree excretions (resins and pollen) all
contain substances capable of causing
damage when allowed to remain on the
finish of your vehicle for any period of
time (spots, etching, flaking, separation
in the top coat).
In industrial areas, deposits from fly
ash, lime, oil deposits, sulfur-dioxide in
precipitation (acid rain) and other envi-
ronmental pollutants will all damage the
surface of the vehicle unless adequate
protection is provided.
In coastal regions, high levels of
atmospheric salt and humidity promote
corrosion.
In tropical zones, temperatures of over
1057 (406) in the shade prevail, in
addition to heavy ultraviolet radiation
and high humidity. Under those circum-
stances, light exterior finishes reach
temperatures of up to 1757 (806)
and dark finishes up to 2507 (1206).
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
173n
Caring for your car
Caring for the vehicle finish
Regular washing is a preventive mea-
sure against long-term effects from
substances that are harmful to the vehi-
cle's finish, especially if you drive your
vehicle in areas with high levels of air
pollution or aggressive natural sub-
stances (tree resins, pollen).
Nevertheless, you should immediately
remove especially aggressive sub-
stances. Failure to do so can lead to
changes in the paint's chemical struc-
ture or to discoloration. Gasoline spilled
during refueling, oil, grease and brake
fluid should always be cleaned away
immediately, as should bird droppings
(finish damage).
Any contamination remaining on the
surface of the vehicle will be especially
conspicuous after washing. Use clean-
ing fluid or alcohol with a clean cloth or
cotton pad to remove. Remove tar
spots with tar remover. After cleaning,
the affected areas should be waxed to
ensure continued protection.
Use cleaning and car-care
products that you can obtain
at your BMW center.<
Waxing your car
Protect the finish using carnauba or
synthetic-based waxes only.
The best way to determine when the
finish needs to be waxed is by noting
when water stops beading on the sur-
face.
You can use a glass cleaner to remove
any wax or silicone that may have been
left on the windows during waxing.
Use cleaning and car-care
products that you can obtain
at your BMW center.<
Paint damage
You can touch up small areas of dam-
age with BMW spray paint or a BMW
touch-up stick.
The paint color code for your vehicle is
provided on a sticker located on the
right hand side under the hood and on
the first page of your Service and War-
ranty Information Booklet.
Damage caused by flying stones,
scratches, etc., must be touched up
without delay to prevent rust from form-
ing.
If corrosion has started to form in an
area with paint damage, remove all rust
and clean the area. Then prime the area
with a BMW Primer Stick. Finally, apply
the finish coat. After a few days, polish
and protect the touched-in areas.
More extensive paint damage should
be repaired professionally in accor-
dance with the manufacturer's instruc-
tions. Your BMW center uses original
BMW finish materials in accordance
with approved repair procedures.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
174n
Caring for your car
Window care
You can use window and glass cleaner
to clean inside window surfaces and
mirrors without smearing and streaking.
Never use polishing pastes or abrasive
(quartz) cleansers on mirror lenses.
When caring for break-resistant
security glass
*, observe the fol-
lowing instructions:
The inner surface of the side windows
is coated with a plastic film. For this
reason, do not affix any decals or adhe-
sive stickers on the inside of these win-
dows unless they are to be placed there
permanently.
Wash the glass with clean water. If nec-
essary, you may add a commercially-
available mild household cleaner. Do
not use abrasive cleaners.
If the windows are fogged or iced over,
treat them with an anti-misting cloth or
a deicer spray – do not use an ice
scraper.<
Clean the wiper blades with soapy wa-
ter. The wiper blades should be re-
placed twice a year, before and after
the cold season.
Use only wiper blades which have
been approved by BMW.<
Caring for other vehicle
components and materials
Light-alloy wheels should be treated
with alloy wheel cleaner, especially
during the winter months. However, do
not use aggressive products contain-
ing acids, strong alkalis or abrasives.
Do not use steam cleaners operating at
temperatures above 1407 (606).
(Follow the manufacturer's instruc-
tions.)
If your vehicle has chrome parts
* such
as window moldings, door handles or
other items, clean these parts carefully
with ample clean water, especially if
they have an accumulation of road salt.
Use a chrome polish for an additional
treatment.
Plastic components, vinyl upholstery,
headliners, lamp lenses, the clear cover
of the instrument cluster and compo-
nents with a sprayed dull black surface
can be cleaned with water (add plastic
cleaner as required). Do not allow mois-
ture to soak through the seats or head-
liner. Never use solvents such as lac-
quer thinner, heavy-duty grease
remover, fuels, etc.
Rubber components should be cleaned
with water only; a rubber treatment or
silicone spray may also be applied.
The safety belts should be cleaned with
a mild soap and water solution without
being removed from the vehicle. Never
attempt chemical or dry cleaning, as
damage to the belt fabric could result.
After cleaning, never allow the inertia
reel to retract the belts until they are
completely dry. Dirty safety belts pre-
vent the inertia reel mechanism from
retracting the strap properly, and thus
constitute a safety hazard.
Heavily soiled floor carpets and mats
*
can be cleaned with an interior cleaner.
The floor mats can be removed from
the vehicle for cleaning.
Please use only a damp cloth to clean
wooden fascia panels and components.
Follow up by drying with a soft cloth.
Use cleaning and car-care
products that you can obtain
at your BMW center.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
175n
Caring for your car
Leather care
The leather* upholstery used by BMW
is a natural product of the highest qual-
ity, processed using state-of-the-art
methods to ensure that it will maintain
its high quality for years to come, pro-
vided that it is properly cared for.
Because this product is manufactured
using natural materials, you must make
allowance for its special characteristics
as well as for the peculiarities of its use
and care.
Regular periodic cleaning and care are
essential, as dust and road dirt act as
abrasives in the pores and creases of
the material. This leads to wear spots
and premature brittleness on the sur-
face of the leather. We therefore sug-
gest that you clean the leather with a
vacuum cleaner or dust cloth at fre-
quent intervals.
For cleaning, use BMW leather cleaning
foam.
Since dirt and grease gradually affect
the protective surface layer of the
leather, the cleaned surfaces should be
treated with a BMW leather care agent.
This also acts as an antistatic agent.
For protection against dampness or
moisture, treat the leather with a BMW
impregnating agent.
We recommend that you perform this
procedure twice a year on leather ex-
posed to normal use.
Spills should be wiped up immediately.
Remove grease and oil stains without
rubbing, but rather by dabbing with
spot remover.
If the upholstery is to be exposed to in-
tense sunlight or if the vehicle is to be
stored for an extended period, cover all
leather surfaces (or, better yet, the win-
dows) to prevent fading.
Use cleaning and car-care
products that you can obtain
at your BMW center.<
Cleaning agents can contain sub-
stances that are dangerous or
pose health risks. Therefore, always
comply with the warnings and danger
notices on the package.
Open the doors or windows on your ve-
hicle before cleaning the interior. Never
clean your vehicle with cleaning agents
(or solvents) not specifically intended
for this purpose.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
176n
Airbags Vehicle storage
1 Front airbags on the driver and
passenger sides
2 Side impact Head Protection System
on the driver and passenger sides
(front and rear
*)
3 Side airbags on the driver and
passenger sides (front and rear
*)
Important safety notices
Do not attempt to remove the gas
generators of the airbag restraint
system from the vehicle. Have testing
and service procedures performed by
specially-qualified technicians only.
In the event of a malfunction, deactiva-
tion, or triggered actuation (as a
response to an accident) of the airbag
restraint system, consult your BMW
center for repairs or service operations.
380de643
Modifications may not be made on
either the wiring or the individual
components in the airbag system.
These include the padded steering
wheel hub, the instrument cluster, the
side trim panels of the front or rear
doors and the roof pillars or the sides of
the headliner. Never apply adhesive
materials to these components or cover
or modify them in any way. Do not at-
tempt to remove or dismantle the steer-
ing wheel.
To ensure compliance with official
safety regulations, entrust disposal of
airbag generators to an BMW center.
Unprofessional attempts to service
the system could lead to failure in an
emergency or undesired airbag activa-
tion, either of which could result in
personal injury.<
Consult your BMW center regarding
the required special procedures if you
intend to store the vehicle for longer
than three months.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
177n
Any BMW center will be glad to inform
you of the advisability, legal require-
ments and factory recommendations
with regard to technical modifications
on the car. For this purpose, the center
requires the Vehicle Identification Num-
ber and, in some cases, also the engine
number.
Light-Emitting Diodes (LEDs)
Light-emitting diodes installed behind
translucent lenses serve as the light
source for many of the controls and dis-
plays in your vehicle. The concept be-
hind their operation is related to that
employed for lasers, and they are offi-
cially designated as Class 1 light-emit-
ting diodes.
Do not remove the protective lens
and avoid staring directly at the
unfiltered beam for extended periods
(several hours), as inflammation of the
iris could result.<
California laws require us to state the
following warning:
Engine exhaust, some of its con-
stituents, and certain vehicle com-
ponents contain or emit chemicals
known to the State of California to
cause cancer and birth defects or other
reproductive harm.<
Technical modifications California Proposition 65 Warning
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
178n
OBD interface socket
The Onboard Diagnostic (OBD) socket
is located on the left of the driver's side
at the bottom of the instrument panel
and under a cover (arrow).
The cover has the letters "OBD" on it.
The purpose of the OBD system is to
ensure proper emission control system
operation for the vehicle's lifetime by
monitoring emission-related compo-
nents and systems for deterioration and
malfunction.
390us249
An illuminated lamp informs you
of the need for service, not of
the need to stop the vehicle.
However, the systems should be
checked by your BMW center at the
earliest possible opportunity.
Under certain conditions, the indicator
will blink or flash. This indicates a rather
severe level of engine misfire. When
this occurs, you should reduce speed
and consult the nearest BMW center as
soon as possible. Severe engine misfire
over only a short period of time can se-
riously damage emission control com-
ponents, especially the catalytic con-
verter.
Service Engine Soon warning
lamp for Canadian models.
When the filler cap is not properly
tightened, the OBD system can
detect the vapor leak and the indicator
will light up. If the filler cap is subse-
quently tightened, the indicator should
extinguish within a few days.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
179n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
180n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index
Advanced technology
181n
Replacement procedures:
Onboard tool kit 182
Wiper blades 182
Lamps and bulbs 183
Changing a wheel 190
Battery 193
Fuses 196
In case of electrical
malfunction:
Fuel filler door 198
Sliding/Tilt sunroof 198
Tailgate 199
Assistance, giving and
receiving:
Jump-starting 200
Towing the vehicle 201
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
182n
Attached to the underside of the
luggage compartment lid/tailgate.
Unscrew the wingnut for access.
394de080
Front
1 Pull the wiper arm up slightly and
hold it firmly.
2 Press back the release (arrow) and
pull the wiper blade back toward the
base of the wiper arm.
3 Install the new blade and slide the
release back into position.
390de097
Rear*
1 Hold the wiper blade on the window
and remove/unclip the wiper arm at
the articulated joint (arrow).
2 Insert a new wiper blade and press it
on/clip it into the wiper arm.
Use only wiper blades approved
by BMW.<
392de173
Onboard tool kit Wiper blades
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
183n
Lamps and bulbs
The lamps and bulbs make essential
contributions to the safety of your vehi-
cle. For this reason, follow the instruc-
tions below carefully when replacing a
bulb. If you are not familiar with any of
the procedures, consult your BMW
center.
Do not touch the glass portion of a
new bulb with your bare hands
since even small amounts of impurities
burn into the surface and reduce the
service life of the bulb. Use a clean
cloth, paper napkin, or a similar mate-
rial, or hold the bulb by its metallic
base.<
A replacement bulb set is available from
your BMW center.
Whenever working on the electri-
cal system, switch off the electri-
cal accessory you are working on or
disconnect the cable from the negative
terminal of the battery. Failure to do this
could result in short circuits.
To prevent injuries and damage, com-
ply with any instructions provided by
the bulb manufacturer.<
The illustration shows the right-hand
engine compartment.
For checking and adjusting head-
lamp aim, please contact your
BMW center.<
1 Low beams
2 High beams
H7 bulb, 55 watts
The H7 bulb is pressurized. There-
fore, wear safety glasses and pro-
tective gloves. Failure to comply with
this precaution could lead to injury if the
bulb is accidentally damaged during re-
placement.<
390de668
1 Turn the bulb holder to the left (arrow)
and remove.
2 Remove and replace the bulb.
When cleaning the headlamps,
please observe the following:
> Do not wipe dry (scratches). Never
use abrasives or strong
solvents to clean the covers.
Remove dirt and contamination (such
as insects) by soaking with BMW Car
Shampoo and then rinsing with plenty
of water.
Always use a deicer spray to remove
accumulated ice and snow – never
use a scraper.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
184n
Lamps and bulbs
Xenon lamps*
The operating life of these lamp units is
extremely long and the likelihood of fail-
ure very low, provided that they are not
switched on and off a very great num-
ber of times. If one of these bulbs
should nevertheless fail, it is possible to
continue driving with great caution us-
ing the fog lamps, provided traffic laws
in your area do not prohibit this.
Because of the extremely high
voltages involved, any work on the
lighting system should be carried out by
technically-qualified personnel only.
Otherwise, there is a risk of fatal in-
jury.<
Parking lamp
10 watt bulb
The bulb holder and reflector are a
single unit and are both changed
at the same time.<
1 Turn the bulb holder with reflector to
the left and remove.
2 Disconnect the plug.
3 Plug the new bulb holder into the
plug connector. Be sure that it is
securely engaged.
4 Insert the reflector with bulb holder
and turn to the right as far as
possible.
390de669
Front turn signal indicators/
Parking lamps (side marker
lamps)
Dual-filament bulb, 21 watt
1 Turn the bulb holder to the left and
remove.
2 Remove and replace the bulb.
390de670
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
185n
Lamps and bulbs
Side turn signal indicators
5 watt bulb
1 Use finger pressure against the rear
end of the lens (arrow) to press it for-
ward for removal.
2 Press gently on the bulb and turn it to
the left to remove it.
390de106
Front fog lamps
H8 bulb, 35 watt
The bulb is pressurized. There-
fore, wear safety glasses and pro-
tective gloves. Failure to comply with
this precaution could lead to injury if the
bulb is accidentally damaged during re-
placement.<
1 Using a screwdriver, remove the
mounting clip for the air grill (arrow)
and remove the grill by bringing it
toward the front.
390de671
2 Loosen both screws (arrows).
3 Take off the cover panel next to the
headlamp.
4 Turn the headlamp 903 to the left and
remove it by bringing it toward the
front.
5 Disconnect the plug.
6 Turn the lamp to the left and remove
it.
390de672
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
186n
Lamps and bulbs
Tail lamps – sedan
Rear lamp/side marker lamps: LEDs
Remaining bulbs: 21 watts
1 Turn signal indicator yellow
2 Rear lamp/side marker lamps red
3 Backup lamp white
4 Brake lamp red
5 Reflector red
Please contact your BMW center
if there is a defect in the rear
lamp/side marker lamp assembly.<
394us721
1 Use the upper handle to fold down
the side panel in the luggage com-
partment.
2 Turn the corresponding bulb holder
to the left (arrow) and remove it.
3 Press the defective bulb gently and
turn it to the left. Remove the bulb
and replace it.
4 Insert the bulb holder and turn to the
right as far as possible.
394de767
Tail lamps – sport wagon
Rear lamp/side marker lamps: LEDs
Remaining bulbs: 21 watts
1 Turn signal indicator yellow
2 Rear lamp/side marker lamps red
3 Backup lamp white
4 Brake lamps, reflector red
5 Reflector red
Please contact your BMW center
if there is a defect in the rear
lamp/side marker lamp assembly.<
392us722
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
187n
Lamps and bulbs
Lamps in the rear apron panel:
1 Open the cover in the side panel.
2 Turn the quick-release fastener and
remove the trim panel in front of the
bulb holder.
3 Open the quick-release fastener
(arrow) and remove the bulb holder.
4 Apply gentle pressure to the bulb
while turning it to the left to remove.
If a subwoofer
* is installed behind the
right-hand panel, unscrew the T-screw
and swing the subwoofer to the side.
392de170
Lamps in the luggage compartment lid/
tailgate:
1 Open the trim panel in the luggage
compartment lid/tailgate.
2 Open the quick-release fastener
(arrow) and remove the lamp holder.
3 Apply gentle pressure to the bulb
while turning it to the left to remove.
392de171
Center (high-mount) brake lamp
21 watt bulb
1 Open the luggage compartment lid.
2 Unclip the cover panel (on the
underside of the parcel tray) with
a screwdriver (arrow).
3 Turn the bulb holder to the left and
remove.
4 Apply gentle pressure to the bulb
while turning it to the left to remove.
sport wagon: LED strip in the tailgate.
Please contact a BMW center in case of
a malfunction.
394de123
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
188n
Lamps and bulbs
License plate lamps
5 watt bulb
1 Insert a screwdriver into the slot and
press to the left (arrow); this disen-
gages the lamp.
2 Remove the lamp and replace the
bulb.
394de642
Interior lamps
Front
Interior lamp (10 watt bulb) with
reading lamps (10 watt bulbs)
1 Interior lamp: press the lamp out to
the side with a screwdriver and re-
move the lens. Pull the bulb from the
contacts.
2 Reading lamp: gently press against
the lamp while turning it to the left to
remove.
Indirect lighting
1 watt bulb
1 Unclip the lamp holder.
2 Remove the bulb.
Rear – sedan
Interior lamp (10 watt bulb) with
reading lamp (5 watt bulb)
1 Use a screwdriver on the upper
recesses to pry out the lamp.
2 Interior lamp: push back the tab on
the reflector and replace the bulb.
3 Reading lamp: gently press against
the lamp while turning it to the left to
remove.
Rear – sport wagon
Interior lamp: 5 watt bulbs
1 Use a screwdriver to pry out the lamp
from above.
2 Remove the lens.
3 Replace the bulb.
Interior lamp (10 watt bulb) with
reading lamp (6 watt bulb)
1 Using a screwdriver, press the lamp
next to the button out to the side.
2 Remove the lens.
3 Replace the bulb.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
189n
Lamps and bulbs
Footwell lamps
5 watt bulb
1 Use a screwdriver to press the lens
out to the side.
2 Replace the bulb.
Glove compartment lamp
5 watt bulb
1 Apply a screwdriver to the recess to
pry the lamp out.
2 Remove the reflector.
3 Replace the bulb.
Luggage compartment lamps –
sedan
Lamp on the underside of the rear
parcel tray: halogen lamp, 10 watt
Lamp in the luggage compartment lid:
10 watt bulb
1 Apply a screwdriver to the recess to
pry the lamp out.
2 Remove the reflector.
3 Replace the bulb.
Luggage compartment lamps –
sport wagon
Headliner lamps: 10 watt bulbs
1 Use a screwdriver to push the lens to
the side.
2 Replace the bulbs.
Lamps on the apron of the tailgate:
10 watt bulb
1 Use a screwdriver to pry out the lamp
at the upper edge.
2 Remove the reflector.
3 Replace the bulb.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
190n
Changing a wheel
Safety measures in the event of a
flat tire or wheel change:
Stop the vehicle as far as possible from
passing traffic. Park on a firm, flat,
surface. Switch on the hazard warning
flashers.
Turn the steering wheel to the straight-
ahead position, remove the key and
engage the steering lock. Shift into 1st
or reverse (selector lever in Park with
automatic transmission) and engage
the parking brake.
All passengers should be outside the
vehicle and well away from your imme-
diate working area (behind a guardrail,
for instance).
If necessary, set up your warning trian-
gle or portable hazard warning lamp on
the roadside at an appropriate distance
from the rear of the vehicle. Comply
with all safety guidelines and regula-
tions.
Change the wheel only on a level, firm
surface which is not slippery. Avoid
jacking the vehicle on a soft or slippery
support surface (snow, ice, loose
gravel, etc.), since it could slide side-
ways.
Position the jack on a firm support
surface.
Do not place wooden blocks or similar
objects under the jack. If this is done,
the jack might not be able to reach its
full support capacity because of the
limited height.
Do not lie under the vehicle or start the
engine when the vehicle is supported
by the jack – risk of fatal injury.<
What you will need
In order to avoid rattling noises later,
note the position of the tools when you
remove them and return them to their
original position when you are through
using them.
> Car jack
sedan: fold back the luggage com-
partment floor mat for access, then
unscrew the wingnut to release the
jack (arrow).
sport wagon: raise the floor panel
and spare tire cover (refer to
page 134).
When you have completed work,
screw the jack all the way back
down. Fold the handle back and in-
sert it in its holder
> Wedge (wheel chock)
Located next to the jack. Loosen the
wing nut to remove it
394de090
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
191n
Changing a wheel
> Spare tire and adapter* for removing
the lug bolt cover
* (refer to the next
column)
Both are next to the jack. Remove the
adapter or the plastic cover. Unscrew
the wing nut (arrow) by hand and re-
move the wheel
> Lug wrench and screwdriver
In the onboard tool kit under the lug-
gage compartment lid (refer to
page 182).
sport wagon: the lug wrench is next
to the spare tire.
394de091
Procedure
1 Read carefully and comply with the
safety precautions on the previous
page.
2 Secure the vehicle against rolling:
Place the wedge against the rear
surface of the front tire on the side
opposite the side being raised. If
the vehicle is parked on a down-
ward slope, place the wedge se-
curely in front of the tire. If the
wheel must be changed on a sur-
face with a more severe slope, take
additional precautions to secure the
vehicle from rolling.
3 Wheels with full wheel covers
*:
Reach into the ventilation openings
and pull the cover off.
4 Wheels with adapter
*: position the
lug bolt adapter on the lug bolt
cover. Then apply the lug wrench
and turn it to the left (refer to the
illustration).
5 Wheels with hub cover
*: pry the
hub cover off with the screwdriver
in the slot.
6 Loosen the lug bolts g-turn.
380de092
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
192n
Changing a wheel
7 Position the jack at the jacking point
closest to the flat tire so that the
jack base is vertically below the
jacking point and the entire surface
of the head of the jack will move
into the square recess of the jacking
point (refer to the illustration detail)
when the jack is cranked.
8 Jack the vehicle up until the wheel
you are changing is raised off the
ground.
9 Unscrew the lug bolts and remove
the wheel.
10 Remove accumulations of mud or
dirt from the mounting surfaces of
the wheel and hub. Clean the lug
bolts.
390de350
11 Position the spare wheel. Secure
the wheel by turning at least two lug
bolts into opposite bolt holes.
12 Screw in the remaining lug bolts.
Tighten all the bolts securely.
13 Lower the jack and remove it from
beneath the vehicle.
14 Tighten the lug bolts in a diagonal
pattern.
15 Wheels with full wheel covers:
Place the wheel cover with the valve
opening over the valve (arrow). Use
both hands to press the cover se-
curely onto the rim.
For this light-weight wheel, use
only the full wheel cover installed
by the factory. Other wheel covers may
not fit securely.<
390de360
16 Wheels with hub covers:
Position the hub cover and press it
on tightly.
17 If equipped with lug bolt covers:
Align the arrow on the cover with
the line in the wheel and press the
cover into place.
18 Check and correct the air pressure
at the earliest opportunity.
For vehicles with Tire Pressure
Control (RDC)
*:
After mounting the spare tire or cor-
recting the inflation pressure, reacti-
vate the system. Refer to page 103.
The vehicle jack is designed for
changing tires only. Do not
attempt to raise another vehicle model
with it or to raise any load of any kind.
To do so could cause accidents and
personal injury.
To ensure continued safety, have the
lug bolts checked with a calibrated
torque wrench [torque specification
72 lb-ft (100 Nm)] at the earliest
opportunity.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
193n
Changing a wheel Battery
When storing the wheel, take care to
ensure that you do not damage the
retaining pin in the spare tire recess.
If light-alloy wheels other than original
BMW light-alloy wheels have been
mounted, it may be necessary to use
different lug bolts for those wheels.
Replace the defective tire as soon as
possible and have the new wheel/tire
balanced.
Size 255/40 R17 94 W
* tires on
the rear axle:
In the event of a puncture or other tire
failure, it may be necessary to mount
the spare tire of different size at the
rear. This tire is of full capacity in all
load and speed ranges. Nevertheless,
mount a tire of the correct size as soon
as possible.<
Battery posts, terminals, and re-
lated accessories contain lead
and lead compounds. Wash hands after
handling.<
Installation location
The battery is located behind the right-
hand side trim panel in the luggage
compartment.
Fold the trim panel down with the
handle at the top. On the sport wagon,
press the button.
If a subwoofer
* is installed on the sport
wagon, loosen the T-screw and swing
the subwoofer to the side.
390de610
Maintenance
The battery is absolutely maintenance-
free, that is, the original electrolyte will
normally last for the service life of the
battery under moderate climatic condi-
tions.
Symbols
You will find the following symbols on
your vehicle battery. To avoid injury,
please comply with the corresponding
precautions whenever you work with or
near the battery.
Please read the following infor-
mation before working with the
battery.
Wear eye protection. Do not al-
low particles containing battery
acid or lead to come into con-
tact with your eyes, your skin, or your
clothing.
Battery acid is extremely corro-
sive. Wear eye protection and
protective gloves. Do not tip the
battery. Battery acid can leak from the
ventilation openings.
Be sure that children keep well
away from batteries and battery
acid.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
194n
Battery
Never allow sparks or open
flame near the battery. Do not
smoke in the vicinity of the
battery. Avoid sparks from electrical
cables or electrical equipment. Turn the
key to position 0 in the steering lock
during the disconnection or connection
of the battery. Never short-circuit the
battery terminals. There is a danger of
injury from powerful sparks.
A highly-explosive gas is
generated when the battery is
charged.
If you happen to get acid in your
eyes, rinse thoroughly for
15 minutes with clear water.
Following that, consult a physician
immediately. If you get acid spray on
your skin or clothing, rinse with plenty
of water. If electrolyte is accidentally
swallowed, consult a physician immedi-
ately.
In order to protect the battery
case from ultraviolet radiation,
do not place it in direct sunlight.
A discharged battery can freeze. Store
the battery in areas where the tempera-
ture remains above freezing.
Charge condition
You can read the charge condition
of the battery with the "Magic Eye"
*
(a hydrometer):
> Green: adequate charge.
> Black: not charged adequately.
The battery must be recharged.
Please contact your BMW center.
> Yellow: replace the battery.
The projected service life of the
battery can only be reached if the
battery is fully-charged at all times.
Check the charge condition of the bat-
tery frequently if the vehicle is used pri-
marily for driving short distances.<
390de612
Charging the battery
If the battery is charged in the vehicle:
Do not charge the battery with the
engine running.
Before performing any work on
the electrical system, disconnect
the cable from the negative terminal. If
you do not, short circuits can create the
risk of fire or personal injury.<
If you plan to store the vehicle for more
than four weeks, disconnect the battery
from the vehicle electrical system by
disconnecting the cable at the negative
terminal and then recharge using a suit-
able charging device.
If you intend to store your vehicle for
longer than 12 weeks: remove the bat-
tery, charge it and store it in a cool (but
frost and dust-free) room. Every three
months and before reinstalling the bat-
tery, have it recharged. If it is not
recharged, it will not be serviceable.
Every time the battery is discharged,
especially over extended periods, its
service life is reduced.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
195n
Battery
Return used batteries to a
recycling point or your authorized
BMW center. Maintain the battery in
an upright position for transport and
storage. Secure the battery against
falling over in transit.<
Removal and installation
Do not disconnect the battery
when the engine is running. Dis-
connecting the battery cable when the
engine is running will cause a voltage
surge which will damage the vehicle's
onboard electronics.
Do not make any modifications in the
wires to the positive terminal. If you do
so, the protective function of the safety
battery terminal is no longer ensured.
Repairs and disposal may only be
performed by specially-trained person-
nel.<
390de611
When removing the battery, first dis-
connect the negative terminal, then the
positive terminal. Remove the protec-
tive bar 1 and unscrew the threaded
connection of the battery bracket 2.
When installing the battery, connect the
positive terminal first, then connect the
negative terminal.
When installing a battery, be sure
that it is mounted properly. Install
and secure the protective bar. If the
battery is not mounted and fastened
properly, it will not be adequately
secured in case of an accident.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
196n
Fuses
When an electrical accessory fails to
operate, switch it off and inspect the
fuse.
In the glove compartment
1 Open the glove compartment and
turn the two white quick-release
fasteners to the left. Spare fuses and
plastic tweezers are located on the
fuse holder.
2 Use the plastic tweezers to remove
the fuse for the accessory or equip-
ment that has stopped working.
3 If the fuse is burned through (the
metal strip will have melted and
separated), replace it with a new fuse
of the same ampere rating (color
code).
390de085
The fuses, their respective ampere rat-
ings and the equipment in their circuits
are all indicated below the fuse holder.
Close the fuse holder by holding the top
of the cover in place and screwing the
two quick-release fasteners to the right.
Additional fuses are provided in the
luggage compartment (refer to next
columns).
The fuse for continuous positive current
is located in a separate fuse box above
the battery. If this fuse is defective, re-
fer the problem to your BMW center for
repair.
Do not attempt to repair a burned
fuse or replace it with a fuse
having a different color or ampere rat-
ing. To do this could cause a fire in the
vehicle resulting from a circuit over-
load.<
If the fuse fails repeatedly, refer the
problem to your BMW center for repair.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
197n
Fuses
In the luggage compartment
Use the handle to pull down the trim on
the right wall.
A list of the fuses, their respective am-
pere ratings and the equipment in their
circuits is provided on the rear of the
side trim.
394de678
In the luggage compartment –
sport wagon
Open the right access door by pressing
the button and pull the trim panel to the
side.
A list of the fuses, their respective am-
pere ratings and the equipment in their
circuits is provided on the rear of the
side trim panel.
If a subwoofer
* is installed, loosen the
T-screw and swing the subwoofer to
the side.
392de172
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
198n
Manual release – sedan
1 Use the handle to lower the trim
panel on the right side of the luggage
compartment.
2 Pull the knob with the fuel pump
symbol (arrow).
394de679
Manual release – sport wagon
1 Release the right-hand panel in the
luggage compartment with the button
and fold the panel down.
2 Pull the knob with the fuel pump
symbol (arrow).
If a subwoofer
* is installed, loosen the
T-screw and swing the subwoofer to
the side.
392de157
Manual operation
1 Remove the interior lamp (refer to
page 188), reach into the opening
and push out the panel.
2 Use the Allen key from the onboard
tool kit (refer to page 182) to turn the
sliding/tilt sunroof in the desired di-
rection.
390de376
Fuel filler door Sliding/Tilt sunroof
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
199n
Tailgate
Manual release – sport wagon
In the event of an electrical malfunction,
you can release the tailgate manually:
1 From inside the luggage compart-
ment, open the two side covers
(arrow). Remove the covers.
392de166
2 Release the two quick-release
fasteners of the cover for the onboard
tool kit in the tailgate. Raise the
cover.
3 Remove the plastic plugs (arrow) and
pull toward the interior. The tailgate
will be released.
4 Open the tailgate. Press the plugs
back into place and close the cover
with the quick-release fasteners.
5 Position the two side covers and
close them.
392de301
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
200n
Never use spray starter fluids.
If the battery is discharged, the engine
can be started with the use of two
jumper cables and the battery of
another vehicle. Always use jumper
cables with fully insulated handles on
the terminal clamps.
Do not touch high-voltage wiring
and cables on a running engine.
There is a risk of fatal injury if you do
this.<
Carefully comply with the following in-
structions to avoid personal injury and
damage to one or both vehicles:
1 Ensure that the battery on the sup-
port vehicle is also rated at 12 volts,
and that the capacities of the two
batteries (Ah) are roughly comparable
(printed on casing).
2 Leave the discharged battery
connected to the vehicle electrical
system.
3 Make sure that there is no contact
between the bodywork of the two
vehicles – short circuit risk.
4 Start by connecting the jumper cable
from the positive terminal of the
support vehicle to the positive
terminal connector located in your
BMW's engine compartment. The
cover of the auxiliary terminal for
jump starting is marked with a "+"
sign (refer to the illustration). Pull up
to open the cover. The illustration
shows the external positive terminal
connector of the BMW 540i. For the
BMW 525i, BMW 530i refer to
"Engine compartment" on page 160.
390de648
5 Then connect the negative terminals.
Attach the cable to either the support
vehicle's negative battery terminal, or
to a suitable ground on its engine or
bodywork. Then connect the other
end of the cable to a ground on the
engine or body of the vehicle which is
to be started. There is a special nut
on the strut dome of your BMW; refer
to the arrow in the illustration.
Follow the same sequence for
connecting the jumper cables if
you assist in jump-starting another ve-
hicle. If you do not, there is a risk of in-
jury caused by spark generation at the
battery.<
390de146
Jump-starting
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
201n
Jump-starting Towing the vehicle
6 Start the engine of the support
vehicle and let it run.
7 Start the engine on the vehicle
needing the jump-start, and allow it
to run as usual. If the first start at-
tempt is not successful, wait a few
minutes before another attempt in
order to allow the discharged battery
to recharge.
8 Before disconnecting the jumper
cables from your BMW, turn on the
headlamps, the rear window
defroster and the highest blower
speed and allow the engine to run
at least 10 seconds to prevent a volt-
age surge at the voltage regulator.
9 Then disconnect the jumper cables in
the opposite order.
Have the battery recharged if neces-
sary.
Tow fitting
The screw-in tow fitting is stored in the
onboard tool kit; be sure that it remains
in the vehicle at all times. This fitting
is designed for installation in the tow
sockets located at the front and rear of
the vehicle, and is intended for towing
on proper road surfaces only.
It should not be used to pull a vehicle
out of deep snow, mud, sand, etc. Al-
ways observe all applicable towing laws
and regulations.
Access to tow sockets
Front:
Apply pressure to the arrow symbol on
the cover panel to remove.
390de087
Rear:
Apply pressure to the arrow symbol on
the cover panel to remove.
Screw the tow fitting in until it bot-
toms firmly. If this is not done, the
threads could be damaged.
Never attach tie-down hooks, chains,
straps, or tow hooks to tie rods, control
arms, or any other part of the vehicle
suspension, as severe damage to these
components will occur, leading to pos-
sible accidents.<
Use only a nylon towing strap to tow
the vehicle, since the inherent resil-
ience of this material helps protect both
vehicles from sudden jerking move-
ments.
394de088
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
202n
Towing the vehicle
The towed vehicle should always
be the lighter of the two vehicles.
If this is not the case, it is no longer
possible to control vehicle response.<
Tow-starting
It is not possible to start the engine of
vehicles equipped with an automatic
transmission by towing or pushing.
For instructions on jump starting, refer
to page 200.
Never attempt to use your vehicle to
push another vehicle, since damage to
the energy-absorbing bumpers could
result.
Towing a vehicle with automatic
transmission
1 Place the selector lever in position N.
2 Towing speed:
Max. 45 mph (70 km/h).
3 Towing distance:
Max. 95 miles (150 km).
4 Leave the ignition key in position 1 to
ensure that the brake lamps, turn sig-
nals, horn and windshield wipers re-
main operative, and to prevent the
steering lock detent from engaging.
5 Switch on the hazard warning flash-
ers (observe country-specific regula-
tions).
Find some means of identifying the ve-
hicle in tow, for instance, place a sign
or warning triangle in the rear window.
Make sure that the ignition key
remains in position 1 even when
the electrical system has failed to pre-
vent the steering lock from engaging.
The steering and brakes are without
power assist when the engine is off.
This means that increased effort is
required for steering and braking.<
Towing with a commercial
tow truck
> Do not tow with sling-type equip-
ment.
> Use a wheel lift or flat bed carrier.
> Please comply with applicable towing
laws.
Never allow passengers to ride in
a towed vehicle for any reason.<
380us124
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
203n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
204n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index
Advanced technology
205n
Airbags 206
Adaptive Transmission Control
(ATC) 207
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC) 208
BMW active seat 210
Safety belt tensioner 210
DSP sound system 211
Mirrors with automatic
dimmer 211
Rain sensor 212
Tire Pressure Control (RDC) 213
Integrated rear suspension 214
Level control system 214
Xenon lamps 215
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
206n
Deceleration sensors continuously
monitor the physical forces acting upon
the vehicle. If, as the result of a frontal
collision, vehicle deceleration is
reached at which the protection of the
safety belts alone is no longer ade-
quate, the gas generators of the driver-
side and passenger-side airbags are ig-
nited simultaneously. However, the
front airbag on the passenger-side is
only triggered if an additional sensor
has recognized that the passenger seat
is occupied.
Depending on which side the vehicle is
involved in a side collision, the head
protection and side airbags in the front
and rear
* are triggered if necessary.
390de319
The airbags located under the marked
covers inflate and unfold in a matter of
a few milliseconds. In this process they
tear through the rated breaking points
of the upholstered covers or press them
out.
Because the inflation process must be
virtually instantaneous, it is necessarily
accompanied by a certain amount of
ignition and inflation noise. The gas
which the system employs to inflate the
airbag is not dangerous. Smoke
appears as the gas dissipates.
The entire process is completed within
fractions of a second.
Airbags
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
207n
On vehicles with automatic transmis-
sion, Adaptive Transmission Control
(ATC) uses a number of factors to cal-
culate the gear which provides the
maximum efficiency. In this process it
monitors your personal driving style,
the situation in which you are driving,
the condition of the road and the traffic
conditions.
ATC recognizes your personal driving
style from the positions and movements
of the accelerator pedal, deceleration
when braking and lateral acceleration
through curves. Four different shift
characteristics – from comfort-oriented
to performance-oriented – are available
for selection by ATC.
In order to take driving conditions into
account, ATC registers corners and
390de334
ATC
both uphill and downhill gradients. For
example, if you maintain speed through
a curve, the transmission does not up-
shift.
On uphill gradients, it shifts only when
the engine speed increases in order to
make more efficient use of power
reserves. On downhill gradients ATC
downshifts when the speed of the vehi-
cles increases, causing the driver to
step on the brakes.
ATC*
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
208n
ASC+T/DSC*
Precision sensors monitor the number
of revolutions of the wheels. When
equipped with DSC, they also monitor
steering angle, lateral acceleration,
brake pressure and the movement of
the vehicle around its vertical axis.
If differences in the wheel speeds
occur, the system counteracts the dan-
ger of wheelspin by reducing torque. If
necessary, the system also responds
with additional brake applications at the
rear wheels, and at all 4 wheels with
DSC.
In addition, DSC permanently monitors
the vehicle's current operating condi-
tion and compares it with an ideal con-
dition that is calculated from the sen-
sor's signals. If deviations from this
occur (understeering or oversteering,
for instance), DSC can stabilize the
vehicle in the fraction of a second by
reducing engine output and with the
assistance of braking intervention at in-
dividual wheels. As a result, dangerous
skids can be prevented even as they
are just beginning.
You may need some time to become
accustomed to this system intervention.
However, it guarantees optimum drive
force and driving stability.
The braking intervention may be
accompanied by a certain degree of
noise.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
209n
Radio reception
The AM frequency bands (medium-
wave, long-wave and short-wave) make
it possible to receive stations from a
great distance, because the broadcast
signals travel not only along the ground
as surface waves, but also as atmo-
spheric waves that are reflected from
the ionosphere.
Frequency-modulation (FM) provides
substantially better sound quality than
AM. However, because FM transmis-
sions rely on line-of-sight broadcast
waves, their effective reception range is
limited.
360de084
Although numerous factors combine
to impose inherent limitations on the
reception quality available from mobile
radios, specially designed systems can
be employed to minimize their effects:
The Diversity Antenna system employs
several FM antennas integrated within
the rear window to provide three sepa-
rate sources for receiving broadcast
waves. An integral processor automati-
cally selects the antenna with the best
FM reception quality at any given time.
Because the ongoing antenna selection
process is completed within milli-
seconds, it remains inaudible to the
radio listener.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
210n
BMW active seat* Safety belt tensioner
BMW seats are configured for your
orthopedic well-being. The active seat
is an engineering enhancement of
BMW's seats, designed to ensure less
fatigue during extended trips while
sitting with little movement. The seat is
no longer a passive element between
the road, the running gear and the pas-
senger. Instead, it creates minor and
imperceptible shifts in your weight by
an active change in the contour of the
seat surface. The basic seat position is
not changed as this occurs.
Fluid cushions are located below the
surface of the seat in the seat's
upholstery on the left and right.
380de676
The fluid is circulated slowly back and
forth between the two cushions by
means of a pump. This causes a move-
ment of the spinal column which is
nearly unnoticeable, resulting in an im-
proved flow of blood to the vertebral
discs and the muscles in the area of the
spinal column. Vehicle occupants can
experience less muscle cramping, back
pain in the spine's lumbar region and
fatigue. The active seat thus provides a
significant contribution to your driving
comfort and safety.
The safety belt tensioner responds to
severe frontal collisions by tightening
the belts to ensure that occupants
remain firmly positioned in their seats.
A gas-pressure system retracts the
buckle assembly to tension the shoul-
der and lap belts within fractions of a
second. This reduces the tendency to
slide under the lap belt.
390de330
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
211n
DSP sound system* Mirrors with automatic dimmer*
The DSP professional premium sound
system features a special amplifier
combined with Digital Sound Process-
ing (DSP) and integrated speakers to
surround you with crisp, true-to-life
sound reproduction.
The speaker system's subwoofers,
woofers, midrange speakers and tweet-
ers furnish you with an impressively full-
bodied listening experience. The indi-
vidual components are oriented so as
to produce the aural sensation that you
would experience facing the stage in a
concert hall. The system also automati-
cally adjusts the bass and treble set-
tings to compensate for changes in vol-
ume and vehicle speed.
390de109
The interior and exterior mirrors with
automatic dimming feature reduce the
glare from following traffic by adapting
the intensity of the reflected images to
correspond to levels of light registered
by the unit's sensors. The mirrors revert
to their undimmed setting as soon as
the light source disappears.
One sensor is mounted on the front
of the interior mirror housing and is
designed to monitor light levels in the
area immediately forward of the vehicle.
A second sensor is integrated within
the mirror's glass.
390de113
The electronic control system operates
by comparing the respective levels of
luminous intensity in front of and behind
the car. The difference provides the
basic parameter used to modulate an
electrical current and induce chemical
changes in a semisolid layer incorpora-
ted in the lens.
The semisolid reacts chemically to this
electrical current, thus providing infi-
nitely-variable dimming of the mirror
(electrochromic technology).
As a result, it is no longer necessary
to dim the mirror manually, and the
driver can maintain full concentration
on traffic.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
212n
Rain sensor*
Depending on the degree of wetness
on the windshield, the rain sensor
controls the operation of the windshield
wipers.
Infrared light is carried along the
surface of the windshield in an optical
conductor in such a manner that it is
reflected completely when the wind-
shield is dry. The quantity of reflected
light is measured.
If the window is covered with beads of
water, the amount of light that is
reflected is decreased since the infra-
red light at the surface of the wind-
shield can then escape. The quantity of
reflected light is thus a means of
gauging the degree of wetness on the
windshield.
390de133
When the system is set to the "Intermit-
tent" wiper speed, the wipers react
immediately – if water is splashed onto
the windshield by vehicles traveling
ahead of you, for example. As a result,
the rain sensor provides a contribution
to driving safety and comfort.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
213n
Tire Pressure Control (RDC)*
The Tire Pressure Control system (RDC)
assumes the task of regular tire pres-
sure checks for you. The tire pressure is
monitored at all four wheels, even when
the vehicle is moving.
Behind the valve stem in every wheel,
there is an electronic chip which is
designed for severe-duty applications
and long service life. It contains a pres-
sure sensor, a transmitter and a battery.
The pressure is measured in extremely
short time intervals and then transmit-
ted by a radio signal. If an irregularity is
detected, the transmission rate is
increased.
394de304
Near every wheel, there are antennas in
the body which receive the signals from
all four wheels. A central electronics
system evaluates the quadruple signals
and forwards any changes.
The RDC provides an important contri-
bution to driving safety.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
214n
Integrated rear suspension Level control system*
The control arms on the patented inte-
grated aluminum rear axle assembly are
not mounted directly on the body. They
are mounted elastically on a chassis
sub-frame which is joined in turn with
elasticity to the vehicle body. The result-
ing double elastic suspension system
effectively absorbs the forces resulting
from bumps and road surface irregulari-
ties.
The compliance rates of the integrated
rear axle assembly's control arm mounts
have been precisely calibrated to help
provide supplementary adjustment in
the tracking angle of the rear wheels
(programmed self-steer effect). The ulti-
mate result is enhanced safety and con-
trol under all conditions.
390de114
The illustration shows the rear axle of the
sedan. With the lightweight, compact
rear axle of the sport wagon, the shock
absorbers are positioned at an angle.
The level control system for the rear
axle maintains constant ground clear-
ance of your vehicle, even when carry-
ing a load.
To achieve this, the vehicle is equipped
with air struts at the rear axle instead of
conventional shock absorbers and steel
suspension springs. With the help of
two sensors, an electronic control unit
calculates the height of the body at all
times and, if it is required, it allows air
which is generated in a compressor to
flow into the air springs.
As a result of the pressure increase in
the air springs, the level control system
ensures not only constant ride height,
but also ride comfort which is indepen-
dent of the load the vehicle is carrying.
390de136
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
215n
Xenon lamps*
The xenon lamps light up the side and
front areas of the vehicle with signifi-
cantly more brightness and uniformity
then the traditional halogen lamps.
In a xenon lamp, an electric arc
replaces the filament in order to gener-
ate intense illumination. A gas mixture
in a quartz glass tube with metal vapor
is ignited by a high electric voltage. The
arc that is generated is then sustained
by a lower voltage.
When the lamp is turned on, a brief
period is needed for the full beam
strength to build up. Maximum bright-
ness is attained in approx. 15 seconds.
390de134
Xenon lamps provide significantly
improved visibility, especially during
adverse weather conditions and driving
situations (driving at night in heavy rain
or through road repair areas where
there are no lane markers, for instance).
Vehicles with xenon lamps
are
equipped with automatic headlamp
range control. As a result, the highway
is always optimally lighted, regardless
of load conditions, and drivers in on-
coming traffic are not blinded.
Xenon lamps make a significant contri-
bution to highway safety since other
highway users, or bicyclists and motor-
cyclists in the right lane, and pedestri-
ans are more easily detected.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
216n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
Overview
Controls and features
Operation, care
and maintenance
Technical data
Index
Advanced technology
217n
Owner service procedures
Engine specifications 218
Dimensions 219
Weights 221
Capacities 223
Electrical system 224
Drive belts 224
Data
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
218n
BMW 525i/sport wagon BMW 530i BMW 540i/sport wagon
Displacement
Number of cylinders
cu in (cm
m
) 152.2 (2,494)
6
181.8 (2,979)
6
268.4 (4,398)
8
Maximum output
at engine speed
hp
rpm
184
6,000
225
5,900
282
5,400
Maximum torque
at engine speed
Ib ft (Nm)
rpm
175 (236)
3,500
214 (289)
3,500
324 (440)
3,600
Compression ratio e 10.5 10.2 10.0
Stroke
Bore
in (mm)
in (mm)
2.95 (75.0)
3.31 (84.0)
3.53 (89.6)
3.31 (84.0)
3.26 (82.7)
3.62 (92.0)
Fuel-injection system
Digital-electronic engine-management system
Engine specifications
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
219n
394us723
Dimensions – sedan
All dimensions are given in inches (mm).
Min. turning circle dia.: BMW 525i, 530i 37.1 ft (11.3 m), BMW 540i 37.4 ft (11.4 m)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
220n
Dimensions – sport wagon
392us724
All dimensions are given in inches (mm). Height with roof-mounted luggage rack*: 57.4 (1,459)
Min. turning circle dia.: BMW 525i 37.1 ft (11.3 m), BMW 540i 37.4 ft (11.4 m)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
221n
Weights – sedan
BMW 525i BMW 530i BMW 540i
Curb weight (with one person, ready for operation, full tank of fuel, options not included)
with manual transmission
with automatic transmission
lbs. (kg)
lbs. (kg)
3,450 (1,565)
3,505 (1,590)
3,494 (1,585)
3,549 (1,610)
3,748 (1,700)
3,803 (1,725)
Approved gross vehicle weight
with manual transmission
with automatic transmission
lbs. (kg)
lbs. (kg)
4,464 (2,025)
4,520 (2,050)
4,509 (2,045)
4,563 (2,070)
4,762 (2,160)
4,817 (2,185)
Approved front axle weight lbs. (kg)
2,116 (960)
2,138 (970) 2,381 (1,080)
Approved rear axle weight lbs. (kg) 2,579 (1,170) 2,579 (1,170) 2,635 (1,195)
Approved roof load capacity lbs. (kg) 220 (100) 220 (100) 220 (100)
Approved axle loads and approved gross vehicle weight may not be exceeded.
Luggage compartment capacity cu ft (l) 16.2 (460) 16.2 (460) 16.2 (460)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
222n
Weights – sport wagon
BMW 525i BMW 540i
Curb weight (with one person, ready for operation, full tank of fuel, options not included)
with manual transmission
with automatic transmission
lbs (kg)
lbs (kg)
3,682 (1,670)
3,736 (1,695)
–
4,056 (1,840)
Approved gross vehicle weight
with manual transmission
with automatic transmission
lbs (kg)
lbs (kg)
4,773 (2,165)
4,828 (2,190)
–
5,093 (2,310)
Approved front axle weight lbs (kg)
2,116 (960)
2,381 (1,080)
Approved rear axle weight lbs (kg) 2,844 (1,290) 2,910 (1,320)
Approved roof load capacity lbs (kg) 220 (100) 220 (100)
Approved axle loads and approved gross vehicle weight may not be exceeded.
Luggage compartment capacity cu ft (l) 14.5 – 53.9 (410 – 1,525) 14.5 – 53.9 (410 – 1,525)
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
223n
Capacities
Notes
Fuel tank
Reserve
gal. (liters)
gal. (liters)
approx. 18.5 (approx. 70)
approx. 2.0 (approx. 8) – BMW 525i,
530i
approx. 2.5 (approx. 10) – BMW 540i
Fuel specification: page 29
Windshield washer system
with headlamp washer system
Intensive cleaning system
quarts (liters)
quarts (liters)
quarts (liters)
approx. 3.7 (approx. 3.5)
approx. 6.3 (approx 6.0)
approx. 1.1 (approx 1.0)
For details: page 164
Cooling system including heater
circuit
quarts (liters) 11.1 (10.5) – BMW 525i, 530i
12.7 (12.0) – BMW 540i
For details: page 167
Engine with oil filter change quarts (liters) 6.9 (6.5) – BMW 525i, 530i
7.9 (7.5) – BMW 540i
"BMW High Performance
Synthetic Oil."
For details: page 167
Manual transmission, automatic
transmission and differential
– – Lifetime fluid, no fluid
change required
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
224n
Electrical system Drive belts
Battery
12 V, 90Ah
Spark plugs
Bosch FGR 7 DQP or
NGK BKR 6 EQUP
This spark ignition system meets all
requirements of the Canadian Interfer-
ence-Causing Equipment Regulations
(ICES-2).
BMW 525i, 530i:
Water pump – Generator –
Power steering
Drive belt 6 PK x 1538
A/C compressor
Drive belt 5 PK x 863
BMW 540i:
Water pump – Generator –
Power steering
V-belt 7 K x 1635
A/C compressor
V-belt 5 K x 1004
You can obtain Original BMW
Parts and Accessories, as well as
professional advice from your BMW
center.<
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Index Data Technology Repairs Car care Controls Overview
225n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
226n
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
A
ABS (Antilock Brake
System) 23, 143
Accessories 6
Activated-charcoal
filter 119
Active seat 55, 210
Adaptive Transmission
Control (ATC) 72, 207
Add
antifreeze 168
t
brake fluid 168
t
engine coolant 168
t
engine oil 165
t
washer fluids 164
t
Adjust washer
nozzles 164
t
Adjusting
backrest angle 53
backrest, forward/
backward 52
seats 52
steering wheel 56
temperature 110, 116
thigh support 55
Air conditioner 108
Air distribution 110, 116
Air outlets 108, 114
Air pressure 29
t
, 150
t
Air supply 110, 117
Air vent 108, 114
Airbags 23, 62, 176, 206
Alarm system 47
Antennas 149
Antifreeze 167
t
radiator 146
Antilock Brake System
(ABS) 23, 143
Anti-theft alarm system 47
Anti-theft protection 39
Approved axle weight 221
Approved gross vehicle
weight 221
Approved roof load
capacity 221
Aquaplaning 141, 150
Arrival time 97
ASC+T/DSC (Automatic
Stability Control plus
Traction/Dynamic Stability
Control) 24, 102, 208
Ashtray 126
ATC (Adaptive Transmission
Control) 72, 207
Attach vacuum cleaner 127
AUC (Automatic
recirculated-air
control) 117
Automatic car washes 171
Automatic climate
control 114
remove condensation from
windows 117
Automatic cruise control 81
Automatic curb monitor 59
Automatic dimming
interior rearview mirror 57
Automatic rear window
cleaning 80
Automatic recirculated-air
control (AUC) 117
Automatic Stability Control
plus Traction/Dynamic
Stability Control (ASC+T/
DSC) 24, 102, 208
Automatic transmission 72
Automatic transmission with
Steptronic 75
Average fuel
consumption 89
Average speed 89, 98
Avoid false alarms 48
t
Axle loads 221
B
Backrest, adjusting 52, 55
Backup lamps 71
bulb replacement 186
t
Battery 193
t
, 224
capacity 224
charge condition 194
t
charging 194
discharged 200
t
removing and
installing 195
t
Belts 61
Beverage holder 125
Blower 110, 117
BMW active seat 55, 210
BMW comfort seat 54
BMW sports seat 55
BMW Universal
Transmitter 121
Body-cavity protectant 172
Brake faults 146
t
Brake hydraulic
system 22, 146
Brake lamps, bulb
replacement 186
t
Brake system 140
brake faults 146
brake fluid 168
brake lamps, bulb
replacement 186
brake pads 23
disc brakes 144
parking brake 23, 70
Brake-in procedure 140
Break-resistant security
glass 174
care 174
t
Bulb replacement 183
t
C
California Proposition
65 Warning 177
Capacity 223
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
229n
Index Data Technology Repairs Car care Controls Overview
Car jack 190
t
Car keys 36
Car Memory 60
Car phones, refer to the
seperate Owner's Manual
Car radio reception 149
Car telephone 125
Car wash 171
Care
vehicle exterior 172
vehicle interior 174
Cargo loading 136
Caring for the vehicle
finish 173
Catalytic converter 142
Cellular phone 149
Center (high-mount) brake
lamp, bulb
replacement 187
Central locking
system 38, 42
Changing a tire 190
t
Changing a wheel 190
t
Charge indicator lamp 22
Charging the battery 194
t
Check air pressure 30
Check button 86
Check Control 86
t
Check engine oil
level 165
t
Check tire pressures 29
t
Child restraint systems 62
Child seat 62, 66
Child seat security 67
Child-safety locks 67
Cigarette lighter 126
Cleaning headlamps 79
Cleaning windshield 78, 79
Clock 92
Clock, refer also to the
onboard monitor
Cockpit 16
Code 98
activating 98
de-activating 98
selecting 98
Cold start 69
Combination switch 78
Comfort seat 54
Compartments 124
Computer 89, 95
average fuel
consumption 89
average speed 89
cruising range 89
outside temperature 89
remote control 99
Computer, refer also to the
onboard monitor Owner's
Manual
Configure settings 60
Consumption display 84
Consumption, fuel 97
Contamination on
paintwork 172
Convenience operation
sliding/tilt sunroof 38
windows 38
Convenience starting
feature 69
Coolant 146, 167
antifreeze 146
temperature gauge 85
Copyright notice 4
Courtesy lamp, bulb
replacement 189
t
Cover, sun blinds 120
Cruise control 81
Cruising range 89, 97
Cup holder 125
Curb weight 221
D
Dashboard 16
Data link connector for
Onboard Diagnostics 178
Date
calling up 92
changing 92
Date, refer also to the
onboard monitor Owner's
Manual
Daytime-driving lamp 105
DBC (Dynamic Brake
Control) 23, 100, 145
Deactivating 99
interior motion
sensor 40, 48
tilt sensor alarm
system 40, 48
Deep water 141
Defrost
rear window 80
t
Defrost position 113, 117
Defrost
windows 113, 117
t
Difficult steering 148
t
Digital clock 92
Digital sound
processing 211
Dimensions 219
Dipstick, engine oil 165
t
Disc brakes 144
Disconnect the
battery 195
t
Displacement 218
Display lighting 105
Displays 18, 20
Distance 96
Distance warning 100
Diversity Antenna
system 209
Divided rear-seat
backrest 128
Door keys 36
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
Door locks, care 146
Doors
emergency release 38
manual operation 38
t
remote control 40
unlocking and locking 38
DOT Quality Grades 151
Drive belts 224
Driving in winter 146
Driving notes 141
Driving through water 141
DSC (Dynamic Stability
Control) 24, 102, 208
DSP sound system 211
refer also to the Radio
Owner's Manual
Dynamic Brake Control
(DBC) 23, 100, 145
Dynamic Stability Control
(DSC) 24, 102, 208
E
Electric power seat 52
Electric power windows 49
Electrical defect
fuel filler door 198
t
sliding/tilt sunroof 198
t
tailgate 199
Electrical heating, exterior
mirror 57
Electrical steering wheel,
adjusting 56
Electrical system 224
Electronic vehicle
immobilizer 37
Elements of operation 16
Emergency operation
doors 38
t
fuel filler door 198
t
luggage compartment lid/
tailgate 43, 199
t
sliding/tilt sunroof 198
t
Energy control 84
Engine
compartment 160
coolant 167
Engine oil
consumption 165
grades 166
level 23
pressure 22
specifications 166
t
Engine specifications 218
Error indicators 86
Estimated time of arrival 97
Exterior finish 172
Exterior mirror 56
electrical heating 57
Exterior mirror with
automatic dimming
feature 211
F
Failure messages 86
t
Failure of an electrical
accessory 196
t
Failure warnings 86
t
Filler cap cover 28
Filling capacities 223
Filling the washer
reservoir 164
t
First-aid kit 27
t
Fittings, tow-starting and
towing 201
t
Flashlight 124
Flat tire 150, 190
t
Fog lamp, bulb
replacement 185
t
Footbrake 144
Footwell lamps 107
bulb replacement 189
t
Forward/backward
adjustment, seats 52, 55
Front fog lamps 106
Front seat adjustment 52
Frost protection,
radiator 167
Fuel 29
gauge 84
quality 29
tank capacity 223
Fuel consumption 97
average 97
indicator 84
Fuel filler door, release after
electrical fault 198
t
Fuses 196
t
, 197
G
Gasoline 29
gauge 84
quality 29
Glove compartment 124
bulb replacement 189
t
Gross vehicle weight 221
H
Handbrake 23, 70
Hands-free system 125
Hazard warning
flashers 27
t
Hazard warning
triangle 27
t
Head restraints 53
Headlamp covers,
care 171
t
, 183
t
Headlamp flasher 78
Headlamp washer
system 164
Heated seats 119
Heated steering wheel 120
Heating and
ventilation 108, 114
Heating while stopped 118
Heating, rapid 113
Heavy loads 136
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
231n
Index Data Technology Repairs Car care Controls Overview
Height 219
Height adjustment
seats 52
steering wheel 56
Help with jump
starting 200
t
HiFi system 211
High beams 24
bulb replacement 183
t
High Performance Synthetic
Oils 166
High-mount brake lamp 187
Hood release 159
t
Horn 25
Hydraulic Brake Assistant,
refer to DBC 23, 100, 145
I
Ice warning 83
Identification number of the
vehicle 169
Identification, tires 153
Ignition key 36
Ignition lock 68
Imprint 4
Independent
ventilation 94, 120
Independent ventilation,
refer also to the onboard
monitor Owner's Manual
Indicator lamps 22
t
Inflation
pressure 29
t
, 30, 150
monitoring 103, 213
INSPECTION 85
Instrument cluster 18, 20
Instrument lighting 105
Instrument panel 20
Instrument panel switch 78
Instruments 18
Integrated rear
suspension 214
Intensive
cleaning 78, 79, 164
Interaxle tire rotation 152
Interference indicators 86
Interference with
car phones 149
Interior lamps 106
bulb replacement 188
t
remote control 40
Interior mirror 57
with automatic dimming
feature 211
Interior motion sensor 48
deactivation 48
Interior rearview mirror
with automatic dimming
feature 57
Interlock 68
Intermittent mode 78
J
Jack 190
t
Jump starting 200
t
K
Key Memory 60
Key, transmitter 36
Keys 36
Keys with remote control 36
Kickdown 73, 76
L
Lashing eye 136
Leather care 175
Length 219
Level control
system 23, 214
inactive 148t
License plate lamps, bulb
replacement 188t
Light switch 105
Light-alloy wheels 156
Lighter 126
Lights-on warning 105
LIMIT 95
Load-securing devices 136
Locking and unlocking the
doors 38
Louvers 108, 114
Low beams 105
bulb replacement 183t
Low-fuel warning lamp 84
Lug bolts 191
Lug wrench 191t
Luggage compartment 46
capacity 221
hanger 46
lamps 106
Luggage compartment
lamps, bulb
replacement 189t
Luggage compartment lid/
tailgate 43
emergency actuation 43
opening separately 43
remote control 41
secure separately 43
unlock in case of electrical
fault 43t
Luggage space 46
Luggage straps 46
Lumbar support 54
M
M+S tires 154
Magic Eye 194
Maintenance 85t, 170t
Malfunction displays 86t
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
Manual operation
doors 38t
fuel filler door 198t
luggage compartment lid/
tailgate 43, 199
sliding/tilt sunroof 198t
tailgate 199t
Manual transmission 70
Manually controlled
recirculated-air 117
Master key 36
Mechanical seat 53
Memo 93
Memory 58
MFL (Multifunction steering
wheel) 25
Microfilter 112, 119
MID (Multi-Information
Display) 91
computer 95
digital clock 92
Mirror 56
heating 57
memory 58
Mirrors with automatic
dimming feature 211
Mobile communication
systems, refer to the
separate Owner's Manual
Mobile phones 149
Modifications,
technical 6, 177
Moonroof 51
Multifunction steering wheel
(MFL) 25
Multi-Information Display
(MID) 91
N
Neck rest 53
Nonsmoker equipment 126
Nozzles 114
O
OBD connector 178
OBD interface socket 178
Odometer 83
Oil
additives 165
consumption 165
grades 166
Oil change interval, refer to
the Service and Warranty
Information Booklet (US
models) or to the Warranty
and Service Guide Booklet
(Canadian models)
Oil dipstick 165
Oil level, indicator lamp 23
Oil pressure, indicator
lamp 23
Oil specifications 166t
OILSERVICE 85
Old batteries 195
Onboard computer, refer
also to computer
Onboard monitor, refer also
to the separate Owner's
Manual
Onboard tool kit 182t
Opening and closing
from the inside 42
from the outside 38
Operating range 89
Outlets, ventilation 108, 114
Outside temperature 89
display 83
P
Paint
blemishes 172
care 172
minor repairs 173
waxing 173
Paintwork, refer to paint
Park Distance Control
(PDC) 100
Parking 184
Parking brake 23, 70
Parking help 100
Parking lamp, bulb
replacement 184t
Parking lamps 106
Parking, winter 148
PDC (Park Distance
Control) 100
Playing cassettes, refer to
the Radio Owner's Manual
Playing CDs, refer to the
Radio Owner's Manual
Pocket light 124
Pollen 112
Pollen filter 119
Power 51
Power steering 148
Power windows 49
safety switch 50
Power-slip control, refer to
ASC+T/DSC 102
Pressure, tire 30, 150
monitoring 103, 213
Pressure, tires 29t, 150t
R
Radio 149
refer also to the separate
Owner's Manual
Radio reception 149, 209
Rain sensor 78, 171, 212
RDC (Tire Pressure
Control) 103, 213
Reading lamps 107
Rear window blind 120
Rear window
defroster 80, 110, 118
Rear window wiper 80
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
233n
Index Data Technology Repairs Car care Controls Overview
Rear wiper blade, blade
replacement 182t
Rear-seat backrest,
removable 128
Rearview mirror 57
Recirculated air mode 110
Recirculated-air control 117
Reclining seat 52
Refueling 28
Releasing fuel filler door after
electrical defect 198t
Releasing the hood 159t
Reminder signal 93
Remote control 39
computer 99
Removable rear-seat
backrest 128
Removing condensation
from the
windows 113t, 117t
from the
windshield 113t, 117t
Replace wiper
blades 182t
Replacement keys 36
Replacement of tires 151
Replacing fuses 196t
Reporting safety defects 7
Reservoir, washer
fluids 164t
Residual heat 118
Restraint system 62
Reverse 71
Rims 153
Roller sun blind 120
Roof load capacity 221
Roof-mounted luggage
rack 137
Rubber parts 147
S
Safety belt tensioner 210
Safety belts 61
Safety lock buttons 42
Seats
electric power 52
forward/backward
adjustment 52, 55
heating 119
height adjustment 52
machanical 53
mechanical 53
memory 58
Secure the load 46, 136
Selector lever, automatic
transmission 72, 75
Self-dimming rearview
mirror 211
Service and Warranty
Information Booklet
(US models) 170
Service Interval
Display 85, 170
Servotronic 148
Shift lever 70
Shiftlock 72, 75
Shoulder support 54
Shutting off the engine 69
Side airbags 62
Side Impact Head Protection
System 62
Side lamps, bulb
replacement 184t
Ski bag 129
Ski bag in the sport
wagon 131
Skid control 148
Sliding 148
Sliding/tilt sunroof 50
closing after an after an
electrical defect 198t
convenience operation 38
glass moonroof 51
manual operation 198
power supply
interruption 51t
remote control 40
Slippery roads 147
Snow chains 147, 155t
Socket 127
Sound system, refer to
DSP 211
Spare key 36
Spare tire 191t
Spark plugs 224
Speaker 125
Special oil 166t
Specifications for engine
oil 166
Speed 98
Speed control 81
Speed limit 95, 96
Speedometer 18, 20
sport wagon
compartments in the
luggage
compartment 133
folding down the rear
backrest 132
lashing eyes 136
load-securing
devices 136
luggage
compartment 132
luggage compartment
lamps, bulb
replacement 189t
opening the rear
window 44
partition net 132
rear window wiper 80
rear window wiper, blade
replacement 182t
releasing the fuel filler
door after an electrical
defect 198t
releasing the tailgate after
an electrical defect 199t
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
roll-up cover 132
securing a load 136
ski bag 131
tail lamp assembly, bulb
replacement 186t
tailgate, manual release
after electrical fault 198t
Sports seat 55
Sports steering wheel 26
Start the engine 69
Starting 69
Starting assistance 200t
Starting help 200
Starting off 147
Starting problems
69, 142t, 200t
Starting the engine 68t
Steel wheel 158
Steering 148
Steering wheel
adjustment 56
heating 120
lock 68
memory 58
Steptronic 75
Stopwatch 93
Storage 124
Summer tires 153
Sun blind cover 120
Sun visors 57
Sunroof 50
with glass moonroof 51
Switching off the engine 69
Switch-on times
input 94
Symbols 4
T
Tachometer 84
Tail lamp assembly, bulb
replacement 186t
Tail lamps 186
Tailgate 199
convenience opening
mode 40
manual release after
electrical fault 199
refer also to luggage
compartment
release after an electrical
defect 199t
Tank capacity 223
Technical
modifications 6, 177
Telephone hookup 125
Temperature display, engine
coolant 85
Temperature display,
outside temperature 83
Temperature gauge 85
Temperature
layering 111, 119
Tensioning straps 46
Thigh support
adjustment 55
Third brake lamp, bulb
replacement 187t
Through-loading
system 128
Tilt alarm 40
Tilt alarm sensor 48
deactivation 48
Tilt function
passenger side exterior
mirror 59
steering wheel 56
Time
calling up 92
changing 92
of arrival, estimated 97
Tire
change 190
code 153
damage 150
inflation pressure 30, 150
monitoring inflation
pressure 103, 213
renewal 151
rotation between
axles 151
tread 150
valve caps 154
wear indicator 150
Tire Pressure Control
(RDC) 103, 213
Tire, changing 190t
Tools 182t
Torque 218
Tow fittings 201t
Towing 201t
Tow-starting 201t
Track width 219
Traction control system,
refer to ASC+T/DSC
Transmission 70, 75
Transmitter key 36
Transporting children
safely 66
Tread depth indicators 150
Tread depth, tires 150
Tread wear indicator 150
Trip odometer 83
Trunk, refer to luggage
compartment
Turn signal indicator 78
bulb replace-
ment 184t, 186t
Turning circle 219
U
Uniform Tire Quality Grading
(UTQR) 152
Universal Transmitter 121
Use antifreeze 167t
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
Everything from A to Z
235n
Index Data Technology Repairs Car care Controls Overview
Used batteries 195
Used oil, disposal 167
V
Valve caps 154
Vanity mirror 57
Vehicle battery 193
Vehicle care
exterior 172
interior 174
Vehicle Identification
Number 169
Vehicle immobilizer 37
Vehicle painting 172
Vehicle removal from
service 176
Vehicle storage 176
Ventilation 108, 112, 114
draft-free 111, 118
in the rear 111, 119
while parked 120
Vinyl upholstery, care 174
Viscosity 166
Voice recognition 26
refer also to the Radio
Owner's Manual
W
Warm feet – cool
head 111, 119
Warning lamp "Please fasten
safety belts" 23
Warning lamps 22t
Warning messages 86t
Warning triangle 27t
Warranty and Service Guide
Booklet (Canadian
models) 170
Washer fluid reservoir,
filling 164
Washer nozzles 164
Washing your car 171
Water on the roads 141
Waxing, paintwork 173
Wear indicator in the
tires 150
Weight 221
Wheel, changing 190t
Wheelbase 219
Wheels and tires 153, 156
Width 219
Windows
convenience operation 38
remote control 40
Windshield washer nozzle
adjustment 164
Windshield washer reservoir,
filling 164
Windshield wipers 78
Winter driving 146
Winter operation 146
Winter tires 154
Wiper blade
replacement 182t
Wiper/Washer system 78
Work in the engine
compartment 159t
X
Xenon lamps 105, 184, 215
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
So that you will have important
specifications available when you
stop to refuel, we recommend that
you supplement this table with data
which apply to your vehicle.
Fuel
Engine oil
The space between the two marks on
the dipstick corresponds to approx.
1.1 US quarts (1 liter).
Designation Premium Unleaded
Gasoline
AKI: minimum 91
Quality
Tire inflation pressures
Summer Winter
front rear front rear
4 persons
5 persons or 4 plus luggage
Refueling
BMW recommends Castrol
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
The Ultimate Driving Machine
01 41 0 155 420 ue
We wish you an enjoyable
driving experience.
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
5 US-En
Online Edition for Part No. 01 41 0 155 420 - © 01/01 BMW Group
