Honeywell CL40PM Evaporative Cooler

User Manual - Transcript

• Page 1: wwwjmatekcom Email usinfojmatekcom Portable Evaporative Air Cooler Safety amp Maintenance Guide User tips and safety instructions

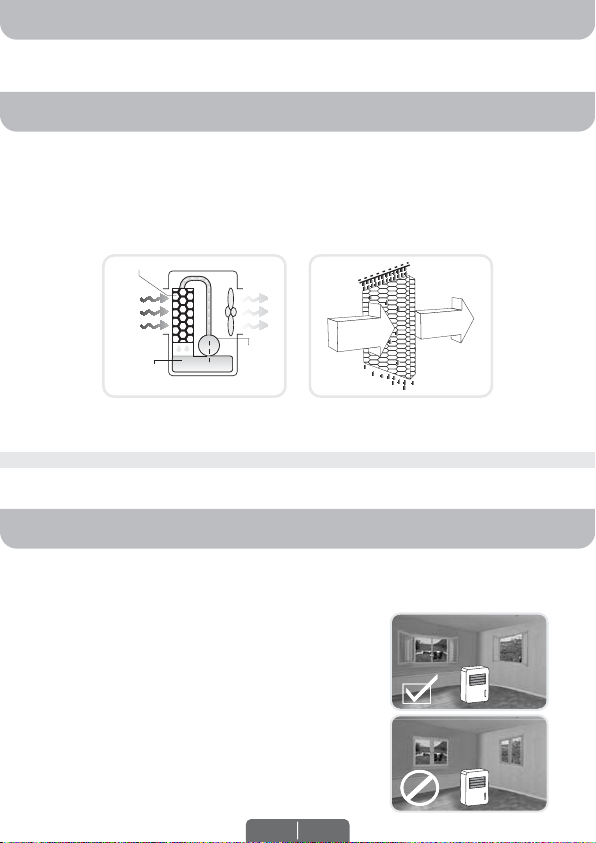

• Page 2 - English - : What is Evaporative Cooling Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep energy costs low Warm air is drawn into the cooler and enters the Honeycomb Cooling Media Water pumped from the water tank pours over the Honeycomb Cooling Media As the warm air passes through the Honeycomb Cooling Media the water absorbs the heat naturally cooling and humidifying the air A fan propels the cooled air out into the room This nocompressor system cools naturally efficiently and inexpensively Warm and dry air Cool and humid air Pump Water Honeycomb Cooling Media Evaporative Air Cooling Mechanism USER TIPS THANK YOU Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler The Safety amp Maintenance Guide and the separate User Manual are intended to provide you with important information needed to set up operate maintain and troubleshoot this product The Evaporative Air Cooler should not be used in enclosed spaces It must be kept level and there must be water in the water tank Doors and windows should be opened to allow free air flow The Evaporative Air Cooler works best when placed near an open window so that outside air is drawn into the Evaporative Air Cooler circulates in the room then exits via the door The maximum cooling effect is felt when a person is near the flow of air coming out of the Evaporative Air Cooler The Evaporative Air Cooler produces moisture and can be used to humidify dry air To be used for humidification the windows and doors should be closed NOTE When the product is used for the first time the Honeycomb Cooling Media will have an odor which will dissipate in a few hours or so of initial use COOLER LOCATION To maximize efficiency position the Air Cooler according to the following guidelines Indoors Place the cooler in front of an open door or window Ensure that there is adequate crossventilation in the room by leaving a door or window open opposite the cooler The recommended maximum relative humidity level is 60 or less which allows a noticeable temperature decrease The temperature will be lower in drier climates because higher evaporation occurs when the humidity is low r EN 1
• Page 3 - English - : WARNINGREAD AND SAVE THE AIR COOLER GUIDE AND USER MANUAL The Air Cooler Guide and User Manual are intended to provide important information needed to set up operate maintain and troubleshoot your Air Cooler Failure to follow these instructions may damage andor impair its operation create hazards and void the warranty READ AND SAVE THESE INSTRUCTIONS When using electrical appliances basic safety precautions should always be followed Check the household voltage to ensure it matches the appliances rating specifications Before operating the product remove the packaging and check that product is in good condition DO NOT operate with a damaged cord or plug If the supply cord is damaged it must be replaced with a supply cord which is as per manufacturers specifications by the authorized service centre or its service agent or a similarly qualified person in order to avoid a hazard DO NOT use an extension cord with this unit DO NOT run power cord under carpeting or cover it with rugs or runners Keep the cord away from areas where it may be tripped over Always ensure the water tank is filled with water above the quotminquot level mark when operating the air cooler in evaporative COOLING mode Always unplug the Air Cooler before refilling the water tank cleaning servicing or relocating the unit Never pull the cord Remove it from the electrical outlet socket by grasping and pulling on the plugend of the cord This appliance has been manufactured for use in domestic environments and must not be used for other purposes DO NOT use in areas where gasoline paint or other flammable goods and objects are stored When using the COOL setting make sure the water tank is at Max Indicator Level Operating the unit on the COOL setting with an empty tank may result in damage to the water pump DO NOT attempt to repair or adjust any electrical or mechanical functions of the Air Cooler as this may void the warranty DO NOT cover the coolers air inlet or outlet as this may damage the motor DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may damage the unit and may cause electrical shock or fire DO NOT operate with the Honeycomb Cooling Media removed as this will overload and damage the motor SAFETY RULES IMPORTANT The evaporative air cooler is not an air conditioner as it does not use a compressor or refrigerant gas It should not be expected to cool as efficiently as a refrigerated air conditioner Outdoors for outdoor models only IMPORTANT Honeywell Outdoor Air Cooler models are designed to IPX4 product standards and not recommended to be placed outdoors during heavy rain or snow COOLER LOCATION CONTINUED Use only on GFCI Protected outlets sockets for USA only Power cords must be secured to avoid tripping The wiring and connections must be protected from water The electrical plug and Air Cooler connections must be dry at all times When used outdoors insert the air cooler electrical plug into an IP44 compliant outdoor electrical outlet Set the unit on a solid flat surface EN 2
• Page 4 - English - : DO NOT leave the operating appliance unattended for an extended period of time DO NOT allow children to play with this appliance packaging or plastic bags DO NOT continue to operate the unit if it is damaged or if it malfunctions Refer to the TROUBLESHOOTING section and contact the CUSTOMER SUPPORT CENTER Always place the unit on a dry level floor DO NOT use in bathrooms or near water DO NOT keep the product where it may fall into a water container Store in a dry area when not in use This appliance is not intended for use by persons including children or elderly with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety Always grip the side handles to move the Air Cooler WARNING To reduce the risk of fire or electric shock do not use this appliance with any solid state speed control device SAFETY RULES CONTINUED Make sure all parts are dry by running the Fan Only mode for about 30 minutes before storing time depends on ambient humidity conditions Switch OFF the Air Cooler and unplug from the power supply Emptydrain all the water from the tank Note If the unit is connected to a continuous water supply you must switch off the water supply and remove the drain tube before draining the water tank This function is only available on some Honeywell Air Cooler models Check the User Manual to see if your unit has the Continuous Water Supply Function Clean the water tank with a damp cloth to wipe away any dust or mineral deposits Remove the Honeycomb Cooling Media and Carbon Dust Filter from the Air Cooler and rinse under fresh water to remove dust and dirt Replace the Honeycomb Cooling Media and Carbon Dust Filter after they are clean and dry To protect the unit from dust and scratches cover with a clean cloth or plastic bag before storing Coil the power cord and store it away from the floor to protect it Read the detailed CLEANING amp DRAINING THE WATER TANK instructions for your Air Cooler located in the separate User Manual Below is a general guideline for maintenance and storage of your Air Cooler WARNING Always switch OFF the Air Cooler and unplug it from the electrical source before cleaning or maintenance Cleaning At least once a week drain the water tank completely and refill with fresh water Doing this will greatly reduce mineral deposits and help to extend the life of the Honeycomb Cooling Media End of Season Storage If the Air Cooler will not be used for a long time STORAGE AND MAINTENANCE GUIDELINES Carbon Dust Filter is available in specific models of Honeywell Air Coolers only Check the User Manual for your model to see if it includes a Carbon Dust Filter EN 3
• Page 5 - English - : TROUBLESHOOTING GUIDE Customer Service Center See the last page of the User Manual to find the contact details for the Customer Service Center for your area No discharge of air Cord is not plugged in Make sure power cord is plugged in and the switch is ON Turn the unit ON by pressing the power button on the control panel or remote control Check the Honeycomb Cooling Media If you see mold spots on the media or suspect an algae issue remove and replace the Honeycomb Cooling Media Contact the Customer Service Center for more information Check water tank amp other cooler parts If you see mold spots or suspect an algae issue use a damp cloth to wipe away the algae until all spots have disappeared Make sure all parts are clean amp dry before storage Contact the Customer Service Center if problem persists Turn on COOL function from remote or control panel Refill water tank Contact Customer Service Center When the unit is used for the first time the Honeycomb Cooling Media will have an odor which will dissipate within a few hours of initial use Replace with new batteries Follow the polarity guide inside the battery compartment If replacing new batteries in the correct position does not work contact the Customer Service Center Try to activate the unit with the Remote Control If the unit responds then the Control Panel on the unit may be experiencing problems contact the Customer Service Center If neither the Remote Control or the Control Panel is working contact the Customer Service Center A small amount of rain on the unit is not a problem as long as the electrical plug and outlet are dry If they are wet DO NOT touch the unit or electrical plugoutlet Switch off the master power for the outlet before unplugging the unit from the electrical outlet Make sure all outlets and plugs are dry before use The Air Cooler is designed to IPX4 product standards and not recommended to be placed outdoors during heavy rain conditions Do not operate the Air Cooler when wet Wait for the Air Cooler to dry before plugging in and turning on the unit again Power is not ON Pump is not turned ON Low or no water in tank when COOL is selected Damaged Pump or Calcium deposits on blower When the Cooler is new Algae or mold due to moist parts In very damp conditions algae may form Remote control batteries are old amp used or inserted incorrectly in the battery compartment Damaged Control Panel on unit The Air Cooler was placed outdoors this is only allowed for outdoor Air Cooler models and soaked by heavy rain Not Cooling Unit is making noise Odors The Air Cooler cools best in dry climates If the ambient humidity level is high 60 or above refrain from using the Air Cooler until ambient humidity is reduced Make sure the windowdoors are open and there is adequate crossventilation in the room so that the moisturized air can circulate better Do not use the evaporative cooling function on days with high ambient humidity In cooling mode the Air Cooler produces moisture as a result of evaporative cooling This is normal Excessive humidity in the room Remote control does not work Damaged remote control The unit does not respond The outdoor Air Cooler is wet from rain PROBLEM POSSIBLE CAUSE SOLUTION EN 4
• Page 6 - English - : wwwjmatekcom Email usinfojmatekcom Model CL40PM CO40PM OFF COOL ON OF F ON SP EED SWING MAX MIN Portable Evaporative Air Cooler User Manual Read and save these instructions before use CL48PM CO48PM
• Page 7 - English - : O F F C O O L O N O F F O N S P E E D S WI N G 1 2 9 8 3 4 5 6 7 10 11 16 12 13 14 15 7 Louvers 8 Water Level Indicator 9 Control Panel 10 Right Side Grill 11 Water Inlet Valve 12 Drain Plug 13 Rear Grill 14 Power Cord amp Plug 15 Rear Grill Screws 16 Water Fill Door PARTS DESCRIPTION USE amp OPERATION CONTROL PANEL FUNCTION BUTTONS SPEED ON OFF Connect to the power supply and turn the SPEED knob The fan will start Change the speed from 3 to 1 1 for Low 2 for Medium and 3 for High fan speed To switch OFF the unit turn the SPEED knob to 0 COOL You must add water before operating the unit on Cool mode Turn the COOL knob to the ON position to activate evaporative cooling The water pump will operate and you will feel the cooler air after the Honeycomb Cooling Media is completely wet SWING Turn the SWING knob to the ON position to activate the movement of the louvers The louvers will begin to move left to right automatically Vertical Air Flow You can manually adjust the lever located at the front of the unit to change vertical air flow 1 Water Inlet Hole 2 Handle 3 Left Side Grill 4 Lever for Horizontal Louvers 5 Water Tank 6 Casters WARNING READ AND SAVE THE AIR COOLER SAFETY amp MAINTENANCE GUIDE AND USER MANUAL BEFORE USING THIS PRODUCT FAILURE TO FOLLOW THESE INSTRUCTIONS MAY DAMAGE AND OR IMPAIR ITS OPERATION AND VOID THE WARRANTY WARNING FOR OUTDOOR MODEL CO40PM CO48PM USE ONLY ON GFCI PROTECTED RECEPTACLES SWING SPEED COOL OFF ON ON OFF EN 1
• Page 8 - English - : USE amp OPERATION CONTINUED Water Inlet Hole Water Fill Door Ice Loading Compartment Water inlet valve Garden Hose FILLING WITH WATER COOLER LOCATION CAUTION Unplug the unit from the electrical power outlet before filling or emptying the water tank Continuous Water Supply Connection Make sure to position the air cooler correctly before you set up and start using the product Please refer to the COOLER LOCATION section of the separate Safety amp Maintenance Guide CLEANING amp DRAINING THE WATER TANK Move the unit to a location where the water can be drained Remove the cap from the Drain plug located at the bottom of the unit Allow the tank to empty Refill the water tank with clean water up to the maximum level and drain it completely Use a damp cloth to remove the dirt and dust from the surface of the unit Never use corrosive elements or chemicals to clean this product When the product is not in use store the unit in a dry place away from direct sunlight Locate the male connector at one end of the garden hose Insert the garden hose connector into the water inlet valve of the cooler Screw and tighten the water inlet valve onto the threaded part of the garden hose connector making sure the hose connector is secured to ensure there will be no leaks If there is leakage the hose and the water inlet valve may not be connected properly Try to disconnect replace and tighten the water inlet valve again When the connection is secured turn ON the water supply and the water will flow into the water tank of the cooler The cooler is now set so the water refills automatically when the water tank is empty or when the water reaches below a minimum level When the water tank is full the water inlet valve will automatically stop the water supply from overflowing Please open the water valve for minimum flow as too much pressure could damage the inlet pressure control system WARNING The maximum water inlet pressure is 05 MPa Using a portable container or a garden hose you can refill the water tank manually by pouring water into the water tank through the water inlet hole located at the top of the air cooler Check the water level indicator to know when the water tank is full Do not fill water above the quotMaxquot water level mark to avoid water droplets collecting on the louvers WARNING Before cleaning the unit switch the unit OFF and disconnect from the electrical socket If the cooler will not be used for a long period of time please refer to the STORAGE amp MAINTENANCE GUIDELINES located in the separate Safety amp Maintenance Guide Note The water capacity refers to the total volume of water that can be contained within the air cooler water tank and water distribution system The water capacity in the tank at the Max indicator level may be lower than the actual water capacity of the air cooler Manual Water Tank Refill For a continuous water supply you will need a garden hose that is connected to a main water supply EN 2
• Page 9 - English - : USE amp OPERATION CONTINUED Remove the screws from the Rear Grill of the Air Cooler Carefully pull out the Rear Grill from the Air Cooler The Honeycomb Cooling Pad is secured on the Rear Grill by two Horizontal Bars that are fixed in place by two screws on the Left and Right Sides of these Horizontal Bars Remove these screws to release the Horizontal Bars Pull out the Honeycomb Cooling Pad by sliding it out from the Rear Grill Replace with the new Honeycomb Cooling Pad by sliding into the grooves of the Rear Grill until it fits comfortably and securely in place on the grill Replace the Horizontal Bars back onto the Rear Grill by replacing the Left and Right Side screws and tightening them in place This secures the Honeycomb Cooling Pad in place on the Rear Grill Repeat steps 1 to 4 to remove the Honeycomb Cooling Pad on the Left and Right Side Grills WARNING DO NOT operate the Air Cooler when any or all of the Rear or Side Grills are removed from the Air Cooler or if there is a loosefitting Rear or Side Grill Doing so can cause serious injury or dangerous electrical shock Removing the Honeycomb Cooling Media CLEANING THE HONEYCOMB COOLING MEDIA The appliance is supplied with three Honeycomb Cooling Media pads The Honeycomb Cooling Media are located inside the Rear and Side Grills Follow Steps 1 to 5 for instructions on how to remove them from the unit for cleaning and maintenance Do not run the unit in COOL mode with stale water in the tank You must empty the water tank and refill with fresh water especially if the tank has not been cleaned in a long time The cleaning frequency for the Honeycomb media depends on local air and water conditions In areas where the mineral content of water is high mineral deposits may build up on the Honeycomb Cooling Media and restrict air flow Draining the water tank and refilling with fresh water at least once a week will help reduce mineral deposits If mineral deposits remain on the Honeycomb Cooling Media the media should be removed and washed under fresh water The media should be cleaned every two months or sooner depending on your needs For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool function 15 minutes before turning the unit off Step 1 Step 3 Step 4 Step 2 Rear Honeycomb Pad Rear Grill Horizontal Bars Screws Rear Honeycomb Pad Rear Grill Rear Grill Screws Rear Grill EN 3
• Page 10 - English - : JMATEK North America LLC Mahwah New Jersey 07495 USA Phone 18004742147 Email usinfojmatekcom Web wwwjmatekcom Made in China 2015 JMATEK Limited All rights reserved The Honeywell Trademark is used under license from Honeywell International Inc Honeywell International Inc makes no representations or warranties with respect to this product This product is manufactured by JMATEK Limited
