LG Electronics LG LAB540W 4.1 Multi Channel Sound Plate User Manual

Please read this manual carefully before operating

your set and retain it for future reference.

LAB540W (LAB540W, S54A2-D)

OWNER’S MANUAL

SoundPlate™

LAB540W

All-in-one Home Theater

1 Getting Started

Getting Started2

Getting Started

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead

symbol within an equilateral triangle

is intended to alert the user to the

presence of uninsulated dangerous

voltage within the product’s

enclosure that may be of sucient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature accompanying the

product.

WARNING: This product contains chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a

conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over heating. The

openings shall be never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product shall not be placed in a built-

in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer’s

instruction has been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read

this owner’s manual carefully and retain it for future

reference. Shall the unit require maintenance,

contact an authorized service center.

Use of controls, adjustments or the performance of

procedures other than those specied herein may

result in hazardous radiation exposure.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon

a dedicated circuit;

That is, a single outlet circuit which powers only

that appliance and has no additional outlets or

branch circuits. Check the specication page of this

owner’s manual to be certain. Do not overload wall

outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or

damaged or cracked wire insulation are dangerous.

Any of these conditions could result in electric

shock or re. Periodically examine the cord of your

appliance, and if its appearance indicates damage

or deterioration, unplug it, discontinue use of the

appliance, and have the cord replaced with an

exact replacement part by an authorized service

center. Protect the power cord from physical or

mechanical abuse, such as being twisted, kinked,

pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and

the point where the cord exits the appliance. To

disconnect power from the mains, pull out the

mains cord plug. When installing the product,

ensure that the plug is easily accessible.

NOTICE: For Product Identication and

Compliance/Safety labeling information please

refer to Main label on the bottom of unit.

Getting Started 3

Getting Started

This device is equipped with a portable battery or

accumulator.

Safety way to remove the battery or the

battery from the equipment: Remove the

old battery or battery pack, follow the steps

in reverse order than the assembly. To prevent

contamination of the environment and bring on

possible threat to human and animal health, the

old battery or the battery put it in the appropriate

container at designated collection points. Do

not dispose of batteries or battery together with

other waste. It is recommended that you use

local, free reimbursement systems batteries and

accumulators. The battery shall not be exposed to

excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to

water (dripping or splashing) and no objects lled

with liquids, such as vases, shall be placed on the

apparatus.

IMPORTANT SAFETY

INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11. Only use attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination

to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-

supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or

moisture, does not operate normally, or has

been dropped.

Getting Started4

Getting Started

FCC Compliance Statement

This device complies with part 15 of the FCC

rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference,

and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

NOTE: This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used

in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference

to radio or television reception, which can be

determined by turning the equipment o and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a

circuit dierent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV

technician for help.

CAUTION : Any changes or modications not

expressly approved by the party responsible for

compliance could void the user’s authority to

operate this equipment.

FCC WARNING: This equipment may generate

or use radio frequency energy. changes or

modications to this equipment may cause harmful

interference unless the modications are expressly

approved in the instruction manual. The user could

lose the authority to operate this equipment if an

unauthorized change or modication is made.

FCC RF Radiation Exposure Statement : This

equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

This equipment should be installed and operated

with minimum distance 20 cm between the

radiator and your body. End users must follow the

specic operating instructions for satisfying RF

exposure compliance. This transmitter must not be

co-located or operating in conjunction with any

other antenna or transmitter.

CAUTION: Regulations of the FCC and FAA prohibit

airborne operation of radio-frequency wireless

devices because their signals could interfere with

critical aircraft instruments.

Responsible Party :

LG Electronics USA, Inc. 1000 Sylvan Avenue

Englewood Clis, NJ 07632

TEL. : +1-800-243-0000

Getting Started 5

Getting Started

Notes on copyrights

Because AACS (Advanced Access Content

System) is approved as content protection

system for Blu-ray Disc format, similar to use of

CSS (Content Scramble System) for DVD format,

certain restrictions are imposed on playback,

analog signal output, etc., of AACS protected

content. The operation of this product and

restrictions on this product may vary depending

on your time of purchase as those restrictions

may be adopted and/or changed by AACS after

the production of this product.

Furthermore, BD-ROM Mark and BD+ are

additionally used as content protection systems

for Blu-ray Disc format, which imposes certain

restrictions including playback restrictions for

BD-ROM Mark and/or BD+ protected content. To

obtain additional information on AACS, BD-ROM

Mark, BD+, or this product, please contact an

authorized Customer Service Center.

Many BD-ROM/DVD discs are encoded with

copy protection. Because of this, you should only

connect your player directly to your TV, not to a

VCR. Connecting to a VCR results in a distorted

picture from copy-protected discs.

This product incorporates copyright protection

technology that is protected by U.S. patents

and other intellectual property rights. Use of

this copyright protection technology must be

authorized by Rovi Corporation, and is intended

for home and other limited viewing uses only

unless otherwise authorized by Rovi Corporation.

Reverse engineering or disassembly is prohibited.

Under the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording,

use, display, distribution, or revision of television

programs, videotapes, BD-ROM discs, DVDs, CDs

and other materials may subject you to civil and/

or criminal liability.

Watching a 3D content for a long period

time may cause dizziness or tiredness.

It is not recommended to watch a movie

in 3D mode for inrm, child and pregnant

woman.

If you are experiencing headache, tiredness

or dizziness while viewing contents in 3D,

it is strongly recommended to stop the

playback and rest until you feel normal.

Caution

Table of Contents6

Table of Contents

1 Getting Started

2 Safety Information

8 Introduction

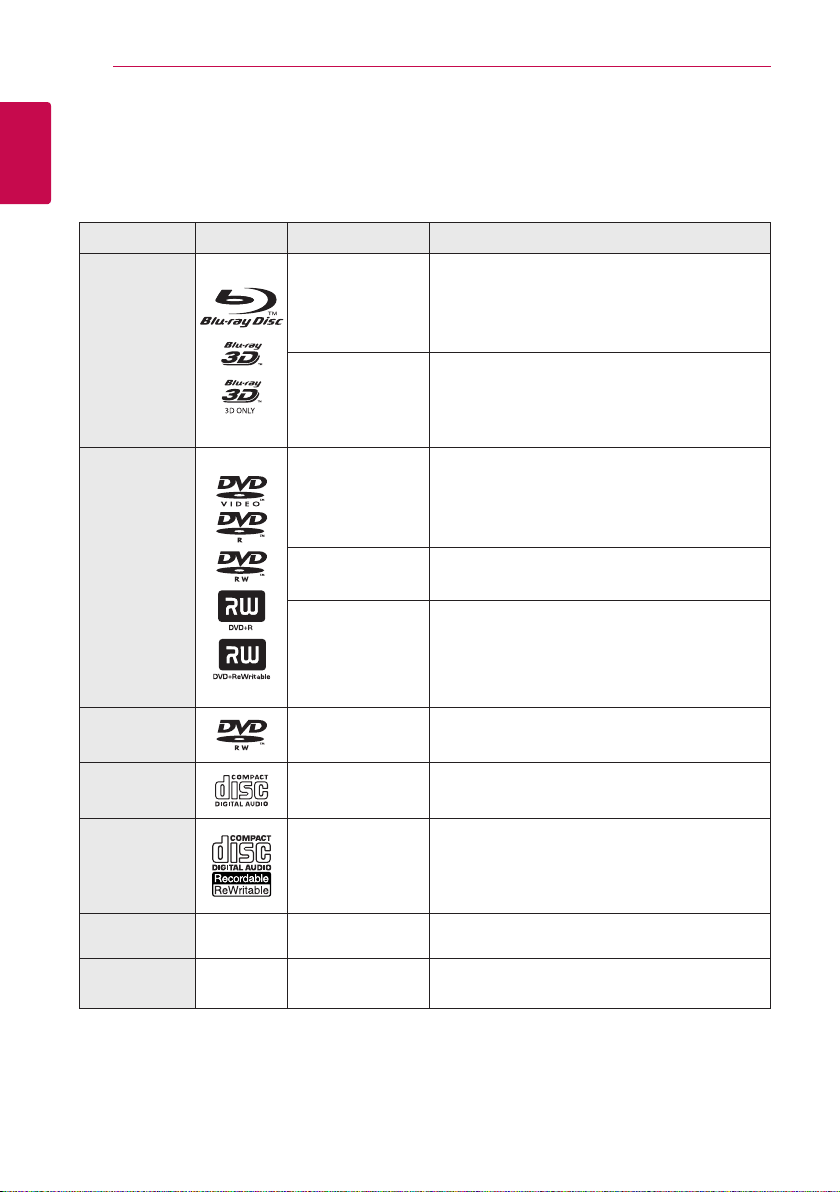

8 – Playable discs and symbols used in

this manual

9 – About the “7” symbol display

9 – Regional code

9 – System Select

10 Remote Control

11 Front Panel

11 Rear Panel

2 Connecting

12 Setting up the unit

15 Wireless subwoofer connection

16 Connecting to your TV

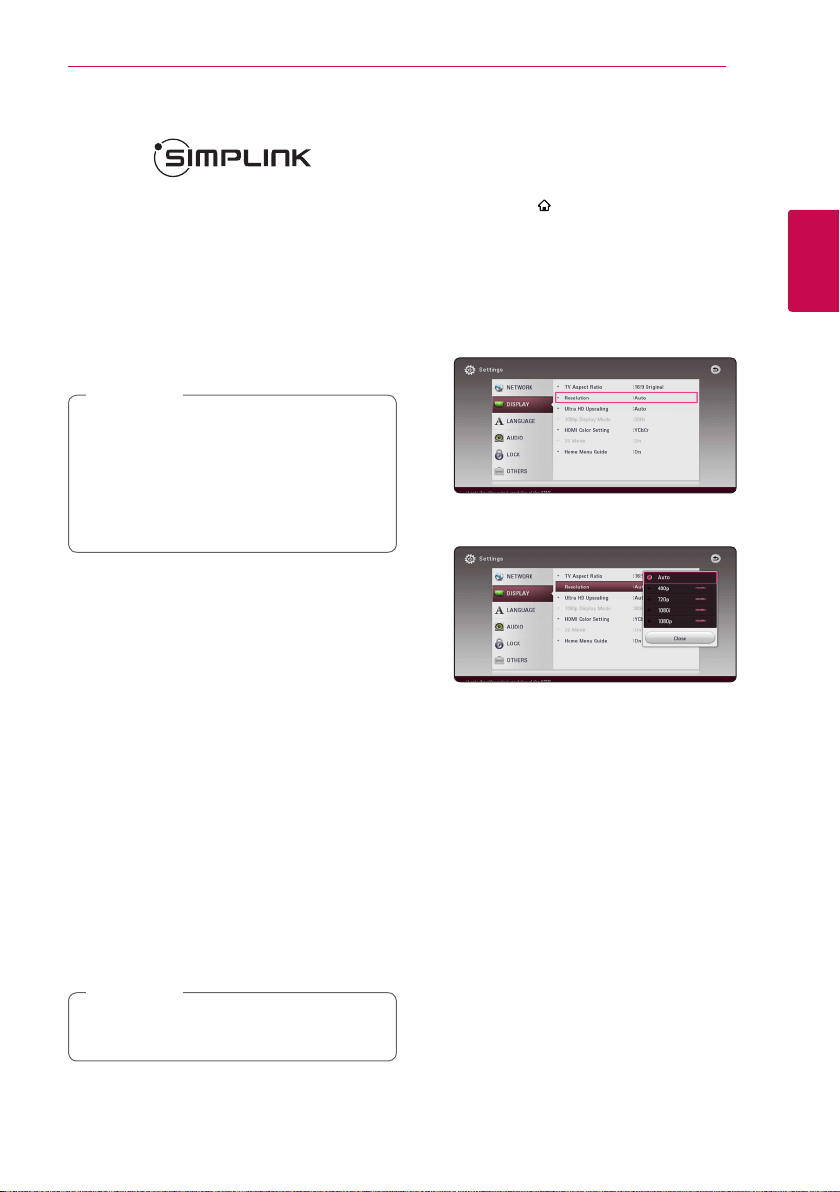

17 – What is SIMPLINK?

17 – ARC (Audio Return Channel) function

17 – Resolution setting

19 Connections with external device

19 – OPTICAL IN connection

19 – HDMI IN connection

20 Connecting to your Home Network

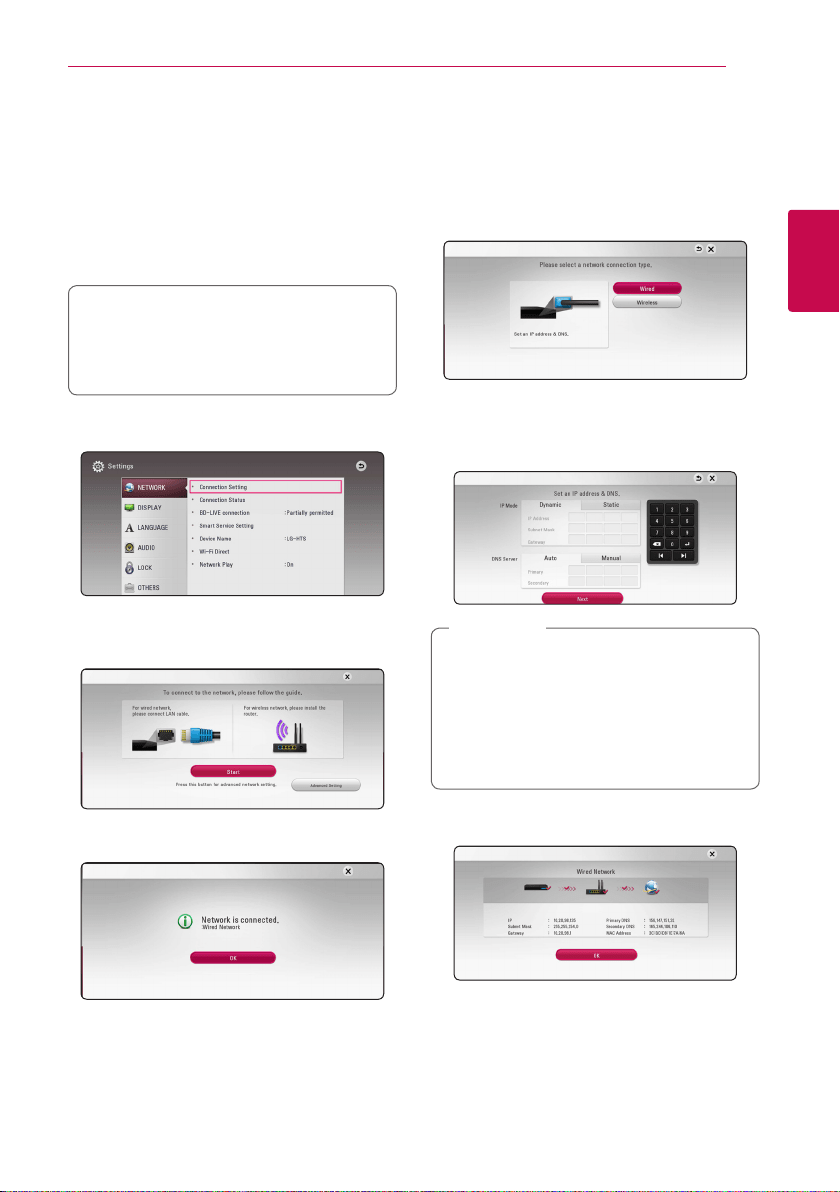

20 – Wired network connection

21 – Wired network setup

22 – Wireless network connection

22 – Wireless network setup

3 System Setting

25 Initial Setup

26 Settings

26 – Adjust the setup settings

27 – [NETWORK] menu

28 – [DISPLAY] menu

29 – [LANGUAGE] menu

30 – [AUDIO] menu

31 – [LOCK] menu

32 – [OTHERS] menu

4 Operating

35 Sound Effect

36 Home Menu Display

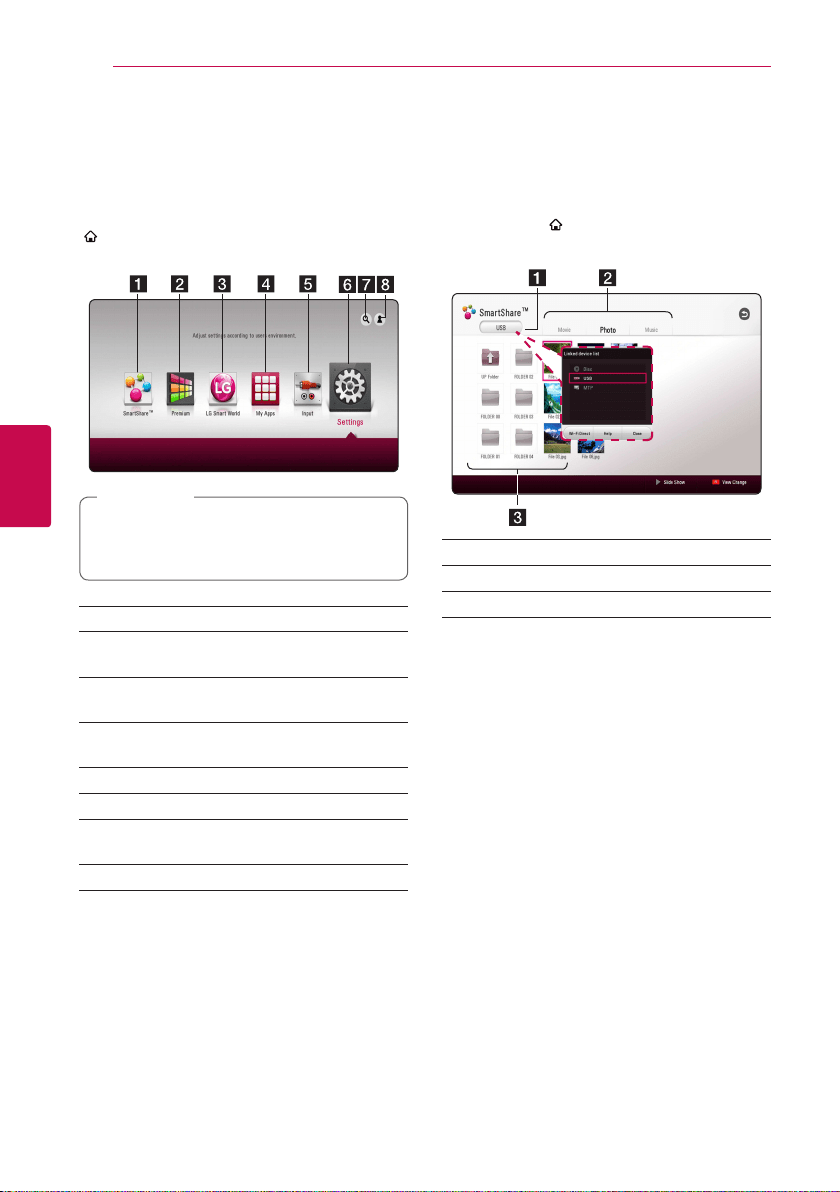

36 – Using [HOME] menu

36 – Using the SmartShare

37 Playing the Linked Devices

37 – Playing a disc

37 – Playing Blu-ray 3D disc

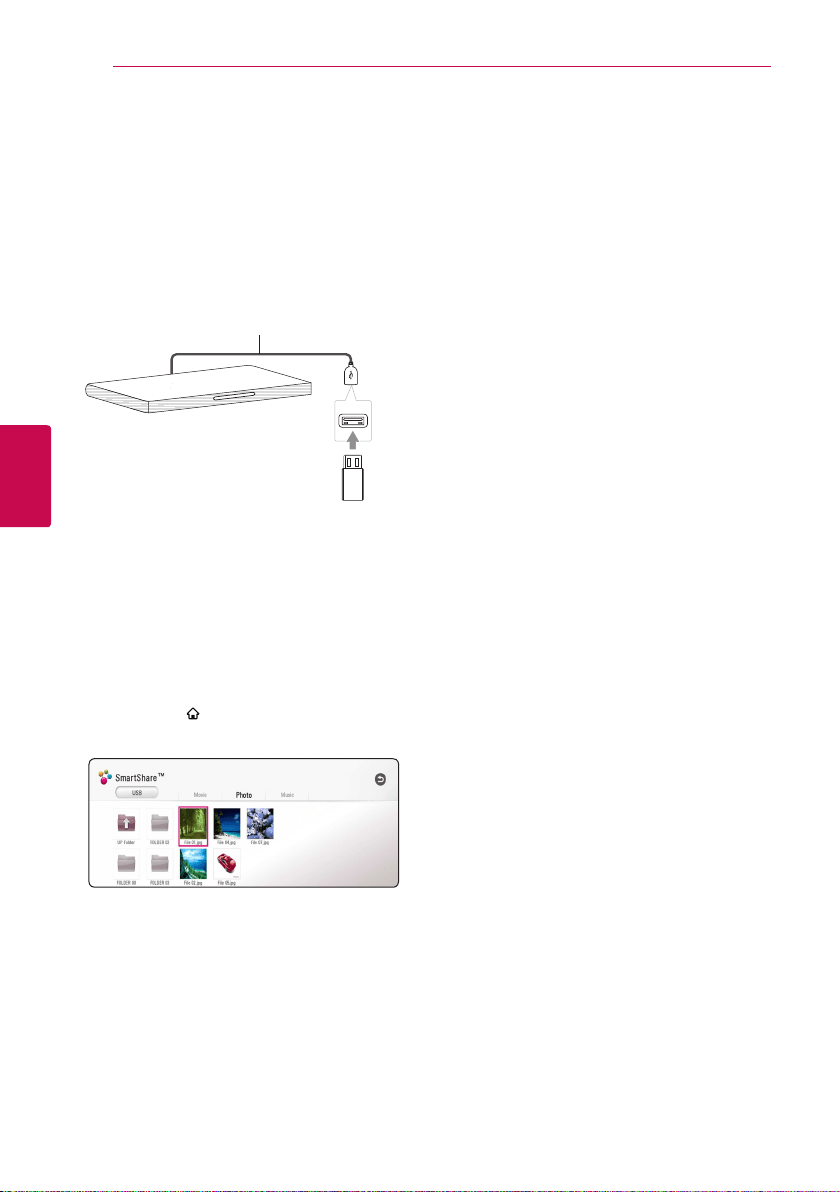

38 – Playing a file on disc/USB device

39 – Playing a file on Android device

40 – Playing a file on a network server

41 Using Home Network Server for PC

41 – About SmartShare PC Software

(DLNA)

41 – Installing SmartShare PC Software

(DLNA)

41 – Sharing files and folders

42 – System requirements

43 General Playback

43 – Basic operations for video and audio

content

43 – Basic operations for photo content

43 – Using the disc menu

44 – Resume playback

44 – Last scene memory

45 On-Screen Display

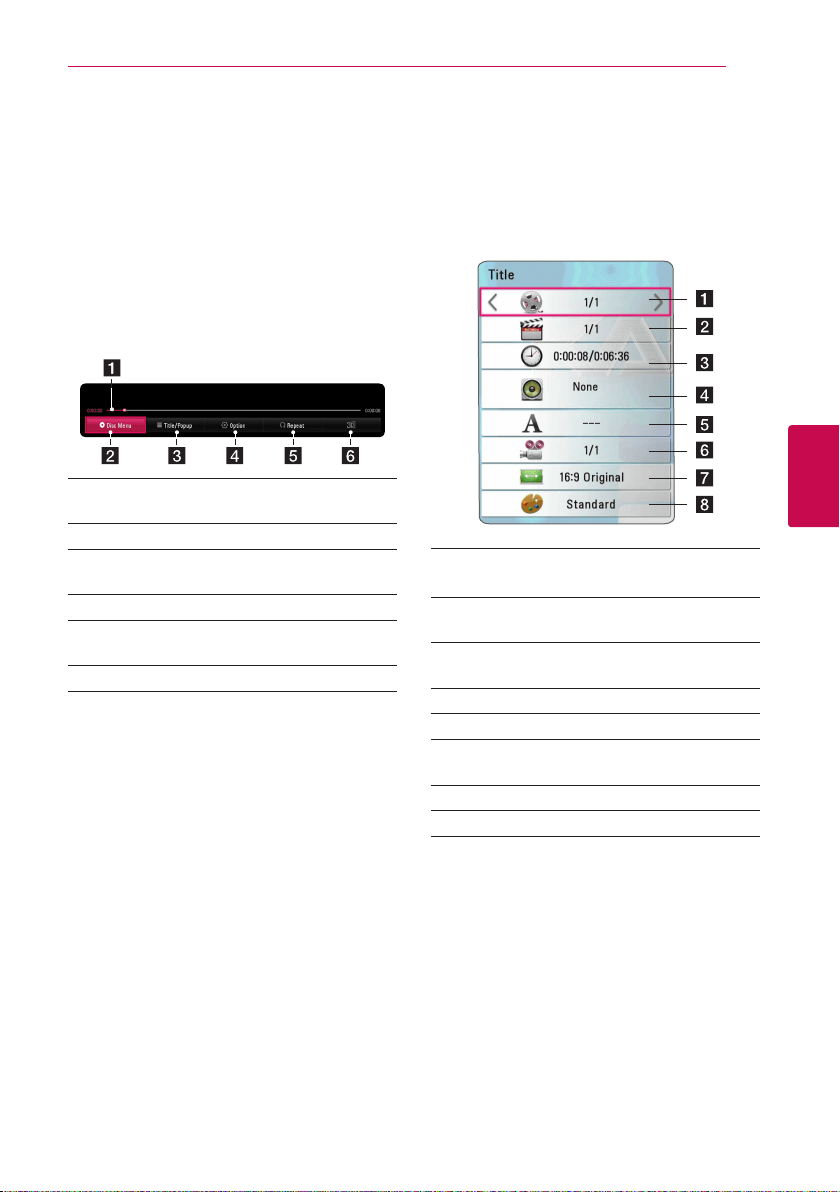

45 – To control video playback

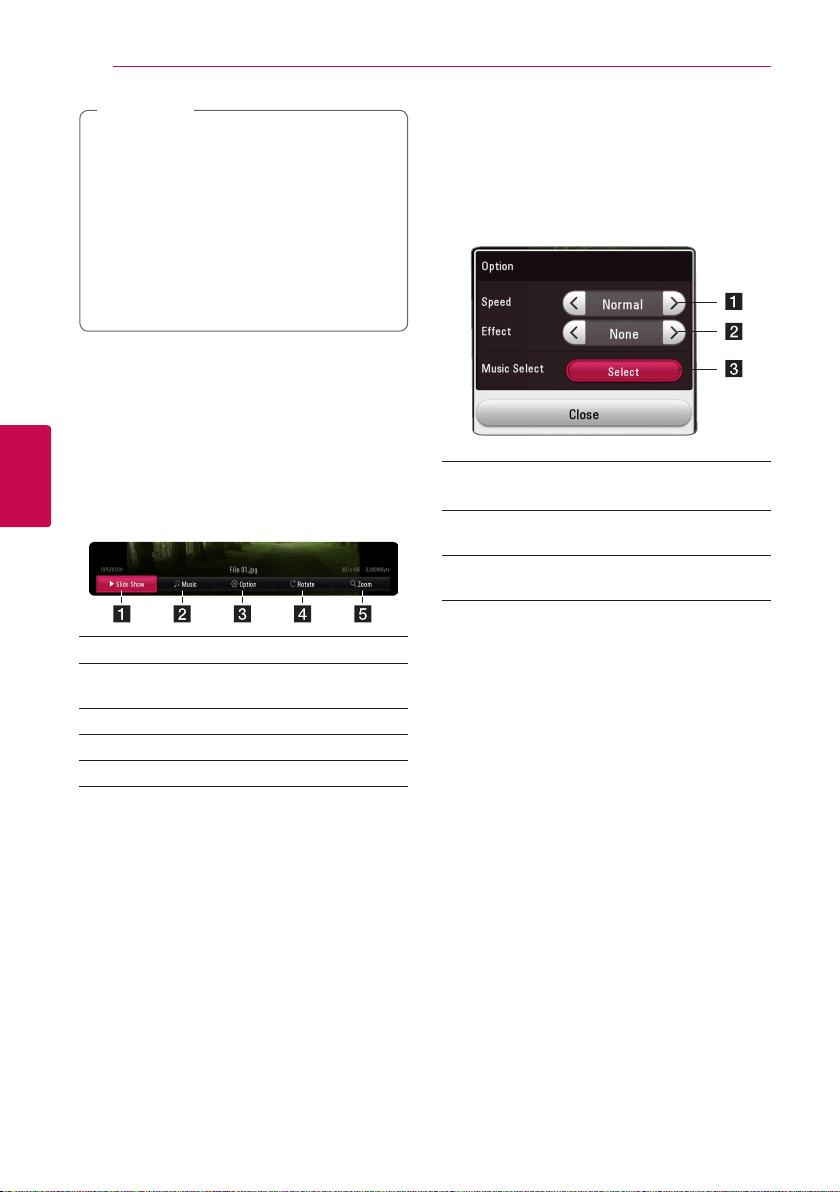

46 – To control photo view

47 Advanced Playback

47 – Repeat playback

47 – Repeating a specific portion

47 – Playing from selected time

48 – Selecting a subtitle language

48 – Hearing a different audio

48 – Watching from a different angle

48 – Changing the TV Aspect Ratio

49 – Changing subtitle Code Page

49 – Changing the Picture Mode

50 – Viewing content information

50 – Changing content list view

50 – Selecting a subtitle file

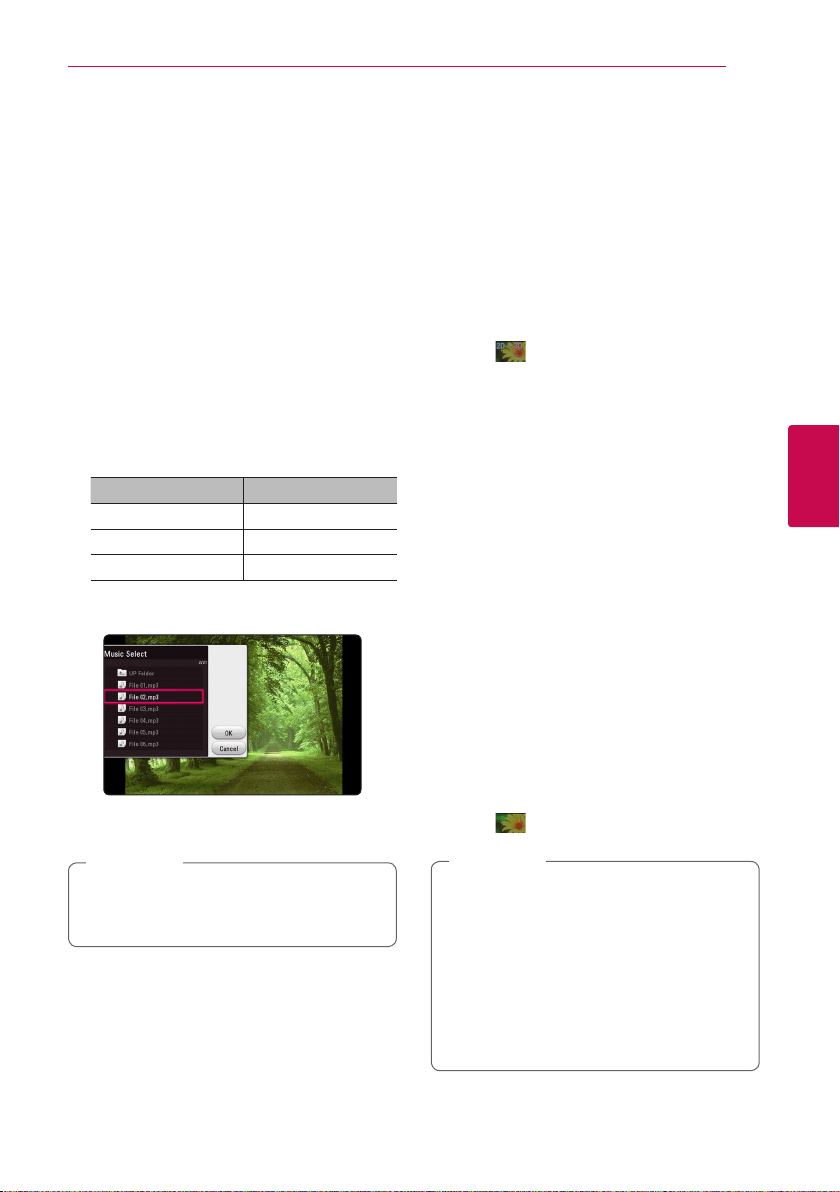

51 – Listening to music during slide show

51 – Playing content to 3D

52 Advanced Features

52 – Wi-Fi Direct™

53 – Enjoying BD-Live™

Table of Contents 7

53 – LG AV Remote

53 – Private Sound Mode

53 – Using an USB keyboard or mouse

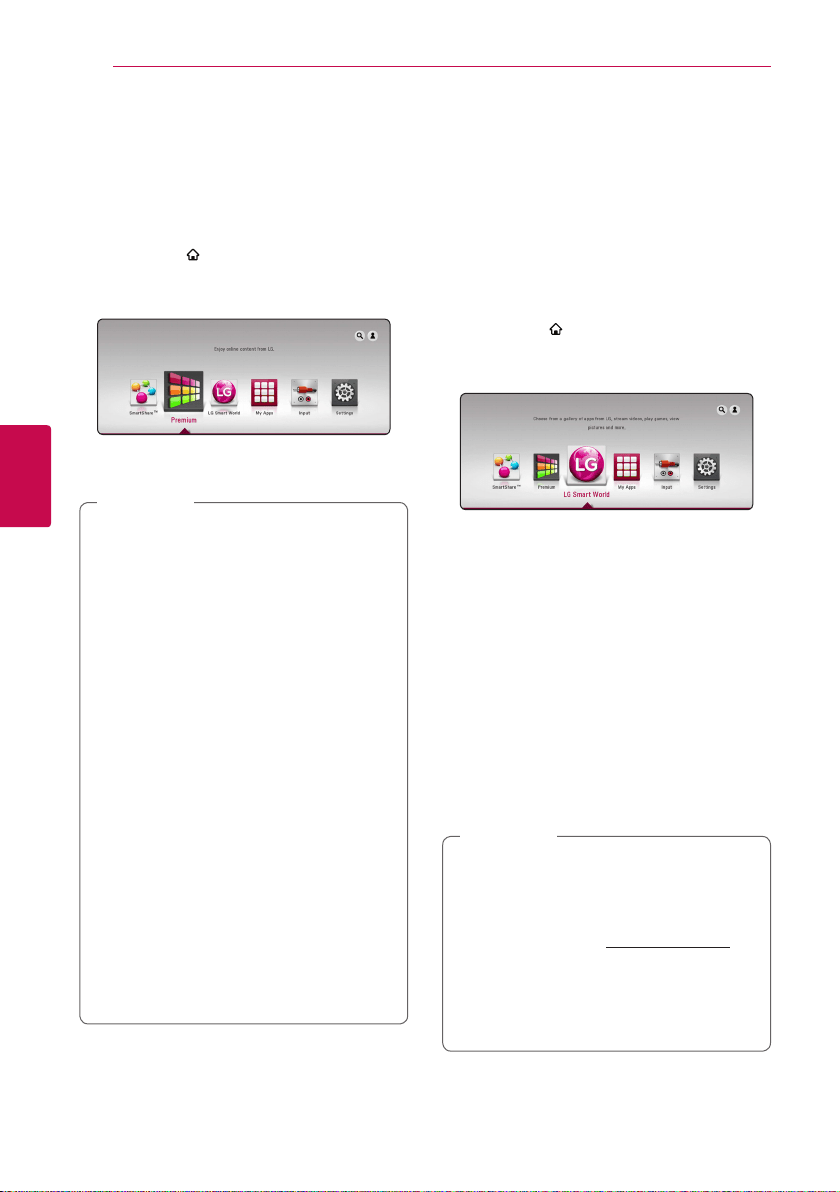

54 Using the Premium

54 Using the LG Smart World

55 – Signing in

55 – Searching online content

56 Using the My Apps Menu

57 Using Bluetooth technology

57 – Listening to music stored on the

Bluetooth devices

5 Troubleshooting

59 Troubleshooting

59 – General

60 – Network

61 – Picture

61 – Sound

61 – Customer Support

61 – Open Source Software Notice

6 Appendix

62 Controlling a TV with the Supplied

Remote Control

62 – Setting up the remote to control your

63 Network Software Update

63 – Network update notification

63 – Software update

65 Additional Information

65 – File requirement

66 – AVCHD (Advanced Video Codec High

Definition)

67 – About DLNA

67 – Certain system requirements

67 – Compatibility notes

68 Audio Output Specifications

69 Area Code List

70 Language Code List

71 Trademarks and Licenses

73 Specifications

75 Maintenance

75 – Handling the unit

75 – Notes on discs

76 Important Information relating to Network

Services

Some of the content in this manual may dier from your player depending on the software of the

player or your service provider.

Getting Started8

Getting Started

Introduction

Playable discs and symbols used in this manual

Media/Term Logo Symbol Description

Blu-ray

Discs such as movies that can be purchased or

rented.

“Blu-ray 3D” discs and “Blu-ray 3D ONLY” discs.

BD-R/RE discs that are recorded in BDAV format.

BD-R/RE discs that contain Movie, Music or

Photo les.

ISO 9660+JOLIET, UDF and UDF Bridge format

DVD-ROM

DVD-R

DVD-RW

DVD+R

DVD+RW

(12 cm)

Discs such as movies that can be purchased or

rented.

Movie mode and nalized only

Supports the dual layer disc also

Finalized AVCHD format

DVD±R/RW discs that contain Movie, Music or

Photo les.

ISO 9660+JOLIET, UDF and UDF Bridge format

DVD-RW (VR)

(12 cm)

VR mode and nalized only

Audio CD

(12 cm)

Audio CD

CD-R/RW

(12 cm)

CD-R/RW discs that contain Movie, Music or

Photo les.

ISO 9660+JOLIET, UDF and UDF Bridge format

Note –

Indicates special notes and operating features.

Caution –

Indicates cautions for preventing possible damages

from abuse.

Getting Started 9

Getting Started

Depending on the conditions of the

recording equipment or the CD-R/RW (or

DVD±R/RW) disc itself, some CD-R/RW (or

DVD±R/RW) discs cannot be played on the

unit.

Depending on the recording software & the

nalization, some recorded discs (CD-R/RW,

DVD±R/RW, BD-R/RE) may not be playable.

BD-R/RE, DVD±R/RW and CD-R/RW discs

recorded using a personal computer or a

DVD or CD Recorder may not play if the

disc is damaged or dirty, or if there is dirt or

condensation on the player’s lens.

If you record a disc using a personal

computer, even if it is recorded in a

compatible format, there are cases in which

it may not play because of the settings of

the application software used to create the

disc. (Check with the software publisher for

more detailed information.)

This player requires discs and recordings to

meet certain technical standards in order to

achieve optimal playback quality.

Pre-recorded DVDs are automatically set to

these standards. There are many dierent

types of recordable disc formats (including

CD-R containing MP3 or WMA les) and

these require certain pre-existing conditions

to ensure compatible playback.

Customers should note that permission

is required in order to download MP3 /

WMA les and music from the Internet.

Our company has no right to grant such

permission. Permission should always be

sought from the copyright owner.

You have to set the disc format option

to [Mastered] in order to make the discs

compatible with the LG players when

formatting rewritable discs. When setting

the option to Live System, you cannot use

it on LG player. (Mastered/Live File System :

Disc format system for windows Vista)

Note

About the “

” symbol display

“

” may appear on your TV display during

operation and indicates that the function explained

in this owner’s manual is not available on that

specic media.

Regional code

This unit has a regional code printed on the rear of

the unit. This unit can play only BD-ROM or DVD

discs labeled same as the rear of the unit or “ALL”.

Getting Started10

Getting Started

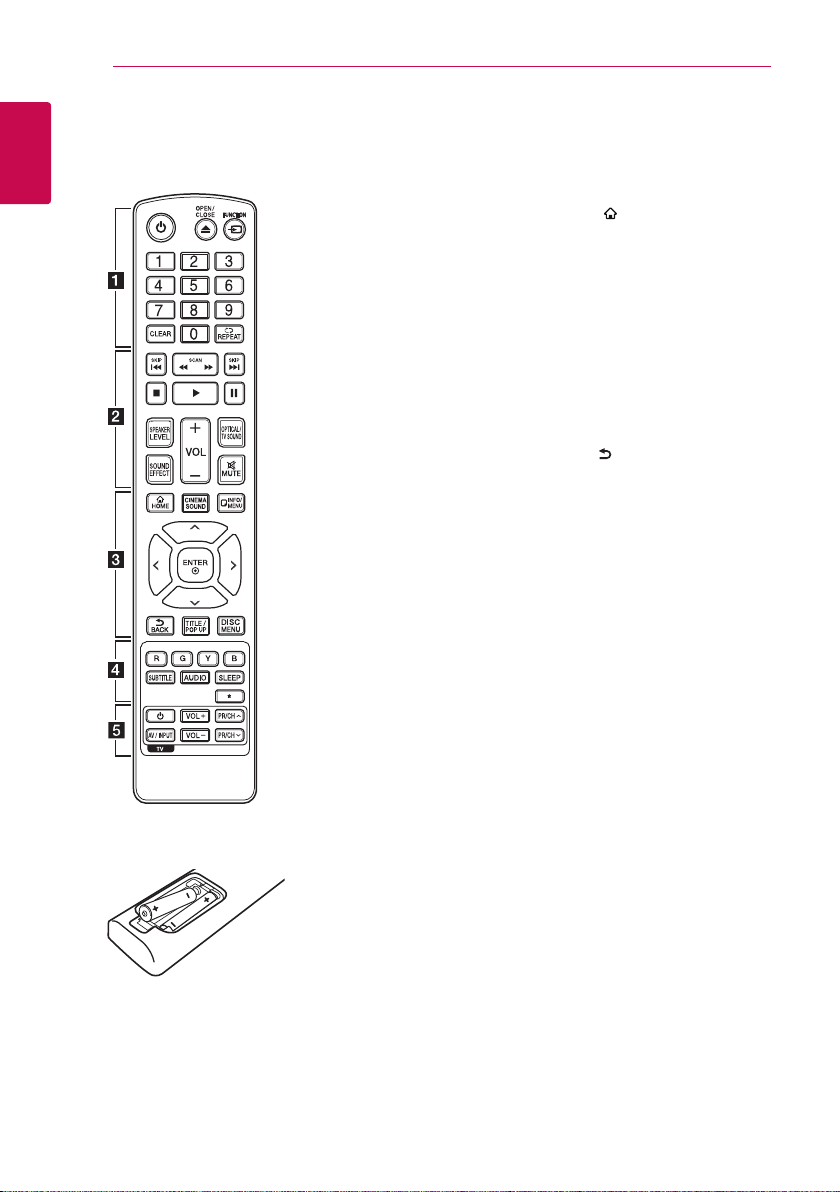

Remote Control

Battery Installation

Remove the battery cover on the

rear of the Remote Control, and

insert two R03 (size AAA) batteries

with

and

matched correctly.

• • • • • •

(POWER): Switches the player

ON or OFF.

(OPEN/CLOSE): Ejects a disc.

FUNCTION: Changes input mode.

0-9 numerical buttons: Selects

numbered options in a menu.

CLEAR: Removes a number when

setting the password or network

connection.

REPEAT (

): Repeats a desired

section or sequence.

• • • • • •

• • • • •

c/v

(SCAN): Searches

backward or forward.

C/V

(SKIP): Goes to the

next or previous chapter / track /

le.

(STOP): Stops playback.

(PLAY): Starts playback.

(PAUSE): Pauses playback.

SPEAKER LEVEL: Sets the sound

level of desired speaker.

SOUND EFFECT: Selects a sound

eect mode.

VOL +/-: Adjusts speaker volume.

OPTICAL/TV SOUND: Changes

input mode to optical directly.

MUTE: Mute the unit.

• • • • • •

• • • • •

HOME ( ): Displays or exits the

[Home].

CINEMA SOUND: Selects the

Cinema sound.

INFO/MENU (

): Displays or

exits On-Screen Display.

Direction buttons (

W/S/

A/D

): Selects an option in the

menu.

ENTER (

): Acknowledges menu

selection.

BACK ( ): Exits the menu or

returns to the previous screen.

TITLE/POPUP: Displays the DVD

title menu or BD-ROM’s popup

menu, if available.

DISC MENU: Accesses menu on a

disc.

• • • • • •

• • • • •

Colored (R, G, Y, B) buttons:

Use to navigate BD-ROM menus.

They are also used as shortcut

buttons for specic menus.

SUBTITLE: Selects a subtitle

language.

AUDIO: Selects an audio language

or audio channel.

SLEEP: Sets a certain period of

time after which the unit will

switch to o.

: Marked button is not available.

• • • • • •

• • • • •

TV Control Buttons: See page

62.

Getting Started 11

Getting Started

Front Panel

ab c ed

1/!

(Power)

Disc Slot

(Open / Close)

Remote sensor

Display window

Operation buttons

F (Function)

Selects the function and input source.

(Play / Pause)

(Stop)

-/+ (Volume)

Precautions in using the touch buttons

Use the touch buttons with clean and dry

hands.

- In a humid environment, wipe out any

moisture on the touch buttons before

using.

Do not press the touch buttons hard to

make it work.

- If you apply too much strength, it can

damage the sensor of the touch buttons.

Touch the button that you want to work in

order to operate the function correctly.

Be careful not to have any conductive

material such as metallic object on the

touch buttons. It can cause malfunctions.

Caution

Rear Panel

a b c d e

USB port

OPT. IN

Optical input

HDMI IN / OUT

HDMI input / output

LAN port

AC IN

2 Connecting

Connecting12

Connecting

Setting up the unit

This unit is designed to be positioned under your

TV.

Before setting up this system with your TV, make

sure your TV’s specications.

Weight

Max. 38 kg

(Max. 83 lbs)

Size of the base

Max. 680 mm

(Max. 26.7 inches)

Max. 270 mm

(Max. 10.6 inches)

Do not try to set up this unit alone. It may

need at least 2 persons to lift your TV.

Otherwise it may result in a personal injury

and/or property damages.

Do not connect a CRT type TV to this unit.

Because this unit contains magnetic parts,

color irregularity may occur on the TV

screen.

Do not put the other objects except a TV or

a monitor on the unit.

The unit must be set up on a stable and

horizontal surface.

Do not put any other object between the

unit and the supporting furniture when you

set up the unit.

Caution

It is recommended to set up the unit on a

suciently rm and horizontal surface.

Recommendation

1. Place the unit on the position where you want

to place your TV.

Connecting 13

Connecting

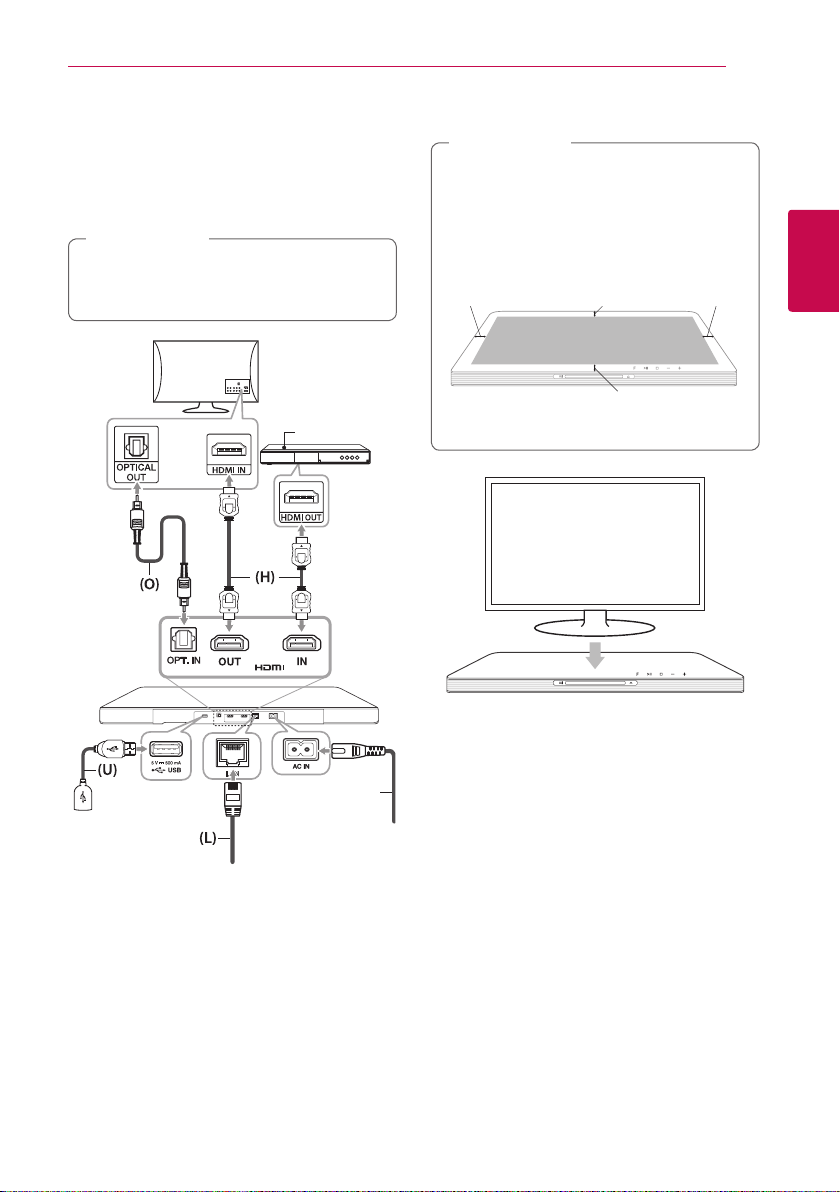

2. Connect all the cables of external devices you

want to use such as TV, Blu-ray disc player or

DVD player. Connect the player’s LAN port to

LAN or Ethernet cable. A USB extension cable

and a power cord supplied as accessories are

also connected.

Because it is dicult to make a connection

after installing this unit, you should connect

the cables before installation.

Caution

Blu-ray disc

player, DVD

player, etc.

Power cord

For more information of connections and

operations, refer to the pages below.

(O) Optical : See page 19.

(H) HDMI : See page 16 and page 19.

(U) USB : See page 38.

(L) LAN : See page 20.

3. Place your TV on the center of the unit.

Be careful not to hide control buttons on

the top of this unit when you put your TV on

the unit.

Put the distance of the base of your TV and

the edge of the unit.

20 mm

Available zone

(Top of the unit)

10 mm

30 mm

Caution

4. Plug in the power cord of the unit.

Connecting14

Connecting

Do not place your TV on the edge of this

unit. Otherwise it may result in a personal

injury and/or property damages.

If your TV is over recommended weight

(max 38 kg (max 83 lbs)) or has a Base larger

in area than the Unit do NOT place TV on

the Unit.

In this case, it is recommended to place this

system in another location such as on the

shelf under the TV.

Caution

Connecting 15

Connecting

Wireless subwoofer

connection

LED indicator of wireless subwoofer

LED Color Status

Green

(Blink)

The connection is trying.

Green The connection is completed.

Red The wireless subwoofer is

in standby mode or the

connection is failed.

O (No

display)

The power cord of wireless

subwoofer is disconnected.

Setting up the wireless subwoofer

for the first time

1. Connect the power cord of the wireless

subwoofer to the outlet.

2. Turn on the main unit : The main unit and

wireless subwoofer will be automatically

connected.

Manually pairing wireless subwoofer

When your connection is not completed, you can

see the red LED or the blinking of green LED on

the wireless subwoofer and the subwoofer does

not make sound. To solve the problem, follow the

below steps.

1. Adjust volume level of the main unit to

minimum.

”VOL MIN” appears on the display window.

2. Press and hold MUTE

(Mute) on the remote

control for about 3 seconds.

“WL RESET” appears on the display window

briey.

3. If the LED of the wireless subwoofer already

blinks in green continually, you can skip this

step.

Press and hold PAIRING on the back of the

wireless subwoofer for more than 5 seconds.

The LED of the wireless subwoofer lights up

alternately in red and green.

4. Disconnect the power cord of the main unit

and the wireless subwoofer.

5. Connect them again after the LED of the main

unit and the wireless subwoofer is fully turned

off.

The main unit and the wireless subwoofer will

be paired automatically when you turn on the

main unit.

When the connection is completed, you can

see the green LED on the subwoofer.

It takes a few seconds (and may take longer)

for the main unit and the subwoofer to

communicate with each other and make

sounds.

The closer the main unit and the subwoofer,

the better sound quality. It is recommended

to install the main unit and the subwoofer

as close as possible (within 5 m) and avoid

the cases below.

There is a obstacle between the main

unit and the subwoofer.

There is a device using same frequency

with this wireless connection such as a

medical equipment, a microwave or a

wireless LAN device.

Note

Connecting16

Connecting

Connecting to your TV

If you have a HDMI TV or monitor, you can connect

it to this player using a HDMI cable (Type A, High

Speed HDMI™ Cable). Connect the HDMI jack on

the player to the HDMI jack on a HDMI compatible

TV or monitor.

HDMI cable

Set the TV’s source to HDMI (refer to TV’s owner’s

manual).

Please refer to the manuals of your TV, Stereo

System or other devices as necessary to make

the best connections.

Note

Additional information for HDMI

When you connect a HDMI or DVI compatible

device make sure of the following:

Try switching o the HDMI/DVI device and

this player. Next, switch on the HDMI/DVI

device and leave it for around 30 seconds,

then switch on this player.

The connected device’s video input is set

correctly for this unit.

The connected device is compatible with

720x480p, 1280x720p, 1920x1080i or

1920x1080p video input.

Not all HDCP-compatible HDMI or DVI devices

will work with this player.

The picture will not be displayed properly

with non-HDCP device.

If a connected HDMI device does not accept

the audio output of the player, the HDMI

device’s audio sound may be distorted or

may not output.

When you use HDMI connection, you can

change the resolution for the HDMI output.

(Refer to “Resolution setting” on page 17)

Select the type of video output from the

HDMI OUT jack using [HDMI Color Setting]

option on the [Settings] menu (page 29).

Changing the resolution when the

connection has already been established

may result in malfunctions. To solve the

problem, turn o the player and then turn it

on again.

When the HDMI connection with HDCP

is not veried, TV screen is changed to

black screen. In this case, check the HDMI

connection, or disconnect the HDMI cable.

If there are noises or lines on the screen,

please check the HDMI cable (length is

generally limited to 4.5 m (15 ft.)).

Note

Connecting 17

Connecting

What is SIMPLINK?

Some functions of this unit are controlled by the

TV’s remote control when this unit and LG TV’s with

SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control;

Play, Pause, Scan, Skip, Stop, Power O, etc.

Refer to the TV owner’s manual for the details of

SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as

shown above.

Depending on the disc type or playing

status, some SIMPLINK operation may dier

from your purpose or not work.

The SIMPLINK function is not supported for

the device with SIMPLINK is connected to

HDMI IN jack.

Note

ARC (Audio Return Channel)

function

The ARC function enables an HDMI capable TV to

send the audio stream to HDMI OUT of this player.

To use this function:

Your TV must support the HDMI-CEC and ARC

function and the HDMI-CEC and ARC must be

set to On.

The setting method of HDMI-CEC and ARC may

dier depending on the TV. For details about

ARC function, refer to your TV manual.

You must use the HDMI cable (Type A, High

Speed HDMI™ cable with Ethernet).

You must connect with the HDMI IN that

supports the ARC function using the HDMI OUT

on this player.

You can connect only one Home Theater to TV

compatible with ARC.

To activate [SIMPLINK / ARC] function, set this

option to [On]. (page 33)

Note

Resolution setting

The player provides several output resolutions for

HDMI OUT jack. You can change the resolution

using [Settings] menu.

1. Press HOME ( ).

2. Use

A/D

to select the [Settings] and press

ENTER (

). The [Settings] menu appears.

3. Use

W/S

to select [DISPLAY] option then

press

to move to the second level.

4. Use

W/S

to select the [Resolution] option

then press ENTER (

) to move to the third level.

5. Use

W/S

to select the desired resolution then

press ENTER (

) to confirm your selection.

Connecting18

Connecting

If your TV does not accept the resolution

you have set on the player, you can set

resolution to 480p as follows:

1. Press HOME (

) to disappear the HOME

menu.

2. Press

(STOP) for more than 5 seconds.

If you select a resolution manually and then

connect the HDMI jack to TV and your TV

does not accept it, the resolution setting is

set to [Auto].

If you select a resolution that your TV

does not accept, the warning message

will appear. After resolution change,

if you cannot see the screen, please

wait 20 seconds and the resolution will

automatically revert back to the previous

resolution.

The 1080p video output frame rate may

be automatically set to either 24 Hz or

60 Hz depending both on the capability

and preference of the connected TV and

based on the native video frame rate of the

content on the BD-ROM disc.

Note

Connecting 19

Connecting

Connections with

external device

OPTICAL IN connection

You can enjoy the sound from your component

with a digital optical connection through the

speakers of this system.

Connect the optical output jack of your component

into the OPT. IN (OPTICAL IN) jack on the unit.

And then select the [OPTICAL] option by pressing

FUNCTION. Or press OPTICAL/TV SOUND to select

directly.

You can also use the F (Function) button on the

front panel to select the input mode.

Optical cable

HDMI IN connection

You can enjoy the pictures and sound from your

component through this connection.

Connect the HDMI OUT jack of your component

into the HDMI IN jack on this unit. And then select

the [HDMI IN] option by pressing FUNCTION.

You can also use the F (Function) button on the

front panel to select the input mode.

To the HDMI OUT jack of your component

(set-top box, digital satellite receiver, video

game machine, etc.)

You cannot change the video resolution

in the HDMI IN mode. Change the video

resolution of the connected component.

If the video output signal is abnormal when

your personal computer is connected to

HDMI IN jack, change the resolution of your

personal computer to 480p, 720p, 1080i or

1080p.

The player sends audio from the HDMI

inputs to both the HDMI output and to the

unit’s speakers.

Note

Connecting20

Connecting

Connecting to your

Home Network

This player can be connected to a local area

network (LAN) via the LAN port on the rear panel or

the internal wireless module.

By connecting the unit to a broadband home

network, you have access to services such as

software updates, BD-Live interactivity and online

content services.

Wired network connection

Using a wired network provides the best

performance, because the attached devices

connect directly to the network and are not subject

to radio frequency interference.

Please refer to the documentation for your network

device for further instructions.

Connect the player’s LAN port to the corresponding

port on your Modem or Router using a

commercially available LAN or Ethernet cable.

When plugging or unplugging the LAN

cable, hold the plug portion of the cable.

When unplugging, do not pull on the LAN

cable but unplug while pressing down on

the lock.

Do not connect a modular phone cable to

the LAN port.

Since there are various connection

congurations, please follow the

specications of your telecommunication

carrier or internet service provider.

If you want to access content from DLNA

servers, this player must be connected to

the same local area network with them via a

router.

To set your PC as a DLNA server, install the

SmartShare PC software on your PC. (page

41)

Note

Router

DLNA certied servers

Broadband

service

Connecting 21

Connecting

Wired network setup

If there is a DHCP server on the local area network

(LAN) via wired connection, this player will

automatically be allocated an IP address. After

making the physical connection, a small number of

home networks may require the player’s network

setting to be adjusted. Adjust the [NETWORK]

setting as follow.

Preparation

Before setting the wired network, you need to

connect the broadband internet to your home

network.

1. Select [Connection Setting] option in the

[Settings] menu then press ENTER (

2. Read the preparations for the network settings

and then press ENTER (

) while [Start] is

highlighted.

Network will automatically be connected to the

unit.

Advanced Setting

If you want to set the network settings manually,

use

W/S

to select [Advanced Setting] on the

[Network Setting] menu and press ENTER (

1. Use

W/S

to select [Wired] and press ENTER

(

2. Use

W/S/A/D

to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

If there is no DHCP server on the network and

you want to set the IP address manually, select

[Static] then set [IP Address], [Subnet Mask],

[Gateway] and [DNS Server] using

W/S/

A/D

and numerical buttons. If you make a

mistake while entering a number, press CLEAR

to clear the highlighted part.

Note

3. Select [Next] and press ENTER (

) to apply

network settings.

Network connection status is displayed on the

screen.

4. Press ENTER (

) while [OK] is highlighted to

finish the wired network settings.

Connecting22

Connecting

Wireless network connection

Another connection option is to use an Access Point

or a wireless router. The network conguration and

connection method may vary depending on the

equipment in use and the network environment.

Wireless

Communication

DLNA certied servers

Access Point or

Wireless Router

Broadband

service

Refer to the setup instructions supplied with

your access point or wireless router for detailed

connection steps and network settings.

For best performance, a direct wired connection

from this player to your home network’s router or

cable/DSL modem is always the best option.

If you do chose to use the wireless option, note that

performance can sometimes be aected by other

electronic devices in the home.

Wireless network setup

For the wireless network connection, the player

needs to be set up for network communication.

This adjustment can be done from the [Settings]

menu. Adjust the [NETWORK] setting as follow.

Setting up the access point or the wireless router

is required before connecting the player to the

network.

Preparation

Before setting the wireless network, you need

to:

connect the broadband internet to the

wireless home network.

set the access point or wireless router.

note the SSID and security code of the

network.

1. Select [Connection Setting] option in the

[Settings] menu then press ENTER (

2. Read the preparations for the network settings

and then press ENTER (

) while [Start] is

highlighted.

If wired network is not connected to the unit, all

available networks are displayed on the screen.

3. Use

W/S

to select a desired SSID of wireless

network and press ENTER (

If you have security on your access point, you

need to input the security code as necessary.

If you use other characters than the english

alphabet or digits for the SSID name of your

access point or wireless router, it may be

displayed dierently.

Note

Connecting 23

Connecting

WEP security mode generally have 4 keys

available on an access point setting. If your

access point or wireless router use WEP

security, enter the security code of the key

“No.1” to connect on your home network.

An Access Point is a device that allows you

to connect to your home network wirelessly.

Note

4. Use

W/S/A/D

to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

If there is no DHCP server on the network and

you want to set the IP address manually, select

[Static] then set [IP Address], [Subnet Mask],

[Gateway] and [DNS Server] using

W/S/

A/D

and numerical buttons. If you make a

mistake while entering a number, press CLEAR

to clear the highlighted part.

Note

5. Select [Next] and press ENTER (

) to apply

network settings.

Network connection status is displayed on the

screen.

6. Select [OK] and press ENTER (

) to complete

the network connection.

Advanced Setting

If you want to set the network settings manually,

use

W/S

to select [Advanced Setting] on the

[Network Setting] menu and press ENTER (

1. Use

W/S

to select [Wireless] and press ENTER

(

[AP List] - Scans all available access points or

wireless routers within range and display them

as a list.

[Network name (SSID)] – Your access point

may not be broadcasting its network name

(SSID). Check your access point settings through

your computer and either set your access

point to broadcast SSID, or manually enter the

network name in [Network name(SSID)].

[PBC] – If your access point or wireless

router that supports the PBC (Push Button

Configuration) method, select this option and

press the Push Button on your access point

within 120 counts. You do not need to know the

network name (SSID) and security code of your

access point.

[PIN] – If your access point supports the PIN

Code configuration method based on WPS(Wi-

Fi Protected Setup), select this option and

note the code number on the screen. And

then, enter the PIN number on a setting menu

of your access point to connect. Refer to the

documentation for your network device.

2. Follow the instructions of each connection

method on the screen.

To use PBC and PIN network connection,

security mode of your access point must be

set to OPEN or AES.

Note

Connecting24

Connecting

Notes on network connection

Many network connection problems during

set up can often be xed by re-setting the

router or modem. After connecting the player

to the home network, quickly power o and/

or disconnect the power cable of the home

network router or cable modem. Then power on

and/or connect the power cable again.

Depending on the internet service provider (ISP),

the number of devices that can receive internet

service may be limited by the applicable terms

of service. For details, contact your ISP.

Our company is not responsible for any

malfunction of the player and/or the internet

connection feature due to communication

errors/malfunctions associated with your

broadband internet connection, or other

connected equipment.

The features of BD-ROM discs made available

through the Internet Connection feature are not

created or provided by our company, and our

company is not responsible for their functionality

or continued availability. Some disc related

material available by the Internet Connection

may not be compatible with this player. If you

have questions about such content, please

contact the producer of the disc.

Some internet content may require a higher

bandwidth connection.

Even if the player is properly connected and

congured, some internet content may not

operate properly because of internet congestion,

the quality or bandwidth of your internet service,

or problems at the provider of the content.

Some internet connection operations may not

be possible due to certain restrictions set by the

Internet service provider (ISP) supplying your

broadband Internet connection.

Any fees charged by an ISP including, without

limitation, connection charges are your

responsibility.

A 10 Base-T or 100 Base-TX LAN port is required

for wired connection to this player. If your

internet service does not allow for such a

connection, you will not be able to connect the

player.

You must use a Router to use xDSL service.

A DSL modem is required to use DSL service and

a cable modem is required to use cable modem

service. Depending on the access method of and

subscriber agreement with your ISP, you may not

be able to use the internet connection feature

contained in this player or you may be limited

to the number of devices you can connect at

the same time. (If your ISP limits subscription to

one device, this player may not be allowed to

connect when a PC is already connected.)

The use of a “Router” may not be allowed or its

usage may be limited depending on the policies

and restrictions of your ISP. For details, contact

your ISP directly.

The wireless network operate at 2.4 GHz

radio frequencies that are also used by other

household devices such as cordless telephone,

Bluetooth® devices, microwave oven, and can be

aected by interference from them.

Turn o all unused network equipment in

your local home network. Some devices may

generate network trac.

For the purpose of the better transmission,

placing the player from the access point as close

as possible.

In some instances, placing the access point or

wireless router at least 0.45 m (1.5 ft.) above the

oor may improve the reception.

Move closer to the access point if possible or re-

orient the player so there is nothing between it

and the access point.

The reception quality over wireless depends on

many factors such as type of the access point,

distance between the player and access point,

and the location of the player.

Set your access point or wireless router to

Infrastructure mode. Ad-hoc mode is not

supported.

3 System Setting

System Setting 25

System Setting

Initial Setup

When you turn on the unit for the rst time, the

initial setup wizard appears on the screen. Set the

display language and network settings on the initial

setup wizard.

1. Press

(POWER).

The initial setup wizard appears on the screen.

2. Use

W/S/A/D

to select a display language

and press ENTER (

3. Read and prepare the preparations for the

network settings and then press ENTER (

)

while [Start] is highlighted.

If wired network is connected, the network

connection setting will automatically be

finished.

4. All available networks are displayed on the

screen. Use

W/S

to select [Wired Network]

or desired SSID of wireless network and press

ENTER (

If you have security on your access point, you

need to input the security code as necessary.

5. Use

W/S/A/D

to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

6. Select [Next] and press ENTER (

) to apply

network settings.

Network connection status is displayed on the

screen.

For details on network settings, refer to

“Connecting to your Home Network” on page

20.

7. Select [Next] and press ENTER (

System Setting26

System Setting

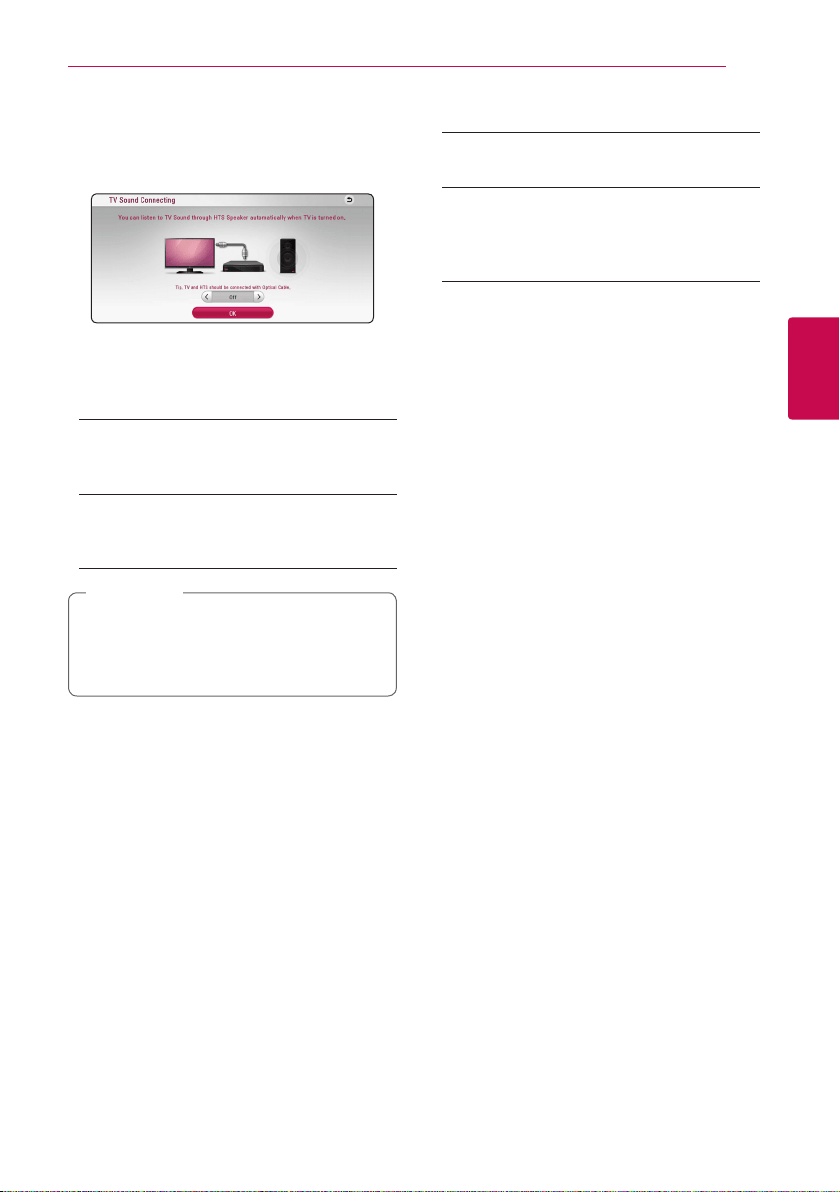

8. You can listen to TV sound through this unit’s

speaker automatically when TV is turned on. TV

and this unit should be connected with optical

cable.

Press

to move and press

A/D

to select [On]

or [Off ]. Select [Next] and press ENTER (

9. Check all the settings that you have set in the

previous steps.

Press ENTER (

) while [Finish] is highlighted

to finish the initial setup settings. If there is any

settings to be changed, use

W/S/A/D

select

and press ENTER (

10. Displays private sound mode guide. Press ENTER

(

Settings

Adjust the setup settings

You can change the settings of the player in the

[Settings] menu.

1. Press HOME ( ).

2. Use

A/D

to select the [Settings] and press

ENTER (

). The [Settings] menu appears.

3. Use

W/S

to select the first setup option, and

press

to move to the second level.

4. Use

W/S

to select a second setup option, and

press ENTER (

) to move to the third level.

5. Use

W/S

to select a desired setting, and press

ENTER (

) to confirm your selection.

System Setting 27

System Setting

[NETWORK] menu

The [NETWORK] settings are needed to use the

software update, BD-Live and online content

services.

Connection Setting

If your home network environment is ready to

connect the player, the player needs to be set the

wired or wireless network connection for network

communication. (See “Connecting to your Home

Network” on page 20.)

Connection Status

If you want to check the network status on this

player, select the [Connection Status] options and

press ENTER (

) to check whether a connection

to the network and the internet have been

established.

BD-LIVE connection

You can restrict Internet access when BD-Live

functions are used.

[Permitted]

Internet access is permitted for all BD-Live

content.

[Partially permitted]

Internet access is permitted only for BD-Live

content which have content owner certicates.

Internet access and AACS Online functions are

prohibited for all BD-Live content without a

certicate.

[Prohibited]

Internet access is prohibited for all BD-Live

content.

Smart Service Setting

[Country Setting]

Select your area for displaying proper online

content service.

[Initialize]

[Deactivate Netix]

Deactivates your player. To activate the

Netix again, contact to the service provider.

[Netix ESN]

Display its unique Netix ESN (Electronic

Serial Number) that allows you to use the

Netix streaming.

[Deactivate Vudu]

Deactivates your player. To activate the Vudu

again, contact to the service provider.

Device Name

You can make a network name using virtual

keyboard. This player will be recognised by the

name you are entering on your home network.

Wi-Fi Direct

This player is a Wi-Fi Direct™ certied device. Wi-Fi

Direct™ is the technology that devices to connect

each other without connecting to an Access point

or a router. Press ENTER (

) to display the Wi-Fi

Direct menu. Refer to page 52 for the device Refer to page 52 for the device

connection.

Network Play

This function allows you to control the playback

of media streamed from DLNA media server by a

DLNA certied smartphone. Most DLNA certied

smartphone has a function to control the playback

media on your home network. Set this option to

[On] for allowing your smartphone to control this

unit. Refer to instructions of your DLNA certied

smartphone or the application for more detailed

information.

System Setting28

System Setting

This unit and the DLNA Certied

Smartphone must be connected to the

same network.

To use the [Network Play] function using a

DLNA certied smartphone, press HOME

(

) to display the home menu before

connecting to this unit.

While controlling the unit using the

[Network Play] function, the remote control

may not work.

Available le formats described on page

65 are not always supported on [Network

Play] function.

Note

[DISPLAY] menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV

type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars

above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected.

Displays pictures cropped to ll your TV screen.

Both sides of the picture are cut o.

[16:9 Original]

Select when a 16:9 wide TV is connected. The

4:3 picture is displayed with an original 4:3

aspect ratio, with black bars appearing at the

left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The

4:3 picture is adjusted horizontally (in a linear

proportion) to ll the entire screen.

You cannot select [4:3 Letter Box] and

[4:3 Pan Scan] option when the resolution is

set to higher than 720p.

Note

Resolution

Sets the output resolution of the HDMI video signal.

Refer to page 17 for details about the resolution

setting.

[Auto]

If the HDMI OUT jack is connected to

TVs providing display information (EDID),

automatically selects the resolution best suited

to the connected TV.

[480p]

Outputs 480 lines of progressive video.

[720p]

Outputs 720 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[1080p]

Outputs 1080 lines of progressive video.

Ultra HD Upscaling

This feature allows the unit to up-scale the original

video resolution to Ultra HD resolution and output

via HDMI connection.

[Auto]

If you connect a display capable of displaying

Ultra HD resolution, this unit will output video

signals in Ultra HD resolution automatically.

[O ]

The unit will turn o the Up-scaling feature.

This unit will output video signals in Ultra

HD resolution when it plays BD-ROM disc

formatted in 24 Hz.

The playback pictures may be momentarily

interrupted when the resolutions switch.

Note

System Setting 29

System Setting

1080p Display Mode

When the resolution is set to 1080p, select

[24 Hz] for smooth presentation of lm material

(1080p/24 Hz) with a HDMI-equipped display

compatible with 1080p/24 Hz input.

When you select [24 Hz], you may

experience some picture disturbance when

the video switches video and lm material.

In this case, select [60 Hz].

Even when [1080p Display Mode] is set to

[24 Hz], if your TV is not compatible with

1080p/24 Hz, the actual frame frequency of

the video output will be 60 Hz to match the

video source format.

Note

HDMI Color Setting

Select the type of output from the HDMI OUT jack.

For this setting, please refer to the manuals of your

display device.

[YCbCr]

Select when connecting to a HDMI display

device.

[RGB]

Select when connecting to a DVI display

device.

3D Mode

Select the type of output mode for Blu-ray 3D disc

playback. (This function is activated only when 3D

TV is connected.)

[On]

Blu-ray 3D disc playback will output as 3D

mode.

[O ]

Blu-ray 3D disc playback will output as 2D

mode like a normal BD-ROM disc playback.

Home Menu Guide

This function allows you to display or delete the

guide bubble on the [HOME] menu. Set this option

to [On] for displaying guide.

[LANGUAGE] menu

Display Menu

Select a language for the [Settings] menu and on-

screen display.

Disc Menu / Disc Audio /

Disc Subtitle

Select the language you prefer for the audio track

(disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the

disc was recorded.

[Other]

Press ENTER (

) to select another language.

Use number buttons then press ENTER (

)

to enter the corresponding 4-digit number

according to the language code list on page

70.

[O] (Disc Subtitle only)

Turn o Subtitle.

Depending on the disc, your language setting

may not work.

Note

System Setting30

System Setting

[AUDIO] menu

Each disc has a variety of audio output options. Set

the player’s Audio options according to the type of

audio system you use.

Since many factors aect the type of audio

output, see “Audio Output Specications” on

page 68 for details.

Note

Digital Output

[Auto]

Select if you connect this unit’s HDMI OUT jack

to a device with LPCM, Dolby Digital, Dolby

Digital Plus, Dolby TrueHD, DTS and DTS-HD

decoder.

[PCM]

Select if you connect this unit’s HDMI OUT jack

to a device with digital decoder.

[DTS Re-Encode]

Select if you connect this unit’s HDMI OUT jack

to a device with DTS decoder.

When [Digital Output] option is set to

[Auto], the audio may output as bitstream.

If the bitstream information is not detected

from HDMI device with EDID, the audio may

output as PCM.

If the [Digital Output] option is set to [DTS

Re-Encode], the DTS Re-Encode audio is

outputted for BD-ROM discs with secondary

audio and the original audio is outputted

for the other discs (like [Auto]).

This setting is not available on the input

signal from an external device.

Note

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a

lower volume without losing clarity of sound.

[Auto]

The dynamic range of the Dolby TrueHD audio

output is specied by itself.

And the dynamic range of the Dolby Digital

and Dolby Digital Plus are operated as same as

the [On] mode.

[On]

Compress the dynamic range of the Dolby

Digital, Dolby Digital Plus or Dolby TrueHD

audio output.

[O ]

Turns o this function.

HD AV Sync

Sometimes Digital TV encounters a delay between

picture and sound. If this happens you can

compensate by setting a delay on the sound so

that it eectively ‘waits’ for the picture to arrive:

this is called HD AV Sync. Use

to scroll up and

down through the delay amount, which you can

set at anything between 0 and 300 ms.

Auto Volume

With Auto Volume function on, the unit

automatically adjusts the outputted volume level to

make it raised or lowered if the sound is too loud or

small. So you can enjoy the sound at comportable

level not too loud or small.

System Setting

[LOCK] menu

The [LOCK] settings aect only Blu-ray Disc and

DVD playback.

To access the any features in [LOCK] settings, you

must enter the 4-digit security code you have

created.

If you have not entered a password yet, you are

prompted to do so. Enter a 4-digit password twice,

and press ENTER (

) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press

ENTER (

) to create a new password.

[Change]

Enter the current password and press ENTER

(

). Enter a 4-digit password twice, and press

ENTER (

) to create a new password.

If you forget your password

If you forget your password, you can clear it using

the following steps:

1. Remove any disc that might be in the player.

2. Highlight [Password] option in the [Settings]

menu.

3. Use Number buttons to enter “210499”. The

password is cleared.

If you make a mistake before pressing ENTER

(

), press CLEAR. Then input the correct

password.

Note

DVD Rating

Blocks playback of rated DVD based on their

content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and

rating eight (8) is the least restrictive.

[Unlock]

If you select [Unlock], parental control is not

active and the disc plays in full.

Blu-ray Disc Rating

Set an age limit of BD-ROM play. Use number

buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding

ratings recorded on them.

The [Blu-ray Disc Rating] will be applied

only for the Blu-ray disc that containing the

Advanced Rating Control.

For the region using MPAA rating level, refer

to the table below as an example.

Blu-ray Disc Rating MPAA Rating

0 G

8 PG

13 PG-13

17 R

18 NC-17

255 Not restricted

Note

Area Code

Enter the code of the area whose standards were

used to rate the DVD video disc, based on the list

on page 69.

System Setting

System Setting32

System Setting

[OTHERS] menu

Pointer

Sets the speed and size of an USB mouse’s pointer.

[Speed]

Sets the moving speed of an USB mouse.

[Size]

Chooses the pointer size of an USB mouse.

The Pointer function is optimized for

convenience of Internet usage.

Note

Quick Start

This player can stay in standby mode with low

power consumption, so that the player can

instantly boot without delay when you turn on this

unit. Set this option to [On] for activating [Quick

Start] function.

If [Quick Start] option is set to [On] and an

AC power is accidently re-connected to

the player by power failure etc., the player

automatically boots itself to be the standby

status. Before operating the player, wait for a

while until the player is in standby status.

When [Quick Start] is set to [On], power

consumption will be higher than when

[Quick Start] is set to [O ].

Note

Auto Power Off

The screen saver appears when you leave the

player in Stop mode for about 5 minutes. If you

set this option to [On], the unit automatically

turns o within 15 minutes since the Screen Saver

is displayed. Set this option to [O] to leave the

screen saver until the unit is operated by the user.

When you set [Auto Power O] function in

setting menu on, this unit will be o itself to

save electronic consumption in the case main

unit is not connected to external device and is

not used for 20 minutes.

So does this unit after six hours since Main unit

has been connected to other device using

analog input.

Note

System Setting 33

System Setting

TV Sound Connecting

You can listen to TV sound through this unit’s

speaker automatically when TV is turned on. TV and

this unit should be connected with optical cable.

Press

to move and press

A/D

to select [On] or

[Off ]. Select [OK] and press ENTER (

Initialize

[Factory Set]

You can reset the player to its original factory

settings.

[Blu-ray Storage Clear]

Initializes the BD-Live content from the

connected USB storage.

If you reset the player to its original factory

settings using [Factory Set] option, you have to

set all the activation for the online services and

network settings again.

Note

Software

[Information]

Displays the current software version.

[Update]

You can update the software by connecting

the unit directly to the software update server

(page 63).

SIMPLINK / ARC

The SIMPLINK function allows you to control this

unit with LG TV’s remote control.

The ARC function enables an HDMI capable TV

to send the audio stream to HDMI OUT of this

player.

Set this option to [On] for activating [SIMPLINK /

ARC] function. (page 17)(page 17)

System Setting34

System Setting

Closed Caption

Closed caption (CC) is the process of displaying text

on a screen to provide additional or interpretive

information for the hearing impaired.

This function allows you to adjust various settings

of closed caption.

[CC Display]

Turns on or o this function.

[CC Type]

Selects the closed caption type between

[Analog] and [Digital].

[Analog] : Select this when you play a disc

or some video les that support [Analog] CC

type.

[Digital] : Select this when you play Online

content or some video les that support

[Digital] CC type.

[Analog CC]

(When [CC Type] is selected to [Analog])

Displays the audio portion of a movie as text

on the screen. CC1 is the most common

mode in use.

[Digital CC]

(When [CC Type] is selected to [Digital])

The language option of the online content

can be selected here. (but language option

will be supported fully or partially according

to contents)

[CC Mode]

(When [CC Type] is selected to [Digital])

Selects the closed caption mode between

[Custom] and [Auto].

[Digital Option]

(When [CC Mode] is selected to [Custom])

You can adjust detail settings of closed

caption.

Adjusting the [Digital Option]

When [CC Mode] is selected to [Custom], you can

adjust detail settings of closed caption.

Selects a typeface for the text.

Font1 : Default / Font2 : Courier

Font3 : TimesNewRoman / Font4 : Helvetica

Font5 : Arial / Font6 : Casual

Font7 : Cursive / Font8 : SmallCapital

Selects the font size.

Selects a color for the text.

Adjusts the opacity for the text color.

Selects an edge type.

Selects a color for the edges.

Selects a background color.

Adjusts the opacity for the background color.

Selects a window color.

Adjusts the opacity for the window color.

On disc jacket or description page, a CC

logo will appear if closed captioning is

supported.

If online content include closed caption of

its own, this setting may not work.

Some disc and online content support

closed caption function, if you want to use

closed caption, go to [Settings] > [OTHERS]

> [Closed Caption].

Note

4 Operating

Operating 35

Operating

Sound Effect

You can select a suitable sound mode. Press SOUND

EFFECT repeatedly until the desired mode appears

on the front panel display or the TV screen. The

displayed items for the equalizer maybe dierent

depending on sound sources and eects.

[Standard]: You can enjoy the sound without

equalizer eect.

[Music]: You can enjoy comfortable and natural

sound.

[Cinema]: You can enjoy more immersive and

cinematic surround sound.

In some of surround modes, some speakers,

there’s no sound or low sound. It depends

on the mode of surround and the source of

audio, it is not defective.

You may need to reset the surround mode,

after switching the input, sometimes even

after the sound le changed.

Note

Operating36

Operating

Home Menu Display

Using [HOME] menu

The home menu appears when you press HOME

( ). Use

W/S/A/D

to select a category and

press ENTER (

Depending on the region, the [LG Smart

World], [My Apps], [

] and [

] may not be

available.

Note

a [SmartShare] - Displays SmartShare menu.

b [Premium] - Displays the Premium home

screen. (page 54)

c [LG Smart World] - Displays LG Apps titles

provided to the unit. (page 54)

d [My Apps] - Displays the [My Apps] screen.

(page 56)

e [Input] - Changes input mode.

f [Settings] - Adjusts the system settings.

g [

] - Searches for desired LG Apps and other

content.

h [

] - Displays Sign In menu.

Using the SmartShare

You can play video, photo and audio content on

the unit by inserting a disc, connecting an USB

device and Android device (MTP) or using home

network (DLNA).

1. Press HOME ( ) to display the home menu.

2. Select [SmartShare] and press ENTER (

a Displays all linked device.

b Displays video, photo or audio content.

c Displays the le or folder on linked device.

Operating 37

Operating

Playing the Linked

Devices

Playing a disc

erot

1. Insert a disc in the disc slot.

For the most Audio CD, BD-ROM and

DVD-ROM discs, playback starts automatically.

2. Press HOME ( ) and then select [SmartShare].

3. Select disc icon.

Playback functions described in this manual

are not always available in every les and

media. Some functions can be restricted

depending on many factors.

Depending on the BD-ROM titles, an USB

device connection may be needed for the

proper playback.

Unnalized DVD-VR format discs may not

be played in this player.

Some DVD-VR discs are made with CPRM

data by DVD RECORDER. This unit cannot

support these kinds of discs.

Note

Playing Blu-ray 3D disc

This player can play the Blu-ray 3D disc which

contains separate views for the left and right eyes.

Preparation

In order to playback Blu-ray 3D title in

stereoscopic 3D mode, you need to:

Check your TV is 3D capable and has HDMI

input(s).

Wear 3D glasses to enjoy the 3D experience

if it is necessary.

Check whether the BD-ROM title is the Blu-

ray 3D disc or not.

Connect an HDMI cable (Type A, High

Speed HDMI™ Cable) between the player’s

HDMI output and TV’s HDMI input.

1. Press HOME ( ), and set the [3D Mode] option

on the [Settings] menu to [On] (page 29).

2. Insert a disc in the disc slot.

The playback starts automatically.

3. Refer to the owner’s manual of your 3D-ready

TV for the further instruction.

You may need to adjust the display settings and

focus on your TV’s setting for the improved 3D

eect.

Watching a 3D content for a long period

time may cause dizziness or tiredness.

It is not recommended to watch a video

in 3D mode for inrm, child and pregnant

woman.

If you are experiencing headache, tiredness

or dizziness while viewing content in 3D,

it is strongly recommended to stop the

playback and rest until you feel normal.

Caution

Operating38

Operating

Playing a file on disc/USB

device

yui

This player can play video, audio and photo les

contained in the disc or USB device.

1. Insert a data disc in the disc slot or connect an

USB device to USB extension cable.

USB extension cable

When you connect the USB device on the HOME

menu, the player plays an audio le contained in

the USB storage device automatically. If the USB

storage device is containing various types of les, a

menu for the le type selection will appear.

File loading may takes few minutes depending on

the number of content stored in the USB storage

device. Press ENTER (

) while [Cancel] is selected

to stop loading.

2. Press HOME ( ).

3. Select [SmartShare] and press ENTER (

4. Select the desired linked device in the category.

5. Select [Movie], [Photo] or [Music].

6. Select a file using

W/S/A/D

, and press

(PLAY) or ENTER (

) to play the file.

Notes on USB device

This player supports USB ash drive/external

HDD formatted in FAT32 and NTFS when

accessing les (music, photo, movie). However,

for BD-Live and Audio CD recording, use the USB

ash drive / external HDD formatted in FAT32.

This unit can support up to 4 partitions of the

USB device.

Do not extract the USB device during operation

(play, etc.).

An USB device which requires additional

program installation when you have connected

it to a computer, is not supported.

USB device: USB device that supports USB1.1

and USB2.0.

Video, audio and photo les can be played.

For details of playing each le, refer to relevant

pages.

Regular back up is recommended to prevent

data loss.

If you use an USB extension cable, USB HUB or

USB Multi-reader, the USB device may not be

recognized.

Some USB device may not work with this unit.

Some digital cameras and mobile phones are

not supported.

USB Port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

Operating 39

Operating

Playing a file on Android

device

yui

This player can play video, audio and photo les

contained in the Android device.

1. Connect the Android device to USB extension

cable on the unit with USB cable. Make sure

that MTP is activated on Android device.

USB extension cable

2. Press HOME ( ).

3. Select [MTP] and press ENTER (

File loading may take few minutes depending

on the number of content stored in the Android

device.

4. Select [Movie], [Photo] or [Music].

5. Select a file using

W/S/A/D

, and press

(PLAY) or ENTER (

) to play the file.

Notes on Connecting Android device

This unit can support only MTP (Media Transfer

Protocol) Android device.

Do not extract the Android device during

operation (play, etc.).

Video, audio and photo les can be played.

For details of playing each le, refer to relevant

pages.

Regular back up is recommended to prevent

data loss.

If you use an USB extension cable, USB HUB or

USB Multi-reader, the Android device may not be

recognized.

Some Android devices may not work with this

unit.

When you use MTP, playing some music, photo,

movie, or subtitle les may not work depending

on the Android device.

Operating40

Operating

Playing a file on a network

server

yui

This player can play video, audio and photo les

located in a DLNA server through your home

network.

1. Check the network connection and settings

(page 20).

2. Press HOME ( ).

3. Select [SmartShare] and press ENTER (

4. Select a DLNA media server in the category.

5. Select [Movie], [Photo] or [Music].

6. Select a file using

W/S/A/D

, and press

(PLAY) or ENTER (

) to play the file.

The le requirements are described on page

65.

The thumbnail of the unplayable les can

be displayed, but those cannot be played

on this player.

The subtitle le name and video le name

have to be the same and located at the

same folder.

The playback and operating quality may be

aected by your home network condition.

You may experience connection problems

depending on your server’s environment.

To set your PC as a DLNA server, install the

SmartShare PC software on your PC. (page

41)

Note

Operating 41

Operating

Using Home Network

Server for PC

DLNA stands for Digital Living Network Alliance,

which allows users to access video, photo and

audio les stored in server and enjoy them on TV

via home networking.

Before connecting to PC to play a le, SmartShare

PC software (DLNA) should be installed on your PC.

About SmartShare PC

Software (DLNA)

SmartShare PC software (DLNA) is for sharing video,

audio and photo les stored on your computer to

this unit as a DLNA-compatible digital media server.

Installing SmartShare PC

Software (DLNA)

Start up your computer, and insert the supplied

CD-ROM disc into your computer’s CD-ROM drive.

An installation wizard will walk you through the

quick and uncomplicated installation process. To

install SmartShare PC software (DLNA), proceed as

follows:

1. Before installation, close all running programs

including rewall and Anti-Virus programs.

2. Insert the supplied CD-ROM disc into your

computer’s CD-ROM drive.

3. Click [SmartShare PC software (DLNA)].

4. Click [Run] to start installation.

5. Click the [Next] button to start installation.

6. If you accept all conditions, click [Yes].

Installation is not possible without this

agreement.

7. Follow the directions of the installation wizard

displayed on the screen.

8. Click the [Exit] button to complete the

installation.

SmartShare PC software is not supported

with Mac OS.

The SmartShare PC software (DLNA) is

a customized software edition only for

sharing les and folders to this player.

This manual explains operations with the

English version of SmartShare PC software

(DLNA) as examples. Follow the explanation

referring to the actual operations of your

language version.

Note

Sharing files and folders

On your computer, you must share the folder

containing video, audio and/or photo content to

play them on this player.

This parts explains the procedure for selecting the

shared folders on your computer.

1. Double-click the “SmartShare” icon.

2. Click [Movie], [Photo] or [Music] icon on the

center, and then click [Settings] on the top

right corner of the SmartShare PC software. The

[Settings] menu appears on the screen.

3. Click [My Shared Contents] tab, and then click

icon. The [Add/Remove Shared Folders]

menu appears on the screen.

4. Click the folder containing the les you want

to share and then click the [OK]. The checked

folder is added to the [My Shared Contents]

and then click the [OK] at the bottom of the

[Settings] menu.

5. Make sure that the SmartShare (DLNA) service

turns on at the [Service] tab.

If the shared folders or les are not displayed

on the player, click the [My Shared Contents]

on the [Settings] menu, and then click

icon.

For more information, click [HELP] on the

[Settings] menu.

Note

Operating42

Operating

System requirements

Minimum System

CPU : Intel® 2.0 GHz or AMD Sempron™ 2000+

processors

Memory : 1 GB of free RAM

Graphics card : 64 MB video memory, minimum

resolution of 1024 x 768 pixels, and 16 bit color

settings

Free Disk Space : 200 MB

Windows® XP (Service Pack 2 or higher), Windows

Vista®, Windows® 7, Windows® 8.0, Windows® 8.1

Windows® Media Player® 11.0 or higher

Network environment: 100 Mb Ethernet, WLAN

Recommended System

CPU : Intel® Core™ Duo or AMD Athlon™ 64X2,

1.7 GHz or better

Memory : 2 GB of free RAM

Graphics card : 128 MB video memory, minimum

resolution of 1024 x 768 pixels, and 16 bit color

settings

Free Disk Space : 200 MB

Windows® XP (Service Pack 2 or higher), Windows

Vista®, Windows® 7, Windows® 8.0, Windows® 8.1

Windows® Media Player® 11.0 or higher

Network environment: 100 Mb Ethernet, WLAN

Operating 43

Operating

General Playback

Basic operations for video and

audio content

To stop playback

Press

(STOP) during playback.

To pause playback

Press

(PAUSE) during playback.

Press

(PLAY) to resume playback.

To play frame-by-frame (Video)

Press

(PAUSE) during video playback.

Press

(PAUSE) repeatedly to play Frame-by-Frame

playback.

To scan forward or backward

Press

to play fast forward or fast reverse

during playback.

You can change the various playback speeds by

pressing

repeatedly.

To slow down the playing speed

(Video)

While the playback is paused, press

repeatedly

to play various speeds of slow motion.

To skip to the next/previous

chapter/track/file

During playback, press

to go to the

next chapter/track/le or to return to the beginning

of the current chapter/track/le.

Press

twice briey to step back to the previous

chapter/track/le.

In the le list menu of a server, there may have

many types of content in a folder together. In this

case, press

to go to the previous or

next content with same type.

Basic operations for photo

content

To play a slide show

Press

(PLAY) to start slide show.

To stop a slide show

Press

(STOP) while slide show.

To pause a slide show

Press

(PAUSE) while slide show.

Press

(PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press

to go to the previous or next photo.

Using the disc menu

ero

To display the disc menu

The menu screen may be displayed rst after

loading a disc which contains a menu. If you want

to display the disc menu during playback, press

DISC MENU.

Use

W/S/A/D

buttons to navigate through

menu items.

To display the Popup menu

Some BD-ROM discs contain Popup menu that

appears during playback.

Press TITLE/POPUP during playback, and use

S/A/D

buttons to navigate through menu

items.

Operating44

Resume playback

eroyt

The unit records the point where you pressed the

(STOP) depending on the disc.

If “

(Resume Stop)” appears on the screen briey,

press

(PLAY) to resume playback (from the scene

point).

If you press

(STOP) twice or unload the disc,

“

(Complete Stop)” appears on the screen. The unit

will clear the stopped point.

The resume point may be cleared when a

button is pressed (for example;

(POWER),

(OPEN/CLOSE), etc).

On BD-ROM discs with BD-J, the resume

playback function does not work.

If you press

(STOP) once during BD-ROM

interactive title playback, the unit will be in

Complete Stop mode.

Note

Last scene memory

This unit memorizes the last scene from the last disc

that is viewed. The last scene remains in memory

even if you remove the disc from the unit or switch

o the unit. If you load a disc that has the scene

memorized, the scene is automatically recalled.

Last Scene Memory function for a previous

disc is erased once a dierent disc is played.

This function may not work depending on

the disc.

On BD-ROM discs with BD-J, the last scene

memory function does not work.

This unit does not memorize settings of

a disc if you switch o the unit before

commencing to play it.

Note

Operating 45

Operating

On-Screen Display

You can display and adjust various information and

settings about the content.

To control video playback

eroy

You can control playback and set options while

watching videos.

During playback, press INFO/MENU (

a Progress bar - Displays the current position

and total playing time.

b [Disc Menu] - Accesses menu on a disc.

c [Title/Popup] - Displays the DVD title menu

or BD-ROM’s popup menu, if available.

d [Option] - Displays playback information.

e [Repeat] - Repeats a desired section or

sequence. (page 47)

f [3D] - Adjusts the 3D setting. (page 51)

Displaying content information on-

screen

eroy

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

a Title – Current title number/total number of

titles

b Chapter – Current chapter number/total

number of chapters

c Time – Elapsed playing time/total playback

time

d Audio – Selected audio language or channel

e Subtitle – Selected subtitle.

f Angle – Selected angle/total number of

angles

g TV Aspect Ratio – Selected TV aspect ratio

h Picture Mode – Selected picture mode

Operating46

Operating

If no button is pressed for a few seconds,

the on-screen display disappears.

A title number cannot be selected on some

discs.

Available items may dier depending on

discs or titles.

If an interactive Blu-ray Disc is playing back,

some setting information is displayed on

the screen but prohibited to be changed.

Note

To control photo view

Controls playback and sets options while viewing

pictures in full screen.

You can control playback and set options while

viewing pictures in full screen.

While viewing pictures, press INFO/MENU (

a [Slideshow] - Starts or pause slide show.

b [Music] - Select the background music for the

slide show (page 51).

c [Option] - Displays slide show options.

d [Rotate] - Rotates the photo clockwise.

e [Zoom] - Displays the [Zoom] menu.

Setting the slide show option

You can use various options during viewing a

photo in full screen.

1. While viewing pictures, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

a [Speed] - Use

A/D

to select a delaying

speed between photos in a slide show.

b [Eect] - Use

A/D

to select a transition

effect between photos in a slide show.

c [Music Select] – Select the background music

for the slide show (page 51).

Operating 47

Operating

Advanced Playback

Repeat playback

erotu

Blu-ray Disc / DVD / Video les

During playback, press REPEAT (

) to select a

desired repeat mode.

A-B – Selected portion will be repeated continually.

Chapter – The current chapter will be played back

repeatedly.

Title – The current title will be played back

repeatedly.

All – All the titles or les will be played back

repeatedly.

O – Returns to normal playback.

To return to normal playback, press CLEAR.

Audio CDs/Audio les

During playback, press REPEAT (

) repeatedly to

select a desired repeat mode.

– Selected portion will be repeated continually.

(Audio CD only)

Track– The current track or le will be played

back repeatedly.

All – All the tracks or les will be played back

repeatedly.

All – All the tracks or les will be played

back repeatedly in random order.

– The tracks or les will be played back in

random order.

To return to normal playback, press CLEAR.

This function may not work on some disc or

title.

Note

Repeating a specific portion

eroy

This player can repeat a portion you have selected.

1. During playback, press REPEAT (

2. Select [A-B] and press ENTER (

3. Press ENTER (

)

at the beginning of the portion

you wish to repeat.

4. Press ENTER (

) at the end of the portion. Your

selected portion will be repeated continually.

5. To return to normal playback, press CLEAR.

You cannot select a portion less than 3

seconds.

This function may not work on some disc or

title.

Note

Playing from selected time

eroy

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Select the [Time] option and then input the

required start time in hours, minutes, and

seconds from left to right.

(You can also input the required start time with

the virtual keyboard by pressing ENTER (

).)

For example, to nd a scene at 2 hours, 10

minutes, and 20 seconds, enter “21020”.

Press

A/D

to skip the playback 60 seconds

forward or backward.

4. Press ENTER (

) to start playback from selected

time.

5. Press BACK (

) to exit the On-Screen display.

This function may not work on some disc or

titles.

This function may not work depending on

the le type and ability of the DLNA server.

Note

Operating48

Operating

Selecting a subtitle language

eroy

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Use

W/S

to select the [Subtitle] option.

4. Use

A/D

to select desired subtitle language.

By pressing ENTER (

), you can set various

subtitle options.

5. Press BACK (

) to exit the On-Screen display.

Some discs allow you to change subtitle

selections only via the disc menu. If this is

the case, press TITLE/POPUP or DISC MENU

button and choose the appropriate subtitle

from the selections on the disc menu.

You can select the [Subtitle] option on the

On-Screen display directely by pressing

SUBTITLE button.

Note

Hearing a different audio

eroy

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Use

W/S

to select the [Audio] option.

4. Use

A/D

to select desired audio language,

audio track or audio channel.

5. Press BACK (

) to exit the On-Screen display.

Some discs allow you to change audio

selections only via the disc menu. In this

case, press TITLE/POPUP or DISC MENU

button and choose the appropriate audio

from the selections on the disc menu.

Immediately after you have switched sound,

there may be a temporary discrepancy

between the display and actual sound.

On BD-ROM disc, the multi audio format

(5.1CH or 7.1CH) is displayed with [MultiCH]

in the on-screen display.

You can select the [Audio] option on the

On-Screen display directely by pressing

AUDIO button.

Note

Watching from a different

angle

If the disc contains scenes recorded at dierent

camera angles, you can change to a dierent

camera angle during playback.

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Use

W/S

to select the [Angle] option.

4. Use

A/D

to select desired angle.

5. Press BACK (

) to exit the On-Screen display.

Changing the TV Aspect Ratio

eoy

You can change the TV aspect ratio setting during

playback.

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Use

W/S

to select the [TV Aspect Ratio]

option.

4. Use

A/D

to select desired option.

5. Press BACK (

) to exit the On-Screen display.

Operating 49

Operating

Even if you change the value of the [TV Aspect

Ratio] option in On-Screen display, the [TV

Aspect Ratio] option in the [Settings] menu is

not changed.

Note

Changing subtitle Code Page

If the subtitle is displayed in broken letter, you can

change the subtitle code page to view the subtitle

le properly.

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Use

W/S

to select the [Code Page] option.

4. Use

A/D

to select desired code option.

5. Press BACK (

) to exit the On-Screen display.

Changing the Picture Mode

eroy

You can change the [Picture mode] option during

playback.

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Use

W/S

to select the [Picture Mode] option.

4. Use

A/D

to select desired option.

5. Press BACK (

) to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/MENU (

2. Select an [Option] using

A/D

, and press

ENTER (

)

3. Use

W/S

to select the [Picture Mode] option.

4. Use

A/D

to select the [User setting] option,

and press ENTER (

5. Use

W/S/A/D

to adjust the [Picture Mode]

options.

Select [Default] option then press ENTER (

) to

reset the all video adjustments.

6. Use

W/S/A/D

to select the [Close] option,

and press ENTER (

) to nish setting.

Operating50

Operating

Viewing content information

The player can display the content information.

1. Select a le using

W/S/A/D

2. Press INFO/MENU (

) to display the option

menu.

The le information appears on the screen.

During video playback, you can display the le

information by pressing TITLE/POPUP.

The information displayed on the screen

may not correct comparing actual content

information.

Note

Changing content list view

yui

On the [SmartShare] menu, you can change the

content list view.

Press red (R) colored button repeatedly.

Selecting a subtitle ﬁle

If the subtitle le name is dierent from the video

le name, you need to select the subtitle le on the

[Movie] menu before playing the movie.

1. Use

W/S/A/D

to select the subtitle le you

wish to play in the [Movie] menu.

2. Press ENTER (

Press ENTER (

) again to deselect the subtitle

le. Selected subtitle le will be displayed when

you play the video le.

If you press

(STOP) during playback, the

subtitle selection is cancelled.

This function is not available for playing le

on a server via home network.

Note

Operating 51

Operating

Listening to music during slide

show

You can display photo les while listening to audio

les.

1. While viewing a photo in full screen, press INFO/

MENU (

) to display the option menu.

2. Select an [Option] using

A/D

, and press

ENTER (

3. Use

W/S

to select [Music Select] option, and

press ENTER (

) to display the [Music Select]

menu.

4. Use

W/S

to select a device, and press ENTER

(

Available device may differ depending on the

location of the current photo file.

Photo location Available Device

Disc, USB Disc, USB

MTP MTP

DLNA server DLNA server

5. Use

W/S

to select a file or a folder you wish to

play.

Select

and press ENTER (

) to display the

upper directory.

When selecting audio le from a server, folder

selection is not available. Only le selection is

available.

Note

6. Use

to select [OK], and press ENTER (

) to

complete music selection.

Playing content to 3D

eroy

This function allows you to convert 2D content to

3D and to play 3D content in case of le encoded

in 3D also. You can adjust 3D’s depth and distance

on the [3D] option while playing back.

Converting 2D content to 3D

1. During playback, press INFO/MENU (

2. Select a [3D], and press ENTER (

3. Select by using

W/S/A/D

to convert

2D contents to 3D.

Playing ﬁle encoded in 3D

1. During playback, press INFO/MENU (

2. Select a [3D], and press ENTER (

3. Select suitable mode (side by side, top and

bottom) which is same way as le encoded in

3D by using

W/S/A/D

3D Setting

1. During playback, press INFO/MENU (

2. Select a [3D], and press ENTER (

3. Select a [3D Setting], and press ENTER (

You can adjust 3D’s depth and distance.

Select [Initialize] option then press ENTER (

)

to reset the all adjustments.

Reverting

1. During playback, press INFO/MENU (

2. Select a [3D], and press ENTER (

3. Select by using

W/S/A/D

to revert.

When you have set to Ultra HD resolution,

if you select the [On] in [3D], the Ultra HD

resolution is automatically changed to the

original resolution.

Movie les which is upper 30 fps (frame

rate) may not be converted to 3D.

If the subtitle is displayed abnormally, set

the TV’s 3D option to o and the unit’s 3D

option to on.

Note

Operating52

Operating

Advanced Features

Wi-Fi Direct™

Connecting to a Wi-Fi Direct™

certified device

yui

This player can play movie, music and photo les

located in a Wi-Fi Direct™ certied device. The Wi-Fi

Direct™ technology make the player to be directely

connected to a Wi-Fi Direct™ certied device

without connecting to a network device such as an

access point.

On Wi-Fi Direct™ certied device

1. Turn on the Wi-Fi Direct™ certied device and

run its Wi-Fi Direct function.

2. Run DLNA application on the device.

On your player

3. Select [NETWORK] option in the [Settings]

menu then press ENTER (

4. Select [Wi-Fi Direct] option, and press ENTER

(

5. Select a Wi-Fi Direct™ device on the list using

W/S

, and press ENTER (

Wi-Fi Direct™ connection will be proceeded.

Follow the procedure on the screen.

If you want to rescan available Wi-Fi Direct™

device, select the [Refresh List] and press ENTER

(

To select a server from the device list, files or

folders must be shared by DLNA server from the

connected Wi-Fi Direct™ device.

6. Select [Movie], [Photo] or [Music] using

W/S/

A/D

, and press ENTER (

7. Select a le using

W/S/A/D

, and press

ENTER (

) to play the le.

For the purpose of the better transmission,

placing the player from the Wi-Fi Direct™

certied server as close as possible.

This unit can connect only 1 device at a

time. Multiple connection is not available.

If you try to connect wireless network while

a device is connected by Wi-Fi Direct™

function, Wi-Fi Direct™ connection will be

force disconnected.

If this player and a Wi-Fi Direct™ device

are connected to the different local area

network, Wi-Fi Direct™ connection may not

available.

If a Wi-Fi Direct™ certified device is not in

Wi-Fi direct standby mode, this product can

not find the device.

When you connect a Wi-Fi Direct™

certified device to your player, PIN network

connection is not supported.

This player cannot connect to a Wi-Fi direct™

device which is in Group Owner mode.

Note

Operating 53

Operating

Enjoying BD-Live™

BD-ROM supporting BD-Live that has a network

extension function allows you to enjoy more

functions such as downloading new movie trailers

by connecting this unit to the internet.

1. Check the network connection and settings

(page 20).

2. Insert an USB storage device to the USB port on

the front panel.

An USB storage device is needed to download

bonus content.

3. Press HOME ( ), and set the [BD-LIVE

connection] option on the [Settings] menu

(page 27).

Depending on a disc, the BD-Live function may

not be operated if [BD-LIVE connection] option

is set to [Partially Permitted].

4. Insert a BD-ROM with BD-Live.

The operations may dier depending on the

disc. Refer to the manual supplied with the disc.

Do not extract the connected USB device

while content is being downloaded or a

Blu-ray disc is still in the disc slot. Doing so

may damage the connected USB device and

BD-Live features may not operate properly

with the damaged USB device anymore. If the

connected USB device seems damaged from

such an action, you can format the connected

USB device from the PC and reuse it with this

player.

Caution

Some BD-Live content may be restrictively

accessed in some territories by content

provider’s own decision.

It may take up to several minutes to load

and start enjoying BD-Live content.

For BD-Live, use the USB ash drive /

external HDD formatted in FAT32 only.

Note

LG AV Remote

You can control this player with your iPhone

or Android phone via your home network. This

player and your phone must be connected to your

wireless network device such as access point. Visit

“Apple iTunes” or “Google Android Market (Google

Play Store)” for detailed information of “LG AV

Remote”.

Private Sound Mode

By downloading “LG AV Remote” application on

your smart phone or tablet, you can connect your

headsets, and enjoy the sound from your player on

your smart devices.

This feature transmits video signal to TV through

HDMI and Audio signal to smart phone or tablet

through Wi-Fi. For more detailed information,

please refer to “LG AV Remote” application.

Using an USB keyboard or

mouse

You can connect an USB keyboard and/or mouse

to type text and navigate menus.

1. Connect an USB keyboard or mouse to the USB

port on the rear panel.

2. Use the keyboard to type text, or the mouse to

navigate menus.

The following keyboards and mice are

recommended.

Logitech Wireless Combo MK520

Logitech Wireless Combo MK320

Logitech Wireless Combo MK260

Microsoft Wireless Desktop 5000

Microsoft Wireless Desktop 3000

Microsoft Wireless Desktop 2000

Microsoft Wireless Desktop 800

Note

Operating54

Operating

Using the Premium

You can use various content services via Internet

with the Premium feature.

1. Check the network connection and settings

(page 20).

2. Press HOME ( ).

3. Select the [Premium] using

A/D

, and press

ENTER (

4. Select an online service using

W/S/A/D

and press ENTER (

For detailed information of each service,

contact to the content provider or visit

support link of the service.

The content of Premium services and

service related information, including user

interface, is subject to changes. Please refer

to the web site of each service for most up-

to-date information.

Using Premium features with wireless

network connection may result in improper

streaming speed by interference from

household devices that are using radio

frequencies.

For the rst time to access [Premium] or

[LG Smart World] feature, current country

setting appears.

If you want to change the country setting,

go to [Settings] > [NETWORK] > [Smart

Service Setting] > [Country Setting]. Select

[Manual] and press ENTER (

) on [Country

Setting] menu.

When changing the sound eect, the audio

output may be delayed depending on your

internet environment.

Note

Using the LG Smart

World

You can use the LG application services on

this player via Internet. You can easily nd and

download various applications from LG Smart

World.

1. Check the network connection and settings

(page 20).

2. Press HOME ( ).

3. Select the [LG Smart World], and press ENTER

(

4. Select a category using

A/D

, and press ENTER

(

5. Use

W/S/A/D

to select an application, and

press ENTER (

) to display the information.

6. Press ENTER (

) while [Install] icon is

highlighted. The application will be installed to

the player.

To install an application to the player, user

needs to sign in. Refer to page 55 for more

information of signning in.

7. Press red (R) colored button to display the [My

Apps] screen.

8. Select the installed application and press ENTER

(

) to excute it.

Depending on the region, the [LG Smart

World], [My Apps], [

] and [

] may not be

available.

To install a paid application, you need to be

a paid member. Visit www.lgappstv.com for

more information.

When changing the sound eect, the audio

output may be delayed depending on your

internet environment.

Note

Operating 55

Operating

Signing in

To use the [LG Smart World] feature, you need to

1. On the home menu, select [ ] icon and press

ENTER (

2. Fill the [ID] and [Password] field using the virtual

keyboard.

If you do not have an account, press red (R)

colored button to register.

3. Use

W/S/A/D

to select [OK], and press

ENTER (

) to sign in with your account.

If you select the [Auto Sign In] check box,

your ID and password are remembered and

automatically signed in without entering them.

To view the information of your account and

applications, select [ ] icon and press ENTER

(

) on home menu, and select [My Page]

option.

Note

Searching online content

If you are having diculties nding specic content

from online services, you can use the all-in-one

search function by entering keywords in the search

menu.

1. Press HOME ( ).

2. Select the [ ] icon on the home menu using

W/S/A/D

, and press ENTER (

The search menu appears on the screen.

3. Press ENTER (

). The virtual keyboard appears

automatically.

4. Use

W/S/A/D

to select letters then press

ENTER (

) to confirm your selection on the

virtual keyboard.

5. When you finish entering the keyword, select

[ ] and press ENTER (

) to display search result.

6. Use

W/S/A/D

to select a desired content,

and press ENTER (

) to move to the selected

content directly.

Depending on the region, the [LG Smart

World], [My Apps], [

] and [

] may not be

available.

The search function does not search

content in every online services. It works

only in certain online services.

Note

Operating56

Operating

Using the My Apps

You can move or delete an installed application in

the [My Apps] menu.

1. Press HOME ( ).

2. Select the [My Apps], and press ENTER (

3. On the [My Apps] menu, press red (R) colored

button.

Move an application

1. Select an application, and press ENTER (

) to

display the options.

2. Use

W/S

to select [Move], and press ENTER

(

3. Use

W/S/A/D

to select a position you want

to move to, and press ENTER (

Delete an application

1. Select an application, and press ENTER (

) to

display the options.

2. Use

W/S

to select [Delete], and press

ENTER(

3. Use

A/D

to select [OK], and press ENTER (

)

to confirm.

Depending on the region, the [LG Smart

World], [My Apps], [

] and [

] may not be

available.

For the rst time to access [My Apps]

feature, current country setting appears.

When changing the sound eect, the audio

output may be delayed depending on your

internet environment.

Note

Operating 57

Operating

Using Bluetooth

technology

About Bluetooth

Bluetooth® is wireless communication technology

for short range connection.

The available range is within 10 meters.

(The sound may be interrupted when the

connection interfered by the other electronic wave

or you connect the bluetooth in the other rooms.)

Connecting individual devices under

Bluetooth® wireless technology does not incur any

charges. A mobile phone with

Bluetooth® wireless technology can be operated

via the Cascade if the connection was made via

Bluetooth® wireless technology.

Available Devices : Mobile phone, MP3, Laptop,

PDA

Bluetooth Profiles

In order to use Bluetooth wireless technology,

devices must be able to interpret certain profiles.

This unit is compatible with following profile.

A2DP (Advanced Audio Distribution Profile)

Listening to music stored on

the Bluetooth devices

Pairing your unit and Bluetooth

device

Before you start the pairing procedure, make

sure the Bluetooth feature is turned on in to your

Bluetooth device. Refer to your Bluetooth device’s

user guide. Once a pairing operation is performed,

it does not need to be performed again.

1. Select the Bluetooth function by using the

FUNCTION.

Appears “BT READY” in display window.

2. Operate the Bluetooth device and perform the

pairing operation. When searching for this unit

with the Bluetooth device, a list of the devices

found may appear in the Bluetooth device

display depending on the type of Bluetooth

device.Your unit appears as “LG-HTS”.

3. When this unit successfully paired with your

Bluetooth device, “BTPAIRED” appears in the

display window.

Depending on the Bluetooth device type,

some device have a dierent pairing way.

Note

4. Listen to music.

To play a music stored on your Bluetooth device,

refer to your Bluetooth device’s user guide.

If you change the function of the unit, the

Bluetooth function is disconnected, operate

pairing again.

Note

Operating58

Operating

The sound may be interrupted when

the connection interfered by the other

electronic wave.

You cannot control the Bluetooth device

with this unit.

Pairing is limited one Bluetooth device per

one unit and multi-pairing is not supported.

Although the distance between your

Bluetooth and the set is less than 10m, there

are obstacles between both, your Bluetooth

device cannot be connected.

Depending on the type of the device,

you may not be able to use the Bluetooth

function.

When not connected the Bluetooth, “BT

READY” appears on the display window.

The Electrical malfunction due to devices

using same frequency such as Medical

equipment, Microwaves or wireless

LAN devices, the connection will be

disconnected.

When someone stands and interrupts

communication between Bluetooth device

and the player, the connection will be

disconnected.

If the gotten away of the distance between

Bluetooth and the unit, the sound quality

is lower and lower the connection will

disconnect when the space between the

Bluetooth and the unit gets out of the

operating range of Bluetooth.

The device with Bluetooth wireless

technology is disconnected, if you turn o

the main unit or put the device away from

the main unit more than 10m.

Note

5 Troubleshooting

Troubleshooting 59

Troubleshooting

General

Symptom Cause & Solution

The Power does not turned on.

Plug the power cord into the wall outlet securely.

The unit does not start

playback.

Insert a playable disc. (Check the disc type, color system, and regional

code.)

Insert the disc with the playback side down.

Clean the disc.

Cancel the Rating function or change the rating level.

The connected USB storage

device is not recognized.

Try using dierent USB cable, some USB cables may not support

enough current for normal USB operation.

If you use an USB extension cable or USB HUB, the USB devices may

not be recognized.

An USB device which requires additional program installation when

you have connected it to a computer is not supported.

This unit supports only USB Flash Drive and USB External HDD with

FAT32 or NTFS format.

The angle cannot be changed.

Multi-angles are not recorded on the DVD Video being played.

Cannot play video, photo or

audio les.

The les are not recorded in a format that the unit can play.

The unit does not support the codec of the video le.

The remote control does not

work properly.

The remote control is not pointed at the remote sensor of the unit.

The remote control is too far from the unit.

There is an obstacle in the path of the remote control and the unit.

The batteries in the remote control are exhausted.

The unit is plugged in, but the

power will not turn on or o.

You can reset the unit as follows.

Unplug the power cord, wait at least ve seconds, and then plug it in

again.

The unit is not operating

normally.

Troubleshooting60

Troubleshooting

Network

Symptom Cause & Solution

BD-Live feature does not work.

The connected USB storage may not have enough space. Connect

the USB storage with at least 1GB free space.

Ensure that the unit is correctly connected to the local area network

and can access the internet (page 20).

Your broadband speed may not fast enough to use the BD-Live

features. Contact your Internet Service Provider (ISP) and increase the

broadband speed is recommended.

The [BD-LIVE connection] option in the [Settings] menu is set to

[Prohibited]. Set the option to [Permitted].

Streaming video services (such

as YouTube™, etc.) are often

stopped or “buer” during

playback.

Your broadband service speed may not be fast enough to stream

video services. Contact your Internet Service Provider (ISP) and

increase the broadband speed is recommended.

Media servers are not displayed

on the device list.

The rewall or anti-virus software on your media server is running.

Turn o the rewall or anti-virus software running on your media

server.

The player is not connected to the local area network that your media

server is connected.

Cannot connect the player to

the access point or wireless

LAN router.

The wireless communication may be interrupted from household

devices that are using radio frequencies. Move the player away from

them.

Access point is not displayed

on the “Access point name” list.

The access point or wireless LAN router may not broadcast its SSID.

Set your access point to broadcast its SSID through your computer.

Your network device such as access point may not set with available

frequency range and channel that this player can support.

Try setting the frequency range and channel on the network device

setting.

Troubleshooting 61

Troubleshooting


Symptom Cause & Solution

There is no picture.

Select the appropriate video input mode on the TV so the picture

from the unit appears on the TV screen.

Connect the video connection securely.

Check the [HDMI Color Setting] in the [Settings] menu is set to the

appropriate item that conforms to your video connection.

Your TV may not support the resolution you have set on the player.

Change the resolution that your TV accepts.

The player’s HDMI OUT jack is connected to a DVI device that does

not support copyright protection.

Picture noise appears

You are playing a disc recorded in a color system that is dierent from

your TV.

Set the resolution which your TV accepts.

Blu-ray 3D disc playback does

not output 3D views.

Connect the player to your TV with HDMI cable (Type A, High Speed

HDMI™ Cable).

Your TV may not support “HDMI 3D mandatory format”.

The [3D Mode] option in the [Settings] menu is set to [O ].

Set the option to [On].

Sound

Symptom Cause & Solution

There is no sound or the sound

is distorted.

The unit is in scan, slow motion, or pause mode.

The sound volume is low.

Customer Support

You can update the player using the latest software to enhance the products operation and/or add new

features. To obtain the latest software for this player (if updates have been made), please visit

http://www.lg.com or contact LG Electronics customer care center.

Open Source Software Notice

To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit

http://opensource.lge.com. All referred license terms, warranty disclaimers and copyright notices are

available to download with the source code.

6 Appendix

Appendix62

Appendix

Controlling a TV with

the Supplied Remote

Control

You can control your TV using the buttons below.

By pressing You can

(TV POWER) Turn the TV on or o.

AV/INPUT

Switch the TV’s input source

between the TV and other

input sources.

PR/CH

W/S

Scan up or down through

memorized channels.

VOL +/– Adjust the volume of the TV

Depending on the unit being connected, you

may not be able to control your TV using some

of the buttons.

Note

Setting up the remote to

control your TV

You can operate your TV with the supplied remote

control.

If your TV is listed in the table below, set the

appropriate manufacturer code.

1. While holding down

(TV POWER) button, and

press the manufacturer code for your TV with

the numerical buttons (see the table below).

Manufacturer Code number

LG 1(Default), 2

Zenith 1, 3, 4

GoldStar 1, 2

Samsung 6, 7

Sony 8, 9

Hitachi 4

2. Release the

(TV POWER) button to complete

setting.

Depending on your TV, some or all buttons may not

function on the TV, even after entering the correct

manufacturer code. When you replace the batteries

of the remote, the code number you have set may

be reset to the default setting. Set the appropriate

code number again.

Appendix 63

Appendix

Network Software

Update

Network update notification

From time to time, performance improvements

and/or additional features or services may be

made available to units that are connected to a

broadband home network. If there is new software

available and the unit is connected to a broadband

home network, the player will inform you about the

update as follows.

Option 1:

1. The update menu will appear on the screen

when you turn on the player.

2. Use

A/D

to select a desired option and then

press ENTER (

[OK] Starts the software update.

[Cancel]

Exits the update menu and the

home appears.

Option 2:

If the software update is available from the update

server, the “Update” icon appears in the Home

menu. Press blue (B) colored button to start the

update procedure.

Software update

You can update the player using the latest software

to enhance the products operation and/or add

new features. You can update the software by

connecting the unit directly to the software update

server.

Before updating the software in your player,

remove any disc and USB Device from the

player.

Before updating the software in your player,

turn the player o and then turn it back on.

During the software update procedure,

do not turn o the player or disconnect

AC power, or do not press any button.

If you cancel the update, turn o the power

and turn it on for stable performance.

This unit cannot be updated to previous

software version.

Note

1. Check the network connection and settings

(page 20)..

2. Select [Software] option in the [Settings] menu

then press ENTER (

3. Select [Update] option, and press ENTER (

The player will check for the newest update.

Pressing ENTER (

) while checking for the

update will end the process.

If there is no update available, the Message,

“No update is found. The current set is the

latest version.” appears. Press ENTER (

) to

return to the [Home Menu].

Note

Appendix64

Appendix

4. If newer version exists, the message “A new

update was found. The update takes a few

minutes. Do you want to update?” appears.

5. Select [OK] to start update. (Selecting [Cancel]

will end the update.)

6. The player starts downloading the newest

update from the server. (Downloading will

takes several minutes depending on your home

network condition)

7. To update software the next time, the software

update procedure has to be started from the

beginning again.

Do not turn o the power during the software

update.

Caution

8. When update is completed, the power will be

turned off automatically in a few seconds.

9. Turn the power back on. The system now

operates with the new version.

The Software Update function may not

work properly depending on your internet

environment. In this case, you can obtain

the latest software from the authorized LG

Electronics Service Center then update your

player. Refer to “Customer Support” on page

61.

Note

Appendix 65

Appendix

Additional Information

File requirement

Video files

File

Location

File

Extension

Codec Format

Audio

Format

Subtitle

Disc,

USB

“.avi”, “.mpg”, “.mpeg”,

“.mkv”, “.mp4”, “.asf”,

“.wmv”, “.m4v” (DRM

free), “.vob”, “.3gp”,

“.mov”, “.trp”, “.m2t”,

“.mpe”, “.m1v”, “.m2v”,

“.wm”, ”.v”, “.ts”, “.dat”

XVID, MPEG1 SS, H.264/

MPEG-4 AVC, MPEG2

PS, MPEG2 TS, VC-1 SM

(WMV3)

Dolby

Digital,

DTS, MP3,

WMA,

AAC, AC3

SubRip (.srt / .txt), SAMI

(.smi), SubStation Alpha

(.ssa/.txt), MicroDVD

(.sub/.txt), VobSub (.sub),

SubViewer 1.0 (.sub),

SubViewer 2.0 (.sub/.

txt), TMPlayer (.txt), DVD

Subtitle System (.txt)

DLNA

“.avi”, “.mpg”, “.mpeg”,

“.mkv”, “.mp4”, “.asf”,

“.wmv”, “.m4v” (DRM

free), “.3gp”, “.mov”,

“.mpe”, “.m1v”, “.m2v”,

”.v”, “.ts”, “.dat”

XVID, MPEG1 SS, H.264/

MPEG-4 AVC, MPEG2

PS, MPEG2 TS, VC-1 SM

(WMV3)

Dolby

Digital,

DTS, MP3,

WMA,

AAC, AC3

SubRip (.srt / .txt), SAMI

(.smi), SubStation Alpha

(.ssa/.txt), MicroDVD (.sub/.

txt), SubViewer 1.0 (.sub),

SubViewer 2.0 (.sub/.

txt), TMPlayer (.txt), DVD

Subtitle System (.txt)

Audio files

File

Location

File

Extension

Sampling Frequency Bitrate Note

Disc,

USB

“mp3”, “.wma”,

“.wav”, “.m4a”

(DRM free),

“.ac”, “.ogg”,

“.ai”

within 32 - 48 kHz

(WMA), within 16 - 48

kHz (MP3)

within 32 - 192 kbps

(WMA), within 32 - 320

kbps (MP3)

Some wav les are

not supported on

this player.

DLNA

“mp3”, “.wma”,

“.wav”, “.m4a”

(DRM free),

“.ac”, “.ogg”

within 32 - 48 kHz

(WMA), within 16 - 48

kHz (MP3)

within 32 - 192 kbps

(WMA), within 32 - 320

kbps (MP3)

Some wav les are

not supported on

this player.

Photo files

File

Location

File

Extension

Recommended

Size

Note

Disc,

USB,

DLNA

“.jpg”, “.jpeg”,

“.png”, “.gif”,

“.mpo”, “.jps”

Less than 4,000 x 3,000 x 24 bit/pixel

Less than 3,000 x 3,000 x 32 bit/pixel

Progressive and lossless

compression photo image les

are not supported.

Appendix66

Appendix

The le name is limited to 180 characters.

Maximum les/Folder: Less than 2000 (total

number of les and folders)

Depending on the size and number of the

les, it may take several minutes to read the

content on the media.

File compatibility may dier depending on

the server.

Because the compatibility on DLNA server

are tested on the DLNA server (SmartShare

PC software) environment, le requirements

and playback functions may dier

depending on media servers.

The le requirements on page 65 are

not always compatible. There may have

some restrictions by le features and media

server’s ability.

Playing video subtitle les are only available

by using a DLNA media server created with

the SmartShare PC software supplied with

this player.

The les from removable media such as USB

drive, DVD-drive etc. on your media server

may not be shared properly.

The total playback time of audio le

indicated on the screen may not correct for

VBR les.

HD video les contained on the CD/DVD or

USB 1.0/1.1 may not played properly.

Blu-ray Disc or USB 2.0 are recommended to

play back HD video les.

This player supports H.264/MPEG-4 AVC

prole Main, High at Level 4.1. A le with

higher level may not be supported.

This player does not support les that are

recorded with GMC

or Qpel

*1 GMC – Global Motion Compensation

*2 Qpel – Quarter pixel

Note

A “avi” le which is encoded “WMV 9 codec”

is not supported.

This player supports UTF-8 les even it

contains Unicode subtitle content. This

player can not support the pure Unicode

subtitle les.

Depending on the types of le or ways of

recording, it may not play back.

A disc which was recorded by multi-session

on normal PC is not supported on this

player.

To be playback a video le, video le name

and Subtitle le name must be the same.

When you play a video le with a extension

such as “.ts”, “.m2ts”, “.mts”, “.tp”, “.Trp” or “.m2t”,

your player may not support subtitle les.

Video / Audio codec compatibility may

dier depending on video le.

Note

AVCHD (Advanced Video

Codec High Definition)

This player can playback AVCHD format discs.

These discs are normally recorded and used in

camcorders.

The AVCHD format is a high denition digital

video camera format.

The MPEG-4 AVC/H.264 format is capable of

compressing images at higher eciency than

that of the conventional image compressing

format.

This player can playback AVCHD discs using

“x.v.Color” format.

Some AVCHD format discs may not play

depending on the recording condition.

AVCHD format discs need to be nalized.

“x.v.Color” oers a wider color range than normal

DVD camcorder discs.

Appendix 67

Appendix

About DLNA

This Player is a DLNA Certied digital media player

that can display and play video, photo and audio

content from your DLNA-compatible digital media

server (PC and Consumer Electronics).

The Digital Living Network Alliance (DLNA) is a

cross-industry organization of consumer electronics,

computing industry and mobile device companies.

Digital Living provides consumers with easy sharing

of digital media through your home network.

The DLNA certication logo makes it easy

to nd products that comply with the DLNA

Interoperability Guidelines. This unit complies with

DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or

other DLNA compatible device is connected to

this player, some setting changes of software or

other devices may be required. Please refer to the

operating instructions for the software or device for

more information.

Certain system requirements

For high denition video playback:

High denition display that has HDMI input jack.

BD-ROM disc with high denition content.

HDMI or HDCP capable DVI input on your display

device is required for some content (as specied

by disc authors).

Compatibility notes

Because BD-ROM is a new format, certain disc,

digital connection and other compatibility issues

are possible. If you experience compatibility

problems, please contact an authorized

Customer Service Center.

This unit allows you to enjoy functions such

as picture-in-picture, secondary audio and

Virtual packages, etc., with BD-ROM supporting

BONUSVIEW (BD-ROM version 2 Prole 1 version

1.1). Secondary video and audio can be played

from a disc compatible with the picture-in-

picture function. For the playback method, refer

to the instructions in the disc.

Viewing high-denition content and up-

converting standard DVD content may require a

HDMI-capable input or HDCP-capable DVI input

on your display device.

Some BD-ROM and DVD discs may restrict the

use of some operation commands or features.

You can use an USB device to store some disc

related information, including downloaded

online content. The disc you are using will

control how long this information is retained.

Appendix68

Appendix

Audio Output Specifications

Jack/Setting

Source

HDMI OUT

PCM

DTS Re-encode

Auto

Dolby Digital PCM 5.1ch DTS Dolby Digital

Dolby Digital Plus PCM 5.1ch DTS Dolby Digital Plus

Dolby TrueHD PCM 5.1ch DTS Dolby TrueHD

DTS PCM 5.1ch DTS DTS

DTS-HD PCM 5.1ch DTS DTS-HD

Linear PCM 2ch PCM 2ch DTS Linear PCM 2ch

Linear PCM 5.1ch PCM 5.1ch DTS Linear PCM 5.1ch

Linear PCM 7.1ch PCM 7.1ch DTS Linear PCM 7.1ch

*1 The secondary and interactive audio may not

be included in the output bitstream if [Digital

Output] option is set to [Auto]. (Except LPCM

Codec : the output always include interactive

and secondary audio.)

*2 This player automatically selects the HDMI

audio according to the decoding capability

of the connected HDMI device even though

[Digital Output] option is set to [Auto].

*3 If the [Digital Output] option is set to [DTS re-

encode], the audio output is limited to 48 kHz

and 5.1Ch. If the [Digital Output] option is set

to [DTS re-encode], the DTS Re-encode audio

is outputted for BD-ROM discs, and the original

audio is outputted for the other discs (like

[Auto]).

The audio is outputted up to PCM 48 kHz/16 bit

for MP3/WMA le and PCM 44.1kHz/16 bit for

Audio CD during playback.

With digital audio connection (HDMI OUT),

Disc Menu button sounds of BD-ROM may not

be heard if the [Digital Output] option is set to

[Auto].

If the audio format of the digital output does

not match the capabilities of your receiver, the

receiver will produce a strong, distorted sound

or no sound at all.

Multi-channel Digital Surround Sound via

digital connection can only be obtained if your

receiver is equipped with a Digital Multi-channel

decoder.

This setting is not available on the input signal

from an external device.

Appendix 69

Appendix

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian

Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Appendix70

Appendix

Language Code List

Use this list to input your desired language for the following initial settings: [Disc Audio],

[Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Afar 6565

Afrikaans 6570

Albanian 8381

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laotian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Appendix 71

Appendix

Trademarks and

Licenses

Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™,

BONUSVIEW™ and the logos are trademarks of

the Blu-ray Disc Association.

“DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

Java is a trademark of Oracle and/or its aliates.

The terms HDMI and HDMI High-Denition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are

trademarks, service marks, or certication marks

of the Digital Living Network Alliance.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing

Limited. DTS, DTS-HD, the Symbol, & DTS and the

Symbol together are registered trademarks, and

DTS-HD Master Audio | Essential is a trademark of

The Wi-Fi CERTIFIED Logo is a certication mark

of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Mark is a trademark of

the Wi-Fi Alliance.

“AVCHD” and the “AVCHD” logo are trademarks of

Panasonic Corporation and Sony Corporation.

Appendix72

Appendix

Bluetooth® wireless technology is a system which

allows radio contact between electronic devices.

Connecting individual devices under Bluetooth®

wireless technology does not incur any charges.

A mobile phone with Bluetooth® wireless

technology can be operated via the Cascade if

the connection was made via Bluetooth® wireless

technology.

The Bluetooth® word mark and logos are owned

by the Bluetooth® SIG, Inc. and any use of such

marks by LG Electronics is under license.

Other trademarks and trade names are those of

their respective owners.

Cinavia Notice

This product uses Cinavia technology to limit the

use of unauthorized copies of some commercially-

produced lm and videos and their soundtracks.

When a prohibited use of an unauthorized copy is

detected, a message will be displayed and playback

or copying will be interrupted.

More information about Cinavia technology

is provided at the Cinavia Online Consumer

Information Center at http://www.cinavia.com. To

request additional information about Cinavia by

mail, send a postcard with your mailing address

to: Cinavia Consumer Information Center, P.O. Box

86851, San Diego, CA, 92138, USA.

This product incorporates proprietary technology

under license from Verance Corporation and is

protected by U.S. Patent 7,369,677 and other U.S.

and worldwide patents issued and pending as well

as copyright and trade secret protection for certain

aspects of such technology. Cinavia is a trademark

Reverse engineering or disassembly is prohibited.

Appendix 73

Appendix

Specifications

General (LAB540W)

Power requirements 120 V ~ 60 Hz

Power consumption 38 W

Dimensions (W x H x D) (700 x 39.5 x 320) mm ((27.5 x 1.5 x 12.6) inches)

Net Weight (Approx.) 4.6 kg (10.1 lbs)

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Input/Output

OPT. IN 3 V (p-p), Optical jack x 1

HDMI IN 19 Pin (Type A, HDMI™ connector) x 1

HDMI OUT 19 Pin (Type A, HDMI™ connector) x 1

Available Digital Input Audio

Sampling Frequency

32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Amplier

Total 320 W

Front 40 W x 2 (8 Ω at 1 kHz)

Surround 40 W x 2 (8 Ω at 1 kHz)

Subwoofer 160 W (3 Ω at 80 Hz)

THD 10 %

Wireless subwoofer (S54A2-D)

Power requirements 120 V ~ 60 Hz

Power consumption 40 W

Type 1 Way 1 Speaker

Impedance 3 Ω

Rated Input Power 160 W

Max. Input Power 320 W

Dimensions (W x H x D) (178 x 378 x 437) mm ((7.0 x 14.8 x 17.2) inches)

Net Weight (Approx.) 9 kg (19.8 lbs)

Appendix74

Appendix

System

Laser Semiconductor laser

wavelength 405 nm / 650 nm

Signal system Standard NTSC color TV system

LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX

Wireless LAN (internal antenna)

Integrated IEEE 802.11n (2.4 GHz band) wireless networking access,

compatible with 802.11b/g Wi-Fi networks.

Bus Power Supply (USB) 5 V

500 mA

Design and specications are subject to change without notice.

Appendix 75

Appendix

Maintenance

Handling the unit

When shipping the unit

Please save the original shipping carton and

packing materials. If you need to ship the unit, for

maximum protection, re-pack the unit as it was

originally packed at the factory.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the

surfaces are extremely dirty, use a soft cloth lightly

moistened with a mild detergent solution. Do not

use strong solvents such as alcohol, benzine, or

thinner, as these might damage the surface of the

unit.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide

spray near the unit.

Wiping with strong pressure may damage the

surface.

Do not leave rubber or plastic products in

contact with the unit for a long period of time.

Maintaining the unit

The unit is a high-tech, precision device. If the

optical pick-up lens and disc drive parts are dirty

or worn, the picture quality could be diminished.

For details, please contact your nearest authorized

service center.

Notes on discs

Handling discs

Do not touch the playback side of the disc. Hold

the disc by the edges so that ngerprints do not

get on the surface. Never stick paper or tape on the

disc.

Storing discs

After playing, store the disc in its case. Do not

expose the disc to direct sunlight or sources of heat

and never leave it in a parked car exposed to direct

sunlight.

Cleaning discs

Fingerprints and dust on the disc can cause poor

picture quality and sound distortion. Before playing,

clean the disc with a clean cloth. Wipe the disc from

the center to out.

Do not use strong solvents such as alcohol,

benzine, thinner, commercially available cleaners,

or anti-static spray intended for older vinyl records.

Appendix76

Appendix

Important Information

relating to Network

Services

All information, data, documents, communications,

downloads, les, text, images, photographs,

graphics, videos, webcasts, publications, tools,

resources, software, code, programs, applets,

widgets, applications, products and other content

(“Content”) and all services and oerings (“Services”)

provided or made available by or through any

third party (each a “Service Provider”) is the sole

responsibility of the Service Provider from whom it

originated.

The availability of and access to Content and

Services furnished by the Service Provider through

the LGE Device are subject to change at any time,

without prior notice, including, but not limited to

the suspension, removal or cessation of all or any

part of the Content or Services.

Should you have any inquiry or problem related

to the Content or Services, you may refer to the

Service Provider’s website for the most up-to-

date information. LGE is neither responsible nor

liable for customer service related to the Content

and Services. Any question or request for service

relating to the Content or Services should be made

directly to the respective Content and Service

Providers.

Please note that LGE is not responsible for any

Content or Services provided by the Service

Provider or any changes to, removal of, or cessation

of such Content or Services and does not warrant

or guaranty the availability of or access to such

Content or Services.
