• Page 1 - English - : 84143954 A XT5 2019 XT5 C M Y CM MY CY CMY K 19CADXT5COVenUS84143954A2018APR13ai 1 442018 14423 PM19CADXT5COVenUS84143954A2018APR13ai 1 442018 14423 PM
• Page 2 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 Contents Introduction 2 In Brief 5 Keys Doors and Windows 27 Seats and Restraints 57 Storage 107 Instruments and Controls 113 Lighting 160 Infotainment System 167 Climate Controls 168 Driving and Operating 177 Vehicle Care 250 Service and Maintenance 329 Technical Data 342 Customer Information 346 Reporting Safety Defects 356 OnStar 360 Connected Ser vices 367 Index 371
• Page 3 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 2 INTRODUCTION Introduction The names logos emblems slogans vehicle model names and vehicle body designs appearing in this manual including but not limited to GM the GM logo CADILLAC the CADILLAC Emblem and XT5 are trademarks and or service marks of General Motors LLC its subsidiaries affiliates or licensors For vehicles first sold in Canada substitute the name General Motors of Canada Company for Cadillac Motor Car Division wherever it appears in this manual This manual describes features that may or may not be on the vehicle because of optional equipment that was not purchased on the vehicle model variants countr y specifications featuresapplications that may not be available in your region or changes subsequent to the printing of this owners manual Refer to the purchase documentation relating to your specific vehicle to confirm the features Keep this manual in the vehicle for quick reference Canadian Vehicle Owners A French language manual can be obtained from your dealer at wwwhelminccom or from Propriétaires Canadiens On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à ladresse suivante Helm Incorporated Attention Customer Ser vice 47911 Halyard Drive Plymouth MI 48170 USA Using this Manual To quickly locate information about the vehicle use the Index in the back of the manual It is an alphabetical list of what is in the manual and the page number where it can be found Litho in USA Part No 84143954 A First Printing 2018 General Motors LLC All Rights Reserved
• Page 4 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 INTRODUCTION 3 Danger Warning and Caution Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them Danger Danger indicates a hazard with a high level of risk which will result in serious injur y or death Warning Warning indicates a hazard that could result in injur y or death Caution Caution indicates a hazard that could result in property or vehicle damage A circle with a slash through it is a safety symbol which means Do Not Do not do this or Do not let this happen Symbols The vehicle has components and labels that use symbols instead of text Symbols are shown along with the text describing the operation or information relating to a specific component control message gauge or indicator M Shown when the owners manual has additional instructions or information Shown when the service manual has additional instructions or information 0 Shown when there is more information on another page see page Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean See the features in this manual for information u Air Conditioning System G Air Conditioning Refrigerant Oil 9 Airbag Readiness Light Antilock Brake System ABS Brake System Warning Light 9 Dispose of Used Components Properly B Engine Coolant Temperature FlameFire Prohibited H Flammable For ward Collision Alert Fuses j ISOFIXLATCH System Child Restraints Lane Change Alert Lane Departure Warning A Lane Keep Assist Malfunction Indicator Lamp
• Page 5 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 4 INTRODUCTION Oil Pressure X Park Assist Pedestrian Ahead Indicator O Power 7 Rear Cross Traffic Alert I Registered Technician Remote Vehicle Start gt Seat Belt Reminders I Side Blind Zone Alert h StartS top 7 Tire Pressure Monitor d StabiliTrakElectronic Stability Control ESC a Under Pressure V Vehicle Ahead Indicator
• Page 6 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 5 In Brief Instrument Panel Instrument Panel Over view 6 Initial Drive Information Initial Drive Information 8 StopStart System 8 Remote Keyless Entr y RKE System 8 Remote Vehicle Start 8 Door Locks 9 Liftgate 10 Windows 10 Seat Adjustment 10 Memory Features 11 Second Row Seats 12 Heated and Ventilated Seats 12 Head Restraint Adjustment 12 Seat Belts 13 Passenger Sensing System 13 Mirror Adjustment 13 Steering Wheel Adjustment 14 Interior Lighting 14 Exterior Lighting 15 Windshield WiperWasher 16 Climate Controls 17 Transmission 18 Vehicle Features Infotainment System 18 Steering Wheel Controls 18 Cruise Control 19 Driver Information Center DIC 19 Forward Collision Alert FCA System 20 Forward Automatic Braking FAB 20 Front Pedestrian Braking FPB System 20 Lane Keep Assist LKA 20 Lane Change Alert LCA 20 Surround Vision 21 Rear Vision Camera RVC 21 Rear Cross Traffic Alert RCTA System 21 Park Assist 21 Automatic Parking Assist APA 21 Reverse Automatic Braking RAB 21 Power Outlets 22 Universal Remote System 22 Sunroof 22 Performance and Maintenance Traction ControlElectronic Stability Control 23 Tire Pressure Monitor 24 Fuel 24 E85 or FlexFuel 24 Engine Oil Life System 25 Driving for Better Fuel Economy 25 Roadside Ser vice 26

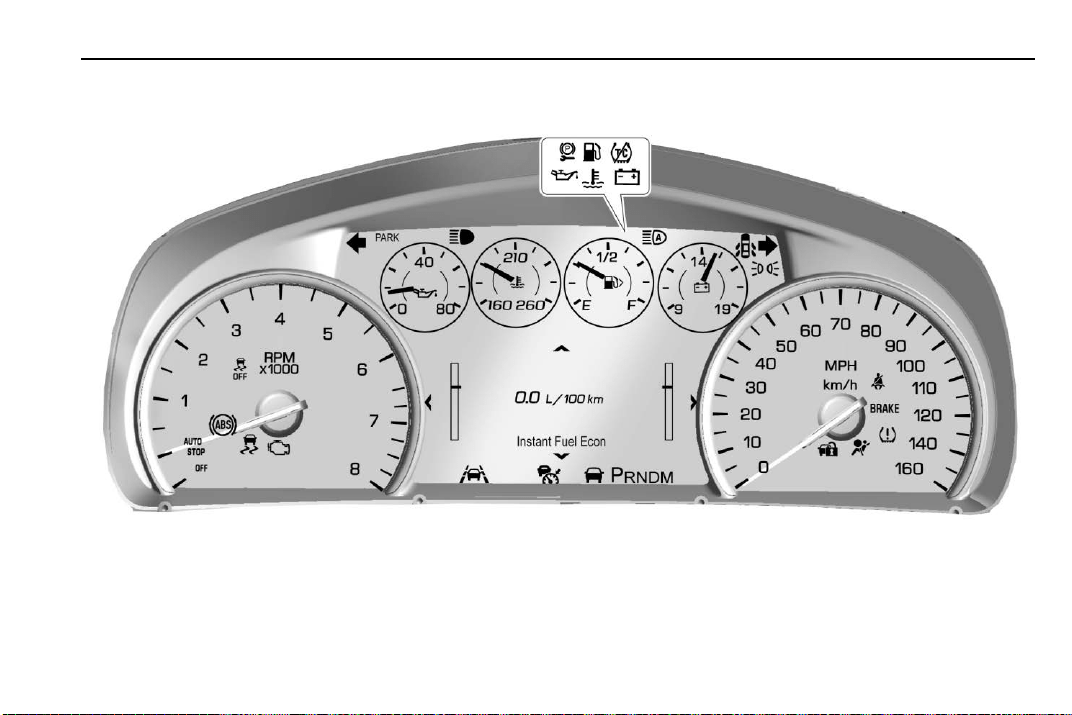

• Page 7: Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 6 IN BRIEF Instrument Panel Instrument Panel Overview
• Page 8 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 7 1 Air Vents 0 175 2 Exterior Lamp Controls 0 160 Turn Signal Lever See Turn and LaneChange Signals 0 163 IntelliBeam System Button If Equipped See Exterior Lamp Controls 0 160 3 Tap Shift Controls See Manual Mode 0 200 4 Instrument Cluster Uplevel Cluster 0 125 or Instrument Cluster Base Level Cluster 0 123 Driver Information Center DIC Display See Driver Information Center DIC 0 141 5 Windshield WiperWasher 0 114 Rear Window WiperWasher 0 117 6 ENGINE STARTSTOP Button See Ignition Positions 0 188 7 Park Assist Button See Assistance Systems for Parking or Backing 0 221 Automatic Parking Assist APA Button See Assistance Systems for Parking or Backing 0 221 8 Light Sensor See Automatic Headlamp System 0 162 9 Hazard Warning Flashers 0 163 10 Infotainment 0 167 11 Heated and Ventilated Front Seats 0 64 If Equipped 12 Dual Automatic Climate Control System 0 168 13 MODE Switch See Driver Mode Control 0 207 Traction ControlElectronic Stability Control 0 206 AllWheel Drive 0 202 If Equipped 14 Shift Lever See Automatic Transmission 0 196 15 Steering Wheel Controls 0 114 Driver Information Center DIC Controls See Driver Information Center DIC 0 141 16 Steering Wheel Controls 0 114 17 Horn 0 114 18 Forward Collision Alert FCA System 0 227 If Equipped Lane Keep Assist LKA 0 236 If Equipped Heated Steering Wheel 0 114 If Equipped 19 Cruise Control 0 208 Adaptive Cruise Control 0 211 If Equipped Phone Button See Steering Wheel Controls 0 114 20 Steering Wheel Adjustment 0 114 Out of View 21 HeadUp Display HUD 0 144 If Equipped 22 Hood Release See Hood 0 253 Data Link Connector DLC Out of View See Malfunction Indicator Lamp Check Engine Light 0 133 23 Instrument Panel Illumination Control 0 164 24 Electric Parking Brake 0 203
• Page 9 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 8 IN BRIEF Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle For more detailed information refer to each of the features which can be found later in this owners manual StopStart System If equipped the StopStart system will shut off the engine to help conser ve fuel It has components designed for the increased number of starts When the brakes are applied and the vehicle is at a complete stop the engine may turn off When stopped the tachometer displays AUTO STOP See Tachometer 0 127 When the brake pedal is released or the accelerator pedal is pressed the engine will restart See StopStart System 0 191 in Driving and Operating Remote Keyless Entry RKE System The Remote Keyless Entry RKE transmitter may be used to lock and unlock the doors from up to 60 m 197 ft away from the vehicle Q Press to lock all doors and the fuel door if equipped K Press to unlock the driver door or all doors depending on the vehicle personalization settings The fuel door will also be unlocked if equipped Lock and unlock feedback can be personalized See Vehicle Personalization 0 148 7 Press and release one time to initiate vehicle locator Press and hold 7 for three seconds to sound the panic alarm Press again to cancel b Press twice quickly to open or close the liftgate Press once to stop the liftgate from moving Press the key release button near the bottom of the transmitter to remove the key The key can be used for the driver door and the glove box See Keys 0 27 and Remote Keyless Entry RKE System Operation 0 28 Remote Vehicle Start The engine can be started from outside of the vehicle Starting the Vehicle 1 Press and release Q on the RKE transmitter
• Page 10 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 9 2 Immediately press and hold for at least four seconds or until the turn signal lamps flash Start the vehicle normally after entering When the vehicle starts the parking lamps will turn on Remote start can be extended Canceling a Remote Start To cancel a remote start do one of the following Press and hold until the parking lamps turn off Turn on the hazard warning flashers Turn the vehicle on and then off See Remote Vehicle Start 0 34 Door Locks Keyless Access Press the button on the door handle and pull the handle when the Remote Keyless Entry RKE transmitter is within range See Remote Keyless Entry RKE System Operation 0 28 Manual Operation From outside use the key in the driver door The key cylinder is covered by a cap See Door Locks 0 36 From the inside push down on the door lock knob at the rear of the door To unlock a door pull once on the door handle to unlock it and again to open it Power Door Locks From outside press Q or K on the RKE transmitter See Remote Keyless Entry RKE System Operation 0 28 From inside press Q or K See Power Door Locks 0 39
• Page 11 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 10 IN BRIEF Liftgate Power Liftgate Operation The power liftgate switch is on the driver door The vehicle must be in P Park Choose the power liftgate mode by selecting MAX or 34 Press 8 on the driver door The driver door must be unlocked On the RKE transmitter press b twice quickly until the liftgate starts moving Press any liftgate button while the liftgate is moving to stop it Pressing again reverses the direction To close press l on the bottom of the liftgate next to the pull cup To disable the power liftgate function select OFF on the liftgate switch See Liftgate 0 41 Windows The power windows work when the ignition is on in ACCACCESSORY or when Retained Accessor y Power RAP is active See Retained Accessory Power RAP 0 193 Using the window switch press to open or pull to close the window The windows may be temporarily disabled if they are used repeatedly within a short time See Power Windows 0 53 Seat Adjustment Warning You can lose control of the vehicle if you try to adjust a driver seat while the vehicle is moving Adjust the driver seat only when the vehicle is not moving
• Page 12 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 11 To adjust the seat Move the seat forward or rearward by sliding the control forward or rearward Raise or lower the front part of the seat cushion by moving the front of the control up or down Raise or lower the entire seat by moving the rear of the control up or down To adjust the seatback see Reclining Seatbacks 0 61 To adjust the lumbar support see Lumbar Adjustment 0 61 Some vehicles are equipped with a feature that activates a vibration in the driver seat to help the driver avoid crashes See Driver Assistance Systems 0 220 Memory Features If equipped memory seats allow two drivers to save and recall their unique seat positions for driving the vehicle and a shared exit position for getting out of the vehicle Other feature positions may also be saved such as power mirrors and power steering wheel if equipped Memor y positions are linked to RKE transmitter 1 or 2 for automatic memory recalls Before saving adjust all available memory feature positions Turn the ignition on and then press and release SET a beep will sound Then immediately press and hold 1 2 or B Exit until two beeps sound To manually recall these positions press and hold 1 2 or B until the saved position is reached When Auto Memor y Recall is enabled in vehicle personalization positions previously saved to memory buttons 1 and 2 are recalled when the ignition is changed from off to on or ACC ACCESSORY When Easy Exit Options is enabled in vehicle personalization the feature automatically recalls the previously saved exit position when exiting the vehicle Memory adjustments may not be available upon delivery or after ser vice until steps in Saving Memory Positions section are performed See Memory Seats 0 62
• Page 13 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 12 IN BRIEF Second Row Seats Rear Seat Adjustment The second row seats slide forward for more room To adjust the seat position lift the lever below the seat cushion and slide the seat forward or backward Folding the Seatback Either side of the seatback can be folded for more cargo space See Rear Seats 0 66 Heated and Ventilated Seats If equipped the buttons are near the climate controls on the center stack To operate the engine must be running Press M or L to heat the driver or passenger seat cushion Press C or to ventilate the driver or passenger seat Press the button once for the highest setting With each press of the button the seat will change to the next lower setting and then to the off setting The indicator lights above the buttons indicate three for the highest setting and one for the lowest If the front heated seats are on high the level may automatically be lowered after approximately 30 minutes See Heated and Ventilated Front Seats 0 64 Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly To achieve a comfortable seating position change the seatback recline angle as little as necessary while keeping the seat and the head restraint height in the proper position See Head Restraints 0 58 and Reclining Seatbacks 0 61
• Page 14 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 13 Seat Belts Refer to the following sections for important information on how to use seat belts properly Seat Belts 0 69 How to Wear Seat Belts Properly 0 70 LapShoulder Belt 0 72 Lower Anchors and Tethers for Children LATCH System 0 96 Passenger Sensing System United States and Canada Mexico The passenger sensing system turns off the front outboard passenger frontal airbag under cer tain conditions No other airbag is affected by the passenger sensing system See Passenger Sensing System 0 83 The passenger airbag status indicator will light on the overhead console when the vehicle is started See Passenger Airbag Status Indicator 0 132 Mirror Adjustment Exterior Mirror To adjust a mirror 1 Press or to choose the driver or passenger mirror 2 Press the arrows on the control pad to move each mirror in the desired direction See Power Mirrors 0 49 Interior Mirror Adjust the rear view mirror for a clear view of the area behind your vehicle
• Page 15 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 14 IN BRIEF Manual Rearview Mirror If equipped push the tab forward for daytime use and pull it rearward for nighttime use to avoid glare of the headlamps from behind Automatic Dimming Rearview Mirror If equipped automatic dimming reduces the glare of headlamps from behind The dimming feature comes on when the vehicle is started Rear Camera Mirror If equipped this automatic dimming rearview mirror provides a wide angle camera view of the area behind the vehicle Adjust the mirror with the tab pushed forward so that the display is off See Rear Camera Mirror 0 51 Steering Wheel Adjustment Power Tilt and Telescoping Steering Wheel Press the control to move the tilt and telescoping steering wheel up and down or forward and rearward Do not adjust the steering wheel while driving Interior Lighting Dome Lamps The dome lamp controls are in the overhead console To operate press the following buttons j OFF Press to turn off the dome lamps when a door is open An indicator light on the button will turn on when the dome lamp override is activated Press j OFF again to deactivate this feature and the
• Page 16 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 15 indicator light will turn off The dome lamps will come on when doors are opened ONOFF Press to turn the dome lamps on manually Reading Lamps There are front and rear reading lamps on the overhead console and over the rear passenger doors These lamps come on automatically when any door is opened To manually turn the reading lamps on or off Press the lamp lenses on the front reading lamps Press the lamp lenses over the rear passenger doors For more information on interior lighting see Instrument Panel Illumination Control 0 164 Exterior Lighting The exterior lamp control is on the turn signal lever Turn the control to the following positions O Turns the exterior lamps off and deactivates the AUTO mode Turn to O again to reactivate the AUTO mode In Canada the headlamps will automatically reactivate when the vehicle is shifted out of P Park AUTO Automatically turns the exterior lamps on and off depending on outside lighting Turns on the parking lamps including all lamps except the headlamps 5 Turns on the headlamps together with the parking lamps and instrument panel lights See Exterior Lamp Controls 0 160 Turn and LaneChange Signals 0 163
• Page 17 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 16 IN BRIEF Windshield WiperWasher Windshield Wiper with Rainsense AUTO Shown If Equipped Windshield Wiper without Rainsense INT Shown With the ignition on or in ACC ACCESSORY move the lever to select the wiper speed HI Use for fast wipes LO Use for slow wipes AUTO If equipped with Rainsense use this setting for intermittent wipes when Rainsense is disabled or Rainsense wipes when Rainsense is enabled For intermittent wipes move the windshield wiper lever to AUTO Turn the band up for more frequent wipes or down for less frequent wipes When Rainsense is enabled move the windshield wiper lever to AUTO Turn the band to adjust the sensitivity to moisture to the desired level Turn the band up for more sensitivity to moisture Turn the band down for less sensitivity to moisture Move the windshield wiper lever out of the AUTO position to deactivate Rainsense To turn the Rainsense feature on or off see Rainsense Wipers under Vehicle Personalization 0 148 INT If equipped with Intermittent wipers only move the windshield wiper lever to INT Turn the band up for more frequent wipes or down for less frequent wipes OFF Use to turn the wipers off 1X For a single wipe briefly move the lever down For several wipes hold the lever down
• Page 18 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 17 f Pull the lever toward you to spray windshield washer fluid and activate the wipers See Windshield WiperWasher 0 114 and Rear Window WiperWasher 0 117 Climate Controls The climate control buttons on the center stack and on the climate control display are used to adjust the heating cooling and ventilation Center Stack Climate Controls 1 Driver and Passenger Temperature Controls 2 Fan Control 3 Driver and Passenger Heated and Ventilated Seats If Equipped 4 Rear Window Defogger 5 Defrost 6 OFF Fan 7 Recirculation 8 AUTO Automatic Operation
• Page 19 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 18 IN BRIEF Climate Control Display 1 Outside Temperature Display 2 Driver and Passenger Temperature Controls 3 Fan Control 4 Rear Rear Climate Display 5 AC Mode Air Conditioning 6 SYNC Synchronized Temperature 7 Climate Control Selection Application Tray Button 8 Driver and Passenger Air Delivery Mode Controls See Dual Automatic Climate Control System 0 168 and Rear Climate Control System 0 173 if equipped Transmission Tap Shift If equipped Tap Shift allows you to shift an automatic transmission similar to a manual transmission To use the Tap Shift feature 1 When in D Drive pull back on the shift lever to enter M Manual Mode 2 Use Tap Shift to manually shift the automatic transmission 3 To exit pull back on the shift lever a second time See Manual Mode 0 200 Vehicle Features Infotainment System See the infotainment manual for information on the radio audio players phone navigation system and voice or speech recognition It also includes information on settings Steering Wheel Controls The infotainment system can be operated by using the steering wheel controls See Steering Wheel Controls in the infotainment manual
• Page 20 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 19 Cruise Control J Press to turn the system on and off A white indicator appears in the instrument cluster when turned on RES If there is a set speed in memory press briefly to resume to that speed or press and hold to accelerate If the cruise control is already active use to increase vehicle speed To increase speed by 1 kmh 1 mph press RES to the first detent To increase speed to the next 5 kmh 5 mph mark on the speedometer press RES to the second detent SET Press briefly to set the speed and activate cruise control If the cruise control is already active use to decrease vehicle speed To decrease speed by 1 kmh 1 mph press SET to the first detent To decrease speed to the next 5 kmh 5 mph mark on the speedometer press SET to the second detent Press to disengage cruise control without erasing the set speed from memory See Cruise Control 0 208 or Adaptive Cruise Control 0 211 if equipped Driver Information Center DIC The DIC display is in the instrument cluster It shows the status of many vehicle systems y or z Press to go to the previous or next selection S or T Press to move between the interactive display zones in the cluster Press S to go back to the previous menu SEL Press to open a menu or select a menu item Press and hold to reset values on certain screens See Driver Information Center DIC 0 141
• Page 21 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 20 IN BRIEF Forward Collision Alert FCA System If equipped FCA may help avoid or reduce the harm caused by frontend crashes FCA provides a green indicator V when a vehicle is detected ahead This indicator displays amber if you follow a vehicle too closely When approaching a vehicle ahead too quickly FCA provides a flashing red alert on the windshield and rapidly beeps or pulses the driver seat See For ward Collision Alert FCA System 0 227 Forward Automatic Braking FAB If the vehicle has Forward Collision Alert FCA it also has FAB which includes Intelligent Brake Assist IBA When the system detects a vehicle ahead in your path that is traveling in the same direction that you may be about to crash into it can provide a boost to braking or automatically brake the vehicle This can help avoid or lessen the severity of crashes when driving in a for ward gear See For ward Automatic Braking FAB 0 230 Front Pedestrian Braking FPB System If equipped the FPB system may help avoid or reduce the harm caused by frontend crashes with nearby pedestrians when driving in a forward gear FPB displays an amber indicator when a nearby pedestrian is detected directly ahead When approaching a detected pedestrian too quickly FPB provides a red flashing alert on the windshield and rapidly beeps or pulses the driver seat FPB can provide a boost to braking or automatically brake the vehicle See Front Pedestrian Braking FPB System 0 231 Lane Keep Assist LKA If equipped LKA may help avoid crashes due to unintentional lane departures It may assist by gently turning the steering wheel if the vehicle approaches a detected lane marking without using a turn signal in that direction It may also provide a Lane Departure Warning LDW alert as the lane marking is crossed The system will not assist or alert if it detects that you are actively steering Override LKA by turning the steering wheel LKA uses a camera to detect lane markings between 60 kmh 37 mph and 180 kmh 112 mph See Lane Departure Warning LDW 0 236 and Lane Keep Assist LKA 0 236 Lane Change Alert LCA If equipped the LCA system is a lanechanging aid that assists drivers with avoiding lane change crashes that occur with moving vehicles in the side blind zone or spot areas or with vehicles rapidly approaching these areas from behind The LCA warning display will light up in the corresponding outside mirror and will flash if the turn signal is on The Side Blind Zone Alert SBZA system is included as part of the LCA system
• Page 22 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 21 See Side Blind Zone Alert SBZA 0 233 and Lane Change Alert LCA 0 234 Surround Vision If equipped views around the vehicle appear in the infotainment display to aid with parking and lowspeed maneuvers See Surround Vision under Assistance Systems for Parking or Backing 0 221 Front Vision Camera If equipped a view of the area in front of the vehicle appears on the infotainment display to aid with parking and lowspeed maneuvers See Front Vision Camera under Assistance Systems for Parking or Backing 0 221 Rear Vision Camera RVC If equipped RVC shows a view of the area behind the vehicle on the infotainment display when the vehicle is shifted into R Reverse to aid with parking and lowspeed backing maneuvers See Assistance Systems for Parking or Backing 0 221 Rear Cross Traffic Alert RCTA System If equipped the RCTA system shows a triangle with an arrow on the infotainment display to warn of traffic behind your vehicle that may cross your vehicles path while in R Reverse In addition beeps will sound or the driver seat will pulse See Assistance Systems for Parking or Backing 0 221 Park Assist If equipped Rear Park Assist RPA uses sensors on the rear bumper to assist with parking and avoiding objects while in R Reverse It operates at speeds less than 8 kmh 5 mph RPA may show a warning triangle on the infotainment display and a graphic on the instrument cluster to provide the object distance In addition multiple beeps or seat pulses may occur if very close to an object The vehicle may also have the Front Park Assist system See Assistance Systems for Parking or Backing 0 221 Automatic Parking Assist APA If equipped the APA system helps to search for and maneuver the vehicle into parallel or perpendicular parking spots using automatic steering displays and beeps When the vehicle speed is below 30 kmh 18 mph touch O to enable the system See Automatic Parking Assist APA under Assistance Systems for Parking or Backing 0 221 Reverse Automatic Braking RAB If the vehicle has Adaptive Cruise Control ACC it also has the RAB system which is designed to help avoid or reduce the harm caused by backing crashes when the vehicle is shifted into R Reverse If the system detects the vehicle is backing too fast
• Page 23 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 22 IN BRIEF to avoid a crash with a detected object behind your vehicle in your path it may automatically brake hard to a stop See Assistance Systems for Parking or Backing 0 221 Power Outlets The accessor y power outlets can be used to plug in electrical equipment such as a cell phone or MP3 player The vehicle has two accessory power outlets one on the lower center console and one in the rear cargo area Lift the cover to access the accessory power outlet See Power Outlets 0 119 Universal Remote System If available this system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers security systems and home automation devices Read the instructions completely before attempting to program the Universal Remote system Because of the steps involved it may be helpful to have another person available to assist you with programming the Universal Remote system See Universal Remote System 0 156 Sunroof If equipped the ignition must be on or in ACCACCESSORY or Retained Accessory Power RAP must be active to operate the sunroof See Ignition Positions 0 188 and Retained Accessory Power RAP 0 193 1 Sunroof Switch 2 Sunshade Switch
• Page 24 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 23 Sunroof Express Operation Press and release e 1 to vent Press and release again to move to the partially opened comfort stop position Press and release again to expressopen to the fully opened position Press and release e 1 at any time to stop movement Press and release g 1 to expressclose Press and release g 1 at any time to stop movement Sunroof Manual Operation The sunroof can change to manual mode by holding e 1 while opening The sunroof will now open as long as e 1 is held Press and release e 1 again to change back to express operation Power Sunshade Express Operation Press and release C 2 to expressopen the sunshade Press and release C 2 at any time to stop movement Press and release Q 2 to expressclose the sunshade Press and release Q 2 at any time to stop movement Power Sunshade Manual Operation The sunshade can change to manual mode by holding C 2 while opening The sunshade will now open as long as C 2 is held Press and release C 2 again to change back to express operation The sunroof cannot be opened or closed if the vehicle has an electrical failure The sunroof and power sunshade are equipped with an automatic reversal system See Sunroof 0 55 Performance and Maintenance Traction ControlElectronic Stability Control The Traction Control System TCS limits wheel spin The system turns on automatically ever y time the vehicle is started The StabiliTrakElectronic Stability Control ESC system assists with directional control of the vehicle in difficult driving conditions The system also turns on automatically every time the vehicle is started To turn off TCS press and release Y on the center console behind the shift lever i comes on in the instrument cluster and a Driver Information Center DIC message may display To turn off both TCS and StabiliTrakESC press and hold Y until i and g come on in the instrument cluster A DIC message may display
• Page 25 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 24 IN BRIEF Press and release Y again to turn on both systems See Traction ControlElectronic Stability Control 0 206 Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System TPMS The low tire pressure warning light alerts to a significant loss in pressure of one of the vehicles tires If the warning light comes on stop as soon as possible and inflate the tires to the recommended pressure shown on the Tire and Loading Information label See Vehicle Load Limits 0 184 The warning light will remain on until the tire pressure is corrected The low tire pressure warning light may come on in cool weather when the vehicle is first started and then turn off as the vehicle is driven This may be an early indicator that the tire pressures are getting low and the tires need to be inf lated to the proper pressure The TPMS does not replace normal monthly tire maintenance Maintain the correct tire pressures See Tire Pressure Monitor System 0 290 Tire Fill Alert If Equipped This feature provides visual and audible alerts outside the vehicle to help when inflating an underinflated tire to the recommended cold tire pressure See Tire Fill Alert If Equipped under Tire Pressure Monitor Operation 0 291 Fuel Regular Unleaded Fuel Use only Regular 87 octane RM 2 or higher unleaded gasoline in your vehicle TOP TIER Detergent Gasoline is recommended Do not use gasoline with an octane rating lower as it will result in reduced performance and lower fuel economy See Recommended Fuel 0 238 E85 or FlexFuel No E85 or FlexFuel Gasolineethanol fuel blends greater than E15 15 ethanol by volume such as E85 cannot be used in this vehicle
• Page 26 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 IN BRIEF 25 Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and displays the CHANGE ENGINE OIL SOON message when it is time to change the engine oil and filter The oil life system should be reset to 100 only following an oil change Resetting the Oil Life System 1 Using the DIC controls on the right side of the steering wheel display REMAINING OIL LIFE on the DIC See Driver Information Center DIC 0 141 When remaining oil life is low the CHANGE ENGINE OIL SOON message will appear on the display 2 Press and hold SEL to clear the CHANGE ENGINE OIL SOON message and reset the oil life at 100 Be careful not to reset the oil life display accidentally at any time other than after the oil is changed It cannot be reset accurately until the next oil change The oil life system can also be reset as follows 1 Display REMAINING OIL LIFE on the DIC See Driver Information Center DIC 0 141 2 Fully press and release the accelerator pedal three times within five seconds If the CHANGE ENGINE OIL SOON message is not on the system is reset See Engine Oil Life System 0 257 Driving for Better Fuel Economy Driving habits can affect fuel mileage Here are some driving tips to get the best fuel economy possible Set the climate controls to the desired temperature after the engine is started or turn them off when not required On AWD vehicles use Tour Mode when conditions permit Avoid fast starts and accelerate smoothly Brake gradually and avoid abrupt stops Avoid idling the engine for long periods of time When road and weather conditions are appropriate use cruise control Always follow posted speed limits or drive more slowly when conditions require Keep vehicle tires properly inflated Combine several trips into a single trip Replace the vehicles tires with the same TPC Spec number molded into the tires sidewall near the size Follow recommended scheduled maintenance
• Page 27 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 26 IN BRIEF Roadside Service US 18002241400 Canada 18008821112 TTY Users US Only 18888892438 New Cadillac owners are automatically enrolled in the Roadside Service Program See Roadside Service 0 350
• Page 28 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 27 Keys Doors and Windows Keys and Locks Keys 27 Remote Keyless Entr y RKE System 28 Remote Keyless Entr y RKE System Operation 28 Remote Vehicle Start 34 Door Locks 36 Power Door Locks 39 Delayed Locking 39 Automatic Door Locks 39 Lockout Protection 39 Safety Locks 40 Doors Liftgate 41 Vehicle Security Vehicle Security 46 Vehicle Alarm System 46 Immobilizer 47 Immobilizer Operation 48 Exterior Mirrors Convex Mirrors 49 Power Mirrors 49 Folding Mirrors 49 Heated Mirrors 50 Automatic Dimming Mirror 50 Reverse Tilt Mirrors 50 Interior Mirrors Interior Rear view Mirrors 51 Manual Rear view Mirror 51 Automatic Dimming Rear view Mirror 51 Rear Camera Mirror 51 Windows Windows 53 Power Windows 53 Sun Visors 55 Roof Sunroof 55 Keys and Locks Keys Warning Leaving children in a vehicle with a Remote Keyless Entr y RKE transmitter is dangerous and children or others could be seriously injured or killed They could operate the power windows or other controls or make the vehicle move The windows will function with the RKE transmitter in the vehicle and children or others could be caught in the path of a closing window Do not leave children in a vehicle with an RKE transmitter
• Page 29 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 28 KEYS DOORS AND WINDOWS The key inside the Remote Keyless Entry RKE transmitter is used for the driver door and glove box To remove the key press the button near the bottom of the transmitter and pull the key out Never pull the key out without pressing the button If it becomes difficult to turn the key inspect the key blade for debris See your dealer if a new key is needed Contact Roadside Ser vice if locked out of the vehicle See Roadside Service 0 350 With an active OnStar or connected service plan an OnStar Advisor may remotely unlock the vehicle See OnStar Over view 0 360 Remote Keyless Entry RKE System See Radio Frequency Statement 0 356 If there is a decrease in the Remote Keyless Entry RKE operating range Check the distance The transmitter may be too far from the vehicle Check the location Other vehicles or objects may be blocking the signal Check the transmitters batter y See Batter y Replacement later in this section If the transmitter is still not working correctly see your dealer or a qualified technician for service Remote Keyless Entry RKE System Operation The Keyless Access system allows for vehicle entry when the Remote Keyless Entry RKE transmitter is within 1 m 3 ft See Keyless Access Operation following The RKE transmitter functions may work up to 60 m 197 ft away from the vehicle Other conditions can impact the performance of the transmitter See Remote Keyless Entry RKE System 0 28
• Page 30 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 29 Q Press to lock all doors and if equipped the fuel door The turn signal indicators may flash andor the horn may sound on the second press to indicate locking See Vehicle Personalization 0 148 If the driver door is open when Q is pressed and Unlocked Door AntiLockout is enabled all doors will lock and then the driver door will immediately unlock See Vehicle Personalization 0 148 If the passenger door is open when Q is pressed all doors lock Pressing Q may also arm the theftdeterrent system See Vehicle Alarm System 0 46 If equipped with auto folding mirrors press and hold Q for one second to fold the mirrors if enabled See Vehicle Personalization 0 148 K Press to unlock the driver door and if equipped the fuel door Press unlock again within five seconds to unlock all doors The RKE transmitter can be programmed to unlock all doors on the first button press See Vehicle Personalization 0 148 The turn signal indicators may flash to indicate unlocking See Vehicle Personalization 0 148 When remotely unlocking the vehicle at night the lights come on briefly to light your approach to the vehicle Pressing K will disarm the theftdeterrent system See Vehicle Alarm System 0 46 If equipped with auto folding mirrors press and hold K for one second to unfold the mirrors if enabled See Vehicle Personalization 0 148 If equipped with remote windows press and hold K until the windows fully open if enabled See Vehicle Personalization 0 148 Press and release Q and then immediately press and hold for at least four seconds to start the engine from outside the vehicle using the RKE transmitter See Remote Vehicle Start 0 34 7 Press and release one time to initiate vehicle locator The exterior lamps flash and the horn chirps three times Press and hold 7 for three seconds to sound the panic alarm The horn sounds and the turn signal lamps flash for 30 seconds or until 7 is pressed again or the vehicle is started b Press twice quickly to open or close the liftgate Press once to stop the liftgate from moving
• Page 31 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 30 KEYS DOORS AND WINDOWS Keyless Access Operation With the Keyless Access system you can lock and unlock the doors and access the liftgate without removing the RKE transmitter from your pocket purse briefcase etc The RKE transmitter should be within 1 m 3 ft of the liftgate or door being opened Keyless Access can be programmed to unlock all doors on the first lock unlock press from the driver door See Vehicle Personalization 0 148 If equipped with memor y seats RKE transmitters 1 and 2 are linked to seating positions of memory 1 or 2 See Memory Seats 0 62 Keyless UnlockingLocking from the Driver Door When the doors are locked and the RKE transmitter is within 1 m 3 ft of the driver door handle pressing the lockunlock button on the driver door handle will unlock the driver door If the lockunlock button is pressed again within five seconds all passenger doors will unlock Driver Shown Passenger Similar Pressing the lockunlock button will cause all doors to lock if any of the following occur It has been more than five seconds since the first lockunlock button press Two lockunlock button presses were used to unlock all doors Any vehicle door has opened and all doors are now closed Keyless UnlockingLocking from Passenger Doors When the doors are locked and the RKE transmitter is within 1 m 3 ft of the door handle pressing the lock unlock button on that door handle will unlock all doors Pressing the lockunlock button will cause all doors to lock if any of the following occur The lockunlock button was used to unlock all doors Any vehicle door has opened and all doors are now closed Passive Locking This vehicle will lock several seconds after all doors are closed if the vehicle is off and at least one RKE transmitter has been removed or none remain in the interior If equipped the fuel door will lock If other electronic devices interfere with the RKE transmitter signal the vehicle may not detect the RKE transmitter inside the vehicle If passive locking is enabled the doors may lock with the RKE transmitter
• Page 32 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 31 inside the vehicle Do not leave the RKE transmitter in an unattended vehicle To customize the doors to automatically lock when exiting the vehicle see Vehicle Personalization 0 148 Temporary Disable of Passive Locking Temporarily disable passive locking by pressing and holding K on the interior door switch with a door open for at least four seconds or until three chimes are heard Passive locking will then remain disabled until Q on the interior door is pressed or until the vehicle is turned on Remote Left in Vehicle Alert When the vehicle is turned off and an RKE transmitter is left in the vehicle the horn will chirp three times after all doors are closed To turn on or off see Vehicle Personalization 0 148 Remote No Longer in Vehicle Alert If the vehicle is on with a door open and then all doors are closed the vehicle will check for RKE transmitters inside If an RKE transmitter is not detected the Driver Information Center DIC will display NO REMOTE DETECTED and the horn will chirp three times This occurs only once each time the vehicle is driven To turn on or off see Vehicle Personalization 0 148 Keyless Liftgate Opening Press the touch pad on the liftgate handle to open the liftgate if the RKE transmitter is within 1 m 3 ft Key Access To access a vehicle with a weak transmitter batter y see Door Locks 0 36 Programming Transmitters to the Vehicle Only RKE transmitters programmed to the vehicle will work If a transmitter is lost or stolen a replacement can be purchased and programmed through your dealer The vehicle can be reprogrammed so that lost or stolen transmitters no longer work Each vehicle can have up to eight transmitters matched to it Programming with Recognized Transmitters A new transmitter can be programmed to the vehicle when there are two recognized transmitters To program the vehicle must be off and all of the transmitters both currently recognized and new must be with you 1 Place the two recognized transmitters in the cupholder 2 Remove the key lock cylinder cap on the driver door handle See Door Locks 0 36 Insert the vehicle key of the transmitter into the key lock cylinder on the
• Page 33 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 32 KEYS DOORS AND WINDOWS driver door and turn the key counterclockwise to the unlock position five times within 10 seconds The DIC displays READY FOR REMOTE 2 3 4 ETC 3 Place the new transmitter into the transmitter pocket The transmitter pocket is inside the center console storage area between the driver and front passenger seats The storage area will need to be opened and the storage tray lifted up to access the transmitter pocket 4 Press ENGINE STARTSTOP When the transmitter is learned the DIC display will show that it is ready to program the next transmitter 5 Remove the transmitter from the transmitter pocket and press the transmitter K or Q button To program additional transmitters repeat Steps 35 When all additional transmitters are programmed press and hold ENGINE STARTSTOP for 12 seconds to exit programming mode 6 Return the key back into the transmitter 7 Replace the key lock cylinder cap See Door Locks 0 36 Programming without Recognized Transmitters If two currently recognized transmitters are not available follow this procedure to program up to eight transmitters This feature is not available in Canada This procedure will take approximately 30 minutes to complete The vehicle must be off and all of the transmitters you wish to program must be with you 1 Remove the key lock cylinder cap on the driver door handle See Door Locks 0 36 Insert the vehicle key of the transmitter into the key lock cylinder on the driver door handle and turn the key counterclockwise to the unlock position five times within 10 seconds The DIC displays REMOTE LEARN PENDING PLEASE WAIT 2 Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN and then press ENGINE STARTSTOP The DIC display will again show REMOTE LEARN PENDING PLEASE WAIT 3 Repeat Step 2 two additional times After the third time all previously known transmitters will no longer work with the
• Page 34 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 33 vehicle Remaining transmitters can be relearned during the next steps The DIC display should now show READY FOR REMOTE 1 4 Place the new transmitter into the transmitter pocket The transmitter pocket is inside the center console storage area between the driver and front passenger seats The storage area will need to be opened and the storage tray lifted up to access the transmitter pocket 5 Press ENGINE STARTSTOP When the transmitter is learned the DIC display will show that it is ready to program the next transmitter 6 Remove the transmitter from the transmitter pocket and press the transmitter K or Q button To program additional transmitters repeat Steps 46 When all additional transmitters are programmed press and hold ENGINE STARTSTOP for 12 seconds to exit programming mode 7 Return the key back into the transmitter 8 Replace the key lock cylinder cap See Door Locks 0 36 Starting the Vehicle with a Low Transmitter Battery When the vehicle is started if the transmitter batter y is weak the DIC may display NO REMOTE DETECTED or NO REMOTE KEY WAS DETECTED PLACE KEY IN TRANSMITTER POCKET THEN START YOUR VEHICLE The DIC may also display REPLACE BATTERY IN REMOTE KEY To start the vehicle 1 Open the center console storage area and the storage tray 2 Place the transmitter in the transmitter pocket 3 With the vehicle in P Park or N Neutral press the brake pedal and ENGINE STARTSTOP Replace the transmitter battery as soon as possible
• Page 35 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 34 KEYS DOORS AND WINDOWS Battery Replacement Caution When replacing the batter y do not touch any of the circuitr y on the transmitter Static from your body could damage the transmitter Replace the batter y if the DIC displays REPLACE BATTERY IN REMOTE KEY 1 Press the button on the side of the transmitter near the bottom and pull the key out Never pull the key out without pressing the button 2 Separate the two halves of the transmitter using a flat tool inserted into the bottom center of the transmitter Do not use the key slot 3 Remove the old battery Do not use a metal object 4 Insert the new battery on the back housing positive side facing down Replace with a CR2032 or equivalent battery 5 Align the front and back housing then snap the transmitter together 6 Reinsert the key Remote Vehicle Start This feature allows the engine to be started from outside of the vehicle
• Page 36 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 35 This button is on the RKE transmitter for remote start The climate control system will use the previous settings during a remote start The rear defog may come on during remote start based on cold ambient conditions The rear fog indicator light does not come on during remote start If the vehicle has auto heated or ventilated seats they may come on during a remote start See Heated and Ventilated Front Seats 0 64 Laws in some local communities may restrict the use of remote starters For example some laws may require a person using remote start to have the vehicle in view Check local regulations for any requirements Other conditions can affect the performance of the transmitter See Remote Keyless Entry RKE System 0 28 Starting the Engine Using Remote Start 1 Press and release Q on the RKE transmitter 2 Immediately press and hold for at least four seconds or until the turn signal lamps flash The turn signal lamps flashing confirms the request to remote start the vehicle has been received During the remote start the doors will be locked and the parking lamps will remain on as long as the engine is running The engine will shut off after 15 minutes unless a time extension is done or the ignition is turned on 3 With the RKE transmitter in the vehicle press the brake pedal and start the vehicle to drive Extending Engine Run Time The engine run time can also be extended by another 15 minutes if during the first 15 minutes Steps 1 and 2 are repeated while the engine is still running An extension can be requested 30 seconds after starting This provides a total of 30 minutes The remote start can only be extended once When the remote start is extended the second 15minute period is added on to the first 15 minutes for a total of 30 minutes A maximum of two remote starts or a remote start with an extension are allowed between ignition cycles The ignition must be turned on and then off before the remote start procedure can be used again Canceling a Remote Start To cancel a remote start do any of the following Press and hold until the parking lamps turn off Turn on the hazard warning flashers Turn the vehicle on and then off
• Page 37 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 36 KEYS DOORS AND WINDOWS Conditions in Which Remote Start Will Not Work The remote start will not operate if any of the following occur The RKE transmitter is in the vehicle The hood is not closed The hazard warning flashers are on There is an emission control system malfunction The engine coolant temperature is too high The oil pressure is low Two remote vehicle start s or a start with an extension have already been used The vehicle is not in P Park Door Locks Warning Unlocked doors can be dangerous Passengers especially children can easily open the doors and fall out of a moving vehicle The doors can be unlocked and opened while the vehicle is moving The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked So all passengers should wear seat belts properly and the doors should be locked whenever the vehicle is driven Young children who get into unlocked vehicles may be unable to get out A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke Always lock the vehicle whenever leaving it Continued Warning Continued Outsiders can easily enter through an unlocked door when you slow down or stop the vehicle Locking the doors can help prevent this from happening To lockunlock the doors from outside the vehicle Press Q or K on the Remote Keyless Entry RKE transmitter See Remote Keyless Entry RKE System Operation 0 28 Use the key in the key lock cylinder in the driver door The key lock cylinder is covered with a cap To lockunlock the doors from inside the vehicle Press Q or K on the power door lock switch See Power Door Locks 0 39
• Page 38 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 37 Pull once on the door handle to unlock the door and again to open the door On the rear doors push down on the door lock knob to lock the door manually Keyless Access If equipped the RKE transmitter must be within 1 m 3 ft of the liftgate or door being opened To lock or unlock the vehicle from the driver door Press the button on the driver door handle once to unlock the driver door only Press the button again within five seconds to unlock all doors Press the button a third time to lock all doors When leaving the vehicle press the button on any door handle to lock all doors Auto Door Lock can be enabled or disabled See Vehicle Personalization 0 148 To lock or unlock the vehicle from any passenger door Press the button on the passenger door handle This will lock or unlock all doors See Remote Keyless Entry RKE System Operation 0 28 Driver Door Key Lock Cylinder Access In Case of Dead Battery To access the driver door key lock cylinder 1 Pull the door handle 1 to the open position and hold it open until the cap removal is complete 2 Insert the key into the slot 3 on the bottom of the cap 2 and lift the key upward 3 Move the cap 2 rearward and remove 4 Use the key in the cylinder
• Page 39 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 38 KEYS DOORS AND WINDOWS To replace the cap 1 Pull the door handle 1 to the open position and hold it open until the cap installation is complete 2 Insert the two tabs 6 at the back of the cap between the seal 5 and the metal base 4 3 Slide the cap forward and press the forward edge to install the cap in place 4 Release the door handle 5 Check that the cap is secure FreeTurning Locks The door key lock cylinder turns freely when either the wrong key is used or the correct key is not fully inserted The freeturning door lock feature prevents the lock from being forced open To reset the lock turn it to the vertical position with the correct key fully inserted Remove the key and insert it again If this does not reset the lock turn the key halfway around in the cylinder and repeat the reset procedure
• Page 40 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 39 Power Door Locks Q Press to lock the doors The indicator light in the switch will illuminate when activated K Press to unlock the doors Delayed Locking This feature delays the locking of the doors until five seconds after all doors are closed Delayed locking can only be turned on when Unlocked Door AntiLockout has been turned off When Q is pressed on the power door lock switch while the door is open a chime will sound three times indicating delayed locking is active The doors will lock automatically five seconds after all doors are closed If a door is reopened before that time the fivesecond timer will reset when all doors are closed again Press Q on the door lock switch again or press Q on the RKE transmitter to lock the doors immediately This feature can also be programmed See Vehicle Personalization 0 148 Automatic Door Locks The doors will lock automatically when all doors are closed the ignition is on and the vehicle is shifted out of P Park If a vehicle door is unlocked and then opened and closed the doors will lock either when your foot is removed from the brake or the vehicle speed becomes faster than 13 kmh 8 mph To unlock the doors Press K on the power door lock switch Shift the transmission into P Park Automatic door locking cannot be disabled Automatic door unlocking can be programmed See Vehicle Personalization 0 148 Lockout Protection If the ignition is on or in ACC ACCESSORY and the power door lock switch is pressed with the driver door open all the doors will lock and only the driver door will unlock If the vehicle is off and locking is requested while a door is open when all doors are closed the vehicle will check for RKE transmitters inside If an RKE transmitter is detected and the number of RKE transmitters inside has not reduced the driver door will unlock and the horn will chirp three times
• Page 41 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 40 KEYS DOORS AND WINDOWS Lockout Protection can be manually overridden with the driver door open by pressing and holding Q on the power door lock switch Unlocked Door AntiLockout If Unlocked Door AntiLockout is turned on and the vehicle is off the driver door is open and locking is requested all the doors will lock and the driver door will remain open Press the button again to lock the driver door The Unlocked Door AntiLockout feature can be turned on or off See Vehicle Personalization 0 148 Safety Locks The rear door safety locks prevent passengers from opening the rear doors from inside the vehicle Manual Safety Locks If equipped the safety lock is on the inside edge of the rear doors To use the safety lock 1 Move the lever down to the lock position 2 Close the door 3 Do the same for the other rear door To open a rear door when the safety lock is on 1 Unlock the door by activating the inside handle by pressing the power door lock switch or by using the Remote Keyless Entry RKE transmitter 2 Open the door from the outside When the safety lock is enabled adults and older children will not be able to open the rear door from the inside Cancel the safety locks to enable the doors to open from the inside To cancel the safety lock 1 Unlock the door and open it from the outside 2 Move the lever up to unlock Do the same for the other door
• Page 42 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 41 Doors Liftgate Warning Exhaust gases can enter the vehicle if it is driven with the liftgate or trunkhatch open or with any objects that pass through the seal between the body and the trunk hatch or liftgate Engine exhaust contains carbon monoxide CO which cannot be seen or smelled It can cause unconsciousness and even death If the vehicle must be driven with the liftgate or trunkhatch open Close all of the windows Fully open the air outlets on or under the instrument panel Adjust the climate control system to a setting that brings in only outside air and Continued Warning Continued set the fan speed to the highest setting See Climate Control Systems in the Index If the vehicle is equipped with a power liftgate disable the power liftgate function See Engine Exhaust 0 195 Caution To avoid damage to the liftgate or liftgate glass make sure the area above and behind the liftgate is clear before opening it Power Liftgate Operation Warning You or others could be injured if caught in the path of the power liftgate Make sure there is no one in the way of the liftgate as it is opening and closing Caution Driving with an open and unsecured liftgate may result in damage to the power liftgate components
• Page 43 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 42 KEYS DOORS AND WINDOWS The power liftgate switch is on the driver door The vehicle must be in P Park The modes are MAX Opens to maximum height 34 Opens to a reduced height that can be set from 34 to fully open Use to prevent the liftgate from opening into overhead obstructions such as a garage door or roofmounted cargo The liftgate can be manually opened all the way OFF Opens manually only To power open or close the liftgate select MAX or 34 mode Press b twice quickly on the RKE transmitter until the liftgate moves Press 8 on the driver door The driver door must either be unlocked or locked without the security armed Press the touch pad on the underside of the liftgate handle after unlocking all doors A locked vehicle can be opened if the RKE transmitter is within 1 m 3 ft of the touch pad Press l on the bottom of the liftgate next to the pull cup to close Press any liftgate button the touch pad or b on the RKE transmitter while the liftgate is moving to stop it Pressing any liftgate button or pressing b twice quickly on the RKE transmitter again restarts the operation in the reverse direction Pressing the touch pad on the liftgate handle will restart the motion but only in the opening direction Caution Manually forcing the liftgate to open or close during a power cycle can damage the vehicle Allow the power cycle to complete The power liftgate may be temporarily disabled under extreme low temperatures or after repeated power cycling over a short period of time If this occurs the liftgate can still be operated manually
• Page 44 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 43 If the vehicle is shifted out of P Park while the power function is in progress the liftgate will continue to completion If the vehicle is accelerated before the liftgate has completed moving the liftgate may stop or reverse direction Check for Driver Information Center DIC messages and make sure the liftgate is closed and latched before driving Falling Liftgate Detection If the power liftgate automatically closes after a power opening cycle it indicates that the system is reacting to excess weight on the liftgate or a possible support strut failure A repetitive chime will sound while the falling liftgate detection feature is operating Remove any excess weight If the liftgate continues to automatically close after opening see your dealer for service before using the power liftgate Interfering with the power liftgate motion or manually closing the liftgate too quickly after power opening may resemble a support strut failure This could also activate the falling liftgate detection feature Allow the liftgate to complete its operation and wait a few seconds before manually closing the liftgate Obstacle Detection Features If the liftgate encounters an obstacle during a power open or close cycle the liftgate will automatically reverse direction and move a short distance away from the obstacle After removing the obstruction the power liftgate operation can be used again If the liftgate encounters multiple obstacles on the same power cycle the power function will deactivate After removing the obstructions manually close the liftgate This will allow normal power operation functions to resume If the vehicle is locked while the liftgate is closing and an obstacle is encountered that prevents the liftgate from completely closing the horn will sound as an alert that the liftgate did not close Pinch sensors are on the side edges of the liftgate If an object is caught between the liftgate and the vehicle and presses against a sensor the liftgate will reverse direction and open fully The liftgate will remain open until it is activated again or closed manually Setting the 34 Mode To change the position the liftgate stops at when opening 1 Select MAX or 34 mode and power open the liftgate 2 Stop the liftgate movement at the desired height by pressing any liftgate button Manually adjust the liftgate position if needed 3 Press and hold l next to the pull cup on the outside of the liftgate until the turn signals flash and a beep sounds This indicates the setting has been recorded The liftgate cannot be set below a minimum programmable height If there is no light flash or sound then the height adjustment may be too low
• Page 45 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 44 KEYS DOORS AND WINDOWS Manual Operation Select OFF to manually operate the liftgate Caution Attempting to move the liftgate too quickly and with excessive force may result in damage to the vehicle Operate the liftgate manually with a smooth motion and moderate speed The system includes a feature which limits the manual closing speed to protect the components To unlock the liftgate press K on the power door lock switch or press K on the Remote Keyless Entry RKE transmitter twice within five seconds See Remote Keyless Entry RKE System Operation 0 28 To open the liftgate press the touch pad under the liftgate handle and lift up Use the pull cup to lower and close the liftgate Do not press the touch pad while closing the liftgate This may cause the liftgate to be unlatched If equipped with Keyless Access the liftgate can be opened when locked if the RKE transmitter is within 1 m 3 ft of the touch pad See Remote Keyless Entry RKE System Operation 0 28 The liftgate has an electric latch If the batter y is disconnected or has low voltage the liftgate will not open The liftgate will resume operation when the batter y is reconnected and charged Always close the liftgate before driving HandsFree Operation If equipped the liftgate may be operated with a kicking motion under the left corner of the rear bumper The RKE transmitter must be within 1 m 3 ft of the rear bumper to operate the power liftgate handsfree The handsfree feature will not work while the liftgate is moving To stop the liftgate while in motion use one of the liftgate switches The handsfree feature can be customized See Vehicle Personalization 0 148 Choose from the following OnOpen and Close The kicking motion is activated to both open and close the liftgate
• Page 46 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 45 OnOpen Only The kicking motion is activated to only open the liftgate Off The feature is disabled Length of Kick Zone Kick Zone Direction To operate kick your foot straight up in one swift motion under the left corner of the rear bumper then pull it back The kick must come within 14 cm 6 in of the rear bumper to activate Caution Splashing water may cause the liftgate to open Keep the RKE transmitter away from the rear bumper detection area or turn the Continued Caution Continued liftgate mode to OFF when cleaning or working near the rear bumper to avoid accidental opening Do not sweep your foot side to side Do not keep your foot under the bumper the liftgate will not activate Do not touch the liftgate until it has stopped moving This feature may be temporarily disabled under some conditions If the liftgate does not respond to the kick open or close the liftgate by another method or start the vehicle The feature will be reenabled When closing the liftgate using this feature there will be a short delay The taillamps will flash and a chime will sound Step away from the liftgate before it starts moving
• Page 47 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 46 KEYS DOORS AND WINDOWS Vehicle Security This vehicle has theftdeterrent features however they do not make the vehicle impossible to steal Vehicle Alarm System This vehicle has an antitheft alarm system The indicator light on the instrument panel near the windshield indicates the status of the system Off Alarm system is disarmed On Solid Vehicle is secured during the delay to arm the system Fast Flash Vehicle is unsecured A door the hood or the liftgate is open Slow Flash Alarm system is armed Arming the Alarm System 1 Close the liftgate and the hood Turn off the vehicle 2 Lock the vehicle in one of three ways Use the RKE transmitter Use the Keyless Access system With a door open press the inside Q 3 After 30 seconds the alarm system will arm and the indicator light will begin to slowly flash indicating the alarm system is operating Pressing Q on the RKE transmitter a second time will bypass the 30second delay and immediately arm the alarm system The vehicle alarm system will not arm if the doors are locked with the key If the driver door is opened without first unlocking with the RKE transmitter the horn will chirp and the lights will flash to indicate prealarm If the vehicle is not started or the door is not unlocked by pressing K on the RKE transmitter during the 10second prealarm the alarm will be activated The alarm will also be activated if a passenger door the liftgate or the hood is opened without first disarming the system When the alarm is activated the turn signals flash and the horn sounds for about 30 seconds The alarm system will then rearm to monitor for the next unauthorized event Disarming the Alarm System To disarm the alarm system or turn off the alarm if it has been activated Press K on the RKE transmitter Unlock the vehicle using the Keyless Access system Start the vehicle
• Page 48 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 47 To avoid setting off the alarm by accident Lock the vehicle after all occupants have left the vehicle and all doors are closed Always unlock a door with the RKE transmitter or use the Keyless Access system Unlocking the driver door with the key will not disarm the system or turn off the alarm How to Detect a Tamper Condition If K is pressed and the horn chirps and the lights flash three times the alarm was activated while the alarm system was armed If the alarm system has been activated a message will appear on the DIC Power Sounder Inclination Sensor and Intrusion Sensor In addition to the standard theftdeterrent system features this system may also have an inclination sensor an intrusion sensor and power sounder The power sounder provides an audible alarm that is different from the vehicles horn It has its own power source and can sound an alarm when the vehicles battery is compromised The inclination sensor can set off the alarm if it senses movement of the vehicle such as a change in vehicle orientation The intrusion sensor monitors the vehicle interior and can set off the alarm if it senses an unauthorized entry into the vehicles interior Do not allow passengers or pets to remain in the vehicle when the intrusion sensor is activated Before arming the theftdeterrent system and activating the intrusion sensor Make sure all doors and windows are completely closed Secure any loose items such as a sunshades Make sure there are no obstructions blocking the sensors in the front overhead console Inclination and Intrusion Sensors Disable Switch It is recommended that the inclination and intrusion sensors be deactivated if pets are left in the vehicle or if the vehicle is being transported With the vehicle turned off press o in the overhead console The indicator light will come on momentarily indicating that the sensor has been disabled until the next time the alarm system is armed Immobilizer See Radio Frequency Statement 0 356
• Page 49 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 48 KEYS DOORS AND WINDOWS Immobilizer Operation This vehicle has a passive theftdeterrent system The system does not have to be manually armed or disarmed The vehicle is automatically immobilized when the vehicle is turned off The immobilization system is disarmed when the ignition is on or in ACCACCESSORY and a valid transmitter is present in the vehicle The security light in the instrument cluster comes on if there is a problem with arming or disarming the theftdeterrent system The system has one or more RKE transmitters matched to an immobilizer control unit in your vehicle Only a correctly matched RKE transmitter will start the vehicle If the transmitter is ever damaged you may not be able to start your vehicle When tr ying to start the vehicle the security light may come on briefly when the ignition is turned on If the engine does not start and the security light stays on there is a problem with the system Turn the ignition off and tr y again If the vehicle will not change ignition modes ACCACCESSORY on off and the RKE transmitter appears to be undamaged try another transmitter Or you may tr y placing the transmitter in the transmitter pocket located in the center console If the ignition mode will not change with the other transmitter or in the transmitter pocket your vehicle needs service If the ignition does change modes the first transmitter may be faulty See your dealer who can service the theftdeterrent system and have a new RKE transmitter programmed to the vehicle It is possible for the immobilizer system to learn new or replacement RKE transmitters Up to eight transmitters can be programmed for the vehicle To program additional transmitters see Programming Transmitters to the Vehicle under Remote Keyless Entry RKE System Operation 0 28 Do not leave the key or device that disarms or deactivates the theftdeterrent system in the vehicle
• Page 50 - English - : Cadillac XT5 Owner Manual GMNALocalizingUSCanadaMexico 12146119 2019 crc 32718 KEYS DOORS AND WINDOWS 49 Exterior Mirrors Convex Mirrors Warning A convex mirror can make things like other vehicles look farther away than they really are If you cut too sharply into the right lane you could hit a vehicle on the right Check the inside mirror or glance over your shoulder before changing lanes The passenger side mirror is convex shaped A convex mirrors surface is curved so more can be seen from the driver seat Power Mirrors To adjust a mirror 1 Press or to choose the driver or passenger mirror 2 Press the arrows on the control pad to move each mirror in the desired direction Memory Mirrors The vehicle may have memor y mirrors See Memory Seats 0 62 Lane Change Alert LCA The vehicle may have LCA See Lane Change Alert LCA 0 234 Folding Mirrors Manual Folding Mirrors If equipped manually fold the mirrors inward toward the vehicle to prevent damage when going through an automatic car wash Push the mirror outward to return it to the original position Power Folding Mirrors If equipped press to power fold the mirrors Press again to unfold
