Danby DCF035B1WM Diplomat 3.5 Cu.ft. Chest Freezer

Owners; Guide Refrigeration

OPERATING INSTRUCTIONS

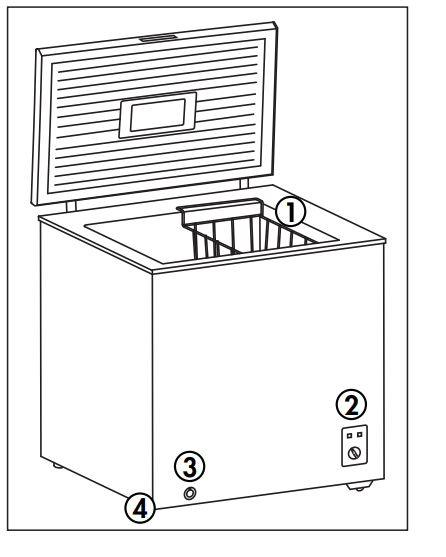

FEATURES

1. Wire Basket
2. Control Panel
3. Defrost Drain
4. Adjustable Foot

IMPORTANT NOTE

The freezer lid may be diffi cult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the freezer and the warm air that has just entered the freezer when the lid was opened. The pressure will equalize within a few minutes.

If the lid is especially diffi cult to open, wait 5 minutes to allow the pressure to equalize and then try again.

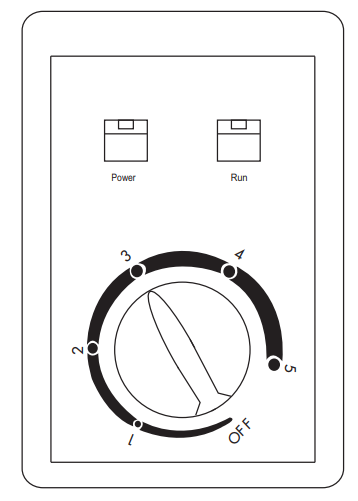

TEMPERATURE CONTROL

The temperature of the appliance is controlled by setting the thermostat dial on the front of the cabinet.

• The number 1 indicates the warmest setting. The number 5 indicates the coldest setting.
• The number 3 setting should be suffi cient for regular home use.
• The temperature range of the appliance is approximately -12°C to -30°C (10.4°F to -22°F).
• To stop the cooling function, turn the dial to the “OFF” position.

Indicator Lights

There are two LED indicator lights on the temperature control panel.

Red LED: Indicates that the appliance is currently connected to the power supply.

Green LED: Indicates that the compressor is currently in operation. Hearing noises from the appliance when the compressor is operating is normal.

Notes:

• The temperature inside the appliance can vary based on ambient room temperature, the frequency that the lid is opened and the amount of fresh food that has recently been added to the appliance.
• Do not overload the appliance as this can affect performance.
• Do not freeze large quantities of fresh food at the same time.

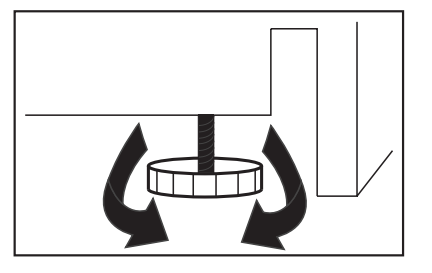

LEVELING INSTRUCTIONS

There are two adjustable feet on the bottom of the cabinet that can be adjusted to ensure that the appliance is level. To level the appliance:

1. Turn the adjustable foot counter-clockwise until the top of the foot is touching the bottom of the cabinet.
2. Slowly turn the adjustable foot clockwise until the appliance is level.

DEFROSTING

This appliance should be defrosted approximately twice a year or when a 6 mm (1/4 inch) layer of frost has formed.

Unplug the appliance, remove all contents and leave the lid open. Follow the instructions below:

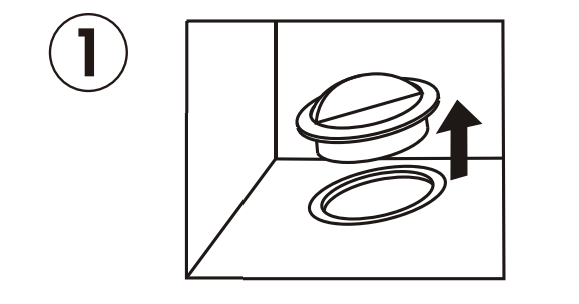

1. The interior defrost drain is located on the inside fl oor of the cabinet. Remove the rubber cover from the defrost drain. Defrosted water will fl ow into the hole and out through the exterior defrost drain cap. See Figure 1.

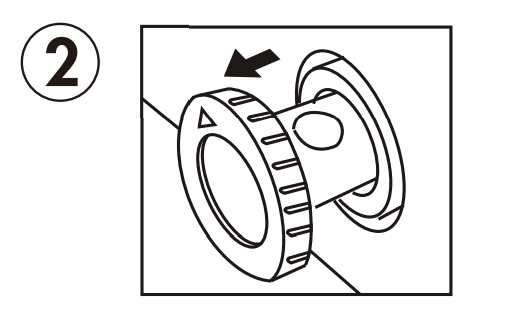

2. The exterior defrost drain cap is located on the front of the cabinet. Gently pull out the exterior drain cap approximately 20 - 25 mm until the water hole is visible. See Figure 2.

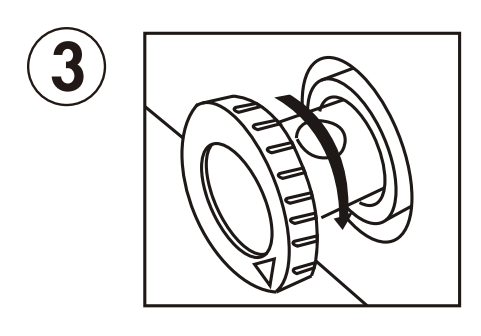

3. Twist the exterior drain cap so that the arrow points downward. See Figure 3.

4. Place a bucket or pan under the drain cap to catch defrosted water. Check the appliance regularly during defrosting to ensure that the water is not overfl owing.

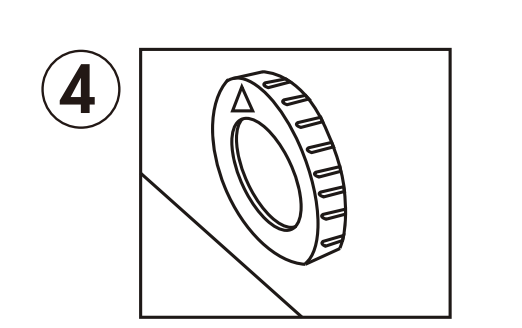

5. When all water has been drained, twist the drain cap until the arrow is pointing upwards and then push inward until it is fl ush with the cabinet. See Figure 4.

6. Replace the rubber cover in the interior defrost drain.

After defrosting is complete, set the temperature control to maximum for 2 to 3 hours before returning to the desired temperature setting and replacing the contents.

IMPORTANT Never use electrical appliances during defrosting. Do not use pointed or sharp objects to remove frost as this can damage the refrigerant lines. If these lines are accidentally pierced it will render the freezer inoperable and void the manufacturer’s warranty.

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of one tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area where the lid seals against the cabinet clean to ensure a tight seal. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the lid is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

ENERGY SAVING TIP

The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of direct sunlight. Do not overload the unit or block any ventilation openings.

VACATION

Short vacations: Leave the appliance operating during vacations of less than three weeks.

Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Defrost, clean and dry the interior thoroughly. To prevent odor and mold growth, leave the lid open slightly, blocking it open if necessary.

MOVING

• Remove all contents.
• Tape the lid shut.
• Be sure the appliance remains in the upright position during transportation. Protect the outside of the appliance with a blanket.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain in its operating position for 6 hours to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government offi ce.

Disposal of this appliance should be in accordance with federal and local regulations.

TROUBLESHOOTING
