180
English
DZ-GX20A
DZ-MV780A/DZ-MV730A
HITACHI AMERICA, LTD.
HOME ELECTRONICS DIVISION
900 Hitachi Way
Chula Vista, CA 91914-3556
Service Hotline: 1-800-HITACHI
(1-800-448-2244)
HITACHI CANADA LTD.
DIGITAL MEDIA DIVISION
2495 Meadowpine Blvd.
Mississauga, Ontario L5N 6C3
CANADA
Service Direct: 1-800-HITACHI
(1-800-448-2244)
QR35602 ©Hitachi, Ltd. 2005 Printed in Japan OG-H(I)
Instruction Manual
This manual was printed
with soy based ink.
Printed on recycled paper
DVDCAM PC Software Support Center
URL http://dvdcam-pc.support.hitachi.ca/
Thank you for buying a Hitachi product. Please take time to become familiar with the manual and how it
is set up. Keep it handy for future reference.
Be sure to read page 181 before unpacking the provided CD-ROM.
The illustrations of DZ-MV780A and DZ-MV730A are
shown only on the front cover of this instruction manual.
The method for operating the DZ-MV780A and DZ-MV730A
is the same as that for DZ-GX20A.
DZ-GX20A DZ-MV780A
DZ-MV730A
SELECT
STOP/EXIT
DISC
NAVIGATION
MENU
SELECT
STOP/EXIT
DISC
NAVIGATION
MENU
SELECT
STOP/EXIT
DISC
NAVIGATION
MENU
English
2
Important Information
For Your Safety
The power switch turns the DVD video camera/recorder on and off, leaving the date/time feature unaffected. If the
camera/recorder is to be left unattended for a long period of time, turn it off.
The DVD video camera/recorder and AC
adapter/charger have the following caution
marks.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT OPEN.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Precautions
WARNING: Many television programs and films
are copyrighted. In certain circumstances, copy-
right law may apply to private in-home
videotaping of copyrighted materials.
This Class B digital apparatus complies with
Canadian ICES-003.
Identifications of caution marks
WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD, USE THE
RECOMMENDED ACCESSORIES ONLY.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
BE SURE TO USE THE SPECIFIED AC ADAPTER/
CHARGER (DZ-ACS2).
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The liquid crystal display (LCD) panel is
made by highly precise technology. More than
99.99% of its picture elements (pixels) are
effective, but some (less than 0.01%) may
appear as colored bright dots. This does not
indicate a fault as the LCD panel stretches the
limits of current technology.
This symbol warns the user that
uninsulated voltage within the unit
may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous
to make any kind of contact with any
inside part of this unit.
This symbol alerts the user that
important literature concerning the
operation and maintenance of this unit
has been included. Therefore, it should
be read carefully to avoid any
problems.
CLASS 1
LASER PRODUCT
CAUTION
This product contains a laser diode of higher
class than 1. To ensure continued safety, do
not remove any covers or attempt to gain
access to the inside of the product. Refer all
servicing to qualified personnel.
English
3
Microsoft
®
, Windows
®
, Windows
®
Me, Windows
®
2000 Professional, and Windows
®
XP are
registered trademarks of Microsoft Corporation.
Intel
®
, Pentium
®
Processor, and Celeron
®
Processor are registered trademarks of Intel Corporation.
IBM
®
and PC/AT
®
are registered trademarks of International Business Machines Corporation.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Other company names and product names listed are trademarks or brand names belonging to each
individual company.
SD logo is a trademark.
Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution to the user: Changes or modifications not expressly approved by the manufacturer void
the user’s authority to operate the equipment.
English
4
IMPORTANT SAFETY INSTRUCTIONS
In addition to the careful attention devoted to quality standards in the manufacture of your video product, safety is a
major factor in the design of every instrument. But, safety is your responsibility too.
This page lists important information that will help to assure your enjoyment and proper use of DVD video camera/
recorder and accessory equipment.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9 Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
10 Only use attachments/accessories specified by the
manufacturer.
11 Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is
used, use caution when moving
the cart/apparatus combination to
avoid injury from tip-over.
12 Unplug this apparatus during lightning storms or
when unused for long periods of time.
13 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
14 The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
English
5
Cautions When Using
Handle the liquid crystal display (LCD) with care:
• The LCD is a very delicate display device: Do not press its surface with force, hit it or prick it with
a sharp object.
• If you push the LCD surface, unevenness in display may occur. If unevenness does not disappear
soon, turn the DVD video camera/recorder off, wait for a few moments, and then turn it on again.
• Do not place the DVD video camera/recorder with the open LCD screen down.
• Close the LCD monitor when not using the DVD video camera/recorder.
Liquid crystal display (LCD) and viewfinder:
• The LCD screen and viewfinder are the products of highly precise technology. Among the total
number of pixels (approx. 120,000 pixels for LCD monitor and equivalent to approx. 200,000 pixels
for viewfinder), 0.01% or less pixels may be missing (black dots) or may remain lit as colored dots
(red, blue, green). This shows the limitations of the current technology, and does not indicate a
fault that will interfere with recording.
• The LCD screen and viewfinder will be slightly dimmer than usual when the DVD video camera/
recorder is at low temperature, as in cold areas, or immediately after power is turned on. Normal
brightness will be restored when the temperature inside the DVD video camera/recorder rises.

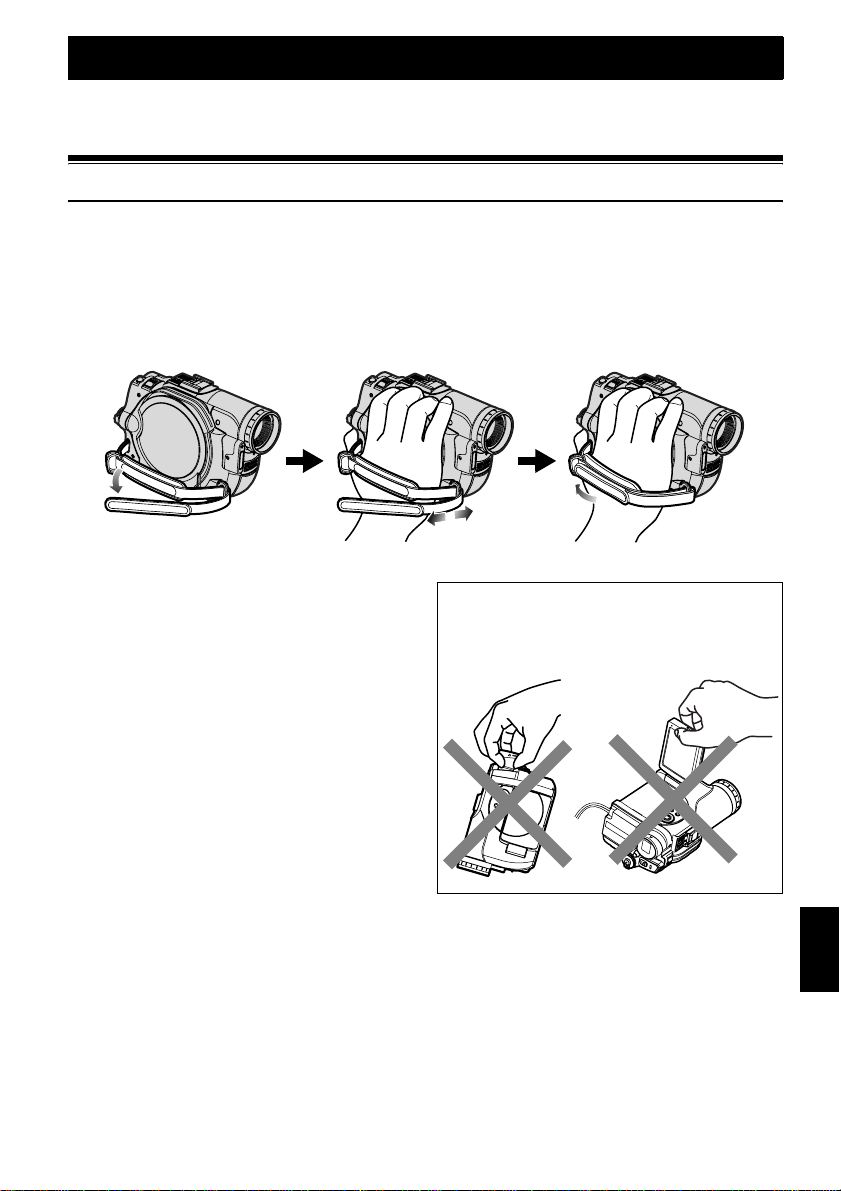

Hold the DVD video camera/recorder correctly:
• Do not hold the viewfinder or LCD monitor when lifting the DVD video camera/recorder: The
viewfinder or LCD monitor could detach and the DVD video camera/recorder may fall.
Do not subject the DVD video camera/recorder to impact:
• This DVD video camera/recorder is a precision machine. Take great care that you do not strike it
against a hard object or let it fall.
• When using a tripod, firmly secure the DVD video camera/recorder on it. Do not use the DVD
video camera/recorder with a tripod in a place where it is subject to severe vibrations or impact.
No sand or dust!
• Fine sand or dust entering the DVD video camera/recorder or AC adapter/charger could cause
malfunctions or defects.
No water or oil!
• Water or oil entering the DVD video camera/recorder or AC adapter/charger could cause electric
shock, malfunctions or defects.
English
6
Heat on surface of product:
• The surfaces of the DVD video camera/recorder, AC adapter/charger and battery will be slightly
warm, but this does not indicate a fault.
Screen on connected TV:
• Never leave the disc navigation screen, still image or camera image displayed on your TV to which
the DVD video camera/recorder is connected: Doing so could result in displayed image retention
or phosphor degradation of TV screen.
Be careful of ambient temperature:
• Using the DVD video camera/recorder in a place where the temperature is over 104ºF (40ºC) or
under 32ºF (0ºC) will result in abnormal recording/playback.
• Take care that the temperature of this DVD video camera/recorder, when connected to PC does
not rise excessively (reference for usage: approx. 30 minutes at about 86ºF (30ºC)).
• Do not leave the DVD video camera/recorder on beach sand or in a closed vehicle where the
temperature is very high for a long time: This could cause malfunctions.
Do not point directly at the sun:
• If direct sunlight strikes the lens or viewfinder, the DVD video camera/recorder could malfunction
or a fire could occur.
• Do not leave the DVD video camera/recorder with the LCD screen exposed to direct sunlight: This
could cause malfunctions.
Do not use the DVD video camera/recorder near TV or radio:
• This could cause noise to appear on the TV screen or in radio broadcasts.
Do not use the DVD video camera/recorder near strong radio waves or magnetism:
• If the DVD video camera/recorder is used near strong radio waves or magnetism, such as near a
radio wave tower or electric appliances, noise could enter video and audio that are being recorded.
During playback of normally recorded video and audio, noise may also be present in picture and
sound.
At worst the DVD video camera/recorder could malfunction.
Do not expose the DVD video camera/recorder to soot or steam:
• Thick soot or steam could damage the DVD video camera/recorder case or cause malfunctions.
Do not use the DVD video camera/recorder near corrosive gas:
• If the DVD video camera/recorder is used in a place where there is dense exhaust gas generated
by gasoline or diesel engine, corrosive gas such as hydrogen sulfide, or sulfur such as in a hot
spring area, the external or internal terminals could corrode, which would disable normal
operation, or the battery connecting terminals could corrode, so power will not turn on.
Do not use the DVD video camera/recorder near ultrasonic humidifier:
• With some water in humidifier, calcium and other chemicals dissolved in water could scatter in the
air, and white particles could adhere to the optical head of the DVD video camera/recorder, which
could cause it to operate abnormally.
Do not expose the DVD video camera/recorder to insecticide:
• Insecticide entering the DVD video camera/recorder could dirty the lens in laser pickup block,
and in such a case the DVD video camera/recorder might not operate normally. Turn the DVD
video camera/recorder off and cover it with vinyl sheet, etc. before using insecticide.
Do not use a generally available 8 cm CD lens cleaner:
• Cleaning the lens is not necessary when using this DVD video camera/recorder in the usual way.
• Using 8 cm CD lens cleaner could cause this DVD video camera/recorder to be faulty.
• If you have to clean the lens, use a Hitachi Maxell cleaner that is exclusively for 8 cm DVD discs.
English
7
Be careful of moisture condensation:
• When you move the DVD video camera/recorder between places where the difference in
temperatures is great – such as entering a lodge from a ski slope or going out of a cooled room or
vehicle – condensation (vapor in air warmed or cooled to water droplets) could occur on the lens
and/or inside the DVD video camera/recorder. If condensation occurs, do not open the cover of
disc or card insertion block if possible. If condensation occurs on the lens, wipe it off with a soft,
dry cloth. Even if the external surface of DVD video camera/recorder has dried, condensation may
remain inside: Turn the DVD video camera/recorder off and leave it in a dry place for at least 1 – 2
hours before using it again.
Do not use the DVD video camera/recorder for a long uninterrupted period of time:
• This DVD video camera/recorder cannot be used for a long time continuously as a surveillance
camera/monitor. If you use it for a long continuous period of time, the temperature of DVD video
camera/recorder could exceed the limit and the recording/playback operation may slow down or
other faults could occur. If this happens, turn it off and wait for a while before using it again.
Do not turn the DVD video camera/recorder off while the ACCESS/PC indicator or
CARD ACCESS indicator is lit or blinking:
• The ACCESS/PC or CARD ACCESS indicator is lit or
blinking to show that data is being written to disc or card,
or being read from it. At this time, do not do any of the
following, so as not to damage the data:
− Remove battery
− Disconnect AC adapter/charger
− Plug or unplug PC connection cable
− Remove disc or card
− Subject DVD video camera/recorder to severe
vibrations or impact.
− Violently open or close the LCD monitor
If you turn the DVD video camera/recorder off while the
ACCESS/PC or CARD ACCESS indicator is lit or blinking,
turn it on again with the disc or card loaded in it: Repair of
the disc or card will be executed automatically (see
page 160).
Do not wipe the DVD video camera/recorder case with benzene or thinner:
• The coating of case could peel off or the case surface could deteriorate.
• When using a chemical cleaning cloth, follow the instructions.
Also read the instructions attached with optional accessories:
• For optional accessories, observe the cautions and follow instruction manuals attached.
The battery provided has not been charged at time of purchase:
• Charge it before using the DVD video camera/recorder (see page 39).
• The battery will discharge as time passes. (The battery is produced so that it discharges on its own
in order to protect its characteristics.)
Disc cannot be inserted or removed unless a charged battery or AC adapter/
charger is connected to the DVD video camera/recorder.
Be sure to set the power switch to “OFF” when turning the DVD video camera/
recorder off:
• Disconnecting the battery or AC adapter/charger while the DVD video camera/recorder is being
powered could cause a fault.
ACCESS/PC
indicator
CARD ACCESS indicator
English
8
Cautions When Storing
Do not leave the DVD video camera/recorder in a place where the temperature is
very high for a long period of time:
• The temperature inside a closed vehicle or trunk can become very high in a hot season. If you leave
the DVD video camera/recorder in such a place, it could malfunction or the case could be
damaged. Also, do not expose the DVD video camera/recorder to direct sunlight or place it near a
heater.
Do not store the DVD video camera/recorder in a place where the humidity is high
or in a dusty place:
• Dust entering the DVD video camera/recorder could cause malfunctions. If the humidity is high,
the lens could be moldy, and the DVD video camera/recorder could become inoperable. It is
recommended that you put the DVD video camera/recorder with desiccant in a box when storing
it in a closet, etc.
Do not store the DVD video camera/recorder in a place subject to strong
magnetism or intense vibrations:
• This could cause malfunctions.
Detach the battery from the DVD video camera/recorder and store it in a cool place:
• Leaving the battery attached or storing it at high temperature could shorten its life.
Suggestions and Restrictions
Make a trial recording:
• Always make a trial recording before doing actual recording to make sure that recording is normal.
The data that have not been stored normally because of a defect in the DVD video camera/
recorder cannot be restored.
It is recommended that you use DVD-RAM disc from which recorded contents can be deleted for
trial recording.
Do not use the DVD video camera/recorder for professional applications:
• This DVD video camera/recorder is designed and produced for home-use recording and playback.
The recorded contents cannot be compensated for:
• Hitachi cannot compensate for any damages caused when recording is not made normally or
recorded contents cannot be played back because of a defect in the DVD video camera/recorder,
disc or card. Also, Hitachi cannot be responsible for your recorded video and audio.
• If you or a third party make a mistake when handling this DVD video camera/recorder, disc, card,
etc., the recorded contents may be lost. We cannot be responsible for compensation for damage due
to loss of recorded contents.
Copyright:
• Data recorded on the disc or card in this DVD video camera/recorder using other digital/analog
media or devices are protected by the copyright act and cannot be used without permission of the
owner of copyright, except for personal enjoyment. Be aware that recording is restricted for some
demonstrations, performances and exhibitions, even for personal enjoyment.
English
9
Read This First
To guide you, we have included following six chapters.
• The section on “Setups” explains how to set
up the DVD video camera/recorder, battery,
and set the date/time.
• The section on “Basic Techniques” explains the
basic operation of this DVD video camera/
recorder – recording of movies, still images,
external input, and playback of recorded
images.
• The section on “Advanced Techniques”
explains settings on this DVD video camera/
recorder for more advanced usage.
• The section on “Disc Navigation” explains
editing with Disc Navigation: Refer to this
section when finalizing DVD-R disc and
initializing DVD-RAM disc.
• The section on “Connecting to PC” explains
the contents of provided CD-ROM and how to
install the software included.
• “Subsidiary Information” includes an
introduction to products sold separately,
proper cleaning, and troubleshooting.
We want this manual to be as helpful as
possible, so it includes two easy ways to find the
information you need:
• A quick index for the information you use
most often (this page).
• A detailed table of contents directing you to
specific information quickly (see pages 12 –
14).
Get to know your DVD video camera/recorder by
using this manual, and get to know Hitachi. We
appreciate your business.
Quick Index
Available Discs................................................ 24
Recording Movie ............................................. 49
Playing Back.................................................... 58
Connecting to a TV.......................................... 77
Functions Available with Disc Navigation...... 107
Connecting to PC.......................................... 138
About This Manual
●Displays in this manual
Understand that the displays are different from those you will actually see in the viewfinder or on
the LCD screen.
●Notation of cancel button
Press the stop/cancel button to stop your operation midway, or return the menu screen to the
preceding one. The expression “press the C button” will be used in this text.
●1, 2 and 3 marks beside headings
Some functions of this DVD video camera/recorder are unavailable with disc or card used. Refer to
the marks at right above each function to identify whether the disc or card is compatible with the
function. Refer to these marks and identify the functions and operation to match the disc or card you
use.
●Illustrations in this manual
Although the external appearances of DZ-GX20A, DZ-MV780A and DZ-MV730A are different, the
method of operating these models is identical.
The illustrations of DZ-GX20A are used for the explanation in this text.
With this DVD video camera/recorder you can view the picture being recorded or the playback
picture whether on the LCD monitor or in the viewfinder. Opening or closing the LCD monitor
switches the picture to appear on the LCD monitor or in the viewfinder.
It is possible to switch the language in the on-screen display of this DVD video camera/recorder
(see page 101).
English
10
Introduction

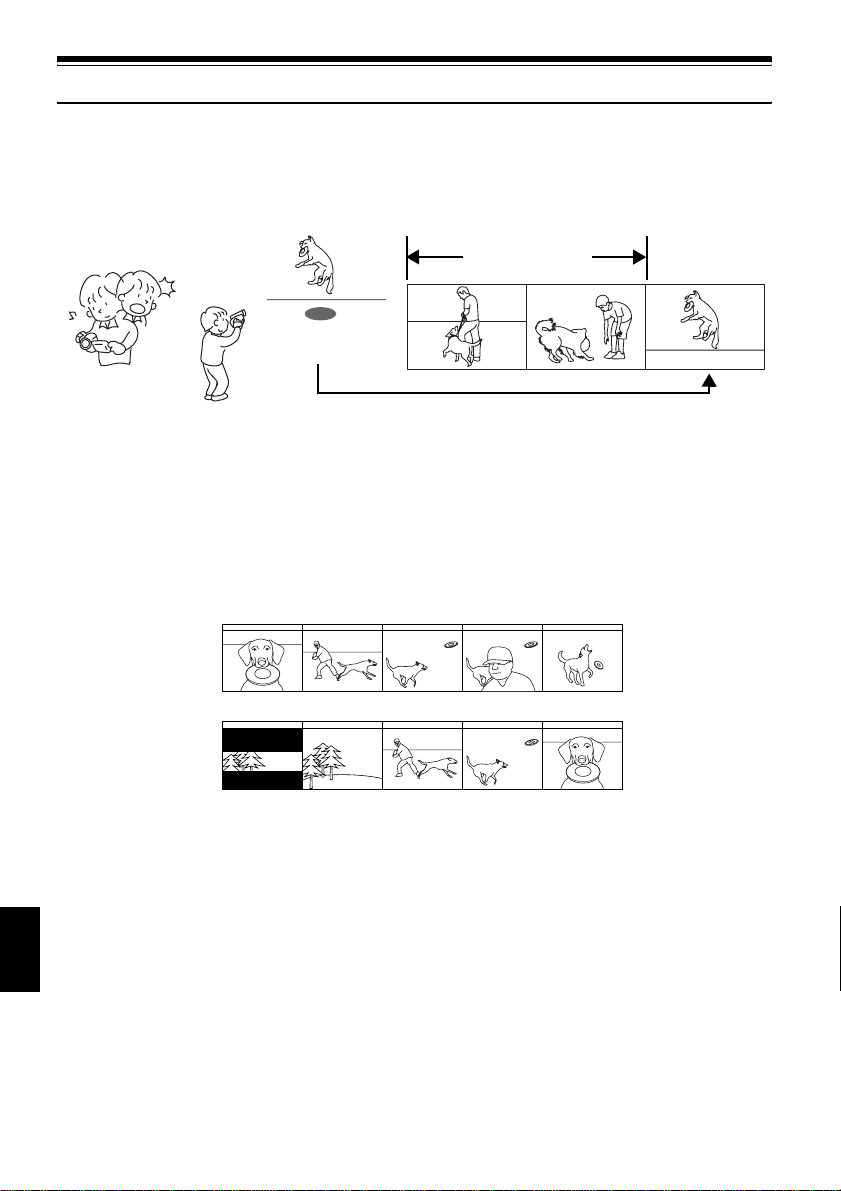

●You can start recording immediately after stopping playback (p. 49, 58)
Unlike tape devices, you do not need to search for the recording start position or locate the
beginning of blank portion.
You can stop playback and immediately start recording: New recording will not overwrite any
previously recorded data.
●You can immediately play back desired recorded scenes (p. 105)
You do not need to rewind, unlike recorders using tape.
You can select any scene you want and immediately play it back (using Disc Navigation function).
●Use Disc Navigation to create your original movie (p. 124)
You can delete unnecessary scenes, move any scenes, etc., and create your original movie work (Play
List).
If you stop playback midway and start recording, overwrite will not occur.
Recorded scenes
Before editing
After editing
English
11

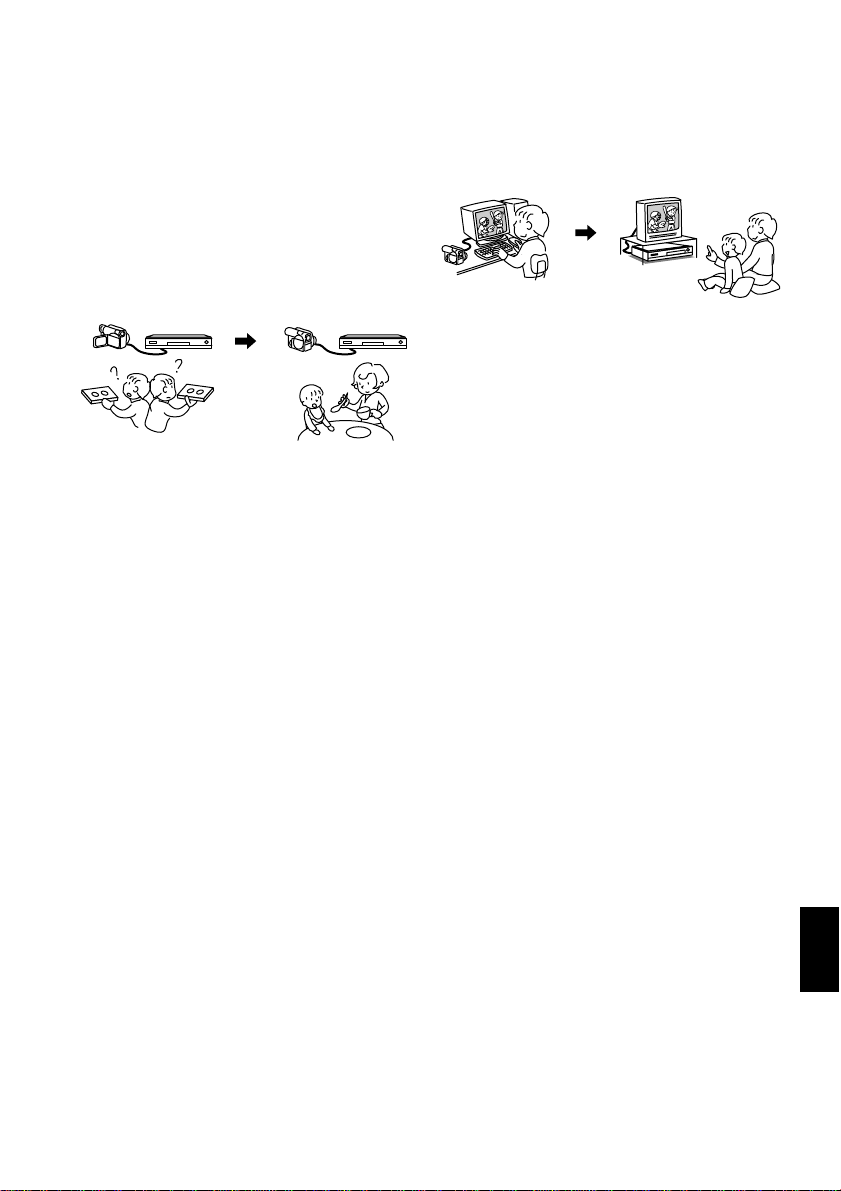

●You can easily edit scenes, which
is quite difficult with tape (p. 83)
Using this DVD video camera/recorder, you can
collect scenes of your child, for example, on play
list of Disc Navigation function and create an
original movie: Then simply play back the play
list and dub it on VCR or DVD recorder.
●Create original DVDs on PC
(p. 147)
You can create an original DVD, using the
provided software CD-ROM.
The created DVD disc can be played back on
DVD player/recorder, DVD-ROM drive, etc.
Up to now, you had to
repeatedly press
buttons
With a DVD, you can
simply play it back on this
DVD video camera/
recorder: Press the record
button on VCR or DVD
recorder.
Original DVD being
created
Playback of DVD
English
12
Table of Contents
Important Information.........................................2
For Your Safety..................................................2
Precautions........................................................2
IMPORTANT SAFETY INSTRUCTIONS...........4
Cautions When Using........................................5
Cautions When Storing......................................8
Suggestions and Restrictions............................8
Read This First ..................................................9
About This Manual.............................................9
Introduction......................................................10
Table of Contents ............................................12
Checking Provided Accessories ......................15
Names of Parts................................................16
Try Recording and Playing Back using Disc
(Video and Photo).........................................20
Try Recording and Playing Back using Card
(Photo) ..........................................................22
Discs and Cards ..............................................24
AVAILABLE DISCS.............................................24
INFORMATION ON DVD-R DISC.......................25
EXAMPLES OF DISCS THAT CANNOT BE
USED ON THIS DVD VIDEO
CAMERA/RECORDER:....................................25
HANDLING DISCS..............................................26
DISC CLEANING.................................................26
AVAILABLE CARDS............................................27
Storage Capacity on Disc or Card...................28
RECORDABLE TIME OF MOVIE (VIDEO).........28
RECORDABLE STILLS (PHOTOS) ON DISC ....28
RECORDABLE STILLS (PHOTOS) ON CARD...29
SIZE AND QUALITY OF PHOTOS .....................30
Setups
Setting Up the DVD Video Camera/
Recorder .......................................................31
HOLDING DVD VIDEO CAMERA/
RECORDER.....................................................31

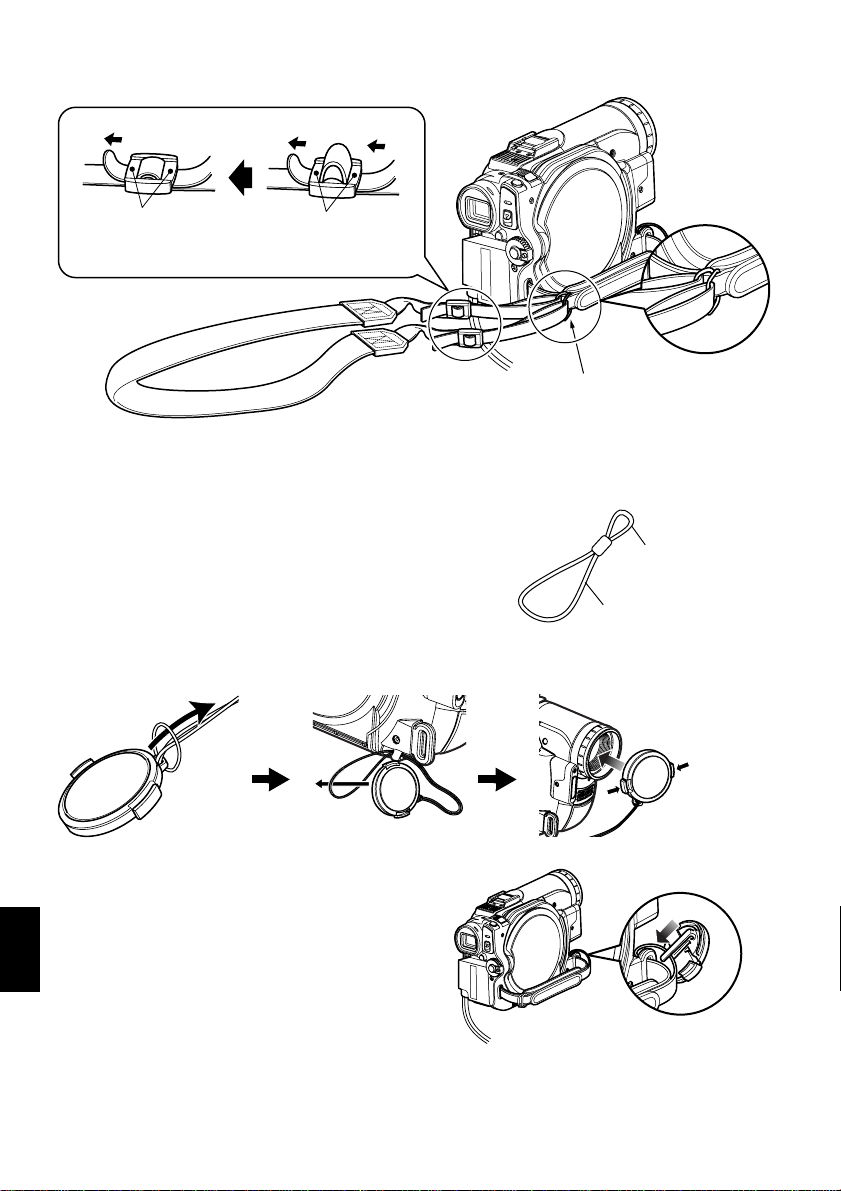

ATTACHING SHOULDER STRAP......................32
ATTACHING LENS CAP.....................................32

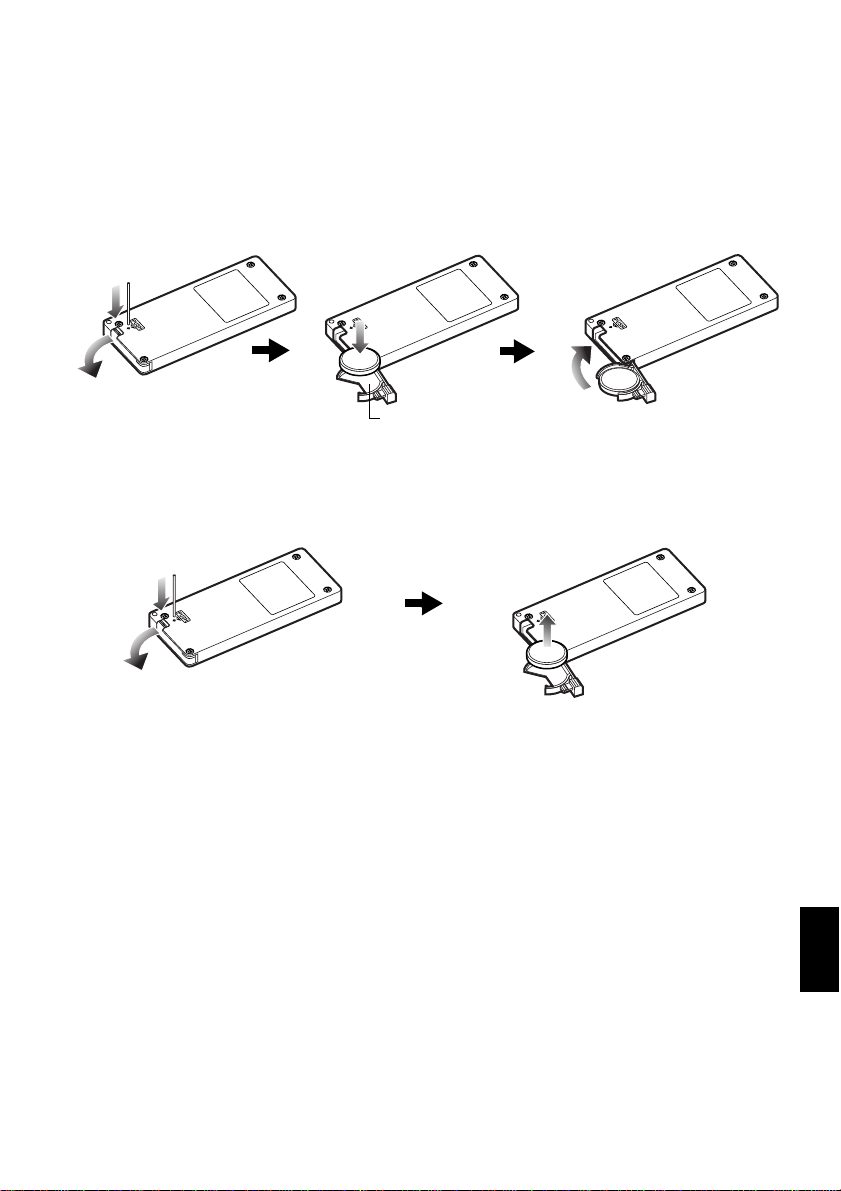

INSERTING BATTERY INTO REMOTE
CONTROL........................................................33
REMOVING BATTERY FROM REMOTE
CONTROL........................................................33
VIEWING IMAGE ON LCD MONITOR
SCREEN...........................................................35
CLOSING LCD MONITOR ..................................36
VIEWING SUBJECT THROUGH
VIEWFINDER...................................................36
SETTING DATE AND TIME................................37
CHANGING DISPLAY FORMAT OF DATE
AND TIME.........................................................38
Setting Up the Battery......................................39
CHARGING BATTERY........................................39

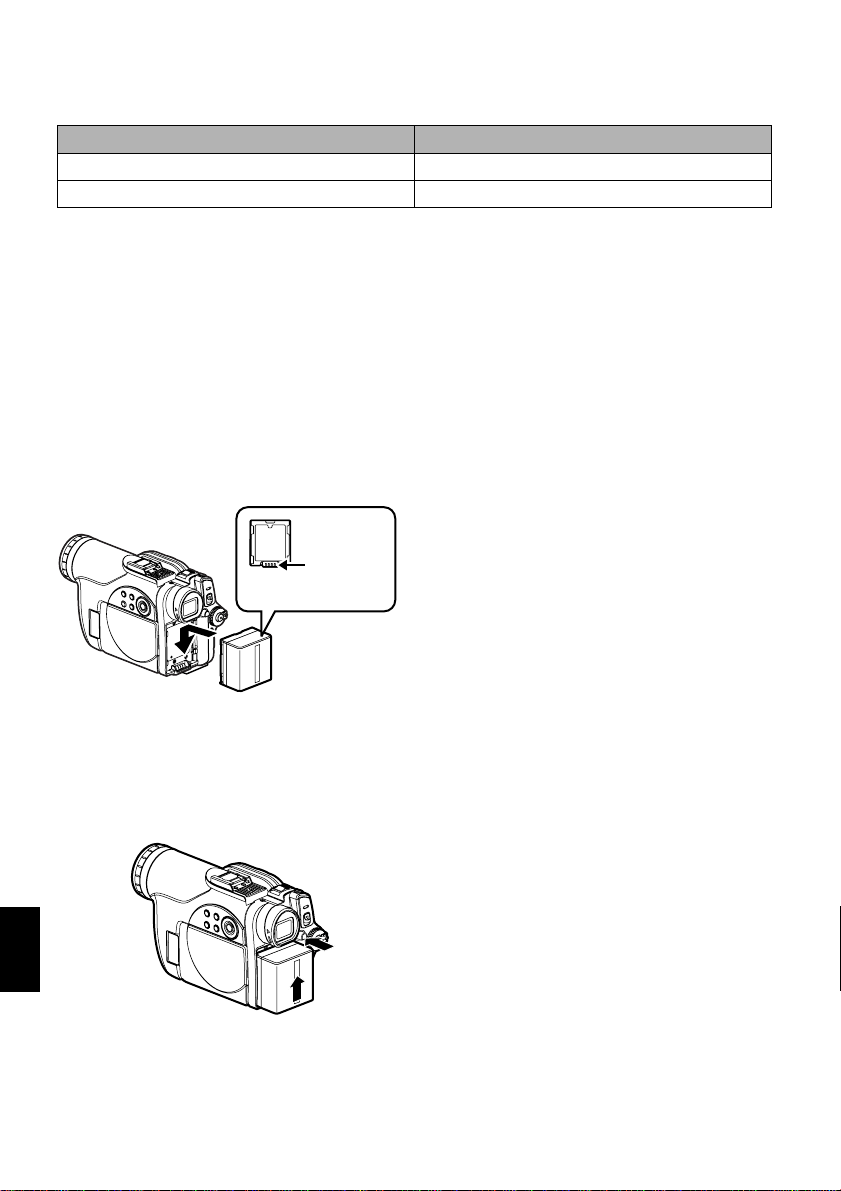

ATTACHING BATTERY TO DVD VIDEO
CAMERA/RECORDER.....................................40
REMOVING BATTERY........................................40
BATTERY REMAINING LEVEL INDICATOR......42
EFFICIENT USE OF BATTERY..........................42
USING DVD VIDEO CAMERA/RECORDER
WITH AC ADAPTER/CHARGER......................43
Turning DVD Video Camera/Recorder On
and Off...........................................................44

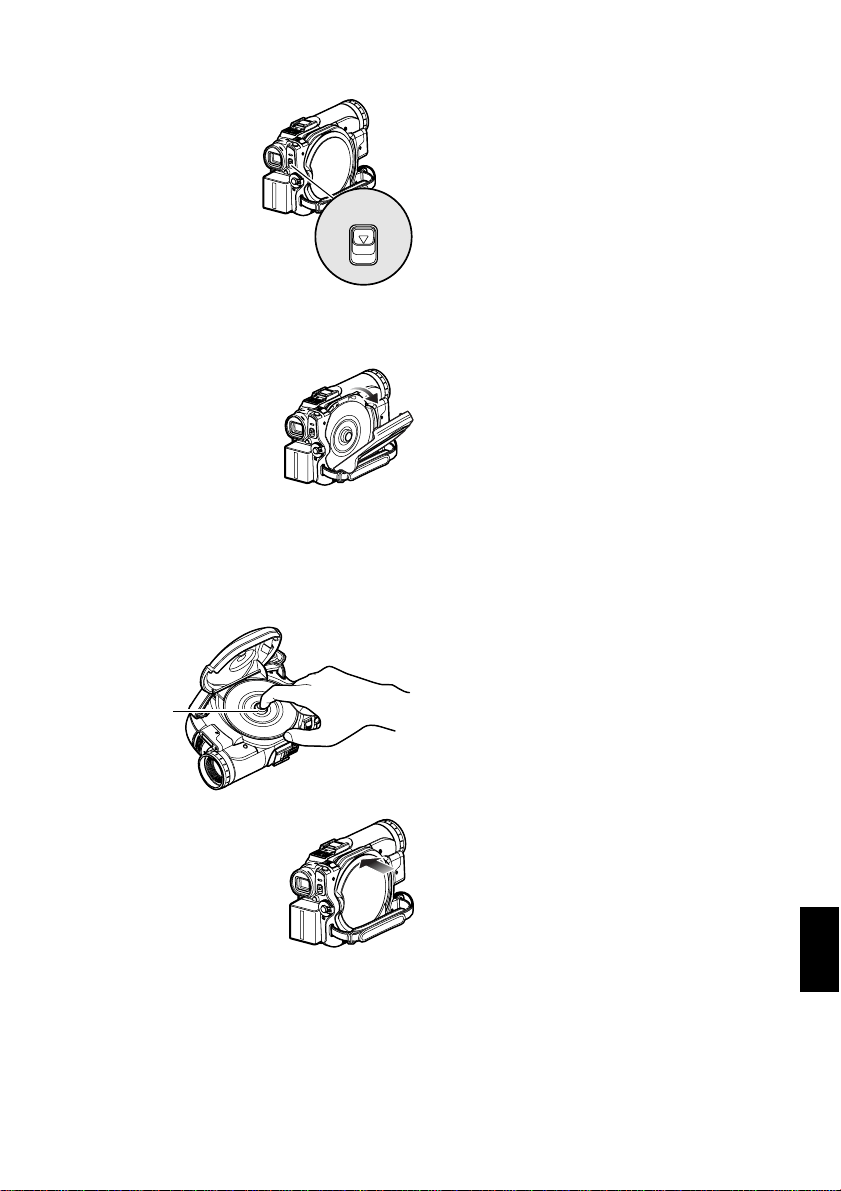

Inserting and Removing Disc...........................45
INSERTING DISC................................................45
REMOVING DISC................................................47

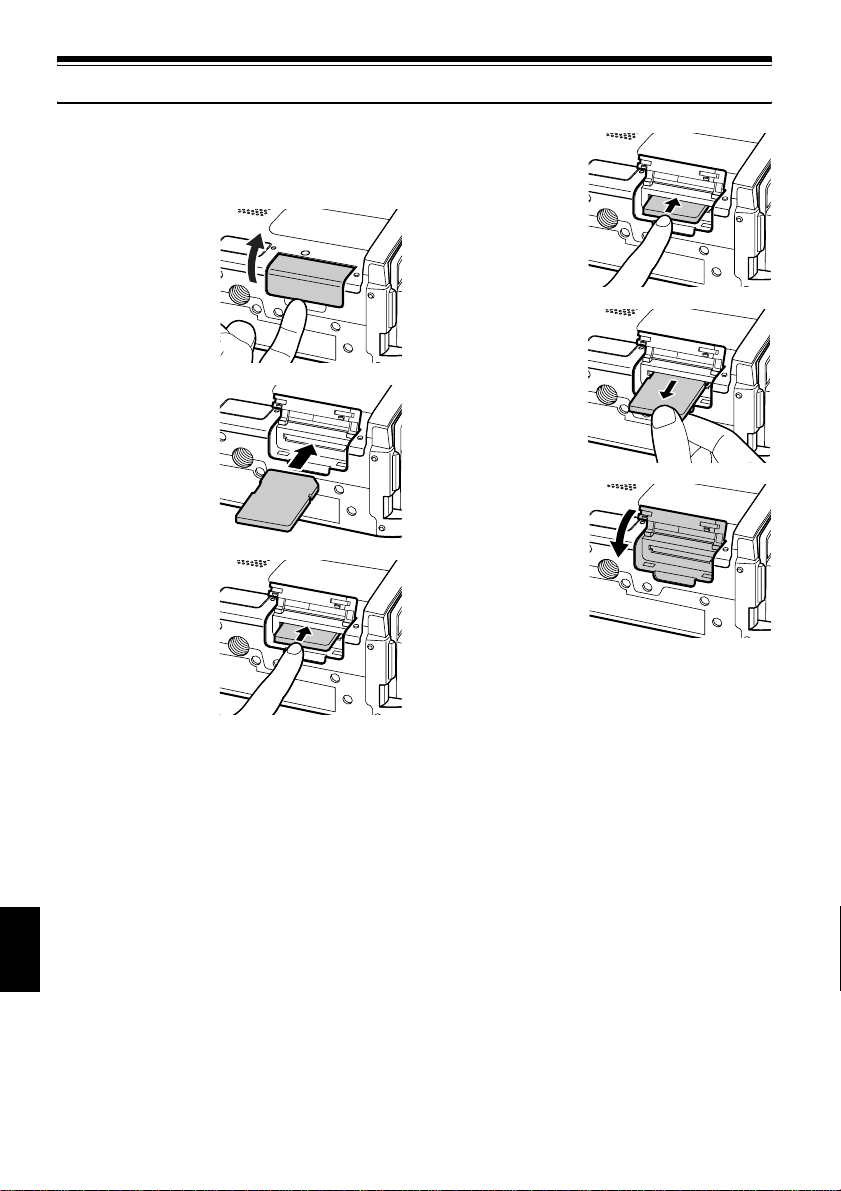

Inserting and Removing Card..........................48
Basic Techniques
Recording Movie..............................................49
Recording Stills................................................51

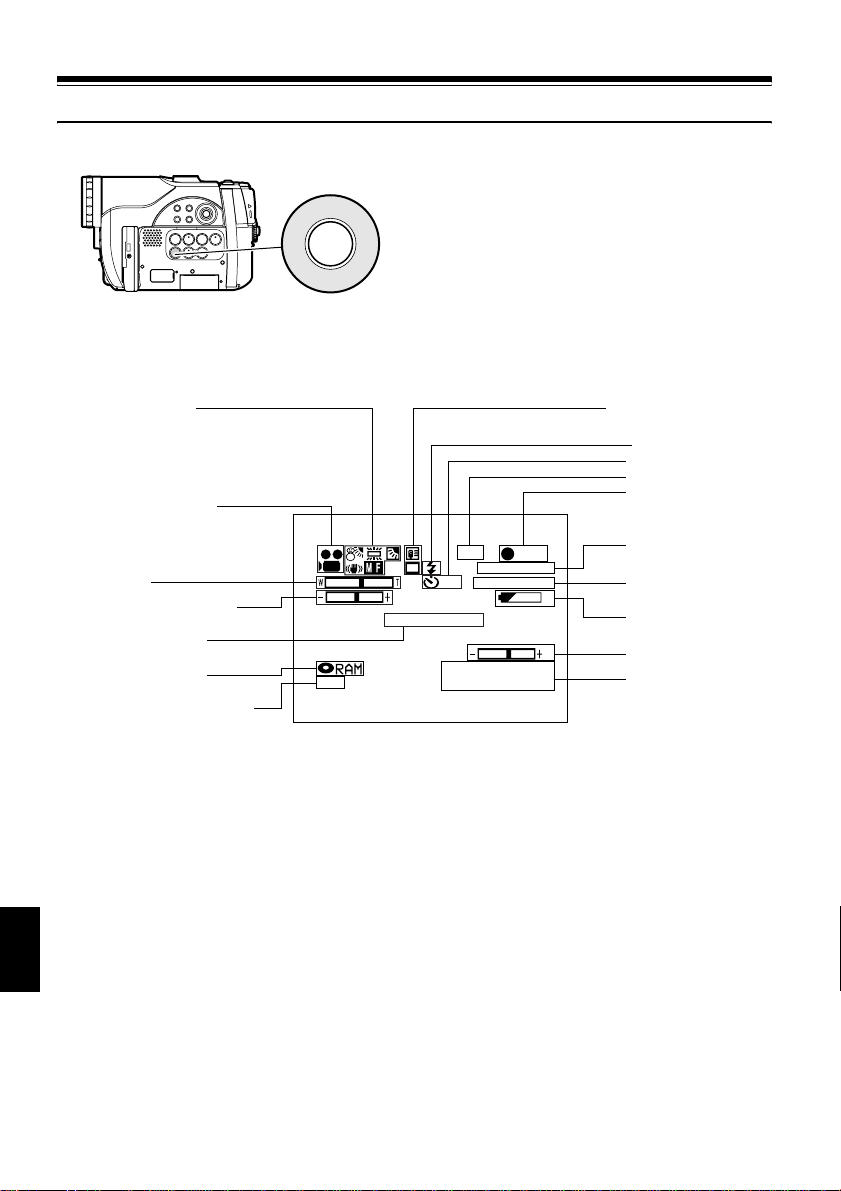

On-Screen Information ....................................52
INFORMATION DISPLAY DURING
RECORDING....................................................52
Zooming...........................................................56
MACRO RECORDING ........................................57
RECORDING SUBJECTS FOR STRONGER
WIDE-ANGLE OR TELEPHOTO EFFECT.......57
Playing Back....................................................58
PLAYING BACK ..................................................58
PLAYBACK FROM START OF DISC OR
CARD................................................................59
SEARCH PLAYBACK OF MOVIE.......................59
FRAME ADVANCE/FRAME BACK/SLOW
PLAYBACK OF MOVIE ....................................59
SKIP PLAYBACK OF MOVIE..............................60
PLAYING BACK STILLS .....................................60
JUMPING TO SPECIFIED POINT (GO TO)........61
On-Screen Information Display........................62
INFORMATION DISPLAY DURING
PLAYBACK.......................................................62
Checking Flow of Quick Menu.........................63
Camera Functions
FLOW OF QUICK MENU WHEN RECORDING
MOVIE: .............................................................65
FLOW OF QUICK MENU WHEN RECORDING
PHOTO (DISC):................................................66
FLOW OF QUICK MENU WHEN RECORDING
PHOTO (CARD): ..............................................68
Disc Navigation Functions
FLOW OF QUICK MENU
(WITH DVD-RAM DISC):..................................70
FLOW OF QUICK MENU
(WITH DVD-R DISC): .......................................71
FLOW OF QUICK MENU
(WITH CARD):..................................................71

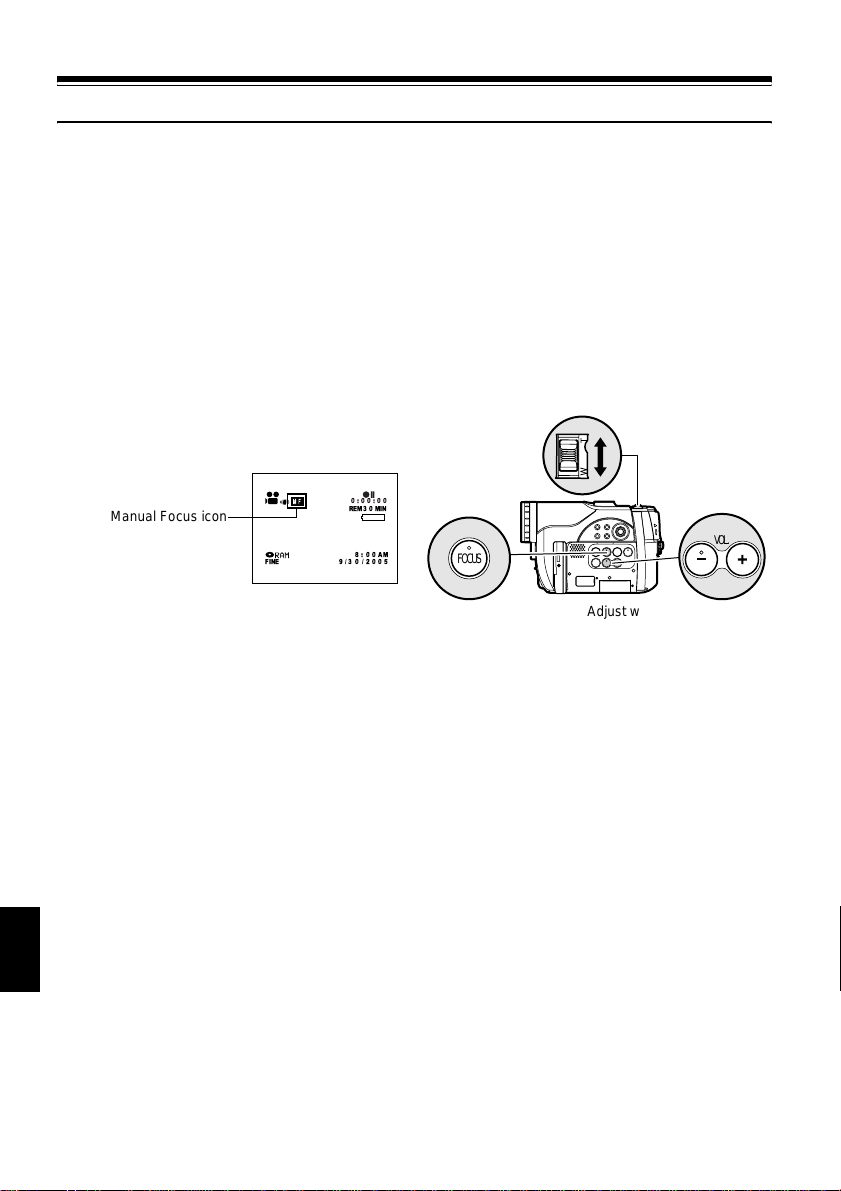

Manually Focusing Subject..............................72
FOCUSING DURING RECORDING....................72
English
13
Adjusting Brightness of Image to be recorded
(Exposure).....................................................74
Compensating for Backlight.............................74
Using External Microphone..............................75
Built-in Video Flash (for DZ-GX20A only) ........76
Viewing on TV Screen......................................77
CONNECTING TO A TV......................................77
VIEWING ON TV SCREEN.................................78
Playback on DVD Recorder/Player..................79
PLAYING BACK DVD-RAM DISC.......................79
PLAYING BACK DVD-R DISC ............................79
Recording (Dubbing) Images ...........................80
RECORDING (DUBBING) IMAGES FROM
OTHER VIDEO DEVICE...................................80
RECORDING (DUBBING) IMAGES FROM
OTHER VIDEO CAMERAS..............................82
RECORDING (DUBBING) IMAGES ON
OTHER VIDEO DEVICES................................83
Advanced Techniques
Checking Flow of Normal Menu.......................84
Camera Functions
Setting Up Camera Functions..........................86
SELECTING SHOOTING MODE TO MATCH
THE SUBJECT
(SWITCHING PROGRAM AE MODE)..............86
RECORDING DARK SUBJECTS USING LCD
MONITOR LIGHT.............................................87
ADJUSTING COLOR (WHITE BALANCE)..........88
USING THE ELECTRONIC IMAGE
STABILIZER (EIS)............................................90
RECORDING SUBJECT USING LARGE
MAGNIFICATION (DIGITAL ZOOM)................90
REDUCING WIND NOISE DURING
RECORDING (MIC.FILTER) ............................90
Setting Up Record Functions ...........................91
SWITCHING MOVIE QUALITY
(VIDEO MODE) ................................................91
SETTING TO WIDE TV SCREEN MODE
(16:9 MODE).....................................................92
SWITCHING QUALITY OF STILL IMAGE
(QUALITY)........................................................94
RECEIVING IMAGE FROM ANOTHER DEVICE
(INPUT SOURCE)............................................94
SWITCHING EXTERNAL INPUT RECORDING
METHOD (PHOTO INPUT)..............................95
SELF-TIMER .......................................................96
SETTING ON-SCREEN DISPLAY OUTPUT
ON OR OFF (OSD OUTPUT)...........................97

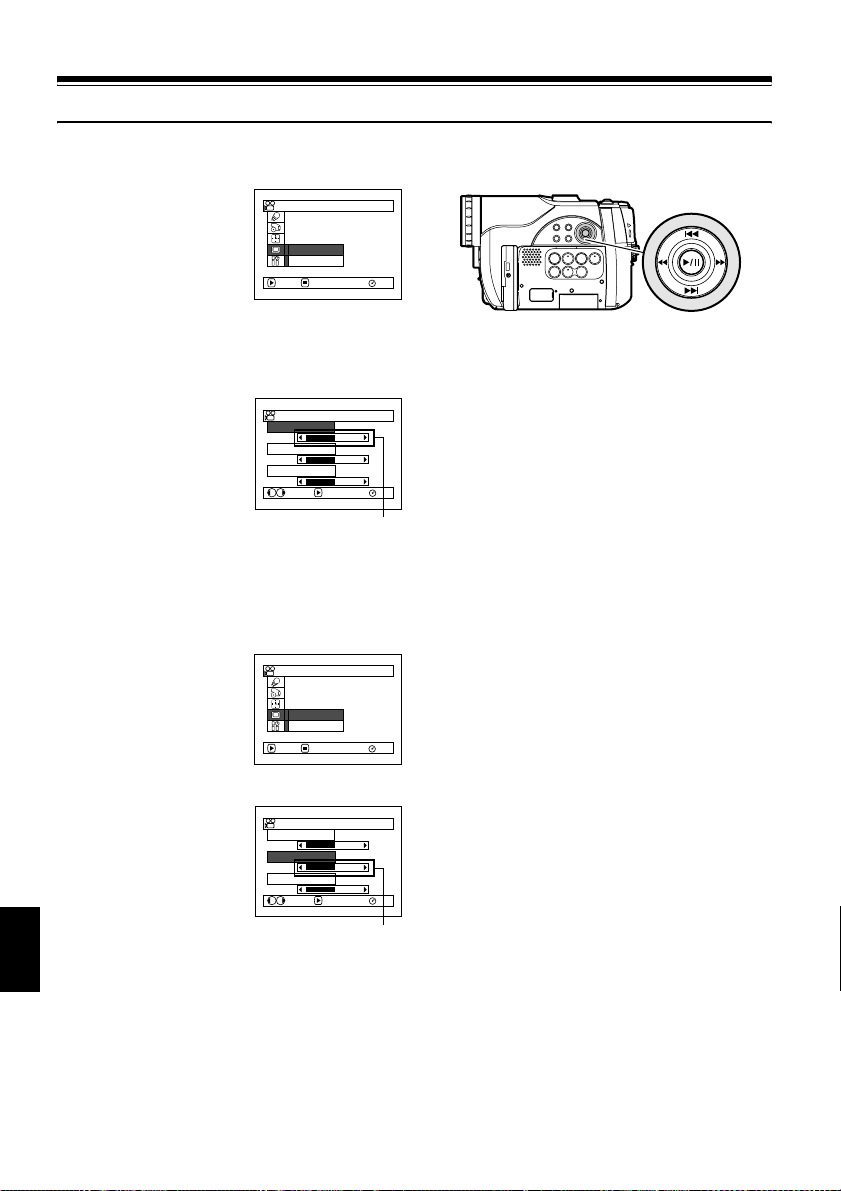

LCD/EVF Setup................................................98
SETTING BRIGHTNESS OF LCD SCREEN
(LCD BRIGHTNESS)........................................98
SETTING BRIGHTNESS OF VIEWFINDER
(EVF BRIGHTNESS)........................................98
SETTING COLOR DENSITY
(COLOR LEVEL) ..............................................99
ALWAYS DISPLAYING IMAGE IN
VIEWFINDER ...................................................99
Initial Settings.................................................100
SWITCHING OPERATING SOUND ON OR
OFF (BEEP)....................................................100
TURNING DVD VIDEO CAMERA/RECORDER
OFF AUTOMATICALLY (POWER SAVE)......100
TURNING RECORD LED ON OR OFF
(RECORD LED)..............................................101
CHANGING DISPLAY LANGUAGE
(LANGUAGE)..................................................101
RESETTING MENU SETTINGS TO
DEFAULTS (RESET)......................................102
Disc Navigation
Using Disc Navigation................................... 103
STARTING OR TERMINATING DISC
NAVIGATION..................................................103

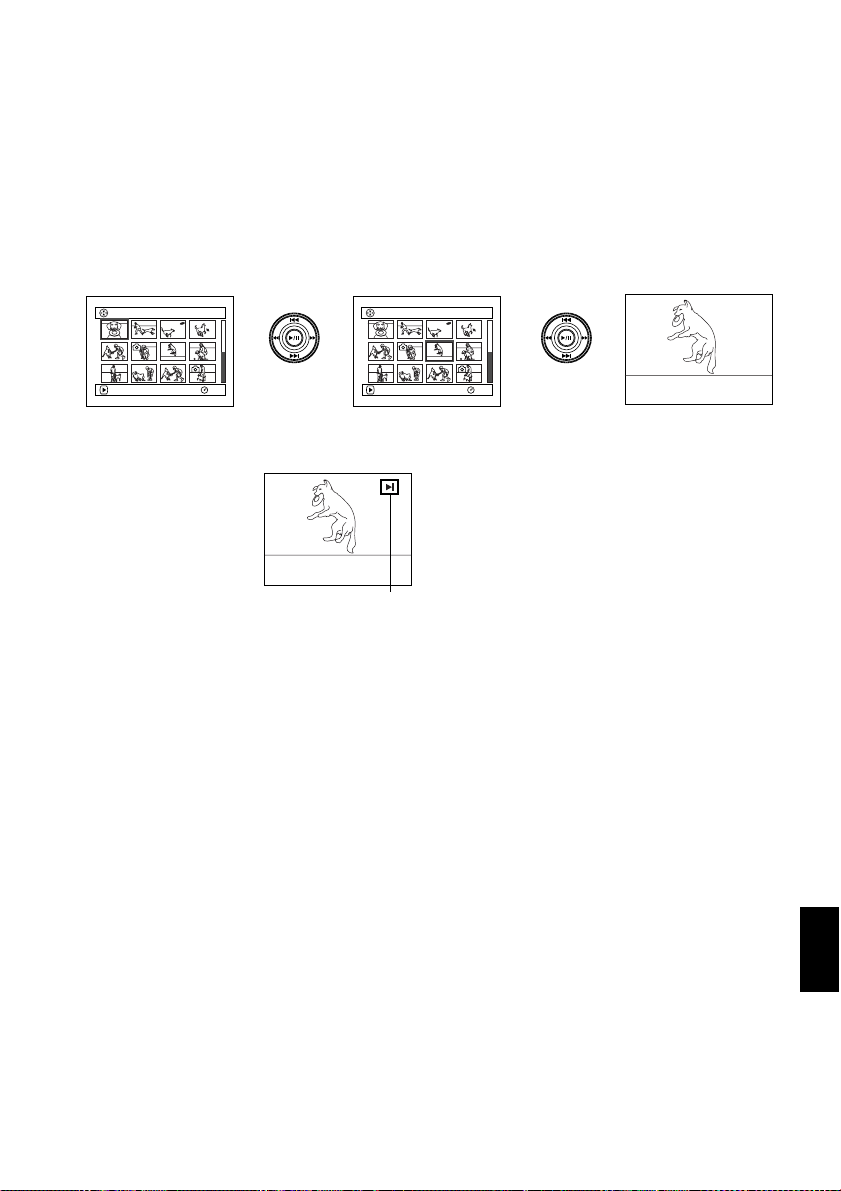

PLAYING BACK FROM DISC NAVIGATION
SCREEN.........................................................105
SELECTING MULTIPLE SCENES....................106
SELECTING CONSECUTIVE SCENES
TOGETHER....................................................106
FUNCTIONS AVAILABLE WITH DISC
NAVIGATION..................................................107
UNDERSTANDING FLOW OF DISC
NAVIGATION MENU......................................108
Scene............................................................ 110
DELETING SCENES (EDIT – DELETE) ...........110
DIVIDING MOVIES (EDIT – DIVIDE)................112
COMBINING MULTIPLE SCENES
(EDIT – COMBINE).........................................113
ARRANGING ORDER OF SCENES
(EDIT – MOVE)...............................................113
DIRECTING SCENES EFFECTIVELY
(EFFECT – FADE)..........................................114
PLAYING BACK BY SKIPPING SCENES
(EFFECT – SKIP) ...........................................115
CHANGING IMAGES FOR THUMBNAILS
(EFFECT – THUMBNAIL)...............................116
COPYING STILLS ON DVD-RAM DISC TO
CARD (COPY) ................................................117
LOCKING SCENES ON CARD (LOCK)............118
SELECTING SCENES USING MENU SCREEN
(SELECT)........................................................119
DISPLAYING INFORMATION USING MENU
SCREEN (DETAIL).........................................120
Program......................................................... 121
WHAT IS “PROGRAM”?....................................121
SWITCHING TO THUMBNAIL DISPLAY OF
SPECIFIC DATE (SWITCH)...........................121
PLAYING BACK PROGRAM (PLAY) ................122
CHANGING TITLE OF PROGRAM (TITLE)......122
Play List......................................................... 124
WHAT IS “PLAY LIST”?.....................................124
CREATING NEW PLAY LIST (CREATE)..........124
SWITCHING TO DISPLAY OF EACH PLAY
LIST (SWITCH)...............................................125
PLAYING BACK A PLAY LIST (PLAY)..............125
ADDING SCENES TO PLAY LIST
(EDITING PLAY LIST)....................................126
DELETING SCENES FROM PLAY LIST
(EDITING PLAY LIST)....................................127
English
14
ADDING SCENES USING SUBMENU
FOR EDITING (EDITING PLAY LIST)............127
DELETING SCENES USING SUBMENU
FOR EDITING (EDITING PLAY LIST)............128
SELECTING SCENES USING SUBMENU
FOR EDITING (EDITING PLAY LIST)............128
ARRANGING ORDER OF SCENES (MOVE)...129
CHANGING TITLE OF PLAY LIST (TITLE) ......130
DELETING PLAY LIST (DELETE) ....................130
Go To.............................................................131
TOP (END) ........................................................131
Disc or Card Management.............................132
INITIALIZING DISC OR CARD
(FORMAT DISC. FORMAT CARD)................132
PROTECTING DISC FROM WRITING
(PROTECT DISC)...........................................133
VERIFYING REMAINING FREE SPACE ON
DISC OR CARD (CAPACITY)........................133
UPDATING CONTROL INFORMATION OF
DVD-RAM DISC
(UPDATE CONTROL INFO.)..........................134
FINALIZING DVD-R DISC (FINALIZE DISC)....135
Others............................................................136
DISPLAYING MOVIES OR STILLS
INDEPENDENTLY (CATEGORY)..................136
PLAYING BACK SCENES REPEATEDLY
(REPEAT PLAY).............................................136
SLIDE SHOW (CONTINUOUS PLAYBACK OF
STILLS)...........................................................137
Connecting to PC
(DZ-GX20A/DZ-MV780A)
THE FOLLOWING ARE AVAILABLE WHEN
CONNECTING TO PC....................................138
Contents on Provided CD-ROM ....................140
Installing Software .........................................142
DISPLAYING INSTALLER SCREEN ................142
INSTALLING SOFTWARE ................................143
Creating DVD Video from DVD-RAM Disc
Recorded on DVD Video Camera/
Recorder .....................................................147
Uninstalling Software.....................................149
Cautions When Using DVD Video Camera/
Recorder by Connecting It to PC ................149
Introduction to Video Editing Software...........150
Subsidiary Information

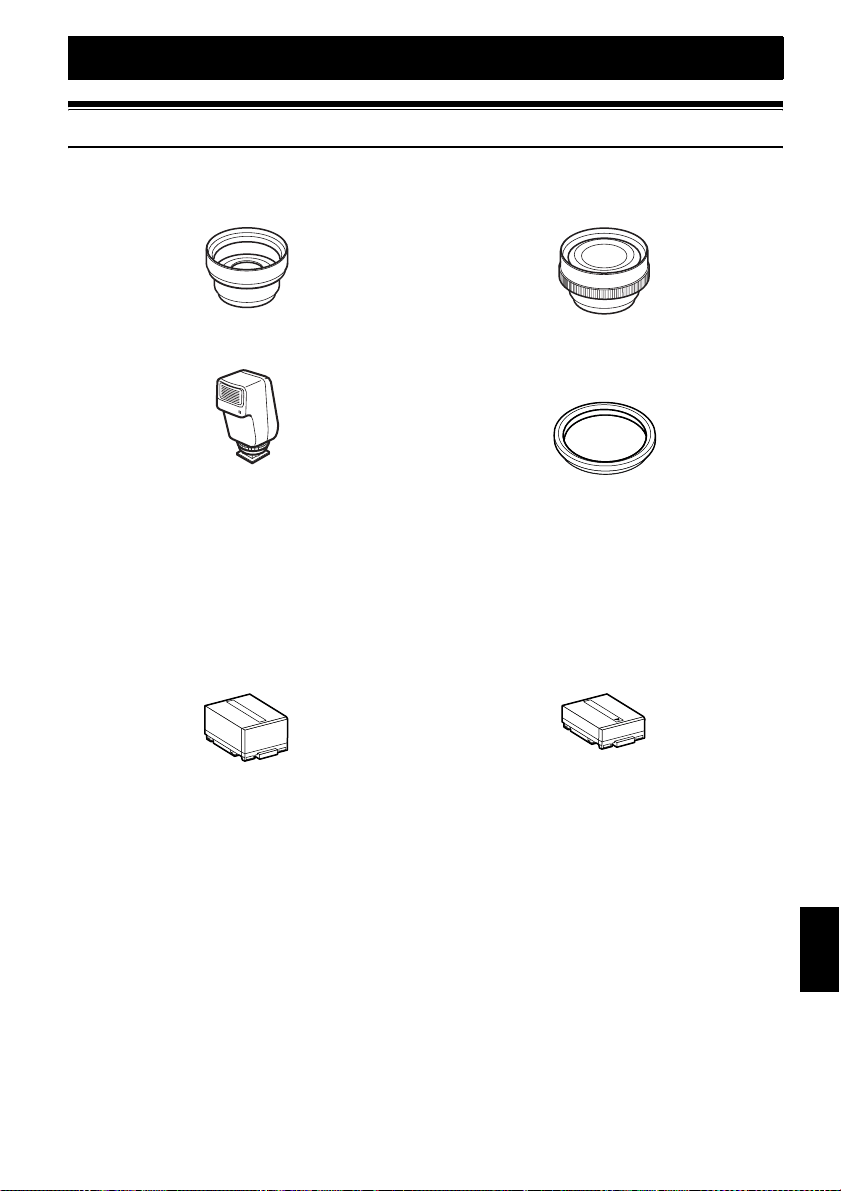

Introduction to Optional Accessories.............151
CAMERA ACCESSORIES ................................151
POWER SUPPLY..............................................151

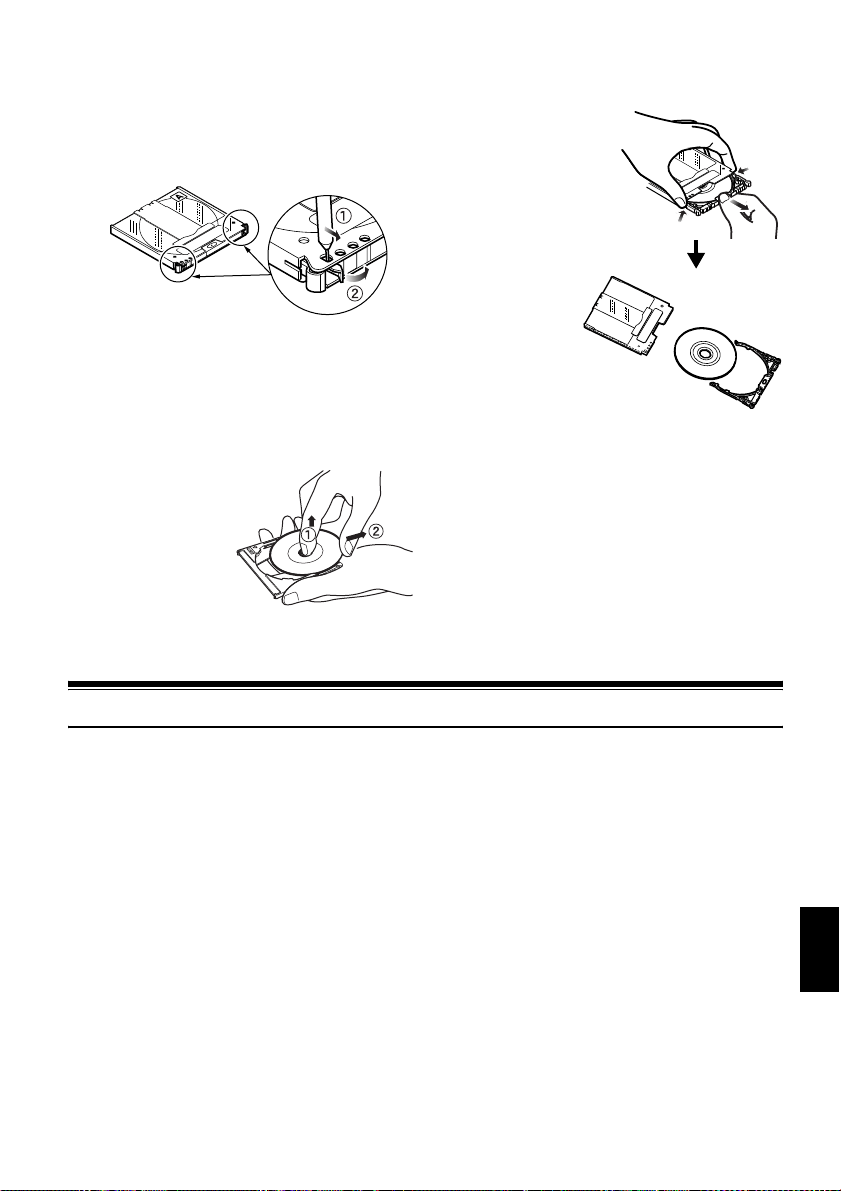

Removing Disc from Its Package...................152
REMOVING AND REPLACING FROM/IN
ROUND DVD HOLDER..................................152
REMOVING DISC FROM CARTRIDGE............153
Cleaning.........................................................153
Changing Setting of Demonstration...............154
Terminology...................................................155
No DVD Video Camera/Recorder Operation –
Check the Following:...................................158
Trouble Messages .........................................160
Troubleshooting.............................................167
System Reset ................................................174
Major Specifications.......................................175
To Order in the United States........................178
To Order in the Canada.................................178
Index..............................................................179
Be sure to read the following before opening
the package of CD-ROM.............................181
TOC
English
15
Checking Provided Accessories
Make sure that you have all the following accessories in package:
Battery (model DZ-BP14S):
For DZ-GX20A only.
Portable power supply for this DVD video
camera/recorder. Charge it before use.
Battery (model DZ-BP7S):
For DZ-MV780A or DZ-MV730A only.
Portable power supply for this DVD video
camera/recorder. Charge it before use.
AC adapter/charger (model DZ-ACS2):
Used to power the DVD video camera/
recorder from AC outlet, or charge battery.
DC power cord:
When powering the DVD video camera/
recorder from household AC outlet, use
this cord to connect the DVD video
camera/recorder and AC adapter/charger.
Power cable:
Connect between household AC outlet and
AC adapter/charger.
Infrared remote control
(model DZ-RM4W):
Use to control the DVD video camera/
recorder from a distance. For DZ-GX20A or
DZ-MV780A only.
Lithium battery (model CR2032):
To power the remote control.
For DZ-GX20A or DZ-MV780A only.
AV/S input/output cable:
Used when viewing the picture played back
on the DVD video camera/recorder on TV
screen, or input or output video from/to
another video device.
Shoulder strap:
Attach to the DVD video camera/recorder
to hang it from shoulder.
Lens cap and lens cap string:
Attach the lens cap when not recording, to
protect the lens.
Single-sided 8 cm DVD-R disc:
To record videos (movies) on this DVD
video camera/recorder.
For DZ-GX20A or DZ-MV780A only.
Software CD-ROM:
Use this CD-ROM when connecting the
DVD video camera/recorder to PC. For DZ-
GX20A or DZ-MV780A only.
PC connection cable:
Use this cable when connecting the DVD
video camera/recorder to PC. For DZ-
GX20A or DZ-MV780A only.
Disc cleaning cloth:
Always use this to clean discs.
WARNING: Keep
this battery away
from children. If
swallowed, consult
a physician
immediately for
emergency
treatment.
English
16

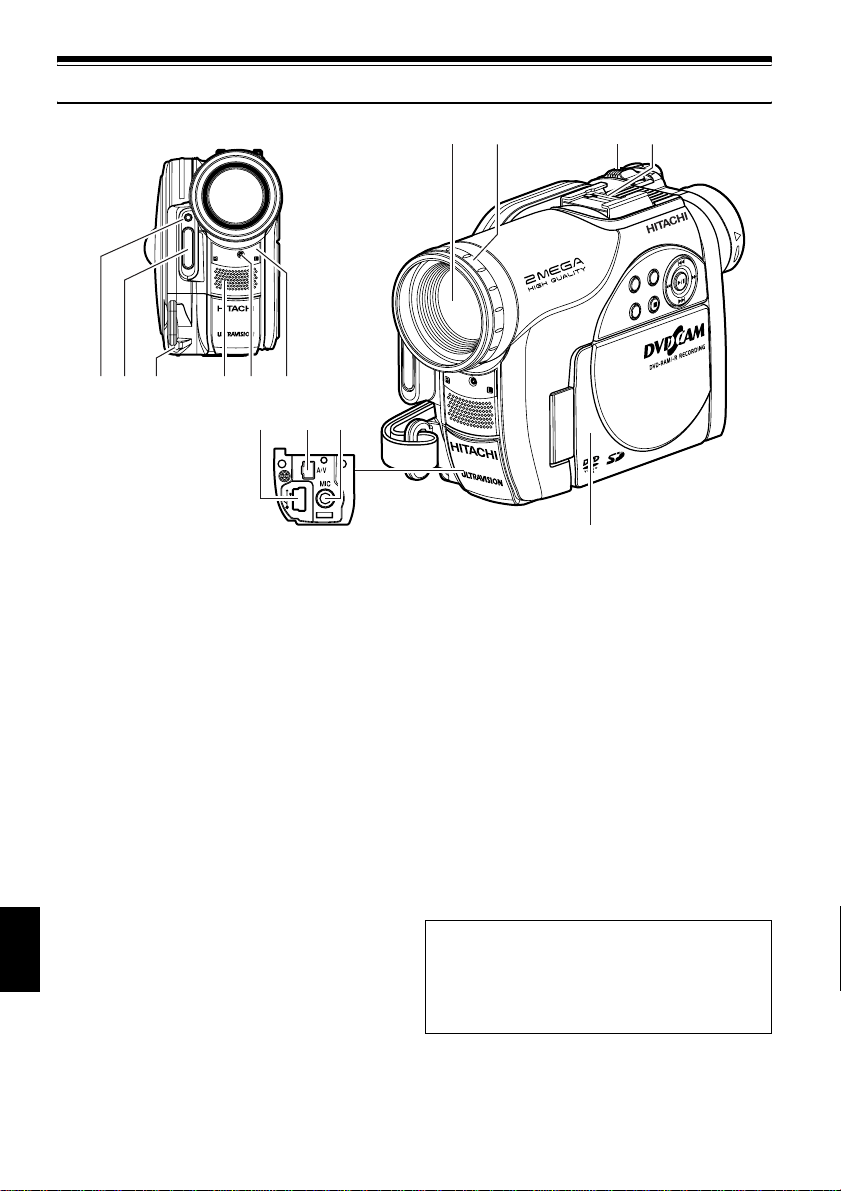

Names of Parts
1 Light receiving sensor
(for DZ-GX20A only)
This sensor controls the amount of light to be
emitted from the built-in flash. Take care not
to block with hand, etc. during recording.
2 Flash (for DZ-GX20A only) (p. 76)
3 Lens cap string attachment hole (p. 32)
4 Stereo microphone (p. 75)
5 Recording indicator (p. 101)
The red indicator will light during recording.
6 Infrared receiver (p. 34)
When the remote control is used to operate
the DVD video camera/recorder, this
receiver will receive the infrared signal.
7 Optical 10× zoom lens
(for DZ-GX20A or DZ-MV780A only)
Optical 16× zoom lens
(for DZ-MV730A only)
(p. 56)
8 Lens hood (p. 57)
Always remove this lens hood when using
generally available tele-conversion or wide-
conversion lens.
9 Zoom lever (p. 56)
Push the lever to the T side for telephoto, or
to the W side for wide-angle.
10 Accessory shoe
For DZ-GX20A or DZ-MV780A only:
The optional video flash can be attached
here. (See the instruction manual of device to
be attached for details.)
11 PC connection terminal (TO PC) (p. 149)
[for DZ-GX20A or DZ-MV780A only]
12 AV input/output jack (p. 77, 80)
13 External microphone jack (p. 75)
14 2.5" type liquid crystal display (inside)
(p. 35)
SELECT
STOP/EXIT
DISC
NAVIGATION
MENU
14
1312
6
78 9
(Inside the cover)
10
11
23 451
Although the external appearances of DZ-
GX20A, DZ-MV780A and DZ-MV730A are
different, the method of operating both
models is identical. DZ-GX20A illustrations
are used in this manual.
English
17

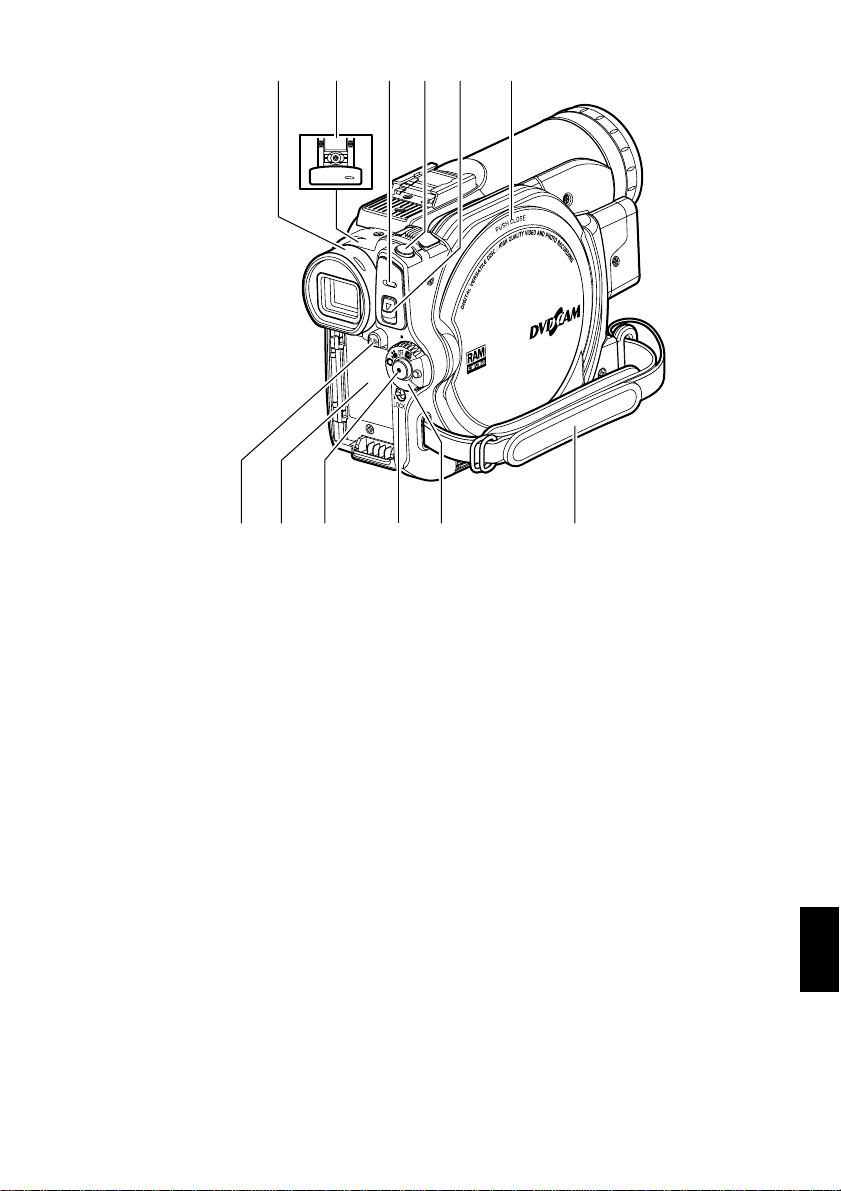

15 Viewfinder (p. 36)
16 Diopter control (p. 36)
To adjust the focus of image appearing in the
viewfinder. (Pull out the viewfinder.)
17 ACCESS/PC indicator
(for DZ-GX20A or DZ-MV780A only)
ACCESS indicator
(for DZ-MV730A only)
(p. 7, 49, 51)
Will blink or light when the disc in DVD
video camera/recorder is accessed (write or
read is executed) or the DVD video camera/
recorder is connected to PC.
18 PHOTO button (p. 51)
19 DISC EJECT button (p. 45)
Press down and release this button to open
the disc guide.
20 Disc insertion block (p. 45)
21 BATTERY EJECT button (p. 40)
Press this button when removing the battery.
22 Battery attachment platform (p. 40)
23 Record button (REC) (p. 49)
24 LOCK switch (p. 50)
It is recommended that you set the LOCK
switch to L (to the upper position) to prevent
the power switch in the “O” position from
accidentally moving to “N”.
25 Power switch (p. 44)
26 Hand strap (p. 31)
ACCESS/PC
DISC EJECT
15 16 17
21
18
22 23 25 26
20
24
19
English
18

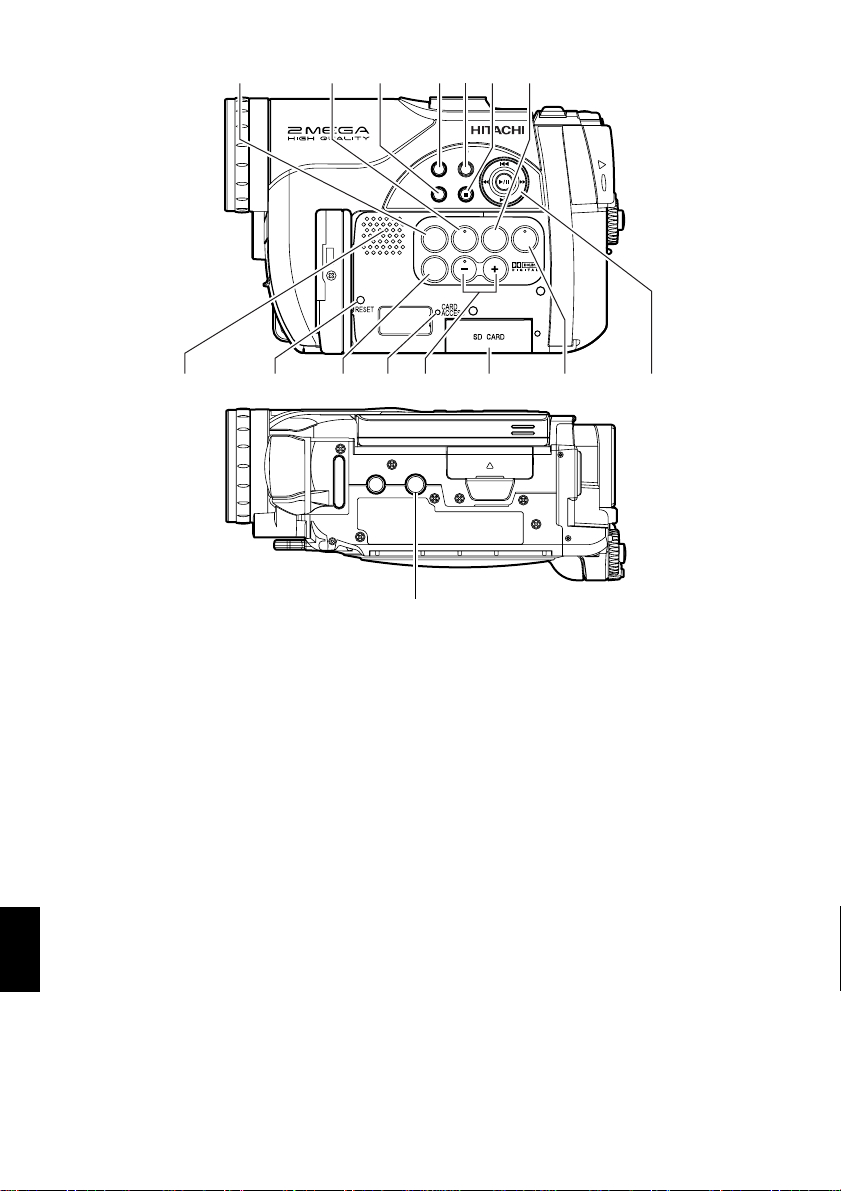

27 QUICK MENU button (p. 63)
To display only the functions that you
frequently use (simple menus).
28 FOCUS button (p. 72)
To switch between manual focus and auto-
focus.
29 MENU button (p. 84, 86, 111)
Press this button to display the menu for
setting camera functions and Disc
Navigation.
30 SELECT button (p. 106)
31 DISC NAVIGATION button (p. 103)
32 Stop/cancel button (p. 9, 58, 103)
To end playback or cancel setting of menu.
33 EXPOSURE button (p. 74)
Press this button to adjust the exposure.
34 Speaker (p. 58)
35 RESET button (p. 174)
To reset all settings to defaults (status when
the DVD video camera/recorder was
shipped from the factory)
36 DISPLAY (Screen display) button (p. 62)
Press this button to display the details of
image being played back or camera setting
status, or switch the display off.
37 CARD ACCESS indicator (p. 7, 51)
38 Volume control buttons (VOL)/
S R buttons (p. 58, 72, 74)
To adjust the volume of sound from speaker,
etc.
39 Card insertion block (p. 48)
40 BLC (backlight compensation) button
(p. 74)
Press this button when subject is being
lighted from rear.
41 f / e / d / c / A buttons
(p. 37, 58, 64, 84)
Use these buttons to select a scene or menu
item, and then press the center (A) to play
back the scene, or designate an option from
the menu.
42 Tripod threaded hole
Used to attach the DVD video camera/
recorder to a tripod.
QUICK
MENU
DISPLAY
FOCUS
EXPOSURE
VOL.
BLC
MENU
SELECT
DISC
NAVIGATION
STOP/EXIT
28 29 30 31 32 33
34 4036 37 38 3935
27
41
42
English
19
43 PHOTO button (p. 51)
44 REC button (p. 49)
45 MENU button (p. 84, 86, 111)
46 SELECT button (p. 106)
47 Reverse search button (p. 59)
48 DELETE button (p. 110)
49 DISC NAVIGATION button (p. 103)
50 DISPLAY button (p. 62)
51 ZOOM T button (p. 56)
52 DIGITAL ZOOM button (p. 56)
53 ZOOM W button (p. 56)
54 Reverse skip button (p. 60)
55 Forward search button (p. 59)
56 Play/pause button (p. 58)
57 Stop button (p. 9, 58, 105)
58 Forward skip button (p. 60)
* The buttons on remote control will function the same as those on DVD video camera/recorder.
REC
DIGITAL
ZOOM
ZOOM
MENU
SELECT
DELETE
DISC
NAVIGATION
DISPLAY
43
44
45
46
47
48
49
52
50
51
54
53
55
56
57
58
English
20
12
Try Recording and Playing Back using Disc
(Video and Photo)
You can record both videos and photos on DVD-RAM disc; only videos on DVD-R disc.
Before You Begin
• It is recommended that you use a DVD-RAM disc for trial recording,
since you can delete the recorded contents (p. 24).
1Connect a power supply (p. 43).
1
3
2
4
Power cable
AC adapter/charger
DC power cord
2Insert a disc (p. 45).
1 Press down the DISC EJECT button once
and release it.
2 Gently open the cover until it stops.
3 Push the disc against the turntable at the
center of disc insertion block to lock it
until a click is heard, and then close the
cover of disc insertion block: Do not touch
the disc recording surface or pickup lens
at this time.
DISC EJECT
Tu rntable
Disc cover
English
21
3Start recording (p. 49).
1 Open the LCD monitor (p. 35), or pull out
the viewfinder (p. 36).
2 While holding down the button on the
right of power switch, set the switch to
“O” or “N” (only “O” for DVD-R disc).
3 When recording a video, press the REC
button.
Recording will start.
Pressing the REC button again will stop
recording (O).
When recording a photo, press the
PHOTO button.
Pressing PHOTO half way (half press)
allows you to focus the subject, and the
“m” indicator will turn purple. Press
PHOTO all the way down to record.
OFF
OFF
OFF
Note:
• When using an unformatted disc, format (initialize) it on this DVD video camera/recorder.
If unformatted disc is inserted into this DVD video camera/recorder, a message will appear: Format the disc
following the instructions on screen (p. 46, 132). Initializing the DVD-RAM disc will erase all the recorded
contents: Make sure the contents on disc are not valuable before initializing the disc.
• See Check 1 on p. 158 if recording is not possible with “
O”.
• See Check 2 on p. 158 if recording is not possible with “N”.
4View the playback of recorded content on LCD monitor screen (p. 35).
1 After recording is finished, press the A
button.
The recorded scene will be played back.
2 Press the C button to stop playback.
12
STOP/EXIT
English
22
3
Try Recording and Playing Back using Card
(Photo)
Photos can only be recorded on card sold separately.
1Connect a power supply (p. 43).
1
3
2
4
Power cable
AC adapter/charger
DC power cord
2Insert a card (p. 48).
1 Open the LCD monitor (p. 35).
2 Open the cover of card insertion block
with power turned off.
3 Put in a card.
4 Insert the card all the way until it locks,
and then close the cover of card insertion
block.
English
23
3Start recording (p. 51).
1 Open the LCD monitor (p. 35).
2 While holding down the button on the
right of power switch, set the switch to
“P”.
3 Press the PHOTO button half way (half
press): When a subject image is focused,
the “m” indicator will turn purple.
4 Press the PHOTO button all the way (full
press).
OFF
OFF
Note:
• With the DZ-GX20A only, the built-in flash may emit light in a dark area (see page 76).
• See page 24 for the cards that can be used on this DVD video camera/recorder.
• See Check 2 on p. 158 if recording is not possible with “P”.
4View the playback of recorded content on LCD monitor screen (p. 35).
1 Press the A button in recording pause
status: The recorded scene will be played
back.
2 Press the C button to stop playback.
12
STOP/EXIT
English
24
Discs and Cards
The following table lists the storage media (discs and cards) that can be used on this DVD video
camera/recorder and the functions which are available with them:
AVAILABLE DISCS
Available Discs
This DVD video camera/recorder can use only
the 8-cm bare discs not packed in a square
cartridge, square caddy case or round DVD
holder. The discs in a square cartridge, square
caddy case or round DVD holder can be used if
they are removed from the package, but take
great care not to dirty or scratch the bare disc
(see pages 152 and 153).
Note:
• It is recommended that you use Hitachi Maxell HG
type single-sided discs, since their compatibility with
this DVD video camera/recorder has been confirmed.
When using an HG type double-sided disc, take great
care with handling it. Using a disc other than these
discs may not allow the DVD video camera/recorder
to deliver optimum performance.
• See page 25 for information on DVD-R disc.
Media
Function DVD-RAM disc DVD-R disc SD memory card
Deleting and editing images ∴ × ∴
Playing back on other DVD
devices
Possible on
compatible machine
*1
∴
*2
×
*4
Initialization Unnecessary
*3
Necessary Unnecessary
*3
Finalization Unnecessary Necessary Unnecessary
∴: Functions available; ×: Not available
*
1: Can be played back on DVD players with a logo , or DVD recorders with a logo . Not playable on those
machines, however, if they are not compatible with 8 cm DVD-RAM discs.
*
2: Must be finalized (see “Terminology”, p. 155) on this DVD video camera/recorder before DVD-R disc can be
played back on DVD player or DVD recorder (see page 135). May not be playable on some DVD players or DVD
recorders.
*
3: When using media sold on market as labeled “formatted”. The media whose initialization format is different can
be used only after they are formatted on this DVD video camera/recorder.
*
4: Some DVD devices can play SD memory cards.
Usable discs and logos
DVD-RAM Ver. 2.1 (8 cm)
DVD-R [for General Ver. 2.0 (8 cm)]
English
25
INFORMATION ON DVD-R DISC
You cannot record a still on DVD-R disc, or
delete any recorded images or data.
For optimum recording on DVD-R disc, this
DVD video camera/recorder writes control data
to the disc in order to automatically make
adjustments when it is inserted and ejected
accompanying recording. If the disc has no area
to be written for adjustment, recording may not
be possible. To prevent this, do not insert or eject
a DVD-R disc accompanying recording more
than 100 times.
Although some models are compatible with the
VR mode using DVD-R disc, this DVD video
camera/recorder is not compatible with that
mode.
●Finalizing DVD-R disc
Before using the 8 cm DVD-R disc provided on
this DVD video camera/recorder on a DVD
player or DVD video recorder that is compatible
with 8 cm DVD-R disc, the disc must be
finalized on this DVD video camera/recorder.
For the finalizing procedure of 8 cm DVD-R disc,
refer to “FINALIZING DVD-R DISC (FINALIZE
DISC)” (p. 135).
Note:
• When using an unformatted DVD-R disc, it is
necessary to format it on this DVD video camera/
recorder (see page 46).
• Do not insert a DVD-R disc recorded on this DVD
video camera/recorder but not finalized, into a
recordable device, such as a DVD recorder: The
recorded data may be damaged (except for devices
that allow playback of a DVD-R disc not finalized on
this DVD video camera/recorder).
• DVD-R discs edited and finalized on PC or those
finalized on another DVD recorder may not be
playable on this DVD video camera/recorder,
depending on the editing software used or recorded
status of DVD-R disc.
• If you insert a DVD-R disc recorded on a DVD video
camera/recorder other than DZ-GX20A, DZ-MV780A
or DZ-MV730A and not finalized, the Disc Navigation
screen will automatically start, and no recording can
be done on the disc nor can it be finalized.
EXAMPLES OF DISCS THAT CANNOT BE USED ON THIS DVD VIDEO
CAMERA/RECORDER:
• DVD-RAM (2.6 GB) Ver. 1.0
• CD-RW
• DVD-R (3.9 GB) Ver. 1.0
• CD
• DVD-R (4.7 GB) for Authoring Ver. 2.0
• LD
• DVD-RW
• MO
• DVD+RW
• MD
• DVD+R
• iD
• DVD-ROM
• Floppy disk
• DVD-Video
• Discs other than those with diameter of 8 cm
• CD-R
• CD-ROM
• DVD-R (double-layered)
Note:
Discs recorded on PC or DVD recorder may not be
playable on this DVD video camera/recorder: If so,
message “This disc cannot be used.” will appear. Also,
blue thumbnails will appear (Fig. 1* on page 26), or
normal playback will not be possible.
English
26
HANDLING DISCS
●Using discs
DVD-RAM and DVD-R discs are very delicate
recording media. Carefully read the following
cautions and observe them:
• Always use a brand new disc when recording
important material.
• Be sure not to touch the recording surface of
disc, or dirty or scratch it.
• If there is dust, scratch, dirt on disc or if it is
warped, the following phenomena may occur:
− Block noise in playback
− Momentary stop of
playback image
− Sound interrupted during
playback, or abnormal
sound
− Blue thumbnail
display* (Fig. 1)
− Disc cannot correctly
be recognized
− Disc cannot be
initialized
− Delay between video
and audio
Even if disc is normal, the above phenomena
may occasionally occur. While the ACCESS/
PC indicator is lit, do not subject disc to
vibrations or impact, and avoid using DVD
video camera/recorder at extremely high or
low temperatures, or in environment where
condensation is likely to occur.
• When recording images,
the DVD video camera/
recorder may avoid the
portions of disc where
recording is not possible,
due to dust, scratches,
etc. [It will pause m at
such a portion and
automatically restart
recording (n).]
This will cause recording to be interrupted for
several seconds to several minutes, and
multiple thumbnails will be created by one
recording session as shown above. In this case,
the recordable time on disc will decrease.
• Be careful when removing the disc since the
metal of removal slot of DVD video camera/
recorder, and disc itself, may be hot.
●Storing discs
• When storing disc, replace it in the plastic case
in which it was purchased.
• Be careful that no condensation occurs on disc.
• Do not place disc in following places:
− Direct sunlight for a long time
− Where humidity is high or in dusty place
− While there is heat from a heater, etc.
DISC CLEANING
Use the disc cleaning cloth provided to lightly
wipe off any dirt adhering to the disc as shown
in the figure. Do not wipe the disc with force:
Doing so could cause scratches.
Never use solvent (thinner, water, antistat or
detergent) for cleaning.
Lightly wash the dirty cleaning cloth with
detergent: The dirt removal capacity of the cloth
will improve (rinse the cloth well with water so
that no detergent remains).
Block noise
001/ 006All Progra
m
s
PLAY
RAM
Fig. 1
*
001/002All Progra
m
s
PLAY
RAM
(Recording one scene
may produce multiple
thumbnails.)
Use the disc cleaning
cloth to clean from inner
to outer edges in axial
direction.
English
27
AVAILABLE CARDS
SD memory card can be used on this DVD video
camera/recorder.
When using an exclusive adapter, a miniSD
memory card can be used in the same way as an
SD memory card.
●Handling card
• Do not use cards other than
the designated ones.
• Be sure to use a brand new
card when recording vital
images.
• Do not touch the card
terminal or allow it to touch
metal.
• Do not paste anything other
than exclusive label on label pasting portion.
• Do not subject card to impact, bend or drop it.
• Do not disassemble card or modify it.
• Do not expose card to water.
• Do not use or store card in the following
places:
− Where the temperature is high, such as in
vehicle at high temperatures, under burning
sun or near a heater.
− Where humidity is high, or in dusty place
• When the erasure prevention switch is locked,
no recording, deletion or editing will be
possible on the card: Only playback will be
possible.
●
Common cautions for disc and card
• It is recommended that you create a backup
file for valuable data on hard disk of PC.
• Do not do the following, or the data on disc or
card may be damaged or lost:
− Do not remove the disc or card or turn DVD
video camera/recorder off during reading or
writing of data
− Do not use DVD video camera/recorder in a
place subject to static electricity or electrical
noise
− Do not have printing done at a print lab or
DPE service.
Note:
• This DVD video camera/recorder can play back image
data recorded on other digital cameras conforming to
the DCF (Design rule for Camera File system)
standard. The range of image data playable on this
DVD video camera/recorder is that with pixels from 80
horizontal × 60 vertical to 4000 horizontal × 3000
vertical.
• DCF is an integrated image file format of digital
cameras: Image files can be used on all digital
devices conforming to DCF.
• Image data edited on PC and certain types of image
data may not be visible on this DVD video camera/
recorder.
• The image data recorded on another device may not
be playable on this DVD video camera/recorder.
Terminal
Erasure prevention
switch
Locked status
English
28
Storage Capacity on Disc or Card
RECORDABLE TIME OF MOVIE (VIDEO)
The recordable time will vary depending on the video recording quality: See page 91 for the setting
of video recording quality.
Movie recordable time on one disc (on single side) (when recording only movies)
Note:
• No movie can be recorded on SD memory card.
• Although the movie quality mode or wide-screen (16:9) mode can be changed midway for recording on DVD-RAM
disc, it cannot be changed on DVD-R disc once the mode has been selected.
• If you record in XTRA mode at high temperatures, the DVD video camera/recorder will heat up and the maximum
transfer rate will be limited to approx. 6 Mbps, so the best quality will not be obtainable.
• If a disc recorded is used at high temperatures, normal playback may be impossible: Turn the DVD video camera/
recorder off once, wait until the ambient temperature becomes lower, and then operate it again.
RECORDABLE STILLS (PHOTOS) ON DISC
●Number of recordable stills on one side of disc
DZ-GX20A: Can record up to approx. 750 photos.
DZ-MV780A/DZ-MV730A: Can record up to approx. 999 photos.
If the disc still has free space after recording the above maximum number of photos on it, movies can
also be recorded on it.
Recording quality Movie recordable time Application
XTRA Approx. 18 min
*1
Best quality
FINE Approx. 30 min
*2
High quality
STD Approx. 60 min
*3
Standard quality
*
1: Variable bit recording (recording of more than 18 minutes may be possible because the transfer rate varies
automatically between approx. 3 – 10 Mbps)
*
2: Fixed bit rate: Approx. 6 Mbps
*
3: Fixed bit rate: Approx. 3 Mbps
English
29
RECORDABLE STILLS (PHOTOS) ON CARD
The number of recordable stills will vary depending on the recording quality: See page 94 for the
setting of recording quality.
For DZ-GX20A
For DZ-MV780A
For DZ-MV730A
(The numbers of recordable stills above are only for reference)
Note:
• Cards used on other devices can be used on this DVD video camera/recorder.
• No movie or music data recorded on card can be checked, viewed or heard on this DVD video camera/recorder.
In addition, no such a data file can be displayed on this DVD video camera/recorder.
• Use the remaining display function to check the remaining free space on disc before use. See “VERIFYING
REMAINING FREE SPACE ON DISC OR CARD (CAPACITY)” on page 133.
• Some still data recorded on this DVD video camera/recorder may not be playable on another device.
Recording
quality
Capacity
16 MB 32 MB 64 MB 128MB 256 MB 512 MB 1 GB
FINE
Approx. 13 Approx. 29 Approx. 60 Approx. 120 Approx. 240 Approx. 480 Approx. 900
NORM
Approx. 18 Approx. 38 Approx. 80 Approx. 160 Approx. 320 Approx. 640 Approx. 1,200
ECO
Approx. 27 Approx. 58 Approx. 120 Approx. 240 Approx. 480 Approx. 960 Approx. 1,800
Recording
quality
Capacity
16 MB 32 MB 64 MB 128MB 256 MB 512 MB 1 GB
FINE
Approx. 27 Approx. 58 Approx. 120 Approx. 240 Approx. 480 Approx. 960 Approx. 1,800
NORM
Approx. 36 Approx. 76 Approx. 160 Approx. 320 Approx. 640 Approx. 1,280 Approx. 2,400
ECO
Approx. 54 Approx. 116 Approx. 240 Approx. 480 Approx. 960 Approx. 1,920 Approx. 3,600
Recording
quality
Capacity
16 MB 32 MB 64 MB 128MB 256 MB 512 MB 1 GB
FINE
Approx. 108 Approx. 232 Approx. 480 Approx. 960 Approx. 1,920 Approx. 3,840 Approx. 7,500
NORM
Approx. 216 Approx. 464 Approx. 960 Approx. 1,920 Approx. 3,840 Approx. 7,680 Approx. 15,000
ECO
Approx. 432 Approx. 928 Approx. 1,920 Approx. 3,840 Approx. 7,680 Approx. 15,360 Approx. 30,000
English
30
SIZE AND QUALITY OF PHOTOS
The pixel size of stills (JPEG) that can be recorded on this DVD video camera/recorder is as follows:
The following table shows the file size and quality of one still (JPEG) recorded on card:
Although still images are recorded on DVD-RAM disc only in the FINE mode, the quality mode can
be chosen when recording stills on card. (p. 94)
The file size of a photo recorded on DVD-RAM disc in “N” status is equal to or larger than that
recorded on card using the FINE quality in “P”.
* JPEG: Joint Photographic Experts Group.
JPEG is one of the photo image compression standards. It is widely used in digital still cameras since
JPEG files can be used on ordinary PC. When this DVD video camera/recorder records on DVD-
RAM disc in “N” status, a JPEG photo will be recorded, along with a photo that conforms to the
DVD video recording (DVD-VR) format which is used to be output to TV (see “Terminology”,
p. 155). Only JPEG photos will be recorded on SD memory card.
Note:
• No still can be recorded on DVD-R disc.
• Since the file size is restricted in all quality modes when recording photos on card (
P), the quality of photos on
card may be inferior to those recorded on DVD-RAM disc (
N).
Model
Setting
Camera input External input
DZ-GX20A 1,600 × 1,200 pixels 640 × 480 pixels
DZ-MV780A 1,280 × 960 pixels 640 × 480 pixels
DZ-MV730A 640 × 480 pixels 640 × 480 pixels
Quality
File size
Application
DZ-GX20A DZ-MV780A DZ-MV730A
FINE Approx. 1,024 KB Approx. 512 KB Approx. 128 KB When image quality is prioritized
NORM Approx. 768 KB Approx. 384 KB Approx. 64 KB Standard quality
ECO Approx. 512 KB Approx. 256 KB Approx. 32 KB When number of stills is prioritized
(quality will be slightly inferior)
31
English
Setups
This section explains preparations for recording – setting up the DVD video camera/recorder
and battery.
Setting Up the DVD Video Camera/Recorder
HOLDING DVD VIDEO CAMERA/RECORDER
Insert your right hand from the bottom of DVD video camera/recorder up to the base of your
thumb.
Put your hand in a position where you can easily operate the REC button and the Zoom lever.
Adjust the length of hand strap so that the DVD video camera/recorder is stable when you press the
REC button with your thumb.
Note:
Do not adjust the hand strap while holding the DVD
video camera/recorder: Doing this could cause the DVD
video camera/recorder to fall and be damaged.
Caution:
Do not lift the DVD video camera/recorder by
holding the viewfinder or LCD monitor: If the
viewfinder or LCD monitor comes off, the DVD video
camera/recorder will fall.
English
32
ATTACHING SHOULDER STRAP
ATTACHING LENS CAP
1Attach the shorter end of lens cap string to
the lens cap.
2Attach the longer end of lens cap string to the
attachment hole of DVD video camera/
recorder.
3Push the both sides of cap inward and attach
it over the lens.
Note:
• Always keep the lens cap on when not using the DVD
video camera/recorder, to protect the lens.
• When recording, attach the lens cap to the hand strap
by hooking the tab inside the cap onto strap for
comfortable shooting.
Pass the shoulder strap through
the shoulder strap attachments.
Be sure to pass through the 2 slots.
Shorter end
Longer end
Push and fit
English
33
INSERTING BATTERY INTO REMOTE CONTROL
Insert the provided lithium battery into remote control.
1While inserting a fine rod into the hole
marked PUSH, pull the battery holder out
forward.
2Insert the lithium battery with the positive R
terminal facing down.
3Slide the cover to close it.
Note:
The life of lithium battery is approximately one year. If
the battery is discharged, no operation is possible with
remote control: Replace the battery.
REMOVING BATTERY FROM REMOTE CONTROL
1While pushing the battery holder, slide the
battery out.
Warning:
• KEEP THE BATTERY AWAY FROM CHILDREN AND
PETS.
• IF SWALLOWED CONSULT A PHYSICIAN
IMMEDIATELY FOR EMERGENCY TREATMENT.
• BATTERY MAY EXPLODE IF NOT HANDLED
PROPERLY. DO NOT RECHARGE, DISASSEMBLE
OR DISPOSE OF IN FIRE.
Note
:
• Replace the battery with a Hitachi Maxell, Sony,
Panasonic, Sanyo, Toshiba CR2032, or Duracell
DL2032. Use of another battery may present a risk of
fire or explosion.
• Dispose of battery safely in accordance with local
laws. Do not dispose of in fire.
• Do not short circuit the battery.
• Do not hold the battery with the metallic tweezers.
• Keep the battery in a dark, cool, dry place.
• The remote control (DZ-RM4W) and lithium battery
(CR2032) are supplied only with the DZ-GX20A and
DZ-MV780A.
Battery holder
English
34

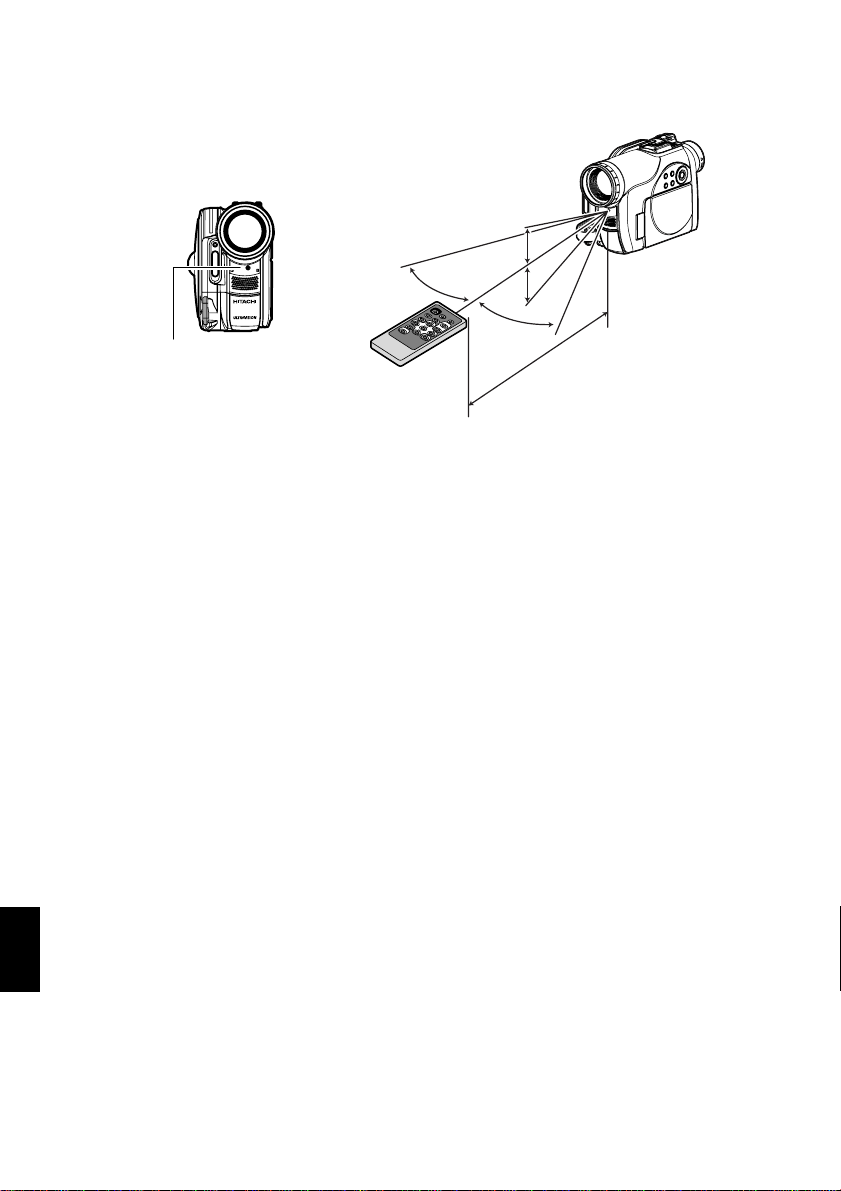

●Using Remote Control
Point the remote control to the infrared receiver on the DVD video camera/recorder. The remote
controllable distance is up to 16 feet (5 m).
Note:
• When using the remote control, make sure that the
infrared receiver on DVD video camera/recorder is not
exposed to direct sunlight or any intense light. If the
infrared receiver is subject to light stronger than the
infrared light from remote control, the DVD video
camera/recorder cannot be operated by remote
control.
• If there is an obstacle between the remote control and
infrared receiver on DVD video camera/recorder,
remote control may not be possible.
• The DVD video camera/recorder uses the “VCR2”
remote control code of Hitachi VCRs. If you use a
Hitachi VCR, etc. with remote control code set to
“VCR2”, a VCR placed near the DVD video camera/
recorder will also be operated by the remote control:
To prevent this, change the remote control code of the
VCR.
• The remote control (DZ-RM4W) and lithium battery
(CR2032) are supplied only with the DZ-GX20A and
DZ-MV780A.
A
p
p
r
ox
.
1
6
f
e
e
t
(
5
m
)
Infrared receiver
10º
10º
15º
15º
English
35
VIEWING IMAGE ON LCD MONITOR SCREEN
If you open the LCD monitor, you can monitor subject image on the LCD screen.
1Open the LCD monitor.
The LCD monitor has a portion where you
can hook your finger. Hook the finger there to
open the monitor.
●Range where the LCD monitor can
be moved
The LCD monitor can be opened up to
approximately 90º.
If the LCD monitor is open 90º, it can be tilted
with the screen down as much as 90º, and can
also be tilted with screen up and turned up to
180° so the screen faces in the same direction as
the lens.
If the LCD monitor is turned 180º so the screen
faces in the same direction as the lens during
recording, subject image will also appear in the
viewfinder as a mirror image (left/right
reversed).
Tilt the LCD monitor to adjust its vertical angle
so that you can see the screen easily.
Note:
• If no image appears on LCD monitor screen, refer to
“Check 7” on page 159.
• If LCD monitor lights white, refer to page 87.
• Be sure to open the LCD monitor approximately 90º
before changing its vertical angle.
• Do not record for a prolonged time with the LCD
monitor turned approximately 180º in close contact
with the DVD video camera/recorder body: Doing this
could cause the DVD video camera/recorder and LCD
monitor to become hot.
Hook your finger
90º
(Bottom)
90º
180º
English
36
CLOSING LCD MONITOR
Before closing the LCD monitor, be sure to reset
it at right angles to the DVD video camera/
recorder.
Replace the LCD monitor on the DVD video
camera/recorder with the LCD screen facing
inward until a click is heard.
Note:
• Be sure to return the LCD monitor at right angles to
the DVD video camera/recorder before closing it or
replacing it on the DVD video camera/recorder with its
screen facing outside. If the LCD monitor is tilted, it
cannot be closed to the DVD video camera/recorder.
• If the LCD monitor is not securely locked to the DVD
video camera/recorder, no image will appear in the
viewfinder.
VIEWING SUBJECT THROUGH VIEWFINDER
1Pull out the viewfinder.
2Turn the diopter control knob to adjust the
focus to suit your eyesight.
Note:
• If no image appears in viewfinder, refer to “Check 6”
on page 159.
• If the LCD monitor is opened approximately 90º, the
viewfinder will be off: Turn the open LCD monitor 180º
so that it faces the same direction as the lens; the
image will appear in the viewfinder.
• Focusing will not be correct unless the viewfinder is
pulled out.
• See “LCD/EVF Setup” (on page 98) if you wish to
display images in the viewfinder regardless of
whether you open or close the LCD monitor.
Diopter control
Pull out the viewfinder
until a click is heard.
Viewfinder
English
37

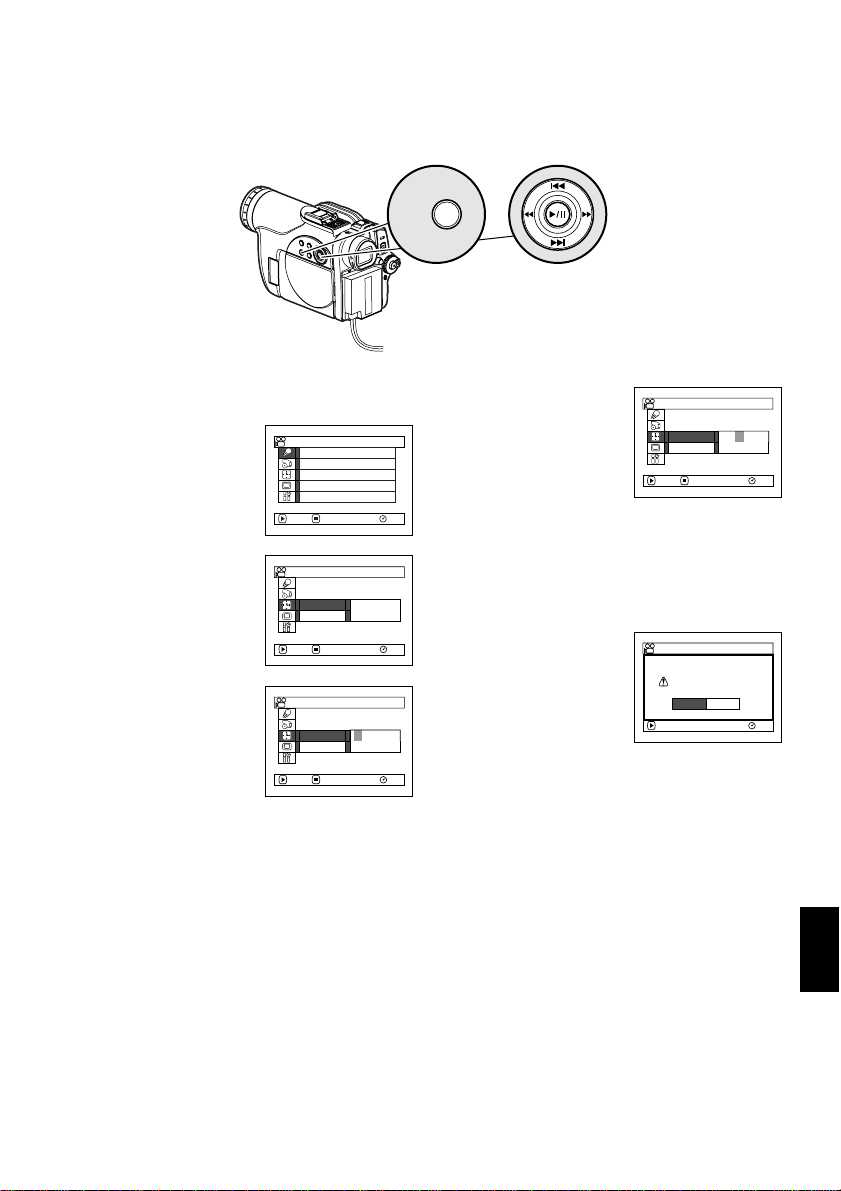

SETTING DATE AND TIME
Set the current date and time so that the date and time you make a recording can be recorded
correctly.
The following procedure can also be used to correct the date and time you have already set.
1Turn the DVD video camera/recorder on.
2Press the MENU button.
The menu screen will
appear.
3Use the f/e/d/
c buttons to choose
“Date Setup” and then
“Date Set”.
4Press the c button.
The figure for the
month will be selected.
[The digit that is
highlighted first
depends on the date
display format (set up in Date Mode): The
digit on the left end of the date display will
be first highlighted.]
Note:
After setting the figure for the month, press the c
button to right to select the digit to be set. If you
press the A button after selecting the figure for
the month, the screen for verifying the set date will
appear instead of screen for setting day, year or
time.
5Press the d or c
button to select the digit
you want to set in
sequence.
Press the f or e
button to select the
number for current date/time, and then
repeat step 5 to set the current date and time.
Note:
To stop date/time setting midway, press the C
button.
6After setting the current
date and time, press the
A button.
The screen for verifying
the set date will appear.
7If the displayed date and time are correct, use
press the d button to choose “YES”, and
then press the A button.
The date and time will be set, and the DVD
video camera/recorder will enter the
recording pause status.
Choosing “NO” will restore the menu screen.
Note:
This DVD video camera/recorder incorporates a
rechargeable battery to store the date and time in
memory. If this built-in battery is exhausted, the date
and time will be reset. To prevent this, connect the AC
adapter/charger to DVD video camera/recorder every 3
months, and leave them for at least 24 hours with the
DVD video camera/recorder turned off: The built-in
battery will be charged.
MENU
Use f / e / d / c buttons
to select, and then press A to
designate.
Ca
m
era Functions Setup
Progra
m
AE : A u to
W
hi te Bal. : Auto
Dig. Z
oom
: 40x
M
IC.Fi l ter :
O
ff
EIS :
O
n
ENTER RETURN
RAM
Da te Se tup
RAM
Date Mode
Da te Se t 1/ 1/2005
ENTER RETURN
12:00A
M
RAM
Date Mode
ENTER RETURN
Da te Se t 1/ 1/2005
12:00A
M
Da te Se tup
RAM
8 : 00AMDate Mode
ENTER RETURN
Da te Se t 9/30/2005
Da te Se tup
ENTER
RAM
9/30/2005 8:00A
M
Date set up?
YES NO
Da te Se t
English
38
CHANGING DISPLAY FORMAT OF DATE AND TIME
You can select one of three date display formats: month/day/year, day/month/year or year/
month/day. Associated with the selected date display, the time display format will also change as
follows:
1Press the MENU button.
The menu screen will appear.
2Use the f/e/d/
c buttons to choose
“Date Mode” on the
“Date Setup” menu
screen, and then press
the A button.
The options will appear on the right of “Date
Mode”: The Z mark will be attached to the
currently selected option.
3Use the f/e/d/
c buttons to select the
desired date display
format, and then press
the A button.
The menu screen for
setting date will be restored, and the “Date
Mode” has been changed as you designated.
4Press the MENU button to switch off the
menu screen.
Note:
If the date display format has been changed, the display
format during playback as well as during recording will
also be changed (see page 52).
Date display format Example of display
M/D/Y
5:00PM
9/30/2005
D/M/Y
17:00
30/ 9/2005
Y/M/D
PM 5:00
2005/ 9/30
RAM
M/D/Y
Y/M/D
Date Set
ENTER RETURN
Date Mode
D/M/Y
Da te Se tup
RAM
ENTER RETURN
Date Mode D/M/Y
Da te Se tup
Date Set
English
39
Setting Up the Battery
The DZ-BP14S battery provided with DZ-GX20A or DZ-BP7S battery provided with DZ-MV780A and
DZ-MV730A has not been charged at purchase time: Charge it before using the DVD video camera/
recorder.
Note:
• Be sure to use the DZ-BP14S, DZ-BP7S, DZ-BP14SW (optional) or DZ-BP7SW (optional, unavailable for DZ-
GX20A) battery for the DVD video camera/recorder: Using other batteries could cause the DVD video camera/
recorder to malfunction, or result in fire.
• Be sure to use the DZ-ACS2 AC adapter/charger to charge the battery: Using other chargers could cause electric
shock or fire.
• Charge the battery at temperatures of 50 – 86ºF (10 – 30ºC).
• If the CHARGE indicator does not light when the AC adapter/charger is plugged into AC outlet, unplug it from the
AC outlet, wait a few moments, and then plug it into the AC outlet again. If the CHARGE indicator still does not
light, the AC adapter/charger may be faulty. Unplug it from the AC outlet and consult your dealer.
• The AC adapter/charger can be used around the world. An AC plug adapter is required in some foreign countries.
If you need one, purchase it from your local electronics distributor.
CHARGING BATTERY
Use the provided AC adapter/charger to charge
the battery.
1Connect the power cable to AC adapter/
charger.
2Plug the power cable into AC outlet.
3Attach the battery to AC adapter/charger.
Note:
When charging a battery, unplug the DC power cord
from the DC output jack on AC adapter/charger.
AC 200 – 240V
AC Plug Adapter (not supplied)
Power cable
AC adapter/charger
B
a
tt
ery
CHARGE indicator
DC output terminal
English
40
●Battery charged status
You can find out the charged status of battery by checking the CHARGE indicator on AC adapter/
charger:
Note:
See “Troubleshooting” on page 167 when the CHARGE indicator blinks.
●Reference for time required to charge battery (at approx. 77ºF (25ºC)):
DZ-BP14S (provided with DZ-GX20A)/DZ-BP14SW (optional): Approx. 165 minutes
DZ-BP7S (provided with DZ-MV780A and DZ-MV730A)/DZ-BP7SW (optional):
Approx. 90 minutes
The charge time will vary depending on the remaining power level of battery.
ATTACHING BATTERY TO DVD VIDEO CAMERA/RECORDER
1Fit the battery to the battery attachment
platform on this DVD video camera/recorder
and slide it downward until a click is heard.
Note:
• Make sure that the battery is in the correct orientation.
• Make sure that the battery is securely attached:
Incomplete attachment could cause the battery to fall,
resulting in damage.
REMOVING BATTERY
After using the DVD video camera/recorder, remove the battery from it.
1While holding down the BATTERY EJECT
button, slide the battery upward to remove it.
Note:
• For safety, be sure to turn the DVD video camera/
recorder off before attaching or removing the battery.
• Be careful not to drop the removed battery.
• If the battery remains attached, minute level current
will flow even if the DVD video camera/recorder is off,
and the battery will discharge.
Charge status CHARGE indicator
During charge Lit
Charge complete Goes out
Terminal
side must be
down.
English
41
●Continuously recordable time with fully charged battery (with no zoom
operation, etc.)
See the following table as a reference for how long the DVD video camera/recorder can
continuously be used with a fully charged battery:
With DZ-BP14S (provided with DZ-GX20A)/DZ-BP14SW (optional)
With DZ-BP7S (provided with DZ-MV780A and DZ-MV730A)/DZ-BP7SW** (optional)
The reference for how long the DVD video camera/recorder can actually be used
will be approx. 1/2 to 1/3 of the above time:
The continuously recordable time of DVD video camera/recorder in the above table shows the time
available when the DVD video camera/recorder is in the recording mode without using any other
function after recording is started. In actual recording, the battery will discharge 2 – 3 times faster
than this reference, since the REC button and zoom are being operated, and playback is performed.
Assume that the actually recordable time with a fully charged battery is between 1/2 and 1/3 of the
above time, and prepare enough batteries to allow for the time you are planning to record on the
DVD video camera/recorder.
The continuously recordable time may be less depending on the conditions when the DVD video
camera/recorder is used (if recording and recording pause are repeated at short intervals, etc.).
Note that the battery discharges faster in cold places.
Note:
• See page 167 when charging is not possible.
• The charge time will vary depending on the battery remaining level.
• During and after charging, and when the DVD video camera/recorder is being used, the battery will be warm, but
this does not indicate a fault.
• A battery cannot be charged while the DC power cord is connected to the DC output jack of AC adapter/charger:
Unplug the DC power cord when charging a battery.
• Charge the battery at ambient temperature 50ºF to 86ºF (10ºC to 30ºC): Charging at temperatures other than this
range could damage the battery.
Video mode DZ-GX20A DZ-MV780A DZ-MV730A
XTRA
*
When using viewfinder approx. 125 min approx. 145 min approx. 170 min
When using LCD monitor approx. 110 min approx. 125 min approx. 145 min
FINE
When using viewfinder approx. 125 min approx. 145 min approx. 170 min
When using LCD monitor approx. 110 min approx. 125 min approx. 145 min
STD
When using viewfinder approx. 140 min approx. 170 min approx. 210 min
When using LCD monitor approx. 125 min approx. 145 min approx. 170 min
Video mode DZ-MV780A DZ-MV730A
XTRA
*
When using viewfinder approx. 70 min approx. 85 min
When using LCD monitor approx. 60 min approx. 70 min
FINE
When using viewfinder approx. 70 min approx. 85 min
When using LCD monitor approx. 60 min approx. 70 min
STD
When using viewfinder approx. 80 min approx. 100 min
When using LCD monitor approx. 70 min approx. 85 min
* The time is only for reference: It will vary depending on recording contents.
**Unavailable for DZ-GX20A.
English
42
BATTERY REMAINING LEVEL INDICATOR
When the battery is used to power the DVD video camera/recorder, the battery remaining level
appears in the viewfinder or on the LCD screen as follows:
Note:
The remaining level indicator “w” may be displayed for an extended period, and “x” or “y” may be displayed
for a shorter period.
If the remaining battery level runs out, the DVD video camera/recorder will automatically turn off. If this happens, be
sure to set the power switch to “OFF” in order to remove the disc (see page 47).
EFFICIENT USE OF BATTERY
Charge battery immediately before using
DVD video camera/recorder:
The battery will slightly discharge even if it is
detached from the DVD video camera/recorder.
If the battery is left attached to DVD video
camera/recorder, it will consume a slight
amount of power.
Therefore, it is recommended that you charge
the battery shortly before using the DVD video
camera/recorder, usually on the day before you
plan to use it.
However, since the battery used for this DVD
video camera/recorder is free from the memory
effect, you do not need to completely discharge
the battery before charging it.
When not using the DVD video camera/
recorder for an extended period:
It is recommended that you fully charge the
battery once a year, attach it to DVD video
camera/recorder and use it up; then remove the
battery and store it in a cool place again.
Store in cool, dark place:
When you are not using the DVD video camera/
recorder, remove the battery and store it in a
cool, dark place. If you store it in a place where
the temperature is high, the battery life will be
shortened. Be especially sure not to store the
battery in an environment (in a closed vehicle)
over 140ºF (60ºC): Neglecting this could damage
the battery. Also, do not store the battery in a
place which is too cold, such as in a refrigerator:
Doing so could cause condensation when using
the DVD video camera/recorder with the
battery.
Battery life:
The battery life varies greatly depending on the
ambient environment and how often the DVD
video camera/recorder is used. If the usable
time of DVD video camera/recorder with a fully
charged battery is noticeably short, the battery is
probably dead: Purchase a new one.
Power save and discharge of battery:
It is recommended that you turn the DVD video
camera/recorder off in status other than
recording, since even during recording pause
battery power is consumed at the same level as
during recording.
If, when you specify Power Save On, the
recording pause status continues for
approximately 5 minutes, the DVD video
camera/recorder will automatically turn off.
To set or release power save, see “TURNING
DVD VIDEO CAMERA/RECORDER OFF
AUTOMATICALLY (POWER SAVE)” on
page 100.
Fully charged Nearly empty
White portion shows remaining level (Blinks)
English
43
USING DVD VIDEO CAMERA/RECORDER WITH AC ADAPTER/CHARGER
It is recommended that you use the AC adapter/charger to power the DVD video camera/recorder
from household AC outlet when you perform settings on it, play back or edit images, or use it
indoors.
Note:
Be sure to use the specified AC adapter/charger (DZ-ACS2) to power the DVD video camera/recorder. Using other
AC adapter/chargers could cause electric shock or result in fire.
1Connect the power cable to AC adapter/
charger.
2Plug the power cable into AC outlet.
3Plug one end of DC power cord into the DC
output jack on AC adapter/charger.
4Attach the other end of DC power cord to the
battery attachment platform on DVD video
camera/recorder.
1
3
2
4
Power cable
AC adapter/charger
DC power cord
English
44
Turning DVD Video Camera/Recorder On and
Off
While holding down the gray button at the right
of power switch, set the switch according to
each recording function:
Power ON status
During playback, set the power switch to “O”
or “N” when using disc, or set it to “P” when
using card.
Turn the switch while holding down the gray
button at the right of switch.
Note:
• Once you turn the DVD video camera/recorder on to
let it recognize the disc, you can immediately record
or play back by turning the DVD video camera/
recorder on again. However, if a long time has
elapsed after the disc was inserted, it will take some
time for the DVD video camera/recorder to start
because it must recognize the disc again (see
page 158).
• It will take some time for the DVD video camera/
recorder to display the Disc Navigation screen after
power is turned on.
• If you turn the DVD video camera/recorder on, the
ACCESS indicator will light or blink to show that the
DVD video camera/recorder is recognizing the disc or
card: During this time, no operation, such as
recording, can be performed.
After several seconds, the ACCESS indicator will go
out, and operating the DVD video camera/recorder
will be possible.
If the ACCESS indicator does not go out, refer to
“Check 4” on page 158.
• When the DVD video camera/recorder is turned on,
the self-diagnosis function will work and a message
may appear. In this case, refer to “Trouble Messages”
on page 160 and take corrective action.
• While the ACCESS/PC or CARD ACCESS indicator is
lit or blinking, do not violently open or close the LCD
monitor.
Set to “OFF”:
The DVD video camera/
recorder will turn off.
Set to “P”:
To record still on SD
memory card
Set to “O”:
To record movie on DVD-
RAM or DVD-R disc
Set to “N”:
To record still on DVD-
RAM disc
OFF
OFF
Power switch
ACCESS/PC
indicator
English
45
Inserting and Removing Disc
INSERTING DISC
1Press down the DISC EJECT button once and
release it.
A few moments after the ACCESS/PC
indicator blinks, the cover of disc insertion
block will open.
2Gently open the cover by hand fully until it
stops.
3Push the disc against the turntable at the
center to lock it until a click is heard.
• Note that the recording surface of disc must face
the inside of DVD video camera/recorder.
• Never touch the disc recording surface or pickup
lens.
• Use the disc cleaning cloth provided to wipe off
any dirt adhering to the disc recording surface.
• Do not use a dirtied or scratched disc.
• The recording side must face the inside (DVD
video camera/recorder).
4Push the section marked “PUSH CLOSE” on
the cover of disc insertion block, to close the
cover.
Then the DVD video camera/recorder will
automatically recognize the disc: While the
ACCESS/PC indicator is lit, do not cut off the
power supply, and do not subject the DVD
video camera/recorder to any vibrations or
impact.
●Identifying recording sides of
disc:
Single sided disc:
The recording side is
opposite to the printed label.
Double-sided disc:
The recording side of “SIDE
A” is opposite to the “SIDE
A” marked side.
The recording side of “SIDE
B” is the “SIDE A” marked
side.
Push the shaded
portion.
Turntabl e
Pickup lens
D
V
D
-
R
A
M
/
S
I
D
E
A
“SIDE A” mark
The opposite side is
the “SIDE A”
recording side.
English
46
Note:
• If the cover of disc insertion block is open, the
ACCESS/PC indicator will blink when an image is
displayed on the LCD monitor screen: In this case,
the DVD video camera/recorder will not turn off even if
the power switch is set to “OFF”.
If the cover remains open after a while, the DVD video
camera/recorder will automatically turn off.
• Disc cannot be inserted or removed unless a charged
battery or AC adapter/charger is connected to the
DVD video camera/recorder.
• If a discharged battery is used, the disc cannot be
inserted or removed: Connect a charged battery or
AC adapter/charger to the DVD video camera/
recorder.
• If there is some delay before recording starts, refer to
“Check 4” on page 158.
• If the disc is not correctly attached to the turntable, it
will be difficult to close the cover: If this happens, do
not forcibly close the cover (this could cause a fault),
but re-attach the disc to the turntable correctly.
• If a single-sided disc is inserted into DVD video
camera/recorder with the printed label facing the
inside, an error message will appear. Remove the
disc and reinsert it with its recording side facing the
inside. See “Trouble Messages” on page 160.
• When using double-sided disc
Recording is possible on both sides of double-sided
disc. However, when recording or playback on one
side is finished, recording or playback will not move
automatically to the other side. Remove the disc once
from the DVD video camera/recorder, turn over the
disc and insert it again for continued use.
The recording surfaces of double-sided disc are likely
to become dirtied or scratched: Always make sure
that there is no dirt or scratch on the recording
surface facing the pickup lens, and then use the disc
taking great care that it is not dirtied or scratched.
Use the provided disc cleaning cloth to wipe off any
dirt on disc (see page 26).
●
When using brand-new DVD-R disc
Recognition of the disc
will start.
The messages on the right
will appear in sequence by
pressing the A button
between messages.
When recording on this DVD video
camera/recorder:
When final message
“Format the disc now?”
appears, choose “YES”
and then press the A
button. The disc will be
formatted.
When formatting is
complete, “DVD-R disc,
Video mode and 16:9
mode cannot be changed”
will appear (see page 163):
Press the A button to
erase the message.
Once formatted, a DVD-R
disc can no longer be
changed to a disc for PC,
even if it has not been
recorded on this DVD
video camera/recorder.
Note:
See page 91 for video mode.
See page 92 for 16:9 mode.
When recording data from PC (for DZ-
GX20A or DZ-MV780A only):
While the above messages are being displayed,
press the C button, or when message “Format
the disc now?” appears, choose “NO” and then
press the A button.
However, if data from PC has not yet been
recorded, the disc can be made usable on this
DVD video camera/recorder. When inserting
the disc into this DVD video camera/recorder,
the same message will appear: If you wish to use
it on this DVD video camera/recorder, choose
“YES”.
Note:
Do not initialize a disc on which you wish to record data
created using the application (DVDfunSTUDIO) of PC.
NEXT
Disc is not formatted.
possible to use for camera.
If it formats, it becomes
For
m
at Disc
CANCEL
ENTER
Format the disc now?
For
m
at Disc
YES NO
NEXT
For
m
at Disc
CANCEL
Howeve r , when you record
from PC connect ion
terminal,
please do not format.
Not displayed on DZ-
MV730A.
English
47
REMOVING DISC
1Press down the DISC
EJECT button once and
release it.
In a moment, the cover
of disc insertion block
will open.
If the DVD video
camera/recorder is on
at this time, the
“EJECT” indicator will blink on the LCD
monitor or in the viewfinder.
2Gently open the cover
fully until it stops.
3Remove the disc.
While pushing down the center portion of
turntable, pick up the disc, holding its edge,
to remove it.
4Gently push the section
indicated “PUSH CLOSE”
on the cover of disc
insertion block, to close the
cover.
Note:
• Do not remove the battery or disconnect the AC
adapter/charger during removal of the disc or until
power is completely turned off: If you do, the disc
cover will not open. If this happens, reattach the
battery or AC adapter/charger, push down the DISC
EJECT button once, and then release it.
• Do not insert anything other than the 8 cm DVD-RAM
or DVD-R disc into the disc insertion block: Doing so
could cause malfunctions.
• When inserting or removing the disc, BE SURE NOT
to look into the lens in laser pickup: Doing so could
damage your eyesight.
• If the battery remaining level runs out, set the power
switch to “OFF” to remove the disc (see page 42).
DISC EJECT
Tu rnta bl e
English
48
Inserting and Removing Card
1
Open the LCD monitor.
2Turn the DVD video camera/recorder off.
3Open the cover of
card insertion
block.
4Inserting Card:
Insert card with its
terminal inward
until it locks.
Removing Card:
Push the center of
card edge.
The card will come
out so that it can
be held by fingers.
5Close the cover of
card insertion
block.
Note:
• No card is provided with this DVD video camera/
recorder: Buy cards if you need them.
• See page 29 for the capacity of cards and the number
of recordable photos on them.
49
English
Basic Techniques
This section explains about recording of movies and still images, and also basic settings on
DVD video camera/recorder.
12

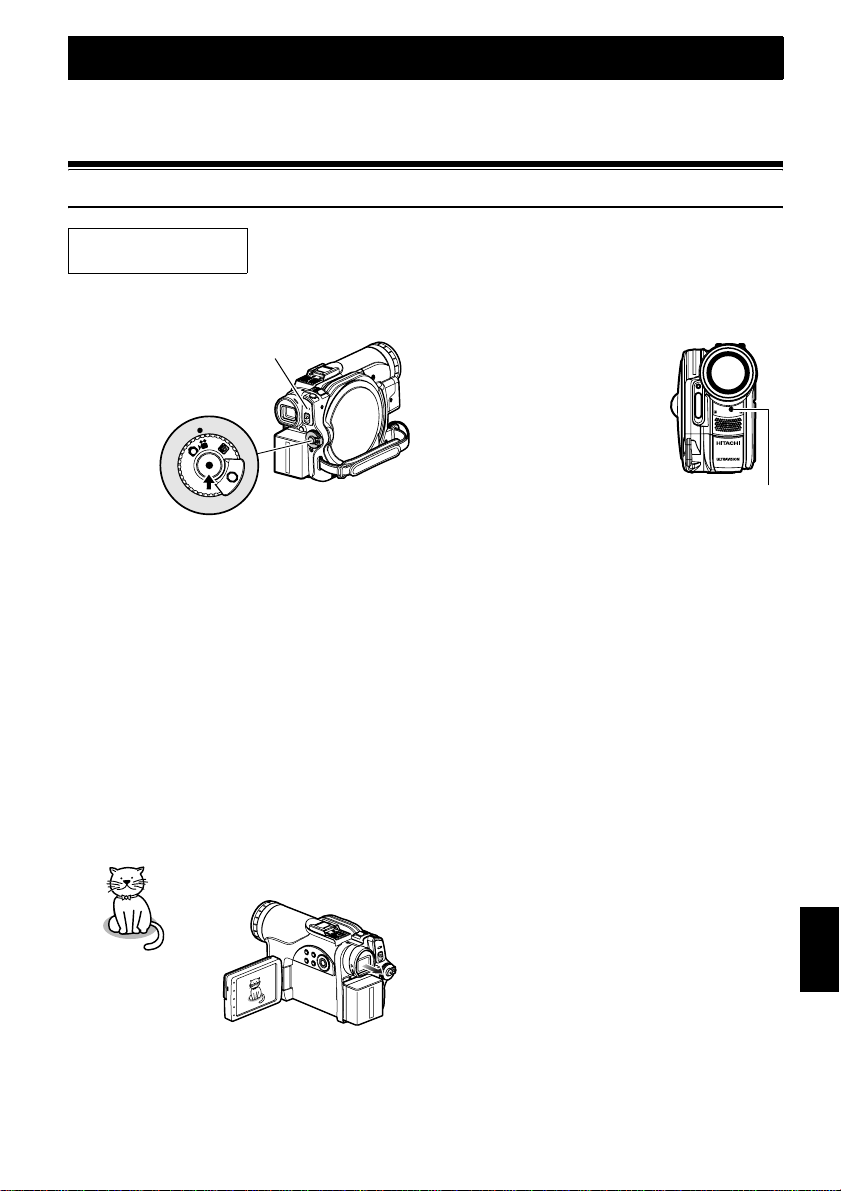

Recording Movie
1
Remove the lens cap, and then point the DVD
video camera/recorder at subject.
2Turn the DVD camera/recorder on.
Set the power switch to “O” to turn the DVD
video camera/recorder on.
After the ACCESS/PC indicator goes out,
perform the subsequent operation:
3Check the subject on the screen (viewfinder
or LCD).
When using the viewfinder, close the LCD
monitor before pulling out the viewfinder.
4Press the REC button.
The “m” mark in the
viewfinder or on the LCD
screen will change to the
“n” mark, and recording
will start.
During recording, the
recording indicator on the
front of DVD video camera/
recorder will light.
Pressing REC again during
recording will set the DVD
video camera/recorder to
the recording pause status.
5When recording is finished, turn the DVD
video camera/recorder off.
Before You Begin
• Insert a recordable DVD-RAM or DVD-R disc into this DVD video camera/
recorder.
OFF
Pressing REC
once will start
recording;
pressing it once
again will
temporarily stop
recording.
ACCESS/PC
indicator
Recording
indicator
English
50
Note:
• See “Check 1” on page 158 when recording movie is
not possible.
• See “Check 4” on page 158 if it takes some time
before recording is possible.
• See “Check 5” on page 159 if the DVD video camera/
recorder does not operate.
• See page 52 for on-screen information display.
• It is recommended that you use DVD-RAM disc from
which recorded contents can be deleted.
• Sound is recorded from the stereo microphone on the
front of DVD video camera/recorder: Take care that
this microphone is not blocked.
• You can press the REC button immediately after the
DVD video camera/recorder enters the recording
pause status, but no further recording can be made
while “DISC ACCESS” is being displayed.
Recording will restart after the message disappears.
• Do not turn power off while message “DISC ACCESS”
is being displayed.
• Take care that power is not interrupted while the
ACCESS/PC indicator is blinking.
• The minimum recordable time of movie is
approximately 3 seconds.
• See page 101 for setting of Record LED (recording
indicator) On/Off.
• For various functions available during recording, see
“Setting Up Camera Functions” on page 86.
• Hitachi cannot be responsible for video and audio that
cannot be recorded or edited because of any defect.
• The power switch can be changed over even during
recording, but the operation will not be changed.
• Each time the DVD video camera/recorder enters the
recording pause status, the counter display will be
reset to “0:00:00”.
• It is recommended that you set the LOCK switch to L
(the upper position) to prevent the power switch in the
“O” position from accidentally moving to “N” position.
• Do not insert a non-finalized DVD-R disc into another
DVD device: Doing so could cause the disc to
become unusable (except in the case of the devices
that have a function that can play back a disc that has
not been finalized on this DVD video camera/
recorder).
• When using an unformatted DVD-R disc, it is
necessary to format it on this DVD video camera/
recorder (see page 46).
English
51
13

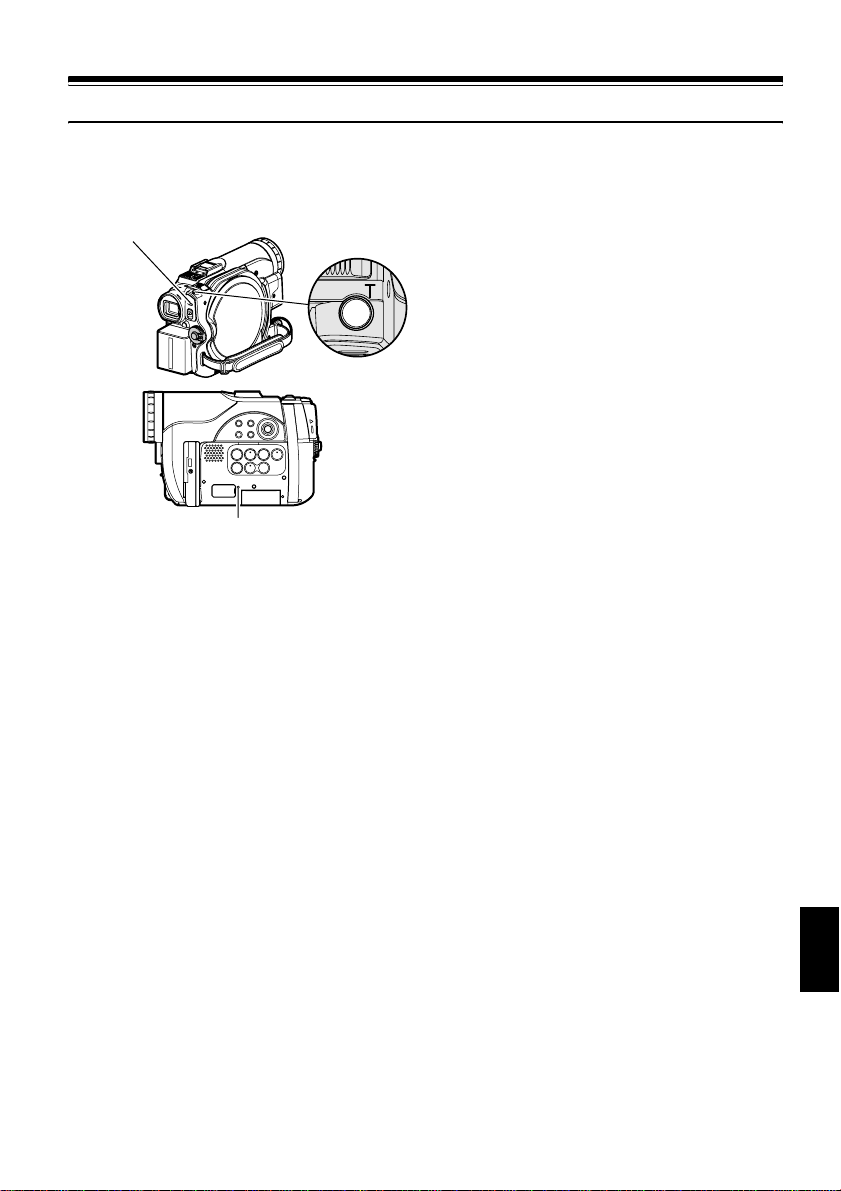

Recording Stills
Note:
Recording of still images is possible on DVD-RAM disc
and card.
1Remove the lens cap, and then point the DVD
video camera/recorder at subject.
2Turn the DVD camera/recorder on.
When using DVD-RAM disc:
Set the power switch to “N”.
When using card:
Set the power switch to “P”.
After the ACCESS indicator goes out,
perform the subsequent operation:
3Check the subject on the screen (viewfinder
or LCD).
When using the viewfinder, pull it out and
close the LCD monitor.
4Press the PHOTO button half way (half
pressing).
The DVD video camera/recorder will
automatically focus on the subject at the
center of screen, and the “m” indicator on
screen will light in purple (the focus will not
change when manual focus is chosen).
5Press the PHOTO button all the way (full
pressing).
The screen will be black, and then the
recorded still will be displayed. When the
“m” mark appears, you can proceed with
the next recording; while “DISC ACCESS” or
“CARD ACCESS” is being displayed, you
cannot proceed with the next recording.
Note:
• If you wish to record without locating a subject at the
center of screen, first locate the subject at the center
of screen, press the PHOTO button halfway down,
determine the composition to be recorded, and then
press the PHOTO button all the way down.
• If you press the PHOTO button all the way down at
one stroke without pressing it half way, recording will
be possible, but the focus will be incorrect.
• See “SIZE AND QUALITY OF PHOTOS” on page 30
for details of photos on card.
• See “Check 2” on page 158 if recording photos is not
possible.
• Shake of the DVD video camera/recorder may cause
blur in recorded image.
• When holding the DVD video camera/recorder for
recording, grasp it securely with both hands.
• When recording with higher zoom magnification, it is
recommended that you secure the DVD video
camera/recorder on a tripod.
• Do not operate the power switch or remove the card
while the ACCESS/PC or CARD ACCESS indicator is
lit or blinking: Doing so may damage the card or the
data on card.
• The range of screen in which recording is possible will
be different for movie and still.
• If focusing is difficult with auto focus, choose manual
focus, and manually correct the focus before
recording (see page 72).
• There may be a difference between the image you
see on the LCD screen or viewfinder and the
recorded image.
ACCESS/PC
indicator
CARD ACCESS indicator
PHOTO button
English
52
123
On-Screen Information
Various types of information will appear in the viewfinder or on the LCD screen during recording.
INFORMATION DISPLAY DURING RECORDING
See the next page for details.
DISPLAY
10
8:00A
M
9/30/2005
3 0 MIN
0:00:00
FINE
REC
DISC ACCESS
REM
LIN
The above screen is an example for explanation:
It is different from the actual display.
*Not displayed on DZ-MV730A.
e 2.Program AE
k 3. White balance
n 4.EIS
o 5. Manual Focus
m 6.Backlight compensation
1.Recording mode
13.Zoom
14. Exposure correction
Warning message
15.Disc/Card type
16.Movie recording quality
p 7. Microphone filter
l 8.16:9 mode
9.Video flash*
10. Self-timer
11.External Input
12.Recording status
Movie recording time
17.Remaining space
on disc/card
18.Remaining
battery level
19. Volume
Current date/time
English
53
1. Recording mode (p. 49, 51, 95)
2. Program AE (only in movie recording mode)
(p. 86)
3. White balance (p. 88)
4. Electronic image stabilizer (EIS)*
1
(p. 90)
5. Manual focus (p. 72)
6. Backlight compensation (p. 74)
7. Microphone filter (only in movie recording
mode) (p. 90)
8. 16:9 mode (only in movie recording mode)
(p. 92)
9. Video flash
*2
[when Video Flash (sold
separately) is attached] (only in still recording
mode) (p. 76)
10.Self-timer (only in still recording mode) (p. 96)
11.External Input (p. 95)
12.Recording status
13.Zoom (p. 56)
14.Exposure correction
A
: Movie
B
:Still (Disc)
C
: External input still (field) (Disc)
D
: External input still (frame) (Disc)
E
:Still (Card)
F
: External input still (field) (Card)
G
: External input still (frame) (Card)
No display : Auto
b
:Sports
c
:Portrait
d
:Spotlight
e
: Sand & Snow
f
: Low Light
No display : Auto
h
:Set
i
: Outdoor
j
: Indoor1
k
: Indoor2
No display : EIS OFF
n
: EIS ON
No display : Autofocus
o
: (display in English or German):
Manual focus
r : (display in French or Italian):
Manual focus
v : (display in Spanish): Manual
focus
No display : Backlight compensation OFF
m
: Backlight compensation ON
No display : Microphone filter OFF
p
: Microphone filter ON
No display : 16:9 mode OFF
l : 16:9 mode ON
No display : Emits light automatically
(
: Always emits light
)
: No light emission
No display : Self-timer OFF
q
: Self-timer ON
(countdown is from 10 seconds)
LIN :AV input
SIN
*2
: S-VIDEO input
n
: During recording
m
: During recording pause (lights in
green)
When focus locks during photo
recording (lights in purple)
No display
*3
W
(Digital Zoom: Off)
X
(Digital Zoom: 40×)
Y
(Digital Zoom: 240× only in movie
recording mode)
No display : Auto
:Manual
English
54
15.Disc/Card type
16.Movie recording quality (when using disc)
(p. 91)
Still recording quality (when using card)
(p. 94)
17.Remaining space on disc/card
*5
18.Remaining battery level (p. 42)
19.Volume (p. 58)
●Switching the information display mode
You can switch the display mode of on-screen information:
Press the DISPLAY button.
The full and minimum display modes will alternate.
• Full display mode: All types of information will
appear.
• Minimum display mode: The recording mode (see
1 on page 52) and recording status (see 12 on
page 52) will appear. If the DVD video camera/recorder has warning information, a warning
message will appear.
Note:
The DVD video camera/recorder does not record the date and time as a part of image. However, this information
during recording will be recorded with image as data which can be checked on Disc Navigation screen during
playback (see “INFORMATION DISPLAY DURING PLAYBACK” on page 62).
I
: DVD-RAM
K
:DVD-R
J
: DVD-RAM (write-protected)
M
: DVD-R disc already finalized on
this DVD video camera/recorder
N
: DVD-R disc finalized on a device
other than this DVD video
camera/recorder
O
: SD memory card
P
: Locked SD memory card
No display
*4
XTRA : Best quality
FINE : High quality
STD : Standard quality
FINE : High quality
NORM : Standard quality
ECO : Number of recordable stills is
prioritized
REM XX
MIN
*6
: Remaining recordable minutes
during movie recording
REM XX
*7
: Number of remaining recordable
still images during still recording
w
(full charge)
x
y
z
(low remaining charge)
:
The volume can be adjusted during
external input and playback.
*1 EIS cannot be used when recording photos on DZ-GX20A or DZ-MV780A.
*2 Not displayed on DZ-MV730A.
*3 When no disc or card is in the DVD video camera/recorder, or disc has not yet been initialized, a write-protected
disc or locked card, or a disc or card with no remaining space, has been inserted.
*4 When a disc or card that cannot be used in this DVD video camera/recorder is inserted.
*5 No remaining time or number will be displayed with a protected disc or locked card, or finalized DVD-R disc.
*6 In XTRA mode, possible recording time may be longer than the displayed time.
*7 The displayed number of recordable stills is for reference: This number may not decrease, depending on the
recording conditions (not displayed with a DVD-R disc).
DISPLAY
English
55
●Display when recording an image of yourself
When recording with the LCD screen facing the same direction as the
lens, the operating status will appear: The battery remaining level will
appear only when the remaining level is very low, and the display will
blink.
The following operating status indicator will light or blink to give
warning message to user. The message can be checked when returning
the LCD monitor 180º to the original status from the status in which the
LCD screen was facing the same direction as the lens.
No warning/message (see page 52) will appear when recording with the LCD screen facing the same
direction as the lens.
Instead, the following screen display symbols will blink to inform you of the operation status of
DVD video camera/recorder.
When the LCD monitor is turned 180º from the position with the LCD screen facing the same
direction as the lens, the warning/message can be checked.
●Interpreting symbols on LCD screen when recording with the screen
facing the same direction as the lens:
Note:
• If the LCD screen is set facing the same direction as the lens, the LCD screen will display a mirror image (left and
right reversed).
• If the LCD screen is set facing the same direction as the lens, you can also view subject image in the viewfinder.
• Although you can switch to the manual focus, exposure and on-screen display modes even during recording with
LCD screen facing the same direction as lens, they will not appear on the screen.
• When the LCD monitor is opened and turned 180º with the Program AE set to Low Light, the monitor screen will
light white (see page 87).
Screen
display
symbol
Description
Q
• A write-protected disc is loaded.
• A locked card is loaded.
• An unusable card is loaded.
N
• An attempt to record a still is being made with a DVD-R disc
used.
• An unusable disc is loaded.
k
• During recording (lights in red).
• The remaining capacity on disc is approaching the limit 0 (blinks
in red).
l
• During recording pause (lights in green).
• During focus lock (lights in purple).
• The remaining capacity on disc or card is approaching the limit 0
(blinks in red).
• There is no remaining capacity on disc or card (blinks in green).
• An attempt to record a copy-guarded image is being made
(blinks in green).
Operating status/
warning message
Battery remaining
level
English
56
123
Zooming
If you continue to hold the zoom lever on the
“T” control side with Dig. Zoom 40× or 240×
specified, the digital zoom will be activated
midway (when optical 10-power is exceeded on
DZ-GX20A or DZ-MV780A, or optical 16-power
is exceeded on DZ-MV730A).
You can zoom up to 240-power.
1Press the MENU
button, choose “Dig.
Zoom” on the “Camera
Functions Setup” menu
screen, and then press
the A button.
2Choose the desired magnification, and then
press the A button.
3Press the MENU button to end the setting.
Moving the zoom lever will display the
digital zoom bar.
Note:
• The digital zoom setting will be stored in memory
even if the DVD video camera/recorder is turned off.
• You can also use the DIGITAL ZOOM button on
remote control to switch the digital zoom setting:
Pressing the button during movie recording will switch
the setting between “Off”, “40×”, and “240×”: Pressing
the button during photo recording will switch between
“Off” and “40×”.
• If you set zoom to “240×” when recording photo, the
digital zoom will be up to 40×.
• When a subject is zoomed, it may be momentarily out
of focus.
• When digital zoom is engaged, the image quality will
be rougher.
W: recording wide area
(wide-angle)
T: recording enlarged
image (telephoto)
Progra
m
AE
W
hi te Bal.
Dig.Z
oom
EIS
40x
240x
ENTER RETURN
RAM
Off
MIC.Fi lter
Ca
m
era Functions Setup
3 0 MIN
0:00:00
REM
FINE
TW
W
W
T
T
When Dig. Zoom is “Off”
When Dig. Zoom is “On” (40x)
Digital zoom range
When Dig. Zoom is “On” (240x)
Digital zoom range
(only in movie recording)
8:00AM
9/30/2005
English
57
MACRO RECORDING
Use the macro function when recording a small object from close-up position: You can shoot the
subject as close as approximately 13/16” (2 cm) from the lens surface, magnifying the image to fill
the screen.
1Aim the DVD video camera/recorder at the
subject, and press the zoom lever to “W”
control side.
Note:
• Zoom can be used, but the subject may not be
focused, depending on the distance to the subject. In
this case, move the zoom to “W” control side to focus.
• The amount of light tends to be insufficient during
macro recording: If the subject image is too dark, use
additional lighting.
RECORDING SUBJECTS FOR STRONGER WIDE-ANGLE OR TELEPHOTO
EFFECT
Use the tele-conversion lens or wide-conversion lens with the following filter diameter and thread
pitch to record subjects for stronger telephoto or wide-angle effect:
Filter diameter: 34 mm for DZ-GX20A or DZ-MV730A; 30.5 mm for DZ-MV780A
Thread pitch: 0.5 mm
When attaching the optional DZ-TL1 tele-conversion lens or DZ-WL1 wide-conversion lens, use the
optional step-up ring: DZ-SR3437 for DZ-GX20A or DZ-MV730A, DZ-SR3037 for DZ-MV780A (see
page 151).
1Remove the lens hood from DVD video
camera/recorder, and attach the step-up ring
over the lens.
2Remove the cap of conversion lens, and screw
the lens into the thread of step-up ring.
Note:
• Be careful not to lose the removed lens hood.
• With DZ-TL1 tele-conversion lens, the focusing range
at “T” (telephoto) control side is between approx.
16 feet (5 m) and infinite.
• When a conversion lens is attached, note that the four
corners of screen will be slightly dim if you zoom in on
a subject on the W control side (wide-angle side).
• When replacing the lens, take care not to drop the
DVD video camera/recorder.
• Attaching the conversion lens will disable the function
of the built-in flash (for DZ-GX20A only): Specify
“Flash: Off” (see page 76).
• If a generally available filter is attached, do not attach
the removed lens hood.
• Tele-conversion lens: For stronger telephoto effect
• Wide-conversion lens: For stronger wide-angle effect
(Attach)
Conversion lensLens hood
(Remove)
Step-up ring
English
58
Playing Back
123

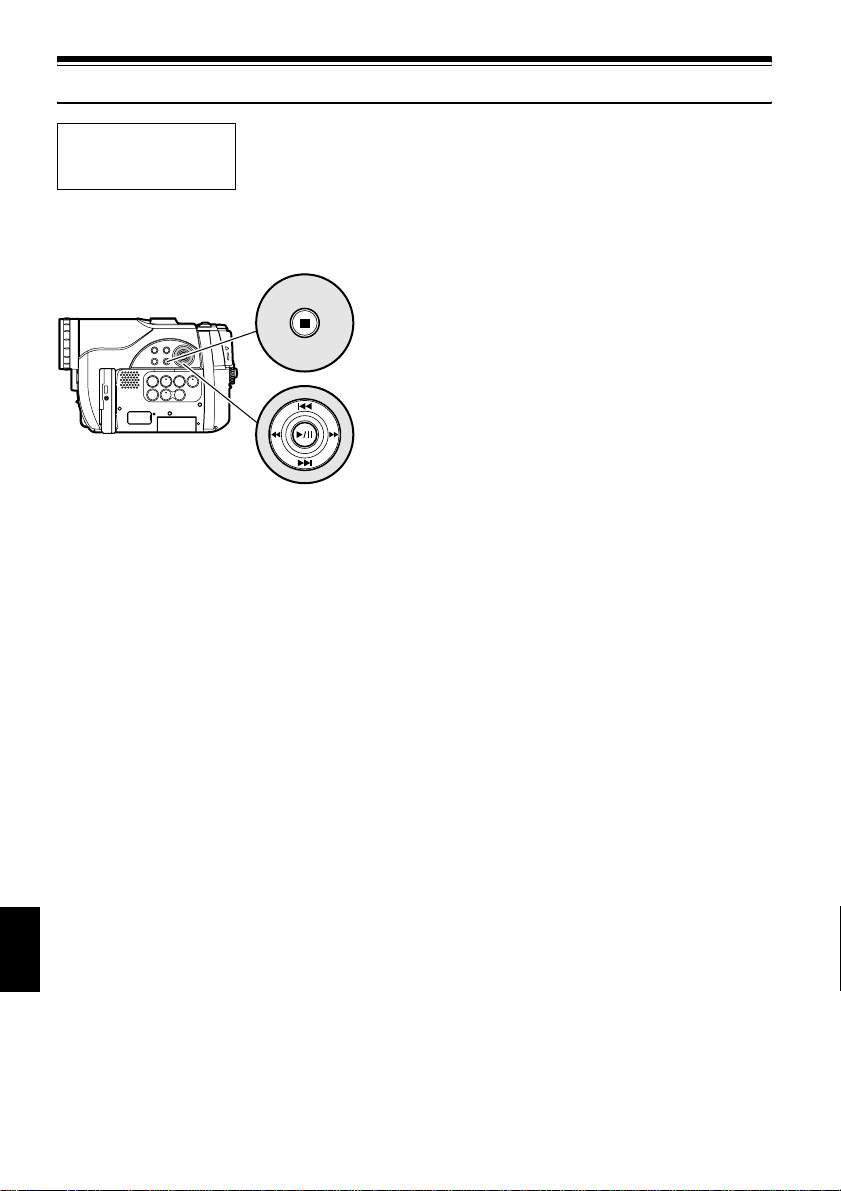

PLAYING BACK
Playing Back
1Press the A button in the recording pause
status.
The DVD video camera/recorder will enter
the playback mode, and the scene you have
recorded last will be played back. (For
“scene”, see p. 103 and “Terminology”,
p. 155.)
When playback is finished, the DVD video
camera/recorder will enter the pause status
at the last image on disc.
If the playback pause status continues for as
long as 5 minutes, the DVD video camera/
recorder will automatically return to the
recording pause status.
2Press the C button.
Playback will stop, and recording pause
status will be restored.
Note:
• If the LCD monitor is open during playback of movie,
playback sound will be heard from the speaker. Adjust
the sound volume using the volume control buttons
(S, R).
• To temporarily stop playback, press the A button.
Press the A button again to restart playback.
• Even if you stop playback midway and immediately
start recording again, the new image will be recorded
after the last scene on disc or card (the previous
images will not be overwritten).
• Image data edited on PC, etc., or the recorded image
may not appear on this DVD video camera/recorder;
also, the recorded sound may not play back,
depending on the type of image data.
• Image data recorded on another DVD video camera/
recorder or DVD recorder may not be played on this
DVD video camera/recorder.
• Depending on the amount of data to be played back,
it may take some time for the playback image to
appear.
• Do not operate the power switch or remove the card
while the ACCESS/PC or CARD ACCESS indicator is
lit or blinking: Doing so may damage the card or the
data on card.
Before You Begin
• Insert a disc or card recorded on this DVD video camera/recorder (p. 49,
51).
• Turn the DVD video camera/recorder on (p. 44).
STOP/EXIT
Use f / e / d / c to select,
and then press A to designate.
English
59
123
PLAYBACK FROM START OF DISC OR CARD
Use the Go To function (p. 61) or Disc
Navigation function (p. 103) to play back from
the start of disc or card.
12
SEARCH PLAYBACK OF MOVIE
During playback, press the d or c button and
hold it: Search playback will start.
Hold down c :
Scenes will be visually scanned forward.
Hold down d :
Scenes will be visually scanned backward.
Release the d or c button when you find the
desired image:
Normal playback will start from that point.
Note:
• See page 158 if search playback does not operate
normally.
12
FRAME ADVANCE/FRAME BACK/SLOW PLAYBACK OF MOVIE
During playback pause, press the d or c
button: Frame advance, frame back or slow
playback will start.
Press c once:
Picture will advance one frame.
Press d once:
Picture will go back one frame.
Hold down c :
Forward slow playback.
Hold down d :
Reverse slow playback.
After frame advance, frame back or slow
playback, the DVD video camera/recorder will
enter the playback pause status.
Note:
• In slow playback, a rapidly moving subject image may
be distorted.
• The intervals for playing back frames in frame
advance/frame back/slow playback are as follows:
Frame advance and forward slow: Approx. 0.03
second
Frame back and reverse slow: Approx. 0.5 second
• No sound will be heard during search playback or
slow playback.
English
60
12
SKIP PLAYBACK OF MOVIE
During playback, press the f or e button to
locate the start of desired scene.
Press e once:
To skip to the first image of the scene
following the one being played back, and start
playback.
Press f once:
To return to the first image of the scene being
played back, and start playback.
Hold down e :
To continuously locate the beginnings of
scenes, starting from the scene following the
scene being played back. When the desired
image appears, release the button: Playback
will start from that point.
Hold down f :
To continuously locate the beginnings of
scenes backward, starting from the scene
preceding the scene currently being played
back. When the desired image appears, release
the button: Playback will start from that point.
Note:
• If you perform skip playback during playback pause,
the DVD video camera/recorder will enter the
playback pause status at the beginning of the located
scene.
• Pressing the e button in the last scene on disc will
set the DVD video camera/recorder to the playback
pause status at the last image.
• See “Check 3” on page 158 if skip playback does not
operate normally.
13
PLAYING BACK STILLS
Press the f or e button during playback to
quickly play back stills in sequence.
Press e once:
To display stills one by one forward.
Press f once:
To display stills one by one backward.
[When using disc]
Releasing the f or e button will start
continuous playback.
[When using card]
When the f or e button is released, the
photo at that point will be displayed, and then
the DVD video camera/recorder will enter the
playback pause status.
Set the slide show function for continuous
display (p. 137).
Portion being played back
Press f
twice
Press f
once
Press e
once
Press e
twice
Press f
once
Press e
once
Press e
twice
Scene 1 Scene 2 Scene 3
Scene 1 Scene 2 Scene 3
Portion being played back
Pressing the f button at a portion several seconds
from the start of scene being played back will return
to the start of the scene preceding that being played
back.
English
61
123
JUMPING TO SPECIFIED POINT (GO TO)
1Press the MENU button
during playback.
2Choose the option
(point you want to go
to), and then press the
A button.
Top:
To go to the start, and enter playback pause.
End:
To go to the end of last scene, and enter
playback pause.
Specify:
To go to a specified point and enter playback
pause. See the following for details.
●Specifying the point to view
1Choose “Specify” in step 2 above, and then
press the A button.
The screen for specifying the point to go to
will appear.
2Use the f/e/d/c buttons to select
the desired time of chosen point.
3Press the A button to enter the selection.
The DVD video camera/recorder will go to
the specified point and enter the playback
pause status.
Pressing A again will start playback.
To cancel the “Go To” procedure midway, press
the C button before going to the specified point.
Note:
• If multiple scenes are selected using the Disc
Navigation function or SELECT button, choosing
“Top” will jump to the beginning of selected scenes
(p. 131).
• When multiple scenes are selected, the total time of
selected scenes will appear in the “total recording
time” display.
• With card, the number of stills will appear at the
“TOP”, “CURRENT”, “END” and “GO TO” indicators.
• The cursor may not move at same-pitch intervals.
Go To
RAM
ENTER RETURN
End
Specify
Top
Press f : To select the start.
Press e : To select the end.
Press d or c :
• Press once:
To move the cursor in 10-second units
(1-still units for card)
• Hold down:
To move the cursor in 1-minute units
(10-still units for card)
GO TO
0:00:00 0:24:240:03:26
0:03:26
TOP ENDCURRENT
TOP END ENTER CANCEL
Go to
Position of currently
played back image
Total recording time of
all selected scenes
Cursor
Cursor position
GO TO
0:00:00 0:24:240:03:26
0:00:00
TOP ENDCURRENT
TOP END ENTER CANCEL
Go to
(When the start of scene is selected)
Cursor at current image position.
Cursor at (GO TO) position.
English
62
123
On-Screen Information Display
INFORMATION DISPLAY DURING PLAYBACK
Various types of information on recording will be superimposed on playback image you are viewing.
●Switching the information display
mode
Press the DISPLAY button: You can switch the
display mode of on-screen information.
When using disc:
When using card:
• Recording date/time display: Shows the date/
time when recording was started. Even when
playback starts, the date/time display will not
advance.
• No display: No information will appear.
However, when the mode of playback
operation is switched, the symbol will appear
for approx. 3 seconds.
Note:
See “Using Disc Navigation” on page 103 and later for
explanation on program and play list.
9/30/2005
9:27
A
M
No display Playback information
display
Recording date/time
RAM
00606 0:00:16
Recording mode
*1
Scene No. Repeat play
*5
Program No. or Play List
No.
*3
Program or Play List
*2
Counter
Disc type
*4
Playback
operation
*6
003 100—0003
Recording mode
*1
Scene No. File name Lock
*5
Playback operation
*6
Slide Show
*5
*1
O (VIDEO) or N (PHOTO) with disc;
Only E (PHOTO) with card.
*2
678 Program or 12345 Play List
*3
Number of program or play list being played
back (not displayed when all programs are
being played back)
*4
Refer to “Disc/Card type” on page 54.
*5
Y : Will appear when each function is
specified “On”
*6
F :Standard playback
b : Playback pause
c : Forward search playback
d : Reverse search playback
e :Forward skip playback
f : Reverse skip playback
g : Forward frame advance
h : Reverse frame back
Refer to “Playing Back” beginning on page 58
for how to operate.
The “j” mark will appear on the first image
on disc.
The “i” mark will appear on the last image
on disc.
English
63
Checking Flow of Quick Menu
The following two on-screen menu modes are available with this DVD video camera/recorder:
• Quick Menu: To display only the fundamental menu items for first timers
• Normal Menu: To display all menu items for experts (p. 84)
While the camera image is being displayed on the LCD monitor, press the QUICK MENU button:
The Quick Menu will appear.
Only the fundamental menu items will appear in the Quick Menu, and the explanation of the
function on which the cursor is positioned will be displayed across the bottom of menu (No
explanation on function will appear in the Normal Menu.).
Use the f/e/d/c buttons to select a menu item, and then press the A button to choose
the option.
See “Operating Menu” shown below for how to set the menu.
No menu appears during recording.
1Press the QUICK MENU button.
<How to interpret the menu screen>
Camera Functions
Qu i ck
M
enu
16:9
Input Source
Select the
m
ovie qual i ty.
ENTER RETURN RA
M
VIDEO
M
ode FINE
Selection of setup items
T : Record Functions Setup
U : Date Setup
W : Initial Setup
Functions settable
Display of disc or card being
used (p. 52)
Options settable
Guide display
Explanation on function
English
64
●Operating Menu
You can use the f/e/d/c buttons on DVD video camera/recorder to select various setting
options in Quick Menu and designate them.
When using the Normal Menu (p. 85) and Disc Navigation Menu (p. 108), use the same procedure to
choose any menu item and determine the option.
Note:
• Pressing the QUICK MENU button during recording will not work.
• The menu screen will disappear when it is left for approx. one minute without any operation.
QUICK
MENU
Qu i ck
Menu
16:9 : Of f
Input Source : CA
M
ERA
M
enu about record funct ions
setup.
ENTER RETURN RA
M
VIDEO
M
ode : FINE
Qu i ck
Menu
Da t e Set
M
enu about date setup.
ENTER RETURN RA
M
Qu i ck
Menu
16:9
Input Source
Select the
m
ov ie qual i t y.
ENTER RETURN RA
M
VIDEO
M
ode FINE
Press the A button directly to choose an option from menu.
To return to the screen one before, press the C button.
Pressing the QUICK MENU button again will cause the Quick
Menu display to disappear.
Press the QUICK MENU button.
Press c or A
Press d or C
Press fPress e
English
65
12
FLOW OF QUICK MENU WHEN RECORDING MOVIE:
The following shows the menu when DVD-RAM disc is being used:
The details of each function are described on the pages showing the Normal Menu: See each
reference page.
●Record Functions Setup
●Date Setup
Qu i ck
Menu
16:9 : Of f
Input Source : CA
M
ERA
M
enu for record functions
setup.
ENTER RETURN RA
M
VIDEO
M
ode : FINE
Qu i ck
Menu
16:9
Input Source
Select the
m
ov ie qual i t y.
ENTER RETURN RA
M
VIDEO
M
ode FINE
Qu i ck
Menu
16:9 FINE
Input Source STD
Fine I
m
age Qual i ty.
ENTER RETURN RA
M
VIDEO
M
ode XTRA
Qu i ck
Menu
16:9
Input Source CA
M
ERA
Select the receiving i
m
age.
ENTER RETURN RA
M
VIDEO
M
ode
Qu i ck
Menu
16:9 CA
M
ERA
Input Source LINE
SLINE
Usua l ly select this opt ion.
ENTER RETURN RA
M
VIDEO
M
ode
Qu i ck
Menu
16:9 On
Input Source Of f
Recording by 4:3.
ENTER RETURN RA
M
VIDEO
M
ode
(p. 91)
(p. 92)
*
* Displayed on DZ-GX20A
and DZ-MV780A only.
(p. 94)
Qu i ck
Menu
16:9 Of f
Input Source
16:9
m
ode is set.
ENTER RETURN RA
M
VIDEO
M
ode
Qu i ck
Menu
Da t e Set
M
enu for date setup.
ENTER RETURN RA
M
Qu i ck
Menu
Da t e Set 9/30/2005
8:00A
M
Set the cur rent date and
ti
m
e.
ENTER RETURN RA
M
(p. 37)
English
66
●Initial Setup
1
FLOW OF QUICK MENU WHEN RECORDING PHOTO (DISC):
The following shows the menu when DVD-RAM disc is being used:
The details of each function are described on pages showing the Normal Menu: See each reference
page.
●Record Functions Setup
Qu i ck
Menu
Language : Engl i sh
De
m
o
M
ode : Auto
Reset
M
enu for Ini t ial setup.
ENTER RETURN RA
M
Qu i ck
Menu
Language Eng l i sh
De
m
o
M
ode
Reset
Change the l anguage display.
ENTER RETURN RA
M
Qu i ck
Menu
Language Français
De
m
o
M
ode Españo l
Reset Deu t sch
Change the l angu Italiano
ENTER RETURN RA
M
Engl i sh
Qu i ck
Menu
Language
De
m
o
M
ode Au t o
Reset
Select de
m
onst rat ion
m
ode
set t ing.
ENTER RETURN RA
M
Qu i ck
Menu
Language Auto
De
m
o
M
ode Of f
Reset Star t
Start de
m
onst rat ion af ter
approx. 3
m
inutes.
ENTER RETURN RA
M
Qu i ck
Menu
Language
De
m
o
M
ode
Reset
M
enu setup is returned to
initial state except date.
ENTER RETURN RA
M
(p. 101)
(p. 154)
(p. 102)
Qu i ck
Menu
Se l f Ti
m
er : Off
M
enu for record functions
setup.
ENTER RETURN RA
M
Input Source : CA
M
ERA
Qu i ck
Menu
Se l f Ti
m
er
Select the receiving i
m
age.
ENTER RETURN RA
M
Input Source CA
M
ERA
Qu i ck
Menu
Se l f Ti
m
er LINE
SLINE
Usua l ly select this opt ion.
ENTER RETURN RA
M
Input Source CA
M
ERA
Qu i ck
Menu
Se l f Ti
m
er Of f
Select the self ti
m
er.
ENTER RETURN RA
M
Input Source
(p. 94)
Qu i ck
Menu
Se l f Ti
m
er On
Of f
Cancel the sel f t i
m
er
recording.
ENTER RETURN RA
M
Input Source
(p. 96)
English
67
●Date Setup
●Initial Setup
Note:
No photo can be recorded on DVD-R disc.
Qu i ck
Menu
Da t e Se t
M
enu for date setup.
ENTER RETURN RA
M
Qu i ck
Menu
Da t e Se t 9/30/2005
8:00A
M
Set the current date and
ti
m
e.
ENTER RETURN RA
M
(p. 37)
Qu i ck
Menu
Language : Engl i sh
De
m
o
M
ode : Auto
Reset
M
enu for Ini t ial setup.
ENTER RETURN RA
M
Qu i ck
Menu
Language Eng l i sh
De
m
o
M
ode
Reset
Change the language display.
ENTER RETURN RA
M
Qu i ck
Menu
Language Français
De
m
o
M
ode Españo l
Reset Deu t sch
Change the l angu Italiano
ENTER RETURN RA
M
Engl i sh
Qu i ck
Menu
Language
De
m
o
M
ode Au t o
Reset
Select de
m
onst rat ion
m
ode
set t ing.
ENTER RETURN RA
M
Qu i ck
Menu
Language Auto
De
m
o
M
ode Of f
Reset St a r t
Start de
m
onst rat ion af ter
approx. 3
m
inutes.
ENTER RETURN RA
M
Qu i ck
Menu
Language
De
m
o
M
ode
Reset
M
enu setup is returned to
initial state except date.
ENTER RETURN RA
M
(p. 101)
(p. 154)
(p. 102)
English
68
3
FLOW OF QUICK MENU WHEN RECORDING PHOTO (CARD):
The details of each function are described on pages showing the Normal Menu: See each reference
page.
●Record Functions Setup
●Date Setup
Qu i ck
Menu
Input Source : CA
M
ERA
Se l f Ti
m
er : Off
M
enu for record funct ions
setup.
ENTER RETURN
Qua l i t y : F INE
Qu i ck
Menu
Input Source CA
M
ERA
Se l f T i
m
er LINE
SLINE
Usua l ly select this opt ion.
ENTER RETURN
Qua l i t y
Qu i ck
Menu
Input Source
Se l f T i
m
er Of f
Select the self ti
m
er.
ENTER RETURN
Qua l i t y
Qu i ck
Menu
Input Source
Se l f T i
m
er On
Of f
ENTER RETURN
Qua l i t y
Cancel t he se l f t i
m
er
recording.
Qu i ck
Menu
Input Source CA
M
ERA
Se l f Ti
m
er
Select the receiving i
m
age.
ENTER RETURN
Qua l i t y
Qu i ck
Menu
Input Source
Se l f Ti
m
er
Select the photo quality.
ENTER RETURN
Qua l i t y FINE
Qu i ck
Menu
Input Source NOR
M
Se l f T i
m
er ECO
Fine I
m
age Qual i ty.
ENTER RETURN
Qua l i t y F INE
(p. 94)
(p. 96)
(p. 94)
Qu i ck
Menu
Da t e Set
M
enu for date setup.
ENTER RETURN
Qu i ck
Menu
Da t e Set 9/30/2005
8:00A
M
Set the cur rent date and
ti
m
e.
ENTER RETURN
(p. 37)
English
69
●Initial Setup
While Disc Navigation screen is being displayed on the LCD monitor, press the QUICK MENU
button: The Quick Menu will appear.
Only the fundamental menu items will appear in the Quick Menu, and the explanation of the
function on which the cursor is positioned will be displayed across the bottom of menu (except
during recording).
1Press the DISC NAVIGATION button. 2Select a scene, and then press the QUICK
MENU button.
Disc Navigation Functions
Qu i ck
Menu
Language : Engl i sh
De
m
o
M
ode : Auto
Reset
M
enu for Ini t ial setup.
ENTER RETURN
Qu i ck
Menu
Language Eng l i sh
De
m
o
M
ode
Reset
Change the l anguage display.
ENTER RETURN
Qu i ck
Menu
Language Français
De
m
o
M
ode Españo l
Reset Deu t sch
Change the l angu I tal iano
ENTER RETURN
Engl i sh
Qu i ck
Menu
Language
De
m
o
M
ode Au t o
Reset
Select de
m
onst rat ion
m
ode
set t ing.
ENTER RETURN
Engl i sh
Qu i ck
Menu
Language Auto
De
m
o
M
ode Off
Reset St a r t
Start de
m
onst rat ion af ter
approx. 3
m
inutes.
ENTER RETURN
Engl i sh
Qu i ck
Menu
Language
De
m
o
M
ode
Reset
M
enu setup i s returned to
initial state except date.
ENTER RETURN
Engl i sh
(p. 102)
(p. 101)
(p. 154)
English
70
1
FLOW OF QUICK MENU (WITH DVD-RAM DISC):
The details of each function are described on pages showing the Normal Menu: See each reference
page.
●Scene
●Disc
●Others
ETC
Qu i ck
M
enu
Effect
Copy
ENTER RETURN RA
M
Ed i t
M
enu for scene.
ETC
Qu i ck
M
enu
Effect Delete
Copy
Ed i t scene.
ENTER RETURN RA
M
Ed i t Divide
ETC
Qu i ck
M
enu
Effect Fade
Copy
Scene effect is setup.
ENTER RETURN RA
M
Ed i t
ETC
Qu i ck
M
enu
Effect Fade
Copy
Add fading to the beginning
and/or end of scene.
ENTER RETURN RA
M
Ed i t
ETC
Qu i ck
M
enu
Effect
Copy
Copy the selected photo
to card.
ENTER RETURN RA
M
Ed i t
ETC
Qu i ck
M
enu
Effect Delete
Copy
Divide scene.
ENTER RETURN RA
M
Ed i t Di v ide
ETC
Qu i ck
M
enu
Effect Delete
Copy
Delete selected scene.
ENTER RETURN RA
M
Ed i t Divide
(p. 112)
(p. 117)
(p. 114)
(p. 110)
ETC
Qu i ck
M
enu
For
m
at Disc
ENTER RETURN RA
M
M
enu f or di sc.
ETC
Qu i ck
M
enu
For
m
at Disc
Disc For
m
at.
ENTER RETURN RA
M
(p. 132)
ETC
Qu i ck
M
enu
Repea t P l ay : Of f
ENTER RETURN RA
M
Oth er s
M
enu
ETC
Qu i ck
M
enu
Repea t P l ay Of f
Select the repeat play
set t ing.
ENTER RETURN RA
M
ETC
Qu i ck
M
enu
Repea t P l ay On
Of f
Cancel repeat play.
ENTER RETURN RA
M
(p. 136)
English
71
2
FLOW OF QUICK MENU (WITH DVD-R DISC):
The details of each function are described on pages showing the Normal Menu: See each reference
page.
●Disc
●Others
Note:
The menu item “Finalize Disc” will not appear with a finalized DVD-R disc.
3
FLOW OF QUICK MENU (WITH CARD):
The details of each function are described on pages showing the Normal Menu: See each reference
page.
ETC
Qu i ck
M
enu
ENTER RETURN R
Finalize Disc
M
enu f or d i sc.
ETC
Qu i ck
M
enu
Finalize DVD-R disc.
ENTER RETURN R
Finalize Disc
(p. 135)
ETC
Qu i ck
M
enu
Repea t P l ay : Of f
ENTER RETURN R
Oth er s
M
enu
ETC
Qu i ck
M
enu
Repea t P l ay Of f
Select the repeat play
set t ing.
ENTER RETURN R
ETC
Qu i ck
M
enu
Repea t P l ay On
Of f
Cancel repeat play.
ENTER RETURN R
(p. 136)
Qu i ck
M
enu
ENTER RETURN
De l e te
M
enu for scene.
Qu i ck
M
enu
Delete selected photo.
ENTER RETURN
De l e te
Qu i ck
M
enu
For
m
at Card
ENTER RETURN
M
enu for card.
Qu i ck
M
enu
For
m
at Card
Card For
m
at.
ENTER RETURN
Qu i ck
M
enu
Start
ENTER RETURN
Sl ide show of al l scenes.
Qu i ck
M
enu
Start
Star t sl ide show.
ENTER RETURN
(p. 110)
(p. 132)
(p. 137)
English
72
123
Manually Focusing Subject
The DVD video camera/recorder usually focuses on a subject automatically (autofocus). You can also
manually focus a subject depending on the recording conditions.
FOCUSING DURING RECORDING
Normally, the DVD video camera/recorder automatically focuses the subject (auto-focus), but you
can also manually focus a subject, depending on the recording conditions (manual focus).
Focusing range
You can switch the display mode of on-screen information:
• On T (tele) side: approximately 3.2 feet (1 m) from lens surface to infinity
• On W (wide) side: approximately 13/16" (2 cm) from lens surface to infinity
1Press the FOCUS button during recording.
“MF” will appear on the screen.
2Press the zoom lever to “T” control side to
zoom in on subject.
3Use the S R buttons to adjust the focus,
while viewing the image in the viewfinder or
on the LCD screen.
Note:
• Pressing FOCUS will alternate between manual focus
and auto focus. With auto focus, no indication will
appear on the screen.
• Be sure to zoom in on your subject before manually
focusing on it. If you bring the subject into focus at the
“W” control side, focus will be faulty when you turn the
zoom lever to the “T” control side to zoom in on the
subject.
• Manual focus is released when the DVD video
camera/recorder is turned off. When you turn the DVD
video camera/recorder on next time, auto focus will be
restored.
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/3 0/2005
Manual Focus icon
VOL.
FOCUS
Adjust with S and R buttons
English
73
Manually focus the following objects, which may not be automatically focused (see page 72):
Objects not in
the center of
screen
Objects that
are far and
near at the
same time
Objects with
little variation
in brightness,
such as white
wall
Objects
moving rapidly
Dark objectsObjects lit by
neon sign,
spotlight, etc.
which glares
or emits
strong light
Object behind
glass with
water
droplets, dirt
on it
Night view
English
74
123
Adjusting Brightness of Image to be recorded
(Exposure)
The DVD video camera/recorder usually adjusts the exposure automatically. You can also manually
adjust the exposure depending on the recording conditions.
1Press the EXPOSURE button during
recording.
The exposure adjustment bar will appear on
the screen.
2Use the S R buttons to adjust the exposure,
while viewing the image in the viewfinder or
on the LCD screen.
Note:
• Pressing EXPOSURE will alternate between manual
adjustment and auto exposure. With auto exposure,
no indication will appear on the screen.
• The exposure setting will return to Auto when the
DVD video camera/recorder is turned off.
123
Compensating for Backlight
1
Press the BLC button during recording.
The backlight correction icon will appear.
Note:
• Pressing the BLC button will alternate between
backlight setting between on and off.
• The backlight setting will automatically return to “off”
when the DVD video camera/recorder is turned off.
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/3 0/2005
Exposure adjustment bar
VOL.
EXPOSURE
Adjust with S and R buttons
When subject is lighted from rear, this function will compensate for lighting so that the subject is not
too dark.
BLC
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
Backlight correction icon
English
75
12
Using External Microphone
Connect external microphone (generally available) to the external microphone jack of this DVD
video camera/recorder. Clearer sound can be recorded. Turn on the switch on external microphone
and start recording. For details on external microphone, see “Major Specifications” on page 175.
Note:
• Depending on the shape of its plug, an external microphone cannot be plugged in, while the cable is left plugged
in the AV/S input/output terminal. Unplug the AV/S input/output cable to use the external microphone.
• This DVD video camera/recorder cannot use a plug-in power type microphone. (Power is not supplied from this
DVD video camera/recorder.)
To external
microphone jack
English
76
13
Built-in Video Flash (for DZ-GX20A only)
When recording photos in a dark place, or if the subject is lit from rear, the DZ-GX20A makes use of
the built-in Video Flash for automatic brightening: The Video Flash can also be set to On where the
light is always being emitted, or Off when you wish to record without using the flash even in a dark
place.
1Press the MENU button, and choose Flash
from the Camera Functions Setup menu.
2Choose the option for Flash and decide it.
3Press the MENU
button to end the
setting.
* Displayed when
using DZ-GX20A
to record photo
(not displayed
when the optional
Video Flash is
connected)
●Optional Video Flash (for DZ-
GX20A or DZ-MV780A only)
See “Introduction to Optional Accessories” on
page 151.
You can use the optional DZ-FLH3 Video Flash*
(p. 151): Refer to the instruction manual of Video
Flash for use.
* Unavailable for DZ-MV730A.
Note:
• The built-in Video Flash setting will not change even
when the DVD video camera/recorder is turned off.
Unless recording is to be made with the fixed Flash
setting, it is recommended to return it to “Auto” after
recording with the “On” or “Off” setting, before turning
the DVD video camera/recorder off.
• When recording dark subjects, the shutter speed will
be slower, so don’t let the camera shake.
• However, dark subjects may not be in clear focus
even if the Video Flash is used. It is recommended
that you light a subject when recording in a dark
place.
• The built-in Video Flash cannot be used when a
conversion lens is attached: Specify “Flash: Off”.
• The Video Flash automatically adjusts the amount of
light emitted, but the light amount adjustment may be
insufficient when a subject is too far away or too near.
• The distance for the built-in Video Flash to adjust the
appropriate amount of light will vary depending on the
subject, but it is approximately 3.2 – 8.2 feet
(1 – 2.5 m).
• When recording a close-up photo, specify Flash: Off.
Using the flash too near subject could cause a whitish
image.
• “ ( ” will blink during charging of the battery for Video
Flash.
• While “ ( ” is flashing, the video flash will not emit
light, though the DVD camera/recorder is recording.
• Do not use the Video Flash when approaching the
human eye. Emitting light from Video Flash near
human eye could damage the subject’s eyesight.
Especially when recording a baby or small child,
move the DVD video camera/recorder at least 3.2 feet
(1 m) away.
• Do not use the Video Flash while pointing it at a driver
in vehicle: Doing so could dazzle the driver, causing
an accident.
• Do not use the Video Flash in a place where there is
flammable or explosive gas: Doing so could cause fire
or explosion.
• When the DZ-FLH3 is attached to DZ-GX20A, the
built-in video flash in DZ-GX20A will not operate.
Setting On-screen display Manner of emitting light
Auto
( when the PHOTO button is
pressed
Automatically emits light in dark place or in a spot lit
from rear.
On
(
Always emits light regardless of brightness.
Off
)
No light emission.
Progra
m
AE
W
hi te Bal.
Flash
Dig.Z
oom
On
Au to
ENTER RETURN
RAM
Off
Ca
m
era Functions Setup
394
REM
8:00AM
9/30/2005
*
English
77
123
Viewing on TV Screen
Connecting to a TV
CONNECTING TO A TV
Use the provided AV/S input/output cable to connect the DVD video camera/recorder to a TV as
follows:
Note:
• Using S-VIDEO will deliver clearer playback status.
• Before connecting, make sure that the volume on TV
is turned down: Forgetting this may cause howling
(see “Terminology”, p. 155) from the TV speakers.
• Insert the AV/S input/output cable plugs into jacks
straight: Obliquely inserting them could damage the
jacks.
* If your TV has an S-VIDEO input jack, you can connect the S-VIDEO plug to it.
To AV input/output jack
AV/S input/output cable
(provided)
To video/audio
input jacks
Red
Yellow
White
To S-VIDEO
input jack*
S-VIDEO VIDEOAUDIO
LR
VIDEOAUDIO
LR
VIDEOAUDIO
Stereo Type with
S-VIDEO Jack
Stereo Type Monaural Type
Red White
Red
YellowWhite
Yellow
White
English
78
123
VIEWING ON TV SCREEN
1Turn the TV on and set the input selector to
“VCR” whichever applicable Video input.
Refer to the TV instruction manual for how to
switch the TV input.
2Turn the DVD video camera/recorder on.
The image that the DVD video camera/
recorder is seeing will appear on the TV
screen.
You can also monitor the image on the LCD
screen or viewfinder of the DVD video
camera/recorder.
3Perform playback, recording or editing.
You can perform playback, editing or editing
on Disc Navigation while checking on TV
screen.
Note:
• Adjust the volume of sound on TV.
• The infrared remote control is useful when operating
the DVD video camera/recorder while viewing an
image on TV screen. However, if you use a Hitachi
VCR, the remote control may inadvertently operate
the VCR if it is near the DVD video camera/recorder.
To prevent this, set the remote control code of the
VCR to a position other than “VCR2”.
• Information that the DVD video camera/recorder is
recording will appear on the TV screen: You can also
display only part of information or switch off the
display. Refer to “SETTING ON-SCREEN DISPLAY
OUTPUT ON OR OFF (OSD OUTPUT)” on page 97,
and press the DISPLAY button to switch the display
status.
• When copy-guarded disc is played back, no image will
appear on TV screen.
• If you use TV with wide mode (aspect ratio 16:9) and
set the TV to the wide mode, the entire Disc
Navigation display may not be displayed on the TV
screen. If this happens, release the wide mode setting
on TV (see the TV instruction manual for releasing the
wide mode).
English
79
12
Playback on DVD Recorder/Player
PLAYING BACK DVD-RAM DISC
You can use a DVD recorder (see “Terminology”, p. 155) or DVD player that conforms to DVD-RAM to
play back 8 cm DVD-RAM discs recorded on this DVD video camera/recorder.
1Insert the disc into the DVD recorder/player
and play it back.
See the instruction manual for DVD
recorder/player.
Note:
• When playing back disc on another device, the Disc
Navigation display will be different from the one on
this DVD video camera/recorder.
PLAYING BACK DVD-R DISC
1Finalize a recorded DVD-R disc.
You need to finalize (see “Terminology”,
p. 155) a disc to play it back on DVD player:
See page 135.
No further data can be recorded on finalized
disc.
Note:
Use this DVD video camera/recorder to finalize the
DVD-R disc recorded on the DVD video camera/
recorder.
2Insert the disc into the DVD player and play
it back.
See the instruction manual for DVD player.
Note:
• Do not insert a DVD-R disc that has not been finalized
into any DVD recorder: The disc may be unusable
(except for devices that allow playback of a DVD-R
disc not finalized on this DVD video camera/recorder).
• DVD-R discs recorded on this DVD video camera/
recorder or other 8 cm DVD-R discs can be played
back on other DVD players or other devices
conforming to 8 cm DVD-R, but playback on all DVD
players is not guaranteed.
• Playback may not be possible on some DVD players,
or it may depend on the recorded status of DVD-R
discs: In such cases, play back the DVD-R disc on
this DVD video camera/recorder. Also, playback on
DVD players may stop momentarily between scenes.
English
80
13
Recording (Dubbing) Images
RECORDING (DUBBING) IMAGES FROM OTHER VIDEO DEVICE
You can record (dub) images from other video devices to disc or card in this DVD video camera/
recorder.
Use the AV/S input/output cable (provided) to connect the DVD video camera/recorder to the
other video device as follows:
1Set the input source on
the DVD video camera/
recorder to “LINE (L
IN)”.
Switch the input
referring to “Input
Source” on page 94.
Choose “S LINE” to input S-VIDEO signal
(only for DZ-GX20A or DZ-MV780A).
2Turn on the connected device, and start
playback.
The picture will appear on the LCD screen or
viewfinder of this DVD video camera/
recorder.
3Press the REC button.
Recording will start on this DVD video
camera/recorder.
The operation of this line-input recording is
the same as for recording movie.
Press the PHOTO button when recording a
photo.
Before You Begin
• Before connecting this DVD video camera/recorder to another device,
be sure to turn both devices off.
• Insert a recordable DVD-RAM disc or card* into this DVD video camera/
recorder (see p. 24, 27).
* Only photos can be recorded: No video can be recorded.
* If you are using DZ-GX20A or DZ-MV780A, and the connected AV device has an S-VIDEO output jack, you can
connect the S-VIDEO jack of AV/S input/output cable.
To AV input/output jack
AV/S input/output cable
(provided)
To video/audio
output jacks
Red
Ye l l o w
White
To S-VIDEO
output jack of
VCR, etc.*
Signal flow
3 0 MIN
0:00:00
REM
FINE
L IN
8:00AM
9/30/2005
English
81
Note:
• If you operate the DVD video camera/recorder
connected to another device, always power the
camera/recorder from AC outlet using the AC adapter/
charger.
• If you use a Hitachi VCR, it will be operated by the
remote control provided with the DVD video camera/
recorder. When recording an image from a Hitachi
VCR, change the remote control code of the VCR to
other than “VCR2”.
• With DZ-GX20A or DZ-MV780A, using S-VIDEO will
enable you to record clearer images.
• The DZ-MV730A cannot record S-VIDEO input.
• Reduce the volume of external input sound heard
from the built-in speaker: The loud volume may cause
noise to enter the recorded image.
• The recorded contents can be played back in the
same manner as when playing back camera images
recorded on this DVD video camera/recorder.
• The “Input Source” setting will return to “CAMERA”
whenever DVD video camera/recorder is turned off.
• Recording of most images is prohibited by the copy-
guard signal to protect the copyright, except for
images recorded on camcorders for personal
enjoyment. “COPY PROTECTED” appears in these
images: They cannot be recorded on this DVD video
camera/recorder.
Typical copyright protected images include those of
DVD video, LD, recorded video tapes, some parts of
digital satellite broadcasts, etc.
• If a video signal that cannot be read by this DVD
video camera/recorder is present – even in images
recorded on camcorder for personal enjoyment
without copy-guard signal – the input image may not
be recorded normally.
• If the input signal is interrupted by switching the
channel on TV or switching the signal using video
selector (see “Terminology”, p. 155), normal recording
cannot be performed.
English
82
RECORDING (DUBBING) IMAGES FROM OTHER VIDEO CAMERAS
You can record (dub) images from other video cameras on a DVD-RAM disc or card* in DVD video
camera/recorder. Use the AV/S input/output cable (provided) to connect the DVD video camera/
recorder to the other video camera.
1Set the input source on
the DVD video camera/
recorder to “LINE (L
IN)”.
Switch the input
referring to “Input
Source” on page 94.
Choose “S LINE” to input S-VIDEO signal
(only for DZ-GX20A or DZ-MV780A).
2Turn on the connected device, and start
playback.
The picture will appear on the LCD screen or
viewfinder of this DVD video camera/
recorder.
3Press the REC button.
Recording will start on this DVD video
camera/recorder.
The operation of this line-input recording is
the same as for recording movie.
Note:
• With DZ-GX20A or DZ-MV780A, using S-VIDEO will
enable you to record clearer images.
• Reduce the volume of external input sound heard
from the built-in speaker: The loud volume may cause
noise to enter the recorded image.
• Still images can also be recorded on DVD-RAM disc
or card. See “SWITCHING EXTERNAL INPUT
RECORDING METHOD (PHOTO INPUT)” on
page 95 for details, and “Recording Stills” on page 51
for how to record still images.
*1: The AV/S input/output cable provided with this DVD video camera/recorder can be directly connected to some
video cameras.
*2: If the video camera to be connected has an S-VIDEO output jack, you can connect it to the DVD video camera/
recorder (only for DZ-GX20A or DZ-MV780A).
To S-VIDEO output
jack of video
camera, etc.
*2
DVD video camera,
8mm video camera,
VHS video camera,
etc.
3 relay adapters
(generally available)
Signal flow
To AV input/
output jack
AV/S input/output cable (provided)
*1
* Only photos can be recorded: No video can be recorded.
3 0 MIN
0:00:00
REM
FINE
L IN
8:00AM
9/30/2005
English
83
RECORDING (DUBBING) IMAGES ON OTHER VIDEO DEVICES
You can record (dub) images played back on this DVD video camera/recorder, on other video
devices.
Use the AV/S input/output cable (provided) to connect the DVD video camera/recorder to another
video device as shown in the following figure:
1Press the DISC NAVIGATION button.
2Select a scene to be played back.
3Set the channel of the connected video device
to an external input.
4Press the playback (A) button on this DVD
video camera/recorder and the record button
on connected device: The DVD video
camera/recorder will start playback and the
recorded device will record (dub) it.
Note:
• Using an S-VIDEO jack will deliver clearer images.
• Audio is heard from the speaker: If the volume is too
high, noise may enter the dubbed image.
• It is recommended that you use Disc Navigation to
create a play list including the scenes to be dubbed
among the scenes recorded on this DVD video
camera/recorder (p. 124).
• Be sure to use the AC adapter/charger to power the
DVD video camera/recorder from AC outlet, to prevent
battery power from shutting off during recording on
another video device.
• If you are using a Hitachi VCR, using the remote
control provided with this DVD video camera/recorder
may operate the VCR. To record (dub) images from
the DVD video camera/recorder to Hitachi VCR,
change the remote control code of VCR to a position
other than “VCR2”.
* If the video device to be connected has an S-VIDEO input jack, you can connect it to the DVD video camera/
recorder.
Signal flow
To AV input/output jack
AV/S input/output cable
(provided)
To video/audio
input jacks
Red
To S-VIDEO
input jack of
VCR, etc.
*
Yellow
White
English
84
Advanced Techniques
This section explains about various settings to further extend the usefulness of this DVD
video camera/recorder.
Checking Flow of Normal Menu
The following two on-screen menu modes are available with this DVD video camera/recorder:
• Quick Menu: To display only the fundamental menu items for first timers (p. 63)
• Normal Menu: To display all menu items for experts
Press the MENU button while the camera image is being displayed on the LCD monitor: The Normal
Menu will appear.
Use the f/e/d/c buttons to select a menu item, and then press the A button to choose
the option.
See page 64 for the setting method.
The screens used here to explain are displayed when DVD-RAM disc is used. Some items will not
appear when a DVD-R disc or card is used, or when no disc is inserted.
No menu appears during recording.
<Menu screen for setting>
Camera Functions
Sports
Portrait
Spo t l i ght
Sand&Snow
Low L i ght
Auto
RAM
Progra
m
AE
W
hi te Bal.
Dig. Zoo
m
MIC.Fi lter
EIS
ENTER RETURN
Camera Funct ions Setup
Display of selected
setup item
Selection of setup items
S : Camera Functions Setup
T : Record Functions Setup
U : Date Setup
V : LCD/EVF Setup
W : Initial Setup
Functions settable
Display of disc or card
being used (p. 54)
Options settable
Guide display
English
85
●Flow of Normal Menu
Refer to page indicated for details of each function.
Camera Functions Setup
*6
Program AE (p. 86)
White balance (p. 88)
EIS
*1
(p. 90)
Digital zoom (p. 56)
Microphone filter
*2
(p. 90)
Flash
*3
(p. 76)
Record Functions Setup
Movie quality
*4
(p. 91)
16:9
*5
(p. 92)
Input selection (p. 94)
External still input
*6 *9
(p. 95)
Self-timer
*7
(p. 96)
On-screen information display output
*8*9
(p. 97)
Date Setup
Date setting (p. 37)
Display format
*9
(p. 38)
LCD/EVF Setup
*9
Adjust (p. 98)
EVF Display (p. 99)
Initial Setup
Beep
*9
(p. 100)
Power save
*9
(p. 100)
Recording LED
*9
(p. 101)
Language selection (p. 101)
Demo mode (p. 154)
Reset (p. 102)
*1: Not displayed when DZ-GX20A or DZ-MV780A is in
“N” or “P” status.
*2: Displayed only in “O” status.
*3: Displayed when DZ-GX20A is recording a photo
(not displayed when the optional Video Flash is
connected).
*4: Not displayed with DVD-RAM disc in “N” status.
The quality mode is displayed in “P” status. (p. 94)
*5: Not displayed in “N” or “P” status, or with external
input.
*6: Displayed with DVD-RAM disc in “N” status, or “P”,
and input selection is set to external signal or
S external signal.
*7: Displayed with DVD-RAM disc in “N” status, or “P”
status.
*8: Displayed only when input selection is set to
camera.
*9: Not displayed in Quick Menu.
On
Auto
RAM
Progra
m
AE :
W
hi te Bal. :
Dig. Zoom :
MIC.Fi l ter :
EIS :
ENTER RETURN
40x
Off
Auto
Ca
m
era Funct i ons Setup
RAM
V I DEO Mode : F I NE
Input Source : CAMERA
OSD Ou t pu t : On
ENTER RETURN
Record Funct ions Setup
16:9 :Off
RAM
Da t e Se t
Da t e Mode : M/D/Y
ENTER RETURN
Date Setup
RAM
EVF Di sp lay : Aut o
Ad j ust
ENTER RETURN
LCD/EVF Set up
RAM
De
m
o Mode : Auto
Reset
Language : Engl ish
ENTER RETURN
Beep : O n
Po
w
er Save : Of f
Record LED : On
Initial Setup
English
86
123
Setting Up Camera Functions
SELECTING SHOOTING MODE TO MATCH THE SUBJECT
(SWITCHING PROGRAM AE MODE)
This DVD video camera/recorder automatically detects the status of subject and surrounding
situation and records the optimum image: If you choose the shooting mode to match the recording
conditions, clearer images will be recorded.
1Press the MENU button, use the f/e/
d/c buttons to choose “Program AE” on
the “Camera Functions Setup” screen, and
then press the A button.
The options will appear on the right of
“Program AE”.
2Use the f/e/d/
c buttons to choose
the desired option, and
then press the A
button: The selected
option will be set.
3Press the MENU button to end the setting.
The menu screen will disappear.
Note:
• You can check the selected AE mode by the on-
screen information display. However, nothing will
appear in the Auto mode.
• The shooting mode set as above will be stored in
memory even if the DVD video camera/recorder is
turned off.
• When recording in a dark area, an after-image will
appear when filming a moving subject or if camera
shake occurs (it is therefore recommended that you
use a tripod in such cases).
• If the Sports mode is used under a fluorescent light,
the image may flicker: In this case, use the Auto mode
for recording.
a Auto : The camera/recorder automatically
judges the subject and surrounding environment
for optimum recording.
Sports : Reduces blurring when recording
rapidly moving subjects such as in golf or tennis.
Portrait : Makes a subject, such as a person
or a creature, stand out from a blurred
background.
Spotlight : Prevents overexposure of subject
portrait face, etc. when strong light strikes the
subject, as in a wedding or on stage.
Sand & Snow : Prevents underexposure of
subject portrait face, etc. in a place where
reflection of light is intense, such as at the
seaside in midsummer or on a ski slope.
Low Light : Allows user to record in a dark
place even with decreased lighting.
Turn the LCD monitor 180º during recording:
The LCD monitor light can then be used for
recording.
Before You Begin
• See page 64 for how to set.
• No menu screen appears with external input.
Spor ts
Por t r ai t
Spo t l i ght
Sand&Snow
Low L ight
Auto
RAM
Progra
m
AE
W
hi te Bal.
Dig .Zoo
m
MIC.Fi l ter
EIS
ENTER RETURN
Camera Funct i ons Setup
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
Selected AE mode
MENU
Use f / e / d / c to select,
and then press A to designate.
English
87
RECORDING DARK SUBJECTS USING LCD MONITOR LIGHT
When Program AE is set to Low Light, you can use the light from LCD monitor to record a subject.
1Press the MENU button, and choose
“Program AE” from the “Camera Functions
Setup” menu.
2Choose “Low Light”,
and designate it.
3Press the MENU
button to end the
setting.
4Open the LCD
monitor, turn it
180º so that it faces
the same direction
as the lens: The
LCD monitor will
light white.
Note:
• Use the viewfinder to check the image to be recorded.
• The LCD monitor light allows you to record a subject
up to 3.2 feet (1 m) even in a dark place.
• An after-image will appear when filming a moving
subject or if camera shake occurs (it is recommended
that you use a tripod).
• If a subject cannot be focused properly, manually
adjust the focus (see page 72).
Spor ts
Portrait
Spo t l i ght
Sand&Snow
Low L ight
Auto
RAM
Progra
m
AE
W
hi te Bal.
MIC.Fi l ter
Dig .Zoo
m
EIS
ENTER RETURN
Camera Funct i ons Setup
394
REM
8:00AM
9/30/2005
English
88
ADJUSTING COLOR (WHITE BALANCE)
This DVD video camera/recorder automatically
adjusts the color of subject. Change the white
balance setting depending on the recording
conditions.
1Press the MENU
button, choose “White
Bal.” on the “Camera
Functions Setup” menu
screen, and then press
the A button.
2Choose the desired
option, and then press
the A button.
3Press the MENU button to end the setting.
Note:
• The white balance mode can be confirmed using the
on-screen information.
• The white balance setting will be stored in memory
even when the DVD video camera/recorder is turned
off.
• Do not block the infrared sensor (see “Terminology”,
p. 155) with hand, etc.
• If a tele or wide-conversion lens is used, the auto
white balance may not operate depending on the
recording conditions. If this happens, set to the mode
to match the recording conditions, or manually set the
white balance.
• Be sure to remove the lens cap before turning the
DVD video camera/recorder on: If the DVD video
camera/recorder is turned on with the lens capped,
the white balance will not work normally.
Mode Setting content
On-screen
display
Auto White balance always
automatically adjusted
None
Set You can manually adjust
white balance to match
the light source or
situation (p. 89)
h
Outdoor To record in fine
weather
i
Indoor 1 To record under
incandescent light,
halogen light or bulb-
color type fluorescent
light
j
Indoor 2 To record under
fluorescent light
k
Camera Funct i ons Setup
Set
Outdoor
Indoor 1
RAM
Progra
m
AE
W
hi te Bal.
Dig.Zoo
m
MIC.Fi lter
EIS
ENTER RETURN
Indoor 2
Auto
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
White balance mode
Infrared sensor block
English
89
●Setting white balance manually
1Point the DVD
video camera/
recorder at a white
object so that it fills
the screen. Use an
object that is not
transparent.
If focus is not
correct when the
white object fills the screen, manually focus
the object, referring to “Manually Focusing
Subject” (see page 72).
2Press the MENU
button, choose “White
Bal.”, “Set”, and then
press the A button.
3Hold A pressed until
the “h” indicator
changes from blinking
to a steady light. When
the “h” indicator
lights, the white balance
setting will be
complete.
4Press the C button to
end the setting.
Note:
• The white balance set using the “Set” option will be
stored in memory until it is re-set.
• Do not use a colored object when setting the white
balance: The appropriate tint cannot be set.
• If “Input Source: LINE, S-LINE” has been specified,
you cannot use the “Set” mode of white balance
(p. 94).
• The setting on white balance “Set” may not be
possible in a dark place. Also, the white balance
cannot be set when the zoom bar is in the digital
zoom range (p. 56). In such status, the “h” indicator
will remain blinking. Set the white balance in a bright
place with “Dig. Zoom Off” specified.
• If the recording conditions have changed, re-set the
white balance for appropriate colors.
• The setting will be stored in memory even when the
DVD video camera/recorder is turned off: The “h”
indicator will blink when the DVD video camera/
recorder is turned on next time. Re-set the white
balance as needed.
Thick paper
Set
Outdoor
RAM
Progra
m
AE
W
hi te Bal.
Dig .Zoo
m
EIS
ENTER RETURN
Auto
Indoor 1
Indoor 2
MIC.Fi lter
Camera Funct i ons Setup
RAM
Set EXIT
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
English
90
USING THE ELECTRONIC IMAGE STABILIZER (EIS)
When you use zoom (see page 56) to record a magnified subject image, it will correct fuzziness in the
recorded image.
1Press the MENU
button, choose “EIS” on
the “Camera Functions
Setup” menu screen,
and then press the A
button.
2Choose the “On” or “Off”, and then press the
A button.
3Press the MENU button to end the setting.
●Checking EIS On or Off
You can check EIS On or Off by the on-screen
information display.
After recording with EIS set to “Off”, it is
recommended that you return the setting to
“On” and then turn the DVD video camera/
recorder off, unless you normally record with
“Off” setting.
Note:
• The EIS setting will be stored in memory even when
the DVD video camera/recorder is turned off.
• It is recommended that you specify “EIS Off” when
using the DVD video camera/recorder on a desk or
tripod.
• When “EIS On” is specified, there will be a slight
difference between the actual movement and the
movement on screen.
• Gross camera shake may not be entirely corrected
even if “EIS On” is specified: Firmly hold the DVD
video camera/recorder with both hands.
• EIS may not operate correctly when the tele or wide-
conversion lens is used.
• EIS cannot be used when recording photos on DZ-
GX20A or DZ-MV780A.
RECORDING SUBJECT USING LARGE MAGNIFICATION (DIGITAL ZOOM)
See page 56 for setting on digital zoom.
REDUCING WIND NOISE DURING RECORDING (MIC.FILTER)
When recording sound from the microphone built into this DVD video camera/recorder, you can
reduce wind noise in recording.
If “MIC.Filter: ON” is specified, the low-frequency components in the sound picked up by
microphone will be cut off during recording: This makes it easier to hear the target voice or sound
during playback.
1Press the MENU
button, choose
“MIC.Filter” on the
“Camera Functions
Setup” menu screen,
and then press the A
button.
2Choose the desired option, and then press the
A button.
3Press the MENU button
to end the setting.
Note:
• You can also use the on-
screen display to confirm
that the MIC.Filter has been
set.
• The MIC.Filter setting will be stored in memory even
when the DVD video camera/recorder is turned off.
• The MIC.Filter function will work only during movie
recording.
• The microphone filter function works only with the
built-in microphone: It will not function when using an
external microphone (p. 75).
Progra
m
AE
W
hi te Bal.
Dig.Z
oom
EIS
Off
On
ENTER RETURN
RAM
MIC.Fi lter
Ca
m
era Functions Setup
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
EIS
O
n
RAM
O
ff
Progra
m
AE
W
hi te Bal.
Dig. Zoo
m
MIC.Fi l ter
EIS
ENTER RETURN
Camera Funct i ons Setup
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
Microphone filter icon
English
91
Setting Up Record Functions
12
SWITCHING MOVIE QUALITY (VIDEO MODE)
Choose the movie quality from “XTRA”, “FINE”, “STD”.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“VIDEO Mode” on the
“Record Functions
Setup” menu screen,
and then press the A
button.
2Choose the desired quality mode, and then
press the A button.
3Press the MENU button to end the setting.
Note:
• The movie quality setting will be stored in memory
even when the DVD video camera/recorder is turned
off.
• The “VIDEO Mode” setting will not change even if the
disc is replaced.
• When using DVD-R disc, you cannot switch the
setting on movie quality or wide-screen mode while
recording on the disc: The DVD video camera/
recorder will be automatically set to the movie quality
or wide-screen mode first used with the disc for
recording.
• The movie quality setting is effective only during
movie recording: The setting will not be displayed
during recording of stills.
Block-like noise may appear in recorded image, or the outline of subject image is distorted under the
recording conditions listed below: Pan the DVD video camera/recorder as slowly as possible. (Block
noise is likely to appear in the “STD” mode):
• If there is a complicated pattern in background (as in following figure on left)
• If the DVD video camera/recorder is moved excessively or quickly
• If subject is moving rapidly even when the DVD video camera/recorder is not moving
It is recommended that you record critical subjects in the “XTRA” or “FINE” mode. (p. 28)
FINE
STD
RAM
XTRA
VIDEO Mode
O
SD
O
utput
Input Source
16:9
ENTER RETURN
Record Funct ions Setup
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
Movie quality
(Image when block-like noise occurs) (Image without block-like noise)
English
92
12
SETTING TO WIDE TV SCREEN MODE (16:9 MODE)
When viewing recorded images later on a wide-screen TV (aspect ratio 16:9), specify wide-screen
(16:9) mode “On”: You can also record images with the aspect ratio changed (the aspect ratio with
“Off” is 4:3).
1Press the MENU button, choose “16:9” on the
“Record Setup Functions” menu screen, and
then press the A button.
2Choose “On”, and then press the A button.
3Press the MENU button to end the setting.
When viewing playback on an ordinary TV screen later, specify “16:9 Off”: Recording with “16:9 On”
specified will be played back on an ordinary TV with longer vertical direction of image.
An image recorded with “16:9 On” specified will appear as follows:
“16:9 Off” specified
(aspect ratio 4:3)
“16:9 On” specified
(aspect ratio 16:9)
8:00AM
9/30/2005
3 0 MIN
0:00:00
REM
FINE
RAM
ENTER RETURN
On
Off
OSD Ou tp u t
Input Source
Record Funct ions Setup
VIDEO Mode
16:9
16:9 mode icon
Display on LCD monitor screen Display in viewfinder
English
93
Note:
• The 16:9 setting will be kept even after the DVD video camera/recorder is turned off.
• The 16:9 mode cannot be used with photo recording, external input, S-VIDEO external input (for DZ-GX20A or
DZ-MV780A only), or “STD” recording using DVD-R disc.
• Once the DVD-R disc has been recorded in the wide-screen mode, you will not be able to switch to recording of
external input or S-VIDEO external input (DZ-GX20A or DZ-MV780A only) using the same disc.
• Once the DVD-R disc has been recorded in the normal (4:3) mode, you will not be able to switch it to the wide-
screen mode using the same disc.
• Once a DVD-R disc has been recorded in the 16:9 mode, you will not be able to switch it to the normal (4:3) mode
using the same disc.
• Images recorded with “16:9 On” (aspect ratio 16:9) specified will be played back with the setting used during
recording regardless of the 16:9 setting then being used.
• The characters of dates and titles will be longer in the vertical direction on a wide-screen TV and on the LCD
monitor of this DVD video camera/recorder.
• When “16:9 On” is specified, black bands will appear across the top and bottom of LCD monitor screen (except on
menu or Disc Navigation screen, or playback image recorded with “16:9 Off” is specified).
• The 16:9 setting is not compatible with ID-1/ID-2*.
• To view images recorded at 16:9 setting, switch the aspect ratio of your TV: See TV instruction manual for this
switching.
• When using a video selector (see “Terminology”, p. 155), the TV may not automatically be switched to 16:9 mode.
* This system records the aspect ratio (16:9, 4:3) information in void space between video signals.
English
94
3
SWITCHING QUALITY OF STILL IMAGE (QUALITY)
You can switch the still recording quality only when using card.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Quality” on the
“Record Functions
Setup” menu screen,
and then press the A
button.
2Choose the option you want, and then press
the A button.
3Press the MENU
button to end the
setting.
Note:
The still quality setting will be stored in memory even
when the DVD video camera/recorder is turned off.
123
RECEIVING IMAGE FROM ANOTHER DEVICE (INPUT SOURCE)
If you wish to input an image from another device to this DVD video camera/recorder, you must
first switch the setting on the DVD video camera/recorder.
Refer to the explanation starting from page 80 on how to connect the DVD video camera/recorder to
other devices or record images input from them.
* Displayed on DZ-GX20A or DZ-MV780A only.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Input Source” on the
“Record Functions
Setup” menu screen,
and then press the A
button.
2Choose “LINE”, and then press the A
button.
3Press the MENU button
to end the setting.
Note:
The “Input Source” setting will
return to “CAMERA” whenever
the DVD video camera/
recorder is turned off.
It is recommended that you use “FINE” when recording vital images. (p. 30 “SIZE AND
QUALITY OF PHOTOS”)
Record Funct ions Setup
N
O
R
M
EC
O
FINE
Qua l i t y
Se l f Ti
m
er
O
SD
O
utput
Input Source
ENTER RETURN
999
REM
NORM
8:00AM
9/30/2005
Still recording quality
Setting Content On-screen display
CAMERA
Usually select this option. No display
LINE
To input image from another device L IN
SLINE
*
To input S-VIDEO signal from another device S IN
CAMERA
LINE
RAM
SLINE
VIDEO Mode
16:9
OSD Ou tp u t
Input Source
ENTER RETURN
Record Funct ions Setup
8:00AM
9/30/2005
3 0 MIN
0:00:00
REM
FINE
L IN
External input icon
English
95
13
SWITCHING EXTERNAL INPUT RECORDING METHOD (PHOTO INPUT)
When “Input Source: LINE or S LINE” is specified, you can record stills of externally input images
on either a DVD-RAM disc or a card. The DVD video camera/recorder can record an external image
with little movement by specifying “Frame”, but “Field” is recommended for recording image with
movement.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“PHOTO Input” on the
“Record Functions
Setup” menu screen,
and then press the A
button.
2Select the desired option and then press the
A button.
3Press the MENU button to end the setting.
Note:
• The PHOTO Input setting can be confirmed using the
on-screen information.
• The PHOTO Input setting will be stored in memory
even when the DVD video camera/recorder is turned
off.
• Refer to “Recording (Dubbing) Images”, p. 80 to see
how to connect the DVD video camera/recorder to
another device.
Recording
format
Details of setting
On-screen display
DVD-RAM card
Frame
Does not suit recording of frequently moving video
subjects, despite high image quality. Frame suits recording
of less moving video.
DG
Field
Suitable for recording of frequently moving video subjects.
CF
RAM
ENTER RETURN
Record Funct ions Setup
Field
F r ame
PHOTO Input
Se l f T i mer
Input Source
999
REM
L IN
8:00AM
9/30/2005
Still external input icon
(Field)
English
96
13
SELF-TIMER
You can record photos using the self-timer function, as with ordinary cameras.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Self Timer” on the
“Record Functions
Setup” menu screen,
and then press the A
button.
2Select “On”, and then press the A button.
The self-timer will be set.
3Press the MENU button to end the setting.
4Press the PHOTO button.
The recording indicator at the front of DVD
video camera/recorder will blink.
The self-timer indicator will start to count
down, and recording will commence
approximately 10 seconds later.
Note:
• You can also check that self-timer has been set by
reviewing the on-screen information.
• To release the self-timer mode, choose “Off” on the
menu screen or turn DVD video camera/recorder off.
• To suspend self-timer, press the PHOTO button again
before recording starts, or press the C button.
The self-timer function is valid only when recording photos (stills).
Se l f T i mer
On
Off
RAM
OSD Ou tp u t
Input Source
ENTER RETURN
Record Funct ions Setup
10
999
REM
8:00AM
9/30/2005
Self-timer recording
English
97
123
SETTING ON-SCREEN DISPLAY OUTPUT ON OR OFF (OSD OUTPUT)
If you connect this DVD video camera/recorder to a TV to view images on TV screen, you can
switch off the on-screen information (displayed in the viewfinder or on the LCD screen) from the TV
screen.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“OSD Output” on the
“Record Functions
Setup” menu screen,
and then press the A
button.
2Choose “On” or “Off”, and press the A
button.
3Press the MENU button to end the setting.
Note:
• The “OSD Output” setting will be stored in memory
even when the DVD video camera/recorder is turned
off.
• Even if “Off” is chosen, the on-screen information will
appear during playback. See page 62 for playback on-
screen information display.
• Even after the on-screen information is removed from
the TV screen, it will still appear in the viewfinder or
on the LCD screen.
• The on-screen display output functions only when the
input selection is set to camera: It cannot be set
during external input.
RAM
ENTER RETURN
On
Off
OSD Ou tp u t
Input Source
Record Funct ions Setup
VIDEO Mode
16:9
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
3 0 MIN
0:00:00
REM
FINE
8:00AM
9/30/2005
LCD screen or viewfinder
“On” setting “Off” setting
TV screen TV screen
English
98
123
LCD/EVF Setup
SETTING BRIGHTNESS OF LCD SCREEN (LCD BRIGHTNESS)
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Adjust” on the “LCD/
EVF Setup” menu
screen, and then choose
“LCD Brightness”.
The brightness adjustment bar will appear on
the screen.
2Use the d/c buttons
for adjustment.
Press d :
The screen becomes
dimmer.
Press c :
The screen becomes
brighter.
3Press the MENU button to end the setting.
Note:
The brightness setting will be stored in memory even
after the DVD video camera/recorder is turned off.
SETTING BRIGHTNESS OF VIEWFINDER (EVF BRIGHTNESS)
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Adjust” on the “LCD/
EVF Setup” menu
screen, and then choose
“EVF Brightness”.
2Use the d/c buttons
for adjustment.
Press d :
The screen becomes
dimmer.
Press c :
The screen becomes
brighter.
3Press the MENU button to end the
adjustment.
Note:
The brightness setting is stored in memory even after
the DVD video camera/recorder is turned off.
RAM
Adj us t
EVF D i sp l ay
ENTER RETURN
LCD/EVF Set up
LCD Br ightness
EVF Br ightness
Co l o r Leve l
RAM
ENTERADJUST
LCD/EVF Ad j ust
Brightness
adjustment bar
Use f / e / d / c to select,
and then press A to designate.
RAM
Adj us t
EVF D i sp l ay
ENTER RETURN
LCD/EVF Set up
LCD Br ightness
EVF Br ightness
Co l o r Leve l
RAM
ENTERADJUST
LCD/EVF Ad j ust
Brightness
adjustment bar
English
99
SETTING COLOR DENSITY (COLOR LEVEL)
You can adjust the color density of the LCD monitor screen and viewfinder.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Adjust” on the “LCD/
EVF Setup” menu
screen, and then choose
“Color Level”.
The color density adjustment bar will appear
on the screen.
2Use the d/c buttons
for adjustment.
Press d :
For lighter color.
Press c :
For denser color.
3Press the MENU button.
Note:
• The color setting will be stored in memory even after
the DVD video camera/recorder is turned off.
• Even if the brightness or density of LCD monitor
screen or viewfinder is changed, the brightness or
density of the recorded image itself will not change.
ALWAYS DISPLAYING IMAGE IN VIEWFINDER
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“EVF Display” on the
“LCD/EVF Setup”
menu screen.
2Choose “On” and decide it.
3Press the MENU button to end the setting:
Images will always appear in the viewfinder
regardless of whether the LCD monitor is
open/closed.
Note:
The setting on EVF Display will be stored in memory
even after the DVD video camera/recorder is turned off.
RAM
Adj us t
EVF D i sp l ay
ENTER RETURN
LCD/EVF Set up
LCD Br ightness
EVF Br ightness
Co l o r Leve l
RAM
ENTERADJUST
LCD/EVF Ad j ust
Color density
adjustment bar
RAM
Adj us t
EVF D i sp l ay
ENTER RETURN
LCD/EVF Set up
Auto
O
n
English
100
123
Initial Settings
SWITCHING OPERATING SOUND ON OR OFF (BEEP)
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Beep” on the “Initial
Setup” menu screen,
and then press the A
button.
2Select “On” or “Off”, and then press the A
button.
3Press the MENU button to end the setting.
Note:
The “Beep” setting will be stored in memory even when
the DVD video camera/recorder is turned off.
TURNING DVD VIDEO CAMERA/RECORDER OFF AUTOMATICALLY
(POWER SAVE)
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Power Save” on the
“Initial Setup” menu
screen, and then press
the A button.
2Select “On” or “Off”, and then press the A
button.
3Press the MENU button to end the setting.
Note:
• To turn the DVD video camera/recorder on again from
automatic off activated by the power save function,
set the power switch to “OFF”, and then set it to “O”,
“N” or “P”
• The Power Save setting will not appear in the on-
screen information display.
• The Power Save setting will be stored in memory
even when the DVD video camera/recorder is turned
off.
Setting Content
On
Beep is heard when the power switch is changed over, the REC button is
pressed, etc.
Off
No beep is heard.
On
Off
RAM
Power Save
Beep
ENTER RETURN
Demo Mode
Reset
Language
Record LED
Ini t ial Setup
Setting Content
On
To engage power save. If the DVD video camera/recorder is left in the recording
pause status without being operated for 5 minutes, it will automatically turn off to
prevent the battery from discharging needlessly.
Off
To cancel power save.
On
Off
RAM
Power Save
Beep
Record LED
ENTER RETURN
Demo Mode
Reset
Language
Ini t ial Setup
English
101
TURNING RECORD LED ON OR OFF (RECORD LED)
You can switch off the recording indicator on the front of DVD video camera/recorder even during
recording.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Record LED” on the
“Initial Setup” menu
screen, and then press
the A button.
2Select “On” or “Off”, and then press the A
button.
3Press the MENU button to end the setting.
Note:
• The Record LED setting will not appear in the on-
screen information display.
• The Record LED setting will be stored in memory
even when the DVD video camera/recorder is turned
off.
• Specify “Record LED: Off” when recording a subject
behind a glass or water tank that reflects light: The
reflected light of the recording indicator will not be
recorded.
• Even if “Record LED Off” is specified, the recording
indicator will light while the self-timer is counting
down.
CHANGING DISPLAY LANGUAGE (LANGUAGE)
You can change the language used to display the menu and information.
The following shows that English is changed to French.
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Language” on the
“Initial Setup” menu
screen, and then press
the A button.
2Select “Français”, and
then press the A
button.
3Press the MENU button to end the setting.
Note:
The language setting will be stored in memory even
when the DVD video camera/recorder is turned off.
Setting Content
On
The recording indicator will light red to show that the DVD video camera/recorder
is recording.
Off
The recording indicator will not light even during recording.
Recording indicator
Record LED
On
Off
RAM
Power Save
Beep
ENTER RETURN
Demo Mode
Reset
Language
Ini t ial Setup
Language
Deut sh
Italiano
RAM
ENTER RETURN
Français
Español
Engl ish
Power Save
Beep
Demo Mode
Reset
Record LED
Initial Setup
Langue
Configuration Ini tiale
RAM
ENTRER RETOUR
Français
Power Save
Beep
Mode Démo
Régl Défaut
LED Enrg.
English
102
RESETTING MENU SETTINGS TO DEFAULTS (RESET)
You can restore menu settings to defaults (initial settings at the factory (p. 174)). (Note, however, that
the date/time will not be reset.)
1Press the MENU
button, use “Operating
Menu” (p. 64) to choose
“Reset” on the “Initial
Setup” menu screen,
and then press the A
button.
The screen for verifying reset will appear.
2If you are sure that you
wish to reset, use the
d button to choose
“YES”, and then press
the A button.
The setting items have
now been reset to defaults.
3Press the MENU button to end the setting.
Note:
To cancel resetting midway, choose “NO” on the screen
for verification in step 2 or press the C button.
Record LED
RAM
Power Save
Beep
ENTER RETURN
Demo Mode
Reset
Language
Ini t ial Setup
ENTER
Reset?
YES NO
RAM
Reset
103
English
Disc Navigation
123
Using Disc Navigation
STARTING OR TERMINATING DISC NAVIGATION
Disc Navigation is a tool for editing scenes recorded on this DVD video camera/recorder.
Here is an explanation on “scene” and “program”, so that you will be able to make most use of Disc
Navigation function.
The screens in this instruction manual are basically those that will appear when DVD-RAM disc is
used: Some items will not appear when DVD-R disc or card is used, but the operation is the same.
1Press the DISC NAVIGATION button.
The Disc Navigation screen (shown on
page 104) will appear.
2Press the DISC NAVIGATION button again.
Disc Navigation will be terminated and the
DVD video camera/recorder will enter the
recording pause status.
You can also press the C button to end Disc
Navigation.
Before You Begin
• Turn the DVD video camera/recorder on (p. 44).
• When using disc: Set the power switch to “O” or “N”.
• When using card: Set the power switch to “P”.
DISC
NAVIGATION
English
104
Disc Navigation screen
Note:
• The background color of screen allows you to identify
whether disc or card is used on this DVD video
camera/recorder.
- Purple: When disc is used.
- Green: When card is used.
• Pressing the DISPLAY button will display the
recording date/time of the scene on which the cursor
is placed in the space for operating guide. Pressing
DISPLAY again will display the operating guide.
• If no disc or card is inserted, the Disc navigation
screen cannot be displayed even by pressing the
DISC NAVIGATION button.
• Each time Disc Navigation is started with a DVD-R
disc inserted, message “Creating Thumbnail ...” will
appear. After the message appears, the Disc
Navigation screen will appear.
• If the following disc or card is inserted, the Disc
Navigation screen will appear or some message will
be displayed:
- Write-protected disc
- Finalized DVD-R disc
- Locked card
• Do not leave the disc navigation screen displayed on
TV to which the DVD video camera/recorder is
connected: Doing so could damage the TV screen,
possibly by burning.
*1 Scene number refers to display number on thumbnail display screen.
*2 No still icon will appear for card.
*3 The operation guide will vary depending on the operation status of DVD video camera/recorder.
*4 Appears when 13 scenes or more have been recorded.
*5 “
690R” will appear for DVD-R disc. “ ” will appear for card.
001/014All Progra
m
s
PLAY
RAM
Cursor
Still image icon
*2
Operation guide
*3
Thumbnail (see “Terminology”, p. 155)
Selected scene number
*1
/
Number of all scenes
Current page position
*4
Bar graph
Disc type icon
*5
Icons to be displayed on thumbnail:
.......................Photo (p. 51)
....................Skip (p. 115)
[ ......................... Fade-in (p. 114)
] ......................... Fade-out (p. 114)
....................... Lock (p. 118)
English
105
PLAYING BACK FROM DISC NAVIGATION SCREEN
1Press the DISC NAVIGATION button.
2Use the f/e/d/c buttons to select
the desired scene.
The selected scene will be framed: This is
called a “cursor”.
3Press the A button.
Playback will start from the selected scene.
Note:
Pressing the d or c button will move the cursor
to the preceding or following scene.
Pressing the f or e button will move to
preceding or following page.
●When playback ends:
The DVD video camera/
recorder will enter the
playback pause status at
the last image of last scene.
Pressing the C or DISC
NAVIGATION button will
restore the Disc
Navigation screen.
When the playback pause
status continues for as long as 5 minutes, the
Disc Navigation screen will automatically be
restored.
●Playing back photos
A photo on DVD-RAM disc will be displayed
for approx. 3 seconds. When playing back
photos on card, playback will stop after each
photo playback.
Note:
• Press the A button to temporarily stop playback.
Pressing A again will start from that point.
• If you press the A button after playback of the last
scene on disc finishes, playback will start again from
the beginning of disc.
• Pressing the C button will always restore the Disc
Navigation screen.
• When playing back photos on card, “Playback” will
appear. In the case of a photo with a large number of
pixels, it will take some time for the photo to appear.
001/014All Progra
m
s
PLAY
RAM
007/014All Progra
m
s
PLAY
RAM
f / e
d / c
A
Playback pause
English
106

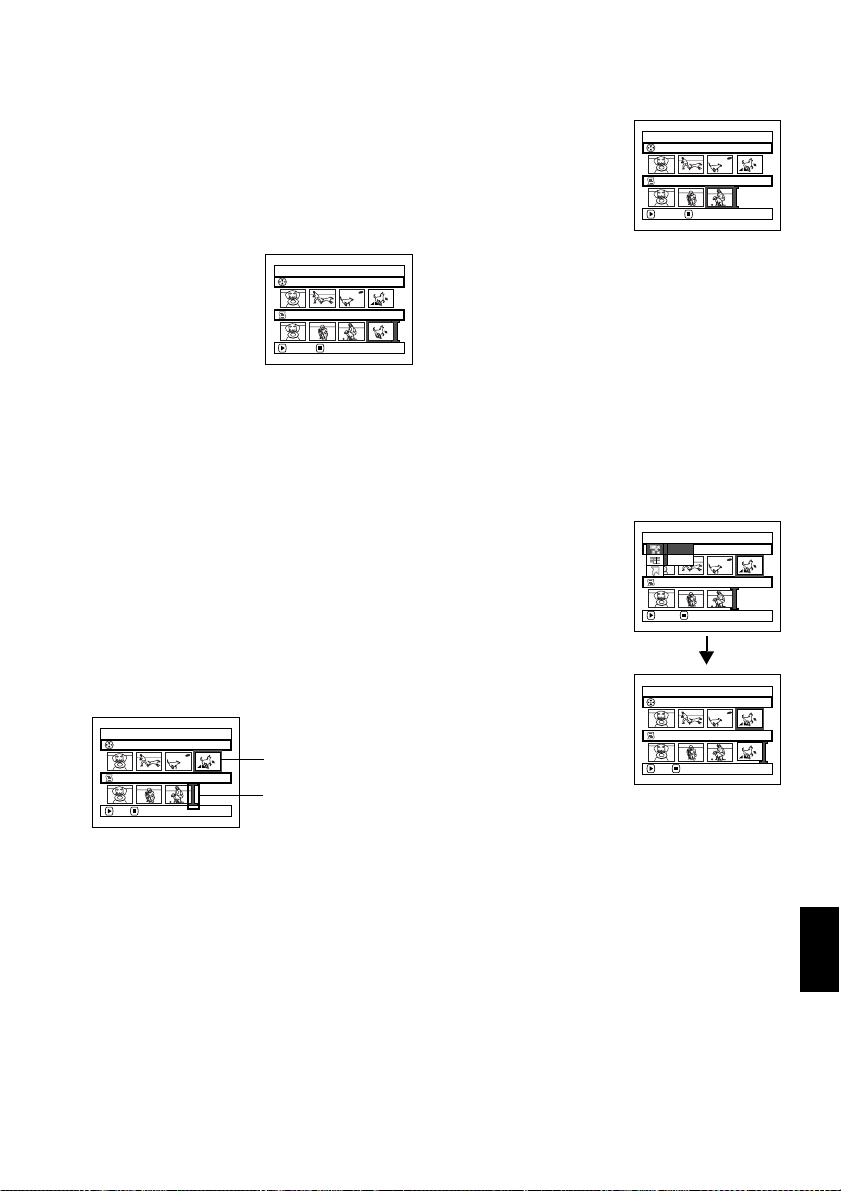

SELECTING MULTIPLE SCENES
1Press the DISC NAVIGATION button.
2Use the f/e/d/c buttons to select
the desired scene.
3Press the SELECT button once:
The selected scene will be framed in red and
yellow.
Repeat steps 2 and 3 to randomly select
multiple scenes.
SELECTING CONSECUTIVE SCENES TOGETHER
1Press the DISC NAVIGATION button.
2Use the f/e/d/
c buttons to select the
desired scene.
3Hold down the
SELECT button for at
least one second:
The selected scene will
be doubly framed in
yellow and blue.
4Use the f/e/d/
c buttons to select the
last scene in the range
you want, and then
press the A button:
The thumbnails of
scenes in the specified
range will be framed in
red, and then selected.
Note:
• You can know the status of scenes from the colors of
cursor and bargraph:
• Pressing the A button after selecting scenes will
play back only the selected scenes from the
beginning of each.
• To cancel a selected scene, select the scene to be
canceled, and then press the SELECT button.
To cancel all selected scenes, press the C button.
• You can also select scenes in reverse from the last
scene in the range.
• To release multiple selection, press the C or SELECT
button before pressing the A button in step 4.
• Up to 999 scenes can be selected for both disc and
card.
005/014All Progra
m
s
PLAY
RAM
Yellow frame
005/014All Progra
m
s
RAM
ENTER CANCEL
Double frames in
yellow and blue
010/014All Progra
m
s
RAM
PLAY DESELECT ALL
When scenes up to
this point are selected
Red
frame
Cursor Bar graph Status of scenes
Yellow Light blue
Current cursor position
Blue Light blue
Range of scenes being
selected
Red Red
Scenes already selected
English
107
FUNCTIONS AVAILABLE WITH DISC NAVIGATION
The Disc Navigation mode will allow a variety of further operations.
Functions Available with Disc Navigation
Note:
Setting special effects to scenes (fade, skip, thumbnail) are unique to this DVD video camera/recorder. When a disc
with any effects set on this DVD video camera/recorder is directly played back on a DVD recorder/player or read into
PC, the set effect results will not be reflected in the playback or reading. To reflect the set effect results, connect
both devices using the AV/S input/output cable and then perform recording (Dubbing, p. 83).
Available function Disc or card used Contents
Reference
page
Editing of scenes
1
You can delete unnecessary scenes,
combine scenes, or divide one scene.
110 – 113
Setting special effects to
scenes
1
You can attach fade and skip to a
scene, and change existing thumbnails.
114 – 116
Scene information
display
123
You can display information on one
scene or multiple scenes, such as
image quality, recording time, etc.
120
Changing title
1
You can change the title of play list or
program.
122, 130
Creation of play list
1
You can create an original movie by
changing the combination of scenes.
124
Disc or Card
initialization
13
You can initialize a DVD-RAM disc or
card so that it can be used on this DVD
video camera/recorder.
132
Copy from disc to card
13
You can copy photos recorded on DVD-
RAM disc to card.
117
Disc finalization
2
You can use this DVD video camera/
recorder to finalize any DVD-R disc
recorded on it so that the disc can be
viewed on DVD player, etc.
135
Repeat play
12
You can repeatedly play back programs
and scenes.
136
Slide show
3
You can play back stills continuously. 137
Remaining display
(Capacity)
123
The remaining recordable movie time
or number of recordable stills is
displayed.
133
Disc protection
1
You can protect the DVD-RAM disc to
prevent deletion or editing by mistake.
133
Deleting scene
3
You can delete unnecessary scenes. 110
Scene lock
3
You can lock any scene so that it will
not be deleted by mistake: Essential
scenes are thereby protected, and
recording another still is possible.
118
English
108
UNDERSTANDING FLOW OF DISC NAVIGATION MENU
Press the MENU button on the Disc Navigation screen: The menu screens for Disc Navigation and
menu screens for disc and card will appear.
See “Checking Flow of Normal Menu” on page 84.
Refer to pages indicated for details of settings.
●When using DVD-RAM disc
●When using DVD-R disc
Scene Edit (p. 110) Divide (p. 112)
Effect (p. 114) Delete (p. 110)
Copy (p. 117) Combine (p. 113)
Select (p. 119) Move* (p. 113) * Will appear when a
play list is displayed.
Detail (p. 120)
Fade (p. 114)
Skip (p. 115)
Thumbnail (p. 116)
Start → Current (p. 119)
Current → End (p. 119)
All (p. 119)
Play list Switch (p. 125) Go To Top (p. 131)
Play (p. 125) End (p. 131)
Create (p. 124)
Edit (p. 126 – 129) Disc Format Disc (p. 132)
Title (p. 130) Protect Disc (p. 133)
Delete (p. 130) Capacity (p. 133)
Update Control Info. (p. 134)
Program Switch (p. 121)
Play (p. 122)
Title (p. 122)
Others Category (p. 136) All (p. 136)
Repeat Play (p. 136) VIDEO (p. 136)
PHOTO (p. 136)
On (p. 136)
Off (p. 136)
ETC
Scene Select (p. 119) Start → Current (p. 119)
Detail (p. 120) Current → End (p. 119)
All (p. 119)
Program Switch (p. 121) Disc Finalize Disc (p. 135)
Play (p. 122) Capacity (p. 133)
Go To Top (p. 131)
End (p. 131)
Others Repeat Play (p. 136) On (p. 136)
Off (p. 136)
ETC
English
109
●When using card
Scene Delete (p. 110)
Lock (p. 118)
Select (p. 119) Start → Current (p. 119)
Detail (p. 120) Current → End (p. 119)
All (p. 119)
Go To Top (p. 131) Slide Show Start (p. 137)
End (p. 131)
Card Format Card (p. 132)
Capacity (p. 133)
English
110
Scene
13
DELETING SCENES (EDIT – DELETE)
You may want to delete unwanted scenes.
Scenes on DVD-R disc cannot be deleted, and menu item “Delete” will not appear with DVD-R disc.
1Press the DISC NAVIGATION button.
2Select the scene to be
deleted.
3Press the MENU
button.
4Choose “Scene”,
“Edit”, “Delete”, and
then press the A
button.
When using card,
choose “Scene”,
“Delete”, and then
press the A button.
5The “Delete Scene” screen will appear: If you
are sure you want to delete the selected scene,
press the A button.
If you want to change the scene to be deleted,
you can change it on this screen.
6The screen for verifying
deletion will appear:
Choose “YES”, and then
press the A button.
Choose “NO” to cancel
deletion.
After Yes or No setting, the “Delete Scene”
screen will be restored.
Repeat steps 5 and 6 to delete other scenes.
7Press the C button to
quit.
Note:
• If you point the cursor at the scene to be deleted on
DISC NAVIGATION screen, and then press the
DELETE button on remote control, the screen in step
5 will appear.
• To delete an unwanted part of a scene on DVD-RAM
disc, divide the scene first, and then delete the
unnecessary part (see page 112).
• If you delete all data on disc or card, initializing the
disc or card will be recommended (see page 132).
• If the time of deleted scenes (stills) is quite short, the
remaining free space of disc may not increase in the
disc or card remaining indicator.
• The locked scenes on card cannot be deleted (see
page 118).
All Programs
005/014
RAM
PLAY DESELECT ALL
Scene to be deleted
Scene
RAM
ENTER RETURN
Ed i t
Ef fect
Dev i de
De le t e
Comb i ne
Copy
Select
Detai l
ETC
Delete Scene
Delete scene?
9 /30/2005 8:00:00A
M
Scene No. 005
ENTER
YES NO
Delete Scene 005/013
RAM
ENTER EX IT
English
111
●Editing using submenu
Press the MENU button before pressing the A button in step 5 (see page 110): The submenu will
appear.
Pressing the C button will restore the screen in step 5.
Note:
Although the submenu screen will appear for each setting, some menu items may not appear, depending on the
setting.
Edi t
RAM
ENTER RETURN
Del ete
Exi t
Se l ect
RAM
ENTER RETURN
Start– Current
Current– End
All
Go To
RAM
ENTER RETURN
End
Top
Edit Delete .................. To delete selected scenes
Exit....................... To restore the Disc Navigation screen
Select Start → Current.. To select scenes from the start to the one that the cursor is on at
the moment
Current → End... To select scenes from the scene the cursor is on to the end
All ........................ To select all scenes
Go To Top....................... To move the cursor to the first scene
End....................... To move the cursor to the last scene
English
112
1
DIVIDING MOVIES (EDIT – DIVIDE)
You can divide a scene into two parts.
To delete unnecessary portion of scene, first divide the scene, and then delete the unnecessary
portion.
1Press the DISC NAVIGATION button.
2Select the scene to be divided.
3Press the MENU button.
4Choose, “Scene”,
“Edit”, “Divide” and
then press the A
button.
5The “Divide Scene”
screen will appear: If
you are sure you want to divide the selected
scene, press the A button: The selected
scene will be played back.
If you want to change the scene to be divided,
you can change it on this screen.
6When you reach the
point where you want
to divide the scene,
press the SELECT
button.
7The screen for verifying
division will appear:
Choose “YES”, and then
press the A button.
Choose “NO” to cancel
division.
After division, the “Divide Scene” screen will
be restored.
Repeat steps 5 – 7 to divide another scene.
8Press the C button to quit.
Note:
• If you press the MENU button before pressing the
A button in step 5, the submenu will appear (see
page 111).
• Search and frame advance are useful when
designating division points.
• Combining scenes that were divided will restore the
original scene (see page 113).
• If a special effect has been added to the original
scene, the “IN” effect will be added to the first half of
scene, and the “OUT” effect, to the latter half.
• The division point may drift before or after the
designated point by approximately 0.5 seconds.
• Since a scene with a skip set cannot be played back,
no division point can be specified: Release the skip
for the scene before dividing it.
• If the division point is at a still, a message will appear,
but no division will be made.
• If the division point is at the start or end of a scene, a
message will appear, but no division will be made.
• A movie scene whose recording time is 0.5 seconds
or less cannot be divided.
• If free space available on disc is insufficient, division
will not be possible: Delete unnecessary scenes.
Scene
RAM
ENTER RETURN
Ed i t
Ef fect
Dev i de
De le t e
Comb i ne
Copy
Select
Detai l
ETC
Select Division Point
RAM
002 0:00:18
ENTER CANCEL
SEL
The status bar of
scene being played
back can be switched
off or on by pressing
the DISPLAY button
ENTER
Divide scene?
Divide Scene
YES NO
English
113
1
COMBINING MULTIPLE SCENES (EDIT – COMBINE)
If you have recorded numerous short scenes, combining them will be facilitated by the use of Disc
Navigation.
Be sure to select consecutive multiple scenes. Combining scenes is possible only when “Category:
All” is specified (p. 136). Stills cannot be combined.
1Press the DISC NAVIGATION button.
2Select the consecutive multiple scenes to be
combined.
See page 106 when selecting multiple scenes.
3Press the MENU button.
4Choose, “Scene”,
“Edit”, “Combine” and
then press the A
button.
5The “Combine Scenes”
screen will appear: If
you are sure you want to combine the
selected scenes, press the A button.
If you want to change the scenes to be
combined, you can change them on this
screen.
6The screen for verifying
combination will
appear: Choose “YES”,
and then press the A
button.
The two images
appearing on the verification screen are those
of the first and last scenes to be combined.
Choose “NO” to cancel combination.
After Yes or No setting, the “Combine
Scenes” screen will be restored.
The thumbnail of the first scene will appear in
the combined scene.
Repeat steps 5 and 6 to combine other scenes.
7Press the C button to quit.
Note:
• If you press the MENU button before pressing the
A button in step 5, the submenu will appear (see
page 111).
• With fade effect, the “IN” effect of the first video in the
selected range and the “OUT” effect on the last video
will be attached to a combined scene.
• Scenes in different programs (different recording
dates) cannot be combined: Create a play list first,
and then combine such scenes on the play list.
1
ARRANGING ORDER OF SCENES (EDIT – MOVE)
You can arrange scenes within a play list by moving them to desired positions. (p. 129) Create a play
list first, and then arrange the scenes [“CREATING NEW PLAY LIST (CREATE)”, p. 124].
Scene
RAM
ENTER RETURN
Ed i t
Ef fect
Dev i de
De le t e
Comb i ne
Copy
Select
Detai l
ETC
Combine Scenes
ENTER
Combine scenes?
YES NO
English
114
1
DIRECTING SCENES EFFECTIVELY (EFFECT – FADE)
You can add fading to the beginning and/or end of scene.
There are three types of special effects:
1Press the DISC NAVIGATION button.
2Select the scene for adding special effects.
3Press the MENU button.
4Choose, “Scene”,
“Effect”, “Fade” and
then press the A
button.
5The “Fade Set” screen
will appear: If you are
sure you want to add the fade effect to the
scene, press the A button.
If you want to change the scene to which fade
is added, you can change it on this screen.
6Select the special effects
for “IN” and/or
“OUT”, choose “Enter”,
and then press the A
button.
You can use f/e to
move the cursor to “IN”, “OUT”, “Enter” or
“Cancel”.
Use d/c to choose the effect to be added,
and then press A to set the effect.
To cancel setting, choose “Cancel”.
If you choose “Enter” and press A, the
“Fade Set” screen will be restored after a
message appears.
Repeat steps 5 and 6 to add fade to other
scenes.
7Press the C button to quit.
The “[” and/or “]” icon(s) will appear in
the scenes for which fade in and/or fade out
have been set.
Fade Out Fade Out Fade Out
White:
Fades in from white screen
Fades out to white screen
Wipe:
Fades in from black screen
to vertical direction of screen
Fades out from vertical
direction of screen to black
screen
B/W:
Fades in from Black and
White screen to color screen
Fades out from color screen
to Black and White screen
Fade InFade InFade In
Scene
RAM
ENTER RETURN
Ed i t
Effect
Copy
Select
Detai l
Sk i p
Thumbnail
Fade
ETC
Fade
IN
OUT
Enter
None
W
hi te
W
ipe B/W
ENTER
None
W
hi te
W
ipe B/W
Cancel
005/013All Progra
m
s
PLAY
RAM
“In” effect
“Out” effect
English
115
1
PLAYING BACK BY SKIPPING SCENES (EFFECT – SKIP)
You can specify “Skip” for scenes you do not want to play back: The selected scenes will be skipped.
1Press the DISC NAVIGATION button.
2Select the scene to be skipped.
3Press the MENU button.
4Choose “Scene”,
“Effect”, “Skip”, and
then press the A
button.
5The “Set Skip” screen
will appear: If you are
sure you want to skip the selected scene,
press the A button.
If you want to change the scene to be
skipped, you can change it on this screen.
After skip setting, the “Set Skip” screen will
be restored.
Repeat step 5 to set skipping of other scenes.
6Press the C button to quit.
A skip icon “ ” will appear in the
thumbnail of any scene for which skipping
has been set.
●Releasing Skip
Perform the same procedure as setting skip: The
skip icon will disappear and skipping of the
scene will be released.
Note:
• Multiple scenes can be selected for skipping (p. 106).
• If you press the MENU button before pressing the
A button in step 5, the submenu screen will appear
(p. 111).
Scene
RAM
ENTER RETURN
Ed i t
Effect
Copy
Select
Detai l
Sk i p
Thumbnail
Fade
ETC
001/013All Progra
m
s
PLAY
RAM
Skip icon
English
116
1
CHANGING IMAGES FOR THUMBNAILS (EFFECT – THUMBNAIL)
Normally, the first image of the recorded scene is displayed as a thumbnail: You can choose another
image of the scene for thumbnail. If you set a vivid image to thumbnail, you can know what you
recorded from a glance at the Disc Navigation screen.
1Press the DISC NAVIGATION button.
2Select the thumbnail of the scene to be
changed.
3Press the MENU button.
4Choose “Scene”,
“Effect”, “Thumbnail”,
and then press the A
button.
5The “Change
Thumbnail” screen will
appear: If you are sure
you want to change the
thumbnail of the
selected scene, press the
A button: The
selected scene will be played back.
If you want to change the scene whose
thumbnail is to be changed, you can change it
on this screen.
6When the image you want to use as the
thumbnail of the scene appears, press the
SELECT button.
7The screen for verifying
switching of thumbnail
will appear: Choose
“YES”, and then press
the A button.
Choose “NO” to cancel
switching of thumbnail.
After Yes or No setting, the “Change
Thumbnail” screen will be restored.
Repeat steps 5 – 7 to change the other scenes.
8Press the C button to quit.
Note:
• If you press the MENU button before pressing the
A button in step 5, the submenu screen will
appear. (See page 111)
• A thumbnail of still cannot be changed.
• Since the scene to which skipping is set cannot be
played back, you will not be able to change its
thumbnail: Release the skip setting of the scene to
change the thumbnail.
● ● ● ● ● ●
Original thumbnail You can use this image as thumbnail.
Scene
RAM
ENTER RETURN
Ed i t
Effect
Copy
Select
Detai l
Sk i p
Thumbnail
Fade
ETC
Se lec t Thu
m
bnai l Point
ENTER CANCEL
SEL
ENTER
Change thu
m
bnai l ?
Change Thu
m
bnai l
YES NO
English
117
13
COPYING STILLS ON DVD-RAM DISC TO CARD (COPY)
1Set the power switch to “O” or “N“.
2Press the DISC NAVIGATION button.
3Select the still to be copied.
4Press the MENU button.
5Choose “Copy” on the
“Scene” menu screen,
and then press the A
button.
6The “Copy to card”
screen will appear: If
you are sure you want
to copy the selected
still, press the A
button.
If you want to change the still to be copied,
you can change it on this screen.
7The screen for verifying
copy will appear:
Choose “YES”, and then
press the A button.
Choose “NO” to cancel
copy.
After Yes or No setting, the “Copy to card”
screen will be restored.
Repeat steps 6 and 7 to copy other stills to
card.
8Press the C button to quit.
Note:
• No movie can be copied.
• If you press the MENU button before pressing the
A button in step 6, the submenu screen will appear
(p. 111).
• See “Category” (p. 136) to check the stills recorded
on DVD-RAM disc.
• You can also select multiple scenes (p. 106).
• Even if all scenes, including movies, are selected to
be copied, only stills will be copied.
• Data on card cannot be copied to disc.
• The quality of still copied from disc to card will be the
same as when you recorded still on disc.
• Stills recorded on a device other than this DVD video
camera/recorder may not be copied normally.
Scene
RAM
ENTER RETURN
Ed i t
Ef fect
Copy
Select
Detai l
ETC
Copy to card 003/014
RAM
ENTER EX IT
ENTER
Copy PHOTO scenes
to card?
Copy to card
YES NO
English
118
3
LOCKING SCENES ON CARD (LOCK)
You can lock each photo recorded on card so that it will not be deleted or edited by mistake.
1Set the power switch to “P”.
2Press the DISC NAVIGATION button.
3Select the scene to be locked.
4Press the MENU button.
5Choose “Lock” on the
“Scene” menu screen,
and then press the A
button.
6The “Lock Set” screen
will appear: If you are
sure you want to lock the selected scene,
press the A button.
If you want to change the scene to be locked,
you can change it on this screen.
After setting, the “Lock Set” screen will be
restored.
Repeat step 6 to lock another scene.
7Press the C button to quit.
The lock icon “ ” will appear on any scene
for which lock has been set.
●To unlock the scene:
Select the locked scene, and then use the same
procedure as above to unlock the scene: The lock
icon will disappear and locking will be released.
Note:
• If you press the MENU button before pressing the
A button in step 6, the submenu screen will appear
(p. 111).
• You can also select multiple scenes (p. 106).
• When initializing the card, the locked scenes will also
be deleted.
Scene
ENTER RETURN
Detai l
Lock
Delete
Select
7/19Lock Set
ENTER EX IT
Lock icon
English
119
123
SELECTING SCENES USING MENU SCREEN (SELECT)
You can use this “Select” function to select consecutive scenes at one time.
This function is useful when there are numerous scenes.
1Press the DISC NAVIGATION button.
2Point the cursor at the first or last scene to be
selected: When selecting all scenes, simply
proceed with step 3.
3Press the MENU button.
4Choose “Select” on the “Scene” menu screen.
5Choose “Start →
Current”, “Current →
End” or “All” and then
press the A button.
●Deselecting selected scenes
Deselecting scenes one by one:
While you are displaying the “All Programs”
screen on which scenes have been selected,
choose the scene to be deselected and then press
the SELECT button.
Note:
Up to 999 scenes can be selected.
Deselecting all the selected scenes at once:
While you are displaying the “All Programs”
screen on which scenes have been selected, press
the C button.
Scene
RAM
ENTER RETURN
Ed i t
Ef fect
Copy
Select
Detai l
ETC
Start– Current
Current– End
All
006/011All Progra
m
s
PLAY
RAM
006/011All Progra
m
s
PLAY
RAM
DESELECT ALL
006/011All Progra
m
s
PLAY
RAM
DESELECT ALL
006/011All Progra
m
s
PLAY
RAM
DESELECT ALL
Current scene
“Start → Current” is specified:
The scenes from the first to
current will be selected.
“Current → End” is specified:
The scenes from the current to
end will be selected.
“All” is specified:
All scenes from the first to end
will be selected.
English
120
123
DISPLAYING INFORMATION USING MENU SCREEN (DETAIL)
You can display various information for a scene: the recording mode, recording date/time and
length, special effects and movie quality mode.
1Press the DISC NAVIGATION button.
2Select the scene whose information you wish
to know.
3Press the MENU button.
4Choose “Scene”, “Detail”, and then press the
A button.
The detailed information on the scene will
appear.
Note:
• DCF (Design rule for Camera File system) is a
unified image file format for video cameras: Image
files can be commonly used for all digital devices
that conform to DCF.
• Pressing the c button will display information on
the following scene; pressing the d button will
display information on the preceding scene.
5Press the C button to quit.
Note:
• If multiple scenes have been selected, the total
recording time of the selected scenes (total number in
case of stills) will appear.
• If a DVD-R disc recorded on a device other than this
DVD video camera/recorder is inserted (already
finalized), no scene information will appear.
*1 Not displayed with DVD-R disc.
*2 May not appear if the loaded card does not
comply with DCF.
*3 Number of pixels on still in horizontal direction:
This may not appear with a JPEG file that does
not conform to this DVD video camera/recorder.
Detail
Scene No. 007
V IDEO (F I NE) 1m i n13 se c
Date : 9/30/2005 8:00:00A
M
Skip :
O
ff
Fade IN:None OUT:None
PREV NEXT RETURN
Detail
Scene No. 7
100–0007 (640)
Date : 9/30/2005 8:00:00A
M
Lock:
O
ff
PREV NEXT RETURN
(When using disc) (When using card)
*1
*3
*2
*1 Number of scenes whose quality mode is
unknown:
This will appear when the disc has a scene
recorded on a device other than this DVD video
camera/recorder, only if the disc has a scene
whose mode is unknown.
Also, this will not appear when a DVD-R disc is
used.
*2 This will not appear with DVD-R disc, since no
still image can be recorded on it.
Detai l
V I DEO : 1
m
in43sec ( 2scenes)
(XTRA): 0
m
in 0sec ( 0scenes)
(FI NE): 1
m
in43sec ( 2scenes)
(STD) : 0
m
in 0sec ( 0scenes)
PHOTO : 0
(---) : 1
m
in 0sec ( 0scenes)
RETURN
*1
*2
(When using disc)
Detai l
Scene No. 6
Scenes: 2
9/ 27 /2005 12:50:00PM
Scene No. 7
9/ 30/2005 8:00:00AM
RETURN
(When using card)
English
121
Program
WHAT IS “PROGRAM”?
Program refers to an assembly of scenes recorded on the same date regardless of whether they are
movie or still.
12
SWITCHING TO THUMBNAIL DISPLAY OF SPECIFIC DATE (SWITCH)
Since the scenes recorded on this DVD video camera/recorder are collected as “programs” for each
recording date, selecting a program will allow you to display only the scenes on a specific date.
1Press the DISC NAVIGATION button.
2Press the MENU button.
3Use “Operating Menu”
(p. 64) to choose
“Switch” on the
“Program” menu
screen, and then press
the A button.
4Select the program to
be displayed, and then
press the A button.
The Disc Navigation
screen of the selected
program will appear.
Note:
• Pressing the C button on the “Switch Program”
screen will restore the Disc Navigation screen.
• If a DVD-RAM or DVD-R disc recorded on another
device is loaded in this DVD video camera/recorder,
the program may not be a collection of recordings on
the same date.
9:00AM
10:20AM
11:45AM
1:30PM
5:20PM 8:00PM
Movie
Movie
Still
Still
Movie
Still
Recorded on September 10
Program No. 1
Scene No. 1 Scene No. 2 Scene No. 3 Scene No. 4 Scene No. 5 Scene No. 6
Program
RAM
ENTER RETURN
Sw i t ch
Play
Title
ETC
Sw i t c h P r og r a
m
01 8/30/2005
02 9/10/2005
Al l Progr a
m
s
ENTER RETURN
03 9/30/2005
001/00803 9/30/2005
RAM
PLAY
English
122
12
PLAYING BACK PROGRAM (PLAY)
You can play back only the selected program.
1Press the DISC NAVIGATION button.
2Press the MENU button.
3Use “Operating Menu”
(p. 64) to choose “Play”
on the “Program”
menu screen, and then
press the A button.
4Select the program to be played back, and
then press the A button.
Playback will start from the first scene of the
selected program.
Note:
If “Repeat Play: On” is specified, the selected program
will be repeatedly played back (PLAYING BACK
SCENES REPEATEDLY (REPEAT PLAY), p. 136).
1
CHANGING TITLE OF PROGRAM (TITLE)
The recording date/time has initially been attached to any program.
You can change the recording date/time to any desired title.
1Press the DISC NAVIGATION button.
2Press the MENU button.
3Choose “Title” on the “Program” menu
screen, and then press the A button.
4Select the program
whose title you want to
change, and then press
the A button.
The screen for setting a
title will appear.
5Use f/e/d/c
to select a letter, and
then press the A
button: The selected
letter will be entered.
Repeat this procedure
to create a title.
Up to 20 characters can
be input.
Program
RAM
ENTER RETURN
Sw i t ch
Play
Title
ETC
Start Progra
m
01 8/30/2005
02 9/10/2005
Al l Progr a
m
s
ENTER RETURN
03 9/30/2005
8:00AM
9/30/2005
Progra
m Title
ENTER RETURN
01 8/30/2005
02 9/10/2005
03 9/30/2005
INPUT DELETE SELECT
9/30/2005TITLE
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
ÀÈ Ì ÒÙÁÉ Í ÓÚÃÑÕ
ÂÊ Î ÔÛÄË Ï ÖÜÇ
1 234567890SPACE
1 Cancel
SEL
Enter
Title input bar
Input mode
Palette for selecting
characters
English
123
6After entering the title,
choose “Enter” and
then press the A
button.
7The screen for verifying
the change in title will
appear: Choose “YES”,
and then press the A
button.
Choose “NO” to cancel
changing of the title.
After Yes or No setting, the Disc Navigation
screen of the selected program will appear.
Note:
• If you wish to delete the letter for title, press the C
button once: The input letter will be deleted. Holding
down the C button will delete all letters in the TITLE
column.
• You can also use the DELETE button on remote
control to delete any input letters.
• Pressing the SELECT button on the title setting
screen (in step 5) will change the cursor position from
the title input bar to character select palette, input
mode number, and then to “Cancel”. You can also use
f/e/d/c to move the cursor up/down and to
the left/right and change its position.
• To cancel the setting of title, choose “NO” on the
screen for verifying the entered title: The screen for
verifying cancellation of title setting will appear. To
cancel title setting, choose “YES”.
• If you press the C button on the screen for verifying
change in title, the title setting screen will be restored.
• Double byte characters set on other devices may be
displayed blank on this DVD video camera/recorder.
• Titles set on this DVD video camera/recorder may not
be visible on other devices.
●Characters available for entering
title
You can use the SELECT button to select
characters from the “capital letter”, “small
letter” and “symbol” input modes.
With step 5, select the input mode and then
press the A button, or press the DISPLAY
button.
ENTER DELETE SELECT
at a ParkTITLE
abcdefghi jklm
nopqrstuvwxyz
àèìòùáéíóúãñõ
âêîôûäëïöüçß
2 Enter Cancel
SEL
1234567890SPACE
ENTER
Finish title setting?
TITLE at a Park
YES NO
CHANGE DELETE SELECT
TITLE
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
ÀÈ Ì ÒÙÁÉ Í ÓÚÃÑÕ
ÂÊ Î ÔÛÄË Ï ÖÜÇ
1 Cancel
SEL
1234567890SPACE
9/30/2005
Enter
CHANGE DELETE SELECT
TITLE
abcdefghi jklm
nopqrstuvwxyz
àèìòùáéíóúãñõ
âêîôûäëïöüçß
2 Cancel
SEL
1234567890SPACE
9/30/2005
Enter
CHANGE DELETE SELECT
TITLE
3 Cancel
SEL
1234567890SPACE
9/30/2005
Enter
Input mode
English
124
1
Play List
WHAT IS “PLAY LIST”?
You can create a play list on this DVD video camera/recorder by gathering your favorites from the
recorded scenes.
Since the play list is not created by copying data, you will consume little of the disc capacity by
making a play list. On the other hand, deleting scenes on play list will not increase the remaining
disc capacity for recording.
Play list of up to No. 99 can be created, and up to 999 scenes can be included in each play list of No. 1
to No. 99.
1
CREATING NEW PLAY LIST (CREATE)
1Press the DISC NAVIGATION button.
2Select the scenes to be programmed in a play
list.
3Press the MENU button.
4Use “Operating Menu”
(p. 64) to choose
“Create” on the
“PlayList” menu screen,
and then press the A
button.
5The scene select screen
will appear: If the
selected scenes on the
play list are the ones
you want, press the
A button.
If you want to change the scenes with which
you want to create a play list, you can change
them on this screen.
With the created play list, you can also add
scenes recorded on another day or delete
unnecessary scenes afterwards.
6When creation of a play list is complete, the
Disc Navigation screen will appear.
Note:
• You can also select multiple scenes (p. 106).
• If the added scene had skip or fade setting, that
information will also be added to the play list.
• The date/time when a play list was created will appear
as the title for the play list. This title can later be
changed (p. 130).
• If free space available on disc is insufficient, creation
of new play list may not be possible: Delete
unnecessary scenes.
• Only the data on scenes is recorded on play list: If
you create or delete play lists, the original scenes
in programs will not be erased.
Editing scenes on play list will not affect the scenes in
programs.
• If you press the MENU button before pressing A in
step 5, the submenu will appear (see page 111).
Example:
Program 2
Play list 1 created
Program 1
PlayList
RAM
ENTER RETURN
S
w
itch
Play
Create
Title
ETC
Delete
Ed i t
Create PlayList 004/019
RAM
ENTER DESELECT ALL
English
125
1
SWITCHING TO DISPLAY OF EACH PLAY LIST (SWITCH)
Select the desired one of multiple play lists: The Disc Navigation screen of the selected play list will appear.
1Press the DISC NAVIGATION button.
2Press the MENU button.
3Use “Operating Menu”
(p. 64) to choose
“Switch” on the
“PlayList” menu
screen, and then press
the A button.
4Use the “Switch
Playlist” screen to select
the play list you wish to
display, and then press
the A button.
The Disc Navigation
screen of the selected play list will be
displayed.
Note:
To display the Disc Navigation screen showing all
programs (all recorded scenes), choose “All Programs”
on the “Switch PlayList” screen.
●Editing on play list
When making settings on play list, such as
changing title, setting skip, adding fade, etc., use
the same procedure for setting on program or
scenes. Perform these settings, referring to the
following reference pages:
1
PLAYING BACK A PLAY LIST (PLAY)
1Press the DISC NAVIGATION button.
2Press the MENU button.
3Use “Operating Menu”
(p. 64) to choose “Play”
on the “PlayList” menu
screen, and then press
the A button.
4Use the “Start Playlist”
screen to select the play
list to be played back,
and then press the A
button.
The selected play list
will be played back from the first scene. To
cancel playback midway, press the C button:
The Disc navigation screen of the play list
being played back will appear.
Note:
If “Repeat Play On” is specified, the play list will be
repeatedly played back (see page 136).
Switch PlayList
01 8/30/2005 12:30P
M
02 9/10/2005 8:00A
M
Al l Progr a
m
s
ENTER RETURN
03 9/12/2005 9 :30A
M
PlayList
RAM
ENTER RETURN
Create
Edi t
Sw i t ch
Play
Title
Delete
ETC
001/00801 8/30/2005 12:..
PLAY
RAM
Deleting scene, p. 110
Changing thumbnail, p. 116
Setting skip, p. 115
Adding fade, p. 114
Combining scenes, p. 113
Dividing a scene, p. 112
Copying to card, p. 117
Changing title, p. 122, 130
Arranging order of scenes
(only on play list)
p. 129
Start PlayList
01 8/30/2005 12:30P
M
02 9/10/2005 8:00A
M
ENTER RETURN
03 9/12/2005 9 :30A
M
04 9/20/2005 3:15P
M
PlayList
RAM
ENTER RETURN
Create
Edi t
Sw i t ch
Play
Title
Delete
ETC
12:30PM
8/30/2005
English
126
1
ADDING SCENES TO PLAY LIST (EDITING PLAY LIST)
1Press the DISC NAVIGATION button.
2Press the MENU button.
3Use “Operating Menu”
(p. 64) to choose “Edit”
on the “PlayList” menu
screen, and then press
the A button.
4Use the play list select
screen to select the play
list to which you wish
to add scenes, and then
press the A button.
The scenes of the
program that was
displayed in step 1 will
appear in the upper
row, and the scenes of
selected play list will
appear in the lower
row.
Note:
If the DISPLAY button is
pressed when the
thumbnails are displayed,
the recording date/time of
the selected scene will
appear across the bottom
of screen. Press DISPLAY
button again to restore the
previous screen.
5Press the e button to move the cursor to the
lower row, and press the d or c button to
select the point where the scene is to be
inserted.
6Press the f button to move the cursor to the
upper row, and press the d or c button to
point the cursor to the scene to be added.
7Press the A button to copy the scene.
After adding scenes is completed, the edited
play list will appear.
Repeat steps 5 – 7 to add other scenes.
8Press the C button: The screen for verifying
exit will appear.
Note:
• The cursor shows the position where the scene is to
be added.
• You can also select multiple scenes (p. 106).
• Pressing C in the middle of adding scenes will display
the screen for verifying an exit from “Edit PlayList”.
Choose “YES” to exit the edition of play list. Choosing
“NO” will restore the “Edit PlayList” screen.
• If you press the MENU button in step 5 or 6, the
submenu screen for editing play list will appear. You
can also use this submenu to add scenes (see
page 111).
PlayList
RAM
ENTER RETURN
Create
Edi t
Sw i t ch
Play
Title
Delete
ETC
Edit PlayList
01 8/30/2005 12:30P
M
02 9/10/2005 8:00A
M
ENTER RETURN
03 9/12/2005 9 :30A
M
04 9/20/2005 3:15P
M
Edit PlayList
PlayList No.01
Al l Progra
ms
004/014
007/007
ADD EX I T
Edit PlayList
PlayList No.01
Al l Progra
ms
004/014
008/008
8 /30 /2005 12 :30:00PM
Recording date/time
*1: Number of scene before insertion position cursor
*2: Number of all scenes on play list
Edit PlayList
PlayList No.01
Al l Progra
ms
004/014
008/008
ADD EX I T
Insertion position
Scene to be added
*1 *2
English
127
1
DELETING SCENES FROM PLAY LIST (EDITING PLAY LIST)
1Press the DISC NAVIGATION button.
2Display the editing screen of the play list to
be edited.
Perform steps 2 – 4 on page 126.
3Move the cursor to the
play list in lower row,
and place the cursor on
the scene to be deleted.
4Press the A button.
Repeat steps 3 and 4 to
delete other scenes.
5Press the C button: The
screen for verifying exit
will appear.
Note:
• You can also select multiple scenes (p. 106).
• Place the cursor on scene to be deleted, and then
press the DELETE button on remote control: You can
also delete the scene on the play list.
1
ADDING SCENES USING SUBMENU FOR EDITING (EDITING PLAY LIST)
You can use the menu screen to add scenes to a play list.
1Press the DISC NAVIGATION button.
2Display the editing screen of the play list to
be edited.
Perform steps 2 – 4 on page 126.
3From the play list in lower row, select the
position where you wish to insert a scene.
4Select the scenes to be added from the upper
row.
5Press the MENU button.
6Choose “Add”, and
then press the A
button.
Repeat steps 3 – 6 to
add other scenes.
7Press the C button: The
screen for verifying exit
will appear.
Note:
• The selected scenes will be added in the insertion
position.
• You can also select multiple scenes (p. 106).
Edit PlayList
PlayList No.02
Al l Progra
ms
004/014
008/008
EXITDELETE
Edit PlayList
PlayList No.02
Al l Progra
ms
004/014
007/007
EXITDELETE
Edit PlayList
PlayList No.03
Al l Progra
ms
004/014
007/007
ADD EX I T
Scene to be added
Insertion position
Ed i t
Al l Progra
ms
ENTER RETURN
007/007PlayList No.03
004/014
Exit
Add
Edit PlayList
PlayList No.03
Al l Progra
ms
004/014
008/008
ADD EX I T
English
128
1
DELETING SCENES USING SUBMENU FOR EDITING (EDITING PLAY LIST)
You can delete scenes from play list on the editing screen.
1Press the DISC NAVIGATION button.
2Display the editing screen of the play list to
be edited.
Perform steps 2 – 4 on page 126.
3Move the cursor to the
play list in lower row.
4Select the scene to be deleted, and then press
the MENU button.
5Choose “Delete” on the
“Edit” menu screen,
and then press the A
button.
Repeat steps 3 – 5 other
scenes can be deleted.
6Press the C button: The screen for verifying
exit will appear.
Note:
• If all scenes on play list are deleted, the play list itself
will also be deleted.
• You can also select multiple scenes (p. 106).
1
SELECTING SCENES USING SUBMENU FOR EDITING (EDITING PLAY
LIST)
You can specify the range of scenes when adding or deleting consecutive multiple scenes to/from
play list. This “Select” menu item is useful when selecting consecutive multiple scenes in items for
adding or deleting scenes using menu on page 119.
1Press the DISC NAVIGATION button.
2Display the editing
screen of the play list to
be edited.
Perform steps 2 – 4 on
page 126.
3Specify the first or last scene of those you
wish to select, and then press the MENU
button.
To select all scenes, simply press the MENU
button.
4Use “Operating Menu”
(p. 64) to choose “Start
→ Current”, “Current
→ End”, “All” on the
“Select” menu screen,
and then press the A
button.
Note:
See page 119 for the status of scenes to be
selected.
5Press the C button: The screen for verifying
exit will appear.
Edit PlayList
PlayList No.04
Al l Progra
ms
001/014
007/007
DELETE EX IT
Ed i t
PlayList No.04
Al l Progra
ms
001/014
007/007
ENTER RETURN
Exit
Delete
Edit PlayList
PlayList No.04
Al l Progra
ms
004/014
007/007
ADD EX I T
Select
