Dishwasher Installation Instructions Kenmore model 14319

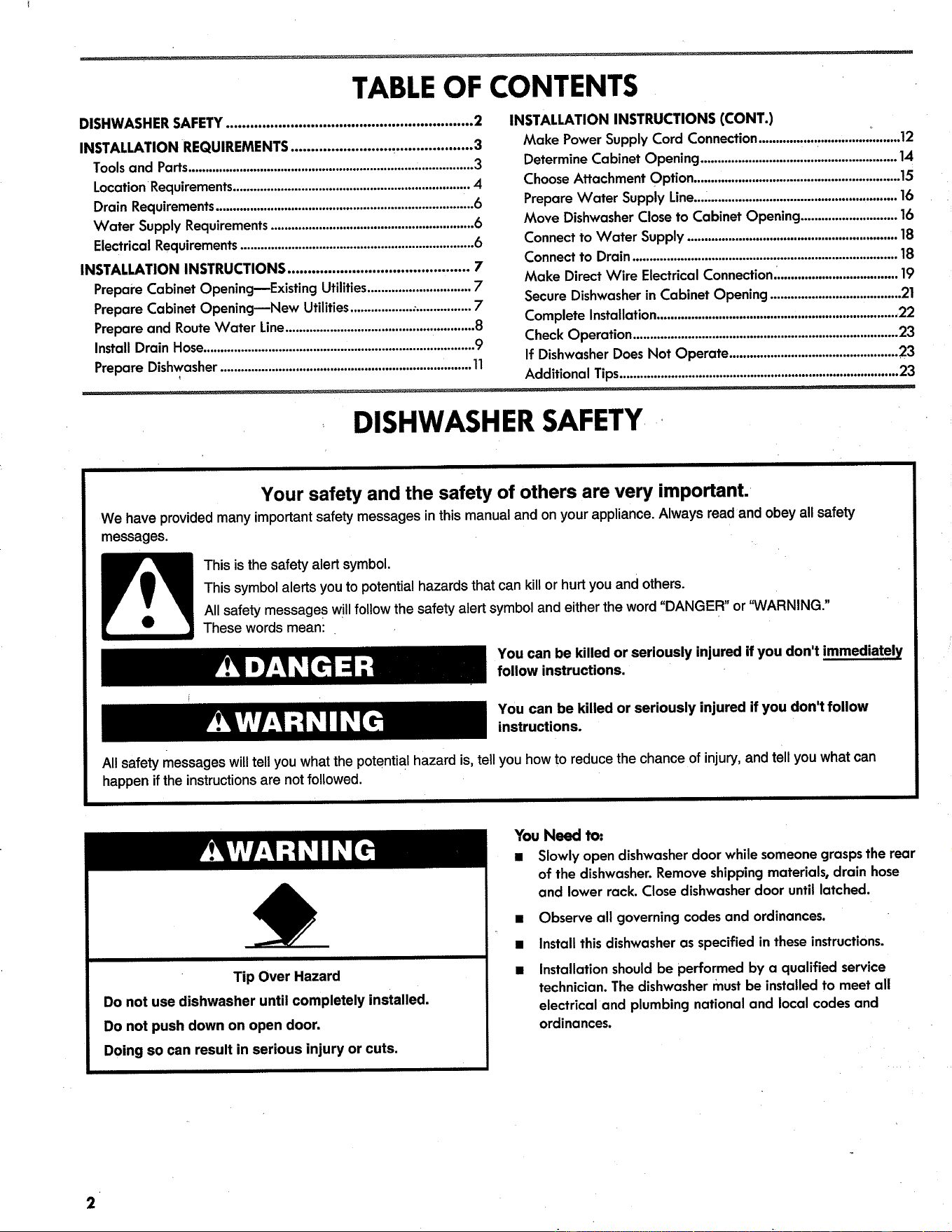

Table of Contents
- DISHWASHER SAFETY
- INSTALLATION REQUIREMENTS
- INSTALLATION INSTRUCTIONS
- INSTALLATION INSTRUCTIONS (CONT.)

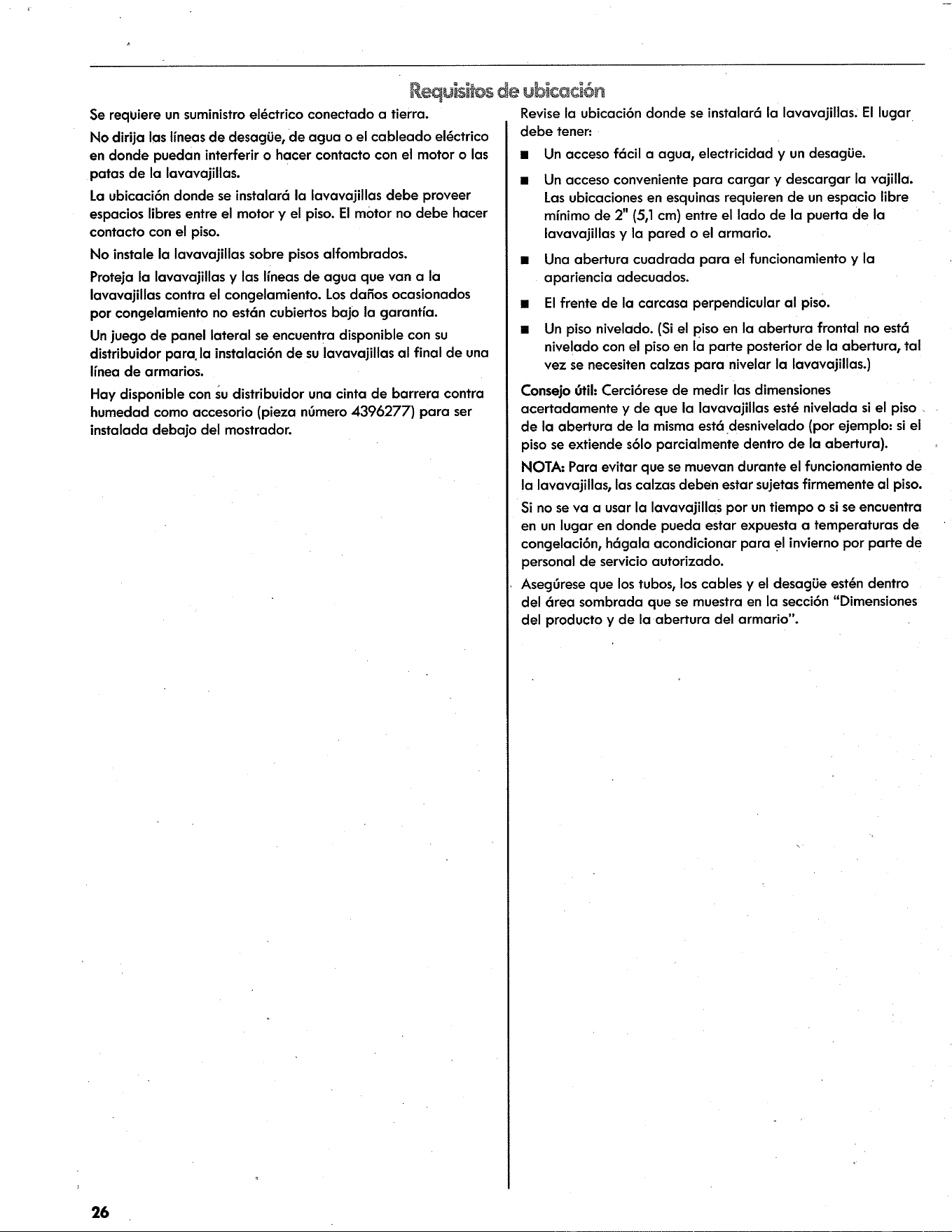

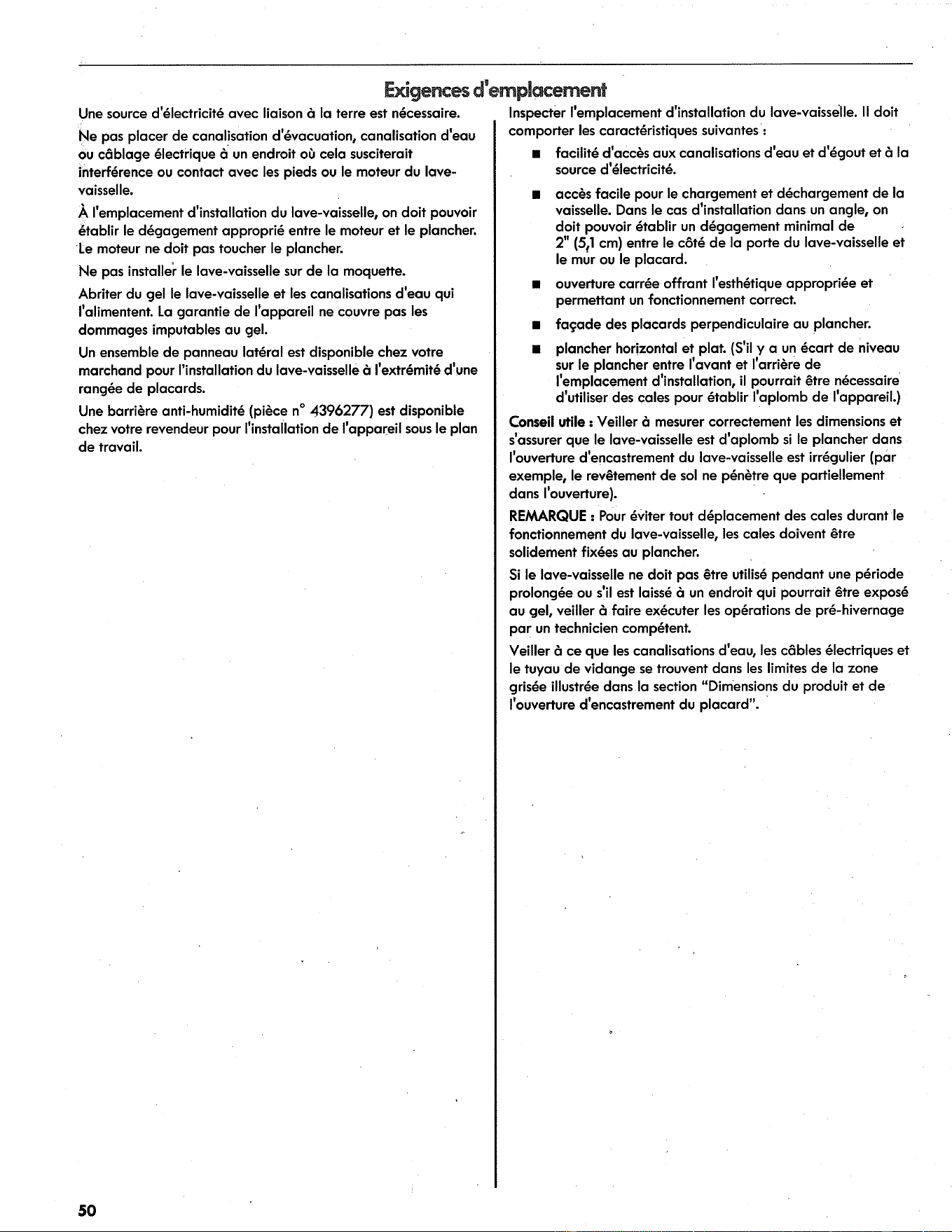

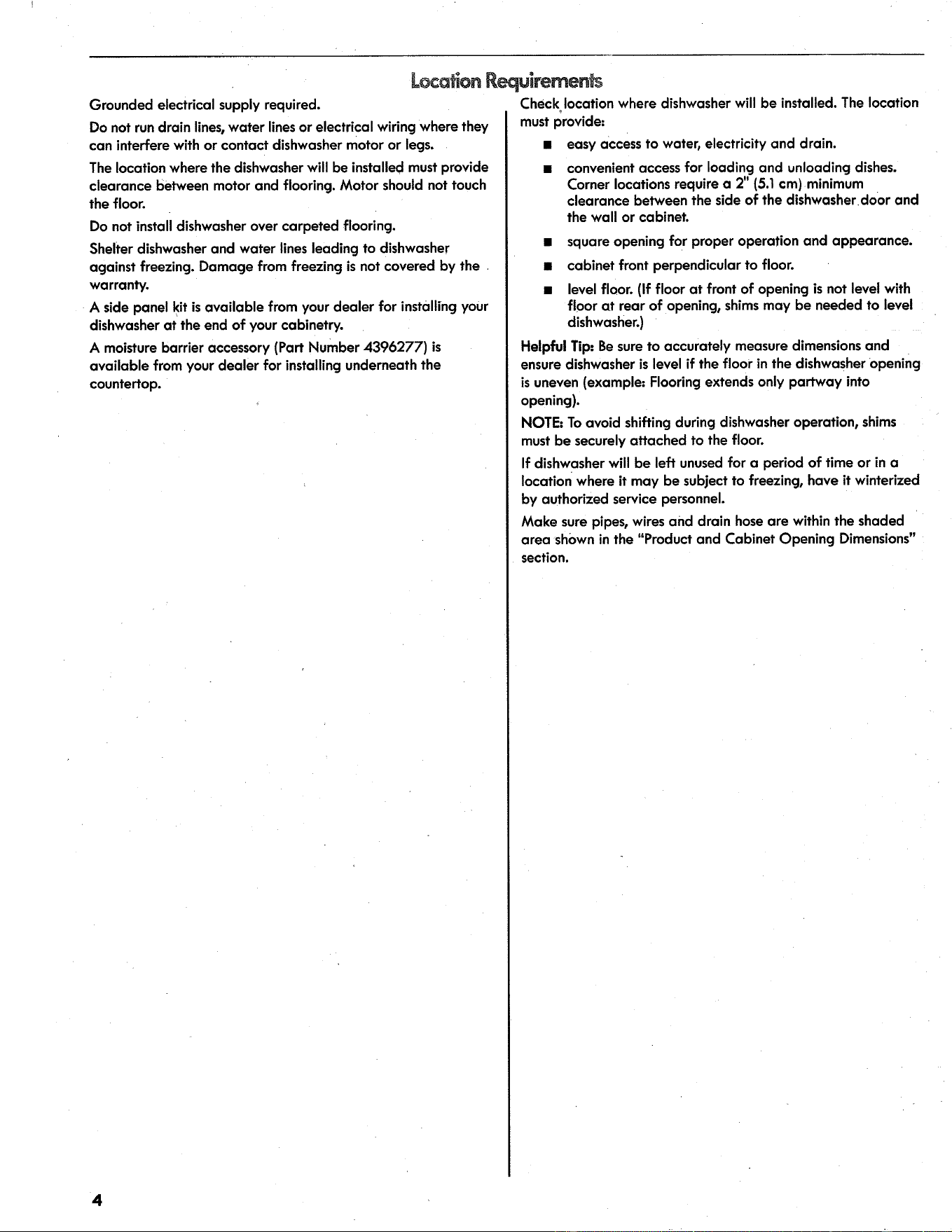

Location Requirernents
- Grounded electrical supply required.
- Do not run drain lines,water lines or electrical wiring where they can interfere with or contact dishwasher motor or legs.
- The location where the dishwasher will be installed must provide clearance between motor and flooring. Motor should not touch the floor.
- Do not install dishwasher over carpeted flooring. Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.
- A side panel kit is available from your dealer for installing your dishwasher at the end of your cabinetry.
- A moisture barrier accessory (Part Number 4396277) is available from your dealer for installing underneath the countertop.
Check/ocation where dishwasher will be installed. The location must provide:
- easy access to water, electricity and drain.
- convenient access for loading and unloading dishes. Corner locations require a 2" (5.1 cm) minimum clearance between the side of the dishwasher door and the wall or cabinet.
- square opening for proper operation and appearance. cabinet front perpendicular to floor.
- level floor. (If floor at front of opening is not level with floor at rear of opening, shimsmay be needed to level dishwasher.)
Helpful Tip:
- Be sure to accurately measure dimensions and ensure dishwasher is level if the floor in the dishwasher Opening is uneven (example: Flooring extends only partway into opening).
NOTE:
- To avoid shifting during dishwasher operation, shims must be securely attached to the floor.
- If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel.

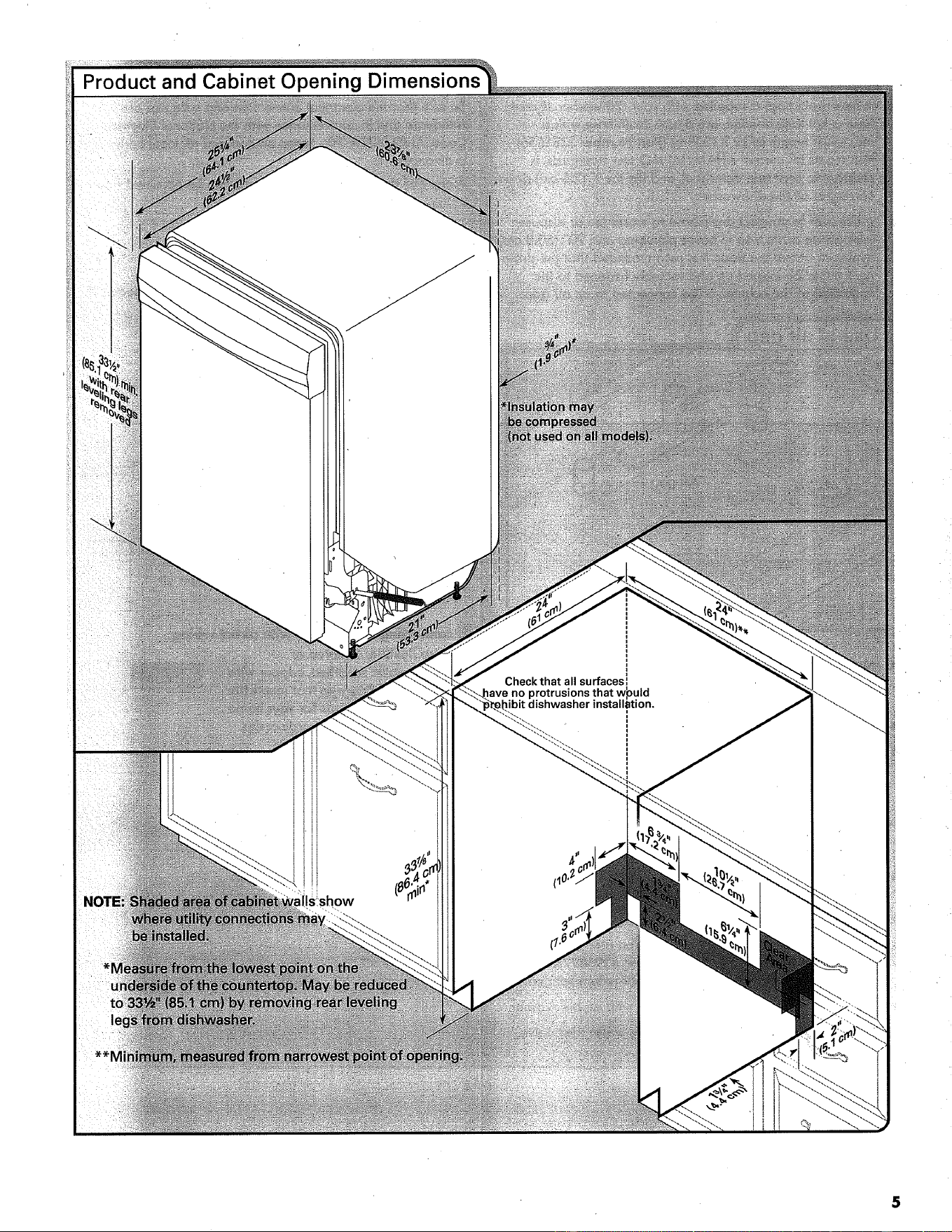

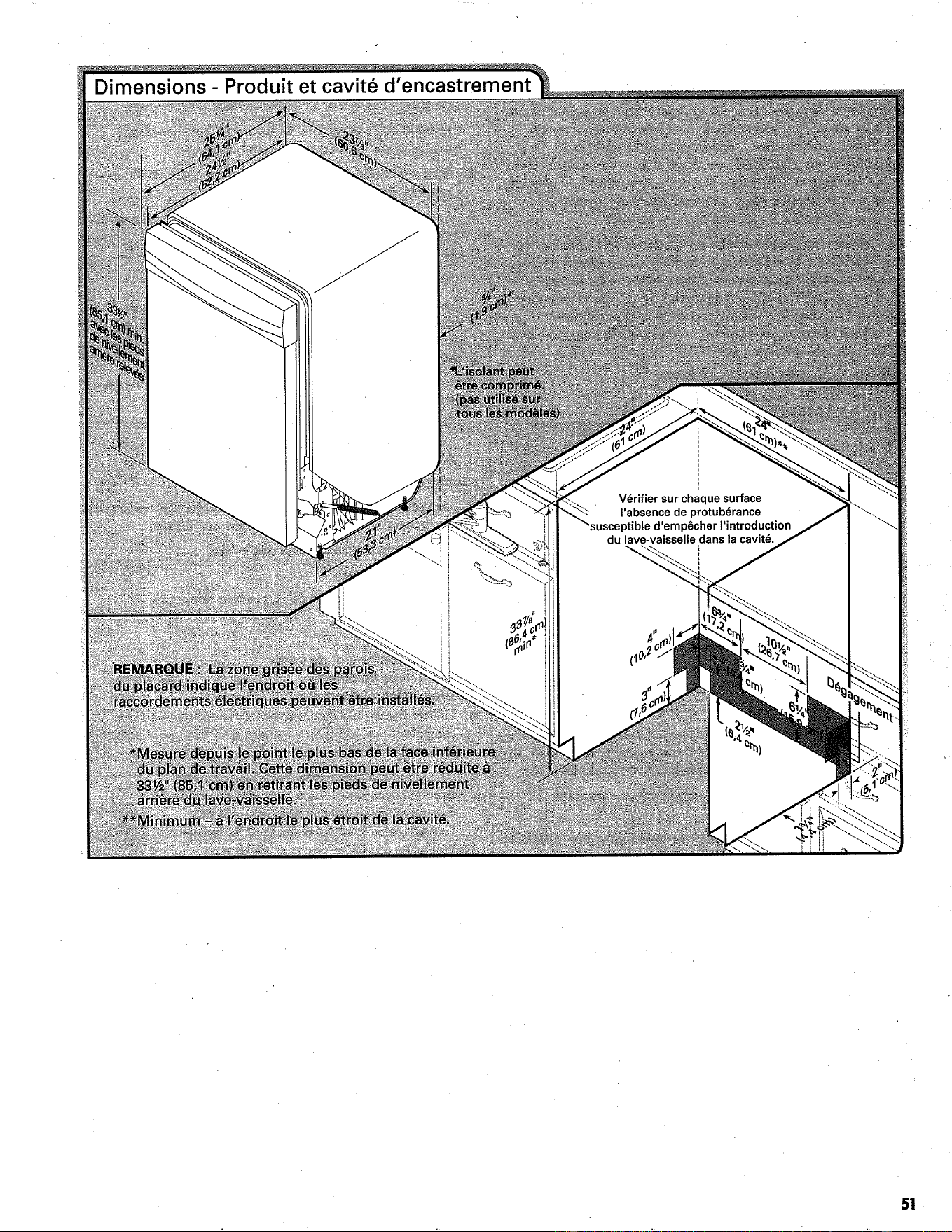

- Make sure pipes, wires and drain hose are within the shaded area shown in the "Product and Cabinet Opening Dimensions" section.
