Owner 's Manual for Refrigerator
Operating Instructions

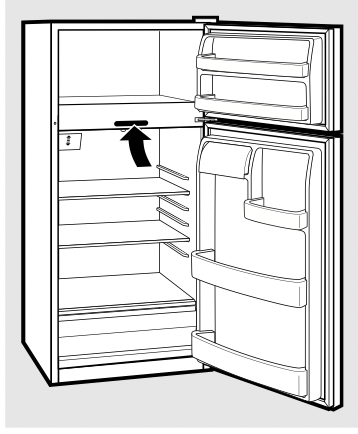

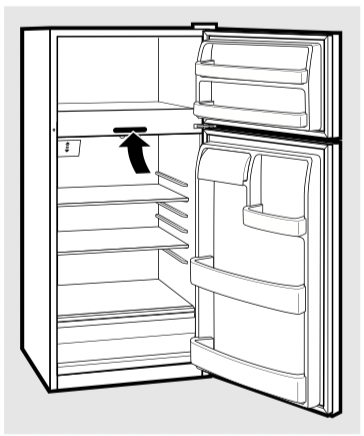

About the controls on the refrigerator.

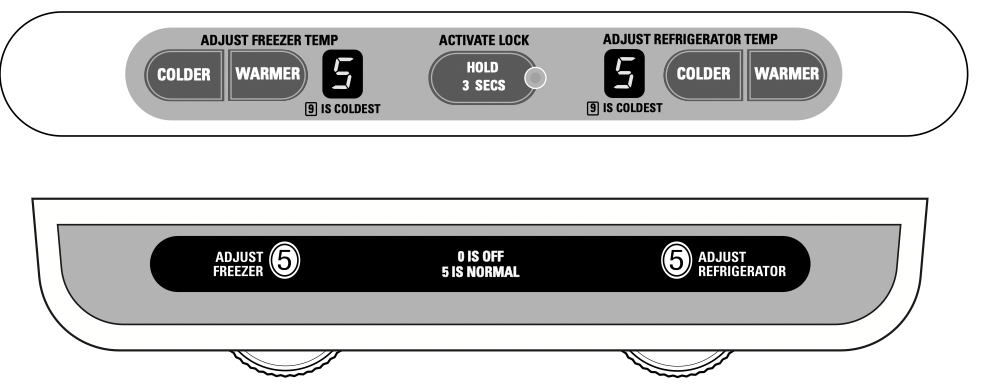

The controls will look like one of the following:
Initially, set the refrigerator control at 5 and the freezer control at 5 and allow 12–24 hours for the temperature to stabilize.
Several adjustments may be required. Adjust the controls one increment at a time, and allow 12 hours after each adjustment for the refrigerator to reach the temperature you have set.
Setting the controls to 0 stops cooling in both the refrigerator and freezer compartments but does not shut off electrical power to the refrigerator. On some models, only the refrigerator control has a 0 setting.

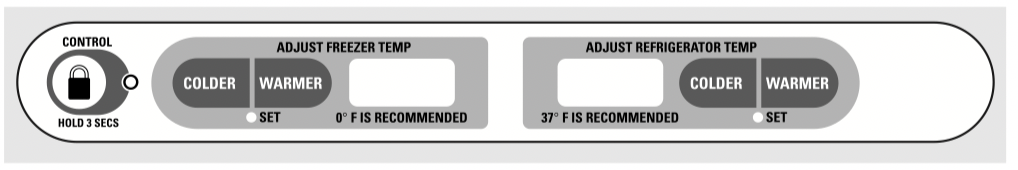

Touch pad controls
• Setting either control at 0 will automatically set the other control at 0. The zeros will blink until you set the controls.
• If both controls are set at 0 and either COLDER pad is pressed, the controls will automatically reset to 5.
Control settings will vary based on personal preferences, usage and operating conditions and may require more than one adjustment.
Locking the Controls (on some models)
This feature allows you to lock the controls so the settings cannot be changed.
To lock the controls:
- Set the controls to the desired settings.
- Press and hold the lock pad for 3 seconds.
When the controls are locked, the indicator light will come on and the control settings will not be displayed.
To unlock the controls:
Press and hold the lock pad for 3 seconds.
After unlocking the controls, the settings will be displayed, the lock indicator light will go out and the settings can be changed.
About the temperature controls.
The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.
The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.
Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.
NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now.
To change the temperature, press and release the WARMER or COLDER pad. The SET light will come on and the display will show the set temperature. To change the temperature, tap either the WARMER or COLDER pad until the desired temperature is displayed. Refrigerator temperatures can be adjusted between 34°F and 44°F and the freezer temperatures can be adjusted between –6°F and +6°F.
Once the desired temperature has been set, the temperature display will return to the actual refrigerator and freezer temperatures after 5 seconds. Several adjustments may be required. Each time you adjust controls, allow 24 hours for the refrigerator to reach the temperature you have set.
To turn the cooling system off, tap the WARMER pad for either the refrigerator or the freezer until the display shows OFF. To turn the unit back on, press the COLDER pad for either the refrigerator or freezer. The SET light will illuminate on the side you selected. Then press the COLDER pad again (on the side where the SET light is illuminated) and it will go to the preset points of 0°F for the freezer and 37°F for the refrigerator. Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.
Locking the Controls (on some models)
This feature allows you to lock the controls so the settings cannot be changed.
To lock the controls:
- Set the controls to the desired settings.
- Press and hold the lock pad for 3 seconds.
When the controls are locked, the indicator light will come on and the control settings will not be displayed.
To unlock the controls:
Press and hold the lock pad for 3 seconds.
After unlocking the controls, the settings will be displayed, the lock indicator light will go out and the settings can be changed.
About the water filter. (on some models)
Water Filter Cartridge
The water filter cartridge is located inside the cartridge holder in the back upper right corner of the refrigerator compartment.
NOTE: Some models ship with the filter bypass plug in place of the filter cartridge. The filter bypass plug needs to be removed before the filter cartridge is installed. Keep the filter bypass plug for future use.
When to Replace the Filter
The filter cartridge should be replaced every six months or earlier if the flow of water to the icemaker and dispenser decreases.
Installing the Filter Cartridge

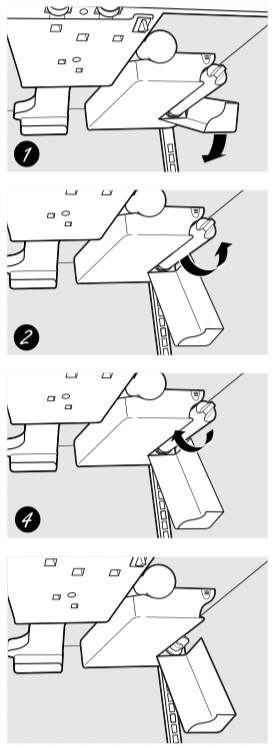

1. If you are replacing the cartridge, first remove the old one. To open the cartridge cover, push in where indicated and the cover will drop down.
2. Remove the cartridge by slowly rotating it to the left. A small amount of water may drip down.
CAUTION: the system, the If air filter has cartridge been may be ejected as it is removed. Use caution when removing.
3. Mark your calendar to remind you to replace the filter cartridge in six months.
4. Remove the protective foil from the end of the cartridge.
5. Position the cartridge inside the cartridge holder and slowly rotate the cartridge to the right until it stops. When the cartridge is properly installed, you will feel it “click” as it locks into place. The blade on the end of the cartridge should be positioned vertically. Do not overtighten.
6. Close the cartridge cover.
7. Run water from the dispenser for 3 minutes (about 11 ⁄2 gallons) to clear the system and prevent sputtering. See To Use the Dispenser section.
NOTE: A newly-installed water filter cartridge may cause water to spurt from the dispenser.
Filter Bypass Plug
You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.
Replacement Filters
To order additional filter cartridges in the United States, visit our Website, or call GE Parts and Accessories, 800.626.2002.
Filter Model GSWF Suggested Retail Price $34.95 USD
Customers in Canada should consult the yellow pages for the nearest Camco Service Center.
About the shelves and bins.
Not all features are on all models.
Rearranging the Shelves
Shelves in the refrigerator and freezer compartments are adjustable.
Refrigerator Compartment
To remove:

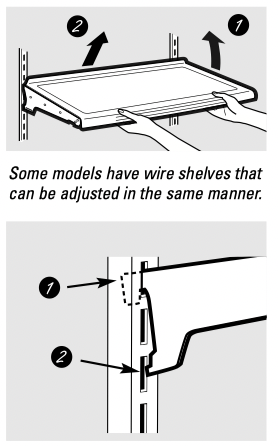

- Tilt the shelf up at the front.
- Lift the shelf up at the back and bring the shelf out.
To replace:
- While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track.
- Lower the front of the shelf until the bottom of the shelf locks into place.

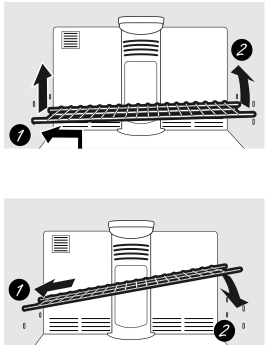

Freezer Compartment
To remove:
- Lift up the left side of the shelf and slide it left into the center of the shelf supports.
- Rotate the right side of the shelf up and out of the shelf supports.
To replace:
- Holding the shelf diagonally, insert the left end of the shelf into the center of the shelf supports on the side wall at the desired level.
- Insert the right end of the shelf into the shelf supports at the same level. Rest each end of the shelf on the bottom of the shelf supports.
NOTE: For models with an automatic icemaker, the freezer shelf must be in the lower position for the ice cube bucket to catch the cubes.
Spillproof Shelves (on some models)
Spillproof shelves have special edges to help prevent spills from dripping to lower shelves. To remove or replace the shelves, see Rearranging the Shelves.
Slide-Out Spillproof Shelf (on some models)
The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.
To remove:
- Remove all items from shelf.
- Slide the shelf out until it stops.
- Lift the front edge of the shelf until the central tabs are above the front bar.
- Continue pulling the shelf forward until it can be removed.
To replace:
- Place the rear shelf tabs just in front of the central notches on the shelf frame.
- Slide the shelf in until the central tabs are slightly behind the front bar.
- Lower the shelf into place until it is horizontal and slide the shelf in.
Make sure that the shelf sits flat after reinstallation and doesn’t move freely from side to side.
Make sure you push the shelves all the way in before you close the door.
Adjustable Bins on the Door
Adjustable bins can easily be carried from refrigerator to work area.
To remove: Lift bin straight up, then pull out.
To replace or relocate: Engage the bin in the molded supports of the door, and push in. Bin will lock in place.
The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Grip the finger hold near the rear of the snugger and move it to fit your needs.
Non-Adjustable Shelves on the Door
To remove: Lift the shelf straight up, then pull out.
To replace: Engage the shelf in the molded supports on the door and push down. It will lock in place.
Freezer Tilt Out Bin (on some models)
Push the button as you tilt out the bin.
To remove: Hold the sides of the bin and lift it straight up, then pull out.
To replace: Engage the ends of the bin in the molded supports on the door and push down. It will lock in place.
NOTE: Do not overload the bin.
About the additional features.
Not all features are on all models.
Shelf Saver Rack (on some models)
Slide-out beverage rack holds 12 cans of soda or 2 wine/water bottles (lengthwise). It can be removed for cleaning.
To remove, slide the rack out to the stop position, lift the rack up and past the stop position and lift it out.
About the crispers and pans.
Not all features are on all models.
Fruit and Vegetable Crisper
Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry.
Adjustable Humidity Crisper (on some models)
Slide the control all the way to the HIGH setting to provide high humidity recommended for most vegetables.
Slide the control all the way to the LOW setting to provide lower humidity levels recommended for most fruits.
Snack Pan (on some models)
This pan can be moved to the most useful location for your family’s needs.
To remove, slide the pan out to the stop position, lift the pan up and past the stop position and lift it out.
Adjustable Temperature Deli Pan (on some models)
When the pan is placed in the top 6 slots on the left side and the lever is set at COLDEST, air from the freezer is forced around the pan to keep it very cold.
You can move the pan to any location if you don’t want the extra cold storage.
The settings can be adjusted anywhere between cold
and coldest .
When set at cold, the pan will stay at the normal refrigerator temperature.
The coldest setting provides the coldest storage area.
About crisper removal.
Not all features are on all models.
Crisper Removal
To Remove:
These drawers can be removed easily by lifting up slightly while pulling the drawer past the stop location.
When the door cannot be fully opened, remove the drawer farthest from the door first. Make sure the drawer closest to the door is fully closed. There is a latch at the front of the center slide rail. Push down on the latch and slide the center slide rail, to which the drawer is attached, away from the door. Remove the drawer.
About the automatic icemaker.
A newly-installed refrigerator may take 12–24 hours to begin making ice.
Automatic Icemaker (on some models)
The icemaker will produce seven or eight cubes (depending on model) per cycleapproximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

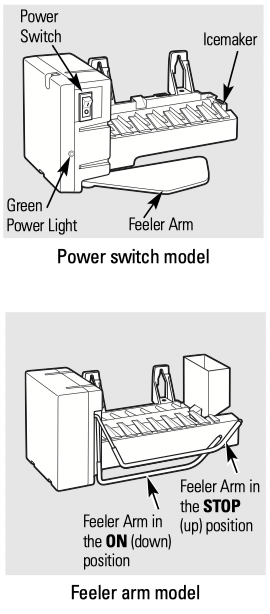

There are two types of icemakers: power switch models and feeler arm models.
If the refrigerator is operated before the water connection is made to the icemaker, set the power switch to O (off) or move the feeler arm to the STOP (up) position.
When the refrigerator has been connected to the water supply, set the power switch to the I (on) position or move the feeler arm to the ON (down) position. On power switch models, the green light will come on.
You will hear a buzzing sound each time the icemaker fills with water.
The icemaker will fill with water when it cools to approximately 15°F. A newlyinstalled refrigerator may take 12 to 24 hours to begin making ice cubes.
Throw away the first few batches of ice to allow the water line to clear.
Be sure nothing interferes with the sweep of the feeler arm.
When the bin fills to the level of the feeler arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined together.
If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.
On power switch models, the green power light will blink if ice cubes get stuck in the icemaker. To correct this, set the power switch to O (off) and remove the cubes. Set the power switch to I (on) to restart the icemaker. After the icemaker has been turned on again, there will be a delay of about 45 minutes before the icemaker resumes operation.
NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.
Icemaker Accessory Kit
If your refrigerator did not come already equipped with an automatic icemaker, an icemaker accessory kit is available at extra cost.
Check the back of the refrigerator for the specific icemaker kit needed for your model.
About the water dispenser. (on some models)
The water dispenser is located on the left wall inside the refrigerator compartment.
To dispense water:
- Hold the glass against the recess.
- Push the water dispenser button.
- Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released.
If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser button for at least 2 minutes to remove trapped air from the water line and to fill the water system. During this process, the dispenser noise may be loud as the air is purged from the water line system. To flush out impurities in the water line, throw away the first 6 glassfuls of water.
NOTE: To avoid water deposits, the dispenser should be cleaned periodically by wiping with a clean cloth or sponge.
Care and cleaning of the refrigerator.
Cleaning the Outside
The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth.
Keep the outside clean. Wipe with a clean cloth lightly dampened with mild liquid dish detergent. Dry with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.
Cleaning the Inside
To help prevent odors, leave an open box of baking soda in the refrigerator and freezer compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.
Use warm water and baking soda solutionabout a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Thoroughly rinse and wipe dry.
Avoid cleaning cold glass shelves (on some models) with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter.
Do not wash any refrigerator parts in the dishwasher.
Wash ice trays in lukewarm water only—do not put them in an automatic dishwasher.
Behind the Refrigerator
Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.
Pull the refrigerator straight out and return it to position by pushing it straight in.
Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.
When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line (on some models).
Preparing for Vacation
For long vacations or absences, remove food and unplug the refrigerator. Move the freezer control to the 0 (off) position, and clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.
Set the icemaker power switch to the O (off) position and shut off the water supply to the refrigerator.
If the temperature can drop below freezing, have a qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding.
Preparing to Move
Secure all loose items such as base grille, shelves and drawers by taping them securely in place to prevent damage.
Be sure the refrigerator stays in an upright position during moving.
Replacing the light bulbs.
Turning the control to the 0 (off) position does not remove power to the light circuit.
Refrigerator Compartment
CAUTION: Light bulbs may be hot.
- Unplug the refrigerator.
- The bulbs are located at the top of the refrigerator compartment near the opening. On some models, a light shield will have to be removed.

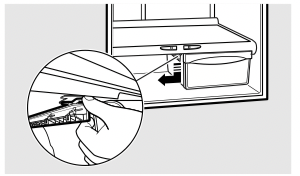

- To remove the light shield, grasp the shield as shown. Squeeze the shield and rotate the shield toward the back of the refrigerator. The light shield will pop out.
- Replace the bulb with an appliance bulb of the same or lower wattage. On models with a light shield, replace the light shield.
- Plug the refrigerator back in.
Freezer Compartment Light (on some models)
CAUTION: Light bulbs may be hot.
- Unplug the refrigerator.
- The bulb is located behind a light shield at the back of the freezer compartment. To remove, squeeze the top and bottom of the shield and pull the shield off.
- After replacing with an appliance bulb of the same or lower wattage, replace the shield.
- Plug the refrigerator back in.
Freezer Compartment Dome Light (on some models)
CAUTION: Light bulbs may be hot.
- Unplug the refrigerator.
- The bulb is located at the top of the freezer compartment inside the dome light shield. To remove the shield, place your finger in the pocket at the back of the shield. Pull the shield forward and down.
- After replacing with an appliance bulb of the same or lower wattage, replace the shield.
- Plug the refrigerator back in.
Troubleshooting tips
Normal operating sounds.
Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology.
Do you hear what I hear? These sounds are normal.
|
HUMMM... WHOOSH...
Electronic models only:
|
Electronic models only:
|
|
CLICKS, POPS, CRACKS and CHIRPS
|
WATER SOUNDS
For additional information on normal icemaker operating sounds, see the About the automatic icemaker section. |
Before you call for service…
Troubleshooting Tips
Save time and money! Review the charts on the following pages first and you may not need to call for service.
|
Problem |
Possible Causes & What To Do |
|
Refrigerator does not operate |
Refrigerator in defrost cycle. •Wait about 40 minutes for defrost cycle to end. The controls are set to the 0 (off) position. •Move the refrigerator and freezer control to a temperature setting. Refrigerator is unplugged. •Push the plug completely into the outlet. The fuse is blown/circuit breaker is tripped. •Replace fuse or reset the breaker. |
|
Vibration or rattling (slight vibration is normal) |
Rollers need adjusting. •See Rollers. |
|
Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.) |
Normal when refrigerator is first plugged in. •Wait 12–24 hours for the refrigerator to completely cool down. Often occurs when large amounts of food are placed in refrigerator. •This is normal. Door left open. •Check to see if package is holding door open. Hot weather or frequent door openings. •This is normal. Temperature controls set at the coldest setting. •See About the controls. |
|
Refrigerator or freezer compartment too warm |
Temperature control not set cold enough. •See About the controls. Warm weather or frequent door openings. •Set the temperature control one step colder. See About the controls. Door left open. •Check to see if package is holding door open. |
|
Frost or ice crystals on frozen food (frost within package is normal) |
Door left open. •Check to see if package is holding door open. Too frequent or too long door openings. |
|
Automatic icemaker (on some models) does not work |
Icemaker power switch is in the O (off) position. •Set the power switch to the I (on) position. Water supply turned off or not connected. •See Installing the water line. Freezer compartment too warm. •Wait 12–24 hours for the refrigerator to completely cool down. Piled up cubes in the storage bin cause the icemaker to shut off. •Level cubes by hand. Ice cubes stuck in icemaker. (Green power light on icemaker blinking.) •Turn off the icemaker, remove cubes and turn the icemaker back on. |
|
Frequent “buzzing” sound |
Icemaker power switch is in the I (on) position, but the water supply to the refrigerator has not been connected. •Set the power switch to the O (off) position. Keeping it in the I (on) position will damage the water valve. |
|
Ice cubes have odor/taste |
Ice storage bin needs cleaning. •Empty and wash bin. Discard old cubes. Food transmitting odor/taste to ice cubes. •Wrap foods well. Interior of refrigerator needs cleaning. •See Care and cleaning. |
|
Slow ice cube freezing |
Door left open. •Check to see if package is holding door open. Temperature control not set cold enough. •See About the controls. |
|
No ice cube production |
Supply line or shutoff valve is clogged. •Call a plumber. |
|
Refrigerator has odor |
Foods transmitting odor to refrigerator. •Foods with strong odors should be tightly wrapped. •Keep an open box of baking soda in the refrigerator; replace every three months. Interior needs cleaning. •See Care and cleaning. |
|
Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened) |
Too frequent or too long door openings. |
|
Interior light does not work |
No power at outlet. •Replace fuse or reset the breaker. Light bulb burned out. •See Replacing the light bulbs. |
|
Hot air from bottom of refrigerator |
Normal air flow cooling motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures. |
|
Food freezing in the refrigerator |
Food too close to air vent. •Move the food away from the air vent (near the controls). Refrigerator control is set too cold. •Move the refrigerator control to a warmer temperature. |
|
Door does not close by itself |
Rollers need adjusting. •See Rollers. |
|
Orange glow in the freezer |
Defrost heater is on. •This is normal. |
|
Water dispenser does not work |
Water supply line turned off or not connected. •See Installing the water line. Water filter clogged. •Replace filter cartridge or remove filter and install plug. Air may be trapped in the water system. •Press the dispenser arm for at least 2 minutes. |
|
Water spurting from dispenser |
Newly-installed filter cartridge. •Run water from the dispenser for 3 minutes (about 11⁄2 gallons). |
|
Water is not dispensed but icemaker is working |
Water in reservoir is frozen because the controls are set too cold. •Set the refrigerator control to a warmer setting and wait 24 hours. If water does not dispense after 24 hours, call for service. |
|
No water or ice cube production |
Supply line or shutoff valve is clogged. •Call a plumber. Water filter clogged. •Replace filter cartridge or remove filter and install plug. Filter cartridge not properly installed. •Remove and reinstall filter cartridge, being certain that it locks into place. The blade on the end of the cartridge should be positioned vertically. |
|
Water is leaking from dispenser |
Glass not being held under the dispenser long enough after button is released. •Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released. Air may be present in the water line system causing water to drip after being dispensed. •Dispense water for at least 2 minutes to remove air from system. |
|
Water has poor taste/odor |
Water dispenser has not been used for a long time. •Dispense water until all water in system is replenished. |
|
Water in first glass is warm |
Normal when refrigerator is first installed. •Wait 24 hours for the refrigerator to completely cool down. Water dispenser has not been used for a long time. •Dispense water until all water is system is replenished. Water system has been drained. •Allow several hours for replenished supply to chill. |
|
Actual temperature not equal to Set temperature (on some models) |
Unit just plugged in. •Allow 24 hours for system to stabilize. Door open for too long. •Allow 24 hours for system to stabilize. Warm food added to refrigerator. •Allow 24 hours for system to stabilize. Defrost cycle is in process. •Allow 24 hours for system to stabilize. |
See other models: TBX18SIBRRWW JB850SP3SS DVM7195DK1BB GDT605PFM0DS JBP72BK1BB
