LT-32N3105A
Q.MENU
MENU
INPUT
HOME
EXITBACK
INFO
SUBTI TLE
Pg Dn
RECALL
GUIDE
1
2
3
6. 3.5mm to L-R Audio Cable x 1
7. 3.5mm to Y/V, Pb, Pr Video Cable x 1
Important Information
4
Table of Contents

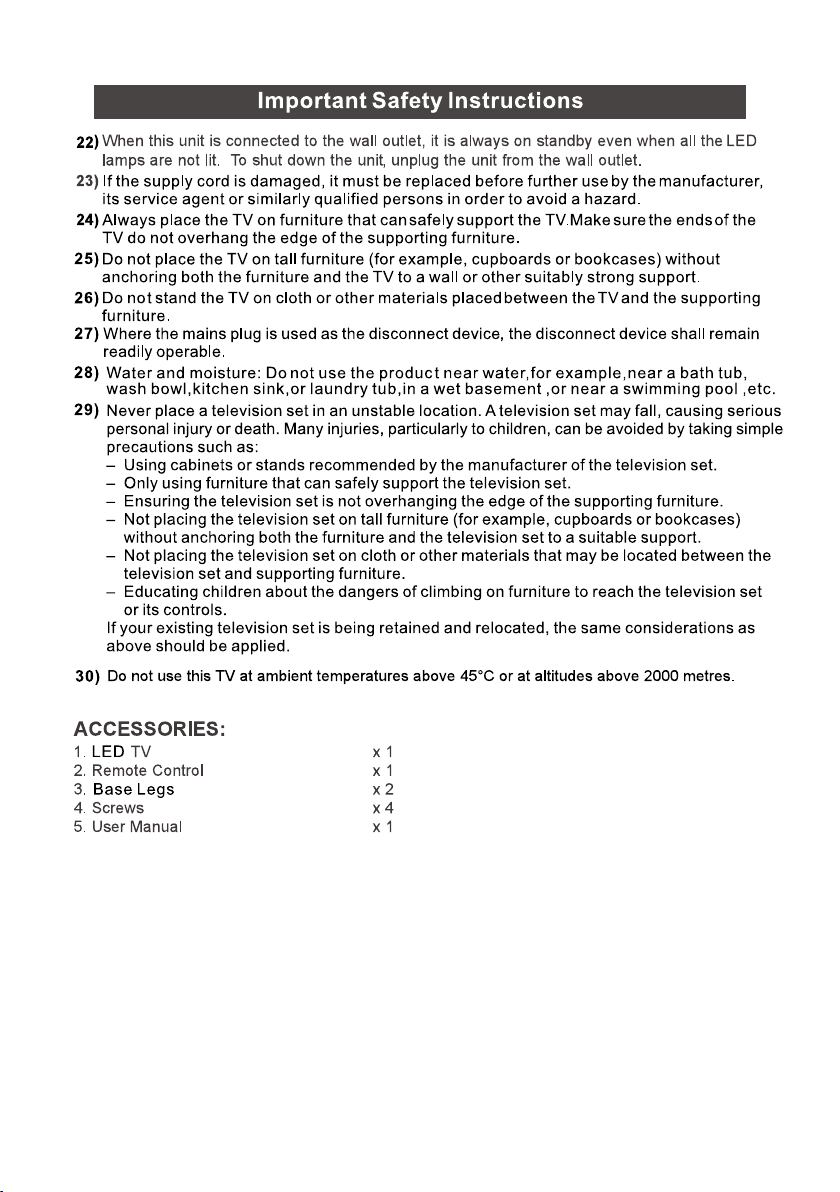

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous
due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions
such as:
• Using cabinets or stands recommended by the manufacturer os the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge os the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and
supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its
controls.
• Keep small accessories out of reach of children so they are not mistakenly swallowed.
5
5
6
7
8
8
9
10
13
13
13
14
15
16
17
18
19
19
21
21
22
24
26
27
29
31
32
34
34
34
35
36
37
Introduction
B
-------------------------------------------------------------------------------------------------------------
asic Functions---------------------------------------------------------------------------------------------------------
Specifications-------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------
--------------------------------------------------------------------------------------------------
Overview of back panel------------------------------------------------------------------------------------------------
Overview of front panel------------------------------------------------------------------------------------------------
Overview of remote control--------------------------------------------------------------------------------------------
Installing Batteries in the Remote Control-------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------
Antenna connection-----------------------------------------------------------------------------------------------------
Connecting VCR---------------------------------------------------------------------------------------------------------
Connecting a Camcorder----------------------------------------------------------------------------------------------
Connecting DVD Player/Set-Top Box via HDMI-----------------------------------------------------------------
Connecting Digital Audio System------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------
Stand and wall-mounting instructions (optional)
General Description
External Connection
Supporting signals
Basic operation
Menu Operation----------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------Menu system instruction
Picture----------------------------------------------------------------------------------------------------------------------
Sound ---------------------------------------------------------------------------------------------------------------------
Setting ---------------------------------------------------------------------------------------------------------------------
Lock-------------------------------------------------------------------------------------------------------------------------
PVR Option---------------------------------------------------------------------------------------------------------------
Program-------------------------------------------------------------------------------------------------------------------
Network -------------------------------------------------------------------------------------------------------------------
About ----------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------
SOURCE setup --------------------------------------------------------------------------------------------------------
APP setup ---------------------------------------------------------------------------------------------------------------
SETTING setup --------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------
Home Operation
Digital Media Player
Troubleshooting
5
Introduction
Basic Functions
Input terminals used for external equipment connection
1 x ANT. IN input
2 x USB inputs
3 x HDMI inputs
1 x Headphone output
1 x RJ-45 input
1 x Shared Mini Component and Composite Input
1 x Digital Optical Audio Out
6
Introduction
Specifications
NOTES:
• Design and specifications are subject to change without notice.
• Weight and Dimension shown are approximate.
Digital: DVB-T
Analog: PAL: BG, I, DK,
SECAM: BG, D/K
TV receive system
Analog: Antenna:
46.25MHz-855.25MHz
Digital
：
DVB-T/T2: 5-12,21-69
TV with stand
TV without stand
TV with stand
TV without stand
≤
0.5W
Standby comsumption
Weight
(Net weight)
Dimensions
(LxWxH)
Model
LED panel resolution
≥
5Wx2
Speaker output power
Power supply
Frequency range
PAL/NTSC/SECAMVideo in
Power consumption
DC 3V
(Two AAA size batteries)
Controller power
0 C-40 C
o o
Operating temperature
Display size
Antenna input
75 ohms
1366x768
110-240V~, 50/60Hz
32" Diagonal (max.)
55W
731.8x91.3x435mm
731.8x185.3x491mm
4.3 kg
4.23 kg
LT-32N3105A
300 cd/m
5000:1(Dynamic)
Brightness(typ.)
Contrast ratio
2
7
Stand and wall-mounting instructions (optional)

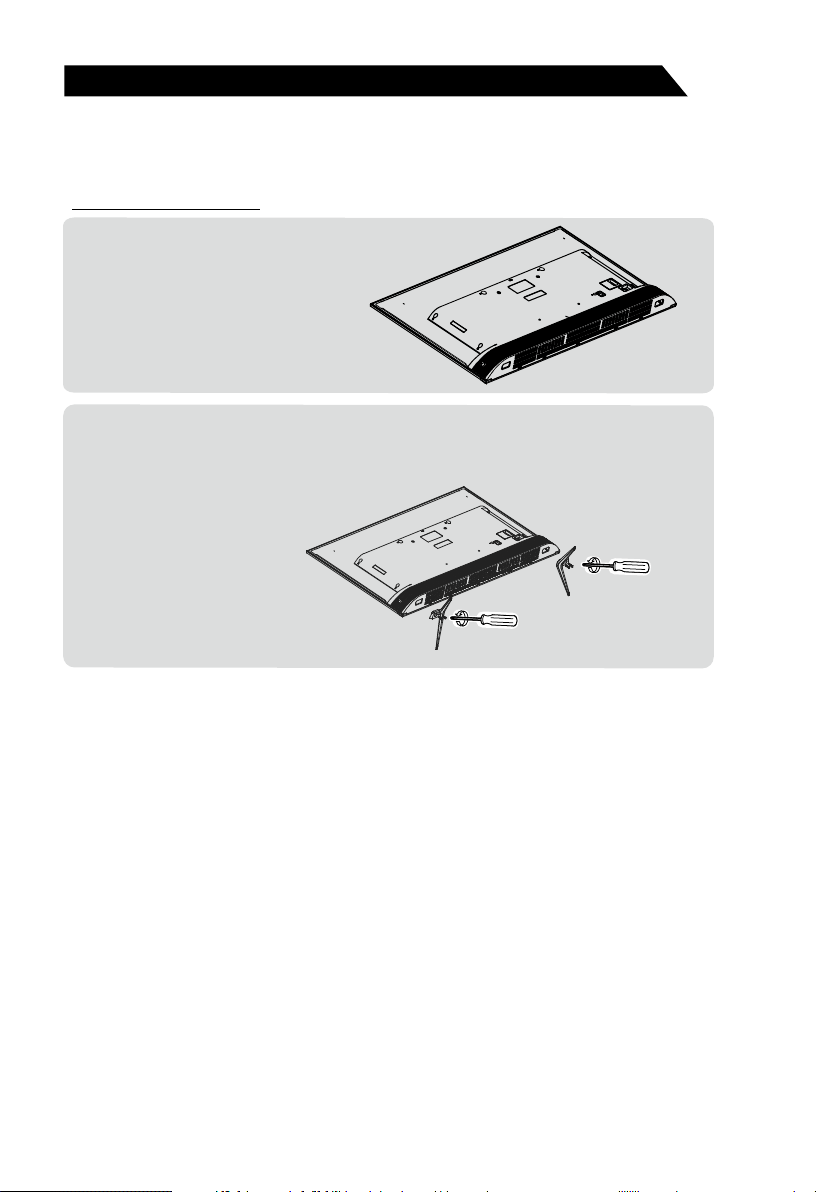

How to assemble the stand
- Before attaching/detaching the stand, make sure to turn off the TV.
- Before performing work, spread cushioning over the base area to lay the LED TV on.
This will prevent it from being damaged.
Assembling instruction:
If you need to remove or assemble the stand please read the following instructions.
Step1: Take out two stands from package,
and insert them into bottom of TV;
Step2: Take out four screws provided with
TV set and tighten them into screw
holes;
- To disconnect the stand from the TV, perform the above steps in reverse order.
Note: The illustrations and on-screen displays in this manual are for explanation purposes
and may vary slightly from actual product.
8
General Description
Overview of back panel
General Description
Overview of back panel
You can connect the TV with video devices such as DVD/VCD player, VCR and video camera to
enjoy the high quality picture.
General Description
Overview of back panel
Headphone
DVD player
Camcorder
DVD player
PC (HDMI-output)
Blu-ray disc player
USB
Note:
The product and illustrations in this user's manual is only for explanation purposes and
may vary depending on model.
9
General Description
Overview of front panel
The on the back panel control your TV’s basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
Multifunction Button
Red light indicates the TV is in standby mode.
Green light indicates the TV is on.
The key instructions are subject to below.
When there is no button icon popping up, press the key, the key icon will
pop up like the picture shows above, the key icon will automatically turn off after 5 seconds of
inactivity.
Short press the button, move the loop to the right, select the icon.
Long press the key to achieve the function of the selected icon.
Corresponding to the “POWER” button of remote.
Corresponding to the “CH+” button of remote.
Corresponding to the “CH-” button of remote.
Power Off Channel UP Channel Down Volume UP Volume Down Source
Press&Hold: SelectPress: Movie
Corresponding to the “Input” button of remote.
Corresponding to the “VOL+” button of remote.
Corresponding to the “VOL-” button of remote.
10
Loading batteries:
1) Remove the lid of the battery compartment.
2) Insert 2 size AAA batteries with polarities as indicated inside the compartment.
3) Replace the lid.
Note:
1) A loading of batteries should last one year under normal use.
2) If you don't intend to use the remote control for a long period of time, remove batteries
to avoid damage due to leakage.
3) Do not mix old and new batteries or different types.
4) Do not throw batteries into fire or water.
5) The batteries (battery pack or batteries installed) should not be exposed to excessive
heat such as sunshine, fire or the like.
General Description
Overview of Remote Control
Q.MENU
MENU
INPUT
HOME
EXITBACK
INFO
SU BTITLE
Pg Dn
RECALL
GUIDE
Q.MENU
MENU
INPUT
HOME
EXITBACK
INFO
SU BT ITLE
Pg Dn
RECALL
GUIDE
11
General Description
Overview of Remote Control

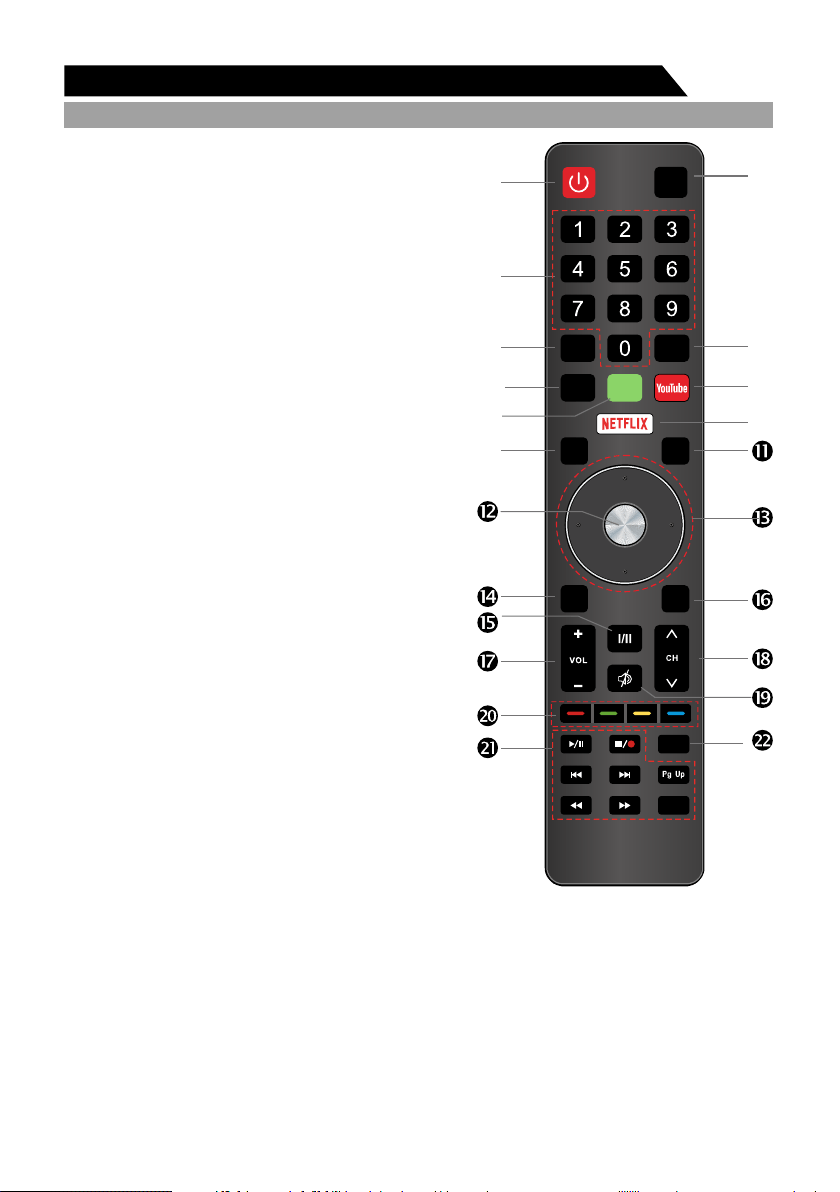

1. : Turn the TV on and off.
2. : This button is used to switch among
POWER
INPUT
different sources, Select a source and press
ENTER button to confirm.
3. Number
Number
4.
5.
6.
7.
HOME: Press it to go to App home page.
9. : If network connects, press this key
to view NETFLIX directly.
NETFLIX
10. : Press this key to go to quick menu. Q.MENU
MENU: Display the main menu or exit the
current menu.
12. : Validation key.ENTER
Buttons(0-9): Directly select channel
with buttons.
RECALL: Switch to the previous program.
INFO: Display the program information.
GUIDE: Display menu GUIDE in DTV mode.
YouTube: If network connects, press this key to view
YouTube directly.
8.
11.
12
General Description
Overview of Remote Control
Q.MENU
MENU
INPUT
HOME
EXITBACK
INFO
SU BT ITLE
Pg Dn
RECALL
GUIDE

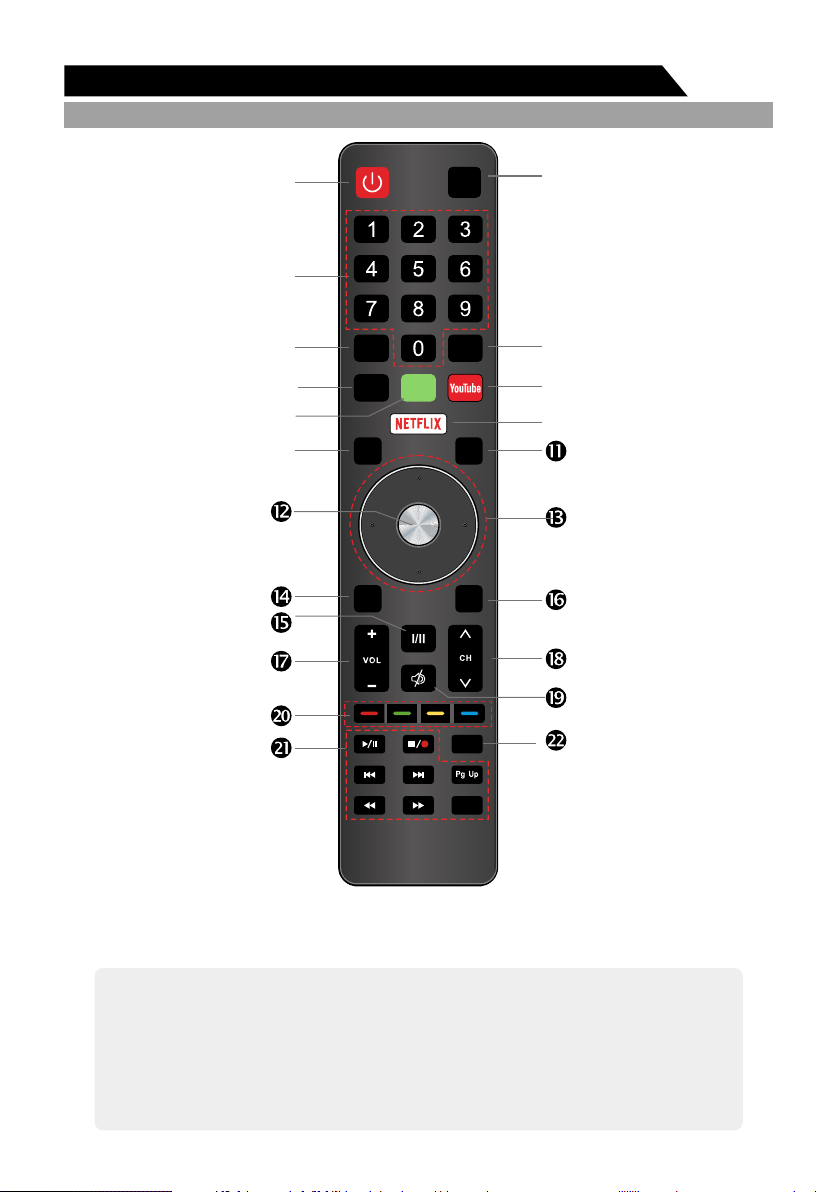

13. : Use to select
on-screen menu items and change menu
values.
14. Return.
15. source
Arrow button
BACK:
source
16. : Exit the menu. EXIT
17. -: Press these buttons to adjust the
volume.
18. :
VOL
CH
19. : Press this button to cut off the sound of
the TV set temporarily, press again to resume.
MUTE
20. It's used as shown in the
EPG or Program Edit menu.
21.
Includes Play/Pause, Stop, Previous, Next, Back,
Forward used in USB mode. A USB memory
device must be connected to one of the USB ports
for recording.
COLOR
D M P :IGITAL EDIA LAYER CONTROL BUTTON
22. : SUBTITLE
s
+/
˄/˅ Press these buttons to change channel
upward or downward.
BUTTONS:
In USB mode, press this button to
switch subtitles when movie is playing.
button In ATV , the button is used to
set NICAM sound system. In DTV , the
button is used to set the audio language.
:
13
NOTES:
• One loading of batteries will last for 1 year under normal use.
• If you do not intend to use the remote controller for a long period of time, remove them
to avoid damage due to leskage.
• Do not use old and new batteries together.
• The batteries (battery pack or batteries installed) shall not exposed to excessive heat
such as sunshine, fire or the like.
External Connection
Antenna connection
Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected
to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to
use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details
Please refer to the following drawing.
75ohm coaxial cable
Antenna cable
Antennas with 300 flat twins Leads Antennas with 75 Round Leads
Use a 75ohm - 300ohm converter
300ohm coaxial cable
Antenna feeder
General Description
Installing Batteries in the Remote Control
Installing Batteries
1
Open the battery compartment
cover on the back side.
2
Insert two 1.5V AAA size batteries
in correct polarity. Don´t mix old or
used batteries with new ones.
3
Point the remote towards the remote control
sensor of the TV and use it within 8 meters.
Do not put used batteries in your household
rubbish as this can negatively affect the
environment. Contact your local council for
battery recycling options.
Close the cover.
INPUT
14
These instructions assume that you have already connected your TV to an antenna or a cable
TV system. Skip step 1 if you have not yet connected to an antenna or a cable system.
VCR Rear Panel
TV Rear Panel
ANT ANT OUT S-VIDEO
AUDIO OUT
VIDEO OUT
2
3
Red
Blue
Green
Red
White
2
3
1
1
Follow the instructions in Viewing a VCR or Camcorder Tape to
view your VCR tape.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection
terminal to the cable.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the
back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the
VCR and the ANT IN terminal on the TV.
4. Connect a Component Cable between the COMPONENT
[Y, Pb, Pr] jacks on the DVD player and YPbPr jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the
VCR and the AUDIO L and AUDIO R jacks on the TV.
Note:
1. Whenever you connect an external device to your TV, make
sure that power on the unit is turned off.
2. When connecting an external device, match the color of the
connection terminal to the cable.
3. Use the connector cables included to convert the 3.5mm mini
ports on the TV to RCA inputs (YPbPr and L-R audio). For composite
connection, use the green connector for video.
2
1
Audio Cable (Not supplied)
YPbPr cable(Not supplied)
RF Cable (Not supplied)
3
15

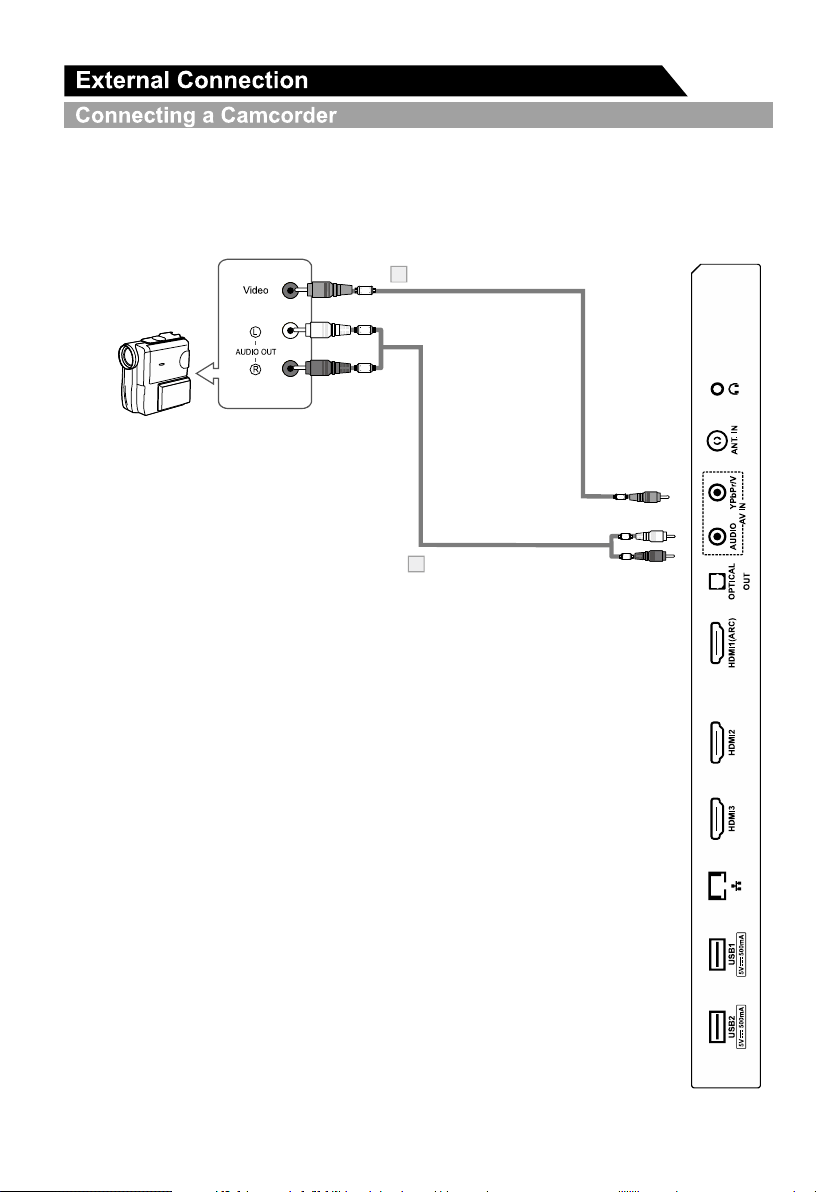

The rear panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you
to view the camcorder tapes without using a VCR.
Each Camcorder has a different back panel configuration.
When connecting a Camcorder or DVD, match the color of the connection terminal to the cable.
Green
Green
Red
White
1. Connect a Video Cable between the AV VIDEO in jacks on the TV and
the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AUDIO L and AUDIO R jacks on the
TV and the AUDIO OUT jacks on the camcorder.
3. Connect a Video Cable between the AV VIDEO IN jacks on the TV and
the VIDEO OUT jack on the DVD.
4. Connect Audio Cables between the component IN AUDIO L and R jacks
on the TV and the AUDIO OUT jack on the DVD.
Notes:
1. Whenever you connect an external device to your TV, make sure
that power on the unit is turned off.
2. When connecting an external device, match the color of the
connection terminal to the cable.
3. Use the connector cables included to convert the 3.5mm mini
ports on the TV to RCA inputs (YPbPr and L-R audio). For
composite connection, use the green connector for video.
White
Red
Camcorder
1
Audio Cable
2
TV Rear Panel
(Use the green connector of
the supplied video cable)
16
External Connection
Connecting DVD Player/Set-Top Box via HDMI
This connection can only be made if there is a HDMI Output connector on the external device.
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that enables the
transmission of digital audio and video signals using a single cable without compression.
Multimedia interface is a more accurate name for it especially because it allows multiple channels
of digital audio (5.1 channels).
The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP
(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel
digital audio.
Each DVD player/STB has a different back panel configuration.
Connect an HDMI Cable between one of the HDMI connectors on the TV and the HDMI
connector on the DVD player/Set-Top Box.
Notes:
1.Whenever you connect an external device to your TV, make sure that power on the unit
is turned off.
2.When connecting an external device, match the color of the connection terminal to the
cable.
HDMI Cable (Not supplied)
TV Rear Panel
17
External Connection
Connecting Digital Audio System
5.1 CH audio is possible when the TV is connected to an external device
supporting 5.1 CH.
Connect an OPTICAL Cable between the OPTICAL jacks on the TV and the
Digital Audio Input jacks on the Digital Audio System. When a Digital Audio
System is connected to the OPTICAL terminal:
Decrease the gain (volume) of the TV, and adjust the volume level with the
volume control.Digital Audio System's
The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.
Digital Audio System
TV Rear Panel
OPTICAL
SPDIF
18
Supporting Signals
Input
Mode
DTV
CVBS
SECAM BG DK
Resolution
Input
Component
60Hz
60Hz
50Hz/60Hz
480i
480p
720p
50Hz/60Hz1080i
HDMI
50Hz/60Hz
50Hz/60Hz
480p
720p
60Hz
1080i
Vertical
Frequency
50Hz/60Hz1080p
50Hz/60Hz
1080p
50Hz
50Hz
576i
576p
576p 50Hz
Digital: DVB-T
19
Basic Operation
Menu Operation
1
Input Setup
Press key on the remote control to enter "INPUT SOURCE" menu. INPUT
Use / key to select an input source and press key to confirm. ENTER
2
Channels Selection
There are four ways to select channel:
1) Using number keys and “ ” keys on the remote control to select channel directly.
To select channel 90, press .
When you use the number buttons, you can directly select channels that were either erased or
not memorized.
, ENTER
2) Using / key on the remote control or on your TV to select channel.CH
When you press the / key, the TV changes channels in sequence. You will see all the
channels that the TV has memorized.
You will not see channels that were either erased or not memorized.
3) Press key to return to previous channel, press it again to return to current channel.
To quickly switch between two channels that are far apart, tune to one channel, then use the
number keys to select the second channel. Then use the button to quickly alternate
between them.
CH
RECALL
RECALL
)
is not activated if no channel has been changed after TV turning on.RECALL
4 Select channels from "Channels List" or "Favorite List".
Press ” key to choose from "Channel List" menu.“ENTER
3
V
olume Adjustment and Mute Setup
Volume adjustment
Press key on the remote control or the TV to display "Volume" menu, adjust the volume
of TV between 0 to 100 by using key:
VOL+ /
VOL+ /
-
-
9
0
ENTER
ATV AV Component
DVBT
HDMI 2 USB Home
HDMI 1 HDMI 2
HDMI 3
Component
HDMI 1
20
Basic Operation
Menu Operation
To increase the volume, press key;
To decrease the volume, press key;
VOL +
VOL -
Mute
Press “ and the sound cuts off. The MUTE icon will appear in the lower-right corner of the
screen.
MUTE”
To resume sound, press the “ ” button again, or simply press the VOL key.MUTE +
4
Current Channel Information
Press “INFO” key on the remote control to view current channel information, the indications of channel
information are listed in the following table.
Press “EXIT” key on the remote control to exit this OSD.
5
EPG Menu
Press key to enter "EPG" menu, the first line displays current channel number, channel
name, event title and current time.
GUIDE
The following line displays all programs which will be displayed in this channel, press / key to
select the program you desired, then press “ ” key to enter this program to watch.
Use “Reminder”( ) button to reserve programs. If the TV is in DTV mode, it will
automatically turn to the reserved program at the scheduled time. “ d ”
Press EXIT key on the remote control to exit this OSD.
▲
ENTER
ENTER
Press key and select Sche ule
option to look up the reminder list.
THE SHAK
5761 SD
Undefined
9
No Information
Thurs 13:01 01/18/2007
Age:1
Nine Digital
13:00 - 13:30(30Min)
MPEG/AC3
Channel List
9 Nine Digital
90 Nine Digital HD
99 Nine Guide
Program List
12:30-13:00
18/JAN/2007
Schedule
Channel Name
90 Nine Digital HD
90 Nine Digital HD
Guide
Schedule
Program Name
THE SHAK
NATIONAL NIN A..
Event
18 Jan.2018 13:03
18 Jan.2018 13:30
THE SHAK
NATIONAL NINE AFTERN...
13:00-13:30
18/JAN/2007
21
Menu system instruction
1. Press key to display the main menu on the screen.
2. Press key to select "Picture" option.
3. Press key to enter "Picture" submenu.
Adjusts the outline of objects to increase or
decrease sharpness.
Adjusts the Tint of the picture.
You can Change the brightness of the entire
screen according to your preference.
1. Press / key to select "Backlight" option.
2. Press / key to increase or decrease the backlight value.
You can change the color of the entire screen according to your preference.
1. Press / key to select "Color Temperature" option.
2. Press / key to select one color temp.
1. Press / key to select “Aspect Ratio” option.
2. Press / key to change the size of the picture on the screen.
Press / key to select the Noise Reduction mode.
You can select the right mode to match the pictures.
1. Press / key to select “Open HDR” option.
2. Press / key to select “Auto”, “Low”, “Middle” or “High”.
MENU
/
Contrast
Adjusts the lightness and darkness between
objects and the background.
Adjusts the brightness of the picture.
Adjusts the colors, making them lighter or darker.
Brightness
Color
S
harpness
Tint
Backlight
Backlight: Adjusts the brightness of the whole screen.
Color Temperature
Aspect Ratio
Noise Reduction
Open HDR
Sound
Setting
Lock
PVR Option
Program
Network
About
Sharpness
Tint
Backlight
Color Temperature
Aspect Ratio
Noise Reduction
Open HDR
50
0
100
Standard
16:9
Middle
On
22
Menu system instruction
Menu system instruction
Sound
1. Press key to display the main menu on the screen.
2. Press / key to select "Sound" option.
3. Press key to enter "Sound" submenu.
You can select the type of the special sound effect
to
be used when watching a given broadcast.
Your TV has five sound settings (“Standard”,
“Music”, “Movie”, “Sport”, “User”) that are preset
at the factory.
1. Press key to select "Sound Mode" option.
2. Press key to select one sound mode.
MENU
Sound Mode
/
/
Standard: Selects the normal sound mode.
Music: Provides clear and live sound for music.
Movie: Provides live and full sound for movies.
Sports: Emphasizes bass over other sounds.
User: Selects your custom sound settings.
Equalizer
Set sound equalizer mode.
Balance
If the volumes of the left speaker and the right speaker are not the same, you can adjust the
"Balance" to suit your personal preference.
1. Press / key to select "Balance" option.
2. Press / key to decrease or increase the value of the item.
Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the
volume every time the channel is changed. “AVL” automatically adjusts the volume of the desired
channel by lowering the sound output when the modulation signal is high or by raising the sound
output when the modulation signal is low.
1. Press / key to select “AVL” option.
2. Press / key to select “On” or “Off”.
This is used to turn on surround sound to gain better sound effect.
Auto Volume Limit
Surround sound
1. Press / key to select "Surround sound” option.
2. Press / key to select “Surround” or “Off”.
Dolby Audio Process
This is used to set DAP.
1. Press / key to select "Dolby Audio Process” option.
2. Press / key to select “On” or “Off”.
Sound
Setting
Lock
PVR Option
Program
Network
About
Sound Mode
Equalizer
Balance
Auto Volume Limit
Surround Sound
Dolby Audio Process
DBX
AD Switch
Off
Off
Off
Off
Sound
Standard
0
23
Menu system instruction
Menu system instruction
Sound
DBX
This is used to set DBX.
1. Press / key to select “DBX” option.
2. Press / key to select “On” or “Off”.
AD Switch
Press button to select AD Switch, then press
or button to enter sub-menu.
In it you can turn the AD Switch on or off and set
the volume ratio in DTV mode.
This is used to .
Digital Output Type
Audio Type
Audio Delay
/
ENTER
set digital audio output
1. Press / key to select "Digital Output Type”
option.
2. Press / key to select a digital output type in
DTV or HDMI mode.
This is used to set audio type
1.Press / key to select "Audio Type" option.
2.Press / key to select audio type.
This is used to set audio type
1.Press / key to select "Audio Delay", them press or button to enter sub-menu.
2.Press / key to decrease or increase the value of the item.
ENTER
Sound
Setting
Lock
PVR Option
Program
Network
About
Sound
Auto Volume Limit
Surround Sound
Dolby Audio Process
DBX
AD Switch
Digital Output Type
Audio Type
Audio Delay
Off
Off
Off
Off
Normal
Auto
Menu system instruction
Menu system instruction
Setting
24
Setting
Sound
Setting
Lock
PVR Option
Program
Network
About
Language
OSD Time
HBBTV
Link Setup
Time
Reset
Always
1. Press key to display the main menu on the screen.
2. Press key to select "Setting" option.
3. Press key to enter “Setting" submenu.
MENU
1. Press key to select “ "
setting.
2. Press or key to select a proper
language for OSD.
Set the preferred amount of time for the OSD to
be displayed on the screen.
ENTER
OSD Time
HBBTV
Link Setup
1. Press key to select “Link Setup” option.
2. “Link Setup” submenu.
/
Link-CEC
Link-CEC Turn on or turn off the function.
Turn on or turn off the function.
Turn on or turn off the function.
HDMI ARC
HDMI ARC
Auto Power
Auto Power
Auto Standby
Turn on or turn off the function.Auto Standby
/
Auto Sync
Clock --:--
/
/
This is used to set HBBTV
Turn on or turn off the HBBTV function.
Press key to enter
Time
1. Press key to display the main menu on
the screen.
2. Press key to select "Time" option.
MENU
3. Press key to enter "Time" submenu.
You can modify the time of your TV set in Manual mode. In Auto mode, the “clock” is decided by
the DTV signal.
When Auto Sync is on, the clock is obtained from DTV streams; Set the clock when Auto Sync is off.
Language
OSD Language
Setting
Sound
Lock
PVR Option
Program
Network
About
Setting
Link Setup
Link - CEC
HDMI ARC
Auto Power
Auto Standby
On
On
Off
Off
On
25
Menu system instruction
Menu system instruction
Setting
Setting
Sound
Lock
PVR Option
Program
Network
About
Setting
Time
Auto Sync
Clock 13:01
Off Time
On Time
Sleep Timer
Auto Sleep
Time Zone
On
Off
Off
Western
Off Time
In "Off Time” item, press button or
button to enter the submenu, set the day & time
to turn off the TV set.
On Time
In "On Time” item, press button or
button to enter the submenu, set the time to turn
on the TV set, when the TV set is in the standby
mode.
1. Press / key to select "Sleep Timer" option.
2. Press / key repeatedly until the desired
time appears (Off, 10mins, 20mins, 30mins,
60mins, 90mins, 120mins, 180mins, 240mins).
Notes: The sleep timer you have set will be
cancelled when the TV turns off or if a power
failure occurs.
Sleep Timer
Notes: When the time is less than 60 seconds,
remind information will be displayed on the screen. Press any key button to cancel timer
function.
Auto Sleep
Press / key to select whether to open the No signal Power off features. If this function is
opened, the TV will power off when there is no signal.
Time Zone
You can choose it to modify your time zone in the TV set.
1. Press / key to select "Time Zone" option.
2. Press / key to select time zone.
1.Press “ / " key to select "Reset" option.
2.Press “ ” or “ " key to confirm.
3.Press "Yes" to confirm again, TV will turn off automatically and change all setting to factory
setting.
ENTER
ENTER
You can set the ON time in advance for
up to 7 days.
Reset
ENTER
26
Menu system instruction
Menu system instruction
Lock
The "Lock" feature automatically locks out programming that is deemed inappropriate for children.
The user must first enter a Password before any of the lock restrictions can be set up or changed.
1. Press key to display the main menu on the screen.
2. Press / key to select "Lock" option.
3. Press key to enter "Lock" submenu, "Enter Password" menu will appear, enter your 4-digit
password to enter "Lock” submenu (the default and universal password is 1980).
MENU
Lock System
Set the Lock function on or off.
1. Press / key to select "Lock System" option.
2. Press / key to select "On" or "Off".
1. Press / key to select "Set Password" option.
Set
Password
2. Enter your 4-digit password to enter "Set Password" submenu.
Choose any 4-digits for your new password and enter them. As soon as the 4 digits are entered,
the cursor skipped to “Confirm Password” item, re-enter the same 4 digits, and your new
password has been memorized.
/
This option can only be used in DTV mode.
1. Press / key to select “Parental Guidance" option.
2.Prsee / key to select the lock level of the Parental Rate.
Parental Guidance
Note: When programs are locked, use the key on the remote control to access the
input-password window.
Lock
Sound
PVR Option
Program
Network
About
Lock System
Set Password
Parental Guidance
OFF
On
Setting
Please Enter Password
Lock
27
Menu system instruction
Menu system instruction
PVR Option
1. Press key to display the main menu on the screen.
2. Press / key to select " VR Option" option.
3. Press key to enter " VR Option" submenu.
MENU
PVR File System
1 /. Press key to select “PVR File System” option.
2. Press or key to enter submenu .ENTER in DTV mode
Connect the USB disk to the standard USB port before using PVR.
Select Disk: Press OK” button to enter submenu and press choose the disk for PVR.
Time Shift Size: Display the buffer used for PVR.
Format Start: Press “OK” button to enter format submenu.
Speed: Display the disk writing/reading speed.
Warning:
The disk must be formatted when first used for PVR, so backup the original data in the disk.
It`s suggested use a special disk for PVR. Don’t modify the PVR file in PC.
Start Record
ENTER
P
P
/ “ “ ” to
Press / key to select “Start Record”. If the storage device is ready, press “ ” key to
start record.
The recording menus will disappear in 5 seconds, press “MENU” key to recall them out.
When recording, press “ ” key again, then you can choose to stop recording or continue:
▲ ▼
●
PVR Option
Sound
Setting
Lock
Program
Network
About
PVR Option
PVR Flie System
Start Record
Start Timeshift
Record Files
PVR Option
Sound
Setting
Lock
Program
Network
About
PVR Option
Select Disk
Select Partition
Time Shift Size
Format
Speed
PVR File System
USB:1
1
512M
Start
check
Are you sure want to stop PVR?
Yes No
CH 9 Nine Digital
Note: The recorded PVR file will be in encrypted form. It can only be viewed on the TV.
28
Menu system instruction
Menu system instruction
PVR Option
Start Timeshift
In DTV channel, press “ ” key to pause, press it again to resume playback.
This is the “Time Shift”. During the length of 'time shift', the program is temporarily stored in the
USB device. The 'time shift' length may be limited based on the available space in the USB device.
This feature supports fast forward and rewind function. Press “ ” key to go backward or forward.
Record Files
ENTER
ENTER
Press / key to select "Recorded List". If the storage device is ready, press “ ” key to
check the record list.
1) Press / key to select record file.
1) Press “ ”
and key to delete the selected file.
Record Files
LCN
9
Channel
Nine Digital
Program/Service
MALCOLM IN THE M...
00:00:02 00:00:33
MALCOLM IN THE MIDDLE
2018 08/11 16:20
CH 9 Nine Digital
CH 9 Nine Digital
Note: A USB device must be connected to the USB port for this function.
29
Menu system instruction
Program
Program
Sound
PVR Option
Network
About
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Signal Information
Setting
Lock
Program
1. Press key to display the main menu on the screen.
2. Press / key to select " rogram" option.
3. Press key to enter " rogram" submenu.
Press ▲/▼ key to select "Auto Tuning" option. The
number of searched channels will be shown on the
screen.
MENU
Auto Tuning
Note: If you want to exit the whole searching,
you can press EXIT button.
DTV Manual Tuning
You can use ◄/► button or input number to
choose the channel. Then press button to
search, the TV will store the DTV channel if there
is a DTV signal present.
ENTER
ATV Manual Tuning
In the ATV/DTV source, you can choose "ATV
Manual Tuning" to enter "ATV Manual Tuning" menu.
Current CH
You can see the current channel number and you can press ◄/►button to choose the channel
you want to modify. It will be searched and saved automatically.
Select the "Color System" option, press ◄/► on the remote control to change. The color system
will be changed repeatedly in the order: PAL-N, PAL-M, NTSC or AUTO.
Color System
Fine Tune
In case of unfavorable image or sound of TV program, you can use "Fine Tune".
You can see the frequency of the searched channels.
You can see the channel you chose.
Frequency
Save
P
P
37
Press OK to search
DTV
0
Data
0
Radio
0
Signal
DTV Manual Tuning
1
Search
Fine-Tune
Save
ATV Manual Tuning
867.875 MHz
Sound System
Color System
BG
PAL
30
Menu system instruction
Program
Signal Information ( )Used only in DTV
1. Press / key to select “Signal Information" option.
2. Press “ ”or key, you can see the information of the DTV channel.
.
ENTER
Signal Quality/Signal Strength (DTV Only): Unlike analogue channels, which can vary in
reception quality, digital channels must have perfect reception quality or you will not receive them
at all. So, unlike analogue channels, you are not able to fine tune a digital channel. If the signal
strength indicates that the signal is weak, a possible solution is to adjust your antenna to increase
the signal strength. Continue to adjust the antenna until you find the best position with the
strongest signal
NOTE:
Program
Sound
PVR Option
Network
About
Setting
Lock
Program
Signal Information
Channel:
Name:
Modulation:
Quality:
Strength:
9
Nine Digital
64QAM
100
0
31
Menu system instruction
Network
1. Press key to display the main menu on the screen.
2. Press / key to select "Network" option.
3. Press key to enter "Network" submenu.
MENU
Wi-Fi
When the W -F network is used, if
select , "Auto Scan" option and
Wi-Fi , then
i i wireless going to be
auto scan select press
key to select your network enter password
to connect your i- i network W F .
If select manual input, "Manual Input" option,
then setting up the IP, Netmask, Gateway and DNS in
sequence. When the setting complete, press the
"Connect" option.
select
Ethernet
When the wired network is used, if select dynamic IP address setting, select the "DHCP" in the
"Configuration", and press the "C " button to enter. If select static IP address setting, select
"Static" in the "Configuration", then setting up the IP, Netmask, Gateway and DNS in
sequence. When the setting complete, press the"C ".
onnect
onnect
Wake On LAN/Wake On WLAN
◄/►
Use the Buttons to turn on these
functions. Your mobile phone should
be in the same network as the TV.
Network
Sound
PVR Option
About
Setting
Lock
Program
Network / Ethernet
Network
Protocol
Configuration
IP
Netmask
Gateway
DNS
Connect
255.255.254.0
172.16.66.254
Ipv4
Static
172.16.67.130
172.16.64.81
Network
Sound
PVR Option
Setting
Lock
Wi-Fi
Ethernet
Wake On LAN
Wake On WLAN
On
On
Not Connected
Not Connected
Network
Sound
Setting
Network / Wi-Fi
Auto Scan
Manual Input
Network
Sound
Setting
Network / Wi-Fi
Searching, Please Wait...
32
Menu system instruction
About
1. Press key to display the main menu on the screen.
2. Press / key to select "About" option.
3. Press key to enter "About" submenu.
MENU
Netflix
Netflix Deactive
1.Press / key to select “Netflix Deactive” option.
2.Press or key to confirm.
3.Press “YES” to confirm again, the Netflix will
be activated.
Terminate Netflix
1.Press / key to select “Terminate Netflix” option.
2.Press or key to confirm.
3.Press “YES” to confirm again, the Netflix will be
terminated.
Netflix ESN
Display the Netflix Esn information.
Netflix Version
Display the Netflix version.
View End-User License Agreement
1.Press / key to select "View End-User License
Agreement" option.
2.Press or " " key to display View End-User
License Agreement.
ENTER
ENTER
ENTER
About
Sound
PVR Option
About
Setting
Lock
Program
Netflix
View End-User License Agreement
System information
NetReady Information
Software Update(USB)
Internet Update Check
Network
About
Sound
PVR Option
About
Setting
Lock
Program
Netflix Deactive
Terminate Netflix
Netflix ESN
Netflix Version
Network
33
Menu system instruction
About
System information
1.Press / key to select "System information" option.
2.Press or " " key to display system information.
Net Ready Information
1.Press / key to select "Net Ready Information" option.
2.Press or " " key to display net ready information.
Software Update(USB)
When the TV need to be updated, please copy the new software to a
1.Press / key to select “Software Update” option.
2.Press or key to confirm.
3.Press “YES” to confirm again, the TV will update by USB. Please wait a few minutes and don’t turn
off the power, it will turn off automatically when updating is complete.
Internet Update Check
This can update TV through Internet.
ENTER
ENTER
USB memory device and
connect it to the USB port of the TV. Then perform the following steps:
ENTER
Note: Please check with Customer Service if an update is available.
34
Home Operation
Setup wizard
Press “HOME” key to enter home interface.
Press arrow key to select a input source and press key to confirm. ENTER
1)NETFLIX
Use arrow key to select icon, then press “ ” key to enter NETFLIX.
Use arrow button to select one video and press “ ” key to play.
Press “MENU” key to exit playing.
ENTER
ENTER
Use arrow key to browse the pages. press “MENU” key to return to main menu and
press “EXIT” key to exit.
SOURCE setup
APP setup
ATV AV Component
DVBT
USB
HDMI 1 HDMI 2
HDMI 3
Sign in
Get ready to watch thousands of TV shows and movies .
Enter your email address
1 2 3 4 5 6 7 8 9 0
q
w e r
t
y
u
i
o
p
a s
d
f
g
h
j
k l
z x c v
b
n m
@gmail com.
@yhoo com tw. . @hotmail com.
!#$ @
com
x
Back
Next
Remember Email
Email address
Need help signing in? Visit http://help netflix com . .
Forgot password?
Password (4-60 characters)
If you have a Netflix account, you can watch videos using the Netflix app. Sign in using your email
address and password.
35
2)Youtube
Use arrow key to select icon, then press “ ” key to enter Youtube.
Use arrow button to select one video and press “ ” key to play.
Press “BACK” key to exit playing.
Press key to open or close control menu when playing
ENTER
ENTER
.
Home Operation
APP setup
SETTING setup
Press arrow key to adjust Picture, Sound, Setting, Lock, PVR Option, Program, Network or
About.
Digital Media Player
This TV is embedded with USB port digital media player. It can find the devices that support
USB1.1/2.0,including flash disk, USB hard disk and digital camera. It supports functions as:
Display pictures. Play music files, Play video files.
Notice:
1. In order to avoid affecting the user's viewing experience, please use the better quality and
shorter USB cable
2. Under the USB channel, you can use only the remote control.
3. Play Control menu to enter the playing surface to press the menu button pop-up menu.
.
Remote Control Button
Description of Buttons:
Introduction
MPG, MPEG, , Mp4 MKV, MOV
Data
Music
Video
Format
JPG, JPEG, PNG, BMP
Mp3
36
Buttons Function
AUDIO
SUBTITLE
Track switch (video)
Subtitle switch (video)
Page up
Page down
Play/Pause
Previous file
Next file
Backward
Forward
RED
YELLOW
AB Loop(Video)
Goto Time(Video)
INFO Show/Hide movie info (video)
CH ˄
CH ˅
Q.MENU
MENU
INPUT
HOME
EXITBACK
INFO
SUB TITL E
Pg Dn
RECALL
GUIDE
RED
YELLOW
AUDIO
Page up
Page down
ENTER
SUBTITLE
INFO
Maximum capacity of USB device: 4TB (FAT32 format)
37
Troubleshooting
If you have any problem, check the couter measures for each symptom listed below. The following
symptoms may have been. caused by inappropriate adjustment rather than actual malfunction of
the unit. If the trouble persists, contact the Customer Care Centre.
Symptoms
Possible solutions
No power
Please check the power cord is plugged in and that the power
outlet works.
Unplug the power cord and plug it in after 60 seconds and
restart the TV.
No picture
Please check antenna connection.
Station may be experiencing problems, please tune to
another station.
Please adjust the settings of contrast and brightness.
Good picture but no
sound
Please increase the volume.
Please check TV is under mute mode, press MUTE button
on the remote control.
Please check sound settings
If external devices are being used, check their volumes are
not set too low or turned off.
If using AVI or Component inputs, please make sure cables
are connected properly and not loose.
Make sure a headphone jack is not connected.
No response to remote
control
Batteries of remote control may have exhausted, if
necessary, please change the batteries.
Clean the remote control lens. The distance between
LED TV and remote control should be within 8m, within
recommended operating angle and path is free of obstructions.
Good sound but abnormal
color or no picture
Please check antenna connection and antenna condition.
If using Component input, please check Component
connections, incorrect or loose connections may cause
colour problems or cause the screen to be blank.
Keep the TV away from noisy electrical sources such as cars,
hair dryers, welders, and all such equipment.
Electrical atmospheric interference such as local or distant
lightning storms may cause picture to break up.
When installing optional equipment, leave some space
between the optional equipment and the TV.
Check the antenna and connection.
Keep the antenna away from any power or input/output cables.
Picture is breaking up
38
TroubleshootingTroubleshooting
Check your area is covered by Digital Video Broadcasts.
Try re-tuning or manually tuning missing channels.
Check that you are using the correct antenna type.
After Auto Tuning only
some channels are
available
Check if the channel has been blocked in the main menu
settings.
Channel cannot be
selected
Please check connecting USB cable and power supply is connected.
Please make sure USB disk is
compatible and the multimedia data formats are supported.
USB not playing
Compression of video contents may cause distortion especially on
fast moving pictures such as sports and action movies.
Picture is distorted
Noise from speaker
Check cable connections, make sure a video cable is not connected
to an audio input.
Low signal level may cause sound distortion.
TV turns off automatically
Check if the Off Timer is set to On in the Setup menu.
Sleep Timer may have been enabled.
If there is no signal for about 10 minutes from
an input, the TV will turn off.
Make sure the AC power cord is plugged in securely to the wall
outlet and the TV.
TV turns on
automatically
Check if the On Timer is set to On in the Setup menu.
Black bars on each side will be shown on HD channels when
displaying SD (4:3) contents.
Black bars on Top & Bottom will be shown on movies that have
aspect ratios different from your TV.
Adjust picture size option on your external device or TV to full screen.
Picture is not shown in
full screen
Never place a television set in an unstable location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly to children, can be avoided by taking simple
precautions such as:
- Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safety support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not placing the television set on cloth or other materials that may be located
between the television set and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the television set or its
controls
If your existing television set is being retained and relocated, the same considerations as above
should be applied.
The plug or appliance coupler is used as the disconnect device, the disconnect device shall
remain readily operable.
WARNING
