User Manual Philips HD9641/96 Avance Collection Airfryer

• User Manual - (English, French, Spanish)

• ICM Recipe Booklet - (English)
• Leaflet - (English)

Table of contents

• General description
• Before first use
• Preparing for use
• Using the appliance
• Making home-made fries
• Using the double-layer rack
• Using the non-stick grill pan
• Using the splatter-proof lid
• Using the baking pan
• Cleaning
• Storage
• Disposal
• Troubleshooting

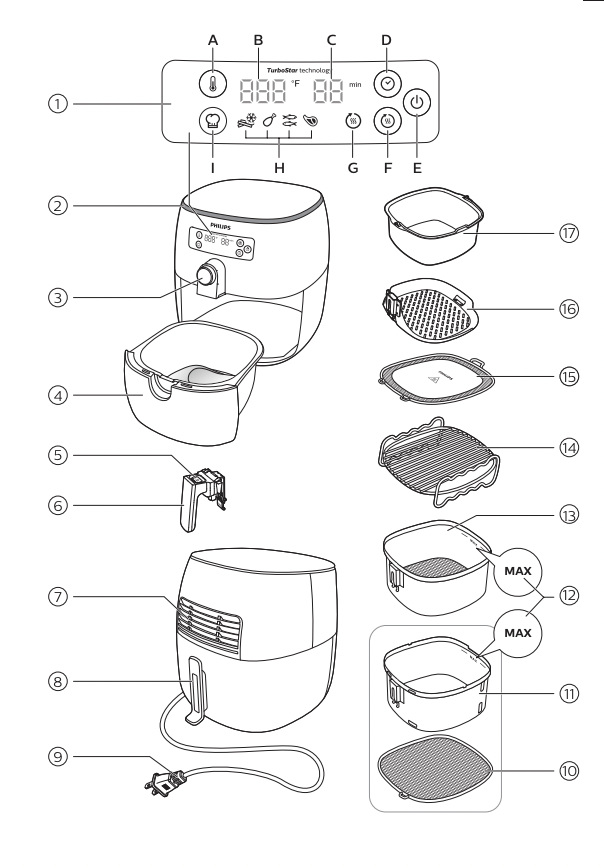

General description

1. Control Panel

A. Temperature button

B. Temperature indication

C. Time indication

D. Timer button

E. Power On/Off button

F. Keep warm button

G. Keep warm indication

H. Presets: frozen French fries, chicken drumstick, fish, chop/cutlet

I. Preset button

2. Air inlet

3. Quick Control dial

4. Pan

5. Basket release button

6. EasyClick handle

7. Air outlets

8. Cord storage wrap

9. Power cord

10. Removable mesh bottom

11. Basket with removable mesh bottom

12. MAX indication

13. Basket with fixed mesh bottom

14. Double-layer rack

15. Splatter-proof lid

16. Non-stick grill pan

17. Baking pan

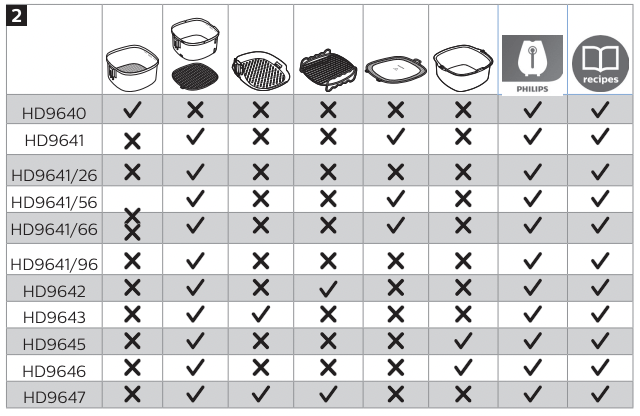

See the “Airfryer and accessories” table (Fig. 2) to see which accessories come packed in your model airfryer.

Before first use

1. Remove all packing material.

2. Remove any stickers or labels from the appliance.

3. Thoroughly clean the appliance accessories before first use, as indicated in the cleaning table (Fig. 53).

Preparing for use

Placing the removable mesh bottom

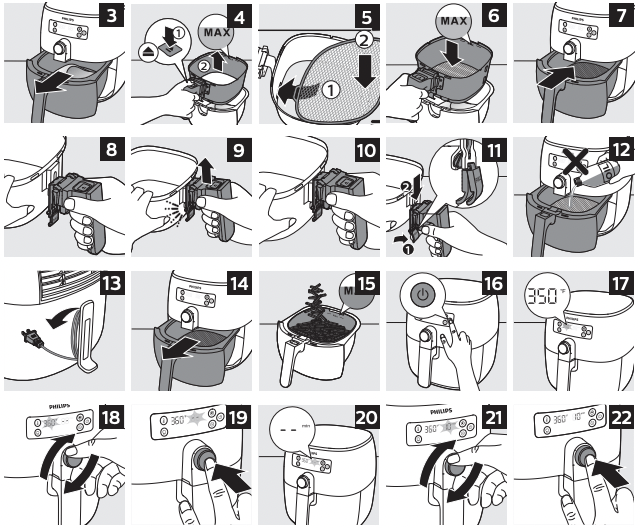

1. Remove the pan from the appliance. (Fig. 3)

2. Put the pan with the basket on a suitable surface, press the basket release button and lift the basket out of the pan. (Fig. 4)

3. Insert the hook of the mesh bottom into the slot on the right bottom side of the basket. Push the mesh bottom down until it locks into position (‘click’ on both sides). (Fig. 5)

4. Put the basket back into the pan. (Fig. 6)

Note

• Never use the pan without the basket in it.

5. Slide the pan back into the appliance. (Fig. 7)

Placing the EasyClick handle

Warning

• Always make sure the basket and the handle have cooled down before you attach or detach the EasyClick handle.

Note

• The EasyClick handle also fits to the non-stick grill pan. It helps you clean and store the appliance in an easy way.

To attach the EasyClick handle:

1. Hold the basket with one hand and hold the handle with the other hand. (Fig. 8)
2. Slide the handle into the opening on the basket from below until it locks into place (‘click’). (Fig. 9)

To detach the EasyClick handle:

1. Hold the basket with one hand and hold the handle with the other hand. (Fig. 10)
2. Pull gently with your finger on the red release tab while pulling the handle straight down. (Fig. 11)

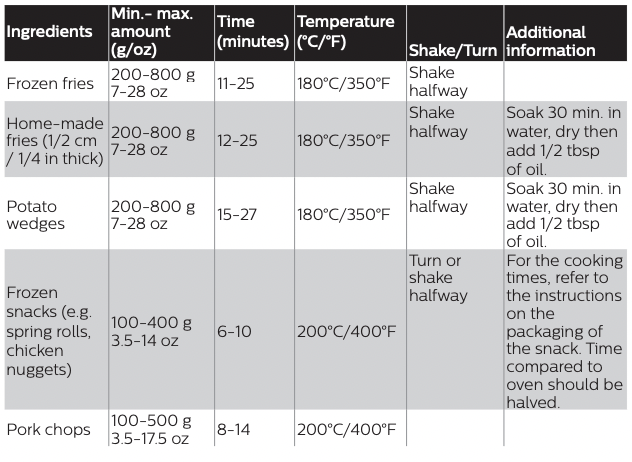

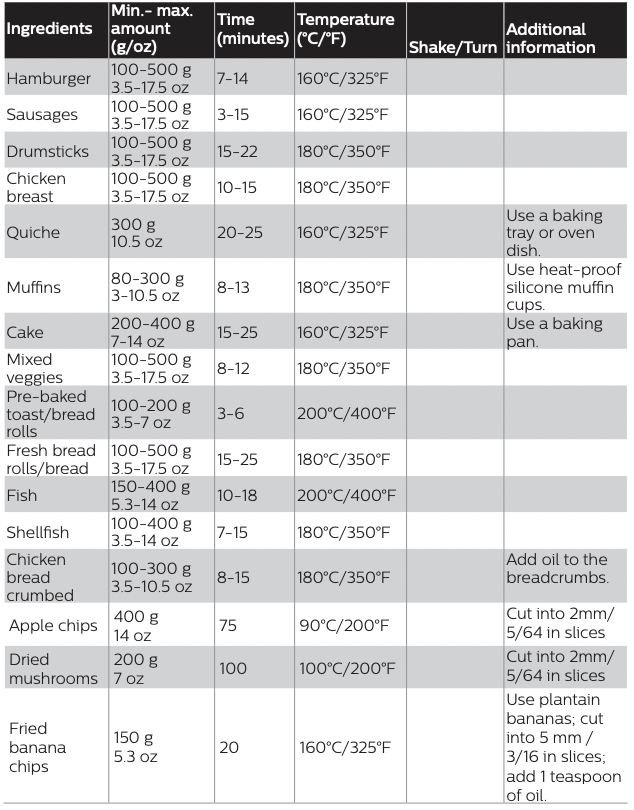

Food table

The table below helps you select the basic settings for the types of food you want to prepare.

Note

• Keep in mind that these settings are suggestions. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

Cooking table for presets

The grams/oz in bold represent the amount of food for which the preset is designed for. If you cook with a different amount, adapt the cooking time accordingly. You can also adapt the cooking time according to your personal preference in regards to doneness and browning level.

The minutes in bold represent the preset cooking time on the appliance.

Using the appliance

Airfrying

Caution

• This is an Airfryer that works on hot air. Do not fill the pan with oil or frying fat. (Fig. 12)

• Do not touch hot surfaces. Use handles or knobs. Only hold the pan by the basket handle.

• This product is for household use only.

• The appliance may produce some smoke when you use it for the first time. This is normal.

• Preheating of the appliance is not necessary.

1. Place the appliance on a stable, horizontal, level and heat-resistant surface.

Note

• Do not put anything on top or on the sides of the appliance. This could disrupt the airflow and influence the frying result.

Caution

• Do not place the appliance on non-heat-resistant surfaces.

2. Unwind the power cord from the cord storage wrap. (Fig. 13)

3. Put the plug in the wall outlet.

4. Remove the pan from the appliance. (Fig. 14)

5. Put the ingredients in the basket. (Fig. 15)

Note

• The Airfryer can prepare a large range of ingredients. Consult the ‘Food table’ for the right quantities and approximate cooking times.
• Do not exceed the amount indicated in the ‘Food table’ section or overfill the basket beyond the ‘MAX’ indication as this could affect the quality of the end result.
• If you want to prepare different ingredients at the same time, make sure you check the suggested cooking time required for the different ingredients before you start to cook them simultaneously. Home-made fries and drumsticks, for example, can be cooked simultaneously because they require the same settings.

6. Place the basket back into the pan, slide the pan back into the appliance. Press the “Power On/Off” button to switch on the appliance. (Fig. 16).

Note

• Never use the pan without the basket in place.

7. The temperature indication blinks and is set to 350°F/180°C by default. (Fig. 17)

» To change the temperature, turn the QuickControl dial to the desired setting. (Fig. 18)

» To confirm the temperature, push the QuickControl dial. (Fig. 19)

8. After the temperature is confirmed, the time indication “- -“starts blinking. (Fig. 20)

» Turn the QuickControl dial to the desired setting. (Fig. 21)

» To confirm the cooking time, push the QuickControl dial. (Fig. 22)

9. The appliance starts cooking after the cooking time has been confirmed.

Tip

• To pause the cooking process, push the QuickControl dial. To resume the cooking process, push the QuickControl dial again.

Note

• Some ingredients require shaking or turning halfway through the cooking time (see ‘Food table’). To shake the ingredients, push the QuickControl dial to pause cooking, remove the pan from the appliance and shake it over the sink. Then slide the pan back into the appliance, push the QuickControl dial to resume cooking. To reduce the weight, you can also remove the basket from the pan. (Fig. 23)
• Be careful not to press the basket release button while shaking.

10. When you hear the timer bell, the set preparation time has elapsed. (Fig. 24)

Note

• Excess oil from the ingredients is collected in the bottom of the pan.
• If you prepare several batches of fatty ingredients (e.g. drumsticks, sausages or hamburgers), carefully pour off any excess oil or rendered fat from pan after each batch or before shaking or replacing basket in pan.

11. Remove the pan from the appliance and place it on a heat-resistant surface. (Fig. 25)

12. Check if the ingredients are ready.

Note

• If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer for a few extra minutes.
• After hot air frying, the pan, basket, accessories, housing and ingredients are hot. Depending on the type of ingredients in the basket, steam may escape from the pan.

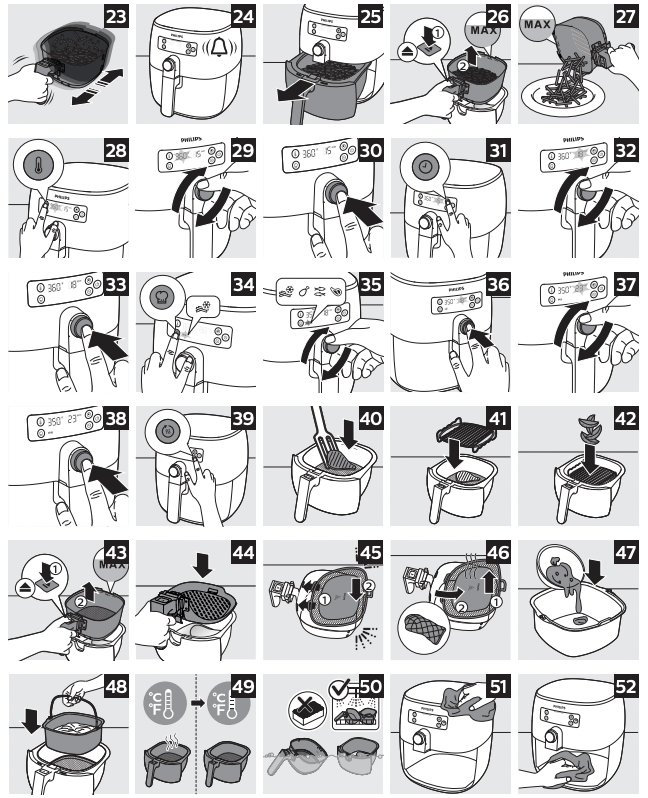

13. Press the basket release button and lift the basket out of the pan. (Fig. 26)

14. Empty the basket contents into a bowl or onto a plate. Always remove the basket with ingredients from the pan to serve as hot oil or rendered fat may be in the bottom of the pan. (Fig.27)

Tip

• To remove large or fragile ingredients, use a pair of tongs to lift the ingredients out of the basket.

Note

• When a batch of ingredients is ready, the Airfryer is instantly ready for preparing another batch.

Changing the cooking temperature during cooking

1. During cooking, press the temperature button. (Fig. 28)

• To change the cooking temperature, turn the QuickControl dial to the desired setting. (Fig. 29)
• To confirm the cooking temperature, push the QuickControl dial. (Fig. 30)

Changing the cooking time during cooking

2. During cooking, press the timer button. (Fig. 31)

• To change the cooking time, turn the QuickControl dial to the desired setting. (Fig. 32)
• To confirm the cooking time, push the QuickControl dial. (Fig. 33)

Choosing the preset modes

1. After the appliance is switched on, press the preset button. (Fig. 34)

• The preset indication for frozen French fries starts blinking.

2. Turn the QuickControl dial to select the preset you need. (Fig. 35)

3. Push the QuickControl dial to confirm the preset. (Fig. 36)

• The cooking temperature displays on the screen and the recommended cooking time blinks.
• To change the cooking time, turn the QuickControl dial. (Fig. 37)

Note

• Changing the temperature is not possible when using a preset mode. If you press the temperature button when selecting the preset mode the appliance will exit the preset mode.

4. Push the QuickControl dial again to confirm the cooking time, and the appliance starts cooking. (Fig. 38)

Tip

• Refer to the “Cooking table for presets” to find the suitable cooking time and more information.

Choosing the keep warm mode

1. Press the keep warm button (you can activate the keep warm mode at each time). (Fig. 39)

• The keep warm indication goes on.
• The keep warm timer is set to 30 minutes. You cannot adjust the keep warm time. To stop the keep warm mode, simply switch off the appliance.

Tip

• If food like French fries loses crispness during the keep warm mode, please either shorten the keep warm time by switching off the appliance earlier or crisp them up for 2-3 minutes at the temperature of 350°F/180°C.

Note

• If you activate the keep warm mode during cooking, the appliance will keep your food warm for 30 minutes after the cooking time has elapsed.
• During the keep warm mode, the fan and heater inside of the appliance is on from time to time.
• The keep warm mode is designed to keep your dish warm immediately after it is cooked in the Airfryer. It is not meant for reheating.

Making home-made fries

To make great home-made fries in the Airfryer:

- Choose a potato variety suitable for making fries, e.g. fresh, russet potatoes.

- It is best to air fry the fries in portions of up to 500 grams/ 17.5 oz for an even result. Larger fries tend to be less crispy than smaller fries.

- Shake the basket 2-3 times during the air frying process.

1. Peel the potatoes and cut into sticks (1/2cm / 1/4 in thick).
2. Soak the potato sticks in a bowl of water for at least 30 minutes.
3. Empty the bowl and dry the potato sticks with a dish towel or paper towel.
4. Pour a half tablespoon of cooking oil in the bowl, put the sticks in the bowl and mix until the sticks are coated with oil.
5. Remove the sticks from the bowl with your fingers or a slotted kitchen utensil so excess oil remains in the bowl.

Note

• Do not tilt the bowl to pour all the sticks in the basket at once to prevent excess oil from going into the pan.

6. Put the sticks in the basket.

7. Fry the potato sticks and shake the basket halfway through the air frying process. Shake 2-3 times if you prepare more than 400 g/14 oz of fries.

Note

• Consult the “Food table” for the right quantities and cooking times.

Using the double-layer rack

Use the double-layer rack to maximize your cooking space.

Note

• If cooking different ingredients at the same time, make sure that the cooking temperature and time is the same for each type of ingredient.
• Always position meats on lower level and vegetables above to avoid cross contamination of food or unsafe transfer of meat juices or partially cooked foods.

1. Follow steps 1 to 4 of section ‘Airfrying’.
2. Put one half of the ingredients in the basket. (Fig. 40)
3. Place the double-layer rack in the basket. (Fig. 41)
4. Put the second half of the ingredients onto the double-layer rack. (Fig. 42)
5. Follow steps 6 to 14 of section ‘Airfrying’.

Warning

• The double-layer rack becomes very hot during use. Wear oven gloves when you remove the double-layer rack from the basket.

Using the non-stick grill pan

1. Follow steps 1 to 3 of section ‘Airfrying’.
2. Press the basket release button and lift the basket out of the pan. (Fig. 43)
3. Attach the EasyClick handle to the non-stick grill pan (see ‘Placing the EasyClick handle’).
4. Place the non-stick grill pan in the pan. (Fig. 44)
5. Put the ingredients on the non-stick grill pan.
6. Follow steps 6 to 12 of section ‘Airfrying’.
7. When finished cooking, to remove ingredients, press the release button and lift the non-stick grill pan out of the Airfryer pan and place on a heat-resistant surface.

Using the splatter-proof lid

Use the splatter-proof lid if you are cooking light-weight ingredients in order to keep them in the basket, fatty ingredients or to reduce the speed of browning.

Note

• When you use the splatter-proof lid, you may need more time to reach the same level of browning and doneness.

1. Follow steps 1 to 5 of section ‘Airfrying’.
2. Hold the lid with the top side facing you. Insert the two hooks of the lid into the two slots on the front side of the basket. Push the lid down until it locks into position (‘click’ on both sides). (Fig. 45)
3. Proceed with step 6 to 11 of section ‘Airfrying’.
4. Carefully remove the splatter-proof lid. (Fig. 46)

Warning

• The splatter-proof lid is very hot. Wear oven gloves when you remove it.

5. Proceed with step 12 to 14 of section ‘Airfrying’.

Using the baking pan

1. Put the ingredients into the baking pan. (Fig. 47)
2. Follow steps 1 to 3 of section ‘Airfrying’.
3. Remove the pan from the appliance and place it on a suitable surface. Place the baking pan into the basket, and then into the pan. (Fig. 48)
4. Follow steps 6 to 14 of section ‘Airfrying’.

Warning

• The baking pan becomes very hot during use. Wear oven gloves when you remove the baking pan out of the basket.

Tip

• If you experience a dark browning on the top, lower the temperature.
• When you prepare cakes or breads in the baking pan, do not overfill. Make sure to only partially fill the baking pan to leave enough room for the dough to rise during baking.

Cleaning

Warning

• Let the basket, pan, accessories and the inside of the appliance cool down completely before you start cleaning. (Fig. 49)
• The pan, basket and inside of appliance have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating.

Clean the appliance after every use. Remove oil and fat from the bottom of the pan after every use to prevent smoke.

1. Press the On/Off button to switch off the appliance, remove the plug from the wall outlet and let the appliance cool down for 10 minutes.

Tip

• Remove the pan and the basket to let the Airfryer cool down more quickly. (Fig. 14)

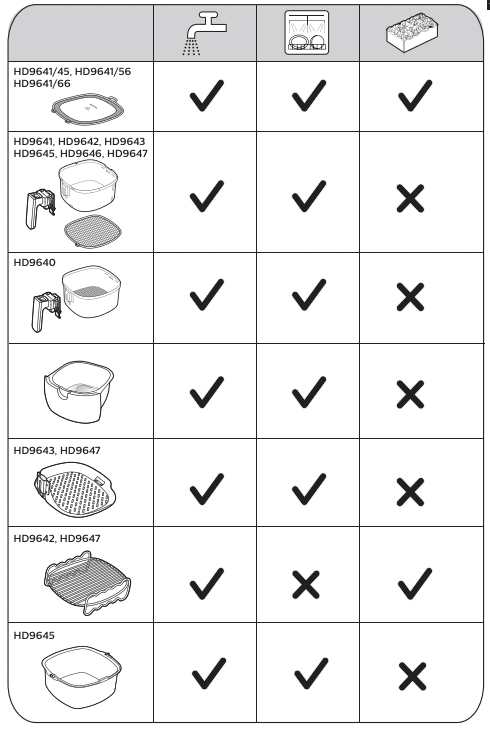

2. Clean the pan, basket, and accessories in a dishwasher. You can also clean them with hot water, dishwashing liquid and a non-abrasive sponge. (Fig. 50)

Tip

• If food residues are stuck to the pan, double-layer rack or basket, you can soak them in hot water and dishwashing liquid for 10-15 minutes. Soaking loosens the food residues and makes it easier to remove. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the pan or basket and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser.
• If necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element.

3. Clean the inside of the appliance with hot water and a non-abrasive sponge.

4. Clean the heating element with a cleaning brush to remove any food residue.

5. Wipe the outside of the appliance and the control panel only with a moist cloth. (Fig. 51)

6. Clean the inside of the appliance with a moist cloth. (Fig. 52)

This appliance has no other user-serviceable parts. For assistance in the U.S. or Canada only, call 1-866-309-8817.

Storage

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry before storing.
3. Wrap the power cord onto the cord storage wrap.

Note

Always hold the Airfryer horizontally when you carry it. Make sure that you also hold the drawer on the front part of the appliance as it can slide out of the appliance if accidentally tilted downwards. This can lead to damaging of the drawer.

Disposal

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit recyclephilips

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit philips/support or (in the US or Canada only) call 1-866-309-8817 for assistance.
