  • Owner's manual - (English)

FlexDry™

User manual

DV*55M9600**

Installation

Step-by-step installation

Make sure you have a qualified technician install the dryer. Step by step installation instructions start below.

STEP 1 Install the exhaust system

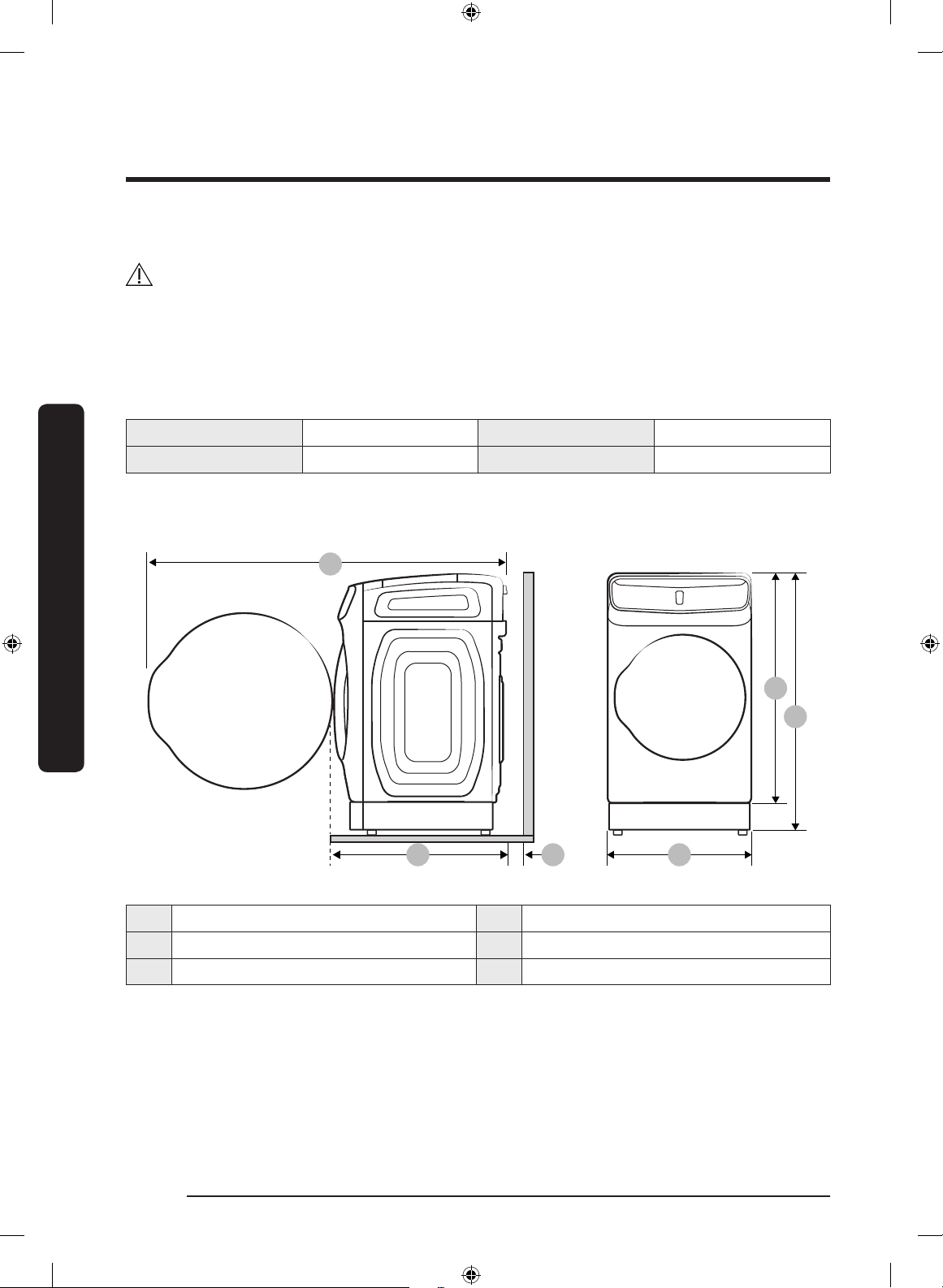

1. Select a location and move the dryer to the site. For easy access, we recommend you install the dryer in the same location as your washer.

2. To change the door direction, see Door reversal.

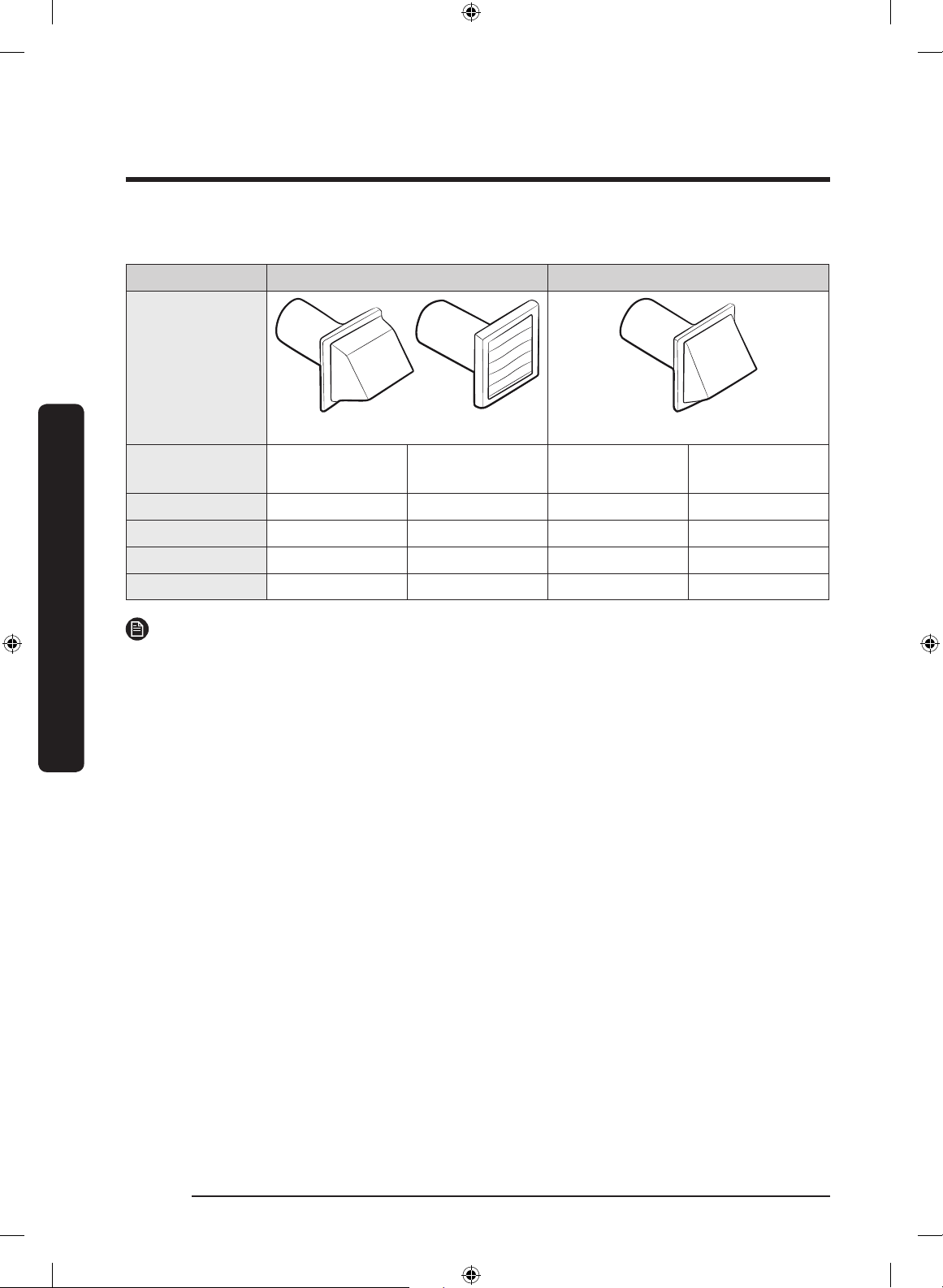

3. Install the exhaust system as instructed in the Exhaust ducting guide section.

NOTE

• To move the dryer easily, lay two of the carton cushions from the packaging on the floor. Tip the dryer on its side so it lies across both cushion-tops. Push the dryer so that it is near its final location, and then set the dryer upright.

• Secure room around the dryer to facilitate ducting and wiring.

STEP 2 Connect the gas line

First, read through the Gas requirements section, and follow these steps.

1. Remove the protective cap from the gas pipe.

2. Apply a LPG (Liquefied Petroleum Gas)-safe compound or 1.5 wraps of Teflon tape to all threaded connections.

3. Connect the gas supply to the dryer. An additional fitting is required to connect the 3/4” (1.9 cm) female thread end of a flexible connector to the 3/8” (1 cm) male threaded end on the dryer. Tighten up the fitting over all threads.

4. Turn on the gas supply, and check for any leaks using a soap solution. If a leak is found, tighten the connections and try again. DO NOT use an open flame to check for gas leaks.

STEP 3 Connect the electrical wiring

First, read through the Electrical requirements section, and then follow these steps.

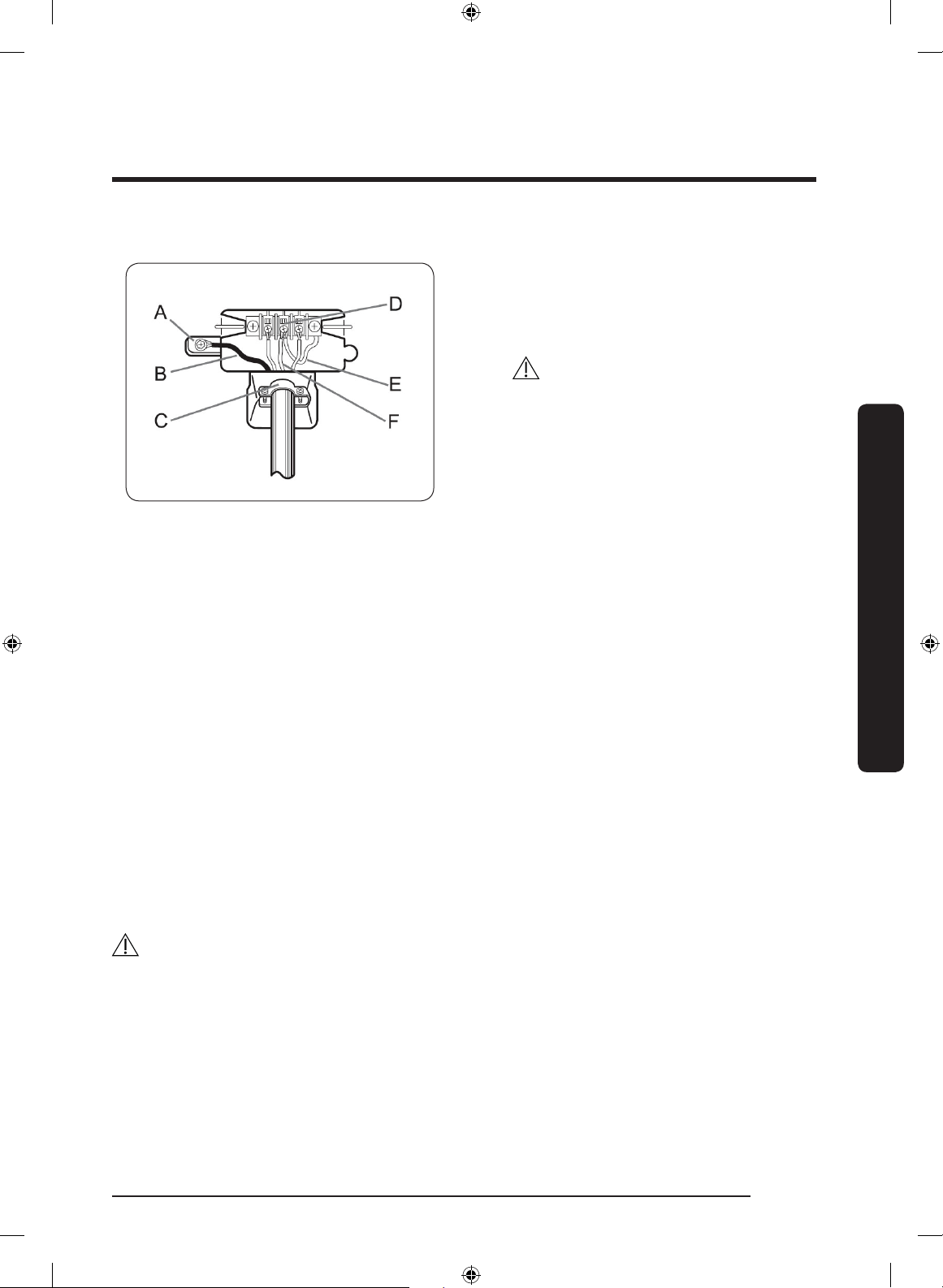

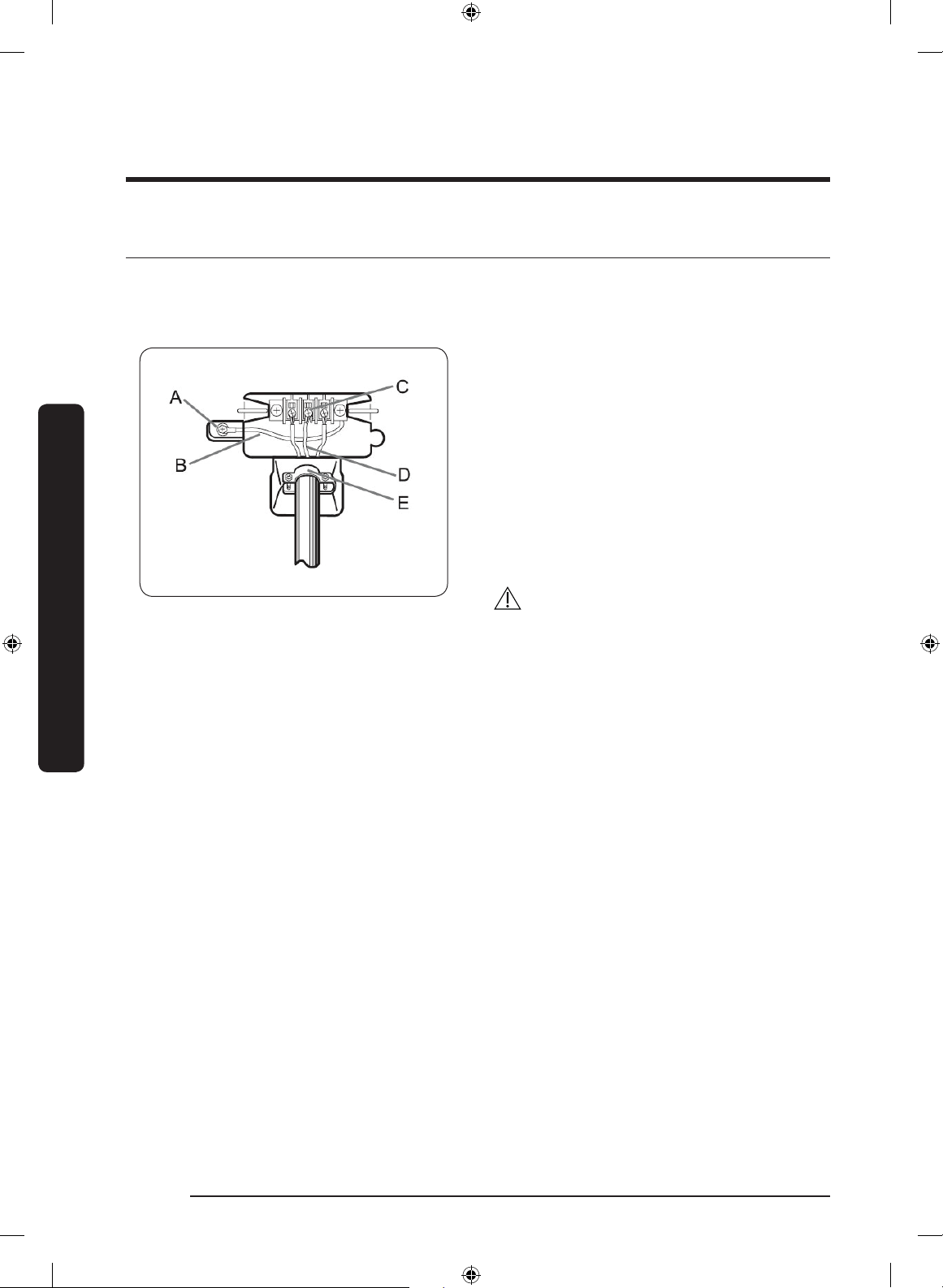

1. Loosen or remove the center terminal block.

2. Connect the neutral wire (white or center wire) of the power cable to the center, silver-colored terminal screw of the terminal block. Tighten the screws.

3. Connect the other wires to outer terminal block screws. Tighten the screws.

4. Tighten the strain relief screws.

5. Insert the terminal block cover into the rear panel of the drye
