Panasonic TC-P50S30 50" Plasma TV With Media Player User Manual

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in

the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid

in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio

provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición,

para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los

servicios que le ofrece la garantía.

Modelo Número de serie

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus

New Jersey 07094 U.S.A.

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3 CANADA

Printed in U.S.A.

Impreso en EE.UU.

M0111-0

Owner’s Manual

42”/46”/50” Class 1080p Plasma HDTV

(41.6/46.0/49.9 inches measured diagonally)

Manual de usuario

Televisión de alta definición de 1080p y

clase 42”/46”/50” de Plasma

(41,6/46,0/49,9 pulgadas medidas diagonalmente)

For assistance (U.S.A./Puerto Rico), please call:

1-877-95-VIERA (958-4372)

www.panasonic.com/help

For assistance (Canada), please call:

1-866-330-0014

www.vieraconcierge.ca

Para solicitar ayuda (EE.UU./Puerto Rico), llame al:

1-877-95-VIERA (958-4372)

www.panasonic.com/help

Gracias por su decisión de comprar este producto marca Panasonic.

Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en

el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

Model No.

Número de modelo

TC-P42S30

TC-P46S30

TC-P50S30

Español

English

Thank you for purchasing this Panasonic product.

Please read these instructions before operating your set and retain them for future

reference. The images shown in this manual are for illustrative purposes only.

TQB2AA0604

■Do not display a still picture for a long time

This causes the image to remain on the plasma screen

(“Image retention”). This is not considered a malfunction and is not covered by the warranty.

4 : 3

To prevent the “Image retention”, the screen saver is

automatically activated after a few minutes if no signals are

sent or no operations are performed.

Typical still images

●

Channel number and other logos

●

Image displayed in 4:3 mode

●

SD Card photo

●

Video game

●

Computer image

■Set up

●

Do not place the unit where it’s exposed to sunlight or other bright light (including reflections).

●

Use of some types of fluorescent lighting may reduce the remote control’s transmission range.

Experience an amazing level of

multimedia excitement

SD memory card

Camcorder

Amplifier with

Speaker system

Cable box

DVD player/

Blu-ray Disc player

DVD recorder/

Blu-ray Disc recorder

VCR

Enjoy rich multimedia

USB device

Basic Advanced Support Information

Getting started

VIERA Link™ is a trademark of

Panasonic Corporation.

HDMI, the HDMI logo and High-

Definition Multimedia Interface are

trademarks or registered trademarks

of HDMI Licensing LLC in the United

States and other countries.

SDXC Logo is a trademark of SD-

3C, LLC.

“AVCHD” and the “AVCHD” logo

are trademarks of Panasonic

Corporation and Sony Corporation.

DLNA

, the DLNA Logo and DLNA

CERTIFIED™ are trademarks,

service marks, or certification

marks of the Digital Living Network

Alliance.

This product qualifies for ENERGY

STAR in the “Home Use” setting

and this is the setting in which

energy savings will be achieved.

Any modifications to the “Home

Use” setting or other factory default

settings could result in greater

energy consumption beyond

levels that meet ENERGY STAR

qualifications.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

HDAVI Control™ is a trademark of Panasonic Corporation.

This product is licensed under the AVC patent portfolio

license for the personal and non-commercial use of a

consumer to (i) encode video in compliance with the AVC

Standard (“AVC Video”) and/or (ii) decode AVC Video

that was encoded by a consumer engaged in a personal

and non-commercial activity and/or was obtained from a

video provider licensed to provide AVC Video. No license

is granted or shall be implied for any other use. Additional

information may be obtained from MPEG LA, LLC.

See http://www.mpegla.com.

•

Watching TV ·················································17

•

Using VIERA TOOLS ····································20

•

Watching content from external devices ·······21

•

Using Media player ·······································22

•

VIERA Link

“HDAVI Control

” ····················28

•

Using Network services ································34

•

Network Connections ··································35

•

Network settings ·········································36

•

Using EASY IPTV ·······································39

•

Using DLNA feature ····································40

•

Network Camera ·········································41

•

Editing and Setting Channels ·······················42

•

How to Use Menu Functions·························44

•

Picture settings ···········································45

•

Audio settings ·············································46

•

Timer settings ·············································46

•

Lock ····························································47

•

Closed caption ············································47

•

Setup ··························································48

•

Ratings List for parental control ····················49

•

Technical Information ····································50

•

Care and Cleaning ········································53

•

Frequently Asked Questions (FAQ) ··············54

•

Specifications················································57

•

Index ····························································· 58

•

Limited Warranty

(for U.S.A. and Puerto Rico only) ·················59

•

Customer Services Directory

(for U.S.A. and Puerto Rico) ·························60

•

Limited Warranty (for Canada) ·····················61

Basic Features

Advanced Features

Support Information

•

Safety Precautions··········································4

Please read before using the unit

•

Accessories/Optional Accessory·····················7

•

Connections ··················································10

•

Identifying Controls ·······································12

•

First Time Setup············································13

Getting started

Contents

Safety Precautions

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set

(including on shelves above, etc.).

Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with

arrowhead within a triangle is

intended to tell the user that

parts inside the product are a risk

of electric shock to persons.

The exclamation point within a

triangle is intended to tell the

user that important operating

and servicing instructions are in

the papers with the appliance.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11) Only use attachments / accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart / apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when

unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the

AC cord power plug is securely connected.

WARNING/CAUTION (TV set)

WARNING

Small parts can present choking hazard if accidentally

swallowed.

Keep small parts away from young children.

Discard unneeded small parts and other objects,

including packaging materials and plastic bags/sheets to

prevent them from being played with by young children,

creating the potential risk of suffocation.

■Set up

This Plasma TV may fall and can cause personal injury or

even death if not installed correctly. To prevent personal

injury or death, follow these warnings:

●

Install the Plasma TV in accordance with the

manufacturer’s recommended pedestal or stand,

corresponding hardware and installation instructions.

This Plasma TV is for use only with the following

optional accessories. Use with any other type of optional

accessories may cause instability. The following accessories

are manufactured by Panasonic Corporation.

• Wall-hanging bracket (Angled)

TY-WK4P1RW

●

Be sure to ask a qualified technician to carry out the

installation and set-up.

Two or more people are required to install or remove the

television.

●

Some wall mounts (wall-hanging brackets) are not

designed to be mounted to walls with steel studs or old

cinder block constructions.

Ask your dealer or licensed contractor to properly secure

the wall-hanging bracket.

●

Do not route the TV’s power cord inside the wall.

The power cord was not designed for in-wall mounting.

Doing so can lead to fire hazard.

●

Do not place the Plasma TV or its stand on a sloped or

unstable surface.

The Plasma TV may fall or tip over.

●

Do not support the Plasma TV on a non-specified

pedestal.

●

Do not place the Plasma TV on furniture that can easily

be used as steps, such as a chest of drawers.

●

Do not climb or allow children to climb on the Plasma TV

●

Place or install the Plasma TV where it cannot be

pushed, pulled over or knocked down.

●

Route all cords and cables such that they cannot be

tripped over or pulled by curious children.

●

Do not place any objects on top of the Plasma TV.

If water spills onto the Plasma TV or foreign objects get

inside it, a short-circuit may occur which could result in

fire or electric shock. If any foreign objects get inside the

Plasma TV, please consult an Authorized Service Center.

In the unlikely event that you receive a shock from this

product it is possible that your household outlet may be

wired improperly. Have an electrician verify that the TV’s

outlet is properly wired. If the symptom persists, have the

TV serviced by a qualified authorized technician.

●

To prevent the spread of fire, keep candles

or other open flames away from this

product at all times

■AC Power Supply Cord

To prevent fire or electric shock:

●

The Plasma TV is designed to operate on a 120 V AC,

60 Hz service. Insert the power cord plug as far as it will

go into the wall socket.

If the plug is not fully inserted, heat may generate, which

could cause a fire.

●

The included power cord is for use with this unit only.

●

Do not use any power cord other than that provided

with this TV.

●

Do not handle the power cord plug with wet hands.

●

Do not do anything that might damage the power

supply cord.

●

When disconnecting the power supply cord, hold the

plug, not the cord.

●

Do not use the power supply cord if the plug or cord is

damaged.

Replace the cord or contact your Authorized Service Center.

●

Do not use a 3-prong to 2-prong AC plug adapters to

connect your TV’s plug to the wall outlet.

Doing so will defeat the TV plug’s safety feature, which

can lead to a shock hazard. If the wall outlet does not

accommodate a 3-prong plug, have a qualified electrician

replace your outlet and check the associated wiring.

■Handling the power supply cord

●

rt the power plug fully into the socket outlet. (If the

power plug is loose, it could generate heat and cause fire.)

●

Ensure that the power plug is easily accessible.

●

Ensure the earth pin on the power plug is securely

connected to prevent electrical shock.

• An apparatus with CLASS I construction shall be

connected to a power socket outlet with a protective

earthing connection.

●

Do not touch the power plug with a wet hand. (This may

cause electrical shock.)

●

Do not use any power cord other than that provided

with this TV. (This may cause fire or electrical shock.)

●

Do not damage the power cord. (A damaged cord may

cause fire or electrical shock.)

• Do not move the TV with the cord plugged in the socket outlet.

• Do not place a heavy object on the cord or place the cord

near a high-temperature object.

• Do not twist the cord, bend it excessively, or stretch it.

• Do not pull on the cord. Hold onto the power plug body

when disconnecting cord.

• Do not use a damaged power plug or socket outlet.

●

If a problem occurs (such as no picture or no sound),

or if smoke or an abnormal odor is detected from the

Plasma TV, unplug the power supply cord immediately.

Continued use of the TV under these conditions might

cause a fire or permanent damage to the TV. Have the TV

evaluated by an Authorized Service Center. Servicing of the

TV by unauthorized personnel is strongly discouraged due

to its high voltage.

●

If water or an object gets inside the Plasma TV, if the

Plasma TV is dropped, or if the enclosure becomes

damaged, unplug the power supply cord immediately.

A short-circuit may occur, which could cause a fire. Contact

an Authorized Service Center for an evaluation.

CAUTION

●

Do not cover the ventilation holes.

Doing so may cause the Plasma TV to overheat, which can

cause a fire or damage to the Plasma TV.

●

Leave a space of 3 15/16” (10 cm) or more at the top,

left and right, and 2 3/4” (7 cm) or more at the rear.

●

When using the pedestal, keep the space between the

bottom of the TV and the pedestal or stand surface

clear from objects that may obstruct ventilation.

■When Moving the Plasma TV

●

Be sure to disconnect all cables before moving the

Plasma TV.

Moving the TV with its cables attached might damage the

cables which, in turn, can cause fire or electric shock.

●

To prevent an electric shock, disconnect the power

plug from the wall outlet as a safety precaution before

carrying out any cleaning.

●

Transport only in upright position.

Transporting the unit with its display panel facing upright or

downward may cause damage to the internal circuitry.

●

Using a dry cloth, clean any dust from the power supply

cord and plug regularly.

Build-up of dust on the power cord plug can increase

humidity, which might damage the insulation and cause a

fire.

This Plasma TV radiates infrared rays;

therefore, it may affect other infrared communication

equipment. Install your infrared sensor in a place away from

direct or reflected light from your Plasma TV.

The TV will still consume some power as long as the

power supply cord is connected to the wall outlet.

●

Display panel is made of glass. Do not apply strong

force or impact to the display panel.

This may cause damage resulting in injury.

●

The TV is heavy. TV should be handled by 2 or more

people. Support as shown to avoid injury by the TV

tipping or falling.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for an Other Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the Panasonic Service Center or an experienced radio/TV technician for help.

FCC Caution:

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables

when connecting to peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of

North America could void the user’s authority to operate this device.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Consumer Electronics Company

1-877-95-VIERA (958-4372)

email: [email protected]

CANADIAN NOTICE:

For Model TC-P42S30, TC-P46S30, TC-P50S30

This Class B digital apparatus complies with Canadian ICES-003.

CEA CHILD SAFETY NOTICES

WARNING

Flat panel displays are not always supported on the

proper stands or installed according to the manufacturer’s

recommendations. Flat panel displays that are inappropriately

situated on dressers, bookcases, shelves, desks, speakers,

chests or carts may fall over and may cause personal injury or

even death.

The consumer electronics industry (of which Panasonic is

a member) is committed to making home entertainment

enjoyable and safe. To prevent personal injury or death, be

sure to follow the following safety guidelines:

TUNE INTO SAFETY:

• One size does NOT fit all. Follow the manufacturer’s

recommendations for the safe installation and use of your

flat panel display.

• Carefully read and understand all enclosed instructions for

proper use of this product.

• Don’t allow children to climb on or play with furniture and

television sets.

• Don’t place flat panel displays on furniture that can easily be

used as steps, such as a chest of drawers.

• Remember that children can become excited while watching

a program, especially on “larger than life” flat panel

displays. Care should be taken to install the display where it

cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables

connected to the flat panel display so that they cannot be

pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT

YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display

manufacturer and/or listed by an independent laboratory

(such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall

mount manufacturers.

• If you have any doubts about your ability to safely

install your flat panel display, contact your retailer about

professional installation.

• Make sure the wall where you are mounting the display

is appropriate. Some wall mounts are not designed to

be mounted to walls with steel studs or old cinder block

construction. If you are unsure, contact a professional

installer.

• A minimum of two people are required for installation. Flat

panel displays can be heavy.

Panasonic recommends that a qualified installer perform

the wall-mount installation. See page 4.

The American Academy of Pediatrics discourages

television viewing for children younger than two years

of age.

Getting started

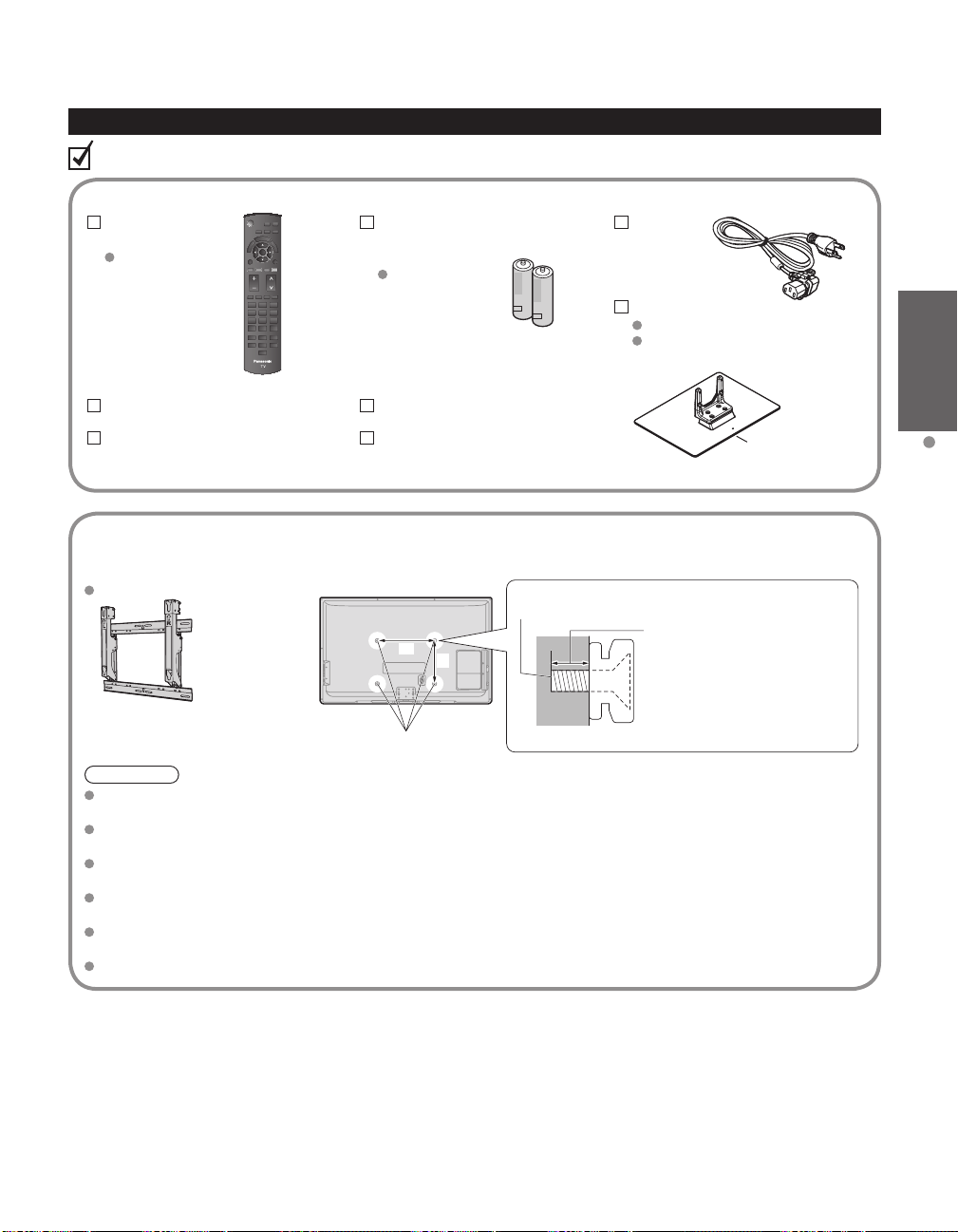

Accessories/Optional Accessory

Accessories

Remote Control

Transmitter

N2QAYB000570

Batteries for the

Remote Control

Transmitter (2)

AA Battery

AC cord

Accessories

Check you have all the items shown.

Pedestal

TBL5ZX0029 (TC-P42S30)

TBL5ZX0032

(TC-P46S30, TC-P50S30)

Quick start guide

Owner’s Manual

Product Registration Card (U.S.A.)

Child safety

How to assemble

(p. 8)

Optional Accessory

Please contact your nearest Panasonic dealer to purchase the recommended

wall-hanging bracket. For additional details, please refer to the wall-hanging

bracket installation manual.

Wall-hanging bracket

(angle)

TY-WK4P1RW

a: 15.7” (400 mm)

b: 11.8” (300 mm)

Rear of the TV

Holes for wall-hanging

bracket installation

Screw for fixing the TV onto the wall-hanging bracket

(not supplied with the TV)

Depth of screw:

minimum 0.67” (17.0 mm),

maximum 0.87” (22.0 mm)

(View from the side)

Warning

In order to maintain the TV’s performance and safety, be absolutely sure to ask your dealer or a licensed

contractor to secure the wall-hanging brackets.

Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to

prevent the TV from tipping over.

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product

damage.

Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the

wall before hanging bracket.

When using the angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting

cables not to press against the wall when the TV is tilted forward.

For safety reasons, remove units no longer being used from their wall-mounted locations.

Accessories

Assembly screws

(4 of each)

XYN5+F20FN

size (M5 × 20) (Silver)

THEL088N (for 42”)

THEL087N (for 46”, 50”)

size (M5 × 25) (Black)

Bracket (1)

Base (1)

Attaching the pedestal to TV

■

Assembling the pedestal

Fix securely with assembly screws

(Total 4 screws).

Tighten screws firmly.

Front

Pole

Base

(Image: TBL5ZX0032)

■

Set-up

Carry out work on a horizontal and level surface.

Tighten assembly screws

(total 4 screws) loosely at first,

then tighten them firmly to fix securely.

(Image: TC-P50S30)

Rear side

Arrow

mark

Hole for pedestal

installation

Pole

Base

Bottom view

Arrow

mark

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall hanging bracket or repacking the TV.

Remove the assembly screws

from the TV.

Pull out the TV from the pedestal.

Remove the assembly screws

from the pole.

Warning

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than that provided with this TV.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong

enough to support the TV, and it might fall over and become damaged, and personal injury may result.

When removing the pedestal, do not remove the pedestal by any methods other than the specified procedure.

Otherwise the TV and/or pedestal may fall over and become damaged, and personal injury may result.

Getting started

Accessories/Optional Accessory

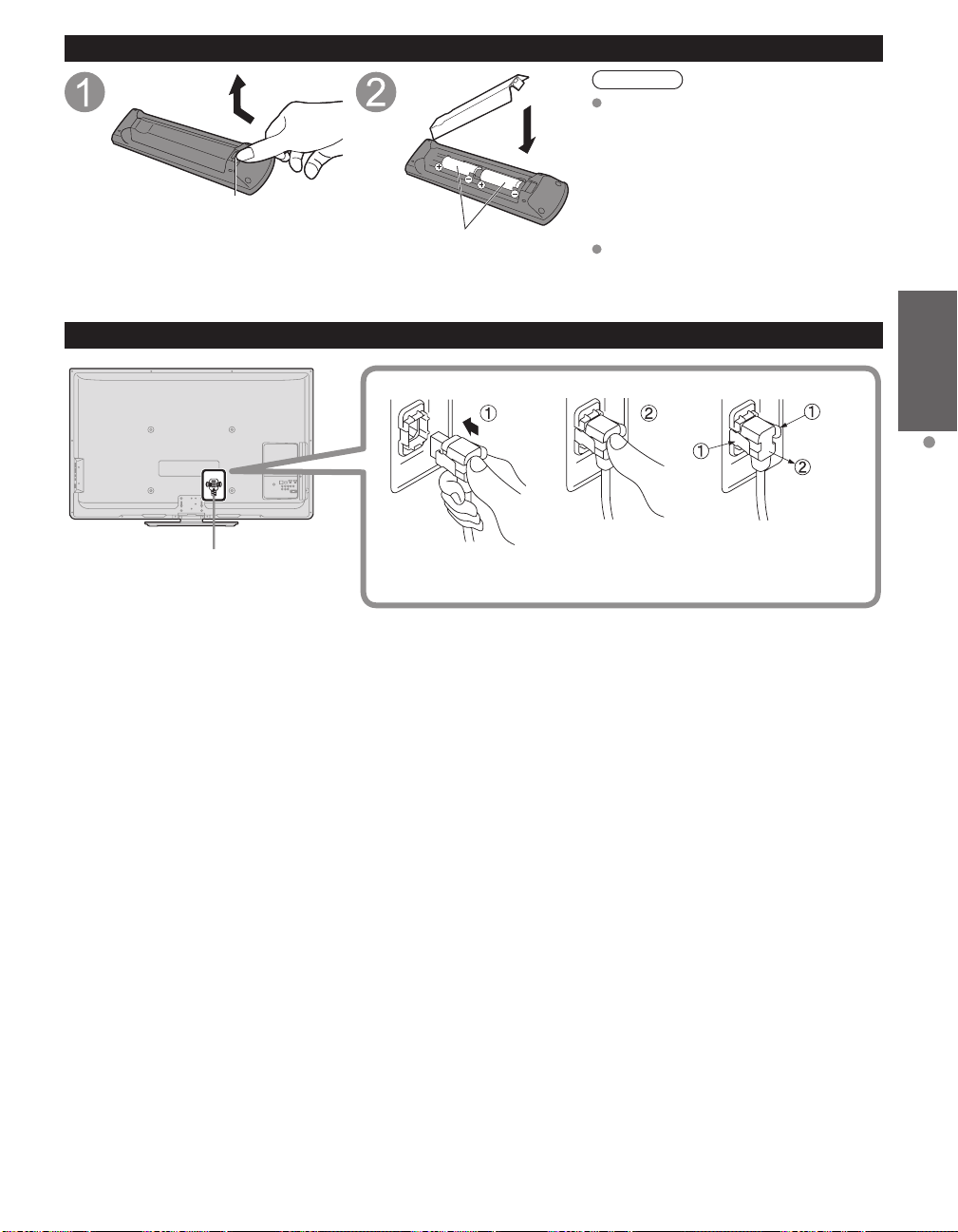

Installing the remote’s batteries

Open

Hook

Note the correct polarity

(+ or -).

Caution

Incorrect installation may cause

battery leakage and corrosion,

resulting in damage to the remote

control.

•

Do not mix old and new batteries.

•

Do not mix different battery types (such

as alkaline and manganese batteries).

•

Do not use rechargeable (Ni-Cd)

batteries.

Do not burn or break batteries.

Power cord connection

To attach To remove

Insert it firmly until the

tabs on both sides click

into place.

Keep pushing both

sides until they snap

and pull.

Connections

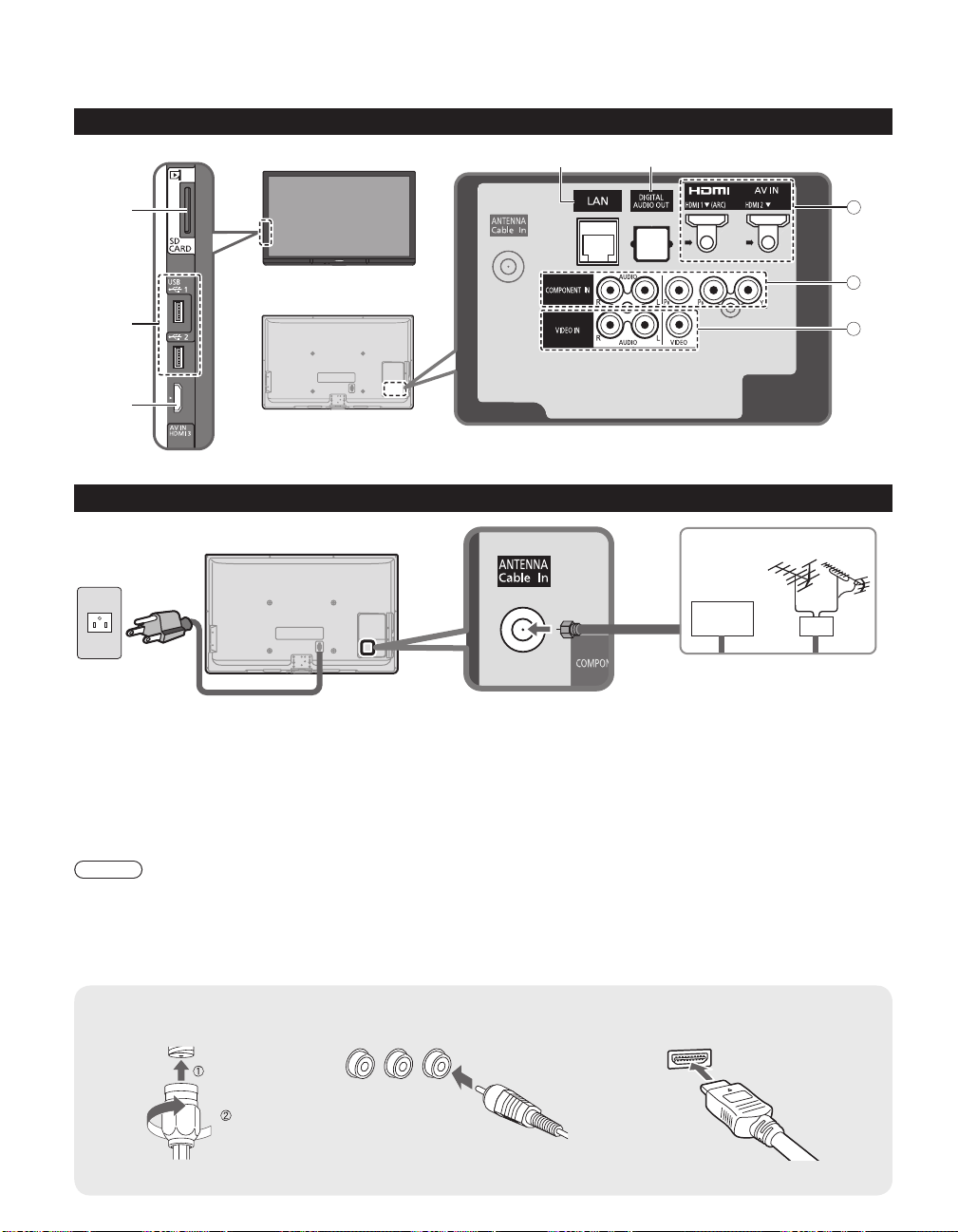

Connection Panels

Power Cord

(Connect after all the

other connections have

been made.)

VHF/UHF Antenna

• NTSC (National Television System Committee):

ATSC (Advanced Television Systems Committee):

Digital TV Standards include digital high-definition television (HDTV), standard-definition television

(SDTV), data broadcasting, multichannel surround-sound audio and interactive television.

Back of the TV

Cable TV

VHF/UHF Antenna

* See page 9

(Power cord

connection)

■

Antenna terminal

■

Pin terminals

■

HDMI terminal

greenbluered

green

●

Firmly tighten by hand.

●

Match colors of plugs and terminals.

●

Insert firmly.

●

Insert firmly.

Connection references

Antenna or Cable connection

Cable

●

You need to subscribe to a cable TV service to enjoy viewing their programming.

●

You may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.

The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 11)

Note

●

When using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.

●

When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.

●

For additional assistance, visit us at: www.panasonic.com/help

www.panasonic.ca

Back of the TV

SD card

slot (p.22)

HDMI 3

terminal

Front of the TV

USB1/2

connector

DIGITAL AUDIO OUTLAN connector

Getting started

Connections

AV cable connection

Audio connection

Best

Good

Basic

(Not HD)

To use HDMI terminals

●

VIERA Link connection, please refer to p. 29

●

The HDMI connection is required for a 1080p signal.

HDMI

AV OUT

HDMI-DVI

Conversion cable

DVI OUT

AUDIO OUT

e.g. Blu-ray Disc

player

e.g. Blu-ray Disc

player

AV Equipment

To use COMPONENT terminals

AUDIO

OUT

COMPONENT

VIDEO OUT

white

red

green

blue

red

white

red

green

blue

red

white

red

green

blue

red

e.g. Blu-ray Disc

player

AV Equipment

To use COMPOSITE terminals

COMPOSITE

OUT

yellow

white

red

yellow

white

red

yellow

white

red

e.g. DVD Recorder

AV Equipment

e.g. VCR

DIGITAL

AUDIO IN

e.g. Amplifier

Audio equipment

●

For HDMI-ARC (Audio Return Channel) connection, see p. 28

Optical cable

Identifying Controls

Note

●

The TV consumes a small amount of electric energy even when turned off.

●

Do not place any objects between the TV remote control sensor and remote control.

TV controls/indicators

Remote control

Switches TV On or Off (Standby)

Select source to watch (p. 21)

Displays Main Menu (p. 44)

Displays Sub Menu for special functions

(when available) (p. 18)

Colored buttons

(used for various functions)

Volume up/down

Sound mute On/Off

Changes aspect ratio and zoom(p. 18, 50)

Switches to previously viewed channel

or input

External equipment operations

(p. 33)

Closed Caption On/Off (p. 17)

Selects Secondary Audio Programming

(p. 17)

Exits from menu screen

VIERA Link menu (p. 32-33)

Display VIERA TOOLS Menu (p. 20)

Viewing from SD Card (p. 22-27)

Selects/OK/Change

Go back to previous menu

Channel up/down, when viewing from

ANT/Cable source

Displays or removes the channel

banner (p. 17)

Operates the Favorite channel list

function (p. 18)

Numeric keypad to select any channel

or press to enter alphanumeric input in

menus

Use for digital channels. (p. 17)

Front of the TV Back of the TV

Displays the Main

Changes the input

mode

Chooses Menu and

Submenu entries

Volume up/down

Remote control sensor

Within about 23 feet

(7 meters) in front of

the TV set

Selects channels

in sequence

C.A.T.S. sensor

Plasma C.A.T.S. (Contrast Automatic

Tracking System) (p. 45)

POWER button

Power indicator

(on: red, off: no light)

Getting started

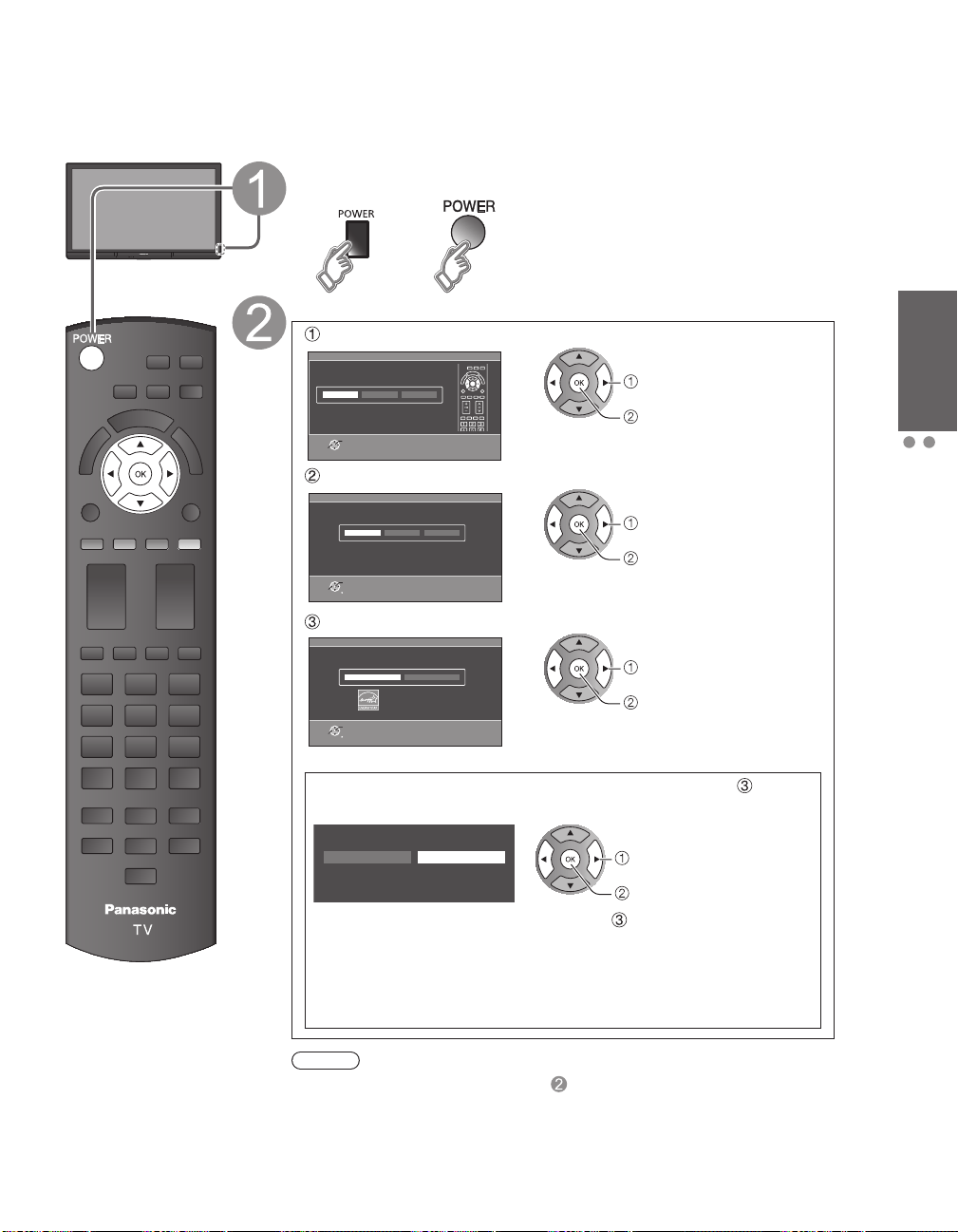

First Time Setup

Identifying Controls

First Time Setup

Turn the TV On with the POWER button

(Remote)

(TV)

Configure your viewing mode

Select your language

Language / Idioma / Langue

English Español Français

Step 1 of 7 / Paso 1 de 7 / Étape 1 de 7

Select

Selección

Sélection

Select your language

Seleccione su idioma

Sélection de la langue

select

Select your country

Step 2 of 7

RETURN

Select

Country

Select the country where this TV is being used.

U.S.A. Canada Other

select

Select your viewing mode (Be sure to select “Home use”)

Step 3 of 7

RETURN

Select

Set viewing mode

Home use Store Demonstration

Select your viewing environment

select

●

Please confirm your selection (Home Use) before pressing OK button.

■If you select “ Store Demonstration” by mistake in ,

confirmation screen will be displayed.

You are selecting the store demonstration mode.

If you select “Yes”, the picture mode will regularly reset

to “Vivid” and a Picture Refresh message will be displayed on the

screen.

Yes

select

●

Select “No” and return to previous screen .

●

If you select “Yes”, Screen enters the store demonstration mode.

To display the “Set viewing mode” screen again as shown above and

select “Home Use”, do one of the following:

• Press and hold down the side POWER button for at least five seconds.

• Unplug power cord for 30 seconds and plug it again.

Note

●

If you use any other step other than

then turn the TV off, or if you used

the EXIT button to quit before completing the settings, the next time you turn

the TV on, “First time setup” will not be automatically displayed.

• The settings up to that point are saved.

• You can start “First time setup”. (p. 48)

●

Language, ANT/Cable setup, Input labels, Clock can also be changed from

the Settings Menu. (p. 48)

The first time setup screen is displayed only when the TV is turned on for the first time after the power cord

is inserted into a wall outlet and when “Auto power on” (p. 48) is set to “No”.

Press to exit from

a menu screen

Press to go back to

the previous screen

Note

About broadcasting

systems

Analog (NTSC):

Conventional

broadcasting

Digital (ATSC):

New

programming

that allows

you to view

more channels

featuring

high-quality video

and sound

ANT/Cable setup

Do you use a Cable, Satellite or Fiber Optic box with this TV?

a Select signal type

(Cable/Antenna)

Select scan type

Select connection type

for Cable or Satellite box

and go to

(Input labels)

ANT/Cable setup

Step 4 of 7

Return

Select

Yes No

Do you use a Cable, Satellite or Fiber Optic box with this TV?

Yes

ANT/Cable setup

Step 4 of 7

Cable service

(No box)

Over-the-Air Antenna

How does the TV receive its programming content?

Antenna

Cable In

Return

Select

Auto program

Step 4 of 7

Return

Select

Yes No

Start scanning for available channels in your area?

ANT/Cable setup

Step 4 of 7

Antenna/Cable in

AV IN

Antenna

Cable In

Which wiring method is used to connect your box to the TV?

HDMI

Component

Composite

Return

Select

select

Start scanning

Complete scanning

Auto program

Auto program completed.

Press OK to continue.

Number of analog channels

Number of digital channels

RETURN

Auto program

Progress

Number of analog channels

Number of digital channels

Press RETURN to quit

This may take some time to complete.

RETURN

Label the inputs for easy identification (Label inputs)

To name each input, follow the instructions on screen.

When done, select NEXT and press OK to go to the next step.

Label inputs

Step 5 of 7

What is connected to HDMI 1 ?

For your convenience, you may name each input for easy identification.

The labels will be shown in the “Input select” menu.

HDMI

Video

HDMI 1

HDMI 2

HDMI 3

Component

Customize label

Return

Select

RETURN

Select

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

- ,

LAST

ABC abc

GAME

Video

GAME

select

set

Follow the instructions on

screen to complete the

following operations.

--> To edit the labels to match your connected devices.

Label: [BLANK] Blu-ray/CABLE/SATELLITE/DVD/DVD REC/DVR/GAME/HOME

THTR/RECEIVER/COMPUTER/MEDIA CTR/MEDIA EXT/VCR/CAMERA/

MONITOR/AUX/OTHER/Not used

• Select “Not used” for any back-panel input that has no device connected to it.

Afterward, the input will be skipped when pressing INPUT, for your convenience.

• The input labels can be changed at any time from the TV’s setup menu

Getting started

First Time Setup

Press to exit from

a menu screen

■

Press to go back to

the previous screen

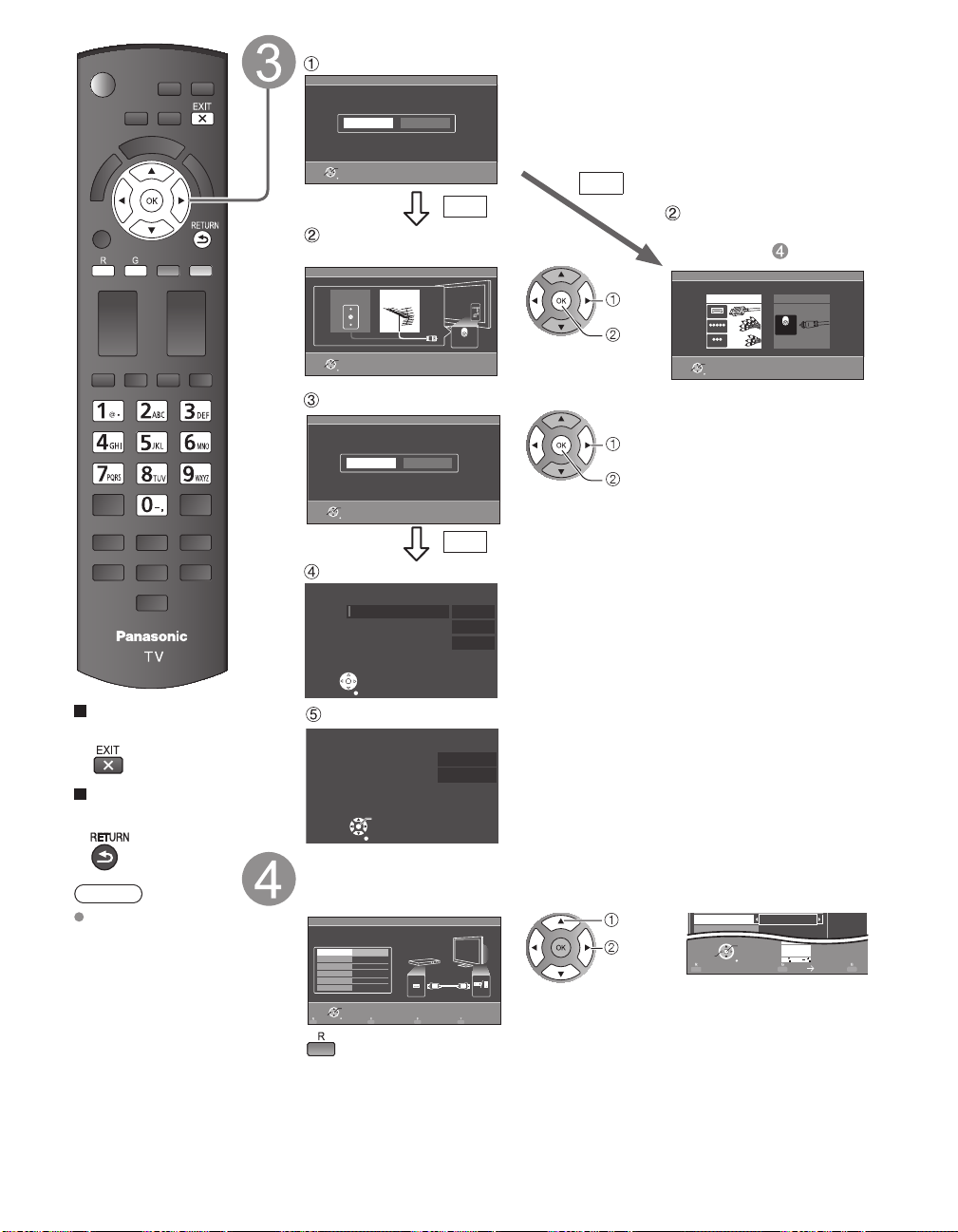

Configure Network settings

Select the Network type

Network settings

Step 6 of 7

RETURN

Select

Automatic Manual

Checks for proper network connection, settings and

communication to the Internet and server

automatically.

Select the setting mode

Network settings

Connection test

Step 6 of 7

Check Ethernet cable connection

Validate IP address

Check for IP address duplication

Check connection to the Internet

Check communication with EASY IPTV server.

Test in progress...

RETURN

Start connection test

Connection test

Manual

Connection

error

Set later: Go to

You can set in “Setup” menu later.

Wireless (WiFi)

: Start “Wireless network” (p. 16)

Automatic: Press OK to start setup automatically.

Error screen is displayed when

Network connection has failed.

Manual: Go to Manual setting.

■Manual setting

■Error screen

Complete “Network settings”

Helpful information is displayed when you

successfully complete “Network settings”.

Network settings

Connection test

Step 6 of 7

Check Ethernet cable connection

Validate IP address

Check for IP address duplication

Check connection to the Internet

Check communication with EASY IPTV server.

Connection to local network (router) failed.

Ensure wireless network availability

Retry Manual Set later

RETURN

Select

Manual

Automatic

Retry: Go to “Start connection test”

Set later: Go to

Network settings

Step 6 of 7

Ethernet cable Wireless(Wifi) Set later

Return

Select

Select Ethernet cable of wireless network.

Network settings are complete.

You can use EASY IPTV.

EASY IPTV lets you enjoy Internet contents on

your VIERA TV.

Network settings

Step 6 of 7

Return

Network settings

Step 6 of 7

IP setting mode

Subnet mask

IP address

Default gateway

DNS

DNS setting mode

Connect test

Proxy address

Proxy port

Automatic

255.255.255.0

192.168.0.4

192.168.0.1

Automatic

00-00-aa-cc-33-ab

RETURN

Change

Select

Mac address

Configure settings of the network connection.

Adjust the Clock (Set clock)

When done, select NEXT and press OK to go to the next step.

■Manual setting

Set clock

Step 7 of 7

Adjust the TV's date and time

Year

Mode

Hour

Month

Minute

- - -

Manual

- - -

DST

Time zone

RETURN

Edit

Select

Change

Day

Follow the instructions on

screen to complete the

following operations.

select

set

RETURN

0 9

DST

Minutes

■Auto setting

Set clock

Step 7 of 7

Year

Mode

Month

Hour

Day

Minute

Auto

DST

Time zone

EST

Off

RETURN

Change

Select

Adjust the TV's date and time

2011/4/5 6:00 AM

Mode

Manual: Adjust the clock manually (Year/Month/Day/Hour/Minute)

Auto: The clock is adjusted automatically via Internet service. Only

available when the TV is on a network. -->Set “Network settings” first.

Time zone

Select your time zone. (EST/CST/MST/PST/AKST/HST/NST/AST)

DST

Set DST (Daylight Saving Time) setting. (On/Off)

On: Advances the clock one hour from the time it is set according to the

time zone.

Press to exit from

a menu screen

■

Press to go back to

the previous screen

Complete First time setup

Congratulations! You are done.

The First time setup can be repeated at any time.

Press MENU and select SETUP; then “First time setup”.

RETURN

Congratulations!

Setup is complete.

Enjoy your Panasonic VIERA TV.

To watch TV via a Cable box, Satellite receiver, or any other source (DVD,

DVR, gaming device, etc.), press the INPUT button and select the appropriate

input.

■About wireless LAN

●

Wireless LAN adapter and Access point need to be obtained separately.

For the latest information on applicable LAN adapters, check the following website:

http://Panasonic.com/NetConnect

●

Check that the Access point supports WPS*.

(If it does not support WPS, the encryption key of the Access point is required when

configuring settings.)

●

Follow the instructions on the Access point setup screen and configure the appropriate

security settings.

For more details on setting of Access point, please refer to operating manual for the Access

point.

●

We recommend using 11n (5 GHz) for the wireless system between the wireless

LAN adapter and Access point.

Communication is also possible with 11a, 11b, and 11g (2.4 GHz), but the

communication speed may be slower.

●

If the wireless system of the Access point is changed, devices that could connect by

wireless LAN may no longer be able to connect.

●

When EASY IPTV, Network camera, DLNA, or other device is using the network, do

not disconnect the wireless LAN adapter.

●

Keep the TV away from the following devices as much as possible:

Wireless LAN, microwaves, and other devices that use 2.4 GHz and 5 GHz signals.

Otherwise, the TV failures such as malfunction may occur due to the radio wave

interference.

* WPS: Wi-Fi Protected Setup

■Wireless network (First time setup) in

Display “Wireless network”

Select the connection method

Wireless network

WPS (Wi-Fi Protected Setup using push button)

Please choose connection method:

Search for wireless networks

select

●

Follow the directions on screen to complete the setting.

●

See page 37 for more information.

Basic

Getting started

Watching TV

First Time Setup

Watching TV

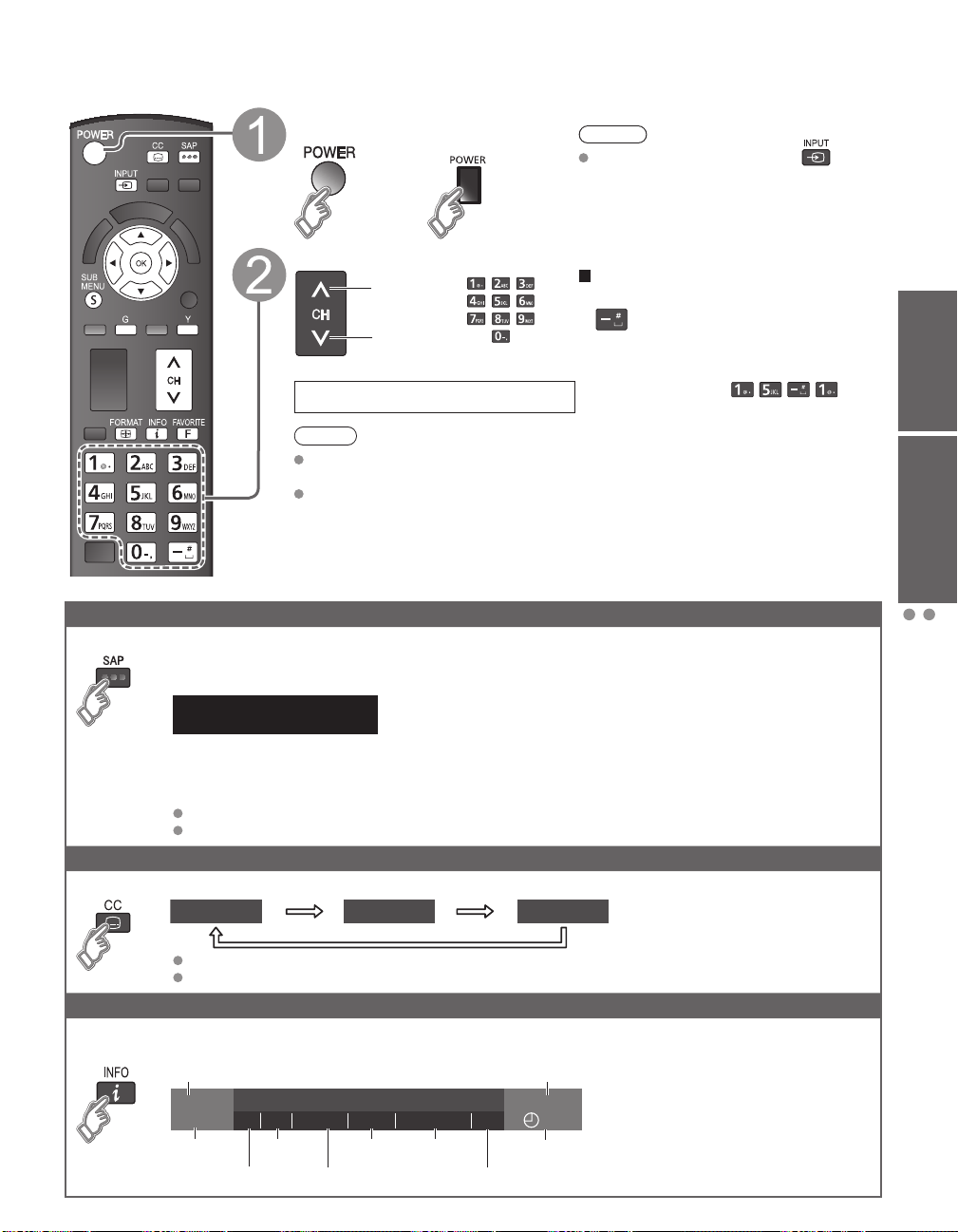

Turn power on

(TV)

(Remote)

Note

Please select correct input --> (p. 21)

Select a channel number

down

• Also available side CH button on the unit.

[For Cable/Satellite box connection]

- Use your connected box’s remote control.

To directly enter the digital channel

number

When tuning to a digital channel,

press the button to enter the minor

number in a compound channel

number.

example: CH15-1:

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal

reception between cable TV and antenna. (p. 14, 42)

The channel number and volume level remain the same even after the TV is turned

off.

■Other Useful Functions

Listen with SAP (Secondary Audio Programming)

■Select the Audio mode for watching TV

Digital mode

Press SAP to select next Audio track (if available) when receiving a digital channel.

Audio track 1 of 2

(English)

Analog mode

Press SAP to select the desired Audio mode.

• Each press of SAP will change the Audio mode. (Stereo/SAP/Mono)

SAP is not available when watching TV with a Cable or Satellite box connected via HDMI.

Contact your Cable or Satellite operator for instructions on enabling SAP with their box.

Closed Caption

■Switches the Closed Caption mode On or Off

Closed caption OnClosed caption Off

Closed caption On mute

Closed Caption is not available when watching TV with a Cable or Satellite box connected via HDMI.

Contact your Cable or Satellite operator for instructions on enabling CC with their box.

Displaying Information

■Displays and removes information. When watching programming via the Antenna/Cable input,

shows the channel banner.

15-2 12:30 PM

THE NEWS

CC SAP

TV-G 1080i Standard 4:3

ABC-HD

Channel

Station

identifier

SAP

indication

Signal

resolution

Rating Level


mode

Sleep timer

remaining time

Aspect ratioClosed caption

Clock

Change aspect ratio and Zoom the picture

■Press FORMAT to cycle through the aspect modes (p. 50)

• 480i, 480p: FULL/JUST/4:3/ ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM

Use when the picture does not fill the whole screen (bars appears on either side of

the image) or portions of the picture is trimmed.

Note

1. Some content, such as film-based movies, are available in extra-wide format.

Top and bottom bars are unavailable.

2. Connected devices, such as Cable/Satellite box, DVD/Blu-ray players and game

consoles have their own aspect (format) settings. Adjust the device’s aspect

settings.

Display the SUB MENU

■Press SUB MENU to show the Sub Menu screen

This menu consists of shortcuts to convenient functions.

Sub menu is only available when the TV is using the Antenna/Cable input, not when using Cable or Satellite box.

SUB

Specify favorites or type of channels to view when pressing the channel up/

down button.

Set favorite channel (below)

Edit the channel identifier (p. 43)

Check the signal strength (p. 43)

All

Setup SUB MENU

Edit CH caption

Signal meter

Set favorite

Channel surf mode

Call up a favorite channel

■ FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast

station with the cursor or use the number buttons. (p. 17)

Favorite channels

1/3

26-1

select

■Set the Favorite channel

SUB

All

Setup SUB MENU

Edit CH caption

Signal meter

Set favorite

Channel surf mode

Set favorite 1/3

26-1

select the list number

(to save the channel

without pressing OK)

select

the list

number

save the displayed

channel

■Delete a favorite channel

Set favorite 1/3

26-1

select

delete

(while holding down)

■To change the page

Press repeatedly to change between pages (1/3, 2/3, 3/3 or exit)

Changes the page forward/backward

●

Favorite channels cannot be set when using Cable or Satellite box.

Basic

Watching TV

■Other Useful operations

Entering characters

You can use the remote control keys to enter the alphanumeric characters.

■Switches input mode

ABC → abc → 123

■Press each number key

to cycle through the

alphanumeric character

RETURN

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

- ,

LAST

Select

DeleteABC → abc

Proxy setting

Proxy address

Proxy port

1 4 8

Navigation area

●

You can also use a USB keyboard (not supplied) to enter the alphanumeric characters.

●

Keyboard type (p. 48)

Password setting/entering

You need to enter the password when you access locked channel or inputs.

Input your 4-digit password

Password

Enter password.

* * * -

●

If it is your first time entering the password, enter the password twice in

order to register it.

●

Make a note of your password. Do not forget it. (If you have forgotten

your password, consult your local dealer.)

●

When you select a locked channel, a message will be displayed that

allows you to view the channel after you input your password.

●

Change password (p. 47)

Operate USB keyboard

You can operate non-character keys as remote control keys.

■Key chart

Keyboard key Remote key Keyboard key Remote key

UP/DOWN/LEFT/RIGHT Cursor key F4 Input

Enter OK F5 Channel Down(-)

BackSpace Return (when you do not

input character)

F6 Channel up(+)

0-9 0-9 F7 Volume Down(-)

F1 Menu F8 Volume up(+)

F2 VIERA Tools F9(Red)/F10(Green)/

F11(Blue)/F12(Yellow)

Color key

(Red/Blue/Yellow/Green)

F3 Submenu

●

For more details on setting and operation of the USB keyboard, please also read the operating manuals for the USB

keyboard.

●

Some keyboards do not have these keys.

Using VIERA TOOLS

Press to exit from

a menu screen

Press to go back

to the previous

screen

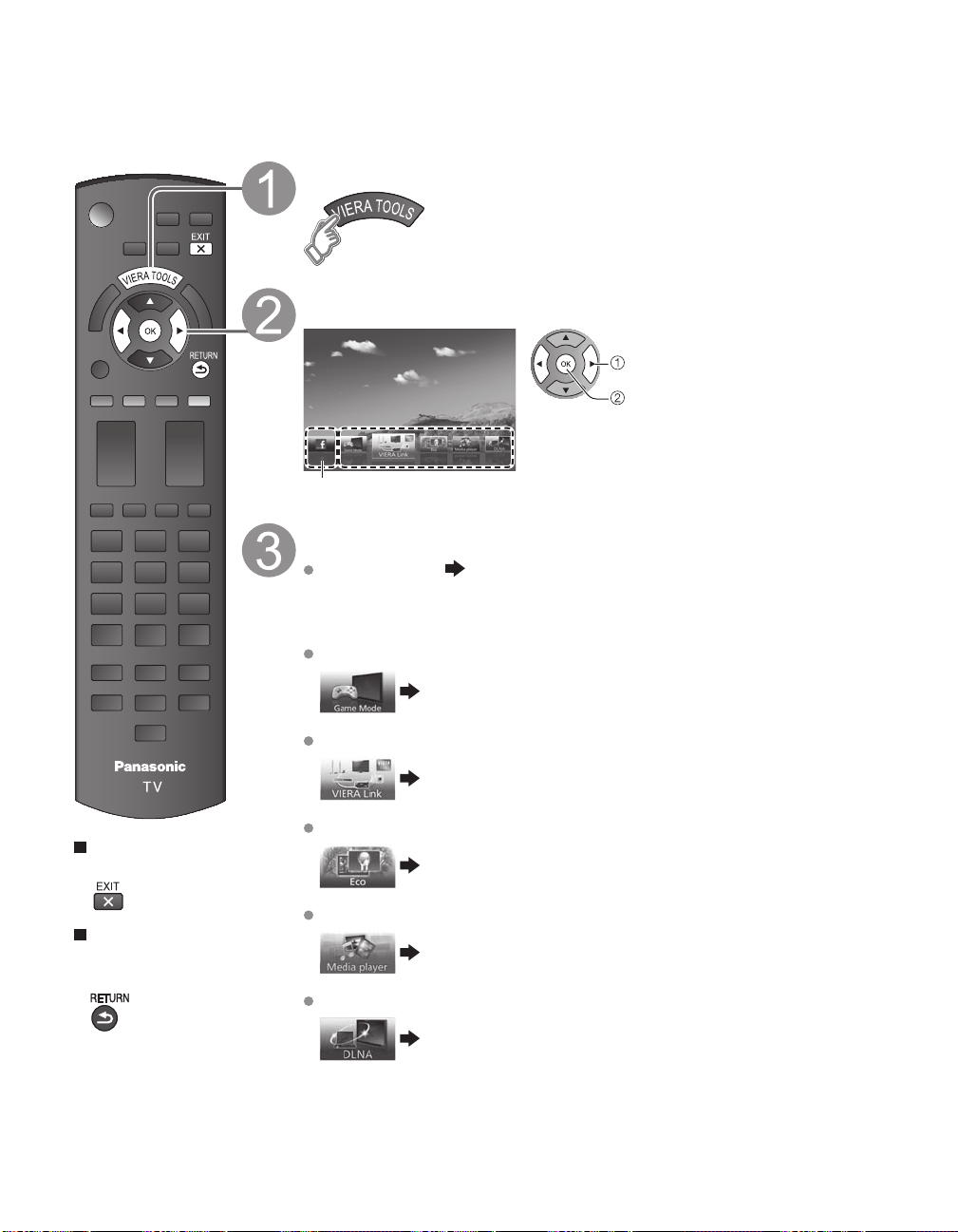

Display VIERA TOOLS

Select the item

●

The icons displayed differ depending on your country or area you select. (p. 13)

(example)

EASY IPTV

select

Set each item

Using EASY IPTV p. 39

Part of Icons on VIERA TOOLS screen above provide you usable

Internet service such as VOD (Video-on-demand), Music distributer

or social networking service etc.

Game mode

Change to “Game” mode.

Picture mode (p. 45)

VIERA Link

VIERA Link (p. 32-33)

Eco mode

ECO/energy saving (p. 48)

Media player

Media player (p. 22-27)

DLNA

Using DLNA feature (p. 40)

VIERA TOOLS is the easy way to access the TV’s special features. They are displayed as shortcut icons on

the TV screen.

Basic

Watching content from external devices

Using VIERA TOOLS

With the connected equipment turned On

Display the Input select menu

Select the input mode

Input select

ANT/Cable In

HDMI 1

HDMI 2

GAME

HDMI 3

Video

Component

AUX

Not used

(example)

Input label

select

enter

Setup ANT/Cable (p. 42)

Edit Device labels

Input labels (p. 48)

(shortcut) press the corresponding

NUMBER button on the remote

control to select the input of your

choice. Or, press the INPUT

button repeatedly, to cycle through

the available inputs.

* set unused input to “Not used”

(below) for quick skipping.

Select the input of your choice,

then press OK.

HDMI 1

GAME

Terminal

(example)

Label

●

During the selection, if no action

is taken for several seconds,

the “Input select” menu

disappears.

●

The terminal and label (names)

of the connected equipment are

displayed.

Note

●

The input label will be displayed on the “Input select” screen if the Input label was

customized.

●

For side input terminals (HDMI 3), “GAME” Input label is set as default.

Operate the connected equipment directly or using the

remote control supplied with the equipment

Note

●

For details, see the manual for the connected equipment.

Watching content from external devices

Using Media Player

You can view still and motion images and play music saved on a USB flash memory and an SD card.

Basic features for Media player

■Available contents and features

Option menu

Photos --> p. 24-25

Videos --> p. 26

Music --> p. 27

Displays data information.

(File name, Date, and Size etc.)

Information differs depending

on selected data.

select

Photos

sotohp llAPhotos reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

Videos

Titles/Folders viewVideos reyalP aideM

2009_9

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Media selectPlay Drive select

Info

SD memory card

OKSelect

RETURN

SUB MENU

Music

Folders

My Music_1 My Music_2 My Music_3

Media Player Music

Media selectPlay Folder Drive select

Info

SD memory card

OKSelect

RETURN

SUB MENU

Drive select

sotohp llAPhotos reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

SD memory card

Drive select

RETURN

Select

Media select

sotohp llAPhotos reyalP aideM

Device selectSlideshow Media select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

Photos Videos Music

Media Select

SD memory card

RETURN

Select

Information panel

sotohp llAPhotos reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

1/70

File name:


Date:

15/04/2011

Size:

640x480

Option menu

sotohp llAotohP reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

Setup SUB MENU

Slideshow settings

Thumbnails size

RETURN

Select

SUB

Media information

■Inserting or removing an SD card/USB flash memory

SD card USB flash memory

●

Insert the card

Gently insert the SD Card

label surface facing front.

Label surface

Push until a

click is heard

Cutout

●

Remove the card

Press in lightly

on SD Card,

then release.

●

Insert the device

●

Remove the device

Insert straight in

Pull straight out

●

Compliant card type (maximum capacity):

SDXC Card (64 GB), SDHC Card (32 GB), microSDHC

Card (32 GB), SD Card (2 GB), miniSD Card (2 GB),

microSD Card (2 GB) (requiring microSDHC Card/

miniSD Card/microSD Card/ adapter)

●

If a microSDHC Card, miniSD Card or microSD Card is

used, insert / remove it together with the adapter.

●

Media player only supports USB Mass storage

class devices.

●

For more information and cautions on SD card and USB flash memory (p. 51)

Basic

Using Media player

Viewing Contents

■Press to exit from

a menu screen

■

Press to go back to

the previous screen

Insert a Media (SD card or USB flash memory)

• Auto play setting Image viewer auto play (p. 48)

Display Media player

(example)

Select Drive

(Display connected drive)

Media Player

SD memory card

Drive select

RETURN

Select

select

Select the Media

Media Player

Photos Videos Music

SD memory card

Media select

RETURN

Select

select

Select the data (Photos/Videos/Music)

How to view the data differs depending on data storage conditions.

Select Title/Folder

Sort by Date

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

Media Player Photos

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

select

(e.g. Photos)

Select file

sotohp llAPhotos reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

select

(e.g. Photos)

View or Play

Rotate

RETURN

Single view

Stop

Prev.

select

(e.g. Photos)

Thumbnail / Playback view image

and operation are differ depending

on selected contents.

●

Photos view --> p. 24-25

●

Videos view --> p. 26

●

Music view --> p. 27

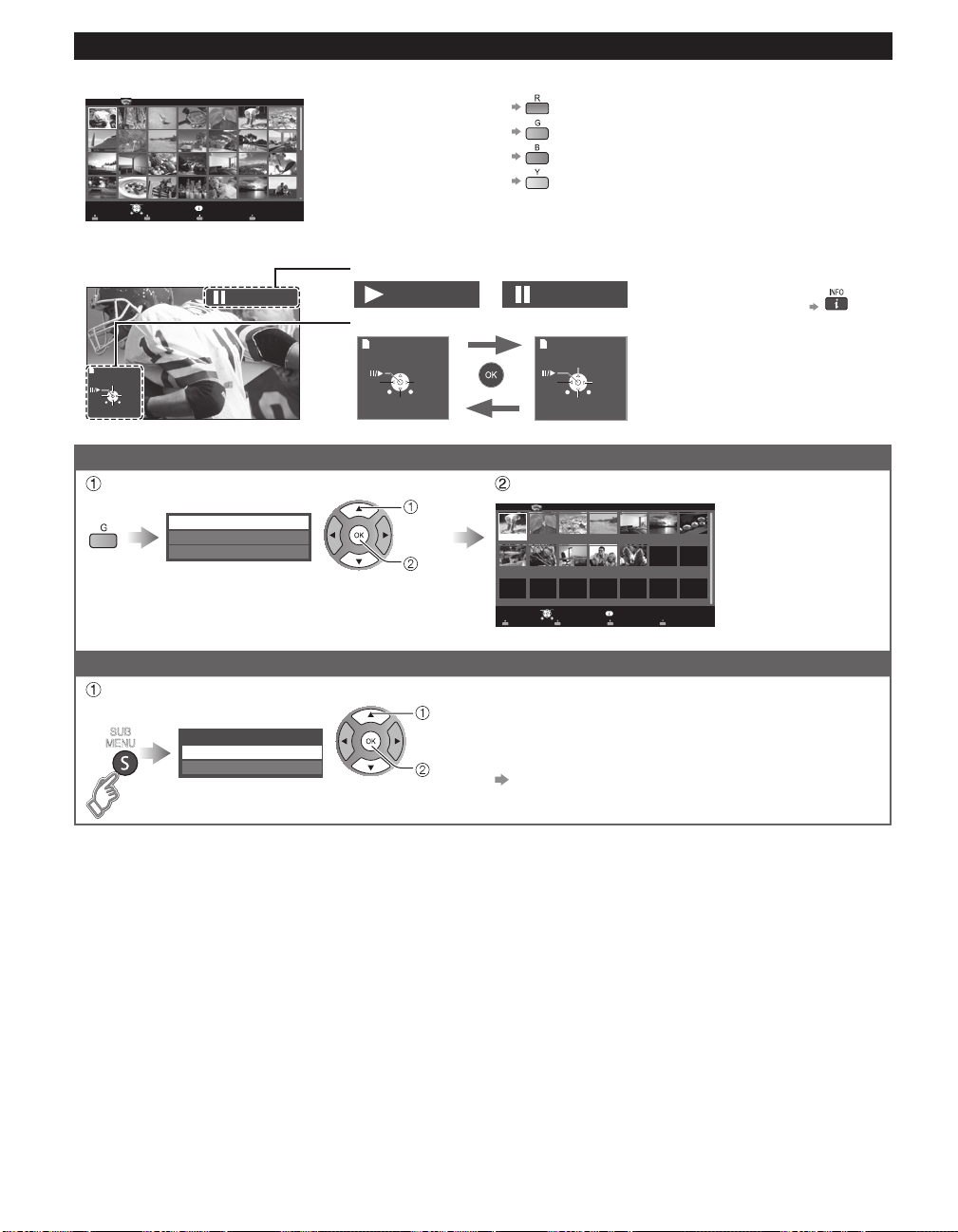

Photos view

[Photos thumbnail]

sotohp llAPhotos reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

[Features]

●

Slideshow setting

●

Sort

●

Drive select

●

Media select

[Photos playback screen]

Rotate

RETURN

Single view

Stop

Prev.

Single viewSlideshow

Photo status

Single view

Prev.

Rotate

RETURN

Stop

Slideshow

Prev.

RETURN

Stop

Navigation Guide

●

To display/hide

Guide and Banner

Sort

Display “Sort select” menu and select item

select

Folders

Sort by date

Sort by month

Displayed each view

Sort by Date

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

Media Player Photos

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

(e.g. Sort by date)

• Folders

(ascending order of

numeric/alphabetical)

• Sort by month

(ascending order of

the month)

• Sort by date

Photo options

Display “Setup SUB MENU” and select item

SUB

select

Setup SUB MENU

Slideshow settings

Thumbnails size

■Slideshow settings (p. 25)

■Thumbnails size

To change the number of photos on a thumbnail screen

at a time

(7 × 4

⇔

10 × 6)

Basic

Using Media player

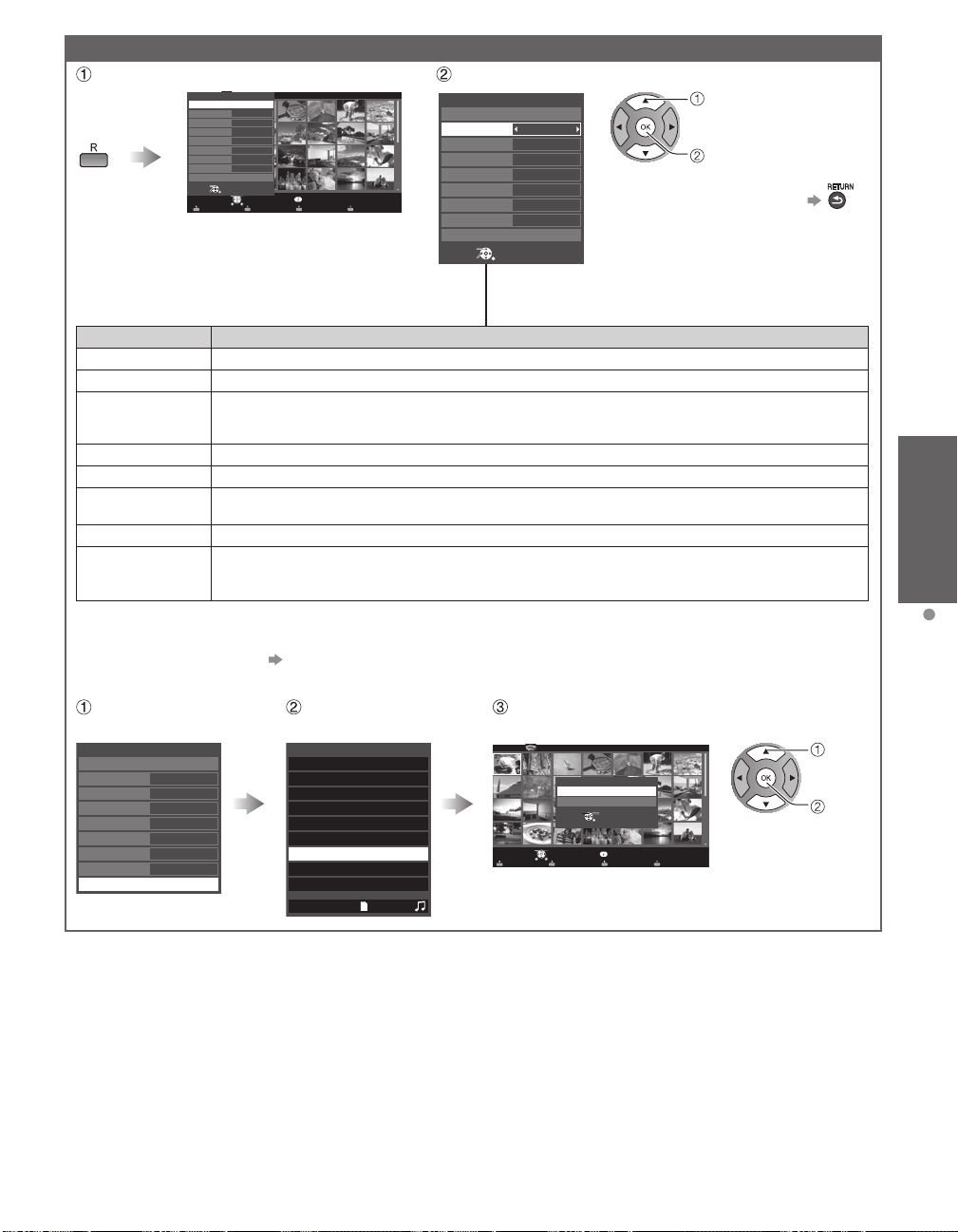

Slideshow

Display “Slideshow settings”

sotohp llAotohP reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

Select

Change RETURN

Off

Normal

Off

Normal

Slideshow settings

Frame

Start Slideshow

Photo effect

Transition effect

Photo size

Burst playback

Display interval

Repeat playback

Soundtrack settings

(example)

Adjust items and select “Slideshow start”

(example)

Select

Change RETURN

Off

Normal

Off

Normal

Slideshow settings

Frame

Start Slideshow

Photo effect

Transition effect

Photo size

Burst playback

Display interval

Repeat playback

Soundtrack settings

●

To stop in mid-cycle Press

select

■Slideshow settings

Settings Item Description

Frame*

Select the Frame (Off/Array/Collage/Drift(with calendar)/Drift/Gallery(with calendar)/Gallery/Cinema)

Photo effect* Select the display effect (Off/Sepia/Gray scale)

Transition effect

Select the Transition effect shown between photos (Off /Fade in/Wipe

↓

/Wipe

↑

/Wipe

→

/Wipe

←

Slide in ↓/Slide in ↑/Slide in →/Slide in ←/Zoom in/Comb ↑↓/Comb →←/Dissolve/Checker

wipe/Motion/Random)

Photo size*

Removes the black borders that are added according to the size of the photo being displayed. (Normal/Zoom)

Burst playback* Continuously plays photos that were shot continuously. (On/Off)

Display interval

Set “Display interval” each image is displayed in the Slideshow mode.

(Short/Fast/Normal/Slow/Very slow)

Repeat playback Turn the Slideshow Repeat (cycle) function on or off (Off/On).

Soundtrack

settings

Select the music (Off/Music 1/Music 2/Music 3/Music 4/Music 5/User selected*/Auto*)

User selected: Plays the soundtrack registered in the “Soundtrack settings”. (below)

Auto: Plays the songs on the SD card or USB flash memory.

• Picture quality may become lower depending on the slideshow settings.

• Picture setting may not work depending on the slideshow settings.

* When using DLNA (DMP mode) feature these menus are not displayed.

DMP: Digital media player p. 34

■Soundtrack settings

Select “Soundtrack

settings”

Select “User select”

Select the song and register

Off

Normal

Off

Normal

Slideshow settings

Frame

Start Slideshow

Photo effect

Transition effect

Photo size

Burst playback

Display interval

Repeat playback

Soundtrack settings

(example)

Soundtrack settings

Music 1

OFF

Music 2

Music 3

Music 4

Music 5

User selected

Auto

User selected 03 XXXX

select

sotohp llAPhotos reyalP aideM

Media selectSlideshow Drive select

Info

SD memory card

OKSelect

RETURN

Sort

SUB MENU

Soundtrack settings

All songs in folder

This song

Select OK

RETURN

This song: Register current music.

All songs in folder : Register the

music in a folder.

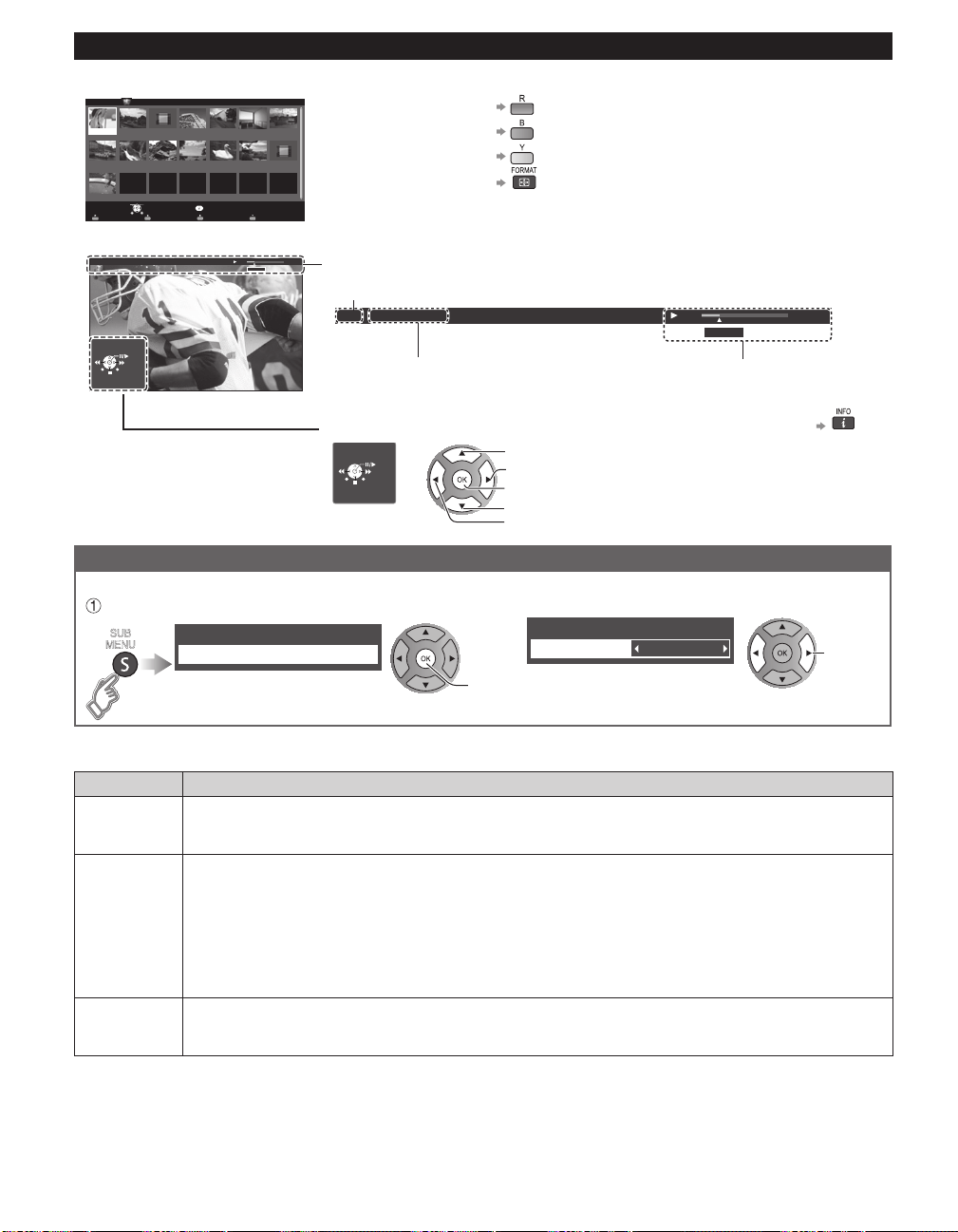

Videos view

[Videos thumbnail]

Titles/Folders viewVideos reyalP aideM

2009_9

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Media selectPlay Drive select

Info

SD memory card

OKSelect

RETURN

SUB MENU

[Features]

●

Play

●

Drive select

●

Media select

●

Aspect change

[Videos playback screen]

00:00.10

00:00.03

01/04/2010 15:34SD

00:00.10

00:00.03

01/04/2010 15:34SD

RETURN

Drive type (SD/USB/DLNA)

Date and time or

File name

30 seconds skip (In DLNA mode only (depends on content))

Forward

• Forward/Reverse

Five level of 1 to 5 (x2, x5, x,30,

x70, x100) are available.

Play/Pause

Stop

Reverse

Elapsed time of current movie

* Counter may not work correctly with DLNA

feature. In this case “--:--:--”is displayed.

Movie banner

Navigation area

RETURN

●

To display/hide Guide and Banner

●

Subtitles are not supported

in MKV file.

Video options

Displayed menu will differ depending on contents.

Select “Video options” in “Setup SUB MENU”

SUB

Setup SUB MENU

Video options

■Repeat playback

Set play repeat function (On/Off)

select

Video options

Repeat playback

Compatible Data format for Media player (SD card/USB flash memory)/DLNA

Media Compatible format


• JPEG files (DCF and EXIF standards)

Sub-sampling - 4:4:4, 4:2:2 and 4:2:0

Image resolution - 8 × 8 to 30,712 × 17,272 pixels

Videos

• SD-Video Files (SD-Video Standard Ver.1.3)

Modified data with a PC may not be displayed correctly.

• AVCHD Standard compatible files

Modified data with a PC may not be displayed correctly.

• MP4 files (Video codec H.264 | Audio codec MP3/AC-3/LPCM)

• MKV files (Video codec H.264 | Audio codec MP3/AC-3/LPCM)

• MPEG-2 PS files*

• MPEG-2 TS files*

Music

• MP3 files (MPEG Audio Layer-3)

• AAC files (MPEG2-AAC / MPEG4-AAC)

• LPCM files*

●

For more data format information. (p. 51) * For DLNA only.

Basic

Using Media player

Music view

[Music thumbnail]

Folders

My Music_1 My Music_2 My Music_3

Media Player Music

Media selectPlay Folder Drive select

Info

SD memory card

OKSelect

RETURN

SUB MENU

[Features]

●

Play folder

●

Drive select

●

Media select

[Music playback screen]

AAAAAA

BBBBBBB

XXXXXXX

00:00.05 / 00:00.49

RETURN

Artist name

Album name

Song name

Elapsed time of current song

* Counter may not work correctly with

DLNA feature.

In this case “--:--:--”is displayed.

RETURN

Navigation area

Forward

• Forward/Reverse

Five level of 1 to 5 (x2, x5, x,30,

x70, x100) are available.

●

To display/hide Guide and Banner

Play/Pause

Stop

Reverse

Music options

Select “Music options” in “Setup SUB MENU”

Setup SUB MENU

Music options

SUB

■Repeat playback

Set play repeat function (Off/Repeat Folder/One

song)

select

Music options

Repeat playback

Other settings in Media player

Display “Menu”

Select the item

select


Audio

VIERA Link

Set

■Adjust the Picture and Audio

select

adjust

Vivid

Picture 1/2

Brightness

Color

Tint

Sharpness

Picture mode

Contrast

Reset to defaults

example: Picture menu

Picture menu/Audio menu

(p. 45-46)

■Use VIERA Link function

select

change

Recorder

VIERA Link control

Speaker output

Back to TV

VIERA Link menu (p. 32)

VIERA Link

“HDAVI Control

”

Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote.

Enjoy additional HDMI Inter-Operability with compatible Panasonic products.

This TV supports “HDAVI Control 5” function.

Connections to equipment (DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI cables

enables VIERA Link controls.

Equipment with the “HDAVI Control” function enables the following operations:

Version Operations (See p. 30-33, for more information)

HDAVI Control or later

•

Automatic Input Switching

•

Power on link

•

Power off link

•

Default speakers

•

Speaker control

HDAVI Control 2 or later

•

VIERA Link control only with the TV’s remote control

•

Unselected device energy save (for available equipment only)

HDAVI Control 3 or later

•

Provides setting information (Language, time. etc.)

•

Automatic lip-sync function

HDAVI Control 4 or later

•

Energy saving mode (with Quick Start mode)

HDAVI Control 5

•

Audio Return Channel

Audio Return Channel (ARC) is a function that enables digital sound signals to

be sent via an HDMI cable back from the TV to a connected audio device.

■When adding new equipment, reconnecting equipment or changing the setup after the connection,

turn the equipment on and then switch the TV on. Set the input mode to HDMI1, HDMI 2 or HDMI 3

(p. 21), and make sure that the image is displayed correctly.

VIERA Link “HDAVI Control”, is based on the control functions provided by HDMI and industry standard known as HDMI

CEC (Consumer Electronics Control), with unique function that we have developed and added. As such, its operation with

other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

■HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic’s HDMI cable. Recommended part number:

RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m)

* For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

Advanced

VIERA Link

“HDAVI Control

”

VIERA Link™ Connections (with VIERA Link function)

■Terminal overview

Back of the TV

■Connecting DVD Recorder (DIGA)

DVD recorder (DIGA)

with VIERA Link function

HDMI cable

■Connecting Home theater system/AV amp

HDMI 1 is recommended.

Home theater systems

with VIERA Link function

AV amp with

VIERA Link function

DVD recorder (DIGA)

with VIERA Link function

No optical cable is necessary when connecting a Home Theater supporting “HDAVI control 5” with an HDMI

cable. Audio will be supported via ARC (Audio Return Channel) (p. 28)

HDMI cable

Optical cable

●

One AV amp and one DVD recorder (DIGA) can be operated with this unit.

■Connecting HD Camcorder/Digital camera

Press INPUT and select an available HDMI terminal, then connect the camcorder to this input. After connection,

confirm the HDAVI control functions. (p. 30-33)

HD Camcorder

with VIERA Link

function

HDMI / mini HDMI cable

LUMIX

with VIERA Link

function

If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and

On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and

check that the connected equipment playback operates.

Note

●

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their respective manuals.

●

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this unit,

the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

●

Some devices use Mini-HDMI terminal. HDMI (type A) to Mini-HDMI (type C) cable or adapter should be used.

VIERA Link settings and Available features

To use all VIERA Link functions: After everything is connected, in VIERA Link settings menu, set “VIERA Link” to “On”.

Some features are disabled depending on the “HDAVI Control” version of the equipment.

Please check the list (p. 28)

Press to exit from

a menu screen

Press to go back

to the previous

screen

Display the menu

Select “VIERA Link settings” in “Setup”

Setup

1/2

ANT/Cable setup

Input labels

Anti image retention

Network settings

VIERA Link settings

Channel surf mode

Language

Clock

All

select

Select “VIERA Link”

Yes

Quick start

No (stay on)

VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

select

Select “On”

(default is On)

change

Select and make other settings

Yes

Quick start

No (stay on)

VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

select

Advanced

VIERA Link

“HDAVI Control

”

Automatic Input Switching

When using a Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to

the appropriate input, when playback begins on one of those devices.

• For a Home theater system the speakers automatically switch to the theater system.

Power on link

Yes: The TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible

equipment is initially turned on and the Play mode is selected.

Power off link

When “Yes” is selected and the TV is turned off, all connected VIERA Link compatible equipment is also automatically

turned off.

• A Panasonic DVD Recorder will not turn off if it is still in Rec mode.

• The TV remains on even if the VIERA Link compatible equipment is turned off.

Energy saving mode

Quick Start: When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO Standby mode*

automatically under these conditions.

• Power off link:(Yes), The connected equipment has “HDAVI Control 4 or later (with Quick Start mode)”

* Minimum power consumption of Standby condition for the equipment.

Unselected device energy save

Yes: The connected VIERA Link compatible equipment will be turned off automatically when not in use under these

conditions.

• The connected equipment has “HDAVI Control 2 or later” (for available equipment only)

[ Example of timing for operation ]

• When the input is switched from the HDMI.

Default speakers

“TV” is the default setting. To set the Home theater system as Default speakers, change the Default speakers setting

from “TV” to “Theater”. Sound will be output from the Home theater whenever the TV is powered on.

Automatic lip-sync function

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or

Amplifier.

TV provided setting information

The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home

theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with an HDMI cable.

Transmittable data Recorder Home theater Player

On Screen Display Language setting

(English/Español/Français)

○○○

Panel Aspect Ratio

(16:9 fixed)

○○○

Closed caption information

(Mode/CC type/Digital setting)

○

--- ---

Channel information

(Input signal/Channel list/Caption information)

○

--- ---

Note

●

There is a possibility that all the GUI language information might be set from equipment that has an HDMI CEC

function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for

each piece of equipment the setting may or may not be applied.

●

For more details on the external equipment’s operation, please refer to the operating manual for the equipment.

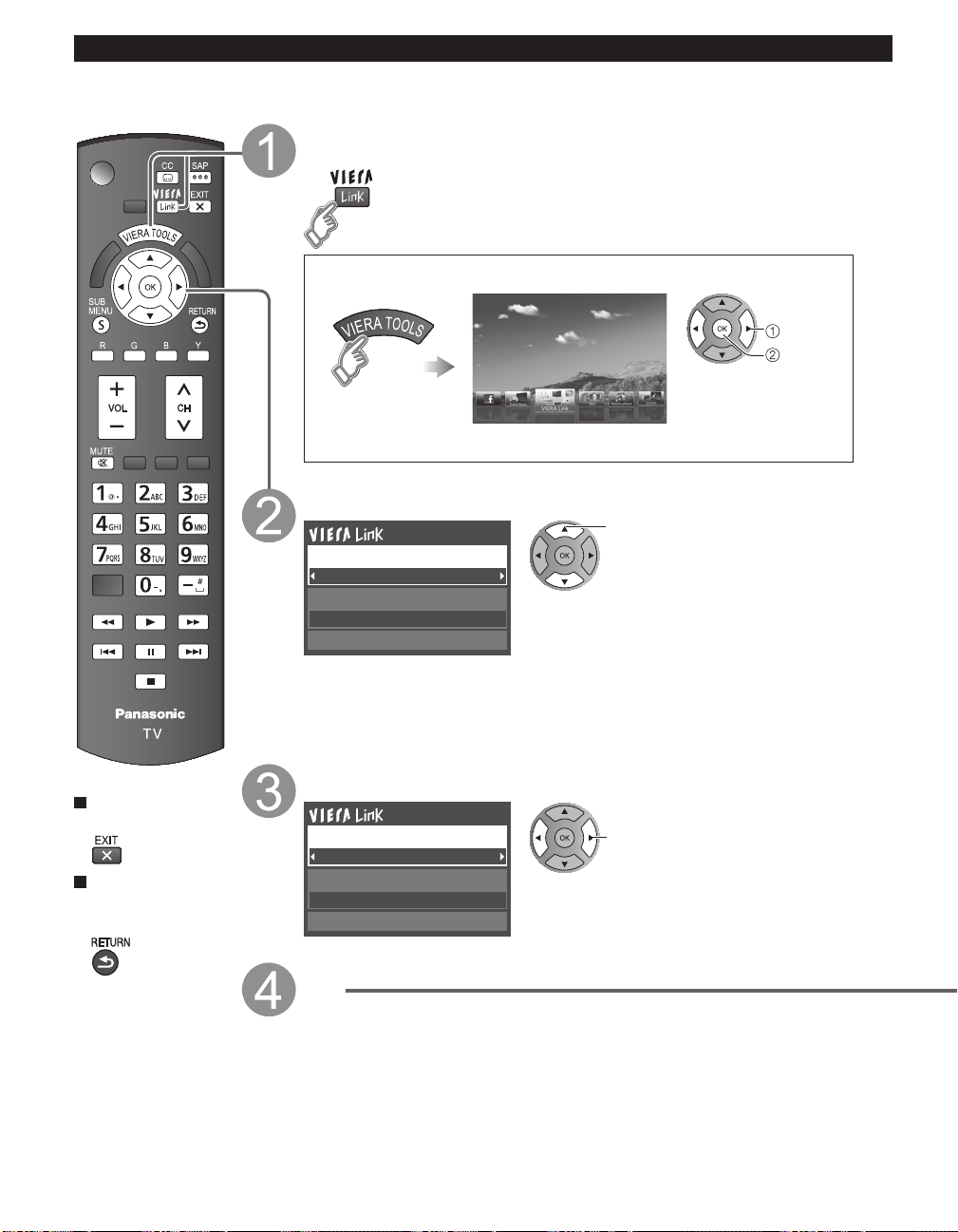

VIERA Link menu and Available features

Some features are disabled depending on the “HDAVI Control” version of the equipment.

Please check the list (p. 28)

Press to exit from

a menu screen

Press to go back

to the previous

screen

Display the VIERA Link menu

This function is not available depending on your country or area you select. (p. 13)

select

(example)

Select the item

Recorder

VIERA Link control

Speaker output

Back to TV

select

•

Items in the VIERA Link menu may be grayed out

if no compatible equipment is connected (must be

HDAVI Control 2 or later) or if the equipment has

not initiated a connection with the TV. In that case,

switch the equipment’s power Off and On while the

TV is On.

For further details, see “VIERA Link” on page 30.

Select

Home theater

VIERA Link control

Speaker output

Back to TV

change

Set

Advanced

VIERA Link

“HDAVI Control

”

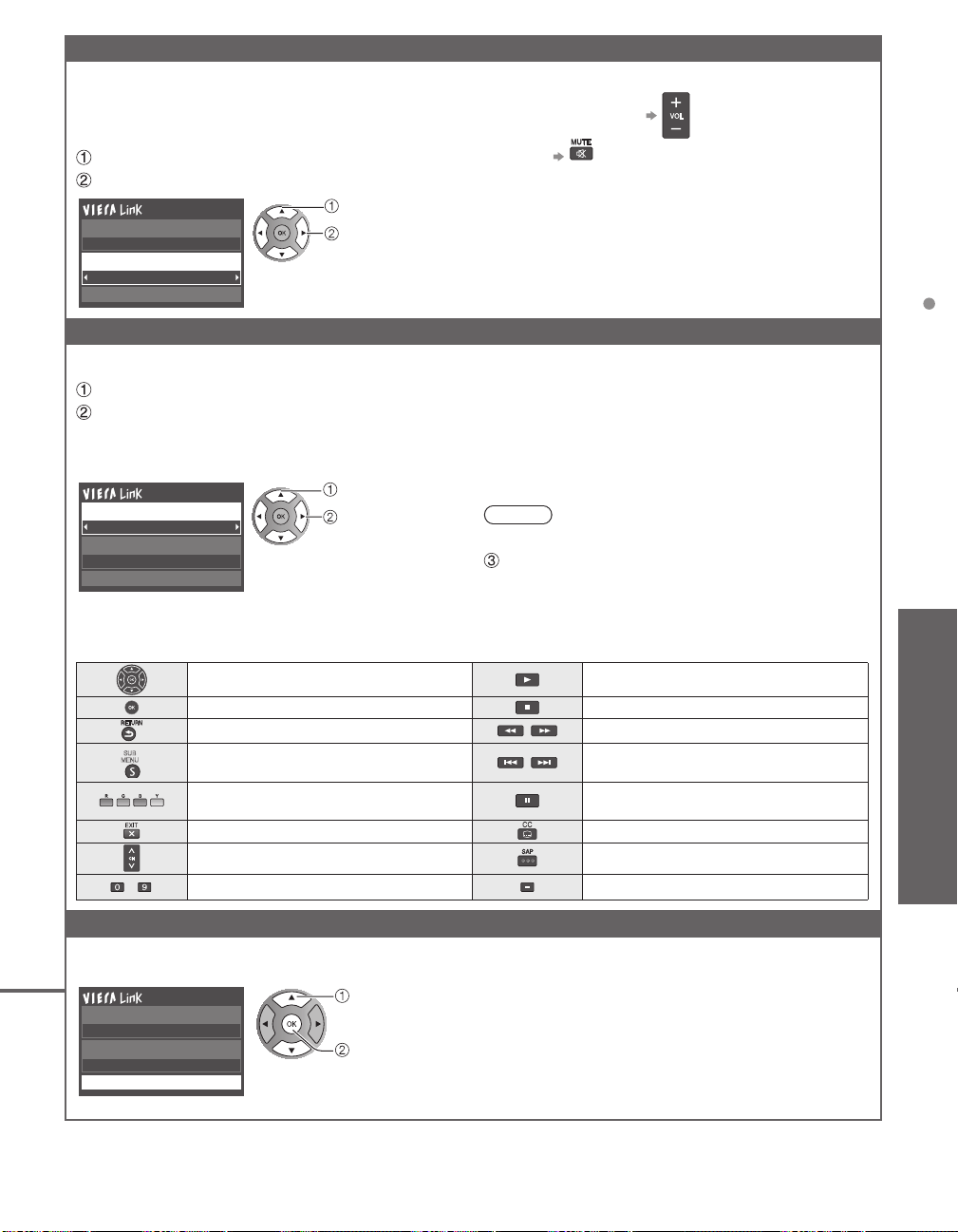

Speaker control

You can select the Home theater or TV speakers for audio

output.

Control the theater speakers with the TV remote control.

This function is available only when a Panasonic Amplifier

or Player theater is connected.

Select “Speaker output”

Select “Home theater” or “TV”

select

change

Recorder

Back to TV

VIERA Link control

Speaker output

■Home theater: Adjustment for the equipment

Volume up / down

Mute

•

The sound of the TV is muted.

•

When the equipment is turned off, the TV speakers

take over.

•

Selecting “Home theater” turns the equipment on

automatically if it is in Standby mode.

■TV: The TV speakers are on.

VIERA Link control only with the TV’s remote control

In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV

remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link control”

Select the equipment you want to access

(Recorder/Home theater/Player/Camcorder/LUMIX/

Digital camera/ Network camera)

●

Using VIERA TOOLS (p. 20)

select

change

You can select available items

only.

Recorder

VIERA Link control

Speaker output

Back to TV

●

If there is more than one equipment item, a number

after the name indicates the number of items. (e.g.

Recorder 1/Recorder 2/Recorder 3...)

●

The number of equipment items that can be connected

is three for recorders, and a total of three for Home

theater/Player/Camcorder/LUMIX/Digital camera/

Network camera.

Note

●

There is a limit to the number of HDMI connectors.

Operate the equipment with the TV remote

control, pointing it at the TV

●

To operate the equipment, read the manual of the

equipment.

■Available TV remote control buttons

Whether an operation is available differs depending on the connected equipment.

Move the cursor/Select Play

Set/Access Stop

Return to previous menu Reverse/Forward

SUB

Display the functions

menu on the equipment

Skip Reverse/Forward

Available when the purpose of the keys

is displayed on screen

Pause

Exit Closed caption

Channel Up/Down SAP (Select Audio Mode)

0-9 Select digital subchannel

Back to TV

Returns the input selection of the device selected with the VIERA Link Control to the TV input.

Select “Back to TV”

select

Recorder

VIERA Link control

Speaker output

Back to TV

Using Network services

Available Network service and features

■Using EASY IPTV p. 39

■Using DLNA feature (Home network) p. 40

This TV is a DLNA Certified™ product.

DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more

convenient to use on a home network. To learn more, visit www.dlna.org.

It allows you to share photos, videos and music stored in the DMS (for example, PC with windows 7 installed, etc.)

connected to your home network, and enjoy watching them on the TV screen as DMP.

DMS (Digital Media Server)

Ensure the connected equipment has a DLNA Certified media server.

Store photos, videos or music into the media server, and then you can watch them on the TV.

“Windows 7” is the server software that has been tested for the performance with this TV (current as of January, 2011).

For installing, read the manual of the server software.

●

The DLNA control function of Windows 7 is not supported with this TV.

●

When a server software for the media server is installed on the PC, the data may be at risk of being accessed

by other people. Please take care of the settings and connections under the network circumstances at the office,

hotel or even at home when not using a router.

DMP (Digital Media Player)

Finds the content on DMS and provides playback.

■Using Network camera p. 41

Advanced

Using Network services

Network Connections

Contact your Broadband service provider

NOTICE: If you don’t have Internet service by your local provider, please order a high-speed Internet service at

no less than the following connection speed. If you already have such service, make sure that the connection

speed exceeds the following.

●

Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively.

●

Dial-up Internet service cannot be used for EASY IPTV.

Select wired or wireless connection

If the Cable/DSL modem is close to the TV and you have only one TV set, you may choose a wired connection.

If the Cable/DSL modem is far from the TV and/or you have more TVs in the house, you may want to use a

wireless network.

Connecting to the Internet

Wired connection (Directly connected)

If you are not using the network for connecting anything else but the TV, you could just connect the TV

directly to the Cable/DSL Ethernet connection.

Wired connection (Using Router)

If you are using the network for connecting various equipments and want to connect the TV, you should use

a router to connect the TV to the Internet

Wireless connection

If you are using the network for connecting various equipments and want to connect the TV, you could also

use a wireless LAN adapter and Access point to connect the TV to the Internet

Internet

LAN cable

Back of the TV

Modem

Hub, Router

Access point

DLNA Certified

media server

(for example, PC,

etc.)

Home network

(DLNA feature)

Network

camera

Ensure to use a LAN straight

cable for this connection.

●

To use only DLNA features or Network camera, you can operate the features without Broadband network environment.

Network camera

LAN cable

Ensure to use a LAN cross

cable for this connection.

DLNA Certified

media server

Back of the TV

Network settings

This is a setting for connecting to a broadband environment.

■Press to exit from

a menu screen

■

Press to go back to

the previous screen

Display the menu

Select “Network settings”

Setup

1/2

ANT/Cable setup

Input labels

Anti image retention

Network settings

Channel surf mode

Language

Clock

All

VIERA Link settings

select

Select the settings and set

select

adjust

Network settings

Network cameras list

Software update

Mac address

Connection test

Network connection

Wireless network

IP address/DNS settings

Wireless (WiFi)

00-0b-97-7c-65-e9

Connection test

Check that the Network settings are as shown below, and then start “Connection test”.

Select “Connection test” and press OK

(It takes a while to cancel the test.)

Displayed Connection test screen

Connection test

Check Ethernet cable connection

Validate IP address

Check for IP address duplication

Check connection to the Internet

Check communication with EASY IPTV server.

Test in progress...

Complete Connection test

Success

-->

Completion screen is displayed.

Error-->Follow the directions on screen to complete the setting.

If you perform the Proxy settings, check the Proxy address

and the Proxy port number.

Network connection

Select Network type (Ethernet cable/Wireless (WiFi))

Wireless network (Confirm Current settings and status)

This setting is performed only when “Wireless (WiFi)” is selected in “Network connection” above.

■Displayed “Current settings and status” screen (If connected with wireless LAN adapter)

You can confirm the AP connection status.

(SSID/Wireless type/Security type/Encryption type/Connection status /Signal strength)

Press “Wireless network”

Wireless network

SSID :

Wireless type :

Security type:

Encryption type :

Connection status :

Signal strength :

Connect using these settings?

Yes No

(example)

select

When you change “Wireless network” -->Press “No”

See “Sets / Changes wireless network setting” on p. 37

and follow the directions on screen to complete the

setting.

You need to be “Connected” to use network devices.

Please set Access point settings to “Connected”.

Advanced

Using Network services

Wireless network (Wireless network setting)

■Sets / Changes wireless network setting

Press “Wireless network” and display setting screen

Follow the directions on screen to complete the setting

Wireless network

WPS (Wi-Fi Protected Setup using push button)

Please choose connection method:

WPS (Wi-Fi Protected Setup using PIN number)

Search for wireless networks

Manual settings

select

* Wi-Fi Protected Setup is an easy setting of the Wi-Fi

Alliance’s certification

●

For more details on setting of an Access point, please

refer to operating manual for the Access point.

Search for Wireless networks:

Select an Access point from the ones searched for

automatically, and configure the settings as instructed

on the screen.

WPS (Wi-Fi Protected Setup* using push button):

You can connect the Access point to press the

buttons.

WPS (Wi-Fi Protected Setup using PIN number):

Set the PIN code that is displayed on the TV on the

Access point.

Manual settings:

Manually set SSID, Security type, and Encryption type

to match the settings of the Access point to which to

connect.

●

When connecting by 11n (5 GHz), select “AES” as the

Encryption type for the wireless LAN.

IP address/DNS settings

Select “IP/DNS setting mode” and set to

“Automatic”

(When IP/DNS automatic acquisition in DHCP can be

used)

IP address/DNS settings

IP setting mode

IP address 192.168.0.5

Subnet mask 255.255.255.0

Default gateway 192.168.0.254

DNS setting mode Automatic

DNS 192.168.0.20

Automatic

The acquired address is displayed.

select

Each IP address is acquired automatically

If you are using a broadband router, IP automatic

acquisition in DHCP can be used under normal

circumstances. If you are not sure, check with the person

who installed the equipment, or check the instructions for

each device.

■Manual setting

Select “IP/DNS setting mode” and set to “Manual”

Select the item and press OK

Check the specifications of the broadband router and

enter each IP address.

Or Enter each IP address as was specified by the

provider

IP address

0 . 0 . 0 . 0

Proxy setting

Set only if specified by the provider. It is not required for normal household use.

Select “Proxy setting”

IP address/DNS settings

IP setting mode

IP address 192.168.0.5

Subnet mask 255.255.255.0

Default gateway 192.168.0.254

DNS setting mode Automatic

DNS 192.168.0.20

Proxy setting

Automatic

select

Select item and press OK

select

Proxy setting

Proxy address

Proxy port

Enter address or port number and press OK

●

Entering characters (p. 19)

■Proxy address

This is the address of the relay server that is connected

to the target server instead of the browser and sends

data to the browser. Setting is only required if specified

by the provider.

■Proxy port

This number is specified by the provider together with the

Proxy address.

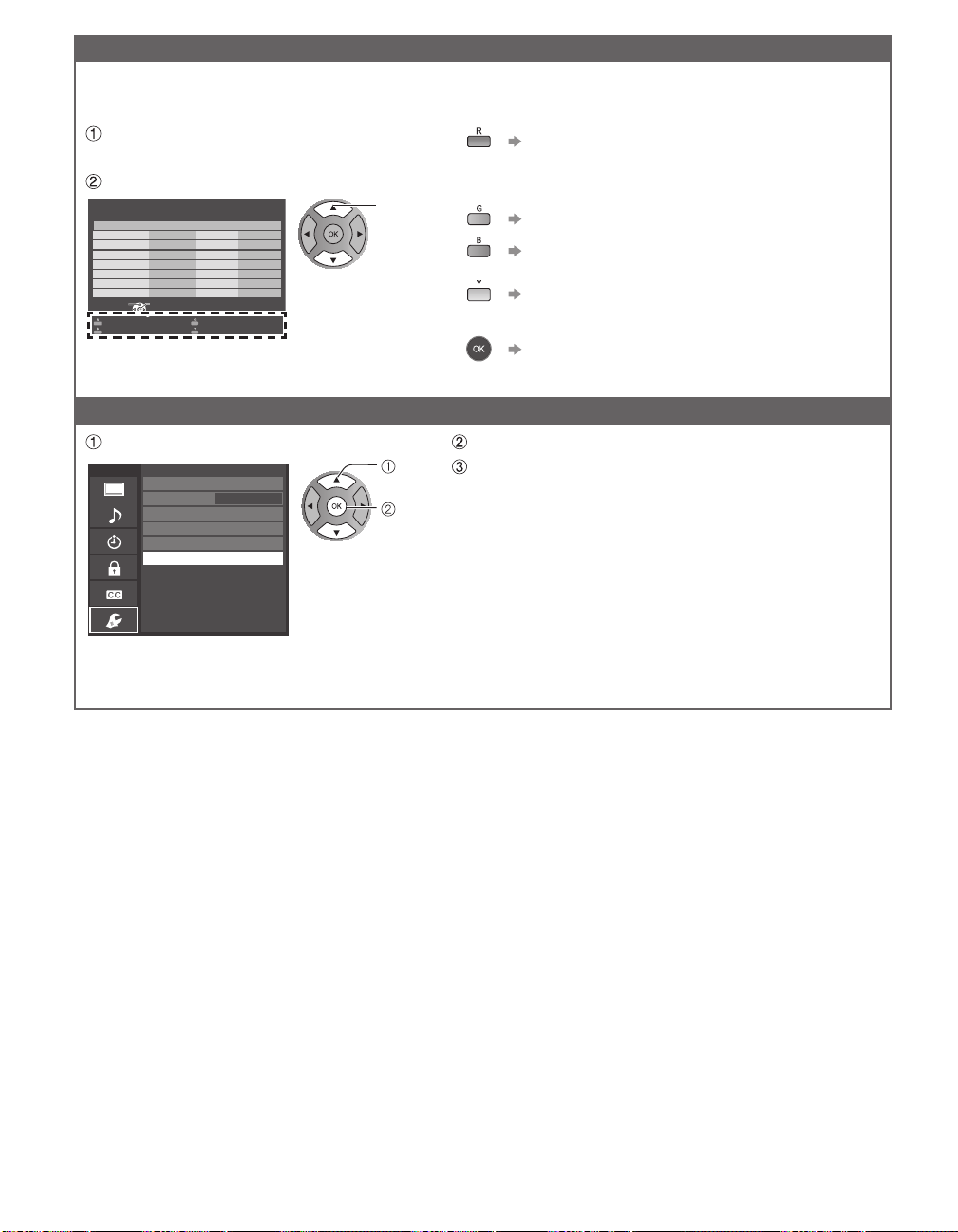

Network cameras list

Before using a Network camera, you need to register the camera as shown below. You can also set

Default camera or Disconnect/Delete the registered cameras.

Press “Network cameras list” and

display screen

Set Network camera setting

Select

RETURN

Network cameras list

Model Status Default

...

Camera name

BL-C210A ConnectedCamera 1

Find cameras Delete

Disconnect Default camera

select

●

For this operation, please refer to the operating

manual for the Network camera.

Start camera search.

●

Before you start to search for a camera, switch the

camera to registration mode.

●

Search condition also depends on “Network settings”

Delete camera information.

Disconnect to camera.

“Disconnected” will be displayed in “Status”.

Set to default use.

Displayed “(Default)” next to camera name.

(Available only when reconnecting)

Connect to Camera. “Connect” will be displayed in

“Status”.

Software update

Select “Software update”

select

Network settings

Network cameras list

Software update

Mac address

Connection test

Network connection

Wireless network

IP address/DNS settings

Wireless (WiFi)

00-0b-97-7c-65-e9

Press OK to start the Software update screen

Follow directions on the screen

●

Set “Clock” first. (p. 15)

Advanced

Using Network services

Using EASY IPTV

This function allows you to access Internet services, such as VOD (Video-on-demand), music distribution or

social networking service etc, easily with selecting the VIERA TOOLS icon.

●

You need broadband environment to use this service.

■Press to exit from

a menu screen

■

Press to go back to

the previous

Preparations

●

Network connections (p. 35)

●

Network settings (p. 36-38)

Display VIERA TOOLS

Select the item

(example)

select

Services contents

VOD (Video-On-Demand)

Music distribution/Radio service

SNS (Social Network Service)

●

Not all EASY IPTV services are available depending on your country or area your

select. (p. 13)

●

Available EASY IPTV services are subject to change without notice.

■Using USB keyboard

●

USB connections (p. 51)

●

Keyboard type (p. 48)

●

Operate USB keyboard/Entering characters (p. 19)

Other settings

Display “Menu”

Select the item

select


Audio

VIERA Link

Set

■Adjust the Picture and Audio

select

adjust

Vivid

Picture 1/2

Brightness

Color

Tint

Sharpness

Picture mode

Contrast

Reset to defaults

example: Picture menu

Picture menu/Audio menu

(p. 45-46)

■Use VIERA Link function

select

change

Recorder

VIERA Link control

Speaker output

Back to TV

VIERA Link menu (p. 32)

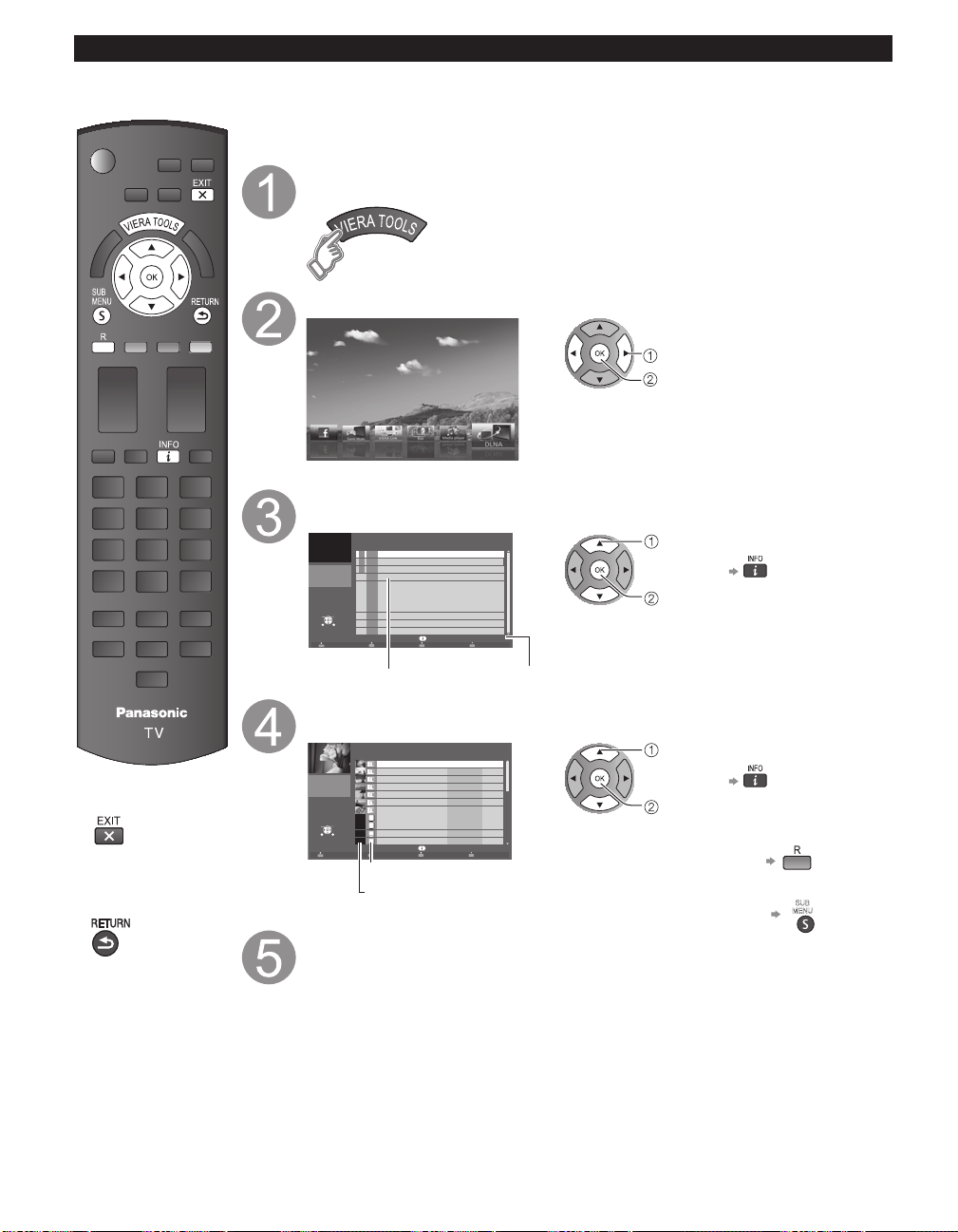

Using DLNA feature

You can share the contents (Photo, Video, Music etc.) stored in DLNA Certified media server with your home network system.

■Press to exit from

a menu screen

■Press to go back

to the previous

screen

Preparations

●

Network connections (p. 35)

●

Network settings (p. 36-38)

Display VIERA TOOLS

Select the “DLNA”

(example)

select

Select server

Display available server.

DLNA server

RETURN

SERVER1

SERVER2

SERVER3

Info

OKSelect

SUB

Available DLNA servers

Total listed number

(DLNA server list)

select

●

To display Information

Select contents

Display contents of selected server.

Size:

Screen format

3648x2736

JPEG

DLNA server

SERVER1 > Photos > All photos

wohsedilS

P000102 2008-10-05 09:54

P000135 2008-11-20 13:18

P000180 2008-12-07 11:31

P000214 2008-12-10 15:20

P000251 2008-12-19 12:39

P000276 2008-12-25 14:06

P000293 2009-01-06 13:52

M10025 2009-01-12 15:56

M10042 2009-01-20 10:08

M10054 2009-01-28 14:48

M10078 2009-02-09 19:58

RETURN

Info

OKSelect

SUB

(File list)

Contents type

Thumbnail

select

●

To display Information

●

To display “Slideshow

settings” (p. 25) (photo

only)

●

To display Optional

SUB

View/Play

See “Using Media player” to operate. (p. 22-27)

Advanced

Using Network services

■Press to exit from

a menu screen

■Press to go back

to the previous

screen

Preparations

●

Network connections (p. 35)

●

Network settings (p. 36-38)

●

Before connecting the Network camera to the TV, please complete “IP setting” and run

“Connection test”

With all connected equipment turned on

Display “VIERA Link” menu

●

If there is no registered camera displayed, please set it in

Network Camera settings. (p. 38)

●

There is also an option to start with sensor detection.

Select “Network camera”

Network camera

VIERA Link control

Speaker output

Back to TV

select

View

4 cam / 8 cam

Select OK

RETURN

Camera name

Camera 1

Model

BL-C210A

Multi screen

(1/9)

Preset position

Home position

Pan

Tilt

RETURN

Single screen

Camera name

Camera 1

Model

BL-C210A

Select OK

RETURN

4 cam / 8 cam

Camera name

Camera 1

Model

BL-C210A

Multi screen

(1/4)

9 split screen

select

OK to Single screen

Single screen

Preset position

Home position

Pan

Tilt

RETURN

Navigation area

4 split screen

select

OK to Single screen

●

Default camera setting (p. 38)

Note

●

A number of VIERA-compatible network cameras can be found at the following sites:

http://www.panasonic.com/

http://panasonic.net/pcc/products/netwkcam/

●

For more details on setting and operation of the Network camera, please also read

the operating manuals for the Network camera.

Network Camera

You can operate the Network camera from the TV remote and also check the images from the Network

camera on

your TV.

●

VIERA Link control only with the TV’s remote control (p. 33)

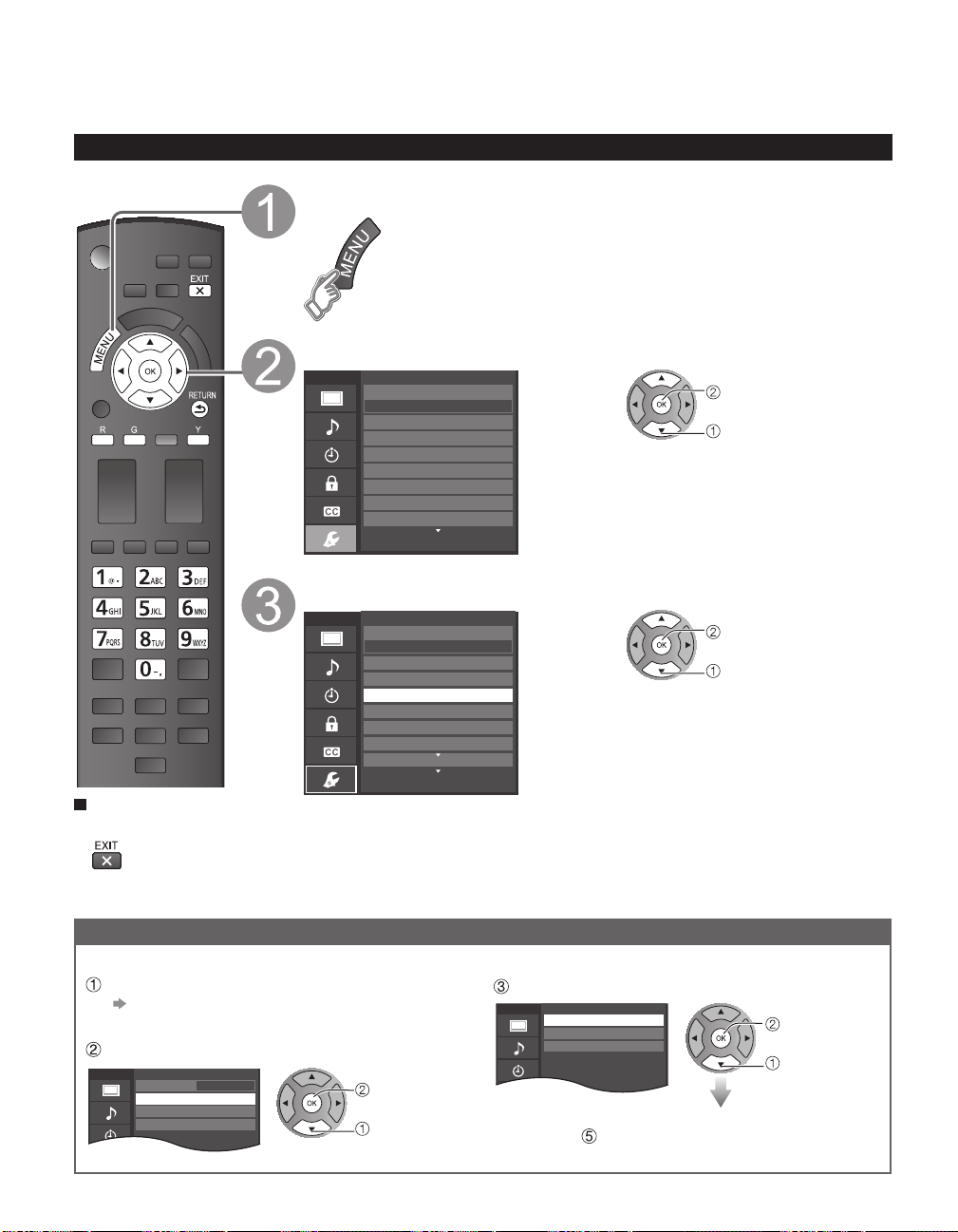

Editing and Setting Channels

Auto program (Set automatically)

Automatically searches and adds available channels to the memory.

Select “ANT in”

Select “Cable” or “Antenna”

Or select “Not used”.

Select “Auto program”

select

Cable

ANT/Cable setup

ANT in

Auto program

Manual program

Signal meter

Select a scanning mode (p. 14)

select

Auto program

All channels

Analog only

Digital only

●

After the scanning is completed, select “Apply”.

(see p. 43 ).

●

All previously saved channels are erased.

Press to exit from

a menu screen

Display the menu

Select “Setup”

Setup

1/2

ANT/Cable setup

Input labels

Anti image retention

Network settings

Channel surf mode

Language

Clock

All

VIERA Link settings

select

Select “ANT/Cable setup”

VIERA Link settings

Setup

1/2

ANT/Cable setup

Input labels

Anti image retention

Network settings

Channel surf mode

Language

Clock

All

select

The current channel settings can be changed according to your needs and reception conditions.

ANT/Cable setup and operation

Advanced

Editing and Setting Channels

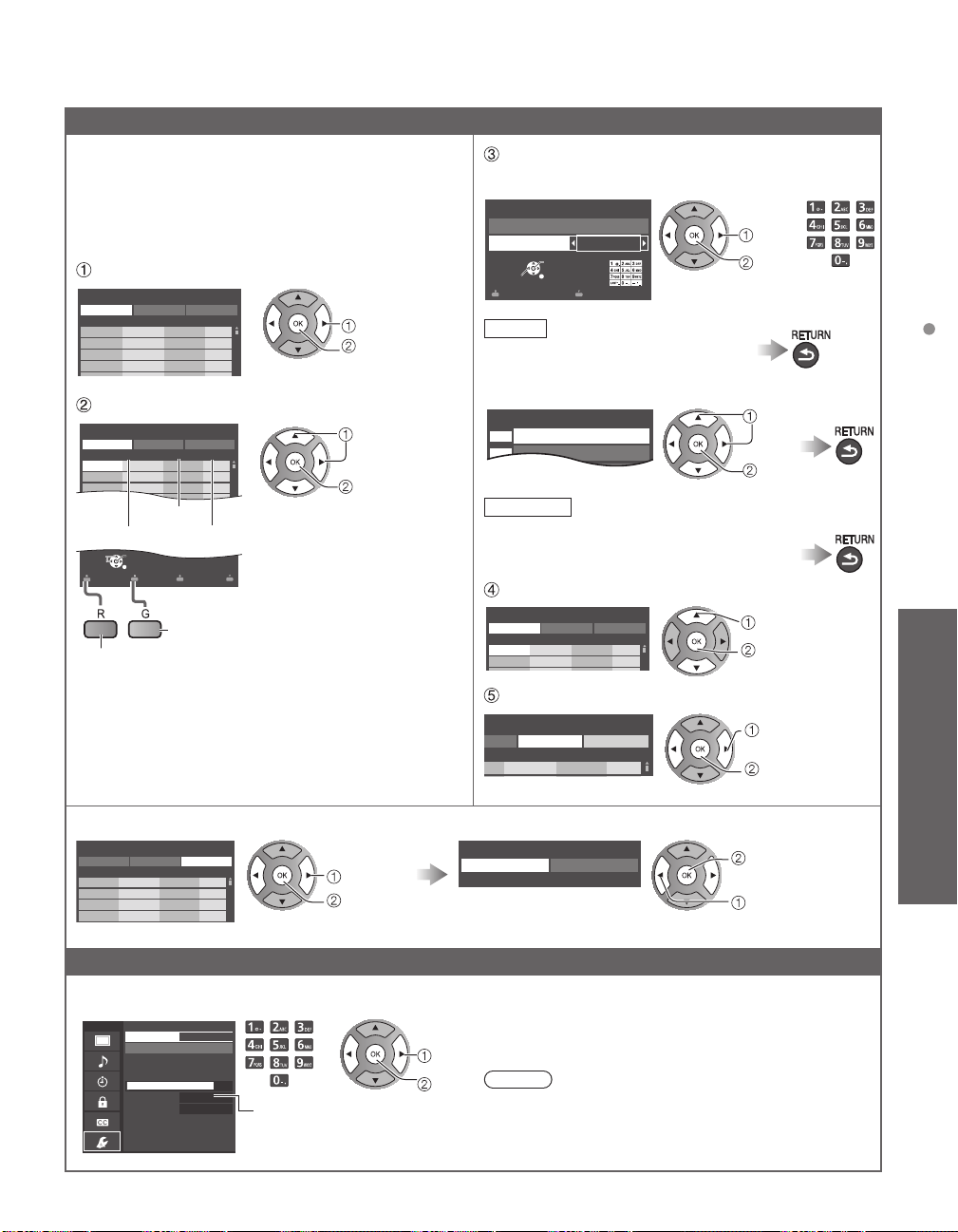

Manual program ( Set manually)

Use this procedure when changing the channel setup or

changing the channel display.

Also, use this to add or skip channels from the channel list

manually.

You can select a channel tuning mode (Digital only/Analog

only) in “Channel surf mode”(p. 48)

Select “Edit”

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

Channel

select

Select the item to edit

Select

RETURN

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

6 ...

...

Yes

7 ...

...

Yes

8 ...

...

Yes

9 ...

...

Yes

Channel

Prev.page Next page

Caption

Favorite

Add

Proceed to

Go back to the previous

page

•

Caption:

Changes the station

identifier

•

Favorite:

Registers channels to the

Favorite List

•

Add:

Adds or skips channels

select the i

tem

to edit (Caption/

Favorite/Add)

Edit

●

Caption

---

80-101

Edit CH caption

Caption

Channel

RETURN

D A

Select

DeleteABC → abc

change

set

Caption

Select or edit the station identifier.

(maximum 7 characters available)

●

Favorite

Set favorite 1/3

26-1

select

set

Set favorite

Select the number

●

Add

Press OK to select “Yes (add)” or “No (skip)”

Move the cursor to a channel number

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

Channel

select

press OK to tune

to the channel.

Select “Apply”

select

program

CancelApply

Caption Favorite Add

...

Yes

To cancel the Edit

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

Channel

Changes will be lost. Continue?

Yes No

select

(returns to “ANT/

Cable setup”)

select “Yes”

Signal meter (Check signal strength)

Check the signal strength if interference is found or freezing occurs on a digital image.

Signal meter

Channel

Signal strength

Current 86%

Peak level 98%

Tune manually

Signal intensity

change

channel

●

If the signal is weak, check the antenna.

If no problem is found, consult your local dealer.

Note

●

Not available if “Cable” is selected in “ANT in” (see p. 42).

●

Available only for digital antenna channels.

How to Use Menu Functions

Various menus allow you to set the picture, sound, and other functions so that you can enjoy watching TV

best suited for you.

Press to exit from

a menu screen

Press to go back

to the previous

screen

Display the menu

●

Shows the functions that can be adjusted.

●

Some functions will be disabled depending on

the type of input signal.

RETURN

Select or enter the name of the device

connected to the HDMI 1 terminal.

Customize label

Input labels

HDMI 3

Component

Video

HDMI 2

HDMI 1

Change

Select

Menu structure

Menu bar

Press OK to move to the Menu items.

Menu items

Press OK to proceed to the next

screen if available.

Help information

Operation guide

(example: Input labels)

Select the menu

Picture settings

Audio settings

Timer (Sleep, On/Off timer)

Lock (Channel, Game, Program etc.)

Closed Caption setting

Setup (other settings)

Select the item and adjust

Vivid

Picture 1/2

Brightness

Color

Tint

Sharpness

Picture mode

Contrast

Reset to defaults

(example: Picture menu)

adjust

select

Advanced

How to Use Menu Functions

●

“Reset to default” will be grayed out if no changes are made in the following menus:

“Picture”, “Audio and Closed caption” .

Picture settings

Adjust the image or picture quality

Settings Items Item Description

Reset to defaults

Resets all picture adjustments to factory default settings except for “Advanced

picture”.

Picture mode Vivid

Provides enhanced picture contrast and sharpness for viewing in a well-lit

room.

Standard

Recommended for normal viewing conditions with subdued room lighting.

Cinema

For watching movies in a darkened room. It provides a soft, film-like picture.

Game

For playing video games.

Custom (Photo)

Customizes each item according to your taste.

Photo is displayed in JPEG menu.

Contrast,

Brightness,

Color, Tint,

Sharpness

Adjusts the color, brightness, etc. for each picture mode to suit your taste

• Display range Contrast/Brightness/Color/Sharpness : 0 - 100

Tint : -50 - +50

Color temp. Cool 2/1/Normal/

Warm 1/2

Selects a choice of Cool (blue), Normal, or Warm (red) color.

Color mgmt. Off/On

On: Enhances green and blue color reproduction, especially outdoor scenes.

C.A.T.S. Off/On

Automatically adjusts the screen brightness according to the ambient lighting

condition.

Video NR Off/Weak/

Medium/Strong

Reduces noise, commonly called snow. Leave it off when receiving a strong signal.

• Some menus are grayed out depending on the input signal or condition.

(e.g. “Zoom adjustments” will be grayed out if the aspect is not set to Zoom.)

Aspect

adjustments

Screen format FULL/H-FILL/

JUST/4:3/ZOOM

Changes the format (aspect ratio).

Lets you choose the aspect depending on the format of

received signal. (p. 50)

HD size Size 1/Size 2

Selects between 95 % (Size 1) or 100 % (Size 2) for the

scanning area with High-definition signal.

Select “Size 1” if noise is generated on the edges of the screen.

●

Size 1: Selected item for “HD size”. Scanning 95 %

●

Size 2: Selected item for “HD size”. Scanning 100 %

H size Size 1/Size 2

Adjusts the horizontal display range to reduce noise of both side

edges of an image.

Size 2: Adjusts the image size according to the aspect mode to

reduce noise. (p. 50)

Zoom

adjustments

Adjusts vertical alignment and size when aspect setting is “ZOOM”.

HDMI settings HDMI/DVI RGB

range (HDMI 1-3)

Auto/

Standard

(16-235)/

Nonstandard

Prevents the blown out highlights and blocked up shadows when

a wide-range signal is received. Selects between standard RGB

range (16-235 bits) or non-compliance (0-255 bits).

Auto: Switches the RGB range (Standard (16-235)/

Nonstandard) depending on the HDMI signal information.

Contents type

(HDMI 1-3)

Off/Auto/Photo/

Graphics

Sets content type to each HDMI input.

Auto: Switches content type automatically depending on the

HDMI signal information.

Photo: Best setting for JPEG viewing.

Graphics: Best setting for On-Screen display of connected

equipment.

Settings Items Item Description

• Some menus are grayed out depending on the input signal or condition.

(e.g. “3:2 pulldown” will be grayed out if the input signal is high definition or you are viewing photos, etc.)

Advanced


3D Y/C filter Off/On

Minimizes noise and cross-color in the picture.

Color matrix SD/HD

Selects image resolution of component-connected devices.

SD: Standard Definition HD: High Definition

Only used with 480p video signal.

Block NR Off/On

Reduces noise of specific digital signals of DVD, Cable box, etc.

Mosquito NR Off/On

Reduces HDTV flicker noise in the contoured sections of an


Black level Dark/Light

Selects Dark or Light. Valid only for external input signals.

3:2 pulldown Off/On/Auto

Adjusts the picture recorded in 24 fps for optimum quality.

24p Direct in 60Hz/48Hz

48Hz: Achieves more cinematic playback by reproducing the

movie contents at twice the speed of 24 frames per second.

Audio settings

Adjust Audio quality

Settings Items Item Description

Reset to defaults

Resets Bass, Treble, and Balance adjustments to factory default settings.

Bass

Increases or decreases the bass response.

Treble

Increases or decreases the treble response.

Balance

Emphasizes the left / right speaker volume.

Advanced audio A.I. sound Off/On

Equalizes overall volume levels across all channels and

external inputs.

Surround Off/On

Enhances audio L/R response when listening to stereo.

Bass boost Off/On

Enhances bass sound and provides powerful sound.

Volume leveler

Minimizes volume disparity after switching to external inputs.

TV speakers Off/On

Switches to “Off” when using external speakers.

Off: “A.I. sound”, “Surround”, “Bass boost” and “Volume leveler”

do not work if “Off” is selected.

HDMI 1-3 in Digital/

Component/

Video

The default setting is “Digital” for the HDMI connection. (Digital

input signal)

Select audio input terminal when DVI cable is connected.

(Analog audio input signal)

Timer settings

The TV can automatically turn On/Off at the designated date and time.

If the Timer settings are grayed out, first set the clock (see p. 48) and make sure “Auto power on” is set to “No” (see p. 48)

Settings Items Item Description

Sleep (Off timer) Sleep (minutes)

Off/15/30/60/90 Select how long for the TV to automatically turn off.

Timer 1-5

(On/Off timer)

Timer set

Enables or disables this timer. (Off/On)

Inputs

Sets the input to select when the TV turns on.

Channel

Sets the channel to select when the TV turns on.

Day

Sets the day when the TV turns on.

[SUN/MON/TUE/WED/THU/FRI/SAT(displays the nearest future date)

MON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/Every TUE/Every

WED/Every THU/Every FRI/ Every SAT]

On time

Sets the time when the TV turns on. The TV will turn off after 90 minutes or as

specified.

Off time

Sets the time when the TV turns off within 24 hours.

Advanced

How to Use Menu Functions

Lock

Locks specified channels or shows to prevent children from watching objectionable content.

You will be asked to enter your password each time you display the Lock menu.

• Password setting/entering (p. 19)

Set “Custom” in “Mode” to specify “Channel”, “Game”, “Program” and “EASY IPTV” settings.

Settings Items Item Description

Mode Off

Unlocks all the Lock settings of “Channel”, “Game”, “Program” and “EASY IPTV”.

All

Locks all the inputs regardless of the Lock settings of “Channel”, “Game”, “Program” and “EASY IPTV”.

Custom

Locks specified inputs of “Channel”, ”Game”, “Program” and “EASY IPTV”.

Channel

(These channels

will be blocked

regardless of the

program rating.)

Mode

Set channel lock status. (Off/All/Custom)

All: Locks all channels

Off: Unlocks all channels

Custom: Locks specified channels. Set “Channel 1” - “Channel 7”

Channel 1-7

Select a channel to lock. (Select up to 7 (1-7) channels to block.)

Game On/Off

Locks Channel 3, Channel 4, and external inputs.

Program

(To set a rating

level)

Mode

Set program lock status. (Off/On) “V-chip” technology enables restricted shows to lock

according to TV ratings. On: Set each rating level (MPAA, US.TV, C.E.L.R., C.F.L.R.)

MPAA

Select U.S. movie ratings to lock.

For more

information

(p. 49)

U.S.TV

U.S. TV program ratings.

C.E.L.R.

Canadian English ratings.

C.F.L.R

Canadian French ratings.

(EASY IPTV)* On/Off

On: Locks EASY IPTV. When you select EASY IPTV icon on VIERA TOOLS screen,

the EASY IPTV Lock screen is displayed. Type the correct password to enter the

screen.

* The menus displayed differ depending on your county or area you select (p. 13)

Change password

Change the password. Input the new 4-digit password twice.

• This television is designed to support the “Downloadable U.S. Region Rating System” when available.

(Available only in U.S.A.)

• The Off rating is independent of other ratings.

• When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also be blocked.

Closed caption Display closed caption

The television includes a built-in decoder that is capable of providing a text display of the audio.

The program being viewed must be transmitting the Closed caption (CC) information. (p. 52)

Settings Items Item Description

Reset to defaults

Resets all Closed caption settings to factory default settings.

Mode On/Off/

CC on mute

On: To display Closed captions.

CC on mute: To display Closed captions when the audio is muted.

(When not using, select “Off”).

Analog CC1-4/T1-4

Choose the Closed caption service of Analog broadcasting.

CC1-4: Information related to pictures (Appears at the bottom of the screen)

T1-4: Textual information (Appears over the entire screen)

Digital Primary/Second./

Service 3/4/5/6

The Digital Closed caption menu lets you configure the way you choose to view

the digital captioning.

Digital setting

(Set display

settings

in digital program)

Size

Text size

Font

Text font

Style

Text style (Raised, Depressed, etc.)

Foreground

Color of text

Fore. opacity

Opacity of text

Background

Color of text box

Back. opacity

Opacity of text box

Outline

Outline color of text (Identify the setting options on the screen)

• The settings in “Analog” or “Digital” depend on the broadcaster.

Setup

Other function settings

Settings Items Item Description

Channel surf

mode

All/Favorite/

Digital only/

Analog only

Sets the mode to select the channel with the Channel up/down button.

Favorite: Only channels registered as FAVORITE. (p. 18)

Language English/Español/

Français

Selects the screen menu language.

Clock

Adjusts the clock. (p. 15)

ANT/Cable setup See p. 42-43 for more detail.

Input labels

(Display labels

of connected

devices)

Selects the terminal and label of the external equipment.

Devices connected to external input terminals can be labeled for easier identification during the

input selection. (Input select (p. 21))

erminals: HDMI 1-3/Component/Video

Label:

[BLANK] Blu-ray/CABLE/SATELLITE/DVD/DVD REC/DVR/GAME/HOME THTR/

RECEIVER/COMPUTER/MEDIA CTR/MEDIA EXT/VCR/CAMERA/MONITOR/AUX/

OTHER/Not used

• You can also enter the label name directly. (Entering characters (p. 19))

Anti Image

retention

(Prevent Image

retention)

Pixel orbiter

(Wobbling)

Enable/Disable

Enable: Shifts the display image automatically.

4:3 side bars

(4:3 mode only)

Off/Dark/Mid/

Bright

Changes the brightness of the side bar

The recommended setting is “Bright” to prevent the panel

“Image retention”. (p. 53)

Scrolling bar

Press “OK” to start the horizontal “Scrolling” on the screen.

• Press any key except the POWER key to return to previous

screen.

• You will return to the previous screen if no key operation has

been performed for 15 minutes.

[Scrolling bar]

Network settings See p. 36-38 for more detail.

VIERA Link settings

See p. 30-31 for more detail.

ECO/energy

saving

No signal for 10

minutes

(Stay on/ Power

TV off)

To conserve energy, the TV automatically turns off when NO SIGNAL and NO

OPERATION continue for more than 10 minutes.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set.

• “No signal for 10 minutes was activated” will be displayed for about 10 seconds

when the TV is turned on for the first time after the power was turned off by “No

signal for 10 minutes”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining

minutes prior to the shut-off.

No activity for 3

hours

(Stay on/ Power

TV off)

To conserve energy, the TV automatically turns off when no operation of remote and

side panel key continues for more than 3 hours.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set.

• “No activity for 3 hours was activated” will be displayed for about 10 seconds when

the TV is turned on for the first time after the power was turned off by “No activity

for 3 hours”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining

minutes prior to the shut-off.

Keyboard type

Select keyboard type. Operate USB keyboard (p. 19)

(U.S./Canadian French/Canadian Multilingual Standard/Spanish (Latin

America)/Spanish (Spain))

Advanced setup

Auto power on

(No/Yes)

Turns TV On automatically when the cable box or connected device is turned On.

TV AC cord must be plugged into this device. TV turns on every time the power is restored.

Image viewer

auto play

Slideshow/Photos/

Videos/Music/

Set later/Off

Sets the media contents or playback type to play back SD

cards automatically.

Set later: “Image viewer settings” menu will be displayed repeatedly.

“Using Media player” (p. 22)

First time setup

Restarts the first time setup from “Language” setting. (p. 13)

About

Displays TV version and software license.

Reset to defaults

Performing Reset will clear all settings made with Setup, such as channel settings.

• Password setting/entering (p. 19)

Advanced Support Information

Ratings List for parental control

How to Use Menu Functions

Ratings List for parental control

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the

entertainment industry.

■U.S. MOVIE RATINGS (MPAA)

NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or

where rating does not apply.

G GENERAL AUDIENCES. All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

R RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NC-17 NO ONE 17 AND UNDER ADMITTED.

X ADULTS ONLY.

■U.S. TV PROGRAMS RATINGS (U. S. TV)

Age-based

Group

Age-based

Ratings

Possible Content

Selections

Description

(Not Rated)

TV-NR

•

Viewable

•

Blocked

Not Rated.

Youth

TV-Y

•

Viewable

•

Blocked

All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6.

TV-Y7

•

FV Blocked

•

Viewable

•

Blocked

Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children

under the age of 7.

Guidance

TV-G

•

Viewable

•

Blocked

General audience. It contains little or no violence, no strong language,

and little or no sexual dialogue or situations.

TV-PG

•

D,L,S,V (all selected)

•

Any combination of

D, L, S, V

Parental guidance suggested. The program may contain infrequent

coarse language, limited violence, some suggestive sexual dialogue

and situations.

TV-14

•

D,L,S,V (all selected)

•

Any combination of

D, L, S, V

Parents strongly cautioned. This program may contain sophisticated

themes, sexual content, strong language and more intense violence.

TV-MA

•

L,S,V (all selected)

•

Any combination of

L, S, V

Mature audiences only. This program may contain mature themes,

profane language, graphic violence, and explicit sexual content.

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

■CANADIAN ENGLISH RATINGS (C. E. L. R.)

Exempt - Exempt programming includes: news, sports, documentaries and other information programming,

talk shows, music videos, and variety programming.

C Programming intended for children under age 8. No offensive language, nudity or sexual content.

C8+

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

G General programming, suitable for all audiences.

PG Parental Guidance suggested. Some material may not be suitable for children.

14+

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents

are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

■CANADIAN FRENCH RATINGS (C. F. L. R.)

E Exempt - Exempt programming.

General - Programming intended for audience of all ages. Contains no violence, or the violence content is

minimal or is depicted appropriately.

8 ans+

8+ General - Not recommended for young children. Programming intended for a broad audience but contains

light or occasional violence. Adult supervision recommended.

13 ans+

Programming may not be suitable for children under the age of 13. Contains either a few violent scenes or one

or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

16 ans+

Programming may not be suitable for children under the age of 16. Contains frequent scenes of violence or

intense violence.

18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

●

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) as

per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing

results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

Technical Information

Aspect Ratio (FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format

of the received signal and your preference. (p. 18)

(e.g.: in case of 4:3 image)

●

FULL

●

JUST

FULL

JUST

Enlarges the 4:3 image horizontally to the screen’s side edges.

(Recommended for anamorphic picture)

Stretches to justify the 4:3 image to the four corners of the

screen.

(Recommended for normal TV broadcast)

●

H-FILL

●

4:3

H-FILL

Side bar

Enlarges the 4:3 image horizontally to the screen’s side

edges. The side edges of the image are cut off.

Standard

(Note that “Image retention” of the side bar may occur from

displaying it for a long time.)

●

ZOOM

Note

●

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):

FULL, JUST, 4:3 or ZOOM

●

1080p / 1080i / 720p:

FULL, H-FILL, JUST, 4:3 or ZOOM

Enlarges the 4:3 image to the entire screen.

(Recommended for Letter Box)

●

Zoom adjustments

Vertical image position and size can be adjusted in “ZOOM”.

Select “Zoom adjustments” on the “Picture” menu. (p. 45)

V-position: Vertical position adjustment V-size: Vertical size adjustment

●

To reset the aspect ratio (OK)

H size

●

Aspect Ratio: 4:3

Size 1 Size 2

●

The width will be decreased on both sides to reduce noise.

●

Aspect Ratio: FULL/JUST(H-FILL/ZOOM)

Size 1 Size 2

●

The width will be increased on both sides to reduce noise.

See page 45 for more information

Support Information

Technical Information

Data format information

●

Compatible Data format for Media player (SD card/USB flash memory)/DLNA p. 26

DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard

EXIF: Exchangeable Image File Format

Note

●

Format the card with the recording equipment.

●

The picture may not appear correctly on this TV depending on the recording equipment used.

●

Display may take some time when there are many files and folders.

●

The function (VIERA Image Viewer/Media player) cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP).

●

Data modified with a PC may not be displayed.

●

Images imported from a PC must be compatible with EXIF 2.0, 2.1 and 2.2.

●

Partly degraded files might be displayed at a reduced resolution.

●

All “.JPG” extension data in the card and USB flash memory will be read in Photo viewer Mode.

●

The folder and file names may be different depending on the digital camera used.

●

Do not use two-byte characters or other special codes.

●

The card may become unusable with this TV if file or folder names are changed.

●

For the suitable SD Memory Cards, please confirm the latest information on the following website.

http://panasonic.jp/support/global/cs (This site is in English only)

Cautions when handling SD Cards

2.1 mm

32 mm

24 mm

●

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

●

Do not remove the card while the unit is accessing data (this can damage card or unit).

●

Do not touch the terminals on the back of the card.

●

Do not subject the card to high pressure or impact.

●

Insert the card in the correct direction (otherwise, card or unit may be damaged).

●

Electrical interference, static electricity or erroneous operation may damage the data or card.

●

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic

operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

SD Card/USB flash memory warning messages

Message Meaning

No media. Please insert an SD memory card or USB

storage device.

●

The device is not inserted.

No media. Device removed.

●

The device is removed.

No photos/ No movies/No music files to play/ No

playable media

●

The device has no data or this type of data is not supported.

Cannot read file

●

The file is broken or unreadable.

●

The TV does not support the format.

Recommended USB device connections

A/B: each USB terminal

Number of

USB device

Connections (Recommended) Memory

Wireless LAN

adapter

Keyboard

A: Flash memory A

A: Wireless LAN adapter A

A: Keyboard A

A: Flash memory B: Keyboard A B

A: Wireless LAN adapter B:Keyboard A B

A: Flash memory B:Wireless LAN adapter A B

VIERA Link

“HDAVI Control

”

HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 29)

●

This function may not work normally depending on the equipment condition.

●

The equipment can be operated by other remote controls with this function on even if the TV is in Standby mode.

●

Image or sound may not be available for the first few seconds when playback starts.

●

Image or sound may not be available for the first few seconds when input mode is switched.

●

Volume function will be displayed when adjusting the volume of the equipment.

●

If you connect equipment that has “HDAVI Control 2 or later” function to the TV with an HDMI cable, the sound from the

DIGITAL AUDIO OUT terminal can be output as multi-channel surround.

●

“HDAVI Control 5” is the newest standard (current as of December, 2010) for the HDAVI Control compatible equipment.

This standard is compatible with the conventional HDAVI equipment.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting

the TV unit and HD devices.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a Cable or Satellite box or a DVD player, can be

connected to the HDMI connector using an HDMI compliant (fully wired) cable.

●

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

●

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).

●

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

●

Audio settings can be made on the “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in” menu screen. (p. 46)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant device.

(*2): Enquire at your local digital equipment retailer shop.

Caution

●

Use with a PC is not assumed.

●

All signals are reformatted before being displayed on the screen.

●

If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”.

●

These HDMI connectors are “type A”.

●

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

●

A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, or “VIDEO” to

receive analog signals.

●

The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.

Match the output setting of the digital device.

●

For details of the applicable HDMI signals, see p. 53.

DIGITAL AUDIO OUT terminal

You can enjoy your Home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the

DIGITAL AUDIO OUT terminals.

Caution

●

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical

output.

●

When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC

channel is selected, the output will be PCM.

●

When playing a movie on SD Card Movie player, when the sound has been recorded in Dolby Digital, the output from the

DIGITAL AUDIO OUT terminal will be Dolby Digital. When the sound is recorded in other formats, the output will be PCM.

Closed Caption (CC)

●

For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3;

characters might be cut off).

●

The CC can be displayed on the TV only when the receiver (such as a Cable box or satellite receiver) has the CC set

to ON within the device itself. Check with your Cable or Satellite provider for instructions. The TV’s CC button does not

operate the Satellite or Cable box’s CC function.

●

If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC

may overlap on the TV.

●

If a digital program is being output in analog format, the CC data will also be output in analog format.

●

If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor.

Support Information

Care and Cleaning

Technical Information

4:3 side bars

Do not display a picture in 4:3 mode for an extended period, as this can cause

“Image retention” to remain on either or both sides of the display field.

To reduce the risk of such “Image retention”, change the brightness of the side

bars.

See page 48 for more information

●

The side bar may flash (alternate black/white) depending on the picture.

Side Bar

4:3

Screen

Display

Image retention

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI

525 (480)/60i 15.73 59.94

525 (480)/60p 31.47 59.94

750 (720)/60p 45.00 59.94

1,125 (1,080)/60i 33.75 59.94

1,125 (1,080)/60p 67.43 59.94

1,125 (1,080)/60p 67.50 60.00

1,125 (1,080)/24p 26.97 23.98

1,125 (1,080)/24p 27.00 24.00

Note

●

Signals other than those shown above may not be displayed properly.

●

The above signals are reformatted for optimal viewing on your display.

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-

free cloth.

●

If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted

by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the

display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

●

Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

●

If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry.

Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth.

●

Do not allow any mild liquid dish soap to come into direct contact with the surface of the Plasma TV.

If water droplets get inside the unit, operating problems may result.

●

Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface

may be adversely affected or the coating may peel off.

●

Do not let articles made from rubber or PVC be in contact with the TV for long periods of time.

Pedestal

●

Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small

amount of mild liquid dish soap has been added and then wipe with a dry cloth.

Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating. (If

using a chemically-treated cloth, follow the instructions supplied with the cloth.)

●

Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with

rubber, vinyl products, or the like. (Doing so will cause deterioration.)

Questions Answers


Frequently Asked Questions (FAQ)

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the

suggested check. If this does not solve the problem, visit the Panasonic web site for further assistance. (see cover)

How do I view the picture from

devices such as a: Cable/

Satellite box, game console,

Blu-ray or DVD player?

Press the INPUT button on the remote to select the correct

input source.

Check that the device is turned on and functioning

correctly.

Why is there no picture or just

a blue, black or snowy screen

being displayed?

Check if the power cord is plugged in and the TV is turned

on (front red LED light should be on; not blinking)

Press the INPUT button on the remote to select the correct input source.

Ensure all connections are correct and secure.

When using external video source, such as a Cable/Satellite box or

DVD player, check that the device is on and functioning correctly.

Press MENU on the TV’s remote control. If the menu is

displayed, then the TV is working; recheck above steps.

Why doesn’t the picture look

like it is in High Definition?

Press the INFO button on the remote to confirm the type of signal

being received (p. 17). HD signal should be 720P, 1080i or 1080p.

Select a High Definition channel from your HD source

(Cable, Satellite or fiber optic service). HD channels

sometimes broadcast non-HD content.

Ensure that your HD source (HD box, Blu-ray player, etc.)

is connected to the TV with an HDMI or Component cable

and set to output an HD video signal.

Why do black bars appear on

the top and bottom and/or sides

of the screen?

Change the format (aspect ratio) of the picture by pressing

the FORMAT button on the remote control. (p. 18)

Check the aspect settings on your external video source,

such as Cable/Satellite box, DVD/Blu-ray Disc player, etc.

Note: Some content, such as film-based movies, are available in

extra-wide format. Top and bottom bars are unavoidable.

Why is the picture snowy when

“ANT/Cable in” is selected?

When using a cable service (without a box), check that all

connections are secure.

When using a cable or satellite box, change the connection

(wiring) to Composite, Component or HDMI. (p. 11)

If you’re using an antenna, then check that connections are

secure. Change the position or direction of the antenna and

check the “Signal meter”. (p. 43)

Why is the picture chaotic and/

or torn and/or with a buzz in the

speakers?

Check if electrical products such as kitchen appliances,

fluorescent lights or light dimmers are nearby. They may

interfere with the TV’s picture.

Try viewing a picture from another device, such as a DVD player

or a game console, to narrow down the source of the problem.

Why is there a black box on the

screen?

Change settings of Closed Caption (CC). (p. 17, 47)

Why is the screen blank and the

power indicator blinking?

The TV has gone into shutdown mode to protect itself. Try unplugging

it for a few minutes and connecting it again. If there was a temporary

power surge on the AC line it may now be OK. If the blinking returns,

call 1-877-95VIERA (U.S.A.) or 1-866-330-0014 (Canada).

Why do some small spots on

the screen remain bright or

dark?

The Plasma panel is made up of a few million pixels and

is produced with advanced technology through an intricate

process. Sometimes a few pixels may be bright or dark.

These pixels do not indicate a defective panel and will have

no impact on the performance of the TV.

Support Information

Frequently Asked Questions (FAQ)

Questions Answers

Sound Other

Why is there no sound coming

from the TV?

Make sure the volume is up and MUTE is off.

Confirm the TV speakers are set to ON by pressing MENU

and selecting “Audio” --> “Advanced audio”. (p. 46)

Check that the correct SAP (Secondary Audio Program) is

selected by pressing the SAP button on the remote control. (p. 17)

If the TV is connected to a Panasonic Home Theater via HDMI

cable, then check VIERA Link controls. (p. 33)

If the TV is connected to a Home Theater via optical cable,

then: Check the connection, the audio system is on, the

correct input is selected.

Check “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in” analog/

digital audio settings. (p. 46)

Why is the sound unusual,

distorted, low volume or in

another language?

Check that the correct SAP (Secondary Audio Program) is

selected by pressing the SAP button on the remote control.

Check that all connections of external equipment

connected to the TV are secure.

When using Cable or Satellite box, check the device’s audio

settings. (example: try changing the box’s Audio Range to ‘narrow’)

Why is there a clicking, ticking

or buzzing sound coming from

the TV unit?

When TV power is turned on or shut off there are electrical

components that make a click sound. This is normal operation.

Changes in the temperature and humidity of the room may

cause thermal expansion and contraction that can produce

sounds. This is not a sign of faulty operation or a malfunction.

What is the easiest and best

way to connect a High-Definition

Cable or Satellite box to the TV?

Use an HDMI cable. It carries both digital video and audio

signal in HD. HDMI cable is the only cable needed to

connect an HD device to the TV.

Why does the CC button not

display Closed Caption?

When viewing TV via an HDMI connected device, such as

a Cable or Satellite box, CC must be enabled at the device.

Closed Caption is available only at supported TV programming.

Why does the screen and back

cover of the TV get warm?

The main unit radiates heat and some of the parts may

become hot. This is normal operation and does not affect

the performance of the set.

Ensure good ventilation.

Do not block the ventilation holes of the TV and do not

place the TV on top of other equipment.

Why doesn’t the Remote

Control work?

Check that the batteries are fresh, are of the same type

and are installed with the correct polarity (+ & -).

To operate other devices, such as changing channels when

using Cable or Satellite boxes or operating non-Panasonic

Blu-ray players, use the remote supplied with the device.

Why is the “ANT/Cable” option

at the top of the “Input select”

menu gray-out and cannot be

selected?

During “First time setup”, you indicated in step - that

you are using Cable or Satellite box and in step - b that

the box is connected to one of the TV’s AV inputs. In this

case, the Antenna/Cable input is deactivated to prevent

unintentional switching into unused tuner. To re-activate,

press MENU, select SETUP and repeat “First time setup”.

Some menu items are grayed-

out and cannot be selected.

Why?

Depending on certain modes or the selected input, some

options are not available. For example, Zoom adjustments are

only available when the FORMAT is changed to zoom mode.

Questions Answers

Networking

How do I get EASY IPTV to work

on my TV?

1. You need a broadband (high speed) Internet service with a

speed of no less than 1.5 Mbps (p. 35).

2. Connect the TV to the Internet through your router by an

Ethernet cable or a compatible Panasonic USB wireless

adapter.

3. Run the “Connections Test”, under the Network Settings

menu.

If Connection test fails, then check with your Internet

service provider or router/modem manufacturer if there are

firewall, content filter or proxy settings that may block the

TV from accessing the Internet.

How do I check for the latest

software (firmware) version for

my TV?

In the main menu, select “Setup”. Highlight “Network

Settings” and press OK. Select “Software Update”. The

current version and latest version software will be shown. If

software update is “grayed out”, the TV is not connected to

the Internet. If newer version is available, update your TV.

Follow the on-screen instructions, do not power off the TV

until the update is complete. Be patient; firmware update

may take a while.

Can I use any USB WiFi adapter

to connect the TV to my

wireless network?

The TV’s internal software was designed to work with

Panasonic’s wireless adapter model DY-WL10*. Check

www.panasonic.com/NetConnect for updated information.

How do I reset my TV to all

factory defaults and settings?

In the main menu, select “Setup”. Highlight “Reset to

Defaults” and press OK. Enter your password (if created

earlier) or create a temporary new password. Select Yes to

reset the TV.

* Model number is subject to change without notice.

Support Information

Specifications

Frequently Asked Questions (FAQ)

TC-P42S30 TC-P46S30 TC-P50S30

Power Source AC 120 V

, 60 Hz

Power

Consumption

Rated Power

Consumption

293 W 299 W 339 W

Standby condition 0.2 W 0.2 W 0.2 W

Plasma Display

panel

Drive method AC type

Aspect Ratio 16:9

Visible screen size

(W × H × Diagonal)

(No. of pixels)

42 ” class (41.6 inches

measured diagonally)

46 ” class (46.0 inches

measured diagonally)

50 ” class (49.9 inches

measured diagonally)

36.2 ” × 20.4 ” × 41.6 ”

(921 mm × 518 mm × 1,057 mm)

40.1 ” × 22.5 ” × 46.0 ”

(1,019 mm × 573 mm × 1,169 mm)

43.5 ” × 24.4 ” × 49.9 ”

(1,105 mm × 622 mm × 1,268 mm)

2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

Sound

Audio Output 20 W [10 W + 10 W] (10 % THD)

Channel Capability

(Digital/Analog)

VHF/ UHF: 2 - 69, CATV: 1 - 135

Operating Conditions

Temperature: 32 °F – 104 °F (0 °C – 40 °C)

Humidity: 20 % – 80 % RH (non-condensing)

Connection Terminals

VIDEO IN

VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

COMPONENT IN

Y: 1.0 V [p-p] (including synchronization)

B, PR ±0.35 V [p-p]

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

HDMI 1-3

TYPE A Connector × 3

•

This TV supports “HDAVI Control 5” function.

USB 1-2 USB 2.0 Type A connector x 2 (DC5V MAX500mA)

LAN

(for IPTV)

RJ45 (10BASE-T/100BASE-TX)

Card slot SD CARD slot × 1

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES

3D Y/C FILTER CLOSED CAPTION

V-Chip EASY IPTV

VIERA IMAGE VIEWER Media player HDAVI Control 5

Dimensions

( W × H × D )

Including pedestal

40.2 ” × 26.6 ” × 11.4 ”

(1,020 mm × 675 mm × 288 mm)

44.1 ” × 28.8 ” × 12.8 ”

(1,118 mm × 730 mm × 324 mm)

47.5 ” × 30.7 ” × 12.8 ”

(1,204 mm × 779 mm × 324 mm)

TV Set only

40.2 ” × 25.2 ” × 2.2 ” (2.8 ”)

(1,020 mm × 640 mm × 54 mm (70 mm))

44.1 ” x 27.4 ” x 2.2 ” (2.8 ”)

(1,118 mm × 695 mm × 54 mm (70 mm))

47.5 ” × 29.3 ” × 2.2 ” (2.8 ”)

(1,204 mm × 744 mm × 54 mm (70 mm))

Mass

Including pedestal

49.7 lb. (22.5

) 57.4 lb. (26.0 ) 62.9 lb. (28.5 )

TV Set only

41.9 lb. (19.0

) 48.6 kg (22.0 ) 54.1 lb. (24.5 )

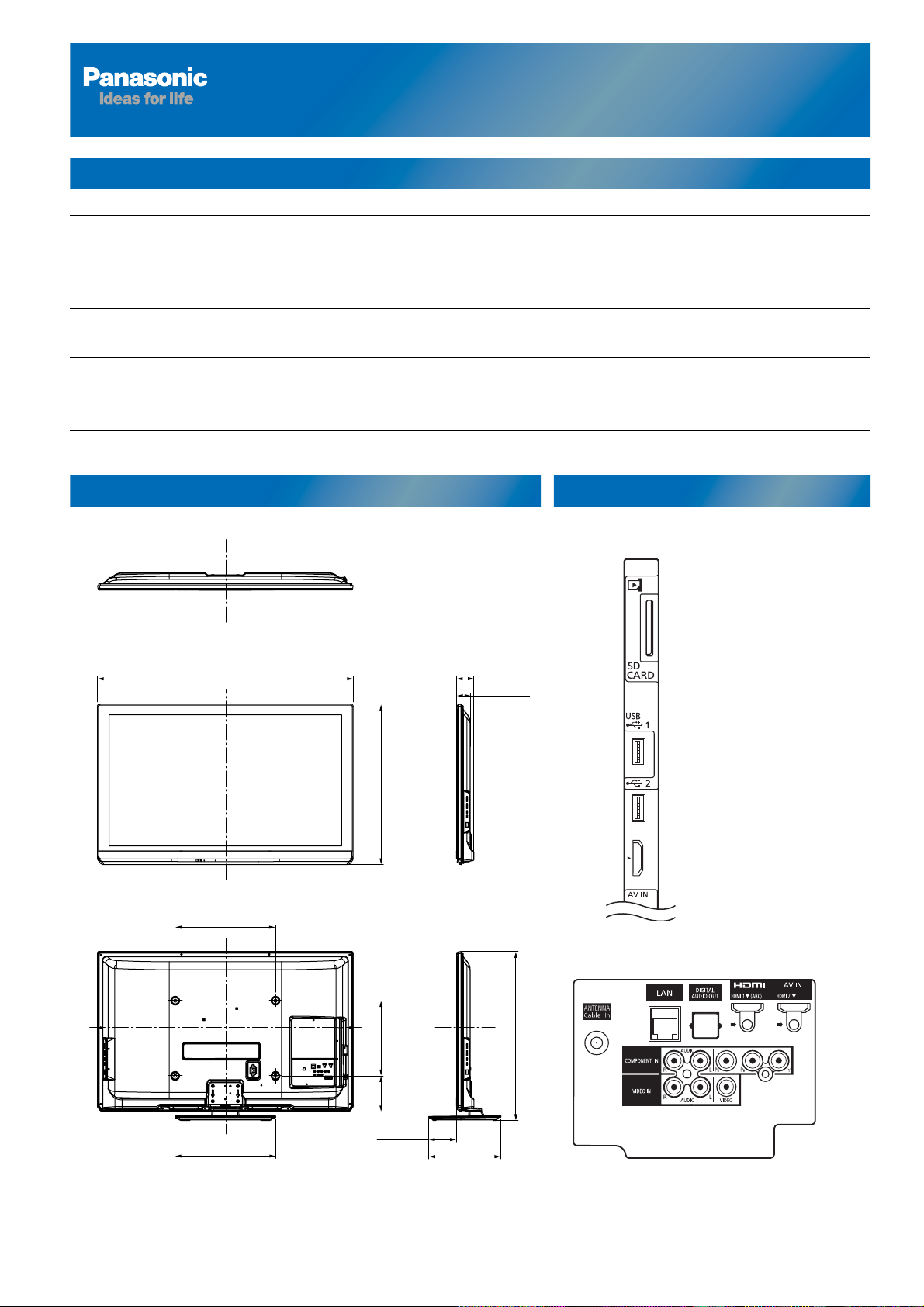

Specifications

12.8 ” (324 mm)

2.2 ”

(54 mm)

2.8 ”

(70 mm)

47.5 ” (1,204 mm)

18.2 ”

(460 mm)

29.3 ” (744 mm)

30.7 ” (779 mm)

12.8 ” (324 mm)

2.2 ”

(54 mm)

2.8 ”

(70 mm)

44.1 ” (1,118 mm)

18.2 ”

(460 mm)

27.4 ” (695 mm)

28.8 ” (730 mm)

11.4 ” (288 mm)

2.2 ”

(54 mm)

2.8 ”

(70 mm)

40.2 ” (1,020 mm)

15.8 ”

(400 mm)

25.2 ” (640 mm)

26.6 ” (675 mm)

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

[TC-P42S30] [TC-P46S30] [TC-P50S30]

Index

A Accessories ............................................................. 7

Ant/Cable .......................................................... 14,42

Antenna ............................................................ 10,14

Audio ...................................................................... 46

Audio, Advanced .................................................... 46

Auto Power ON ...................................................... 48

Auto Program ......................................................... 42

B Battery ..................................................................... 9

C Cable .................................................................10,11

Care & Cleaning

.................................................... 53

CC Closed Caption ...................................... 17,47,52

Channel .............................................14,17-18,42-43

Channel Surf Mode ........................................... 18,48

Clock ................................................................. 15,48

Colored Buttons ..................................................... 12

Component ........................................................11,57

Composite ...............................................................11

Connections ...................................................... 10-11

Customer Service Directory ................................... 60

D DLNA ........................................................... 20,34,40

E EASY IPTV ..................................................20,34,39

ECO/energy ......................................................

20,48

Exit ......................................................................... 12

F FAQ’s ................................................................54-56

Favorite ..................................................................

First Time Setup ...........................................13-16,48

Format .............................................................. 18,50

H HDAVI Control ........................................................

HDMI .............................................................11,52,57

Home Use .............................................................. 13

I Image Viewer Auto ................................................. 48

Info .........................................................................

Input .................................................................. 21,48

L Language .......................................................... 13,48

Last ........................................................................

Lock / Parental contorol .................................... 47,49

M Media player ................................................20,22-27

Menu ......................................................................

Movies/Video ......................................................... 26

Music ..................................................................... 27

Mute ....................................................................... 12

N Network camera ......................................33-35,38,41

Network services

....................................15,34-38,48

P Pedestal ................................................................ 7,8

Photo ................................................................

24-25

Picture, Advanced .................................................. 46

Picture settings ...................................................... 45

Power ..................................................................... 12

R Remote Control ...................................................... 12

Reset .....................................................................

S Safety ....................................................................... 4

SAP ........................................................................17

Scan .................................................................. 14,42

SD Card ............................................................ 22,51

Signal Meter ........................................................... 43

Sleep ...................................................................... 46

Specifications ......................................................... 57

Store Demonstration .............................................. 13

Sub menu ..............................................................18

T Technical Information ........................................50-53

imer ...................................................................... 46

U USB ............................................................. 22,51,57

V VIERA Link ...................................................20,28-33

VIERA

TOOLS ....................................................... 20

Viewing contents .................................................... 23

Volume ...................................................................12

W Warranty ........................................................... 59,61

atching TV, DVD, Blu-ray, etc. ....................... 17,21

Wireless LAN Adapter ....................................... 16,35

Z Zoom .................................................................18,50

Support Information

Limited Warranty (for U.S.A. and Puerto Rico only)

Index

Limited Warranty (for U.S.A. and Puerto Rico only)

PANASONIC CONSUMER ELECTRONICS COMPANY,

DIVISION OF

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way

Secaucus, New Jersey 07094

Panasonic Plasma Television

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer

Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which

starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new

or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price.

The decision to repair, replace or refund will be made by the warrantor.

PLASMA TV CATEGORIES PARTS LABOR SERVICE

Up to 42” (diagonal)

1 (ONE) YEAR 1 (ONE) YEAR

Carry-In

46” (diagonal) and larger On-Site

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period,

there will be no charge for parts.

You must carry-in your product or arrange for on-site service during the Limited Warranty period. If non-rechargeable

batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced

in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser of a new product

which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for Limited Warranty

service.

On-Site or Carry-in Service

For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372).

On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer

and does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not

be completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for

shop diagnosis and/or repair and then returned.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER

normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the glass panel resulting

from viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV’s,

or onscreen data in a stationary and fixed location). The Limited Warranty ALSO DOES NOT COVER damages which

occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result

from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation,

set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,

modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product,

service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts

of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this

excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to

and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED

WARRANTIES, INCLUDING THE LIMITED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF

THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an

implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state to state. If

a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service

Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at

the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH ARE

NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Customer Services Directory (for U.S.A. and Puerto Rico)

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center;

purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web

Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-877-95-VIERA (958-4372)

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

■For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web

Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

[email protected]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South,

Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

■For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Support Information

Limited Warranty (for Canada)

Customer Services Directory (for U.S.A. and Puerto Rico)

Limited Warranty (for Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and

for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with

new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase

price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Viera TV (42” & over) In-home service One (1) year, parts (including panel) and labour.

Viera TV (under 42”) Carry-in service One (1) year, parts (including panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic

service facility.

In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not include

removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of

the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or consequential

damages.

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic

brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,

which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR

OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS

REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal

wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or

failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,

misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment

of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,

humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or

service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are

also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY

EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the

Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is

not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or

the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives

you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014

Email link: “Contact us → email” on www.vieraconcierge.ca

For product repairs, please contact Viera Customer Care Agent using the above contact info.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

TC-P50S30

50" Plasma HDTV

Dimensions (W x H x D) 47.5" (1,204 mm) x 30.7" (779 mm) x 12.8" (324 mm)

(Including pedestal)

47.5" (1,204 mm) x 29.3" (744 mm) x 2.2" (2.8") (54mm (70 mm))

(TV Set only)

Mass 62.9 lb. (28.5 kg) (Including pedestal)

54.1 lb. (24.5 kg) (TV Set only)

Power Source AC 120 V, 60 Hz

Rated Power Consumption 399 W

Standby condition 0.2 W

SPECIFICATIONS

DIMENSIONS JACKS

Note:

To make sure that the Plasma Television fits the cabinet properly when a high degree of

precision is required, we recommend that you use the Plasma Television itself to make

the necessary cabinet measurements. Panasonic cannot be responsible for

inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.

Non-metric weights and measurements are

approximate.

Side Panel

Rear Panel

P110118

Top View

Front View

Back View

Side View

Side view with the

pedestal (option)

attached

15.8 (400)

18.2 (460) 12.8 (324)

47.5 (1204)

2.2 (54)

2.8 (70)

29.3 (744)

5.6

(140) 11.9 (300)

30.7 (779)

5.2 (132)

TC-P46S30

46" Plasma HDTV

Dimensions (W x H x D) 44.1" (1,118 mm) x 28.8" (730 mm) x 12.8" (324 mm)

(Including pedestal)

44.1" (1,118 mm) x 27.4" (695 mm) x 2.2" (2.8") (54mm (70 mm))

(TV Set only)

Mass 57.4 lb. (26.0 kg) (Including pedestal)

48.6 lb. (22.0 kg) (TV Set only)

Power Source AC 120 V, 60 Hz

Rated Power Consumption 299 W

Standby condition 0.2 W

SPECIFICATIONS

DIMENSIONS JACKS

Note:

To make sure that the Plasma Television fits the cabinet properly when a high degree of

precision is required, we recommend that you use the Plasma Television itself to make

the necessary cabinet measurements. Panasonic cannot be responsible for

inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.

Non-metric weights and measurements are

approximate.

Side Panel

Rear Panel

P110118

Top View

Front View

Back View

Side View

Side view with the

pedestal (option)

attached

27.4 (695)

15.8 (400)

18.2 (460) 12.8 (324)

5.2 (132)

44.1 (1118)

2.2 (54)

2.8 (70)

11.9 (300)

5.5

(138)

28.8 (730)

TC-P42S30

42" Plasma HDTV

Dimensions (W x H x D) 40.2" (1,020 mm) x 26.6" (675 mm) x 11.4" (288 mm)

(Including pedestal)

40.2" (1,020 mm) x 25.2" (640 mm) x 2.2" (2.8") (54mm (70 mm))

(TV Set only)

Mass 49.7 lb. (22.5 kg) (Including pedestal)

41.9 lb. (19.0 kg) (TV Set only)

Power Source AC 120 V, 60 Hz

Rated Power Consumption 293 W

Standby condition 0.2 W

SPECIFICATIONS

DIMENSIONS JACKS

Note:

To make sure that the Plasma Television fits the cabinet properly when a high degree of

precision is required, we recommend that you use the Plasma Television itself to make

the necessary cabinet measurements. Panasonic cannot be responsible for

inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.

Non-metric weights and measurements are

approximate.

Side Panel

Rear Panel

P110118

Top View

Front View

Back View

Side View

Side view with the

pedestal (option)

attached

26.6 (675)

5.7

(143)

15.8 (400)

15.8 (400) 11.4 (288)

4.4 (111)

40.2 (1020)

2.2 (54)

2.8 (70)

25.2 (640)

11.9 (300)

Panasonic TC-P50S30 50" Plasma TV With Media Player

Product's Documents

User Manual

Specifications

Panasonic TC-P50S30 Questions and Answers

Related Products

Panasonic TC-P58S2 58" 1080p Plasma TV

Panasonic TC-P50C2 50" 720p Plasma TV

Panasonic TC-P50S2 50" 1080p Plasma TV

Panasonic TC-P50S60 50" SMART VIERA S60 Full HD Plasma TV
