User Manual for Fridge

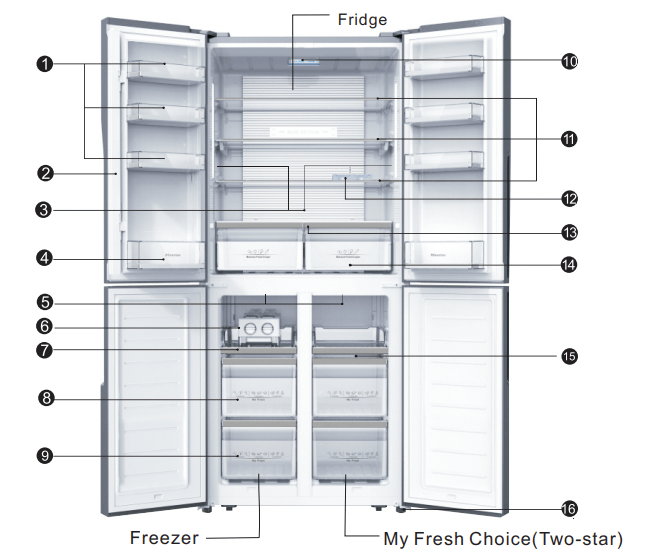

Description of the appliance

1. Middle rack
2. Rotary separator
3. Fridge LED light
4. Lower rack
5. Freezer LED light
6. Twistable ice tray
7. Upper freezer tray
8. Middle freezer drawer

9. Lower freezer drawer

10. Decorative light

11. Glass shelves

12. Egg tray(located in the plastic bag)

13. Crisper cover

14. Fruit and vegetables crisper

15. Glass plates

16. Adjustable bottom feet

Note: Due to unceasing modification of our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same. To get more space in the freezer, you can remove drawers (except lower freezer drawer) and twistable ice tray.

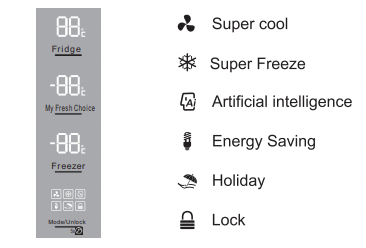

Display controls

Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off.

Controlling the temperature We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 5°C ,my fresh choice to -12°C and the freezer to -18°C. If you want to change the temperature, follow the instructions below.

Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

1.Fridge

Press "Fridge' button repeatedly to set your desired fridge temperature between 8°C and 2°C, the temperature will decrease 1°C degrees with each press and the fridge temperature indicator will display corresponding value according to the following sequence.

2.My Fresh Choice

Press "My Fresh Choice" button to set the two-star compartment temperature between -5°C and-18°C to suit your desired temperature, and the two-star compartment temperature indicator will display corresponding value according to the following sequence.

3.Freezer

Press "Freezer" button to set the freezer temperateure between -15°C and -25"C to suit your desired temperature, and the freezer temperature indicator will display corresponding value according to the following sequence.

4.Mode/Unlock

• You can select different modes by pressing the “Mode/Unlock”button. When certain mode is selected,wait for the corresponding icon flashing for 10 seconds.Buzzer will sound two times afterwards and the icon will be illuminated,which means the setting is completed.
• Each time you press "Mode / Unlock" button, the mode icon will be switched in the following order, Corresponding icon is illuminated.

5.Artificial intelligence

When the function is activated,the temperature of the refrigerator is automatically switched to 5°C ,the temperature of freezer is automatically switched to -18°C

6.Energy Saving

When the function activated, the temperature of refrigerator is automatically switched to 6°C and the temperature of freezer is automatically switched to -17°C.

7. Holiday

When the holiday function is activated,the temperature of the refrigerator is automatically switched to 15°C to minimise the energy consumption. The temperature of the freezer is automatically switched to -18°C

Important! Do not store any food in the fridge during this time.

When the holiday function is on, you can switch it off by pressing any button of "Holiday", "Fridge" and "Super Cool” button. The fridge temperature setting will revert back to the previous setting.

8.Super Cool

Super Cool can refrigerate the food quicker and keep food fresh for a longer period

• Super cool automatically switches off after 6 hours and the refrigerator temperature setting displays 2°C.
• When super cool function is on you can switch it off by pressing “Super Cool” or “Fridge” button and the refrigerator temperature setting will revert back to the previous setting.

9.Super Freeze

Super Freeze can rapidly lower frozen temperature and freeze you food substantially faster than usual

This feature also helps to keep vitamins and nutrition of fresh food for longer period.

• The super freeze light will be illuminated and the freezer temperature setting will display -25°C.
• Super freeze automatically switches off after 26 hours .
• When super freeze function is on you can switch off super freeze function by pressing "Super Freeze" or "Freezer" button and the freezer temperature setting will revert back to the previous setting.

Note: When selecting the Super Freeze function, ensure there are no bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.

10. Lock

By pressing " Mode/Unlock" button 5s to switch the locked state, Unlocked or locked.

11. Door alarm

Leaving any door open for over 2 minutes will activate a alarm and buzzer, and the control panel will display “ ”.
In case of door alarm, buzzer will beep 1 time per minute , and will automatically stop alarming 8 minutes later .

To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can be cleared by closing the door.

Using your appliance

You appliance has the accessories as the "Description of the appliance showed in general , with this part instruction you can have the right way to use them .

Door rack

• It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks
• The middle door racks can be placed at different heights according to your appliance. Please take food out of the racks before lifting vertically to reposition_

• All the door racks are completely removable for cleaning.

Note: There are egg trays in the racks.

Shelf

• There are three glass shelves in refrigerator chamber. They can be adjusted to various heights as needed.

• When you remove the shelves,gently pull them forward until the shelf comes clear of the shelf guides.
• When you return the shelves,make sure there is no obstacle behind and gently push the shelf back into the position.

Crispers

• The crisper, mounted on telescopic extension slides,is for storing vegetables and fruits.

Crisper cover

• It is for avoiding the vegetable losing moisture .You can adjust the humidity inside the crispers by using the sliding block.

Crisper and humidity control

• The humidity control adjusts the airflow in the crisper; higher airflow results in lower humidity. Slide the humidity control to the right in order to increase humidity.
• High humidity settings are recommended for vegetables, while low humidity is suitable for preservation of fruit.

Using your freezer drawer

• The freezer drawers are suitables for storage of foods required to be frozen,such as meat,ice cream and others. Caution! Ensure that bottles are not stored in the freezer as freezing cause the bottle to break.

Using the refrigerator chamber

The refrigerator chamber is suitable for storage of vegetable and fruits. Separate packing of different foods is recommended to avoid losing moisture or flavour permeating into other foods.

Cautionl

Never close doors while the shelves, crisper and/or telescopic slides are extended. It may damage the unit.

• Follow these simple instructions to remove the crisper chamber, or freezer drawer, for cleaning. Empty the crisper chamber; pull it out to fully open position. Lift the crisper from the lateral slides. Push the slides fully in to avoid damage when closing the door.

Twistable ice tray

Twistable ice tray is placed in the freezer to make and store ice cubes.you should use it as follows

1 .Pull out the twistable ice tray from the freezer compartment.

2.Fill with drinking water below the maximum level mark.

3. Place the filled ice tray back in to the freezer compartment.

4. Await for around 3 hours, twist the knobs clockwise and the ice will drop into the ice box below.

5. Ice cubes can be stored in the ice box until required

Note: If the ice tray is used for the first time or has not been used for a long time, please clean it before using.

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods in order to conserve energy.

• Ensure the appliance is away from any sources of heat. (Direct sunlight, electric oven or cooker etc.)

• Don't set the temperature colder than necessary.

• Don't store warm food or evaporating liquid in the appliance.

• Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter.

• The diagram shows the correct combination for the drawers, crisper and shelves. Do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

• Do not place hot food directly into the refrigerator, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.

■ Do cover or wrap the food, particularly if it has a strong flavor.

• Place food properly so that air can circulate freely around it.

Hints for refrigeration

• Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.

• Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.

• Fruit and vegetables: They should be stored in the special drawer provided.

Butter and cheese: Should be wrapped inairtight foil or plastic film wrap.

• Milk bottles: Should have a lid and be stored in the door racks.

Hints for freezing

• When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.

• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.

• Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.

• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid partially thawing the frozen food.

• Iced products, if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin.

• It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for the storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer.

• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

1. Remove all food.

2. Remove the power plug from the mains socket.

3. Clean and dry the interior thoroughly.

4. Ensure that all the doors are wedged open slightly to allow air to circulate.

Cleaning and care

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

- To maintain good appearance of your appliance, you should clean it regularly. -Wipe the digital panel and display panel with a clean, soft cloth.

-Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface. -Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Caution!

-Don't use sharp objects as they are likely to scratch the surface.

-Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

You should clean the appliance interior regularly. It will be easier to clean when food stocks are low.

Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts.

Although this appliance automatically defrosts, a layer of frost may occur on the refrigerator's interior walls if the door is opened frequently or kept opentoo long. If the frost is too thick wait until food stocks are low and proceed as follows:

1. Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.

2. When defrosting is completed, clean your freezer as described above.

Caution! Don't use sharp objects to remove frost from the refrigerator. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seal cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

Caution! Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light

Warning:The LED light should not be replaced by the user.lf the LED light is faulty, contact the customer helpline for assistance. To replace the LED light, the following steps can be used:

1 .Unplug your appliance.

2. Remove light cover by pushing up and out.

3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.

4. Replace LED light and snap it correctly in to place.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.
