Please read this manual carefully before operating your set and retain it
for future reference.
OWNER’S MANUAL
Safety and Reference
OLED TV
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Printed in Korea

ENGLISH
2
Important Safety Instruction
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ENGLISH
3
• Ventilation
- Install your TV where there is proper ventilation. Do
not install in a confined space such as a bookcase.
- Do not install the product on a carpet or cushion.
- Do not block or cover the product with cloth or
other materials while unit is plugged in.
• Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot.
• Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular
attention to plugs, wall outlets, and the point where
the cord exits the device.
• Do not move the TV whilst the Power cord is
plugged in.
• Do not use a damaged or loosely fitting power cord.
• Be sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to unplug
the TV.
• Do not connect too many devices to the same AC
power outlet as this could result in fire or electric
shock.
• Disconnecting the Device from the Main Power
- The power plug is the disconnecting device. In
case of an emergency, the power plug must remain
readily accessible.
• Do not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause
serious injury.
• Outdoor Antenna Grounding (Can differ by
country):
- If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can come in contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded to provide
some protection against voltage surges and
built-up static charges Section 810 of the National
Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of
the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding
electrodes and requirements for the grounding
electrode. Antenna grounding according to the
National Electrical Code, ANSI/NFPA 70
Warning! Safety instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The symbol is intended to alert the user to
the presence of uninsulated dangerous
voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the device.
WARNING : TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR
OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS
PRODUCT AT ALL TIMES.
• Do not place the TV and/or remote control in the
following environments:
- Keep the product away from direct sunlight.
- An area with high humidity such as a bathroom
- Near any heat source such as stoves and other
devices that produce heat.
- Near kitchen counters or humidifiers where they
can easily be exposed to steam or oil.
- An area exposed to rain or wind.
- Do not expose to dripping or splashing and do
not place objects filled with liquids, such as vases,
cups, etc. on or over the apparatus (e.g., on shelves
above the unit).
- Near flammable objects such as gasoline or
candles, or expose the TV to direct air conditioning.
- Do not install in excessively dusty places.
Otherwise, this may result in fire, electric shock,
combustion/ explosion, malfunction or product
deformation.

ENGLISH
4
• Grounding (Except for devices which are not
grounded.)
- TV with a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet.
Ensure that you connect the earth ground wire to
prevent possible electric shock.
• Never touch this apparatus or antenna during a
lightning storm. You may be electrocuted.
• Make sure the power cord is connected securely to
the TV and wall socket if not secured damage to the
Plug and socket may occur and in extreme cases a
fire may break out.
• Do not insert metallic or inflammable objects into
the product. If a foreign object is dropped into the
product, unplug the power cord and contact the
customer service.
• Do not touch the end of the power cord while it is
plugged in. You may be electrocuted.
• If any of the following occur, unplug the product
immediately and contact your local customer
service.
- The product has been damaged.
- If water or another substance enters the product
(like an AC adapter, power cord, or TV).
- If you smell smoke or other odors coming from
the TV.
- When lightning storms or when unused for long
periods of time.
Even the TV is turned off by remote control or
button, AC power source is connected to the unit if
not unplugged in.
• Do not use high voltage electrical equipment near
the TV (e.g., a bug zapper). This may result in product
malfunction.
• Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Accidental fire or electric shock can occur. Contact
your local customer service for service or repair.
Unauthorized modification could void the user’s
authority to operate this product.
• Use only an authorized attachments / accessories
approved by LG Electronics. Otherwise, this may
result in fire, electric shock, malfunction, or product
damage.
• Never disassemble the AC adapter or power cord.
This may result in fire or electric shock.
• Handle the adapter carefully to avoid dropping or
striking it. An impact could damage the adapter.
• To reduce the risk of fire or electrical shock, do not
touch the TV with wet hands. If the power cord
prongs are wet or covered with dust, dry the power
plug completely or wipe dust off.
• Batteries
- Store the accessories (battery, etc.) in a safe
location out of the reach of children.
- Do not short circuit, disassemble, or allow the
batteries to overheat. Do not dispose of batteries
in a fire. Batteries should not be exposed to
excessive heat.
• Moving
- When moving, make sure the product is turned off,
unplugged, and all cables have been removed. It
may take 2 or more people to carry larger TVs. Do
not press or put stress on the front panel of the TV.
Otherwise, this may result in product damage, fire
hazard or injury.
• Keep the packing anti-moisture material or vinyl
packing out of the reach of children.
• Do not allow an impact shock, any objects to fall
into the product, and do not drop anything onto the
screen.
• Do not press strongly upon the panel with a hand or
a sharp object such as a nail, pencil, or pen, or make
a scratch on it. It may cause damage to screen.
• Cleaning
- When cleaning, unplug the power cord and wipe
gently with a soft/dry cloth. Do not spray water or
other liquids directly on the TV. Do not clean your
TV with chemicals including glass cleaner, any type
of air freshener, insecticide, lubricants, wax (car,
industrial), abrasive, thinner, benzene, alcohol etc.,
which can damage the product and/or its panel.
Otherwise, this may result in electric shock or
product damage.

ENGLISH
5
Preparing
• When the TV is turned on for the first time after
being shipped from the factory, initialization of the
TV may take approximately one minute.
• Image shown may differ from your TV.
• Your TV’s OSD (On Screen Display) may differ slightly
from that shown in this manual.
• The available menus and options may differ from the
input source or product model that you are using.
• New features may be added to this TV in the future.
• The device must be easily accessed to a location
outlet near the access. Some devices are not made
by turning on / off button, turning off the device and
unplugging the power cord.
• The items supplied with your product may vary
depending upon the model.
• Product specifications or contents of this manual
may be changed without prior notice due to
upgrade of product functions.
• For an optimal connection, HDMI cables and USB
devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
• Use an extension cable that supports USB 2.0 if the
USB cable or USB flash drive does not fit into your
TV’s USB port.
• Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen
may not display or a connection error may occur.
• Recommended HDMI cable types (3 m (9.84 ft) or
less)
• High-Speed HDMI®/™ cable
• High-Speed HDMI®/™ cable with Ethernet
A
B
A
B
* A 10 mm
(0.39 inches)
* B 18 mm
(0.7 inches)
• Do not use any unapproved items to ensure the
safety and lifespan of the product.
• Any damages or injuries by using unapproved items
are not covered by the warranty.
Optional Extras
Optional extras can be changed or modified for quality
improvement without any notification. Contact your
dealer for buying these items.
These devices work only with certain models.
The model name or design may be changed due to
the manufacturer’s circumstances or policies.
Magic Remote Control
AN-MR18HA
Companion Box (AV Box) Wall mount
W7AWB

ENGLISH
6

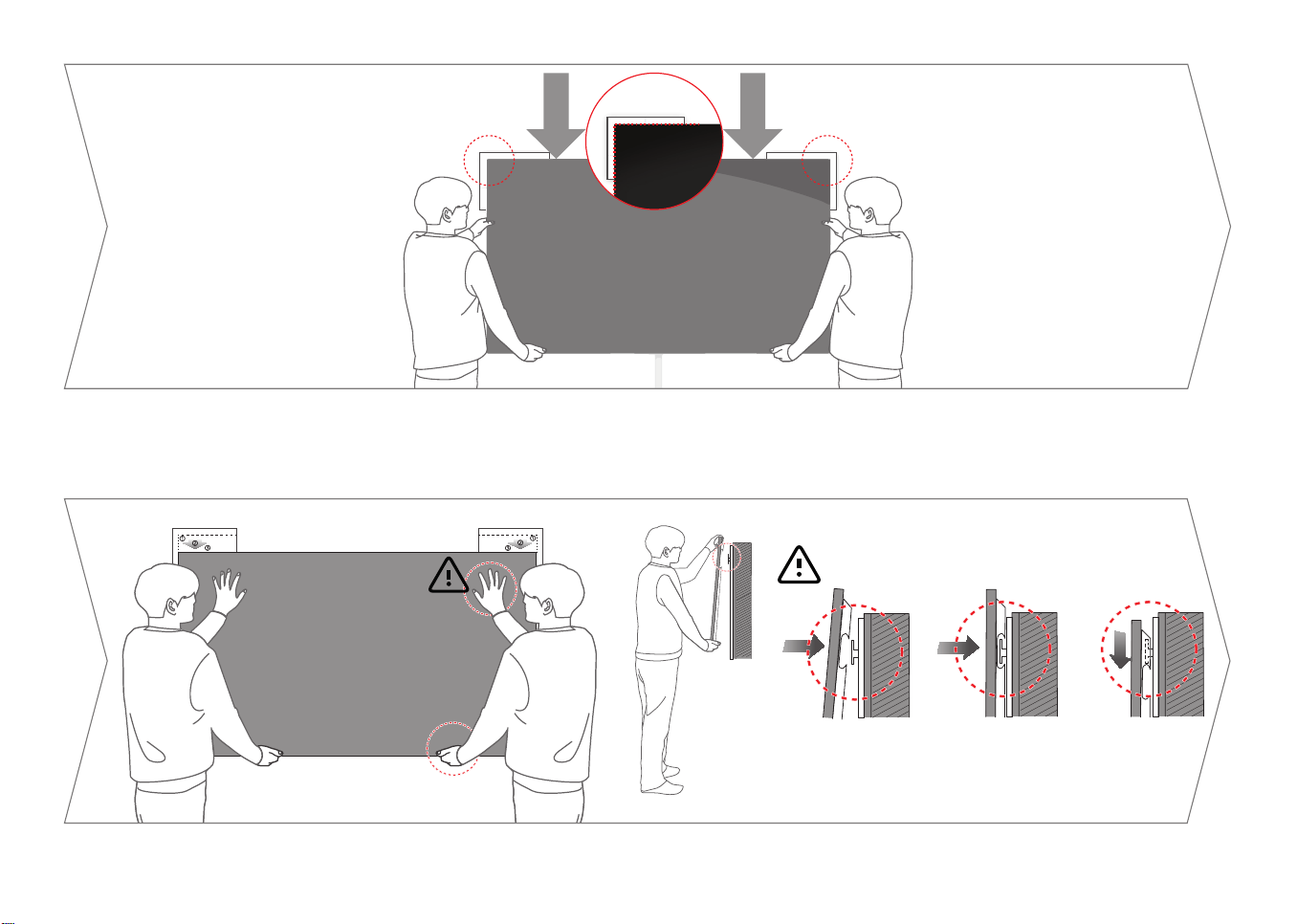

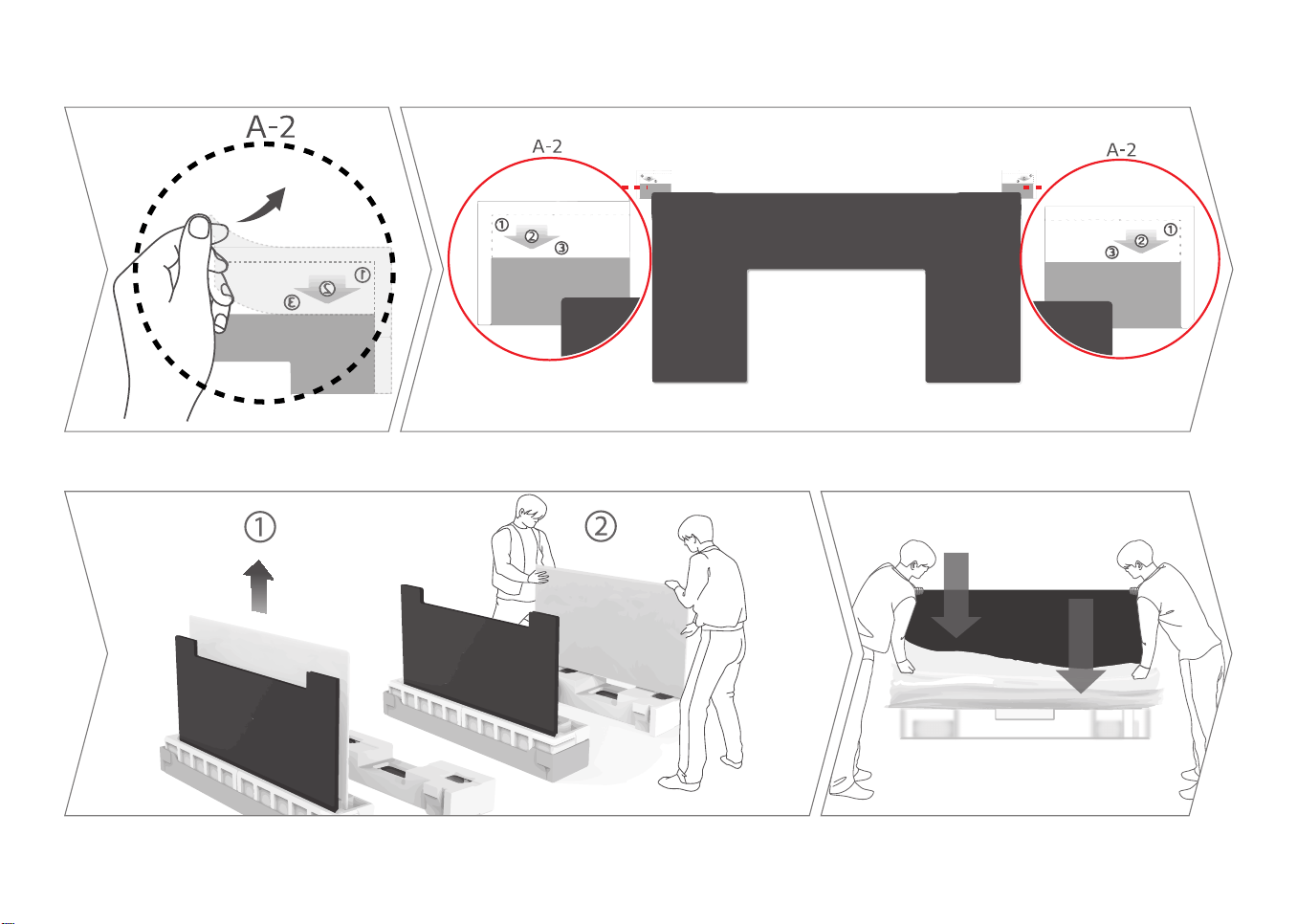

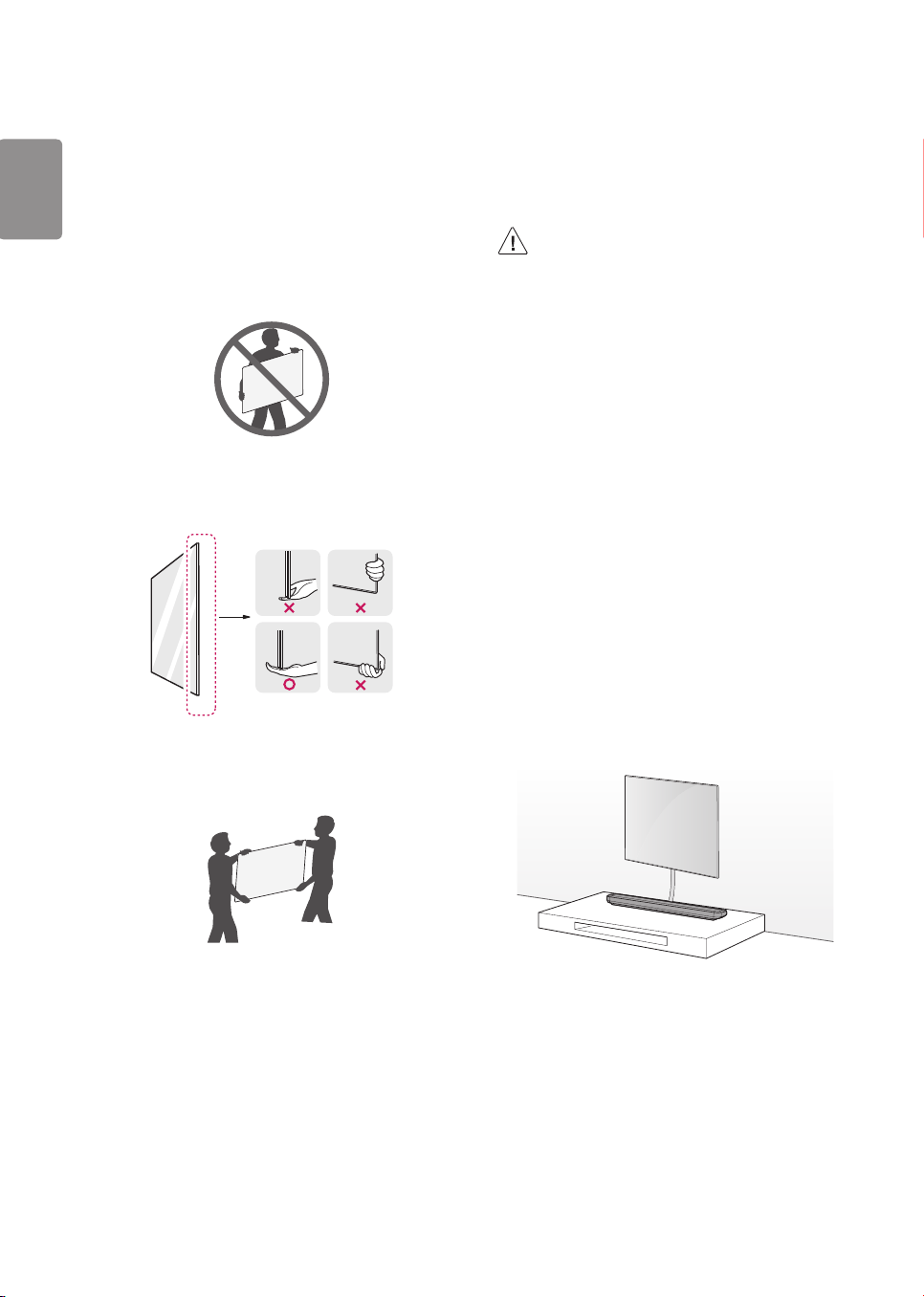

Lifting and Moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and
for safe transportation regardless of its type and size.
• It is recommended to move the TV in the box or
packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the
power cord and all cables.
• When holding the TV, the screen should face away
from you to avoid damage.
• Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grille area.
• Use at least two people to move a large TV.

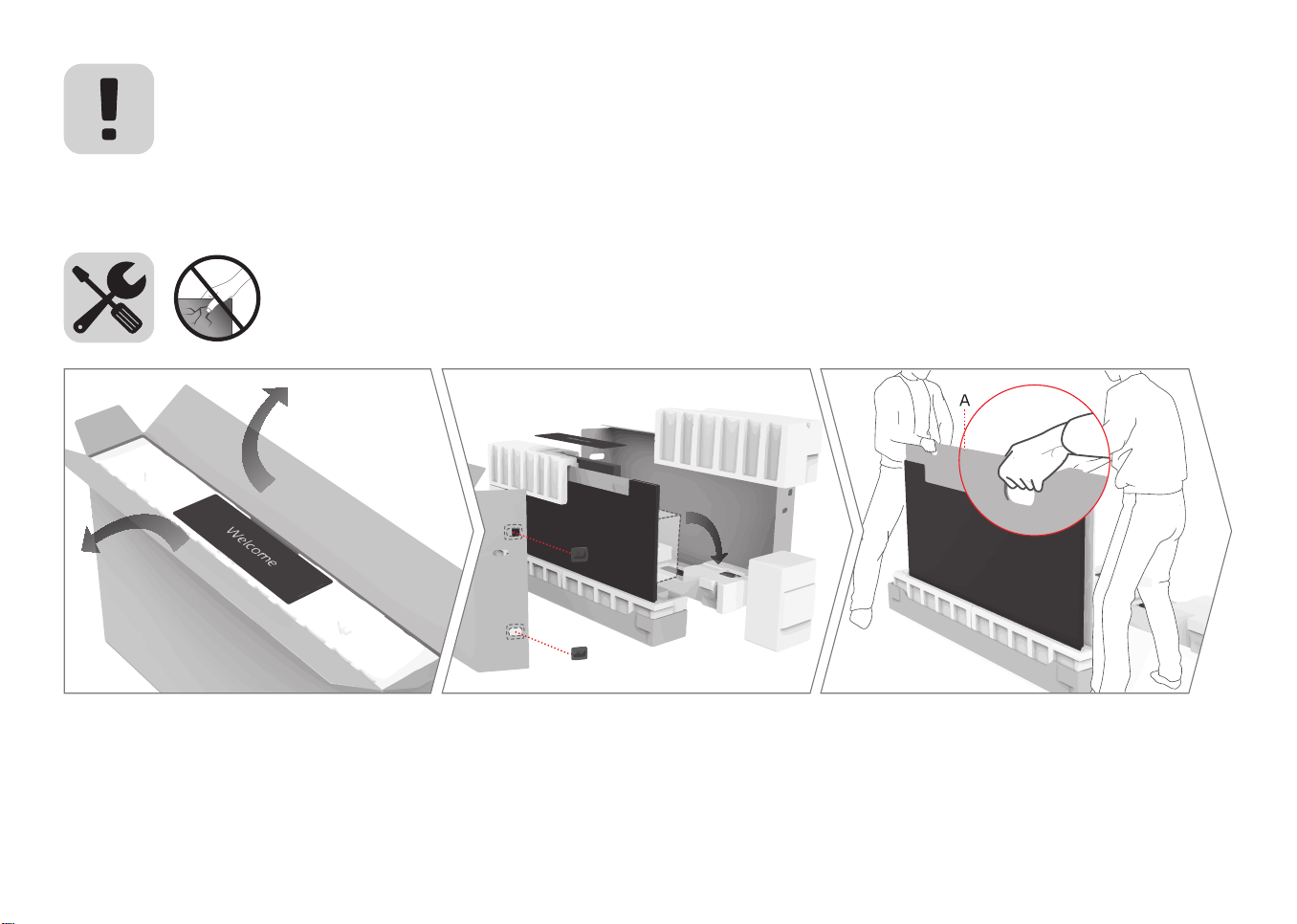

• When transporting the TV by hand, hold the TV as
shown in the following illustration.
• When transporting the TV, do not expose the TV to
jolts or excessive vibration.
• When transporting the TV, keep the TV upright;
never turn the TV on its side or tilt towards the left
or right.
• When handling the TV, be careful not to damage the
protruding buttons.
• Avoid touching the screen at all times, as this
may result in damage to the screen.
• Do not place the product on the floor with
its front facing down without padding.
Failure to do so may result in damage to the
screen.
• Do not move the TV by holding the cable
holders, as the cable holders may break, and
injuries and damage to the TV may occur.
• When supported cable is not long enough
to connect TV set with Companion Box (AV
Box), you can use an extension cable.
• Please do not pile the stuff up or press
strongly the speaker. This may result in
product damage or degradation.

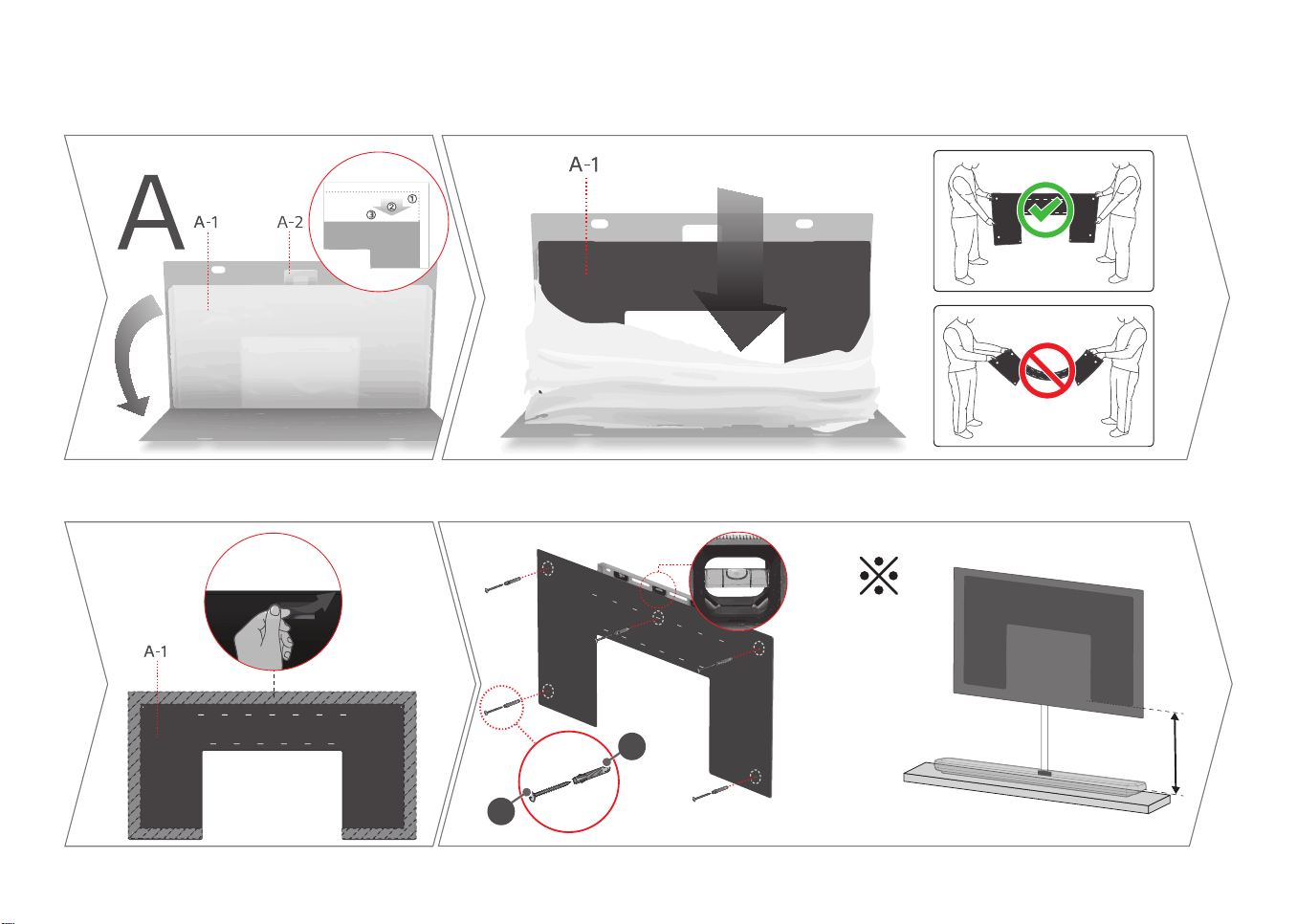

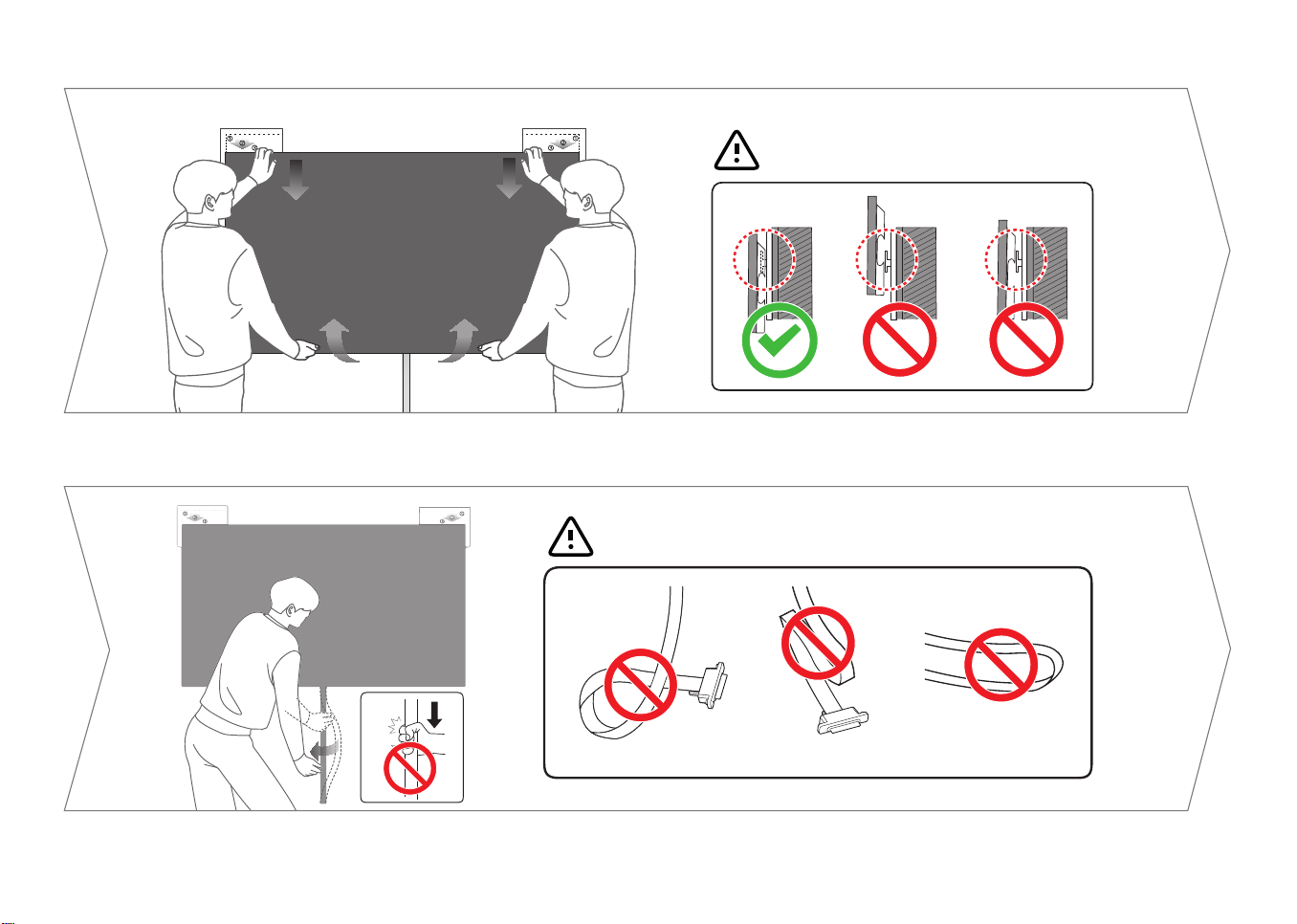

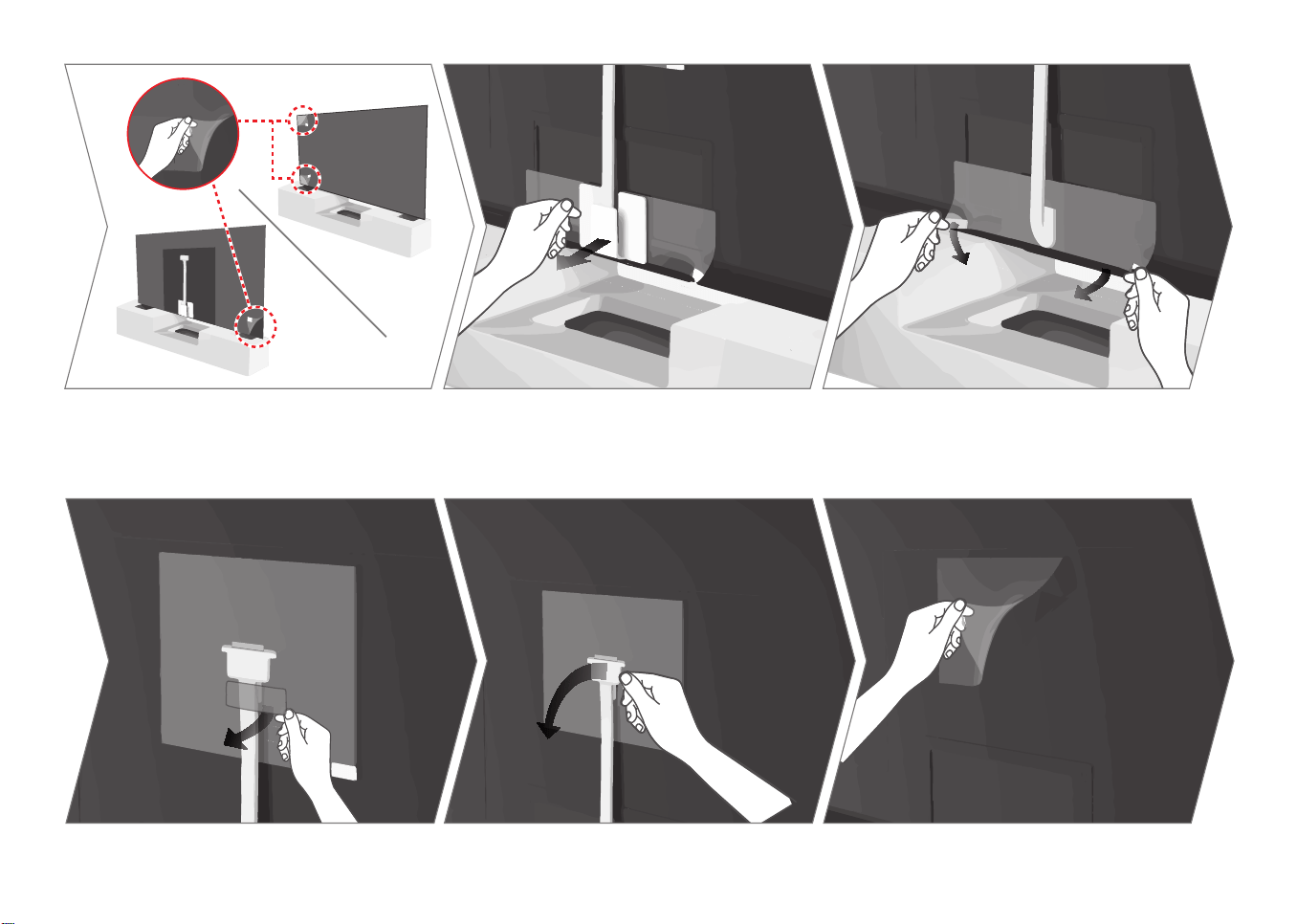

Mounting on a Wall
If you are attaching the TV to other building materials,
please contact qualified personnel to install the wall
mount.

ENGLISH
7
• Do not apply foreign substances (oils,
lubricants, etc.) to the screw parts when
assembling the product. (Doing so may
damage the product.)
• Do not use any unapproved items to ensure
the safety and lifespan of the product.
• Any damages or injuries by using
unapproved items are not covered by the
warranty.
• Make sure that the screws are fastened
tightly. (If they are not fastened securely
enough, the TV may tilt forward after being
installed.)
• Do not fasten the screws with excessive
force otherwise they may strip and become
loose.

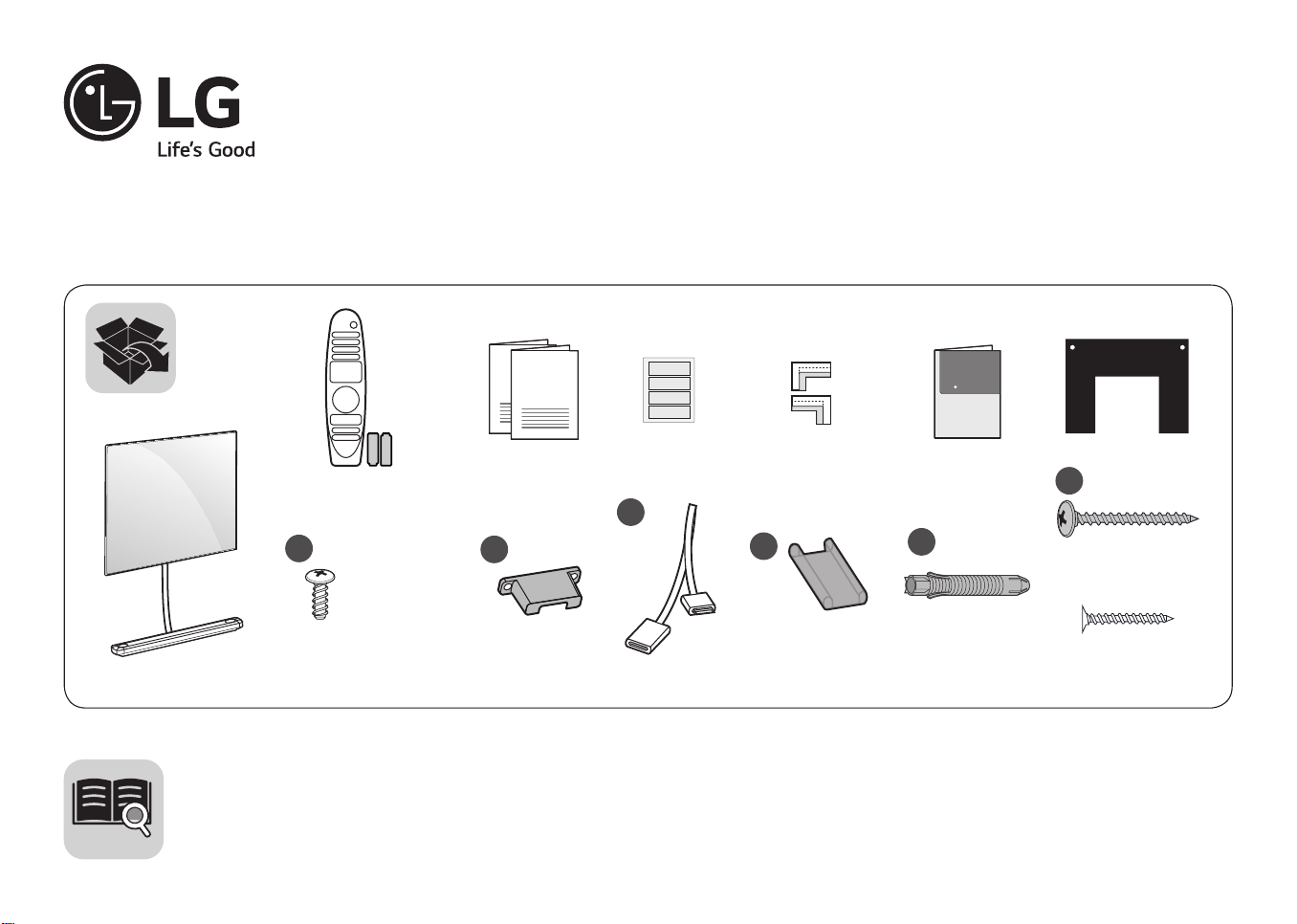

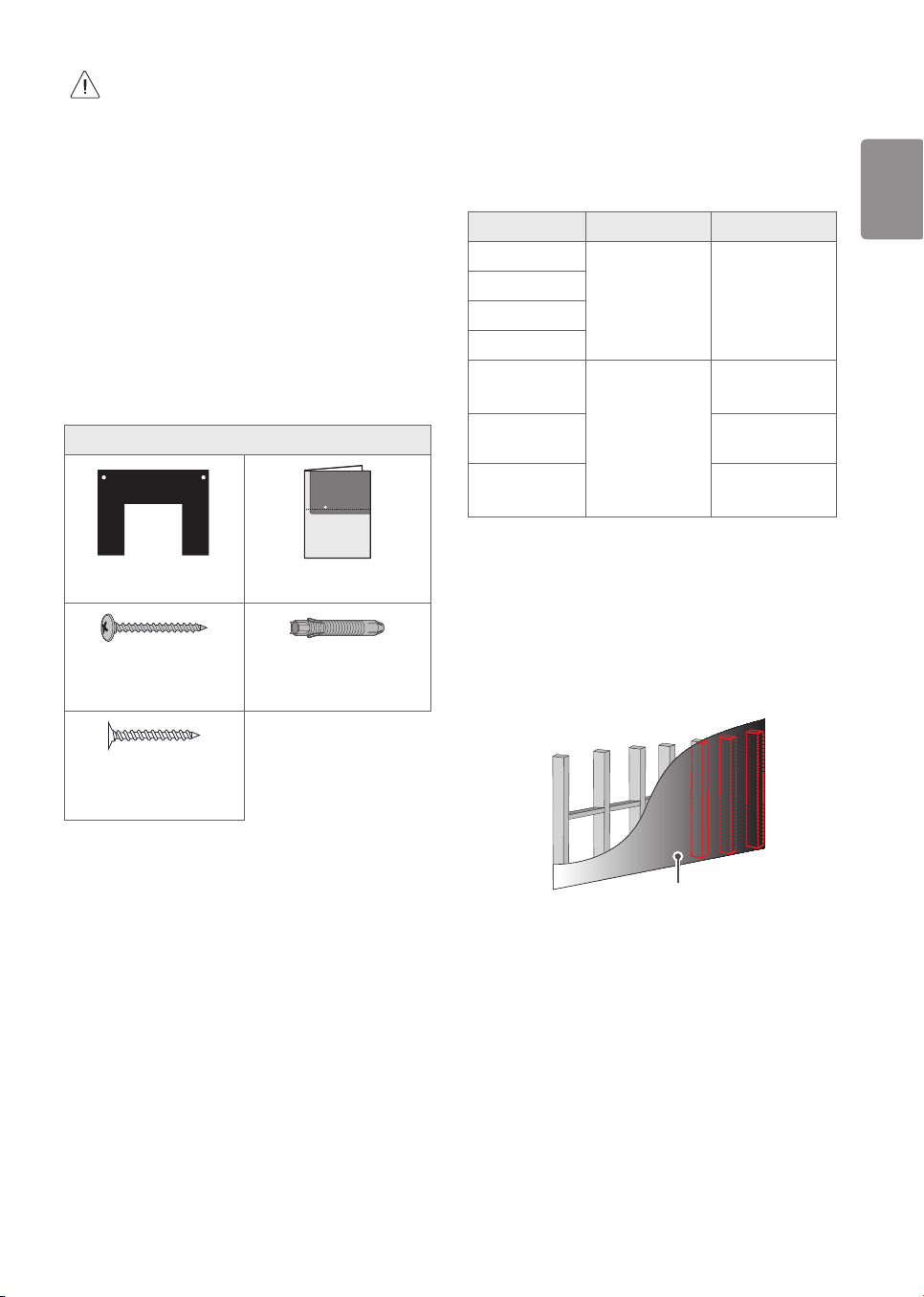

Provided Item
Wall-mount Punching Guide
(Ø5 X L65)
Wall mounting screw
Wall mounting anchor
(Ø3 X L18)
Wall mounting screw
• Check the material of the wall and the thickness of
the finishing.
• Use the Wall mount anchor for wall material of
concrete, light concrete, strong natural stone, soft
natural stone masonry brick and hallow block that
do not crack.
Wall Material Tools Wall Thickness
Concrete Wall mounting
anchor, Wall
mounting
screw, Drill bit
(Ø 3 / 6 / 8)
70 mm
(2.7 inches)
Brick
Natural stone
Metal Panel
Plywood Wall mounting
screw, Drill bit
(Ø 1.8)
30 mm
(1.1 inches)
EPS Panel Penetrate the
wall
Plasterboard +
Plywood
30 mm
(1.1 inches)
• When installing on a gypsum board or medium-
density fiberboard (MDF) wall, fasten the screws to
the wooden pillars that support the wall. If there are
no wooden pillars, check the distance from the inner
wall before installing.
- 30 mm (1.1 inches) or below: Install directly on the
inner wall using a 65 mm (2.5 inches) screw.
- 30 mm (1.1 inches) or above: Install using a
separate hanger.
Wall

ENGLISH
8
• When installing the wall mount, check the positions
of the wooden studs using a stud finder. Then, fasten
the screws on at least two separate studs before
proceeding.
Stud Wall mount
• When installing the product on wall material not
designated, install the product so that each location
can withstand the pull out load of 70 kgf (686 N) and
shear load of 100 kgf (980 N) or above.
• Use the Ø 8 mm (0.3 inches) drill bit for concrete and
hammer (Impact) drill.
Tools you will need
• Phillips head + driver (manual or motorized) / Ø 8
mm (0.3 inches) Drill bit / Level / Stud finder / Drill

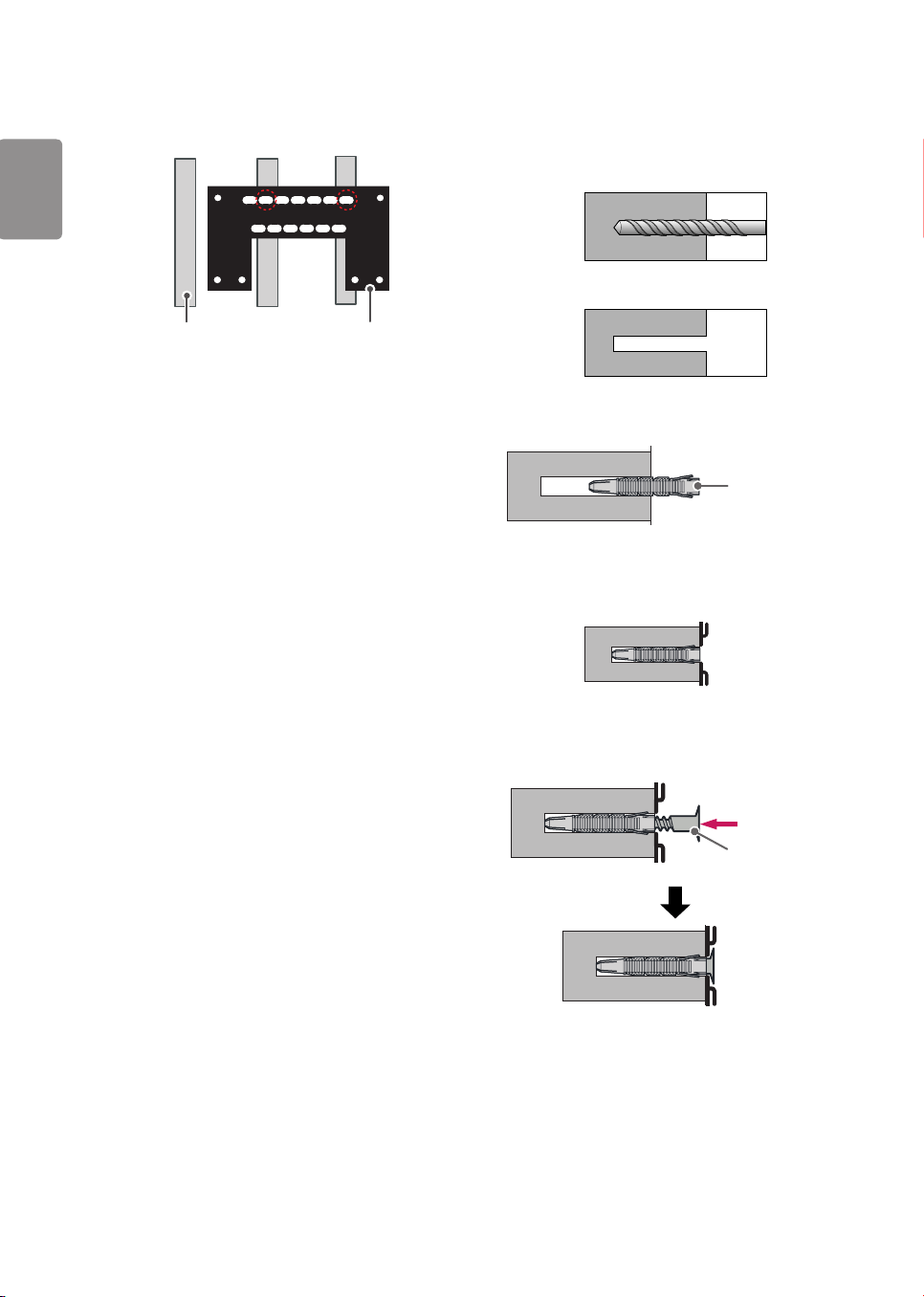

How to attach to masonry walls
Please follow the below direction.
1 Use a drill bit Ø 8 mm (0.3 inches) to drill a hole
for the anchor location within a depth of 80 mm
(3.1 inches) to 100 mm (3.9 inches).
2 Clean the drilled hole.
3 Insert the sealed wall mounting anchor to the
hole. (When inserting the anchor, use a hammer.)
Wall mounting
anchor
4 Set the wall mount on the wall by aligning to the
location of the hole. And, set the angle adjusting
part to face upward.
5 Align the wall mounting screw to the hole and
tighten it. Then, fasten the screws at torque of 45
kgf/cm (39.06 lbf/in) to 60 kgf/cm (52.08 lbf/in).
Wall mounting
screw

ENGLISH
9
• When mounting a TV on the wall, make sure
not to install the TV by hanging the power and
signal cables on the back of the TV.
• Do not install this product on a wall if it could
be exposed to oil or oil mist. This may damage
the product and cause it to fall.
• Make sure that children do not climb on or
hang on the TV.
• Use a platform or cabinet that is strong and
large enough to support the TV securely.
• When installing the product, first check that
the wall is strong enough. Use the anchors and
screws provided.
- If you use anchors and screws that are not
specified by the manufacturer, they may
not hold the weight of the product, causing
safety issues.
• Be sure to use the accessory cable provided.
Otherwise, friction between the product and
the wall may cause damage to the connector.
• When drilling holes into the wall, make sure
you use a drill and drill bit with the specified
diameter. Ensure that you also follow the
instructions regarding the depth of the holes.
- Otherwise, the product may be installed
incorrectly and cause safety issues.
• Wear safety gloves when installing the product.
Do not use your bare hands.
- Otherwise, it may cause personal injury.
• If some parts of the wall mount do not touch
the wall after it is attached, in addition to the
other mounting hardware, add the double
sided tape included with the accessories to
stick the mount to the wall.
• If some parts of the wall mount do not touch
the wall after using the wall mounting screws
for wood, use the remaining screws.
• Be sure to use only the exclusive wall mounting
screws provided as accessories.
• If you want to connect the TV Cable is
connected to the back panel partition, please
use the enclosed Punching Guide.

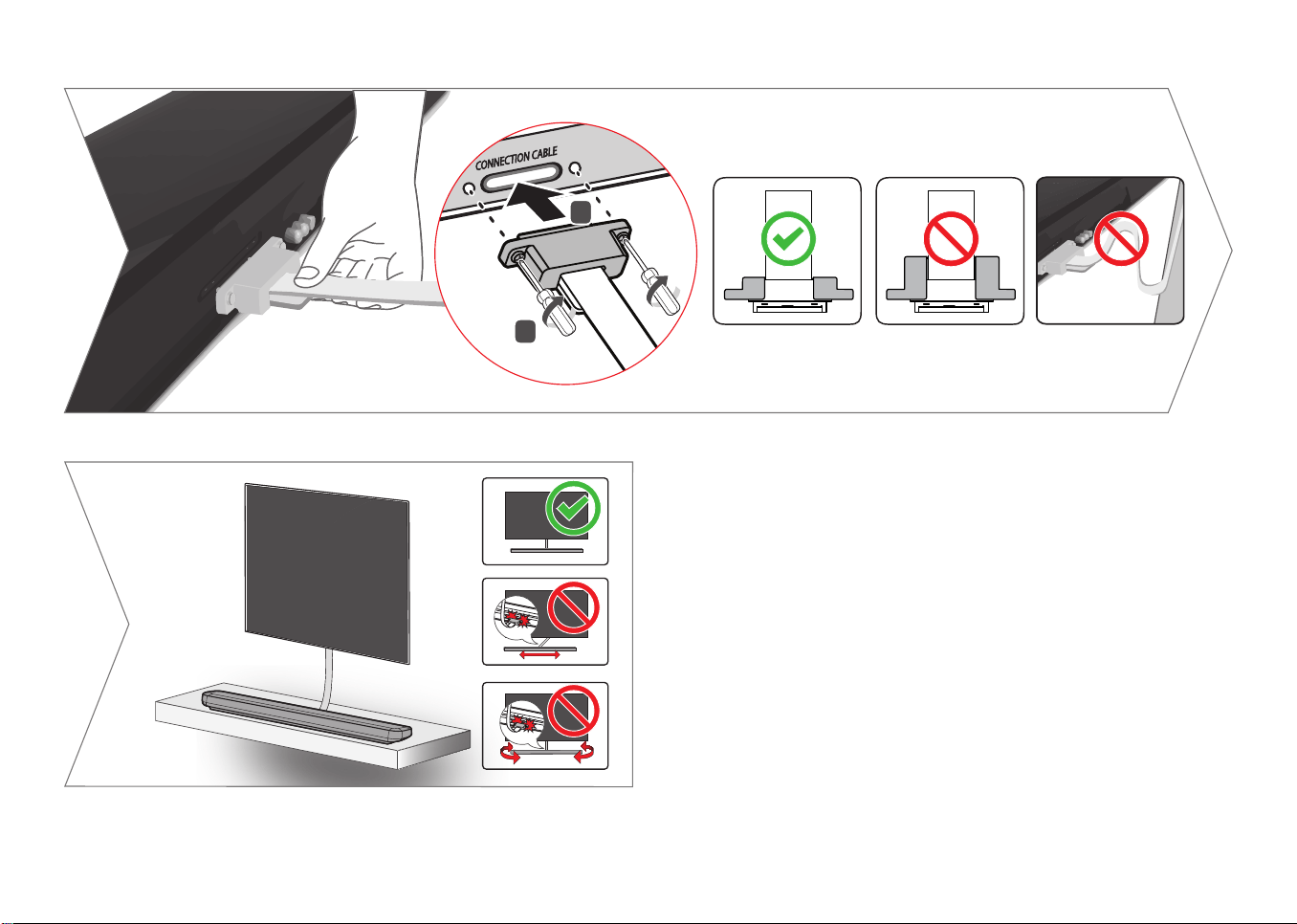

• If the cable that connects the panel to the
Companion Box (AV Box) is to be embedded in
the wall, it is recommended that construction
make use of a conduit as shown in the figure.
The conduit must be installed in accordance
with the wall-embedded installment
regulations of each country. It is recommended
that a product made of metallic material with
internal dimensions at least 70 mm (2.7 inches)
wide and 20 mm (0.7 inches) thick be used.
20 mm
(0.7 inches)
70 mm (2.7 inches)
Companion Box
(AV Box)
Cable
Panel
Conduit
Wall

ENGLISH
10

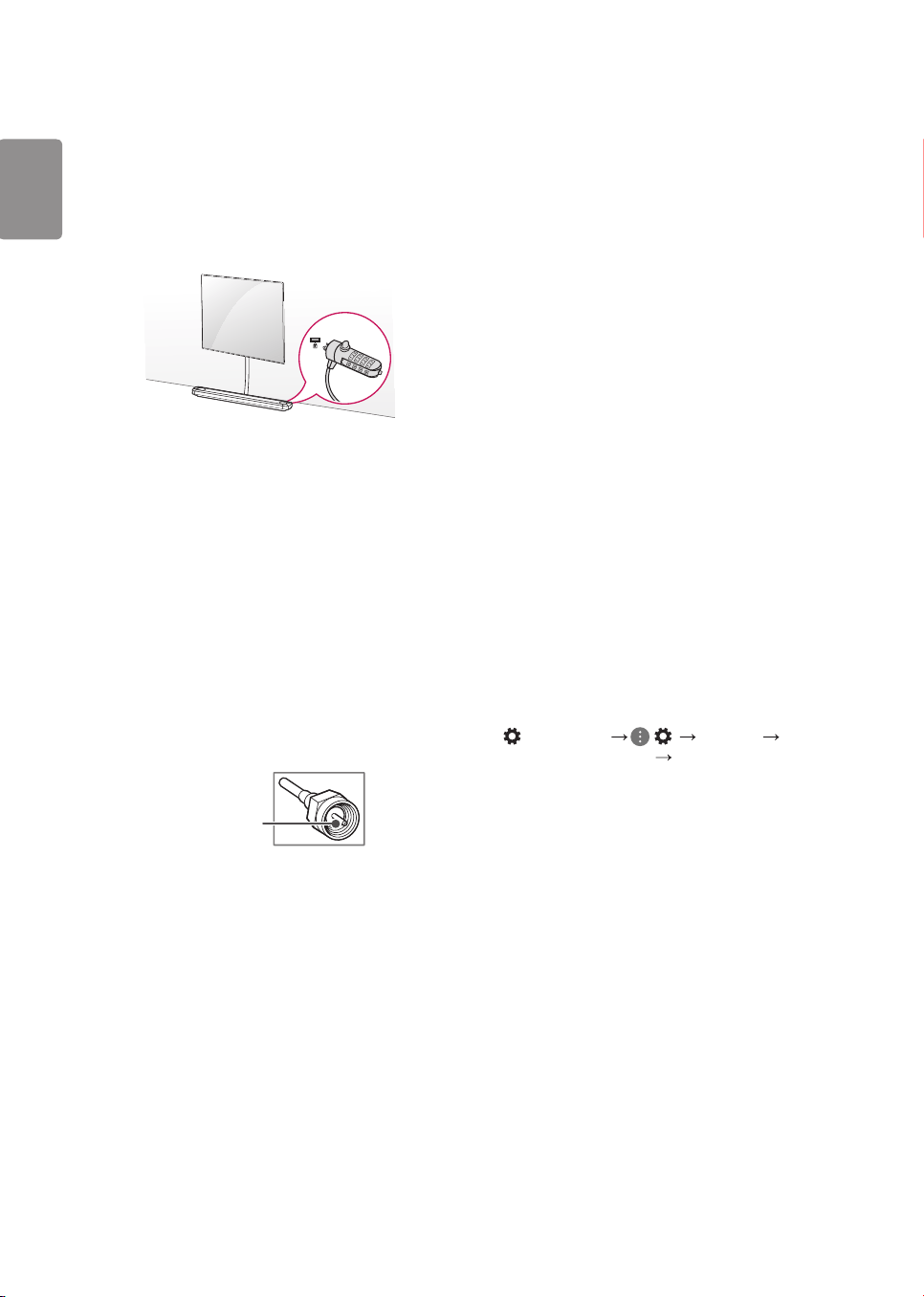

Using the kensington security system
(optional)
The Kensington security system connector is located
at the rear of the Companion Box (AV Box). For more
information of installation and using, refer to the
manual provided with the Kensington security system
or visit http://www.kensington.com.

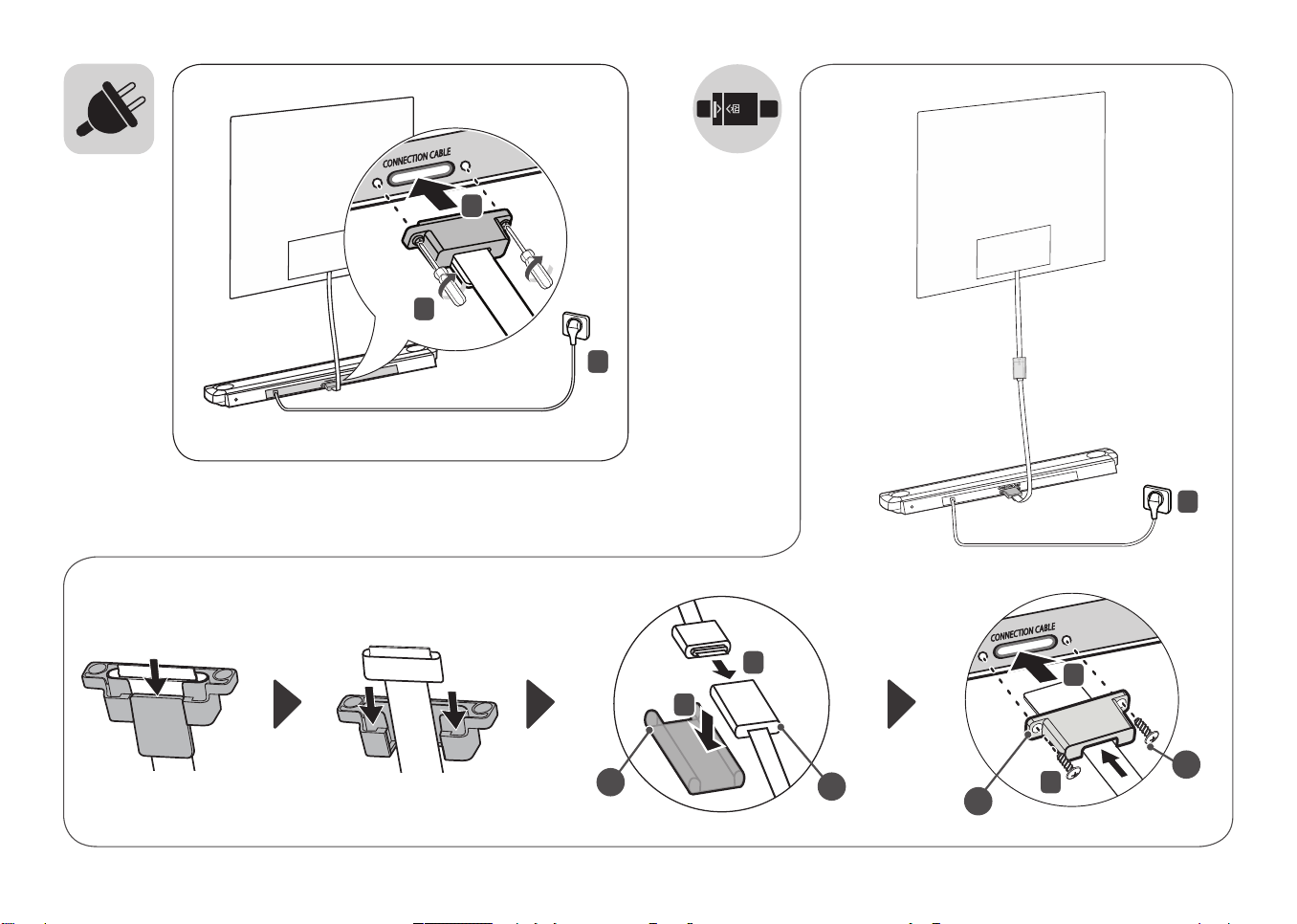

Connections
You can connect various external devices to the TV.
For more information on external device’s connection,
refer to the manual provided with each device.
Antenna/Cable
Connect an antenna, cable, or cable box to watch TV
while referring to the following. The illustrations may
differ from the actual items and an RF cable is optional.
• Make sure not to bend the copper wire of the RF
cable.
Copper wire
• Complete all connections between devices, and
then connect the power cord to the power outlet to
prevent damage to your TV.
• To improve the picture quality in a poor signal area,
purchase a signal amplifier.
• Use a signal splitter to use 2 TVs or more.
• If the antenna is not installed properly, contact your
dealer for assistance.
• This TV cannot receive ULTRA HD (3840 x 2160
pixels) broadcasts directly because the related
standards have not been confirmed.

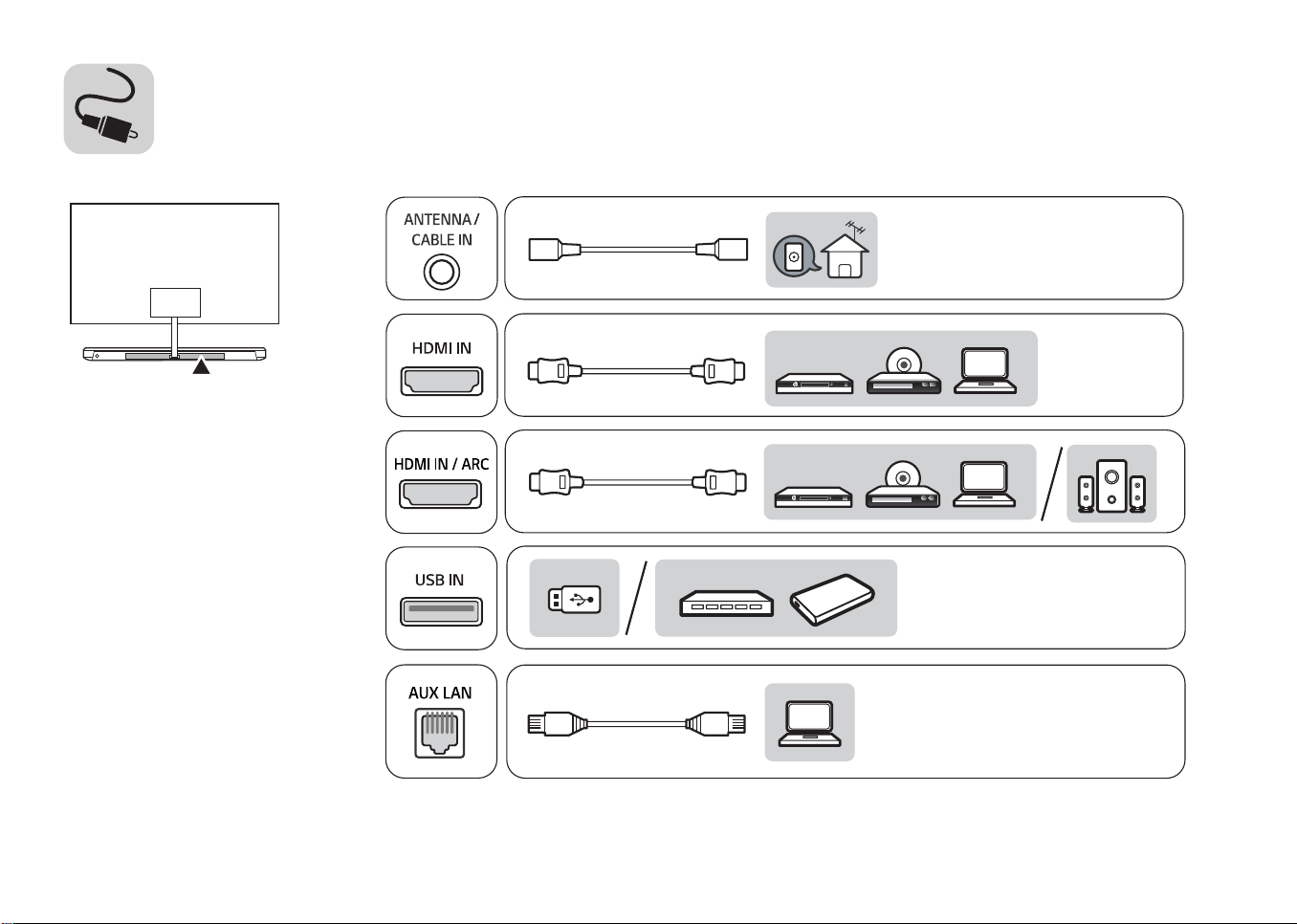

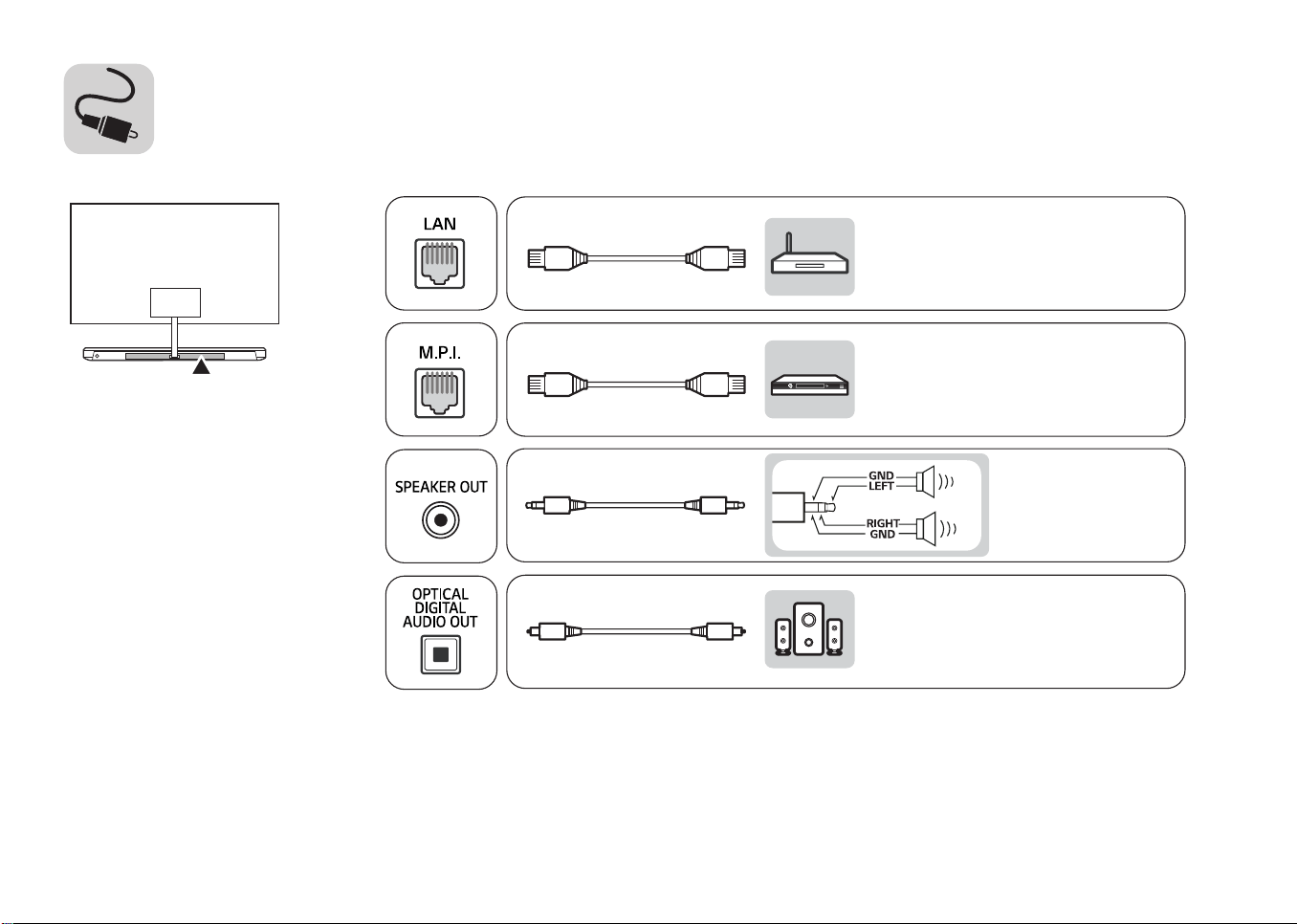

Other connections
Connect your TV to external devices. For the best
picture and audio quality, connect the external device
and the TV with the HDMI cable.
HDMI
• Supported HDMI Audio format :
DTS (44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz)
DTS HD (44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4
kHz, 192 kHz)
True HD (48 kHz)
Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz,
48 kHz)
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
• DTV Audio Supported Codec: MPEG, Dolby Digital
(Only UHD models)
• (Q.Settings) ( ) [Picture]
[Additional Settings] [HDMI ULTRA HD Deep
Color]
- On : Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0)
- Off : Support 4K @ 60 Hz 8 bit (4:2:0)
• If the device connected to Input Port also supports
ULTRA HD Deep Color, your picture may be clearer.
However, if the device doesn’t support it, it may not
work properly. In that case, change the TV’s [HDMI
ULTRA HD Deep Color] setting to off.

ENGLISH
11
USB
• Some USB Hubs may not work. If a USB device
connected through a USB Hub is not detected,
connect it directly to the USB port on the TV.
External Devices
Supported external devices are: Blu-ray player, HD
receivers, DVD players, VCRs, audio systems, USB
storage devices, PC, gaming devices, and other
external devices.
• The external device connections shown may differ
slightly from illustrations in a manual.
• Connect external devices to the TV regardless about
the order of the TV port.
• If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
• Refer to the external equipment’s manual for
operating instructions.
• In PC mode, there may be noise associated with the
resolution, vertical pattern, contrast or brightness.
If noise is present, change the PC output to another
resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the [Picture]
menu until the picture is clear. Depending upon
the graphics card, some resolution settings may
not allow the image to be positioned on the screen
properly.
• When connecting via a wired LAN, it is
recommended to use a CAT 7 cable.
External Speakers
RIGHT
LEFT
GND
GND
• Use only with the 3 pole 3.5 mm stereo jack.
• Do not connect your headphones or earphones to
the port for connecting an external speaker.

ENGLISH
12

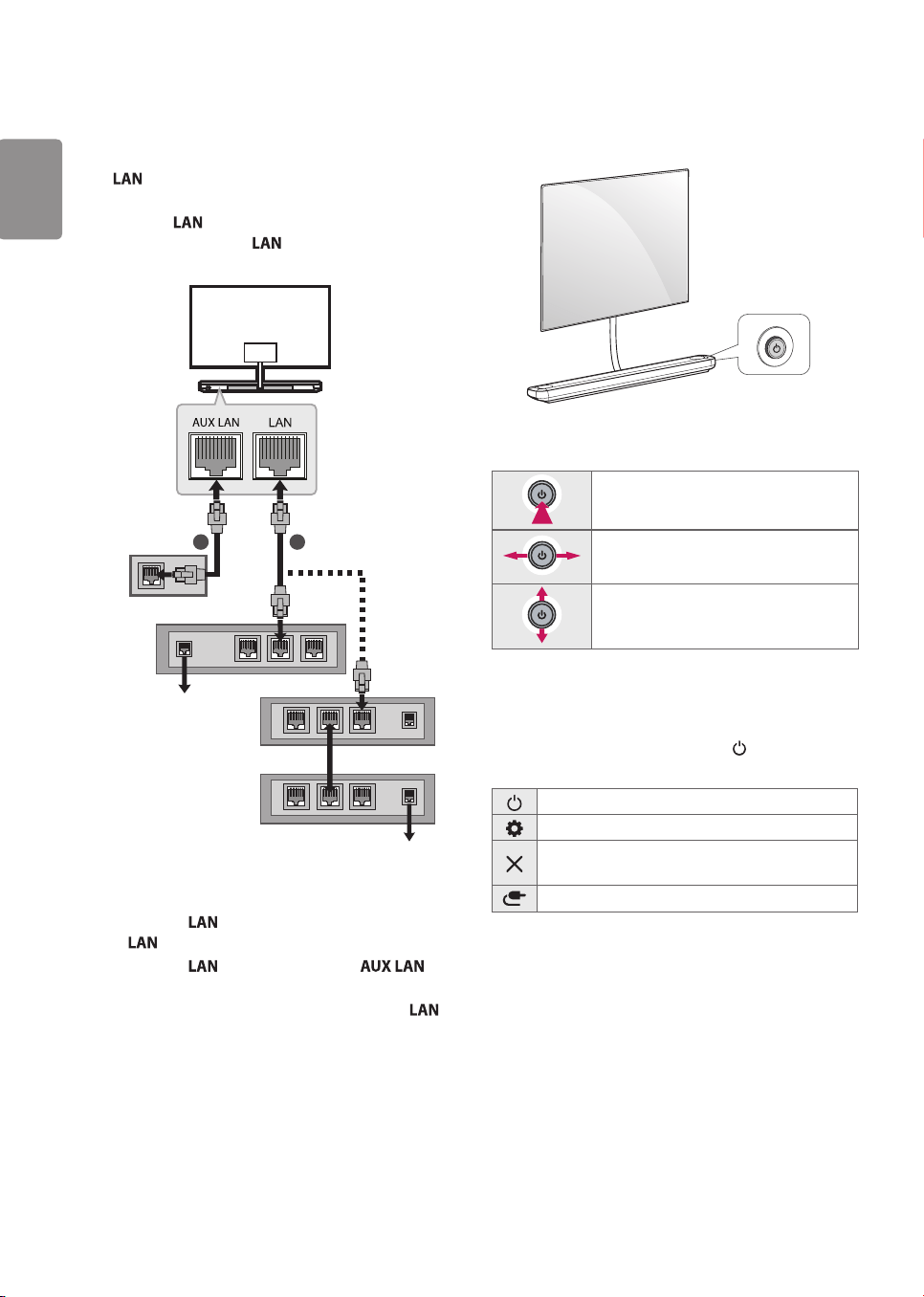

Network setup
Wired network connection
This TV can be connected to a Pro:Centric server via
the port. After making the physical connection,
the TV needs to be set up for network communication.
Connect the port of the Modem or Router from
Pro:Centric server to the port on the TV.
2
1
Broadband Modem
Pro:Centric Server
Broadband Modem
Pro:Centric Server
Router
Broadband Modem
1 Connect the port of the Modem or Router to
the port on the TV.
2 Connect the port of the PC to the
port on the TV.
• Do not connect a modular phone cable to the
port.
• Since there are various connection methods, please
follow the specifications of your telecommunication
carrier or internet service provider.

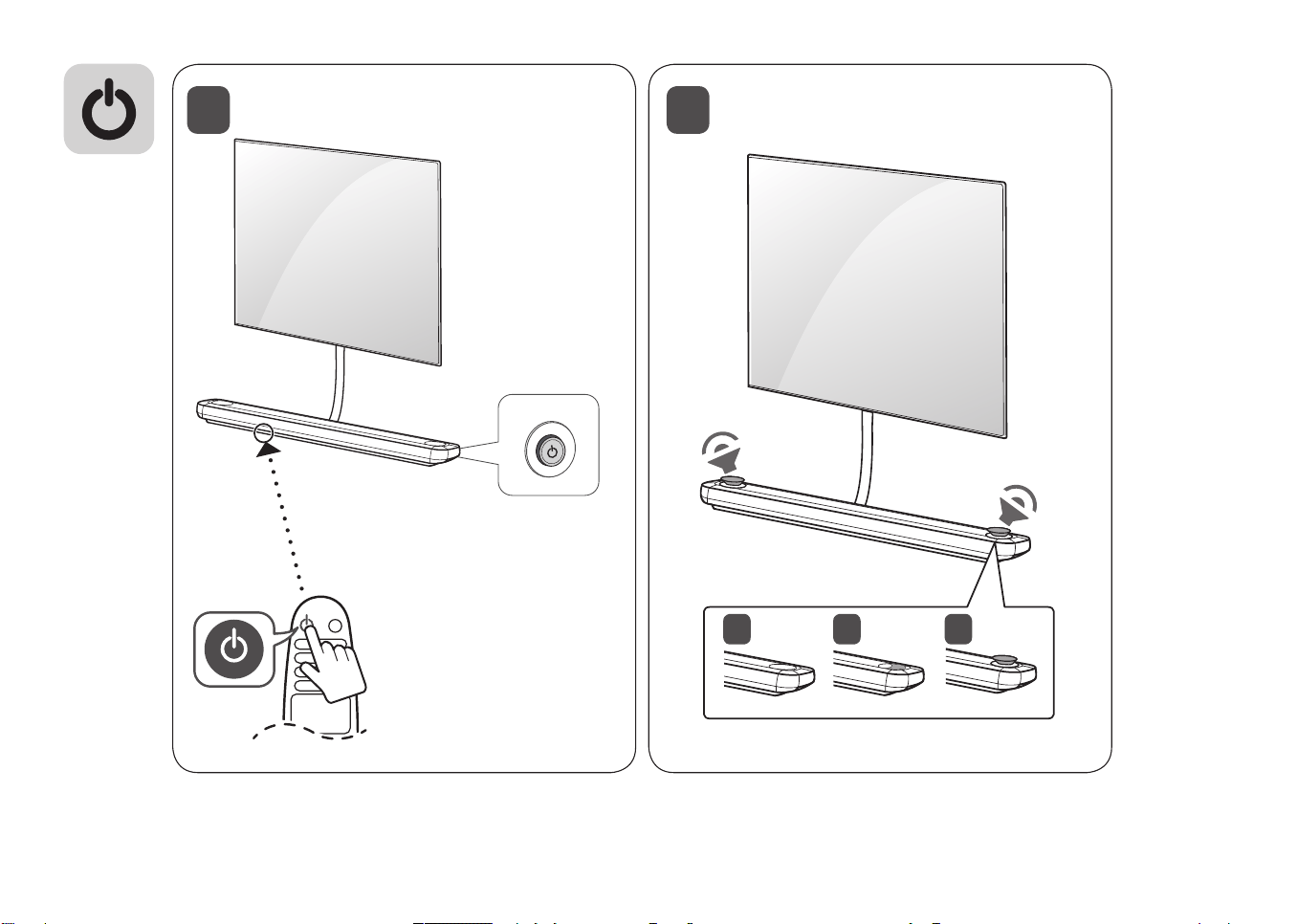

Using the Button
You can simply operate the TV functions, using the
button.
Basic Functions
Power On (Press)
Power Off
1
(Press and Hold)
Volume Control
Channels Control
1 All running apps will close.
Adjusting the Menu
When the TV is turned on, press the button one
time. You can adjust the Menu items using the button.
Turns the power off.
Accesses the setting menu.
Clears on-screen displays and returns to TV
viewing.
Changes the input source.

ENGLISH
13

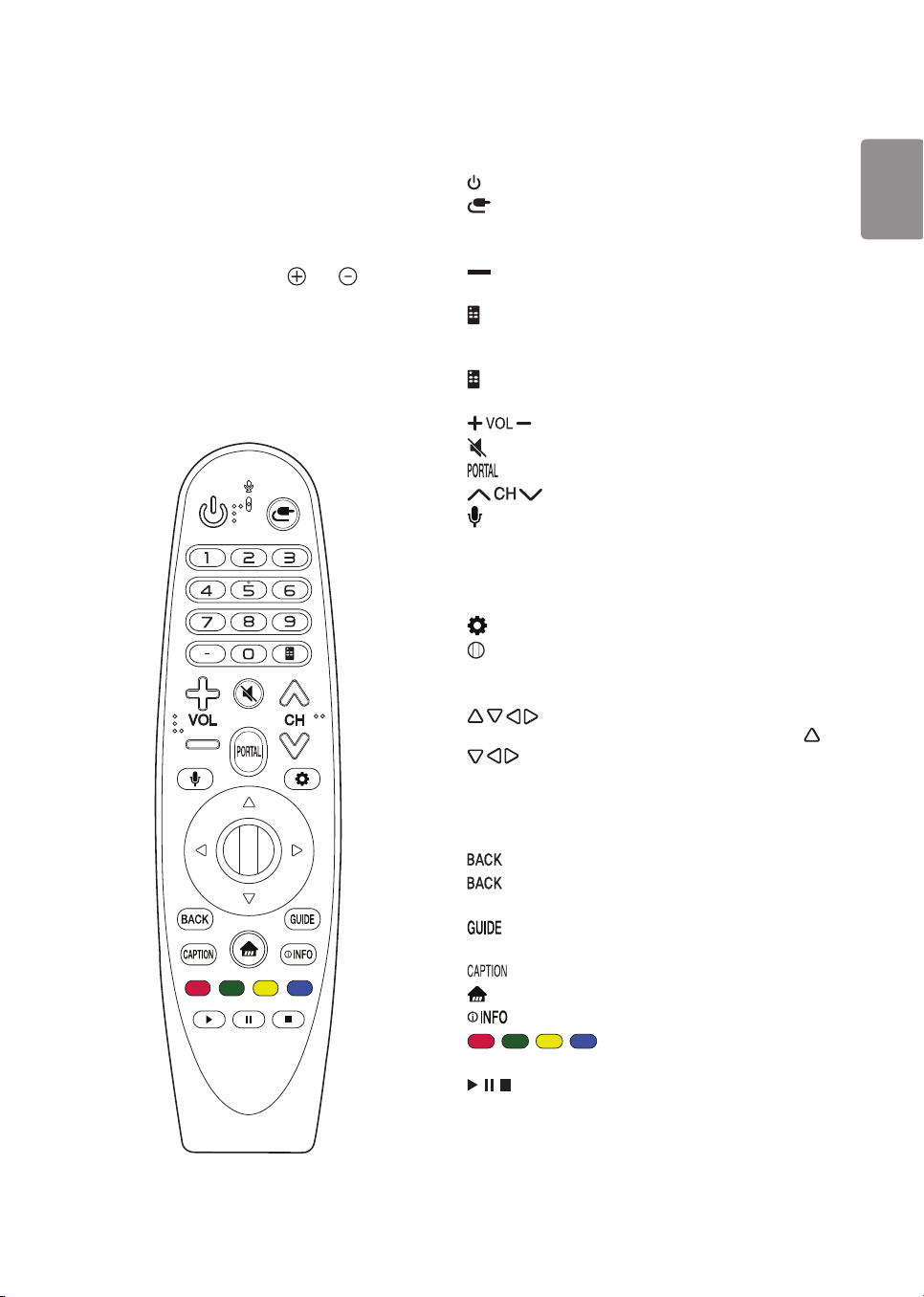

Using Magic Remote Control
The descriptions in this manual are based on the
buttons on the remote control. Please read this
manual carefully and use the TV correctly.
When the message “Magic Remote battery is low.
Please change the battery.” is displayed, replace the
batteries.

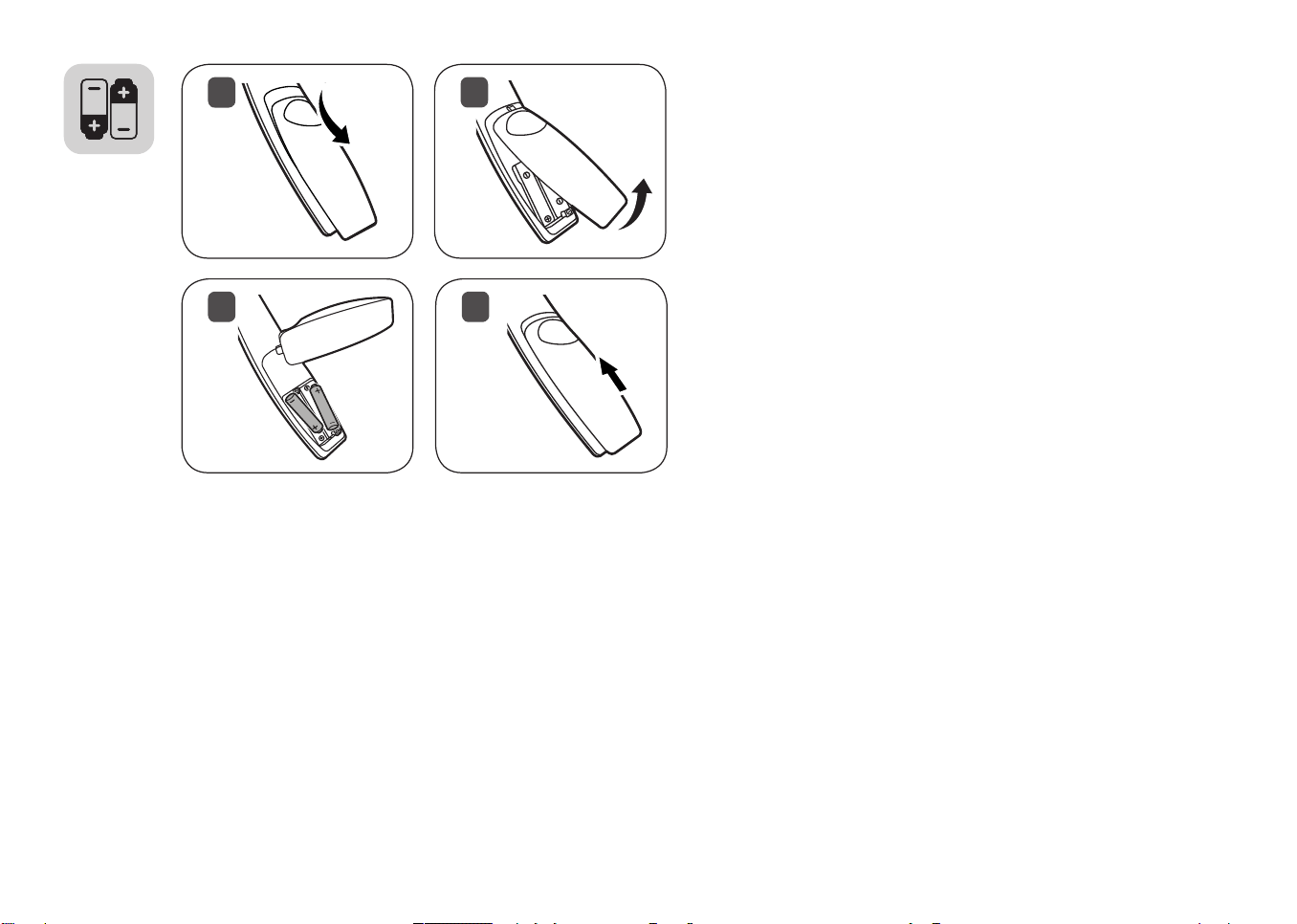

To install batteries, open the battery cover, replace
batteries (1.5 V AA) matching the and ends
to the label inside the compartment, and close the
battery cover. Be sure to point the magic remote
toward the remote control sensor on the TV. To
remove the batteries, perform the installation actions
in reverse. This remote uses infrared light. When in use,
it should be pointed in the direction of the TV’s remote
sensor.
(Some buttons and services may not be provided
depending upon models or regions.)
* To use the button, press and hold for more than 3
seconds.
(Power) Turns the TV on or off.
(Input) Changes the input source.
Number button Enters numbers. Also supports
characters.
(Dash) Inserts a dash between numbers such as
2-1 and 2-2.
(Screen Remote) Displays the Screen Remote.
- Accesses the Universal Control Menu in some
regions.
* (Screen Remote) SAP (Secondary Audio Program)
Feature can be enabled by pressing the key.
Adjusts the volume level.
(Mute) Mutes all sounds.
Displays and removes Pro:Centric Application.
Scrolls through the saved channels.
* (Voice Recognition) Once the voice display bar is
activated on the TV screen, press and hold the button
and speak your command out loud.
- Network connection is required to use the voice
recognition function.
(Q.Settings) Accesses the Quick Settings.
Wheel (OK) Press the center of the Wheel button
to select a menu. You can change channels by using
the wheel button.
(up/down/left/right) Press the up, down,
left or right button to scroll the menu. If you press
buttons while the pointer is in use, the pointer
will disappear from the screen and Magic Remote will
operate like a general remote control. To display the
pointer on the screen again, shake Magic Remote to
the left and right.
Returns to the previous screen.
* Clears on-screen displays and returns to last
input viewing.
Displays the program event according to time
scheduler.
Activates or deactivates the subtitles.
(Home) Accesses the Home menu.
Shows information on the current program.
, , , These access special functions in
some menus.
, , Control buttons for media contents

ENGLISH
14
Registering Magic Remote Control
How to register the Magic Remote Control
To use the Magic Remote, first pair it with your TV.
1 Put batteries into the Magic Remote and turn the
TV on.
2 Point the Magic Remote at your TV and press the
Wheel (OK) on the remote control.
* If the TV fails to register the Magic Remote, try again
after turning the TV off and back on.
How to deregister the Magic Remote Control
Press the and (Home) buttons at the same
time, for five seconds, to unpair the Magic Remote
with your TV.
* Pressing and holding the button will let you
cancel and re-register Magic Remote at the same
time.
• It is recommended that an Access Point (AP)
be located more than 0.2 m (0.65 ft) away
from the TV. If the AP is installed closer than
0.2 m (0.65 ft), the Magic remote control may
not perform as expected due to frequency
interference.
• Do not mix new batteries with old batteries.
This may cause the batteries to overheat
and leak.
• Failure to match the correct polarities of
the battery may cause the battery to burst
or leak, resulting in fire, personal injury, or
ambient pollution.
• This apparatus uses batteries. In your
community there might be regulations
that require you to dispose of these
batteries properly due to environmental
considerations. Please contact your
local authorities for disposal or recycling
information.
• The product's internal and external batteries
should not be exposed to excessive heat
such as direct sunlight, fire, or the like.
Troubleshooting
The software may be updated for improvement in
performance. The customer is responsible to ensure
the compatibility of their equipment with any LG
Electronics software. If needed, please consult with
LG Electronics and update new software versions
according to the guidance provided by LG Electronics.
• Cannot control the TV with the remote control.
- Check if anything such as tape has been placed
over the receiver.
- Check if there is any obstacle between the
product and the remote control.
- Replace the batteries with new fresh ones.
• No image display and no sound is produced.
- Check if the product is turned on.
- Check if the power cord is connected to a wall
outlet.
- Check if there is a problem in the wall outlet by
connecting other products.
• The TV turns off suddenly.
- Check the power control settings. The power
supply may be interrupted.
- Check if the auto-off function is activated on the
settings related time.
- If there is no signal while the TV is on, the TV
will turn off automatically after 15 minutes of
inactivity.
• When connecting to the PC (HDMI), no signal is
detected.
- Turn the TV off/on using the remote control.
- Reconnect the HDMI cable.
- Restart the PC with the TV on.
• Abnormal Display
- If the TV feels cold to the touch, there may be a
small flicker when it is turned on. This is normal;
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing
as tiny red, green, or blue spots. However, they
have no adverse effect on the TV’s performance.
Avoid touching the OLED screen or holding your
finger(s) against it for long periods of time. Doing
so may produce some temporary distortion
effects on the screen.
- This panel is an advanced product that contains
millions of pixels. In a very few cases, you could
see fine dots on the screen while you’re viewing
the TV. Those dots are deactivated pixels and do
not affect the performance and reliability of the
TV.

ENGLISH
15
- Displaying a still image for a prolonged period
of time may cause an image sticking. Avoid
displaying a fixed image on the TV screen for a
extended length of time.
• Generated Sound
- Cracking noise A cracking noise that occurs
when watching or turning off the TV is generated
by plastic thermal contraction due to temperature
and humidity. This noise is common for products
where thermal deformation is required.
- Electrical circuit humming/panel buzzing
A low level noise is generated from a high-
speed switching circuit, which supplies a large
amount of current to operate a product. It varies
depending upon the product. This generated
sound does not affect the performance and
reliability of the product.
• Make sure to wring any excess water or
cleaner from the cloth.
• Do not spray water or cleaner directly onto
the TV screen.
• Make sure to spray just enough of water or
cleaner onto a dry cloth to wipe the screen.
• To clean the top of the Companion Box (AV
Box), spray a soft cloth with water. Then,
wipe the surface so that the product does
not come in direct contact with water. Next,
wipe it again so that no moisture remains.
Settings
To select Picture Mode
(Q.Settings) ( ) [Picture] [Picture Mode
Settings] [Picture Mode]
Select the picture mode optimized for the viewing
environment or the program.
• [Vivid] Heightens contrast, brightness and sharpness
to display vivid images.
• [Standard] Displays images in standard levels of
contrast, brightness and sharpness.
• [APS] APS (Auto power saving) mode reduces power
consumption by dimming control.
• [Cinema] / [Game] Displays the optimum picture for
a movie or a game.
• [Sports] Optimized picture mode for sports matches.
The pitch and kits are presented in vibrant colors,
with crystal-clear images even for fast movements.
• [HDR Effect] This feature lets you enjoy a more
dynamic, clearer image by correcting the light
and dark areas of the display. This feature provides
a realistic image, even when the source image’s
gradation level is high. If you set [Picture Mode] to
[HDR Effect], you will not be able to use some of
[Picture Mode Settings].
• [Expert] Menu for adjusting picture quality that
allows experts and amateurs to enjoy the best TV
viewing. This menu for adjustment is provided
for ISF-certified picture tuning professionals. (ISF
logo can be used only on ISF-certified TVs.) ISFccc:
Imaging Science Foundation Certified Calibration
Control
• Depending upon input signal, the available range of
picture modes may differ.
• [Expert] mode is for picture tuning professionals
to control and fine-tune using a specific image. For
normal images, the effects may not be drastic.
• [Picture Mode] change may modify [Motion Eye
Care] settings and it can affect energy consumption.
To set additional picture options
(Q.Settings) ( ) [Picture] [Picture Mode
Settings] [Picture Options]
Adjusts detailed setting for images.
• [Noise Reduction] Eliminates noise in the picture.
• [MPEG Noise Reduction] Eliminates noise generated
while creating digital picture signals.
• [Black Level] Adjusts the brightness and contrast of
the screen to suit the black level of the input picture
by using the blackness (black level) of the screen.
• [Real Cinema] Optimizes the screen for movie
viewing.
• [Motion Eye Care] Saves power consumption by
adjusting the brightness corresponding to the
movement of the image on the screen.
• [TruMotion] Optimizes the image quality of fast-
moving pictures.
• Depending upon input signal or other picture
settings, the range of detailed items for adjustment
may differ.

ENGLISH
16

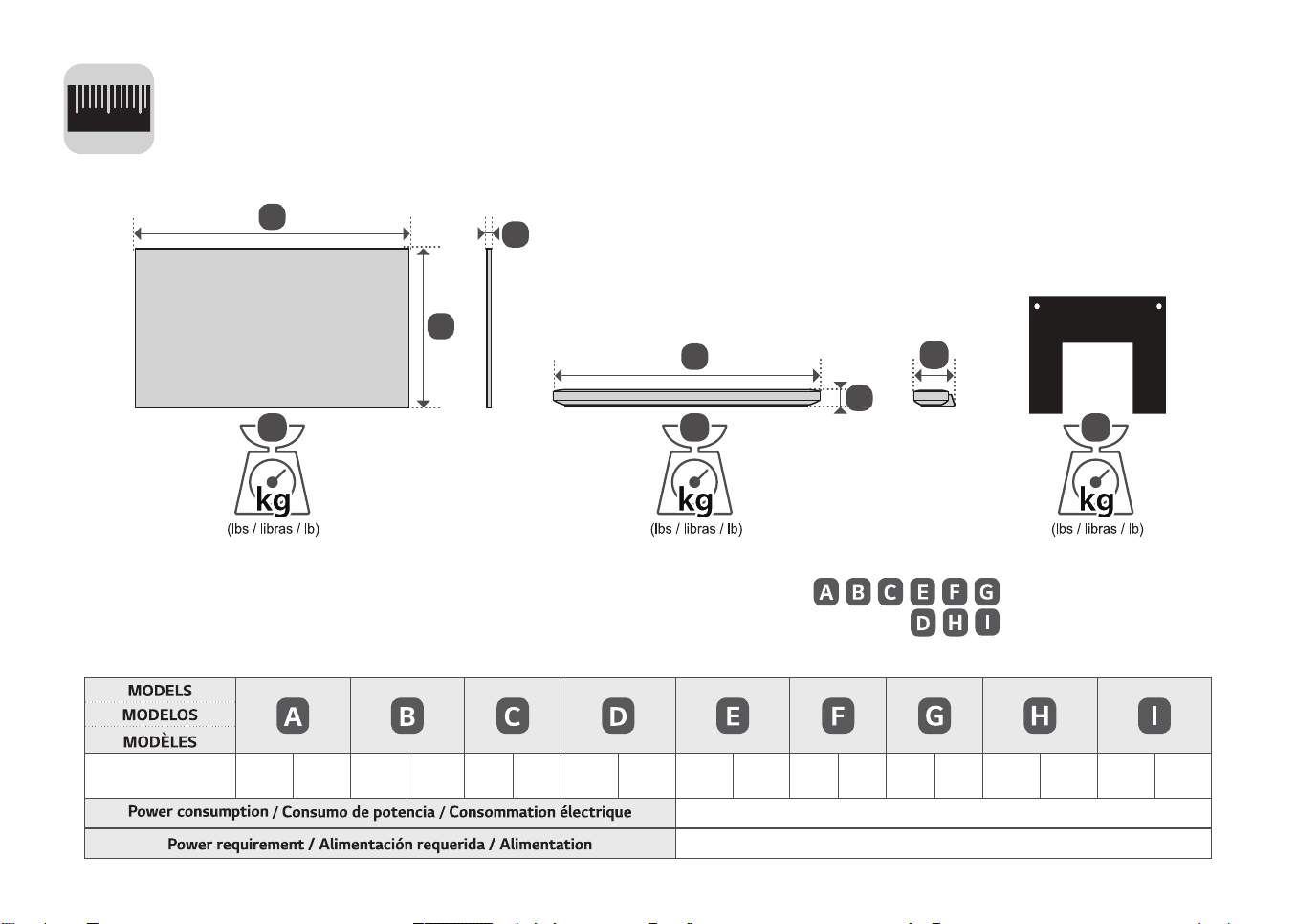

Specifications
Product specifications may be changed without prior notice due to upgrade of product functions.
Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test
Procedures for Television Sets (USA only).
The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).
Broadcasting Specifications
Television system ATSC, NTSC-M, 64 & 256 QAM
Program coverage (Band) VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135
External antenna impedance 75 Ω
Wireless Module (LGSBWAC72) Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz
5150 to 5725 MHz
5725 to 5850 MHz
15 dBm
14.5 dBm
14.5 dBm
Bluetooth
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz 8.5 dBm
• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product
is configured for the regional frequency table.
• For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm
(7.8 inches) between the device and the body.
• FCC ID: BEJLGSBWAC72 / IC: 2703H-LGSBWAC72
Environment condition
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity Less than 85 %

ENGLISH
17
HDMI (PC) supported mode
(Use HDMI IN 1 for PC mode)
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 350 31.46 70.09
720 x 400 31.46 70.08
640 x 480 31.46 59.94
800 x 600 37.87 60.31
1024 x 768 48.36 60.00
1152 x 864 54.34 60.05
1360 x 768 47.71 60.01
1280 x 1024 63.98 60.02
1920 x 1080
67.50 60.00
135.00 120.00
3840 x 2160
54.00 24.00
56.25 25.00
67.50 30.00
4096 x 2160
53.95 23.97
54.00 24.00
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 480p
31.46 59.94
31.50 60.00
720 x 480p
31.47 59.94
31.50 60.00
720 x 576p 31.25 50.00
1280 x 720p
37.50 50.00
44.96 59.94
45.00 60.00
1920 x 1080i
28.12 50.00
33.72 59.94
33.75 60.00
1920 x 1080p
26.97 23.97
27.00 24.00
33.71 29.97
33.75 30.00
56.25 50.00
67.43 59.94
67.50 60.00
112.50 100.00
134.86 119.88
135.00 120.00
3840 x 2160p
53.95 23.98
54.00 24.00
56.25 25.00
61.43 29.97
67.50 30.00
112.50 50.00
134.86 59.94
135.00 60.00
4096 x 2160p
53.95 23.98
54.00 24.00
56.25 25.00
61.43 29.97
67.50 30.00
112.50 50.00
134.86 59.94
135.00 60.00

ENGLISH
18
My Media Supported Files
• External supported subtitle formats: *.smi, *.srt,
*.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt
(TMPlayer), *.psb (PowerDivX), *.dcs (DLP Cinema)
• Internal supported subtitle formats:
Matroska (mkv): Sub Station Alpha (SSA), Advanced
Sub Station Alpha(ASS), SRT, MP4: Timed Text
Supported Photo Formats
File
Format
Format Resolution
.jpeg
.jpg
.jpe
JPEG
Minimum: 64 (W) x 64 (H)
Maximum (Normal Type):
15360 (W) x 8640 (H)
Maximum (Progressive Type):
1920 (W) x 1440 (H)
.png PNG
Minimum: 64 (W) x 64 (H)
Maximum: 5760 (W) x 5760 (H)
.bmp BMP
Minimum: 64 (W) x 64 (H)
Maximum: 1920 (W) x 1080 (H)
Supported Audio Formats
File Format Info
.mp3
(Bit rate) 32 Kbps ~ 320 Kbps
(Sample freq.) 16 kHz ~ 48 kHz
(Support) MPEG-1, MPEG-2
(Channel) Mono, Stereo
.wav
(Bit rate) -
(Sample freq.) 8 kHz ~ 96 kHz
(Support) PCM
(Channel) Mono, Stereo
.ogg
(Bit rate) 64 Kbps ~ 320 Kbps
(Sample freq.) 8 kHz ~ 48 kHz
(Support) Vorbis
(Channel) Mono, Stereo
.wma
(Bit rate) 128 Kbps ~ 320 Kbps
(Sample freq.) 8 kHz ~ 48 kHz
(Support) WMA
(Channel) Up to 6 Channel
.flac
(Bit rate) -
(Sample freq.) 8 kHz ~ 96 kHz
(Support) FLAC
(Channel) Mono, Stereo
Supported Video Formats
Extension Codec
.asf
.wmv
Video
VC-1 Advanced Profile (Except
for WMVA), VC-1 Simple and
Main Profiles
Audio
WMA Standard (Except for WMA
v1/ WMA Speech)
.avi
Video
Xvid (Except for 3 warp-point
GMC), H.264/AVC, Motion Jpeg,
MPEG-4
Audio
MPEG-1 Layer I, MPEG-1 Layer
II, MPEG-1 Layer III (MP3), Dolby
Digital, LPCM, ADPCM, DTS
.mp4
.m4v
.mov
Video H.264/AVC, MPEG-4, HEVC
Audio
Dolby Digital, Dolby Digital Plus,
AAC, MPEG-1 Layer III (MP3),
Dolby AC-4
.3gp
.3g2
Video H.264/AVC, MPEG-4
Audio AAC, AMR-NB, AMR-WB
.mkv
Video
MPEG-2, MPEG-4, H.264/AVC,
VP8, VP9, HEVC
Audio
Dolby Digital, Dolby Digital Plus,
AAC, PCM, DTS, MPEG-1 Layer I,
MPEG-1 Layer II, MPEG-1 Layer
III (MP3)
.ts
.trp
.tp
.mts
Video H.264/AVC, MPEG-2, HEVC
Audio
MPEG-1 Layer I, MPEG-1 Layer
II, MPEG-1 Layer III (MP3), Dolby
Digital, Dolby Digital Plus, AAC,
PCM, Dolby AC-4
.mpg
.mpeg
.dat
Video MPEG-1, MPEG-2
Audio
MPEG-1 Layer I, MPEG-1 Layer II,
MPEG-1 Layer III (MP3)
.vob
Video MPEG-1, MPEG-2
Audio
Dolby Digital, MPEG-1 Layer I,
MPEG-1 Layer II, DVD-LPCM
.mkv
.mp4
.ts
Video H.264/AVC, HEVC
Audio
Dolby Digital, Dolby Digital Plus,
AAC
* The optimal display resolution:
3840 x 2160, 4096 x 2160

ENGLISH
19
Important Information for
Preventing Image Retention
OLED is a self-emissive technology, which brings many
significant benefits to image quality and performance.
As with any self-emitting display, it is possible for users
of OLED TVs to experience temporary image retention
under certain conditions, such as when displaying
a static image on the screen for a long time. Even
so, this phenomenon is rare under ordinary viewing
conditions and is not a malfunction. Below sets forth
helpful information you may refer to for using your
OLED TV.
Examples of Images that may Cause
Image Retention
• Still images or fixed images containing certain
information that are displayed uninterrupted
on the screen, such as channel numbers, station
logos, program titles, news or movie subtitles, and
headlines.
• Fixed menu or icons for video game consoles or
broadcasting set-top boxes.
• Black bars shown on the left, right, top, or bottom of
the screen, such as in images with a 4:3 or 21:9 ratio.
Recommended Measures for
Preventing Image Retention
• Avoid watching a video displaying an image as listed
above for extended periods of time.
• Adjust your TV settings as below when turning
on a video exhibiting an image as listed above for
extended periods of time.
- [Picture] [Picture Mode Settings] [Picture
Mode] [APS]
- [Picture] [Picture Mode Settings] [OLED LIGHT]
Adjust to lower value
- [Picture] [OLED Panel Settings] [Logo
Luminance Adjustment] [High]
• Turn off the menu bar of an external device, such as
a set-top box, to prevent long-term display of the
menu bar of such device. (Please refer to the manual
of the applicable external device for instructions.)
• Adjust the settings as below when watching a video
constantly showing black bars on the left, right, top
or bottom, in order to remove the black bars.
- [Picture] [Aspect Ratio Settings] [Aspect Ratio]
[Vertical Zoom] or [All-Direction Zoom]
Information on Functions
Supporting Image Quality in Relation
to Temporary Image Retention
• OLED TV offers a function called Pixel Refresher,
which helps to prevent temporary image retention.
This function can be operated automatically or
manually.
• The auto feature will activate when the TV power
is turned off, but only after the TV has been turned
on for a cumulated total of four (4) hours or more,
which need not be consecutive. Pixel Refresher
will automatically run for several minutes after the
screen is turned off. (Please note that failure to
supply the AC power or disconnecting the power
cord from the outlet will disable the auto feature.)
• To manually activate Pixel Refresher, you will have
to select [Picture] [OLED Panel Settings] [Pixel
Refresher] in the settings. Once manually activated,
the function will run for approximately one (1) hour.
During this time, a horizontal line may appear on the
screen; however, this is not a malfunction.
• If Pixel Refresher has not been manually activated for
a certain period of time, a pop-up window advising
to activate this function will appear on the screen.
Please follow the instructions set forth in the pop-up
window.
• In addition to Pixel Refresher, there are other
functions available for protecting the screen from
image retention. For example, a function that
automatically reduces the screen brightness level,
in part or in whole, will be activated when a static
image is displayed uninterrupted on the screen.
Once the static image disappears, the brightness
level will automatically return to the previous level.
This function is an intended function, and not a
malfunction.

ENGLISH
20
KEY CODES
* This feature is not available for all models.
Code
(Hexa)
Function
Note
Code
(Hexa)
Function
Note
00
/ Wheel (Up)
R/C Button
43
(Q.Settings)
R/C Button
01
/ Wheel (Down)
R/C Button 45
(Screen Remote)
R/C Button
02
R/C Button 4C (Dash) R/C Button
03 R/C Button 7C
(Home)
R/C Button
06
(Right)
R/C Button 83
Wheel (OK)
R/C Button
07
(Left)
R/C Button
8B
(Voice Recognition)
R/C Button
08 (Power)
R/C Button
AA
R/C Button
09
(Mute)
R/C Button AB R/C Button
0B (Input) R/C Button B0 R/C Button
0C R/C Button B1 R/C Button
10 - 19 Number Key 0 - 9 R/C Button BA R/C Button
28 R/C Button C0
(Green)
R/C Button
39 R/C Button C1
(Red)
R/C Button
40
(Up)
R/C Button C2
(Yellow)
R/C Button
41
(Down)
R/C Button
C3
(Blue)
R/C Button
• Key code 4C (0 x 4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan,
North America, Latin America except Colombia models)

ENGLISH
21
EXTERNAL CONTROL DEVICE SETUP
* Image shown may differ from your TV.
* Cable is not provided.
* The connection interface may differ from your TV.
RS-232C Setup
• Connect the USB to Serial converter/RS-232C input
jack to an external control device (such as a computer
or an A/V control system) to control the product’s
functions externally.
• Connect the serial port of the control device to the
RS-232C jack on the product.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LG TV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which is
not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C with RS-232C Cable
DE9 (D-Sub 9pin) Type
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• You need to purchase the RS-232C (DE9, D-Sub 9 pin female-to-female type) to RS-232C cable required for the
connection between the PC and the TV, which is specified in the manual.
• The connection interface may differ from your TV.

ENGLISH
22

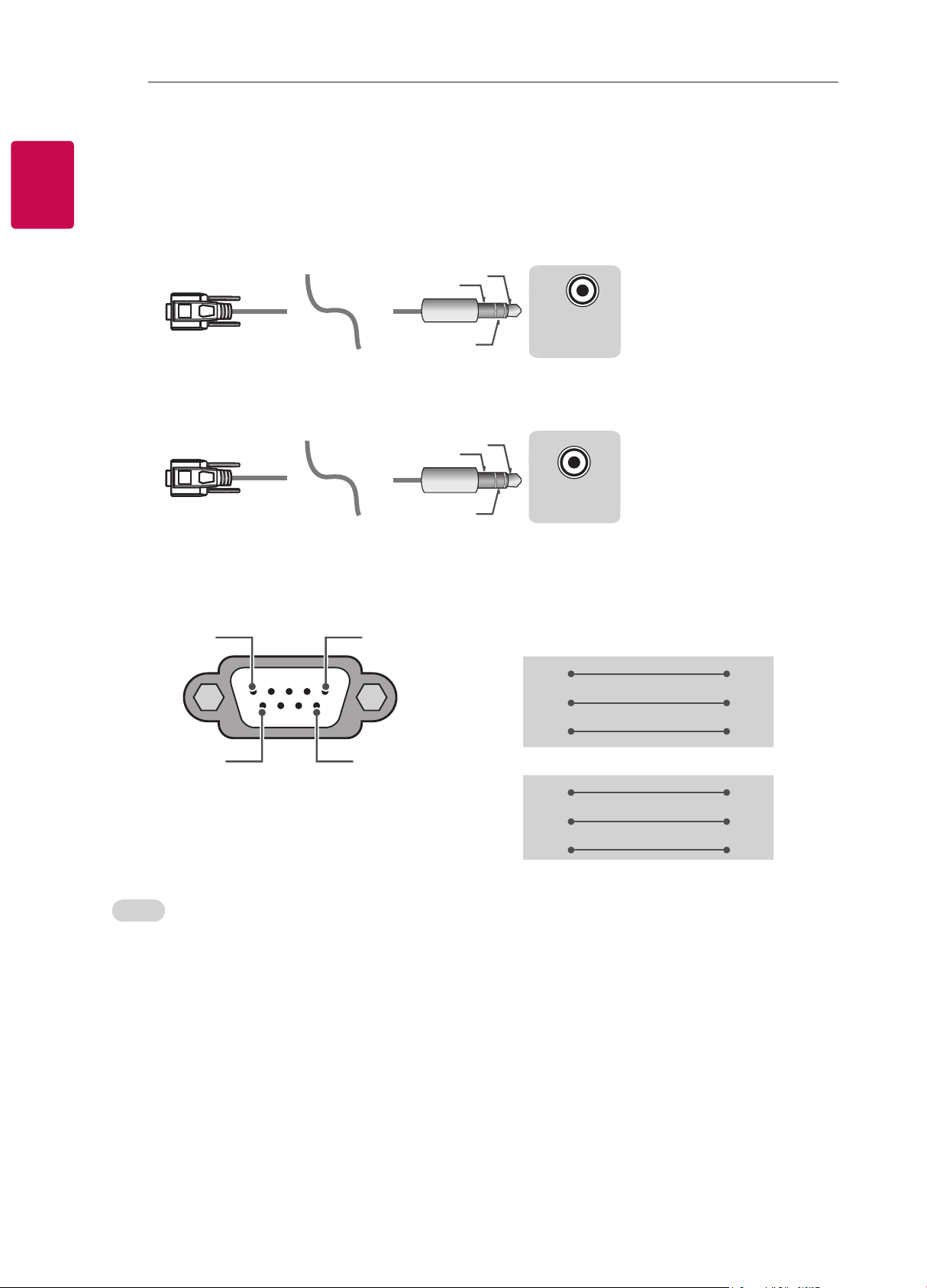

Connector type : D-Sub 9-pin male
1
6
5
9
RS-232C
(Serial port)
RS-232C configurations
7-Wire Configurations
(Standard RS-232C cable)
3-Wire Configurations
(Not standard)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
Set ID
For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”.
1 Press (Q.Settings) ( ) to access the main menus.
2 Press the Navigation buttons to scroll to (* [General] [Set ID]) and press Wheel (OK) button.
3 Scroll left or right to select a set ID number and select . The adjustment range is 1-99.
4 When you are finished, press and hold .

ENGLISH
23
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
COMMAND1 COMMAND2 DATA (Hexadecimal)
1 Power k a 00 to 01
2 [Aspect Ratio] k c (page 25)
3 Screen Mute k d (page 25)
4 Volume Mute k e 00 to 01
5 Volume Control k f 00 to 64
6 [Contrast] k g 00 to 64
7 [Brightness] k h 00 to 64
8 [Color] k i 00 to 64
9 [Tint] k j 00 to 64
10 [Sharpness] k k 00 to 32
11 [OSD] Select k l 00 to 01
12 Remote Control Lock Mode k m 00 to 01
13 Treble k r 00 to 64
14 Bass k s 00 to 64
15 [Balance] k t 00 to 64
16 [Color Temperature] x u 00 to 64
17 [Equalizer] j v (page 27)
18 Key m c Key Codes
19 Input select x b (page 27)
• During playing media, all commands except Power (ka) and Key (mc) are not executed and treated as NG. With
RS-232C cable, TV can communicate “ka command” in power-on or power-off status. But with USB-to-Serial
converter cable, the command works only if TV is on.

ENGLISH
24
TRANSMISSION / RECEIVING PROTOCOL
* (Depending upon model)
Transmission
(Command1)(Command2)( )([Set ID])( )(Data)(Cr)
(Command 1) : First command to control the TV. (j, k, m or x)
(Command 2) : Second command to control the TV.
([Set ID]) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to
99. When selecting Set ID ‘0’, every connected set is controlled. Set ID is indicated as decimal (1 to 99) on menu and
as Hexa decimal (0 x 0 to 0 x 63) on transmission/receiving protocol.
(Data) : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
(Cr) : Carriage Return - ASCII code ‘0 x 0D’
( ) : Space – ASCII code ‘0 x 20’
OK Acknowledgement
(Command2)( )([Set ID])( )(OK)(Data)(x)
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC
computer.
Error Acknowledgement
(Command2)( )([Set ID])( )(NG)(Data)(x)
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable
functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal : Decimal)
* When you enter the (Data) in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value (Data) to select channel number.
00 : Step 0 32 : Step 50 ([Set ID] 50) FE : Step 254
01 : Step 1 ([Set ID] 1) 33 : Step 51 ([Set ID] 51) FF : Step 255
... ... ...
0A : Step 10 ([Set ID] 10) 63 : Step 99 ([Set ID] 99) 01 00 : Step 256
... ... ...
0F : Step 15 ([Set ID] 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 ([Set ID] 16) C8 : Step 200 27 0F : Step 9999
... ... ...

ENGLISH
25
1 Power (Command: k a)
► To control power on or off of the set.
Transmission
(k)(a)( )([Set ID])( )(Data)(Cr)
Data 00 : [Off]
Data 01 : [On]
Ack
(a)( )([Set ID])( )(OK/NG)(Data)(x)
► To show TV is power on or *off
Transmission
(k)(a)( )([Set ID])( )(FF)(Cr)
Ack
(a)( )([Set ID])( )(OK/NG)(Data)(x)
* Similarly, if other functions transmit ‘FF’ data based
on this format, Acknowledgement feedback presents
status about each function.
* OK Ack., Error Ack. and other message may display
on the screen when TV is power on.
2 [Aspect Ratio] (Command: k c) (Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
picture settings.
Transmission
(k)(c)( )([Set ID])( )(Data)(Cr)
Data 01 : [4:3] (Normal screen - Just Scan Off)
Data 02 : [16:9] (Wide screen - Just Scan Off)
Data 06 : [Original] (Just Scan Off )
Data 09 : [Just Scan]
Ack
(c)( )([Set ID])( )(OK/NG)(Data)(x)
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV, AV
partially.
3 Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission
(k)(d)( )([Set ID])( )(Data)(Cr)
Data 00 : Screen mute off (Picture on) / Video mute off
Data 01 : Screen mute on (Picture off)
Data 10 : Video mute on
Ack
(d)( )([Set ID])( )(OK/NG)(Data)(x)
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute on,
TV will not display OSD.
4 Volume Mute (Command: k e)
► To control volume mute on/off. You can also adjust
mute using the mute button on remote control.
Transmission
(k)(e)( )([Set ID])( )(Data)(Cr)
Data 00 : Volume mute on (Volume off)
Data 01 : Volume mute off (Volume on)
Ack
(e)( )([Set ID])( )(OK/NG)(Data)(x)
5 Volume Control (Command: k f)
► To adjust volume. You can also adjust volume with
the volume buttons on remote control.
Transmission
(k)(f)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(f)( )([Set ID])( )(OK/NG)(Data)(x)
6 [Contrast] (Command: k g)
► To adjust screen contrast. You can also adjust
contrast in the picture settings.
Transmission
(k)(g)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(g)( )([Set ID])( )(OK/NG)(Data)(x)

ENGLISH
26
7 [Brightness] (Command: k h)
► To adjust screen brightness. You can also adjust
brightness in the picture settings.
Transmission
(k)(h)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(h)( )([Set ID])( )(OK/NG)(Data)(x)
8 [Color] (Command: k i)
► To adjust the screen color. You can also adjust color
in the picture settings.
Transmission
(k)(i)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(i)( )([Set ID])( )(OK/NG)(Data)(x)
9 [Tint] (Command: k j)
► To adjust the screen tint. You can also adjust color in
the picture settings.
Transmission
(k)(j)( )([Set ID])( )(Data)(Cr)
Data Red : 00 to Green : 64
Ack
(j)( )([Set ID])( )(OK/NG)(Data)(x)
10 [Sharpness] (Command: k k)
► To adjust the screen sharpness. You can also adjust
sharpness in the picture settings.
Transmission
(k)(k)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 32
Ack
(k)( )([Set ID])( )(OK/NG)(Data)(x)
11 [OSD] Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission
(k)(l)( )([Set ID])( )(Data)(Cr)
Data 00 : [Off]
Data 01 : [On]
Ack
(l)( )([Set ID])( )(OK/NG)(Data)(x)
12 Remote Control Lock Mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission
(k)(m)( )([Set ID])( )(Data)(Cr)
Data 00 : [Off]
Data 01 : [On]
Ack
(m)( )([Set ID])( )(OK/NG)(Data)(x)
* If you are not using the remote control, use this
mode. When main power is off & on (plug-off and
plug-in, after 20 - 30 seconds), external control lock
is released.
* In the standby mode (DC off by off timer or ‘ka’, ‘mc’
command), and if key operation is on, TV will not
turn on by power on key of IR & Local Key.
13 Treble (Command: k r)
(Depending upon model)
► To adjust treble. You can also adjust Treble in the
audio settings.
Transmission
(k)(r)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(r)( )([Set ID])( )(OK/NG)(Data)(x)

ENGLISH
27
14 Bass (Command: k s)
(Depending upon model)
► To adjust bass. You can also adjust Bass in the audio
settings.
Transmission
(k)(s)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(s)( )([Set ID])( )(OK/NG)(Data)(x)
15 [Balance] (Command: k t)
► To adjust balance. You can also adjust balance in the
audio settings.
Transmission
(k)(t)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(t)( )([Set ID])( )(OK/NG)(Data)(x)
16 [Color Temperature] (Command: x u)
► To adjust color temperature. You can also adjust
color temperature in the picture settings.
Transmission
(x)(u)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(u)( )([Set ID])( )(OK/NG)(Data)(x)
17 [Equalizer] (Command : j v)
► Adjust EQ of the set.
Transmission
(j)(v)( )([Set ID])( )(Data)(Cr)
0 0 0 0 0 0 0 0
MSB
Frequency Data
LSB
7 6 5 Frequency 4 3 2 1 0 Step
0 0 0 1st Band 0 0 0 0 0 0(decimal)
0 0 1 2nd Band 0 0 0 0 1 1(decimal)
0 1 0 3rd Band ... ... ... ... ... ...
0 1 1 4th Band 1 0 0 1 1 19(decimal)
1 0 0 5th Band 1 0 1 0 0 20(decimal)
Ack
(v)( )([Set ID])( )(OK/NG)(Data)(x)
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
18 Key (Command: m c)
► To send IR remote key code.
Transmission
(m)(c)( )([Set ID])( )(Data)(Cr)
Data : Key code - page 20
Ack
(c)( )([Set ID])( )(OK/NG)(Data)(x)
19 Input select (Command: x b) (Main Picture
Input)
► To select input source for main picture.
Transmission
(x)(b)( )([Set ID])( )(Data)(Cr)
Data 00 : DTV
Data 01 : CADTV
Data 02 : Satellite DTV ISDB-BS (Japan)
Data 03 : ISDB-CS1 (Japan)
Data 04 : ISDB-CS2 (Japan)
Data 10 : ATV
Data 11 : CATV
Data 20 : AV or AV1
Data 21 : AV2
Data 40 : Component1
Data 41 : Component2
Data 60 : RGB
Data 90 : HDMI1
Data 91 : HDMI2
Data 92 : HDMI3
Data 93 : HDMI4
Ack
(b)( )([Set ID])( )(OK/NG)(Data)(x)
* This function depends on model and signal.

ENGLISH
28
IR OUT Using Guide
Suitable / Not Recommend remote-controller data format
Item Data format code
Suitable Data Format NEC, RC5, Toshiba
Not Recommend Data Format Continuous data format (short burst/ gap signal)
IR Receiver specifications
Carrier frequency 37.9 KHz
Peak Wavelength 940 nm
Minimum burst length Min. 420 us
Minimum gap time is required of Min. 550 us
Data word length Max. 100 ms
Minimum gap time in the data stream is needed of Min. 30 ms
Parameter Symbol Conditions Min Typ Max Unit
High Level Out Pulse Width Twh
Burst Wave = 600
Period = 1.2
400 - 800
Low Level Out Pulse Width Twl 400 - 800
If not use the remote-controller with data formats recommended, IR output signals will be suppressed
automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this
matter, here are two methods as below.
• Use the remote-controller with suitable data formats.
• Use the IR dongle receiver of the set-top box.

ENGLISH
29
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained in
this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request to
[email protected]om. This offer is valid for a period of
three years after our last shipment of this product. This
offer is valid to anyone in receipt of this information.
Updating Firmware
(Depending upon model)
You can update the firmware for the product by
downloading the latest firmware.
1 Download the latest firmware at partner.lge.com.
(Signing up for a membership and log-in required)
2 Create a folder named “LG_DTV” or “lg_dtv” on a USB
memory device.
3 Move the downloaded file to the folder that you
have created on the USB memory device.
4 Connect the USB memory device to the USB port on
your TV.
5 When a pop-up window appears, start the update
by following the instructions.
Licenses
Supported licenses may differ by model. For more
information about licenses, visit www.lg.com.
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Vision, Dolby Audio,
Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and
other countries.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together, DTS 2.0 Channel, DTS 2.0+Digital Out,
DTS-HD, and DTS Virtual:X are registered trademarks
or trademarks of DTS, Inc. in the United States and/or
other countries. © DTS, Inc. All Rights Reserved.
(Depending upon model)

ENGLISH
30
Regulatory
FCC NOTICE
(For USA)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference
and (2) this device must accept any interference
received, including interference that may cause
undesired operation. Any changes or modifications
in construction of this device which are not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
FCC Radio Frequency Interference
Requirements (for UNII devices)
High power radars are allocated as primary users of
the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These
radar stations can cause interference with and/or
damage this device. This device cannot be co-located
with any other transmitter.
FCC RF Radiation Exposure Statement
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be colocated or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with
minimum distance 20 cm (7.8 inches) between the
radiator and your body. Users must follow the specific
operating instructions for satisfying RF exposure
compliance.
Industry Canada Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of
the device.
IC Radiation Exposure Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 20 cm (7.8 inches) between the
antenna & your body.
NOTE : THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.

ENGLISH
31
RSS-247 Requirement
(For Canada)
[For product having the wireless function using 5 GHz
frequency bands]
(1) The device for operation in the band 5150–5250
MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite
systems;
(2) For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in the
bands 5250-5350 MHz and 5470-5725 MHz shall be
such that the equipment still complies with the e.i.r.p.
limit;
(3) For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits as
appropriate; and
(4) [For devices operating in the band 5250-5350
MHz having an e.i.r.p. greater than 200 mW] Antenna
type(s), antenna models(s), and worst-case tilt
angle(s) necessary to remain compliant with the e.i.r.p.
elevation mask requirement set forth in section 6.2.2.3
of RSS-247 shall be clearly indicated.
Users should also be advised that high-power radars
are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage
to LE-LAN devices.
NOTE TO CABLE/TV INSTALLER
(For USA and Canada)
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding
system of the building, as close to the point of the
cable entry as practical.
WARNING!
Never place a television set in an unstable location. A
television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can be
avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the
manufacturer of the television set.
• Only using furniture that can safely support the
television set.
• Ensuring the television set is not overhanging the
edge of the supporting furniture.
• Not placing the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television set
to a suitable support.
• Not placing the television set on cloth or other
materials that may be located between the television
set and supporting furniture.
• Educating children about the dangers of climbing on
furniture to reach the television set or its controls.
If your existing television set is being retained and
relocated, the same considerations as above should
be applied.
Symbols
Refers to alternating current(AC).
Refers to direct current(DC).
Refers to class II equipment.
Refers to stand-by.
Refers to “ON” (power).
Refers to dangerous voltage.

ENGLISH
32

ENGLISH
33

ENGLISH
34

THE CONSUMER ELECTRONICS INDUSTRY CARES
• Manufacturers, retailers and the rest of the consumer electronics industry are committed to
making home entertainment safe and enjoyable.
• As you enjoy your television, please note that all televisions – new and old- must be supported on
proper stands or installed according to the manufacturer’s recommendations. Televisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,
may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television
is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about your
ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certication by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder
block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
• Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a at-panel television. Special care should be made in the placement of older CRT
televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size
and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
CE.org/safety
ENGLISH
35

LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-888-865-3026
USA, Commercial User
1-855-286-2456
CANADA
The model and serial numbers of the TV are
located on the back and on one side of the TV.
Record them below should you ever need service.
MODEL
SERIAL
Supplier’s Declaration of Conformity
Trade Name LG
Responsible Party LG Electronics USA, Inc.
Address 1000 Sylvan Ave Englewood
Cliffs, NJ 07632
TEL (201)266-2215

OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com

2
ENG
ENGLISH
2
KEY CODES
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00 CH +, PR + R/C Button 53 List R/C Button
01 CH -, PR - R/C Button 5B Exit R/C Button
02 Volume + R/C Button 60 PIP(AD) R/C Button
03 Volume - R/C Button 61 Blue R/C Button
06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button
07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button
08 Power R/C Button 72 Red R/C Button
09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button
0B Input R/C Button 91 AD (Audio Description) R/C Button
0E SLEEP R/C Button 9E LIVE MENU R/C Button
0F TV, TV/RAD R/C Button 7A User Guide R/C Button
10 - 19 * Number Key 0 - 9 R/C Button 7C Smart / Home R/C Button
1A Q.View / Flashback R/C Button 7E SIMPLINK R/C Button
1E FAV (Favorite Channel) R/C Button 8E ►►(Forward) R/C Button
20 Text (Teletext) R/C Button 8F ◄◄(Rewind) R/C Button
21 T. Opt (Teletext Option) R/C Button AA Info R/C Button
28 Return (BACK) R/C Button AB Program Guide R/C Button
30 AV (Audio / Video) Mode R/C Button B0 ►(Play) R/C Button
39 Caption/Subtitle R/C Button B1 ꕗ (Stop / File List) R/C Button
40 Λ
(Arrow Key / Cursor Up)
R/C Button B5 RECENT R/C Button
41
V (Arrow Key / Cursor
Down)
R/C Button BA
ꕘ (Freeze / Slow Play /
Pause)
R/C Button
42 My Apps R/C Button BB Soccer R/C Button
43 Menu / Settings R/C Button BD ꔄ (REC) R/C Button
44 OK / Enter R/C Button DC 3D R/C Button
45 Q.Menu R/C Button 99 AutoConfig R/C Button
4C List, - (ATSC Only) R/C Button 9F App / * R/C Button
4D PICTURE R/C Button 9B TV / PC R/C Button
52 SOUND R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)

3
ENGENGLISH
3
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC
)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C With RS232C Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
USB IN
(TV)
(PC
)
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
The connection interface may differ from your TV.

4
ENG
ENGLISH
4
EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)

5
ENGENGLISH
5
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power* k a 00 to 01 15. Balance k t 00 to 64
02. Aspect
Ratio
k c (p.7)
16. Color
(Colour)
Temperature
x u 00 to 64
03. Screen
Mute
k d (p.7)
17. ISM
Method (Only
Plasma TV)
j p (p.8)
04. Volume
Mute
k e 00 to 01 18. Equalizer j v (p.8)
05. Volume
Control
k f 00 to 64
19. Energy
Saving
j q 00 to 05
06. Contrast k g 00 to 64
20. Tune
Command
m a (p.9)
07.
Brightness
k h 00 to 64
21. Channel
(Programme)
Add/Del(Skip)
m b 00 to 01
08. Color/
Colour
k i 00 to 64 22. Key m c Key Codes
09. Tint k j 00 to 64
23. Control
Backlight,
Control Panel
Light
m g 00 to 64
10.
Sharpness
k k 00 to 32
24. Input
select (Main)
x b (p.11)
11. OSD
Select
k l 00 to 01
25. 3D (Only
3D models)
x t (p.11)
12. Remote
Control Lock
Mode
k m 00 to 01
26. Extended
3D (Only 3D
models)
x v (p.12)
13. Treble k r 00 to 64
27. Auto
Configure
j u (p.12)
14. Bass k s 00 to 64
* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not
executed and treated as NG.
With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with
USB-to-Serial converter cable, the command works only if TV is on.

6
ENG
ENGLISH
6
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...

7
ENGENGLISH
7
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power *On or Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off 01 : *Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show TV is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
05 : Zoom 2
(Latin America
except Colombia
Only)
06 : Set by Program/
Original
07 : 14:9
(Europe, Colombia, Mid-East,
Asia except South Korea and
Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, Mid-
East, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1 to 16
0c : 21:9 (Depending on model)
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]

8
ENG
ENGLISH
8
EXTERNAL CONTROL DEVICE SETUP
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
13. Treble (Command: k r)
► To adjust treble.
You can also adjust in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
14. Bass (Command: k s)
► To adjust Bass.
You can also adjust in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
15. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
16. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
17. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]

9
ENGENGLISH
9
EXTERNAL CONTROL DEVICE SETUP
18. Equalizer (Command : j v)
► Adjust EQ of the set.
Transmission [j][v][ ][Set ID][ ][Data][Cr]
0 0 0 0 0 0 0 0
MSB
Frequency Data
LSB
7 6 5
Frequency
4 3 2 1 0 Step
0 0 0
1st Band
0 0 0 0 0
0(decimal)
0 0 1
2nd Band
0 0 0 0 1
1(decimal)
0 1 0
3rd Band
... ... ... ... ...
...
0 1 1
4th Band
1 0 0 1 1
19(decimal)
1 0 0
5th Band
1 0 1 0 1
20(decimal)
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
19. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto (For LCD TV / LED TV) /
Intelligent sensor (For PDP TV)
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
20. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ]
[Data 01][ ][Data 02][Cr]
* Analog Antenna/Cable
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analog)
- 00 : Antenna TV (ATV)
- 80 : Cable TV (CATV)
* Digital Antenna/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Antenna TV (DTV)
- 20 : Antenna Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the Analog antenna (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analog Antenna TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital antenna (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Antenna TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.

10
ENG
ENGLISH
10
EXTERNAL CONTROL DEVICE SETUP
* Analog Antenna/Cable
Data 00 : Physical Channel Number
- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analog)
- 00 : Antenna TV (ATV)
- 01 : Cable TV (CATV)
* Digital Antenna/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Antenna TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
Number
- 22 : Antenna TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Physical/Major
Channel Number Only (One Part Channel)
- 66 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
- 0b : Cable DTV Plus – Use Physical Channel
Number
- 2b : Cable DTV Plus – Don’t Use Physical
Channel Number
- 4b : Cable DTV Plus – Use Physical/Major
Channel Number Only (One Part Channel)
- 6b : Cable DTV Plus – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1. Tune to the Analog cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital antenna (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Antenna/Satellite
Data 00: xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Antenna TV (DTV)
- 42 : Antenna TV (DTV) – Use Physical/Major
Channel Number Only (One Part Channel)
- 62 : Antenna TV (DTV) – Use Major Channel
Number Only (One Part Channel)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1
Tune to the digital antenna (ISDB-T) channel 17-1
.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Antenna TV = 02
Total = ma 00 00 00 11 00 01 02

11
ENGENGLISH
11
EXTERNAL CONTROL DEVICE SETUP
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
21. Channel(Programme) Add/Del(Skip)
(Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
22. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
23. Control Backlight (Command: m g)
• For LCD TV / LED TV
► To control the backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
24. Input select (Command: x b)
(Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
02 : Satellite DTV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
01 : CADTV
10 : ATV
20 : AV or AV1 21 : AV2
40 : Component1
60 : RGB
41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
25. 3D(Command: x t) (only 3D models)
(Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
* (Depending on model)
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side
02 : Check Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)

12
ENG
ENGLISH
12
EXTERNAL CONTROL DEVICE SETUP
* [Data 02], [Data 03] functions depend on model
and signal.
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03 (2D to 3D), [Data 01] and
[Data 02] have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only.
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O O
01 X X X
02 X X X
03 X O O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
26. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When [Data 00] is 06, 07
00 : Off
01 : On
4) When [Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 2D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
5) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
05 : Auto
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
27. Auto Configure (Command: j u)
(Depending on model)
► To adjust picture position and minimize image
shaking automatically. It works only in RGB (PC)
mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01 : To set Auto Configure
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
