AFDC5470W
OPERATION MANUAL
APPLIANCES
FOR LIVING
Congratulations, you are now the proud owner of an ARTUSI cooking appliance.
Thank you for purchasing ARTUSI and welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the
full range of features your ARTUSI appliance has to offer and serves as an
introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance
consists of. Once you have read this section you will be able to choose the
most appropriate settings for your appliance when cooking different types of
food.
We ask you to read the instructions in this booklet very carefully as this
will allow you to get the best results from using your appliance. KEEP THE
DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD
AT THE END OF THIS BOOKLET AND POST IT TO: REPLY PAID 83617
LEICHHARDT NSW 2040
Dear Artusi Customer, please read this user manual carefully before using the
product and, keep it permanently at your disposal.
Note: This user manual is prepared for more than one model. Some of the
features specified in this Manual may not be available on your appliance.
All our appliances are only for domestic use, not for commercial use. Products
marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED
SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE”
“Conforms with the WEEE Regulations.”
5
6
After unpacking, please dispose of all
elements of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the
appliance are environmentally friendly;
they are 100% recyclable and are marked
with the appropriate symbol.
During unpacking, the packaging materials
(polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
C au tio n !
During transportation,
protective packaging was
used to protect the appliance
against any damage.
Old appliances should not
simply be disposed of with
normal household waste,
but should be delivered to a
collection and recycling centre
for electric and electronic
A symbol shown on the product,the
instruction manual or the packaging shows
if it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are
making a significant contribution to the
protection of our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.
equipment.
GGRRIILLLLGGRRIILLLL
Top burners control knob
Electronic programmer
control knob
Main oven
control knob
Top oven
indicator light
Main oven
indicator light
Temperature
control knob
hob indicator light
splashback

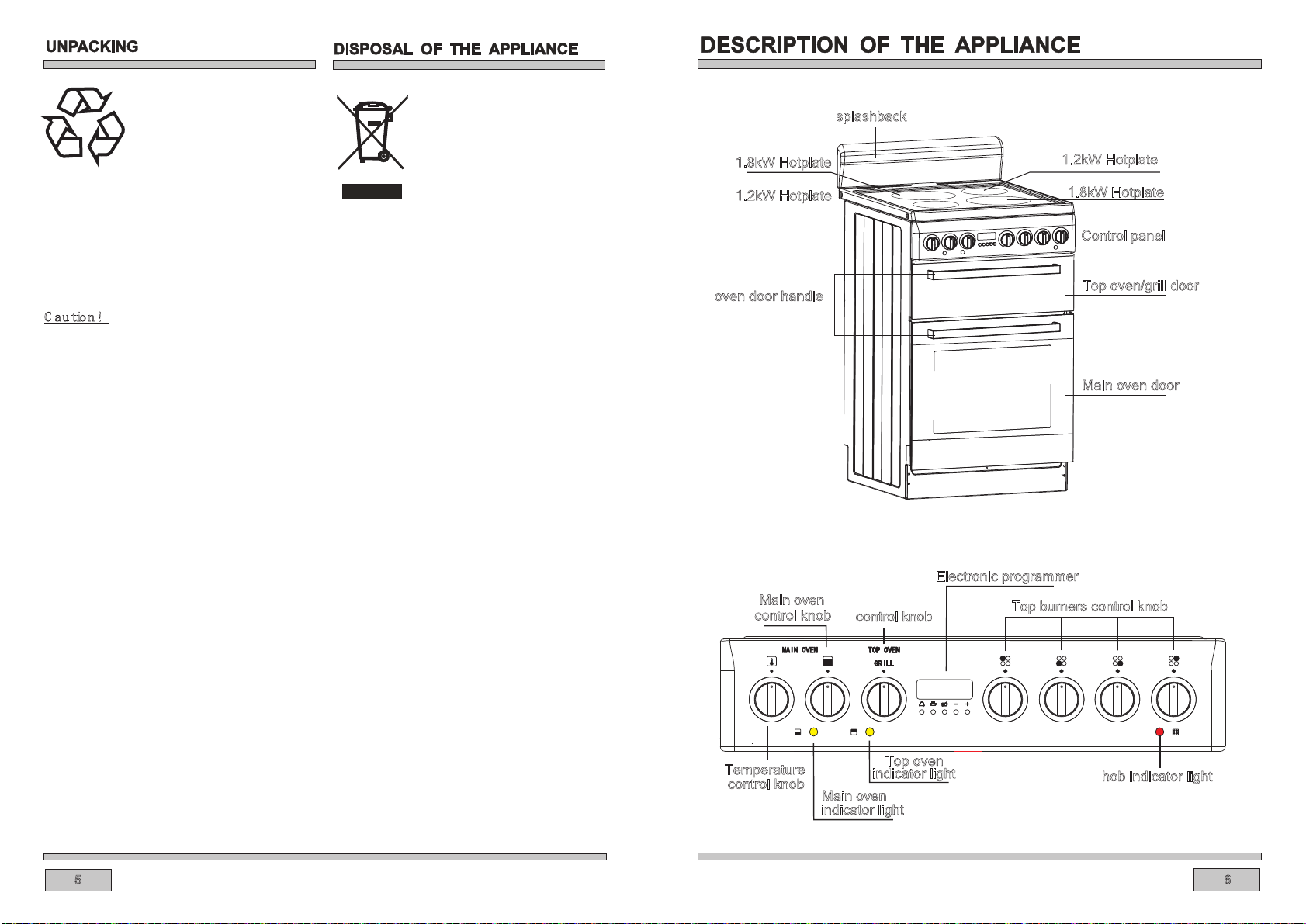

1.8kW Hotplate
1.2kW Hotplate
1.8kW Hotplate
1.2kW Hotplate
Control panel
Top oven/grill door
Main oven door
oven door handle
7
8
●

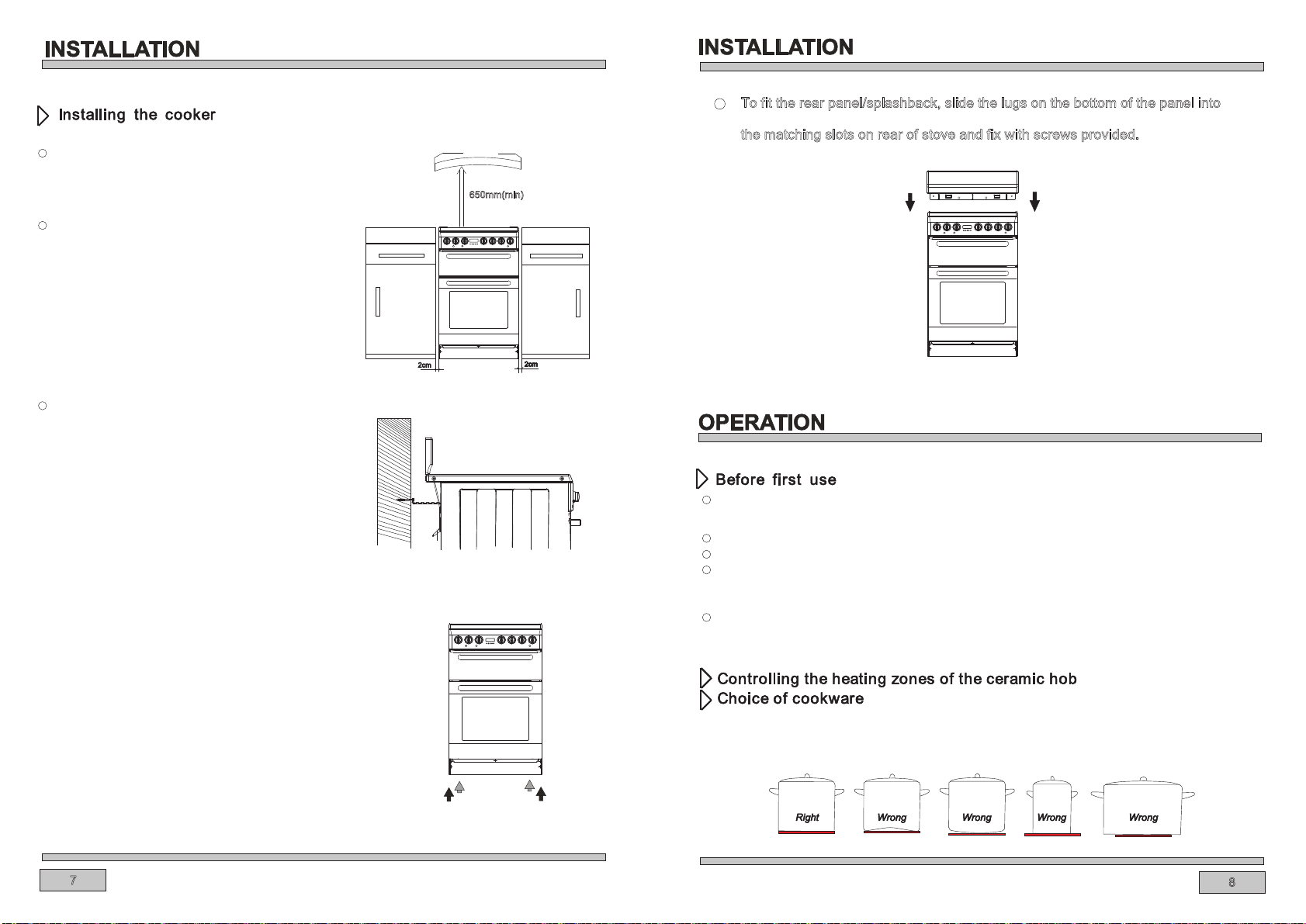

To fit the rear panel/splashback, slide the lugs on the bottom of the panel into
t
he matching slots on rear of stove and fix with screws provided.
Take out and wash the oven fittings with warm water and a little washing-up liquid.
Switch on the ventilation in the room or open a window.
Heat the oven (to a temperature of 250°C, for approx. 30 min.), remove any stains and
When heating the oven for the first time it is normal for the stove to give
off smoke and manufacturing odours.These will disappear after about 30
Remove packaging and empty the drawer. Clean the interior of the oven with
Minutes.
warm soapy water and wipe clean with moistened cloth or sponge. Wipe clean the
wash carefully. The hotplates should be heated for around 4 minutes without
a pan or pot on them.
cooktop.

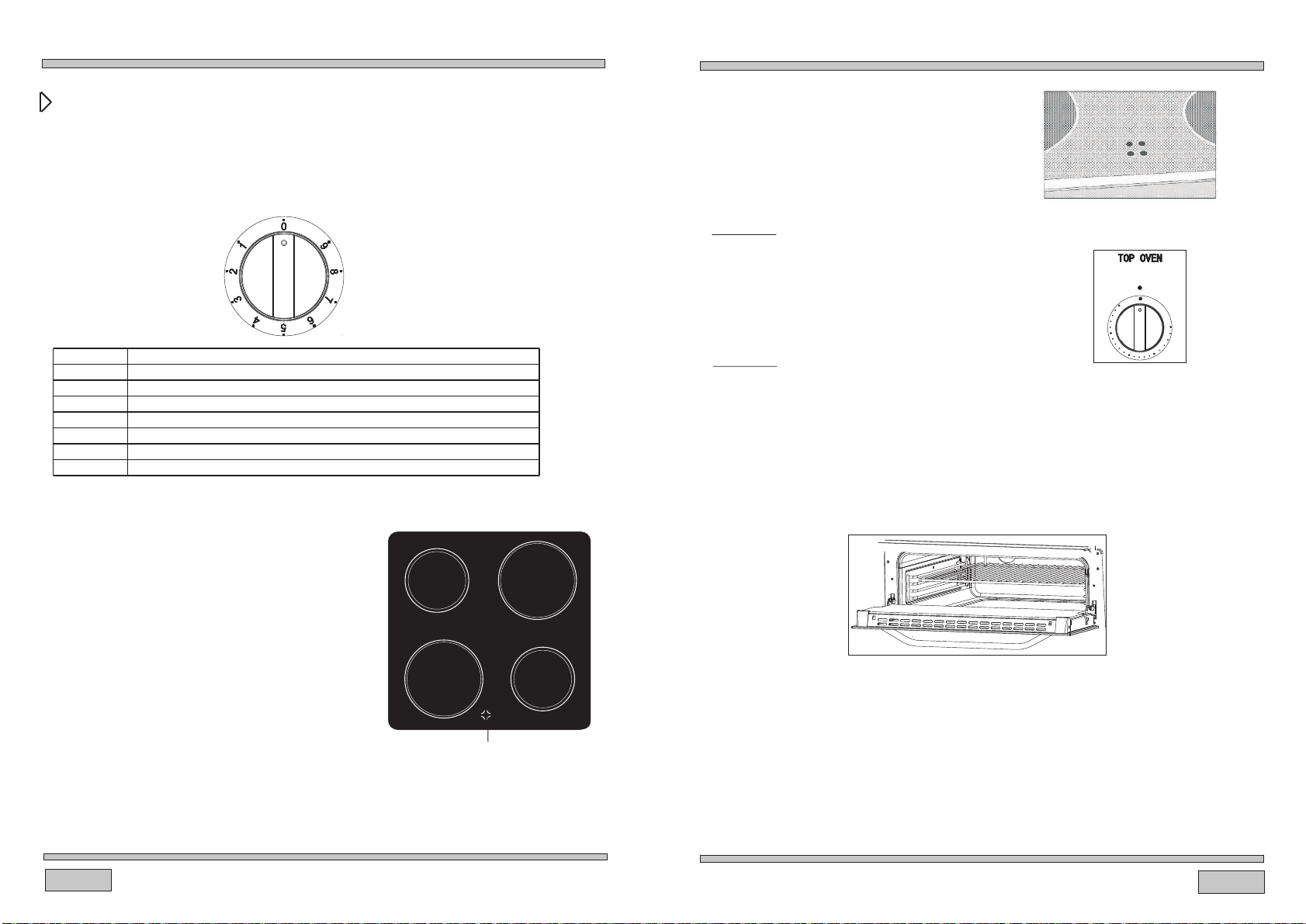

Choose a pan with a diameter that is at least as large as the heating zone.Do not use
pans with a concave or convex base.Always remember or put a proper cover on the
pan.We recommend the use of pans with thick,even bases.
If the heating zones and pans are solied it is impossible to make full use of the heat.
Coating or veneer used on fitted
furniture must be applied with a heat
resistant adhesive (100℃). This
prevents surface deformation or
detachment of the coating. If you
resistance, you should leave
approximately 2 cm of free a space
around the cooker. The wall behind
the cooker should be resistant to
high temperatures.During operation,
its back side can warm up to around
665500mmmm((mmiinn))
2cm
2cm2cm
are unsure of your furniture’s heat
Fix the cooker to the back wall
with 2 chains
Before you start using the cooker it should
distribution in a frying fat pan. To this
removal of the drawer. The adjustment range is +/-5mm.
The cooker should stand on a hard,
even floor (do not put it on a base.)
The kitchen where the appliance is to
be installed must be dry and well
ventilated.
The room should be equipped with a
ventilation system that pipes away
exhaust fumes created during
combustion. This system should
consist of a ventilation grid or hood.
Hoods should be installed according
to the manufacturer's instructions.
The cooker should be placed so as
to ensure free access to all control
elements.
be leveled,which is particularly Important for
purpose,adjustable feet are accessible after

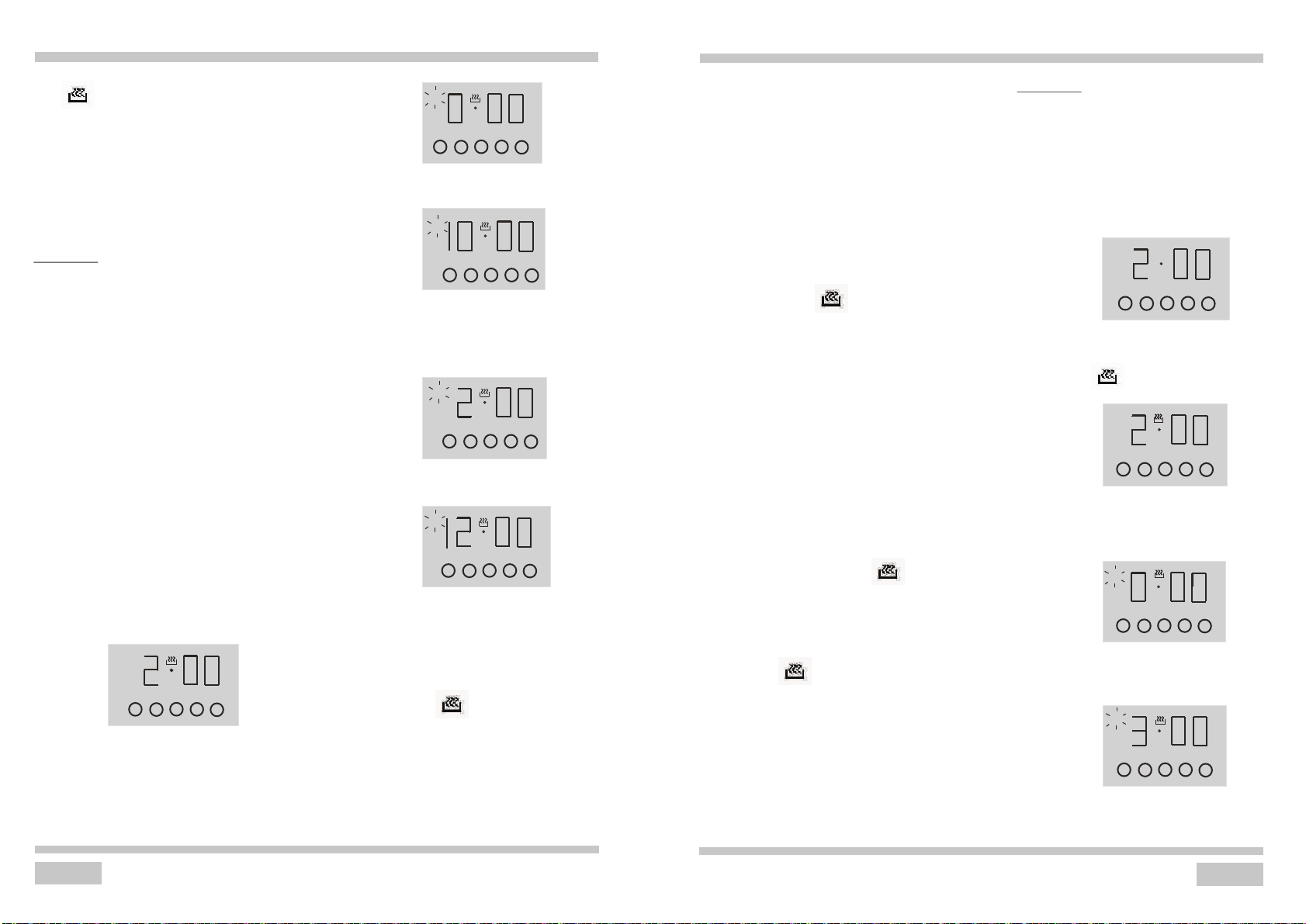

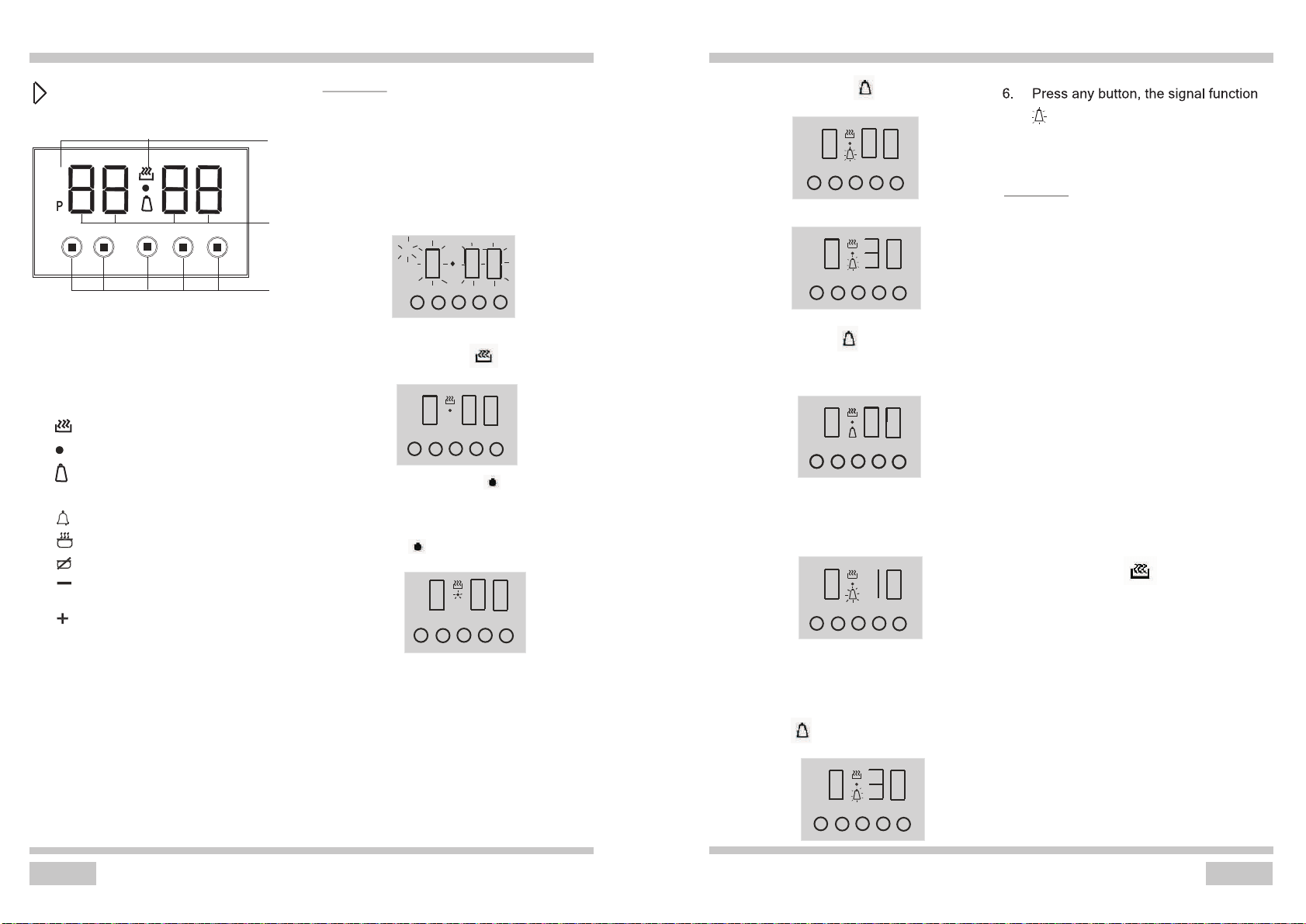

Press button 1 to select timer s ettings,
and then press button 4 set time to 0: 00,
5 seconds later the timer is cancelled.
Press button 2 and 3 simultaneously, the
auto function will be cancelled, and the
function signal ’A’ will go out. Then the
display will show the current time.
17
● If the cooking time set to be 0 or the
switch-off time set to be the current
time, the auto function will be off.
Turn the oven function selection knob to
“0”. 10 seconds later, run the oven
again.

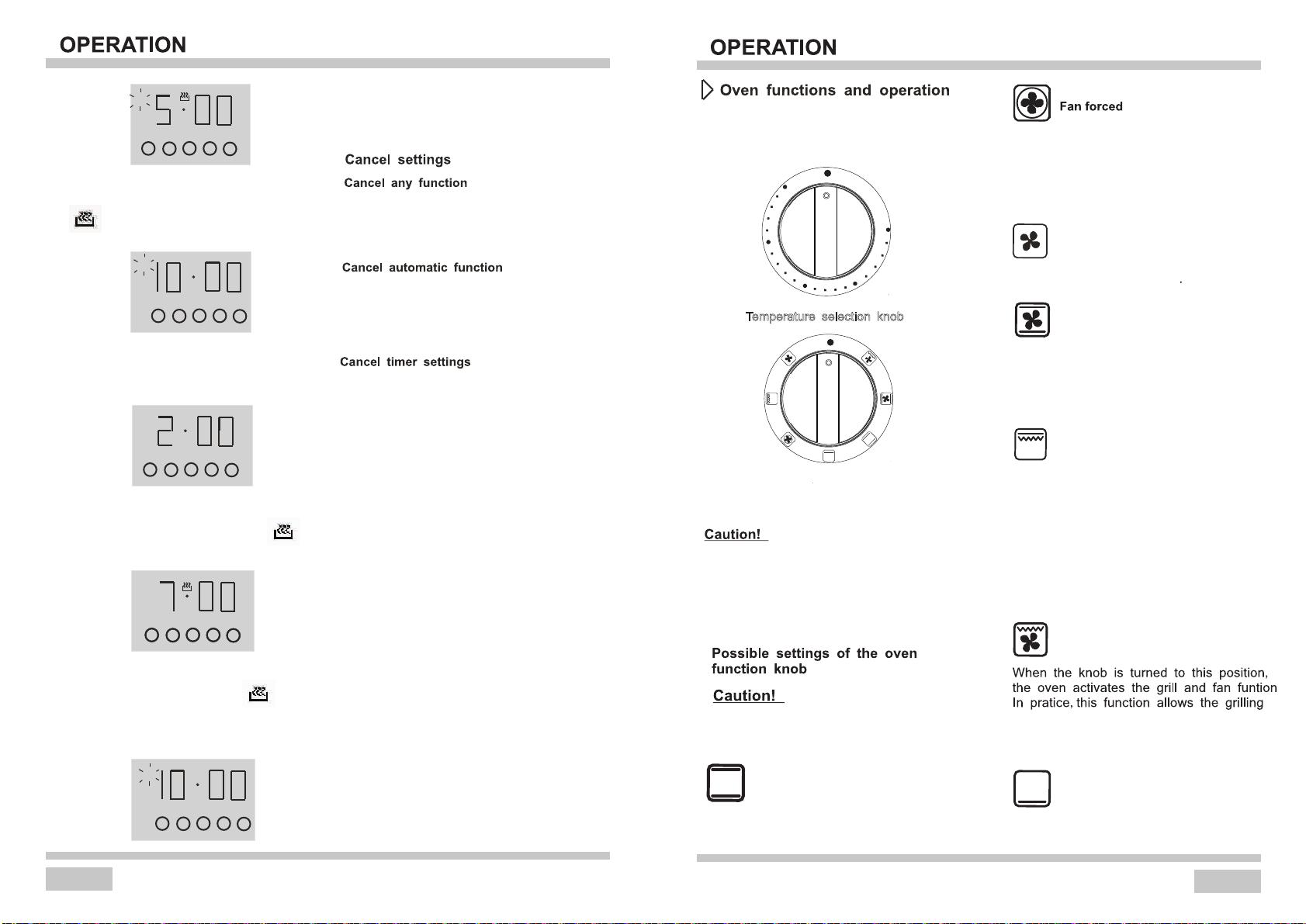

Oven is controlled by the function knob
and the temperature selection knob.
The function knob
When selecting any heating function
(switching a heater on etc.) the oven will
only be switched on after the temperature
has been set by the temperature regulator
knob.
At this oven function knob position.
The oven is not being warmed up.
Setting the knob to this position allows the
oven to be heated conventionally.
When the “combined grill” is active it
enables grilling with the grill and with the
top heater switched on at the same time.
This function allows a higher temperature
at the top of the cooking area, which
causes more intense browning of the dish
and permits larger portions to be grilled.
18
At this knob position the oven executes the
cake function. Conventional oven with a
fan.
process to be speeded and an improvem-
ent in the taste of the dish,you should only
use the gillwith the oven door shut.
At this oven function knob position, the
oven activates the bottom heater.
This function for defrosting
Defrost
A heating element around the fan enables
the most uniform heating possible. This
mode minimises preheating time, and is
also the best for cooking several different
types of food at once.
1
2
3
4
5
6. 5 seconds after setting, the auto
function “A” is on.
1
2
3
4
5
7. When it up to 7:00 , the oven will begin
to work and the signal function
is
on.
1 2
3
4
5
8. When it up to 10:00, the alarm signal is
activated, the signal function
is off,
and the signal “A” starts flashing.
1
2
3
4
5
5.
A
A
A
A
5. Set the switch-off time to be “10.00”
with buttons 4or5, the signal function
goes out.
1
2
3
4
5
A
Temperature selection knob
5
0
1
0
0
1
5
0
2
0
0
2
5
0
5
0
1
0
0
1
5
0
2
0
0
2
5
0
Classic convection
Fan assisted
Stastic Grill
Half Fan Grill
Base Heat
24

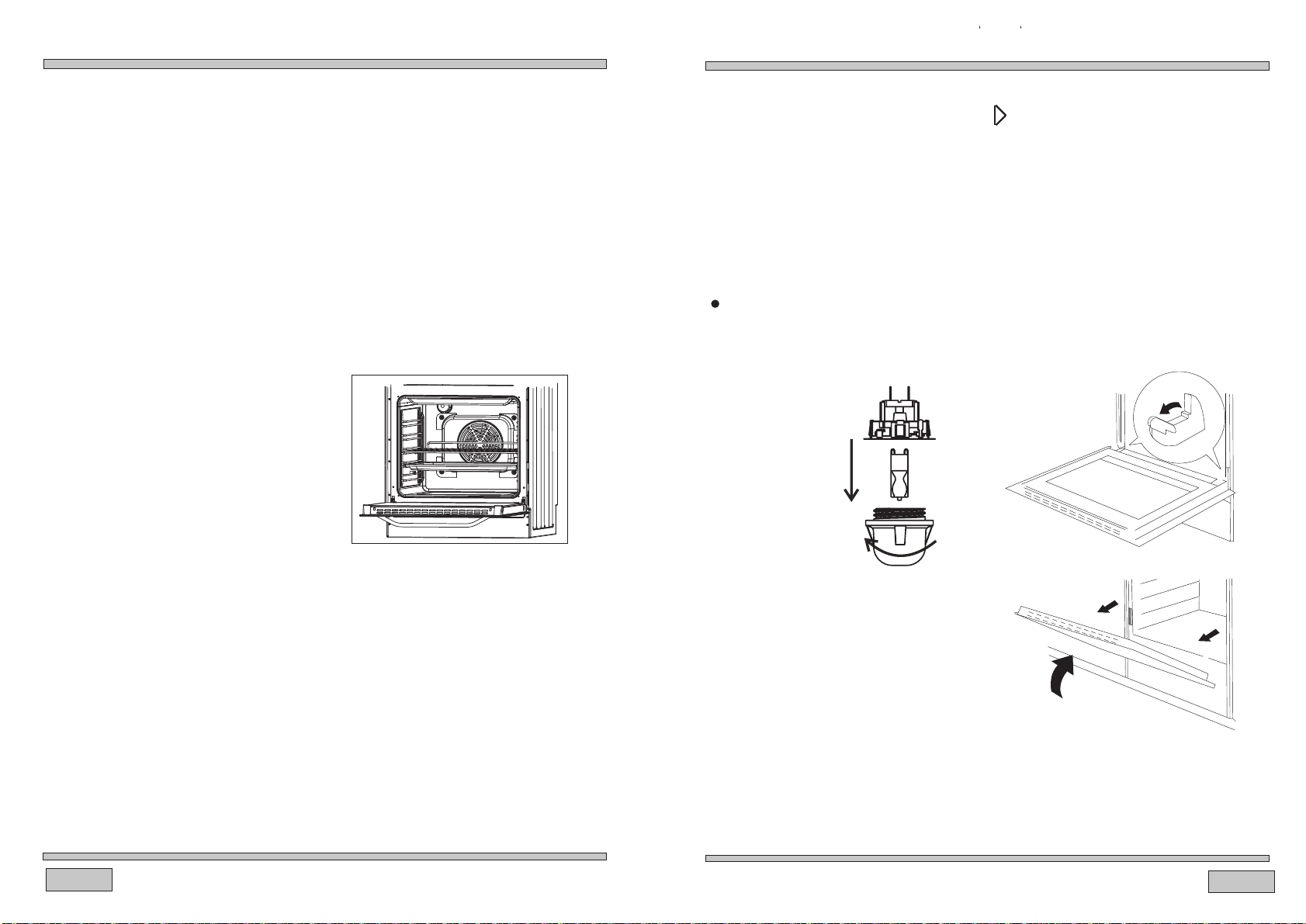

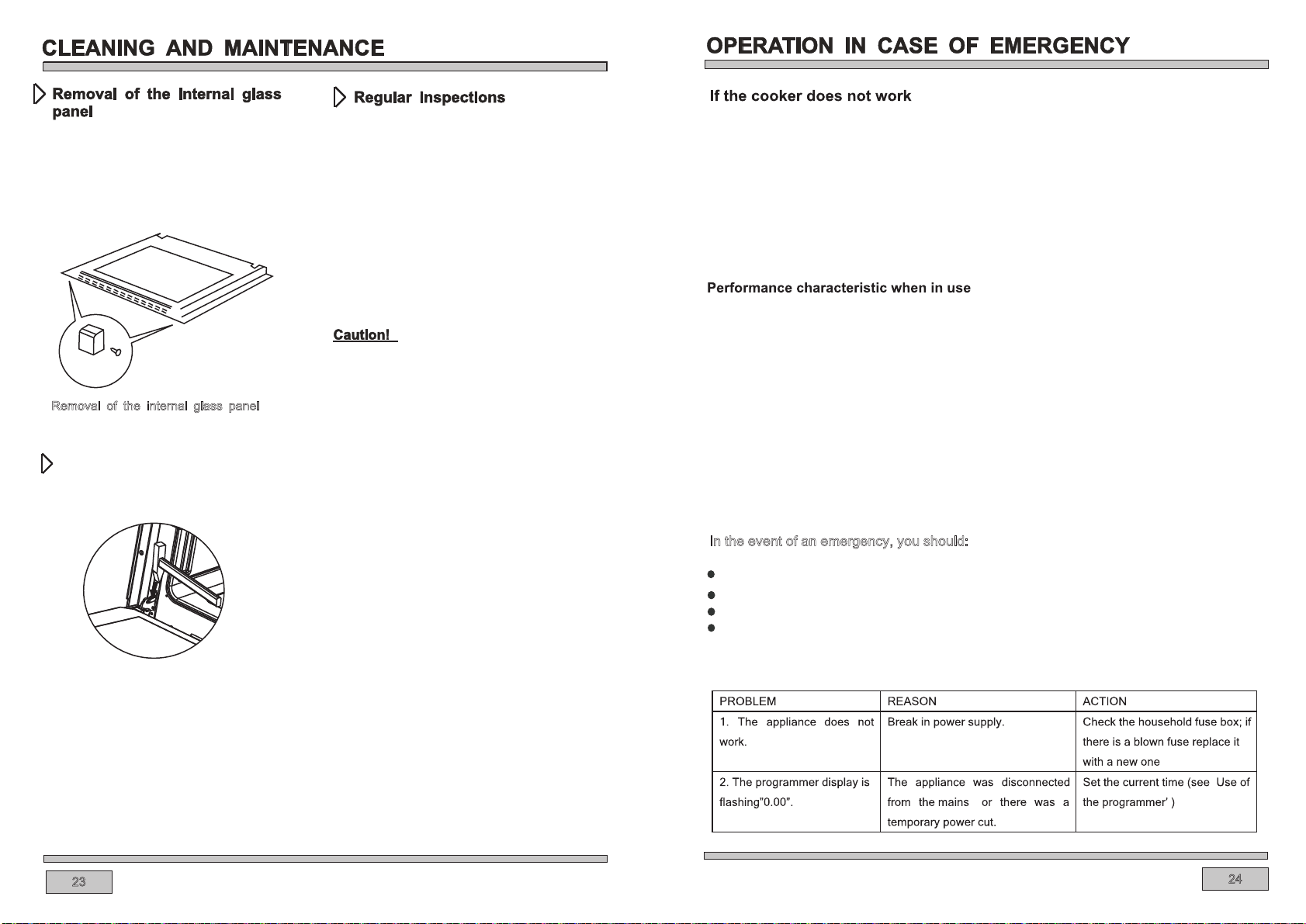

Unscrew and unfasten the plastic latch that
is in the corner at the top of the door. Next
take out the glass from the second blocking
mechanism and remove.After cleaning,
sert and block the glass panel,and screw in
the blocking mechanism.
Removal of the internal glass panel
Besides keeping the cooker clean, you
should:
● Carry out periodic inspections of the
control elements and cooking units of the
cooker. After the guarantee has expired you
should have a technical inspection of the
cooker carried out at a service centre
at least once every two years.
● Fix any operational faults.
● Carry out periodical maintenance of the
cooking units of the cooker.
All repairs and regulatory activities should
be carried out by the appropriate service
centre or by an appropriately authorized
fitter.
In the event of an emergency, you should:
switch off all working units of the oven
23
disconnect the mains plug
call the service centre
some minor faults can be fixed by referring to the instructions given in the table below.
Before calling the customer support centre or the service centre check the following
points that are presented in the table.
If theappliance does not operate check whether:
The power supply is on.
The fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.
The temperture control has been set correct.
The main oven will not light has the clock been set.
Check youe electric power supply earthing system.
This cooker must be earthed in doubt consult a qualified electrician.
●
●
●
●
●
●
If the appliance is still not operating after the above checks, please refer o section on how
to obtain sevice.
When using your appliance for the first few times,and odour and/or smoke may be
emitted which is normal.
It is normal for the metal partsto produce noise when in use,this is due to expansion
and contraction .
When in use, steam ma\y be produced which is normal anf not a fault of the cooker.
At the end of cooking session,it is normal to have a momentary puff of steam when
the oven door is opened. This should disperse in a few seconds.
If,whilst cooking,steam produced comes in to contact with cool surface’s on the outside
of the appliance,it will condense and produce water droplets.This is quite normal and is
not a fault.
●
●
●
●
●
Install door
25
C

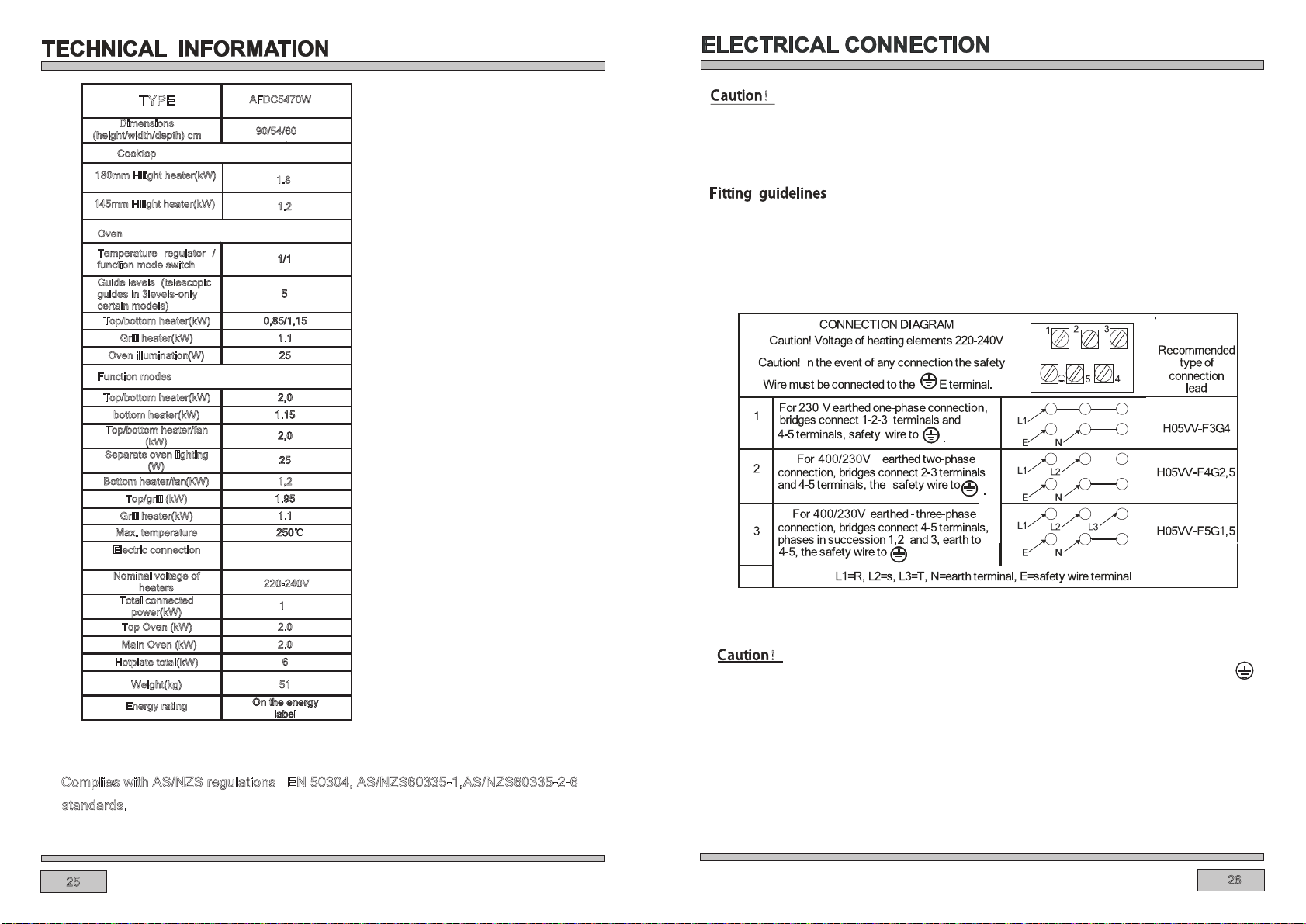

omplies with AS/NZS regulations EN 50304, AS/NZS60335-1,AS/NZS60335-2-6
TYPE
Dimensions
(
height/width/depth) cm
Oven
Temperature regulator /
f
unction mode switch
1
/1
Guide levels (telescopic
g
uides in 3levels-only
c
ertain models)
5
Top/bottom heater(kW)
Grill heater(kW)
Oven illumination(W)
Function modes
Top/bottom heater(kW)
bottom heater(kW)
Top/bottom heater/fan
(
kW)
Separate oven lighting
(
W)
Bottom heater/fan(KW)
Top/grill (kW)
Grill heater(kW)
0
,85/1,15
1.1
25
2,0
1.15
2,0
25
1,2
1.95
1.1
Max. temperature 250℃
Electric connection
Nominal voltage of
h
eaters
Total connected
p
ower(kW)
Top Oven (kW)
Hotplate total(kW)
Weight(kg)
Energy rating
10
2.0.
On the energy
l
abel
standards.
1
/1
5
9
0/54/60
0
,85/1,15
1.1
25
2,0
1.15
2,0
25
1.95
1.1
250℃
6
51
On the energy
l
abel
220-240V
1
80mm Hilight heater(kW)
1.8
145mm Hilight heater(kW)
1.2
Cooktop
AFDC5470W
nnection type andthe power rating of the cooker.
!
All electrical work should be carried out by a suitably qualified and authorized electrician.
No alterations or willful changes in the electricity supply should be carried out.
The cooker is manufactured to work with three-phase alternating current (380-415V 3N~50
Hz). The voltage rating of the cooker heating elements is 220-240V. Adapting the cooker
to operate with one phase current is possible by appropriate bridging in the connection box -
box according to the connection diagram below. The connection diagram is also found on t
he cover of the connection box. Remember that the connection wire should match the co-
The fixing line connected must be equipped with the all-pole disconnection device
provided by breakaway the contact under overvoltage category III according to the
the wiring rules.
Before connecting the cooker to the power supply it is important to read the informatIion
on the data plate and the connection diagram.
!
Remember to connect the safety circuit to the connection box terminal marked with
.
The connection cable must be secured in a strain-relief clamp.For the connection leads,
the grounding wire must be longer than the other wires.
26
Main Oven (kW) 2.0
220-240V/400V
3N ~ 50Hz
Worldwide Appliances Pty Limited
A.B.N. 45868077422
Oce:
48-50 Moore Street, Leichhardt N.S.W 2040
Post:
Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 694 583
WARRANTY REGISTRATION
Your ongoing satisfaction with your artusi
product is important to us. We ask that you
complete the enclosed Warranty Registration
Card and return it to us so that we have a record
of the artusi product purchased by you.
PRIVACY
Worldwide Appliances respects your
privacy and is committed to handling your
personal information in accordance with the
National Privacy Principles and the Privacy
Act 1988 (Cth). A copy of the Worldwide
Appliances Privacy Policy is available at
www.artusi.com.au. Worldwide Appliances will
not disclose any personal information set out
in the Warranty Registration Card (“Personal
Information”) without your consent unless
required by:
1. law;
2. any Worldwide Appliances related company;
3. any service provider which provide services
to artusi or assist artusi in providing services
(including repair and warranty services) to
customers. Our purpose in collecting the
Personal Information is
to keep a record of the artusi product purchased
by you, in order to provide a better warranty
service to you in the unlikely event that there is
a problem with your artusi product. Worldwide
Appliances may contact you at any one or more
of the address, email address or telephone
numbers set out in the Warranty Registration
Card. Please contact artusi on 1300 694
583 should you not wish to be contacted by
Worldwide Appliances.
WARRANTY
1. Warranty
Worldwide Appliances warrants that each artusi
product will remain, for a period of either 12
months or 24 months of warranty. All Warranties
are valid from the original date of purchase, And
warranty claims must be accompanied by the
proof of purchase.
24 months warranty products:
All Built-in Appliances – Limited to Ovens,
Gas, Induction and Electric Cooktops, and All
Rangehoods
Freestanding Cookers - Gas and Electric Models
(900mm Width)
Dishwashers - Freestanding, Fully Integrated,
Semi Integrated and built-in
12 months warranty products:
Freestanding Cookers - Gas and Electric Models
in 50cm, 54cm and 60cm Widths
Portable Appliances* – Benchtop Models and
Portable Gas Models
2. What is not Covered by the Warranty.
The Warranty does not apply if an artusi product
is defective by a factor other than a defect
arising in the manufacture of the artusi product,
including but not limited to:
(a) damage through misuse (including failure
to maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);
(b) use for purpose for which the artusi product
was not sold or designed;
(c) use or installation which is not in accordance
with any specied instructions for use or
installation;
(d) use or operation after a defect has occurred
or been discovered;
(e) damage through freight, transportation or
handling in transit (other than when Worldwide
Appliances is responsible);
(f) damage through exposure to chemicals,
dusts, residues, excessive voltage, heat,
atmospheric conditions or other forces or
environmental factors outside the control or
Worldwide Appliances;
(g) repair, modication or tampering by the
purchaser or any person other than Worldwide
Appliances, an employee of Worldwide
Appliances or an authorised artusi service
contractor*;
(h) use of parts, components or accessories
which have not been supplied or specically
approved by artusi.
(i) damage to surface coatings caused by
cleaning or maintenance using products not
recommended in the artusi product handbook
provided to the purchaser upon purchase of the
artusi product;
(j) damage to the base of an electric oven due
to items having been placed on the base of
the oven cavity or covering the base, such as
aluminium foil (this impedes the transfer of heat
from the element to the oven cavity and can
result in irreparable damage); or
(k) damages, dents or other cosmetic
imperfections not aecting the performance
of the artusi in respect of an artusi product
purchased as a “factory second” or from display
The Warranty does not extend to light globes
used in artusi products.
3. Domestic Use
Each artusi product is made for domestic use.
This Warranty may not extend to artusi products
used for commercial purposes.
4. Time for Claim under the Warranty
You must make any claim under this Warranty
within twenty eight (28) days after the occurrence
of an event which gives rise to a claim pursuant
to the Warranty, by booking a service call on the
telephone number below.
Continued over...
Please complete and send to ARTUSI at: REPLY PAID 83617
LEICHHARDT NSW 2040
Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)
MODEL NUMBER
SERIAL NUMBER
(if you cannot locate the serial number please call ARTUSI on 1300 694 583)
1
2
3
4
WARRANTY REGISTRATION CARD
01052013
01032014
5. Proof of Purchase
Customers must retain proof of purchase in order
to be eligible to make a warranty claim in respect
of an artusi product.
6. Claiming under the Warranty
Customers will bear the cost of claiming under
this Warranty unless Worldwide Appliances
determines the expenses are reasonable, in which
case the customer must claim those expenses
by providing written evidence of each expense
to Worldwide Appliances at the address on the
Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not aect your
statutory rights.
(b) The limitations on the Warranty set out in this
document do not exclude or limit the application
of the consumer guarantees set out in the Act or
any other equivalent or corresponding legislation
in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction;
or
(ii) cause any part of the Warranty to be void.
(c) Worldwide Appliances excludes indirect or
consequential loss of any kind (including, without
limitation, loss of use of the artusi product) and
(other than expressly provided for in these terms
and conditions) subject to all terms,
conditions and warranties implied by custom,
the general law, the Act or other statute.
(d) The liability of Worldwide Appliances to you
for a breach of any express or non-excludable
implied term, condition or warranty is limited at
the option of Worldwide Appliances to:
(i) replacing or repairing the defective part of the
artusi product;
(ii) paying the cost of replacing or repairing the
defective part of the artusi product;
(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi
product.
(e) Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
Warranty Card tear off
major failure.
8. Defects
Any part of an artusi product deemed to be
defective and replaced by Worldwide Appliances
is the property of Worldwide Appliances.
Worldwide Appliances reserves the right to
inspect and test artusi products in order to
determine the extent of any defect and the
validity of a claim under the Warranty.
*To locate your closest artusi authorised service
agent please contact us on 1300 652 100 or visit
www.artusi.com.au
ALL SERVICE CALLS MUST BE BOOKED THROUGH AN
AUTHORISED DEALER OR WARRANTY DEPARTMENT
ON 1300 652 100 OR stokesaps.com.au/artusi-
service
01032014
ARTUSI.COM.AUP: 1300 649 583
NSW & ACT (HEAD OFFICE)
48-50 MOORE STREET
LEICHHARDT
F 02 8569 4699
QLD
1/42 CAVENDISH ROAD
COORPAROO
F 07 3397 0850
VIC, TAS & SA
1211 TOORAK ROAD
CAMBERWELL
F 03 9809 2155
WA & NT
UNIT 10/55 HOWE STREET
OSBORNE PARK
F 08 9201 9188
NZ
PO BOX 11.160
SOCKBURN CHRISTCHURCH
F 03 344 5906
ARTUSI OFFICES ARE OPEN DAILY FROM 9AM–5PM AND SATURDAYS 10AM–4PM
DISCLAIMER
Worldwide Appliances PTY LTD, trading as ARTUSI, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to our products and
designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it
constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers
are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
