READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This owner's guide and any additional inserts are considered part of the product. They contain
important information about safety, use and disposal. Before using the product, please familiarize
yourself with all operating and safety instructions. Please keep all documents for future reference
and pass these documents on, together with the product, to any future owner. See our website to
view, download and print the most current version of this owner’s guide.
INTENDED USE: This product is intended to humidify and circulate the air in indoor living spaces
only in the United States and Canada. This product is not intended for commercial or industrial
use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or
product modication. Failure to follow these directions will void the product warranty.
WARNING: Risk to Children and Impaired Persons
- Supervision is required during the installation, operation, cleaning and maintenance of this
product by children under age 12 and anyone with reduced physical, sensory or mental
capabilities. Children should be supervised to ensure that they do not play with the appliance, its
parts and packaging material.
INSTALLATION WARNING—To reduce risk of re, electrical shock and injury to persons,
observe the following:
- No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near
furnaces, replaces, stoves or other high temperature heat sources. Do not use in a window, on
an uneven or unstable surface, or near water.
- The appliance, power supply, power cord and plug cannot come into contact with water. Do not
use this product on wet surfaces. Do not use this product in a bathtub or shower or position
product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not
use this product outdoors or expose it to weather or elements.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
Do not route under furniture or appliances. Arrange cord away from trafc area and where it will
not be tripped over. The cord should not hang over edges of counters or be placed where it can
be crimped or closed in doors. Place appliance near an easily accessible outlet so the product
can be unplugged quickly during an emergency.
4 English
SAFE USE WARNING—To reduce risk of re, electrical shock and injury to persons, observe
the following:
- WARNING: To reduce likelihood of circuit overload, re and electric shock, do not operate with
a solid state speed device, such as a dimmer control switch.
- Do not operate unit if the unit has been dropped or damaged. Do not use this product if it
has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair
or replace parts. Only original replacement parts may be used. If the power cord is damaged,
it must be replaced by the manufacturer, its service agent, or similarly qualied persons in
order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or
[email protected] (email) for further instructions about replacement and repair.
- Risk of re. Your appliance may be equipped with a detachable power supply or a cord/plug with
a safety device such as a fuse. Use only the power cord and plug provided.
- Before plugging power cord into electrical outlet, be sure that all electrical information on the
rating label, including voltage, is compatible with your outlet’s power supply.
- Never use the cord as a handle or otherwise yank, strain or stretch the power cord.
- While the product is plugged in, do not insert or allow foreign objects to enter any input or
output opening as this may cause risk of electric shock or re, or damage the product.
- A loose t between wall outlet (receptacle) and plug may cause overheating and distortion of
the plug. Discontinue use of the product in this outlet. Contact a qualied electrician to replace
loose or worn outlets.
- This appliance has a polarized plug (one blade is wider than the other.) To reduce the risk of
electrical shock, this plug is intended to t in a polarized outlet only one way. If the plug does not
t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not
attempt to defeat this safety feature.
- The product may be hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
Always allow appliance to cool at least 30 minutes before moving, relling or emptying it. Empty
all water and dry unit before storing.
- Before lling with water, moving, repositioning, servicing, cleaning and when not in use, use
the product controls to turn off the power and then unplug. To disconnect from outlet, grasp
and pull only the plug. Also, power off and unplug if the product will be left unattended for an
extended period of time or during electrical storms.
- Electric shock can occur when liquid comes in contact with electricity. Be careful when removing
the water tank and relling to avoid electric shock. Do not pour water through the top Outlet Air
Grill on the power head.
- Turn the humidier off if the relative humidity exceeds 60%. Humidity levels above 60% may allow
5
English
moisture to build up indoors and condense on surfaces, where microorganisms can settle and
grow. For accurate readings, use a hygrometer which is available at most hardware stores and
home centers.
SERVICING WARNING—To reduce risk of re, electrical shock and injury to persons,
observe the following:
- Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the
power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other
chemicals for cleaning. Refer to the CLEANING instructions provided.
- Do not open appliance housing while product is plugged in. To avoid risk of shock, all service
and/or repairs must be done by a Vornado Authorized Service Center.
- Protect against the growth of mold, mildew and other microorganisms by emptying the water
tank immediately after each use. If water is left in the tank for longer than 8 hours, thoroughly
clean and disinfect the unit as described in the section of this Owner’s Guide referenced as
“CLEANING”.
DISPOSAL WARNING
To reduce waste and environmental harm, observe the following:
PACKAGE RECYCLING: The packaging protects the appliance from transport damage.
The packaging materials are selected from the point of view of their environmental
friendliness and disposal technology and are therefore recyclable. Dispose of all packaging
materials in an environmentally responsible manner.
FCC Consumer Advisement
This equipment may generate, use and/or radiate radio frequency energy that may cause harmful
interference to radio communications. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to contact Vornado Consumer Service at 1-800-234-0604. Changes or modications
to this unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
6 English
Before operating, ALWAYS lift from the bottom by using the handles located on the base. Lifting
the water tank handle on the water tank will cause the tank to detach from the humidier.
Check appliance for visible damage. DO NOT USE if there is evidence of damage. If any damage
is found, contact Vornado Air, LLC at 1-800-234-0604.
CAUTION: When removing water tanks lift vertically, do not twist tanks while still in base or
cap may disengage and leak.
WARNING: To avoid overlling the base, remove the water tanks before the power head to
avoid water displacement.
GETTING STARTED
CHECK FOR LEAKS
Damage due to shipping may cause leaks in base or water tanks. A visual
inspection may not reveal hairline fractures.
1. Place humidier on a water-resistant
surface.
2. Fill water tanks with water to inspect
for leaks.
3. Pour several cups of water into base to
inspect for leaks.
Not Leaking?
Empty water from base and install full
water tanks.
Leaking?
In the slight chance your humidier has
leaks, contact Consumer Service and we
will immediately replace damaged parts.
Note: Be gentle handling water tanks when relling to prevent any damage.
7
English
Lift Twist Fill Close
After lling the water tank, ensure the Cap is fully tightened before you replace it in the humidier.
Ensure gasket, the rubber ring around the Water Tank, is properly positioned. Insert the Cap into
the grooves of the tank and turn clockwise until tightened. When Cap is fully tightened the arrows
on the tank will align with the indicator lines on the Cap.
8 English

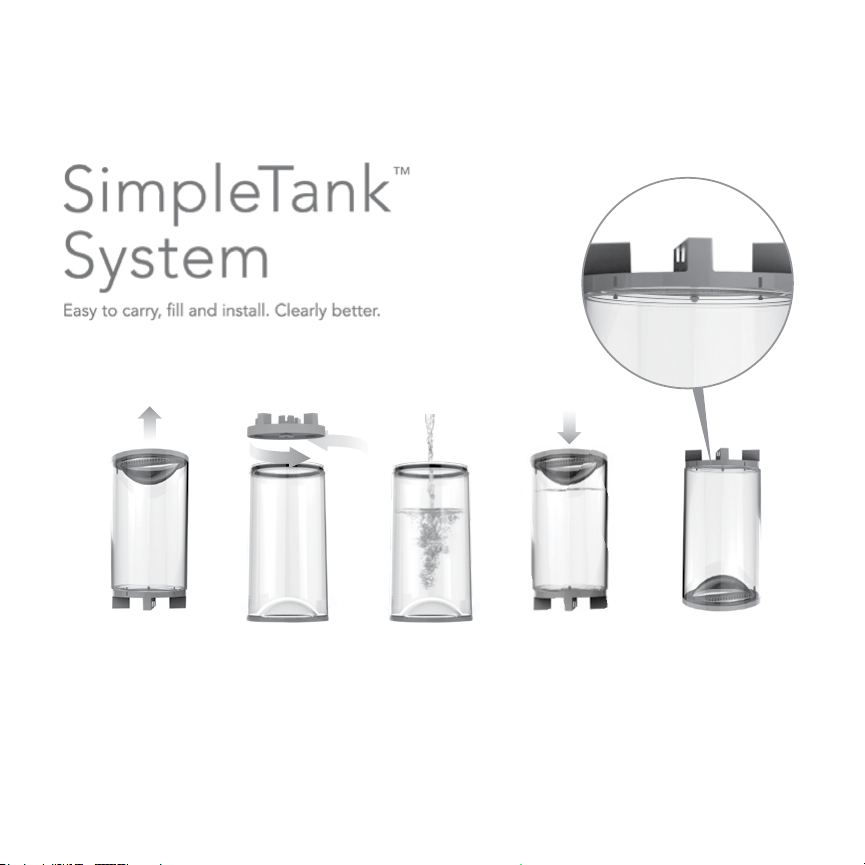

SIMPLETANK™ SYSTEM
This water tank is easy to carry, ll, install, clean and view water level. Two 1-gallon
capacity tanks.

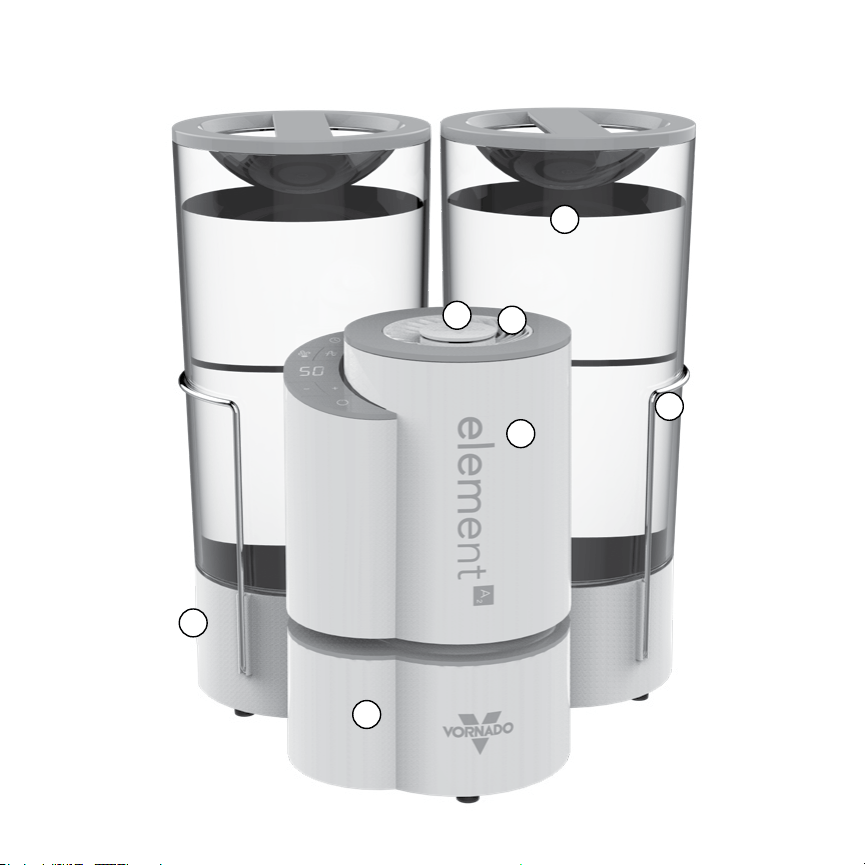

WATER TANK SUPPORT ROD
Provides support to water tanks in base.
OUTLET GRILL
Emits humidity throughout the whole room.
AROMATHERAPY SCENT CUP
Aromatherapy ready; just add essential oils.
POWER HEAD
CARRY HANDLES
Integrated handles on sides of base for lifting and carrying.
BASE
Durable and easy to clean.
FEATURES
1
2
3
4
5
6
7
9
English
1
5
7
6
4
2
3
10 English
CONTROLS
POWER ON/OFF/CONTROL LOCK
Turn the humidier On/Off. Lock in desired settings.
HUMIDITY
Control humidity level at 30%–70%.
STEAM TEMPERATURE SETTINGS
Customize your steam experience with cool, warm or hot steam settings.
AUTO MODE
Delivers the right amount of humidity as the fan speed and heat element vary to maintain set
humidity level.
TIMER
Set timer for up to 12 hours.
PHOTODETECTOR
Based on the amount of light detected in the room, the photodetector sensor will
automatically adjust the brightness of the control display.
1
2
3
4
5
6
11
English
1
3
4
5
6
2
12 English
HOW TO USE
CONTROLS
1. Touch
to power on. All control panel LED’s
will illuminate white to indicate the unit is
powered on. When the humidier is powered off,
only
will illuminate white.
Note: After rst use, current settings are saved
when powering off or unplugging (excluding
timer function).
2. Set humidity level by touching
–/+. The
humidity settings will increase in increments of
5%. Once set humidity is reached, Element will
turn off until the humidity level drops below the
selected setting.
The humidier will evaporate 4 gallons of
water (+/- 10%) in 24 hours of continuous
operation. (This assumes room conditions of
70º F and 30% relative humidity.)
13
English
3. Touch to select desired steam setting. A color
indicator will illuminate for cool steam (purple),
warm steam (pink) and hot steam (orange-red).
Depending on selected steam setting, the
temperature of the mist at the outlet grill may
be hot.
4. Touch
to select auto mode. The fan speed
and heat element varies to maintain set humidity
level. When your desired humidity level is
reached, the fan and heat element will turn off
until the humidity level drops below your desired
humidity setting.
WARNING! After using the humidier, if you
disassemble the unit for any reason the boil
chamber will contain hot water! The heat
element will also be extremely HOT! Cool
down at least 30 minutes before touching
these components.
Color indicator
will illuminate.
14 English
HOW TO USE
CONTROL LOCK
Element features an option to lock in your desired settings during operation. To lock press and hold
for 3 seconds, then repeat to unlock. All control panel LED’s will ash 1 time to indicate it is
locked, 2 times when unlocked and attention code LC will also ash.
While this feature is engaged you will not be able to change the settings or power off. If you try to
change settings while locked, the control panel LED’s will ash 3 times and attention code LC will
also ash.
When the humidier is powered off you may still use the control lock feature. Follow the
instructions above to lock and unlock. The control panel will ash LC 1 time to indicate the controls
are locked, 2 times when unlocked and 3 times when the controls are locked and you attempt to
change the settings.
If Element is unplugged while locked, the lock setting will not be saved.
5. Set timer to automatically power humidier off
by touching
. The number 0 will ash on the
display. Press either
or –/+ to select up to 12
hours. Once your selection is made, the display
will stop ashing, timer icon will illuminate orange
and display will return to selected humidity
setting. To cancel timer operation, select 0 hours
or press and hold down for 3 seconds. The
timer icon will illuminate white when timer is off.
15
English

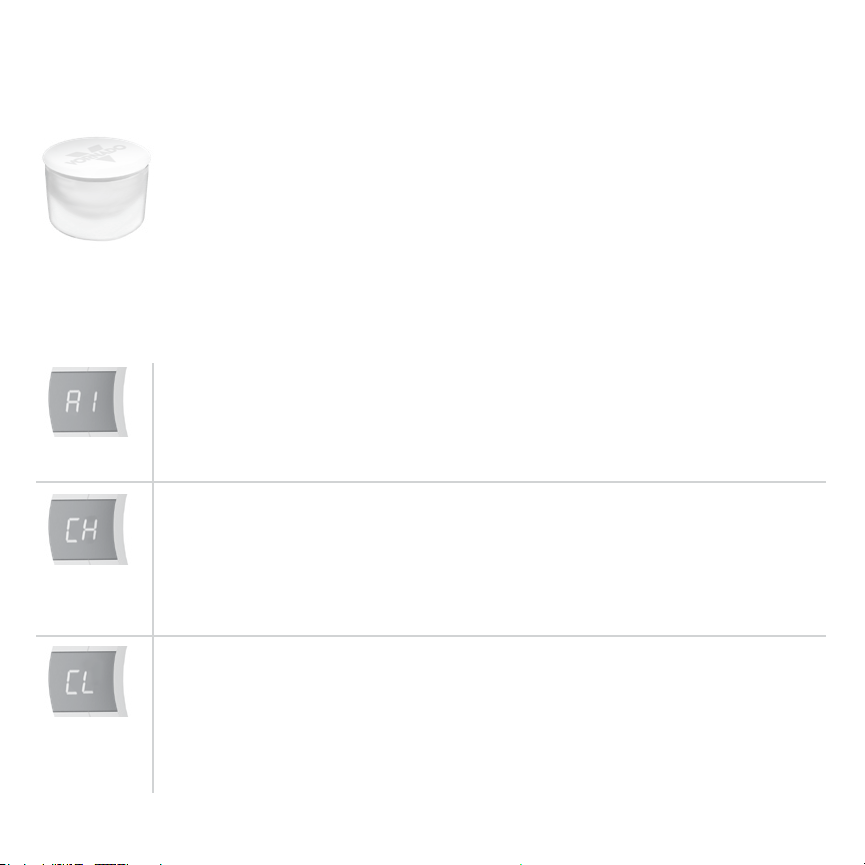

ATTENTION CODES
A1: Power head is not attached to the base. If you detach the power head
while the humidier is running, or if power head is not properly attached
to the base, the humidier will power off. Control panel LED’s ash and
display A1. Power button illuminates orange until power head is attached and
aligned with the base correctly and Element is powered back on.
CH: When the water tank runs out of water, a "CH" auto rell notication code
will ash for 5 seconds on the control panel every 15 seconds until the tank
is relled. Once water is added "CH" code will clear after a short period of
time. Unit does not need to be powered on as it will automatically resume
operation once water is added. Note: When tank is out of water, there will be
no visible steam.
CL: When the heat element has accumulated mineral scale and cleaning is
needed, a "CL" cleaning notication code will ash for 5 seconds on the
control panel every 15 seconds until cleaned. Once clean, "CL" code will
clear. The unit will continue running and will not turn off due to "CL" code.
Note: If the unit is used for an extended period of time after being notied of
"CL" code but still has not been cleaned, a decrease in visible steam plume
may be noticeable. This indicates diminished performance.
AROMATHERAPY SCENT CUP
Element is aromatherapy ready; just add your favorite essential oils. The steam
will heat the oil and the fragrances will be released via evaporation ensuring the
therapeutic properties are not damaged or altered. Follow the essential oils usage
instructions as directed. Clean the scent cup and lid periodically even if using the
same oil repeatedly. If using different blends or fragrances, clean between each
use. Do not overll the scent cup or put any oils directly into the water tank,
outlet grill, area under the scent cup, or base. Avoid transferring oils to the
control panel or ring around the outlet grill as decolorization or a reaction to the
surface may occur.
16 English
CLEANING
Proper cleaning is essential to the air quality and performance of your humidier. The
frequency in which your humidier will need to be cleaned will vary depending on use,
water hardness and outside environmental factors. It is recommended to thoroughly clean
the unit once a week or when Attention Code "CL" appears on control panel.

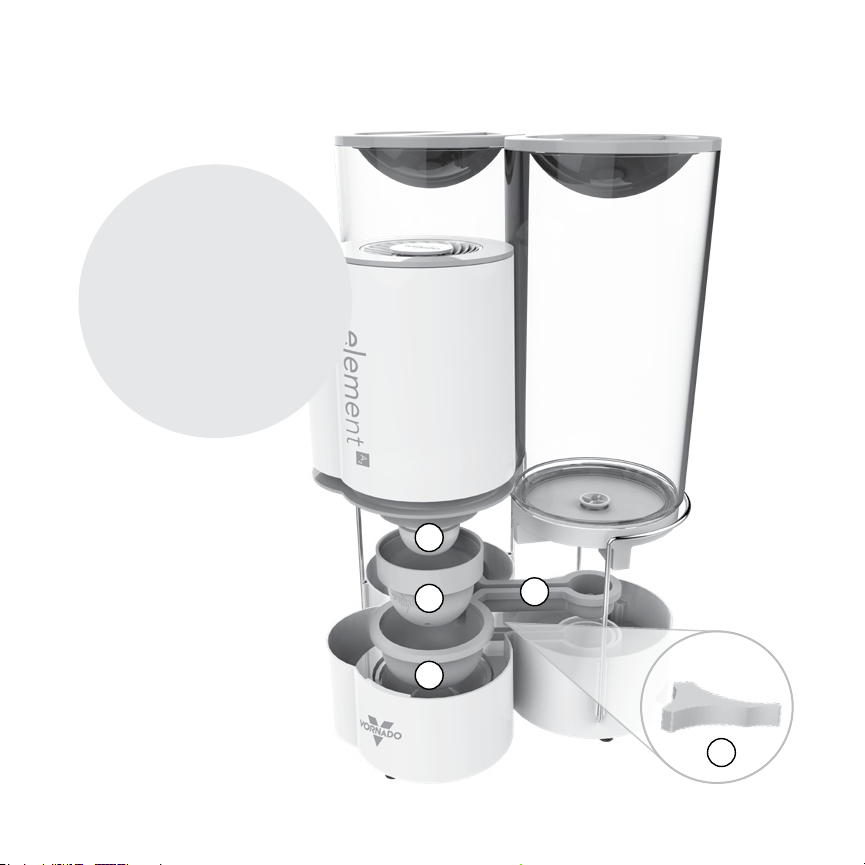

HEAT ELEMENT
Heats water in boil chamber to generate steam.
HEAT ELEMENT COVER
Silicone cover seals steam compartment and provides protection for heat element.
BOIL CHAMBER
Silicone chamber holds water heated by heat element.
RESERVOIR
Silicone reservoir feeds water from water tank to boil chamber.
MAGNETIC BASE COVER
Ensures electrical connection between power head and base.
1
2
3
4
5
17
English
1
2
3
4
5
GENERAL CLEANING:
To clean the exterior of
the humidier, wipe down
with a soft, damp cloth. Do
not submerge power head in
water. Clean the grill with a
soft, damp cloth or with a
can of compressed air.
18 English
CLEANING
The water tanks and base are not dishwasher
safe. Do not use gasoline, thinners, solvents
or other chemicals for cleaning.
CLEAN SCENT CUP:
Remove the scent cup and lid
and clean with warm water and a
mild detergent. Rinse and dry with a
clean cloth or paper towel. Clean the
scent cup and lid periodically even
if using the same oil repeatedly.
If using different blends or
fragrances, clean between
each use.
The silicone parts are
dishwasher safe (place on
the top rack of dishwasher
only). Warm water and a mild
detergent may also be used for
cleaning these parts.
19
English
CLEANING THE BASE
1. Turn humidier off and unplug.
Note: Be sure you are near a sink or an area that will not be damaged by water. Excess water will ush
from heat element cover when disassembling.
WARNING: To avoid overlling the base, remove the water tanks before the power head to
avoid water displacement.
2. Disassemble humidier:
– Remove water tanks rst.
– Next remove water tank support rods by pulling the rods outward.
– Then remove power head by turning power head counterclockwise to release from base and
remove the magnetic base cover and all silicone parts. WARNING: Do not grasp outlet grill to
remove power head, it may be hot.
3. Clean base and silicone parts with warm water and a mild detergent. Rinse and dry.
4. Reassemble humidier:
– Ensure the magnetic base cover and silicone parts are back in place.
WARNING: Do not run humidier without the silicone parts.
– Turn power head clockwise to re-attach to base:
- First align arrows as shown on power head and magnetic base (A).
- Next turn power head clockwise until power head locks
into place.
– Replace water tank support rods then water tanks.
A
A
20 English
Let humidier dry completely
before storing. Do not store with
water inside water tank, base or
around the heat element.
WATER TANK IMPURITIES:
On occasion the water tank
may need to be gently wiped
down or cleaned to remove
build-up of impurities. Clean
with a mild detergent and
cool water.
If the humidier is turned off with water in base for 8 hours or longer, or
if humidier is not cleaned as recommended, you may experience some
growth of algae or bacteria. These microorganisms may become airborne.
21
English

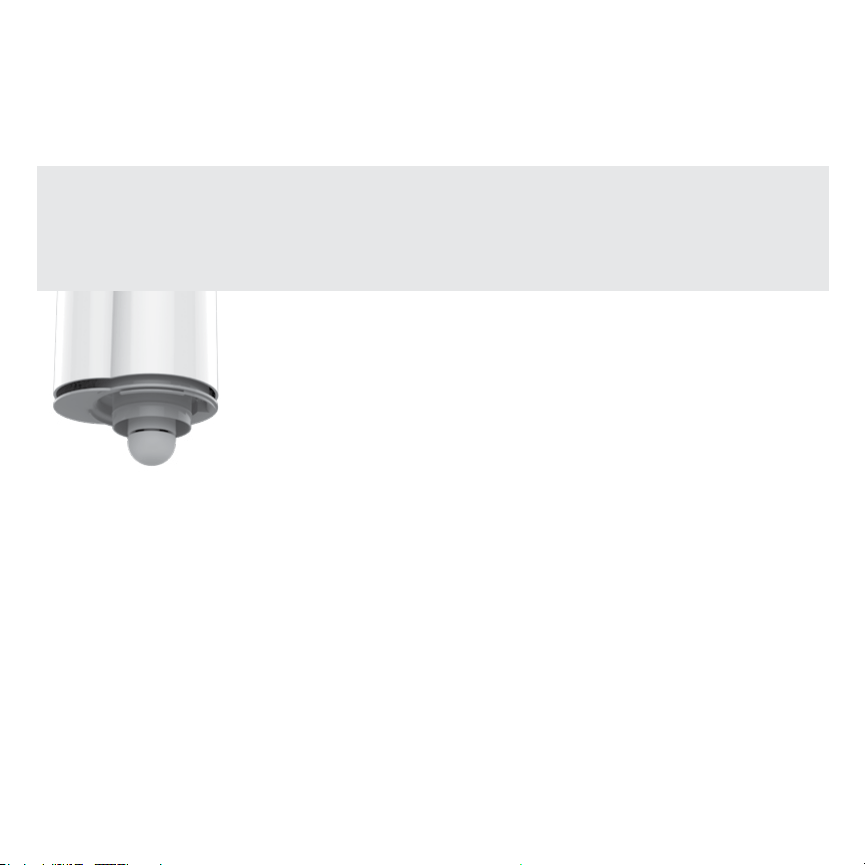

MINERAL BUILD-UP
The best way to minimize mineral build-up is to use distilled or de-mineralized water when
using your Element Steam Humidier. It is recommended the heat element and silicone parts
be cleaned weekly or when Attention Code "CL" appears on control panel in order to remove
any deposits that form. This will help to extend the life of the product and keep it functioning
at its maximum potential.
Note: Do not use hard brushes, steel wool or other abrasives on heat
element to avoid damage.
WARNING: Allow unit to cool (30 minutes for complete cooling)
before cleaning heat element. Do not allow heat element to touch
other objects as it cools.
REMOVE MINERAL BUILD-UP
The Element Steam Humidier includes a packet of Vornado Cleaner & Descaler. Consisting
of citric acid, this agent is used to loosen and remove mineral build-up on the heat element. It
is easy-to-use and safe for all Vornado Steam Humidiers.
1. Turn off humidier, unplug and let cool before cleaning. Do not run unit at any time during
the cleaning process. Disassemble humidier as outlined in CLEANING.
2. Empty any water in base and silicone boil chamber & reservoir.
3. Combine granules from the cleaning packet and mix with 6 oz. of water in a measuring cup
(not included) until completely dissolved. Pour mixture into the silicone boil chamber and
22 English
reservoir in base. If using more than 6 oz. of water, some
will ow into the base. This will not hurt base but it is not
needed.
4. Position magnetic base cover back onto base. Set power
head on base and attach (without silicone heat element
cover attached). This will submerge heat element directly
into the mixture. Soak for 30 minutes to an hour or longer
depending on amount of build-up. You may scrub the
heat element with a soft bristle brush as particles begin
to loosen. Avoid hard brushes or steel wool as they can
damage the heat element.
5. Once clean, thoroughly rinse base, silicone parts and heat element with cool tap water to
ensure all residue is gone before using.
6. Avoid dumping water or the mixture into the two drain holes located on underside of
powerhead during cleaning.
NOTE: Undiluted white vinegar may also be used for cleaning the heat element, however,
citric acid is recommended.
For replacement packets (MD1-0037), call Vornado Consumer Service at 800-234-0604.
23
English
Unit is not plugged in. Plug power cord into electrical outlet.
Household circuit breaker/ground fault circuit interrupter
has tripped or blown fuse. Reset circuit breaker/ground fault
circuit interrupter, or replace fuse. For assistance, contact
licensed electrician.
Unit is damaged or in need of repair. Cease usage and unplug.
Contact Consumer Service for assistance.
If unit is sitting on a metal cabinet or surface, interference can
occur with the magnet in the magnetic base cover. Do not place
unit on metal surfaces during operation.
Ensure the magnetic base cover is securely in place to ensure
electrical connection between power head and base.
This is normal and is power being provided to the unit.
This is normal. Water is being dispensed into base. You may
periodically see bubbles in the tank, which is normal. This is the
water tank feeding water from the reservoir to the boil chamber.
Unit fails to power on.
Unit emits a slight
buzzing when
plugged in before
powering unit on.
Unit makes bubbling
or gurgling sound.
TROUBLESHOOTING
POSSIBLE CAUSE AND SOLUTIONPROBLEM
24 English
Unit is not producing
desired amount
ofhumidity.
Condensation is
forming on scent cup
and outletgrill.
Water is collecting in
base.
Unit is not emitting
steam.
POSSIBLE CAUSE AND SOLUTIONPROBLEM
Water level in tank is empty or too low. Rell tank with clean, cool
water.
Unit has reached its set point. When set humidity level is reached,
the fan and heat element will turn off until humidity level in room
drops below humidity set point.
Airow is blocked. Remove obstruction.
Unit settings are too low. Set to hot steam setting for maximum
humidity output.
This is normal. As steam rises condensation may gather on these
areas. You may wipe away periodically. It will not harm the unit.
Water can form from condensation from two drain holes located on
underside of powerhead during operation. Empty base periodically
during use.
The water tank has run out of water and “CH” code is ashing on
control panel. Rell tank with clean, cool water.
Unit’s internal thermostat is turning heat element off and on (cycling)
to ensure proper operating conditions. Cycling can occur if heat
element needs cleaning. The heat element may turn off
25
English
Unit is not emitting
steam (cont).
Unit has a decrease in
visible steam plume.
Attention Code LC
Attention Code A1
Attention Code CH
Attention Code CL
POSSIBLE CAUSE AND SOLUTIONPROBLEM
for approximately 30-45 seconds before turning back on. While
heat element is off unit may not emit steam. “CL” code will ash
on control panel. Clean heat element and resume operation. See
CLEANING.
Mineral scale has accumulated on heat element and “CL” code is
ashing on control panel. Clean heat element and resume operation.
See CLEANING.
Unit is locked and settings can’t be changed. See HOW TO USE –
CONTROL LOCK.
Power head is not attached to the base; does not have proper power
connection. See HOW TO USE
–
ATTENTION CODES.
When the water tank runs out of water, “CH” code will ash on the
control panel until the tank is relled. Once water is added, “CH”
code clears and unit continues normal operation. See HOW TO USE
– ATTENTION CODES.
When the heat element has accumulated mineral scale and cleaning
is needed, “CL” code will ash on the control panel until cleaned.
Once clean, “CL” code will clear. See HOW TO USE – ATTENTION
CODES.
26 English
Vornado Air LLC (“Vornado”) warrants to the original consumer
or purchaser this Vornado
®
Element Steam Humidier
(“Product”) is free from defects in material or workmanship for
a period of ve (5) years from the date of purchase. If any such
defect is discovered within the warranty period, Vornado, at its
discretion, will repair or replace the Product at no cost.
For warranty or repair service:
Call 1-800-234-0604 or email [email protected] to obtain a
Return Authorization (“RA”) form. Please have or include your
Product’s model number and serial number, as well as your
name, address, city, state, Zip code and phone number when
contacting Vornado for warranty service.
After receiving the RA form, ship your Product to:
Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street,
Andover, KS 67002. For your convenience, please have your
model number and serial number when contacting Vornado
with service inquiries. To ensure proper handling, packages
must be clearly marked with the RA number. Packages not
clearly marked with the RA number may be refused at the
receiving dock. Please allow 1–2 weeks for repair and return of
your Product after the Product is received.
Repairs not covered by the warranty or outside the warranty
period will require a fee to cover the cost of materials, labor,
handling and shipping.
This warranty does not apply to defects resulting from abuse
of the Product, modication, alteration, mishandling, improper
maintenance, commercial use or repair or service of the
Product by anyone other than Vornado; damages which occur
in shipment or are attributed to acts of God. Improper product
use, which includes using an external device that alters or
converts the voltage or frequency of electricity, or shipping a
Vornado product to a country not intended for use will void all
warranties. Any unauthorized product modication, repair by
unauthorized repair center or use of non-approved replacement
parts is not recommended and any consequences will not
be covered by support services or product warranties. The
product warranty will be honored only on models that are being
used in the country intended. REPAIR OR REPLACEMENT
AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. VORNADO SHALL NOT
BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY. Some states do not
allow the exclusion or limitation of incidental or consequential
damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to
you. This warranty gives you specic legal rights, and you may
have other rights that vary from state to state. The manufacturer
assumes no responsibility for damage or injury caused by
failure to follow these instructions, improper product use or
unauthorized product modications. Any such actions will
invalidate the product warranty.
All company names and product names are trademarks of
their respective owners. ©All rights reserved. All technical
information, data and instructions for the installation,
connection and operation contained in these instructions for
use correspond to the latest available information at time of
printing. The contents of this manual may differ slightly from the
actual product. Observe any additional supplements.
WARRANTY
We expect this product to be perfect. If you’re not satised with this product, let us know.
We’re Here to Help
800.234.0604
vornado.com
© 2018 Vornado Air LLC Andover, KS 67002 U.S. Patent pending. Specications subject
to change without notice. Vornado
®
is a trademark owned by Vornado Air LLC.
Designed, engineered and supported in USA.
CL3-0521 RA, V00
MODEL ELEMENT A2
vornado.com
