Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
English
The illustration shown is an image.
TH-42PD12U
TH-50PD12U
Model No.
Operating Instructions
High Defi nition Plasma Display
2
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualifi ed service personnel.
The lightning flash with
arrow-head within a triangle
is in tend ed to tell the user
that parts inside the product
are a risk of electric shock
to per sons.
The exclamation point within
a triangle is intended to
tell the user that important
operating and servicing
instructions are in the papers
with the ap pli ance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING : To prevent damage which may result in fi re or shock hazard, do not expose this apparatus to rain
or mois ture.
Do not place containers with water (fl ower vase, cups, cosmetics, etc.) above the set.
(including on shelves above, etc.)
WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to
qualifi ed service personnel.
2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fi t a grounding-type power outlet. This is a safety fea ture.
If you are unable to insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the grounding plug.
3
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifi ers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments / accessories specifi ed by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart / apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.
4
Table of Contents
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment
from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making any adjustments,
and retain them for future reference.
Retain your purchase receipt as well, and record the model number and serial number of your set in the
space provided on the rear cover of these instructions.
Visit our Panasonic Web Site http://panasonic.net
Important Safety Instructions .................................. 3
FCC STATEMENT ...................................................... 5
Safety Precautions ................................................... 6
Maintenance .............................................................. 7
Accessories .............................................................. 8

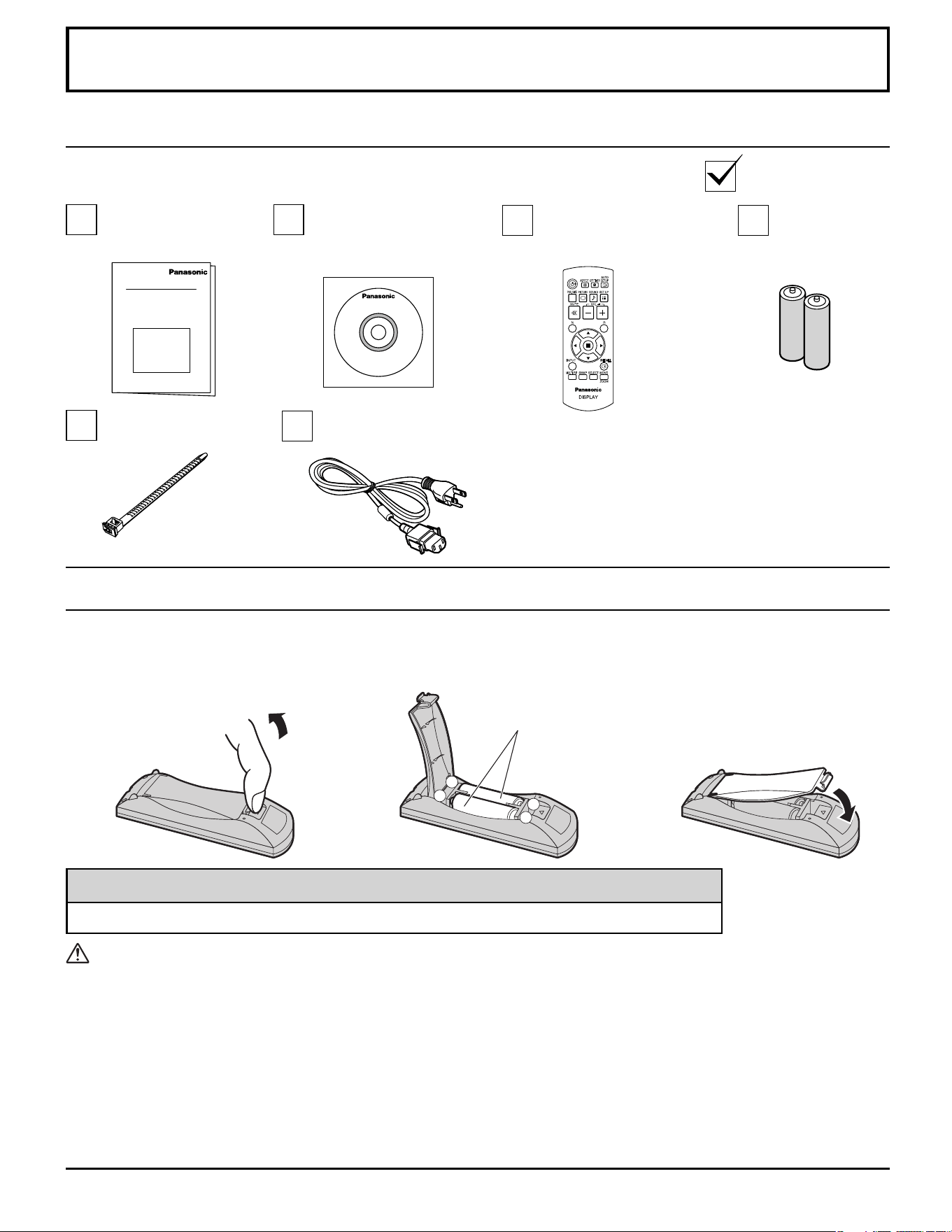

Accessories Supplied .............................................. 8
Remote Control Batteries ........................................ 8

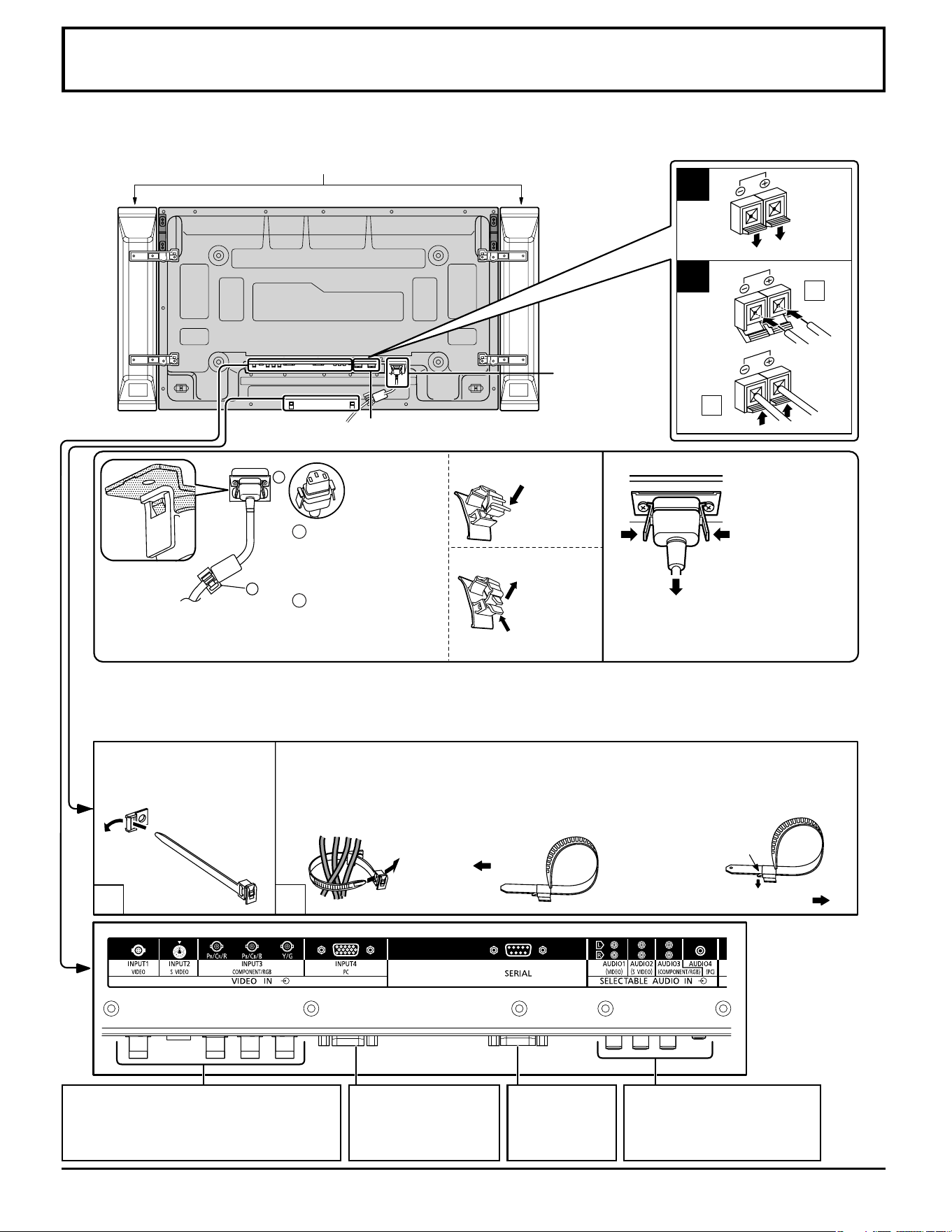

Connections .............................................................. 9
PC Input Terminals connection .............................. 10

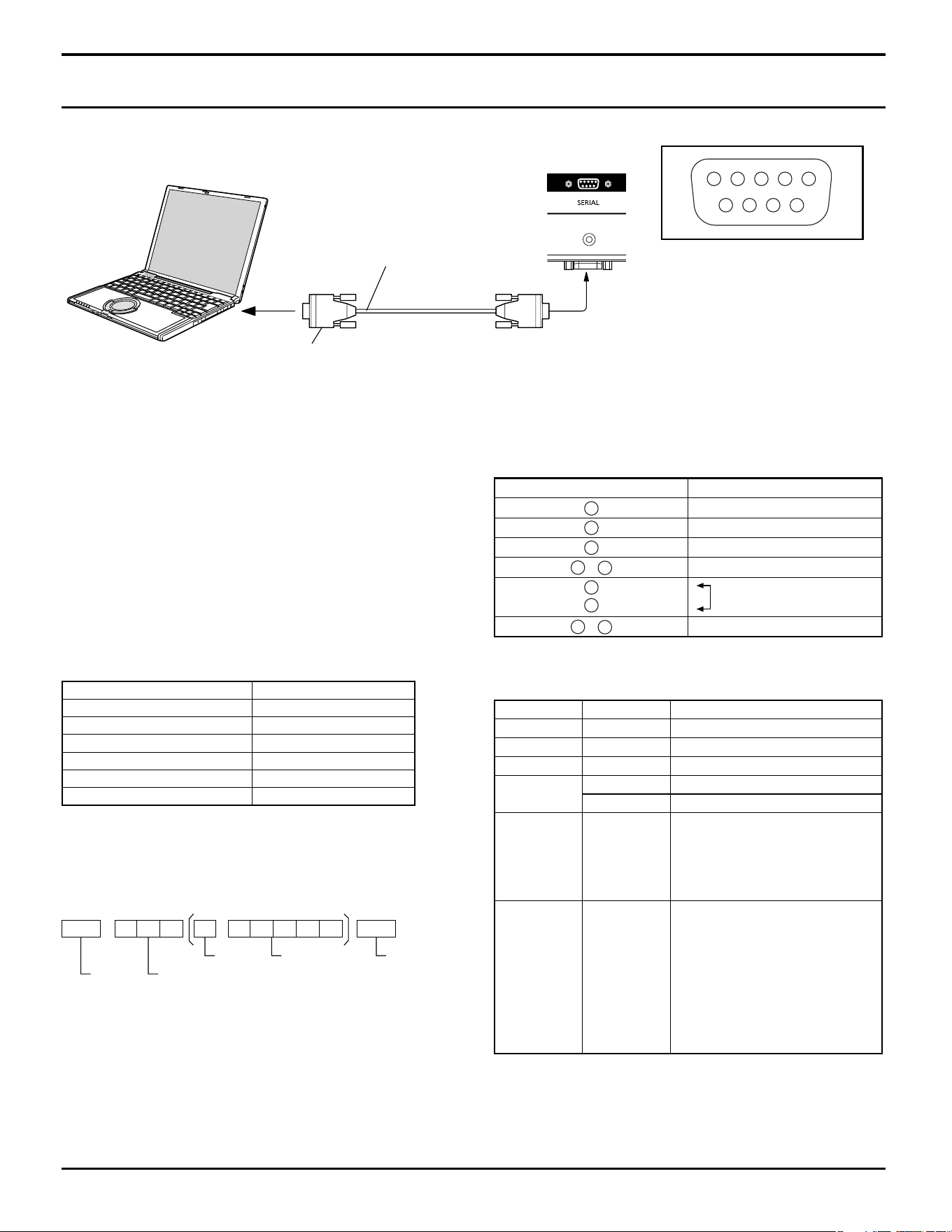

SERIAL Terminals connection ................................11

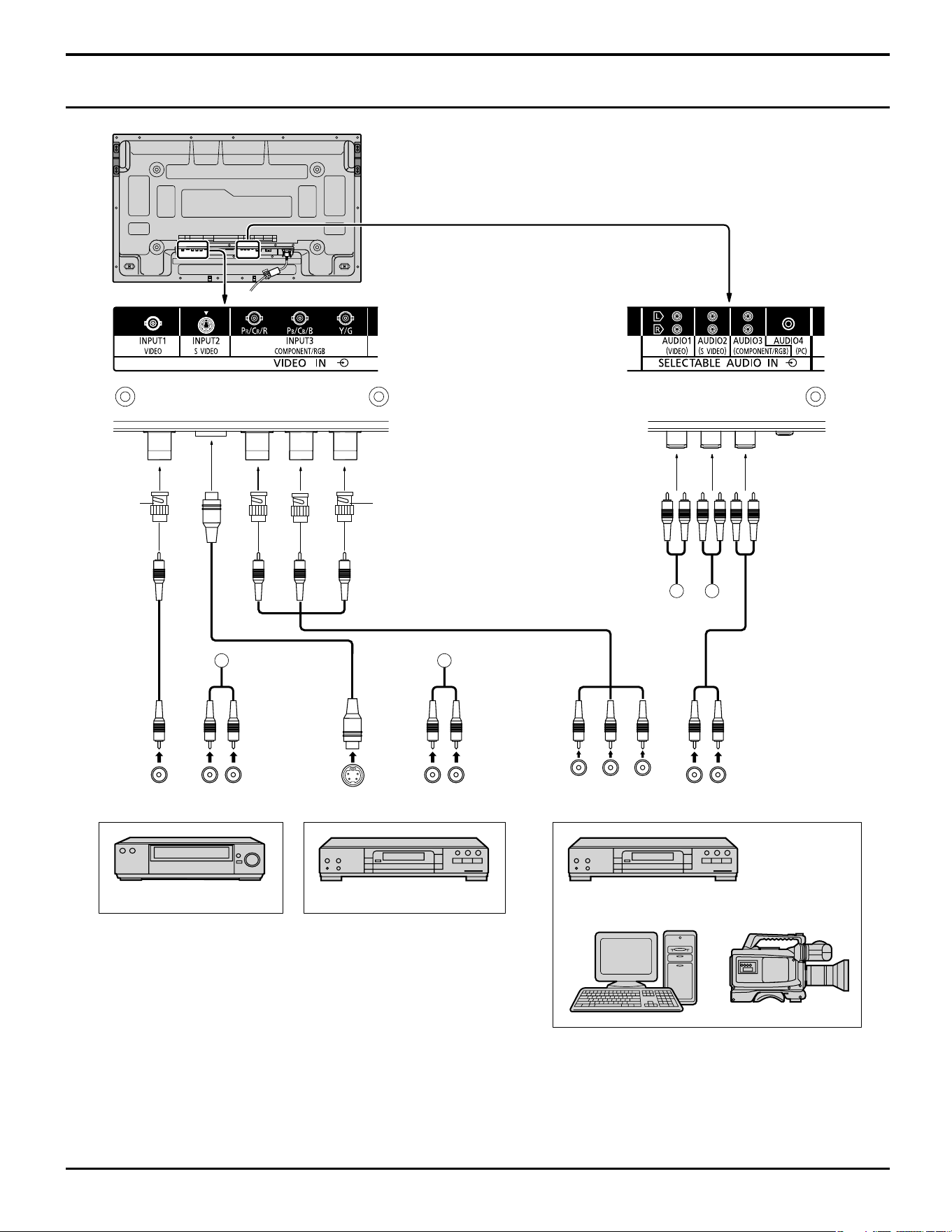

AV connection........................................................ 12

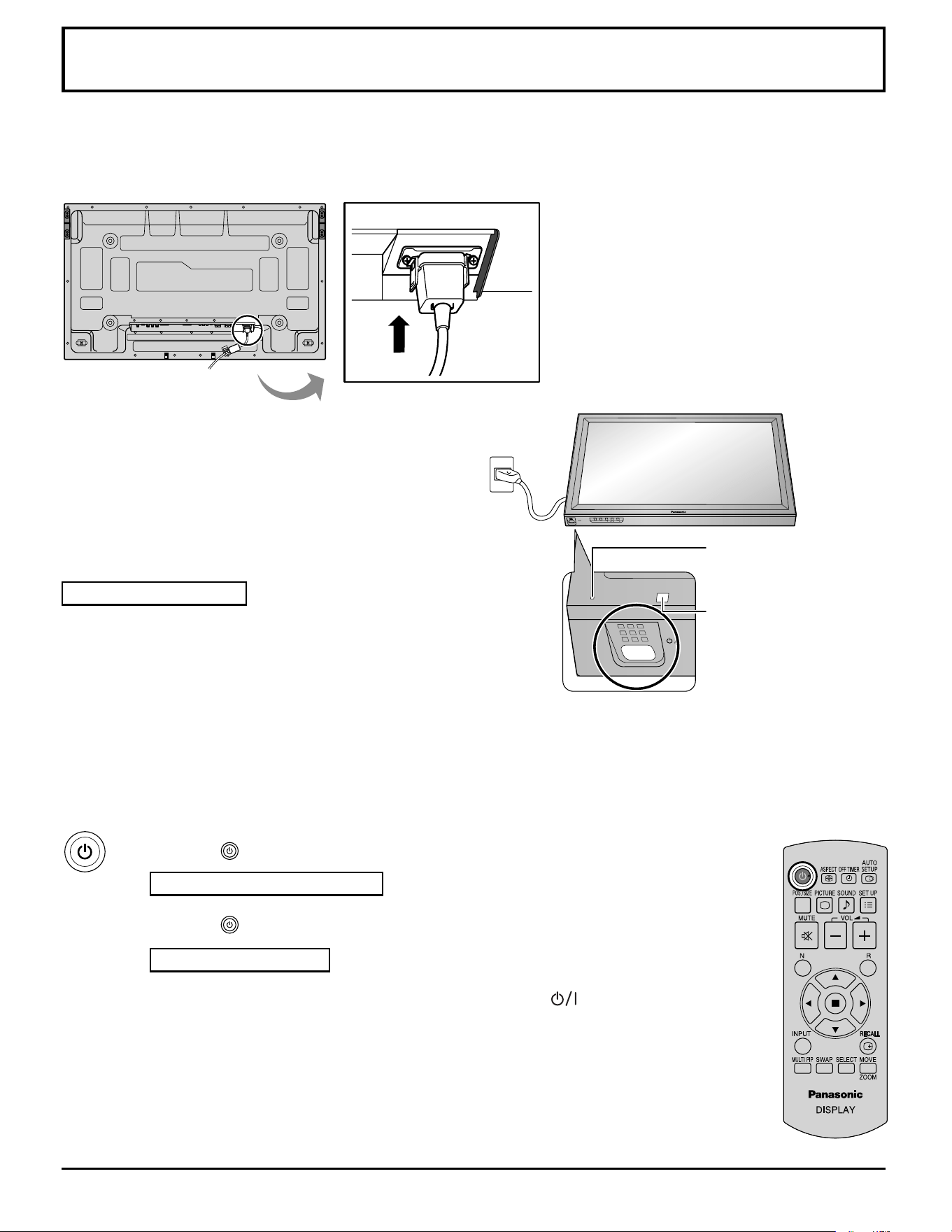

Power ON / OFF ..................................................... 13
Selecting the input signal ...................................... 15

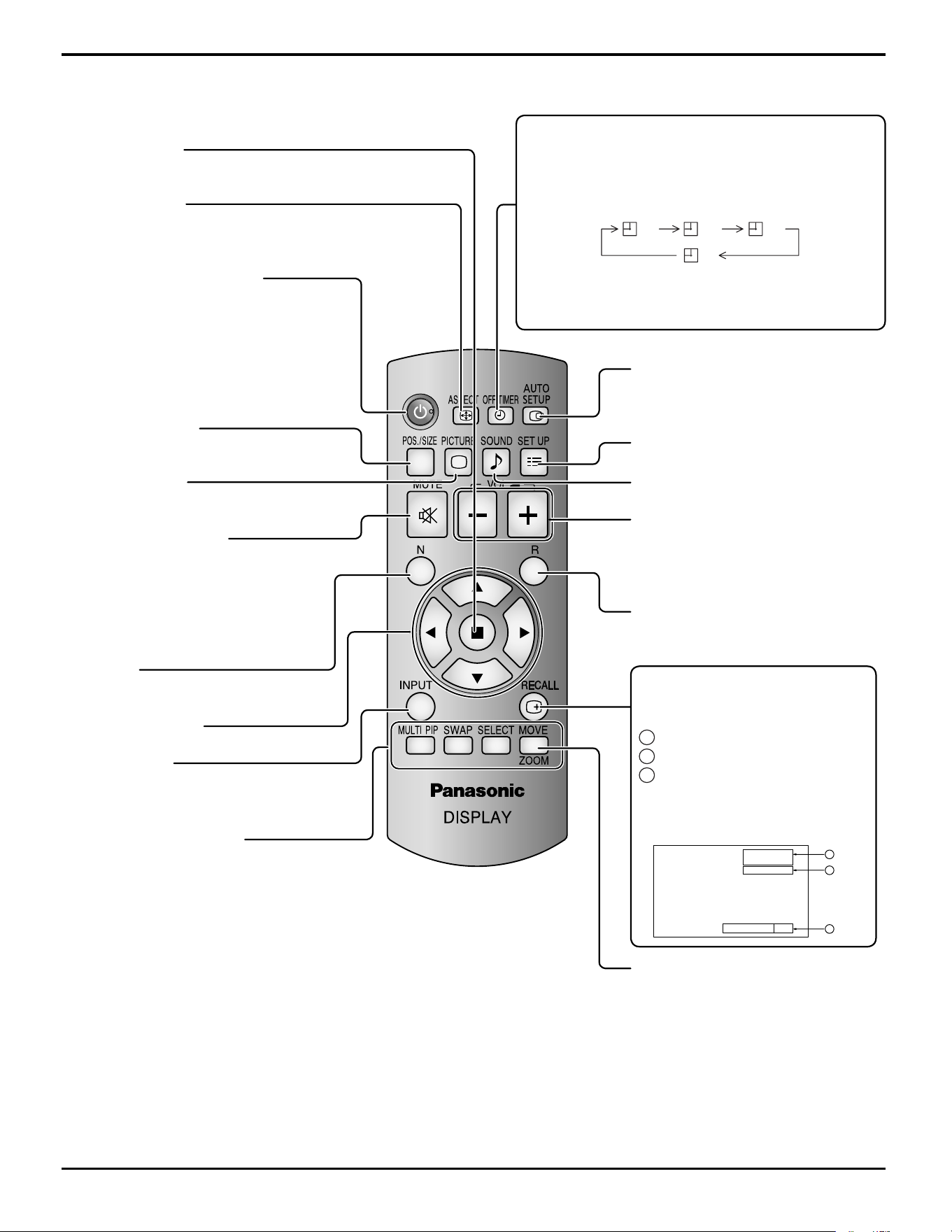

Basic Controls ........................................................ 16
ASPECT Controls ................................................... 18

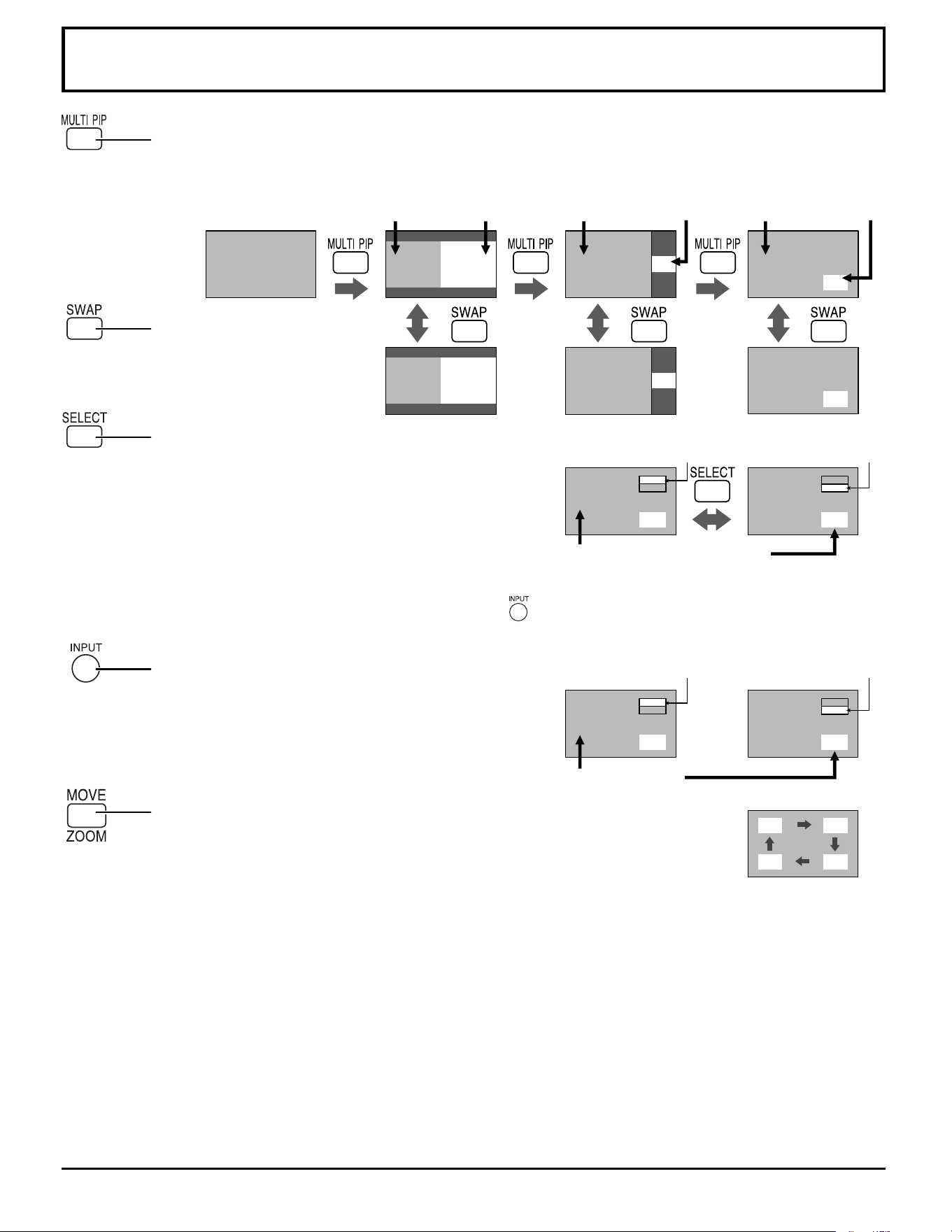

MULTI PIP ................................................................ 19

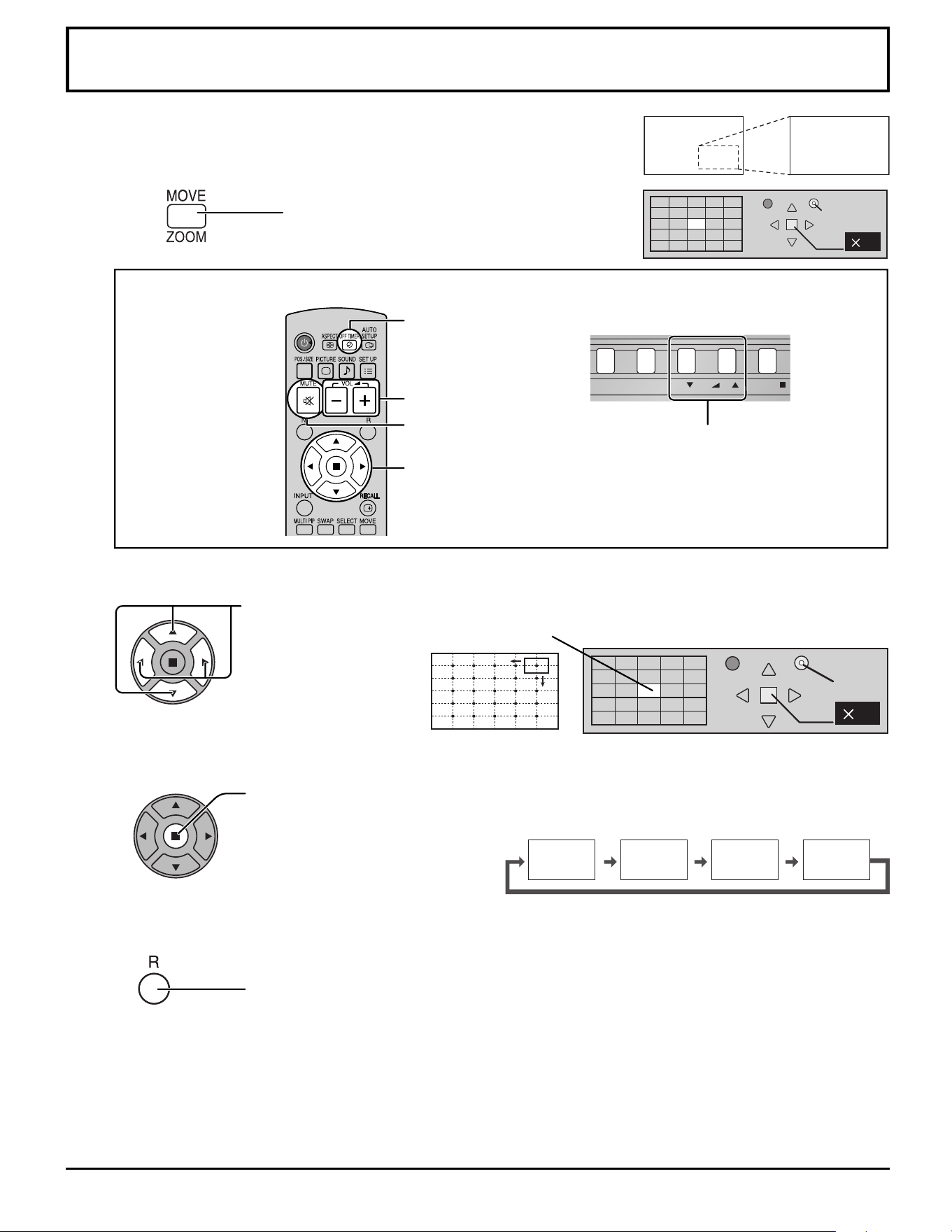

Digital Zoom ............................................................ 20

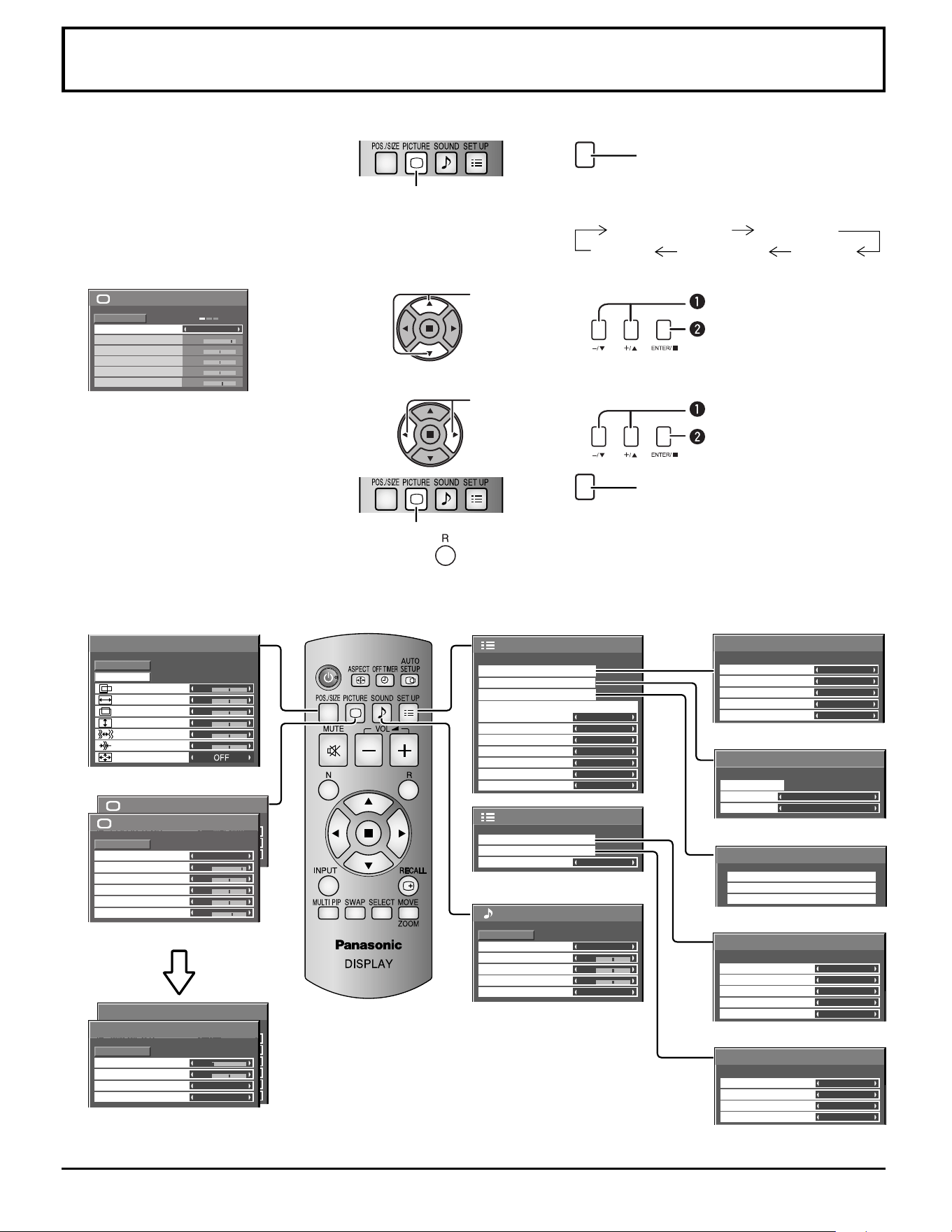

On-Screen Menu Displays ..................................... 21

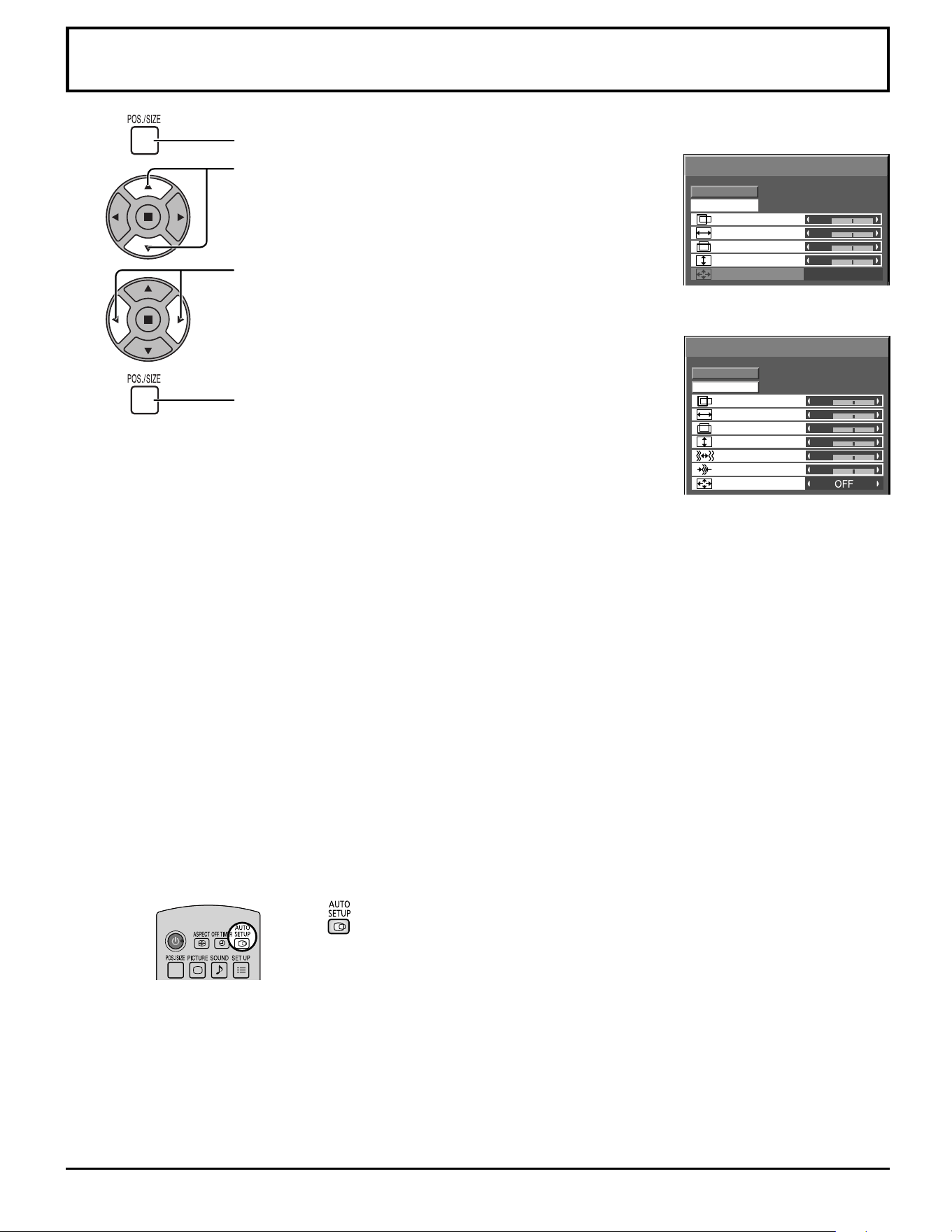

Adjusting POS. /SIZE ............................................. 22
PICTURE Adjustments ........................................... 24
ADVANCED SETTINGS ........................................ 25

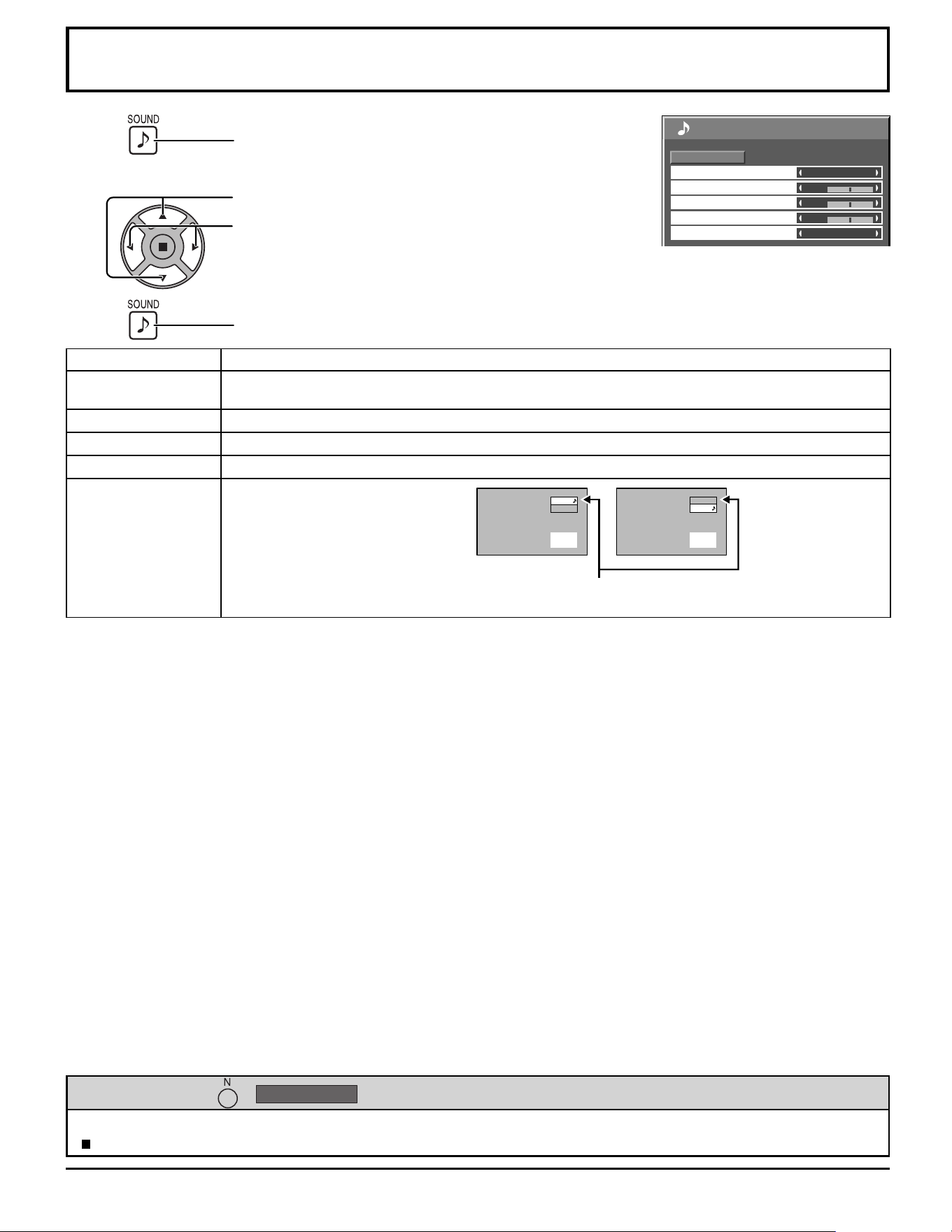

SOUND Adjustment ................................................ 26
SCREENSAVER (For preventing image retention)
.. 27
Setup of SCREENSAVER Time ............................ 27
Reduces screen image retention .......................... 28
EXTENDED LIFE SETTINGS ............................... 28
Reduces power consumption ............................... 30
Customizing the Input labels ................................. 31

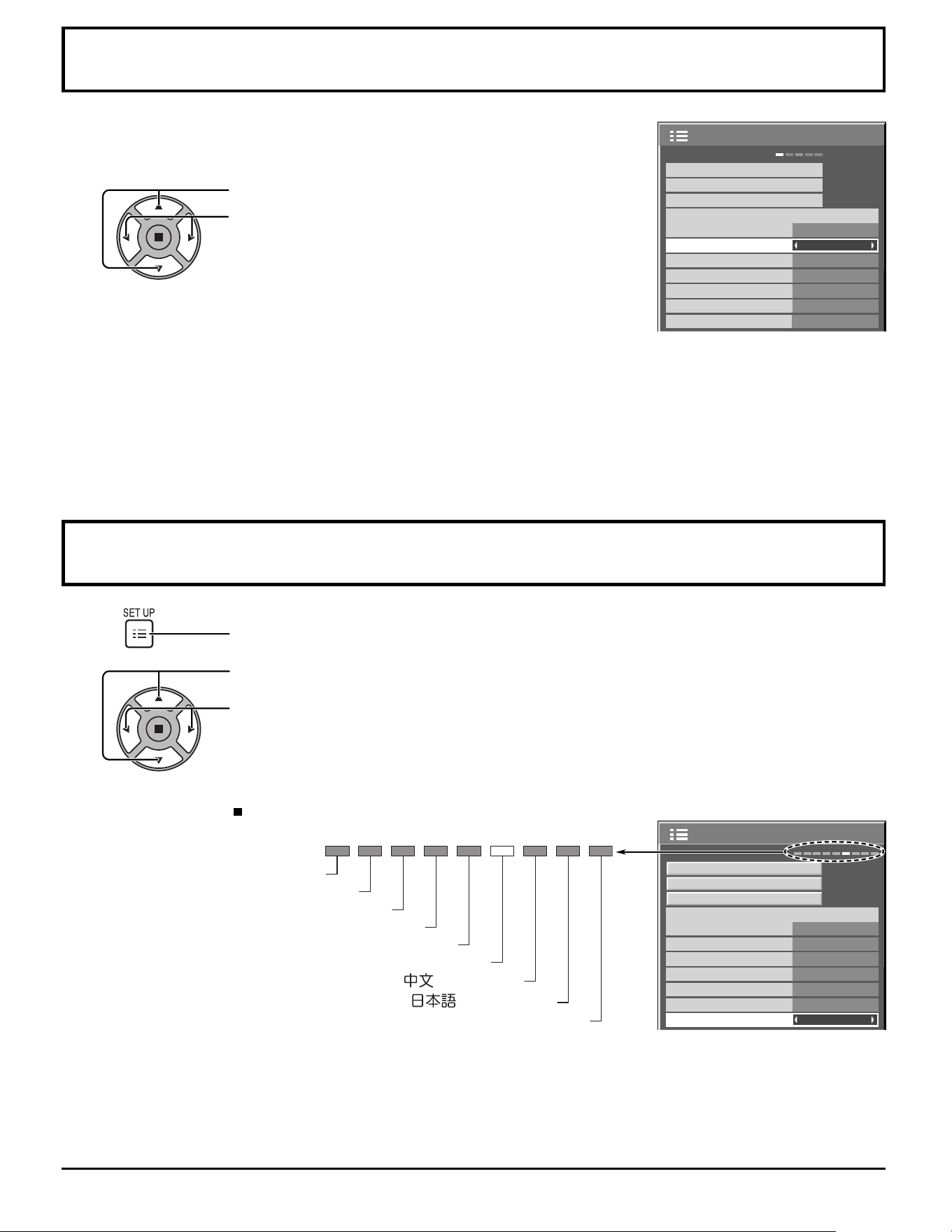

Selecting the On-Screen Menu Language ............ 31
AUDIO INPUT SELECT ........................................... 32

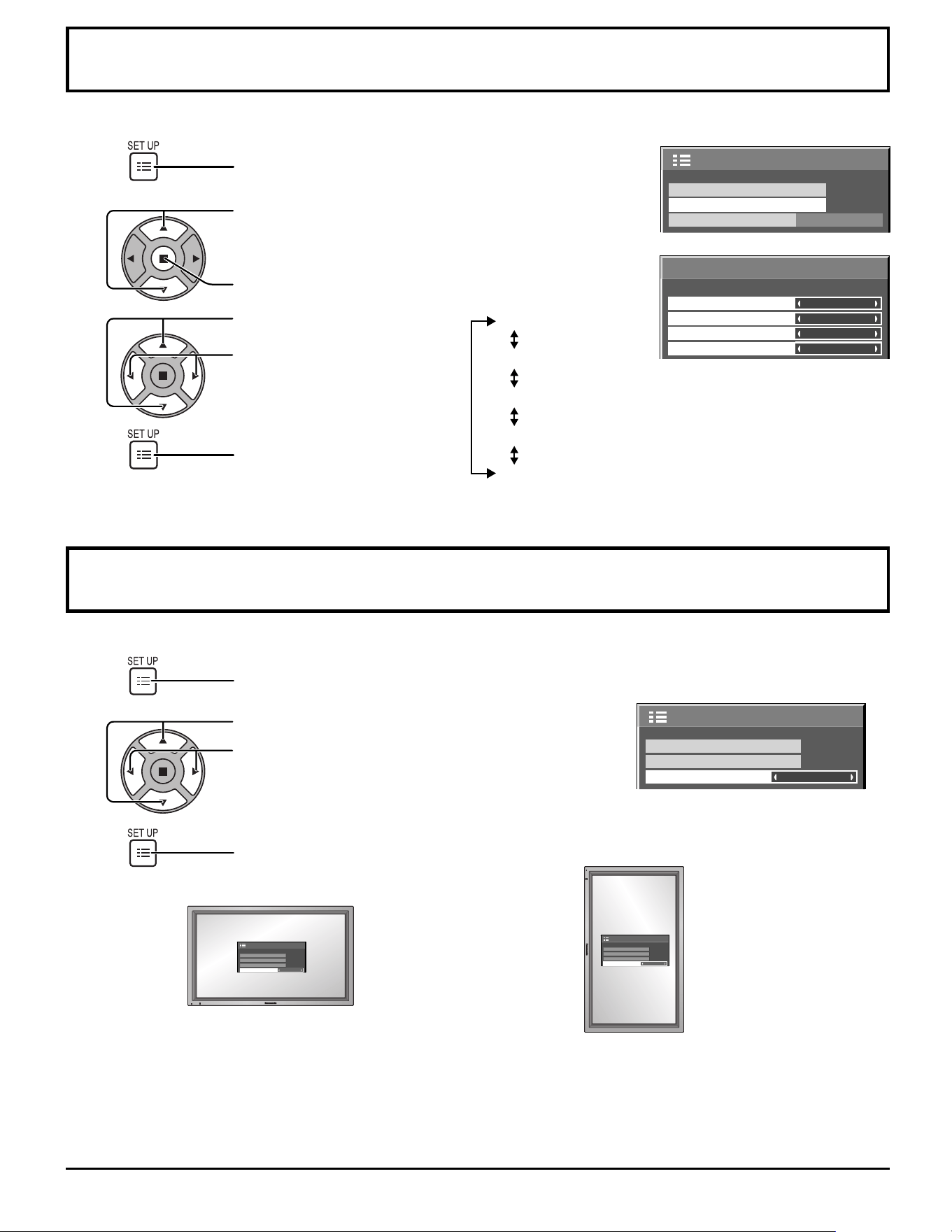

DISPLAY ORIENTATION ......................................... 32
SET UP for MULTI DISPLAY ................................... 33

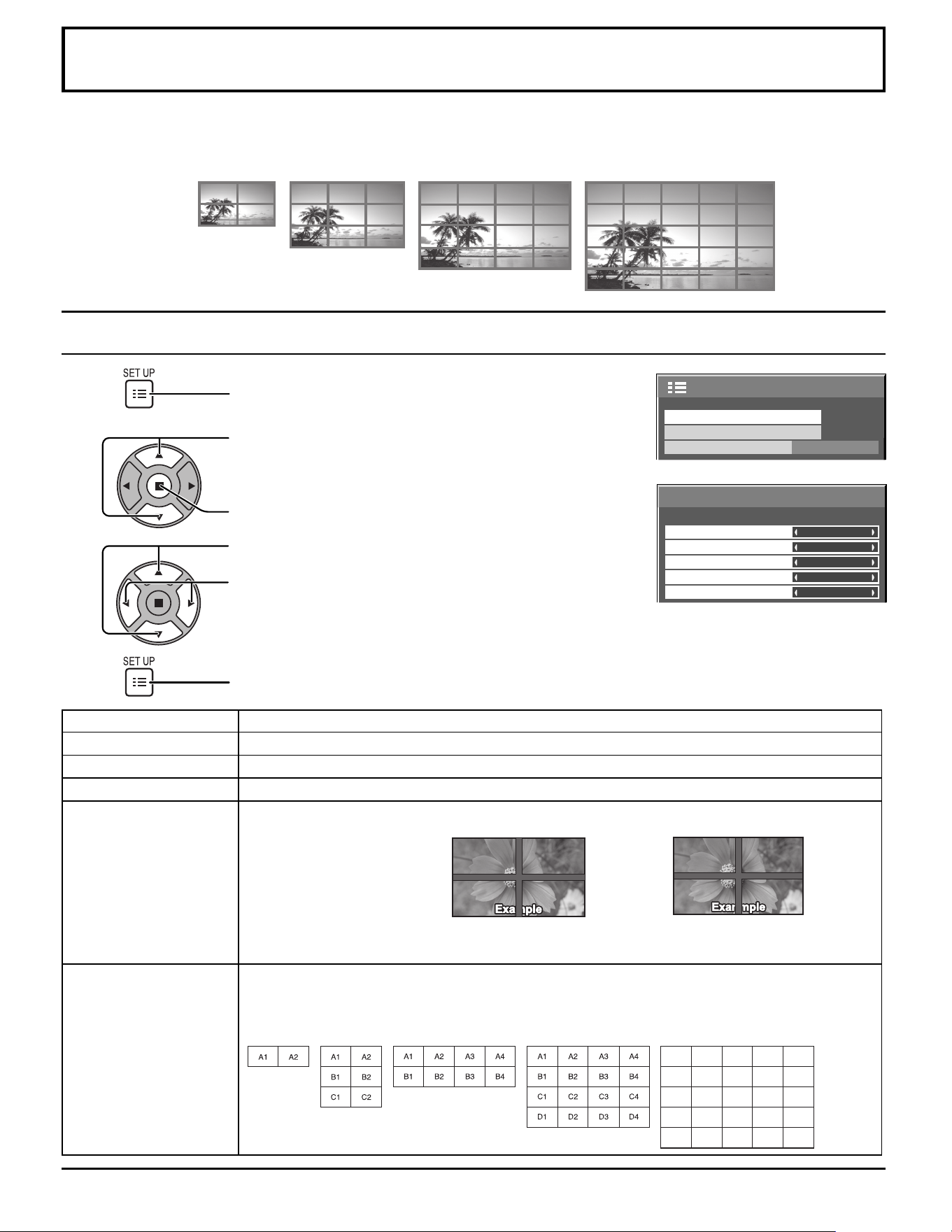

How to setup MULTI DISPLAY .............................. 33
ID Remote Control Function .................................. 34
SET UP for Input Signals ....................................... 35
COMPONENT / RGB IN SELECT ......................... 35
SIGNAL menu ....................................................... 35
3D Y/C FILTER ...................................................... 36
COLOR SYSTEM .................................................. 36
3:2 PULLDOWN .................................................... 37
XGA MODE ........................................................... 37
REFRESH RATE ................................................... 38
NOISE REDUCTION ............................................. 38
SYNC .................................................................... 39
Input signal display ................................................ 39
Options Adjustments ............................................. 40
Shipping condition ................................................. 43

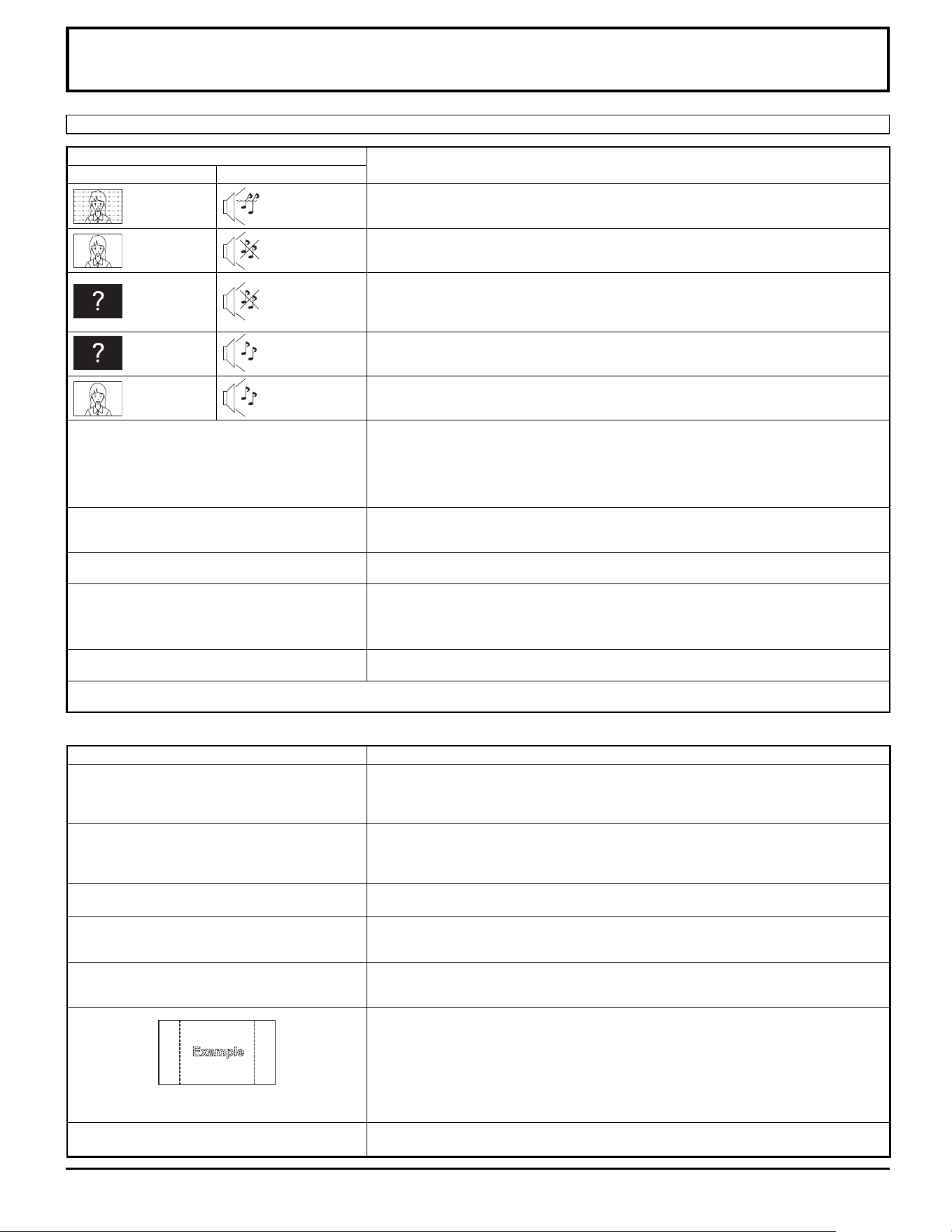

Troubleshooting ..................................................... 44

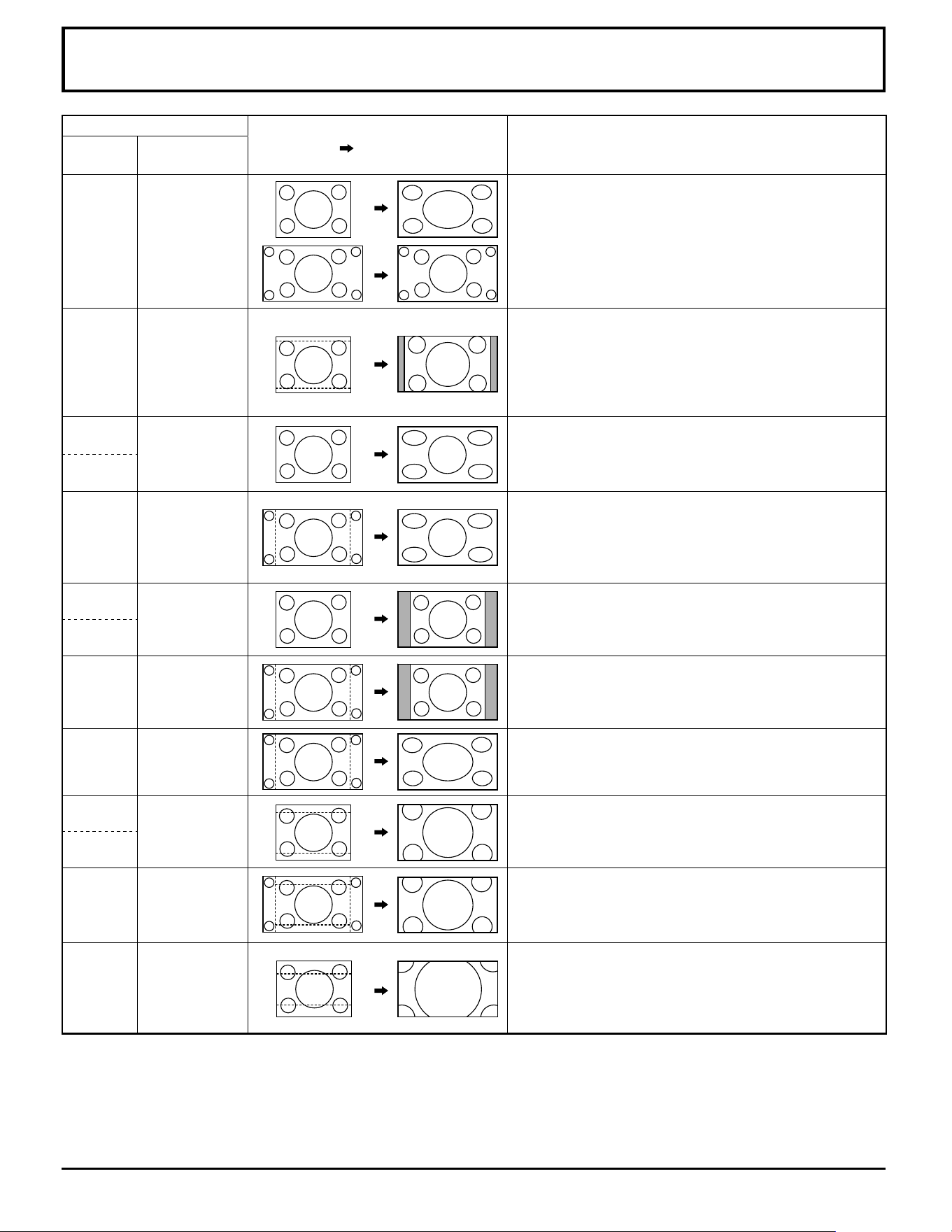

List of Aspect Modes ............................................. 45
Applicable input signals ........................................ 46
Specifi cations ......................................................... 47
5
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC CAUTION:
To assure continued compliance, follow the attached installation instructions and use only shielded interface
cables when connecting to computer or peripheral devices. Any changes or modifi cations not expressly
approved by Panasonic Corp. of North America could void the user's authority to operate this device.
FCC Declaration of Conformity
Model No. TH-42PD12U, TH-50PD12U
Responsible Party: Panasonic Corporation of North America
One Panasonic Way 1F-10, Secaucus, NJ 07094
Contact Source: Panasonic Professional Display Company
Panasonic Plasma Concierge 1-800-973-4390
CANADIAN NOTICE:
This Class B digital apparatus complies with Canadian ICES-003.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
FCC STATEMENT
6
Safety Precautions
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation.)
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the
ventilation holes of the Plasma Display.
•
Top of the Plasma Display is usually very hot due to the
high temperature of exhaust air being released through the
ventilation holes. Burns or personal injuries can happen if any
body parts are brought too close. Placing any object near the
top of the display could also result in heat damages to the object
as well as to the Display if its ventilation holes are blocked.
Be sure to disconnect all cables before moving the
Plasma Display.
•
Moving the Display with its cables attached might damage
the cables which, in turn, can cause fi re or electric shock.
Disconnect the power plug from the wall outlet as a
safety precaution before carrying out any cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it from
becoming dusty.
• Built-up dust on the power cord plug can increase
humidity which might damage the insulation and cause
fi re. Unplug the cord from the wall outlet and clean it
with a dry cloth.
This Plasma Display radiates infrared rays, therefore it
may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct
or refl ected light from your Plasma Display.
Note:
Do not allow a still picture to be displayed for an extended
period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer
images, teletext and images displayed in 4:3 mode.
• Speakers .................................................. TY-SP42P8W-K (for TH-42PD12U), TY-SP50P8W-K (for TH-50PD12U),
• Pedestal ................................................... TY-ST08-K
• Mobile stand .............................................TY-ST58PF10
• Wall-hanging bracket (vertical) ................. TY-WK42PV7
• Wall-hanging bracket (angled) ................. TY-WK42PR7
• Wall-hanging bracket (drawer type) ......... TY-WK42DR1
• Ceiling-hanging bracket ........................... TY-CE42PS7
• Touch Panel ............................................. TY-TP42P10S (for TH-42PD12U), TY-TP50P10S (for TH-50PD12U)
• Anti Glare Filter ........................................ TY-AR42P12W (for TH-42PD12U), TY-AR50P12W (for TH-50PD12U)
Always be sure to ask a qualifi ed technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being
played with by young children, creating the potential risk of suffocation.
7
Safety Precautions / Maintenance
WARNING
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which
neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface
is dry.
• Do not scratch or hit the surface of the panel with fi ngernails or other hard objects, otherwise the surface may become
damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise
the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added
and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet
surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact
with articles made from rubber or PVC.
Maintenance
Setup
Do not place the Plasma Display on sloped or unstable
surfaces.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display.
• If water spills onto the Plasma Display or foreign objects get
inside it, a short-circuit may occur which could result in fi re or
electric shock. If any foreign objects get inside the Plasma
Display, please consult an Authorized Service Center.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat,
which can cause fi re or damage to the Plasma Display.
Transport only in upright position!
• Transporting the unit with its display panel facing upright or
downward may cause damage to the internal circuitry.
If using the pedestal (optional accessory), leave a space
of 3
15/16” (10 cm) or more at the top, left and right, and
2 3/4” (7 cm) or more at the rear, and also keep the space
between the bottom of the display and the fl oor surface.
If using some other setting-up method, follow the manual
of it. (If there is no specifi c indication of installation
dimension in the installation manual, leave a space of
3 15/16” (10 cm) or more at the top, bottom, left and right,
and 2 3/4” (7 cm) or more at the rear.)
An apparatus with CLASS I construction shall be
connected to a mains socket outlet with a protective
earthing connection.
AC Power Supply Cord
The Plasma Display is designed to operate on 110 - 127
V AC, 50/60 Hz.
Do not use any power supply cord other than that
provided with this unit.
• Doing so may cause fi re or electric shocks.
Securely insert the power cord plug as far as it will go.
• If the plug is not fully inserted, heat may be generated
which could cause fi re. If the plug is damaged or the
wall socket plate is loose, they should not be used.
Do not handle the power cord plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that might damage the power cable.
When disconnecting the power cable, hold the plug,
not the cable.
• Do not make any modifi cations, place heavy objects on,
place near hot objects, heat, bend, twist or forcefully
pull the power cable. Doing so may cause damage to
the power cable which can cause fi re or electric shock.
If damage to the cable is suspected, have it repaired at
an Authorized Service Center.
If the Plasma Display will not be used for a long period
of time, unplug the power cord from the wall outlet.
If problems occur during use
If a problem occurs (such as no picture or no sound),
or if smoke or an abnormal odor is detected from the
Plasma Display, unplug the power cord immediately.
• Continuous use of the Display under these conditions
might cause fi re or permanent damage to the unit.
Have the Display evaluated at an Authorized Service
Center. Services to the Display by any unauthorized
personnel are strongly discouraged due to its high
voltage dangerous nature.
If water or foreign objects get inside the Plasma Display,
if the Plasma Display is dropped, or if the cabinet
becomes damaged, disconnect the power cord plug
immediately.
• A short may occur, which could cause fi re. Contact an
Authorized Service Center for any repairs that need to be
made.
+
-
+
-
8
Accessories
Requires two AA batteries.
2. Insert batteries - note correct
polarity ( + and -).
Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.
Observe the following precautions:
1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.
6. Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.
3. Replace the cover.
Accessories Supplied
Check that you have the Accessories and items shown
Operating
Instruction book
Remote Control
Transmitter
N2QAYB000432
Batteries for the
Remote Control
Transmitter
(2 × AA Size)
AC cordFixing band × 1
Remote Control Batteries
“AA” size
Helpful Hint:
For frequent remote control users, replace old batteries with Alkaline batteries for longer life.
1. Pull and hold the hook, then
open the battery cover.
CD-ROM
(Operating instructions)
1
2
1
2
1
2
1
2
9
Connections
– Cable fi xing band
Secure any excess cables with band as required.
Note:
Make sure that the AC cord
is locked on both the left and
right sides.
Push until
the hook
clicks.
2. Pull off.
1. Keep the
knob
pressed.
Close
Open
1
Plug the AC cord into
the display unit.
Plug the AC cord until
it clicks.
2
Fix the AC cord with
the clamper which is
attached to the unit.
Note:
One fi xing band is supplied with this unit. In case of securing cables at two positions, please purchase it separately.
Speaker terminal (R, L)
When connecting the speakers, be sure to use only the optional accessory speakers.
Refer to the speaker’s Installation Manual for details on speaker installation.
Speakers (Optional accessories)
AC cord
connection
(see page 13)
Pass the attached cable
fi xing band through the clip
as shown in the fi gure.
To secure cables connected to Terminals, wrap the cable fi xing band around them
then pass the pointed end through the locking block, as shown in the fi gure.
While ensuring there is suffi cient slack in cables to minimize stress (especially
in the power cord), fi rmly bind all cables with the supplied fi xing band.
To tighten:
To loosen:
Pull
Pull
Push the catch
– AC cord fi xing
Unplug the AC cord
Unplug the AC
cord pressing
the two knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet fi rst.
INPUT1: Video input terminal
INPUT2: S Video input terminal
INPUT3: Component/RGB Video input terminals
Connect a video device such as VCR or DVD player. (see page 12)
From SERIAL
terminal on
computer
(see page 11)
From audio output terminal
on external equipment
connected to INPUT1 to 4
(see page 10, 12)
INPUT4: PC input terminal
From EXTERNAL monitor
terminal on computer
(see page 10)
10

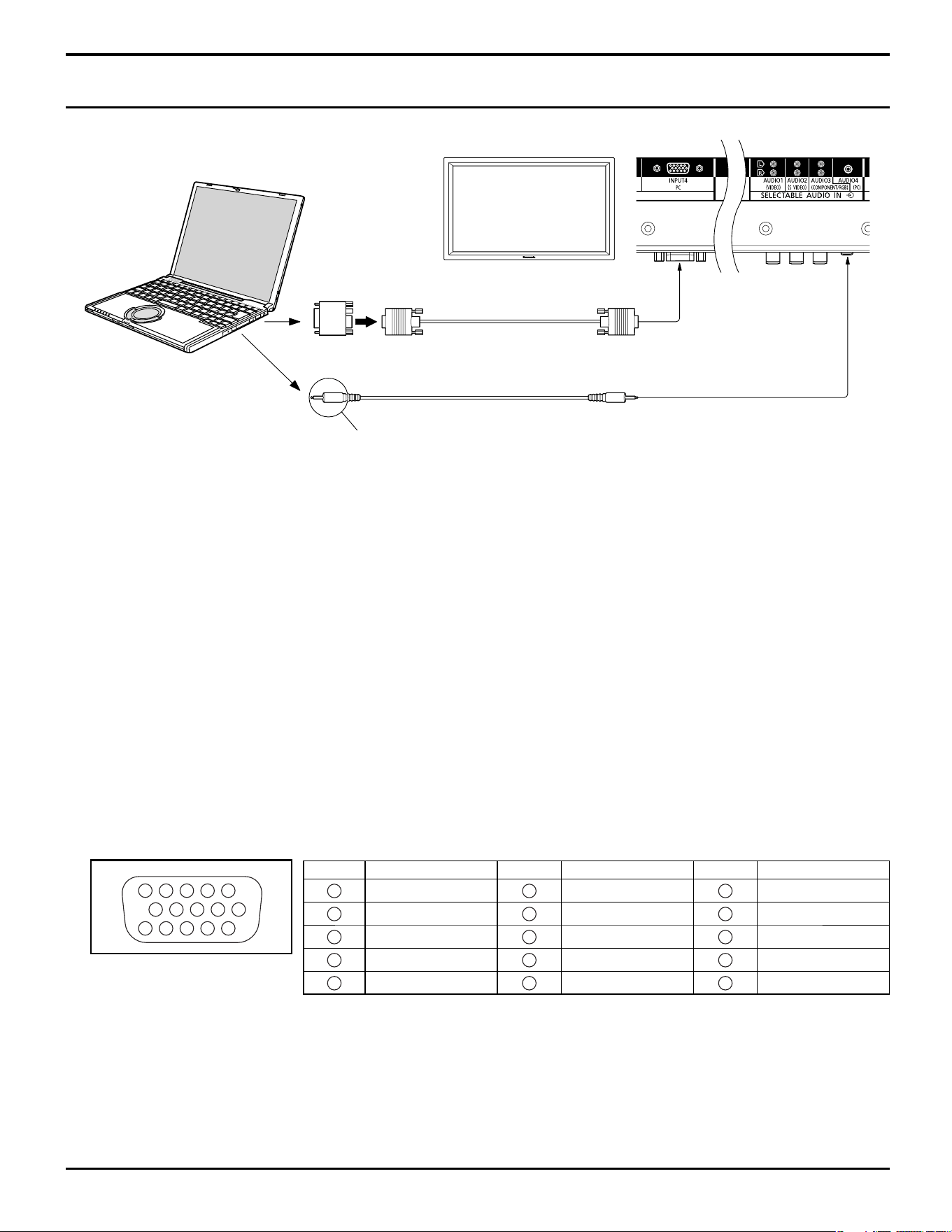

PC Input Terminals connection
Notes:
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 768 × 768 dots (TH-42PD12U), 1,024 × 768 dots (TH-50PD12U) when the aspect
mode is set to “4:3”, and 1,024 × 768 dots (TH-42PD12U), 1,366 × 768 dots (TH-50PD12U) when the aspect mode is
set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show fi ne detail with suffi cient
clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need
to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specifi ed
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”
(when COMPONENT signal connection) or “RGB” (when RGB signal connection). (see page 35)
Signal Names for Mini D-sub 15P Connector
Pin Layout for PC Input
Terminal
COMPUTER
Conversion adapter
(if necessary)
Mini D-sub 15p
RGB
PC cable
Stereo plug
Audio
Connect a cable which matches
the audio output terminal on the computer.
1
678
3
9
45
10
15 14 13 12 11
2
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1
R (P
R
/C
R
)
6
GND (Ground)
11
NC (not connected)
2
G (Y)
7
GND (Ground)
12
SDA
3
B (P
B
/C
B
)
8
GND (Ground)
13
HD/SYNC
4
NC (not connected)
9
+5 V DC
14
VD
5
GND (Ground)
10
GND (Ground)
15
SCL
Connections
(Male)
(Female)
6789
13452
11
Connections
SERIAL Terminals connection
Notes:
• Use the RS-232C straight cable to connect the computer
to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied
with this set.
The SERIAL terminal conforms to the RS-232C interface
specifi cation, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfi es the
conditions given below. Use a computer application such as
programming language software. Refer to the documentation
for the computer application for details.
The SERIAL terminal is used when the Plasma Display is controlled by a computer.
Basic format for control data
The transmission of control data from the computer starts with
a STX signal, followed by the command, the parameters, and
lastly an ETX signal in that order. If there are no parameters,
then the parameter signal does not need to be sent.
Start
(02h)
3-character
command (3 bytes)
Colon Parameter(s)
(1 - 5 bytes)
End
(03h)
STX C1 C2 C3 P1 P2 P3 P4: P5 ETX
Notes:
• If multiple commands are transmitted, be sure to wait for
the response for the fi rst command to come from this unit
before sending the next command.
• If an incorrect command is sent by mistake, this unit will
send an “ER401” command back to the computer.
Pin layout for SERIAL Terminal
COMPUTER
RS-232C Straight cable
D-sub 9p
Command Parameter Control details
PON None Power ON
POF None Power OFF
AVL ** Volume 00 - 63
AMT 0 Audio MUTE OFF
1 Audio MUTE ON
IMS None
SL1
SL2
SL3
PC1
Input select (toggle)
INPUT1 (VIDEO)
INPUT2 (S-VIDEO)
INPUT3 (COMPONENT)
INPUT4 (PC)
DAM None
ZOOM
FULL
JUST
NORM
SJST
SNOM
SFUL
ZOM2
Screen mode select (toggle)
ZOOM
(For Video/SD/PC signal)
FULL
JUST (For Video/SD signal)
4:3
(For Video/SD/PC signal)
JUST (For HD signal)
4:3 (For HD signal)
H-FILL (For HD signal)
ZOOM (For HD signal)
With the power off, this display responds to PON command
only.
Command
Signal level RS-232C compliant
Synchronization method Asynchronous
Baud rate 9600 bps
Parity None
Character length 8 bits
Stop bit 1 bit
Flow control -
Signal names for D-sub 9P connector
Pin No.
Details
2
R X D
3
T X D
5
GND
4
•
6
Non use
7
8
(Shorted in this set)
1
•
9
NC
These signal names are those of computer specifi cations.
Communication parameters
(Male)
(Female)
12
Connections
AV connection
Notes:
• Additional equipment, cables and adapter plugs shown are not supplied with this set.
• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT” (when COMPONENT
signal connection) or “RGB” (when RGB signal connection). (see page 35)
• SYNC ON G signal is needed. (see page 39)
VIDEO
OUT
AUDIO OUT
R G B OUT
Y P
B PR OUT
L
R
AUDIO OUT
L
R
S VIDEO
OUT
AUDIO OUT
L
R
A
B
A
B
VCR
RCA-BNC
adapter plug
DVD player
DVD player
Computer RGB Camcorder
RCA-BNC
adapter
plug
INPUT MENU ENTER/
+
/VOL
-
/
13
Power Indicator
Remote Control Sensor
Power ON / OFF
Connecting the AC cord plug to the Plasma Display.
Fix the AC cord plug securely to the Plasma Display
with the clamper. (see page 9)
Connecting the plug to the Wall Outlet.
Note:
When disconnecting the AC cord, be absolutely sure to
disconnect the AC cord plug at the socket outlet fi rst.
Press the Power switch on the Plasma Display to turn the
set on: Power-On.
Power Indicator: Green
Press the button on the remote control to turn the Plasma Display off.
Power Indicator: Red (standby)
Press the button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the switch on the unit,
when the Plasma Display is on or in standby mode.
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
PC
FULL
AUDIO 4
English (UK)
Deutsch
Français
Italiano
Español
ENGLISH (US)
Русский
OSD LANGUAGE
SETSELECT
LANDSCAPE
PORTRAIT
DISPLAY ORIENTATION
14
From the second time on, the below screen is displayed for a while (setting condition is an example).

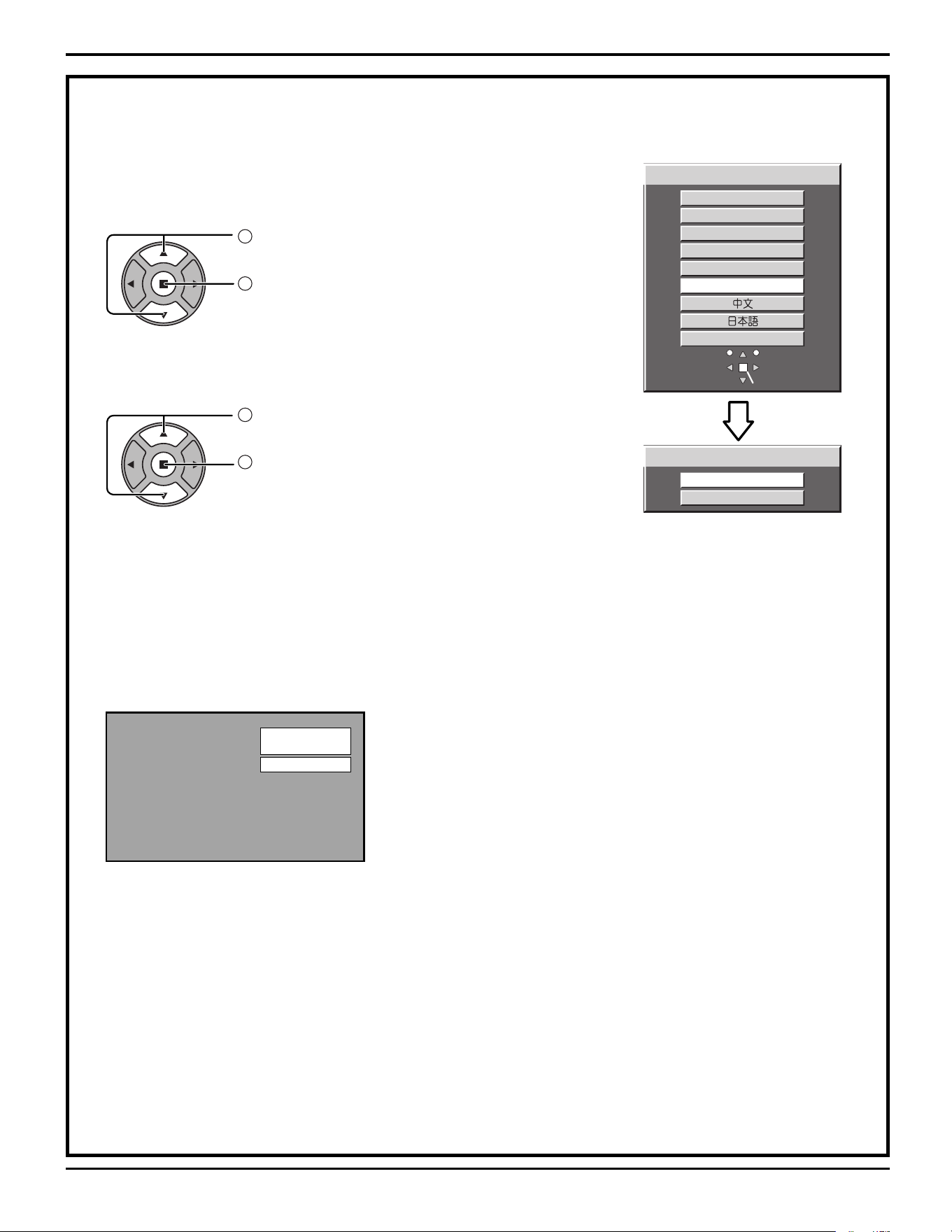

When fi rst switching on the unit
Following screen will be displayed when the unit is turned on for the fi rst time.
Select the items with the remote control. Unit buttons are invalid.
OSD LANGUAGE
DISPLAY ORIENTATION
1
Select the language.
2
Set.
1
For vertical installation, select “PORTRAIT”.
2
Set.
Notes:
• Once the items are set, the screens won't be displayed when switching on the unit next time.
• After the setting, the items can be changed in the following menus.
OSD LANGUAGE (see page 31)
DISPLAY ORIENTATION (see page 32)
Power ON / OFF
INPUT MENU ENTER/ + / VOL
-
/
INPUT MENU ENTER/
+
/VOL
-
/
15

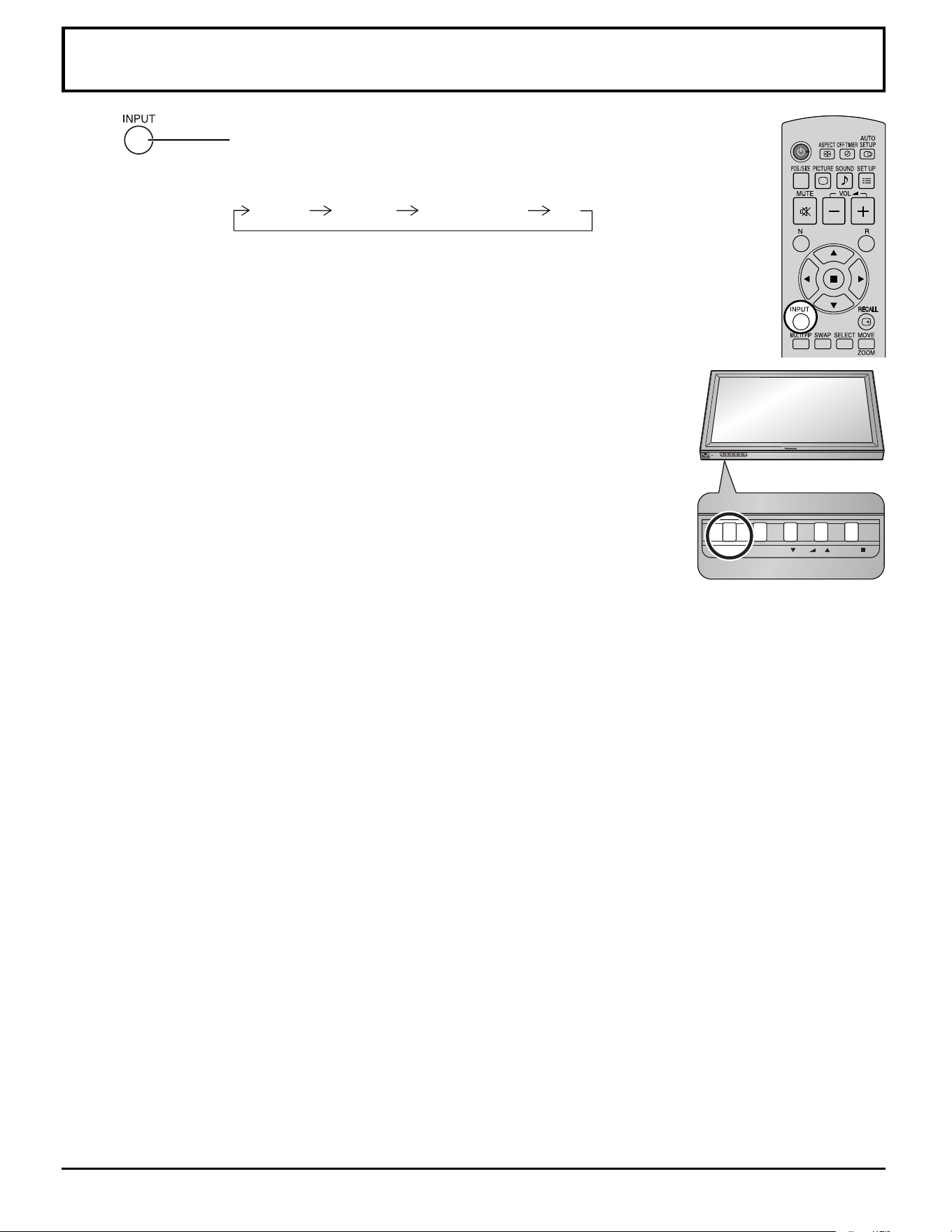

Selecting the input signal
Press to select the input signal to be played back from the
equipment which has been connected to the Plasma Display.
Input signals will change as follows:
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• The sound set with “AUDIO INPUT SELECT” is output. (see page 32)
• Select to match the signals from the source connected to the component/RGB input
terminals. (see page 35)
• In 2 screen display, the same input mode cannot be selected for the main picture and
sub picture.
• Image retention (image lag) may occur on the plasma display panel when a still picture
is kept on the panel for an extended period. The function that darkens the screen slightly
is activated to prevent image retention (see page 44), but this function is not the perfect
solution to image retention.
VIDEO S-VIDEO PCCOMPONENT
VIDEO: Video input terminal in INPUT1.
S-VIDEO: S Video input terminal in INPUT2.
COMPONENT: Component or RGB input terminal in INPUT3.
PC: PC input terminal in INPUT4.
INPUT MENU ENTER/
+
/VOL
-
/
16

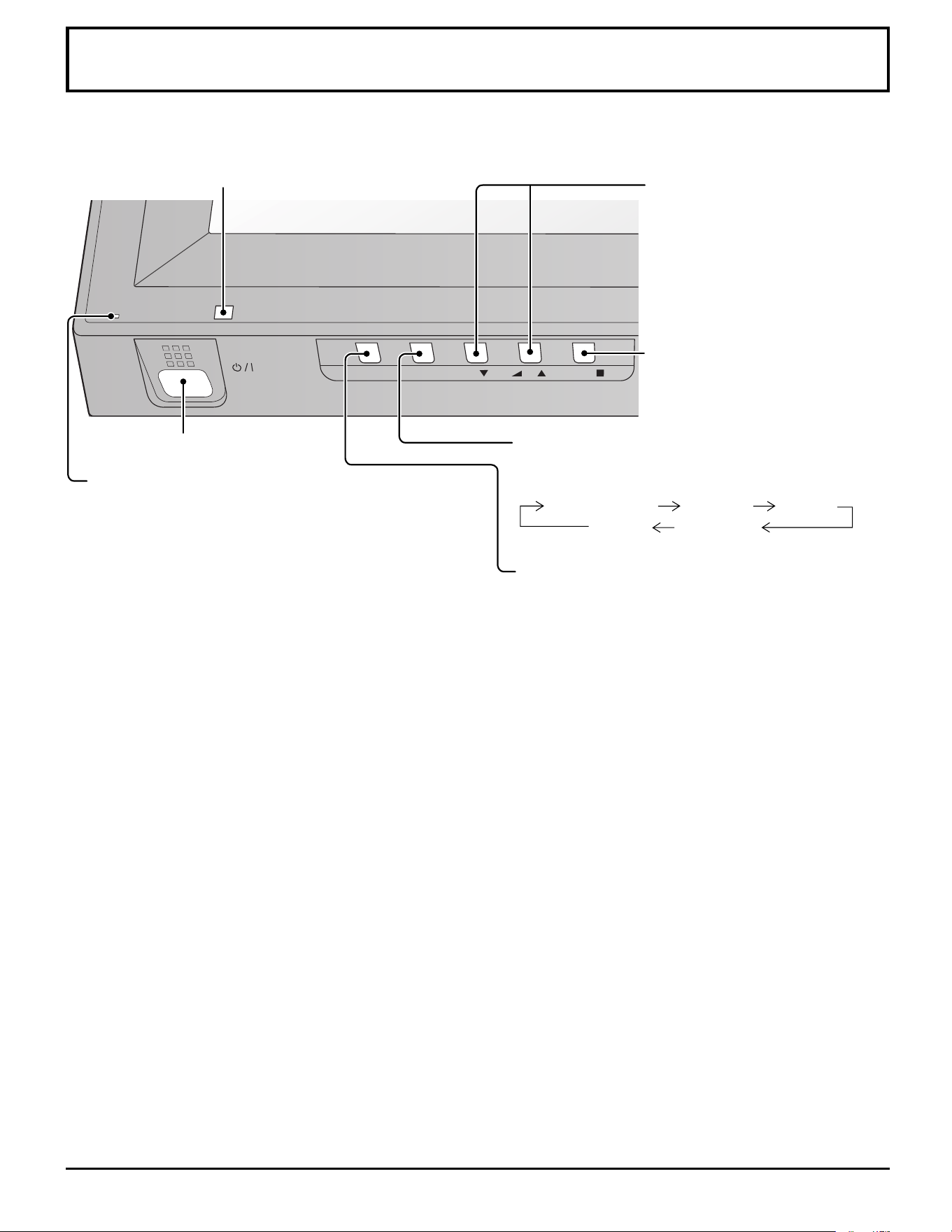

Basic Controls
MENU Screen ON / OFF
Each time the MENU button is pressed, the menu screen
will switch. (see page 21)
INPUT button (Input signal selection)
(see page 15)
Main Power On / Off Switch
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit will still
consume some power as long as the power
cord is still inserted into the wall outlet.)
• Standby ......... Red
• Power-ON ...... Green
• DPMS (POWER MANAGEMENT)
.......................Orange (With PC input signal. See page
30)
Volume Adjustment
Volume Up “+” Down “–”
When the menu screen is
displayed:
“+” :
press to move the cursor up
“–” :
press to move the cursor down
(see page 21)
Enter / Aspect button
(see page 18, 21)
Normal Viewing PICTURE SET UP
SOUND POS. /SIZE
Remote control sensor
Main Unit
17
Basic Controls
Standby (ON / OFF) button
The Plasma Display must fi rst be plugged
into the wall outlet and turned on at the
power switch (see page 13).
Press this button to turn the Plasma
Display On, from Standby mode. Press
it again to turn the Plasma Display Off to
Standby mode.
ACTION button
Press to make selections.
ASPECT button
Press to adjust the aspect.
(see page 18)
POS. /SIZE button
(see page 22)
PICTURE button
(see page 24)
Sound mute On / Off
Press this button to mute the sound.
Press again to reactivate sound.
Sound is also reactivated when power is
turned off or volume level is changed.
N button
(see page 23, 24, 25, 26)
POSITION buttons
INPUT button
Press to select input signal sequentially.
(see page 15)
MULTI Window buttons
(see page 19)
Digital Zoom (see page 20)
Remote Control Transmitter
AUTO SETUP button
Automatically adjusts the position/
size of the screen. (see page 22)
SET UP button (see page 21)
SOUND button (see page 26)
Volume Adjustment
Press the Volume Up “+” or Down “–”
button to increase or decrease the
sound volume level.
R button (see page 21)
Press the R button to return to
previous menu screen.
OFF TIMER button
The Plasma Display can be preset to switch to stand-
by after a fi xed period. The setting changes to 30
minutes, 60 minutes, 90 minutes and 0 minutes (off
timer cancelled) each time the button is pressed.
30 60
0
90
When three minutes remain, “OFF TIMER 3” will fl ash.
The off timer is cancelled if a power interruption
occurs.
OFF TIMER 90
1
2
3
PC
4:3
AUDIO 4
RECALL button
Press the “RECALL” button to display
the current system status.
1
Input label (video, audio)
2
Aspect mode (see page 18)
3
Off timer
The off timer indicator is
displayed only when the off
timer has been set.
INPUT MENU ENTER/+/VOL
-
/
18

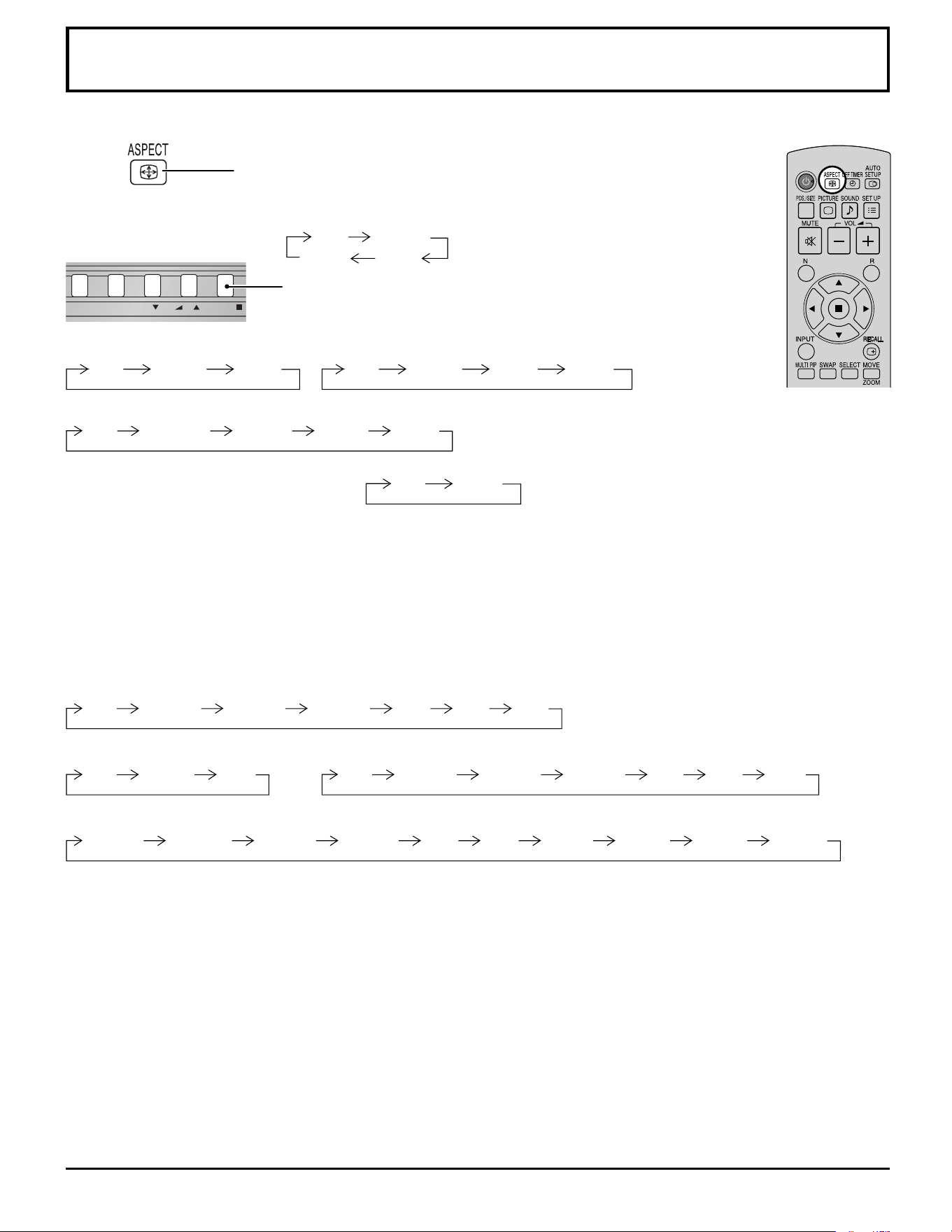

ASPECT Controls
The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format
picture.
Press repeatedly to move through the aspect options:
For details about the aspect mode, please see “List of Aspect Modes” (page 45).
The aspect mode changes each time the ENTER button is pressed.
[During MULTI PIP Operations]
• Picture and Picture, Picture in Picture :
4:3 FULL
• Others : Aspect switching is not possible.
[from the unit]
4:3 H-FILL ZOOM FULL JUST
For VIDEO (S VIDEO) signal input:
4:3 ZOOM FULL 4:3 ZOOM JUSTFULL
4:3 Zoom1 16:9 JustZoom2 Zoom3 14:9
For PC signal input:
Notes:
• The aspect mode is memorized separately for each input terminal.
• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image
retention to remain on the Plasma Display Panel.
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
All Aspect mode
Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 42). When All Aspect mode, the aspect
mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes” (page 45).
For VIDEO (S VIDEO) signal input:
4:3 Zoom 16:9
For PC signal input: For SD signal input (525 (480) / 60i
•
60p, 625 (575) / 50i
•
50p):
4:3 Zoom1 16:9 JustZoom2 Zoom3 14:9
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
4:3 Full Zoom1 16:9 Just1Zoom2 Zoom3 14:9 Just2 4:3 (1) 4:3 (2)
4:3 ZOOM
JUST FULL
A B
A
B
A
B
B A
B
A
B
A
PC
VIDEO
PC
VIDEO
COMPONENT
VIDEO
PC
S-VIDEO
A
A
A
C
B
B
B
D
19
Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed as follows below.
Press to swap main picture and
sub picture.
Press to select the input mode.
Under main Picture and sub picture display, select the
picture which you would like to change input modes.
Notes:
• The sub picture sound is heard while a sub picture
operation is underway.
• The sub picture operation automatically returns to
the main picture operation if a sub picture operation
has not been performed for about 5 seconds or if any
of the remote control buttons is pressed (except
button).
Press to move the sub picture.
Each time the location of the sub picture will be moved.
Notes:
• This button is effective only in the picture in picture.
• The sub picture may be hidden by the on screen display, depending on its position.
Press to change input signal.
[Picture out Picture]
Main picture Sub picture
[Picture and Picture] [Picture in Picture]
[Example]
Input modes switching is possible
Main picture label is bright Sub picture label is bright
Picture is changed
Main picture label is changed
Sub picture label is changed
Main picture Sub picture Main picture Sub picture
Normal
Viewing
MULTI PIP
Notes:
• If “INPUT lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.
• Sound output is from the picture which is selected in AUDIO OUT (PIP) (see page 26).
• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.
• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the
pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed
on the main picture and depending on the 2-picture display mode.
• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.
•
Computer screen picture is displayed in a simplifi ed format, and it may not be possible to discern details on them satisfactorily.
• Following combinations of two signals cannot be displayed simultaneously;
INPUT1 (Video) - INPUT2 (S Video), INPUT3 (Component) - INPUT4 (PC)
•
Be aware that if you put the display in a public place for commercial purposes or a public showing and then use the MULTI PIP
function to make a composite screen display, you may be violating the copyright under copyright law. It is prohibited to show or
alter the copyrighted materials of other people for commercial purposes without the prior permission of the copyright holder.
INPUT MENU ENTER/+/VOL
-
/
2
EXIT
2
1
EXIT
× 1 × 2 × 3 × 4
20
VOL button
Digital Zoom
This displays an enlargement of the designated part of the displayed image.
Select the area of the image to be enlarged.
Press on the enlargement location to select.
Return to normal display (quit Digital Zoom).
Press to exit from the Digital Zoom.
Notes:
• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.
• The Digital Zoom function cannot be selected while in the following operation state:
“Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 19)
When MULTI DISPLAY SETUP is ON (see page 33).
When SCREENSAVER (except for NEGATIVE IMAGE) is running. (see page 27)
• While Digital Zoom is in operation, “Adjusting POS. /SIZE” cannot be used.
Select the magnifi cation required for the enlarged display.
Each time this is pressed, the magnifi cation factor changes.
This is shown in the image being displayed.
3
2
4
The cursor will move.
1
Display the operation guide.
Press to access Digital Zoom.
The operation guide will be displayed.
During Digital Zoom, only the following buttons can be operated.
[Remote control]
[Unit]
POSITION /
ACTION button
OFF TIMER button
VOL button
MUTE button
2/2
ADVANCED SETTINGS
COLOR TEMP
COLOR MANAGEMENT
NORMAL
OFF
ON
0
NORMAL
NORMALIZE
AUTO SETUP
POS. /SIZE
V-POS
0
H-POS
V-SIZE
DOT CLOCK
H-SIZE
CLOCK PHASE
OVER SCAN
0
0
0
0
1/2
SIGNAL
EXTENDED LIFE SETTINGS
SET UP
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
SCREENSAVER
POWER SAVE
2/2 SET UP
MULTI DISPLAY SETUP
AUDIO INPUT SELECT
DISPLAY ORIENTATION
LANDSCAPE
3D Y/C FILTER (NTSC)
COLOR SYSTEM
SIGNAL
ON
3 : 2 PULLDOWN
[
VIDEO
]
NOISE REDUCTION
REFRESH RATE
AUTO
OFF
OFF
100 Hz
SCREENSAVER
START
FUNCTION
MODE
SCROLLING BAR ONLY
OFF
1/2 PICTURE
NORMAL
NORMALIZE
STANDARD
25
0
0
0
5
BRIGHTNESS
SHARPNESS
PICTURE MENU
COLOR
TINT
0
0
0
0
0
0
2/2
W/B LOW B
W/B HIGH R
W/B LOW R
W/B LOW G
W/B HIGH G
W/B HIGH B
ADVANCED SETTINGS
0
0
2.2
1/2
BLACK EXTENSION
AGC
GAMMA
INPUT LEVEL
ADVANCED SETTINGS
NORMAL
NORMALIZE
OFF
0
0
0
SOUND
NORMAL
NORMALIZE
STANDARD
TREBLE
AUDIO MENU
BALANCE
BASS
MAIN
AUDIO OUT (PIP)
EXPRESS SETTINGS
CUSTOM SETTINGS
RESET
EXTENDED LIFE SETTINGS
21
On-Screen Menu Displays
Remote Control Unit
1
Display the menu screen.
Press to select.
(Example: PICTURE menu)
MENU
Press several times.
Each time the MENU button is pressed, the
menu screen will switch.
Normal Viewing PICTURE
SOUND POS. /SIZE
SET UP
2
Select the item.
1/2
25
0
0
0
5
NORMAL
NORMALIZE
STANDARD
BRIGHTNESS
SHARPNESS
PICTURE MENU
COLOR
TINT
( Example:
PICTURE menu)
Select.
Select.
Press.
3
Set.
Set.
Set.
Press.
4
Exit the menu.
Press.
Press to return to the previous menu.
MENU
Press several times.
Overview
Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
(see page 22, 23)
(see page 24, 25)
(see page 24, 25)
(see page 26)
(see page 35-39)
(see page 28)
AUDIO 2
VIDEO
S-VIDEO
AUDIO 1
COMPONENT
AUDIO 4
PC
AUDIO 3
AUDIO INPUT SELECT
(see page 32)
× 2
MULTI DISPLAY SETUP
HORIZONTAL SCALE
OFF
A1
VERTICAL SCALE
LOCATION
OFF
SEAM HIDES VIDEO
× 2
MULTI DISPLAY SETUP
(see page 33, 34)
(see page 28, 29)
(see page 27-39)
0
NORMAL
NORMALIZE
AUTO SETUP
POS. /SIZE
V-POS
0
H-POS
V-SIZE
DOT CLOCK
H-SIZE
CLOCK PHASE
OVER SCAN
0
0
0
0
0
0
0
0
NORMAL
NORMALIZE
POS. /SIZE
V-POS
H-POS
0
V-SIZE
H-SIZE
AUTO SETUP
OVER SCAN
22
Adjusting POS. /SIZE
1
Press to display the POS. /SIZE menu.
Press to select the menu to adjust.
Press to adjust the menu.
Press to exit from adjust mode.
During “VIDEO (S VIDEO)”
input signal.
During “COMPONENT”, “RGB”
and “PC” input signal.
Notes:
• Unadjustable items are grayed out.
Adjustable items differ depending on the input signal and the display mode.
• Adjustment details are memorized separately for different input signal formats. (Adjustments for component signals are
memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF,
1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC signals are memorized for each frequency.)
• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture
position movement cannot be controlled by the POS. /SIZE function.
AUTO
SETUP
H-POS/V-POS, H-SIZE/V-SIZE, DOT CLOCK and CLOCK PHASE are automatically adjusted when the
INPUT3 (COMPONENT/RGB) or INPUT4 (PC) signal is received.
This setting is enabled under the following conditions:
• This setting only support single screen display. Two screen display or multiple display are not supported.
•
When “COMPONENT/RGB-IN SELECT” in the “SET UP” menu (see page 35) is set to “RGB”, this setting is
enabled.
• When the signal is not PC format, this setting is enabled only if “OVER SCAN” (see page 23) is “OFF”, and
H-SIZE/V-SIZE is not automatically adjusted.
This setting will be invalid and will not work under the following conditions:
• Aspect is set to “JUST”
• “Display size” in the Options menu (see page 41) is set to “On”
Using Remote Control
When on the remote control is pressed, “AUTO SETUP” will be executed.
When AUTO SETUP does not work, “INVALID” is displayed.
Auto mode
When the “Auto Setup“ is set to “Auto” in the Options menu (see page 42), automatic position adjustment starts:
• When the display power is turned ON.
• When the input signal is switched.
2
3
4
23

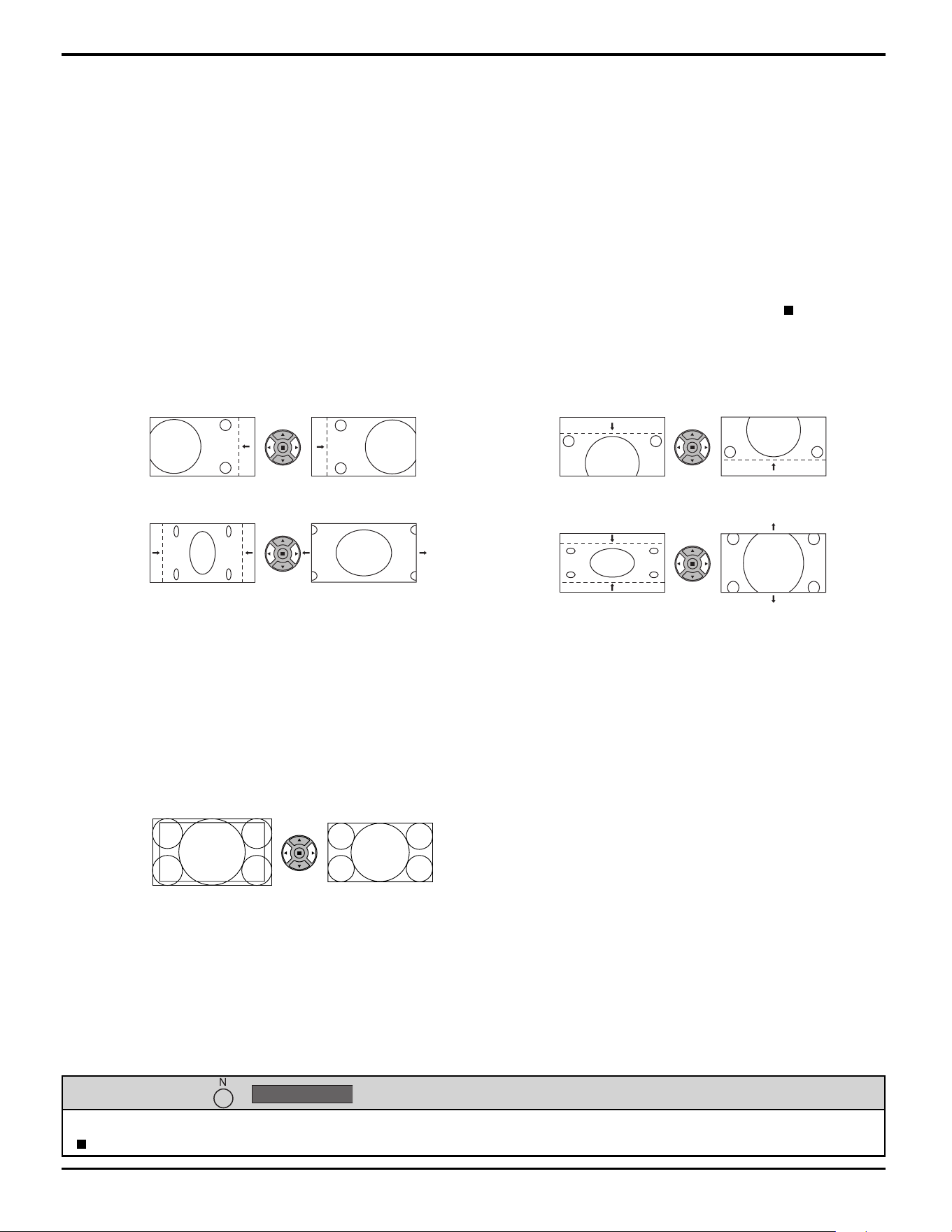

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.
Helpful Hint ( /
NORMALIZE
Normalization)
H-POS Adjust the horizontal position. V-POS Adjust the vertical position.
H-SIZE Adjust the horizontal size. V-SIZE Adjust the vertical size.
DOT
CLOCK
(During “COMPONENT”, “RGB” and “PC” input signal)
Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens,
adjust so that any such noise is minimized.
CLOCK
PHASE
(During “COMPONENT”, “RGB” and “PC” input signal)
Eliminate the fl ickering and distortion.
OVER
SCAN
Turn image over scan ON/OFF.
Confi gurable signals are as follows:
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/60p,
1125/50p, 1125/30p, 1250/50i (Component Video, RGB)
ON OFF
Notes:
• When “OFF” is set, “H-SIZE” and “V-SIZE” cannot be adjusted.
• When the “Display size” is set to “On” in the Options menu, this setting will be invalid. (see page 41)
Adjusting POS. /SIZE
Notes:
• If the dot clock frequency is 108 MHz or higher, DOT CLOCK and CLOCK PHASE cannot be made.
• AUTO SETUP may not work when a cropped or dark image is input. In such case, switch to a bright image
with borders and other objects are clearly shown, and then try auto setup again.
• Depending on the signal, out of alignment may occur after AUTO SETUP. Carry out fi ne tuning for the
position/size as required.
• If AUTO SETUP cannot set properly for vertical frequency 60Hz XGA signal (1024×768@60Hz,
1280×768@60Hz, and 1366×768@60Hz), pre-selecting the individual signal in “XGA MODE” (see page
37) may results in correct AUTO SETUP.
• AUTO SETUP does not work well when a signal such as additional information is superimposed out of
valid image period or intervals between synchronizing and image signals are short, or for image signal with
tri-level synchronizing signal added.
• If AUTO SETUP cannot adjust correctly, select “NORMALIZE” once and press ACTION ( ) then adjust
POS. /SIZE manually.
2/2
ADVANCED SETTINGS
COLOR TEMP
COLOR MANAGEMENT
NORMAL
OFF
ON
1/2
25
0
0
0
5
NORMAL
NORMALIZE
STANDARD
BRIGHTNESS
SHARPNESS
PICTURE MENU
COLOR
TINT
0
0
2.2
1/2
BLACK EXTENSION
AGC
GAMMA
INPUT LEVEL
ADVANCED SETTINGS
NORMAL
NORMALIZE
OFF
0
0
0
0
0
0
2/2
W/B LOW B
W/B HIGH R
W/B LOW R
W/B LOW G
W/B HIGH G
W/B HIGH B
ADVANCED SETTINGS
24
Press to select “ON”.
Press the left or right button to switch between modes.
STANDARD
For viewing in standard (evening lighting) environments.
This menu selects the normal levels of BRIGHTNESS
and PICTURE.
DYNAMIC
For viewing in brighter environments.
This menu selects higher than normal levels of
BRIGHTNESS and PICTURE.
CINEMA
Ideal for movies.
Note:
If you would like to change the picture and color of the
selected PICTURE menu to something else, adjust using
the items in the PICTURE menu. (see next page)

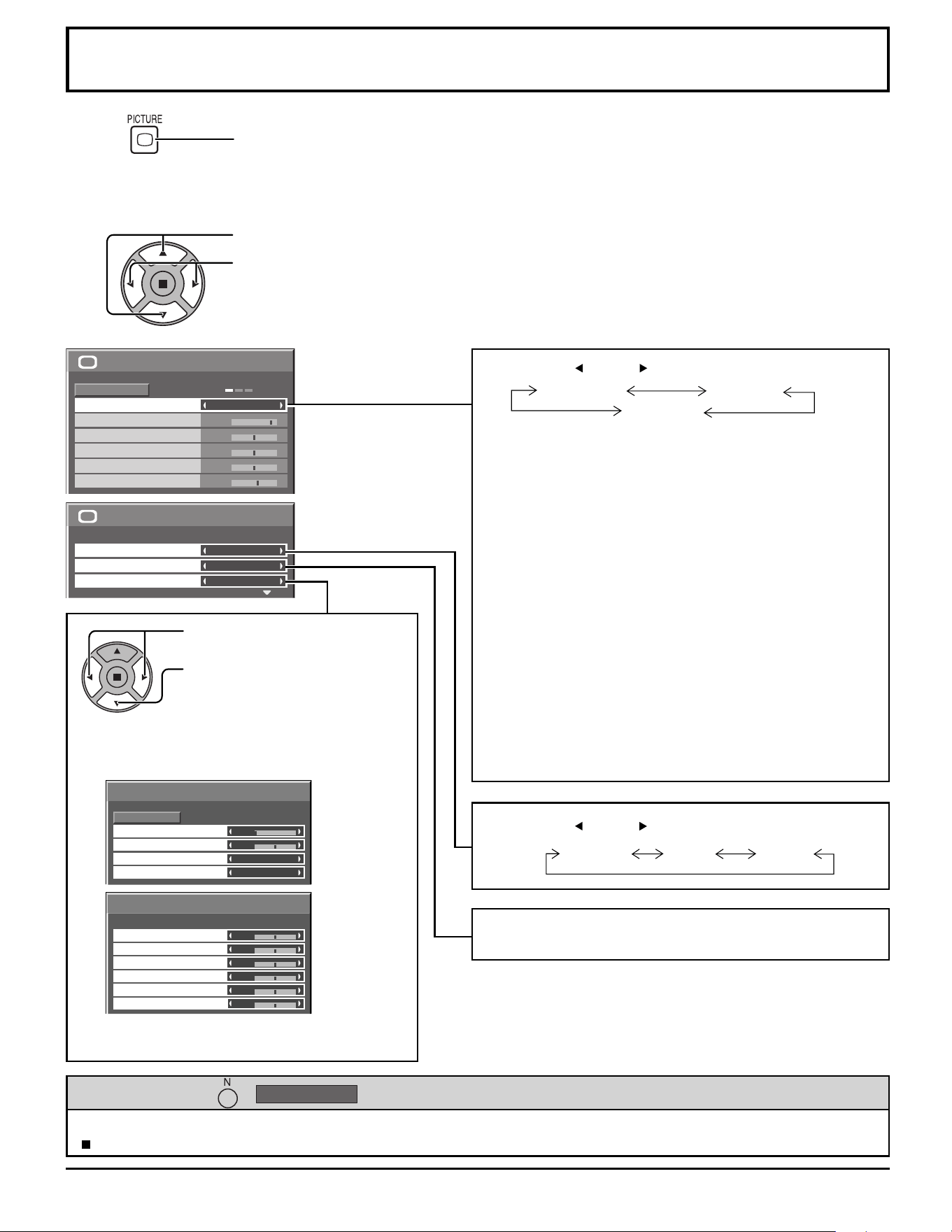

PICTURE Adjustments
1
ADVANCED SETTINGS ON
Enables fi ne picture adjustment at a professional level
(see next page).
ADVANCED SETTINGS OFF
Displays images with settings of the PICTURE menu.
Press to enter Advanced
Settings.
COLOR MANAGEMENT ON
Enables vivid color adjustment automatically.
While the “PICTURE” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.
Helpful Hint ( /
NORMALIZE
Normalization)
Press the left or right button to switch between modes.
NORMAL COOL WARM
Press to display the PICTURE menu.
Press to select the menu to adjust.
Select the desired level by looking at the picture behind the menu.
Select to adjust each item.
STANDARD
CINEMA
DYNAMIC
Note:
Menu that cannot be adjusted is grayout. Adjustable menu
changes depending on signal, input and menu setting.
2
25
PICTURE Adjustments
ADVANCED SETTINGS
Notes:
• “COLOR” and “TINT” settings cannot be
adjusted for “RGB/PC” input signal.
•
You can change the level of each function
(PICTURE, BRIGHTNESS, COLOR, TINT,
SHARPNESS) for each PICTURE MENU.
• The setting details for STANDARD,
DYNAMIC and CINEMA respectively
are memorized separately for each input
terminal.
• The “TINT” setting can be adjusted
for NTSC signal only during “VIDEO
(S VIDEO)” input signal.
• In PICTURE, there is not a noticeable
change even when contrast is increased
with a bright picture or reduced with a dark
picture.
On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if either the N button is pressed at any time
or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.
Helpful Hint ( /
NORMALIZE
Normalization)
Item Effect Adjustments
Less More
Adjusts the proper picture contrast.
BRIGHTNESS
Darker Brighter
Adjusts for easier viewing of dark
pictures such as night scenes and
black hair.
COLOR
Less More
Adjusts color saturation.
TINT
Reddish Greenish
Adjusts for natural fl esh tones.
SHARPNESS
Less More
Adjusts picture sharpness.
Item Effect Details
BLACK
EXTENSION
Less More
Adjusts the dark shades of the image in gradation.
INPUT
LEVEL
Less More
Adjustment of parts which are extremely bright and hard to see.
GAMMA
Down Up
S CURVE 2.0 2.2 2.5
AGC
OFF ON
Increases the brightness of dark signal automatically.
W/B HIGH R
Less More
Adjusts the white balance for light red areas.
W/B HIGH G
Less More
Adjusts the white balance for light green areas.
W/B HIGH B
Less More
Adjusts the white balance for light blue areas.
W/B LOW R
Less More
Adjusts the white balance for dark red areas.
W/B LOW G
Less More
Adjusts the white balance for dark green areas.
W/B LOW B
Less More
Adjusts the white balance for dark blue areas.
Notes:
• Carry out “W/B” adjustment as follows.
1.
Adjust the white balance of the bright sections using the “W/B HIGH R” , “W/B HIGH G” and “W/B HIGH B” settings.
2. Adjust the white balance of the dark sections using the “W/B LOW R” , “W/B LOW G” and “W/B LOW B” settings.
3. Repeat steps 1 and 2 to adjust.
Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.
• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.
0
0
0
SOUND
NORMAL
NORMALIZE
STANDARD
TREBLE
AUDIO MENU
BALANCE
BASS
MAIN
AUDIO OUT (PIP)
26
SOUND Adjustment
1
Press to display the SOUND menu.
Press to select the menu to adjust.
Select the desired level by listening to the sound.
Press to exit from adjust mode.
2
Select to adjust each item.
While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.
Helpful Hint ( /
NORMALIZE
Normalization)
3
Item Details
AUDIO MENU
STANDARD: Emits the original sound.
DYNAMIC: Accentuates sharp sound.
BASS Adjusts low pitch sounds.
TREBLE Adjusts high pitch sound.
BALANCE Adjusts left and right volumes.
AUDIO OUT (PIP)
MAIN: Selects main picture sound.
SUB: Selects PIP frame sound.
A
B
VIDEO
PC
A
B
VIDEO
PC
Musical note ♪ is displayed on right side of the audio output
screen label.
Note: BASS and TREBLE settings are memorized separately for each AUDIO MENU.
1/2
SIGNAL
EXTENDED LIFE SETTINGS
SCREENSAVER
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
POWER SAVE
SET UP
SCREENSAVER
START
FUNCTION
MODE
SCROLLING BAR ONLY
OFF
SCREENSAVER
START
FUNCTION
MODE
SCREENSAVER DURATION
SCROLLING BAR ONLY
STANDBY AFTER SCR SAVER
6:15
SCREENSAVER
START
FUNCTION
MODE
SAVER DURATION
SHOW DURATION
SCROLLING BAR ONLY
INTERVAL
12:00
3:00
27
Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a SCREENSAVER should be used.
FUNCTION selection
2
3
1
4
Press to display the SET UP menu.
Press to select the SCREENSAVER.
Press to select the SCREENSAVER screen.
Press to select the FUNCTION.
Press to select the desired function.
SCROLLING BAR ONLY
OVERLAY SCROLLING BAR
NEGATIVE IMAGE
WHITE SCREEN
MODE selection
START setting
5
When the MODE is set to ON, press to select START.
Press to start SCREENSAVER.
The menu screen will disappear and the SCREENSAVER will be activated. To stop the
SCREENSAVER under ON, press the R button or any buttons on the main unit.
Note: When the display is turned off, the SCREENSAVER will be deactivated.
Press to select the
MODE.
Press to select each
mode items.

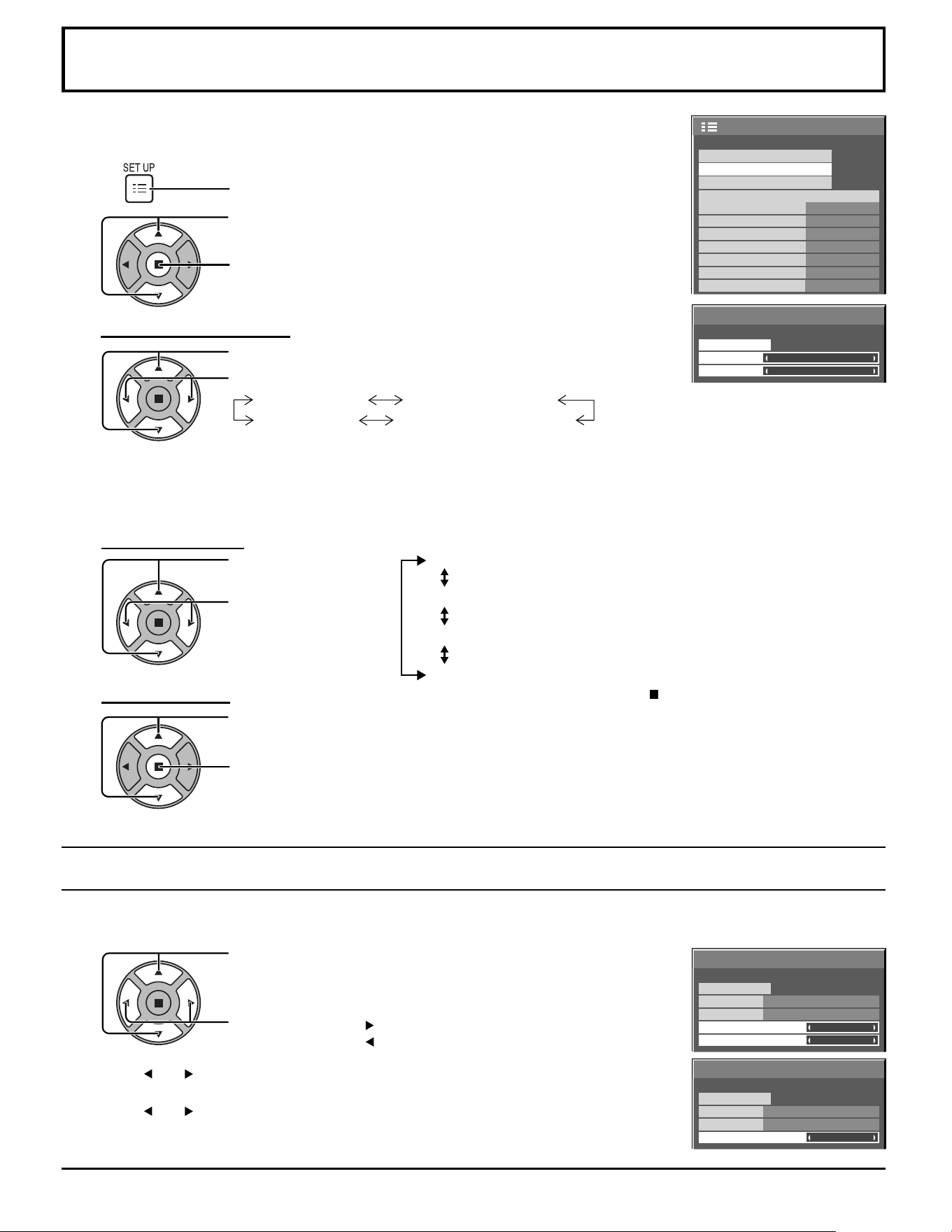

SCREENSAVER (For preventing image retention)
Setup of SCREENSAVER Time
After selecting INTERVAL or STANDBY AFTER SCR SAVER, the relevant Time Setup will become available for selection
and the Operating Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.)
Press to select SHOW DURATION / SAVER DURATION (When
INTERVAL is selected).
Press to select SCREENSAVER DURATION (When STANDBY
AFTER SCR SAVER is selected).
Press to setup. button: Forward
button: Back
Notes:
• Pressing “
” or “ ” button once changes the Time 1 minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.
• “SCREENSAVER DURATION” of the “STANDBY AFTER SCR SAVER” can be set from 0:00
to 23:59. When this is set to “0:00”, “STANDBY AFTER SCR SAVER” will not be activated.
NEGATIVE IMAGE : A negative image will be displayed on the screen.
SCROLLING BAR ONLY :
A white bar will scroll from left to right. The image won't be displayed.
OVERLAY SCROLLING BAR
:
The brightness of the image will be decreased and a white bar will scroll on it.
WHITE SCREEN : The whole screen will be white.
Note: OVERLAY SCROLLING BAR is not effective during two screen display.
Off
INTERVAL
: Operates when SHOW DURATION and SAVER
DURATION are set up and those times arrive.
STANDBY AFTER SCR SAVER
: Operates while SCREENSAVER DURATION,
and display enters standby mode.
ON : Operates when START is selected and the
ACTION ( ) button is pressed.
1/2
SIGNAL
EXTENDED LIFE SETTINGS
SCREENSAVER
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
POWER SAVE
SET UP
EXPRESS SETTINGS
CUSTOM SETTINGS
RESET
EXTENDED LIFE SETTINGS
PICTURE MENU
EXTENDED LIFE SETTINGS
DYNAMIC
SIDE BAR ADJUST
WOBBLING
LOCK SETTINGS
PEAK LIMIT
BRIHGT
OFF
UNLOCK
APPLY TO CURRENT INPUT
APPLY TO ALL INPUTS
OFF
30
RECOMMENDED SETTINGS
28
WOBBLING
Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of sharper contour
of image.
ON1: Shifts the image every 30 seconds.
ON2: Shifts the image at a dot level pitch depending on screen-detection.
PEAK LIMIT
ON: Suppresses image contrast (peak brightness).
Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 44)
EXTENDED LIFE SETTINGS
SIDE BAR ADJUST
Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
bars on either side of the display fi eld.
To reduce the risk of such an image retention, illuminate the
side bars.
This function may be applicable to the non-picture area.
OFF: Darken both ends.
DARK: Make it dark gray.
MID: Make it gray.
BRIGHT: Make it light gray.
Notes:
• To reduce the occurrence of image retention, set the SIDE BAR ADJUST to BRIGHT.
• The side bar may fl ash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode
will reduce such fl ashing.
side bars
4:3 mode
retention
Picture out Picture Picture and Picture
Non picture area
Reduces screen image retention
The following settings are setup to reduce image retention:
Image Retention Reduction Menu
“EXTENDED LIFE SETTINGS” enables you to set the following 5 menus (Image Retention Reduction Menu) as
recommended values or set them individually.
PICTURE MENU
“PICTURE MENU” and “PICTURE” are same as “PICTURE” menu items (see page 24). The settings of this menu will be
refl ected to the “PICTURE” menu.
Set to the recommended value
Set individually
Reset to the factory settings
Image Retention Reduction Menu

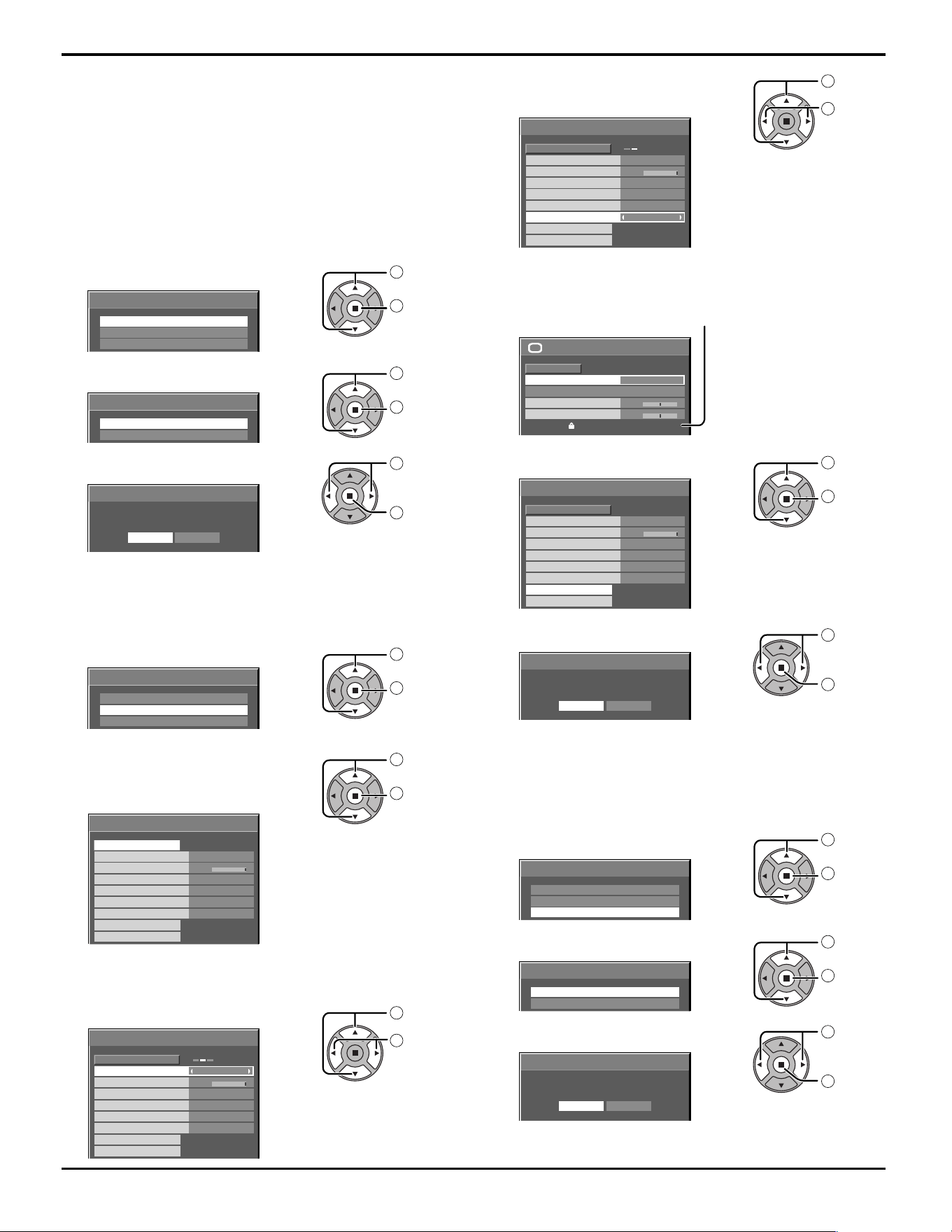

29
Reduces screen image retention
EXPRESS SETTINGS
Set the “Image Retention Reduction” menu to the
recommended settings.
All menus will be locked.
PICTURE MENU: STANDARD
PICTURE: 10
SIDE BAR ADJUST: BRIGHT
WOBBLING: ON1
PEAK LIMIT: ON
1
Select “EXPRESS SETTINGS”.
1
select
2
access
EXPRESS SETTINGS
CUSTOM SETTINGS
RESET
EXTENDED LIFE SETTINGS
2
Select the input to apply the settings.
1
select
2
set
APPLY TO CURRENT INPUT
APPLY TO ALL INPUTS
EXTENDED LIFE SETTINGS
3
Select “YES”.
1
select
2
set
APPLY TO CURRENT INPUT
NOYES
EXTENDED LIFE SETTINGS
RESET
Reset the “Image Retention Reduction” menu to the factory settings.
Each menu will be unlocked.
1
Select “RESET”.
1
select
2
access
EXPRESS SETTINGS
CUSTOM SETTINGS
RESET
EXTENDED LIFE SETTINGS
2
Select the input to reset the settings.
1
select
2
set
RESET CURRENT INPUT
RESET ALL INPUTS
EXTENDED LIFE SETTINGS
3
Select “YES”.
1
select
2
set
RESET CURRENT INPUT
NOYES
EXTENDED LIFE SETTINGS
CUSTOM SETTINGS
Set the individual “Image Retention Reduction” menu.
1
Select “CUSTOM SETTINGS”.
1
select
2
access
EXPRESS SETTINGS
CUSTOM SETTINGS
RESET
EXTENDED LIFE SETTINGS
2
To set each menu to the
recommended setting:
Select “RECOMMENDED SETTINGS”.
1
select
2
set
PICTURE MENU
EXTENDED LIFE SETTINGS
DYNAMIC
SIDE BAR ADJUST
WOBBLING
LOCK SETTINGS
PEAK LIMIT
BRIHGT
OFF
UNLOCK
APPLY TO CURRENT INPUT
APPLY TO ALL INPUTS
OFF
30
RECOMMENDED SETTINGS
Each menu will be set as same as
the “EXPRESS SETTINGS”.
3
Set each menu.
1
select
2
access
PICTURE MENU
EXTENDED LIFE SETTINGS
DYNAMIC
SIDE BAR ADJUST
WOBBLING
LOCK SETTINGS
PEAK LIMIT
BRIHGT
OFF
UNLOCK
APPLY TO CURRENT INPUT
APPLY TO ALL INPUTS
OFF
30
RECOMMENDED SETTINGS
4
To lock each menu setting:
Set the “LOCK SETTINGS” to “LOCK”.
1
select
2
adjust
PICTURE MENU
EXTENDED LIFE SETTINGS
DYNAMIC
SIDE BAR ADJUST
WOBBLING
LOCK SETTINGS
PEAK LIMIT
BRIHGT
OFF
LOCK
APPLY TO CURRENT INPUT
APPLY TO ALL INPUTS
OFF
30
RECOMMENDED SETTINGS
When a menu is locked, it is grayed out and cannot be set.
“PICTURE MENU” and “PICTURE” will no longer be able
to set in the “PICTURE” menu, and they are labeled with
icon to indicate their locked status.
1/2 PICTURE
NORMAL
NORMALIZE
0
0
BRIGHTNESS
EXTENDED LIFE SETTINGS
PICTURE MENU
COLOR
DYNAMIC
30
5
Select the input to apply the settings.
1
select
2
set
PICTURE MENU
EXTENDED LIFE SETTINGS
DYNAMIC
SIDE BAR ADJUST
WOBBLING
LOCK SETTINGS
PEAK LIMIT
BRIHGT
OFF
LOCK
APPLY TO CURRENT INPUT
APPLY TO ALL INPUTS
OFF
30
RECOMMENDED SETTINGS
6
Select “YES”.
1
select
2
set
APPLY TO CURRENT INPUT
NOYES
EXTENDED LIFE SETTINGS
1/2
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
SIGNAL
SCREENSAVER
EXTENDED LIFE SETTINGS
POWER SAVE
SET UP
30

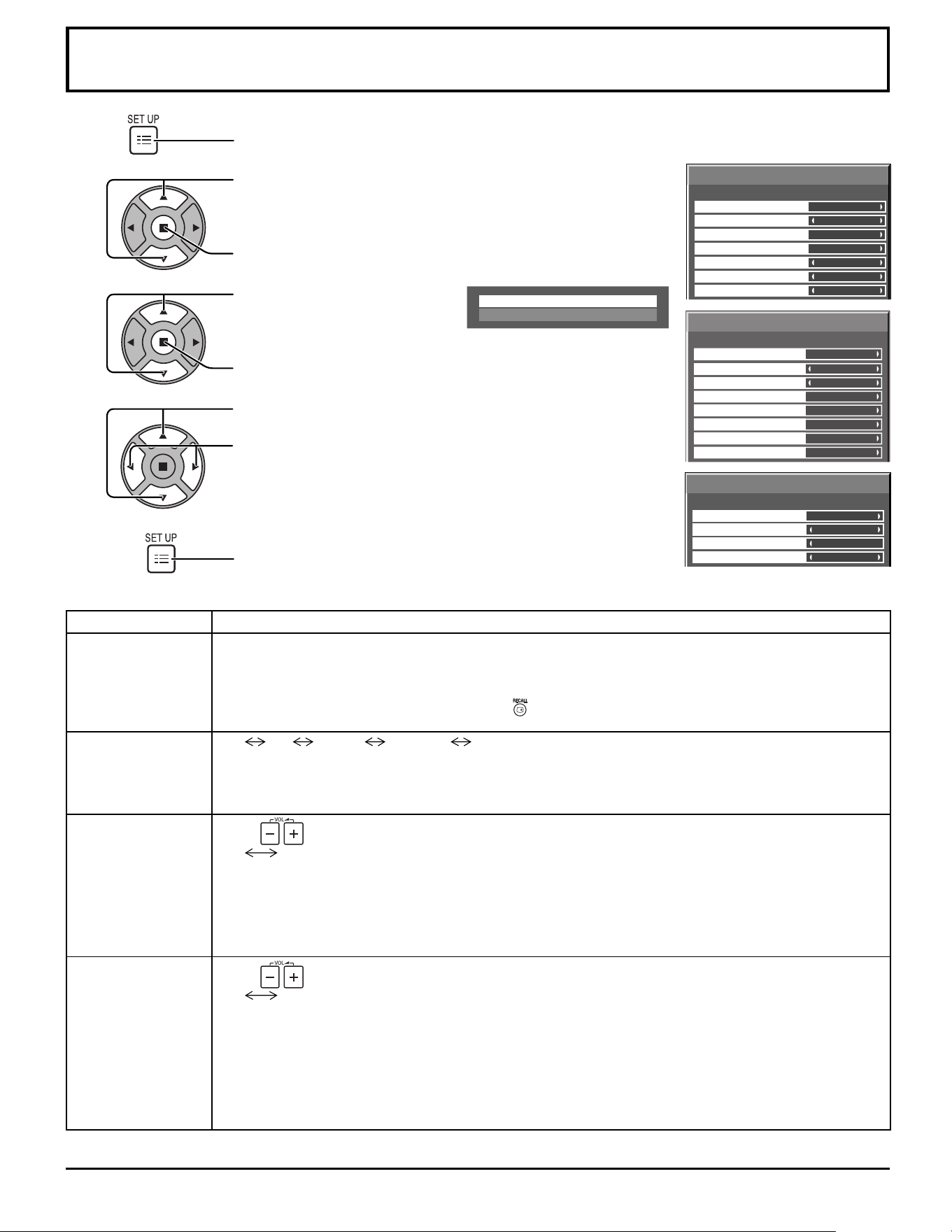

Reduces power consumption
Press to select
“POWER SAVE”
“STANDBY SAVE”
“POWER MANAGEMENT”
“AUTO POWER OFF”.
Press to select “ON” or “OFF”.
On Off
Press to exit from SET UP.
• POWER SAVE: When this function is turned ON, luminous level of the Plasma Display is suppressed, so
power consumption is reduced.
• STANDBY SAVE: When this function is turned ON, power consumption of the microcomputer is reduced during
power supply standby (see page 13, 16, 17), so standby power of the set is reduced.
• POWER MANAGEMENT: When this function is set to ON, it operates under the following conditions to turn the power
on or off automatically.
When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC signal
input:
→ Power is turned off (standby); the power indicator lights up orange.
When pictures (HD/VD sync signals) are subsequently detected:
→ Power is turned on; the power indicator lights up green.
Notes:
• This function operates only during PC signal input.
• This function is effective when “SYNC” is set to “AUTO”, “COMPONENT / RGB-IN SELECT”
is set to “RGB” and during normal viewing (one picture screen).
• AUTO POWER OFF: Equipment power supply is turned OFF when there is no signal.
When this is set to On, the power supply of the unit goes Off 10 minutes after the input
signals stop.
Note:
This function is effective during normal viewing (one picture screen) for input signals except
PC terminal.
1
2
3
1/2
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
SIGNAL
SCREENSAVER
EXTENDED LIFE SETTINGS
POWER SAVE
SET UP
1/2
SIGNAL
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
POWER SAVE
SET UP
SCREENSAVER
EXTENDED LIFE SETTINGS
31
Press to select INPUT LABEL.
Press to change the INPUT LABEL.
This function can change the label of the Input signal to be displayed.
Select the input signal which you would like to change its label before customizing the
Input labels. (see page 15, 17)
INPUT LABELS for INPUT1, 2, 3 and 4:
[INPUT1] VIDEO / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV /
VCR / STB
[INPUT2] S-VIDEO / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB
[INPUT3] COMPONENT / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB
[INPUT4] PC / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB

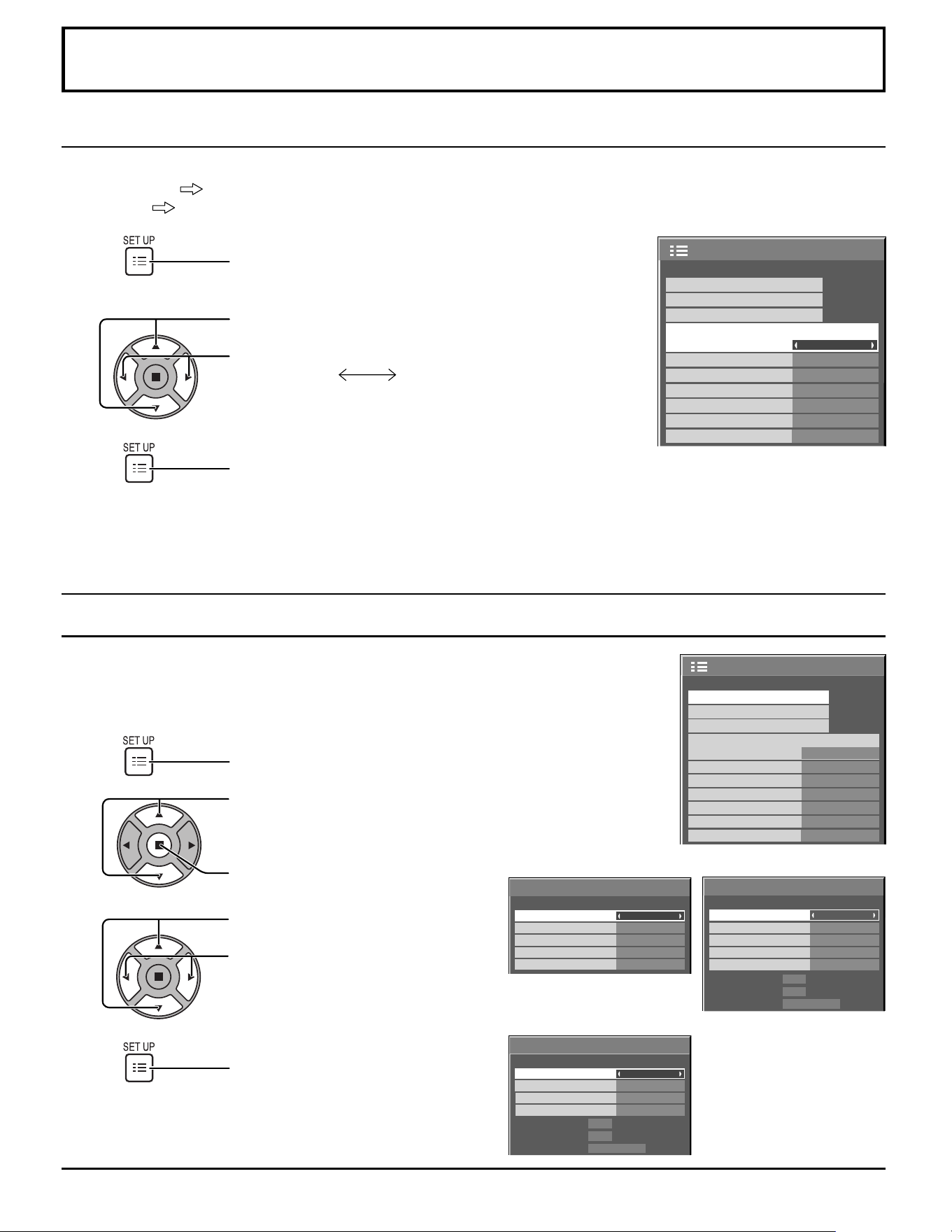

Customizing the Input labels
Press to display the SET UP menu.
Press to select OSD LANGUAGE.
Press to select your preferred language.
Selectable languages
.......(Japanese)
.......(Chinese)
Italiano
Français
Deutsch
English(UK)
Español
ENGLISH(US)
.......(Russian)
Русский
Selecting the On-Screen Menu Language
1
2
2/2 SET UP
MULTI DISPLAY SETUP
AUDIO INPUT SELECT
DISPLAY ORIENTATION
LANDSCAPE
2/2 SET UP
MULTI DISPLAY SETUP
AUDIO INPUT SELECT
DISPLAY ORIENTATION
LANDSCAPE
32
Sets the fan control and the display style of on-screen menu for vertical installation.
Press to display the SET UP menu.
Press to select DISPLAY ORIENTATION.
Press to select “LANDSCAPE” or “PORTRAIT”.
Press to exit from adjust mode
1
2
3
Notes:
• Turn up the power switch for the upward direction when you set Display vertically.
• Fan control will be switched when turning on the unit next time.
LANDSCAPE PORTRAIT
Fan control for horizontal installation. Fan control for vertical installation. On-screen menu will be rotated
90 degrees counterclockwise to be suitable for the setting.
DISPLAY ORIENTATION
AUDIO INPUT SELECT
Press to select the AUDIO INPUT SELECT.
Press to display the “AUDIO INPUT SELECT” menu.
AUDIO 2
VIDEO
S-VIDEO
AUDIO 1
COMPONENT
AUDIO 4
PC
AUDIO 3
AUDIO INPUT SELECT
Press to display the SET UP menu.
1
2
3
Press to select video input.
Press to select audio input.
Press to exit from adjust mode.
4
AUDIO 1
AUDIO 2
AUDIO 3
AUDIO 4
NO AUDIO: No audio input (Mute)
Set up the sound when an image input (INPUT 1 to 4) is selected.
2/2 SET UP
MULTI DISPLAY SETUP
AUDIO INPUT SELECT
DISPLAY ORIENTATION
LANDSCAPE
33

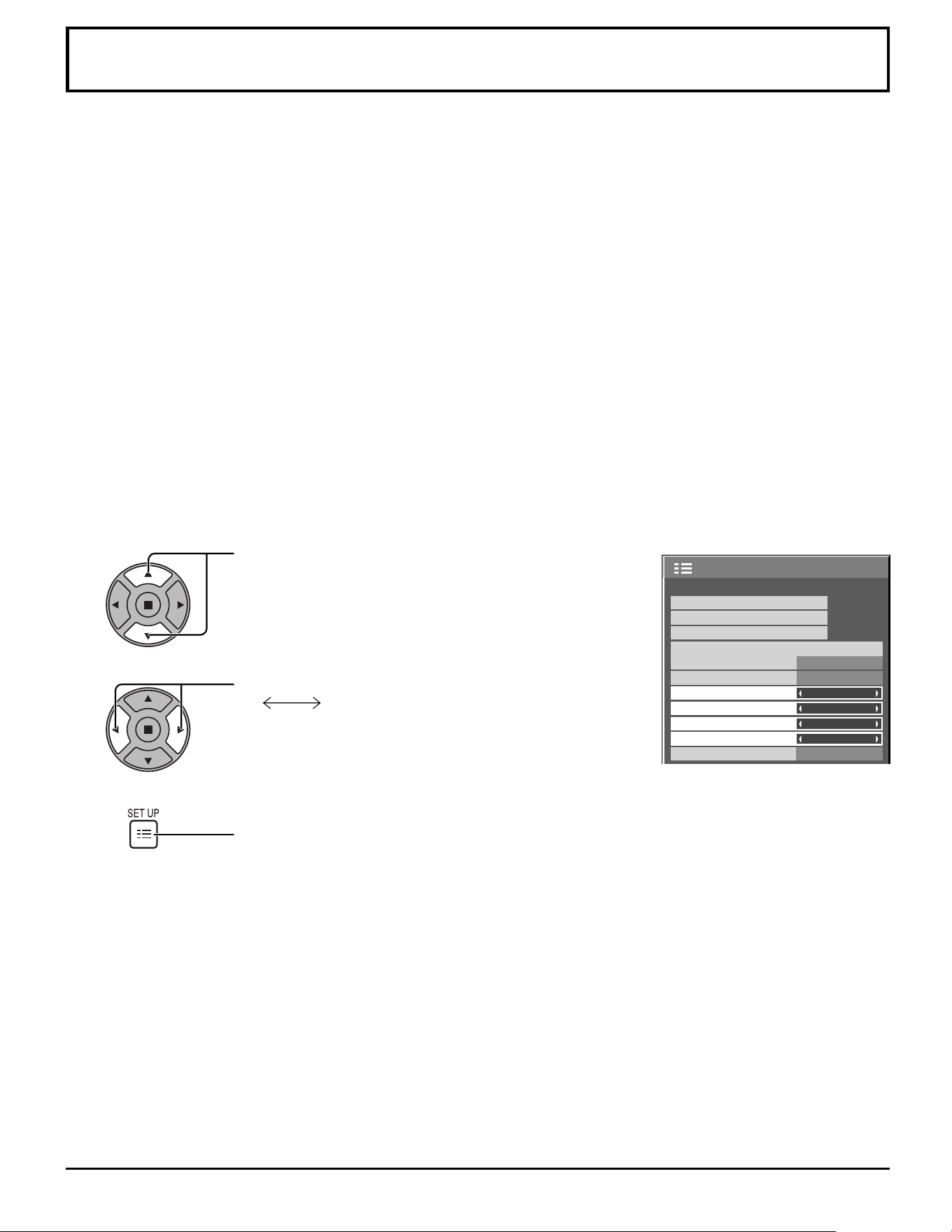

By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens.
For this mode of operation, each plasma display has to be set up with a Display number to determine its location.
Press to select the MULTI DISPLAY SETUP.
Press to display the “MULTI DISPLAY SETUP” menu.
How to setup MULTI DISPLAY
group of 16 (4 × 4)
group of 4 (2 × 2)
group of 9 (3 × 3)
× 2
MULTI DISPLAY SETUP
HORIZONTAL SCALE
OFF
A1
VERTICAL SCALE
LOCATION
OFF
SEAM HIDES VIDEO
× 2
MULTI DISPLAY SETUP
SET UP for MULTI DISPLAY
(Example)
group of 25 (5 × 5)
Press to display the SET UP menu.
1
2
3
Press to select the MULTI DISPLAY SETUP.
Press to select “ON” or “OFF”.
Item Details
MULTI DISPLAY SETUP Select “ON” or “OFF”.
HORIZONTAL SCALE Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.
VERTICAL SCALE Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.
SEAM HIDES VIDEO
Select “ON” or “OFF”.
To hide joints between displays.
Suitable for moving image display.
To show joints between displays.
Suitable for still image display.
ON OFF
LOCATION
Select the required arrangement number. (A1-E5 : Refer to the following)
Display Number locations for each arrangement.
(Examples)
( 2 × 1) ( 2 × 3 ) ( 4 × 4 )( 4 × 2 ) ( 5 × 5 )
A1 A2 A3 A4 A5
B1 B2 B3 B4 B5
C1 C2 C3 C4 C5
D1 D2 D3 D4 D5
E1 E2 E3 E4 E5
Press to exit from adjust mode.
4
34

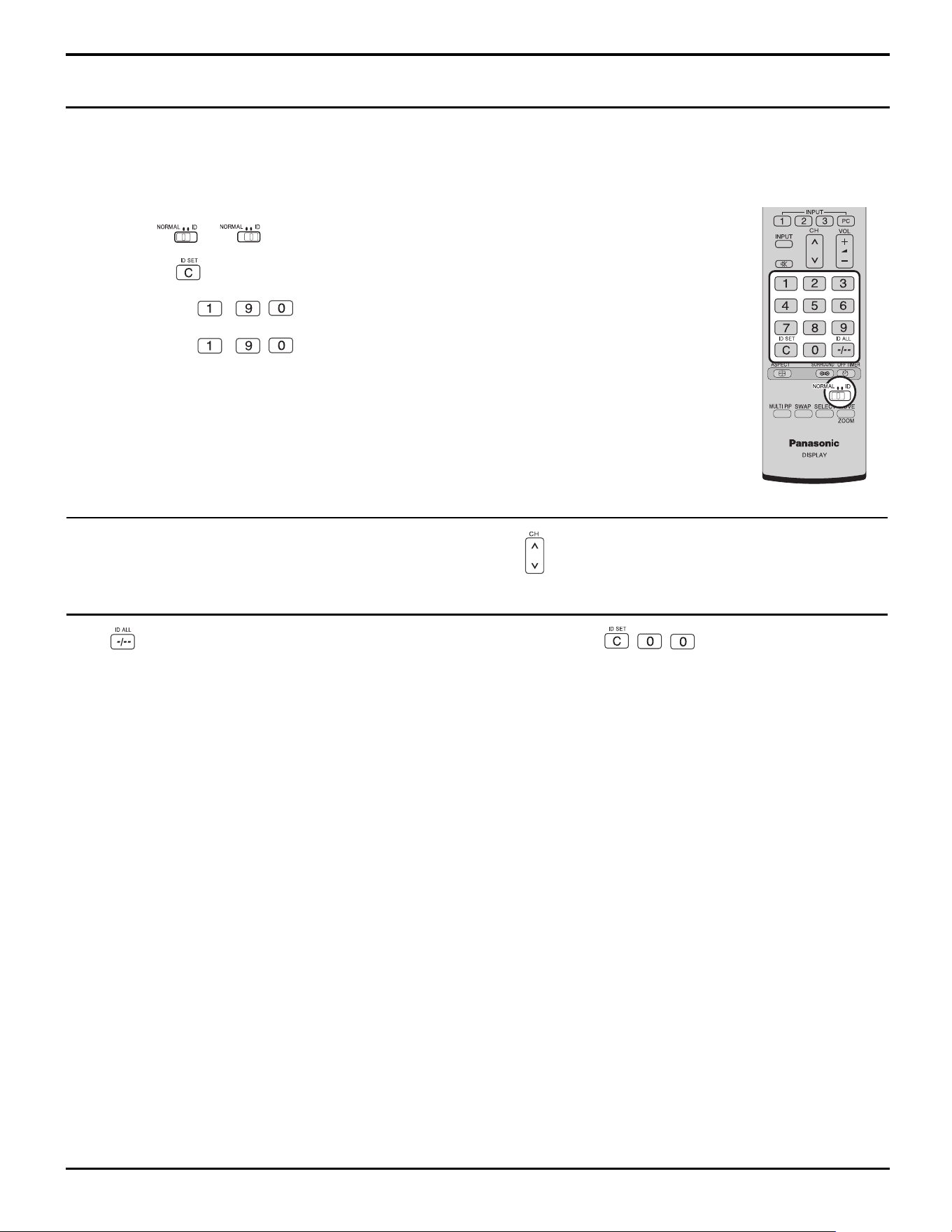

You can set the remote control ID when you want to use this remote control on one of several different displays.
Note:
To operate this function, please purchase ID remote controller sold separately.
Object model : EUR7636070R
SET UP for MULTI DISPLAY
1
2
3
Switch to on the right side.
Press the button on the remote control.
Press one of - , for the tens digit setting.
Press one of - , for the units digit setting.
4
Notes:
• The numbers in 2, 3 and 4 should be set up quickly.
• Adjustable ID number range is 0 - 99.
• If a number button is pressed more than two times, the fi rst two numbers become the ID number
for the remote control.
ID Cancellation
Press button on remote control. (This has the same effect as pressing the , , buttons at the same time.)
Notes:
• Set the Remote ID “On” to operate the ID remote control.
If remote ID is set to “On”, you can use the remote control without identical ID number during option menu display.
(see page 41)
• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is not
the same as the ID select number (see page 41).
ID remote control button operation
The operation is the same as normal remote control except for the button.
ID Remote Control Function
1/2
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
SIGNAL
SCREENSAVER
EXTENDED LIFE SETTINGS
POWER SAVE
SET UP
1/2
SIGNAL
SCREENSAVER
EXTENDED LIFE SETTINGS
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
POWER SAVE
SET UP
3D Y/C FILTER (NTSC)
COLOR SYSTEM
SIGNAL
ON
AUTO
3 : 2 PULLDOWN
OFF
[
VIDEO
]
NOISE REDUCTION
OFF
REFRESH RATE
100 Hz
3 : 2 PULLDOWN
SIGNAL
OFF
[
COMPONENT
]
XGA MODE
AUTO
NOISE REDUCTION
OFF
REFRESH RATE
100 Hz
H-FREQ.
V-FREQ.
kHz
Hz
63.98
60.02
SIGNAL FORMAT 1280×1024/60
SYNC
SIGNAL
H-FREQ.
V-FREQ.
kHz
Hz
63.98
60.02
SIGNAL FORMAT 1280×1024/60
[
RGB
]
3 : 2 PULLDOWN
XGA MODE
NOISE REDUCTION
OFF
REFRESH RATE
100 Hz
AUTO
OFF
AUTO
35
SET UP for Input Signals
COMPONENT / RGB IN SELECT
Select to match the signals from the source connected to the COMPONENT / RGB input terminals.
Y, P
B
, P
R
signals “COMPONENT”
RGB signals “RGB”
Press to display the SET UP menu.
Press to select the “COMPONENT / RGB-IN SELECT”.
Press to select the desired mode.
COMPONENT RGB
Press to exit from adjust mode.
Note:
Make setting of the selected input terminal.
1
2
3
Press to select the menu to adjust.
Press to adjust the menu.
Press to exit from adjust mode.
Note:
“SIGNAL” setup menu displays a different setting condition for each input signal.
3
4
SIGNAL menu
For VIDEO (S VIDEO)
Press to display the SET UP menu.
Press to select the “SIGNAL”.
Press to display the SIGNAL menu.
2
1
For RGB
For COMPONENT
3D Y/C FILTER (NTSC)
ON
3D Y/C FILTER (NTSC)
COLOR SYSTEM
SIGNAL
ON
AUTO
3 : 2 PULLDOWN
OFF
[
VIDEO
]
36
SET UP for Input Signals

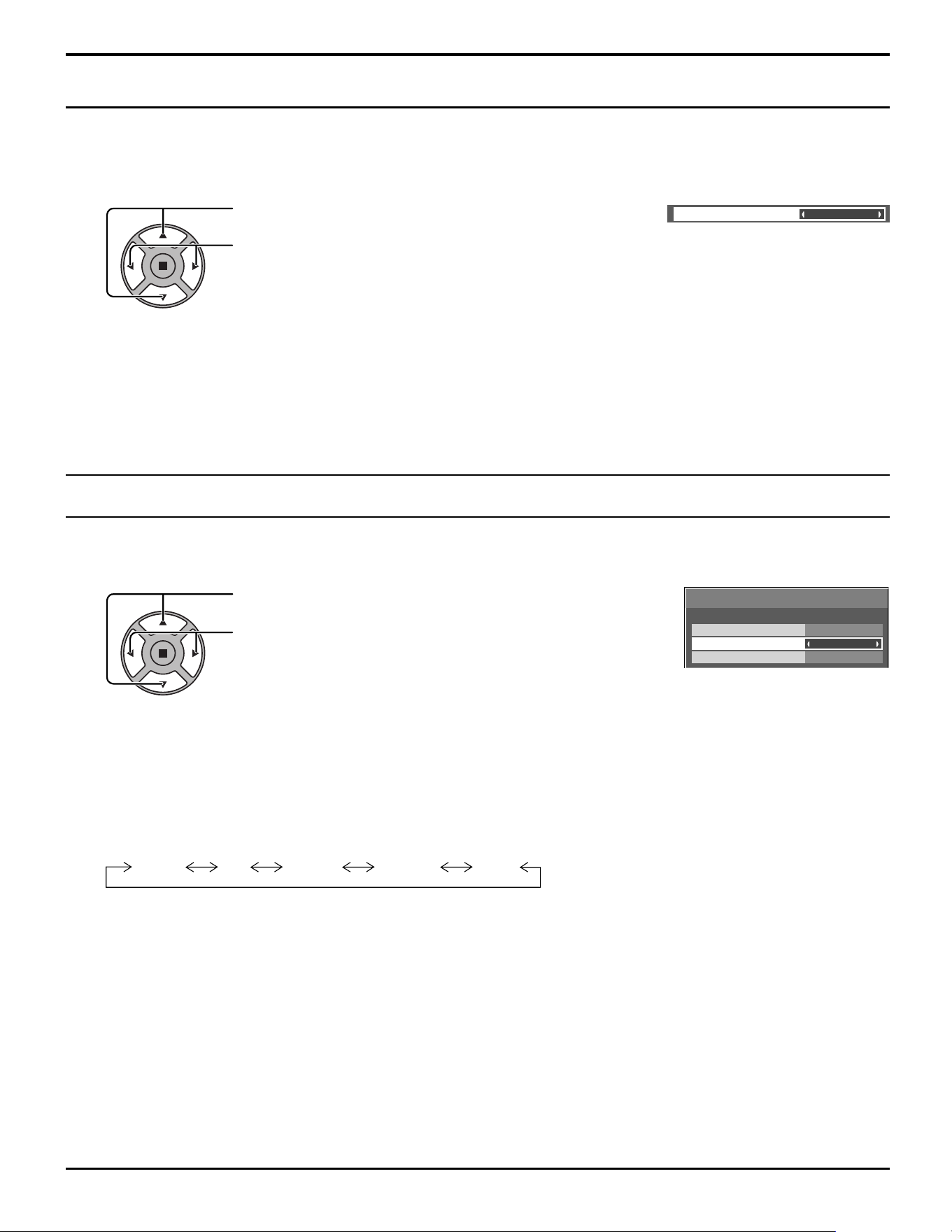

3D Y/C FILTER – For NTSC AV images
Select “SIGNAL” from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.
(“SIGNAL [VIDEO]” menu is displayed.)
Note:
When ON, this setting only affects NTSC input signals.
Press to select the “3D Y/C FILTER (NTSC)”.
Press to set ON / OFF.
COLOR SYSTEM
Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input
signal mode.(“SIGNAL [VIDEO]” menu is displayed.)
Press to select the “COLOR SYSTEM”.
Press to select each function.
If the image becomes unstable:
With the system set on Auto, under conditions of low level
or noisy input signals the image may in rare cases become
unstable. Should this occur, set the system to match the format
of the input signal.
COLOR SYSTEM:
Set the color system to match the input signal. When “AUTO” is set, COLOR
SYSTEM will be automatically selected from NTSC/PAL/SECAM. However, M.NTSC
signal may not be displayed properly. To display M.NTSC signal, select “M.NTSC”
in COLOR SYSTEM.
AUTO SECAM M.NTSC
NTSCPAL
3 : 2 PULLDOWN
OFF
XGA MODE
AUTO
37

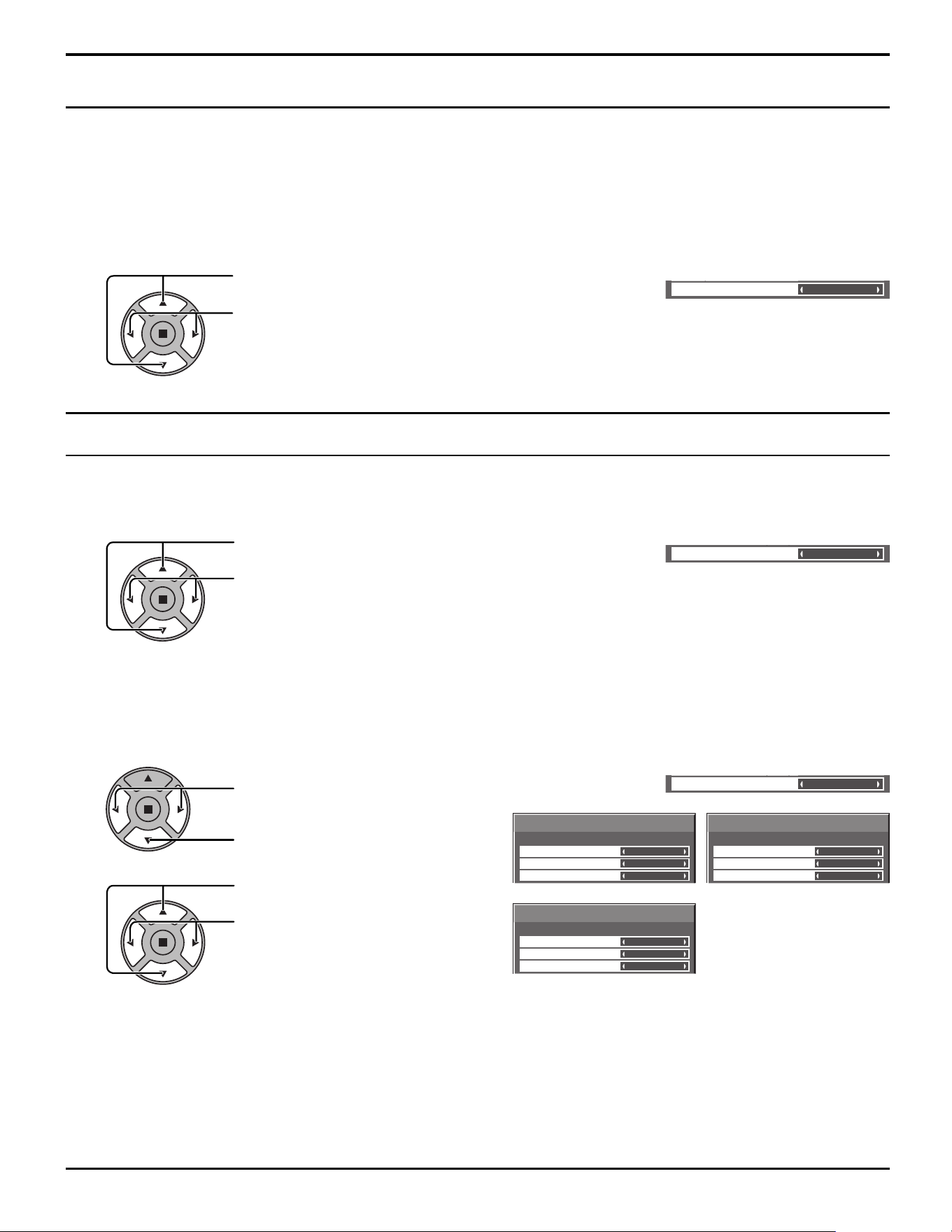

3:2 PULLDOWN
SET UP for Input Signals
Press to select “3:2 PULLDOWN”.
Press to set ON/OFF.
3:2 PULLDOWN: When ON, the display attempts to reproduce a more natural interpretation of sources such as movie
pictures, which are recorded at 24 frames per second.
If the picture is not stable, turn the setting to OFF.
Note:
When ON, this setting only affects the following signal input:
• NTSC / PAL signal input during “VIDEO (S VIDEO)” input signal.
• 525i(480i), 625i(575i), 1125(1080)/60i signal input during “COMPONENT” input signal.
XGA MODE
This menu displays when INPUT3 (COMPONENT/RGB) and INPUT4 (PC) signals are selected.
This unit supports three types of XGA signals with 60Hz vertical frequency having different aspect ratios and sampling
rates (1,024 × 768 @ 60Hz, 1,280 × 768 @ 60Hz and 1,366 × 768 @ 60Hz).
Press to select “XGA MODE”.
Press to select “AUTO”, “1024×768”, “1280×768”, “1366×768”.
AUTO: Automatically selected from 1024×768/1280×768/
1366×768.
Switch the setting to suit the input signal for better
display depends on the angle of view or display
resolution condition.
Note:
After making this setting, be sure to make each adjustment (such as “AUTO SETUP”) on the “POS. /SIZE” menu as
necessary. (see page 22)
REFRESH RATE
100 Hz
q
ADVANCED NR
[
VIDEO
]
MOSQUITO NR
VIDEO NR
BLOCK NR
OFF
OFF
OFF
ADVANCED NR
[
COMPONENT
]
MOSQUITO NR
VIDEO NR
BLOCK NR
OFF
OFF
OFF
ADVANCED NR
[
RGB
]
MOSQUITO NR
VIDEO NR
BLOCK NR
OFF
OFF
OFF
()
NOISE REDUCTION
OFF
()
NOISE REDUCTION
ADVANCED
38
VIDEO NR: Automatically reduces unwanted picture noise.
MOSQUITO NR
: Reduces mosquito noise around subtitles on MPEG videos.
BLOCK NR: Reduces block noise when playing MPEG videos.
Notes:
• NOISE REDUCTION cannot be adjusted while a PC signal is being applied.
• BLOCK NR cannot be adjusted while a HD signal is being applied.
REFRESH RATE
SET UP for Input Signals
Press to select REFRESH RATE.
Press to adjust.
This function sets the refresh rate of the display.
This menu is displayed when the input signal is 50 Hz system (50i, 50p, 25p, 24p, 24sF) of vertical scan rate.
100 Hz: Reduce screen fl icker.
50 Hz: Enhance the resolution of moving images.
Note:
It is recommended to set to 100 Hz normally.
NOISE REDUCTION
Sets the following three NR (Noise Reduction) functions together.
VIDEO NR, MOSQUITO NR, BLOCK NR
Press to select “NOISE REDUCTION”.
Press to select “OFF”, “MIN”, “MID”, “MAX”,
“ADVANCED”.
Sets the three NR functions separately.
Press to select “ADVANCED”.
Press to enter ADVANCED NR.
1
Press to select VIDEO NR,
MOSQUITO NR or BLOCK NR.
Press to select “OFF”, “MIN”, “MID”,
“MAX”.
2
Advanced NR
▼
SYNC
SIGNAL
[
RGB
]
3 : 2 PULLDOWN
XGA MODE
AUTO
OFF
AUTO
SYNC
AUTO
SYNC
ON G
SYNC
VBS
H-FREQ.
V-FREQ.
kHz
Hz
63.98
60.02
SIGNAL FORMAT 1280×1024/60
39
SET UP for Input Signals
Select SIGNAL from the “SET UP” menu during RGB input signal.
SYNC
Setting RGB sync signal
Confi rm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT
signal).
AUTO: The H and V sync or synchronized signal are automatically selected.
If both input, it is selected the H and V sync.
ON G: Uses a synchronized signal on the Video G signal, which is input from
the G connector.
VBS: Uses a synchronized signal of Composite Sync input, which is input
from the HD connector.
Displays the frequency and the type of the current input signal.
This display is valid only for COMPONENT/RGB/PC input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical 48 - 120 Hz
Input signal display
Press to select the “SYNC”.
Press to adjust.
Options
1/3
Initial INPUT
Onscreen display
On
Off
Off
Off
0
0
Maximum VOL level
Initial VOL level
Off
INPUT lock
Off
Button lock
Off
Remocon User level
Options
Enable
Off-timer function
Normal
Initial Power Mode
0
ID select
Off
Remote ID
Off
Serial ID
Off
Display size
Off
Studio W/B
Off
Studio Gain
2/3
3/3
Options
Off
Auto Setup
Off
All Aspect
Rotate
Off
Power On Screen Delay
Manual
40
1
2
4
Press to display the SET UP menu.
3
5
Item Adjustments
Onscreen display
On: Displays all the following on screen.
• Power on display
• Input signal switch display
• No signal display
• Mute and the remaining time of off-timer after
was pressed.
Off: Hides all the items above from view.
Initial INPUT
Off
PC VIDEO S-VIDEO COMPONENT
Adjusts the input signal when the unit is turned on.
Notes:
• Only the adjusted signal is displayed. (see page 15)
• This menu is available only when “INPUT lock” is “Off”.
Initial VOL level
Press
button to adjust the volume when the unit is turned on.
Off
On
Off: Sets normal volume.
On: Sets your preferred volume.
Notes:
•
When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.
• You can hear the changed volume regardless of your volume setting before opening the options menu if
you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.
Maximum VOL level
Press
button to adjust the maximum volume.
Off
On
Off: Sets auto maximum volume.
On: Sets your preferred maximum volume.
Notes:
• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically
becomes the same as the “Maximum VOL level”.
• The volume display can go up to 63 regardless of the settings.
• You can hear the changed volume regardless of your volume setting before opening the options menu if
you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.
Press to select “OSD LANGUAGE”.
Press for more than 3 seconds.
Press to select “Options”.
Press to display the Options menu.
Press to select your preferred menu.
Press to adjust the menu.
Press to exit from Options menu.
Options Adjustments
Options
Shiping
41
Item Adjustments
INPUT lock
Off
PC VIDEO S-VIDEO COMPONENT
Locks the input switch operation.
Notes:
• Only the adjusted signal is displayed (see page 15).
• Input switch can be used when this is set to “Off”.
• In two screen display mode, if anything other than “Off” is set, the value will be fi xed as the value input in
the single screen display mode.
Button lock
Off
MENU&ENTER On
Off: All the buttons on main unit can be used.
MENU&ENTER: Locks
MENU
and
ENTER/
buttons on main unit.
On: Locks all the button on main unit.
Sets Button lock with the unit buttons in the following procedure.
Off: Press
four times→Press
INPUT
four times→Press four times→Press
ENTER/
MENU&ENTER: Press
ENTER/
four times→Press four times→Press
INPUT
four times→Press
ENTER/
On: Press four times→Press
ENTER/
four times→Press four times→Press
ENTER/
Remocon User level
Off
User1 User2 User3
Off: You can use all of the buttons on the remote control.
User1:
You can only use , , , , buttons on the remote control.
User2: You can only use
button on the remote control.
User3:
Locks all the buttons on remote control.
Off-timer function
Enable: Enables the “Off-timer function”.
Disable: Disables the “Off-timer function”.
Note: When “Disable” is set, the Off-timer is cancelled.
Initial Power Mode
Normal
Standby On
Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.
Normal: Power returns in as the same state as before the power interruption.
Standby: Power returns in standby mode. (Power Indicator : red/orange)
On: Power returns in power On. (Power Indicator : green)
Note:
When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.
ID select
Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.
Set value range: 0 - 100
(Standard value: 0)
Remote ID
The setting of this menu is valid only when using ID remote control.
Off: Disables ID remote control functions. You can use normal remote control operations.
On: Enable ID remote control functions.
Serial ID
Sets the panel ID Control.
Off: Disables external control by the ID.
On: Enables the external control by the ID.
Display size
Adjusts the image display size on screen.
Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display.
Off On
Notes:
• This setting is valid only when the input signals are as follows;
NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (Video (S Video)) 525i, 525p, 625i, 625p, 750/60p,
750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/30p, 1125/60p, 1125/50p, 1250/50i
(Component Video, RGB)
• This setting is invalid when two screen display, digital zoom or Multi display is selected.
• When “Display size” is set to “On”, “H-POS” and “V-POS” in “POS. /SIZE” can be adjusted.
Options Adjustments
42
Item Adjustments
Studio W/B
Off: Nullify all the settings adjusted.
On: Sets the color temperature for TV studio.
Note: Valid only when the low is set as color temperature on screen adjustment.
Studio Gain
Sharpens the contrast for a better view when a part of the image is too light to see.
Off: Disables “Studio Gain”.
On: Enables “Studio Gain”.
Note: This setting is valid only when the input signals are as follows:
Component Video, RGB
Power On Screen
Delay
Off 1 2 3.... 30
You can set the power-on delay time of the displays to reduce the power load, when you press
to turn
on the multiple displays that are set together, for example, on MULTI DISPLAY system.
Set each display’s setting individually.
Off: The display will be turned on at the same time as
is pressed.
1 to 30 (sec.)
: Set the power-on delay time (second).
After pressing
, the display will be powered on with time delay depending on this setting.
Notes:
• During this function is working, the power indicator is blinking green.
• This function also works when the power recovers from failure or after plugging off and in again the power
cord.
All Aspect
Sets All Aspect mode (advanced aspect setting) or default aspect mode.
With each press of
button, the aspect changes in the selected mode.
Off: Default aspect mode
On: All Aspect mode
Aspect mode of each setting is as follows:
(Example: HD signal)
Off 4:3→H-FILL→ZOOM→FULL→JUST
On 4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2
Auto Setup
Sets the operational mode of the automatic position adjustment in the POS./SIZE menu.
Manual: Automatic position adjustment starts when
is pressed on the remote control or automatic position
adjustment is executed from the POS./SIZE menu.
Auto: Other than remote control or menu operation, automatic position adjustment starts:
When the display power is turned ON.
When the input signal is switched.
Rotate
Off: Does not rotate the image.
On: Rotates the image 180 degrees.
Normalization
When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote
ID” adjustments, set all the values “Off” so that all the buttons are enabled again.
Press the button on main unit together with button on the remote control and hold for more than 5 seconds. The
“Shipping” menu is displayed and the lock is released when it disappears.
Options Adjustments
1/2
SIGNAL
PC
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE ENGLISH
(
US
)
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
POWER SAVE
SET UP
SCREENSAVER
EXTENDED LIFE SETTINGS
Shipping
YES NO
43

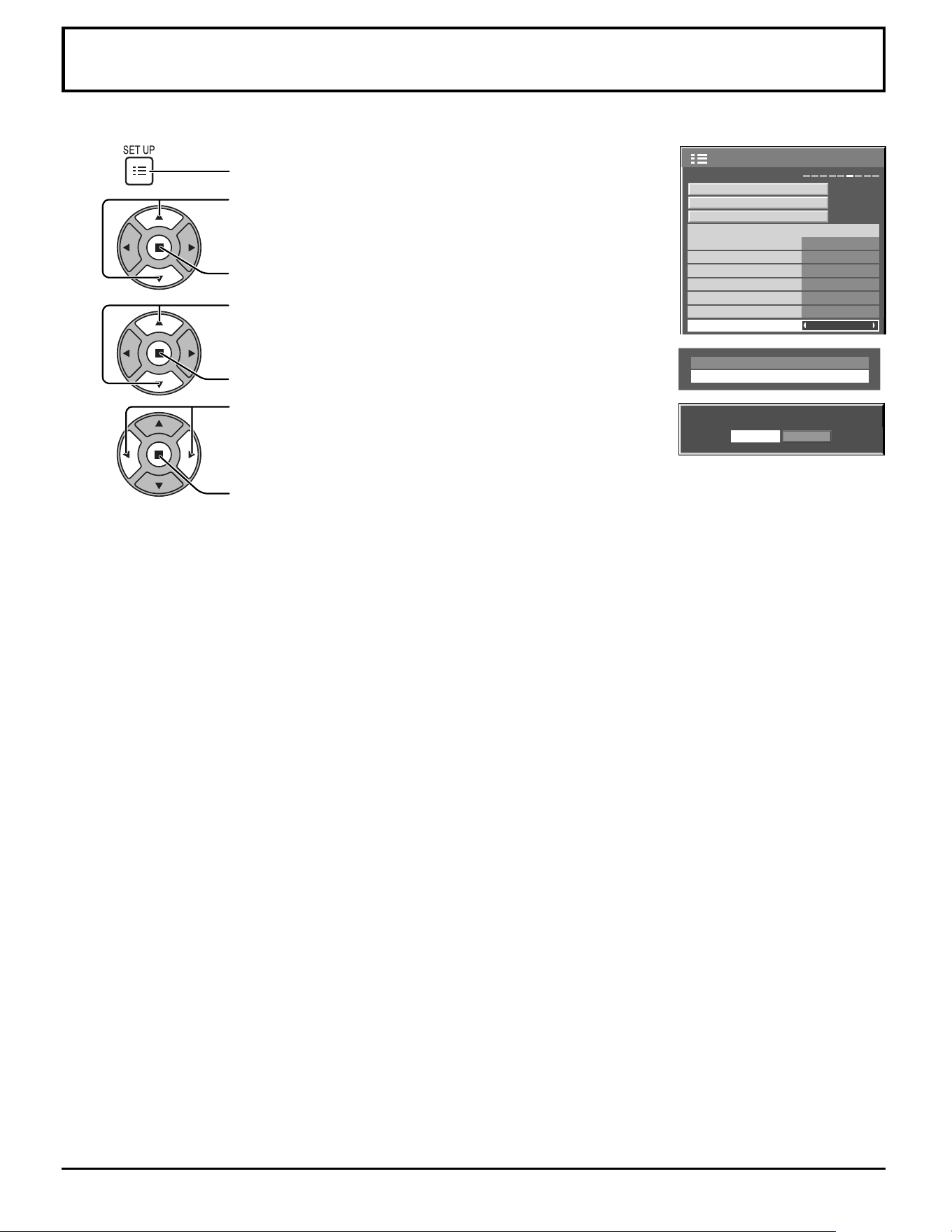

This function allows you to reset the unit to the factory setting.
Shipping condition
1
2
3
4
Press to display the SET UP menu.
Press to select “OSD LANGUAGE”.
Press for more than 3 seconds.
Press to select “Shipping”.
Press to display the Shipping menu.
Press to select “YES”.
Press to confi rm.
[from the unit]
1 Press the MENU button till the SET UP menu is displayed.
2 Press the Volume Up “+” or Down “–” button to select “OSD LANGUAGE”.
3 Press and hold the ENTER button till the Shipping menu is displayed.
4 Press the Volume Up “+” or Down “–” button to select “YES”.
5 Press the ENTER button and wait for 10 sec.
Options
Shiping
44
Troubleshooting
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Checks
Picture Sound
Interference Noisy Sound
Electrical Appliances
Cars / Motorcycles
Fluorescent light
Normal Picture No Sound
Volume
(Check whether the mute function has been activated on the remote control.)
No Picture No Sound
Not plugged into AC outlet
Not switched on
PICTURE and BRIGHTNESS/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
No Picture Normal Sound
If a signal with a non-applicable color system format, or frequency is input, only the input
terminal indication is displayed.
No Color Normal Sound
Color controls set at minimum level. (see page 24, 25)
COLOR SYSTEM (see page 37)
No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not, whether they
were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a strong fl uorescent
light.
Check whether the remote control designed specifi cally for use with the unit is being used.
(The unit cannot be operated by any other remote control.)
A cracking sound is sometimes heard from the unit. If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing
very slight contractions in response to changes in the room temperature. There are no adverse
effects on the performance or other aspects.
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Adjust the position of the picture on the screen.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
When using a video software program (such as a cinema size program) with a screen wider
than one in the 16:9 mode, blank areas separate from the images are formed at the top and
bottom of the screen.
I can hear sounds coming from inside the unit. When the power is turned on, a sound of the display panel being driven may be heard: This is
normal and not indicative of malfunctioning.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input
signal. However, this is not a malfunction.
Plasma Display panel
Symptoms Check
The screen darkens slightly when bright pictures with
minimal movements are shown.
The screen will darken slightly when photos, still images of a computer or other pictures with
minimal movements are shown for an extended period. This is done to reduce image retention
on the screen and the shortening of the screen’s service life: It is normal and not indicative of
malfunctioning.
It takes a while for the picture to appear. The unit digitally processes the various signals in order to reproduce esthetically pleasing
images. As such, it sometimes takes a few moments for the picture to appear when the power
has been turned on, when the input has been switched or when the images for the main picture
and sub picture on the two screens are swapped.
The edges of the images fl icker. Due to the characteristics of the system used to drive the panel, the edges may appear to fl icker
in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
The brightness on both sides of images in 4:3 mode
changes.
When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides
may change depending on the kind of program shown: This is normal and not indicative of
malfunctioning.
Some parts of the screen do not light up. The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Image retention appears
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
image retention to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 4:3 mode.
Note:
The permanent image retention on the Plasma Display resulting from fi xed image use is not
an operating defect and as such is not covered by the Warranty.
This product is not designed to display fi xed images for extended periods of time.
Whirring sounds can be heard from the display unit. The display unit is fi tted with a cooling fan to dissipate heat generated during normal use. The
whirring sound is caused by rotation of the fan and is not a malfunction.
45
List of Aspect Modes
Aspect mode
Enlarged screen
Description
All Aspect:
On
Factory setting
All Aspect: Off
16:9 FULL
The display of the pictures fi lls the screen.
In the case of SD signals, pictures with a 4:3 aspect ratio are
enlarged horizontally, and displayed. This mode is suited to
displaying anamorphic pictures with a 16:9 aspect ratio.
14:9 –
Letterbox pictures with a 14:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the
screen vertically and is slightly smaller than the screen
horizontally. The top and bottom edges of the pictures are
cut off. Side panels are displayed at the left and right edges
of the screen.
Just
JUST
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The display of
the areas around the left and right edges of the screen is
slightly elongated.
Just1
Just2 JUST
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The left and right
edges of the pictures are cut off. The display of the areas
around the left and right edges of the screen is slightly
elongated.
4:3
4:3
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. Side panels are displayed at the left
and right edges of the screen.
4:3 (1)
4:3 (2) 4:3
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. The left and right edges of the pictures
are masked by side panels.
4:3 Full H-FILL
Pictures with a 4:3 aspect ratio are enlarged horizontally so
that their display fi lls the screen. The left and right edges of
the pictures are cut off.
Zoom
ZOOM
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the screen.
The top and bottom edges of the pictures are cut off.
Zoom1
Zoom2 ZOOM
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the screen.
The top and bottom edges as well as the left and right edges
of the pictures are cut off.
Zoom3 –
Letterbox pictures with a 2.35:1 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the screen
vertically and is slightly larger than the screen horizontally.
The top and bottom edges as well as the left and right edges
of the pictures are cut off.
46
Applicable input signals
∗1:
Based on SMPTE 274M standard.
∗
2: Based on SMPTE RP211 standard.
∗
3: Based on SMPTE 295M standard.
∗4:
When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.
∗5:
When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.
Note: Signals without above specifi cation may not be displayed properly.
VIDEO input (VIDEO, S VIDEO)
Signal name
Horizontal Vertical
frequency(kHz) frequency(Hz)
1 NTSC 15.73 59.94
2 PAL 15.63 50.00
3 PAL60 15.73 59.94
4 SECAM 15.63 50.00
5 Modifi ed NTSC 15.73 59.94
*Mark: Applicable input signal
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
COMPONENT/RGB, PC
(Dot clock (MHz))
1 525 (480) / 60i 15.73 59.94
*
(13.5)
2 525 (480) / 60p 31.47 59.94
*
(27.0) ∗4
3 625 (575) / 50i 15.63 50.00
*
(13.5)
4 625 (575) / 50p 31.25 50.00
*
(27.0)
5 750 (720) / 60p 45.00 60.00
*
(74.25)
6 750 (720) / 50p 37.50 50.00
*
(74.25)
7 1,125 (1,080) / 60p 67.50 60.00
*
(148.5) ∗1
8 1,125 (1,080) / 60i 33.75 60.00
*
(74.25) ∗1
9 1,125 (1,080) / 50p 56.26 50.00
*
(148.5) ∗1
10 1,125 (1,080) / 50i 28.13 50.00
*
(74.25) ∗1
11 1,125 (1,080) / 24sF 27.00 47.92
*
(74.25) ∗2
12 1,125 (1,080) / 30p 33.75 30.00
*
(74.25) ∗1
13 1,125 (1,080) / 25p 28.13 25.00
*
(74.25) ∗1
14 1,125 (1,080) / 24p 27.00 24.00
*
(74.25) ∗1
15 1,250 (1,080) / 50i 31.25 50.00
*
(74.25) ∗3
16 640 × 400 @70 Hz 31.46 70.07
*
(25.17)
17 640 × 480 @60 Hz 31.47 59.94
*
(25.18) ∗5
18 640 × 480 @72 Hz 37.86 72.81
*
(31.5)
19 640 × 480 @75 Hz 37.50 75.00
*
(31.5)
20 640 × 480 @85 Hz 43.27 85.01
*
(36.0)
21 852 × 480 @60 Hz 31.47 59.94
*
(33.54) ∗5
22 800 × 600 @56 Hz 35.16 56.25
*
(36.0)
23 800 × 600 @60 Hz 37.88 60.32
*
(40.0)
24 800 × 600 @72 Hz 48.08 72.19
*
(50.0)
25 800 × 600 @75 Hz 46.88 75.00
*
(49.5)
26 800 × 600 @85 Hz 53.67 85.06
*
(56.25)
27 1,024 × 768 @60 Hz 48.36 60.00
*
(65.0)
28 1,024 × 768 @70 Hz 56.48 70.07
*
(75.0)
29 1,024 × 768 @75 Hz 60.02 75.03
*
(78.75)
30 1,024 × 768 @85 Hz 68.68 85.00
*
(94.5)
31 1,152 × 864 @75 Hz 67.50 75.00
*
(108.0)
32 1,280 × 768 @60 Hz 47.70 60.00
*
(80.14)
33 1,280 × 960 @60 Hz 60.00 60.00
*
(108.0)
34 1,280 × 960 @85 Hz 85.94 85.00
*
(148.5)
35 1,280 × 1,024 @60 Hz 63.98 60.02
*
(108.0)
36 1,280 × 1,024 @75 Hz 79.98 75.03
*
(135.0)
37 1,280 × 1,024 @85 Hz 91.15 85.02
*
(157.5)
38 1,600 × 1,200 @60 Hz 75.00 60.00
*
(162.0)
39 1,600 × 1,200 @65 Hz 81.25 65.00
*
(175.5)
40 1,066 × 600 @60 Hz 37.64 59.94
*
(53.0)
41 1,366 × 768 @60 Hz 48.36 60.00
*
(86.71)
42 Macintosh13” (640 × 480) 35.00 66.67
*
(30.24)
43 Macintosh16” (832 × 624) 49.72 74.54
*
(57.28)
44 Macintosh21” (1,152 × 870) 68.68 75.06
*
(100.0)
47
TH-42PD12U TH-50PD12U
Power Source
110 - 127 V AC, 50/60 Hz
Power Consumption
Power on
255 W 365 W
Stand-by condition
Save OFF 0.9 W, Save ON 0.4 W Save OFF 0.9 W, Save ON 0.4 W
Power off condition
0.2 W 0.2 W
Plasma Display panel
Drive method : AC type 42-inch,
16:9 aspect ratio
Drive method : AC type 50-inch,
16:9 aspect ratio
Screen size
36.2” (921 mm) (W) × 20.4” (518 mm) (H)
× 41.6” (1,057 mm) (diagonal)
43.5” (1,106 mm) (W) × 24.4” (622 mm) (H)
× 49.9” (1,269 mm) (diagonal)
(No.of pixels)
786,432 (1,024 (W) × 768 (H))
[3,072 × 768 dots]
1,049,088 (1,366 (W) × 768 (H))
[4,098 × 768 dots]
Operating condition
Temperature
32 °F - 104 °F (0 °C - 40 °C) 32 °F - 104 °F (0 °C - 40 °C)
Humidity
20 % - 80 % 20 % - 80 %
Applicable signals
Color System
NTSC, PAL, PAL60, SECAM, Modifi ed NTSC
Scanning format
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p
· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
PC signals
VGA, SVGA, XGA
SXGA, UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
Connection terminals
VIDEO BNC
1.0 Vp-p (75 Ω)
S VIDEO
MINI DIN 4PIN Y: 1.0 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω)
COMPONENT/RGB
Y/G (BNC)
P
B/B (BNC), PR/R (BNC)
with sync 1.0 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
PC
(HIGH-DENSITY MINI D-SUB 15PIN)
B/P
B/CB :
R/P
R/CR :
HD/VD:
Y or G with sync 1.0 Vp-p (75 Ω)
Y or G without sync 0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
1.0 - 5.0 Vp-p (high impedance)
SERIAL
EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE
AUDIO1–3
RCA PIN JACK × 6 0.5 Vrms
AUDIO4
M3 JACK 0.5 Vrms
EXT SP
6 Ω, 16 W [8 W + 8 W] (10 % THD)
Accessories Supplied
Remote Control Transmitter
N2QAYB000432
Batteries
AA Size × 2
Fixing band
TMME203 × 1
Dimensions (W × H × D)
40.2” (1,020 mm) × 24.1” (610 mm) × 3.5” (89 mm) 47.7” (1,210 mm) × 28.5” (724 mm) × 3.8” (95 mm)
Mass (weight)
main unit only
approx. 50.7 lbs approx. 70.6 lbs
with speakers
approx. 59.6 lbs approx. 79.4 lbs
Note:
Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate.
Specifi cations
