CRF125F/FB
Models sold in and used in California:
The removal or modification of evaporative emission-related parts on this OHRV is illegal. Violators may be
subject to civil and/or criminal penalties as provided under California and federal law.
Black
Pantone 3415C
CRF125F/FB
2020
2020
PRINTED IN XXXX
XXXX.2019.XX.L
00X31-K28-B600
31K28B60
EN
This manual should be considered a permanent part of the motorcycle and should remain with the
motorcycle when it is resold.
This publication includes the latest production information available before printing.
Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without
incurring any obligation.
No part of this publication may be reproduced without written permission.
This vehicle pictured in this owner’s manual may not match your actual vehicle.
©
Honda Motor Co., Ltd. 2019
20YM CRF125FFB_31K28B60_FM.book 1 ページ ２０１９年３月１日 金曜日 午後１時４８分
2020
Honda CRF125F/FB
OWNER’S MANUAL
FOR OFF-ROAD USE ONLY
This vehicle is designed and manufactured for off-road use only.
USA only:
It conforms to US EPA Noise Emission regulations, but does not conform to Federal Motor Vehicle Safety
Standards or US EPA On Highway Exhaust Emission regulations, and operation on public streets, roads, or
highways is illegal. The vehicle is equipped with a USDA qualified spark arrester. Obey local laws and
regulations.
It conforms to US EPA, California, and Environment and Climate Change Canada (ECCC) emission
regulations for off-road motorcycles.
20YM CRF125FFB_31K28B60_FM.book 2 ページ ２０１９年３月１日 金曜日 午後１時４８分
Safety Messages
A Few Words About Safety
Your safety, and the safety of others, is very important. And operating this motorcycle safely is an
important responsibility.
To help you make informed decisions about safety, we have provided operating procedures and other
information on labels and in this manual. This information alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to warn you about all hazards associated with operating or
maintaining a motorcycle. You must use your own good judgment.
You will find important safety information in a variety of forms, including:
• Safety Labels – on the motorcycle.
• Safety Messages – preceded by a safety alert symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
20YM CRF125FFB_31K28B60_FM.book 3 ページ ２０１９年３月１日 金曜日 午後１時４８分
Safety Messages
A Few Words About Safety
• Safety Headings – such as Important Safety Reminders or Important Safety Precautions.
• Safety Section – such as Motorcycle Safety.
• Instructions – how to use this motorcycle correctly and safely.
This entire book is filled with important safety information – please read it carefully.
You WILL be KILLED or SERIOUSLY HURT if you don't follow
instructions.
You CAN be KILLED or SERIOUSLY HURT if you don't follow
instructions.
You CAN be HURT if you don't follow instructions.
20YM CRF125FFB_31K28B60_FM.book 4 ページ ２０１９年３月１日 金曜日 午後１時４８分
Contents
Contents
These pages give an overview of the contents
of your owner’s manual. The first page of each
section lists the topics covered in that section.
Introduction
Motorcycle Safety.........................................1
Important safety information, a special
message for parents, precautions about
loading, accessories, and modifications, and
the location of safety labels.
Operating Controls.....................................13
The location, function, and operation of the
throttle, brakes, and other basic controls.
Before Riding..............................................23
The importance of wearing a helmet and
other protective gear, plus how to make sure
you and your motorcycle are ready to ride.
Basic Operation & Riding..........................29
How to start and stop the engine, shift gears,
and brake. Also, riding precautions.
Servicing Your Honda.................................41
Why your motorcycle needs regular
maintenance, what you need to know before
servicing your Honda, a maintenance
schedule, and instructions for specific
maintenance items.
20YM CRF125FFB_31K28B60_FM.book 1 ページ ２０１９年３月１日 金曜日 午後１時４８分
Contents
Contents
Tips............................................................. 119
How to transport and store your motorcycle,
and how to be an environmentally
responsible rider.
Taking Care of the Unexpected...............129
What to do if you have a flat tire, your
engine won’t start, etc.
Technical Information..............................145
ID numbers, technical specifications, and
other technical facts.
Consumer Information ............................161
Information on warranties and how to get
Honda service manuals.
Index
.................................................................168
Quick Reference
Handy facts about fuel, engine oil, tire sizes,
and air pressures.
20YM CRF125FFB_31K28B60_FM.book 2 ページ ２０１９年３月１日 金曜日 午後１時４８分
Introduction
Introduction
Congratulations on choosing your Honda off-
road motorcycle.
When you own a Honda, you’re part of a
worldwide family of satisfied customers –
people who appreciate Honda’s reputation for
building quality into every product.
Your Honda was designed as a recreational
motorcycle for off-road use by one rider only.
It’s an ideal bike for younger, beginning riders.
Before riding, take time to get acquainted with
your motorcycle and how it works. To protect
your investment, we urge you to take
responsibility for keeping your motorcycle well
maintained. Scheduled service is a must, of
course. But it’s just as important to observe the
break-in guidelines, and perform all the pre-
ride and other periodic checks detailed in this
manual.
We also recommend that you read the owner’s
manual before you ride. It’s full of facts,
instructions, safety information, and helpful
tips. To make it easy to use, the manual
contains a detailed list of topics at the
beginning of each section and an index at the
back of the book.
As you read this manual, you will find
information that is preceded by a
symbol. This information is intended to help
you avoid damage to your Honda, other
property, or the environment.
Read the Warranties Booklet (page 164)
thoroughly so you understand the coverages
that protect your new Honda and are aware of
your rights and responsibilities.
20YM CRF125FFB_31K28B60_FM.book 1 ページ ２０１９年３月１日 金曜日 午後１時４８分
Introduction
Introduction
Whenever you ride, tread lightly. By staying on
established trails and riding only in approved
areas, you help protect the environment and
keep off-road riding areas open for the future.
If you have any questions, or if you ever need a
special service or repairs, remember that your
Honda dealer knows your motorcycle best and
is dedicated to your complete satisfaction.
Please report any change of address or
ownership to your dealer so we will be able to
contact you concerning important product
information.
You may also want to visit our website at
USA: www.powersports.honda.com.
Canada: www.honda.ca.
Happy riding!
20YM CRF125FFB_31K28B60_FM.book 2 ページ ２０１９年３月１日 金曜日 午後１時４８分
20YM CRF125FFB_31K28B60_FM.book 3 ページ ２０１９年３月１日 金曜日 午後１時４８分
1
Motorcycle Safety
This section presents some of the most
important information and recommendations to
help you ride your motorcycle safely. Please
take a few moments to read these pages. This
section also includes a special message for
parents and location information for the safety
labels on your motorcycle.
Important Safety Information .........................2
Important Message to Parents ........................5
Loading, Accessories & Modifications...........8
Loading ......................................................8
Accessories & Modifications ...................10
Safety Labels.................................................12
20YM CRF125FFB_31K28B60_FM.book 1 ページ ２０１９年３月１日 金曜日 午後１時４８分
2
Important Safety Information
Your motorcycle can provide many years of
service and pleasure–if you take responsibility
for your own safety and understand the
challenges you can meet while riding.
This motorcycle has been designed for younger
riders. However, not all youngsters are
physically or emotionally ready to ride.
Therefore, before parents allow any youngster
to ride this motorcycle, we urge them to
carefully read the Important Message to
Parents beginning on page 5 and the Parents,
Youngsters and Off -Highway Motorcycles
booklet that came with the motorcycle (USA
only).
There is much that you can do to protect
yourself when you ride. You’ll find many
helpful recommendations throughout this
manual. The following are a few that we
consider to be most important.
Always Wear a Helmet
It’s a proven fact: helmets significantly reduce
the number and severity of head injuries. So
always wear an approved motorcycle helmet.
We also recommend that you wear eye
protection, sturdy boots, gloves, and other
protective gear (page 24).
Never Carry a Passenger
Your motorcycle is designed for one person
only. There are no handholds, footrests, or seat
for a second person–so never carry a passenger.
A passenger could interfere with your ability to
move around to maintain your balance and
control of the motorcycle.
20YM CRF125FFB_31K28B60_FM.book 2 ページ ２０１９年３月１日 金曜日 午後１時４８分
3
Important Safety Information
Ride Off-road Only
Your motorcycle is designed and manufactured for
off-road use only. The tires are not made for
pavement, and the motorcycle does not have turn
signals and other features required for use on public
roads. If you need to cross a paved or public road,
get off and walk your motorcycle across.
Take Time to Learn and Practice
Developing off-road riding skills is a gradual,
step-by-step process. Start by practicing at low
speeds in a safe area and slowly build your
skills. Personal instruction from an experienced
rider can also be valuable.
If you need assistance, ask your dealer about
riding groups in your area.
Also be sure to read the Tips & Practice Guide
for the Off -Highway Motorcyclist booklet that
came with your motorcycle (USA only).
Be Alert for Off-road Hazards
The terrain can present a variety of challenges
when you ride off-road. Continually ‘‘read’’ the
terrain for unexpected turns, drop-offs, rocks,
ruts, and other hazards. Always keep your
speed low enough to allow time to see and react
to hazards.
Ride within Your Limits
Pushing limits is another major cause of
motorcycle crashes. Never ride beyond your
personal abilities or faster than conditions
warrant. Remember that alcohol, drugs, fatigue,
and inattention can significantly reduce your
ability to make good judgments and ride safely.
20YM CRF125FFB_31K28B60_FM.book 3 ページ ２０１９年３月１日 金曜日 午後１時４８分
4
Important Safety Information
Don’t Drink and Ride
Alcohol and riding don’t mix. Even one drink
can reduce your ability to respond to changing
conditions, and your reaction time gets worse
with every additional drink. So don’t drink and
ride, and don’t let your friends drink and ride
either.
Keep Your Honda in Safe Condition
It’s important to keep your motorcycle properly
maintained and in safe riding condition.
Having a breakdown can be difficult, especially
if you are stranded off-road far from your base.
To help avoid problems, inspect your
motorcycle before every ride and perform all
recommended maintenance.
20YM CRF125FFB_31K28B60_FM.book 4 ページ ２０１９年３月１日 金曜日 午後１時４８分
5
Important Message to Parents
Your child’s safety is very important to Honda.
That’s why we urge you to read this message
before you let any young person ride this
motorcycle. Off-road riding can be fun. But, as
with riding a bicycle, bad judgment can result
in injury, and we don’t want that to happen! As
a parent, you can help prevent accidents by
making good decisions about if, when, and how
your youngster rides this motorcycle.
The first decision you’ll need to make is
whether your youngster is ready to ride. Riding
readiness varies widely from one person to
another, and age and size are not the only
factors.
PHYSICAL ABILITY is an important
consideration. For example, riders must be big
enough to hold the motorcycle up, get on, and
comfortably sit on the seat with both feet
touching the ground. They should also be able
to easily reach and work the brakes, throttle,
and all other controls.
ATHLETIC ABILITY is necessary for riding a
motorcycle. Generally speaking, your
youngster should be good at riding a bicycle
before getting on a motorcycle. Can your
youngster judge speeds and distances while
riding a bicycle and react with proper hand and
foot actions? Anyone who does not have good
coordination, balance, and agility is not ready
to ride this motorcycle.
Riding Readiness
20YM CRF125FFB_31K28B60_FM.book 5 ページ ２０１９年３月１日 金曜日 午後１時４８分
6
Important Message to Parents
MENTAL AND EMOTIONAL MATURITY
are requirements for safe riding. Does your
youngster think through problems and come to
logical solutions? On a bicycle, does your
youngster obey safe riding rules? Be honest!
Young people who take unnecessary risks,
make bad judgments, and don’t obey rules are
not ready to ride this motorcycle.
If you decide that your youngster is ready to
safely operate this motorcycle, make sure both
of you carefully read and understand the
owner’s manual before riding. Also be sure that
your youngster has a helmet and other
appropriate riding equipment, and always
wears it when operating the vehicle or sitting
on it.
GOOD INSTRUCTION is an important part of
hands-on training. The teacher can either be
you or another responsible adult who has
experience with off-road motorcycle riding.
(For help in finding a qualified instructor, talk
with your dealer.) Even if you’re not the main
teacher, it’s up to you to ensure your
youngster’s safety. Remember, learning to ride
a motorcycle is a gradual, step-by-step process.
It takes time, patience, and practice–many
hours over a period of weeks or months.
Instruction and Supervision
20YM CRF125FFB_31K28B60_FM.book 6 ページ ２０１９年３月１日 金曜日 午後１時４８分
7
Important Message to Parents
SUPERVISION is another important obligation
of parents. Even after youngsters have become
skilled off-road riders, they should always ride
with adult supervision. It helps to regularly
remind young riders of basic safety rules and
precautions. And remember, it’s your
responsibility to see that the motorcycle is
properly maintained and kept in safe operating
condition.
SAFE AND RESPONSIBLE RIDING must be
an on-going commitment – by you and your
youngster. When you both put safety first, you
can enjoy more peace of mind, and your
youngster can enjoy more hours of safe off-
road riding.
For your convenience, this CRF125F/FB
comes with an ignition switch and key. Remove
the key when the motorcycle is parked to help
prevent unauthorized use.
20YM CRF125FFB_31K28B60_FM.book 7 ページ ２０１９年３月１日 金曜日 午後１時４８分
8
Loading, Accessories & Modifications
Your Honda was designed as a rider-only
motorcycle. It was not designed to carry a
passenger or cargo. A passenger or cargo could
interfere with your ability to move around to
maintain your balance and control of the
motorcycle.
In addition, exceeding the weight limits or
carrying an unbalanced load can seriously
affect your motorcycle’s handling, braking, and
stability. Adding accessories or making
modifications that change this motorcycle’s
design and performance can also make it
unsafe. Also, the weight of any accessories will
reduce the maximum load the motorcycle can
carry.
More specific information on load limits,
accessories, and modifications follows.
How much weight you put on your motorcycle,
and how you load it, are important to your safety.
If you decide to carry cargo, you should be aware
of the following information.
Loading
Overloading or carrying a passenger
can cause a crash and you can be
seriously hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
20YM CRF125FFB_31K28B60_FM.book 8 ページ ２０１９年３月１日 金曜日 午後１時４８分
9
Loading, Accessories & Modifications
Load Limits
Following are the load limits for your
motorcycle:
Maximum weight capacity
CRF125F: 176 lb (80 kg)
CRF125FB: 194 lb (88 kg)
Includes the weight of the rider and any
accessories.
Loading Guidelines
As discussed on page 8, we recommend that
you do not carry any cargo on this motorcycle.
However, if you decide to carry cargo, ride at
reduced speeds and follow these common-
sense guidelines:
• Keep cargo small and light. Make sure it
cannot easily be caught on brush or other
objects, and that it does not interfere with
your ability to shift position to maintain
balance and stability.
• Place weight as close to the center of the
motorcycle as possible.
• Do not attach large or heavy items (such as a
sleeping bag or tent) to the handlebar, fork,
or front fender.
• Make sure that all cargo is tied down
securely.
• Never exceed the maximum weight limit.
• Check that both tires are inflated properly
(page 98).
20YM CRF125FFB_31K28B60_FM.book 9 ページ ２０１９年３月１日 金曜日 午後１時４８分
10
Loading, Accessories & Modifications
Modifying your motorcycle or using non-
Honda accessories can make your motorcycle
unsafe.
Before you consider making any modifications
or adding an accessory, be sure to read the
following information.
Accessories
We strongly recommend that you use only
Honda Genuine Accessories that have been
specifically designed or approved and tested for
your motorcycle. Because Honda cannot test all
other accessories, you must be personally
responsible for proper selection, installation,
and use of non-Honda accessories. Check with
your dealer for assistance and always follow
this guideline:
• Make sure the accessory does not reduce
ground clearance and lean angle, limit
suspension travel or steering travel, alter
your riding position, or interfere with
operating any controls.
Accessories & Modifications
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding modifications and
accessories.
20YM CRF125FFB_31K28B60_FM.book 10 ページ ２０１９年３月１日 金曜日 午後１時４８分
11
Loading, Accessories & Modifications
Modifications
We strongly advise you not to remove any
original equipment or modify your motorcycle
in any way that would change its design or
operation. Such changes could seriously impair
your motorcycle’s handling, stability, and
braking, making it unsafe to ride.
We also advise you not to make any
modifications or remove any equipment (such
as the USDA qualified spark arrester or
emission control system components) that
would make the motorcycle illegal in your area.
20YM CRF125FFB_31K28B60_FM.book 11 ページ ２０１９年３月１日 金曜日 午後１時４８分
12 Motorcycle Safety
Safety Labels
This page shows the locations of safety labels on your motorcycle. Some labels warn you of
potential hazards that could cause serious injury. Others provide important safety information. Read
these labels carefully and don’t remove them.
If a label comes off or becomes hard to read, contact your dealer for a replacement.
(For USA)
(For Canada)
20YM CRF125FFB_31K28B60_FM.book 12 ページ ２０１９年３月１日 金曜日 午後１時４８分
Operating Controls
13
Operating Controls
When you ride off-road, you need to operate
the throttle, clutch, brakes, and other controls
without stopping to look at them. Read this
section carefully before you ride. It describes
the location, function, and operation of all the
basic controls on your motorcycle.
Operation Component Locations ..................14
Operating Controls........................................17
Ignition Switch..........................................17
Start Button...............................................18
Engine Stop Switch...................................18
Front Brake Lever.....................................18
Throttle......................................................18
Clutch Lever..............................................19
Shift Lever ................................................19
Rear Brake Pedal.......................................19
Kickstarter.................................................19
Side Stand .................................................20
PGM-FI malfunction indicator lamp
(MIL).........................................................20
Fuel Reserve Indicator..............................21
Ignition indicator.......................................21
20YM CRF125FFB_31K28B60_FM.book 13 ページ ２０１９年３月１日 金曜日 午後１時４８分
Operating Controls
17
Operating Controls
The ignition switch (1) is used to prevent
unauthorized use of the motorcycle.
Before riding, insert the key and turn it to the
(ON) position.
After parking the motorcycle, remove the key.
Ignition Switch
Key
Position
Function Key Removal
(OFF)
The engine cannot be
operated.
The key can be
removed.
(ON)
With the engine stop
switch at (RUN)
and the transmission
in neutral, the engine
can be started.
The key cannot
be removed.
(1) ignition switch
OFF ON
(1)
ONOFF
FRONT
20YM CRF125FFB_31K28B60_FM.book 17 ページ ２０１９年３月１日 金曜日 午後１時４８分
18
Operating Controls
Operating Controls
The start button is used for starting the engine.
Pushing the button in starts the engine. See
Starting Procedure, page 31.
When the start button is pushed, the starter
motor will crank the engine.
The engine stop switch can be used to turn the
engine off in an emergency. To operate, turn the
switch to the (STOP) position. The switch
must be in the (RUN) position to start the
engine.
The front brake lever is used to slow or stop
your motorcycle. To operate, pull the lever.
For information on braking techniques, see
page 36.
The throttle controls engine rpm (speed). To
increase engine rpm, rotate the grip toward you.
To reduce engine rpm, rotate the grip away
from you. The throttle will automatically return
to the closed position (engine idle) when you
remove your hand.
Start Button
Engine Stop Switch
Front Brake Lever
Throttle
20YM CRF125FFB_31K28B60_FM.book 18 ページ ２０１９年３月１日 金曜日 午後１時４８分
Operating Controls
19
Operating Controls
The clutch lever is used to disengage the clutch
whenever you shift gears. To operate, pull the
clutch lever in all the way before shifting, then
slowly release it after shifting.
The shift lever is used to select the next higher
or lower gear in the transmission. To operate,
raise the shift lever (after pulling in the clutch
lever) to engage the next higher gear or depress
the shift lever to engage the next lower gear.
See Shifting Gears, page 34.
The rear brake pedal is used to slow or stop
your motorcycle. To operate, depress the pedal.
For information on braking techniques, see
page 36.
The kickstarter is used to start the engine. To
operate, swing the kickstarter out from its
stored position and depress it through its entire
stroke. See Starting Procedure, page 32.
Clutch Lever
Shift Lever
Rear Brake Pedal
Kickstarter
20YM CRF125FFB_31K28B60_FM.book 19 ページ ２０１９年３月１日 金曜日 午後１時４８分
20
Operating Controls
Operating Controls
The side stand is used to support your
motorcycle while parked (page 38). To operate,
use your foot to lower the stand. Before riding,
raise the stand.
Lights when there is any abnormality in the
PGM-FI (Programmed Fuel Injection) system.
The indicator should also light for a few
seconds and then go off when the ignition
switch is turned to the (ON) position with the
engine stop switch in the (RUN) position. If
the indicator does not come on when it should,
have your dealer check for problems.
If it comes on at any other time, reduce speed
and take the motorcycle to your dealer as soon
as possible.
Side Stand PGM-FI malfunction indicator
lamp (MIL)
20YM CRF125FFB_31K28B60_FM.book 20 ページ ２０１９年３月１日 金曜日 午後１時４８分
Operating Controls
21
Operating Controls
When this indicator comes on while riding, fuel
reserved in the tank is about: 0.2 US gal (0.7
)
The indicator should also light for a few
seconds and then go off when the ignition
switch is turned to the (ON) position with the
engine stop switch in the (RUN) position.
If the indicator does not come on when it
should, have your dealer check for problems.
When the ignition switch is turned on, the
ignition indicator comes on.
If the indicator does not come on when it
should, have your dealer check for problems.
Fuel Reserve Indicator Ignition indicator
20YM CRF125FFB_31K28B60_FM.book 21 ページ ２０１９年３月１日 金曜日 午後１時４８分
Before Riding
23
Before Riding
Before each ride, you need to make sure you
and your Honda are both ready to ride. To help
get you prepared, this section discusses how to
evaluate your riding readiness, and how to
perform the recommended pre-ride inspection
of your Honda. If you’re a parent, be sure you
also read the Important Message to Parents on
page 5.
Are You Ready to Ride?...............................24
Protective Apparel ...................................24
Is Your Motorcycle Ready to Ride? .............26
Pre-ride Inspection ...................................26
20YM CRF125FFB_31K28B60_FM.book 23 ページ ２０１９年３月１日 金曜日 午後１時４８分
24
Before Riding
Are You Ready to Ride?
Before you ride your motorcycle for the first
time, we strongly recommend that you:
• read this owner’s manual
• make sure you understand all the safety
messages
• know how to operate all the controls
Before each ride, we also suggest that you
make sure you:
• are in good physical and mental condition
• are free of alcohol and drugs
• are wearing an approved motorcycle helmet
(with chin strap tightened securely), eye
protection, and other protective clothing
For your safety, we strongly recommend that
you always wear an approved motorcycle
helmet, eye protection, boots, gloves, long
pants, and a long-sleeved jersey, shirt, or jacket
whenever you ride. Although complete
protection is not possible, wearing the proper
gear can reduce the chance of injury when you
ride. Following are suggestions to help you
choose the proper gear.
Protective Apparel
20YM CRF125FFB_31K28B60_FM.book 24 ページ ２０１９年３月１日 金曜日 午後１時４８分
Before Riding
25
Are You Ready to Ride?
Helmets and Eye Protection
Your helmet is your most important piece of
riding gear because it offers the best protection
against head injuries. A helmet should fit your
head comfortably and have a chin strap that can
be tightened securely.
An open-face helmet offers some protection,
but a full-face helmet offers more. Regardless
of the style, look for a DOT (Department of
Transportation) sticker on any helmet you buy
(USA only). Always wear a face shield or
goggles to protect your eyes and help your
vision.
Additional Riding Gear
In addition to a helmet and eye protection, we
also recommend:
• Sturdy off-road motorcycle boots to help
protect your feet, ankles, and lower legs.
• Off-road motorcycle gloves to help protect
your hands.
• Riding pants with knee and hip pads, a riding
jersey with padded elbows, and a chest/
shoulder protector.
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Be sure you always wear a helmet, eye
protection and other protective apparel
when you ride.
20YM CRF125FFB_31K28B60_FM.book 25 ページ ２０１９年３月１日 金曜日 午後１時４８分
26
Before Riding
Is Your Motorcycle Ready to Ride?
Before each ride, it’s important to inspect your
motorcycle and make sure any problem you
find is corrected. A pre-ride inspection is a
must because off-road riding can be tough on a
motorcycle and you don’t want to have a
breakdown far from help.
Note to Parents:
If a youngster will be performing any of the
following pre-ride inspection procedures, it’s
your responsibility to provide careful
supervision and make sure they are performed
safely.
Check the following items before you get on
the motorcycle:
Improperly maintaining this motorcycle
or failing to correct a problem before
riding can cause a crash in which you
can be seriously hurt or killed.
Always perform a pre-ride inspection
before every ride and correct any
problems.
Pre-ride Inspection
Tires Use a gauge to check the air
pressure. Adjust if needed. Also
look for signs of damage or
excessive wear (page 98).
Spokes &
Rims
Make sure the spokes and the
rims lock are tight. Also check
the rims for damage (page 93).
20YM CRF125FFB_31K28B60_FM.book 26 ページ ２０１９年３月１日 金曜日 午後１時４８分
Before Riding
27
Is Your Motorcycle Ready to Ride?
Leaks Look under the motorcycle for
signs of leaking fluids (fuel,
engine oil, brake fluid).
Engine Oil Check the level and add oil if
needed (page 64).
Fuel Check the level and add fuel
(page 59) if needed. Also make
sure the fuel fill cap is securely
fastened.
Drive Chain Check the condition and slack.
Adjust and lubricate if needed.
Also check the chain slider for
wear and replace if needed
(page 103).
Cables Check the cable housings for
wear. Check the fittings for
looseness. Replace or tighten as
needed.
Nuts & Bolts Use a wrench to make sure all
accessible nuts, bolts, and
fasteners are tight.
Spark Plug
&Cap
Check for looseness (page 77).
20YM CRF125FFB_31K28B60_FM.book 27 ページ ２０１９年３月１日 金曜日 午後１時４８分
28
Before Riding
Is Your Motorcycle Ready to Ride?
Check these items after you get on the
motorcycle:
Throttle Check the freeplay and adjust if
needed. Rotate the throttle to
make sure it moves smoothly
without sticking, and snaps shut
automatically when it is
released, in all steering positions
(page 72).
Brakes Squeeze the front brake lever
and step on the rear brake
pedal to check that the
controls operate normally
(pages 84, 88).
Check for proper freeplay
(pages 84, 88).
Adjust freeplay, if necessary.
(pages 84, 88).
Clutch
Lever
Check for smooth operation and
adjust if needed (page 74).
Indicators Turn the ignition on and check
for normal operation of the
indicators (page 20, 21).
Remember, be sure to take care of any problem
you find or have your dealer correct it before
you ride.
20YM CRF125FFB_31K28B60_FM.book 28 ページ ２０１９年３月１日 金曜日 午後１時４８分
Basic Operation & Riding
29
Basic Operation & Riding
This section gives basic information on how to
begin riding your motorcycle. It includes how
to start and stop your engine, how to use the
throttle, clutch, and brakes, and what to do
when you’re through riding.
For more information on how to make turns,
ride on hills, etc., see the Tips & Practice Guide
for the Off -Highway Motorcyclist booklet that
came with your Honda (USA only).
To protect your new engine and enjoy optimum
performance and service life, refer to Break-in
Guidelines (page 153).
Safe Riding Precautions................................30
Starting & Stopping the Engine ....................31
Preparation............................................... 31
Starting Procedure.....................................32
Flooded Engine.........................................33
Bank Angle Sensor Ignition Cut-off
System.......................................................33
How to Stop the Engine............................33
Shifting Gears ...............................................34
Braking..........................................................36
Parking ..........................................................38
Post-ride Inspection.......................................39
20YM CRF125FFB_31K28B60_FM.book 29 ページ ２０１９年３月１日 金曜日 午後１時４８分
30
Basic Operation & Riding
Basic Operation & Riding
Before riding your motorcycle for the first
time, please review the Important Safety
Information beginning on page 2 and the
previous section, titled Before Riding.
Even if you have ridden other motorcycles,
take time to become familiar with how this
motorcycle works and handles. Practice in a
safe area until you build up your skills and get
accustomed to your motorcycle’s size and
weight.
For your safety, avoid starting or operating the
engine in an enclosed area such as a garage.
Your motorcycle’s exhaust contains poisonous
carbon monoxide gas which can collect rapidly
in an enclosed area and cause illness or death.
Your motorcycle is not equipped with lights.
Do not ride at night.
Safe Riding Precautions
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness
and lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
20YM CRF125FFB_31K28B60_FM.book 30 ページ ２０１９年３月１日 金曜日 午後１時４８分
Basic Operation & Riding
31
Starting & Stopping the Engine
Always follow the proper starting procedure
described below.
Your motorcycle can be started with the
transmission in gear by pulling in the clutch
lever before operating the start button.
Before starting, insert the key and turn the
ignition switch to the (ON) position, and
confirm the following:
• The transmission is in neutral.
• The engine stop switch is at (RUN).
• The PGM-FI malfunction indicator lamp
(MIL) is off.
Preparation
20YM CRF125FFB_31K28B60_FM.book 31 ページ ２０１９年３月１日 金曜日 午後１時４８分
32
Basic Operation & Riding
Starting & Stopping the Engine
This motorcycle has a fuel-injected engine.
Follow the procedure indicated below.
Any Air Temperature
1. Using the start button
With the throttle completely closed, press the
start button.
Using the kickstarter
Lightly depress the kickstarter until resis-
tance is felt.
Then let the kickstarter return to the top of its
stroke.
With the throttle completely closed, operate
the kickstarter starting from the top of the
stroke, kick through to the bottom with a
rapid, continuous motion.
Allowing the kickstarter to snap back freely
against the pedal stop can damage the engine
case.
2. If you cannot start the engine, open the
throttle slightly (about 0.1 in (3 mm),
without freeplay).
Starting Procedure
about 0.1 in (3 mm),
without freeplay
20YM CRF125FFB_31K28B60_FM.book 32 ページ ２０１９年３月１日 金曜日 午後１時４８分
Basic Operation & Riding
33
Starting & Stopping the Engine
If the engine fails to start after repeated
attempts, it may be flooded with excess fuel.
To clear a flooded engine:
1.Open the throttle fully.
2.
Using The Start Button
Press the start button for 5 seconds.
Using The Kickstarter
Crank the engine several times with the kick-
starter.
3.Follow the normal engine starting procedure
(page 32).
Your motorcycle’s banking (lean angle) sensor
system is designed to automatically stop the
engine and fuel pump if the motorcycle is
overturned.
To stop the engine, shift into neutral, and turn
the ignition switch to the (OFF) position.
Flooded Engine Bank Angle Sensor Ignition Cut-off
System
How to Stop the Engine
20YM CRF125FFB_31K28B60_FM.book 33 ページ ２０１９年３月１日 金曜日 午後１時４８分
34
Basic Operation & Riding
Shifting Gears
Your motorcycle has four forward gears.
To start riding, after the engine has been
warmed and the side stand raised:
1.Close the throttle and pull the front brake
lever in.
2.Pull the clutch lever all the way in.
3.Depress the shift lever from neutral down to
first gear.
4.Release the front brake. Gradually open the
throttle while you slowly release the clutch
lever.
If engine rpm (speed) is too low when you
release the clutch lever, the engine will stall.
If engine rpm is too high or you release the
clutch lever too quickly, your motorcycle
may lurch forward.
5.When you attain a moderate speed, close the
throttle, pull the clutch lever in, and raise the
shift lever. After shifting, release the clutch
lever and apply the throttle.
20YM CRF125FFB_31K28B60_FM.book 34 ページ ２０１９年３月１日 金曜日 午後１時４８分
Basic Operation & Riding
35
Shifting Gears
6.To continue shifting up to each higher gear,
repeat step 5.
7.To shift down to a lower gear, close the
throttle, pull the clutch lever in, and depress
the shift lever. After shifting, release the
clutch lever and apply the throttle.
Remember to close the throttle and pull the
clutch lever in completely before shifting.
Improper shifting may damage the engine,
transmission, and drive train.
Learning when to shift gears comes with
experience. Upshift to a higher gear or reduce
throttle before engine rpm (speed) gets too
high. Downshift to a lower gear before you feel
the engine laboring (lugging) at low rpm.
Downshifting can help slow your motorcycle,
especially on downhills. However, downshifting
when engine rpm is too high can cause engine
damage.
To prevent transmission damage, do not coast
or tow the motorcycle for long distances with
the engine off.
20YM CRF125FFB_31K28B60_FM.book 35 ページ ２０１９年３月１日 金曜日 午後１時４８分
36
Basic Operation & Riding
Braking
To slow or stop, apply the front brake and rear
brake smoothly, while downshifting to match
your speed. Gradually increase braking as you
feel the brakes slowing your speed. To prevent
stalling the engine, pull the clutch lever in
before coming to a complete stop. For support,
put your left foot down first, then your right
foot when you have finished using the rear
brake.
For maximum braking, close the throttle and
firmly apply the brake lever and pedal controls.
Applying the brakes too hard may cause the
wheels to lock and slide, reducing control of
your motorcycle. If this happens, release the
brake controls, steer straight ahead until you
regain control, then reapply the brakes more
gently.
Generally, reduce your speed or complete
braking before beginning a turn. Avoid braking
or closing the throttle quickly while turning.
Either action may cause one or both wheels to
slip. Any wheel slip will reduce your control of
your motorcycle.
When riding in wet or rainy conditions, or on
loose surfaces, the ability to maneuver and stop
will be reduced. All of your actions should be
smooth under these conditions. Rapid
acceleration, braking or turning may cause loss
of control. For your safety, exercise extreme
caution when braking, accelerating, or turning.
20YM CRF125FFB_31K28B60_FM.book 36 ページ ２０１９年３月１日 金曜日 午後１時４８分
Basic Operation & Riding
37
Braking
When descending a long, steep grade, use
engine compression braking by downshifting,
with intermittent use of both brakes.
When you brake to a stop, pull the clutch lever
in before stopping completely to prevent
stalling the engine. For support, put your left
foot on the ground first, then your right foot
when you have finished braking.
20YM CRF125FFB_31K28B60_FM.book 37 ページ ２０１９年３月１日 金曜日 午後１時４８分
Basic Operation & Riding
39
Post-ride Inspection
When you return home after riding, thoroughly
clean your motorcycle and remove any dirt,
mud, brush, rocks or other objects you may
have picked up along the way.
After cleaning, carefully inspect your
motorcycle for leaks or damage.
Be sure to lubricate the drive chain (page 107)
to prevent rusting.
20YM CRF125FFB_31K28B60_FM.book 39 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
41
Servicing Your Honda
Keeping your motorcycle well maintained is
absolutely essential to your safety. It’s also a
good way to protect your investment, get
maximum performance, avoid breakdowns, and
have more fun.
To help keep your motorcycle in good shape,
this section includes a Maintenance Schedule
for required servicing and step-by-step
instructions for specific maintenance tasks.
You’ll also find important safety precautions,
information on oils, and tips for keeping your
Honda looking good.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and
Environment and Climate Change Canada
(ECCC), see page 154.

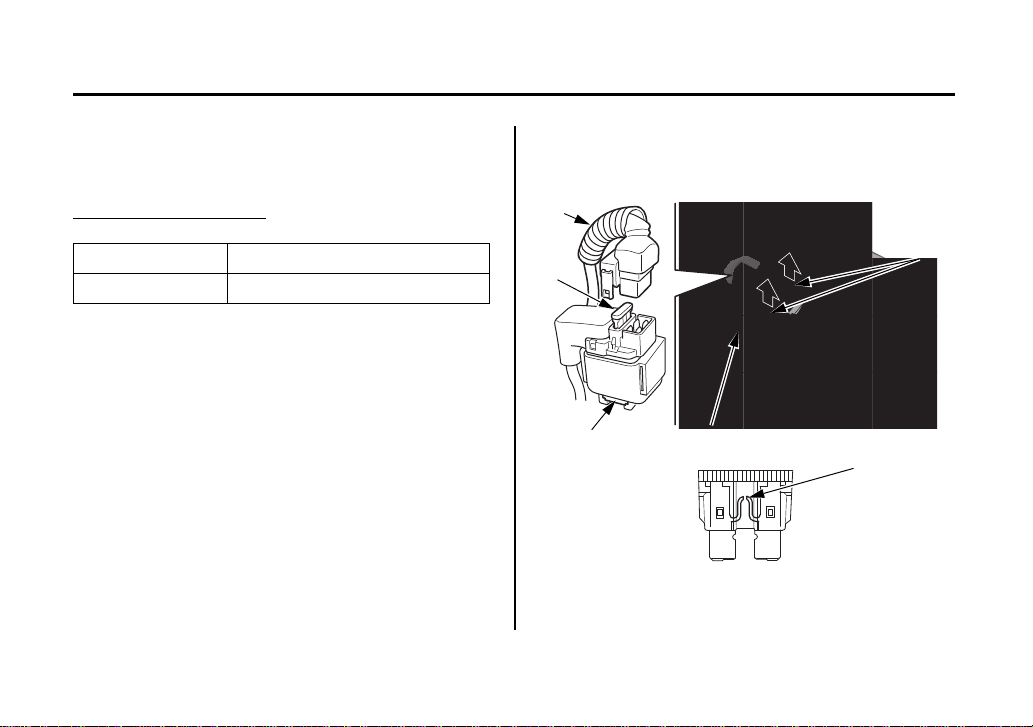

For information about replacing fuse,
see page 136.
An optional tool kit may be available. Check
with your dealer’s parts department.
USA only
Maintenance, replacement or repair of the
emission control devices and systems may be
performed by any motorcycle repair
establishment or individual using parts that
are ‘‘certified’’ to EPA standards.
Before You Service Your Honda
The Importance of Maintenance ...................43
Maintenance Safety.......................................45
Important Safety Precautions....................45
Maintenance Schedule ..................................47
Maintenance Record......................................51
(cont’d)
20YM CRF125FFB_31K28B60_FM.book 41 ページ ２０１９年３月１日 金曜日 午後１時４８分
42
Servicing Your Honda
Servicing Your Honda
Service Preparations
Maintenance Component Locations............. 52
Tools............................................................. 55
Seat Removal................................................56
Left Side Cover Removal.............................57
Service Procedures
Fluids & Filters
Fuel...............................................................58
Engine Oil.....................................................61
Air Cleaner ...................................................67
Crankcase Breather.......................................71
Engine
Throttle..........................................................72
Clutch System ...............................................74
Spark Plug.....................................................77
Spark Arrester ...............................................79
Chassis
Suspension ....................................................81
Brakes............................................................84
Wheels...........................................................92
Tires & Tubes................................................98
Side Stand ...................................................102
Drive Chain.................................................103
Electrical
Battery.........................................................110
Appearance Care.........................................115
20YM CRF125FFB_31K28B60_FM.book 42 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
43
The Importance of Maintenance
A well-maintained motorcycle is essential for
safe, economical, and trouble-free riding. It
will also help reduce air pollution. Careful
preride inspections and good maintenance are
especially important because your motorcycle
is designed to be ridden over rough off-road
terrain.
To help you properly care for your motorcycle,
this section of the manual provides a
Maintenance Schedule. The service intervals in
this schedule are based on average riding
conditions.
More frequent service is needed if you subject
your motorcycle to severe use (such as
competition) or ride in unusually wet or dusty
areas.
Frequent servicing of the air cleaner is
especially important to help you avoid a
possible costly engine repair.
If your motorcycle overturns or is involved in a
crash, be sure your dealer inspects all major
parts, even if you are able to make some repairs.
Improperly maintaining this motorcycle
or failing to correct a problem before
you ride can cause a crash in which
you can be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
20YM CRF125FFB_31K28B60_FM.book 43 ページ ２０１９年３月１日 金曜日 午後１時４８分
44
Servicing Your Honda
The Importance of Maintenance
Remember, proper maintenance is the owner’s
responsibility. Be sure to inspect your
motorcycle before each ride and follow the
Maintenance Schedule in this section.
Note to Parents:
As a parent, it’s up to you to make sure that this
motorcycle is properly maintained and kept in
safe operating condition. For youngsters,
learning how to take care of a motorcycle and
perform basic maintenance can be an
important part of their riding experience.
However, if you allow a youngster to perform
or assist in any maintenance task, such as
filling the tank with gasoline, you should
provide close supervision to make sure that it is
performed safely.
20YM CRF125FFB_31K28B60_FM.book 44 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
45
Maintenance Safety
The maintenance section includes instructions
on how to perform some important
maintenance tasks. Some of the most important
safety precautions follow. However, we cannot
warn you of every conceivable hazard that can
arise in performing maintenance. Only you can
decide whether or not you should perform a
given task.
• Make sure the engine is off before you begin
any maintenance or repairs.
This will help eliminate several potential
hazards:
Carbon monoxide poisoning from engine
exhaust. Be sure there is adequate
ventilation whenever you operate the engine.
Burns from hot motorcycle parts. Let the
engine and exhaust system cool before
touching.
Injury from moving parts. Do not run the
engine unless instructed to do so.
(cont’d)
Failure to properly follow maintenance
instructions and precautions can cause
you to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
Important Safety Precautions
20YM CRF125FFB_31K28B60_FM.book 45 ページ ２０１９年３月１日 金曜日 午後１時４８分
46
Servicing Your Honda
Maintenance Safety
• Read the instructions before you begin, and
make sure you have the tools and skills
required.
• To help prevent the motorcycle from falling
over, park it on a firm, level surface, using
the side stand or a maintenance stand to
provide support.
• To reduce the possibility of a fire or
explosion, be careful when working around
gasoline. Use only a non-flammable (high
flash point) solvent such as kerosene–not
gasoline–to clean parts. Keep cigarettes,
sparks, and flames away from all fuel related
parts.
• Remember that your dealer knows your
motorcycle best and is fully equipped to
maintain and repair it. To ensure the best
quality and reliability, use only new Honda
Genuine Parts or their equivalents for repair
and replacement. If you have the tools and
skills required for additional maintenance
jobs, you can purchase an official Honda
Service Manual (page 162).
20YM CRF125FFB_31K28B60_FM.book 46 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
47
Maintenance Schedule
To maintain the safety and reliability of your
motorcycle, regular inspection and service is
required as shown in the Maintenance Schedule
that follows.
The Maintenance Schedule lists items that can
be performed with basic mechanical skills and
hand tools. Procedures for these items are
provided in this manual.
The Maintenance Schedule also includes
items that involve more extensive procedures
and may require special training, tools, and
equipment. Therefore, we recommend that
you have your dealer perform these tasks
unless you have advanced mechanical skills
and the required tools. Procedures for items
in this schedule are provided in a service
manual available for purchase from your
dealer (page 162).
Because your motorcycle does not have an
odometer, service intervals in the maintenance
schedules are expressed in terms of riding days
as well as miles. To avoid overlooking required
service, we urge you to develop a convenient
way to record the number of days and/or miles
you ride.
If you do not feel capable of performing a given
task or need assistance, remember that your
Honda dealer knows your motorcycle best and
is fully equipped to maintain and repair it.
If you decide to do your own maintenance, use
only Honda Genuine Parts or their equivalents
for repair or replacement to ensure the best
quality and reliability.
(cont’d)
20YM CRF125FFB_31K28B60_FM.book 47 ページ ２０１９年３月１日 金曜日 午後１時４８分
48
Servicing Your Honda
Maintenance Schedule
Perform the pre-ride inspection (page 26) at
each scheduled maintenance period.
Each item on the maintenance schedule
requires some mechanical knowledge. Certain
items (particularly those marked * and **) may
require more technical information and tools.
Consult your dealer.
* Should be serviced by your dealer, unless the
owner has the proper tools and service data
and is mechanically qualified. Refer to the
official Honda Service Manual (page 162).
**In the interest of safety, we recommend these
items be serviced only by your dealer.
Summary of Maintenance Schedule Notes and
Procedures:
NOTES:
1.Service more frequently when ridden in wet
or dusty conditions.
2.Replace every 2 years. Replacement requires
mechanical skill.
Maintenance Procedures:
I: inspect and clean, adjust, lubricate, or
replace, if necessary
C: clean
A: adjust
L: lubricate
R: replace
20YM CRF125FFB_31K28B60_FM.book 48 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
49
Maintenance Schedule
* Should be serviced by your dealer, unless the owner has the proper tools and service data and is mechanically qualified. Refer to the
official Honda Service Manual (page 162).
** In the interest of safety, we recommend these items be serviced only by your dealer.
Whichever
Comes First
Initial
Maint.
Regular Maint. Interval
Refer to
page:
mi 100 600 1,200 1,800 2,400
km 150 1,000 2,000 3,000 4,000
Note Month 1 6 12 18 24
*
Fuel Line II–
* *
Fuel Filter R: every 4,800 mi (8,000 km) –
*
Throttle Operation I I 72
Air Cleaner Note 1 C C C C 67
Crankcase Breather I I I I 71
Spark Plug I I I I 77
*
Valve Clearance I I I I I –
Engine Oil R R R R R 61
* *
Engine Oil Strainer Screen C C –
* *
Engine Oil Centrifugal Filter C C –
* *
Engine Idle Speed I I I I I –
Frequency
Items
20YM CRF125FFB_31K28B60_FM.book 49 ページ ２０１９年３月１日 金曜日 午後１時４８分
50
Servicing Your Honda
Maintenance Schedule
* Should be serviced by your dealer, unless the owner has the proper tools and service data and is mechanically qualified. Refer to the
official Honda Service Manual (page 162).
** In the interest of safety, we recommend these items be serviced only by your dealer.
Whichever
Comes First
Initial
Maint.
Regular Maint. Interval
Refer to
page:
mi 100 600 1,200 1,800 2,400
km 150 1,000 2,000 3,000 4,000
NoteMonth1 6 121824
Drive Chain Note 1 I, L I, L: every 300 mi (500 km) or 3 months 103
Drive Chain Slider I I I I 104
Brake Fluid Note 2 I I I I 85
Brake Shoes/Pads Wear I I I I 87,90
Brake System IIIII84
Clutch System IIIII74
Side Stand II102
*
Suspension II81
*
Spark Arrester
C: every 1,000 mi (1,600 km) or every 100 operating hours
79
*
Nuts, Bolts, Fasteners I I I –
* *
Wheels/Tires I I I I I 92, 98
* *
Steering Head Bearings I I I –
Frequency
Items
20YM CRF125FFB_31K28B60_FM.book 50 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
51
Maintenance Record
Keeping an accurate maintenance record will help ensure that your motorcycle is properly
maintained. Use the space under Notes to record anything you want to remind yourself about or
mention to your dealer. Of course, if you find any problem while servicing your motorcycle, be sure
it is corrected as soon as possible.
Miles (km) or Months Date Performed By: Notes
600 (1,000) or 6
1,200 (2,000) or 12
1,800 (3,000) or 18
2,400 (4,000) or 24
3,000 (5,000) or 30
3,600 (6,000) or 36
4,200 (7,000) or 42
4,800 (8,000) or 48
5,400 (9,000) or 54
20YM CRF125FFB_31K28B60_FM.book 51 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
55
Tools
Refer to Safety Precautions on page 45. The spoke wrench is delivered with your
motorcycle for tightening or loosening the
spokes (USA only).
You will need to provide your own tools to
perform any owner maintenance.
(1)
(1) spoke wrench
20YM CRF125FFB_31K28B60_FM.book 55 ページ ２０１９年３月１日 金曜日 午後１時４８分
56
Servicing Your Honda
Seat Removal
Refer to Safety Precautions on page 45. The seat (1) must be removed to service the
battery and main fuse.
Removal
1.Remove the bolts (2) and collars (3).
2.Remove the seat backward.
Installation
1.Insert the front recess (4) into the front prong
(5) and the rear prong (6) into the rear recess
(7).
2.Install the collars onto the bolts. Tighten the
bolts securely.
(5)
(2)
(6)
(4)
(3)
(1)
(1) seat
(2) bolts
(3) collars
(4) front recess
(5) front prong
(6) rear prong
(7) rear recess
(7)
(2)
20YM CRF125FFB_31K28B60_FM.book 56 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
57
Left Side Cover Removal
Refer to Safety Precautions on page 45. The left side cover (1) must be removed to
service the air cleaner and sub fuse.
Left Side Cover Removal
1.Remove the bolt A (2), bolt B (3) and collar
(4).
2.Pull out the prong (5) from the rubber
grommet (6), and the boss (7) from the hole
(8) on the shroud.
Left Side Cover Installation
1.Hook the tab (9) to the shroud and slide the
top of the side cover under the bottom edge
of the seat.
2.Align the prong with the rubber grommet,
and also the boss with the hole on the shroud.
3.Install the collar onto the bolt B.
4.Install the bolt B and bolt A and tighten them
securely.
(2)
(4)
(5)
(1)
(1) left side cover
(2) bolt A
(3) bolt B
(4) collar
(5) prong
(6) grommet
(7) boss
(8) hole
(9) tab
(3)
(7)
(9)
(8)
(6)
20YM CRF125FFB_31K28B60_FM.book 57 ページ ２０１９年３月１日 金曜日 午後１時４８分
58
Servicing Your Honda
Fuel
Refer to Safety Precautions on page 45.
Your engine is designed to use any unleaded
gasoline that has a pump octane number of 86
or higher. Gasoline pumps at service stations
normally display the pump octane number. For
information on the use of oxygenated fuels, see
page 158.
Use of lower octane gasoline can cause
persistent ‘‘pinging’’ or ‘‘spark knock’’ (a
louder rapping noise) which, if severe, can lead
to engine damage. (Light pinging experienced
while operating under a heavy load, such as
climbing a hill, is no cause for concern.)
If pinging or spark knock occurs at a steady
engine speed under normal load, change brands
of gasoline. If pinging or spark knock persists,
consult your dealer.
Use only unleaded fuel in your Honda. If you
ride your Honda in a country where leaded fuel
might be available, take precautions to use only
unleaded fuel.
Never use stale or contaminated gasoline or an
oil/gasoline mixture. Avoid getting dirt, dust, or
water in the fuel tank.
Fuel Recommendation
Type unleaded
Pump Octane Number 86 (or higher)
20YM CRF125FFB_31K28B60_FM.book 58 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
59
Fuel
Fuel Tank Capacity:
0.98 US gal (3.7 )
1.To open the fuel fill cap (1), pull the breather
tube (2) out of the steering stem nut (3).
Turn the fuel fill cap counterclockwise and
remove it.
2.Add fuel until the level reaches the lower
edge of the filler neck (4). Avoid overfilling
the tank. There should be no fuel in the filler
neck.
(cont’d)
Refueling Procedure
(2)
(4)
(3)
(1)
(1) fuel fill cap
(2) breather tube
(3) steering stem nut
(4) lower edge of filler neck
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine and keep heat,
sparks and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
20YM CRF125FFB_31K28B60_FM.book 59 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
61
Engine Oil
Refer to Safety Precautions on page 45.
Using the proper oil, and regularly checking,
adding, and changing oil will help extend your
engine’s life. Even the best oil wears out.
Changing oil helps get rid of dirt and deposits
held in the engine. Operating the engine with
old or dirty oil can damage your engine.
Running the engine with insufficient oil can
cause serious damage to the engine and
transmission.
Oil Recommendation
API classification SG or higher except oils
labeled as energy
conserving or resource
conserving on the circular
API service label
viscosity
(weight)
SAE 10W-30
*
JASO T 903
standard
MA
suggested oil
**
Pro Honda GN4 4-stroke oil
(USA & Canada), or Honda
4-stroke oil, or an
equivalent motorcycle oil
20YM CRF125FFB_31K28B60_FM.book 61 ページ ２０１９年３月１日 金曜日 午後１時４８分
62
Servicing Your Honda
Engine Oil
* For normal air temperatures. See next page
for additional temperature/viscosity
information.
**Suggested oils are equal in performance to
SJ oils that are not labeled as energy
conserving or resource conserving on the
circular API service label.
• Your motorcycle does not need oil additives.
Use the recommended oil.
• Do not use oils with graphite or molybdenum
additives. They may adversely affect clutch
operation.
• Do not use API SH or higher oils displaying
a circular API ‘‘energy conserving’’ or
‘‘resource conserving’’ service label on the
container. They may affect lubrication and
clutch performance.
• Do not use non-detergent, vegetable, or
castor based racing oils.
NOT
RECOMMENDED RECOMMENDED
20YM CRF125FFB_31K28B60_FM.book 62 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
63
Engine Oil
Other viscosities shown in the following chart
may be used when the average temperature in
your riding area is within the indicated range.
JASO T 903 standard
The JASO T 903 standard is an index for
engine oils for 4-stroke motorcycle engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled on the
oil container. For example, the following label
shows the MA classification.
(1)
(2)
(1) oil code
(2) oil classification
20YM CRF125FFB_31K28B60_FM.book 63 ページ ２０１９年３月１日 金曜日 午後１時４８分
64
Servicing Your Honda
Engine Oil
1.Park your motorcycle on a firm, level
surface.
2.Clean around the oil fill cap/dipstick (1) and
nearby surfaces.
3.Start the engine and let it idle for 3-5
minutes. Stop the engine. Wait 2-3 minutes.
4.Unscrew and remove the oil fill cap/dipstick.
Wipe it clean.
5.Hold the motorcycle upright.
6.Insert the oil fill cap/dipstick until it seats,
but do not screw it in.
7.Remove the oil fill cap/dipstick and check
the oil level.
• If the oil is at or near the upper level mark
(2), you do not have to add oil.
• If the oil is below or near the lower level
mark (3), add the recommended oil until it
reaches the upper level mark. (Do not
overfill.)
8.Insert the oil fill cap/dipstick and screw it in
tightly.
9.Check for oil leaks.
Checking & Adding Oil
(1)
(2)
(3)
(1) oil fill cap/dipstick
(2) upper level mark
(3) lower level mark
RIGHT SIDE
20YM CRF125FFB_31K28B60_FM.book 64 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
65
Engine Oil
1.If the engine is cold, start it and let it idle for
3-5 minutes. Turn the engine off. Wait 2-3
minutes for the oil to settle.
2.Park your motorcycle on its side stand on a
firm, level surface.
3.Place a drain pan under the crankcase.
4.To drain the oil, remove the oil fill cap/
dipstick, oil drain bolt (1), and sealing
washer (2).
5.Pour the drained oil into a suitable container
and dispose of it in an approved manner
(page 127).
Improper disposal of drained fluids is harmful
to the environment.
(cont’d)
Changing Engine Oil
(1)
(2)
(1) oil drain bolt
(2) sealing washer
UNDER ENGINE
20YM CRF125FFB_31K28B60_FM.book 65 ページ ２０１９年３月１日 金曜日 午後１時４８分
66
Servicing Your Honda
Engine Oil
6. After the oil has drained, install the drain
bolt with new sealing washer and tighten to
the specified torque:
18 lbf·ft (24 N·m , 2.4 kgf·m)
7. Pour the recommended oil into the
crankcase, approximately:
0.9 US qt (0.85 )
8. Install the oil fill cap/dipstick securely.
9. Start the engine and let it idle for 3-5
minutes. Stop the engine. Wait 2-3 minutes.
10.
With the motorcycle held upright on level
ground, check the oil level.
If needed, add oil (page 64) until it reaches
the upper level mark. (Do not overfill.)
11.
Check for oil leaks.
20YM CRF125FFB_31K28B60_FM.book 66 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
67
Air Cleaner
Refer to Safety Precautions on page 45.
Proper air cleaner maintenance is very
important for off-road vehicles. A dirty, water-
soaked, worn-out, or defective air cleaner will
allow dirt, dust, mud, and other impurities to
pass into the engine.
Service the air cleaner more frequently if you
ride in unusually wet or dusty areas. Your
dealer can help you determine the correct
service interval for your riding conditions.
Your motorcycle’s air cleaner has very specific
performance requirements. Use a new Honda
Genuine air cleaner specified for your model or
an air cleaner of equal quality.
Using the wrong air cleaner may result in
premature engine wear.
Proper air cleaner maintenance can prevent
premature engine wear or damage, expensive
repairs, low engine power, poor gas mileage,
and spark plug fouling.
Improper or lack of proper air cleaner
maintenance can cause poor performance and
premature engine wear.
20YM CRF125FFB_31K28B60_FM.book 67 ページ ２０１９年３月１日 金曜日 午後１時４８分
68
Servicing Your Honda
Air Cleaner
1.Remove the left side cover (page 57).
2.Unlatch the retainer clips (1) and remove the
air cleaner housing cover (2).
3.Unhook the set spring (3), take care to avoid
bending the set spring and set spring holder
(4).
4.Remove the air cleaner (5).
Cleaning
(1)
(3) set spring
(4) set spring holder
(5) air cleaner
LEFT SIDE
(1) retainer clips
(2) air cleaner housing cover
(3)
(4)
(2)
(5)
(1)
20YM CRF125FFB_31K28B60_FM.book 68 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
69
Air Cleaner
5. Remove the air cleaner holder (6) from the
air cleaner (5).
6. Gently wash the air cleaner in clean,
nonflammable (high flash point) solvent
such as kerosene–not gasoline. After
cleaning, gently squeeze out the remaining
solvent. Avoid twisting or wringing the air
cleaner. This can tear the foam.
7. Inspect for tears or cracks in the foam or
seams of the air cleaner. Replace the air
cleaner if it is damaged.
8. Allow the air cleaner to dry thoroughly
before applying oil. A wet air cleaner will
not fully absorb the oil.
(cont’d)
(6)
(5)
(5) air cleaner
(6) air cleaner holder
(8)
(7) tabs
(8) air cleaner holes
(7)
(8)
20YM CRF125FFB_31K28B60_FM.book 69 ページ ２０１９年３月１日 金曜日 午後１時４８分
70
Servicing Your Honda
Air Cleaner
9.Pour clean Pro Honda Foam Filter Oil or an
equivalent (Canada: Honda Foam Filter Oil
or an equivalent) over the entire surface of
the air cleaner. Use both hands to evenly
spread the oil into the air cleaner. Gently
squeeze out any excess oil. (To keep your
hands dry, place the air cleaner in a clean
plastic bag before spreading the oil into the
air cleaner.)
10.
Assemble the air cleaner and holder.
Insert the tabs (7) in the air cleaner holes (8).
11.
Clean the inside of the air cleaner housing.
12.
Apply a thin coat of grease to the sealing
surface of the air cleaner.
13.
Install the air cleaner assembly by inserting
the upper tab (9) on the cleaner into the
upper hole (10) in the air cleaner housing,
and the lower tab (11) into the lower hole
(12).
Hook the set spring.
Check that the air cleaner is properly seated.
14.
Install the air cleaner housing cover and set
the retainer clips.
15.
Install the left side cover (page 57).
(9)
(10)
(9) upper tab
(10) upper hole
LEFT SIDE
(11)
(12)
(11) lower tab
(12) lower hole
20YM CRF125FFB_31K28B60_FM.book 70 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
71
Crankcase Breather
Refer to Safety Precautions on page 45.
Service more frequently if your motorcycle is
ridden in the rain or often at full throttle.
If the drain tube overflows, the air filter may
become contaminated with engine oil causing
poor engine performance.
1.Place a suitable container under the
crankcase breather tube.
2.Remove the crankcase breather tube (1).
3.Drain deposits into a suitable container.
4.Install the crankcase breather tube.
(1)
LEFT SIDE
(1) crankcase breather tube
20YM CRF125FFB_31K28B60_FM.book 71 ページ ２０１９年３月１日 金曜日 午後１時４８分
72
Servicing Your Honda
Throttle
Refer to Safety Precautions on page 45. Inspection
Check freeplay (1).
Freeplay: 1/16–1/4 in (2–6 mm)
If necessary, adjust to the specified range.
Adjustment
1.Pull the rubber dust cover (2) back.
2.Loosen the lock nut (3) on the throttle cable
mechanism.
3.Turn the adjuster (4).
4.Tighten the lock nut. Return the dust cover to
its normal position.
5.After adjustment, check for smooth rotation
of the throttle grip from fully closed to fully
open in all steering positions.
If you can’t get the freeplay within the
specified range, contact your dealer.
Throttle Freeplay
(1)
(2) rubber dust cover
(3) lock nut
(4) adjuster
RIGHT SIDE
(4)
(2)
(1) freeplay
(+) increase freeplay
(–) decrease freeplay
(3)
(–)
(+)
20YM CRF125FFB_31K28B60_FM.book 72 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
73
Throttle
1.Check that the throttle assembly is positioned
properly and the securing bolts are tight.
2.Check for smooth rotation of the throttle (1)
from fully open to fully closed in all steering
positions. If there is a problem, see your
dealer.
3.Inspect the condition of the throttle cables (2)
from the throttle grip down to the throttle
body. If the cable is kinked or chafed, have it
replaced.
4.Check the cables for tension or stress in all
steering positions.
5.Lubricate the cables with a commercially
available cable lubricant to prevent
premature rust and corrosion.
Throttle Inspection
(1) throttle
(2) throttle cables
(1)
(2)
20YM CRF125FFB_31K28B60_FM.book 73 ページ ２０１９年３月１日 金曜日 午後１時４８分
74
Servicing Your Honda
Clutch System
Refer to Safety Precautions on page 45.
Inspection
Check freeplay.
Freeplay: 3/8–13/16 in (10–20 mm)
If necessary, adjust to the specified range.
Improper freeplay adjustment can cause
premature clutch wear.
Minor Adjustment
Minor adjustments are generally made with the
minor clutch cable adjuster.
Minor clutch assembly adjuster:
1.Pull the rubber dust cover (2) back.
2.Loosen the minor lock nut (3).
3.Turn the minor clutch cable adjuster (4) to
obtain the specified freeplay.
Clutch Freeplay
(1)
(1) clutch lever
LEFT SIDE
(2)
(2) rubber dust cover
(3) minor lock nut
(4) minor clutch cable
adjuster
LEFT SIDE
(+) increase freeplay
(–) decrease freeplay
(3)
(4)
(–)
(+)
20YM CRF125FFB_31K28B60_FM.book 74 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
75
Clutch System
4.Tighten the lock nut and check the freeplay
again.
5.Return the dust cover to its normal position.
Major Adjustment
The major clutch cable adjuster is used if the
minor clutch cable adjuster is threaded out near
its limit, or the correct freeplay cannot be
obtained.
1.Loosen the minor lock nut (3) and turn the
minor clutch cable adjuster (4) all the way in
(to provide maximum freeplay).
2.Tighten the minor lock nut and pull the
rubber dust cover (2) back to its normal
position.
3.Hold the major adjusting nut (5) and loosen
the major lock nut (6).
4.Turn the major adjusting nut to obtain the
specified freeplay.
5.Hold the major adjusting nut and tighten the
major lock nut. Check the adjustment.
(cont’d)
(6)
(5) major adjusting nut
(6) major lock nut
RIGHT SIDE
(+) increase freeplay
(–) decrease freeplay
(5)
(–)
(+)
20YM CRF125FFB_31K28B60_FM.book 75 ページ ２０１９年３月１日 金曜日 午後１時４８分
76
Servicing Your Honda
Clutch System
6.Start the engine, pull the clutch lever in, and
shift into gear. Make sure the engine does not
stall and the motorcycle does not creep.
Gradually release the clutch lever and open
the throttle. Your motorcycle should move
smoothly and accelerate gradually.
If you can’t get proper adjustment, or the clutch
does not work properly, the cable may be
kinked or worn, or the clutch discs may be
worn. See your dealer or refer to the official
Honda Service Manual (page 162).
• Check that the clutch lever assembly is
positioned properly and the securing bolts are
tight.
• Check the clutch cable for kinks or signs of
wear. If necessary, have it replaced.
• Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
Other Inspections & Lubrication
20YM CRF125FFB_31K28B60_FM.book 76 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
77
Spark Plug
Refer to Safety Precautions on page 45.
The recommended standard spark plug is
satisfactory for most riding conditions.
Use only the recommended type of spark plugs
in the recommended heat range.
Using spark plugs with an improper heat range
can cause engine damage.
Spark Plug Recommendation
Standard
CPR6EA-9
(NGK)
(3)
(1)
(2)
(1) center electrode
(2) side electrode
(3) spark plug gap
20YM CRF125FFB_31K28B60_FM.book 77 ページ ２０１９年３月１日 金曜日 午後１時４８分
78
Servicing Your Honda
Spark Plug
1.Clean any dirt from around the spark plug
base.
2.Disconnect the spark plug cap.
3.Remove the spark plug with a plug wrench.
4.Inspect the spark plug electrodes for wear.
The center electrode (1) should have square
edges. The side electrode (2) should not be
eroded. The insulator should not be cracked
or chipped.
5.Check the spark plug gap (3), using a wire-
type feeler gauge. If adjustment is necessary,
bend the side electrode carefully. The gap
should be:
0.031- 0.035 in (0.80 - 0.90 mm)
Make sure the plug washer is in good
condition.
If you have to install a new plug, first check
the gap.
6.With the plug washer attached, thread the
spark plug in by hand (to prevent cross-
threading).
7. Tighten the spark plug:
• If the old plug is good:
1/8 turn after it seats.
• If installing a new plug, tighten it twice to
prevent loosening:
a)First, tighten the plug:
1/2 turn after it seats.
b)Then loosen the plug.
c)Next, tighten the plug again:
1/8 turn after it seats.
An improperly tightened spark plug can
damage the engine. If a plug is too loose, a
piston may be damaged. If a plug is too tight,
the threads may be damaged.
8.Reinstall the spark plug cap. Take care to
avoid pinching any cables or wires.
20YM CRF125FFB_31K28B60_FM.book 78 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
79
Spark Arrester
Refer to Safety Precautions on page 45.
The spark arrester must be serviced every 100
operating hours to maintain its efficiency.
Regular servicing prevents carbon buildup
(which can diminish engine performance) and
also complies with USDA regulations for
regular maintenance to assure proper function.
The spark arrester prevents random sparks from
the combustion process in your engine from
reaching the environment.
1.Allow the engine and muffler to cool.
2.Remove the bolts (1), the spark arrester (2),
and the gasket (3) from the muffler (4).
(cont’d)
(2)
(1)
(3) (4)
RIGHT REAR
(1) bolts
(2) spark arrester
(3) gasket
(4) muffler
20YM CRF125FFB_31K28B60_FM.book 79 ページ ２０１９年３月１日 金曜日 午後１時４８分
80
Servicing Your Honda
Spark Arrester
3.Use a brush to remove carbon deposits from
the spark arrester screen (5). Be careful to
avoid damaging the spark arrester screen.
The spark arrester must be free of breaks and
holes. Replace, if necessary.
4.Install the spark arrester with a new gasket
and tighten the bolts to the specified torque:
7 lbf·ft (10 N·m , 1.0 kgf·m)
(5)
(5) spark arrester screen
20YM CRF125FFB_31K28B60_FM.book 80 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
81
Suspension
Refer to Safety Precautions on page 45.
Loose, worn, or damaged suspension
components may adversely affect the handling
and stability of your motorcycle. If any
suspension components appear worn or
damaged, see your dealer for further inspection.
Your dealer is qualified to determine whether or
not replacement parts or repairs are needed.
1.Check fork operation. Pull the front brake
lever in, to lock the brake. Then pump up and
down on the fork legs several times. The
suspension should function smoothly. There
should be no oil leakage.
(cont’d)
Front Suspension Inspection
(1)
(1)
(1)
(1) mounting bolts
20YM CRF125FFB_31K28B60_FM.book 81 ページ ２０１９年３月１日 金曜日 午後１時４８分
82
Servicing Your Honda
Suspension
2.Check the security of all handlebar and fork
mounting bolts (1). If any front suspension
components appear worn or damaged, see
your dealer for further inspection.
1.Place the motorcycle on a maintenance stand.
Push hard against the side of the rear wheel
and feel for any freeplay which indicates
worn swingarm bearings (1).
Rear Suspension Inspection
(2)
(3)
RIGHT SIDE
(1) swingarm bearing
(2) shock absorber attachment points
(3) suspension linkage attachment points
(3)
(1)
(1)
LEFT SIDE
(1) swingarm bearing
20YM CRF125FFB_31K28B60_FM.book 82 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
83
Suspension
2.Check that the fasteners for the shock
absorber attachment points (2) and rear
suspension linkage attachment points (3) are
secure.
3.Check for oil leaks in the shock absorber. If
any rear suspension components appear worn
or damaged, see your dealer for further
inspection.
20YM CRF125FFB_31K28B60_FM.book 83 ページ ２０１９年３月１日 金曜日 午後１時４８分
84
Servicing Your Honda
Brakes
Refer to Safety Precautions on page 45.
The front brake is the hydraulic disc type. As
the brake pads wear, the brake fluid level will
drop. A leak in the system will also cause the
level to drop.
Frequently inspect the system to ensure there
are no fluid leaks. Periodically inspect the
brake fluid level and the brake pads for wear.
If the front brake lever freeplay does not feel
within the normal range while riding, check the
brake pads. If they are not worn beyond the
recommended limit (page 87), there is probably
air in the brake system. See your dealer to have
the air bled from the system.
Never use adjusters other than those designed
for this motorcycle. Install a new adjuster from
the lever side with the lock nut under the head
of the adjuster.
Front Brake Lever Adjustment
(3)
(1)
(4)
(1) rubber dust cover
(2) lock nut
RIGHT HANDLEBAR
(3) front brake lever
(4) adjuster
(2)
20YM CRF125FFB_31K28B60_FM.book 84 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
85
Brakes
1.Pull the rubber dust cover (1) back.
2.Loosen the lock nut (2).
3.To position the front brake lever (3) farther
away from the handgrip, turn the adjuster (4)
clockwise.
To position the front brake lever closer to the
handgrip, turn the adjuster counterclockwise.
4.Tighten the lock nut. Return the dust cover to
its normal position.
5.Apply the brake, release it, then spin the
wheel and check that it rotates freely. Repeat
this procedure several times.
6.Check freeplay by pulling in slowly on the
front brake lever until the brake starts to
engage.
Freeplay: LESS THAN 13/16 in (20 mm)
If brake lever freeplay is not within this range,
see your dealer.
Front Brake Fluid Level
With the motorcycle in an upright position,
check the fluid level.
It should be above the LWR mark (1). If the
level is at or below the LWR mark, check the
brake pads for wear (page 87).
Fluid Level Inspection
RIGHT HANDLEBAR
(1) LWR mark
(1)
20YM CRF125FFB_31K28B60_FM.book 85 ページ ２０１９年３月１日 金曜日 午後１時４８分
86
Servicing Your Honda
Brakes
Worn brake pads should be replaced. If the pads
are not worn, have your brake system inspected
for leaks.
The recommended brake fluid is Honda DOT 3
or DOT 4 brake fluid from a sealed container,
or an equivalent.
Brake fluid can damage plastic and painted
surfaces. Handle with care.
Wipe up spills immediately. Avoid brake fluid
contact with skin or eyes. If it comes in contact
with your eyes, wash them out with clean water
and immediately call a doctor. If it comes in
contact with your skin, wash with clean water
and, if necessary, call a doctor.
Other Inspections
• Make sure there are no fluid leaks.
• Check for deterioration or cracks in the hoses
and fittings.
20YM CRF125FFB_31K28B60_FM.book 86 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
87
Brakes
Brake pad wear depends on the severity of
usage, the type of riding, and riding area
conditions. (Generally, the pads will wear
faster on wet and dirty riding terrain.) Inspect
the pads at each regular maintenance interval
(page 50).
Check the wear limit grooves (2) in each pad. If
either pad is worn to the groove, replace both
pads as a set. See your dealer for this service.
Check that the front lever assembly is
positioned properly and the securing bolts are
tight.
Brake fluid should be added and replaced by
your dealer.
The recommended brake fluid is Honda DOT 3
or DOT 4 Brake Fluid, or any brake fluid of
equal quality and performance. Use fresh brake
fluid from a sealed container.
Brake Pad Wear
LEFT SIDE
(1) front brake caliper
(2) wear limit grooves
(1)
(2)
Other Inspections
More About: Brake Fluid
20YM CRF125FFB_31K28B60_FM.book 87 ページ ２０１９年３月１日 金曜日 午後１時４８分
88
Servicing Your Honda
Brakes
Inspection
1.Place your motorcycle on its side stand.
2.Check freeplay by slowly depressing the rear
brake pedal (1) until the brake starts to
engage.
Freeplay: 3/8–13/16 in (10–20 mm)
If necessary, adjust to the specified range.
Rear Brake Pedal Freeplay
RIGHT SIDE
(1) rear brake pedal
(1)
20YM CRF125FFB_31K28B60_FM.book 88 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
89
Brakes
Adjustment
1.Adjust by turning the rear brake adjusting nut
(2) a half-turn at a time. Make sure the cut-
out on the adjusting nut is seated on the brake
arm pin (3).
2.Apply the brake, release it, and then spin the
wheel and check that it rotates freely. Repeat
this procedure several times.
3.Check the freeplay. If you can’t adjust the
freeplay properly, see your dealer.
After adjustment, push the brake arm (4) to
confirm that there is a gap between the
adjusting nut (2) and the brake arm pin (3).
After adjustment, confirm the freeplay of the
brake pedal.
RIGHT REAR
(2)
(3)
(2) adjusting nut
(3) brake arm pin
(+) increase freeplay
(–) decrease freeplay
(–)
(+)
(3)
(4)
(2)
(2) adjusting nut
(3) brake arm pin
(4) brake arm
20YM CRF125FFB_31K28B60_FM.book 89 ページ ２０１９年３月１日 金曜日 午後１時４８分
90
Servicing Your Honda
Brakes
The rear brake is equipped with external brake
wear indicator that let you check brake wear
without disassembly. Application of the brake
control (pedal) causes the arrow on the brake
arm to move toward a reference mark on the
brake panel.
1.Place your motorcycle on its side stand.
2.Apply the brake control (pedal) and check
the movement of the arrow (1) on the brake
arm (2). Replace the brake shoes if the arrow
aligns with the reference mark (3) on the
brake panel (4) upon full application of the
brake. If replacement is necessary, see your
dealer.
Brake Shoe Wear
RIGHT REAR
(1) arrow
(2) brake arm
(3) reference mark
(4) brake panel
(3)
(1)
(4)
(2)
20YM CRF125FFB_31K28B60_FM.book 90 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
91
Brakes
• Check that the front lever and rear pedal
assemblies are positioned properly and the
securing bolts are tight.
• Make sure the rear brake rod, brake arm,
spring, and fasteners are in good condition.
1.Loosen the lock nut (1) and turn the stopper
bolt (2).
2.Tighten the lock nut.
3.Check the freeplay (page 88).
Other Inspections & Lubrication Rear Brake Pedal Height Adjustment
RIGHT SIDE
(1)
(2)
(1) lock nut
(2) stopper bolt
20YM CRF125FFB_31K28B60_FM.book 91 ページ ２０１９年３月１日 金曜日 午後１時４８分
92
Servicing Your Honda
Wheels
Refer to Safety Precautions on page 45.
Keeping the wheels true (round) and
maintaining correct spoke tension is critical to
safe motorcycle operation. During the first
100 miles (150 km), spokes will loosen more
rapidly due to the initial seating of the parts.
Excessively loose spokes may result in
instability at high speeds and the possible loss
of control. Neglecting this maintenance may
also cause rim or spoke damage. It’s also
important that the rim lock is secure to prevent
tire slippage.
It is not necessary to remove the wheels to
perform the recommended service in the
Maintenance Schedule. However, information
for wheel removal is provided for emergency
situations.
20YM CRF125FFB_31K28B60_FM.book 92 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
93
Wheels
1.Inspect the wheel rims (1) and spokes (2) for
damage.
2.Tighten any loose spokes or rim lock (3).
3.Rotate the wheel slowly to see if it appears to
‘‘wobble.’’ If it does, the rim is out of round
or not ‘‘true.’’ If the wobble is noticeable, see
your dealer for inspection.
Wheel Rims & Spokes
REAR
(1)
(2)
(1) wheel rim
(2) spoke
(3) rim lock
(3)
20YM CRF125FFB_31K28B60_FM.book 93 ページ ２０１９年３月１日 金曜日 午後１時４８分
94
Servicing Your Honda
Wheels
Removal
1.Raise the front wheel off the ground by
placing a maintenance stand or support block
under the engine. Secure the rear of the
motorcycle with tie-down straps.
2.Remove the axle nut (1).
3.Remove the axle shaft (2), wheel, and side
collars.
Avoid depressing the brake lever when the
wheel is off the motorcycle. This will force
the caliper pistons out of the cylinders. The
result will be loss of brake fluid. If this
occurs, the brake system will require service.
See your dealer for this service.
Avoid getting grease, oil, or dirt on the disc or
pad surfaces. Any contamination can cause
poor brake performance or rapid pad wear after
reassembly.
Front Wheel Removal
(1)(2)
(1) axle nut
(2) axle shaft
RIGHT FRONT LEFT FRONT
20YM CRF125FFB_31K28B60_FM.book 94 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
95
Wheels
Installation
1.Reverse the removal procedure. Install the
side collars into the wheel. Carefully fit the
brake disc between the pads to avoid
scratching them.
2.Insert the front axle shaft from the right side,
through the right fork leg and wheel hub.
3.Tighten the front axle nut to the specified
torque:
46 lbf·ft (62 N·m , 6.3 kgf·m)
4.After installing the wheel, apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the brake
drags or if the wheel does not rotate freely.
Check front brake adjustment (page 84).
If a torque wrench was not used to install the
wheel, see your dealer as soon as possible to
verify proper assembly. Improper assembly
may lead to loss of braking capacity.
20YM CRF125FFB_31K28B60_FM.book 95 ページ ２０１９年３月１日 金曜日 午後１時４８分
96
Servicing Your Honda
Wheels
Removal
1.Raise the rear wheel off the ground by
placing a maintenance stand or support block
under the engine. Secure the front of the
motorcycle with tie-down straps.
2.Unscrew the rear brake adjuster (1). Press the
rear brake pedal and disconnect the brake rod
(2) from the brake arm (3).
3.Loosen the lock nuts (4) and adjusting nuts
(5) on the chain adjuster on both sides.
4.Unscrew the rear axle nut (6). Pull the rear
axle shaft (7) out. Push the wheel forward
and derail the drive chain from the rear
sprocket. Remove the wheel.
Take care to prevent getting grease, oil, or dirt
on the brake shoe surfaces. This can cause poor
brake performance or rapid brake shoe wear
after reassembly.
Rear Wheel Removal
RIGHT REARLEFT REAR
(1)
(6)
(7) (4)(5) (3) (5)
(1) adjuster
(2) brake rod
(3) brake arm
(4) lock nuts
(5) adjusting nuts
(6) rear axle nut
(7) rear axle shaft
(4)
(2)
20YM CRF125FFB_31K28B60_FM.book 96 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
97
Wheels
Installation
1.Reverse the removal procedure. Make sure
the lug (8) on the swingarm is located in the
slot (9) in the brake panel (10). Check that
the chain adjusters are installed properly.
2.Adjust the drive chain (page 106).
3.Tighten the rear axle nut to the specified
torque:
46 lbf·ft (62 N·m , 6.3 kgf·m)
4.Adjust the rear brake (page 89).
5.Apply the rear brake, release it, then spin the
wheel and check that it rotates freely. Repeat
this procedure several times.
If a torque wrench was not used to install the
wheel, see your dealer as soon as possible to
verify proper assembly. Improper assembly
may lead to loss of braking capacity.
RIGHT REAR
(10)
(9)
(8)
(8) lug
(9) slot
(10) brake panel
20YM CRF125FFB_31K28B60_FM.book 97 ページ ２０１９年３月１日 金曜日 午後１時４８分
98
Servicing Your Honda
Tires & Tubes
Refer to Safety Precautions on page 45.
To safely operate your motorcycle, the tires
must be the proper type (off-road) and size, in
good condition with adequate tread, and
correctly inflated.
The following pages give detailed information
on how and when to check your air pressure,
how to inspect your tires for wear and damage,
and our recommendations on tire repair and
replacement.
Properly inflated tires provide the best
combination of handling, tread life, and riding
comfort. Generally, underinflated tires wear
unevenly, adversely affect handling, and are
more likely to fail from being overheated.
Underinflated tires can also cause wheel
damage in rocky terrain. Overinflated tires
make your motorcycle ride harshly, are more
prone to damage from surface hazards, and
wear unevenly.
Make sure the valve stem caps are secure. If
necessary, install new caps.
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or
killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.
Air Pressure
20YM CRF125FFB_31K28B60_FM.book 98 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
99
Tires & Tubes
Always check air pressure when your tires are
‘‘cold.’’ If you check air pressure when your
tires are ‘‘warm’’– even if your motorcycle has
only been ridden for a few miles – the readings
will be higher. If you let air out of warm tires to
match the recommended cold pressures, the
tires will be underinflated. The correct ‘‘cold’’
tire pressures are:
If you decide to adjust tire pressures for a
particular riding condition, make changes a
little at a time.
A flat tire or blowout is inconvenient and
may even cause a crash. Take time to inspect
your tires and wheels before you ride. For
more information about handling flat tires,
see page 135.
Front
15 psi (100 kPa , 1.0 kgf/cm
2
)
Rear
15 psi (100 kPa , 1.0 kgf/cm
2
)
Inspection
(1)
(1) tread depth
20YM CRF125FFB_31K28B60_FM.book 99 ページ ２０１９年３月１日 金曜日 午後１時４８分
100
Servicing Your Honda
Tires & Tubes
• Inspect carefully for bumps or bulges in the
side of the tire or the tread. Replace any tire
that has a bump or bulge.
• Look closely for cuts, slits, or cracks in the
tires. Replace a tire if you can see fabric or
cord.
• Check for rocks or other objects embedded in
the tire or tread. Remove any objects.
• Measure tread depth (1). Replace the tire
before depth at the center reaches 0.12 in
(3 mm), or any time you notice a reduction
in traction.
• Check the position of both valve stems. A
tilted valve stem indicates the tube is slipping
inside the tire or the tire is slipping on the
rim. See your dealer.
If a tube is punctured or damaged, you should
replace it as soon as possible. A repaired tube
may not have the same reliability as a new one,
and it may fail while you are riding. For
information on making a temporary repair, see
page 135.
Use a replacement tube equivalent to the
original.
We recommend that tubes be replaced by your
dealer. Replacing a tube requires removing and
reinstalling the wheel. Any time a tube is
replaced, carefully inspect the tire as described
on page 99.
Tube Replacement
20YM CRF125FFB_31K28B60_FM.book 100 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
101
Tires & Tubes
The tires that came on your motorcycle were
designed to provide a good combination of
handling, braking, durability, and comfort
across a broad range of riding conditions.
• Use a replacement tire equivalent to the
original.
• Replace the tube any time you replace a tire.
The old tube will probably be stretched and,
if installed in a new tire, could fail.
• Have the wheel balanced after a new tire is
installed.
• We recommend that tires be replaced by your
dealer.
Tire Replacement
Installing improper tires on your
motorcycle can affect handling and
stability. This can cause a crash in
which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’ s manual.
Front
CRF125F 70/100–17M/C 40M
CRF125FB 70/100–19M/C 42M
Rear
CRF125F 90/100–14M/C 49M
CRF125FB 90/100–16M/C 51M
Type bias-ply, tube
20YM CRF125FFB_31K28B60_FM.book 101 ページ ２０１９年３月１日 金曜日 午後１時４８分
102
Servicing Your Honda
Side Stand
Refer to Safety Precautions on page 45. 1.Check the side stand spring (1) for damage
and loss of tension.
2.Check the side stand assembly for freedom
of movement.
If the side stand is stiff or squeaky, clean the
pivot area and lubricate the pivot bolt with
clean engine oil.
LEFT SIDE
(1)
(1) side stand spring
20YM CRF125FFB_31K28B60_FM.book 102 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
103
Drive Chain
Refer to Safety Precautions on page 45.
The service life of the chain depends on proper
lubrication and adjustment. Poor maintenance
can cause premature wear or damage to the
drive chain or sprockets.
Under severe usage, or when the motorcycle is
ridden in unusually dusty or muddy areas, more
frequent maintenance will be necessary.
Before servicing your drive chain, turn the
engine OFF, lower the side stand, and check
that your transmission is in neutral.
It is not necessary to remove or replace the
drive chain to perform the recommended
service in the Maintenance Schedule.
1.Check slack in the lower drive chain (1) run
midway between the sprockets. Drive chain
slack should allow the following vertical
movement by hand:
1–1 3/8 in (25–35 mm)
(cont’d)
Inspection
LEFT SIDE
(1)
(1) drive chain
20YM CRF125FFB_31K28B60_FM.book 103 ページ ２０１９年３月１日 金曜日 午後１時４８分
104
Servicing Your Honda
Drive Chain
2.Check drive chain slack at several points
along the chain. The slack should remain
constant. If it isn’t, some links may be kinked
and binding. Lubricating the chain will often
eliminate binding and kinking.
Excessive chain slack may allow the drive
chain to damage the engine cases.
3.Inspect the drive chain for:
• damaged rollers
• loose pins
• dry or rusted links
• kinked or binding links
• excessive wear
Replace the drive chain (page 108) if it has
damaged rollers, loose pins, or kinks that
cannot be freed. Lubricate the drive chain
(page 107) if it appears dry or shows signs of
rust. Lubricate any kinked or binding links
and work them free. Adjust chain slack if
needed.
4.Check the chain slider (2) for wear. If the
depth (3) of the chain slider reaches the
service limit, have your dealer replace the
chain slider.
Service Limit: 0.1 in (3 mm)
LEFT SIDE
(2) chain slider (3) depth
(2)
(3)
(3)
(3)
20YM CRF125FFB_31K28B60_FM.book 104 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
105
Drive Chain
5.Replace the drive chain if chain slack is
excessive when the rear axle is moved to the
farthest limit of adjustment. Excessive slack
indicates the chain is worn beyond its service
limit.
To check the chain’s service limit, remove
the drive chain (page 108). Then measure the
distance between a span of 41 pins, from pin
center to pin center. If the distance exceeds
the service limit, the drive chain is worn out
and should be replaced.
New Chain: 20.0 in (508 mm)
Service Limit: 20.4 in (518 mm)
Measure a span of 41 pins
20YM CRF125FFB_31K28B60_FM.book 105 ページ ２０１９年３月１日 金曜日 午後１時４８分
106
Servicing Your Honda
Drive Chain
6.Inspect the front and rear sprocket teeth for
excessive wear or damage. If necessary, have
your dealer replace a worn sprocket.
Use of a new chain with worn sprockets will
cause rapid chain wear.
1. Loosen the rear axle nut (1).
2. Loosen the lock nuts (2) on both sides of the
swingarm.
Damaged Sprocket
Teeth
Worn Sprocket
Teeth
REPLACE
REPLACE
Normal Sprocket Teeth
GOOD
Adjustment
RIGHT SIDE
(5)
(2) (3)
(1)
(1) rear axle nut
(2) lock nut
(3) adjusting nut
(4) notch
(5) graduated scale
(4)
20YM CRF125FFB_31K28B60_FM.book 106 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
107
Drive Chain
3.Turn the adjusting nuts (3) on the right and
left chain adjusters an equal number of turns
to increase or decrease chain slack.
4.Align the notches (4) on the chain adjusters
with the graduated scales (5) on both sides of
the swingarm.
5.Torque the rear axle nut to:
46 lbf·ft (62 N·m , 6.3 kgf·m)
If a torque wrench is not used for this
installation, see your dealer as soon as possible
to verify proper assembly.
6.Tighten the adjusting nuts lightly. Then,
while holding the adjusting nuts with a
wrench, tighten the lock nuts.
7.Recheck drive chain slack.
8.Check rear brake pedal freeplay and adjust as
necessary (page 88). Freeplay is affected
when repositioning the rear wheel to adjust
drive chain slack.
Lubricate every 300 miles (500 km) or sooner
if chain appears dry.
Turn the rear wheel by hand. Saturate each
chain link joint so that the lubricant penetrates
between the link plates, pins, bushings, and
rollers.
Recommended lubricant:
Pro Honda HP Chain Lube or an equivalent
Lubrication
20YM CRF125FFB_31K28B60_FM.book 107 ページ ２０１９年３月１日 金曜日 午後１時４８分
108
Servicing Your Honda
Drive Chain
When the drive chain becomes extremely dirty,
it should be removed and cleaned prior to
lubrication.
1.Remove the master link retaining clip (1)
with pliers. Do not bend or twist the clip.
Remove the master link. Remove the drive
chain.
2.Clean the drive chain with a non-flammable
(high flash point) solvent such as kerosene–
not gasoline–and allow it to dry.
3.Inspect the drive chain for possible wear or
damage. Replace the drive chain if it has
damaged rollers, loose fitting links, or
otherwise appears unserviceable.
Replacement chain:
DID 428HD
Removal, Cleaning & Replacement
(1) master link retaining clip
(1)
LEFT SIDE
20YM CRF125FFB_31K28B60_FM.book 108 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
109
Drive Chain
4.Inspect the sprocket teeth for wear or
damage. We recommend replacing the
sprocket whenever a new chain is installed.
5.Lubricate the drive chain.
6.Pass the chain over the sprockets and join the
ends of the chain with the master link. For
ease of assembly, hold the chain ends against
adjacent rear sprocket teeth while inserting
the master link. Install the master link
retaining clip so that the closed end of the
retaining clip will face the direction of
forward wheel rotation.
• The master link is the most critical element
of drive chain security. Master links are
reusable, as long as they remain in excellent
condition. We recommend installing a new
master link retaining clip when the drive
chain is reassembled.
• You may find it easier to install a new chain
by connecting it to the old chain with a
master link and pulling the old chain to
position the new chain on the sprockets.
More About: Drive Chain
20YM CRF125FFB_31K28B60_FM.book 109 ページ ２０１９年３月１日 金曜日 午後１時４８分
110
Servicing Your Honda
Battery
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water as you
would with a conventional-type battery.
Your battery is a maintenance-free type and can
be permanently damaged if the cap strip is
removed.
Electrical accessories use current from the
battery, even when the ignition is OFF. Limited
operation also allows the battery to discharge.
If you have electrical accessories on your
motorcycle or do not ride frequently, we
recommend that you charge the battery
frequently (see Battery Charging, page 114).
If you do not expect to ride your motorcycle for
at least two weeks, we recommend you remove
the battery, or at least disconnect the battery
cables (negative cable first).
If you plan to store your motorcycle, see
Battery Storage, page 111.
If your battery seems weak and/or is leaking
electrolyte (causing slow starting or other
electrical problems), see your dealer.
WAR NIN G: Battery posts, terminals and
related accessories contain lead and lead
compounds. Wash hands after handling.
20YM CRF125FFB_31K28B60_FM.book 110 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
111
Battery
Refer to Safety Precautions on page 45.
If you plan to store your motorcycle, we
recommend you remove the battery and store it
where it can be charged at least every 30 days
to maintain its service life.
If you do not remove the battery, we
recommend disconnecting the battery cables
(negative cable first).
You will get the best storage results from
removing the battery and slow charging it every
30 days (see Battery Charging, page 114).
Before you remove the battery, be sure to read
all the information that follows, as well as the
information on the battery label.
Battery Storage
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery maintenance.
20YM CRF125FFB_31K28B60_FM.book 111 ページ ２０１９年３月１日 金曜日 午後１時４８分
112
Servicing Your Honda
Battery
The battery is located in the battery
compartment under the seat.
Removal
1.Make sure the ignition switch is OFF.
2.Remove the seat (pages 56).
3.Disconnect the negative (−) terminal (1)
from the battery.
4.Disconnect the positive (+) terminal (2)
from the battery.
5.Release the battery holder band (3) from
the hook, then remove the battery (4)
taking care not to drop the terminal nuts.
UNDER SEAT
(3)
(4)
(1) (2)
(1) negative (–) terminal lead
(2) positive (+) terminal lead
(3) battery holder band
(4) battery
20YM CRF125FFB_31K28B60_FM.book 112 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
113
Battery
6.Charge the battery (see following section),
unless you have been riding regularly.
7.Store your battery in an easy-to-reach
location off the floor, in an area protected
from freezing temperatures and direct
sunlight.
8.Clean the battery box after removing the
battery for storage.
9.Slow charge the battery (see following
section) once every 30 days.
Installation
1.Reinstall in the reverse order of removal. Be
sure to connect the positive (+) terminal first,
then the negative (–) terminal.
2.Check all bolts and other fasteners are
secure.
20YM CRF125FFB_31K28B60_FM.book 113 ページ ２０１９年３月１日 金曜日 午後１時４８分
114
Servicing Your Honda
Battery
Refer to Safety Precautions on page 45.
Be sure to read the information that came with
your battery charger and follow the instructions
on the battery. Improper charging may damage
the battery.
We recommend using a charger (1) designed
specifically for your Honda, which can be
purchased from your dealer. These units can be
left connected for long periods without risking
damage to the battery. However, do not
intentionally leave the charger connected
longer than the time period recommended in
the charger’s instructions.
Avoid using an automotive-type battery
charger. An automotive charger can overheat a
motorcycle battery and cause permanent
damage.
Battery Charging
(1)
(1) charger
20YM CRF125FFB_31K28B60_FM.book 114 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
115
Appearance Care
Refer to Safety Precautions on page 45.
Frequent cleaning and polishing will keep your
Honda looking newer longer. Frequent cleaning
also identifies you as an owner who values your
motorcycle. A clean motorcycle is also easier
to inspect and service.
While you’re cleaning, be sure to look for
damage, wear, and gasoline or oil leaks.
• To clean your motorcycle, you may use:
–water
–a mild, neutral detergent and water
–a mild spray and wipe cleaner/polisher
–a mild spray and rinse cleaner/degreaser
and water
• Avoid products that contain harsh detergents
or chemical solvents that could damage the
metal, paint, and plastic on your motorcycle.
• If your motorcycle is still warm from recent
operation, give the engine and exhaust
system time to cool off.
General Recommendations
20YM CRF125FFB_31K28B60_FM.book 115 ページ ２０１９年３月１日 金曜日 午後１時４８分
116
Servicing Your Honda
Appearance Care
• We recommend the use of a low pressure
garden hose to wash your motorcycle. High
pressure washers (like those at coin-operated
car washes) can damage certain parts of your
motorcycle. If you use a high pressure
washer, avoid spraying the following areas:
• wheel hubs
• muffler outlet
• area under seat
• engine stop switch
• brake master cylinder
•under fuel tank
• drive chain
• throttle body
High pressure water (or air) can damage
certain parts of your motorcycle.
1.Rinse your motorcycle thoroughly with cool
water to remove loose dirt.
2.Fill a bucket with cool water. Mix in a mild,
neutral detergent, such as dish washing liquid
or a product made especially for washing
motorcycles or automobiles.
3.Wash your motorcycle with a sponge or a
soft towel. As you wash, check for heavy
grime. If necessary, use a mild cleaner/
degreaser to remove the grime.
4.After washing, rinse your motorcycle
thoroughly with plenty of clean water to
remove any residue. Detergent residue can
corrode alloy parts.
Washing Your Motorcycle with a Mild
Detergent
20YM CRF125FFB_31K28B60_FM.book 116 ページ ２０１９年３月１日 金曜日 午後１時４８分
Servicing Your Honda
117
Appearance Care
5.Dry your motorcycle with a chamois or a soft
towel. Leaving water on the surface to air dry
can cause dulling and water spots. As you
dry, inspect for chips and scratches.
6.Lubricate the drive chain to prevent rusting.
7.Start the engine and let it idle for several
minutes. The engine heat will help dry moist
areas.
8.As a precaution, ride at a slow speed and
apply the brakes several times. This will help
dry the brakes and restore normal braking
performance.
Refer to Safety Precautions on page 45.
When the exhaust pipe and muffler are painted,
do not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
Exhaust Pipe and Muffler Maintenance
20YM CRF125FFB_31K28B60_FM.book 117 ページ ２０１９年３月１日 金曜日 午後１時４８分
Tips
119
Tips
Here’s helpful advice on how to prepare for an
off-road adventure, how to transport and store
your Honda, and how to be an environmentally
responsible motorcycle owner.
Preparing for a Ride....................................120
Transporting Your Honda...........................122
Storing Your Honda....................................124
You & the Environment..............................126
20YM CRF125FFB_31K28B60_FM.book 119 ページ ２０１９年３月１日 金曜日 午後１時４８分
120
Tips
Preparing for a Ride
A safe and enjoyable ride begins with good
planning and preparation. Always ride with at
least one other person in case you have trouble,
and let someone know where you’re going and
when you expect to return.
Before riding in an unfamiliar area, find out in
advance if you need special permits, get maps
so you can study the terrain, and talk to other
riders who know the area. The Forest Service
and the Bureau of Land Management (USA
only), the Ministry of Natural Resources
(Canada only), riding clubs, and off-road
magazines are good sources of information.
Along with your motorcycle and riding gear,
you should take along some tools and
supplies in case you have a problem. For
some of the difficulties you might encounter,
see Taking Care of the Unexpected, which
begins on page 129.
We recommend that you always take water,
food, a first aid kit, and your owner’s manual.
Other items you should consider loading on
your truck or trailer include:
• a tool kit
• tire repair supplies and tools, tubes, and tires
• extra parts, such as a drive chain and master
links, control levers, cables, and spark plugs
• wire, duct tape, and rope
• extra gasoline
What to Take to the Riding Area
20YM CRF125FFB_31K28B60_FM.book 120 ページ ２０１９年３月１日 金曜日 午後１時４８分
Tips
121
Preparing for a Ride
For safety, all refueling should be done at a gas
station on the way to the riding area or at your
base camp.
What you take with you during a ride depends
on the kind of terrain, how long you expect to
ride, how far you might go from your base
camp or help, and how experienced you or your
companions are in making repairs.
If you decide to take some tools, spare parts, or
other supplies on the trail, be sure you can carry
them safely and know how to use them. Also,
be sure to follow the loading guidelines and
weight limit (page 9).
What to Take on the Trail
20YM CRF125FFB_31K28B60_FM.book 121 ページ ２０１９年３月１日 金曜日 午後１時４８分
122
Tips
Transporting Your Honda
If you use a truck or motorcycle trailer to
transport your Honda, we recommend that you
follow these guidelines:
• Use a loading ramp.
• Secure the motorcycle in an upright position,
using motorcycle tie-down straps. Avoid
using rope, which can loosen and allow the
motorcycle to fall over.
To secure your motorcycle, brace the front
wheel against the front of the truck bed or
trailer rail. Attach the lower ends of two straps
to the tie-down hooks on your vehicle. Attach
the upper ends of the straps to the handlebar
(one on the right side, the other on the left),
close to the fork.
20YM CRF125FFB_31K28B60_FM.book 122 ページ ２０１９年３月１日 金曜日 午後１時４８分
Tips
123
Transporting Your Honda
Check that the tie-down straps do not contact
any control cables or electrical wiring.
Tighten both straps until the front suspension is
compressed about half-way. Too much pressure
is unnecessary and could damage the fork seals.
Use another tie-down strap to keep the rear of
the motorcycle from moving.
We recommend that you do not transport your
motorcycle on its side. This can damage the
motorcycle, and leaking gasoline could be a
hazard.
20YM CRF125FFB_31K28B60_FM.book 123 ページ ２０１９年３月１日 金曜日 午後１時４８分
124
Tips
Storing Your Honda
If you won’t be riding for an extended period,
such as during the winter, thoroughly inspect
your motorcycle and correct any problem
before storing it. That way, needed repairs
won’t be forgotten and it will be easier to get
your motorcycle running again.
For more information about storage, refer to the
Honda Winter Storage Guide, available from
your dealer (USA only).
We suggest you perform the following
procedures to keep your motorcycle in top
condition. These storage procedures will
reduce the deterioration that can occur during
storage.
20YM CRF125FFB_31K28B60_FM.book 124 ページ ２０１９年３月１日 金曜日 午後１時４８分
Tips
125
Storing Your Honda
1.Change the engine oil (page 65).
2.Fill the fuel tank. Make sure the fuel fill cap
is properly installed.
3. Remove the battery and charge it fully. Store
it in an area protected from freezing
temperatures and direct sunlight. Slow
charge the battery (page 114) once a month.
4. Wash and dry your motorcycle.
5. Lubricate the drive chain (page 107).
6. Inflate the tires to their recommended
pressures (page 98).
7. Store your motorcycle in an unheated area,
free of dampness, away from sunlight, with a
minimum of daily temperature variation.
8.Cover your motorcycle with a porous
material. Avoid using plastic or similar non-
breathing, coated materials that restrict air
flow and allow heat and moisture to
accumulate.
1.Uncover and clean your motorcycle.
2.If your motorcycle has been stored for more
than four months–change the engine oil
(page 65).
3.If your motorcycle has been stored for more
than two months–drain and replace the fuel.
4.Charge the battery (page 114) as required.
Install the battery.
5.Lubricate the drive chain (page 107).
6.Perform a pre-ride inspection (page 26), then
test-ride your motorcycle at low speeds.
Preparation for Storage Removal from Storage
20YM CRF125FFB_31K28B60_FM.book 125 ページ ２０１９年３月１日 金曜日 午後１時４８分
126
Tips
You & the Environment
Owning and riding a motorcycle can be
enjoyable, but you must do your part to protect
nature. When you show respect for the land,
wildlife, and other people, you also help
preserve the sport of off-road riding.
Following are tips on how you can be an
environmentally responsible motorcycle owner.
• Tread Lightly. Stay on existing roads and
trails, avoid surfaces that are easily damaged,
and ride only in areas approved for off-road
vehicles.
• Keep the Noise Down. Loud motorcycles
can be offensive. Ride as quietly as possible,
don’t remove your spark arrester, and don’t
modify the muffler or any other part of your
air intake and exhaust systems. Such
modifications not only increase noise, they
also reduce engine performance and may be
illegal.
• Choose Sensible Cleaners. Use a
biodegradable detergent when you wash your
motorcycle. Avoid aerosol spray cleaners
that contain chlorofluorocarbons (CFCs)
which damage the atmosphere’s protective
ozone layer. Don’t throw cleaning solvents
away; see the following guidelines for proper
disposal.
20YM CRF125FFB_31K28B60_FM.book 126 ページ ２０１９年３月１日 金曜日 午後１時４８分
Tips
127
You & the Environment
• Recycle Wastes. It’s illegal and thoughtless
to put used engine oil in the trash, down a
drain, or on the ground. Used oil, gasoline,
and cleaning solvents contain poisons that
can hurt refuse workers and contaminate our
drinking water, lakes, rivers, and oceans.
Before changing your oil, make sure you
have the proper containers. Put oil and other
toxic wastes in separate sealed containers and
take them to a recycling center. Call your
local or state office of public works or
environmental services to find a recycling
center in your area and get instructions on
how to dispose of non-recyclable wastes.
20YM CRF125FFB_31K28B60_FM.book 127 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
129
Taking Care of the Unexpected
With all the challenges you can encounter off-
road, there’s a chance that sometime something
may go wrong. This section gives practical
advice to help you deal with a wide range of
problems. Take time to read this section before
you ride. Also review the tips in Preparing for
a Ride (page 120).
General Guidelines......................................130
If Your Engine Quits or Won’t Start...........131
If You Have a Flat Tire...............................135
If a Fuse Blows ...........................................136
If You Crash................................................139
If You Lose Your Key.................................140
If a Component Fails...................................141
If Your Battery Is Low (or Dead) ...............142
20YM CRF125FFB_31K28B60_FM.book 129 ページ ２０１９年３月１日 金曜日 午後１時４８分
130
Taking Care of the Unexpected
Taking Care of the Unexpected
If something goes wrong during a ride, the first
thing to do is stop as soon as you safely can. Do
not continue riding if you have a flat tire, or
you hear an unusual noise, or your motorcycle
just doesn’t feel right. If you continue riding,
you could cause more damage and endanger
your own safety.
After a stop, take time to assess the situation.
Carefully inspect your motorcycle to identify
the problem, then consider your options before
you decide what to do.
If a problem is relatively minor and you have
the tools, supplies, and skills to make a
permanent repair, you may be able to fix it on
the trail and continue riding. Or, you may be
able to make a temporary repair that allows you
to slowly ride back to your base where you can
make a permanent repair or get help.
When a problem is more serious – or you don’t
have the tools, supplies, experience, or time to
deal with it – you need to choose the safest way
to get yourself and your motorcycle back to
base. For example, if you are close enough, you
(or you and another person) might be able to
push it back.
Whatever the problem, the most important
rules are:
• Always put personal safety first.
General Guidelines
20YM CRF125FFB_31K28B60_FM.book 130 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
131
Taking Care of the Unexpected
• If the problem is relatively minor and you
have the tools, supplies, and skills to make a
temporary repair, be sure to have permanent
repairs made as soon as possible.
• Do not continue riding if you are hurt or your
motorcycle is not in safe riding condition.
Additional recommendations for specific
problems follow.
Proper operation and maintenance can prevent
starting and engine performance problems. In
many cases, the cause of the problem may be a
simple operational oversight.
If you have a problem starting the engine – or
experience poor engine performance – the
following information may help you. If you
can’t correct the problem, see your dealer.
If your motorcycle won’t start, listen as you
press the start button. If you don’t hear the
starter motor turning, refer to the Starter motor
doesn’t operate symptom. If you can hear the
starter motor working normally, refer to the
Starter motor works, but the engine won’t start
symptom.
If Your Engine Quits or Won’t Start
20YM CRF125FFB_31K28B60_FM.book 131 ページ ２０１９年３月１日 金曜日 午後１時４８分
132
Taking Care of the Unexpected
Taking Care of the Unexpected
SYMPTOM: Starter motor doesn’t operate.
POSSIBLE CAUSE WHAT TO DO
ignition switch OFF Turn the ignition switch ON.
transmission not in neutral Shift into neutral.
blown fuse Replace with a new fuse of the same rating (page 136).
battery lead loose Tighten the battery lead.
low (or dead) battery Charge the battery (page 114). If charging doesn’t help,
see your dealer.
faulty starter motor If all possible causes are negative, the starter motor may
be faulty. See your dealer.
20YM CRF125FFB_31K28B60_FM.book 132 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
133
Taking Care of the Unexpected
SYMPTOM: Starter motor works, but the engine won’t start.
POSSIBLE CAUSE WHAT TO DO
out of fuel Fill the fuel tank.
flooded engine See Flooded Engine (page 33).
loose or unconnected
spark plug cap
Install the spark plug cap securely. If the engine still
won’t start, see your dealer.
loose battery cables Tighten the battery terminal bolts.
weak battery Charge the battery (page 114). If charging doesn’t help,
see your dealer.
SYMPTOM: Engine starts, but runs poorly.
POSSIBLE CAUSE WHAT TO DO
idles roughly, too fast, stalls See your dealer.
runs erratically, misfires See your dealer.
blubbers (rich fuel mixture) See your dealer.
20YM CRF125FFB_31K28B60_FM.book 133 ページ ２０１９年３月１日 金曜日 午後１時４８分
134
Taking Care of the Unexpected
Taking Care of the Unexpected
SYMPTOM: Engine starts, but runs poorly. (cont’d)
POSSIBLE CAUSE WHAT TO DO
sooty exhaust (rich fuel
mixture)
See your dealer.
detonates or pings under
load
If applicable, switch to the recommended octane gasoline
(page 58) or change your brand of gasoline.
If the problem persists, see your dealer.
afterfires (backfires) See your dealer.
pre-ignition (runs on after
ignition switched OFF)
See your dealer.
20YM CRF125FFB_31K28B60_FM.book 134 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
135
Taking Care of the Unexpected
How you handle a flat tire on the trail depends
on how serious the tube or tire damage is, and
what tools and supplies you have with you.
If you have a slow leak or a minor puncture,
there are two ways to try making a temporary
repair:
• Use an aerosol tire sealer to seal the puncture
and inflate the tube. (This can be done
without removing the tire or wheel.)
• Use a tube patch kit to repair the puncture.
(This requires removing the tire.)
If the leak is more serious, or a temporary
repair doesn’t hold, the tube must be replaced.
The tire will also need to be replaced if it is
damaged (page 101). Replacing a tube or tire
involves removing and re-installing the wheel
(pages 94, 96).
If You Have a Flat Tire
20YM CRF125FFB_31K28B60_FM.book 135 ページ ２０１９年３月１日 金曜日 午後１時４８分
136
Taking Care of the Unexpected
Taking Care of the Unexpected
If you are unable to repair a flat tire on the trail,
you will need to push the motorcycle back to
your base or send for help. We strongly
recommend that you do not try to ride with a
flat tire. The motorcycle will be hard to handle,
and if the tire comes off the rim, it may lock up
the wheel and cause you to crash.
All of the electrical circuits on your motorcycle
have a fuses to protect them from damage
caused by excess current flow (short circuit or
overload).
If something electrical on your motorcycle
stops working, the first thing you should check
for is a blown fuse.
Check the fuses before looking elsewhere for
another possible cause of the problem. Replace
any blown fuse and check component
operation.
Riding your motorcycle with a
temporary tire repair can be risky.
If the temporary repair fails, you can
crash and be seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully until the
tire is permanently repaired or
replaced.
If a Fuse Blows
20YM CRF125FFB_31K28B60_FM.book 136 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
137
Taking Care of the Unexpected
The main fuse is located under the seat.
The sub fuse is located behind the left side cover.
Recommended Fuses
1.To prevent an accidental short circuit, turn
the ignition switch OFF before checking or
replacing the fuse.
Main Fuse Access:
2.For access the main fuse (1), remove the seat
(page 56).
3.Remove the starter magnetic switch (2) from
the ribs (3).
4.Disconnect the wire connector (4) of the
starter magnetic switch.
5.Pull the fuse out. If the main fuse is blown
(5), install the spare main fuse (6).
6.Reconnect the wire connector.
7.Install the starter magnetic switch.
8.Install the seat.
main fuse 15 A
sub fuse 5 A
(3)
(1)
(4)
(5)
(1) main fuse
(2) starter magnetic switch
(3) ribs
(4) wire connector
(5) blown fuse
(6) spare main fuse
UNDER SEAT
(6)
(2)
20YM CRF125FFB_31K28B60_FM.book 137 ページ ２０１９年３月１日 金曜日 午後１時４８分
138
Taking Care of the Unexpected
Taking Care of the Unexpected
Sub Fuse Access:
9. For access the sub fuse (7), remove the left
side cover (page 57).
10.Open the fuse case cover (8) and pull the
sub fuse out. If the fuse is blown (9),
replace it with the spare fuse (10).
11. Close the fuse case cover and install the left
side cover.
If you do not have a replacement fuse with the
proper rating for the circuit, install one with a
lower rating.
Replacing a f use with one that has a higher
rating greatly increases the chance of damage
to the electrical system.
(7) sub fuse
(8) fuse case cover
(8)
(9) blown fuse
(10) spare fuse
(7)
(10)
(9)
20YM CRF125FFB_31K28B60_FM.book 138 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
139
Taking Care of the Unexpected
Personal safety is your first priority after a
crash. If you or anyone else has been injured,
take time to assess the severity of the injuries
and whether it is safe to continue riding. If you
cannot ride safely, send someone for help. Do
not ride if you will risk further injury.
If you decide that you are capable of riding
safely, first evaluate the condition of your
motorcycle. If the engine is still running, turn it
off and look it over carefully; inspect it for fluid
leaks, check the tightness of critical nuts and
bolts, and secure such parts as the handlebar,
control levers, brakes, and wheels.
If there is minor damage, or you are unsure
about possible damage but decide to try riding
the motorcycle back to your base, ride slowly
and cautiously.
Sometimes, crash damage is hidden or not
immediately apparent. When you get home,
thoroughly check your motorcycle and correct
any problems you find. Also, be sure to have
your dealer check the frame and suspension
after any serious crash.
If You Crash
20YM CRF125FFB_31K28B60_FM.book 139 ページ ２０１９年３月１日 金曜日 午後１時４８分
140
Taking Care of the Unexpected
Taking Care of the Unexpected
Be sure to record the key number provided with
the original keys. Store the spare key and
recorded key number in a safe location. You’ll
need this number to have a duplicate key made.
If you lose your key and aren’t carrying a
duplicate, either get your spare or have one
made. If you don’t know your key number, call
the dealer where you purchased your Honda.
They may have it listed in their records. If they
don’t, transport your motorcycle to them or the
nearest dealer. The dealer will probably have to
remove the ignition switch assembly to find the
key number so they can make a key for you.
If You Lose Your Key
20YM CRF125FFB_31K28B60_FM.book 140 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
141
Taking Care of the Unexpected
The drive chain, master link, brake lever or
pedal, control cables, and other components
can be damaged as you ride in dense brush or
over rocky terrain. Making a trailside repair
depends on how serious the damage is and what
tools and supplies you have with you.
• If the chain breaks or does other damage
when it comes off, you may not be able to
make a trailside repair.
• If the drive chain comes off because the
master link clip gets knocked off, you may be
able to put the chain back on with a new
master link. However, if the chain breaks or
does other damage when it comes off, you
may not be able to make a trailside repair.
• If any component of the front brake system is
damaged, you may be able to ride carefully
back to your base using the rear brake for
slowing or stopping.
• If the clutch lever breaks, you may be able to
temporarily switch the front brake lever to
the clutch side, then ride carefully back to
base using the rear brake for slowing or
stopping.
• If you damage a throttle cable or other
critical component, your motorcycle may be
unsafe to ride. Carefully assess the damage
and make any repairs that you can. But if
there is any doubt, it’s best to be conservative
and safe.
If a Component Fails
20YM CRF125FFB_31K28B60_FM.book 141 ページ ２０１９年３月１日 金曜日 午後１時４８分
142
Taking Care of the Unexpected
Taking Care of the Unexpected
Jump starting is not recommended, especially if
you use an automobile battery. The greater
amperage of an automobile battery when the
car engine is running can damage your
motorcycle’s electrical system.
Bump starting is also not recommended.
If you can’t charge the battery or it appears
unable to hold a charge, contact your dealer.
If Your Battery Is Low (or Dead)
20YM CRF125FFB_31K28B60_FM.book 142 ページ ２０１９年３月１日 金曜日 午後１時４８分
Taking Care of the Unexpected
143
Taking Care of the Unexpected
If the fuel pump filter is clogged, unstable
engine operation will occur intermittently while
riding.
Even if this symptom occurs, you can continue
to ride your motorcycle.
If unstable engine operation occurs even if
sufficient fuel is available, have your
motorcycle inspected by your dealer as soon as
possible.
If Unstable Engine Operation Occurs
Intermittently
20YM CRF125FFB_31K28B60_FM.book 143 ページ ２０１９年３月１日 金曜日 午後１時４８分
Technical Information
145
Technical Information
This section contains dimensions, capacities,
and other technical data, plus information on
government requirements and how to break-in
your motorcycle.
Vehicle Identification..................................146
Specifications..............................................148
Break-in Guidelines ....................................153
Emission Control Systems ..........................154
Oxygenated Fuels........................................158
20YM CRF125FFB_31K28B60_FM.book 145 ページ ２０１９年３月１日 金曜日 午後１時４８分
146
Technical Information
Vehicle Identification
The VIN and engine serial number are required
when you register your motorcycle. They may
also be required when ordering replacement
parts. You may record these numbers in the
Quick Reference section at the rear of the
manual.
The VIN (1) is stamped on the left side of the
steering head.
Serial Numbers
(1)
(1) VIN
RIGHT SIDE
20YM CRF125FFB_31K28B60_FM.book 146 ページ ２０１９年３月１日 金曜日 午後１時４８分
148
Technical Information
Specifications
Dimensions
Overall length CRF125F:
69.7 in (1,770 mm)
CRF125FB:
73.0 in (1,855 mm)
Overall width CRF125F:
29.1 in (740 mm)
CRF125FB:
30.3 in (770 mm)
Overall height CRF125F:
39.4 in (1,000 mm)
CRF125FB:
42.1 in (1,070 mm)
Wheelbase CRF125F:
48.0 in (1,220 mm)
CRF125FB:
49.4 in (1,255 mm)
Fuel & Lubricants
Fuel tank capacity
0.98 US gal (3.7 )
Fuel
recommendation
unleaded gasoline,
pump octane number
of 86 or higher
Engine oil capacity after draining:
0.9 US qt (0.85 )
after disassembly:
1.1 US qt (1.0 )
20YM CRF125FFB_31K28B60_FM.book 148 ページ ２０１９年３月１日 金曜日 午後１時４８分
Technical Information
149
Specifications
Fuel & Lubricants
Engine oil
recommendation
API Service
Classification SG or
higher except oils
labeled as energy
conserving or
resource conserving
on the circular API
service label, SAE
10W-30, JASO T 903
standard MA,
Pro Honda GN4 4-
stroke oil (USA &
Canada), or Honda 4-
stroke oil, or an
equivalent
motorcycle oil
Drive chain
lubricant
Recommended
lubricant:
Pro Honda HP Chain
Lube or an equivalent
Fuel & Lubricants
Air cleaner oil Pro Honda (USA only)
or Honda Foam Filter
Oil or an equivalent
Capacities
Passenger capacity operator only;
no passenger
Maximum weight
capacity
CRF125F:
176 lb (80 kg)
CRF125FB:
194 lb (88 kg)
Cargo capacity none
Engine Specifications
Displacement
7.6 cu-in (125 cm
3
)
Bore & stroke 2.06 X 2.28 in
(52.4 X 57.9 mm)
Compression ratio 9.0 : 1
20YM CRF125FFB_31K28B60_FM.book 149 ページ ２０１９年３月１日 金曜日 午後１時４８分
150
Technical Information
Specifications
Engine Specifications
Valve clearance
(cold)
Intake: 0.004 in
(0.10 mm)
Exhaust: 0.006 in
(0.15 mm)
Spark plug
(standard)
CPR6EA-9 (NGK)
Spark plug gap 0.031- 0.035 in
(0.80 - 0.90 mm)
Idle speed 1,400 ± 100 rpm
Power Transmission
Primary reduction 3.250
Gear ratio, 1st 3.181
2nd 1.705
3rd 1.238
4th 0.916
Final reduction CRF125F: 3.538
CRF125FB: 3.769
Final drive chain
Power Transmission
Drive chain
freeplay
1–1 3/8 in (25–35 mm)
New chain length 20.0 in (508 mm)
distance between a
span of 41 pins
Used chain service
limit length
20.4 in (518 mm)
distance between a
span of 41 pins
20YM CRF125FFB_31K28B60_FM.book 150 ページ ２０１９年３月１日 金曜日 午後１時４８分
Technical Information
151
Specifications
Chassis & Suspension
Caster 27° 30'
Trail CRF125F:
3.2 in (81 mm)
CRF125FB:
3.7 in (94 mm)
Tire size,
front
CRF125F:
70/100–17M/C 40M
CRF125FB:
70/100–19M/C 42M
Tire size,
rear
CRF125F:
90/100–14M/C 49M
CRF125FB:
90/100–16M/C 51M
Chassis & Suspension
Tire type bias-ply, tube
Tire pressure,
front (cold)
15 psi (100 kPa, 1.0 kgf/cm
2
)
Tire pressure,
rear (cold)
15 psi (100 kPa, 1.0 kgf/cm
2
)
Suspension,
front
CRF125F:
5.2 in (133 mm)
axle travel
CRF125FB:
5.9 in (151 mm)
axle travel
Suspension,
rear
CRF125F:
5.5 in (140 mm)
axle travel
CRF125FB:
6.6 in (168 mm)
axle travel
20YM CRF125FFB_31K28B60_FM.book 151 ページ ２０１９年３月１日 金曜日 午後１時４８分
152
Technical Information
Specifications
Electrical
Battery YTZ4V
12 V–3.0 Ah (10HR)
Generator 0.125 kW/5,000 rpm
Fuse
Main 15 A
Sub 5 A
Torque Specifications
Oil drain bolt 18 lbf·ft
(24 N·m, 2.4 kgf·m)
Spark arrester
mount bolts
7 lbf·ft
(10 N·m, 1.0 kgf·m)
Front axle nut 46 lbf·ft
(62 N·m, 6.3 kgf·m)
Rear axle nut 46 lbf·ft
(62 N·m, 6.3 kgf·m)
20YM CRF125FFB_31K28B60_FM.book 152 ページ ２０１９年３月１日 金曜日 午後１時４８分
Technical Information
153
Break-in Guidelines
Help assure your motorcycle’s future reliability
and performance by paying extra attention to
how you ride during the first operating day or
15 miles (25 km).
During this period, avoid full-throttle starts and
rapid acceleration.
20YM CRF125FFB_31K28B60_FM.book 153 ページ ２０１９年３月１日 金曜日 午後１時４８分
154
Technical Information
Emission Control Systems
Exhaust Emission Requirements
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment and Climate
Change Canada (ECCC) require that your
motorcycle comply with applicable exhaust
emissions standards during its useful life, when
operated and maintained according to the
instructions provided.
The Vehicle Emission Control Information
Label (1) (2) is attached to the rear fender.
Noise Emission Requirements
The EPA also requires that motorcycles built
after January 1, 1983 comply with applicable
noise emission standards for one year or
1,865 miles (3,000 km) after the time of sale to
the ultimate purchaser, when operated and
maintained according to the instructions
provided. (USA only)
(2)
(1)
(1) vehicle emission control information label
(2) vehicle emission control information label
(Canada only)
REAR FENDER
20YM CRF125FFB_31K28B60_FM.book 154 ページ ２０１９年３月１日 金曜日 午後１時４８分
Technical Information
155
Emission Control Systems
Source of Emissions
The combustion process produces carbon
monoxide (CO), oxides of nitrogen (NOx), and
hydrocarbons (HC). Control of hydrocarbons
and oxides of nitrogen is very important
because, under certain conditions, they react to
form photochemical smog when subjected to
sunlight. Carbon monoxide does not react in
the same way, but it is toxic.
Honda Motor Co., Ltd. utilizes various systems
to reduce carbon monoxide, oxides of nitrogen
and hydrocarbons.
Exhaust Emission Control System
The exhaust emission control system includes a
PGM-FI system. No adjustment to this system
should be made although periodic inspection of
the components is recommended. The exhaust
emission control system is separate from the
crankcase emission control system.
Evaporative Emission Control System
(AC type only)
An evaporative emission control system uses
pressure proof fuel tank and fuel fill cap which
maintains inside of the fuel tank at a high
pressure to keep fuel vapor in itself while the
engine is off.
An add-on or modified part must be compliant
with applicable ARB evaporative emission
control standards. A violation of this
requirement is punishable by civil and/or
criminal punishment.
Crankcase Emission Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through air
cleaner and throttle body.
20YM CRF125FFB_31K28B60_FM.book 155 ページ ２０１９年３月１日 金曜日 午後１時４８分
156
Technical Information
Emission Control Systems
Noise Emission Control System
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED: U. S. federal law
prohibits, or Canadian provincial laws may
prohibit the following acts or the causing
thereof: (1) The removal or rendering
inoperative by any person, other than for
purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
ACTS LISTED BELOW:
• Removal of, or puncturing the muffler,
baffles, header pipes, or any other component
which conducts exhaust gases.
• Removal of, or puncturing of any part of the
intake system.
• Lack of proper maintenance.
• Removing or disabling any emissions
compliance component, or replacing any
compliance component with a non-compliant
component.
20YM CRF125FFB_31K28B60_FM.book 156 ページ ２０１９年３月１日 金曜日 午後１時４８分
Technical Information
157
Emission Control Systems
Problems that May Affect Motorcycle
Emissions
If you are aware of any of the following
symptoms, have the vehicle inspected and
repaired by your Honda Motorcycle Dealer:
1.Hard starting or stalling after starting
2.Rough idle
3.Misfiring or backfiring during acceleration
4.After-burning (backfiring)
5.Poor performance (driveability) and poor
fuel economy
Federal regulations prohibit removing or
disabling a device or element of design that
may affect your engine’s emission performance
unless your motorcycle will be used
exclusively in competition. If you modify your
engine for use in sanctioned competition
events, you must deface or destroy the emission
control information label.
If you loan, sell, or give your competition
modified motorcycle to someone else,
according to applicable law, you must inform
the new owner/operator in writing that the
vehicle is to be used for competition only.
Fuel Permeation Emission Control System
This vehicle complies with the Fuel Permeation
Emission Control regulations of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and
Environment and Climate Change Canada
(ECCC).
The fuel tank, fuel hoses, and fuel vapor charge
hoses used on this vehicle incorporate fuel
permeation control technologies.
Tampering with the fuel tank, fuel hoses, or
fuel vapor charge hoses to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited by federal
regulations.
20YM CRF125FFB_31K28B60_FM.book 157 ページ ２０１９年３月１日 金曜日 午後１時４８分
158
Technical Information
Oxygenated Fuels
Some conventional gasolines are being blended
with alcohol or an ether compound. These
gasolines are collectively referred to as
oxygenated fuels. To meet clean air standards,
some areas of the United States and Canada use
oxygenated fuels to help reduce emissions.
If you use an oxygenated fuel, be sure it is
unleaded and meets the minimum octane rating
requirement.
Before using an oxygenated fuel, try to confirm
the fuel’s contents. Some states/provinces
require this information to be posted on the
pump.
The following are the EPA-approved
percentages of oxygenates:
ETHANOL (ethyl or grain alcohol) up to 10%
by volume.
You may use gasoline containing up to 10%
ethanol by volume. Gasoline containing
ethanol may be marketed under the name
‘‘Gasohol’’.
METHANOL (methyl or wood alcohol) up to
5% by volume.
You may use gasoline containing up to 5%
methanol by volume as long as it contains
cosolvents and corrosion inhibitors to protect
the fuel system. Gasoline containing more than
5% methanol by volume may cause starting
and/or performance problems. It may also
damage metal, rubber, and plastic parts of your
fuel system.
20YM CRF125FFB_31K28B60_FM.book 158 ページ ２０１９年３月１日 金曜日 午後１時４８分
Technical Information
159
Oxygenated Fuels
If you notice any undesirable operating
symptoms, try another service station or switch
to another brand of gasoline.
Fuel system damage or performance problems
resulting from the use of an oxygenated fuel
containing more than the percentages of
oxygenates mentioned above are not covered
under warranty.
Oxygenated fuels can damage paint and plastic.
Be careful not to spill fuel when filling the fuel
tank. Wipe up any spills immediately.
Oxygenated fuels can damage paint and
plastic. Damage caused by spilled fuel is not
covered under warranty.
20YM CRF125FFB_31K28B60_FM.book 159 ページ ２０１９年３月１日 金曜日 午後１時４８分
Consumer Information
161
Consumer Information
This section contains information on your
warranty and how to get an official Honda
service manual.
Authorized Manuals....................................162
Warranty Coverage .....................................164
Warranty Service.........................................165
Contacting Honda .......................................166
Your Honda Dealer.....................................167
20YM CRF125FFB_31K28B60_FM.book 161 ページ ２０１９年３月１日 金曜日 午後１時４８分
162
Consumer Information
Authorized Manuals
The Service Manual used by your authorized dealer is available from your Honda dealer or Helm,
Inc. (USA only, Canada: See your dealer to order authorized manuals.)
Also available, but not necessary to service your model, is the Honda Common Service Manual,
which explains basic service information for various systems on Honda motorcycles, scooters, and
ATV.
The Winter Storage Guide in conjunction with the Owner's Manual and Service Manual can help you
prepare your Honda motorcycle, scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the professional technician. However, if you possess the proper
tools, observe the safety standards, and are mechanically capable, you should find them easy to use.
Special Honda tools are necessary for some procedures.
Publication Item No. Description
61K2851 2020 CRF125F/FB Service Manual
61CSM00 Common Service Manual
S9507 Winter Storage Guide
31K28B60 2020 CRF125F/FB Owner’s Manual
20YM CRF125FFB_31K28B60_FM.book 162 ページ ２０１９年３月１日 金曜日 午後１時４８分
164
Consumer Information
Warranty Coverage
Your new Honda is covered by these
warranties:
• Motorcycle Limited Warranty
• Emission Control System Warranty
• Noise Control Warranty (USA only)
The information of your warranty coverage is
in the Honda Motorcycle Warranties Booklet
that was provided to you by your Honda dealer.
Please read this booklet and be aware of the
responsibilities, restrictions, and exclusions
which apply.
Please also keep your Honda owner’s card with
your Warranties Booklet.
Canada: Please refer to the Warranty Booklet
posted on our website at www.honda.ca.
It is important to realize that your warranty for
your Honda applies to defects in material or
factory workmanship. Your warranty coverage
does not apply to normal wear or deterioration
associated with using the motorcycle.
Your warranty coverage will not be voided if
you choose to perform your own maintenance.
However, you should have the proper tools and
service information and be mechanically
qualified. Failures that occur due directly to
improper maintenance or lack of maintenance
are not covered.
Almost all of your warranty coverage can be
extended through the Honda Protection Plan
(USA only). For more information, see your
dealer.
20YM CRF125FFB_31K28B60_FM.book 164 ページ ２０１９年３月１日 金曜日 午後１時４８分
Consumer Information
165
Warranty Service
Please remember that recommended
maintenance interval servicing is not included
in your warranty coverage. Additionally, your
warranty does not apply to the normal wear of
items (such as brakes, tires, etc.).
If you believe you have a problem with your
Honda, call the service department of your
dealer. Make an appointment for an inspection
and diagnosis. Remember, as the owner of the
motorcycle, you will be asked to authorize that
inspection. Your dealer will give you the results
of the inspection. If the problem is covered
under warranty, your dealer will perform the
warranty repairs for you.
If you have questions about warranty coverage
or the nature of the repair, it is best to talk to the
Service Manager of your dealer.
Sometimes, in spite of the best intentions of all
concerned, a misunderstanding may occur. If
you aren’t satisfied with your dealer’s handling
of the situation, we suggest you discuss your
problem with the appropriate member of the
dealership’s management team. If the problem
has already been reviewed with the Service
Manager, Parts Manager, Sales Manager, etc.,
contact the Owner of the dealership or his
designated representative.
20YM CRF125FFB_31K28B60_FM.book 165 ページ ２０１９年３月１日 金曜日 午後１時４８分
166
Consumer Information
Contacting Honda
Your owner’s manual was written to cover most
of the questions you might ask about your
Honda. Any questions not answered in the
owner’s manual can be answered by your
dealer. If he doesn’t have the answer right
away, he will get it for you.
If you have a difference of opinion with your
dealer, please remember that each dealership is
independently owned and operated. That’s why
it’s important to work to resolve any
differences at the dealership level.
If you wish to comment on your experiences
with your Honda or with your dealer, please
send your comments to the following address:
USA: Motorcycle Division, American Honda
Motor Co., Inc., P.O. Box 2200, Torrance, CA
90509-2200, mailstop: 100-4C-7B, telephone:
(866) 784-1870.
Canada: Honda Canada Inc., Customer
Relations Dept, 180 Honda Boulevard,
Markham, Ontario L6C 0H9, telephone: (888)
946-6329, facsimile: (877) 939-0909.
E-mail: [email protected]
Please include the following information in
your letter:
• name, address, and telephone number
• product model, year, and VIN
• date of purchase
• dealer name and address
We will likely ask your dealer to respond, or
possibly acknowledge your comments directly.
20YM CRF125FFB_31K28B60_FM.book 166 ページ ２０１９年３月１日 金曜日 午後１時４８分
Consumer Information
167
Your Honda Dealer
Once you purchase your new Honda, get
familiar with the organization of your Honda
dealer so you can utilize the full range of
services available.
The service department is there to perform
regular maintenance and unexpected repairs. It
has the latest available service information
from Honda. The service department will also
handle warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Genuine
Accessories (USA only), and Honda
accessories and products (Canada only). The
same quality that went into your Honda can be
found in Honda Genuine replacement parts.
You’ll also find comparable quality in the
accessories and products available from the
parts department.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage (USA only).
Your dealer can inform you about competition
and other riding events in your area. You’ll also
find that your dealer is a source of information
(USA only) about safety training available in
your local area.
We’re sure you’ll be as pleased with the service
your dealer continues to provide after the sale
as you are with the quality and dependability of
your Honda.
20YM CRF125FFB_31K28B60_FM.book 167 ページ ２０１９年３月１日 金曜日 午後１時４８分
168
Index
Index
accessories ....................................................10
air cleaner .....................................................67
air pressure, tires
...........................................98
altering your motorcycle
..............................11
arrester, spark ...............................................79
authorized manuals
.....................................162
bank angle sensor ignition cut-off system
....33
battery .........................................................110
brakes,
fluid level
...............................................85
lever, front ..............................................18
lever, front adjustment
...........................84
pad wear .................................................87
pedal, rear ...............................................19
shoe wear
...............................................90
braking ..........................................................36
break-in guidelines .....................................153
capacity, fuel
................................................ 59
cleaner, air
.................................................... 67
cleaning, appearance care .......................... 115
clutch system,
adjustment
.............................................. 74
lever ....................................................... 19
consumer information ................................ 161
controls, operating
........................................ 13
cover removal, left side ................................ 57
crankcase breather ........................................ 71
customer service
......................................... 166
drive chain
.................................................. 103
A
B
C
D
Index
20YM CRF125FFB_31K28B60_FM.book 168 ページ ２０１９年３月１日 金曜日 午後１時４８分
Index
169
Index
education, rider .......................................3, 167
emission control systems
............................154
emission requirements ................................154
engine number
............................................147
engine stop switch
........................................18
engine,
flooded ...................................................33
pinging
...................................................58
starting ...................................................31
stop switch .............................................18
stopping
..................................................33
won’t start ............................................131
environment, protecting ..............................126
flat tire
........................................................ 135
flooded engine, starting ................................ 33
fork
............................................................... 81
front brake,
lever
....................................................... 18
lever freeplay
......................................... 84
front suspension
........................................... 81
front wheel removal ..................................... 94
fuel reserve indicator .................................... 21
fuel,
oxygenated
........................................... 158
recommendation .................................... 58
tank capacity
.......................................... 59
fuse ............................................................. 136
E
F
20YM CRF125FFB_31K28B60_FM.book 169 ページ ２０１９年３月１日 金曜日 午後１時４８分
170
Index
Index
gap, spark plug .............................................77
gasohol ........................................................158
gasoline
.........................................................58
gears, shifting
...............................................34
Honda service manual
................................162
Honda, contacting .......................................166
ignition indicator
..........................................21
ignition switch ..............................................17
inspection,
post-ride
.................................................39
pre-ride ...................................................26
key, lost
...................................................... 140
kickstarter ..................................................... 19
left side cover removal
................................. 57
lever,
clutch
..................................................... 19
front brake ............................................. 18
shift ........................................................ 19
limit, weight
................................................... 9
loading ............................................................ 8
G
H
I
K
L
Index
20YM CRF125FFB_31K28B60_FM.book 170 ページ ２０１９年３月１日 金曜日 午後１時４８分
Index
171
Index
maintenance,
component locations ..............................52
record
.....................................................51
safety
......................................................45
schedule .................................................47
manual, service
...........................................162
modifications
................................................11
oil, engine
.....................................................61
operating controls .........................................13
operation component locations .....................14
oxygenated fuels
.........................................158
parking
......................................................... 38
pedal, rear brake ........................................... 19
pgm-fi malfunction indicator lamp (MIL)
... 20
pinging, engine
............................................. 58
plug, spark .................................................... 77
post-ride inspection
...................................... 39
pre-ride inspection
........................................ 26
rear wheel removal.
...................................... 96
rider training ...........................................3, 167
riding,
basic operation
....................................... 29
before ..................................................... 23
clothing .................................................. 24
precautions
............................................. 30
safety ........................................................ 2
rim lock ........................................................ 93
M
O
P
R
20YM CRF125FFB_31K28B60_FM.book 171 ページ ２０１９年３月１日 金曜日 午後１時４８分
172
Index
Index
schedule, maintenance ..................................47
service,
customer
...............................................166
manuals
................................................162
warranty
...............................................165
shifting gears ................................................34
shoe, brake ....................................................90
side stand
..............................................20, 102
spark arrester ................................................79
spark knock ...................................................58
spark plug
.....................................................77
specifications ..............................................148
stand, side .............................................20, 102
start button
....................................................18
starting, engine .............................................31
stop switch, engine .......................................18
stopping engine
.............................................33
storage ........................................................124
suspension,
front
....................................................... 81
rear
......................................................... 82
throttle
freeplay
.................................................. 72
operation
................................................ 18
tires,
air pressure
............................................. 98
flat ........................................................ 135
replacing.
............................................. 101
tools .............................................................. 55
towing ........................................................... 35
training, rider
..........................................3, 167
transporting ................................................ 122
troubleshooting, starting ............................. 131
S
T
Index
20YM CRF125FFB_31K28B60_FM.book 172 ページ ２０１９年３月１日 金曜日 午後１時４８分
Index
173
Index
vehicle identification no. (VIN) .................146 warranty,
coverage ............................................... 164
extended
............................................... 164
service
.................................................. 165
washing your motorcycle ........................... 116
weight limit
.................................................... 9
wheels
........................................................... 92
V W
20YM CRF125FFB_31K28B60_FM.book 173 ページ ２０１９年３月１日 金曜日 午後１時４８分
174
Memo
20YM CRF125FFB_31K28B60_FM.book 174 ページ ２０１９年３月１日 金曜日 午後１時４８分
Memo
175
20YM CRF125FFB_31K28B60_FM.book 175 ページ ２０１９年３月１日 金曜日 午後１時４８分
176
Memo
20YM CRF125FFB_31K28B60_FM.book 176 ページ ２０１９年３月１日 金曜日 午後１時４８分
Quick Reference
Quick Reference
The following is a brief, but important
collection of information you need to know
about your Honda. You’ll also find space to
record important notes.
Your Honda engine can be the most expensive
component to repair. Proper maintenance,
especially the use of the recommended fluids
and filters, prevents premature wear and
damage.
Frequent causes of costly engine repairs are:
• Engine oil -- insufficient quantity, improper
oil.
• Air cleaner -- dirty, cleaned but not oiled,
leaking because of improper installation
(poor seal).
Frequent causes of costly chassis repair are:
• Chain -- A loosely adjusted chain or a chain
stretched because of lack of lubrication may
come off and damage an engine case or
wheel hub.
• Spokes -- Loose spoke may break and
damage the wheel hub or rim.
Record important information on the following
page:
How To Avoid Costly Repairs
20YM CRF125FFB_31K28B60_FM.book 177 ページ ２０１９年３月１日 金曜日 午後１時４８分
Quick Reference
Quick Reference
Initial Maintenance about 100 miles (150 km) or 1 month.
Regular Maintenance about every 600 miles (1,000 km) or 6 months.
Pre-ride Inspection Check the following items each time before you ride (page 26): tires, spokes & rims, leaks,
engine oil, fuel, drive chain, cables, nuts & bolts, spark plug & cap, throttle, brakes, and
clutch lever.
Fuel/Capacity unleaded gasoline, pump octane number of 86 or higher
tank: 0.98 US gal (3.7 )
Engine Oil/Capacity API Service Classification SG or higher except oils labeled as energy conserving or resource
conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil (USA & Canada), or Honda 4-stroke oil, or an equivalent
motorcycle oil
after draining: 0.9 US qt (0.85 )
Maximum Weight
Capacity
CRF125F: 176 lb (80 kg)
CRF125FB: 194 lb (88 kg)
rider only (no passenger or cargo) and any accessories
Tires Front: CRF125F: 70/100–17M/C 40M CRF125FB: 70/100–19M/C 42M
Rear: CRF125F: 90/100–14M/C 49M CRF125FB: 90/100–16M/C 51M
Type: bias-ply, tube
Tire Pressure (cold)
Front: 15 psi (100 kPa , 1.0 kgf/cm
2
)
Rear 15 psi (100 kPa , 1.0 kgf/cm
2
)
Spark Plug CPR6EA-9 (NGK)
Fuse main: 15 A
sub: 5 A
20YM CRF125FFB_31K28B60_FM.book 179 ページ ２０１９年３月１日 金曜日 午後１時４８分
