Westinghouse WHOF04B 7.2L Opti-Fry Air Fryer User Manual

Air Fryer User Manual

SAFETY INFORMATION

Read all instructions carefully before using your new Air Fryer.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
DANGER: Do not operate the appliance if: i) the cord or plug is split, melted or damaged. ii) the appliance has malfunctioned. iii) the appliance has been damaged in any manner.
If any of the above incidents occur, return your unit to the nearest authorised service center for examination, repair or adjustment.
DANGER: Do not under any circumstances immerse the power cord, mains plug or appliance body in water or any other liquid.
WARNING: Use handle grip and buttons only as some surfaces may become warm whilst the Appliance is in use.
WARNING: If the mains supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly person in order to avoid a hazard.
WARNING: Do not cover the Appliance whilst in operation as the air inlet and outlet vents must be kept clear.
WARNING: Ensure drip tray is cleaned regularly as build-up of oils and fats re hazard.
WARNING: Exercise caution when removing the cooking basket and drip tray from the Air Fryer.
WARNING: The insides of the appliance will become very hot during and after operation. Do not touch.
WARNING: Do not move Air Fryer whilst food is present in the basket as hot liquids may have collected in the drip tray and may leak out whilst moving.
WARNING: Combustible materials such as paper, curtains, tablecloths, kitchen towels etc should not be placed near the Air Fryer whilst in operation.
WARNING: Do not place the Air Fryer against a wall or against another appliance. Leave at least 10cm free space on the back and sides and 10cm free space above the Air Fryer.
WARNING: Exercise caution when removing the basket and drip tray as hot steam and air will expel from the Air Fryer.
WARNING: Immediately unplug the Air Fryer if you see any smoke coming from the unit. Wait for the smoke to stop before removing the basket and drip tray from the Air Fryer.
CAUTION: Close supervision is necessary when this appliance is used by or near children.
CAUTION: Keep the Air Fryer and its cord out of reach of children less than 8 years old.
CAUTION: Wait for the Air Fryer to cool before moving. Carry only by the outer side panels.
CAUTION: During operation, hot steam is released through the air vent openings. Keep your hands and other body parts at a safe distance from the air vent openings.
CAUTION: Allow 30 minutes to cool down after cooking before handling or cleaning.
This Air Fryer is not intended to be operated by means of an external timer or separate remote-control system.
Any appliance that has been dropped or damaged should not be used until examined by an authorised service center.
Do not permit the mains supply cord or plug to touch hot objects or allow the power cord to lay across the Air Fryer.
This appliance is deemed for use indoors only.
Do not use harsh or abrasive cleaning agents. The outside surface may be wiped clean with a soft, damp cloth and dried thoroughly. If necessary, a mild dishwashing detergent may be applied to the cloth but not directly applied to the
Appliance.
Children should not play with the Air Fryer.
Your Air Fryer should not be unattended while in use.
This Air Fryer should not be used in a commercial environment such as a restaurant, hotel or hostel dining room.
Always use this Air Fryer with a power outlet of the voltage (A.C. only) marked on the back of the Air Fryer.
Do not use the Air Fryer for any purpose other than its intended use.
Do not place your Air Fryer on or near a hot gas e, electric element, heated oven or any hot surface.
Do not place the Air Fryer on top of any other appliance.
Do not allow the power cord of this Air Fryer to hang over the edge of a table or benchtop.
Keep liquids away from the Air Fryer. cooking basket past the max level indicated on the basket.
Do not place anything on top of the Air Fryer.
Ensure the appliance in placed on a horizontal, even and stable surface.

ELECTRICAL REQUIREMENTS

POWER SUPPLY CORD

Do not attempt to modify the power cord or plug in any way.
A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord.
If the power supply cord is too short, do not use an extension cord. Have a ceman install an outlet near the appliance.

NOTE: Neither Westinghouse nor the retailer can accept any liability for damage to the product or personal injury resulting due to failure to observe the electrical connection procedures.

INSTALLATION GUIDE

Carefully unpack your Air Fryer.
Carefully remove packaging around the Air Fryer and power cord. Do not remove warning labels.
Wash accessories, cooking basket and drip tray before use.

DANGER: Do not under any circumstances immerse the Air Fryer, mains cord or mains plug in water or any other liquid.

SETUP AND USE

1. Temperature control knob.
2. Timer knob.
3. Basket.
4. Basket release button and button guard.
5. Basket handle.
6. Drip tray.
7. Outlet air vent (back of unit).

OPTI-FRY OPERATION

Before first use, the basket and drip tray must be cleaned. Wash with hot water and mild detergent, rinse with fresh water and dry thoroughly. Do not use abrasive cleaning products or abrasive sponges when cleaning.
We recommend the unit complete a 10 minute cycle without any food present
1. Ensure unit is unplugged from wall power outlet.
2. Insert drip tray and basket back into the Air Fryer after cleaning process.
3. Ensure timer is set to 0, plug the power cord into the wall power outlet and turn on.
4. Using the temperature and timer knobs on the top of the Air Fryer, set temperature to 200 degrees and timer for 10 minutes. The timer will automatically switch off the unit after the 10 minute cycle is complete. (See Fig. 6 and Fig. 7)
5. Once cycle has been completed, your Air Fryer is ready for use.
6. WARNING: Please exercise caution when removing the basket and drip tray as it will be very hot.
Remove basket and drip tray from your Air Fryer by gripping the basket handle and pulling in an outward motion. (See Fig. 1)
Release basket from drip tray by pressing the release button. (See Fig. 2)
Place your ingredients into the basket (See Fig. 3)
Put the basket back into the drip tray and ensure it is locked into position. The basket should click into place. (See Fig. 4)
Slide the basket and drip tray back into the Air Fryer and push in an inwards direction until closed. (See Fig. 5)
Turn the temperature control knob to the desired setting. (See Fig. 6) See section cooking temperature and times for guidance (See Page 6).
Determine the required preparation time for the food via the cooking temperatures and times page and turn timer clockwise to the desired time. (See Fig. 7) The Air Fryer will now begin the cooking cycle. (See Page 6)
The cycle may need to be interrupted during cycle for turning or agitation of ingredients. Refer cooking temperatures and times (See Page 6) To interrupt the cycle, slowly pull the basket handle outwards and keep clear of steam released from Air Fryer. The Air Fryer will automatically cease operation. You may now remove the basket from the drip tray using the release button on the drip tray to turn or agitate the ingredients.
Once the time cycle has been completed, remove the basket and drip tray using the basket handle. (See Fig. 1)

WARNING: Use caution removing the basket and drip tray as hot steam and air will expel from the Air Fryer.

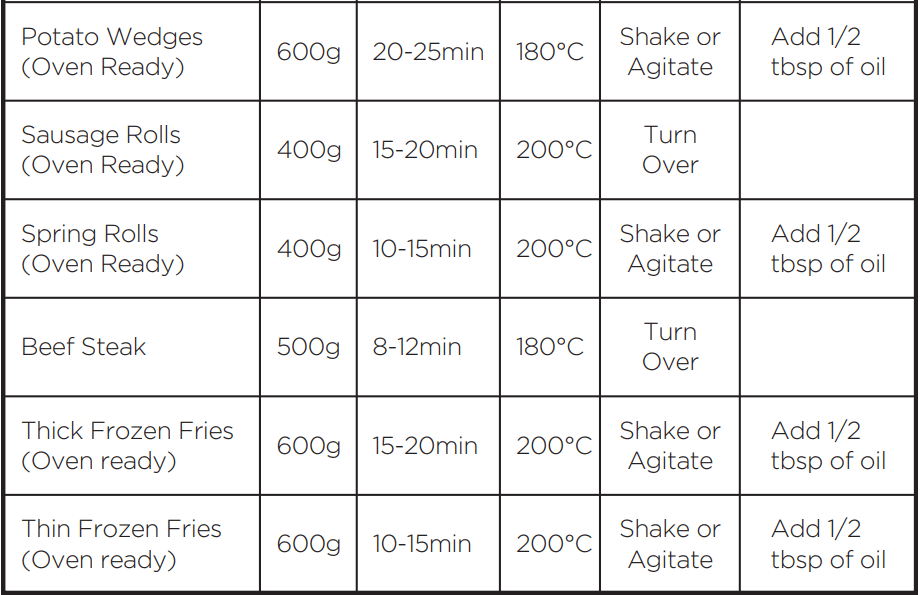

COOKING TEMPERATURE & TIMES

CLEANING AND CARE

CAUTION: Allow 30 minutes to cool down after cooking before handling or cleaning.

CLEANING:

WARNING: Do not under any circumstances immerse the power cord, mains plug or Air Fryer body in water or any other liquid.
Ensure unit is unplugged from wall power switch before attempting to clean.
Do not use harsh or abrasive cleaning agents. The outside surface may be wiped clean with a soft, damp cloth and dried thoroughly. If necessary, a mild dishwashing detergent may be applied to the cloth but not directly applied to the Air Fryer.
Soaking the basket and drip tray in soapy water will assist in the removal of sticky or tough to remove substances. Do not immerse the basket handle.
When washing, non-abrasive cloths and plastic bristle kitchen brushes may be used to remove stubborn food particles from the basket and drip tray. Do not use abrasive cloths and cleaning materials as they will damage the surface.
Do not place the basket or drip tray into a dishwasher. They are not dishwasher safe.
Ensure all items are dried thoroughly after cleaning and placed back into the Air Fryer for storage.
Store in a dry place away from steam and humidity where possible.

TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

If the Air Fryer fails to operate:

Check to make sure the Air Fryer is plugged in correctly and securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it back in securely.
Check for a blown or tripped circuit breaker in your home. If these seem to be working correctly, test another appliance in the same outlet to ensure the outlet is working correctly.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, DO NOT TRY TO ADJUST OR REPAIR THE AIR FRYER YOURSELF.

Troubleshoot your problem by using the chart. If the Air Fryer still does not operate correctly, it may be defective.

TROUBLE	POSSIBLE CAUSE	POSSIBLE REMEDY
Air Fryer does not turn on.	Air Fryer is not plugged in.	Check that Air Fryer is plugged into a working power outlet and turned on.
Air Fryer does not turn on.	Timer not set.	Turn the timer knob to the desired position. The Air Fryer will start automatically.
Air Fryer does not turn on.	Basket & drip tray not inserted properly.	Remove basket, check for obstructions then re-insert basket and drip tray. The Air Fryer will start automatically.
Foods have not cooked properly.	Too much in the basket.	Remove excess foods from basket and try with smaller batches.
Foods have not cooked properly.	Temperature set too low or timer not set for correct amount of time.	Check temperature and times page for temperature and time setting. Set temperature knob and timer knob to correct settings.
Foods have cooked unevenly.	Turning / agitation during the cooking cycle not completed.	Foods that lay across one another (eg. Fries) need to be turned or agitated during cooking cycle. Interrupt cycle half way through cycle, remove basket and turn / agitate foods.
Foods are not crispy when they come out of the Air Fryer.	Foods were not oven ready or were made to be cooked in a traditional deep fryer.	Use oven ready foods or lightly brush some oil onto the foods prior to cooking. For best results, mix ingredients with ½ tbsp. oil in a mixing bowl prior to cooking.
Basket will not fit back into Air Fryer.	Too much food in basket	Do not fill basket past the max indicator on the basket. Remove some food from basket and try again.
Basket will not fit back into Air Fryer.	Obstruction.	Remove basket and drip tray from Air Fryer, check for obstructions and try again.
White smoke coming from appliance.	Foods oily or greasy.	Very oily of greasy foods drip excessive amounts of oil and fats onto the oil catch tray which may heat up and burn off. This is considered normal. Ensure drip tray is cleaned after each use.
