DIGITAL VIDEO DISC RECORDER &
VIDEO CASSETTE RECORDER
WITH DIGITAL TUNER
DVDR3545V/37
User Manual
STOP
ARRÊT
ALTO
Recording Playback EditingIntroduction Connections Basic Setup Function Setup VCR Functions
Others
E9H90UD.indd 1E9H90UD.indd 1 2007/06/20 13:35:482007/06/20 13:35:48
2EN2EN
PRECAUTIONS
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below,
so don't miss out. Complete and return your Product Registration Card at once, or register online at
www.philips.com/welcome to ensure:
Return your Product Registration Card or register online at
www.philips.com/welcome today to get the very most from your purchase.
Know these
safety symbols
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
*Proof of
Purchase
Returning the enclosed card guar-
antees that your date of purchase
will be on file, so no additional
paperwork will be required from
you to obtain warranty service.
*Product Safety
Notification
By registering your product, you'll
receive notification - directly from
the manufacturer - in the rare
case of a product recall or safety
defect.
*Additional
Benefits
Registering your product guar-
antees that you'll receive all of
the privileges to which you're
entitled, including special money-
saving offers.
Visit our World Wide Web Site at http://www.philips.com/welcome
For Customer Use
Enter below the Serial No. which is located on the rear of
the cabinet. Retain this information for future
reference.
Model No. _______________________________________
Serial No. _______________________________________
This “bolt of lightning” indicates uninsulated material
within your unit may cause an electrical shock. For
the safety of everyone in your household, please do
not remove product covering.
The “exclamation point” calls attention to features
for which you should read the enclosed literature
closely to prevent operating and maintenance
problems.
WARNING: To reduce the risk of fire or electric
shock, this apparatus should not be exposed to rain or
moisture, and objects filled with liquids, such as vases,
should not be placed on this apparatus.
CAUTION: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la
lame la plus large de la fiche dans la borne correspondante de
la prise et pousser jusqu’au fond.
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.
You’ve selected one of the best-built, best-
backed products available today. We’ll do
everything in our power to keep you happy
with your purchase for many years to come.
As a member of the PHILIPS “family,” you’re
entitled to protection by one of the most
comprehensive warranties and outstanding
service networks in the industry. What’s more,
your purchase guarantees you’ll receive all
the information and special offers for which
you qualify, plus easy access to accessories
from our convenient home shopping
network.
Most importantly, you can count on our
uncompromising commitment to your total
satisfaction.
All of this is our way of saying welcome - and
thanks for investing in a PHILIPS product.
P.S. To get the most from your PHILIPS
purchase, be sure to complete and
return your Product Registration Card
at once, or register online at:
www.philips.com/welcome
E9H90UD.indd 2E9H90UD.indd 2 2007/05/16 15:43:442007/05/16 15:43:44
3EN 3EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup VCR Functions
Others
PRECAUTIONS
Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as practical.

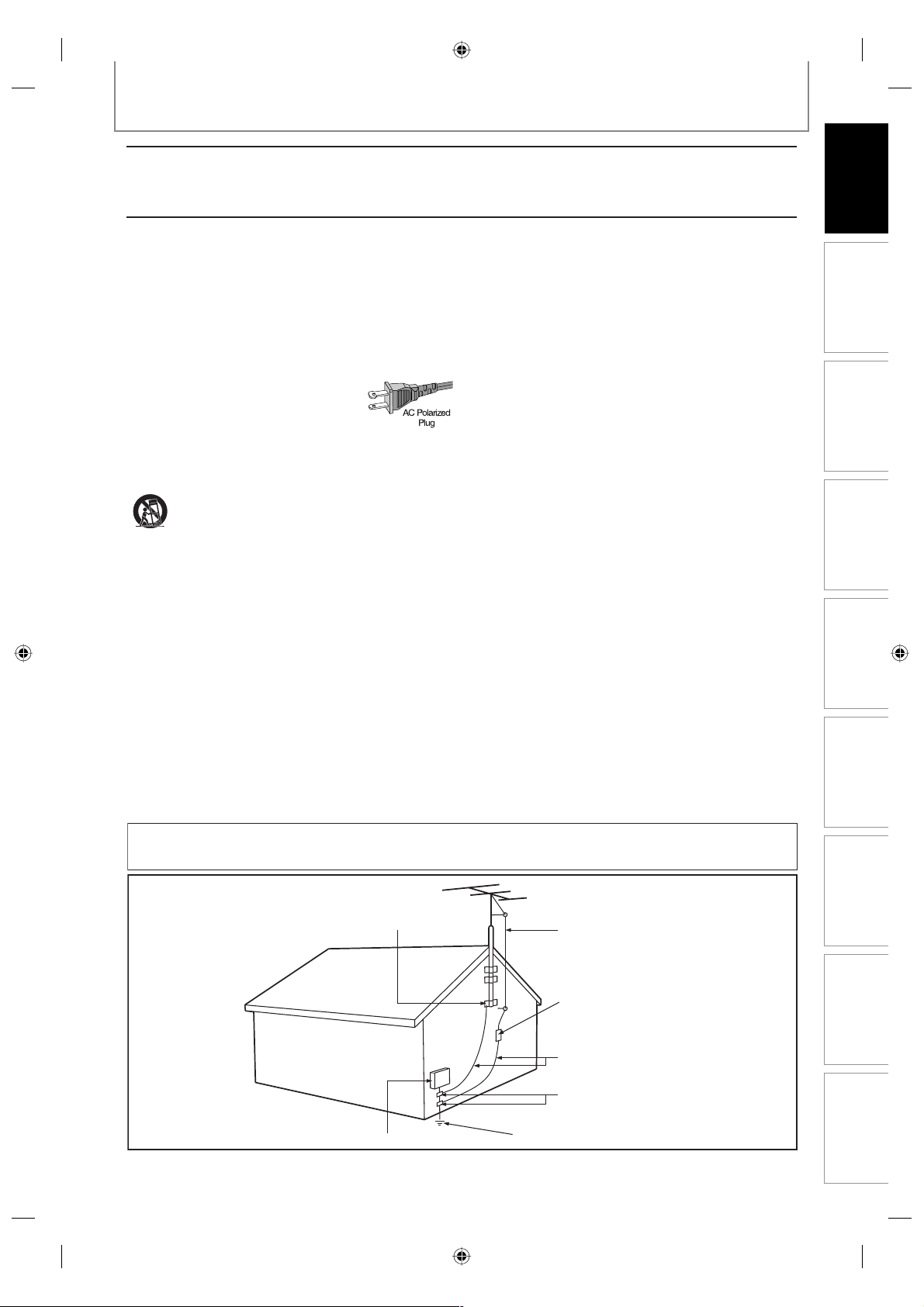

ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
Example of Antenna Grounding
as per NEC - National Electric Code
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance
with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and third
grounding prong. The wide blade or third prong
are provided for your safety. When the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
Use only with a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus combi-
nation to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects
have fallen into apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. This product may contain lead and mercury. Disposal of these materi-
als may be regulated due to environmental considerations. For dis-
posal or recycling information, please contact your local authorities or
the Electronic Industries Alliance: www.eiae.org
16. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
17. Tilt/Stability - All televisions must comply with recommended inter-
national global safety standards for tilt and stability properties of its
cabinet design.
●
Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet which could ultimately
overturn the product.
●
Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could unsus-
pectingly fall from the top of the set and cause product damage
and/or personal injury.
18. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
19. Power Lines - An outdoor antenna should be located away from
power lines.
20. Outdoor Antenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70- 1984,
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding connectors, location of antenna-dis-
charge unit, connection to grounding electrodes, and requirements
for the grounding electrode. See Figure below.
21. Object and Liquid Entry - Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through openings.
a) Warning: To reduce the risk of fire or electric shock, this apparatus
should not be exposed to rain or moisture and objects filled with
liquids, such as vases, should not be placed on this apparatus.
22. Battery Usage CAUTION - To prevent battery leakage that may result
in bodily injury, property damage, or damage to the unit:
●
Install all batteries correctly, with + and - aligned as marked on the
unit.
●
Do not mix batteries (old and new or carbon and alkaline, etc.).
●
Remove batteries when the unit is not used for a long time.
23. Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of fire or
electric shock.
24. Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
25. Replacement Parts - When replacement parts are required, be sure
the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
26. Safety Check - Upon completion of any service or repairs to this prod-
uct, ask the service technician to perform safety checks to determine
that the product is in proper operating condition.
AC Polarized
Plug
E9H90UD.indd 3E9H90UD.indd 3 2007/05/16 15:43:442007/05/16 15:43:44
4EN4EN
PRECAUTIONS
Welcome!
This product lets you record on DVD and cassette tape and play back DVD/CD/cassette tape.
Read this user manual carefully to learn how to use the features described in this manual.
Safety Precautions
Warning: To prevent fire or shock hazard, do not expose this device to rain or moisture.
Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifications to this device
void the user’s authority to operate it.
• Do not stand the unit up vertically. Install the unit in a horizontal and stable position.
• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.
Department of Health and Human Services (DHHS) Certification: Complies with 21 Center for Radiation (CFR)
chapter 1 subchapter J applicable at time of manufacture.
Laser Safety: This unit employs a laser. Only a qualified service person should remove the cover or attempt to
service this device, due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO
BEAM. THE BEAM IS LOCATED INSIDE, NEAR THE DECK MECHANISM.
Special Information for Canadian Users: This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada.
Radio/TV Interference: This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the device and the receiver.
3) Connect the device into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
Copyright Notice: The making of unauthorized copies of copy-protected material, including computer programs,
files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This
device should not be used for such purposes.
Copyright Protection: Unauthorized copying, broadcasting, public performance, and lending of Discs are
prohibited.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Notice for Progressive Scan Use: Consumers should note that not all high definition television sets are fully
compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with
525 (480) progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’
output. If there are questions regarding your TV set compatibility with this 525p (480p) DVD player, please contact our
customer service center.
Declaration of Conformity
Model Number: DVDR3545V/37
Trade Name: Philips
Responsible Party: Philips Consumer Electronics Company
Marietta, GA 30006-0026
1-888-PHILIPS (744-5477)
Copyright 2007 Philips. All rights reserved.
E9H90UD.indd 4E9H90UD.indd 4 2007/05/16 15:43:462007/05/16 15:43:46
5EN 5EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup VCR Functions
Others
PRECAUTIONS
User Manual
Supplied Accessories
remote control
with batteries
(AAAx2)
RF coaxial cable RCA audio/video
cables
user manual quick start guide
For safety and optimum performance of this unit:
• Install the unit in a horizontal and stable position. Do
not place anything directly on top of the unit. Do not
place the unit directly on top of the TV.
• Shield it from direct sunlight and keep it away from
devices of intense heat. Avoid dusty or humid places.
Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes on
the sides of the unit. Avoid locations subject to strong
vibration or strong magnetic fields.
Servicing
• Please refer to relevant topics on “TROUBLESHOOTING”
on pages 107-111 before returning the product.
• If you need to call a customer service representative,
please know the model number and serial number of
your product before you call. This information is
displayed on the back of the product. Also, please take
a moment to identify the problem you are having, and
be prepared to explain this to the representative. If you
believe the representative will need to help you with
operations, please stay near the product. Our
representatives will be happy to assist you. For online
reference, please visit our web site at http://www.
philips.com/welcome
Cleaning the cabinet
• Wipe the front panel and other exterior surfaces of the
unit with a soft, slightly damp cloth.
• Never use a solvent, thinner, benzene or alcohol to
clean the unit. Do not spray insecticide liquid near the
unit. Such chemicals may discolor the surface or
damage the unit.
Cleaning discs
• When a disc becomes dirty, clean it with a cleaning
cloth. Wipe the disc from the center to out. Do not
wipe in a circular motion.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, detergent, abrasive
cleaning agents or antistatic spray intended for analog
records.
Cleaning the disc lens
• If this unit still does not perform properly although you
refer to the relevant sections and to
“TROUBLESHOOTING” in this user manual, the laser
optical pickup unit may be dirty. Consult your dealer or
an Authorized Service Center for inspection and
cleaning of the laser optical pickup unit.
Disc handling
• Handle the discs so that fingerprints and dust do not
adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is
not used.
Dolby Digital Recording
“Dolby® Digital Recording enables consumers to record
high-quality video with stereo sound on recordable DVD
discs. The technology, when utilized instead of PCM
recording, also saves recordable disc space, allowing for
higher video resolution or extended recording time on
each DVD. DVDs created using Dolby Digital Recording
will play back on all DVD-video players.”
Note: This is true when the players are compatible with
actual recordable DVD discs.
Installation Location
Maintenance
Manufactured under license from
Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo and High-
Definition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC.
Moisture condensation may occur inside the unit when it
is moved from a cold place to a warm place or after
heating a cold room or under conditions of high
humidity. Do not use this unit at least for 2 hours until its
inside gets dry.
Moisture Condensation Warning
Auto head cleaning
• Automatically cleans video heads as you insert or
remove a cassette, so you can see a clear picture.
• Playback picture may become blurred or interrupted
while the TV program reception is clear. Dirt
accumulated on the video heads after a long period of
use, or the usage of rental or worn tapes can cause this
problem. If a streaky or snowy picture appears during
playback, the video heads in your unit may need to be
cleaned.
1. Please visit your local Audio/Video store and purchase a
good quality VHS video head cleaner.
2. If a video head cleaner does not solve the problem,
please consult your dealer or an Authorized Service
Center.
Note
• Remember to read the instructions along with the video
head cleaner before use.
• Clean video heads only when problems occur.
E9H90UD.indd 5E9H90UD.indd 5 2007/05/16 15:43:462007/05/16 15:43:46
6EN6EN
CONTENTS
Introduction
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols Used in this User Manual . . . . . . . . . . . . . . . . . . .9
FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . 10

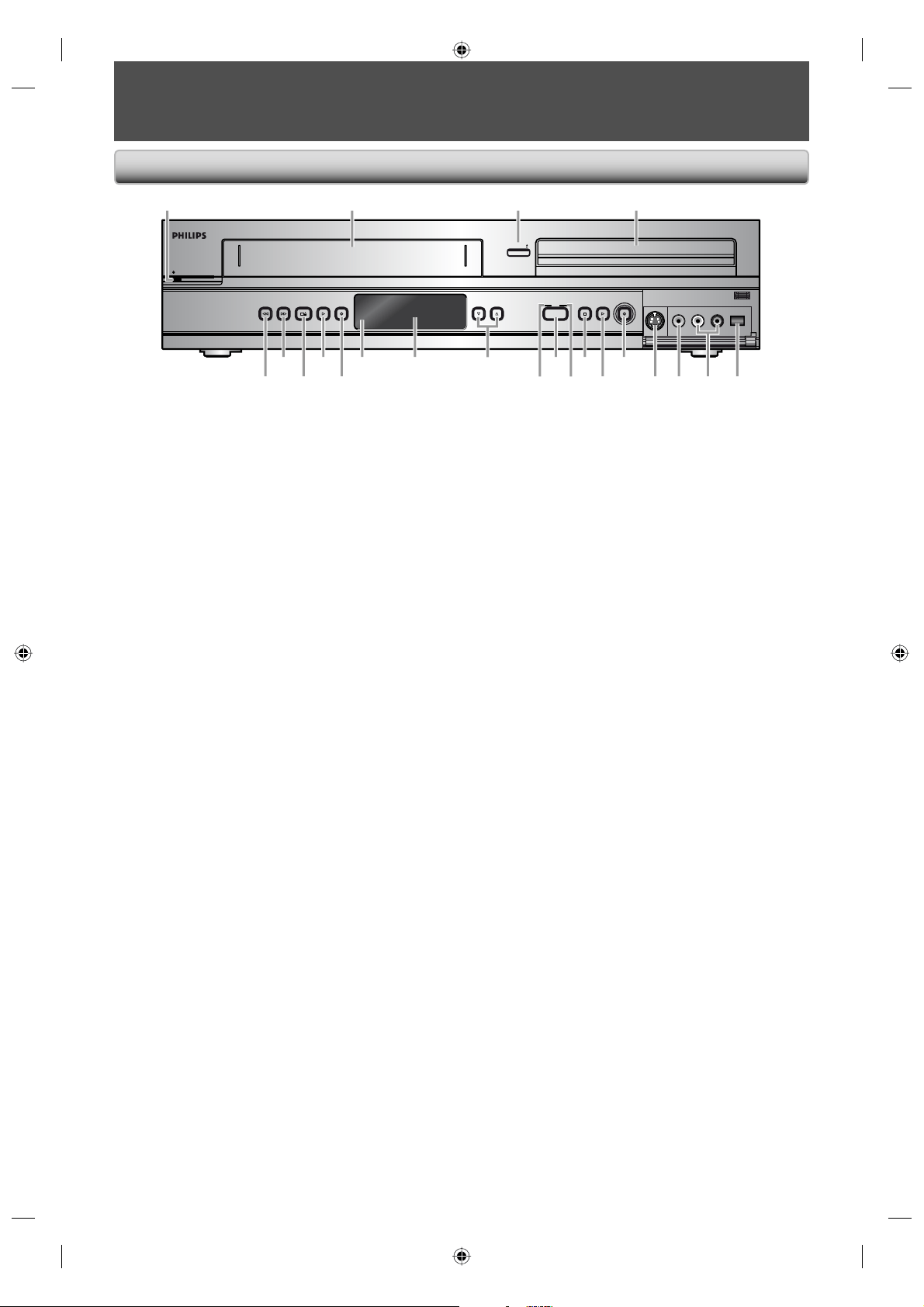

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Panel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connections

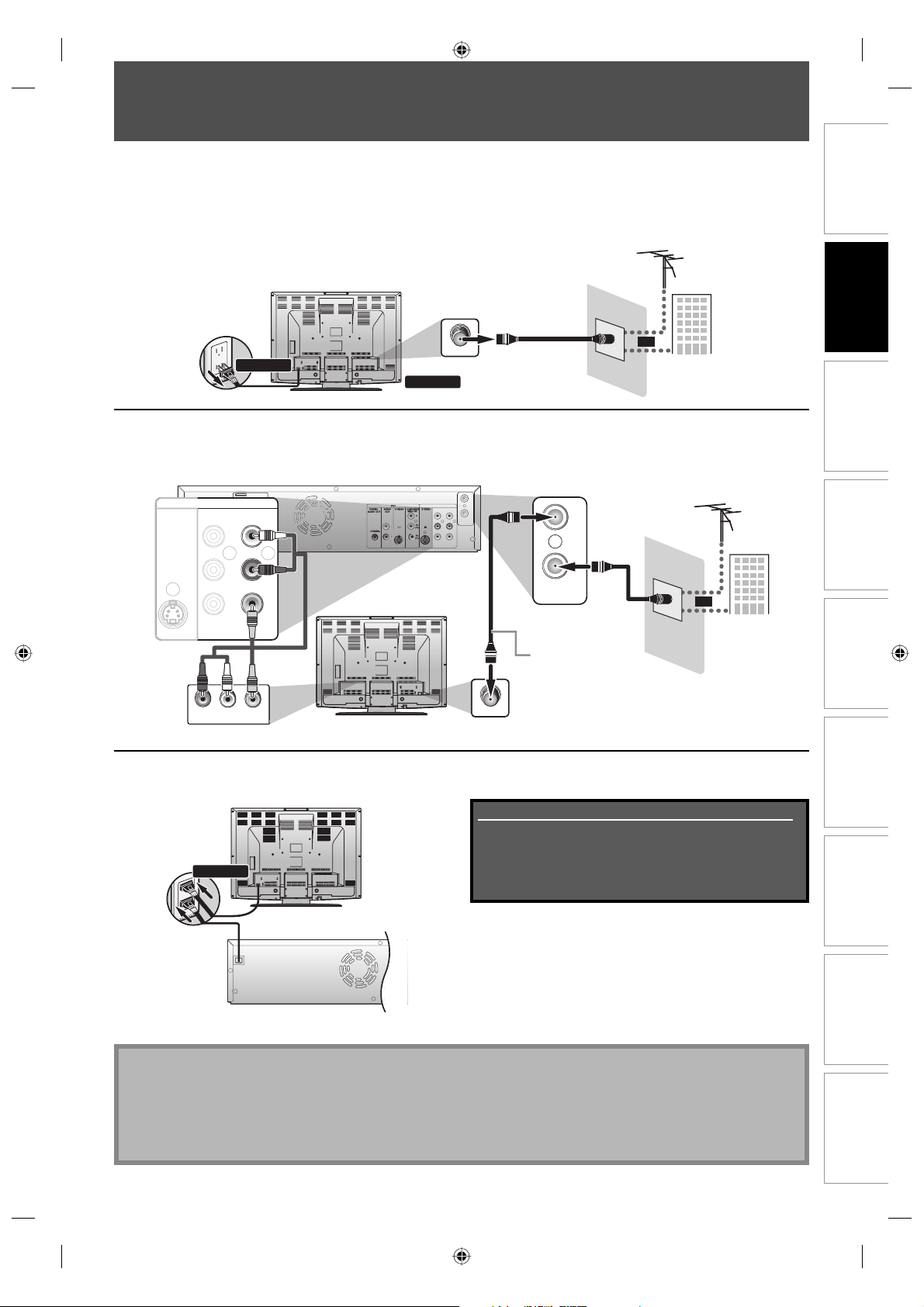

ANTENNA CABLE CONNECTION . . . . . . . . . . . . . . . . . . 15
RF MODULATOR CONNECTION. . . . . . . . . . . . . . . . . . . 16
CONNECTION TO A CABLE / SATELLITE BOX. . . . . . . 17
CONNECTION TO A TV. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CONNECTION TO AN AUDIO SYSTEM . . . . . . . . . . . . . 20
Basic Setup
BEFORE YOU START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Finding the Viewing Channel on Your TV . . . . . . . . . . 21
On-Screen Display / Menu . . . . . . . . . . . . . . . . . . . . . . . . . 22
Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Switching VCR / DVD Mode. . . . . . . . . . . . . . . . . . . . . . . . 25

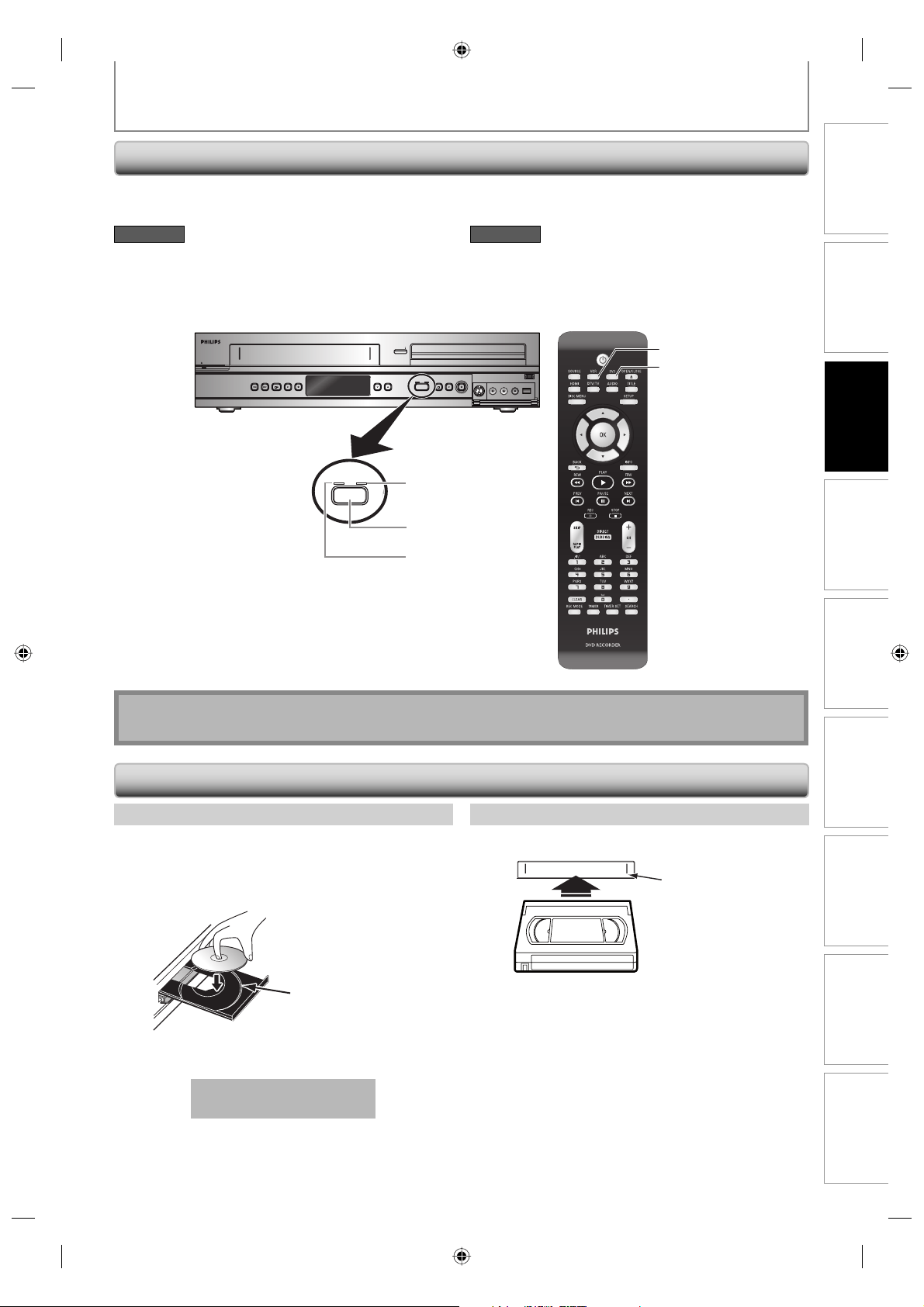

How to Insert a Disc / Cassette Tape . . . . . . . . . . . . . . . 25
INITIAL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
CHANNEL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Auto Channel Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Adding / Deleting Channels . . . . . . . . . . . . . . . . . . . . . . . 28
SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Auto Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Manual Clock Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Daylight Saving Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
TUNER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Switching Analog Mode / Digital Mode . . . . . . . . . . . . 32
Channel Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting TV Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
DTV Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Closed Caption Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Recording
INFORMATION ON DVD RECORDING . . . . . . . . . . . . . 38
BEFORE RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Make Recording Compatible . . . . . . . . . . . . . . . . . . . . . . 39
Setting for Auto Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . 39
BASIC RECORDING &
ONE-TOUCH TIMER RECORDING . . . . . . . . . . . . . . . . . 40
TIMER RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Hints for Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . 45
OVERWRITING UNNECESSARY TITLE . . . . . . . . . . . . . 46
Overwriting from the Beginning of the Title. . . . . . . . 46
Overwriting in the Middle of the Title. . . . . . . . . . . . . . 46
Hints for Overwriting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
SETTINGS FOR AN EXTERNAL DEVICE . . . . . . . . . . . . 48
Connection to an External Device. . . . . . . . . . . . . . . . . . 48
Recording from an External Device . . . . . . . . . . . . . . . . 49
DV DUBBING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Guide to DV and On-Screen Display . . . . . . . . . . . . . . . 50
DVC to DVD Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
DVC to VCR Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
BI-DIRECTIONAL DUBBING . . . . . . . . . . . . . . . . . . . . . . 53
SETTING A DISC TO PROTECT . . . . . . . . . . . . . . . . . . . . 55
PLAYING THE DISCS ON OTHER DVD PLAYERS . . . . 56
Finalizing a Disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Auto Finalizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
E9H90UD.indd 6E9H90UD.indd 6 2007/05/16 15:43:472007/05/16 15:43:47
7EN 7EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup VCR Functions
Others
CONTENTS
Playback
INFORMATION ON PLAYBACK . . . . . . . . . . . . . . . . . . . 58
BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Direct Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Playback from the Title List . . . . . . . . . . . . . . . . . . . . . . . . 61
Playing Back an Audio CD and a CD-RW/-R
with MP3/Windows Media™ Audio/JPEG Files . . . . . . 63
Playing Back a DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Using the Title / Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . 66
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
SPECIAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Fast Forward / Fast Reverse Playback . . . . . . . . . . . . . . 67
Skipping TV Commercials During Playback. . . . . . . . . 67
Rapid Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Step by Step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Slow Forward / Slow Reverse Playback. . . . . . . . . . . . . 68
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Marker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Program Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
SELECTING THE FORMAT OF AUDIO AND VIDEO . . 74
Switching Subtitles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Switching Audio Soundtrack . . . . . . . . . . . . . . . . . . . . . . 74
Switching Virtual Surround System . . . . . . . . . . . . . . . . 75
Switching Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . 75
Reducing Block Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Editing
INFORMATION ON DISC EDITING. . . . . . . . . . . . . . . . . 76
Guide to a Title List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Editing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
EDITING DISCS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Deleting Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Putting Names on Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Setting Chapter Marks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Clearing Chapter Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Hiding Chapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Setting Pictures for Thumbnails. . . . . . . . . . . . . . . . . . . . 83
Dividing a Title. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Putting Name on Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Setting or Releasing Disc Protect . . . . . . . . . . . . . . . . . . 86
Erasing Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Making Edits Compatible. . . . . . . . . . . . . . . . . . . . . . . . . . 88
Function Setup
LIST OF SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
SETUPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Reset All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
VCR Functions
VCR FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
One-touch Timer Recording (OTR) . . . . . . . . . . . . . . . . 105
Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Other Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Others
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Frequently Asked Questions. . . . . . . . . . . . . . . . . . . . . . 111
LANGUAGE CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
E9H90UD.indd 7E9H90UD.indd 7 2007/05/16 15:43:472007/05/16 15:43:47
8EN8EN
FEATURES
This unit not only plays back DVD, CD and VCR but also offers features for you to record on DVD and edit them after
that. The following features are offered with this unit.
This unit is compatible with DVD+RW/DVD-RW, which
are rewritable repeatedly and DVD+R/DVD-R, which are
available for recording once. Even if you choose DVD-
RW/DVD-R, these discs will automatically be recorded in
the DVD+VR mode. Also, this unit allows you to record
to the cassette tape. You can choose either one for your
convenience.
DVD mode
VCR mode
Up to 12 program recording:
You can program the unit to record up to 12 programs
within a one-month period. Daily or weekly program
recordings are also available.
One-touch timer recording (OTR):
You can easily set a recording time as you prefer. Every
time [REC I] is pressed during recording, the recording
time will be increased by 30 minutes up to 6 hours for
DVD, and 8 hours for VCR. The recording automatically
stops when the recording time you set is reached or the
disc is full.
Dubbing mode:
You can copy a DVD to a cassette tape or copy a cassette
tape to a DVD. This function will be possible only if the
DVD or a cassette tape is not copy protected.
You cannot record on a cassette tape when its erase-pro-
tection tab is removed.
DV dubbing:
This function helps you to easily dub the contents of the
DVC (digital video camcorder) to DVD or cassette tape.
Left channel stereo recording:
This unit can record the sound of the left channel mon-
aural input as left and right channels automatically (the
input from the E1 and E2 only).
DVD mode
Automatic chapter mark setting:
Chapter marks will be put on recordings as you set before
attempting to record.
Automatic title list making:
The unit makes a title list with the index automatically.
Recording
Deleting titles:
You can delete titles which you do not need anymore.
Putting names on titles:
You can put your favorite names on titles.
Setting / clearing chapter marks:
You can set / clear chapter marks on titles.
Hiding chapters:
To keep others from playing back some chapters without
permission, you can hide chapters.
Setting pictures for thumbnails:
You can change pictures for thumbnails.
Dividing titles:
You can divide a title into 2 or more.
Putting name on disc:
You can put your favorite disc name.
Editing
DVD mode
Theater surround sound in your home:
When connecting the unit to an amplifier or a decoder
which is compatible with Dolby Digital, you can experi-
ence the theater surround sound from discs with sur-
round sound system.
Quick search for what you want to watch:
You can easily find the part you want to watch using the
search function. Search for a desired point on a disc by
title, chapter or time.
Virtual surround system:
You can enjoy stereophonic space through your existing
2 channel stereo system.
Playback
Available for playing back discs on a regular DVD
player:
Recorded discs can be played back on regular DVD
players, including computer DVD drives compatible
with DVD-video playback. Although DVD+R are playable
on other units without finalization in most cases, it
is recommended to finalize in order to stabilize the
performance. For DVD-RW/-R, you need to finalize the
recorded discs to play on other DVD players.
Compatibility
DVD mode
Progressive scan system
Unlike conventional interlace scanning, the progressive
scan system provides less flickering and images in higher
resolution than that of traditional television signals.
HDMI (High-Definition Multimedia Interface)
You can enjoy clearer audio/video output when
connecting this unit to a display device with an HDMI-
compatible port.
Others
Playing back MP3/Windows Media™ Audio/JPEG/
DivX® files:
You can enjoy MP3/Windows Media™ Audio/JPEG/DivX®
files which are recorded on CD-RW/-R.
DivX® files can also be recorded on DVD+RW/+R or DVD-
RW/-R.
VCR mode
Quick search for what you want to watch:
You can easily find the part you want to watch using the
index search/time search functions. An index mark will be
assigned at the beginning of each recording you make.
For time search function, you can go to a specific point on
a cassette tape by entering the exact amount of time you
wish to skip.
E9H90UD.indd 8E9H90UD.indd 8 2007/05/16 15:43:482007/05/16 15:43:48
9EN 9EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup VCR Functions
Others

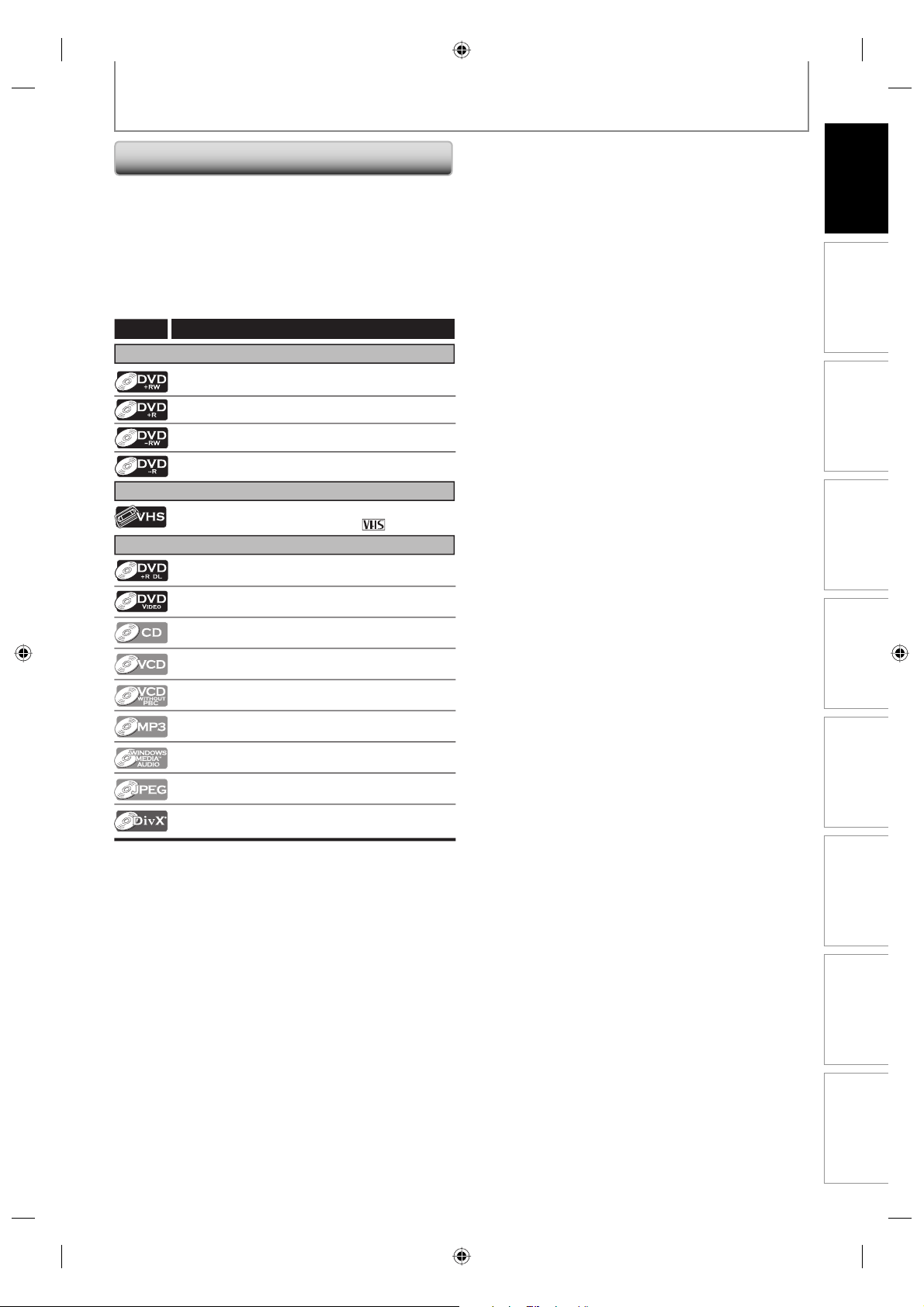

Symbols Used in this User Manual
To specify for what disc type each function is, we put the
following symbols at the beginning of each item to operate.
* DVD-RW/-R recorded in VR mode or non compatible
recording format are not playable.
* DVD-RW recorded in the mode other than +VR is not
recordable on this unit unless you erase all contents in the
disc (refer to page 87).
* DVD-R recorded in the mode other than +VR is not
recordable on this unit.
Symbol
For Recording, Playing Back, and Editing
For Recording and Playing Back
Description
Description refers to DVD+RW
Description refers to DVD+R
Description refers to DVD-RW
Description refers to DVD-R
For Playback only
Description refers to audio CD
Description refers to video CD with PBC function
Description refers to video CD without PBC
function
Description refers to CD-RW/-R with MP3 les
Description refers to CD-RW/-R with Windows
Media™ Audio les
Description refers to CD-RW/-R with JPEG les
Description refers to DVD+RW/+R, DVD-RW/-R
and CD-RW/-R with DivX® les
Description refers to DVD-video
If you do not nd any of the symbols listed above under the
function heading, the operation is applicable to all media.
Description refers to DVD+R DL
Description refers to VHS tapes
Use only cassettes marked VHS ( )
FEATURES
E9H90UD.indd 9E9H90UD.indd 9 2007/05/16 15:43:482007/05/16 15:43:48
10 EN10 EN
FUNCTIONAL OVERVIEW
DVD RECORDER
4 HEAD HI-FI STEREO
ONE TOUCH RECORDING • LONG PLAY
DVD RECORDER / VCR DVDR 3545V
STANDBY-ON
REW F.F W D PLAY PLAYRECSTOP/EJECT STOP
REC
CHANNEL
SOURCE
VCR DVD
OPEN/CLOSE
SV VIDEO L-AUDIO-R DV
22
21
20
19
18
17 16 15 13 11
1214 10*
9
758
6
1 2 3* 4
Front Panel
(
*
) The unit can also be turned on by pressing these buttons or inserting a cassette tape.
1.
y
STANDBY-ON button (DVD/VCR)
Press to turn on and off the unit.
Red LED lights up when power is on.
2. Cassette compartment (VCR)
Insert a cassette tape here.
3. OPEN/CLOSE A button (DVD)*
Press to open or close the disc tray.
4. Disc tray (DVD)
Place a disc when it is open.
5. DV input jack (E3) (DVD/VCR)
Use to connect the DV output of external device with
a DV cable.
6. AUDIO input jacks (E2) (DVD/VCR)
Use to connect external device with an RCA audio
cable.
7. VIDEO input jack (E2) (DVD/VCR)
Use to connect external device with an RCA video
cable.
8. SV input jack (E2) (DVD/VCR)
Use to connect the S-video output of external device
with an S-video cable.
9. DVD REC I button (DVD)
Press once to start a recording.
Press repeatedly to start the one-touch timer
recording.
10. DVD PLAY B button (DVD)*
Press to start or resume playback.
11. STOP C button (DVD)
Press to stop playback or recording.
Press to stop the proceeding timer recording in DVD.
12. DVD indicator
Lights up when the DVD output mode is selected.
13. SOURCE button (DVD/VCR)
Press to select the component you wish to operate.
14. VCR indicator
Lights up when the VCR output mode is selected.
15. CHANNEL L / K buttons (DVD/VCR)
Press to change the channel up and down.
16. Display
Refer to “Front Panel Display” on page 14.
17. Infrared sensor window (DVD/VCR)
Receive signals from your remote control so that you
can control the unit from a distance.
18. VCR REC I button (VCR)
Press once to start a recording. Press repeatedly to
start the one-touch timer recording.
19. VCR PLAY B button (VCR)
Press to start playback.
20. STOP/EJECT C A button (VCR)
Press to remove the cassette tape from the cassette
compartment.
Press to stop cassette tape playback or recording.
Press to stop the proceeding timer recording in VCR.
21. F.FWD D button (VCR)
Press to rapidly advance the cassette tape, or view the
picture rapidly in forward during playback (forward
search).
22. REW E button (VCR)
Press to rewind the cassette tape, or to view the
picture rapidly in reverse during playback (rewind
search).
E9H90UD.indd 10E9H90UD.indd 10 2007/05/16 15:43:482007/05/16 15:43:48
11EN 11EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup VCR Functions
Others
DVD
DIGITAL
AUDIO OUT
AUD IO
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-VIDEO I N --- AUD IO --- OUT
IN --- VIDEO --- OU T
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
HDMI OUT
1 2
5
3
91113 10 8 67 412

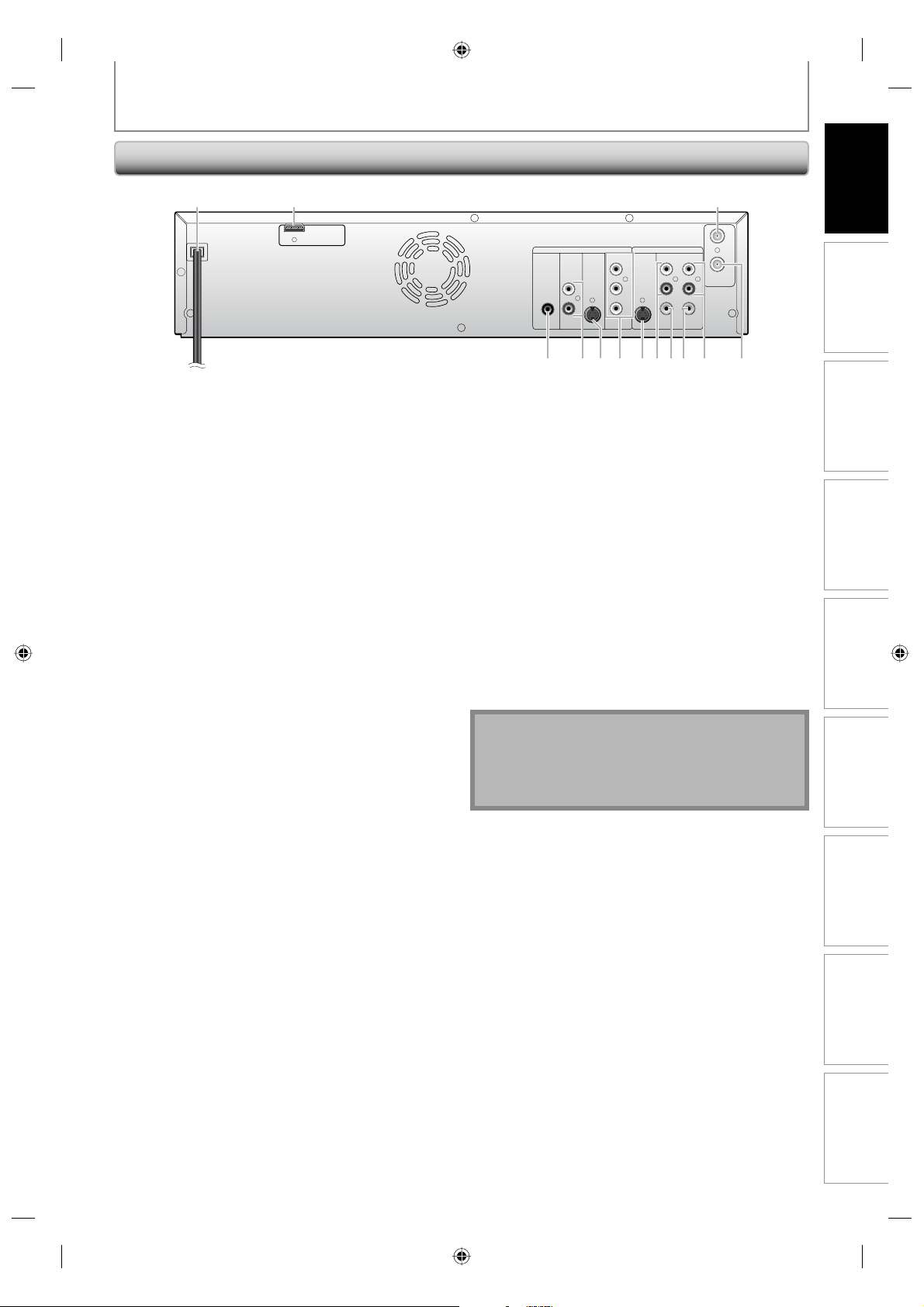

Rear Panel
FUNCTIONAL OVERVIEW
Note
• Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
• This unit does not have the RF modulator.
1. AC Power Cord (DVD/VCR)
Connect to a standard AC outlet to supply power to this
unit.
2. HDMI OUT jack (DVD only)
Use an HDMI cable to connect to a display with an
HDMI compatible port.
3. ANTENNA OUT jack (DVD/VCR)
Use to connect an RF coaxial cable to pass the signal
from the ANTENNA IN to your TV monitor.
4. ANTENNA IN jack (DVD/VCR)
Use to connect an antenna.
5. AUDIO OUT jacks (DVD/VCR)
Use to connect a TV monitor, AV receiver or other
device with an RCA audio cable.
6. VIDEO OUT jack (DVD/VCR)
Use to connect a TV monitor, AV receiver or other
device with an RCA video cable.
7. VIDEO IN jack (E1) (DVD/VCR)
Use to connect external device with an RCA video
cable.
8. AUDIO IN jacks (E1) (DVD/VCR)
Use to connect external device with an RCA audio
cable.
9. S-VIDEO IN jack (E1) (DVD/VCR)
Use to connect the S-video output of external device
with an S-video cable.
10. COMPONENT VIDEO OUT jacks (DVD only)
Use to connect a TV monitor with component video
inputs with a component video cable.
11. S-VIDEO OUT jack (DVD only)
Use to connect the S-video input of a TV monitor, AV
receiver or other device with an S-video cable.
12. AUDIO OUT jacks (DVD only)
Use to connect a TV monitor, AV receiver or other
device with an RCA audio cable.
13. COAXIAL DIGITAL AUDIO OUT jack (DVD only)
Use to connect an AV receiver, Dolby Digital decoder
or other device with a digital audio coaxial input jack
with a digital audio coaxial cable.
E9H90UD.indd 11E9H90UD.indd 11 2007/05/16 15:43:492007/05/16 15:43:49
12 EN12 EN
FUNCTIONAL OVERVIEW

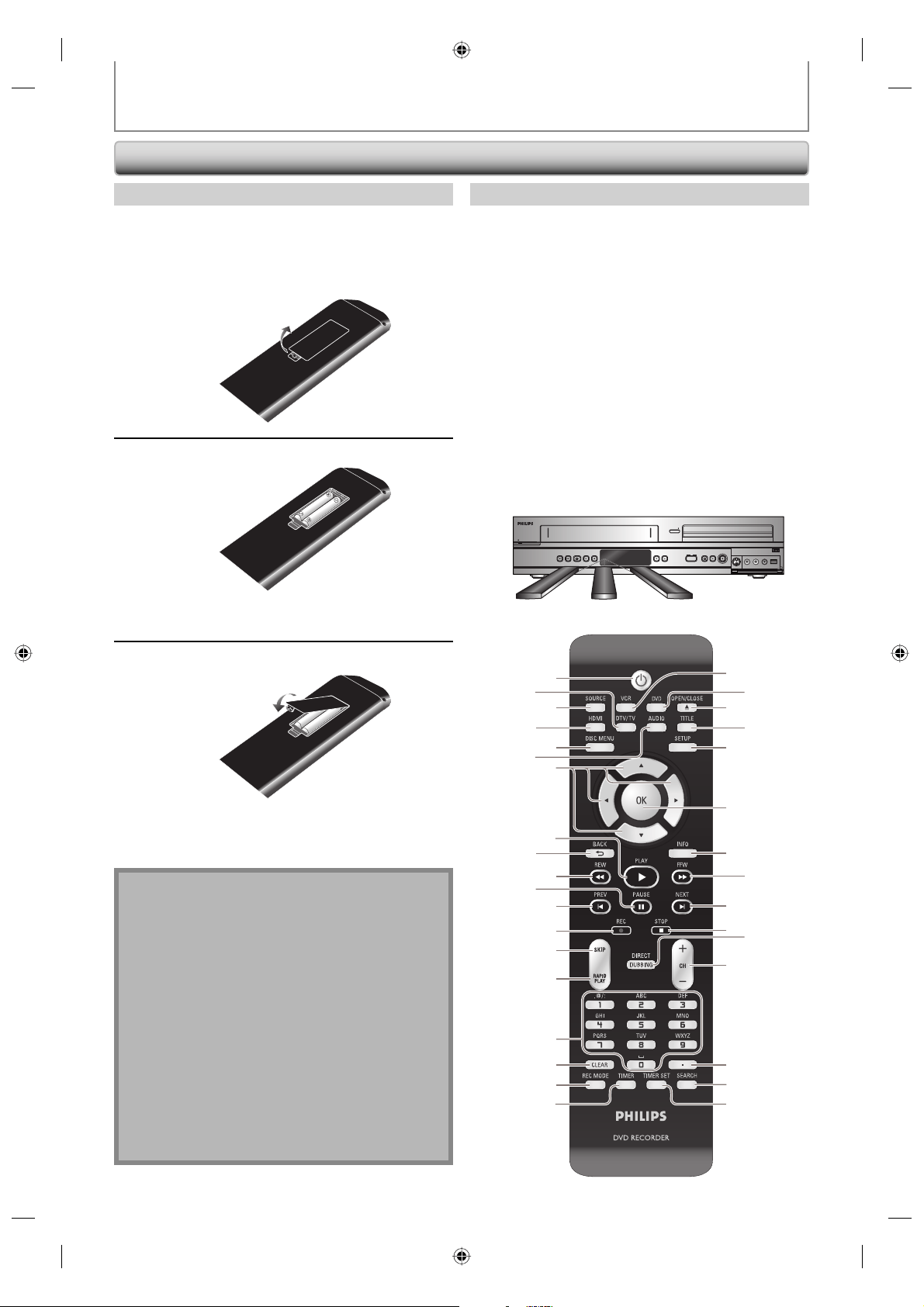

Using a Remote Control
3
1
2
4
5
6
9
11
22
23
20
21
24
26
10
27
12
28
14
15
17
18
19
16
31
32
33
34
13
29
25
7
8
3
0
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the remote
control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the infrared
sensor window of the unit.
• Remote control for different devices can interfere with
each other. Avoid using remote control for other device
located close to the unit.
• Replace the batteries when you notice a fall off in the
operating range of the remote control.
• The maximum operable ranges from the unit are as
follows.
- Line of sight: approx. 23 feet (7m)
- Either side of the center:
approx. 16 feet (5m) within 30°
- Above: approx. 16 feet (5m) within 15°
- Below: approx. 10 feet (3m) within 30°
Install the batteries (AAAx2) matching the polarity
indicated inside battery compartment of the remote
control.
Note
Incorrect use of batteries can result in hazards such as
leakage and bursting. Please observe the following:
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together.
Although they may look similar, different batteries
may have different voltages.
• Make sure that the + and - ends of each battery
match the indications in the battery compartment.
• Remove batteries from battery compartment that is
not going to be used for a month or more.
• When disposing of used batteries, please comply
with governmental regulations or environmental
public instruction’s rules that apply in your country
or area.
• Do not recharge, short-circuit, heat, burn or
disassemble batteries.
DVD RECORDER
4 HEAD HI-FI STEREO
ONE TOUCH RECORDING • LONG PLAY
DVD RECORDER / VCR DVDR 3545V
STANDBY-ON
REW F. FWD PLAY PLAYRECSTOP/EJECT STOP
REC
CHANNEL
SOURCE
VCR DVD
OPEN/CLOSE
SV VIDEO L-AUDIO-R DV
16feet (5m)
30˚
16feet (5m)
30˚
23feet (7m)
1
Open the cover.
2
Insert batteries.
Make sure to match + and - on the batteries to
the marks indicated in the battery compartment.
3
Close the cover.
Remote Control
Installing the Batteries in the Remote Control
E9H90UD.indd 12E9H90UD.indd 12 2007/05/16 15:43:502007/05/16 15:43:50
13EN 13EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup VCR Functions
Others
FUNCTIONAL OVERVIEW
1. STANDBY-ON
y
y button (DVD/VCR)
• Press to turn the unit on and off.
2. DTV/TV button (DVD/VCR)
• Press to switch between digital TV (DTV) mode and
analog TV (TV) mode.
3. SOURCE button (DVD/VCR)
• Press to select the appropriate input.
4. HDMI button (DVD)
• Press to set the HDMI connector’s video signal out-
put mode.
5. DISC MENU button (DVD)
• Press to display the disc menu.
6. AUDIO button (DVD/VCR)
DTV mode:
• Press to switch the audio language for digital TV.
DVD mode:
• Press to display the audio menu during playback.
VCR mode:
• During playback of a Hi-Fi videotape, press to
change the audio out setting.
7. Cursor K / L / { / B buttons (DVD/VCR)
• Press to select items or settings.
8. PLAY B button (DVD/VCR)
• Press to start playback or resume playback.
9. BACK
button (DVD/VCR)
• Press to return to the previously displayed menu screen.
10. REW E button (DVD/VCR)
DVD mode:
• During playback, press to fast reverse playback.
• When playback is paused, press to slow reverse playback.
VCR mode:
• During playback, press to rewind the cassette tape
or to view the picture rapidly in reverse.
11. PAUSE F button (DVD/VCR)
• Press to pause playback or recording.
12. PREV
button (DVD)
• During playback, press to return to the beginning of
the current chapter, track or file.
• When playback is in pause, press repeatedly to
reverse the playback step by step.
13. REC I button (DVD/VCR)
• Press once to start a recording.
• Press repeatedly to start the one-touch timer recording.
14. SKIP button (DVD)
• During playback, press to skip 30 seconds.
15. RAPID PLAY button (DVD)
• During playback, press to play back in a slightly
faster/slower mode with keeping the audio quality.
16. Number/Character buttons (DVD/VCR)
• Press to select channel numbers.
• Press to select a title/chapter/track/file on display.
• Press to enter values for the settings in the main menu.
• Press to enter title names.
• Press to start the index/time search in VCR mode.
17. CLEAR button (DVD/VCR)
DVD mode:
• Press to clear the password once entered or to can-
cel the programming for CD or to clear the selected
marker number, etc.
VCR mode:
• Press to reset the tape counter.
18. REC MODE button (DVD/VCR)
• Press to switch the recording mode.
19. TIMER button (DVD/VCR)
• Press to display the timer programming list.
20. VCR button
• Press to select the VCR output mode.
21. DVD button
• Press to select the DVD output mode.
22. OPEN/CLOSE A button (DVD/VCR)
DVD mode:
• Press to open or close the disc tray.
VCR mode:
• Press to remove the cassette tape from the cassette
compartment.
23. TITLE button (DVD)
• Press to display the title list.
24. SETUP button (DVD/VCR)
• Press to display the main menu.
• During DVD playback, press and hold for more than
3 seconds to switch the progressive scanning mode
to the interlace mode.
25. OK button (DVD/VCR)
• Press to confirm or select menu items.
26. INFO button (DVD/VCR)
• Press to display the display menu on or off.
27. FFW D button (DVD/VCR)
DVD mode:
• During playback, press to fast forward playback.
• When playback is paused, press to slow forward playback.
VCR mode:
• During playback, press to rapidly advance the
cassette tape or view the picture rapidly in forward.
• When playback is paused, press to view the cassette
tape in slow motion.
28. NEXT
button (DVD)
• During playback, press to skip to the next chapter,
track or file.
• When playback is in pause, press repeatedly to for-
ward the playback step by step.
29. STOP C button (DVD/VCR)
• Press to stop playback or recording.
DVD mode:
• Press to exit from the title list.
30. DIRECT DUBBING button (DVD/VCR)
• Press to start VCR to DVD (DVD to VCR) duplication
which you set in the main menu.
31. CH
/ buttons (DVD/VCR)
DVD mode:
• Press to change the channel up and down.
VCR mode:
• Press to change the channel up and down.
• Press to adjust the tracking during playback or in slow
motion of the cassette tape.
• While playback is in still mode, you can adjust the
picture blurred vertically.
32. Confirm ( • ) button (DVD/VCR)
Analog mode:
• Press to confirm the channel selection made by
[the Number buttons].
Digital mode:
• Press to confirm the major / minor channel
selection made by [the Number buttons].
33. SEARCH button (VCR)
• Press to call up the index or time search menu.
34. TIMER SET button (DVD/VCR)
• Press to set the unit in the timer standby mode. In
the timer standby mode, press to cancel the mode
and to turn the unit on.
Note
• If you turn off this unit, [OPEN/CLOSE A] on the remote
control is not available.
Be sure to use [OPEN/CLOSE A] or [STOP/EJECT C A]
on the unit.
E9H90UD.indd 13E9H90UD.indd 13 2007/05/16 15:43:512007/05/16 15:43:51
14 EN14 EN
Appears when data is being
written on a disc.
Appears when a disc is loaded
on the disc tray.
Appears when the PBC function
is activated. (Video CD playback
only. Refer to page 59.)
Appears when the disc tray is
closing.
Appears when the disc tray is
opening.
Display Message
Appears when HDMI output
mode (720p) is selected.
Appears when HDMI output
mode (1080p) is selected.
Appears when HDMI output
mode (480p) is selected.
Appears when HDMI output
mode (1080i) is selected.
FUNCTIONAL OVERVIEW

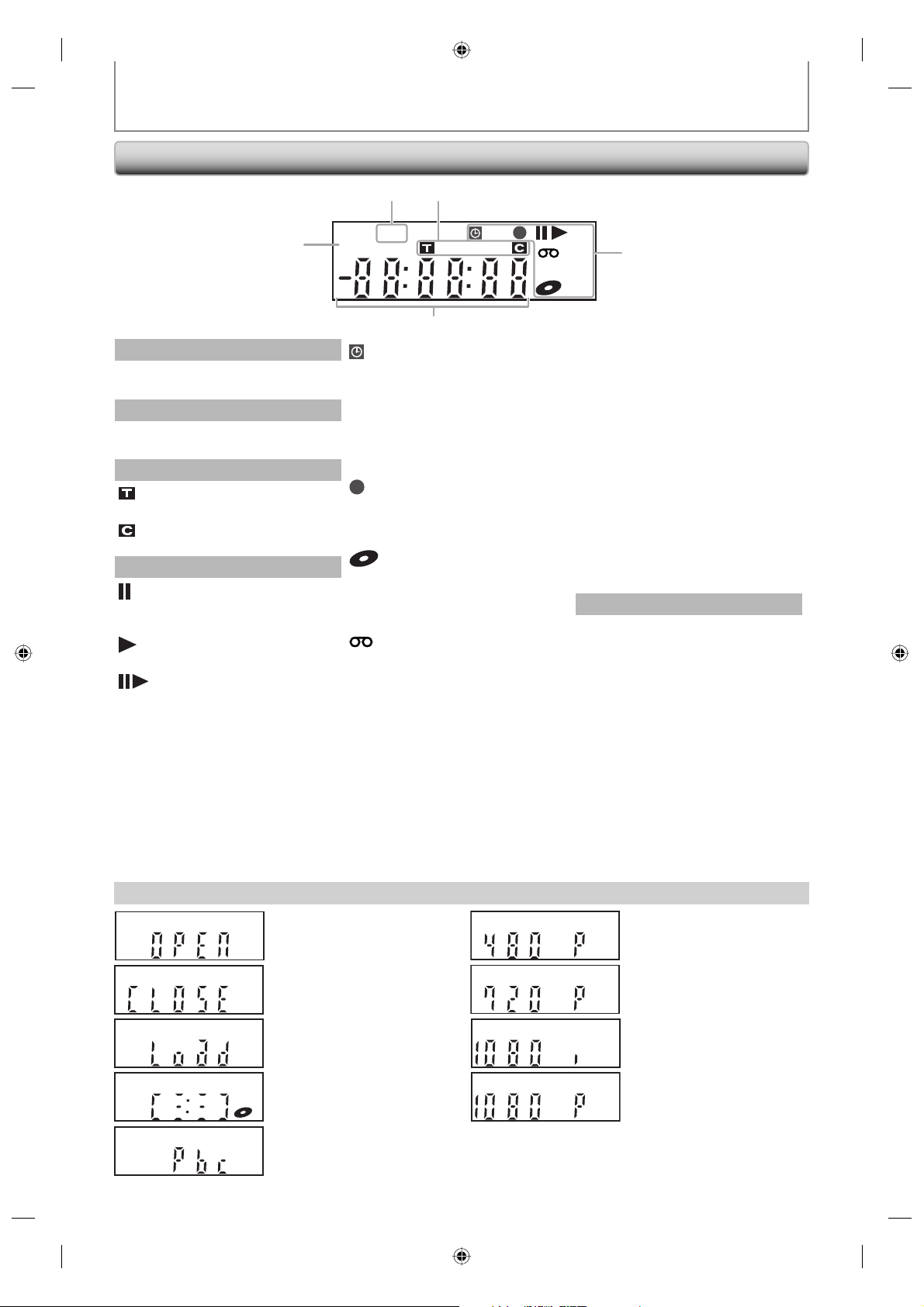

Front Panel Display
PM
DTV BS CS DR CD
VCR
HDDDB
DVD
1
5
3
4
2
1.
PM
: Appears in the afternoon
with the clock display.
2.
DT
V
: Appears when the channel is
in DTV mode.
3. Title / track / file and chapter mark
: Appears when indicating a
title / track / file number.
: Appears when indicating a
chapter number.
4. Current status of the unit
: Appears when playback is in
pause, or in step by step
playback.
: Appears when playing back a
disc, or a cassette tape.
: Appears during slow forward
/ reverse playback.
: Appears when the timer
programming or OTR has
been set or is proceeding.
: Flashes when all timer
recordings have been
finished.
: Flashes when there is an error
in programming.
: Appears during recording
process.
: Flashes when a recording is in
pause.
: Appears when this unit is in
DVD output mode and a disc
is in the unit.
: Appears during duplication
process.
: Appears when this unit is in
VCR output mode and a
cassette tape is in the unit.
: Appears during duplication
process.
VCR
: Appears when this unit is in
VCR output mode.
: Appears when the timer
recording is proceeding in VCR.
: Appears when VCR is in the
timer recording standby mode.
: Flashes when a program
cannot be performed for
some reasons.
DVD
: Appears when this unit is in
DVD output mode.
: Appears when the timer
recording is proceeding in
DVD.
: Appears when DVD is in the
timer recording standby
mode.
: Flashes when a program
cannot be performed for
some reasons.
DB
: Appears during VCR to DVD
duplication process.
: Appears during DVD to VCR
duplication process.
5. Displays the following
• Elapsed playback time
• Current title / chapter / track /file
number
• Recording time / remaining time
• Clock
• Selected channel number
• Remaining time for one-touch
timer recording
• Selected HDMI OUTPUT mode
• VCR tape counter
E9H90UD.indd 14E9H90UD.indd 14 2007/05/16 15:43:522007/05/16 15:43:52
15EN 15EN
Recording Playback EditingIntroduction
Connections
Basic Setup Function Setup VCR Functions
Others
ANTENNA CABLE CONNECTION
This section describes how to connect your unit to an antenna, cable box, etc.
* Once connections are completed, turn on the TV and
begin initial setting.
Channel scanning is necessary for the unit to memorize
all available channels in your area.
(Refer to “INITIAL SETTING” on page 26.)
Note
• For your safety and to avoid damage to the device, please unplug the RF coaxial cable from the ANTENNA IN jack
before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be
more effective than set-top versions.
• Antenna out is for tuner pass through only. DVD playback through the RF is not possible.
4
Plug in the power cord of this unit and your TV to the AC outlet.
1
Disconnect the power cord of your TV from the AC outlet.
2
Disconnect RF coaxial cable from antenna input jack of your TV.
3
Connect cables to the unit.
Make the basic connection as illustrated below.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your
local store.
rear of your TV
rear of this unit
connect
ANT. IN
VHF / UHF
antenna
cable TV
company
RF coaxial cable
or
rear of your TV
disconnect
disconnect
1
1
1
2
HDMI OUT
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
IN
COAXIAL
L
Y
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-VI DEO I N --- AU DI O --- OUT
IN --- VID E O --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
rear of this unit
AUDIO IN
LR
VIDEO IN
rear of your TV
This connection is for
TV loop through only
OUT
IN
ANTENNA
IN
L
R
S-VIDEO IN --- AU D IO --- OU T
IN --- V I DE O --- OUT
DVD/VCR
VHF / UHF
antenna
cable TV
company
RF coaxial
cable
or
ANT. IN
RF coaxial cable
RCA audio
cable
RCA video
cable
E9H90UD.indd 15E9H90UD.indd 15 2007/05/16 15:43:542007/05/16 15:43:54
16 EN16 EN
RF MODULATOR CONNECTION
If your TV has antenna in jack only, it is still possible to connect this unit to your TV by using a commercially available
stereo audio/video RF modulator. In this case, follow the instructions below.
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area.
If your RF modulator has a modulator/antenna switch, set it according to the manual supplied with the RF
modulator.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.
For more details, follow the manual supplied with the RF modulator.
Note
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
• The quality of picture may become poor if this unit is connected to an RF modulator.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
HDMI OUT
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-VI DEO I N --- AU DI O --- OUT
IN --- VI DE O --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
rear of your
RF modulator
AUDIO IN ANT. INTO TV
LR
CHANNEL
43
VIDEO IN
Set channel 3 or 4
rear of this unit
OUT
IN
ANTENNA
IN
L
R
S-VIDEO IN --- AUD IO --- OU T
IN --- VIDEO --- OUT
DVD/VCR
VHF / UHF
antenna
cable TV
company
RF coaxial cable
or
RF coaxial cable
RCA audio
cable
RCA video
cable
rear of your TV
ANT. IN
E9H90UD.indd 16E9H90UD.indd 16 2007/05/16 15:43:552007/05/16 15:43:55
17EN 17EN
Recording Playback EditingIntroduction
Connections
Basic Setup Function Setup VCR Functions
Others

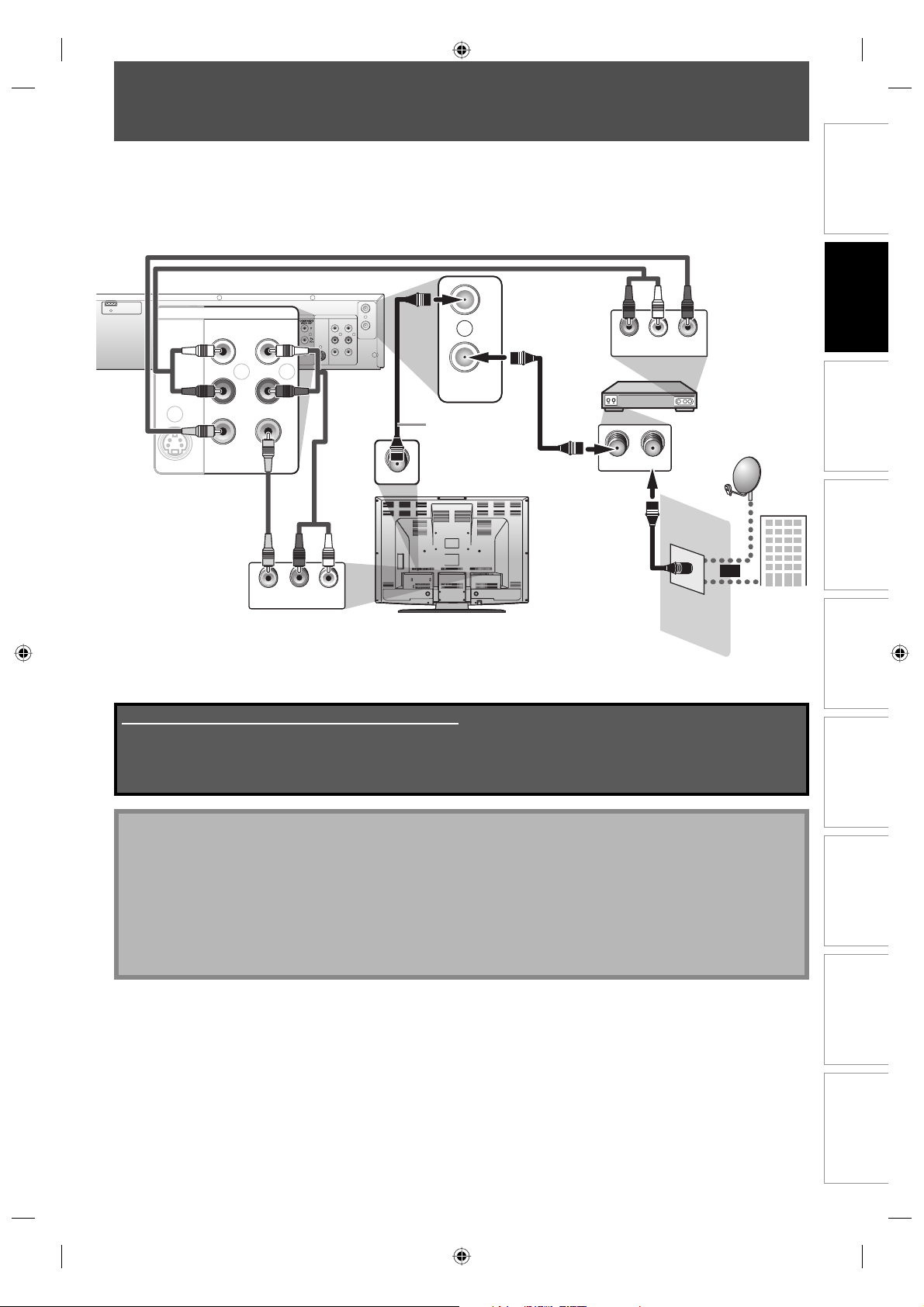

CONNECTION TO A CABLE / SATELLITE BOX
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Plug in the power cords of the devices to the AC outlet.
Note
• Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
• Instead of using video out jack of this unit, you can also use S-VIDEO OUT jack, COMPONENT VIDEO OUT jack, or
HDMI OUT jack (DVD only)(no audio out jack connection required) for connecting to your TV.
With this setup:
• You can record any unscrambled channel by selecting the channel on the cable/satellite box. Be sure that the
cable/satellite box is turned on.
• You cannot record one channel while watching another channel.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
HDMI OUT
DVD
DIGITAL
AUDIO OUT
AUDI O
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-VIDEO I N --- AUDIO --- OUT
IN --- VI D EO --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
AUDIO IN
LR
VIDEO IN
AUDIO OUT
LR
VIDEO OUT
rear of your TV
ANT. INRF OUT
satellite
dish
cable TV
company
or
rear of this unit
OUT
IN
ANTENNA
IN
L
R
S-VIDEO IN --- AUDIO --- OUT
IN --- VIDEO --- OUT
DVD/VCR
RCA video
cable
ANT. IN
RCA video cable
e.g.)
RF coaxial
cable
RF coaxial
cable
cable/satellite
box
RCA audio
cable
RCA audio
cable
RF coaxial
cable
This connection is
for TV loop
through only
E9H90UD.indd 17E9H90UD.indd 17 2007/05/16 15:43:552007/05/16 15:43:55
18 EN18 EN
Make one of the following connections, depending on the capabilities of your existing device.
Note for HDMI connection
• A simple 1-cable connection with a device having an HDMI (high-definition multimedia interface) connector
allows digital transfer of the digital images of DVD-video and other devices.
When connecting with an HDMI cable, the audio signal will be output as the digital audio signal simultaneously,
so you do not need the analog audio connection described above.
Note
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
• You will not be able to hear the sound being output from DVD if you are not connecting DVD AUDIO OUT when
you made either S-video or component video out connection.
To set progressive scan mode, refer to page 99
• This unit is compatible with the progressive scan system. The feature provides you with the higher quality images than the
traditional output system does. To utilize this feature, you must set “Progressive Scan” to “ON”.
CONNECTION TO A TV
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
S-VIDEO IN
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT
COAXIAL
L
R
Y
P
B
/CB
PR
/CR
COMPONENT
VIDEO OUT
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT
COAXIAL
L
R
Y
P
B
/CB
PR
/CR
COMPONENT
VIDEO OUT
Y
PB/CB
PR/CR
COMPONENT
VIDEO IN
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
HDMI OUT
DVD
DIGITAL
AUDIO O UT
AUDIO
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
RR
S-VID EO IN --- AU D IO --- OUT
IN --- V ID EO --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
AUDIO IN
LR
VIDEO
IN
IN
L
R
L
R
S-VIDEO IN --- AU D IO --- OU T
IN --- V I D EO --- OU T
DVD/VCR
TV
analog audio
this unit
or
RCA audio
cable
RCA video
cable
Method 1 Method 2
TV
this unit
and
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
COAXIAL
L
R
L
Y
L
R
OUT
IN
S-VIDEO I N --- AUDIO --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
AUDIO IN
LR
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT
COAXIAL
L
R
Y
P
B
/CB
PR
/CR
COMPONENT
VIDEO OUT
AUDIO OUT (DVD/VCR)
VIDEO OUT
Available on DVD only
VCR and basic DVD connection
HDMI OUTCOMPONENT
VIDEO OUT
S-VIDEO OUTAUDIO OUT (DVD)
better picturegood picture
S-video cable component video cableRCA audio cable
Method 3
best picture
or
HDMI IN
HDMI OUT
HDMI cable
E9H90UD.indd 18E9H90UD.indd 18 2007/05/16 15:43:562007/05/16 15:43:56
19EN 19EN
Recording Playback EditingIntroduction
Connections
Basic Setup Function Setup VCR Functions
Others
HDMI Mode and Actual Output Signals
Press [HDMI] to select the HDMI output mode. The output mode changes as follows every time [HDMI] is pressed.
Front Panel Display Video Output Signal
480 Progressive
Press [HDMI]
720 Progressive
Press [HDMI]
1080 interlaced
Press [HDMI]
1080 Progressive
Press [HDMI]
• The HDMI mode that is not supported by display device will be skipped.
CONNECTION TO A TV
*HDMI: High Definition Multimedia Interface
Copyright protection system
To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the
display device (or an AV amplifier) support a copyright protection system called HDCP (high-bandwidth digital
content protection system). HDCP is copy protection technology that comprises data encryption and authentication
of the connected AV device. This unit supports HDCP. Please read the operating instructions of your display device
(or AV amplifier) for more information.
Note
• When using HDCP-incompatible display device, the image will not be viewed properly.
• Among the devices that support HDMI, some devices can control other devices via the HDMI connector; however,
this unit cannot be controlled by another device via the HDMI connector.
• The audio signals from the HDMI connector (including the sampling frequency, the number of channels and bit
length) maybe limited by the device that is connected.
• Among the monitors that support HDMI, some do not support audio output (for example, projectors). In
connections with device such as this unit, audio signals are not output from the HDMI output connector.
• When this unit’s HDMI connector is connected to a DVI-D compatible monitor (HDCP compatible) with an HDMI-
DVI converter cable, the signals are output in digital RGB.
Audio recording format of the disc Dolby Digital setting of this unit Actual output
DVD-video
Dolby Digital
PCM 2channel PCM
Stream Dolby Digital
LPCM
PCM
2channel PCM
Stream
DivX®
Dolby Digital
PCM 2channel PCM
Stream Dolby Digital
MP3 / MP2
PCM
2channel PCM
Stream
For audio CD, video CD, and MP3 / Windows Media™ Audio files, 2 channel PCM will be output regardless of the
“Dolby Digital” setting.
*1 If the connected device is not compatible with HDMI BITSTREAM, audio will be output as PCM even if you select
“Stream” in “Dolby Digital” setting.
Refer to pages 101-102 for “HDMI” setting.
Actual Output Modes by Media
E9H90UD.indd 19E9H90UD.indd 19 2007/05/16 15:43:572007/05/16 15:43:57
20 EN20 EN

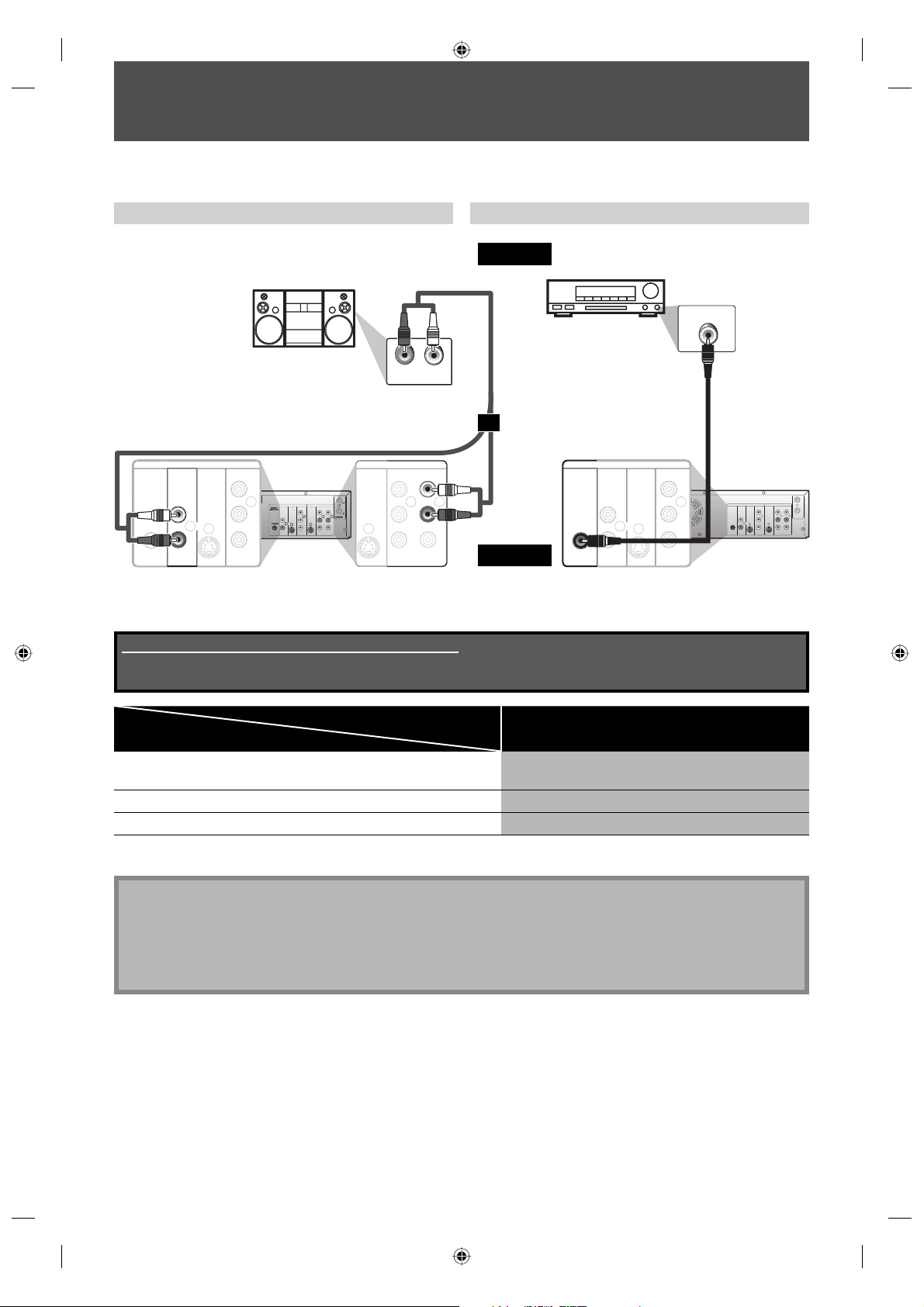

CONNECTION TO AN AUDIO SYSTEM
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.
2 Channel Analog Audio Connection Digital Audio Connection
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Setting
Setup >General Setting >Playback >Disc Audio >
Dolby Digital
Connection
If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder.
Stream
Connecting to an MD deck or DAT deck. PCM
If not connected to any external devices. PCM
* To complete these settings, refer to page 94.
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
LY
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-VIDEO I N --- AUDIO --- OU T
IN --- VIDEO --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
AUDIO IN
LR
IN
L
R
S-VIDEO IN --- AUD IO --- OU T
I N --- V ID EO --- OU T
DVD/VCR
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT
COAXIAL
L
R
Y
P
B
/CB
PR
/CR
COMPONENT
VIDEO OUT
stereo system
audio
analog audio
input jacks
RCA audio cable
AUDIO OUT
Dolby Digital decoder,
MD deck or DAT deck
HDMI OUT
DVD
DIGITAL
AUDIO O UT
AUDIO
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-VIDEO IN --- AUDIO --- OU T
IN --- V ID EO --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT
COAXIAL
L
R
Y
P
B
/CB
PR
/CR
COMPONENT
VIDEO OUT
COAXIAL
digital audio
coaxial input
jack
digital audio
coaxial cable
DIGITAL AUDIO OUT
this unit
or
E9H90UD.indd 20E9H90UD.indd 20 2007/05/16 15:43:572007/05/16 15:43:57
21EN 21EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others

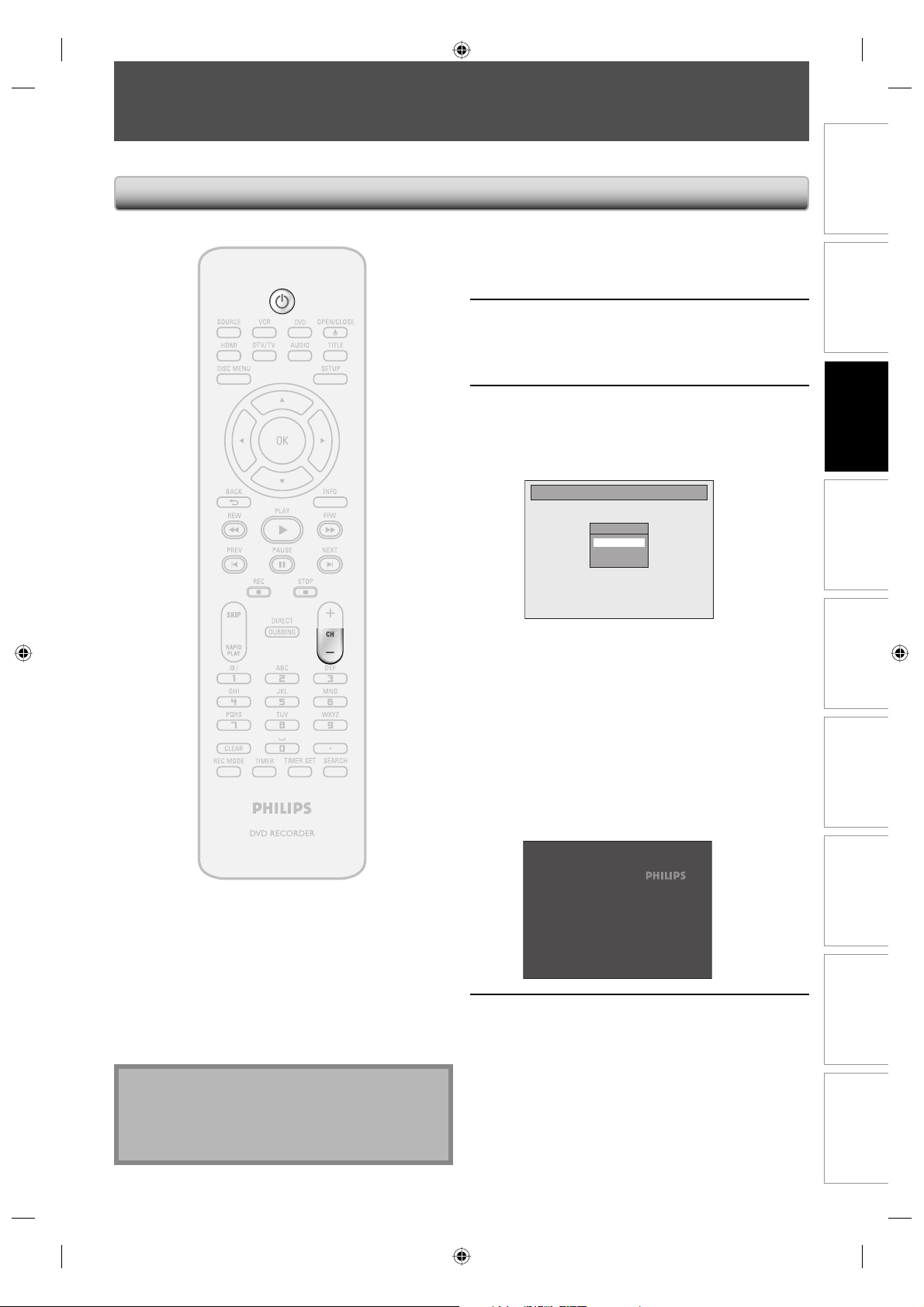

BEFORE YOU START
After you have completed all the connections, you must find the viewing channel (external input channel) on your TV.
1
After you have made all the
necessary connections, press
[STANDBY-ON
y
y] to turn on the unit.
2
Turn on your TV.
• If connected to your VCR make sure it is
switched off or in standby mode before
proceeding.
3
Press “2” on the TV’s remote control,
then press channel down button
repeatedly until you see the “Initial
Setup” menu.
Initial Setup
OSD Language
English
Français
Español
This is the correct viewing channel (external
input channel) for the recorder.
• For some TVs, there may be a button on the
TV’s remote control that accesses the external
input channel. It may be labeled “SOURCE”,
“AV”, or “SELECT”. In such case, press it
repeatedly. Refer to your TV’s user manual for
details.
• If more than 10 minutes have past since you
have turned on the unit, you may see the
PHILIPS screen saver instead of “Initial Setup”
menu.
PHILIPS screen saver:
4
Proceed to step 2 in “INITIAL
SETTING” on page 26.
Finding the Viewing Channel on Your TV
Note
• Video input selection varies for different brand’s
models of TVs.
• Consult your TV manufacturer if none of the above is
successful.
E9H90UD.indd 21E9H90UD.indd 21 2007/05/16 15:43:582007/05/16 15:43:58
22 EN22 EN
CH 10
1/ 5 1/ 5
DVD
Video
0:01:00 / 1:23:45
SP(2Hr) 1:53
6
5 15122
4
3
* This is an example screen only for explanation.
Displayed items vary depending on the disc you
inserted.
1. Indicates a disc type and format mode.
2. Indicates a channel number or selected external input
channel.
3. Indicates a recording mode and possible recording
time left.
4. Indicates an operation status.
5. Each icon means:
: Search
: Audio
: Subtitle
: Angle
: Repeat
: Marker
: Noise Reduction
: Zoom
: Surround
6. Indicates the current title number/total number of
titles, the current chapter number/total number of
chapters, and time lapse of the current title playback/
total duration of the title.

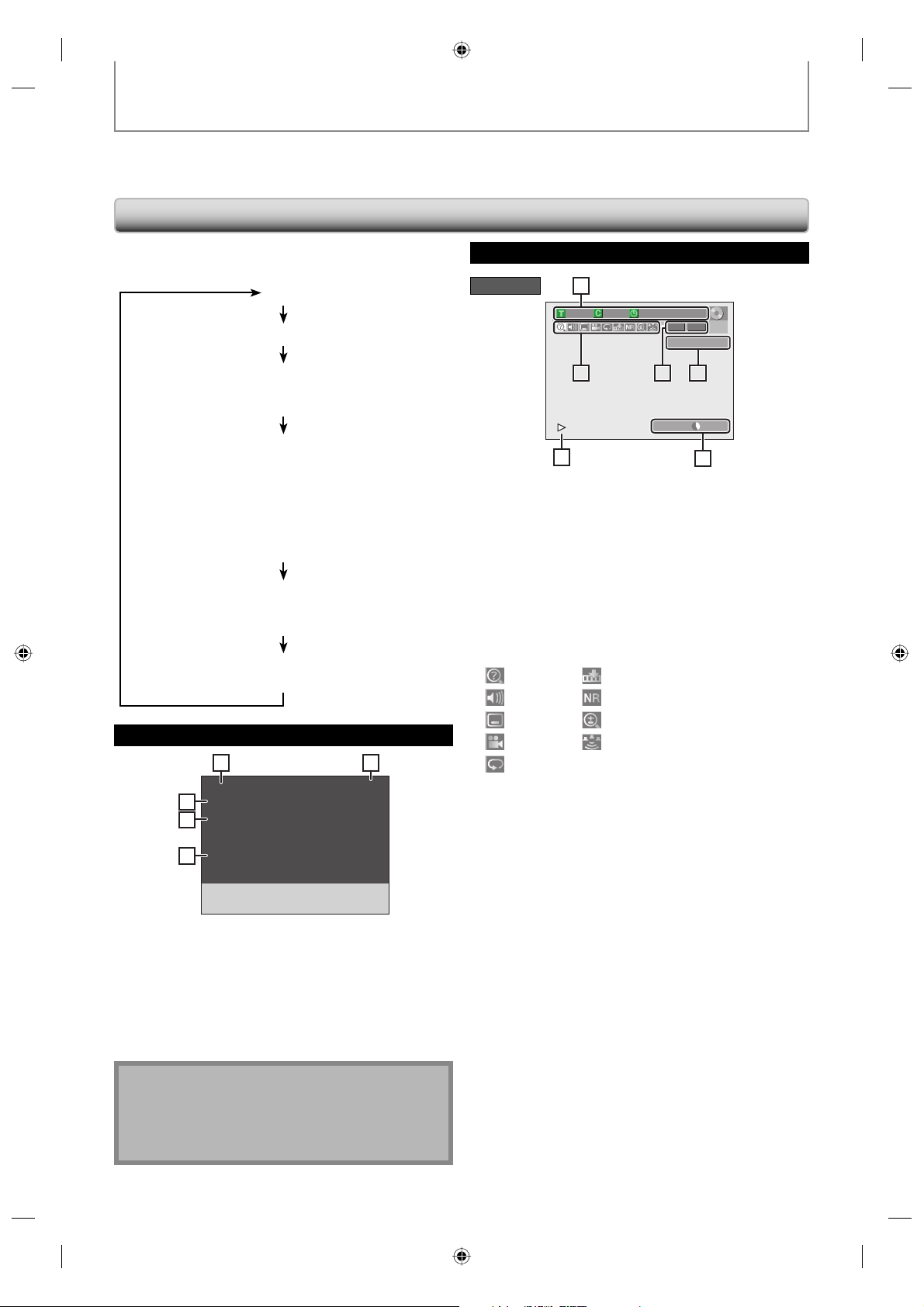

This unit uses the following on-screen displays and menus to guide you to the easy operations.
The on-screen displays give you the information on the loaded disc, the disc/file in playback, or the HDMI status, etc.
The menus allow you to change the various kinds of settings for playing back, recording, or editing to suite your preference.
Guide to On-Screen Display / Menu
DTV Program Guide
English 1/2
A Day of Memories
KABC
A quarter-century ago, which may now
qualify as the good old days of
newspapering, run-of-paper sales
accounted for 80 percent of the
industry's advertising revenues.
DTV 6.1
1 5
52
53
54
1. Broadcast station
2. Program title (max. 2 lines displayed)
3. Audio language (“Other” is displayed when the
audio language cannot be acquired, or the acquired
languages are other than English, Spanish or French.)
4. Program guide (max. 6 lines displayed)
5. Channel number
Note
• When the program guide is displayed in more than 7
lines, use [K / L] to scroll.
• “No description provided” is displayed when the
program guide is not provided.
Disc Information / Menu
The on-screen display changes in the following order
as you press [INFO].
OFF
DTV Program Guide (only in DTV mode)
Disc Information/Menu (only in DVD mode)
or
VCR Information (only in VCR mode)
Title Name Information (only in DVD mode)
(only when DVD+RW/DVD+R/DVD-RW/DVD-R
is in playback)
or
File Name Information (only in DVD mode)
(only when a CD with MP3/Windows Media™ Audio/
JPEG/DivX® files is in playback)
Windows Media™ Audio Tag Information
(only in DVD mode)
(only when a Windows Media™ Audio file is in playback)
HDMI Information (only in DVD mode)
(only for the images output through the HDMI output)
DVD mode
BEFORE YOU START
E9H90UD.indd 22E9H90UD.indd 22 2007/05/16 15:43:582007/05/16 15:43:58
23EN 23EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others
Artist Name
11
1. Indicates artist/title information (only when available)
• First, artist name will be displayed.
• If you press [INFO] one more time, title name will be
displayed.
Windows Media™ Audio Tag Information
Video Info. : 480p YCbCr
Audio Info. : Bitstream
21
3
4
3
* This is an example screen only for explanation.
1. Indicates the resolution of the HDMI output image.
2. Indicates the HDMI video format.
3. Indicates the HDMI audio format.
4. Indicates an operation status.
HDMI Information
BEFORE YOU START
Title Name Information
Title Name
My Title
1
File Name Information
File Name
My File
1
1. Displays title/file name.
Title/File Name Information
0:00:00 HIFISP
12:00AM
CH 21
Stereo
5 64
1
2
3
* This is an example screen only for explanation.
Displayed items vary depending on the cassette tape
you inserted.
1. Indicates current video status.
2. Indicates the current time.
3. Indicates a current channel number (or selected
external input channel) and an audio status of the
program.
4. Indicates a recording or playing back mode.
5. Indicates a tape counter.
6. Audio status of the current cassette tape.
VCR mode
VCR Information
E9H90UD.indd 23E9H90UD.indd 23 2007/05/16 15:43:592007/05/16 15:43:59
24 EN24 EN
1. Edit Disc Name:
Allows you to rename the disc.
2. Erase Disc: (DVD+RW/DVD-RW only)
Allows you to erase all contents in the disc and format it.
3. Make Edits Compatible: (DVD+RW only)
Allows you to memorize the editing status on the disc if
you have added or deleted chapters, or made chapters
hidden on this unit, and to effect it when playing back
on the other unit.
Finalize: (DVD+R/DVD-RW/-R only)
Allows you to finalize a disc containing recorded titles.
4. Disc Protect :
Allows you to protect a disc from accidental editing or
recording.
5. Random Play:
Allows you to activate the random playback feature.
6. Program Play: (audio CD/video CD only)
Allows you to activate the program playback feature.
7. PBC (Video CD only):
Allows you to select images or information on the menu
screen by activating PBC (playback control) function.
8. Slide Show: (JPEG files only)
Allows you to select the display time of the slide show
mode.
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
1
2
3
4
1
2
3
4
<Disc Edit menu (DVD+RW)>
CD Playback Mode
Random Play
Program Play
PBC (Video CD only)
Slide Show
1
2
3
4
5
6
7
8
<CD Playback Mode menu>
Disc Edit
Edit Disc Name
Finalize
Disc Protect OFF ON
1
2
3
1
3
4
<Disc Edit menu (DVD+R/DVD-R)>
BEFORE YOU START
Main Menu
Press [SETUP] to display the main menu. Then use
[K / L] to select a menu and press [OK] to display the
menu. These menus provide entries to all main functions
of the unit.
Disc Edit / CD Playback Mode
Disc Edit
Edit Disc Name
Erase Disc
Finalize
Disc Protect OFF ON
1
2
3
4
1
2
3
4
<Disc Edit menu (DVD-RW)>
1. General Setting:
To go to general setting menu.
2. Timer Programming:
To program a timer recording.
3. Title List:
To call up the title list.
4. Disc Edit:
To set up the DVD setting.
5. CD Playback Mode:
To set up the CD playback setting.
• “CD Playback Mode” is available only when an audio
CD, a video CD, a CD-RW/-R with MP3 / Windows
Media™ Audio / JPEG files is inserted into the unit.
Setup
Timer Programming
Title List
Disc Edit
CD Playback Mode
General Setting
1
2
3
4
5
1
2
3
4
5
General Setting Menu
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Disc Audio
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
1
2
3
4
5
2
3
4
5
1
2
3
4
5
6
7
8
9
1
10
3. Video:
To set up the video setting.
4. Recording:
To set up the unit to record to discs as you prefer.
5. Clock:
To set up the clock of the unit as you need.
6. Channel:
To adjust the channel setting of the unit as you prefer.
7. DivX:
To set up the setting for the DivX® playback.
8. HDMI:
To set up the HDMI connection setting.
9. Reset All:
To reset the setting to the factory default.
10.
:DVD
:VCR
Indicates the available mode for the selected function.
1. Playback:
To set up the unit to play back discs as you prefer.
2. Display:
To set up the OSD screen as you prefer.
E9H90UD.indd 24E9H90UD.indd 24 2007/05/16 15:44:002007/05/16 15:44:00
25EN 25EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others
Because this product is a combination of a VCR and a DVD recorder, you must select first which component you wish
to operate.
DVD RECORDER
4 HEAD HI-FI STEREO
ONE TOUCH RECORDING • LONG PLAY
DVD RECORDER / VCR DVDR 3545V
STANDBY-ON
REW F.F WD PLAY PLAYRECSTOP/EJECT STOP
REC
CHANNEL
SOURCE
VCR DVD
OPEN/CLOSE
SV VIDEO L-AUDIO-R DV
SOURCE
VCR
DVD
DVD indicator
VCR indicator
SOURCE button
VCR button
DVD button
DVD mode
Press [SOURCE] on the front panel, or press [DVD] on the
remote control.
(Verify that the DVD indicator is lit.)
VCR mode
Press [SOURCE] on the front panel, or press [VCR] on the
remote control.
(Verify that the VCR indicator is lit.)
Note
• You cannot switch the mode while in the timer-standby mode.
1) Press [OPEN/CLOSE A] to open the disc tray.
2) Place the disc on the disc tray with its label side
facing up.
Align the disc to
the disc tray guide.
3) Press [OPEN/CLOSE A] to close the disc tray.
It may take a while to load
the disc.
To eject the disc:
Press [OPEN/CLOSE A] to open the disc tray, then
remove the disc before turning off the unit.
1) Insert a cassette tape as illustrated below.
4 HEAD HI-FI STEREO
ONE TOUCH RECORDING • LONG PLAY
Cassette compartment
• Insert from the flap side first with the window side
facing up.
To eject the cassette tape:
Press [STOP/EJECT C A] on the front panel or press
[OPEN/CLOSE A] on the remote control.
How to Insert a Disc How to Insert a Cassette Tape
How to Insert a Disc / Cassette Tape
Switching DVD / VCR Mode
BEFORE YOU START
E9H90UD.indd 25E9H90UD.indd 25 2007/05/16 15:44:012007/05/16 15:44:01
26 EN26 EN

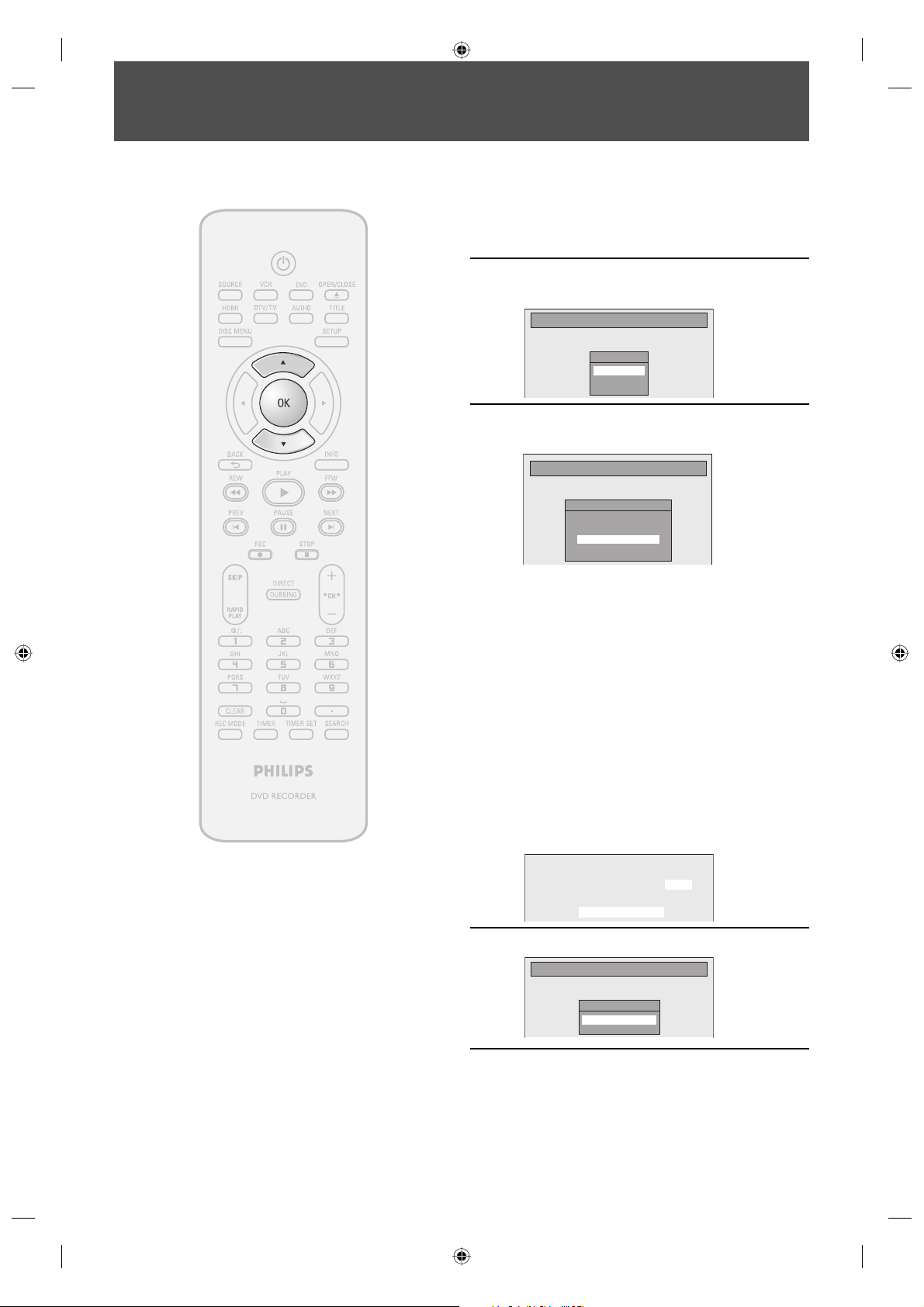

INITIAL SETTING
You need to follow these steps when you turn on this unit for the first time.
1
Follow the procedure in “Finding the
Viewing Channel on Your TV” on
page 21 to display the “Initial Setup”
menu.
2
Use [K / L] to select your desired
language, then press [OK].
Initial Setup
OSD Language
English
Français
Español
3
Use [K / L] to select the type of
broadcasting signal, then press [OK].
Initial Setup
Channel Preset
Make sure the antenna is
connected to “ANTENNA IN” jack.
Antenna
Cable (Analog)
Cable (Analog / Digital)
The unit will start getting channels available in
your area.
Antenna:
(When using antenna)
The channels broadcasted in analog TV and
digital TV are automatically scanned and
memorized. Only the receivable channels in the
area will be memorized.
Cable (Analog):
(When using basic cable)
The channels broadcasted in analog CATV are
automatically scanned and memorized.
Cable (Analog / Digital):
(When using basic cable)
The channels broadcasted in analog CATV and
digital CATV are automatically scanned and
memorized.
Auto Presetting Now
CH 1
4
Press [OK] to activate “Clock Setting”.
Initial Setup
Clock Setting
- - - / - - / - - - - ( - - - )
- - : - - - -
5
Proceed to step 5 in “Manual Clock
Setting” on page 31.
• If a PBS (public broadcasting station) is
available in your area, follow “Auto Clock
Setting” on page 30.
E9H90UD.indd 26E9H90UD.indd 26 2007/05/16 15:44:012007/05/16 15:44:01
27EN 27EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others

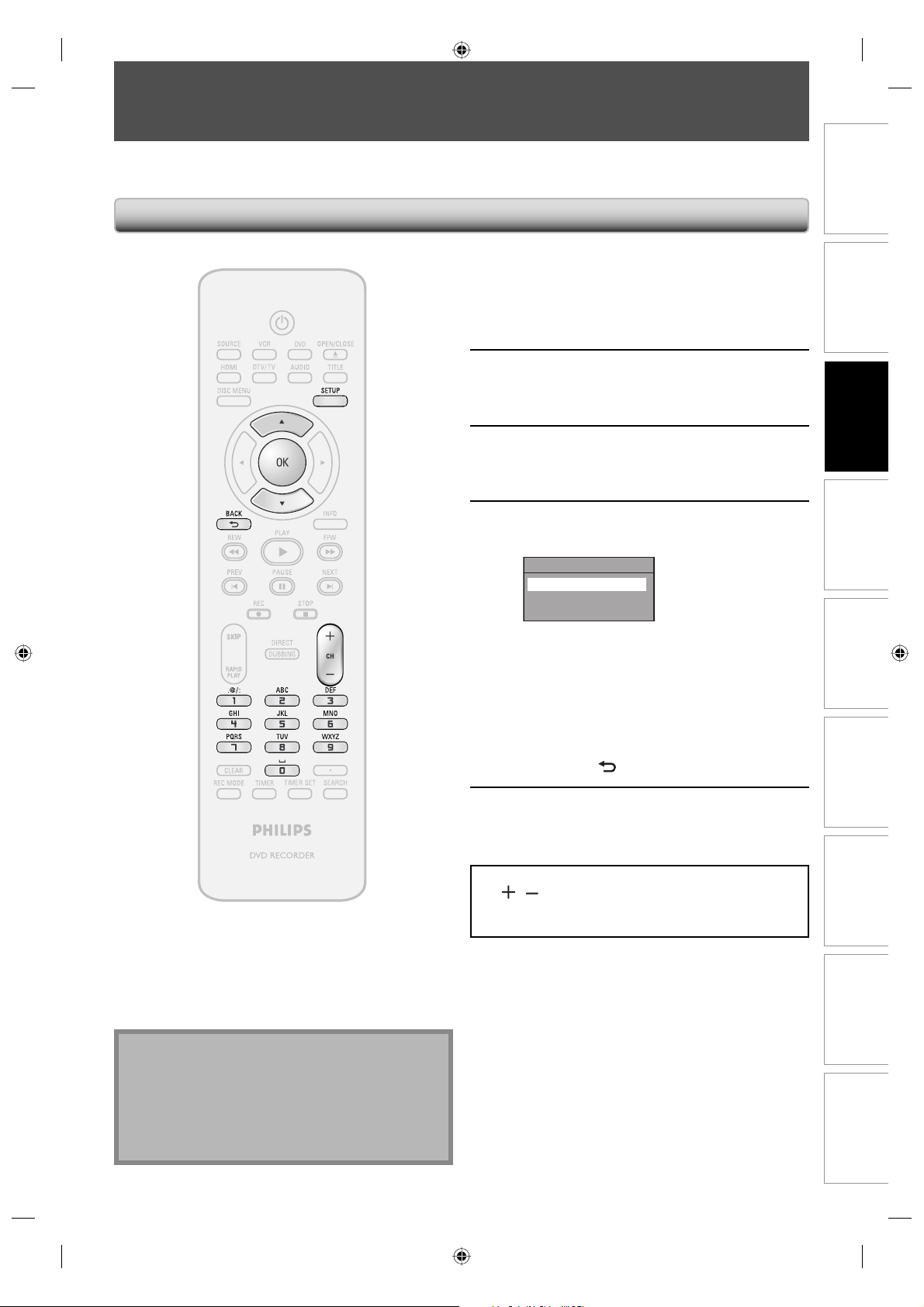

CHANNEL SETTING
If you have changed antenna connection, we recommend that you program available channels in your area with the
following procedures.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Channel”, then
press [OK].
“Channel” menu will appear.
3
Use [K / L] to select “Auto Channel
Preset”, then press [OK].
4
Use [K / L] to select the type of
broadcasting signal, then press [OK].
Auto Channel Preset
Antenna
Cable (Analog)
Cable (Analog / Digital)
The unit will start getting channels available in
your area.
• When aerial antenna is connected, select
“Antenna”.
• When connected to CATV, select “Cable
(Analog)” or “Cable (Analog/Digital)”.
To cancel the auto channel preset during
scanning:
Press [BACK
] or [SETUP] to cancel.
5
When scanning is over, press [SETUP]
to exit.
To cycle through only the memorized channels, use
[CH
/ ].
To select a channel directly (including the ones not
memorized), use [the Number buttons].
Auto Channel Scan
Note
• If the auto channel preset is canceled during
presetting, some channels not yet preset may not be
received.
• You cannot change the channel when either VCR or
DVD is in any recording mode (basic recording, one-
touch timer recording or timer recording).
E9H90UD.indd 27E9H90UD.indd 27 2007/05/16 15:44:022007/05/16 15:44:02
28 EN28 EN

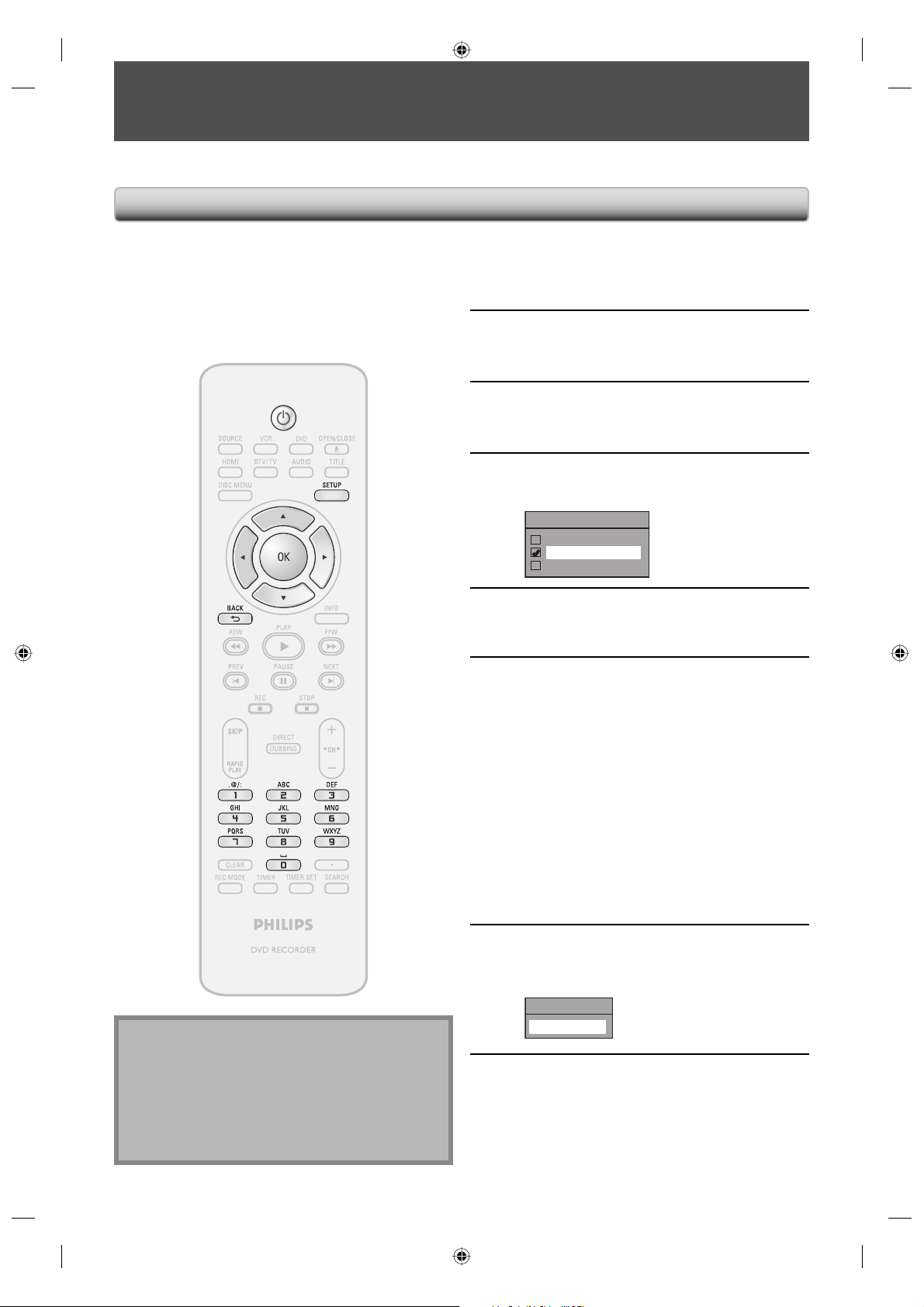

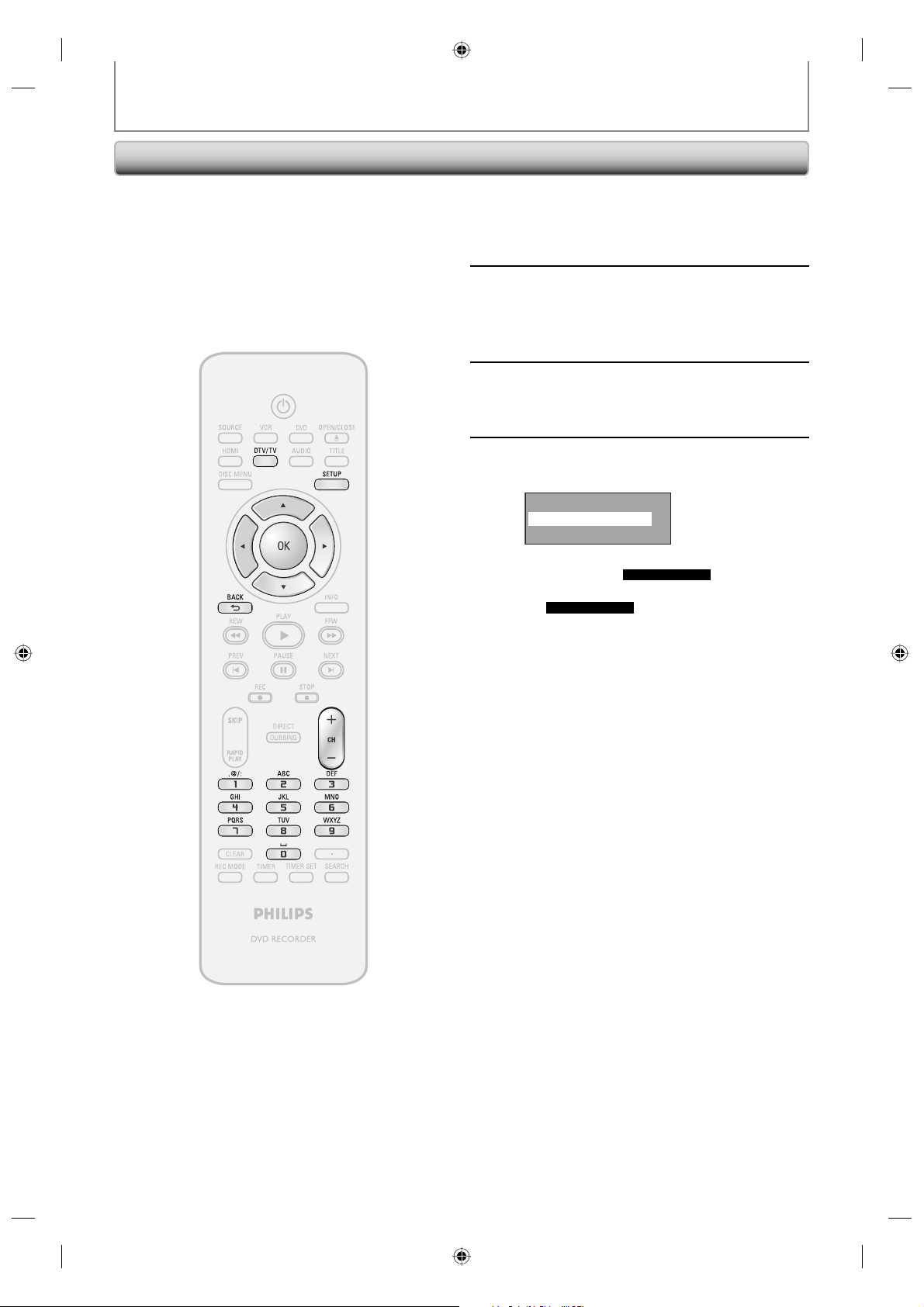

1
Press [DTV/TV] to select the mode
(DTV or TV) to/from which you want
to add/delete channels.
2
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
3
Use [K / L] to select “Channel”, then
press [OK].
“Channel” menu will appear.
4
Use [K / L] to select “Manual Channel
Preset”, then press [OK].
Auto Channel Preset
Manual Channel Preset
TV Audio Select
• If you are adding or deleting analog TV/CATV
channels, go to
ANALOG
to continue.
• If you are deleting digital TV/CATV channels, go
to
DIGITAL
to continue.
Adding / Deleting Channels
CHANNEL SETTING
You may want to add or delete TV channels if your
channel lineup changes or if you no longer watch some
channels.
Adding channel is only available for the analog TV
channels.
Make sure
• You perform “Auto Channel Scan” before adding or
deleting the channels.
E9H90UD.indd 28E9H90UD.indd 28 2007/05/16 15:44:032007/05/16 15:44:03
29EN 29EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others
ANALOG
5
Select the channel number to add or
delete.
• Use [CH / ] to cycle through only the
memorized channels.
• Use [{ / B] to cycle through all the channels
including the ones not memorized.
• Use [the Number buttons] to select a channel
directly.
• When a memorized channel is selected, “Add”
is checked and highlighted as a default.
• When an unmemorized channel is selected
“Delete” is checked and highlighted as a
default.
6
Use [K / L] to select “Add” or
“Delete”, then press [OK].
CH 2
Add
Delete
Manual Channel Preset
Your setting will be activated and it will
automatically switch to the next channel so that
you can continue adding or deleting channels.
7
Press [SETUP] to exit.
DIGITAL
5
Select the channel number to delete.
• Only the major channel is displayed in “Manual
Channel Preset” menu. (The channel number
displayed in the parenthesis is a virtual channel
number)
• Use [CH
/ ] to cycle through only the
memorized channels.
• You cannot use [{ / B] for the digital TV
channel selection.
• Use [the Number buttons] to select a channel
directly.
• When a memorized channel is selected, “Add”
is checked and highlighted as a default.
• When an unmemorized channel is selected
“Delete” is checked and highlighted as a
default.
6
Use [K / L] to select “Delete”, then
press [OK]. Then select the next
channel to delete.
• If the setting is complete, press [BACK ] to
activate “Manual Channel Preset”.
Add
Delete
DTV 2 (CH - - - )
Manual Channel Preset
Your setting will be activated.
WARNING:
• For the digital TV channels, you cannot recover the
deleted channels once they are deleted unless you
perform the auto channel preset again.
7
Press [SETUP] to exit.
CHANNEL SETTING
E9H90UD.indd 29E9H90UD.indd 29 2007/05/16 15:44:042007/05/16 15:44:04
30 EN30 EN
SETTING THE CLOCK
Set the clock before you try the timer programming. If a PBS (public broadcasting station) is available in your area,
follow “Auto Clock Setting” below. If not, follow “Manual Clock Setting” on page 31.
Note
• The clock may set itself automatically after you
connect the antenna/cable signal and plug in the
power cord.
• Only the analog PBS channel signal is effective for
auto clock setting.
• The unit receives the clock data at 12:00 a.m. / p.m.
from the PBS channel when the power is off.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Clock”, then
press [OK].
“Clock” menu will appear.
3
Use [K / L] to select “Auto Clock
Setting”, then press [OK].
4
Use [K / L] to select “Auto”, then
press [OK].
Auto Clock Setting
OFF
Auto
Manual
5
Press [SETUP] to exit.
6
Press [STANDBY-ON
y
y] to turn off
the unit.
This unit will search for the time only when the
power is off. Leave it off for several minutes to
give this unit time to set the clock.
Auto Clock Setting
This unit can set the time and date automatically by
referring to a PBS station.
Make sure
• The antenna/cable TV connections are correct.
• Channels are set. (Refer to page 27.)
• If this unit is connected to a cable/satellite box,
select the local PBS station on them to set the clock
automatically.
1
Select “Manual” at step 4, then press
[OK].
2
Use [the Number buttons] or [K / L]
to enter your PBS channel number,
then press [OK].
Set Channel No.
CH 1
3
Press [SETUP] and turn off the unit.
If the unit chooses an incorrect PBS channel, set the PBS
channel manually by following the steps below.
E9H90UD.indd 30E9H90UD.indd 30 2007/05/16 15:44:052007/05/16 15:44:05
31EN 31EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others
SETTING THE CLOCK
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Clock”, then
press [OK].
“Clock” menu will appear.
3
Use [K / L] to select “Daylight Saving
Time”, then press [OK].
4
Use [K / L] to select “ON (MAR -
NOV)”, “ON (APR - OCT)” or “OFF”,
then press [OK].
Daylight Saving Time
ON (MAR - NOV)
ON (APR - OCT)
OFF
ON (MAR - NOV):
Move forward one hour on the second Sunday in
March and move back one hour on the first
Sunday in November.
ON (APR - OCT):
Move forward one hour on the first Sunday in
April and move back one hour on the last
Sunday in October.
5
Press [SETUP] to exit.
Daylight Saving Time
When “Daylight Saving Time” is “ON”, the unit clock will
automatically adjust the time in order to fit the daylight
saving time.
“ON (MAR - NOV)” has been selected as the default.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Clock”, then
press [OK].
“Clock” menu will appear.
3
Use [K / L] to select “Clock Setting”,
then press [OK].
4
Use [K / L] to select calendar or time,
then press [OK].
Clock Setting
JAN / 01 / 2007 ( MON )
12 : 00 AM
5
Use [{ / B] to select an item to set,
and use [K / L] to select the contents
to suit your preference, then press
[OK] when you finish setting all the
contents.
Clock Setting
JAN / 01 / 2007 ( MON )
12 : 00 AM
Your setting will be activated.
The clock start counting when you press [OK].
6
Press [SETUP] to exit.
Note
• Your setting will be canceled if you press [BACK ]
before pressing [OK] at step 5.
• Your clock setting will be lost if either there is a power
failure or this unit has been unplugged for more than
30 seconds when you set the clock manually.
• For setting the day, year, hour, and minute,
[the Number buttons] can also be used.
• You can set the built-in calendar from the year 2007
up to 2056.
Manual Clock Setting
E9H90UD.indd 31E9H90UD.indd 31 2007/05/16 15:44:062007/05/16 15:44:06
32 EN32 EN
TUNER SETTINGS
Switching Analog Mode /
Digital Mode
You can easily switch the analog TV (NTSC) and digital TV
(ATSC) with the remote control.
Press [DTV/TV] on the remote control.
• The analog mode and digital mode switch alternately.
Note
• When you switch the analog mode to the digital
mode, it may take about 10 seconds until the digital
channel selection is completed. The following screen
is displayed while switching the mode.
Now Scanning
DTV 125. 1
Channel Selection
<Digital TV Channels>
Enter the major and minor channel number with [the
Number buttons] to select a channel you want to watch.
For 1-digit number
e.g.) 2-2 ch:
major channel [0] + [2] or [2] + [•]
minor channel [0] + [2], [2] + [•] or
[2] + leave it for 2 seconds.
For 2-digit number
e.g.) 35-16ch:
major channel [3] + [5]
minor channel [1] + [6]
• If you enter 1 digit for major channel and leave it for 2
seconds, the number will be taken as the major channel
and lowest minor channel of the major channel will be
displayed.
• If there is no minor channel input, lowest minor channel
of the major channel will be displayed.
Note
• It may take up to 5 to 7 seconds to switch the digital
TV channels.
• In digital TV broadcasting, 2 or more channels, called
minor channels, are simultaneously broadcast on one
main channel, called major channel.
About digital TV broadcasting:
With its high definition broadcast, digital broadcasting far
surpasses analog broadcasting in both its picture and
sound quality.
What is the minor channel?
By using high compression technology, digital
broadcasting offers a service that enables multiple signals
to send simultaneously.
Therefore, you can select more than one program per
major channel since digital broadcasting technology
distinguishes between multiple channels broadcast by a
signal network.
: change automatically
: change manually by using [CH / ]
CH4-1
18:00
18:30
19:00
19:30
20:00
CH4-2
CH4-1
CH4-1
CH4-3
smallest
CH
smallest
CH
CH4-3
CH4
CH4-2CH4-1
smallest
CH
smallest
CH
ATSC (digital mode)NTSC (analog mode)
[Air Time]
major channel
minor channel
Select channels by using [CH / ] or [the Number
buttons] found on remote control.
[CH
/ ]
Use [CH
/ ] to change the channel.
[the Number buttons]
Press the channel number with [the Number buttons] to
select a channel you want to watch.
<Analog TV Channels>
Enter the channel number with [the Number buttons] to
select a channel you want to watch.
For 1-digit number
e.g.) 2 ch: [0] + [2], [2] + [•] or
[2] + leave it for 2 seconds.
For 2-digit number
e.g.) 12ch: [1] + [2]
E9H90UD.indd 32E9H90UD.indd 32 2007/05/16 15:44:062007/05/16 15:44:06
33EN 33EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others

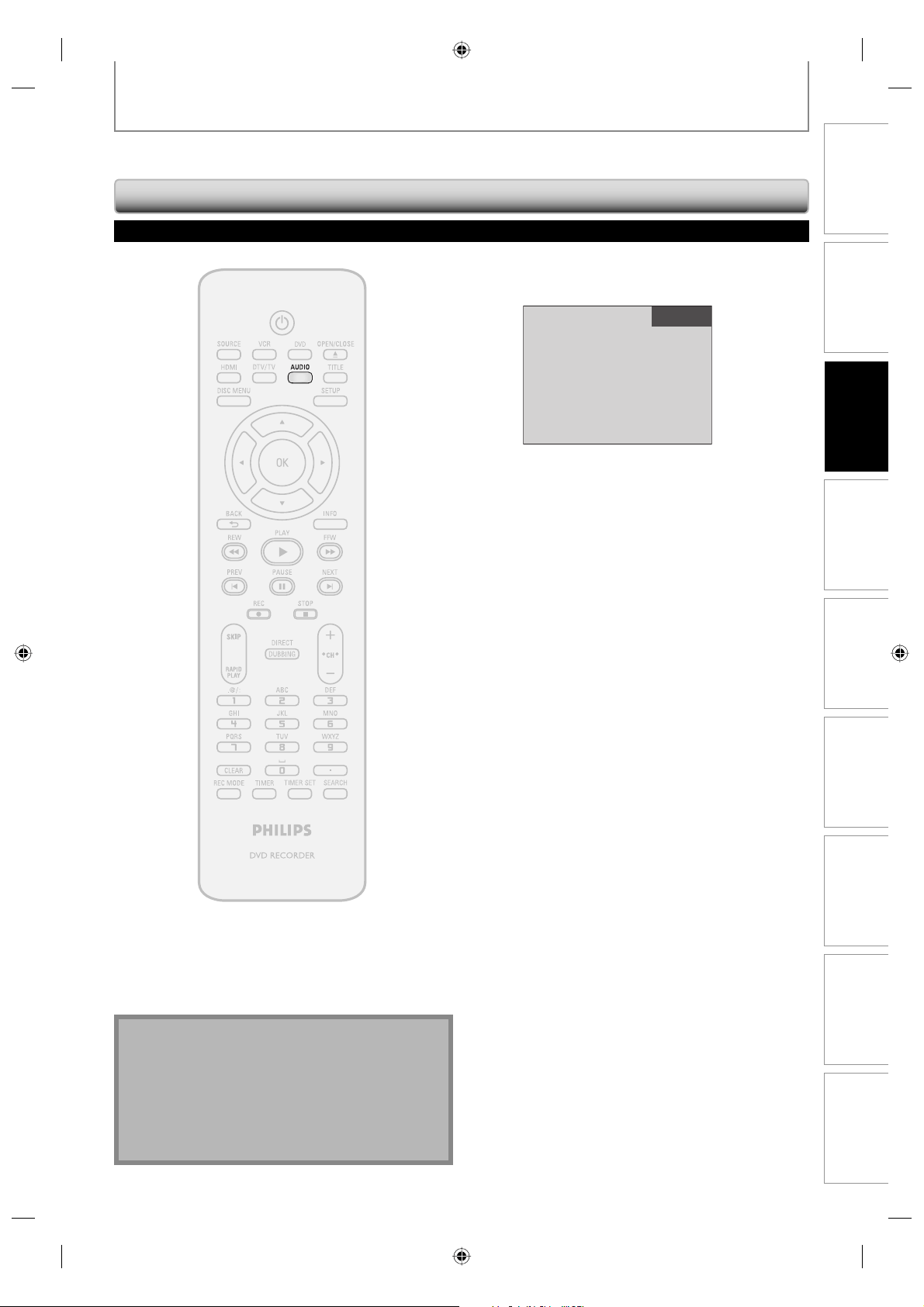

1
Press [AUDIO] to cycle through
available audio languages.
English 1/2
• When you press [AUDIO], selected language
will be displayed on the TV screen.
• Every time you press [AUDIO], the language
will be switched.
e.g.) English 1/3 ➔ Spanish 2/3 ➔ Other 3/3
• Available languages differ depending on the
broadcast.
• The language information display will
automatically disappear.
• When you record digital TV broadcasting, the
audio language you have selected will be
recorded.
Note
• You cannot change the audio language for the timer
recording of digital TV broadcasting.
• Pressing [AUDIO] does not control external device
audio.
• When there is only one audio channel on the
broadcast, pressing [AUDIO] does not display
anything.
TUNER SETTINGS
This section describes how to switch the TV audio. When you record a TV program, only the audio selected here will be
recorded.
Selecting TV Audio
Digital TV
E9H90UD.indd 33E9H90UD.indd 33 2007/05/16 15:44:072007/05/16 15:44:07
34 EN34 EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Channel”, then
press [OK].
“Channel” menu will appear.
3
Use [K / L] to select “TV Audio
Select”, then press [OK].
4
Use [K / L] to select “Stereo” or
“SAP”, then press [OK].
TV Audio Select
Stereo
SAP
Stereo:
Outputs main-audio.
SAP (secondary audio program):
Outputs sub-audio.
5
Press [SETUP] to exit.
Note on recording analog TV audio
• When you record an analog TV program available in
second audio or stereo, you have to select either
“Stereo” or “SAP” in “General Setting” menu
beforehand. Refer to the following table to check an
appropriate setting.
Selected
audio
Broadcast
audio
Disc
recording
Audio
output
Stereo STEREO+SAP STEREO STEREO
STEREO STEREO STEREO
MONO+SAP MONO MONO
MONO MONO MONO
SAP STEREO+SAP SAP SAP
STEREO STEREO STEREO
MONO+SAP SAP SAP
MONO MONO MONO
TUNER SETTINGS
Selecting TV Audio (cont’d)
Analog TV
E9H90UD.indd 34E9H90UD.indd 34 2007/05/16 15:44:072007/05/16 15:44:07

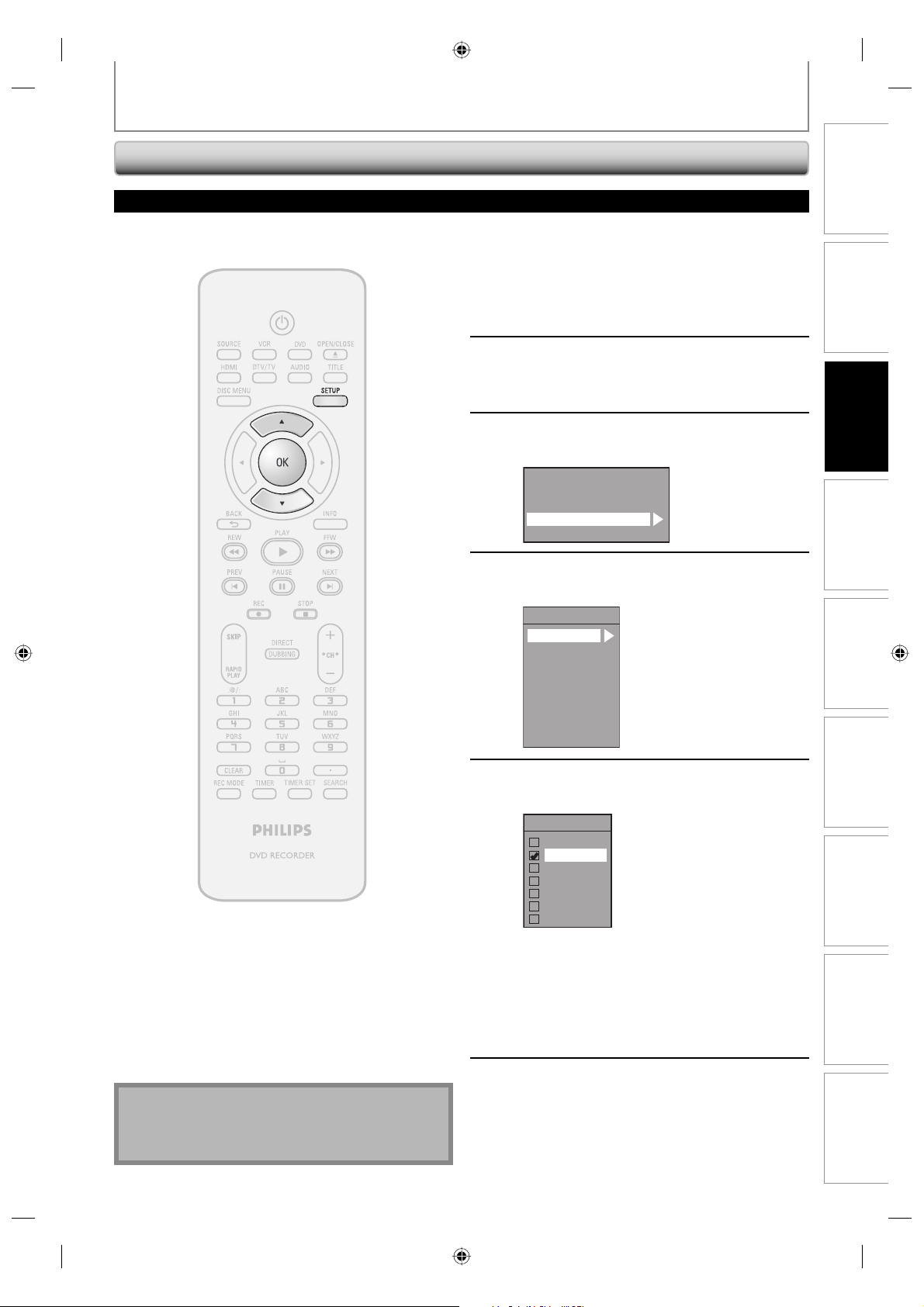

35EN 35EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Display”, then
press [OK].
3
Use [K / L] to select “CC Style”, then
press [OK].
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
4
Use [K / L] to select “DTV CC”, then
press [OK].
CC Style
DTV CC
User Setting
Font Size
Font Style
Edge Type
Font Opacity
Font Color
Back Opacity
Back Color
5
Use [K / L] to the desired DTV closed
caption, then press [OK].
DTV CC
OFF
Service1
Service2
Service3
Service4
Service5
Service6
OFF:
Select if you do not want DTV CC. This is the
default.
Service 1 to Service 6:
Select one of these before changing any other
item in the closed caption menu. Choose
“Service 1” under normal circumstances.
6
Press [SETUP] to exit.
TUNER SETTINGS
DTV Closed Caption
Digital TV
Digital TV has its own closed captions called DTV CC. Use this menu to change the settings for DTV CC.
Note
• Even if you set “DTV CC” to anything other than
“OFF”, its effect will temporarily be canceled while
recording.
E9H90UD.indd 35E9H90UD.indd 35 2007/05/16 15:44:082007/05/16 15:44:08
36 EN36 EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Display”, then
press [OK].
3
Use [K / L] to select “CC Style”, then
press [OK].
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
4
Use [K / L] to select “User Setting”,
then press [OK].
CC Style
DTV CC
User Setting
Font Size
Font Style
Edge Type
Font Opacity
Font Color
Back Opacity
Back Color
5
Use [K / L] to select “ON”, then press
[OK].
User Setting
ON
OFF
TUNER SETTINGS
Closed Caption Style
Digital TV
Digital TV can also change the style of its closed caption such as font, color or size, etc.
E9H90UD.indd 36E9H90UD.indd 36 2007/05/16 15:44:092007/05/16 15:44:09
37EN 37EN
Connections
Basic Setup
Recording Playback EditingIntroduction Function Setup VCR Functions
Others
6
Use [K / L] to select the item and
switch the setting for each item you
want to set, then press [OK].
• When “User Setting” is set to “ON”, you can set
the following items. CC style set by “User
Setting” will be displayed.
• The setting description for each item is shown
below.
<Font Size>
Font size of the displayed caption can be
switched as below.
Font Size
Middle
Large
Small
<Font Style>
Font style of the displayed caption can be
switched as below.
Font Style
Style1
Style2
Style3
Style4
Style5
Style6
Style7
Style8
<Edge Type>
Edge type of the displayed caption can be
switched as below.
Edge Type
None
Raised
Depressed
Uniform
L.Shadow
R.Shadow
<Font Opacity>
Font opacity of the displayed caption can be
switched as below.
Font Opacity
Solid
Translucent
Flash
<Font Color>
Font color of the displayed caption can be
switched as below.
Font Color
Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
<Back Opacity>
Background opacity of the displayed caption can
be switched as below.
Back Opacity
Solid
Translucent
Flash
<Back Color>
Background color of the displayed caption can
be switched as below.
Back Color
Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
7
Press [SETUP] to exit.
TUNER SETTINGS
E9H90UD.indd 37E9H90UD.indd 37 2007/05/16 15:44:102007/05/16 15:44:10
38 EN38 EN

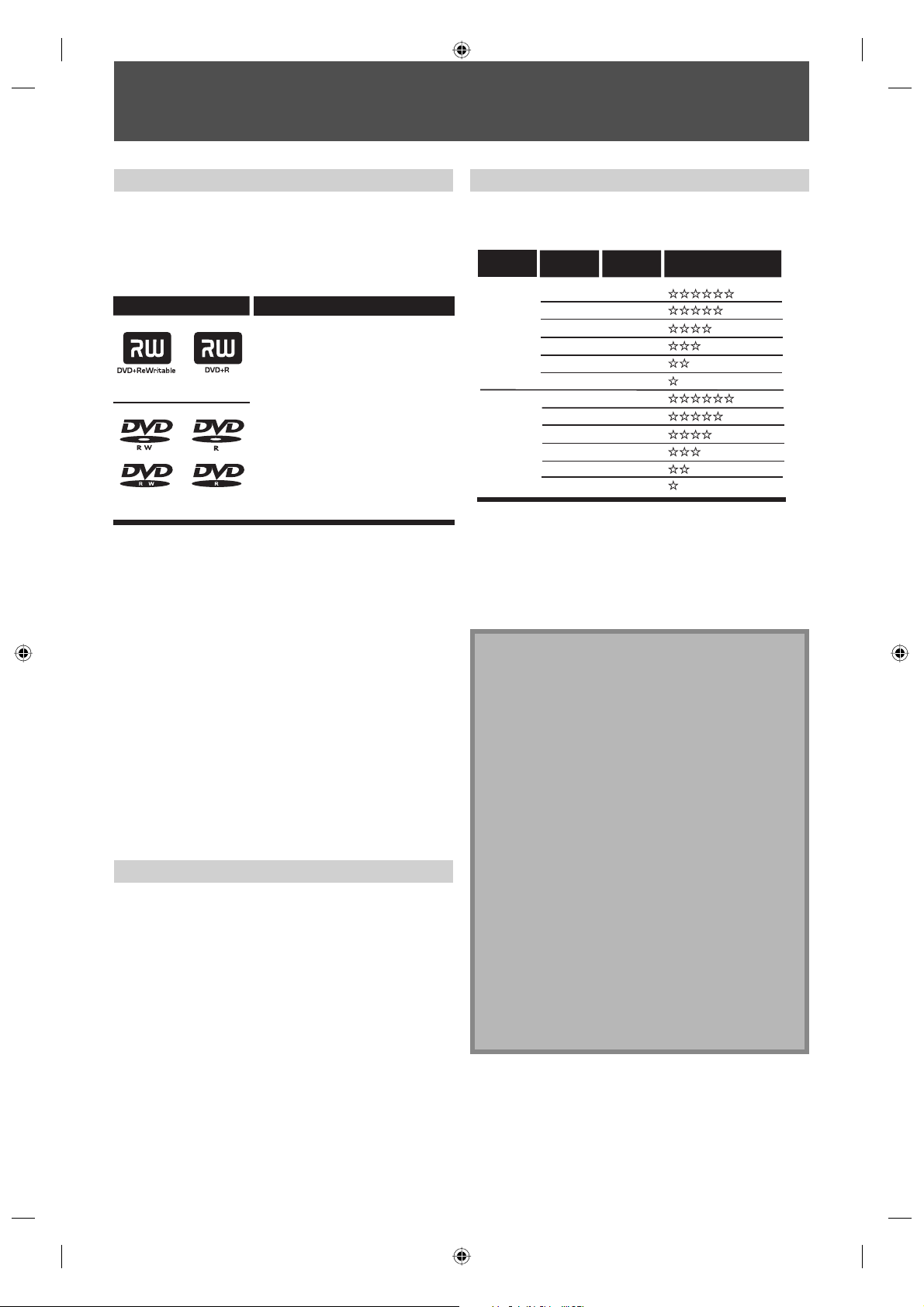

INFORMATION ON DVD RECORDING
Logo
Attributes
8cm/12cm, single-sided,
single layer disc
Approx. max. recording time
(SLP mode):
360 minutes (4.7GB) (for 12cm)
108 minutes (1.4GB) (for 8cm)
DVD+RW DVD+R
DVD-RW
DVD-R
This unit can record to DVD+RW, DVD+R, DVD-RW and
DVD-R.
DVD+R/DVD-R can only be recorded to once. DVD+RW/
DVD-RW can be recorded to and erased many times.
DVD-RW/-R will be recorded in the DVD+VR mode
automatically in this unit.
You can select a recording mode among 6 options, and
the recording time will depend on the recording mode
you select as follows.
Recording
mode
Recording
time
Video/sound
quality
Disc size
8cm Disc
60 min
120 min
150 min
180 min
240 min
360 min
12cm Disc
(poor)
(poor)
(good)
(good)
HQ
(1Hr)
SP (2Hr)
SPP
(2.5Hr)
LP (3Hr)
EP (4Hr)
SLP (6Hr)
18 min
36 min
45 min
54 min
72 min
108 min
HQ
(1Hr)
SP (2Hr)
SPP
(2.5Hr)
LP (3Hr)
EP (4Hr)
SLP (6Hr)
• The recording time is only an estimate. The actual
recording time may differ.
• The audio and video quality gets poorer as the recording
time becomes longer.
• Each time [REC MODE] is pressed, recording mode and
its allowed recording time will be displayed.
• Following discs are recommended for good recording
quality and are proven to be compatible with this unit.
However, depending on the media condition the unit
may not read the disc properly.
Verbatim DVD+R 8x, DVD+RW 4x,
DVD-R 8x, DVD-RW 2x
JVC DVD-RW 4x
Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x
SONY DVD+R 4x/8x/16x, DVD+RW 4x
TDK DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
• You can play back DVD+RW on most DVD players
without finalizing. However, if you have added or
deleted chapters, or made chapters hidden, you
must perform “Make Edits Compatible” before being
able to see those effects on other units. (Refer to
page 88 for more details.) To play back discs other
than DVD+RW on other DVD players, you will need
to finalize.
Note
• This unit cannot record to CD-RW or CD-R.
• All high definition pictures will be down converted to
the standard definition pictures when they are
recorded on this unit.
• DVD+RW/+R, DVD-RW/-R and CD-RW/-R recorded on
a personal computer or a DVD or CD recorder may
not be played back if the disc is damaged or dirty or
if there is condensation on the player’s lens.
• If you record a disc using a personal computer, even
if it is recorded in a compatible format it may not be
played back because of the settings of the
application software used to create the disc. (Check
with the software publisher for more detailed
information.)
• Since the recording is made by the VBR (variable bit
rate) method, depending on the picture you are
recording, the actual remaining time for recording
may be a little shorter than the remaining time
displayed on the TV screen.
• You cannot record copy-protected program using
this unit. (Copy-protected signal is included in DVD-
video or some satellite broadcasts.)
• You cannot record “copy-once only” program on
DVD.
Recordable Discs
Before you make a recording, read the following information.
Recording Mode
• DVD-RW recorded in the mode other than +VR is not
recordable on this unit unless you erase all contents in
the disc (refer to page 87).
• DVD-R recorded in the mode other than +VR is not
recordable on this unit.
Unrecordable Discs
E9H90UD.indd 38E9H90UD.indd 38 2007/05/16 15:44:102007/05/16 15:44:10
39EN 39EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
BEFORE RECORDING
Use this feature to make the unfinalized +VR mode discs
recorded on other unit recordable on this unit. When you
make an additional recording on this unit with “Make
Recording Compatible” set to “ON”, the title menu is
automatically converted to our style.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [OK].
“General Setting” menu will appear.
2) Use [K / L] to select “Recording”, then press [OK].
“Recording” menu will appear.
3) Use [K / L] to select “Make Recording Compatible”,
then press [OK].
4) Use [K / L] to select “ON” or “OFF”, then press [OK].
Make Recording Compatible
ON
OFF
ON: Title list will be replaced when you make
additional recordings to the discs recorded by
other units.
OFF: Prohibiting additional record to the disc that
has a title list created by other units.
5) Press [SETUP] to exit.
Make Recording Compatible Setting for Auto Chapter
You can set a specified time for chapter marks.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [OK].
“General Setting” menu will appear.
2) Use [K / L] to select “Recording”, then press [OK].
“Recording” menu will appear.
3) Use [K / L] to select “Auto Chapter”, then press [OK].
4) Use [K / L] to select a desired time option, then
press [OK].
Auto Chapter
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
5) Press [SETUP] to exit.
Note
• The interval for auto chapter marks may slightly
differ.
• A blank chapter may be created depending on the
remaining time of the disc.
E9H90UD.indd 39E9H90UD.indd 39 2007/05/16 15:44:112007/05/16 15:44:11
40 EN40 EN

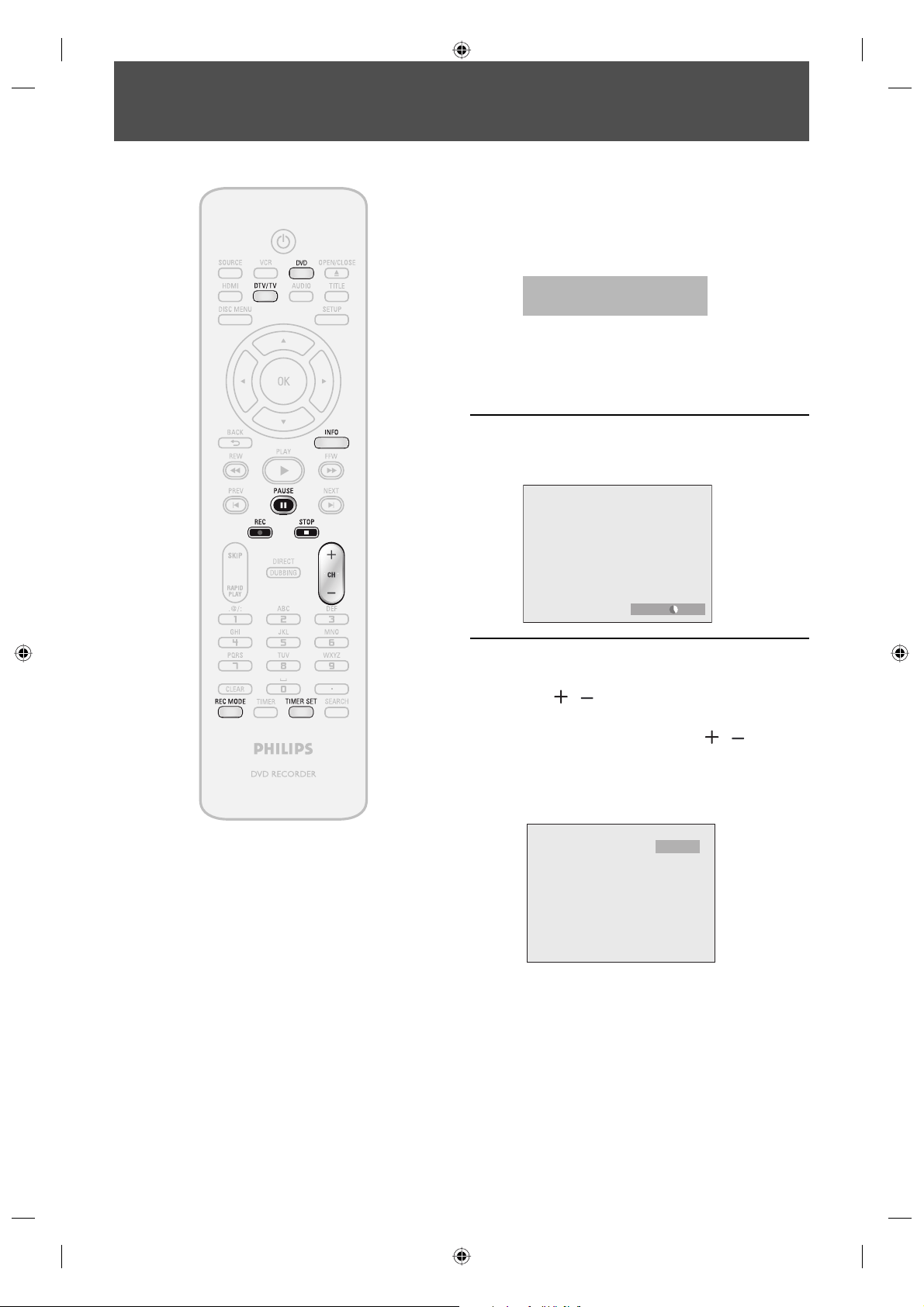

BASIC RECORDING & ONE-TOUCH TIMER RECORDING
Press [DVD] first.
1
Insert a recordable disc (refer to page
25 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 38 for the list of compatible
discs.)
It may take a while to load
the disc.
• When inserting a brand-new DVD+RW/DVD-
RW, the unit automatically starts to format.
• If titles have been recorded on the disc, the
title list is displayed. Press [STOP C] to exit the
title list.
2
Press [REC MODE] to select a
recording mode.
Refer to “Recording Mode” on page 38.
SP(2Hr) 0:58
3
Select the appropriate external input
channel by pressing [SOURCE] or
[CH
/ ].
Press [DTV/TV] to select analog TV or
digital TV, then use [CH
/ ] or [the
Number buttons] to select a desired
channel to record.
Refer to “Switching Analog Mode/Digital Mode”
and “Channel Selection“ on page 32.
CH 12
Follow the steps to record TV programs.
E9H90UD.indd 40E9H90UD.indd 40 2007/05/16 15:44:122007/05/16 15:44:12
41EN 41EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
5
Press [STOP C] to stop recording.
The recorded title will appear in the title list.
(Refer to “Guide to a Title List” on page 76.)
e.g.) DVD+R
Writing to Disc
Finalize the recordings so that the disc
can be played on regular DVD players.
90%
1 SP(2Hr)
2
EMPTY TITLE
1:41:17
SP(2Hr)
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
• Press [STOP C] to exit the title list.
4
Press [REC I] to start recording.
“I” will be displayed for 5 seconds.
I
Press [PAUSE F] to pause recording.
Press [PAUSE F]] or [REC I] again to restart
recording.
To set one-touch timer recording (OTR)...
This is a simple way to set the recording time in blocks
of 30 minutes.
Press [REC I] repeatedly until the desired recording
time (30 minutes to 6 hours) appears on the TV screen.
One-touch timer recording will start.
0:30
(normal recording)
6:00 5:30
1:00
I
0:30
To change the recording length during the one-
touch timer recording:
Press [REC I] repeatedly until the desired length appear.
To cancel the one-touch timer recording within the
specified time:
Press [STOP C].
Note
• When you press [REC I], recording starts immediately and continues until the disc is full or you stop recording.
• This unit cannot record images as aspect ratio of 16:9. The 16:9 images will be recorded as 4:3.
• When the unit clock has not been set, the space for a date and time of title names will be blank.
• When you record a TV program, you have to select the TV channel audio beforehand. Only the selected channel
audio will be recorded. Refer to “Selecting TV Audio” on pages 33-34 for more details.
• This unit cannot record in both stereo and SAP (secondary audio program) at the same time.
• You cannot change the recording mode during the recording pause mode.
• You can change a channel to be recorded during the recording pause mode.
Note for one-touch timer recording
• The remaining recording time will be displayed on the front panel display during one-touch timer recording. Press
[INFO] to see it on the TV screen.
• Unlike the timer recording, you can perform the following operations during one-touch timer recording.
- Turning off the power to stop one-touch timer recording.
- Using [REC I].
• You cannot use the pause function during one-touch timer recording.
• When one-touch timer recording is finished and the power is turned off, the unit will switch to the timer-standby
mode automatically if a timer recording has been programmed. Press [TIMER SET] to cancel the timer-standby
mode to use the unit continuously.
E9H90UD.indd 41E9H90UD.indd 41 2007/05/16 15:44:132007/05/16 15:44:13
42 EN42 EN

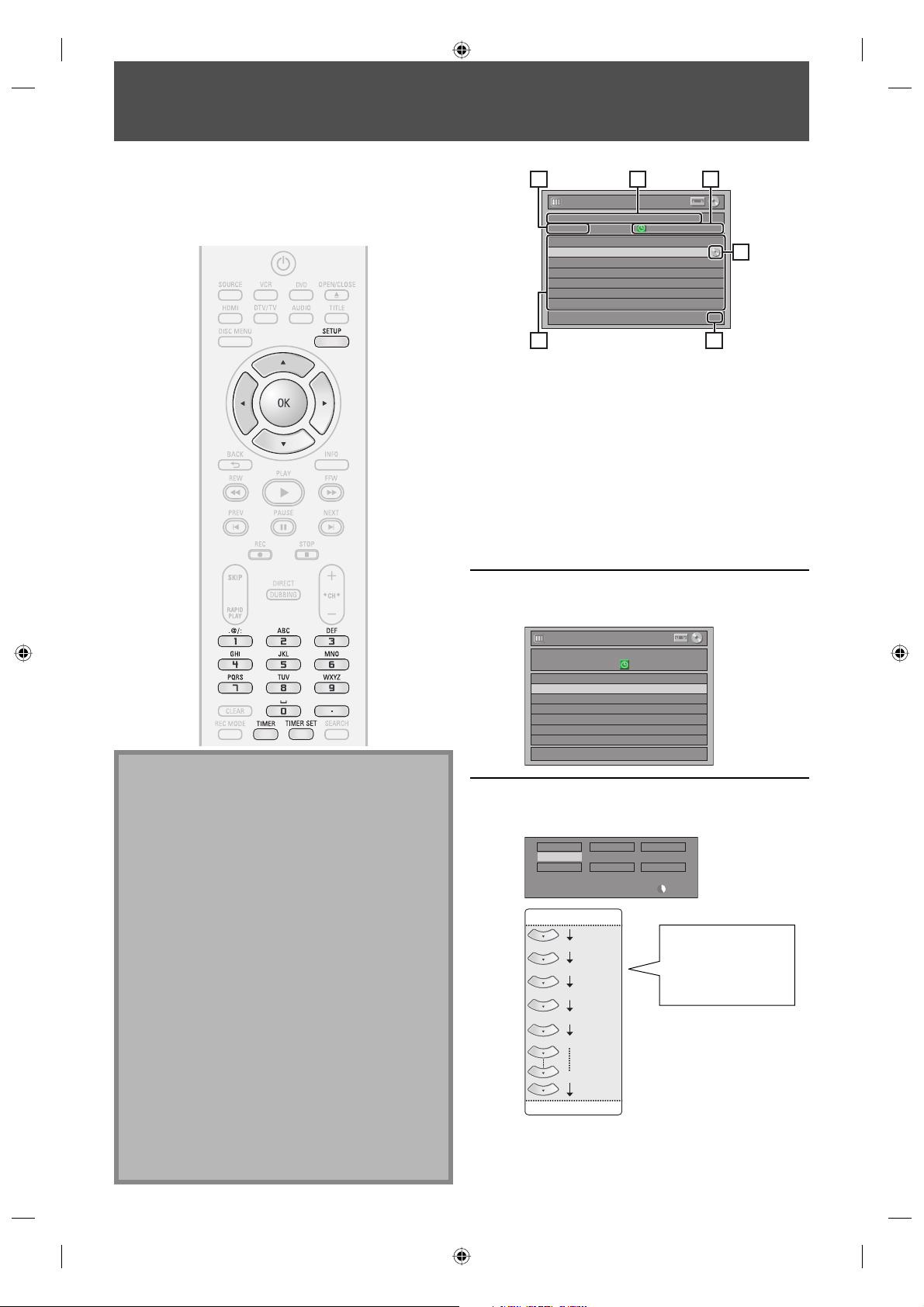

TIMER RECORDING
1
Press [TIMER].
2
Use [K / L] to select “New Program”,
then press [OK].
Timer Programming
1/1
MON JAN/01 11:00AM
Date Start End CH
New Program
3
Use [K / L] to enter the date, then
press [B].
Date
JAN/02
REC To Mode
DVD SP
SP 2 : 00
Start
- - : - -
End
- - : - -
CH
DTV125. 1
Daily
MON-SAT
JAN/01
JAN/31
MON-FRI
SAT
FRI
SUN
You can program the unit to record up to 12 programs
within a month in advance. Daily or weekly program
recordings are also available.
Before recording, make sure
• Set the clock before setting a timer programming.
• Insert a recordable disc with enough recordable space.
Guide to Timer Programming Display
Timer Programming
1/1
MON JAN/01 11:00AMSP (1:00)
JAN/ 2/07 12:00 AM 125.1 SP
Date Start End CH
JAN/02 12:00AM 1:00AM DTV125. 1
New Program
1
5
3
4
2
6
1 Title of a timer program (Contains date, time, channel,
recording mode of the program)
2 Current date and time
3 Recording mode, and length of the recording
4 Timer program list
5 Total number of pages and current page (2 pages
maximum)
6 Recording media
When pressing [L] at
the current date, the
date will change as
follows.
e.g.) January 1st
Note
• If you have not set the clock yet:
Entry screen for the clock setting will appear instead
of the timer programming list at step 1. Continue
with the step 4 in “Manual Clock Setting” on page 31
before setting a timer programming.
• Use [s / B] to move the cursor to the left and the
right in the entry screen for the timer programming.
• If a basic recording or one-touch timer recording is in
progress on one component (e.g., VCR) and the timer
recording set for the other component (e.g., DVD) is
about to begin, the unit automatically switches to the
programmed channel for timer recording 2 minutes
before the programmed starting time, and the
recording in progress (for VCR) will be canceled
UNLESS their recording channels are the same. If their
recording channels are the same, the timer recording
will start without canceling the recording currently in
progress. In this case, the recording of the same
channel will be made on both DVD and VCR.
• Cancel the timer-standby mode by pressing
[TIMER SET] before operation for either DVD or VCR.
When finished operating, press [TIMER SET] to
resume the timer-standby mode.
• In the timer-standby mode, you can turn on the
power and use the component (VCR or DVD) which is
not currently timer-programmed.
E9H90UD.indd 42E9H90UD.indd 42 2007/05/16 15:44:142007/05/16 15:44:14
43EN 43EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
4
Use [K / L / s / B] or [the Number
buttons] to enter the start and end
time, then press [B].
Date
JAN/02
REC To Mode
DVD SP
SP 2 : 00
Start End
- - : - -
CH
DTV125. 1
12 : 00AM
5
Use [K / L / s / B] to select analog
(“- - -”) / digital (“DTV”) mode or
external input (E1 / E2), then press
[B].
e.g.) external input mode
Date
JAN/02
REC To Mode
DVD SP
SP 1 : 00
Start End
CH
E1
1 : 00AM
12 : 00AM
To record from external input (e.g., cable/
satellite box), select E1 or E2.
Use [K / L] or [the Number buttons] to select
the channel number to record, then press
[B].
For digital mode, select both major and minor
channels. Refer to “How to select a channel
number for the timer recording” on page 44
for more details.
e.g.) analog mode
Date
JAN/02
REC To Mode
DVD SP
SP 1 : 00
Start End
CH
10
1 : 00AM
12 : 00AM
e.g.) digital mode
Date
JAN/02
REC To Mode
DVD SP
SP 1 : 00
Start End
CH
DTV125. 1
1 : 00AM
12 : 00AM
6
Use [K / L] to select the recording
media (“DVD” or “VCR”), then press
[B].
e.g.) recording to DVD
Date
JAN/02
REC To Mode
DVD SP
SP 1 : 00
Start
12 : 00AM
End
1 : 00AM
DTV125. 1
CH
7
Use [K / L] to select a recording
mode.
Date
JAN/02
REC To Mode
DVD
SP 1 : 00
Start End
CH
DTV125. 1
1 : 00AM
12 : 00AM
SP
Refer to “Recording Mode” on page 38.
• When recording to DVD, you can check the
remaining recordable space of the disc when
you select the recording mode.
Date
JAN/02
REC To Mode
DVD
SP 1 : 00
Start End
CH
DTV125. 1
1 : 00AM
12 : 00AM
SP
Auto recording mode select...
When “Auto” is selected as a recording mode, the unit
calculates how much time is available on the disc and
selects the best recording mode available
automatically to complete recording the program.
Date
JAN/02
REC To Mode
DVD
Auto 1 : 00
Start End
CH
DTV125. 1
1 : 00AM
12 : 00AM
Auto
• “Auto” is only available for one program in the timer
program list.
• The recording may be cut short when the available
recording space of the disc is too limited.
8
Press [OK] when all items are
entered.
After displaying a warning message for 10
seconds, timer program list will appear.
Press TIMER SET to Timer Standby mode.
When Timer set on DVD or VCR,
it is not available in the standby mode.
Press TIMER SET to cancel the Standby mode.
Timer Programming
MON JAN/01 11:00AMSP (1:00)
JAN/ 2/07 12:00 AM 125.1 SP
Date Start End CH
JAN/02 12:00AM 1:00AM DTV125. 1
Your program setting is now stored.
• To set another program, repeat steps 2 to 8.
• To exit, press [TIMER] or [SETUP].
• When 2 or more programs are overlapped,
“Timer program overlapped” appears, and the
overlapped program will be displayed in blue.
• To correct the timer program refer to
“Checking, canceling, or correcting the timer
programming information” on page 44.
9
Press [TIMER SET] to set a timer
programming.
will appear on the front panel display.
TIMER RECORDING
E9H90UD.indd 43E9H90UD.indd 43 2007/05/16 15:44:152007/05/16 15:44:15
44 EN44 EN
How to select a channel number for the timer recording
Analog TV
For channel number 2-6 press, press [B] or [ • ] to decide the channels. For other channels (7-69),
the channel will be decided as soon as you enter the channel number.
Analog CATV
For channel number 1-12 press, press [B] or [ • ] to decide the channels. For other channels (13-
125), the channel will be decided as soon as you enter the channel number.
Digital TV
For channel number 1-9 press, press [B] or [ • ] to decide the channels. For other channels (10-99),
the channel will be decided as soon as you enter the channel number.
Digital CATV
For channel number 1-13 press, press [B] or [ • ] to decide the channels. For other channels (14-
135), the channel will be decided as soon as you enter the channel number.
minor channels
For channel number 1-9 press, press [B] or [ • ] to decide the channels. For other channels (10-99),
the channel will be decided as soon as you enter the channel number.
<Hint>
• You can decide the 1-digit channel number by pressing 0 first , then enter desired 1-digit channel number.
e.g.) “5”: [0]+[5]
• For selecting the channels with [K / L] you need to press [B] or [ • ] to decide the channel number.
• For selecting the minor channels with [K / L], please make sure the minor channel your are selecting is existed.
[K / L] does not skip the non-existed minor channels.
TIMER RECORDING
Checking, canceling, or correcting the timer
programming information
If the timer program did not complete correctly,
the error number appears in the timer pro-
gramming list.
1) Press [TIMER SET].
2) Press [TIMER].
3) Check the information.
Timer Programming
MON JAN/01 11:00AMSP (1:00)
JAN/ 2/07 12:00 AM 125.1 SP
Date Start End CH
JAN/02 12:00AM 1:00AM DTV125. 1
New Program
4-A) To delete the timer program:
1 Use [K / L] to select the program you want to
delete, then press [OK].
2 Use [K / L] to select “Delete”, then press [OK].
Confirmation window will appear.
3 Use [K / L] to select “Yes”, then press [OK].
4-B) To correct the timer program:
1 Use [K / L] to select the program you want to
correct, then press [OK].
2 Use [K / L] to select “Program Change”, then
press [OK].
3 Correct the timer program by using
[K / L / { / B], then press [OK].
5) Press [TIMER] to exit.
6) Press [TIMER SET] to return to the timer standby
mode.
Note
• Press [TIMER] to check the timer recording in progress.
When the timer recording is proceeding, that
program will be highlighted with red. In this case,
you cannot select any other program.
Timer Programming
1/1
TUE JAN/02 11:00AM
Date Start End CH
E41 JAN/02 12:00AM 1:00AM DTV125. 1
New Program
Each error number means:
E1-22
E37-39
Recording error other
than below
E41 Power failed
E24 Unrecordable disc E42 No disc when
recording
E25-26 Copy prohibited
program
E43 Already 49 titles
recorded
E29 Disc protected E44 Already 254 chapters
recorded
E30 Disc full E45 Copy prohibited
program
E35 PCA full *1 E46 It is impossible to
record additionally
on a disc recorded
by other units
when setting “
Make Recording
Compatible” to “OFF”.
E36 Already finalized
video format disc
E40 Some portion has
not been recorded
because of program
overlapping.
Recording did not
start at the start time.
• E23, E27, E28, E31, E32, E33 and E34 are not displayed.
• A program with the error number is grayed in the timer
programming list.
• Once the timer programming list with error line(s) is
displayed, or after canceling and setting again the timer
standby mode, the program line(s) with error will be
cleared.
*1 PCA is a disc's space reserved for recording test.
Press [STOP C] to stop the timer recording in
progress.
To stop the timer recording in progress
E9H90UD.indd 44E9H90UD.indd 44 2007/05/16 15:44:172007/05/16 15:44:17
45EN 45EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
TIMER RECORDING
Hints for Timer Recording
When the starting time is the same:
A program set previously (PROG. A) has priority.
PROG. A
PROG. B
actual
recording
PROG. A
PROG. B
The rst 2 minutes (at the longest) will be cut o
(when recording to DVD only).
PROG. A
• Timer program which has the earlier start time will be placed first in the timer program list, and be given priority over
the programs with the later start time when timer programs overlap.
• When timer programs overlap, the first 2 minutes (at the longest) of the later recording will be cut off.
• When 2 or more timer programs have the same start time, the program set first will be given priority.
• A timer recording of lower priority will be canceled or start from the middle.
• Check the overlapped timer programmings and change the priority if necessary.
The Priority of Overlapped Settings
Note for DVD recording
• When the recording time of 2 programs are overlapped, or
the end time of a program and the start time of another
program is the same, the first 2 minutes (at the longest) of
the subsequent program will be cut off.
• If the cut-off portion comes up to 3 minute or more, this
program will be displayed with error number E40 in the
timer programming list.
PROG. A
PROG. B
actual
recording
The rst 2 minutes (at the longest) will be cut o.
PROG. BPROG. A
When the end time of the programming
currently being recorded and the start time
of the subsequent program are same:
The beginning of the PROG. B may be cut o.
• If there is a power failure or this unit has been
unplugged for more than 30 seconds, the clock setting
and all timer programming will be lost.
• If a disc is not inserted, "DVD" on the front panel display
flashes and timer recording cannot be performed. In
some cases,
will appear momentarily around the start
time as the unit attempts to record. Please insert a
recordable disc.
• If a cassette tape with a erase-protection tab is not in the
cassette compartment or there is no cassette tape in the
cassette compartment, “VCR” on the front panel display
flashes and timer recording cannot be performed. Please
insert a recordable cassette tape.
• If a cassette tape ends during the timer recording, the
unit will automatically stop, eject the cassette tape, and
turn itself off. To continue recording, insert a recordable
tape.
• When all the timer recordings are completed,
flashes.
Press [TIMER SET] to release the unit from the timer
standby mode.
• If both DVD and VCR are timer programmed, you cannot
use any functions for either unit during timer standby or
timer recording. If you want to use functions other than
recording under such condition, cancel timer recording
by pressing [TIMER SET] during timer standby or stop
recording by pressing [STOP C] during timer recording.
• To cancel the timer standby mode, press [TIMER SET].
• When the starting and the ending time are the same, the
length of the recording will be set for 24 hours. When
the disc or cassette tape becomes full during the
recording, the unit turns itself off.
• If the starting time is earlier and the ending time is later
than the current time, the recording will start right after
you press [TIMER SET] at step 9 on page 43.
• You cannot change the audio language for the timer
recording of digital TV broadcasting.
• The timer recording cannot be performed in DVD and
VCR at the same time. If you set 2 programmings with
the same channel and time in both devices, the program
which is set first will have the priority.
E9H90UD.indd 45E9H90UD.indd 45 2007/05/16 15:44:172007/05/16 15:44:17
46 EN46 EN
OVERWRITING UNNECESSARY TITLE
You can overwrite the existing title from the beginning.
1) Press [STANDBY-ON
y
y].
Make sure that the TV input is set on the unit.
2) Load the disc that includes a title to be overwritten.
It takes a while to display
the title list.
Title list will appear.
If the title list does not appear, press [TITLE].
3) Press [REC MODE] to select a recording mode.
Refer to “Recording Mode” on page 38.
4) Use [K / L] to select a title to be overwritten, then
press [OK].
1 SP (2Hr)
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP(2Hr)
5) Use [K / L] to select “Overwrite”, then press [OK].
1 SP (2Hr)
2
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Edit
Overwrite
Play
6) Select the channel you want to record.
(Refer to page 32 on how to select a channel.)
e.g.) DVD+RW
CH 12
11
+RW
0:01:00
SP(2Hr) 2:00
F I
selected title number
to be overwritten
7) Press [REC I].
Overwriting recording starts.
The elapsed-time counter starts running.
8) Press [STOP C] to stop recording.
Title name is also overwritten.
This operation may take a
while to be completed.
You can overwrite the existing title from the selected
position.
1) Follow the steps 1, 2 and 4 on the left.
2) Use [K / L] to select “Play”, then press [OK].
Playback will start.
3) Press [PAUSE F] at the point from which you want
to start overwriting.
4) Press [REC I].
“F I”, display menu, channel, and the time lapse will
be displayed as illustrated on the left.
5) Select the channel you want to record.
(Refer to page 32 on how to select a channel.)
6) Press [REC I] again.
Overwriting recording starts.
7) Press [STOP C] to stop recording.
This operation may take a
while to be completed.
Overwriting from the Beginning of
the Title
Note
• The remaining recording time is displayed on the
bottom right corner of the TV screen during
overwriting.
Note
• Recording mode of the overwriting title is the same
as that of the original (overwritten) title when
overwriting in the middle of the title.
• Title name will not be overwritten.
Overwriting in the Middle of the Title
E9H90UD.indd 46E9H90UD.indd 46 2007/05/16 15:44:182007/05/16 15:44:18
47EN 47EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
OVERWRITING UNNECESSARY TITLE
When you overwrite on the unnecessary title, there were various circumstances such as follows. Please note that
following cases only describe the overwriting without any recording mode discrepancy. To avoid accidental deletion
please check if there is no important title after the overwriting point.
When overwriting title is shorter than the existing title:
(overwriting from the beginning of the title)
overwrite
recording : A
existing title : B
after
overwriting
30 - 180 seconds will be cut o.
When overwriting title is longer than the existing title:
(overwriting from the beginning of the title)
overwrite
recording : A
existing title : B
after
overwriting
When overwriting in the middle of the title:
30 - 180 seconds will be cut o.
30 - 180 seconds will be cut o.
overwrite
recording : A
existing title : B
after
overwriting
overwrite
recording : A
existing title : B
existing title : C
after
overwriting
title name : A
title name : A
title name : B
title name : A
title name : C
title name : B*
title name : B
*
Overwritten section and the rest of the sections will
have the same title name as the original existing
title (B).
Hints for Overwriting
Note
• When a title name is overwritten, its thumbnail is also overwritten.
• “Auto Chapter” interval time is reset at the overwriting start point.
• A chapter mark is put the beginning of the overwrite title when overwriting in the middle of the title.
E9H90UD.indd 47E9H90UD.indd 47 2007/05/16 15:44:192007/05/16 15:44:19
48 EN48 EN
SETTINGS FOR AN EXTERNAL DEVICE
HDMI OUT
DVD
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-V IDE O IN --- A UD I O --- OUT
IN --- V I DE O --- OU T
COMPONENT
VIDEO OUT
DVD/VC R
ANTENNA
DVD RECORDER
4 HEAD HI-FI STEREO
ONE TOUCH RECORDING • LONG PLAY
DVD RECORDER / VCR DVDR 3545V
STANDBY-ON
REW F.FWD PLAY PLAYRECSTOP/EJECT STOP
REC
CHANNEL
SOURCE
VCR
DVD
OPEN/CLOSE
SV VIDEO L-AUDIO-R DV
front of this unit rear of this unit
IN
L
R
L
R
S-VIDEO IN --- AUDIO --- OU T
IN --- VIDEO --- OU T
DVD/VCR
S-VIDEO
OUT
AUDIO OUT DV-OUT
LR
VIDEO
OUT
S-VIDEO
OUT
AUDIO OUT
LR
VIDEO
OUT
to E1 IN
external device
(camcorder, VCR etc.)
S-video
cable
RCA
video
cable
S-video
cable
DV cable
(4-pin)
RCA
video
cable
RCA
audio
cable
RCA
audio
cable
to E2 & E3 IN
or
or
E2
E1
E3
or
or
or
3
Use [K / L] to select “Video Input”,
then press [OK].
4
Use [K / L] to select desired external
input, then press [OK].
Video Input
E1 (Rear)
E2 (Front)
5
Use [K / L] to select the input jack
type to connect, then press [OK].
If you want to use VIDEO IN jack, select “Video
In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
E1 (Rear)
Video In
S-Video In
6
Press [SETUP] to exit.
Connect the external device properly to the unit by using input jacks either E2 and E3 (Front) or E1 (Rear).
When connecting an external device of monaural output to this unit, use AUDIO L jack of E2 (Front).
Use S-video or the RCA audio/video cables for this connection.
When connecting a DV-camcorder, use DV input jack of E3 (Front) instead of S-VIDEO IN or VIDEO IN jack
.
Connection to an External Device
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Video”, then
press [OK].
Submenu will appear.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
E9H90UD.indd 48E9H90UD.indd 48 2007/05/16 15:44:202007/05/16 15:44:20
49EN 49EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
4 HEAD HI-FI STEREO
ONE TOUCH RECORDING • LONG PLAY
DVD RECORDER / VCR DVDR 3435V
STANDBY-ON
REW F. FW D PLAY RECSTOP/EJECT
CHANNEL
O
DVD RECORDER
PLAYSTOP
REC
CHANNEL
SOURCE
VCR DVD
OPEN/CLOSE
SV VIDEO L-AUDIO-R DV

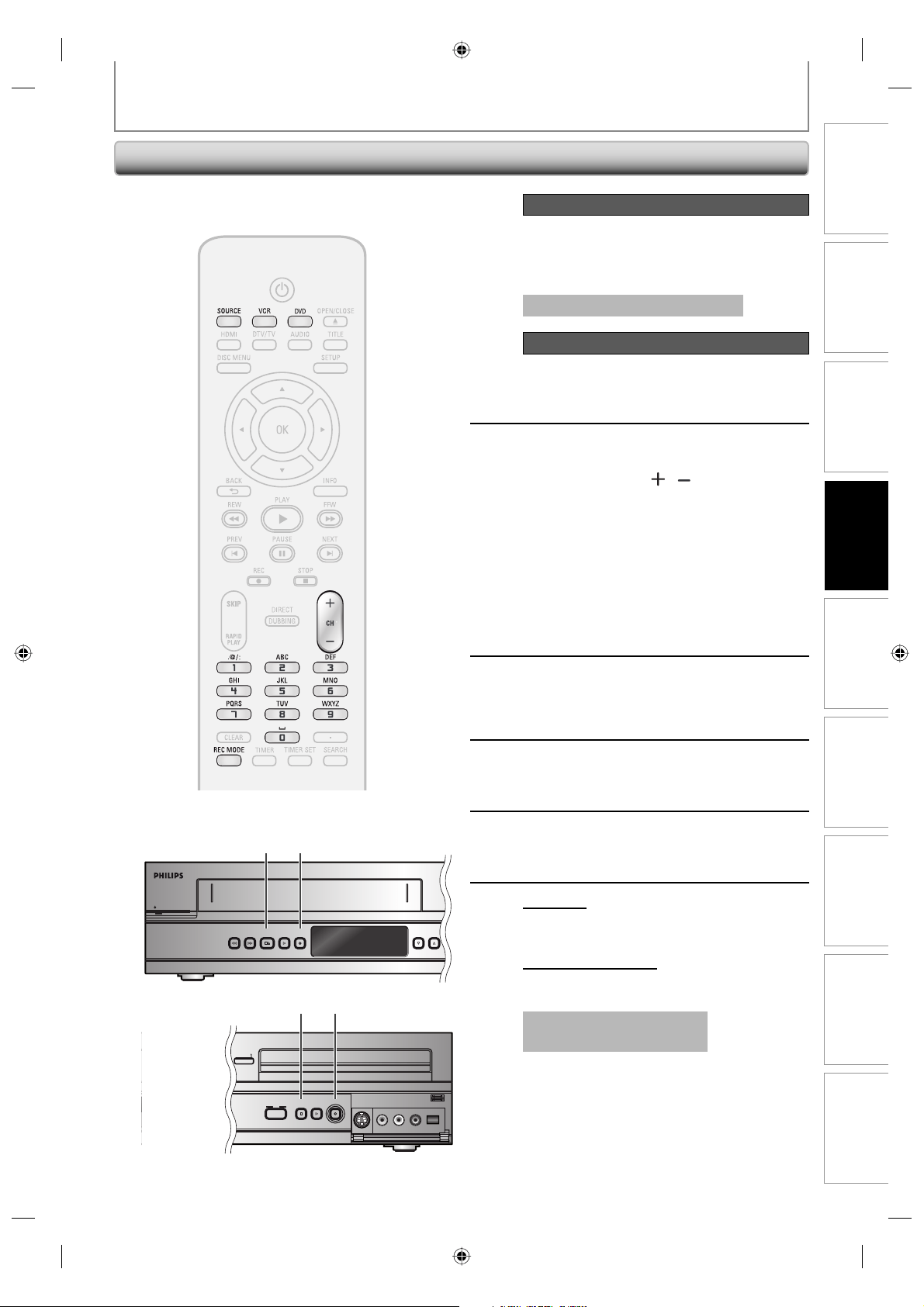

SETTINGS FOR AN EXTERNAL DEVICE
Recording from an External Device
1
Recording to a DVD
Press [DVD].
Insert a recordable disc (refer to page
25 on how to insert a disc).
It takes a while to load the disc.
Recording to a Cassette Tape
Press [VCR].
Insert the cassette tape with an
erase-protection tab intact.
2
Select the appropriate external input
channel (E1 or E2) by pressing
[SOURCE] or [CH
/ ].
• If the external device is connected to the rear
of this unit, select E1.
• If the external device is connected to the front
of this unit, select E2.
• If you are connecting the digital video
camcorder to the DV-IN jack of this unit, refer
to “DV DUBBING” on pages 50-52.
• You can also select E1 or E2 channel by using [the
Number buttons].
e.g.) For E1, press [0], [0], [1].
3
Press [REC MODE] to select a
recording mode.
Refer to “Recording Mode” on page 38 for DVD,
or “Recording” on page 104 for VCR.
4
Press [DVD REC I] or [VCR REC I] on
the unit to start recording.
5
Start playback on the external device
to record from.
6
For disc:
Press [STOP C] on the unit to stop
recording.
For cassette tape:
Press [STOP/EJECT C A] on the unit
to stop recording.
This operation may take a
while to be completed.
Before recording from an external device, refer to the
instructions for the connection on page 48.
4
46
6
E9H90UD.indd 49E9H90UD.indd 49 2007/05/16 15:44:212007/05/16 15:44:21
50 EN50 EN
DV DUBBING
Guide to DV and On-Screen Display
1) Connect your DVC to the DV input jack on the front panel using a DV cable. (Use the DV cable that has 4-pin input
jack and is compliance with the IEEE1394 standards.)
2) Press [SOURCE] repeatedly to select the appropriate external input channel for DV input (E3).
3) Press [INFO] to display the DVC information on the screen.
1. DV icon
2. Indicator of active device
• With “Control” highlighted, press
[OK] to display the available
devices to control with the
remote control of this unit. Use
[K / L] to select the device you
wish to operate, then press [OK].
- Select “DVD” to control this unit
with the remote control of this
unit.
- Select “DV Input” to control your
DVC with the remote control of
this unit.
3. Recording audio mode
• “DV Audio” can be changed. With
“DV Audio” selected, press [OK]
to display the “DV Audio” menu.
Use [K / L] to select the audio
you wish to output, then press
[OK].
- Select “Stereo1” to dub the stereo
sound.
- Select “Stereo2” to dub the sound
with after recording sound.
- Select “Mix” to dub the stereo1
and stereo2.
4. Command menu
• ”Start Rec” or “Pause Rec” will
appear.
5. External input channel
6. Product name of your DVC
• If the unit cannot recognize the
input signal from the DVC or if it is
the unknown product, “No Device”
or “****” will appear instead.
7. Status of the current operation
and the time counter
Each icon means (Available icons
may vary depending on the DVC):
DVC is in stop mode.
DVC is in playback mode.
DVC is in pause mode.
DVC is fast forwarding.
(standard speed)
DVC is fast forwarding.
(faster than above)
DVC is fast forwarding.
(faster than above)
DVC is slow forwarding.
(standard speed)
DVC is slow forwarding.
(faster than above)
DVC is slow forwarding.
(faster than above)
DVC is fast forwarding.
(in stop mode)
DVC is fast reversing.
(in stop mode)
DVC is fast reversing.
(standard speed)
DVC is fast reversing.
(faster than above)
DVC is fast reversing.
(faster than above)
DVC is in slow reverse
playback.
DVC is in recording.
DVC is in recording pause
mode.
The following instructions are described with the operations using the remote control of this unit.
E3 (DV-IN)
AB-1234
0:12:34
1/ 1 1/ 1
+
RW
Control DVD
DV Audio Stereo1
Start Rec
SP(2Hr) 2:00
E3 (DV-IN)
AB-1234
0:12:34
1/ 1 1/ 1
+
RW
SP(2Hr) 2:00
2
3 7
1
4
5
6
The menu changes according to
what mode of DVC.
Switch the mode on the DVC
to video mode for the dubbing
information.
When the DVC is in
video mode...
When the DVC is in camera
mode...
Please also read the operating instructions of your DVC for more information.
This function helps you to easily dub the contents in the DVC (digital video camcorder) to DVD or cassette tape.
You can control basic operations of the DVC from the remote control of this unit if the DVC is in video mode.
DVD mode
VCR mode
For VCR mode on-screen display, refer to page 23.
E9H90UD.indd 50E9H90UD.indd 50 2007/05/16 15:44:222007/05/16 15:44:22
51EN 51EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
DV DUBBING
DVC to DVD Dubbing
2
Press [REC MODE] to select a
recording mode.
(Refer to page 38.)
3
Press [INFO].
4
With “Control” highlighted, press
[OK] to display the available devices
to control with the remote control of
this unit. Use [K / L] to select “DV
Input”, then press [OK].
AB-1234
0:00:00
E3 (DV-IN)
DV Audio Stereo1
Start Rec
Control DVD
1/ 1 1/ 1
+
RW
SP(2Hr) 2:00
Now you can operate your DVC with the remote
control of this unit.
5
Press [PLAY B] to start playing back
the DVC, and find the point where
you wish to start dubbing.
Then, press [STOP C] when you come
to the desired start point.
6
Use [K / L] to select “Start Rec”, then
press [OK].
The dubbing will start.
7
To stop dubbing;
Use [K / L] to select “Control”, then
press [OK].
Use [K / L] to select “DVD”, then
press [OK].
Then press [STOP C].
Before recording from DVC, refer to page 48 for
connection instructions.
Press [DVD] first.
Preparing for DV to DVD dubbing:
• Insert a recordable disc and make sure your DVC is in
video mode.
1
Use [SOURCE] or [CH / ] to select
“E3 (DV-IN)”.
AB-1234
0:00:00
E3 (DV-IN)
E9H90UD.indd 51E9H90UD.indd 51 2007/05/16 15:44:232007/05/16 15:44:23
52 EN52 EN
DV DUBBING

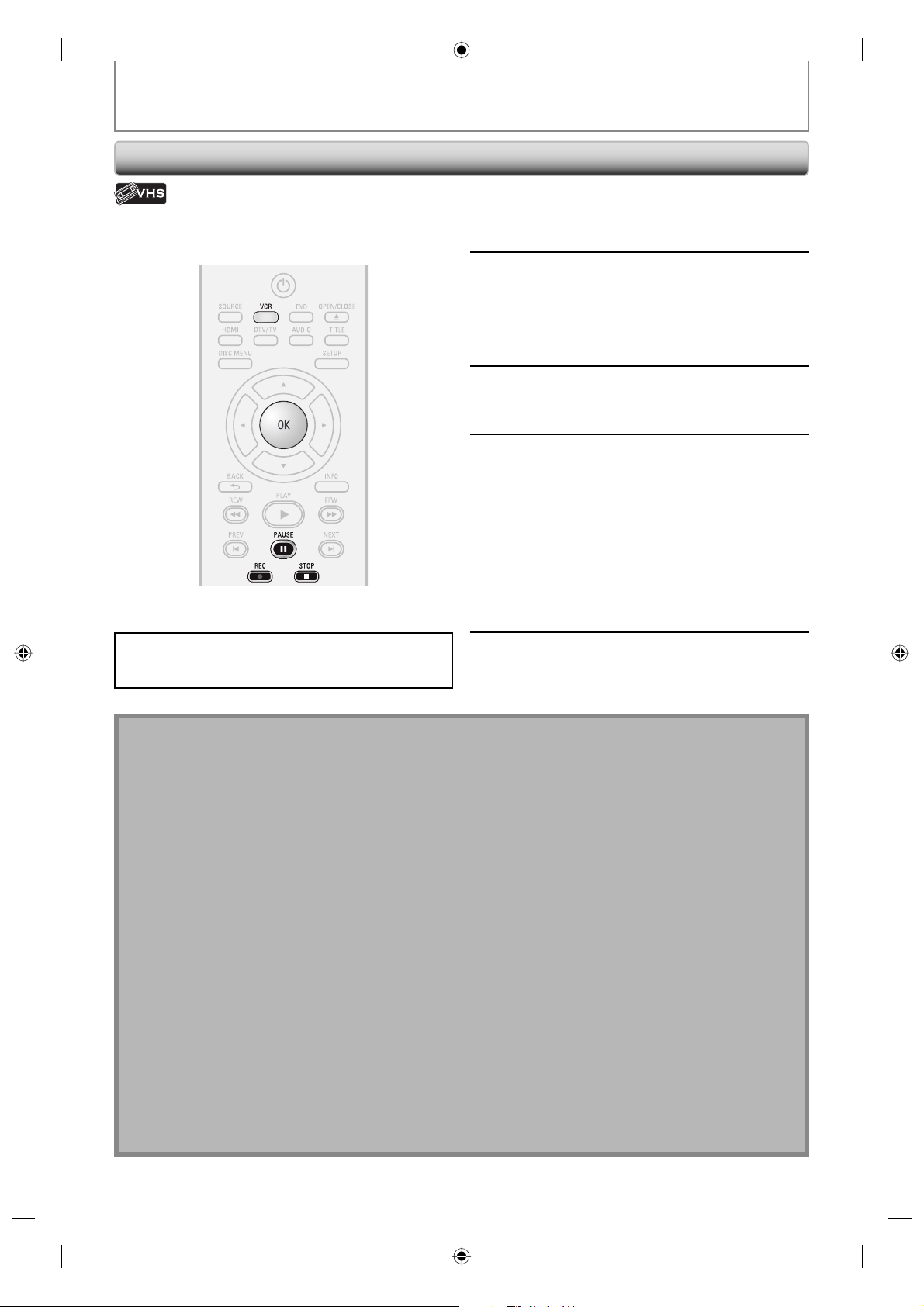

DVC to VCR Dubbing
Before recording from DVC, refer to page 48 for
connection instructions.
Note for DV dubbing
• With regard to DVC to DVD dubbing, if you press [PAUSE F] at step 5, the tape will rewind to the point a few
seconds preceding the paused point when you press [OK] at step 6, then, it will start dubbing when it comes to
the paused point.
• The unit does not send out the output signal to DV camcorder.
• For the proper operation, connect DVC to the unit directly. Do not connect this unit and DVC via any other unit.
• Do not connect more than one DVC.
• The unit can only accept DVC. Other DV device such as cable / satellite box or D-VHS VCR cannot be recognized.
• If no video signal is detected from the DVC during DVC to DVD dubbing, the recording will be paused and “I” will
flash on the TV screen. The recording will resume when the unit detects the video signal again.
• When the DVC is in Camera mode, refer to “Guide to DV and On-Screen Display” on page 50.
• You cannot dub from DVC to the both DVD and VCR at the same time.
• You cannot change the output mode during DVC to VCR dubbing. If you want to switch to the DVD mode, stop
the VCR first.
• During DVC to VCR dubbing, you cannot change channels while paused.
• When output is in DVD mode while playing back a DVD using E3(DV-IN), you cannot switch to the VCR mode.
• If you are using anything other than E3(DV-IN) to playback DVD, you can switch to the VCR mode, but cannot
select E3(DV-IN) channel. (You can select E3(DV-IN) after switching to the DVD mode during VCR playback.)
• You cannot dub from DVC during timer standby mode.
• During timer standby of either component, you cannot select E3(DV-IN) even on the component which is not in
timer standby.
• Date / time and cassette memory data will not be recorded.
• Pictures with a copy-guard signal cannot be recorded.
• A DV terminal is a terminal that can use the transmission mode conforming to the IEEE 1394 standards called “Fire
Wire”. It enables digital dubbing between DV devices with little degradation.
1
Repeat the steps 1 and 2 on page 51.
2
Press the PLAY button on your DVC
to find the point where you wish to
start dubbing. Then, press the PAUSE
button on the DV camcorder when
you come to the desired start point.
3
Press [REC I] to start recording.
4
Press the PLAY button or the PAUSE
button on your DVC to resume the
playback.
The dubbing will start.
To pause the recording:
Press [PAUSE F] once.
“REC” will flash.
To resume recording:
Press [REC I] or press [PAUSE F] again.
“REC” will reappear.
5
To stop recording, press [VCR] then
press [STOP C].
Press [VCR] first.
Preparing for DV to VCR dubbing:
• Insert a recordable cassette tape and make sure your
DVC is in video mode.
E9H90UD.indd 52E9H90UD.indd 52 2007/05/31 9:27:422007/05/31 9:27:42
53EN 53EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others

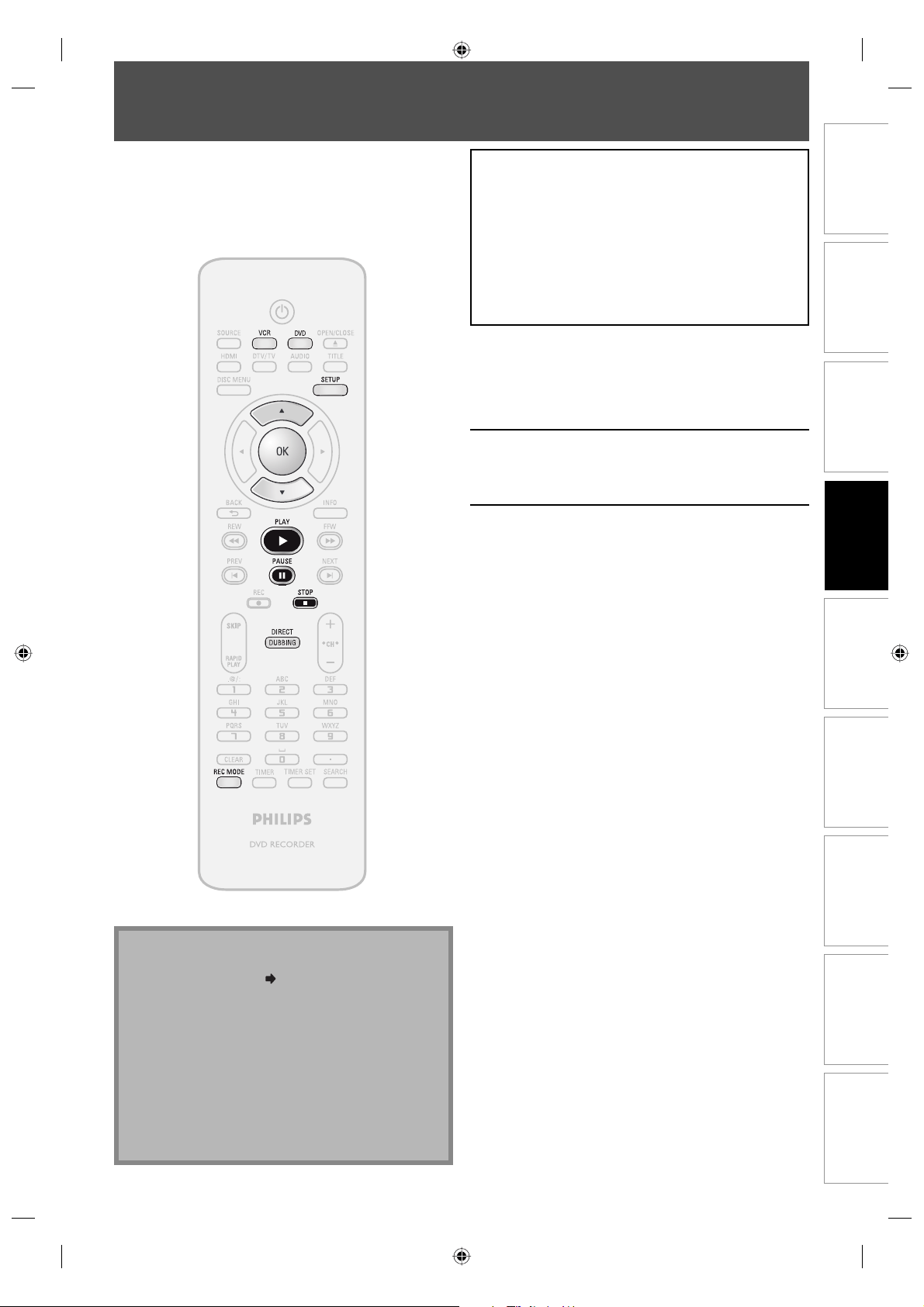

BI-DIRECTIONAL DUBBING
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Recording”,
then press [OK].
“Recording” menu will appear.
3
Use [K / L] to select “Dubbing
Mode”, then press [OK].
Selection menu will appear.
You can copy contents in a DVD to a cassette tape, or do
vice versa. This function is available only when the contents
are not copy-protected. (Before you start, refer to page 38
for the list of compatible discs.)
Note for dubbing
• Dubbing direction setting in “Dubbing Mode” menu
is always reset to “VCR
DVD” whenever you turn off
the power.
• You cannot change the output mode during VCR to
DVD or DVD to VCR duplication.
Note for recording to a tape:
Make sure
- the cassette tape’s erase-protection tab is intact.
- the cassette tape is long enough.
Note for recording to a disc:
Make sure
- the disc is compatible (refer to page 38).
Preparing for dubbing (cassette tape to DVD):
• Insert a cassette tape to be dubbed.
• Insert a recordable DVD.
• Make sure there is enough space on the DVD.
Preparing for dubbing (DVD to cassette tape):
• Insert a disc to be dubbed.
• Insert a cassette tape with an erase-protection tab in
tact.
• Make sure there is enough recordable length on the
tape.
Instructions continue on the next page.
E9H90UD.indd 53E9H90UD.indd 53 2007/05/16 15:44:252007/05/16 15:44:25
54 EN54 EN
BI-DIRECTIONAL DUBBING
Note for VCR to DVD duplication
• After starting VCR to DVD duplication, the picture
may be distorted because of the auto tracking
function. This is not a malfunction. Be advised to play
back the tape until the picture is stabilized, then set
the starting point which you wish to start recording,
and start VCR to DVD duplication.
• This unit will automatically stop the duplication if
playback with no image is detected for more than 3
minutes during VCR to DVD duplication.
• Playback sound mode of the dubbed contents is
determined by the playback sound mode of the VCR
at the point of dubbing.
• This function is available for audio CD, but not with
MP3, Windows Media™ Audio or DivX® files.
4
Use [K / L] to select “VCR DVD”,
then press [OK].
Dubbing Mode
VCR DVD
DVD VCR
Press [SETUP] to exit.
5
Press [VCR], then press [PLAY B] to
find the point where you wish to start
dubbing.
6
Press [PAUSE F] when you come to
the desired start point.
7
Press [DVD], then press [REC MODE]
repeatedly to select the desired
recording mode.
8
Press [DIRECT DUBBING].
VCR to DVD duplication will start.
9
Press [STOP C] to stop the dubbing.
4
Use [K / L] to select “DVD VCR”,
then press [OK].
Dubbing Mode
VCR DVD
DVD VCR
Press [SETUP] to exit.
5
Press [DVD], then press [PLAY B] to
find the point where you wish to start
dubbing.
6
Press [PAUSE F] when you come to
the desired start point.
7
Press [VCR], then press [REC MODE]
repeatedly to select the desired
recording mode.
Rewind or fast forward the tape to the point
where you want to start recording.
8
Press [DIRECT DUBBING].
DVD to VCR duplication will start.
9
Press [STOP C] to stop the dubbing.
VCR to DVD DVD to VCR
E9H90UD.indd 54E9H90UD.indd 54 2007/05/16 15:44:272007/05/16 15:44:27
55EN 55EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others

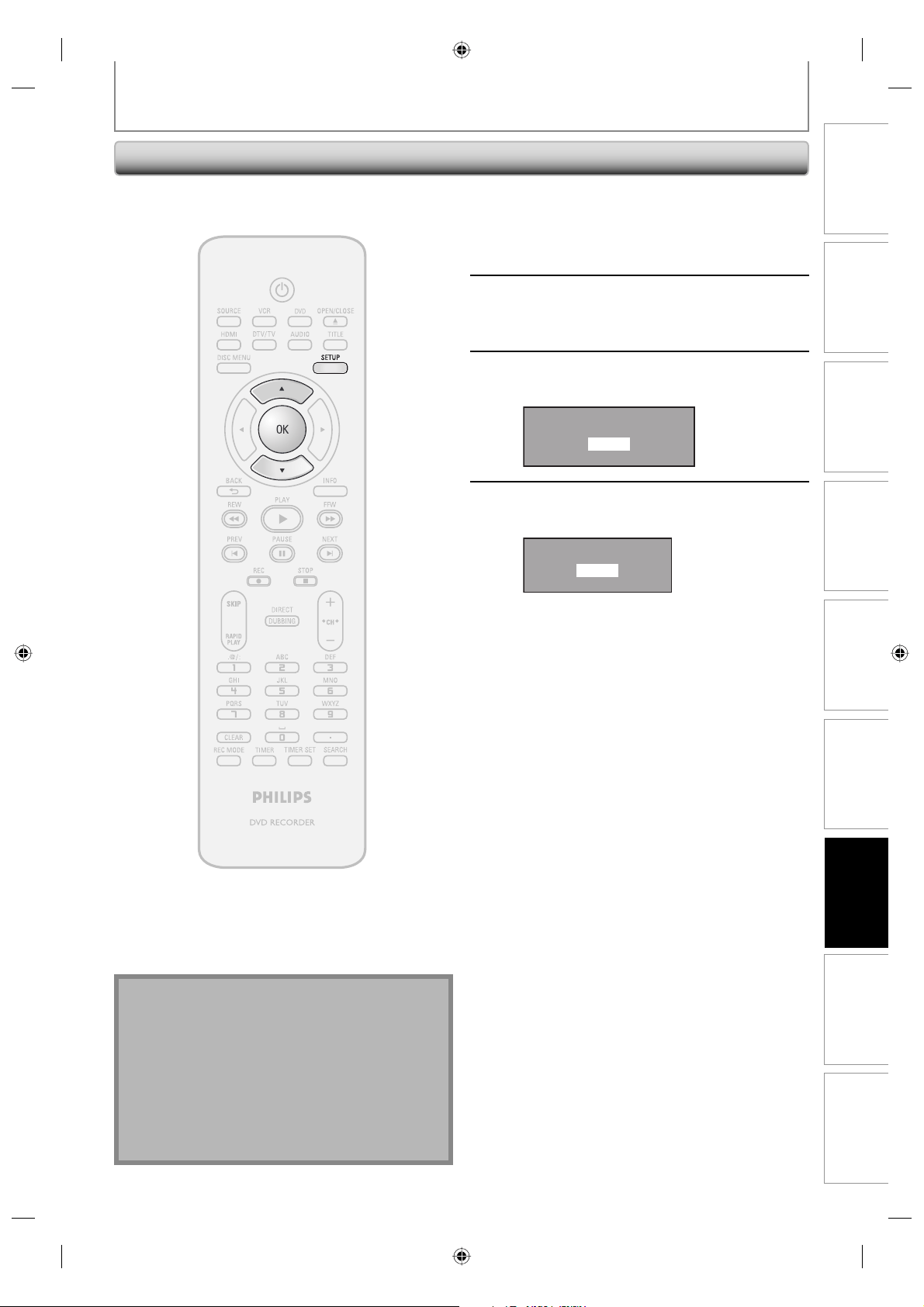

SETTING A DISC TO PROTECT
1
Press [SETUP].
2
Use [K / L] to select “Disc Edit”, then
press [OK].
3
Use [K / L] to select “Disc Protect
OFF
ON”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
4
Use [K / L] to select “Yes”, then press
[OK].
Protect this disc?
Yes
No
A disc will be protected.
This operation may take a
while to be completed.
To prevent accidental recording, editing or erasing the
titles, you can protect them from “Disc Edit” menu.
Note
To cancel the disc protect:
• When you insert a disc protected with this unit,
“Disc Protect ON
OFF” will appear instead of “OFF
ON” at step 3.
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect ON OFF
To release the protect for the disc, select “Yes” at step 4.
E9H90UD.indd 55E9H90UD.indd 55 2007/05/16 15:44:272007/05/16 15:44:27
56 EN56 EN

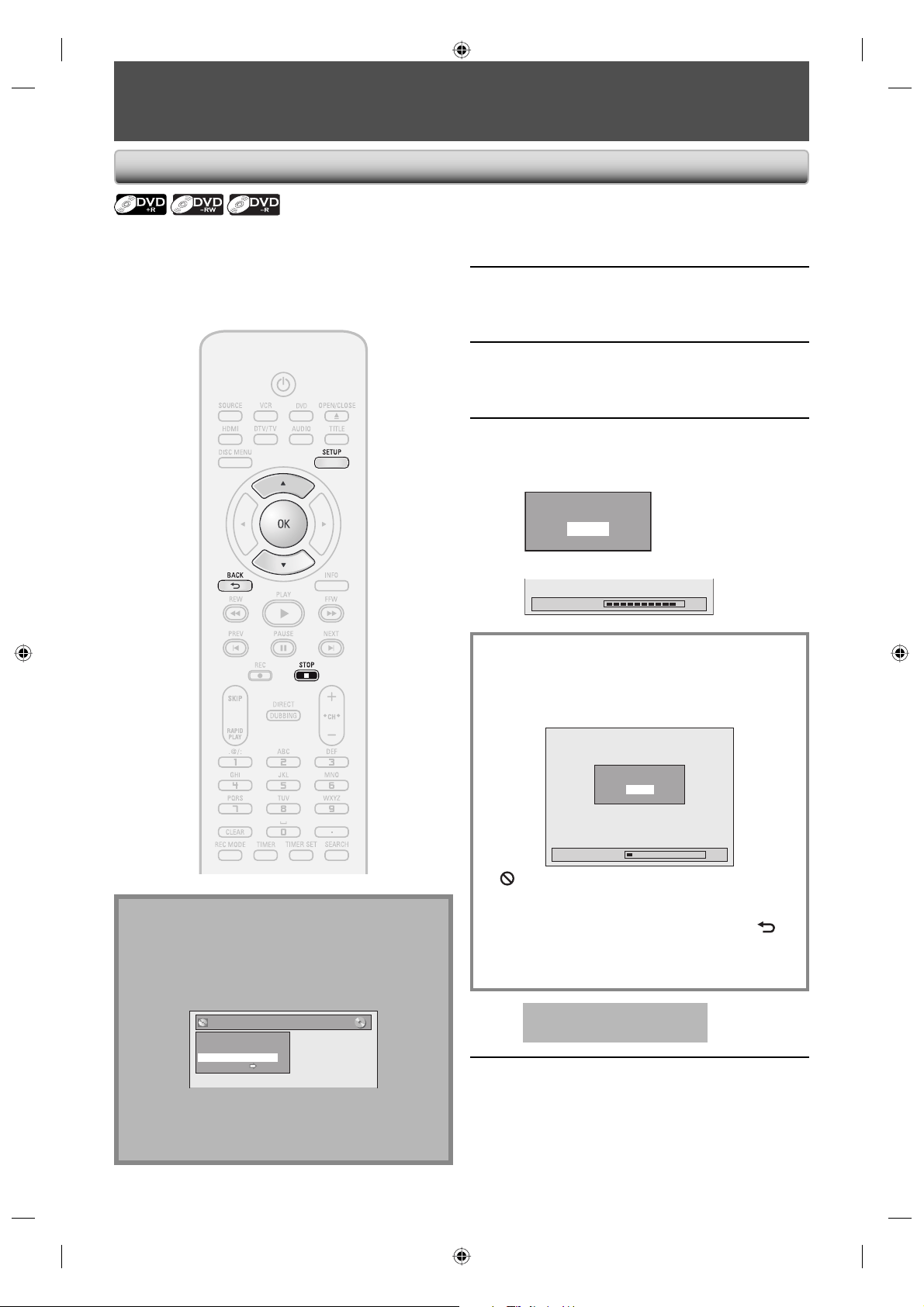

PLAYING THE DISCS ON OTHER DVD PLAYERS
Finalizing a Disc
1
Press [SETUP].
2
Use [K / L] to select “Disc Edit”, then
press [OK].
“Disc Edit” menu will appear.
3
Use [K / L] to select “Finalize”, then
press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
e.g.) DVD+R, DVD-R
Finalize disc?
Yes
No
Finalizing will start.
Finalizing 90%
To cancel finalizing...
(DVD-RW only)
• To cancel finalizing at step 4, press [STOP C], select
“Yes” with [K / L], then press [OK]. Finalizing is
canceled and the unit will be in stop mode.
Finalizing 5%
Yes
No
Do you want to cancel ?
• If appears when pressing [STOP C], you cannot
cancel finalizing because the finalizing has been in
certain progress.
• When selecting “No” and press [OK] or [BACK
] ,
finalizing will be continued.
• You cannot cancel finalizing the DVD+R/DVD-R once
it has started.
This operation may take a
while to be completed.
5
Finalizing is completed.
You will need to finalize DVD+R, DVD-RW or DVD-R to
play them back on other DVD players.
Finalizing may take several minutes up to an hour.
A shorter recording period on the disc will require a
longer time period for finalization. Do not unplug the
power cord during finalization.
Note
• Once you have finalized a DVD+R/ DVD-R, you
cannot edit or record anything on that disc.
• There is no need to finalize DVD+RW.
• When you insert a DVD-RW finalized with this unit,
“Undo Finalize” will appear instead of “Finalize”.
Disc Edit
Edit Disc Name
Erase Disc
Undo Finalize
Disc Protect ON OFF
To release the finalizing for the disc, select “Undo
Finalize” at step 3.
* DO NOT power off during finalization, this will result
in malfunction.
E9H90UD.indd 56E9H90UD.indd 56 2007/05/16 15:44:282007/05/16 15:44:28

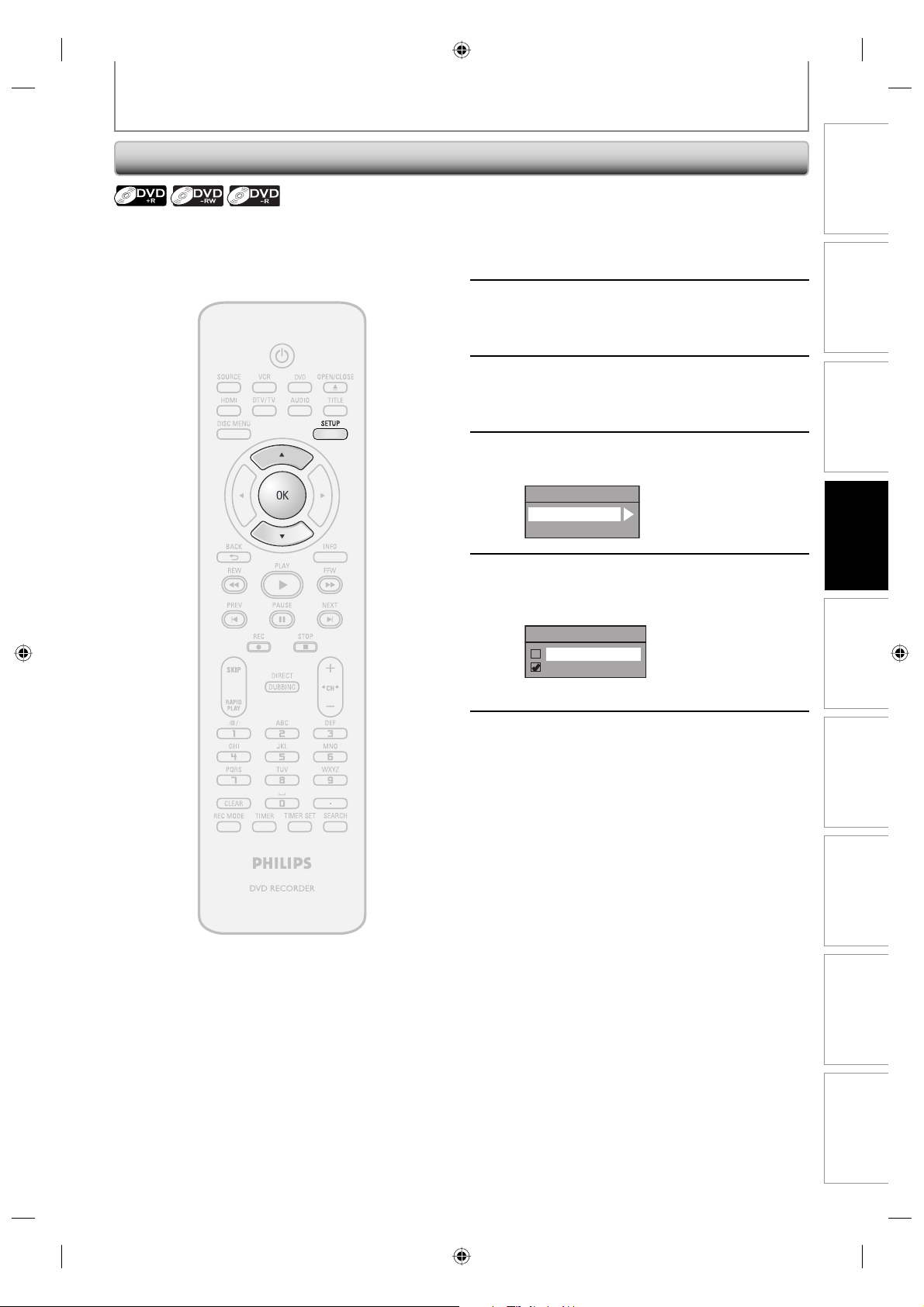

57EN 57EN
Recording
Basic SetupConnections Playback EditingIntroduction Function Setup VCR Functions
Others
PLAYING THE DISCS ON OTHER DVD PLAYERS
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Recording”,
then press [OK].
“Recording” menu will appear.
3
Use [K / L] to select “Auto Finalize”,
then press [OK].
4
Use [K / L] to select “Disc Full” or
“End of Timer Rec”, then press [OK].
Auto Finalize
Disc Full
End of Timer Rec
5
Use [K / L] to select “ON”, then press
[OK].
e.g.) “Disc Full”
Disc Full
ON
OFF
Your setting will be activated.
6
Press [SETUP] to exit.
You can finalize discs automatically using this function.
You can use this function to finalize discs after finishing
all timer recordings and at the end of the disc space.
Auto Finalizing
E9H90UD.indd 57E9H90UD.indd 57 2007/05/16 15:44:302007/05/16 15:44:30
58 EN58 EN

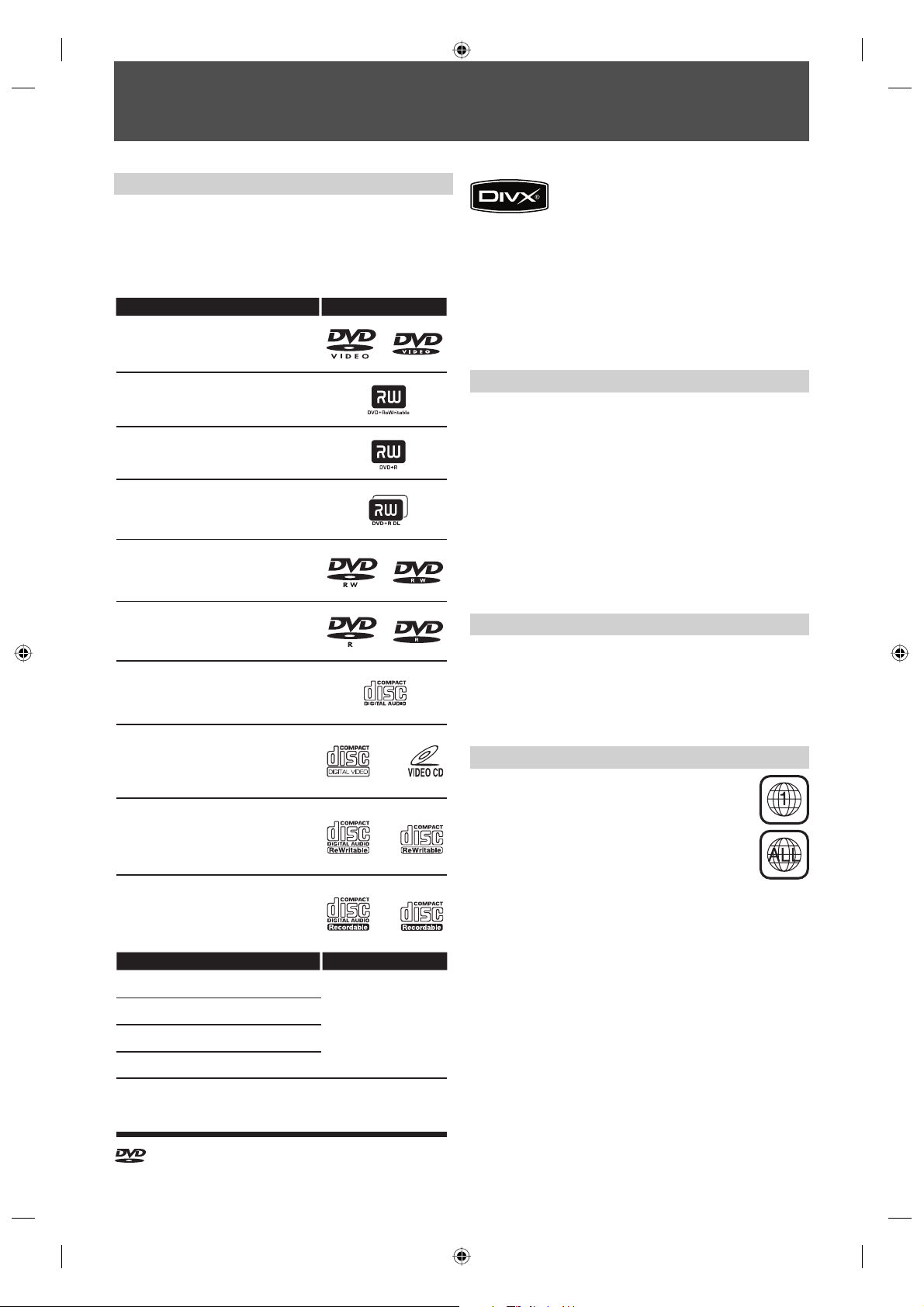

INFORMATION ON PLAYBACK
Before you play back DVD, read the following information.
This unit is compatible to play back the following discs.
To play back a DVD, make sure that it meets the
requirements for region codes and color systems as
described below. You can play back discs that have the
following logos will play back on the unit. Other disc
types are not guaranteed to play back.
Playable Discs and Files
DVD is recorded in different color systems throughout
the world. The most common color system is NTSC
(which is used primarily in the United States and Canada).
This unit uses NTSC, so DVD you play back must be
recorded in the NTSC system. You cannot play back DVD
recorded in other color systems.
Color Systems
This unit has been designed to play back DVD
with region 1. DVD must be labeled for ALL
regions or for region 1 in order to play back on
the unit. You cannot play back DVD that are
labeled for other regions. Look for the symbols
on the right on your DVD. If these region
symbols do not appear on your DVD, you cannot
play back the DVD in this unit.
The number inside the globe refers to region of the
world.
A DVD labeled for a specific region can only play back on
the unit with the same region code.
Region Codes
LogosPlayable discs
MediaPlayable les
CD-DA
MP3
Windows Media™ Audio
CD-RW/-R
JPEG
DivX®
CD-RW/-R
DVD+RW/+R
DVD-RW/-R
CD-DA (audio CD)
video CD
CD-RW
CD-R
DVD-video
DVD+RW
DVD+R
DVD-RW
(Finalized video mode discs only)
DVD-R
(Finalized video mode discs only)
DVD+R Double Layer
is a trademark of DVD Format/Logo Licensing Corporation.
DivX, DivX Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
• Official DivX® Certified product; Plays DivX® 6.0, DivX® 5,
DivX® 4, DivX® 3, and DivX®VOD video content (in
compliance with DivX Certified™ technical requirements).
• Discs containing the DivX® files with the DivX® GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
* This unit cannot play back the disc contents protected
by Windows Media Digital Rights Management (DRM).
The following discs will not play back on this unit.
• CD-ROM • Compact Disc-Interactive (CD-I)
• DVD-RAM • Video Single Disc (VSD)
• DVD-ROM • DVD-audio
• Unfinalized disc
• DVD contains MP3/Windows Media™ Audio/JPEG files
• DVD-R or DVD-RW recorded in VR mode or non
compatible recording format
On the following disc, the sound may not be heard.
• Super audio CD - Only the sound on the CD layer can be
heard. The sound on the high-density super audio CD
layer cannot be heard.
Unplayable Discs
E9H90UD.indd 58E9H90UD.indd 58 2007/05/16 15:44:302007/05/16 15:44:30
59EN 59EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others
You can select images or information on the menu
screen by activating the PBC (playback control) function
of the video CD.
This unit conforms to ver.1.1 and ver. 2.0 of video CD
standard with PBC function.
Ver.1.1 (without PBC function): You can enjoy playback
picture as well as music CD.
Ver.2.0 (with PBC function): While using a video CD with
PBC function, “PBC” appears on the TV screen.
Note
• PBC setting turns to “ON” when loading video CD
with PBC function, thus, even after setting PBC to
“OFF” and ejecting the video CD then reloading the
video CD, this setting turns to “ON” automatically.
• Some operations cannot be performed while PBC
function is on. Cancel PBC function temporarily to
perform those operations by following the
instruction below.
1) Press [SETUP].
2) Use [K / L] to select “CD Playback Mode”, then
press [OK].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “PBC (Video CD only)”, then
press [OK].
4) Use [K / L] to select “ON” or “OFF”, then press [OK].
Your setting will be activated.
You can play back interactive software using menu
screens. Refer to instructions in the video CD.
PBC (playback control) for Video CD
The contents of DVD are generally divided into titles.
Titles may be further subdivided into chapters.
Hint for DVD Playback
DVD-video
title 1 title 2
chapter 1 chapter 2 chapter 1 chapter 2 chapter 3
audio CD, video CD
track 1 track 2 track 3 track 4 track 5
MP3, Windows Media™ Audio, JPEG
folder 1 folder 2
file 1 file 2 file 3 file 4 file 5
INFORMATION ON PLAYBACK
E9H90UD.indd 59E9H90UD.indd 59 2007/05/16 15:44:322007/05/16 15:44:32
60 EN60 EN
BASIC PLAYBACK
Direct Playback
Press [DVD] first.
1
Insert a playable disc (refer to page
25 on how to insert a disc).
Align the disc to
the disc tray guide.
* Make sure the disc is compatible with this unit.
(Refer to page 58 for the list of compatible discs.)
It may take a while to load
the disc.
2
Press [PLAY B] to start playback.
If you are playing back a DVD-video or video CD
with PBC function, a menu may appear.
Refer to “Using the Title / Disc Menu” on page
66.
3
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 67.
Note
• Some discs may start playback automatically.
• You can select images or information on the menu
screen by activating PBC (playback control) function
(page 59).
E9H90UD.indd 60E9H90UD.indd 60 2007/05/16 15:44:332007/05/16 15:44:33

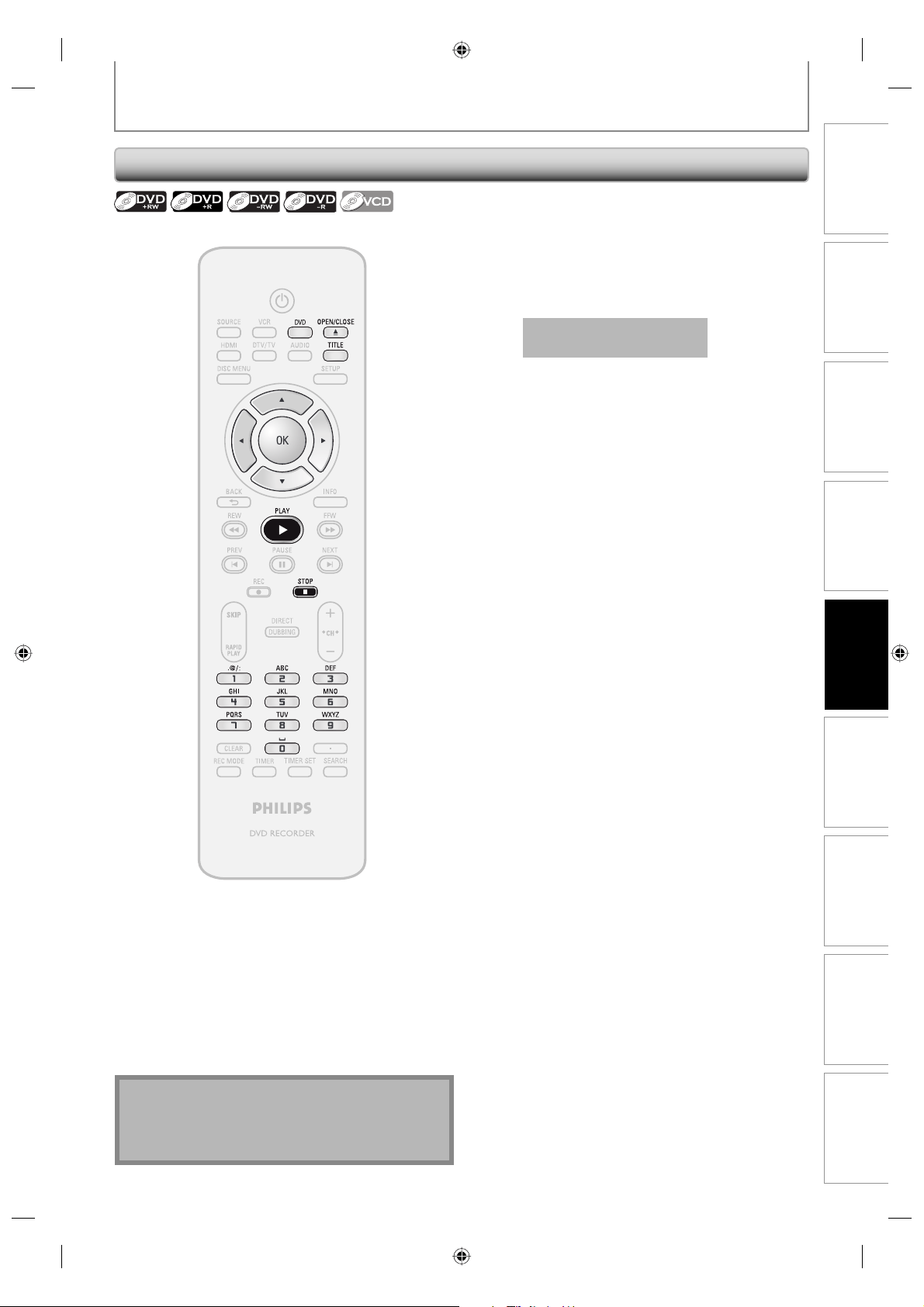

61EN 61EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others
BASIC PLAYBACK
Press [DVD] first.
1
Insert a playable disc (refer to page
25 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 58 for the list of compatible discs.)
It may take a while to load
the disc.
• Title list will appear automatically.
• To exit the title list, press [STOP C].
• To resume the title list, press [TITLE].
Note
• Some discs may start playback automatically.
• You can also start playback by pressing [PLAY B]
instead of [OK] at step 2.
Playback from the Title List
Instructions continue on the next page.
E9H90UD.indd 61E9H90UD.indd 61 2007/05/16 15:44:342007/05/16 15:44:34
62 EN62 EN
2
Use [K / L] to select a desired title,
then press [OK].
1 SP (2Hr)
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP(2Hr)
• For Video CD, when “PBC (Video CD only)” in
“CD playback Mode” menu is set to “ON”, the
video CD main menu will appear when
inserting a disc. In such case, select a numbered
menu with [the Number buttons].
• Press [B] to display the next page, and press
[{] to display the previous page.
If you want to see disc information, press [{ ] when the
first page of the title list is displayed or press [ K ] when
the first title is selected but not when “Play”, “Edit” or
“Overwrite” is highlighted.
e.g.) DVD+RW
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used 0:30:48
Disc Protect OFF
Make Edits Compatible Needed
e.g.) DVD+R
No Disc Name
Disc DVD+R
Total Titles 5
Disc Space Used 1:30:48
Disc Protect OFF
Finalize Finalized
1. Disc name
(Default “No Disc Name”)
2. Disc type
(DVD+RW/DVD+R/ DVD-RW/DVD-R)
3. Total number of title
(include “EMPTY TITLE”)
4. Total time of recorded disc space
5. Status of disc protection
(“ON” is protected disc.)
6. Making edits compatible/finalize
• When DVD+RW is inserted:
If the disc needs to be set “Make Edits Compatible”,
“Needed” is displayed. Otherwise, “Not Needed” is
displayed. (Refer to page 88.)
• When DVD+R, DVD-RW or DVD-R is inserted:
If “Finalize” is done, “Finalized” is displayed.
Otherwise, “Unfinalized” is displayed.
3
Use [K / L] to select “Play”, then
press [OK].
1 SP (2Hr)
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP(2Hr)
Edit
Overwrite
Play
Playback will start.
4
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 67.
BASIC PLAYBACK
E9H90UD.indd 62E9H90UD.indd 62 2007/05/16 15:44:352007/05/16 15:44:35
63EN 63EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others
BASIC PLAYBACK

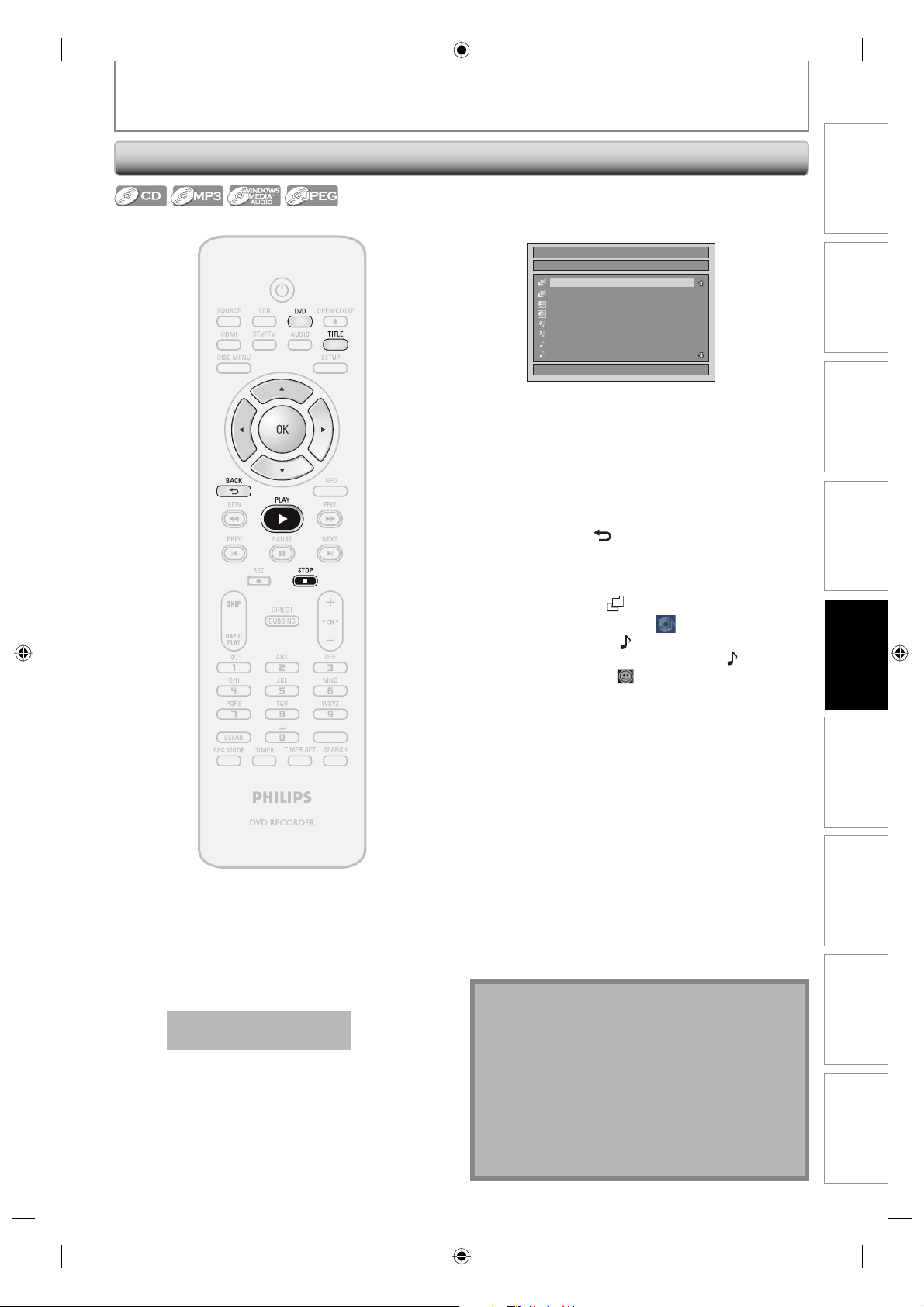

Playing Back an Audio CD and a CD-RW/-R with MP3/Windows Media™ Audio/JPEG Files
Press [DVD] first.
1
Insert a playable disc (refer to page
25 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 58 for the list of compatible discs.)
It may take a while to load
the disc.
When an audio CD is inserted, track list will
appear.
When a CD-RW/-R with MP3/Windows Media™
Audio/JPEG files is inserted, file list will appear.
• To exit the track/file list, press [STOP C].
• To resume the track/file list, press [TITLE].
Note
• The audio source of MP3 files cannot be recorded as
digital sound by an MD or DAT deck.
• Files whose extension is other than “.mp3(MP3)”
“.wma(Windows Media™ Audio)” or “.jpg / .jpeg(JPEG)”
will not be listed.
• Some unplayable folders or files may be listed due to
the recording status.
• High-resolution JPEG files take longer to be displayed.
• Progressive JPEG files (JPEG files saved in progressive
format) cannot be played back on this unit.
2
Use [K / L] to select a desired folder
or track/file, then press [OK].
e.g.) File list
File List
DISC NAME
1/ 2
A
B
1 JPEG file1
2 JPEG file2
3 MP3 file1
4 MP3 file2
5 WMA file1
6 WMA file2
When selecting track/file:
Playback will start.
When selecting the folder (Not available for audio CD):
The files in the folder will appear.
Use [K / L] to select the file or folder you want to play
back, then press [OK].
• Press [PLAY B], [OK] or [B] to move to any lower
hierarchies.
• Press [s] or [BACK
] to move back to the previous
hierarchy.
Hints for audio CD tracks and MP3 / Windows Media™
Audio / JPEG files:
• Folders are shown by
.
• Audio CD tracks are shown by
.
• MP3 files are shown by
3
.
• Windows Media™ Audio files are shown by
.
• JPEG files are shown by
.
• The system can recognize up to 255 folders, up to 99
tracks/999 files.
• Letters of a file/folder name overflowing the given space
will be displayed as “...”. Unrecognizable characters will
be replaced with asterisks.
• If there are no files in the folder, “No Files” will be displayed.
It is recommended that files to be played back in this
unit are recorded under the following specifications:
<MP3 / Windows Media™ Audio>
• Sampling frequency : 44.1 kHz or 48 kHz.
• Constant bit rate : 112 kbps - 320 kbps (MP3),
48 kbps - 192 kbps
(Windows Media™ Audio).
<JPEG>
• Upper limit : 6,300 x 5,100 dots.
• Lower limit : 32 x 32 dots.
• File size of image maximum : 12 MB.
E9H90UD.indd 63E9H90UD.indd 63 2007/05/16 15:44:362007/05/16 15:44:36

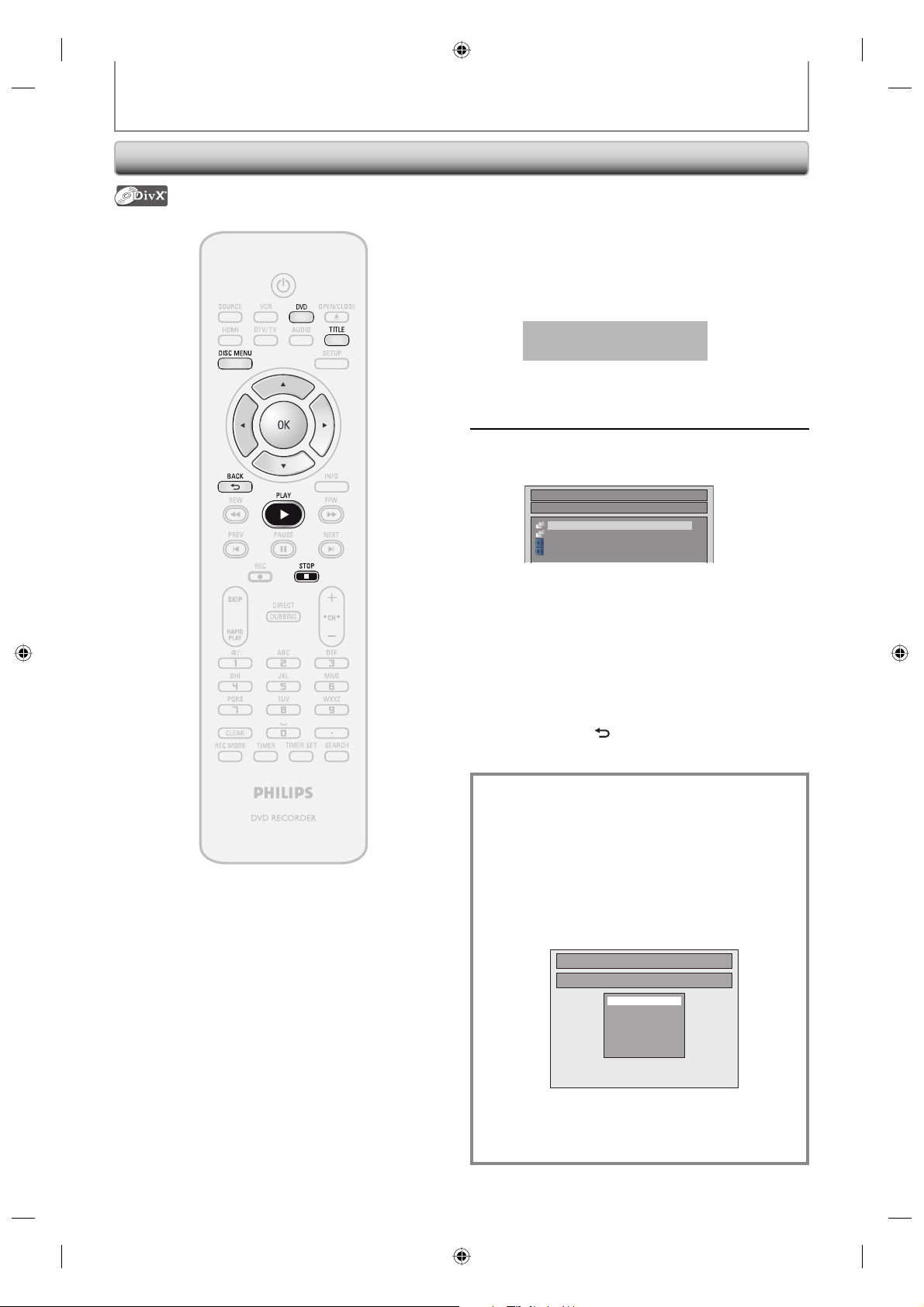

64 EN64 EN
BASIC PLAYBACK
Playing Back a DivX®
Press [DVD] first.
1
Insert a playable disc (refer to page
25 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 58 for the list of compatible discs.)
It may take a while to load
the disc.
File list will appear automatically.
• To exit the file list, press [STOP C].
• To resume the file list, press [TITLE].
2
Use [K / L] to select the desired
folder or file, then press [OK].
File List
DISC NAME
Folder1
Folder2
1 DivX File1
2 DivX File2
When selecting file:
Playback will start.
When selecting folder:
The files in the folder will appear.
Use [K / L] to select the file you want to play back, then
press [OK].
• Press [PLAY B], [OK] or [B] to move to any lower
hierarchy.
• Press [s] or [BACK
] to move back to the folder
above.
To play back the DivX® subtitle created by
the user...
The subtitle created by the user can be displayed
during DivX® playback.
1) After selecting the DivX® file, the “Subtitle List”
will appear when “DivX Subtitle” is set to
anything other than “OFF”. (Refer to page 100.)
2) Use [K / L] to select the desired extension you
want to display, then press [OK].
Subtitle List
DivX File1
OFF
SMI
SRT
SUB
ASS
SSA
TXT
DivX® with the subtitle starts playback. The subtitle
cannot be displayed when the setting is “OFF”.
• If there is more than one extension, the extension
selection appears in the subtitle list.
E9H90UD.indd 64E9H90UD.indd 64 2007/05/16 15:44:382007/05/16 15:44:38
65EN 65EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others
It is recommended that files to be played back in this
unit are recorded under the following specifications:
Official DivX® Certified product
• Playable codec of AVI files : DivX®3.x, DivX®4.x, DivX®5.x
• Maximum size of image : 720 x 480 @30 fps
720 x 576 @25 fps
• Sampling frequency of audio : 8 kHz - 48 kHz
• Audio type : MPEG1 audio layer 3(MP3),
MPEG1 audio layer 2,
Dolby Digital
Hint for the purchased or rental official DivX®
Certified product
• When you purchased or rental a DivX® file through the
official site of DivX® video which is called DivX® Video-
On-Demand (VOD) services, a registration code is
required every time you get the new file from the DivX®
VOD services. Refer to “DivX® VOD” on page 100.
BASIC PLAYBACK
Note for DivX®
• DivX® is a codec (compression/decompression) that can
compress images to a very small amount of data. The
software can compress video data from almost any
devices to the size that can be sent on the Internet
without compromising visual quality of the images.
• A file with an extension of “.avi” and “.divx” is called an
DivX® file. All files with the “.avi” extension are recognized
as MPEG4.
• Files whose extension other than “.avi” and “.divx” will not
be listed on the DivX® menu. However, unplayable folders
and files may be displayed, depending on the recording
conditions.
• Even if the file has an extension of either “.avi” and “.divx”,
this unit cannot play it back if it is recorded in the format
other than DivX®.
• A symbol of
is shown on the top of the file name.
• A maximum of 255 folders or 999 files may be recognized
in a disc.
• Up to 8 hierarchies can be recognized in a folder. Files in
the 9th or deeper hierarchies cannot be played back.
• When there are 9 or more files, a down arrow “L” appears,
indicating that the user can view another part on the
previous page. The current page number and the number
of total pages are shown below the down arrow “L”.
• Letters of a file/folder name overflowing the given space
will be displayed as “...”. Unrecognizable characters will be
replaced with asterisks.
• You can play back the disc recorded in multi-session.
• It may take a while for audio and images to be output
after you inserted a disc and pressed [PLAY B].
• When playing back the files recorded in high bit rates, the
images can be interrupted in some occasions.
• Although DivX® logo has been obtained for this unit, it
may not be able to play back some data, depending on
the characteristics, bit rates, or audio format settings, etc.
• A DivX® file whose file size exceeds 2 GB cannot be played
back.
• If a large-sized DivX® file is selected, it may take a while to
start the playback (over 20 seconds sometimes).
• If you try to playback the DivX® file that has the screen
resolution which this unit does not support, the playback
will be stopped and error message will appear.
• If DivX® files written on a CD-RW/-R cannot be played
back, rewrite them on a DVD+RW/+R or DVD-RW/-R and
try to play back.
• For more information for DivX®, please visit
http://www.divx.com.
• If you insert a CD-RW/-R with
DivX® files that are mixed
with MP3/Windows Media™
Audio/JPEG files, the
playback media selection
screen will be displayed.
Please select “Video” and
proceed to next step.
• Press [DISC MENU] to call up the playback media
selection screen in stop mode.
• If you select “Audio & Picture”, instead of “Video” on the
playback media selection screen, this unit can play back
MP3/Windows Media™ Audio/JPEG files.
• Some DivX® files cannot be played back on this unit due
to the configuration and characteristics of the disc, or due
to the condition of recording
and authoring software.
• You cannot play back the
DivX® VOD files obtained
with different registration
codes on this unit. Press
[TITLE] and select other files
that can be played back.
Note for DivX® Subtitle
• To utilize this function, the following conditions must
meet.
– “DivX Subtitle” must be activated in “DivX” menu. (Refer
to “DivX Subtitle” on page 100.)
– Playback file and the subtitle file must have the same
name.
– Playback file and the subtitle file must locate in the same
folder.
– Only the subtitle files with the following extensions are
supported; .smi (.SMI), .srt (.SRT), .sub (.SUB), .ass (.ASS), .
ssa (.SSA), .txt (.TXT).
(.sub (.SUB) and .txt (.TXT) files may not be recognized.)
– The subtitles that exceeds the playback time of the DivX®
file will not be displayed.
Please select the media
to play back.
Audio & Picture
Video
This player is not authorized to
play this video.
Please push 'TITLE'.
Authorization Error
• Some DivX® VOD files are
restricted with the limited
playable times (you cannot
play them back beyond the
limit). If your DivX® VOD file
has such limit, the playback
confirmation screen will
appear.
Use [s / B] to select “Yes” if you want to play back the
file, or to select “No” if you do not wish to play it back.
Then, press [OK] to confirm the selection.
• You cannot play back the
DivX® VOD files, of which
rental period has been
expired. In such case, press
[TITLE] and select other files
that can be played back.
This rental has views left.
Do you want to use one
of your views now?
DivX
®
VOD Rental
Yes
No
This rental is expired.
Please push 'TITLE'.
Rental Expired
E9H90UD.indd 65E9H90UD.indd 65 2007/05/16 15:44:392007/05/16 15:44:39
66 EN66 EN
BASIC PLAYBACK
Using the Title / Disc Menu
DVD or video CD with PBC function may contain a title
list, which describes the contents of the disc, or a disc
menu, which guides you through the available functions
in the disc.
Press [DVD] first.
1) Insert a playable disc (refer to page 25 on how to
insert a disc).
* Make sure the disc is compatible with this unit. (Refer
to page 58 for the list of compatible discs.)
It may take a while to load the disc.
2) Press [TITLE] or [DISC MENU] to call up the title list
or disc menu.
3) Use [K / L / { / B] to make a selection, and then
press [OK] to enable your selection.
4) Press [STOP C] to exit.
1) During playback, press [PAUSE F].
Playback will be paused and sound will be muted.
F
2) Press [PLAY B] to return to the normal playback.
Note
• You can select a numbered menu with [the Number
buttons] also.
• Menus vary among discs. Refer to the information
accompanying the disc for details.
• [TITLE] or [DISC MENU] will not always be active
with all DVD.
• For video CD, when “PBC (Video CD only)” in “CD
Playback Mode” menu is “ON”, the video CD main
menu will appear when inserting a disc.
Note
• On DVD, set “Still Mode” to “Field” in “Playback”
menu if pictures in the pause mode are blurred.
(Refer to page 95.)
Pause
E9H90UD.indd 66E9H90UD.indd 66 2007/05/16 15:44:402007/05/16 15:44:40
67EN 67EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others

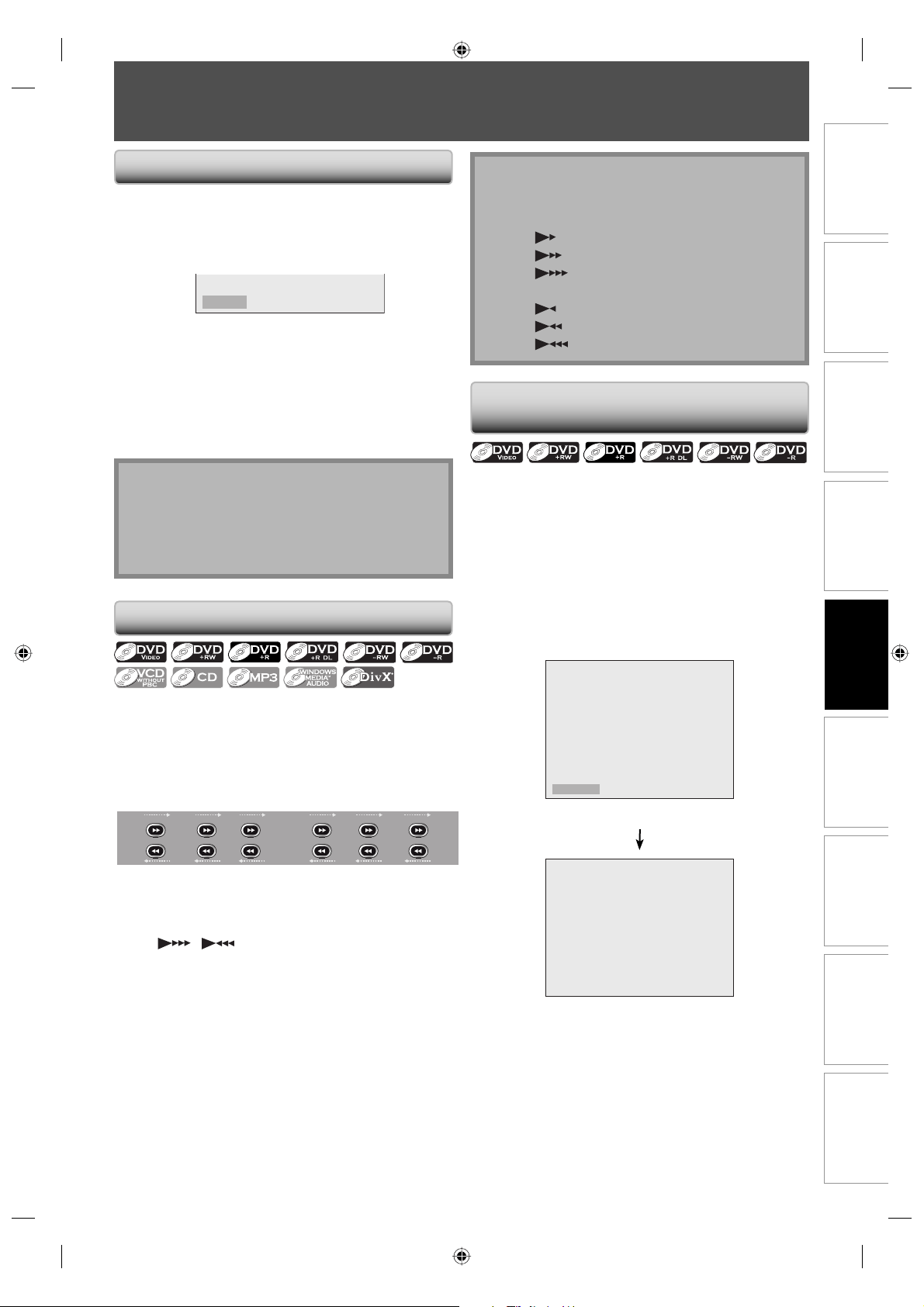

SPECIAL PLAYBACK
You can skip TV commercials to enjoy the recorded
programs without interrupting.
During playback, press [SKIP].
Normal playback will start at 30 seconds ahead from the
point you press [SKIP].
Every time you press [SKIP], the searching point will be
extended by 30 seconds ahead.
You can press [SKIP] up to 6 times (180 seconds).
e.g.) Press [SKIP] once.
B
Skip 30 sec.
(forwarding 30 seconds)
Playback will return to the normal playback.
You can play back from where you stopped playing back
the disc last.
1) During playback, press [STOP C].
The resume message will appear.
Resume ON
2) Press [PLAY B].
In a few seconds, playback will resume from the point
at which it stopped last. You can resume playback at
the same point even if you turn off the unit.
To cancel the resume playback and start playing back
the disc from the beginning, press [STOP C] again
while the playback is stopped.
Resume Playback
Note
• For MP3/Windows Media™ Audio/JPEG files, playback
will resume from the beginning of the file at which
playback was stopped.
• Some video CD with the PBC function resume
playback from the beginning of the track.
Note
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
2x:
20x:
40x:
reverse (approx. speed)
5x:
20x:
40x:
1) During playback, press [FFW D] or [REW E].
Every time you press [FFW D] or [REW E],
approximate speed will be changed as follows.
Fast forward or fast reverse playback across titles (for
DVD) or files (for MP3 / Windows Media™ Audio files) is
not possible.
20x
normal
speed
playback
2x 20x5x 40x40x
For video CD, approximate forward/reverse speeds are
2x, 8x, 16x.
For audio CD, MP3/Windows Media™ Audio files,
approximate speed is fixed at 8x with sound (indicated
with / ).
Picture quality of DivX® files in fast reverse is lower
than that in fast forward.
For some DivX® files, fast forward/fast reverse may not
function.
2) Press [PLAY B] to return to the normal playback.
Fast Forward / Fast Reverse Playback
Skipping TV Commercials During
Playback
E9H90UD.indd 67E9H90UD.indd 67 2007/05/16 15:44:412007/05/16 15:44:41
68 EN68 EN
SPECIAL PLAYBACK
Rapid playback function is available only during
playback.
This function is available only on discs recorded in the
Dolby Digital format, and plays back in a slightly faster/
slower speed while keeping the sound quality just as
normal playback.
1) During playback, press [RAPID PLAY].
B
:
Press [RAPID PLAY] once during playback.
Plays back approximately at 0.8 times of normal
playback.
B
:
Press [RAPID PLAY] twice during playback.
Plays back approximately at 1.3 times of normal
playback.
B :
Press [RAPID PLAY] 3 times to play back in
normal speed.
No effects.
2) Press [PLAY B] to continue the normal playback.
Rapid Playback
Note
• Audio (language) setting cannot be changed while
using this mode.
• This feature may not work at some point in a disc.
• Audio is PCM during rapid playback mode except
when using digital audio connection.
• When using digital audio connection (COAXIAL or
HDMI), the LPCM sound (2 channel) will be output.
Step by Step Playback
1) During playback, press [PAUSE F].
Playback will be paused and sound will be muted.
2) Press [NEXT
] repeatedly.
Playback will advance one frame (or step) at a time
when you press [NEXT
] with the sound muted.
To play back step by step backward:
Press [PREV
] repeatedly.
Every time you press the button, the playback will go
backward by one frame.
• Press and hold [PREV
] / [NEXT ] to reverse/
advance continuously.
3) Press [PLAY B] to continue the normal playback.
Note
• Only step by step forward playback is available for
playing back video CD and DivX® files.
Note
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
1/16x:
1/8x:
1/3x:
reverse (approx. speed)
1/16x:
1/8x:
1/4x:
• For some DivX® files, slow forward/slow reverse may
not function.
• Only slow forward is available when playing back
video CD and DivX® files.
Slow Forward / Slow Reverse Playback
1) During playback, press [PAUSE F]. Then press
[FFW D] or [REW E].
Every time you press [FFW D] or [REW E],
approximate speed will be changed as follows. (The
sound will remain muted.)
1/8x
pause
1/16x 1/8x1/16x 1/3x1/4x
To return to the normal playback, press [PLAY B].
E9H90UD.indd 68E9H90UD.indd 68 2007/05/16 15:44:432007/05/16 15:44:43
69EN 69EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others
SPECIAL PLAYBACK
Zoom
Note
• When selecting a smaller factor than the current one,
the zoom area will not be displayed.
• To exit the zoom menu, press [INFO] again at step 1.
• To cancel the zoom function, select “x1.0” using
[K / L], then press [OK].
• You cannot slide the zoomed picture on some JPEG
files.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired zoom factor to zoom,
then press [OK].
1/ 5 1/ 5
DVD
× 1.2
× 1.5
× 2.0
0:01:00 / 1:23:45
Video
Zoom menu will appear.
There are four options
(x1.0, x1.2, x1.5 and x2.0), these are displayed
excluding the current zoom rate.
Zoom area will be displayed.
4) Use [K / L / { / B] to select a desired zoom
position, then press [OK].
Zoom playback will start.
This feature allows you to assign a specific point on a disc
to be called back later.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the marker
list.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired marker number.
When it reaches the desired point, press [OK].
1/ 5 1/ 5
DVD
---
---
---
---
---
---
1
2
3
4
5
6
0:01:00 / 1:23:45
Video
The title (track) number and the time will be displayed.
4) To return to the marker later:
Use [K / L] to select the desired marker number,
then press [OK].
Marker Setting
Note
• To clear a marker, select the marker number to be
cleared, then press [CLEAR].
• All markers will be erased when you operate these
operations listed below.
– Opening the disc tray
– Turning off the power
– Record on a recordable disc
• You can mark up to 6 points.
• Marker setting is not available when you play back
the video CD with PBC function.
E9H90UD.indd 69E9H90UD.indd 69 2007/05/16 15:44:462007/05/16 15:44:46

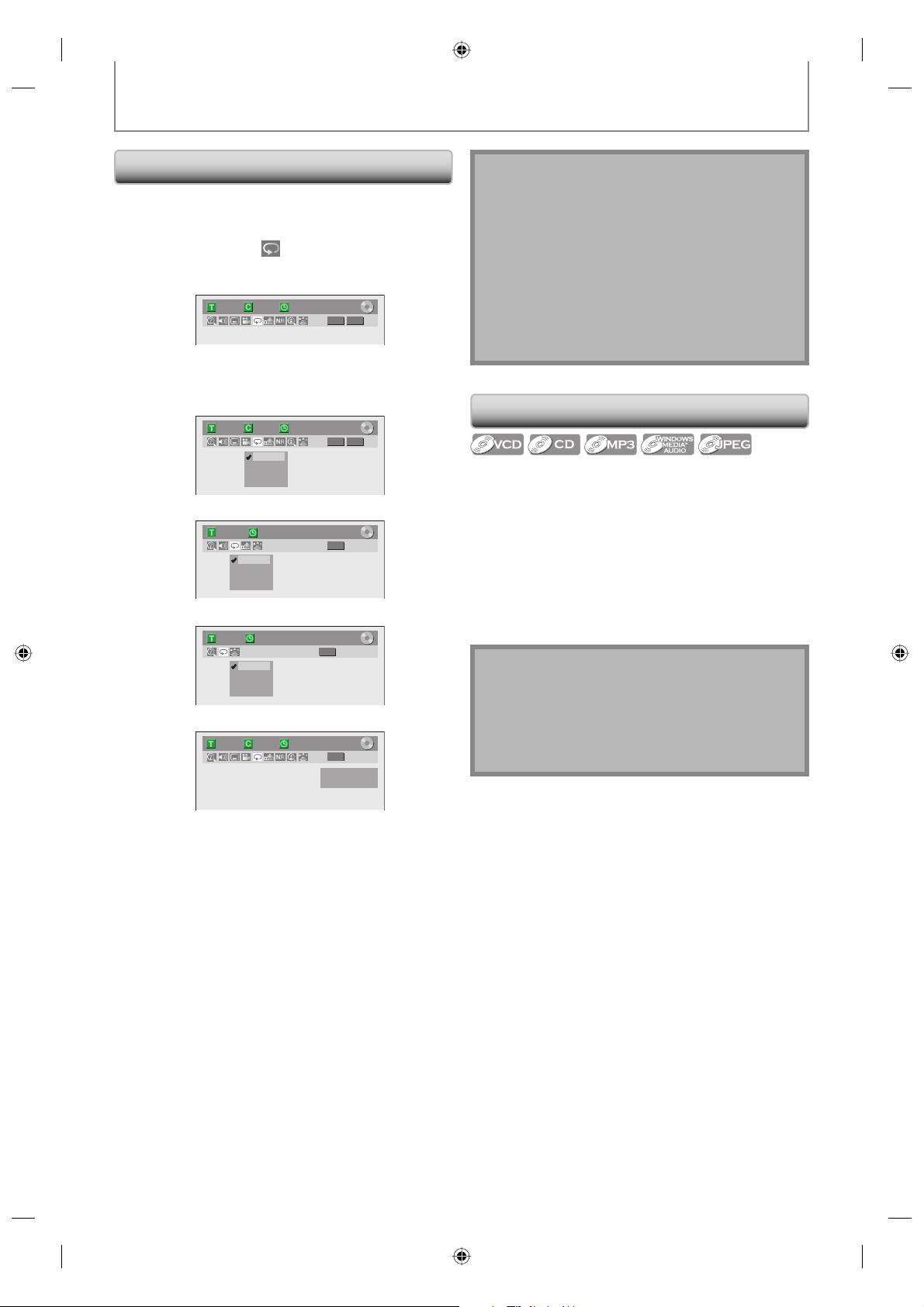

70 EN70 EN
Repeat Playback
Random Playback
Available repeat function may vary depending the discs.
1) During playback press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired repeat type, then
press [OK].
e.g.) DVD-video
1/ 5 1/ 5
DVD
OFF
Title
Chapter
A – B
0:01:00 / 1:23:45
Video
e.g.) audio CD, video CD
1/ 5
CD
0:00:15 / 0:05:00
OFF
Track
All
A – B
e.g.) MP3/Windows Media™ Audio/JPEG files
1/ 5 0:00:15
MP3
OFF
Track
All
Group
The selected repeat playback will start.
Repeat
Title
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Title:
The current title will be played back repeatedly.
Chapter:
The current chapter will be played back repeatedly.
All:
The current disc will be played back repeatedly.
A-B:
Desired section can be played back repeatedly.
1) Use [K / L] to select “A-B”, then press [OK].
2) Press [OK] at the desired starting point A.
3) Press [OK] at the desired ending point B.
Track:
The current track or file will be played back repeatedly.
Group:
The current folder will be played back repeatedly.
You can play back a disc randomly instead of playing
back in the original order.
1) Press [SETUP].
2) Use [K / L] to select “CD Playback Mode”, then press
[OK].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “Random Play”, then press
[OK].
Random playback will start.
Note
• To cancel random playback, press [STOP C] twice
during random playback. “OFF” appears on the TV
screen.
• For video CD with PBC function, the PBC setting will
be switched to off automatically when you start
random playback.
Note
• Point B for the repeat A-B playback should be set
within the same title or track as point A.
• To cancel the repeat playback, select “OFF” at step 3.
The repeat setting will also be canceled when you
stop playback.
• You cannot select “Group” during the random
playback.
• For some DivX® files, A-B repeat playback may not
function.
• Repeat playback is not available when you play back
the video CD with PBC function.
SPECIAL PLAYBACK
E9H90UD.indd 70E9H90UD.indd 70 2007/05/16 15:44:482007/05/16 15:44:48

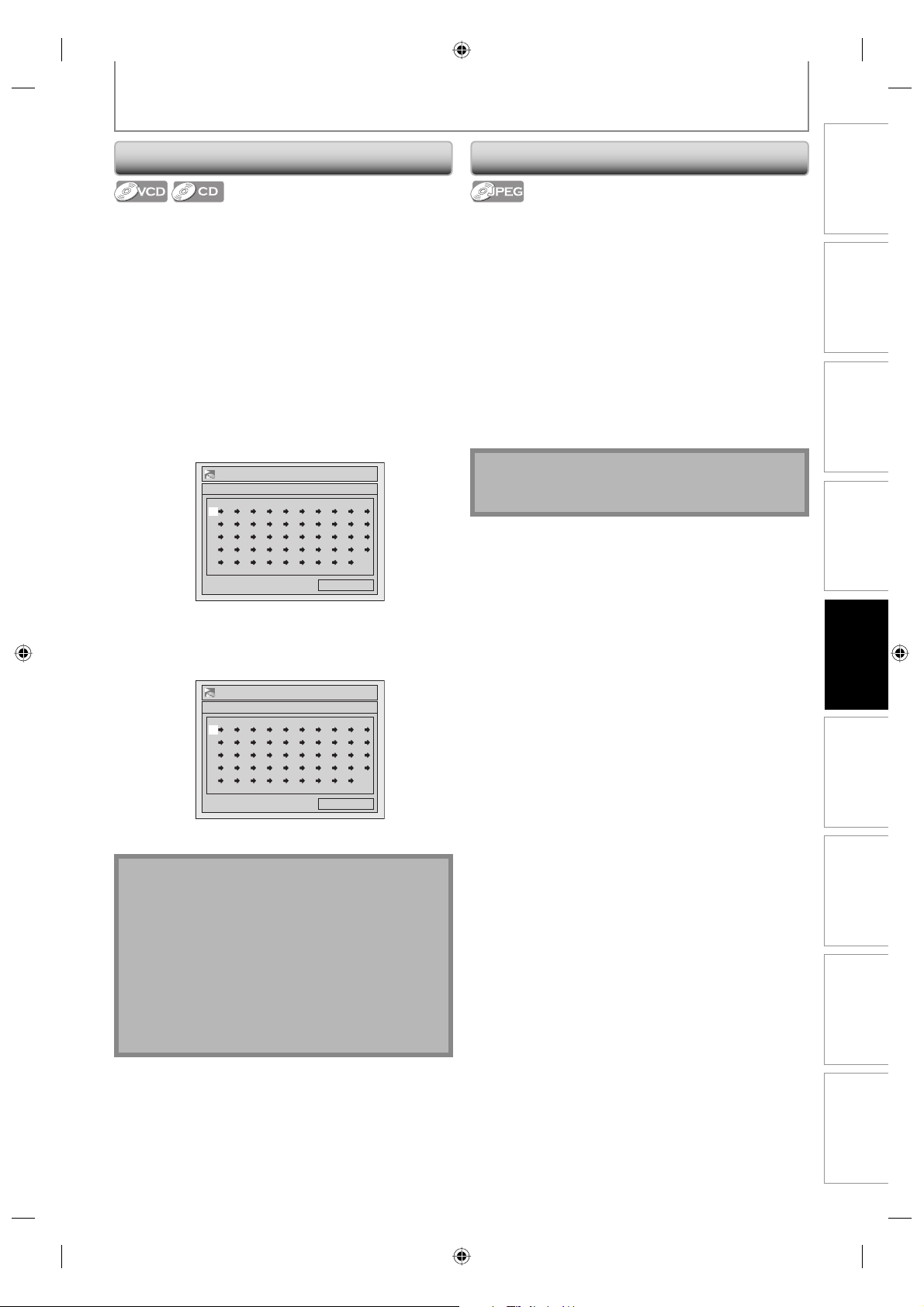

71EN 71EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others
Program Playback
Note
• To erase tracks you selected, press [CLEAR] at step 4.
• You can make program settings up to 50 tracks.
• To cancel program playback, press [STOP C] twice
during program playback. “OFF” appears on the TV
screen.
• You may also select a desired track using [the
Number buttons] at step 4.
• For video CD with PBC function, the PBC setting will
be switched to off automatically when you start
program playback.
You can program the disc to play back in your desired
order.
1) Press [SETUP].
2) Use [K / L] to select “CD Playback Mode”, then press
[OK].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “Program Play”, then press
[OK].
4) Use [K / L] to select a desired track, then press [OK]
or [B].
CD Playback Mode
Program Play
0:00:00Total
--
-- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
Repeat this step until you program all the desired
tracks.
5) Press [PLAY B].
CD Playback Mode
Program Play
0:31:07Total
09
04 10 06 -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
Program playback will start.
Slide Show
You can select the display time between 5 seconds and
10 seconds.
1) Follow steps 1 and 2 in “Random Playback” on page
70.
2) Use [K / L] to select “Slide Show”, then press [OK].
3) Use [K / L] to select the display time, then press
[OK].
4) Press [SETUP] to exit.
Note
• Large-size JPEG files take a few moments to be
displayed.
SPECIAL PLAYBACK
E9H90UD.indd 71E9H90UD.indd 71 2007/05/16 15:44:502007/05/16 15:44:50
72 EN72 EN

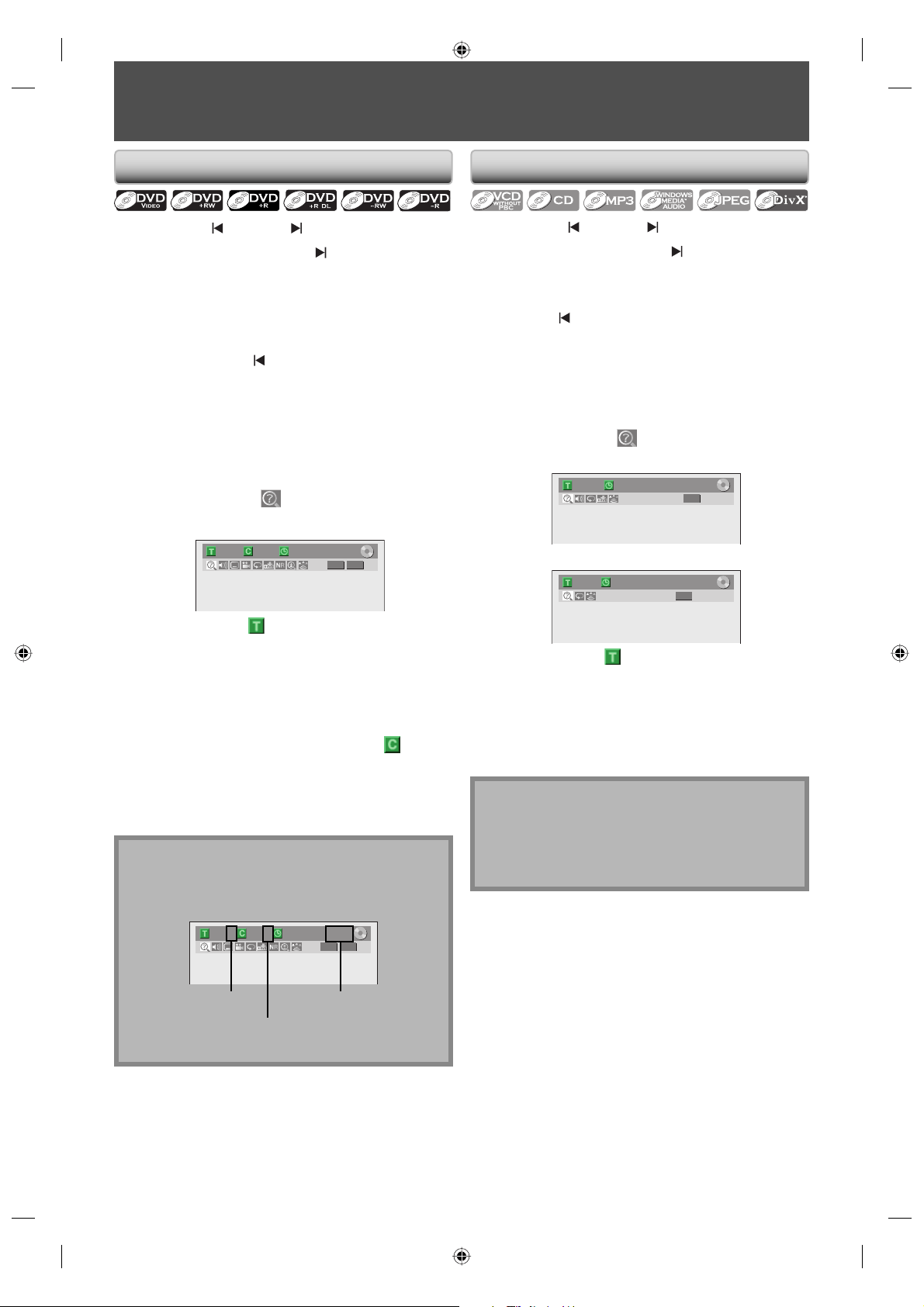

SEARCH
Using [PREV ] / [NEXT ]
1) During playback, press [NEXT ] to skip the current
title or chapter and move to the next.
The title or chapter will move forward by one at a time.
• If there is no chapter in one title, the current title will
be skipped.
To go back to the beginning of the current title or
chapter, press [PREV
].
Press it repeatedly to go to the previous title or
chapter. The title or chapter will move backward one
at a time.
Using [INFO]
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
The number next to will be highlighted.
3) Title:
Use [K / L] or [the Number buttons] to enter a
desired title number to search, then press [OK].
Title search will start.
Chapter:
Press [B] to move to the number next to
for
chapter.
Use [K / L] or [the Number buttons] to enter a
desired chapter number to search, then press [OK].
After the search, playback will start automatically.
Title / Chapter Search
Using [PREV ] / [NEXT ]
1) During playback, press [NEXT ] to skip the current
track/file and move to the next.
The track/file will move forward one at a time.
To go back to the beginning of the current track/file,
press [PREV
].
Press it repeatedly to go to the previous track/file. The
track/file will move backward one at a time.
Track Search
Note
• During CD playback you can enter a track number
directly using [the Number buttons] for track search
without displaying the menu.
• Track search is not available when you play back the
video CD with PBC function.
Using [INFO]
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) audio CD
1/ 5
CD
0:00:15 / 0:05:00
e.g.) MP3 files
1/ 5 0:00:15
MP3
The number next to will be highlighted.
3) Use [K / L] or [the Number buttons] to enter a
desired track/file number to search, then press
[OK].
After the search, playback will start automatically.
Note
• In search mode display, total numbers of each search
contents (title/chapter/time) are shown as a
denominator.
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD
Video
total number
of titles
total number
of chapters
total time
of the title
E9H90UD.indd 72E9H90UD.indd 72 2007/05/16 15:44:502007/05/16 15:44:50

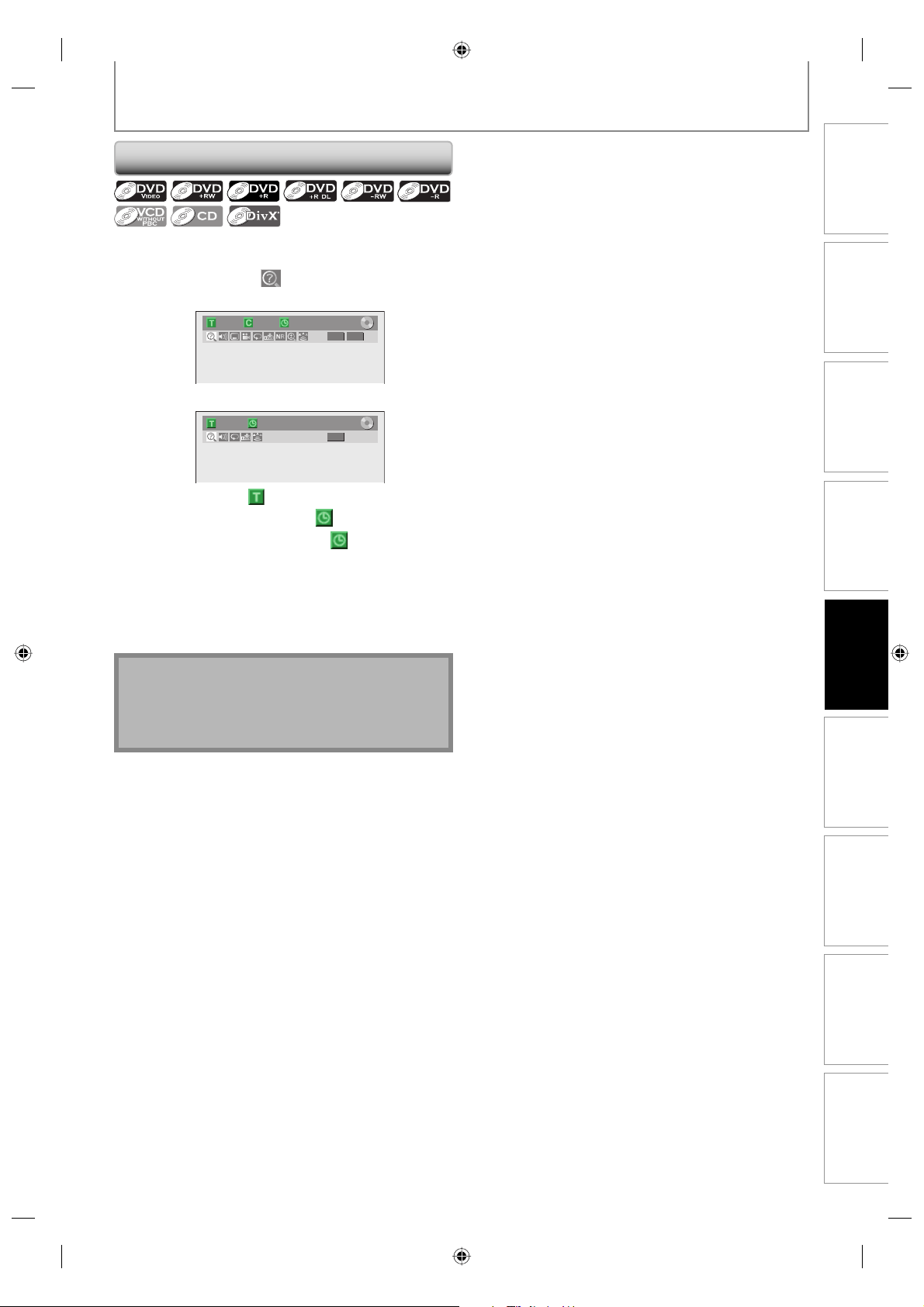

73EN 73EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD
Video
e.g.) audio CD
1/ 5
CD
0:00:15 / 0:05:00
The number next to will be highlighted.
To move to the number next to
, press [B].
When time search is not available,
and time
counter are not displayed.
3) Use [K / L / { / B] or [the Number buttons] to
enter a desired time to search, then press [OK].
After the search, playback will start automatically.
Note
• Time search is available only in the same track, file or
title.
• Time search is not available when you play back the
video CD with PBC function.
Time Search
SEARCH
E9H90UD.indd 73E9H90UD.indd 73 2007/05/16 15:44:522007/05/16 15:44:52
74 EN74 EN

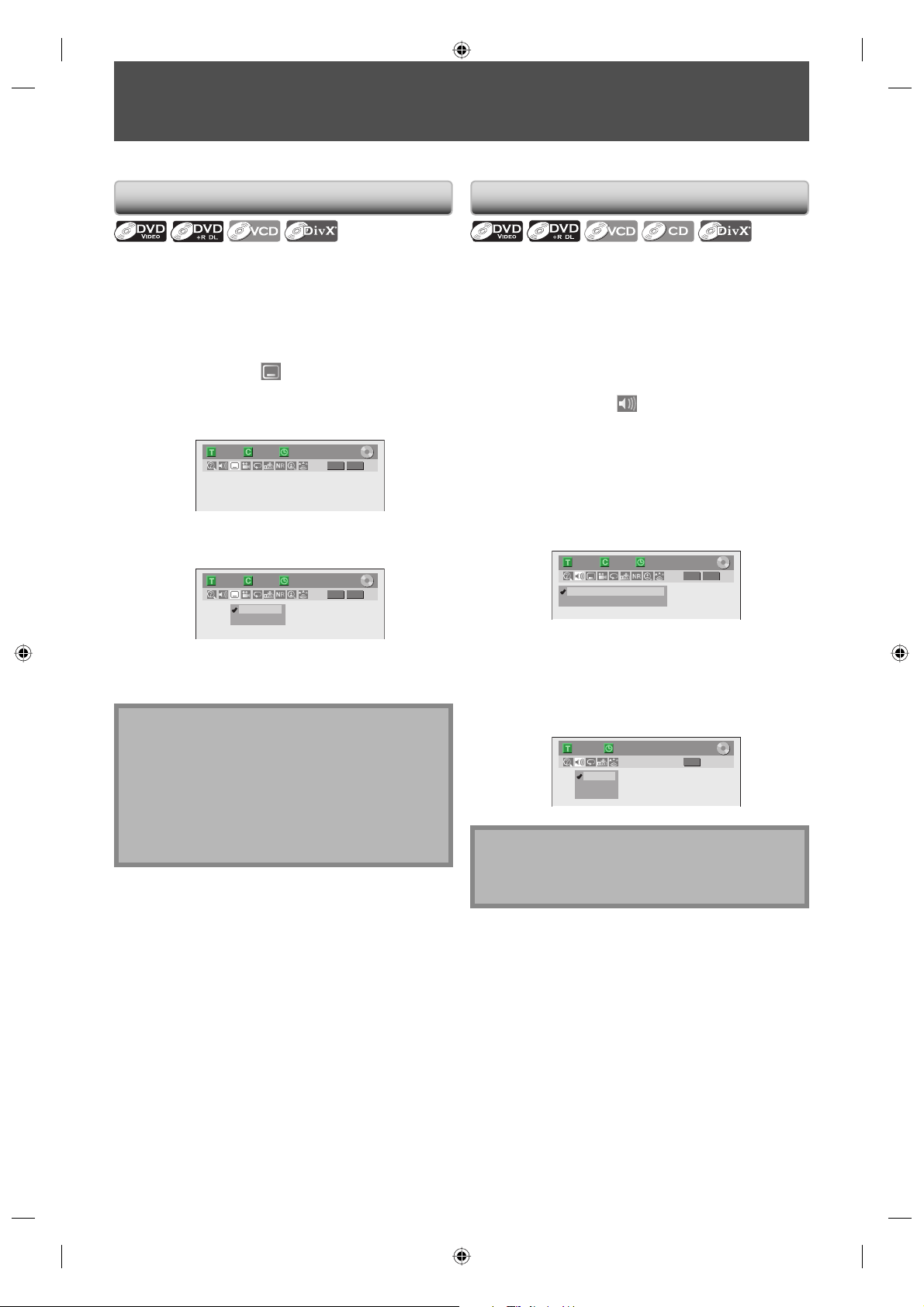

DVD-video may have subtitles in 1 or more languages.
Available subtitle languages can be found on the disc
case. You can switch subtitle languages anytime during
playback.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired subtitle language,
then press [OK].
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
OFF
1.English
Video
Subtitle will be displayed in the selected language.
When selecting “OFF”, subtitle will disappear.
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Subtitles
Note
• Some discs will only allow you to change the subtitle
from the disc menu. Press [TITLE] or [DISC MENU] to
display the disc menu.
• If a 4-digit language code appears in the subtitle
menu, refer to the “LANGUAGE CODE” on page 112.
• For disc with DivX® files, the TV screen only displays
the number of subtitle languages and “_ _ _ _“ next
to the numbers.
You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back.
When playing back a DVD-video recorded with 2 or more
soundtracks (these are often in different languages), you
can switch them during playback.
When playing back video CD, audio CD you can switch
“L/R”(stereo), “L”(left) or “R”(right).
1) During playback press [INFO], then proceed to
step 2), or press [AUDIO] then proceed to step 3).
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
3) Use [K / L] to select a desired audio soundtrack or
audio channel, then press [OK].
For DVD-video, DivX® files
• Audio soundtrack will switch.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
1.Dolby Digital 5.1ch English
2.Dolby Digital 2ch English
Video
• If the title contains both main and sub audio, you can
further select “L” (main), “R” (sub), or “L/R” (mixed of
main and sub).
For audio CD, video CD
• Audio channel will switch.
e.g.) audio CD
1/ 5
CD
0:00:15 / 0:05:00
1. L/R
2. L
3. R
Switching Audio Soundtrack
Note
• Some discs will only allow you to change the
soundtrack from the disc menu. Press [TITLE] or
[DISC MENU] to display the disc menu.
E9H90UD.indd 74E9H90UD.indd 74 2007/05/16 15:44:542007/05/16 15:44:54
75EN 75EN
Recording
Playback
Basic Setup
Connections EditingIntroduction Function Setup VCR Functions Others

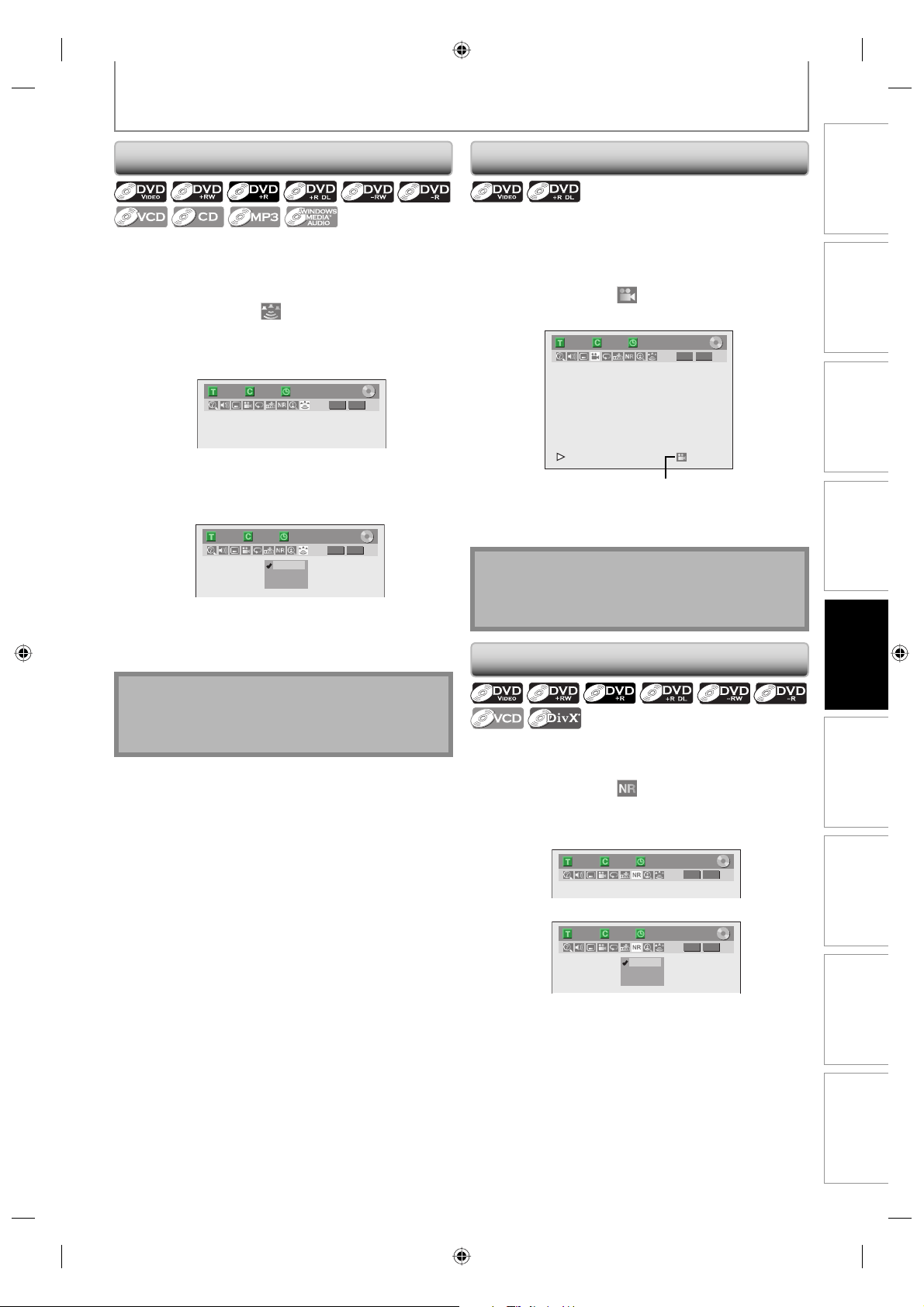

You can enjoy stereophonic virtual space through your
existing 2 channel stereo system.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select “OFF”, “Type 1” or “Type 2”,
then press [OK].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
OFF
Type 1
Type 2
Video
OFF : no effect
Type 1 : natural effect
Type 2 : emphasized effect
Note
• Select “OFF” in a case sound is distorted.
• The setting will be kept even when the unit is turned
off.
Switching Virtual Surround System
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Camera Angles
Reducing Block Noise
Some DVD-video have scenes shot from 2 or more
angles. Angle information should be on the disc case if
the disc contains multi-angle scenes.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
Angle icon appears when a switching camera angle is
available.
Angle will switch each time you press [OK].
This function reduces noise in the playback picture.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired option, then press
[OK].
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
OFF
Type 1
Type 2
Your setting will be activated.
OFF : When playing back titles with a few noises
such as DVD-video discs.
Type 1 : For the titles recorded in long time mode
such as SLP or SEP mode.
Type 2 : Same as type 1, only more effective.
Note
• Angle icon does not appear on the TV screen in a
case you set “Angle Icon” to “OFF” in “Playback”
menu. Refer to page 95.
E9H90UD.indd 75E9H90UD.indd 75 2007/05/16 15:44:552007/05/16 15:44:55
76 EN76 EN
INFORMATION ON DISC EDITING
Guide to a Title List Editing Discs
Title list allows you to check the titles recorded on the
disc easily. You can choose a title to play back from this
list and easily edit the titles as you prefer.
Press [DVD], then press [TITLE].
Chapter Mark
Hide Chapter
Index Picture
Title Dividing
Edit Title Name
Title Delete
Edit
NOV/22/07 11:35AM CH13 EP
0:00:59
2
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Overwrite
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP(2Hr)
Play
Edit
SP (2Hr)
2
2
789
10
11
5
43
6
1
1. Title list: List of the titles recorded on the disc, and
their information.
2. Arrow: Indicating there is a previous / next page.
3. Title information: On the first line, title name
(editable) is displayed. On the second line, the length
of the title is displayed.
Empty title: The portion of the disc where there is no
recordings are made. As for the empty title, available
recording time by the selected recording mode is
displayed on the second line.
4. Recording mode: Currently selected recording mode
is displayed here.
5. Capacity indicator: Indicating the position and the
amount of each title in the disc. The portion for the
selected title is highlighted.
6. Thumbnails: A cut from the recorded content is
displayed here.
7. Submenu: Submenus for the selected menu are
displayed here.
8. Title name (editable): If you do not name the title,
the recorded date, time, channel, and the recording
mode are displayed here.
9. Progress bar: Indicating the progress of the
playback.
10. Preview window: Preview of the selected title is
displayed here.
11. Playback status: Indicating the current playback
status of the selected title.
Press [STOP C] to exit the title list.
Note
• When selecting “Edit” on pop-up menu of the title
list and edit the title, the title list is displayed after
writing the edited contents onto the disc.
• The capacity indicator in the right side of the title list
may not indicate the precise capacity in the disc.
• The capacity indicator may not indicate the capacity
for the titles of which recording time is short.
• Once you have finalized a DVD+R/ DVD-R, you
cannot edit or record anything on that disc.
You can edit discs for the following items. Be sure that
once you edit titles, they will not remain as original.
• Deleting Titles (Refer to page 77.)
• Putting Names on Titles (Refer to page 78.)
• Setting Chapter Marks (Refer to page 79.)
• Clearing Chapter Marks (Refer to pages 80-81.)
• Hiding Chapters (Refer to page 82.)
• Setting Pictures for Thumbnails (Refer to page 83.)
• Dividing a Title (DVD+RW/DVD-RW only)
(Refer to page 84.)
• Putting Name on Disc (Refer to page 85.)
• Setting or Releasing Disc Protect (Refer to page 86.)
• Erasing Disc (Refer to page 87.)
• Making Edits Compatible (Refer to page 88.)
E9H90UD.indd 76E9H90UD.indd 76 2007/05/16 15:44:572007/05/16 15:44:57

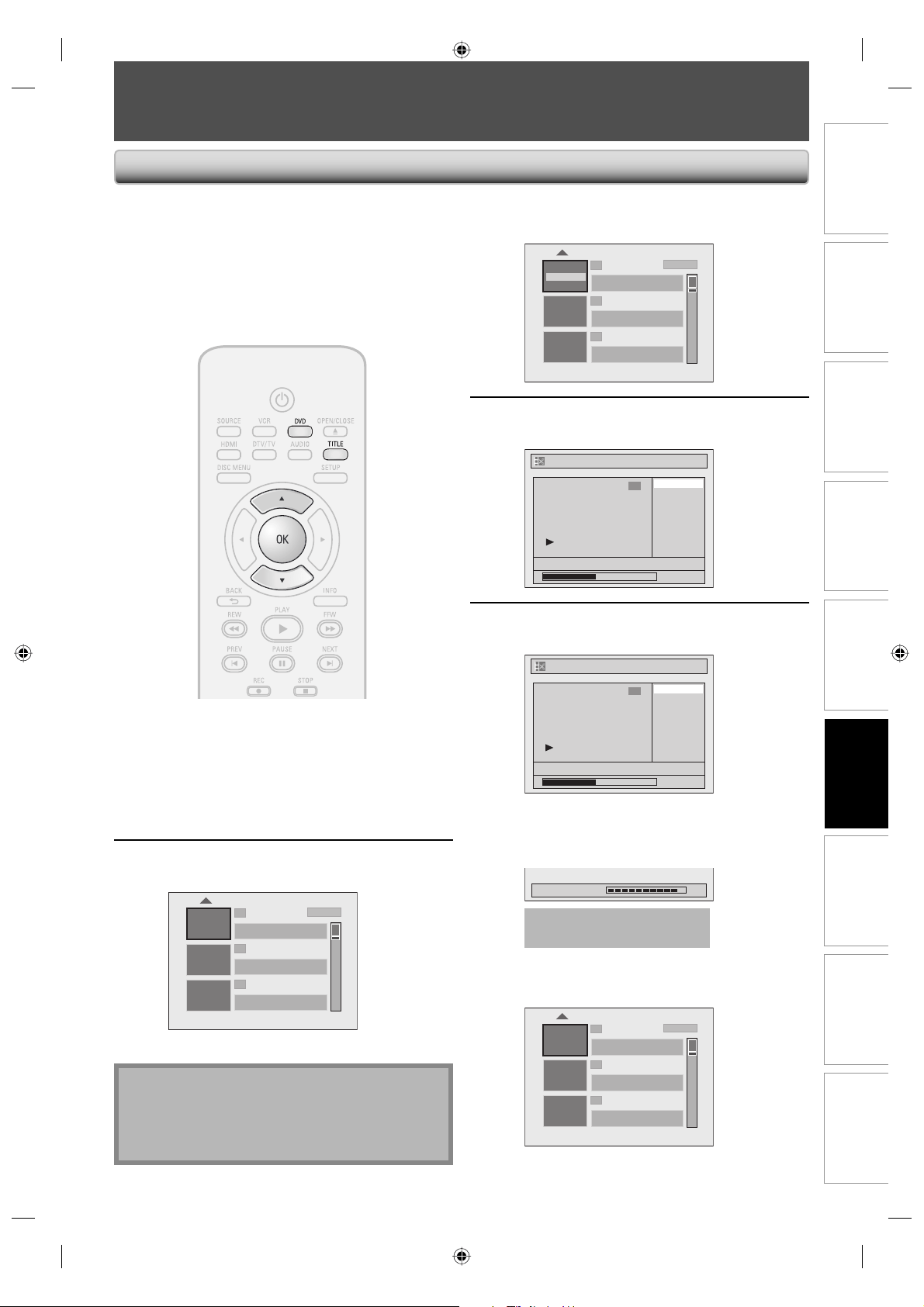

77EN 77EN
Playback
Editing
Recording
Basic Setup
ConnectionsIntroduction Function Setup VCR Functions Others
EDITING DISCS
3
Use [K / L] to select “Edit”, then
press [OK].
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Overwrite
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP(2Hr)
SP (2Hr)
Edit
Play
4
Use [K / L] to select “Title Delete”,
then press [OK].
Edit
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Hide Chapter
NOV/21/07 11:00AM CH12 SP
0:00:59
1
5
Use [K / L] to select “Yes”, then press
[OK].
Edit - Title Delete
No
Yes
0:00:59
1
NOV/21/07 11:00AM CH12 SP
After that, “Are you sure?” will appear, select
“Yes” and then press [OK].
Title will be deleted.
Data will be written onto the disc momentarily.
Writing to Disc 90%
This operation may take a
while to be completed.
After editing is complete, the title list will appear.
e.g.) DVD+RW/DVD-RW
1
2
3
EMPTY TITLE
0:21:14 SP(2Hr)
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP(2Hr)
SP (2Hr)
You can delete titles which you do not need anymore.
Please be advised that the titles once deleted cannot be
brought back to the disc.
For DVD+RW/DVD-RW, when the last recorded title in the
title list is deleted, the available disc space to record on
will be increased. For DVD+R/DVD-R, the disc space to
record on will not be changed.
Note
• Deleted part of the titles in the capacity indicator
changes in color.
• As for DVD+RW/DVD-RW if you delete the title, deleted
title will be displayed as “EMPTY TITLE”.
Deleting Titles
Press [DVD] first.
1
Press [TITLE].
2
Use [K / L] to select a desired title,
then press [OK].
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP(2Hr)
SP (2Hr)
E9H90UD.indd 77E9H90UD.indd 77 2007/05/16 15:44:582007/05/16 15:44:58
78 EN78 EN
EDITING DISCS

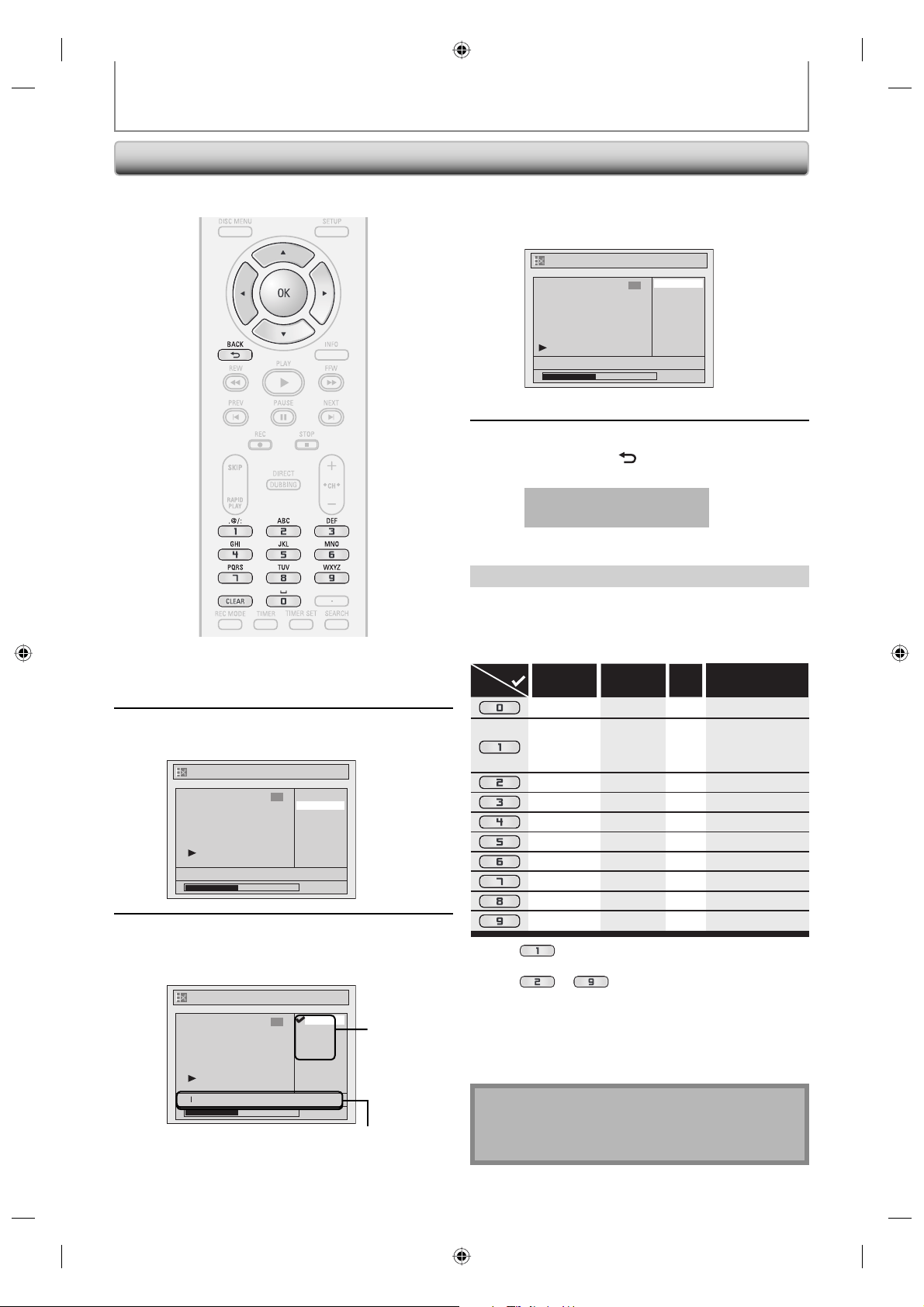

Putting Names on Titles
4
Use [K / L] to select “Yes”, then press
[OK].
Edit - Edit Title Name
No
Yes
MY FAVORITE
1
0:00:59
The name you entered will be activated for the title.
5
After this operation is completed,
press [BACK
] to exit.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
You can put title names on the titles and change the
names from this menu.
1) Use [K / L] to select a desired character set, then
press [OK].
2) Follow the list below, use [the Number buttons]
repeatedly until the desired letter appears.
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
! ” # $ % & ’ ( )
*
+ , - . / : ; < = >
? @ [ ] ^ _ { | }
2
3
4
5
6
7
8
9
0
1
ABC
abc @ ! ?
123
(*1) (*1)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
Select
Press
<space> <space> <space>
*1 Press , character set will be changed to the “ @!? ”
mode automatically.
*2 Press
to , character set will be changed to
the previous input mode automatically.
• To delete letters, press [CLEAR] repeatedly.
Holding [CLEAR] to delete all letters.
• Use [s / B] to move the cursor to the left and right.
• You can enter up to 30 letters.
Note
• Undefined letters in a title name are shown by “*”. If
you delete them, adjoining letters may change to “*”
or other.
Guide to Edit Title Name
1
Follow steps 1 to 3 in “Deleting
Titles” on page 77 to display “Edit”
menu.
2
Use [K / L] to select “Edit Title
Name”, then press [OK].
Edit
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Hide Chapter
NOV/21/07 11:00AM CH12 SP
0:00:59
1
3
To enter a title name, follow the
steps of “Guide to Edit Title Name”
on this page.
Edit - Edit Title Name
abc
ABC
123
@! ?
M
0:00:59
1
character set
area for entering title names
When you finish entering a title name, press [OK].
E9H90UD.indd 78E9H90UD.indd 78 2007/05/16 15:44:592007/05/16 15:44:59
79EN 79EN
Playback
Editing
Recording
Basic Setup
ConnectionsIntroduction Function Setup VCR Functions Others
EDITING DISCS
Setting Chapter Marks
1
Follow steps 1 to 3 in “Deleting
Titles” on page 77 to display “Edit”
menu.
2
Use [K / L] to select “Chapter Mark”,
then press [OK].
Submenu will appear.
3
Press [PLAY B] and then [PAUSE F]
to decide the point at which you will
create a new chapter mark.
• It is convenient to use [PREV ], [NEXT ],
[REW E] and [FFW D] for finding the point
to add a new chapter mark.
4
Use [K / L] to select “Add”, then press
[OK].
Delete
Delete All
Add
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 2/ 2
Edit - Chapter Mark
5
Use [K / L] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Add
No
Yes
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 2/ 2
F
A new chapter mark will be added.
6
Press [BACK ] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
You can put chapter marks in each title. Once a chapter is
marked, you can use it for the chapter search feature.
Note
• When the number of chapter marks in a title is 99
and the number of chapter marks in a disc is 254,
chapter marks cannot be added.
• Besides the above-mentioned, it is not likely to be
able to add according to recorded time and number
of chapters.
• Remaining time of the disc may decrease when
adding chapter marks or increase when clearing
chapter marks depending on the recording time or
edited contents.
E9H90UD.indd 79E9H90UD.indd 79 2007/05/16 15:45:012007/05/16 15:45:01
80 EN80 EN
EDITING DISCS

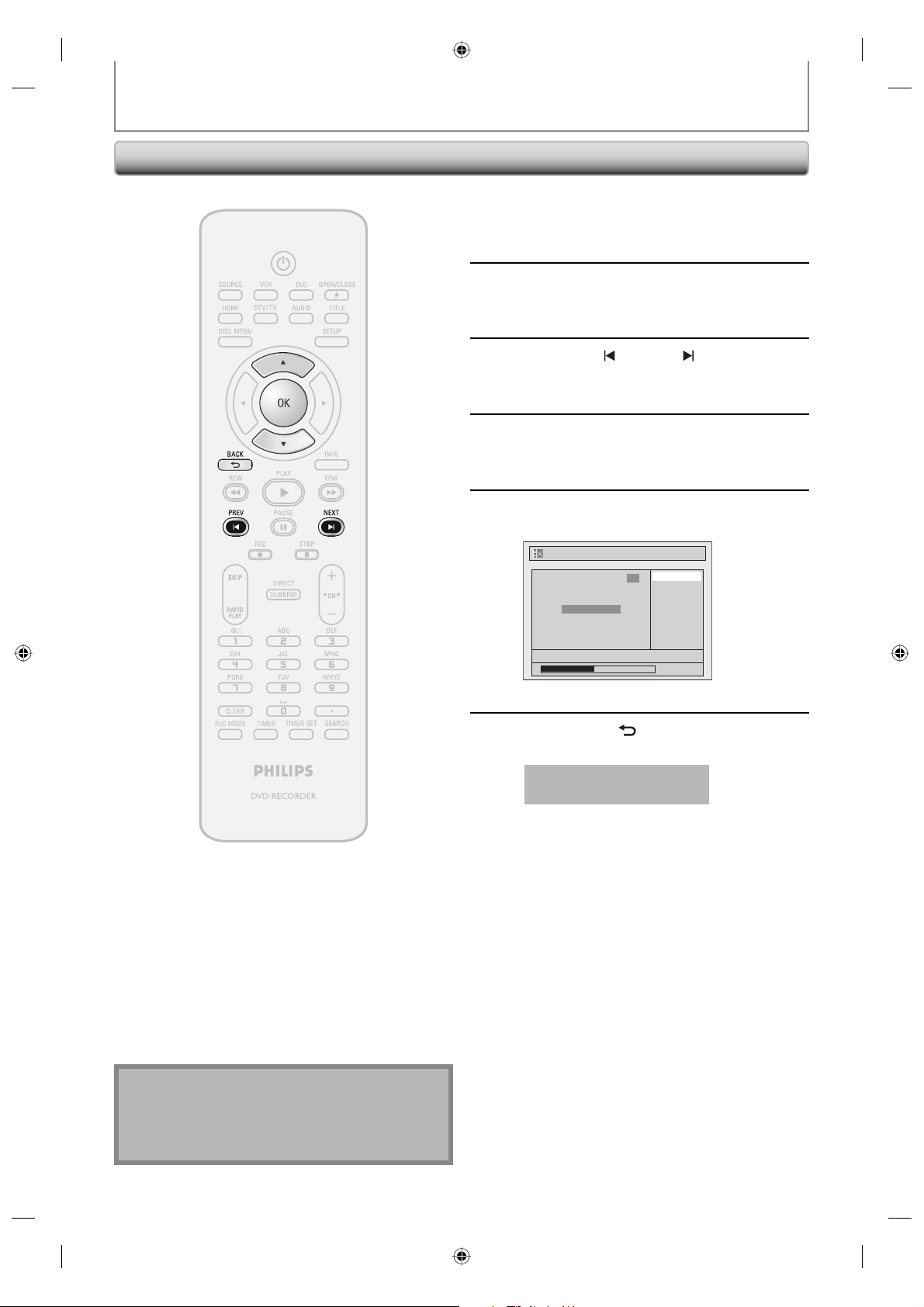

Clearing Chapter Marks
1
Follow steps 1 to 3 in “Deleting
Titles” on page 77 to display “Edit”
menu.
2
Use [K / L] to select “Chapter Mark”,
then press [OK].
Submenu will appear.
3
Use [PREV ] / [NEXT ] to select a
chapter mark to be deleted.
4
Use [K / L] to select “Delete”, then
press [OK].
5
Use [K / L] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Delete
No
Yes
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 2/ 2
F
The selected chapter mark will be deleted.
6
Press [BACK ] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
Note
• Remaining time of the disc may decrease when
adding chapter marks or increase when clearing
chapter marks depending on the recording time or
edited contents.
E9H90UD.indd 80E9H90UD.indd 80 2007/05/16 15:45:022007/05/16 15:45:02
81EN 81EN
Playback
Editing
Recording
Basic Setup
ConnectionsIntroduction Function Setup VCR Functions Others
EDITING DISCS

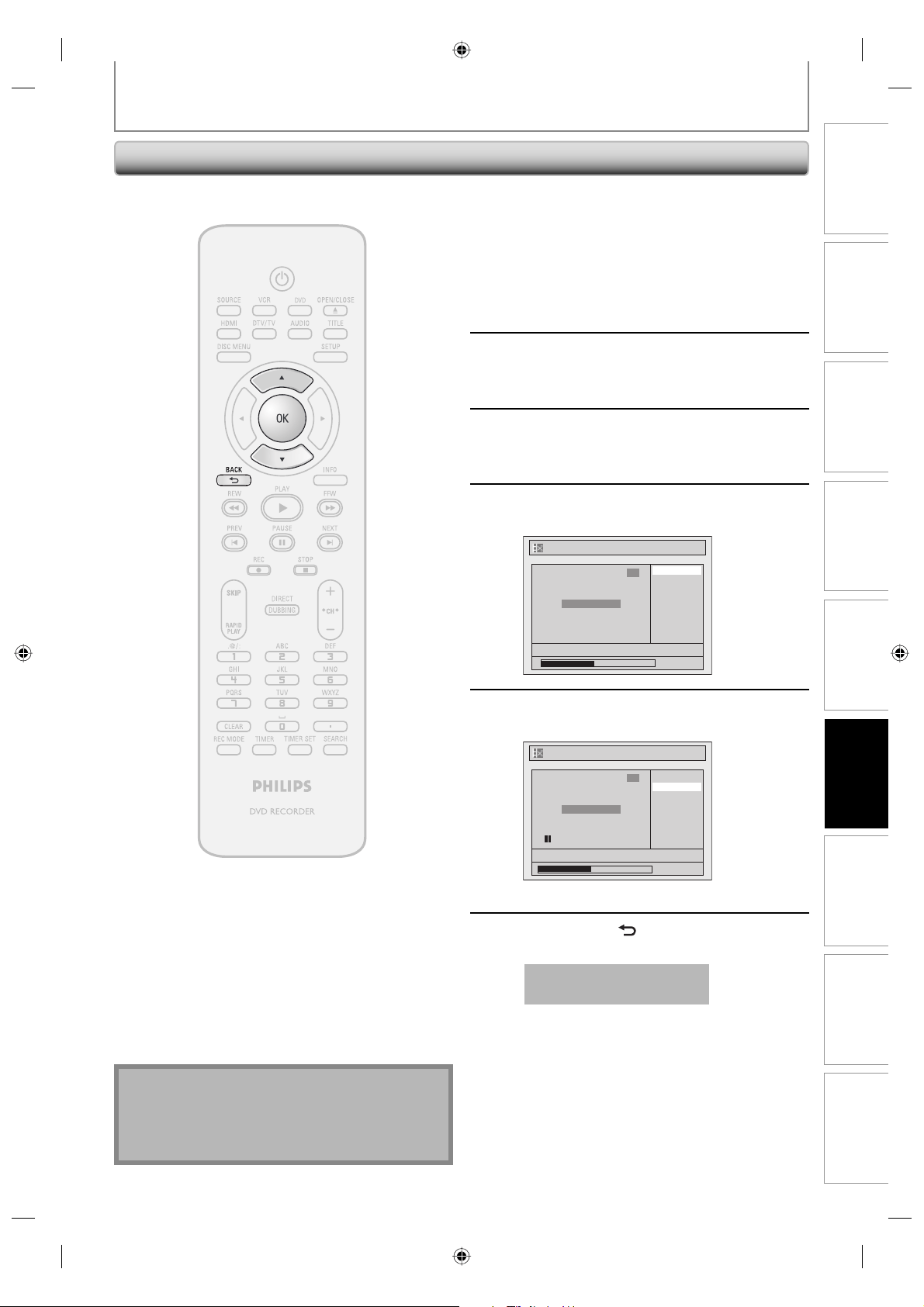

Clearing Chapter Marks (cont’d)
To delete all chapter marks:
1
Follow steps 1 to 3 in “Deleting
Titles” on page 77 to display “Edit”
menu.
2
Use [K / L] to select “Chapter Mark”,
then press [OK].
Submenu will appear.
3
Use [K / L] to select “Delete All”,
then press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Delete All
No
Yes
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 2/ 2
F
5
Use [K / L] to select “Yes”, then press
[OK].
Chapter 2/ 2
Edit - Chapter Mark - Delete All
No
Yes
Are you sure?
NOV/21/07 11:00AM CH12 SP
1
0:00:59
All chapter marks will be deleted.
6
Press [BACK ] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
Note
• Remaining time of the disc may decrease when
adding chapter marks or increase when clearing
chapter marks depending on the recording time or
edited contents.
E9H90UD.indd 81E9H90UD.indd 81 2007/05/16 15:45:032007/05/16 15:45:03

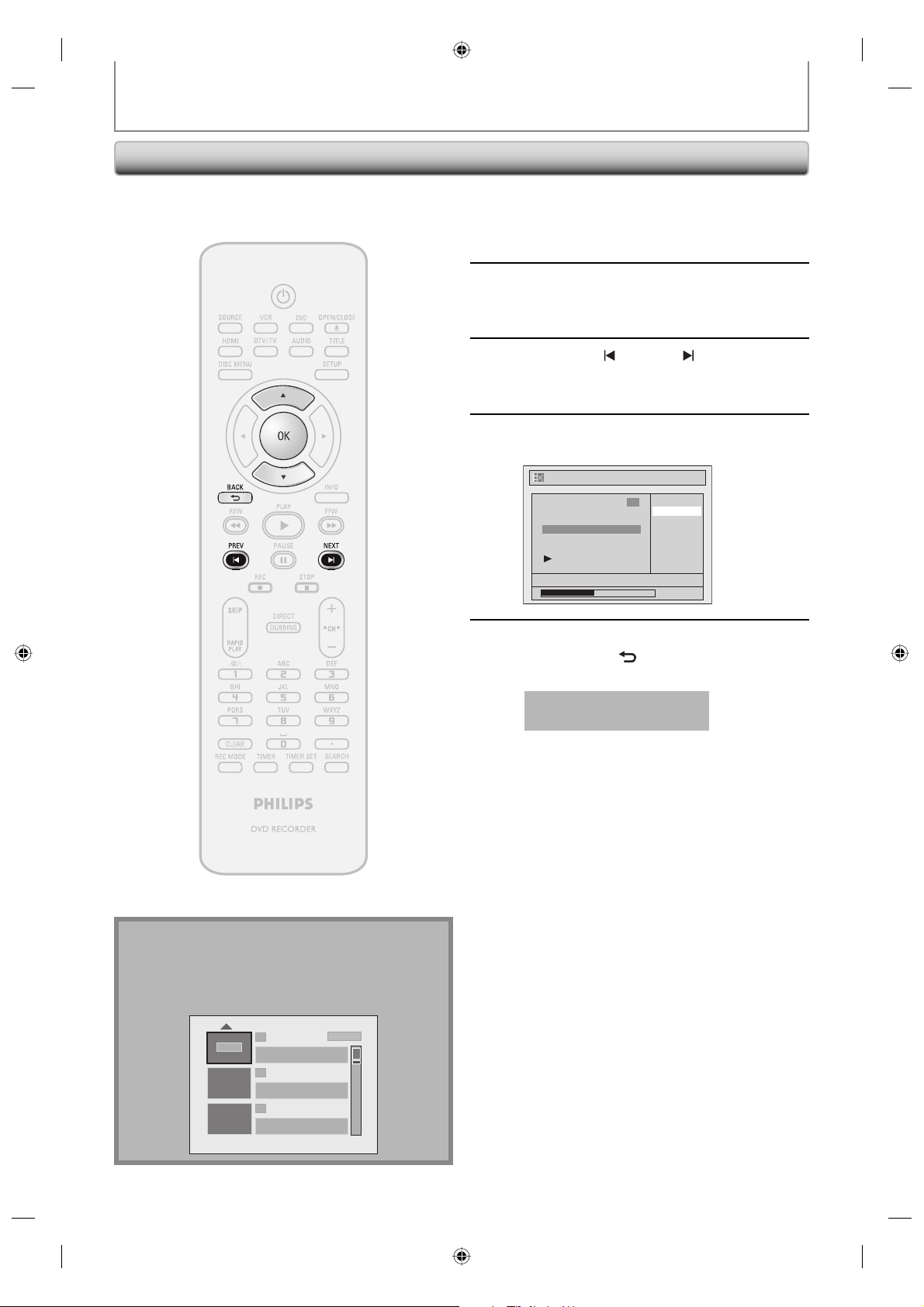

82 EN82 EN
EDITING DISCS
Hiding Chapters
1
Follow steps 1 to 3 in “Deleting
Titles” on page 77 to display “Edit”
menu.
2
Use [K / L] to select “Hide Chapter”,
then press [OK].
Submenu will appear.
3
Use [PREV ] / [NEXT ] to decide the
chapter to be hidden.
4
Use [K / L] to select “Hidden”, then
press [OK].
Edit - Hide Chapter
Hidden
Visible
0:00:59
1
NOV/21/07 11:00AM CH12 SP
Chapter 2/ 2 Visible
5
After this operation is completed,
press [BACK
] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
If you want hidden chapters to be “Visible”,
select the chapter to be shown. Then use
[K / L] to select “Visible” at the step 4 on this
page.
Data will be written onto the disc momentarily.
After that, title list is displayed.
Note
• ”Hidden” will be displayed in the preview window
while previewing the hidden chapter.
• When you make all chapters in the title “Hidden”,
“Hidden” is displayed in a thumbnail of the title list.
1
2
3
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Hidden
EMPTY TITLE
1:37:52 SP(2Hr)
SP (2Hr)
You can hide chapters from the title list.
Hidden chapters are skipped during playback.
E9H90UD.indd 82E9H90UD.indd 82 2007/05/16 15:45:042007/05/16 15:45:04
83EN 83EN
Playback
Editing
Recording
Basic Setup
ConnectionsIntroduction Function Setup VCR Functions Others
EDITING DISCS

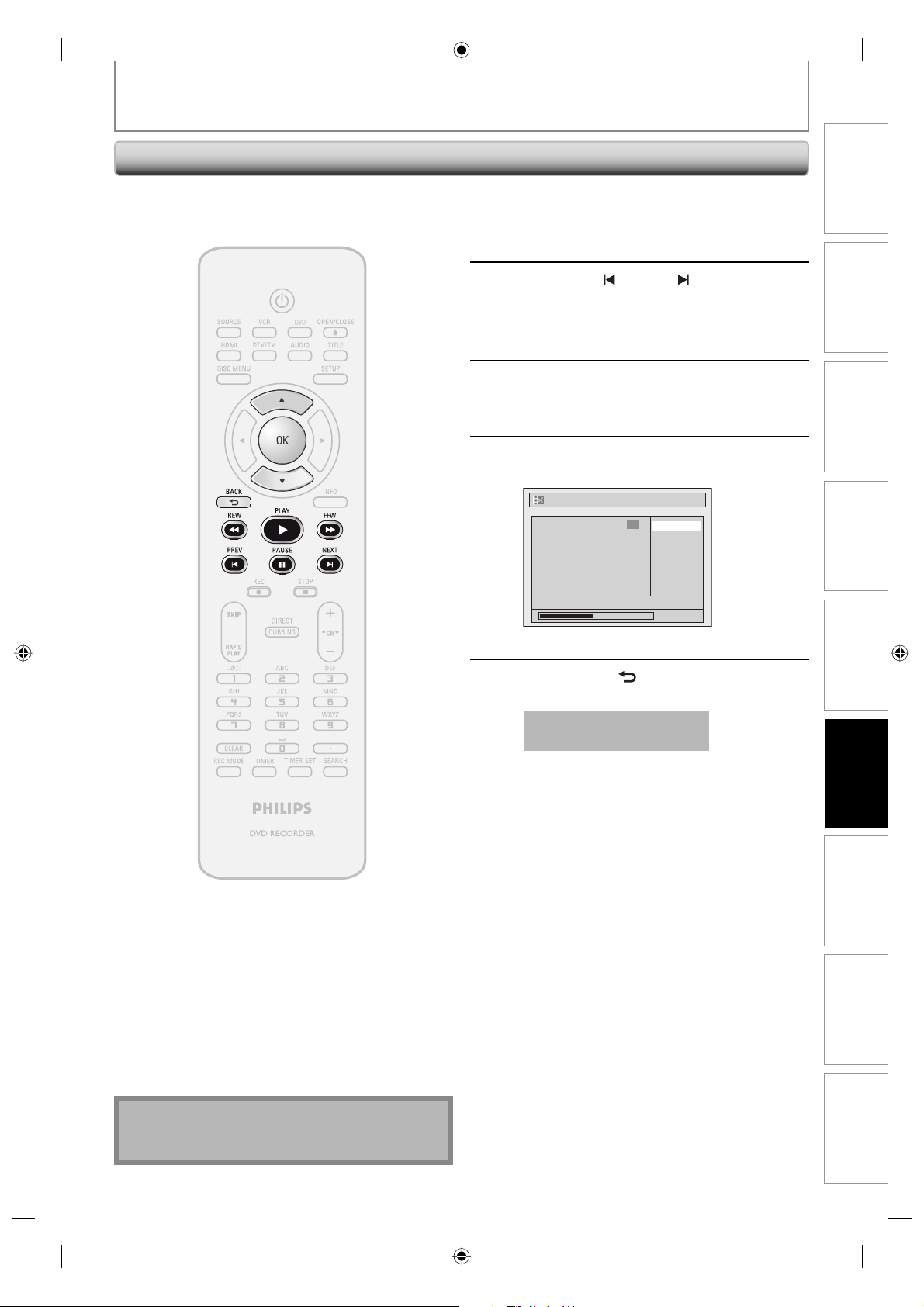

Setting Pictures for Thumbnails
1
Follow steps 1 to 3 in “Deleting
Titles” on page 77 to display “Edit”
menu.
2
Use [PREV ], [NEXT ], [REW E],
[FFW D], [PAUSE F] and [PLAY B]
to decide the picture you want to
select as a thumbnail.
3
Use [K / L] to select “Index Picture”,
then press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
No
Yes
1
Edit - Index Picture
NOV/21/07 11:00AM CH12 SP
0:00:59
F
A picture for thumbnail will be set.
5
Press [BACK ] to exit.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
Note
• If the selected picture for a thumbnail is overwritten,
the index picture is reset to the first scene of the title.
You can set your desired scene as a thumbnail for each
title.
E9H90UD.indd 83E9H90UD.indd 83 2007/05/16 15:45:052007/05/16 15:45:05
84 EN84 EN
EDITING DISCS

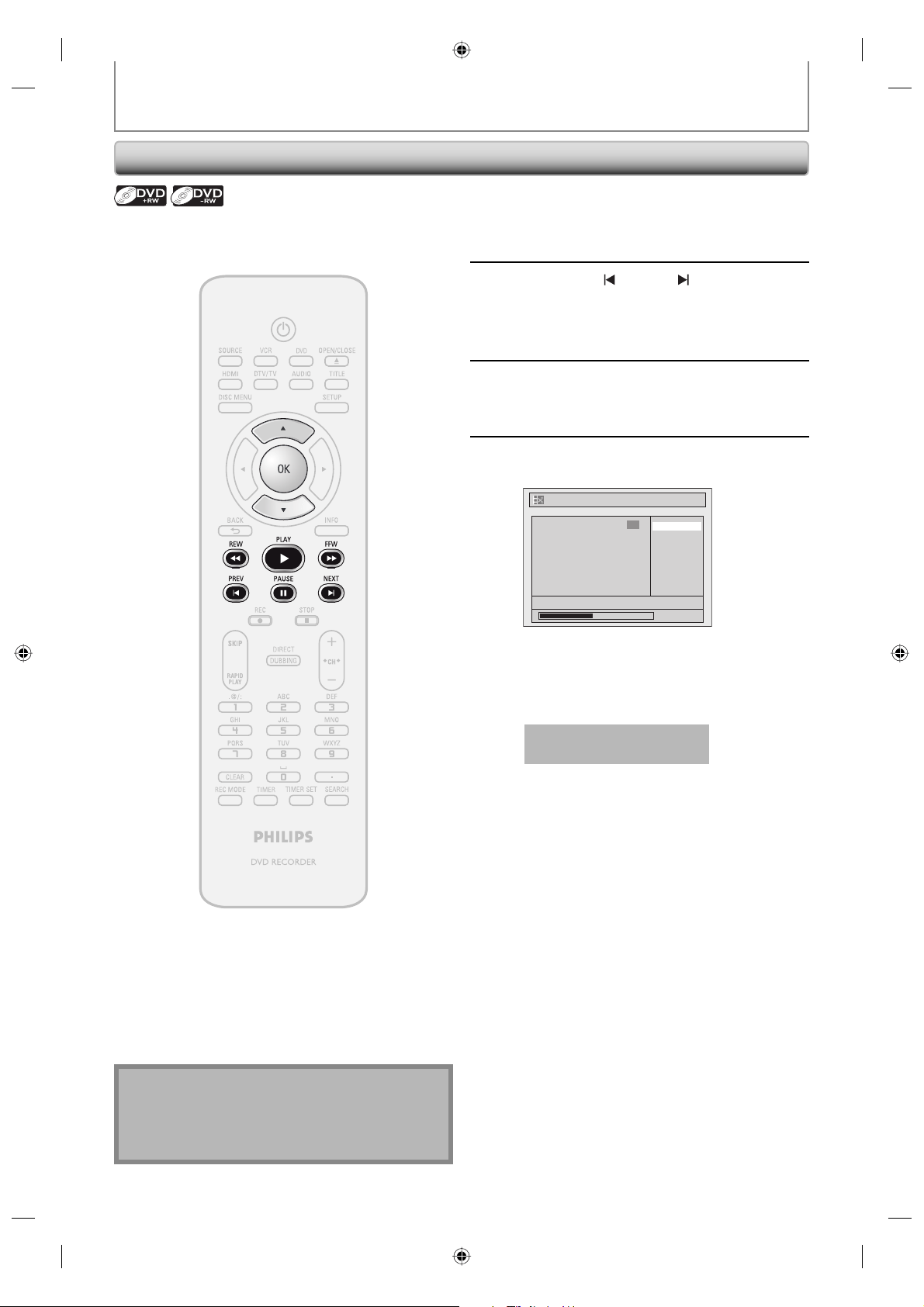

Dividing a Title
1
Follow steps 1 to 3 in “Deleting
Titles” on page 77 to display “Edit”
menu.
2
Use [PREV ], [NEXT ], [REW E],
[FFW D], [PAUSE F] and [PLAY B]
to decide the point at which you will
divide the title.
3
Use [K / L] to select “Title Dividing”,
then press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
No
Yes
1
Edit - Title Dividing
NOV/21/07 11:00AM CH12 SP
0:00:59
F
The title will be divided into 2 new titles.
Both title names are identical, and index pictures
are reset to the first scene at this point.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
You can divide one title into 2 new titles.
Note
• You cannot divide a title of the disc when the
number of recording titles reaches the maximum of
49, and the number of recording chapters reaches
the maximum of 254.
E9H90UD.indd 84E9H90UD.indd 84 2007/05/16 15:45:062007/05/16 15:45:06

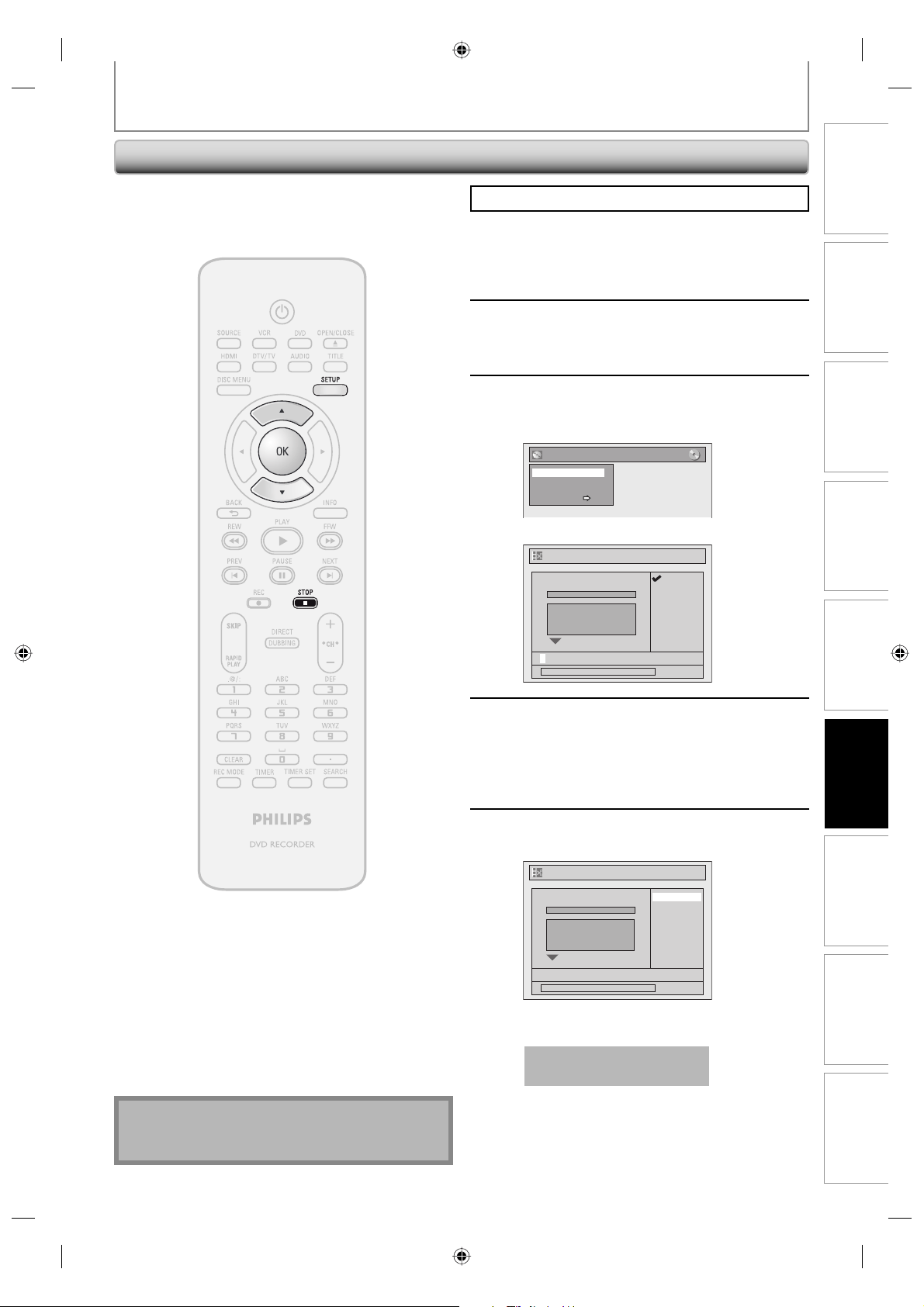

85EN 85EN
Playback
Editing
Recording
Basic Setup
ConnectionsIntroduction Function Setup VCR Functions Others
Putting Name on Disc
Press [STOP C] if you are playing back a disc.
1
Press [SETUP].
2
Use [K / L] to select “Disc Edit”, then
press [OK].
3
Use [K / L] to select “Edit Disc
Name”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
A window for entering a title name will appear.
Edit Disc Name
abc
ABC
123
@! ?
0:00:00
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used 0:30:48
Disc Protect OFF
Make Edits Compatible Needed
4
To enter a disc name, follow the steps
of “Guide to Edit Title Name” on page
78.
When you finish entering a title name, press
[OK].
5
Use [K / L] to select “Yes”, then press
[OK].
Edit Disc Name
0:00:00
MY FAVORITE DISC
No
Yes
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used 0:30:48
Disc Protect OFF
Make Edits Compatible Needed
The name you entered will be activated for the title.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
Note
• You cannot select “Disc Edit” when finalized DVD+R
or DVD-R is inserted.
You can put a name on the disc and change it from this
menu.
EDITING DISCS
E9H90UD.indd 85E9H90UD.indd 85 2007/05/16 15:45:072007/05/16 15:45:07

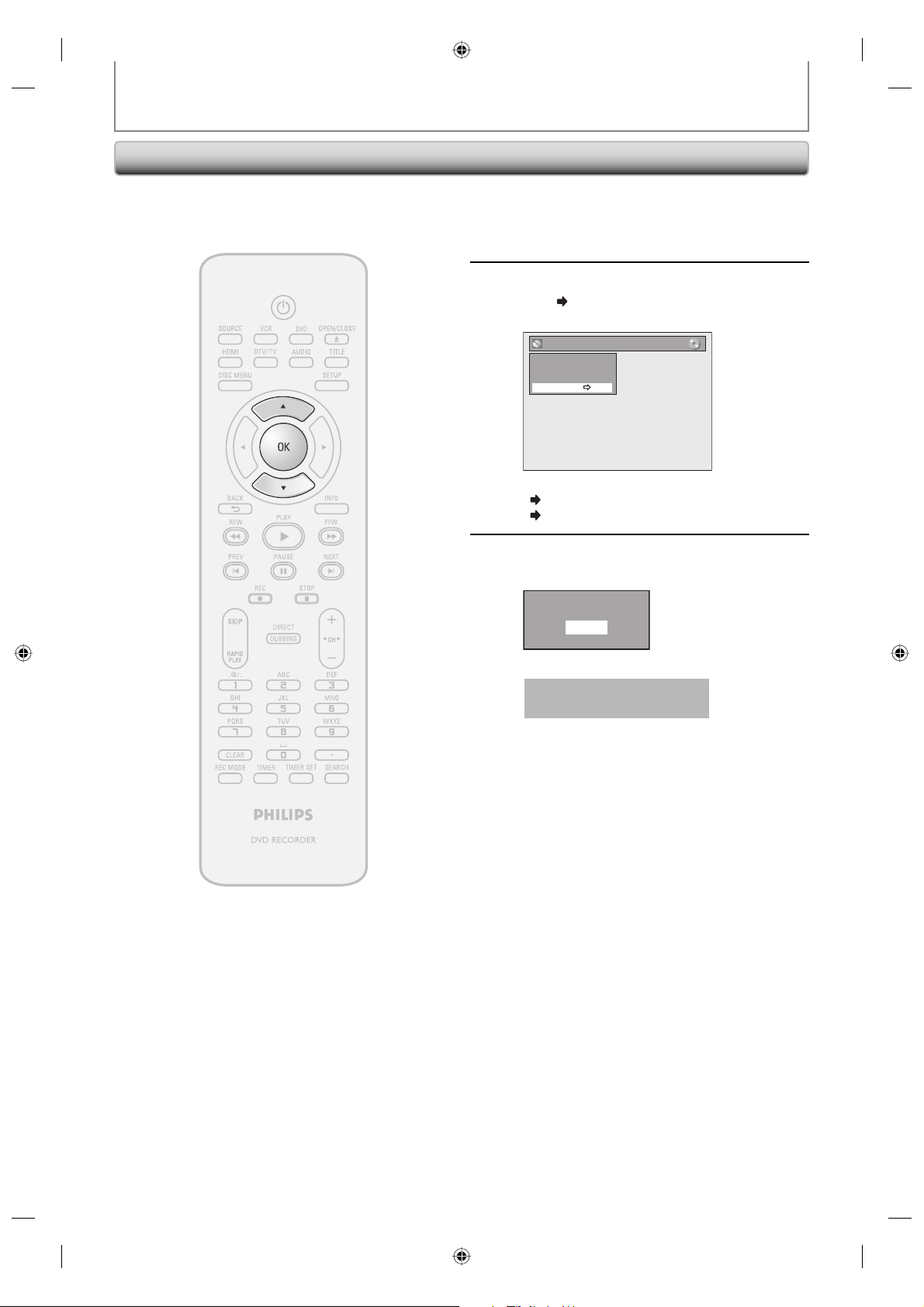

86 EN86 EN
EDITING DISCS
Setting or Releasing Disc Protect
1
Follow steps 1 to 2 in “Putting Name
on Disc” on page 85 to display “Disc
Edit” menu.
2
Use [K / L] to select “Disc Protect
OFF
ON”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
• If the disc is already protected, “Disc Protect ON
OFF” will appear instead of “Disc Protect OFF
ON”.
3
Use [K / L] to select “Yes”, then press
[OK].
Protect this disc?
Yes
No
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
To prevent accidental editing, or erasing the titles, you
can protect them.
E9H90UD.indd 86E9H90UD.indd 86 2007/05/16 15:45:082007/05/16 15:45:08
87EN 87EN
Playback
Editing
Recording
Basic Setup
ConnectionsIntroduction Function Setup VCR Functions Others
EDITING DISCS

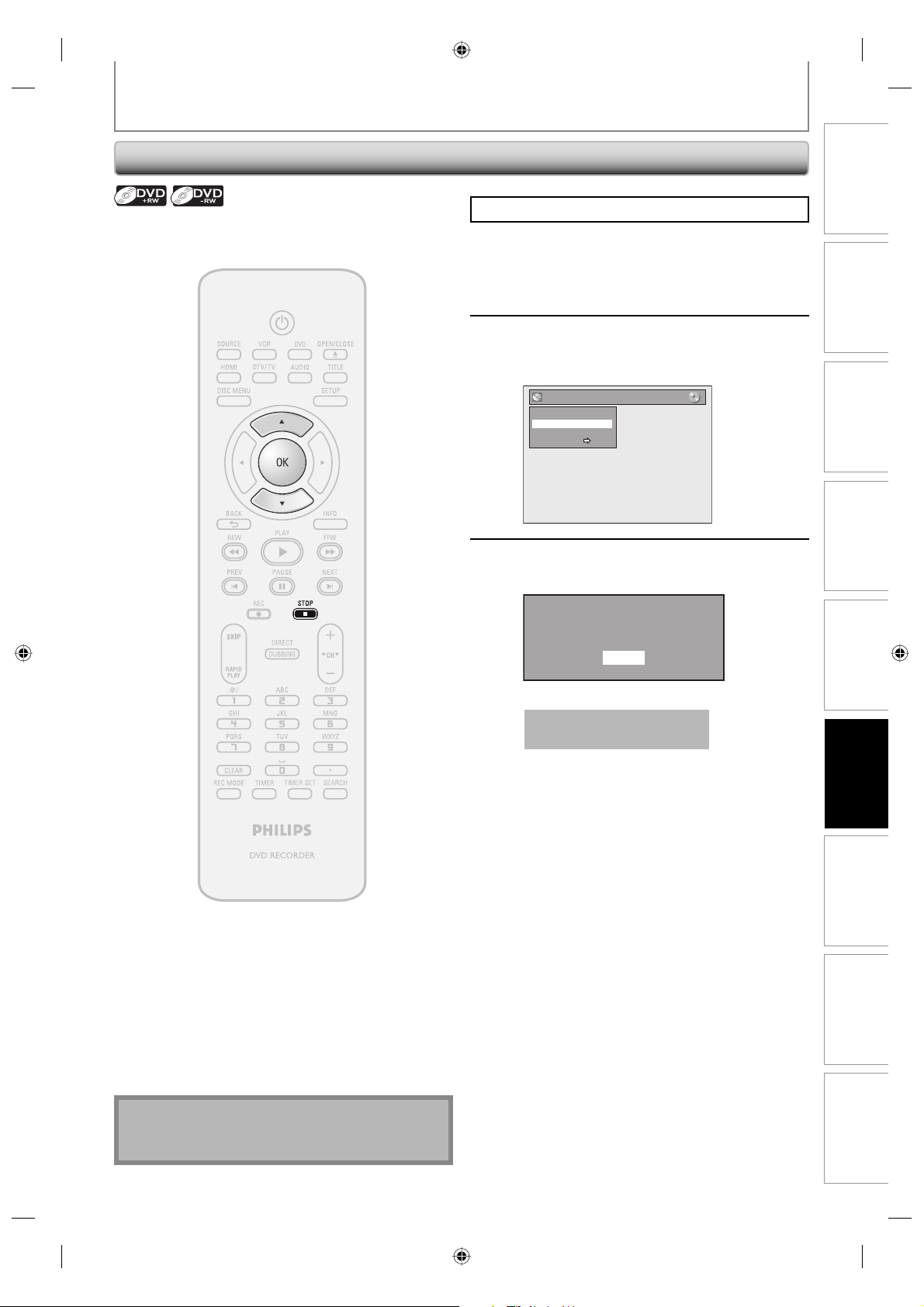

Erasing Disc
Press [STOP C] if you are playing back a disc.
1
Follow steps 1 to 2 in “Putting Name
on Disc” on page 85 to display “Disc
Edit” menu.
2
Use [K / L] to select “Erase Disc”,
then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
3
Use [K / L] to select “Yes”, then press
[OK].
When you press “Yes”, all the
contents in the disc will be erased.
Are you sure to erase the disc?
Yes
No
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
You can erase all titles on a disc.
Note
• When you select “Yes” at step 3, all contents of the
disc will be erased.
E9H90UD.indd 87E9H90UD.indd 87 2007/05/16 15:45:092007/05/16 15:45:09
88 EN88 EN
EDITING DISCS

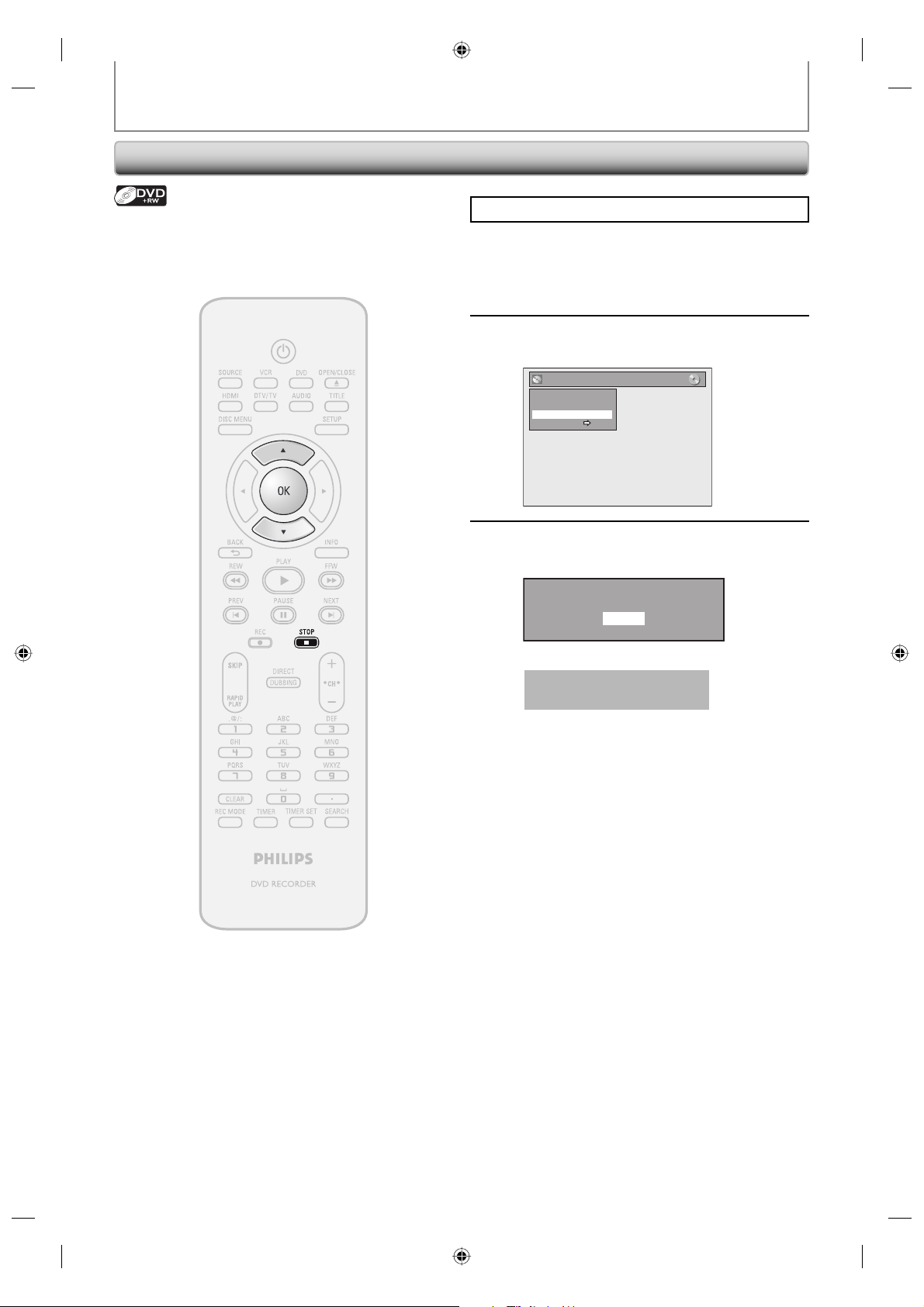

Making Edits Compatible
Press [STOP C] if you are playing back a disc.
1
Follow steps 1 to 2 in “Putting Name
on Disc” on page 85 to display “Disc
Edit” menu.
2
Use [K / L] to select “Make Edits
Compatible”, then press [OK].
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
3
Use [K / L] to select “Yes”, then press
[OK].
Activate the Make Edits Compatible?
Yes
No
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
If you have added or deleted chapters, or made chapters
hidden, you must perform “Make Edits Compatible” to
see those effects on other unit.
E9H90UD.indd 88E9H90UD.indd 88 2007/05/16 15:45:102007/05/16 15:45:10
89EN 89EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
LIST OF SETTINGS
The following table is the contents which you can set and the default setting.
Refer to the following table for useful operation.
Setup Items (highlight is the default) Contents
General Setting
Playback
Pages 92-95
Parental Lock
OFF
level 8 [Adult] to 1 [Kid Safe]
Set the parental level for DVD playback.
Disc Audio Dynamic Range
Control
ON
OFF
Compressing the range of sound volume.
PCM
48kHz
96kHz
Set whether the sound recorded in 96kHz will
be down sampled in 48kHz.
Dolby Digital PCM
Stream
Set the type of sound signal which outputs
from the digital audio output jack.
Disc Menu Language
English
French
Spanish
Other
Set the language for disc menu language.
Audio Language
Original
English
French
Spanish
Other
Set the language for audio.
Subtitle Language
OFF
English
French
Spanish
Other
Set the language for subtitles.
Angle Icon
ON
OFF
Set whether or not to display the angle icon.
Still Mode
Auto
Field
Frame
Set the type of still image in pausing playback.
Display
Pages 96-97
OSD Language
English
Français
Español
Set the language for OSD (on-screen display).
Screen Saver OFF
5minutes
10minutes
15minutes
30minutes
Set the idling time before the screen saver
starts.
FL Dimmer Auto
Bright
Dark
Set the brightness of the front panel display.
CC Style
Pages 35-37
DTV CC
OFF
Service1
Service2
Service3
Service4
Service5
Service6
Set the type of the DTV closed caption.
User Setting ON
OFF
Set the whether or not CC style setting is
effective.
Font Size
Middle
Large
Small
Set font size of the displayed caption.
Font Style
Style1
Style2
Style3
Style4
Style5
Style6
Style7
Style8
Set font style of the displayed caption.
E9H90UD.indd 89E9H90UD.indd 89 2007/05/16 15:45:112007/05/16 15:45:11
90 EN90 EN
LIST OF SETTINGS
Setup Items (highlight is the default) Contents
General Setting
Display
Pages 96-97
CC Style
Pages 35-37
Edge Type
None
Raised
Depressed
Uniform
L.Shadow
R.Shadow
Set edge type of the displayed caption.
Font Opacity
Solid
Translucent
Flash
Set the font opacity of the displayed caption.
Font Color Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Set the font color of the displayed caption.
Back Opacity
Solid
Translucent
Flash
Set back opacity of the displayed caption.
Back Color Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Set back color of the displayed caption.
V-Chip00
Downloadable Rating
Change Password
Set the downloadable rating.
Video
Pages 98-99
Progressive Scan ON
OFF
Set to the progressive scan mode (set to "ON")
or to the interlace scan mode (set to "OFF").
TV Aspect
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
Set a picture size according to aspect ratio of
your TV.
Video Input
Page 48
E1(Rear)
Video In
S-Video In
Set the video input type for the external input.
E2(Front)
Video In
S-Video In
Recording Auto Chapter
Page 39
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
Insert chapter marks at even time interval.
Auto Finalize
Page 57
Disc Full ON
OFF
Set the unit to finalize the disc automatically.
End of Timer Rec ON
OFF
Dubbing Mode Pages 53-54
VCR DVD
DVD VCR
Set the dubbing direction.
Make Recording Compatible
Page 39
ON
OFF
Set to prohibiting additional recording (OFF)
or to replace the title list after recording (ON).
Clock
Pages 30-31
Clock Setting Set the clock.
Auto Clock Setting OFF
Auto
Manual
Set the clock automatically.
Daylight Saving Time
ON(MAR-NOV)
ON(APR-OCT)
OFF
Set the clock for the daylight saving time.
E9H90UD.indd 90E9H90UD.indd 90 2007/05/16 15:45:112007/05/16 15:45:11
91EN 91EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
Note
• Your change to each settings stays on even when the power is off.
• An item which is not currently available is grayed in the settings.
LIST OF SETTINGS
Setup Items (highlight is the default) Contents
General Setting
Channel
Pages 27-29
Auto Channel Preset
Antenna
Cable (Analog)
Cable (Analog/Digital)
Tune the channels automatically.
Manual Channel Preset Tune the channels manually.
TV Audio Select
Pages 33-34
Stereo
SAP
Set the analog TV audio type for output and
recording.
DivX
Page 100
DivX®VOD Provide DivX®VOD registration code.
DivX Subtitle OFF
English
French
Spanish
German
Italian
Swedish
Dutch
Russian1
Russian2
Hungarian
Polish
Czech
Set the language for DivX® Subtitle.
HDMI
Pages 101-102
Format RGB
YCbCr
Set the color space for the HDMI output.
HDMI Audio ON
OFF
Set whether or not to output the HDMI audio
signal.
RGB Range Normal
Enhanced
Set the black-white contrast level for HDMI
RGB output.
Reset All Page 103 Yes
No
Set to the default setting.
E9H90UD.indd 91E9H90UD.indd 91 2007/05/16 15:45:122007/05/16 15:45:12
92 EN92 EN
SETUPS
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Playback”, then
press [OK].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
3
Use [K / L] to select a desired item,
then press [OK].
1
2
3
4
5
6
7
Parental Lock
Disc Audio
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Submenu will appear.
4
Refer to
1
to
7
on pages 93-95 and
set the selected item.
5
When you finish with setting, press
[SETUP] to exit.
Playback
E9H90UD.indd 92E9H90UD.indd 92 2007/05/16 15:45:132007/05/16 15:45:13
93EN 93EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
SETUPS
1
Parental Lock (Default: OFF)
Some DVD-video feature a parental lock level. Playback
will stop if the ratings exceed the levels you set, it will
require you to enter a password before the disc will
playback. This feature prevents your children from
viewing inappropriate material.
Use [K / L] to select the desired level, then press [OK].
Parental Lock
OFF
8 [Adult]
7 [NC 17]
6 [R]
5 [PG R]
4 [PG 13]
3 [PG]
2 [G]
1 [Kid Safe]
If a password has not been set yet, proceed to
A
.
If a password has been set already, proceed to
B
.
Note
• Parental lock function may not be available to some
discs.
• With some DVD, it may be difficult to find if they are
compatible with parental lock. Be sure to check if the
parental lock function operates in the way that you
have set.
• Record the password in case you forget it.
• If there is a DVD in the unit when you set up the
parental lock, press [OPEN/CLOSE A] to activate the
parental lock level.
A
A password has not been set yet.
Use [K / L] to select “Yes”. Use [the Number buttons]
to enter a new password except for 4737, then press
[OK].
Change Password?
Yes
No
Password Input
Yes
Your setting will be activated.
B
A password has been set already.
• Use [the Number buttons] to enter the current
password.
Password Input
Your setting will be activated.
• If you want to change password, use [K / L] to select
“Yes”. Use [the Number buttons] to enter a new
password, then press [OK].
<change the password>
Change Password?
Yes
No
Password Input
Yes
Your setting will be activated.
Note
• Press [CLEAR] to erase numbers entered incorrectly.
• When you forget the password or you want to clear
all settings in “Parental Lock” menu, enter 4,7,3,7
using [the Number buttons] in password input
window. Password will be cleared and parental levels
will be set to “OFF”.
Playback (cont’d)
E9H90UD.indd 93E9H90UD.indd 93 2007/05/16 15:45:142007/05/16 15:45:14
94 EN94 EN
SETUPS
2
Disc Audio
Choose the appropriate audio setting for your external
device.
It will only affect a disc playback.
Use [
K
/
L
] to select a desired item, then press
[OK]
.
Disc Audio
Dynamic Range Control
PCM
Dolby Digital
A
B
C
A
Dynamic Range Control (Default : ON)
Set to “ON” to compress the range between soft and loud
sounds.
Use [K / L] to select a setting, then press [OK].
Dynamic Range Control
ON
OFF
Your setting will be activated.
Note
• Dynamic range control function is available only on
the discs which are recorded in the Dolby Digital
format.
B
PCM (Default : 48kHz)
Use [K / L] to select a setting, then press [OK].
PCM
48kHz
96kHz
Your setting will be activated.
48kHz : If your amplifier/decoder is NOT compatible
with 96kHz PCM, select “48kHz”. 96kHz sound
will be output in 48kHz.
96kHz : If your amplifier/decoder is compatible with
96kHz PCM, select “96kHz”. 96kHz sound will
be output.
Note
When playing back disc with copyright protection
• Even if you select “96kHz”, the sound will be down
sampled at 48kHz.
C
Dolby Digital (Default : Stream)
Use [K / L] to select a setting, then press [OK].
Dolby Digital
PCM
Stream
Your setting will be activated.
PCM : Converts the Dolby Digital into PCM (2 channel).
When your amplifier/decoder is NOT
compatible with Dolby Digital, set to “PCM”.
Stream : Outputs Dolby Digital signals
When your amplifier/decoder is compatible
with Dolby Digital, set to “Stream”.
Playback (cont’d)
E9H90UD.indd 94E9H90UD.indd 94 2007/05/16 15:45:152007/05/16 15:45:15
95EN 95EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
SETUPS
3
Disc Menu Language (Default : English)
Set the language for disc menu.
Use [K / L] to select a setting, then press [OK].
Disc Menu Language
English
French
Spanish
Other
Your setting will be activated.
4
Audio Language (Default : Original)
Set the audio language.
Use [K / L] to select a setting, then press [OK].
Audio Language
Original
English
French
Spanish
Other
Your setting will be activated.
• When “Original” is selected, the audio language will be
in the disc’s default language.
5
Subtitle Language (Default : OFF)
Set the subtitle language.
Use [K / L] to select a setting, then press [OK].
Subtitle Language
OFF
English
French
Spanish
Other
Your setting will be activated.
If “Other” is selected for
3
to
5
, press 4-digit code
using [the Number buttons].
Code Input
----
• When you finish entering the code, press [OK]. Refer
to the language code table on page 112.
Note
• Only the languages supported by the disc can be
selected.
• Audio language setting may not be available to
some discs.
• You can change or switch off the subtitles on a DVD
also from the disc menu if it is available.
• Press [CLEAR] or [s] to erase numbers entered
incorrectly.
6
Angle Icon (Default : ON)
Set to “ON” to show the angle icon during the playback.
Use [K / L] to select a setting, then press [OK].
Angle Icon
ON
OFF
Your setting will be activated.
7
Still Mode (Default : Auto)
Select “Auto” usually.
Use [K / L] to select a setting, then press [OK].
Still Mode
Auto
Field
Frame
Your setting will be activated.
Auto : Optimum resolution setting (“Field” or
“Frame”) will be selected.
Field : Images in the still mode will be stabilized.
Frame : Images in the still mode will be highly defined.
Note
•
Frame is 1 completed video image made up of 2
fields (There are 30 frames per second of NTSC video).
Playback (cont’d)
E9H90UD.indd 95E9H90UD.indd 95 2007/05/16 15:45:162007/05/16 15:45:16
96 EN96 EN
SETUPS
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
2
Use [K / L] to select “Display”, then
press [OK].
3
Use [K / L] to select a desired item,
then press [OK].
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
1
2
3
4
5
Selection menu will appear.
4
Refer to
1
to
5
on page 97 and set
the selected item.
• For
4
refer to pages 35-37.
5
When you finish with setting, press
[SETUP] to exit.
Display
E9H90UD.indd 96E9H90UD.indd 96 2007/05/16 15:45:172007/05/16 15:45:17
97EN 97EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
SETUPS
1
OSD Language (Default : English)
Set the language for the on-screen display.
Use [K / L] to select a setting, then press [OK].
OSD Language
English
Français
Español
Your setting will be activated.
2
Screen Saver (Default : 10 minutes)
Set the time to activate the screen saver function on the
TV screen.
Use [K / L] to select a setting, then press [OK].
Screen Saver
OFF
5 minutes
10 minutes
15 minutes
30 minutes
Your setting will be activated.
3
FL Dimmer (Default: Bright)
Set the front panel display brightness.
Use [K / L] to select a setting, then press [OK].
FL Dimmer
Auto
Bright
Dark
You can choose one from “Auto”, “Bright” and “Dark”.
If “Auto” is selected, the display gets dark when the
power is off.
5
V-Chip
You can set the viewing limitation for the digital TV
programs to prevent your children from watching
inappropriate programs.
This feature is available only after the digital TV
ratings have been downloaded
• The ratings can be downloaded by the unit
automatically if it is available in your area.
1) Use [the Number buttons] to enter the access
password.
If you have not set the password, first, use [the Number
buttons] to set the access password, then press [OK].
The number you entered will be stored as the access
password.
Password Input
2) Use [K / L] to select a desired item, then press [OK].
V-Chip
Downloadable Rating
Change Password
A
B
A
Downloadable Rating
Set the rating system via digital broadcasting, or clear the
downloaded ratings.
If the broadcasting signal does not have the
downloadable rating information, the message below
will appear.
Downloadable Rating is currently not available.
• This message will also appear when you try to access
“DOWNLOADABLE RATING“ after you have cleared the
downloadable rating information, and the new information has
not been downloaded since.
To set the rating:
Use [K / L] to select “BLOCK SETTING” then press [OK]
to show the various types of ratings. Use [K / L] to
select a desired rating to set, then press [OK] to show
the levels for the rating. Use [K / L] to select a level,
then press [OK] to switch “VIEW” or “BLOCK”. If you set
one level to “BLOCK”, all the higher levels will be turned
to “BLOCK” automatically.
To clear the downloadable rating information and its
setting:
Use [K / L] to select “CLEAR DOWNLOADABLE
RATING”, then press [OK].
B
Change Password
Change the current password.
Use [the Number Buttons] to enter new access
password.
Note
• When you forget the access password at step 1),
enter 4,7,3,7 using [the Number buttons] in the
password input window. Password will be cleared.
• Depending on the type of rating system, you may set
the levels individually.
Display (cont’d)
E9H90UD.indd 97E9H90UD.indd 97 2007/05/16 15:45:182007/05/16 15:45:18
98 EN98 EN
SETUPS
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
2
Use [K / L] to select “Video”, then
press [OK].
3
Use [K / L] to select a desired item,
then press [OK].
Progressive Scan
TV Aspect
Video Input
1
2
3
Submenu will appear.
4
Refer to
1
to
2
on page 99 and set
the selected item.
• For
3
refer to page 48.
5
When you finish with setting, press
[SETUP] to exit.
Video
E9H90UD.indd 98E9H90UD.indd 98 2007/05/16 15:45:192007/05/16 15:45:19
99EN 99EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
1
Progressive Scan (Default : OFF)
This unit is compatible with the progressive scan system.
The feature provides you with the higher definition
images than the traditional output system does. To utilize
this feature, you must set progressive scan mode to “ON”.
1) Use [K / L] to select “ON“, then press [OK].
Progressive Scan
ON
OFF
2) Use [{ / B] to select “Yes“, then press [OK].
Activating progressive scan:
Check your TV has progressive scan
and connect with component video cable.
NOTE :
Activate? Yes No
If there is no picture or picture is
distorted after selecting “Yes”,
Wait about 15 seconds for auto recovery.
3) Use [K / L] to select “Yes“ within 15 seconds, then
press [OK].
Your setting will be activated.
Note
• If your TV is compatible with progressive scan (525p /
480p), you are recommended to use the HDMI or
component video cable (commercially available) to
connect this unit to the TV. (Refer to “Method 2” or
“Method 3” on page 18.) If not, use the RCA video
cable and set the progressive scan to “OFF” or press
and hold [SETUP] for more than 3 seconds during
DVD playback.
• When selecting “No” or not pressing any buttons on
the unit or remote control within 15 seconds at step 3,
progressive scan remains to be “OFF” (interlace scan).
2
TV Aspect (Default: 4:3 Letter Box)
You can select the TV aspect ratio to match the formats of
what you are playing back with the unit and your TV
screen (4:3 standard or 16:9 widescreen TV).
Use [K / L] to select a setting, then press [OK].
TV Aspect
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
If you have a standard TV:
Select “4:3 Letter Box”, so that black bars appear on the
top and bottom of the TV screen when playing back a
wide-screen picture. Select “4:3 Pan & Scan” for a full
height picture with both sides trimmed when playing
back wide-screen picture.
If you have a widescreen TV:
Select “16:9 Wide”.
Video (cont’d)
SETUPS
E9H90UD.indd 99E9H90UD.indd 99 2007/05/16 15:45:202007/05/16 15:45:20
100 EN100 EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “DivX”, then
press [OK].
3
Use [K / L] to select a desired item,
then press [OK].
DivX
R
VOD
DivX Subtitle
1
2
4
Refer to
1
and
2
on this page and
set the selected item.
5
When you finish with setting, press
[SETUP] to exit.
1
DivX® VOD
This unit allows you to play back the files purchased or
rented from DivX® VOD (video-on-demand) services. The
files are available on the internet. When you purchase or
rent DivX® VOD files on the internet, you will be asked to
enter an activation/registration code. This menu item
provides you with the activation/registration code.
On how to activate this unit for the DivX® VOD file
playback, visit www.divx.com/vod.
Your registration code is :
To learn more visit
www.divx.com/vod
DivX
R
VOD
2
DivX Subtitle (Default : OFF)
Set the DivX® subtitle.
Use [K / L] to select a setting, then press [OK].
DivX Subtitle
OFF
English
French
Spanish
German
Italian
Swedish
Your setting will be activated.
DivX®
Note
• Only the languages supported by the disc can be
selected.
• Audio language setting may not be available to
some discs.
• You can change or switch off the subtitles on a DVD
also from the disc menu if it is available.
• One registration code is only valid for one DivX® VOD
file.
• The registration code will be displayed in 8
characters which consist of numbers between 0 to 9
and capital letters chosen randomly.
• You must first download the file from the internet
and play it back on this unit before you are able to
get another code.
• You must follow this step every time you purchase or
rent a DivX® VOD file from the internet.
• For more information for DivX®, please visit
http://www.divx.com/vod.
SETUPS
E9H90UD.indd 100E9H90UD.indd 100 2007/05/16 15:45:202007/05/16 15:45:20
101EN 101EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “HDMI”, then
press [OK].
3
Use [K / L] to select a desired item,
then press [OK].
Format
HDMI Audio
RGB Range
1
2
3
4
Refer to
1
to
3
on page 102 and set
the selected item.
5
When you finish with setting, press
[SETUP] to exit.
HDMI
SETUPS
E9H90UD.indd 101E9H90UD.indd 101 2007/05/16 15:45:212007/05/16 15:45:21
102 EN102 EN
1
Format (Default : RGB)
You can select the color space for HDMI output.
Set the appropriate color space for your display device.
Use [K / L] to select a setting, then press [OK].
• When the connected device is not compatible with the
Y/Cb/Cr, HDMI signal is output as RGB regardless of the
setting.
Format
RGB
YCbCr
Your setting will be activated.
2
HDMI Audio (Default : ON)
If you do not want to output the audio through HDMI
(when you digitally output the audio through the
COAXIAL DIGITAL AUDIO OUT jack to your audio system,
etc.), you can set the HDMI audio output off.
Use [K / L] to select a setting, then press [OK].
• Set to “OFF” when not outputting the HDMI sound.
HDMI Audio
ON
OFF
Your setting will be activated.
3
RGB Range (Default : Normal)
You can adjust the RGB range to make the dark areas of
the HDMI images brighter.
Use [K / L] to select a setting, then press [OK].
• Select “Enhanced“ if the black-white contrast is not clear.
• This setting is effective only for HDMI RGB output.
RGB Range
Normal
Enhanced
Your setting will be activated.
HDMI (cont’d)
SETUPS
E9H90UD.indd 102E9H90UD.indd 102 2007/05/16 15:45:212007/05/16 15:45:21
103EN 103EN
Editing
Function Setup
PlaybackRecording
Basic Setup
ConnectionsIntroduction VCR Functions Others
Reset the setting to default.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Reset All”, then
press [OK].
3
Select “Yes” using [K / L] , then press
[OK].
Reset to factory default?
Yes
No
4
Select “Yes” again using [K / L] ,
then press [OK].
Are you sure?
Yes
No
Your setting in recording will be initialized.
Reset All
SETUPS
Note
• The settings listed below will remain unchanged
even after resetting to the factory default.
– OSD language setting
– Channel setting
– Clock setting
– Parental lock setting
– V-Chip setting
– Timer programming information
– DivX® registration code
E9H90UD.indd 103E9H90UD.indd 103 2007/05/16 15:45:222007/05/16 15:45:22
104 EN104 EN
VCR FUNCTIONS
Playback Recording
Press [VCR] first.
1) Insert a prerecorded tape (refer to page 25 on how
to insert a cassette tape).
2) Press [PLAY B] to start playback.
3) Press [STOP C] to stop playback.
Note
• When a cassette tape without erase-protection tab is
inserted, the unit will start playback automatically.
• Tracking will be automatically adjusted upon
playback. To adjust the tracking manually, press [CH
/ ] on the remote control.
• S-VHS cassette tape is not available on this unit.
Press [VCR] first.
1) Insert a recordable tape with an erase-protection
tab intact.
Accidental erasure prevention
To prevent accidental recording on a
recorded cassette tape, remove its erase-
protection tab. To record on it later, cover
the hole with cellophane tape.
erase-protection tab
2) Select the recording mode using [REC MODE].
• The desired recording mode is selected in SP
(standard play) or SLP (super long play) mode by
pressing [REC MODE].
Recording mode:
Tape speed Recording / playback time
Type of tape T60 T120 T160
SP mode 1hour 2hours 2-2/3hours
SLP mode 3hours 6hours 8hours
3) Select stereo or SAP. Refer to page 34.
4) Select the desired channel to record using
[CH
/ ] or [the Number buttons].
5) Press [REC I] to start recording.
Press [STOP C] to stop the recording.
To pause recording:
Press [PAUSE F].
To resume recording:
Press [PAUSE F] or [REC I].
After the unit has been in pause mode for 5 minutes, it
will stop automatically to protect the tape and the
video head from damage.
• Refer to pages 42-45 for instructions on timer recording.
To pause playback:
Press [PAUSE F].
Playback will pause and sound will be muted.
To resume playback:
Press [PLAY B].
E9H90UD.indd 104E9H90UD.indd 104 2007/05/16 15:45:222007/05/16 15:45:22
105EN 105EN
Function Setup
VCR Functions
EditingPlaybackRecording
Basic Setup
ConnectionsIntroduction Others
VCR FUNCTIONS
One-touch Timer Recording (OTR) Index Search
This feature allows you to set the recording length simply
by pressing [REC I] on the remote control.
Press [VCR] first.
1) Insert a recordable tape with an erase-protection
tab intact.
2) Select the recording mode using [REC MODE].
(Refer to “Recording” on page 104.)
3) Select stereo or SAP. Refer to page 34.
4) Select the desired channel to record using
[CH
/ ] or [the Number buttons].
5) Press [REC I] to begin the one-touch timer
recording.
You can select a fixed recording time by pressing
[REC I] repeatedly.
(0:30) (1:00)
(Normal recording)
(7:30)(8:00)
When the one-touch timer recording is finished, the
unit will turn off automatically.
To change the recording length during the one-
touch timer recording:
Press [REC I] repeatedly until the desired length
appear.
To cancel the one-touch timer recording within the
specified time:
Press [STOP C].
Note
• The remaining recording time will be displayed on
the front panel display during one-touch timer
recording. Press [INFO] to see it on the TV screen.
• You cannot pause the one-touch timer recording.
• If VCR one-touch timer recording is completed
during DVD playback or recording, the VCR will be in
stop mode and the DVD keeps the current mode.
• Unlike a timer recording, you can perform the
following operations during the one-touch timer
recording.
- Turning off the power to stop one-touch timer
recording.
- Using [REC I].
• When the one-touch timer recording is finished and
the power is turned off, the unit will switch to the
timer standby mode automatically if a timer
recording has been programmed. Press [TIMER SET]
to cancel the timer standby mode for using the unit
continuously.
An index mark will be assigned at the beginning of each
recording you make. You may skip to a specific marked
point by following the steps below.
Press [VCR] first.
1) Press [SEARCH] so that “INDEX SEARCH” menu
appears.
2) Using [the Number buttons], enter the number of
recordings you wish to skip within 30 seconds.
INDEX SEARCH
03
3) Press [REW E], [FFW D] to start index search.
If you want to go in the forward direction, press
[FFW D].
If you want to go in the reverse direction, press
[REW E].
After index search, the VCR will play back the cassette
tape automatically.
Pro.1 Pro.2 Pro.3 Pro.4 Pro.5
02 01 01 02 03
Beginning
of tape
End
of tape
CURRENT PROGRAM
INDEX MARK
Note
• You can make the index mark up to 20.
E9H90UD.indd 105E9H90UD.indd 105 2007/05/16 15:45:232007/05/16 15:45:23
106 EN106 EN
VCR FUNCTIONS
Time Search Other Operations
This feature allows you to go to a specific point on a
cassette tape by entering the exact amount of time you
wish to skip in order to reach the point.
Press [VCR] first.
1) Press [SEARCH] repeatedly so that “TIME SEARCH”
menu appears.
2) Using [the Number buttons], enter your desired
time to skip within 30 seconds.
You can set the time up to 9:59.
TIME SEARCH
2:50
3) Press [REW E], [FFW D] to start time search.
If you want to go in the forward direction, press
[FFW D].
If you want to go in the reverse direction, press
[REW E].
After time search, the unit will play back the cassette
tape automatically.
Note
• Index search and time search are not available
during recording.
• Press [STOP C] to stop the search.
• If the end of the cassette tape is reached during
search, this unit will cancel the search and rewind the
cassette tape.
Press [VCR] first.
Fast forward:
When the unit is in stop mode, press [FFW D] to fast
forward the cassette tape.
Rewind:
When the unit is in stop mode, press [REW E] to
rewind the cassette tape.
To cue or review picture during playback (picture search):
Press [REW E], [FFW D] during playback.
Press it again and the unit will search in super high
speed. (in the SLP mode only)
To freeze the picture on TV screen during playback
(still mode):
Press [PAUSE F]. Each time you press the button, the
picture will be forwarded by one frame.
If the picture begins to vibrate vertically during the still
mode, stabilize the picture by pressing [CHANNEL
/ ]
on remote control.
If the picture is distorted or rolling vertically, adjust the
vertical hold control on your TV, if equipped.
Counter reset:
Press [CLEAR] to reset the counter to “0:00:00”.
To playback in slow motion:
Press [PAUSE F] during playback, then press [FFW D].
Press [FFW D] or [REW E] repeatedly to select the
desired speed.
Automatic rewind:
When a cassette tape is played back or fast forwarded to its
end, the cassette tape will rewind to the beginning, stop
and eject itself.
When you playback a cassette tape recorded in Hi-Fi
stereo:
Press [AUDIO] on the remote control to select Hi-Fi or
MONO for playback sound mode.
• If you have connected a stereo TV to this unit, select “HIFI”.
• If you have connected a monaural TV to this unit, select
“MONO”.
HIFI
Your Selection
Type of recorded tape
non Hi-Fi tapes
Hi-Fi tapes
recorded in
Hi-Fi stereo
Hi-Fi tapes
recorded second
audio program
Hi-Fi tapes
recorded main
audio program
MONO
Monaural
L+R
Main audio
program
Second audio
program
Monaural
R-channelL-channel
R
Main audio
program
Second audio
program
Monaural
L
Main audio
program
Second audio
program
Note
• Still/slow mode will stop after 5 minutes to prevent
damage to the cassette tape and the video head.
• To return to playback from the picture search/still/
slow mode, press [PLAY B].
E9H90UD.indd 106E9H90UD.indd 106 2007/05/16 15:45:242007/05/16 15:45:24
107EN
Function Setup VCR FunctionsEditingPlaybackRecording
Basic Setup
ConnectionsIntroduction
Others
TROUBLESHOOTING
Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing.
Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
Symptom Remedy
GENERAL
The power does not turn on. • Check that the AC power cord is connected securely.
• Check the breaker (in case of power failure).
• Press [TIMER SET] to cancel the timer standby mode.
There is no picture. • Re-connect the connecting cords securely.
• Check if the connecting cords are damaged.
• Check the connection to your TV (page 18).
• Switch the input selector on your TV (such as to “E1”) so that the signal
from the unit appears on the TV screen.
TV program reception does not fill the
TV screen.
• Try to set the channels with “Auto Preset” or “Manual Preset” in
“Channel” menu (pages 27-29).
• Select a channel of any TV program using [CH
/ ].
TV program pictures are distorted. • Adjust TV antenna.
• Adjust the picture. (Refer to the TV’s instruction manual.)
• Place the unit and TV farther apart.
• Place the TV and any bunched RF coaxial cables farther apart.
TV channels cannot be changed. • Switch the input to TV.
• Connect the RF coaxial cable correctly (pages 15-17).
There is no sound or the sound is
distorted.
• Re-connect all connections securely.
• Check if the connecting cord is damaged.
• Check the connections to the amplifier input.
• Check if the input device setting on the amplifier is correct.
• When the unit is in pause mode or in slow-motion playback mode,
sound is not output. This is not a malfunction.
• When the unit is in fast forward or fast reverse mode, sound is not
output. This is not a malfunction.
• If using the HDMI connection, sound is not output when “HDMI Audio”
is set to “OFF”.
• Check the RCA audio cable connection. If you are using HDMI-DVI
conversion cable, you must connect the RCA audio cable, too.
• If using the HDMI connection, check whether the output format of this
unit (HDMI FORMAT) matches the supported input format of other
connected device.
The remote control does not function. • Batteries are weak.
• There are obstacles between the remote control and the unit.
• The remote control is far from the unit.
• There are no batteries in the remote control.
• Check if the unit is turned on.
• Check if you are pointing the remote control at the recorder and NOT
the TV.
If you have a plasma TV, it may interfere with the IR signal. Try the
remote with the plasma off. If the remote works, you may need to move
the unit away from the plasma TV.
• Press [DVD] or [VCR], whichever you need. Then, try again.
• Press [TIMER SET] to cancel the timer standby mode.
The unit does not operate properly. • When static electricity, etc., causes the unit to operate abnormally,
unplug the unit and then plug it in again.
No analog TV closed captions are
output.
• If you are using HDMI connection to watch the TV programs through
this unit’s tuner, analog TV closed caption cannot be output. Try using
other connection.
E9H90UD.indd 107E9H90UD.indd 107 2007/05/16 15:45:252007/05/16 15:45:25
108 EN
TROUBLESHOOTING
Symptom Remedy
DVD • VCR
Playback picture is distorted. • Keep the device which may cause electrical disturbances, such as a
cellular phone, away.
The channel cannot be changed from
the channel you are recording.
• Set the TV’s input to “TV.”
Nothing was recorded even though
you set the timer setting correctly.
• There was a power failure during recording.
• The unit’s internal clock stopped due to a power failure that lasted for
more than 30 seconds. Reset the clock (pages 30-31).
• The program contains copy protection signals that restricts copying.
• The timer setting overlapped with another setting that has priority.
Timer recording is not complete or did
not start from the beginning.
• The timer setting overlapped with another setting that has priority
(page 45).
• Disc space was not enough.
Timer recording is impossible.
• Make sure
appears on the front panel display of this unit. If not, press
[TIMER SET].
DVD
There is no picture.
• If the main menu appears on the TV screen, press [BACK
] to exit.
• Check if the progressive scan mode is set correctly according to your TV
(page 99).
Picture noise appears. • Clean the disc with a cleaning cloth.
There is no sound. • If you are using DIGITAL AUDIO OUTPUT (COAXIAL) jack, check the setting
in “Disc Audio” (page 94).
• Clean the disc with a cleaning cloth.
Sound is noisy. • Clean the disc with a cleaning cloth.
No DTS sound is output. • This unit is not compatible with DTS sound.
The disc does not play back. • No disc is inserted.
• A blank disc is inserted.
• The disc is upside down. Insert the disc with the labeled side facing up.
• The disc is not correctly inserted.
• The unit cannot play back certain discs (such as a CD-ROM) (page 58).
• The region code on the DVD-video does not match the unit (page 58).
• Moisture has condensed inside the unit. Remove the disc and leave the
unit turned on for about 2 hours until the moisture evaporates (page 5).
• If the disc was recorded on another recorder, the unit cannot play back
the disc if it was not finalized.
Discs recorded on this unit cannot be
played back on other DVD players.
• If you are using DVD-RW/-R, please ensure you finalized the disc after
recording (pages 56-57).
The disc does not start playback from
the beginning.
• Resume playback was activated (page 67). Press [STOP C] twice.
• You have inserted a disc whose title menu or DVD menu automatically
appears on the TV screen when it is first inserted.
The unit starts playing back the disc
automatically.
• The DVD-video features an auto playback function.
Some functions such as stop, search,
or slow-motion playback cannot be
performed.
• Depending on the disc, you may not be able to do some of the
operations. Refer to the instruction manual supplied with the disc.
The language for the sound track
cannot be changed.
• The title does not have the multilingual audio tracks.
• The DVD-video prohibits the changing of the language for the sound
track.
The subtitle language cannot be
changed or turned off.
• Multilingual subtitle are not recorded on the DVD-video.
The angles cannot be changed. • Multi-angles are not recorded on the DVD-video being played back.
• The angle-change operation is whenever possible as long as the disc
contains a multi-angle portion. Actual change will be performed when
the portion has come up.
• The DVD-video prohibits changing angles.
• Try changing the angle using the DVD-video’s menu.
Recording does not stop immediately
after you press [STOP C].
• It may take a few seconds for the unit to input disc data before
recording stops.
The disc tray does not open when you
press [OPEN/CLOSE A].
• It may take a few seconds for the disc tray to open after you have
recorded or edited a disc. This is because the unit is adding disc data to
the disc.
E9H90UD.indd 108E9H90UD.indd 108 2007/05/16 15:45:252007/05/16 15:45:25
109EN
Function Setup VCR FunctionsEditingPlaybackRecording
Basic Setup
ConnectionsIntroduction
Others
TROUBLESHOOTING
Symptom Remedy
DVD
Playback image freezes for a second. • During the playback of 2 layered disc, picture may freeze for a moment
when the 1st layer switches to the 2nd layer. This is not a malfunction.
“Repairing” appears on the TV screen.
Repairing
• If there is a power failure or unplugging during recording, finalizing,
formatting or editing (even after “Repairing” disappears), a repairing
process will begin automatically just after turning the unit on again.
It may take several minutes up to about several hours.
In a case you intend to cancel the
repairing process.
Repairing
Do you want to cancel a repairing
process? When selecting “Yes”,
the disc may not be usable.
Yes
No
• If you intend to cancel the repairing process, press [OPEN/CLOSE A]
on the front panel, then select “Yes” and press [OK]. After that, press
[OPEN/CLOSE A] to take out the disc. The disc canceled during the
repairing process MAY NOT work.
VCR
Picture noise appears. • Head cleaning for VCR may be necessary. Refer to “Auto head cleaning”
(page 5).
• Adjust tracking control for better picture by pressing [CH
/ ] while
you are playing back a cassette tape.
The cassette tape does not play back. • No cassette tape is inserted.
Recording does not start after you press
[REC I].
• Make sure the cassette tape has an erase-protection tab when you
record to a cassette tape. If needed, cover the hole with cellophane
tape.
The remote control does not function. • Check if a cassette tape is in this unit.
The motor rotates even when
playback / recording is stopped.
• The motor may rotate for the duration of approximately 5 minutes for
efficient operation. This is not a malfunction.
OTHER
DV signal cannot be input. • Before connection, turn on the power supplies for both this unit and the
DVC, and make sure that these units have stopped.
• Only a “DVC-SD” signal can be input from the DVC to this unit. Other
types of signals are not supported.
• Do not connect any device other than the DVC. Even if a recorder or PC
with another DV terminal is connected, the DV function will not operate.
• If the DVC is not recognized after connection, turn off the power supply
for the unit and re-connect the DVC.
The DVC cannot be operated with this
unit.
• Signal input or DVC operation from this unit may be disabled
depending on the type of DVC.
• If a DVC signal cannot be input, use an external input (E1/E2) for analog
connection via audio/video cables.
• DVC control may be disabled depending on the type of DVC, even in a
mode other than camera mode. In this case, switch to DVD control and
execute the normal recording procedure while operating the DVC.
Certain functions of the DVC cannot
operate.
• Some functions may not operate depending on the type of DVC. For
example, if the DVC does not support slow playback mode, the slow
playback function is disabled.
• With E3(DV-IN), the disc display menu does not appear unless disc playback
is executed.
DV audio signal cannot be switched. • For recording with the DVC, the recording audio signal can be set to 12
bits or 16 bits. However, when 16-bit recording mode is selected, audio
signal cannot be switched. To record an audio signal, set it to 12 bits.
No image from HDMI connection. • Check the HDMI connection. (Check the status of the HDMI related
indications.)
• Check whether the connected monitor device or other device supports
HDCP. (This unit will not output a video signal unless the other device
supports HDCP.)
• Check the setting of HDMI.
• Check whether the output format of this unit (HDMI FORMAT) matches
the supported input format of other connected device.
E9H90UD.indd 109E9H90UD.indd 109 2007/05/16 15:45:252007/05/16 15:45:25
110 EN
TROUBLESHOOTING
Disc Error message Cause Solution
Disc Error
— Please eject the disc. —
Playback feature may not be available on
this Disc.
• Unplayable disc is inserted in the unit.
• The disc is upside down.
• Insert the standardized disc which bear
the marks on page 58.
• Insert the disc with the labeled side
facing up.
Region Error
— Please eject the disc. —
Playback is not authorized in your region.
• Playback is not authorized in the region
of the DVD-video which you inserted in
the unit.
• Insert the DVD-video with region codes
1 or ALL.
Parental Lock On
The current selected parental level
prohibits playback.
• The current selected parental level
prohibits playback.
• Check “Parental Lock” setting in
“Playback” menu (page 93).
Recording Error
This program is not allowed to be
recorded.
• The recording function encountered
the copy prohibited program.
• You cannot record copy prohibited
programs.
Recording Error
This program is not recordable in +VR
mode.
• You are trying to record the copy-once
program.
• You cannot record the copy-once
program.
Recording Error
Can not record on this disc.
• You are trying to record onto the disc
which is unrecordable, or the disc status
is unable to record.
• The disc is dirty.
• The disc is damaged.
• Insert the recordable disc, and ensure
the disc status satisfies the recording
requirements (page 38).
• Clean the disc with a cleaning cloth.
• Replace the disc.
Recording Error
This disc is protected and not recordable.
• You are trying to record on to the
protected disc which is set in “Disc Edit”
menu.
• Release the disc protect setting in “Disc
Edit” menu (page 86).
Recording Error
Disc is full.
(No area for new recording)
• You are trying to record onto the disc
which has no space for recording.
• Insert the recordable disc with enough
recording space.
Recording Error
You cannot record more than 49 titles on
one disc.
(The maximum is 49)
• You are trying to record onto the disc
on which the number of recording titles
comes up to the maximum (49).
• Delete unnecessary titles (page 77).
Recording Error
You cannot record more than 254 chapters
on one disc.
(The maximum is 254)
• You are trying to record onto the
DVD+RW or DVD-RW on which the
number of recording chapters comes
up to the maximum (254).
• Delete unnecessary chapter marks
(pages 80-81).
Recording Error
You cannot record on this disc as Power
Calibration Area is full.
• When recordings are performed
repeatedly onto an unstable disc, this
area may come up to be full.
• Every time you insert a disc for
recording, the disc’s working area will
be taken up. And if you repeat this
frequently, it will be used up sooner
and you may not be able to record full
49 titles.
• Insert a new disc.
Recording Error
This disc is already finalized.
• You are trying to record onto the disc
already finalized.
• Release the finalizing for this disc
(page 56).
Recording Error
The disc has no recording compatibility.
Set “Make Recording Compatible” to
“ON” to convert the disc.
• You are trying to record onto the
disc that had been recorded by other
recorders.
• Set “Make Recording Compatible” to
“ON” to rewrite the menu, after that you
will record to disc (page 39).
* If you are still having trouble with the unit after checking “TROUBLESHOOTING”, write down the error code and the
error description for calling our help line mentioned on the front page to locate an Authorized Service Center.
E9H90UD.indd 110E9H90UD.indd 110 2007/05/16 15:45:262007/05/16 15:45:26
111EN
Function Setup VCR FunctionsEditingPlaybackRecording
Basic Setup
ConnectionsIntroduction
Others
Frequently Asked Questions
TROUBLESHOOTING
– Can I record to CD-RW/-R? No, this unit records only DVD.
– Can I play back DVD-video that is bought in another
country?
Possible when the region code of the disc is 1 and All.
– Can I connect the unit to my PC? No, you cannot control the unit by PC.
– Can I program a timer recording with cable/satellite
box?
Yes, you can. Select “E1” or “E2” as your recording
channel, and leave the cable / satellite box on (pages 17,
42-45).
– Can I record one channel while watching another
channel using a cable / satellite box?
It depends on your connection configurations. For
more details, please kindly contact your cable / satellite
provider.
– Can I connect this unit directly to a TV which only has
an antenna in jack using an RF coaxial cable?
No. You need an RF modulator (commercially available)
to connect this unit to a TV which only has an antenna in
jack (page 16). This unit does not have an RF modulator.
– Can I change the channels on the cable / satellite box
using the remote control of this unit?
No. Changing the channels on the cable / satellite box
using this unit’s remote control is not possible. You
need to use the remote control supplied with the cable /
satellite box to change the channels on the cable / satellite
box.
DVD
DIGITAL
AUDIO OUT
AUDI O
OUT
S-VIDEO
OUT IN
COAXIAL
L
R
L
Y
P
B
/CB
PR
/CR
R
L
R
OUT
IN
S-VIDEO IN --- AUDIO --- OUT
IN --- VIDEO --- OUT
COMPONENT
VIDEO OUT
DVD/VCR
ANTENNA
HDMI OUT
1
2 4 53 6
Note for Output Jacks on the Rear Panel
✔ : Available : Not available
Available for
DVD mode only VCR mode
Output Jacks
1
(HDMI OUT)
✔✔
2 (COAXIAL DIGITAL AUDIO OUT)
✔
3 (AUDIO OUT)
✔
4 (S-VIDEO OUT)
✔
5 (COMPONENT VIDEO OUT - interlace)
✔
5 (COMPONENT VIDEO OUT - progressive)
✔
6 (AUDIO/VIDEO OUT)
✔✔
E9H90UD.indd 111E9H90UD.indd 111 2007/05/16 15:45:262007/05/16 15:45:26
112 EN
LANGUAGE CODE
Language Code
Abkhazian 4748
Afar 4747
Afrikaans 4752
Albanian 6563
Amharic 4759
Arabic 4764
Armenian 5471
Assamese 4765
Aymara 4771
Azerbaijani 4772
Bashkir 4847
Basque 5167
Bengali;Bangla 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
Cambodian 5759
Catalan 4947
Chinese 7254
Corsican 4961
Croatian 5464
Czech 4965
Danish 5047
Dutch 6058
English 5160
Esperanto 5161
Estonian 5166
Faroese 5261
Fiji 5256
Finnish 5255
French 5264
Frisian 5271
Galician 5358
Georgian 5747
German 5051
Greek 5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Language Code
Hungarian 5467
Icelandic 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish 5347
Italian 5566
Japanese 5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean 5761
Kurdish 5767
Laothian 5861
Latin 5847
Latvian; Lettish 5868
Lingala 5860
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian 6061
Occitan 6149
Oriya 6164
Oromo (Afan) 6159
Panjabi 6247
Pashto; Pushto 6265
Persian 5247
Polish 6258
Portuguese 6266
Quechua 6367
Rhaeto-Romance 6459
Romanian 6461
Language Code
Russian 6467
Samoan 6559
Sangho 6553
Sanskrit 6547
Scots Gaelic 5350
Serbian 6564
Serbo-Croatian 6554
Sesotho 6566
Setswana 6660
Shona 6560
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish 5165
Sundanese 6567
Swahili 6569
Swedish 6568
Tagalog 6658
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish 6664
Turkmen 6657
Twi 6669
Ukrainian 6757
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
E9H90UD.indd 112E9H90UD.indd 112 2007/05/16 15:45:262007/05/16 15:45:26
113EN
Function Setup VCR FunctionsEditingPlaybackRecording
Basic Setup
ConnectionsIntroduction
Others
Analog Audio
An electrical signal that directly represents sound.
Compare this to digital audio which can be an electrical
signal, but is an indirect representation of sound. See also
“Digital Audio”.
Aspect Ratio
The width of a TV screen relative to its height.
Conventional TVs are 4:3 (in other words, the TV screen
is almost square); widescreen models are 16:9 (the TV
screen is almost twice as wide as it is high).
Chapter
Just as a book is split up into several chapters, a title on a
DVD is usually divided into chapters. See also “Title”.
Component Video Out
Each signal of luminance (Y) and component (PB/CB, PR/
C
R) is independent to output so that you can experience
picture color as it is.
Also, due to compatibility with progressive video
(525p/480p), you can experience higher-density picture
than that in interlace (525i/480i).
Digital Audio
An indirect representation of sound by numbers. During
recording, the sound is measured at discrete intervals
(44,100 times a second for CD audio) by an analog-
to-digital converter, generating a stream of numbers.
On playback, a digital-to-analog converter generates
an analog signal based on these numbers. See also
“Sampling Frequency” and “Analog Audio”.
DivX®
DivX® is a codec (compression/decompression) that can
compress images to a very small amount of data.
Dolby Digital
The system to compress digital sound developed by
Dolby Laboratories. It offers you sound of stereo(2ch) or
multi channel audio.
Finalize
To make DVD, which have been recorded on, possible to
play back in DVD players. With this unit, it is possible to
finalize DVD+R, DVD-RW, and DVD-R.
HDMI (high definition multimedia interface)
A digital interface between audio and video source. It can
transmit component video, audio, and control signal with
one cable connection.
JPEG (joint photographic experts group)
JPEG is a method of compressing still image files. You can
copy JPEG files on CD-RW/-R from a computer and play
back the files on this unit.
MP3 (MPEG audio layer 3)
MP3 is a method of compressing files. You can copy MP3
files on CD-RW/-R from the computer and play back the
files on this unit.
PBC (playback control) (video CD only)
This function enables you to play back interactive
software using a menu screen. See also “Video CD”.
PCM (pulse code modulation)
The most common system of encoding digital audio,
found on CD and DAT. Excellent quality, but requires a
lot of data compared to formats such as Dolby Digital
and MPEG audio. For compatibility with digital audio
recorders (CD, MD and DAT) and AV amplifiers with
digital inputs, this unit can convert Dolby Digital and
MPEG audio to PCM. See also “Digital Audio”.
Progressive Scan (525p/480p)
A type of display that does not split each frame into
fields, and instead scans directly through all the scanlines
of each frame in order. Progressive scan provides less
flickering and higher image resolution than traditional
(525i/480i) TV signals. Refer to page 99 for instructions on
selective progressive scan mode.
Region Code
Regions associate discs and players with particular areas
of the world. This unit will only play back discs that have
compatible region codes. You can find the region code
of your unit by looking on the rear panel. Some discs are
compatible with more than one region (or all regions).
Sampling Frequency
The rate which sound is measured by a specified interval
to turn into digital audio data. The numbers of sampling
in one second defines as sampling frequency. The higher
the rate, the better the sound quality.
SAP (secondary audio program)
Sub-audio channel which is delivered separately from
main-audio channel. This audio channel is used as an
alternate in bilingual broadcasting.
S-Video Output
It delivers independently each signal of color(C) and
luminance(Y) to TV as video signals, so that higher-quality
picture will be gained.
Title (DVD only)
A collection of chapters on DVD. See also “Chapter”.
Track
Audio CD use tracks to divide up the content of a
disc. The DVD equivalent is called a chapter. See also
“Chapter”.
Video CD
A digital format for store video data in compact disc.
Windows Media™ Audio
Windows Media™ Audio is the audio compressing
technology developed by Microsoft. You can copy
Windows Media™ Audio files on CD-RW/-R from a
computer and play them back on this unit.
GLOSSARY
E9H90UD.indd 113E9H90UD.indd 113 2007/05/16 15:45:262007/05/16 15:45:26
114 EN
SPECIFICATIONS
Note
• The specifications and design of this product are subject to change without notice.
General
System DVD+RW/+R, DVD-RW/-R, DVD-video, CD-DA, Video CD, CD-RW/-R
Power requirements 120V AC +/-10%, 60Hz +/-5%
Power consumption 30W (standby: 3.5W)
Dimensions (width x height x depth) 17.1 x 3.9 x 10.2 inches (435 x 99.5 x 260mm)
Weight 9.5 lbs. ( 4.3kg )
Operating temperature 41°F (5°C) to 104°F (40°C)
Operating humidity Less than 80% (no condensation)
TV format ATSC / NTSC-M TV standard
Recording
Recording format +VR (video recording) format
Recording discs
DVD+Rewritable, DVD+Recordable
DVD-Rewritable, DVD-Recordable (+VR mode only)
Video recording format
Sampling frequency
Compression format
13.5 MHz
MPEG
Audio recording format
Sampling frequency
Compression format
48 kHz
Dolby Digital
Tuner
Tuning system Channel frequency synthesized tuning system
Channel coverage (ATSC / NTSC)
Terrestrial
CATV
VHF 2~13, UHF 14~69
2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A1, 5A
Terminals
Front
Audio input
RCA jack x 2 2V rms (input impedance: more than 22kΩ)
Video input
RCA jack x 1 1Vp-p (75Ω)
S-video input
Mini DIN 4-pin x 1 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
DV input
DV 4-pin jack x 1 IEEE 1394
Rear
VHF/UHF/CATV input and output
F-type 75Ω unbalanced
Audio input
RCA jack x 2 2V rms (input impedance: more than 22kΩ)
Audio output
RCA jack x 4 2V rms (output impedance: more than 1kΩ)
Video input
RCA jack x 1 1Vp-p (75Ω)
Video output
RCA jack x 1 1Vp-p (75Ω)
S-video input
Mini DIN 4-pin x 1 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
S-video output
Mini DIN 4-pin x 1 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
Component video out
RCA jack x 3 Y: 1Vp-p (75Ω) P
B/CB: 700mVp-p (75Ω) PR/CR: 700mVp-p (75Ω)
Coaxial digital audio out
RCA jack x 1 500mVp-p (75Ω)
HDMI output
HDMI jack x 1
Video: 480p, 720p, 1080i, 1080p
Audio: 2 channel linear PCM 32, 44.1 and 48kHz
E9H90UD.indd 114E9H90UD.indd 114 2007/05/16 15:45:262007/05/16 15:45:26
115EN
Function Setup VCR FunctionsEditingPlaybackRecording
Basic Setup
ConnectionsIntroduction
Others
Philips, Marietta, GA. 30006-0026
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the
person receiving the product as a gift against defects in materi-
als and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect arises and
a valid claim is received by Philips within the Warranty Period.
At its option, Philips will either (1) repair the product at no
charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has
been manufactured from new, or serviceable used parts and is
at least functionally equivalent or most comparable to the origi-
nal product in Philips current inventory, or (3) refund the origi-
nal purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product
or part is exchanged, any replacement item becomes your
property and the replaced item becomes Philips’ property.
When a refund is given, your product becomes Philips’ proper-
ty.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all require-
ments can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIM-
ITATIONS:
This Limited Warranty applies only to the new products manu-
factured by or for Philips that can be identified by the trade-
mark, trade name, or logo affixed to it. This Limited Warranty
does not apply to any non-Philips hardware product or any
software, even if packaged or sold with the product. Non-
Philips manufacturers, suppliers, or publishers may provide a
separate warranty for their own products packaged with the
bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained with-
in the product, or any non-Philips product or part not covered
by this warranty. Recovery or reinstallation of programs, data
or other information is not covered under this Limited
Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, misapplication, or non-Philips product, (b) to
damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product
or a part that has been modified without the written permis-
sion of Philips, or (d) if any Philips serial number has been
removed or defaced, or (e) product, accessories or consum-
ables sold “AS IS” without warranty of any kind by including
refurbished Philips product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage occurring to product during shipping.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifica-
tions.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-
SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-
UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICA-
BLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILI-
TY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of inci-
dental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
3121 233 48801
LIMITED WARRANTY
E9H90UD.indd 115E9H90UD.indd 115 2007/05/16 15:45:262007/05/16 15:45:26
P
HILIPS CONSUMER ELECTRONICS
A Division of Philips Electronics North America Corp
P.O. Box 671539 Marietta, GA 30006 00296
Meet Philips at the Internet
http://www.philips.com/welcome
HTS6600
3139 245 25683
Printed in China
JpnCN-0721/37-3
1VMN23624A ****
E9H90UD
DVDR3545V/37
8239 300 56592
Philips Consumer Electronics Company
Marietta, GA 30006-0026
CLASS 1
LASER PRODUCT
E9H90UD.indd 116E9H90UD.indd 116 2007/05/16 19:19:112007/05/16 19:19:11
