RHFE-559FT
RHFE-309FT
Energysaver
®
Space Heaters
RHFE-309FT
RHFE-559FT
RHFE-561FT
Operation and Installation Manual
Please note:
Ty
RHFE-561FT
Rinnai i Energysaver Operation & Installation Manual
This page is intentionally blank
Rinnai ii Energysaver Operation & Installation Manual
INSTALLATION RECORD ........................................................................................................................ 1
INSTALLATION REQUIREMENTS .......................................................................................................... 2
CERTIFICATION ....................................................................................................................................... 2
CARTON CONTENTS .............................................................................................................................. 2
ABOUT YOUR ENERGYSAVER .............................................................................................................. 3
Control Panel Layout - RHFE-309FT / RHFE-559FT / RHFE-561FT .............................................................. 3
SAFETY .................................................................................................................................................... 4
FEATURES ............................................................................................................................................... 9
CUSTOMER INFORMATION - OPERATING ......................................................................................... 10

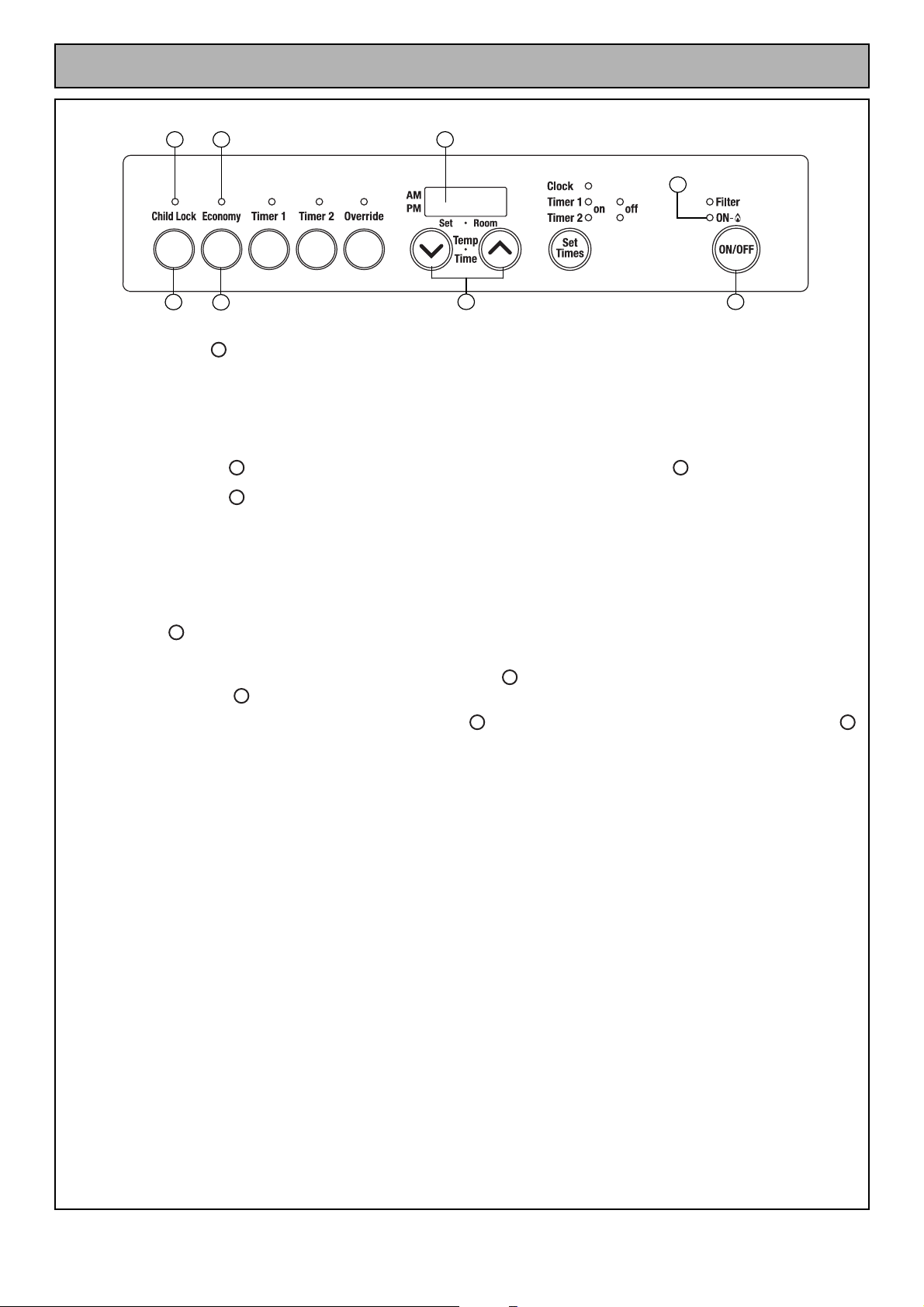

To turn the unit ‘ON’ ....................................................................................................................................... 10
To turn the unit ‘OFF’ .................................................................................................................................... 10

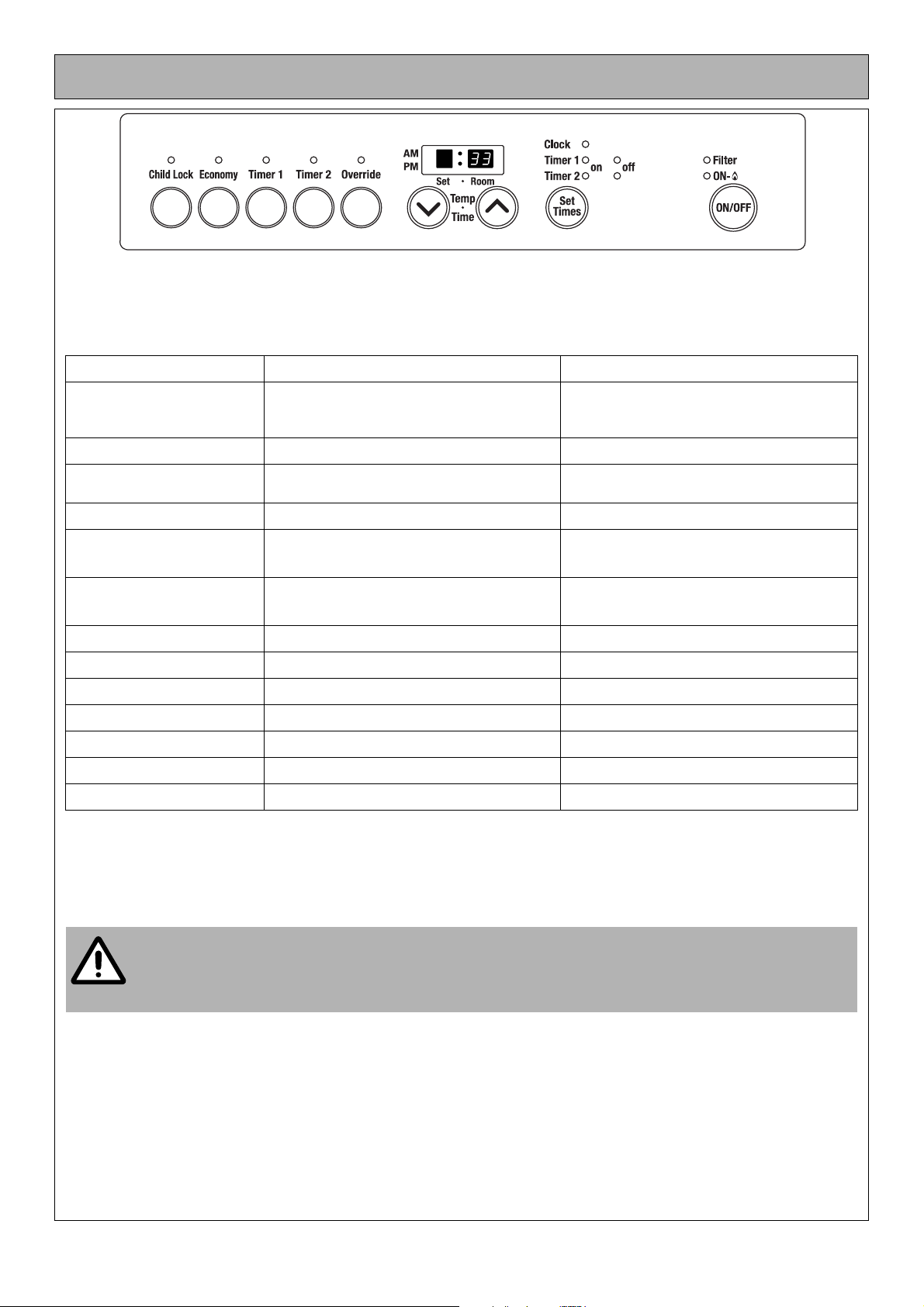

Room Temperature Adjustment .................................................................................................................... 10
Economy Mode ............................................................................................................................................. 11
Child Lock ..................................................................................................................................................... 11
Fan Operation ................................................................................................................................................ 11
SETTING THE CLOCK ........................................................................................................................... 12
Setting the Clock/Timers ................................................................................................................................ 12
Day light saving and time adjustment ............................................................................................................ 12
Setting the ON / OFF Timers ......................................................................................................................... 12
OPERATING THE TIMERS .................................................................................................................... 13
Operating the Timers ..................................................................................................................................... 13
Set and Forget Operation .............................................................................................................................. 13
Override ......................................................................................................................................................... 13
OTHER OPERATING INFORMATION ................................................................................................... 14

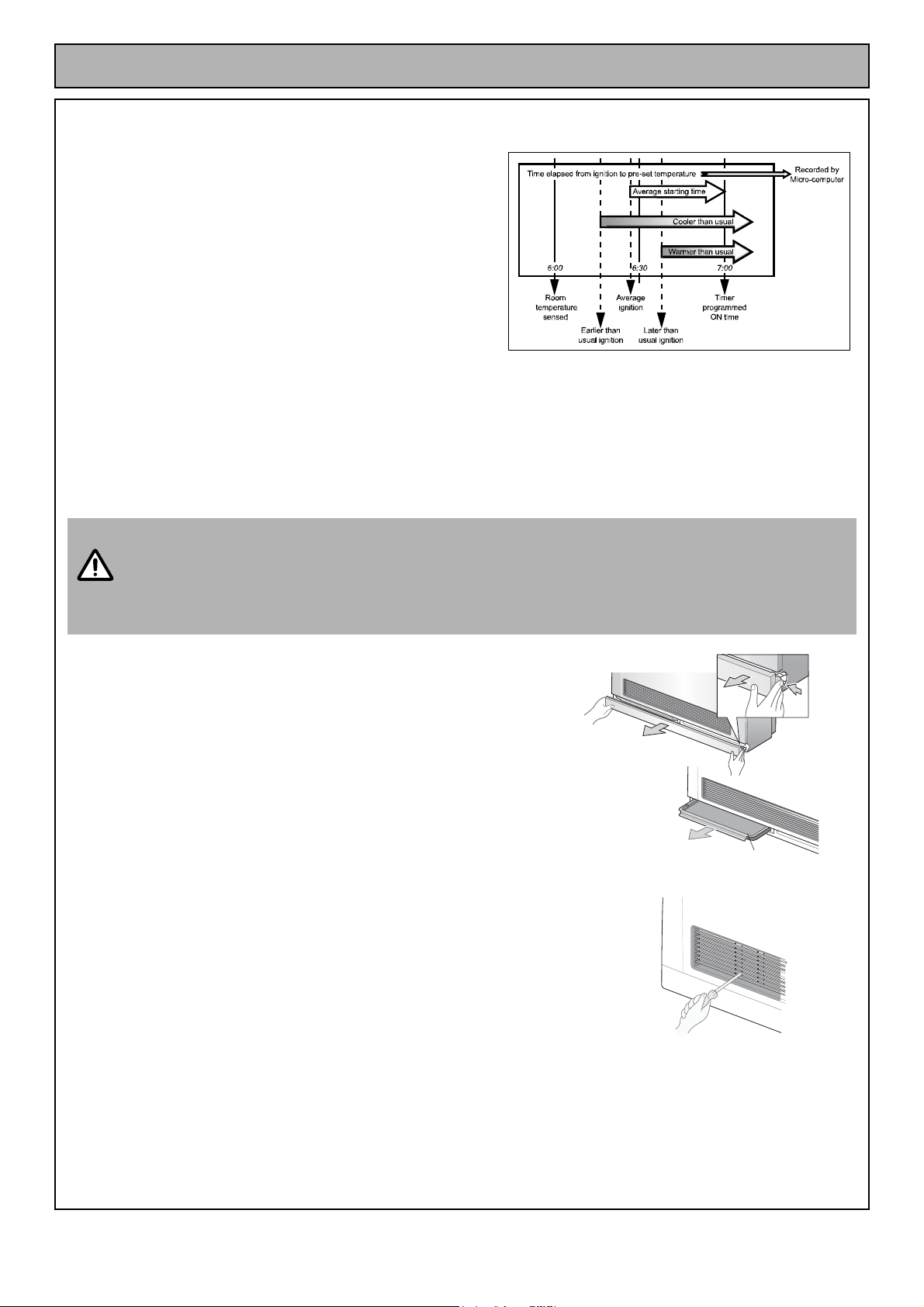

Pre-Heat ......................................................................................................................................................... 14
Humidifier Tray ............................................................................................................................................... 14
Vertical Louvre Adjustment ............................................................................................................................ 14

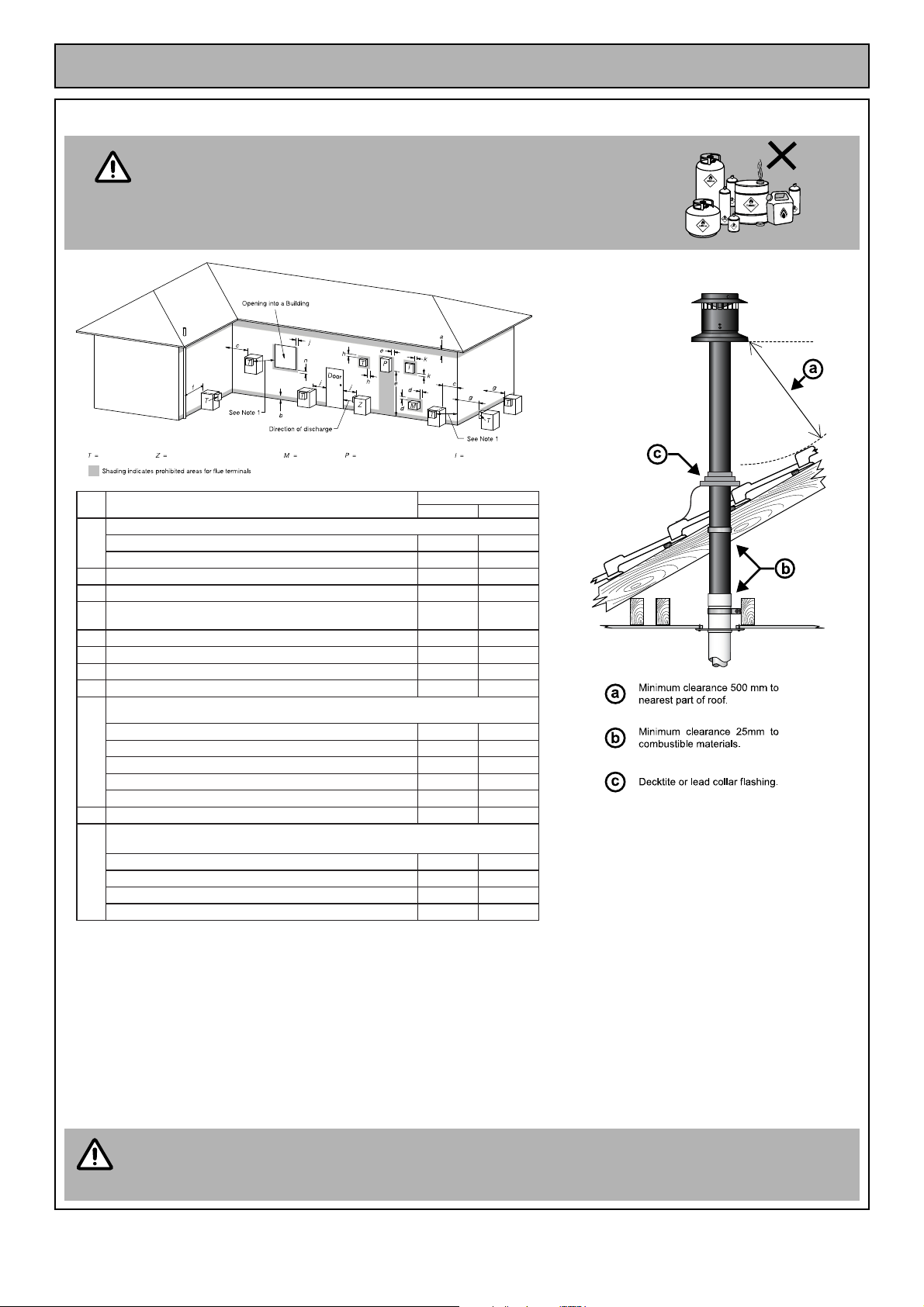

Outside Flue Terminal .................................................................................................................................... 14
CARE OF YOUR ENERGYSAVER ........................................................................................................ 15
Cleaning ......................................................................................................................................................... 15

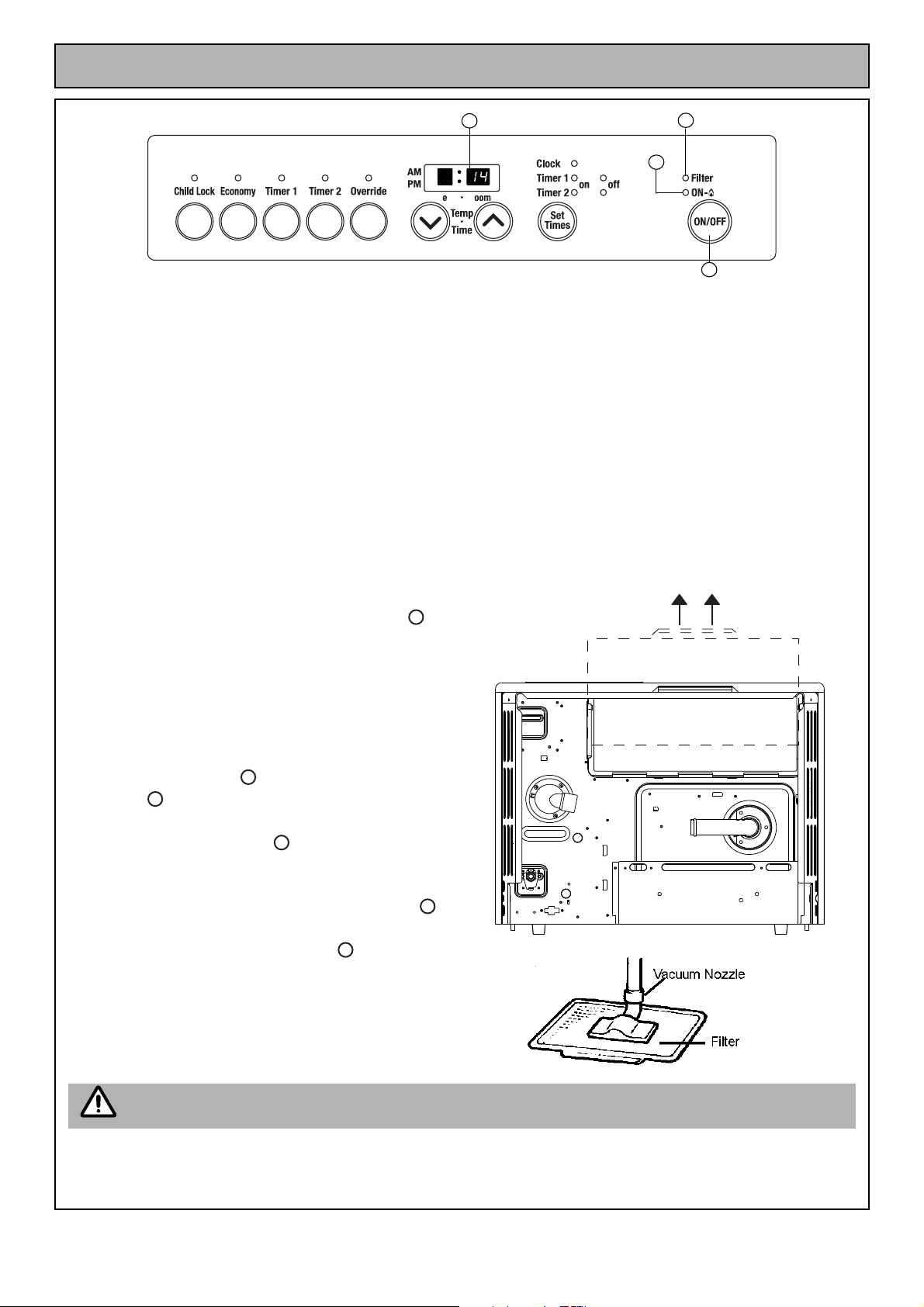

Fan Filter ........................................................................................................................................................ 15
Cleaning the Fan Filter ................................................................................................................................... 15
SAFETY DEVICES .................................................................................................................................. 16
Overheat Switch: ............................................................................................................................................ 16
Fusible Links: ................................................................................................................................................. 16
Flame Failure Device: .................................................................................................................................... 16
Electrical Fuse: .............................................................................................................................................. 16
Power Failure: ................................................................................................................................................ 16
SERVICE ................................................................................................................................................. 16
INSTALLATION MANUAL ...................................................................................................................... 18
CONTACT DETAILS ............................................................................................................................... 33
TABLE OF CONTENTS
Rinnai 1 Energysaver Operation & Installation Manual
INSTALLATION RECORD
INSTALLERS / GAS FITTERS DETAILS
Installers Name: ________________________________________________________________________
Company Name: ________________________________________________________________________
Company Address: ________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
Company Contact Details
Telephone: ________________________________________________________________________
Mobile Phone: ________________________________________________________________________
Certificate of Compliance / Certification Number: __________________________________________________
Authorised Persons - Licence Number: _________________________________________________________
Installers Signature: ________________________________________________________________________
Installation Date: ________________________________________________________________________
APPLIANCE DETAILS
Model Number: ________________________________________________________________________
Serial Number: ________________________________________________________________________
Installation Address: ________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
Rinnai 2 Energysaver Operation & Installation Manual
INSTALLATION REQUIREMENTS
This heater must be installed by an authorised person. The installation must conform to local regulations.
The installation must also comply with the instructions supplied by Rinnai.
Service and removal must be carried out by an authorised person.
The Rinnai Energysaver
®
Range have been certified by the Australian Gas Association.
The AGA Certification Number is shown on the appliance dataplate.
No parts or functions should be modified or permanently removed from the heater.
Please keep these instructions in a safe place for future reference.
Check you have the following:
1 x Rinnai Space Heater - RHFE-309FT, RHFE-559FT or RHFE-561FT

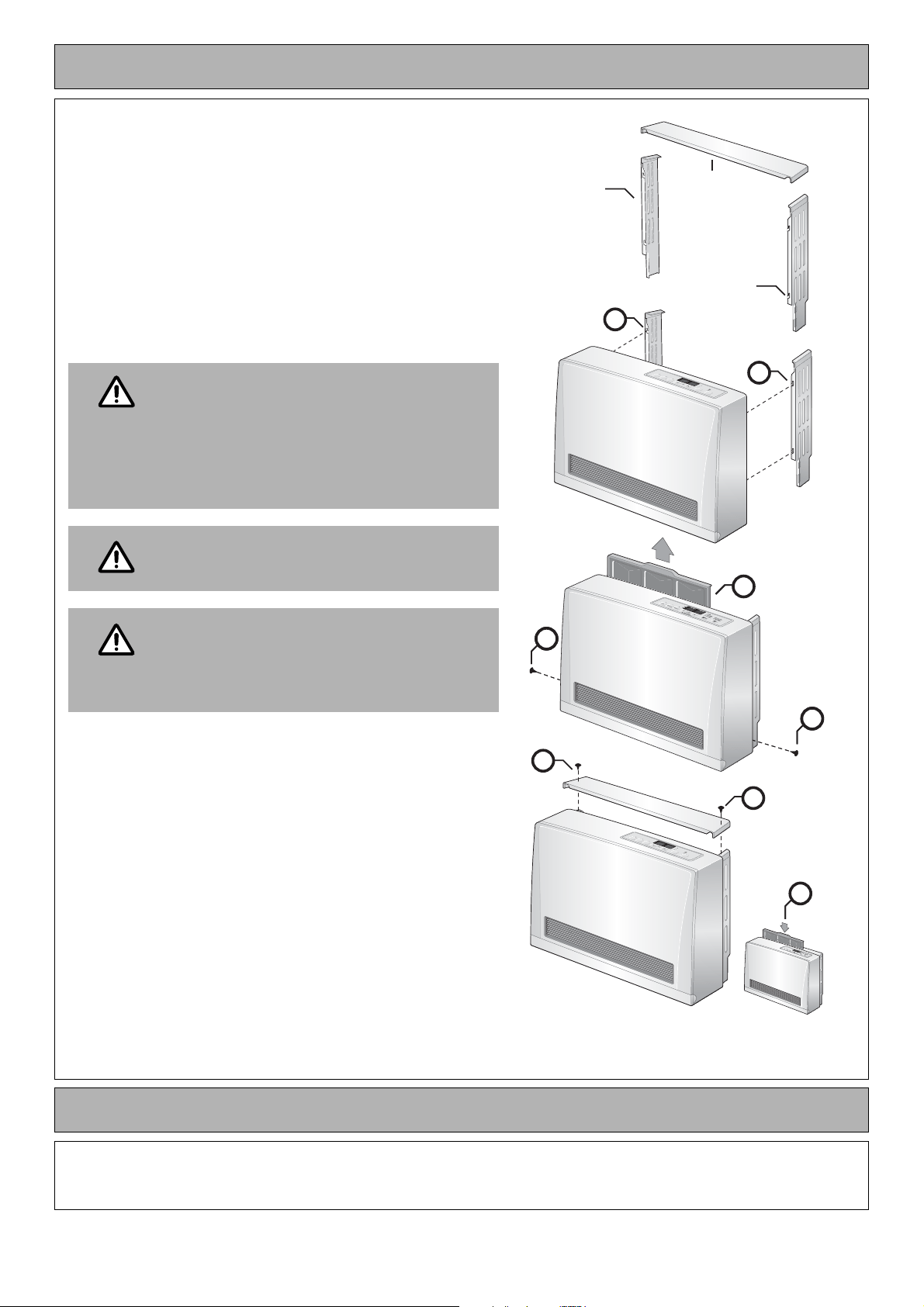

1 x Rear Cover set, comprising of left, right and top cover panels
1 x Bolt pack containing;
• Stainless steel sheath clamp
• 2 x securing brackets
• 2 x 8g x 30 mm stainless steel securing bracket screws
• 2 x plastic inlet hose clamps
• 1 x 150 mm long cable tie
• 1 x HD stainless steel flue clamp
• 2 x 6g x 10 mm button head screws
• 4 x 6g x 8 mm pan head screws.
CERTIFICATION
CARTON CONTENTS
Rinnai 3 Energysaver Operation & Installation Manual
ABOUT YOUR ENERGYSAVER

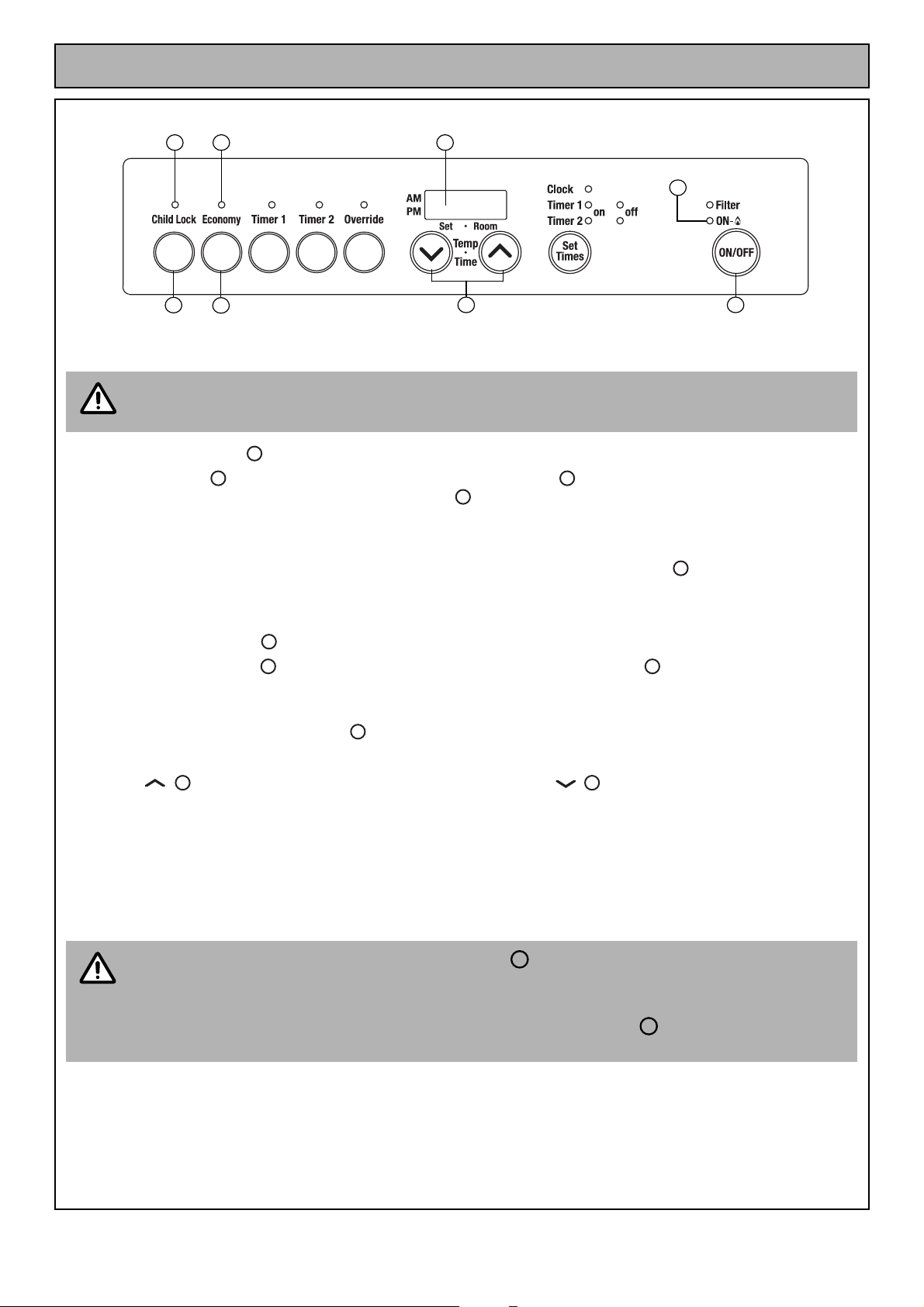

Control Panel Layout - RHFE-309FT / RHFE-559FT / RHFE-561FT
Main switch for turning 'ON / OFF'.
'ON' / 'OFF' BUTTON
1
123
7
5
8
15
9
13
12
14 11 10
6
4
Selects clock and/or Timers for
adjusting or programming.
SET TIMES BUTTON
2
Increases or decreases the
temperature setting as well as
changing hours or minutes.
TIME / TEMP
ADJUSTMENT BUTTON
3
Temporarily changes operation from
ON to OFF or OFF to ON, until next
programmed setting is reached.
OVERRIDE BUTTON
4
Selects operating mode for
Timers 1 & 2 period.
ON TIMER BUTTON
5
Selects energy saving function.
ECONOMY BUTTON
6
Locks all controls when pressed.
(EXCEPT OFF)
CHILD LOCK BUTTON
7
Indicates that the filter needs
cleaning.
FILTER INDICATOR
8
Indicates that the appliance is
turned ON and whether the
burner is alight.
POWER ON /
COMBUSTION INDICATOR
9
Indicates that clock or dual timer
programme is being set.
CLOCK ADJUSTMENT &
TIMER INDICATORS
10
Shows either the time of day,
temperatures, or coded error
message.
TIME / TEMP DISPLAY
11
Indicates that the override function
is activated.
OVERRIDE INDICATOR
12
Indicates that Timer 1 or Timer 2 has
been selected to operate.
TIMER INDICATOR
13
Indicates that the Economy mode is
in operation.
ECONOMY INDICATOR
14
Indicates Child lock is activated.
CHILD LOCK
INDICATOR
15
Rinnai 4 Energysaver Operation & Installation Manual
SAFETY
Important
Unpack the heater and check for damage. DO NOT INSTALL DAMAGED HEATER. If the heater is damaged, contact
your supplier for advice. Before installing the heater, check the label for the correct gas type (refer rating plate, right
hand side panel).
Refer to local gas authority for confirmation of the gas type if you are in doubt.
Important Points
1. The appliance must be installed in accordance with the local gas and electrical authority regulations.
2. For information on gas consumption, refer technical specifications on page 19 and check with the data plate on
the appliance.
3. This appliance must not be installed where curtains or other combustible materials could come into contact with
it. In some cases curtains may need restraining.
4. Heater must not be located below a power socket-outlet.
5. The local gas and electrical authorities will be able to advise on local regulations.
6. Only the approved flue components specified by Rinnai must be used.
1. The appliance must be installed in accordance with the local gas and electrical authority
regulations.
2. DO NOT connect to an LPG Gas cylinder indoors.
3. A dedicated 240 V earthed 10 Amp power point must be used with this appliance.

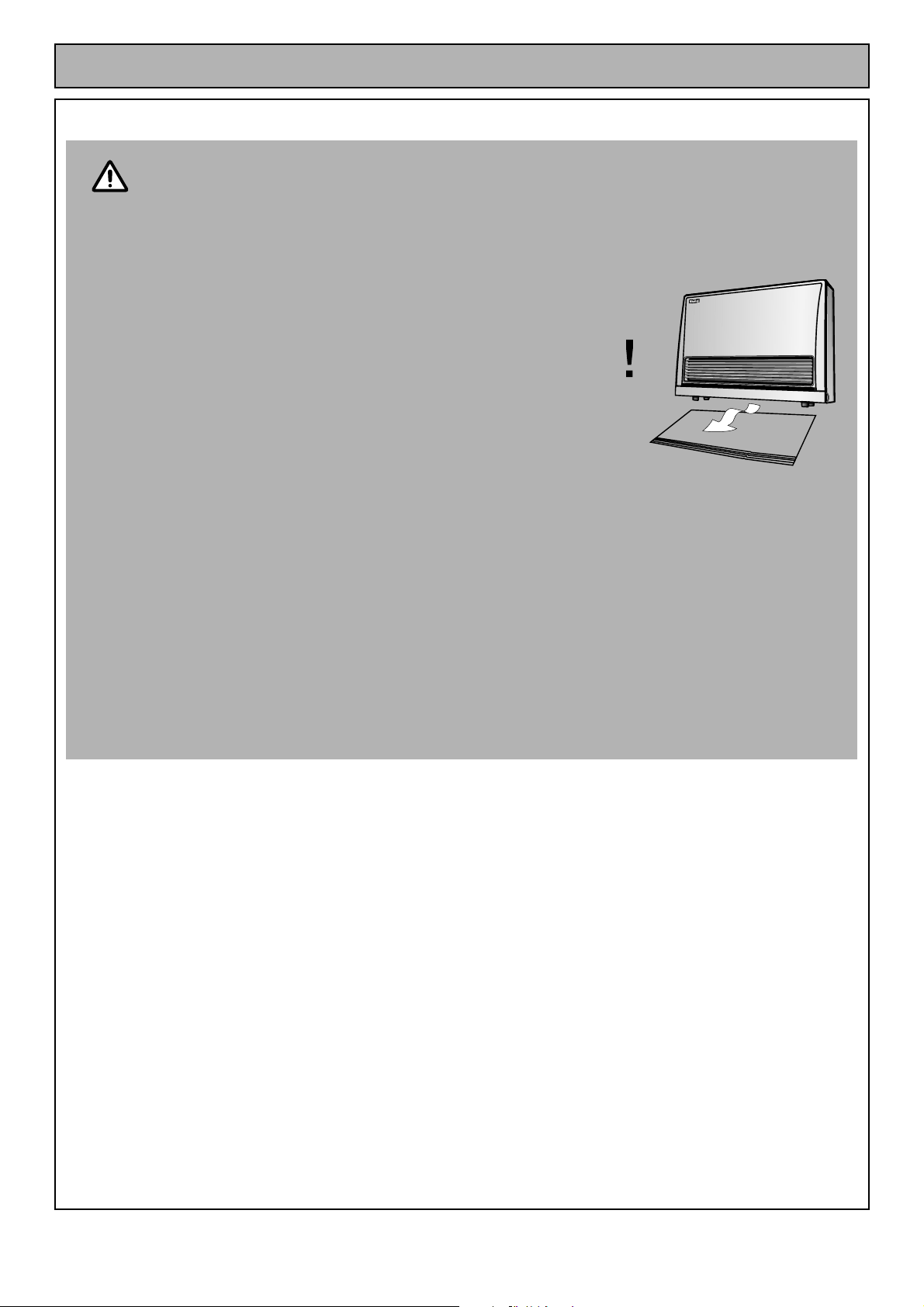

4. Heat emanating from the front of this appliance may
over time affect the appearance of some materials
used for flooring such as carpet, vinyl, cork or timber.
This effect may be amplified if the air in the room
contains cooking vapours or cigarette smoke. To avoid
this possibility, it is recommended that a mat is placed
in front of the appliance, extending at least 750 mm in
front of the air outlet.
5. The appliance is not intended for use by young
children or infirm persons without supervision.
6. This appliance is not intended for use by persons (including children) with reduced
physical, sensor or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instructions concerning use of this appliance by a person
responsible for their safety.
7. Young children should be supervised to ensure they do not play with the appliance.
8. If the supply cord is damaged or requires replacing, it must be replaced by the
manufacturer or the manufacturer's agent or similarly qualified person in order to avoid a
hazard.
9. DO NOT modify this appliance. Modifying it in any way or form, from original specifications
may create a dangerous situation and will void your warranty.
WARNING
AT L E A S T
750 mm
Rinnai 5 Energysaver Operation & Installation Manual
.

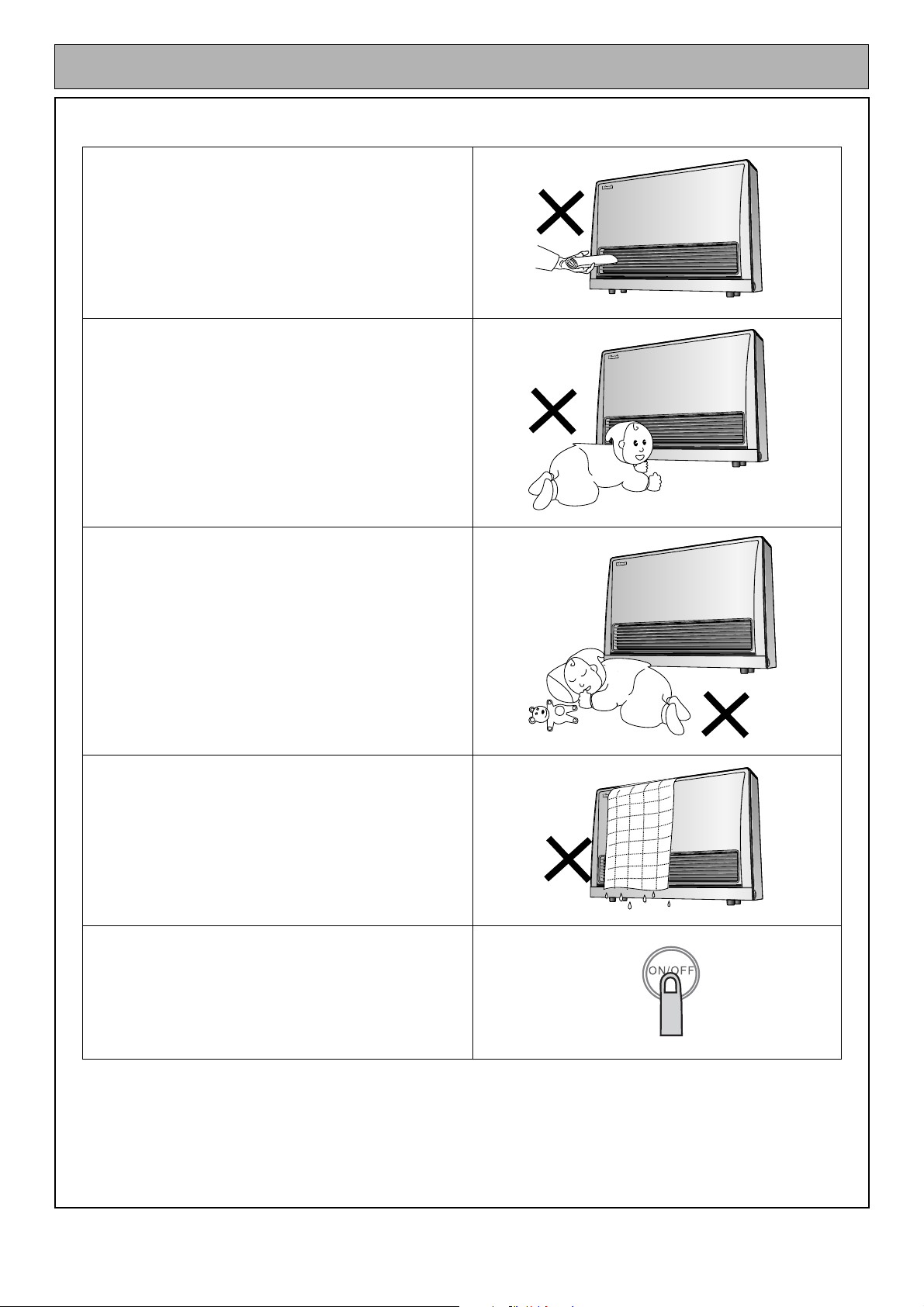

DO NOT post articles in, or block louvres.
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
they DO NOT play with the appliance.
DO NOT allow children or elderly persons to sleep
in the warm air discharge from the heater.
DO NOT cover or place articles on or against this
heater.
Turn ‘OFF’ heater after use.
SAFETY
Rinnai 6 Energysaver Operation & Installation Manual

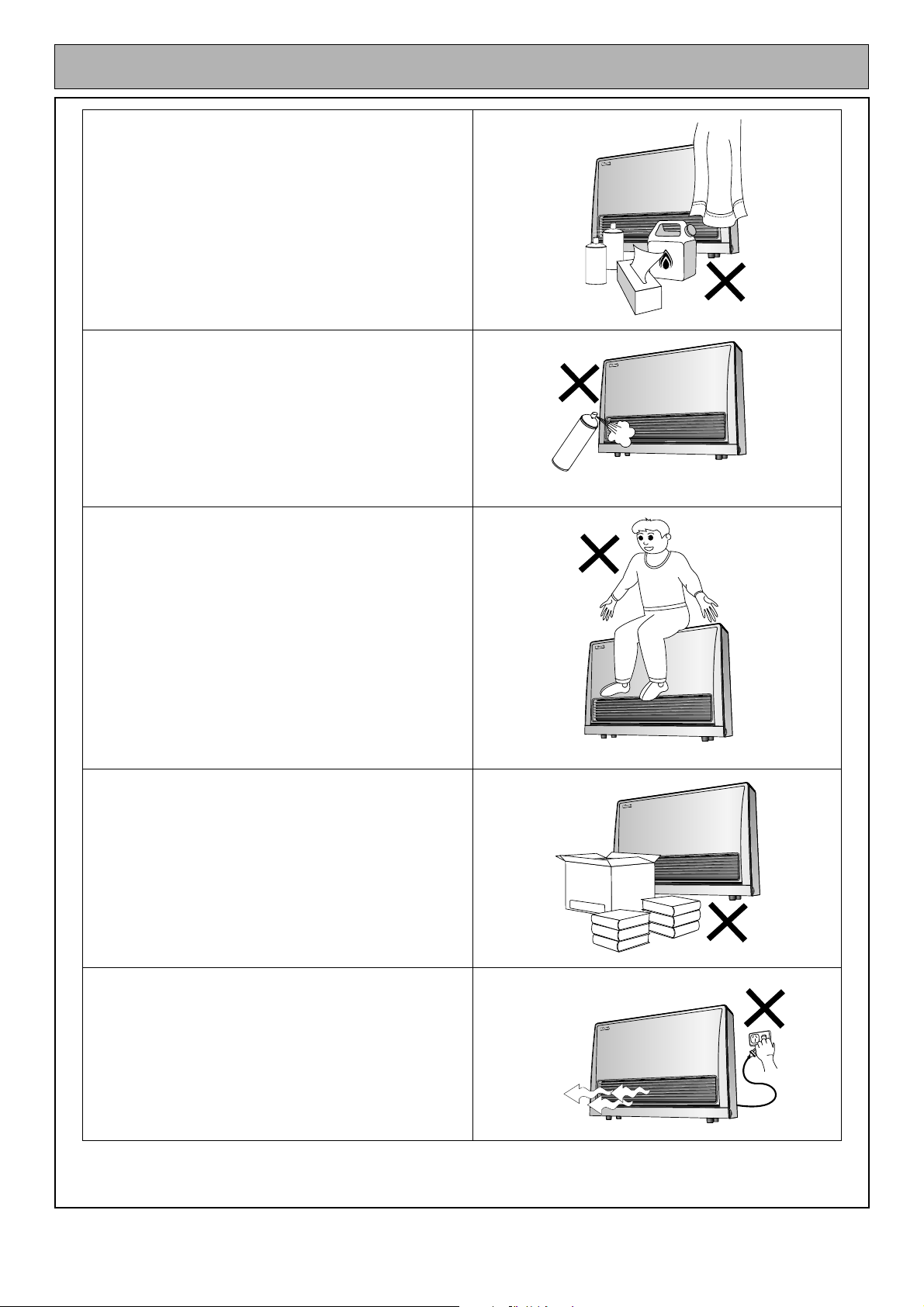

Keep away from flammable materials.
Combustible materials must not be placed where
the heater could ignite them.
DO NOT place articles on or against this
appliance.
DO NOT use or store flammable materials near
this appliance.
DO NOT spray aerosols in the vicinity of this
appliance while it is in operation.
Most aerosols contain butane gas which can be a
fire hazard if used near this heater when it is in
use.
DO NOT sit on this heater.
DO NOT place articles in front of the louvres.
DO NOT unplug the heater while it is in
operation or while the fans are still cycling.
DO NOT turn the heater ‘OFF’ by unplugging it
from the wall.
SAFETY
Rinnai 7 Energysaver Operation & Installation Manual

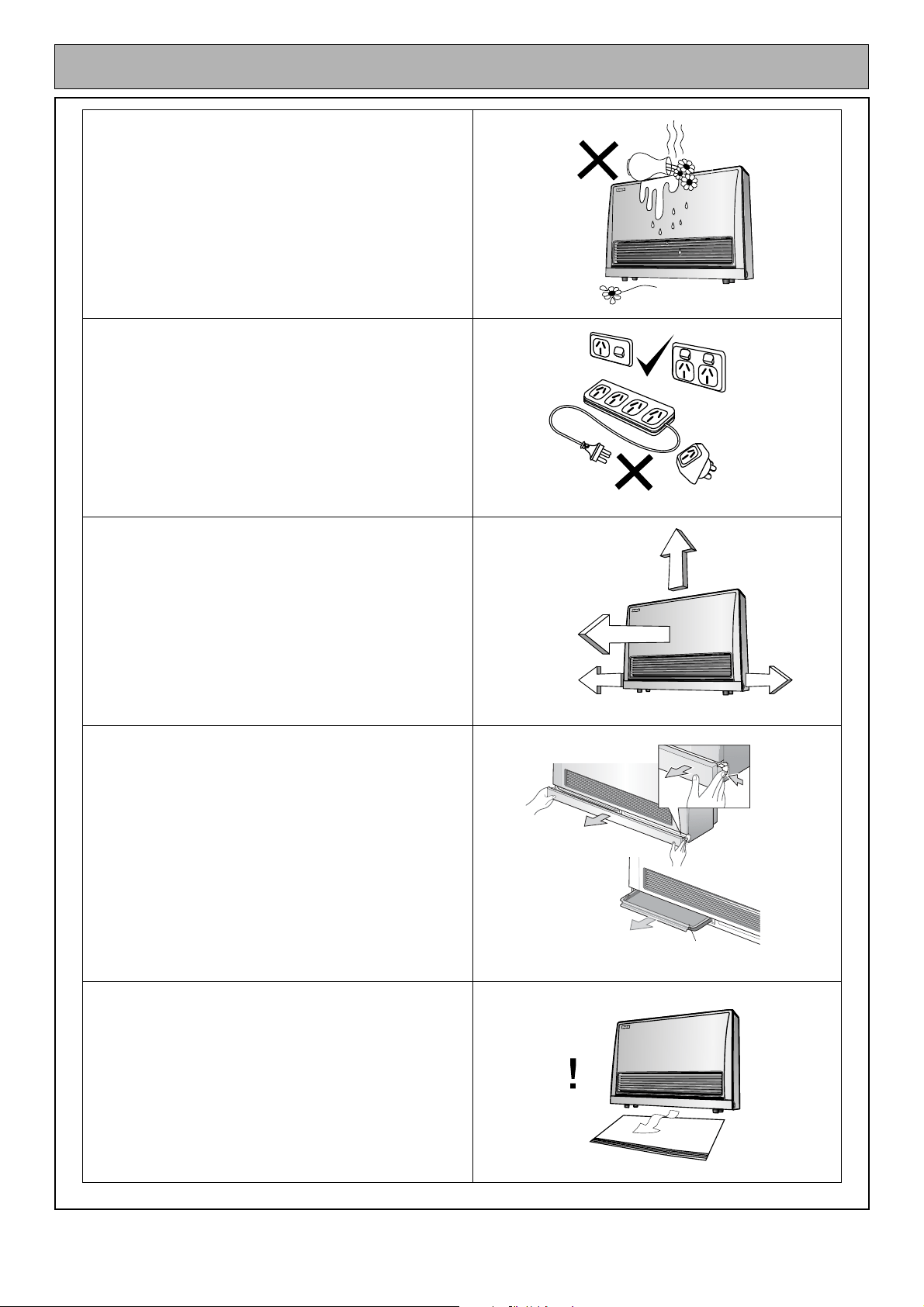

DO NOT place containers of liquid on top of the
heater. Water spillage can cause extensive
damage to the appliance and may result in electric
shock.
A dedicated 240V earthed 10 Amp power point
must be used with this appliance.
DO NOT use power boards or double
adaptors to operate this appliance.
Heater must not be located below a power socket-
outlet.
This appliance must not be built-in.
The clearances shown must be maintained.
Access panel and Humidifier tray have to be fitted
while the heater is in use.
Rinnai recommend you fill the tray to the water
level indicator as marked. Take care not to overfill.
Heat emanating from the front of this appliance
may over time affect the appearance of some
materials used for flooring such as carpet, vinyl,
cork or timber. This effect may be amplified if the
air in the room contains cooking vapours or
cigarette smoke. To avoid this possibility, it is
recommended that a mat be placed in front of the
appliance, extending at least 750 mm in front of
the air outlet.
2
5
0
m
m
1000 mm
50 mm50 mm
TOP
FRONT
LEFT SIDE
RIGHT SIDE
Pull
Push
Pull
Humidifier Tray
AT LEAS T
750 mm
SAFETY
Rinnai 8 Energysaver Operation & Installation Manual
During peak operating periods the filters should be
cleaned weekly, however if the “FILTER” warning
indicator flashes in the control panel display, turn
off the appliance immediately and clean filters
before further use.
When the heater is operated for the first time or
after long periods of non use a slight odour may
be emitted, this is normal.
However if odours persist switch ‘OFF’ the
appliance and contact Rinnai.
Keep flammable materials, trees shrubs etc. away
from the flue terminal.
Snow Areas - in areas subject to heavy snowfall,
keep snow clear of flue terminal at all times.
SAFETY
Rinnai 9 Energysaver Operation & Installation Manual
FEATURES
ROOM SEALED
Air for combustion is taken from the outside and the flue products are
exhausted to the outside. This means heater operation has no effect on
the composition and quality of air in the room.
PUSH BUTTON IGNITION
Only one touch of the ‘ON’/’OFF’ button is required to operate the
heater.
CHILD LOCK
Prevents children from altering heater settings whilst running, or from
activating the heater when turned ‘OFF’.
MEMORY
The micro-computer records selected preset temperatures, the times
programmed into Timers as well as operating the Economy/Auto-Off
and Pre-heat modes, to maintain comfort levels.
7 STEP AUTOMATIC HEAT
CONTROL
Selected temperature is controlled via thermostat. The optimum
corresponding fan speeds are controlled by the Central Processing
Unit.
PRE-HEAT
This function will automatically operate the appliance before the
programmed start time of the Timer, in order to heat a room to the pre-
set temperature by the programmed start time.
ECONOMY MODE
The Economy (ECON) function is an energy saving features designed
to control the room temperature and prevent discomfort from over
heating.
OVERRIDE FUNCTION
This temporarily changes the heater operation from ‘ON’ to ‘OFF’, or
vice versa, until the next programmed setting is reached.
DUAL WEEKDAY / WEEKEND
TIMER
The Dual WEEKDAY/WEEKEND Timer allows you to program the
appliance to come on for two separate periods each day, one period in
the morning and one period in the evening. The built in Pre-heat Mode
brings the room temperature to the temperature you have selected, by
the time programmed into the Timer.
The Dual Timer feature means that you can "Set and Forget" your
heater. It will turn itself ‘ON’ or to STANDBY at the times you have
programmed until you cancel the Timer program.
FILTER INDICATOR
When the fan filters become covered with dust, the filter indicator will
flash. The filters should be vacuumed at regular intervals to avoid
unnecessary strain on the appliance.
HUMIDIFIER TRAY
The integral humidifier tray can be filled with water as required to raise
the humidity level in the room for extra comfort.
Tray should not be filled to more than 3/4 full.
Rinnai 10 Energysaver Operation & Installation Manual

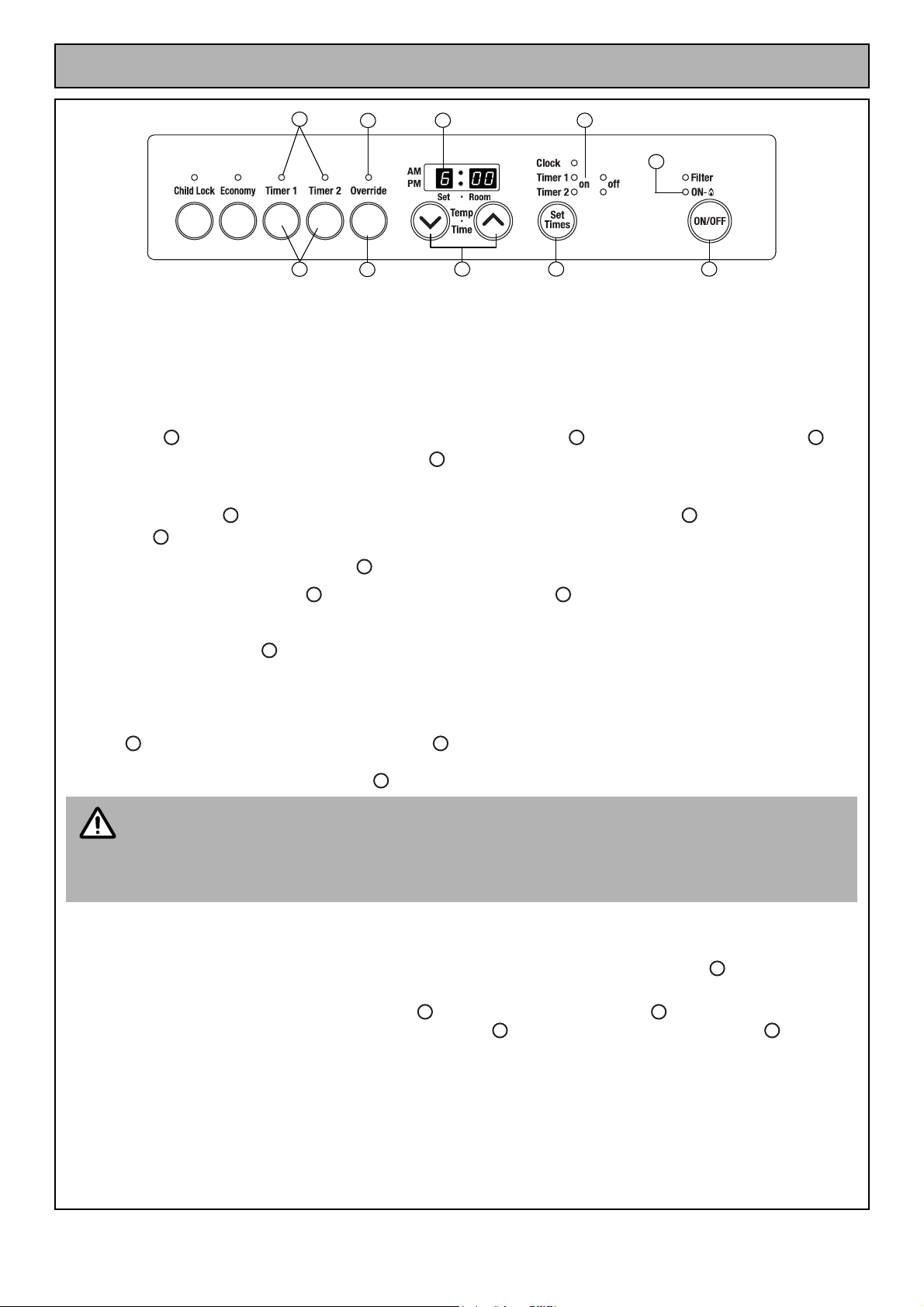

CUSTOMER INFORMATION - OPERATING
To turn the unit ‘ON’
Press the ‘ON’/’OFF’ button to operate the heater. The ‘ON’ indicator will glow green. The spark generator will
be heard before the burner ignites and the ‘ON’ indicator glows red, indicating that the heater is alight.
When the heater warms up, the fan will automatically start.
If the heater does not ignite on initial use, this may be due to air remaining in the gas supply line. The spark generator
will only continue for 15 seconds. After this it will be necessary to press the ‘ON’/’OFF’ button ‘OFF’, then ‘ON’
again.
If the appliance fails to ignite after 4 attempts, contact Rinnai as a service call may be required.
To turn the unit ‘OFF’
Simply press the ‘ON’/’OFF’ button to switch ‘OFF’ the heater. The ‘ON’ indicator light will go out. The fan will
continue to operate for several minutes after the burner has gone out in order to cool the appliance. Do not unplug
the appliance while the fan is running.
Room Temperature Adjustment
The room temperature and pre-set temperatures can only be displayed and adjusted when the heater is running.
Press the “ ” button to increase the temperature setting or the “ ” button to decrease the temperature
setting.
The temperatures can be preset to:
a) [L] - Temperature is controlled at set temperature “Low”.
b) [16°C] to [26°C] in 1°C steps - thermostatic control to preset temp selected. Combustion rate varies as
required to maintain the selected temperature.
c) [H] - continuous combustion on ‘High’.
You must read and understand these instructions fully before operating the heater.
Room temperature on the Temp/Time Display may vary slightly from the actual room
temperature.
If the heater does not ignite then the pre-set temperature may not be set to a setting
which is higher than the room temperature. The ‘ON’ indicator will change colour from
red to green when the heater reaches the pre-set temperature and stops running.
13
7
9
1415 11
6
WARNING
1
1
9
9
1
1
1
9
3
3
3
NOTE
11
9
Rinnai 11 Energysaver Operation & Installation Manual
CUSTOMER INFORMATION - OPERATING
Economy Mode
The Economy (ECON) function is an energy saving features designed to control the room temperature and prevent
discomfort from over heating.
1. The Economy mode can only be operated when the heater is turned ‘ON’, but remains in the system memory
until deactivated. Select the Economy mode before selecting timer operation.
2. Press the Economy button to start the Economy function. The Economy indicator will glow.
3. Press the Economy button once more to switch ‘OFF’ the economy function.
• When the room temperature reaches the set temperature, the set temperature decreases at the rate of 1°C
per 30 minutes in two cycles.
• The set temperature on the display does not change.
• Room temperature may not decrease in some cases, this is depending on room style, location of the
appliance and the temperature outside the room.
Child Lock
The Child Lock function will help to prevent accidental operation as well as prevent small children from altering the
controls. To operate the Child Lock simply press the Child Lock button. The function is activated immediately and
the Child Lock indicator will glow.
To Deactivate the Child Lock simply press the Child Lock button for 2 seconds and the Child Lock indicator
will go out. The Child Lock can be deactivated at any time in this way.
During normal operation the Child Lock may be activated and all controls, other than the ‘OFF’ switch, will be locked.
Deactivating the Child Lock releases the controls. If the Child Lock is activated whilst the heater is turned ‘OFF’, then
all functions will be locked. If the heater is turned ‘OFF’ while the Child Lock is activated, it cannot be turned ‘ON’
again until the Child Lock is deactivated.
Fan Operation
The fan turns ‘ON’ automatically when the heat exchanger warms up and off when it cools down.
This helps to prevent cold draughts and maximises efficiency.
13
7
9
1415 11
6
6
6
14
6
7
7
15
7
15
Rinnai 12 Energysaver Operation & Installation Manual
SETTING THE CLOCK
Setting the Clock/Timers
When the appliance is first plugged in or after a power failure, the Digital Display with show --:--
As an example, let’s set the clock to 10:35 am:
1. Press the Set Times button once, the Clock/Timer indicator will flash.
2. Press and hold the “ ” button; the minutes will begin to change first then the time will change by whole
hours.
3. Release the button when AM 10:00 shows on the Digital Display . Confirm that you have selected AM, a small
indicator on the left hand side of the Digital Display indicates the AM setting.
4. Press and hold the “ ” button again, release the button when AM 10:35 shows. If you go past AM 10:35,
then the “ ” button can be used to change the time settings in reverse.
5. Press the Set Times button five times to lock in and complete setting the time. The Clock and Timer indicators
will go out. A small indicator on the Digital Display will flash to show that the Clock is operating.
6. The display will dim approximately 10 seconds after the last control input.
Day light saving and time adjustment
• Follow steps 1 to 5 to adjust for day light saving and for time adjustment.
Setting the ON / OFF Timers
Example: programming Timer 1 to heat the room by 7:10 am and finish at 9:00 am.
1. Press the Set Times button twice. The Digital Display will show AM 6:00. The Clock/Timer indicator will
flash.
2. Press the “ ” button until AM 7:00 appears, release the button, then press it again until AM 7:10 appears.
(Press the “ ” button if you go past AM 8:00).
3. Press the Set Times button again, the Timer 1 ‘OFF’ indicator will flash. Press the “ ” button until AM
9:00 appears.
4. Press the Set Times button three times to lock in the program time. The Digital Display will show the
current time. A small indicator on the Digital Display will flash to shown that the display has returned to the
clock.
5. Timer 2 is programmed in the same way. Remember to ensure that the Timer indicator is flashing when you
program in the desired setting.
Before programming the Timers you must ensure that the clock has been set to the
correct time.
This procedure is for setting the ‘ON’/ ‘OFF’ times for Timers. To program the time periods
refer page 13.
If during setting no buttons are pressed for 1 minute the setting sequence will
automatically cancel and the display will revert to normal display.
123
9
11 10
11
2
10
3
11
3
3
2
11
NOTE
2
11
10
3
3
2
3
2
11
11
10
NOTE
Rinnai 13 Energysaver Operation & Installation Manual
OPERATING THE TIMERS
Operating the Timers
The timers can be programmed to operate for any two time periods in any 24 hours. Before operating the Timer(s),
the clock time must be correct and a starting time and finishing time for the Timer(s) must be programmed. The two
Timers operate in the same way. This heater does not commence operation at the programmed starting time. It will
attempt to heat a room by the programmed starting time. Refer to “Pre-Heat” on page 14, for further explanation.
To select the Timer(s) to commence heating:
• Set Times button and check the time shown on the Digital Display is correct. Press the Set Times
button to finish flashing on the Timer indicator(s).
• Check the ON and OFF times, for both Timers if necessary, (refer to ‘setting the ‘ON’/‘OFF’ timers’).
• Press the ON/OFF button to operate the heater without The Clock / Timer indicator flashing. The ‘ON’
indicator will glow green.
• Select the desired temperature setting.
Press the Timer 1 and/or Timer 2 button(s). The Timer indicator(s) will glow. The heater will now remain on
standby until up to one hour prior to the time programmed into the selected Timer(s) is reached. Timer indicator will
also flash during Pre-heat (Combustion). When this time is reached, the Timer indicator will flash and the heater will
operate. The ‘ON’ indicator glows red when the heater commences operation. Actual start time will depend on
temperature selected and current room temperature. (Refer to Pre-heat section for details).
Set and Forget Operation
Your heater can be operated to alternate between Timers automatically during cold weather by selecting Timer 1 and
Timer 2 buttons together. Both Timer indicator(s) will glow. The appliance will remain on standby at intervals
between the programmed finishing and starting times of each Timer. While the heater is operating during
programmed intervals the Timer indicator(s) will flash.
Override
This function is intended to be used to manually override the current operation of the heater. For example; if the heater
is in standby mode (i.e. between finishing time and starting time of a Timer) and the Override button is selected,
then the heater will begin to operate and heat the room.
To operate the Override simply press the Override button. The Override indicator will flash.
To manually deactivate the Override simply press the Override button again. The Override indicator will go out,
and the heater will return to standby mode.The heater will continue to operate on Override until the Override button
is pressed again, or one of the Timers takes over the operation of the appliance. This means that the Override mode
will automatically drop out if a programmed starting time is reached.
The appliance will then return to operating at the times programmed into the Timer(s).
If there is a power failure, the system memory will retain the Timer programs, and the
clock will stop at the time the power goes off. The clock will re-start again when the power
comes back on, but the time will be slow by the duration of the power failure. To set the
clock to the correct time after the power has come back on, simply follow the instructions
on “Setting the Clock/Timers” on page 12.
2
11
2
10
1
10
9
3
5
13
9
5
13
13
NOTE
4
4
12
4
12
123
9
11 10
5
13
12
4
Rinnai 14 Energysaver Operation & Installation Manual
OTHER OPERATING INFORMATION
Pre-Heat
This function operates automatically in conjunction with
the Timers. When a Timer is selected, the heater may
operate anywhere within an hour prior to the
programmed starting time on the Timer.
This function is called Pre-Heat since it ensures the
room reaches the desired temperature by the
programmed timer ON time. The room temperature is
sensed one hour before reaching the Timers
programmed ON time.
The temperature differential at the time of sensing the room temperature combined with the data from previous
operation governs exactly how long before the programmed ‘ON’ time the micro-computer will operate the heater and
ignite the burner.
Humidifier Tray
Your heater is fitted with an enamelled tray behind the air outlet so that you can humidify the air. To fill the tray, open
the access panel as shown in the diagram and pour water into the tray using the spout built into the access panel.
Do not fill the tray over 3/4 full.
The air will be humidified as it passes over the water in the tray.
Humidifier Tray may become hot!
DO NOT FILL THE HUMIDIFER TRAY WHILST THE HEATER IS IN OPERATION.
DO NOT fill the humidifier tray for at least 5 minutes after the heater stops operating.
DO NOT operate the heater without the humidifier tray in place.
If you notice water in the humidifier tray, but have not placed any there do
not be alarmed, this is normal. Due to the high efficiency of Energysaver
heaters, water in the form of condensate is accumulated in the flue system
which drains into the humidifier tray.
If the humidifier is in use, it will need filling approximately about once a day
during the heating season.
Vertical Louvre Adjustment
The warm air flow direction may be altered by carefully inserting a
screwdriver or similar tool and gently bending the vertical louvre(s) either
to the left or the right.
NOTE: These louvres are not designed to be adjusted more than 6
times.
Outside Flue Terminal
On cold days steam may be discharged from the flue terminal. This is normal with high efficiency appliances such as
the Energysaver range and does not indicate any fault.
CAUTION
Pull
Push
Pull
Humidifier Tray
Rinnai 15 Energysaver Operation & Installation Manual
CARE OF YOUR ENERGYSAVER
Cleaning
Your heater requires very little maintenance, but the following information will help you to keep it looking like new
and working efficiently.
• Unplug electrical cord before cleaning.
• All parts of the heater can be cleaned using a soft, damp cloth and a mild detergent.
• DO NOT use solvents or abrasives to clean any parts.
Care for the Humidifier Tray: if the humidifier tray gets dirty, wash in warm soapy water.
How to clean: when heater is cold, remove the lower cover panel and pull out the humidifier tray from appliance.
Ensure there is no water in the tray. If there is water in the tray, Keep the tray level to avoid spilling then wash in
warm soapy water.
Fan Filter
To protect the appliance internals from dust particles or
lint, a filter is situated at the rear of the heater.
If the filter becomes blocked, the Filter indicator will
flash to indicate that it should be cleaned. Clean the filter
weekly during the heating season. Dusty or clogged
filters reduce the air flow through the appliance reducing
heating effectiveness.
• DO NOT remove filter when appliance is operating.
• If the filter requires cleaning, clean filter whilst the
appliance is not operating.
The ‘ON’ indicator will flash and the Digital
Display shows error code 14.
Note: If you do not clean the filter at regular intervals
and the Filter indicator is allowed to remain
flashing, then the appliance will stop. You must clean
the filter before operating the heater again.
• DO NOT use the heater with the Filter indicator
flashing as this may cause overheating.
• DO NOT wait for the Filter indicator to flash before
cleaning filters.
Cleaning the Fan Filter
• Dust: Use duster or vacuum to remove dust.
• Oil: Wash the fan filter with a mild detergent. Drain
off the water and dry the filter.
Ensure to fit the Fan Filter back in the appliance after cleaning.
DO NOT operate appliance without filter in place.
Regularly check the outside flue terminal to make sure it is clear from plant growth and from other obstructions.
Refer “SAFETY” on page 4 for additional requirements.
1
8
9
11
8
9
11
8
8
8
Remove filter by pulling straight
up and out from appliance.
WARNING
Rinnai 16 Energysaver Operation & Installation Manual
SAFETY DEVICES
Overheat Switch:
This device automatically shuts the gas supply off if the heater exceeds a predetermined temperature.
This is normally caused by an obstruction in front of the louvres, or a blocked fan filter.
If the overheat switch operates, turn the unit ‘OFF’, remove the obstruction (clean filters) and allow the unit cool off
for 10-15 minutes before re-operating.
Fusible Links:
The fusible link activates under conditions of severe overheating and shuts off the gas supply.
A service call will be required to repair the appliance.
Flame Failure Device:
If the flame goes out during operation this device shuts off gas to the burner. To reset, turn the unit ‘OFF’, then ‘ON’
again. If this happens repeatedly a service call is required.
Electrical Fuse:
The electrical circuits are protected by an electric fuse. When the fuse blows, the heater will not operate. The fuse
must be replaced by an authorised person.
Power Failure:
In the event of a power failure or power cut, the gas valves will automatically close. After the power is re-instated the
appliance will automatically re-start. The time of day will need to be reset to the correct current time (refer “Setting the
Clock/Timers” on page 12).
Rinnai has a nation wide service and spare parts network. Our service network personnel are fully trained and
equipped to give the best service on your Rinnai appliance. If your appliance needs servicing, please refer to the back
page of this manual for contact details.
Rinnai recommends that this appliance is serviced every 2 years.
SERVICE
Rinnai 17 Energysaver Operation & Installation Manual
This page is intentionally blank
Rinnai 18 Energysaver Operation & Installation Manual
SPECIFICATIONS .................................................................................................................19
Specification Table ........................................................................................................19
DIMENSIONS ........................................................................................................................20
HEATER LOCATION ............................................................................................................23
Location .........................................................................................................................23
Gas Supply ....................................................................................................................23
Purging the Gas Supply ................................................................................................23
Electrical Supply ............................................................................................................23
FLUE INSTALLATION CONFIGURATIONS ........................................................................24
FLUE POSITIONING .............................................................................................................25
Flue Terminal Location ..................................................................................................25
HEATER INSTALLATION .....................................................................................................26
COMMISSIONING .................................................................................................................27
TROUBLE SHOOTING .........................................................................................................28
Trouble Shooting Check List .........................................................................................28
ERROR MESSAGES .............................................................................................................30
WIRING DIAGRAMS..............................................................................................................31
INSTALLATION & COMMISSIONING CHECKLIST ............................................................32
INSTALLATION MANUAL
Rinnai 19 Energysaver Operation & Installation Manual
SPECIFICATIONS
Specification Table
NOTE: For other appliance Specifications refer to appliance data plate.
RHFE-309FT RHFE-559FT RHFE-561FT
'LPHQVLRQV
PP+[
PP:[
PP'
PP+[
PP:[
PP'
PP+[
PP:[
PP'
:HLJKW NJ NJ NJ
*DV&RQWUROYDOYH 5LQQDL
(OHFWURQLF0RGXODWLQJ*DV&RQWURO9DOYH
%XUQHU )DEULFDWHG6WDLQOHVV6WHHO±%XQVHQ%XUQHU7\SH
*DV,QOHWWKUHDG 50DOHPP
)OXH6\VWHP
)DQDVVLVWHGWZLQFKDPEHU&R$[LDO)OXH6\VWHP
SUR
YLGHVDLUIRUFRPEXVWLRQWRWKHDSSOLDQFHDQG
DOORZVH[SXOVLRQRIFRPEXVWLRQSURGXFWVWR
DWPRVSKHUH5HVXOWVLQµURRPVHDOHG¶DSSOLDQFH
,JQLWLRQ
'LUHFWFRQWLQXRXVVSDUNHOHFWURQLFLJQLWLRQ
QRSLORW
(OHFWULFDOVXSSO\
9+]ZLWKVXSSO\OHDGDQGSLQSOXJ
5HSODFHZLWK5LQQDLJHQXLQHSDUW
6WDQGE\SRZHU
FRQVXPSWLRQ
:
&RQYHFWLRQIDQ
&HQWULIXJDO
'UXP7\SH)DQ
&URVV)ORZ)DQ
&HQWULIXJDO
'UXP7\SH)DQ
7HPSHUDWXUHUDQJH &&[&,QFUHPHQWV
7KHPDQXIDFWXUHUUHVHUYHVWKHULJKWWRFKDQJHRUPRGLI\VSHFLILFDWLRQV
ZLWKRXWQRWLFH
Rinnai 20 Energysaver Operation & Installation Manual
RHFE-309FT
465
695
257
85
335
124
Gas Inlet

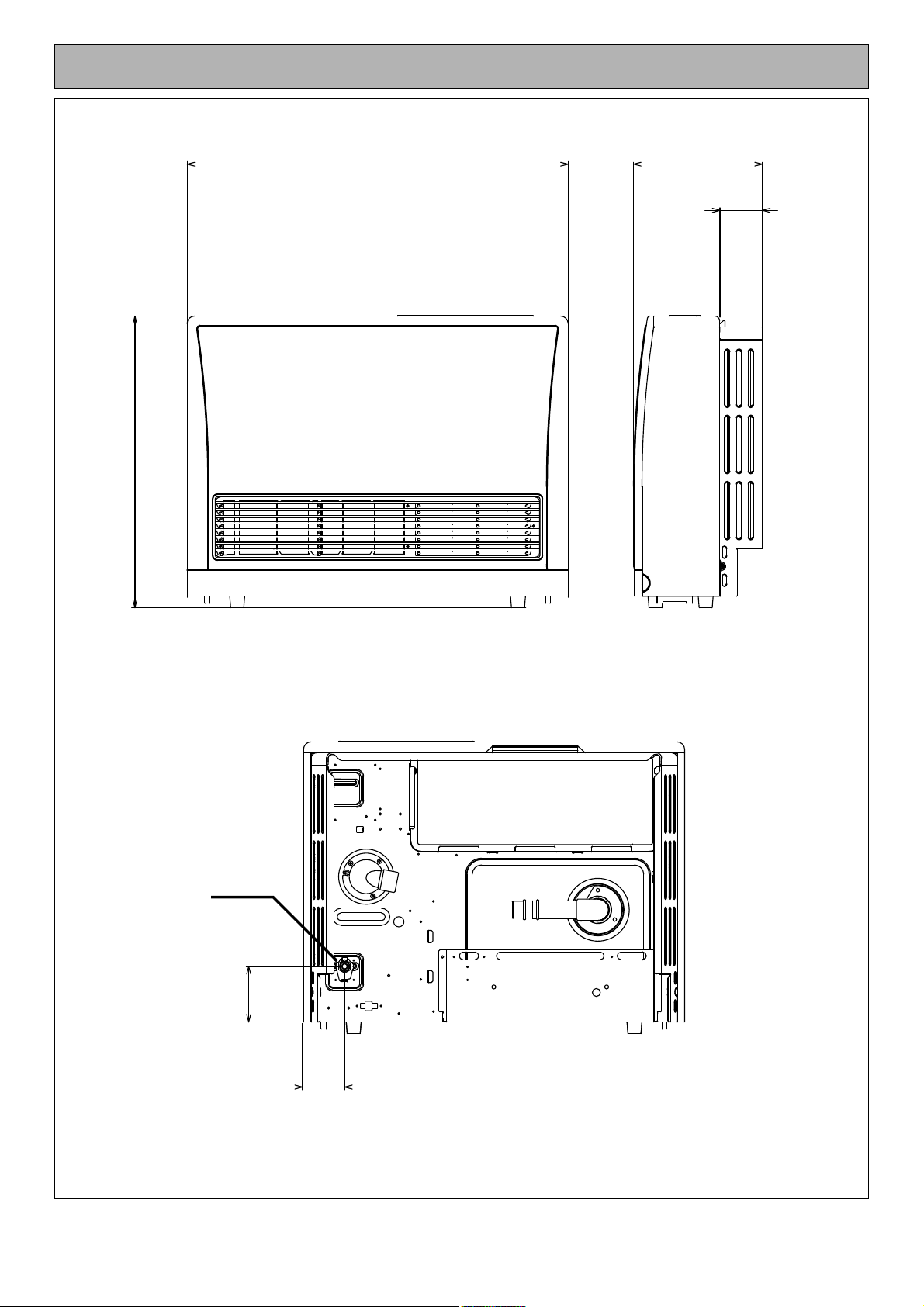

DIMENSIONS
Rinnai 21 Energysaver Operation & Installation Manual
RHFE-559FT
760
582
257
85
134
82
Gas Inlet
DIMENSIONS
Rinnai 22 Energysaver Operation & Installation Manual
RHFE-561FT
350
114.5
545
750
262
85
Gas Inlet
DIMENSIONS
Rinnai 23 Energysaver Operation& Installation Manual
HEATER LOCATION
Location
When positioning the heater the main variables governing the location are Flueing and Warm Air Distribution.
This heater must not be installed where curtains or other combustible materials could come into contact with it. In
some cases curtains may need restraining. Refer to page 4 for additional safety consideration.
Gas Supply
The gas supply terminates outside the heater at the rear of the appliance.
Locate the gas supply pipe to suit position as per the heater gas inlet. Refer to the drawings on pages 20, 21 and
22 for appliance gas inlet location.
Gap required between the wall and heater body is 85 mm to 200 mm depending on Back Cover Kit used.
Purging the Gas Supply
All foreign materials such as filings must be purged from the gas supply, as they may cause the gas control valve
to malfunction.
Electrical Supply
This heater has a power cord with a three pin plug supplied. The cord passes out of the rear of the appliance and
can extend to the left or right of the appliance.
A dedicated 240 V earthed 10 Amp power point must be used with this appliance. The power point must to the left
or the right side, it MUST NOT BE above the heater.
Alternatively the appliance can be direct wired if the power supply is to be concealed. The electric isolation switch
MUST BE accessible after the appliance has been installed.
For all installations, ONLY Rinnai Energysaver Flue components MUST be used. The Rinnai
Energysaver MUST NOT be flued into ‘natural draft’ flue system or via a chimney.
Consult the Rinnai ‘Energysaver Space Heater Co-Axial flue System installation’ manual
included with the ‘On Wall’ or ‘Direct’ flue kits for detailed flue installation instructions.
Gas pipe sizing must consider the gas input to this appliance as well as all other gas
appliances in the premises. The gas meter and regulator must be specified for the total gas
rate. Suitable sizing chart such as the one in AS/NZS 5601 should be used.
Consult a qualified electrician if direct wiring is required as it must comply with the
requirements of AS/NZS 5601 and AS/NZS 3000 and any other relevant local regulations.
WARNING
WARNING
IMPORTANT
Rinnai 24 Energysaver Operation & Installation Manual

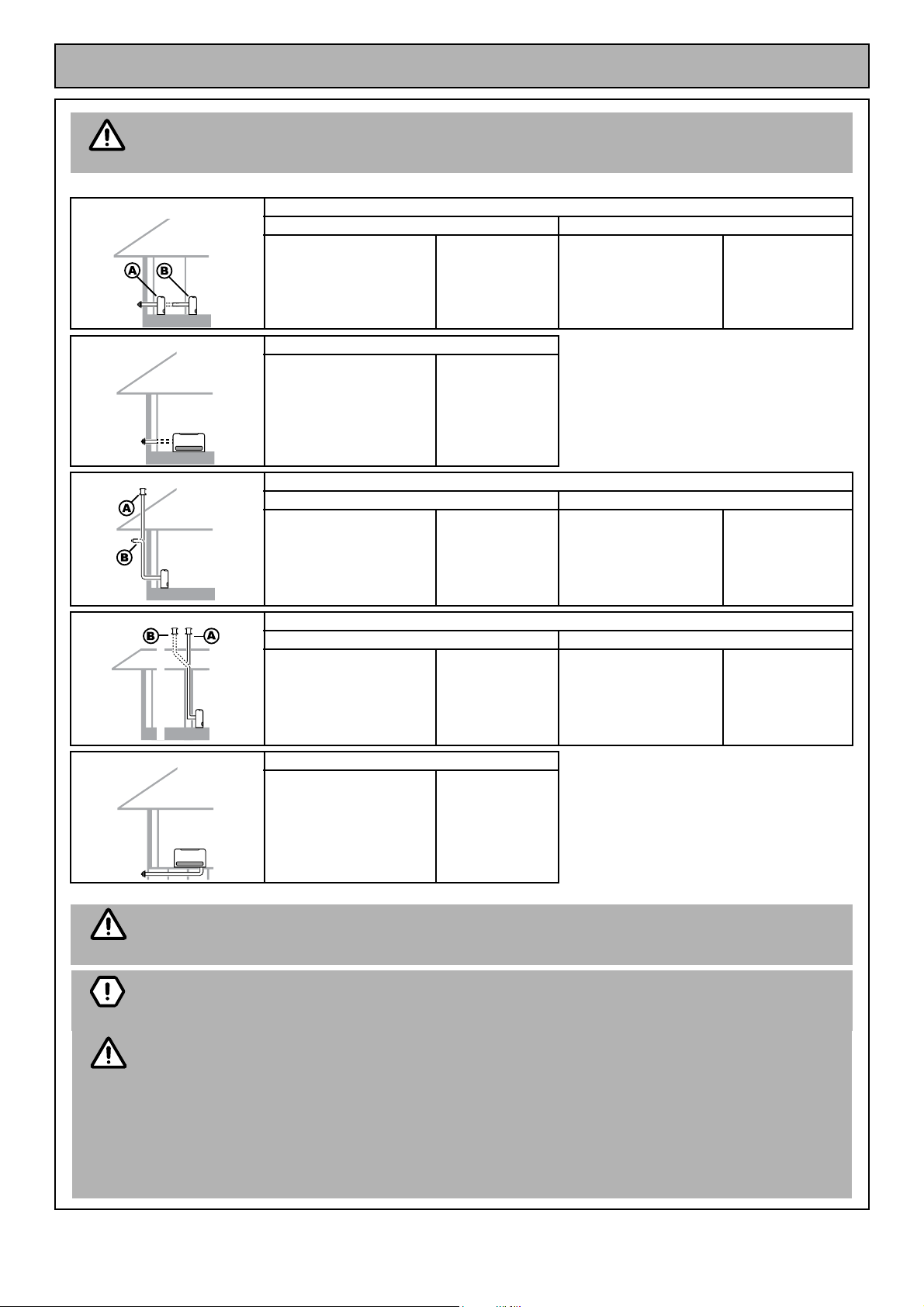

FLUE INSTALLATION CONFIGURATIONS
Consult the ‘Energysaver Space Heater Co-Axial Flue Systems Installation Manual’ included
with the ‘On Wall’ or ‘Direct’ flue kits for detailed flue installation instructions. Use only Rinnai
Flue components with this appliance.
The following configurations are currently available. For alternative configurations contact Rinnai.
Components
DIRECT / EXTENDED
Option A (Direct) Option B (Direct Extended)
Direct Flue Kit ESDFK Direct Flue Kit
Co-Ax Pipe 900mm
(Optional) #
ESDFK
ESPIPE900
SIDEWAYS
Components
Direct Flue Kit
Co-Ax Pipe 900mm #
Back Cover Set
(see note below)
ESDFK
ESPIPE900
EXTERNAL WALL
Components
Option A (Vertical Termination) Option B (On Wall Termination)
Direct Flue Kit
Co-Ax Pipe 900mm #
Bend (2 x 45º)
Condensate Trap
Roof Cowl
ESDFK
ESPIPE900
ESBEND
ESCONDK
ESROOFCOWL
Direct Flue Kit
Co-Ax Pipe 900mm #
Bend (2 x 45º)
Condensate Trap
ESDFK
ESPIPE900
ESBEND
ESCONDK
IN-WALL
Components
Option A (Direct) Option B (Offset)
Vertical Adaptor Kit §
Co-Ax Pipe 900mm #
Roof Cowl
ESFKITIW
(ESKIT03)
ESPIPE900
ESROOFCOWL
Vertical Adaptor Kit §
Co-Ax Pipe 900mm #
Bend (2 x 45º)
Roof Cowl
ESFKITIW
(ESKIT03)
ESPIPE900
ESBEND
ESROOFCOWL
UNDER FLOOR
Components
Direct Flue Kit
Co-Ax Pipe 900mm #
Bend (2 x 45º)
Back Cover Set
(see note below)
ESDFK
ESPIPE900
ESBEND
# Order lengths as required § Includes Condensate Trap (ESCONDK)
The Energysaver Heater comes supplied with a standard back cover set. For ‘Sideways’ &
‘Underfloor’ installations, refer to the ‘Energysaver Space Heater Co-Axial Flue System
Installation Manual’ for the alternative back cover set required.
Flue is NOT to be terminated under the floor or in a roof space.
‘Down & Out’ and vertical ‘through roof’ flue installations are permitted ONLY when the flue
terminal is located externally.
For horizontal installations there must be a continuous fall of at least 2° to the termination point
to drain condensate.
All terminations exceeding a vertical height of 1.5 metres must incorporate a condensate trap.
‘Down & Out’ Flue systems must have a continuous fall of at least 2° to the termination point
to drain condensate.
Flue terminal must be at least 300 mm above the ground in accordance with AS/NZS 5601,
Clause 6.9 and Fig. 6.2.
AT NO TIME MUST THE ‘AIR INTAKE’ HOSE BE CUT OR SHORTENED. For more detailed
information refer to ‘Energysaver Space Heater Co-Axial Flue Systems Installation Manual’
NOTE
NOTE
DO NOT
WARNING
Rinnai 25 Energysaver Operation & Installation Manual
FLUE POSITIONING
Flue Terminal Location
The flue terminal should be positioned away from flammable
materials.
Ensure that the location of the flue terminal can comply with the
requirements of AS/NZS 5601, Fig. 6.2 which is reproduced
below.
Horizontal Clearances (Extract AS/NZS 5601 Fig. 6.2)
AS/NZS 5601 was current at the time of printing this manual, but may have been
superseded. It is the installers responsibility to ensure that the current version of this
standard is used.
WARNING
Flue terminal Fan assisted flue appliance only Gas meter Electricity meter or fuse box Mechanical air inlet
Natural draft Fan assisted
Appliances
Appliances
b
meter regulator
meter
flue terminal
Appliances
Appliances
Appliances
Appliances
flue appliances
appliances
Appliances
Appliances
c, j k
2
flue terminal
3
flue terminal cylinder.
flue terminal
Ref. Item
Min. clearances (mm)
NOTES:
appliance certified
appliance s
NOTE
Rinnai 26 Energysaver Operation & Installation Manual
1. UNPACKING THE APPLIANCE
The heater is supplied in one carton containing; Heater, Standard Rear Cover Set and Bolt Pack.
Remove all packaging materials. Check for damage. If any damage is evident DO NOT install or operate this
appliance. Contact your supplier for advice. Before installing the heater, check it is labelled for the correct gas type,
(refer to the data label at the rear of the heater). Refer to the local gas authority for confirmation of gas type if you
are in doubt.
The heater does not come supplied with flue components. These are purchased separately.
ONLY Rinnai Energysaver Co-Axial Flue System Flue components can be used with this
appliance.
240 VOLTS, RISK OF ELECTRICAL SHOCK!
Ensure the appliance is disconnected from mains power.
2. CONNECTING THE APPLIANCE TO THE CONSUMER GAS PIPE
1. Remove the plastic protection cap from the threaded gas inlet located at the rear of the appliance.
2. Position the appliance gas inlet in line with gas supply from wall.
3. Attach gas supply pipe to the appliance gas inlet and tighten - finger tight. Appliance has R1/2 fitting.
4. On the wall behind the appliance, at a level of about midway of the heaters height, mark the vertical centre line
of the heater, marked as “ ” (centre line) in diagram A. below.
5. Mark the flue penetration position in accordance with ‘Energysaver Space Heater Co-Axial Flue System
Installation’ manual.
6. Undo the gas connection, remove the heater.
7. Cut flue penetration(s)
8. Mark out the securing bracket screw holes in accordance
with the diagram A. adjacent and the table below using the
centre line as reference.
9. Attach the two securing brackets supplied to the wall using
the two 8g x 30mm screws supplied, or suitable equivalent
refer to diagram A.
10.Install flue system in accordance with ‘Energysaver Space Heater Co-Axial Flue System Installation manual’
which is provided with the flue kit.
11.Return the heater to the final position.
12.Connect flue in accordance with ‘Energysaver Space Heater, Co-Axial Flue System Installation Manual’.
13.Connect gas supply line and fully tighten connection.
Use a soapy solution to test all gas connections. If a leak is present bubbles will form at the
leak point. When finished remove any residue with a rag. Prevent any soapy solution from
coming in contact with electrical components.
NOTE
WARNING
C
L
A
B
C
L
Floor Level
Heater Centre Line
Securing brackets
Diagram A.
Model A B
RHFE-309FT 250 mm 624 mm
RHFE-559FT 350 mm 537 mm
RHFE-561FT 280 mm 688 mm
SECURING
BRACKET
CAUTION
HEATER INSTALLATION
Rinnai 27 Energysaver Operation & Installation Manual
For Commissioning Instructions, refer to the Commissioning sheet attached behind the front panel of this appliance.
14.Fit left and right cover panels to the rear of the appliance by
clipping the panels onto the location tabs (i) then fastening
into position using the two 6g x 8mm pan head screws (ii)
supplied. These screws locate into pre-drilled and formed
recesses at the bottom edge of the panels
15.Remove the Fan Filter (iii).
16.Carefully fit the top cover panel ensuring the rear fold
locates neatly between the two securing brackets and wall.
17.Secure the top cover panel with two 6g x 8mm pan head
screws supplied (iv).
18.Replace the Fan Filter (v).
Air hose and heater exhaust connections at
the Energysaver heater MUST be made and
checked in accordance with these
instructions. Improper connections may
result in dangerous situations, for example,
the dispersion of combustion products in
the space being heated.
NOT INTENDED FOR FIREPLACE INSERT.
Rear cover panels MUST BE fitted to ensure
correct and safe operation of the appliance.
Failure to fit the rear cover panels may
result in unsafe operation of the appliance
and void the warranty.
i
iv
iv
ii
ii
iv
iv
Top
Cover
Panel
Right
Cover
Panel
Left
Cover
Panel
iii
v
i
CAUTION
NOTE
WARNING
HEATER INSTALLATION
COMMISSIONING
Rinnai 28 Energysaver Operation & Installation Manual
TROUBLE SHOOTING
Trouble Shooting Check List
If you are unsure about the way the unit is operating, contact Rinnai or your Agent or Installer.
Please check this list before asking for Service
Fault
Cause
No Power ON/Combustion Indicator
Burner doesn’t ignite
Unusual Combustion
Combustion stops
during operation
Smell of Gas
Noisy Ignition
Remedy
Not plugged in
Plug in power cord and press the control
panel ‘ON‘/ ‘OFF’ button.
Power Cut Re-ignite manually after power is
restored.
(Initial Installation)
Air in gas pipe
Purge air (Installer).
Gas Filter Blocked Service Call
(Contact Rinnai).
Mis-Ignition Check customer instructions.
Flue Terminal obstructed Clear obstruction.
Flue manifold not connected Service Call
(Contact Rinnai).
Louvre obstructed Clear obstruction.
Air Filter Blocked Clean filter (weekly).
Gas Escape Service Call
(Contact Rinnai).
‘ON’ Timer is set Cancel ‘ON’ Timer or press the override
button.
Gas turned ‘OFF’ at meter Turn Gas ‘ON’.
Child Lock Set Cancel Child Lock.
Rinnai 29 Energysaver Operation& Installation Manual
Before asking for a service call please check the following.
These symptoms are part of the normal operation of the unit and do not indicate a fault.
Symptom Explanation
At Ignition:
Warm air does not start when the burner
lights.
The fan is started automatically after a short delay.
This is to allow the heat exchanger to warm up,
helping to avoid cold draughts.
Smoke or strange smells are produced on
the first trial light up after installation.
This is caused by grease or oil from the
manufacturing process on the heat
exchanger and dust, and will stop after a short time.
Sharp clicking noises at ignition, or when
the unit cuts down on the thermostat, or
goes out.
This is simply expansion noise from the metal heat
exchanger.
During combustion:
Clunking noise when the thermostat
operates.
This is the sound of the solenoid gas valves
opening and closing.
When the unit is turned ‘OFF’:
Convection fan continues to run after
turning ‘OFF’
This is to remove the residual heat from the heat
exchanger. The fan will stop when the unit cools
down.
Other points:
Steam is discharged from the flue terminal. High efficiency appliances tend to discharge water
vapour on cold days. This is normal.
Heater does not start even when ‘ON’
button is pushed and thermostat is on
HIGH.
Check timer. Timer must be in the “OFF” position
for manual operation.
Room temperature is hotter than ‘High’ setting.
Timers:
Timers do not operate at set time. Timers may either be inactivated or incorrectly
programmed. Repeat programming. Refer to
“Operating the Timers” on page 13.
Timer operates for 30 seconds then cuts
out.
Room temperature may be higher than set
temperature. Adjust temperature upwards if
desired.
TROUBLE SHOOTING
Rinnai 30 Energysaver Operation& Installation Manual
The Energysaver Range of heaters has the ability to monitor its own operation continuously. If a fault occurs, an Error
Message will flash on the Digital Display on the control panel. This assists with diagnosing the fault, and may enable
you to overcome a problem without a service call.
Please quote the code displayed when inquiring about service.
Code Displayed Fault Remedy
11
Ignition failure Check gas supply is turned ‘ON’
Turn Heater ‘OFF’ then ‘ON’ again
Service call if repeated
12
Flame failure Check gas is turned ‘ON’
14
Overheat Clean filter
Service call if repeated
16
Room Overheat Lower room temperature to less than 40°C
31
32
Room temperature sensor faulty Service call
33
34
Overheat temperature sensor faulty Service call
53
Sparker failure Service call
61
Combustion fan failure Service call
62
Convection fan failure Service call
70
Faulty ‘ON’/’OFF’ Switch Service call
71
Faulty solenoids Service call
72
Faulty Flame Rod Service call
73
Communication error Service call
In all cases, you may be able to clear the Error Message simply by turning the heater ‘OFF’, then ‘ON’ again. If the
Error Message still remains or returns on the next operation, contact Rinnai or your nearest service agent and
arrange for a service call.
Service calls for general cleaning, maintenance and wear and tear are not covered under the
warranty. Service calls of this nature may be chargeable.
Faults caused by insufficient gas supply, gas quality, installation errors or operation errors are not
covered by the Rinnai warranty. Refer to the separate warranty booklet for details.
NOTE
ERROR MESSAGES
Rinnai 31 Energysaver Operation & Installation Manual

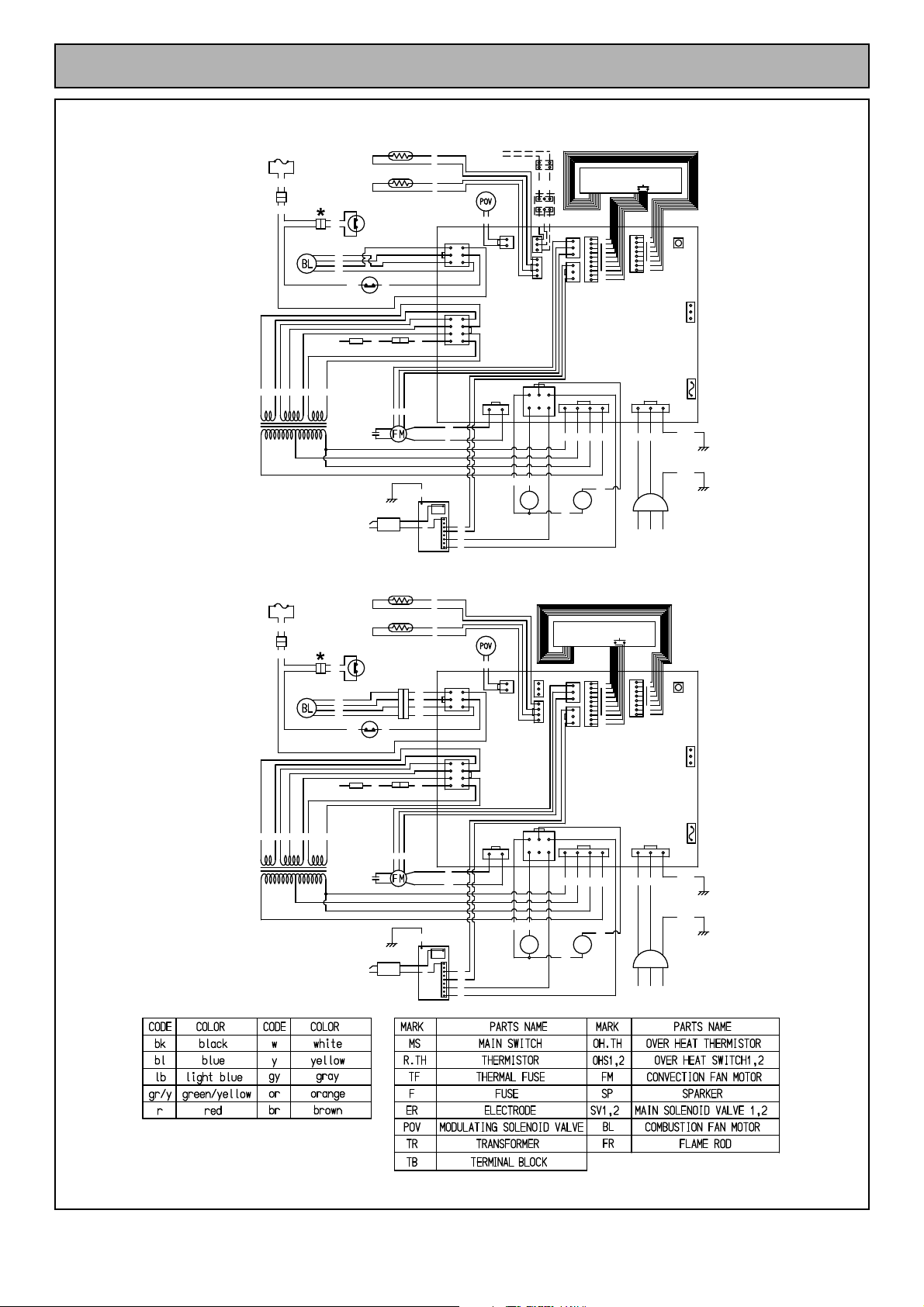

*NOTE: This connector applicable to RHFE-559FT AND RHFE-561FT ONLY
CONTROL DISPLAY UNIT
r
r
r
bl
W
W
OH.TH
R.TH
y
y
TEST SW
3
1
TF
OHS1
1
2
1
yy
9
1
w
ER
SP
gr/y
gy
or
bl
r
SV1
SV2
gr/y
3A
F
FR
MS
10
OHS2
bl
w
w
r
bk
y
bk
r
w
br
AC240V:AUS
AC230V:NZ
lbgy gyww
3
1
w
gr/y
TR
bl
2
1413
1
1
8
1
4
3
1
4
3
6
6
14
1
5
84
1
w
y
bk
ygyor
ryrblbkbrbr
w
w
w
w
bl
bl
bl
w
r
bk
y
bk
CONTROL DISPLAY UNIT
r
r
r
bl
W
W
OH.TH
R.TH
y
y
TEST SW
3
1
TF
OHS1
1
2
1
yy
1
8
w
ER
SP
gr/y
gy
or
bl
r
SV1
SV2
gr/y
3A
F
FR
MS
10
OHS2
bl
w
w
r
bk
r
bk
y
w
br
AC240V:AUS
AC230V:NZ
lbgy gyww
3
1
w
gr/y
TR
bl
2
1413
1
8
1
4
3
1
4
3
6
6
14
1
5
84
1
w
y
bk
ygyor
ryrblbkbrbr
w
w
w
w
bl
bl
bl
bk
1
3
SUB-P.C.B.
wbl
bk
TB
AC24V
r
bk
RHFE-309FT / RHFE-559FT
RHFE-561FT
WIRING DIAGRAMS
Rinnai 32 Energysaver Operation & Installation Manual
INSTALLATION & COMMISSIONING CHECKLIST
• Complete the Installation Check List and the Installer details below.
• Instruct customer on the operation of the Energysaver.
• Ensure the customer understands the content of this manual.
Attention Installer - Have you checked?
*If you have answered NO to any of the above, you must correct before appliance hand-over to the customer.
Advise the customer that during the initial burning in period of approximately 2 hours, some
vapour and smell may be emitted from the heater. This is normal operation for a new heater.
During this period the heater should be operated on ‘High’ and the space being heated should
be well ventilated.
The grill louvre and rear cover fitted to this appliance reduces the risk of fire and injury, no part
of it should be permanently removed.
Ensure the Customer understands that:
No part of this appliance should be permanently removed.
Paper or other material must not be forced into the louvres of this appliance.
Young children and the infirm should be supervised at all times while in the vicinity of this
appliance while it is in operation or able to be turned on.
Yes
/
*No
1. Is the appliance positioned in a suitable location (clearances, combustible clearances mantels and
surrounds etc)?
2. Have all packaging / protective materials been removed prior to operation?
3. The Appliance Test Point (Burner) Pressure is correct for it's particular installation / flue
configuration and adjusted if necessary.
4. Have you used only Rinnai Energysaver® flueing components?
5. That the air inlet hose and flue connections are sound?
6. That the Appliance is secured to the wall as per Installation manual?
7. Gas Supply pipe is purged of foreign matter before connection?
8. That gas connections are correct?
9. Have you turned on the power?
10.Is the appliance inlet pressure correct with all other resident gas appliances operating?
11.Have you shown the customer how to operate the heater and informed them of the safety
requirements?
12.Where applicable, have you connected the condensation drain hose in accordance with the
Installation manual?
13.Have you checked the flue clearances and installation as per the Installation manual and as per
AS/NZS 5601?
14.Have you filled out the "Installation Record" found at the front of this manual?
15.Is the end-user fully aware of the servicing schedule?
16.Have you completed the "Energysaver® Commissioning Check List" attached to the front of the
Appliance?
17.Have you left this Operation and Installation manual with the customer?
NOTE
WARNING
CONTACT INFORMATION
Rinnai 33 Energysaver RHFE-561FT Operating & Installation Manual 12.007 Issue 3 - 6/3/13
CONTACT DETAILS
Head Office
10-11 Walker Street,
Braeside, Victoria 3195
P.O. Box 460
Tel: (03) 9271 6625
Fax: (03) 9271 6622
National Help Line
Tel: 1300 555 545* Fax: 1300 555 655*
*Cost of a local call Higher from mobile or public phones.
Australia Pty. Ltd.
ABN 74 005 138 769
Internet: www.rinnai.com.au
E-mail: [email protected]
RHF559-1152x04(00)
Rinnai has a nation wide service and spare parts network. Our service network personnel
are fully trained and equipped to give the best service on your Rinnai appliance. If your
appliance needs servicing, please contact Rinnai. Rinnai recommends that this appliance
is serviced every 2 years.
