Heating
REFERENCE GUIDE
Experience Our Innovation
CONTENTS
02 Introduction
04 Range Overview
SELECTING THE RIGHT HEATER
06 Heater selector
07 Important tips

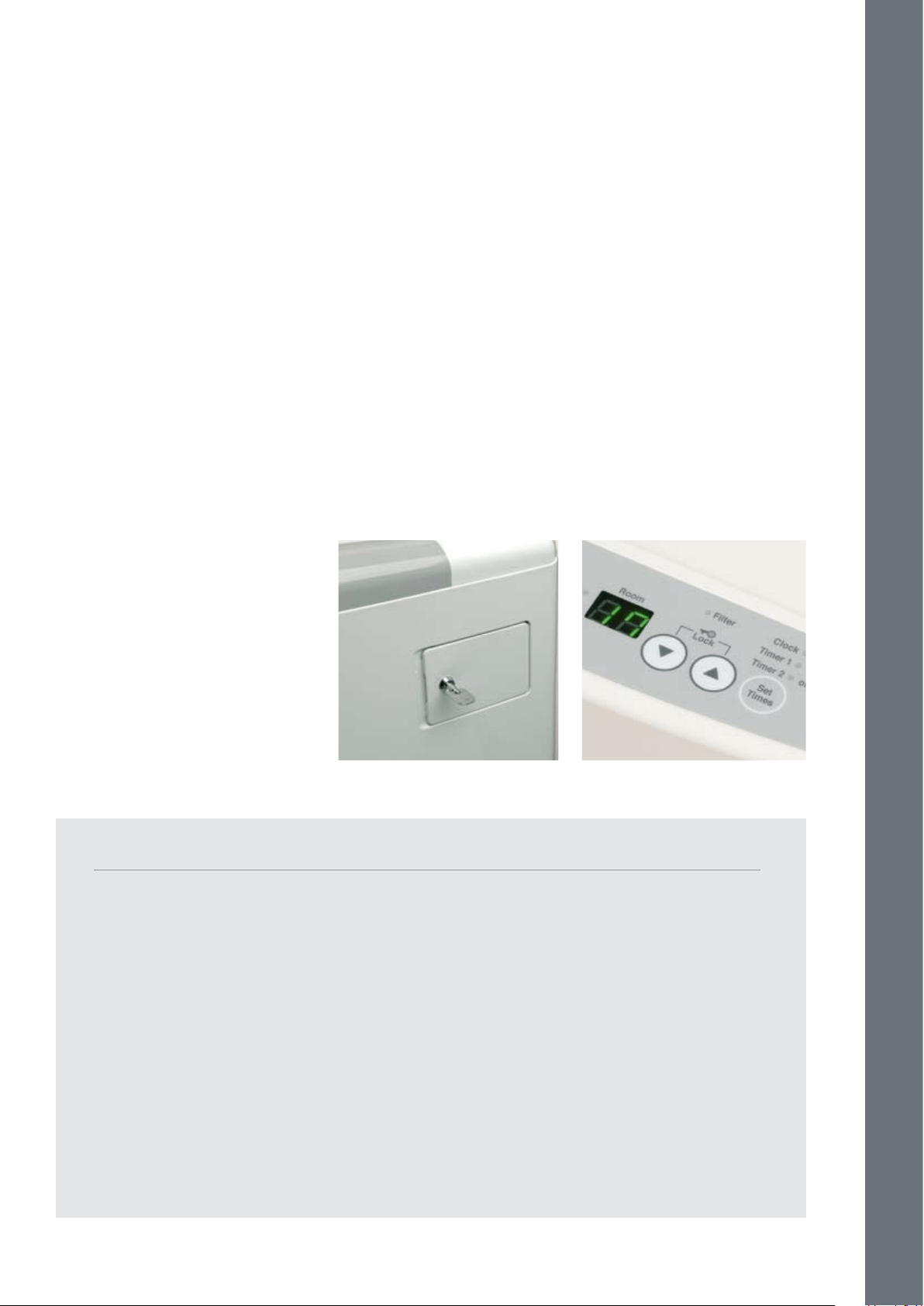

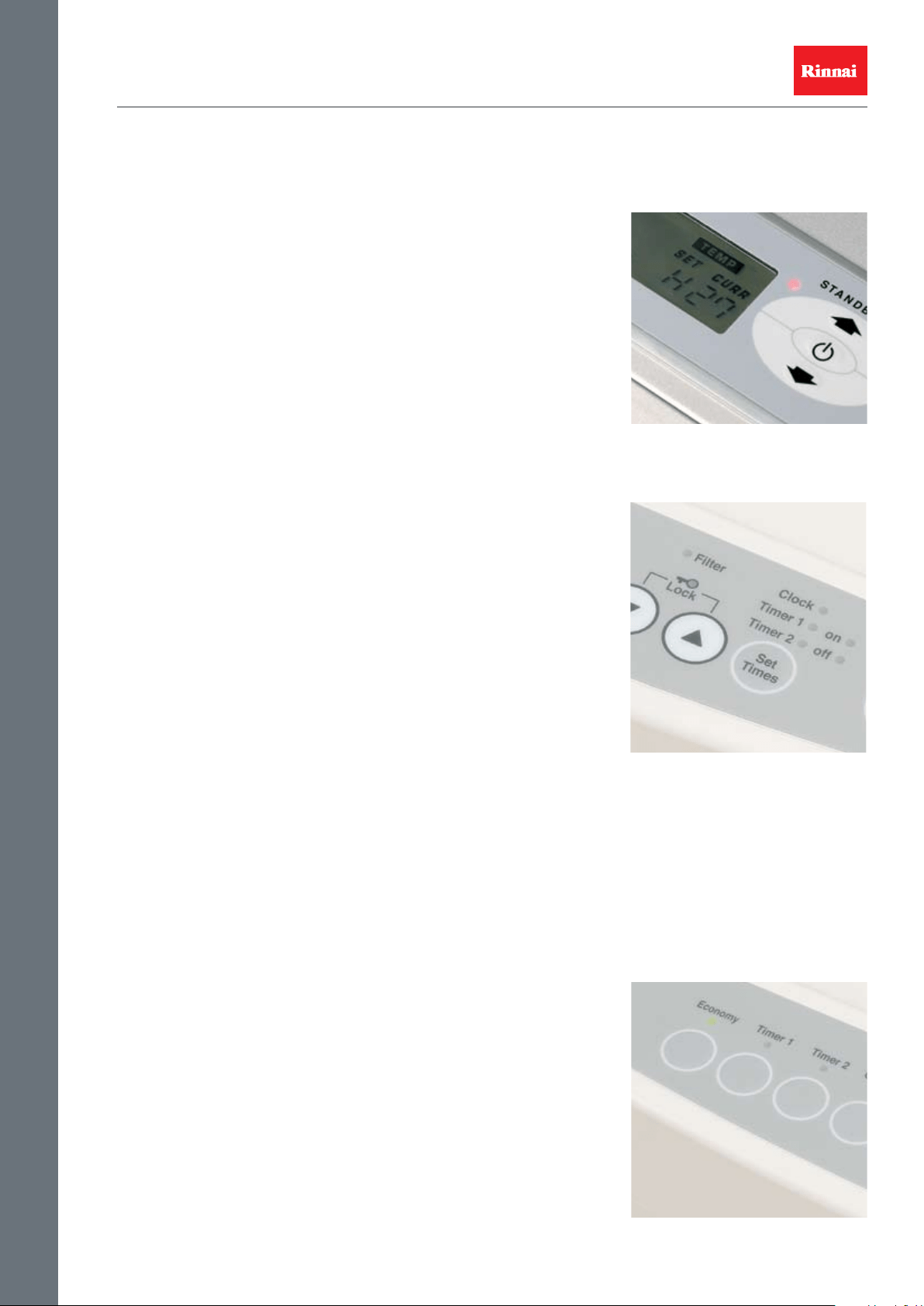

FEATURES
08 Generic heating features
and functions
SPECIFICATIONS
10 Portable Heaters
11 Flued Heaters

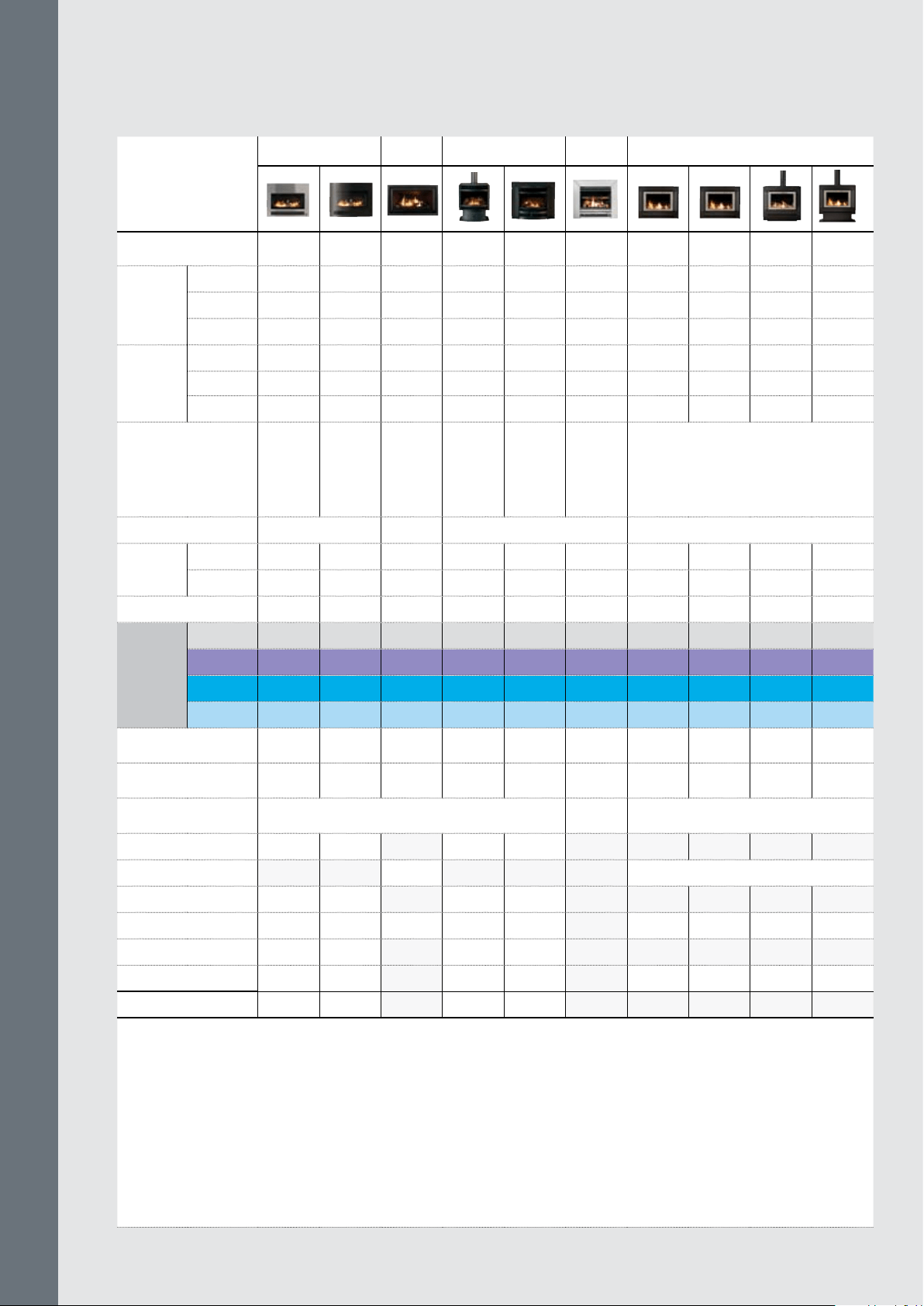

12 Gas Log Flame Fires

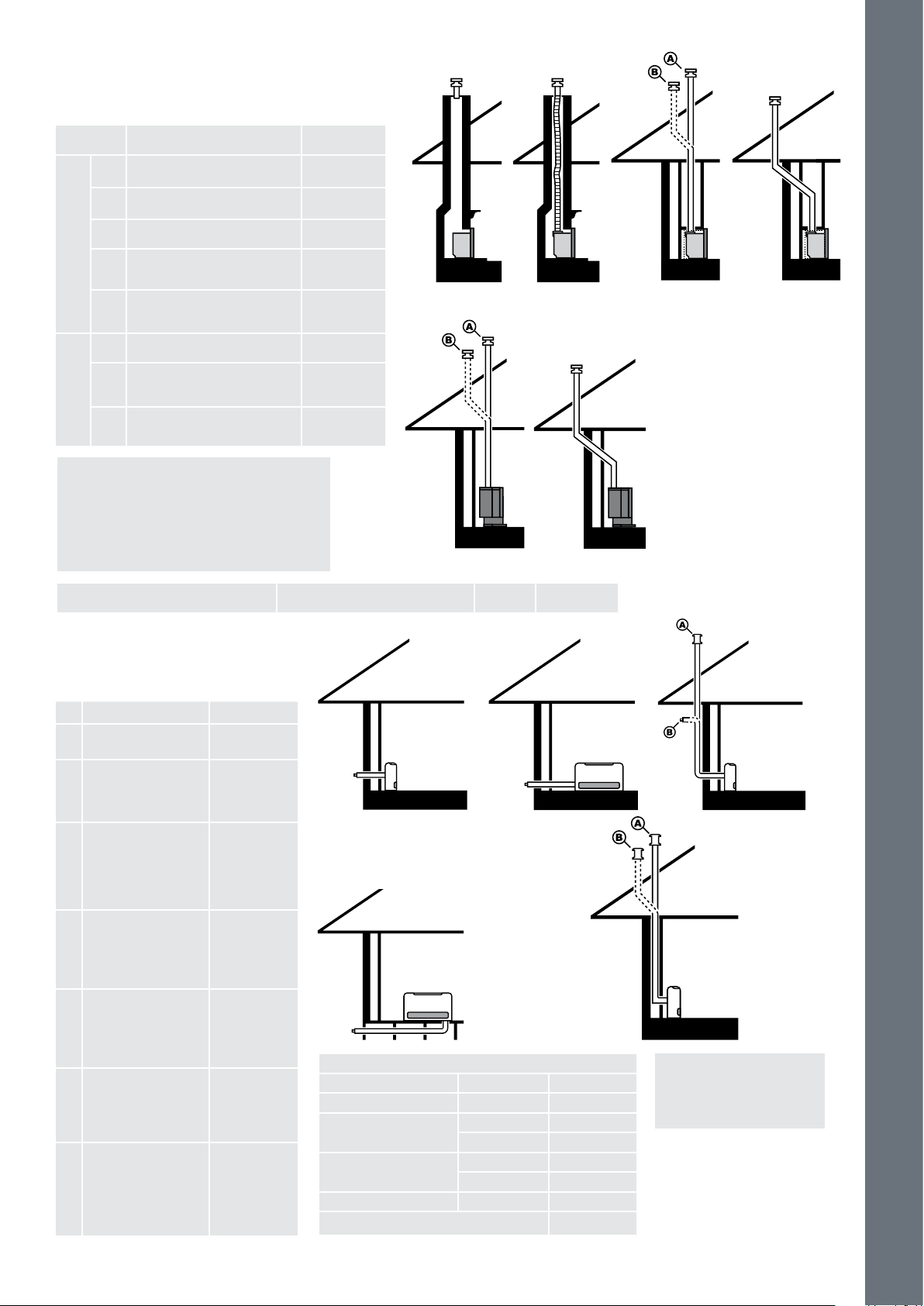

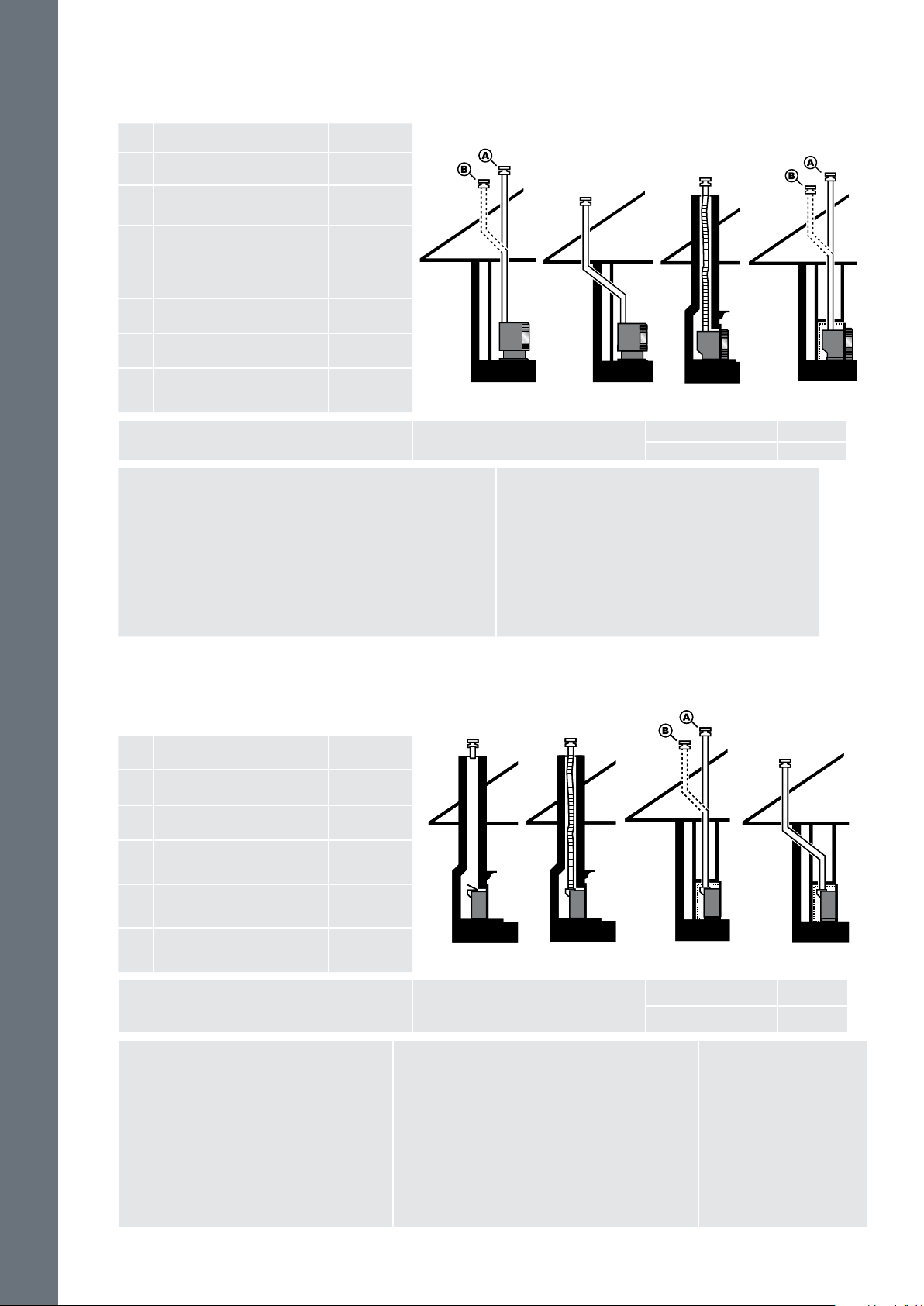

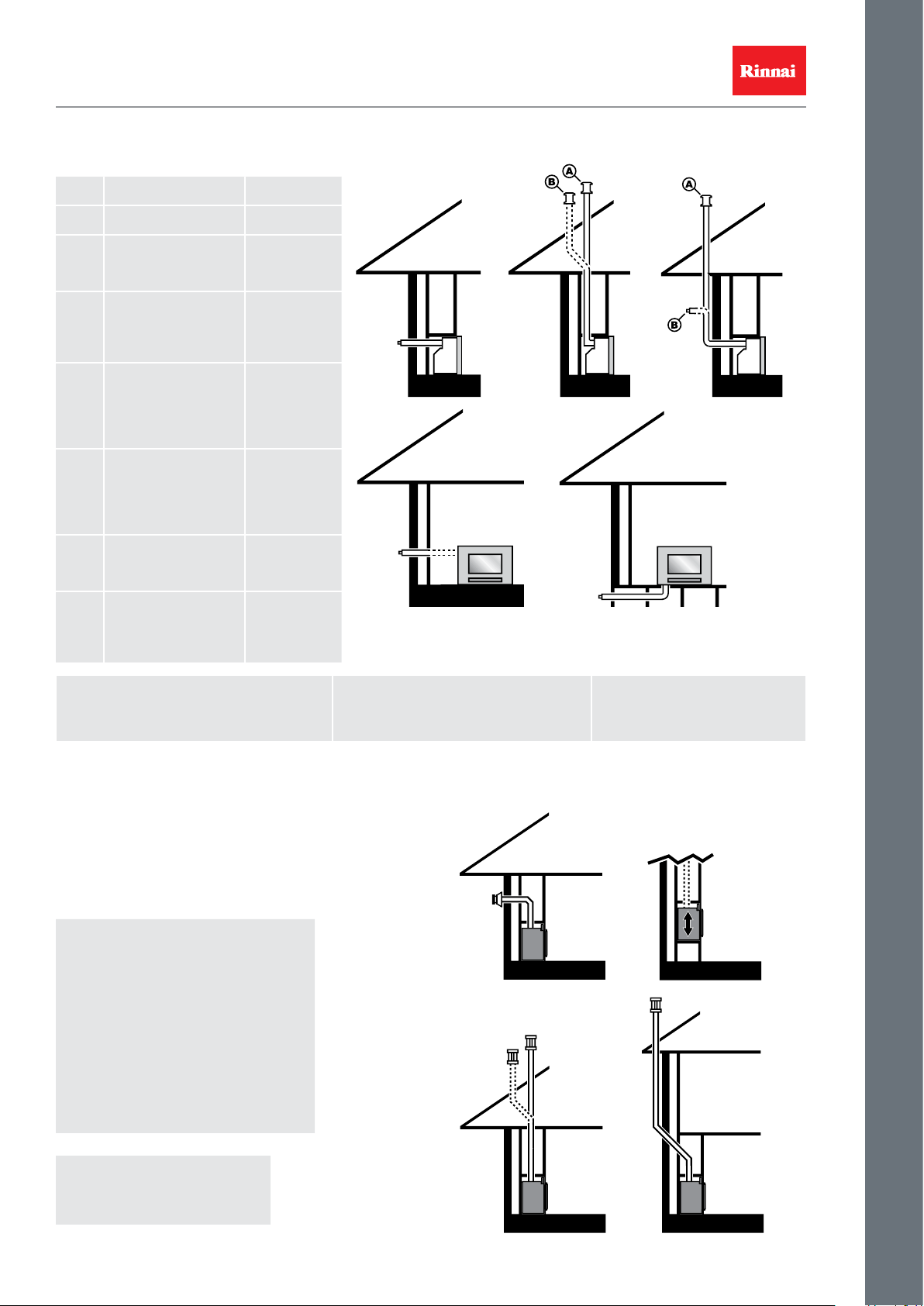

FLUEING
13 Aspiration Gas Log Flame Fire
Symmetry Gas Log Flame Fire
14 Royale Gas Log Flame Fire
Slimre Gas Log Flame Fire
15 Sapphire Gas Log Flame Fire
Energysaver® Power Flueing
OTHER
16 Service & Warranty
ISO 9001 Lic 4983
SAI Global
N10378
Experience our Innovation
For 40 years Australians have been enjoying the comfort, convenience and
reliability of Rinnai gas appliances. Our innovative products are designed with
the environment in mind, with low emission technology and high eciencies,
as well as a host of other great features.
Rinnai is committed to ongoing innovation - delivering ecient, well designed
and engineered lifestyle solutions oering a host of benets including
ambience, versatility, control and reliability. Backed with extensive warranties
and after sales service teams, Rinnai is proud to be the No.1 choice for gas space
heating in Australia
Through innovation, we will endeavour to continue oering superior ranges of
home appliances that provide a clear insight into what the future holds for
Australian homes.
About this Brochure
This ‘Heater Reference Guide’ is to be used in conjunction with the consumer
brochure. The contents of this brochure are more of a technical nature and it has
been produced in relevant technical sections rather than by specic product
pages as in the consumer brochure.
It is designed to be a quick reference guide to questions that may be asked to
ensure selection of the correct Rinnai heating appliance for an application. If
you need to nd a dimension you go to the specication tables, if you need to
nd what a specic feature is, you go to the features and functions pages
where all features of all heaters are listed.
Need additional help?
Please contact the Rinnai HelpLine on 1300 555 545
Monday to Friday 8.00am – 5.30pm EST
Associations & Certicates
Energysaver® 559F
Range Overview - Portable Heaters
Portable Heaters are a highly ecient low cost and exible home heating alternative. They require no installation and can be
stored away when not used. There are 3 forms of heating available - Radiant heat, Convection heat and combined Radiant and
Convection heat.
HANDY
HINT
Best positioned away from you for most comfortable operation
Cool to touch cabinet allows it to be positioned closer to furniture
Fan assisted warmth circulates around the room
Convectors
• Convection heat
• Advanced low emission burner technology
• Fully thermostatic set’n’forget operation
• Easy to use as a manual or programmable appliance
HANDY
HINT
Must be positioned closer to you as there is no fan
Needs to be kept away from furniture
Radiants
• Radiant heat
• Ideal for spot heating - feel the warmth
• Simple battery ignition - no need for a power point
• Simple & easy to operate manual settings
HANDY
HINT
Best of both heating types - Radiant & Convected warmth
Circulates heat throughout your room
Radiant Convectors
• Radiant and Convection heating
• High eciency powerful heaters
• Easy operation - manually adjustable for comfort
Important Installation Guidelines - Portable Heaters
The installation of Portable gas heaters is restricted in some States of Australia. Restrictions sometimes include:
• Minimum room sizing (volume of room in cubic metres)
• Minimum ventilation requirements
• Limited to a certain gas type (Victoria LPG only)
• Maximum heater size 18 MJ’s on Natural Gas and 25 MJ’s on LPG (South Australia)
• Maximum 2.5ng/J NO
2
emissions (Victoria)
• Not permitted in new installations/homes (Victoria)
Some other key points that should be noted include:
• Portable gas heaters cannot be installed in bedrooms, bathrooms or hallways
• The gas hose & power cord cannot be positioned through a doorway into an adjoining room
• Portable heaters cannot be operated from an LPG gas cylinder in the same room
• It should be noted that minimum room sizing varies between thermostatically controlled Convectors and
manually controlled Radiant heaters
• All installation of bayonet points, room sizing & ventilation is to be in accordance with the Australian
Standard AS5601 – Gas Installations
04
Range Overview - Portable Heaters
Range Overview - Flued Heaters
Flued Heaters utilise ueing to ensure there are no indoor emissions. They can oer powerful heat output and there are many
energy ecient product varieties. Flued heaters utilise 2 forms of heating - Convection heat or Radiant and Convection heat.
HANDY
HINT
Sizing is really only critical if the Gas Log Fire is the primary
heating source. If required for a decorative look only – select a
model with a Flame feature only or Flame Override button
Gas Log Flame Fires
• Radiant and Convection heat
• Powerful heaters that enhance the feel of a home
• Variety of styles and ueing options
• Freestanding, Inbuilt & False Fireplace options
HANDY
HINT
Great option for those who are sensitive to air quality
Humidier tray oers the ability to enhance indoor air comfort

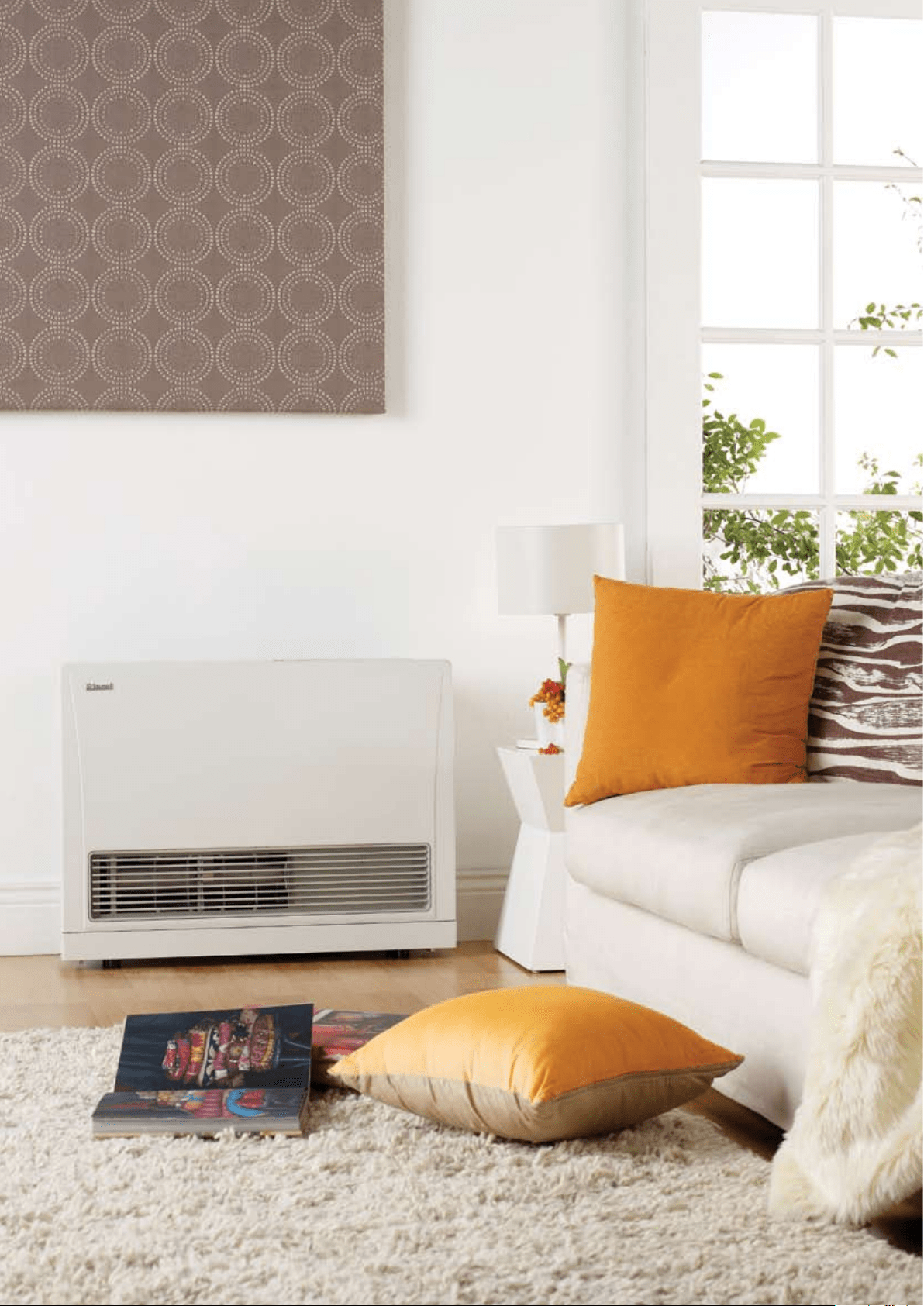

Energysavers
• Convection heat
• Highly energy ecient with full set’n’forget operation
• Powerful ‘room-sealed’ heaters for optimum indoor air quality
• Range of sizes with exible power ue installation options
HANDY
HINT
Oer cosy radiant warmth whilst still providing the benet of
convected heat. Ideal for replacement of older space heaters
– easy changeover
Flued Space Heaters
• Radiant and Convection heat
• Powerful heat output in both thermostatic or manual operation models
• Suits standard ‘o the shelf’ ueing – supplied by the installer
Important Installation Guidelines - Flued Heaters
All Flued gas heaters must be installed by a licensed plumber/gas tter.
Other guidelines for Flued heaters include:
• It is mandatory to use Rinnai proprietary ueing for all Rinnai Energysaver® & Gas Log Flame Fire heaters.
Use of unauthorised ueing will not only compromise performance and void warranty, but could have
serious safety related consequences
• All Flued Space Heaters (Ultima II, Spectrum & 2001) use standard ‘o-the-shelf’ ueing components
supplied by the installer
• Room sizing is only dependant on the heat load required
• If in doubt, it is best to slightly oversize a Flued Heater and let the thermostat do its work
• Installation of Flued Heaters is limited to the exibility of the ueing system and therefore heaters cannot
always be positioned where desired
• Some States of Australia require that a certicate of compliance is given to the end-user for both new
and changeover installations
• All installations of Flued gas heaters must comply with the Australian Standard AS5601 – Gas Installations
05
Range Overview - Flued Heaters

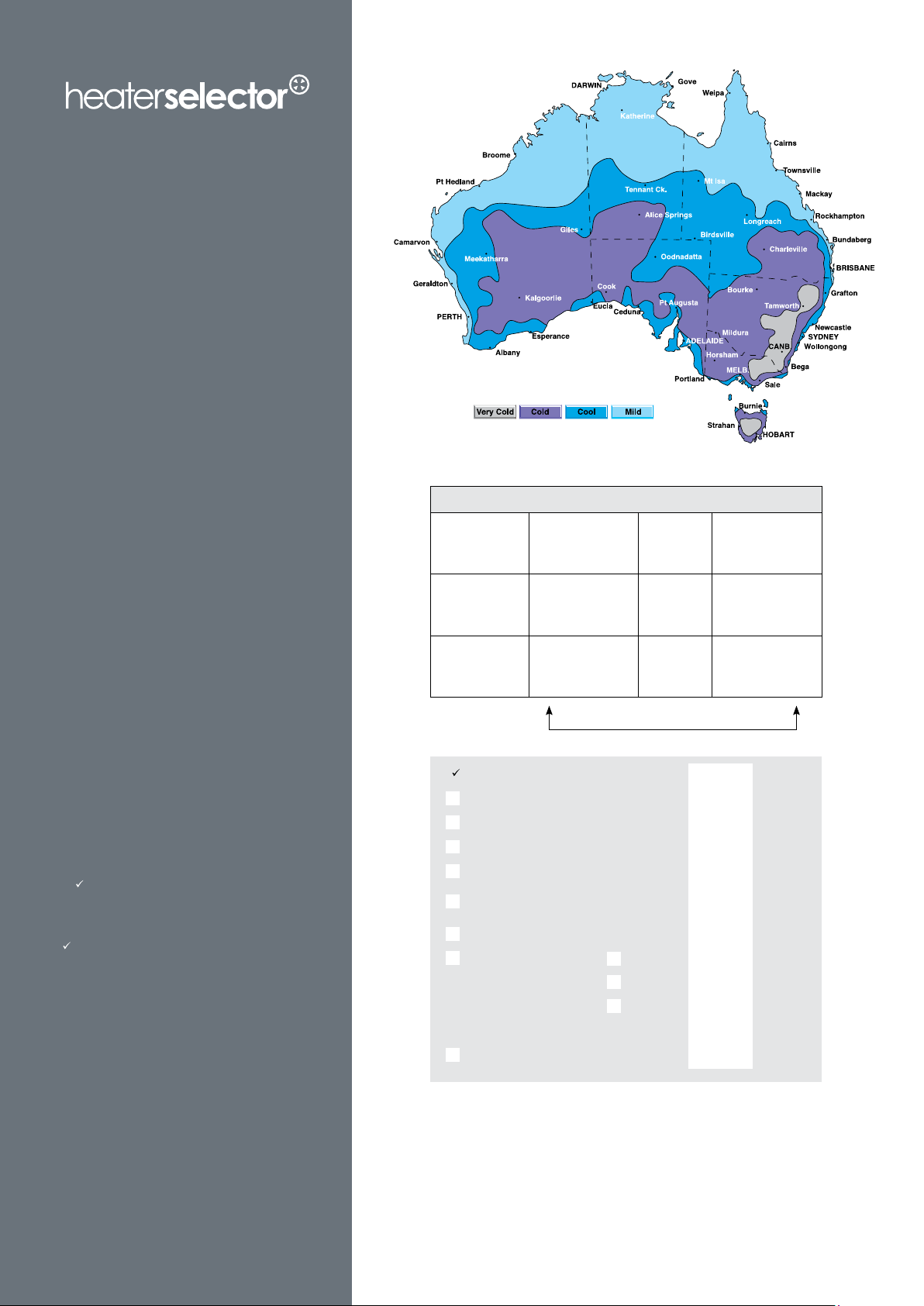

step 1 climate
Pictured on the right is a climate
map of Australia that shows four
winter climate zones relevant to
Rinnai Heaters; Mild, Cool, Cold
and Very Cold. It is important that
you choose the correct zone that
suits an application, as it directly
relates to the performance of
the heater. Detailed State maps
can be found on the ‘heater
selector’ page of our website:
www.rinnai.com.au.
step 2 heating area
It is also important that you
consider the size of the heating
area. This includes adjacent
rooms through permanently
open doorways and hallways.
On pages 10-12 you will nd the
approximate maximum area that
the unit will heat based on the
climate zones (ie. Step 1).
step 3 heat loss
Not all homes will have all of the
features listed in the table to
the right. Consequently, this will
aect the heating capacity. Place
a
alongside each of the design
features if they are relevant to
your home. Everywhere there is a
, an adjustment to the ‘Heats up
to’ capacity will need to be made.
Please note that this is only a guide
and individual house designs and
locations may vary.
Contact the Rinnai Helpline
if you require further assistance
1300 555 545.
calculate on-line
in 3 easy steps
As an example, you wish to purchase a Slimfire gas log flame fire, live in the ‘Cool’
zone, and have an area to heat of 65m
2
. The recommended ‘Heats up to’ capacity
for this model is 68m
2
, however you also have no carpets on the floor and a house
built on stumps. The heat loss total percentage is -10% (-5% + -5% = -10%) which is
deducted from the 68m
2
(the capacity of your heater) as a % to reduce it to 61m
2
. This
will no longer heat your desired 65m
2
. The next model up is the Royale Inbuilt with a
‘Heats up to’ capacity of 93m
2
, less the 10% heat loss = 84m
2
, which will adequately
heat the area.
Your area should be less than the Adjusted Capacity
Calculate your selected Rinnai Heater’s Capacity
1. Selected Heater
4. ‘Heats up
to’ Capacity
(see specifications)
2. Climate/Zone
5. Less
Heat Loss
(see specifications)
3. Total area you
are going to heat
(length x width)
6. Adjusted
Capacity
m
2
m
2
m
2
%
Heat Loss Factors Deduct Example
No Ceiling Insulation -10% ______ %
House built on stumps (not a slab) -5% ______ % -5%
No carpets on floors -5% ______ % -5%
No drapes on windows -5% ______ %
Uncurtained window area
exceeding 15.0m
2
-10% ______ %
Ceiling height exceeding 2.4m
If Yes, height 2.5 - 2.8m
-3% ______ %
2.8 - 3.0m
-5% ______ %
3.0m +
-7% ______ %
Reversible Ceiling Fan (positive) +5% ______ % ______
HEAT LOSS FACTOR TOTAL ______ % -10%
Energy Star Ratings
Energy Star ratings are an industry wide independent rating
that gives an indication of how eciently a heater operates...
the more stars the greater the eciency. Typically Portable
gas heaters have around 5.9 Stars with the majority of ued
heaters around 4.0 to 4.5 Stars. Some older type heaters are
not as ecient, however they still perform extremely well
with large heat outputs.
The Environment
In Australian homes, heating & cooling amounts to around
23% of household energy use – second only to hot water.
Gas is one of the most greenhouse friendly fuel sources
available and selection of a Rinnai gas heater can assist
with our global need to reduce carbon emissions. In
addition, the better insulated your home, the less work the
heater needs to do, the less gas you will use and the less
impact on the environment.
Very Cold Zone: 1 kW output will heat approx 8.5m
2
Cold Zone: 1 kW output will heat approx 10m
2
Cool Zone: 1 kW output will heat approx 13m
2
Mild Zone: 1 kW output will heat approx 16m
2
i.e. a 7.3 kW output heater in a Cool Zone will heat approx 95m
2
Running Costs
Rinnai gas heaters are designed to be highly ecient, and when used correctly, are a very economical form of home heating. The
running cost of gas heaters compare very well to other forms of heating. Straight electric heating is by far the most expensive, with
both gas heaters and electric reverse cycle heaters comparatively less expensive.
When comparing diering forms of heating in relation to running costs, it is important that the comparison is based on the same
kW output of heat. Once we are comparing ‘apples with apples’, the calculation of the running cost is then based on the energy used
(kW input) to achieve that output. The actual taris that are charged are listed on energy bills.
Heating Sizing
It is very important that careful consideration is given to selecting the correct model/size of any heater. Critical factors such as the
area to be heated, along with specic design and insulation characteristics of a home must all be considered. On the opposite
page there is a heater selector relating to correct sizing or you can use our on-line version at
www.rinnai.com.au.
In general heater sizing should be based on the kW output of the heater. As a very rough guide to heating performance (based on
our heating zones):
07
Important Tips
Kitchen
Appliances
10%
Comparison of Energy use
around the home
Fridge Other
Heating
& Cooling
Hot
Water
12%
18%
23%
37%
Source: Department of Environmental & Climate Change NSW
Important Tips for heater selection
HANDY
HINT
The MJ input of heaters should
not be used for comparison.
The kW output is the only true
‘apples for apples’ method.
As an example, a 25MJ input,
5.9 Star heater has a larger
heat output than a 25MJ 3.1
Star heater.
Generic Heating Features & Functions
There are many diering features that are available with Rinnai gas heating appliances. The following pages give an overview of
each feature, the benets gained and a brief explanation of how they work. For a specic list of which features apply to a particular
product, please refer to the specications starting on page 10.
Preheat Feature
This function will automatically operate the appliance before the programmed start
time of the timer, in order to heat a room to the pre-set temperature by the
programmed start time. This means that the heater may activate up to 1 hour prior to
the programmed start time.
Economy Button
The Economy (ECON) function is an energy saving feature. It gradually reduces the
heat settings once the room has maintained the set temperature for a period of 1
hour. Many people operate heaters at a higher temperature initially when they are
cold, but forget to turn them down later.
Delay OFF Timer
This is also a countdown timer but the set period is xed at either 30 or 60 minutes. Once activated the heater will automatically
shut o after this period. Typically used in the mornings when people get out of bed, it ensures that if they rush out the door they
won’t leave the heater on all day!
Delay Timer (FDT)
This feature is only available with the “FDT” range of Energysaver Power Flued heaters and is usually only used for commercial
application such as schools etc. Factory ordered & preset, the delay timer automatically shuts the heater o after a predetermined
(programmed) time of either 1, 2, 3, 6, 8, 10 or 12 hour intervals. As an additional feature, a central relay timer can be programmed
to operate multiple heaters.
Please contact Rinnai on 1300 555 545 for further information on Delay Timer (FDT) programming
Thermostatic Heat Control
Often referred to as set’n’forget, thermostatic control means that the heater will
modulate up and down to ensure a set temperature is maintained, for greater comfort.
Manual Heat Control
This applies to heater models that have a number of predetermined settings that you
can select from. Some heaters have a Low/Med/High option while others can have up
to 6 manual settings.
Timers
Models with timers have one of the following:
Dual Weekday & Weekend Timers
Set the heater to come on and o in the mornings & evenings for the weekdays
Monday to Friday. Additionally, dierent times can be set for the weekend when
people prefer to get up a little later.
Dual Timers
Set the heater to come on and o in the mornings & evenings (or any other selected
dual periods). Timers are set separately allowing you to operate with both, just one or
none at all.
Multiple Timers (4 Periods)
Where 4 periods per day can be set at varying temperatures. Ideal for mornings when
waking and coming home of an evening, with the other 2 periods usually set as a
minimum desired temperature during the day and overnight. In addition, each day of
the week can have a dierent setting, making these timers the most exible available
Delay ON Timer
This is a countdown timer that allows you to select in how many hours/minutes you
wish the heater to switch on. It allows you to select up to 9 ½ hours in 30 minute
increments or up to 24 hours in 60 minute increments. Delay ON timer is typically set
before going to bed and when leaving in the morning to come on when you get up
and return from work.
08
Features
Auto O Button
The auto-o feature found on some of our Gas Log Flame Fires, Energysavers® and Space Heaters is only relevant when the
minimum heat setting of the heater still has too much heat output to maintain the set temperature. If the auto-o button is
activated, the heater would turn o rather than continue to heat the room above the set temperature. In simple terms, the auto-o
needs to be activated (displayed) in order for the heater to be fully thermostatically controlled.
Override Button
The override button is only used when a heater has programmed timers set. It allows you to manually activate the heater outside
of the programmed times without disruption to the settings (i.e: if someone comes home early from work/school).
Flame Button
The Flame button is only found on selected Gas Log Flame Fires and it allows the user to override the thermostat and maintains a
constant ame picture. Basically it is used when just the ambience of a re is required.
Lockable Panel
The commercial Energysaver® FDT models
have a key lockable control panel lid. This is
primarily to ensure that programmed times
and/or temperature settings are not
adjusted by the public.
Filter Indicator Light
When the fan lters become covered with
dust, the lter indicator will ash. The lters
on all heaters should be vacuumed at
regular intervals to optimise heating
eectiveness.
Child Lock or Lock Button
A feature that ensures that little wandering hands cannot activate or play with the heater. If the lock is activated when the appliance
is turned OFF then all functions are locked. If the lock is activated when the heater is in operation, then only the OFF button will
function. There are two types of child lock activations:
1. Single button which must be held down for about 3 seconds until there is a beep
2. Some models require the user to push 2 buttons simultaneously to lock and unlock the feature
Either method is dicult for young children to accidently activate.
Additional Safety features
Over heat switch
When the heater gets too hot during operation (for example when the lters or air outlet louvres are blocked) this
device turns the gas o automatically
Flame failure sensor
This device automatically cuts o the gas supply to the heater in the event of a gas failure
Oxygen depletion sensor
If the oxygen level in the room drops below a pre-set limit, this device cuts the gas supply to the heater. This feature
is standard with all portable heaters.
Tilt switch
Only found on portable heaters, the tilt switch will immediately cut the gas supply if the heater is accidentally
knocked over. For additional safety, the fan will continue to operate ensuring the heater is cooled as well.
Power failure
In the event of a power failure or power cut, the gas valves on thermostatic models will automatically close and shut
o the gas supply.
09
Features
Model
Avenger
25Plus
(Gas &
Electric)
Capella
18Plus
(Gas &
Electric)
Avenger 25
Dynamo
15
Enduro 13 Econoheat
850
Cosyglow
650
Granada
252
Titan 151
Dimen-
sions
(mm)
H 570 570 485 495 495 410 405 540 540
W 610 610 610 490 490 505 440 620 620
D 245 245 245 245 245 250 250 220 220
Colours White or Platinum Silver Platinum Silver
O White or Platinum
Silver
Gas Type Available in both Natural Gas and LPG
Low NOx
Yes Yes Yes Yes Yes No No No No
Gas Hose Length (mm)
1500
Electric Cord Length (mm)
1500 No cord 1500
Gas Input
MJ/h
Low
8.5 8.5 8.5 6.0 6.0 7.0 5.5 8.0 7.5
High 25 18 25 15 13 15 11 25 15
kW Output 8.2 6.6 6.2 3.8 3.3 3.5 2.9 6.0 3.7
‘Heats
up to’
Capacity
(m
2
)
Very Cold
70 55 53 32 28 31 23 52 31
Cold
83 66 63 38 33 35 28 57 34
Cool
113 89 85 52 45 47 37 76 46
Mild 128 102 97 59 51 54 42 87 53
AS4553 Eciency
Star Rating
5.8 5.8 5.8 5.8 5.8 5.9 5.9 5.9 5.9
AS4553 Emissions
Star Rating NG/LPG
3.8/3.5 4.6/4.1 3.8/3.5 3.8/3.5 3.6/3.5 2.8/3.0 2.1/2.1 2.3/2.5 2.0/1.6
Thermostatic or
Manual Control
Thermostatic
Manual
2 Settings
Manual
2 Settings
Manual
3 Settings
Manual
2 Settings
Dual Weekday & Weekend
Timers
Yes Yes
Dual Timers
Yes Yes
Delay ON Timer
Yes
Delay OFF Timer
(60 Minute)
Yes
Preheat Feature Yes Yes Yes Yes
Economy Mode Yes Yes Yes Yes Yes
Auto O Mode
Yes Yes
Override Button Yes Yes Yes Yes
Child Lock or
Lock Button
Yes Yes Yes Yes Yes
240V power is required with all models with the exception of Radiant only heaters. A power cord & plug are tted.
Dimensions are subject to production tolerances and may vary slightly from those given.
Rinnai Australia Pty. Ltd. Reserves the right to make modications and change specications without notice.
We will however endeavour to communicate any major changes well before implementation.
Portable Heating Specications
10
Specications - Portable Heaters
Flued Heating Specications
Model
Energysaver® Ultima II 2001 Spectrum
309FT
556FDT
559FT
557FTR
1004FTR
1004FDT
Inbuilt
Console
Inbuilt
Console
Inbuilt
Console
Dimen-
sions
(mm)
H 695 554 582 750 670 670 653 653 650 650 650 650
W 465 750 760 550 930 930 910 910 910 910 910 910
D 257 250 257 250 330 330 164 404 125 302 125 302
Inbuilt
Cavity
Dimen-
sions
(mm)
H - - - - - - 605-635 - 605-635 - 605-635 -
W - - - - - - 710-805 - 710-805 - 540-805 -
D - - - - - - Min. 330 - Min. 270 - Min. 270 -
Colours White White White
White or
Silver
White
Beige or
Gunmetal
Beige or Brown
Gas Type NG/ LPG NG Only* NG/ LPG NG/ LPG NG/ LPG NG Only* NG/ LPG NG Only*
Gas Input
MJ/h
Low 6 9 9 9 11 11 15 15 7
High 13 23 23 23 37 37 30 30 28
kW Output
2.9 5.4 5.2 5.4 8.6 8.6 7.0 5.2 5.2
‘Heats
up to’
Capacity
(m
2
)
Very Cold
27 47 47 47 75 75 59 45 41
Cold 32 56 56 56 89 89 70 53 49
Cool 42 74 74 74 119 119 95 70 65
Mild 49 85 85 85 138 138 109 81 75
AS4553 Eciency
Star Rating
4.6 4.3 4.3 4.2 4.3 4.3 4.4 1.0 2.1
AS4553 Emissions
Star Rating NG & LPG
6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0
Thermostatic or
Manual Control
Thermostatic Manual 3 Settings
Dual Timers
Yes Yes Yes Yes
Delay Timer (FDT)
Yes Yes Yes Yes
Dual Weekday &
Weekend Timers
Yes Yes
Preheat feature
Yes Yes Yes Yes Yes Yes
Economy Mode
Yes Yes Yes Yes Yes Yes
Auto O Mode
Yes Yes Yes Yes Yes Yes Yes Yes
Override Button
Yes Yes Yes Yes Yes Yes
Child Lock or
Lock Button
Yes Key Yes Yes Yes Key Yes Yes
* LPG conversions are available at an additional cost and are made to order
240V power is required with all models and a power cord & plug is tted. In most cases this cord is on the right hand side.
To hide the power cord, it is permissible to have the unit ‘hardwired’ behind wall cavities as long as it is in accordance with the Standard AS/NZS3000 and done by a
qualied electrical tradesperson such as an electrician. In short, this means that it must be wired with an accessible double pole isolation switch.
Dimensions are subject to production tolerances and may vary slightly from those given.
Rinnai Australia Pty. Ltd. Reserves the right to make modications and change specications without notice.
We will however endeavour to communicate any major changes well before implementation.
11
Specications - Flued Heaters
Gas Log Flame Fire Specications
12
Specications - Gas Log Flame Fire
Model
Aspiration Symmetry Royale ETR Slimre Sapphire
Style
Slimline
Metal
Radius
Glass
Inbuilt
Free-
standing
Inbuilt Inbuilt Masonry
Zero
Clearance
Console Plinth
Visual
Dimen-
sions
(mm)
H 675 675 640 755 695 645 660 660 760 837
W 900 900 1110 650 910 750 865 865 865 865
D 90 126 13 560 167 335 462 462 425 425
Inbuilt
Cavity
Dimen-
sions
(mm)
H 660 660 845 N/A 595-675 550-630 600 650 N/A N/A
W 860 860 1100-1125 N/A 600-800 595-700 695 800 N/A N/A
D 450
*
450
*
Min 600 N/A Min. 405 Min. 360 370 420 N/A N/A
Colours
Metallic
Black or
Stainless
Steel
Black Black
Metallic
Black
Metallic
Black
Metallic
Black or
Stainless
Steel
Black outer frame with Stainless Steel inner frame
Gas Types NG Only
#
NG Only
#
NG/LPG NG/LPG
Gas Input
MJ/h
Low 8 8 19 8 8 7.7 14 14 14 14
High 31.5
†
31.5
†
33 35 33 25 30 30 30 30
kW Output
6.0 6.0 7.5 7.4 6.6 5.0 6.97 6.97 6.97 6.97
‘Heats
up to’
Capacity
(m
2
)
Very Cold
47 47 67 66 58 42 60 60 60 60
Cold 56 56 80 79 69 50 70 70 70 70
Cool 74 74 108 106 93 68 95 95 95 95
Mild 85 85 124 122 109 77 108 108 108 108
AS4553 Eciency
Star Rating
4.0
††
4.0
††
4.2 2.5 2.6 2.8 4.1 4.1 4.1 4.1
AS4553 Emissions
Star Rating NG & LPG
6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0
Thermostatic or
Manual Control
Thermostatic
Manual 3
Settings
Manual/Remote Thermostat
*
Dual Timers Yes Yes Yes Yes
Multiple Timers (4 Periods)
Yes Yes, with optional remote control
Preheat Feature
Yes Yes Yes Yes
Auto O Mode
Yes Yes Yes Yes Yes Yes
**
Yes
**
Yes
**
Yes
**
Override Button Yes Yes Yes Yes
Flame Function
Yes Yes Yes Yes Yes
**
Yes
**
Yes
**
Yes
**
Child Lock or Lock Button Yes Yes Yes Yes
Please note:
#
Lpg conversions are available at an additional cost and are made to order
*
Suitable for direct, vertical or horizontal ueing. 500mm required for down and out ue applications. See installation instructions for full details
†
31.5 MJ/h when installed with a direct ue. Gas input 28MJ/h when installed with an extended ue
††
4.0 Stars when installed with a direct ue. Increases to 5.2 Stars when installed with an extended ue
º
4.0 Star Rating when installed in a sound brick or masonry fireplace without a flue
240V power is required with all models and a power cord & plug is fitted. In most cases this cord is standard on the right hand side of the appliance. The Royale &
Slimfire Flame Fires also allow you to have the electrical cord on either the right or left hand side.
To hide the power cord, it is permissible to have the unit ‘hardwired’ behind wall cavities as long as it is in accordance with the Standard AS/NZS3000 and done by a
qualified electrical tradesperson such as an electrician. In short, this means that it must be wired with an accessible double pole isolation switch.
Dimensions are subject to production tolerances and may vary slightly from those given.
Rinnai Australia Pty. Ltd. Reserves the right to make modifications and change specifications without notice. We will however endeavour to communicate any major
changes well before implementation.
Aspiration Gas Log Flame Fire Power Flueing
*includes condensate trap
#
order lengths as required
Description Order Code
1 Direct Flue Kit ASPDFK
2A
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm
#
Roof Cowl
ASPKIT03
ESPIPE900
ESROOFCOWL
2B
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm
#
Bend (2 x 45º)
Roof Cowl
ASPKIT03
ESPIPE900
ESBEND
ESROOFCOWL
3A
Direct Flue Kit
Co-Ax Pipe 900mm
#
Bend (2 x 45º)
Condensate Trap
Roof Cowl
ASPDFK
ESPIPE900
ESBEND
ESCONDK
ESROOFCOWL
3B
Direct Flue Kit
Co-Ax Pipe 900mm
#
2 Sets of Bends (2 x 45º)
Condensate Trap
Wall Terminal Kit
ASPDFK
ESPIPE900
ESBEND x 2
ESCONDK
ESWTKIT
4
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm
#
Wall Terminal Kit
ASPKIT03
ESPIPE900
ESWTKIT
5
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm
#
Bend (2 x 45º)
Wall Terminal Kit
ASPKIT03
ESPIPE900
ESBEND
ESWTKIT
Fascias
Slimline Metallic Black Fascia
Slimline Stainless Steel Fascia
Order Code
FLFASPFFB
FLFASPFFSS
Fascias
Radius Glass Black Fascia
Order Code
FLFASPFRBG
Installation Clearances
Sides of appliance 100mm
Above appliance 250mm
In front 1000mm
1.
4.
2. 3.
5.
< false
wall
< false
wall
< false
wall
min. 300mm vertical clearance
from base of flue terminal
Flueing
13
Flueing
Symmetry ueing combinations vary for each installation. Please refer to the installation instructions or online at www.rinnai.com.au
Symmetry Gas Log Flame Fire
Installation Clearances
Sides of appliance 400mm
Above appliance 400mm
In front 1000mm
The Direct Flue Kit covers the majority of installations. Separate
components are available for other installations as shown.
Description
1. Direct Flue Kit
Individual Components
90mm Flue Length
230mm Flue length
300mm Flue length
600mm Flue length
1200mm Flue length
275-370 (adjustable) Flue length
90º Elbow
45º Elbow
High Wind (Roof) Terminal Cap
Square Horizontal (Wall) Cap
Order Code
SYMDFK
RDV903
RDV907
RDV906
RDV904
RDV902
RDV911B
RDV990G
RDV945G
RDV991
RDV984
< elevated
installation
< direct flue kit
installation
1.
14
Flueing
Royale ETR Gas Log Flame Fire
1. 2.
3.
4.
Freestanding Inbuilt
< false
wall
< masonry
fireplace
zero clearance
Description Order Code
1A Vertical Twin Skin Flue Kit (3.6m) FLFKIT05*
1B
Vertical Twin Skin Flue Kit (3.6m)
Twin Skin Oset
FLFKIT05*
FLFBEND*
2
Thru-wall Twin Skin Flue Kit (3.6m)
inc. 1x900mm Powder Coated &
3x900mm Galvanised Twin Skin
Flues, Cowl & Wall Penetration Kit
FLFKIT03*
3 Flexiliner Flue Kit (5.0m) FLEXLINER05
4A Vertical Twin Skin Flue Kit (3.6m) FLFKIT05B
4B
Vertical Twin Skin Flue Kit (3.6m)
Twin Skin Oset
FLFKIT05B
FLFBENDB
Freestanding Accessories
450mm Twin Skin Flue
900mm Twin Skin Flue
45
º
Twin Skin Offset
900mm Galvanised Flue Ext Twin Skin
Order Code
FLF0450M*
FLF0900M*
FLFBEND*
FLFEXT03
Inbuilt Accessories
Flue Adaptor Plate
50mm Plinth
45
º
Twin Skin Offset
40mm External Top Surround (Black Only)
Order Code
FLFAD
FLFRP*
FLFBENDB
FLFRSEXTB
For Thru-Wall double storey applications, please order the 3.6 metre Thru-Wall
Twin Skin Kit (FLFKIT03) and additional lengths of 900mm Galvanised Flue
Extensions (FLFEXT03) as required
Installation Clearances
Sides of appliance 400mm
Above appliance 400mm
Back of draft diverter 100mm
In front 1000mm
Inbuilt Zero Clearance Frame Dimensions
(See installation instructions for full details)
745mm H x 810mm W x 440mm D (min.)
Metallic Black Zero Box
ZEROR1
Titanium Zero Box
ZEROR2T
*Nominate Metallic Black or Titanium
Slimre Gas Log Flame Fire
#
Nominate Metallic Black or Stainless Steel
Description Order Code
1 No Flue N/A
2 Flexiliner Flue Kit FLEXLINER03
3A Vertical Twin Skin Flue Kit FLFKIT05
3B
Vertical Twin Skin Flue Kit
Twin Skin Oset
FLFKIT05
FLFBEND
4
Vertical Twin Skin Flue Kit
Thru-wall Twin Skin Flue Kit
FLFKIT05
FLFKIT03
Fascias Order Code
Metallic Black Fascia FLFSFB
Stainless Steel Fascia FLFSFSS
Sided Fascia
Inspiration 3 Sided Fascia - Duracote INSP3FD
Inspiration 3 Sided Fascia - Black INSP3FD
Inspiration 4 Sided Fascia - Duracote INSP4FD
Inspiration 4 Sided Fascia - Black INSP4FB
Mantles
Inspiration Mantle - Cherry INSPMC
Inspiration Mantle - Beech INSPMB
Accessories Order Code
Fluebox Adaptor FLFAD1
50mm Plinth (Masonry Fireplaces only) FLFSP
#
90mm Ext Top 3-sided Surround (Black only) FLFSBEXT
Console Kit
Extends protrusion of the Slimre by 300mm.
Kit includes sides, top and base plinth.
All other components supplied by installing plumber
Metallic Black Console Kit FLFSCB
Stainless Steel Console Kit FLFSCSS
Installation Clearances
From top of glass 300mm
From sides of glass 300mm
In front 1000mm
Inbuilt Zero Clearance Frame Dimensions
(See installation instructions for full details)
675mm H x 685mm W x 370mm D (min.)
Metallic Black Zero Box
ZEROS
Titanium Zero Box
ZEROS2
zero clearance
zero clearance
1. 2. 3. 4.
< false
wall
< false
wall
< masonry
fireplace
zero clearance
zero clearance
1. 2. 3. 4.
< false
wall
< false
wall
< masonry
fireplace
15
Flueing
Energysaver® - Power Flueing
*includes condensate trap
#
order lengths as required
Description Order Code
1 Direct Flue Kit ESDFK
2
Direct Flue Kit
Co-Ax Pipe 900mm*
Wall Plate
Back Spacer Kit
ESDFK
ESPIPE900
ESPLATE
See below right
3A
Direct Flue Kit
Co-Ax Pipe 900mm*
90° Bend (2 x 45°)
Condensate Trap
Roof Cowl
ESDFK
ESPIPE900
ESBEND
ESCONDK
ESROOFCOWL
3B
Direct Flue Kit
Co-Ax Pipe 900mm*
2 x 90º Bends (4 x 45°)
Condensate Trap
Wall Terminal Kit
ESDFK
ESPIPE900
2 X ESBEND
ESCONDK
ESWTKIT
4
Direct Flue Kit
Wall Terminal Kit
Co-Ax Pipe 900mm*
90° Bend (2 x 45°)
Back Spacer Kit
ESDFK
ESWTKIT
ESPIPE900
ESBEND
See below right
5A
In Wall Flue Kit
Includes:
Condensate Trap
Roof Cowl
4 x Co-Ax Pipe 900mm
ESFKITIW
5B
Bends (2 x 45º)
In Wall Flue Kit
Includes:
Condensate Trap
Roof Cowl
4 x Co-Ax Pipe 900mm
ESBEND
ESFKITIW
Back Spacer Kits
#
Model Colour Order Code
Energysaver 308
White ESBSKA
Energysaver 556
White ESBSKB
Platinum Silver
ESBSKSB
Energysaver 557
White ESBSKC
Platinum Silver
ESBSKSC
Energysaver 1004
White ESBSKD
Optional Flue Guard
FGM01
*Order lengths as required
#
A Back Spacer Kit is required in all
installations that are either sideways
or down and out (2 & 4)
1. 2. 3.
Min. 300mm vertical
clearance from base of
flue terminal
4.
5.
Installation Clearances
Sides of appliance 50mm
Above appliance 300mm
In front 1000mm
Sapphire Gas Log Flame Fire
Description Order Code
Inbuilt
1 No Flue N/A
2 Flexiliner Flue Kit (5.0m) FLEXILINER05
3A Vertical Twin Skin Flue Kit (3.6m) FLFKIT05G
3B
Vertical Twin Skin Flue Kit (3.6m)
Twin Skin Oset
FLFKIT05G
FLFBENDG
4
Vertical Twin Skin Flue Kit
Thru-wall Twin Skin Flue Kit
FLFKIT05G
FLFEXT03BG
Freestanding
5A Vertical Twin Skin Flue Kit (3.6m) FLFKIT05G
5B
Vertical Twin Skin Flue Kit (3.6m)
Twin Skin Oset
FLFKIT05G
FLFBENDG
6
Vertical Twin Skin Flue Kit
Thru-wall Twin Skin Flue Kit
FLFKIT05G
FLFEXT03BG
Inbuilt Zero Clearance Cavity Dimensions 650mm H x 800mm W x 420mm D (min.) Zero Box SAPZEROCLR
1. 2.
Inbuilt Masonry
3.
4.
Inbuilt Zero Clearance
5.
6.
Freestanding (Console & Plinth)
Accessories Order Code
450mm Twin Skin Flue FLF0450MG
900mm Twin Skin Flue FLF0900MG
1200mm x 145mm Twin Skin Flue FLFEXT03
Remote Control Accessory SAPRM
Spigot Assembly
(Zero Clearance & Freestanding) SAPFSSA
Rinnai Service - Need help with installation?
In most situations Rinnai retailers can assist with the installation of our appliances. Should this not be the case, Rinnai has an
installation service available direct to the end-user.
Any gas installation, and in particular where ueing is also required, is a specialist process and requires trained professional
installers to ensure safe and ecient operation of the appliance. Our Rinnai installers are not only very familiar with our products,
but are fully insured and OH&S compliant. Be condent in your installation by employing Rinnai Service.
For further information, please call 1300 555 545
Rinnai Heating Products Warranty
DEFINITIONS
Domestic use:
The warranty periods in the table above that are allocated under “Domestic Use” are based on the heating
requirements of a typical domestic dwelling.
Commercial use:
The warranty periods that are allocated under “Commercial Use” are for applications other than domestic use and
include premises such as commercial and industrial buildings, hotels, motels, caravan parks, cafes, schools and
sporting complexes, but not limited to these.
Full warranty conditions including exclusions, are available with each appliance and can be viewed online at rinnai.com.au
Table 1
Flued Heaters
Portable Radiant
Heaters
Portable Convector
Heaters
Ultima II, 2001
Spectrum
Energysaver®
Aspiration
Sapphire
Royale
Slimre
Symmetry
Titan 151
Granada 252
Cosyglow 650
Econoheat 850
Avenger 25
Avenger 25Plus
Capella 18
Capella 18Plus
Dynamo 15
Enduro 13
Domestic Use
Heat Exchanger 10 years pro rata
(1)
10 years pro rata
(2)
10 years pro rata
(3)
Fan 2 years 3 years 5 years
All other parts 1 year 3 years 5 years
Free Labour 1 year 3 years 5 years
Commercial Use
Heat Exchanger 1 year 1 year 1 year
Fan 1 year 1 year 1 year
All other parts 1 year 1 year 1 year
Free Labour 1 year 1 year 1 year
(1) Full replacement costs in the rst year, reducing 10% per year thereafter
(2) Full replacement costs in the rst 3 years, reducing 15% per year thereafter
(3) Full replacement costs in the rst 5 years, reducing 20% per year thereafter
www.rinnai.com.au
RINNAI AUSTRALIA PTY. LTD
ABN 74 005 138 769
10-11 Walker Street Braeside VIC 3195
For further information visit
www.rinnai.com.au or call 1300 555 545
06.11_MAY
