Instructions for installation
and use
Extractor hood
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch DFR097E50A:
[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Danger of death!
3
: Warning
3
Risk of fire!
3
: Warning
4
Risk of burns!
4
: Warning
4
Risk of injury!
4
: Warning
4
Risk of electric shock!
4
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).
4
7 Environmental protection
5
Environmental protection
5
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
5
Saving energy
5
Environmentally-friendly disposal
5
Dispose of packaging in an environmentally-friendly manner.
5
Ç Operating modes
5
Operating modes
5
Exhaust air mode
5
Note:
5
Air recirculation
5
Note:
5
1 Operating the appliance
6
Operating the appliance
6
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
6
Note:
6
Control panel model 1
6
Control panel
6
Explanation
6
Setting the fan
6
Switching on
6
Pull out the filter pull-out and press the % button. The fan starts at setting ƒ.
6
Press the + or - button to change the fan strength.
6
Switching off
6
Press the % button. Slide the filter pull-out in.
6
Intensive setting
6
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
6
Press the + button when the fan is at setting „.
6
The intensive boost setting‚ is activated. Pressing the + button again activates the intensive boost ƒsetting.
6
After approx. six minutes, the electronics automatically reduce the fan to a lower setting . If you want to end the intensive setting before the preset time expires, press the - button until the required fan setting is reached.
6
Fan run-on time
6
If you slide in the filter pull-out, the run-on time will be activated for as long as the extractor hood is operating.
6
After approx. 10 minutes, the fan switches off automatically.
6
Lighting
6
The lighting can be switched on and off independently of the fan.
6
Press the B button.
6
Setting the brightness
6
Press and hold the B button until the desired brightness is reached.
6
Saturation display
6
When the metal mesh grease filters or the activated carbon filter are saturated, a signal sounds for approx. 4 seconds after the fan is switched off.
6
In addition, the corresponding symbol appears in the display:
6
If you have not yet done so, the metal mesh grease filters should be cleaned or the activated carbon filter changed now.
6
For instructions on how to clean the metal mesh grease filters, please refer to the section Cleaning and maintenance.
6
While the saturation displays are flashing, they can be reset. To do this, press the – button.
6
Switching over the display for circulating-air mode
6
For circulating-air mode, the electronic control display must be switched over accordingly:
6
Audible signal
6
Switching on the acoustic signal
6
When the fan is switched off, press the % and + buttons at the same time for approx. three seconds. An acknowledgement signal sounds.
6
Switching off the acoustic signal
6
Repeat the "Switching on the acoustic signal" process.
6
Control panel model 2
7
Control panel
7
Explanation
7
Setting the fan
7
Switching on
7
Pull out the filter pull-out and press the % button. The fan starts at setting ƒ.
7
Press the + or - button to change the fan strength.
7
Switching off
7
Press the % button. Slide the filter pull-out in.
7
Intensive setting
7
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
7
Press the + button when the fan is at setting „.
7
The intensive boost setting‚ is activated. Pressing the + button again activates the intensive boost ƒsetting.
7
After approx. six minutes, the electronics automatically reduce the fan to a lower setting . If you want to end the intensive setting before the preset time expires, press the - button until the required fan setting is reached.
7
Fan run-on time
7
Press the r button or slide the filter pull-out in while the extractor hood is operating.
7
Šminr appears in the display. Once this time has elapsed, the fan switches off automatically.
7
Setting the run-on time
7
When Šminr appears on the display, press the + or - button.
7
You can set a run-on time of between 1 and 9 minutes.
7
Lighting
7
The lighting can be switched on and off independently of the fan.
7
Press the B button.
7
Setting the brightness
7
Press and hold the B button until the desired brightness is reached.
7
Saturation display
7
When the metal mesh grease filters or the activated carbon filter are saturated, a signal sounds for approx. 4 seconds after the fan is switched off.
7
In addition, the corresponding symbol appears in the display:
7
If you have not yet done so, the metal mesh grease filters should be cleaned or the activated carbon filter changed now.
7
For instructions on how to clean the metal mesh grease filters, please refer to the section Cleaning and maintenance.
7
While the saturation displays are flashing, they can be reset. To do this, press the # button.
7
Switching over the display for circulating-air mode
7
For circulating-air mode, the electronic control display must be switched over accordingly:
7
Audible signal
7
Switching on the acoustic signal
7
When the fan is switched off, press the % and + buttons at the same time for approx. three seconds. An acknowledgement signal sounds.
7
Switching off the acoustic signal
7
Repeat the "Switching on the acoustic signal" process.
7
2 Cleaning and maintenance
8
Cleaning and maintenance
8
: Warning
8
Risk of burns!
8
: Warning
8
Risk of electric shock!
8
: Warning
8
Risk of electric shock!
8
: Warning
8
Risk of injury!
8
Cleaning agents
8
Observe the information in the table to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use
8
Wash new sponge cloths thoroughly before use.
8
Follow all instructions and warnings included with the cleaning agents.
8
Area
8
Cleaning agents
8
Cleaning the metal mesh grease filters
8
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
8
: Warning
8
Risk of fire!
8
Notes
8
By hand:
8
Note:
8
In the dishwasher:
9
Note:
9
Removing metal grease filter
9
1. Open the lock and fold down the metal grease filter. While doing this, place your other hand under the metal grease filter.
9
2. Take the metal grease filter out of the holder.
9
Notes
9
3. Clean the metal grease filter.
9
Installing the metal mesh grease filter
9
1. Insert the metal mesh grease filter.
9
2. Fold the metal mesh grease filter upwards, locking it in place.
9
3 Trouble shooting
9
Trouble shooting
9
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
9
: Warning
9
Risk of electric shock!
9
Malfunction table
9
Problem
9
Possible cause
9
Solution
9
LED lights
9
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
9
: Warning
9
Risk of injury!
9
4 Customer service
10
Customer service
10
When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter ...
10
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
10
E no.
10
FD no.
10
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
10
Please find the contact data of all countries in the enclosed customer service list.
10
To book an engineer visit and product advice
10
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
10
Accessories
10
(not included in the scope of delivery)
10
Note:
10
Note:
10
Accessory
10
Order number
10
Installation instructions
11
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
11
Appliance width 60 cm:
11
Appliance width 90 cm:
11
( Important safety information
12
Important safety information
12
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
12
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
12
The width of the extractor hood must correspond at least with the width of the hob.
12
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
12
When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
12
: Warning
12
Risk of death!
12
: Warning
12
Danger of death!
12
: Warning
12
Danger of death!
12
: Warning
13
Risk of fire!
13
: Warning
13
Risk of injury!
13
: Warning
13
Risk of electric shock!
13
: Warning
13
Risk of electric shock!
13
: Warning
13
Danger of suffocation!
13
K General information
13
General information
13
Exhaust air mode
13
: Warning
13
Risk of death!
13
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
13
Exhaust duct
13
Note:
13
Round pipes An inner diameter of 150 mm, but at least 120 mm, is recommended.
13
Flat ducts The inner cross-section must correspond to the diameter of the round pipes.
13
150 mm diameter, approx. 177 cm2
13
120 mm diameter, approx. 113 cm2
13
Electrical connection
14
: Warning
14
Risk of electric shock!
14
The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
14
Length of the cable: approx. 1.30 m
14
This appliance complies with the EC interference suppression regulations.
14
: Warning
14
Risk of electric shock!
14
Preparing the units
14

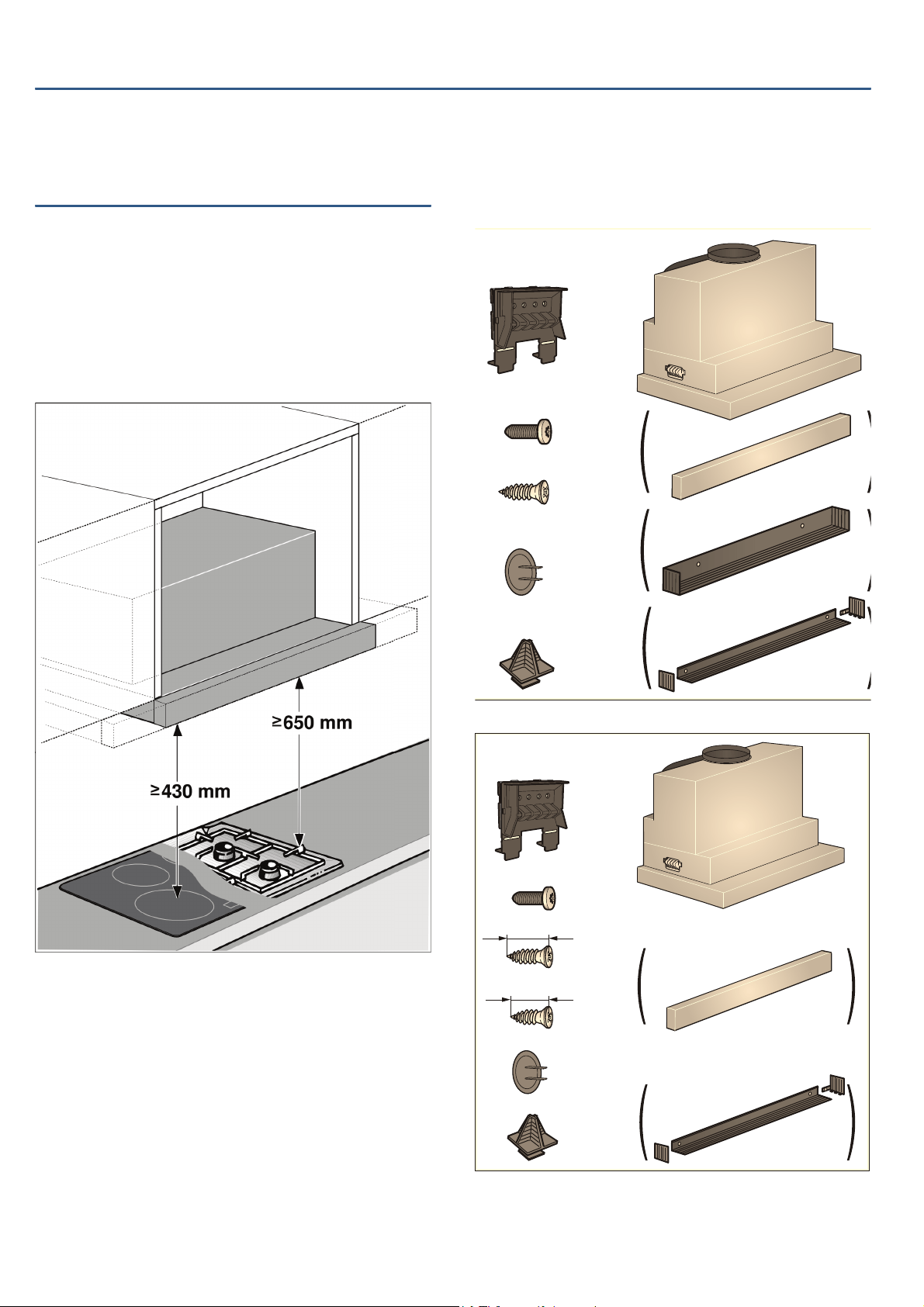

Appliance dimensions and safety clearances
14
1. Make the cut-out for the exhaust air pipe. To do this, make an opening in the top or back panel of the fitted unit with an additional recess for the power cord.
14
2. If the cabinet base is in place, remove it. Mark the fastening points on the inside of the cabinet and use a bradawl to make indentations where the holes are to be. To help you mark the fastening points, use the mounting piece provided.
14
Body wall thickness: 16 mm
15

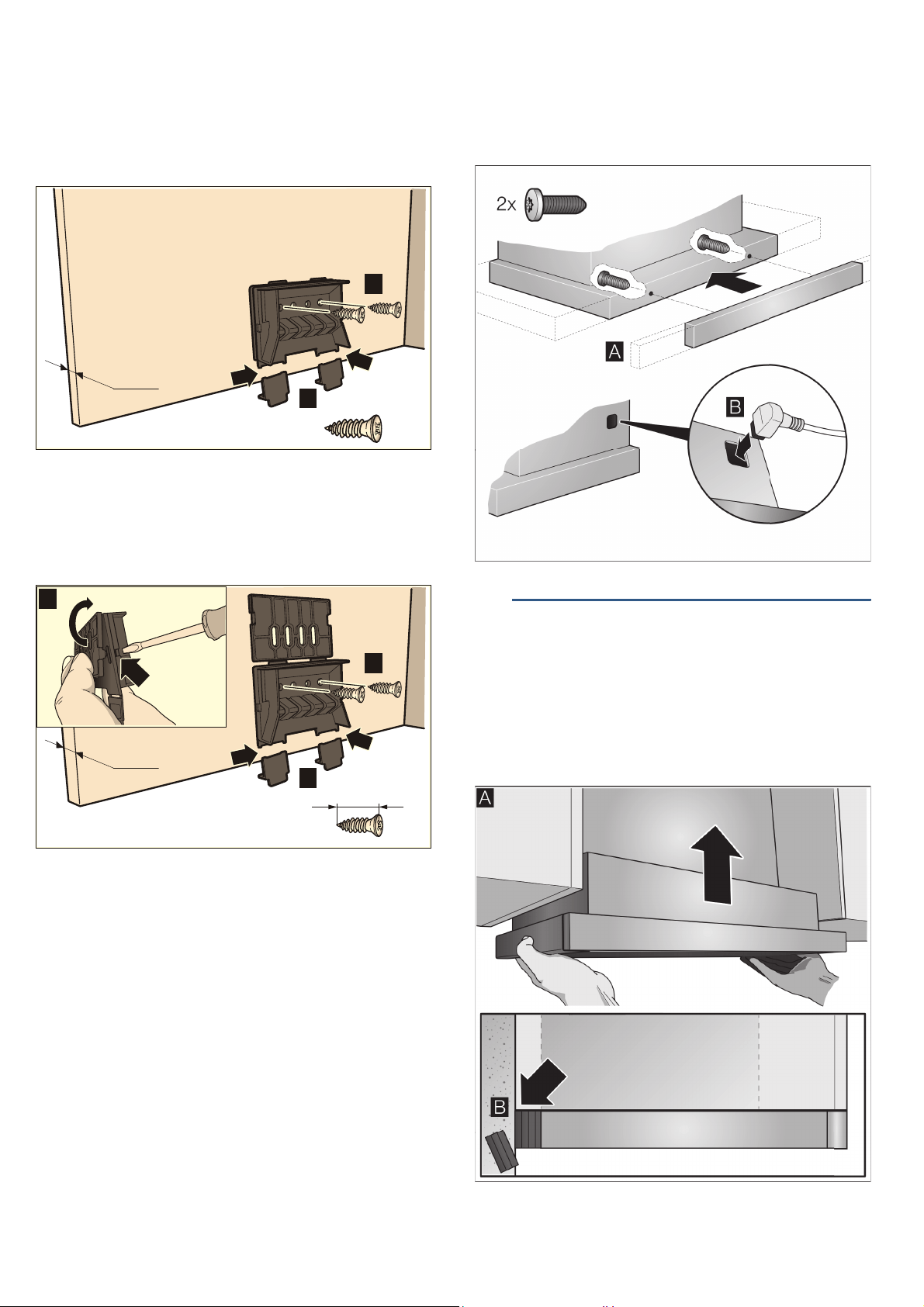

1. Screw the mounting pieces to the body on the left and right. ¨
15
2. Remove the tabs from the bottom of the mounting pieces. ©
15
Body wall thickness: 19 mm
15
1. Fold out the tabs on both of the mounting pieces. ¨
15
2. Screw the mounting pieces to the body on the left and right. ©
15
3. Remove the tabs from the bottom of the mounting pieces. ª
15
Preparing the appliance
15
A handle strip must be screwed into the filter pull-out. This handle strip can be one that is provided with the appliance, or one that is available as an accessory.
15
1. Use the screws provided to secure the handle strip to the filter-pull-out. ¨
15
2. Connect the power cord provided to the appliance. ©
15
5 Installation
15
Installation
15
Sliding the appliance up into place
15
1. Slide the appliance up into place and make sure it is positioned correctly. ¨
15
2. Measure the distance between the appliance and the wall, and mark this on the filler strip.
15
3. If required, shorten the filler strip to the required dimension. ©
15
Sliding out the appliance
16
Note:
16
1. Use a flat-blade screwdriver to push in the fastening bolt, and turn it 90° until it locks into place. ¨
16
2. Push in the fastening bolt gently with your fingers, and turn it until it comes out of the housing along with the spring.
16
Caution!
16
3. Carefully remove the appliance.
16
4. Screw in the filler strip fully.
16
5. Reinsert the springs and fastening bolts.
16
Note:
16
Final fitting stage
16
1. Slide the appliance up into place. ¨
16
2. Lock the fastening bolts on the left and right. ©
16
3. Fit the protective caps on the left and right. ª
16
4. Establish the electrical connection.
16
Note:
16
Appliance width 90 cm:
17
You must also screw the appliance to the wall-hanging cupboards either side of it.
17
Changing the filter pull-out's limit stop
17
1. Pull the filter pull-out towards you.
17
2. Shorten the spacer to the required dimension and insert it into the slot specified.
17
Connecting the pipes
17
Note:
17
Exhaust air pipe, dia. 150 mm (recommended size)
17
Fit the exhaust air pipe directly to the air-pipe connector and seal the joint.
17
Exhaust air pipe, dia. 120 mm
17
1. Fit the reducing connector directly to the air-pipe connector.
17
2. Attach the exhaust air pipe to the reducing connector.
17
3. Seal both joints appropriately.
17
Removing the appliance
17
1. Disconnect the electrical connection.
17
2. Disconnect the pipes.
17
3. Remove the metal grease filter.
17
4. Remove the protective caps from the fastening elements.
17
5. Remove the appliance; see section entitled "Removing the appliance".
17
File type: PDF
File name: dfr097e50a.pdf
File size: 2.94 MB
File Language: English
Pages: 20
Author: Bosch
Updated: 2023-05-22
Download File
Specifications
Brand:
Bosch
Model: DFR097E50A
Category:
Ranges
View in the file:
Full Specifications
See other models:
HBG675BB2A
MSGP3/01
SHP65T55UC/01
MSM67140AU
WTE86302EE/17
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch DFS097E50A
Bosch DFR097A50A
Bosch DFR067E50A/03
Bosch DFS097A50A
Bosch DFR097T51
Bosch DFR097A52
Bosch DFR067A50A
Bosch DFR067E50/01
Bosch DFR097A50/03
Bosch DFS097E51A/05
Bosch DFS067A50A
Bosch DFM064W50A
Bosch DFS097A50B
Bosch DFS097A51
Bosch DFR067A52
Table of Contents
×
[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Danger of death!
3
: Warning
3
Risk of fire!
3
: Warning
4
Risk of burns!
4
: Warning
4
Risk of injury!
4
: Warning
4
Risk of electric shock!
4
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).
4
7 Environmental protection
5
Environmental protection
5
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
5
Saving energy
5
Environmentally-friendly disposal
5
Dispose of packaging in an environmentally-friendly manner.
5
Ç Operating modes
5
Operating modes
5
Exhaust air mode
5
Note:
5
Air recirculation
5
Note:
5
1 Operating the appliance
6
Operating the appliance
6
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
6
Note:
6
Control panel model 1
6
Control panel
6
Explanation
6
Setting the fan
6
Switching on
6
Pull out the filter pull-out and press the % button. The fan starts at setting ƒ.
6
Press the + or - button to change the fan strength.
6
Switching off
6
Press the % button. Slide the filter pull-out in.
6
Intensive setting
6
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
6
Press the + button when the fan is at setting „.
6
The intensive boost setting‚ is activated. Pressing the + button again activates the intensive boost ƒsetting.
6
After approx. six minutes, the electronics automatically reduce the fan to a lower setting . If you want to end the intensive setting before the preset time expires, press the - button until the required fan setting is reached.
6
Fan run-on time
6
If you slide in the filter pull-out, the run-on time will be activated for as long as the extractor hood is operating.
6
After approx. 10 minutes, the fan switches off automatically.
6
Lighting
6
The lighting can be switched on and off independently of the fan.
6
Press the B button.
6
Setting the brightness
6
Press and hold the B button until the desired brightness is reached.
6
Saturation display
6
When the metal mesh grease filters or the activated carbon filter are saturated, a signal sounds for approx. 4 seconds after the fan is switched off.
6
In addition, the corresponding symbol appears in the display:
6
If you have not yet done so, the metal mesh grease filters should be cleaned or the activated carbon filter changed now.
6
For instructions on how to clean the metal mesh grease filters, please refer to the section Cleaning and maintenance.
6
While the saturation displays are flashing, they can be reset. To do this, press the – button.
6
Switching over the display for circulating-air mode
6
For circulating-air mode, the electronic control display must be switched over accordingly:
6
Audible signal
6
Switching on the acoustic signal
6
When the fan is switched off, press the % and + buttons at the same time for approx. three seconds. An acknowledgement signal sounds.
6
Switching off the acoustic signal
6
Repeat the "Switching on the acoustic signal" process.
6
Control panel model 2
7
Control panel
7
Explanation
7
Setting the fan
7
Switching on
7
Pull out the filter pull-out and press the % button. The fan starts at setting ƒ.
7
Press the + or - button to change the fan strength.
7
Switching off
7
Press the % button. Slide the filter pull-out in.
7
Intensive setting
7
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
7
Press the + button when the fan is at setting „.
7
The intensive boost setting‚ is activated. Pressing the + button again activates the intensive boost ƒsetting.
7
After approx. six minutes, the electronics automatically reduce the fan to a lower setting . If you want to end the intensive setting before the preset time expires, press the - button until the required fan setting is reached.
7
Fan run-on time
7
Press the r button or slide the filter pull-out in while the extractor hood is operating.
7
Šminr appears in the display. Once this time has elapsed, the fan switches off automatically.
7
Setting the run-on time
7
When Šminr appears on the display, press the + or - button.
7
You can set a run-on time of between 1 and 9 minutes.
7
Lighting
7
The lighting can be switched on and off independently of the fan.
7
Press the B button.
7
Setting the brightness
7
Press and hold the B button until the desired brightness is reached.
7
Saturation display
7
When the metal mesh grease filters or the activated carbon filter are saturated, a signal sounds for approx. 4 seconds after the fan is switched off.
7
In addition, the corresponding symbol appears in the display:
7
If you have not yet done so, the metal mesh grease filters should be cleaned or the activated carbon filter changed now.
7
For instructions on how to clean the metal mesh grease filters, please refer to the section Cleaning and maintenance.
7
While the saturation displays are flashing, they can be reset. To do this, press the # button.
7
Switching over the display for circulating-air mode
7
For circulating-air mode, the electronic control display must be switched over accordingly:
7
Audible signal
7
Switching on the acoustic signal
7
When the fan is switched off, press the % and + buttons at the same time for approx. three seconds. An acknowledgement signal sounds.
7
Switching off the acoustic signal
7
Repeat the "Switching on the acoustic signal" process.
7
2 Cleaning and maintenance
8
Cleaning and maintenance
8
: Warning
8
Risk of burns!
8
: Warning
8
Risk of electric shock!
8
: Warning
8
Risk of electric shock!
8
: Warning
8
Risk of injury!
8
Cleaning agents
8
Observe the information in the table to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use
8
Wash new sponge cloths thoroughly before use.
8
Follow all instructions and warnings included with the cleaning agents.
8
Area
8
Cleaning agents
8
Cleaning the metal mesh grease filters
8
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
8
: Warning
8
Risk of fire!
8
Notes
8
By hand:
8
Note:
8
In the dishwasher:
9
Note:
9
Removing metal grease filter
9
1. Open the lock and fold down the metal grease filter. While doing this, place your other hand under the metal grease filter.
9
2. Take the metal grease filter out of the holder.
9
Notes
9
3. Clean the metal grease filter.
9
Installing the metal mesh grease filter
9
1. Insert the metal mesh grease filter.
9
2. Fold the metal mesh grease filter upwards, locking it in place.
9
3 Trouble shooting
9
Trouble shooting
9
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
9
: Warning
9
Risk of electric shock!
9
Malfunction table
9
Problem
9
Possible cause
9
Solution
9
LED lights
9
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
9
: Warning
9
Risk of injury!
9
4 Customer service
10
Customer service
10
When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter ...
10
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
10
E no.
10
FD no.
10
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
10
Please find the contact data of all countries in the enclosed customer service list.
10
To book an engineer visit and product advice
10
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
10
Accessories
10
(not included in the scope of delivery)
10
Note:
10
Note:
10
Accessory
10
Order number
10
Installation instructions
11
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
11
Appliance width 60 cm:
11
Appliance width 90 cm:
11
( Important safety information
12
Important safety information
12
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
12
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
12
The width of the extractor hood must correspond at least with the width of the hob.
12
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
12
When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
12
: Warning
12
Risk of death!
12
: Warning
12
Danger of death!
12
: Warning
12
Danger of death!
12
: Warning
13
Risk of fire!
13
: Warning
13
Risk of injury!
13
: Warning
13
Risk of electric shock!
13
: Warning
13
Risk of electric shock!
13
: Warning
13
Danger of suffocation!
13
K General information
13
General information
13
Exhaust air mode
13
: Warning
13
Risk of death!
13
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
13
Exhaust duct
13
Note:
13
Round pipes An inner diameter of 150 mm, but at least 120 mm, is recommended.
13
Flat ducts The inner cross-section must correspond to the diameter of the round pipes.
13
150 mm diameter, approx. 177 cm2
13
120 mm diameter, approx. 113 cm2
13
Electrical connection
14
: Warning
14
Risk of electric shock!
14
The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
14
Length of the cable: approx. 1.30 m
14
This appliance complies with the EC interference suppression regulations.
14
: Warning
14
Risk of electric shock!
14
Preparing the units
14
Appliance dimensions and safety clearances
14
1. Make the cut-out for the exhaust air pipe. To do this, make an opening in the top or back panel of the fitted unit with an additional recess for the power cord.
14
2. If the cabinet base is in place, remove it. Mark the fastening points on the inside of the cabinet and use a bradawl to make indentations where the holes are to be. To help you mark the fastening points, use the mounting piece provided.
14
Body wall thickness: 16 mm
15
1. Screw the mounting pieces to the body on the left and right. ¨
15
2. Remove the tabs from the bottom of the mounting pieces. ©
15
Body wall thickness: 19 mm
15
1. Fold out the tabs on both of the mounting pieces. ¨
15
2. Screw the mounting pieces to the body on the left and right. ©
15
3. Remove the tabs from the bottom of the mounting pieces. ª
15
Preparing the appliance
15
A handle strip must be screwed into the filter pull-out. This handle strip can be one that is provided with the appliance, or one that is available as an accessory.
15
1. Use the screws provided to secure the handle strip to the filter-pull-out. ¨
15
2. Connect the power cord provided to the appliance. ©
15
5 Installation
15
Installation
15
Sliding the appliance up into place
15
1. Slide the appliance up into place and make sure it is positioned correctly. ¨
15
2. Measure the distance between the appliance and the wall, and mark this on the filler strip.
15
3. If required, shorten the filler strip to the required dimension. ©
15
Sliding out the appliance
16
Note:
16
1. Use a flat-blade screwdriver to push in the fastening bolt, and turn it 90° until it locks into place. ¨
16
2. Push in the fastening bolt gently with your fingers, and turn it until it comes out of the housing along with the spring.
16
Caution!
16
3. Carefully remove the appliance.
16
4. Screw in the filler strip fully.
16
5. Reinsert the springs and fastening bolts.
16
Note:
16

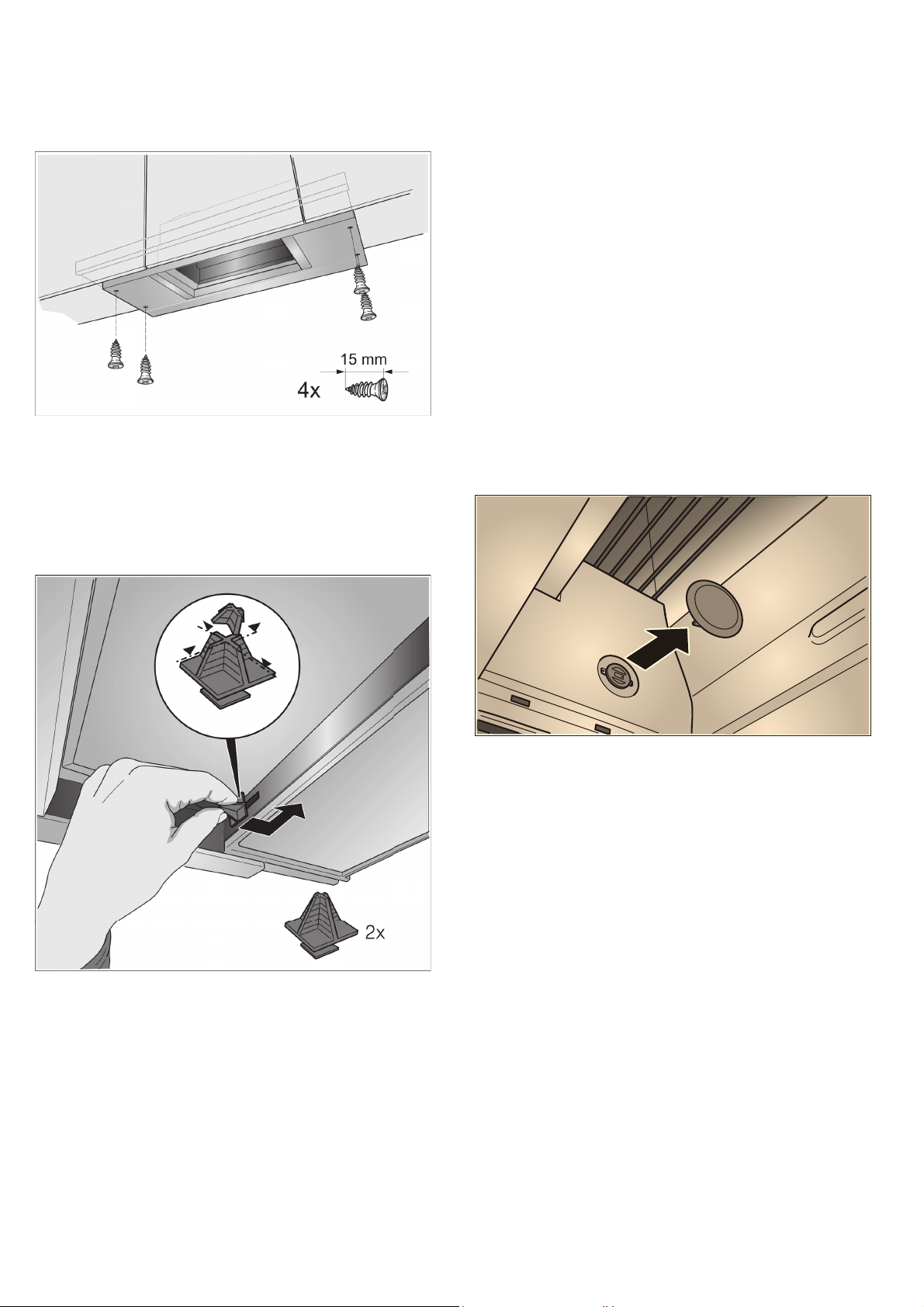

Final fitting stage
16
1. Slide the appliance up into place. ¨
16
2. Lock the fastening bolts on the left and right. ©
16
3. Fit the protective caps on the left and right. ª
16
4. Establish the electrical connection.
16
Note:
16
Appliance width 90 cm:
17
You must also screw the appliance to the wall-hanging cupboards either side of it.
17
Changing the filter pull-out's limit stop
17
1. Pull the filter pull-out towards you.
17
2. Shorten the spacer to the required dimension and insert it into the slot specified.
17
Connecting the pipes
17
Note:
17
Exhaust air pipe, dia. 150 mm (recommended size)
17
Fit the exhaust air pipe directly to the air-pipe connector and seal the joint.
17
Exhaust air pipe, dia. 120 mm
17
1. Fit the reducing connector directly to the air-pipe connector.
17
2. Attach the exhaust air pipe to the reducing connector.
17
3. Seal both joints appropriately.
17
Removing the appliance
17
1. Disconnect the electrical connection.
17
2. Disconnect the pipes.
17
3. Remove the metal grease filter.
17
4. Remove the protective caps from the fastening elements.
17
5. Remove the appliance; see section entitled "Removing the appliance".
17
Search:
×
Search
