Instruction Manual for Vacuum Cleaner

CUSTOMER CARE AND SERVICE

When contacting the Electrolux service center, ensure that you have following data available:

- Model number,

- PNC number

- Serial number

The information can be found on the rating plate.

CONSUMABLES & ACCESSORIES

Filter

Ref: EF150

PNC: 900 168 3748

Car Kit

Ref: KIT10A

PNC: 900 167 1677

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

RUNNING TIMES FOR ERGORAPIDO®

Actual running time vary by use and environment

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

This symbol on the product indicates that this product contains a built-in rechargeable battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country’s rules for the separate collection of electrical products and rechargeable batteries.

Thank you for choosing an Electrolux ERGORAPIDO® vacuum cleaner. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your vacuum cleaner. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

DESCRIPTION OF ERGORAPIDO®

A. ON/OFF button

B. Power regulation button

C. ON/OFF button, hand unit

D. Locking screw

E. Release button, hand unit

F. Charging station, wall unit

G. Charging station, floor unit

H. Charging adapter

I. Fine filter (inner filter)

J. Pre filter (outer filter)

K. Release button, dust container

L. Dust container

M. Dusting brush

N. Crevice nozzle

O. Cable protector grill

P. Hatch cover for brush roll

Q. Brush roll

R. BRUSHROLLCLEAN® pedal

S. Nozzle front lights

T. Charging indicator

U. Cliff hanger

V. Slot for accessory storage

BEFORE STARTING

Check that the package includes all parts described in this instruction manual and read this manual carefully. Pay special attention to the safety precautions chapter. Save these instructions.

Picture page 2

Assemble the handle.

Assemble the charge stand.

There is a hollow space in the bottom of the charging station where unused cable can be wound. Insert the adaptor into the mains and position the charging station on a stable and horizontal surface away from heat sources, direct sunlight or wet places.

The charging indicator will be lit when ERGORAPIDO ® is placed in the charging station.

Picture page 3

CHARGING ERGORAPIDO®

When fully charged, the charging indicator will blink slowly. The numbers of LED lamps will indicate the level of charge. Full charging time is around 4 hours. For better battery performance, charge ERGORAPIDO® for 24 hours before first use and always keep it on charge when not used.

VACUUMING WITH ERGORAPIDO®

Before vacuuming, check that the nozzle wheels and the brush roll are clean from sharp objects in order to avoid scratching sensitive floors and to ensure full cleaning performance.

Start and stop ERGORAPIDO ® by pushing the ON/OFF button. ERGORAPIDO ® will start on the high power mode.

For more silent cleaning and longer runtime, press the power regulation button.

VACUUMING FURNITURE, CAR SEATS ETC.

Press the button to release the hand unit from the main body.

Attach the crevice nozzle to facilitate cleaning of areas difficult to reach. Attach the brush on the crevice nozzle for dusting.

The crevice nozzle and small brush can be stored in the charging station or in the slot on the back side of the handle.

BRUSHROLLCLEAN® FUNCTION

Use the BRUSHROLLCLEAN® function to keep the brush roll clean and free from hair and fibres. For best results use the BRUSHROLLCLEAN® function when ERGORAPIDO® is fully charged.

Place ERGORAPIDO ® on a hard and flat surface. Do not use the BRUSHROLLCLEAN ® function on carpets.

Press the BRUSHROLLCLEAN ® pedal with your foot while the cleaner is on. Hold for 5 seconds until hairs and fibres are removed. There will be a cutting noise during this process, this is normal. If hairs remain on the brush roll, repeat the process.

The BRUSHROLLCLEAN ® function is equipped with an overheating protection. If the BRUSHROLLCLEAN ® function has been used for more than 30 seconds (constant or interrupted) it will deactivate the brush roll and turn off the nozzle front lights. The vacuum cleaner can still be used, even when the BRUSHROLLCLEAN ® function is deactivated. To reactivate the BRUSHROLLCLEAN ® function, place ERGORAPIDO ® on charge and charge for 15 minutes.

Please note that the BRUSHROLLCLEAN® function might not be able to remove thicker threads or wires that are caught in the brush roll.

EMPTYING OF THE DUST CONTAINER

Remove the dust container by pressing the buttons.

Take out the filters from the dust container by pressing the release buttons. Empty the contents into a dustbin. Never wash the dust container or filters in a dishwasher.

IMPORTANT - FILTER CLEANING!

The filters must be cleaned at regular intervals to ensure a high cleaning performance. Take out the filters by pressing the release buttons. Separate the inner filter from the outer filter.

Rinse the filter parts carefully under lukewarm water without using any detergents. (Never use the dishwasher or washing machine.) S hake to remove excess water and leave to dry minimum 12h before putting them back into the cleaner.

CLEANING THE HOSE AND NOZZLE WHEELS

Loosen the hose behind the nozzle from its upper connection. Remove any object or debris that can be blocking the airflow in the hose or in the air channel to the dust cup, and put the hose back.

If the wheels need to be cleaned or get jammed, remove them carefully by using a flat screwdriver.

REMOVING AND CLEANING THE BRUSH ROLL

If the brushroll gets blocked ERGORAPIDO® will stop. Open the cable protector grill and the brush roll hatch cover and remove the brush roll.

Use a pair of scissors to remove threads etc. Reassemble the brush roll, making sure it can spin freely.

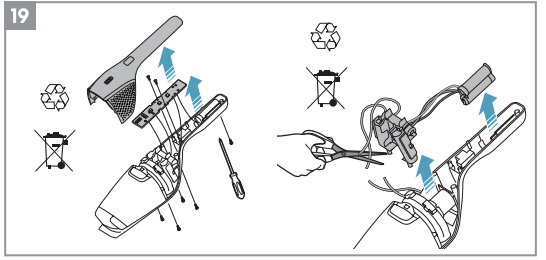

REMOVING THE BATTERIES FOR RECYCLING

Warning; Battery removal must only be done by an Electrolux service center or official collection point!

Only remove batteries if the product is to be scrapped. Improper handling of the batteries may be hazardous. Batteries should always be completely discharged before removal. Take your product to an Electrolux service center or official collection point for recycling. They can remove and recycle the battery and electric parts in a safe and professional way. Follow your country’s rules for collection of rechargeable batteries and electrical products.

Enjoy a great cleaning experience with ERGORAPIDO®!

SAFETY PRECAUTIONS

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

Only use the charging adapter that was provided with the product.

ERGORAPIDO® should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored in a dry place.

Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

• In wet areas.

• Close to flammable gases, etc.

• When the product shows visible signs of damage.

• On sharp objects or liquids.

• On hot or cold cinders, lighted cigarette butts, etc.

• On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Do not leave the vacuum cleaner in direct sunlight.

• Avoid exposing the vacuum cleaner to strong heat.

• The battery cells within must not be dismantled, short circuited or placed against a metal surface.

• Never use the vacuum cleaner without its filters.

• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.

• Mind your fingers if cleaning the inside of the floor nozzle. The metal blade of the BRUSHROLLCLEAN® function is sharp and could cause injury.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

To protect the motor, battery and electronics the product should not be stored or operated in:

• An ambient temperature below 5 °C or exceeding 35 °C. If the product is stored in a temperature below 5 °C or exceeding 35 °C, let the product cool down or warm up and dry for a few hours before usage.

• A humidity level below 20% or exceeding 80% (non-condensing).

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product in normal room temperature with the batteries charged at 50% capacity or more. This will maintain the performance of the product.

Attention! Dew condensation may form inside the product if the unit is moved from a cold to a warm environment or after heating up the storage room. Wait a few hours for the internal components to warm up and dry before usage.

INDICATION LAMPS
