Haier HBF80W WH - 75L Refrigerator

Operating Instructions

For HBF80W. Additionally, the document applies to other Haier models: HBF55W

PDF File Manual, 10 pages, Read Online | Download pdf file

HBF80W photo
background
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...

Operating Instructions - Transcript

  • Page 1 - English - : MODEL HBF55W INSTRUCTIONS * The manufacturer keeps on developing various types of refrigerators. so has the right to modify designs. products and technical data without further

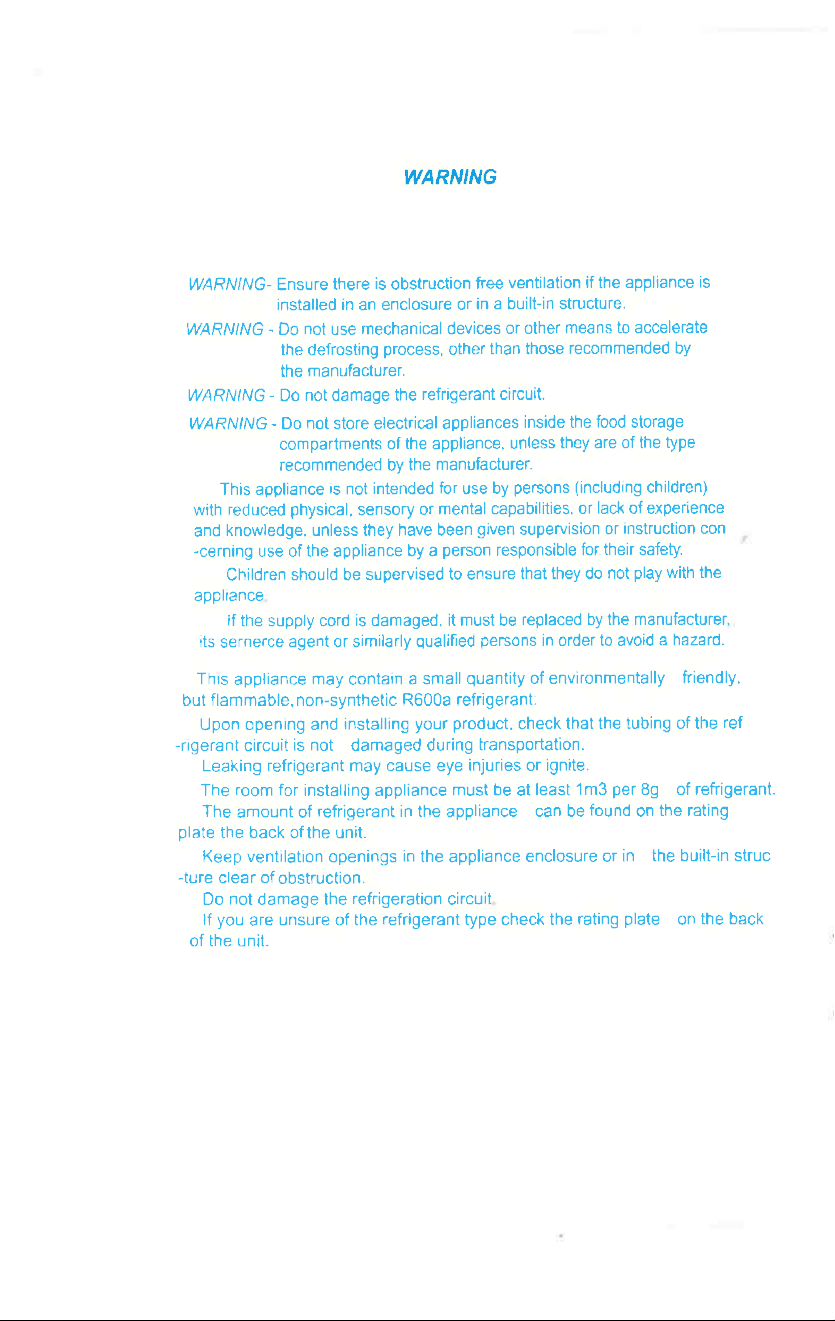

  • Page 2 - English - : WARNING- Ensure there is obstruction free ventilation if the appliance is installed in an enclosure or in a built-in structure. WARNING - Do not use mechanical devices or other means to accelerate the defrosting process. other than those recommended by the manufacturer. WARNING - Do not damage the refrigerant circuit. WARNING - Do not store electrical appliances inside the food storage compartments of the appliance. unless they are of the type recommended by the manufacturer. This appliance is not intended for use by persons (including children) with reduced physical. sensory or mental capabilities. or lack of experience and knowledge. unless they have been given supervision or instruction con cerning use of the appliance by a person responsible for. their safety. Children should be supervised to ensure that they do not play with the appliance. if the supply cord is damaged. it must be replaced by the manufacturer. its sernerce agent or similarly qualified persons in order to avoid a hazard. This appliance may contain a small quantity of environmentally _ friendly. but flammable. non-synthetic R600a refrigerant: Upon opening and installing your product. check that the tubing of the ref rigerant circuit is not +~damaged during transportation. Leaking refrigerant may cause eye injuries or ignite. The room for installing appliance must be at least 1m3 per 8g __ of refrigerant. The amount of refrigerant in the appliance can be found on the rating plate the back of the unit. Keep ventilation openings in the appliance enclosure or in ture clear of obstruction. Do not damage the refrigeration circuit. if you are unsure of the refrigerant type c of the unit. the built-in struc

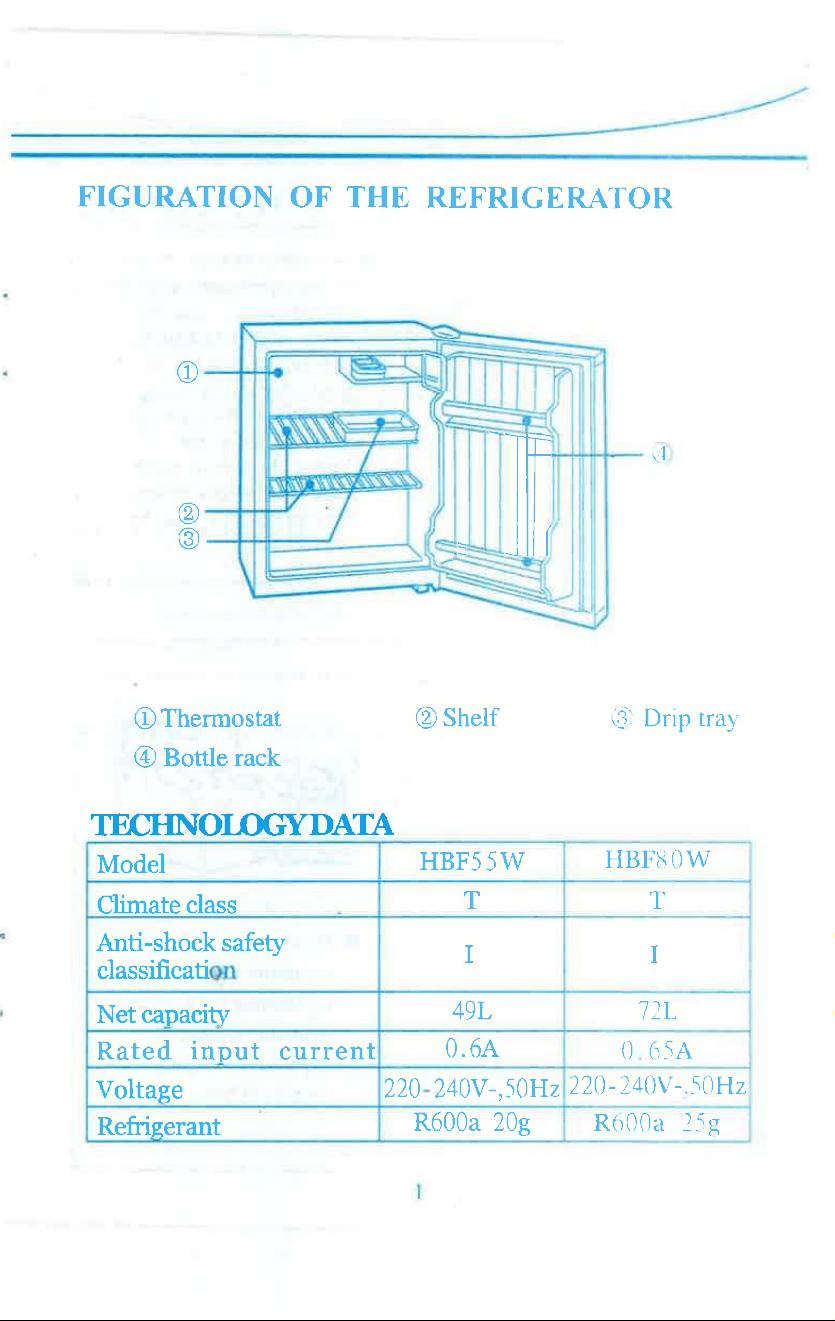

  • Page 3: @ Thermostat @ Shelf (> Drip tray Bottle rack acitieehodle safety classification Refris verant
  • Page 4 - English - : @ [he power supply | @ Never store anything dangerous in the appliance. such as combustibles. exposives. strong acid and alkali. etc. lor appliance is 220-240V. 60Hz single phase. recomended to Use any @ The appliance is not intended for use by young children or infirm persons without supervision. ——= Sl @ Young children should be Connect the appliance with a supervised to ensure that properly earthed three-wire plug ~ they do not play with the and socket with a special use. appliance. SETTING UP @ The appliance can be placed with its rear pancl directly against the wall. For a good air circulation. the vent grille at the back of the worktop must not be blocked. It should be placed on | Hat and firm ground to eliminate | excess vibration. ® Poorly ventilated rooms are unsuitable. Avoid positioning the appliance in direct sunshine or exposed to similar sources of heat.
  • Page 5 - English - : @ The knob graduation 0. 1. 2. 3. 4. 5. 6. 7. does not stand for a specific temperature. The smaller | the numbers. he lower the temperature in the compartment and vice versa.Usually.it’s better to | put the thermostat in. Pos. “4”. Pas. “0” shows the power is cut off. e The temperatures in different positions inside the refrigerator are different due to different refrigeration distribution. Thus when you store food. select the proper position to meet your | @ The coldest position is QD. Termperature from low to high in order as 2X3) NAXS).

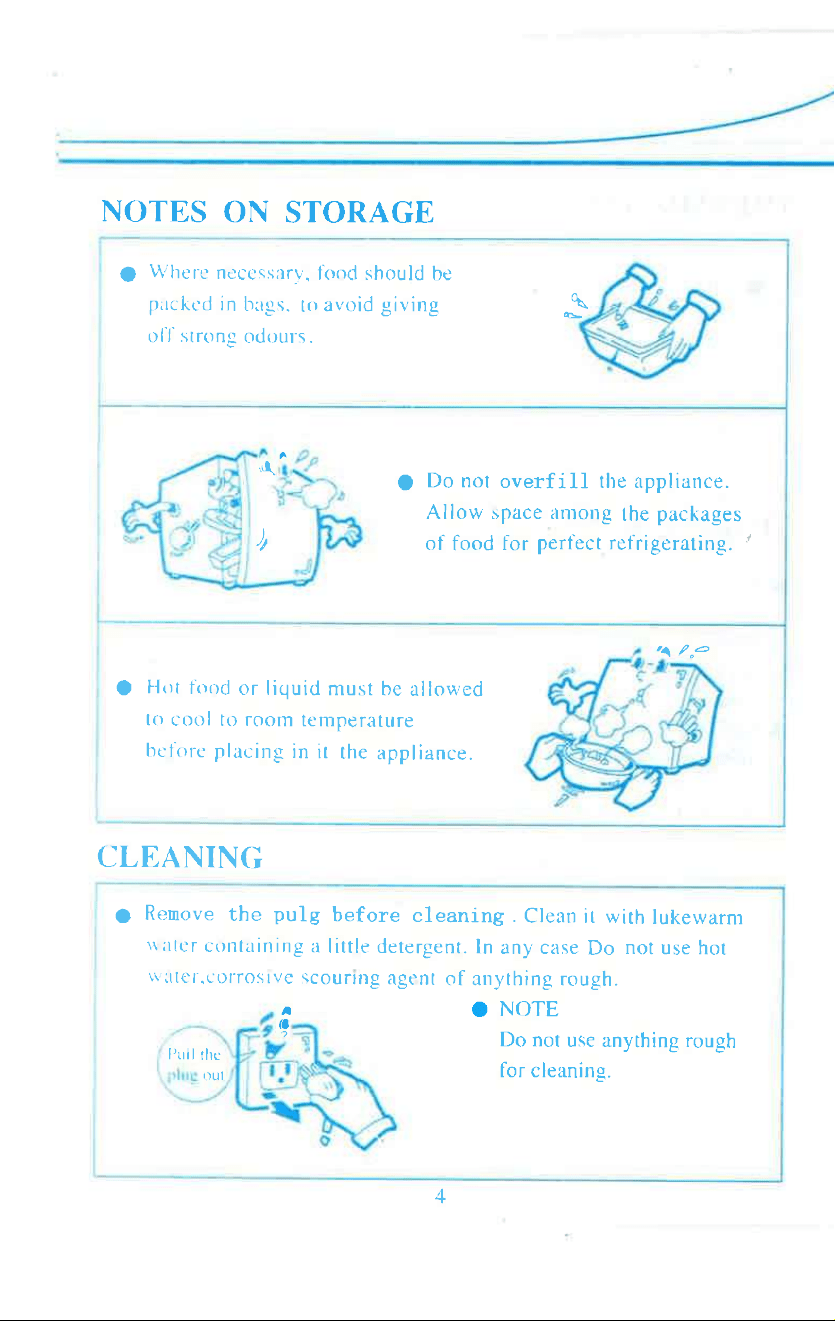

  • Page 6 - English - : NOTES ON STORAGE @ Where necessary. food should be | packed in bags. to avoid giving off strong odours. @ Do not overfill the appliance. Allow space among the packages of food for perfect refrigerating. * @ Hot food or liquid must be allowed to cool to room temperature before placing in it the appliance. @ Remove the pulg before cleaning. Clean it with lukewarm water containing a little detergent. In any case Do not use hot waler. orrosive scouring agent of anything rough. Do not use anything rough | ( Pull the Lpluw out) for cleaning.

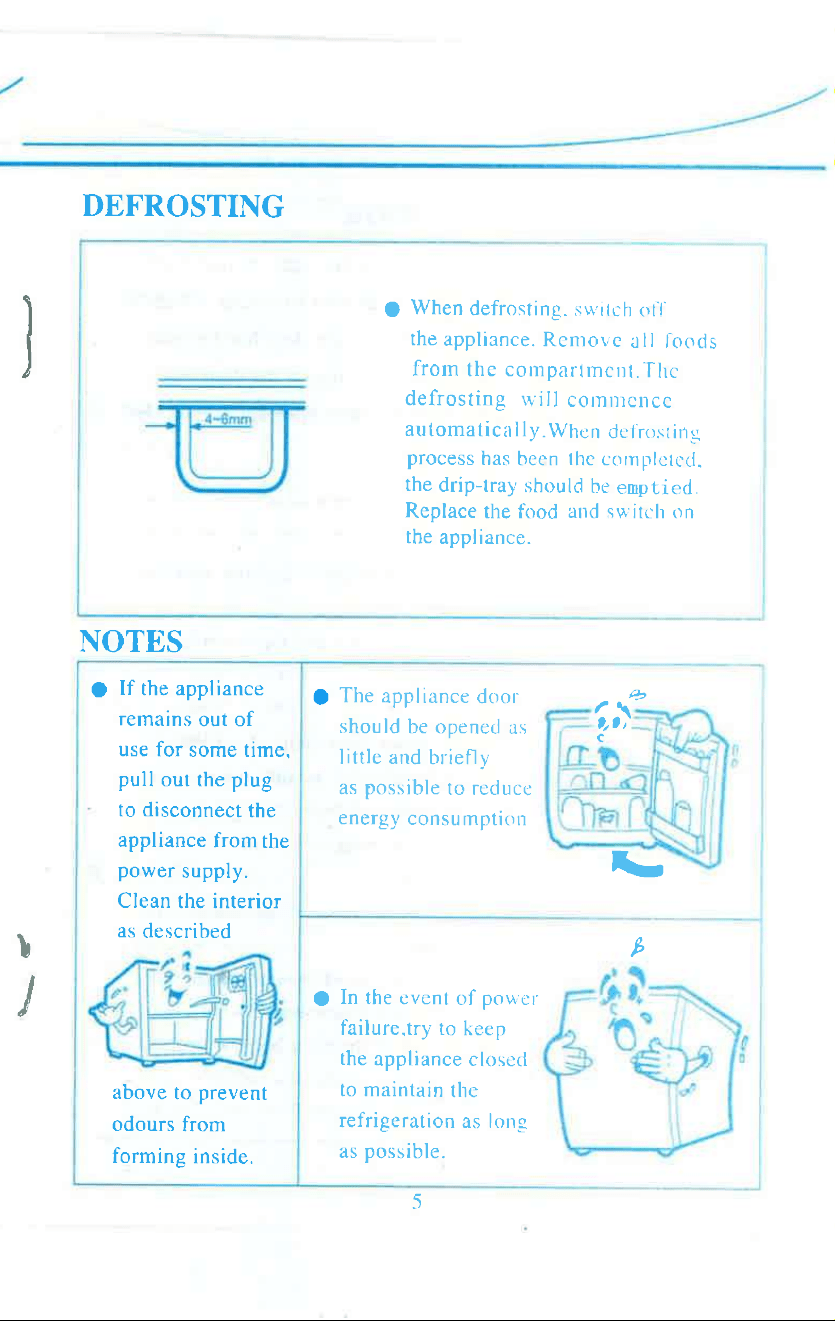

  • Page 7 - English - : @ If the appliance remains out of use for some time. | pull out the plug to disconnect the appliance from the | power supply. Clean the interior as described above to prevent odours from forming inside. @ When defrosting. switch off the appliance. Remove all foods from the compartment.The defrosting will commence automatically.When defrosting process has been the co mpleted. the drip-tray should be emptied. Replace the food and switch on the appliance. @ The appliance door should be opened as little and briefly as possible to reduce energy consumption In the event of power failure.try to keep ; the appliance closed to maintain the refrigeration as long as possible.

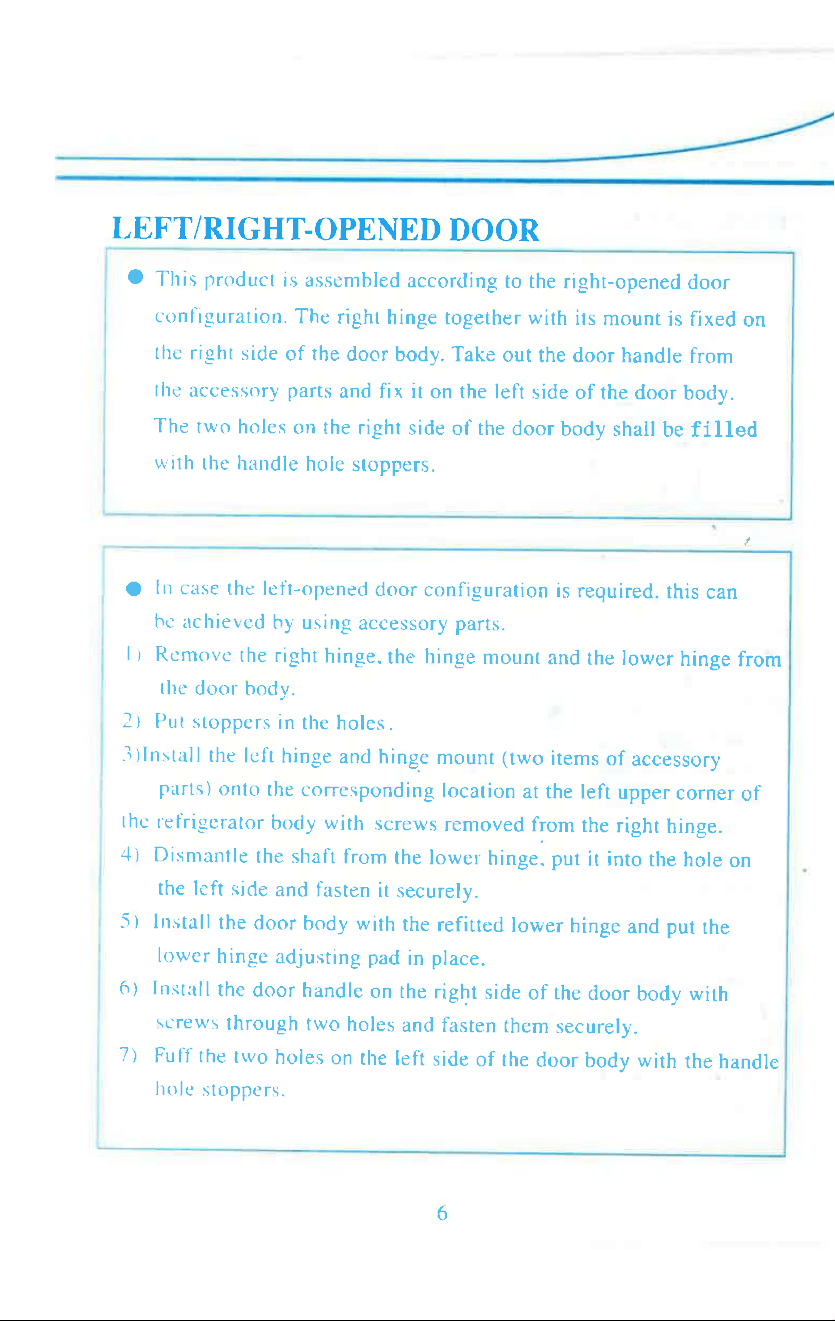

  • Page 8 - English - : LEFT/RIGHT-OPENED DOOR ® This product is assembled according to the right-opened door configuration. The right hinge together with its mount is fixed on the right side of the door body. Take out the door handle from | the accessory parts and fix it on the left side of the door body. | The two holes on the right side of the door body shall be filled with the handle hole stoppers. @ In case the left-opened door configuration is required. this can be achieved by using accessory parts. |) Remove the right hinge. the hinge mount and the lower hinge from the door body. 2) Put stoppers in the holes. 3)Install the left hinge and hinge mount (two items of accessory parts) onto the correspondi ng location at the left upper corner of the refrigerator body with screws removed from the right hinge. ) Dismantle the shaft from the lower hinge. put it into the hole on the left side and fasten it securely. Install the door body with the refitted lower hinge and put the lower hinge adjusting pad in place. 6) Install the door handle on the right side of the door body with Screws through two holes and fasten them securely. 7) Fuff the two holes on the left side of the door body with the handle} hole stoppers.
  • Page 9 - English - : In the event of a fault occurring during operation. check first if the fault is due to an operation error. You can repair the following faults @ The appliance does @ The temperature inside | the appliance is not low enough. @ Excessive noise from the appliance. It is not switched on properly. or mains plug properly inserted in the socket. 2. The thermostat knob is turned to position “0”. 3. Supply voltage is too low. The appliance is too full of food. The appliance is located too near a source of heal. 3. The door is not properly closed or is opened too frequently. The vent gritle is covered over. The appliance is not standing securely on the ground. If none of these circumstances applies and you are not able to repair the fault. please contact the service agent.
