Frigidaire FGDF4085TS gallery 40'' freestanding dual fuel User Manual

All about the

Use & Care

of your

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

Dual Fuel Range

808576701 Rev A January (2017)

TABLE OF CONTENTS

Product Record and Registration . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . 3

Before Setting Surface Controls . . . . . . . . . . . . . . . 9

Setting Surface Burners . . . . . . . . . . . . . . . . . . . . 11

Before Setting Oven Controls . . . . . . . . . . . . . . . . 13

Oven Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 34

Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Product Record and Registration . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . 3

Before Setting Surface Controls . . . . . . . . . . . . . . . . . 9

Setting Surface Burners . . . . . . . . . . . . . . . . . . . . . . . 11

Before Setting Oven Controls . . . . . . . . . . . . . . . . . . 13

Oven Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Thank you for choosing Frigidaire.

This Use and Care Guide is part of our commitment to

customer satisfaction and product quality throughout the

service life of your new appliance. We view your purchase

as the beginning of a relationship. To ensure our ability to

continue serving you, please use this page to record

important product information.

Need Help?

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can

do to help us serve you better.

Read this Use & Care Manual

This manual contains instructions to help you use and

maintain your range properly.

If You Received a Damaged Range...

Immediately contact the dealer (or builder) that sold you the

range.

Save Time and Money

Check the section title “Before You Call”. This section helps

step you through some common problems that might occur.

If you do need service, help is only a phone call away. Call

Frigidaire Customer Services at 1-800-944-9044.

Product Registration

Registering your product with Frigidaire enhances our

ability to serve you. Register online at www.frigidaire.com

or by dropping your Product Registration Card in the mail.

Serial Plate Location

The serial plate is located on top of the range’s lower front

panel, and can be clearly viewed when door is open.

Record model & serial numbers here

Purchase Date

Frigidaire model number

Frigidaire serial number

Fig. 1 Model, serial number location

PRODUCT RECORD AND REGISTRATION

Questions?

For toll-free telephone support in the U.S. and Canada call

1-800-944-9044

For online support and Internet production information visit

www.frigidaire.com.

Read all instructions before using this appliance.

This manual contains important safety symbols

and instructions. Please pay attention to these

symbols and follow all instructions given.

Do not attempt to install or operate your appliance

until you have read the safety precautions in this

manual. Safety items throughout this manual are

labeled with a WARNING or CAUTION statement

based on the risk type.

Warnings and important instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur.

Common sense, caution, and care must be

exercised with installing, maintaining, or operating

your appliance.

DEFINITION

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all

safety messages that follow this symbol to avoid

possible injury or death.

Indicates a potentially hazardous situation

which, if not avoided, may result in death or

serious injury.

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injury.

Indicates installation, operation, maintenance,

or valuable information that is not hazard

related.

WARNING

CAUTION

IMPORTANT

Indicates a short, informal reference –

something written down to assist the memory or

for future reference.

If the information in this manual is

not followed exactly, a fire or explosion may

result causing property damage, personal

injury or death.

FOR YOUR SAFETY: Do not store or use

gasoline or other flammable vapors and

liquids in the vicinity of this or any other appli-

ance.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas

supplier's instructions.

• If you cannot reach your gas supplier, call

the fire department.

• Installation and service must be

performed by a qualified installer, servicer

or the gas supplier.

NOTE

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR

UNPACKING AND INSTALLATION

IMPORTANT - Read and follow the below instruc-

tions and precautions for unpacking, installing, and

servicing your appliance:

• Remove all tape and packaging before using the

appliance. Destroy the carton and plastic bags

after unpacking the appliance. Never allow

children to play with packaging material. Do not

remove the wiring label and other literature

attached to the appliance. Do not remove model/

serial number plate.

• Cold temperatures can damage the electronic

control. When using this appliance for the first

time, or when the appliance has not been used for

an extended period of time, be sure the appliance

has been in temperatures above 32ºF (0ºC) for at

least 3 hours before turning on the power to the

appliance.

• Never modify or alter the construction of the

appliance by removing the leveling legs, panels,

wire covers, anti-tip brackets/screws, or any other

part of the appliance.

• Be sure to have an appropriate foam-type fire

extinguisher available, visible, and easily acces-

sible located near the appliance.

WARNING

Tip Over Hazard

Range

leveling leg

Anti-tip

bracket

• A child or adult can tip the

range and be killed.

• Verify the anti-tip device has

been installed to floor or wall.

• Ensure the anti-tip device is re-engaged to floor

or wall when the range is moved.

• Do not operate the range without the anti-tip

device in place and engaged.

• Failure to follow these instructions can result in

death or serious burns to children and adults.

To check if the anti-tip bracket is installed properly, use

both arms to grasp the rear edge of the range back.

Carefully attept to tilt range forward. When properly

installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions

supplied with your range for proper installation.

Air curtain or other overhead range hoods which

operate that operate by blowing a downward air flow

onto a range or cooktop, shall not be used in

conjunction with gas ranges or cooktops other than

when the range or cooktop and hood have been

designed, tested, and listed by an independent test

laboratory for use in combination with each other.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

Proper Installation—Be sure your appliance is

properly installed and grounded by a qualified techni-

cian. In the United States, install in accordance with

the National Fuel Gas Code ANSI Z223.1/NPFA No.

54, latest edition and National Electrical Code NFPA

No. 70 latest edition, and local electrical code require-

ments. In Canada, install in accordance with CAN/

CGA B149.1 and CAN/CGA B149.2 and CSA

Standard C22.1, Canadian Electrical code, Part 1-

latest editions and local electrical code requirements.

Install only per installation instructions provided in the

literature package for this appliance.

For personal safety, this appliance must be properly

grounded. For maximum safety, the power cord must

be securely connected to an electrical outlet or

junction box that is the correct voltage, is correctly

polarized and properly grounded, and protected by a

circuit breaker in accordance with local codes.

It is the personal responsibility of the consumer to

have the appropriate outlet or junction box with the

correct, properly grounded wall receptacle installed by

a qualified electrician. It is the responsibility and obli-

gation of the consumer to contact a qualified installer

to assure that the electrical installation is adequate

and is in conformance with all local codes and ordi-

nances.

Conversion to (L.P.) Gas

This appliance allows for conversion to Liquefied

Petroleum (L.P.) Gas. If L.P. conversion is needed,

contact your local L.P. Gas provider for assistance.

See the installation instructions packaged with this

appliance for complete installation and grounding

instructions.

Avoid fire hazard or electrical shock. Failure to

follow this warning may cause serious injury, fire, or

death.

Avoid fire hazard or electrical shock. Do not use an

adapter plug, use an extension cord, or remove

grounding prong from the power cord. Failure to

follow this warning may cause serious injury, fire, or

death.

WARNING

Personal injury or death from electrical shock may

occur if the conversion to L.P. gas is not made by a

qualified installer or electrician. Any additions,

changes or conversions required in order for this

appliance to satisfactorily meet the application

needs must be made by a qualified technician.

240V grounded

wall receptacle

Power supply

cord with 4-prong

grounding plug

WARNING

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING THE

APPLIANCE

Storage In or On Appliance—Flammable materials

should not be stored in an oven or microwave, near

surface burners or elements, or in the storage or

warmer drawer (if equipped). This includes paper,

plastic, and cloth items, such as cookbooks, plastic

ware, and towels, as well as flammable liquids. Do

not store explosives, such as aerosol cans, on or

near the appliance.

• Do not leave children alone - Children should not

be left alone or unattended in the area where

appliance is in use. They should never be

allowed to sit or stand on any part of the appli-

ance, including the storage drawer, lower broiler

drawer, warmer drawer, or lower double oven.

• Do not store items of interest to children in the

cabinets above the appliance or on the back-

guards of ranges. Children climbing on or near

the appliance to reach items could be seriously

injured.

• Do not allow children to climb or play around the

appliance. The weight of a child on an open over

door may cause the appliance to tip, resulting in

serious burns or other injury. An open drawer

when hot may cause burns.

• Stepping, leaning, or sitting on the door or

drawers of this appliance can result in serious

injuries and also cause damage to the appliance.

• Never cover any slots, holes, or passages in the

oven bottom or cover an entire oven rack with

any materials, such as aluminum foil or after-

market oven liners. Aluminum foil and other

liners may trap heat, causing a fire hazard.

• Do not use oven or warmer drawer (if equipped)

for storage.

• Never use your appliance as a space heater to

heat or warm the room. Doing so may result in

carbon monoxide poisoning and overheating of

the appliance.

WARNING

• When heating fat or grease, watch it closely.

Grease may catch fire if it becomes too hot.

• Do not use water or flour on grease fires.

Smother fire or flame or use dry chemical or

foam-type extinguisher. Cover the fire with a pan

lid or use baking soda.

• Use dry potholders. Moist or damp potholders on

hot surfaces may result in burns from steam. Do

not let potholders touch hot cooking areas. Do

not use towels or other bulky cloths.

• Do not heat unopened food containers - Build-up

of pressure may cause container to burst and

result in injury.

• Wear proper apparel - Loose-fitting or hanging

garments should never be worn while using the

appliance. Do not let clothing or other flammable

materials contact hot surfaces.

• Do not touch surface burners or elements, areas

near these burners or elements, interior surfaces

of the oven, or the warmer drawer (if equipped).

Surface burners and elements may be hot even

though they appear cool. Areas near surface

burners and elements may become hot enough

to cause burns. During and after use, do not

touch, or let clothing or other flammable

materials touch these areas until they are cool.

These areas may include the cooktop, surfaces

facing the cooktop, oven vent areas, oven door,

and oven window.

• Do not attempt to operate the appliance during a

power failure. If the power fails, always turn off

the appliance. If the appliance is not turned off

and the power resumes, electric surface

elements may resume operation when power is

restored. Once the power resumes, reset the

clock and the oven function.

•

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING

YOUR GAS COOKTOP

Know which knob or key controls each surface heating

area. Place cookware with food on the cooking area

before turning it on. Turn the cooking area off before

removing the cookware.

Use proper pan size. This appliance is equipped with

one or more surface units of different sizes. Select

cookware with flat bottoms that match the surface unit

heating element. The use of undersized cookware

may expose a portion of the flame to direct contact

and may result in the ignition of clothing or other

items. Using the proper cookware on the cooking

areas will improve efficiency.

Always turn knob to the full LITE position when igniting

top burners. Visually check that burner has lit. Then

adjust the flame so it does not extend beyond the

edge of the utensil.

To reduce the risk of burns, ignition of flammable

materials, and spillage due to unintentional contact

with the utensil, the handle of the utensil should be

positioned so that it is turned inward, and does not

extend over adjacent surface burners

Never leave surface burners unattended at high heat

settings — Boil overs cause smoking and greasy spill

overs that may ignite, or a pan that has boiled dry may

melt.

Glazed cooking utensils — Only certain types of glass,

glass/ceramic, ceramic, earthenware, or other glazed

utensils are suitable for cook top service without

breaking due to the sudden change in temperature.

Check the manufacturer’s recommendations for cook

top use.

When you are flaming foods under a ventilating hood,

turn the fan on.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

• Protective liners—Do not use aluminum foil, after-

market oven liners, or any other materials or

devices to line oven bottom, oven racks, or any

other part of the appliance. Only use aluminum as

recommended for baking, such as lining cookware

or as a cover placed on food. Any other use of

protective liners or aluminum foil may result in a

risk of electric shock or fire or a short circuit.

• Use care when opening oven door, lower oven

door, or warmer drawer (some models). Stand to

the side of the appliance when opening the door of

a hot oven. Let hot air or steam escape before you

remove or replace food in the oven.

• Keep oven vent ducts unobstructed. Touching

surfaces in this area when the oven is on may

cause severe burns. Do not place plastic or heat-

sensitive items on or near the oven vent. These

items can melt or ignite.

• Placement of oven racks - Always place oven

racks in desired location while oven is cool. If rack

must be moved while oven is hot, do not let

potholder contact hot burner or element in oven.

Use potholders and grasp the rack with both hands

to reposition. Remove all cookware and utensils

before moving the rack.

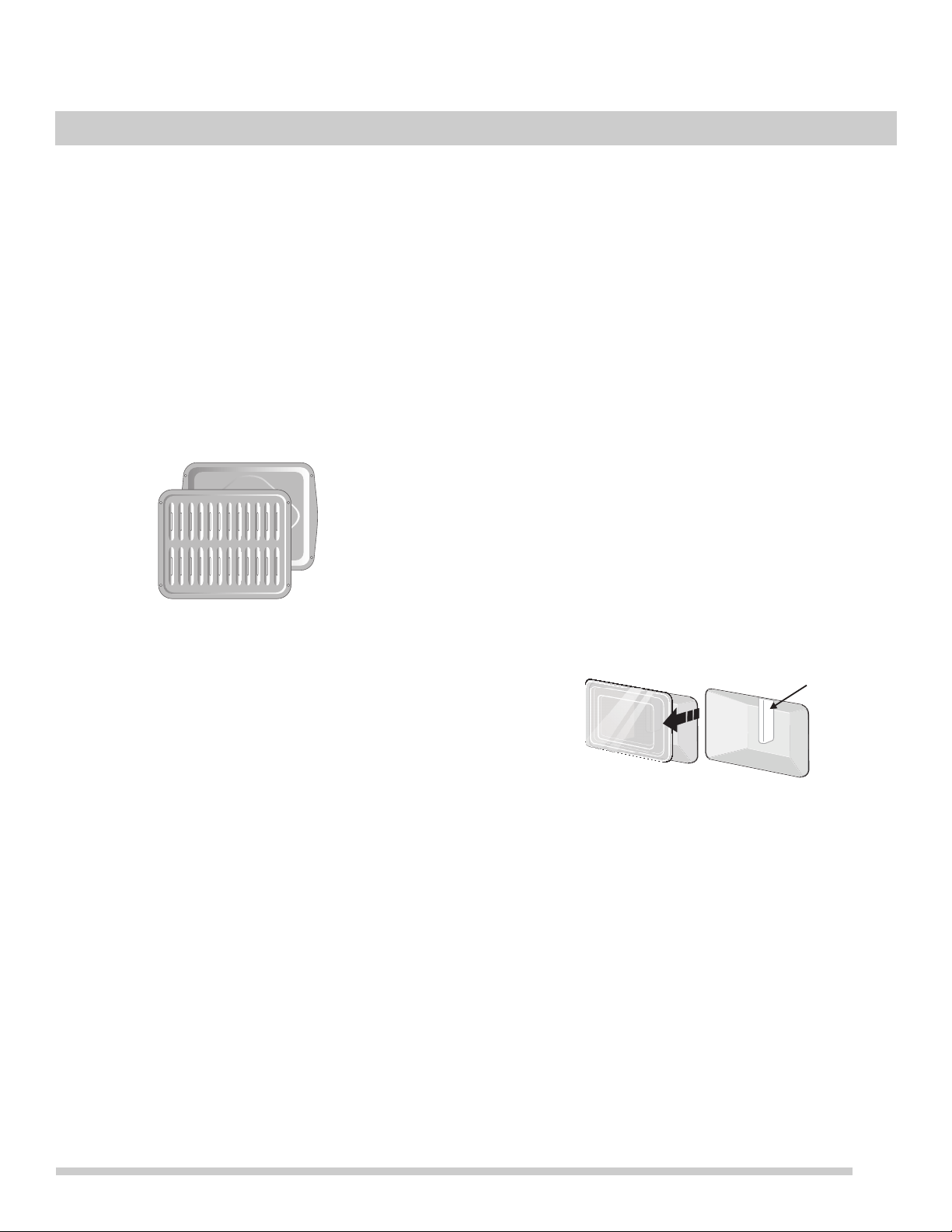

• Do not use a broiler pan without its insert. Broiler

pans and inserts allow dripping fat to drain away

from the high heat of the broiler. Do not cover the

broiler insert with aluminum foil; exposed fat and

grease could ignite.

• Do not cook food on the oven bottom. Always cook

in proper cookware and always use the oven

racks.

Use Proper Flame Size — Adjust flame size so it

does not extend beyond the edge of the utensil. The

use of undersized utensils will expose a portion of

the burner flame to direct contact and may result in

ignition of clothing. Proper relationship of utensil to

flame will also improve efficiency.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR APPLIANCE

Clean the appliance regularly to keep all parts free of

grease that could catch fire. Do not allow grease to

accumulate. Greasy deposits in the fan could catch

fire.

Always follow the manufacturer’s recommended direc-

tions for use of kitchen cleaners and aerosols. Be

aware that excess residue from cleaners and aerosols

may ignite causing damage and injury.

Clean ventilating hoods frequently - Grease should not

be allowed to accumulate on hood or filter. Follow the

manufacturer’s instructions for cleaning vent hoods.

IMPORTANT INSTRUCTIONS FOR SELF

CLEANING OVENS

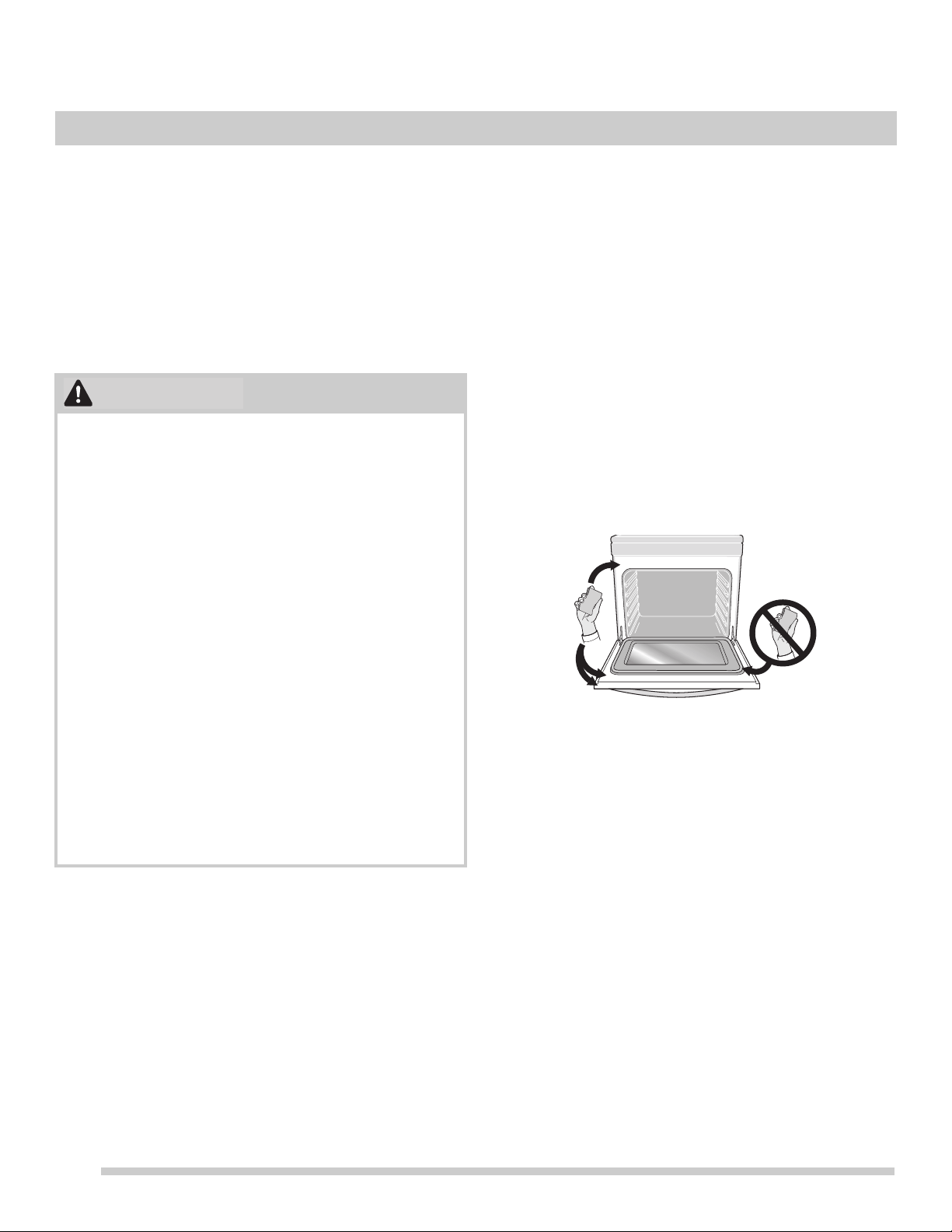

• Do not clean the oven door gasket. The door

gasket is essential for a good seal. Care should be

taken not to rub, damage, or move the gasket.

• Do not use oven cleaners. No commercial oven

cleaner or oven liner protective coating of any kind

should be used in or around any part of the appli-

ance.

• Use the self clean cycle to clean only the parts

listed in this manual.

• Before using self clean, remove the broiler pan,

any food, utensils, and cookware from the oven,

storage drawer or warming drawer (if equipped).

Remove oven racks unless otherwise instructed.

• Some birds are extremely sensitive to the fumes

given off during the self clean cycle of any oven.

Move birds to another well-ventilated room.

IMPORTANT INSTRUCTIONS FOR SERVICE

AND MAINTENANCE

• Do not repair or replace any part of the appliance

unless specifically recommended in the manuals.

All other servicing should be done only by a

qualified technician. This reduces the risk of

personal injury and damage to the appliance.

• Always contact your dealer, distributor, service

agent, or manufacturer about problems or condi-

tions you do not understand.

• Ask your dealer to recommend a qualified techni-

cian and an authorized repair service. Know how

to disconnect the power to the appliance at the

circuit breaker or fuse box in case of an emer-

gency.

• Remove the oven door from any unused oven if it

is to be stored or discarded.

• Do not touch a hot oven light bulb with a damp

cloth. Doing so could cause the bulb to break.

Handle halogen lights (if equipped) with paper

towels or soft gloves. Disconnect the appliance or

shut off the power to the appliance before

removing and replacing the bulb.

Important Safety Notice - The California Safe

Drinking Water and Toxic Enforcement Act requires

the governor of California to publish a list of

substances known to cause cancer, birth defects, or

other reproductive harms, and requires businesses to

warn customers of potential exposures to such

substances.

• Before manually cleaning any part of the appli-

ance, be sure all controls are turned off and the

appliance is cool. Cleaning a hot appliance can

cause burns.

CAUTION

Burner Caps and Burner Grates Assembly

To prevent flare-ups use the cooktop with all burner caps

properly installed.

Placement of burner caps:

• Place a burner cap on each burner head, matching the

cap size to the head size.

• The cap for each burner has an inner locating ring

which centers the cap correctly on the burner head. Be

sure that all the burner caps and burner heads are

correctly placed before using your appliance.

• If the burner cap is not assembled properly, the burner

will not light.

• Make sure each burner cap is properly aligned and

level.

• Turn the burner on to determine if it will light. If the

burner does not light, contact the installer. Do not

service the sealed burner yourself.

ATTENTION: Do not slide the burner caps on the cooktop,

doing so can damage the surface.

BEFORE SETTING SURFACE CONTROLS

Burner Cap

Burner Head

Correct Burner Cap

Placement

Incorrect Burner Cap

Placement

Burner Cap Lip

BEFORE SETTING SURFACE CONTROLS

Installing Burner Grates

Do not use surface burners without burner caps and grates

properly installed. Missing pieces or improper installation

may lead to spills, burns, or damage to your range and

cookware.

Make sure the burner grates are properly placed on the

cooktop before using the surface burners. The grates are

designed to rest inside the recess on the cooktop.

To install burner grates, place grates flat-side down and

align into the cooktop recess. Grates should rest flush

against each other and against the sides of the recess (

See

Figure 2).

Cookware Material Types

The most popular materials available are:

• Aluminum - Excellent heat conductor. Some types of

food will cause it to darken (Anodized aluminum

cookware resists staining and pitting).

• Copper - Excellent heat conductor but discolors easily.

• Stainless - Slow heat conductor with uneven cooking

results. Is durable, easy to clean and resists staining.

• Cast Iron - A slow heat conductor; however, it will retain

heat very well. Cooks evenly once cooking temperature

is reached.

• Porcelain - enamel on metal - Heating characteristics

will vary depending on base material.

• Glass - Slow heat conductor.

Using Proper Cookware

Important: For best cooking results, cookware should have

flat bottoms that rest level on the burner grate. Before using

cookware, check for flatness by rotating a ruler across the

bottom of the cookware (Figure 3).

Please note: The size and type of utensil used and the

amount and type of food being cooked will influence the

burner flame setting needed for best cooking results.

Figure 2: How to properly place burner grates

Figure 3: Check for flat bottom cookware

Figure 4: Cookware recommendations

CORRECT

• Flat bottom and straight

sides.

• Tight ﬁtting lids.

• Weight of handle does

not tilt pan. Pan is well

balanced.

• Pan sizes match the

amount of food to be

prepared.

• Made of material that

conducts heat well.

• Easy to clean.

INCORRECT

• Curved and warped pan

bottoms.

• Pan overhangs unit by

more than 1” (2.5 cm).

• Heavy handle tilts pan.

• Flame extends beyond unit.

SETTING SURFACE BURNERS

Setting Surface Controls

Your gas appliance may be equipped with different sized

surface burners. The ability to heat food quicker and in

larger volumes increases as the burner size increases. It is

important to select cookware that is suitable for the amount

and type of food being prepared.

• The smaller simmer burner (5k) is best suited for

simmering delicate sauces, etc.

• Use middle oval burner (10k), left rear burner (9.5k), or

left front burner (15k) for most cooking needs.

• The larger power burner at the front right (18k) is

recommended for bringing large quantities of liquid to

temperature and when preparing larger quantities of

food.

To set surface burners:

1. Place cooking utensil on center of surface burner grate.

Be sure the cooking utensil sits stable on the burner

grate.

2. Push the desired surface control knob in and turn coun-

terclockwise out of the OFF position.

3. Release the surface control knob and rotate to the LITE

position. Visually check that the burner is lit.

4. Once the burner has a flame, push the control knob in

and turn counterclockwise to the desired flame size.

Use the control knob markings and adjust the flame as

needed.

• Do not cook with the surface control knob left in the

LITE position. The electronic ignitor will continue to

spark if the control knob setting remains in the LITE

position.

• When setting any surface control knob to the LITE

position, all electronic surface ignitors will spark at the

same time. However, only the surface burner you are

setting will ignite.

• Never place or straddle a cooking utensil over two

different surface cooking areas at the same time. This

can cause uneven heating results.

• In the event of an electrical power outage, the surface

burners can be lit manually. Use caution when lighting

surface burners manually. To light a surface burner,

hold a lit match to the burner head, then slowly turn

the surface control knob to LITE. After burner lights

push in and turn knob to desired setting.

• When operating the oven, it is possible for residual

heat from the oven to build-up and over time to even

tually transfer to the surface control knobs located

directly above the oven door.

• Never extend the flame beyond the outer edge of the

utensil. A higher flame simply wastes heat and

energy, and increases the risk of being burned by the

gas flame.

IMPORTANT

• Do not place flammable items such as plastic salt and

pepper shakers, spoon holders or plastic wrappings

on the cooktop when it is in use. These items could

melt or ignite. Potholders, towels or wooden spoons

could catch fire if placed too close to the range

cooktop.

• Do not place aluminum foil, or any material that can

melt on the range cooktop. If these items melt they

may permanently damage the cooktop surface.

Figure 5: Setting single burner

CAUTION

OFF

LITE

SETTING SURFACE BURNERS

Setting proper surface burner flame size

For most cooking: Start on the highest control setting and

then turn to a lower one to complete the process. Use the

recommendations below as a guide for determining proper

flame size for various types of cooking. The size and type of

utensil used and the amount of food being cooked will

influence the setting needed.

Home Canning

Be sure to read and observe all the following points when

home canning with your appliance.

Check with the United States Department of Agriculture

(USDA) website and be sure to read all the information they

have available as well as follow their recommendations for

home canning procedures.

• Use only quality flat bottom canners when home

canning. Use a straight-edge to check canner bottom.

• When home canning, use only a completely flat bottom

canner with no ridges that radiate from the bottom

center.

• Be sure the diameter of the canner does not exceed 1

inch beyond the grate.

• Start with hot tap water to bring water to boil more

quickly.

• Use the highest heat setting when first bringing the

water to a boil.

• Once boiling is achieved, reduce heat to lowest

possible setting to maintain that boil.

IMPORTANT! Never place or straddle a cooking utensil

over two different surface cooking areas heating at the

same time. This can cause uneven heating results.

Flame Size Type of Cooking

High Flame

• Start most foods

• Bring water to a boil

• Pan broiling

Medium Flame

• Maintain slow boil

• Thicken sauces and

gravies

• Steaming foods

Low Flame

• Keep foods cooking,

poaching and stewing

Figure 6: Gas flame adjustment

Settings based on using medium weight metal or

aluminum pans. Settings may vary using other types of

pans.

The color of the flame is key to proper burner adjustment.

A good flame is clear, blue, and hardly visible in a well lit

room.

Each cone of the flame should be steady and sharp.

Clean burner if flame is yellow-orange.

IncorrectCorrect

NOTE

BEFORE SETTING OVEN CONTROLS

Oven Vent Location

The oven vent is located under the controls. When the oven

is in use, hot air passes through this vent for proper air

circulation and provides good baking results in the upper

oven. Steam or moisture may appear near the oven vent.

This is normal. Do not block this vent.

Cooling Fan: The fan may continue to run for a while even

after the oven has been turned off; this is normal.

Installing Ladder Racks

1. Place the ladder racks hook side up into the support

brackets located on the sides of the oven (

Figure 8).

2. Place oven racks into desired positions.

Note: To aid installation and movement of racks, apply a

thin layer of cooking oil to the sides of the oven racks that

contact the ladder supports.

Protective liners — Do not line the oven walls, racks,

bottom or any other parts of the range with aluminum foil.

Doing so will alter heat distribution, produce poor baking

results, and may cause permanent damage to the oven

interior. During self clean temperatures the oven will be hot

enough to melt foil. Use aluminum foil only as recom

mended in this manual. Improper installation or use of these

liners may result in risk of electric shock or fire.

Oven Racks

Your appliance is equipped with flat handle oven racks and

can be placed in most oven rack positions.

Arranging, Removing, and Replacing Oven Racks

IMPORTANT! Remove all oven racks, rack ladders, and

any other accessories from the oven before starting a self

clean cycle.

• To arrange - Always arrange the oven racks when the

oven is cool (prior to operating the oven).

• To remove - pull the oven rack straight forward until it

reaches the stop position. Lift up front of oven rack

slightly and slide out.

• To replace - place the oven rack on the rack guides on

the oven walls. Tilt the front of the rack upward slightly

and slide the oven rack back into place.

• For ease of removal, racks should not be placed in

adjacent rack positions.

IMPORTANT!

To prevent possible damage to the oven, do not attempt to

close the oven door until all oven racks are fully positioned

inside the oven cavity.

Figure 7: Oven vent location

Figure 8: Ladder rack supports

oven vent

• Always use potholders or oven mitts when removing

food or adjusting the oven racks. Wait until the oven

has completely cooled if possible. Oven racks may be

very hot and may cause burns. Remove all oven

racks and rack ladders before starting a self clean

cycle. Clean oven racks according to the instructions

provided in the Care and Cleaning section this

manual.

CAUTION

BEFORE SETTING OVEN CONTROLS

OVEN CONTROLS

1. Self Clean - Use to select 2, 3, or 4 hr Self-Clean cycle.

2. Add a Minute - Use to add one minute to the timer. This

works with the kitchen timer and does not affect any

cook time or start time functions.

3. Delay Start - Use with Bake, Convection Bake,

Convection Convert, and Self Clean functions to

program a delayed start time.

4. Bake Time - Use to set a specific amount of time

needed for cooking. Automatically cancels cooking

process at end of set time.

5. Set Clock - Use to set time of day.

6. Timer on/off - Use to set and cancel the timer.

7. Light - Use to turn internal oven light on and off.

8. Lock - Use to lock oven door and oven controls. Will not

affect operation of surface burners.

9. Probe - Use to cook meat and poultry to the perfect

internal temperature automatically.

10. Quick preheat - Use to quickly raise oven to preheat

temperature for baking on one rack.

11. Keep Warm - Maintains low heat to keep food warm at

serving temperature.

12. Convect Convert - Converts regular bake temperature

to allow for convection baking.

13. Bake - Use to start a normal Bake function.

14. Convect - Use to toggle between convection bake,

convection roast, and convection broil.

15. Broil - Use to select Broil function.

16. Start - Use to start oven functions.

17. Off - Use to cancel any oven function previously

entered except clock and timer.

Minimum and maximum settings

All of the features listed have minimum and maximum time

and temperature settings that may be entered into the

control. An entry acceptance beep will sound each time a

key is touched. An entry error tone (three short beeps) will

sound if the entry of the temperature or time is below the

minimum allowable setting or above the maximum setting

for the cooking feature.

456

789

123

timerset

clock

delay

start

bake

time

add

a min

bake broilconvect

quick

preheat

convect

convert

probe

keep

warm

self

clean

10 11 12

14 15

16 17

Feature Min. Temp or Time Max. Temp or Time

Bake 170°F (77°C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Quick Preheat 170°F (77°C) 550°F (288°C)

Convect Broil 400°F (205°C) 550°F (288°C)

Convect Roast 170°F (77°C) 550°F (288°C)

Convect Bake 170°F (77°C) 550°F (288°C)

Self Clean 2 Hours 4 Hours

Keep Warm 170°F (77°C) 3 Hours

Bake Time 1 Minute 5:59

Delay Time 12 Hr. 1:00 12:59

Delay Time 24 Hr. 0:00 23:59

Probe 140°F(60°C) 210°F(99°C)

Timer 1 minute 11 hrs. 59 mins.

Clock 12 Hr. 1:00 12:59

Clock 24 Hr. 0:00 23:59

OVEN CONTROLS

Setting the Clock

When the appliance is first powered up, 12:00 will flash in

the display (

Figure 9). The time of day must first be set

before operating the oven.

To set clock to 1:30:

1. Press set clock.

2. Enter 1 3 0 using numeric keypad.

3. Press start.

Note: The clock cannot be changed when a Bake Time,

Self Clean, Delay Start, or cooking feature is active.

Setting 12 Hour or 24 Hour display mode

The clock display mode allows you to select 12 hr or 24 hr

modes. The factory pre-set clock display mode is 12 hours.

To set 12 hr or 24 hr display mode:

1. Press and hold set clock for 6 seconds.

2. Press self clean to toggle between 12 Hr day or 24 Hr

day display modes (

Figure 10).

3. Press start to accept the choice.

Setting Timer

The minute timer allows you to track your cooking times

without interfering with the cooking process. The timer may

be set from a minimum time of 1 minute to a maximum of 11

hours and 59 minutes.

To set timer for 5 minutes:

1. Press Timer ON/OFF.

2. Enter 5 using numeric keypad.

3. Press START to start the timer. When set time ends,

END will show in the display and the control will sound a

beep three times every 30 seconds until Timer ON/OFF

key is pressed.

To cancel the timer when active, press Timer ON/OFF

again.

Important note:

• The timer does not start or stop the cooking process. It

serves as an extra minute timer that will beep when the

set time has run out. The timer may be used alone or

while using any of the other oven functions.

• When timer is set for more than 1 hour it will display

hours and minutes until 1 hour remains. When less than

1 hour remains, the display counts down in minutes and

seconds. With less than 1 minute remaining, only

seconds will display.

• If the timer is active during a cooking process, the timer

will show in the display. To view the status of any other

active oven function, press the key of the cooking

function once and it will appear in the display for a few

seconds.

Add a Minute

Use the Add 1 Minute feature to set additional minutes to

the timer. Each press of the key will add 1 additional minute.

If Add

1 Minute is pressed when the timer is not active, the

timer will activate and begin counting down from 1 minute.

To add 2 minutes to the timer:

Press Add 1 Minute twice.

Figure 9: 12:00 in display before setting clock

Figure 10: 12 Hr day and 24 Hr day settings

OVEN CONTROLS

Changing between continuous bake setting or 6 hour

energy saving

The oven control has a factory preset built-in 6 Hour Energy

Saving feature that will turn off the oven if the oven is left on

for more than 6 hours. The control may be programmed to

override this feature to bake continuously.

To change between continuous bake or 6 hour energy

saving feature:

1. Press and hold Timer ON/OFF for 6 seconds

2. Press self clean to toggle between 6 Hour OFF or Stay

On feature (

Figure 11).

3. Press START to accept choice.

Changing temperature display from Fahrenheit to

Celsius

The electronic oven control is set to display °F when shipped from

the factory. The display may be changed to show either °F or ºC

oven temperatures.

To change temperature display mode from °F to °C or from °C

to °F:

1. Press and hold Broil for 6 seconds.

2. Once F (or C) appears in the display, press self clean to

toggle between Fahrenheit and Celsius temperature display

modes (

Figure 12).

3. Press start to accept the choice.

Important note:

The oven temperature display cannot be changed during the

cooking process or if a Delay Start has been set or Self Clean is

active.

Setting Silent or Audible Control mode

Silent mode allows the oven control to operate without

audible tones. The control may be programmed for silent

operation and later reset to operate with all the normal

audible tones.

To set for silent or audible mode:

1. Press and hold Delay Start for 6 seconds.

2. Press the self clean key to toggle between bEEP On or

bEEP OFF (

Figure 13).

3. Press START to accept the choice.

Setting Oven Lockout

To activate the oven lockout features:

1. Be sure oven door is completely closed.

2. Press and hold the lock key for 3 seconds. The motor

driven door latch mechanism will begin locking the oven

door automatically. Do not open the oven door. Allow

about 15 seconds for the oven door to completely lock.

Once door is locked, the word DOOR with a lock icon

will appear in the display.

To cancel the oven lockout feature:

1. Press and hold the lock key for 3 seconds. The motor

door latch will begin unlocking the oven door automati

cally. Do not open the oven door. Allow about 15

seconds for the oven door to completely unlock.

2. When the word DOOR with a lock icon no longer

displays, the oven door may be opened, and the oven

control keypad will be available for use.

Important note:

• To avoid damage to the oven door latching mechanism,

do not attempt to open or close the oven door whenever

the word DOOR with a lock icon is displayed.

• If a control key is pressed when oven lockout is active,

the control will triple beep indicating the key action is

not available when the oven lockout feature is active.

Figure 11: 6 hr energy saving (L) and continuous setting (R)

Figure 12: Display showing Fahrenheit and Celsius

Figure 13: Display showing audible and silent operation

OVEN CONTROLS

Operating Oven Lights

The interior oven lights will automatically turn on when the

oven door is opened. Oven lights will not operate during a

self clean cycle.

Press to turn the interior oven lights on and off

whenever the oven door is closed.

The interior oven lights are located on the side walls of the

oven interior and are covered with a glass shield. The glass

shield protects the bulb from high temperatures and should

always be in place whenever the oven is in use.

Important: Do not keep oven lights on for an extended

period of time while baking. It may cause food to be

overdone.

To replace the interior oven light, see “Replacing Oven

Lights” on page 37.

Quick Preheat

Quick Preheat is available for your convenience for baking

on one rack and can be programmed for temperatures

between 170F and 550F. Follow the recipe or package

directions for food preparation time and temperature. When

quick preheat is complete, a reminder tone will sound and

food should be placed in the oven. During quick preheat

function, the bake and convection elements will cycle on

and off. Depending on your preference for doneness and

type of pan used, cooking times may vary. Watch food

closely.

Important:

• Always place in center of the oven on rack position 5

(

Figure 15) and place the food as shown in Figure 14.

• For best results when baking batter and dough-based

items such as cakes, cookies and pastries, use convec

tion bake function and place food in oven when the

reminder tone sounds.

• For crispy crust on pizza use Bake function and place

food in oven when reminder tone sounds.

To set the preheat temperature for 350°F:

1. Arrange the interior oven racks.

2. Press quick preheat. 350 will appear in the display.

3. Press start.

4. 350 and PREHEAT will be displayed while the oven is

preheating.

5. Press off when baking is complete or to cancel the

preheat feature.

To change preheat temperature while oven is

preheating (ex: changing from 350°F to 425°F):

1. Press quick preheat. 350 will appear in the display.

2. Enter the new preheat temperature. Press 4 2 5.

3. Press start. 425 will show in the display.

4. When baking is complete, press off.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

CAUTION

Figure 14: Single rack baking pan position

Figure 15: Oven rack position (5)

at handle

oven rack

OVEN CONTROLS

Setting Bake

Use the bake feature whenever the recipe calls for baking

using normal temperatures. A reminder tone will sound indi

cating when the set bake temperature is reached and to

place the food in the oven. When the oven is preheating,

the convection fan will be on and will turn off once the set

temperature is reached. The oven will cycle on and off while

baking to maintain the set temperature and the bake

element icon in the display will reflect the cycling of the

bake element.

Important: The Bake function is best for baking cakes.

Bake may be set for any oven temperature between 170°F (77°C)

to 550°F (288°C).

Baking tips

• For pastries and breads, use the convection bake

function for best results when using multiple racks

“Convection Bake” on page 19.

• Allow at least 2 inches (5 cm) of space between

bakeware for proper air circulation.

• Fully preheat the oven before cooking items like

cookies, biscuits, and breads.

• When using any single rack, use rack position 5 so that

the food is in the center of the oven.

• For best results when baking cakes using two oven

racks, use the regular bake function and place racks in

positions 3 and 7 (

Figure 16) and place pans as shown

in Figure 17.

• For best results when baking two racks of cookies, use

convection bake and place racks in positions 2 and 7.

• Dark or dull pans absorb more heat than shiny

bakeware, resulting in dark or overbrowning of foods. It

may be necessary to reduce the oven temperature or

cook time to prevent overbrowning of some foods. Dark

pans are recommended for pies. Shiny pans are recom

mended for cakes, cookies, and muffins.

• Glass cookware is a slow heat conductor. May require

reducing oven temperature.

• Do not open oven door often. Opening the door will

reduce the temperature in the oven and may increase

cooking time.

To set Bake for oven temperature of 425°F:

1. Press Bake.

2. Enter 4 2 5 using numeric keypad.

3. Press start.

4. To cancel Bake at any time, press off.

The oven will bake no longer than 6 hours. If you wish to

bake for a longer period, see

“Changing between contin-

uous bake setting or 6 hour energy saving” on page 16 for

detailed information.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

Figure 16: Oven rack positions

Figure 17: Baking on multiple levels

CAUTION

OVEN CONTROLS

Convection Bake

Convection functions use a fan to circulate oven heat

continuously around the oven. This improved heat distribu

tion allows for fast, even cooking and browning results.

Breads and pastry brown more evenly. Convect Bake may

be set for any oven temperature between 170°F (77°C) and

550°F (288°C).

Benefits of convection cooking include:

• Multiple rack baking.

Baking tips

• For pastries and breads, use the convection bake

function for best results when using multiple racks.

• Fully preheat the oven before cooking items like

cookies, biscuits, and breads.

• When using any single rack, use rack position 5 so that

the food is in the center of the oven.

• When using two oven racks, place in positions 2 and 7

(

Figure 18) and place bakeware as shown in Figure 19.

• When cooking with three oven racks, place racks on

positions 2, 5, and 8.

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven

temperature and cook time to prevent overbrowning of

some foods. Shiny bakeware is recommended for

cakes, cookies, and muffins.

• Glass cookware is a slow heat conductor. May require

reducing oven temperature.

• Use pans or cookware with low sides. This allows the

air to circulate around food evenly.

• Unless the recipe is written for convection cooking,

reduce oven temperature 25°F from recipe’s

recommended oven temperature. Follow the remainder

of the recipe’s instructions using the minimum

recommended cook time.

• Do not open oven door often. Opening the door will

reduce the temperature in the oven and may increase

cooking time.

To set Convection Bake with a default oven set temper-

ature of 350°F:

1. Press Convect key once. Conv Bake and 350° will

appear in the display.

2. Press START.

To cancel Convection Bake at any time, press off.

Important notes:

• If the oven door is opened when convection bake is

active, the convection fan will stop rotating until the

oven door is closed.

• When using convection bake, cook time reductions may

vary depending on the amount and type of food being

cooked.

Figure 18: Air movement using convection

Figure 19: Baking on multiple levels

OVEN CONTROLS

Setting Bake Time

Use bake time to set the amount of time needed for baking.

The oven will turn on immediately and stop automatically

after the set Bake Time ends.

To program oven to bake with oven default temperature

of 350°F and to shut-off after 30 minutes. Press bake

time.

1. Enter 3 0 using numeric keypad.

3. Press start to accept.

4. Press bake.

5. Press start.

When the programmed bake time ends:

End will appear in the display window, and the oven will

shut-off automatically (

Figure 20). The oven control will

beep three times every 30 seconds as a reminder until Off

is pressed.

Important note:

• The bake time feature may be set with bake, convection

bake, and convection roast. Bake time or delay start will

not operate with the broil function.

• The maximum time setting is 11 hours and 59 minutes

unless oven is set for continuous cooking.

To change the oven temperature or bake time after bak-

ing has started:

1. Press bake (for oven temperature) or bake time.

2. Press numeric keys to enter new temperature or bake

time.

3. Press start to accept change.

Setting Delay Start

Delay Start sets a delayed starting time to oven cooking or

cleaning functions. Prior to setting a delay start, be sure the

time of day is set correctly.

To program oven for a Delay Start beginning at 5:30, to

shut-off automatically after 50 minutes and for baking

at 375°F:

1. Press bake time.

2. Enter 5 0 using numeric keypad.

3. Press START to accept.

4. Press Delay Start.

5. Enter 5 3 0 using numeric keypad.

6. Press START to accept.

7. Press Bake.

8. Enter 3 7 5 using numeric keypad.

9. Press START.

When the programmed bake time ends: End will appear

in the display window, and the oven will shut off automati

cally. The oven control will beep three times every 30

seconds as a reminder until the Off key is pressed.

Important note:

Delay Start may be set using a 24 hr clock. To set clock for

24 Hr operation, See

“Setting 12 Hour or 24 Hour display

mode” on page 15 for more information. The Delay Start

feature may be used with Convection Bake, Convection

Roast, Convection Convert, Bake, Slow Cook, and Self

Clean functions. Delay Start or Bake Time will not operate

with the Broil functions.

Food Poisoning Hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness.

Figure 20: Display showing cooking has ended

WARNING

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

CAUTION

OVEN CONTROLS

Setting Convection Convert

Press the Convection Convert key to automatically convert

the cooking temperature entered for any standard baking

recipe to the lower temperature required for convection

baking.

When Convection Convert is used with a timed Convection

Bake setting, the Convection Convert function will display a

CF message when first programmed and will appear again

as a reminder to check food when the bake time is 75%

complete (

Figure 21). At this time the oven control will

sound one long beep at regular intervals until the set cook

time has finished.

To add Convection Convert to Convection Bake

function using default oven set temperature of 350°F:

1. Press Convect once. Convection bake is selected.

2. Press START. Press Convect Convert.

To cancel Convection Convert at any time, press off.

To program oven for Convection Convert with oven

default temperature of 350°F and to shut-off after 30

minutes:

1. Press Convect once. Convection Bake is selected.

2. Press START.

3. Press Bake Time.

4. Enter 3 0 using numeric keypad.

5. Press START.

6. Press Convect Convert.

7. To cancel Convection Convert at any time, press off.

Important note:

• Convection Convert may only be used with the Convec-

tion Bake function.

• The convection fan will begin rotating once Convection

Bake has been activated.

• If the oven door is opened when any convection

function is active, the convection fan will stop rotating

until the oven door is closed.

Setting Convection Broil

Use this mode for thicker cuts of meat, fish, and poultry. The

convection broiling gently browns the exterior and seals in

the juices. Convection broiling uses the broil element and a

fan to circulate the heat continuously within the oven.

The oven can be programmed for convection broiling at any

temperature between 400°F to 550°F.

Convection broiling tips:

• For optimum browning, preheat the broil element for 2

minutes. Always pull the rack out to the stop position

before turning or removing food.

• Always use a broiler pan and its grid when broiling. It

keeps grease away from the high heat of the broil

element.

• Do not use the broil pan without the insert. Do not cover

the broil pan insert with foil. The exposed grease could

catch fire. Broil one side until the food is browned; turn

and cook on the second side. Season and serve.

• Convection broiling is generally faster than conventional

broiling. Check for doneness at the minimum recom

mended time.

To set a convection broil temperature of 500°F:

1. Arrange oven racks first. Press convect. The display

will show 350 and convect and bake will flash.

2. Press convect two more times. 550 and convect and

broil will flash.

3. Press 5 0 0 using numeric keys. Press start.

4. 500, CONVECT, BROIL, and the fan icon will show in

the display.

5. Allow oven to preheat for 2 minutes then place food in

the oven.

Figure 21: Check Food reminder shown in display.

The preheat tone will not sound for this feature.

NOTE

OVEN CONTROLS

Setting Broil

Use the Broil function to cook meats that require direct

exposure to radiant heat for optimum browning results. The

Broil feature is preset to broil at 550° but may be set at any

temperature between 400°F (205°C) and 550°F (288°C).

IMPORTANT! Broil Auto Shut Off: If oven door is open

for more than one minute during Broil the control will beep.

If door is not closed it will turn off Broil element after another

30 seconds.

• Do not use the broiler pan without the insert (Figure 22).

Do not cover the broil pan or insert with aluminum foil;

the exposed grease could ignite. The insert is slotted

and allows hot grease from the meat to drain away into

the broiler pan

• Broil with oven door closed.

• Broiling can produce smoke. If smoke is excessive,

place food further away from the broil element.

• The broil pan with broil pan insert allow the grease to

drain away from the high heat of the broiler and help

avoid spatter and reduce smoking.

• If a broiler pan and insert are not supplied with the appli-

ance, they may be purchased at frigidaire.com

• When broiling, always pull the oven rack out to the stop

position before turning or removing foo

• For optimum browning results, fully preheat for 5

minutes before placing meat in the oven.

• Refer to Table 3 for the type and amount of meat being

prepared.

To set broil:

1. Arrange the interior oven rack and place the broiler pan

on the rack. Be sure to center the broiler pan directly

under the broiler element. If preheating the broil burner,

position the broiler pan with food after step 4.

2. Place broiler pan insert on the broiler pan. Then place

the food on the broiler pan insert.

3. Broil with the oven door closed.

4. Press broil. 550°F will appear in the display.

5. Press START.

6. Press OFF when cooking is completed or to cancel

broil.

Should an oven fire occur, leave the oven door closed

and turn off the oven. If the fire continues, use a fire extin

guisher. Do not put water or flour on the fire. Flour may be

explosive and water can cause a grease fire to spread

and cause personal injury

Always use pot holders or oven mitts when working with a

hot oven. When broiling, the oven interior, oven racks and

cooktop will become hot enough to cause burns.

WARNING

CAUTION

Figure 22: Broil pan and insert

Figure 23: Rack positions

OVEN CONTROLS

Recommended Broiling Times

Table 1: Broiling Recommendations

• Use the broiling table (Table 1) for approximate recommended broiling times for the types of meat listed.

• Depending on the type, the thickness, and the desired doneness of meat, it might be necessary to increase or

decrease broiling times or adjust the broiling pan to different rack positions.

• If the food you are broiling is not listed in the table, follow the instructions provided in your recipe and watch the

broiling process closely.

Food Rack

Position

Temperature Cook time in

minutes

1st side 2nd

side

Internal

Temperature

Doneness

Steak 1” thick 8th 550°F (288ºC) 8 6 140°F (60°C) Rare*

Steak 1” thick 7th or 8th 550°F (288ºC) 9 7 145°F (63°C) Medium

Steak 1” thick 7th or 8th 550°F (288ºC) 10 9 170°F (77ºC) Well

Pork Chops 3/4” thick 6th 550°F (288ºC) 10 8 170°F (77ºC) Well

Chicken bone-in 5th 550°F (288ºC) 22 12 170°F (77ºC) Well

Chicken boneless 6th 550°F (288ºC) 10 8 170°F (77ºC) Well

Fish 7th 550°F (288ºC) 15 n/a 170°F (77ºC) Well

Shrimp 7th 550°F (288ºC) 7 n/a 170°F (77ºC) Well

Hamburger 1” thick 8th 550°F (288ºC) 11 9 145°F (63°C) Medium

Hamburger 1” thick 7th 550°F (288ºC) 12 10 170°F (77ºC) Well

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F

(60°C) means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA) The

lowest temperature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC).

Note: Broiling is direct heat cooking and will produce some smoke. If smoke is excessive, place food further away from flame.

Always watch foods carefully to prevent burning.

OVEN CONTROLS

Convection Roast

Convection roast combines a cook cycle with the convec-

tion fan and element to rapidly roast meats and poultry.

Heated air circulates around the meat from all sides, seal

ing in juices and flavors.

Meats cooked with this feature are crispy and brown on the

outside while staying moist inside.

Before roasting See “Convection roasting temperature and

time recommendations” as listed in Table 2.

Important:

• Do not use the broiler pan without the insert.

• Do not cover the broil pan or insert with aluminum foil;

the exposed grease could ignite.

To use convection roast at a temperature of 350°F

(177°C):

1. Place oven rack on the bottom or next to the bottom

oven rack position (1).

2. Place the meat on the broiler pan and insert. Make sure

the insert is securely seated on top of the broiler pan.

Do not use the broiler pan without the insert.

3. Place meat (fat side up) on insert

4. Place prepared food on oven rack and slide into oven.

5. Close the door.

6. Press the convect key twice. Roast will appear in the

display.

7. Press start.

8. When cooking is completed or to cancel convection

roast press off.

Figure 24: Rack positions

OVEN CONTROLS

Convection Roasting tips:

• Preheating for convection roast will not be necessary for most meats and poultry.

• Arrange oven racks so large poultry or other cuts of meat are on the lowest oven rack position. on the lowest rack of

the oven. Small cuts of meat and poultry should be cooked on rack position 3 using the flat handle rack.

• Since convection roast cooks faster, you can reduce cook times as much as 25% from the recommended time of your

recipe (check the food at this time). Then if needed, increase cook time until the desired doneness is obtained.

• Carefully follow your recipe’s temperature and time recommendations or refer to the convection roast recommenda-

tions for additional information.

• Do not cover foods when dry roasting - covering will prevent the meat from browning properly.

• When cooking meats use the broiler pan and insert. The broiler pan will catch grease spills and the insert helps

prevent grease splatters.

Table 2: Convection roasting temperature and time recommendations

Meat Weight Oven Temp Internal Temp Minutes per

lb.

Beef Standing rib roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Rib eye roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Tenderloin roast 2 to 3 lb. 400°F (204ºC) *160ºF (71ºC) 15-25

Poultry Turkey whole** 12 to 16 lb. 325°F (163ºC) 180°F (82ºC) 8-10

Turkey whole** 16 to 20 lb 325°F (163ºC) 180°F (82ºC) 10-15

Turkey whole** 20 to 24 lb. 325°F (163ºC) 180°F (82ºC) 12-16

Chicken 3 to 4 lb. 350°F-375°F (177ºC-

191ºC)*

180°F (82ºC) 12-16

Pork Ham roast, fresh 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 30-40

Loin 3 to 4 lb. 325°F (163ºC) 160°F (71ºC) 20-25

Pre-cooked ham 5 to 7 lb. 325°F (163ºC) 160°F (71ºC) 30-40

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F

(60°C) means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide) The lowest

temperature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC)** Stuffed

turkey requires additional roasting time. Shield legs and breast with foil to prevent over browning and drying of the skin.

OVEN CONTROLS

Cooking with Meat Probe

Use the probe feature for best results when cooking foods

such as roasts, hams, or poultry.

For meats like poultry and roasts, using a probe to check

internal temperature is the safest method to ensure properly

cooked food.

The probe feature, when set correctly, will signal an alert

when the internal food temperature reaches the desired set

target temperature.

When active, the probe displays the internal food tempera-

ture which is visible in the display during the cooking

process. This eliminates any guesswork or the need to

open the oven door to check the thermometer.

Proper placement of probe in food.

• Insert the probe so that the probe tip rests inside the

center of the thickest part of meat or food (See

Figure 26). For best results, do not allow the probe

temperature sensor to contact bone, fat, gristle, or the

cookware.

• For bone-in ham or lamb, insert the probe into the

center of lowest large muscle or joint.

• For meat loaf or casseroles, insert the probe into center

of food.

• When cooking fish, insert meat probe just above the gill.

• For whole poultry or turkey, fully insert the probe sensor

into the thickest part of the breast (See

Figure 27).

Figure 25: Using the probe

Do not store the probe inside the oven. Use only the

original probe provided. Connecting any other probe or

device could result in damage to the oven control, elec

tronics, and the receptacle.

Before starting self clean, double check that the probe is

removed from the oven interior. Defrost frozen foods

completely before inserting the probe.

Do not use kitchen utensils to pull on the probe cable or

handles. Always insert and remove the probe using the

provided handles, and always use a pot holder to protect

hands from possible burns.

IMPORTANT

Figure 26: Probe in thickest area of food

Figure 27: Probe in thickest part of breast

Insert

probe tip

to center of

food

OVEN CONTROLS

To set probe:

1. Insert the probe into the food. Place prepared food on

the desired oven rack position and slide into the oven.

2. Plug the connector end of the probe all the way into the

probe receptacle while the oven is still cool. The recep

tacle is located on the upper left front oven cavity wall

(See

Figure 25).

3. When the probe is set, an acceptance tone will sound,

the probe icon will illuminate, and the actual probe

temperature appears in the display (See

Figure 28).

Close the oven door.

4. Press probe key once. Enter the desired target food

temperature using the numeric keys and set tempera

ture for food type. The minimum setting is 140ºF (60ºC);

the maximum is 210ºF (99ºC). Default is 170ºF (77ºC).

5. Press start to accept the target temperature.

6. Set for quick preheat, bake, convect bake, convect

roast, or convect convert, and if necessary adjust the

oven temperature accordingly.

7. The control will provide three beeps when the internal

target temperature is reached. The oven will automati

cally change to a keep warm setting and the actual

probe temperature will remain in the display. Keep

warm will maintain the oven temperature at 170°F

(77°C) for 3 hours unless otherwise cancelled.

To stop cooking at any time, press off.

Note: To change the target temperature while cooking,

press the probe key once. Use the numeric keys to change

the temperature. Press the start key to accept any change.

Figure 28: Probe set showing probe temperature

During cooking the internal food temperature will display

by default. To see the target temperature press the probe

key once. After 6 seconds the display will revert to the

internal food temperature.

To assure accuracy, do not remove the probe from the

food or receptacle until the desired internal temperature is

reached. If the probe is removed from the receptacle only,

the probe feature will cancel but the oven will continue to

cook. If the probe is removed from the food only, the

probe feature will remain active and may eventually

generate a probe too hot message.

NOTE

Table 3: USDA recommended minimum internal cooking

temperatures

Food Type Internal Temp.

Ground meat and meat mixtures

Beef, Pork, Veal, Lamb 160°F (71°C)

Turkey, Chicken 165°F (74°C)

Fresh beef, veal, lamb

Medium rare + 145°F (63°C)

Medium 160°F (71°C)

Well Done 170°F (77°C)

Poultry

Chicken and Turkey, whole 165°F (74°C)

Poultry Breasts, Roasts 165°F (74°C)

Duck and Goose 165°F (74°C)

Stuffing (cooked alone or in bird) 165°F (74°C)

Fresh Pork 160°F (71°C)

Ham

Fresh (raw) 160°F (71°C)

Pre-cooked (to reheat) 140°F (60°C

Eggs dishes 160°F (71°C)

Leftovers and Casseroles 165°F (74°C)

The U.S. Department of Agriculture states, “Rare fresh beef is popular, but

you should know that cooking it to only 140°F (60°C) means some

food poisoning organisms may survive.” (Source: Safe Food Book,

Your Kitchen Guide, USDA) Visit the USDA Food Safety and

Inspection website at www.fsis.usda.gov

OVEN CONTROLS

To set how the oven will operate once the probe

reaches the target temperature:

The oven is preset to automatically stop cooking and start

the warm feature when probe sensor reaches the target

temperature. This may be set to continue cooking if desired.

Setting the options once the probe reaches the target

temperature must be done when the oven is inactive. The

probe is not required to be connected to the probe recep

tacle when setting this option.

To set the oven to continue cooking after reaching the

target temperature:

1. Press probe key and hold for 6 seconds.

2. Press self clean key and toggle until Continu:

appears, as shown in

Figure 29, then press start to

accept.

To set the oven to automatically stop cooking and start

warm once reaching target temperature:

1. Press probe key and hold for 6 seconds.

2. Press the self clean key and toggle until CAnCEL

appears, as shown in

Figure 30, then press start to

Probe too hot message:

When the message Prob... Too... Hot... flashes in the

display, the probe temperature has exceeded 250°F

(121°C). If the probe is not removed, this message may

continue until the sensor reaches 300°F (149°C) or higher,

and oven will automatically turn off. Be sure the probe

sensor is fully covered by the food.

Keep Warm

Keep Warm should only be used with foods that are already

at serving temperatures. Keep warm will keep cooked foods

warm and ready for serving for up to 3 hours after cooking

has finished. After 3 hours the oven will shut-off automati

cally. Keep Warm will keep the oven temperature at 170° F

(77°C).

To set Keep Warm:

1. If needed, arrange oven racks and place cooked food in

oven.

2. Press Keep Warm: KEEP WARM will appear in the

display. (If no other keys are touched within 25 seconds

the request for Keep Warm will clear.)

3. Press START. Keep Warm will automatically turn on

and then turn off after 3 hours unless cancelled.

To turn Keep Warm off at any time, press off.

To add Keep Warm to turn ON after baking 45 minutes

with a set temperature of 425°F:

1. Press Bake Time.

2. Enter 4 5 using numeric keypad.

3. Press START.

4. Press Bake and enter 425 on numeric keypad.

5. Press START to accept.

6. Press Keep Warm. KEEP WARM will appear in the

display.

7. Press START. When the bake time is over, Keep Warm

will automatically turn ON. Keep Warm function will

automatically turn OFF after 3 hours unless canceled

sooner.

Note: Keep Warm may be set when finished cooking or

may be added to automatically turn on after cooking using

Bake Time. Delay Start may also be added.

Figure 29: Probe set to continue cooking

Figure 30: Probe set to cancel cooking

OVEN CONTROLS

Setting the Sabbath Feature (for use on the Jewish

Sabbath and Holidays)

For further assistance, guidelines for

proper usage, and a complete list of

models with the Sabbath feature, please

visit the web at www.star-k.org.

This appliance provides special settings

for use when observing the Jewish Sab

bath/Holidays. Sabbath mode disables all audible tones or

visual display changes on the oven control. Bake heating is

the only cooking feature available while in the Sabbath

mode. Oven controls are locked during Sabbath mode.

You must first set the Bake feature and temperature(s)

needed for the oven, the Bake Time, and Delay Start

options (if needed). Any settings made prior to setting the

Sabbath mode will be visible in the displays. The Bake Time

option, if set prior to the Sabbath mode, will give one

audible alert at the end of Bake Time.

The Sabbath mode will override the factory preset 6 hour

energy saving mode, and the appliance will stay on until the

cooking features are cancelled. If any of the cooking fea

tures are cancelled when the appliance is in the Sabbath

mode, no audible or visual indicators will be available to

verify the cancellation.

If the oven interior lights are needed, be sure to activate

them prior to setting the Sabbath mode. Once the oven light

is turned on and the Sabbath mode is active, the oven light

will remain on until the Sabbath mode is turned off and the

oven lights are turned off. The oven door will not activate

the interior oven lights when the oven door is opened or

closed.

It is recommended that any oven temperature modification

made within an active Sabbath mode be followed with two

presses of the START key. This will insure the oven

remains on even if an attempt is made to set the oven

temperature outside of its temperature range.

If the oven temperature is set outside of the temperature

range, the oven will default to the nearest available temper

ature. Try to set the desired oven temperature again.

Important:

• Do not attempt to activate any other oven function

except Bake while the Sabbath feature is active. The

following keys will function correctly when the Sabbath

feature is active: 0-9 number keypad, Bake, START,

and off. All other keys should not be used once the

Sabbath feature is active.

• You may change the oven temperature once baking has

started. Press bake, use the numeric keypad to enter

the oven temperature change (170°F to 550F°), and

press START (for Jewish Holidays only).

• Remember that the oven control will no longer provide

audible tones or display any further changes when the

Sabbath feature is active.

• The oven will shut-off automatically after completing a

bake time, delay start, or keep warm and therefore may

only be used once during the Sabbath/Jewish Holidays.

• If a delay start time longer than 11 hours and 59

minutes is desired, set the oven control for the 24 hour

day display mode setting. See

“Setting 12 Hour or 24

Hour display mode” on page 15 for more information.

Food poisoning hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness. Foods that can easily spoil

such as milk, eggs, fish, meat or poultry, should be chilled

in the refrigerator first. Even when chilled, they should not

stand in the oven for more than 1 hour before cooking

begins, and should be removed promptly when finished

cooking.

WARNING

OVEN CONTROLS

To program oven to Bake with default oven temperature

of 350°F and activate the Sabbath feature:

1. Be sure the clock is set with the correct time of day.

2. Arrange oven racks, place bakeware in oven, and close

oven door. Press Bake.

3. Press START.

4. Note: If a bake time or delay start are desired enter the

times at this point. See

“Setting Bake Time” and “” on

page 20 for detailed instructions.

5. Press and hold bake time and delay start simultane-

ously for about 3 seconds to set the Sabbath feature.

Once the feature is set, SAb will appear in the display

indicating the oven is properly set for the Sabbath

feature (

Figure 31).

To turn the oven off and keep the Sabbath feature

active:

1. Press off.

To turn off the Sabbath feature:

Press and hold both bake time and delay start simultane-

ously for at least 3 seconds to turn the Sabbath feature off.

The control will provide an acceptance tone, and SAb will

disappear from the display. The oven is no longer

programmed for the Sabbath feature.

What to do during a power failure or power interruption

after the Sabbath feature was activated:

Should you experience a power failure or interruption, the

oven will shut-off. When power is restored the oven will not

turn back on automatically. The oven will remember that it is

set for the Sabbath, and the oven display will show the

message SF for Sabbath failure (

Figure 32).

The food may be safely removed from the oven while still in

the Sabbath feature, however the oven cannot be turned

back on until after the Sabbath/Holidays. After the Sabbath

observance turn off the Sabbath feature.

Press and hold both Bake Time and Delay Start keys for at

least 3 seconds simultaneously to turn the Sabbath feature

off. SF will disappear from the display, and the oven may be

used with all normal functions.

Figure 31: Oven set for Sabbath baking.

Figure 32: Display showing Sabbath failure

OVEN CONTROLS

Restoring Factory Default Settings

Your appliance was set with predetermined (default) oven

control settings. Over time, users may have made changes

to these settings. The following options may have been

modified since the appliance was new:

• 12 or 24 hr display mode

• All Meat Probe settings

• Continuous bake or 6 hour energy savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

To restore oven control to factory default settings:

1. Press and hold 7 on numeric keypad until acceptance tone

sounds (about 6 seconds).

2. Press START. The control has been reset with the default

settings.

Adjusting Oven Temperatures

Your appliance has been factory calibrated and tested to

ensure accurate baking temperatures. For the first few

uses, follow your recipe times and temperature recommen

dations carefully. If you think the oven is cooking too hot or

too cool for your recipe times, you may adjust the control so

the oven cooks hotter or cooler than the oven temperature

displayed.

Important: Do not use oven thermometers such as those

found in grocery stores to check the temperature settings

inside your oven. These oven thermometers may vary as

much as 20 to 40°F degrees from actual temperatures.

The oven temperature may be increased as much as +35°F

(+19°C) or decreased -35°F (-19°C) from the factory cali

brated settings.

To increase or decrease the oven temperature by 20°F:

1. Press and hold Bake until the control produces an

audible tone (about 6 seconds). The factory offset

temperature of 0

(zero) should appear in the display.

2. Enter 2 0 using numeric keypad.

3. To offset the oven by -20°F, press self clean to toggle

between + and -.

4. Press START to accept change.

Important note:

• Oven temperature adjustments will not change the Broil

or Self Clean function temperatures.

• The oven temperature adjustment may be made if your

oven control is set to display temperatures in °C

(Celsius). Minimum and maximum settings for Celsius

range from plus (+)19°C to minus (-) 19°C.

All of the above user settings will be restored to the

factory default settings.

CAUTION

OVEN CONTROLS

Self Clean

Read before starting Self Clean. Be sure to read all follow-

ing caution and important statements before starting a self

clean cycle.

A self cleaning oven cleans itself with high temperatures

(well above normal cooking temperatures), which eliminate

soils completely or reduces them to a fine powdered ash

you can wipe away afterwards with a damp cloth. This

function can be programmed for 2, 3, or 4 hours.

Important notes:

• Completely remove all oven racks and any accessories

from oven cavity to avoid damage to oven racks. If the

oven racks are not removed they may discolor.

• Remove all items from the oven and cooktop including

cookware, utensils, and any aluminum foil. Aluminum

foil will not withstand high temperatures from a self

clean cycle and will melt.

• Do not use oven cleaners or oven protective coatings in

or around any part of the oven interior.

• Clean any soil from the oven frame, the door liner

outside the oven door gasket, and the small area at the

front center of the oven bottom (

Figure 33). These

areas heat sufficiently to burn soil on. Clean using soap

and water prior to starting Self Clean.

• Remove any excessive spills. Any spills on the oven

bottom should be wiped up and removed before starting

a Self Clean cycle. To clean use hot, soapy water and a

cloth. Large spills can cause heavy smoke or fire when

subjected to high temperatures.

• Do not allow food spills with high sugar or acid content

(such as milk, tomatoes, sauerkraut, fruit juices, or pie

fillings) to remain on the surface as they may leave a

dull spot even after cleaning.

• Do not clean the oven door gasket. The woven material

in the gasket is essential for a good seal. Care should

be taken not to rub, damage, or remove the oven door

gasket. Doing so could cause damage to the door

gasket and compromise the performance of the oven.

• The kitchen area should be well ventilated using an

open window, ventilation fan, or exhaust hood during

the first Self Clean cycle. This will help eliminate the

normal odors.

• Do not attempt to open the oven door when the OVEN

LOCK indicator light is flashing. Allow about 15 seconds

for the motorized door latch mechanism to completely

lock or unlock the oven door.

• When the clean time finishes, the oven door will remain

locked until the range has cooled sufficiently. In addition

to the clean time that was programmed, you must allow

about 1 additional hour for the oven to cool before you

will be able to open the oven door.

• Do not leave small children unattended near appli-

ance. During self clean cycle, the outside of the oven

can become very hot and cause burns if touched.

• Do not line the oven walls, racks, oven bottom, or any

part of the range with aluminum foil. This will cause

permanent damage to the oven interior and destroy

heat distribution, and will melt to the oven interior.

• Do not force the oven door open. This will damage

the automatic door locking system. Use caution when

opening the oven door after the self clean cycle ends.

The oven may still be very hot and cause burns. To

avoid possible burns, stand to side of oven when

opening door to allow steam or hot air to escape.

• The health of some birds is extremely sensitive to

fumes given off during the self clean cycle of any

range. Move birds to a well ventilated room.

• The oven bake and broil elements may appear to

have cooled after they have been turned off. These

elements may still be hot and burns may occur if

elements are touched before they have cooled.To

avoid possible burns, stand to side of oven when

opening door to allow steam or hot air to escape.

CAUTION

Figure 33: Areas to clean and to avoid

OVEN CONTROLS

Setting Self Clean

To set self clean:

1. Be sure the oven is empty and all oven racks are

removed. Remove all items from the oven. Be sure

oven door is completely closed.

2. Press Self Clean and the default 3 hour clean time will

appear in the display. You may accept the default 3 hour

clean time by going to step 3, or choose a different

clean time by continuing to press Self Clean to select 2

hours or 4 hours. Once you have the desired clean time

selected proceed to Step 3.

3. Press START to activate Self Clean.

4. As soon as Self Clean becomes active, a motor driven

lock mechanism will begin locking the oven door auto

matically. Do not attempt to open the oven door (allow

15 seconds for the lock mechanism to lock the oven).

Once the oven door has locked, CLEAN will appear in

the display indicating Self Clean has started.

When Self Clean is finished:

1. CLEAN message will turn off, and Hot will appear in

display window.

2. Once the oven has cooled down (about 1 hour) and Hot

is no longer displayed, the oven door may be opened.

3. When the oven interior has completely cooled, wipe

away any residue or powdered ash with a damp cloth or

paper towel.

Setting Delay Start Self Clean

To start a delay Self Clean with default clean time of 3

hours and a start time of 9:00 o’clock:

1. Be sure the clock is set with the correct time of day, the

oven is empty, and all oven racks are removed. Be sure

oven door is completely closed.

2. Press Delay Start.

3. Using numeric keypad, enter 9 0 0.

4. Press START to accept

5. Press Self Clean.

6. Press START.

If it becomes necessary to stop Self Clean when active:

1. Press off.

2. If Self Clean has heated the oven to a high temperature,

allow enough time for the oven to cool.

3. Before restarting Self Clean, be sure to read important

notes below.

Important note:

• If your clock is set with the (default) 12 hr display mode,

the Delay Start for a Self Clean can only be

programmed to start up to 11 hours and 59 minutes

after the time showing in the display (be sure to set the

clock to current time before programming a delay start).

To set a Delay Start Self Clean to begin 12 or more

hours (maximum is 23 hours and 59 minutes) after the

time of setting, be sure to first set the control in the 24

Hr display mode.

• If Self Clean was active and then interrupted by a power

failure or cancelled before the oven was thoroughly

cleaned, it may be necessary to run another Self Clean

cycle.

• If the oven temperature was high enough when Self

Clean was interrupted the oven control may not allow

another Self Clean cycle to be set for up to 4 hours.

Do not force the oven door open when self-clean is

active. This can damage the automatic door-locking

system.

Use caution when opening the oven door after self

cleaning. The oven may still be very hot and can cause

burns. To avoid possible burns stand to the side of the

oven when opening the oven door to allow hot air or

steam to escape.

CAUTION

Cleaning Various Parts of Your Oven

Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool.

Remove spills and any heavy soiling as soon as possible. Regular cleanings will reduce the number of

major cleanings later.

Surface Type Recommendation

Aluminum and Vinyl • Use hot, soapy water and a cloth. Dry with a clean cloth.

Painted body parts

Painted decorative trims

Painted and plastic control knobs

and control panel

Surface burners

Burner grates

• Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar

and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth.

Glass cleaners may be used if sprayed on a soft cloth first. Do not spray liquids directly on

the oven control and display area. Do not use large amounts of water on the control panel.

Excess water on the control area may cause damage to the appliance. Do not use other

liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will damage the

finish.

• To remove control knobs, turn to the OFF position; grasp firmly and pull straight off the

shaft. To replace knobs after cleaning, line up the flat sides of both the knob and the shaft;

then push the knob into place.

• For details on cleaning surface burners and grates see “General Cleaning” starting on

page 35.

Stainless Steel

• Your oven finish may be made with stainless steel (some models). Clean the stainless with

warm soapy water using a clean sponge or cloth. Rinse with clean water and dry with a

soft clean cloth.

• Do not use any store bought cleaners like stainless steel cleaners or any other types of

cleaners containing any abrasive, chlorides, chlorine, or ammonia. It is recommended to

use mild dish soap and water or a 50/50 solution of water and vinegar.

Porcelain enamel broiler pan and

insert (available by mail order)

Oven interior (Porcelain)

Door liner and body parts

• Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1

solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-

soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and

then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove

all cleaners or the porcelain may become damaged during future heating.

Oven racks • Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner

following manufacturer’s instructions. Rinse with clean water and dry.

Oven door • Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse

well. You may use a glass cleaner on the outside glass of the door. Do not immerse the

door in water. Do not spray or allow water or the glass cleaner to enter the door vents. Do

not use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the

outside of the oven door.

Oven door gasket • Do not clean the oven door gasket. On self-clean models, the oven door gasket is made of

a woven material which is essential for a good seal. Care should be taken not to rub,

damage, or remove this gasket.

Oven door window (inside) • Use a small amount of ceramic glass cleaner to remove splatters on oven glass. Be sure

to wipe completely after cleaning with a damp paper towel.

CARE AND CLEANING

General Cleaning

Refer to the table at the beginning of this chapter for more

detailed information about cleaning specific parts of the

range.

Important: Before manually cleaning any part of the range,

be sure all controls are turned

off and the range is cool. The

range may be hot and can

cause burns. It is recom-

mended to not use ammonia

to clean the oven. However, if

ammonia is used, the oven

must be thoroughly rinsed

before operating. Provide

adequate ventilation.

Aluminum Foil, Aluminum

Utensils, and Oven Liners

WARNING! Never cover any slots, holes, or passages in

the oven bottom or cover an entire oven rack with materials

such as aluminum foil. Doing so blocks air flow through the

oven and may cause carbon monoxide poisoning. Aluminum

foil linings may trap heat, causing a fire hazard. Do not use

a cooktop cleaner on a hot cooktop. The fumes can be

hazardous to your health, and can chemically damage the

ceramic-glass surface.

Protective liners—Do not use aluminum foil to line the oven

bottom. The high heat of the oven can melt these materials

to the oven cavity and ruin the oven. These types of

materials can also reduce the effectiveness of the air circu

lation in the oven and produce poor baking results. Only use

aluminum foil as recommended in this manual. Improper

installation of these liners may result in risk of electric shock

or fire.

• Aluminum foil - Use of aluminum foil on a hot cooktop

can damage the cooktop. Do not use thin aluminum

cooking utensils or allow aluminum foil to touch the

surface burners under any circumstances.

• Aluminum utensils - The melting point of aluminum is

much lower than that of other metals. If aluminum pans

are allowed to boil dry when using the cooktop, the

utensil will be damaged or destroyed.

• Oven racks - Do not use aluminum foil to cover the

oven racks. During self clean the oven temperature can

become hot enough to melt aluminum cooking utensils

or aluminum foil and could result in permanent damage

to the oven interior and porcelain finish.

Cleaning the Glass Cooktop

Your cooktop is glass with gas sealed burners. To clean the

glass portion of the cooktop follow these directions.

For light to moderate soil:

Apply a few drops of cooktop cleaning cream directly to the

glass part of the cooktop. Use a clean paper towel to clean

the entire cooktop surface. Make sure the cooktop is

cleaned thoroughly, leaving no residue. Do not use the

towel you use to clean the cooktop for any other purpose.

For heavy, burned on soil:

Apply a few drops of cooktop cleaning cream directly to the

soiled area. Rub the soiled area using a non-abrasive

cleaning tool, applying pressure as needed. Do not use the

pad you use to clean the cooktop for any other purpose. If

soils remain, carefully scrape soils with a metal razor blade

scraper, holding scraper at a 30 degree angle to the surface

(Figure 26). Remove loosened soils with cooktop cleaning

cream and buff surface clean.

To avoid possible burns do not attempt any of the

cleaning instructions provided below before turning off all

surface burners and allow them to cool.

Figure 34: Use razor to scrape sediment on glass surface

CAUTION

30°

CARE AND CLEANING

Cleaning the Sealed Burners

To avoid possible burns do not attempt any of the cleaning

instructions provided below before turning off all surface

burners and allow them to cool.

To avoid possible burns do not attempt to operate the

surface burners without the burner caps.

Routinely clean the cooktop. Wipe with a clean, damp cloth

and wipe dry to avoid scratches. Keeping the surface

burner head ports and slots clean will prevent improper

ignition and an uneven flame. See the following sections for

more instructions.

To clean burner caps:

1. Remove caps from burner heads after they have

cooled. Clean the cap with hot soapy water and dry

thoroughly.

2. For burned-on and dried spills, apply hot soapy water to

the burner head (Figure 28). Allow time for the soils to

soften.

3. Use a small cleaning brush such as an old toothbrush to

clean all over the burner head (Figure 28) and to clean

the slots and holes in the burner.

4. Use a needle or paper clip to clean out the ignition port

(

Figure 36).

5. Wipe burner head clean with a soft, clean cloth, sponge,

or scratch-free cleaning pad.

6. Before using the cooktop again make sure the burner

caps are properly placed and seated on the burner

heads (

Figure 37). When placed correctly, the burner

cap is centered on the burner head and will click into

place on the burner head. You can wiggle the cap to

test placement, it should not move off the burner head.

Important: During cleaning, keep debris and liquids out of

the orifice port.

• Do not use abrasive cleaners, oven cleaners, or steel

wool on the cooktop around the burner head. These

products can damage the cooktop finish.

• The burner head does not need to be removed to be

cleaned. Only qualified service professionals should

disassemble the burner head from the cooktop surface.

• Do not attempt to disassemble any part of the appli-

ance.

Figure 35: Burner head components

Figure 36: Burner head areas to clean

Burner Cap

Burner Head

Burner Cap Lip

slots

ignition port

ignitor

Figure 37: Replacing burner caps correctly

Correct Burner Cap

Placement

Incorrect Burner Cap

Placement

CARE AND CLEANING

Broiler Pan Cleaning Tips

• To prevent grease from baking on, remove the broiler

pan from the oven as soon as cooking is completed.

• Use potholders or oven mitts because the broiler pan is

extremely hot. Pour off grease.

• Soak the pan in hot, soapy water.

• Clean the broiler pan and insert as soon as possible

after each use. If necessary, use soap-filled steel wool

pads. Heavy scouring may scratch the insert.

• To make cleaning easier, the bottom of the broiler pan

may be lined with aluminum foil. Do not cover the broiler

insert with foil.

To clean burner grates:

• Clean when the grates are cool.

• Use nonabrasive plastic scrubbing pad and mild

abrasive cleanser.

• Food soils containing acids may affect the finish. Clean

immediately after the grates are cool.

• Thoroughly dry grates immediately following cleaning.

Replacing Oven Lights

Your oven is equipped with interior oven lights that ramp up

gradually when the oven door is opened. The oven lights

can also be turned on when the door is closed by using the

oven light switch located on the control panel.

To remove and replace a light bulb:

Be sure the range is unplugged and all parts are cool before

replacing oven light. Wear a leather-faced glove for protec

tion against possible broken glass. Do not allow your fingers

to touch the new bulb when replacing. Use a clean soft cloth

or paper towel to cover the new bulb when installing.

1. Turn electrical power off at the main source or unplug

the appliance.

2. To remove the glass shield, pull the back side of the

shield toward the inside of the oven in a manner to lift it

up from the oven side. The glass shield should come

out easily by pushing a little toward front of the wall

oven (

Figure 39).

3. Replace the halogen appliance bulb.

4. Gently push the glass shield toward the oven wall until it

is firmly seated against the oven wall.

5. Reconnect electrical power to the appliance or turn

power back on

Figure 38: Broil pan and insert

Figure 39: Light shield and bulb

Lift backside of

glass shield and

remove it.

Halogen

Light Bulb

CARE AND CLEANING

Removing and Replacing the Oven Door

To remove the oven door:

1. Open oven door completely, horizontal with floor.

2. Pull up the lock located on each hinge support toward

front of the oven until the lock stops. You may have to

apply a little upward pressure on the lock to pull it up

(

Figure 41 and Figure 42).

3. Grasp the door by the sides, and close the door until the

door frame makes contact with the unlocked hinges.

4. Pull the bottom of the door toward you while rotating the

top of the door toward the appliance to completely

disengage the hinge levers (

Figure 43).

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door

sides. Do not use the oven door handle (

Figure 43).

2. Hold the oven door at the same angle as the removal

position. Carefully insert the hinge levers into the oven

frame until you feel the hinge levers are seated into the

hinge notches. The hinge arms must be fully seated into

the hinge notches before the oven door can be fully

opened. (

Figure 43).

3. Fully open the oven door, horizontal with floor

(

Figure 40).

4. Push the door hinge locks up toward and into the oven

frame on both left and right oven door hinges to the

locked position (

Figure 41).

5. Close the oven door.

Special door care instructions - The door is heavy. For

safe, temporary storage, lay the door flat with the inside

of the door facing down.

Most oven doors contain glass that can break. Do not

close the oven door until all the oven racks are positioned

correctly in the cavity. Do not hit the glass with bakeware

or any other objects. Scratching, hitting, jarring, or

stressing the glass may weaken its structure, causing an

increased risk of breakage at a later time.

IMPORTANT

Figure 40: Door hinge location

Figure 41: Door hinge locked

Figure 42: Unlocking door hinge

Figure 43: Remove door position

Oven door

hinge

locations

Door frame ﬂush

with hinge lock

Hinge

notch

BEFORE YOU CALL

Solutions to Common Baking Problems

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need

to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a

product may vary slightly from your previously owned appliance.

Baking Problems and Solutions Chart

Baking Problems Causes Corrections

Cookies and biscuits

burn on the bottom.

• Cookies and biscuits put

into oven before the

preheating time is

completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too

fast.

• Allow oven to preheat to desired temperature

before placing food in oven.

• Choose pan sizes that will permit 2” to 4” of air

space (5.1 cm to 10.2 cm) on all sides when

placed in the oven.

• Use a medium weight baking sheet.

Cakes too dark on top

or bottom.

• Cakes put in oven before

preheating time is

completed.

• Rack position too high or too

low.

• Oven too hot.

• Allow oven to preheat to the selected temperature

before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F/13°C lower than

recommended.

Cakes not done in

center.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Set oven temperature 25°F/13°C lower than

recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan to allow

for 2” to 4” (5.1 cm to 10.2 cm) of space on all

sides of pan.

Cakes not level. • Range not level.

• Pan too close to oven wall

or rack overcrowded.

• Pan warped.

• Oven light left on during

baking.

• Place a marked glass measuring cup filled with

water on the center of the oven rack. If the water

level is uneven, refer to the installation instruc

tions for leveling the range.

• Be sure to allow 2” to 4” (5.1 cm to 10.2 cm) of

clearance on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Keep oven light off while baking.

Foods not done when

cooking time is over.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too

frequently.

• Set oven temperature 25°F/13°C higher than

suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except

the ones to be used for baking.

• Open oven door only after shortest recommended

baking time.

BEFORE YOU CALL

Solutions to Common Problems

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided

with the problem listed:

Problem Solution

Poor baking result Many factors effect baking results. Use proper oven rack position. Center food in the

oven and space pans to allow air to circulate. Preheat oven to the set temperature

before placing food in the oven. Try adjusting the recipe's recommended temperature

or baking time. See

“Adjusting Oven Temperatures” on page 28 if you feel the oven is

too hot or cold.

Appliance is not level Be sure floor is level, strong and stable enough to adequately support range. If floor is

sagging or sloping, contact a carpenter to correct the situation.

Poor installation. Place oven rack in center of oven and place a level on the oven rack.

Adjust leveling legs at base of appliance until the rack is level.

Kitchen cabinet alignment may make range appear not level. Be sure cabinets are

square and have sufficient room for appliance clearance.

Cannot move appliance easily.

Appliance must be accessible for

service.

Cabinets not square or are built in too tight to allow clearance for appliance. Contact

builder or installer to make appliance accessible.

Carpet interferes with appliance. Provide sufficient space so appliance can be lifted

over carpet.

Entire appliance does not work. For models with a power cord, make sure power cord is plugged properly into outlet. If

electricity to home is working, check fuse box or breaker. Call your local electric

company for service outage information..

Oven portion does not operate. The time of day is not set. The oven clock must first be set in order to operate the oven.

See

“Setting the Clock” on page 15.

Be sure oven controls are set properly. See “Oven Control Functions” on page 14 and

review instructions for the desired cooking function in this manual or see “Entire

appliance does not operate” in this checklist.

Oven light does not work. Be sure the oven light is secure in the socket. See “Replacing Oven Lights” on

page 37.

Flames inside oven or smoking

from oven vent.

Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe

up excessive spills before starting oven. If flames or excessive smoke are present

when using Broil, see

“Setting Broil” on page 25.

Oven racks discolored or do not

slide easily.

Oven racks left in oven cavity during Clean. Always remove oven racks from oven

cavity before starting a clean cycle. Clean by using a mild abrasive cleaner following

manufacturer's instructions. Rinse with clean water, dry, and replace in oven.

Oven smokes excessively when

broiling.

Incorrect setting. Follow broiling instructions in Setting Oven Controls section.

Meat too close to the broil element. Reposition broil rack to provide proper clearance

between the meat and broil element. Remove excess fat from meat. Cut remaining

fatty edges to prevent curling, but do not cut into lean.

Grease build up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Grease or food splatters will cause excessive smoking.

BEFORE YOU CALL

Oven control panel sounds an

audible alarm and displays an

Error code.

Oven control has detected a fault or error condition. Turn either oven mode or tempera-

ture selector to the OFF position to clear the error code. Try Bake or Broil function. If

the Error code error repeats, turn OFF power to appliance, wait 5 minutes and then

repower appliance. Set clock with correct time of day. Try Bake or Broil function again.

If fault recurs, turn oven mode and temperature selectors OFF and call 1-800-4-MY-

HOME® for assistance.

Soil not completely removed after

Clean

Clean was interrupted. Review instructions in Clean section.

Excessive spills on oven bottom. Clean before starting Clean.

Failure to clean soil from the oven frame, the door liner outside the oven door gasket

and the small area at the front center of the oven bottom. These areas are not in the

self-cleaning area, but get hot enough to burn on residue. Clean these areas before

starting the clean cycle. Burned-on residue can be cleaned with a stiff nylon brush and

water or a nylon scrubber. Be careful not to damage the oven gasket.

Fan noise occurring after the oven

is turned off.

Some models are equipped with a cooling fan that runs during the cooking process to

cool internal electronic components. It is normal for this fan to continue to run for an

extended period of time, even when the oven is off.

Convection fan does not rotate. Oven door is open. Convection fan will turn off if oven door is opened when convection

is active. Close oven door.

Clean does not work. Oven control not set properly. Review instructions in Clean section.

Surface burners do not ignite. Surface control knob was not completely turned to Lite. Push in and turn the surface

control knob to Lite until burner ignites and then turn control knob to desired flame size.

Improper burner assembly. If the burner cap is not assembled properly, the burner will

not light. Refer to

“Burner Caps and Burner Grates Assembly” on page 9.

Burner ports are clogged. Refer to Care and Cleaning section on how to clean sealed

burners.

Range power cord is disconnected from outlet (electric ignition models only). Be sure

power cord is securely plugged into the power outlet. Electrical power outage. Burners

may be lit manually. See

“Setting Surface Controls” on page page 11.

Surface burner flame uneven or

only part way around the burner

cap.

Burner slots or ports are clogged. Refer to Care and Cleaning section on how to clean

sealed burners.

Moisture is present after cleaning. Lightly fan the flame and allow burner to operate

until flame is full.

Burner caps are not seated properly. Check that all burner caps are level and seated

correctly on burner heads.

Surface burner flame is too high. Surface control knob is set too high. Adjust to lower flame setting.

Burner caps are not seated properly. Check that all surface burner caps are level and

seated correctly on surface burner heads.

Incorrect L.P. conversion. Refer to L.P. conversion kit instructions to correct.

WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your original date of

purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove

to be defective in materials or workmanship when such appliance is installed, used and maintained in

accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR

OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT

BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL

EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED

WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under

this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described

or illustrated are subject to change without notice.

If You Need

Service

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

USA

1.800.944.9044

Electrolux Home Products, Inc.

10200 David Taylor Drive

Charlotte, NC 28262

Frigidaire FGDF4085TS gallery 40'' freestanding dual fuel range

Product's Documents

User Manual

Specifications

Frigidaire FGDF4085TS Questions and Answers

Related Products

Frigidaire PLCF489GC Gallery Other 40" Freestanding Dual Fuel Range
