USER’S GUIDE
MFC-9420CN
Version D
If you need to call Customer Service
Please complete the following information for future
reference:
Model Number: MFC-9420CN
Serial Number:*
Date of Purchase:
Place of Purchase:
* The serial number is on the inside of the front cover.
Retain this User’s Guide with your sales receipt as a
permanent record of your purchase, in the event of theft,
fire or warranty service.
Register your product on-line at
By registering your product with Brother, you will be recorded
as the original owner of the product. Your registration with
Brother:
■
may serve as confirmation of the purchase date of your
product should you lose your receipt;
■
may support an insurance claim by you in the event of
product loss covered by insurance; and
■
will help us notify you of enhancements to your product and
special offers.
The most convenient and efficient way to register your new
product is on-line at http://www.brother.com/registration/
http://www.brother.com/registration/
©2005 Brother Industries, Ltd.
i
Brother numbers
Register your product
By registering your product with Brother International Corporation, you will be recorded as the
original owner of the product. Your registration with Brother:
■ may serve as confirmation of the purchase date of your product should you lose your receipt;
■ may support an insurance claim by you in the event of product loss covered by insurance; and,
■ will help us notify you of enhancements to your product and special offers.
Please complete and fax the Brother Warranty Registration And Test Sheet or, for your
convenience and most efficient way to register your new product, register on-line at
FAQs (Frequently asked questions)
The Brother Solutions Center is our one-stop resource for all your Fax Machine/Multi-Function
Center needs. You can download the latest software, documents and utilities, read FAQs and
troubleshooting tips, and learn how to get the most from your Brother product.
Note
You can check here for Brother driver updates.
For Customer Service
Service Center Locator (USA only)
For the location of a Brother authorized service center, call 1-800-284-4357.
Service Center Locations (Canada only)
For the location of a Brother authorized service center, call 1-877-BROTHER.
IMPORTANT
For technical help, you must call the country where you bought the machine. Calls must be made
from within that country.
In USA: 1-800-284-4329 (voice)
1-901-379-1215 (fax)
1-800-284-3238 (TTY service for the hearing-impaired)
In Canada: 1-877-BROTHER (voice)
(514) 685-4898 (fax)
http://www.brother.com/registration/
http://solutions.brother.com
ii
Brother fax back system (USA only)
Brother has installed an easy-to-use fax back system, so you can get instant answers to common
technical questions and product information for all Brother products. This system is available 24
hours a day, 7 days a week. You can use the system to receive faxed instructions and an Index
of fax back subjects.
Ordering accessories and supplies
For best quality results use only genuine Brother accessories, which are available at most Brother
retailers. If you cannot find the accessory you need and you have a Visa, MasterCard, Discover,
or American Express credit card, you can order accessories directly from Brother. (In the USA,
you can visit us online for a complete selection of the Brother accessories and supplies that are
available for purchase.)
In USA only: 1-800-521-2846
In USA: 1-888-879-3232 (voice)
1-800-947-1445 (fax)
In Canada: 1-877-BROTHER (voice)
Description Item
Toner Cartridge Black: TN-04BK (Prints approx. 10,000 pages)
Cyan: TN-04C (Prints approx. 6,600 pages)
Magenta: TN-04M (Prints approx. 6,600 pages)
Yellow: TN-04Y (Prints approx. 6,600 pages)
OPC Belt OP-4CL
Waste Toner Pack WT-4CL
Fusing Unit FP-4CL
Telephone Line Cord LG3077001
IEEE-1284 Bi-directional Cable F2A046-10
Power Protector for A/C Power Telephone
Line Surges and Voltage Spikes (2 outlets)
QPD120
Power Protector for A/C Power Telephone
Line Surges and Voltage Spikes (8 outlets)
FX120
Lower Tray Unit LT-27CL
User's Guide LF9339001 (English for USA and Canada)
LF9339002 (French for Canada)
Quick Setup Guide LF9353001 (English for USA and Canada)
LF9353002 (French for Canada)
http://www.brothermall.com
iii
Notice - Disclaimer of Warranties
(USA and Canada)
BROTHER’S LICENSOR(S), AND THEIR DIRECTORS, OFFICERS, EMPLOYEES OR
AGENTS (COLLECTIVELY BROTHER’S LICENSOR) MAKE NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, REGARDING THE SOFTWARE. BROTHER’S LICENSOR(S) DOES NOT
WARRANT, GUARANTEE OR MAKE ANY REPRESENTATIONS REGARDING THE USE
OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS OF ITS
CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS OR OTHERWISE. THE
ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE SOFTWARE IS
ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED
BY SOME STATES IN THE USA AND SOME PROVINCES IN CANADA. THE ABOVE
EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL BROTHER’S LICENSOR(S) BE LIABLE TO YOU FOR ANY
CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES
FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE
THE SOFTWARE EVEN IF BROTHER’S LICENSOR HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES IN THE USA AND SOME
PROVINCES IN CANADA DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU. IN ANY EVENT BROTHER’S LICENSOR’S
LIABILITY TO YOU FOR ACTUAL DAMAGES FROM ANY CAUSE WHATSOEVER, AND
REGARDLESS OF THE FORM OF THE ACTION (WHETHER IN CONTRACT, TORT
(INCLUDING NEGLIGENCE), PRODUCT LIABILITY OR OTHERWISE), WILL BE
LIMITED TO $50.
Compilation and Publication Notice
Under the supervision of Brother Industries Ltd., this manual has been compiled and
published, covering the latest product descriptions and specifications.
The contents of this manual and the specifications of this product are subject to change
without notice.
Brother reserves the right to make changes without notice in the specifications and
materials contained herein and shall not be responsible for any damages (including
consequential) caused by reliance on the materials presented, including but not limited to
typographical and other errors relating to the publication.
iv
Brother
®
Color Laser One-Year On-Site Limited Warranty
(USA only)
Who is covered:
• This limited warranty (“warranty”) is given
only to the original end-use/retail
purchaser (referred to in this warranty as
“Original Purchaser”) of the accompanying
product, consumables and accessories
(collectively referred to in this warranty as
“this Product”).
• If you purchased a product from someone
other than an authorized Brother reseller in
the United States or if the product was
used (including but not limited to floor
models or refurbished product), prior to
your purchase you are not the Original
Purchaser and the product that you
purchased is not covered by this warranty.
What is covered:
• This Product includes a Machine and
Consumable and Accessory Items.
Consumable and Accessory Items include
but are not limited to Toner Cartridges,
OPC Belt Assembly, Fuser Unit and
Transfer Belt Assembly.
• Except as otherwise provided herein,
Brother warrants that the Machine and the
accompanying Consumable and
Accessory Items will be free from defects
in materials and workmanship, when used
under normal conditions.
• This warranty applies only to products
purchased and used in the United States.
For products purchased in, but used
outside, the United States, this warranty
covers only warranty service within the
United States (and does not include
shipping outside the United States).
What is the length of the Warranty
Periods:
• Machines: one year from the original
purchase date.
• Accompanying Consumable and
Accessory Items: 90 days from the original
purchase date or the rated life of
consumable, whichever comes first.
What is NOT covered:
This warranty does not cover
:
(1)Physical damage to this Product;
(2)Damage caused by improper installation,
improper or abnormal use, misuse, neglect
or accident (including but not limited to
transporting this Product without the
proper preparation and/or packaging);
(3)Damage caused by another device or
software used with this Product (including
but not limited to damage resulting from
use of non Brother
®
-brand parts and
Consumable and Accessory Items);
(4)Consumable and Accessory Items that
expired in accordance with a rated life;
and,
(5)Problems arising from other than defects
in materials or workmanship.
(6)Normal Periodic Maintenance Items, such
as Paper Feeding Kit, Fuser and Laser
Units.
This limited warranty is VOID if this Product
has been altered or modified in any way
(including but not limited to attempted
warranty repair without authorization from
Brother and/or alteration/removal of the serial
number).
What to do if you think your Product is
eligible for warranty service:
Report your issue to our Customer Service
Hotline at 1-800-284-4329
or to a Brother
Authorized Service Center within the
applicable warranty period
. Supply Brother
or the Brother Authorized Service Center with
a copy of your dated bill of sale showing that
this Product was purchased within the U.S.
For the name of local Brother Authorized
Service Center(s), call 1-800-521-2846.
What Brother will ask you to do:
After contacting Brother or a Brother
Authorized Service Center, you may be
required to provide information pertaining to
the defect or malfunction of this Product.
v
Brother
®
Color Laser One-Year On-Site Limited Warranty
(USA only)
What Brother will do:
If the problem reported concerning your
Machine and/or accompanying Consumable
and Accessory Items is covered by this
warranty and
if you first reported the problem
to Brother or an Authorized Service Center
within the applicable warranty period, Brother
or its Authorized Service Center will evaluate
your report of a possible defect to determine
whether a defect exists, and if it does exist,
Brother or an Authorized Service Center will
provide “On-site Warranty Service” during
“Normal Working Hours” and will repair the
Machine and/or accompanying Consumable
and Accessory Items at no charge to you for
parts or labor. “On-site Warranty Service”
shall consist of the remedial service, as
necessitated by normal usage, to restore this
product to good operating condition at your
location and does not guarantee
uninterrupted operation of this Product.
“Normal Working Hours” shall mean 9:00am
to 5:00pm (local time), Monday through
Friday, excluding legal and local holidays
observed by Brother or the Authorized
Service Center.
If the Machine and/or accompanying
Consumable and Accessory Items are not
covered by this warranty, you will be charged
for any service and/or replacement
parts/products at Brother's or the Authorized
Service Center's then current published rates.
The foregoing are your sole (i.e., only) and
exclusive remedies under this warranty.
What you must provide:
Reasonable cooperation with the Brother
Representative in troubleshooting as they
diagnose the problem, provide access to this
Product at reasonable times and provide
adequate working space including heat, light,
ventilation, electric current and outlets for the
use of the Brother representative.
Limitations:
Brother is not responsible for damage to or
loss of any equipment, media, programs or
data related to the use of this Product.
Except for that repair as described above,
Brother shall not be liable for any direct,
indirect, incidental or consequential damages
or specific relief. Because some states do
not allow the exclusion or limitation of
consequential or incidental damages, the
above limitation may not apply to you.
THIS WARRANTY IS GIVEN IN LIEU OF
ALL OTHER WARRANTIES, WRITTEN OR
ORAL, WHETHER EXPRESSED BY
AFFIRMATION, PROMISE, DESCRIPTION,
DRAWING, MODEL OR SAMPLE. ANY
AND ALL WARRANTIES OTHER THAN
THIS ONE, WHETHER EXPRESS OR
IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE, ARE HEREBY DISCLAIMED.
• This Limited Warranty is the only warranty
that Brother is giving for this Product. It is
the final expression and the exclusive and
only statement of Brother’s obligations to
you. It replaces all other agreements and
understandings that you may have with
Brother or its representatives.
• This warranty gives you certain rights and
you may also have other rights that may
vary from state to state.
• This Limited Warranty (and Brother’s
obligation to you) may not be changed in
any way unless you and Brother sign the
same piece of paper in which we (1) refer
to this Product and your bill of sale date,
(2) describe the change to this warranty
and (3) agree to make that change.
© 2006 Brother International Cor
p
oration
vi
BROTHER MULTIFUNCTION CENTER/FACSIMILE MACHINE
LIMITED WARRANTY
(Canada only)
Pursuant to this limited warranty of 1 year from the date of purchase for labour and parts,
Brother International Corporation (Canada) Ltd. (“Brother”), or its Authorized Service
Centers, will repair this MFC/Facsimile machine free of charge if defective in material or
workmanship. This Limited Warranty does not include cleaning, consumables (including,
without limitation, print cartridges, print head, toner and drum) or damage caused by accident,
neglect, misuse or improper installation or operation, any damage caused from service,
maintenance, modifications, or tampering by anyone other than a Brother Authorized Service
Representative, or from the use of supplies or consumable items that are non-Brother
products. Operation of the MFC/Facsimile machine in excess of the specifications or with the
Serial Number or Rating Label removed shall be deemed abuse and all repairs thereafter
shall be the sole liability of the end-user/purchaser. In order to obtain warranty service, the
MFC/Facsimile machine must be delivered or shipped freight prepaid by the end
user/purchaser to a “Brother” Authorized Service Center, together with your Proof of
Purchase in the form of a Sales Receipt.
For laser products: Failure to remove the Toner Cartridge (and Toner Drum Unit on applicable
models) during shipping will cause severe damage to the MFC/Facsimile and will VOID the
Warranty. (Refer to your User’s Guide for proper packaging.)
For ink-jet products: Do not remove the ink cartridges during shipping. Damage to your print
head resulting from packing without the ink cartridges will VOID your warranty. (Refer to your
User’s Guide for proper packaging.)
BROTHER DISCLAIMS ALL OTHER WARRANTIES EXPRESSED OR IMPLIED
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EXCEPT TO THE
EXTENT THAT ANY WARRANTIES IMPLIED BY LAW CANNOT BE VALIDLY WAIVED.
No oral or written information, advice or representation provided by Brother, its Authorized
Service Centers, Distributors, Dealers, Agents or employees, shall create another warranty
or modify this warranty. This warranty states Brother’s entire liability and your exclusive
remedy against Brother for any failure of the MFC/Facsimile machine to operate properly.
Neither Brother nor anyone else involved in the development, production, or delivery of this
MFC/Facsimile machine shall be liable for any indirect, incidental, special, consequential,
exemplary, or punitive damages, including lost profits, arising from the use of or inability to
use the product, even if advised by the end user/purchaser of the possibility of such damages.
Since some Provinces do not allow the above limitation of liability, such limitation may not
apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights
which vary from Providence to Providence.
Warranty Service is available at Brother Authorized Service Centers throughout Canada. For
Technical Support or for the name and location of your nearest Authorized Service Center
call 1-877-BROTHER.
Internet support: support@brother.ca or browse
Brother’s Web Site: www.brother.com
Brother International Corporation (Canada) Ltd.
1 Rue Hôtel de Ville
Dollard-Des-Ormeaux, QC H9B 3H6
vii
Quick Reference Guide
Sending Faxes
Automatic Transmission
1
If it is not illuminated in blue, press
(Fax).
2 Load your document.
3
Enter the fax number using One-Touch,
Speed-Dial, Search or the dial pad.
4
Press Black Start or Color Start.
Storing numbers
Storing One-Touch Dial numbers
1
Press Menu/Set, 2, 3, 1.
2
Press the One-Touch key where you
want to store the number.
Note
To access One-Touch numbers 9 to 16, hold
down Shift as you press the One-Touch key.
3
Select Fax/Tel.
Press Menu/Set.
4
Enter the number (up to 20 digits).
Press Menu/Set.
5
Enter the name up to 15 characters (or
leave it blank).
Press Menu/Set.
6
Press Stop/Exit.
Storing Speed-Dial numbers
1
Press Menu/Set, 2, 3, 2.
2
Using the dial pad, enter a three-digit
Speed-Dial location number.
Press Menu/Set.
3
Select Fax/Tel.
Press Menu/Set.
4
Enter the number (up to 20 digits).
Press Menu/Set.
5
Enter the name up to 15 characters (or
leave it blank).
Press Menu/Set.
6
Press Stop/Exit.
Dialing operations
One-Touch Dialing / Speed-Dialing
1
If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Press the One-Touch key of the number
you want to call.
Note
To dial One-Touch numbers 9 to 16, hold
down Shift as you press the One-Touch key.
—OR—
Press Search/Speed Dial, press #.
Press the three-digit Speed-Dial
number.
4
Press Black Start or Color Start.
viii

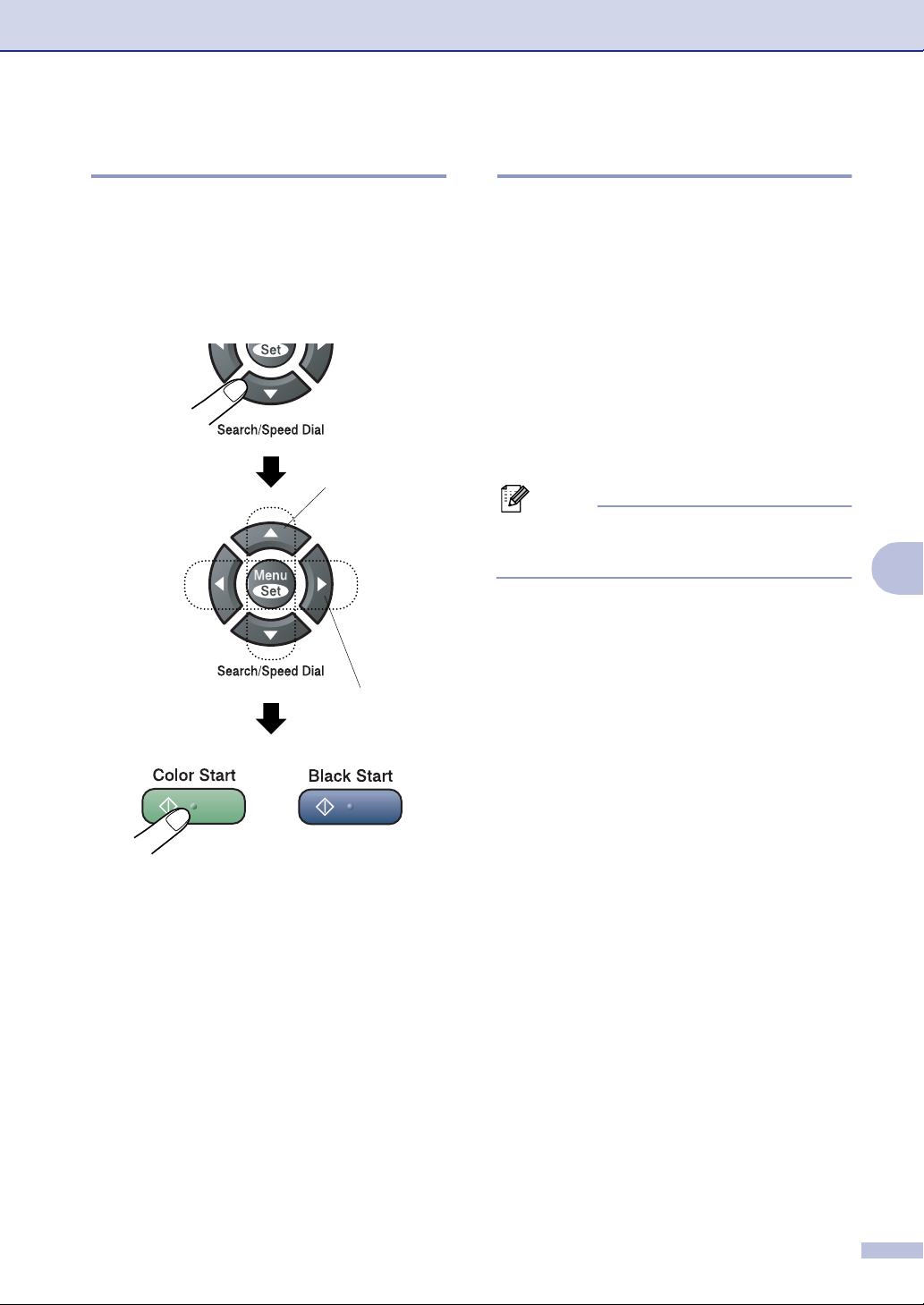

Using Search
1
If it is not illuminated in blue, press
(Fax).
2 Load your document.
3
Press Search/Speed Dial
,
and then
enter the first letter of the name you’re
looking for.
4
Press or to search the memory.
5 Press Black Start or Color Start.
Making copies
Single copy
1
Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Press Black Start or Color Start.
Sorting copies using the ADF
1
Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4
Press Options and ▲ or ▼ to select
Stack/Sort.
Press Menu/Set.
5
Press ▲ or ▼ to select Sort.
Press Menu/Set.
6
Press Black Start or Color Start.
▲
▲
ix
Table of Contents
Section I - General
1
General Information
Using this Guide ..................................................................................................1-1
Finding information........................................................................................1-1
Symbols used in this Guide ...........................................................................1-1
How to access the complete User’s Guide..........................................................1-2
To view Documentation (For Windows
®
).......................................................1-2
To view Documentation (For Macintosh
®
).....................................................1-3
Control panel overview........................................................................................1-4
About fax machines .............................................................................................1-6
Custom features ............................................................................................1-6
Fax tones and handshake .............................................................................1-7
ECM (Error Correction Mode)........................................................................1-7
2
Loading paper and documents
Acceptable paper and other media......................................................................2-1
Recommended paper ....................................................................................2-1
Type and size of paper..................................................................................2-1
Handling and using special paper .................................................................2-3
Printable area ......................................................................................................2-7
Loading paper and envelopes .............................................................................2-8
Loading documents ...........................................................................................2-10
Using the ADF (automatic document feeder) ..............................................2-10
Using the scanner glass ..............................................................................2-11
3
Setup
Date and Time .....................................................................................................3-1
Automatic Daylight Savings Time..................................................................3-1
Station ID.............................................................................................................3-2
LCD Contrast.......................................................................................................3-3
Phone line settings ..............................................................................................3-3
Tone and Pulse dialing mode........................................................................3-3
Roll over phone lines.....................................................................................3-3
Two-line phone system..................................................................................3-3
Converting telephone wall outlets..................................................................3-4
Installing machine, external two-line TAD and two-line telephone ................3-4
Multi-line connections (PBX) .........................................................................3-5
Connecting an external or extension telephone ............................................3-5
Connecting an external telephone answering device (TAD) .........................3-5
Ecology features..................................................................................................3-7
Toner Save....................................................................................................3-7
Sleep Time ....................................................................................................3-8
Mode Timer..........................................................................................................3-8
x
Paper settings......................................................................................................3-9
Paper Type ....................................................................................................3-9
Paper Size .....................................................................................................3-9
Volume Settings.................................................................................................3-10
Ring Volume................................................................................................3-10
Beeper Volume............................................................................................3-10
Speaker Volume ..........................................................................................3-10
4
Security features
Setting Lock.........................................................................................................4-1
Setting up the password ................................................................................4-1
Changing the Setting Lock password ............................................................4-2
Turning Setting Lock on.................................................................................4-2
Turning Setting Lock off.................................................................................4-2
Memory Security..................................................................................................4-3
Setting up the password ................................................................................4-3
Changing the Memory Security password.....................................................4-4
Turning Memory Security on .........................................................................4-4
Turning Memory Security off .........................................................................4-4
Section II - Fax & Telephone
5
Sending a fax
How to Fax...........................................................................................................5-1
Entering Fax mode ........................................................................................5-1
Sending a fax from the ADF ..........................................................................5-1
Sending a fax from the scanner glass ...........................................................5-1
Color fax transmission ...................................................................................5-2
Canceling a fax in progress...........................................................................5-2
Dual Access (Black & White only) .................................................................5-2
Sending a fax manually .......................................................................................5-3
Manual transmission......................................................................................5-3
Sending a fax at the end of a conversation ...................................................5-3
Out of Memory message ...............................................................................5-3
Broadcasting (Black & White only) ......................................................................5-4
Additional Sending Operations ............................................................................5-5
Sending faxes using multiple settings ...........................................................5-5
Contrast.........................................................................................................5-5
Changing fax Resolution ...............................................................................5-5
Real Time Transmission................................................................................5-6
Overseas Mode .............................................................................................5-7
Delayed Faxing (Black & White only) ............................................................5-8
Delayed Batch Transmission (Black & White only) .......................................5-8
Checking job status and canceling a waiting job ...........................................5-9
Composing the electronic Cover Page (Black & White only).........................5-9
xi
6
Receiving a fax
Receive Mode......................................................................................................6-1
Fax Receive Settings...........................................................................................6-2
Ring Delay.....................................................................................................6-2
F/T Ring Time (Fax/Tel mode only)...............................................................6-3
Tray Use for Fax mode..................................................................................6-3
Printing a reduced incoming fax (Auto Reduction) ........................................6-4
Receiving a fax at the end of a conversation.................................................6-4
Changing the remote codes ..........................................................................6-5
Easy Receive.................................................................................................6-5
Printing a fax from the memory .....................................................................6-6
Setting the Print Density................................................................................6-6
Operation from extension telephones............................................................6-6
Using a cordless external handset ................................................................6-6
For Fax/Tel mode only...................................................................................6-7
7
Dialing and phone options
How to dial...........................................................................................................7-1
Manual dialing ...............................................................................................7-1
One-Touch Dialing.........................................................................................7-1
Speed-Dialing ................................................................................................7-1
Search ...........................................................................................................7-2
Fax Redial .....................................................................................................7-2
Storing numbers ..................................................................................................7-3
Storing a Pause.............................................................................................7-3
Storing One-Touch Dial numbers..................................................................7-3
Storing Speed-Dial numbers .........................................................................7-4
Changing One-Touch and Speed-Dial numbers ...........................................7-4
Setting up Groups for Broadcasting ..............................................................7-5
Access codes and credit card numbers.........................................................7-6
Tone or Pulse ................................................................................................7-6
Phone line services..............................................................................................7-6
Distinctive Ring..............................................................................................7-6
Caller ID.........................................................................................................7-8
8
Remote Fax Options (Black & White only)
Fax Forwarding....................................................................................................8-1
Programming your pager number........................................................................8-2
Fax Storage.........................................................................................................8-2
PC Fax Receive...................................................................................................8-3
Changing Remote Fax Options ...........................................................................8-4
Turning off Remote Fax Options ...................................................................8-4
Remote Retrieval.................................................................................................8-5
Setting the Remote Access Code..................................................................8-5
Using your Remote Access Code..................................................................8-5
Remote commands..............................................................................................8-6
Retrieving fax messages ...............................................................................8-7
Changing the Fax Forwarding number..........................................................8-7
xii
9
Printing reports
Fax reports...........................................................................................................9-1
Transmission Verification Report...................................................................9-1
Fax Journal (Activity report)...........................................................................9-1
Additional reports.................................................................................................9-2
10
Polling
Polling Operation ...............................................................................................10-1
Polling Receive..................................................................................................10-1
Set up to receive polling ..............................................................................10-1
Sequential Polling........................................................................................10-1
Polled Transmit..................................................................................................10-2
Setup for Polled Transmit (Black & White only)...........................................10-2
Section III - Copy
11
Making copies
How to copy.......................................................................................................11-1
Entering Copy mode....................................................................................11-1
Printable Area..............................................................................................11-1
Making a single copy ...................................................................................11-1
Making multiple copies ................................................................................11-2
Tray Use for Copy mode .............................................................................11-2
Cancel copying............................................................................................11-2
Copy options......................................................................................................11-3
Increasing copy quality................................................................................11-3
Enlarging or reducing the image copied ......................................................11-4
Making N in 1 copies or a poster (page layout) ...........................................11-5
Sorting copies using the ADF......................................................................11-7
Adjusting Brightness, Contrast and Color....................................................11-7
Out of Memory message ...................................................................................11-9
Legal limitations .................................................................................................11-9
Section IV - Software and Network Features
Section V - Appendixes
A
Important information
Standard telephone and FCC Notices
These notices are in effect on models sold and used in the United
States only................................................................................................ A-1
Federal Communications Commission (FCC) Declaration of Conformity
(USA only) ................................................................................................ A-2
Industry Canada Compliance Statement (Canada only) .............................. A-3
xiii
For your safety.............................................................................................. A-3
Disconnect device ........................................................................................ A-3
LAN connection ............................................................................................ A-3
Laser safety .................................................................................................. A-3
FDA regulations............................................................................................ A-4
Important safety instructions......................................................................... A-4
Choosing a location ............................................................................................ A-6
To use the machine safely............................................................................ A-7
Trademarks....................................................................................................... A-10
B Menu and Features
On-screen programming..................................................................................... B-1
Menu table.................................................................................................... B-1
Memory storage............................................................................................ B-1
Menu keys .......................................................................................................... B-2
Menu Table......................................................................................................... B-3
Copy options key .............................................................................................. B-14
Entering Text .................................................................................................... B-15
C Troubleshooting and routine maintenance
Troubleshooting.................................................................................................. C-1
Error messages ............................................................................................ C-1
Document jams............................................................................................. C-6
Paper jams ................................................................................................... C-7
Paper Jam A1 / Paper Jam A2 ..................................................................... C-8
Paper Jam B................................................................................................. C-9
Paper Jam C............................................................................................... C-10
If you are having difficulty with your machine ............................................. C-11
Improving the print quality .......................................................................... C-16
Setting Dial Tone Detection........................................................................ C-20
Compatibility............................................................................................... C-20
Routine maintenance........................................................................................ C-20
Cleaning the outside of the machine .......................................................... C-21
Cleaning the scanner glass ........................................................................ C-22
Cleaning to prevent paper jams.................................................................. C-22
Cleaning the laser glass ............................................................................. C-24

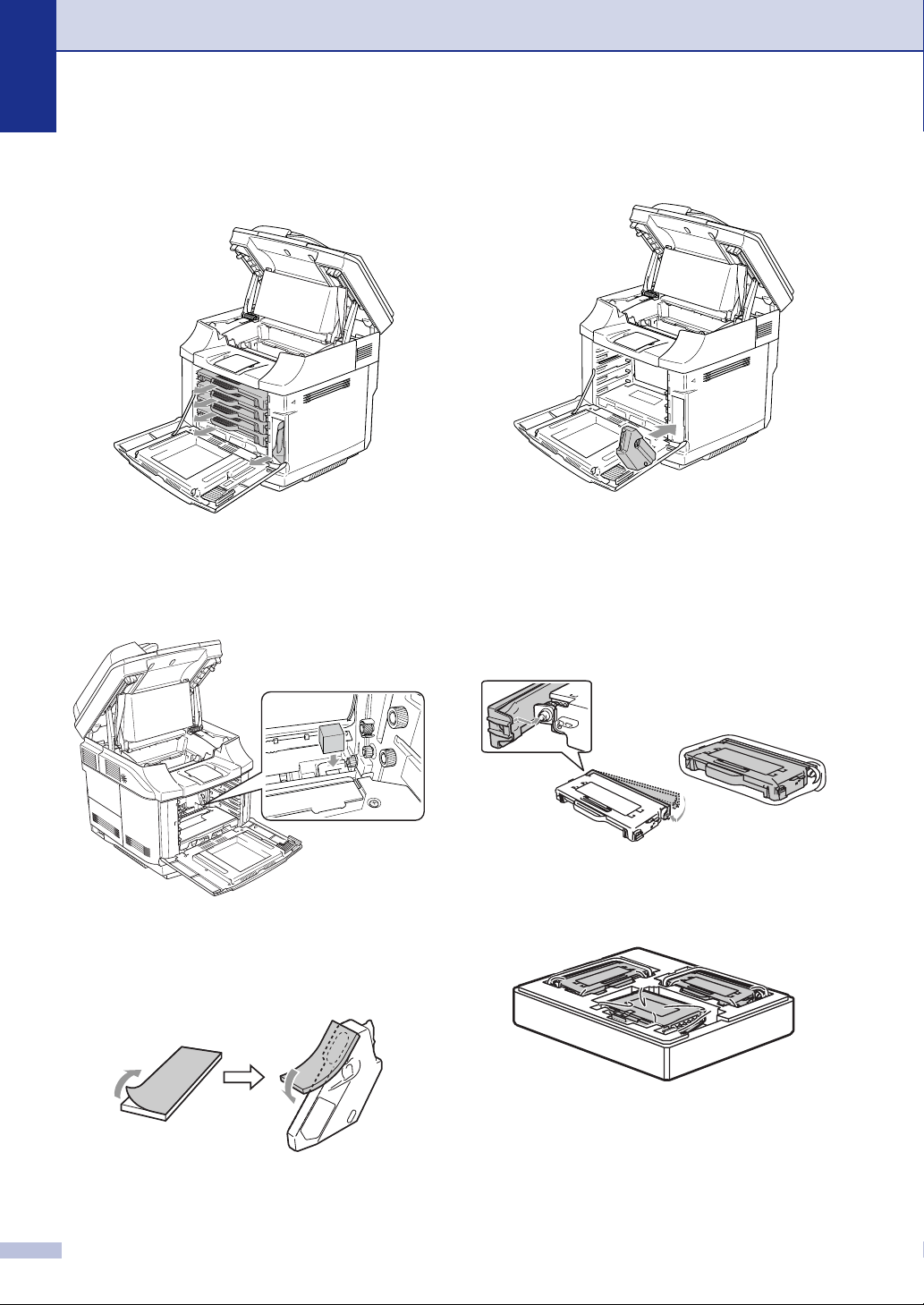

Replacing the consumable items...................................................................... C-26

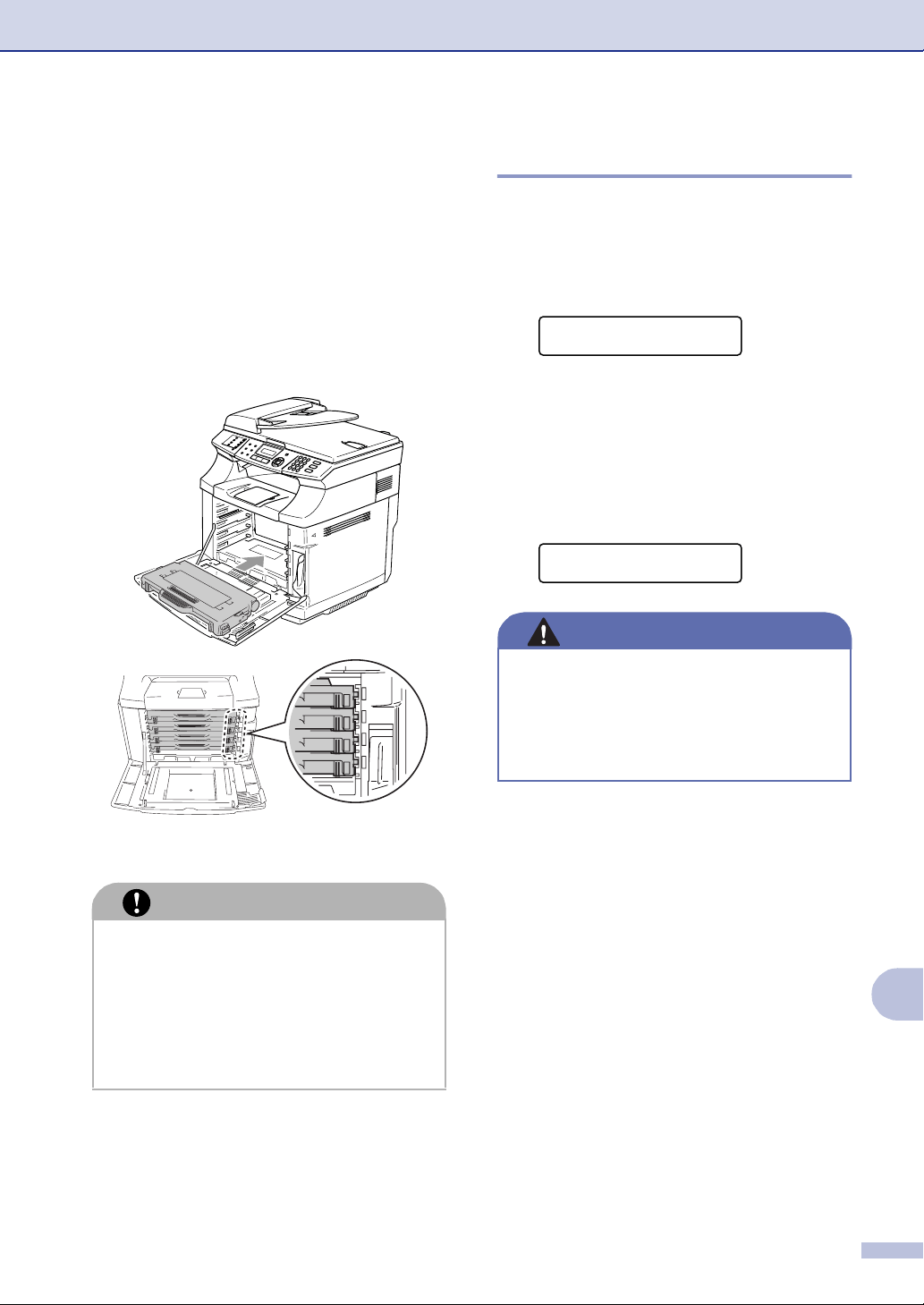

Toner cartridges ......................................................................................... C-28
Waste toner pack........................................................................................ C-31
OPC belt cartridge ...................................................................................... C-33
Fusing unit .................................................................................................. C-35

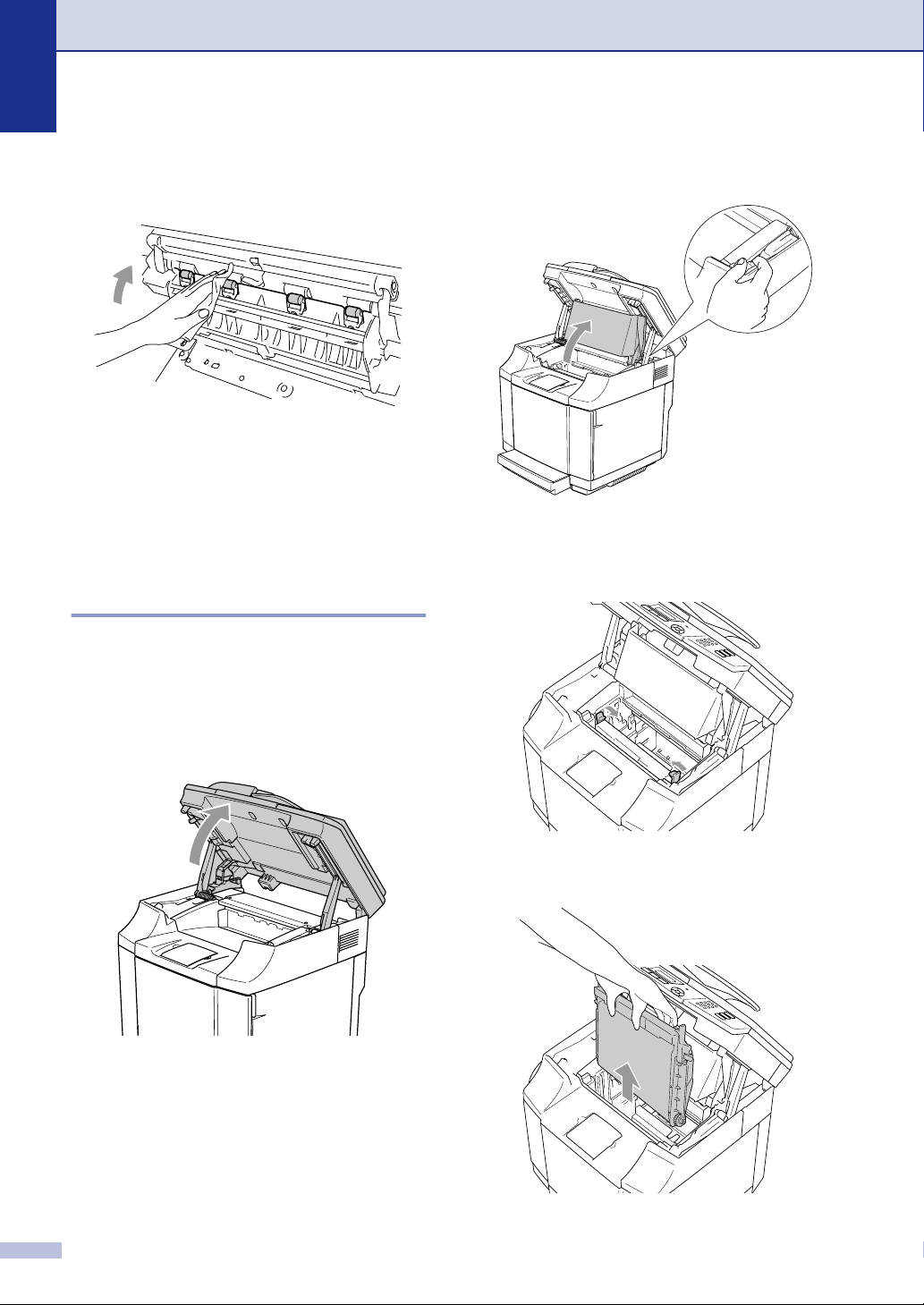

Replacing the transfer belt cleaner............................................................. C-37

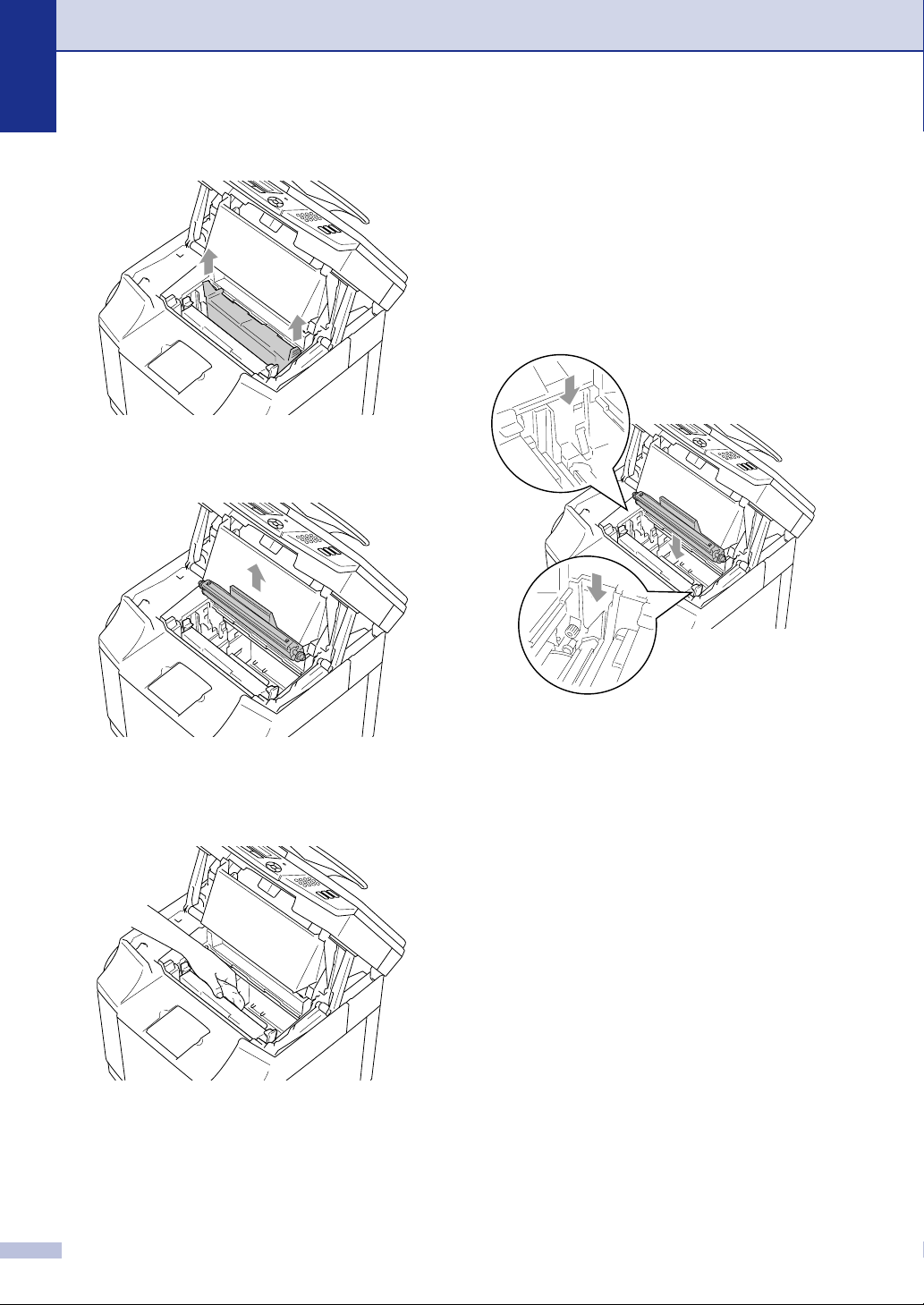

Replacing the transfer roller ....................................................................... C-39
Machine Information ......................................................................................... C-40
Checking the Serial Numbers..................................................................... C-40
Checking the Page Counters...................................................................... C-40
Checking remaining life of parts ................................................................. C-40
Packing and shipping the machine................................................................... C-41
xiv
D
Optional accessories
Optional accessories ..........................................................................................D-1

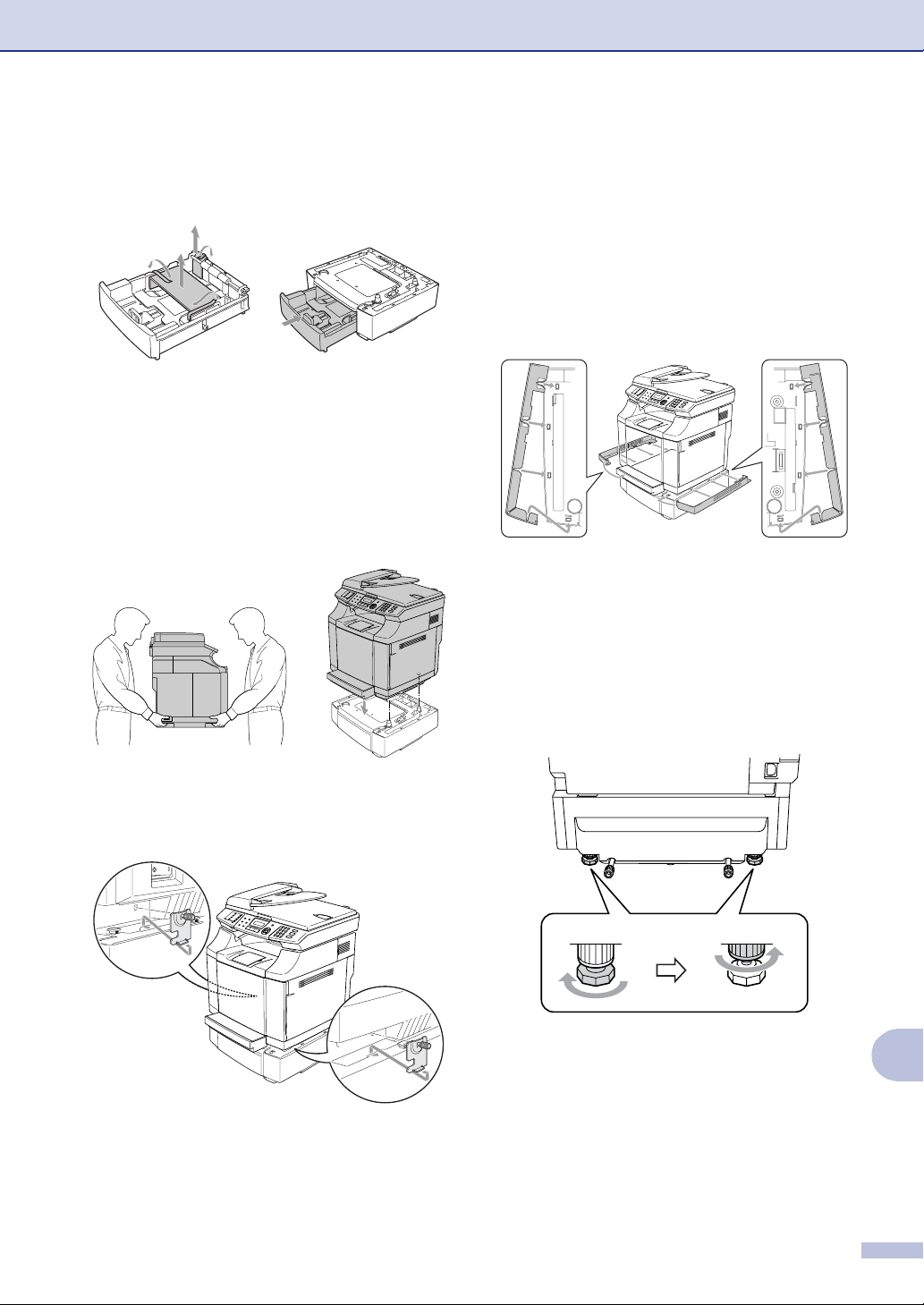

Lower tray unit (LT-27CL).............................................................................D-1
SO-DIMM (Memory) .....................................................................................D-3
Installing additional memory ......................................................................... D-4
E
Specifications
Product description ............................................................................................. E-1
General............................................................................................................... E-1
Print media.......................................................................................................... E-2
Fax...................................................................................................................... E-3
Copier .................................................................................................................E-4
Scanner .............................................................................................................. E-5
Printer ................................................................................................................. E-6
Interfaces............................................................................................................E-6
Computer requirements...................................................................................... E-7
Consumable items.............................................................................................. E-8
Replacement Parts ............................................................................................. E-8
Network (LAN) .................................................................................................... E-9
F
Glossary
G
Index
H
Remote Retrieval Access Card
1 - 1
1
1
Using this Guide
Finding information
All the chapter headings and subheadings are listed in the Table of Contents. You will be able to
find information about a specific feature or operation by checking the Index at the back of this
Guide.
Symbols used in this Guide
Throughout this Guide you will see special symbols alerting you to important warnings, notes and
actions. Special fonts identify keys you should press, messages that appear on the LCD, and
important points or related topics.
General Information
Bold Bold typeface identifies specific keys on the machine’s control panel.
Italics Italicized typeface emphasizes an important point or refers you to a related topic.
Courier Courier type face identifies the messages on the LCD of the machine.

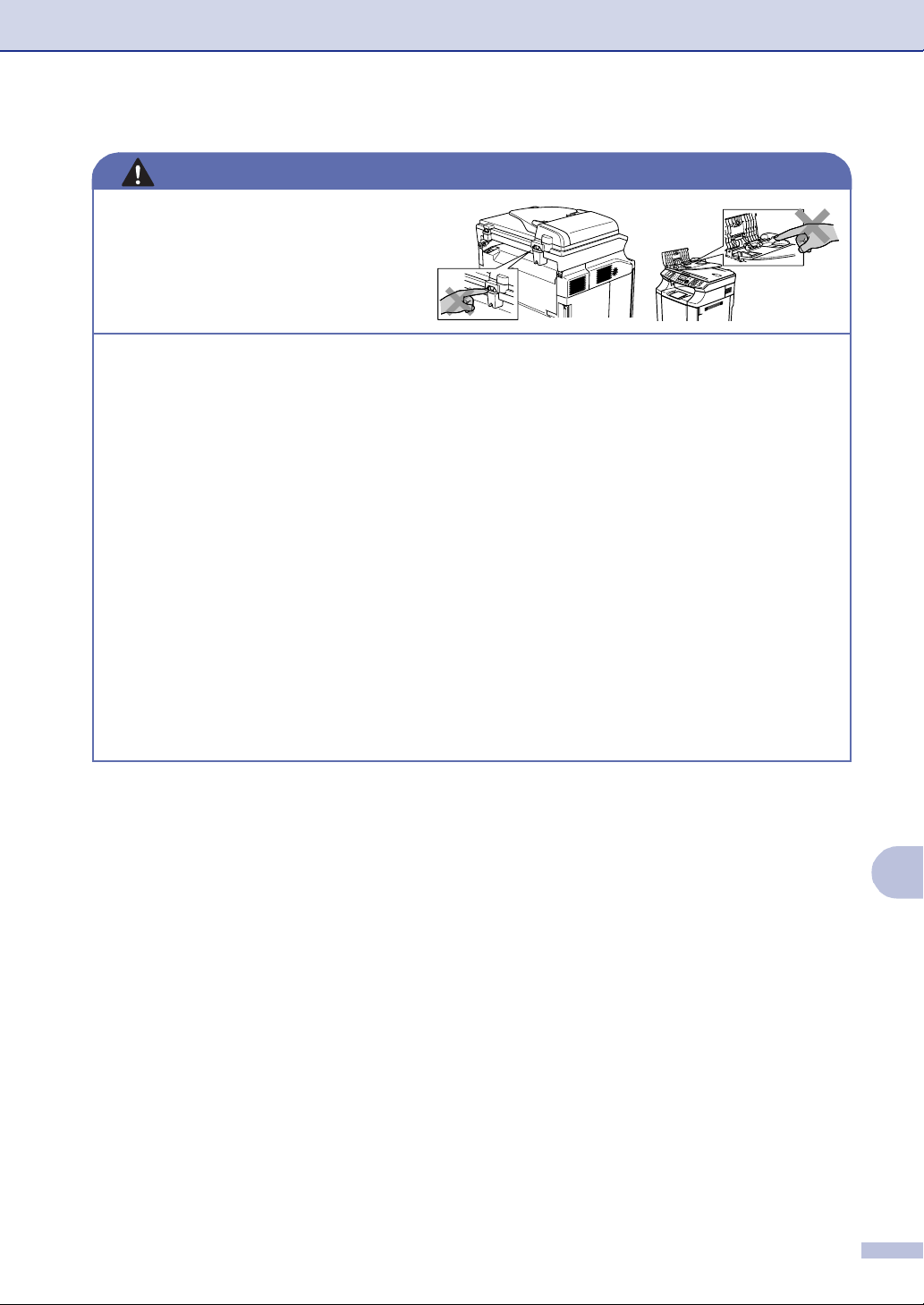

Warnings tell you what to do to prevent possible personal injury.
Electrical Hazard icons alert you to a possible electrical shock.
Hot Surface icons warn you not to touch machine parts that are hot.
Cautions specify procedures you must follow or avoid to prevent possible
damage to the machine or other objects.
Improper Setup icons alerts you to devices and operations that are not
compatible with the machine.
Notes tell you how you should respond to a situation that may arise or give tips
about how the operation works with other features.
Chapter 1
1 - 2
How to access the
complete User’s Guide
This User’s Guide does not contain all the
information about the machine such as how
to use the advanced features of the Fax,
Printer, Scanner, PC Fax and Network. When
you are ready to learn detailed information
about these operations, read the complete
User’s Guide located in the ‘Documentation’
section of the CD-ROM.
To view Documentation
(For Windows
®
)
From the Start menu, select Brother, MFL
Pro Suite MFC-9420CN from the Programs
Group and then select User’s Guide.
—OR—
1
Turn on your PC. Insert the Brother
CD-ROM labeled Windows
®
into your
CD-ROM drive.
2
If the model name screen appears, click
your model name.
3
If the language screen appears, click
your language.

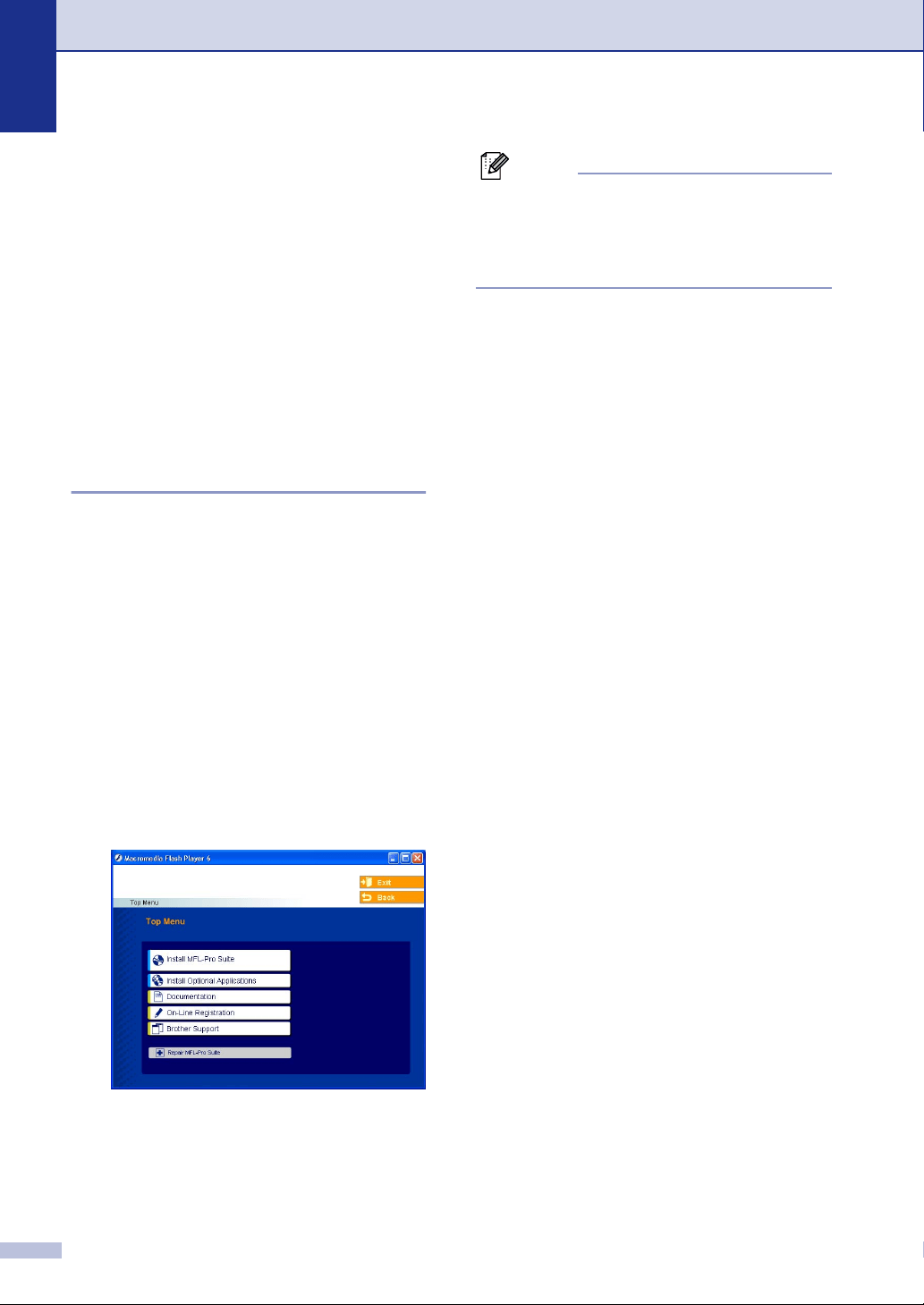

The CD-ROM main menu will appear.
Note
If this window does not appear, use
Windows
®
Explorer to run the setup.exe
program from the root directory of the Brother
CD-ROM.
4 Click Documentation.
5
Click the documentation you want to
read.
• Quick Setup Guide: Setup and
Software Installation Instructions
• User’s Guide (3 manuals): User’s
Guide for stand-alone operations,
Software User’s Guide and Network
User’s Guide
• PaperPort
®
User’s Guide: Document
Management Software
How to find Scanning instructions
There are several ways you can scan
documents. You can find the instructions as
follows:
Software User's Guide:
■ Scanning in Chapter 2
(For Windows
®
98/98SE/Me/2000
Professional/XP/Windows NT
®
Workstation Version 4.0)
■ ControlCenter2 in Chapter 3
(For Windows
®
98/98SE/Me/2000
Professional/XP/Windows NT
®
Workstation Version 4.0)
■ Network Scanning in Chapter 4
PaperPort
®
User's Guide
■ Instructions for scanning directly from
ScanSoft
®
PaperPort
®
General Information
1 - 3
1
To view Documentation
(For Macintosh
®
)
1
Turn on your Macintosh
®
. Insert the
Brother CD-ROM labeled Macintosh
®
into your CD-ROM drive. The following
window will appear.
2
Double-click the Documentation icon.
3
The select Language screen appears,
double-click your language.
4
Click the documentation you want to
read.
• Quick Setup Guide: Setup and
Software Installation Instructions
• User's Guide (3 manuals): User’s
Guide for stand-alone operations,
Software User’s Guide and Network
User’s Guide
How to find Scanning instructions
There are several ways you can scan
documents. You can find the instructions as
follows:
Software User's Guide:
■ Scanning in Chapter 8
(For Mac OS
®
9.1 - 9.2/Mac OS
®
X 10.2.4
or greater)
■ ControlCenter2 (For Mac OS
®
X 10.2.4 or
greater) in Chapter 9
■ Network Scanning (For Mac OS
®
X 10.2.4
or greater) in Chapter 10
Presto!
®
PageManager
®
User's Guide
■ Instructions for scanning directly from
Presto!
®
PageManager
®
(Mac OS
®
X)
Chapter 1
1 - 4
Control panel overview
03/01 15:25 Fax
Sleep
1
One-Touch Keys
These 8 keys give you instant access to 16
previously stored numbers.
2
Shift
To access One-Touch numbers 9 to 16, hold
down Shift as you press the One-Touch key.
3 Copy keys (Temporary settings):
Enlarge/Reduce
Lets you reduce or enlarge copies depending
upon the ratio you select.
Options
You can quickly and easily select temporary
settings for copying.
4 Mode keys:
Fax
Lets you access Fax mode.
Scan
Lets you access Scan mode.
Copy
Lets you access Copy mode.
5 Menu keys:
Menu/Set
The same key is used for Menu and Set
operations.
Lets you access the Menu to program and
store your settings in the machine.
Volume keys
When listening to the speaker in Fax mode or
on standby, you can press these keys to
adjust the volume.
▼ Search/Speed Dial
Lets you look up numbers that are stored in
the dialing memory. It also lets you dial
stored numbers by pressing # and a
three-digit number.
Press to scroll forward or backward to a
menu selection.
▲
or
▼
Press to scroll through the menus and
options.
▲
▲
▲
▲
General Information
1 - 5
1
03/01 15:25 Fax
Sleep
6
Dial Pad
Use these keys to dial telephone or fax
numbers and as a keyboard for entering
information into the machine.
The # key lets you temporarily switch the
dialing mode during a telephone call from
Pulse to Tone.
7
Black Start
Lets you start sending faxes or making
copies in black & white.
Color Start
Lets you start sending faxes or making
copies in full color.
8
Stop/Exit
Stops an operation or exits from the menu.
9
Secure Print
Lets you print secured print data saved in the
machine’s memory if you enter the four-digit
password. (For details about using this
feature, for Windows
®
see Chapter 1 in the
Software User’s Guide on the CD-ROM, and
for Macintosh
®
see Chapter 7 in the Software
User’s Guide on the CD-ROM.)
@
Liquid Crystal Display (LCD)
Displays messages on the screen to help you
set up and use your machine.
A Fax and telephone keys:
Redial/Pause
Redials the last number you called. It also
inserts a pause in quick dial numbers.
Hook
Press before dialing if you want to make sure
a fax machine will answer, and then press
Black Start or Color Start. Also, press this
key after picking up the handset of an
external telephone during the F/T
double/pseudo-ring.
Resolution
Sets the resolution when you send a fax.
B Print key:
Job Cancel
You can cancel a print job and clear the
machine’s memory.
Chapter 1
1 - 6
About fax machines
Custom features
Do you have Voice Mail on the phone
line?
If you have Voice Mail on the phone line
where you will install your new machine,
there is a strong possibility that Voice Mail
and the machine may conflict with each other
while receiving incoming calls.
Why should there be problems?
Since both the machine and Voice Mail will
pick up the call, after the number of rings you
have set, each of them has the ability to keep
the other from receiving calls.
For example, if Voice Mail is set to answer
after two rings and your machine is set to
answer after four, Voice Mail will stop your
machine from receiving faxes.
If you set Voice Mail and the Brother machine
to answer after the same number of rings,
there is no way of knowing which one will
answer first. It is important to remember that
neither Voice Mail nor the machine can pass
the call back to the other after the call has
been answered.
How can you avoid possible
problems?
A very good way to avoid problems like the
one mentioned, is to get a second phone
number on your present phone line.
Many people with Voice Mail choose an
alternative service, which is called
“Distinctive Ring”, and they are very satisfied
with it.
(See Distinctive Ring on page 7-6.)
Another way to avoid possible problems is to
replace Voice Mail with an answering
machine. Your Brother machine is designed
to work with an answering machine or TAD
(telephone answering device).
(See Connecting an external telephone
answering device (TAD) on page 3-5.)
General Information
1 - 7
1
Fax tones and handshake
When someone is sending a fax, the fax
machine sends fax calling tones (CNG
tones). These are quiet, intermittent beeps
every 4-seconds. You’ll hear them after you
dial and press Black Start or Color Start and
they will continue for about 60 seconds after
dialing. During that time, the sending
machine must begin the “handshake” or
connection with the receiving machine.
Each time you use automatic procedures to
send a fax, you are sending CNG tones over
the phone line. You will soon learn to listen for
these quiet beeps each time you answer a
phone on your fax line, so you will know if you
are receiving a fax message.
The receiving fax responds with fax receiving
tones, which are loud, chirping sounds. A
receiving fax chirps for about 40 seconds
over the phone line, and the LCD shows
Receiving.
If your machine is set to the Fax Only mode,
it will answer every call automatically with fax
receiving tones. If the other person hangs up,
your machine will continue to send the
“chirps” for about 40 seconds, and the LCD
continues to show
Receiving. To cancel
receiving, press Stop/Exit.
The fax ‘handshake’ is the time in which the
sending machine’s CNG tones and the
receiving machine’s “chirps” overlap. This
must be for at least 2 to 4 seconds, so both
machines can understand how each is
sending and receiving the fax. The
handshake cannot begin until the call is
answered, and the CNG tones only last for
about 60 seconds after the number is dialed.
So it is important for the receiving machine to
answer the call in as few rings as possible.
ECM (Error Correction Mode)
The Error Correction Mode (ECM) is a way for
the machine to check a fax transmission
while it is in progress. If the machine detects
errors during fax transmission, it resends the
pages of the fax that had an error. ECM
transmissions are only possible between fax
machines that both have this feature. If they
do, you may send and receive fax messages
that are continuously being checked by the
machine.
If this feature stops working, delete your
faxes from the memory.
2 - 1
2
Acceptable paper and
other media
Recommended paper
The recommended paper for this machine is:
Xerox 4200, Hammermill Laserprint or
equivalent
■ To get the best output quality and to avoid
any damage, use smooth white paper.
■ Before you buy a lot of paper, please test
some to make sure that the paper is
suitable.
■ Use neutral paper. Do not use acidic or
alkaline paper.
■ Print quality will vary depending on the
paper being used.
Type and size of paper
The machine loads paper from the installed
standard paper tray or optional lower tray.

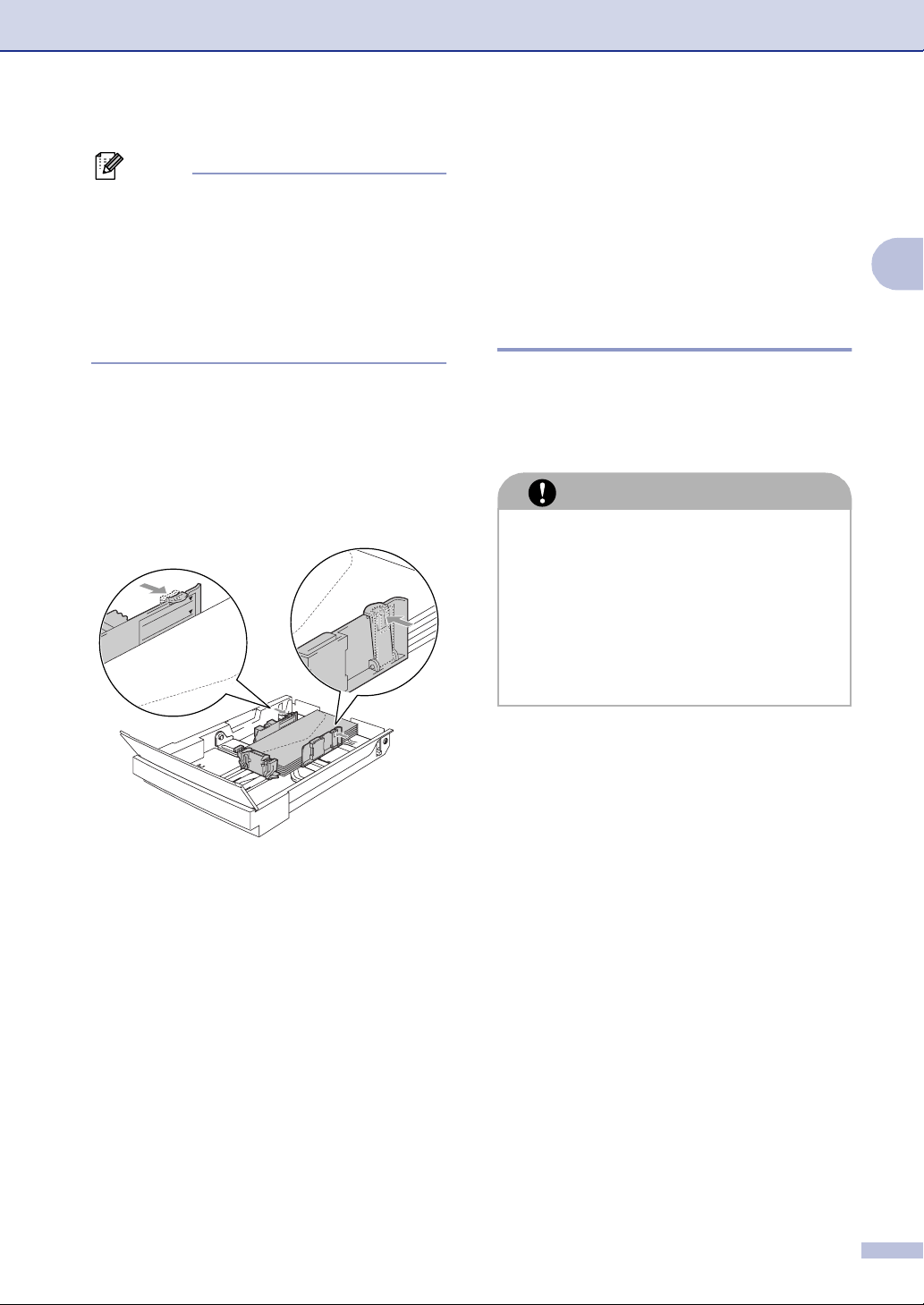

Standard paper tray
Since the standard paper tray is a universal
type, you can use any of the paper types and
sizes (one paper type and size at a time)
listed in the table in Paper capacity of the
paper trays on page 2-2. The tray can hold up
to 250 sheets of paper (20 lb or 80 g/m
2
) or up
to 15 envelopes (paper can be loaded up to
the top line of the maximum paper mark on
the sliding paper width guide).
Optional lower tray (LT-27CL)
The optional lower tray can hold up to 530
sheets of Letter/A4 paper (20 lb or 80 g/m
2
).
The maximum capacity is 1.76 in. (44 mm)
paper height.
The names for the paper trays in the machine
driver and this Guide are as follows:
Loading paper and documents
CAUTION
Do not load envelopes, transparencies,
labels or thick paper (more than 28 lb or
105 g/m
2
) into the optional lower tray unit.
It may cause paper jams.
Tray and optional unit Name
Standard paper tray Tray 1
Optional lower tray Tray 2
Loading paper and documents
2 - 2
2
Paper capacity of the paper trays
* H/H = High temperature/High humidity
Recommended paper specifications
The following paper specifications are suitable for this machine.
Standard Paper Tray
(Tray 1)
Optional lower tray
(Tray 2)
Paper size A4, Letter, Legal, B5 (JIS/ISO),
Executive, A5, COM10, DL,
4.1 x 8.3 in. to 8.5 x 11.7 in.
(104.8 x 210 mm to 215.9 x 297 mm)
A4, Letter, B5 (JIS/ISO),
Executive
Number of sheets Plain paper Up to 250 sheets
(20 lb or 80 g/m
2
)
Up to 530 sheets
(20 lb or 80 g/m
2
)
Thick/Thicker
paper
Up to 40 sheets
(44 lb or 165 g/m
2
)
Up to 1.76 in. (44 mm)
loading height
Transparencies Up to 50 sheets N/A
Labels Up to 80 sheets N/A
Envelopes Up to 15 sheets or 7 sheets for H/H*
condition.
N/A
Basis weight (lb (g/m
2
)) 16-24 (75-90)
Thickness (µm) 80-110
Roughness (sec.) Higher than 20
Stiffness (cm
3
/100) 90-150
Grain direction Long grain
Volume resistivity (ohm) 10e
9
-10e
11
Surface resistivity (ohm-cm) 10e
10
-10e
12
Filler CaCO
3
(Neutral)
Ash content (wt%) Below 23
Brightness (%) Higher than 80
Opacity (%) Higher than 85
Chapter 2
2 - 3
Handling and using special
paper
The machine is designed to work well with
most types of xerographic and bond paper.
However, some paper variables may have an
effect on print quality or handling reliability.
Always test samples of paper before
purchasing to ensure desirable performance.
Some important guidelines when selecting
paper are:
■ Supplier should be informed that the
paper or envelopes will be used in a color
laser machine.
■ Preprinted paper must use inks that can
withstand the temperature of the
machine's fusing process (392 degrees
Fahrenheit or 200 degrees centigrade for
a period of 0.1 seconds).
■ If you have selected a cotton bond paper,
paper having a rough surface, such as
cockle or laid finished paper or paper that
is wrinkled or puckered, the paper may
exhibit degraded performance.
Types of paper to avoid
CAUTION
Some types of paper may not perform well
or may cause damage to your machine.
Do not use paper:
■ that is highly textured
■ that is extremely smooth or shiny
■ that is curled or warped
■ that is coated or has a chemical finish
■ that is damaged, creased or folded
■ that exceeds the recommended weight
specification in this guide
■ with tabs and staples
■ with letterheads using low temperature
dyes or thermography
■ that is multipart or carbonless
■ that is designed for inkjet printing
If you use any of the types of paper listed
above, they may damage your machine.
This damage is not covered under any
Brother warranty or service agreement.
Loading paper and documents
2 - 4
2
Envelopes
Most envelopes will be suitable for your
machine. However, some envelopes will
have feed and print-quality problems
because of the way they have been made. A
suitable envelope should have edges with
straight, well-creased folds and the leading
edge should not be thicker than two pieces of
paper. The envelope should lie flat and not be
of baggy or flimsy construction. You should
buy quality envelopes from a supplier who
understands that you will be using the
envelopes in a laser machine.
Envelopes can only be fed from Tray#1.
Note
Brother will not recommend a particular
envelope because envelope manufacturers
may change the envelope specifications. You
are responsible for the quality and
performance of the envelopes you use.
Before you put envelopes in the tray, check
the following:
■ Envelopes should have a lengthwise
sealing flap.
■ The sealing flaps should be folded crisply
and correctly (irregularly cut or folded
envelopes may cause paper jams).
■ Envelopes should consist of two layers of
paper in the area circled in Figure 1.
Note
■ Before you print envelopes, you must ‘fan’
the stack to avoid paper jams and
misfeeds.
■ Before you print a lot of envelopes, test
one to make sure that the print results are
what you want.
■ Envelope joints that are sealed by the
manufacturer should be secure.
■ Do not put different types of paper in the
paper tray at the same time because it
may cause paper jams or misfeeds.
■ For proper printing, you must choose the
same paper size from your software
application as the paper in the tray.
■ We recommend that you do not print
within 0.6 in. (15 mm) of the edges of
envelopes.
■ See Acceptable paper and other media on
page 2-1.
Feeding
direction
Figure 1
Chapter 2
2 - 5
Types of envelopes to avoid
CAUTION
Do not use envelopes:
■ that are damaged, curled, wrinkled, or an unusual shape
■ that are extremely shiny or textured
■ with clasps, snaps or tie strings
■ with self-adhesive closures
■ that are of a baggy construction
■ that are not sharply creased
■ that are embossed (have raised writing on them)
■ that were previously printed by a laser machine
■ that are pre-printed on the inside
■ that cannot be arranged neatly when stacked
■ that are made of paper that weighs more than the paper weight specifications for the
machine
■ with edges that are not straight or consistently square
■ with windows, holes, cut-outs or perforations
■ with sealing flaps that have not been folded at purchase
■ with sealing flaps as shown in Figure 2
■ with each side folded as shown in Figure 3
If you use any of the types of envelopes listed above, they may damage your machine. This
damage is not covered under any Brother warranty or service agreement.
Figure 2 Figure 3
Loading paper and documents
2 - 6
2
Labels and transparencies
The machine will print on most types of labels
and transparencies designed for use with a
laser machine. Labels should have an
adhesive that is acrylic-based since such
material is more stable at the high
temperatures in the fusing unit. Adhesives
should not come in contact with any part of
the machine, because the label stock may
stick to the OPC belt or rollers and cause
jams and print quality problems. No adhesive
should be exposed between the labels.
Labels should be arranged so that they cover
the entire length and width of the sheet. Using
labels with spaces may result in labels
peeling off and causing serious jams or print
problems.
All labels and transparencies used in this
machine must be able to withstand a
temperature of 392 degrees Fahrenheit (200
degrees centigrade) for a period of 0.1
seconds.
Label and transparency sheets should not
exceed the paper weight specifications
described in this User's Guide. Labels and
transparencies exceeding this specification
may not feed or print properly and may cause
damage to your machine.
Transparencies and labels can be fed from
Tray 1 only.
Types of labels and transparencies to
avoid
Do not use labels or transparencies that are
damaged, curled, wrinkled or an unusual
shape.
CAUTION
■ Avoid feeding labels with the carrier
sheet exposed because your machine
will be damaged.
■ When feeding transparencies, use the
recommended type for laser machines.
For detailed information on the
specification of the proper
transparencies to purchase, call your
dealer or Brother Customer Service.
Chapter 2
2 - 7
Printable area
The edges of the paper that cannot be printed
on are shown below.
Portrait
Landscape
Note
We recommend that you do not print within
0.6 in. (15 mm) of the edges of envelopes.
For all available paper sizes
1 0.17 in. (4.2 mm)
2 0.17 in. (4.2 mm)
3 0.17 in. (4.2 mm)
4 0.17 in. (4.2 mm)
1
2
3
4
For all available paper sizes
1 0.17 in. (4.2 mm)
2 0.17 in. (4.2 mm)
3 0.17 in. (4.2 mm)
4 0.17 in. (4.2 mm)
1
2
3
4
Loading paper and documents
2 - 8
2
Loading paper and
envelopes
The machine can feed paper from the
standard paper tray or optional lower tray.
When you put paper into the paper tray, note
the following:
■ The machine detects standard paper
sizes in the paper trays. If you load small
size paper or envelopes, you will need to
manually set the paper size in the Small
Paper setting. (See Paper Size on
page 3-9.)
■ If your application software supports
paper size selection on the print menu,
you can select it through the software. If
your application software does not
support it, you can set the paper size in
the printer driver or by using the control
panel buttons.
■ Before using paper that has holes in it,
such as organizer sheets, you must ‘fan’
the stack to avoid paper jams and
misfeeds.
To load paper or other media in the
paper tray
1
Pull the paper tray completely out of the
machine.
2
Place the tray on a flat table and lift the
front tray cover.
Chapter 2
2 - 9
3
Squeeze the snap lock on the end of the
front paper guide. Slide the front paper
guide to the position for the size of paper
you are using. Release the snap lock.
Squeeze and slide the left hand side
paper guide to the paper size you are
using, and release it.
4
Fan the stack of paper well to avoid
paper jams and mis-feeds.
5
Put the paper in the tray with the
recommended print side face up.
6
Lower the front tray cover.
7
Put the paper tray firmly back in the
machine and unfold the output paper
tray support flap before you use the
machine.
A
B
C
P
A
P
E
R
L
A
B
E
L
E
N
V
E
L
O
P
E
T
R
A
N
S
P
A
R
E
N
C
Y
C
A
R
D
S
T
O
C
K
AB
C
Output paper
tray support flap
Loading paper and documents
2 - 10
2
Note
When you put paper in the paper tray, please
remember the following:
■ Check that the paper is flat in the tray and
below the maximum paper mark, and that
the paper guides are touching the sides of
the paper stack.
■ The side to be printed on must be face up.
Printing on envelopes
Adjust the paper length and width guides to fit
the envelopes that are going to be used.
You can load envelopes into the standard
paper tray only.
Loading documents
You can send a fax, make copies, and scan
from the ADF (automatic document feeder)
and from the scanner glass.
Using the ADF (automatic
document feeder)
The ADF can hold up to 35 pages and feeds
each sheet individually. Use standard 20 lb
(80 g/m
2
) paper and always fan the pages
before putting them in the ADF.
■ Make sure documents written with ink are
completely dry.
■ Documents to be faxed must be from
5.8 to 8.5 in. (147.3 to 215.9 mm) wide
and 5.8 to 14 in. (147.3 to 356 mm) long.
CAUTION
■
DO NOT leave thick documents on the
scanner glass. If you do this, the ADF
may jam.
■
DO NOT use paper that is curled,
wrinkled, folded, ripped, stapled,
paper-clipped, pasted or taped.
■
DO NOT use cardboard, newspaper or
fabric.
Chapter 2
2 - 11
1
Fan the pages well. Make sure you put
the documents face up, top edge first
in the ADF until you feel them touch the
feed roller.
2
Adjust the paper guides to fit the width of
your documents.
3
Unfold the ADF document output
support flap.
Using the scanner glass
You can use the scanner glass to fax, copy or
scan pages of a book or one page at a time.
Documents can be up to 8.5 in. (215.9 mm)
wide and 11 in. (297 mm) long.
Note
To use the scanner glass, the ADF must be
empty.
1
Lift the document cover.
2
Using the document guidelines on the
left, center the document face down on
the scanner glass.
3
Close the document cover.
CAUTION
DO NOT pull on the document while it is
feeding.
CAUTION
If the document is a book or is thick, do not
slam the cover or press on it.
Place documents Face Down on
the scanner glass.
3 - 1
3
3
Date and Time
When the machine is not in use it will display
the date and time. If you set up the Station ID
the date and time displayed by your machine
will be printed on every fax you send. If there
is a power failure, you may have to reset the
date and time. No other settings will be
affected.
1
Press Menu/Set, 0, 2.
2
Enter the last two digits of the year.
Press Menu/Set.
3
Enter two digits for the month.
Press Menu/Set.
(For example, enter 09 for September,
or 10 for October.)
4
Enter two digits for the day.
Press Menu/Set.
(For example, enter 06 for 6th.)
5
Enter the time in 24-Hour format.
Press Menu/Set.
(For example, enter 15:25 for 3:25 P.M.)
6
Press Stop/Exit.
The LCD now shows the date and time
whenever the machine is idle and in Fax
mode.
When the machine is in Sleep mode, the
LCD shows
Sleep. (See Sleep Time on
page 3-8.)
Automatic Daylight Savings
Time
You can set the machine to change
automatically for Daylight Savings Time. It
will reset itself forward one hour in the Spring
and backward one hour in the Fall. Make sure
you have set the correct date and time in the
Date/Time setting.
1
Press Menu/Set, 1, 5.
2
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
3
Press Stop/Exit.
Setup
Initial Setup
2.Date/Time
General Setup
5.Auto Daylight
Chapter 3
3 - 2
Station ID
You should store your name or company
name and fax number so they print on all fax
pages you send.
1
Press Menu/Set, 0, 3.
2
Enter your fax number (up to 20 digits).
Press Menu/Set.
3
Enter your telephone number (up to 20
digits).
Press Menu/Set.
(If the telephone number and fax
number are the same, enter the same
number again.)
Note
■ You cannot enter a hyphen in the number.
To enter a space press once between
numbers.
■ The telephone number you enter is only
used for Cover Page features. (See
Composing the electronic Cover Page
(Black & White only) on page 5-9.)
4
Use the dial pad to enter your name (up
to 20 characters).
(See Entering Text on page B-15).
Press Menu/Set.
5
Press Stop/Exit.
Note
If the Station ID has already been
programmed, the LCD will ask you to press 1
to make a change or 2 to exit without
changing.
Initial Setup
3.Station ID
▲
NOTICE (For USA)
The Telephone Consumer Protection Act of
1991 makes it unlawful for any person to
use a computer or electronic device to send
any message via a telephone fax machine
unless such messages clearly contain, in a
margin at the top or bottom of each
transmitted page, or on the first page of the
transmission, the date and time it is sent
and an identification of the business or
other entity or other individual sending the
message and the telephone number of the
sending machine or such business, other
entity or individual.
To program this information into your
machine, see Date and Time on page 3-1
and Station ID on page 3-2.
Setup
3 - 3
3
LCD Contrast
You can change the contrast to help the LCD
look lighter or darker.
1
Press Menu/Set, 1, 7.
2
Press
▲
to increase the contrast.
—OR—
Press
▼ to decrease the contrast.
Press Menu/Set.
3
Press Stop/Exit.
Phone line settings
Tone and Pulse dialing mode
Your machine comes set for Tone dialing
service. If you have Pulse dialing service
(rotary), you need to change the dialing
mode.
1
Press Menu/Set, 0, 4.
2
Press ▲ or ▼ to select Pulse (or Tone).
Press Menu/Set.
3
Press Stop/Exit.
Roll over phone lines
A roll over phone system is a group of two or
more separate telephone lines that pass
incoming calls to each other if they are busy.
The calls are usually passed down or “rolled
over” to the next available phone line in a
preset order.
Your machine can work in a roll over system
as long as it is the last number in the
sequence, so the call cannot roll away. Do not
put the machine on any of the other numbers;
when the other lines are busy and a second
fax call is received, the fax call would be
transferred to a line that does not have a fax
machine. Your machine will work best on a
dedicated line.
Two-line phone system
A two-line phone system is nothing more than
two separate phone numbers on the same
wall outlet. The two phone numbers can be
on separate jacks (RJ11) or combined into
one jack (RJ14). Your machine must be
plugged into an RJ11 jack. RJ11 and RJ14
jacks may be equal in size and appearance
and both may contain four wires (black, red,
green, yellow). To test the type of jack, plug in
a two-line phone and see if it can access both
lines. If it can, you must separate the line for
your machine. (See Easy Receive on
page 6-5.)
General Setup
7.LCD Contrast
Initial Setup
4.Tone/Pulse
Chapter 3
3 - 4
Converting telephone wall
outlets
There are three ways to convert to an RJ11
jack. The first two ways may require
assistance from the telephone company. You
can change the wall outlets from one RJ14
jack to two RJ11 jacks. Or, you can have an
RJ11 wall outlet installed and slave or jump
one of the phone numbers to it.
The third way is the easiest: Buy a triplex
adapter. You can plug a triplex adapter into
an RJ14 outlet. It separates the wires into two
separate RJ11 jacks (Line 1, Line 2) and a
third RJ14 jack (Lines 1 and 2). If your
machine is on Line 1, plug the machine into
L1 of the triplex adapter. If your machine is on
Line 2, plug it into L2 of the triple adapter.
Installing machine, external
two-line TAD and two-line
telephone
When you are installing an external two-line
telephone answering device (TAD) and a
two-line telephone, your machine must be
isolated on one line at both the wall jack and
at the TAD. The most common connection is
to put the machine on Line 2, which is
explained in the following steps. The back of
the two-line TAD must have two telephone
jacks: one labeled L1 or L1/L2, and the other
labeled L2. You will need at least three
telephone line cords, the one that came with
your machine and two for your external
two-line TAD. You will need a fourth line cord
if you add a two-line telephone.
1
Place the two-line TAD and the two-line
telephone next to your machine.
2
Plug one end of the telephone line cord
for your machine into the L2 jack of the
triplex adapter. Plug the other end into
the LINE jack on the back of the
machine.
3 Plug one end of the first telephone line
cord for your TAD into the L1 jack of the
triplex adapter. Plug the other end into
the L1 or L1/L2 jack of the two-line TAD.
4
Plug one end of the second telephone
line cord for your TAD into the L2 jack of
the two-line TAD. Plug the other end into
the EXT. jack on the left side of the
machine.
You can keep two-line telephones on other
wall outlets as always. There are two ways to
add a two-line telephone to the machine’s
wall outlet. You can plug the telephone line
cord from the two-line telephone into the
L1+L2 jack of the triplex adapter. Or, you can
plug the two-line telephone into the TEL jack
of the two-line TAD.
RJ14
RJ11
RJ14
Triplex Adapter
Triplex Adapter
Two Line Phone
External Two Line TAD machine
Setup
3 - 5
3
Multi-line connections (PBX)
Most offices use a central telephone system.
While it is often relatively simple to connect
the machine to a key system or a PBX
(Private Branch Exchange), we suggest that
you contact the company that installed your
telephone system and ask them to connect
the machine for you. It is advisable to have a
separate line for the machine.
If the machine is to be connected to a
multi-line system, ask your installer to
connect the unit to the last line on the system.
This prevents the unit from being activated
each time a telephone call is received.
If you are installing the machine to
work with a PBX
1
It is not guaranteed that the unit will
operate properly under all
circumstances with a PBX. Any cases of
difficulty should be reported first to the
company that handles your PBX.
2
If all incoming calls will be answered by
a switchboard operator, it is
recommended that the Receive Mode
be set to
Manual. All incoming calls
should initially be regarded as telephone
calls.
Connecting an external or
extension telephone
You can connect a separate telephone to
your machine as shown in the diagram below.
Connect the telephone line cord to the jack
labeled EXT. in the left of the machine.
When you are using an external phone, the
LCD shows
Telephone.
Connecting an external
telephone answering device
(TAD)
Sequence
You may choose to connect an external
answering device. However, when you have
an external TAD on the same telephone line
as the machine, the TAD answers all calls
and the machine “listens” for fax calling
(CNG) tones. If it hears them, the machine
takes over the call and receives the fax. If it
does not hear CNG tones, the machine lets
the TAD continue playing your outgoing
message so your caller can leave you a voice
message.
Extension
Telephone
External
Telephone
Chapter 3
3 - 6
The TAD must answer within four rings (the
recommended setting is two rings). The
machine cannot hear CNG tones until the
TAD has answered the call, and with four
rings there are only 8 to 10 seconds of CNG
tones left for the fax “handshake”. Make sure
you carefully follow the instructions in this
guide for recording your outgoing message.
We do not recommend using the toll saver
feature on your external answering machine if
it exceeds five rings.
Note
■ If you do not receive all your faxes, reduce
the Ring Delay setting on your external
TAD.
■ If You Subscribe to your Telephone
Company’s Distinctive Ring Service:
You may connect an external TAD to a
separate wall jack only if you subscribe to
your telephone company’s Distinctive
Ring service, have registered the
distinctive ring pattern on your machine,
and use that number as a fax number. The
recommended setting is at least four rings
on the external TAD when you have the
telephone company’s Distinctive Ring
Service. You cannot use the Toll Saver
setting.
■ If You Do Not Subscribe to Distinctive
Ring Service:
You must plug your TAD into the EXT.
jack of your machine. If your TAD is
plugged into a wall jack, both your
machine and the TAD will try to control the
phone line. (See illustration shown next.)
When the TAD answers a call, the LCD
shows
Telephone.
Connections
The external TAD must be plugged into the
back of the machine, into the jack labeled
EXT. Your machine cannot work properly if
you plug the TAD into a wall jack (unless you
are using Distinctive Ring).
1
Plug the telephone line cord from the
telephone wall jack into the back of the
machine, in the jack labeled LINE.
2
Plug the telephone line cord from your
external TAD into the back of the
machine, in the jack labeled EXT. (Make
sure this cord is connected to the TAD at
the TAD’s telephone line jack, and not
its handset jack.)
3
Set your external TAD to four rings or
less. (The machine’s Ring Delay setting
does not apply.)
4
Record the outgoing message on your
external TAD.
Improper Setup
Unless you are using Distinctive Ring,
do not connect a TAD elsewhere on the
same phone line.
TAD
TAD
Setup
3 - 7
3
5
Set the TAD to answer calls.
6
Set the Receive Mode to
External TAD.
(See Receive Mode on page 6-1.)
Recording outgoing message (OGM)
on an external TAD
Timing is important in recording this
message.
1
Record 5 seconds of silence at the
beginning of your message. (This allows
your machine time to listen for the fax
CNG tones of automatic transmissions
before they stop.)
2
Limit your speaking to 20 seconds.
3
End your 20-second message by giving
your Fax Receive Code for people
sending manual faxes. For example:
“After the beep, leave a message or
send a fax by pressing 51 and Start.”
Note
We recommend beginning your OGM with an
initial 5-second silence because the machine
cannot hear fax tones over a resonant or loud
voice. You may try omitting this pause, but if
your machine has trouble receiving, then you
must re-record the OGM to include it.
Ecology features
Toner Save
You can conserve toner using this feature.
When you set Toner Save to
On, print
appears lighter. The default setting is
Off.
1
Press Menu/Set, 1, 6, 1.
2
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
3
Press Stop/Exit.
Note
We do not recommend Toner Save for
printing photo or gray scale images.
Ecology
1.Toner Save
Chapter 3
3 - 8
Sleep Time
Setting the Sleep Time reduces power
consumption by turning off the fuser inside
the machine while it is idle. You can choose
how long the machine is idle (from 00 to 99
minutes) before it goes into sleep mode. The
timer is automatically reset when the machine
receives a Fax or PC data or makes a copy.
The factory setting is 30 minutes. While the
machine is in sleep mode you will see
Sleep
on the LCD. If you try to print or copy in sleep
mode, there will be a short delay while the
fuser warms up to its working temperature.
1
Press Menu/Set, 1, 6, 2.
2
Use the dial pad to enter the length of
time the machine is idle before it goes
into sleep mode (00 to 99).
Press Menu/Set.
3
Press Stop/Exit.
Note
■ If you want to turn off sleep mode, press
Start
(either Black or Color) and Options
simultaneously in Step 2.
■ If the machine is in Sleep Mode when you
change the Sleep Time, the new setting
will take effect the next time the machine
copies, prints or is turned off and on.
Mode Timer
The machine has three temporary mode keys
on the control panel: Fax, Scan and Copy.
You can change the number of seconds or
minutes the machine takes after the last Scan
or Copy operation before it returns to Fax
mode. If you select
Off, the machine stays in
the mode you used last.
1
Press Menu/Set, 1, 1.
2
Press ▲ or ▼ to select 0 Sec,
30 Secs, 1 Min, 2 Mins, 5 Mins or
Off.
Press Menu/Set.
3
Press Stop/Exit.
Ecology
2.Sleep Time
General Setup
1.Mode Timer
Setup
3 - 9
3
Paper settings
Paper Type
To get the best print quality, set the machine
for the type of paper you are using.
1
Press Menu/Set, 1, 2.
—OR—
If you have the optional paper tray,
Press Menu/Set, 1, 2, 1 to set the paper
type for
Tray#1 or Menu/Set, 1, 2, 2 to
set the paper type for
Tray#2.
2
Press ▲ or ▼ to select Thin, Plain,
Thick, Thicker or Recycled Paper.
Press Menu/Set.
3
Press Stop/Exit.
Note
The machine ejects paper with printed
surfaces face down onto the output paper
tray in the front of the machine. When you use
transparencies or labels, remove each sheet
immediately to prevent smudging or paper
jams.
Paper Size
In the standard paper tray, you can use eight
sizes of paper for printing copies: Letter, A4,
Legal, B5, JISB5, Executive, Com10 and DL
and three sizes for printing faxes: Letter, A4
and Legal. The machine automatically
detects A4, Letter and Executive paper size
that is in the paper tray. However, if you load
paper that is B5 or smaller sizes in the paper
tray, you will need to change the Small Paper
setting at the same time so your machine can
print a reduced copy on the page.
1
Press Menu/Set, 1, 3.
—OR—
If you have the optional paper tray,
press Menu/Set, 1, 3, 1 to set the paper
size for Tray#1 or Menu/Set, 1, 3, 2 to
set the paper size for
Tray#2.
2
Press ▲ or ▼ to select B5, DL, Com10 or
JISB5.
Press Menu/Set.
3
Press Stop/Exit.
Note
If you select Tray#2 in Step 1, you can only
select
B5 or JISB5.
General Setup
2.Paper Type
General Setup
3.Small Paper
Chapter 3
3 - 10
Volume Settings
Ring Volume
You can turn the ring Off or you can select
the ring volume level.
1
Press Menu/Set, 1, 4, 1.
2
Press ▲ or ▼ to select Low, Med, High
or
Off.
Press Menu/Set.
3
Press Stop/Exit.
—OR—
You can adjust the ring volume when your
machine is idle (not being used).
In mode (Fax), press or to
adjust the volume level. Every time you press
these keys, the machine will ring so you can
hear the active setting as the LCD shows it.
The volume changes with each key press.
The new setting will stay until you change it
again.
Beeper Volume
You can change the beeper volume. The
default setting is
Med. When the beeper is on,
the machine will beep when you press a key,
make a mistake, or after you have sent or
received a fax.
1
Press Menu/Set, 1, 4, 2.
2
Press ▲ or ▼ to select Low, Med, High
or
Off.
Press Menu/Set.
3
Press Stop/Exit.
Speaker Volume
You can adjust the machine’s one-way
speaker volume.
1
Press Menu/Set, 1, 4, 3.
2
Press ▲ or ▼ to select Low, Med, High
or
Off.
Press Menu/Set.
3
Press Stop/Exit.
—OR—
In Fax mode , you can adjust the
speaker volume by pressing Hook, and then
selecting a speaker volume level.
Press or to adjust the volume
level. The LCD shows the setting you are
choosing. Each key press changes the
volume to the next setting. The new setting
will remain until you change it again.
Volume
1.Ring
▲
▲
Volume
2.Beeper
Volume
3.Speaker
▲
▲
4 - 1
4
4
You can set up your machine with multiple
levels of security using Setting Lock and
Memory Security.
Setting Lock
Setting Lock lets you prevent unauthorized
access to the machine settings.
While Setting Lock is
On, the following
operations are NOT available without a
password:
■ Date & Time
■ Station ID
■ Set Quick-Dial (One-Touch Dial,
Speed-Dial and Setup Groups)
■ Mode Timer
■ Paper Type
■ Small Paper
■ Volume
■ Auto Daylight
■ Ecology
■ LCD Contrast
■ Memory Security
Setting up the password
Note
■ If you have already set the password, you
will not need to set it, again.
■ If you forget the Setting Lock password,
please call Brother Customer Service.
(See Brother numbers on page i.)
1
Press Menu/Set, 1, 8, 2.
2
Enter a four-digit number for the
password.
Press Menu/Set.
The LCD shows
Verify:
3
Re-enter the password.
Press Menu/Set.
4
Press Stop/Exit.
Security features
Security
2.Setting Lock
Chapter 4
4 - 2
Changing the Setting Lock
password
1
Press Menu/Set, 1, 8, 2.
2
Press ▲ or ▼ to select Set Password.
Press Menu/Set.
3
Enter the registered four-digit password.
Press Menu/Set.
4
Enter a four-digit number for the new
password.
Press Menu/Set.
5
If the LCD shows Verify:, re-enter the
new password.
Press Menu/Set.
6
Press Stop/Exit.
Turning Setting Lock on
1
Press Menu/Set, 1, 8, 2.
2
Press ▲ or ▼ to select On.
Press Menu/Set.
3
Enter the registered four-digit password.
Press Menu/Set.
4
Press Stop/Exit.
Turning Setting Lock off
1 Press Menu/Set, 1, 8, 2.
2
Enter the registered four-digit password.
Press Menu/Set twice.
3
Press Stop/Exit.
Note
If you enter the wrong Password, the LCD
shows
Wrong Password. The machine will
stay in Setting Lock mode until the registered
password is entered.
Security
2.Setting Lock
Security
2.Setting Lock
Security features
4 - 3
4
Memory Security
Memory Security lets you prevent
unauthorized access to the machine. You will
not be able to continue to schedule Delayed
Faxes or Polling jobs. However, any
pre-scheduled Delayed Faxes will be sent
even if you turn on Memory Security, so they
won’t be lost.
While Memory Security is on, the following
operations are available:
■ Receiving faxes into memory
(limited by memory capacity)
■ Fax Forwarding
(if Fax Forwarding was already on)
■ Paging
(if Paging was already on)
■ Remote Retrieval
(if Fax Storage was already on)
While Memory Security is on, the following
operations are NOT available:
■ Printing received faxes
■ Sending faxes
■ Copying
■ PC printing
■ Scanning
■ PC Fax Receive
Note
■ To print the faxes in memory, turn off
Memory Security.
■ You must turn off PC Fax Receive before
you can turn on Memory Security.
(See Turning off Remote Fax Options on
page 8-4.)
Setting up the password
Note
■ If you have already set the password, you
will not need to set it, again.
■ If you forget the Memory Security
password, please call Brother Customer
Service. (See Brother numbers on page i.)
1
Press Menu/Set, 1, 8, 1.
2
Enter a four-digit number for the
password.
Press Menu/Set.
The LCD shows
Verify:
3
Re-enter the password.
Press Menu/Set.
4
Press Stop/Exit.
Security
1.Mem Security
Chapter 4
4 - 4
Changing the Memory
Security password
1
Press Menu/Set, 1, 8, 1.
2
Press ▲ or ▼ to select Set Password.
Press Menu/Set.
3
Enter the registered four-digit password.
Press Menu/Set.
4
Enter a four-digit number for the new
password.
Press Menu/Set.
5
If the LCD shows Verify:, re-enter the
new password.
Press Menu/Set.
6
Press Stop/Exit.
Turning Memory Security on
1
Press Menu/Set, 1, 8, 1.
2
Press ▲ or ▼ to select Set Security.
Press Menu/Set.
3
Enter the registered four-digit password.
Press Menu/Set.
The machine goes offline and the LCD
shows
Secure Mode.
Note
If there is a power failure the data will stay in
memory for up to 60 hours.
Turning Memory Security off
1 Press Menu/Set.
Enter the registered four-digit password.
2 Press Menu/Set.
Memory Security is automatically turned
off and the LCD shows the date and
time.
Note
If you enter the wrong password, the LCD
shows
Wrong Password and stays offline.
The machine will stay in Secure Mode until
the registered password is entered.
Security
1.Mem Security
5 - 1
5
How to Fax
Entering Fax mode
Before sending faxes or changing fax send or
receiving settings, make sure (Fax) is
illuminated in blue. If it is not, press
(Fax) to enter Fax mode. The default
setting is Fax mode.
Sending a fax from the ADF
This is the easiest way to send a fax.
1
If it is not illuminated in blue, press
(Fax).
2
Put the document face up in the ADF.
3
Dial the fax number.
Press Black Start or Color Start.
■ If you press Black Start, the machine
starts scanning the first page.
■ If you press Color Start, the machine
starts sending.
Note
If the memory is full, the document will be
sent in real time.
Sending a fax from the
scanner glass
You can use the scanner glass to fax pages
of a book. The documents can be up to
Letter/A4 size. Put the document face down
on the scanner glass.
Note
■ Since you can only scan one page at a
time, it is easier to use the ADF if you are
sending a multiple page document.
■ Press Stop/Exit at anytime to cancel.
1
If it is not illuminated in blue, press
(Fax).
2
Place the first page on the scanner
glass.
3
Dial the fax number.
Press Black Start or Color Start.
■ If you press Black Start, the machine
starts scanning the first page.
■ If you press Color Start, the machine
starts sending.
4
To send more than one page, press 1
and go to Step 5.
—OR—
To send a single page, press 2 (or press
Black Start again).
The machine starts sending the
document.
Sending a fax
Next Page?
1.Yes 2.No(Send)
Sending a fax
5 - 2
5
5
Place the next page on the scanner
glass.
Press Menu/Set.
The machine starts scanning the page.
(Repeat Steps 4 and 5 for each
additional page.)
Note
■ If the memory is full and you are faxing a
single page, it will be sent in real time.
■ You cannot send multiple pages for color
faxes.
Color fax transmission
Your machine can send a color fax to
machines that support this feature.
However, color faxes cannot be stored in the
memory. When you send a color fax, the
machine will send it in real time (even if
Real
Time TX
is set to Off).
Note
Delayed fax and Polling Transmit features
are not available in color.
Canceling a fax in progress
If you want to cancel a fax, while the machine
is scanning, dialing or sending it, press
Stop/Exit.
Dual Access
(Black & White only)
You can dial a number and begin scanning a
fax into memory—even when the machine is
sending from memory, receiving faxes, or
printing PC data. The LCD shows the new job
number.
Note
■ Your machine normally uses Dual Access.
However, to send a color fax, the machine
will send the document in real time (even
if
Real Time TX is set to Off).
The number of pages you can scan into
the memory will vary depending on the
data that is printed on them.
■ If you get an Out of Memory message
while scanning the first page of a fax,
press Stop/Exit to cancel scanning. If you
get an
Out of Memory message while
scanning a subsequent page, you can
press Black Start to send the pages
scanned so far, or press Stop/Exit to
cancel the operation.
Set Next Page
Then Press Set
Chapter 5
5 - 3
Sending a fax manually
Manual transmission
Manual transmission lets you hear the
dialing, ringing and fax-receiving tones while
sending a fax.
1
If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Pick up the handset of the external
phone and listen for a dial tone.
—OR—
Press Hook and listen for a dial tone. On
the external phone, dial the fax number
you want to call. If you pressed Hook,
dial using the machine dial pad.
4
When you hear the fax tone, press
Black Start or Color Start.
5
If you picked up the handset of an
external phone, replace it.
Sending a fax at the end of a
conversation
At the end of a conversation you can send a
fax to the other party before you both hang
up.
1 Ask the other party to wait for fax tones
(beeps) and then to press Start or Send
key before hanging up.
2
If it is not illuminated in blue, press
(Fax).
3
Load your document.
Press Black Start or Color Start.
4
If you load the document on the scanner
glass, press 1 to send the fax.
5
Replace the external phone’s handset.
Out of Memory message
If you get an Out of Memory message while
scanning the first page of a fax, press
Stop/Exit to cancel the fax.
If you get an
Out of Memory message while
scanning a subsequent page, you will have
the option to press Black Start to send the
pages scanned so far, or to press Stop/Exit
to cancel the operation.
Note
If you get an Out of Memory message while
faxing and you do not want to delete your
stored faxes to clear the memory, you can
send the fax in real time. (See Real Time
Transmission on page 5-6.)
Sending a fax
5 - 4
5
Broadcasting
(Black & White only)
Broadcasting is when the same fax message
is automatically sent to more than one fax
number. You can include Groups,
One-Touch, Speed-Dial numbers and up to
50 manually dialed numbers in the same
broadcast.
Press Menu/Set between each of the
numbers. Use Search/Speed Dial to help
you choose the numbers easily. (To set up
Group dial numbers, see Setting up Groups
for Broadcasting on page 7-5.)
After the broadcast is finished, a Broadcast
Report will be printed to let you know the
results.
1
If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Enter a number using One-Touch,
Speed-Dial, a Group number, Search or
manual dialing using the dial pad.
Press Menu/Set after each number.
4
After you have entered all the fax
numbers, press Black Start.
Note
■ If you did not use up any of the numbers
for Groups, access codes or credit card
numbers, you can ‘broadcast’ faxes to as
many as 266 different numbers.
■ The available memory will vary depending
on the types of jobs in the memory and the
number of locations used for
broadcasting. If you broadcast to the
maximum numbers available, you will not
be able to use Dual Access and Delayed
fax.
■ Enter the long dialing sequence numbers
as you would normally, but remember that
each One-Touch and Speed-Dial number
counts as one number, so the number of
locations you can store becomes limited.
(See Access codes and credit card
numbers on page 7-6.)
■ If the memory is full, press Stop/Exit to
stop the job or if more than one page has
been scanned, press Black Start to send
the portion that is in the memory.
To stop a broadcast in progress
1
Press Menu/Set, 2, 6.
The LCD will display the name, if you
stored it, or the fax number being dialed.
2
Press Menu/Set.
The LCD will display:
3
Press 1 to Clear.
The LCD will then display the Broadcast
job number and
1.Clear 2.Exit.
4
To cancel the Broadcast, press 1.
5
Press Stop/Exit.
XXXXXXXX
1.Clear 2.Exit
Chapter 5
5 - 5
Additional Sending
Operations
Sending faxes using multiple
settings
When you send a fax you can choose any
combination of these settings: cover page,
contrast, resolution, overseas mode, delayed
fax timer, polling transmission or real time
transmission.
1
If it is not illuminated in blue, press
(Fax).
After each setting is accepted, the LCD
will ask if you want to enter more
settings:
2
Press 1 to select more settings. The
LCD will return to the
Setup Send
menu.
—OR—
Press 2 if you have finished choosing
settings and go to the next step.
Contrast
If your document is very light or very dark, you
may want to change the contrast.
Use
Light to send a light document.
Use
Dark to send a dark document.
1
If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Press Menu/Set, 2, 2, 1.
4
Press ▲ or ▼ to select Auto, Light or
Dark.
Press Menu/Set.
Changing fax Resolution
After you load the document, you can use
Resolution to change the setting temporarily
(for this fax only). In Fax mode , press
Resolution and
▲ or ▼ to select the setting
you want, and then press Menu/Set.
—OR—
You can change the default setting.
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 2, 2.
Other Settings
1.Yes 2.No
Setup Send
1.Contrast
Setup Send
2.Fax Resolution
Sending a fax
5 - 6
5
3
Press ▲ or ▼ to select the resolution
you want.
Press Menu/Set.
Note
You can choose four different resolution
settings for black & white faxes and two for
color.
Black & White
Color
If you select
S.Fine or Photo and then use
the Color Start key to send a fax, the
machine will send the fax using the
Fine
setting.
Real Time Transmission
When you are sending a fax, the machine will
scan the documents into the memory before
sending. Then, as soon as the phone line is
free, the machine will start dialing and
sending.
If the memory is full, the machine will send
the document in real time (even if
Real Time TX is set to Off).
Sometimes, you may want to send an
important document immediately, without
waiting for memory transmission. You can set
Real Time TX to On for all documents or
Next Fax:On for the next fax only.
Sending in real time for all faxes
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 2, 5.
3
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
Standard Suitable for most typed
documents.
Fine Good for small print and
transmits a little slower than
Standard resolution.
S.Fine Good for small print or
artwork and transmits slower
than Fine resolution.
Photo Use when the document has
varying shades of gray or is a
photograph. This has the
slowest transmission time.
Standard Suitable for most typed
documents.
Fine Use when the document is a
photograph. The
transmission time is slower
than Standard resolution.
Setup Send
5.Real Time TX
Chapter 5
5 - 7
Sending in real time for the next fax
only
1
If it is not illuminated in blue, press
(Fax).
2 Press Menu/Set, 2, 2, 5.
3
Press ▲ or ▼ to select Next Fax:On
(or
Next Fax:Off).
Press Menu/Set.
Note
■ In Real Time Transmission, the automatic
redial feature does not work when using
the scanner glass.
■ If you are sending a color Fax, the
machine will send it in real time (even if
Real Time TX is set to Off).
Overseas Mode
If you are having difficulty sending a fax
overseas due to possible interference on the
phone line, we recommend that you turn on
the Overseas Mode. After you send a fax
using this feature, the feature will turn itself
off.
1 If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Press Menu/Set, 2, 2, 9.
4
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
Setup Send
5.Real Time TX
Setup Send
9.Overseas Mode
Sending a fax
5 - 8
5
Delayed Faxing
(Black & White only)
During the day you can store up to 50 faxes
in the memory to be sent within 24 hours.
These faxes will be sent at the time of day you
enter in Step 4.
1
If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Press Menu/Set, 2, 2, 3.
4
Press Menu/Set to accept the displayed
time.
—OR—
Enter the time you want the fax to be
sent (in 24-hour format).
(For example, enter 19:45 for 7:45 PM.)
Press Menu/Set.
Note
The number of pages you can scan into the
memory depends on the amount of data that
is printed on each page and the amount of
data already stored in the memory.
Delayed Batch Transmission
(Black & White only)
Before sending the delayed faxes, your
machine will help you economize by sorting
all the faxes in the memory by destination and
scheduled time. All delayed faxes that are
scheduled to be sent at the same time to the
same fax number will be sent as one fax to
save transmission time.
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 2, 4.
3
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
4
Press Stop/Exit.
Setup Send
3.Delayed Fax
Setup Send
4.Batch TX
Chapter 5
5 - 9
Checking job status and
canceling a waiting job
Check which jobs are still waiting in the
memory to be sent. (If there are no jobs, the
LCD shows
No Jobs Waiting.) You can
cancel a fax job that is stored and waiting in
the memory.
1 Press Menu/Set, 2, 6.
2
If you have more than one job waiting,
press
▲ or ▼ to select the job you want
to cancel.
Press Menu/Set.
—OR—
If you only have one job waiting, go to
Step 3.
3
Press 1 to cancel.
To cancel another job waiting, go to
Step 2.
—OR—
Press 2 to exit without canceling.
4
Press Stop/Exit.
Composing the electronic
Cover Page (Black & White
only)
When you send a fax, you can send a cover
page with your fax message. The Cover Page
is sent to the receiving party’s machine. Your
Cover Page includes the name or number
stored in the One-Touch or Speed-Dial
memory. If you are dialing manually, the
name is not shown on the Cover Page.
The Cover Page shows your Station ID and
the number of pages you are sending. (See
Station ID on page 3-2.) If you have Cover
Page set to
On for all faxes (Menu/Set, 2, 2,
7), the number of pages is not shown on the
cover page.
You can select a comment to include on your
Cover Page.
1.Comment Off
2.Please Call
3.Urgent
4.Confidential
Instead of using one of the preset comments,
you can enter two personal messages of your
own, up to 27 characters long. Use the chart
on B-15 for help entering characters.
(See Composing your own comments on
page 5-10.)
5.(User Defined)
6.(User Defined)
Most of the
Setup Send settings are
temporary to allow you to make changes for
each fax you send. However, when you set
up your Cover Page and Cover Page
Comments, you are changing the default
settings so they will be available while faxing.
Note
You can send the cover page only for a black
& white fax. If you press Color Start to send
a fax, the cover page will not be sent.
Fax
6.Remaining Jobs
Sending a fax
5 - 10
5
Composing your own comments
You can set up two comments of your own.
1 If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 2, 8.
3
Press ▲ or ▼ to choose 5 or 6 for your
own comment.
Press Menu/Set.
4
Use the dial pad to enter your
customized comment.
Press Menu/Set.
(See Entering Text on page B-15.)
Cover page for the next fax only
If you have not yet set your Station ID this
feature will not work. Make sure you have
programmed the Station ID before
continuing. (See Station ID on page 3-2.) If
you only want to send a Cover Page with a
particular fax, your machine will ask you to
enter the number of pages you are sending
so it can be printed on the Cover Page.
1
If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Press Menu/Set, 2, 2, 7.
4
Press ▲ or ▼ to select Next Fax:On
(or
Next Fax:Off).
Press Menu/Set.
5
Press ▲ or ▼ to select one of the
standard or your own comments.
Press Menu/Set.
6
Enter two digits to show the number of
pages you are sending.
Press Menu/Set.
(For example, press 02 for 2 pages or
enter 00 to leave the number of pages
blank. If you make a mistake, press
to back up and re-enter the number of
pages.)
Send a cover page for all faxes
If you have not yet set your Station ID this
feature will not work. Make sure you have
programmed the Station ID before
continuing. (See Station ID on page 3-2.)
You can set the machine to send a cover
page whenever you send a black & white fax.
The number of pages in your fax is not
included when you use this setting.
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 2, 7.
3
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
4
If you selected On, press ▲ or ▼ to
select one of the standard or your own
comments.
Press Menu/Set.
Setup Send
8.Coverpage Msg
Setup Send
7.Coverpg Setup
▲
Setup Send
7.Coverpg Setup
Chapter 5
5 - 11
Using a printed cover page
If you prefer to use a printed cover page that
you can write on, you can print the sample
page and attach it to your fax.
1 If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 2, 7.
3
Press ▲ or ▼ to select Print Sample.
Press Menu/Set.
4
Press Black Start or Color Start. Your
machine prints a copy of your cover
page.
Setup Send
7.Coverpg Setup
6 - 1
6
6
Receive Mode
There are four different Receive Modes for your machine. You can choose the mode that best
suits your needs.
Receiving a fax
LCD How it works When to use it
Fax Only
(automatic receive)
The machine automatically
answers every call as a fax.
For dedicated fax lines.
Fax/Tel
(fax and telephone)
(with an external or
extension telephone only)
The machine controls the
line and automatically
answers every call. If the call
is a fax it will receive the fax.
If the call is not a fax it will
ring (pseudo/double ring) for
you to pick up the call.
Use this mode if you expect to receive lots of fax messages
and few telephone calls. You cannot have an answering
machine on the same line, even if it is on a separate
telephone wall jack on the same line. You cannot use the
telephone company’s Voice Mail in this mode.
External TAD
(with an external
answering device only)
The external answering
device (TAD) automatically
answers every call.
Voice messages are stored
on the external TAD. If it is a
fax call, the machine
receives the fax.
Use this mode if you have connected an answering
machine to the EXT jack of your machine.
The External TAD setting works only with an external
answering machine. Ring Delay does not work in this
setting.
Manual
(manual receive)
(with an external or
extension telephone only)
You control the phone line
and must answer every call
yourself unless you are using
the Distinctive Ring feature.
Use this mode if you do not receive many fax messages,
use Distinctive Ring, or if you are using a computer on the
same line.
If you answer and hear fax tones, wait until the machine
takes over the call, then hang up. (See Easy Receive on
page 6-5.)
Chapter 6
6 - 2
To select or change your Receive
Mode
1
Press Menu/Set, 0, 1.
2
Press ▲ or ▼ to select Fax Only,
Fax/Tel, External TAD or Manual.
Press Menu/Set.
3
Press Stop/Exit.
Fax Receive Settings
Ring Delay
The Ring Delay sets the number of times the
machine rings before it answers in
Fax Only
or
Fax/Tel mode. If you have extension
phones on the same line as the machine or
subscribe to the telephone company’s
Distinctive Ring service, keep the Ring Delay
setting of 4.
(See Operation from extension telephones on
page 6-6 and Easy Receive on page 6-5.)
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 1.
3
Press ▲ or ▼ to select how many times
the line rings before the machine
answers (00 - 04).
Press Menu/Set.
(If you select 00, the line won’t ring at
all.)
4
Press Stop/Exit.
Initial Setup
1.Receive Mode
Current Receive Mode
Fax : Fax Only
F/T : Fax/Tel
TAD : External TAD
Mnl : Manual
12/10 11:53 Fax
Setup Receive
1.Ring Delay
Receiving a fax
6 - 3
6
F/T Ring Time
(Fax/Tel mode only)
If you set the Receive Mode to Fax/Tel,
you’ll need to decide how long the machine
will signal you with its special
pseudo/double-ring when you have a voice
call. (If it’s a fax call, the machine receives the
fax.)
This pseudo/double-ring happens after the
initial ringing from the phone company. Only
the machine rings and no other phones on the
same line will ring with the special
pseudo/double-ring. However, you can still
answer the call on any telephone on the same
line as the machine. (See For Fax/Tel mode
only on page 6-7.)
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 2.
3
Press ▲ or ▼ to select how long the
machine will ring to alert you that you
have a voice call (20, 30, 40 or 70
seconds).
Press Menu/Set.
4
Press Stop/Exit.
Note
Even if the caller hangs up during the
pseudo/double-ringing, the machine will
continue to ring for the set time.
Tray Use for Fax mode
If your machine does not have the optional
tray #2, this setting is not available. The
default setting of
Auto allows your machine
to choose the paper from the optional Tray #2
if Tray #1 is out of paper or if incoming faxes
will fit best on the paper in Tray #2.
1
Press Menu/Set, 1, 0.
2
Press ▲ or ▼ to select
Tray#1 Only, Tray#2 Only or Auto.
Press Menu/Set.
3
Press Stop/Exit.
Setup Receive
2.F/T Ring Time
General Setup
0.Tray Use:Fax
Chapter 6
6 - 4
Printing a reduced incoming
fax (Auto Reduction)
If you choose On, the machine automatically
reduces an incoming fax to fit on one page of
Letter, Legal or A4 size paper. The machine
calculates the reduction ratio by using the
page size of the fax and size of the paper in
your tray.
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 5.
3
Use ▲ or ▼ to select On (or Off).
Press Menu/Set.
4
Press Stop/Exit.
Note
■ Turn on this setting if you receive faxes
that are split onto two pages. However, if
the document is too long the machine may
still print on two pages.
■ If left and right margins are cut off, turn on
this setting.
■ When this feature is set to On, the Letter or
Legal faxes people send to you may
appear slightly reduced even though your
machine prints them on Letter, Legal or A4
paper. This is because the machine has to
print the Station ID of the sending machine
at the top of the page.
Receiving a fax at the end of a
conversation
At the end of a conversation you can ask the
other party to fax you information before you
both hang up.
1 Ask the other party to place the
document in their machine and to press
Start or Send key.
2
When you hear the other machine’s
CNG tones (beeps), press Black Start
or Color Start.
3
Press 2 to receive the fax.
4
Replace the external phone’s handset.
Setup Receive
5.Auto Reduction
Receiving a fax
6 - 5
6
Changing the remote codes
The preset Fax Receive Code is 51. The
preset Telephone Answer Code is #51. If you
want to, you can replace them with your own
codes.
1 If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 4.
3
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
4
Enter the new Fax Receive Code.
Press Menu/Set.
5
Enter the new Telephone Answer Code.
Press Menu/Set.
6
Press Stop/Exit.
Note
■ If you are always disconnected when
accessing your external TAD remotely, try
changing the Fax Receive Code and
Telephone Answer Code to another
three-digit code (such as ### and 999).
■ Remote Codes might not work with some
telephone systems.
Easy Receive
When you use this feature you do not have to
press Black Start or Color Start or the Fax
Receive Code 51 when you answer a fax
call. Selecting
On allows the machine to
receive fax calls automatically, even if you lift
the handset of an extension or external
phone. When you see
Receiving on the
LCD or when you hear ‘chirps’ through the
handset of an extension phone connected to
another telephone wall jack, just replace the
handset and your machine will do the rest.
Note
■ If this feature is set to On, but your
machine does not connect a fax call when
you lift an extension or external phone
handset, press the Fax Receive Code
51.
■ If you send faxes from a computer on the
same phone line and the machine
intercepts them, set Easy Receive to
Off.
■ Selecting Off means you’ll have to
activate the machine yourself by lifting the
handset of an external or extension
phone, and then press Black Start or
Color Start on the machine.
—OR—
by pressing 51 if you are not at your
machine. (See Operation from extension
telephones on page 6-6.)
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 3.
3
Use ▲ or ▼ to select On (or Off).
Press Menu/Set.
4
Press Stop/Exit.
Setup Receive
4.Remote Codes
Setup Receive
3.Easy Receive
Chapter 6
6 - 6
Printing a fax from the
memory
If you have selected Fax Storage
(Menu/Set, 2, 5, 1), you can still print a fax
from the memory when you are at your
machine. (See Fax Storage on page 8-2.)
1 Press Menu/Set, 2, 5, 3.
2
Press Black Start or Color Start.
Setting the Print Density
You can adjust print density, making your
printed pages darker or lighter.
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 6.
3
Press ▲ to make the print darker.
—OR—
Press
▼ to make the print lighter.
Press Menu/Set.
4
Press Stop/Exit.
Operation from extension
telephones
If you answer a fax call on an extension
telephone or an external telephone
connected to the EXT. jack of the machine,
you can make your machine take the call by
using the Fax Receive Code. When you
press the Fax Receive Code 51, the
machine starts to receive the fax.
If the machine answers a voice call and
pseudo/double-rings for you to take over, use
the Telephone Answer Code #51 to take the
call at an extension phone. (See F/T Ring
Time (Fax/Tel mode only) on page 6-3.)
If you answer a call and no one is on the line,
you should assume that you’re receiving a
manual fax.
■ Press 51 and wait for the chirp or until
the machine’s LCD displays
Receiving,
and then hang up.
You can also use the Easy Receive feature to
make your machine automatically take the
call. (See Easy Receive on page 6-5.)
Using a cordless external
handset
If your cordless telephone is connected to the
EXT. jack of the machine and you typically
carry the cordless handset elsewhere, it is
easier to answer calls during the Ring Delay.
If you let the machine answer first, you will
have to go to the machine so you can press
Hook to transfer the call to the cordless
handset.
Remote Fax Opt
3.Print Fax
Setup Receive
6.Print Density
Receiving a fax
6 - 7
6
For Fax/Tel mode only
When the machine is in Fax/Tel mode, it will
use the F/T Ring Time (pseudo or
double-ringing) to alert you to pick up a voice
call.
Lift the external telephone's handset, and
then press Hook to answer.
Using the remote codes
If you hear the fax machine double-ringing
when you are at an extension phone, you’ll
need to lift the handset and then press the
Telephone Answer Code (#51) between the
pseudo/double rings. If no one is on the line,
or if someone wants to send you a fax, send
the call back to the machine by pressing the
Fax Receive Code ( 51).
7 - 1
7
How to dial
You can dial in any of the following ways.
Manual dialing
Press all of the digits of the fax number.
One-Touch Dialing
Press the One-Touch key of the location you
want to call. (See Storing One-Touch Dial
numbers on page 7-3.)
Note
To dial One-Touch numbers 9 to 16 hold
down Shift as you press the One-Touch key.
Speed-Dialing
Press Search/Speed Dial, #, and then the
three-digit Speed-Dial number. (See Storing
Speed-Dial numbers on page 7-4.)
Note
If the LCD shows Not Registered when
you enter the One-Touch or Speed-Dial
number, a number has not been stored at this
location.
Dialing and phone options
Three-digit number
Dialing and phone options
7 - 2
7
Search
You can search for names you have stored in
the One-Touch and Speed-Dial memories.
Press Search/Speed Dial and the menu
keys to search. (See Storing One-Touch Dial
numbers on page 7-3 and Storing Speed-Dial
numbers on page 7-4.)
* To search alphabetically, you can use the
dial pad to enter the first letter of the name
you are looking for.
Fax Redial
If you are sending a fax manually and the line
is busy, press Redial/Pause, and then press
Black Start or Color Start to try again. If you
want to make a second call to the last number
dialed, you can save time by pressing
Redial/Pause and Black Start or
Color Start.
Redial/Pause only works if you dialed from
the control panel.
If you are sending a fax automatically and the
line is busy, the machine will automatically
redial one time after five minutes.
Note
In Real Time TX the automatic redial feature
does not work when using the scanner glass.
To search
numerically
To search
alphabetically*
or
Chapter 7
7 - 3
Storing numbers
You can set up your machine to do following
types of easy dialing: One-Touch, Speed-Dial
and Groups for Broadcasting faxes. When
you dial a quick-dial number, the LCD shows
the number and the name, if you stored it.
Note
If you lose electrical power, the quick-dial
numbers that are in the memory will not be
lost.
Storing a Pause
Press Redial/Pause to insert a 3.5-second
pause between numbers. If you are dialing
overseas, you can press Redial/Pause as
many times as needed to increase the length
of the pause.
Storing One-Touch Dial
numbers
Your machine has 8 One-Touch keys where
you can store 16 fax or phone numbers for
automatic dialing. To access numbers 9 to
16, hold down Shift as you press the
One-Touch key.
1
Press Menu/Set, 2, 3, 1.
2
Press the One-Touch key where you
want to store a number.
3
Select Fax/Tel.
Press Menu/Set.
4
Enter the phone or fax number (up to 20
digits).
Press Menu/Set.
5
Use the dial pad to enter the name (up
to 15 characters).
Press Menu/Set.
(You can use the chart on page B-15 to
help you enter letters.)
—OR—
Press Menu/Set to store the number
without a name.
6
Go to Step 2 to store another
One-Touch number.
—OR—
Press Stop/Exit.
Set Quick-Dial
1.One-Touch Dial
Dialing and phone options
7 - 4
7
Storing Speed-Dial numbers
You can store Speed-Dial numbers, so that
when you dial you will only have to press a
few keys (Search/Speed Dial, #, the
three-digit number, and Black Start or
Color Start). The machine can store 200
Speed-Dial numbers.
1
Press Menu/Set, 2, 3, 2.
2
Use the dial pad to enter a three-digit
Speed-Dial location number.
(001 - 200)
(For example, press 005.)
Press Menu/Set.
3
Select Fax/Tel.
Press Menu/Set.
4
Enter the phone or fax number (up to 20
digits).
Press Menu/Set.
5
Use the dial pad to enter the name (up
to 15 characters).
Press Menu/Set.
(You can use the chart on page B-15 to
help you enter letters.)
—OR—
Press Menu/Set to store the number
without a name.
6
Go to Step 2 to store another
Speed-Dial number.
—OR—
Press Stop/Exit.
Changing One-Touch and
Speed-Dial numbers
If you try to store a One-Touch or Speed-Dial
number where a number has already been
stored, the LCD will show the name that has
been stored there (or number) and will ask
you to do one of the following:
1 Press 1 to change the stored number.
—OR—
Press 2 to exit without making a change.
How to change the stored number or name:
• If you want to change a character, use
or to position the cursor under
the character you want to change, and
then type over it.
• If you want to erase the whole number
or whole name, press Stop/Exit when
the cursor is under the first digit or
letter. The characters above and to
the right of the cursor will be deleted.
2
Enter a new number.
Press Menu/Set.
3
Follow the directions beginning at
Step 5 in Storing One-Touch Dial
numbers and Storing Speed-Dial
numbers. (See Storing One-Touch Dial
numbers on page 7-3 and Storing
Speed-Dial numbers on page 7-4.)
Set Quick-Dial
2.Speed-Dial
#005:MIKE
1.Change 2.Exit
▲
▲
Chapter 7
7 - 5
Setting up Groups for
Broadcasting
Groups, which can be stored on a One-Touch
key or a Speed-Dial location, allow you to
send the same fax message to many fax
numbers by pressing only a One-Touch key
and Black Start or Search/Speed Dial, #,
the three-digit location and Black Start.
First, you’ll need to store each fax number as
a One-Touch or Speed-Dial number. Then,
you can combine them into a Group. Each
Group uses up a One-Touch key or a
Speed-Dial location. You can have up to eight
Groups, or you can assign up to 215 numbers
to one large Group.
(See Storing One-Touch Dial numbers on
page 7-3 and Storing Speed-Dial numbers on
page 7-4.)
1
Press Menu/Set, 2, 3, 3.
2
Decide where you wish to store the
Group.
—AND—
Press a One-Touch key.
—OR—
Press Search/Speed Dial and enter the
three-digit location, and then press
Menu/Set.
(For example, press One-Touch key 2
for Group 1.)
3
Use the dial pad to enter the Group
number (1 to 8).
Press Menu/Set.
(For example, press 1 for Group 1.)
4
To include One-Touch or Speed-Dial
numbers in the Group, press them as
follows:
For example, for One-Touch number 2,
press One-Touch key 2. The LCD
shows
002. For Speed-Dial location
009, press Search/Speed Dial, and
then 009 on the dial pad
.
5
Press Menu/Set to accept the numbers
for this Group.
6
Use the dial pad and the chart on page
B-15 to enter a name for the Group.
Press Menu/Set.
(For example, type
NEW CLIENTS).
7
Press Stop/Exit.
Note
You can print a list of all One-Touch and
Speed-Dial numbers. Group numbers will be
marked in the GROUP column.
(See Printing reports on page 9-1.)
Set Quick-Dial
3.Setup Groups
Setup Groups
Setup Group:G01
Setup Groups
G01: 002#009
Dialing and phone options
7 - 6
7
Access codes and credit card
numbers
Sometimes you may want to choose from
several long distance carriers when you
make a call. Rates may vary depending on
the time and destination. To take advantage
of low rates, you can store the access codes
or long-distance carriers and credit card
numbers as One-Touch and Speed-Dial
numbers. You can store these long dialing
sequences by dividing them and setting them
up on separate One-Touch and Speed Dial
numbers in any combination. You can even
include manual dialing using the dial pad.
(See Storing One-Touch Dial numbers on
page 7-3 and Storing Speed-Dial numbers on
page 7-4.)
For example, perhaps you have stored ‘555’
on One-Touch key 1 and ‘7000’ on
One-Touch key 2. If you press One-Touch
key 1, One-Touch key 2, and Black Start or
Color Start, you will dial ‘555-7000’.
To temporarily change a number, you can
substitute part of the number with manual
dialing using the dial pad.
For example, to change the number to
555-7001 you could press One-Touch key 1
and then press 7001 using the dial pad.
Tone or Pulse
If you have a Pulse dialing service, but need
to send Tone signals (for example, for
telephone banking), follow the instructions
below. If you have Touch Tone service, you
will not need this feature to send tone signals.
1
Lift the handset of the external phone
and press Hook or the machine’s
control panel.
2
Press # on the machine’s control panel.
Any digits dialed after this will send tone
signals.
When you hang up, the machine will
return to the Pulse dialing service.
Phone line services
Your machine supports the Distinctive Ring
and Caller ID subscriber telephone services
that some telephone companies offer.
Note
■ If you have Voice Mail, Call Waiting, Call
Waiting/Caller ID, RingMaster, an
answering service, an alarm system or
other custom features on your telephone
line, it may affect the way your machine
works. (See Custom features on page 1-6
and Custom features on a single line. on
page C-12.)
■ If you have Voice Mail on your phone line,
please read the following carefully.
Distinctive Ring
Brother uses the term ‘Distinctive Ring’ but
different telephone companies have other
names for this service such as SmartRing,
RingMaster, Teen-Ring, Indent-a-Call or
Indent-a-Ring.
What does your telephone company’s
‘Distinctive Ring’ do?
Your telephone company’s Distinctive Ring
service allows you to have more than one
number on the same phone line. If you need
more than one phone number, it is
cheaper than paying for an extra line. Each
phone number has its own distinctive ring
pattern, so you will know which phone
number is ringing. This is one way you can
have a separate phone number for your
machine.
Note
Please call your telephone company for
availability and rates.
Chapter 7
7 - 7
What does Brother’s ‘Distinctive Ring’
do?
The Brother machine has a Distinctive Ring
feature that allows you to use your machine to
take full advantage of the telephone
company’s Distinctive Ring service. The new
phone number on your line can just receive
faxes.
Note
You must pay for your telephone company’s
Distinctive Ring service before you program
the machine to work with it.
Do you have Voice Mail?
If you have Voice Mail on the phone line that
you will install your new machine on, there is
a strong possibility that Voice Mail and the
machine will conflict with each other while
receiving incoming calls. However, the
Distinctive Ring feature allows you to use
more than one number on your line, so
both Voice Mail and the machine can work
together without any problems. If each one
has a separate phone number, neither will
interfere with the other’s operations.
If you decide to get the Distinctive Ring
service from the telephone company, you will
need to follow the directions on next page to
‘register’ the new Distinctive Ring pattern
they give you. This is so your machine can
recognize its incoming calls.
Note
You can change or cancel the Distinctive
Ring pattern at any time. You can switch it off
temporarily, and turn it back on later. When
you get a new fax number, make sure you
reset this feature.
Before you choose the ring pattern to
register
You can only register one Distinctive Ring
pattern with the machine. Some ring patterns
cannot be registered. The ring patterns below
are supported by your Brother machine.
Register the one your telephone company
gives you.
Note
If the ring pattern you received is not on this
chart, please call your telephone company
and ask for one that is shown.
■ The machine will only answer calls to its
registered number.
■ The first two rings are silent on the
machine. This is because the fax must
«listen» to the ring pattern (to compare it
to the pattern that was ‘registered’). (Other
telephones on the same line will ring.)
■ If you program the machine properly, it will
recognize the registered ring pattern of the
‘fax number’ within 2 ring patterns and
then answer with a fax tone. When the
‘voice number’ is called, the machine will
not answer.
Ring
Pattern
Rings
1 long-long
2 short-long-
short
3 short-short-
long
4 very long
(normal
pattern)
Dialing and phone options
7 - 8
7
Registering the Distinctive Ring
pattern
Very important!
After you have set the Distinctive Ring feature
to ON, the receive mode is set to Manual
automatically. Unless you have a TAD or
Voice Mail set up on the Distinctive Ring
number,
Manual mode means you must
answer all the calls yourself. You can not
change the receive mode to another mode
while the Distinctive Ring is set to on.
1
Press Menu/Set, 2, 0, 2.
2
Press ▲ or ▼ to select Set.
Press Menu/Set.
3
Press ▲ or ▼ to select the stored ring
pattern you want to use.
Press Menu/Set.
(You will hear each pattern as you scroll
through the four patterns. Make sure
you choose the pattern that the
telephone company gave you.)
4
Press Stop/Exit. Distinctive Ring is now
set to on.
Turning off Distinctive Ring
1
Press Menu/Set, 2, 0, 2.
2
Press ▲ or ▼ to select Off.
Press Menu/Set.
3
Press Stop/Exit.
Note
If you turn off Distinctive Ring, the machine
will stay in
Manual receive mode. You will
need to set the Receive Mode again. (See To
select or change your Receive Mode on
page 6-2.)
Caller ID
Note
The Caller ID feature lets you use the Caller
ID subscriber service offered by many local
telephone companies. This service displays
the telephone number, or name if it is
available, of your caller as the line rings.
After a few rings, the LCD shows the
telephone number of your caller (and name, if
available). Once you pick up the external
phone’s handset, the Caller ID information
disappears from the LCD, but the call
information remains stored in the Caller ID
memory.
■ You will see the first 16 characters of the
number (or name).
■ Out of Area display means call
originated outside your Caller ID service
area.
■ Private Call display means the caller
has intentionally blocked transmission of
information.
You can print a list of Caller ID information
received by your machine. (See Printing
Caller ID List on page 7-9.)
Caller ID service varies with different carriers.
Call your local telephone company to
determine the kind of service available in your
area.
Miscellaneous
2.Distinctive
Miscellaneous
2.Distinctive
Chapter 7
7 - 9
Viewing Caller ID List
Caller ID memory stores information for up to
thirty calls. When the thirty-first call comes in,
information about the first call is erased. You
can scroll through Caller ID information to
review those calls made to your machine.
1
Press Menu/Set, 2, 0, 3.
2
Press ▲ or ▼ to select Display#.
Press Menu/Set.
The caller ID of the last call will appear
on the display. If no ID is stored, the
beeper will sound and
No Caller ID
will appear on the display.
3
Press ▲ or ▼ to scroll through the Caller
ID memory to select the Caller ID you
want to view, and then press Menu/Set.
The LCD shows the caller’s number and
the date and time of the call.
4
Press to return to the Caller ID listing.
—OR—
Press Stop/Exit.
Printing Caller ID List
1 Press Menu/Set, 2, 0, 3.
2
Press ▲ or ▼ to select Print Report.
Press Menu/Set.
If no ID is stored, the beeper will sound
and
No Caller ID will appear on the
display.
3
Press Black Start or Color Start.
4
After printing has finished, press
Stop/Exit.
Miscellaneous
3.Caller ID
▲
Miscellaneous
3.Caller ID
8 - 1
8
8
Note
■ You can only use one remote fax option at
a time:
Fax Forwarding—OR—Paging—OR—
Fax Storage—OR—PC FAX Receive
—OR—Off.)
■ If you change the remote fax option and
received faxes are left in your machine’s
memory, an LCD message will appear.
(See Changing Remote Fax Options on
page 8-4.)
Fax Forwarding
When you select Fax Forward, your machine
stores the received fax in the memory. The
machine will then dial the fax number you
have programmed and forward the fax
message.
1
Press Menu/Set, 2, 5, 1.
2
Press ▲ or ▼ to select Fax Forward.
Press Menu/Set.
The LCD will ask you to enter the fax
number to which faxes will be
forwarded.
3
Enter the forwarding number (up to 20
digits).
Press Menu/Set.
4
Press
▲
or
▼
to select
Backup Print:On
or
Backup Print:Off
.
.
Press Menu/Set.
Note
■ If you select Backup Print:On, the
machine will also print the fax at your
machine so you will have a copy. This is a
safety feature in case there is a power
failure before the fax is forwarded or a
problem at the receiving machine. The
machine can store faxes up to 60 hours if
there is a power failure.
■ If Fax Forwarding is turned on your
machine can not receive a color fax unless
the sending machine converts it to black &
white.
5
Press Stop/Exit.
Remote Fax Options
(Black & White only)
Remote Fax Opt
1.Fwd/Page/Store
Fax Forward
Backup Print:On
Chapter 8
8 - 2
Programming your
pager number
When Paging is selected, your machine dials
the pager number you’ve programmed, and
then dials your Personal Identification
Number (PIN). This activates your pager so
you will know that you have a fax message in
the memory.
1
Press Menu/Set, 2, 5, 1.
2
Press ▲ or ▼ to select Paging.
Press Menu/Set.
3
Enter your pager phone number
followed by # # (up to 20 digits).
Press Menu/Set.
Do not include the area code if it is the
same as that of your machine.
For example, press:
1 8 0 0 5 5 5 1 2 3 4 # #.
4
If your pager needs a PIN, enter the PIN,
press #, press Redial/Pause, enter your
fax number followed by ##.
Press Menu/Set.
For example, press:
1 2 3 4 5 # Redial/Pause 1 8 0 0 5 5 5 6
7 8 9 # #
—OR—
If you do not need a PIN, press
Redial/Pause, enter your fax number
followed by ##.
Press Menu/Set.
For example, press:
Redial/Pause 1 8 0 0 5 5 5 6 7 8 9 # #
5
Press Stop/Exit.
Note
■ You cannot change a Paging number or
PIN remotely.
■ If you have set Paging, a backup copy of
the received fax will automatically be
printed at the machine.
■ If Paging is turned on your machine can
not receive a color fax unless the sending
machine converts it to black & white.
Fax Storage
If you select Fax Storage, your machine
stores the received fax in the memory. You
will be able to retrieve fax messages from
another location using the Remote Retrieval
commands.
1
Press Menu/Set, 2, 5, 1.
2
Press ▲ or ▼ to select Fax Storage.
Press Menu/Set.
3
Press Stop/Exit.
Note
■ If you have set Fax Storage, a backup
copy will automatically be printed at the
machine.
■ If Fax Storage is turned on your machine
can not receive a color fax unless the
sending machine converts it to black &
white.
Remote Fax Opt
1.Fwd/Page/Store
Remote Fax Opt
1.Fwd/Page/Store
Remote Fax Options (Black & White only)
8 - 3
8
PC Fax Receive
If you turn on the PC-Fax Receive feature
your machine will store received faxes in
memory and send them to your PC
automatically. You can then use your PC to
view and store these faxes.
Even if you have turned off your PC (at night
or on the weekend, for example), your
machine will receive and store your faxes in
its memory. The LCD will show the number of
stored faxes received, for example:
PC Fax Msg:001
When you start your PC and the PC-FAX
Receiving software runs, your machine
transfers your faxes to your PC automatically.
To transfer the received faxes to your PC you
must have the PC-FAX Receiving software
running on your PC. (For details, see PC-FAX
receiving in the Software User’s Guide on the
CD-ROM.)
If you select
Backup Print:On the machine
will also print the fax.
1
Press Menu/Set, 2, 5, 1.
2
Press ▲ or ▼ to select
PC Fax Receive.
Press Menu/Set.
3
Press ▲ or ▼ to select
Backup Print:On or
Backup Print:Off.
Press Menu/Set.
4
Press Stop/Exit.
Note
■ When Backup Print is off, your fax
messages are automatically erased from
your machine’s memory when they have
been successfully sent to your PC. When
Backup Print is on, your fax messages are
erased when they have been successfully
printed and sent to the PC.
■ In the event of a power failure, the
machine will store your faxes in the
memory for up to 60 hours. However, if
you select
Backup Print:On, the
machine will print the fax, so you will have
a copy if there is a power failure before it
is sent to the PC.
■ If you get an error message and the
machine cannot print the faxes in memory,
you can use this setting to transfer your
faxes to your PC. (For details, see Error
messages on page C-1.)
■ You cannot turn on Memory Security if
PC-Fax Receive is on.
■ PC Fax Receive is not supported in the
Mac
®
OS or when the machine is
connected on a network.
■ When PC Fax Receive is turned on only
black & white faxes can be received into
the memory and sent to the PC. Color
faxes will be received in real time and
printed in color.
Remote Fax Opt
1.Fwd/Page/Store
PC Fax Receive
Backup Print:On
Chapter 8
8 - 4
Changing Remote Fax
Options
If received faxes are left in your machine’s
memory when you change to another remote
fax option, the LCD will ask you the following
message:
—OR—
■ If you press 1, faxes in the memory will be
erased or printed before the setting
changes. If a backup copy has already
been printed it will not be printed again.
■ If you press 2, faxes in the memory will not
be erased or printed and the setting will be
unchanged.
If received faxes are left in the machine’s
memory when you change to
PC Fax Receive from another remote fax
option (
Fax Forward, Paging or
Fax Storage), the LCD will ask you the
following message:
■ If you press 1, faxes in the memory will be
sent to your PC before the setting
changes.
■ If you press 2, faxes in the memory will not
be erased or transferred to your PC and
the setting will be unchanged.
Turning off Remote Fax
Options
1
Press Menu/Set, 2, 5, 1.
2
Press ▲ or ▼ to select Off.
Press Menu/Set.
Note
The LCD will give you options if there are
received faxes still in your machine’s
memory. (See Changing Remote Fax
Options on page 8-4.)
3
Press Stop/Exit.
Erase All Fax?
1.Yes 2.No
Print All Fax?
1.Yes 2.No
Send Fax to PC?
1.Yes 2.No
Remote Fax Opt
1.Fwd/Page/Store
Remote Fax Options (Black & White only)
8 - 5
8
Remote Retrieval
You can call your machine from any touch
tone telephone or fax machine, then use the
Remote Access Code and remote commands
to retrieve fax messages stored in the
memory. Be sure to cut out the Remote
Retrieval Access Card on the last page and
keep it with you at all times.
Setting the Remote Access
Code
The remote access code lets you access the
Remote Retrieval features when you are
away from your machine. Before you use the
remote access and retrieval features, you
have to set up your own code. The default
code is inactive code (--- ).
1
Press Menu/Set, 2, 5, 2.
2
Enter a three-digit code using numbers
0-9, or #.
Press Menu/Set. (The preset ‘ ’
cannot be changed.)
Note
Do not use the same code as your Fax
Receive Code ( 51) or Telephone Answer
Code (#51).
(See Operation from extension telephones on
page A-5.)
3
Press Stop/Exit.
Note
You can change your code at any time by
entering a new one. If you want to make your
code inactive, press Stop/Exit in Step 2 to
restore the inactive setting (--- ) and press
Menu/Set.
Using your Remote Access
Code
1
Dial your fax number from a telephone
or another fax machine using touch
tone.
2
When your machine answers,
immediately enter your Remote Access
Code (3 digits followed by ).
3
The machine signals if it has received
fax messages:
1 long beep — Fax messages
No beeps — No messages
4
The machine gives two short beeps to
tell you to enter a command. The
machine will hang up if you wait longer
than 30 seconds to enter a command.
The machine will beep three times, if
you enter an invalid command.
5
Press 9 0 to reset the machine when
you’ve finished.
6
Hang up.
Note
If your machine is set to Manual mode and
you want to use the remote retrieval features,
you can access your machine by waiting
about 2 minutes after it starts ringing, and
then entering the Remote Access Code
within 30 seconds.
Remote Fax Opt
2.Remote Access
Chapter 8
8 - 6
Remote commands
Follow the commands below to access features when you are away from the machine. When you
call the machine and enter your Remote Access Code (3 digits followed by ), the system will
give two short beeps and you must enter a remote command.
Remote commands Operation details
95 Change the Fax Forwarding,
Paging or Fax Storage settings
1 OFF You can select
Off
after you have retrieved or erased all your
messages.
2 Fax Forwarding If you hear one long beep, the change has been accepted. If
you hear three short beeps, you cannot change it because
something has not been set up (for example, perhaps a Fax
Forwarding or Paging number had not been registered). You
can register your Fax Forwarding number by entering 4. (See
Changing the Fax Forwarding number on page 8-7.) Once you
have registered the number, Fax Forwarding will work.
You can select
Off
after you have retrieved or erased all your
messages.
3 Paging
4 Fax Forwarding number
6 Fax Storage
96 Retrieve a fax
2 Retrieve all faxes Enter the number of a remote fax machine to receive stored fax
message(s). (See page 8-7.)
3 Erase faxes from the memory If you hear one long beep, fax messages have been erased
from the memory.
97 Check the receiving status
1 Fax You can check whether your machine has received any faxes.
If yes, you will hear one long beep. If no, you will hear three
short beeps.
98 Change the Receive Mode
1 External TAD If you hear one long beep, your change has been accepted.
2 Fax/Tel
3 Fax Only
90 Exit Press 9 0 to exit Remote Retrieval. Wait for the long beep, then
replace the handset.
Remote Fax Options (Black & White only)
8 - 7
8
Retrieving fax messages
You can call your machine from any touch
tone telephone or fax machine and have your
fax messages sent to a fax machine.
1
Dial your fax number.
2 When your machine answers,
immediately enter your Remote Access
Code (3 digits followed by ). If you
hear one long beep, you have
messages.
3
When you hear two short beeps, use the
dial pad to press 9 6 2.
4
Wait for the long beep, and then use the
dial pad to enter the number of the
remote fax machine where you want
your fax messages sent followed by ##
(up to 20 digits).
Note
You cannot use and # as dial numbers.
However, press # if you want to store a
pause.
5
Press 9 0 to reset the machine when
you’ve finished.
6
Hang up after you hear your machine
beep. Your machine will call the other
fax machine, which will then print your
fax messages.
Changing the Fax Forwarding
number
You can change the default setting of your fax
forwarding number from another telephone or
fax machine using touch tone.
1 Dial your fax number.
2
When your machine answers,
immediately enter your Remote Access
Code (3 digits followed by ). If you
hear one long beep, you have
messages.
3
When you hear two short beeps, use the
dial pad to press 9 5 4.
4
Wait for the long beep, and then use the
dial pad to enter the new number of the
remote fax machine where you want
your fax messages forwarded followed
by ## (up to 20 digits).
Note
You cannot use and # as dial numbers.
However, press # if you want to store a
pause.
5
Press 9 0 to reset the machine when
you’ve finished.
6
Hang up after you hear your machine
beep.
9 - 1
9
Fax reports
Fax reports (Transmission Verification and
Fax Journal) can be printed automatically and
manually.
Transmission Verification
Report
You can use the Transmission Verification
Report as proof that you sent a fax. This
report lists the time and date of transmission
and whether the transmission was successful
(OK). If you select
On or On+Image, the
report will print for every fax you send.
If you send a lot of faxes to the same place,
you may need more than the job numbers to
know which faxes you must send again.
Selecting
On+Image or Off+Image will print
a section of the fax’s first page on the report
to help you remember.
Note
When the Transmission Verification Report is
turned
Off or Off+Image, the Report will
only print if there is a transmission error, with
NG in the RESULT column.
1
Press Menu/Set, 2, 4, 1.
2
Press ▲ or ▼ to select On, On+Image,
Off or Off+Image.
Press Menu/Set.
3
Press Stop/Exit.
Fax Journal (Activity report)
You can set the machine to print a journal at
specific intervals (every 50 faxes, 6, 12 or 24
hours, 2 or 7 days). If you set the interval to
Off
, you can print the report by following the
steps on Additional reports.
The default setting is
Every 50 Faxes.
1
Press Menu/Set, 2, 4, 2.
2
Press ▲ or ▼ to choose an interval.
Press Menu/Set.
(If you choose 7 days, the LCD will ask
you to choose a day on which to begin
the 7-day countdown.)
3
Enter the time to begin printing in
24-hour format.
Press Menu/Set.
(For example: enter 19:45 for 7:45 PM.)
4
Press Stop/Exit.
Note
■ If you select 6, 12, 24 hours, 2 or 7 days,
the machine will print the report at the
selected time and then erase all jobs from
its memory. If the machine’s memory
becomes full with 200 jobs before the time
you selected has passed, the machine will
print the Journal early and then erase all
jobs from memory. If you want an extra
report before it is due to print, you can
print it without erasing the jobs from
memory.
■ If you select Every 50 Faxes, the
machine will print the Journal when the
machine has stored 50 jobs.
Printing reports
Report Setting
1.Transmission
Report Setting
2.Journal Period
Printing reports
9 - 2
9
Additional reports
Following reports are available:
How to print a report
1
Press Menu/Set, 5.
2
Press ▲ or ▼ to select the report you
want.
Press Menu/Set.
—OR—
Enter the number of the report you want
to print.
For example, press 2 to print the Help
List.
3
Press Black Start or Color Start.
1.Transmission
Prints a Transmission Verification
Report for your last transmission.
2.Help List
Prints the Help List so you can see
at-a-glance how to quickly program your
machine.
3.Quick-Dial
Lists names and numbers stored in the
One-Touch and Speed-Dial memory, in
numerical order.
4.Fax Journal
Lists information about the last incoming
and outgoing faxes.
(TX means Transmit.)
(RX means Receive.)
5.User Settings
Lists your settings.
6.Network Config
Lists your Network settings.
10 - 1
10
Polling Operation
Polling is the process of retrieving faxes from
another fax machine. You can use your
machine to 'poll' other machines, or you can
have someone poll your machine.
Everyone who is involved in Polling needs to
set up their fax machines for Polling. When
someone polls your machine to receive a fax,
they pay for the call. If you poll someone’s fax
machine to receive a fax, you pay for the call.
Note
Some fax machines do not respond to the
Polling feature.
Polling Receive
Polling Receive is when you call another fax
machine to receive a fax from it.
Set up to receive polling
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 7.
3
Enter the fax number you are polling.
4
Press Black Start or Color Start.
The LCD shows
Dialing.
Sequential Polling
Your machine can ask for faxes from several
fax units in a single operation (Sequential
Polling Receive). Afterwards, a Sequential
Polling Report will be printed.
1
If it is not illuminated in blue, press
(Fax).
2
Press Menu/Set, 2, 1, 7.
3
Enter the fax machines you want to poll
using One-Touch, Speed-Dial, a Group
or the dial pad. You must press
Menu/Set between each fax number.
4
Press Black Start or Color Start. Your
machine will poll each number or Group
number in turn to receive a fax.
To stop a sequential polling in
progress
1
Press Menu/Set, 2, 6.
The LCD will display the name, if you
stored it, or the fax number being dialed.
2
Press Menu/Set.
The LCD will display:
3
Press 1 to Clear.
The LCD will then display the sequential
polling job number and
1.Clear
2.Exit
.
4
To cancel the sequential polling,
press 1.
5
Press Stop/Exit.
Polling
Setup Receive
7.Polling RX
Setup Receive
7.Polling RX
XXXXXXXX
1.Clear 2.Exit
Polling
10 - 2
10
Polled Transmit
Polled Transmit is when you set up your
machine to wait with a document so another
fax machine can call and retrieve it.
Setup for Polled Transmit
(Black & White only)
1
If it is not illuminated in blue, press
(Fax).
2
Load your document.
3
Press Menu/Set, 2, 2, 6.
4
Press ▲ or ▼ to select On (or Off).
Press Menu/Set.
5
The LCD shows:
6
Press 2 and press Black Start.
Note
The document will be stored and can be
retrieved from any other fax machine until you
delete the fax from memory by using the
Canceling a Job menu setting. (See
Checking job status and canceling a waiting
job on page 5-9.)
Setup Send
6.Polled TX
Other Settings
1.Yes 2.No
11 - 1
11
11
‘
How to copy
You can use your machine as a copier,
making up to 99 copies at a time.
Entering Copy mode
Before making copies, make sure that
(Copy) is illuminated in blue. If it is not,
press (Copy) to enter Copy mode. The
default setting is Fax mode. You can change
the number of seconds or minutes that the
machine stays in Copy mode. (See Mode
Timer on page 3-8.)
Printable Area
The printable area of your machine begins at
approximately 0.12 in. (3 mm) from both
sides and 0.16 in. (4 mm) from the top or
bottom of the paper.
Making a single copy
1
Press (Copy) to illuminate it in
blue.
2
Load your document.
(See Loading documents on
page 2-10.)
3
Press Black Start or Color Start.
Note
To stop copying, press Stop/Exit.
Making copies
Copy Ratio
The LCD shows the default copy setting
Contrast
Quality
Stack/Sort No. of Copies
Stack Copies:01
100% Auto
0.12" (3 mm)
0.16" (4 mm)
Unprintable
area
Chapter 11
11 - 2
Making multiple copies
1 Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4 Press Black Start or Color Start.
Note
To sort the copies, press Options and ▲ or ▼
to select
Stack/Sort. (See Sorting copies
using the ADF on page 11-7.)
Tray Use for Copy mode
If your machine does not have the optional
Tray#2, this setting is not available. You can
change the tray that will be used for next copy
only. Normally, the machine uses the paper in
Tray#1 first.
1
Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4
Press Options and ▲ or ▼ to select
Tray Select.
5
Press ▲ or ▼ to select Auto, #1(xxx)
or
#2(xxx).
Press Menu/Set.
The ‘xxx’ is the paper size detected by the
tray or the small size you set in the
Menu/Set, 1, 3.
6
Press Black Start or Color Start.
■ If both trays are using paper that is the
same size, Auto will allow your machine to
take paper from Tray #2 if Tray #1 is out of
paper.
To change the default setting follow the
instructions below:
Auto allows your machine to choose the
paper from the optional Tray#2 when paper is
out in Tray#1
1
or when the size of the
document will fit best on the paper in Tray#2.
1
Press Menu/Set, 1, 9.
2
Press ▲ or ▼ to select Tray#1 Only,
Tray#2 Only or Auto.
Press Menu/Set.
3
Press Stop/Exit.
Note
1
Copies will automatically be printed from
Tray#2 only if the Paper in Tray#1 was the
same size.
Cancel copying
To stop copying, press Stop/Exit.
General Setup
9.Tray Use:Copy
Making copies
11 - 3
11
Copy options
When you want to quickly change the copy
settings temporarily for the next copy, use the
Copy Options keys. You can use different
combinations.
Note
■ These settings are temporary, and the
machine returns to its default settings 60
seconds after copying, unless you have
set the Mode Timer to 30 seconds or less.
(See Mode Timer on page 3-8.)
■ You can save some of the copy settings
you use most often by setting them as
default.
Increasing copy quality
You can select the copy quality. The default
setting is
Auto.
1
Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4
Press Options and ▲ or ▼ to select
Quality.
Press Menu/Set.
5
Press ▲ or ▼ to select the copy quality
you want (
Auto, Text or Photo).
Press Menu/Set.
6
Press Black Start or Color Start.
To change the default setting follow the
instructions below:
1
Press Menu/Set, 3, 1.
2
Press ▲ or ▼ to select Auto, Text or
Photo.
Press Menu/Set.
3
Press Stop/Exit.
Auto Suitable for documents that
contain both text and
photographs.
Text Suitable for documents
containing only text.
Photo Suitable for copying
photographs.
Copy Options keys
Copy
1.Quality
Chapter 11
11 - 4
Enlarging or reducing the
image copied
You can select the following enlargement or
reduction ratios.
Custom(25-400%) allows you to enter a
ratio from 25% to 400%.
1
Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Press Enlarge/Reduce.
4
Press ▲ or ▼ to select the enlargement
or reduction ratio you want.
Press Menu/Set.
—OR—
Use the dial pad to enter an
enlargement or reduction ratio from
25%
to
400%.
Press Menu/Set.
(For example, press 5 3 to enter
53%.)
5
Press Black Start or Color Start.
—OR—
Press the Options key for more
settings.
Note
■ Page Layout Options 2 in 1 (P),
2 in 1 (L), 4 in 1 (P),
4 in 1 (L) or Poster(3 x 3) are not
available with Enlarge/Reduce.
■ After you choose your settings by pressing
Menu/Set, the LCD shows
Set temporarily.
Press
Enlarge/Reduce
100%
104% EXE→ LTR
141% A5→ A4
200%
Custom(25-400%)
50%
70%
78% LGL→ LTR
83% LGL→ A4
85% LTR→ EXE
91% Full Page
94% A4→ LTR
97% LTR→ A4
Making copies
11 - 5
11
Making N in 1 copies or a
poster (page layout)
You can reduce the amount of copies by
using the N in 1 copy feature. This allows you
to copy two or four pages onto one page,
allowing you to save paper. It is also possible
to create a poster. When you use the Poster
feature your machine divides your document
into sections, then enlarges the sections so
you can assemble them into a poster. If you
want to print a poster, use the scanner glass.
Note
■ Please make sure paper size is set to
Letter, Legal or A4.
■ You can use N in 1 copy and poster
feature with 100% copy size only.
■ (P) means Portrait and (L) means
Landscape.
■ For Poster copies, you cannot make more
than one copy.
1
Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4
Press Options and ▲ or ▼ to select
Page Layout.
Press Menu/Set.
5
Press ▲ or ▼ to select 2 in 1 (P),
2 in 1 (L), 4 in 1 (P),
4 in 1 (L), Poster(3 x 3) or
Off(1 in 1).
Press Menu/Set.
6
Press Black Start or Color Start to
scan the document.
If you are making a poster or placed the
document in the ADF, the machine
scans the document and starts printing.
If you are using the scanner glass:
7
After the machine scans the page, the
LCD shows:
Press 1 to scan the next page.
8
Place the next page on the scanner
glass. The LCD shows:
Press Menu/Set.
9
Repeat Steps 7 and 8 for each page of
the layout.
0
After all the pages of the document have
been scanned, press 2 in Step 7 to
end.
Next Page?
1.Yes 2.No
Set Next Page
Then Press Set
Chapter 11
11 - 6
When using the ADF, insert document
face up in the direction shown below.
2 in 1 (P)
4 in 1 (P)
When using the scanner glass, place
document face down in the direction
shown below.
2 in 1 (P)
4 in 1 (P)
Poster(3 x 3)
You can make a poster size copy of a
photograph.
2 in 1 (L)
4 in 1 (L)
2 in 1 (L)
4 in 1 (L)
Making copies
11 - 7
11
Sorting copies using the ADF
You can sort multiple copies. Pages will be
stacked in the order (1 2 3), (1 2 3)
and so on.
1
Press (Copy) to illuminate it in
blue.
2 Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4
Press Options and ▲ or ▼ to select
Stack/Sort.
Press Menu/Set.
5
Press ▲ or ▼ to select Sort.
Press Menu/Set.
6
Press Black Start or Color Start.
—OR—
Press the Options key for more
settings.
Adjusting Brightness,
Contrast and Color
Brightness
You can adjust the copy brightness to make
copies darker or lighter.
1 Press (Copy) to illuminate it in
blue.
2
Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4
Press Options and ▲ or ▼ to select
Brightness.
Press Menu/Set.
5
Press ▲ to make a lighter copy.
—OR—
Press
▼ to make a darker copy.
Press Menu/Set.
6
Press Black Start or Color Start.
To change the default setting follow the
instructions below:
1
Press Menu/Set, 3, 2.
2
Press ▲ to make a lighter copy.
—OR—
Press
▼ to make a darker copy.
Press Menu/Set.
3
Press Stop/Exit.
Copy
2.Brightness
Chapter 11
11 - 8
Contrast
You can adjust copy contrast to make copies
with more or less contrast.
1
Press (Copy) to illuminate it in
blue.
2 Load your document.
3
Use the dial pad to enter the number of
copies you want (up to 99).
4
Press Options and ▲ or ▼ to select
Contrast.
Press Menu/Set.
5
Press ▲ to increase the contrast.
—OR—
Press
▼ to decrease the contrast.
Press Menu/Set.
6
Press Black Start or Color Start.
To change the default setting follow the
instructions below:
1
Press Menu/Set, 3, 3.
2
Press ▲ to increase the contrast.
—OR—
Press
▼ to decrease the contrast.
Press Menu/Set.
3
Press Stop/Exit.
Color saturation
You can only change the default setting for
Color saturation.
1
Press Menu/Set, 3, 4.
2
Press
▲
or
▼
to select
1.Red
,
2.Green
or
3.Blue
.
Press Menu/Set.
3
Press ▲ to increase the color saturation.
—OR—
Press
▼ to decrease the color
saturation.
Press Menu/Set.
4
Return to Step 2 to select the next
color.
—OR—
Press Stop/Exit.
Copy
3.Contrast
Copy
4.Color Adjust
Making copies
11 - 9
11
Out of Memory
message
If the memory becomes full while you are
making copies, the LCD message will guide
you through the next step.
If you get an
Out of Memory message while
scanning a subsequent page, you will have
the option to press Black Start or Color Start
to copy the pages scanned so far, or to press
Stop/Exit to cancel the operation.
Note
To gain extra memory, you can turn off Fax
Storage.
(See Turning off Remote Fax Options on
page 8-4.)
—OR—
Print the faxes that are in the memory.
(See Printing a fax from the memory on
page 6-6.)
When you get an
Out of Memory message,
you may be able to make copies if you first
print incoming faxes in the memory to restore
the memory to 100%.
Legal limitations
Color reproductions of certain documents are
illegal and may result in either criminal or civil
liability. This memorandum is intended to be
a guide rather than a complete listing of every
possible prohibition. In case of doubt, we
suggest that you check with counsel as to any
particular questionable documents.
The following documents issued by the
United States/Canadian Government or any
of its Agencies may not be copied:
■ Money
■ Bonds or other certificates of
indebtedness
■ Certificates of Deposit
■ Internal Revenue Stamps (canceled or
uncanceled)
■ Selective Service or draft papers
■ Passports
■ United States/Canadian Postage Stamps
(canceled or uncanceled)
■ Food Stamps
■ Immigration Papers
■ Checks or drafts drawn by Governmental
agencies
■ Identifying badges or insignias
Copyrighted works cannot be copied.
Sections of a copyrighted work can be copied
for ‘fair use.’ Multiple copies would indicate
improper use.
Works of art should be considered the
equivalent of copyrighted works.
Licenses and Certificates of Title to motor
vehicles may not be copied under certain
state/provincial laws.
SECTION IV SOFTWARE AND NETWORK FEATURES
Section IV
Software and Network Features
The User’s Guide on the CD-ROM includes the Software and Network User’s Guides
for features available when connected to a computer (for example, Printing and
Scanning).
■
Printing
(For Windows
®
, see Chapter 1 in the Software User’s Guide on the CD-ROM.)
(For Macintosh
®
, see Chapter 7 in the Software User’s Guide on the CD-ROM.)
■
Scanning
(For Windows
®
, see Chapter 2 in the Software User’s Guide on the CD-ROM.)
(For Macintosh
®
, see Chapter 8 in the Software User’s Guide on the CD-ROM.)
■
ControlCenter2
(For Windows
®
, see Chapter 3 in the Software User’s Guide on the CD-ROM.)
(For Macintosh
®
, see Chapter 9 in the Software User’s Guide on the CD-ROM.)
■
Remote Setup
(For Windows
®
, see Chapter 5 in the Software User’s Guide on the CD-ROM.)
(For Macintosh
®
, see Chapter 11 in the Software User’s Guide on the CD-ROM.)
■
Brother PC-FAX software
(For Windows
®
, see Chapter 6 in the Software User’s Guide on the CD-ROM.)
(For Macintosh
®
, see Chapter 7 in the Software User’s Guide on the CD-ROM.)
■
Network Scanning
(For Windows
®
, see Chapter 4 in the Software User’s Guide on the CD-ROM.)
(For Macintosh
®
, see Chapter 10 in the Software User’s Guide on the CD-ROM.)
■
Network Printing
(For Windows
®
, see Chapter 4 in the Network User’s Guide on the CD-ROM.)
(For Macintosh
®
, see Chapter 6 in the Network User’s Guide on the CD-ROM.)
Note
See How to access the complete User’s Guide on page 1-2.
A - 1
A
Standard telephone and FCC
Notices
These notices are in effect on
models sold and used in the
United States only.
When programming emergency numbers
or making test calls to emergency
numbers:
■
Remain on the line and briefly explain to the
dispatcher the reason for the call before
hanging up.
■
Perform these activities in the off-peak hours,
such as early morning or late evening.
This equipment complies with Part 68 of the FCC
rules and the requirements adopted by the ACTA.
On the backside of this equipment is a label that
contains, among other information, a product
identifier in the format US: AAAEQ##TXXXX. If
requested, this number must be provided to the
telephone company.
You may safely connect this equipment to the
telephone line by means of a standard modular
jack, USOC RJ11C.
A plug and jack used to connect this equipment to
the premises wiring and telephone network must
comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant
telephone cord and modular plug is provided with
this product. It is designed to be connected to a
compatible modular jack that is also compliant.
See installation instructions for details.
The REN is used to determine the number of
devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in
the devices not ringing in response to an incoming
call. In most but not all areas, the sum of RENs
should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line,
as determined by the total RENs, contact the local
telephone company. For products approved after
July 23, 2001, the REN for this product is part of
the product identifier that has the format
US:AAAEQ##TXXXX.The digits represented by
## are the REN without a decimal point (e.g., 06 is
a REN of 0.6). For earlier products, the REN is
separately shown on the label.
If this equipment causes harm to the telephone
network, the telephone company will notify you in
advance that temporary discontinuance of service
may be required. But if advance notice isn’t
practical, the telephone company will notify the
customer as soon as possible. Also, you will be
advised of your right to file a complaint with the
FCC if you believe it is necessary.
The telephone company may make changes in its
facilities, equipment, operations or procedures that
could affect the operation of the equipment. If this
happens the telephone company will provide
advance notice in order for you to make necessary
modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for
repair or warranty information, please contact
Brother Customer Service. (See Brother numbers
on page i.) If the equipment is causing harm to the
telephone network, the telephone company may
request that you disconnect the equipment until
the problem is resolved.
Connection to party line service is subject to state
tariffs. Contact the state public utility commission,
public service commission or corporation
commission for information.
If your home has specially wired alarm equipment
connected to the telephone line, ensure the
installation of this equipment does not disable your
alarm equipment. If you have questions about
what will disable alarm equipment, call your
telephone company or a qualified installer.
If you are not able to solve a problem with your
machine, call Brother Customer Service. (See
Brother numbers on page i.)
Important information
Important information
A - 2
A
Federal Communications
Commission (FCC)
Declaration of Conformity
(USA only)
Responsible Party:
Brother International Corporation
100 Somerset Corporate Boulevard
Bridgewater, NJ 08807-0911 USA
TEL: (908) 704-1700
declares, that the products
Product Name: MFC-9420CN
comply with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This
device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the
equipment and receiver.
■
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
■
Call the dealer or an experienced radio/TV
technician for help.
Important
Changes or modifications not expressly approved
by Brother Industries, Ltd. could void the user’s
authority to operate the equipment.
Important - about the interface cable
A shielded interface cable should be used to
ensure compliance with the limits for a Class B
digital device.
WARNING
■
For protection against the risk of electrical
shock, always disconnect all cables from
the wall outlet before servicing, modifying
or installing the equipment.
■
This equipment may not be used on coin
service lines provided by the telephone
company or connected to party lines.
■
Brother cannot accept any financial or other
responsibilities that may be the result of
your use of this information, including
direct, special or consequential damages.
There are no warranties extended or
granted by this document.
■
This machine has been certified to comply
with FCC standards, which are applied to
the USA only. A grounded plug should be
plugged into a grounded AC power outlet
after checking the rating of the local power
supply for the machine to operate properly
and safely.
Chapter A
A - 3
Industry Canada Compliance
Statement (Canada only)
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
For your safety
To ensure safe operation the supplied
three-pin plug must be inserted only into a
standard three-pin AC power outlet that is
effectively grounded through the normal
household or office wiring.
The fact that the equipment operates
satisfactorily does not imply that the power is
grounded and that the installation is
completely safe. For your safety, if in any
doubt about the effective grounding of the
power, consult a qualified electrician.
Disconnect device
This product must be installed near an AC power
outlet that is easily accessible. In case of
emergencies, you must disconnect the power cord
from the AC power outlet to shut off power
completely.
LAN connection
Laser safety
This equipment is certified as a Class 1 laser
product under the U.S. Department of Health and
Human Services (DHHS) Radiation Performance
Standard according to the Radiation Control for
Health and Safety Act of 1968. This means that the
equipment does not produce hazardous laser
radiation.
Since radiation emitted inside the equipment is
completely confined within protective housings
and external covers, the laser beam cannot
escape from the machine during any phase of user
operation.
CAUTION
Do not connect this product to a LAN
connection that is subject to over-voltages.
Important information
A - 4
A
FDA regulations
U.S. Food and Drug Administration (FDA) has
implemented regulations for laser products
manufactured on and after August 2, 1976.
Compliance is mandatory for products marketed in
the United States. The following label on the back
of the machine indicates compliance with the FDA
regulations and must be attached to laser products
marketed in the United States.
Important safety instructions
1
Read all of these instructions.
2
Save them for later reference.
3 Follow all warnings and instructions marked
on the product.
4
Unplug this product from the wall outlet
before cleaning inside of the machine. Do
not use liquid or aerosol cleaners. Use a
damp cloth for cleaning.
5
Do not place this product on an unstable
cart, stand, or table. The product may fall,
causing serious damage to the product.
6
Slots and openings in the cabinet and the
back or bottom are provided for ventilation;
to ensure reliable operation of the product
and to protect it from overheating, these
openings must not be blocked or covered.
The openings should never be blocked by
placing the product on a bed, sofa, rug, or
other similar surface. This product should
never be placed near or over a radiator or
heater. This product should never be placed
in a built-in installation unless proper
ventilation is provided.
7
This product should be connected to an AC
power source within the range indicated on
the rating label. Do NOT connect it to a DC
power source. If you are not sure, contact a
qualified electrician.
8
This product is equipped with a 3-wire
grounded plug. This plug will only fit into a
grounded power outlet. This is a safety
feature. If you are unable to insert the plug
into the outlet, call your electrician to replace
your obsolete outlet. Do not defeat the
purpose of the grounded plug.
9 Use only the power cord supplied with this
machine.
MANUFACTURED:
Brother Industries, Ltd.,
15-1 Naeshiro-cho Mizuho-ku Nagoya,
467-8561 Japan
This product complies with FDA radiation
performance standards, 21 CFR subchapter J.
WARNING
Use of controls, adjustments or performance of
procedures other than those specified in this
manual may result in hazardous invisible
radiation exposure.
Internal laser radiation
Max. Radiation Power 5 mW
Wave Length 780 - 800 nm
Laser Class Class 3B
Chapter A
A - 5
0 Do not place anything on top of the power
cord including this machine. Do not allow the
power cord to be stepped on.
A
If an extension cord is used with this product,
make sure that the total ampere ratings on
the products plugged into the extension cord
do not exceed the extension cord ampere
rating. Also, make sure that the total of all
products plugged into the AC power outlet
does not exceed 15 amperes (USA only).
B Do not place anything in front of the machine
that will block received faxes. Do not place
anything in the path of received faxes.
C
Wait until pages have exited the machine
before picking them up.
D
Never push objects of any kind into this
product through cabinet slots, since they
may touch dangerous voltage points or short
out parts resulting in the risk of fire or electric
shock. Never spill liquid of any kind on the
product. Do not attempt to service this
product yourself because opening or
removing covers may expose you to
dangerous voltage points and other risks and
may void your warranty. Refer all servicing to
a Brother Authorized Service Center. For the
location of your nearest Brother Authorized
Service Center, please call
In USA: 1-800-284-4357
In Canada: 1-877-BROTHER.
(See Brother numbers on page i.)
E Unplug this product from the AC power outlet
and refer all servicing to Brother Authorized
Service Personnel under the following
conditions:
• When the power cord is damaged or
frayed.
• If liquid has been spilled into the product.
• If the product has been exposed to rain or
water.
• If the product does not operate normally
when the operating instructions are
followed. Adjust only those controls that
are covered by the operating instructions.
Improper adjustment of other controls may
result in damage and will often require
extensive work by a qualified technician to
restore the product to normal operation.
• If the product has been dropped or the
cabinet has been damaged.
• If the product exhibits a distinct change in
performance, indicating a need for service.
F
To protect your product against power
surges, we recommend the use of a power
protection device (Surge Protector).
G
To reduce the risk of fire, electric shock and
injury to people, note the following:
• Do not use this product near appliances
that use water, a swimming pool or in a wet
basement.
• Do not use the machine during an
electrical storm (there is the remote
possibility of an electrical shock) or to
report a gas leak in the vicinity of the leak.
• Do not dispose of batteries in a fire. They
may explode. Check with local codes for
possible special disposal instructions.
H Caution - To reduce the risk of fire, use only
a No.26 AWG or larger telecommunication
line cord.
Important information
A - 6
A

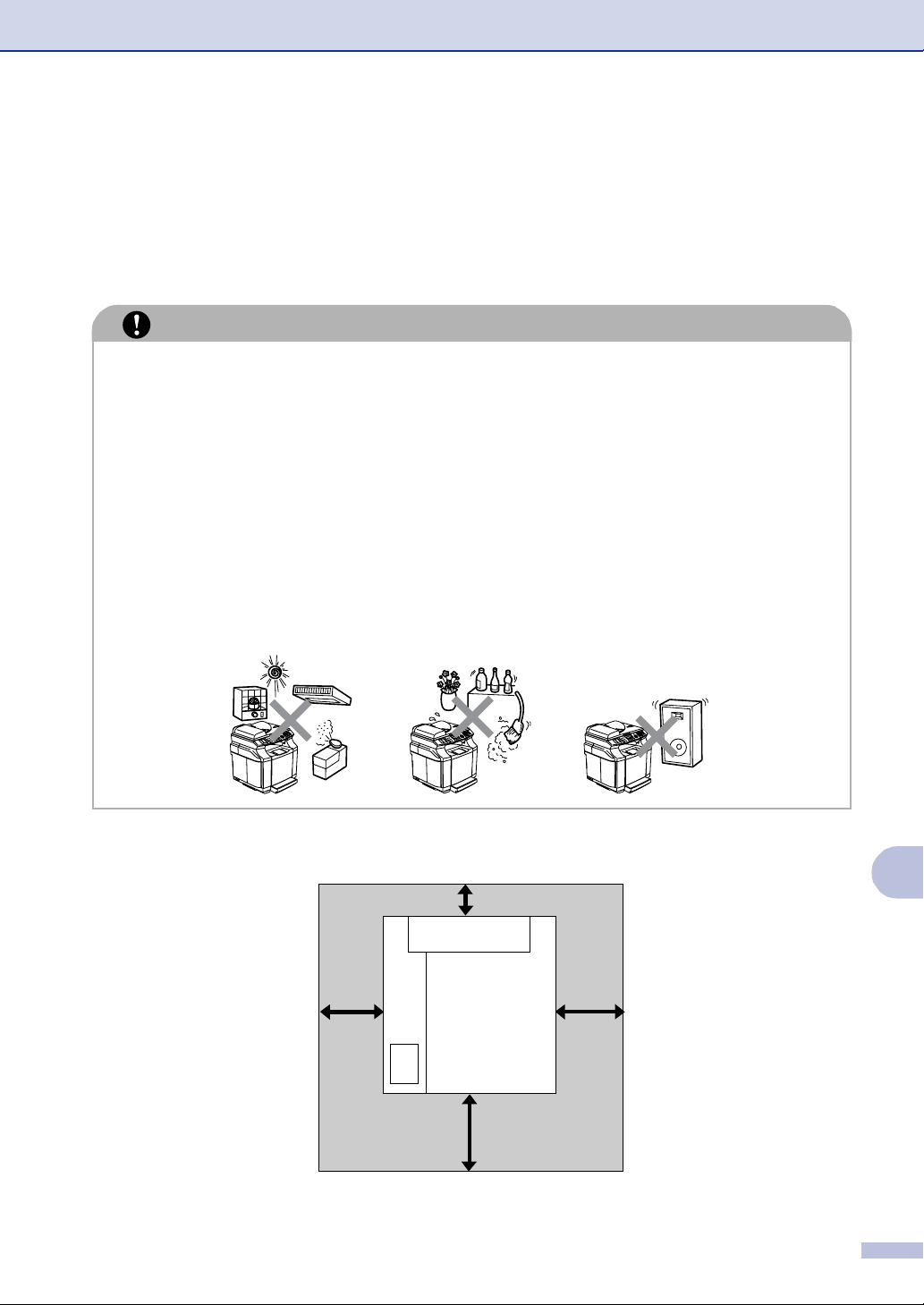

Choosing a location
Place your machine on a flat, stable surface that is free of vibration and shocks. Put the machine
near a telephone wall jack and a standard, grounded AC power outlet. Choose a location where
the temperature remains between 50°F and 90.5°F (10°C and 32.5°C) and the humidity is
between 20% to 80% (without condensation).
The following figure details the recommended area around the machine for proper ventilation,
operation and maintenance.
CAUTION
■ Avoid placing your machine in a high-traffic area.
■ Do not place the machine near heaters, air conditioners, refrigerators, water, chemicals or
devices that contain magnets or generate magnetic fields.
■ Do not expose the machine to direct sunlight, excessive heat, open flames, salty or
corrosive gasses, moisture, or dust.
■ Do not connect your machine to an AC power outlet controlled by wall switches or automatic
timers.
■ Disruption of power can wipe out information in the machine’s memory.
■ Do not connect your machine to an AC power outlet on the same circuit as large appliances
or other equipment that might disrupt the power supply.
■ Avoid interference sources, such as speakers or the base units of cordless phones.
■ Do not put objects on top of the machine.
Back
Front
14 in. (35 cm)
8 in. (20 cm)
28 in. (70 cm)
20 in. (50 cm)
Chapter A
A - 7
To use the machine safely
Please keep these instructions for later reference and read them before attempting any
maintenance.
WARNING
There are high voltage electrodes inside the machine.
Before you clean the inside of the machine, make sure you
have unplugged the telephone line cord first and then the
power cord from the AC power outlet.
Do not handle the plug with wet hands. Doing this might
cause an electrical shock.
The fusing unit becomes extremely hot during
operation. Wait until it has cooled down
sufficiently before replacing consumable
items.
The fusing unit is marked with a caution label.
Please do not remove or damage the label.
To prevent injuries, be careful
not to put your hands on the edge
of the machine under the
document cover or scanner unit.
Important information
A - 8
A
■ To prevent injuries, be careful not to
put your fingers in the area shown in
the illustrations.
■ Do not use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner
dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean
the toner dust with a clean dry soft, lint-free cloth and dispose of it according to local
regulations.
■ Do not use flammable substances near the machine. Doing this might cause a fire or
electrical shock.
■ If the machine becomes hot, blows smoke, or generates obscure odor, immediately turn off
the power switch and unplug the machine from the AC power outlet. Call your Brother
dealer or Brother Customer Service.
■ If metal objects, water or other liquids get inside the machine, immediately turn off the power
switch and unplug the machine from the AC power outlet. Call your Brother dealer or
Brother Customer Service.
■ Do not put consumable items such as the toner cartridges and the waste toner pack into a
fire. Some consumable items can be flammable under certain conditions.
■ Do not look directly at the laser beam light. It might cause damage to your eyesight. Do not
remove or break open the machine's safety interlocks.
■ Do not run the machine with the inside cover, front cover and back covers open and the
interlocks removed.
WARNING
Chapter A
A - 9
WARNING
■ This machine is heavy and weighs approximately 76.7 lb
(34.8 kg). To prevent injuries, use at least two people to lift the
machine. Be careful not to trap your fingers when you set the
machine back down.
■ When you lift the machine make sure you use the handholds at
the bottom four corners of the machine. Keep the machine
horizontal when you carry it.
■ Use caution when installing or modifying telephone lines. Never touch telephone wires or
terminals that are not insulated unless the telephone line has been disconnected at the wall
jack. Never install telephone wiring during a lightning storm. Never install a telephone wall
jack in a wet location.
■ This product must be installed near an AC power outlet that is easily accessible. In case of
an emergency, you must disconnect the power cord from the AC power outlet to shut off the
power completely.
■ To reduce the risk of shock or fire, use only a No. 26 AWG or larger telecommunication line
cord.
CAUTION
Lightning and power surges can damage this product! We recommend that you use a quality
surge protection device on the AC power line and on the telephone line, or unplug the cords
during a lightning storm.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to people, including the following:
1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or
washing machine, in a wet basement or near a swimming pool.
2. Avoid using this product during an electrical storm. There may be a remote risk of electric
shock from lightning.
3. Do not use this product to report a gas leak in the vicinity of the leak.
4. Use only the power cord provided with the machine.
SAVE THESE INSTRUCTIONS
Important information
A - 10
A
Trademarks
The Brother logo is a registered trademark of
Brother Industries, Ltd.
Brother is a registered trademark of Brother
Industries, Ltd.
Multi-Function Link is a registered trademark
of Brother International Corporation.
© 2004-2005 Brother Industries, Ltd. All
rights reserved.
Windows and Microsoft are registered
trademarks of Microsoft in the U.S. and other
countries.
Macintosh and TrueType are registered
trademarks of Apple Computer, Inc.
PaperPort and OmniPage OCR are
registered trademarks of ScanSoft, Inc.
Presto! PageManager is a registered
trademark of NewSoft Technology
Corporation.
Each company whose software title is
mentioned in this manual has a Software
License Agreement specific to its proprietary
programs.
All other brand and product names
mentioned in this User’s Guide, the
Software User’s Guide, and the Network
User’s Guide are registered trademarks of
their respective companies.
B - 1
B
On-screen
programming
Your machine is designed to be easy to use
with LCD on-screen programming using the
menu keys. User-friendly programming helps
you take full advantage of all the menu
selections your machine has to offer.
Since your programming is done on the LCD,
we have created step-by-step on-screen
instructions to help you program your
machine. All you need to do is follow the
instructions as they guide you through the
menu selections and programming options.
Menu table
The Menu table that begins on page B-3 will
help you understand the menu selections and
options that are found in the machine’s
programs. Once you become familiar with
programming, you can use the Menu table as
a quick reference when you want to change
your settings.
Note
You can program your machine by pressing
Menu/Set, followed by the menu numbers.
For example to set Beeper Volume to
Low.
Press Menu/Set, 1, 4, 2 and
▲ or ▼ to select
Low.
Press Menu/Set.
Memory storage
If there is a power failure, you will not lose
your menu settings because they are stored
permanently. Temporary settings (such as
Contrast, Overseas Mode, and so on) will be
lost. You may also have to reset the date and
time.
Note
Your machine can store the date and time up
to 60 hours.
Menu and Features
Menu and Features
B - 2
B
Menu keys
You can access the menu mode by pressing
Menu/Set.
When you enter the menu, the LCD scrolls.
Press 1 for General Setup menu
—OR—
Press 2 for Fax menu
—OR—
Press 3 for Copy menu
Press 0 for Initial Setup
You can scroll more quickly through each
menu level or to your next menu selection by
pressing the
▲ or ▼ arrow key for the
direction you want.
Select an option by pressing Menu/Set when
that option appears on the LCD.
The LCD will then show the next menu level.
When you finish setting an option, the LCD
shows
Accepted.
Access the menu
Go to the next menu level
Accept an option
Scroll through the current menu
level
Go back to the previous menu
level or forward to the next menu
level
Exit the menu
Select
▲▼
& Set
1.General Setup
Select
▲▼
& Set
2.Fax
Select
▲▼
& Set
3.Copy
....
Select
▲▼
& Set
0.Initial Setup
Chapter B
B - 3
Menu Table
Main Menu Submenu Menu Selections Options Descriptions Page
1. General
Setup
1. Mode Timer — 5 Mins
2 Mins
1 Min
30 Secs
0 Sec
Off
Sets the time to return to
Fax mode.
3-8
2. Paper Type 1. Tray#1
(This menu only
appears when you
have the optional
tray #2)
Thin
Plain
Thick
Thicker
Recycled Paper
Sets the type of paper in
the paper tray.
3-9
2. Tray#2
(This menu only
appears when you
have the optional
tray #2)
Thin
Plain
Thick
Thicker
Recycled Paper
Sets the type of paper in
the paper tray.
3-9
3. Small Paper 1. Tray#1
(This menu only
appears when you
have the optional
tray #2)
B5
DL
Com10
JISB5
Sets the size of the paper
in the paper tray.
3-9
2. Tray#2
(This menu only
appears when you
have the optional
tray #2)
B5
JISB5
Sets the size of the paper
in the paper tray.
3-9
4. Volume 1. Ring High
Med
Low
Off
Adjusts the ring volume. 3-10
2. Beeper High
Med
Low
Off
Adjusts the volume level of
the beeper.
3-10
3. Speaker High
Med
Low
Off
Adjusts the speaker
volume.
3-10
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Menu and Features
B - 4
B
1. General
Setup
(Continued)
5. Auto
Daylight
— On
Off
Changes for Daylight
Savings Time
automatically.
3-1
6. Ecology 1. Toner Save On
Off
Increases the page yield
of the toner cartridge.
3-7
2. Sleep Time (0-99)
30 Min
Conserves power. 3-8
7. LCD
Contrast
—
▼
-
+
▲
▼
-
+
▲
▼
-
+ ▲
▼
-
+
▲
▼
-
+
▲
Adjust the contrast of the
LCD.
3-3
8. Security 1. Mem
Security
Prohibits most operations
except receiving faxes into
the memory.
4-3
2. Setting
Lock
Prohibits the settings for
Date & Time, Station ID,
Quick-Dial and General
Setup.
4-1
9. Tray Use:
Copy
(This setting only
appears when you
have the optional
tray #2.)
—
Tray#1 Only
Tray#2 Only
Auto
Select the tray that will be
used for copying.
11-2
0. Tray Use:
Fax
(This setting only
appears when you
have the optional
tray #2.)
—
Tray#1 Only
Tray#2 Only
Auto
Select the tray that will be
used for faxing.
6-3
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Chapter B
B - 5
2. Fax 1. Setup
Receive
(In Fax mode
only)
1. Ring Delay 04
03
02
01
00
Sets the number of rings
before the machine
answers in Fax Only or
Fax/Tel mode.
6-2
2. F/T Ring
Time
70 Sec
40 Sec
30 Sec
20 Sec
Sets the
pseudo/double-ring time in
Fax/Tel mode.
6-3
3. Easy
Receive
On
Off
Receives fax messages
without pressing Black
Start or Color Start.
6-5
4. Remote
Codes
On( 51, #51)
Off
You can answer all calls at
an extension or external
phone and use codes to
turn the machine on or off.
You can personalize these
codes.
6-5
5. Auto
Reduction
On
Off
Reduces the size of
incoming faxes.
6-4
6. Print
Density
▼
-
+
▲
▼
-
+
▲
▼
-
+ ▲
▼
-
+
▲
▼
-+
▲
Makes printouts darker or
lighter.
6-6
7. Polling RX — Sets up your machine to
poll another fax machine.
10-1
2. Setup Send
(In Fax mode
only)
1. Contrast Auto
Light
Dark
Changes the lightness or
darkness of faxes you
send.
5-5
2. Fax
Resolution
Standard
Fine
S.Fine
Sets the default resolution
for outgoing faxes.
5-5
3. Delayed Fax — Sets the time of day in 24
hour format that the
delayed faxes will be sent.
5-8
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Menu and Features
B - 6
B
2. Fax
(Continued)
2. Setup Send
(In Fax mode
only)
(Continued)
4. Batch TX On
Off
Combines delayed faxes
to the same fax number at
the same time of day into
one transmission.
5-8
5. Real Time TX Off
On
Next Fax:On
Next Fax:Off
You can send a fax
without using the memory.
5-6
6. Polled TX On
Off
Sets up your machine with
a document to be retrieved
by another fax machine.
10-2
7. Coverpg
Setup
Off
On
Next Fax:On
Next Fax:Off
Print Sample
Automatically sends a
Cover Page you have
programmed.
5-10
8. Coverpage
Msg
— You can set up your own
comments for fax Cover
Page.
5-9
9. Overseas
Mode
On
Off
If you are having difficulty
sending faxes overseas,
set this to On.
5-7
3. Set
Quick-Dial
1. One-Touch
Dial
— Stores One-Touch Dial
numbers, so you can dial
by pressing one key (and
Black Start or Color
Start.).
7-3
2. Speed-Dial — Stores Speed-Dial
numbers, so you can dial
by pressing only a few
keys (and Black Start or
Color Start.).
7-4
3. Setup
Groups
— Sets up a Group number
for Broadcasting.
7-5
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Chapter B
B - 7
2. Fax
(Continued)
4. Report
Setting
1. Transmission On
On+Image
Off
Off+Image
Initial setup for
Transmission Verification
Report and Fax Journal.
9-1
2. Journal
Period
Every 7 Days
Every 2 Days
Every 24 Hours
Every 12 Hours
Every 6 Hours
Every 50 Faxes
Off
9-1
5. Remote Fax
Opt
(Backup print for
Fax Forward/PC
Fax Receive)
1. Fwd/Page/
Store
Off
Fax Forward
Paging
Fax Storage
PC Fax Receive
Sets the machine to
forward fax messages, to
call your pager, to store
incoming faxes in the
memory (so you can
retrieve them while you
are away from your
machine), or to send faxes
to your PC.
If you selected Fax
Forward or PC Fax
Receive, you can turn on
the safety feature Backup
Print.
8-1
8-4
2. Remote
Access
--- You must set your own
code for Remote
Retrieval.
8-5
3. Print Fax — Prints incoming faxes
stored in the memory.
6-6
6. Remaining
Jobs
— — Checks which jobs are in
the memory and lets you
cancel selected jobs.
5-9
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Menu and Features
B - 8
B
2. Fax
(Continued)
0.
Miscellaneous
1.
Compatibility
High
Normal
Basic
Adjusts the Equalization
for transmission problems.
C-20
2. Distinctive Off
Set
(On)
Uses the Telephone
Company’s Distinctive
Ring subscriber service to
register the ring pattern
with the machine.
7-8
3. Caller ID Display#
Print Report
View or print a list of the
last 30 Caller IDs stored in
the memory.
7-8
3. Copy 1. Quality — Text
Auto
Selects the Copy
resolution for your type of
document.
11-3
2. Brightness —
▼
-+
▲
▼
-+
▲
▼
-
+ ▲
▼
-+
▲
▼
-+
▲
Adjusts the brightness for
copies
11-7
3. Contrast —
▼
-+
▲
▼
-+
▲
▼
-
+ ▲
▼
-+
▲
▼
-+
▲
Adjusts the contrast for
copies.
11-8
4. Color
Adjust
1. Red
▼
R:-+
▲
▼
R:-+
▲
▼
R:-
+ ▲
▼
R:-+
▲
▼
R:-+
▲
Adjusts the amount of Red
in copies.
11-8
2.
Green
▼
G:-+
▲
▼
G:-+
▲
▼
G:-
+ ▲
▼
G:-+
▲
▼
G:-+
▲
Adjusts the amount of
Green in copies.
11-8
3. Blue
▼
B:-+
▲
▼
B:-+
▲
▼
B:-
+ ▲
▼
B:-+
▲
▼
B:-+
▲
Adjusts the amount of
Blue in copies.
11-8
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Chapter B
B - 9
4. Printer 1. Emulation — Auto
HP LaserJet
BR-Script 3
Selects the emulation
mode.
See
Software
User’s
Guide
on the
CD-ROM
2. Print
Options
1. Internal
Font
— Prints a list of the
machine’s internal fonts.
2.
Configuration
— Prints a list of the
machine’s print settings.
3. Test Print — Prints a test page.
3. Reset
Printer
— — Returns the print settings
to the original factory
default settings.
4. Calibration — Calibrate
Reset
Adjusts the color density
or returns the color
calibration to the factory
setting.
5. Print
Reports
1. Transmission — — You can print these lists
and reports.
9-2
2. Help List ——
3. Quick-Dial ——
4. Fax Journal ——
5. User
Settings
——
6. Network
Config
——
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Menu and Features
B - 10
B
6. LAN 1. Setup
TCP/IP
1. BOOT Method Auto
Static
RARP
BOOTP
DHCP
You can choose the
BOOT method that best
suits your needs.
See
Network
User’s
Guide
on the
CD-ROM
2. IP Address [000-255].
[000-255].
[000-255].
[000-255]
Enter the IP address.
3. Subnet Mask [000-255].
[000-255].
[000-255].
[000-255]
Enter the Subnet mask.
4. Gateway [000-255].
[000-255].
[000-255].
[000-255]
Enter the Gateway
address.
5. Node Name BRN_XXXXXX Enter the Node name.
6. WINS Config Auto
Static
You can choose the WINS
configuration mode.
7. WINS Server (Primary)
[000-255].
[000-255].
[000-255].
[000-255]
(Secondary)
[000-255].
[000-255].
[000-255].
[000-255]
Specifies the IP address of
the primary or secondary
WINS server.
8. DNS Server (Primary)
[000-255].
[000-255].
[000-255].
[000-255]
(Secondary)
[000-255].
[000-255].
[000-255].
[000-255]
Specifies the IP address of
the primary or secondary
DNS server.
9. APIPA On
Off
Automatically allocates
the IP address from the
link-local address range.
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Chapter B
B - 11
6. LAN
(Continued)
2. Setup
Internet
1. Mail
Address
(60 characters) Enter the mail address. See
Network
User’s
Guide
on the
CD-ROM
2. SMTP Server [000-255].
[000-255].
[000-255].
[000-255]
Enter the SMTP server
address.
3. POP3 Server [000-255].
[000-255].
[000-255].
[000-255]
Enter the POP3 server
address.
4. Mailbox
Name
(Up to 20
characters)
Enter the mail box name.
5. Mailbox Pwd Password:
******
Enter the password to
login to the POP3 server.
3. Setup Mail
RX
1. Auto
Polling
On
Off
Automatically checks the
POP3 server for new
messages.
2. Poll
Frequency
(01-60)
10Min
Sets the interval for
checking for new
messages on the POP3
server.
3. Header All
Subject+From+To
None
Selects the contents of the
mail header to be printed.
4. Del Error
Mail
On
Off
Deletes error mails
automatically.
5. Notification On
MDN
Off
Sends notification
messages.
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Menu and Features
B - 12
B
6. LAN
(Continued)
4. Setup Mail
TX
1. Sender
Subject
— Displays the subject that is
attached to the Internet
Fax data.
See
Network
User’s
Guide
on the
CD-ROM
2. Size Limit On
Off
Displays a warning that
the size of the E-mail
document is larger than
1 MB. The document will
not be sent.
3.
Notification
On
Off
Sends notification
messages.
5. Setup Relay 1. Rly
Broadcast
On
Off
Relays a document to
another fax machine.
2. Relay
Domain
RelayXX:
(Up to 30
characters)
Registers the Domain
name.
3. Relay
Report
On
Off
Prints the Relay Broadcast
Report.
6. Setup Misc. 1. Ethernet Auto
100B-FD
100B-HD
10B-FD
10B-HD
Selects Ethernet link
mode.
2. Time Zone GMT-5:00 Sets the time zone for your
country.
7. Scan to
E-mail
1. B/W File
Type
TIFF
PDF
Selects the file type.
2. ColorFile
Type
JPEG
PDF
0. Factory
Reset
Restores all Network
settings to factory default.
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Chapter B
B - 13
7. Machine
Info.
1. Serial No. — — Lets you check the serial
number of your machine.
C-40
2. Page
Counter
— Total
Copy
Print
List/Fax
Lets you check the
number of total pages the
machine has printed
during its life.
C-40
3. Parts Life 1.
OPC Belt Life
OPC Belt Life
Remaining:XXX%
You can check the
percentage of unused
(remaining) life for these
parts.
C-40
2. Fuser Life Fuser Life
Remaining:XXX%
3.
120K Kit Life
120K Kit Life
Remaining:XXX%
4. PF Kit2 Life PF Kit2 Life
Remaining:XXX%
0. Initial
Setup
1. Receive
Mode
— Fax Only
Fax/Tel
External TAD
Manual
You can choose the
receive mode that best
suits your needs.
6-1
2. Date/Time — — Puts the date and time on
the LCD and in headings
of faxes you send.
3-1
3. Station ID — Fax:
Tel:
Name:
Program your name and
fax number to appear on
each page you fax.
3-2
4. Tone/Pulse — Tone
Pulse
Selects the dialing mode. 3-3
5. Dial Tone — Detection
No Detection
You can shorten the dial
tone detect pause.
C-20
0. Local
Language
— English
French
Allows you to change the
LCD language for your
country.
See Quick
Setup
Guide
Main Menu Submenu Menu Selections Options Descriptions Page
Note
The factory settings are shown in Bold.
to exitSelect & Set Select & Set to accept
Menu and Features
B - 14
B
Copy options key
Use the Options key to quickly set the following copy settings temporarily for the next copy. After
you choose each setting by pressing Menu/Set, the LCD shows
Set temporarily. Press
Black Start or Color Start when you have finished choosing settings.
*
XXX is the paper size detected by the tray or the small paper size you set in Menu/Set, 1, 3.
Note
■ If both trays are using paper that is the same size, Auto will allow your machine to take paper
from Tray#2 if Tray#1 is out of paper.
■ The factory settings are shown in Bold.
Press Menu Selections Options Page
Quality Auto
Text
11-3
Stack/Sort Stack
Sort
11-7
Brightness ▼ -+ ▲
▼ -+ ▲
▼ -+ ▲
▼ -+ ▲
▼ -+ ▲
11-7
Contrast ▼ -+ ▲
▼ -+ ▲
▼ -+ ▲
▼ -+ ▲
▼ -+ ▲
11-8
Page Layout
Off(1 in 1)
2 in 1 (P)
2 in 1 (L)
4 in 1 (P)
4 in 1 (L)
Poster(3 x 3)
11-5
Tray Select
(
This menu only appears when you have
the optional tray#2.
)
Auto
#1 (XXX)
*
#2 (XXX)
*
11-2
select select
Chapter B
B - 15
Entering Text
When you are setting certain menu
selections, such as the Station ID, you may
need to type text into the machine. Most
number keys have three or four letters printed
above the keys. The keys for 0, # and do
not have printed letters because they are
used for special characters.
By pressing the appropriate number key
repeatedly, you can access the character you
want.
Inserting spaces
To enter a space in the fax number, press
once between numbers. To enter a space in
the name, press twice between
characters.
Making corrections
If you entered a letter incorrectly and want to
change it, press to move the cursor under
the incorrect character. Then press
Stop/Exit. All letters above and to the right of
the cursor will be deleted. Re-enter the
correct character. You can also back up and
type over incorrect letters.
Repeating letters
If you need to enter a character that is on the
same key as the previous character, press
to move the cursor to the right before you
press the key again.
Special characters and symbols
Press , # or 0, and then press or to
move the cursor under the special character
or symbol you want. Then press Menu/Set to
select it.
Press
Key
one
time
two
times
three
times
four
times
2 ABC2
3 DEF3
4 GH I 4
5 JKL5
6 MNO6
7 PQRS
8 TUV8
9 WXYZ
▲
▲
▲
▲
Press for (space) ! " # $ % & ’ ( )
+ , - . /
Press # for : ; < = > ? @ [ ] ^ _
Press 0 for É À È Ê Î Ç Ë Ö 0
▲
▲
C - 1
C
C
Troubleshooting
Error messages
As with any sophisticated office product, errors may occur. If this happens, your machine identifies
the problem and displays an error message. The most common error messages are shown below.
You can correct most problems by yourself. If you need more help, the Brother Solutions Center
offers latest FAQs and troubleshooting tips.
Visit us at http://solutions.brother.com
.
Troubleshooting and routine
maintenance
IMPORTANT
For technical help, you must call the country where you bought the machine. Calls must be made
from within that country.
ERROR MESSAGES
ERROR MESSAGE CAUSE ACTION
Calibrate
Calibration
Failed
Toner is getting low. Check that the toner cartridges are not low and try
again.
Check Tray#1
Check Tray#2
The indicated tray is not completely
closed.
Close the indicated tray properly.
Comm.Error Poor phone line quality caused a
communication error.
Send the fax again or connect the machine to another
telephone line. If the problem continues, call the
telephone company and ask them to check your phone
line.
Connection Fail You tried to poll a fax machine that is
not in Polled Waiting mode.
Check the other fax machine’s polling setup.
Cover Open
Close the back
cover(3)
The back cover is not completely
closed.
Close the back cover of the machine.
Cover Open
Close the front
cover(2)
The front cover is not completely
closed.
Close the front cover of the machine.
Cover Open
Close the inside
cover(1)
The inside cover is not completely
closed.
Close the inside cover of the machine.
Chapter C
C - 2
Data Remaining Print data is left in the machine’s
memory.
Re-start printing from your computer.
Print data is left in the machine’s
memory. The interface cable was
unplugged while the computer was
sending the data to the machine.
Press Job Cancel. The machine will cancel the job
and clear it from the memory. Try to print again.
Disconnected The other person or other person’s fax
machine stopped the call.
Try to send or receive again.
Document Jam The document was not inserted or fed
properly, or the document scanned
from the ADF was too long.
See Document jams on page C-6.
See Using the ADF (automatic document feeder) on
page 2-10.
DR Mode in Use The machine is set to Distinctive Ring
mode. You can not change the
Receive Mode from Manual to another
mode.
Set Distinctive Ring to Off.
See Turning off Distinctive Ring on page 7-8.
Near Waste Toner The waste toner pack is nearly full. Replace the waste toner pack. (See Replacing the
waste toner pack on page C-32.)
No Fusing Unit The fusing unit was not detected. Please install one. (See Fusing unit on page C-35.)
No OPC Belt The OPC belt cartridge is not installed. Install the OPC belt cartridge. (See Replacing the OPC
belt cartridge (OP-4CL) on page C-33.)
No Paper Fed #1
No Paper Fed #2
The machine is out of paper or paper
is not properly loaded in the indicated
paper tray.
Refill the paper in the paper tray, and then press
Black Start or Color Start.
—OR—
Remove the paper and load it again, and then press
Black Start or Color Start.
No Response/Busy The number you dialed does not
answer or is busy.
Verify the number and try again.
No Toner X
X = C, M, Y, K
(C: Cyan,
M: Magenta,
Y: Yellow, K: Black)
The toner cartridge is not installed
properly.
Reinstall the X toner cartridge. (See How to replace a
toner cartridge on page C-30 and follow the steps for
properly taking out and inserting the cartridge.)
No TR Roller The transfer roller is not installed. Install the transfer roller. (See Replacing the transfer
roller on page C-39 and follow the steps for properly
installing the roller.)
Not Registered You tried to access a One-Touch or
Speed Dial number that is not
programmed.
Set up the One-Touch or Speed Dial number.
(See Storing One-Touch Dial numbers on page 7-3
and Storing Speed-Dial numbers on page 7-4.)
ERROR MESSAGES
ERROR MESSAGE CAUSE ACTION
Troubleshooting and routine maintenance
C - 3
C
Out of Memory The machine’s memory is full. (Fax sending or copy operation in progress)
Press Black Start or Color Start to send or copy the
scanned pages.
—OR—
Press Stop/Exit and wait until the other operations in
progress have finished and then try again.
—OR—
Clear the faxes from the memory. (See Out of Memory
message on page 5-3.)
(Printing operation in progress)
Reduce print resolution. (See Advanced tab in the
Software User’s Guide on the CD-ROM.)
—OR—
Clear the faxes from the memory. (See Out of Memory
message on page 5-3.)
—OR—
Add more memory. (See Installing additional memory
on page D-4.)
Paper Jam A1
Paper Jam A2
Paper Jam B
Paper Jam C
Remove the jammed paper. See the
alphanumerical diagram to check on
the location.
(See Paper jams on page C-7.)
Replace 120K Kit It is time to replace the 120K kit. Call Brother Customer Service to replace the 120K kit.
Replace Fuser It is time to replace the fusing unit. Replace the fusing unit. (See Replacing the fusing unit
on page C-35.)
Replace OPC Belt It is time to replace the OPC belt
cartridge.
Replace the OPC belt cartridge. (See Replace OPC
belt cartridge message on page C-33.)
Replace PF Kit2 It is time to replace the PF kit2. Call Brother Customer Service to replace the PF kit2.
Stacker Full The output tray is full of paper. Remove the paper from the output tray.
Toner Empty X
X = C, M, Y, K
The toner is used up and printing is
not possible.
Replace the used toner cartridge with a new one. (See
Replacing a toner cartridge on page C-29.)
Toner Error The machine has detected an
incompatible toner cartridge.
Use only Brother genuine toner cartridges.
Toner Low X
X = C, M, Y, K
The indicated color toner is nearly
empty.
Order a new toner cartridge now.
ERROR MESSAGES
ERROR MESSAGE CAUSE ACTION
Chapter C
C - 4
Unable to Init.
(Initialize)
Unable to Print
Unable to Scan
The machine has a mechanical
problem.
Turn off the machine's power switch and then turn it on
again. If the error message continues leave the
machine for several minutes and then try it again. (The
machine can be turned off for up to 60 hours without
losing faxes stored in the memory. If the machine will
be off longer than 60 hours, you can save the faxes in
your PC. See Transferring faxes to your PC on
page C-5.)
Waste Toner Full The waste toner pack is full. Replace the waste toner pack. (See Replacing the
waste toner pack on page C-32.)
ERROR MESSAGES
ERROR MESSAGE CAUSE ACTION
Troubleshooting and routine maintenance
C - 5
C
Checking if the machine has faxes in
its memory
1
Press Menu/Set, 9, 0, 1.
2
If the LCD shows No Data, there are no
faxes left in the machine’s memory.
—OR—
If the LCD shows
Enter Fax No.
there are faxes in the machine’s
memory.
• You can transfer the faxes to another fax
machine. (See Forwarding faxes to
another fax machine.)
• You can transfer the faxes from the
machine’s memory to your PC. (See
Transferring faxes to your PC.)
Note
You can transfer the Fax Journal report to
another fax machine by pressing
Menu/Set, 9, 0, 2 in Step 1.
Forwarding faxes to another fax
machine
If you have not set up your Station ID you
cannot enter fax transfer mode.
1
Enter the fax number to which the faxes
will be forwarded.
2
Press Black Start or Color Start.
Transferring faxes to your PC
You can transfer the faxes from your
machine’s memory to your PC.
1
Press Stop/Exit.
2 Make sure you have installed MFL-Pro
Suite on your PC, and then turn on PC
Fax Receiving on the PC. (For details
about PC Fax Receive, see Brother
PC-FAX software in the Software User’s
Guide on the CD-ROM.)
3
Make sure you have set
PC Fax Receive on the machine.
(See PC Fax Receive on page 8-3.)
During setup the LCD will ask if you
want to transfer the faxes to your PC.
4
To transfer all faxes to your PC, press 1.
—OR—
To exit and leave the faxes in the
memory, press 2.
Note
If there is an error on the machine’s LCD,
after the faxes have been transferred
disconnect the machine from the power
source for several minutes, and then
reconnect it.
Chapter C
C - 6
Document jams
If the document is jammed, follow the steps
below.
Document is jammed in the top of the
ADF unit
1 Take out any paper from the ADF that is
not jammed.
2
Open the ADF cover.
3
Pull the jammed document out to the
left.
4
Close the ADF cover.
Press Stop/Exit.
Note
To avoid future document jams close the ADF
cover properly by pushing it gently in the
center.
Document is jammed under the
document cover
1
Take out any paper from the ADF that is
not jammed.
2
Lift the document cover.
3 Pull the jammed document out to the
right.
4
Close the document cover.
5
Press Stop/Exit.
Document is jammed at the output
tray
1
Pull the jammed document out to the
right.
2
Press Stop/Exit.
Troubleshooting and routine maintenance
C - 7
C
Paper jams
If paper jams inside the machine, the
machine will stop. One of the following LCD
messages will appear to tell you where to find
the jammed paper.
Paper may jam in the paper tray, inside the
machine, at the back cover, or where the
paper comes out of the machine. Check
where the jam is and follow the instructions
on the next few pages to remove the jammed
paper.
If the error message still appears on the LCD
after you remove the jammed paper, there
may be more paper jammed somewhere
else. Please check the machine thoroughly.
After you have followed the instructions, the
machine will resume printing automatically.
After a paper jam has occurred, data usually
stays in the machine’s memory.
After removing the jammed paper, and the
next printed page is stained with toner, print
several test pages before restarting your print
job.
A1
C
B
A2
Paper Jam A1
Paper Jam A2
Paper Jam B
Paper Jam C
Paper jam in the standard paper tray (TRAY1)
Paper jam in the optional lower tray (TRAY2)
Paper jam inside the machine.
Paper jam where the paper comes out of the
machine.
WARNING
The fusing unit and the parts around it are
hot! Never touch the shaded areas shown
below.
Chapter C
C - 8
Note
Do not use the following paper:
■ Bent/curled paper
■ Moist paper
■ Paper that does not meet specifications
Paper Jam A1 / Paper Jam A2
If there is a paper jam in the paper tray, follow
these steps:
1
Pull out the paper tray.
2
Take out the jammed paper.
3
Put the paper tray back in the machine.
4
Open the back cover. If there is any
jammed paper where the paper comes
out, remove it.
5
Close the back cover.
CAUTION
■ Do not touch the toner surface of the
jammed paper. It might stain your
hands or clothes.
■ Remove the jammed paper carefully to
prevent spreading toner.
■ Take care not to stain your hands and
clothes. Wash toner stains immediately
with cold water.
■ Never touch the transfer roller.
■ If the paper in the paper tray is creased
at the edges, paper jams can occur. To
prevent this, please turn the paper
over.
Paper Jam A1
Paper Jam A2
Troubleshooting and routine maintenance
C - 9
C
Paper Jam B
If paper is caught inside the machine, follow
these steps:
1
Open the back cover.
2
If the paper jammed while exiting the
paper tray, remove the jammed paper
by holding it with both hands and pulling
it slowly toward you.
3
If the paper is caught in the registration
roller (1), remove the jammed paper by
holding it with both hands and pulling it
slowly toward you.
4
If the paper is caught in the fusing roller,
release the fusing unit pressure release
levers on both sides.
5
Remove the jammed paper at the back
of the machine by holding it with both
hands and pulling it slowly toward you.
6
Lock the fusing unit pressure release
levers.
7
Close the back cover.
WARNING
These paper jams are near the fusing
roller, which is extremely hot during
operation. Remove the paper
carefully.
Paper Jam B
1
Chapter C
C - 10
Paper Jam C
If paper has passed behind the back cover
and there is a paper jam where the paper
comes out, follow the steps below:
1
Open the back cover and release the
fusing unit pressure release levers.
2
Remove the jammed paper by pulling it
out slowly.
3
Reset the fusing unit pressure release
levers.
4
Close the back cover.
Paper Jam C
Troubleshooting and routine maintenance
C - 11
C
If you are having difficulty with your machine
If you think there is a problem with the way your faxes look, make a copy first. If the copy looks
good, the problem is probably not your machine. Check the chart below and follow the
troubleshooting tips.
The Brother Solutions Center offers the latest FAQs and troubleshooting tips.
Visit us at http://solutions.brother.com
.
DIFFICULTY SUGGESTIONS
Printing or Receiving Faxes
Condensed print and horizontal
streaks or the top and bottom of
sentences are cut off.
You probably had a bad connection, with static or interference on the telephone
line. Ask the other party to send the fax again.
Poor print quality See Improving the print quality on page C-16.
Horizontal streaks; lines are
missing.
You may get a fax with horizontal streaks or with missing lines. Usually this is
caused by a poor telephone connection. Ask the other party to send the fax again.
Received faxes appear as split or
blank pages.
If the received faxes are divided and printed on two pages or if you get an extra
blank page, turn on the Auto Reduction menu setting. (See Printing a reduced
incoming fax (Auto Reduction) on page 6-4.)
Received color fax prints only in
black & white.
Replace the color toner cartridges that are empty or nearly empty, and then ask
the other person to send the color fax again. (See Replacing a toner cartridge on
page C-29.) When Fax Forwarding, Paging or Fax Storage is turned on a color fax
can only be received if the sending machine could convert it to black & white.
(See Turning off Remote Fax Options on page 8-4.)
Phone Line or Connections
Dialing does not work. Check for a dial tone. Change Tone/Pulse setting. (See Tone or Pulse on
page 7-6.) Check all line cord connections. Check power cord connection. Send a
manual fax by pressing Hook or by lifting the handset of the external phone and
dialing the number. Wait to hear fax receiving tones before pressing Black Start
or Color Start.
The machine does not answer
when called.
Make sure the machine is in the correct receiving mode for your setup.
(See Receive Mode on page 6-1.) Check for a dial tone. If possible, call your
machine to hear it answer. If there is still no answer, check the telephone line cord
connection. If there is no ringing when you call your machine, ask your telephone
company to check the line.
Chapter C
C - 12
Sending Faxes
Poor fax send quality Change your resolution to Fine or S.Fine. Make a copy to check your machine’s
scanner operation. If the copy quality is not good, clean the scanner.
(See Cleaning the scanner glass on page C-22.)
Transmission Verification Report
says ‘RESULT:NG’.
There is probably temporary noise or static on the line. Try sending the fax again.
If you send a PC FAX message and get ‘RESULT:NG’ on the Transmission
Verification Report, your machine may be out of memory. To gain extra memory,
you can turn off Fax Storage, Paging or PC-FAX receive (see Turning off Remote
Fax Options on page 8-4), print fax messages in memory (see Printing a fax from
the memory on page 6-6) or cancel a Delayed Fax or Polling Job (see Canceling
a fax in progress on page 5-2). If the problem continues, ask the telephone
company to check your phone line.
If you frequently get transmission errors due to possible interference on the phone
line, try changing the Compatibility setting to Normal or Basic.
(See Compatibility on page C-20.)
Vertical black lines when sending. If the copy you made shows the same problem, your scanner is dirty.
(See Cleaning the scanner glass on page C-22.)
Handling Incoming Calls
Machine ‘Hears’ Voice as CNG
Tone.
If Easy Receive is set to On, your machine is more sensitive to sounds. It may
mistakenly interpret certain voices or music on the line as a calling fax machine
and respond with fax receiving tones. Deactivate the machine by pressing
Stop/Exit. Try avoiding this problem by turning Easy Receive to Off.
(See Easy Receive on page 6-5.)
Sending a Fax Call to the machine. If you answered on an external or extension phone, press your Fax Receive Code
(default setting is ( 51). When your machine answers, hang up.
Custom features on a single line. If you have Call Waiting, Call Waiting/Caller ID, RingMaster, Voice Mail, an
answering machine, an alarm system or other custom feature on a single phone
line with your machine, it may create a problem sending or receiving faxes.
For Example: Your Brother machine handles the Caller ID subscriber service.
However, if you subscribe to Call Waiting or some other custom service and its
signal comes through the line while your machine is sending or receiving a fax, the
signal can temporarily interrupt or disrupt the faxes. Brother’s ECM feature should
help overcome this problem. This condition is related to the telephone system
industry and is common to all devices that send and receive information on a
single, shared line with custom features. If avoiding a slight interruption is crucial
to your business, a separate line with no custom features is recommended.
Menu Setting Difficulties
The machine beeps when you try
to access the Setup Receive and
Setup Send menus.
If the Fax key is not illuminated, press it to turn on Fax mode. The Setup
Receive setting (Menu/Set, 2, 1) and Setup Send setting (Menu/Set, 2, 2) are
available only when the machine is in Fax mode.
Copy Quality Difficulties
Vertical streaks appear in copies. Sometimes you may see vertical streaks on your copies. The scanner glass may
be dirty. (See Cleaning the scanner glass on page C-22.)
DIFFICULTY SUGGESTIONS
Troubleshooting and routine maintenance
C - 13
C
Printing Difficulties
The machine does not print. Please make sure:
• The machine is plugged in and the power switch is turned On.
—OR—
• The toner cartridge and the OPC belt cartridge are installed properly.
(See Replacing a toner cartridge on page C-29 and Replacing the OPC belt
cartridge (OP-4CL) on page C-33.)
—OR—
• The interface cable is securely connected between the machine and computer.
(See the Quick Setup Guide).
—OR—
• The correct printer driver has been installed and selected.
—OR—
• Check to see if the LCD is showing an error message.
(See Error messages on page C-1.)
—OR—
• The machine is online. Click Start and then Printers and Faxes. Select ‘Brother
MFC-9420CN’, and right-click. Make sure that “Use Printer Offline” is
unchecked.
The machine prints unexpectedly
or it prints garbage.
Turn off the machine's power switch and then turn it on again. If the error message
continues leave the machine for several minutes and then try it again. (The
machine can be turned off for up to 60 hours without losing faxes stored in the
memory.) Check the settings in your application software to make sure it is set up
to work with your machine
The machine prints first couple of
pages correctly, then some pages
have text missing.
Your computer is not recognizing the machine’s input buffer full signal. Please
make sure you connect the interface cable to the machine correctly.
(See the Quick Setup Guide.)
The machine cannot print full
pages of a document.
Out of Memory message occurs.
Reduce the printing resolution. (See Advanced tab in the Software User’s Guide
on the CD-ROM.)
Reduce the complexity of your document and try again. Reduce the graphic quality
or the number of font sizes within your application software.
—OR—
Add more memory. See Installing additional memory on page D-4.
My headers or footers appear
when I view my document on the
screen but do not appear when I
print them.
There is an unprintable area on the top and bottom. Adjust the top and bottom
margins in your document to allow for this.
Scanning Difficulties
TWAIN errors appear while
scanning.
Make sure the Brother TWAIN driver is selected as the primary source. In
PaperPort
®
, click Scan in the File menu and select the Brother TWAIN driver.
DIFFICULTY SUGGESTIONS
Chapter C
C - 14
Software Difficulties
Cannot install software or print. Run the Repair MFL-Pro Suite program on the CD-ROM. This program will repair
and reinstall the software.
Cannot perform ‘2 in 1’ or ‘4 in 1’
printing.
Check that the paper size setting in the application and in the printer driver are the
same.
Machine does not print from Adobe
Illustrator
Try to reduce the print resolution. (See Advanced tab in the Software User’s Guide
on the CD-ROM.)
—OR—
Add more memory. See Installing additional memory on page D-4.
When using ATM fonts, some
characters are missing or some
characters are printed in their
place.
If you are using Windows
®
98/98SE/Me, select ‘Printer Settings’ from the ‘Start’
menu. Select the properties of the ‘Brother MFC-9420CN’. Click ‘Spool Setting’ on
the ‘Details’ tab. Select ‘RAW’ from ‘Spool Data Format.’
‘Unable to write to LPT1’ or ‘LPT1
already in use’ Error Message
appears.
1. Make sure the machine is on (plugged into the AC power outlet and the power
switch turned on) and that it is connected directly to the computer using the
IEEE-1284 bi-directional parallel cable. The cable must not go through another
peripheral device (such as a Zip Drive, External CD-ROM Drive, or Switch box).
2. Make sure the machine is not displaying an error message on the LCD Display.
3. Make sure no other device drivers, which also communicate through the parallel
port, are running automatically when you boot up the computer (such as, drivers
for Zip Drives, External CD-ROM Drive, etc.) Suggested areas to check: (Load=,
Run=command lines in the win.ini file or the Setup Group)
4. Check with your computer manufacturer to confirm that the computer’s parallel
port settings in the BIOS are set to support a bi-directional machine; i.e. (Parallel
Port Mode – ECP)
‘MFC is Busy’ Error Message
appears.
Paper Handling Difficulties
The machine does not load paper.
The LCD shows
No Paper Fed #1 or
Paper Jam.
If there is no paper, load a new stack of paper into the paper tray. If there is paper
in the paper tray, make sure it is straight. If the paper is curled, you should
straighten it. Sometimes it is helpful to remove the paper, turn the stack over and
put it back into the paper tray. Reduce the amount of paper in the paper tray, and
then try again.
If the LCD shows Paper Jam and you still have a problem, see Paper jams on
page C-7.
How can I load envelopes? You can only load envelopes into the standard paper tray. To check that you are
loading them properly, see Loading paper and envelopes on page 2-8.
Make sure your application software is set up to print the envelope size you are
using. This is usually done in the Page Setup or Document Setup menu of your
software. Please refer to the manual provided with your software application.
What paper can I use? You can use plain paper, recycled paper, envelopes, transparencies and labels
that are made for laser machines. (For information on paper you can use, see
Acceptable paper and other media on page 2-1.)
How can I clear paper jams? See Paper jams on page C-7.
DIFFICULTY SUGGESTIONS
Troubleshooting and routine maintenance
C - 15
C
Print Quality Difficulties
Printed pages are curled. Low quality thin or thick paper can cause this problem. Make sure you select the
Paper Type that suits the media type you use. (See Acceptable paper and other
media on page 2-1.)
Printed pages are smeared. The Paper Type setting may be incorrect for the type of print media you are
using—OR—The print media may be too thick or have a rough surface.
(See Acceptable paper and other media on page 2-1 and Basic tab in the Software
User’s Guide on the CD-ROM.)
Printouts are too light. If this problem occurs when making copies or printing received faxes, turn off
Toner Save mode in the machine’s menu settings. (See Toner Save on page 3-7.)
Set Toner Save mode to off in the Advanced tab in the printer driver.
(See Advanced tab in the Software User’s Guide on the CD-ROM.)
Network Difficulties
I cannot print over the Network See Printing Problems in the Network User’s Guide on the CD-ROM
—OR—
1. Make sure that your machine is powered on and is online and in Ready mode.
2. Print a Network Configuration list and check the current Network settings printed
in this list. (See Printing reports on page 9-1.)
3. Reconnect the LAN cable to the hub to verify that the cabling and network
connections are good. If possible, try connecting the machine to a different port on
your hub using a different cable.
4. Contact your Network Administrator to check if the settings are correct.
The network scanning feature does
not work.
(For Windows
®
users only) Firewall setting on your PC may be rejecting the
necessary network connection. Follow the instructions below to disable the
Firewall. If you are using a personal Firewall software, please refer to the User’s
Guide for your software or contact the software manufacturer.
<Windows
®
XP SP2 users.>
1. Click the ‘Start’ button, ‘Settings’, ‘Control Panel’ and then ‘Windows Firewall’.
Make sure that Windows Firewall on the ‘Basic’ tab is set to On.
2. Click the ‘Exceptions’ tab and ‘Add port’ button.
3. Enter any name, port number (54295 for network scanning), select ‘UDP’ and
click OK.
4. Make sure if the new setting is added and is checked, and then click OK.
For Windows
®
XP SP1 users, please go to the Brother Solutions Center.
Your computer cannot find your
machine.
<For Windows
®
user>
Firewall setting on your PC may be rejecting the necessary network connection.
For detail, see the instruction above.
<For Macintosh
®
users>
Re-select your machine in the DeviceSelector application located in Macintosh
HD/Library/Printers/Brother/Utilities or from the model pull-down list of
ControlCenter2.
DIFFICULTY SUGGESTIONS
Chapter C
C - 16
Improving the print quality
If you are having problems with print quality, please do a test print first (Menu/Set, 4, 2, 3).
If the problem appears on the printout, then match it to one of the examples below and follow the
recommendation. If the problem does not appear on the test print, please check driver settings
and the interface cables as the problem may not lie with the machine.
Examples of poor print quality Recommendation
White lines or bands or ribbing
across the page
■ Check that the machine is on a solid level surface.
■ Check that the back cover is closed properly.
■ Check that the toner cartridges are installed properly.
■ Shake the toner cartridges gently.
■ Check that the transfer roller is installed properly.
■ Replace the transfer roller. (See Replacing the transfer roller on page C-39.)
Colors are light or unclear on the
whole page
■ Check that the recommended paper was used. (See Recommended paper on
page 2-1.)
■ Change the paper to freshly unpacked paper, and then check that the problem
is solved.
■ Check that the back cover is closed properly.
■ Shake the toner cartridges gently.
■ Clean the laser glass. (See Cleaning the laser glass on page C-24.)
■ Turn off Toner Save. (See Toner Save on page 3-7.)
White streaks or bands down the
page
Clean the laser glass. (See Cleaning the laser glass on page C-24.)
Identify the missing color and replace that toner cartridge. (See Replacing a toner
cartridge on page C-29.)
The toner has probably reached the end of its life.
However, when you see a white vertical line on the toner roller, try the following
procedure.
■ Cut a sheet approx. 1.97 in. x 1.97 in. (50 mm x 50 mm) out of a transparency
film.
■ Insert the film about 2.54 in. (10 mm) into the gap between the toner roller and
the blade.
■ Slide the film and pull it out as shown below.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
Troubleshooting and routine maintenance
C - 17
C
Colored streaks or bands down the
page
■ Identify the color and replace that toner cartridge. (See Replacing a toner
cartridge on page C-29.)
■ Replace the OPC belt cartridge. (See Replacing the OPC belt cartridge
(OP-4CL) on page C-33.)
Colored lines across the page ■ Clean the registration roller, the paper pick-up roller, the transfer roller guide
and the exit roller. (See Cleaning to prevent paper jams on page C-22.)
■ If the problem continues, identify the color and replace that toner cartridge.
(See Replacing a toner cartridge on page C-29.)
White spots or hollow print ■ Change the paper to freshly unpacked paper.
■ Check that the recommended paper was used. (See Recommended paper on
page 2-1.)
■ Check that the room temperature is higher than 50 °F (10 °C)
Completely blank or some colors
are missing
■ Check that the back cover is closed properly.
■ Check that the front cover is closed properly.
■ Identify the missing color and check that the toner cartridge is installed
properly.
■ Replace the toner cartridge. (See Replacing a toner cartridge on page C-29.)
■ Replace the OPC belt cartridge. (See Replacing the OPC belt cartridge
(OP-4CL) on page C-33.)
Colored spots or Toner stain ■ Identify the color causing the problem and replace the toner cartridge.
(See Replacing a toner cartridge on page C-29.)
Examples of poor print quality Recommendation
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
Chapter C
C - 18
Toner scatter or toner stain ■ Identify the color causing the problem and replace that toner cartridge.
(See Replacing a toner cartridge on page C-29.)
■ Replace the OPC belt cartridge. (See Replacing the OPC belt cartridge
(OP-4CL) on page C-33.)
The color of your printouts is not
what you expected
■ Check that the toner cartridges are installed properly.
■ Check that the toner cartridges are not empty. (See Toner empty message on
page C-29.)
■ Perform the calibration. (Menu/Set, 4, 4)
■ Adjust the color by using the custom setting in the driver. Colors the machine
can print and colors you see on a monitor are different. The machine may not
be able to reproduce the colors on your monitor.
■ Check to make sure the recommended paper was used. (See Recommended
paper on page 2-1.)
All one color Replace the OPC belt cartridge. (See Replacing the OPC belt cartridge (OP-4CL)
on page C-33.)
Shade on the transparency ■ Change to the recommended type of transparency, and then check that the
problem is solved.
■ Check that the media type mode is selected properly.
Color mis-registration ■ Check that the OPC belt cartridge is installed properly.
■ Check that the cleaning roller is installed properly.
■ Replace the OPC belt cartridge. (See Replacing the OPC belt cartridge
(OP-4CL) on page C-33.)
■ Replace the cleaning roller. (See Replacing the transfer belt cleaner on
page C-37.)
Uneven density appears
periodically across the page
■ Check that the toner cartridges are installed properly.
■ Check that the OPC belt cartridge is installed properly.
■ Check that the cleaning roller is installed properly.
■ Check that the back cover is closed properly.
■ Check that the fusing unit is installed properly.
■ Replace the OPC belt cartridge. (See Replacing the OPC belt cartridge
(OP-4CL) on page C-33.)
Examples of poor print quality Recommendation
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
Troubleshooting and routine maintenance
C - 19
C
Missing image at edge ■ Check that the toner cartridges are installed properly.
■ Check that the OPC belt cartridge is installed properly.
■ Identify the color causing the problem and replace the toner cartridge.
(See Replacing a toner cartridge on page C-29.)
■ Replace the OPC belt cartridge. (See Replacing the OPC belt cartridge
(OP-4CL) on page C-33.)
Wrinkle ■ Change to a recommended type of paper, and then check that the problem is
solved. (See Recommended paper on page 2-1.)
■ Check that the back cover is closed properly.
■ Check that the transfer roller is installed properly.
■ Check that the fusing unit is installed properly.
■ Replace the fusing unit. (See Replacing the fusing unit on page C-35.)
Mixed color image ■ Check that the front cover is closed properly.
■ Check that the toner cartridges are installed properly.
■ Check that the transfer roller is installed properly.
■ Replace the toner cartridges. (See Replacing a toner cartridge on page C-29.)
Insufficient gloss Check that the recommended paper is being used. (See Recommended paper on
page 2-1.)
Offset image Check that the recommended paper is being used. (See Recommended paper on
page 2-1.)
Poor fixing ■ Check that the recommended paper is used. (See Recommended paper on
page 2-1.)
■ Check that the media type mode is selected properly.
■ Check that the release lever of the fusing unit is set properly.
■ Replace the fusing unit. (See Replacing the fusing unit on page C-35.)
Poor fixing when printed on thick
paper
Set the machine to thick paper mode through the control panel or the printer driver.
(See the Software User’s Guide on the CD-ROM.)
Examples of poor print quality Recommendation
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
Chapter C
C - 20
Setting Dial Tone Detection
Setting the dial tone to Detection will
shorten the dial tone detect pause.
1
Press Menu/Set, 0, 5.
2
Press ▲ or ▼ to select Detection or
No Detection.
Press Menu/Set.
3
Press Stop/Exit.
Compatibility
If you are having difficulty sending or
receiving a fax due to possible interference
on the phone line, we recommend that you
adjust the Equalization for compatibility to
reduce the modem speed for fax operations.
1
Press Menu/Set, 2, 0, 1.
2
Press ▲ or ▼ to select Basic or
Normal or High.
Press Menu/Set.
3
Press Stop/Exit.
Note
■ Basic reduces the modem speed to 9600
bps. Unless interference is a recurring
problem on your phone line, you may
prefer to use it only when needed.
■ Normal sets the modem speed at 14400
bps.
■ High sets the modem speed at 33600 bps
■ When you change the Compatibility to
Basic, the ECM feature is not available.
Routine maintenance
We recommend cleaning the following parts
of the machine every 20,000 printed pages or
every 12 months:
■ Paper guides of the paper tray
■ Registration roller
■ Paper pick-up roller
■ Transfer roller unit
■ Transfer roller guide
■ Exit roller
■ Laser unit
■ Laser glass
Initial Setup
5.Dial Tone
Miscellaneous
1.Compatibility
CAUTION
If toner scatters and your hands or clothes
get dirty, immediately wipe or wash it off
with cold water.
Troubleshooting and routine maintenance
C - 21
C
Cleaning the outside of the
machine
Clean the outside of the
machine
as
follows:
1
Pull the paper tray completely out of the
machine.
2
Wipe the outside of the machine with a
soft cloth to remove dust.
3
Remove anything that is stuck inside the
paper tray.
4
Wipe the inside and the outside of the
paper tray with a soft cloth to remove
dust.
5
Re-load the paper and put the paper tray
firmly back in the machine.
CAUTION
■ Use neutral detergents. Cleaning with
volatile liquids such as thinner or
benzine will damage the outside
surface of the machine.
■ Do not use cleaning materials that
contain ammonia.
■ Do not use isopropyl alcohol to remove
dirt from the control panel. It may crack
the panel.
Chapter C
C - 22
Cleaning the scanner glass
Lift the document cover. Clean the scanner
glass and white plastic above it with isopropyl
alcohol on a soft lint-free cloth.
In the ADF unit, clean the white plastic bar
and the scanner glass strip under it with
isopropyl alcohol on a lint-free cloth.
Cleaning to prevent paper
jams
When you clean the inside of the machine,
pay attention to the following:
White Plastic
Scanner
glass
Document
Cover
Glass Strip
White
Plastic Bar
WARNING
■ The fusing unit and the parts around it
are hot! Never touch the shaded areas
shown below.
■ Be careful not to inhale the toner.
CAUTION
■ When you clean parts inside the
machine, use a clean, dry soft, lint-free
cloth. Do not use Isopropyl alcohol.
■ If your clothes are smeared with toner,
wipe off the toner with a dry cloth.
Immediately wash your clothes in cold
water to avoid stains.
■ Never touch or clean the transfer roller
because print quality may be adversely
affected.
Troubleshooting and routine maintenance
C - 23
C
1
Turn off the machine’s power switch.
Unplug the telephone line cord first, and
then unplug the power cord from the AC
power outlet. Open the back cover of the
machine.
2
Clean the registration roller and the
paper pick-up roller with a dry soft,
lint-free cloth to prevent paper jams.
3
Clean the transfer roller unit and the
transfer roller guide with a dry soft,
lint-free cloth to prevent paper jams.
WARNING
■ Be careful you do not break the
actuator while cleaning the registration
roller and paper pick-up roller.
■ Make sure you do not put too much
pressure on the registration roller and
paper pick-up roller. This could
damage them and cause poor print
quality.
Chapter C
C - 24
4
Clean the exit roller. This will help to
prevent paper jams at the paper exit and
dirt from appearing on your printouts.
5
Close the back cover.
6
Plug the machine’s power cord back into
the AC power outlet first, and then plug
in the telephone line cord. Turn on the
machine’s power switch.
Cleaning the laser glass
1
Turn off the machine’s power switch.
Unplug the telephone line cord first, and
then unplug the power cord from the AC
power outlet.
2
Open the scanner unit.
3
Open the inside cover so that it latches
under the scanner unit.
4
To release the lock, push the green belt
cartridge lock levers that are on both
sides inwards.
5
Remove the OPC belt cartridge from the
machine.
Troubleshooting and routine maintenance
C - 25
C
6
Place the OPC belt cartridge on a flat
surface and cover the shiny green OPC
belt with a piece of paper to prevent
exposing it to light.
7
Open the front cover of the machine.
8
Take all the toner cartridges out of the
machine.
9
Clean the surface of the laser unit with a
dry soft, lint-free cloth.
0
Open the laser glass cover.
A
Clean the surface of the laser glass with
a dry soft, lint-free cloth.
B
Close the laser glass cover.
C
Put all the toner cartridges and the OPC
belt cartridge back in the machine. Do
not try to push or lock the new toner
cartridge in. It must rest loosely in the
guide rails.
D
Close the front cover and the inside
cover, and then close the scanner unit.
E
Plug the machine’s power cord back into
the AC power outlet first, and then plug
in the telephone line cord. Turn on the
machine’s power switch.
CAUTION
■ Do not touch the OPC belt surface with
your hands.
■ Do not expose the OPC belt cartridge
to bright room light or sunlight (a light
source of 74.3 footcandles or 800 lux)
for more than two minutes to avoid
damaging the belt.
WARNING
Do not use volatile liquids such as thinner
or benzene for cleaning the laser glass.
This might cause poor print quality.
Chapter C
C - 26
Replacing the consumable items
You will need to replace the following consumable items regularly. When the time comes to
replace consumable items, the following messages will appear on the LCD.
The machine will stop printing when the following maintenance messages appear on the LCD.
The following are maintenance messages that appear on the LCD in the Ready mode. These
messages provide advanced warnings to replace the consumable items before they run out. To
avoid any inconvenience, you may wish to buy spare consumable items before the machine stops
printing.
Note
The toner cartridges that come supplied with this machine are starter toners.
Starter toners, are toner cartridges with approx. half the page yield of the standard toner cartridge,
approx. 5,000 pages (Black) and approx. 3,000 pages (Cyan, Magenta and Yellow) at
approximately 5% print coverage (Letter/A4 size).
LCD messages Consumable item
to replace
Approximate life
1
How to
replace
Order No.
Toner cartridge
X = C, M, Y, K
C = Cyan,
M = Magenta,
Y = Yellow,
K = Black
10,000 pages (Black)
2
6,600 pages (Cyan,
Magenta, Yellow)
2
See Toner
empty
message on
page C-29.
TN-04BK
TN-04C
TN-04M
TN-04Y
Waste toner pack 12,000 images See Waste
toner pack
full message
on
page C-31.
WT-4CL
LCD message Consumable part
to replace
Approximate life
1
How to
replace
Order No.
Toner cartridge
X = C, M, Y, K
C = Cyan,
M = Magenta,
Y = Yellow,
K = Black
10,000 pages (Black)
2
6,600 pages (Cyan,
Magenta, Yellow)
2
See Toner
nearly empty
message on
page C-28.
TN-04BK
TN-04C
TN-04M
TN-04Y
Toner Empty X
Waste Toner Full
Toner Low X
Troubleshooting and routine maintenance
C - 27
C
The following are maintenance messages that appear alternatively with the normal message on
the upper row of the LCD when the machine is in the Ready mode. These messages advise you
that you will need to replace each of the consumable items as soon as possible, since the
consumable item’s end of life has been reached. The machine will continue printing when any of
these messages appear on the LCD.
1
Definition of pages: actual output page number.
Definition of images:
If the image on a page contains only one color of either Cyan, Magenta, Yellow or Black =>1 image,
two colors => 2 images, three colors => 3 images, four colors => 4 images.
2
At 5% coverage print (Letter/A4 size).
LCD messages Consumable part
to replace
Approximate life
1
How to
replace
Order No.
Waste toner pack 12,000 Images See C-31. WT-4CL
OPC belt cartridge 60,000 images
(Continuously printed)
See C-33. OP-4CL
Fusing unit 60,000 pages
2
See C-35. FP-4CL
Transfer belt
cleaner
Transfer roller
Paper pick-up roller
Separator pad
Transfer belt
120,000 pages
2
Call Brother
Customer
Service to
replace the
120K kit.
Paper feeding kit 2.
(Paper pick-up
roller
Separator pad)
Call Brother
Customer
Service to
replace the
paper
feeding kit 2.
Near Waste Toner
Replace OPC Belt
Replace Fuser
Replace 120K Kit
Replace PF Kit2
Chapter C
C - 28
Note
■ Discard the used consumable item according to local regulations, keeping it separate from
domestic waste. If you have questions, call your local waste disposal office. Be sure to re-seal
the consumable item tightly so that the material inside does not spill.
■ We recommend placing used consumable items on a piece of paper or cloth to prevent
accidentally spilling or scattering the material inside.
■ If you use paper that is not a direct equivalent for the recommended paper, the life of
consumable items and machine parts may be reduced.
■ The projected life for each of the items listed is based on an average of 5% coverage of the
printable area using any color toner cartridge. Frequency of replacement will vary depending
on the complexity of printed pages, percentage of coverage and type of media used.
Toner cartridges
A new toner cartridge contains enough toner
to print approx. 10,000 pages for Black and
approx. 6,600 pages for Cyan, Magenta and
Yellow Letter/A4-size single-sided pages at
about 5% coverage.
Note
■ The amount of toner used varies
depending on how much print is on the
page and the print density setting.
■ If you change the print density setting for
lighter or darker printing, the amount of
toner that is used will change.
Toner nearly empty message
Check printed pages, page counter, and
display messages regularly. If you see the
message below, the machine has nearly run
out of the indicated toner or the indicated
toner is not evenly distributed inside the
cartridge. Make sure you have a new toner
cartridge ready for replacement.
X = C, M, Y, K
C stands for Cyan, M stands for Magenta and
Y stands for Yellow, K stands for Black.
Although you can print approx. 300 (Black)
and approx. 500 (Cyan, Magenta and Yellow)
additional pages (at 5% coverage) after the
Toner Low message first appears, you
should replace the toner cartridge with a new
one before it becomes completely empty.
Toner Low X
Troubleshooting and routine maintenance
C - 29
C
Toner empty message
When the following message appears on the
LCD and the machine stops printing, you
need to replace the toner cartridge.
Replacing a toner cartridge
The toner cartridge can print approx. 10,000
pages for Black, 6,600 pages for Cyan,
Magenta and Yellow. When the toner
cartridge is running low, the LCD show the
below message. X shows the toner color that
is nearly empty. (C = Cyan, M = Magenta,
Y = Yellow, K = Black) When the toner
becomes empty, this message will change to
Toner Empty X.
Actual page count will vary depending on
your average type of document (i.e., standard
letter, detailed graphics).
Note
We recommend that you clean the machine
when you replace a toner cartridge.
WARNING
Do not put the toner cartridge into a fire. It
could explode.
Toner Empty X
Toner Low X
CAUTION
■ Brother strongly recommends that you
do not refill the toner cartridges
provided with your machine. We also
strongly recommend that you continue
to use only Genuine Brother Brand
replacement toner cartridges. Use or
attempted use of potentially
incompatible toner and/or cartridges in
the Brother machine may cause
damage to the machine and/or may
result in unsatisfactory print quality.
Our warranty coverage does not apply
to any problem that is caused by the
use of unauthorized third party toner
and/or cartridges. To protect your
investment and obtain premium
performance from the Brother
machine, we strongly recommend the
use of Genuine Brother Supplies.
■ Printing with a third-party toner or
third-party toner cartridges may reduce
not only the print quality but also the
quality and life of the machine itself. It
may also cause serious damage to the
performance and life of a OPC belt
cartridge. Warranty coverage does not
apply to problems caused by the use of
third-party toner or third-party toner
cartridges.
■ Wait to unpack the toner cartridge until
immediately before you install it in the
machine. If a toner cartridge is left
unpacked for a long period of time, the
toner life is shortened.
Chapter C
C - 30
How to replace a toner cartridge
1 Open the front cover of the machine.
2
Pull out the used toner cartridge.
3
Take the new toner cartridge out of the
box.
Note
■ Discard the used toner cartridge
according to local regulations, keeping it
separate from domestic waste.
■ Be sure to seal the toner cartridge tightly
so toner powder does not spill out of the
cartridge. If you have questions, call your
local waste disposal office.
4
Hold the cartridge level with both hands
and gently rock it from side to side three
to four times to spread the toner evenly
inside the cartridge. Remove the tape
labeled REMOVE and the orange
protective cover from the new toner
cartridge.
Note
■ Wait to unpack the toner cartridge until
immediately before you put it in the
machine. If toner cartridges are left
unpacked for a long time, the toner life will
be shortened.
■ Put the toner cartridge into the machine
immediately after you have removed the
protective cover. To prevent degradation
to the print quality, do not touch the
shaded parts shown.
CAUTION
Handle the toner cartridge carefully. If
toner scatters on your hands or clothes,
immediately wipe or wash it off with cold
water.
Troubleshooting and routine maintenance
C - 31
C
5
Put in the new toner cartridge by
positioning it in the guide. Slide it gently
into the machine. Do not try to push or
lock the new toner cartridge in; it must
rest loosely in the guide rails and will
automatically be positioned properly
when the front cover is closed. Note that
each color cartridge is individually keyed
to prevent improper installation. Match
each cartridge color label to the same
color label on the machine.
6
Close the front cover.
Waste toner pack
After you have printed approximately 12,000
images at 5% coverage, you must change the
waste toner pack. When the waste toner pack
is nearly full a warning message will be
displayed.
Waste toner pack full message
When the waste toner pack is full, the
following message appears on the LCD and
the machine will stop printing. When you see
this message, you must replace the waste
toner pack.
CAUTION
■ If you use consumable items other than
genuine Brother supplies or if you use
refilled toner cartridges, the machine
could be damaged or might not work
properly. This may void your warranty.
■ Do not stand a toner cartridge on its
end or turn it upside down.
K
Y
M
C
K
Y
M
C
WARNING
■ Do not re-use the waste toner pack.
■ Do not put the waste toner pack into a
fire. It could explode.
■ Be careful not to spill the toner. Do not
inhale or allow it to get into your eyes.
Near Waste Toner
Waste Toner Full
Chapter C
C - 32
Replacing the waste toner pack
1
Open the front cover of the machine.
2
Remove the waste toner pack from the
holder at the lower right hand side of the
machine. Be careful not to spill the
toner.
3
Take the cap off the new waste toner
pack, and put the cap on the used waste
toner pack.
Note
■ When you discard the used waste toner
pack, place it in the plastic bag included
with the replacement waste toner pack.
■ Discard the used waste toner pack
according to local regulations, keeping it
separate from domestic waste. If you have
questions, call your local waste disposal
office.
4
Put the new waste toner pack into the
waste toner pack holder.
5
Close the front cover.
CAUTION
Handle the waste toner pack carefully. If
toner scatters on your hands or clothes,
immediately wipe or wash it off with cold
water.
Troubleshooting and routine maintenance
C - 33
C
OPC belt cartridge
Replace OPC belt cartridge message
When the OPC belt cartridge runs out, the
following message appears on the LCD.
When you see this message, you must
replace the OPC belt cartridge:
Replacing the OPC belt cartridge
(OP-4CL)
1
Turn off the machine’s power switch.
2
Open the scanner unit.
3
Open the inside cover so that it latches
under the scanner unit.
4
To release the lock, push the green belt
cartridge lock levers on both sides
inwards.
5
Remove the OPC belt cartridge from the
machine.
6
Remove the tension release pins from
both sides of the new OPC belt
cartridge.
WARNING
■ Do not touch the green film of the OPC
belt cartridge. If you touch it, it could
degrade print quality.
■ Do not expose the OPC belt cartridge
to bright room light or sunlight (a light
source of 74.3 footcandles or 800 lux)
for more than two minutes to avoid
damaging the belt.
■ Damage caused by improper handling
of the OPC belt cartridge may void your
warranty.
Replace OPC Belt
Chapter C
C - 34
7
Remove the protective sheet from the
new OPC belt cartridge. Do not touch
the green part of the OPC belt cartridge.
8
Put the new OPC belt cartridge into the
machine guides with the flat side facing
you.
9
To lock the cartridge into the machine,
push the belt cartridge lock levers that
are on both sides of the OPC belt
cartridge outwards.
0
Close the inside cover, and then close
the scanner unit.
A
Turn the machine’s power switch back
on.
Reset the OPC belt life counter
1 Press Menu/Set, 7, 4.
2
Press ▲ or ▼ to select OPC Belt
and press Menu/Set.
The confirmation message appears on
the LCD.
3
Press 1 to reset the life counter.
—OR—
Press 2 to cancel.
OPC Belt
1.Reset 2.Exit
Troubleshooting and routine maintenance
C - 35
C
Fusing unit
Replace fusing unit message
When the following message appears on the
LCD, you must replace the fusing unit.
Replacing the fusing unit
1 Turn off the machine’s power switch. To
avoid injury, wait until the machine has
cooled down sufficiently before you
replace the fusing unit.
2
Open the back cover (1) and the
scanner unit (2) of the machine.
3
To release the fusing unit from the
machine, release the lock levers that are
on both sides of the fusing unit.
WARNING
The fusing unit and the parts around
it are hot! Be sure to wait until the
fusing unit has cooled down
sufficiently before replacing the
fusing unit. If you touch the hot
parts, you might get injured.
Replace Fuser
Chapter C
C - 36
4
Hold the handles on both sides as you
take the fusing unit out of the machine.
5
Put the new fusing unit into the machine.
Be sure to insert the fusing unit
completely into the machine.
6
Secure the fusing unit with the two lock
levers that are on both sides of the
fusing unit.
7
Move the fusing unit pressure release
levers to the Set position.
8
Close the scanner unit and the back
cover.
9
Turn the machine’s power switch back
on.
Troubleshooting and routine maintenance
C - 37
C
Reset the Fusing Unit life counter
1 Press Menu/Set, 7, 4.
2
Press ▲ or ▼ to select Fusing Unit
and press Menu/Set.
The confirmation message appears on
the LCD.
3
Press 1 to reset the life counter.
—OR—
Press 2 to cancel.
Replacing the transfer belt
cleaner
1
Turn off the machine’s power switch.
2
Open the scanner unit.
3
Open the inside cover of the machine so
that it latches under the scanner unit.
CAUTION
Please be careful when replacing the
fusing unit. Do not put pressure on the
fusing unit; it should go in easily. If it does
not, make sure the fusing unit connector is
free to move.
Do not apply force! It could damage both
the fusing unit and the machine.
Fusing Unit
1.Reset 2.Exit
CAUTION
Both ends of the transfer belt cleaner roller
consist of metal bearings that connect the
bias element to the power supply. These
must be connected properly when you
install the transfer belt cleaner. Be sure to
check how to connect them properly by
looking at the old transfer belt cleaner
before you begin replacement.
Chapter C
C - 38
4
Remove the transfer belt cover.
5
Remove the transfer belt cleaner by
grasping the handle and lifting it up.
6
Clean the area where the new transfer
belt cleaner is to be installed with a dry
cotton cloth.
7
Put the new transfer belt cleaner into the
machine by gently placing the brass
bearings into the guides, and then
pushing the handle down until the
bearings click into place. Make sure the
transfer belt cleaner is free to move
slightly upwards (rotating slightly around
the bearings) in the housing after you
have installed it.
8
Put the transfer belt cleaner cover back
in, and then close the top cover.
9
Close the inside cover, and then close
the scanner unit.
0
Turn the machine’s power switch back
on.
Troubleshooting and routine maintenance
C - 39
C
Replacing the transfer roller
1 Turn off the machine’s power switch.
2
Open the back cover of the machine.
3
Release the transfer roller lock levers on
the right and left-hand sides, and then lift
the levers to release the transfer roller.
4
Take out the transfer roller by gently
pulling the right-hand side up and sliding
the transfer roller to the right.
5
Put in the new transfer roller by holding
the lock levers of the transfer roller and
adjusting the angle of the transfer roller
lever shafts (both sides) to match the
transfer unit grooves. Put the transfer
roller onto the shafts and place the roller
onto the springs as shown below:
6
Push the lock levers down to lock the
transfer roller into place.
7
Close the back cover.
8
Turn the machine’s power switch back
on.
Lock levers
Transfer roller shaft
Spring
Chapter C
C - 40
Machine Information
Checking the Serial Numbers
You can view the machine’s serial number on
the LCD.
1
Press Menu/Set, 7, 1.
2
Press Stop/Exit.
Checking the Page Counters
You can view the machine’s page counters
for copies, printed pages, reports and lists,
faxes or a summary total.
1
Press Menu/Set, 7, 2.
2
Press ▲ or ▼ to select Total, Copy,
Print or List/Fax.
3
Press Stop/Exit.
Checking remaining life of
parts
You can view the remaining life of these parts
on the LCD.
1 Press Menu/Set, 7, 3.
2
Press ▲ or ▼ to select
1.OPC Belt Life, 2.Fuser Life,
3.120K Kit Life or
4.PF KIT2 Life.
Press Menu/Set.
3
Press Stop/Exit.
Note
The life check of a part will be accurate only if
you have reset that part’s life counter when
you installed a new part.
It will not be accurate if you have reset that
part’s life counter during the life of a used
part.
Serial No.
XXXXXXXXX
Machine Info.
2.Page Counter
Page Counter
Total :XXXXXX
Page Counter
Copy :XXXXXX
Page Counter
Print :XXXXXX
Page Counter
List/Fax :XXXXXX
OPC Belt Life
Remaining:XXX%
Troubleshooting and routine maintenance
C - 41
C
Packing and shipping
the machine
When you transport the machine, use the
packing materials that came with your
machine. If you do not pack the machine
properly, you could void your warranty. The
machine should be adequately insured with
the carrier.
Note
If you are missing the original repacking kit
that came with your machine, please call
800-284-4329 BEFORE REPACKING FOR
SHIPMENT.
1
Turn off the machine’s power switch.
2
Unplug first the telephone line cord from
the telephone wall jack, then any
interface cables, and then unplug the
power cord from the AC power outlet.
3
Open the scanner unit and the inside
cover of the machine so that it latches
under the scanner unit.
4
Push both green OPC belt cartridge lock
levers inwards.
5
Remove the OPC belt cartridge from the
machine, place it in the original plastic
bag.
Chapter C
C - 42
6
Open the front cover of the machine.
Pull out all the toner cartridges and the
waste toner pack from the machine.
7
To avoid any toner spills, plug the waste
toner hole located at the bottom right
inside of the machine with the supplied
protective sponge.
8
Remove the tape from the supplied
protective sponge and cover the
opening of the waste toner pack as
shown in the illustration.
9
Put the waste toner pack back into the
machine.
0
Close the front cover, inside cover and
scanner unit.
A
Attach an original orange protective
cover to each of the toner cartridges and
secure it with tape. Put each toner
cartridge in a separate plastic bag.
B
Put the toner cartridges and the OPC
belt cartridge into the accessory box,
and then close it.
Troubleshooting and routine maintenance
C - 43
C
C
Two people should put the machine into
the plastic bag, and then put the
machine into the original carton.
D
Put the two Styrofoam pieces on top of
the machine and then put the accessory
box on top of the Styrofoam.
E
Close the carton and tape it shut.
F
Lift the carton with two people and put it
into the outer carton. Put a cushion in
each of the four corners.
G
Close the outer carton and tape it shut.
LOCK
D - 1
D
Optional accessories
Lower tray unit (LT-27CL)
See Lower tray unit (LT-27CL) on page D-1.
SO-DIMM memory
See SO-DIMM (Memory)
on page D-3.
Lower tray unit (LT-27CL)
The lower tray unit (Tray 2) is an optional
device that can hold up to 530 sheets of extra
paper (20 lb (80 g/m
2
)). You can put Letter,
A4, B5 (JIS and ISO) or Executive size
(176 x 250 to 215.9 x 297 mm) paper in this
tray.
How to install the lower tray unit
1
Turn off the machine's power switch.
Then, unplug the telephone line cord
from the telephone wall jack.
2
Unplug the power cord from the AC
power outlet. Disconnect the interface
cable from the machine.
3
Place the lower tray unit on a flat table,
and then remove the protective parts.
4
Remove the paper tray from the lower
tray unit.
Optional accessories
WARNING
■ This machine is heavy and weighs
approximately 76.7 lb (34.8 kg). To
prevent injuries, use at least two
people to lift the machine.
■ When you lift the machine make sure
you use the handholds at the bottom
four corners of the machine.
■ When placing the machine on top of
the lower tray unit, be careful not to
catch your fingers between them.
■ Do not carry the machine when the
lower tray unit is attached.
CAUTION
When moving or lifting this machine, keep
the machine flat. To avoid spills, you must
first remove the toner cartridges and waste
toner pack.
Optional accessories
D - 2
D
5
Remove the protective parts and then
put the paper tray back in the lower tray
unit.
6
Check the two alignment pins on the
lower tray unit. Use two people to lift the
machine and place it on top of the lower
tray unit. Make sure you use the
handholds at the bottom four corners of
the machine. Check that the pins are
properly inserted into the machine.
Check that the connector is inserted.
7
Install the two stopper fittings on the
right and left hand sides of the lower tray
unit.
8
Cover the gap on the right hand side
with the right-hand side cover by first
inserting the hook at the back. Cover the
gap on the left hand side with the
left-hand side cover by first inserting the
hook at the back.
Close both of the side covers by putting
the notch over the hook of the lower tray
unit.
9
To level the machine, adjust the feet of
the lower tray unit at the front and back
on the right-hand side. Turn the feet to
move them up or down until they touch
the work surface and the tray unit is
level.
Turn the lock screw on each foot to
secure it.
Chapter D
D - 3
Putting paper in the lower tray unit
After you have installed the lower paper tray,
you can put paper in it the same way you put
paper in the upper paper tray.
SO-DIMM (Memory)
The memory board is installed on the main
controller board inside the machine. When
you add the optional memory board, it
increases the performance for both copy and
print operations.
The machine has 64 MB of standard memory
and a slot for optional additional memory. The
memory can be expanded up to a total of 576
MB by installing a commercially available
SO-DIMM (Dual In-line Memory Module).
The machine uses memory modules that are:
144 pins, no-parity, SDRAM with 64 MB or
more.
The machine is not compatible with Extended
Data Output (EDO) DIMM.
The following SO-DIMM sizes can be
installed:
■ 64 MB TechWorks 12345-0001
■ 128 MB TechWorks 12462-0001
■ 256 MB TechWorks 12485-0001
■ 512 MB TechWorks 12475-0001
Note
For more information, visit TechWorks web
site at www.techworks.com
In general, SO-DIMM must have the following
specifications:
Type: 144 pin and 64 bit output
CAS latency: 2 or 3
Clock frequency: 100 MHz or more
Capacity: 64 MB to 512 MB
DRAM type: SDRAM
■ The machine’s standard memory can vary
depending on the machine model and the
country.
■ There might be some SO-DIMMs that will
not work with this machine.
■ For more information, call the dealer you
bought the machine from or Brother
Customer Service.
■ For the latest information, visit the Brother
Solutions Center at
http://solutions.brother.com
Improper Setup
Do not put transparencies, labels or
envelopes in the paper tray of the optional
lower tray unit. This might cause paper
jams.
Optional accessories
D - 4
D
Installing additional memory
1 Turn off the machine's power switch.
2
Unplug first the telephone line cord from
the telephone wall jack, and then unplug
the power cord from the AC power
outlet.
3
Unscrew the screw holding the side
cover, and then slide the side cover to
remove it.
4
Unscrew the screw holding the metal
shield plate, and then remove the metal
shield plate.
5
Unpack the SO-DIMM and hold it by the
edges.
WARNING
Make sure you turn the machine OFF
and unplug the machine before you
install or remove the SO-DIMM.
Installing optional accessories
without unplugging the machine
could result in electric shock hazard.
CAUTION
SO-DIMM boards can be damaged by
even a small amount of static electricity.
Do not touch the memory chips or the
board surface. Wear an antistatic wrist
strap when you install or remove the
board. If you do not have an antistatic wrist
strap, keep touching the bare metal on the
machine.
Chapter D
D - 5
6
Hold the SO-DIMM with your fingers on
the side edges and your thumb on the
back edge. Align the notch on the
SO-DIMM with the protrusions with the
SO-DIMM slot. (Check that the locks on
each side of the DIMM slot are open or
facing outwards.)
7
Press the SO-DIMM straight into the slot
(press firmly). Make sure the locks on
each side of the SO-DIMM click into
place.
Note
To remove the SO-DIMM, open the retaining
clips on both sides of the SO-DIMM by
pushing them outward, grasp both edges of
the SO-DIMM and pull it out straight.
8
Secure the metal plate with the screw.
9
Put the side cover back on by sliding it
into the guide rails, and then secure it
with the screw.
0
Reconnect the interface cable (machine
cable) to your computer. Then, plug the
machine's power cord back into the AC
power outlet first, and then plug in the
telephone line cord. Turn on the
machine's power switch.
Note
To check that you have installed the
SO-DIMM properly, you can print the User
Settings listing that shows the current
memory size. To print the User Settings
listing, see How to print a report on page 9-2.
E - 1
E
E
Product description
General
Specifications
Memory Capacity 64 MB (expandable to 576 MB)
ADF (automatic document
feeder)
Up to 35 pages
Temperature: 68°F - 86°F (20°C - 30°C)
Humidity: 50% - 70%
Paper: 20 lb (80 g/m
2
) Letter
Paper Tray 250 Sheets (20 lb (80 g/m
2
))
Printer Type Laser
Print Method Electrophotography by semiconductor laser beam scanning
LCD (Liquid Crystal Display) 16 characters x
2 lines
Power Source 120V AC 50/60Hz
Power Consumption Copying: Average 615 W
Sleep: Average 16 W
Standby: Average 155 W
Dimensions
19 in.
(482 mm)
20.2 in.
(512 mm)
21 in.
(534 mm)
Chapter E
E - 2
Print media
Weight Without OPC belt/Toner cartridges: 76.7 lb (34.8 kg)
Noise Operating: LWAd = 6.7 bels or less
Standby: LWAd = 5.4 bels or less
Temperature Operating: 50°F - 90.5°F (10 - 32.5°C)
Storage: 32°F - 104°F (0 - 40°C)
Humidity Operating: 20 to 80% (without condensation)
Storage: 10 to 90% (without condensation)
Paper Input Paper Tray
■
Paper type:
Thin, Plain, Thick, Thicker, Recycled paper or Transparencies
1
■
Paper size:
Letter/A4, Legal, Executive, A5, B5, COM10 and DL
For more details, see Acceptable paper and other media on
page 2-1.
■
Paper Weight:
16 - 55 lb (60 - 210 g/m
2
)
17 - 24 lb (64 - 90 g/m
2
) for ADF
Maximum paper tray capacity: Up to 250 sheets of 20 lb (80 g/m
2
)
plain paper or up to 50 transparencies
Paper Output Up to 250 sheets of Letter/A4 size plain paper
2
(Face down print delivery to the output paper tray)
1
For transparencies and labels, we recommend removing printed pages from the output paper tray immediately after
they exit the machine to avoid the possibility of smudging.
2
Based on the Recommended paper on page 2-1. The number of pages will vary depending on the paper being used.
Some paper can not be stacked up to 250 sheets.
Specifications
E - 3
E
Fax
Compatibility ITU-T Group 3
Coding System MH/MR/MMR/JPEG
Modem Speed Automatic Fallback: 33600 bps
Document Size ADF Width: 5.8 to 8.5 in. (147.3 to 215.9 mm)
ADF Height: 5.8 to 14 in. (147.3 to 356 mm)
Scanner Glass Width: Max. 8.5 in. (215.9 mm)
Scanner Glass Height: Max. 11.7 in. (297 mm)
Scanning Width Max. 8.2 in. (208 mm)
Printing Width Max. 8.2 in. (208 mm)
Gray Scale 256 levels
Polling Types Standard, Sequential
Contrast Control Automatic/Light/Dark (manual setting)
Resolution • Horizontal 203 dot/inch (8 dot/mm)
• Vertical
Standard - 98 line/inch (3.85 line/mm) (Black)
196 line/inch (7.7 line/mm) (Color)
Fine - 196 line/inch (7.7 line/mm) (Black)
196 line/inch (7.7 line/mm) (Color)
Photo - 196 line/inch (7.7 line/mm) (Black)
Superfine - 392 line/inch (15.4 line/mm) (Black)
One-Touch Dial 16 (8 x 2)
Speed-Dial 200 stations
Broadcasting 266 stations
Automatic Redial 1 time after 5 minutes
Auto Answer 0, 1, 2, 3 or 4 rings
Communication Source Public switched telephone network.
Memory Transmission Up to 500
1
/400
2
pages
Out of Paper Reception Up to 500
1
/400
2
pages
1
“Pages” refers to the “Brother Standard Chart No. 1” (a typical business letter, Standard resolution, MMR code).
Specifications and printed materials are subject to change without prior notice.
2
“Pages” refers to the "ITU-T Test Chart #1" (a typical business letter, Standard resolution, MMR code). Specifications
and printed materials are subject to change without prior notice.
Chapter E
E - 4
Copier
Color/Black Color/Black
Document Size ADF Width: 5.8 to 8.5 in. (147.3 to 215.9 mm)
ADF Height: 5.8 to 14 in. (147.3 to 356 mm)
Scanner Glass Width: Max. 8.5 in. (215.9 mm)
Scanner Glass Height: Max. 11.7 in. (297 mm)
Copy Speed Color
Up to 8 pages/minute (Letter/A4 paper)
1
Black
Up to 31 pages/minute (Letter/A4 paper)
1
First Copy Approx. 20 seconds (Black)
Approx. 30 seconds (Color)
Multiple Copies Stacks or Sorts up to 99 pages
Reduce/Enlarge 25% to 400% (in increments of 1%)
Resolution Scan: Up to 600 x 300 dpi
Print: Up to 600 x 600 dpi
1
Does not include the warm up time for the 1st printed page.
Based on Brother standard pattern. (Stack Copy)
Copy speeds vary with the complexity of the document.
Specifications
E - 5
E
Scanner
Color/Black Color/Black
TWAIN Compliant Yes (Windows
®
98/98SE/Me/2000 Professional/XP/Windows NT
®
Workstation Version 4.0)
Mac OS
®
9.1 - 9.2/Mac OS
®
X 10.2.4 or greater
WIA Compliant Yes (Windows
®
XP)
1
Color Depth 48 bit color processing (Input)
24 bit color processing (Output)
Resolution Up to 9600 x
9600 dpi (interpolated)
Scanner glass: Up to 1200 x
2400 dpi (optical)
ADF: Up to 1200 x 600 dpi (optical)
Document Size ADF Width: 5.8 to 8.5 in. (147.3 to 215.9 mm)
ADF Height: 5.8 to 14 in. (147.3 to 356 mm)
Scanner Glass Width: Max. 8.5 in. (215.9 mm)
Scanner Glass Height: Max. 11.7 in. (297 mm)
Scanning Width Max. 8.5 in. (215.9 mm)
Gray Scale 256 levels
1
Maximum 1200 x 1200 dpi scanning with Windows
®
XP (resolution up to 9600 x 9600 dpi can be selected by using the
Brother scanner utility)
Chapter E
E - 6
Printer
Interfaces
Emulations Brother Printing System for Windows
®
PCL6
BR-Script 3 (PostScript
®
3
™
Emulation)
Printer Driver Windows
®
98/98SE/Me/2000 Professional/XP/Windows NT
®
Workstation Version 4.0 driver supporting Brother Native
Compression mode and bi-directional capability
Brother Color Driver
for Mac OS
®
9.1 - 9.2/Mac OS
®
X 10.2.4 or greater
Resolution 600 x 600 dpi (Max. 2400 dpi class)
Print Quality Normal printing mode
Economy printing mode (Toner Save mode)
Print Speed Up to 31 pages/minute (Letter/A4 size) (Black)
1
Up to 8 pages/minute (Letter/A4 size) (Color)
1
First Print Average 13 seconds (Black)
Average 19 seconds (Color)
1
Based on Brother standard pattern.
Does not include the warm up time for the 1st printed page.
Interface Recommended Cable
Parallel A bi-directional shielded parallel cable that is IEEE 1284 compliant and
no longer than 6 feet (2.0 m).
USB A USB 2.0 cable that is no longer than 6 feet (2.0 m).
Your machine has a High-Speed USB 2.0 interface.
The machine can also be connected to a computer that has a USB 1.1
interface.
LAN cable Ethernet UTP cable category 5 or greater.
(Cables are not included.)
Specifications
E - 7
E
Computer requirements
Minimum System Requirements and Supported PC Software Functions
Computer Platform &
Operating System Version
Supported PC
Software
Functions
PC
Interface
Minimum
Processor
Minimum
RAM
Recommended
RAM
Available Hard Disk
Space
for
Drivers
for
Applications
Windows
®
Operating
System
98, 98SE
Printing,
Scanning
1
,
PC Fax
2,4
USB,
Parallel,
Ethernet
Pentium
®
II
or
equivalent
32 MB 128 MB
90 MB 130 MB
Me
USB,
Parallel,
Ethernet
NT
®
Workstation 4.0
Parallel,
Ethernet
64 MB 256 MB
2000 Professional
USB,
Parallel,
Ethernet
XP Home
XP Professional
USB,
Parallel,
Ethernet
128 MB 256 MB 150 MB 220 MB
XP Professional
x64 Edition
(Download from
http://solutions.brother.com)
USB,
Parallel,
Ethernet
AMD Opteron
™
AMD Athlon
™
64
Intel
®
Xeon
™
with
Intel
®
EM64T
Intel
®
Pentium
®
4
with Intel
®
EM64T
256 MB 512 MB 150 MB 220 MB
Macintosh
®
Operating
System
OS 9.1 - 9.2
Printing,
Scanning
1,3
,
PC Fax send
4
USB,
Ethernet
All base models meet
minimum
requirements.
64 MB
80 MB 200 MB
OSX 10.2.4
or greater
Printing,
Scanning,
PC Fax send
4
USB,
Ethernet
128 MB 160 MB
1
Network Scanning not supported in Windows NT
®
Workstation 4.0 and Mac OS
®
9.1 - 9.2.
2
PC Fax send only for network users.
3
Dedicated Scan to key not available for Mac OS
®
9.1 - 9.2.
4
PC Fax supports black & white faxing only.
For the latest driver updates,
access the
Brother Solutions Center at
http://solutions.brother.com
All registered trademarks referenced herein are the property of their respective companies.
Chapter E
E - 8
Consumable items
Replacement Parts
Toner Cartridge Life Starter Toner Cartridges
Black: Approx. 5,000 pages
1
Yellow, Cyan and Magenta: Approx. 3,000 pages
1,2
Replacement Toner Cartridges
(TN-04BK, TN-04Y, TN-04C, TN-04M)
Black: Approx. 10,000 pages
1
Yellow, Cyan and Magenta: Approx. 6,600 pages
1,2
Waste Toner Pack Life
Expectancy (WT-4CL)
Up to 12,000 images
2
OPC Belt Life Expectancy
(OP-4CL)
Approx. 60,000 images by continuous printing
2
Fusing Unit Life Expectancy
(FP-4CL)
Approx. 60,000 pages
Transfer belt cleaner
(LM0590001)
Approx. 120,000 pages
2
Transfer roller
(LM0660001)
Approx. 120,000 pages
2
1
When printing on letter or Letter/A4 size paper at 5% print coverage
2
Definition of pages: actual output page number.
Definition of images:
If the image on a page contains only one color of either Cyan, Magenta, Yellow or Black =>1 image,
two colors => 2 images, three colors => 3 images, four colors => 4 images.
There are many factors that determine the actual consumable items’ life, such as temperature, humidity, type of paper,
toner you use and the number of pages per print job.
Specifications
E - 9
E
Network (LAN)
Note
■ SMTP/POP3 E-mail Services are required for Internet Fax.
■ BRAdmin Professional is not supported in Mac OS
®
.
■ BRAdmin Light is available for Mac OS
®
X 10.2.4 or greater.
For more information, please visit the Brother Solutions Center (http://solutions.brother.com)
LAN You can connect your machine to a network for the Internet FAX,
Network Printing, Network Scanning and PC Fax Send. Also included
is the Brother BRAdmin Professional Network Management software.
Support for Windows
®
98/98SE/Me/2000/XP/
Windows NT
®
Workstation Version 4.0
1
Mac OS
®
9.1 - 9.2/Mac OS
®
X 10.2.4 or greater
2
Ethernet 10/100 BASE-TX Auto Negotiation
Protocols TCP/IP
ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), NetBIOS, WINS,
DNS Resolver, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP
Client, IPP, FTP Server, mDNS, TELNET, SNMP, HTTP, TFTP
Included Utilities:
BRAdmin Professional (Windows
®
)
1
Network Scanning is not available for Windows NT
®
Workstation Version 4.0.
2
Network Scanning is available for Mac OS
®
X 10.2.4 or greater.
F - 1
F
Glossary
ADF (automatic document feeder)
The document can be placed in the ADF
and scanned one page at a time
automatically.
Auto Reduction
Reduces the size of incoming faxes.
Automatic fax transmission
Sending a fax without picking up the
handset of an external phone.
Automatic Redial
A feature that enables your machine to
redial the last fax number after five
minutes if the fax did not go through
because the line was busy.
Backup Print
Your machine prints a copy of every fax
that is received and stored in memory.
This is a safety feature so you will not lose
messages during a power failure.
Batch Transmission
As a cost saving feature, all delayed faxes
to the same fax number will be sent as one
transmission.
Beeper Volume
Volume setting for the beep when you
press a key or make an error.
Broadcasting
The ability to send the same fax message
to more than one location.
Caller ID
A service purchased from the telephone
company that lets you see the number (or
name) of the party calling you.
Cancel Job
Cancels print jobs and programmed fax
jobs, such as Delayed Fax or Polling, from
the machine's memory.
CNG tones
The special tones (beeps) sent by fax
machines during automatic transmission
to tell the receiving machine that a fax
machine is calling.
Coding method
Method of coding the information
contained in the document. All fax
machines must use a minimum standard
of Modified Huffman (MH). Your machine
is capable of greater compression
methods, Modified Read (MR), Modified
Modified Read (MMR) and JPEG, if the
receiving machine has the same
capability.
Communication error (or Comm.
Error)
An error during fax sending or receiving,
usually caused by line noise or static.
Compatibility group
The ability of one fax unit to communicate
with another. Compatibility is assured
between ITU-T Groups.
Contrast
Setting to compensate for dark or light
documents, by making faxes or copies of
dark documents lighter and light
documents darker.
Delayed Fax
Sends your fax at a specified time later
that day.
Distinctive Ring
A subscriber service purchased from the
telephone company that gives you
another phone number on an existing
phone line. The Brother machine uses the
new number to simulate a dedicated fax
line.
Glossary
F - 2
F
Dual Access
Your machine can scan outgoing faxes or
scheduled jobs into memory at the same
time it is sending a fax from memory or
receiving or printing an incoming fax.
Easy Receive
Enables your machine to respond to CNG
tones if you interrupt a fax call by
answering it.
ECM (Error Correction Mode)
Detects errors during fax transmission
and resends the pages of the fax that had
an error.
Extension phone
A telephone on the fax number that is
plugged into a separate wall jack.
External phone
A telephone that is plugged into the EXT
jack of your machine.
F/T Ring Time
The length of time that the Brother
machine rings (when the Receive Mode
setting is Fax/Tel) to notify you to pick up
a voice call that it answered.
Fax Forwarding
Sends a fax received into the memory to
another pre-programmed fax number.
Fax Journal
Lists information about the last 200
incoming and outgoing faxes. TX means
Transmit. RX means Receive.
Fax Receive Code
Press this code ( 5 1) when you answer
a fax call on an extension or external
phone.
Fax Storage
You can store received faxes in memory.
Fax tones
The signals sent by sending and receiving
fax machines while communicating
information.
Fax/Tel
You can receive faxes and telephone
calls. Do not use this mode if you are
using a telephone answering device
(TAD).
Fine resolution
Resolution is 203 x 196 dpi. It is used for
small print and graphs.
Gray scale
The shades of gray available for copying
and faxing photographs.
Group number
A combination of One-Touch and
Speed-Dial numbers that are stored in a
One-Touch key or Speed-Dial location for
Broadcasting.
Help list
A printout of the complete Menu table that
you can use to program your machine
when you do not have the User’s Guide
with you.
Journal Period
The pre-programmed time period
between automatically printed Fax
Journal Reports. You can print the Fax
Journal on demand without interrupting
the cycle.
LCD (liquid crystal display)
The display screen on the machine that
shows interactive messages during
On-Screen Programming and shows the
date and time when the machine is idle.
Manual fax
When you lift the handset of your external
telephone or press Hook so you can hear
the receiving fax machine answer before
you press Black Start or Color Start to
begin sending.
Menu mode
Programming mode for changing your
machine’s settings.
Chapter F
F - 3
OCR (optical character recognition)
The bundled ScanSoft
®
OmniPage
®
(for
Windows
®
) and Presto!
®
PageManager
®
(for Macintosh
®
) software applications
convert an image of text to text that you
can edit.
One-Touch
Keys on the machine’s control panel
where you can store numbers for easy
dialing.
You can store a second number on each
key if you press Shift and the One-Touch
key together.
Out of Paper Reception
Receives faxes into the machine’s
memory when the machine is out of paper.
Overseas Mode
Makes temporary changes to the fax
tones to accommodate noise and static on
overseas phone lines.
Paging
This feature enables your machine to call
your pager when a fax is received into its
memory.
Pause
Allows you to place a 3.5 second delay in
the dialing sequence stored on
One-Touch keys and Speed-Dial
numbers. Press Redial/Pause as many
times as needed for longer pauses.
Photo resolution
A resolution setting that uses varying
shades of gray for the best representation
of photographs.
Polling
The process of a fax machine calling
another fax machine to retrieve waiting fax
messages.
Pulse
A form of rotary dialing on a telephone
line.
Quick Dial List
A listing of names and numbers stored in
One-Touch and Speed-Dial memory, in
numerical order.
Real Time Transmission
When memory is full, you can send faxes
in real time.
Remaining jobs
You can check which jobs are waiting in
memory and cancel jobs individually.
Remote Access Code
Your own four-digit code (--- ) that
allows you to call and access your
machine from a remote location.
Remote Retrieval Access
The ability to access your machine
remotely from a touch tone phone.
Resolution
The number of vertical and horizontal lines
per inch. See: Standard, Fine, Super Fine
and Photo.
Ring Delay
The number of rings before the machine
answers in
Fax Only and Fax/Tel
mode.
Ring Volume
Volume setting for the machine’s ring.
Scanning
The process of sending an electronic
image of a paper document into your
computer.
Search
An electronic, alphabetical listing of stored
One-Touch, Speed-Dial and Group
numbers.
Speed-Dial
A pre-programmed number for easy
dialing. You must press the
Search/Speed Dial key, #, and the
three-digit code, and Black Start or
Color Start to start the dialing process.
Glossary
F - 4
F
Standard resolution
203 x 97 dpi. It is used for regular size text
and quickest transmission.
Station ID
The stored information that appears on
the top of faxed pages. It includes the
sender’s name and fax number.
Super Fine resolution
203 x 392 dpi. Best for very small print and
line art.
TAD (telephone answering device)
You can connect an external device or
answering machine to the EXT. jack of
your machine.
Telephone Answer Code (for Fax/Tel
mode only)
When the machine answers a voice call, it
pseudo/double-rings. You can pick up at
an extension phone by pressing this code
(# 5 1).
Temporary settings
You can select certain options for each fax
transmission and copy without changing
the default settings.
Tone
A form of dialing on the telephone line
used for Touch Tone telephones.
Transmission
The process of sending faxes over the
phone lines from your machine to the
receiving fax machine.
Transmission Verification Report
A listing of each fax sent, that shows its
date, time and number.
User Settings
A printed report that shows the current
settings of the machine.
G - 1
G
A
Access codes, storing and dialing ...........7-6
Accessories and supplies ............................ii
ADF (automatic document feeder) ........2-10
ADF cover ........................................... C-6
Answering machine (TAD) ......................3-5
connecting ............................................3-6
Apple
®
Macintosh
®
See Software User’s Guide on the
CD-ROM.
Automatic
fax receive ............................................6-1
Easy Receive ....................................6-5
fax redial ............................................... 7-2
B
Broadcasting ........................................... 5-4
setting up Groups for ............................ 7-5
Brother
accessories and supplies .........................ii
Brother numbers ...................................... i
Customer Service ..................................... i
FAQs (frequently asked questions) .......... i
fax back system .......................................ii
product support ........................................ i
register your product ................................ i
warranties .......................................iii, iv, vi
C
Caller ID ..................................................7-8
Out of Area ...........................................7-8
print list ................................................. 7-9
view list .................................................7-9
Canceling
Fax Forwarding ....................................8-1
jobs awaiting redial ...............................5-9
Paging .................................................. 8-6
Checking
machine information .......................... C-40
Cleaning
outside of machine ............................ C-21
scanner glass .................................... C-22
CNG tones .............................................. 1-7
Connecting
external TAD .........................................3-5
external telephone ................................3-5
two-line external TAD or telephone ......3-4
Consumable items ........................ C-26, E-8
Control panel overview .................... 1-4, 1-5
ControlCenter2
See Software User’s Guide on the
CD-ROM.
Copy
brightness ...........................................11-7
color ....................................................11-7
color adjust .........................................11-8
contrast ...............................................11-7
Enlarge/Reduce key ...........................11-4
enter Copy mode ................................11-1
multiple copies ....................................11-2
Options key ........................................ B-14
Out of Memory ....................................11-9
page layout .........................................11-5
poster ..................................................11-5
printable area ......................................11-1
quality .................................................11-3
single copy ..........................................11-1
sort ......................................................11-7
speed ..................................................11-3
Cordless phone .......................................6-6
Cover page
custom comments ..............................5-10
for all faxes .........................................5-10
for next fax only ..................................5-10
printed form ........................................5-11
Credit card numbers ................................7-6
D
Date and Time .........................................3-1
Delayed Batch Transmission ...................5-8
Dialing
a pause .................................................7-3
access codes and credit card
numbers ................................................7-6
automatic fax redial ..............................7-2
Groups ..................................................5-4
manual ..................................................7-1
One-Touch ............................................7-1
Speed-Dial ............................................7-1
Index
Index
G - 2
Distinctive Ring ....................................... 7-6
setting ring pattern ...............................7-8
turning off .............................................7-8
Dual Access ............................................ 5-2
E
Easy Receive ..........................................6-5
ECM (Error Correction Mode) .................1-7
Envelopes ........................................2-4, 2-5
Equalization .......................................... C-20
Error messages on LCD
Comm. Error ....................................... C-1
Not Registered ............................. 7-1, C-2
Out of Memory .................................... C-3
while scanning a document ............. 11-9
Unable to Init. ...................................... C-4
Unable to Print .................................... C-4
Unable to Scan ................................... C-4
Extension telephone, using .....................6-6
External telephone, connecting ............... 3-5
F
Fax codes
changing .............................................. 6-5
Fax Receive Code ...............................6-6
Remote Access Code ..........................8-5
setting ..................................................8-5
Telephone Answer Code ..................... 6-6
Fax Forwarding
changing remotely .........................8-6, 8-7
programming a number ........................8-1
Fax Storage .............................................8-2
printing from memory ...........................6-6
turning on .............................................8-2
Fax, stand-alone
receiving ...............................................6-1
at the end of a conversation ..............6-4
compatibility ................................... C-20
Fax Forwarding .................................8-1
from extension phone ....................... 6-6
Paging ...............................................8-2
Polling Receive ...............................10-1
reducing to fit on paper .....................6-4
retrieving from a remote site ............. 8-7
Ring Delay, setting ............................ 6-2
Sequential Polling ........................... 10-1
sending .................................................5-1
at the end of a conversation ..............5-3
Broadcasting .....................................5-4
canceling fax jobs in memory ............5-9
color fax .............................................5-2
compatibility .................................... C-20
contrast ..............................................5-5
delayed ..............................................5-8
Easy Receive ....................................6-5
enter Fax mode .................................5-1
from ADF ...........................................5-1
from memory (Dual Access) .......5-2, 7-2
from PC
See Software User’s Guide on the
CD-ROM.
from scanner glass ............................5-1
Out of Memory ...................................5-3
overseas ............................................5-7
Polled Transmit ...............................10-2
printing a fax from the memory ..........6-6
Real Time Transmission ....................5-6
redial ..................................................7-2
resolution ...........................................5-5
Station ID (fax header) ......................3-2
Fax/Tel mode
answering at extension phones ............6-6
double-ringing (voice calls) ...................6-3
F/T Ring Time .......................................6-3
Fax Receive Code ................................6-6
receiving faxes .....................................6-7
Ring Delay ............................................6-2
Telephone Answer Code ......................6-6
FCC notices ............................................ A-1
Fusing unit ............................................ C-35
G
Gray scale .......................................E-3, E-5
Groups for Broadcasting ..........................7-5
H
HELP
LCD messages .................................... B-1
using menu keys .............................. B-2
Menu Table ..................................B-1, B-3
Hook key ..................................................1-5
G - 3
J
Jacks
convert to RJ11 jack
triplex adapter ................................... 3-3
EXT
external telephone .............................3-5
TAD (answering machine) .................3-5
Jams
document ............................................ C-6
paper ................................................... C-7
L
Labels ...................................................... 2-6
LCD (liquid crystal display) ..............B-1, B-2
Lower tray (option) ................................. D-1
loading paper ...................................... D-3
M
Machine information ............................. C-40
Macintosh
®
See Software User’s Guide on the
CD-ROM.
Maintenance, routine ............................ C-20
replacing
fusing unit ....................................... C-35
OPC belt cartridge .......................... C-33
toner cartridges .....................C-28, C-29
transfer belt cleaner ....................... C-37
transfer roller .................................. C-39
waste toner pack ............................ C-31
Manual
dialing ...................................................7-1
receive ..................................................6-1
Manual transmission ............................... 5-3
Memory
adding SO-DIMM (option) ................... D-3
installing ........................................... D-4
Memory Security .....................................4-3
Memory Storage ......................................B-1
Menu Table .............................................B-1
Mode, entering
Copy ...................................................11-1
Fax .......................................................5-1
Scan .....................................................1-4
Multi-line connections (PBX) ................... 3-5
N
Networking
printing
See Network User’s Guide on the
CD-ROM.
scanning
See Network User’s Guide on the
CD-ROM.
O
One-Touch
changing ...............................................7-4
setting up ..............................................7-3
using .....................................................7-1
Options (accessories)
lower tray unit ......................................D-1
SO-DIMM .............................................D-3
Options key ........................................... B-14
Out of Memory message .........................5-3
P
Packing and shipping the machine ....... C-41
Paging .....................................................8-2
programming your pager number .........8-1
Paper ............................................... 2-1, E-2
how to load ...........................................2-8
size .......................................................3-9
size of document ................................2-10
type .......................................................3-9
PaperPort
®
See Software User’s Guide on the
CD-ROM.
PC Faxing
See Software User’s Guide on the
CD-ROM.
Phone Line
connections ..........................................3-6
difficulties ...........................................C-11
multi-line (PBX) .....................................3-5
roll over lines ........................................3-3
two-line phone system ..........................3-3
Polling ....................................................10-1
Polled Transmit ...................................10-2
Polling Receive ...................................10-1
Sequential Polling ...............................10-1
Poster ....................................................11-5
Power failure ........................................... B-1
Index
G - 4
Print
difficulties .......................................... C-11
drivers ..................................................E-6
fax from memory .................................. 6-6
from PC
See Software User’s Guide on the
CD-ROM.
paper jams .......................................... C-7
quality .................................. 2-1, 3-9, C-16
report .................................................... 9-2
resolution .............................................E-6
specifications .......................................E-6
Programming your machine ............ B-1, B-2
Q
Quick-Dial
Access codes and credit card numbers
setting up ..........................................7-6
Broadcasting ........................................5-4
using Groups ..................................... 5-4
Group dial
changing ...........................................7-4
setting up Groups for Broadcasting ... 7-5
One-Touch dial
changing ...........................................7-4
setting up ..........................................7-3
using .................................................7-1
Search ..................................................7-2
Speed-Dial
changing ...........................................7-4
setting up ..........................................7-4
using .................................................7-1
R
Receive Mode ......................................... 6-1
External TAD ........................................6-1
Fax Only ...............................................6-1
Fax/Tel ................................................. 6-1
Manual ................................................. 6-1
Redial/Pause key .............................7-2, 7-3
Reducing
copies ................................................. 11-4
incoming faxes ..................................... 6-4
Remote Retrieval ....................................8-5
access code ......................................... 8-5
commands ...........................................8-6
getting your faxes .................................8-7
Remote Setup
See Software User’s Guide on the
CD-ROM.
Reports ....................................................9-1
Caller ID List .........................................7-9
Fax Journal ...........................................9-2
Journal Period ...................................9-1
Help List ...............................................9-2
how to print ...........................................9-2
Network Configuration ..........................9-2
Quick-Dial List ......................................9-2
Transmission Verification .....................9-1
User Settings ........................................9-2
Resolution
copy ..................................................... E-4
fax (Standard, Fine, SuperFine,
Photo) .................................................. E-3
print ..................................................... E-6
scan ..................................................... E-5
setting for next fax ................................5-5
Ring Delay, setting ..................................6-2
S
Safety Instructions ...........................A-4, A-7
Scanning
See Software User’s Guide on the
CD-ROM.
Setting Lock .............................................4-1
Sleep Time ..............................................3-8
Speed-Dial
changing ...............................................7-4
setting up ..............................................7-4
using .....................................................7-1
T
TAD (telephone answering device),
external ..................................... 3-4, 3-5, 6-1
connecting .....................................3-5, 3-6
receive mode ........................................6-1
recording OGM .....................................3-7
with two-line jack ..................................3-4
Text, entering ........................................ B-15
special characters ............................. B-15
Transfer roller .......................................C-39
Transparency ...........................................2-6
Tray use, setting
copy ....................................................11-2
fax .........................................................6-3
G - 5
Troubleshooting ..................................... C-1
document jam ...................................... C-6
if you are having difficulty
incoming calls ................................. C-12
Network .......................................... C-15
paper handling ............................... C-14
phone line ...................................... C-20
printing ........................................... C-11
printing difficulties ........................... C-13
paper jam ............................................ C-7
Two-line phone system ...........................3-3
V
Volume, setting .....................................3-10
beeper ................................................ 3-10
ring .....................................................3-10
speaker ..............................................3-10
W
Warranties ..................................................iii
Canada ....................................................vi
Notice-Disclaimer ....................................iii
USA .........................................................iv
Waste toner pack ................................. C-31
Windows
®
See Software User’s Guide on the
CD-ROM.
World Wide Web ......................................... i
H - 1
H
If you plan to receive fax messages while away from your machine, carrying the Remote Retrieval
Access Card printed below will serve as a convenient reminder of the retrieval procedures. Simply
cut out the card and fold it to fit your wallet or organizer. Keeping it handy will help you derive the
full benefit of your machine’s Paging, Fax Forwarding and Remote Retrieval features.
Remote Retrieval Access Card
Using Remote Access Code
1
Dial your fax number from a telephone or fax machine using
touch tone.
When your machine answers, immediately enter your
Remote Access Code (3 digits followed by ).
Your machine signals the kinds of messages it received:
1 long beep — Fax messages
No beeps — No messages.
After 2 short beeps, enter a command.
Press
9 0
to reset your machine when you finish.
Hang up.
2
3
4
5
6
1
4
Press
9 7 1
1 long beep — Fax messages
3 short beeps — No messages
C
HANGE
R
ECEIVE
M
ODE
Press
9 8
then for External TAD, press
1
.
Fax Only, press
3
.
Fax/Tel, press
2
.
E
XIT
R
EMOTE
O
PERATION
Press
9 0
.
CHECK RECEIVING STATUS
R
EMOTE
R
ETRIEVAL
A
CCESS
C
ARD
Fold Fold
H - 2
Press
Menu/Set
,
2
,
5
,
2
.
fax number where you want your fax messages forwarded
followed by .
Program Fax Forwarding Number, press
4
. Enter the new
Select Fax Storage
,
press
6
.
R
ETRIEVE A
F
AX
Press
9 6
then to
Retrieve all faxes, press
2
,
then enter the number of remote fax machine followed by .
After the beep, hang up and wait.
Erase all fax messages, press
3
.
Changing Remote Access Code
1
2
Enter a three-digit code using numbers 0-9, or .
The cannot be changed.
3
Press
Menu/Set
.
4
Press
Stop/Exit
.
Remote Commands
C
HANGE
P
AGING
/F
AX
F
ORWARDING
S
ETTING
Press
9 5
.
then to Turn feature Off, press
1
.
Select Fax Forwarding, press
2
.
Select Paging, press
3
.
3
2
Fold Fold
EQUIPMENT ATTACHMENT LIMITATIONS
(Canada only)
NOTICE
This product meets the applicable Industry Canada technical
specifications.
NOTICE
The Ringer Equivalence Number is an indication of the maximum
number of devices allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the RENs of
all the devices does not exceed five.
This machine is made for use in the USA and Canada only. We cannot recommend using
them overseas because it may violate the Telecommunications Regulations of that country
and the power requirements of your multi-function center may not be compatible with the
power available in foreign countries. Using USA or Canada models overseas is at your
own risk and may void your warranty.
Brother International Corporation
100 Somerset Corporate Boulevard
P.O. Box 6911
Bridgewater, NJ 08807–0911 USA
Brother International Corporation (Canada) Ltd.
1 rue Hôtel de Ville,
Dollard-des-Ormeaux, QC, Canada H9B 3H6
USA
Visit us on the World Wide Web
http://www.brother.com
