Brother HL-2700CN Color Laser Printer User Manual

Brother Laser Printer

HL-2700CN series

User's Guide

Version 5

For visually-impaired users

You can read this manual with Screen Reader ‘text-to-speech’

software.

You must set up the hardware and install the driver before you can use the printer.

Please use the Quick Setup Guide to set up the printer. You can find a printed copy in the box or view

it on the CD-ROM we have supplied.

Please read this User’s Guide thoroughly before you use the printer. Keep the CD-ROM in a

convenient place so you can use it quickly if you need to.

Please visit our web site at http://solutions.brother.com

where you can get answers to Frequently

Asked Questions (FAQs), Product Support and Technical Questions, and the latest Driver Updates

and Utilities.

Definitions of warnings, cautions, and notes

We use the following terms throughout this User’s Guide:

You must follow these warnings to prevent possible personal injury.

You must follow these instructions to make sure you use the printer properly and do not damage it.

Remember these useful tips when you use the printer.

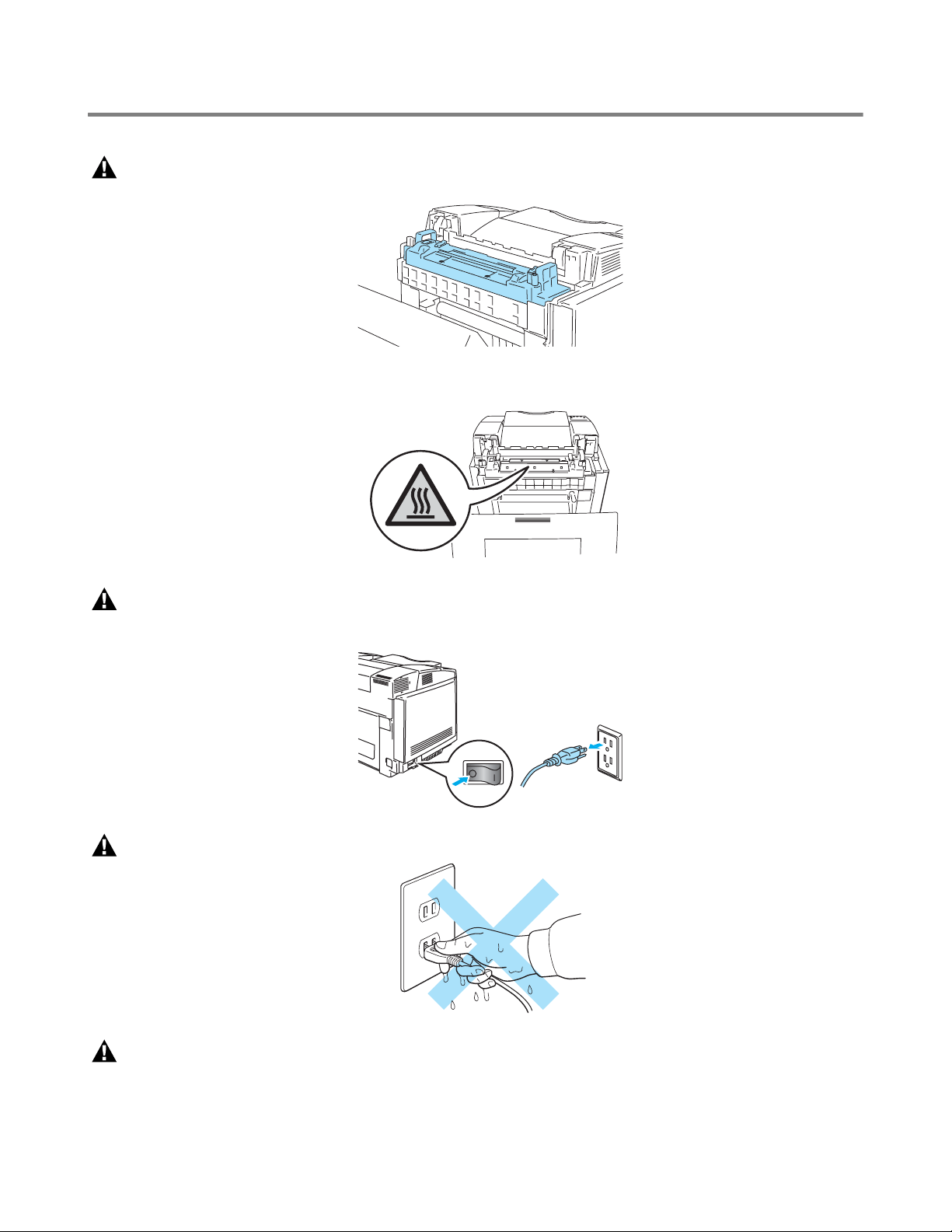

To use the printer safely

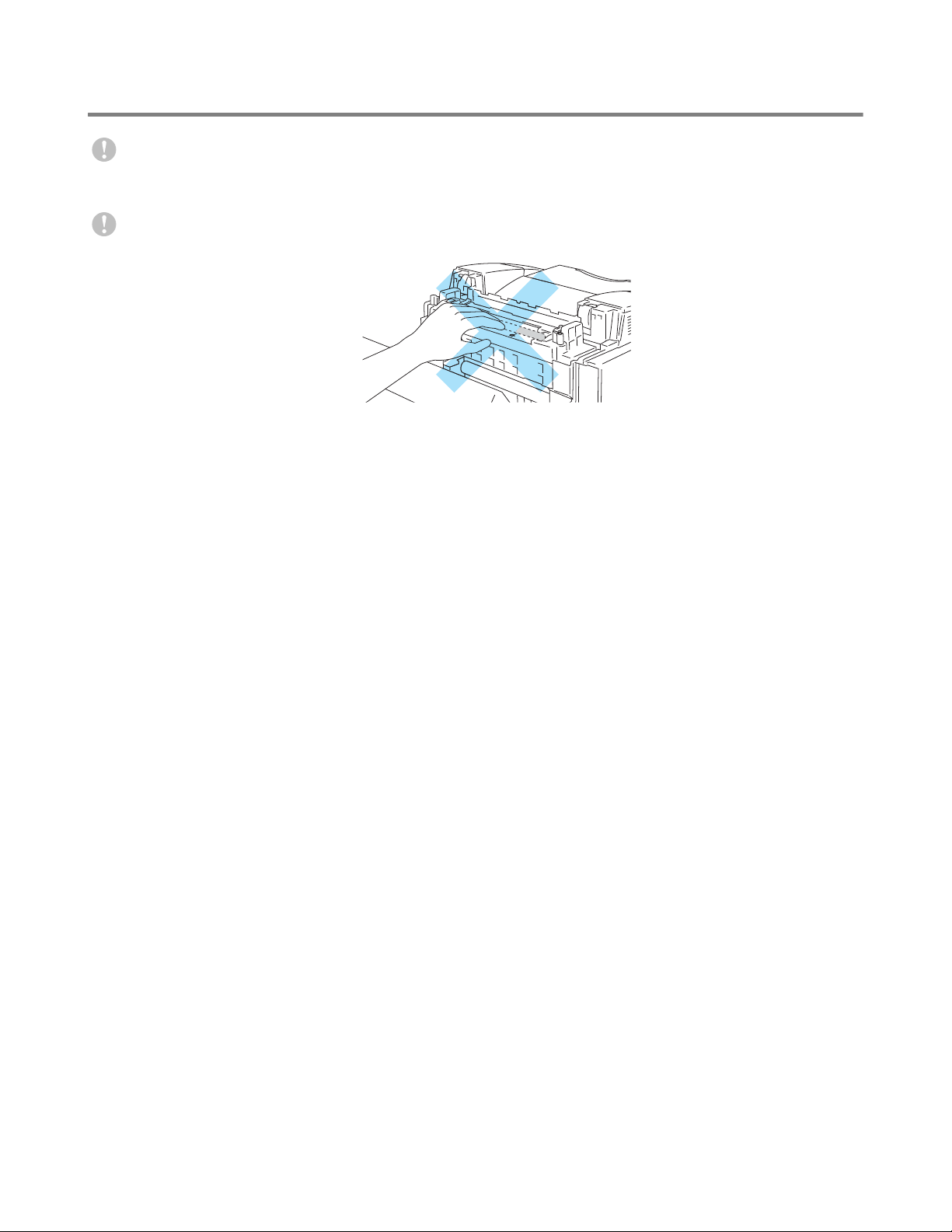

The fusing unit becomes extremely hot during operation. Wait until it has cooled down sufficiently

before replacing consumable items.

The fusing unit is marked with the caution label. Please do NOT take off or damage the label.

There are high voltage electrodes inside the printer. Before you clean the printer, clear a paper jam

or replace parts, make sure you have turned off the power switch and unplugged the printer from

the AC power outlet/socket.

Do not handle the plug with wet hands - this constitutes an electric shock hazard.

This printer is heavy and weighs approximately 31.5 kg (69.4 lb). When you move or lift this printer,

make sure at least two people lift it together. Be careful not to trap your fingers when you set the

machine back down.

iii

If the printer becomes hot, blows smoke, or generates obscure odor, immediately turn off the power

switch and unplug the printer from the AC power outlet/socket. Call your dealer or Brother

Customer Service.

If metal objects, water or other liquids get inside the printer, immediately turn off the power switch

and unplug the printer from the AC power outlet/socket. Call your dealer or Brother Customer

Service.

Do not put consumable items such as the toner cartridges and the waste toner pack into a fire.

Some consumable items can be flammable under certain conditions.

Do not look directly at the laser beam light. It might cause damage to your eyesight. Do not remove

or break open the printer's safety interlocks.

Do not run the printer with the top cover, front cover and back covers open and the interlocks

removed.

Do not place any items on the printer.

Printer do’s and don’ts for optimum print quality

Before you move or lift the printer, remove the toner cartridges, waste toner pack and fusing unit

to avoid spills. Be sure to keep the printer as level as possible. Damage caused by failure to remove

the supplies may void your warranty.

Do not touch the rollers of the fusing unit. This can degrade print quality.

IMPORTANT: For technical and operational help, you must call the country where you bought the

printer. Calls must be made from within that country.

By registering your product with Brother International Corporation, you will be recorded as the original

owner of the product.

Your registration with Brother:

■ may serve as a confirmation of the purchase date of your product should you lose your receipt;

■ may support an insurance claim by you in the event of product loss covered by insurance; and,

■ will help us notify you of enhancements to your product and special offers.

Please complete the Brother Warranty Registration or, for your convenience and most efficient way to

http://www.brother.com/registration/

Frequently asked questions (FAQs)

The Brother Solutions Center is our one-stop resource for all your Printer needs. You can download the

latest software and utilities, read FAQs and troubleshooting tips, and go to the ‘Solutions’ section to learn

how to get the most from your Brother product.

http://solutions.brother.com

You can check here for the Brother driver updates.

Customer Service

In USA: 1-877-284-3238

In Canada: 1-877-BROTHER

In Europe: Visit www.brother.com

for contact information on your local Brother office.

If you have comments or suggestions, please write us at:

In USA: Printer Customer Support

Brother International Corporation

15 Musick

Irvine, CA 92618

In Canada: Brother International Corporation (Canada), Ltd.

- Marketing Dept.

1, rue Hotel de Ville

Dollard-des-Ormeaux, PQ, Canada H9B 3H6

Service center locator (USA only)

For the location of a Brother authorized service center, call 1-800-284-4357.

Service center locations (Canada only)

For the location of a Brother authorized service center, call 1-877-BROTHER

Service center locations (Europe)

For service centres in Europe, contact your local Brother Office. Address and telephone contact

information for European offices can be found at www.brother.com

and selecting your country from the

pull down list.

Brother fax back system (USA only)

Brother has installed an easy to use fax back system so you can get instant answers to common

technical questions and product information. This is available 24 hours a day, 7 days a week. You can

use the system to send the information to any fax machine.

Call the number below and follow the recorded instructions to receive a fax about how to use the system

and an index of fax back subjects.

In USA only:1-800-521-2846

Internet Addresses

Brother Global Web Site: http://www.brother.com

For Frequently Asked Questions (FAQs), Product Support and Technical Questions, and Driver

Updates and Utilities: http://solutions.brother.com

(In USA Only) For Brother Accessories & Supplies: http://www.brothermall.com

vii

Important information: Regulations

Federal Communications Commission (FCC) Declaration of

Conformity (For USA)

Responsible Party: Brother International Corporation

100 Somerset Corporate Boulevard

P.O. Box 6911

Bridgewater, NJ 08807-0911

USA

Telephone: (908) 704-1700

Important

A shielded interface cable should be used to ensure compliance with the limits for a Class B digital

device.

Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user’s

authority to operate the equipment.

declares, that the products

Product name: Laser Printer HL-2700CN

Model number: HL-2700CN

Product options: All

complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■ Call the dealer, Brother Customer Service, or an experienced radio/TV technician for help.

viii

Industry Canada Compliance Statement (For Canada)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio interference (220 to 240 volt model only)

This printer follows EN55022 (CISPR Publication 22)/Class B.

Before you use this product, make sure that you use a double-shielded interface cable with twisted-pair

conductors and that it is marked “IEEE1284 compliant”. The cable must not be more than 2 metres long.

xii

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd.

Apple, the Apple Logo, and Macintosh

are registered trademarks in the United States and other

countries, and TrueType is a trademark of Apple Computer, Inc.

Epson is a registered trademark and FX-80 and FX-850 are trademarks of Seiko Epson Corporation.

Hewlett Packard is a registered trademark and HP LaserJet 6P, 6L, 5P, 5L, 4, 4L 4P, III, IIIP, II, and IIP

are trademarks of Hewlett-Packard Company.

IBM, IBM PC, and Proprinter are registered trademarks of International Business Machines Corporation.

Microsoft, MS-DOS, Windows and Windows NT are registered trademarks of Microsoft Corporation in

the U.S. and other countries.

PostScript is a registered trademark of Adobe Systems Incorporated.

NERGY STAR is a U.S. registered mark.

All other terms and brand and product names mentioned in this User’s Guide are registered trademarks

of their respective companies.

Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering

the latest product’s descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained

herein and shall not be responsible for any damages (including consequential) caused by reliance on

the materials presented, including but not limited to typographical and other errors relating to the

publication.

This printer contains UFST and Micro Type from Monotype Imaging Inc.

Shipment of the Printer

If for any reason you must ship your Printer, carefully package the Printer to avoid any damage during

transit. It is recommended that you save and use the original packaging. The Printer should also be

adequately insured with the carrier.

See Shipping the printer on page 5-28

xiii

“EC” Declaration of Conformity

Manufacturer

Brother Industries Ltd.,

15-1, Naeshiro-cho, Mizuho-ku,

Nagoya 467-8561, Japan

Herewith declare that:

Products description : Laser Printer

Product Name : HL-2700CN

is in conformity with provisions of the Directives applied: Low Voltage Directive 73/23/EEC (as amended

by 93/68/EEC) and the Electromagnetic Compatibility Directive 89/336/EEC (as amended by

91/263/EEC and 92/31/EEC and 93/68/EEC).

Standards applied:

Harmonized: Safety : EN60950:2000

EMC : EN55022:1998 + A1:2000 Class B

EN55024:1998

EN61000-3-2:1995 + A14:2000

EN61000-3-3:1995

Year in which CE marking was First affixed: 2003

Issued by : Brother Industries, Ltd.

Date : 15th May, 2003

Place : Nagoya, Japan

Signature :

Takashi Maeda

Manager

Quality Management Group

Quality Management Dept.

Information & Document Company

xiv

Table of Contents

Definitions of warnings, cautions, and notes ...............................................................................i

To use the printer safely .............................................................................................................ii

Printer do’s and don’ts for optimum print quality .......................................................................iv

Important information: Regulations .................................................................................................vii

Federal Communications Commission (FCC) Declaration of Conformity (For USA) ............... vii

Industry Canada Compliance Statement (For Canada) .......................................................... viii

Radio interference (220 to 240 volt model only) ...................................................................... viii

International ENERGY STAR

Compliance Statement .............................................................ix

Laser Safety (100 to 120 volt model only) .................................................................................ix

FDA Regulations (100 to 120 volt model only) ..........................................................................ix

IEC 60825 specification (220 to 240 volt model only) ................................................................x

IMPORTANT - For Your Safety .................................................................................................xi

Geräuschemission / Acoustic noise emission (for Germany only) ........................................xi

Wiring information (for UK) ....................................................................................................xi

Trademarks ....................................................................................................................................xii

Compilation and Publication Notice ................................................................................................ xii

Shipment of the Printer ......................................................................................................... xii

Table of Contents .......................................................................................................................... xiv

About this printer .................................................................................................................................... 1-1

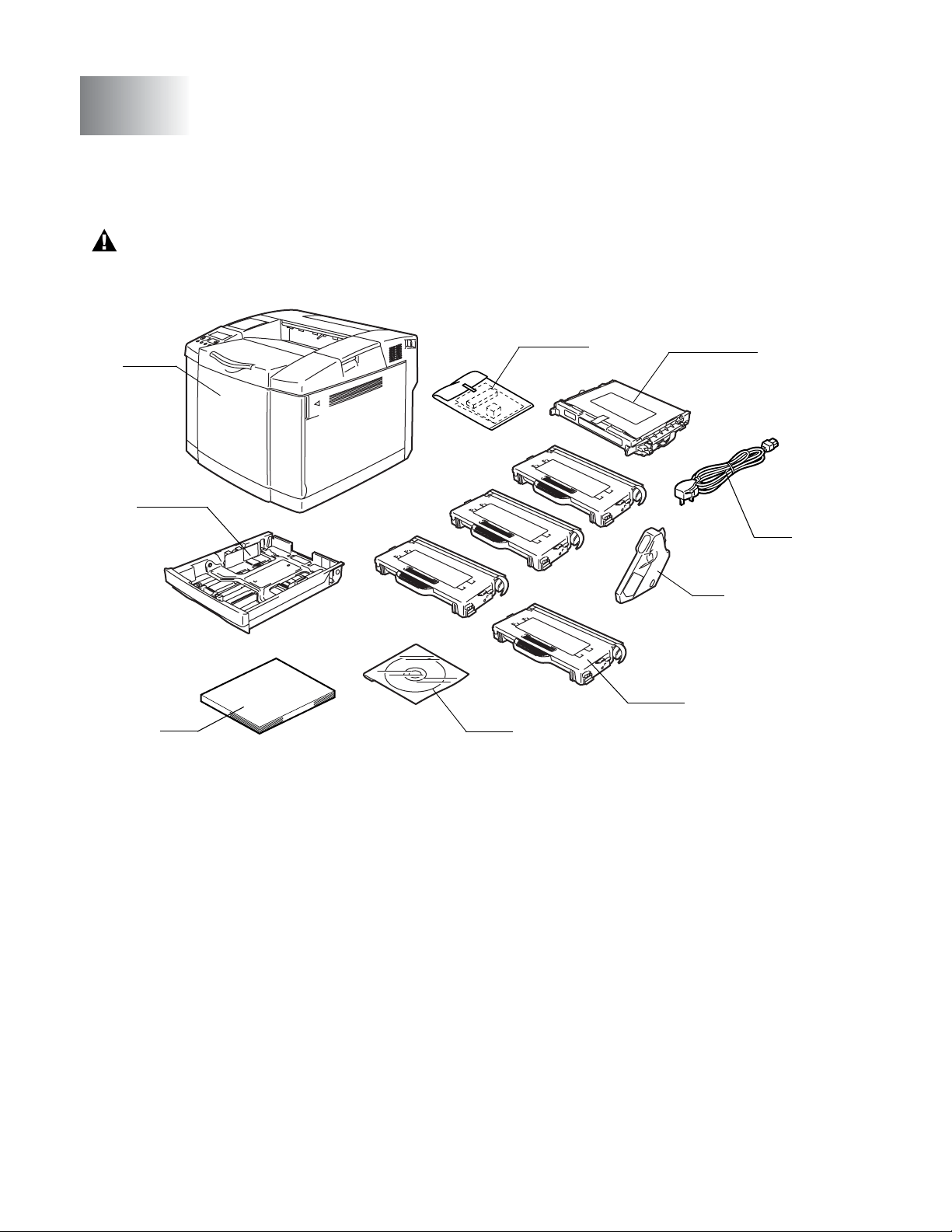

What is in the box? ....................................................................................................................... 1-1

Front view ............................................................................................................................... 1-3

Back view ............................................................................................................................... 1-4

Features ....................................................................................................................................... 1-5

2400 DPI class resolution ................................................................................................... 1-5

High speed and color laser printing .................................................................................... 1-5

Color Advanced Photoscale Technology (CAPT) .............................................................. 1-5

High Resolution Control (HRC) .......................................................................................... 1-5

Maintenance-free and economical toner cartridge ............................................................. 1-5

Universal paper tray ...........................................................................................................1-5

Three interfaces ................................................................................................................. 1-5

Automatic Interface Selection ............................................................................................. 1-6

Five emulation modes ........................................................................................................ 1-6

Automatic Emulation Selection ........................................................................................... 1-6

Data compression technology ............................................................................................ 1-6

Fonts .................................................................................................................................. 1-6

Panel lock setting ............................................................................................................... 1-7

Power Save Mode .............................................................................................................. 1-7

Toner Save Mode ............................................................................................................... 1-7

Reprint setting .................................................................................................................... 1-7

Network .............................................................................................................................. 1-7

Positioning the printer ................................................................................................................... 1-8

Power Supply ......................................................................................................................... 1-8

Environment ........................................................................................................................... 1-8

What kind of paper can I use? .................................................................................................... 1-10

Type and size of paper .........................................................................................................1-10

Suitable paper specifications ............................................................................................ 1-10

Recommended paper ........................................................................................................... 1-12

Printable area ....................................................................................................................... 1-13

Portrait .............................................................................................................................. 1-13

Landscape ........................................................................................................................ 1-13

Guidelines for selecting paper .............................................................................................. 1-14

Envelopes ......................................................................................................................... 1-15

Labels and transparencies ............................................................................................... 1-17

Paper feed ............................................................................................................................ 1-18

Tray feed .......................................................................................................................... 1-18

Manual feed ...................................................................................................................... 1-19

Paper output ......................................................................................................................... 1-19

Driver and software ................................................................................................................................ 2-1

Printer driver ................................................................................................................................. 2-1

For Windows

......................................................................................................................... 2-2

Features in the PCL printer driver ...................................................................................... 2-2

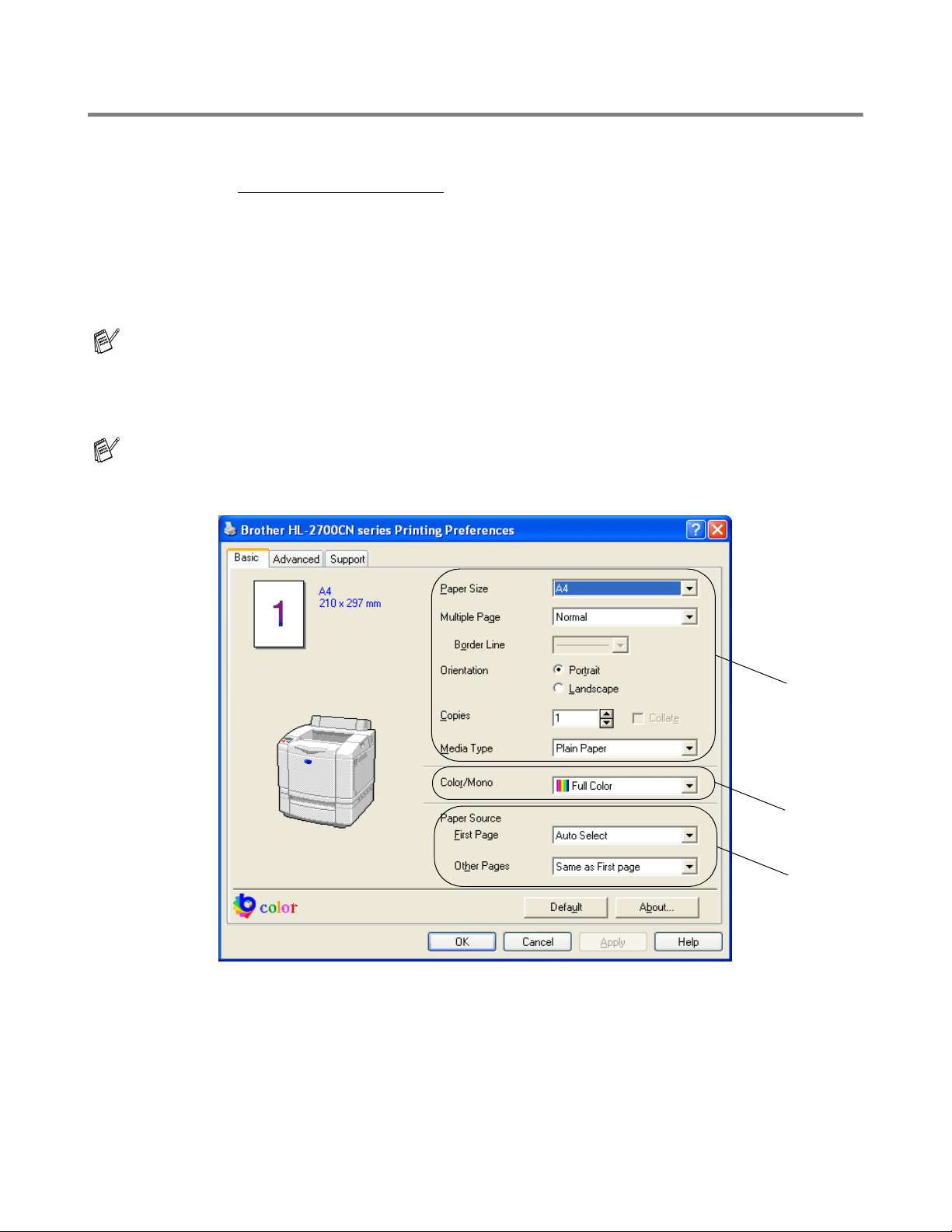

Basic Tab ........................................................................................................................... 2-2

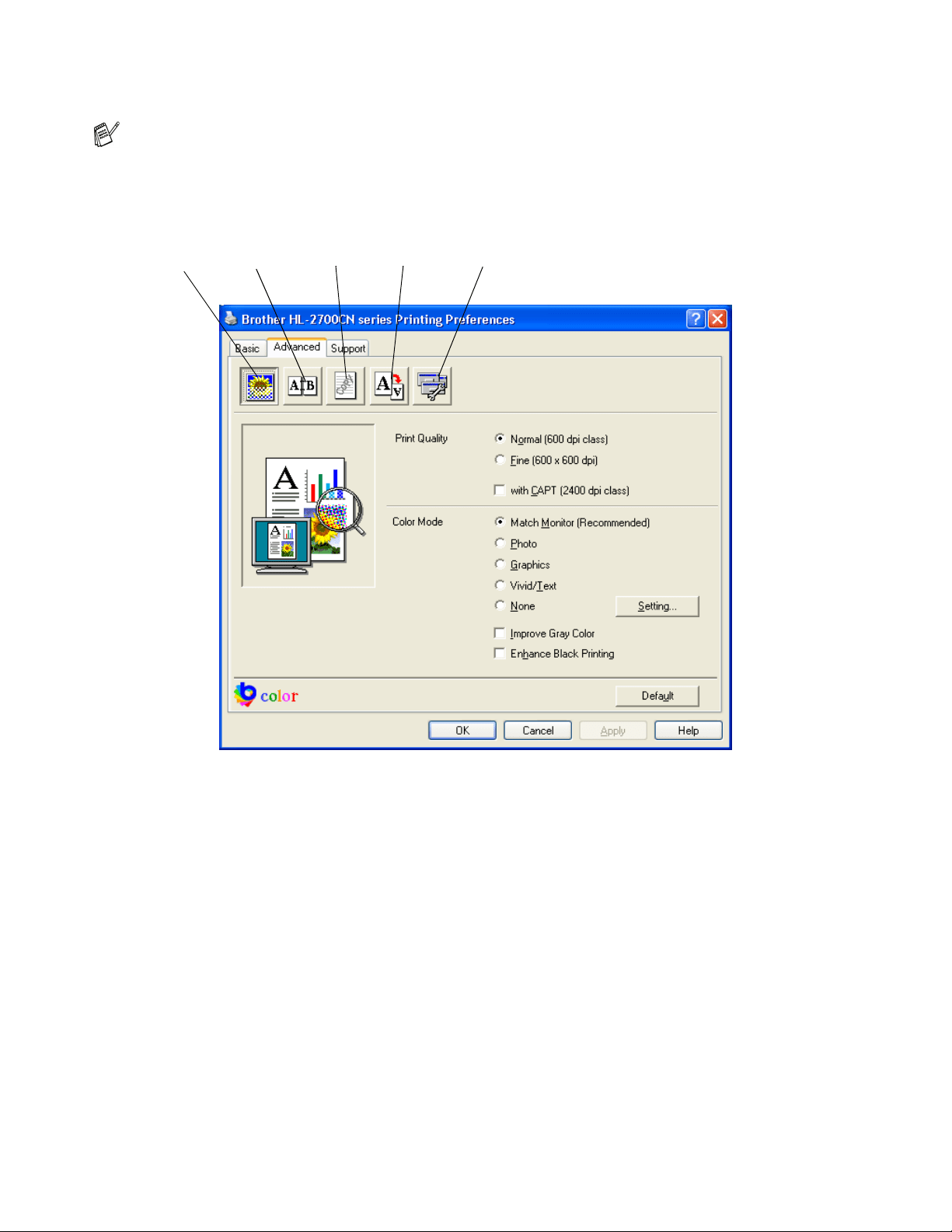

Advanced tab ..................................................................................................................... 2-3

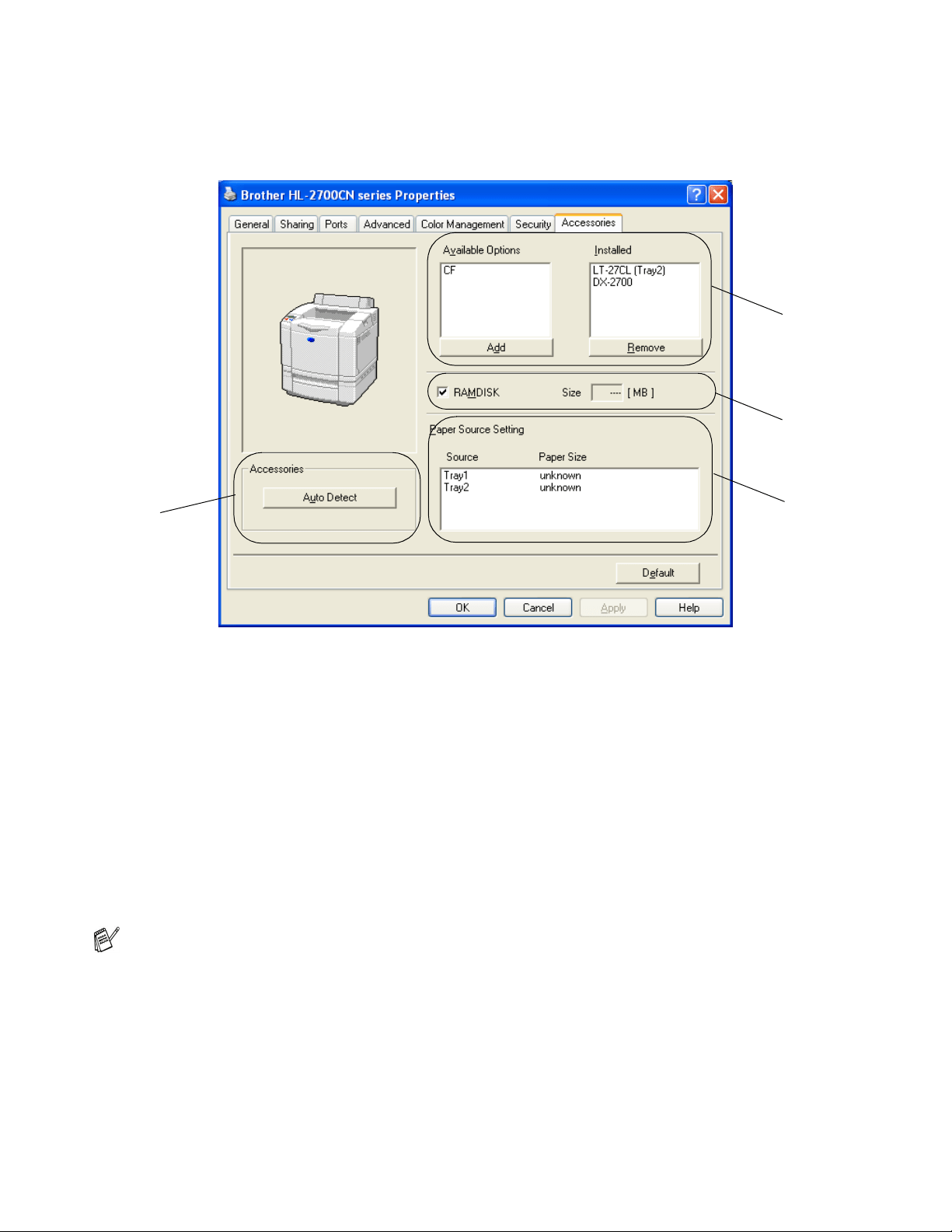

Accessories tab .................................................................................................................. 2-8

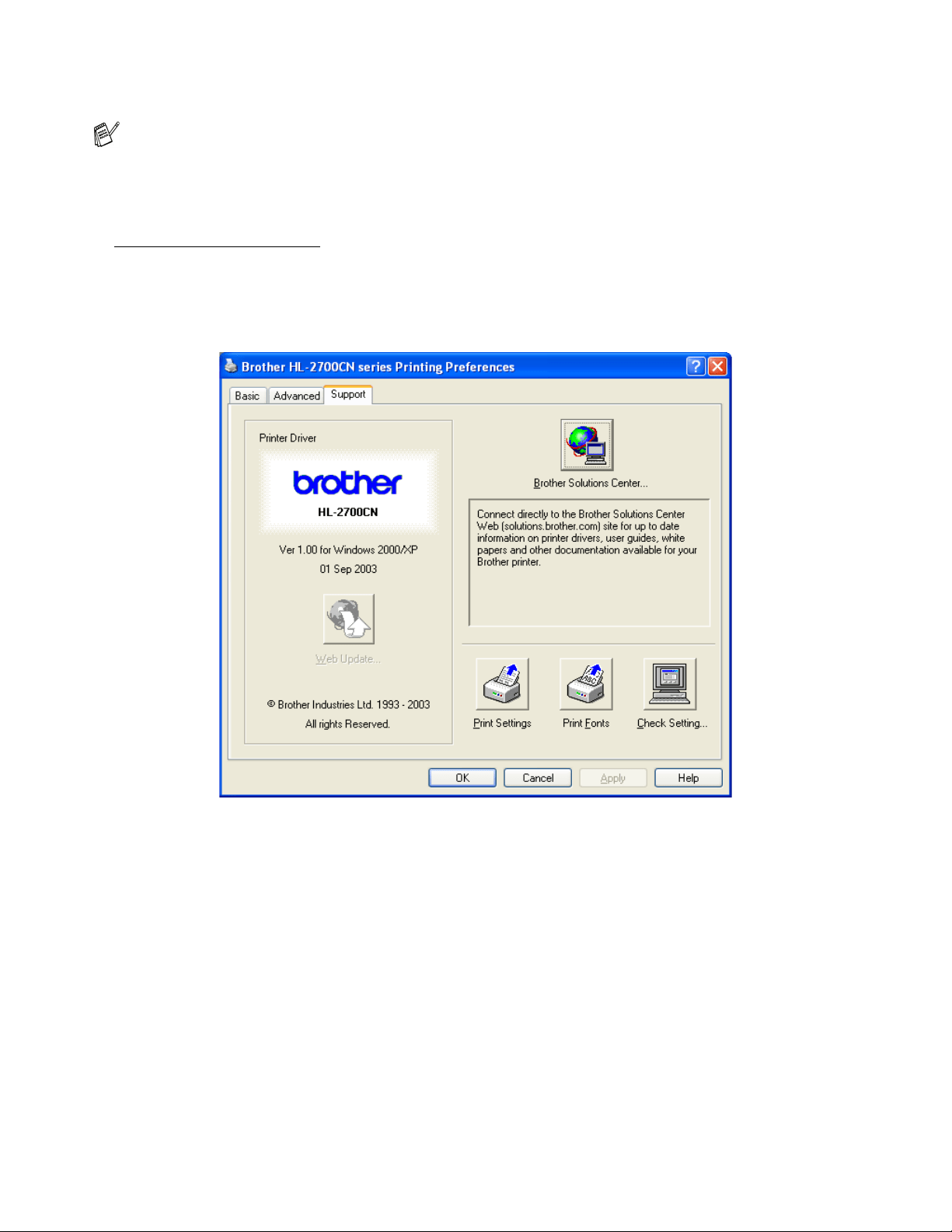

Support Tab ........................................................................................................................ 2-9

Features in the PS printer driver ...................................................................................... 2-10

Ports tab ........................................................................................................................... 2-10

Device Settings tab .......................................................................................................... 2-11

Layout tab ......................................................................................................................... 2-12

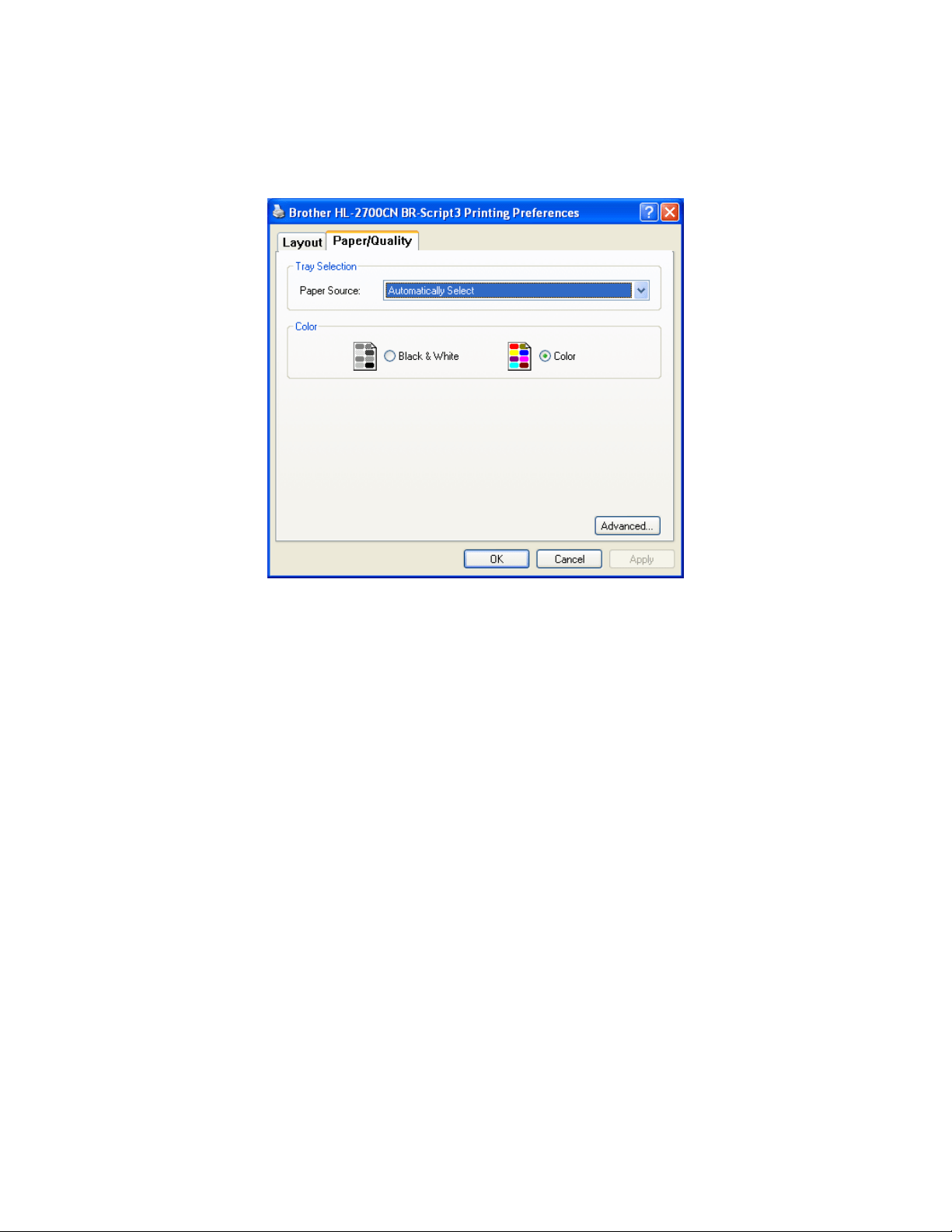

Paper / Quality tab ............................................................................................................2-13

Advanced options ............................................................................................................. 2-14

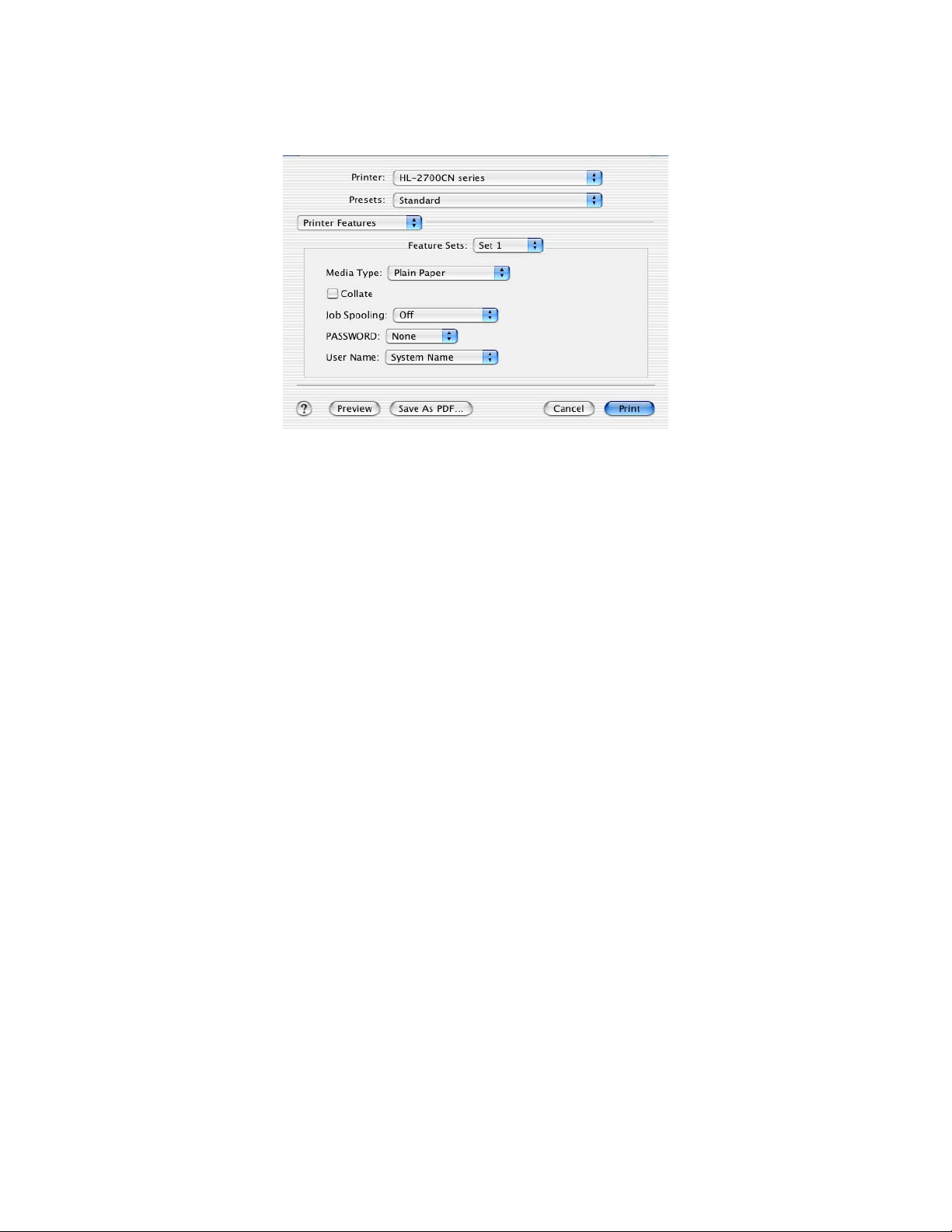

For Macintosh

..................................................................................................................... 2-16

Software ..................................................................................................................................... 2-18

Software for Networks ..........................................................................................................2-18

BRAdmin Professional utility ............................................................................................ 2-18

Driver Deployment Wizard ............................................................................................... 2-18

Web BRAdmin .................................................................................................................. 2-18

Automatic Emulation Selection ............................................................................................. 2-19

Automatic Interface Selection ............................................................................................... 2-20

Printer settings ............................................................................................................................ 2-20

Factory settings .................................................................................................................... 2-20

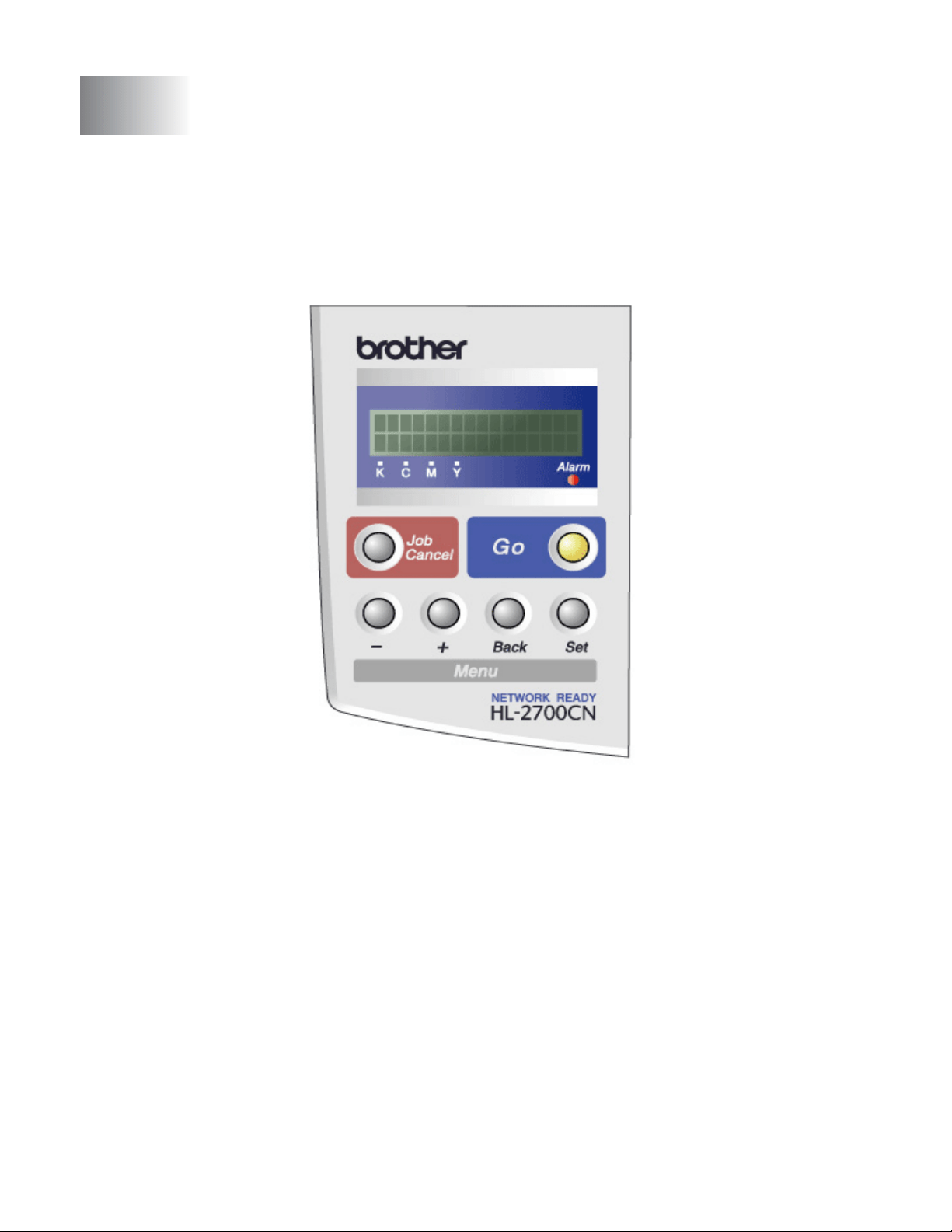

Control panel ........................................................................................................................................... 3-1

Control panel ................................................................................................................................ 3-1

Buttons ......................................................................................................................................... 3-2

Go button ................................................................................................................................ 3-3

Job Cancel button ................................................................................................................... 3-3

+ or - button ............................................................................................................................ 3-3

To move through menus in the LCD .................................................................................. 3-3

To enter numbers ...............................................................................................................3-3

Set button ............................................................................................................................... 3-3

Back button ............................................................................................................................. 3-4

Light-emitting diodes (LEDs) ........................................................................................................ 3-5

Liquid crystal display (LCD) .......................................................................................................... 3-6

LCD messages ....................................................................................................................... 3-6

Printer status messages ..................................................................................................... 3-7

How to use the control panel ........................................................................................................ 3-7

Control panel LCD menu .............................................................................................................. 3-9

Set date and time ............................................................................................................. 3-19

Set IP address .................................................................................................................. 3-20

About emulation modes ........................................................................................................ 3-21

List of factory settings ........................................................................................................... 3-22

Network factory default setting ......................................................................................... 3-22

Reprint setting ...................................................................................................................... 3-26

Reprinting from RAM ........................................................................................................ 3-26

Reprinting the last job ....................................................................................................... 3-27

Printing PROOF data ....................................................................................................... 3-28

Printing PUBLIC data ....................................................................................................... 3-28

xvi

Printing SECURE data ..................................................................................................... 3-29

When there is no reprint data in memory ......................................................................... 3-31

To delete the job ............................................................................................................... 3-31

To cancel the reprint job ................................................................................................... 3-31

Options .................................................................................................................................................... 4-1

Optional accessories and supplies ............................................................................................... 4-1

Lower tray unit (LT-27CL) .................................................................................................. 4-1

Legal tray (LT-27LG) .......................................................................................................... 4-1

Duplex unit (DX-2700) ........................................................................................................ 4-1

CompactFlash

card .......................................................................................................... 4-1

SO-DIMM memory ............................................................................................................. 4-1

Optional fonts package ....................................................................................................... 4-1

Lower tray unit (LT-27CL) ............................................................................................................. 4-2

Putting paper in the lower tray unit ......................................................................................... 4-2

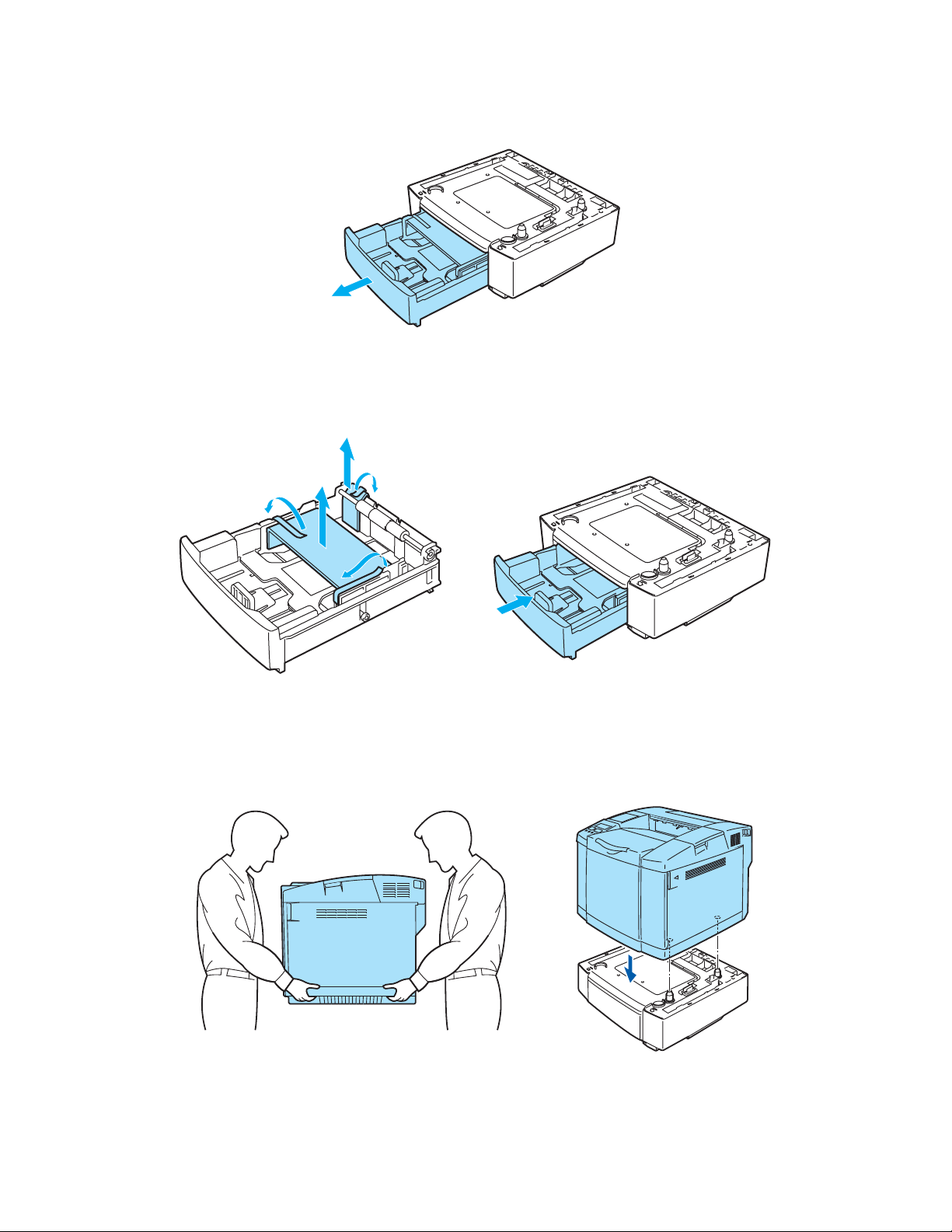

How to install the lower tray unit .............................................................................................4-2

Legal tray (LT-27LG) .................................................................................................................... 4-5

How to install the legal tray ..................................................................................................... 4-5

Duplex unit (DX-2700) .................................................................................................................. 4-7

How to install the duplex unit .................................................................................................. 4-7

Guidelines for printing on both sides of the paper ................................................................ 4-10

Paper orientation for printing on both sides of the paper ................................................. 4-10

CompactFlash

card ................................................................................................................... 4-11

Inserting the CompactFlash

card ........................................................................................ 4-12

SO-DIMM .................................................................................................................................... 4-13

Installing additional memory ................................................................................................. 4-14

Optional fonts package ............................................................................................................... 4-16

Optional fonts package (BS-3000) ................................................................................... 4-16

Optional barcode fonts package (BT-1000) ..................................................................... 4-16

Selecting the optional fonts .................................................................................................. 4-16

Routine maintenance .............................................................................................................................. 5-1

Replacing the consumable items .................................................................................................. 5-1

Toner cartridges ..................................................................................................................... 5-4

Toner nearly empty message ............................................................................................. 5-4

TONER EMPTY message .................................................................................................. 5-4

Replacing the toner cartridges ........................................................................................... 5-5

Waste toner pack .................................................................................................................... 5-8

Waste toner pack full message .......................................................................................... 5-8

Replacing the waste toner pack ......................................................................................... 5-9

OPC belt cartridge ................................................................................................................ 5-10

Replace OPC belt cartridge message .............................................................................. 5-10

......................................................................................................................................... 5-10

Replacing the OPC belt cartridge ..................................................................................... 5-10

Fusing unit ............................................................................................................................ 5-13

Replace fusing unit message ........................................................................................... 5-13

Replacing the fusing unit .................................................................................................. 5-14

120K kit ................................................................................................................................. 5-16

Replacing the transfer belt cleaner ................................................................................... 5-16

Replacing the transfer roller ............................................................................................. 5-18

Cleaning ..................................................................................................................................... 5-21

Cleaning the outside of the printer ........................................................................................ 5-22

Cleaning the inside of the printer .......................................................................................... 5-23

Shipping the printer .................................................................................................................... 5-28

xvii

Troubleshooting ...................................................................................................................................... 6-1

LCD messages ............................................................................................................................. 6-1

Error messages ...................................................................................................................... 6-1

Maintenance messages .......................................................................................................... 6-3

Call service messages ............................................................................................................ 6-4

Paper jams and how to clear them ...............................................................................................6-7

JAM A1 / JAM A2 (paper jam in the paper tray) ..................................................................... 6-8

JAM B (paper jam at the entrance to the fusing roller) ........................................................... 6-9

JAM C (paper jam where the paper comes out of the printer) .............................................. 6-11

JAM D (paper jam in the lower part of the duplex unit) ........................................................ 6-13

JAM E (paper jam in the upper part of the duplex unit) ........................................................ 6-14

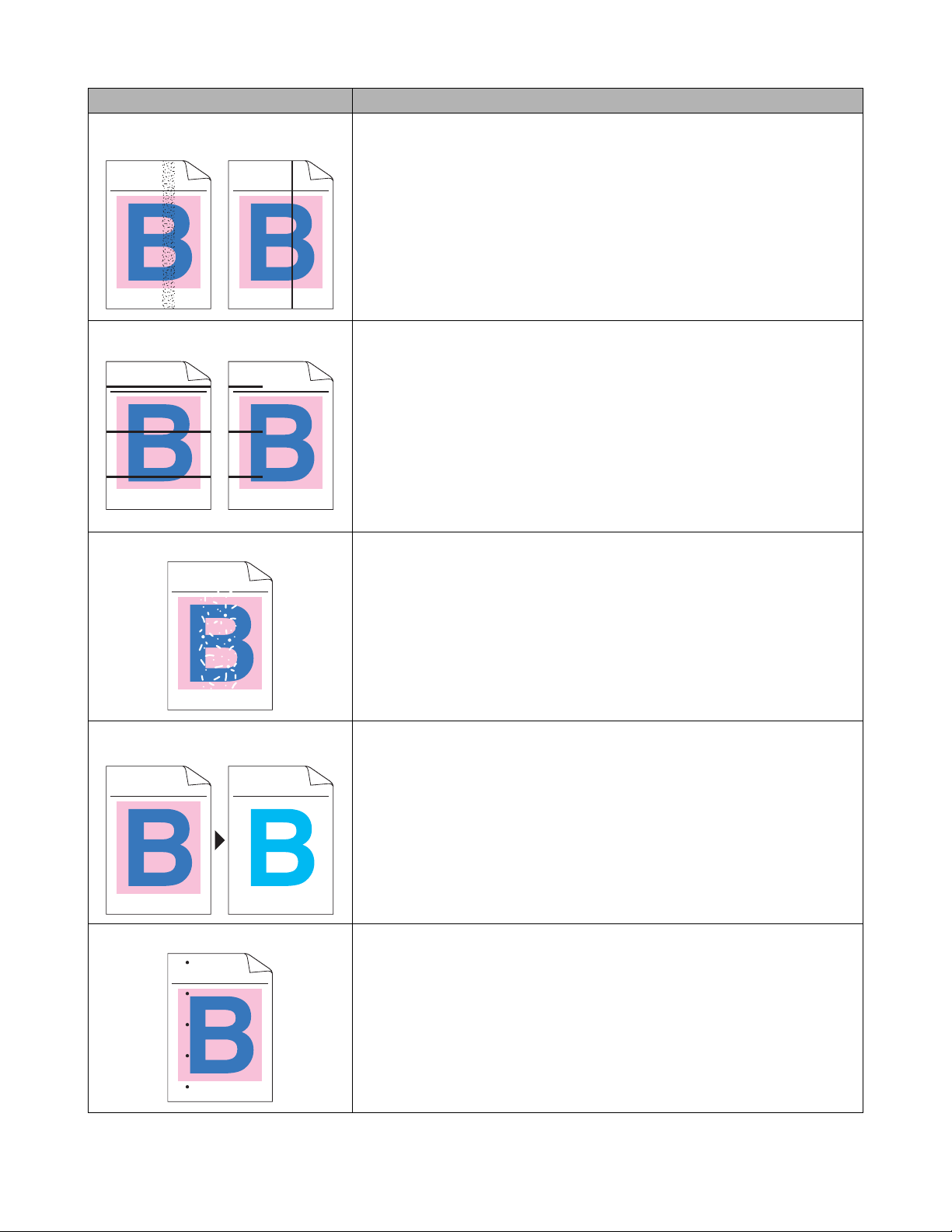

Improving the print quality .......................................................................................................... 6-16

Q & A .......................................................................................................................................... 6-20

Setting up the printer hardware ............................................................................................ 6-20

Setting up the printer ............................................................................................................ 6-21

Paper handling ..................................................................................................................... 6-22

Printing ................................................................................................................................. 6-23

Appendix ..................................................................................................................................................A-1

Printer specifications ....................................................................................................................A-1

Printing ...................................................................................................................................A-1

Features .................................................................................................................................A-2

Electrical and mechanical .......................................................................................................A-3

Paper specifications .....................................................................................................................A-4

Paper handling .......................................................................................................................A-4

Media specifications ...............................................................................................................A-4

INDEX ........................................................................................................................................................ I-1

1 - 1 ABOUT THIS PRINTER

What is in the box?

When you unpack the printer, check to see that you have all of the following parts:

Figure 1-1

Printer

Standard Paper Tray (pre-installed)

Quick Setup Guide

CD-ROM

Toner Cartridges

(pre-installed) (Black [TN04BK], Cyan [TN04C], Magenta [TN04M], Yellow

[TN04Y])

Waste Toner Pack (pre-installed) [WT-4CL]

AC Power Cord

OPC Belt Cartridge [OP-4CL]

Repacking kit

*1 The toner cartridges that come supplied with this printer, are starter toners.

Starter toners, are toner cartridges with up to half the life of the standard toner cartridge, 5000 pages (Black) and 3000 pages (Cyan, Magenta and Yellow) at

approximately 5% print coverage (A4 or Letter size).

*2 In Europe these parts are in the Localization Kit.

*3 Repacking kit is to be used ONLY for moving or shipping the printer.Localization Kit.

About this printer

This printer is heavy and weighs approximately 31.5 kg (69.4 lb). To prevent injuries when moving

or lifting this printer, make sure to use at least two people.

ABOUT THIS PRINTER 1 - 2

Depending on the country you live in and the HL-2700CN series model bought, you may have

additional parts not listed above.

The OPC belt cartridge is packed inside a separate box as a starter kit. Wait to unpack the OPC

belt cartridge until immediately before you put it in the printer. Exposure to direct sunlight or room

light may damage the OPC belt cartridge.

We recommend keeping spares of the following consumable items at all times. When these are

exhausted, the printer may stop printing.

■ Toner cartridges (TN-04BK, TN-04C, TN-04M, TN-04Y)

■ Waste toner pack (WT-4CL)

■ OPC belt cartridge (OP-4CL)

Interface cable

■ An interface cable is not a standard accessory.

■ Some computers have a USB and a parallel port. Please buy the appropriate cable for the

interface you are going to to use.

■ Most parallel cables support bi-directional communication, but some might have an incompatible

pin assignment or may not be IEEE 1284 compliant.

■ It is recommended to use a parallel interface cable or USB interface cable that is no longer than

6 feet (2 meters).

■ When you use a USB cable, make sure it is a high-speed twisted cable (12 Mbps or 480 Mbps),

and that you connect it to the USB connector of your PC.

■ Please make sure that you use a Hi-Speed USB 2.0 certified cable if your computer uses a

Hi-Speed USB 2.0 interface.

■ Do not connect the USB cable to a non-powered hub or Mac

Keyboard.

Depending on the country where you bought the printer, the power cord may differ slightly from the

one shown in Figure 1-1.

1 - 5 ABOUT THIS PRINTER

Features

This printer has the following standard features.

2400 DPI class resolution

This printer prints at a default resolution of 600 dots per inch (dpi). You can get a higher print quality,

equivalent to 2400 dpi class resolution by using Brother technologies: High Resolution Control (HRC)

and Color Advanced Photoscale Technology (CAPT).

High speed and color laser printing

You can print crisp images in brilliant 24-bit color.

This printer can print at speeds up to 29 pages per minute in monochrome mode and 8 pages per minute

in full color mode. The HL-2700CN controller uses a high speed 64-bit RISC microprocessor and special

hardware chips, to ensure fast print job processing.

Color Advanced Photoscale Technology (CAPT)

This printer can print graphics in 256 shades for each color in PCL6 emulation and BR-Script3, producing

nearly photographic quality. CAPT is most effective when printing photographic images.

High Resolution Control (HRC)

The High Resolution Control (HRC) technology gives you clear and crisp printouts and improves even

600-dpi resolution output. HRC is most effective when printing text.

Maintenance-free and economical toner cartridge

This printer uses four easy-to-replace toner cartridges. The toner cartridges can print up to 6,600 (Cyan,

Magenta and Yellow) and 10,000 (Black) single-sided pages at approximately 5% coverage.

Universal paper tray

This printer loads paper automatically from the paper tray. Since the paper tray is a universal type, a

number of different paper sizes (one paper size at a time) can be used. Even envelopes can be loaded

from the paper tray. For detailed paper specifications, see What kind of paper can I use? on page 1-10.

Three interfaces

This printer has a high speed, bi-directional parallel, a Hi-Speed USB 2.0, and an Ethernet

10/100BASE-TX interface.

If your application software supports the bi-directional parallel interface, you can monitor the printer

status. It is fully compatible with the industry-standard bi-directional parallel interface.

The Brother network board is factory installed in the HL-2700CN, which enables you to use this printer

in the TCP/IP, IPS/SPX, AppleTalk, DLC/LLC and NetBEUI environments. Also, many useful utilities,

such as BRAdmin Professional utility for the administrator and Brother network printing software, are

included in the CD-ROM supplied with the HL-2700CN printer. For setup, see the Network User's Guide,

which is provided on the CD-ROM.

ABOUT THIS PRINTER 1 - 6

Automatic Interface Selection

This printer can automatically select the bi-directional parallel, USB or Ethernet 10/100BASE-TX

interface, depending on the interface port through which it receives data. With this feature, you can

connect the printer to more than one computer. See Automatic Interface Selection on page 2-20.

Five emulation modes

This printer can emulate PCL 5C and PCL 6 language printers, Brother BR-Script3 printers, HP-GL

plotter as well as EPSON FX-850 and IBM Proprinter XL printers (for monochrome printing only). You

can print with all application programs that support one of these printers. See About emulation modes

on page 3-21.

Automatic Emulation Selection

This printer can automatically select the printer emulation mode, depending on the print commands it

receives from the computer software. With this feature, many users can share the printer on a network.

See Automatic Emulation Selection on page 2-19.

Data compression technology

This printer can internally compress the received graphics and font data in its memory so it can print

larger graphics and more fonts without the need for additional memory.

Fonts

This printer has 66 scalable and 12 bitmapped fonts. The fonts that can be used vary according to the

selected emulation mode.

In PCL mode, you can also print the 13 kinds of bar codes listed below. In BR-Script mode, the printer

has 35 scalable fonts.

Bar code printing

This printer can print the following 13 types of bar codes:

■ Code 39

■ Interleaved 2 of 5

■ EAN-8

■ EAN-13

■ EAN- 128

■ Code 128

■ UPC-A

■ UPC-E

■ Codabar

■ FIM (US-PostNet)

■ Post Net (US-PostNet)

■ ISBN (EAN)

■ ISBN (UPC-E)

1 - 7 ABOUT THIS PRINTER

Panel lock setting

If the panel button settings have been changed, the printer may not work as you expect. If you are an

administrator of this printer, you can lock your settings to prevent changes from being made. See SETUP

on page 3-12.

Power Save Mode

This printer has a power saving mode. Since laser printers consume power to keep the fixing assembly

at a high temperature, this feature can save electricity when the printer is on but not being used. The

factory setting of the power save mode is ON so that it complies with the new EPA Energy Star

specification.

Toner Save Mode

This printer has an economical toner save mode. By using this feature you can substantially reduce

operating costs and extend the life expectancy of the toner cartridges.

Reprint setting

The printer saves data that you want reprinted. You can reprint a document without sending the data

again from your PC. If you do not install a CompactFlash

card, you can reprint from RAM. See Reprint

setting on page 3-26.

When there is not enough memory to print the last job, you can reprint the last print page.

Network

Ethernet 10/100BASE-TX enables you to use the printer in the following environments:

(TCP/IP, IPX/SPX, AppleTalk, DLC/LLC, NetBEUI)

Also, many useful utilities, such as BRAdmin Professional Utility, Driver Deployment Wizard and Web

BRAdmin software for the Network administrator, are included. For details of the utilities, see the

documentation included on the CD-ROM. See Software for Networks on page 2-18.

ABOUT THIS PRINTER 1 - 10

What kind of paper can I use?

Type and size of paper

The printer loads paper from the installed standard paper tray, optional lower tray, or the optional legal

tray.

Standard paper tray

Since the standard paper tray is a universal type, you can use any of the paper sizes (one paper size at

a time) listed in table 1 in Media type, paper size and number of sheets for paper source on page 1-11.

The tray can hold up to 250 sheets of paper (

75 g/m

or 20 lb) or up to 15 envelopes (paper can be loaded

up to the top line of the sliding guide).

Optional lower tray (LT-27CL)

The optional lower tray can hold up to 530 sheets of paper (75 g/

or 20 lb). The maximum capacity is

44 mm paper height.

Optional legal tray (LT-27LG)

The optional legal tray can hold up to 250 sheets of paper (75 g/

or 20 lb). If you want to print on legal

size paper, you must use this tray. You can use the optional legal tray as a standard paper tray (Tray 1).

See Legal tray (LT-27LG) on page 4-5.

The names for the paper trays in the printer driver and this Guide are as follows:

Suitable paper specifications

The following paper specifications are suitable for this printer.

Tray and optional unit Name

Standard paper tray

Optional legal tray

Tray 1

Optional lower tray Tray 2

Optional duplex unit for duplex printing DX

Basis weight (g/m

) 75-90

Thickness (µm) 80-110

Roughness (sec.) Higher than 20

Stiffness (cm

/100) 90-150

Grain direction Long grain

Volume resistivity (ohm) 10e

-10e

Surface resistivity (ohm-cm) 10e

-10e

Filler CaCO

(Neutral)

Ash content (wt%) Below 23

Brightness (%) Higher than 80

Opacity (%) Higher than 85

ABOUT THIS PRINTER 1 - 12

Recommended paper

The recommended paper for this printer is:

Xerox 4200, Hammermill Laserprint

NEUSIEDLER Color Copy 90g/m

or equivalent

■ To get the best output quality and to avoid any damage, use smooth white paper.

■ Before you buy a lot of paper, please test some to make sure that the paper is suitable.

■ Use neutral paper. Do not use acidic or alkaline paper.

■ Print quality will vary depending on the paper being used.

Do not load envelopes, transparencies, labels or thick paper (more than 105 g/m

or 28 lb) into the

optional lower tray unit. It may cause paper jams.

ABOUT THIS PRINTER 1 - 14

Guidelines for selecting paper

The printer is designed to work well with most types of xerographic and bond paper. However, some

paper variables may have an effect on print quality or handling reliability. Always test samples of paper

before purchasing to ensure desirable performance. Some important guidelines when selecting paper

are:

■ Supplier should be informed that the paper or envelopes will be used in a laser printer.

■ Preprinted paper must use inks that can withstand the temperature of the printer's fusing process.

(200 degrees centigrade)

■ If you have selected a cotton bond paper, paper having a rough surface, such as cockle or laid

finished paper or paper that is wrinkled or puckered, the paper may exhibit degraded performance.

Types of paper to avoid

Some types of paper may not perform well or may cause damage to your printer.

Do not use paper:

■ that is highly textured

■ that is extremely smooth or shiny

■ that is curled or warped

■ that is coated or has a chemical finish

■ that is damaged, creased or folded

■ that exceeds the recommended weight specification in this guide

■ with tabs and staples

■ with letterheads using low temperature dyes or thermography

■ that is multipart or carbonless

■ that is designed for inkjet printing

If you use any of the types of paper listed above, they may damage your printer. This damage is not

covered under any Brother warranty or service agreement.

The manufacturer does not recommend the use of any particular paper. The operator is responsible

for the quality of paper used with the printer.

1 - 17 ABOUT THIS PRINTER

Labels and transparencies

The printer will print on most types of labels and transparencies designed for use with a laser printer.

Labels should have an adhesive which is acrylic-based since such material is more stable at the high

temperatures in the fusing unit. Adhesives should not come in contact with any part of the printer,

because the label stock may stick to the drum or rollers and cause jams and print quality problems. No

adhesive should be exposed between the labels. Labels should be arranged so that they cover the entire

length and width of the sheet. Using labels with spaces may result in labels peeling off and causing

serious jams or print problems.

All labels and transparencies used in this printer must be able to withstand a temperature of 200 degrees

centigrade (392 degrees Fahrenheit) for a period of 0.1 seconds.

Label and transparency sheets should not exceed the paper weight specifications described in this

User's Guide. Labels and transparencies exceeding this specification may not feed or print properly and

may cause damage to your printer.

Transparencies and Labels can be fed from Tray 1 only and cannot be printed using the duplex unit.

Types of labels and transparencies to avoid

Do not use labels or transparencies that are damaged, curled, wrinkled or an unusual shape.

Figure 1-11

Before using paper that has holes in it, such as organizer sheets, you must ‘fan’ the stack to avoid

paper jams and misfeeds.

Figure 1-12

■ Avoid feeding labels with the carrier sheet exposed because your printer will be damaged.

■ When feeding transparencies, use the recommended type for laser printers. For detailed

information on the specification of the proper transparencies to purchase, call your dealer or

Brother Customer Service.

Brother will not recommend particular labels or transparencies because the manufacturers may

change the specifications. You are responsible for the quality and performance of the print media

you use.

ABOUT THIS PRINTER 1 - 18

Paper feed

Tray feed

The printer can feed paper from the standard paper tray, optional lower tray or optional legal tray.

The printer automatically detects the paper size you have put into the paper tray. The printer will prompt

you to put the correct size of paper in the tray as follows:

If you want to put a different size of paper into the paper tray from the size that was selected in the paper

size setting by using the control panel buttons or in your application software, you can change the paper

size setting.

Print on envelopes

Adjust the paper length and width guides to fit the envelopes that are going to be used.

Figure 1-13

When you put paper into the paper tray, note the following:

■ If your application software supports paper size selection on the print menu, you can select it

through the software. If your application software does not support it, you can set the paper size

in the printer driver or by using the control panel buttons.

■ The paper size has been set at the factory to Letter for 120 V models or A4 for 220/240 V

models. If you want to use other sizes of paper or envelopes, change the paper size setting in

PAGE FORMAT in the FORMAT menu by using the control panel buttons. For paper size

selection, see PRINT MENU on page 3-13.

■ If you use pre-printed paper in the trays, please be sure to put the paper with the printed side

face up and the top edge of the paper at the back of the paper tray.

SIZE MISMATCH

Put <size> paper size in Tray

<1/2>. Paper mismatch between

the Printer and the Printer

Driver setting

1 - 19 ABOUT THIS PRINTER

Manual feed

Since this printer does not have a manual feed or multi purpose tray, you cannot manually feed irregular

sized paper. However, this printer has a special manual feed mode using Tray 1 (standard paper tray)

to accommodate non-standard paper sizes. You can select this mode with the printer driver or the control

panel buttons.

See PAPER in Chapter 3 for more information on selecting this setting using the printer control panel

buttons.

When the manual feed command is selected, the printer waits until you put the paper in Tray 1.

Pull out Tray 1 and put in the paper you are going to use. It may be necessary to remove some or

all of the paper stack first, depending on the size of paper in the tray and the size of the paper you

wish to print on manually.

Put Tray 1 back in and press Go. The printer will then start printing.

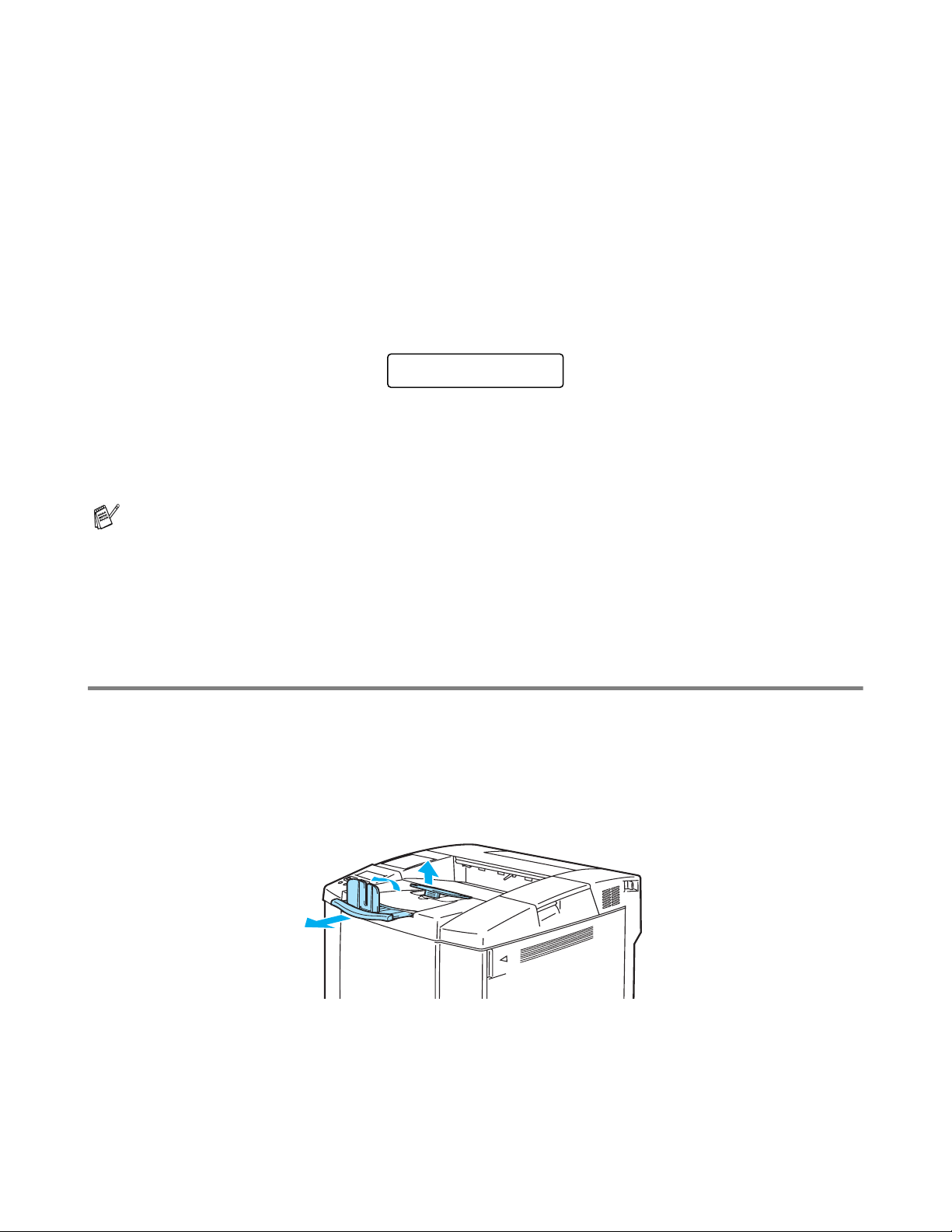

Paper output

We recommend that you use the face down output tray extension, paper stopper and paper support:

when prining a lot at anyone time

when using legal sized paper

if the printed paper appears curled

Figure 1-14

■ Print quality may be affected by the type of paper you use and the print image.

■ You may experience poor paper feeding during duplex printing.

■ You cannot perform continuous duplex printing when MANUAL FEED is on.

■ During manual duplex printing, if you leave the printer for more than 5 minutes after the first side

has been printed, the printer will reset this setting automatically.

MANUAL FEED

=ON

2 - 2 DRIVER AND SOFTWARE

For Windows

Features in the PCL printer driver

You can also download the latest printer driver or get other information by accessing the Brother

Solutions Center at http://solutions.brother.com

You can also change settings by clicking the illustration on the left side of the Basic tab in the Properties

dialog box.

For more information, please see the online Help in the printer driver.

Basic Tab

Select the Paper Size, Multiple Page, Orientation and other settings.

Select the color mode.

Select the Paper Source.

The screens in this section are from Windows

XP. The screens on your PC will vary depending on

your operating system.

If you are using Windows NT

4.0, Windows

2000 or XP, you can access the Basic tab by clicking

Printing Preferences... in the General tab of the Brother HL-2700CN series Properties screen.

DRIVER AND SOFTWARE 2 - 3

Advanced tab

Change the tab settings by clicking the following icons:

Print Quality

Duplex

Watermark

Page Setting

Device Options

If you are using Windows NT

4.0, Windows

2000 or XP, you can access the Advanced tab by

clicking Printing Preferences... in the General tab of the Brother HL-2700CN series Properties

screen.

DRIVER AND SOFTWARE 2 - 5

Device Options

Set the following print functions in this tab:

■ Job Spooling

■ Toner Save Mode

■ Quick Print Setup

■ Sleep Time

■ Status Monitor

■ Macro

■

Administrator (For Windows

95/98/Me users only)

■

Insert Command/File (For Windows

95/98/Me users only)

■ Print Setting

■ Print Setting (Monochrome Only)

■ Page Protection

■ Print Date & Time

2 - 6 DRIVER AND SOFTWARE

Job Spooling

You can reprint a document without sending the data again from your PC (except for secure printing)

because the printer will save data that you specify for reprinting.

■ Last Job Reprint: Reprint the last job

■ Secure Print: Print the data with a password

■ Public: Save the data without a password

■ Proof: Save the data and print it

For more information about the Reprint setting, see Reprint setting on page 3-26.

Toner Save Mode

You can save running costs by turning on the toner save mode, which reduces the print density.

Quick Print Setup

You can turn the Quick Print Setup function ON or OFF. A small selection window appears on your

computer. This will then let you make changes to the settings of the following functions:

■ Multiple Page

■ Duplex

■ Toner Save Mode

■ Paper Source

■ Media Type

■ Color / Mono

Sleep Time

When the printer does not receive data for a certain period of time (time-out), it enters sleep mode. Sleep

mode acts as though the printer was turned off. The default time-out is 30 minutes. When Intelligent

Sleep Mode is selected, it is automatically adjusted to the most suitable time-out setting depending on

the frequency of your printer use. While the printer is in sleep mode, the printer can still receive data from

the computer. Receiving a print file or document automatically wakes up the printer to start printing.

Pressing one of the buttons will also wake up the printer.

Sleep mode can be turned off. To turn sleep mode off, go to the Advanced tab, select Device Options

and then select Sleep Time. Double-click the word Sleep Time in the Sleep Time screen, this will allow

the Sleep Time Off function to appear, click Sleep Time Off to stop the printer going into sleep mode.

The Sleep Time Off function can be hidden by double-clicking the word Sleep Time in the Sleep Time

screen again. We recommend that you keep Sleep mode on for power saving.

Status Monitor

This reports the printer status (any errors that may happen with the printer) when printing. The default

setting for the Status Monitor is off. If you would like to turn the status monitor on, go to the Advanced

tab, select Device Options and then select Status Monitor.

■ If you want to prevent other people from using the Reprint setting to print your data, remove the

Use Reprint check mark in Job Spooling settings.

■ The settings for Job Spooling in the printer driver will take priority over the settings made on the

control panel. See Reprint setting on page 3-26.

2 - 8 DRIVER AND SOFTWARE

Accessories tab

When you install optional units, you can add them and select the settings for them in the Accessories

tab as follows.

You can manually add or remove the options for any optional device that is installed on the printer.

Tray settings will match the installed options.

RAMDISK

You can detect the capacity of RAMDISK that that has been set using the control panel. To find the

capacity of RAMDISK, tick the RAMDISK check box and then click Auto Detect.

For more information, see Reprinting from RAM on page 3-26.

Paper Source Setting

This feature recognizes the paper size in each paper tray.

Auto detection of printer options and RAMDISK

■ The Auto Detect function finds the currently installed optional unit devices and shows the

available settings in the printer driver. When you click the Auto Detect button, options that are

installed on the printer will be listed. You can manually add or remove options.

Auto Detect function may not be available under certain printer conditions.

DRIVER AND SOFTWARE 2 - 9

Support Tab

■ You can download the latest driver by accessing the Brother Solutions Center at

http://solutions.brother.com

■ You can see the printer driver version.

■ You can check the current driver settings.

■ You can print the Print Settings page and internal fonts list.

If you are using Windows NT

4.0, Windows

2000 or XP, you can access the Support tab by

clicking Printing Preferences... in the General tab of the Brother HL-2700CN series Properties

screen.

2 - 10 DRIVER AND SOFTWARE

Features in the PS printer driver

You can download the latest driver by accessing the Brother Solutions Center at

http://solutions.brother.com

For more information, please see the online Help in the printer driver.

Ports tab

Select the port where your printer is connected or the path to the network printer you are using.

The screens in this section are from Windows

XP. The screens on your PC will vary depending on

your operating system.

DRIVER AND SOFTWARE 2 - 11

Device Settings tab

Select the options you installed.

DRIVER AND SOFTWARE 2 - 13

Paper / Quality tab

Select the Paper Source and Color.

DRIVER AND SOFTWARE 2 - 15

You can change settings by selecting the setting in the Printer Features list:

■ Media Type

■ Collate (Only when a CompactFlash

card is installed)

■ Job Spooling

■ PASSWORD

■ Job Name

■ Print Quality

■ HRC

■ Toner Save

■ Sleep Time

■ Color / Mono

■ Gamma Correction

■ Color Mode

■ Improve Gray Color

■ Enhance Black Printing

■ Halftone Screen Lock

■ BR-Script Level

DRIVER AND SOFTWARE 2 - 17

Specific settings

Set the Media Type, Job Spooling, PASSWORD and other settings.

2 - 18 DRIVER AND SOFTWARE

Software

Software for Networks

BRAdmin Professional utility

The BRAdmin Professional is a utility for managing your Brother network enabled printers that are

running under Windows

95/98/Me, Windows NT

4.0 and Windows

2000/XP.

It allows you to easily configure and check the status of your printer on the network.

Driver Deployment Wizard

This installer includes the Windows

PCL driver and Brother network port driver (LPR and NetBIOS).

The administrator should set up the IP address, Gateway and Subnet with BRAdmin Professional utility

before using this software.

If the administrator then installs the printer driver and port driver using this software, he can save the file

to the file server or send the file by E-mail to users. Then, each user just clicks that file to have the printer

driver, port driver, IP address, and so on, automatically copied to their PC.

Web BRAdmin

The Web BRAdmin software is designed to manage all LAN/WAN Brother network connected devices.

By installing the Web BRAdmin server software on a computer running IIS*, Administrators with a Web

browser can connect to the Web BRAdmin server, which then communicates with the device itself.

Unlike the BRAdmin Professional utility - which is designed for Windows

systems only - the Web

BRAdmin server software can be accessed from any client computer with a web browser that supports

Java 2.

You can download the Web BRAdmin software from our web site at

http://solutions.brother.com/webbradmin

IIS* = Internet Information Server 4.0 or Internet Information Services 5.0/5.1

Web BRAdmin and Internet Information Server 4.0 is supported by the following operating systems:

■ Windows NT

4.0 Server

Web BRAdmin and Internet Information Server 5.0 is supported by the following operating systems:

■ Windows

2000 Professional

■ Windows

2000 Server

■ Windows

2000 Advanced Server

Web BRAdmin and Internet Information Server 5.1 is supported by the following operating systems:

■ Windows

XP Professional

This section is for Windows

2 - 20 DRIVER AND SOFTWARE

Automatic Interface Selection

This printer has an Automatic Interface Selection feature. When the printer receives data from the

computer, it automatically selects the IEEE 1284 Parallel or the USB interface, whichever is appropriate.

When you use the parallel interface, you can turn the high-speed and bi-directional parallel

communications on or off by using the control panel buttons to access PARALLEL in the INTERFACE

menu. See INTERFACE on page 3-17. Since the Automatic Interface Selection mode has been factory

set to ON, simply connect the interface cable to the printer. (Note: Always turn off both your computer

and printer when connecting or disconnecting the cable).

If you typically use only one interface, we recommend that you select that interface in the INTERFACE

mode. If only one interface is selected, the printer will allocate the entire input buffer to that interface.

Printer settings

Factory settings

The printer settings have been set at the factory before shipment. They are called factory settings.

Although you can operate the printer with these factory settings unchanged, you can tailor the printer

with user settings. See List of factory settings on page 3-22.

The changed user settings can be restored to the default factory settings with the RESET MENU menu.

See RESET MENU on page 3-17.

When you use the Automatic Interface Selection, note the following:

■ This function takes a few seconds to work. If you want to speed up printing, select the required

interface manually by using the control panel to access SELECT in the INTERFACE menu.

Changing the user settings does not affect the factory settings. You cannot modify the present

factory settings.

CONTROL PANEL 3 - 1

Control panel

This printer has one liquid crystal display (LCD), six buttons and two Light Emitting Diodes (LEDs) on

the control panel. The display can show various messages with up to 16 characters in each of the two

rows. The LEDs light to indicate the current printer status.

Figure 3-1

Control panel

3 - 2 CONTROL PANEL

Buttons

You can control the basic printer operations and change various printer settings with the six buttons (Go,

Job Cancel, +, -, Set, Back).

Button Operations

Go Exit from the control panel menu, reprint settings, error messages and

sleep mode.

Job Cancel Stop and cancel the print job in progress.

Menu + Move forward through menus.

Move forward through the options you can choose.

- Move backward through menus.

Move backward through the options you can choose.

Set Select the control panel menu.

Set the selected menus and settings.

Back Go back one level in the menu.

3 - 4 CONTROL PANEL

Back button

If you press the Back button when the printer is in the on-line (Ready) state, it goes off-line and the LCD

goes to the menu.

Pressing the Back allows you to return to the previous level from the current menu level.

The Back button also allows you to select the previous digit while setting numbers.

When you select the leftmost digit, the Back button allows you to go up one level in the menu.

When you select a setting and it does not have an asterisk (*) (Set button was not pressed), the Back

button allows you to return to the previous menu level with the original setting unchanged.

When you press the Set button to choose a setting, an asterisk appears briefly at the end of the

display. Since the asterisk shows what you have chosen, you can easily see the current settings as

you look through the display.

3 - 6 CONTROL PANEL

Liquid crystal display (LCD)

The display shows the current printer status. When you use the control panel buttons, the display will

change.

If you take the printer off-line, the display changes to show the emulation you have chosen.

If there are any problems, the display shows the appropriate error message, maintenance message, or

call service message so you will know that you need to take action. For more information about these

messages, see Troubleshooting in Chapter 6.

LCD messages

The message on the LCD display shows the current printer status during normal operation as shown

below.

The  marks indicate the status of the toner in the toner cartridges (K: Black, C: Cyan, M: Magenta, Y:

Yellow). When the  mark blinks (), the indicated toner is nearly empty. When toner becomes empty,

the  indicator disappears completely.

When an error has occurred, the type of error is displayed on the first line of the LCD message as shown

below.

The message on the second line shows information for clearing the error as shown below.

READY

   

K C M Y

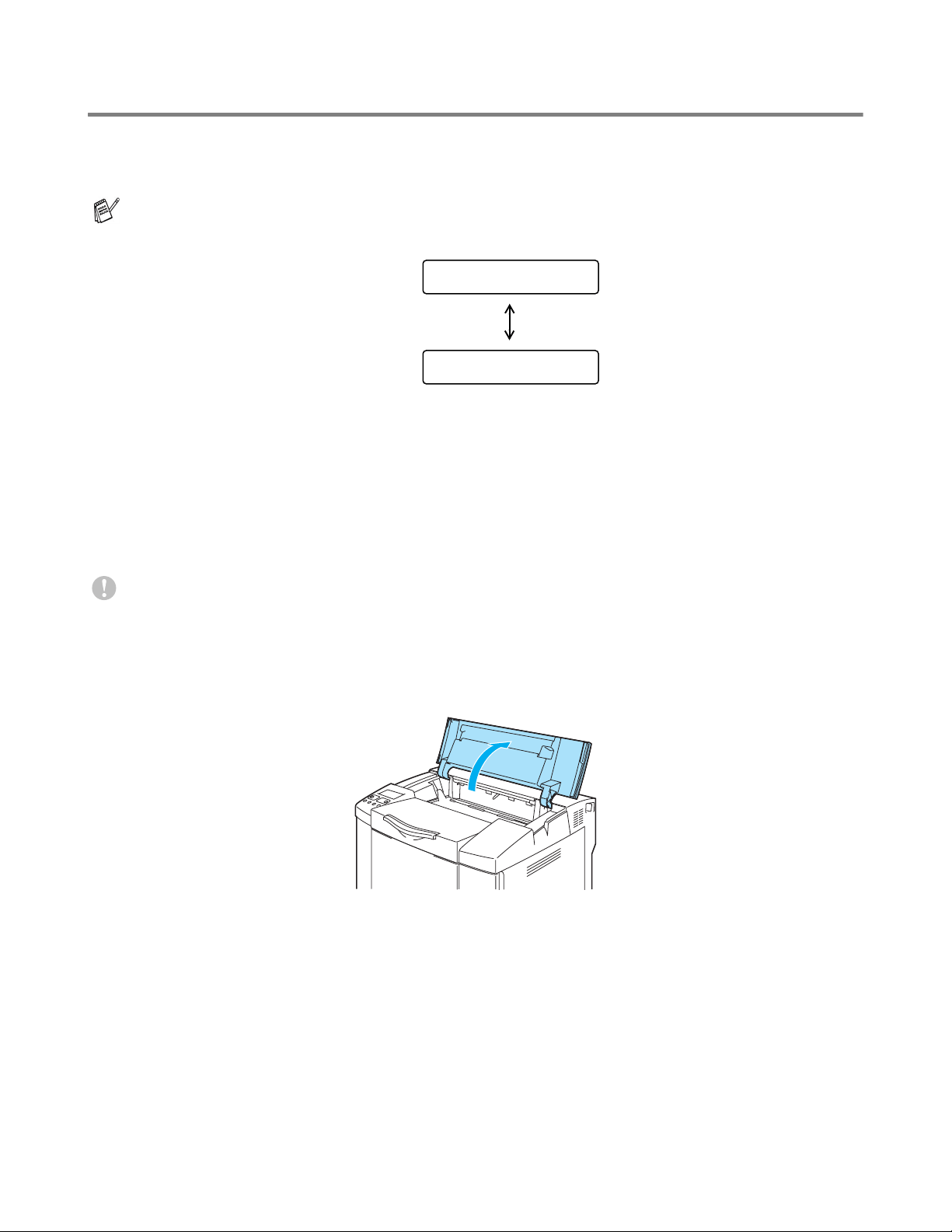

COVER OPEN

Close the Top Cover

CONTROL PANEL 3 - 7

Printer status messages

The following table shows the printer status messages that are displayed during normal operation:

How to use the control panel

When you use the Menu buttons (+, -, Set or Back), remember the following basic steps:

■ If no control panel operations are performed for 30 seconds, the LCD automatically returns to Ready

state.

■ When you press the Set button to choose a setting, an asterisk appears briefly at the end of the

display. After that, the display returns to the previous menu level.

■ After changing the status or a setting, pressing the Back button before you press the Set button will

cause the display to return to the previous menu level with the original settings unchanged.

■ There are two ways to input numbers. You can press the + or - button to scroll up or down one

number at a time, or you can hold down + or - to scroll faster. The blinking number is the one that you

can change.

Printer status message Meaning

READY Ready to print.

PRINTING Printing.

RESOLUTION ADAPT Printing with reduced resolution.

PROCESSING Busy processing data.

JOB CANCELLING Cancelling the job.

PAUSE The printer has suspended its operations. Press the

Go button to start the printer

again.

WARMING UP The printer is warming up.

SLEEP In sleep status

PRESS SET TO PRINT Press the

Set button to start printing.

RESET TO FACTORY

SETTING

The printer settings return to the factory settings.

SELF TEST Performing self-diagnostics.

RAM SIZE=xxMB This printer has XX MB memory.

NOW INITIALIZING The printer is setting up.

PROGRAMING-WAIT Accessing CompactFlash card.

3 - 8 CONTROL PANEL

For example: If you only use Tray 1 to print from, change the SOURCE setting to TRAY1,

as follows:

Press any of the Menu buttons (+, -, Set or Back) to take the printer

off-line.

Press the + or - button to move forward or backward through the

menus until PAPER is displayed.

Press the Set button to move to the next menu level.

Press the Set button.

Press the + button.

Press the Set button.

An asterisk * briefly appears at the end of the display.

The default setting is indicated by an *.

READY

--MENU--

INFORMATION

--MENU--

PAPER

SOURCE

=AUTO *

SOURCE

=TRAY1

SOURCE

=TRAY1

CONTROL PANEL 3 - 11

PAPER

Display Shows Description

SOURCE =AUTO/TRAY1/TRAY2

Selects which paper tray the paper will be fed from.

MANUAL FEED =OFF/ON

Selects whether or not you want to feed paper manually.

TRAY1 SMALL SIZE =B5/DL/COM-10/JISB5

TRAY2 SMALL SIZE =B5/JISB5

DUPLEX =OFF/ON(LONG BIND)/ON(SHORT BIND)

Selects whether you want to automatically print on both sides of the paper.

QUALITY

Display Shows Description

HRC =MEDIUM/DARK/OFF/LIGHT

HRC: High Resolution Control offers improved print quality of letters, numbers and

graphics that conventional laser printers cannot achieve, with a resolution of 300

or 600 dpi.

TONER SAVE =OFF/ON

CALIBRATION Subsetting Description

CALIBRATE Carry out calibration to revise the colors.

RESET Set the calibration parameters back to those set

at the factory.

3 - 12 CONTROL PANEL

SETUP

Display Shows Description

LANGUAGE = ENGLISH/FRANÇAIS /...

PANEL CONTROL Subsetting Description

BUTTON REPEAT Set the time for the display message to change

when holding the + or - button at intervals of: 0.2,

0.4, 0.6, 0.8, 1.0, 1.4, 1.8 or 2.0 seconds. The

factory setting is 0.2.

MESSAGE SCROLL Set the time in seconds that an LCD message

will scroll across the display. From level 1=0.2 to

Level 10=2.0. The factory setting is Level 1.

POWER SAVE =ON/OFF

POWER SAVE TIME =1:30:99 MIN

AUTO CONTINUE =OFF/ON

LOCK PANEL =OFF/ON

Turns the lock panel settings ON/OFF.

PASS NO.=###

REPRINT =ON/OFF

PAGE PROTECTION =AUTO/OFF/LETTER/LEGAL/A4

EMULATION =AUTO(EPSON)/AUTO(IBM)/HP LASER JET/....

KEEP PCL =OFF/ON

RAMDISK SIZE =0/1/2/...MB RESTART PRINTER?

DELETE STORAGE Deletes the data on the CompactFlash card.

Subsetting Description

SECURE FILE Selects the user name, job name and password.

PUBLIC FILE Selects the user name and job name.

PROOF FILE Selects the user name and job name.

DATA ID (CF) =####

MACRO ID (CF) =####

FONT ID (CF) =####

XLSTREAM(CF) =####

FORMAT(CF) OK?

TIME STYLE =YY/MM/DD hh:mm*

DATE & TIME DISPLAY YYYY/MM/DD hh:mm

YEAR =YYYY

MONTH =MM

DAY =DD

HOUR =hh

MINUTE =mm

CONTROL PANEL 3 - 15

EPSON FX-850 FONT NO. =I0000:#####

FONT PITCH =###.##

CHARACTER SET PC-8/...

Sets the symbol set or the character set.

TABLE PRINT Print code table.

AUTO LF =OFF/ON

ON: CR→CR+LF

OFF: CR→CR

AUTO MASK =OFF/ON

LEFT MARGIN Sets the left margin at column 0 to 126 columns

at 10 cpi.

RIGHT MARGIN Sets the right margin at column 10 to 136

columns at 10 cpi.

TOP MARGIN Sets the top margin at a distance from the top

edge of the paper: 0, 0.33, 0.5, 1.0, 1.5 or 2.0"

The factory setting is 0.33

BOTTOM MARGIN Sets the bottom margin at a distance from the

bottom edge of the paper: 0, 0.33, 0.5, 1.0, 1.5

or 2.0" The factory setting is 0.33

LINES Sets the number of lines on each page from 5 to

128 lines.

IBM PROPRINTER FONT NO. =I0000:#####

FONT PITCH =###.##

CHARACTER SET PC-8/...

Sets the symbol set or the character set.

TABLE PRINT Prints code table.

AUTO LF =OFF/ON

ON: CR→CR+LF,

OFF: CR→CR

AUTO CR =OFF/ON

AUTO MASK =OFF/ON

LEFT MARGIN Sets the left margin at column 0 to 126 columns

at 10 cpi.

RIGHT MARGIN Sets the right margin at column 10 to 136

columns at 10 cpi.

TOP MARGIN Sets the top margin at a distance from the top

edge of the paper: 0, 0.33, 0.5, 1.0, 1.5 or 2.0"

The factory setting is 0.33

BOTTOM MARGIN Sets the bottom margin at a distance from the

bottom edge of the paper: 0, 0.33, 0.5, 1.0, 1.5

or 2.0"

The factory setting is 0.33

LINES

Sets the number of lines on each page from 5 to

128 lines.

PRINT MENU (Continued)

Display Shows Description

3 - 16 CONTROL PANEL

HP-GL CHAR SET(STD) =####

CHAR SET(ALT) =####

PEN # SIZE PEN 1 to 6

(Set size and gray percentage for the selected

pen.)

PEN # GRAY PEN 1 to 6

15, 30, 45, 75, 90 or 100 %

(# is the selected pen number)

BR-SCRIPT ERROR PRINT =OFF/ON

CAPT =OFF/ON

CAPT: Color Advanced Photoscale Technology

offers photographic fine gray scale on graphics.

NETWORK

Display Shows Description

TCP/IP Subsetting Description

TCP/IP ENABLE =ON/OFF

IP ADDRESS= ###.###.###.###

SUBNET MASK= ###.###.###.###

GATEWAY= ###.###.###.###

IP BOOT TRIES =#

IP METHOD =AUTO/STATIC/RARP/BOOTP/DHCP

APIPA =ON/OFF

NETWARE NETWARE ENABLE =ON/OFF

NET FRAME =AUTO/8023/ENET/8022/SNAP

APPLETALK =ON/OFF

NETBEUI =ON/OFF

DLC/LLC =ON/OFF

NETBIOS/IP =ON/OFF

ENET =AUTO/100B-FD/100B-HD/10B-FD/10B-HD

PRINT MENU (Continued)

Display Shows Description

CONTROL PANEL 3 - 17

INTERFACE

Display Shows Description

SELECT =AUTO/USB/PARALLEL/NETWORK

AUTO IF TIME = 1:99 (sec)

You need to set the time-out period for the auto interface selection.

INPUT BUFFER = Level1:15

Increases or decreases the input

buffer capacity.

RESTART PRINTER?

PARALLEL When using the parallel interface

Subsetting Description

HIGH SPEED =ON/OFF

Turns high-speed parallel communications on or

off.

BI-DIR =ON/OFF

Turns bi-directional parallel communications on

or off.

USB2.0 HIGH SPEED =ON/OFF

Turns high-speed USB2.0 communications on

or off.

RESET MENU

Display Shows Description

RESET PRINTER Resets the printer and restores all printer settings (including command settings) to

settings you have previously made with the control panel buttons.

FACTORY RESET Resets the printer and restores all printer default settings (including command

settings) to the factory settings. See List of factory settings on page 3-22.

PARTS LIFE Subsetting Description

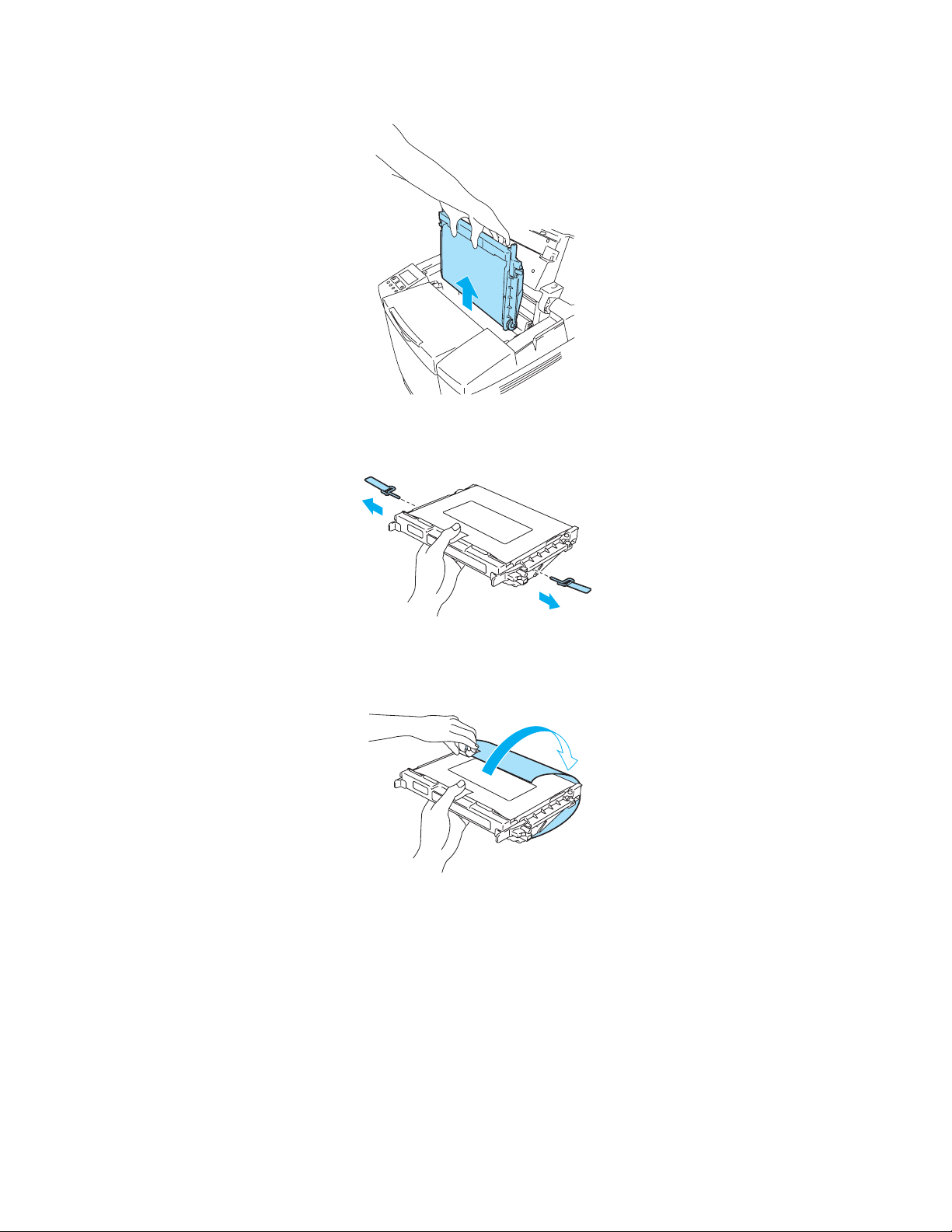

OPC BELT Resets the OPC Belt parts life.

Appears when you need to replace the OPC

belt.

FUSER UNIT Resets the Fusing Unit parts life.

Appears when you need to replace the Fusing

unit.

120K KIT Resets the 120K Kit parts life.

Appears when you need to replace the 120K Kit.

PF KIT2 Resets the PF kit2 parts life.

Appears when you need to replace the PF Kit2.

3 - 18 CONTROL PANEL

REPRINT

Display Shows Description

COPIES = 1 Appears when the printer has reprint data but no PROOF, PUBLIC or SECURE

data in the memory.

LAST JOB COPIES = 1

Appears when the printer has reprint data and PROOF, PUBLIC or SECURE data

in the memory.

PROOF FILE XXX (User name), XXX (Job name), COPIES = 1

Appears when the printer has PROOF data in the memory.

PUBLIC FILE XXX (User name), XXX (Job name), COPIES = 1

Appears when the printer has PUBLIC data in the memory.

SECURE FILE XXX (User name), XXX (Job name), XXX (Pass word), COPIES = 1

Appears when the printer has SECURE data in the memory.

CONTROL PANEL 3 - 19

Set date and time

Press the + or - button until the SETUP menu appears (and to

display each setting shown below).

Press the Set button, and then press the + or - button

until DATE & TIME appears.

Press the Set button, and then press the + or - button until YEAR

appears.

a) Press the Set button.

b) Press the + button until the correct year appears.

c) Press the Set button.

d) After a short time, the display changes.

e) Press the Set button.

Repeat processes ‘a to e’ until you have set the date & time.

--MENU--

INFORMATION

--MENU--

SETUP

DATE & TIME

YEAR

=1999 *

YEAR

=2003

YEAR

=2003 *

DATE & TIME

YEAR

DATE & TIME

MONTH

DATE & TIME

2003/10/25 10:22

3 - 20 CONTROL PANEL

Set IP address

Press the + or - button until the NETWORK menu appears (and to

display each setting shown below).

Press the Set button.

Press the + button.

Press the Set button.

The last digit in the first part of the number is blinking.

Press the + or - button to increase or decrease the number.

Press the Set button to go to the next number.

Repeat this process until you have set your IP address.

Press the Set button to complete the IP address.

An asterisk appears at the end of the display.

--MENU--

INFORMATION

--MENU--

NETWORK

TCP/IP

TCP/IP ENABLE

TCP/IP

IP ADDRESS=

192.0.0.192 *

IP ADDRESS=

123.0.0.192

IP ADDRESS=

123.45.67.89

IP ADDRESS=

123.45.67.89 *

3 - 22 CONTROL PANEL

List of factory settings

Table 1 shows the factory settings.

Network factory default setting

If you wish to reset the print server back to its default factory settings (resetting all information such as

the password and IP address information), please follow these steps:

Turn off the printer.

Hold down the + button as you turn on the power switch. Keep the button pressed down until the

LCD display shows

The print server has been reset to its default factory settings.

■ Different emulation modes will have different factory settings.

■ The following settings cannot be automatically restored to the factory settings by using the

FACTORY RESET in the RESET MENU menu - INTERFACE menu, HRC, PAGE

PROTECTION, SCALABLE FONT, LOCK PANEL, page counter and local language for display

messages.

■ The COPY setting is always restored to the factory setting when the printer is turned off and on.

--MENU--

INFORMATION

CONTROL PANEL 3 - 23

Table 1: List of factory settings

MODE MENU Factory Setting

PAPER SOURCE =AUTO

MANUAL FEED =OFF

DUPLEX =OFF

QUALITY HRC =MEDIUM

TONER SAVE =OFF

SETUP LANGUAGE =ENGLISH

POWER SAVE TIME =30MIN

AUTO CONTINUE =OFF

LOCK PANEL =OFF

REPRINT =ON

PAGE PROTECTION =AUTO

EMULATION =AUTO(EPSON)

KEEP PCL =OFF

RAMDISK SIZE =#MB

TIME STYLE =YY/MM/DD hh:mm

PRINT MENU MEDIA TYPE =PLAIN PAPER

PAPER =A4/LETTER

COPIES =1

ORIENTATION =PORTRAIT

PRINT POSITION X OFFSET=0

Y OFFSET=0

AUTO FF TIME =5

FF SUPPRESS =OFF

HP LASERJET FONT NO.=59

FONT PITCH/POINT=10.00/12.00

SYMBOL/CHARACTER SET=PC8

AUTO LF=OFF

AUTO CR=OFF

AUTO WRAP=OFF

AUTO SKIP=ON

LEFT MARGIN=####

RIGHT MARGIN=####

TOP MARGIN=####

BOTTOM MARGIN=####

LINES=####

3 - 24 CONTROL PANEL

PRINT MENU EPSON FX-850 FONT NO.=59

FONT PITCH/POINT=10.00/12.00

SYMBOL/CHARACTER SET=US ASCIF

AUTO LF=OFF

AUTO MASK=OFF

LEFT MARGIN=####

RIGHT MARGIN=####

TOP MARGIN=####

BOTTOM MARGIN=####

LINES=####

IBM PROPRINTER FONT NO.=59

FONT PITCH/POINT=10.00/12.00

SYMBOL/CHARACTER SET=PC8

AUTO LF=OFF

AUTO CR=OFF

LEFT MARGIN=####

RIGHT MARGIN=####

TOP MARGIN=####

BOTTOM MARGIN=####

LINES=####

HP-GL CHAR SET(STD)=####

CHAR SET(ALT)=####

PEN # SIZE

PEN # GRAY

BR-SCRIPT ERROR PRINT=OFF

CAPT=OFF

Table 1: List of factory settings (Continued)

MODE MENU Factory Setting

CONTROL PANEL 3 - 25

NETWORK TCP/IP TCP/IP ENABLE=ON

IP ADDRESS=169.254.###.###

SUBNET MASK=255.255.0.0

GATEWAY=0.0.0.0

IP BOOT TRIES=3

IP METHOD=AUTO

APIPA=ON

NETWARE NETWARE ENABLE=ON

NET FRAME=AUTO

APPLETALK =ON

NETBEUI =ON

DLC/LLC =ON

NETBIOS/IP =ON

ENET =AUTO

INTERFACE SELECT =AUTO

AUTO IF TIME =5

INPUT BUFFER =LEVEL 3

PARALLEL HIGH SPEED=ON

BI-DIR=ON

USB2.0 HIGH SPEED=ON

Automatic Private IP Addressing (APIPA) protocol, automatically configure an IP address and

subnet mask. See the Network User's Guide, which is provided on the CD-ROM.

Table 1: List of factory settings (Continued)

MODE MENU Factory Setting

3 - 26 CONTROL PANEL

Reprint setting

If you want to reprint a document that has just been printed, you can reprint it by using the control panel

button. Also, if you have created a document that you wish to share with colleagues, simply spool the

document to a non-secure area of the printer. This document can then be reprinted by anyone who is on

the network or at the printer control panel.

If you want to print PROOF, PUBLIC or SECURE data, we recommend that you install the optional

CompactFlash

card.

Reprinting from RAM

If you do not install a CompactFlash

card (see CompactFlash

card on page 4-11), you can reprint from

random access memory (RAM). The reprint data in RAM will be deleted when the printer is turned off.

When you use RAM to reprint:

Press the Set button on the control panel to exit from the READY state and select RAMDISK SIZE

in the SETUP menu.

The pre-set RAM disk is 0MB. Press the + button to increase the reprint RAM size in increments of

1MB.

We recommend that you add more RAM if you want to be able to print a lot of secured data. (See

SO-DIMM on page 4-13)

■ When you increase the RAM size for Secure Printing, the work area of the printer is decreased

and the printer performance will be reduced. Make sure that you reset the RAMDISK SIZE to

0MB after you finish using Secure Printing.

■ You can also save macros, the print log, and fonts on RAMDISK.

■ When you store data in RAM, the data will be deleted when the printer is turned off.

CONTROL PANEL 3 - 27

Reprinting the last job

You can reprint the data from the last print job without sending it from the computer again.

Reprint the last job three times

Turn the REPRINT setting ON by using the control panel buttons to go to the SETUP menu.

■ If you want to cancel reprinting, press the Job Cancel button.

■ If the printer does not have enough memory to spool the print job data, it will print only the last

page. We recommend that you expand the memory when you want to reprint a large amount of

data. For more information on memory expansion, see SO-DIMM memory on page 4-1.

■ For information about the settings in the printer driver, see Job Spooling on page 2-6.

If you print using the driver we have supplied with the printer, the settings for Job Spooling in the

printer driver will take priority over the settings made on the control panel. See Job Spooling on page

2-6.

Press the + or - button until the REPRINT menu appears (and to

display each setting shown below).

Press the Set button.

If PROOF, PUBLIC or SECURE

data exists.

Press the Set button.

Press the + button twice.

Press the Set button.

--MENU--

INFORMATION

--MENU--

REPRINT

--REPRINT--

COPIES= 1

---REPRINT---

LAST JOB

--REPRINT--

COPIES= 3

PRINTING

--REPRINT--

COPIES= 1

3 - 28 CONTROL PANEL

Printing PROOF data

You can use this setting to reprint PROOF data that has just been printed and has no security settings.

Documents that are placed in the PROOF area are available to anyone. You might use this setting for a

document that will be moved to a public folder at a later date.

When the area to spool data is full, the earliest data is automatically deleted first. The order of deleting

data is not connected to the order of reprinting.

When you reprint PROOF data, please see How to print SECURE data on page 3-30.

Printing PUBLIC data

You can use this setting to reprint documents that are stored in a PUBLIC area of the printer memory.

Documents here will not be protected by a password and anyone can access them using the control

panel or a web browser. The printer will not print a PUBLIC document when you send it to the printer.

You must use the control panel of the printer or connect to the printer through a web browser.

PUBLIC data can be deleted using the control panel of the printer or from the web-based management

software.

When you reprint PUBLIC data, please see How to print SECURE data on page 3-30.

■ Pressing the + or - button makes the number of reprint copies decrease or increase. You can

select between 1 and 999 COPIES.

■ If you wait 30 seconds to continue the control panel operation, the display leaves the REPRINT

setting automatically.

■ If you press the Go button twice, the printer will leave the REPRINT setting.

■ If you want to reprint the data and have pressed the Go button, the display shows PRESS SET

TO PRINT. Press the Set button to start reprinting, or press Go again to leave the REPRINT

setting.

■ If the printer does not have reprint data in the memory and you press the Set button when the

printer is in the REPRINT menu, the LCD shows NO DATA STORED.

■ If you have not installed the optional CompactFlash

, the reprint data will be deleted when the

printer is turned off.

■ If there is data in the job information that cannot be displayed on the LCD, the display shows a ?.

■ For more information about the settings in the printer driver, see Job Spooling on page 2-6.

■ If there is data in the job information that cannot be displayed on the LCD, the display shows a ?.

■ For more information about the settings in the printer driver, see Job Spooling on page 2-6.

CONTROL PANEL 3 - 31

When there is no reprint data in memory

If the printer does not have reprint data in the memory and you press the Set button when the printer is

in the REPRINT menu, the LCD shows NO DATA STORED.

To delete the job

Using the control panel button, select the DELETE STORAGE submenu under the SETUP menu. Select

the user name and the job to delete it (you will need to enter the password to delete secure data).

To cancel the reprint job

Pressing the Job Cancel button allows you to cancel the current reprint job. Job Cancel also allows you

to cancel a paused reprint job.

4 - 1 OPTIONS

Optional accessories and supplies

This printer has the following optional accessories. You can increase the capabilities of the printer with

these items.

Lower tray unit (LT-27CL)

See Lower tray unit (LT-27CL) on page 4-2.

Legal tray (LT-27LG)

See Legal tray (LT-27LG) on page 4-5.

Duplex unit (DX-2700)

See Duplex unit (DX-2700) on page 4-7.

CompactFlash

card

See CompactFlash

card on page 4-11.

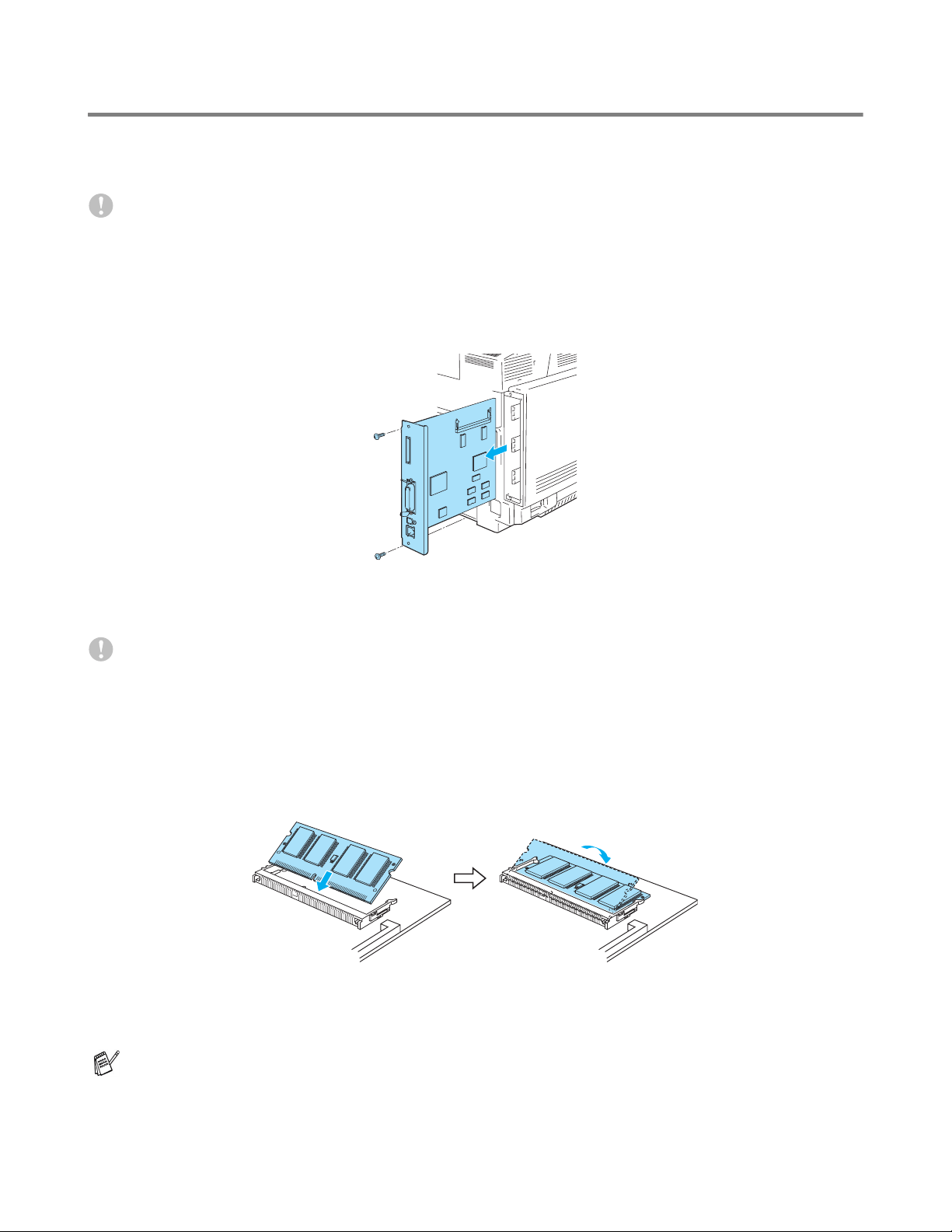

SO-DIMM memory

See SO-DIMM on page 4-13.

Optional fonts package

See Optional fonts package on page 4-16.

Options

OPTIONS 4 - 2

Lower tray unit (LT-27CL)

The lower tray unit (Tray 2) is an optional device that can hold up to 530 sheets of extra paper (75 g/m

or 20 lb). You can put Letter, A4, B5 (JIS and ISO) or Executive size (176x250 to 215.9x297mm) paper

in this tray. If you want to buy the optional lower tray unit, call the dealer you bought the printer from.

Putting paper in the lower tray unit

After you have installed the lower paper tray, you can put paper in it the same way you put paper in the

upper paper tray.

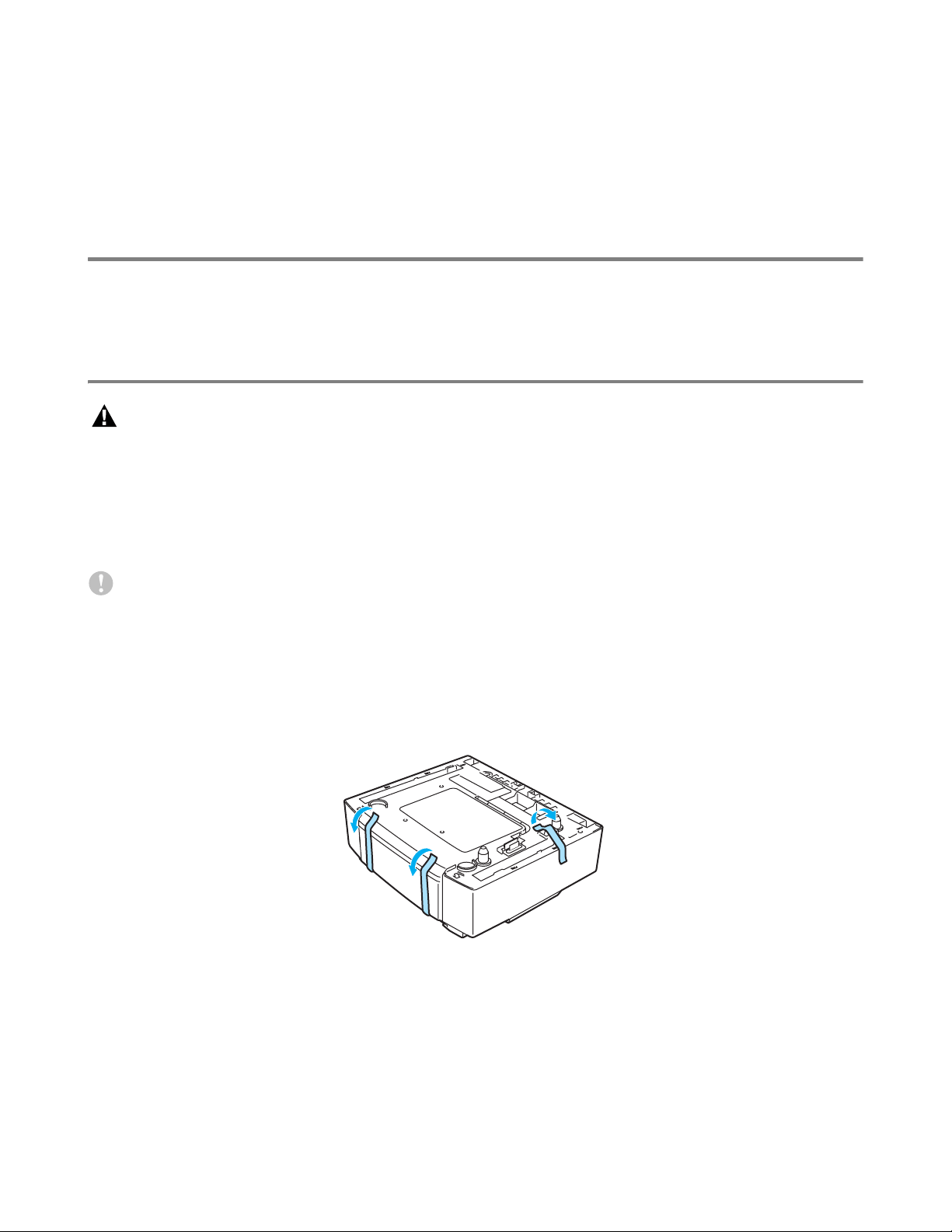

How to install the lower tray unit

Caution

When moving or lifting this printer, keep the printer flat. To avoid spills, you must first remove the

toner cartridges and waste toner pack.

Turn off the printer power switch and unplug the printer.

Place the lower tray unit on a flat table, and then remove the protective parts.

Figure 4-1

■ This printer is heavy and weighs approximately 31.5 kg (69.4 lb). To prevent injuries, use at

least two people to lift the printer.

■ When you lift the printer make sure you use the handholds at the bottom four corners of the

printer.

■ When placing the printer on top of the lower tray unit, be careful not to catch your fingers

between them.

■ Do not carry the printer when the lower tray unit and/or the duplex unit are attached.

4 - 3 OPTIONS

Remove the paper tray from the lower tray unit.

Figure 4-2

Remove the protective parts and then put the paper tray back in the lower tray unit.

Figure 4-3

Check the two alignment pins on the lower tray unit. Use two people to lift the printer and place it

on top of the lower tray unit. Make sure you use the handholds at the bottom four corners of the

printer. Check that the pins are properly inserted into the printer. Check that the connector is

inserted.

Figure 4-4

4 - 7 OPTIONS

Duplex unit (DX-2700)

The duplex unit is an optional device that allows you to print on both sides of a piece of paper. You can

print on Letter, A4, B5 (JIS/ISO), Executive, A5 and Legal size paper. When it is installed, you can select

either duplex printing or simplex printing on the control panel or with a software command. See PAPER

on page 3-11 for details about the menu setting.

How to install the duplex unit

Caution

When moving or lifting this printer, keep the printer flat. To avoid spills, you must first remove the

toner cartridges and waste toner pack.

Turn off the printer power switch and unplug the printer.

Remove the duplex upper cover, duplex lower cover and duplex cap at the back of the printer. We

recommend removing the covers and the cap with a coin or a screwdriver.

Figure 4-13

Remove the protective parts.

Figure 4-14

■ This printer is heavy and weighs approximately 31.5 kg (69.4 lb). To prevent injuries, use at

least two people to lift the printer.

■ When you lift the printer, be sure to use the handholds at the bottom four corners of the printer.

■ Do not carry the printer when the lower tray unit and/or the duplex unit are attached.

OPTIONS 4 - 8

Use the handholds of the duplex unit to lift it up.

Figure 4-15

Insert the bottom of the duplex unit into the grooves in the printer, and then insert both the hooks of

the duplex unit to the holes of the printer.

Figure 4-16

Open the duplex back cover and duplex inside unit.

Figure 4-17

4 - 9 OPTIONS

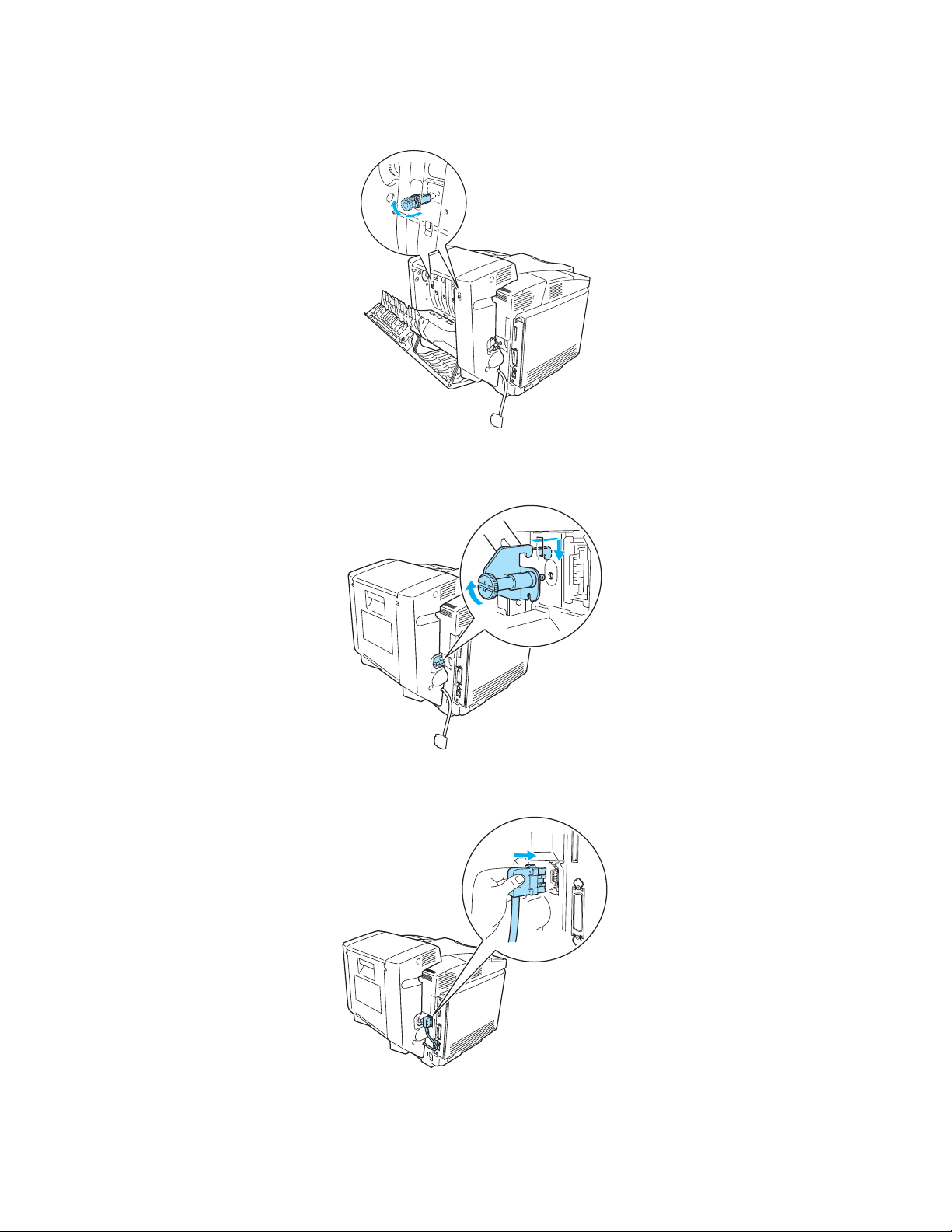

Pull out the 2 green sleeves covering the screws as far as they will come. Turn the green sleeves

to tighten the screws of the duplex unit to the printer. Once the screws are fully tight, push the green

sleeves back in.

Figure 4-18

Put the hook on the left hand side of the duplex unit into the hole of the printer. Secure the screw of

the duplex unit to the printer.

Figure 4-19

Connect the connector cable to the printer.

Figure 4-20

Plug the printer into the AC power outlet/socket and turn on the printer power switch.

4 - 11 OPTIONS

CompactFlash

card

This printer has a slot for an optional CompactFlash

card. If you install an optional CompactFlash

card,

you can save macros, the print log, and fonts on it. You can also select your print job and reprint it

through the network.

You can install the following types of CompactFlash

memory cards:

SanDisk (or SanDisk OEM products)

Type II

■ 32 MB SDCFB-32-801

■ 64 MB SDCFB-64-801

■ 96 MB SDCFB-96-801

■ 128 MB SDCFB-128-801

■ 192 MB SDCFB-192-801

■ 256 MB SDCFB-256-801

■ Make sure the printer power is OFF before you insert or remove the card, this is so you don’t

seriously damage it or lose all its data.

■ For more information about the CompactFlash

card, call the dealer you bought the printer from.

■ For the latest information visit: http://solutions.brother.com

■ Make sure the printer power is off before you install or remove a card so you don't seriously

damage it or lose all its data.

■ IBM Microdrive

is not compatible.

■ For more information about the card, call the dealer you bought the printer from.

4 - 13 OPTIONS

SO-DIMM

We recommend that you expand the printer memory to avoid any MEMORY FULL errors.

The HL-2700CN printer has 64 MB of standard memory and a slot for optional additional memory. The

memory can be expanded up to a total of 576 MB by installing a commercially available SO-DIMM (Dual

In-line Memory Module).

The printer uses memory modules that are:

144 pins, no-parity, SDRAM with 64 MB or more.

The printer is not compatible with Extended Data Output (EDO) DIMM.

The following SO-DIMM sizes can be installed:

In general, SO-DIMM must have the following specifications:

<US>

■ 64 MB

■ 128 MB

■ 256 MB

■ 64 MB

■ 128 MB

■ 256 MB

■ 512 MB

TechWorks

Buffalo Technology

12345-0001

12462-0001

12469-0001

VN133-64M

VN133-128M

VN133-256M

VN133-512M

For more information, visit Techworks web site at www.techworks.com

Type:

CAS latency:

Clock frequency:

Capacity:

DRAM type:

144 pin and 64 bit output

2 or 3

100 MHz or more

64 MB to 512 MB

SDRAM

■ The printer’s standard memory can vary depending on the printer model and the country.

■ There might be some SO-DIMMs that will not work with this printer.

■ For more information, call the dealer you bought the printer from or Brother Customer Service.

■ For the latest information, visit the Brother Solutions Center at http://solutions.brother.com

OPTIONS 4 - 14

Installing additional memory

Turn off the printer power switch, and then unplug the printer. Disconnect the interface cable from

the printer.

Caution

Make sure you turn the printer OFF before you install or remove the SO-DIMM. Installing optional

accessories without turning off the printer could result in electric shock hazard.

Unscrew the two screws securing the back plate of the main controller board, and then pull out the

main controller board.

Figure 4-22

Unpack the SO-DIMM and hold it by the edges.

Caution

SO-DIMM boards can be damaged by even a small amount of static electricity. Do not touch the

memory chips or the board surface. Wear an antistatic wrist strap when you install or remove the

board. If you do not have an antistatic wrist strap, keep touching the bare metal on the printer.

Hold the SO-DIMM with your fingers on the side edges and align the notch in the SO-DIMM with the

protrusions in the SO-DIMM slot.

Figure 4-23

Put the SO-DIMM diagonally, and then tilt the SO-DIMM toward the main controller board until it

clicks into place.

To remove the SO-DIMM, open the retaining clips on both sides of the SO-DIMM by pushing them

outward, grasp both edges of the SO-DIMM and pull it out straight.

OPTIONS 4 - 16

Optional fonts package

Optional fonts package (BS-3000)

The optional fonts package (BS-3000) is the CD-ROM you need for installing the PS3 136 compatible

fonts.

Optional barcode fonts package (BT-1000)

The optional barcode fonts package (BT-1000) is the CD-ROM you need for installing the barcode fonts.

Selecting the optional fonts

After you have installed the optional font card, you can select optional fonts using any of the following

methods:

Through your application software

With a font selection command

With the control panel menu settings.

When you select fonts through your application software, follow the instructions specific to your software.

See your software manual if you need assistance. When you select fonts with a font selection command,

embed the font selection command in your program. See the Technical Reference Manual. Call a

Brother authorized service representative or Brother Customer Service for references to the Technical

Reference Manual.

To select fonts with the control panel setting menu, follow these basic steps:

Press any of the Menu buttons (+, -, Set or Back) to take the printer off line.

Press + or - until INFORMATION appears on the LCD display.

Press Set to proceed to the next menu level, and then press + or - until PRINT FONTS appears.

Press Set to print the list of optional fonts (Figure 4-23).

Find the font number on the list.

When you select the fonts through your software or with a command, note the following:

■ You do not need to be concerned about the font control panel setting. The software or command

overrides the printer setting.

■ Be sure to install a font package that has the fonts you want. The printer automatically selects

the font that has exactly the same or similar characteristics as those you have set through the

software or with a command. If the installed font package does not happen to have a font of

similar characteristics, the printer will print in an unexpected font.

4 - 17 OPTIONS

Figure 4-25

Press + or - on the control panel to select PRINT MENU.

Press Set to proceed to the next menu level, and then press + or - to select HP LASERJET, EPSON

FX-850, or IBM PROPRINTER.

Press the Set button to select the emulation for the fonts you want to select HP LASERJET, EPSON

FX-850, or IBM PROPRINTER.

Press + or - button to select FONT NO, and then select the font number of the font you want.

Font number

5 - 4 ROUTINE MAINTENANCE

Toner cartridges

A new toner cartridge contains enough toner to print up to 10,000 pages for Black and up to 6,600 pages

for Cyan, Magenta and Yellow A4 or Letter-size single-sided pages at about 5% coverage.

Toner nearly empty message

Check printed pages, page counter, and display messages regularly. If the  indicator starts blinking,

the printer has nearly run out of toner or the toner is not evenly distributed inside the cartridge.

*K stands for Black, C stands for Cyan, M stands for Magenta and Y stands for Yellow.

Although you can print up to 300 (Black) and 500 (Cyan, Magenta and Yellow) additional pages (at 5%

coverage) after the TONER LOW message first appears, be sure to replace the toner cartridge with a new

one before it becomes completely empty. When this occurs, the  indicator on the LCD panel will

disappear.

TONER EMPTY message

When the following message appears on the LCD panel and the printer stops printing, you need to

replace the toner cartridge:

■ The amount of toner used varies depending on how much print is on the page and the print

density setting.

■ If you change the print density setting for lighter or darker printing, the amount of toner that is

used will change.

■ Wait to unpack the toner cartridge until immediately before you install it in the printer.

READY

   

K C M Y

TONER EMPTY

ROUTINE MAINTENANCE 5 - 5

Replacing the toner cartridges

To replace the toner cartridge, follow these steps:

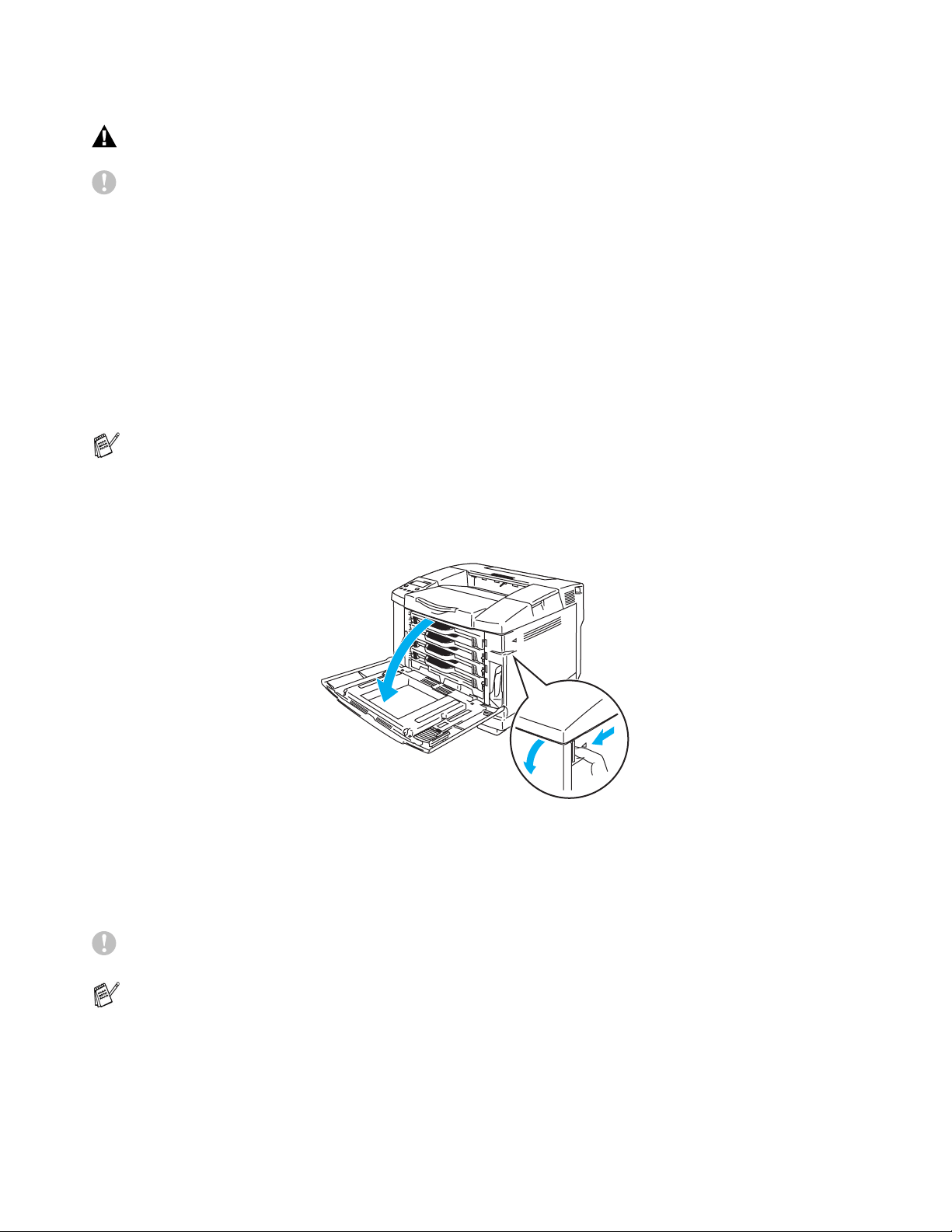

Open the front cover of the printer.

Figure 5-1

Pull out the used toner cartridge.

Take the new toner cartridge out of the box.

Do not put the toner cartridge into a fire. It could explode.

■ Brother strongly recommends that you do not refill the toner cartridge provided with your printer.

We also strongly recommend that you continue to use only Genuine Brother Brand

replacement toner cartridges. Using or attempting to use potentially incompatible toner and /or

toner cartridges in your printer may cause damage to the printer itself and/or it may result in

unsatisfactory print quality. Our warranty coverage does not apply to any problem that was

caused by the use of unauthorized third party toner and toner cartridges. To protect your

investment and guarantee your print quality please continue to replace consumed toner

cartridges with only Genuine Brother Branded Supplies.

■ Printing with a third-party toner or third-party toner cartridges may reduce not only the print

quality but also the quality and life of the printer itself. It may also cause serious damage to the

performance and life of a drum unit. Warranty coverage does not apply to problems caused by

the use of third-party toner or third-party toner cartridges.

We recommend that you clean the printer when you replace the toner cartridge. See Cleaning on

page 5-21.

Handle the toner cartridge carefully. If toner scatters on your hands or clothes, immediately wipe

or wash it off with cold water.

■ Be sure to seal up the toner cartridge tightly so that toner powder does not spill out of the

cartridge.

■ Discard the used toner cartridge according to local regulations, keeping it separate from

domestic waste. If you have questions, call your local waste disposal office.

5 - 6 ROUTINE MAINTENANCE

Hold the cartridge level with both hands and gently rock it from side to side three to four times to

spread the toner evenly inside the cartridge. Remove the tape labeled REMOVE and the orange

protective cover from the new toner cartridge.

Figure 5-2

Figure 5-3

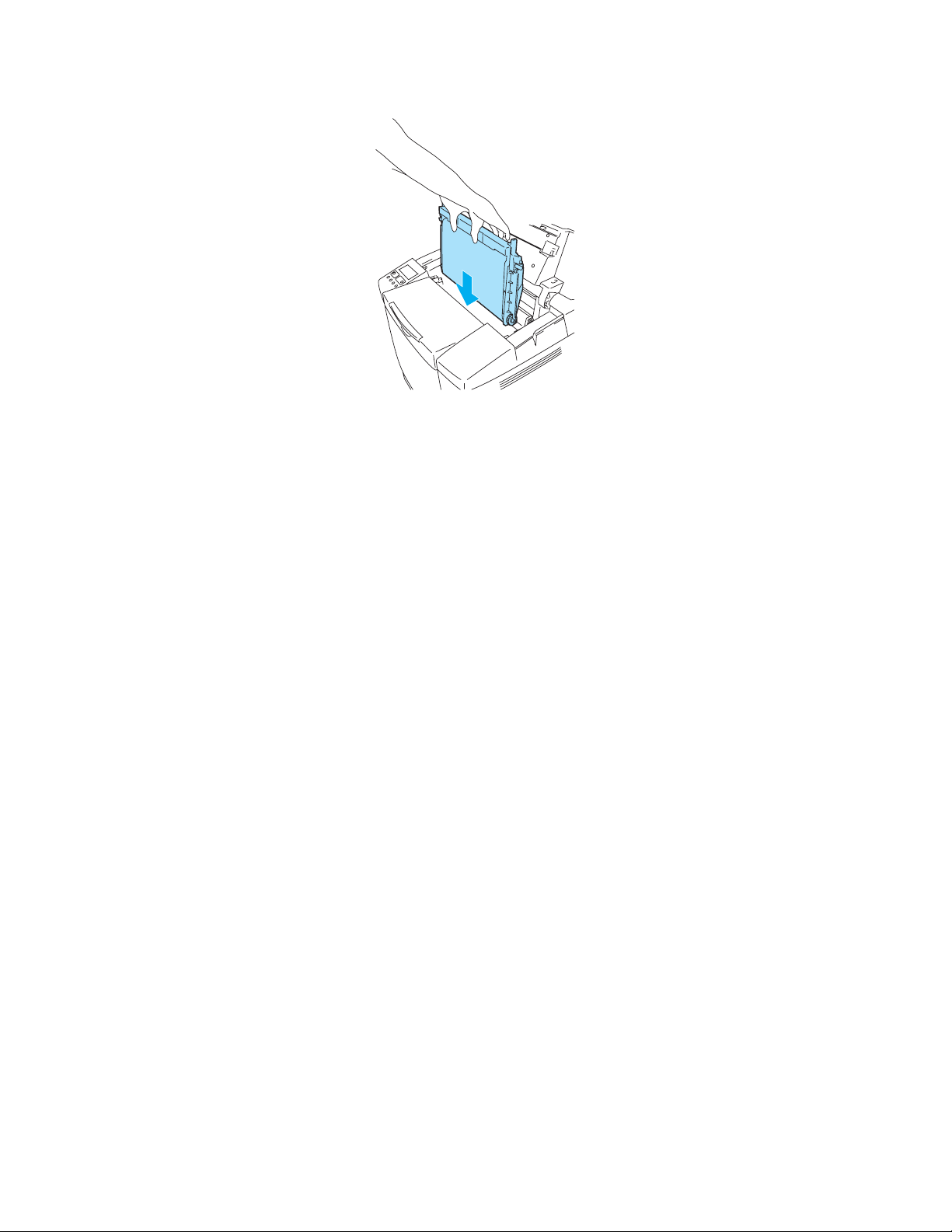

Put in the new toner cartridge by positioning it in the guide. Slide it gently into the printer. Do not try

to push or lock the new toner cartridge in; it must rest loosely in the guide rails and will automatically

be properly positioned when the front cover is closed. Note that each color cartridge is individually

keyed to prevent improper installation. Match each cartridge color label to the same color label on

the printer.

Figure 5-4

Close the front cover.

■ Wait to unpack the toner cartridge until immediately before you put it in the printer. If toner

cartridges are left unpacked for a long time, the toner life will be shortened.

■ Put the toner cartridge into the printer immediately after you have removed the protective cover.

To prevent degradation to the print quality, do not touch the shaded parts shown in Figure 5-3.

5 - 10 ROUTINE MAINTENANCE

OPC belt cartridge

Replace OPC belt cartridge message

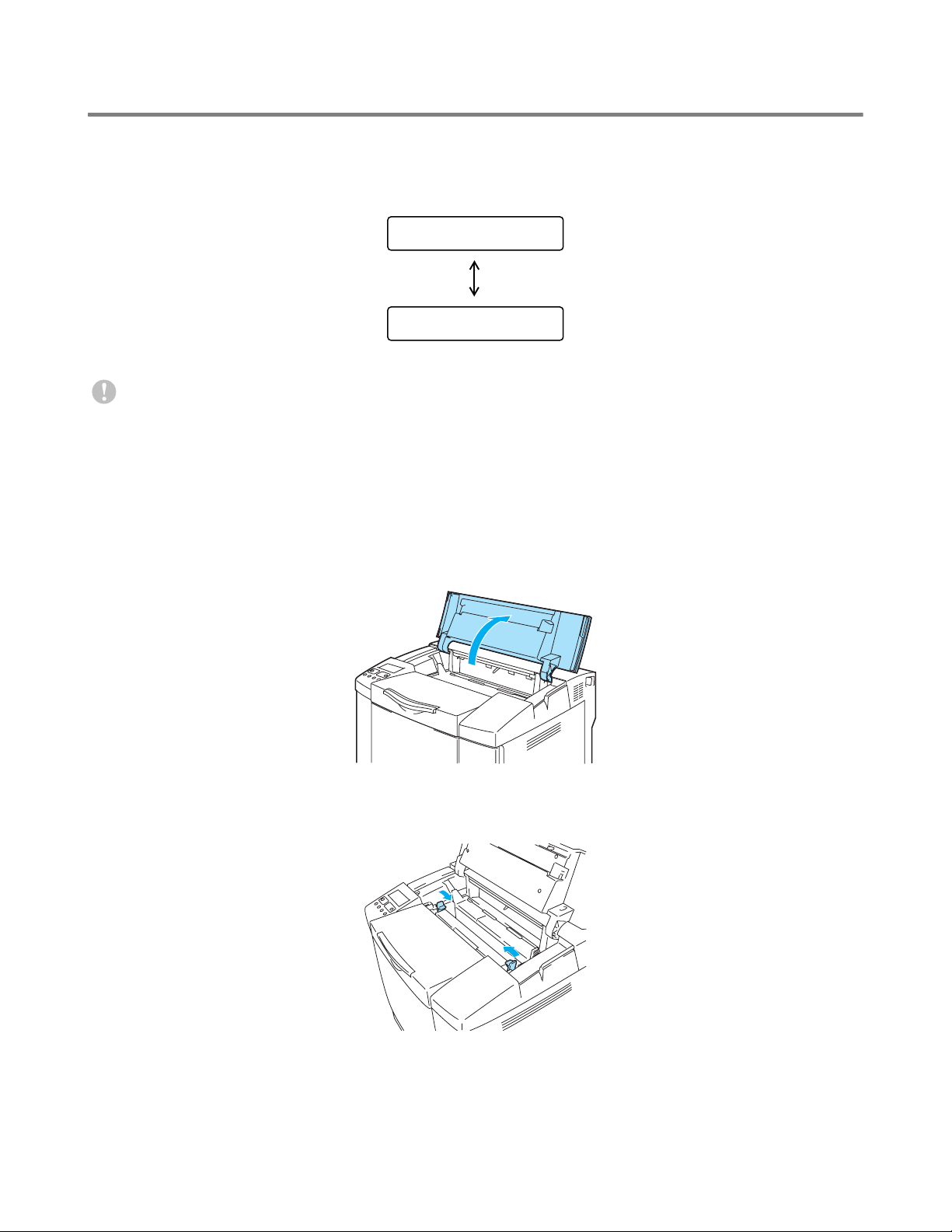

When the OPC belt cartridge runs out, the following message appears on the LCD. When you see this

message, you must replace the OPC belt cartridge:

Replacing the OPC belt cartridge

Turn off the printer power switch.

Open the top cover of the printer.

Figure 5-8

To release the lock, push the green belt cartridge lock levers on both sides inwards.

Figure 5-9

■ Do not touch the surface of the OPC belt cartridge. If you touch it, it could degrade print quality.

■ Do not expose the OPC belt cartridge to light (more than 800 lux) for more than 2 minutes. This

could degrade print quality.

■ Damage caused by improper handling of the OPC belt cartridge may void your warranty.

REPLACE OPC BELT

READY

ROUTINE MAINTENANCE 5 - 11

Remove the OPC belt cartridge from the printer.

Figure 5-10

Remove the tension release pins from both sides of the new OPC belt cartridge.

Figure 5-11

Remove the protective sheet from the new OPC belt cartridge. Do not touch the green part of the

OPC belt cartridge.

Figure 5-12

5 - 12 ROUTINE MAINTENANCE

Put the new OPC belt cartridge into the printer guides with the flat side facing you.

Figure 5-13

To lock the cartridge into the printer, push the belt cartridge lock levers that are on both sides of the

OPC belt cartridge outwards.

Close the top cover.

Turn the printer power switch back on.

Press any of the Menu buttons (+, –, Set or Back) to take the printer off line.

Press + or – until RESET MENU appears.

Press Set to proceed to the next menu level, and then press + or – until PARTS LIFE appears.

Press Set, and then press + until OPC BELT appears.

Press Set. The printer is now in the READY state.

ROUTINE MAINTENANCE 5 - 13

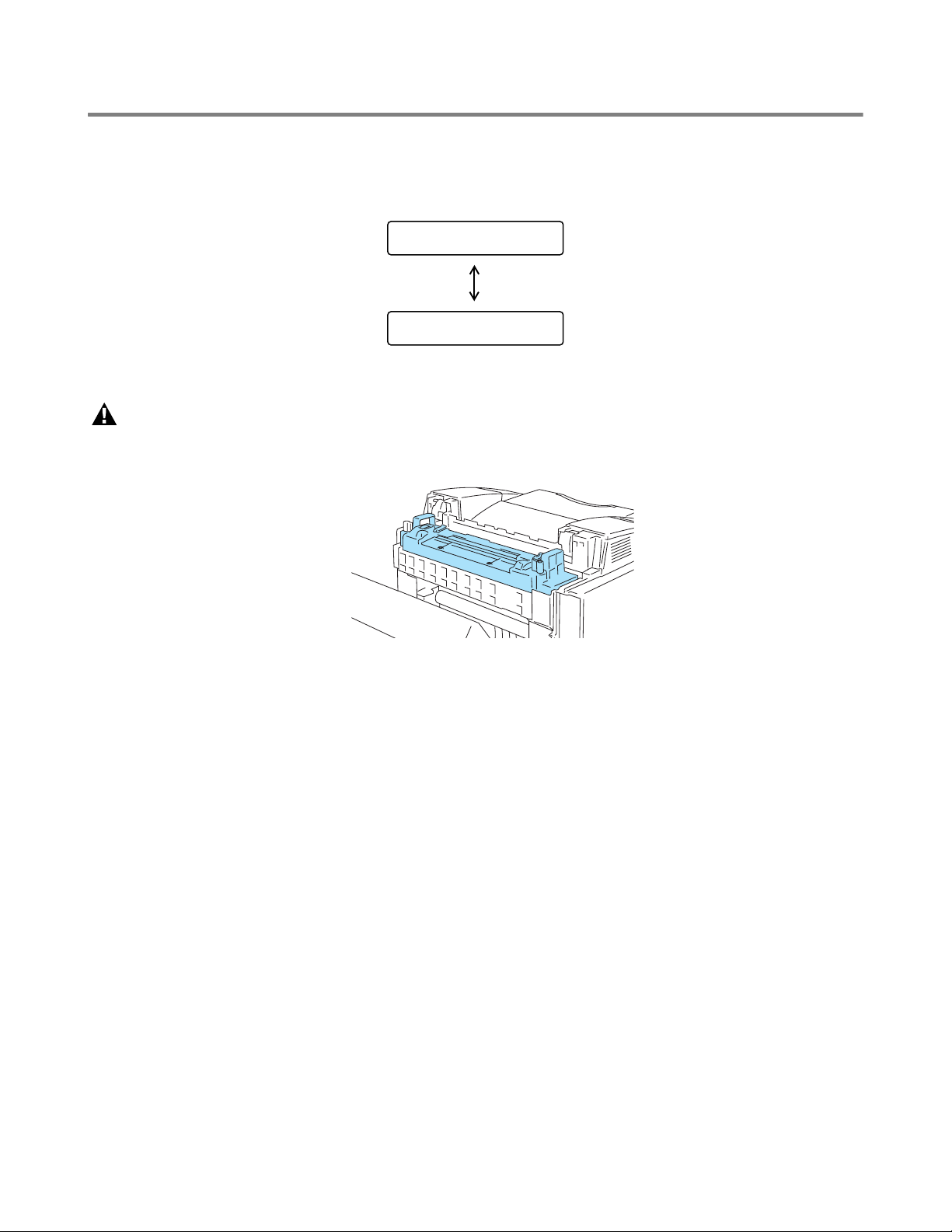

Fusing unit

Replace fusing unit message

When the following message appears on the LCD panel, you must replace the fusing unit.

The fusing unit and the parts around it are hot! Be sure to wait until the fusing unit has cooled down

sufficiently before replacing the fusing unit.

If you touch the hot parts, you might get injured.

REPLACE FUSER

READY

5 - 14 ROUTINE MAINTENANCE

Replacing the fusing unit

Turn off the printer power switch. To avoid injury, wait until the printer has cooled down sufficiently

before you replace the fusing unit.

Open the back cover of the printer.

Figure 5-14

To release the fusing unit from the printer, release the lock levers that are on both sides of the fusing

unit as shown in Figure 5-15.

Figure 5-15

Hold the handles on both sides as you take the fusing unit out of the printer.

Figure 5-16

ROUTINE MAINTENANCE 5 - 15

Put the new fusing unit into the printer. Be sure to insert the fusing unit completely into the printer.

Figure 5-17

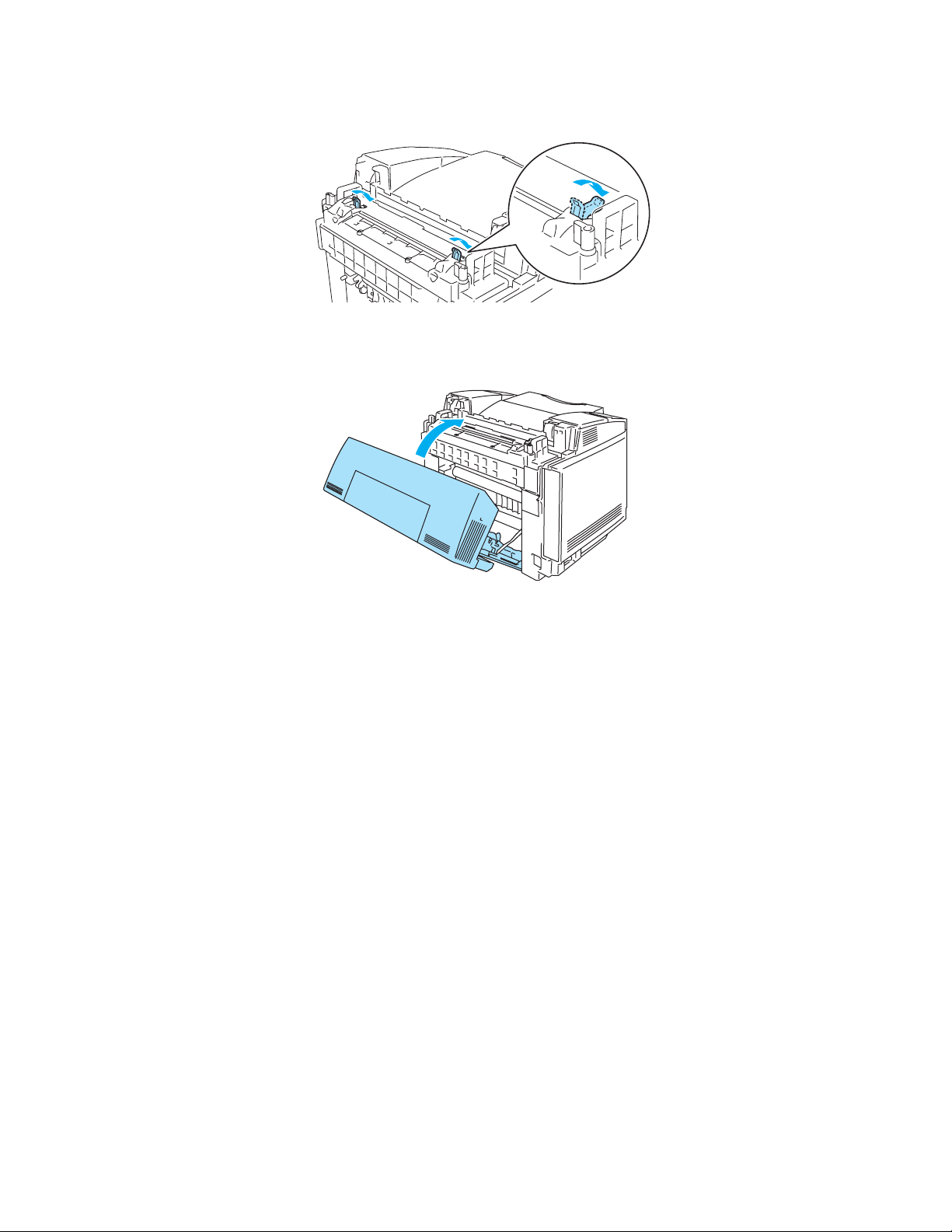

Secure the fusing unit with the two lock levers that are on both sides of the fusing unit.

Figure 5-18

Move the fusing unit pressure release levers to the Set position.

Figure 5-19

Close the back cover.

Turn the printer power switch back on.

Press any of the Menu buttons (+, –, Set or Back) to take the printer off line.

Press + or – until RESET MENU appears.

Press Set to proceed to the next menu level, and then press + or – until PARTS LIFE appears.

Press Set, and then press + until FUSER UNIT appears.

Press Set. The printer is now in the READY state.

Please be careful when replacing the fusing unit. Do not put pressure on the fusing unit; it should

go in easily. If it does not, make sure the fusing unit connector is free to move.

Do not apply force! It could damage both the fusing unit and the printer.

5 - 16 ROUTINE MAINTENANCE

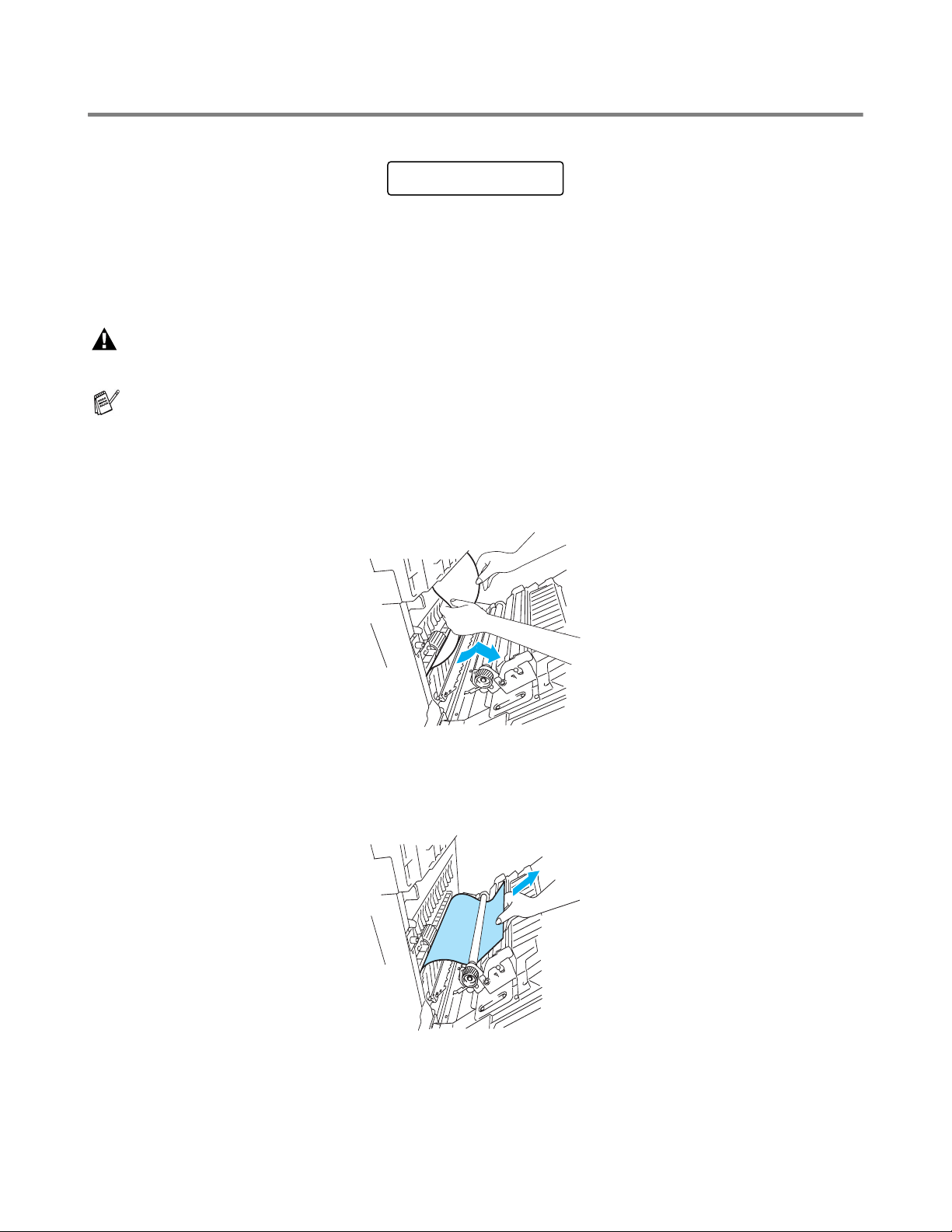

120K kit

When you see the following message on the LCD, you must replace the items in the 120K kit, which are

the transfer belt cleaner, transfer roller, paper pick-up roller, separator pad and transfer belt.

Replacing the transfer belt cleaner

1) Turn off the printer power switch.

2) Open the top cover of the printer.

Figure 5-20

■ We recommend that you call your service provider when you see the following message on the

LCD panel:

■ It is also recommended that your dealer or Brother Customer Service replace the paper pick-up

roller, separator pad and transfer belt.

■ When you replace the transfer belt cleaner and transfer roller, please follow the instructions. See

Replacing the transfer belt cleaner on page 5-16 and Replacing the transfer roller on page 5-18.

Replacement of only the transfer belt cleaner and the transfer roller is not a full 120K service and

the counter should not be reset until these additional parts are replaced.

Both ends of the transfer belt cleaner roller consist of metal bearings that connect the bias element

to the power supply. These must be connected properly when you install the transfer belt cleaner.

Be sure to check how to connect them properly by looking at the old transfer belt cleaner before

you begin replacement.

REPLACE 120K KIT

READY

ROUTINE MAINTENANCE 5 - 17

3) Remove the transfer belt cover.

Figure 5-21

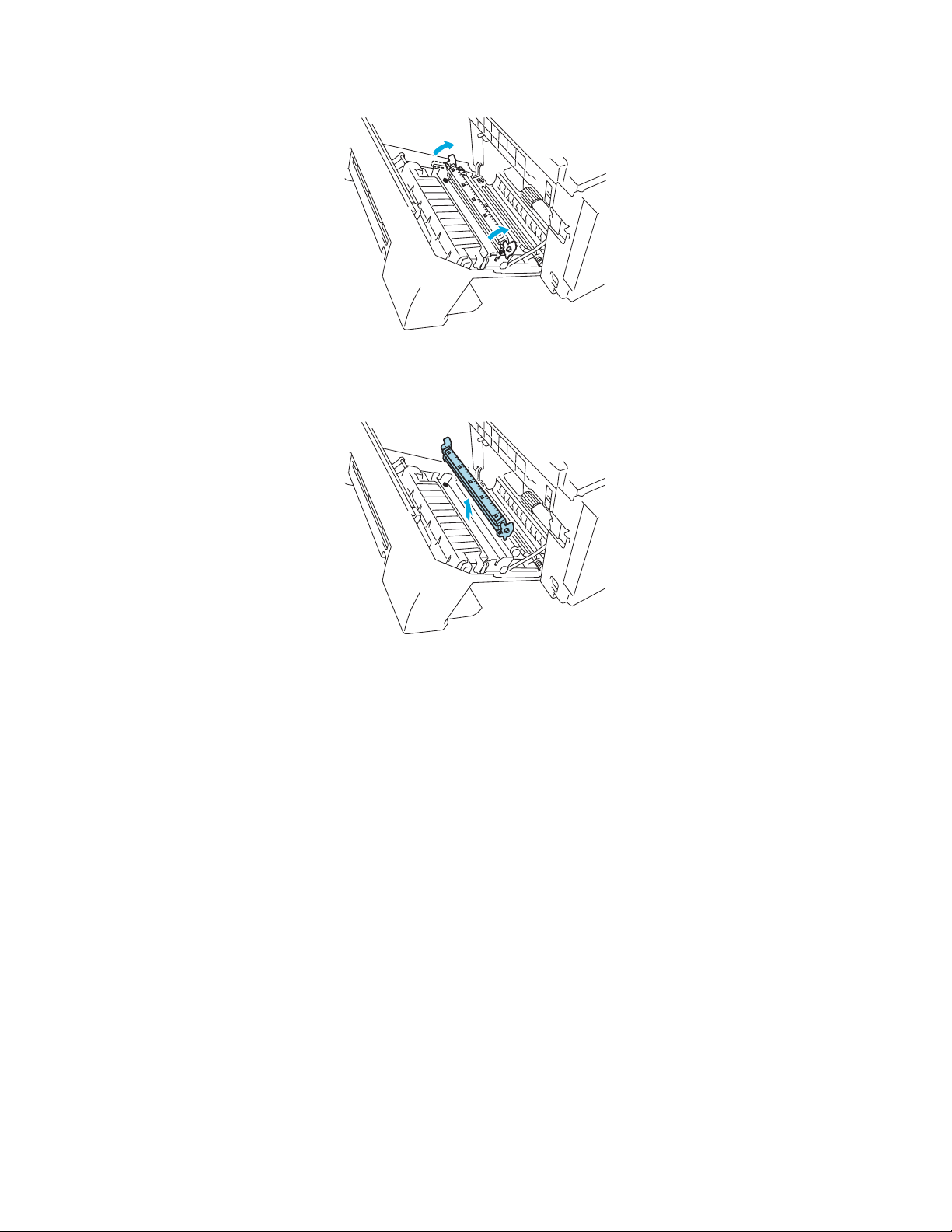

4) Remove the transfer belt cleaner by grasping the handle and lift it up.

Figure 5-22

5) Clean the area where the new transfer belt cleaner is to be installed with a dry cotton cloth.

Figure 5-23

6) Put the new transfer belt cleaner into the printer by gently placing the brass bearings into the

guides, and then pushing the handle down until the bearings click into place. Make sure the

transfer belt cleaner is free to move slightly upwards (rotating slightly around the bearings) in

5 - 18 ROUTINE MAINTENANCE

the housing after you have installed it.

Figure 5-24

7) Put the transfer belt cleaner cover back in, and then close the top cover.

8) Turn the printer power switch back on.

Replacing the transfer roller

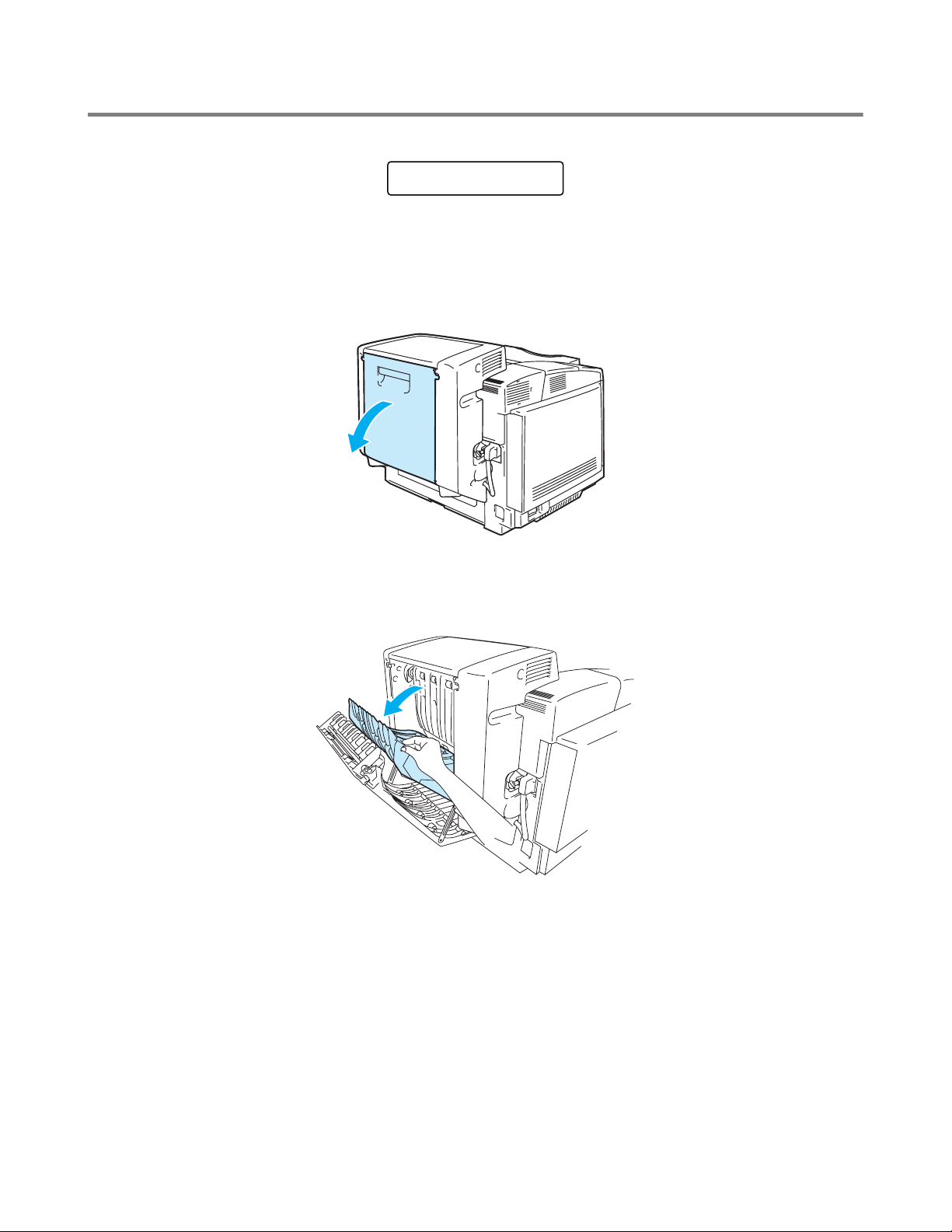

1) Turn off the printer power switch.

2) Open the back cover of the printer.

Figure 5-25

3) Release the transfer roller lock levers on the right and left-hand sides, and then lift the levers to

If you have the duplex unit installed, open the duplex back cover and the duplex inside unit first

before you open the back cover of the printer.

ROUTINE MAINTENANCE 5 - 19

release the transfer roller.

Figure 5-26

4) Take out the transfer roller by gently pulling the right-hand side up and sliding the transfer roller

to the right.

ROUTINE MAINTENANCE 5 - 21

Cleaning

Clean the outside and inside of the printer regularly with a dry soft cloth. When you replace the toner

cartridge, make sure you clean the inside of the printer. If printed pages are stained with toner, clean the

inside of the printer with a dry soft cloth.

We recommend cleaning the following parts of the printer every 20,000 printed pages or every 12

months:

■ Paper guides of the paper tray

■ Registration roller

■ Paper pick-up roller

■ Transfer roller unit

■ Transfer roller guide

■ Exit roller

■ Laser unit

■ Dust proof glass

■ Use water. Cleaning with volatile liquids such as thinner or benzine will damage the surface of

the printer.

■ Do not use cleaning materials that contain ammonia. They could damage the printer, particularly

the toner cartridges.

5 - 22 ROUTINE MAINTENANCE

Cleaning the outside of the printer

Clean the outside of the printer as follows:

Turn off the printer power switch and unplug the printer.

Take the paper tray out of the printer.

Wipe the outside of the printer with a soft cloth to remove dust. Dip the cloth in water and wring it

out thoroughly for cleaning.

Figure 5-31

Clean the paper guides of the paper tray with a dry soft cloth. Remove anything that is stuck inside

the paper tray.

Figure 5-32

Put the paper tray back in the printer.

Plug the printer into the AC power outlet/socket, and then turn the printer power switch back on.

ROUTINE MAINTENANCE 5 - 23

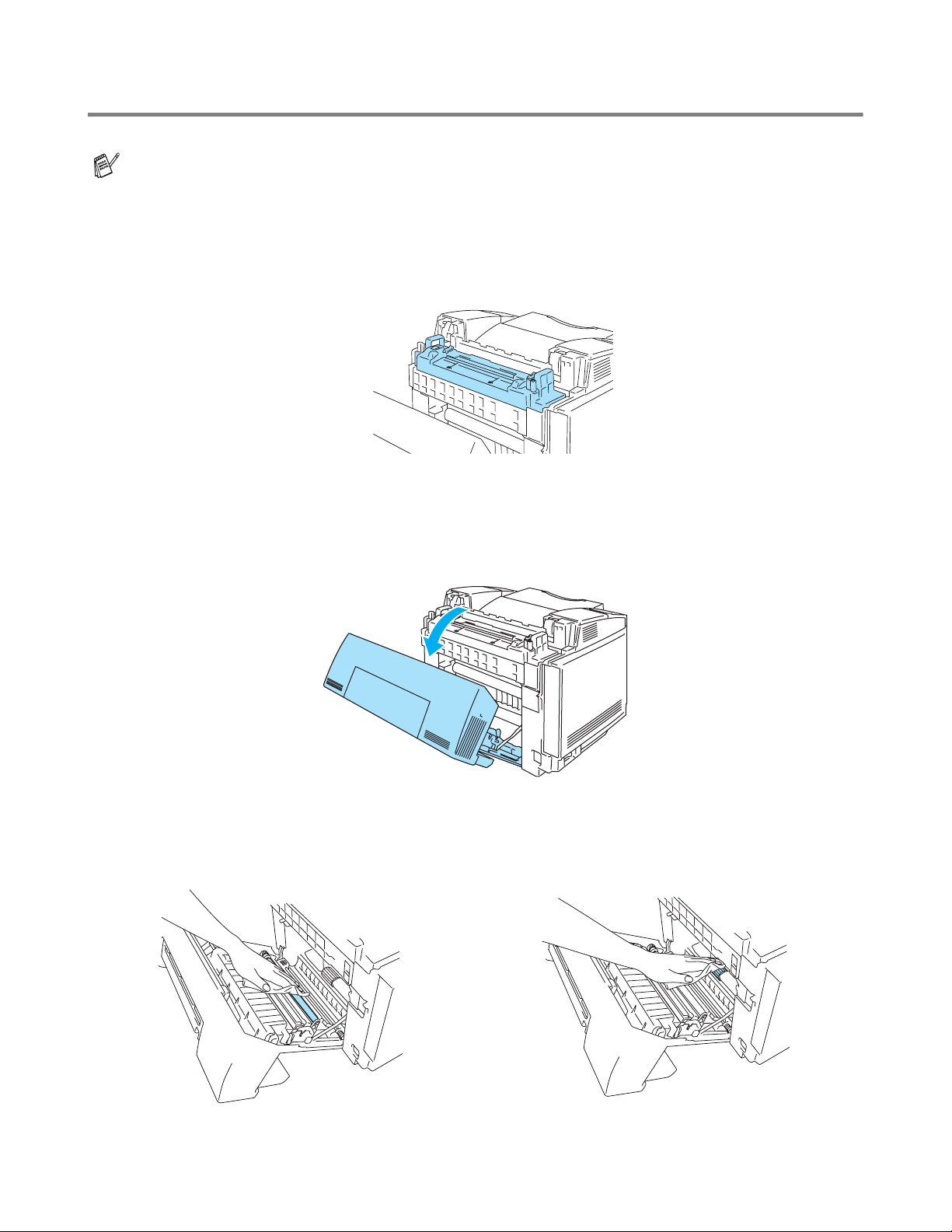

Cleaning the inside of the printer

Clean the printer interior as follows:

Turn off the printer power switch and unplug the printer.

Open the back cover of the printer.

Figure 5-33

Clean the registration roller and the paper pick-up roller with a dry soft cloth to prevent paper jams.

When you clean the inside of the printer, pay attention to the following:

■ If your clothes are smeared with toner, wipe off the toner with a dry cloth. Immediately wash your

clothes in cold water to avoid stains.

■ The fusing unit and the parts around it are hot! Never touch the shaded areas shown below.

■ Never touch or clean the transfer roller because print quality may be adversely affected.

■ Be careful not to inhale the toner.

Figure 5-34 Figure 5-35

5 - 24 ROUTINE MAINTENANCE

Clean the transfer roller unit and the transfer roller guide with a dry soft cloth to prevent paper jams.

Figure 5-38

Clean the exit roller. This will help to prevent paper jams at the paper exit and dirt from appearing

on your printouts.

Figure 5-39

Close the back cover.

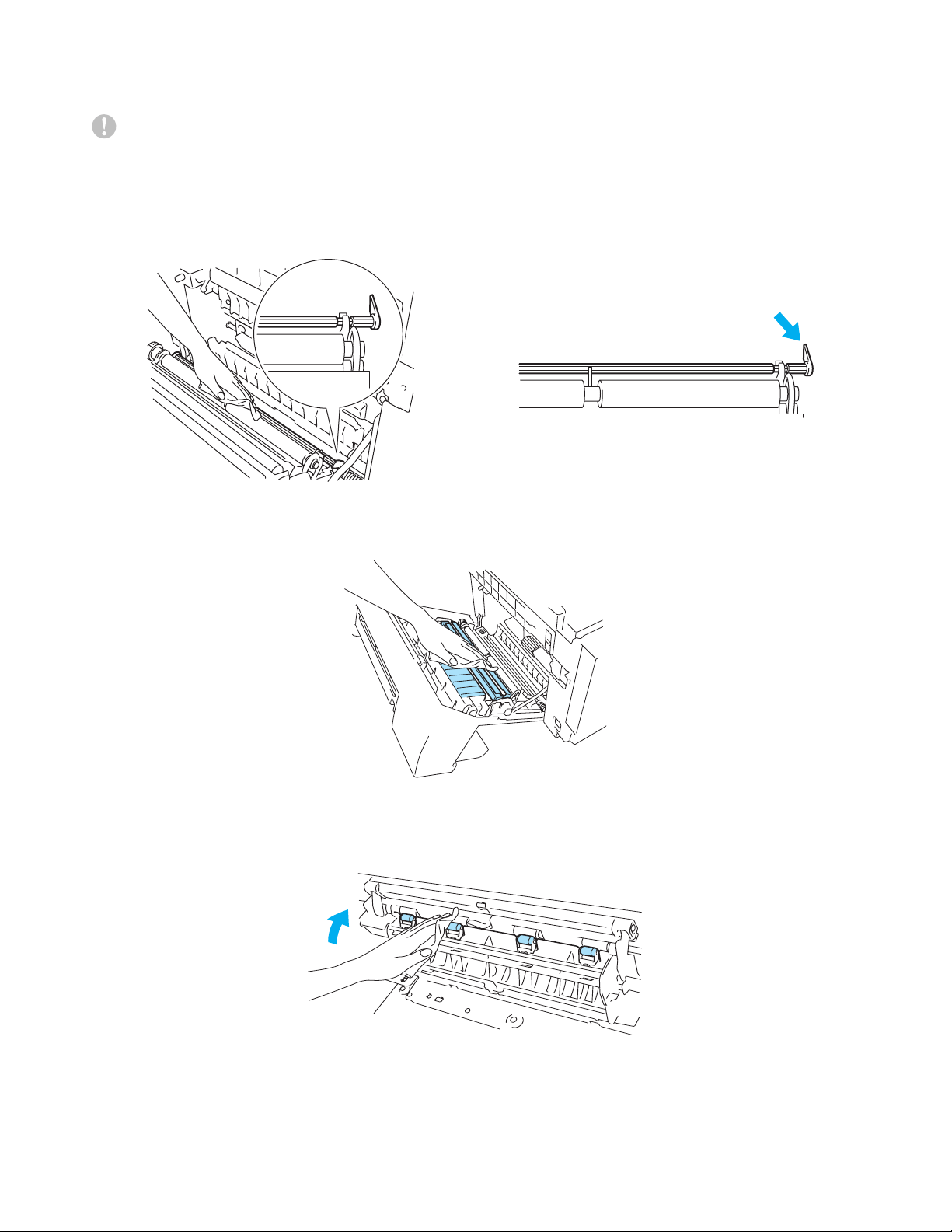

■ Be careful you do not break the actuator while cleaning the registration roller and paper pick-up

roller.

■ Make sure you do not put too much pressure on the registration roller and paper pick-up roller.

This could damage them and cause poor print quality.

Figure 5-36 Figure 5-37

ROUTINE MAINTENANCE 5 - 25

Open the top cover.

Figure 5-40

To release the lock, push the green belt cartridge lock levers that are on both sides inwards.

Figure 5-41

Remove the OPC belt cartridge from the printer.

Figure 5-42

Place the OPC belt cartridge on a flat surface and cover the shiny green OPC belt with a piece of

paper to prevent exposing it to light.

■ Do not touch the OPC belt surface with your bare hands or gloves.

■ If the belt is exposed for more than two minutes to a light source of 800 lux, the belt could be

damaged.

5 - 26 ROUTINE MAINTENANCE

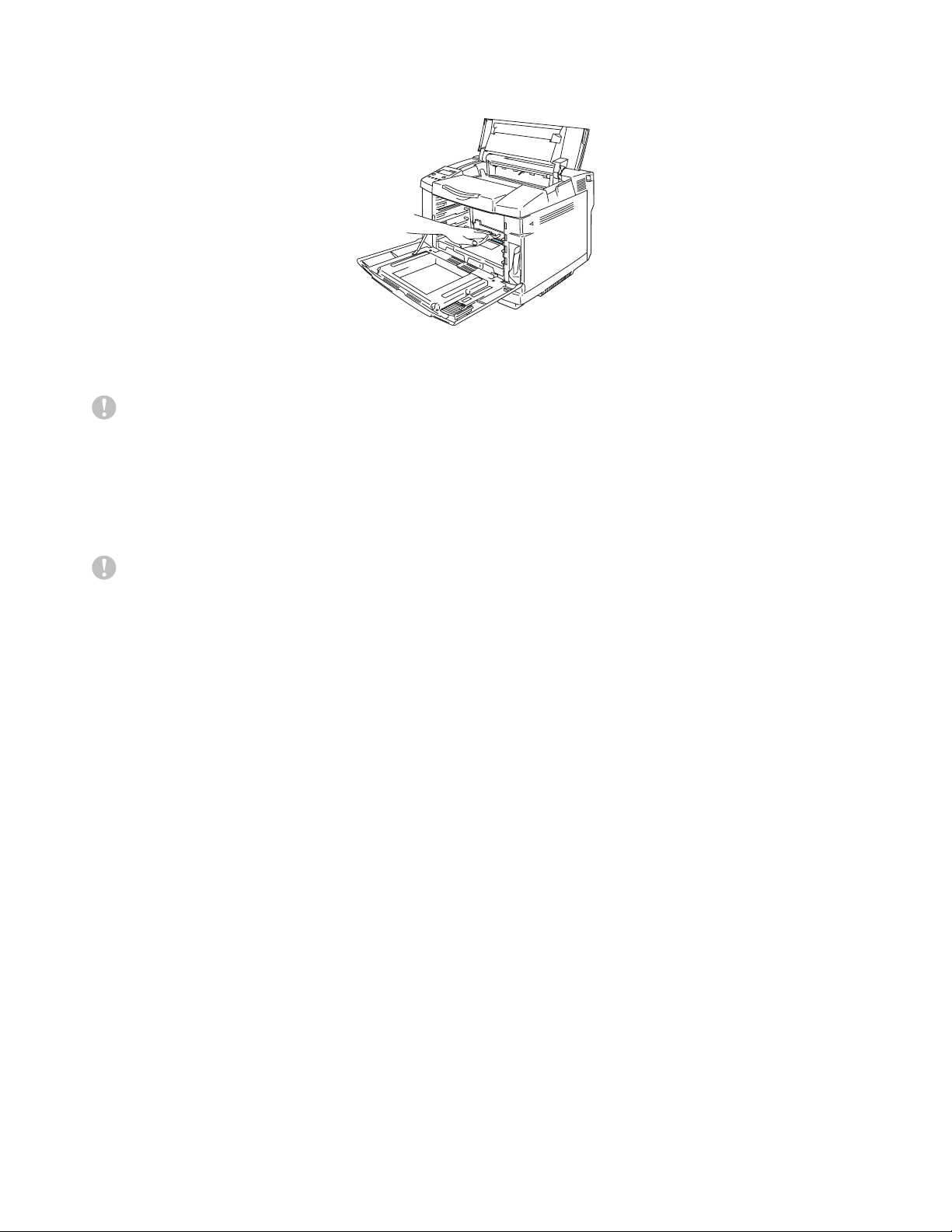

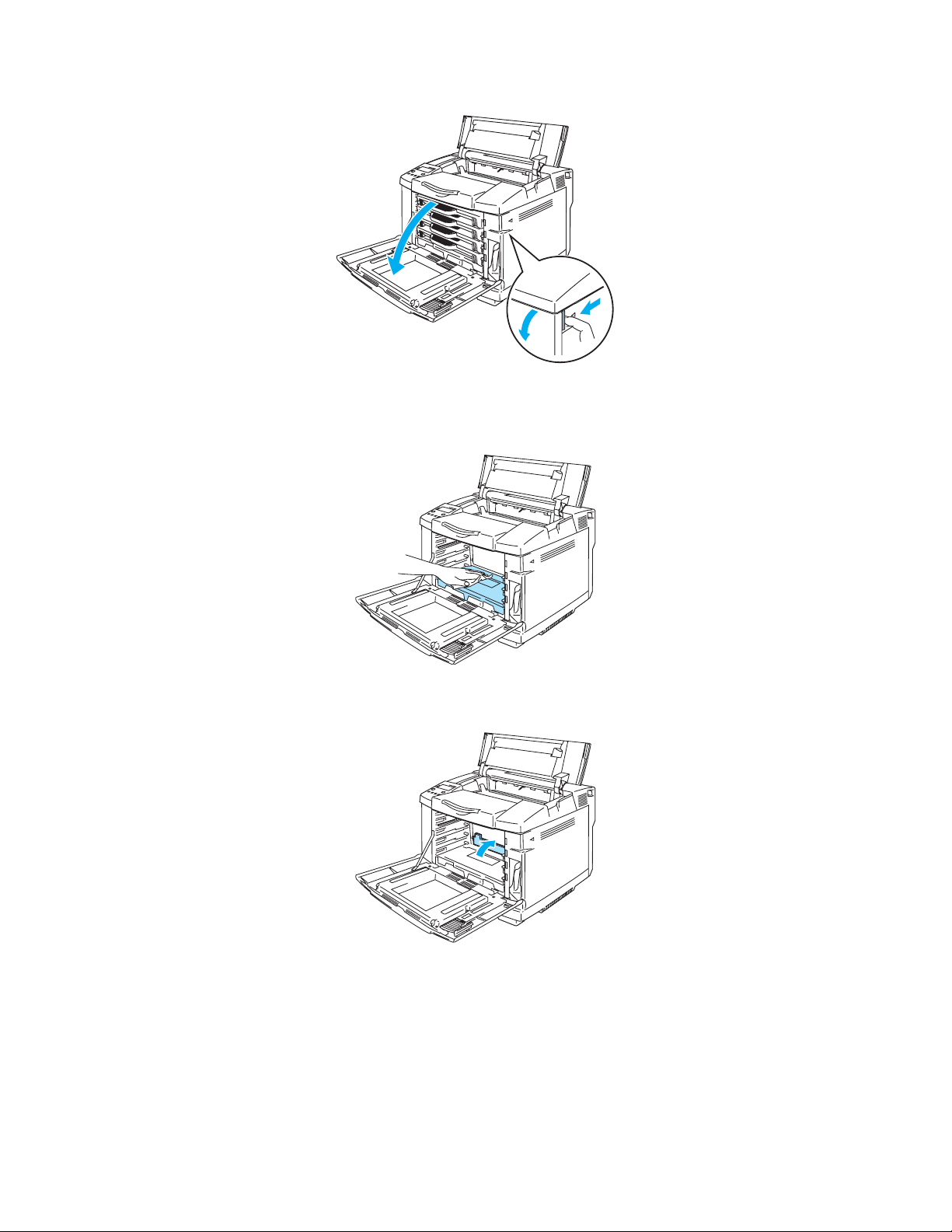

Open the front cover of the printer.

Figure 5-43

Take all the toner cartridges out of the printer.

Clean the surface of the laser unit with a cotton cloth.

Figure 5-44

Open the dust proof glass cover.

Figure 5-45

ROUTINE MAINTENANCE 5 - 27

Clean the surface of the dust proof glass with a dry cotton swab.

Figure 5-46

Close the dust proof glass cover.

Put all the toner cartridges and the OPC belt cartridge back in the printer.

Close the front cover and the top cover.

Plug the printer into the AC power outlet/socket, and then turn the printer power switch back on.

Do not use volatile liquids such as thinner or benzene for cleaning the dust proof glass. This might

cause poor print quality.

Do not use volatile liquids such as thinner or benzene for cleaning the dust proof glass. This might

cause poor print quality.

5 - 28 ROUTINE MAINTENANCE

Shipping the printer

■ Once your printer has been set-up and used, we do not recommend that it be moved or shipped

unless absolutely necessary.

■ Color laser printers are complex printing devices. Moving the printer or shipping it without

properly removing the installed supplies can result in SEVERE damage to the printer. As a

result, your printer may not operate properly afterwards.

■ If the printer must be shipped, please go to http://solutions.brother.com

for a detailed,

step-by-step instruction on how to properly prepare your printer for transport.

■ Failure to properly prepare the printer for shipping according to the instructions located at

http://solutions.brother.com

may VOID YOUR WARRANTY.

TROUBLESHOOTING 6 - 1

LCD messages

If any problems occur, the printer automatically stops printing, diagnoses the problem, and displays the

resulting message on the LCD to alert you. Take the appropriate action, referring to the following tables.

If you cannot clear the problem, call the dealer you bought the printer from or Brother Customer Service.

Error messages

When any one of the following messages appear, the printer will stop operating.

Troubleshooting

If you do not follow the instructions for using the printer, you may be responsible for all repairs.

The control panel LCD names for the paper trays are as follows.

■ Standard paper tray: TRAY1

■ Optional lower tray: TRAY2

■ Optional duplex unit: DX

Error message Remarks

TONER EMPTY X

Replace the X toner cartridge

X = C, M, Y, K,

NO TONER X

Install the X toner cartridge

X = C, M, Y, K,

COVER OPEN

Close the Front Cover

COVER OPEN

Close the Top Cover

COVER OPEN

Close the Back Cover

COVER OPEN

Close the Duplex Unit Cover

JAM X

Remove the jammed paper. See the alphanumerical diagram to check on the

location

X = A1, A2, B, C, D or E

NO PAPER T1/2

Load paper into Tray 1/2.

WASTE TONER

Replace the waste toner pack.

NO OPC BELT

Install the OPC belt.

Check that the charging roller

(on the bottom of the OPC belt

cartridge) is locked in place

and the levers are closed.

NO TR ROLLER

Install the transfer roller.

ILLEGAL TONER

Use only Brother genuine toner cartridges.

6 - 2 TROUBLESHOOTING

NO TRAY 1/2

The indicated paper tray was not detected,install it, or make sure it is inserted

properly.

SIZE ERROR T2

Specify the correct paper size for the indicated tray.

SIZE ERROR DX

Can only Duplex on specified sizes. Check the printer driver settings and the

paper size in the paper tray.

STACKER FULL

Remove the paper from the output tray.

MEDIA MISMATCH

Media mismatch between the Printer and the Printer Driver setting. Put XX in

Tray <1/2>.

XX = Plain Paper,

Transparencies, Thick Paper,

Thicker Paper, Thin Paper

SIZE MISMATCH

Put <size> Paper size in Tray <1/2>. Paper mismatch between the Printer and

the Printer Driver setting.

MANUAL FEED

Put paper <size> into tray1, and then press GO.

MEDIATYPE ERROR

Specify the correct media type: XX

XX=T1, T2, or DX

XX = T1, T2 or DX

NO FUSING UNIT

A fusing unit was not detected. Please install one.

CARD ERROR

An error occurred while accessing the Flash card. Check that the driver is

formatted and not in Write Protect mode.

CARD REMOVAL

The Flash card was removed while the printer was powered on. Power cycle the

printer.

STORAGE FULL

The RAMDISK SIZE is set to 0 MB or there is no more space to store jobs.

STORAGE FULL

There is no space in the CompactFlash.

DOWNLOAD FULL

The download buffer of the printer is full. Add more memory to the printer.

MEMORY FULL

The printer memory is full and the printer is unable to print the page. Add more

memory.

Error message Remarks

TROUBLESHOOTING 6 - 3

Maintenance messages

Error Message Meaning Action

   

K C M Y

When the  mark blinks (), the

indicated color toner is nearly

empty. K: Black, C: Cyan, M:

Magenta, Y: Yellow. When the

toner becomes empty, the 

indicator disappears completely.

Be ready to replace the toner

cartridges when the toner is nearly

empty. Replace it when the toner

becomes empty.

REPLACE OPC BELT It is time to replace the OPC belt

cartridge.

Replace the OPC belt cartridge.

REPLACE FUSER It is time to replace the fusing unit. Replace the fusing unit.

REPLACE 120K KIT It is time to replace the transfer

belt cleaner, paper discharger,

transfer roller, separator pad,

paper pick-up roller and transfer

belt.

Call your dealer or Brother Customer

Service to replace the transfer belt

cleaner, paper discharger, transfer

roller, separator pad, paper pick-up

roller and transfer belt.

REPLACE PF KIT2 It is time to replace the paper

feeding kit 2.

Call your dealer or Brother Customer

Service for a replacement of the

paper feeding kit 2.

NEAR WASTE TONER The waste toner pack is almost

full.

Replace the waste toner pack.

6 - 6 TROUBLESHOOTING

ERROR EF0

WARNING

Cooling fan error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EF3

WARNING

Laser fan error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EF4

WARNING

Fuser fan error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EF5

WARNING

Charger HV unit error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EF6

WARNING

LVPS error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EH0

WARNING

Fuser thermistor error Turn off the printer. Wait 15 minutes, and then

turn it on again.

ERROR EH1

WARNING

Fuser heater error Turn off the printer. Wait 15 minutes, and then

turn it on again.

ERROR EH2

WARNING

Fuser temperature low error at

warming up

Turn off the printer. Wait 15 minutes, and then

turn it on again.

ERROR EH3

WARNING

Fuser temperature low error Turn off the printer. Wait 15 minutes, and then

turn it on again.

ERROR EH4

WARNING

Fuser temperature high error Turn off the printer. Wait 15 minutes, and then

turn it on again.

ERROR EHA

WARNING

Fuser AC OFF error Turn off the printer. Wait 15 minutes, and then

turn it on again.

ERROR EN1

WARNING

Duplex connection error 1 Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EN2

WARNING

Duplex connection error 2 Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EN3

WARNING

HVU connection error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EN4

WARNING

Toner empty sensor connection error

Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EN5

WARNING

Toner empty sensor connection error

Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EN6

WARNING

LFU connection error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EL1

WARNING

Beam detector error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EL2

WARNING

Scanner motor error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR ELL

WARNING

Laser power error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EP1

WARNING

Duplex controller hardware error 1 Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EP2

WARNING

Duplex controller hardware error 2 Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EP4

WARNING

Duplex motor error Turn off the printer. Wait a few seconds, and

then turn it on again.

ERROR EP5

WARNING

Outer pass select solenoid error Turn off the printer. Wait a few seconds, and

then turn it on again.

Call Service

Message

Meaning Action

TROUBLESHOOTING 6 - 7

Paper jams and how to clear them

If paper jams inside the printer, the printer will stop. One of the following LCD messages will appear to

tell you where to find the jammed paper.

Figure 6-1

Paper may jam in the paper tray, inside the printer, at the back cover, or where the paper comes out of

the printer. Check where the jam is and follow the instructions on the next few pages to remove the

jammed paper.

If the error message still appears on the LCD after you remove the jammed paper, there may be more

paper jammed somewhere else. Please check the printer thoroughly.

After you have followed the instructions, the printer will resume printing automatically. However, the

Status LED may come on and the following message may appear on the display:

After a paper jam has occurred, data usually stays in the printer memory. The message prompts you to

do a form feed to print the data that is left. Press

Go to continue.

Paper jam in the standard paper tray (TRAY1)

Paper jam in the optional lower tray (TRAY2)

Paper jam at the entrance to the fusing roller.

Paper jam where the paper comes out of the printer.

Paper jam in the lower assembly of the duplex unit

Paper jam in the upper assembly of the duplex unit

C B

JAM A1

JAM A2

JAM B

JAM C

JAM D

JAM E

PAUSE

6 - 8 TROUBLESHOOTING

JAM A1 / JAM A2 (paper jam in the paper tray)

If there is a paper jam in the paper tray, follow these steps:

Pull out the paper tray.

Take out the jammed paper.

Figure 6-2

Put the paper tray back in the printer.

Open the back cover. If there is any jammed paper where the paper comes out, remove it.

Close the back cover.

■ Do not touch the toner surface of the jammed paper. It might stain your hands or clothes.

■ After removing the jammed paper, and the next printed page is stained with toner, print several

test pages before restarting your print job.

■ Remove the jammed paper carefully to prevent spreading toner.

■ Take care not to stain your hands and clothes. Wash toner stains immediately with cold water.

■ Never touch the transfer roller.

■ If the paper in the paper tray is creased at the edges, paper jams can occur. To prevent this,

please turn the paper over.

Do not use the following paper:

■ Bent/curled paper

■ Moist paper

■ Paper that does not meet specifications

JAM A1

JAM A2

TROUBLESHOOTING 6 - 9

JAM B (paper jam at the entrance to the fusing roller)

If there is a paper jam at the entrance to the fusing roller, follow the same steps to remove the jammed

paper as for JAM C (paper jam where the paper comes out of the printer). Otherwise, follow the steps

below:

Open the back cover.

Remove the jammed paper by holding it with both hands and pulling it slowly toward you.

Figure 6-3

If the paper is caught in the registration roller, remove the jammed paper by holding it with both

hands and pulling it slowly toward you.

Figure 6-4

The fusing roller is extremely hot during operation. Remove the paper carefully.

If you have the duplex unit installed, open the duplex back cover and then duplex inside unit first

before open the back cover of the printer.

JAM B

6 - 10 TROUBLESHOOTING

If the paper is caught in the fusing roller, follow the steps below:

Open the back cover.

Figure 6-5

Release the fusing unit pressure release levers on both sides.

Figure 6-6

Remove the jammed paper at the back of the printer by holding it with both hands and pulling it

slowly toward you.

Figure 6-7

Lock the fusing unit pressure release levers and close the top cover.

Close the back cover.

TROUBLESHOOTING 6 - 11

JAM C (paper jam where the paper comes out of the printer)

If paper has passed behind the back cover and there is a paper jam where the paper comes out, follow

the steps below:

Open the back cover and release the fusing unit pressure release levers.

Figure 6-8

Remove the jammed paper by pulling it out slowly.

Figure 6-9

If you have the duplex unit installed, open the duplex back cover and then the duplex inside unit first

before opening the back cover of the printer.

JAM C

6 - 12 TROUBLESHOOTING

Reset the fusing unit pressure release levers.

Figure 6-10

Close the back cover.

Figure 6-11

6 - 14 TROUBLESHOOTING

JAM E (paper jam in the upper part of the duplex unit)

If there is a paper jam in the upper part of the duplex unit, follow these steps:

Open the duplex back cover.

Figure 6-14

Open the duplex inside unit.

Figure 6-15

JAM E

TROUBLESHOOTING 6 - 15

If the paper is caught in the lower exit of the duplex unit, remove the jammed paper by pulling it out

slowly.

Figure 6-16

If the jammed paper is at the upper exit of the duplex unit, remove it by rotating the green pinch roller

downwards to feed the paper out through the exit of the unit.

Figure 6-17

Close the duplex inside unit and the duplex back cover.

6 - 16 TROUBLESHOOTING

Improving the print quality

If you are having problems with print quality, please do a test print first (press the Set button 3 times).

If the problem appears on the printout, then match it to one of the examples below and follow the

recommendation. If the problem does not appear on the test print, please check driver settings and the

interface cables as the problem may not lie with printer.

You can resolve a print quality problem by replacing a toner cartridge with a new one when the toner

indicators start blinking or the LCD shows the TONER EMPTY message.

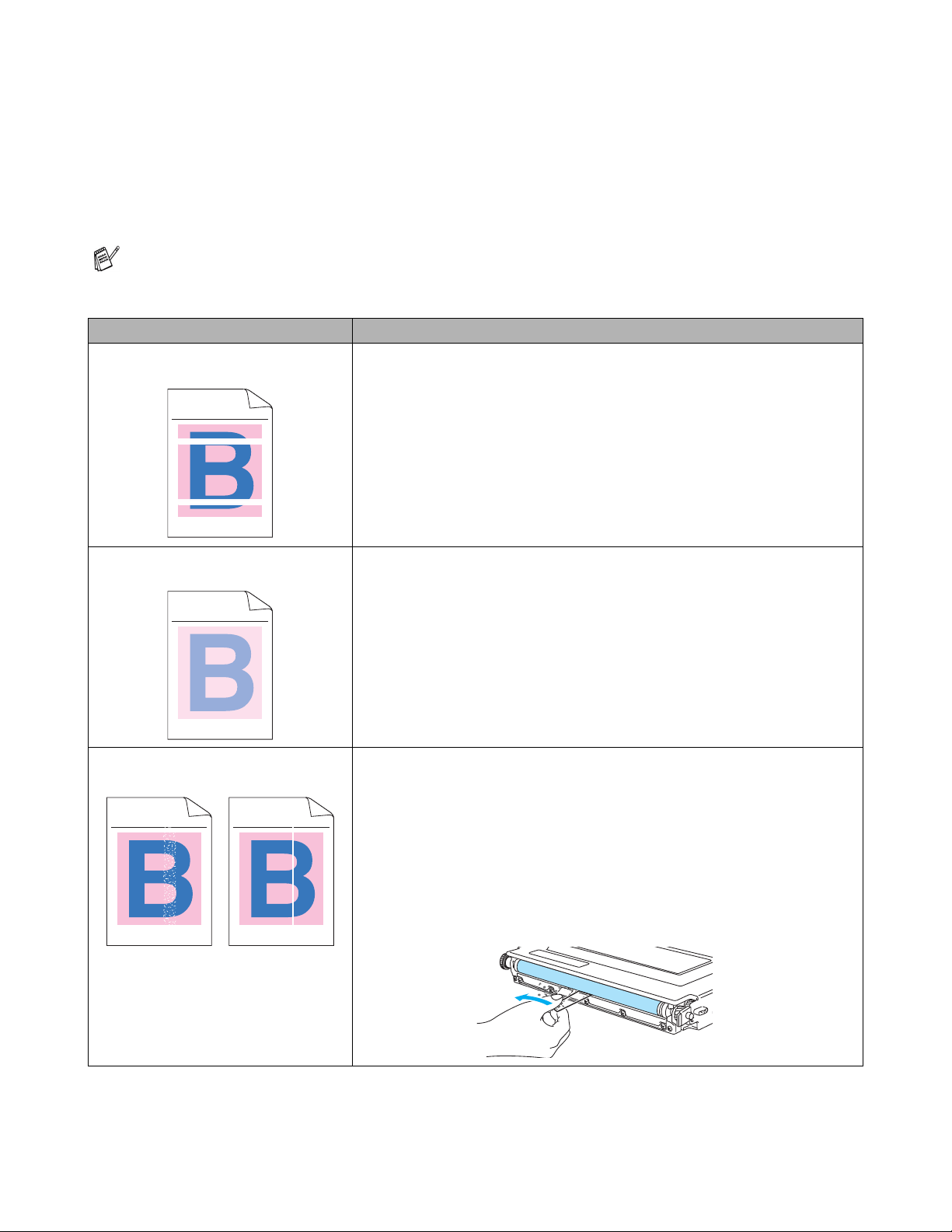

Examples of poor print quality Recommendation

White lines or bands or ribbing

across the page

1) Check that the printer is on a solid level surface.

2) Check that the back cover is closed properly.

3) Check that the toner cartridges are installed properly.

4) Shake the toner cartridges gently.

5) Check that the transfer roller is installed properly.

6) Replace the transfer roller.

Colors are light or unclear on the

whole page

1) Check that the recommended paper was used.

2) Change the paper to freshly unpacked paper, and then check that the

problem is solved.

3) Check that the back cover is closed properly.

4) Shake the toner cartridges gently.

5) Clean the scanner dust glass.

White streaks or bands down the

page

Clean the dust proof glass.

Identify the missing color and replace that toner cartridge.

*The toner has probably reached the end of its life.

However, when you see a white vertical line on the toner roller, try the

following procedure.

1) Cut a sheet approx. 50mm x 50mm out of a transparency film.

2) Insert the film about 10mm into the gap between the toner roller and the

blade.

3) Slide the film and pull it out as shown below.

ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.

TROUBLESHOOTING 6 - 17

Colored streaks or bands down the

page

1) Identify the missing color and replace that toner cartridge.

2) Replace the OPC belt cartridge.

Colored lines across the page Identify the missing color and replace that toner cartridge.

White spots or hollow print 1) Change the paper to freshly unpacked paper, and then check that the

problem was solved.

2) Check that the recommended paper was used.

3) Check that the room temperature is higher than 10 °C (50 °F)

Completely blank or some colors are

missing

1) Check that the back cover is closed properly.

2) Check that the front cover is closed properly.

3) Identify the missing color and check that the toner cartridge is installed

properly.

4) Replace the toner cartridge.

5) Replace the OPC belt cartridge.

Colored spots or Toner stain Replace the toner cartridge.

Examples of poor print quality Recommendation

ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.

6 - 20 TROUBLESHOOTING

Q & A

You may occasionally encounter a difficulty with your HL-2700CN printer. This section contains

frequently asked questions and the answers. Find your question below, and then follow the

recommended steps. You can correct most problems yourself.

Setting up the printer hardware

Question Recommendation

The printer does not come on. Check the following:

■ The printer is securely plugged into the AC power outlet/socket.

■ The power source is active.

■ The power switch is on.

The printer does not print. Check the following:

■ The printer is turned on.

■ The printer is online.

■ All of the protective parts have been removed.

■ All the covers on the printer are closed.

■ The toner cartridges are installed properly.

■ The TONER EMPTY message is not displayed on the LCD. If one or more

toner indicators are on, replace those toner cartridges.

■ The interface cable is securely connected between the printer and computer.

■ If the Alarm LED is blinking: See Error messages on page 6-1.

■ The HL-2700CN printer is selected in the printer settings in your application.

■ The host is configured properly: check printer port, print manager, etc. (clear

stored job or 'use print manager' is turned off)

■ There is no jammed paper inside the printer.

■ Paper is in the paper tray.

■ An error message is not displayed.

TROUBLESHOOTING 6 - 21

Setting up the printer

Question Recommendation

I cannot print from my

application software.

■ Make sure that the supplied Windows

printer driver is installed properly and

selected in your application software.

I cannot print the entire page. ■ Check that the size of paper in the feeder is the same as the paper size you

selected in your application or in the printer driver.

■ Check that the interface cable is connected to the printer and computer

securely.

Computer indicates a device

time-out.

■ If the Alarm LED is blinking, clear it and then try to print again. See LCD

messages on page 6-1 under Error messages.

■ If the Alarm LED is off, wait a short while and then click the Retry button in the

PC screen dialog box.

■ Check that the printer is on line.

Computer indicates paper is

empty.

Paper is empty. Put paper in the feeder, and then press

Go to recover from the

error status.

Computer indicates off line Press

Go to put the printer in the Ready state.

Computer indicates power is

off

Check that the printer is securely plugged into the AC power outlet/socket and

that the power switch is on.

Computer indicates an error

message other than above.

Check the following;

■ The computer can work in bi-directional mode.

■ The printer port is correct.

■ Selection of the printer is correct.

■ Recommended interface cable is being used. (IEEE 1284 compliant)

Or, select the Control tag in the driver and set the Status Monitor to off.

6 - 22 TROUBLESHOOTING

Paper handling

Question Recommendation

The printer does not feed

paper.

■ Check to see if the Alarm LED is on. If so, the paper tray may be out of paper

or not properly inserted. If it is empty, put a new stack of paper in the paper

tray.

■ If there is paper in the paper tray, make sure that it is straight. If the paper is

curled, you should straighten it before printing. Sometimes it is helpful to

remove the paper, turn the stack over, and then put it back in the paper tray.

■ Reduce the stack of paper in the paper tray, and then try again.

How can I load envelopes? You can feed envelopes from the paper tray (Tray 1). Make sure you adjust the

paper guide. Your application software also must be set up properly to print on

the size of envelopes you are using. This is usually done in the Page Setup or

Document Setup menu of your software. See your applications manual for more

information.

Which paper can I use? See What kind of paper can I use? on page 1-10 for detailed paper

specifications.

How can I clear paper jams? See Paper jams and how to clear them on page 6-7.

The printer feeds more than

one sheet at a time.

Check the following:

■ The paper in the tray is all the same type.

■ The paper meets the specifications.

■ Paper stack was fanned before loading.

■ The stack of paper is not too high.

■ The side guide is not set too tight.

Paper skews while feeding. Check the following:

■ The side guide is adjusted properly.

■ The amount of paper you loaded is correct. See Paper specifications on page

A-4.

Sometimes mis-picking of

paper from the paper tray or

mis-feeding of paper from the

paper exit occurs.

Clean the paper guide, the registration roller and the exit roller. See Cleaning on

page 5-21.

TROUBLESHOOTING 6 - 23

Printing

Question Recommendation

The printer prints

unexpectedly or it prints

incorrect characters.

■ Cancel the print job from your computer. Then, turn the printer off and on, or

reset the printer and try your print job again.

■ Make sure your application software is properly set up to use this printer.

Check the printer driver settings or printer settings in your application

software.

The computer hangs up when

the printer starts printing, or an

application error occurs.

Check to see that the system resources are enough (PC memory, etc.). When

you have many applications open, the system resources of your PC will not be

enough and will cause your PC to hang up. Close applications you are not using

and try again.

The headers or footers appear

when I view my document on

the screen but do not show up

when I print them.

Most laser printers have a restricted area that cannot be printed. Adjust the top

and bottom margins in your document to allow for this.

Printing takes too long. ■ Color graphic images contain a large amount of data and the printer will take

a relatively long time to complete printing.

■ When you print in Super Fine mode, the printer will take a relatively long time

to finish printing.

■ When the Status LED is blinking, the printer is getting ready to print. Print

speed depends on memory size or performance of your PC and memory size

of the printer.

The printer doesn't print in

color.

■ The printer may be set to monochrome mode.

APPENDIX A - 2

Features

CPU MIPS TMPR4955 (300 MHz)

Emulation Automatic emulation selection

PCL5C and PCL 6

BR-Script3

HP-GL

EPSON FX850

IBM Proprinter XL

Interface Automatic interface selection among IEEE 1284 Parallel, 10/100BASE-TX Ethernet,

Hi-Speed USB 2.0

Network conectivity Interface 10/100 Base TX Ethemet (Auto Negotiation)

Protocol TCP/IP

ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS,

DNS, LPR/LPD, Custom Raw Port/Port9100, POP3/SMTP, SMB

Print, IPP, FTP, SSDP, TELNET, SNMP, HTTP, TFTP

Netware IPX/SPX (Bindery/NDS)

AppleTalk

DLC/LLC

NetBEUI

Management tool BRAdmin Professional, Web Based Management, Web BRAdmin

RAM 64 MB

(Expandable up to 576 MB with SO-DIMMs)

The printer’s standard memory can vary depending on the printer model and country.

Storage device CompactFlash

memory

(Microdrive

is not compatible.)

Control panel 6 buttons, 2 LEDs and one LCD that is a 2-line, 16-column display

Diagnostics Self-diagnostic program

A - 3 APPENDIX

Electrical and mechanical

Power Source U.S.A. and Canada AC 120 V, 50/60 Hz

Europe and Australia AC 220 to 240 V, 50/60 Hz

Power consumption Printing (Average) 670 W or less

Stand-by 200 W or less

Stand-by in sleep mode 35 W or less

Noise Printing LWAd = 6.6 bels or less

Stand-by LWAd = 5.4 bels or less

Temperature Operating 10 to 32.5°C (50°F to 90.5°F)

Non-operational 5 to 35°C (41°F to 95°F)

Storage 0 to 35°C (38°F to 95°F)

Humidity Operating 20 to 80% (without condensation)

Storage 10 to 90% (without condensation)

Dimensions

(W x D x H)

480 (W) x 420 (D) x 385 (H) mm (18.9 x 16.4 x 15.2)

480 (W) x 470 (D) x 535 (H) mm (18.9 x 18.5 x 21.1 in.) with an optional lower tray unit

installed

480 (W) x 525 (D) x 590 (H) mm (18.9 x 20.7 x 23.2 in.) with installed optional lower tray

unit and optional duplex unit

Weight Approx. 31.5 kg (69.4 lb)

Approx. 42.7 kg (94.1 lb) with optional lower tray unit, optional duplex unit and toner

cartridges installed

I - 2

PCL printer driver ..........................................2-2

Power save mode

.........................................1-7

PRINT MENU menu

....................................3-13

Print quality

...................................................2-4

Printer driver

.................................2-1, 2-2, 2-10

Printer status messages

...............................3-7

PROOF data

...............................................3-28

Protective sheet

..........................................5-11

PS printer driver

..........................................2-10

PUBLIC data

...............................................3-28

QUALITY menu ...........................................3-11

Reprint

..........................................................2-6

REPRINT menu

..........................................3-18

RESET MENU menu

..................................3-17

SECURE data .............................................3-29

Set button

...............................................3-2, 3-3

SETUP menu

..............................................3-12

SO-DIMM

....................................................4-13

Status LED

....................................................3-5

Status Monitor

...............................................2-6

TCP/IP ........................................................3-16

Tension release pin

.....................................5-11

Toner cartridge

..............................................5-4

Toner save mode

..........................................1-7

Transfer belt cleaner

...................................5-16

Transfer belt cover

......................................5-17

Transfer roller

..............................................5-18

Transfer roller lock lever

.............................5-18

Transparency

..............................................1-17

Tray feed

.....................................................1-18

Troubleshooting

............................................6-1

USB interface ..............................................2-20

Waste toner pack ..........................................5-8

Waste toner pack holder

...............................5-9

Watermark

....................................................2-4

Windows

.......................................2-1, 2-2, 6-21
