E
English
Multimedia Projector
Owner’s Manual
LV-X4 LV-7230
2
Features and Design
◆ Wide Zoom Lens
This projector is equipped with Wide Zoom Lens which is
1.6 times the zoom ratio, and it allows you to enjoy 100"
screen size in range of 8.2' (2.5m) to 13.1' (4m).
◆ Compact Design
This projector is designed compact in size and weight. It is
easy to carry and work anywhere you wish to use.
◆ Compatibility
The projector widely accepts various video and computer
input signals including; Computers, 6 Color systems,
Component video, S-video and RGB scart.
◆ Simple Computer System Setting
The projector has the Multi-scan system to conform to
almost all computer output signals quickly. (See page 27.)
◆ Digital Zoom (for Computer)
The digital zoom function expands (to approx. 16 times of
screen size) or compress the image size, allowing you to
focus on crucial information at a presentation.
(See page 33.)
◆ Keystone Adjustment
The keystone correction function is provided to correct
distortion of the projected image allowing you to use the
projector without locational constraints. (See page 24 and
41.)
◆ Power Management
The Power management function reduces power
consumption and maintain the lamp life. (See page 43.)
◆ User’s Logo
A projected image can be captured and used for the
starting display of the projector with the Capture function.
You can also display the captured image in an interval
during your presentation instead of blackout image with the
No show function. (See page 25 and 42.)
◆ Selectable Lamp Mode
Brightness of the projection lamp can be selected in the
Setting menu. (See page 44.)
◆ Blackboard Function
Blackboard✳ can be used as a projection screen.
(See page 31 and 37.)
✳ The board color is limited to Green.
◆ Film Function
The Film function reproduces pictures faithful to the original
film quality from 3:2 pull-down video contents.
(See page 39.)

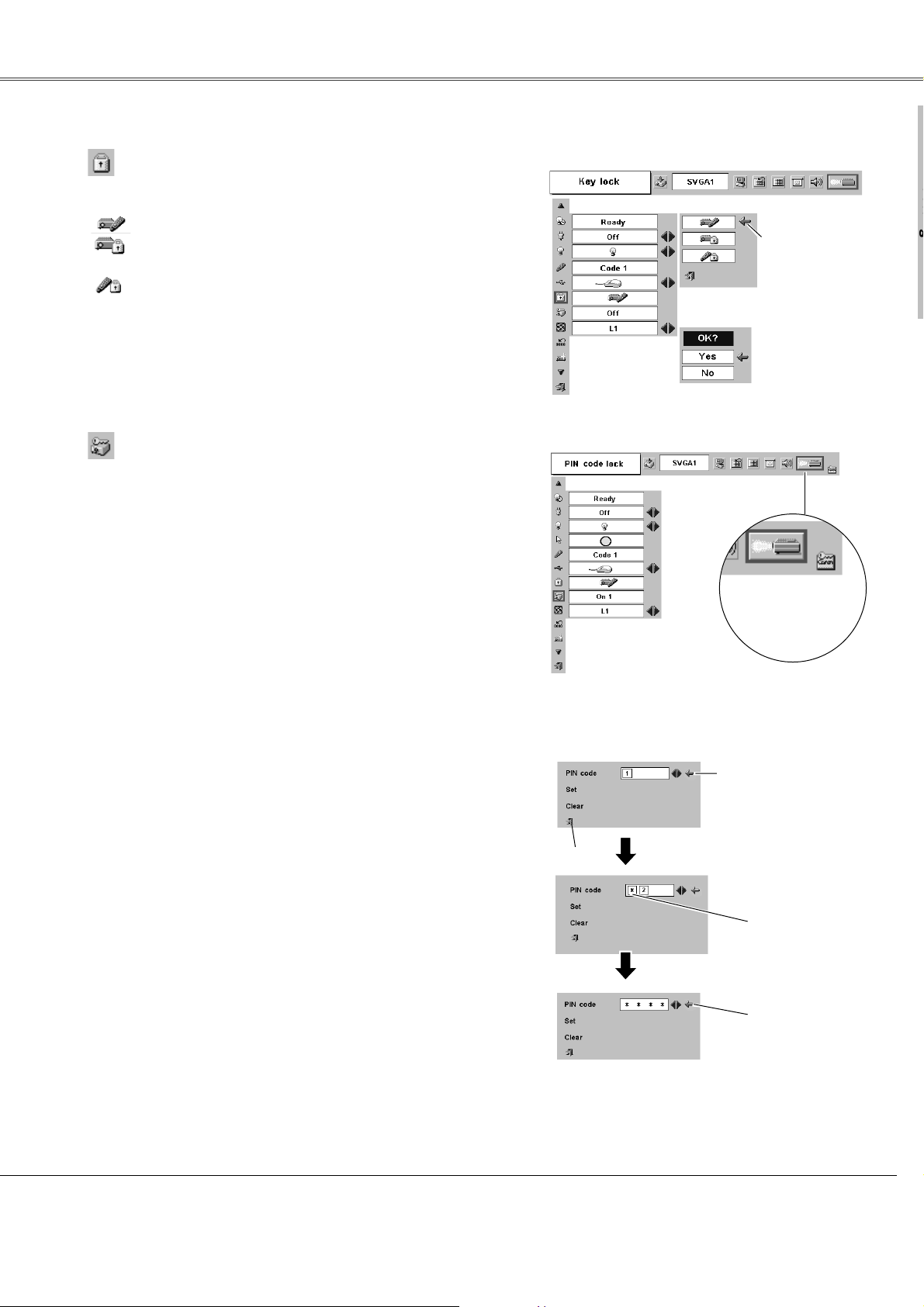

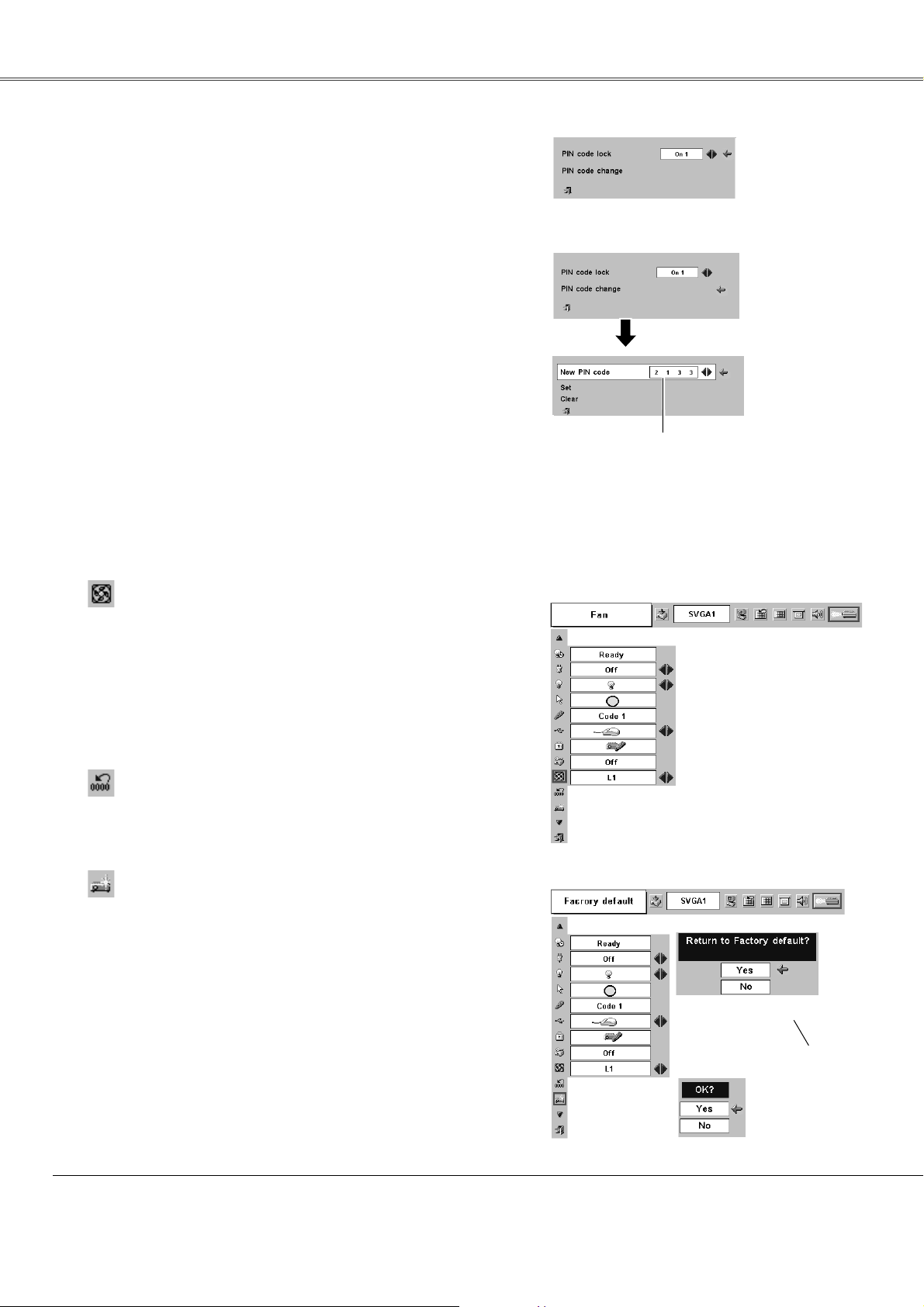

◆ PIN Code Lock Function
The PIN code lock function prevents others except users
from using the projector. (See page 20, 45 and 46.)

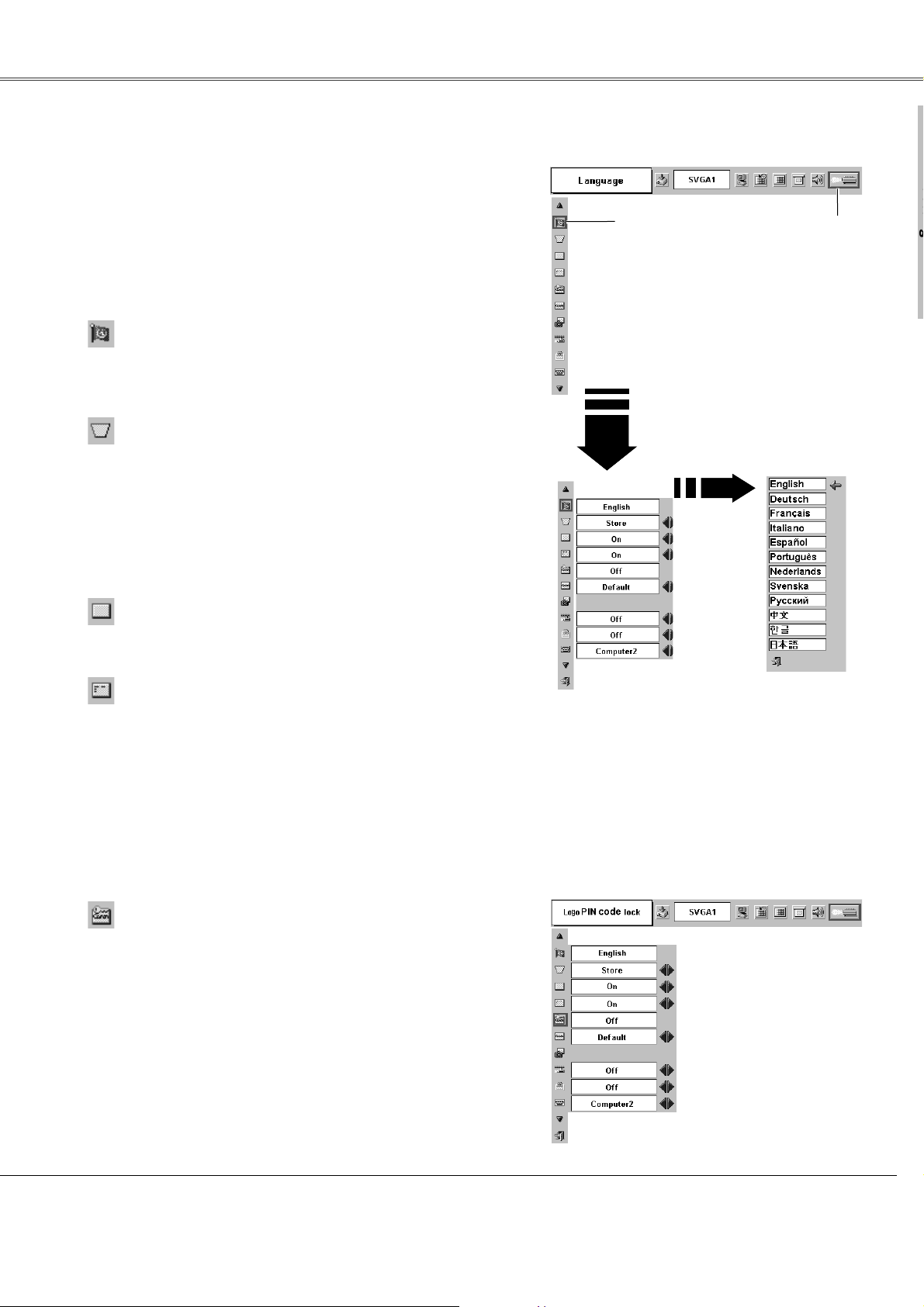

◆ Multilanguage Menu Display
Operation menu is available in 12 languages; English,
German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Russian, Chinese, Korean, or Japanese.
(See page 41.)
◆
Switchable Interface Terminal
The projector provides a switchable interface terminal. You
can use the terminal as computer input or monitor output
conveniently. (See page 43.)
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector
utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
3
Table of Contents
Features and Design . . . . . . . . . . . . . . . . . . .2
Ta ble of Contents . . . . . . . . . . . . . . . . . . . . . .3
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . .5
Air Circulation 6
Installing the Projector in Proper Position 6
Moving the Projector 6
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7

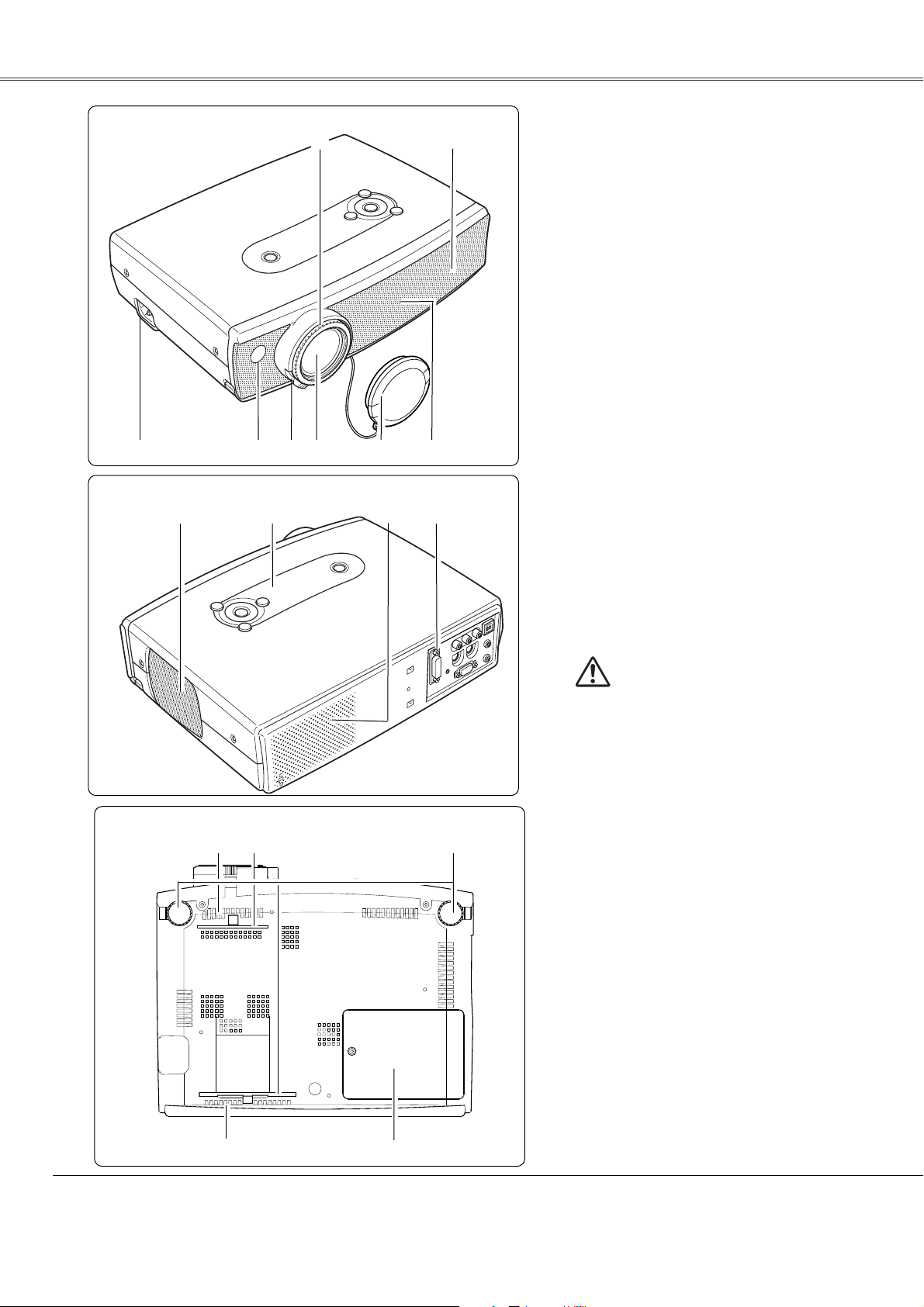

Part Names and Functions . . . . . . . . . . . . . .8
Front 8
Back 8
Bottom 8
Terminal 9
Top Control 10
Remote Control Unit 11
Pointer Function 12
Wireless Mouse Operation 12
Remote Control Code 13
Operating Range 13

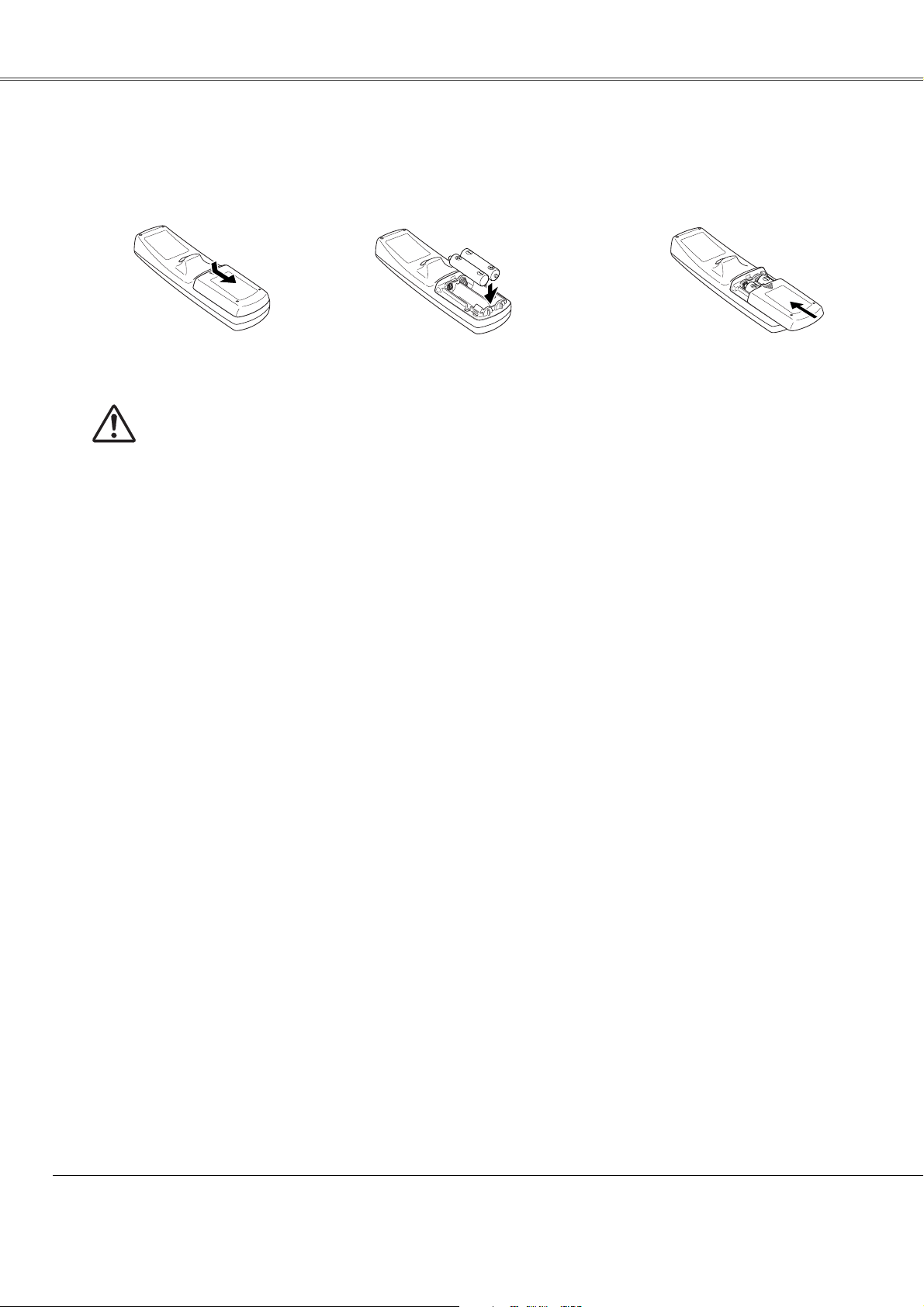

Remote Control Battery Installation 14
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .15

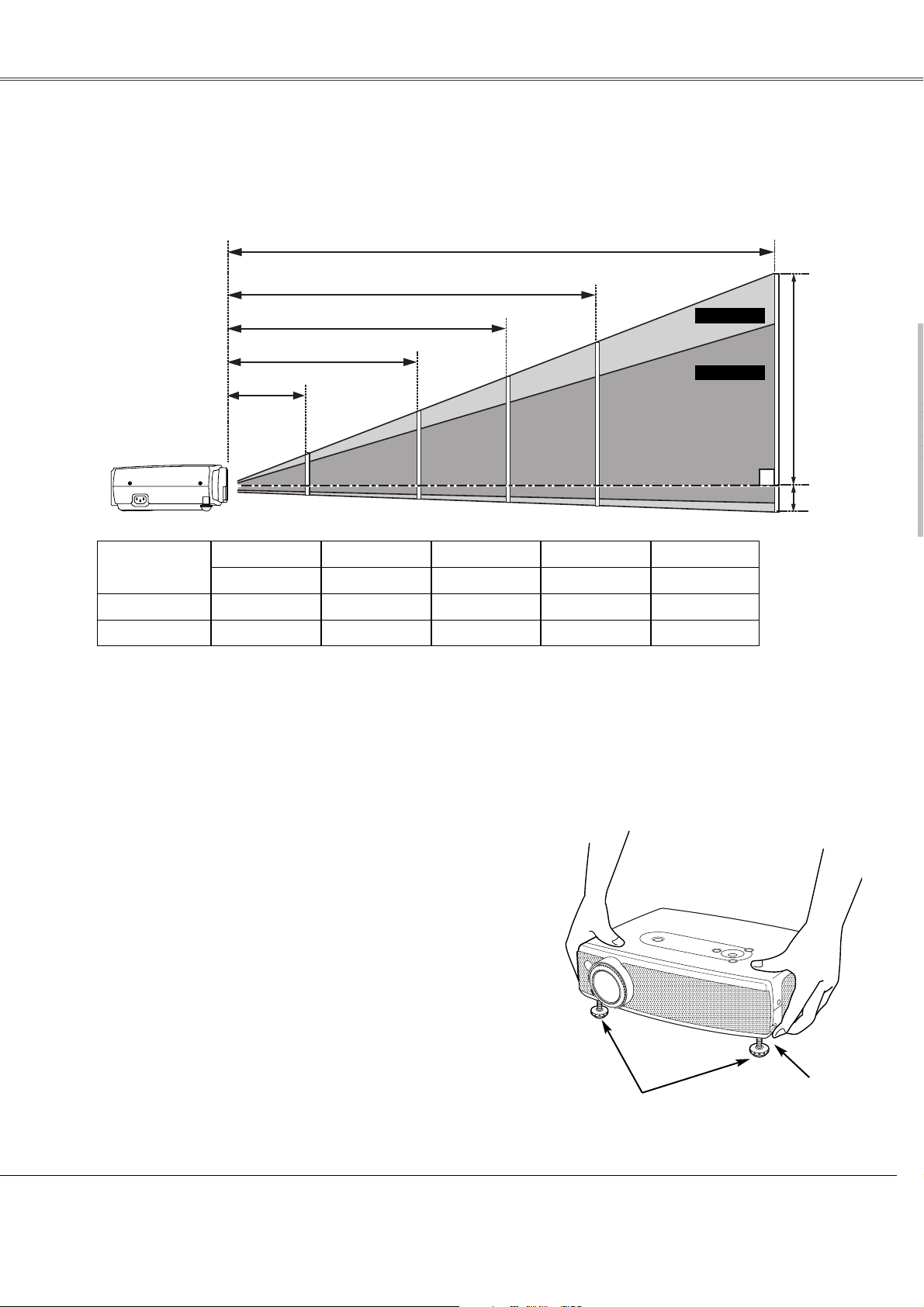

Positioning the Projector 15
Adjustable Feet 15

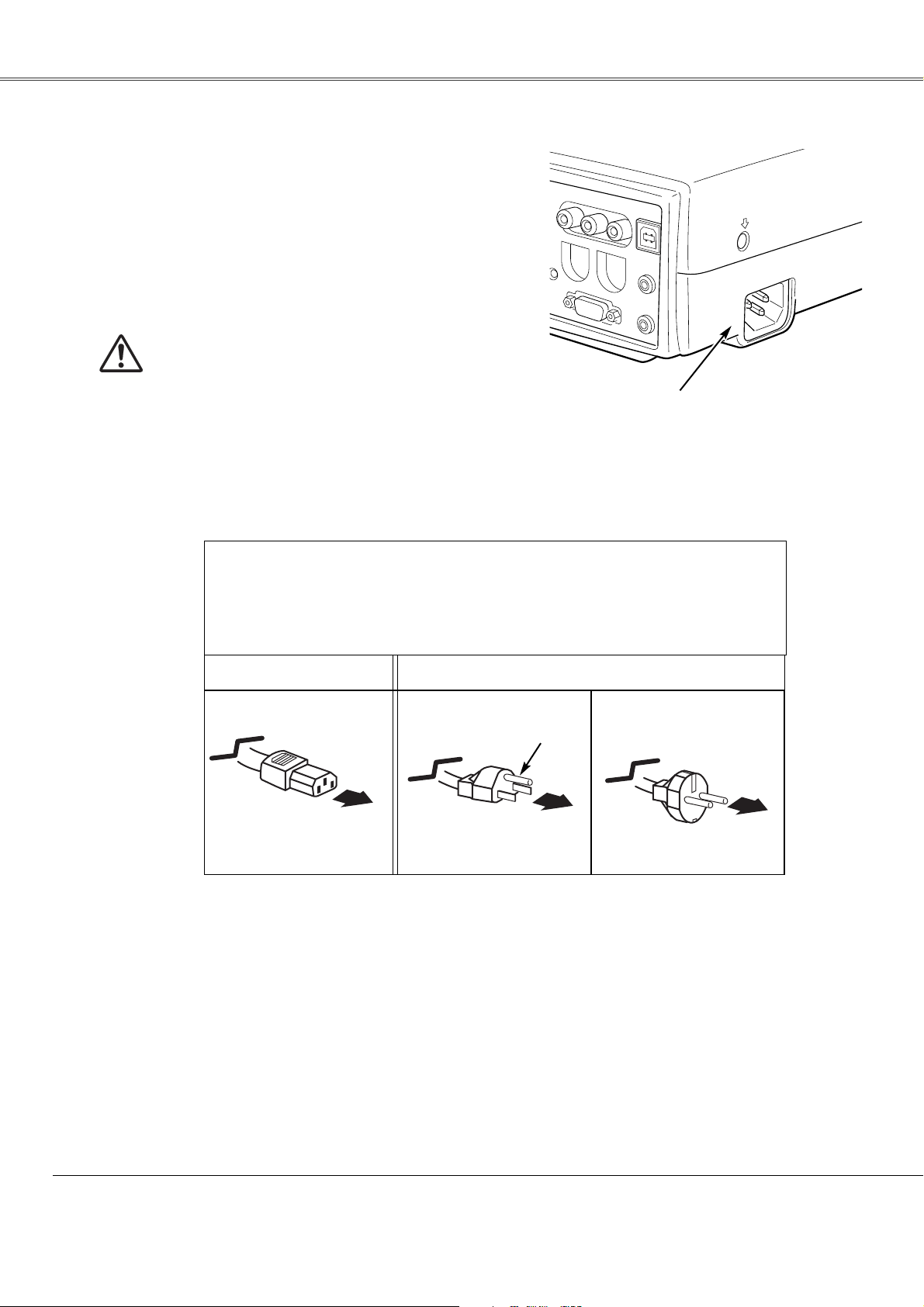

Connecting the AC Power Cord 16
Connecting to a Computer 17
Connecting to Video Equipment 18
Connecting to Component Video Equipment 19
Basic Operation . . . . . . . . . . . . . . . . . . . . . .20
Turning On the Projector 20
Turning Off the Projector 21
How to Operate the On-Screen Menu 22
Menu Bar 23
Zoom and Focus Adjustment 24
Keystone Adjustment 24
Picture Freeze Function 24
No Show Function 25
P-Timer Function 25
Sound Adjustment 25
Computer Input . . . . . . . . . . . . . . . . . . . . .26
Input Source Selection 26
Computer System Selection 27
Auto PC Adjustment 28
Manual PC Adjustment 29
Image Level Selection 31
Image Level Adjustment 32
Screen Size Adjustment 33
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .34
Input Source Selection (Video, S-Video) 34
Input Source Selection (Component, RGB Scart 21-Pin) 35
Video System Selection 36
Image Level Selection 37
Image Level Adjustment 38
Screen Size Adjustment 40
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Setting 41
Maintenance and Cleaning . . . . . . . . . . . . .47
Warning Indicator 47
Cleaning the Air Filters 48
Attaching the Lens Cover 48
Cleaning the Projection Lens 49
Cleaning the Projector Cabinet 49

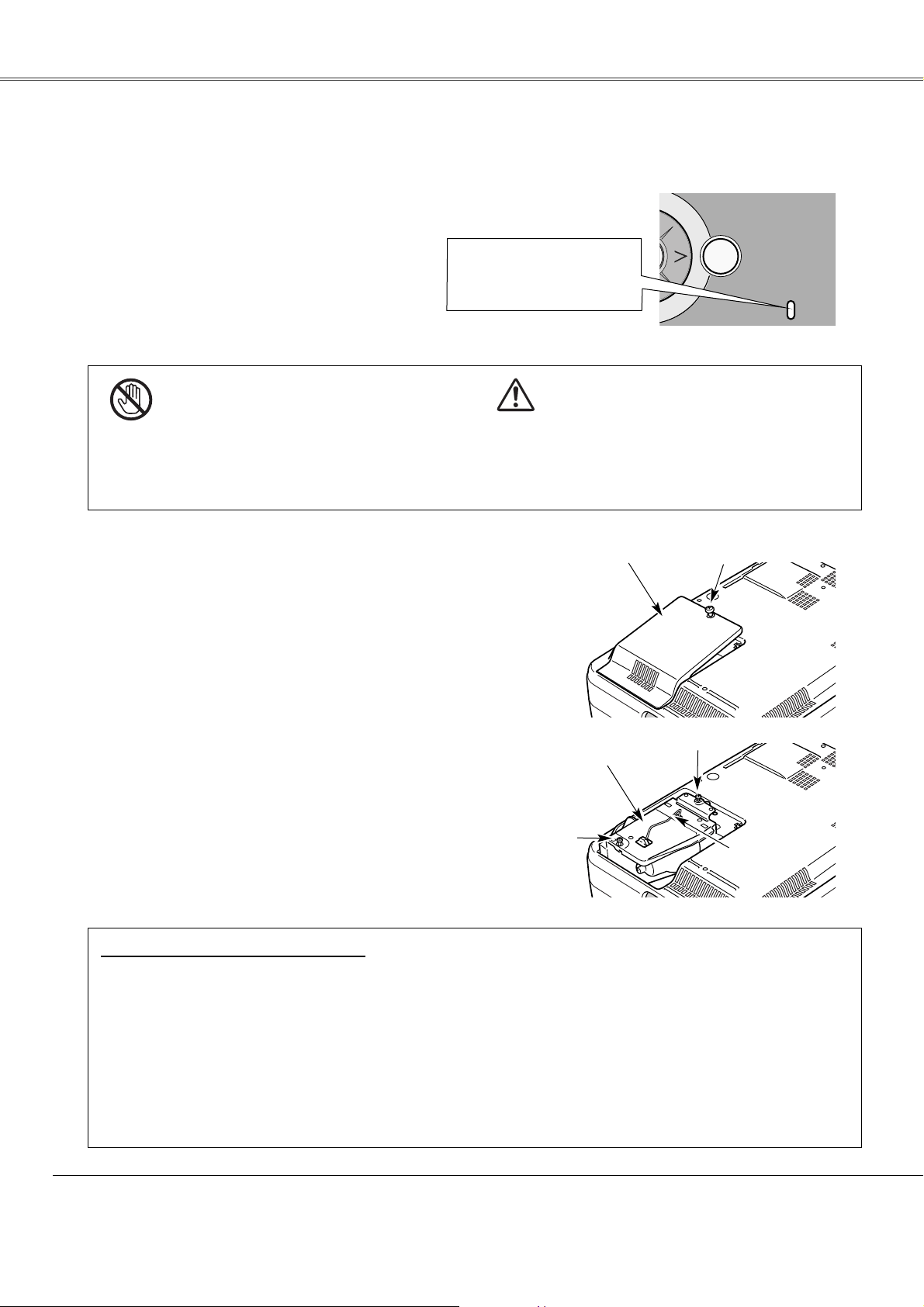

Lamp Replacement 50
Lamp Replace Counter 51
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Troubleshooting 52
Indicators and Projector Condition 54
Menu Tree 55
Compatible Computer Specifications 57
Technical Specifications 58
Configurations of Terminals 60
Optional Parts 60
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.
4
To the Owner
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for
a considerable time.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the end of
this booklet. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Do not stare directly into the lens as possible. Eye
damage could result. Be especially careful that children do
not stare directly into the beam.
– Install the projector in a proper position. If not, it may
result in a fire hazard.
– Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained. Do
not cover the ventilation slot on the projector. Heat build-
up can reduce the service life of your projector, and can
also be dangerous.
– Do not put any flammable object or spray can near the
projector, hot air is exhausted from the ventilation holes.
– If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE.
3.3'(1m)
3.3'(1m)
3.3'
(
1m
)
3.3'(1m)
SIDE and TOP REAR
CAUTION
Not for use in a computer room as defined in the Standard for
the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utillisé dans une salle d’ordinateurs telle que
définie dans la norme ANSI/NFPA 75 Standard for Protection
of Electronic Computer/Data Processing Equipment
NOTE FOR CUSTOMERS IN THE US
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY
AND MUST BE RECYCLED OR DISPOSED OF ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS.
5
Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest
on the power cord. Do not locate this projector where the
cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
6
Safety Instructions
USE CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR
–Do not drop or bump a projector, otherwise damages or
malfunctions may result.
– When carrying a projector, use a suitable carrying case.
– Do not transport a projector by using a courier or transport
service in an unsuitable transport case. This may cause
damage to a projector. To transport a projector through a
courier or transport service, consult your dealer for their
information.
Moving the Projector
When moving the projector, replace the Lens Cover and
retract Adjustable Feet to prevent damage to the lens and
cabinet.
When the projector is not in use for an extended period, put
it into the case (carrying bag) supplied with the projector.
Do not tilt the projector more than 20
degrees from side to side.
Do not point the projector up to
project an image.
Do not point the projector down to
project an image.
Do not put the projector on either
side to project an image.
Install the projector properly. Improper Installation may reduce
the lamp life and cause a fire hazard.
Installing the Projector in Proper Position
Openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or
covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using or
installing the projector, the following precautions should be
taken.
– Do not put any flammable objects near the vent.
– Keep the exhaust vent at least 3’(1m) away from any
objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will become
hot while the projector is being used.
– Do not put anything on the cabinet. The materials put on
the cabinet will not only get damaged but also cause fire
hazard by heat.
Cooling fans are provided to cool down the projector. This
projector monitors internal temperature and control the
running speed of the cooling fans.
Air Circulation
20˚
20˚
;;
;;;;
;;;;;;
;;;;;;;;
;;;;;;;;;
;;;;;;;;;;;
;;;;;;;;;;;;;
;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;
;;;;;;;;;;;;;
;;;;;;;;;;;
;;;;;;;;;
;;;;;;;
;;;;;;
;;;;
;;
;
Air Intake Vent
Air Intake VentExhaust Vent
(Hot air exhaust)
CAUTION
Carrying Bag (supplied) is intended for protection from dust
and scratches on the surface of a cabinet, and it is not
designed to protect an appliance from external forces. Do not
transport a projector through a courier or transport services
with this bag, otherwise the projector can be damaged. When
handling a projector, do not drop, bump, subject it to strong
forces or put other things on the cabinet.
7
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and
certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the
power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet,
contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC Power Cord Requirement
Feder
al Communication Commission Notice
Multimedia Projector, Model : LV-X4E, LV-X4U, LV-7230E, LV-7230U
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
Canadian Radio Interf
erence Regulations
This Class B digital apparatus complies with Canadian ICE-003.
Réglementation canadienne sur les intérfer
ences radio
Cet appareil num
é
rique de la classe B est conforme à la norme NMB-003 du Canada.
Compliance
8
q
e r t
!6 Exhaust Vent
o !0
CAUTION
Hot air is exhausted from the exhaust
vent. Do not put heat-sensitive
objects near this side.
y u i
!2
q Focus Ring
w Speaker
e Power Cord Connector
r Infrared Remote Receiver
t Zoom Lever
y Projection Lens
u Lens Cover (See page 48 for attaching.)
i Air Intake Vent
o Top Controls and Indicators
!0 Air Intake Vent
!1 Terminals and Connectors
!2 Air Intake Vent
!3 Air Filter
!4 Adjustable Feet
!5 Lamp Cover
w
!6
!5
!3 !4!2
!1
Bottom
Back
Front
Part Names and Functions
9
Part Names and Functions
at a esa d u cto s
AUDIO
R IN L
VIDEO IN
RGB IN-1/
COMPONENT IN
SERVICE PORT
S-VIDEO IN
COMPUTER
AUDIO IN
AUDIO OUT
RGB IN-2/
RGB OUT
RESET
Te r minal
q w e r t y
u
i o
*
q RGB IN-1/ COMPONENT IN
Connect output signal from a computer (Analog RGB) or
video equipment (Component or RGB Scart) to this
terminal. Optional cables are required when using this
terminal as component input or RGB Scart 21-Pin Video
input. (p17.19)
i S-VIDEO IN
Connect the S-VIDEO IN output from video equipment
to this jack. (p18)
e AUDIO IN
Connect the audio output from video equipment
connected to r or i to this jack. (When the audio
output is monaural, connect it to L (MONO) jack.) (p18)
y COMPUTER AUDIO IN
Connect the audio output (stereo) from a computer or
video equipment connected to q or u to this jack.
(p17,19)
r
VIDEO IN
Connect the composite video output from video
equipment to VIDEO jack. (p18)
u RGB IN-2 / RGB OUT
This terminal is switchable and can be used for input
from a computer or output to the other monitor. Set the
terminal up as either Computer input or Monitor output
properly. (Used for Monitor out, this terminal outputs
only incoming signal from RGB IN-1/ COMPONENT IN
terminal.) (p17,43)
o AUDIO OUT
Connect an external audio amplifier to this jack. (p17,
18,19)
This terminal outputs sound from AUDIO IN terminal (e
or y).
w SERVICE PORT
This jack is used to service this projector.
A built-in micro processor which controls this unit may occasionally
malfunction and need to be reset. This can be done by pressing the RESET
button with a pen, which will shut down and restart the unit. Do not use the
RESET function excessively.
✽
t USB (Series B)
When operating the connected computer with the
remote control unit, connect USB port of your computer
to this connector with a USB cable. (p17)
10
Part Names and Functions
Top Control
INPUT
WARNING
LAMP REPLACE
MENU
POWER
KEY
STONE
SET
VOL
VOL
+
-
q w r
t y u
i
e
u LAMP REPLACE indicator
Turns yellow when the life of the projection lamp draws to an
end. (p50, 54)
i WARNING indicator
Lights red when the projector detects abnormal condition. This
also blinks red when the internal temperature of the projector
exceeds the operating range. (p47, 54)
r POWER button
Turns the projector on or off. (p20,21)
POWER indicator
Blinks red until the projector gets ready to be turned on.
It turns red when the projector is in the stand-by mode.
It remains green while the projector is under operation.
(p54)
t INPUT button
Selects input source. (p26, 34, 35 )
q MENU button
Opens or closes the On-Screen Menu. (p22)
y POINT
eedd
7 8(VOL+/-)button
Selects an item or adjusts value in the On-Screen Menu. These
are also used to pan the image in the Digital zoom + mode.
(p33)
Point 7 8 buttons are used as VOL +/– button. (p25)
w SET button
Executes the item selected. It is also used to expand /
compress the image in Digital zoom +/– mode. (p33)
e KEYSTONE button
Corrects keystone distortion. (p24, 41)
11
Part Names and Functions
Remote Control Unit
q
w SIGNAL EMISSION indicator
This indicator lights red while a signal is being sent from the remote control unit to
the projector.
r AUTO PC button
Operates the Auto PC adjustment function. (p28)
y POINT (
eedd
7 8) button
Selects an item or adjusts value in the On-Screen Menu. These are also used to pan
the image in the Digital zoom + mode. (p33)
Point 7 8 button are also used as VOL+/- buttons. (p25)
i SET button
Executes the item selected, or to expand or compress image in the Digital zoom +/-
mode. (p33)
t COMPUTER button
Selects input source (COMPUTER 1 or COMPUTER 2). (p26)
o PAGE UP/DOWN button
Turns pages; the Up button to the previous page and the Down button to the next
page for an image from a computer. Connect the projector and your computer with
a USB cable before use. (p17.)
q L-CLICK button
Acts as left click for wireless mouse operation. (p12)
e KEYSTONE button
Corrects keystone distortion. (p24, 41)
u PRESENTATION POINTER button
Move a pointer of the projector or a pointer for wireless mouse operation. (p12)
at a esa d u cto s
POINTER
w
e
r
t
y
u
i
o
!0
!1
!4
!5
!6
!7
!8
!9
@0
!2
!3
@1
@1 RESET/ON/ALL-OFF switch
When using the remote control unit, set this switch to “ON.” Set it to “ALL OFF”
when it is not used for energy saving. Slide this switch to the "RESET" to initialize
the remote control code. (p13)
!7 D.ZOOM button
Selects the Digital zoom +/– mode and resize the image. (p33)
!3 M
UTE button
Mutes sound. (p25)
!6 MENU button
Opens or closes the On-Screen Menu. (p22)
!0 POINTER button
Activates the Pointer function of the projector. (p12)
!4 POWER button
Turns the projector on or off. (p20,21)
!8 NO SHOW button
Turns the picture into black image. (p25)
!1 FREEZE button
Freezes the projected picture. (p24)
!2 IMAGE button
Selects image levels.(p31, 37)
@0
P-TIMER button
Operates P-Timer function. (p25)
!9 R-CLICK button
Acts as right click for wireless mouse operation. (p12)
!5 VIDEO button
Selects input source (VIDEO). (p34)
12

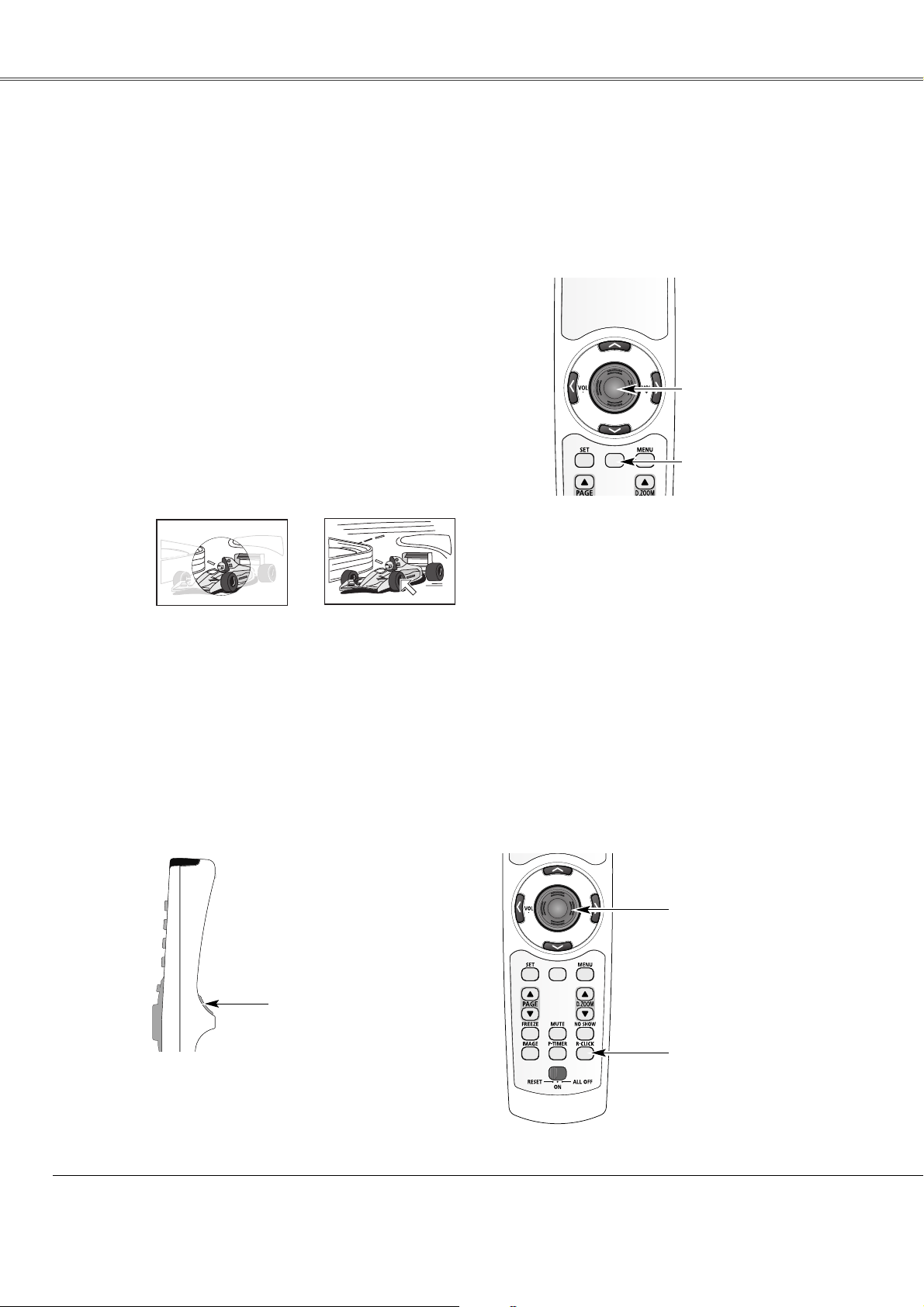

You can move Spotlight or Pointer of the projector with the remote control unit to emphasize a part of the projected image.
Press the POINTER button on the remote control unit to
display the Spotlight or Pointer (Arrow, Finger or Dot) you
have selected.
1
Spotlight
Move the Spotlight or Pointer with the PRESENTATION
POINTER button.
2
To clear the Spotlight or Pointer displayed on the screen,
press the POINTER button toward the projector.
3
POINTER
Pointer
POINTER button
PRESENTATION POINTER button
The remote control unit can be used as a wireless mouse for your computer. Before operating the wireless mouse, connect
your computer and the projector with the supplied USB cable. (See page 17 for connection.)
When the Pointer function is used, the wireless mouse is not available.
Wireless Mouse Operation
POINTER
Move the pointer on the screen
with this button.
PRESENTATION POINTER button
R-CLICK button
L-CLICK button
Acts as right click while the
projector and a computer are
connected with a USB cable.
Acts as left click while the
projector and a computer are
connected with a USB cable.
✔Note:
You can choose the size of Spotlight (Large, Middle, and Small) and the pattern of
Pointer (Arrow, Finger, and Dot) in the Setting Menu. See “Pointer” on page 44.
Part Names and Functions
Pointer Function
13
Part Names and Functions
This projector has eight different remote control codes (Code 1-Code 8); the factory-set, initial code (Code 1) and the other
seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating several
projectors or video equipment at the same time. (Change the remote control code for the projector first before changing
that for the remote control unit. See “Remote control” on page 44.)
While pressing the MENU button, press the IMAGE button
number of times corresponding to each remote control code
number. Each time you press the IMAGE button, the code is
changed sequentially. (See the list below.)
1
To initialize the remote control code for the remote control
unit, slide the RESET/ON/ALL-OFF switch to the RESET, and
then to the ON. The initial code is Code 1.
2
POINTER
While pressing the MENU
button, press the IMAGE
button number of times
corresponding to the remote
control code for the projector.
Remote Control Code
Number of Times of
Pressing IMAGE Button
Code 1 1
Code 2 2
Code 3 3
Code 4 4
Code 5 5
Code 6 6
Code 7 7
Code 8 8
MENU button
IMAGE button
INPUT
WARNING
LAMP REPLACE
MENU
POWER
KEY
STONE
SET
VOL
VOL
+
-
Point the remote control unit toward the projector (Infrared
Remote Receiver) whenever pressing any button. Maximum
operating range for the remote control unit is about 16.4’
(5m) and 60° in front of the projector.
16.4’
(5 m)
60°
Operating Range
Remote Control Unit
at a esa d u cto s
Remote Control Code
14
Part Names and Functions
To insure safe operation, please observe the following precautions :
● Use (2) AA, UM3 or LR06 type alkaline batteries.
● Replace two batteries at the same time.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid.
● Do not expose the remote control unit to moisture or heat.
● Do not drop the remote control unit.
● If a battery has leaked on the remote control unit, carefully wipe the case clean and install new batteries.
● Risk of explosion if the battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions.
Press the lid downward
and slide it.
Remove the battery
compartment lid.
Slide the batteries into
the compartment.
Replace the compartment
lid.
Two AA size batteries
For correct polarity (+ and
–), be sure battery
terminals are in contact
with pins in compartment.
12 3
Remote Control Battery Installation
15
sta at o
Projection angle can be adjusted up to 11.9 degrees with the
adjustable feet.
Lift the front of the projector and pull upward the feet lock
latches on both sides of the projector.
1
Adjustable Feet
Feet Lock Latches
Release the feet lock latches to lock the adjustable feet and
rotate the adjustable feet to adjust the position and tilt.
2
To retract the adjustable feet, lift the front of the projector
and pull and undo the feet lock latches.
Keystone distortion of the projected image can be adjusted
by menu operation. (p24, 41)
3
100”
150”
190”
300”
190”
122”
95”
62”
40”
A
B
Max. Zoom
Min. Zoom
A : B = 9 : 1
Adjustable Feet
(Inch Diagonal)
✔Note:
• The brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.
• The values shown above are approximate and may vary from the actual size.
This projector is designed to project on a flat projection surface and can be focused from 3.3’(1.0m) - 25.3’(7.7m). Refer to
the figure and the table below for the screen size and the distance between the projector and the screen.
(Center)
Positioning the Projector
Installation
Screen Size
(W x H) mm
4 : 3 aspect ratio
Zoom (min)
40”
Zoom (max)
813 x 610
5.2' (1.6m)
3.3' (1.0m)
100”
2032 x 1524
13.1' (4.0m)
8.2' (2.5m)
150”
3048 x 2286
19.7' (6.0m)
12.5' (3.8m)
190”
3861 x 2896
25.3' (7.7m)
16.1' (4.9m)
300”
6096 x 4572
–––––
25.3' (7.7m)
16,1’ (4,9m)
12.5’ (3.8m)
8,2’ (2,5m)
3.3’ (1.0m)
25.3’ (7,7m)
16
Installation
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power being supplied.
Connect the projector with all peripheral equipment before turning
the projector on. (See page 17-19 for connection.)
CAUTION
For safety, unplug AC power cord when the projector is not in
use. When this projector is connected to an outlet with AC
power cord, it is in Stand-by mode and consumes a little electric
power.
Connecting the AC Power Cord
Connect AC power cord (supplied) to the
projector.
The AC outlet must be near this equipment and
must be easily accessible.
NOTE ON THE POWER CORD
AC power cord must meet requirement of the country where you use a projector.
Confirm an AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
To power cord
connector on your
projector.
Projector side AC outlet side
Ground
To the AC outlet.
(120 V AC)
For Continental Europe
For the U.S.A. and Canada
To the AC outlet.
(200 - 240 V AC)
17
sta at o
Installation
Connecting to a Computer
S-VIDEO IN
RGB IN-2 /
RGB OUT
COMPUTER
AUDIO IN
AUDIO
R
VIDEO INL
SERVICE PORT
RESET
A AUDIO OUT
RGB IN-1 /
COMPONENT IN
IN
Cables used for connection
• VGA Cable (HDB 15 pin) (Only a cable is supplied.)
• USB Cable
• Audio Cables (Mini Plug: stereo)
✽
(✽ = Not supplied with this projector.)
External Audio Equipment
VGA cable
USB cable
Audio cable (stereo)
✽
Audio cable ✽
(stereo)
Monitor Output
USB port
Audio Output
RGB IN-1/ COMPONENT IN
(or RGB IN-2/ RGB OUT)
USB
COMPUTER
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
This terminal is switchable. Set up the
terminal as either Computer input or
Monitor output. (See Page 43.)
VGA cable
Monitor Input
RGB IN-2/ RGB OUT
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
• If you wish to use Page
eedd
buttons on the remote control unit, connect USB port
of your computer to the USB socket of the projector. (p9,12 and 44)
• When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.
18
AUDIO
R IN L
VIDEO IN
RGB IN-1/
COMPONENT IN
SERVICE PORT
S-VIDEO IN
COMPUTER
AUDIO IN
AUDIO OUT
RGB IN-2/
RGB OUT
RESET
Installation
Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3) ✽
• S-VIDEO Cable ✽
• Audio Cable (Mini Plug: stereo) ✽
(✽ = Not supplied with this projector.)
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
• The S-VIDEO jack has priority over the VIDEO jack under the condition of connecting
both the S-VIDEO jack and the VIDEO jack when selecting AUTO in the Input
Menu.
• When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.
External Audio Equipment
Audio cable ✽
(stereo)
VIDEO INS-VIDEO IN
S-Video cable ✽
Video and audio
cable✽
Composite Video and
Audio Output
S-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R)
(L)
(R)
(L) (Video)
(Video)
19
sta at o
Installation
Connecting to Component Video Equipment
AUDIO
R IN L
VIDEO IN
RGB IN-1/
COMPONENT IN
SERVICE PORT
S-VIDEO IN
COMPUTER
AUDIO IN
AUDIO OUT
RGB IN-2/
RGB OUT
RESET
Cables used for connection
• Audio Cables (Mini Plug (stereo) x 2 or RCA x 2) ✽
• Video and Audio Cable (RCA x 3) ✽
• Scart-VGA Cable ✽
• Component-VGA Cable ✽ (Separately supplied as LV-CA32)
(
✽ = Not supplied with this projector.)
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
• Input sound to the COMPUTER AUDIO IN terminal when using the RGB IN-2/RGB
OUT terminal as input.
• When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.
External Audio Equipment
RGB IN-1/
COMPONENT IN
RGB IN-1/
COMPONENT IN
COMPUTER
AUDIO IN
Audio cable ✽
(stereo)
Audio cable ✽
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-pin Output Audio Output
Scart-VGA cable ✽
Component-
VGA cable✽
AUDIO OUT
(stereo)
Video and
audio cable✽
20
Connect the projector's AC power cord into an AC outlet.
The POWER indicator blinks red in a moment and lights red.
Press the POWER button on the top control or on the
remote control unit. The POWER indicator turns green
lighting and the cooling fans start to operate. The
preparation display appears on the screen and the count
down starts.
2
3
1
16
The preparation display disappears after 30 seconds.
4
After the count-down, the image level that was selected last
and the Lamp mode status icon (see page 44) appear on the
screen.
(See page 44 for Lamp mode.)
Selected Image Level and Lamp Mode
Complete peripheral connections (with a computer, VCR,
etc.) before turning on the projector.
Lamp mode
What is PIN code?
PIN code is a security code using Personal Identification Number that
allows the person who knows it to operate the projector. Setting PIN code
prevents others except the specific users from operating the projector.
A PIN code consists of a four-digit number. Refer to PIN code lock
function in Setting on page 45 and 46 for locking operation of the projector
with your PIN code.
Pointer
After the OK icon
disappears, you can
operate the projector.
PIN code Input Dialog Box
Tu r ning On the Projector
Basic Operation
Enter a PIN code
Select a number by pressing the Point 7 8 button and fix the number with
the SET button. The number will change to "✳". If you fixed a wrong
number, move the pointer to "Set" or "Clear" once by pressing the Point
dd
button, then return to "PIN code". Enter the correct number again.
Repeat this step to complete entering a four-digit number.
When the four-digit number is fixed, the pointer will automatically move to
"Set". Press the SET button so that you can start to operate the projector.
If you entered a wrong PIN code, "PIN code" and the number (✳✳✳✳) will
turn red and disappear. Enter a correct PIN code all over again.
✔Note:
If the projector is locked with a PIN code, PIN code Input Dialog Box will appear.
Enter the PIN code as instructed below.
21
Basic Operation
as c Ope at o
Press the POWER button on the top control or on the
remote control unit, and a message "Power off?" appears on
the screen.
Press the POWER button again to turn off the projector. The
POWER indicator starts to blink red, and it continues while
the cooling fans are operating for about 90 seconds. (About
120 seconds when the fan mode is L2. See page 46.)
1
2
TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN
PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE
TURNING IT OFF.
DO NOT DISCONNECT AC POWER CORD WHILE
COOLING FANS ARE RUNNING OR BEFORE POWER
INDICATOR LIGHTS RED. OTHERWISE IT WILL
RESULT IN SHORTENING LAMP LIFE.
3
When the projector has cooled down enough to be turned on
again, the POWER indicator lights red. Then you can
disconnect the AC power cord.
The message disappears after 4 seconds.
✔Note:
• The projector cannot be turned on during the cooling period with the POWER
indicator blinking red. You can turn it on again after the POWER indicator lights red.
• When the On start function is on, this projector is turned on automatically by
connecting the AC power cord to an AC outlet. (See page 43 for the On start
function.)
• Do not operate the projector continuously without rest. Continuous use may result
in shortening the lamp life. Turn off the projector and give it a rest about an hour in
every 24 hours.
• This projector monitors internal temperature and automatically controls the running
speed of the cooling fans.
• If the WARNING indicator blinks or lights red, see “Warning Indicator” on page 47.
Tu r ning Off the Projector
INPUT
LAMP REP
L
MENU
KEY
STONE
SET
VOL
VOL
+
-
22
Basic Operation
Top Control
Menu bar
Pointer
(red frame)
Menu icon
Item data
Press the Point
7 8buttons
to adjust value.
SET
button
Pointer (red frame)
Press the Point d button
to move the pointer.
Item

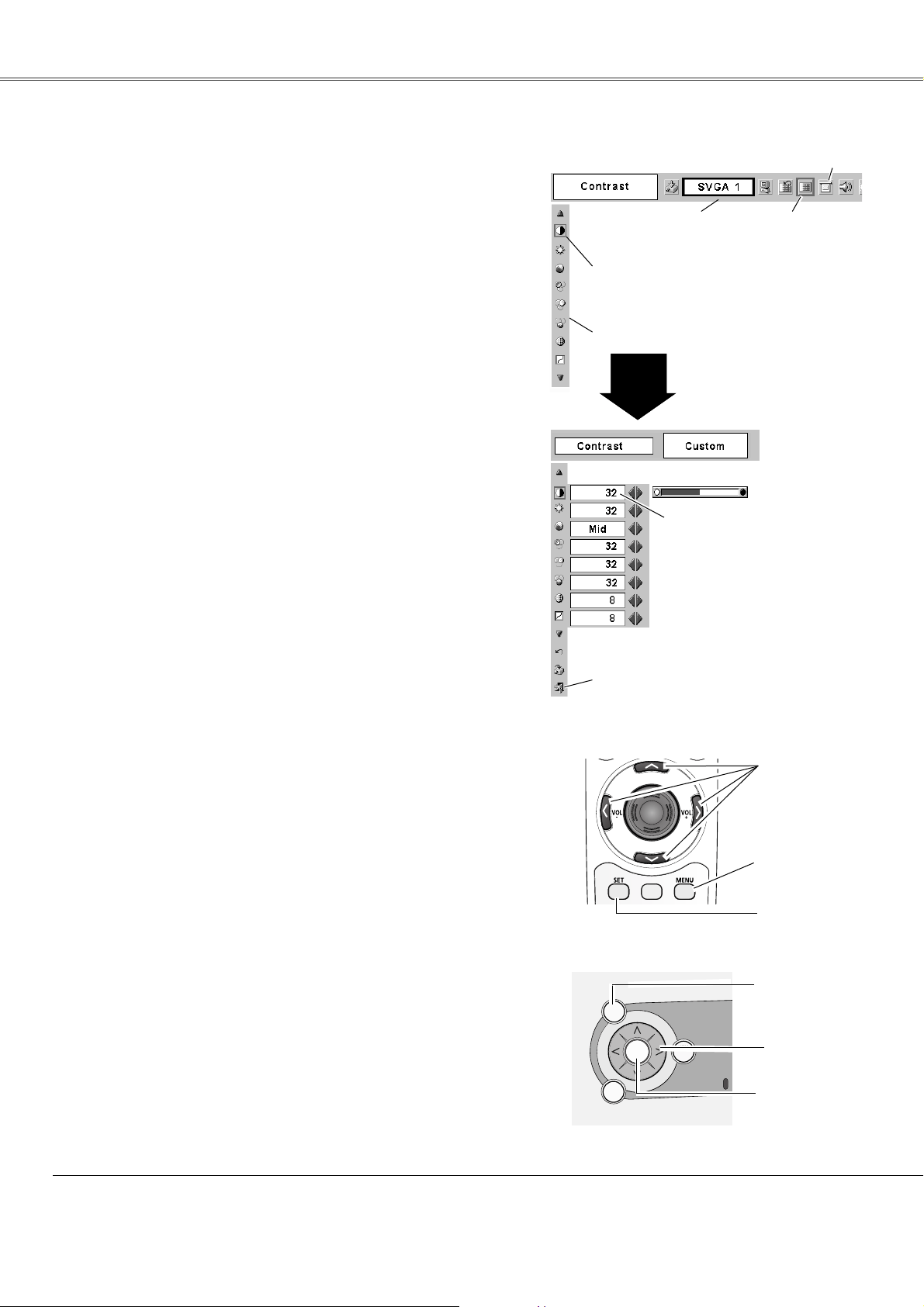

How to Operate the On-Screen Menu
MENU button
SET button
POINT button
(outer ring)
On-Screen Menu
Quit to exit this menu.
The projector can be adjusted or set via the On-Screen Menu.
Refer to the following pages regarding each adjustment and
setting procedure.
Press the Point 7 8 button to select a Menu icon to adjust.
Press the Point ed button to select an item to adjust.
Press the SET button to show the item data. Press the Point
7 8 button to adjust the data. Refer to the following pages
for respective adjustment.
Press the MENU button to display the On-Screen Menu.
✔Note:
The selected item is not in effective until the SET button is pressed.
1
2
3
POINTER
SET button
POINT button
Remote Control Unit
MENU button
23
as c Ope at o
Basic Operation
Menu Bar
PC System Menu
Used to select
computer system.
(p27)
Image Adjust Menu
Used to adjust computer image.
[Contrast / Brightness
/ Color
temp. /
White balance (R/G/B) /
Sharpness /
Gamma]
(p32)
Setting Menu
Used to change
settings of the
projector or reset lamp
replace counter.
(p41-46)
Sound Menu
Used to adjust
volume or mute
sound. (p25)
Image Select Menu
Used to select an
image level among
Standard, High
contrast,Blackboard
(Green), and
Custom.(p31)
For computer source
AV System Menu
Used to select
system of selected
video source.
(Refer to p36)
Image Adjust Menu
Used to adjust picture image.
[Contrast / Brightness
/ Color / Tint
/
Color temp. / White balance (R/G/B) /
Sharpness /
Gamma / Progressive /
Film]
(Refer to p38,39)
For video source
Same function as menu
for computer source.
Input Menu
Used to select
input source
either Video or
Computer.
(p34,35)
PC Adjust Menu
Used to adjust
parameters to
match with input
signal format.
(p28-30)
Image Select Menu
Used to select an
image level among
Standard, Cinema,
Blackboard(Green)
and Custom.
(p37)
Screen Menu
Used to set size
of image to
Normal or Wide.
(p40)
Guide Window
Shows the selected
Menu of the On-
Screen Menu.
Same function as
menu for computer
source.
Input Menu
Used to select
input source
either Computer
or Video. (p26)
Screen Menu
Used to adjust size
of image. [Normal
/ True / Wide /
Digital zoom +/–]
(p33)
24
Press the FREEZE button on the remote control unit to freeze the
picture on the screen. To cancel the FREEZE function, press the
FREEZE button again. (p11)
If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.
Basic Operation
• The arrows are blue when there is no correction.
• The arrows disappear at the maximum correction.
• The direction of the arrow being corrected turns light
blue.
• If you press the KEYSTONE button on the top control
or on the remote control unit once more while the
keystone dialog box is being displayed, the keystone
adjustment will be canceled.
Picture Freeze Function
Reduce the upper width
with Point
ee
button.
Reduce the lower width
with Point
dd
button.
1
Press the KEYSTONE button on the top control, the remote
control unit or select Keystone in the Setting Menu (p41).
The keystone dialog box appears.
2
Correct keystone distortion by pressing the Point
eedd
button.
Keystone adjustment can be memorized. (p41)
Rotate the Zoom Lever to zoom in and out.
Rotate the Focus Ring to adjust the projected picture focus.
Zoom Lever
Focus Ring
Keystone Adjustment
Zoom and Focus Adjustment
25
as c Ope at o
Basic Operation

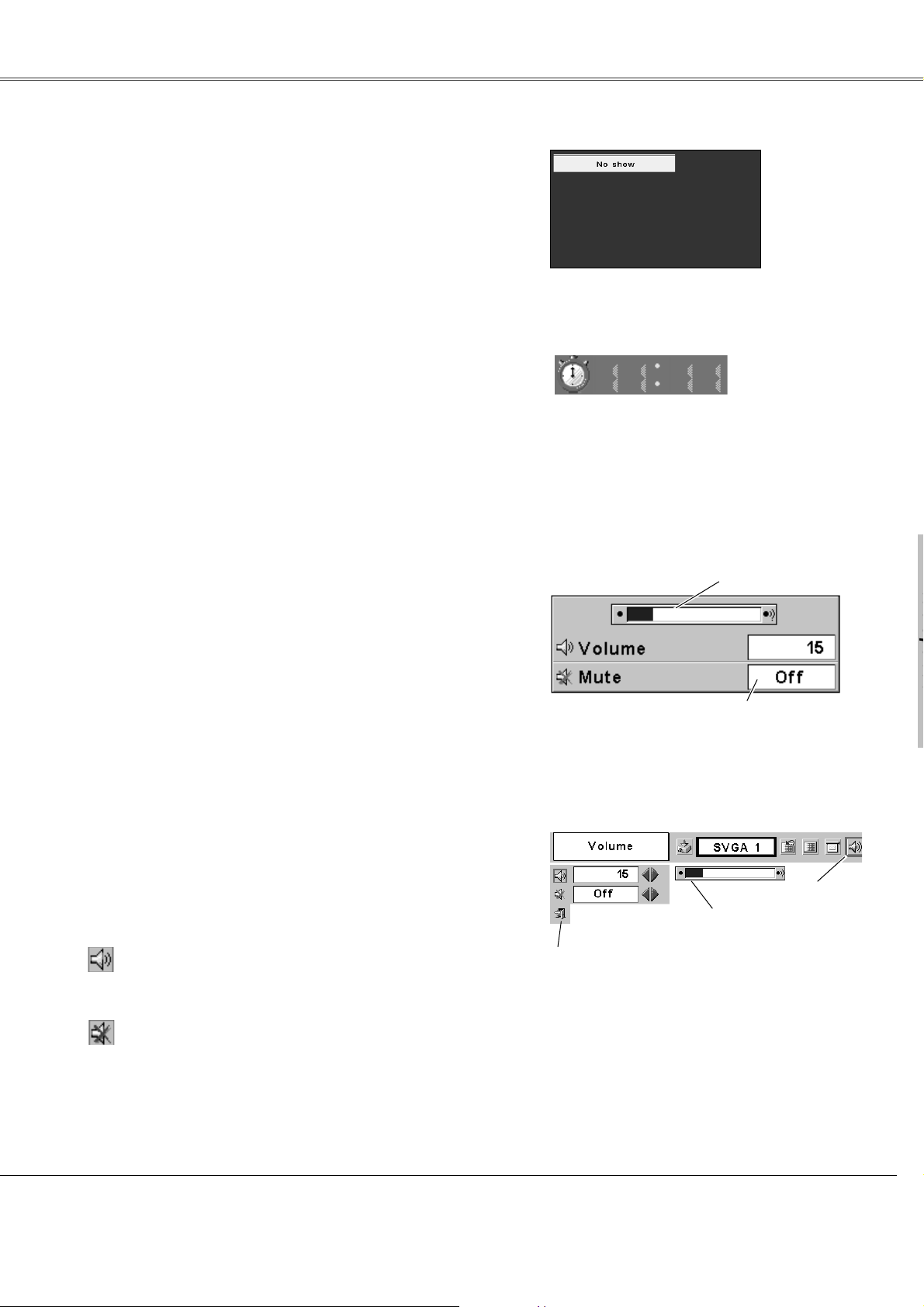

Press the NO SHOW button on the remote control unit to black
out the image. To restore to normal, press the NO SHOW button
again or press any other button. When a projected image is
captured and set as “User” in the Logo item in the Setting Menu
(p42), the screen changes each time you press the NO SHOW
button as follows.
The message disappears after 4 seconds.
Press the P-TIMER button on the remote control unit. The timer
display “00 : 00” appears on the screen and the timer starts to
count time (00 : 00 ~ 59 : 59).
To stop the P-Timer, press the P-TIMER button. And then, press
the P-TIMER button again to cancel the P-Timer function.
1
2
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Sound Menu icon.
Volume
Press the VOL (+/–) button on the top control or on the remote
control unit to adjust volume. The volume dialog box appears on
the screen for a few seconds.
(+) button to turn up the volume and (–) button to turn down the
volume.
Mute
Press the MUTE button on the remote control unit to cut off
sound. To restore sound to its previous level, press the MUTE
button again or press the VOL (+/–) button.
Press the Point 8 button to turn up the volume, and press the
Point
7 button to turn down the volume.
Press the Point 7 8 button to cut off sound. Dialog box display is
changed to “On” and sound is cut off. To restore sound to its
previous level, press the Point
7 8 button again.
Press the Point
dd
button to move the red frame pointer to
the item that you want to select, and then press the SET
button.
indicates approximate
level of volume.
closes the Sound Menu.
Direct Operation
Volume
Mute
indicates approximate
level of volume.
Press the MUTE button to set
the Mute function On or Off.
The display disappears after 4 seconds.
Sound Menu
Sound Menu icon
Sound Adjustment
Menu Operation
black out ➜ the captured image ➜ normal ➜
• • • • •
P-Timer Function
No Show Function
26
Choose either Computer 1 or Computer 2 by pressing the INPUT
button on the top control or press the COMPUTER button on the
remote control unit.
Before using these buttons, correct input source should be
selected through menu operation as described below.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Input Menu icon.
1
Computer
1
Input Menu
Press the Point
dd
button to move the red arrow pointer to
either Computer 1 or Computer 2, and then press the SET
button.
2
After the Source Select Menu appears for Computer 1,
move the pointer to RGB and then press the SET button.
3
Input Menu
Computer 1
Video
Computer 2
COMPUTER button
Computer 1
Computer 2
When the input source is analog coming from a
computer through the RGB IN-1/ COMPONENT
IN terminal, select RGB.
RGB
INPUT button
Input Source Selection
Direct Operation
Menu Operation
Computer Input
Move the pointer to RGB and
press the SET button.
Source Select Menu
✔Note:
Computer 2 is not displayed when the RGB IN-2/ RGB OUT terminal is used as
Monitor out. (p43)
Move the pointer (red
arrow) to Computer 1
and press the SET
button.
Input Menu icon
Move the pointer (red
arrow) to Computer 2
and press the SET
button.
RGB (Scart)
Component
See "Selecting Input Source (Component / RGB-
Scart 21-pin )" on p35.
See "Selecting Input Source (Component / RGB-
Scart 21-pin )" on p35.
✳ See Note on the bottom of this page.
✳
✳
27
Co pute put
Computer Input
The Auto PC Adjustment
function operates to adjust the
projector.
PC System Menu
The PC System Menu icon
displays the system being
selected.
The systems on this dialog
box can be selected.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the PC System Menu icon.
Press the Point
dd
button to move the red arrow pointer to
the system that you want to set, and then press the
SET
button.
1
2
PC System Menu
Custom Mode (1~5) set in the
PC Adjust Menu. (p29,30)
PC system can also be selected manually.
Computer System Selection
This projector automatically tunes to various types of computers based on VGA, SVGA, XGA or SXGA with its Multi-scan
system and Auto PC Adjustment. If Computer is selected as a signal source, this projector automatically detects the signal
format and tunes to project a proper image without any additional setting. (Signal formats provided in this projector is
shown on page 57 )
When the projector cannot recognize connected
signal conforming to PC Systems provided in this
projector, Auto PC Adjustment function works to
display proper images and the message “Auto” is
displayed on the PC System menu box. When the
image is not projected properly, manual adjustment is
required. (p29,30 )
There is no signal input from computer. Check the
connection of your computer and the projector. ( "
Troubleshooting" p52 )
Auto
-----
✔Note:
The projector may display one of the following messages.
User preset system manually adjusted in PC Adjust
menu. Adjustment data can be stored in Mode 1 - 5.
( p29,30 )
Mode 1
PC Systems provided in the projector. The projector
chooses a proper system and displays it.
SVGA 1
Selecting Computer System Manually
*Mode 1 and SVGA 1 are examples.
28
Computer Input
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to conform to
your computer. Auto PC Adjustment function can be operated as follows.
Move the red frame pointer to
the Auto PC Adj. icon and
press the SET button.
PC Adjust Menu
PC Adjust Menu icon
To store adjustment parameters
Adjustment parameters from Auto PC Adjustment can be
memorized in this projector. Once parameters are memorized, the
setting can be done just by selecting Mode in the PC System
Menu (p27). See “Store” on page 30.
✔Note:
• Fine sync, Total dots and Picture Position of some computers can not be fully
adjusted with this Auto PC Adjustment function. When the image is not provided
properly with this operation, manual adjustments are required. (p29,30)
• The Auto PC Adjust cannot be operated when 480i, 575i, 480p, 575p, 720p,1035i,
or 1080i is selected in the PC System Menu.
Auto PC Adjustment
Press the MENU button to display the On-Screen Menu.
Press the Point
7 8 button to move the red frame pointer to
PC Adjust Menu icon.
1
2
Press the Point d button to move the red frame pointer to
Auto PC Adj. icon and then press the SET button twice.
This Auto PC Adjustment can be also executed by pressing
the Auto PC button on the remote control unit.
Auto PC Adj.
29
Co pute put
Computer Input
Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC
Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 5
independent memory areas to memorize those parameters manually adjusted. It allows you to recall the setting for a
specific computer.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the PC Adjust Menu icon.
1
2
Press the Point
dd
button to move the red frame pointer to
the item that you want to adjust and then press the SET
button. An adjustment dialog box will appear. Press the
Point
7 8 button to adjust value.
Move the red frame pointer to
an item and press the SET
button.
PC Adjust Menu
PC Adjust Menu icon
Eliminates flicker from the image displayed. Press the Point 7 8
button to adjust value. (From 0 to 31)
Fine sync
Adjusts the number of total dots in one horizontal period. Press
the Point
7 8 button and adjust number to match your PC image.
Total dots
Adjusts horizontal picture position. Press the Point 7 8 button to
adjust the position.
Horizontal
Adjusts vertical picture position. Press the Point 7 8 button to
adjust the position.
Vertical
Press the SET button to show H-Freq. and V-Freq. of the
connected computer.
Current mode
Adjusts clamp level. When the image has dark bars, try this
adjustment.
Clamp
Press the SET button at this
icon to adjust the other items.
Press the Point 7 8 button to
adjust the value.
Shows status
(Stored / Free) of the
selected Mode.
Selected Mode
Press the SET button at the
Current mode icon to show
the information of the
connected computer.
Current mode
Manual PC Adjustment
Press the SET button at this
icon to jump to the top item.
30
Computer Input
Select the resolution at the Display area dialog box.
Display area
Adjusts the horizontal area displayed by this projector. Press the
Point
7 8 button to decrease/increase value and then press the
SET button.
Display area H
Adjusts the vertical area displayed by this projector. Press the
Point
7 8 button to decrease/increase value and then press the
SET button.
Display area V
With this function on, SXGA image is fully displayed at 4 : 3 aspect
ratio. It is displayed at 5 : 4 aspect ratio with this function off.
Full screen
Reset
Store
Exits the PC Adjust Menu.
Quit
To store adjustment data, move the red frame pointer to the Store
icon and then press the SET button. Move the red arrow pointer
to any of Mode 1 to 5 in which you want to store and then press
the SET button.
Resets all adjustment to their previous levels.
Mode free
Vacant Mode
shows values of “Total
dots,” “Horizontal,”
“Vertical,” “Display area
H,” and “Display area V.”
closes this dialog box.
To store adjustment data
To clear adjustment data
To clear adjustment data previously set, move the red frame
pointer to the Mode free icon and then press the SET button.
Move the red arrow pointer to the Mode that you want to clear
and then press the SET button.
Display area
Press the SET button at the
Display area icon and the
Display area dialog box
appears.
✔Note:
Auto PC Adjust, Display area, Display area (H/V), and Full screen cannot be selected
when “480i”, “575i”, “480p”, “575p”, “720p”, “1035i”, or “1080i” is selected in the
PC System Menu (p27).
This Mode has parameters being stored.
31
Co pute put
Computer Input
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Image Select Menu icon.
1
2
Press the Point
dd
button to move the red frame pointer to
the level that you want to set and then press the SET button.
Move the red frame pointer to
the level and press the SET
button.
The level being selected.
Image Select Menu
Normal picture level preset on this projector.
Standard
High contrast
Picture level suitable for the image projected on a blackboard. See
above for further description.
Blackboard(Green)
Image Select Menu icon
Select an image level among Standard, High contrast,
Blackboard(Green), Custom by pressing the IMAGE button on the
remote control unit.
IMAGE button
Standard
High contrast
Blackboard
(Green)
Custom
Normal picture level preset on this projector.
User preset image in the Image Adjust Menu (p32).
Standard
High contrast
Custom
Image Level Selection
Direct Operation
Menu Operation
User preset image in the Image Adjust Menu (p32).
Custom
Blackboard(Green)
Picture level suitable for the image projected on a blackboard.
This mode assists to enhance the image projected on a
blackboard. This is mainly effective on a green colored board, not
truly effective on a black colored board.
Picture adjustment improved in reproduction of the halftones.
This adjustment is suitable for providing a better image in a
brighter place.
Picture adjustment improved in reproduction of the halftones.
This adjustment is suitable for providing a better image in a
brighter place.
32
Computer Input

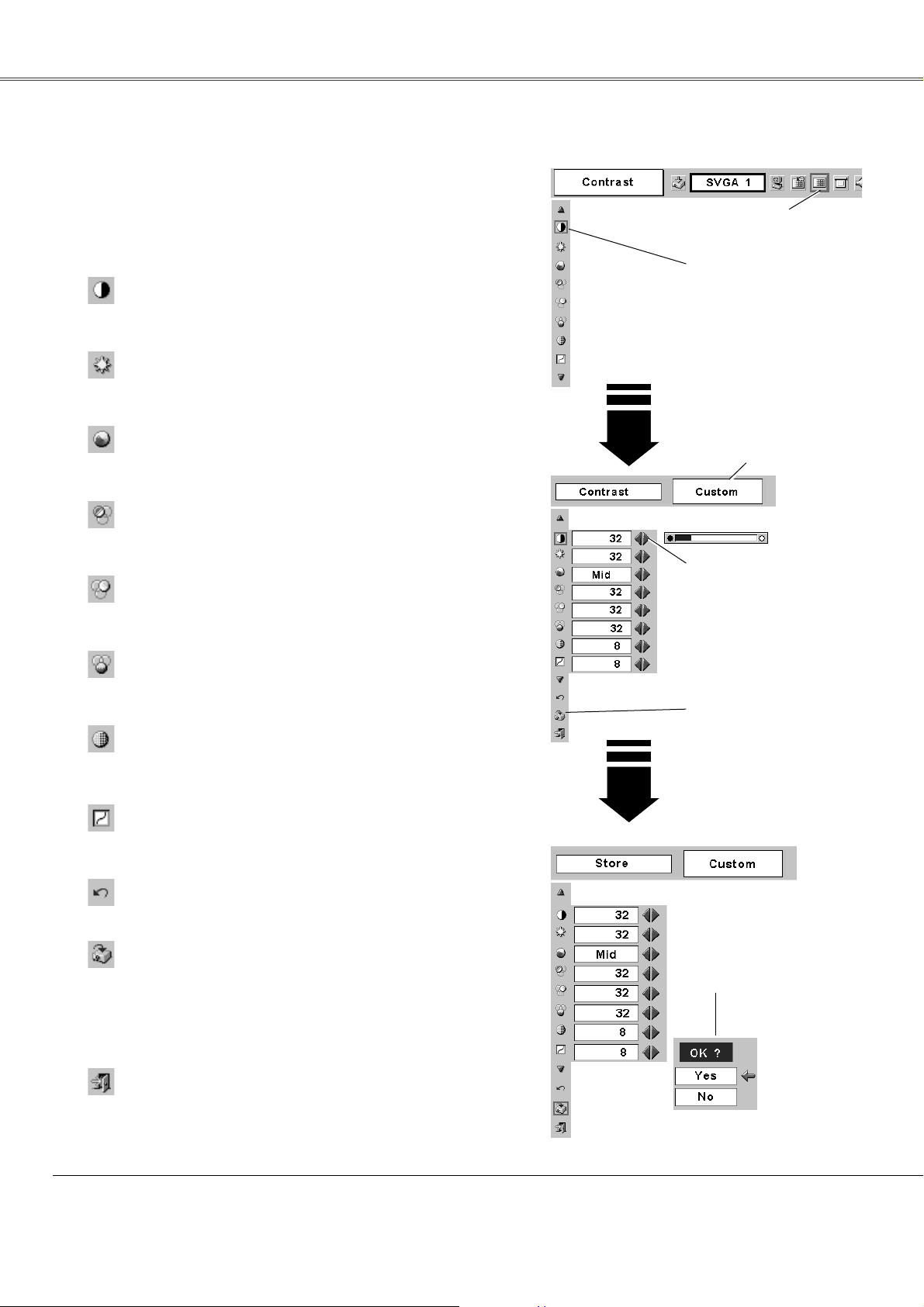

Press the Point 7 8 button to
adjust value.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Image Adjust Menu icon.
1
2
Press the Point
dd
button to move the red frame pointer to
the item that you want to adjust, and then press the SET
button. The level of each item is displayed. Adjust each
level by pressing the Point
7 8 button.
Move the red frame pointer to
the item to be selected and
then press the SET button.
Image Adjust Menu
Press the Point 7 button to decrease contrast and the Point 8
button to increase contrast. (From 0 to 63.)
Press the Point 7 button to adjust image darker and the Point 8
button to adjust image brighter. (From 0 to 63.)
Contrast
Brightness
Press the Point 7 8 button to obtain better balance of contrast.
(From 0 to 15.)
Gamma
Store icon
Press the SET button at this
icon to store the adjustment.
Image Adjust Menu icon
Press the Point 7 button to lighten red tone and the Point 8
button to deepen red tone. (From 0 to 63.)
White balance (Red)
Press the Point 7 button to lighten green tone and the Point 8
button to deepen green tone. (From 0 to 63.)
White balance (Green)
Press the Point 7 button to lighten blue tone and the Point 8
button to deepen blue tone. (From 0 to 63.)
White balance (Blue)
Selected Image level
Press the Point 7 button or the Point 8 button for Color temp.
level that you want to select. (XLow, Low, Mid, or High)
Color temp.
Press the Point 7 button to soften the image and the Point 8
button to sharpen the image. (From 0 to 15.)
Sharpness
Image Level Adjustment
Resets all adjustment to their previous levels.
Reset
Closes the Image Adjust Menu.
Quit
Store
To store the image data adjusted manually, move the red frame
pointer to the Store icon and press the SET button. The message
“OK?” will appear. Select [Yes] to store manual adjustment.
To set this manual adjustment, select Custom by pressing the IMAGE
button or through the Image Select Menu (p31).
“OK?” message
Move the pointer to [Yes] and
then press the SET button.
33
Co pute put
Computer Input
This projector has a picture screen resize function, which enables you to display the desirable image size.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Screen Menu icon.
When the Digital zoom + is selected, the On-Screen Menu
disappears and the message “D. Zoom +” is displayed. Press the
SET button to expand the image size. And press the Point
eedd
7 8
button to pan the image. The Panning function can work only
when the image is larger than the screen size.
A projected image can be also expanded by pressing the D.ZOOM
▲ button on the remote control unit.
1
To exit the Digital Zoom +/– mode, press any button except the
D.ZOOM ▲/▼, SET, and Point button.
Move the red frame to the
function and press the SET
button.
Press the Point
dd
button and move the red frame pointer to
the function that you want to select and then press the SET
button.
2
Wide
Digital zoom +
✔Note:
• This Screen Menu cannot be operated when “720p(HDTV)”,
“1035i (HDTV)”, or “1080i (HDTV)” is selected in the PC
System Menu (p27).
• The True and Digital zoom +/– cannot be selected when
“480i”, “575i”, “480p”, or “575p” is selected in the PC
System Menu (p27).
• This projector cannot display any resolution higher than
1280 X 1024. If your computer’s screen resolution is higher
than 1280 X 1024, reset the resolution to the lower before
connecting to the projector.
• The image data in other than XGA (1024 x 768) is modified
to fit the screen size in initial mode.
• The panning function may not operate properly if the
computer system prepared in the PC Adjust Menu is used.
Provides image to fit screen size.
Normal
True
Screen Menu
Screen Menu icon
When the Digital zoom – is selected, the On-Screen Menu
disappears and the message “D. Zoom –” is displayed. Press the
SET button to compress the image size.
A projected image can be also compressed by pressing the
D.ZOOM ▼ button on the remote control unit.
Digital zoom –
Provides image in its original size. When the original image size is
larger than the screen size (1024 x 768), this projector enters
“Digital zoom +” mode automatically.
Provides image to fit wide video aspect ratio (16 : 9) by expanding
image width uniformly. This function can be used for providing a
squeezed video signal at 16 : 9.
Screen Size Adjustment
To return to the previous screen before adjusting the screen size,
select Screen size from the Screen Size Adjustment or Input
source from the Input Source Selection (p26) again, or adjust the
screen size with the D.ZOOM or the SET button.
34
Choose Video by pressing the INPUT button on the top control or
the VIDEO button on the remote control unit.
Before using these buttons, correct input source should be
selected through menu operation as described below.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Input Menu icon.
Press the Point
dd
button to move the red arrow pointer to
Video and then press the SET button. The Source Select
Menu will appear.
1
2
Move the pointer to
Video and press the
SET button.
VIDEO
Move the pointer to the
source that you want to
select and press the SET
button.
Source Select Menu (VIDEO)
Input Menu
Move the pointer to the source that you want to select and
then press the SET button.
3
When selecting Auto, the projector automatically
detects incoming video signal, and adjusts itself to
optimize its performance. The projector selects
connection in the following order:
1st S-Video
2nd Video
The S-VIDEO jack has priority over the VIDEO jack
under the condition of connecting both the S-VIDEO
jack and the VIDEO jack.
Auto
When video input signal is connected to the VIDEO
jack, select Video.
Video
When video input signal is connected to the S-VIDEO
jack, select S-Video.
S-Video
INPUT button
Video
Computer 2
Computer 1
VIDEO button
Video
Input Source Selection (Video, S-Video)
Direct Operation
Menu Operation
✔Note:
When Monitor out is selected at the Terminal item in the Setting Menu, Computer 2 is
not displayed. (p43)
Video Input
✳ See Note on the bottom of this page.
✳
Input Menu icon
35
V deo put
Video Input
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Input Menu icon.
1
Press the Point
dd
button to move the red arrow pointer to
Computer 1, and then press the SET button. The Source
Select Menu will appear.
2
Move the pointer to the correct input source and then press
the SET button.
3
Move the pointer (red arrow)
to Computer 1 and press the
SET button.
Move the pointer to
Component or RGB (Scart)
and press the SET button.
Source Select Menu
Input Menu
Input Menu icon
Computer 1
Video
Computer 2
COMPUTER button
Computer 1
Computer 2
INPUT button
Input Source Selection (Component, RGB Scart 21-Pin)
Direct Operation
Menu Operation
When the input source is coming from video
equipment connected to the RGB IN-1/
COMPONENT IN terminal with a Component-
VGA Cable, select Component.
Component
When the input source is coming from video
equipment connected to the RGB IN-1/
COMPONENT IN terminal with a Scart-VGA
Cable, select RGB (Scart).
RGB (Scart)
✔Note:
• Component-VGA Cable and Scart-VGA Cable are optionally supplied. See page 60
for order.
• Computer 2 is not displayed when the RGB IN-2/RGB OUT terminal is used as
Monitor out. (p43)
Choose Computer 1 by pressing the INPUT button on the top
control or press the COMPUTER button on the remote control
unit.
Before using these buttons, correct input source should be
selected through menu operation as described below.
✳ See Note on the bottom of this page.
✳
✳
Computer
1
36
Video Input
AV System Menu (Video or S-Video)
AV System Menu (Component)
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the AV System Menu icon.
Press the Point
dd
button to move the red arrow pointer to
the system that you want to select and then press the SET
button.
1
2
If the projector cannot reproduce proper video image, it is
necessary to select a specific broadcast signal format among PAL,
SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.
Move the pointer to a system
and press the SET button.
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N
The projector automatically detects incoming video signal, and
adjusts itself to optimize its performance.
If the projector cannot reproduce proper video image, it is
necessary to select a specific component video signal format
among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.
Auto
COMPONENT VIDEO SIGNAL FORMAT
Video or S-Video
Component
The projector automatically detects incoming video system, and
adjusts itself to optimize its performance.
When Video System is PAL-M or PAL-N, select system manually.
Auto
AV System Menu icon
This box indicates the system
being selected.
Move the pointer to a system
and press the SET button.
AV System Menu icon
This box indicates the system
being selected.
Video System Selection
✔Note:
The AV System Menu cannot be selected when selecting RGB(Scart).
37
V deo put
Video Input
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Image Select Menu icon.
1
2
Press the Point
dd
button to move the red frame pointer to
the level that you want to set and then press the SET button.
The level being selected.
Image Select Menu
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
Blackboard(Green)
User preset image in the Image Adjust Menu (p38,39).
Custom
Image Select
Menu icon
Select a desired image level among Standard, Cinema, Blackboard
(Green), Custom by pressing the IMAGE button on the remote
control unit.
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
Blackboard(Green)
User preset image in the Image Adjust Menu (p38,39).
Custom
IMAGE button
Standard
Cinema
Custom
Image Level Selection
Direct Operation
Menu Operation
Picture level suitable for the image projected on a blackboard.
This mode assists to enhance the image projected on a
blackboard. This is mainly effective on a green colored board, not
truly effective on a black colored board.
Picture level suitable for the image projected on a Blackboard.
See above for further description.
Blackboard
(Green)
Move the red frame pointer to a level
and press the SET button.
38
Video Input
Press the Point 7 8 button to
adjust value.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Image Adjust Menu icon.
1
2
Press the Point
dd
button to move the red frame pointer to
the item that you want to adjust and then press the SET
button. The level of each item is displayed. Adjust each
level by pressing the Point
7 8 button.
Move the red frame pointer to
the item to be selected and
then press the SET button.
Image Adjust Menu
Press the Point 7 button to decrease contrast and the Point 8
button to increase contrast. (From 0 to 63.)
Press the Point 7 button to adjust image darker and the Point 8
button to adjust image brighter. (From 0 to 63.)
Contrast
Brightness
Press the Point 7 8 button to obtain better balance of contrast.
(From 0 to 15.)
Gamma
Press the SET button at this
icon to display other items.
Image Adjust Menu icon
Press the Point 7 button to lighten color and the Point 8 button to
deepen color. (From 0 to 63.)
Press the Point 7 8 button to obtain proper color. (From 0 to 63.)
Color
Tint
Press the Point 7 button to soften the image and the Point 8
button to sharpen the image. (From 0 to 15.)
Sharpness
Press the Point 7 button to lighten red tone and the Point 8
button to deepen red tone. (From 0 to 63.)
White balance (Red)
Press the Point 7 button to lighten green tone and the Point 8
button to deepen green tone. (From 0 to 63.)
White balance (Green)
Press the Point 7 button to lighten blue tone and the Point 8
button to deepen blue tone. (From 0 to 63.)
White balance (Blue)
Press the SET button at this
icon to display previous items.
✔Note:
The Tint cannot be adjusted when the video system is PAL, SECAM, PAL-M, or PAL-N.
Image Level Adjustment
Press the Point 7 8 button for Color temp. level that you want to
select. (XLow, Low, Mid, or High)
Color temp.
Press the SET button at this
icon to store the value.
39
V deo put
Video Input
Resets all adjustment to their previous levels.
Reset
Store
Closes the Image Adjust Menu.
Quit
Interlaced video signal can be displayed in a progressive picture.
Off . . . .Not activated.
L1 . . . . .Select “L1” for an active picture.
L2 . . . . .Select “L2” for a still picture.
Progressive
This function is effective on 3:2 pulldown video source. With this
function On, the projector reproduces pictures faithful to the
original film quality.
Film
✔Note:
• Progressive cannot be selected when 480p, 575p, 720p, 1035i, or 1080i is
selected.
• Film can only be activated in any state shown below.
1. When selecting NTSC, NTSC4.43 PAL-M or 480i in the AV System Menu (p36).
2. When selecting Auto and signal is NTSC, NTSC4.43, PAL-M(Composite) or
480i(Component) in the AV System Menu (p36).
• 3:2 Pulldown or Telecine transfer is the process of changing images from film mode
to video mode. While film runs at 24 frames per second (fps), NTSC television
signals (or video) have a run rate of 30fps so the 24 fps film needs to be speeded
up to 30fps and transferred using a proper field pattern to get the best film-like
images.
To store the adjustment data, move the red frame pointer to the Store
icon and press the SET button. The message “OK?” will appear.
Select [Yes] to store the adjustment data.
To select this manual adjustment, select Custom by pressing the
IMAGE button or through the Image Select Menu (p37).
Store icon
“OK?” message
Move the pointer to
[Yes] and then press
the SET button.
40
Video Input
This projector has a picture screen resize function, which enables you to display the desirable image size.
Press the MENU button and the On-Screen Menu will
appear. Press the Point
7 8 button to move the red frame
pointer to the Screen Menu icon.
Press the Point
dd
button and move the red frame pointer to
the function that you want to select and then press the SET
button.
1
2
Move the red frame to a function and
press the SET button.
Screen Menu
Screen Menu icon
Provides image at a wide screen ratio of 16 : 9.
Wide
Provides image at a normal video aspect ratio of 4 : 3.
Normal
Screen Size Adjustment
✔Note:
Screen Menu cannot be operated when “720p”, “1035i”, or “1080i” is selected in the
AV System Menu (p36).
41
Keystone
Press the MENU button to display the On-Screen Menu.
Press the Point
7 8 button to move the red frame pointer to
the Setting Menu icon.
1
2
Language
The language used in the On-Screen Menu is available in English,
German, French, Italian, Spanish, Portuguese, Dutch, Swedish,
Russian, Chinese, Korean, or Japanese.
Display
This function decides whether to display On-Screen Displays.
On . . . . . . . shows all the On-Screen Displays.
Off . . . . . . . does not show On-Screen Displays except;
● On-Screen Menu
● “Power off?” message
● P-Timer
● “No signal” message
● ”Wait a moment!” message
Set the red frame
pointer to the item
and press the SET
button.
Press the Point
dd
button to move the red frame pointer to
the item that you want to set and then press the
SET button.
The Setting dialog box appears.
Blue back
When this function is “On,” the projector produces a blue image
while input signal is not detected.
When pressing the SET
button at Language, the
Language Menu appears.
Setting Menu (Language)
Setting Menu icon
This function corrects distortion of a projected image. Select
either Store or Reset with the Point
7 8 button, and then press
the SET button. The keystone dialog box appears. Adjust
keystone with the Point
eedd
button.
Store . . . . stores the keystone adjustment even if the AC
power cord is disconnected.
Reset . . . . .resets the keystone adjustment when the AC power
cord is disconnected.
Setting
Setting
Logo PIN code lock
This function prevents others except specific users from changing
the Logo setting.
Off . . . . .the Logo setting can be changed freely from the
Logo menu. (p42)
On . . . . . .the Logo setting cannot be changed without the
Logo PIN code.
If you want to change the Logo PIN code lock setting, enter a
Logo PIN code along the following steps. The initial Logo PIN code
is set "4321" at the factory.
Logo PIN code lock
Sett g
This projector has Setting menu that allows you to set up the
other various functions described as follows;
42
Setting
Capture
This function enables you to capture the image being projected
and use it for a starting-up display or interval of presentations.
After capturing the projected image, go to the Logo function and
set it to “User”. Then the captured image can be displayed when
turning on the projector next time or pressing the NO SHOW
button. (p25)
To capture the image, select [Yes]. To cancel the Capture
function, select [No].
✔Note:
• Before capturing an image, select Standard in the Image Select Menu to capture a
proper image. (See page 31,37.)
• A signal from a computer can be captured up to XGA(1024 x 768). A signal from
video equipment can be captured except for 720p, 1035i, and 1080i.
• When capturing the image that has been adjusted by the Keystone function, the
adjustment data is automatically reset and the projector captures an image without
keystone adjustment.
• When the Logo PIN code lock function is On, the Logo and Capture menu cannot
be selected.
Select [Yes] to capture
the projected image.
Select [Yes] to
stop capturing.
Capture
Logo PIN code lock Dialog Box
Quit
Pointer
Logo
This function decides what to be displayed on the starting-up
display as follows:
User . . . . . .the image you captured
Default . . . .the factory-set logo
Off . . . . . . .count-down only
Enter a Logo PIN code
Select a number by pressing the Point 7 8 button and fix the
number with the SET button. The number will change to "✳". If
you fixed a wrong number, move the pointer to "Set" or "Clear"
once by pressing the Point
dd
button, then return to "Logo PIN
code". Enter the correct number again.
Repeat this step to complete entering a four-digit number.
When the four-digit number is fixed, the pointer will automatically
move to "Set". Press the SET button so that you can change the
Logo PIN code lock setting.
If you entered a wrong Logo PIN Code, "Logo PIN code" and the
number (✳✳✳✳) will turn red and disappear. Enter a correct Logo
PIN code all over again.
After a correct Logo PIN code is entered, the
following dialog box will appear.
Select On/Off by pressing the Point 7 8 button or
change the Logo PIN code.
Change the Logo PIN code
Logo PIN code can be changed to your desired four-digit number.
Select "Logo PIN code change" with the Point
dd
button and press
the SET button. Set a new Logo PIN code.
Be sure to note the new Logo PIN code and keep it at hand.
✔Note:
If you forget your Logo PIN code and unable to change it, the Logo P IN code can be
reset to the factory default setting (4321) according to the following procedures.
When you reset the Logo PIN code, the PIN code will be reset, as well.
1. Disconnect the AC Power Cord from the AC outlet.
2. As pressing the SET button on the projector, connect the AC Power Cord into an
AC outlet again. Keep pressing the SET button until the POWER indicator lights.
The Logo PIN code will be returned to the factory default setting while the Logo PIN
code lock state will remain the same as previous set state.
43
Setting
Power management
Time left until Lamp off
Press the SET button at Power
management and this box
appears. Choose one of three
settings with the Point 7 8
button, and go to the timer
with the Point
eedd
button and
set time with the Point 7 8
button.
Power management
Terminal
The RGB IN-2/RGB OUT terminal on the back of the projector is
switchable for computer input or monitor output. (See page 9)
Select Computer 2 or Monitor Out with the Point Left/Right
button.
RGB IN-2 . . . . . . .computer input
RGB Out . . . . . . . .monitor out
Terminal item is not available when selecting Computer 2 to the
input source. Change the input source to the others (Computer1
or Video) so that the Terminal item will be available. (p26, 34, 35)
For reducing power consumption as well as maintaining the lamp
life, the Power Management function turns off the projection lamp
when the input signal is interrupted and no button is pressed for
30 seconds or more.
If the input signal is interrupted and no button is pressed for 30
seconds or more, the timer display with the message "No signal"
appears on the screen. The count-down of the set time will get
started. The count-down time can be set between 1 and 30
minutes.
When the count-down time has been elapsed, the lamp will be
turned off to cool itself down. The POWER indicator is blinking red
during this cooling-off period. The next operation depends on the
setting as follows :
Ready . . . . . .When the lamp has been fully cooled down, the
POWER indicator changes to green blinking. In
this condition, the projection lamp will be turned
on if the input signal is reconnected or any
button on the top control or remote control unit
is pressed.
Shutdown . . .When the lamp has been fully cooled down, the
power will be turned off.
Off . . . . . . . . .The Power Management function is canceled.
Sett g
Ceiling
Rear
Ceiling
When this function is “On,” the picture is top/bottom and left/right
reversed. This function is used to project the image from a ceiling
mounting the projector.
Rear
When this function is “On,” the picture is left/right reversed. This
function is used to project the image to a rear projection screen.
On start
When this function is “On,” the projector is automatically turned
on just by connecting the AC power cord to a wall outlet.
✔Note:
Be sure to turn the projector off properly (see “Turning Off the Projector” on page
21). If the projector is turned off in the wrong steps, the On start function does not
operate properly.
44
Setting
Remote control
This projector provides eight different remote control codes (Code
1-Code 8);the factory-set, initial code(Code1) and the other seven
codes (Code 2 to Code 8). This switching function prevents
remote control interference when operating several projectors or
video equipment at the same time.
When operating the projector in “Code 7”, both the projector and
the remote control unit must be switched to “Code 7”.
To change the code for the projector;
Select either “Code 1” or “Code 8” in this Setting Menu.
To change the code for the remote control;
While holding down the MENU button, press the IMAGE button
number of times corresponding to the remote control code for
the projector. (See page 13 for details.)
Remote control
Lamp mode
This function allows you to change brightness of the screen.
Normal mode ···· normal brightness
Auto mode ···· the controlled brightness according with
input signal
Silent mode ···· lower brightness reduces the lamp power
consumption and extends the lamp life.
The sound is quiet.
USB
This projector is equipped with the USB port for interactive
operation between the projector and computer. Selects either of
the followings as needed.
···· When using the remote control unit as the wireless
mouse for a computer connected to the projector with
a USB cable.
···· When controlling the projector with a computer.
This item is provided for future use. Not available now.
✔Note:
Lamp mode is not switched into Silent mode within 2 minutes after the projector is
turned on.
Select Spotlight or
Pointer with the Point
eedd
button and press
the SET button. Then
select size or pattern
with the Point 7 8
button.
Pointer
You can emphasize a part of the projected image with this
function. Choose either Spotlight or Pointer with the Point ed
button and press the SET button. Then select one of three
different sizes (Large, Middle, and Small) of Spotlight or a pointer
of three different patterns (Arrow, Finger, and Dot) of Pointer.
(See page 12 for operation.)
Pointer
When pressing the SET button
at Remote Control Unit, the
remote control code menu
appears.
45
Setting
PIN code lock
This function prevents the projector from being operated by others
except specific users and provides the following settings for your
options.
Off
...............the projector is not locked with the PIN code.
On1
.............requires to enter the PIN code every time turning on
the projector.
On2
...........requires to enter the PIN code to operate the
projector once the power cord is disconnected; as
long as the AC power cord is connected, the
projector can be operated without the PIN code.
To change the PIN code Lock setting or the PIN code (the four-
digit number), you are required to enter the PIN code. "1234" is
set as the initial PIN code at the factory.
PIN code lock
When the projector is
locked with the PIN
code, the PIN code
lock mark appears on
the menu bar.
Enter a PIN code
Quit
Pointer
The input numbers
change to “✳” for
security.
Enter a PIN code
Select a number by pressing the Point 7 8 button and fix the
number with the SET button. The number will change to "✳". If
you fixed a wrong number, move the pointer to "Set" or "Clear"
once by pressing the Point
dd
button, then return to "PIN code".
Enter the correct number again.
Repeat this step to complete entering a four-digit number.
When the four-digit number is fixed, the pointer will
automatically move to "Set". Press the SET button so that you
can change the following PIN code lock settings.
If you entered a wrong PIN code, "PIN code" and the number
(✳✳✳✳) will turn red and disappear. Enter a correct PIN code
all over again.
Sett g
When the pointer
automatically move
to "Set", press the
SET button.
Key lock
This function locks operation of the top control and remote control
unit. It is useful to prevent operation by an unauthorized person.
···· not locked.
···· locks operation of the top control. To unlock, use the
remote control unit.
···· locks operation of the remote control unit. To unlock,
use the top control.
If the top control accidentally becomes locked and you do not have
the remote control unit nearby, disconnect the AC power cord
from the AC outlet, and then while pressing the SET button,
reinsert the AC power cord. This will release the top control lock.
Key lock
Select Key lock
and this box
appears. Choose
one of these with
the Point
eedd
button and select
[Yes] to activate
it.
46
Setting
This function is used to reset the lamp replace counter. When
replacing the projection lamp, reset the lamp replace counter by
using this function. See page 51 for operation.
Lamp counter reset
Factory default
This function returns all setting values except for the PIN code
lock, the Logo PIN code lock, the User logo and the lamp counter
to the factory default settings.
Select Factory
default and this box
appears. Select
[Yes] , and the next
box appears.
Factory default
Select [Yes] to
activate it.
This function provides you the following alternatives in the cooling
fans operation after turning off the projector.
L1 . . . . . . . .normal operation. Cooling the projector for 90
seconds after turning off the projector.
L2 . . . . . .slower operation than the normal (L1) , but takes
longer to cool down the projector. Cooling the
projector for 120 seconds after turning off the
projector.
Fan
Fan
The PIN code can be changed to your desired four-digit
number.
Select "PIN code change" with the Point
dd
button, and press
the SET button. The New PIN code input dialog box will
appear.
Select a number with the Point
7 8 button and fix the number
with the SET button.
Repeat it to complete entering a four-digit
number. When the four-digit number is fixed, the pointer will
automatically move to "Set". Then press the SET button.
Be sure to note the new Logo PIN code and keep it at hand.
To Change the PIN code
Select Off, On1, or On2 with the Point 7 8 button and then
"Quit" with the Point
dd
button and press the SET button to
close the dialog box.
To Change the PIN code lock setting
✔Note:
If you forget your PIN code and unable to start operating the projector, the PIN code
can be reset to the factory default setting (1234) according to the following procedure
When you reset the PIN code, the Logo PIN code will be reset, as well.
1. Disconnect the AC Power Cord from the AC outlet.
2. As pressing the SET button on the projector, connect the AC Power Cord into an
AC outlet again. Keep pressing the SET button until the POWER indicator lights.
The PIN code will be returned to the factory default setting while the PIN code
lock state will remain the same as previous set state.
Change the PIN code
Select PIN code
change and press
the SET button. The
New PIN code input
dialog box will
appear.
The input numbers
are being displayed
for confirmation.
Change the PIN code lock setting
Select a desired
setting with the
Point 7 8 button.
47
The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING
indicator and the POWER indicator to take proper maintenance.
WARNING
LAMP REPLACE
POWER
KEY
STONE
O
L
+
WARNING
blinking red
TOP CONTROL
Warning Indicator
The projector is shut down and the WARNING indicator is blinking red.
When the temperature inside the projector exceeds the normal
temperature, the projector is automatically shut down to protect
the inside of the projector. The POWER indicator is blinking and
the projector is being cooled down. When the temperature inside
the projector returns to normal, the POWER indicator lights red
and the projector can be turned on.
✔Note:
After the temperature inside the projector returns to normal, the WARNING indicator
still continues to blink. When the projector is turned on again, the WARNING
indicator stops blinking.
Then check the matters below:
–Did you provide appropriate space for the projector to be
ventilated? Check the installing condition to see if ventilation
slots are not blocked.
– Is the projector not installed near the ventilation duct of air-
conditioning equipment which may be hot? Install the
projector away from the ventilation duct of air-conditioning
equipment.
– Are the air filters clean? Clean the air filters periodically.
WARNING
LAMP REPLACE
POWER
KEY
STONE
V
OL
+
WARNING
lights red
TOP CONTROL
The projector is shut down and the WARNING indicator lights red.
When the projector detects an abnormal condition, it is
automatically shut down to protect the inside and the WARNING
indicator lights red. In this case, disconnect the AC power cord
and reconnect it, and then turn the projector on once again for
check. If the projector is still turned off and the WARNING
indicator lights red, disconnect the AC power cord and contact the
service station for check and repair.
CAUTION
DO NOT LEAVE THE PROJECTOR WITH THE AC
POWER CORD CONNECTED UNDER THE ABNORMAL
CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC
SHOCK.
Maintenance and Cleaning
ateaceadCea g
POWER
indicator
POWER
indicator
48
Maintenance and Cleaning

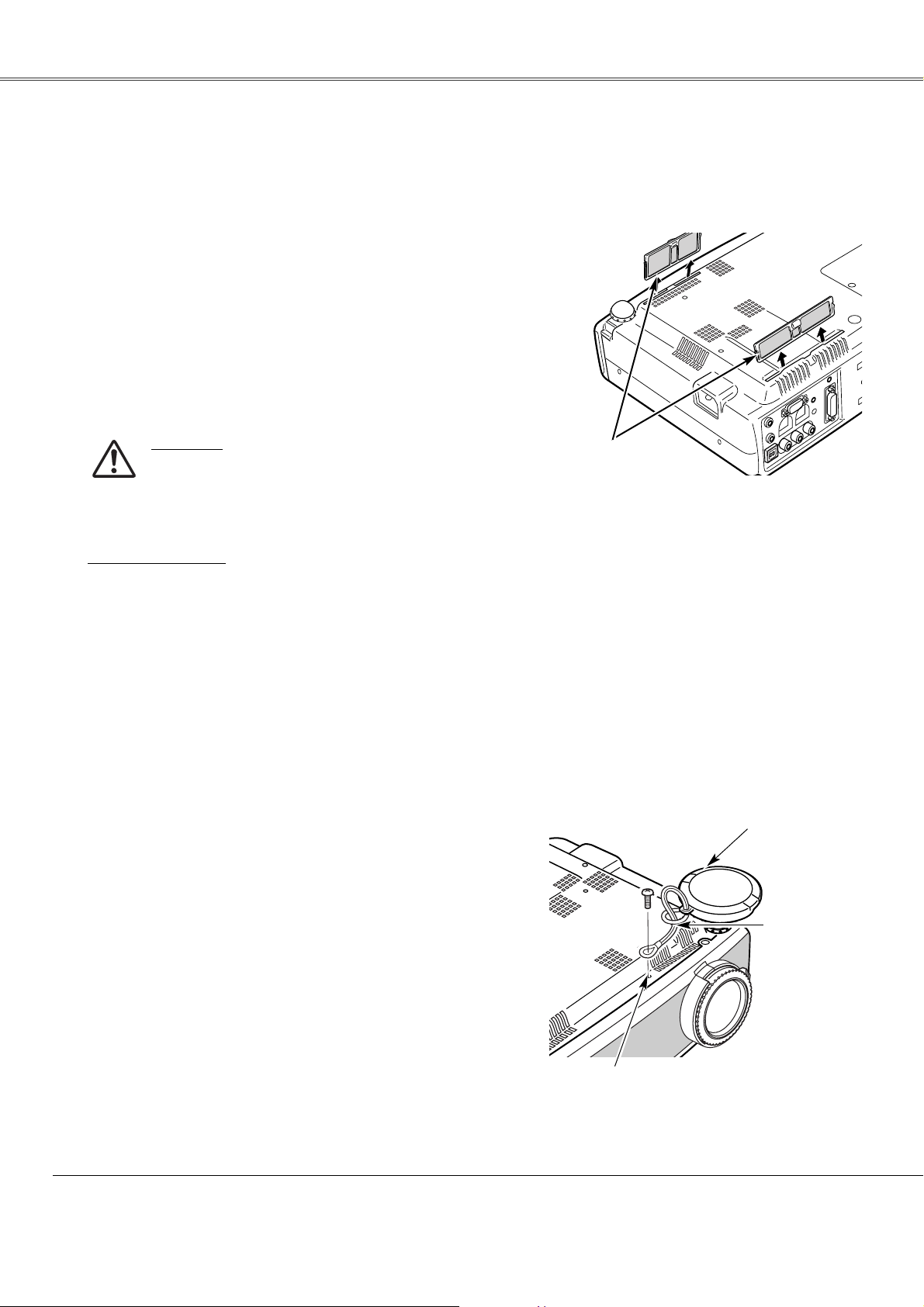

Air Filter
Pull up and remove.
Turn off the projector, and disconnect the AC power cord
from the AC outlet.
Turn the projector upside down and remove the air filters by
pulling the latches upward.
1
2
Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters
become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat build up and
adversely affect the life of the projector. Clean the air filters following the steps below.
Clean the air filters with a brush or rinse them softly.
3
When cleaning the air filters by rinsing, dry them well.
Replace the air filters properly. Make sure that the air filters
are fully inserted.
4
CAUTION
Do not operate the projector with the air filters removed.
Dust may accumulate on the LCD panel and the
projection mirror degrading picture quality.
Do not put small parts into the air intake vents. It may
result in malfunction of the projector.
RECOMMENDATION
We recommend avoiding dusty/smoky environments when
operating the projector. Usage in these environments may
cause poor image quality.
When using the projector under dusty or smoky conditions, dust
may accumulate on a lens, LCD panels, or optical elements inside
the projector. This condition may degrade the quality of a
projected image.
When the symptoms above are noticed, contact your authorized
dealer or service station for proper cleaning.
When moving this projector or while not using it over an extended
period of time, replace the lens cover.
Pass the string through a hole of the lens cover.
1
2
Turn the projector upside down.
Lens Cover
String for the lens
cover
Secure it to the hole
with a screw.
Hole
Attaching the Lens Cover
Cleaning the Air Filters
Attach the string with lens cover to a hole on the bottom of
the projector and secure it with a screw.
3
49
Maintenance and Cleaning

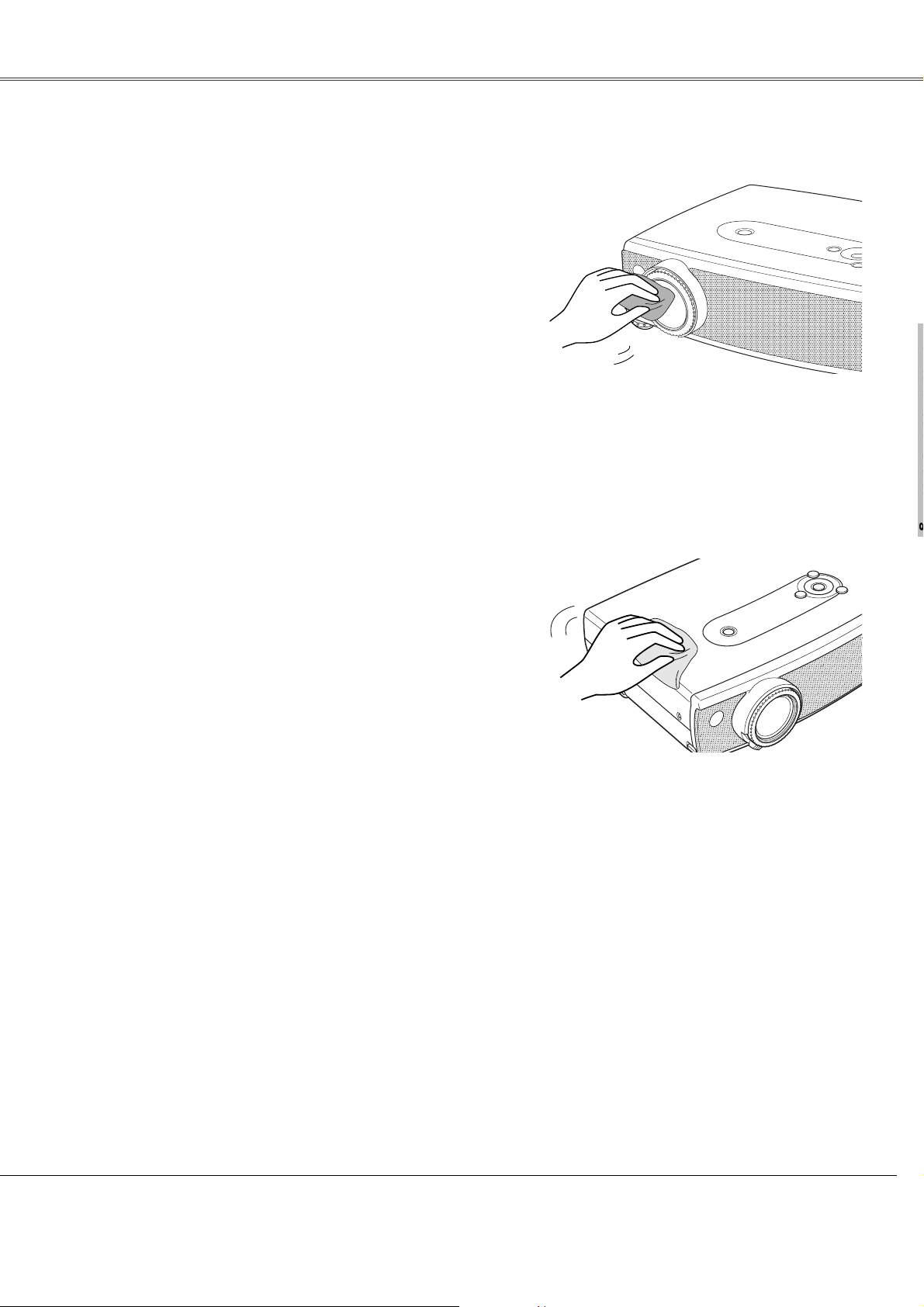

Disconnect the AC power cord before cleaning.
When the projector is not in use, replace the lens cover.
1
3
2
Follow these steps to clean the projection lens.
Cleaning the Projector Cabinet
Disconnect the AC power cord before cleaning.
1
Softly wipe the projector body with a soft, dry cleaning cloth.
When it is heavily soiled, use a small amount of mild
detergent and finish with a soft, dry cleaning cloth. Avoid
using an excessive amount of cleaner. Abrasive cleaners,
solvents, or other harsh chemicals might scratch the surface.
2
Follow these steps to clean the projector cabinet.
When the projector is not in use, put the projector in an
appropriate carrying case to protect it from dust and
scratches.
3
Softly wipe the projection lens with a cleaning cloth that
contains a small amount of non-abrasive camera lens
cleaner, or use lens cleaning paper or a commercially
available air blower to clean the lens. Avoid using an
excessive amount of cleaner. Abrasive cleaners, solvents, or
other harsh chemicals might scratch the surface.
Cleaning the Projection Lens
ateaceadCea g
50
Maintenance and Cleaning
When the life of the projection lamp of this projector draws to an
end, the LAMP REPLACE indicator lights yellow. If this indicator
lights yellow, replace the lamp with a new one promptly.
Follow these steps to replace the lamp.
Lamp
Lamp Cover
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following
information to the dealer.
●
Model No. of your projector : LV-X4, LV-7230
● Replacement Lamp Type No. : LV-LP21 (for LV-X4)
(610 315 5647)
LV-LP18 (for LV-7230)
(610 309 2706)
For continued safety, replace with a lamp of the same
type. Do not drop a lamp or touch a glass bulb! The
glass can shatter and may cause injury.
Allow a projector to cool, for at least 45 minutes before
you open the Lamp cover. The inside of the projector
can become very hot.
LAMP REPLACE
KEY
STONE
VOL
+
This indicator lights yellow
when the life of the projection
lamp draws to an end.
Top Control
CAUTION
Screw
Screw
Turn off the projector and disconnect the AC plug. Allow the
projector to cool for at least 45 minutes.
Loosen 2 screws of the lamp with a screwdriver and pull out
the lamp by grasping the handle.
1
3
Replace the lamp with a new one and tighten the 2 screws
back into position. Make sure that the lamp is set properly.
Replace the lamp cover and tighten the screw.
4
Loosen the screw with a screwdriver, and remove the lamp
cover.
2
Connect the AC power cord to the projector and turn on the
projector.
6
Reset the Lamp replace counter.
See “Lamp Replace Counter” on the next page .
5
Lamp Replacement
Handle
Screw
CAUTION
51
ateaceadCea g
Maintenance and Cleaning
Be sure to reset the lamp replace counter after the lamp is replaced. When the lamp replace counter is reset, the LAMP
REPLACE indicator stops lighting.
Move the pointer to Lamp counter reset
and then press the SET button. The
message “Lamp replace counter
Reset?” is displayed.
Turn the projector on, press the MENU button and the On-
Screen Menu will appear. Press the Point
7 8 button to
move the red frame pointer to the Setting Menu icon.
Press the Point
dd
button to move the red frame pointer to
the Lamp counter reset item and then press the SET button.
The message "Lamp replace counter Reset?" is displayed.
Move the pointer to [Yes] and then press the SET button.
1
2
Another confirmation dialog box appears and select [Yes] to
reset the Lamp replace counter.
3
This projector uses a high-pressure lamp which must be handled carefully and properly. Improper
handling may result in accidents, injury, or create a fire hazard.
● Lamp life may differ from lamp to lamp and according to the environment of use. There is no
guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter
period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights
up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.
( Follow carefully the instructions in the Lamp Replacement section of this manual. ) Continuous use
of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.
● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its
lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in
which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an
authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check
carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out
from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one
should check the inside of the projector except those who are authorized trained technicians and who are
familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those
who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.
LAMP HANDLING PRECAUTIONS
Lamp Replace Counter
✔Note:
Do not reset the Lamp replace counter without implementation of lamp replacement.
Be sure to reset the Lamp replace counter only after replacing the lamp.
52
Tr o u bleshooting
Before calling your dealer or service center for assistance, check the items below once again.
– Make sure you have properly connected the projector to peripheral equipment as described in "Connecting to a Computer"
and “Connecting to Video Equipment” on page17-19.
– Make sure all equipment is connected to AC outlet and the power is turned on.
– If the projector does not project an image being operated with a computer, restart the computer.
Appendix
Problem: – Solutions
No power – Plug the power cord of the projector into the AC outlet.
– See if the POWER indicator lights red.
– Wait 90-120 seconds after the projector is turned OFF when turning the
projector back on. The projector can be turned on after the POWER
indicator turns red. (See “Turning Off the Projector” on page 21.)
– Check the WARNING indicator. If the WARNING indicator lights red, the
projector cannot be turned on. (See "Warning Indicator" on page 47.)
– Check the projection lamp. (See page 50 and 51.)
– Unlock Key lock for the projector in the Setting Menu. (See page 45.)
Image is out of focus. – Adjust focus of the projector. (See page 24.)
– Provide proper distance between the projector and the projection
screen. (See page 15.)
– Check the projection lens to see if it needs cleaning. (See page 49.)
– Moving the projector from a cool to a warm place may result in moisture
condensation on the projection lens. In such cases, leave the projector
OFF and wait until condensation disappears.
No image – Check the connection between your computer or video equipment
and the projector. (See page 17–19)
– See if the input signal is correctly output from your computer. Some
laptop computers may need to change the setting for monitor output when
connecting to a projector. See your computer’s instruction manual for the
setting.
– It takes about 30 seconds to display an image after turning on the projector.
– See if the selected system is corresponding with your computer or video
equipment. (See page 27 and 36)
– Select correct input source once again through menu operation.
(See page 26, 34 and 35)
– Make sure the temperature is not out of the specified Operating
Temperature (41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)).
Image is Left/Right reversed. – Check the Ceiling / Rear item. (See “Setting” on page 43.)
image is Top/Bottom reversed. – Check the Ceiling item. (See “Setting” on page 43.)
No sound – Check audio cable connection from audio input source.
– Adjust the audio source.
– Press the Vol (+) button. (See page 25)
– Press the Mute button. (See page 25)
53
ppe d
This symbol on the nameplate means the product is
Listed by Underwriters Laboratories Inc. It is designed
and manufactured to meet rigid U.L. safety standards
against risk of fire, casualty and electrical hazards.
Appendix
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If problems still persist
after following all operating instructions,
contact the dealer where you purchased the projector or the
service center.
Give the model number and explain about the problem. We will advise you how to obtain service.
The CE Mark is a Directive conformity
mark of the European Community (EC).
Some displays are not seen – Check the Display item. (See “Setting” on page 41.)
during the Operation.
PIN code dialog box appears at start-up. – PIN code lock is being set. Input a PIN code (1234 or numbers you have
set). (See “PIN code lock” on page 20,45 and 46.)
Computer 2 cannot be selected. – Select Computer 2 at the Terminal item in the Setting Menu. (See “Setting”
on page 43.)
The Terminal item cannot be selected. – The Terminal item in the Setting Menu cannot be selected after Computer 2
is selected. Select other input source such as Computer 1 or Video with the
INPUT button on the top control, the COMPUTER button or the VIDEO
button on the remote control unit so that the Terminal item can be selected.
The Remote Control unit does not work. – Check the batteries.
– Make sure no obstruction is between the projector and remote control unit.
–Make sure you are not too far from the projector when using the remote
control unit. Maximum operating range is 16.4’ (5m).
–Make sure the code of the remote control unit is conformed to the
projector. (See page 44.)
– Unlock Key lock for the remote control unit in the Setting Menu. (See page
45.)
Wireless Mouse function does not work. – Make sure your computer is connected to the projector with a USB cable.
(See page 17.)
– Check cable connection between the projector and your computer.
(See page 17.)
54
Appendix
Check the indicators to see the projector condition.
• • • lights green. • • • lights red.
• • • off
• • • blinks green.
✽ When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights
yellow, replace the projection lamp with a new one promptly. Reset the Lamp replace counter after replacement of the lamp.
See page 50 and 51.
The projector is OFF. (The AC power cord is unplugged.)
The projector is preparing for stand-by or the projection lamp is being
cooled down. The projector cannot be turned on until cooling is completed.
The temperature inside the projector is abnormally high. The projector
cannot be turned on. When the projector is cooled down enough and the
temperature returns to normal, the POWER indicator lights red and the
projector can be turned on. (The WARNING indicator keeps blinking.)
Check and clean the air filters.
Projector Condition
The projector is ready to be turned on with the POWER button.
POWER
red/green
Indicators
LAMP
REPLACE
yellow
WARNING
red
The projector detects an abnormal condition and cannot be turned on.
Unplug the AC power cord and plug it again to turn on the projector. If the
projector is turned off again, disconnect the AC power cord and contact the
dealer or the service center for service and checkup. Do not leave the
projector on. It may cause electric shock or a fire hazard.
✽
✽
✽
✽
✽
The projector is operating normally.
The projector is in the Power management mode.
✽
✽
The projector has been cooled down enough and the temperature returns
to normal. When turning on the projector, the WARNING indicator stops
blinking. Check and clean the air filters.
Indicators and Projector Condition
• • • blinks red.
55
ppe d
Appendix
Menu Tree
System (1)
MODE 1
MODE 2
SVGA 1
- - - -
Auto PC Adj.
Fine sync.
Total dots
Horizontal
Vertical
Display area H
Display area V
Full screen
Reset
Mode free
Store
Quit
Standard
High contrast
Blackboard(Green)
Custom
Image Adjust
Contrast
Brightness
Color temp.
Red
Green
Blue
Gamma
Store
Quit
Normal
True
Wide
Digital zoom +
Digital zoom –
0 - 31
On / Off
0 - 63
0 - 63
Input
Computer 2
RGB
Go to System (1)
Computer Input
Video
Auto
Go to System (3)
Go to System (3)
Computer 1
Video
S-Video
PC Adjust
720 x 400
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1400 x 1050
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Image Select
High
0 - 63
0 - 63
0 - 63
0 - 15
Yes / No
Screen
Quit
Quit
Yes / No
✽Systems displayed in the System Menu vary
depending on an input signal.
Mid
Reset
Yes / No
Low
XLow
Sharpness 0 - 15
Go to System (3)
Computer Input / Video Input
✽N/A - - - not applicable
RGB
Component
Go to System (1)
RGB( Scart )
Go to System (2)
N/A
Sound
Volume
Mute
Quit
On / Off
Sound
0 - 63
Quit
Quit
Quit
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Quit
Display area
640 x 480
H-sync freq.
V-sync freq.
Quit
Current mode
Clamp
56
Appendix
Auto
PAL
SECAM
NTSC
NTSC 4.43
PAL-M
PAL-N
Video Input
Auto
1080i
1035i
720p
575p
480p
575i
480i
Standard
Cinema
Blackboard(Green)
Custom
Quit
Normal
Wide
0 - 63
0 - 63
0 - 63
0 - 63
Off
Setting
Image Select
System (2)
System (3)
Image Adjust
Contrast
Brightness
Color
Tint
Red
Green
Blue
Sharpness
Reset
Store
Gamma
Progressive
0 - 63
0 - 63
0 - 63
0 - 15
0 - 15
Yes / No
Screen
Yes / No
Quit
HighColor Temp
Mid
Low
XLow
L1
L2
Film
On/ Off
Language
Setting
English
German
French
Italian
Spanish
Portuguese
Dutch
Swedish
Chinese
Korean
Japanese
Store / Reset
On / Off
On / Off
Off
On / Off
On / Off
Off
On / Off
Normal
Code 1
Yes / No
Keystone
Blue back
Display
Logo
Ceiling
Rear
Power management
On start
Lamp mode
Remote control
Code 2
Code 3
Code 4
Code 5
Code 6
Code 7
Code 8
Quit
Quit
Russian
Computer 2Terminal
Monitor out
Yes/NoCapture
Ready
Shut down
SpotlightPointer
Pointer
Auto
Yes / NoLamp counter reset
OffKey lock
Projector
Remote Control
User
Default
Timer(1-30 Min)
Quit
Quit
Quit
PIN code lock
Off
On1
On2
PIN code change
Logo PIN code lock
Off
On
PIN code change
Silent
Factory default
Mouse / Projector
USB
L1 / L2Fan
Quit
Quit
Quit
57
ppe d
Appendix
Compatible Computer Specifications
Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 130
MHz of Dot Clock.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
640 x 480 31.47 59.88
720 x 400 31.47 70.09
640 x 400 31.47 70.09
640 x 480 37.86 74.38
640 x 480 37.86 72.81
640 x 480 37.50 75.00
640 x 480 34.97 66.60
640 x 480 35.00 66.67
MAC 16 832 x 624 49.72 74.55
800 x 600 35.156 56.25
800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600 53.674 85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31
SVGA 11 800 x 600 38.00 60.51
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
XGA 8 1024 x 768
XGA 9 1024 x 768
63.48 79.35
36.00
87.17
(Interlace)
XGA 1 1024 x 768
XGA 2 1024 x 768
XGA 3 1024 x 768
XGA 4 1024 x 768
48.36 60.00
68.677 84.997
XGA 6 1024 x 768
60.023 75.03
XGA 7 1024 x 768
56.476 70.07
48.50 60.02
44.00 54.58
XGA 5 1024 x 768 60.31 74.92
640 x 480 43.269 85.00
––––––––
15.734
60.00
(Interlace)
––––––––
15.625
50.00
(Interlace)
SVGA 10 800 x 600 32.70 51.09
76.97
SVGA 1
SVGA 2
480i
VGA 1
VGA 2
VGA 3
VGA 4
VGA 5
VGA 6
MAC LC13
MAC 13
VGA 7
575i
XGA 10 1024 x 768 62.04 77.07
1280 x 960
75.00
75.08
SXGA 11 1152 x 900
SXGA 12 1152 x 900
SXGA 13 1280 x 1024
SXGA 14 1280 x 1024
61.20 65.20
71.40 75.60
50.00
86.00
(Interlace)
50.00
94.00
(Interlace)
SXGA 10 1280 x 960 60.00 60.00
1280 x 1024
SXGA 16 1280 x 1024
SXGA 17 1152 x 900
SXGA 18 1280 x 1024
63.37 60.01
72.00
61.85 66.00
46.43
86.70
(Interlace)
SXGA 19 1280 x 1024 63.79 60.18
1400 x 1050 63.90 60.00
MAC
SXGA 21
SXGA 15
MAC 19 1024 x 768 60.24 75.08
MAC 21 1152 x 870 68.68 75.06
XGA 12 1024 x 768
XGA 13 1024 x 768
XGA 14 1024 x 768
XGA 15 1024 x 768
35.522
(Interlace)
46.90 58.20
47.00 58.30
58.03 72.00
SXGA 1 1152 x 864
SXGA 2 1280 x 1024
1280 x 1024
1280 x 1024
64.20 70.40
1280 x 1024
62.50 58.60
1280 x 1024
63.90 60.00
63.34 59.98
SXGA 8
1280 x 1024
63.74 60.01
71.69 67.19
63.98
60.02
SXGA 3
SXGA 4
SXGA 5
SXGA 6
86.96
XGA 11 1024 x 768 61.00 75.70
––––––––
45.00 60.00
––––––––
33.75
60.00
(Interlace)
––––––––
33.75
60.00
(Interlace)
––––––––
28.125
50.00
(Interlace)
––––––––
31.47 59.88
––––––––
31.25
50.00
76.97
575p
480p
1080i
1080i
720p
1035i
58
Appendix
Te c hnical Specifications
Mechanical Information
Projector Type Multi-media Projector
Dimensions (W x H x D) 11.81" x 3.23" x 8.94" (300mm x82mm x 227mm) (Not including adjustable feet)
Net Weight 6.4lbs (2.9kgs)
Feet Adjustment 0˚ to 11.9˚
Panel Resolution
LCD Panel System 0.8" TFT Active Matrix type, 3 panels
Panel Resolution 1,024 x 768 dots
Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)
Signal Compatibility
Color System PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N
High Definition TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
Scanning Frequency H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz
Optical Information
Projection Image Size (Diagonal) Adjustable from 40" to 300"
Projection Lens F 1.7 ~ 2.5 lens with f 20.3 mm ~ 32.5 mm with manual zoom and focus
Throw Distance 3.3' ~ 25.3' (1.0m ~ 7,7m)
Projection Lamp 200W
Interface
Video Input Jacks RCA Type x 1
S-Video Mini DIN 4 pin x 1
Audio Input Jacks RCA Type x 2
RGB Input 1/ Component Input Terminal (VGA) HDB15 Terminal X 1
RGB Input 2/ RGB Output Terminal
(VGA) HDB15 Terminal X 1 (In / Out switchable)
Computer Audio Input Jacks
Mini Jack (stereo) x 1
Service Port Connector Mini DIN 8 pin x 1
USB Connector USB Series B receptacle x 1
Audio Output Jack Mini Jack (stereo) x 1 (Variable)
Audio
Internal Audio Amp 1.0W RMS
Built-in Speaker 1 speaker, ø1.1" (28mm)
Power
Voltage and Power Consumption AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)
AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz (Continental Europe )
Operating Environment
Operating Temperature 41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)
Storage Temperature 14 ˚F ~ 140 ˚F (-10˚C ~ 60 ˚C)
Remote Control Unit
Battery AA, UM3 or LR06 Type x 2
Operating Range
16.4’ (5m) / ±30˚
Dimensions 2.0” x 1.0” x 7.1” (50mm x 27mm x 181mm)
Net Weight 0.34 lbs (154 g) (including batteries)
59
ppe d
Accessories
Owner's Manual
AC Power Cord
Remote Control Unit and Batteries
VGA Cable
USB Cable
Lens Cover with String and Screw
Soft Carrying Bag
PIN code Label
● The specifications are subject to change without notice.
● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of
the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.
● The On-Screen Menu and figures in this manual may differ slightly from the product.
Appendix
60
Terminal : Mini DIN 8-PIN
1
2
3
4
5
8 7 6
Pin Configuration
SERVICE PORT CONNECTOR
R X D
-----
-----
GND
RTS / CTS
T X D
GND
GND
Serial
1
2
3
4
5
6
7
8
Appendix
RGB INPUT/COMPONENT INPUT/RGB OUTPUT TERMINAL (ANALOG)
Terminal : HDB15-PIN
5
1
2
34
10
9 678
15
14
13
11
12
Red (R/Cr) Input / Output
Ground (Horiz.sync.)
Green (G/Y) Input / Output
-----
Blue (B/Cb) Input / Output
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
-----
Horiz. sync. Input / Output (Composite H/V sync.)
Ground (Vert.sync.)
-----
Ground / -----
Vert. sync. Input / Output
-----
9
13
10
12
11
14
15
Pin Configuration
Vcc
- Data
+ Data
Ground
1
2
3
4
USB CONNECTOR (Series B)
Pin Configuration
2
34
1
Model No.
COMPONENT-VGA Cable : LV-CA32
SCART-VGA Cable : LV-CA31
CEILING HANGER : LV-CL08
The parts listed below are optionally available. When ordering those parts, give the item name and Model No. to the sales
dealer.
Optional Parts
(This cable is used for RGB Scart 21-Pin
Video output of video equipment.)
Configurations of Terminals
61
ppe d
Appendix
Put a label below on in a prominent place of the projector's body
while it is locked with a PIN code.
The label is provided with the product to identify the projector
locked with a PIN code.
While the projector is locked with the PIN code...
62
63
©CANON INC. 2005
YT1-1347-001
CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON U.S.A., INC.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
CANON CANADA, INC.
6390 Dixie Road Mississauga, Ontario L5T 1P7 Canada
CANON LATIN AMERICA, INC.
703 Waterford Way Suite 400 Miami, Florida 33126 U.S.A.
CANON MEXICANA, S.DE R.L.DE C.V.
Blvd. M. A. Camacho No.138, Piso PB 15, 16 y 17, Col. Lomas de Chapultepec,
C.P. 11000 México, D.F. México
CANON EUROPA N.V.
P. O .Box 2262, 1180 EG Amstelveen, The Netherlands
CANON COMMUNICATION & IMAGE FRANCE S.A.
102, Avenue du General de Gaulle, 92250 La Garenne Colombes, France
CANON (UK) LTD.
Woodhatch, Reigate, Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A 10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8, I-20097 San Donato Milanese (MI), Italy
CANON (Schweiz) A.G.
Industriestrasse 12, 8305 Dietlikon, Switzerland
CANON BELGIUM N.V./S.A
Bessenveldstraat 7, 1831 Diegem, Belgium
CANON GmbH
Zetschegasse 11, A-1232 Wien, Austria
CANON ESPANA S.A.
C/Joaquin Costa 41, 28002 Madrid, Spain
CANON SVENSKA AB
Stensätravägen 13, S-127 88 Skarholmen 2, Sweden
CANON NORGE A/S
Hallagerbakken 110, P. O. Box 2-33, Holmlia 1201 Oslo 12, Norway
CANON OY
Huopalahdentie 24, P.O. Box 1, FIN-00351 Helsinki, Finland
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kln., H. K.
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue #04-01, Keppel Bay Tower Singapore 098632
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney, N.S.W.2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
CANON DENMARK A/S
Knud Hoejgaards Vej, DK-2860 Soeborg, Denmark
1AA6P1P4612A- (MY7P-A)
