CD-G10000/CP-G10000S
SERVICE MANUAL
In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
No. S1506CDG10000
SHARP CORPORATION
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications ................................................. 1-1
[2] Names of parts............................................... 1-2
CHAPTER 2. ADJUSTMENTS
[1] Mechanism section ........................................ 2-1
[2] Tuner section ................................................. 2-1
[3] TEST MODE .................................................. 2-2
[4] CD SECTION ................................................. 2-4
[5] CD section...................................................... 2-4
[6] Standard Specification of Stereo System
Error Message Display Contents ................... 2-4

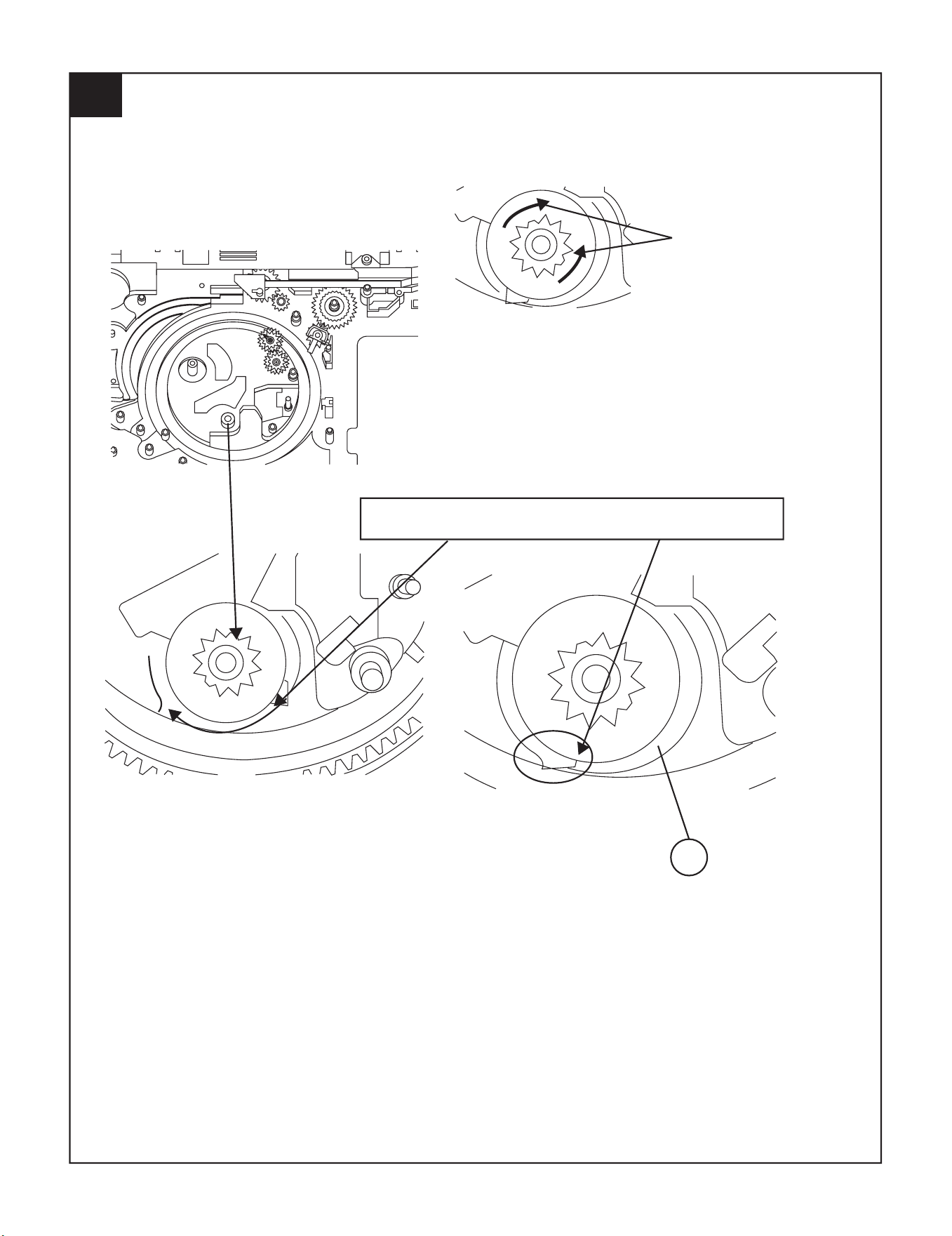

[7] CD Changer mechanism section ................... 2-5
CHAPTER 3. MECHANISM BLOCKS

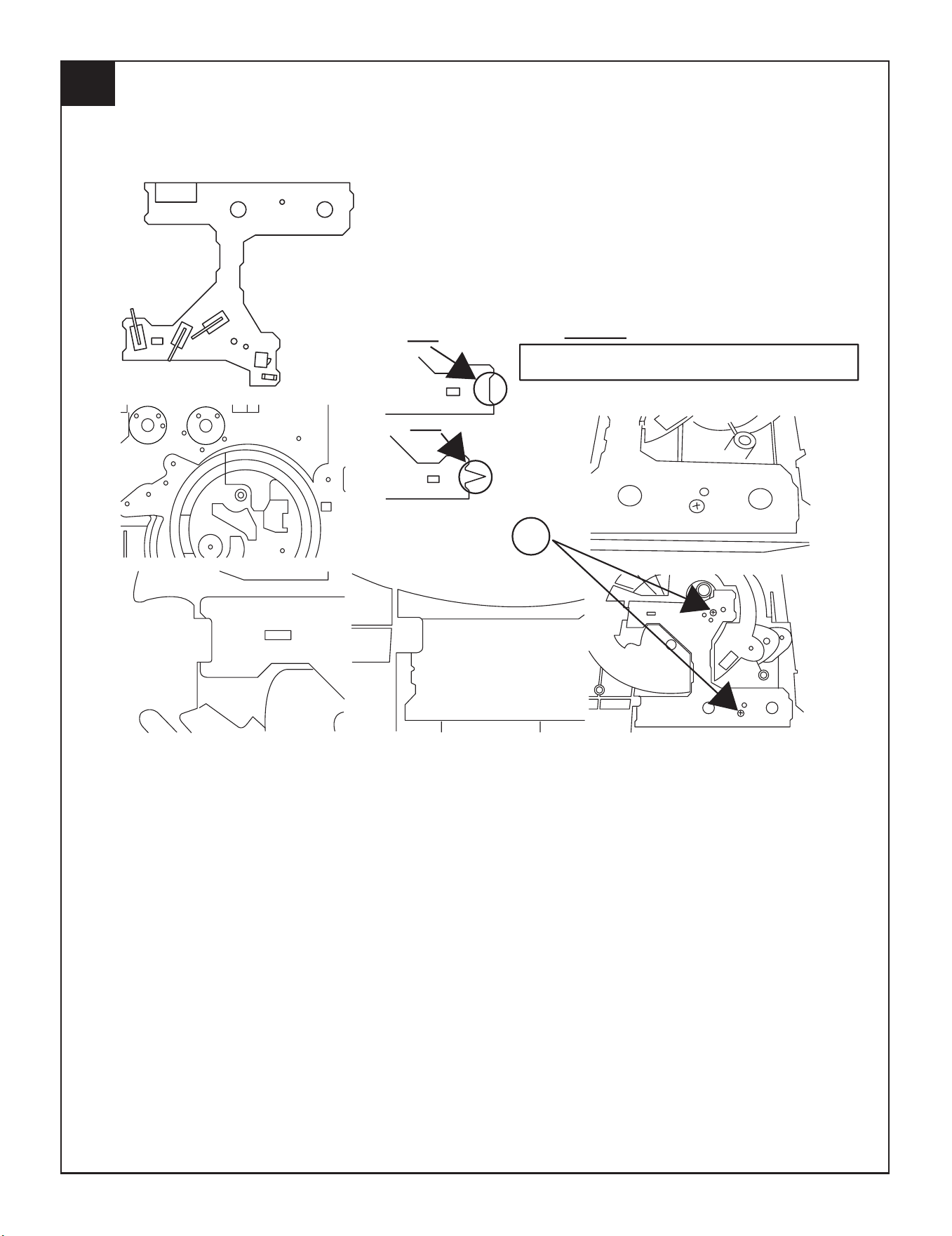

[1] Caution on disassembly ................................. 3-1

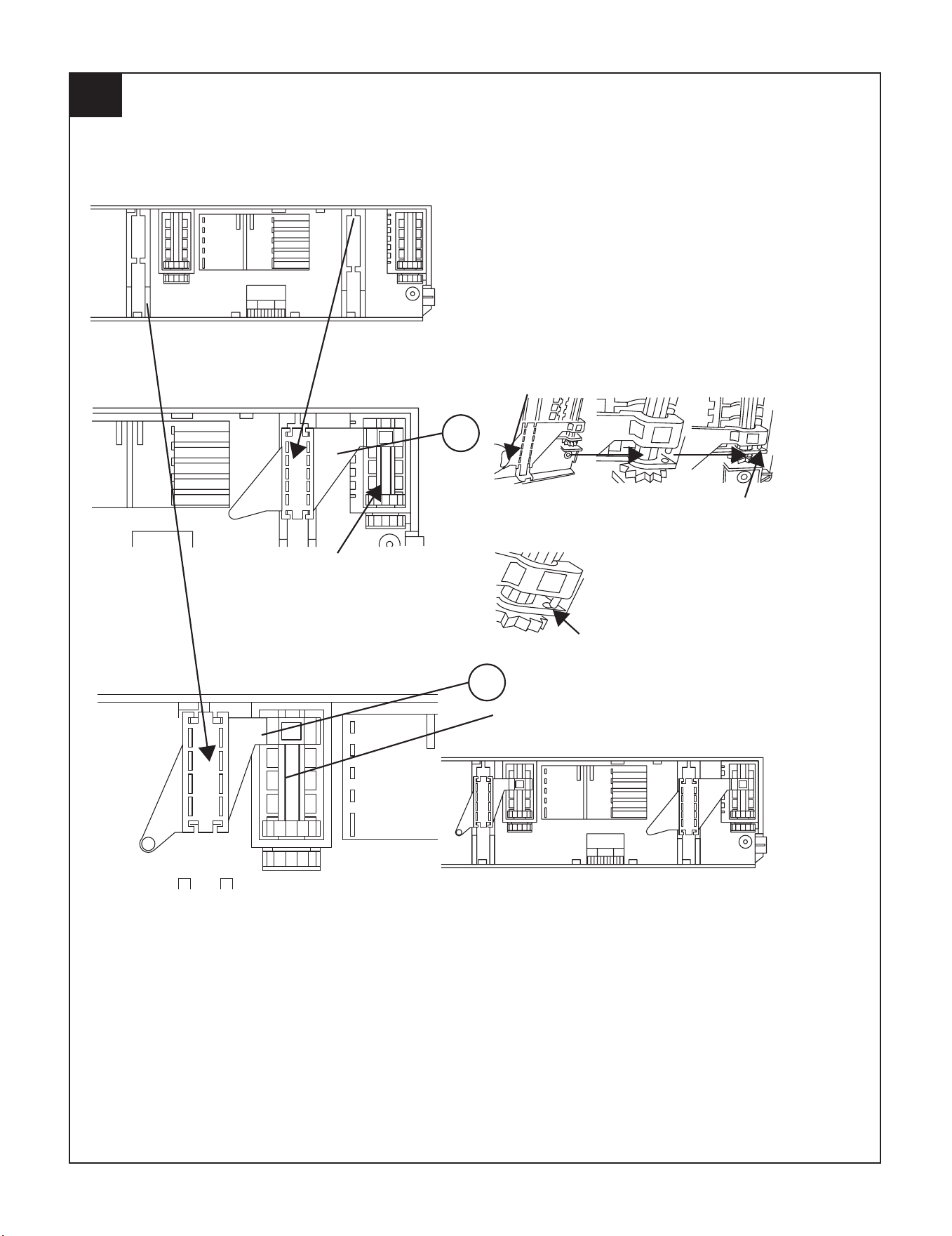

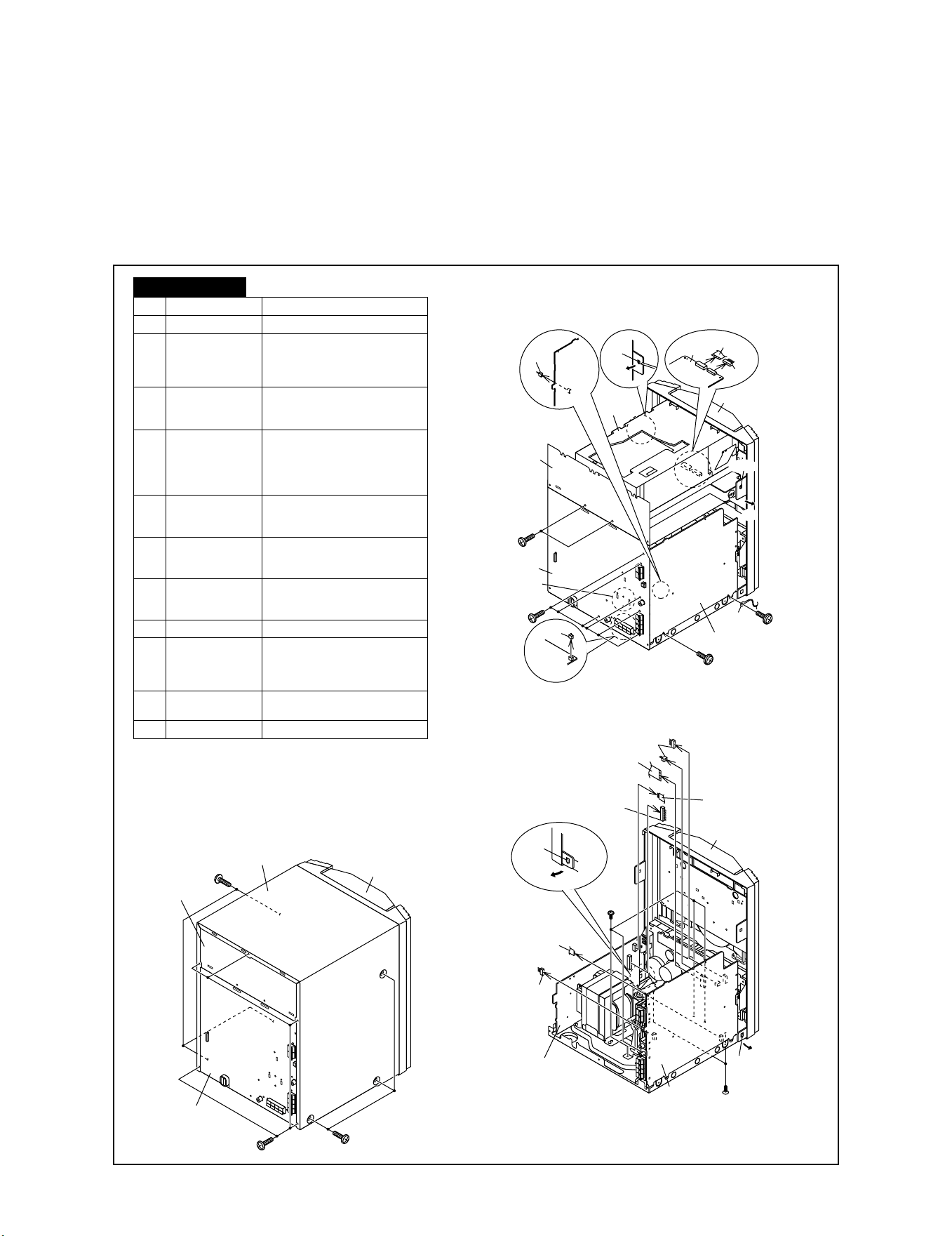

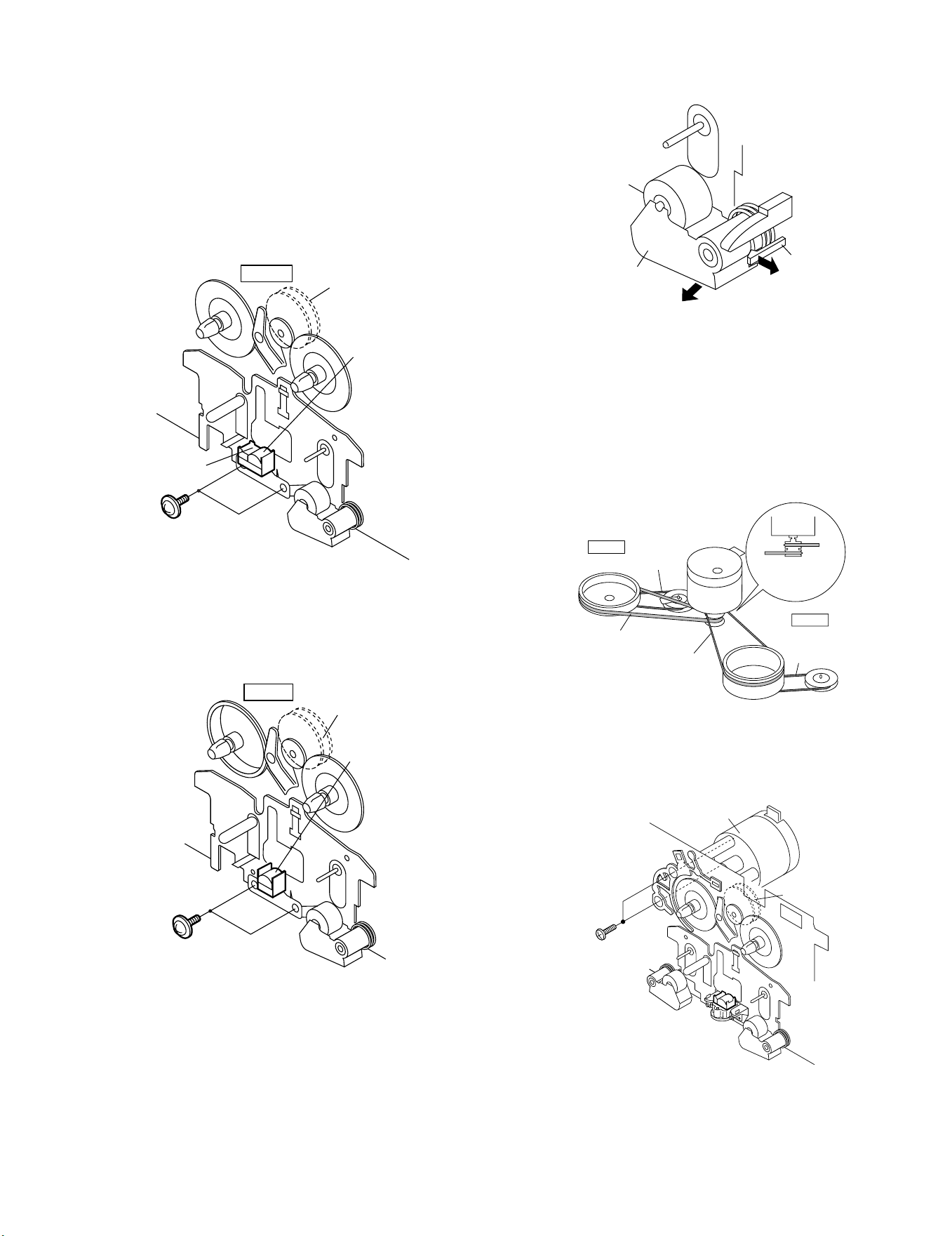

[2] Removing and reinstalling the main parts ........ 3-5
CHAPTER 4. DIAGRAMS
[1] Block diagrams............................................... 4-1
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Notes on schematic diagram .........................5-1
[2] Types of transistor and LED ..........................5-1

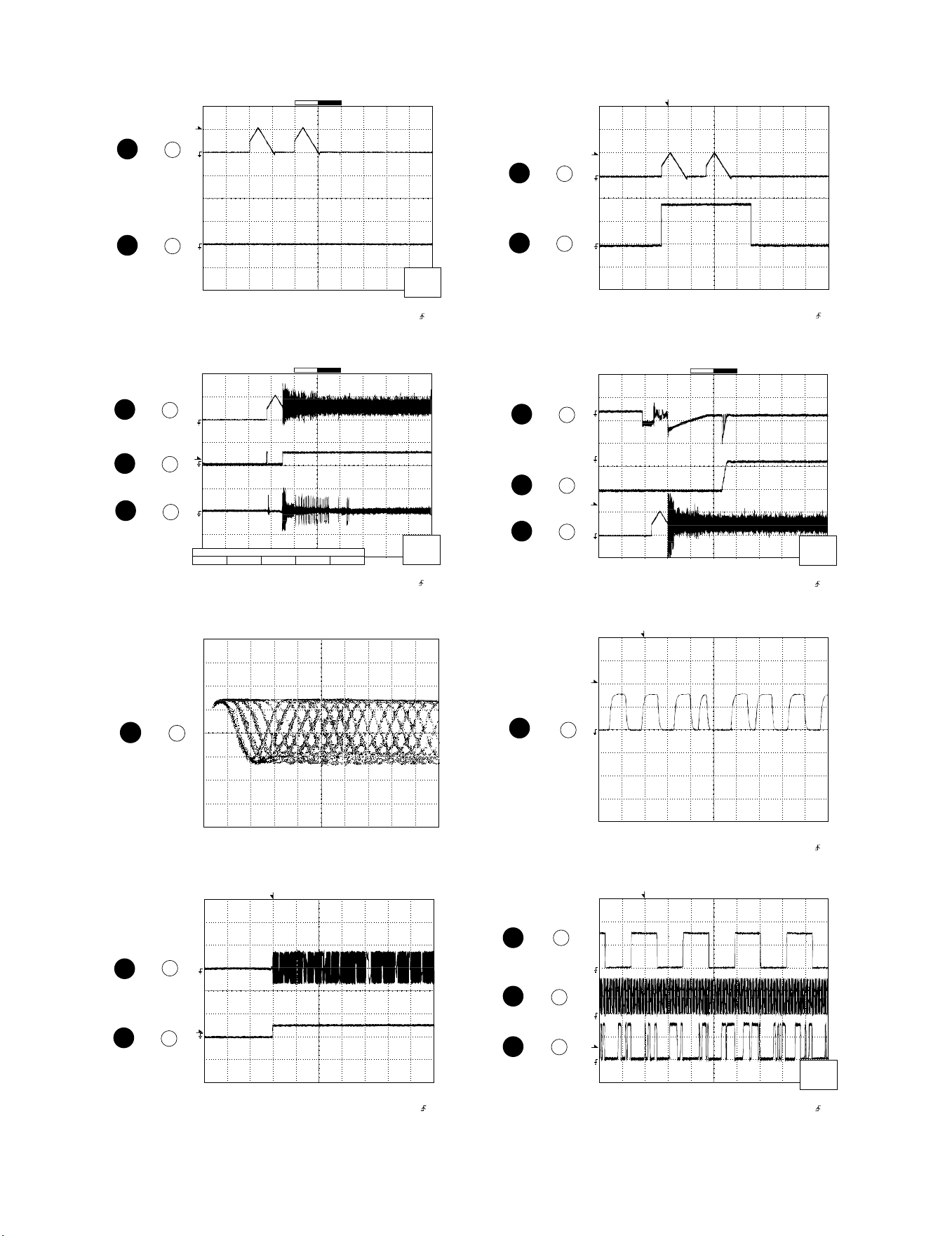

[3] Waveforms of CD circuit ................................5-2
[4] Voltage...........................................................5-3
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS
LAYOUT

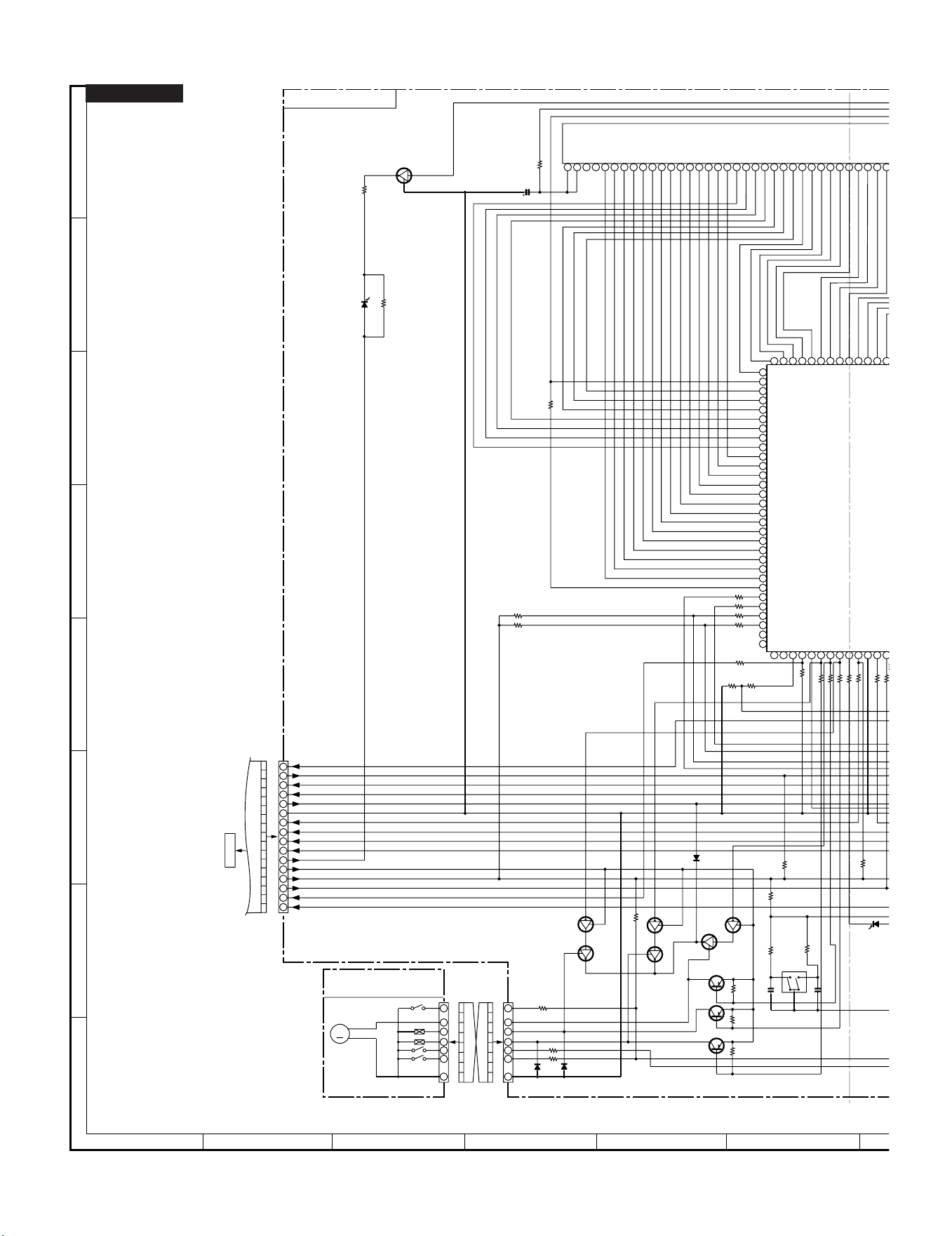

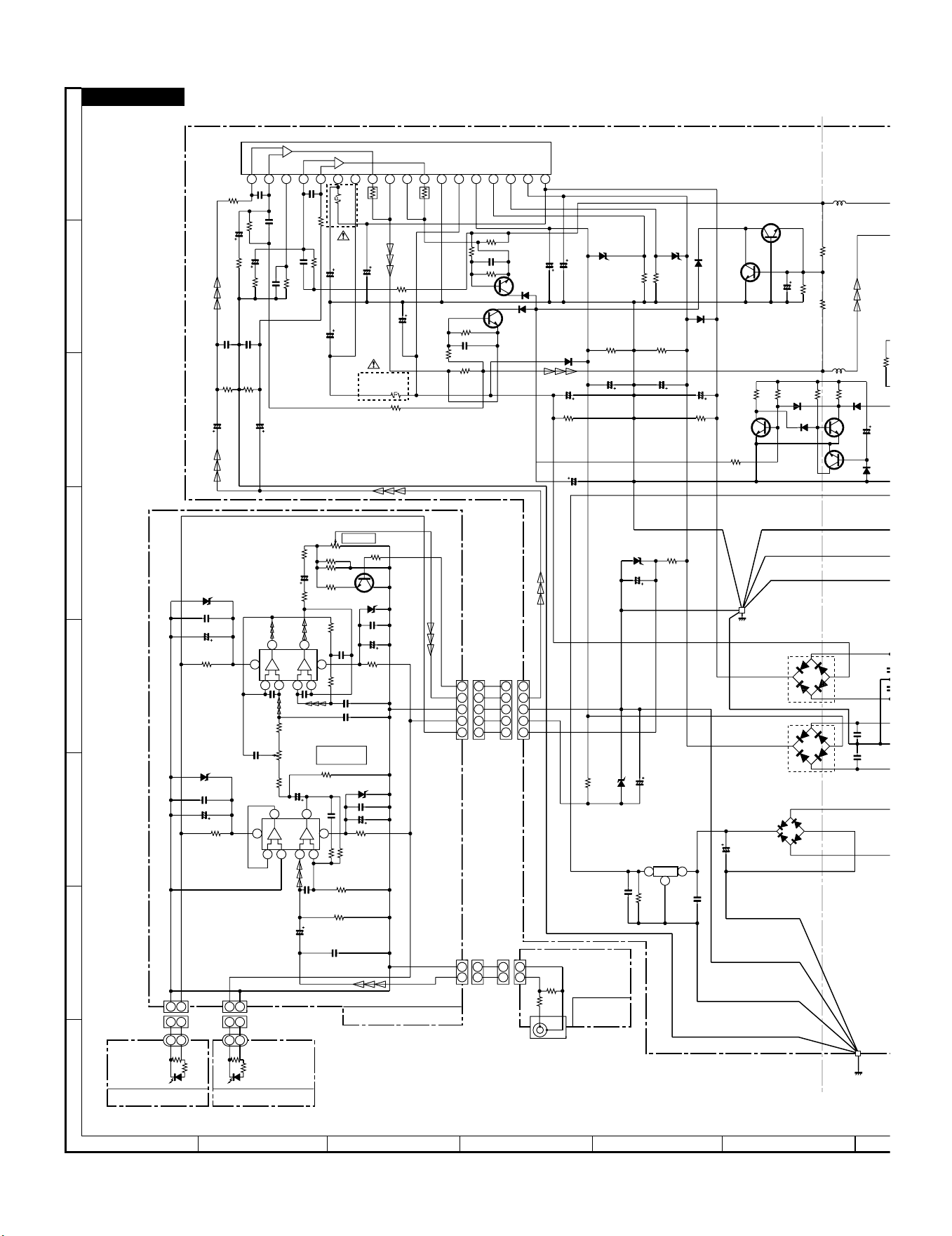

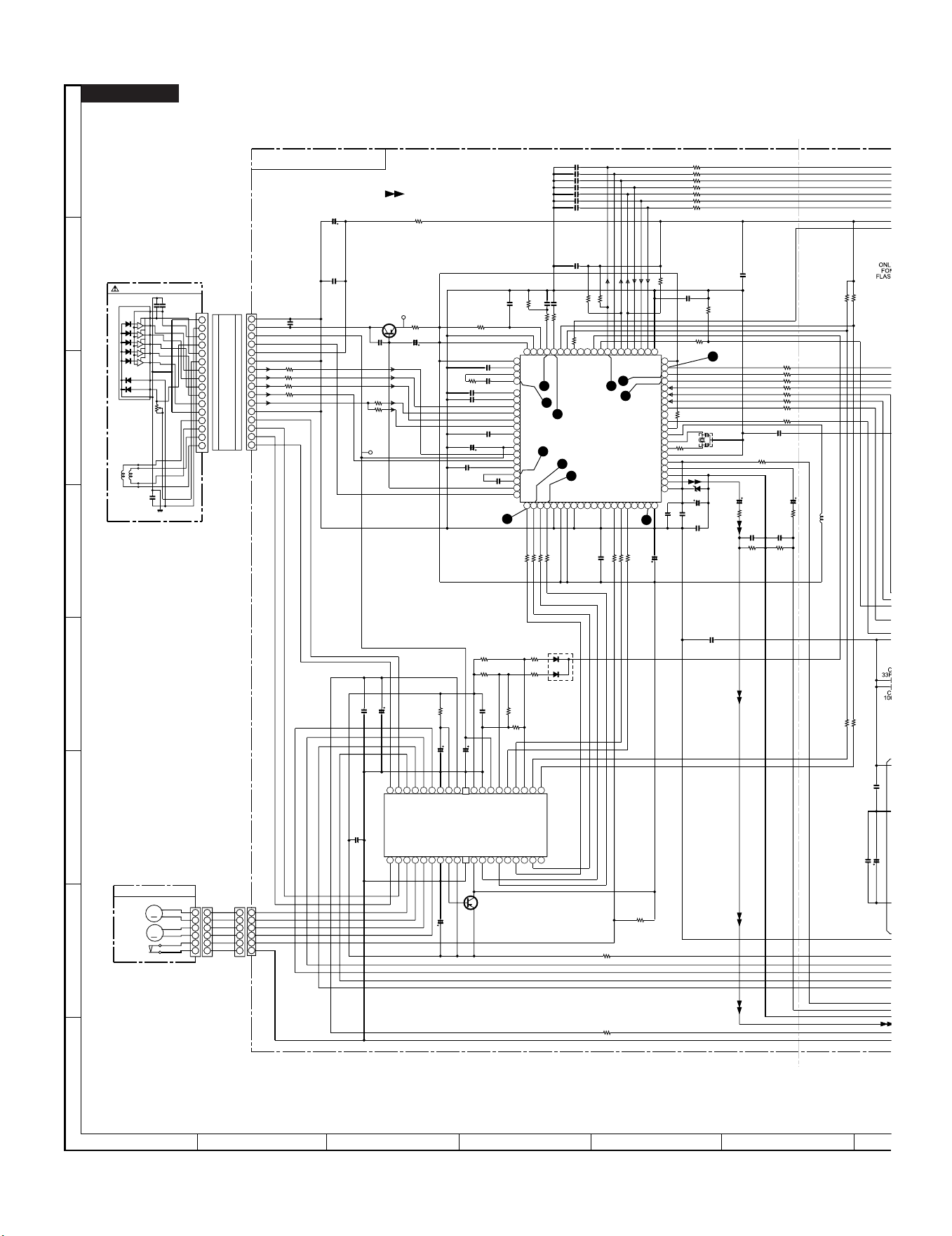

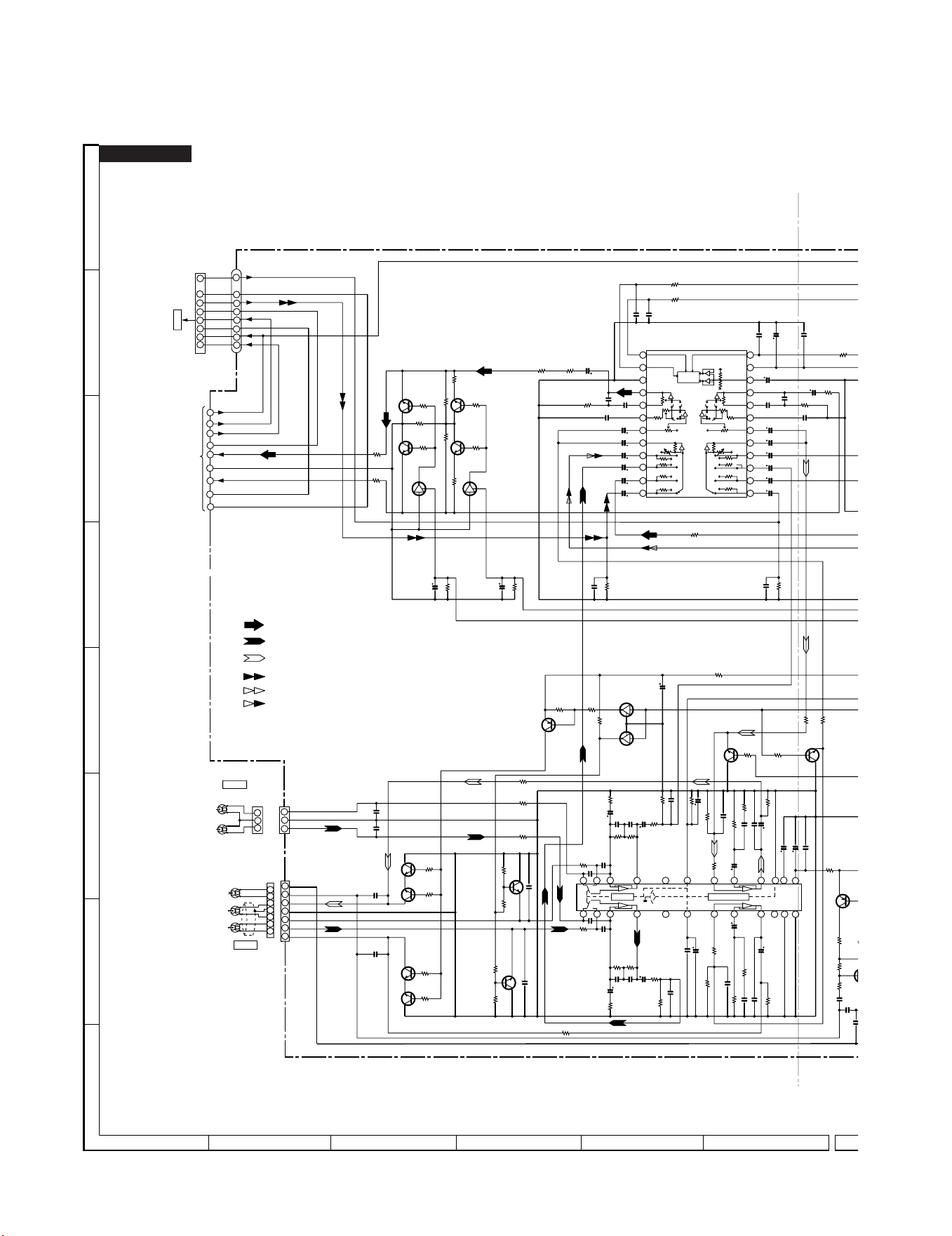

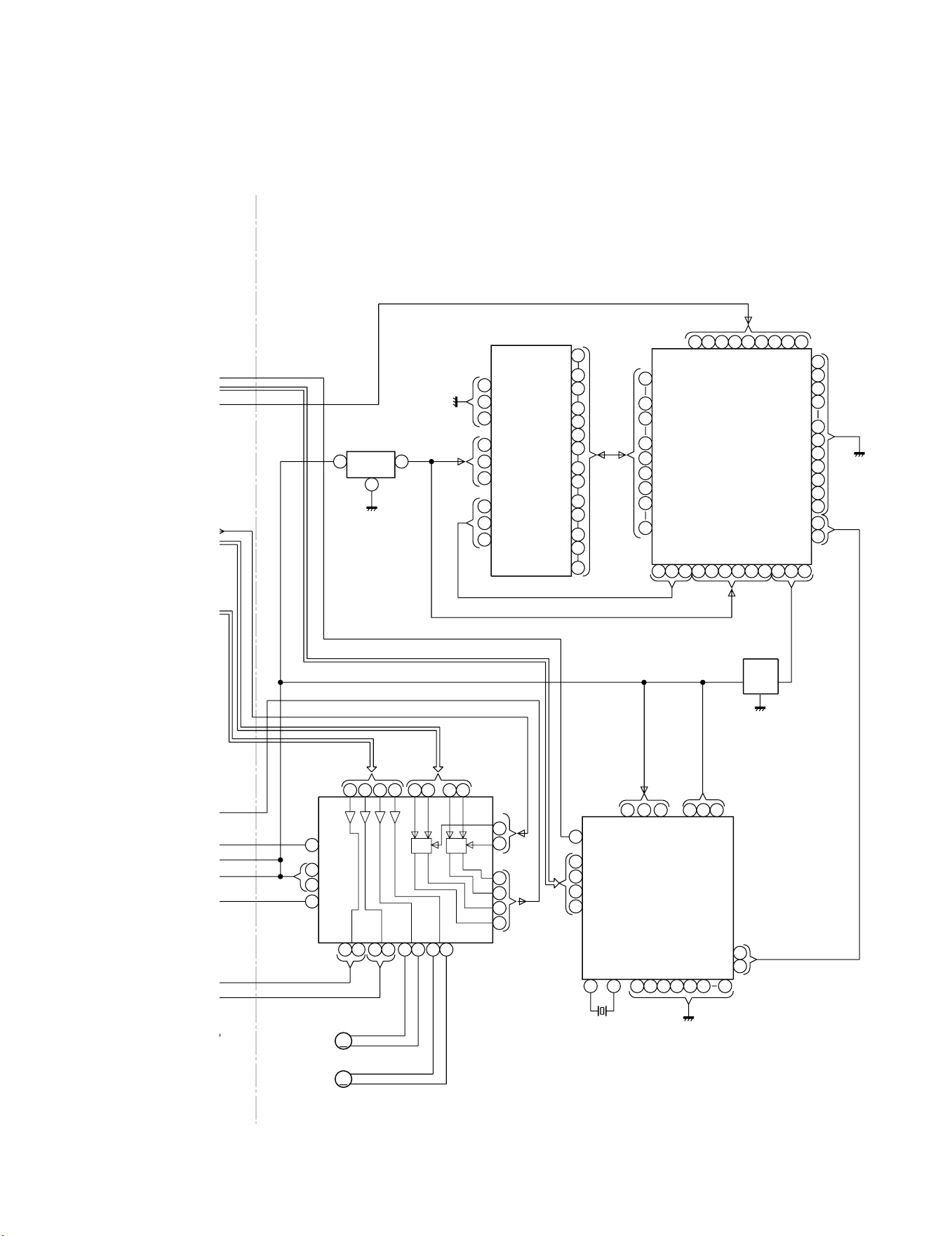

[1] Schematic diagram........................................6-1

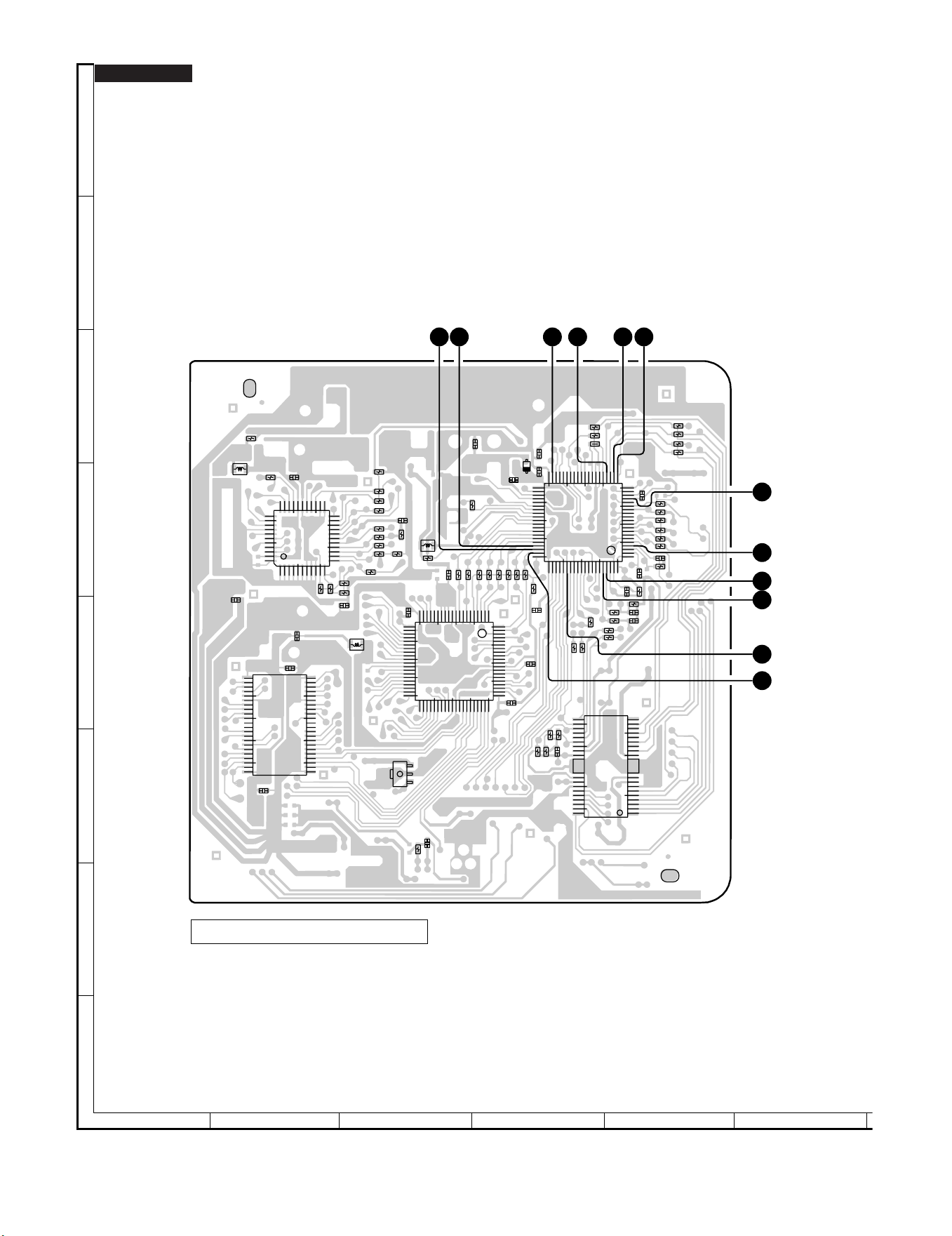

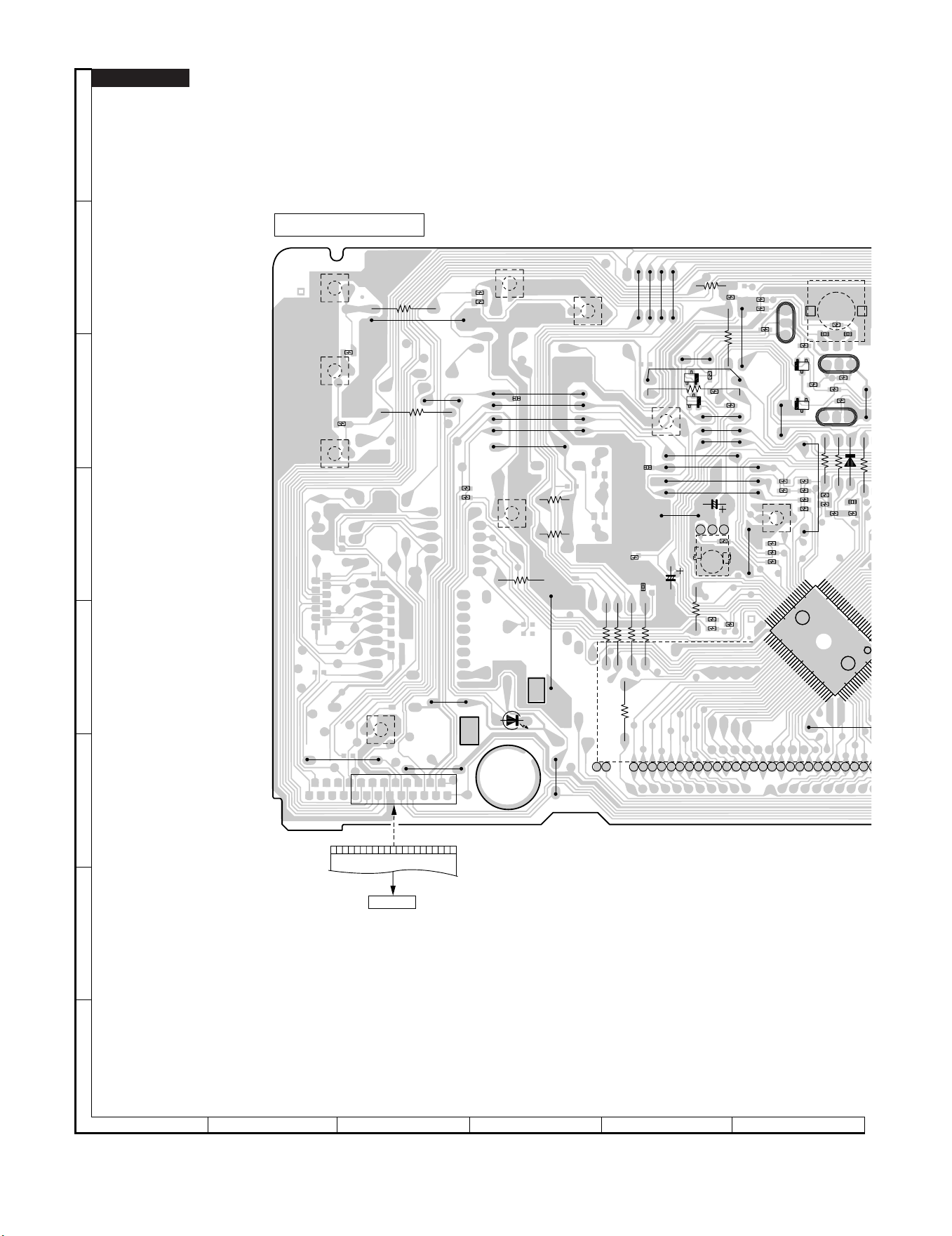

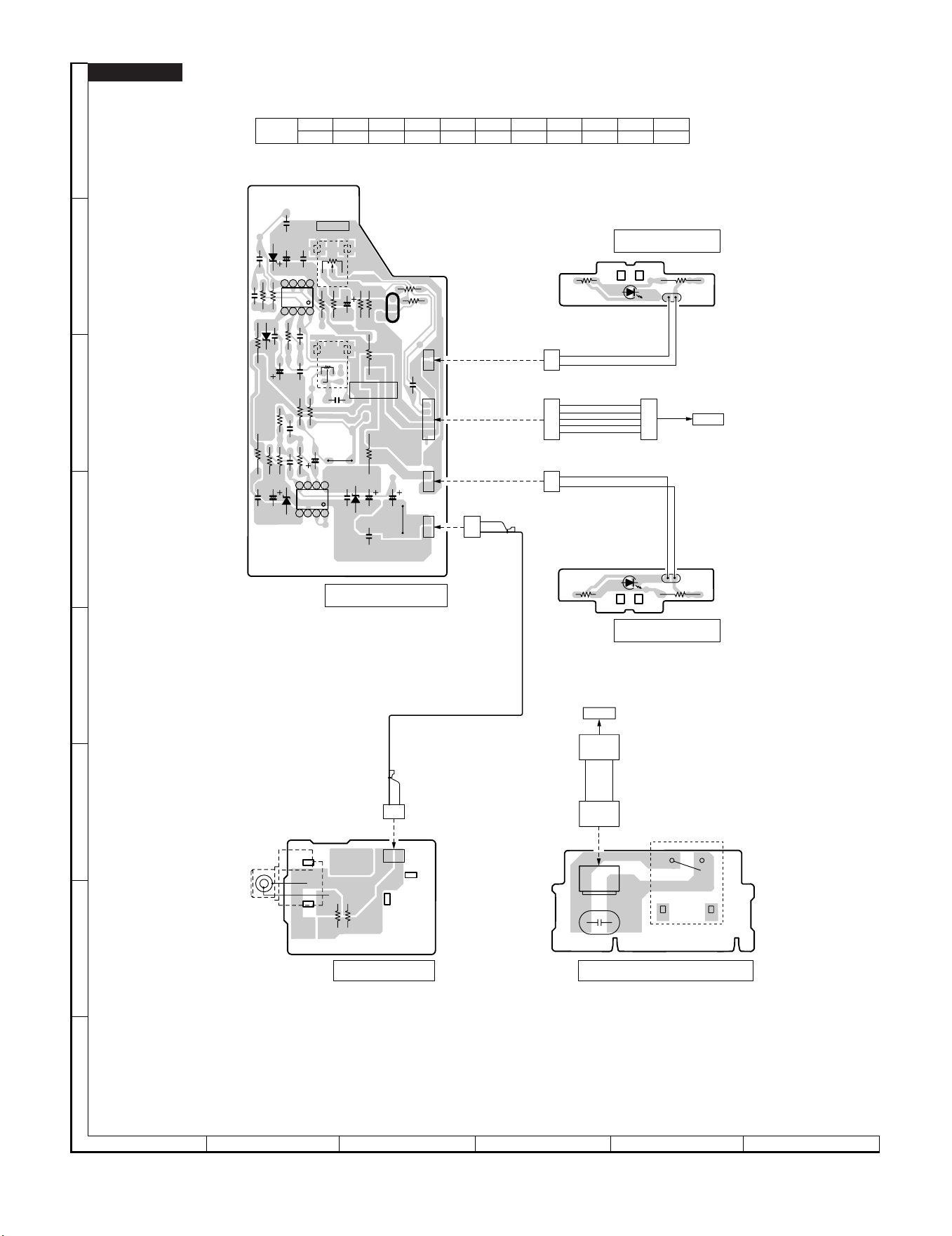

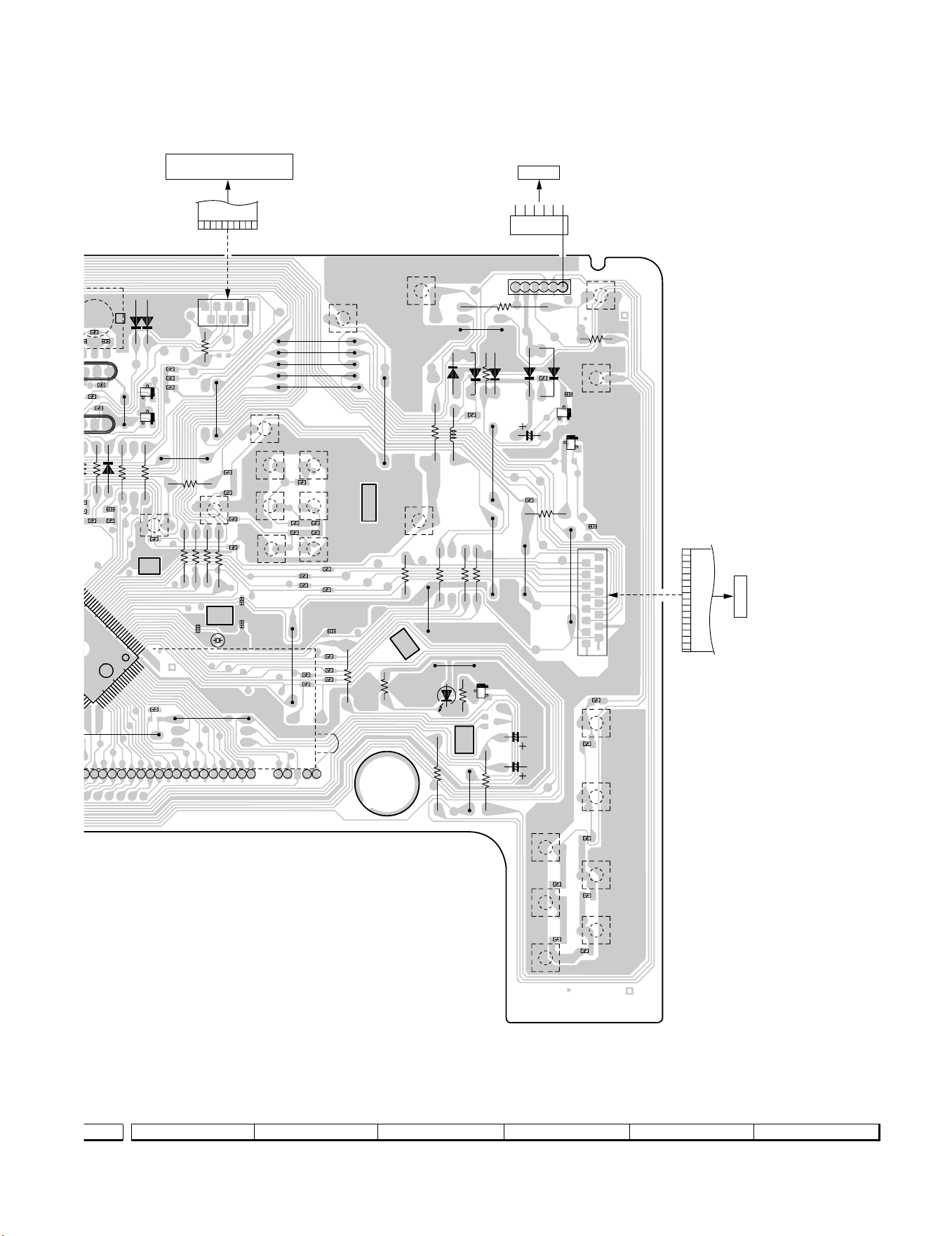

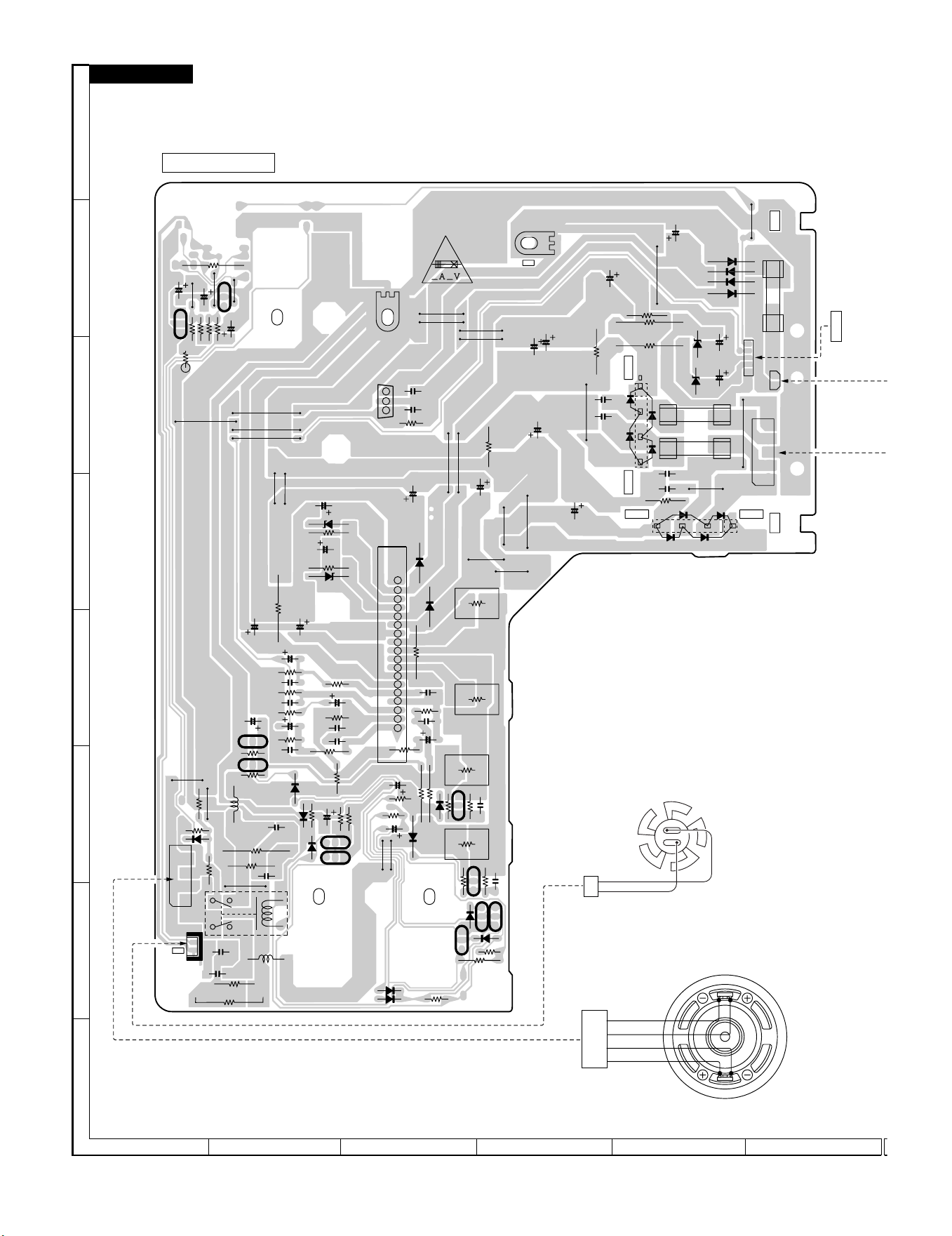

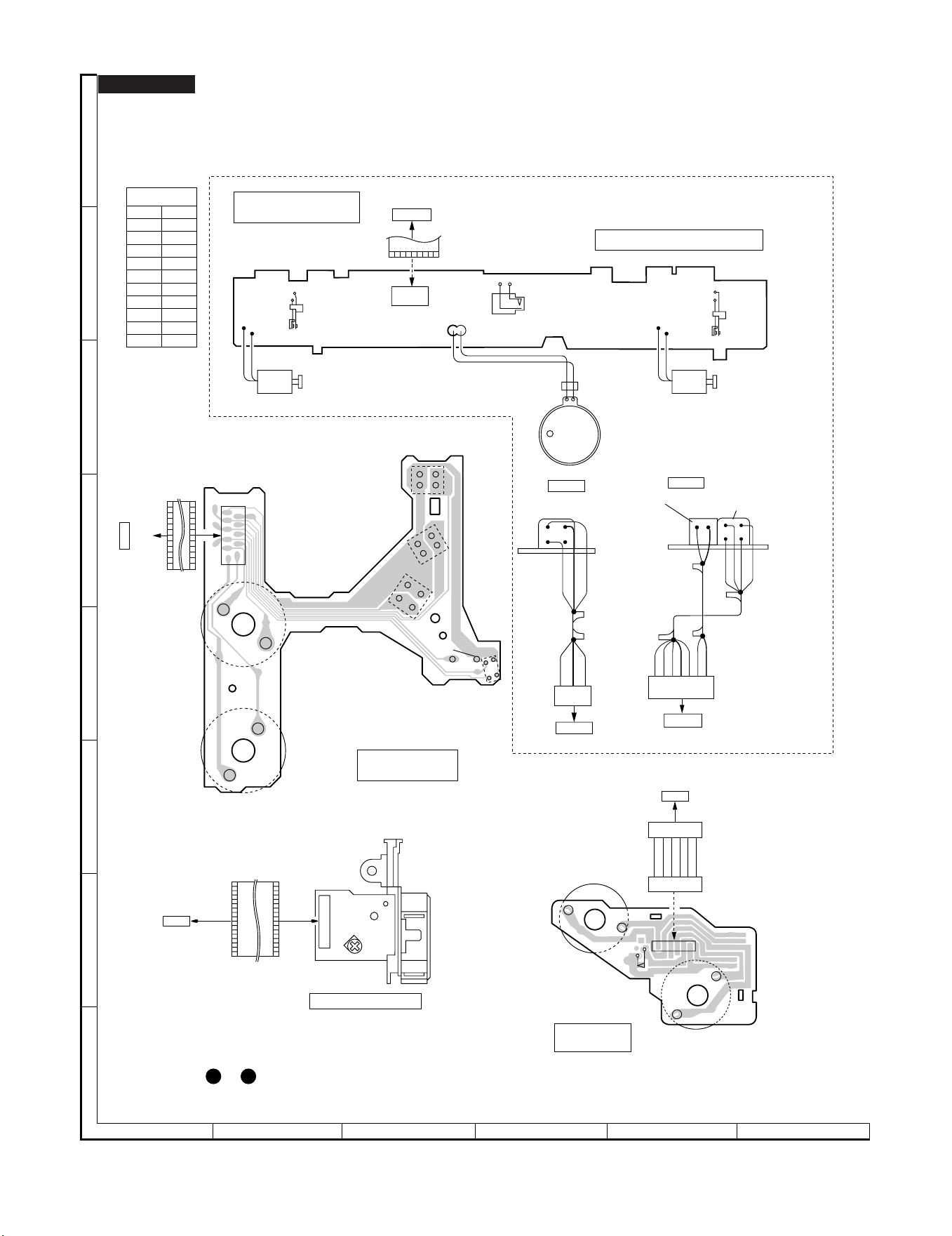

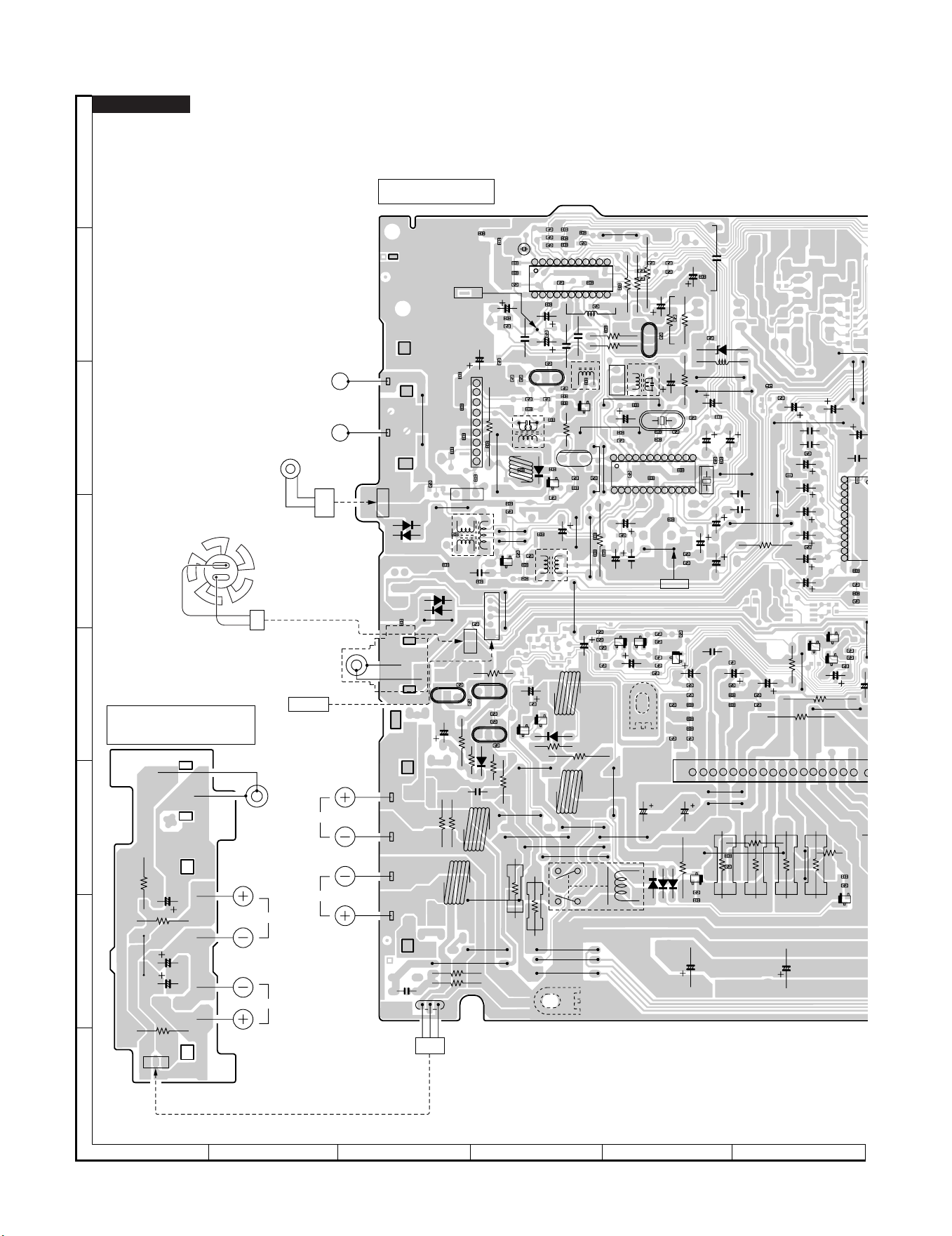

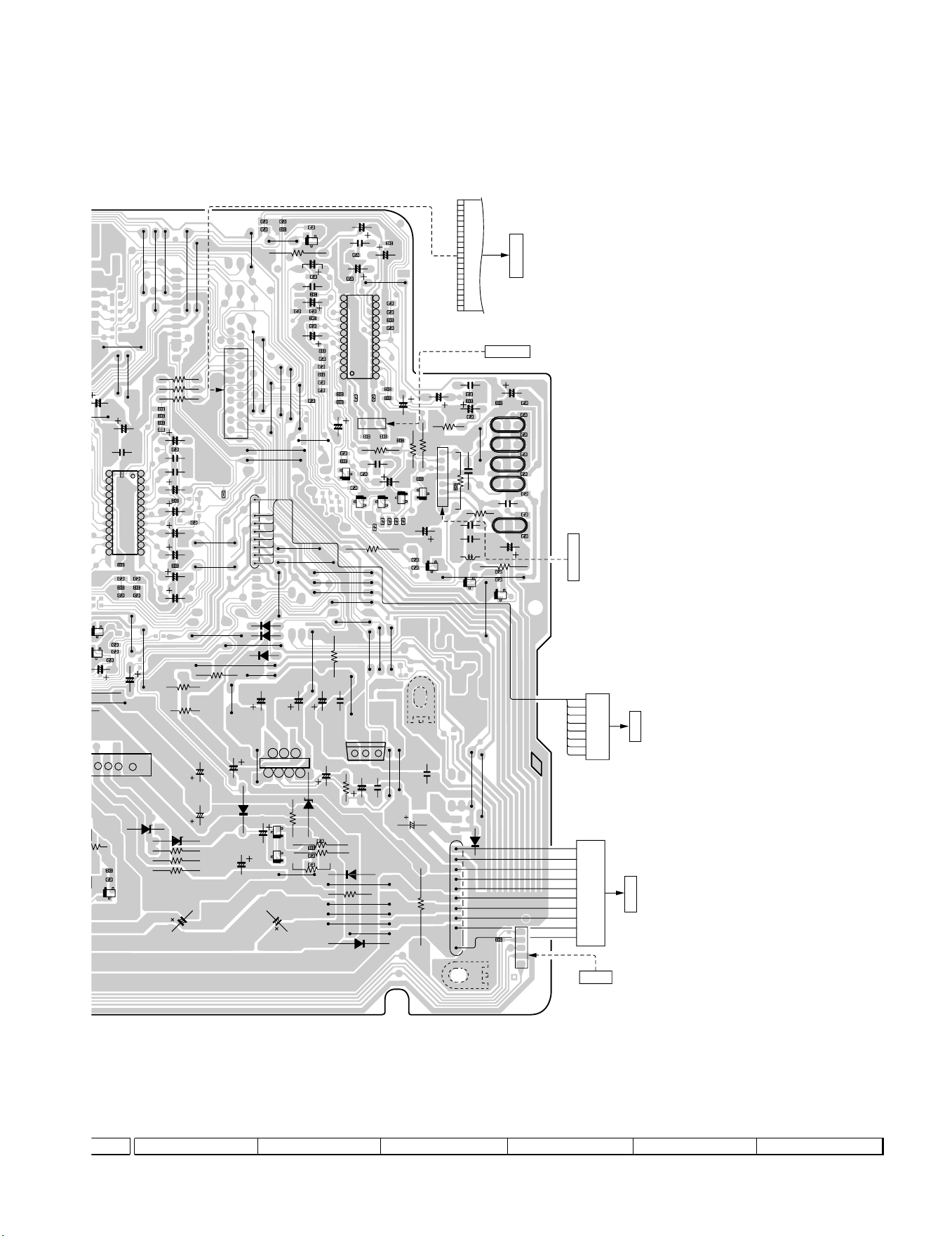

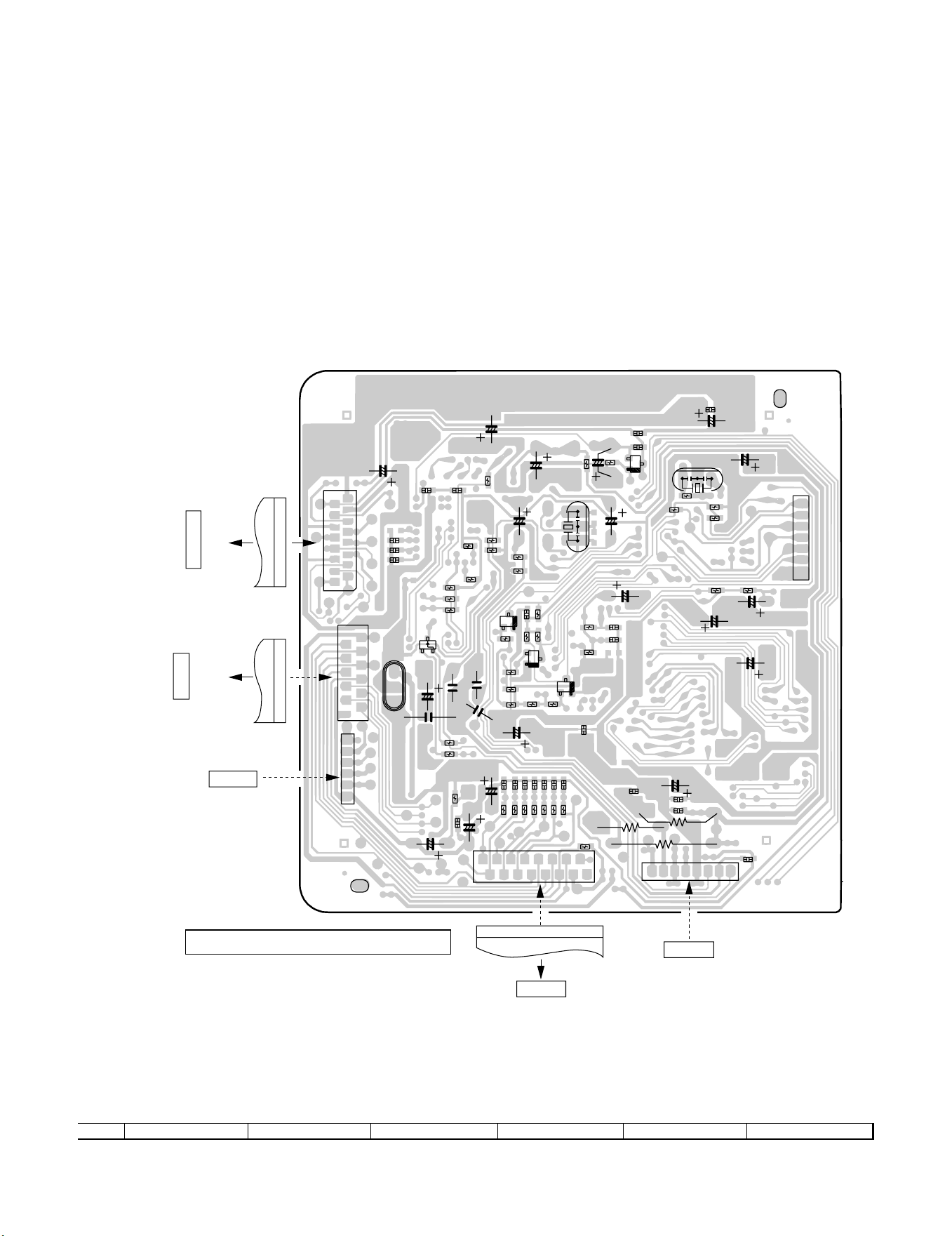

[2] Wiring side of PWB......................................6-13
CHAPTER 7. FLOWCHART

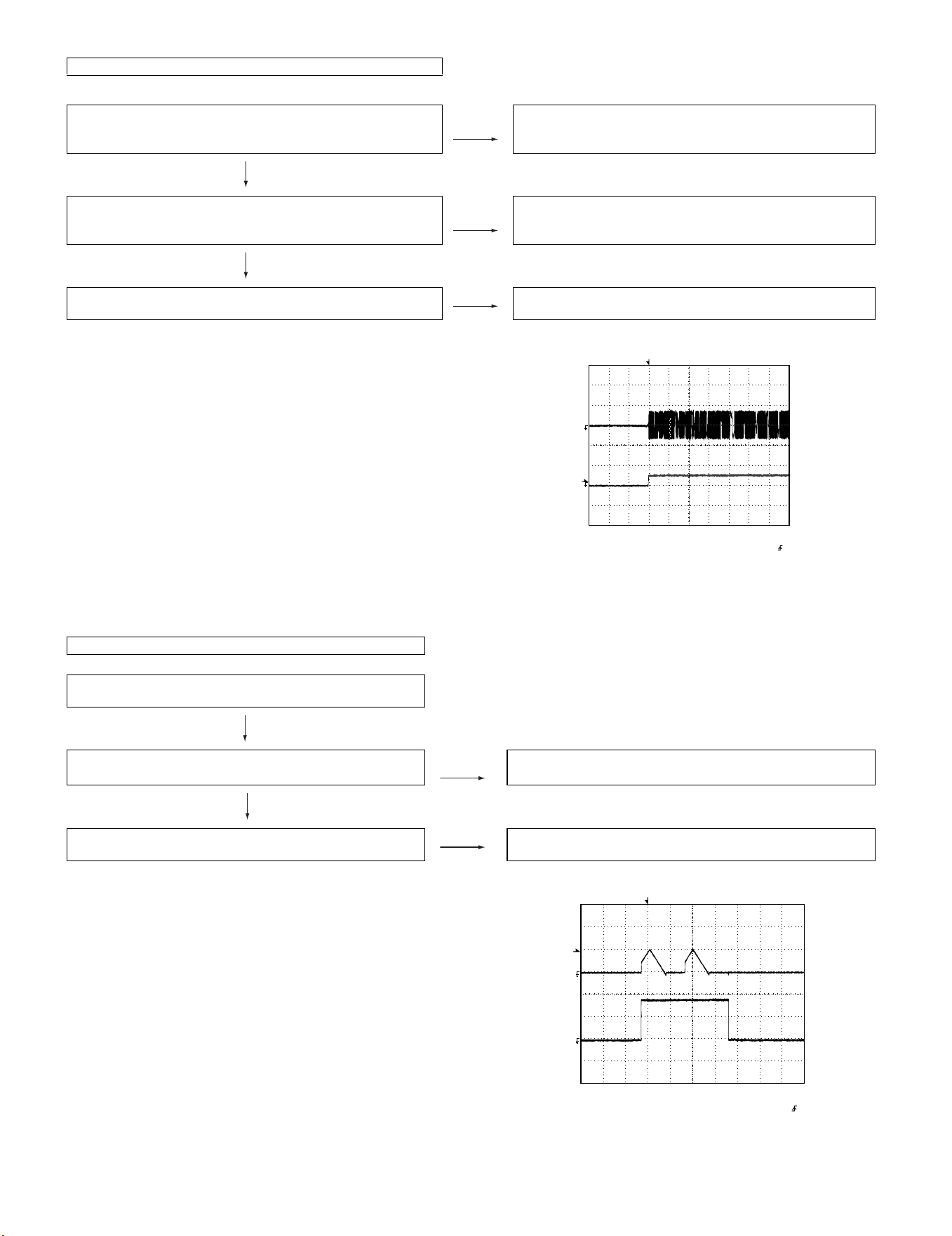

[1] Troubleshooting.............................................7-1
CHAPTER 8. OTHERS

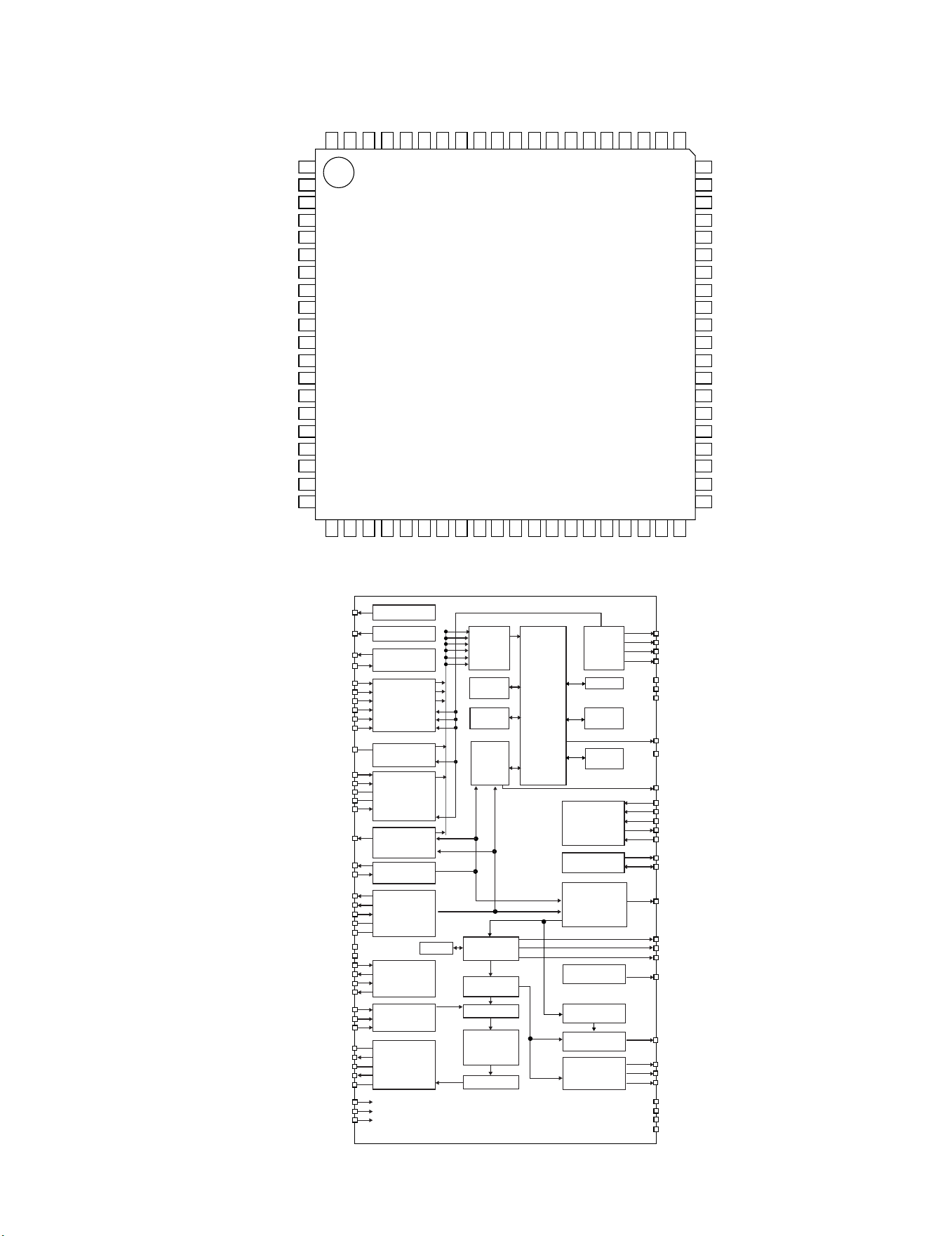

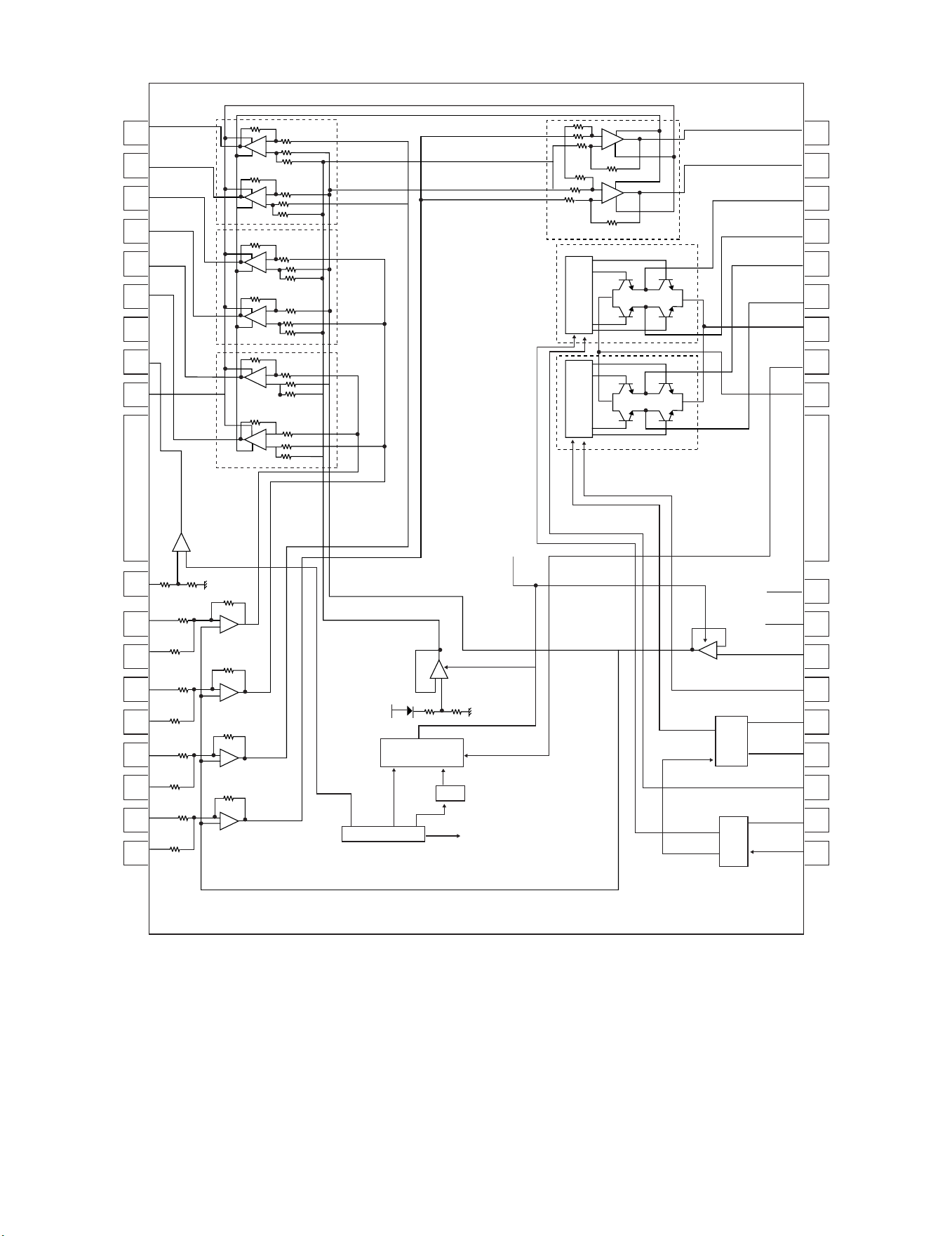

[1] Function table of IC .......................................8-1

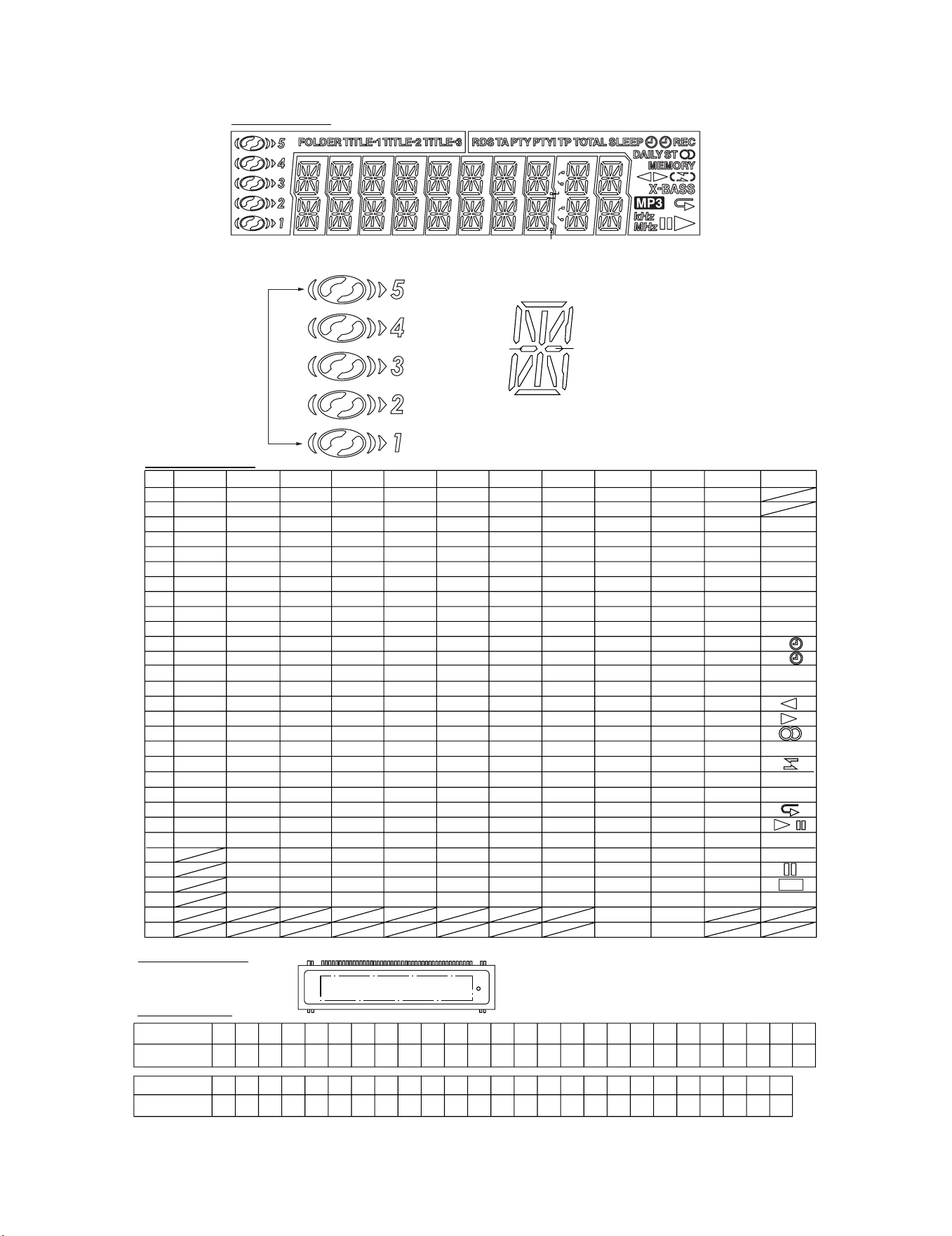

[2] FL Display....................................................8-10
Parts Guide (CD-G10000)
Parts Guide (CP-G10000S)
MINI COMPONENTSYSTEM
CD-G10000
MODEL
CD-G10000 Mini Component System consisting of CD-G10000
(main unit) and GBOXSA090AWM1 (rear speaker system).
SPEAKER SYSTEM
CP-G10000S
CP-G10000S Speaker System consisting of CP-G10000S
(front
speaker system) and CP-SW10000S (active subwoofer).
MODEL
background
CD-G10000/CP-G10000S
– i –
IMPORTANT SERVICE NOTES
BEFORE RETURNING THE AUDIO PRODUCT
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the following
safety checks.
1. Inspect all lead dress to make certain that leads are not pinched or
that hardware is not lodged between the chassis and other metal
parts in the audio product.
2. Inspect all protective devices such as insulating materials, cabinet,
terminal board, adjustment and compartment covers or shields,
mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage current in
the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5 kohm, 10 watt resistor paralleled
by a 0.15 µF capacitor in series with all exposed metal cabinet parts
and a known earth ground, such as conduit or electrical ground con-
nected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher, sensitivity to
measure the AC voltage drop across the resistor (See diagram).
* Connect the resistor connection to all exposed metal parts having a
return path to the chassis (antenna, metal cabinet, screw heads,
knobs and control shafts, escutcheon, etc.) and measure the AC
voltage drop across the resistor.
All check must be repeated with the AC line cord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp. AC.) or
more is excessive and indicates a potential shock hazard which must
be corrected before returning the audio product to the owner.
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 mF
1.5 kohms
10 W
VTVM
AC SCALE
background
CD-G10000/CP-G10000S
1 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications
Tuner
Cassette deck
Frequency range FM: 87.5 - 108.0 MHz
AM: 530 - 1,720 kHz
Frequency
response
50 - 14,000 Hz (normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
Type 2-way type speaker system
2" (5 cm) tweeter 1
5-1/8" (13 cm) woofer 2
Maximum input
power
270 W
Rated input power 135 W
Impedance 8 ohms
Dimensions Width: 8-11/16" (220 mm)
Height: 16-9/16" (420 mm)
Depth: 16-15/16" (430 mm)
Weight 12.1 lbs. (5.5 kg)/each
Type Full-range speaker system
4" (10 cm) speaker 2
Maximum input
power
130 W
Rated input power 65 W
Impedance 16 ohms
Dimensions Width: 7-7/8" (200 mm)
Height: 16-9/16" (420 mm)
Depth: 16-15/16" (430 mm)
Weight 8.8 lbs. (4.0 kg)/each
Power source AC 120 V, 60 Hz
Power
consumption
120 W
Output power 400 watts minimum RMS into 6 ohms from
50 Hz to 120 Hz, 10% total harmonic distor-
tion
Input terminals Subwoofer input (audio signal):
200mV / 10 k ohms at 70 Hz
Speaker type 10" (25 cm) woofer
Impedance 6 ohms
Dimensions Width: 15-3/4" (400 mm)
Height: 16-9/16" (420 mm)
Depth: 20-1/16" (510 mm)
Weight 47.6 lbs. (21.6 kg)
CD-G10000 CP-G10000S
GBOXSA090AWM1
CP-SW10000S
General
CD player
Amplifier
Power source AC120V,60Hz
Power
consumption
175 W
Dimensions Width: 10-1/4" (260 mm)
Height: 13" (330 mm)
Depth: 12-7/8" (326 mm)
Weight 23.0 lbs. (10.4 kg)
Type 5-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
pickup
D/A converter 1-bit D/A converter
Frequency
response
20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Output power
Front speakers 135 watts minimum RMS per channel into
8 ohms from 100 Hz to 20 kHz, 10% total
harmonic distortion
Rear speakers 65 watts minimum RMS per channel into
16 ohms from 5 kHz to 20 kHz, 10% total
harmonic distortion
Output terminals Front speakers: 8 ohms
Rear speakers: 16 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Subwoofer pre-out (audio signal):
200 mV/10 k ohms at 70 Hz
Video out: 1 Vp-p (75 ohms)
Input terminals Game/ Auxiliary (audio signal):
500 mV/ 47 k ohms
Game/Video: 1 Vp-p (75 ohms)
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
background
CD-G10000/CP-G10000S
1 – 2

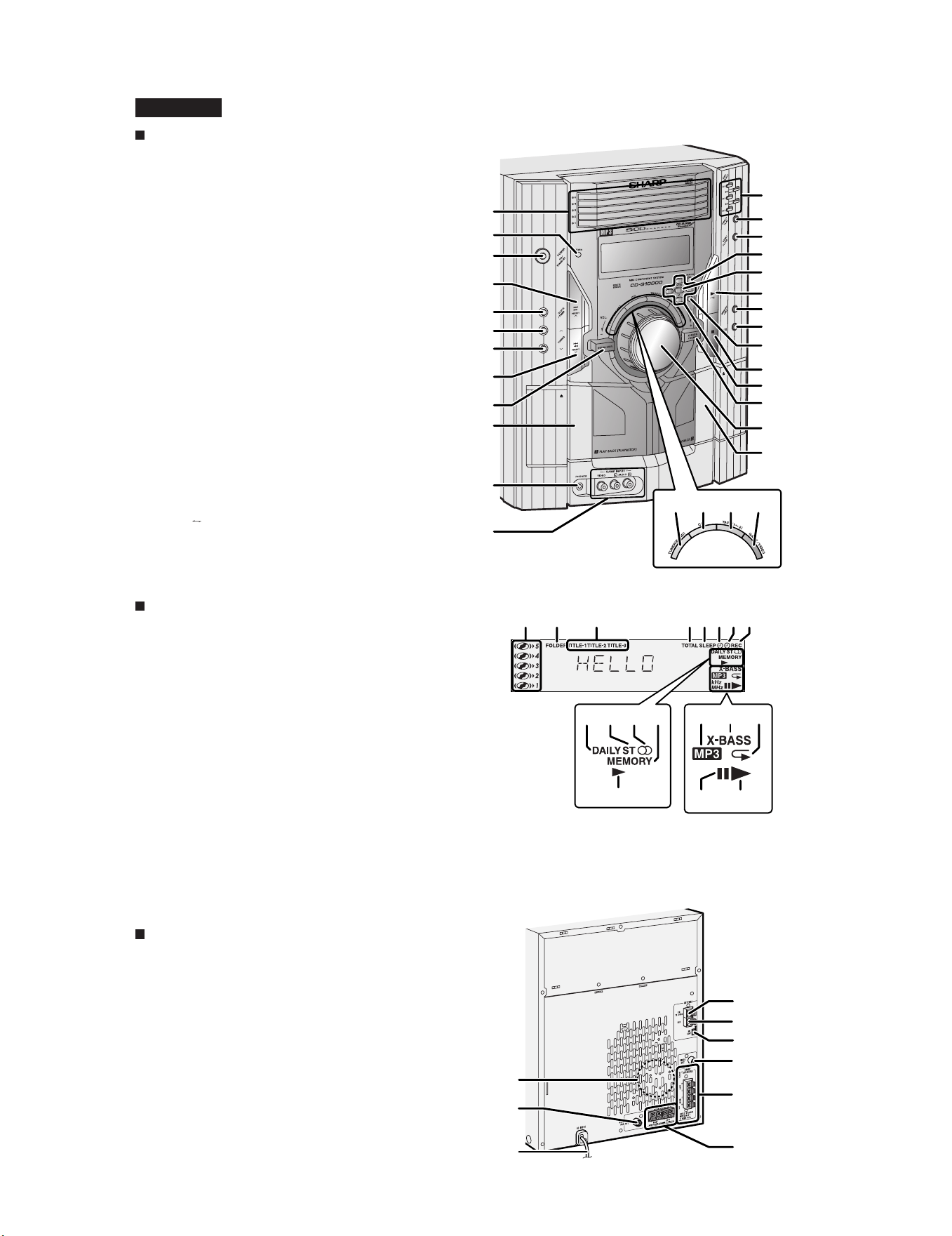

[2] Names of parts
Front panel
1. Disc Trays
2. Timer Indicator
3. Power On/Stand-by Button
4. Disc Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
5. Clock/Timer Button
6. Tuning Up Button
7. Tuning Down Button
8. Disc Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down Button
9. Equalizer Mode Select Button
10. Tape 1 Cassette Compartment
11. Headphone Jack
12. Game/Video Input Jacks
13. Disc Number Select Buttons
14. Disc Direct Play Button
15. Disc Tray Open/Close Button
16. Character Button
17. Enter Button
18. Disc Play or Repeat, Tape Play Button
19. Memory/Set Button
20. Tape 2 Record Pause Button
21. MP3 Disc Navigation Mode Select Button
22. Disc or Tape Stop Button
23. Cursor Buttons
24. Extra Bass/Demo Mode Button
25. Volume Control
26. Tape 2 Cassette Compartment
27. Tuner (Band) Button
28. CD Button
29. Tape (1 2) Button
30. Game/Video Button
1
13
15
25
17
19
23
24
3
2
5
6
7
16
22
21
26
14
20
11
8
12
4
9
10
28 29 3027
18
CD-G10000
Display
1. Disc Number Indicators
2. MP3 Folder Indicator
3. MP3 Title Indicators
4. MP3 Total Indicator
5. Sleep Indicator
6. Timer Play Indicator
7. Timer Recording Indicator
8. Tape 2 Record Indicator
9. Daily Timer Indicator
10. FM Stereo Mode Indicator
11. FM Stereo Receiving Indicator
12. Memory Indicator
13. Tape Play Indicator
14. MP3 Disc Indicator
15. Extra Bass Indicator
16. Disc Repeat Play Indicator
17. Disc Pause Indicator
18. Disc Play Indicator
4 5321 7 8
9
13
1110 12
14 15 16
17
18
6
Rear panel
1. Cooling Fan
2. Subwoofer Pre-output Jack
3. AC Power Cord
4. FM 75 Ohms Antenna Terminal
5. FM Antenna Ground Terminal
6. AM Loop Antenna Jack
7. Video Output Jack
8. Front Speaker Terminals
9. Rear Speaker Terminals
1
2
6
9
4
7
5
8
3
background
CD-G10000/CP-G10000S
1 – 3
CD-G10000
CP-G10000S
CP-SW10000S
GBOXSA090AWM1

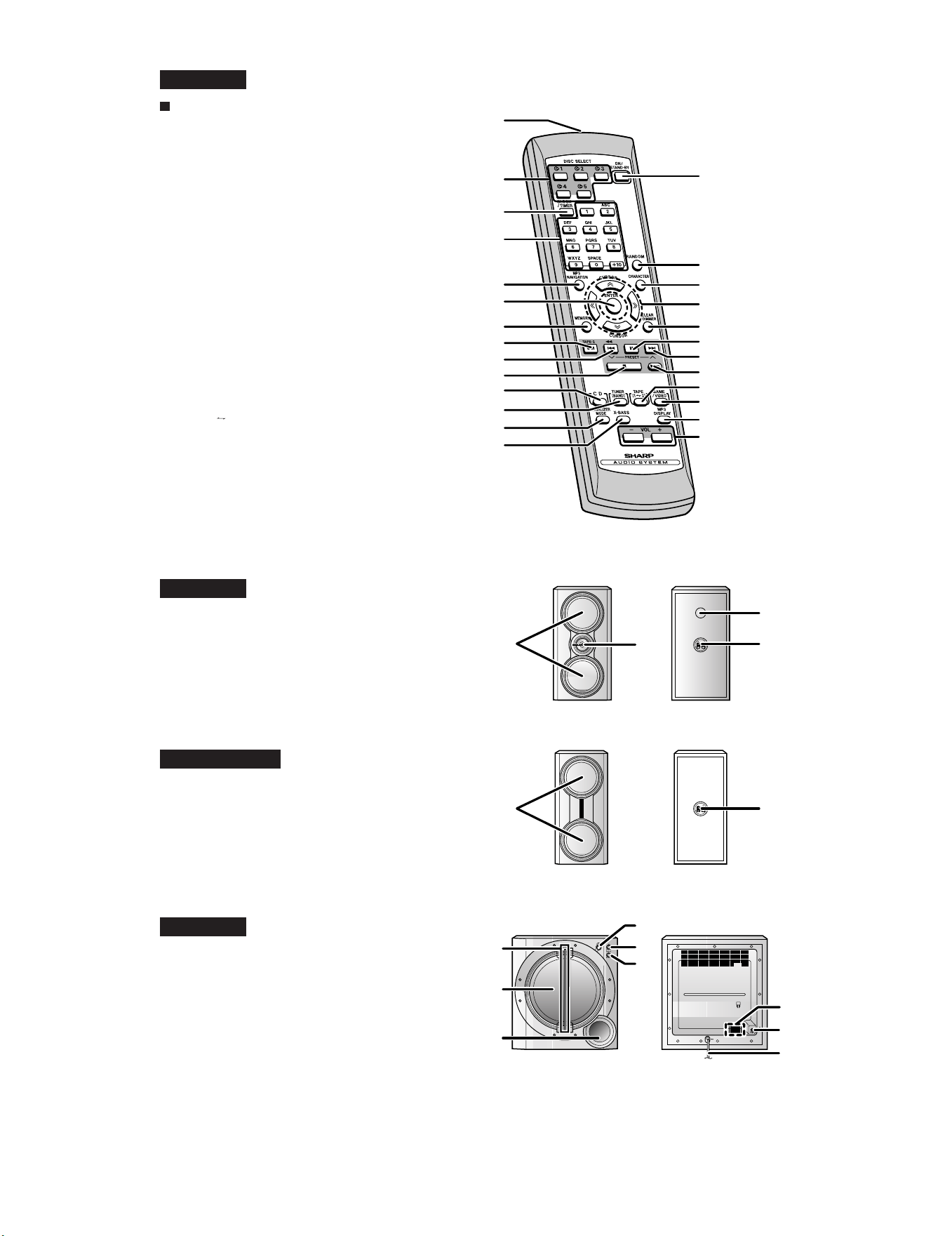

Remote control
1. Remote Control Transmitter
2. Disc Number Select Buttons
3. Clock/Timer Button
4. Character Input/Disc Direct Search Buttons
5. MP3 Disc Navigation Mode Select Button
6. Enter Button
7. Memory/Set Button
8. Tape 2 Record Pause Button
9. Disc Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down Button
10. Disc or Tape Stop Button
11. CD Button
12. Tuner (Band) Button
13. Equalizer Mode Select Button
14. Extra Bass Button
15. Power On/Stand-by Button
16. Disc Random Button
17. Character Button
18. Cursor Buttons
19. Disc Clear/Dimmer Button
20. Disc Pause Button
21. Disc Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
22. Disc Play or Repeat, Tape Play Button
23. Tape (1 2) Button
24. Game/Video Button
25. MP3 Disc Display Button
26. Volume Up and Down Buttons
1
2
3
4
5
7
9
15
16
17
18
19
24
25
26
12
13
10
21
22
23
20
14
6
8
11
1. Woofers
2. Tweeter
3. Bass Reflex Duct
4. Speaker Terminals
1. Full-range Speakers
2. Speaker Terminals
1. Power Indicator
2. Subwoofer
3. Bass Reflex Duct
4. Power Switch
5. Volume Control
6. Crossover Frequency Control
7. Cooling Fan
8. Subwoofer Input Jack
9. AC Power Cord
1
3
8
7
4
2
1
2
2
1
4
3
5
6
9
background
CD-G10000/CP-G10000S
2 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE

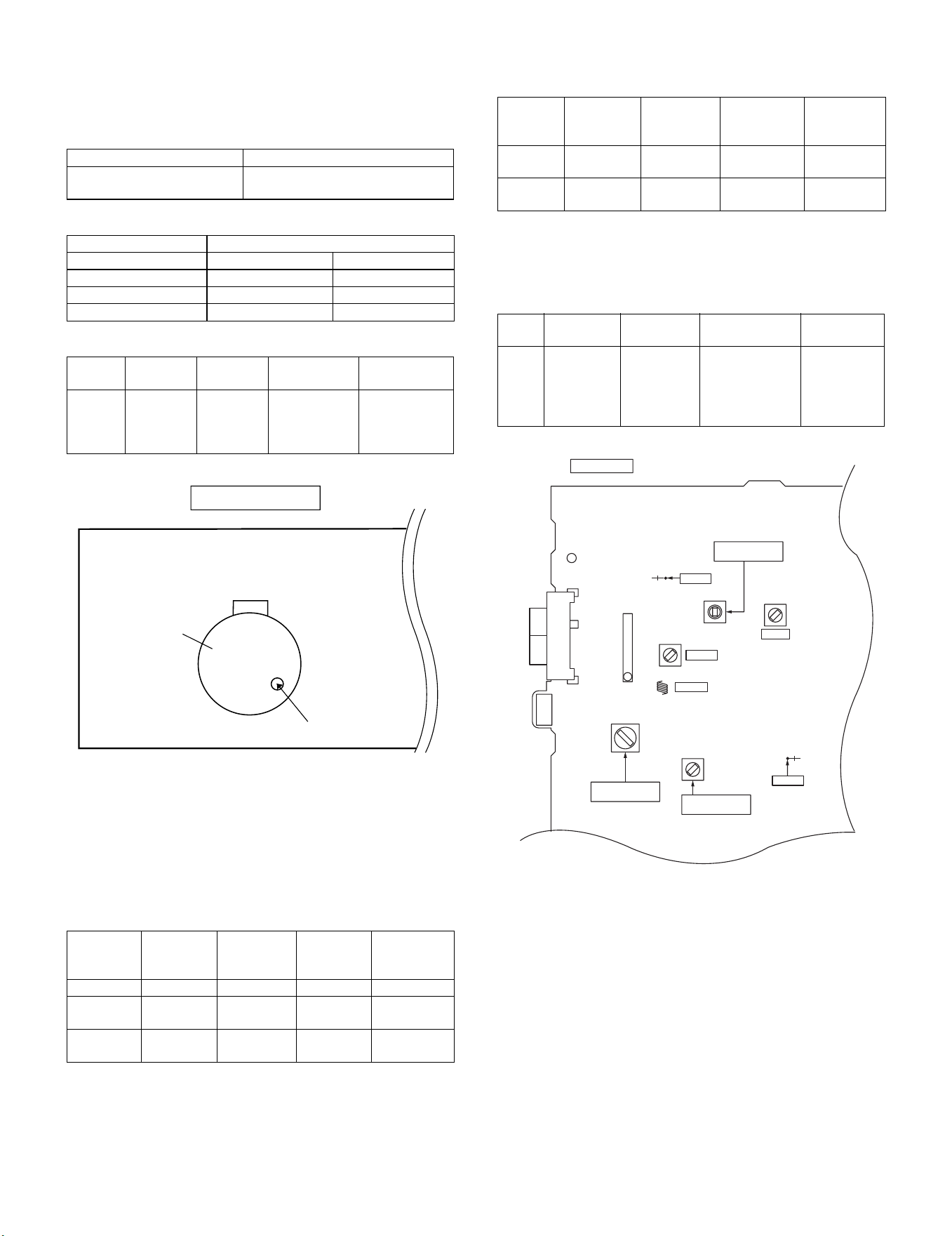

CHAPTER 2. ADJUSTMENTS
[1] Mechanism section
• Driving Force Check
• Torque Check
• Tape Speed
[2] Tuner section
fL: Low-range frequency
fH: High-range frequency
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
•FM RF
Signal generator: 1 kHz, 40 kHz dev., FM modulated
•FM IF
Signal generator: 10.7 MHz, FM modulated
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
Torque Meter Specified Value
Tape 1 Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
— 70 to 180 g.cm
Test Tape Adjust-
ing Point
Specified
Value
Instrument
Connection
Normal
speed
MTT-111 Variable
Resistor in
motor.
3,000 ± 30 Hz
Speaker
Speaker Ter-
minal (Load
resistance: 6
ohms)
Figure 1
Test Stage Frequency Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
AM IF 450 kHz 1,720 kHz T351 *1
AM Band
Coverage
— 530 kHz (fL): T306
1.1 ± 0.1 V
*2
AM
Tracking
990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
TAPE MECHANISM
Tape
Motor
Variable Resistor in motor
Test
Stage
Frequency Frequency
Display
Setting/
Adjusting
Point
Instrument
Connection
FM Band
Coverage
— 87.50 MHz T301 (fL):
1.3 V ± 0.1 V
*1
FM RF 98.00 MHz
(10-30 dB)
98.00 MHz L312 *2
*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal
Test
Stage
Frequency Frequency
Display
Setting/Adjust-
ing Point
Instrument
Connection
IF 10.7 MHz 98 MHz T302 (Turn the
core of trans-
former T302
fully counter
clockwise)
*1
Figure 2 Adjustment Points
AM IF
FM RF
TP301
TP302
FM IF
T301
T302
R356
R381
T303
T306
IC301
L312
T351
CNP301
AM LOOP ANTENNA
SO302
FM ANTENNA
TERMINAL
FM BAND
COVERAGE fL
AM BAND
COVERAGE fL
AM TRACKING
fL
MAIN PWB
1
background
CD-G10000/CP-G10000S
2 – 2
[3] TEST MODE
• Setting the test mode
During stand-by mode, press ON/STAND-BY button while pressing
down the button and X-BASS/DEMO button. then, press the CD
button to enter the test mode.
IL isn’t done
OPEN/CLOSE operation is using manual. IL isn’t done
<< >>,<< >>buttons make pick's slide possible.
IL isn’t done
to page 2-3
<<PLAY>> key input.
C D T E S T
A
Do TOC IL. Do normal play.
When these following key is input into PLAY key, track num-
ber can be appoint directly.
<<MEMORY>>
key input.
<< 1 >> key: Track 4
<< 2 >> key: Track 9
<< 3 >> key: Track 15
Adjustment result automatically will
display as below for each 2 sec:
a) “FOF_XXXX”
b) “TOF_XXXX”
c) “TBAL_XX”
d) “TGAN_XX”
f) “FGAN_XX”
g) “RFLS_XX”
––––––––
<<STOP>> key input.
STOP
explanation:
a) Focus off set = “FOF_XXXX”
b)Tracking off set = “TOF_XXXX”
c)Tracking balance = “TBAL_XX”
d)Tracking Gain = “TGAN_XX”
f) Focus Gain = “FGAN_XX”
g) RF level shift = “RFLS_XX”
VOL — Last memory
P. G E Q — F L AT
X-BASS — OFF
To cancel: Power OFF
background
CD-G10000/CP-G10000S
2 – 3
Sliding the PICKUP with<< >>, << >> button must only be
in STOP mode.
<<MEMORY>> key input.
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that specific point.
<<MEMORY>> key input.
Tracking ON play from that specific point.
<<MEMORY>> key input.
Adjustment result automatically will display as below for each 2 sec:
a) “FOF_XXXX”
b) “TOF_XXXX”
c) “TBAL_XX”
d) “TGAN_XX”
f) “FGAN_XX”
g) “RFLS_XX”
<<STOP>> key input.
STOP
explanation:
a) Focus off set = “FOF_XXXX”
b)Tracking off set = “TOF_XXXX”
c)Tracking balance = “TBAL_XX”
d)Tracking Gain = “TGAN_XX”
f) Focus Gain = “FGAN_XX”
g) RF level shift = “RFLS_XX”
VOL — Last memory
P. G E Q — F L AT
X-BASS — OFF
To cancel: Power OFF
A
background
CD-G10000/CP-G10000S
2 – 4
[4] CD SECTION
• Adjustment
Since this CD system incorporates the following automatic adjust-
ment functions, readjustment is not needed when replacing the
pickup. Therefore, different PWBs and pickups can be combined
freely.
Each time a disc is changed, these adjustments are performed
automatically. Therefore, playback of each disc can be performed
under optimum conditions.
Items adjusted automatically
1) Offset adjustment (The offset voltage between the head amplifier
output and the VREF reference voltage is compensated inside the
IC.)
* Focus offset adjustment
* Tracking offset adjustment
2) Tracking balance adjustment
3) Gain adjustment (The gain is compensated inside the IC so that the
loop gain at the gain crossover frequency will be 0 dB.)
* Focus gain adjustment
* Tracking gain adjustment
[5] CD section
CD Error code description
* 'CHECKING'
If Error is detected, 'CHECKING' will be displayed instead of 'ER-
CD**'. 'ER-CD**' display will only be displayed when error had been
detected for the 5th times.
[6] Standard Specification of Stereo System Error Message Display Contents
(*) CHECKING:
If CD changer mechanism error is detected, ‘CHECKING’ will be dis-
play instead of ‘ER-CD**’. ‘ER-CD**’ display will only be display when
error had been detected for the 5 th times.
Speaker abnormal detection and +B PROTECTION display
In case speaker abnormal detection or +B PROTECTION had
occurred, it can be check by pressing ‘POWER’, ‘ ’ and ‘X-BASS’
button. MicroComputer version number will displayed as “XM******”.
Press ‘GAME/VIDEO’ button during version number display and then
press ‘POWER’, ‘MEMORY/SET’ and ‘GAME/VIDEO’ button. Display
will show “S** B**”. S is referring to speaker abnormal detection and B
is referring to +B PROTECTION. ** is in hex valve.
+B PROTECTION is condition when irregular process occur on power
supply line.
BEFORE TRANSPORTING THE UNIT
The following process need to be taken after set tapering/parts
replacement.
1. Press the ON/STAND-BY button to enter stand-by mode.
2. While pressing down the button and the X-BASS/DEMO but-
ton, press the ON/STAND-BY button. The Micro Computer version
number will be displayed as “XM******”.
3. Press OPEN/CLOSE button until “WAIT”→ “FINISHED” appears.
4. Unplug the AC cord and the unit is ready for transporting.
Error Explanation
01 When Pickup set inner position, inner switch cannot detect
'ON' level for 10 secs.
10* CAM error. Can't detect CAM switch when CAM is moving.
11* When it detect cam operation error during initialize pro-
cess.
20* TRAY error. Can't detect TRAY switch when TRAY is mov-
ing.
21* When it detect TRAY operation error during initialize pro-
cess.
31 When it change to CD function, DSP cannot read initial
data.
Error Contents Display Notes
CD Pickup Mechanism Error. 'ER-CD01' PU-IN SW Detection NG.
CD Changer Mechanism Error. 'ER-CD**' (*) 10: CAM SW Detection NG during normal operation
11: CAM SW Detection NG during initialize process
20:TRAY SW Detection NG during normal operation
21:TRAY SW Detection NG during initialize process
CD DSP Communication Error. 'ER-CD31' DSP COMMUNICATION ERROR.
Focus Not Match/IL Time Over. 'NO DISC'
TUNER PLL Unlock. PLL Unlock.
FM 87.5 MHz
background
CD-G10000/CP-G10000S
2 – 5
[7] CD Changer mechanism section

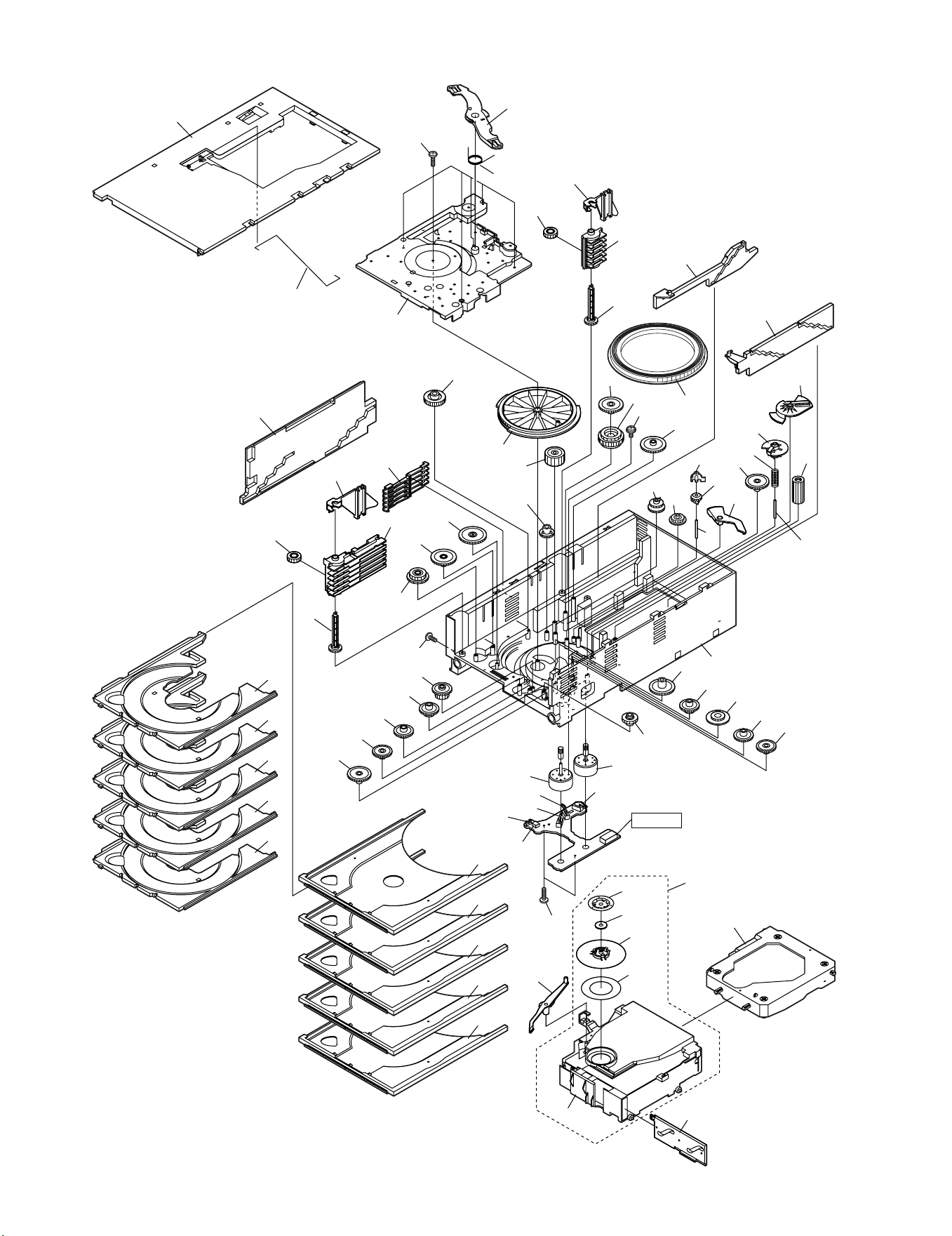

• A number in the drawing sheet is the number of the parts guide
(CHANGER MECHANISM PARTS).

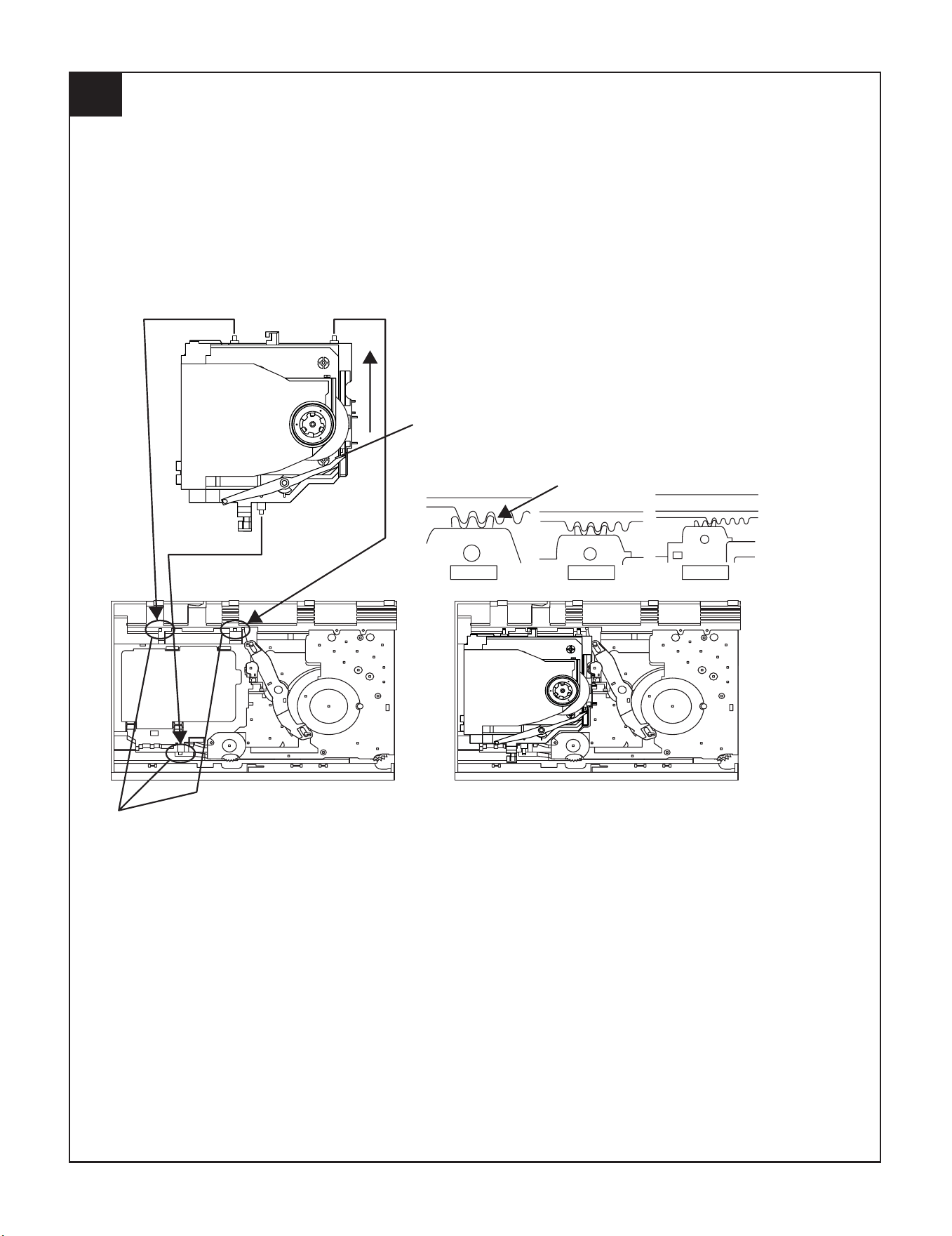

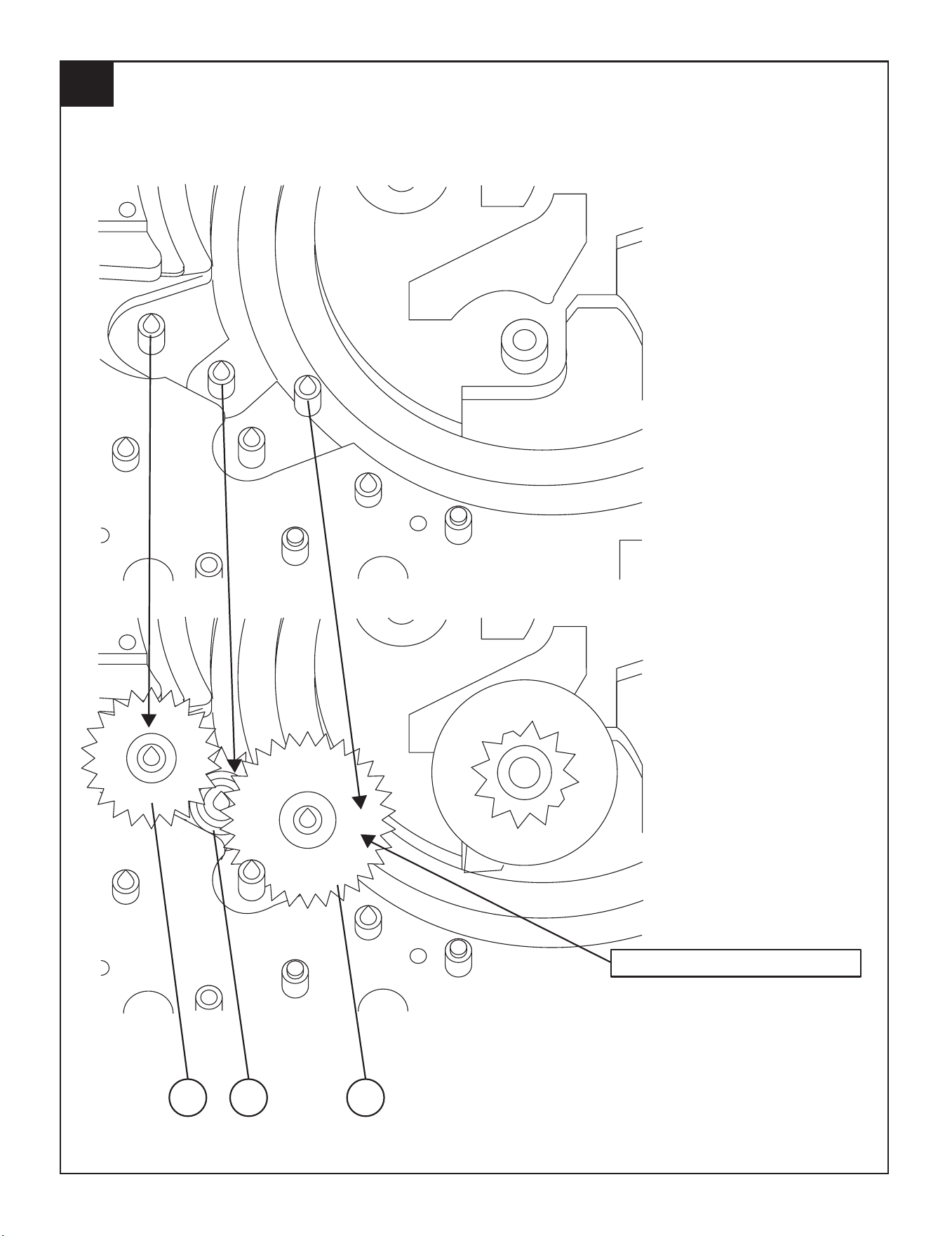

140
141
HALF GEAR
MUST ARRANGE AS SHOWN
1
background
CD-G10000/CP-G10000S
2 – 6

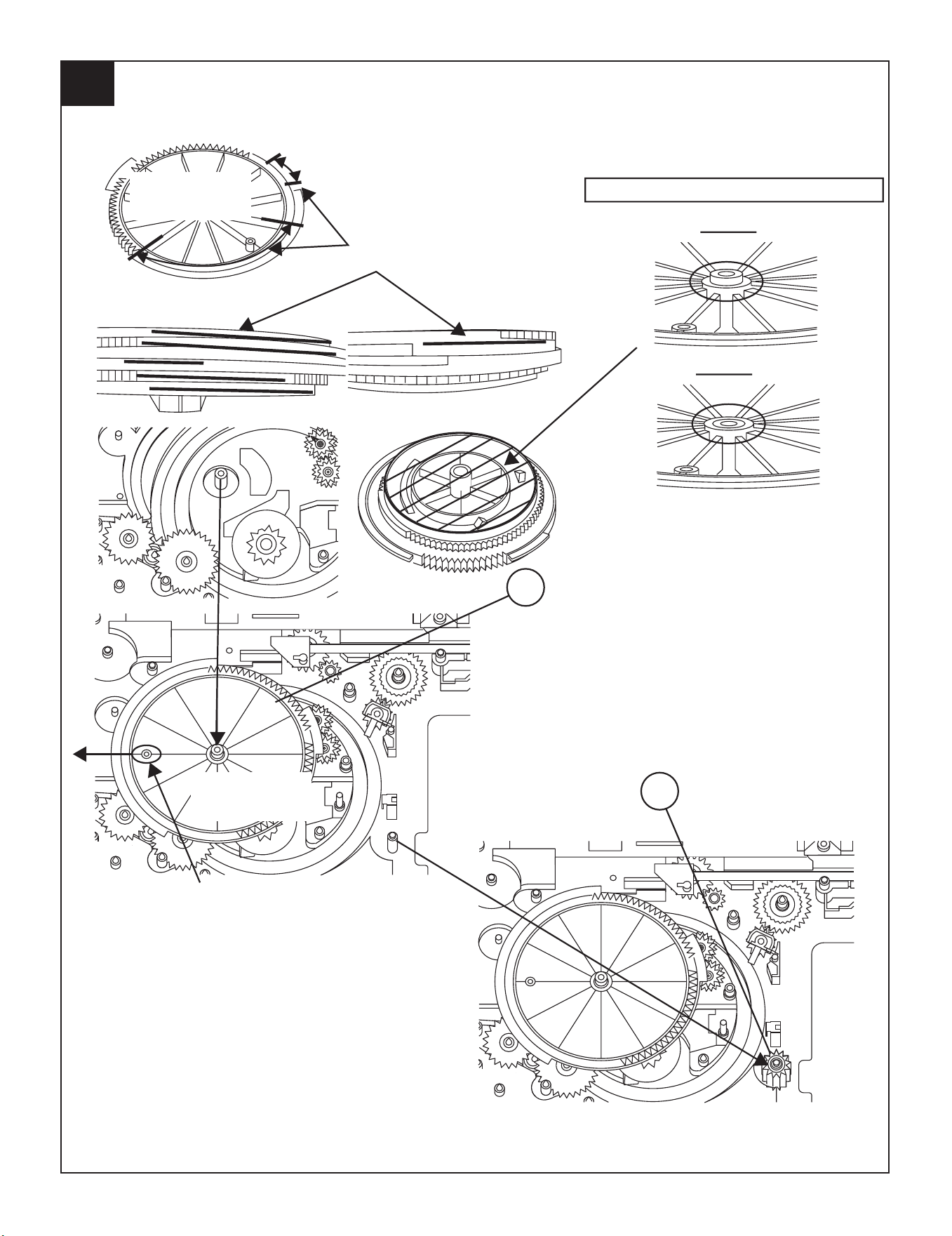

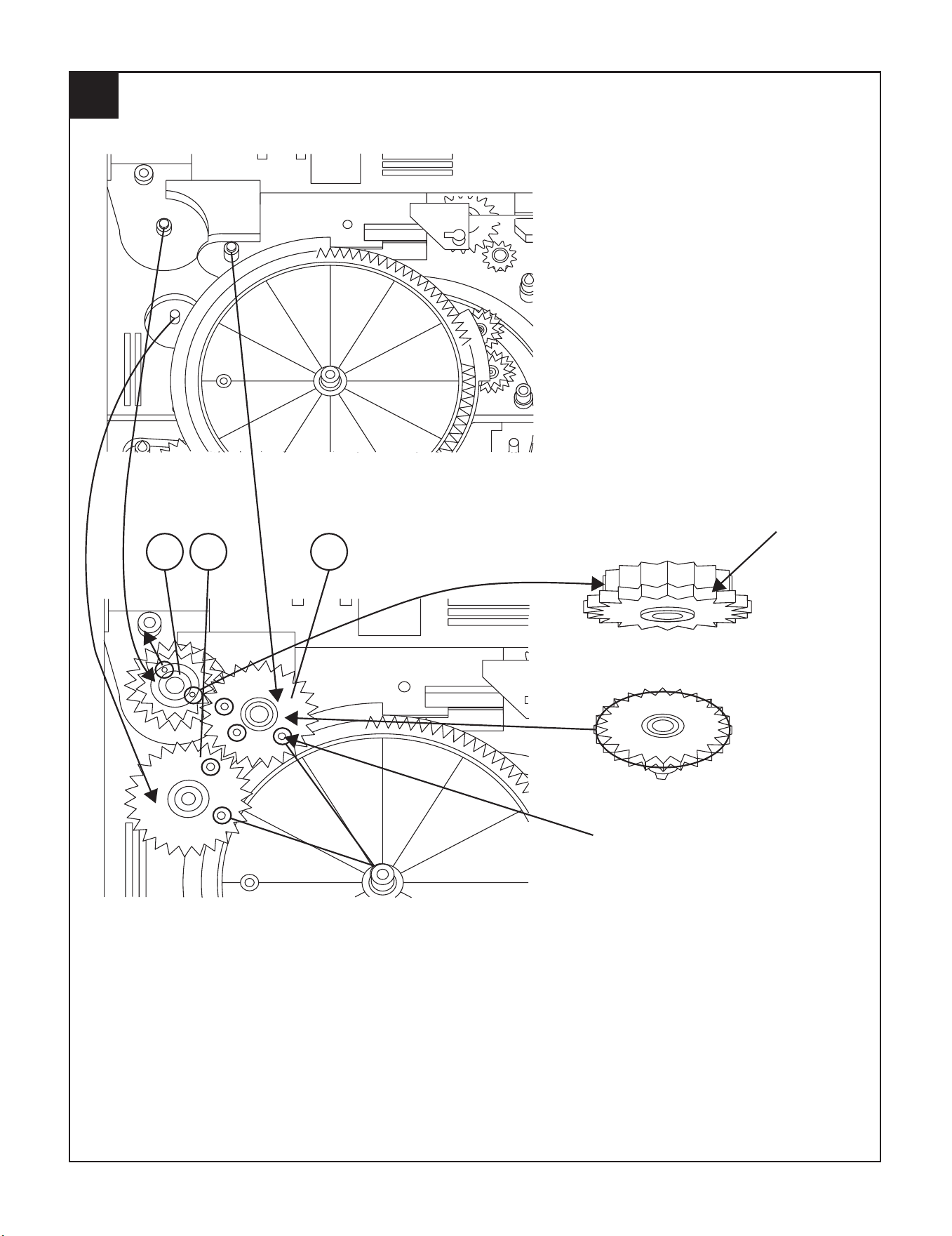

139
2
APPLY SANKOL BEFORE FIX
FIX ITEM 1 ACCORDING TO THE
SHOWN PICTURE ABOVE
ROTATE MODE BIG GEAR UNTIL REACH AS SHOWN IN PICTURE
background
CD-G10000/CP-G10000S
2 – 7

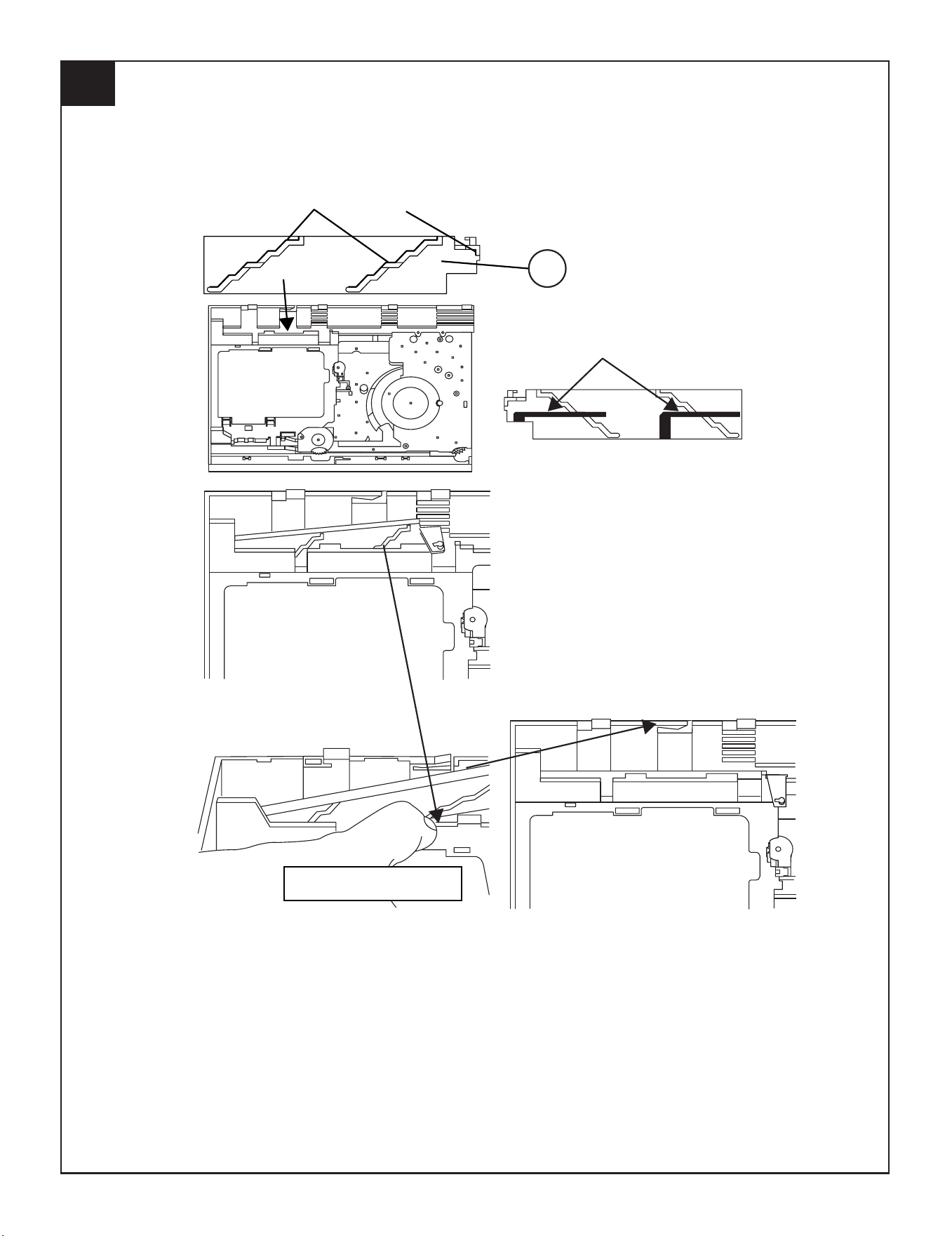

APPLY GREASE
PULL THE LEVER UNITIL
REACH THE ARROW MARK
143
112
3
background
CD-G10000/CP-G10000S
2 – 8
FIGURE 1
FIGURE 2
APPLY GREASE
SLOT CLAMP SW ARM INSIDE BASE SLOT
152
142
118
4
background
CD-G10000/CP-G10000S
2 – 9
127
128
5
APPLY GREASE AT BOTTOM SIDE
OF GEAR FOLLOW MARKING
NO NEED APPLY GREASE AT BOTTOM
SIDE
O.K
BLACK MARK
FIGURE 1
N.G
OTHER THAN FIGURE 1 DIRECTION ALL N.G
APPLY GREASE AT
TOP SIDE OF GEAR
FOLLOW MARKING
background
CD-G10000/CP-G10000S
2 – 10

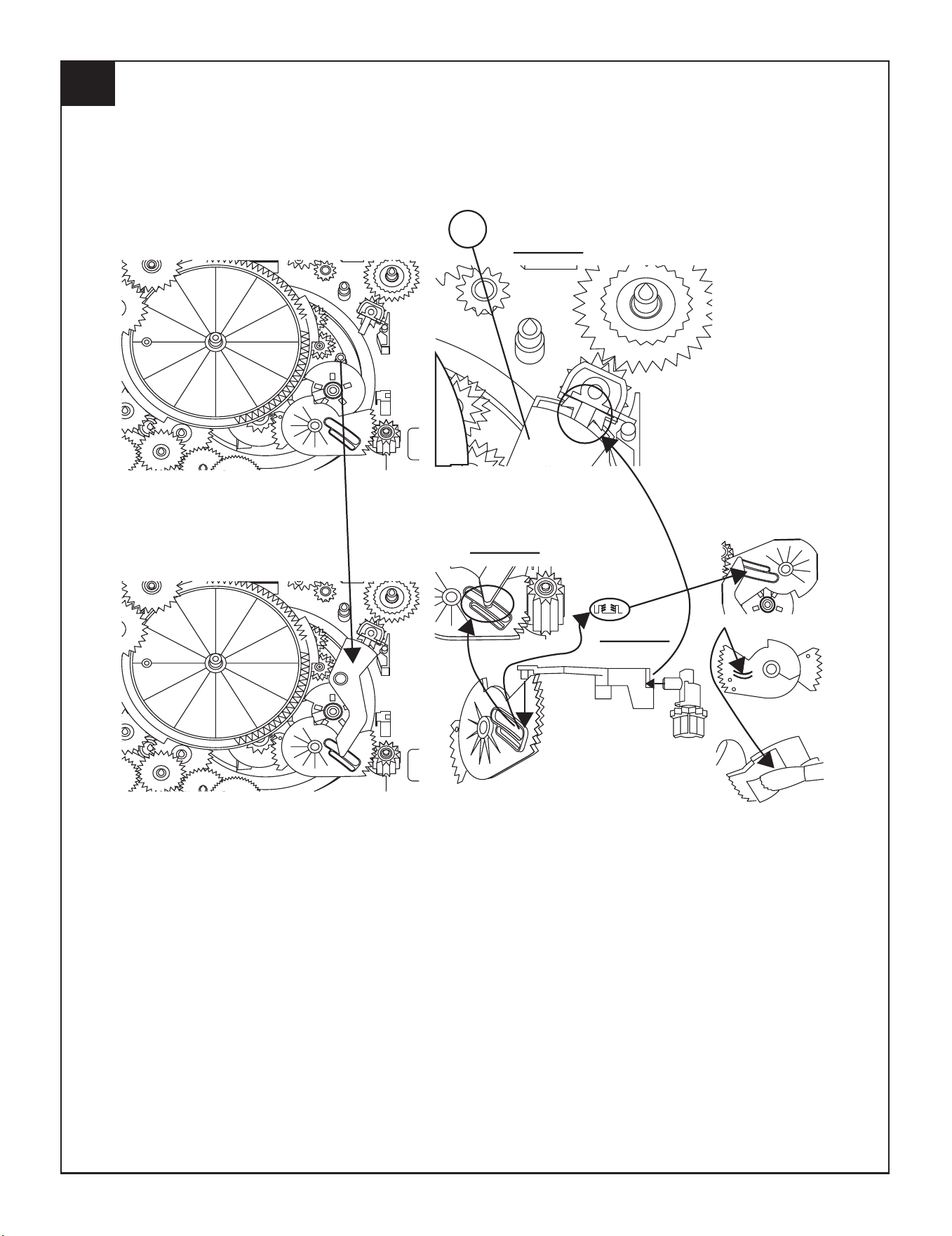

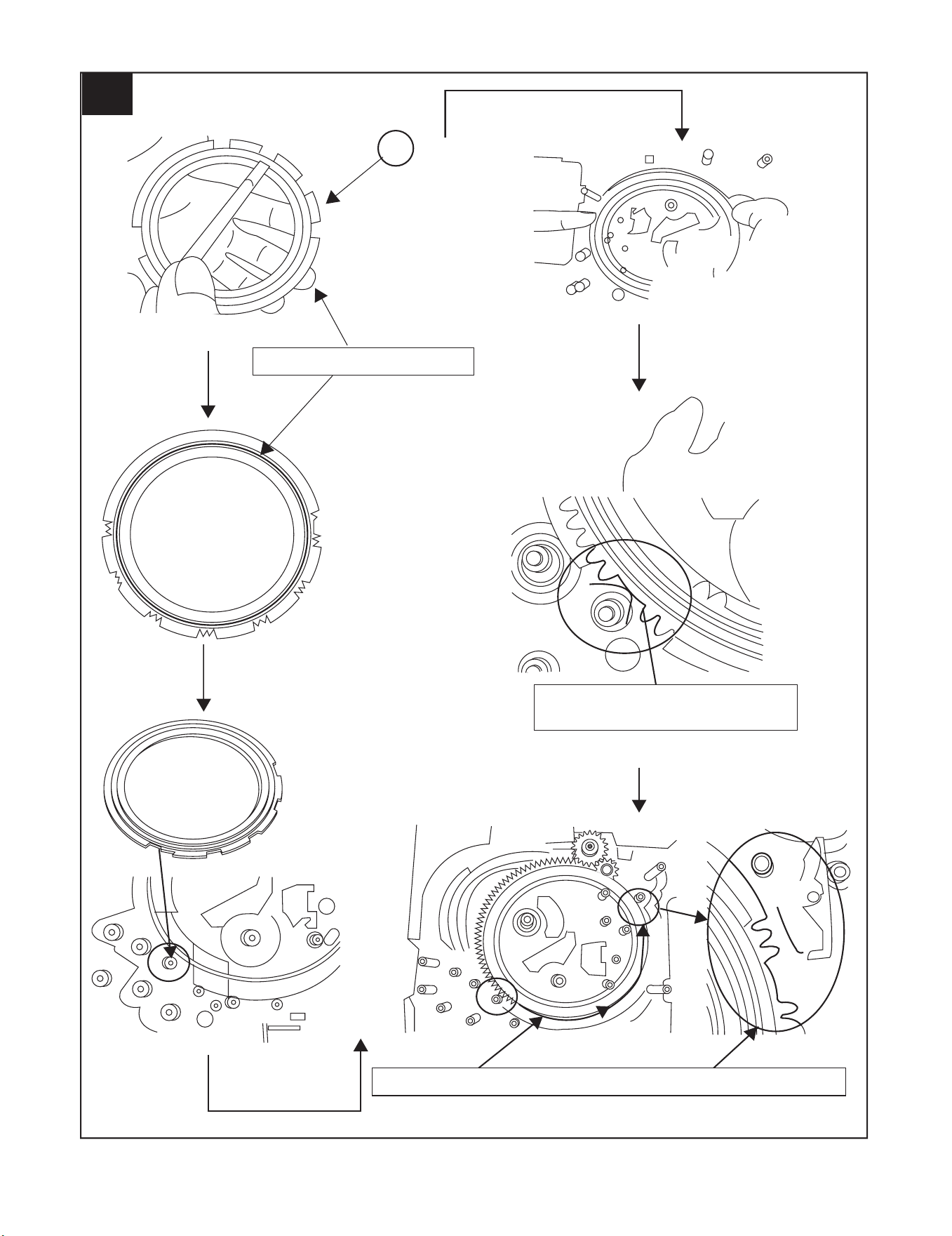

APPLY GREASE AT
HALF GEAR AREA
ROTATE CLOCKWISE UNTIL REACH HERE (MAXIMUM)
6
129
background
CD-G10000/CP-G10000S
2 – 11
CHANGE COLOR TO BLACK
150151148
7
background
CD-G10000/CP-G10000S
2 – 12

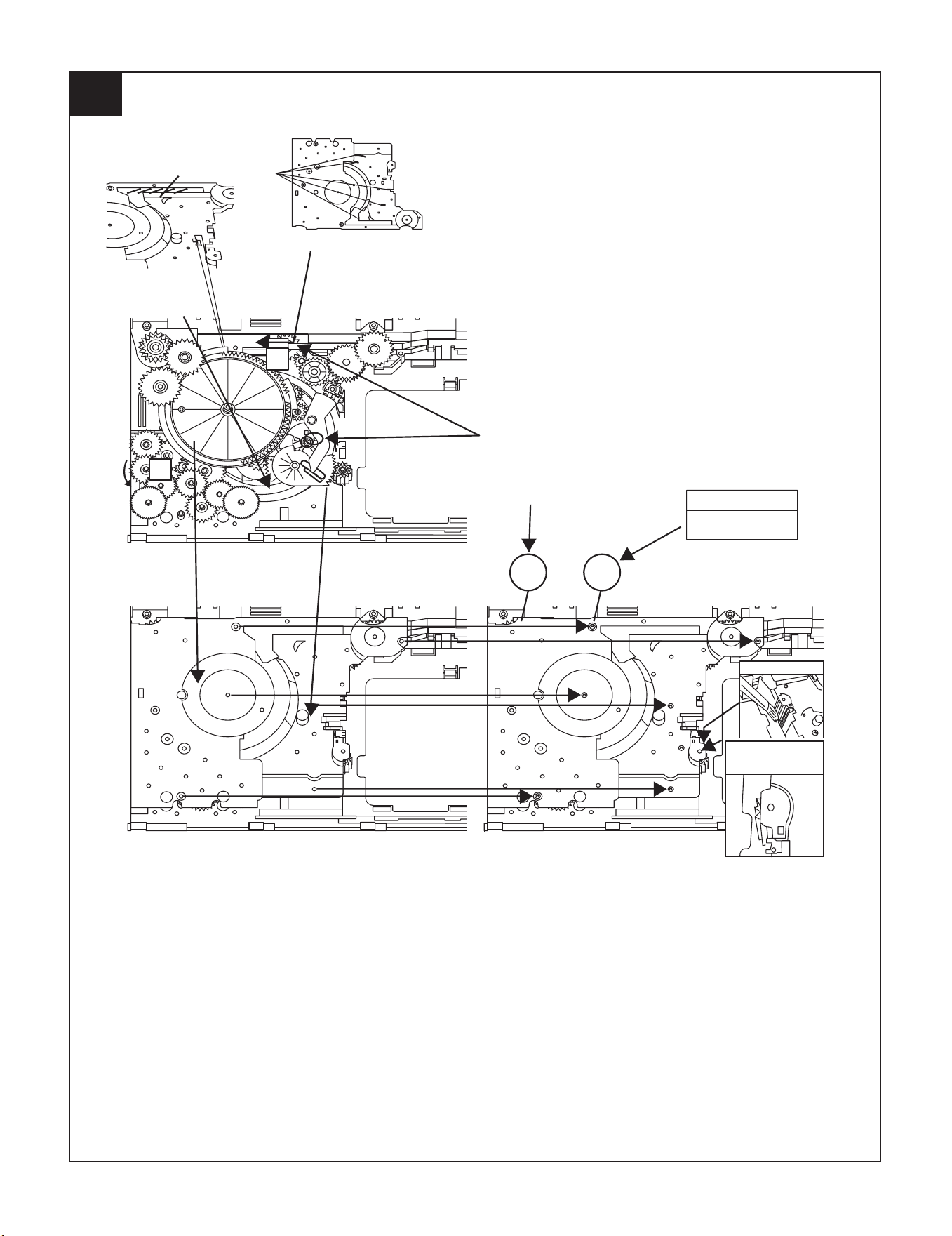

124
131
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
GREASE APPLICATION LENGTH
GREASE APPLICATION PORTION
MUST FREE FROM GREASE THE SHOWN AREA
O.K
N.G
SHOWN HOLE MUST FACING ARROW DIRECTION
8
background
CD-G10000/CP-G10000S
2 – 13
TR-RE JOINT GEAR C
APPLY GREASE AT
BOTTOM SIDE ONLY
APPLY GREASE ONLY AT TOP SIDE GEAR
MUST FIX ACCORDING TO THE HOLE'S
138 126 125
9
background
CD-G10000/CP-G10000S
2 – 14
10
148 147 146 145
background
CD-G10000/CP-G10000S
2 – 15
APPLY GREASE
WHEN FIXING ITEM 2 MUST FOLLOW AS SHOWN
121
144
130
11
background
CD-G10000/CP-G10000S
2 – 16
FIGURE 1
FIGURE 3
FIGURE 2
APPLY GREASE SC141
APPLY GREASE
117
12
background
CD-G10000/CP-G10000S
2 – 17
ITEM 2 , 3 MUST APPLY GREASE ON TOP SIDE GEAR ONLY
O.K
N.G
TOP VIEW AFTER
ASSY
FIX REVERSE N.G
GEAR 112 GEAR 112
134
133
132
13
background
CD-G10000/CP-G10000S
2 – 18
APPLY GREASE BEFORE FIX
MOVE 112 UNTIL TOUCH THE WALL
DURING GEAR A ROTATE
MUST PRESS SHOWN AREA
AND LEVER B WILL MOVE
ARROW DIRECTION THEN
FIX PART 108
SCREW TORQUE
A
B
APPLY GREASE
CONFIRM WHETHER
FIXED
PROPELY OR NOT
108 803 x6
14
2 kgf-cm
+0.5
-0
background
CD-G10000/CP-G10000S
2 – 19
APPLY GREASE
BEHIND THE LEVER NEED TO APPLY GREASE
PULL IT THEN LEVER WILL
MOVE IN
115
15
background
CD-G10000/CP-G10000S
2 – 20
APPLY GREASE
AT BOSS
APPLY GREASE
APPLY GREASE BEFORE FIX
SPRING MUST ARRANGE UNDER THE HOOK
O.K LR JOINT LEV
LR JOINT LEV
BOARD R
BOARD R
N.G
123
115
16
background
CD-G10000/CP-G10000S
2 – 21
APPLY GREASE
ASSY REVERSELY N.G
BIG SLOT MUST FACING OUT
WHEN FIX & AFTER FIX TO BASE CHASSIS
AFTER ASSY CONFIRM THE FREE DROP
GEAR POSITION DURING FIXING
103 137 136
17
background
CD-G10000/CP-G10000S
2 – 22
ASSY REVERSELY N.G
WHEN FIX & AFTER FIX TO BASE CHASSIS
AFTER ASSY CONFIRM THE FREE DROP
APPLY GREASE
BIG SLOT MUST FACING OUT
GEAR POSITION DURING FIXING
CONFIRM BOTH GEAR SIT PROPELY & LOCKED
18
114
135
136
background
CD-G10000/CP-G10000S
2 – 23
BIGGER SLOT FACING OUT
BIGGER SLOT FACING OUT
AFTER FIX OUTER UP/DOWN LEVER HOLD SHOWN PORTION AND
MOVE UP/DOWN THEN CONFIRM LEVER GO INSIDE THE HOLE OR NOT
IF NO GO INSIDE HOLE IS N.G
IF GO INSIDE HOLE
IS O.K
120
119
19
background
CD-G10000/CP-G10000S
2 – 24
BIG SLOT FACING OUT
110
20
background
CD-G10000/CP-G10000S
2 – 25
PUSH THE LEVER ACCORDING TO ARROW
DIRECTION THEN FIX
WHEN FIX MAIN BASE ASSY FOLLOW ACCORDING TO O.K PICTURE
O.K
N.G
N.G
MAKE SURE MECHA HOLDER SHAFT FIX PROPELY TO LEVER
21
background
CD-G10000/CP-G10000S
2 – 26

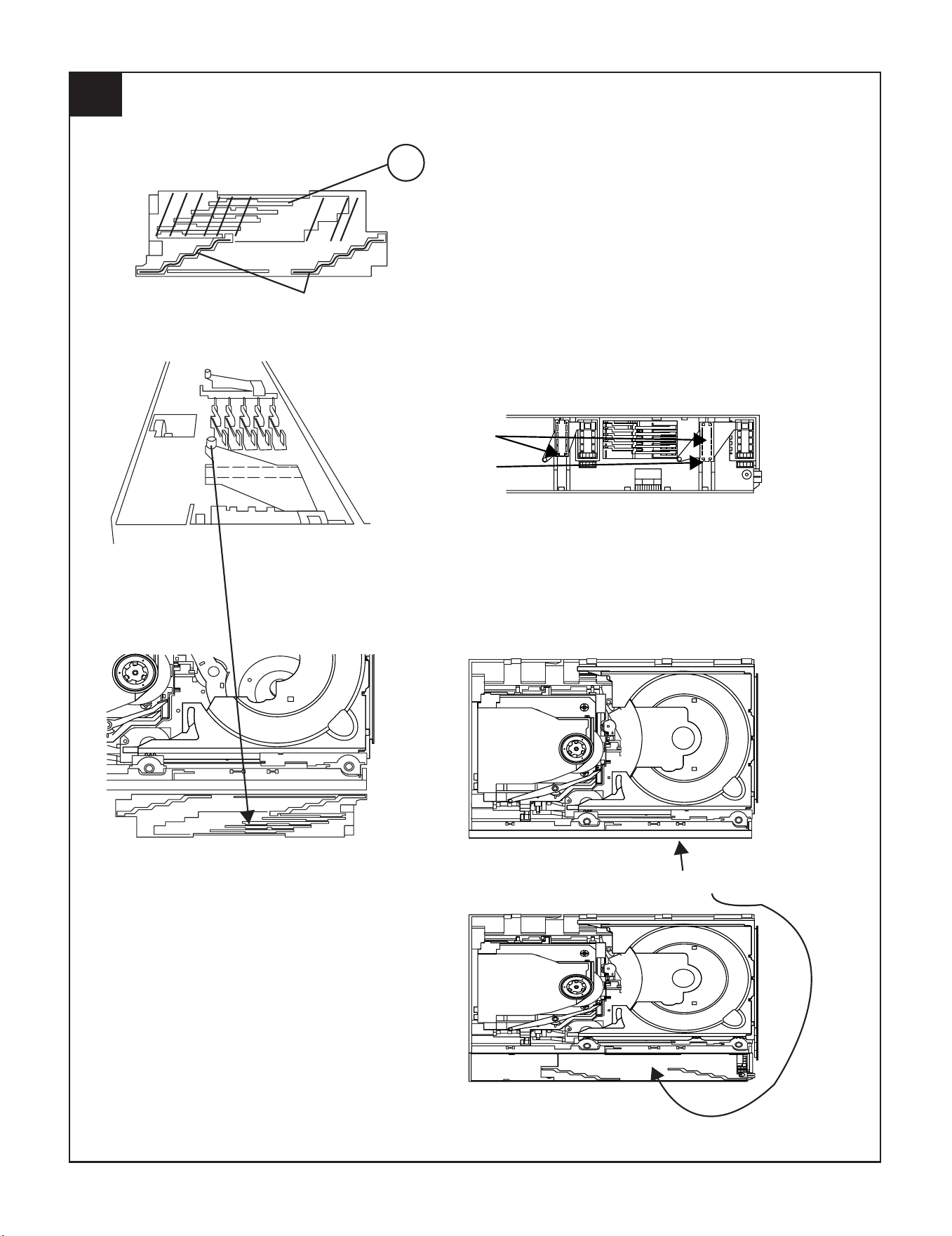

APPLY SANKOL ON TOP
APPLY SANKOL
APPLY SANKOL INSIDE THE SLOT
& OTHER SHOWN PORTION
RIB
RIB
APPLY SANKOL AT TRAY SLIDING PORTION
FIX TRAY NO 1 FIRST THAN
FOLLOW OTHER
COSMO GUIDE TRAY HAVE
MARKING AS SHOWN
101
102
22
background
CD-G10000/CP-G10000S
2 – 27

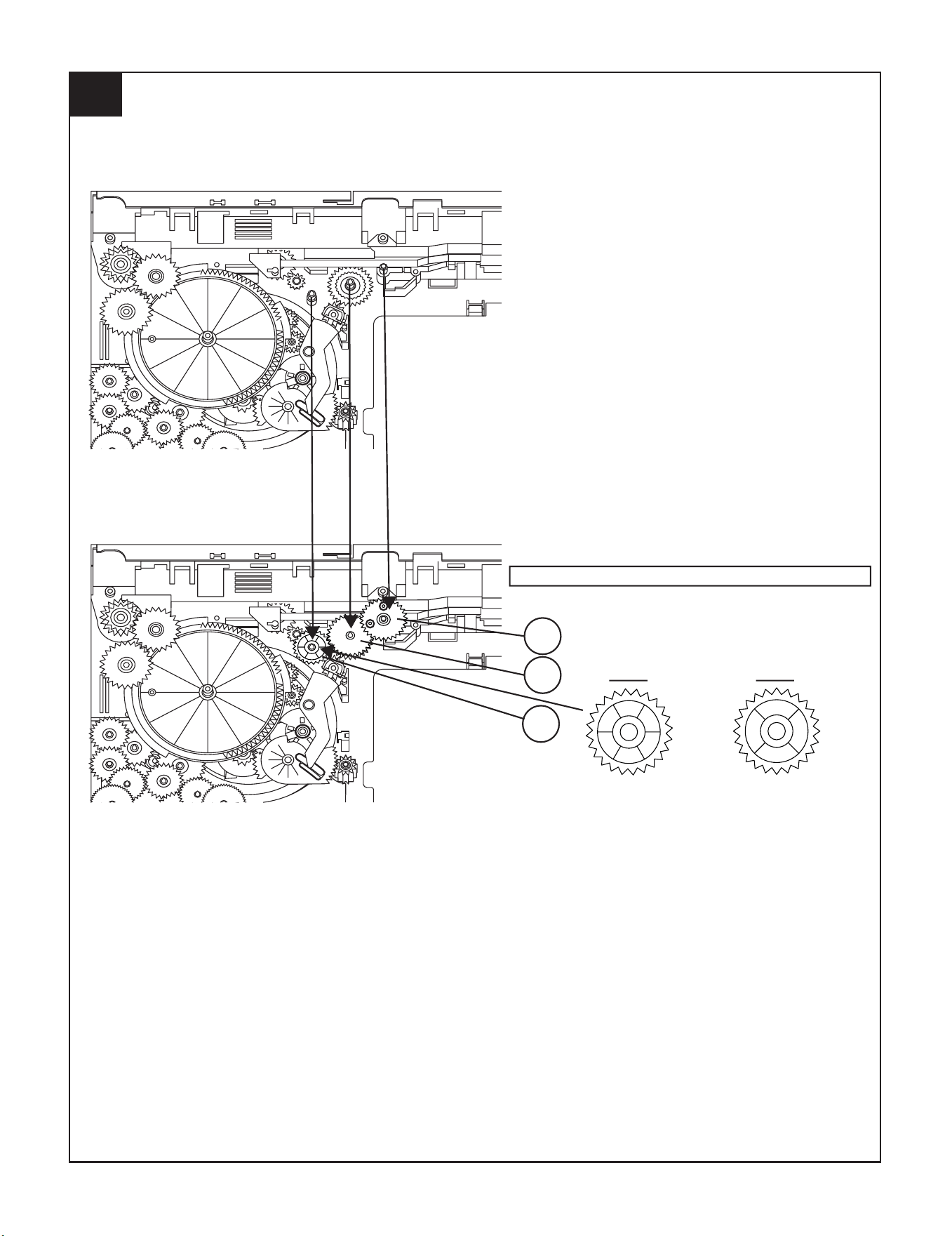

AFTER ASSY GEAR UP/DOWN BOARD
APPLY GREASE AT INNER & OUTER GEAR SLIDING PORTION
WHEN FIX GEAR UP/
DOWN BOARD THE
TWO LEVER MUST AT
PARALLEL LINE &
POSITION AT TOP
MAX SIDE
111
23
GEAR UP/DOWN BOARD
background
CD-G10000/CP-G10000S
2 – 28
804
24
SCREW TORQUE
3 kgf-cm
+0.5
-0
background
CD-G10000/CP-G10000S
2 – 29
AFTER ASSY TOP PLATE
FIX THE FFC
AFTER FIX PUSH FOLLOW ARROW DIRECTION
AFTER PUSH MAKE SURE SNAP PROPELY
BACK
PORTION
PRESS IN
SLOT IN
BEFORE LOCK
BEFORE LOCK
BEFORE LOCK
AFTER LOCK
AFTER LOCK
AFTER LOCK
MUST CONFIRM
MUST CONFIRM
FFC4
122
107
25
background
CD-G10000/CP-G10000S
2 – 30
803
26
O.K
N.G
CAUTION
1. MAKE SURE NO PWB CHIP INSIDE SET .( BEFORE
FIX MAKE SURE PWB NO DUST , GREASE & ETC )
background
CD-G10000/CP-G10000S
2 – 31
THE TWO SLOT
MUST FREE FROM GREASE
APPLY GREASE BELOW
THE MARKING FOR
BOTH PORTION

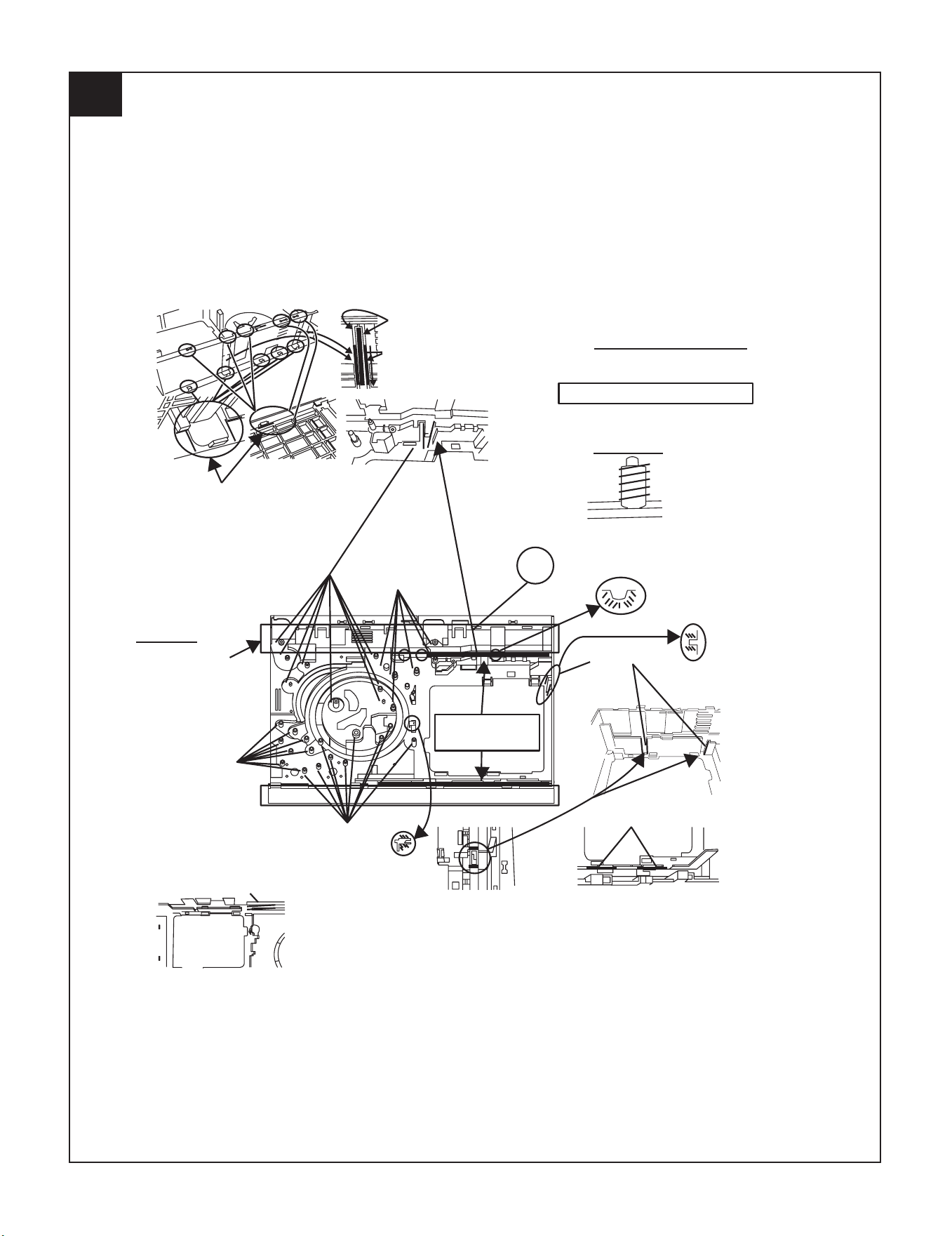

ASSEMBLY SEQUENCE
1. APPLY GREASE TO MAIN BASE
GREASE APPLICATION AREA
ALL BOSS
APPLY GREASE
APPLY GREASE
1 RIB ONLY
APPLY GREASE
APPLY GREASE
APPLY GREASE AT 3 HALF MOON
CAUTION
TRAY SLIDING
AREA MUST
FREE FROM
GREASE
APPLY GREASE
APPLY GREASE
APPLY GREASE
AT BOTH SLOT
APPLY GREASE
INSIDE SLOT
APPLY GREASE AT WALL
105
27
background
CD-G10000/CP-G10000S
2 – 32

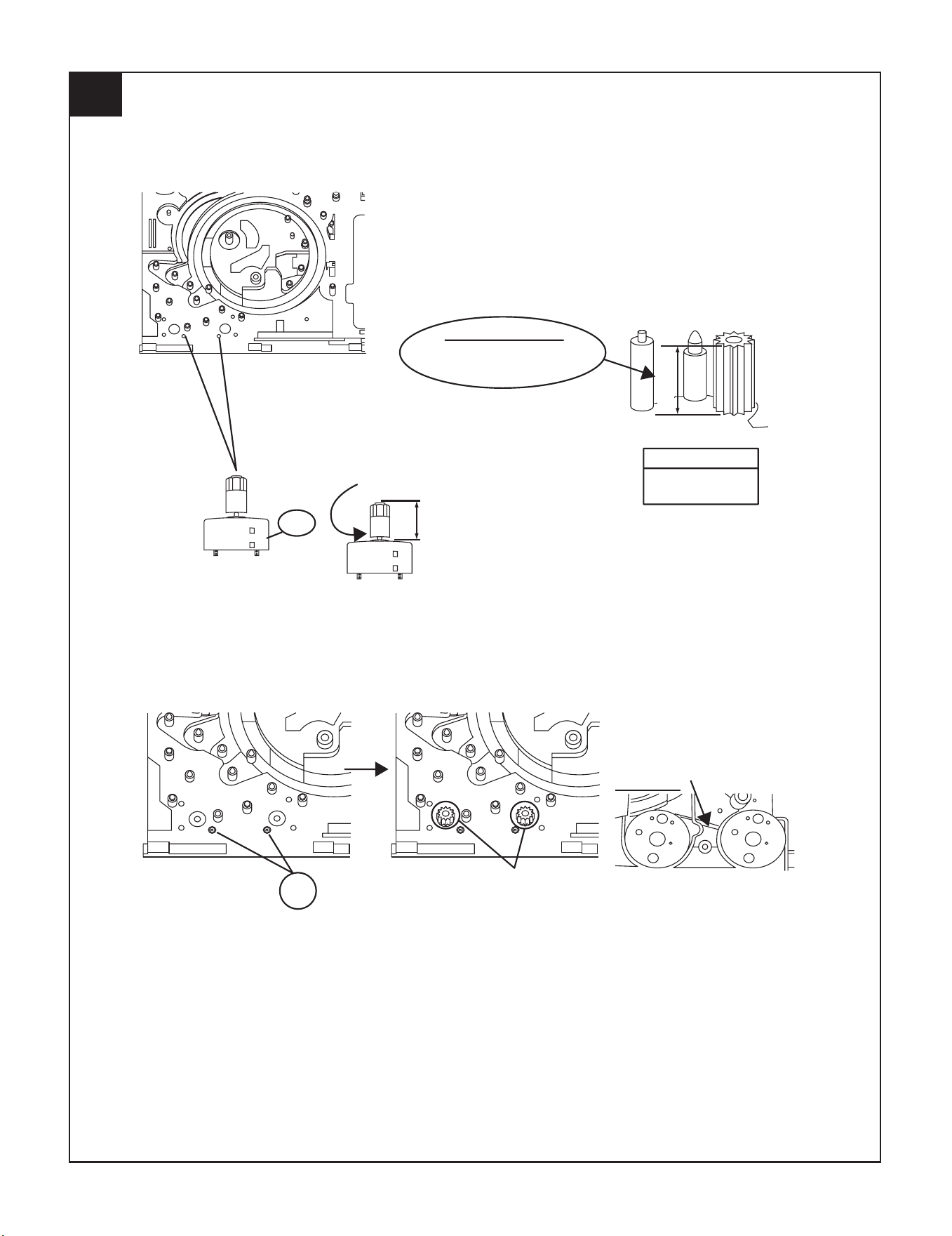

MOTOR SCREWING HOLE
13.8 + 0.2
-0
12.2
APPLY GREASE
MUST HAVE GAP
REFERENCE ONLY
MOTOR GEAR HEIGHT FROM
MAIN BASE 12.2
1.5 + 0.5
-0
SCREW TORQUE
AFTER SCREW MOTOR,CONFIRM THE
ARRANGEMENT AS IN FIGURE 2
FIGURE 2
M1,2
801
28
+
-
0.1
+
-
0.1
background
CD-G10000/CP-G10000S
2 – 33
APPLY SANKOL
3.1 + 0.1
SHAFT X 3 DIM AFTER INSERTION
MUST CONFIRM EVERYDAY
SANKOL APPLICATION AREA
APPLY GREASE
APPLY GREASE AT THE SLIDING PORTION
UP / DOWN
HOLDER CHANGE
TO NATURE
COLOR
109-2
29
114
116
background
CD-G10000/CP-G10000S
2 – 34

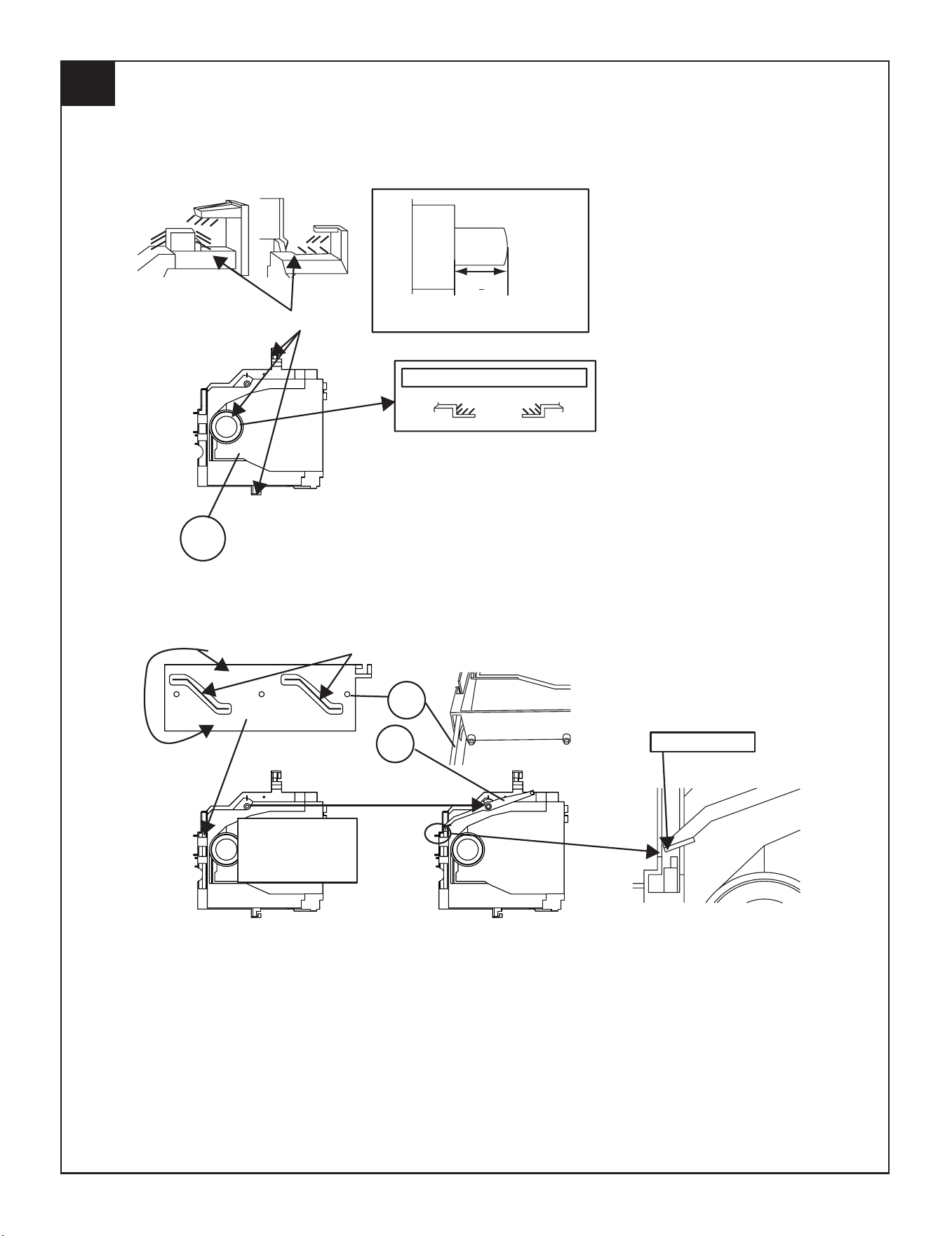

BEFORE MELT IT
AFTER MELT IT ( MUST FLAT )
CHANGE COLOR
TO NATURE
WHEN FITTING STABILIZER PLATE TO STABILIZER,
ROTATE STABILIZER ANTI CLOCKWISE BY JIG
( BY HAND CANNOT X )
AFTER ASSY TO HOLDER
STABILIZER NEED CLEAN
WITH ALCOHOL DISC
TO UCHING SURFACE
BELOW
30
background
CD-G10000/CP-G10000S
2 – 35
GAP
N.G
O.K N.G
APPLY GREASE
MUST MAKE SURE SNAP PROPELY BOTH SIDE
ALL SURFACE MUST TOUCH
104
31
background
CD-G10000/CP-G10000S
2 – 36
NO GAP HAVE GAP
O.K N.G
32
background
CD-G10000/CP-G10000S
3 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE
CHAPTER 3. MECHANISM BLOCKS
[1] Caution on disassembly
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange
the leads where they were before disassembling.
1 Top/Side Cabinet 1. Screw .................... (A1) x11
2 Changer Unit/ 1. Screw ...................... (B1) x2
Rear Panel B 2. Hook ........................ (B2) x2
3. Flat Cable ................ (B3) x1
4. Socket ..................... (B4) x1
3 Rear Panel A 1. Screw ...................... (C1) x6
with Fan motor/
Terminal PWB
2. Socket .....................
.....................
(C2) x1
4 Main PWB 1. Screw ...................... (D1) x2
2. Flat Cable ............... (D2) x1
3. Socket ..................... (D3) x4
4. Flat Wire .................. (D4) x1
3. Socket (C3) x1
5. Screw ...................... (D5) x4
5 Front Panel 1. Screw ...................... (E1) x2
2. Flat Wire .................. (E2) x1
3. Hook ........................
........................
(E3) x2
6 Tape Mechanism 1. Open the cassette cover.
2. Screw .......................(F1) x6
3. Flat Cable ................(F2) x1
3. Hook (G3) x5
7 Display PWB 1. Knob ........................ (G1) x1
2. Screw .................... (G2) x10
8 Game Input PWB 1. Screw........................ (H1) x2
9 CD Servo PWB 1. Screw ...................... (J1) x2
2. Flat Cable ............... (J2) x2
3. Socket ..................... (J3) x1
4. Hook ........................ (J4) x1
10 Changer 1. Screw ...................... (K1) x4
Mechanism Unit 2. Changer Chassis .... (K2) x1
11 CD Mechanism 1. Screw ...................... (L1) x4
STEP
REMOVAL PROCEDURE
CD-G10000
(A1)x5
M3x10mm
(A1)x3
M3x10mm
(A1)x3
M3x10mm
Rear Panel A
Top/Side Cabinet
Front Panel
Rear Panel B
(D1)x1
M3x10mm
(B1)x2
M3x10mm
Front Panel
Main PWB
Main PWB
(C2)x1
(B2)x1
(B2)x1
Lug Wire
Changer
Mechanism
Unit
Rear
Panel A
Rear
Panel B
Pull
Pull
(E1)x2
M3x8mm
Main
PWB
(E3)x1
(E3)x1
(D1)x1
M3x10mm
(D5)x4
M3x6mm
(D3)x1
(D4)x1
(D3)x1
(E2)x1
Front Panel
(D3)x2
(D2)x1
(C1)x6
M3x10mm
Fan Motor
(C3)x1
Terminal
PWB
Note 1:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of the connector so as to protect the optical
pickup from electrostatic damage.
(B3)x1
(B4)x1
CD Servo
PWB
Power PWB
background
CD-G10000/CP-G10000S
3 – 2
Changer
Mechanism
Unit
CD Servo
PWB
(K1)x4
M3x10mm
(K2)x1
Changer
Mechanism
Unit
Front Panel
Open
Cassette
Cover
(H1)x2
M3x10mm
(G2)x10
M2.6x10mm
(G1)x1
Game Input
PWB
(L1)x4
M2.6x10mm
Changer
Mechanism
Unit
CD Mechanism
(F1)x6
M3x10mm
Lug Wire
Lug Wire
Tape
Mechanism
(F2)x1
Front Panel
Display PWB
(G3)x5
(J4)x1
(J2)x1
(J3)x1
(J2)x1
(J1)x2
M3x10mm
background
CD-G10000/CP-G10000S
3 – 3

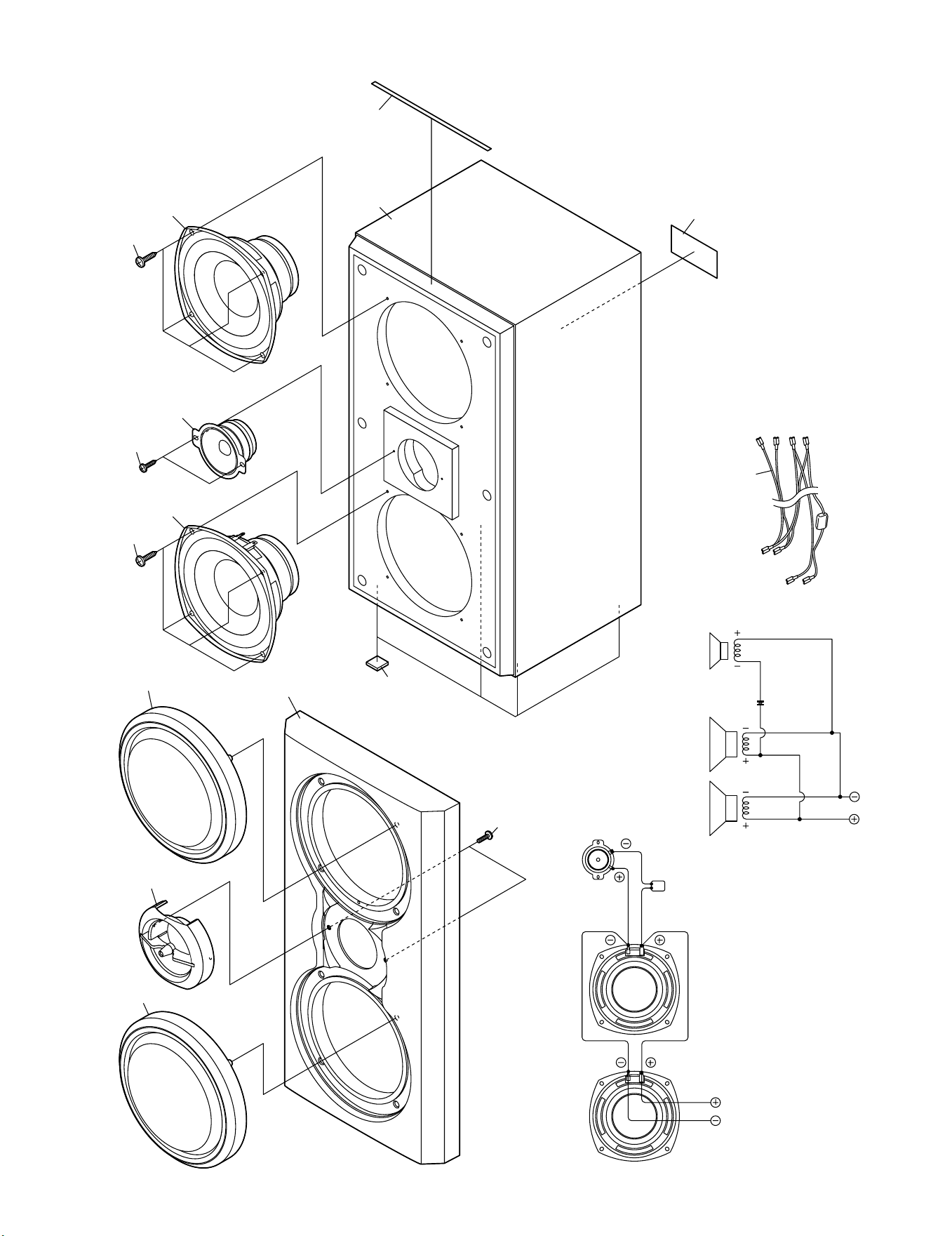

1 Woofer 1. Front Panel .............. (A1) x1
2 Tweeter 1. Screw ...................... (B1) x2
2. Screw ...................... (A2) x8
STEP
REMOVAL PROCEDURE
CP-G10000S
1 Woofer 1. Front Panel .............. (A1) x1
2. Screw ...................... (A2) x8
STEP
REMOVAL PROCEDURE
GBOXSA090AWM1
Speaker Box Ass'y
(A1)x1
(A1)x1
Screwdriver
Driver should
be pried away
from Speaker Box.
Speaker Box Ass'y
Woofer
Woofer
Tweeter
(A2)x4
M4x16mm
(A2)x4
M4x16mm
(B1)x2
M3x12mm
Speaker Box Ass'y
Screwdriver
Driver should
be pried away
from Speaker Box.
Speaker Box Ass'y
Woofer
Woofer
(A2)x4
M3.5x16mm
(A2)x4
M3.5x16mm
background
CD-G10000/CP-G10000S
3 – 4
1 Rear Cabinet 1. Screw (A1) x1
2
Power PWB/Fan
Motor
1. Screw ...................... (B1) x8
2. Screw ...................... (B2) x2
4. Screw ...................... (B4) x2
3. Socket ..................... (B3) x5
3 Transformer PWB
1. Screw ...................... (C1) x2
2. Socket ..................... (C2) x3
3. Screw ...................... (D3) x1
4. Socket ..................... (D4) x1
(D1) x4
(D2) x1
2. Screw ....................
......................
(A2) x13
STEP
REMOVAL PROCEDURE
CP-SW10000S
7 Volume PWB
1. Screw ...................... (G1) x4
2. Socket ..................... (G2) x3
4JackPWB
1. Screw ......................
2. Bracket ....................
3. Screw ...................... (E3) x8
4. Socket ..................... (E4) x2
(E1) x8
(E2) x8
5 Front Panel
1. Screw Cover ............
2. Catching Holder .......
(F1) x8
6 Subwoofer
1. Screw ......................
(H1) x2
8
Power Switch PWB
1. Screw ......................
(B4)x2
M3x14mm
Fan Motor
(A2)x13
M4x20mm
Speaker Box Ass'y
Speaker Box Ass'y
Front Panel
Rear Cabinet
(A1)x1
M3x10mm
(B1)x4
M3x8mm
(B1)x4
M3x8mm
(B2)x2
M4x16mm
Power PWB
(B3)x2
(B3)x3
Front Panel
(C1)x1
M3x10mm
(D3)x1
M3x8mm
(C2)x1
(C2)x2
(D4)x1
(D2)x1
Jack PWB
Transformer
PWB
(D1)x4
M3x20mm
(C1)x1
M3x10mm
Washer
Speaker Box Ass'y
Front Panel
(F1)x8
M4x20mm
(E3)x8
M4x40mm
(E2)x8
(E1)x8
Subwoofer
Speaker Box Ass'y
Front Panel
(H1)x2
M3x10mm
(E4)x1
(E4)x1
(G1)x4
M3x10mm
Front Panel
Power Switch PWB
Volume PWB
(G2)x3
background
CD-G10000/CP-G10000S
3 – 5
[2] Removing and reinstalling the main parts
1. TAPE MECHANISM SECTION
Perform steps 1 to 5 and 6 of the disassembly method to remove the
tape mechanism.
1.1. How to remove the record/playback and erase heads
(TAPE 2) (See Fig. 1)
1. When you remove the screws (A1) x 2 pcs., the recording/playback
head and three-dimensional head of the erasing head can be
removed.
1.2. How to remove the playback head (TAPE 1)(See Fig. 2)
1. When you remove the screws (B1) x 2 pcs., the playback head can
be removed.
1.3. How to remove the pinch roller (TAPE 1/2) (See Fig. 3)
1. Carefully bend the pinch roller pawl in the direction of the arrow
<A>, and remove the pinch roller (C1) x 1 pc., in the direction of the
arrow <B>.
NOTE: When installing the pinch roller, pay attention to the spring
mounting position.
1.4. How to remove the belt (TAPE 2) (See Fig. 4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
1.5. How to remove the belt (TAPE 1) (See Fig. 4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
1.6. How to remove the motor (See Fig. 5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 1
Figure 2
(A1)x2
M2x9mm
TAPE 2
Record/Playback
Head
Erase Head
Clutch Ass'y
(B1)x2
M2x9mm
TAPE 1
Playback
Head
Clutch Ass'y
Figure 3
Figure 4
Figure 5
Pinch Roller
(C1)x1
<A>
<B>
Pinch
Roller
Pawl
Pull
TAPE 2
TAPE 1
Main Belt
(E1)x1
TAPE 2
Main Belt
(D1)x1
TAPE 1
Main Belt
(D1)x1
Main Belt
(E1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
Tape
Motor
Tape
Motor
(F1)x2
M2.6x5mm
Tape
Motor
Clutch Ass'y
background
CD-G10000/CP-G10000S
3 – 6

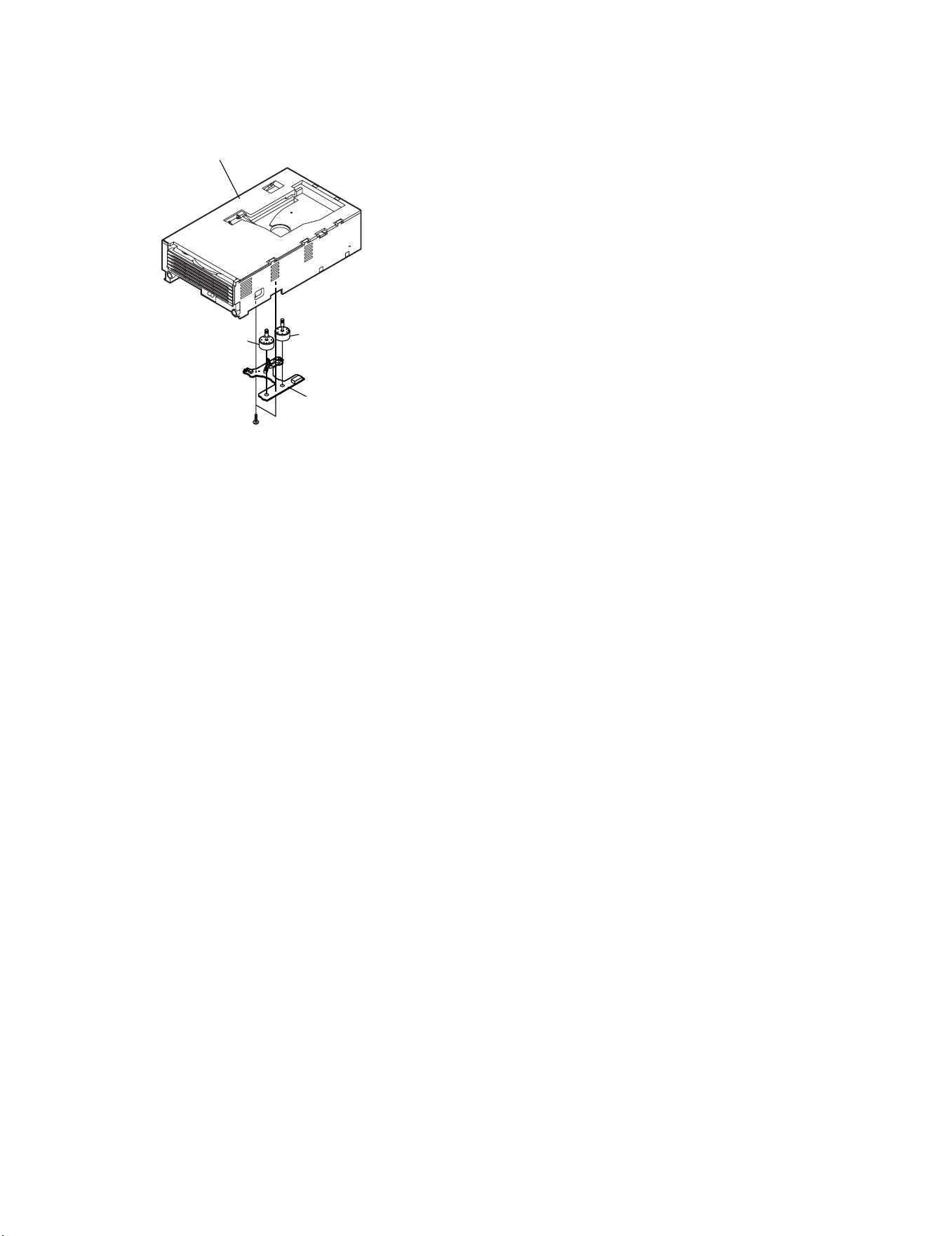

2. CD MECHANISM SECTION
Perform steps 1, 2, 9 10 and 11 of the disassembly method to remove
the CD mechanism.

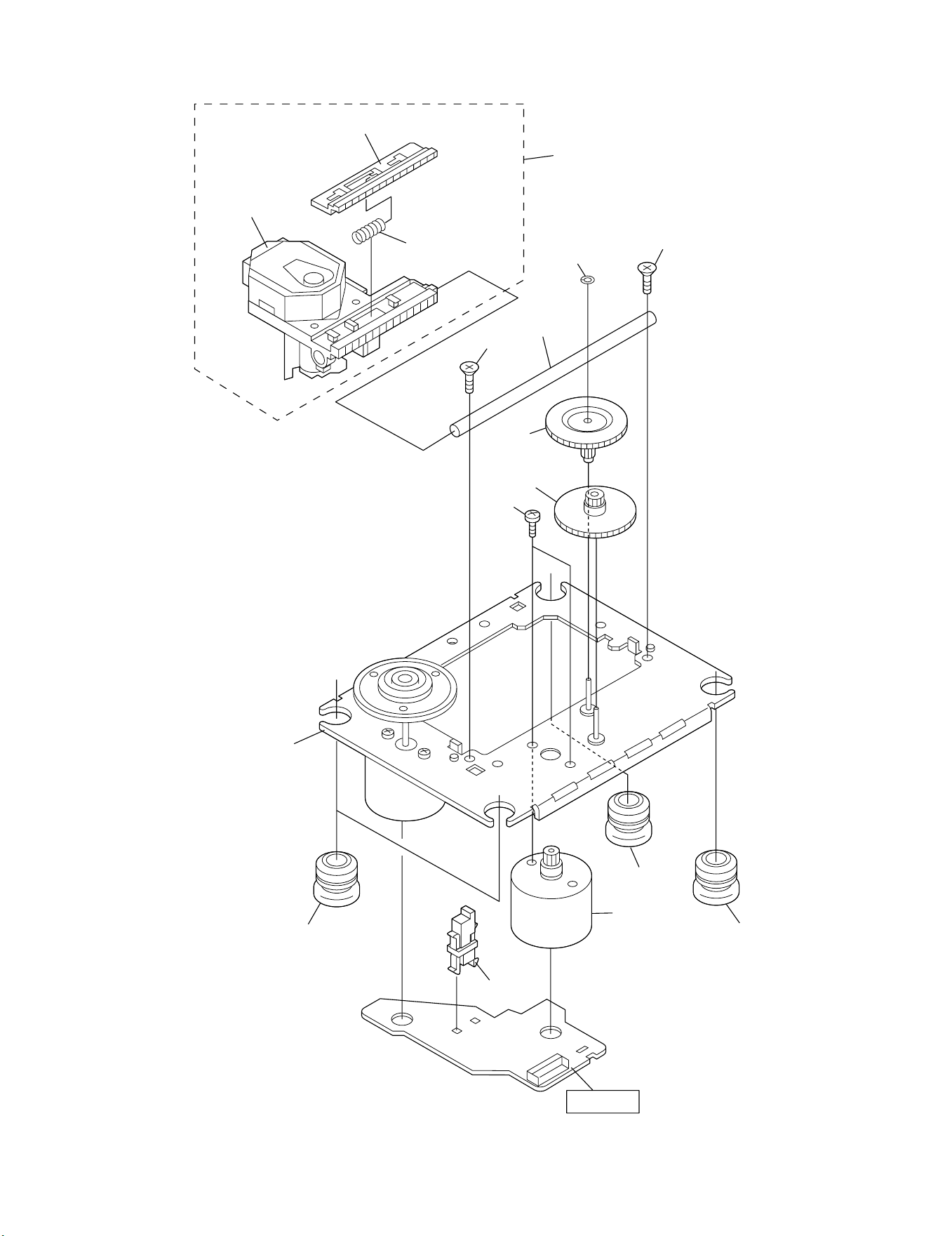

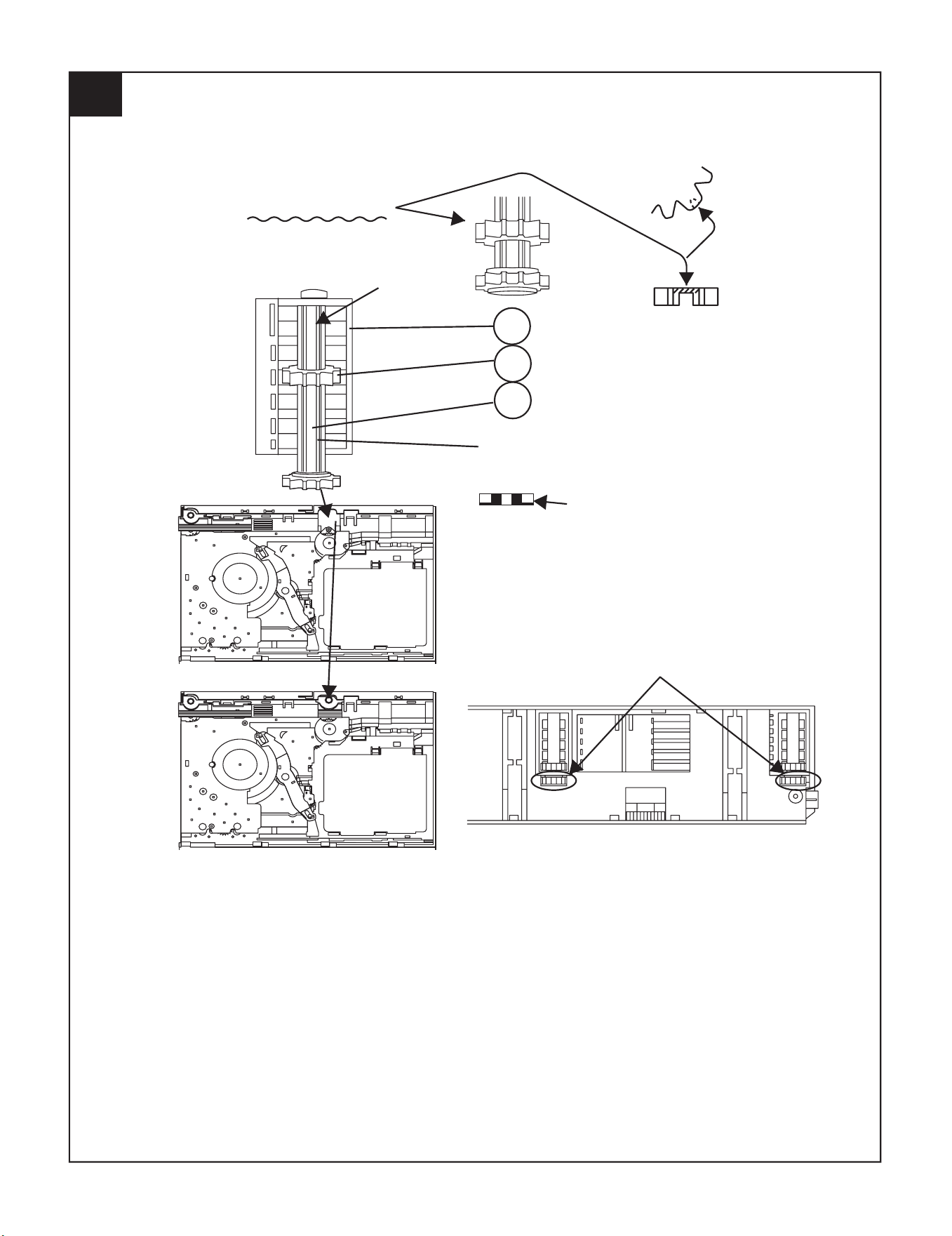

2.1. Remove the pickup. (See Fig. 1)
1. Remove the stop washer (A1) x 1 pc., to remove the gear (A2) x 1
pc.
2. Remove the screws (A3) x 2 pcs., to remove the shaft (A4) x 1 pc.
3. Remove the pickup.
NOTE: After removing the connector for the optical pickup from the
connector wrap the conductive aluminium foil around the front
end of connector so as to protect the optical pickup from elec-
trostatic damage.
3. CHANGER MECHANISM SECTION
Perform steps 1, 2, 9 and 10 of the disassembly method to remove the
CD changer mechanism.

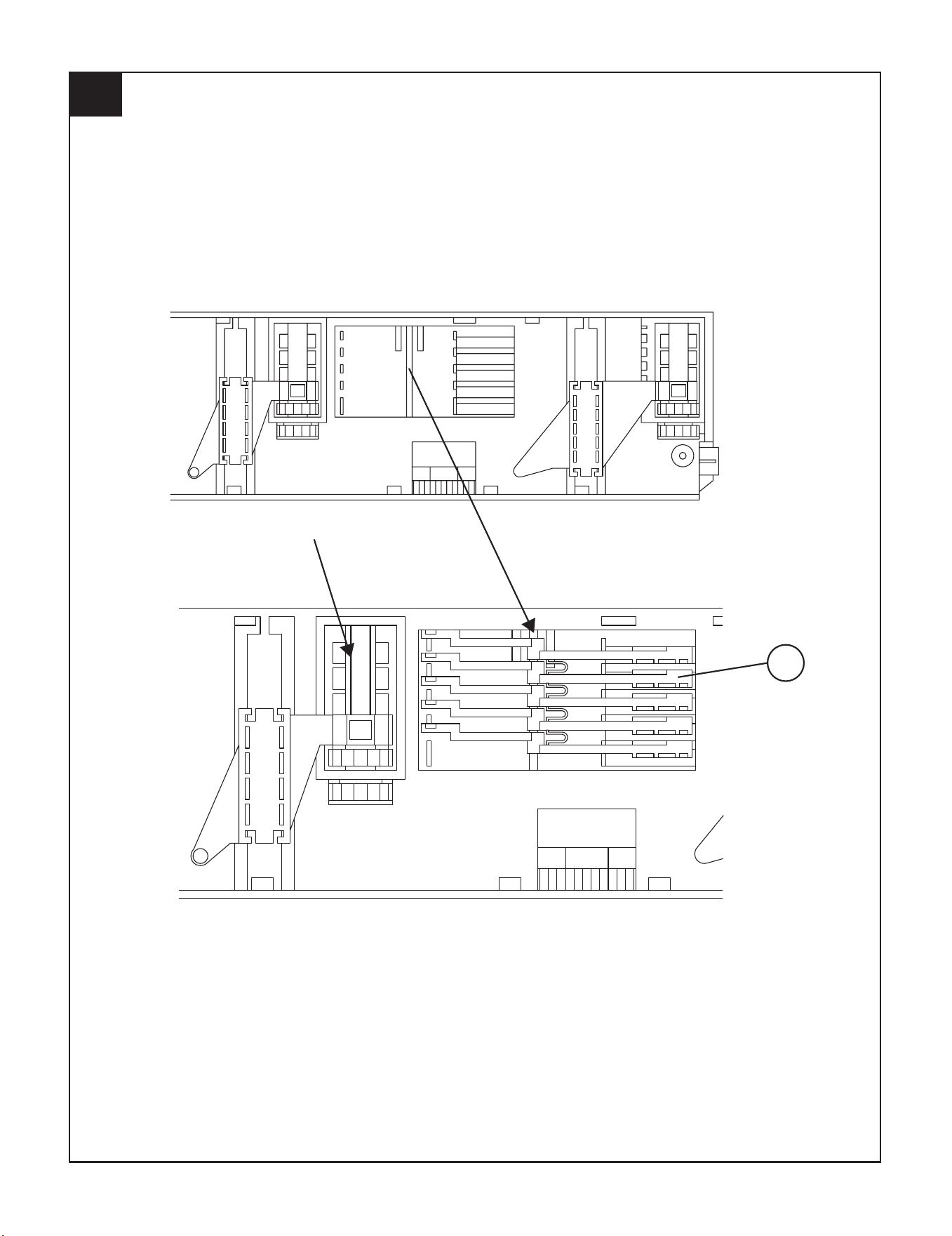

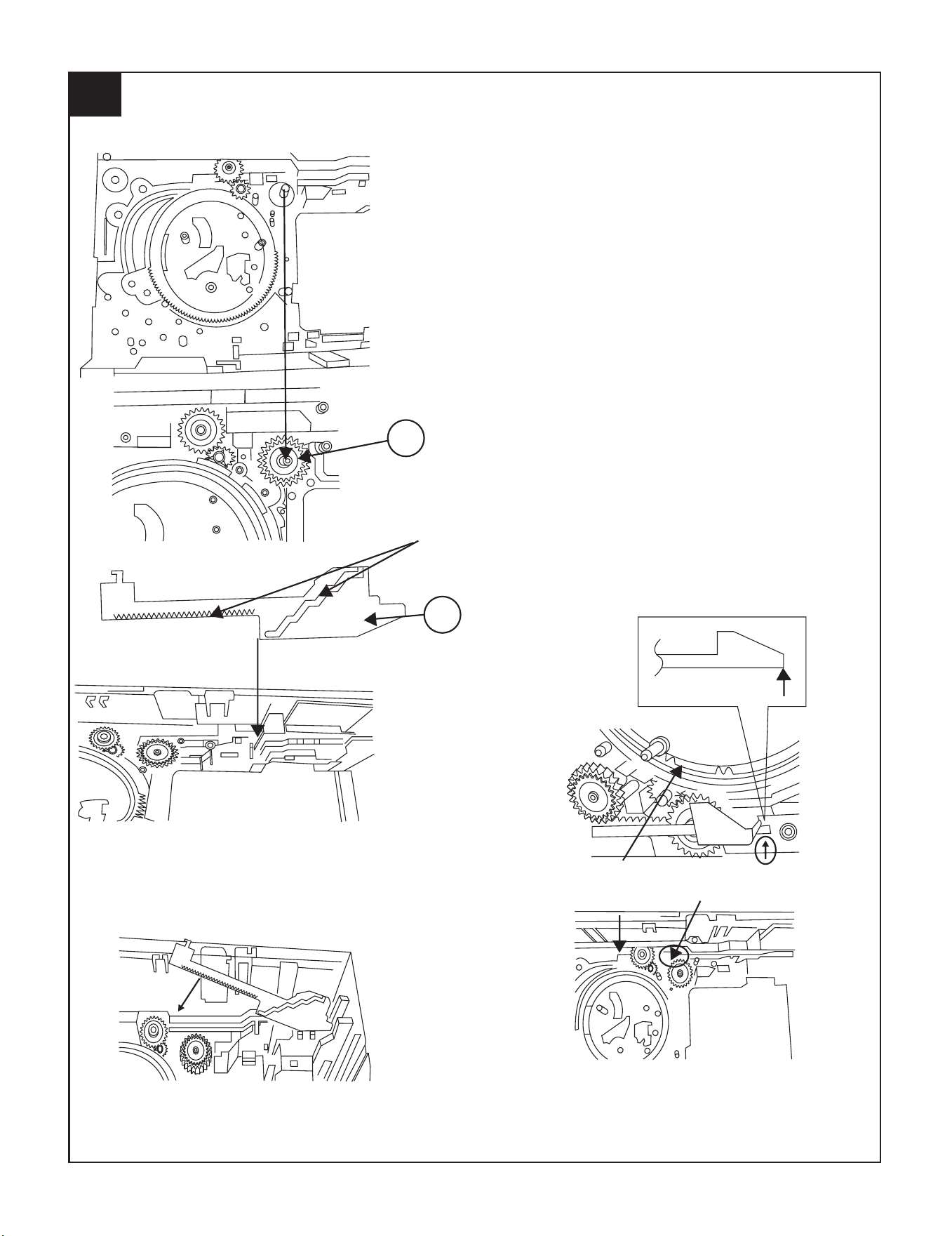

3.1. How to remove CD Disc (See Fig. 2~5)
1. When CD is at play position (Figure 2), rotate reduction gear C
clock-wise as shown in Figure 3 Until disc tray is at stock position,
then rotate further to eject the disc tray so that CD can be removed
from the tray.
2. In another case, if CD mechanism is at tray No.1 play position and
to remove CD located in tray No.3, the procedure is as follows:
If the gear up down board is located at tray No.1 position, then
rotate gear clock-wise until it at stock position. Rotate reduction
gear D clockwise (Figure 4) to move the CD mechanism to tray
No.3 position.This is confirmed by checking the gear up down
board position by the marking as indicated on the main chassis as
shown in Figure 5.
Figure 1
Figure 2
Pickup Unit
(A3)x2
M2.6x6mm
CD Mechanism
Shaft
(A4)x1
Gear
(A2)x1
Stop Washer
(A1)x1
CD Disc
CD At play position.
Disc Tray
Guide Tray
CD Disc
CD At stalk position.
Figure 3
Figure 4
Figure 5
Reduction gear C
Front Rear
Reduction gear D
Up Down
Mark 1
(DISC 1)
(DISC 2)
(DISC 3)
(DISC 4)
(DISC 5)
Gear up down board
Mark 3 Mark 5
Mark 2 Mark 4
background
CD-G10000/CP-G10000S
3 – 7
3.2. How to Remove the tray motor/main cam motor/5-
Changer Motor PWB (See Fig. 6)
1. Remove the screws (A1)x 2 pcs., to remove tray motor/main cam
motor/5-Changer Motor PWB.
NOTE: There are 2 more screws tighten the motors at the bottom of
main chassis. Before performing procedure 1 above, disc stop
spring, top plate gear up down board and trays must be
removed, then only the 2 screws can be untighten.
Figure 6
5-Changer
Motor PWB
Tray Motor
Changer Mechanism Unit
Main Cam Motor
(A1)x2
M2x10mm
background
CD-G10000/CP-G10000S
3 – 8
—— MEMO ——
background
CD-G10000/CP-G10000S
4 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE
CHAPTER 4. DIAGRAMS
[1] Block diagrams
Figure 4-1 BLOCK DIAGRAM (1/6)
+B4
+B8
+B7
LDS
LDD
MOT_A-/CONT4
MOT_A+/CONT5
M0_SPEED/CONT6
MO_B+/CONT3
MO_B-/CONT2
SPDO
SLDO
TDO
FDO
F16MOUT
SUB CE
NC
C2F/SBCK
DATA
F16MIN
VVDD
DVDD
DVDD
AVDD2
AVDD1
FIN
EIN
DIN
BIN
CIN
AIN
XOUT
XIN
RCHO
LCHO
RVDD
LVDD
ZD1
DRF
*RES
*WRG
DO
DI
CL
CE
TO MAIN SECTION
TRAY_SW1
DISC
CLAMP
CL
DI
DO
CE
DRF
WRQ
TO DISPLAY SECTION
+5V(+B9)
D_GND
TRAY_SW2
CD_RES
D_GND
TRAY_SW2
TRAY_SW1
CLAMP
DISC
+5V
CAM+
CAM-
TR+
TR-
CNP6
CNP5
16.9344 MHz
+3.3V
+3.3V
Q2
DRIVER
LASER
PICKUP UNIT
FOCUS COIL
TRACKING COIL
PICKUPIN
NSW1
IC1
LC78648E
CD SERVO
XL1
24
23
22
21
75
74
70
36
35
PU-IN/CONT1
34
20
19
32
61
79
48
45
44
42
41
47
66 65 6468 67 63 62 51 53 59 69
1516 161114 13 12 510 3798 4 2
27 1266080
XVDD
49 789101415 2840 25
CNP2
+8V
+5V
DGND
L-CH
AGND
R-CH
D_GND
+5V
16324
Q1
GND
CNP6A
1234567891011
1234567891011
+
--
+
M
M
TRAY
MOTOR
DISC
CLAMP
TRAY SW1
TRAY SW2
MAIN CAM
MOTOR
INTERRUPTER
M1
RX1
SW3
SW2
SW1
SW4
M2
785
CD-G10000
background
CD-G10000/CP-G10000S
4 – 2
Figure 4-2 BLOCK DIAGRAM (2/6)
+5V
+5V
+3.3V
+3.3V
++
-
-
M
M
SPIN/SLED DRIVER
REGULATOR
VOLTAGE
SI3033LUS
IC6
MDATA15
MDATA12
MDATA11
MDATA8
ADRS8
ADRS4
ADRS3
ADRS0
DRASB
DWEB
MDATA7
MDATA4
MDATA3
MDATA0
DCASLB
DCASUB
D0EM
VCC
VCC
VCC
ADRS0
ADRS7
ADRSB
WEB
RASB
MDATA15
MDATA8
MDATA7
MDATA0
OEB
CASUB
CASLB
DVDD6
DVDD5
DVDD4
DVDD3
DVDD2
DVDD1
INTB
CMDOUT
FSYNC
X1 X2
RESET
CE
CL
SYS-DI
FSYNC
MP3 DO
INTB
XL2
Q5
Q4
Q3
MICROCOMPUTER
SPINDLE
SLED
NM2
NM1
MOTOR
MOTOR
PICKUPIN
NSW1
MP3 DECODER
LC78683E
IC3
LRSY
ADDATA
ADBCK
ADLRCK
C2FIN
CKIN(16M)
CKOUT
DATAIN
DATACK
IC4
LV16256-35T
IC2
LA6261
IC5
IXA006AW
SYS-CE
SYS-CL
SYS-DO
AVDD
VDD
VDD
FOCUS/TRACKING/
4.19 MHz
D-RAM
28
33
34
21
24
31
32
43135
13
111517
23665
27
9
10
19 23 22
20
25
19
18
11
10
301214291743
15
16
144282627 9232437
2
1
3
29
30
31
23
44
39
1
6
22
53
50
30
33
40
23
42
60
41
2
5
7
10
43
40
38
35
28
24
21
18
16
15
76
75
32
69
62
14
20
22
52
10
12
8
6
43 44 45 68 61 51 31 21 11 77 73 66
80 979
7
5
4321
MO_B-
MO_B+
MOT_A+
MOT_A-
VIN4
VIN3
VIN1
VIN2
VO4+
VO4-
VO3+
VO3-
PVCC1
SVCC
PVCC2
REGOUT
VO1-
VO1+
VO2-
VO2+
background
CD-G10000/CP-G10000S
4 – 3
7
IC101
AN7345K
PLAYBACK AND RECORD/
PLAYBACK AMP.
AUX
VIDEO
R
L
R
L
JK690
GAME INPUT
JK691
VIDEO OUT
-20dB
ATT
Q101~
Q104
Q107
Q108
Q601
Q602
Q603
Q604
REC/PLAY
CLK
CE
DI
+B4
L
R
BIAS
T1/T2
MUTING
P.B.
REC.
AC BIAS
L
L
R
R
R
L
TAPE
TUNER
CD
PB
CNP2
FROM CD SECTION
HEAD
ERASE
SWITCHING
SWITCHING
SWITCHING
BIAS
Q113
Q114
Q112
Q110
LED
DRIVER
Q710
Q706
Q711
Q712
Q707
Q708
Q714~
Q717
SWITCHING
Q109
BIAS
OSC
Q111
L103
Q105
Q106
REC./P.B.
HEAD
TAPE 2
P.B. HEAD
TAPE 1
R-CH
L-CH
R-CH
L-CH
IC601
LC75341
AUDIO PROCESSOR
+B4
R
L
REC
R
L
ALC
R REC
L REC
POP REDUCE
SWITCHING
L(T2)
R(T2)
R(T1)
L(T1)
21
4
24
2
1
18
11
16
3
15
10
9
7
23
14
12
13
19
7
18
10
58
30
48
13
21
4
2
24
23
6
9
16
12
11
15
1
H/N
P.B
REC
T1/T2
T1/T2
NOR/
HIGH
+B4
+B4
+B4
SYSTEM
TAPE
MECHANISM
ASS'Y
MOTOR
DRIVER
SOLENOID
DRIVER
+B7
+B7
LED703
JOG701
VOLUME
IC701
IXA054AW
SYSTEM
MICROCOMPUTER
(2/2)
FM+B
+B4
SWITCHING
IC302
LC72131
PLL(TUNER)
FM
Q360
9
10
21
17
7
MO/ST
FM/AM
OSC
+B4
5436
22 111615
CLK
DO
DI
CE
1
20
VT
X352
4.5 MHz
IC303
LA1832S
FM IF DET./
FM MPX./
AM IF
STEREO
AM RF IN
AM OSC IN
AM OSC OUT
1821 12162324
FM/AM
OUT
R
L
FM/AM
MPXIN
MO/ST
VCO
FM
DET
FM+B
GND
AM IF
AM MIX
985
17
21
13
14
15
4
AM IF
450 kHz
CF352
T351
CF303
+B4
10.7 MHz
X351
456 kHz
ZD351
5.1V
CF351
OSC BUFF
FM
OSC
AM BAND
COVERAGE
AM TRACKING
T303 T306
Q302
FM RF
OSC
FM
L312 T301
8
4
3
5
7
FM IF
T302
9
6
IC301
TA7358AP
FM FRONT END
B.P.F
BF301
AM LOOP
ANTENNA
CNP301
FM
ANTENNA
SO302
FM ANTENNA
TERMINAL
1
2
1
BI601CNS601
1
3
4
1
3
2
CD-G10000
Figure 4-3 BLOCK DIAGRAM (3/6)
background
CD-G10000/CP-G10000S
4 – 4
Q905
-VF
VF2
VF1
Q801
Q841
+B2
-B1
+B1
-B2
+B8
+B7
+B5
26
R
L
+B5
RX701
REMOTE
SENSOR
D803,
D804
D863
D802
D801
RL914
JK701
HEADPHONES
M901
FAN
MOTOR
M
Q906
Q709
6
03
6
04
IC901
STK41244
POWER AMP.
F803
2A/125V
VOLTAGE
REGULATOR
F804
2A/125V
F801
5A/125V
F802
5A/125V
R-OUT
L-OUT
Q901~
Q904
D905~D907
CLK
SO901
SPEAKER
TERMINAL
47
Y
VLOAD
RESET
+B5
+B5
+B5
+B5
VDD
VDD
VDD
~~
CE
DI
DO
XL701
4.19 MHz
~
B
IAS
/T2
AVDD
SW701-SW707
SW712-SW723
SW725-SW735
KEY
TO CD
SECTION
IC701
IXA054AW
SYSTEM
MICROCOMPUTER
(1/2)
FL701
FL DISPLAY
27
5150
80
12345 67
14
18
2
78
58
812 45
1
2
3
11
6
7
1
5
8
97
100
99
33
31
53
56
15
46
11 1210 16 21 24 20 17 18 19
41
79
38 28 26
59
40
47
25 13 27
39
34
T.F.
PT801
MAIN POWER
TRANSFORMER
SYSTEM
MUTE
~
~
~
~
TAPE
MECHANISM
ASS'Y
RESET
SP DET.
SP RELAY
ON-OFF
FAN MOTOR
DRIVER
R
F805
6A/125V
RL841
AC POWER
SUPPLY CORD
AC 120 V, 60 Hz
PT841
SUB POWER
TRANSFORMER
D842~
D845
RELAY
DRIVER
AC_RLY
IC854
AN78L05
31
VOLTAGE REGULATOR
+B5
UNSW_5.6V
IC851
AN80T53
MULTI REGULATOR
+B6
+B3
+B7
+B4
+B8
A_+5V
3
7
2
6
1
LD+8V
M+13V
A+10V
+5V
+B9
SW5V
D+5V
SO904
SURROUND
SPEAKER
TERMINAL
JK904
SUBWOOFER
PRE-OUT
Figure 4-4 BLOCK DIAGRAM (4/6)
background
CD-G10000/CP-G10000S
4 – 5
+12V
KIA4558P
OPE AMP.
8
4
KIA4558P
OPE AMP.
8
4
KIA7812AP
VOLTAGE
REGULATOR
31
STK41244
5
32
1
7
5
32
1
7
125678
1114151718
2
VH+
GND
VL+
VL-
VH-
VH+
L
-
+
-
+
VL-
VL+
VH-
VH+
VH-
VL-
VL+
SUBWOOFER
INPUT
CROSSOVER
FREQUENCY
VOLUME
POWER AMP.
VR502
Q501
VR501
IC501
LED501
Q901
D901
D902
Q902
IC901
D903
L902
Q904
Q903
L901
D801
D802
IC801
SO501
IC502
LED502
D803~D806
Q907
D910
D912
D911
Q908
Q909
CP-SW10000S
Figure 4-5 BLOCK DIAGRAM (5/6)
background
CD-G10000/CP-G10000S
4 – 6
4
3
2
1
4
3
2
1
2
1
2
1
6.3A/125V
AC POWER SUPPLY CORD
120 V, 60 Hz
6.3A/125V
6.3A/125V
500mA/125V
FAN MOTOR
L
R
L
-
+
R1_OUT
L1_OUT
M
POWER
SUBWOOFER
L902
Q906
Q905
L901
D906
D801
D802
F806
F804
F805
PT801
POWER
TRANSFORMER
T.F.
F801
SW802
CNP901
CNS901
Q401
Q402
D909
D907
RL901
D908
M401
SP1
6
D910
D912
D911
Q908
Q909
Figure 4-6 BLOCK DIAGRAM (6/6)
background
CD-G10000/CP-G10000S
5 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Notes on schematic diagram
•Resistor:
To differentiate the units of resistors, such symbol as K and M are
used: the symbol K means 1000 ohm and the symbol M means
1000 kohm and the resistor without any symbol is ohm-type resis-
tor. Besides, the one with “Fusible” is a fuse type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this symbol P
means pico-farad and the unit of the capacitor without such a sym-
bol is microfarad. As to electrolytic capacitor, the expression
“capacitance/withstand voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this model are
subject to change for improvement without prior notice.
• The indicated voltage in each section is the one measured by Digi-
tal Multimeter between such a section and the chassis with no sig-
nal given.
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ “ ( ) are important for main-
taining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the
set.
[2] Types of transistor and LED
REF. NO DESCRIPTION POSITION
JOG701 VOLUME ON—OFF
NSW1 PICKUP IN ON—OFF
SW1 CLAMP ON—OFF
SW2 TRAY SW1 ON—OFF
SW3 TRAY SW2 ON—OFF
SW4 DISC ON—OFF
SW701 POWER ON/STAND-BY ON—OFF
SW702 CLOCK/TIMER ON—OFF
SW703 TUNING UP ON—OFF
SW704 TUNING DOWN ON—OFF
SW705 FAST REWIND/PRESET DOWN ON—OFF
SW706 EQUALIZER ON—OFF
SW707 FAST FORWARD/PRESET UP ON—OFF
SW712 TUNER (BAND) ON—OFF
SW713 CD ON—OFF
SW714 TAPE ON—OFF
SW715 GAME/VIDEO ON—OFF
SW716 X-BASS/DEMO ON—OFF
SW717 LEFT ON—OFF
SW718 UP ON—OFF
SW719 CHARACTER ON—OFF
SW720 RIGHT ON—OFF
SW721 ENTER ON—OFF
SW722 DOWN ON—OFF
SW723 MP3 NAVIGATION ON—OFF
SW725 PLAY/REPEAT ON—OFF
SW726 STOP ON—OFF
SW727 REC/PAUSE ON—OFF
SW728 MEMORY/SET ON—OFF
SW729 OPEN/CLOSE ON—OFF
SW730 DIRECT PLAY ON—OFF
SW731 DISC2 ON—OFF
SW732 DISC4 ON—OFF
SW733 DISC5 ON—OFF
SW734 DISC3 ON—OFF
SW735 DISC1 ON—OFF
REF. NO DESCRIPTION POSITION
background
CD-G10000/CP-G10000S
5 – 2
[3] Waveforms of CD circuit
T
T
DATA
DATACK
LRSY
Stopped
CH1=2 V
DC 10:1
CH2=2 V
DC 10:1
CH3=2 V
DC 10:1
5 µs/div
(5 µs/div)
NORM:100 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 5 K
Zoom : 100
Mode : AUTO
Type : EDGE CH3
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH3
v/DIV
2V
1999/04/05 20:50:17
10
IC1 57
IC1 58
IC1 59
11
12
T
T
DOUT
Stopped
CH1=2 V
DC 10:1
500 ns/div
1999/04/07 09:25:28
(500 ns/div)
NORM:200 MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 1 K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
9
IC1 39
T
FDO
PD02
PD01
Stopped
CH1=500 mV
DC 10:1
CH3=1 V
DC 10:1
CH4=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1999/04/05 17:33:17
1
IC1 21
7
IC1 76
8
IC1 77
T
T
FDO
SPDO
Stopped
CH1=200 mV
DC 10:1
CH2=500 mV
DC 10:1
500 ms/div
1999/04/07 09:51:15
(500 ms/div)
NORM:20 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
1
IC1 21
6
IC1 24
T
T
TE
DRF
Stopped
CH1=10 V
DC 10:1
CH2=1 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0 V
CH2 : 0.00 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
3
IC1 68
4
IC1 17
Vp-p=1.0 V~1.3 V
0.5 mV/div,0.5 µsec/div
5
IC1 4
T
FDO
DRF
TE
Stopped
CH1=500 mV
DC 10:1
CH2=10 V
DC 10:1
CH3=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
-3 div -1 div 0 div +1 div +3 div
CH Position To
CH2
Position
0.20 div
1
IC1 21
3
IC1 68
4
IC1 17
T
FDO
TDO
Stopped
CH1=500 mV
DC 10:1
CH3=500 mV
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.000 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1
IC1 21
2
IC1 22
background
CD-G10000/CP-G10000S
5 – 3
[4] Voltage
3.20 V
1.61V
1.61 V
1.60 V
1.61 V
3.08 V
1.65 V
1.65 V
1.65 V
1.65 V
1.48 V
0V
1.65 V
0V
1.65 V
1.47 V
1.48 V
0V
0V
0V
1.60 V
0V
1.61 V
1.61 V
0V
0V
3.20 V
0V
3.20 V
0V
0V
1.59 V
1.60 V
3.20 V
0V
0V
0V
0V
0V
0V
3.61 V
0V
0V
1.80 V
3.60 V
0V
1.45 V
1.49 V
3.19 V
3.79 V
0V
0V
0V
0V
0V
0V
0V
0V
0V
3.20 V
0V
0V
0.53 V
0V
5.16 V
5.18 V
4.68 V
0V
0V
0V
0V
0V
0V
4.86 V
4.86 V
3.01 V
0V
1.12 V
0V
3.20 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
PIN
NO.
VOLTAGE
IC1
2.10 V
2.20 V
2.10 V
2.20 V
2.10 V
2.20 V
0V
4.37 V
5.02 V
3.20 V
1.62 V
1.65 V
1.62 V
1.65 V
1.62 V
0V
1.62 V
1.64 V
4.71 V
4.71 V
3.92 V
3.11 V
3.10 V
2.50 V
1.65 V
0V
5.02 V
8.68 V
5.02 V
0.59 V
0.71 V
0V
0V
0V
2.11 V
2.20 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
PIN
NO.
VOLTAGE
IC2
0V
0V
0.57 V
2.03 V
0.44 V
0V
0V
0.58 V
3.45 V
3.35 V
0V
0V
6.97 V
4.16 V
0V
3.42 V
0.57 V
0V
0V
0.41 V
2.03 V
0.57 V
0V
0V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO.
VOLTAGE
IC101
1.97 V
5.15 V
1.97 V
1.96 V
0V
0V
5.21 V
3.59 V
5.15 V
0V
2.01 V
1.25 V
2.27 V
1.13 V
1.10 V
1.96 V
0V
1.29 V
2.08 V
1.29 V
1.95 V
1.95 V
5.15 V
3.65 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO.
VOLTAGE
IC303
0V
0V
0V
5.10 V
5.10 V
5.10 V
5.10 V
5.11 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
10.20 V
0V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO.
VOLTAGE
IC601
2.57 V
0V
0V
0V
0V
5.22 V
10.18 V
4.76 V
0V
0V
5.23 V
0V
5.23 V
0V
0V
2.59 V
5.24 V
0V
0V
10.18 V
0V
2.57 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PIN
NO.
VOLTAGE
IC302
0V
0V
0.29 V
0.20 V
0V
0.29 V
0.26 V
0.29 V
0.29 V
1
2
3
4
5
6
7
8
9
PIN
NO.
VOLTAGE
IC301
5.22 V
13.11 V
20.66 V
0V
19.72 V
10.22 V
8.67 V
1
2
3
4
5
6
7
PIN
NO.
VOLTAGE
IC851
4.74 V
4.65 V
0V
4.70 V
4.72V
4.72 V
0V
0V
0V
4.83 V
2.27 V
1.99 V
0V
4.73 V
0V
4.74 V
0V
0V
5.22 V
0V
0V
4.68 V
0V
0V
0V
5.20 V
0V
5.01 V
5.01 V
2.64 V
5.01 V
5.01 V
0V
0V
5.01 V
1.67 V
5.20 V
5.01 V
4.87 V
0V
2.02 V
0V
13.10 V
0V
0V
4.74 V
0V
4.61 V
0V
0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC701
0V
0V
0V
0V
5.17 V
5.17 V
-29.70 V
0V
-0.26 V
-0.24 V
-0.22 V
-0.20 V
-0.19 V
-0.19 V
-0.18 V
-0.17 V
-0.16 V
0V
-29.90 V
-29.90 V
-29.90 V
-29.90 V
-29.90 V
-19.76 V
-27.40 V
-24.87 V
-22.29 V
-22.30 V
-30.13 V
-27.43 V
-14.50 V
-27.20 V
-19.30 V
-6.08 V
-21.85 V
-27.22 V
-21.89 V
-17.00 V
-27.38 V
-27.10 V
-27.07 V
-27.00 V
-27.00 V
-27.35 V
-26.27 V
-27.11 V
-27.00 V
-27.07 V
-27.07 V
-26.83 V
PIN
NO.
VOLTAGE
51
64
63
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
62
61
60
59
58
57
56
55
54
53
52
85
84
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
83
82
81
52.80 V
21.60 V
9.60 V
-9.70 V
-21.60V
-48.80 V
0V
-19.70 V
-22.90 V
-22.10 V
-18.60 V
-51.30 V
51.40V
-0.14 V
-0.13 V
-50.04 V
-0.14 V
-0.14 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
PIN
NO.
VOLTAGE
IC901
68.0 V
30.5 V
18.5 V
-18.5 V
-30.5V
-68.0 V
0V
13.6 mV
17.8 mV
18.3 mV
14.6 mV
-66.5 V
66.5 V
-151.0 mV
-153.7 mV
-65.5 V
-155.5 mV
-152.5 mV
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
PIN
NO.
VOLTAGE
IC901
0V
0V
0V
5.0 V
6.5 mV
6.5 mV
162.5 mV
5.0 V
1
2
3
4
5
6
7
8
PIN
NO.
VOLTAGE
IC501
6.5 mV
6.5 mV
7.5 mV
4.0 V
7.5 mV
7.5 mV
7.5 mV
4.0 V
1
2
3
4
5
6
7
8
PIN
NO.
VOLTAGE
IC502
19.5 V
0.5 mV
12.0 V
1
2
3
PIN
NO.
VOLTAGE
IC801
18.2 mV
6.3 V
18.2 mV
E
C
B
PIN
NO.
VOLTAGE
Q901
17.7 mV
6.3 V
17.7 mV
E
C
B
PIN
NO.
VOLTAGE
Q902
11.4 mV
6.3 V
1.5 mV
E
C
B
PIN
NO.
VOLTAGE
Q903
1.5 mV
6.3 V
11.4 mV
E
C
B
PIN
NO.
VOLTAGE
Q904
2.2 mV
0.8 V
0.7 V
E
C
B
PIN
NO.
VOLTAGE
Q905
0.7 V
0.8 V
1.5 V
E
C
B
PIN
NO.
VOLTAGE
Q906
5.5 V
12.0 V
16.2 mV
E
C
B
PIN
NO.
VOLTAGE
Q401
0.7 mV
6.0 V
0.7 mV
E
C
B
PIN
NO.
VOLTAGE
Q402
5.5 V
187.5 mV
3.7 V
E
C
B
PIN
NO.
VOLTAGE
Q403
CP-G10000S
CD-G10000
background
CD-G10000/CP-G10000S
5 – 4
— M E M O —
background
CD-G10000/CP-G10000S
6 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT
[1] Schematic diagram
Figure 6-1 SCHEMATIC DIAGRAM (1/12)
0V
0V
0.7V
0.7V
0V
0.7V
0.7V
0V
0V
0V
0V
0V
0V
9.3V
8.6V
9.3V
0V
0V
0V
3.4V
0
0V
0V
11.6V
0V
0.7V
0V
0.7V
3.4V
0V
0V
0V
330
390
KTC2875 B
2.2K
390
KTC2875 B
2.2K
15K
15K
150
KTA1504 Y
100/16
10K
KRC104 S
4.7K
KRC104 S
10K
220K
220K
KTC3875 GR
10K
KTC3875 GR
10K
330
KTA15
820K
0.0022
820
0.0022
22K
1/50
22K
22/50
0.039(ML)
0.008
2
0.047(ML)
22K
47K
82(1/2
W
220
8.
2
10K
Q101
KTC3200 GR
KTC3200 GR
KTC3200 GR
KTC3200 GR
C150
47/50
68K
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
220P
220P
220P
0.022
22/25
220/10
220/10
0.0027
4.7K
1K
10K
0
1/50
0.022
220/16 0.022
1K
0.0027
1/50
4.7/50
1/50
1/50
1/50
0
1/50
1K
KTC3875 GR
KTC3875 GR
2.2K
2.2K
0
0.0015
1.5K
15K
330P
2.2K
3.3K
2.2K
3.3K
3.9K
100K
15K
0.039
4.7K
47/25
560P
47/25
3.9K
100K
4.7K
0.039
560P
47/25
56
47/25
4.7K
18K
0.0022
18K
4.7K
100
0.022
270P
22/50
0.022
0.0033
1K
5.6K
3.3/50
5.6K
47/25
0.0033
100
22/50
1.5K
560P
1K
47/25
180P(CH)
180P
47K
560P
270P
1K
4.7K
0.0015
330P
KTC3875 GR
10K
4.7K
1K
330P
330P
KTC3875 GR
10K
56
47K
1/50
1/50
1/50
1/50
4.7/50
1/50
0.18
0.22
1/50
4.7K
0.22
0.18
LC75341
AUDIO PROCESSOR
AN7345K
13
14
15
16
17
18
12
11
10
9
8
7
19
6
5
20
21
4
22
23
24
1
23
CD_A_GND
CD_D_GND
LD+8V
A_5V
CD_GND
L-CH
REC_R
R-CH
A_GND
R-CH
+B
+B
+B
+B
+B
+B
+B
+B
A_GND
L-CH
CD_GND
CD+5V
+8V
A +10V
VCD_A+10V
P6-10 11-F
TO CD SERVO PWB
REC_L
T2_R2
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
CCB
INTERFACE
AUX
DECK
TUNER
CD
112K
56K
112K
56K
Hich=CHROME
-
-
+
+
Hich=T1
+
-
+
-
Nor/CrO2
RIPPLE
ALC
ALC
Vcc
LSEL0
R1
R2
R3
R4
RSEL0
RIN
RTRE
RBASS
ROUT
VREF
VDD
CLK
L1
L2
L3
L4
LIN
LTRE
LBASS
LOUT
VSS
CE
DI
A_GND
L
L
R
R
T1_R
T1_L
A_GND
M_GND
ERASE
T2_R1
T2_L1
T2_L2
TAPE 1
PLAYBACK HEAD
R-CHL-CH
2
8
1
1
3
2
1
3
2
1
9
3
4
5
6
7
8
3
7
5
6
4
CD_GND
6-5 1-D~H
TO POWER SECTION
0.0022
CNP6
8
1
3
12
11
20
14
17
18
Q603, Q604: SYSTEM MUTE
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
2
1
1
3
23
SWITCHING
SWITCHING
SWITCHING
MUTING
MUTING
SWIT
C
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
+
+B
+B
11
22
33
KRA107 M
KRA107 S
CNP102
BI601
CNS601
C102
C101
C104
Q102
R104
R106
Q104
C103
Q103
R105
R103
R111
R109
R107
C105
Q105
R110
R108
C106
Q106
R101
R102
R112
Q112
R146
R148
R147
Q114
Q113
C141
R116
R120
R118
C114
R124
C118
C116
C112
R122
C120
R114
C110
C108
R113
C109
C107
C125
IC101
IC101
PLAYBACK
AND
RECORD/
PLAYBACK
AMP.
R115
R119
R117
R123
C113
C115
C117
C111
R121
C119
R131
C127
C129
R133
R135
C121
R127
R129
C143
C123
C131
C139
C137
R144
R143
R142
Q109
R158
C133
C134
C135
C126
R128
R150
R126
C124
R130
R132
C128
C130
R134
C132
R
6
C624
C622
C620
C618
C616
C614
C606
C612
R606
C608
R604
C610
R603
C603
C653 C601 C602
R602
R601
C652
C651
R605JP601
C609
C605
C611
C613
C617
C615
C619
C621
C623
JP802
R607
C607
R613
Q601
R611
R610
Q602
R612
R615
R617
R616
JP662
Q603
Q604
Q607
Q608
R619
R618
R621
C639
R620
C640
C626
R608
R149
Q107
R137
R136
R139
R138
Q108
R614
C625
R609
IC601
CNP101
C138
ERASE HEAD
TAPE2
R-CH
L-CH
1
5
6
7
4
3
2
6
1
2
3
4
5
7
RECORD/
PLAYBACK HEAD
CD SIGNAL
FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
VIDEO SIGNAL
AUX SIGNAL
A
B
C
D
E
F
G
H
1
23456
CD-G10000
background
CD-G10000/CP-G10000S
6 – 2
Figure 6-2 SCHEMATIC DIAGRAM (2/12)
0V
0V
0V
0V
11.6V
0V
0.7V
C691
JK690
220K
0
220K
KTC3875 GR
10K
KTA1504 Y
10K
820K
KRC104 S
47/25
330 µH
R145
4.7
KTC3203 Y
0.039(ML)
0.0082
0.047(ML)
22K
47K
82(1/2W)
220
4.7K
8.2K
8.2K
10K
10K
22/25
220/10
220/10
0.0027
4.7K
0.022
220/16 0.022
1K
47K
47/25
47/25
10K
10K
1/50
1/50
1/50
1/50
4.7/50
1/50
0.18
0.22
1/50
13
14
15
6
12
11
10
TAPE_A_GND
A+10V
REC_R
CE
TUN_R
AGND
SW_5V
AGND
CLK
DGND
A+10V
TUN_L
SP_RLY
SP_DET
M_+13
+B_PROTECT
DI
DO
+B
+B
A+10V
REC_L
D_GND
M_GND
SW_5V
S_MUTE
M_+13V
P6-4 10-H
TO TUNER SECTION
K
K
Nor/CrO2
RIPPLE
ALC
ALC
Vcc
+B_PROTECT
- 20dB
SP_DET
D_GND
SP_RLY
REC/PLAY
T_T1/T2
T_BIAS
CLK
DI
CE
DO
2
1
4
5
3
5
12
7
10
15
14
13
11
6
P6-5 1-D~H
TO POWER SECTION
16
8
9
4
1
2
3
MAIN PWB-A1 (1/3)
MUTING
1
23
SWITCHING
BIAS
BIAS OSC
15
19 14
16 10 13
9745
CNP701A
P6-7 2-F
TO DISPLAY PWB
1
16
24
26
14
25
23
22
16
21
9
DS1SS133DS1SS133
1
2
3
4
5
1
3
4
5
6
P6-6 11-B
TO POWER PWB
CNP901
GAME INPUT
PWB-B2
5
1
M_+13V
SP_RLY
R-CH
GND
L-CH
6.8K
390P
6.8K
390P
33K
33K
VIDEO IN
CHASSIS
AUX/VIDEO
R-CH
L-CH
0.0010.001
0.01
+B
+B
+B
+B
+B
+B
+B
+B
R135
C131
C140
L103
Q111
C139
C137
R144
R143
CNP603
C693
0.01
R142
Q109
R141
R140
Q110
R158
C133
C134
C135
R134
C132
R641
R643
R644
R642
C624
C622
C620
C618
C616
C614
C606
C612
R606
C608
R604
C610
R603
C603
C601 C602
R608
Q107
R137
R136
JP608
R139
C138
CNP701B
FFC701
JK691
VIDEO OUT
D691D690
GAME
INPUT
WTM901
FW901
CNS603
BI603
R690 C690
R691
R693
R692
HEADPHONES
JK692
C694C695
C696
6
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 3

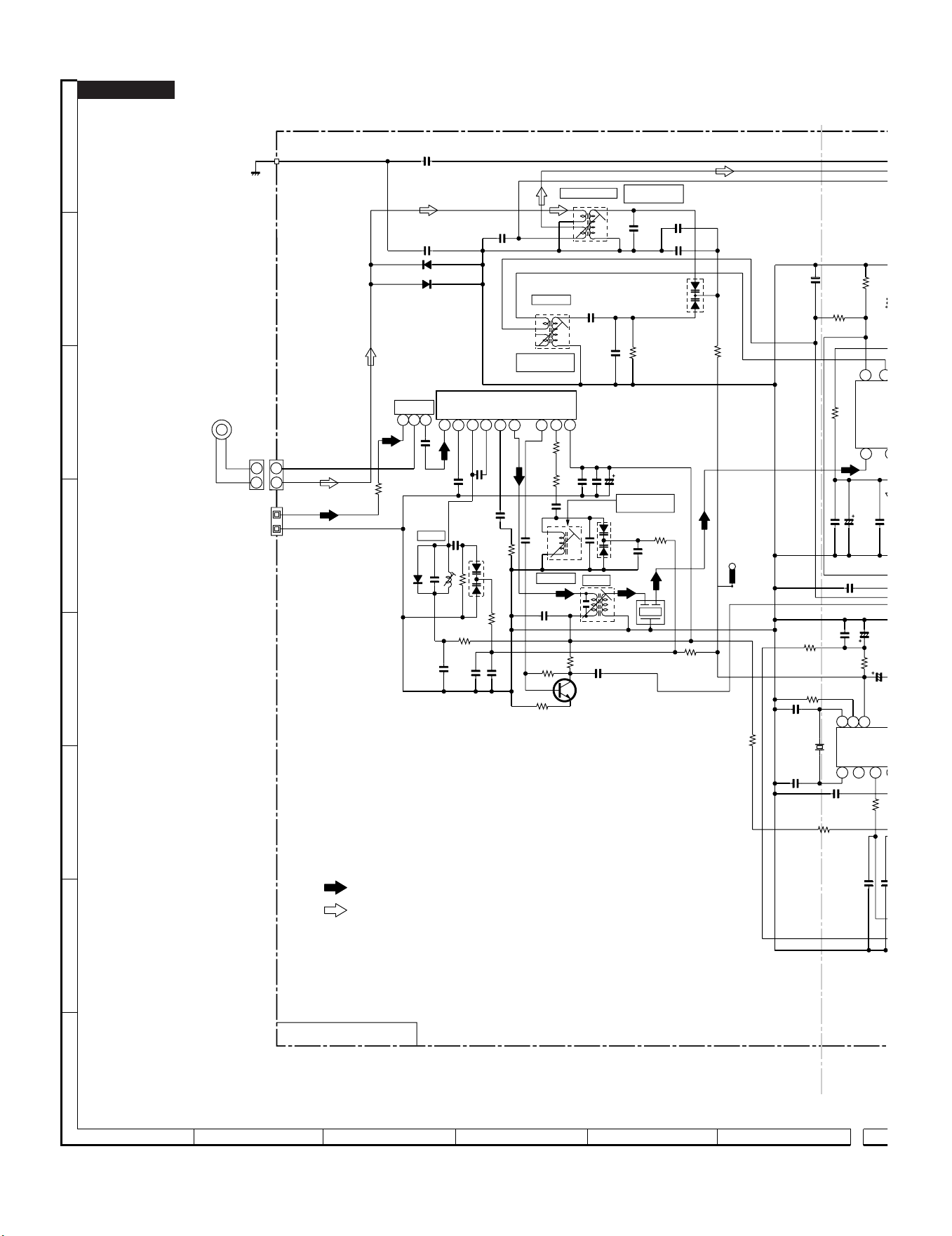

Figure 6-3 SCHEMATIC DIAGRAM (3/12)
47/2
5
SVC347S
1K
2.2/50
10/50
0.001
150
10
0
18P(CH)
10K
47K
0
10P(CH)
0.022
3.3K
68K
0.001
0.022
4.7P
22P
0.022
+B
+B
+B
+B
+B
10/50
1/50
4.7K
0
0
15P
0.022
10K
KTC3194 Y
100P
TA7358AP
10K
DS1SS133
L
C
0.022
22
0.001
0.022
12P
560P
MAIN PWB-A1 (2/3)
0.001
0.022
10K
47P
0.001
15P(CH)
470
0.022
0.022
0.01
5.6K
15P(CH)
33K
0.001
1K
4.7P(CH)
22P(CH)
0.047
100K
0.022
4.7P(CH)
0.01
0
680
DS1SS133
DS1SS133
SVC230C
0
SVC230C
123
20
21
22
1
123456 7 89
23
1
2
3
24
FM IF IN
AM OSC OUT
AM OSC IN
XOUT
XIN
CE
AOUT
VSS
(CH)
(CH)
4.5 MHz
FM FRONT END
(CH)
(CH)
1
2
1
2
FM 75 OHMS
GND
AM LOOP
ANTENNA
FM RF
OSC BUFF
FM IF
FM OSC.
1
2
3
AM ANTENNA
AM TRACKING
fL
AM OSC.
AM BAND
COVERAGE fL
FM BAND
COVERAGE fL
B.P.F
TP301
100P(CH)
100P(CH)
VD301
C302
T306
C335
C338
C323
C331
D302
D301
T303
C330
C332
C334
R323
R336
BF301
IC301
CNP301
SO302
FM ANTENNA
TERMINAL
D305
C309
R311
L312
C308
R314
R313
C320
VD302
JP308
C315
C316
C317
R325
R327
Q302
C318
T301
C312
C310
R322
C311
C313
VD303
C324
R302JP312
C347
C307
R309
R316
JP307
JP303
CF303
C306
C305
C304
JP309
C303
C342
R365
R358
C362
C351
C352
C383
R375
R373
R374
C382
X352
I
C
C39
4
C389
R381
C393
C381
R382
C397
C377
C376
R351
C350
T302
FM SIGNAL
AM SIGNAL
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CD-G10000
background
CD-G10000/CP-G10000S
6 – 4

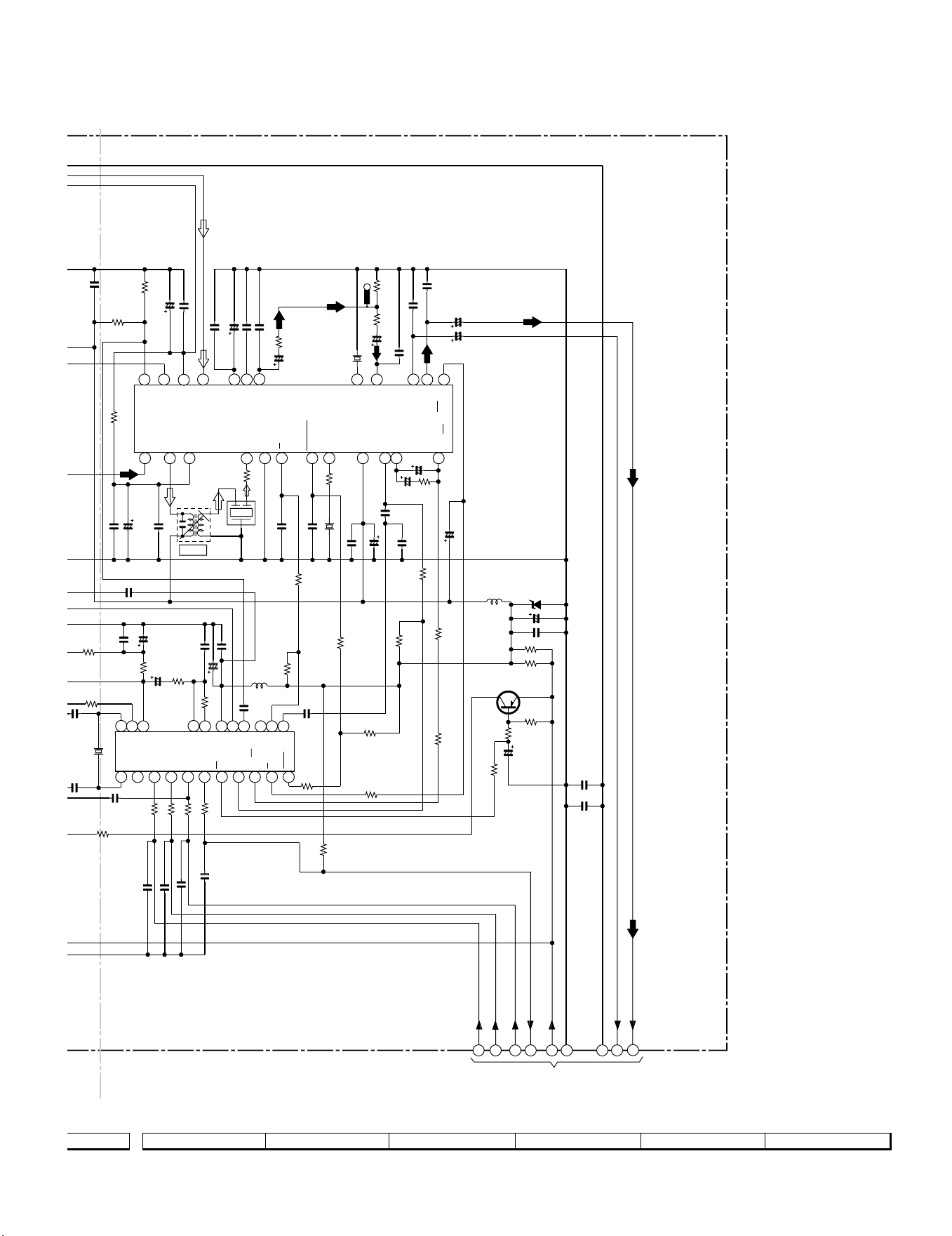

Figure 6-4 SCHEMATIC DIAGRAM (4/12)
47/25
1K
2.2/50
1.8K
1K
5.6K
22P(CH)
0.022
150
330P
47K
KTA1266 GR
0.022
3.3K
0.015
0.001
0.001
0.022
100P(CH)
100P(CH)
1K
0
0
1/50
270
0.001
2.2/50
470K
100/10
0.022
2.2K
1K
3.9K
27P(CH)
0.022
4.7K
22K
+B
+B
+B
+B
10/50
1/50
0.001
DZ5.1BSB
47K
5.6K
0
0.022
5
P
0.022
10K
100/10
0.001
10K
0.015
1/50
1K
1K
2.7K
LC72131
1/50
P
3.3K
LA1832S
FM IF DET./FM MPX./AM IF
1/50
456 kHz
47P
1K
1/50
470
0.022
0.022
1.5K
5.6K
10/50
2.2/50
0.022
0.022
1K
1/50
100 µH
0.001
270
270
5.6K
0.022
100 µH
47/25
5.6K
1234567891011
12131415161720
21
22 1819
123 456 78 91011 12
131415161718192021222324
DI
DO
TUN_R
TUN_L
AGND
A+10V
CLK
DGND
CE
FM IF IN
AM MIX OUT
AM OSC OUT
FM AFC
AM OSC IN
AM RF IN
AM LOW CUT
VSM
FM/AM OUT
MPX VCO
MPX IN
R-CH OUT
L-CH OUT
PHASE
(FM/AM)
PHASE
IF OUT
VCC
FM DET
STEREO
SD
GND
AM IF IN
REG
IF IN
XOUT
XIN
CE
DI
CL
DO
AM IN
FM IN
VDD
PD
AIN
AOUT
VSS
MO/ST
ST IND
MO/ST
(CH)
(CH)
SD
FM/AM
FM/AM
IF
CONT
4
.5 MHz
0.01
P6-2 11-C
TO MAIN SECTION
AM IF
1
2
3
SWITCHING
21 22 23 24 9 14 16 25 26
100P(CH)
100P(CH)
JP303
C342
R365
C361
R358
C362
C363
C351
C352
C387
C383
R375
R373
R378
R372
R374
C
382
X352
IC302
IC302
PLL (TUNER)
R386
C386
R395
R360
R377
R376
L351
C385
R380
R379
C380
C392
C394
C389
R381
C393
C
381
R382
C397
C379
C378
C377
C376
R351
C350
T351
CF352
R352
C353
C354
CF351
R393
JP310
JP317
C399
C398
R353
R355
C358
C357
C356
C355
R388
C370
R387
R359
R384
R385
C391
R383
Q360
R391
C388
C384
R392
ZD351
L352
C396
C395
C372
C371
C373
C374
C369
R356
R357
TP302
C368
X351
C364
C366
C365
R350
C367
IC303
6
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 5

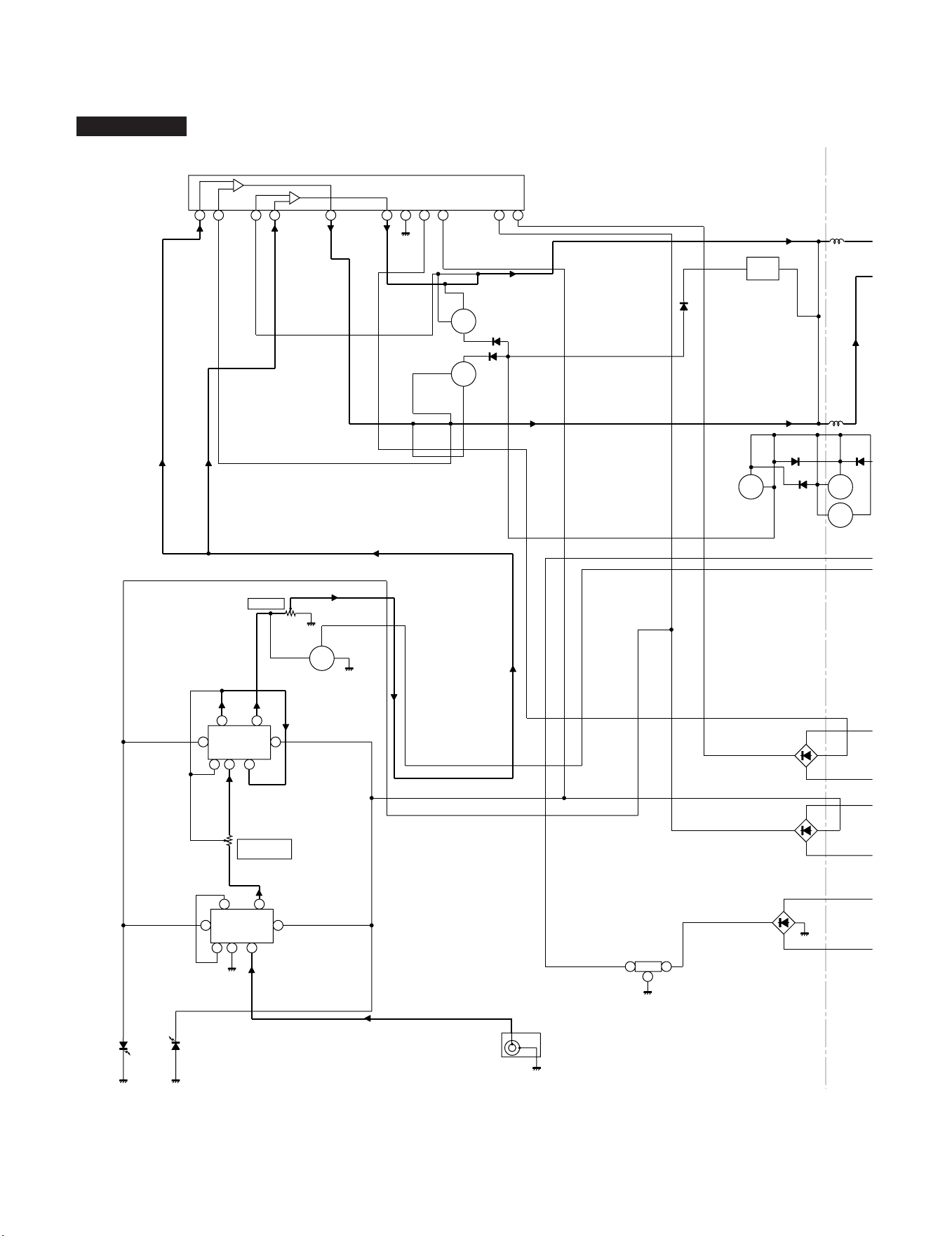

Figure 6-5 SCHEMATIC DIAGRAM (5/12)
DZ12BSB
3900/85
4700/25
22/25
0.1
(ML)
KIA7805AP
VOLTAGE
REGULATOR
1
2
3
3.3K
22K
10K
220/25
22K
22/25
22/50
10/50
22/25
22K
0.1
(ML)
AN80T53
MULTI
REGULATOR
22K
680
0.1
KTC3875 GR
KTC3875 GR
22K
47K
47K
DS1SS133
DS1SS133
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+
DS1SS133
0.1/50
DS1SS133
DS1SS133
39K
100/100
100/100
100/100
1K
560
0.1(5W)
47K
47K
3900/85
1N4004S
DZ12BSB
33K
47/50
56K
3µH
3µH
56K
39K
DS1SS133
1N4004S
1.5K
100/50
100/50
STK41244
2.2K
KTC3875 GR
0.01
4700/50
DS1SS133
KTC3875 GR
56K
3P(CH)
56K
4700/50
DZ12BSB
1.5K
1.5K
4.7/50
100P(CH)
560
2.2K
0.001
0.001
56K
1K
4.7/50
56K
0.01
KTC3875 GR
0.1(5W)
1.5K
DS1SS133
KTC3875 GR
0.22(5W)
1K
100/100
0.22/50
1K
0.22/50
56K
0.22(5W)
100P(CH)
3P(CH)
100(1/4W)
Fusible
1234567
123456789101112131415161718
TAPE_A_GND
CD_GND
CD_A_GND
CD_D_GND
D_GND
M_GND
AGND(AUDIO PRO)
LD+8V
A+10V
D+5V
M_+13V
SP_RLY
A_GND
+B_PROTECT
SP_DET
L_CH
R-CH
VCD A+10V
VCC
13V
SW +B
GND
8V 10V
SW_5V
GND
VL+
VL-
VH-
VH+
(1/2W)
(1/2W)
L
R
-
+
-
+
VH+
VH-
VL+
SP_DET
6
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
5
4
3
2
1
V
F
P
_
-
V
V
F
P6-1 1-C
P6-2 8-H
TO MAIN SECTION
0.1(ML)
100(1/4W)
Fusible
5V
VL-
0.1(ML)
10(1/2W)
FW701
6-811-E
FROM DISPLAY PWB
1
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
POWER AMP.
C915
C914
C912
R905
C909
R909
C908
R907
C905
C913
R906
C904
C903
C906
R911
R913
R903
C911
R904
C907
C910
R912
R902
R901
C901
C902
R908
R958
R916
R910
C946
D885
D863
Q885
C885
R885
IC851
C855
C864
C859
R854
3.3
(1/2W)
R863
C856
C865
C854
ZD805
D860
D861
D862
R857
R864
R853
Q886
R886
R887
R888
R889
R922
Q901
C919
R921
R920
D905
Q902
D906
C916
R917
R918
C917
R919
IC901
R928
ZD903
R927
D907
C918
C922
C921
ZD902
R926
R925
C920
R929
D909
D910
R930
C923
R859
C817
C851
C852
IC852
C850
L901
Q903
Q904
C925
R937
R934
L902
R935
R939
BI801
CHASSIS
C
N
CNS801
CNP802
CHASSIS
AC RLY
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CD-G10000
background
CD-G10000/CP-G10000S
6 – 6

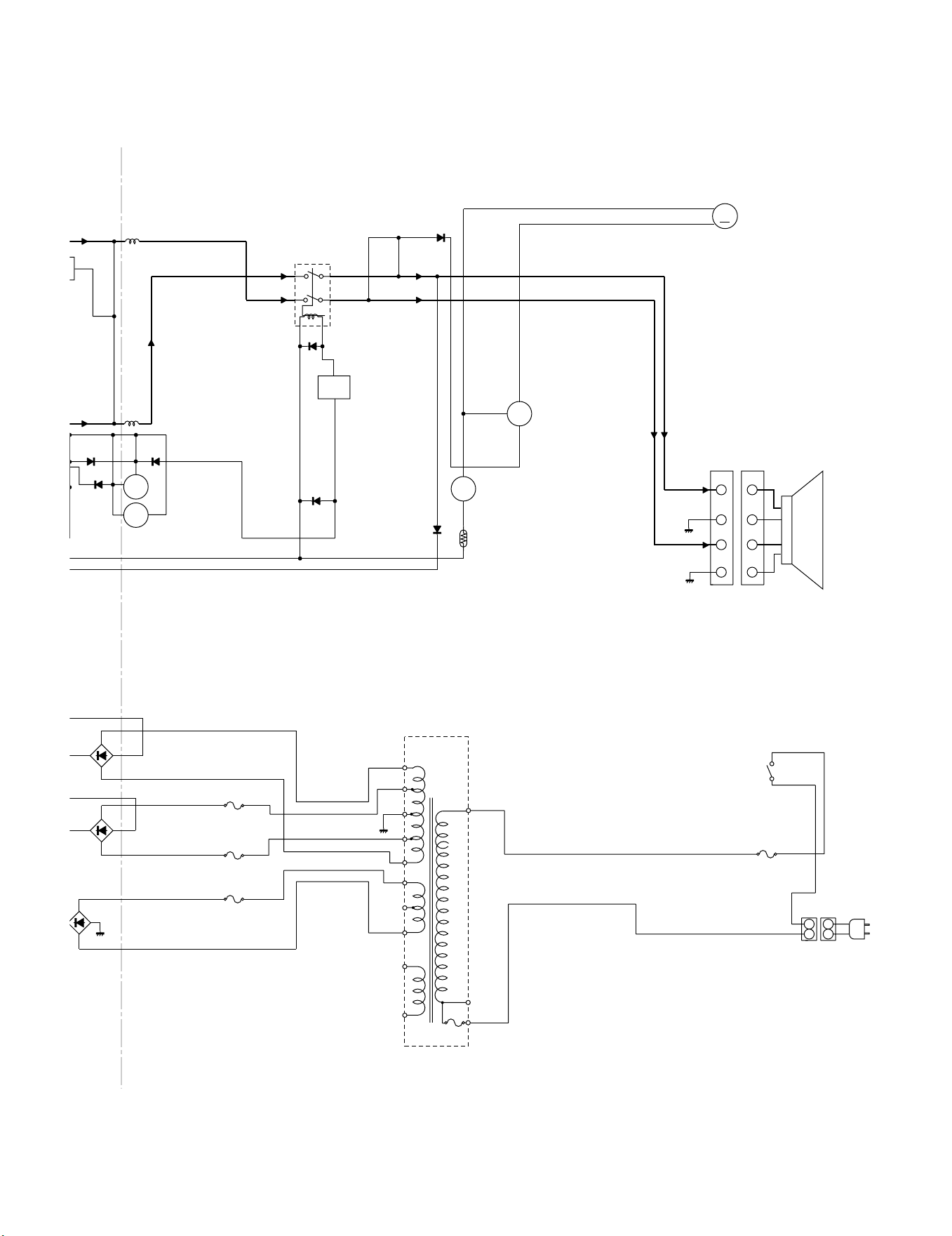

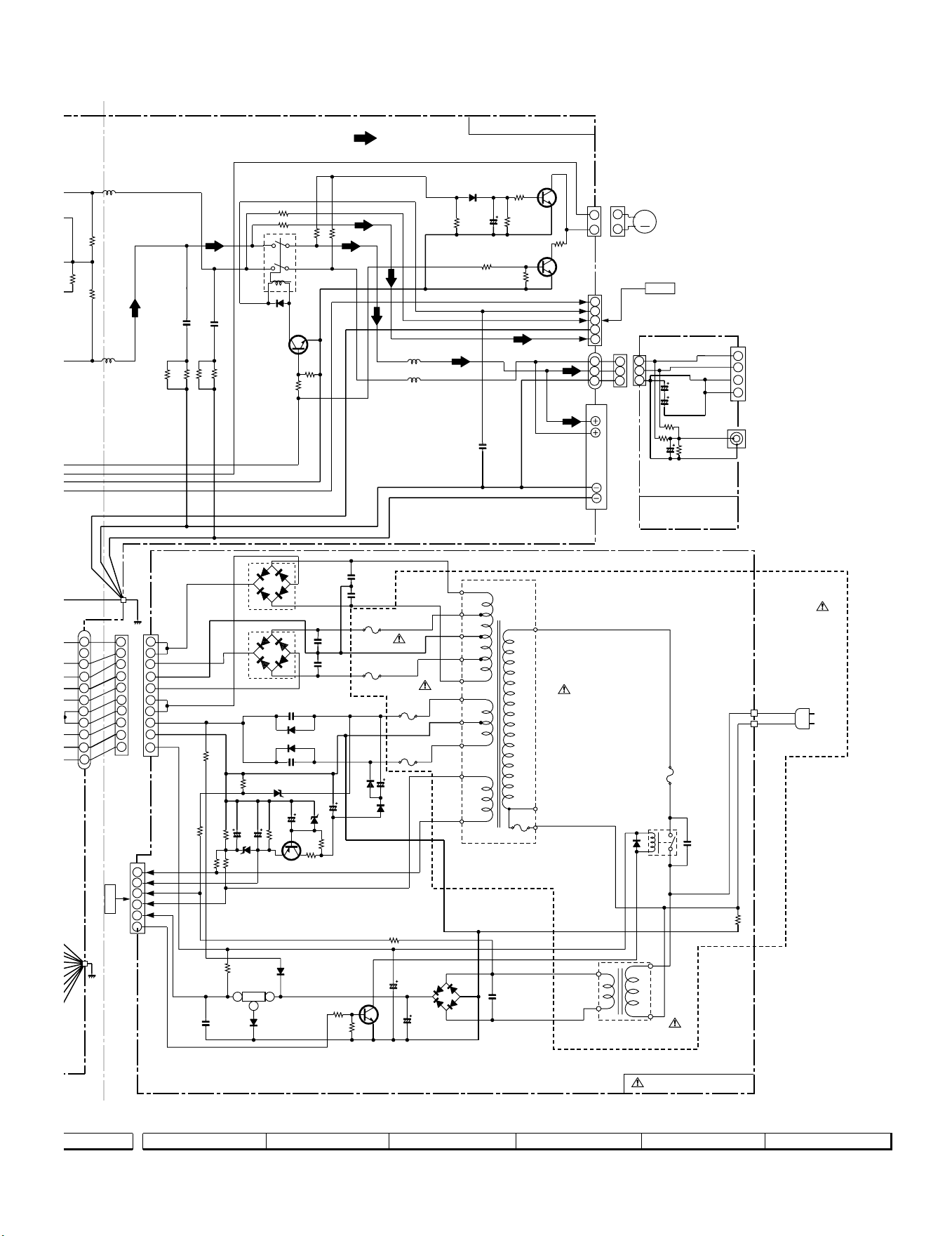

Figure 6-6 SCHEMATIC DIAGRAM (6/12)
4.4V
0.2V
22/50
22/50
8.2K
8.2K
680
3.3/25
0.22
(ML)
0.22
(ML)
220/63
KTA1274 Y
2.2K(1/2W)
100
220
1K
4.7K
1K
KTC3203 Y
KTC3203 Y
R949
1K(1/2W)
DS1SS133
100K
12K
100/35
DZ6.2BSA
47/50
47K
1N4004S
22/100
1N4004S
+B
+B
+B
+B
+B
-B
-B
-B
+B
+B +B
+B
+B
15K
10/50
68K
DZ30BSB
47/50
47K
DZ7.5BSB
D10XB60F
0.22
0.22
0.01
0.1
56K
3µH
3µH
56K
R941
56K
1.5K
1.5K
DS1SS133
KTC3199 GR
47K
D10XB60F
0.1
0.1
1N4004S
0.1
GND
AC POWER SUPPLY CORD
AC 120 V, 60 Hz
2A/125V
2A/125V
5A/125V
5A/125V
L
R
R
L
R
L
L-CH
GND
R-CH
SP_RLY
M_+13V
SP_L1-CH
SP_R1-CH
-
+
VL-
VL+
VH-
VH+
6 OHMS MIN
R1_OUT
L1_OUT
(ML)
(ML)
(ML)
(ML)
47
2
1
1
2
M
47
6
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
5
4
3
2
1
5
4
3
2
1
3
2
1
3
2
1
1
2
3
VF1
P_IN
-VF
VF2
SP_R1-CH_GND
SP_L1-CH_GND
680(2W)
680(2W)
10(1/2W)
10(1/2W)
10(1/2W)
10(1/2W)
1N4004S
MAIN PWB-A1 (3/3)
SP RELAY
ON-OFF
FAN MOTOR
DRIVER
FW901
P6-2 10-A
FROM
GAME INPUT PWB
0.29 µH
0.29 µH
SPEAKER
TERMINAL PWB-H
T.F.
VOLTAGE
REGULATOR
POWER PWB-B1
FW701
6-811-E
FROM DISPLAY PWB
C929
C928
L901
R937
R934
L902
R935
R942
R943
R944
R945
RL914
D911
Q905
R956
R946
R939
R938
R940
B
I801
CHASSIS
CNP801
CNS801
CNP802
CHASSIS
R891
Q801
R805
C801
ZD801
R804
R803
R801
ZD802
R802
C803
R806
C802
R808
ZD803
C804
D805
C805
D806
C807
D803
D804
C806
D802
D801
C809
C808
F802
F801
C811
C810
C952
F804
F803
L920
L921
D912
C931
R947
R950
Q906
R959
Q907
R951
R957
CNS971
CNP971
CNP901
SO901
SPEAKER
TERMINAL
CNP903
R962
C960
R961
R960
C963
C962
JK904
SUBWOOFER
PRE-OUT
PT801
POWER TRANSFORMER
BI901
CNS901
M901
FAN
MOTOR
SO904
SURROUND
SPEAKER TERMINAL
5.6V
220K
0.022
1N4004S
0.047(ML)
1N4004S
1N4004S
1N4004S
DS1SS133
AN78L05
31
1K
47K
KTC3199 GR
1000/6.3
470/35
220
1N4004S
82
4.7M
(1/2W)
0.0047
DS1SS133
2
6A/125V
UNSW_
AC_RLY
R844
F805
C844
RL841
D846
R890
R841
D845
C843
D844
D842
C841
IC854
R858
D853
D856
C861
R842
R843
Q841
C842
D843
PT841
SUB POWER
TRANSFORMER
FM SIGNAL
6
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 7
Figure 6-7 SCHEMATIC DIAGRAM (7/12)
+10V
M_+13V
KRA107 S
KRC104 S
KRC104 S
KRA107 S
KRA107 S
DS1SS133
KRC104 S
IXA054A
W
SYSTE
M
MICROCOMP
U
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
1.5
1K
1K
1K
1K
1K
100
1K
0.047
0.047
KTA1273 Y
KTA1273 Y
10K
10K
4.7K
DS1SS133
4.7K
DS1SS133
1K
1K
10K
47K
10K
10K
KTA1273 Y
304VT2H
3
5.6K
4.7K
1/50
KRC102 S
8.2K
4.7K
R785
2.7K
330
SDPB50CD
10K
680
680
2.2K
4.7K
560
1K
4.7K
10K
4.7K
81 82 83 84 85 86 87 88 89 90 91 92 9
3
50 49 48 47 46 45 44 43 42 41 40 39 3
8
MIC SW/S29
S28
S27
S26
S25
S24
S23
S22
S21
S20
P10
P28
P27
P30
P29
P26
P25
F
F
NP
NP
ILLU LED/S30
TIMER LED
SP_RLY
AC_RLY
A+10V
DIST
TRAY SW1
S_MUTE
SW_5V
M_+13V
(DIST 2),S17
(DIST 3),S16
S15
S14
(DIST 0),S19
DISC_SW
T_MOTOR
+B_PROTECT
(DIST 1),S18
S8
S7
TRAY SW2
CLAMP SW
P09
P08
P07
P06
P05
G10
G11
G12
S1
S2
S9
S10
S11
REMOCON
VSS
SMUTE
T_SOL_B
T_SOL_A
VDD
G9
G8
P24
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
P11
P04
P03
P02
P01
G12
SP_RLY
D_GND
REC/PLAY
T_T1/T2
T_BIAS
DI
CE
CLK
DO
SP_DET
Ð20dB
S3
S4
S5
S6
VLOAD
S12
S13
SP DET
T2 RUN
+MTR
SOL2
SOL1
T1 RUN
GND
F_REC
+
-
M
15
2
3
4
7
7
7
4
5
1
1
45 44 43 42 41 40 3951 50 49 48 47 46 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 1
7
5
6
9
8
10
12
11
13
14
16
16
1
1
6
3
2
1
1
7
7
2
3
4
5
6
SOL
TAPE
MOTOR
SOL
DISPLAY PWB-A2
CNP701B
P6-2 11-G
TO MAIN PWB
1
23
FL DISPLAY
3
2
1
1
3
2
TAPE MECHANISM
PWB-D
1
2
3
2
3
1
1
2
3
1
2
3
VOLUME
+B
+B
+B
+B
+B
Q707, Q708: SOLENOID DRIVER
Q706, Q711, Q712: MOTOR DRIVER
Q714~Q717: SOLENOID DRIVER
LED DRIVER
Q710
R794
C707
R751
LED703
R750
R745
R725
R724
R733
R731
R728
R727
R726
R729
R732
R784
R762
R771
D716
R775
R780
CNP701A
R790
Q714
Q706
R777
Q708
Q707
R778
R779
Q712
R776
C709
C710
JOG701
CNP702A
R787
R786
D710
D709
FL701
IC701
R741
R740
R746
R730
R789
R788
LED701
Q715
Q711
R770
Q716
Q717
FFC701
FFC702
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CD-G10000
background
CD-G10000/CP-G10000S
6 – 8

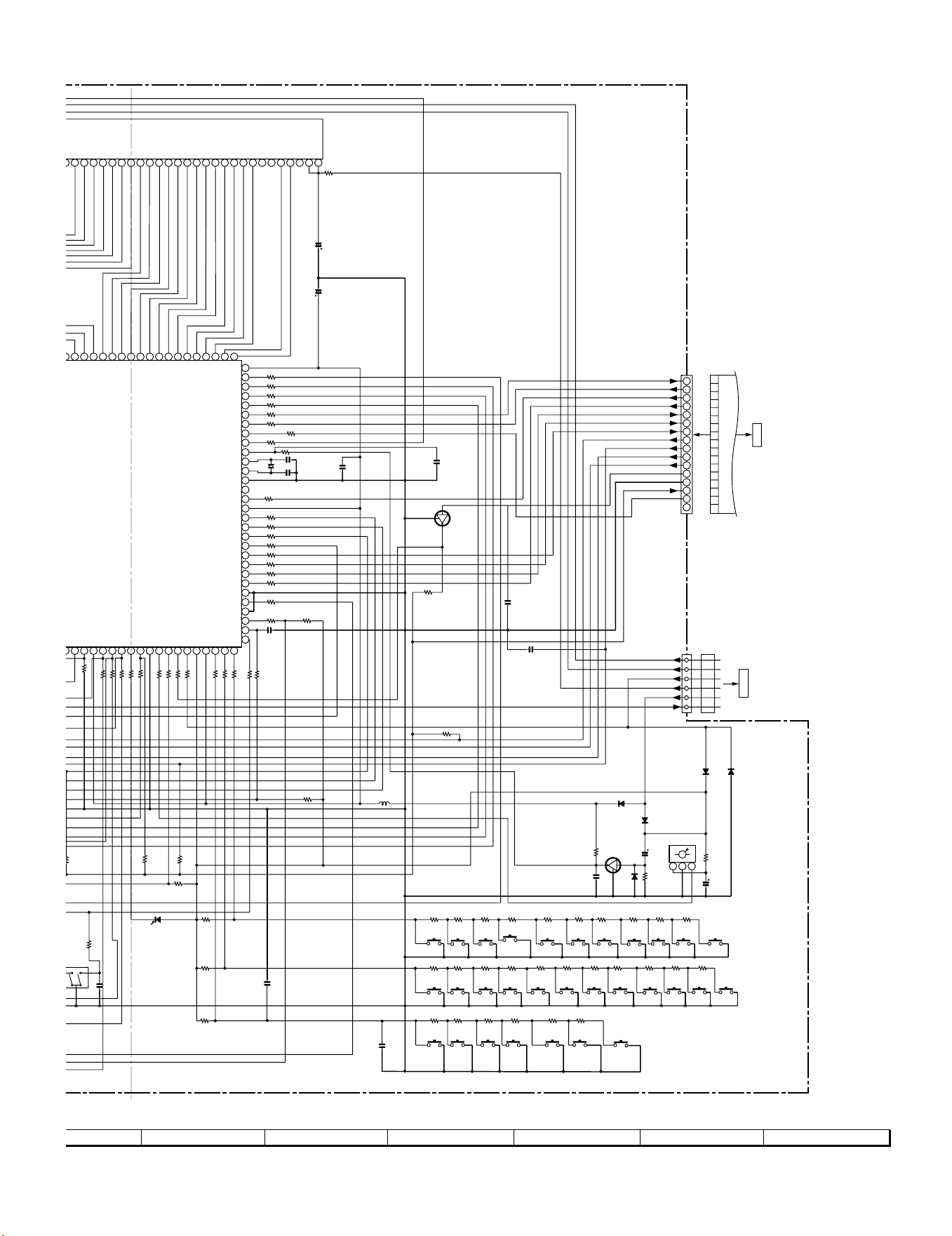

Figure 6-8 SCHEMATIC DIAGRAM (8/12)
5V BACK UP
IXA054AW
SYSTEM
MICROCOMPUTER
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
220/10
1/50
1.5
1K
1K
4.7K
1K
1K
1K
10K
10K
10K
1K
1K
1K
1K
18P(CH)
4.19 MHz
10K
DS1SS133
DS1SS133
100
KRC102 S
RESET
820
1K
0.047
1K
1K
1K
1K
1K
DS1SS133
0.022
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
3.9K
2.7K
2.7K
2.2K
2.2K1.5K
3.3/50
47/25
1K
15P(CH)
100K
DS1SS133
0.01
304VT2H3
DS1SS133
47K
1K
4
.
7K
0.022
1K
1K
820680 10K5.6K
10K
KRC104 S
R785
2.7K
5.6K
15K
10K
680
680
2.2K
4.7K
560
820
680
680
4.7K
10K
100 µH
10K
1.5K
1.5K
1K
1K
1K
2
83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99
100
9
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31
123
S
W/S29
F1
P10
NX
STOP
PLAY/
REPEAT
FAST
REWIND/
PRESET
DOWN
DIRECT
PLAY
CLOCK/
TIMER
X-BASS/
DEMO
FAST
FORWARD/
PRESET UP
G10
G09
LED/S30
TIMER LED
T_RUN PULS
CD_WRQ
SUB CE
ILLU LED
DISC 5
DISC 3
DISC 2
DISC 1
DISC 4
TAPE
SP_RLY
AC_RLY
T_FP SW
CTR
AC RELAY
GAME/
VIDEO
Y
SW1
CD_DRF
VF2
-VF
VF1
P_IN
UNSW5.6
CLK
2),S17
3),S16
0),S19
_
SW
T_MOTOR
TUNING
UP
KEY 0
KEY 1
KEY 2
1),S18
S7
PROTECT
Y
SW2
M
PSW
P09
P08
P07
P06
P05
NX
T_BIAS
VDD
XIN
XOUT
AVDD
RESET
CE
DI
G10
G11
G12
S1
S2
CD_CE
VOL_JOG
T_T1/T2
T_REC/PLAY
VPP/IC
DO
CD_CLK
CD_DI
CD_DO
AVSS
TUN_SM(SPAN)
KEY 2
KEY 1
KEY 0
P_IN
REMOCON
VSS
SMUTE
T_SOL_B
T_SOL_A
VDD
G9
G8
G7
G6
G5
G4
G3
G2
G1
VDD
P11
P04
P03
P02
P01
G12
G11
G01
G02
G03
G03
G04
G05
G06
G07
G08
F
POWER
ON/STAND-BY
EQUALIZER
CD
TUNING
DOWN
CD_WRQ
Ð20dBATT
AVREF
CD_DRF
CD_RESOUT
OPEN/
CLOSE
5.6K3.9K2.7K2.2K 15K10K 33K
UP
ENTER
DOWN
CHARACTER
MP3
NAVIGATION
RIGHT
LEFT
TUNER
(BAND)
S3
S4
S5
S6
A
D
SP DET
CD_RESOUT
MEMORY/
SET
REC/
PAUSE
8
27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
1
1
2
3
4
5
7
8
6
9
10
11
12
13
14
15
16
16
1
1
6
6
CD DO
CD DI
CD CLK
CD CE
CLAMP SW
DISC SW
TRAY SW1
TRAY SW2
GND
+5V
SUB_CE
FL DISPLAY
V
OLUME
1
3
2
1
23
PIC3704
CNP802
P6-5 6-G
TO POWER PWB
CNP5
P6-10 12-C
TO CD SERVO PWB
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
R
R795
C701
R725
R724
R733
R736
R721
R720
R719
R718
R722
R723
R731
R728
R727
R726
R729
C720
R791
WTM705
FW701
D712
D711
R773
L701
D713
D714
R783
Q709
C714
RX701
C717
R782
D715
R781
C715
R593
R761
R771
R780
C710
J
OG701
R767
R766
RD29RD28RD27RD26RD24RD23
C722
0.047
C732
0.047
RD25 RD31RD30
RD32
SW728
SW729 SW731SW730SW727SW725 SW726 SW734SW733SW732 SW735
RD18RD17RD16RD15 RD20RD19 RD21
SW717 SW719SW718 SW722SW721SW720 SW723
RD12RD11 RD14RD13
SW716SW713SW712 SW715SW714
RD06RD05RD02RD01 R D04RD03
SW707
SW706SW705SW704SW702SW701 SW703
CNP704
FL701
C702
R704
R701
R702
R703
R705
R706
R707
R763
IC701
C705
R709
C721
R708
C704
C730
0.047
C723
0.047
C727
0.047
R769
XL701
R710
R711
R713
R715
R716
R712
R714
Q713
R573
R739
R717
R759
R768
LED701
FFC704
6
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 9
Figure 6-9 SCHEMATIC DIAGRAM (9/12)
3.3V
5V
5V
5V
+8V
5V
FOCUS/TRACKING/
SPIN/SLED DRIVER
CD
SERVO
CD SIGNAL
VREF
TR-
VCC
E
A
B
C
F
LD
VR
PD
FO-
FO+
FO+
TR+
TR+
TR-
GND
5
6
7
8
9
10
11
12
13
14
16
15
1
2
3
4
SLED
MOTOR
SPINDLE
MOTOR
+-
+-
-
-
PICKUP-IN
M
M
6
5
2
4
1
3
2
5
1
4
3
6
6
5
2
4
1
3
CD MOTOR PWB-F
PICKUP UNIT(306)
10K
680
680
2.2M
0.1
56K
4.7K
0.01
0.001
47/25
10
0.01
0.001
KTA1504 Y
33K
33K
47/25
47
0.01
0.001
100/10
100/10
1
100/10
0.01
10/25
2.2K
0.0015
10K
0.0015
10K
0.01
LA6261
4.7K
KTA1271Y
1K
10K
10K
1
0.047
330
0.0027
0.01
100P
(CH)
0.056
3.3/16
0.01
0.01
330/6.3
MA8033
2.2K
10/25
100
220
0.22
0.047
150
390
390
390
390
390
390
390
390
2.2K
2.2K
4.7K
1K
4.7K
0.001
4.7K 4.7K
0.056
10K
6.8K
5.6K
10K
6.8K
8.2K
6.8K
0.022
1K
2.2K
2.2K
100/10
6.8K
KDS184
0.1
47/10
LC78648E
4.7K
1K
1K
1K
1K
1K
1K
1K
100P(CH)
100P(CH)
100P(CH)
100P(CH)
100P(CH)
100P(CH)
0.022
0.022
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
20
19
18
17
16
15
14
13
11
12
10
9
8
7
6
5
4
3
2
1
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
72 71 70 69 68 67 66 65 64 63 62 6180 79 78 77 76 75 74 73
36 35 34 33 32 31 30 29 28
123456789
27 26 25 24 23 22 21 20 19
10 11 12 13 14 15 16 17 18
100/10
TP
(ML)
(ML)
DATA
XIN
AVDD1
SLCO
EFMIN
RF
LPF
JITTC
AIN
CIN
BIN
DIN
VREF
EIN
FIN
TEC
TE
TEIN
LDD
FEC
PHLPF/RFMON
LDS
FDO
TDO
SLDO
SPDO
AVDD2
DVSS
VPB
DEFECT
FSEQ
EFLG
FSX
PU-IN/CONT1
M0_B-/CONT2
MO_B+/CONT3
MONI1
MONI2
DOUT
TEST
LCHO
LRVSS
RCHO
RVDD
LRSY
XVSS
XOUT
XVDD
IOMODE
F16MIN
OUT1
F16MOUT
ASLRCK
ASDACK
ASDFIN
DATACK
DVDD
DVSS
CE
CL
DI
DO
*WRG
*RES
DRF
C2F/SBCK
MO_SPEED/CONT6
MONI5
MONI3/EMPH
MOT_A+/CONT5
MOT_A-/CONT4
PD01
PD02
PCKIST
VVSS
VVDD
MONI4
AVSS
DVDD
VCC
E
A
B
F
C
TR-
TR+
FO+
PD
FO-
GND
TP2
VREF
LD
VR
GND
REGIN
FWD5
REV5
VCONT5
FWD6
VO5+
VO4+
VIN4G
VIN4
VO3+
PVCC1
MUTE
VIN3
REV6
VCONT6
VIN2G
VIN3G
VIN2
VIN1G
REGOUT
VIN1
PGND1
VO1-
VO2-
VO1+
VO2+
VO3-
VO6-
VO6+
VO5-
VO4-
SGND
VREFIN
SVCC
PGND2
PVCC2
(1/4W)
+B+B+B
+B
+B
+B+B
+B +B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B +B
+B
+B
+B+B+B+B
(1/4W)
LVDD
16.9344MHz
0.82µH
7
8
9
01
11
2
1
3
1
14
1
6
5
1
1
2
3
4
5
6
GND
PUIN
SL+
SL-
SP-
SP+
4
3
5
1
6
2
CD SERVO PWB-C
CNP3A
CNS3A/B
FFC1
NSW1
NM1
NM2
CNP1
C38
R3
R6
C60
C57
CNP3
Q2
C41
IC2
C56
C61
C62
R48
R55
R54
R58
R92
R91
R57
D1
R15
R13
R14
R16
C17
R8
R18
R49
C21
C23
R25
C25
C20
ZD1
C34
0.0033
C82
XL1
R27
R30
R33
R34
R31
R32
R37
R35
R36
R29
RM2
R56
C16 470P
R40
C74
R43
R45
R47
R46
R42
R41
R44
C72
C73
C28
C30
C32
C27
C31
C26
R96
R88
R39
R50
C37
R38
C36
C35
0.001
C83
R99
C3
R9
C4
Q1
C5
R12
C8
C6
C12
C33
C9
C46
C11
R17 R10
C29
C59
C58
R59
R85
C24
R26
R24
C22
L1
R28
R23
C18
C52
R94
R95
R93
C1
C2
IC1
R19
R7
4
2
6
1
9
3
7
8
5
12
11
10
0.022
C86
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
0
R2
0
R1
0
R4
0
R5
CD-G10000
background
CD-G10000/CP-G10000S
6 – 10

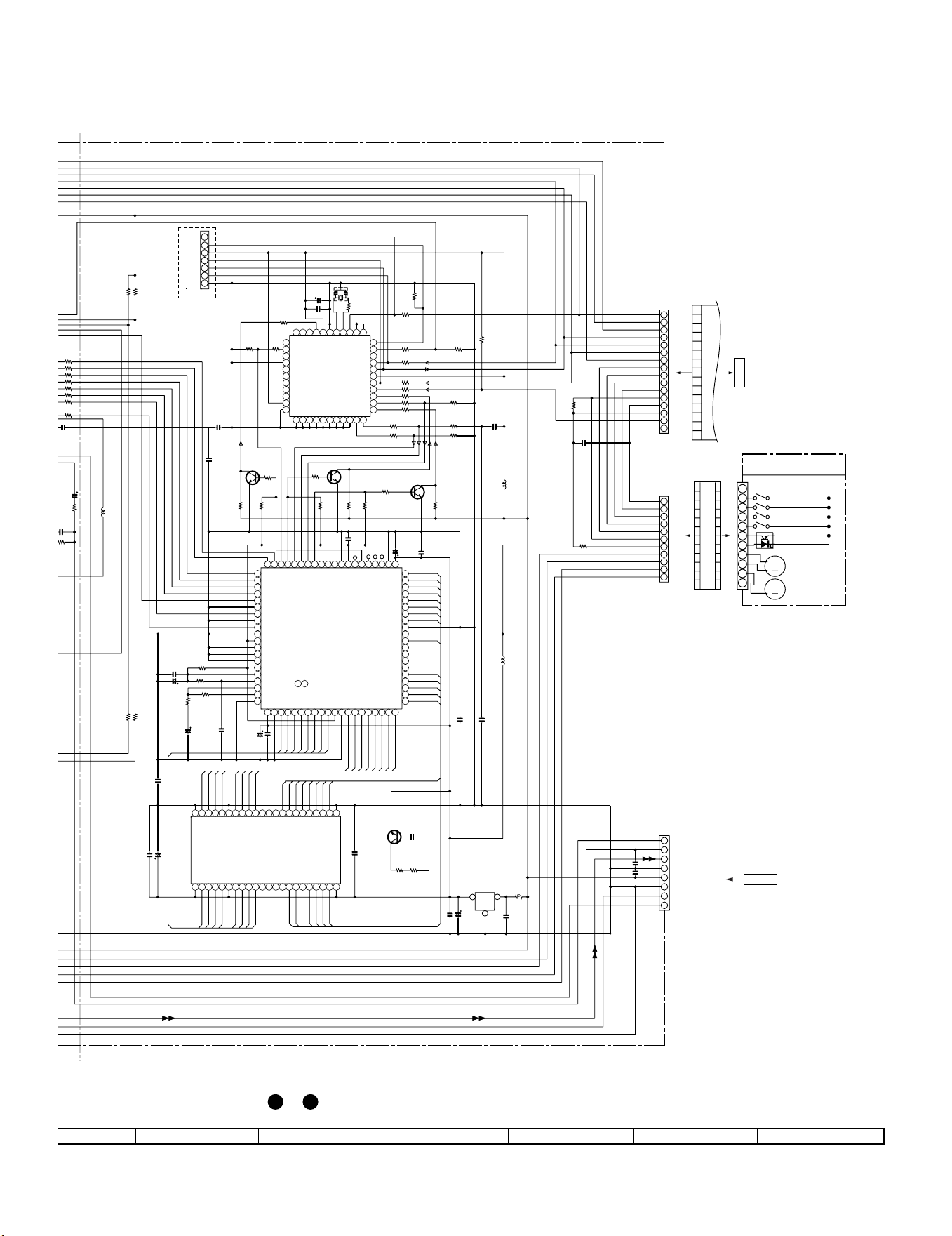

Figure 6-10 SCHEMATIC DIAGRAM (10/12)
5V
2V
5V
5V
3.3V
5V
3.3V
MP3-DEODER
COMPUTER
MICRO-
D-RAM
P6-1 1-B
CNS601
FROM MAIN PWB
10K
270
33K
0.01
0.001
0.001
4.7K
4.7K
4.7K
4.7K
4.7K
0.01
4.7K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
2.2K
2.2K
2.2K
2SD601 AR
0.1
47/10
0.022
3.3
0.1
1K
1
0K
4.7K
0.01
2.2K
1
0/25
390
390
390
390
390
390
390
150
2.2K
2.2K
4.7K 4.7K
100/10
LC78684E
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
20
19
18
17
16
15
14
13
11
12
10
9
8
7
6
5
4
3
2
1
150
82
0.1
47/10
33P
(CH)
47/10
0.01
47/25
47/10
220
0.1
100K
0.01
0.022
2.2K
2SD601 AR
2SD601 AR
1K
2.2K
4.7K
4.7K
LV1625635T
2.2K
1/50
0.01
3.3K
33P(CH)
0.01
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
123456789
10 11 12 13 14 15 16 222120191817
21 22 23
21
2
2
24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
72 71 70 69 68 67 66 65 64 63 62 6180 79 78 77 76 75 74 73
12
11
34
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
2324252627282930313233
35
34
36
37
38
39
40
41
42
43
44
IXA006AW
MDATA13
CASLB
ADRS5
MDATA7
MDATA6
MDATA5
MDATA4
CASUB
ADRS0
RASB
WEB
ADRS3
ADRS7
MDATA15
OEB
MDATA14
OEB
MDATA9
ADRS8
ADRS7
ADRS6
ADRS5
ADRS1
MDATA15
MDATA14
MDATA13
MDATA12
MDATA11
MDATA10
MDATA9
MDATA8
WEB
MDATA2
MDATA1
ADRS4
MDATA10
ADRS2
MDATA11
MDATA7
MDATA6
MDATA5
MDATA4
MDATA3
MDATA2
ADRS4
ADRS3
ADRS6
MDATA8
CASLB
CASUB
ADRS8
MDATA12
RASB
ADRS0
ADRS1
ADRS2
MDATA1
MDATA0
MDATA3
MDATA0
M
L)
CLAMP
DISC
SUB_CE
WRQ
DRF
CE
DO
DI
CL
GND
TRAY SW2
TRAY SW1
CD RES
+5V
GND
TRAY SW2
TRAY SW1
CLAMP
DISC
+5V
CAM+
CAM-
TR+
TR-
2
13
RES
VPP
+5V
FCLK
FDO
FDI
GND
DVDD3
2.0V
MP3 CL
MP3 CE
MP3
MP3
FLASH
FOR
ONLY
+8V
+B
+B+B
+B
+B
+B+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
AVSS
DGND_DRIVER
TPTPTP
TP
AVREF
AVDD
VSS
FDO
FCLK
FSYNC
VDD
VSS
X1
X2
RESET
ICO
CDEMPH
MP3-RES
SYS-DI
SYS-DO
VDD
SYS-CL
SYS-CE
INTB
DI
DO
CL
CE
FSYNC
DATACK
DATAIN
RESB
INTB
CMDIN
CMDOUT
OVF
CNTOK
WOK
VSS
DVDD6
CRCF
STDAT
STCK
STREQ
VSS
DVDD6
VSS
DVDD4
VSS
VSS
DVDD2
AVSS
VPDO
VCOC
VPRFR
AVDD1
SBCK
SFSY
SBSY
PW
DVDD1
TEST2
CKOUT
VSS
CKIN(16M)
TEST1
C2FIN
ADLRCK
ADBCK
ADDATA
LRSY
VSS
VSS
DCASLB
DCASUB
DOEB
ADRS8
ADRS7
ADRS6
ADRS5
ADRS4
VSS
VCC
ADRS3
ADRS2
ADRS1
ADRS0
DRASB
DWEB
VCC
VCC
+5V(ANL)
+5V(DIG.)
DGND
L-CH
AGND
R-CH
11
01
9
8
7
1
2
3
4
5
6
6
14
7
01
5
2
1
5
1
1
6
1
3
4
11
8
3
1
9
2
7
1
2
3
4
5
6
2.2µH
0.82µH
4.19MHz
2.2µH
5
6
7
8
4
3
2
1
0
3
4
1
2
7
5
6
R17 R10
CNP4
R71
R76
C50
C51
XL2
R75
R74
R68
R73
R69
R72
R67
R66
R77
R64
R78
R65
R63
R61
R62
R60
IC5
R22
Q4
R20
R84
R89
R87
C70
R21
R79
Q5
R52
R86
Q3
C68
C69
C44
R83
R80
R82
C63
R81
C42
C29
C64
C65
C66
IC4
C59
C58
C10
C39
IC6
SI3033LUS
VOLTAGE
REGULATOR
C14
C13
FJ1
C48
C76
CNP2
CNP6
R98
CNP5
R97
RM1
C71
0.1
C87
L2
L3
C53
C75
IC3
R70
C47
0.022
C85
R59
R85
C
24
R
26
R24
C22
L1
0.022
C84
M
M
11
11
1
11
2
3
4
5
6
7
8
9
10
11
11
1
16
+
+
-
-
TRAY
MOTOR
MAIN CAM
MOTOR
5-CHANGER
MOTOR PWB-E
CNP704
P6-8 12-C
TO DISPLAY PWB
CNP6A
SW4 DISC
SW1 CLAMP
SW2 TRAY SW1
SW3 TRAY SW2
RX1
M1
M2
FFC4
FFC704
• The number 1 to 12 are waveform number shown in page 5-3.
6
7
8 9 10 11 12
470P
680
RM6
270
RM5
Q6
KTC3875 GR
background
CD-G10000/CP-G10000S
6 – 11
Figure 6-11 SCHEMATIC DIAGRAM (11/12)
+12V
10K
10K
10(1/2W)
1.5K
10K
LG901
A50ABC2L
560
A50ABC2L
560
0.001
5.6K
KTC3199 GR
1K
2.2K
10K(A)
39K
4700/50
4700/50
39K
560
1000/25
4.7K
5.6K
10/50
D10XB60
0.1
0.1
D10XB60
10/50
100P
DZ5.1BSB
100K
100P
10/50
470K
120K
0.033(ML)
KIA4558P
OPE AMP.
8
4
100K
2.7K
100P
10/50
0.22
1K
1K
1
DZ3.9BSB
100P
10/50
10K
DZ3.9BSB
100P
10/50
1K
DZ5.1BSB
1K
2.7K
100P
100P
1K
0.1(ML)
1K
KIA4558P
OPE AMP.
8
4
10/50
0.12
1K
560(3W)
DZ13BSB
220/16
GD1N4004
47K
10K
10/5
0
1N4148H
1N41
4
1N4148H
1N4148H
47K
47K
10K
1K
3900/85
1N4148H
560
220/16
DZ13BSB
DZ12BSB
GD1N4004
47K
3900/85
0.1/50
KIA7812AP
VOLTAGE
REGULATOR
31
0.1
22K
0.1
0.1(ML)
0.1(ML)
56K
56K
47/50
560
47/50
KTC3199 GR
1N4148H
100/50
100/50
1.8K
2.2K
0.01
0.
2
0.2
2
0.1
DZ12BSB
33K
47/50
56K
56K
0.1
STK41244
KTC3199 GR
KRC102 M
KRC102 M
KRC104 M
1N4148H
KTC3199 GR
100(1/4W)
Fusible
3P
1K
56K
100/100
1.5K
1.5K
100P
2.2K
56K
100/100
R910
1K
56K
0.01
KTC3199 GR
0.1
1.8K
0.22
1K
100/100
1/50
1K
1/50
0.22
100P
3P
100(1/4W)
Fusible
C914
100/100
12
21
12
12
1212
2
1
2
1
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
2
1
6
5
32
1
7
6
5
32
1
7
123456789
101112131415161718
2
VH+
(3W)
+
-
-
+
+
-
-
+
CHASSIS
L_CH INPUT
R_CH INPUT
(5W)
(5W)
(ML)
GND
VL+
VL-
VH-
VH+
(1/2W)
(1/2W)
(ML)
(ML)
CHAS
S
L
-
+
-
+
VL-
VL+
VH-
(ML)
(ML)
VH+
VH-
VL-
VL+
(5W)
(5W)
(ML)
(ML)
3µH
3µH
D803~D806: GD1N4004
SUBWOOFER
INPUT
JACK
PWB-A3
LED B PWB-B4 LED A PWB-B3
VOLUME PWB-B1
10K(A)
CROSSOVER
FREQUENCY
VOLUME
+B
+B
+B
+B
+B
+B
+B
+B
+B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
POWER AMP.
R905
C906
R906
C905
C911
R942
C909
R907
C908
C912
R908
R903
R904
C907
C910
R912
C913
R913
C903
C904
R901
R902
C901
C902
VR502
R535
R538
C529
ZD502
R522
R525
Q501
R524
R523
ZD501
C517
C518
C521
R520
R518
R519
C516
C515
C519
R517
C520
C514
R513
ZD504
R514
VR501
C526
C511
C510
R511
R533
R528
C508
R510
C507
C501
R507
C506
C512
C513
ZD503
R512
IC501
CNP501 CNP502
R536
LED501
R526
BI501
BI502
CNS502 CNS501
CNP503
CNP505
CNS505
CNS503
CNP902
CNP504
CNS504
CNS902
Q901
D901
R917
R919
C919
R915
R911
R909
C915
C916
D902
Q902
R920
C917
R916
R918
R914
IC901
ZD901
ZD902
R922
R921
C918
R923
R924
C922 C923
C920
C937
D904
R925
D905
R926
R955
C931
D910
D91
2
D913
D911
R958
R959
R960
R957
C921
R935
C933
ZD903
D903
C925
R928
R927
L902
Q904
Q907
Q908
Q909
R929
Q903
L901
R933
C9
2
C9
2
D801
D802
D805
D803
D806
D804
C807
IC801
C810
R801
C808
R502
R501
SO501
LG902
C804
C803
IC502
R521
C523
C522
LED502
R537
R527
C932
R934
ZD904
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CP-SW10000S
background
CD-G10000/CP-G10000S
6 – 12

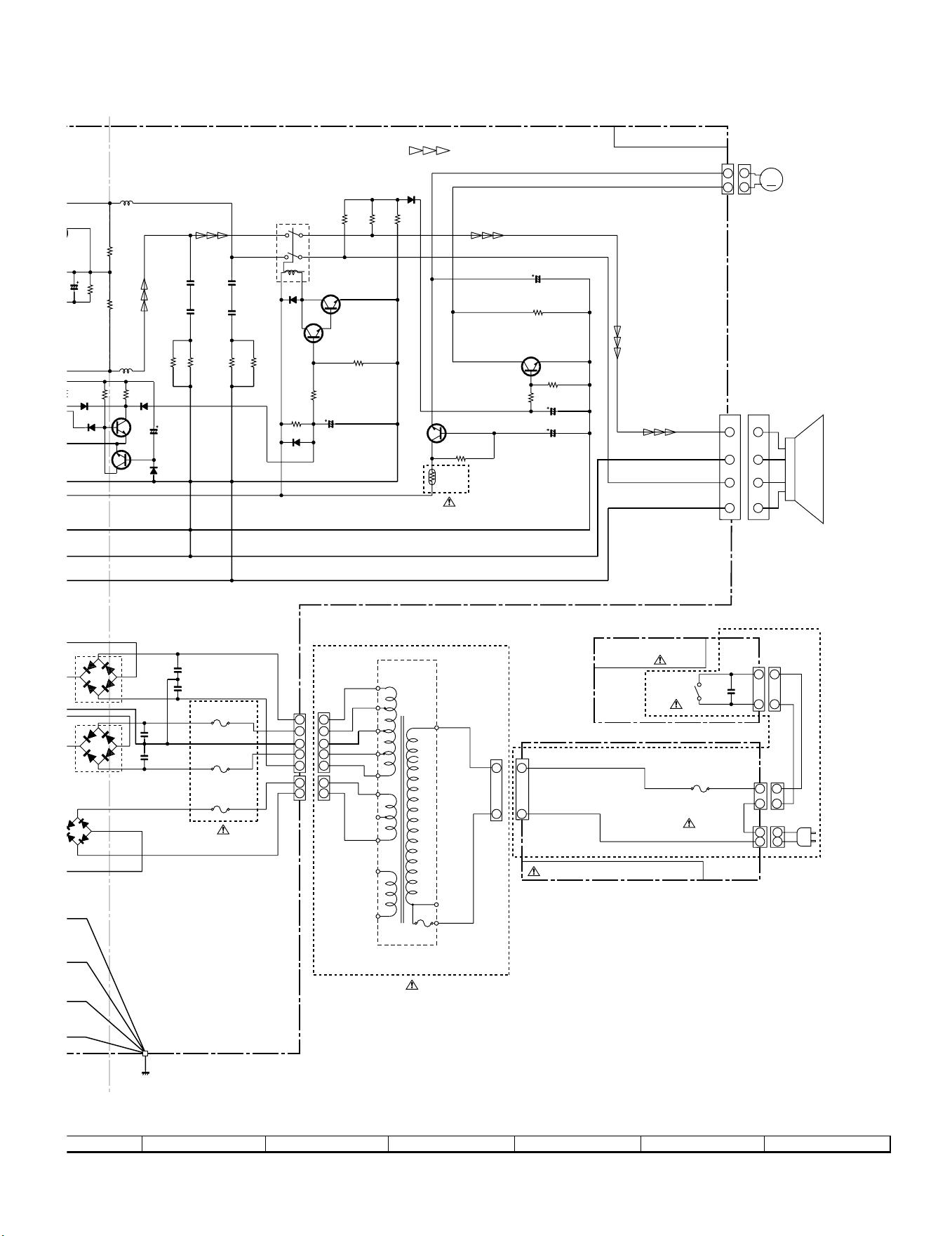

Figure 6-12 SCHEMATIC DIAGRAM (12/12)
SUBWOOFER SIGNAL
10(1/2W)
10(1/2W)
10(1/2W)
22K
4.7
47/25
KTC3205 Y
1.5K
KTC3203 Y
4.7K
120K
100/16
10/50
1N4148H
47K
15K
4
3
2
1
4
3
2
1
0.047
0.22
0.22
D10XB60
0.1
0.1
0
1N4148H
1.5K
1.5K
KTC3199 GR
KTC3199 GR
47/25
47K
1N4148H
10/50
1N4148H
1N4148H
1N4148H
1N4148H
47K
10K
0.22
0.22
47/50
56K
56K
10(1/2W)
0.22
0.22
KRC102 M
KRC104 M
56K
9
GR
2
1
5
4
2
1
3
2
1
2
1
2
1
2
1
2
1
2
1
2
1
6.3A/125V
SP_R-CH
POWER PWB-A1
AC POWER SUPPLY CORD
120 V, 60 Hz
T6.3A/125V
T6.3A/125V
T500mA/125V
FAN MOTOR
CHASSIS
L
R
L
SP_L-CH
SP_L-CH_GND
SP_R-CH_GND
-
+
R1_OUT
L1_OUT
(ML)
(ML)
2
2
4.7
Posistor
M
1
2
1
2
5
4
2
1
3
1
1
3µH
3µH
6
: GD1N4004
TRANSFORMER PWB-A2
POWER SWITCH
PWB-B2
POWER
SUBWOOFER
-B
-B
C931
D910
D912
D913
D911
R959
R960
C925
R928
R927
L902
Q908
Q909
R929
L901
R933
R931
R930
C929
C927
R932
C928
C926
D906
D802
D805
D806
LG902
F806
F804
F805
C804
C803
C805
C806
CNP805
CNS805
CNP806
CNS806
PT801
POWER
TRANSFORMER
T.F.
CNP804
F801
CNP801
CNP802
CNS802
CNS803
C935
SW802
CNP803
CNP901
CNS901
CNP402
CNS402
CNS804
R409
C404
Q401
R402
Q402
R404
R405
C402
C401
R401
R938
R939
Q905
Q906
C930
R940
D907
RL901
D908
R941
R936
R937
M401
SP1
6
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 13
[2] Wiring side of PWB
Figure 6-13 WIRING SIDE OF PWB (1/11)
Q902
R91
9
C91
7
R911
C910
R904
C913
R902
C904
R906
R909
C355
R355
C356
R395
R374
R373
R378
R372
R388
JP317
C382
R359
R376
C381
C395
R360
C387
R379
JP303
C386
C392
R377
R385
C385
R380
R383
JP308
R325
R327
C324
C311
JP312
R302
C313
C351
C310
VD303
JP310
C312
R353
C353
C350
C354
R352
C309
C399
C308
C366
R365
R311
R351
C316
VD302
R313
C317
R316
C369
C334
R350
C361
R356
R323
C363
C342
R336
R357
C332
C335
R619
R613
R614
R615
JP662
JP805
R612
Q601
Q608
Q602
R611
R621
R610
R905
R901
R937
C903
R903
C907
Q903
C908
Q904
R907
R908
Q901
R920
C919
R947
R946
R956
R957
C330
C693
VD301
C338
C323
JP309
C303
C304
C315
C305
C347
R322
C306
JP307
R381
C397
C384
C302
C376
C379
C377
C378
1
2
AM LOOP
ANTENNA
CNS603
P6-20 4-G
FROM
GAME INPUT PWB
Q603
R62
0
R617
R616
Q604
R608
C626
R641
C
6
R606
R604
C640
C946
R618
C624
C622
R642
C620
IC601
C618
C616
C614
C602
C606
C601
C608
C603
C610
24
23
22
21
20
19
18
17
16
15
14
13
C388
Q607
C923
R916
R917
R913
R922
R918
R910
IC901
R912
R958
C902
C906
C909
C372
C371
C374
C373
C358
C370
L352
ZD351
C383
X352
IC302
R386
C396
R384
R387
L351
C391
C380
R391
R392
R375
C393
C318
R382
C320
Q360
C389
Q302
T301
T351
R393
CF352
C398
C352
CF351
T302
R309
C357
CF303
IC303
D305
L312
X351
C367
C362
R358
C368
C365
C364
T306
C901
C639
C905
C925
L902
LG4
D907
R934
R935
L901
C911
C912
R921
RL914
D905
D906
D911
R943
R942
C920
LG2
C929
R939
R941
L920
SO901
SPEAKER
TERMINAL
SO904
SURROUND
SPEAKER
TERMINAL
JK904
SUBWOOFER
PRE-OUT
L921
R938
R940
C928
R945
R944
D912
R950
R949
C931
Q905
R959
Q907
Q906
R951
JK691
VIDEO OUT
CNP603
D691
D690
C331
T303
D302
D301
CNP301
BF301
R314
IC301
S0302
FM ANTENNA
TERMINAL
C307
C394
BI901
CNS901
CNP971
M901
FAN MOTOR
CNS971
CNP903
R960
R961
C960
C961
C962
R962
1
2
123456789
10 11
22 21 20 19 18 17 16 15 14 13 12
1
2
3
4
5
6
7
8
9
10 11
222324
21
20
19
18
17
16
15
14
13
12
1
3
1
2
3
4
5
6
7
8
9
12 3
1
2
3
4
5
6
7
8
9
10111213
14
15161718
2
1
RD
BR
1
2
123
FM
75 OHMS
GND
BCE
B
3
2
1
C
E
123
TP302
TP301
1
2
3
4
5
ECB
BCE
BCE
L-CH
L-CH
R-CH
R-CH
MAIN PWB-A1
SPEAKER
TERMINAL PWB-H
CD-G10000
3
2
1
A
B
C
D
E
F
G
H
1
23456
background
CD-G10000/CP-G10000S
6 – 14
Figure 6-14 WIRING SIDE OF PWB (2/12)
Q109
R140
Q112
R141
Q110
R147
R146
R143
R148
R108
R107
R110
R109
R144
Q114
Q105
C104
R106
Q106
C106
R112
R104
C105
C102
C101
R103
R118
R105
R102
R134
C130
C116
C110
R120
C108
R128
C124
R126
R150
C135
R122
R124
R138
C120
R136
Q108
R132
R135
R130
C129
R131
R133
C121
R129
C123
R127
R137
C119
R121
R123
C107
JP608
C109
R101
R119
C115
R117
Q107
R139
Q113
Q885
R887
C885
R885
Q886
R886
Q902
R919
C917
R607
C611
R605
C631
R620
R617
R616
Q
604
R609
R608
C625
C626
R643
R641
C612
0
6
C652
C651
C653
R601
R603
R602
C609
C607
C605
C615
C613
C617
C619
C621
C623
C946
2
4
2
2
2
0
IC601
18
16
14
C602
6
06
C601
6
08
C603
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
BI601
CNS601
1
9
RD
BK
BK
BK
WH
WH
WH
WH
1
2
3
4
5
6
7
8
BK
BK
BK
WH
RD
WH
WH
WH
CNP2
P6-18 11-G
TO CD SERVO PWB
LG1
C952
CNP901
BI801
C850
C856
C851
LG3
R142
L103
R149
C140
C139
C141
Q111
C138
R145
C137
R111
Q104
C111
C103
Q102
C113
R115
R114
R113
Q101
R116
Q103
CNP101
C150
C112
C118
C132
C114
C133
C134
C128
R158
C126
C131
C127
C125
C143
IC101
CNP701B
C117
D860
D862
D861
R859
R857
R853
C852
C817
C865
C859
R864
C864
C915
C854
C855
R854
ZD805
D863
D885
C914
R889
R863
ZD903
C918
R888
R926
R930
R925
R928
R927
C916
D909
R929
C922
C921
D910
R916
R918
ZD902
R958
IC852
CNS801
FFC701
IC851
1
11
123
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
23
1
2
3
4
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
FW901
P6-20 4-H
FROM GAME INPUT
PWB
RD
BL
WH
BL
WH
BL
WH
BL
BL
WH
CNP801
P6-20 4-A
TO POWER PWB
FROM TAPE 1 PLAYBACK HEAD
1
16
CNP701A
P6-15 3-G
TO DISPLAY PEB
1
2
3
4
5
6
7
ECB
ECB
ECB
ECB
ECB
CNP102
FROM
TAPE 2 RECORD/PLAYBACK HEAD
1
2
3
4
5
6
7
7
8 9 10 11 12
P6-19 4-E
P6-19 5-E
background
CD-G10000/CP-G10000S
6 – 15
Figure 6-15 WIRING SIDE OF PWB (3/11)
R733
R736
R721
R7
2
R773
R720
R718
C7
2
R766
R768
R719
RD11
R767
RD12
Q714
R727
R777
JP718
R728
R779
Q715
JP717
C710
C709
R778
JP701
R776
R785
R775
Q716
JP707
R726
C732
Q717
C722
R762
R724
C727
R731
R784
R732
JP708
R761
RD02
RD03
RD06
RD05
IC701
FL701
SW713
CD/
VIDEO CD
R739
D716
R723
R759
Q706
Q
7
Q707
JOG701
VOLUME
SW705
FAST REWIND/
PRESET DOWN
R780
SW706
EQUALIZER
R771
R725
SW712
TUNER (BAND)
R789
C717
SW707
FAST
FORWARD/
PRESET UP
R788
RX701
R754
C702
R729
R741
R740
R746
R730
R750
CNP701A
SW701
ON/
STAND-BY
SW702
CLOCK/
TIMER
RD01
SW703
TUNING UP
RD04
SW704
TUNING
DOWN
LED701
FFC701
5
90
85
81
80
75
70
65
60
55
51
50
45
40
35
31
30
25
20
15
10
95
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CNP701B
P6-14 10-B
TO MAIN PWB
116
DISPLA PWB-A2
E
C
B
51 50 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22
2
321
BCE
BCE
CD-G10000
A
B
C
D
E
F
G
H
1
23456
background
CD-G10000/CP-G10000S
6 – 16
Figure 6-16 WIRING SIDE OF PWB (4/11)
RD30
RD31
RD29
RD32
RD28
RD27
RD26
Q710
C723
R791
Q713
Q709
R783
C715
R781
RD14
RD16
RD15
JP705
R716
R718
R719R720
R721
R717
R715
R714
R713
C721
C730
C705
R706
R703
R702
R701
R763
JP702
C704
JP706
R722
R
773
R718
C720
R768
Q711
77
Q712
8
R770
R779
R786
R790
C710
J
P701
7
01
SW733
DISC 5
SW732
DISC 4
SW734
DISC 3
SW731
DISC 2
SW735
DISC 1
SW730
DIRECT
PLAY
R795
C707
C701
SW729
OPEN/
CLOSE
R751
CNP704
R704
R705
R573
L701
C714
D715
R782
D712
D711
D713
D714
SW728
MEMORY/
SET
RD25
RD24
SW727
REC/
PAUSE
WTM705
SW726
STOP
CNP702A
SW716
X-BASS/
DEMO
SW715
GAME/VIDEO
SW717
LEFT
SW718
UP
SW719
CHARACTER
SW720
RIGHT
SW723
MP3 NAVIGATION
SW721
ENTER
SW722
DOWN
RD23
SW725
PLAY/
REPEAT
R707
R708
R769
XL701
R745
LED703
R794
1
R710
R709
R711
R712
SW714
TAPE
RD13
R717
R739
D716
R723
R759
Q708
R787
O
G701
O
LUME
D709
D710
FW701
FFC702
FFC704
100
5
90
85
81
80
7
5
20
15
10
95
1
1
1
6
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
P6-18 10-G
TO CD SERVO PWB
CNP802
P6-20 5-A
TO POWER PWBP6-19 3-B
TO TAPE MECHANISM PWB
1
3
4
2
5
6
7
17
24 23
2
625 22212019181716151413
12 11 10 9 8 5 4 21
B
CE
B
CE
1
16
CNP5
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 17
Figure 6-17 WIRING SIDE OF PWB (5/11)
R7
C51
R76
L2
IC5
R65
R64
R77
R66
R67
R69
R72
R74
R73
C71
L1
R56
RM1
C66
R14
R13
R16
R15
C10
IC4
C59
C53
L3
IC6
R98
IC3
C68
C70
C83
R54
R55
R91
C62
C84
R92
R59
R85
R8
IC2
R6
R3
R4
R1
R5
R2
C8
R12
C5
C46
R38
C35
C36
R99
C37
R39
R50
R49
R29
R18
R93
IC1
C34
C17
RM2
ZD1
R37
R36
R35
R34
R33
R32
C25
R28
R31
R30
C52
R78
C47
C82
R63
R61
R62
R60
C75
1
1
1
1
5
9
10
18
19
15
20
25
30
35
36
5
5
510
12
15
20
23
2530
33
35
40
44
10
10
15
15
25
3035
40
41
45
65
50
55
60
61
70
75
25
45
30
35
40
41
1
1
5
10
15
20
22
23
25
30
35
40
44
2
3
50
55
60
65
70
75
80
61
80
20
20
21
21
CD/MP3 PWB-D (TOP VIEW)
8
4
5
7
3
12
1110
9 6 2 1
A
B
C
D
E
F
G
H
1
23456
CD-G10000
background
CD-G10000/CP-G10000S
6 – 18
Figure 6-18 WIRING SIDE OF PWB (6/11)
D1
R58
R57
R48
C60
R87
R84
R20
C86
R46
C31
R45
C30
R52
R47
C32
Q3
R43
C28
R44
C73
R21
R42
C72
R41
C27
Q5
R97
R80
C29
C39
C48
C13
C76
R83
R82
R70
R71
C2
R75
R68
C4
Q1
C38
R9
C42
C64
R27
R81
R86
R89
R79
C74
R25
R23
Q4
R22
R19
R26
R24
R88
R40
C26
R17
R10
R96
C11
C6
C12
C33
FFC704
FFC1
FFC4
C58
CNP2
FJ1
C14
R95
R94
CNP5
C69
C85
C41
C23
C57
C24
C61
C56
Q2
CNP6
CNP3
CNP1
C9
C18
C21
C20
XL1
C3
C22
C44
XL2
C1
C65
C50
C63
CNP4
CD/MP3 PWB-D (BOTTOM VIEW)
1
1
12345678
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
15
13
14
11
12
10
9
8
7
6
5
4
3
2
1
1
1
1
11
2
3
4
5
6
7
8
9
10
11
E
C
B
6
5
4
3
2
1
6
7
5
4
3
2
1
P6-14 11-E
FROM MAIN PWB
P6-16 11-D
TO DISPLAY PWB
CNS601
P6-19 5-F
FROM
CD MOTOR PWB
CNS3B
P6-19 1-D
TO
CHANGER PWB
CNP6A
P6-19 1-G
TO
CD PICKUP UNIT
CNP704
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 19
Figure 6-19 WIRING SIDE OF PWB (7/11)
-
+
CNP6
NSW1
PICKUP IN
CNP3A
NM2
SLED MOTOR
NM1
SPINDLE MOTOR
FFC702
CNP6A
FFC4
M1
TRAY
MOTOR
P6-18 7-E
TO
CD SERVO PWB
CNP1
CNP3
P6-18 7-D
TO
CD SERVO PWB
P6-18 8-8
TO
CD SERVO PWB
M2
MAIN CAM
MOTOR
SW1
CLAMP
SW2
TRAY SW1
SW3
TRAY SW2
SW4
DISC
RX1
PICKUP UNIT(306)
1
16
12345
6
+
-
-
+
CD MOTOR
PWB-F
5-CHANGER
MOTOR PWB-E
BK
YL
WH
BK
RD
WH
BK
RD
BK
WH
23
1
P6-14 10-D
TO MAIN PWB
CNP102
CNP101
P6-14 9-B
TO MAIN PWB
TAPE 2
ERASE HEAD
RECORD/PLAYBACK
HEAD
TAPE 1
WH
BK
GR
GR
BL
YL
WH
PK
BK
WH
PK
GR
1
2
SW
TAPE
MOTOR
SOLENOID
TAPE MECHANISM PWB-D
SW
SOLENOID
SW
TAPE MECHANISM
ASSEMBLY
1
2
3
4
5
6
7
1
7
CNP702
P6-16 7-A
TO DISPLAY PWB
1234567
11 11
11
1
3
5
7
9
11
2
4
6
8
10
+
+
-
-
PLAYBACK HEAD
• The number 1 to 12 are waveform number shown in page 5-2.
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
FFC1
1
16
1
16
CNS3A
CNS3B
RD
WH
GR
WH
GR
WH
12345
6
12345
6
A
B
C
D
E
F
G
H
1
23456
CD-G10000
background
CD-G10000/CP-G10000S
6 – 20

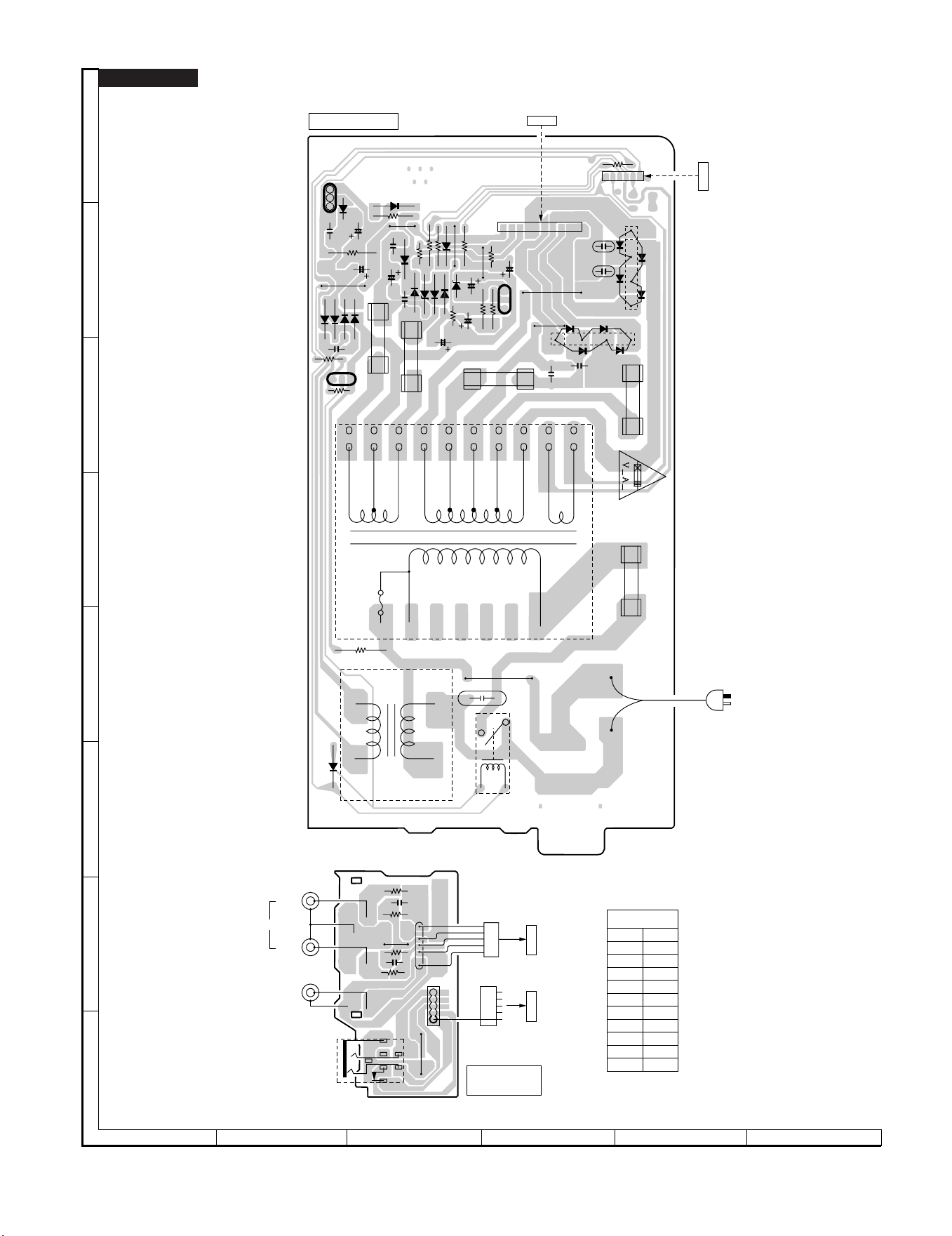

Figure 6-20 WIRING SIDE OF PWB (8/11)
WTM901
R693
C691
JK690
GAME INPUT
R691
BI603
R690
C690
R692
RL841
C844
PT841
SUB POWER TRANSFORMER
R890
D846
PT801
MAIN POWER TRANSFORMER
D802
C808
C809
Q801
R891
R808
C802
R806
C804
C807
D845
D844
Q841
D842
R843
C843
D843
R842
C861
IC854
D856
R858
C841
C842
R844
D853
C805
C806
D804
D803
R802
ZD802
R801
D805
R805
D806
ZD801
ZD803
R804
C803
R803
C801
CNP801
R841
CNP802
D801
C810
C811
CNS603
FW901
JK692
HEADPHONES
F805
6A/125V
F801
5A/125V
F802
5A/125V
F803
2A/125V
F804
2A/125V
BK
BK
BK
BK
BK
1
2
3
4
5
CNP602
P6-13 2-E
TO MAIN PWB
CNP901
P6-14 10-G
TO MAIN PWB
1
5
1
5
GAME INPUT
PWB-B2
FW701
CNS801
P6-14 14-G
FROM MAIN PWB
P6-16 10-A
FROM DISPLAY PWB
1
123456
23456789
10
POWER PWB-B1
1
6
R-CH
AUX/VIDEO
VIDEO IN
L-CH
AC POWER SUPPLY CORD
AC 120 V, 60 Hz
T.F.
WH
BK
BCE
B
C
E
1
2
3
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
CD-G10000
A
B
C
D
E
F
G
H
1
23456
background
CD-G10000/CP-G10000S
6 – 21
Figure 6-21 WIRING SIDE OF PWB (9/11)
L902
L901
ECB
BCE
BCE
ECB
CNS402
CNS901
M401
FAN MOTOR
SP1
SUBWOOFER
CNP901
CNP402
R937
C926
C928
R932
R930
RL901
R933
C929
Q905
D910
D912
R960
Q907
R920
D913
R958
Q902
D911
Q909
R959
R918
Q908
C917
C919
R913
R917
R916
R915
Q901
R919
D901
R910
C906
C908
R928
C910
R908
D902
R906
R957
C937
C931
R955
R938
R939
R909
C907
C909
R907
C905
Q906
C930
R903
D906
R940
D907
D903
C903
R901
C901
R905
C911
R942
C927
R931
R927
Q904
R929
Q903
C925
R941
D908
R936
C912
R912
C904
R902
C902
C913
C916
ZD901
ZD902
R921
R922
R904
IC901
R911
D905
D904
R914
D801
CNP805
CNP806
CNP902
C932
ZD904
C805
C806
R925
D802
C803
C804
R923
C920
C921
CE1
R926
C915
C914
C808
C810
R801
C918
R401
C404
Q401
R402
R403
C401
R405
R404
R409
Q402
C402
LG901
LG902
C922
C923
R924
R934
R935
C807
ZD903
F806
500mA/125V
F804
6.3A/125V
F805
6.3A/125V
C933
D806
D803
D804
D805
IC801
E
C
B
E
C
B
E
C
B
B
C
E
B
C
E
E
C
B
B
C
E
1
2
3
4
CNS902
P6-23 5-C
FROM VOLUME PWB
RD
BR
1
2
POWER PWB-A1
RD
RD
BK
BK
1
1
2
2
3
4
1
1
1
2
3
4
5
2
2
3
4
5
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
A
B
C
D
E
F
G
H
1
23456
CP-SW10000S
background
CD-G10000/CP-G10000S
6 – 22
Figure 6-22 WIRING SIDE OF PWB (10/11)
CNS804
CNP802
CNS801
CNS805CNS806
PT801
POWER
TRANSFORMER
F801
6.3A/125V
2
1
12
12
2
1
2
1
6-28 5-C
FROM VOLUME PWB
BR
BL
AC POWER SUPPLY CORD
AC 120 V, 60 Hz
CNS802
P6-23 4-E
FROM
POWER SWITCH PWB
TRANSFORMER PWB-A2
BL
BR
BL
BR
12
12345
YL
YL
RD
BL
BK
BL
RD
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
CNP804
CNP801
7
8 9 10 11 12
background
CD-G10000/CP-G10000S
6 – 23
Figure 6-23 WIRING SIDE OF PWB (11/11)
CNP503
CNP502
CNP504
CNP501
R536
LED501
R526
R527
BI501
BI502
CNS502
CNS504 CNS902
CNS501
LED502
CNP803
C935
R537
CNP505
R502
R501
SO501
SUBWOOFER
INPUT
CNS505
CNS503
CNS803
SW802
POWER
CNS802
1
1
2
1
2
1
2
1
2
1
2
2
1
3
4
5
1
2
3
4
5
1
2
3
4
5
2
12
12
1
2
LED B PWB-B4
LED A PWB-B3
VOLUME PWB-B1
JACK PWB-A3 POWER SWITCH PWB-B2
1
2
WH
WH
GR
GR
RD
CNP902
TO POWER PWB
6-31 6-B
WH
BK
WH
BK
GY
1
2
1
2
1
2
BR
BL
CNP802
6 - 32 12 - B
TO TRANSFORMER PWB
BR
COLOR
TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W) BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
A
B
C
D
E
F
G
H
1
23456
CP-SW1000S
C511 R511
R507
C510
R510
ZD504
C507
R533
IC501
C526
C513
ZD503
C501
R512
C512
C506
C534
R525
R524
Q501
R521
R538
R523
C529
R535
C514
R522
R514
R513
C515
C520
IC502
C508
R517
R528
C518
C517
R518
ZD501
R520
R519
C521
C519
ZD502
C522 C516
C523
1234
8765
1234
8765
VR502
VR501
VOLUME
CROSSOVER
FREQUENCY
B
C
E
background
CD-G10000/CP-G10000S
7 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE
CHAPTER 7. FLOWCHART
[1] Troubleshooting
1. When the CD does not function
The CD section may not operate when the objective lens of the optical pickup is dirty. Clean the objective lens, and check the playback operation.
When this section does not operate even after the above step is taken, check the following items.
Remove the cabinet and follow the trouble shooting instructions.
“Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens. Before attempting
any adjustment make certain that the lens is clean. If not, clean it as mentioned below.”
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
2. When a CD cannot be played
2.1. “E-CD01” is displayed.
1) Check the power to IC1 (LC78648E), the presence of the clock signal (16.9344 MHz) and the status of the RESET terminal (pin 67 on IC1).
2) Does the pickup move to the PICKUP-IN Switch (NSW1) position?
If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).
2.2. Pressing the CD operation key is accepted, but playback does not occur.
1) Focus-HF system check
2) Tracking system check
3) Spin system check
4) PLL system check
5) Others

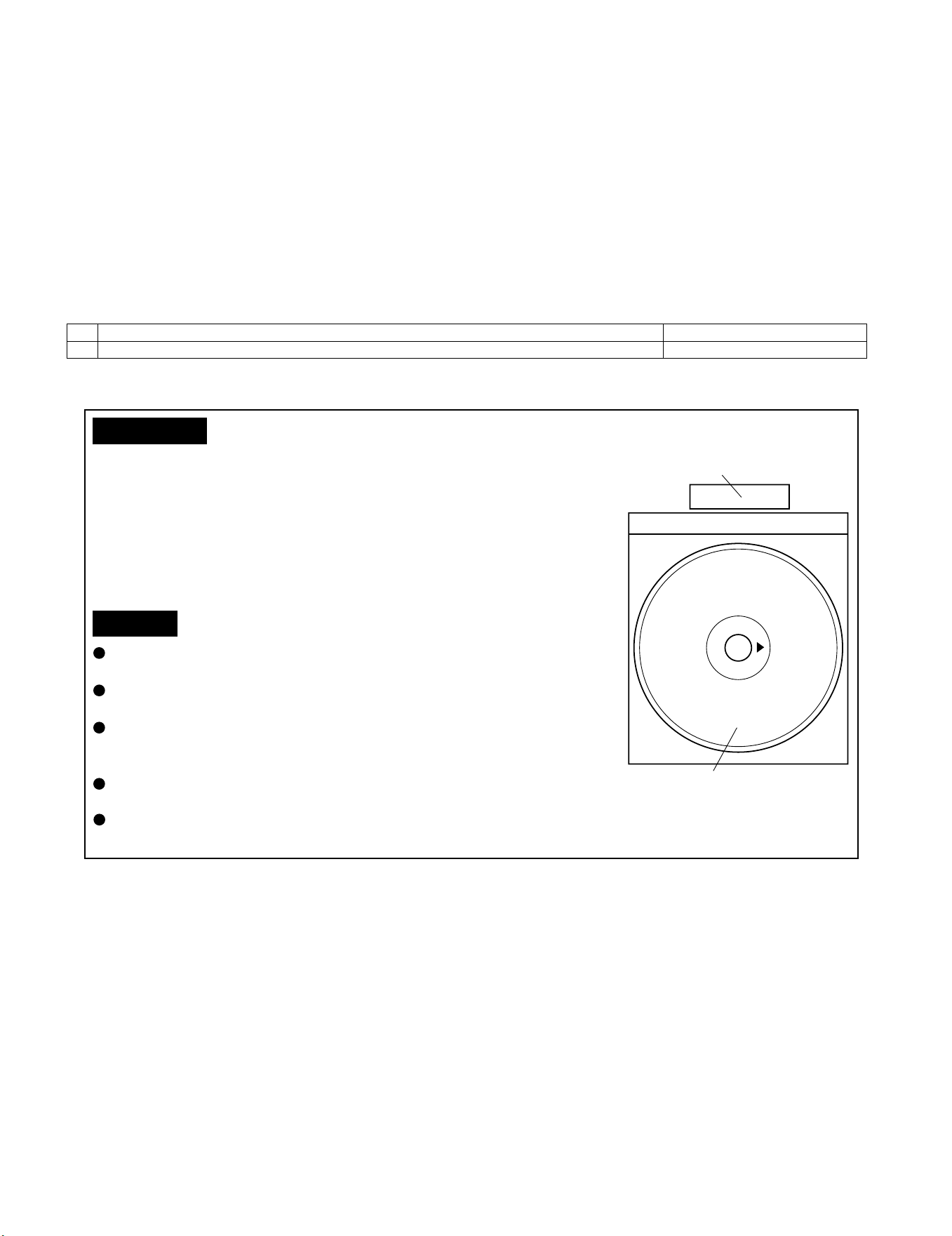

Parts code
1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ
HOW TO USE
CAUTION
Cleaning fluid
Cleaner disc
Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it still play continuously, press the stop button.
1.
2.
3.
The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please replace the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it contact with the eyes. In the event of this
happening then drink and / or rinse with clean water and seek medical advice.
The CD cleaner disc must not be used on car CD players or on computer CD-ROM
drives.
All rights reserved. Unauthorized duplicating, broadcasting and renting this product
is prohibited by law.
background
CD-G10000/CP-G10000S

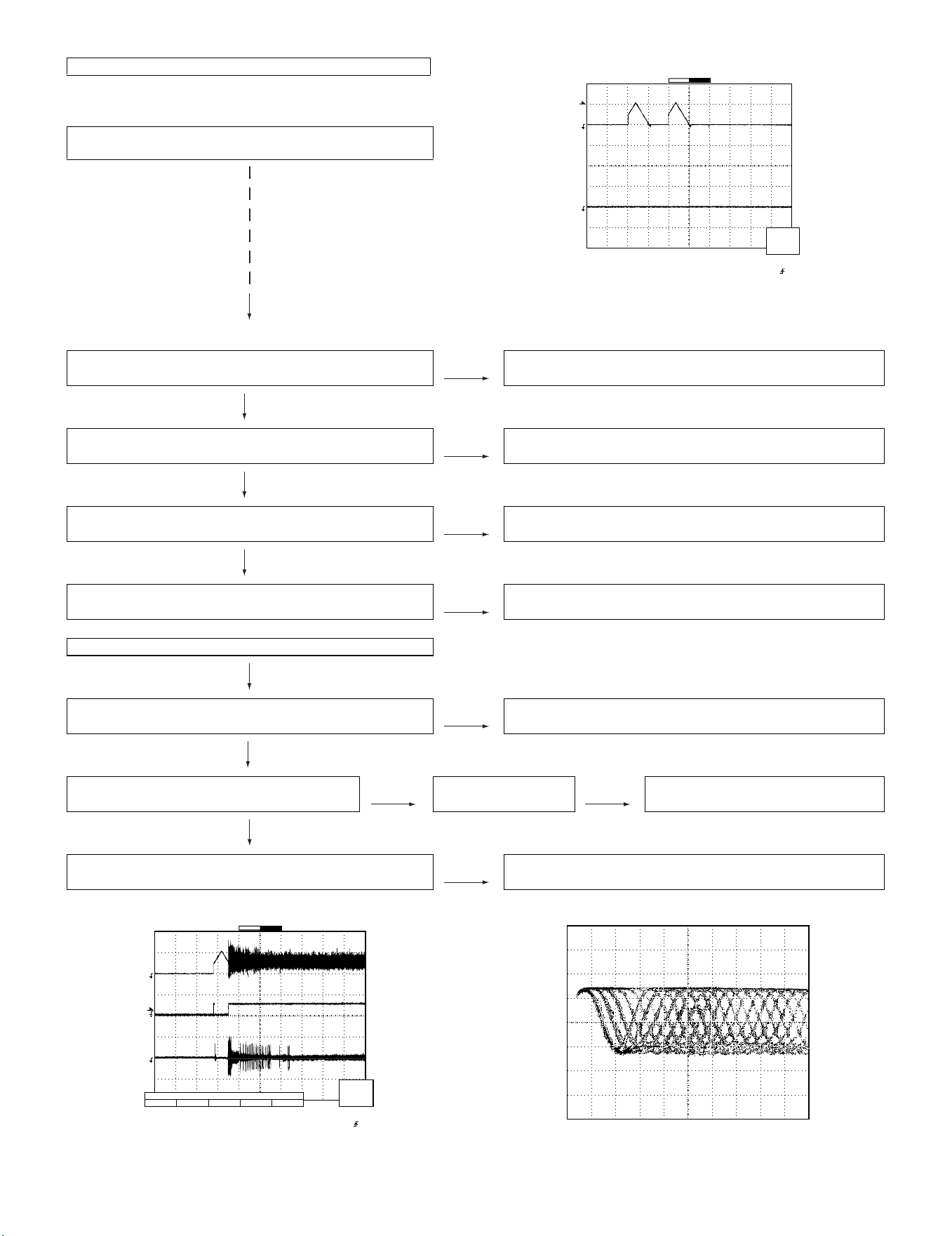

7 – 2
Although a CD is inserted and the cover is closed, “NO DISC” is
displayed.
(1) Focus-HF system check.
Press the Tray1 CD Eject Button without inserting a disc, and try
starting the playback operation.
Figure 1
T
FDO
TDO
Stopped
CH1=500 mV
DC 10:1
CH3=500 mV
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.000 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1. Does the pickup move to the PICKUP-IN Switch (NSW1) posi-
tion?
No Sled motor (NM2).
Yes
2. Does the focus (lens) move up and down?
(Waveform drawing Figure 1)
No Check the focus peripheral circuit.
Yes
3. Is the laser lit? No Check the laser diode driver Q1 peripheral circuit.
Yes
4. Is the turntable rotating? No Spindle motor (NM1).
When a disc is loaded, start playback operation.
1. Is focus servo activated?
(Waveform drawing Figure 2)
No Pins 7~11, 13, 19 and 20 on IC1
Check the laser diode driver Q1 peripheral circuit.
Yes
2. Does DRF change from “L” to “H”? No Is the disc rotating? No Check the spin system.
Yes
If the disc is spinning and a HF waveform
is generated, DRF will go H.
3. Is the HF waveform normal?
(Waveform drawing Figure 3)
No If the level is not normal.
Figure 2
T
FDO
DRF
TE
Stopped
CH1=500 mV
DC 10:1
CH2=10 V
DC 10:1
CH3=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
-3 div -1 div 0 div +1 div +3 div
CH Position To
CH2
Position
0.20 div
Figure 3
Vp-p=1.0 V~1.3 V
0.5 mV/div,0.5 µsec/div
background
CD-G10000/CP-G10000S
7 – 3

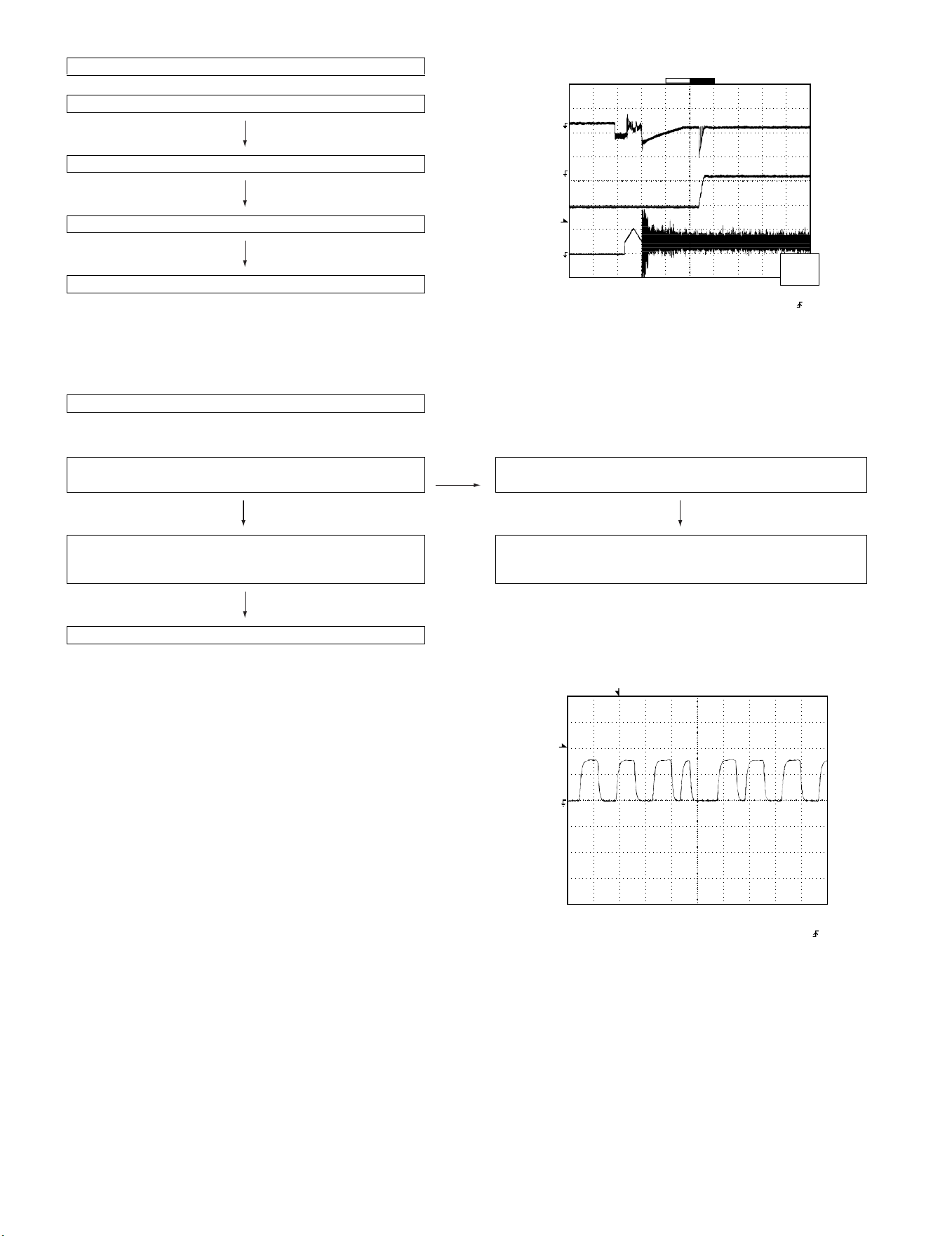

Check the TE waveform at pin 15 on IC1.
(2) Focus-HF system check.
If the waveform shown in Figure 4 appears and soon after NO
DISC appears?
Yes
The tracking servo is not activated.
Check the peripheral circuits at pins 16, 17 and 22 on IC1, and
FFC1.
No
“Initialization” is possible, but play is not possible?
Yes
A normal jump operation cannot be completed or the beginning
of the track cannot be found.
Check the around pin 22 on IC1.
No
“Initialization” is not possible. Data cannot be read. Check the VCO-PLL (Pin76~80 on IC1)
system.
Figure 4
T
T
TE
DRF
Stopped
CH1=10 V
DC 10:1
CH2=1 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0 V
CH2 : 0.00 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
(3) Spin system check.
Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.
1. The turntable rotates a little?
(Waveform drawing Figure 5)
Yes The spin driver circuit is OK.
No
2. The turntable doesn't rotate. Check around pin 24 on IC1, pins 3 and 4 on IC2, and CNS3A/
CNS3B.
Figure 5
T
T
FDO
SPDO
Stopped
CH1=200 mV
DC 10:1
CH2=500 mV
DC 10:1
500 ms/div
1999/04/07 09:51:15
(500 ms/div)
NORM:20 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
background
CD-G10000/CP-G10000S
7 – 4
The HF waveform is normal and the time is displayed normally,
but no sound is produced. Or the sound has dropouts.
(4) PLL system check.
When a disc is loaded, start play operation.
The HF waveform is normal, but the TOC data cannot be read.
Check the PDO waveform. (Figure 6)
Check around pins 76~80 on IC1.
Figure 6
T
FDO
PDO2
PDO1
CH1=500 mV
DC 10:1
CH3=1 V
DC 10:1
CH4=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1999/04/05 17:33:17
(5) Others.
Is pin 69 (C2F) on IC1 “L” ? No There are too many error flags on a damaged disc which makes
error correction impossible.
Yes
1. When playing at normal speed.
Check the peripheral circuit at pin 39 (DOUT) on IC1 and the
waveform (Figure 7).
Check again using a known good disc.
If OK, Check the unit.
Figure 7
T
T
DOUT
Stopped
CH1=2 V
DC 10:1
500 ns/div
1999/04/07 09:25:28
(500 ns/div)
NORM:200 MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 1 K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
background
CD-G10000/CP-G10000S
8 – 1
AudioCD-G10000/CP-G10000SService ManualCD-G10000/CP-G10000SMarketE
CHAPTER 8. OTHERS
[1] Function table of IC
IC1 VHiLC78648E-1: CD Servo (LC78648E) (1/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Terminal Name Input/Output Setting in Reset Function
1 AVDD1 Output — Analog power supply pin 1.
2 SLCO Output —
slice level con-
trol.
Slice level Control output pin.
3 EFMIN Input — RF signal input pin.
4 RF Output — RF signal Output pin.
5 LPF Output — RF signal DC level detection LPF capacitor connection pin.
6 JITTC Input — Jitter detection capacitor connection pin.
7 AIN Input — A signal input pin.
8 CIN Input — C signal input pin.
9 BIN Input — B signal input pin.
10 DIN Input — D signal input pin.
11 FEC Output FE signal LPF capacitor connection pin.
12* PHLPF/RFMON Output ZHI Reference supply setting terminal.
13 VREF Output AVDD1/2 VREF voltage output pin.
14 EIN Input — E signal input pin.
15 FIN Input F signal input pin.
16 TEC Output TE signal LPF capacitor connection pin.
17 TE Output — TE signal output pin.
18 TEIN Input — TES signal generation TE signal input pin
19 LDD Output — Laser power control signal output pin.
20 LDS Input — Laser power control signal input pin.
21 FDO Output ADAVDD/2 Focus control output pin. D/A output.
22 TDO Output ADAVDD/2 Tracking control output pin. D/A output.
23 SLDO Output ADAVDD/2 Thread control output pin. D/A output.
24 SPDO Output ADAVDD/2 Spindle control output pin. D/A output.
25 AVSS2 — — Analog GND pin 2. Must always be connected to 0 V.
26 AVDD2 — — Analog power supply pin 2.
27 DVDD — — Digital power supply pin.
28 DVSS — — Digital GND pin 2. Must always be connected to 0 V.
29* VPB Output H Rough servo/phase control automatic switching monitor output pin.“H” for rough
servo and “L” for phase servo.
30* DEFECT Output L Defect signal output pin.
31* FSEQ Output L Synchronization signal detection output pin.
Outputs a high level when the Synchronization signal detection from the EFM sig-
nal and the internally generated Synchronization signal agree.
32 EFLG Output L C1, C2 error correction monitor pin
33* FSX Output L 7.35 kHz Synchronization signal output pin.
CLV playback mode.
34 CONT1 Input/Output Input General pur-
pose I/O pin 1.
Controlled by command from the microprocessor. Any of these
that are unused must be either set up as input pin ports and
connected to 0 V, or set up as output pin ports and left open.
35 CONT2 Input/Output Input General pur-
pose I/O pin 2.
36 CONT3 Input/Output Input General pur-
pose I/O pin 3.
37* MONI1 Input/Output Input External deiemphasis setting pin, INternal signal monitor pin 1. Controlled by
microprocessor.
38* MONI2 Output L Internal signal monitor pin 2.
39* DOUT Output L Digital OUT output Pin. (EIAJ format)
40 TEST Input L Test input pin. Must always be connected to 0 V.
41 LVDD — —
Left channel
D/A converter
L channel Power supply pin.
42 LCHO Output LVDD/2 L channel output supply pin.
43 LRVSS — — LR channel GND pin. Must always be connected to 0 V.
background
CD-G10000/CP-G10000S
8 – 2
IC1 VHiLC78648E-1: CD Servo (LC78648E) (2/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
The same potential must be supplied to all power supply pins, i, e., AVDD1, AVDD2, XVDD, DVDD, LVDD and RVDD)
Pin No. Terminal Name Input/Output Setting in Reset Function
44 RCHO Output RVDD /2
Right channel
D/A converter
R channel Power supply pin.
45 RVDD — — R channel output supply pin.
46 XVSS — — Digital GND pin. Must always be connected to 0 V
47 XOUT Output Oscillator
Crystal
oscillator
Power supply for crystal oscillator.
Connected for a 16.9344 MHz crystal oscillator pin.
48 XIN Input Oscillator
49 XVDD — — Digital power supply pin. Must always be connected to 0 V
50 IOMODE Input — CONT4 to 6. MONI3~5, DRF, WRQB pin output mode switching input pin.
”L” setting: Normal output “H” setting: Nch open drain output
51 F16MIN Input — DF. DAC external clock input pin.
52* OUT1 Output L General-purpose output pin 1.
53 16MOUT Output CLK
Output
16.9344 MHz output port.
54 ASLRCK Input —
Anti-shock
Left/Right clock input pin.
(Must be connect to 0 V when unused.)
55 ASDACK Input — Bit clock input pin.
(Must be connect to 0 V when unused.)
56 ASDFIN Input — Left/Right channel data input pin.
(Must be connect to 0 V when unused.)
57 LRSK Output L
Digital data
output
Left/Right channel data output pin.
58 DATACK Output L Bit clock output pin.
59 DATA Output L Left/Right clock output pin.
60 DVDD — — Digital power supply pin.
61 DVSS — — Digital GND pin 2. Must always be connected to 0V.
62 CE Input —
Microcom-
puter Interface
Chip enable signal input pin.
63 CL Input — Data transfer clock input pin.
64 DI Input — Data output pin.
65 DO Output (H) Data output pin. (Try state output.)
66 WRQB Output L Interruption signal output pin.
67 RESB Input — Reset input pin for LSI.
This pin must be set LOW briefly after power is first applied.
68 DRF Output L Focus ON detection pin.
69 C2F/SBCK Input/Output Input Error flag monitor pin, or sub
code read clock input pin.
Controlled by commands from the micropro-
cessor.
70 CONT6/SBCK Input/Output Input General-purpose I/O pin 6, or
sub code read clock input pin.
Controlled by commands from the micropro-
cessor.
Any of these that are unused must be either
set up as input pin ports and connected to 0
V, or set up as output pin ports and left open.
71* MONI5 Output L Internal signal monitor pin 5.
72* MONI4 Output L Internal signal monitor pin 4.
73 MONI3 Output L Internal signal monitor pin 3.
74 CONT5 Input/Output Input General pur-
pose I/O pin 5.
Controlled by command from the microprocessor. Any of
these that are unused must be either set up as input pin ports
and connected to 0 V, or set up as output pin ports and left
open when unused.
75 CONT4 Input/Output Input General pur-
pose I/O pin 4.
76 PDO1 Output —
PLL
Phase comparison output pin 1 to control built-in VCO.
77 PDO2 Output — Phase comparison output pin 2 to control built-in VCO.
78 PCKIST Input — Resistor connection pin to set current for PDO1 and 02 out-
puts.
79 VVSS — — Built-in VCO GND pin. Must always be connected to 0 V.
80 VVDD — — Built-in VCO power supply pin.
background
CD-G10000/CP-G10000S
8 – 3
IC1 VHiLC78648E-1: CD Servo (LC78648E)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
AVDD1
SLCO
EFMIN
RF
LPF
JITTC
AIN
CIN
BIN
DIN
FEC
PHLPF/RFMON
VREF
EIN
FIN
TEC
TE
TEIN
LDD
LDS
FDO
TDO
SLDO
SPDO
AVSS
AVDD2
DVDD
DVSS
VPB
DEFECT
FSEQ
EFLG
FSX
CONT1
CONT2
CONT3
MONI1
MONI2
DOUT
TEST
VVDD
VVSS
PCKIST
PD02
PD01
CONT4
CONT5
MONI3
MONI4
MONI5
CONT6/SBCK
C2F/SBCK
DRF
*RES
*WRQ
DO
DI
CL
CE
DVSS
DVDD
DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
F16MOUT
OUT1
F16MIN
IOMODE
XVDD
XIN
XOUT
XVSS
RVDD
RCHO
LRVSS
LCHO
LVDD
LC78648E
PHLPF/RFMON
VREF
LDD
LDS
LPF
RF
AIN
CIN
BIN
DIN
FEC
EIN
FIN
TEC
TE
TEIN
JITTC
SLCO
EFMIN
PDO1
PDO2
PCKIST
VVDD
VVSS
RVDD
RCHO
LRVSS
LCHO
LVDD
XVDD
XVSS
XIN
XOUT
F16MIN
F16MOUT
ASLRCK
ASDACK
ASDFIN
RESB
TEST
IOMODE
FDO
TDO
SPDO
SLDO
AVDD1
AVSS
AVDD2
DEFECT
DRF
VPB
CONT1~6
OUT1
FSEQ
CL
CE
DI
DO
WRQB
DOUT
LRSY
DATACK
DATA
FSX
EFLG
C2F
MONI1~5
DVDD
DVDD
DVSS
DVSS
MONITOR
VREF
APC
RF SIGNAL
PROCESSOR
FOCUS ERROR
PROCESSOR
JITTER/DETECT
PLL
CLOCK
GENERATOR
EXTERNAL
AUDIO IN
LPF
SLICE LEVEL
CONTROL
TRACKING ERROR
PROCESSOR
1bit DAC
RAM
ATTENUATION
INTERPOLATION
MUTE
ERROR
CORRECTION
8FS DIGITAL
FILTER
DEEMPHASIS
SERIAL
OUT
A/D
AUTO
ADJUST
SERVO
PROCESSOR
TRACK
JUMP
CLV
CAV
CONTROL
A/D
RAM
RUPTURE
DEFECT
DRF
CPU I/F
FRAME SYNC
DETECT,PROTECT,
INSERT,
EFM DECODE
PORT
MONITOR SIGNAL
SELECTOR
SUBCODE DECODE
CRC & TEXT
AUDIO OUT
Figure 8-3 BLOCK DIAGRAM OF IC
background
CD-G10000/CP-G10000S
8 – 4
IC2 VHILA6261//-1: Focus/Tracking/Spin/Sled Driver (LA6261)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
* Set power system GND to the minimum potential together with SGND
* Short-circuit three pins of power system SVSS and PVCC1 externally before use.
Pin No. Terminal Name Function
1 VO3+ BTL Output pin (+) for channel 3.
2 VO3- BTL Output pin (-) for channel 3.
3 VO2+ BTL Output pin (+) for channel 2.
4 VO2- BTL Output pin (-) for channel 2.
5 VO1+ BTL Output pin (+) for channel 1.
6 VO1- BTL Output pin (-) for channel 1.
7 PGND1 Power GND for channels 1,2,3 and 4 (BTL).
8 REGIN Regulator pin (External PNP base).
9 PVCC1 Power for channels 1,2,3 and 4 (BTL). (SVCC short-crircuited)
10 REGOUT Regulator pin (External PNP collector).
11 VIN1 Input pin for channel 1
12* VIN1G Input pin for channel 1 (for gain control)
13 VIN2 Input pin for channel 2
14* VIN2G Input pin for channel 2 (for gain control)
15 VIN3 Input pin for channel 3
16* VIN3G Input pin for channel 3 (for gain control)
17 VIN4 Input pin for channel 4
18 VIN4G Input pin for channel 4 (for gain control)
19 FWD5 CH5 Output change pin (FWD). Logic input for bridge.
20 REV5 CH5 Output change pin (REV). Logic input for bridge.
21 VCONT5 Input pin for CH5 output voltage control
22 FWD6 CH6 Output change pin (FWD). Logic input for bridge.
23 REV6 CH6 Output change pin (REV). Logic input for bridge.
24 VCONT6 Input pin for CH5 output voltage control.
25 VREFIN Reference voltage input pin.
26 SGND Signal system GND
27 SVCC Signal system power (PVCC1 short - circuited)
28 PVCC2 Power for channel 5 and 6 (H bridge).
29 MUTE Input pin for BTL mute.
30 PGND2 Power GND for channels 5 and 6 (H bridge).
31 VO6+ H bridge Output pin (+) for channel 6.
32 VO6- H bridge Output pin (-) for channel 6.
33 VO5+ H bridge Output pin (+) for channel 5.
34 VO5- H bridge Output pin (-) for channel 5.
35 VO4+ BTL Output pin (+) for channel 4.
36 VO4- BTL Output pin (-) for channel 4.
background
CD-G10000/CP-G10000S
8 – 5
IC2 VHILA6261//-1: Focus/Tracking/Spin/Sled Driver (LA6261)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
11k
22k
1k
1k
1k
1k
11k
11k
11k
22k
22k
22k
-
+
-
+
Pre DrivePre Drive
+
-
+
-
+
-
Reference
voltage
DUFFER AMP
For 1/2 VCC
DUFFER AMP
For VREF
TSD
Band gad
BTL
Mode
select
Mode
select
CH4
CH5
CH6
CH3
CH2
CH1
VOLTAGE
CONTROL AMP
Figure 8-5 BLOCK DIAGRAM OF IC
background
CD-G10000/CP-G10000S
8 – 6

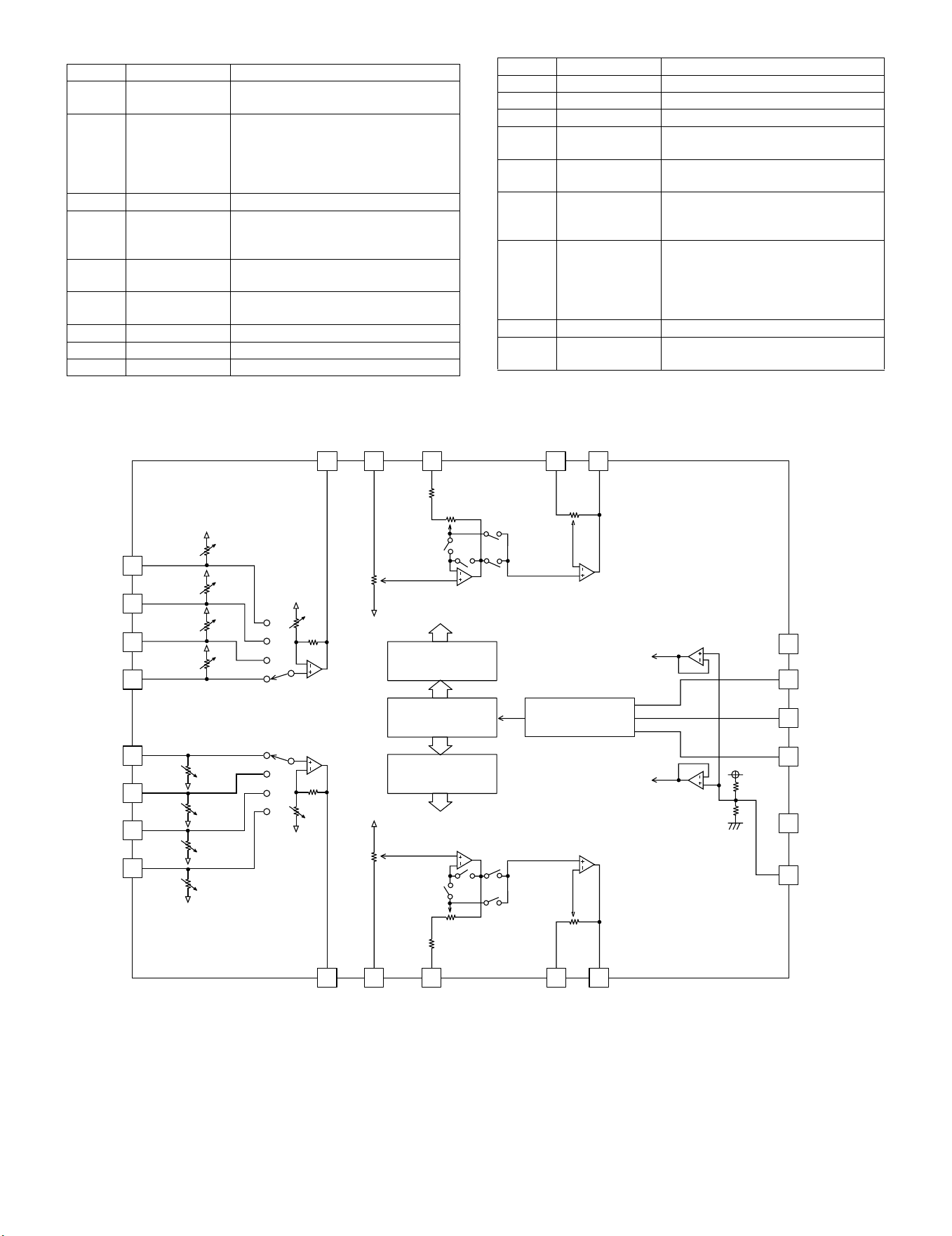

IC601 VHiLC75341/-1: Audio Processor (LC75341)
Pin No. Terminal Name Function
1 DI Serial data and clock input pin for con-
trol.
2 CE Chip enable pin.
Data written into an internal latch in a
timing of "H" to "L".
Each analog switch is activated.
Data transfer enabled at "H" level.
3 VSS Ground pin.
4 LOUT Bass band filter comprising
capacitor and resistor connection pin
and bass/treble output pin.
5 LBASS Bass band filter comprising capacitor
and resistor connection pin.
6 LTRE Treble band filter comprising capacitor
and resistor connection pin.
7 LIN Volume + equalizer output pin.
8 LSEL0 Input selector output pin.
9-12 L4-1 Input signal pin.
Pin No. Terminal Name Function
13-16 R1-4 Input signal pin.
17 RSEL0 Input selector output pin.
18 RIN Volume + equalizer output pin
19 RTRE Treble band filter comprising capacitor
and resistor connection pin.
20 RBASS Bass band filter comprising capacitor
and resistor connection pin.
21 ROUT Bass band filter comprising capacitor
and resistor connection pin and bass/
treble output pin.
22 VREF 0.5x VDD voltage generation block
for analog ground. Capacitor of sev-
eral 10µF to be connected between
VREF and AWSS (VSS) as a counter-
measure against power ripple.
23 VDD Supply pin
24 CLK Serial data and clock input pin for con-
trol.
19
20 21
22
23
24
1
2
3
45678
9
10
11
12
13
14
15
16
1817
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT
LBASS
LIN
LSEL0
L4
L3
L2
L1
R1
R2
R3
R4
RSEL0
RIN
RTRE
LTRE
RBASS
ROUT
VREF
VDD
CLK
DI
CE
VSS
CCB
INTERFACE
CD
Tuner
Tape
Video
Figure 8-6 BLOCK DIAGRAM OF IC
background
CD-G10000/CP-G10000S
8 – 7
IC701 RH-iXA054AWZZ: System Microcomputer (IXA054AW) (1/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Port Name Terminal Name Input/Output Function
1 VDD VDD Input (+) Power supply 5 V.
2 P37 -20dBATT Output -20dB Attenuator.
3 P36 T BIAS Output Tape record bias control.
4 P35 T_REC/PLAY Output Tape REC/PLAY control.
5 P34 T_T1/T2 Output Tape T1/T2 Control.
6 P33 CD RESOUT Output CD Reset.
7 P32 CD_WRQ Input CD WRQ input.
8 P31 SUB CE Output MP3 Sub-micom CE.
9 P30 ILLU LED Output FL Edge light control.
10 RESET RESET Input Reset Input.
11 X2 XOUT Output Main clock output 4.19 MHz.
12 X1 XIN Input Main clock input 4.19 MHz.
13 IC(VPP) VPP — GND
14* XT2 NO USE — Open
15 P04 CD_DRF Input CD DRF detect.
16 VDD VDD Input (+) Power supply 5 V.
17 P27 CLK Output Clock output.
18 P26 DI Output Data output.
19 P25 DO Input Data input.
20 P24 CE Output CE Output.
21 P23 CD CE Output CD Chip enable.
22 P22 CD CLK Output CD Clock.
23 P21 CD DI Output CD Data output.
24 P20 CD DO Input CD Data input.
25 AVSS AVSS — Analog ground.
26 ANI7 T RUN PULS Input Tape T1/T2 Run Pulse detect.
27* ANI6 TUN SM Input Connect to GND.
28 ANI5 T_FP SW Input Tape Fool Proof A & B SW.
29 ANI4 PROTECT Input Power abnormal detect.
30 ANI3 VOL JOG Input Volume jog input.
31-33 ANI2-ANI0 KEY 2-KEY 0 Input Key input.
34 AVDD AVDD Input Analog power supply 5 V.
35 AVREF AVREF Input Analog reference voltage 5 V.
36 INTP3 P_IN Input Power failure detect.
37 P02 PHOTO Input 5-Changer Photo SW.
38 INTP1 SP DET Input Speaker abnormal detect.
39 INTP0 REMOCON Input Remocon input.
40 VSS VSS — Ground voltage.
41 P74 S MUTE Output System mute control.
42 P73 TIMER LED Output Timer LED control.
43 P72 T_SOL B Output Tape 2 solenoid control.
44 P71 T_MOTOR Output Tape motor control.
45 P70 T_SOL A Output Tape 1 solenoid control.
46 VDD VDD Input (+) Power supply 5 V.
47 P127 SP RLY Output Speaker relay control.
48 P126 AC RLY Output AC relay control.
49* P125 NS SW3 Output New sound mode SW3.
50* P124 NO USE Output Open.
51* P123 NS SW1 Output New sound mode SW1.
52* P122 NO USE Output Open.
53 P121 TRAY SW2 Input 5-Changer Tray SW2.
54 P120 TRAY SW1 Input 5-Changer Tray SW1.
55 P117 DISC SW Input 5-Changer Disc SW.
56 P116 CLAMP SW Input 5-Changer Clamp SW.
57 P115 DIST Input Destination input.
58-68 FIP41-FIP31 S30-S20 Output FL Segment driver.
69 P101/FIP30 S19/DEST0 Input FL segment driver/Destination input.
70 P100/FIP29 S18/DEST1 Output FL segment driver/Destination input.
71 P97/FIP28 S17/DEST2 Output FL segment driver/Destination input.
72 P96/FIP27 S16/DEST3 Output FL segment driver/Destination input.
background
CD-G10000/CP-G10000S
8 – 8
IC701 RH-iXA054AWZZ: System Microcomputer (IXA054AW) (2/2)
Pin No. Port Name Terminal Name Input/Output Function
73-78 FIP26-FIP21 S15-S10 Output FL segment driver.
79 VLOAD VLOAD Input VLOAD -35 V
80-88 FIP20-FIP11 S9-S1 Output FL segment driver.
89-100 FIP10-FIP0 G12-G1 Output FL grid driver.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
VDD
-20dBATT
T_BIAS
T_REC/PLAY
T_T1/T2
CD_RESOUT
CD_WRQ
SW_CE
ILL4_LED
RESET
XOUT
XIN
VPP
CD_DRF
VDD
CLK
DI
DO
CE
CD_CE
CD_CLK
CD_DI
CD_DO
AVSS
T_RUN PULS
TUN_SM
T_FP SW
PROTECT
VOL_JOG
VDD
P37
P36/BUZ
P35/PCL
P34/T12
P33/T11
P32/TO2
RESET
X2
X1
IC(VPP)
P04/XT1
VDD
P27/SCK0
P26/SO0/SB1
P25/SI0/SB0
P24/BUSY
P23/STB
P22/SCK1
P21/SO1
P20/SI1
AVSS
P17/ANI7
P16/ANI6
P15/ANI5
P14/ANI4
P13/ANI3
VLOAD
S10
S11
S12
S13
S14
S15
S17
(DIST2)
S18
(DIST1)
S19
(DIST0)
S28
S27
S26
S25
S24
S23
S22
S21
S20
29
30
DIST
CLAMP SW
DISC SW
TRAY SW1
TRAY SW2
NO USE
NS_SW1
KEY2
KEY1
KEY0
AVDD
AVREF
P-IN
SP_DET
REMOCON
VSS
S MUTE
TIMER LED
T_SOL B
T MOTOR
T_SOL A
VDD
SP_RLY
AC_RLY
NS_SW3
NO USE
P12/ANI2
P11/ANI1
P10/ANI0
AVDD
AVREF
P03/INTP3
P02/INTP2
P01/INTP1
P00/INTPOT0
VSS
P74
P73
P72
P71
P70
VDD
P127/FIPS2
P126/FIPS1
P125/FIPS0
P124/FIP49
FIP0
FIP1
FIP2
FIP3
FIP4
FIP5
FIP6
FIP7
FIP8
FIP9
FIP10
FIP11
FIP12
P80/FIP13
P81/FIP14
P82/FIP15
P83/FIP16
P84/FIP17
P85/FIP18
P86/FIP19
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
G12
S1
S2
S3
S4
S5
S6
S7
S8
S16
(DIST3)
S9
P31/TO1
P30/TO0
XT2
P87/FIP20
VLOAD
P90/FIP21
P91/FIP22
P92/FIP23
P93/FIP24
P94/FIP25
P97/FIP28
P100/FIP29
P101/FIP30
P102/FIP31
P104/FIP33
P105/FIP34
P106/FIP35
P107/FIP36
P110/FIP37
P111/FIP38
P112/FIP39
P113/FIP40
P114/FIP41
P115/FIP42
P116/FIP43
P117/FIP44
P120/FIP45
P121/FIP46
P122/FIP47
P123/FIP48
P95/FIP26
P96/FIP27
P103/FIP32
IXA054AW
Figure 8-8 BLOCK DIAGRAM OF IC
background
CD-G10000/CP-G10000S
8 – 9
IC851 VHIAN80T53/-1: Multi Regulator (AN80T53)
Pin
No.
Terminal Name Function
1 REG4 Output 5.1 V power supply with a minimum peak out current of 1200 mA.
2 REG3 Output 13 V power supply with a minimum peak out current of 1350 mA.
3 VCC Connected to Power supplies.
4 GND Connected to the IC substrate.
5 MODE 1 REG1, REG2,REG3 and REG4 outputs are turned ON when this pin is 5 V.
6 REG2 Output 10 V power supply with a minimum peak out current of 800 mA.
7 REG1 Output 8.5 V power supply with a minimum peak out current of 700 mA.
5 2 3 4 1 7 6
Peak Current Protection,
Thermal Protection,
Load Short Protection.
Out puts
-
+
-
+
Prc
Drive
-
+
Prc
Drive
-
+
Prc
Drive
Prc
Drive
Reference
Voltage
MODE1 REG3
13V
REG4
5.1V
REG1
8.5V
REG2
10.0V
VCC GND
Figure 8-9 BLOCK DIAGRAM OF IC
background
CD-G10000/CP-G10000S
8 – 10
[2] FL Display
FL701 VVKNA12MM44-1
(1G)
D1a
D1a
D1b
2G 3G 4G 5G 6G 7G 9G 10G 12G11G8G1G
GRID ASSIGNMENT
D1c
D2a
D2a
D2b
D2c
D3a
D3a
D1b
D3c
D4a
D4a
D4b
D4c
D5a
D5a
1a 1a 1a 1a 1a 1a 1a 1a 1a 1a
2a 2a 2a 2a 2a 2a 2a
2a
2a
2a
D5b
D5c
col1
col2
Dot1
Dot2
a
b
c
d
f
g
m
e
r
p
n
h
j
k
(2G~11G)
TOTAL
MEMORY
SLEEP
5
TITLE-3
TITLE-2
TITLE-1
FOLDER
PTYI
PTY
ST
REC
TA
TP
DAILY
MHz
RDS
kHz
P1
1G
D5-a
D5-b
D5-c
D4-a
D4-b
D4-c
D3-a
D2-a
D2-b
D2-c
D1-a
D1-b
D1-c
D3-b
D3-c
(R)
2G 3G 4G 5G 6G 7G 8G 9G
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
Col1
Col2
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g ()
2p
2e
2n
2r
2c
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
Dot1
Dot2
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
1a
1j
1k
1h
1f
1m
1d
1g
1p
1e
1n
1r
1c
2a
2b
1b
2j
2k
2h
2f
2m
2d
2g
2p
2e
2n
2r
2c
1a
10G 11G 12G
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
ANODE CONNECTION
4
3
2
1
MP3
X-BASS
)
(
(L)
OUTER DIMENSIONS
PIN CONNECTION
PIN NO.
CONNECTION
45
F2 F2 NP NP P29P30 P28 P27 P25P26 P24 P23 P22 P21 P20 P19 P18 P17 P16 P15 P14 P12P13 P11 P10 P9
44 43 42 415051 49 48 47 46 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26
PIN NO.
CONNECTION
20
P3 P2 P1 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G NX NX 2G 1G NP F1 F1
19181716151413121110987654321
P8 P7 P6 P5 P4
25 24 23 22 21
PATTERN AREA
1
51
background
PARTS GUIDE
No. S1506CDG10000
SHARP CORPORATION
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and performance of the set.
CD-G10000/CP-G10000S
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
[1] INTEGRATED CIRCUITS
[2] TRANSISTORS
[3] DIODES
[4] FILTERS
[5] TRANSFORMERS
[6] COILS
[7] VARIABLE CAPACITORS
[8] VIBRATORS
[9] CAPACITORS
[10] RESISTORS
[11] OTHER CIRCUITRY
PARTS
[12] CD MECHANISM PARTS
[13] CHANGER MECHANISM
PARTS
[14] CABINET PARTS
[15] SURROUND SPEAKER
BOX PARTS
[16] PACKING PARTS
[17] ACCESSORIES
[18] P.W.B. ASSEMBLY
(Not Replacement Item)
[19] OTHER SERVICE PART
INDEX
MODEL
CD-G10000
MINI COMPONENT SYSTEM
CD-G10000 Mini Component System consisting of CD-G10000
(main unit) and GBOXSA090AWM1 (rear speaker system).
background
CD-G10000/CP-G10000S
2
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[1] INTEGRATED CIRCUITS
IC1 VHILC78648E-1 AW CD Servo,LC78648E
IC2 VHILA6261//-1 AN Focus/Tracking/Spin/Sled Driver,LA6261
IC3 VHILC78684E-1 AZ MP3 Decoder,LC78684E
IC4 VHILV1625635T AT D-RAM,LV6125635T
IC5 RH-IXA006AWZZ AT Microcomputer,IXA006AW
IC6 VHISI3033LUS1 AG Voltage Regulator,SI3033LUS1
IC101 VHIAN7345K/-1 AM Playback and Record/Playback Amp.,AN7345K
IC301 VHITA7358AP-1 AG FM Front End,TA7358AP
IC302 VHILC72131/-1 AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 AN FM IF Det./FM Mpx./AM IF,LA1832S
IC601 VHILC75341/-1 AM Audio Processor,LC75341
IC701 RH-IXA054AWZZ AV System Microcomputer,IXA054AW
IC851 VHIAN80T53/-1 AL Multi Regulator,AN80T53
IC852 VHIKIA7805AP1 AF Voltage Regulator,KIA7805AP
IC854 VHIAN78L05/-1 AE Voltage Regulator,AN78L05
IC901 VHISTK41244-1 BF Power Amp.,STK41244
[2] TRANSISTORS
Q1 VSKTA1504Y/-1 AB Silicon,PNP,KTA1504 Y
Q2 VSKTA1271Y/-1 AC Silicon,PNP,KTA1271 Y
Q3 VS2SD601AR/-1 AC Silicon,NPN,2SD601 AR
Q4 VS2SD601AR/-1 AC Silicon,NPN,2SD601 AR
Q5 VS2SD601AR/-1 AC Silicon,NPN,2SD601 AR
Q6 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q101 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q102 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q103 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q104 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q105 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q106 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q107 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q108 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q109 VSKTA1504Y/-1 AB Silicon,PNP,KTA1504 Y
Q110 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q111 VSKTC3203Y/-1 AC Silicon,NPN,KTC3203 Y
Q112 VSKTA1504Y/-1 AB Silicon,PNP,KTA1504 Y
Q113 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q114 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q302 VSKTC3194Y/-1 AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 AB Silicon,PNP,KTA1266 GR
Q601 VSKTC2875B/-1 AC Silicon,NPN,KTC2875 B
Q602 VSKTC2875B/-1 AC Silicon,NPN,KTC2875 B
Q603 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q604 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q607 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q608 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q706 VSKTA1273Y/-1 AE Silicon,PNP,KTA1273 Y
Q707 VSKTA1273Y/-1 AE Silicon,PNP,KTA1273 Y
Q708 VSKTA1273Y/-1 AE Silicon,PNP,KTA1273 Y
Q709 VSKRC102S//-1 AB Digital,NPN,KRC102 S
Q710 VSKRC102S//-1 AB Digital,NPN,KRC102 S
Q711 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q712 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q713 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q714 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q715 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q716 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q717 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q801 VSKTA1274Y/-1 AE Silicon,PNP,KTA1274 Y
Q841 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q885 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q886 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q901 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q902 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q903 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q904 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q905 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q906 VSKTC3203Y/-1 AC Silicon,NPN,KTC3203 Y
Q907 VSKTC3203Y/-1 AC
Silicon,NPN,KTC3203 Y
[3] DIODES
D1 VHDKDS184//-1 AB Silicon,KDS184
D301 VHDDS1SS133-1 AB Silicon,DS1SS133
D302 VHDDS1SS133-1 AB Silicon,DS1SS133
D305 VHDDS1SS133-1 AB Silicon,DS1SS133
D690 VHDDS1SS133-1 AB Silicon,DS1SS133
D691 VHDDS1SS133-1 AB Silicon,DS1SS133
D709 VHDDS1SS133-1 AB Silicon,DS1SS133
D710 VHDDS1SS133-1 AB Silicon,DS1SS133
D711 VHDDS1SS133-1 AB Silicon,DS1SS133
D712 VHDDS1SS133-1 AB Silicon,DS1SS133
D713 VHDDS1SS133-1 AB Silicon,DS1SS133
D714 VHDDS1SS133-1 AB Silicon,DS1SS133
D715 VHDDS1SS133-1 AB Silicon,DS1SS133
D716 VHDDS1SS133-1 AB Silicon,DS1SS133
background
CD-G10000/CP-G10000S
3
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
D801 VHDD10XB60F-1 AL Silicon,D10XB60F
D802 VHDD10XB60F-1 AL Silicon,D10XB60F
D803 VHD1N4004S/-1 AB Silicon,1N4004S
D804 VHD1N4004S/-1 AB Silicon,1N4004S
D805 VHD1N4004S/-1 AB Silicon,1N4004S
D806 VHD1N4004S/-1 AB Silicon,1N4004S
D842 VHD1N4004S/-1 AB Silicon,1N4004S
D843 VHD1N4004S/-1 AB Silicon,1N4004S
D844 VHD1N4004S/-1 AB Silicon,1N4004S
D845 VHD1N4004S/-1 AB Silicon,1N4004S
!
D846 VHDDS1SS133-1 AB Silicon,DS1SS133
D853 VHD1N4004S/-1 AB Silicon,1N4004S
D856 VHDDS1SS133-1 AB Silicon,DS1SS133
D860 VHDDS1SS133-1 AB Silicon,DS1SS133
D861 VHDDS1SS133-1 AB Silicon,DS1SS133
D862 VHDDS1SS133-1 AB Silicon,DS1SS133
D863 VHDDS1SS133-1 AB Silicon,DS1SS133
D885 VHDDS1SS133-1 AB Silicon,DS1SS133
D905 VHDDS1SS133-1 AB Silicon,DS1SS133
D906 VHDDS1SS133-1 AB Silicon,DS1SS133
D907 VHDDS1SS133-1 AB Silicon,DS1SS133
D909 VHD1N4004S/-1 AB Silicon,1N4004S
D910 VHD1N4004S/-1 AB Silicon,1N4004S
D911 VHDDS1SS133-1 AB Silicon,DS1SS133
D912 VHDDS1SS133-1 AB Silicon,DS1SS133
LED701 VHP304VT2H3-1 AC LED,Red,304VT2H3
LED703 VHPSDPB50CD-1 AK LED,Blue,SDPB50CD
ZD1 VHEMA8033//-1 AC Zener,3.3V,MA8033
ZD351 VHEDZ5R1BSB-1 AC Zener,5.1V,DZ5.1BSB
ZD801 VHEDZ6R2BSA-1 AB Zener,6.2V,DZ6.2BSA
ZD802 VHEDZ7R5BSB-1 AB Zener,7.5V,DZ7.5BSB
ZD803 VHEDZ300BSB-1 AB Zener,30V,DZ30BSB
ZD805 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
ZD902 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
ZD903 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
[4] FILTERS
BF301 RFILR0008AWZZ AE Band Pass Filter
CF303 RFILF0124AFZZ AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ AK FM IF
CF352 RFILA0009AWZZ AE AM IF
[5] TRANSFORMERS
!
PT801 RTRNP0518AWZZ BL Power,Main
!
PT841 RTRNP0483AWZZ AL Power,Sub
T301 RCILBA001AWZZ FM OSC.
T302 RCILI0017AWZZ AB FM IF
T303 RCILA0052AWZZ AE AM Antenna
T306 RCILB0067AWZZ AD AM OSC.
T351 RCILI0019AWZZ AD AM IF
[6] COILS
L1 RCILC0011AWZZ AD 0.82 µ H
L2 RCILC0012AWZZ AD 2.2 µ H
L3 RCILC0012AWZZ AD 2.2 µ H
L103 VP-MK331K0000 AB 330 µ H,Choke
L312 RCILR0056AWZZ AB FM RF
L351 VP-DH101K0000 AB 100 µ H,Choke
L352 VP-DH101K0000 AB 100 µ H,Choke
L701 VP-DH101K0000 AB 100 µ H,Choke
L901 RCILZ0024AWZZ AC 3 µ H,Choke
L902 RCILZ0024AWZZ AC 3 µ H,Choke
L920 RCILZ0137AFZZ AA 0.29 µ H
L921 RCILZ0137AFZZ AA 0.29 µ H
[7] VARIABLE CAPACITORS
VD301 VHCSVC347S/-1 AG Variable Capacitance,SVC347S
VD302 VHCSVC230C/-1 AD Variable Capacitance,SVC230C
VD303 VHCSVC230C/-1 AD Variable Capacitance,SVC230C
[8] VIBRATORS
X351 92LCRSTL1425A AF Crystal,456 kHz
X352 RCRSP0019AWZZ AF Crystal,4.5 MHz
XL1 RCRM-0047AWZZ AE Ceramic,16.9344 MHz
XL2 RCRM-0043AWZZ AB Ceramic,4.19 MHz
XL701 RCRSP0003AWZZ AH Crystal,4.19 MHz
[3] DIODES
background
CD-G10000/CP-G10000S
4
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[9] CAPACITORS
C1 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C2 VCKYCY1CB103K AA 0.01 µ F,16V
C3 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C4 VCKYCY1HB102K AA 0.001 µ F,50V
C5 VCKYCY1CB473K AA 0.047 µ F,16V
C6 VCKYCY1CB103K AA 0.01 µ F,16V
C8 VCKYCY1HB272K AA 0.0027 µ F,50V
C9 RC-EZ0004AWZZ AD 3.3 µ F,16V,Electrolytic
C10 VCKYCY1CB104K AB 0.1 µ F,16V
C11 VCKYCY1CB563K AB 0.056 µ F,16V
C12 VCCCCY1HH101J AA 100 pF (CH),50V
C13 VCKYCY1EF223Z AB 0.022 µ F,25V
C14 VCEAZA1AW476M AB 47 µ F,10V,Electrolytic
C16 VCKYCY1HB471K AA 470 pF,50V
C17 VCKYCY1EF223Z AB 0.022 µ F,25V
C18 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C20 VCEAZA0JW337M AC 330 µ F,6.3V,Electrolytic
C21 VCEAZA1EW106M AB 10 µ F,25V,Electrolytic
C22 VCEAZA1EW106M AB 10 µ F,25V,Electrolytic
C23 VCQYKA1HM152K AB 0.0015 µ F,50V,Mylar
C24 VCQYKA1HM152K AB 0.0015 µ F,50V,Mylar
C25 VCKYCY1CB103K AA 0.01 µ F,16V
C26 VCKYCY1EF223Z AB 0.022 µ F,25V
C27 VCCCCY1HH101J AA 100 pF (CH),50V
C28 VCCCCY1HH101J AA 100 pF (CH),50V
C29 VCKYCY1HB102K AA 0.001 µ F,50V
C30 VCCCCY1HH101J AA 100 pF (CH),50V
C31 VCKYCY1EF223Z AB 0.022 µ
F,25V
C32 VCCCCY1HH101J AA 100 pF (CH),50V
C33 VCKYCY1CB563K AB 0.056 µ F,16V
C34 VCKYCY1CB103K AA 0.01 µ F,16V
C35 VCKYCY1CB473K AA 0.047 µ F,16V
C36 VCKYCY1CF224Z AB 0.22 µ F,16V
C37 VCKYCY1CB104K AB 0.1 µ F,16V
C38 VCKYCY1CB103K AA 0.01 µ F,16V
C39 VCKYCY1CB104K AB 0.1 µ F,16V
C41 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C42 VCCCCY1HH330J AA 33 pF (CH),50V
C44 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C46 VCKYCY1CB103K AA 0.01 µ F,16V
C47 VCKYCY1CB103K AA 0.01 µ F,16V
C48 VCKYCY1EF223Z AB 0.022 µ F,25V
C50 VCEAZA1AW476M AB 47 µ F,10V,Electrolytic
C51 VCKYCY1CB103K AA 0.01 µ F,16V
C52 VCKYCY1CB103K AA 0.01 µ F,16V
C53 VCKYCY1CB103K AA 0.01 µ F,16V
C56 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C57 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C58 VCEAZA1AW476M AB 47 µ F,10V,Electrolytic
C59 VCKYCY1CB104K AB 0.1 µ F,16V
C60 VCKYCY1HB102K AA 0.001 µ F,50V
C61 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C62 VCKYCY1CB103K AA 0.01 µ F,16V
C63 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C64 VCCCCY1HH330J AA 33 pF (CH),50V
C65 VCEAZA1AW476M AB 47 µ F,10V,Electrolytic
C66 VCKYCY1CB103K AA 0.01 µ F,16V
C68 VCKYCY1CB103K AA 0.01 µ F,16V
C69 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C70 VCKYCY1CB103K AA 0.01 µ F,16V
C71 VCKYCY1CB104K AB 0.1 µ F,16V
C72 VCCCCY1HH101J AA 100 pF (CH),50V
C73 VCCCCY1HH101J AA 100 pF (CH),50V
C74 VCKYCY1HB102K AA 0.001 µ F,50V
C75 VCKYCY1HB102K AA 0.001 µ F,50V
C76 VCKYCY1CB103K AA 0.01 µ F,16V
C82 VCKYCY1HB332K AA 0.0033 µ F,50V
C83 VCKYCY1HB102K AA 0.001 µ F,50V
C84 VCKYCY1EF223Z AB 0.022 µ F,25V
C85 VCTYBT1EF223Z AA 0.022 µ F,25V
C86 VCTYBT1EF223Z AA 0.022 µ F,25V
C87 VCKYCY1CB104K AB 0.1 µ F,16V
C101 VCKYCY1HB561K AA 560 pF,50V
C102 VCKYCY1HB561K AA 560 pF,50V
C103 VCKYBT1HB181K AA 180 pF,50V
C104 VCCCCY1HH181J AA 180 pF (CH),50V
C105 VCKYCY1HB152K AA 0.0015 µ F,50V
C106 VCKYCY1HB152K AA 0.0015 µ F,50V
C107 VCKYCY1HB331K AA 330 pF,50V
C108 VCKYCY1HB331K AA 330 pF,50V
C109 VCKYCY1HB331K AA 330 pF,50V
C110 VCKYCY1HB331K AA 330 pF,50V
C111 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C112 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C113 VCTYPA1EX393K AA 0.039 µ
F,25V
background
CD-G10000/CP-G10000S
5
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C114 VCTYPA1EX393K AA 0.039 µ F,25V
C115 VCKYCY1HB561K AA 560 pF,50V
C116 VCKYCY1HB561K AA 560 pF,50V
C117 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C118 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C119 VCKYCY1HB222K AA 0.0022 µ F,50V
C120 VCKYCY1HB222K AA 0.0022 µ F,50V
C121 VCKYCY1EF223Z AB 0.022 µ F,25V
C123 VCKYCY1HB271K AA 270 pF,50V
C124 VCKYCY1HB271K AA 270 pF,50V
C125 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C126 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C127 VCTYPA1CX223K AA 0.022 µ F,16V
C128 VCTYPA1CX223K AA 0.022 µ F,16V
C129 VCKYCY1HB332K AA 0.0033 µ F,50V
C130 VCKYCY1HB332K AA 0.0033 µ F,50V
C131 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C132 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C133 VCEAZA1EW226M AB 22 µ F,25V,Electrolytic
C134 VCEAZA1AW227M AC 220 µ F,10V,Electrolytic
C135 VCKYCY1EF223Z AB 0.022 µ F,25V
C137 VCQYKA1HM473K AB 0.047 µ F,50V,Mylar
C138 VCQPKA2AA822J AA 0.0082 µ F,100V,Polypropylene
C139 VCQYKA1HM393K AB 0.039 µ F,50V,Mylar
C140 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C141 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
C143 VCEAZA1HW335M AB 3.3 µ F,50V,Electrolytic
C150 VCEAZA1HW476M AB
47 µ F,50V,Electrolytic
C302 VCKYCY1HB102K AA 0.001 µ F,50V
C303 VCCCCY1HH100D AA 10 pF (CH),50V
C304 VCKYCY1HB103K AA 0.01 µ F,50V
C305 VCCCCY1HH4R7C AA 4.7 pF (CH),50V
C306 VCKYCY1EF223Z AB 0.022 µ F,25V
C307 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C308 VCCCCY1HH4R7C AA 4.7 pF (CH),50V
C309 VCKYCY1HB102K AA 0.001 µ F,50V
C310 VCCCCY1HH150J AA 15 pF (CH),50V
C311 VCCCCY1HH180J AA 18 pF (CH),50V
C312 VCKYCY1EF223Z AB 0.022 µ F,25V
C313 VCCCCY1HH220J AA 22 pF (CH),50V
C315 VCKYCY1HB103K AA 0.01 µ F,50V
C316 VCKYCY1EF223Z AB 0.022 µ F,25V
C317 VCKYCY1HB102K AA 0.001 µ F,50V
C318 VCKYBT1HB101K AA 100 pF,50V
C320 VCKYBT1HB102K AA 0.001 µ F,50V
C323 VCKYCY1EF223Z AB 0.022 µ F,25V
C324 VCCCCY1HH4R7C AA 4.7 pF (CH),50V
C330 VCCCCY1HH150J AA 15 pF (CH),50V
C331 VCKZPA1HF473Z AA 0.047 µ F,50V
C332 VCKYCY1EF223Z AB 0.022 µ F,25V
C334 VCCCCY1HH220J AA 22 pF (CH),50V
C335 VCKYCY1HB561K AA 560 pF,50V
C338 VCKYCY1HB102K AA 0.001 µ F,50V
C342 VCKYCY1EF223Z AB 0.022 µ F,25V
C347 VCKYCY1EF223Z AB 0.022 µ F,25V
C350 VCKYCY1EF223Z AB 0.022 µ F,25V
C351 VCKYCY1EF223Z AB 0.022 µ F,25V
C352 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C353 VCKYCY1EF223Z AB 0.022 µ F,25V
C354 VCKYCY1EF223Z AB 0.022 µ F,25V
C355 VCCCCY1HH220J AA 22 pF (CH),50V
C356 VCKYCY1HB102K AA 0.001 µ F,50V
C357 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
C358 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C361 VCKYCY1EF223Z AB 0.022 µ F,25V
C362 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
C363 VCKYCY1EF223Z AB 0.022 µ F,25V
C364 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
C365 VCTYPA1CX223K AA 0.022 µ F,16V
C366 VCKYCY1HB102K AA 0.001 µ F,50V
C367 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C368 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C369 VCCCCY1HH270J AA 27 pF (CH),50V
C370 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C371 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C372 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C373 VCTYPA1CX153K AA 0.015 µ F,16V
C374 VCTYPA1CX153K AA 0.015 µ F,16V
C376 VCCCCY1HH101J AA 100 pF (CH),50V
C377 VCCCCY1HH101J AA 100 pF (CH),50V
C378 VCCCCY1HH101J AA 100 pF (CH),50V
C379 VCCCCY1HH101J AA 100 pF (CH),50V
C380 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C381 VCCCCY1HH120J AA 12 pF (CH),50V
C382 VCCCCY1HH150J AA 15 pF (CH),50V
[9] CAPACITORS
background
CD-G10000/CP-G10000S
6
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C383 VCCSBT1HL470J AA 47 pF,50V
C384 VCKYCY1HB102K AA 0.001 µ F,50V
C385 VCKYCY1HB103K AA 0.01 µ F,50V
C386 VCKYCY1HB331K AA 330 pF,50V
C387 VCKYCY1EF223Z AB 0.022 µ F,25V
C388 VCKYCY1HB102K AA 0.001 µ F,50V
C389 VCKYBT1HB102K AA 0.001 µ F,50V
C391 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C392 VCKYCY1HB102K AA 0.001 µ F,50V
C393 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C394 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C395 VCKYCY1EF223Z AB 0.022 µ F,25V
C396 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C397 VCKYCY1EF223Z AB 0.022 µ F,25V
C398 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C399 VCKYCY1EF223Z AB 0.022 µ F,25V
C601 VCEAZA1CW227M AC 220 µ F,16V,Electrolytic
C602 VCKYPA1HF223Z AB 0.022 µ F,50V
C603 VCEAZA1AW227M AC 220 µ F,10V,Electrolytic
C605 VCFYFA1HA184J AC 0.18 µ F,50V,Thin Film
C606 VCFYFA1HA184J AC 0.18 µ F,50V,Thin Film
C607 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C608 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C609 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C610 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C611 VCKYCY1HB272K AA 0.0027 µ F,50V
C612 VCKYCY1HB272K AA
0.0027 µ F,50V
C613 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C614 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C615 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
C616 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
C617 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C618 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C619 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C620 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C621 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C622 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C623 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C624 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C625 VCKYCY1HB222K AA 0.0022 µ F,50V
C626 VCKYCY1HB222K AA 0.0022 µ F,50V
C639 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C640 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C651 VCKYCY1HB221K AA 220 pF,50V
C652 VCKYCY1HB221K AA 220 pF,50V
C653 VCKYCY1HB221K AA 220 pF,50V
C690 VCKYPA1HB391K AA 390 pF,50V
C691 VCKYPA1HB391K AA 390 pF,50V
C693 VCKYCY1HB103K AA 0.01 µ F,50V
C694 VCKYPA1HB102K AA 0.001 µ F,50V
C695 VCKYPA1HB102K AA 0.001 µ F,50V
C696 VCKYPA1HB103K AA 0.01 µ F,50V
C701 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C702 VCEAZA1AW227M AC 220 µ F,10V,Electrolytic
C704 VCCCCY1HH150J AA 15 pF (CH),50V
C705 VCCCCY1HH180J AA 18 pF (CH),50V
C707 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C709 VCKYCY1HB473K AB 0.047 µ F,50V
C710 VCKYCY1HB473K AB 0.047 µ F,50V
C714 VCEAZA1HW335M AB 3.3 µ F,50V,Electrolytic
C715 VCKYCY1HB103K AA 0.01 µ F,50V
C717 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C720 VCKYCY1EF223Z AB 0.022 µ F,25V
C721 VCKYCY1EF223Z AB 0.022 µ F,25V
C722 VCKYCY1HF103Z AB 0.01 µ F,50V
C723 VCKYCY1EF473Z AB 0.047 µ F,25V
C727 VCKYCY1EF473Z AB 0.047 µ F,25V
C730 VCKYCY1EF473Z AB 0.047 µ F,25V
C732 VCKYCY1EF473Z AB 0.047 µ F,25V
C801 VCEAZA1VW107M AC 100 µ F,35V,Electrolytic
C802 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C803 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C804 VCEAZA1JW227M AD 220 µ F,63V,Electrolytic
C805 VCEAZA2AW226M AC 22 µ F,100V,Electrolytic
C806 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C807 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C808 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C809 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C810 VCFYDA2AA224J AD 0.22 µ F,100V,Thin Film
C811 VCFYDA2AA224J AD 0.22 µ F,100V,Thin Film
C817 VCEAZA1EW226M AB
22 µ F,25V,Electrolytic
C841 VCEAZA0JW108M AC 1000 µ F,6.3V,Electrolytic
C842 VCEAZA1VW477M AD 470 µ F,35V,Electrolytic
C843 VCQYKA1HM473K AB 0.047 µ F,50V,Mylar
!
C844 RC-KZ002LAWZZ AC 0.0047 µ F,250V,Ceramic
[9] CAPACITORS
background
CD-G10000/CP-G10000S
7
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C850 VCEAZW1EW478M AK 4700 µ F,25V,Electrolytic
C851 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C852 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C854 VCEAZA1EW227M AC 220 µ F,25V,Electrolytic
C855 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C856 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C859 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C861 VCKYPA1HF223Z AB 0.022 µ F,50V
C864 VCEAZA1EW226M AB 22 µ F,25V,Electrolytic
C865 VCEAZA1EW226M AB 22 µ F,25V,Electrolytic
C885 VCKYCY1HB104K AD 0.1 µ F,50V
C901 VCEAZA1HW224M AB 0.22 µ F,50V,Electrolytic
C902 VCEAZA1HW224M AB 0.22 µ F,50V,Electrolytic
C903 VCKYCY1HB102K AA 0.001 µ F,50V
C904 VCKYCY1HB102K AA 0.001 µ F,50V
C905 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
C906 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
C907 VCCCCY1HH101J AA 100 pF (CH),50V
C908 VCCCCY1HH3R0C AA 3 pF (CH),50V
C909 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C910 VCCCCY1HH3R0C AA 3 pF (CH),50V
C911 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C912 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C913 VCCCCY1HH101J AA 100 pF (CH),50V
C914 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C915 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C916 VCEAZA1HW107M AC 100 µ F,50V,Electrolytic
C917 VCKYCY1HB103K AA
0.01 µ F,50V
C918 VCEAZA1HW107M AC 100 µ F,50V,Electrolytic
C919 VCKYCY1HB103K AA 0.01 µ F,50V
C920 RC-EZ0124AWZZ AR 3900 µ F,85V,Electrolytic
C921 RC-EZ0065AWZZ AN 4700 µ F,50V,Electrolytic
C922 RC-EZ0065AWZZ AN 4700 µ F,50V,Electrolytic
C923 RC-EZ0124AWZZ AR 3900 µ F,85V,Electrolytic
C925 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C928 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C929 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C931 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C946 VCEAZA1HW104M AB 0.1 µ F,50V,Electrolytic
C952 VCKYCY1HB103K AA 0.01 µ F,50V
C960 VCEAZA1HW335M AB 3.3 µ F,50V,Electrolytic
C961 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C962 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
J631 VCKYBT1HB103K AB 0.01 µ F,50V
[10] RESISTORS
VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP1 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP303 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP307 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP308 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP309 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP310 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP312 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP317 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP601 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP602 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP603 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP604 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP608 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP634 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP661 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP662 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP701 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP702 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP705 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP706 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP707 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP708 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP715 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP717 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP718 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP805 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP808 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP809 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP810 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP811 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
JP812 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R1 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R2 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3 VRS-CY1JB333J AA 33 kohms,1/16W
R4 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R5 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R6 VRS-CY1JB333J AA 33 kohms,1/16W
R7 VRS-CY1JB470J AA 47 ohms,1/16W
[9] CAPACITORS
background
CD-G10000/CP-G10000S
8
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R8 VRS-CY1JB222J AA 2.2 kohms,1/16W
R9 VRS-CY1JB100J AA 10 ohm,1/16W
R10 VRS-CY1JB472J AA 4.7 kohms,1/16W
R12 VRS-CY1JB331J AA 330 ohms,1/16W
R13 VRS-CY1JB822J AA 8.2 kohms,1/16W
R14 VRS-CY1JB682J AA 6.8 kohms,1/16W
R15 VRS-CY1JB682J AA 6.8 kohms,1/16W
R16 VRS-CY1JB682J AA 6.8 kohms,1/16W
R17 VRS-CY1JB472J AA 4.7 kohms,1/16W
R18 VRS-CY1JB102J AA 1 kohm,1/16W
R19 VRS-CY1JB102J AA 1 kohm,1/16W
R20 VRS-CY1JB472J AA 4.7 kohms,1/16W
R21 VRS-CY1JB472J AA 4.7 kohms,1/16W
R22 VRS-CY1JB472J AA 4.7 kohms,1/16W
R23 VRS-CY1JB222J AA 2.2 kohms,1/16W
R24 VRS-CY1JB222J AA 2.2 kohms,1/16W
R25 VRS-CY1JB103J AA 10 kohm,1/16W
R26 VRS-CY1JB103J AA 10 kohm,1/16W
R27 VRS-CY1JB101J AA 100 ohm,1/16W
R28 VRS-CY1JB221J AA 220 ohms,1/16W
R29 VRS-CY1JB151J AA 150 ohms,1/16W
R30 VRS-CY1JB391J AA 390 ohms,1/16W
R31 VRS-CY1JB391J AA 390 ohms,1/16W
R32 VRS-CY1JB391J AA 390 ohms,1/16W
R33 VRS-CY1JB391J AA 390 ohms,1/16W
R34 VRS-CY1JB391J AA 390 ohms,1/16W
R35 VRS-CY1JB391J AA 390 ohms,1/16W
R36 VRS-CY1JB391J AA 390 ohms,1/16W
R37 VRS-CY1JB391J AA 390 ohms,1/16W
R38 VRS-CY1JB563J AA 56 kohms,1/16W
R39 VRS-CY1JB681J AA 680 ohms,1/16W
R40 VRS-CY1JB472J AA 4.7 kohms,1/16W
R41 VRS-CY1JB102J AA 1 kohm,1/16W
R42 VRS-CY1JB102J AA 1 kohm,1/16W
R43 VRS-CY1JB102J AA 1 kohm,1/16W
R44 VRS-CY1JB102J AA 1 kohm,1/16W
R45 VRS-CY1JB102J AA 1 kohm,1/16W
R46 VRS-CY1JB102J AA 1 kohm,1/16W
R47 VRS-CY1JB102J AA 1 kohm,1/16W
R48 VRS-CY1JB102J AA 1 kohm,1/16W
R49 VRS-CY1JB222J AA 2.2 kohms,1/16W
R50 VRS-CY1JB681J AA 680 ohms,1/16W
R52 VRS-CY1JB472J AA 4.7 kohms,1/16W
R54 VRS-CY1JB562J AA 5.6 kohms,1/16W
R55 VRS-CY1JB682J AA 6.8 kohms,1/16W
R56 VRS-CY1JB472J AA 4.7 kohms,1/16W
R57 VRS-CY1JB103J AA 10 kohm,1/16W
R58 VRS-CY1JB103J AA 10 kohm,1/16W
R59 VRS-CY1JB222J AA 2.2 kohms,1/16W
R60 VRS-CY1JB102J AA 1 kohm,1/16W
R61 VRS-CY1JB222J AA
2.2 kohms,1/16W
R62 VRS-CY1JB102J AA 1 kohm,1/16W
R63 VRS-CY1JB222J AA 2.2 kohms,1/16W
R64 VRS-CY1JB102J AA 1 kohm,1/16W
R65 VRS-CY1JB222J AA 2.2 kohms,1/16W
R66 VRS-CY1JB102J AA 1 kohm,1/16W
R67 VRS-CY1JB102J AA 1 kohm,1/16W
R68 VRS-CY1JB104J AA 100 kohm,1/16W
R69 VRS-CY1JB102J AA 1 kohm,1/16W
R70 VRS-CY1JB102J AA 1 kohm,1/16W
R71 VRS-CY1JB222J AA 2.2 kohms,1/16W
R72 VRS-CY1JB102J AA 1 kohm,1/16W
R73 VRS-CY1JB222J AA 2.2 kohms,1/16W
R74 VRS-CY1JB102J AA 1 kohm,1/16W
R75 VRS-CY1JB221J AA 220 ohms,1/16W
R76 VRS-CY1JB102J AA 1 kohm,1/16W
R77 VRS-CY1JB102J AA 1 kohm,1/16W
R78 VRS-CY1JB102J AA 1 kohm,1/16W
R79 VRS-CY1JB472J AA 4.7 kohms,1/16W
R80 VRS-CY1JB820J AA 82 ohms,1/16W
R81 VRS-CY1JB332J AA 3.3 kohms,1/16W
R82 VRS-CY1JB222J AA 2.2 kohms,1/16W
R83 VRS-CY1JB151J AA 150 ohms,1/16W
R84 VRS-CY1JB472J AA 4.7 kohms,1/16W
R85 VRS-CY1JB222J AA 2.2 kohms,1/16W
R86 VRS-CY1JB472J AA 4.7 kohms,1/16W
R87 VRS-CY1JB472J AA 4.7 kohms,1/16W
R88 VRS-CY1JB472J AA 4.7 kohms,1/16W
R89 VRS-CY1JB472J AA 4.7 kohms,1/16W
R91 VRS-CY1JB103J AA 10 kohm,1/16W
R92 VRS-CY1JB103J AA 10 kohm,1/16W
R93 VRS-CY1JB472J AA 4.7 kohms,1/16W
R94 VRD-ST2EE1R0J AA 1 ohm,1/4W
R95 VRD-ST2EE1R0J AA 1 ohm,1/4W
R96 VRS-CY1JB472J AA 4.7 kohms,1/16W
[10] RESISTORS
background
CD-G10000/CP-G10000S
9
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R97 VRS-CY1JB333J AA 33 kohms,1/16W
R98 VRS-CY1JB271J AA 270 ohms,1/16W
R99 VRS-CY1JB225J AA 2.2 Mohms,1/16W
R101 VRS-CY1JB102J AA 1 kohm,1/16W
R102 VRS-CY1JB102J AA 1 kohm,1/16W
R103 VRS-CY1JB222J AA 2.2 kohms,1/16W
R104 VRS-CY1JB222J AA 2.2 kohms,1/16W
R105 VRS-CY1JB332J AA 3.3 kohms,1/16W
R106 VRS-CY1JB332J AA 3.3 kohms,1/16W
R107 VRS-CY1JB473J AA 47 kohms,1/16W
R108 VRS-CY1JB473J AA 47 kohms,1/16W
R109 VRS-CY1JB472J AA 4.7 kohms,1/16W
R110 VRS-CY1JB472J AA 4.7 kohms,1/16W
R111 VRD-ST2CD153J AA 15 kohms,1/6W
R112 VRS-CY1JB153J AA 15 kohms,1/16W
R113 VRD-ST2CD102J AA 1 kohm,1/6W
R114 VRD-ST2CD102J AA 1 kohm,1/6W
R115 VRD-ST2CD560J AA 56 ohms,1/6W
R116 VRD-ST2CD560J AA 56 ohms,1/6W
R117 VRS-CY1JB104J AA 100 kohm,1/16W
R118 VRS-CY1JB104J AA 100 kohm,1/16W
R119 VRS-CY1JB392J AA 3.9 kohms,1/16W
R120 VRS-CY1JB392J AA 3.9 kohms,1/16W
R121 VRS-CY1JB183J AA 18 kohms,1/16W
R122 VRS-CY1JB183J AA 18 kohms,1/16W
R123 VRS-CY1JB472J AA 4.7 kohms,1/16W
R124 VRS-CY1JB472J AA 4.7 kohms,1/16W
R126 VRS-CY1JB472J AA 4.7 kohms,1/16W
R127 VRS-CY1JB472J AA 4.7 kohms,1/16W
R128 VRS-CY1JB562J AA 5.6 kohms,1/16W
R129 VRS-CY1JB562J AA 5.6 kohms,1/16W
R130 VRS-CY1JB152J AA 1.5 kohms,1/16W
R131 VRS-CY1JB152J AA 1.5 kohms,1/16W
R132 VRS-CY1JB101J AA 100 ohm,1/16W
R133 VRS-CY1JB101J AA 100 ohm,1/16W
R134 VRS-CY1JB103J AA 10 kohm,1/16W
R135 VRS-CY1JB103J AA 10 kohm,1/16W
R136 VRS-CY1JB224J AA 220 kohms,1/16W
R137 VRS-CY1JB224J AA 220 kohms,1/16W
R138 VRS-CY1JB103J AA 10 kohm,1/16W
R139 VRS-CY1JB103J AA 10 kohm,1/16W
R140 VRS-CY1JB473J AA 47 kohms,1/16W
R141 VRS-CY1JB472J AA 4.7 kohms,1/16W
R142 VRD-RT2HD820J AA 82 ohms,1/2W
R143 VRS-CY1JB473J AA 47 kohms,1/16W
R144 VRS-CY1JB223J AA 22 kohms,1/16W
R145 VRD-ST2CD4R7J AA 4.7 ohms,1/6W
R146 VRS-CY1JB103J AA 10 kohm,1/16W
R147 VRS-CY1JB103J AA 10 kohm,1/16W
R148 VRS-CY1JB472J AA 4.7 kohms,1/16W
R149 VRD-ST2EE151J AA
150 ohms,1/4W
R150 VRS-CY1JB683J AA 68 kohms,1/16W
R158 VRD-ST2EE221J AA 220 ohms,1/4W
R302 VRS-CY1JB100J AA 10 ohm,1/16W
R309 VRD-ST2CD103J AA 10 kohm,1/6W
R311 VRS-CY1JB104J AA 100 kohm,1/16W
R313 VRS-CY1JB333J AA 33 kohms,1/16W
R314 VRD-ST2CD220J AA 22 ohms,1/6W
R316 VRS-CY1JB472J AA 4.7 kohms,1/16W
R322 VRS-CY1JB681J AA 680 ohms,1/16W
R323 VRS-CY1JB683J AA 68 kohms,1/16W
R325 VRS-CY1JB473J AA 47 kohms,1/16W
R327 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R336 VRS-CY1JB103J AA 10 kohm,1/16W
R350 VRS-CY1JB272J AA 2.7 kohms,1/16W
R351 VRS-CY1JB562J AA 5.6 kohms,1/16W
R352 VRS-CY1JB102J AA 1 kohm,1/16W
R353 VRS-CY1JB271J AA 270 ohms,1/16W
R355 VRS-CY1JB332J AA 3.3 kohms,1/16W
R356 VRS-CY1JB102J AA 1 kohm,1/16W
R357 VRS-CY1JB474J AA 470 kohms,1/16W
R358 VRD-ST2CD332J AA 3.3 kohms,1/6W
R359 VRS-CY1JB182J AA 1.8 kohms,1/16W
R360 VRS-CY1JB472J AA 4.7 kohms,1/16W
R365 VRS-CY1JB103J AA 10 kohm,1/16W
R372 VRS-CY1JB102J AA 1 kohm,1/16W
R373 VRS-CY1JB102J AA 1 kohm,1/16W
R374 VRS-CY1JB102J AA 1 kohm,1/16W
R375 VRD-ST2CD471J AA 470 ohms,1/6W
R376 VRS-CY1JB102J AA 1 kohm,1/16W
R377 VRS-CY1JB473J AA 47 kohms,1/16W
R378 VRS-CY1JB102J AA 1 kohm,1/16W
R379 VRS-CY1JB222J AA 2.2 kohms,1/16W
R380 VRS-CY1JB152J AA 1.5 kohms,1/16W
R381 VRS-CY1JB103J AA 10 kohm,1/16W
[10] RESISTORS
background
CD-G10000/CP-G10000S
10
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R382 VRD-ST2EE151J AA 150 ohms,1/4W
R383 VRS-CY1JB562J AA 5.6 kohms,1/16W
R384 VRD-ST2CD562J AA 5.6 kohms,1/6W
R385 VRS-CY1JB562J AA 5.6 kohms,1/16W
R386 VRD-ST2CD223J AA 22 kohms,1/6W
R387 VRD-ST2CD562J AA 5.6 kohms,1/6W
R388 VRS-CY1JB392J AA 3.9 kohms,1/16W
R391 VRD-ST2EE271J AA 270 ohms,1/4W
R392 VRD-ST2EE271J AA 270 ohms,1/4W
R393 VRD-ST2CD102J AA 1 kohm,1/6W
R395 VRS-CY1JB473J AA 47 kohms,1/16W
R573 VRD-ST2CD103J AA 10 kohm,1/6W
R593 VRS-CY1JB472J AA 4.7 kohms,1/16W
R601 VRD-ST2CD102J AA 1 kohm,1/6W
R602 VRD-ST2CD102J AA 1 kohm,1/6W
R603 VRD-ST2CD102J AA 1 kohm,1/6W
R604 VRS-CY1JB103J AA 10 kohm,1/16W
R605 VRS-CY1JB103J AA 10 kohm,1/16W
R606 VRS-CY1JB472J AA 4.7 kohms,1/16W
R607 VRS-CY1JB472J AA 4.7 kohms,1/16W
R608 VRS-CY1JB821J AA 820 ohms,1/16W
R609 VRS-CY1JB821J AA 820 ohms,1/16W
R610 VRS-CY1JB222J AA 2.2 kohms,1/16W
R611 VRS-CY1JB222J AA 2.2 kohms,1/16W
R612 VRS-CY1JB391J AA 390 ohms,1/16W
R613 VRS-CY1JB391J AA 390 ohms,1/16W
R614 VRS-CY1JB153J AA 15 kohms,1/16W
R615 VRS-CY1JB153J AA 15 kohms,1/16W
R616 VRS-CY1JB222J AA 2.2 kohms,1/16W
R617 VRS-CY1JB222J AA 2.2 kohms,1/16W
R618 VRD-ST2CD331J AA 330 ohms,1/6W
R619 VRS-CY1JB331J AA 330 ohms,1/16W
R620 VRS-CY1JB223J AA 22 kohms,1/16W
R621 VRS-CY1JB223J AA 22 kohms,1/16W
R641 VRS-CY1JB103J AA 10 kohm,1/16W
R642 VRD-ST2CD103J AA 10 kohm,1/6W
R643 VRS-CY1JB822J AA 8.2 kohms,1/16W
R644 VRS-CY1JB822J AA 8.2 kohms,1/16W
R690 VRD-ST2CD682J AA 6.8 kohms,1/6W
R691 VRD-ST2CD682J AA 6.8 kohms,1/6W
R692 VRD-ST2CD333J AA 33 kohms,1/6W
R693 VRD-ST2CD333J AA 33 kohms,1/6W
R701 VRS-CY1JB102J AA 1 kohm,1/16W
R702 VRS-CY1JB102J AA 1 kohm,1/16W
R703 VRS-CY1JB102J AA 1 kohm,1/16W
R704 VRD-ST2CD102J AA 1 kohm,1/6W
R705 VRD-ST2CD102J AA 1 kohm,1/6W
R706 VRS-CY1JB102J AA 1 kohm,1/16W
R707 VRD-ST2CD102J AA 1 kohm,1/6W
R708 VRD-ST2CD102J AA 1 kohm,1/6W
R709 VRD-ST2CD102J AA
1 kohm,1/6W
R710 VRD-ST2CD102J AA 1 kohm,1/6W
R711 VRD-ST2CD102J AA 1 kohm,1/6W
R712 VRD-ST2CD102J AA 1 kohm,1/6W
R713 VRS-CY1JB102J AA 1 kohm,1/16W
R714 VRS-CY1JB102J AA 1 kohm,1/16W
R715 VRS-CY1JB102J AA 1 kohm,1/16W
R716 VRS-CY1JB102J AA 1 kohm,1/16W
R717 VRD-ST2CD102J AA 1 kohm,1/6W
R718 VRS-CY1JB102J AA 1 kohm,1/16W
R719 VRS-CY1JB102J AA 1 kohm,1/16W
R720 VRS-CY1JB102J AA 1 kohm,1/16W
R721 VRS-CY1JB102J AA 1 kohm,1/16W
R722 VRS-CY1JB102J AA 1 kohm,1/16W
R723 VRD-ST2CD102J AA 1 kohm,1/6W
R724 VRS-CY1JB102J AA 1 kohm,1/16W
R725 VRD-ST2CD102J AA 1 kohm,1/6W
R726 VRS-CY1JB222J AA 2.2 kohms,1/16W
R727 VRS-CY1JB681J AA 680 ohms,1/16W
R728 VRS-CY1JB681J AA 680 ohms,1/16W
R729 VRD-ST2CD561J AA 560 ohms,1/6W
R730 VRD-ST2CD102J AA 1 kohm,1/6W
R731 VRS-CY1JB103J AA 10 kohm,1/16W
R732 VRS-CY1JB102J AA 1 kohm,1/16W
R733 VRS-CY1JB102J AA 1 kohm,1/16W
R736 VRS-CY1JB102J AA 1 kohm,1/16W
R739 VRD-ST2CD102J AA 1 kohm,1/6W
R740 VRD-ST2CD101J AA 100 ohm,1/6W
R741 VRD-ST2CD102J AA 1 kohm,1/6W
R745 VRD-ST2CD103J AA 10 kohm,1/6W
R746 VRD-ST2CD102J AA 1 kohm,1/6W
R750 VRD-ST2CD473J AA 47 kohms,1/6W
R751 VRD-ST2CD331J AA 330 ohms,1/6W
R759 VRD-ST2CD562J AA 5.6 kohms,1/6W
R761 VRS-CY1JB103J AA 10 kohm,1/16W
[10] RESISTORS
background
CD-G10000/CP-G10000S
11
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R762 VRS-CY1JB103J AA 10 kohm,1/16W
R763 VRS-CY1JB102J AA 1 kohm,1/16W
R766 VRS-CY1JB103J AA 10 kohm,1/16W
R767 VRS-CY1JB103J AA 10 kohm,1/16W
R768 VRS-CY1JB103J AA 10 kohm,1/16W
R769 VRD-ST2CD102J AA 1 kohm,1/6W
R770 VRS-CY1JB562J AA 5.6 kohms,1/16W
R771 VRD-ST2CD472J AA 4.7 kohms,1/6W
R773 VRS-CY1JB103J AA 10 kohm,1/16W
R775 VRS-CY1JB472J AA 4.7 kohms,1/16W
R776 VRS-CY1JB472J AA 4.7 kohms,1/16W
R777 VRS-CY1JB103J AA 10 kohm,1/16W
R778 VRS-CY1JB103J AA 10 kohm,1/16W
R779 VRS-CY1JB103J AA 10 kohm,1/16W
R780 VRD-ST2CD103J AA 10 kohm,1/6W
R781 VRS-CY1JB473J AA 47 kohms,1/16W
R782 VRD-ST2CD104J AA 100 kohm,1/6W
R783 VRS-CY1JB101J AA 100 ohm,1/16W
R784 VRS-CY1JB102J AA 1 kohm,1/16W
R785 VRS-CY1JB272J AA 2.7 kohms,1/16W
R786 VRS-CY1JB472J AA 4.7 kohms,1/16W
R787 VRD-ST2CD472J AA 4.7 kohms,1/6W
R788 VRD-ST2CD472J AA 4.7 kohms,1/6W
R789 VRD-ST2CD472J AA 4.7 kohms,1/6W
R790 VRS-CY1JB822J AA 8.2 kohms,1/16W
R791 VRS-CY1JB472J AA 4.7 kohms,1/16W
R794 VRD-ST2EE1R5J AA 1.5 ohms,1/4W
R795 VRD-ST2EE1R5J AA 1.5 ohms,1/4W
R801 VRD-ST2CD104J AA 100 kohm,1/6W
R802 VRD-ST2CD473J AA 47 kohms,1/6W
R803 VRD-ST2CD123J AA 12 kohms,1/6W
R804 VRD-ST2EE470J AA 47 ohms,1/4W
R805 VRD-ST2EE470J AA 47 ohms,1/4W
R806 VRD-ST2CD473J AA 47 kohms,1/6W
R808 VRD-RT2HD222J AA 2.2 kohms,1/2W
R841 VRD-ST2CD224J AA 220 kohms,1/6W
R842 VRD-ST2CD102J AA 1 kohm,1/6W
R843 VRD-ST2CD473J AA 47 kohms,1/6W
R844 VRD-ST2EE820J AA 82 ohms,1/4W
R853 VRD-ST2CD223J AA 22 kohms,1/6W
R854 VRD-ST2CD332J AA 3.3 kohms,1/6W
R857 VRD-ST2CD223J AA 22 kohms,1/6W
R858 VRD-ST2CD221J AA 220 ohms,1/6W
R859 VRD-ST2CD103J AA 10 kohm,1/6W
R863 VRD-RH2HD3R3J AA 3.3 ohms,1/2W
R864 VRD-ST2CD223J AA 22 kohms,1/6W
R870 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R885 VRS-CY1JB681J AA 680 ohms,1/16W
R886 VRS-CY1JB223J AA 22 kohms,1/16W
R887 VRS-CY1JB223J AA 22 kohms,1/16W
R888 VRD-ST2CD473J AA
47 kohms,1/6W
R889 VRD-ST2CD473J AA 47 kohms,1/6W
!
R890 RR-HZ0001AWZZ AE 4.7 Mohms,1/2W
R891 VRD-ST2EE101J AA 100 ohm,1/4W
R901 VRS-CY1JB563J AA 56 kohms,1/16W
R902 VRS-CY1JB563J AA 56 kohms,1/16W
R903 VRS-CY1JB102J AA 1 kohm,1/16W
R904 VRS-CY1JB102J AA 1 kohm,1/16W
R905 VRS-CY1JB561J AA 560 ohms,1/16W
R906 VRS-CY1JB561J AA 560 ohms,1/16W
R907 VRS-CY1JB563J AA 56 kohms,1/16W
R908 VRS-CY1JB102J AA 1 kohm,1/16W
R909 VRS-CY1JB333J AA 33 kohms,1/16W
R910 VRD-ST2CD102J AA 1 kohm,1/6W
R911 VRS-CY1JB563J AA 56 kohms,1/16W
!
R912 VRG-ST2EC101J AB 100 ohm,1/4W,Fusible
R913 VRN-CM05NR22J AD 0.22 ohms,5W
R916 VRN-CM05NR22J AD 0.22 ohms,5W
R917 VRN-CM05N0R1J AD 0.1 ohm,5W
R918 VRD-ST2CD222J AA 2.2 kohms,1/6W
R919 VRS-CY1JB152J AA 1.5 kohms,1/16W
R920 VRS-CY1JB152J AA 1.5 kohms,1/16W
R921 VRD-ST2CD222J AA 2.2 kohms,1/6W
R922 VRN-CM05N0R1J AD 0.1 ohm,5W
R925 VRD-RT2HD152J AA 1.5 kohms,1/2W
R926 VRD-RT2HD152J AA 1.5 kohms,1/2W
R927 VRD-ST2EE393J AA 39 kohms,1/4W
R928 VRD-ST2EE393J AA 39 kohms,1/4W
R929 VRD-ST2EE473J AA 47 kohms,1/4W
R930 VRD-ST2EE473J AA 47 kohms,1/4W
R934 VRD-ST2CD563J AA 56 kohms,1/6W
R935 VRD-ST2CD563J AA 56 kohms,1/6W
R937 VRS-CY1JB563J AA 56 kohms,1/16W
R938 VRD-RT2HD100J AA 10 ohm,1/2W
R939 VRD-RT2HD100J AA 10 ohm,1/2W
[10] RESISTORS
background
CD-G10000/CP-G10000S
12
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R940 VRD-RT2HD100J AA 10 ohm,1/2W
R941 VRD-RT2HD100J AA 10 ohm,1/2W
R942 VRS-VV3DA681J AC 680 ohms,2W
R943 VRS-VV3DA681J AC 680 ohms,2W
R944 VRD-ST2CD152J AA 1.5 kohms,1/6W
R945 VRD-ST2CD152J AA 1.5 kohms,1/6W
R946 VRS-CY1JB473J AA 47 kohms,1/16W
R947 VRS-CY1JB153J AA 15 kohms,1/16W
R949 VRD-RT2HD102J AA 1 kohm,1/2W
R950 VRD-ST2CD683J AA 68 kohms,1/6W
R951 VRD-RT2HD102J AA 1 kohm,1/2W
R956 VRS-CY1JB102J AA 1 kohm,1/16W
R957 VRS-CY1JB472J AA 4.7 kohms,1/16W
!
R958 VRG-ST2EC101J AB 100 ohm,1/4W,Fusible
R959 VRS-CY1JB221J AA 220 ohms,1/16W
R960 VRD-RT2HD822J AA 8.2 kohms,1/2W
R961 VRD-RT2HD822J AA 8.2 kohms,1/2W
R962 VRD-RT2HD471J AA 470 ohms,1/2W
RD01 VRD-ST2CD681J AA 680 ohms,1/6W
RD02 VRS-CY1JB821J AA 820 ohms,1/16W
RD03 VRS-CY1JB102J AA 1 kohm,1/16W
RD04 VRD-ST2CD152J AA 1.5 kohms,1/6W
RD05 VRS-CY1JB222J AA 2.2 kohms,1/16W
RD06 VRS-CY1JB272J AA 2.7 kohms,1/16W
RD11 VRS-CY1JB681J AA 680 ohms,1/16W
RD12 VRS-CY1JB821J AA 820 ohms,1/16W
RD13 VRD-ST2CD102J AA 1 kohm,1/6W
RD14 VRS-CY1JB152J AA 1.5 kohms,1/16W
RD15 VRS-CY1JB222J AA 2.2 kohms,1/16W
RD16 VRS-CY1JB272J AA 2.7 kohms,1/16W
RD17 VRS-CY1JB392J AA 3.9 kohms,1/16W
RD18 VRS-CY1JB562J AA 5.6 kohms,1/16W
RD19 VRS-CY1JB103J AA 10 kohm,1/16W
RD20 VRS-CY1JB153J AA 15 kohms,1/16W
RD21 VRS-CY1JB333J AA 33 kohms,1/16W
RD23 VRD-ST2CD681J AA 680 ohms,1/6W
RD24 VRD-ST2CD821J AA 820 ohms,1/6W
RD25 VRD-ST2CD102J AA 1 kohm,1/6W
RD26 VRS-CY1JB152J AA 1.5 kohms,1/16W
RD27 VRS-CY1JB222J AA 2.2 kohms,1/16W
RD28 VRS-CY1JB272J AA 2.7 kohms,1/16W
RD29 VRS-CY1JB392J AA 3.9 kohms,1/16W
RD30 VRS-CY1JB562J AA 5.6 kohms,1/16W
RD31 VRS-CY1JB103J AA 10 kohm,1/16W
RD32 VRS-CY1JB153J AA 15 kohms,1/16W
RM1 VRS-CY1JB103J AA 10 kohm,1/16W
RM2 VRS-CY1JB103J AA 10 kohm,1/16W
RM5 VRS-CY1JB271J AA 270 ohms,1/16W
RM6 VRS-CY1JB681J AA 680 ohms,1/16W
[11] OTHER CIRCUITRY PARTS
BI601 QCNWN2715AWPZ AG Connector Ass'y,9/8Pin Within CNS601
BI603 QCNWN2714AWPZ AK Connector Ass'y,6/5Pin Within CNS603
BI801 QCNWN2713AWPZ AH Connector Ass'y,11/10Pin Within CNS801
BI901 QCNWN2561AWZZ AE Connector Ass'y,3/3Pin with CNS901
CNP1 QCNCWYP16AWZZ AD Socket,16Pin
CNP2 92LCONE8P53254 AC Plug,8Pin
CNP3 92LCONE6P53253 AC Plug,6Pin
CNP3A 92LCONE6P53254 AC Plug,6Pin
CNP4 92LCONE7P53253 AC Plug,7Pin
CNP5 QCNCWZY16AWZZ AD Socket,16Pin
CNP6 QCNCWZX11AWZZ AC Socket,11Pin
CNP6A QCNCWZO11AWZZ AC Socket,11Pin
CNP101 QCNCM705CAFZZ AA Plug,3Pin
CNP102 QCNCM705GAFZZ AB Plug,7Pin
CNP301 92LCONE2P5268 AB Plug,2Pin
CNP603 92LCONE5P53253 AB Plug,5Pin
CNP701
A
QCNCWZY16AWZZ AD Socket,16Pin
CNP701
B
QCNCWZX16AWZZ AD Socket,16Pin
CNP702
A
QCNCWZY07AWZZ AC Socket,7Pin
CNP704 QCNCWZY16AWZZ AD Socket,16Pin
CNP801 92LCONEAP5267X AC Plug,10Pin
CNP802 QCNCW012FAWZZ AC Plug,6Pin
CNP901 QCNCW012EAWZZ AC Socket,5Pin
CNP903 QCNCM705CAFZZ AA Plug,3Pin
CNP971 92LCONE2P53253 AB Plug,2Pin
CNS3A QCNWNA087AWPZ AF Connector Ass'y,6/6Pin with CNS3B
CNS971 QCNWNA080AWPZ AC Connector Ass'y,2Pin
!
F801 QFS-D502DAWNI AC Fuse,5A/125V
!
F802 QFS-D502DAWNI AC Fuse,5A/125V
!
F803 QFS-D202BSJNI AB Fuse,2A/125V
[10] RESISTORS
background
CD-G10000/CP-G10000S
13
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
!
F804 QFS-D202BSJNI AB Fuse,2A/125V
!
F805 QFS-D602DAWNI AC Fuse,6A/125V
FFC1 QCNWNA088AWPZ AF Flat Cable,16Pin
FFC4 QCNWN2701AWPZ AD Flat Cable,11Pin
FFC701 QCNWN2716AWPZ AF Flat Cable,16Pin
FFC702 QCNWN2495AWZZ AD Flat Cable,7Pin
FFC704 QCNWN2718AWPZ AF Flat Cable,16Pin
FJ1 RCORFA001AWZZ AB Ferrit Bead
FL701 VVKNA12MM44-1 AX FL Display
FW701 QCNWN2712AWPZ AD Flat Wire,6Pin
FW901 QCNWN2711AWPZ AD Flat Wire,5Pin
JK690 QSOCJ0313AWZZ AF Jack,Game Input
JK691 QSOCJ0120AWZZ AD Jack,Video Out
JK692 QJAKM0004AWZZ AK Jack,Headphones
JK904 QSOCJA010AWZZ AC Jack,Subwoofer Pre-Out
JOG701 QSW-ZA001AWZZ AE Switch,Jog Type [Volume]
LG1 QLUGPA001AWZZ AC Lug Terminal
LG2 QLUGPA001AWZZ AC Lug Terminal
LG3 QLUGPA001AWZZ AC Lug Terminal
LG4 QLUGPA001AWZZ AC Lug Terminal
M1 92LMTR5529BASY AD Motor with Gear [Tray]
M2 92LMTR5529BASY AD Motor with Gear [Main Cam]
M901 RMOTV0059AWZZ AL Motor Air Cooling,Fan
NM1 92LMTR5515CASY AS Motor with Chassis [Spindle]
NM2 92LMTR1854BASY AP Motor with Gear [Sled]
NSW1 QSW-F9001AW01 AD Switch,Push Type [Pickup In]
!
RL841 RRLYD0018AWZZ AH Relay
RL914 RRLYD0016AWZZ AH Relay
RX1 VHPGP1S094HCZ AF Photo Interrupter,GP1S094HCZ
RX701 VHLPIC3704/-1 AG Remote Sensor,PIC3704
SO302 QTANC0206AWZZ AD Terminal,FM Antenna
SO902 QTANA0424AWZZ AE Terminal,Speaker
SO904 QTANA0428AWZZ AE Terminal,Surround Speaker
SW1 QSW-P9003AWZZ AD Switch,Push Type [Clamp]
SW2 QSW-P9003AWZZ AD Switch,Push Type [Tray SW1]
SW3 QSW-P9003AWZZ AD Switch,Push Type [Tray SW2]
SW4 QSW-P9006AWZZ AF Switch,Push Type [Disc]
SW701 92LSWICH1401AT AC Switch,Key Type [On/Stand-by]
SW702 92LSWICH1401AT AC Switch,Key Type [Clock/Timer]
SW703 92LSWICH1401AT AC Switch,Key Type [Tuning Up]
SW704 92LSWICH1401AT AC Switch,Key Type [Tuning Down]
SW705 92LSWICH1401AT AC Switch,Key Type [Fast Rewind/Preset Down]
SW706 92LSWICH1401AT AC Switch,Key Type [Equalizer]
SW707 92LSWICH1401AT AC Switch,Key Type [Fast Forward/Preset Up]
SW712 92LSWICH1401AT AC Switch,Key Type [Tuner (Band)]
SW713 92LSWICH1401AT AC Switch,Key Type [CD]
SW714 92LSWICH1401AT AC Switch,Key Type [Tape]
SW715 92LSWICH1401AT AC Switch,Key Type [Game/Video]
SW716 92LSWICH1401AT AC Switch,Key Type [X-Bass/Demo]
SW717 92LSWICH1401AT AC Switch,Key Type [Left]
SW718 92LSWICH1401AT AC Switch,Key Type [Up]
SW719 92LSWICH1401AT AC Switch,Key Type [Character]
SW720 92LSWICH1401AT AC Switch,Key Type [Right]
SW721 92LSWICH1401AT AC Switch,Key Type [Enter]
SW722 92LSWICH1401AT AC Switch,Key Type [Down]
SW723 92LSWICH1401AT AC Switch,Key Type [MP3 Navigation]
SW725 92LSWICH1401AT AC Switch,Key Type [Play/Repeat]
SW726 92LSWICH1401AT AC Switch,Key Type [Stop]
SW727 92LSWICH1401AT AC Switch,Key Type [Rec/Pause]
SW728 92LSWICH1401AT AC Switch,Key Type [Memory/Set]
SW729 92LSWICH1401AT AC Switch,Key Type [Open/Close]
SW730 92LSWICH1401AT AC Switch,Key Type [Direct Play]
SW731 92LSWICH1401AT AC Switch,Key Type [Disc2]
SW732 92LSWICH1401AT AC Switch,Key Type [Disc4]
SW733 92LSWICH1401AT AC Switch,Key Type [Disc5]
SW734 92LSWICH1401AT AC Switch,Key Type [Disc3]
SW735 92LSWICH1401AT AC Switch,Key Type [Disc1]
WTM705 QCNCW019FAWZZ AB Socket,6Pin
WTM901 QCNCW019EAWZZ AB Socket,5Pin
[11] OTHER CIRCUITRY PARTS
background
CD-G10000/CP-G10000S
14
[12] CD MECHANISM PARTS
701
304
701
302
301
NM1
703x2
305x2
NSW1
NM2
308
PWB-F
306-2
306
704
307
306-1
306-3
background
CD-G10000/CP-G10000S
15
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[12] CD MECHANISM PARTS
301 NGERH0011AWZZ AC Gear,Middle
302 NGERH0012AWZZ AC Gear,Drive
304 NSFTM0020AWFW AD Shaft,Guide
305 92LMCUSN1524A AD Cushion
!
306 92LHPC1LFASY BB Pickup Unit Ass'y
306- 1 -------- — Pickup Unit (Not Replacement Item)
306- 2 NGERR0043AFZZ AC Gear,Rack
306- 3 MSPRC0961AFZZ AA Spring,Rack
307 PCUSG0001AWSA AD Cushion
308 PCUSG0004AWSA AD Cushion
701 XBSSD26P06000 AA Screw,M2.6x6mm
703 XBBSD20P03000 AA Screw,M2x3mm
704 LX-WZ1070AFZZ AA Washer,M1.5xM3.8x0.25mm
NM1 92LMTR5515CASY AS Motor with Chassis [Spindle]
NM2 92LMTR1854BASY AP Motor with Gear [Sled]
NSW1 QSW-F9001AW01 AD Switch,Push Type [Pickup In]
background
CD-G10000/CP-G10000S
16
[13] CHANGER MECHANISM PARTS
PWB-E
107
122
115
123
108
119
135
104
136
112
113
139
133
143
134
132
140
124
141
111
137
136
120
110
801x2
803x6
103
138
804
148
149
147
146
145
126
125
127
128
118
142
145
152
121
144
131
105
150
148
129
147
146
151
130
152
117
101
101
101
101
101
102
102
102
116
114
106
109-2
109-3
109-5
109
109-1
109-4
102
102
M1
SW1
SW2
SW3
RX1
SW4
M2
803x2
background
CD-G10000/CP-G10000S
17
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[13] CHANGER MECHANISM PARTS
101 GCOVA1513AWZZ AF Disc Tray
102 GCOVA1514AWZZ AF Guide Tray
103 LANGG0008AWZZ AD Outer Tray Guide
104 LANGG0009AWZZ AC Inner Tray Guide
105 LCHSM0194AWZZ AP Main Base
106 LHLDZ9017AWZZ AF CD Mechanism Holder
107 LPLTP0014AWZZ AK Top Plate
108 LPLTP0015AWZZ AG Gear Plate
109 MHOLD5529ASY AP Up/Down Holder Ass'y
109- 1 LHLDM9001AWZZ AD Stabilizer
109- 2 LHLDZ9019AWM1 AK Up/Down Holder Ass'y
109- 3 LPLTM0017AWZZ AB Stabilizer Plate
109- 4 LPLTMA001AWFW AC Plate
109- 5 PMAGF0003AWZZ AF Magnet
110 MLEVP0129AWZZ AC Tray Lock Lever
111 MLEVP0130AWZZ AG Gear Up/Down Board
112 MLEVP0131AWZZ AD Mechanism Up/Down Board (L)
113 MLEVP0132AWZZ AD Mechanism Up/Down Board (R)
114 MLEVP0133AWZZ AC Mechanism Clamp Board
115 MLEVP0134AWZZ AD L/R Joint Lver
116 MLEVP0135AWZZ AC Tray Set Lever
117 MLEVP0136AWZZ AC Mechanism Clamp Switch Lever
118 MLEVP0137AWZZ AC Mechanism Clamp Switch Arm
119 MLEVP0138AWZZ AB Inner GR Up/Down Lever
120 MLEVP0139AWZZ AC Outer GR Up/Down Lever
121 MSPRC0044AWFJ AB Shift Spring
122 MSPRD0191AWFJ AC Disc Stop Spring
123 MSPRD0192AWFJ AB Balance Spring
124 NGERH0176AWZZ AF Tray Big Gear
125 NGERH0177AWZZ AC Tray Front Gear A
126 NGERH0178AWZZ AC Tray Front Gear B
127 NGERH0179AWZZ AC Tray Rear Gear A
128 NGERH0180AWZZ AB Tray Rear Gear B
129 NGERH0181AWZZ AC Mechanism Clamp Gear A
130 NGERH0182AWZZ AC Mechanism Clamp Joint Gear
131 NGERH0183AWZZ AC Mechanism Clamp Board Gear
132 NGERH0184AWZZ AC Tray Rear Joint Gear A
133 NGERH0185AWZZ AC Tray Rear Joint Gear B
134 NGERH0186AWZZ AC Tray Rear Joint Gear C
135 NGERH0187AWZZ AB Tray Rear Drive Gear
136 NGERH0188AWZZ AC Tray Drive Gear
137 NGERH0189AWZZ AB Tray Front Drive Gear
138 NGERH0190AWZZ AC Tray Front Joint Gear
139 NGERH0191AWZZ AE Mode Big Gear
140 NGERH0192AWZZ AC G-Up/Down Gear A
141 NGERH0193AWZZ AC G-Up/Down Gear B
142 NGERH0194AWZZ AB Mechanism Up/Down Gear A
143 NGERH0195AWZZ AC Mechanism Up/Down Gear B
144 NGERH0196AWZZ AC Mechanism Clamp Switch Gear
145 NGERH0198AWZZ AB Reduction Gear A
146 NGERH0199AWZZ AB
Reduction Gear B
147 NGERH0200AWZZ AB Reduction Gear C
148 NGERH0201AWZZ AB Reduction Gear D
149 NGERH0202AWZZ AB Up/Down Reduction Gear E
150 NGERH0203AWZZ AB Up/Down Reduction Gear F
151 NGERH0204AWZZ AB Tray Reduction Gear E
152 NSFTT0084AWFD AD Shaft,Main Base
801 LX-BZA006AWFD AB Screw,Special
803 XEBSD20P10000 AA Screw,M2x10mm
804 XEBSD30P10000 AA Screw,M3x10mm
M1 92LMTR5529BASY AD Motor with Gear [Tray]
M2 92LMTR5529BASY AD Motor with Gear [Main Cam]
SW1 QSW-P9003AWZZ AD Switch,Push Type [CLAMP]
SW2 QSW-P9003AWZZ AD Switch,Push Type [TRAY SW1]
SW3 QSW-P9003AWZZ AD Switch,Push Type [TRAY SW2]
SW4 QSW-P9006AWZZ AF Switch,Push Type [DISC]
background
CD-G10000/CP-G10000S
18
[14] CABINET PARTS
224x10
PWB-B2
201
604
615
615
212
201-21
201-20
201-22
201-17
214
213
203x2
606x2
216
201-25
201-23
201-9
201-4
201-1
201-18
201-2
201-6
201-7
201-3
201-19
201-5
201-9
201-11
201-26
201-24
229
201-13
607x2
201-8
201-28
201-27
201-14
201-16
201-15
201-10
201-12
604
PWB-A2
PWB-A1
PWB-H
PWB-B1
PWB-C
605x2
603x4
602x4
602x2
207
CHANGER
MECHANISM UNIT
206
CD
MECHANISM
601x3
234
234
234
234
202
601x5
601x3
601x2
601x11
204
218
M901
223
216
609x2
614x2
222
212
227
604x10
226
FL701
210
205
205
205
205
205
208 219
221
220
203x2
217
610
610
610
611
228
612
Tape
Motor
MAIN BELT
FLYWHEEL
ASS'Y
TAPE1
FLYWHEEL
ASS'Y
TAPE2
FF/REW
ROLLER
ASS'Y
FF/REW
ROLLER
ASS'Y
BELT CONNECTION
601x2
616x2
616x2
232
601x2
225
230
Silicon
Grease
613x2
617
617
209
PWB-D
605x6
PT801
608x4
230
212
background
CD-G10000/CP-G10000S
19
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[14] CABINET PARTS
201 CCABA6232AW01 Front Panel Ass'y
201- 1 -------- — Front Panel (Not Replacement Item)
201- 2 GCOVA1521AWSA AK Cover,Cassette [Tape 1]
201- 3 GCOVA1522AWSA AK Cover,Cassette [Tape 2]
201- 4 GDORF0127AWSA AE Holder,Cassette [Tape 1]
201- 5 GDORF0128AWSA AE Holder,Cassette [Tape 2]
201- 6 HDECQ1108AWSA AE Panel,Cassette [Tape 1]
201- 7 HDECQ1109AWSA AE Panel,Cassette [Tape 2]
201- 8 JKNBZ0982AWSA AE Button,Disc Number
201- 9 MLIF-A001AWZZ AD Damper
201-10 JKNBZA023AWSD AM Button,Operation A
201-11 JKNBZA024AWSD AM Button,Operation B
201-12 JKNBZA057AWSA AG Button,Function
201-13 JKNBZ0986AWSA AE Button,Memory
201-14 JKNBZ0987AWSA AE Button,Tuning
201-15 JKNBZ0991AWSA AF Button,Power
201-16 GCOVA1533AWSA AC Cover,Timer
201-17 HBDGB1007AWSA AD Badge,SHARP
201-18 MSPRDA002AWFJ AB Spring,Cassette [Tape 1]
201-19 MSPRDA003AWFJ AB Spring,Cassette [Tape 2]
201-20 HDECQA039AWSA AH Volume Knob Ring,A
201-21 HDECQA086AWSA AG Volume Knob Ring,B
201-22 HDECQA148AWSA AK Decoration Plate,Amp.
201-23 MLOKC0014AWZZ AC Lock,Cassette [Tape 1]
201-24 MLOKC0015AWZZ AC Lock,Cassette [Tape 2]
201-25 MSPRD0196AWFJ AB Spring,Cassette Lock [Tape 1]
201-26 MSPRD0197AWFJ AC Spring,Cassette Lock [Tape 2]
201-27 JKNBZA058AWSA AH Button,MP3 Navigation,A
201-28 JKNBZ0989AWSA AE Button,MP3 Navigation,B
202 GCAB-3101AWSA AY Cabinet,Top/Side
203 PCUSG0022AWZZ AB Cushion,Leg
204 GITARA253AWSA AK Rear Panel B
205 GCOVA1520AWSA AG Cover,CD Tray
206 LCHSZ0025AWZZ AM Chassis,Changer
207 PSLDMA009AWFW AG Shield,Dust Cover
208 92LNBAND1318A AA Nylon Band,80mm
209 KMECBA001AWZZ BC Tape Mechanism Ass'y
210 HDECQ1110AWSA AF Panel,Edge Light
212 QCNWN1860AWZZ AC Lug Wire
213 JKNBK0103AWSA AD Knob,Volume
214 HDECQ1104AWSA AL Cover,Volume Knob
216 92LCSPR1431C AA Spring,Ring
217 LCHSM0201AWFW AR Chassis,Main
218 GITARA252AWSA AP Rear Panel,A
219 LBND-1011AWZZ AA Nylon Band
!
220 QACCD0022AWZZ AM AC Power Supply Cord with CNS805
221 LBSHC0005AWZZ AD Bushing,AC Power Supply Cord
222 NFANP0001AWZZ AD Rotary Fan
223 LANGK0437AWFW AE Bracket,Fan Support A
!
224 QFSHD0001AWZZ AB Holder,Fuse
225 PRDAR0320AWFW AV Heat Sink
226 LHLDZ9024AWZZ AD Holder,Edge Light
227 LANGT0042AWFW AC Bracket,PWB Support
228 PSHEPA019AWZZ AF Insulator,Main PWB
229 LHLDZA004AWZZ AC Holder,Rib Support
230 LANGK0435AWFW AF Bracket,Heat Sink Support
234 PFLT-A006AWZZ AB Felt
601 XJBSD30P10000 AA Screw,M3x10mm
602 XEBSD30P10000 AA Screw,M3x10mm
603 LX-EZ0005AWFD AA Screw,M2.6x10mm
604 XEBSD26P10000 AA Screw,M2.6x10mm
605 XESSD30P10000 AA Screw,M3x10mm
606 XJSSD30P08000 AA Screw,M3x8mm
607 LX-EZ0010AWFD AA Screw,Special
608 XHBSD40P08000 AA Screw,M4x8mm
609 XBBSD20P04000 AA Screw,M2x4mm
610 LX-JZ0010AFFD AA Screw,M3x10mm
611 LX-LZA002AWZZ AD Push Rivet
612 LX-LZ0002AW00 AC Snap Rivet
613 LX-JZ0037AWFD AB Screw,M3x18mm
614 LX-JZ0044AWFF AB Screw,M3x10mm
615 XWHSD32-10080 AA Washer,M3.2xM8x1mm
616 XHBSD30P06000 AA Screw,M3x6mm
617 LX-JZ0036AWFD AB Screw,M3x12mm
background
CD-G10000/CP-G10000S
20
[15] SURROUND SPEAKER BOX PARTS
SP3,
SPEAKER
4
SP1,
SPEAKER
2
SP3,
SPEAKER
4
BK
SP1,
SPEAKER
2
RD
BK RD
SP1, 2
SP3, 4
910x4
910x4
903x4
901
904
904
904
908
905
907
902
907
906
909
background
CD-G10000/CP-G10000S
21
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[15] SURROUND SPEAKER BOX PARTS
901 GBOXSA043AW01 CC Speaker Box Ass'y
902 HPNLSA016AWSA BA Front Panel
903 PCUSGA020AWZZ AB Leg Cushion
904 PCUSSA015AWZZ AH Cushion,Front Panel Support
905 QCNWNA148AWZZ AR Lead Wire Ass'y
906 HDECQA062AWSA AP Decoration Panel
907 CDECQA063AW01 AZ Speaker Ring Ass'y
908 TSPC-A362AWZZ AD Label,Specifications
909 XJBSD30P12000 AA Screw,M3x12mm
910 XMBSF35P16000 AC Screw,M3.5x16mm
911 XEBSD26P10000 AA Screw,M2.6x10mm
SP1 RSP-ZA041AWZZ BD Speaker
SP2 RSP-ZA041AWZZ BD Speaker
SP3 RSP-ZA041AWZZ BD Speaker
SP4 RSP-ZA041AWZZ BD Speaker
[17] ACCESSORIES
QANTL0005AWZZ AG AM Loop Antenna
QCNWGA003AWPZ AM RCA Cable
QCNWHA004AWZZ AS Speaker Cord,Surround Speaker
TINSEA075AWZZ AE Operation Manual
TINSZA128AWZZ AD Quick Guide
TLABZA113AWSA AB Label,Energy Star
TLABZA227AWZZ AB Label,Model No.
92LBAG1460C1 AB Polyethylene Bag,Accessories
92LFANT1746A AD FM Antenna
1 RRMCG0395AWSA AU Remote Control
1- 1 GFTAT1017AWSA AG Battery Lid,Remote Control
[18] P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A 92LPWB6232MANS — Main/Display (PWB-A1,2) (Combined Ass'y)
!
PWB-B 92LPWB5534PWRS — Power/Game Input (PWB-B1,2) (Combined Ass'y)
PWB-C 92LPWB5612CDUS — CD Servo
PWB-D -------- — Tape Mechanism
PWB-E QPWBF1055AWZZ AE 5-Changer Motor (PWB Only)
PWB-F QPWBF0027AWZZ AD CD Motor (PWB Only)
PWB-G 92LPWB5813SPKS — Speaker Terminal
[19] OTHER SERVICE PART
UDSKA0004AFZZ AZ CD Pickup Lens Cleaner
background
CD-G10000/CP-G10000S
22
INDEX
INDEX
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
[ C ]
CCABA6232AW01 14-201
CDECQA063AW01 15-907 AZ
[ G ]
GBOXSA043AW01 15-901 CC
GCAB-3101AWSA 14-202 AY
GCOVA1513AWZZ 13-101 AF
GCOVA1514AWZZ 13-102 AF
GCOVA1520AWSA 14-205 AG
GCOVA1521AWSA 14-201- 2 AK
GCOVA1522AWSA 14-201- 3 AK
GCOVA1533AWSA 14-201-16 AC
GDORF0127AWSA 14-201- 4 AE
GDORF0128AWSA 14-201- 5 AE
GFTAT1017AWSA 17-1- 1 AG
GITARA252AWSA 14-218 AP
GITARA253AWSA 14-204 AK
[ H ]
HBDGB1007AWSA 14-201-17 AD
HDECQ1104AWSA 14-214 AL
HDECQ1108AWSA 14-201- 6 AE
HDECQ1109AWSA 14-201- 7 AE
HDECQ1110AWSA 14-210 AF
HDECQA039AWSA 14-201-20 AH
HDECQA062AWSA 15-906 AP
HDECQA086AWSA 14-201-21 AG
HDECQA148AWSA 14-201-22 AK
HPNLSA016AWSA 15-902 BA
[ J ]
JKNBK0103AWSA 14-213 AD
JKNBZ0982AWSA 14-201- 8 AE
JKNBZ0986AWSA 14-201-13 AE
JKNBZ0987AWSA 14-201-14 AE
JKNBZ0989AWSA 14-201-28 AE
JKNBZ0991AWSA 14-201-15 AF
JKNBZA023AWSD 14-201-10 AM
JKNBZA024AWSD 14-201-11 AM
JKNBZA057AWSA 14-201-12 AG
JKNBZA058AWSA 14-201-27 AH
[ K ]
KMECBA001AWZZ 14-209 BC
[ L ]
LANGG0008AWZZ 13-103 AD
LANGG0009AWZZ 13-104 AC
LANGK0435AWFW 14-230 AF
LANGK0437AWFW 14-223 AE
LANGT0042AWFW 14-227 AC
LBND-1011AWZZ 14-219 AA
LBSHC0005AWZZ 14-221 AD
LCHSM0194AWZZ 13-105 AP
LCHSM0201AWFW 14-217 AR
LCHSZ0025AWZZ 14-206 AM
LHLDM9001AWZZ 13-109- 1 AD
LHLDZ9017AWZZ 13-106 AF
LHLDZ9019AWM1 13-109- 2 AK
LHLDZ9024AWZZ 14-226 AD
LHLDZA004AWZZ 14-229 AC
LPLTM0017AWZZ 13-109- 3 AB
LPLTMA001AWFW 13-109- 4 AC
LPLTP0014AWZZ 13-107 AK
LPLTP0015AWZZ 13-108 AG
LX-BZA006AWFD 13-801 AB
LX-EZ0005AWFD 14-603 AA
LX-EZ0010AWFD 14-607 AA
LX-JZ0010AFFD 14-610 AA
LX-JZ0036AWFD 14-617 AB
LX-JZ0037AWFD 14-613 AB
LX-JZ0044AWFF 14-614 AB
LX-LZ0002AW00 14-612 AC
LX-LZA002AWZZ 14-611 AD
LX-WZ1070AFZZ 12-704 AA
[ M ]
MHOLD5529ASY 13-109 AP
MLEVP0129AWZZ 13-110 AC
MLEVP0130AWZZ 13-111 AG
MLEVP0131AWZZ 13-112 AD
MLEVP0132AWZZ 13-113 AD
MLEVP0133AWZZ 13-114 AC
MLEVP0134AWZZ 13-115 AD
MLEVP0135AWZZ 13-116 AC
MLEVP0136AWZZ 13-117 AC
MLEVP0137AWZZ 13-118 AC
MLEVP0138AWZZ 13-119 AB
MLEVP0139AWZZ 13-120 AC
MLIF-A001AWZZ 14-201- 9 AD
MLOKC0014AWZZ 14-201-23 AC
MLOKC0015AWZZ 14-201-24 AC
MSPRC0044AWFJ 13-121 AB
MSPRC0961AFZZ 12-306- 3 AA
MSPRD0191AWFJ 13-122 AC
MSPRD0192AWFJ 13-123 AB
MSPRD0196AWFJ 14-201-25 AB
MSPRD0197AWFJ 14-201-26 AC
MSPRDA002AWFJ 14-201-18 AB
MSPRDA003AWFJ 14-201-19 AB
[ N ]
NFANP0001AWZZ 14-222 AD
NGERH0011AWZZ 12-301 AC
NGERH0012AWZZ 12-302 AC
NGERH0176AWZZ 13-124 AF
NGERH0177AWZZ 13-125 AC
NGERH0178AWZZ 13-126 AC
NGERH0179AWZZ 13-127 AC
NGERH0180AWZZ 13-128 AB
NGERH0181AWZZ 13-129 AC
NGERH0182AWZZ 13-130 AC
NGERH0183AWZZ 13-131 AC
NGERH0184AWZZ 13-132 AC
NGERH0185AWZZ 13-133 AC
NGERH0186AWZZ 13-134 AC
NGERH0187AWZZ 13-135 AB
NGERH0188AWZZ 13-136 AC
NGERH0189AWZZ 13-137 AB
NGERH0190AWZZ 13-138 AC
NGERH0191AWZZ 13-139 AE
NGERH0192AWZZ 13-140 AC
NGERH0193AWZZ 13-141 AC
NGERH0194AWZZ 13-142 AB
NGERH0195AWZZ 13-143 AC
NGERH0196AWZZ 13-144 AC
NGERH0198AWZZ 13-145 AB
NGERH0199AWZZ 13-146 AB
NGERH0200AWZZ 13-147 AB
NGERH0201AWZZ 13-148 AB
NGERH0202AWZZ 13-149 AB
NGERH0203AWZZ 13-150 AB
NGERH0204AWZZ 13-151 AB
NGERR0043AFZZ 12-306- 2 AC
NSFTM0020AWFW 12-304 AD
NSFTT0084AWFD 13-152 AD
[ P ]
PCUSG0001AWSA 12-307 AD
PCUSG0004AWSA 12-308 AD
PCUSG0022AWZZ 14-203 AB
PCUSGA020AWZZ 15-903 AB
PCUSSA015AWZZ 15-904 AH
PFLT-A006AWZZ 14-234 AB
PMAGF0003AWZZ 13-109- 5 AF
PRDAR0320AWFW 14-225 AV
PSHEPA019AWZZ 14-228 AF
PSLDMA009AWFW 14-207 AG
[ Q ]
QACCD0022AWZZ 14-220 AM
QANTL0005AWZZ 17- AG
QCNCM705CAFZZ 11-CNP101 AA
" 11-CNP903 AA
QCNCM705GAFZZ 11-CNP102 AB
QCNCW012EAWZZ 11-CNP901 AC
QCNCW012FAWZZ 11-CNP802 AC
QCNCW019EAWZZ 11-WTM901 AB
QCNCW019FAWZZ 11-WTM705 AB
QCNCWYP16AWZZ 11-CNP1 AD
QCNCWZO11AWZZ 11-CNP6A AC
QCNCWZX11AWZZ 11-CNP6 AC
QCNCWZX16AWZZ 11-CNP701B AD
QCNCWZY07AWZZ 11-CNP702A AC
QCNCWZY16AWZZ 11-CNP5 AD
" 11-CNP704 AD
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
23
" 11-CNP701A AD
QCNWGA003AWPZ 17- AM
QCNWHA004AWZZ 17- AS
QCNWNA088AWPZ 11-FFC1 AF
QCNWN1860AWZZ 14-212 AC
QCNWN2495AWZZ 11-FFC702 AD
QCNWN2561AWZZ 11-BI901 AE
QCNWN2701AWPZ 11-FFC4 AD
QCNWN2711AWPZ 11-FW901 AD
QCNWN2712AWPZ 11-FW701 AD
QCNWN2713AWPZ 11-BI801 AH
QCNWN2714AWPZ 11-BI603 AK
QCNWN2715AWPZ 11-BI601 AG
QCNWN2716AWPZ 11-FFC701 AF
QCNWN2718AWPZ 11-FFC704 AF
QCNWNA080AWPZ 11-CNS971 AC
QCNWNA087AWPZ 11-CNS3A AF
QCNWNA148AWZZ 15-905 AR
QFS-D202BSJNI 11-F803 AB
" 11-F804 AB
QFS-D502DAWNI 11-F801 AC
" 11-F802 AC
QFS-D602DAWNI 11-F805 AC
QFSHD0001AWZZ 14-224 AB
QJAKM0004AWZZ 11-JK692 AK
QLUGPA001AWZZ 11-LG1 AC
" 11-LG2 AC
" 11-LG3 AC
" 11-LG4 AC
QPWBF0027AWZZ 18-PWB-F AD
QPWBF1055AWZZ 18-PWB-E AE
QSOCJ0120AWZZ 11-JK691 AD
QSOCJ0313AWZZ 11-JK690 AF
QSOCJA010AWZZ 11-JK904 AC
QSW-F9001AW01 11-NSW1 AD
" 12-NSW1 AD
QSW-P9003AWZZ 11-SW1 AD
" 11-SW2 AD
" 11-SW3 AD
" 13-SW1 AD
" 13-SW2 AD
" 13-SW3 AD
QSW-P9006AWZZ 11-SW4 AF
" 13-SW4 AF
QSW-ZA001AWZZ 11-JOG701 AE
QTANA0424AWZZ 11-SO902 AE
QTANA0428AWZZ 11-SO904 AE
QTANC0206AWZZ 11-SO302 AD
[ R ]
RC-EZ0004AWZZ 9-C9 AD
RC-EZ0065AWZZ 9-C921 AN
"9-C922AN
RC-EZ0124AWZZ 9-C920 AR
"9-C923AR
RCILA0052AWZZ 5-T303 AE
RCILB0067AWZZ 5-T306 AD
RCILBA001AWZZ 5-T301
RCILC0011AWZZ 6-L1 AD
RCILC0012AWZZ 6-L2 AD
"6-L3AD
RCILI0017AWZZ 5-T302 AB
RCILI0019AWZZ 5-T351 AD
RCILR0056AWZZ 6-L312 AB
RCILZ0024AWZZ 6-L901 AC
"6-L902AC
RCILZ0137AFZZ 6-L920 AA
"6-L921AA
RC-KZ002LAWZZ 9-C844 AC
RCORFA001AWZZ 11-FJ1 AB
RCRM-0043AWZZ 8-XL2 AB
RCRM-0047AWZZ 8-XL1 AE
RCRSP0003AWZZ 8-XL701 AH
RCRSP0019AWZZ 8-X352 AF
RFILA0009AWZZ 4-CF352 AE
RFILF0003AWZZ 4-CF351 AK
RFILF0124AFZZ 4-CF303 AD
RFILR0008AWZZ 4-BF301 AE
RH-IXA006AWZZ 1-IC5 AT
RH-IXA054AWZZ 1-IC701 AV
RMOTV0059AWZZ 11-M901 AL
RR-HZ0001AWZZ 10-R890 AE
RRLYD0016AWZZ 11-RL914 AH
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
RRLYD0018AWZZ 11-RL841 AH
RRMCG0395AWSA 17-1 AU
RSP-ZA041AWZZ 15-SP1 BD
" 15-SP2 BD
" 15-SP3 BD
" 15-SP4 BD
RTRNP0483AWZZ 5-PT841 AL
RTRNP0518AWZZ 5-PT801 BL
[ S ]
SPAKAA029AWZZ 16-
SPAKAA030AWZZ 16-
SPAKAA031AWZZ 16-
SPAKAA032AWZZ 16-
SPAKCA218AWZZ 16-
SPAKP0032AWZZ 16-
SSAKHA016AWZZ 16-
SSAKHA017AWZZ 16-
[ T ]
TINSEA075AWZZ 17- AE
TINSZA128AWZZ 17- AD
TLABZA113AWSA 17- AB
TLABZA227AWZZ 17- AB
TSPC-A362AWZZ 15-908 AD
[ U ]
UDSKA0004AFZZ 19- AZ
[ V ]
VCCCCY1HH100D 9-C303 AA
VCCCCY1HH101J 9-C12 AA
" 9-C27 AA
" 9-C28 AA
" 9-C30 AA
" 9-C32 AA
" 9-C72 AA
" 9-C73 AA
" 9-C376 AA
" 9-C377 AA
" 9-C378 AA
" 9-C379 AA
" 9-C907 AA
" 9-C913 AA
VCCCCY1HH120J 9-C381 AA
VCCCCY1HH150J 9-C310 AA
" 9-C330 AA
" 9-C382 AA
" 9-C704 AA
VCCCCY1HH180J 9-C311 AA
" 9-C705 AA
VCCCCY1HH181J 9-C104 AA
VCCCCY1HH220J 9-C313 AA
" 9-C334 AA
" 9-C355 AA
VCCCCY1HH270J 9-C369 AA
VCCCCY1HH330J 9-C42 AA
" 9-C64 AA
VCCCCY1HH3R0C 9-C908 AA
" 9-C910 AA
VCCCCY1HH4R7C 9-C305 AA
" 9-C308 AA
" 9-C324 AA
VCCSBT1HL470J 9-C383 AA
VCEAZA0JW108M 9-C841 AC
VCEAZA0JW337M 9-C20 AC
VCEAZA1AW107M 9-C18 AB
" 9-C41 AB
" 9-C44 AB
" 9-C56 AB
" 9-C57 AB
" 9-C61 AB
" 9-C396 AB
" 9-C398 AB
VCEAZA1AW227M 9-C134 AC
" 9-C603 AC
" 9-C702 AC
VCEAZA1AW476M 9-C14 AB
" 9-C50 AB
" 9-C58 AB
" 9-C65 AB
VCEAZA1CW107M 9-C141 AC
VCEAZA1CW227M 9-C601 AC
VCEAZA1EW106M 9-C21 AB
" 9-C22 AB
VCEAZA1EW226M 9-C133 AB
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
24
" 9-C817 AB
" 9-C864 AB
" 9-C865 AB
VCEAZA1EW227M 9-C854 AC
VCEAZA1EW476M 9-C1 AB
"9-C3AB
" 9-C69 AB
" 9-C111 AB
" 9-C112 AB
" 9-C117 AB
" 9-C118 AB
" 9-C131 AB
" 9-C132 AB
" 9-C140 AB
" 9-C391 AB
" 9-C394 AB
" 9-C717 AB
VCEAZA1HW104M 9-C946 AB
VCEAZA1HW105M 9-C63 AB
" 9-C358 AB
" 9-C367 AB
" 9-C368 AB
" 9-C370 AB
" 9-C371 AB
" 9-C372 AB
" 9-C393 AB
" 9-C609 AB
" 9-C610 AB
" 9-C613 AB
" 9-C614 AB
" 9-C617 AB
" 9-C618 AB
" 9-C619 AB
" 9-C620 AB
" 9-C621 AB
" 9-C622 AB
" 9-C623 AB
" 9-C624 AB
" 9-C639 AB
" 9-C701 AB
" 9-C707 AB
VCEAZA1HW106M 9-C307 AB
" 9-C352 AB
" 9-C380 AB
" 9-C855 AB
" 9-C931 AB
VCEAZA1HW107M 9-C916 AC
" 9-C918 AC
VCEAZA1HW224M 9-C901 AB
" 9-C902 AB
VCEAZA1HW225M 9-C357 AB
" 9-C362 AB
" 9-C364 AB
VCEAZA1HW226M 9-C125 AB
" 9-C126 AB
" 9-C640 AB
" 9-C859 AB
" 9-C961 AB
" 9-C962 AB
VCEAZA1HW335M 9-C143 AB
" 9-C714 AB
" 9-C960 AB
VCEAZA1HW475M 9-C615 AB
" 9-C616 AB
" 9-C905 AB
" 9-C906 AB
VCEAZA1HW476M 9-C150 AB
" 9-C802 AB
" 9-C803 AB
" 9-C925 AB
VCEAZA1JW227M 9-C804 AD
VCEAZA1VW107M 9-C801 AC
VCEAZA1VW477M 9-C842 AD
VCEAZA2AW107M 9-C911 AD
" 9-C912 AD
" 9-C914 AD
" 9-C915 AD
VCEAZA2AW226M 9-C805 AC
VCEAZW1EW478M 9-C850 AK
VCFYDA2AA224J 9-C810 AD
" 9-C811 AD
VCFYFA1HA184J 9-C605 AC
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
"9-C606AC
VCFYFA1HA224J 9-C607 AC
"9-C608AC
VCKYBT1HB101K 9-C318 AA
VCKYBT1HB102K 9-C320 AA
"9-C389AA
VCKYBT1HB103K 9-J631 AB
VCKYBT1HB181K 9-C103 AA
VCKYCY1CB103K 9-C2 AA
"9-C6AA
"9-C25AA
"9-C34AA
"9-C38AA
"9-C46AA
"9-C47AA
"9-C51AA
"9-C52AA
"9-C53AA
"9-C62AA
"9-C66AA
"9-C68AA
"9-C70AA
"9-C76AA
VCKYCY1CB104K 9-C10 AB
"9-C37AB
"9-C39AB
"9-C59AB
"9-C71AB
"9-C87AB
VCKYCY1CB473K 9-C5 AA
"9-C35AA
VCKYCY1CB563K 9-C11 AB
"9-C33AB
VCKYCY1CF224Z 9-C36 AB
VCKYCY1EF223Z 9-C13 AB
"9-C17AB
"9-C26AB
"9-C31AB
"9-C48AB
"9-C84AB
"9-C121AB
"9-C135AB
"9-C306AB
"9-C312AB
"9-C316AB
"9-C323AB
"9-C332AB
"9-C342AB
"9-C347AB
"9-C350AB
"9-C351AB
"9-C353AB
"9-C354AB
"9-C361AB
"9-C363AB
"9-C387AB
"9-C395AB
"9-C397AB
"9-C399AB
"9-C720AB
"9-C721AB
VCKYCY1EF473Z 9-C723 AB
"9-C727AB
"9-C730AB
"9-C732AB
VCKYCY1HB102K 9-C4 AA
"9-C29AA
"9-C60AA
"9-C74AA
"9-C75AA
"9-C83AA
"9-C302AA
"9-C309AA
"9-C317AA
"9-C338AA
"9-C356AA
"9-C366AA
"9-C384AA
"9-C388AA
"9-C392AA
"9-C903AA
"9-C904AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
25
VCKYCY1HB103K 9-C304 AA
"9-C315AA
"9-C385AA
"9-C693AA
"9-C715AA
"9-C917AA
"9-C919AA
"9-C952AA
VCKYCY1HB104K 9-C885 AD
VCKYCY1HB152K 9-C105 AA
"9-C106AA
VCKYCY1HB221K 9-C651 AA
"9-C652AA
"9-C653AA
VCKYCY1HB222K 9-C119 AA
"9-C120AA
"9-C625AA
"9-C626AA
VCKYCY1HB271K 9-C123 AA
"9-C124AA
VCKYCY1HB272K 9-C8 AA
"9-C611AA
"9-C612AA
VCKYCY1HB331K 9-C107 AA
"9-C108AA
"9-C109AA
"9-C110AA
"9-C386AA
VCKYCY1HB332K 9-C82 AA
"9-C129AA
"9-C130AA
VCKYCY1HB471K 9-C16 AA
VCKYCY1HB473K 9-C709 AB
"9-C710AB
VCKYCY1HB561K 9-C101 AA
"9-C102AA
"9-C115AA
"9-C116AA
"9-C335AA
VCKYCY1HF103Z 9-C722 AB
VCKYPA1HB102K 9-C694 AA
"9-C695AA
VCKYPA1HB103K 9-C696 AA
VCKYPA1HB391K 9-C690 AA
"9-C691AA
VCKYPA1HF223Z 9-C602 AB
"9-C861AB
VCKZPA1HF473Z 9-C331 AA
VCQPKA2AA822J 9-C138 AA
VCQYKA1HM104K 9-C806 AB
"9-C807AB
"9-C808AB
"9-C809AB
"9-C851AB
"9-C852AB
"9-C856AB
"9-C909AB
"9-C928AB
"9-C929AB
VCQYKA1HM152K 9-C23 AB
"9-C24AB
VCQYKA1HM393K 9-C139 AB
VCQYKA1HM473K 9-C137 AB
"9-C843AB
VCTYBT1EF223Z 9-C85 AA
"9-C86AA
VCTYPA1CX153K 9-C373 AA
"9-C374AA
VCTYPA1CX223K 9-C127 AA
"9-C128AA
"9-C365AA
VCTYPA1EX393K 9-C113 AA
"9-C114AA
VHCSVC230C/-1 7-VD302 AD
" 7-VD303 AD
VHCSVC347S/-1 7-VD301 AG
VHD1N4004S/-1 3-D803 AB
"3-D804AB
"3-D805AB
"3-D806AB
"3-D842AB
"3-D843AB
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
" 3-D844 AB
" 3-D845 AB
" 3-D853 AB
" 3-D909 AB
" 3-D910 AB
VHDD10XB60F-1 3-D801 AL
" 3-D802 AL
VHDDS1SS133-1 3-D301 AB
" 3-D302 AB
" 3-D305 AB
" 3-D690 AB
" 3-D691 AB
" 3-D709 AB
" 3-D710 AB
" 3-D711 AB
" 3-D712 AB
" 3-D713 AB
" 3-D714 AB
" 3-D715 AB
" 3-D716 AB
" 3-D846 AB
" 3-D856 AB
" 3-D860 AB
" 3-D861 AB
" 3-D862 AB
" 3-D863 AB
" 3-D885 AB
" 3-D905 AB
" 3-D906 AB
" 3-D907 AB
" 3-D911 AB
" 3-D912 AB
VHDKDS184//-1 3-D1 AB
VHEDZ120BSB-1 3-ZD805 AB
" 3-ZD902 AB
" 3-ZD903 AB
VHEDZ300BSB-1 3-ZD803 AB
VHEDZ5R1BSB-1 3-ZD351 AC
VHEDZ6R2BSA-1 3-ZD801 AB
VHEDZ7R5BSB-1 3-ZD802 AB
VHEMA8033//-1 3-ZD1 AC
VHIAN7345K/-1 1-IC101 AM
VHIAN78L05/-1 1-IC854 AE
VHIAN80T53/-1 1-IC851 AL
VHIKIA7805AP1 1-IC852 AF
VHILA1832S/-1 1-IC303 AN
VHILA6261//-1 1-IC2 AN
VHILC72131/-1 1-IC302 AP
VHILC75341/-1 1-IC601 AM
VHILC78648E-1 1-IC1 AW
VHILC78684E-1 1-IC3 AZ
VHILV1625635T 1-IC4 AT
VHISI3033LUS1 1-IC6 AG
VHISTK41244-1 1-IC901 BF
VHITA7358AP-1 1-IC301 AG
VHLPIC3704/-1 11-RX701 AG
VHP304VT2H3-1 3-LED701 AC
VHPGP1S094HCZ 11-RX1 AF
VHPSDPB50CD-1 3-LED703 AK
VP-DH101K0000 6-L351 AB
" 6-L352 AB
" 6-L701 AB
VP-MK331K0000 6-L103 AB
VRD-RH2HD3R3J 10-R863 AA
VRD-RT2HD100J 10-R938 AA
" 10-R939 AA
" 10-R940 AA
" 10-R941 AA
VRD-RT2HD102J 10-R949 AA
" 10-R951 AA
VRD-RT2HD152J 10-R925 AA
" 10-R926 AA
VRD-RT2HD222J 10-R808 AA
VRD-RT2HD471J 10-R962 AA
VRD-RT2HD820J 10-R142 AA
VRD-RT2HD822J 10-R960 AA
" 10-R961 AA
VRD-ST2CD101J 10-R740 AA
VRD-ST2CD102J 10-R113 AA
" 10-R114 AA
" 10-R393 AA
" 10-R601 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
26
" 10-R602 AA
" 10-R603 AA
" 10-R704 AA
" 10-R705 AA
" 10-R707 AA
" 10-R708 AA
" 10-R709 AA
" 10-R710 AA
" 10-R711 AA
" 10-R712 AA
" 10-R717 AA
" 10-R723 AA
" 10-R725 AA
" 10-R730 AA
" 10-R739 AA
" 10-R741 AA
" 10-R746 AA
" 10-R769 AA
" 10-R842 AA
" 10-R910 AA
" 10-RD13 AA
" 10-RD25 AA
VRD-ST2CD103J 10-R309 AA
" 10-R573 AA
" 10-R642 AA
" 10-R745 AA
" 10-R780 AA
" 10-R859 AA
VRD-ST2CD104J 10-R782 AA
" 10-R801 AA
VRD-ST2CD123J 10-R803 AA
VRD-ST2CD152J 10-R944 AA
" 10-R945 AA
" 10-RD04 AA
VRD-ST2CD153J 10-R111 AA
VRD-ST2CD220J 10-R314 AA
VRD-ST2CD221J 10-R858 AA
VRD-ST2CD222J 10-R918 AA
" 10-R921 AA
VRD-ST2CD223J 10-R386 AA
" 10-R853 AA
" 10-R857 AA
" 10-R864 AA
VRD-ST2CD224J 10-R841 AA
VRD-ST2CD331J 10-R618 AA
" 10-R751 AA
VRD-ST2CD332J 10-R358 AA
" 10-R854 AA
VRD-ST2CD333J 10-R692 AA
" 10-R693 AA
VRD-ST2CD471J 10-R375 AA
VRD-ST2CD472J 10-R771 AA
" 10-R787 AA
" 10-R788 AA
" 10-R789 AA
VRD-ST2CD473J 10-R750 AA
" 10-R802 AA
" 10-R806 AA
" 10-R843 AA
" 10-R888 AA
" 10-R889 AA
VRD-ST2CD4R7J 10-R145 AA
VRD-ST2CD560J 10-R115 AA
" 10-R116 AA
VRD-ST2CD561J 10-R729 AA
VRD-ST2CD562J 10-R384 AA
" 10-R387 AA
" 10-R759 AA
VRD-ST2CD563J 10-R934 AA
" 10-R935 AA
VRD-ST2CD681J 10-RD01 AA
" 10-RD23 AA
VRD-ST2CD682J 10-R690 AA
" 10-R691 AA
VRD-ST2CD683J 10-R950 AA
VRD-ST2CD821J 10-RD24 AA
VRD-ST2EE101J 10-R891 AA
VRD-ST2EE151J 10-R149 AA
" 10-R382 AA
VRD-ST2EE1R0J 10-R94 AA
" 10-R95 AA
VRD-ST2EE1R5J 10-R794 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
" 10-R795 AA
VRD-ST2EE221J 10-R158 AA
VRD-ST2EE271J 10-R391 AA
" 10-R392 AA
VRD-ST2EE393J 10-R927 AA
" 10-R928 AA
VRD-ST2EE470J 10-R804 AA
" 10-R805 AA
VRD-ST2EE473J 10-R929 AA
" 10-R930 AA
VRD-ST2EE820J 10-R844 AA
VRG-ST2EC101J 10-R912 AB
" 10-R958 AB
VRN-CM05N0R1J 10-R917 AD
" 10-R922 AD
VRN-CM05NR22J 10-R913 AD
" 10-R916 AD
VRS-CY1JB000J 10- AA
" 10-R1 AA
" 10-R2 AA
" 10-R4 AA
" 10-R5 AA
" 10-JP1 AA
" 10-R327 AA
" 10-R870 AA
" 10-JP303 AA
" 10-JP307 AA
" 10-JP308 AA
" 10-JP309 AA
" 10-JP310 AA
" 10-JP312 AA
" 10-JP317 AA
" 10-JP601 AA
" 10-JP602 AA
" 10-JP603 AA
" 10-JP604 AA
" 10-JP608 AA
" 10-JP634 AA
" 10-JP661 AA
" 10-JP662 AA
" 10-JP701 AA
" 10-JP702 AA
" 10-JP705 AA
" 10-JP706 AA
" 10-JP707 AA
" 10-JP708 AA
" 10-JP715 AA
" 10-JP717 AA
" 10-JP718 AA
" 10-JP805 AA
" 10-JP808 AA
" 10-JP809 AA
" 10-JP810 AA
" 10-JP811 AA
" 10-JP812 AA
VRS-CY1JB100J 10-R9 AA
" 10-R302 AA
VRS-CY1JB101J 10-R27 AA
" 10-R132 AA
" 10-R133 AA
" 10-R783 AA
VRS-CY1JB102J 10-R18 AA
" 10-R19 AA
" 10-R41 AA
" 10-R42 AA
" 10-R43 AA
" 10-R44 AA
" 10-R45 AA
" 10-R46 AA
" 10-R47 AA
" 10-R48 AA
" 10-R60 AA
" 10-R62 AA
" 10-R64 AA
" 10-R66 AA
" 10-R67 AA
" 10-R69 AA
" 10-R70 AA
" 10-R72 AA
" 10-R74 AA
" 10-R76 AA
" 10-R77 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
27
" 10-R78 AA
" 10-R101 AA
" 10-R102 AA
" 10-R352 AA
" 10-R356 AA
" 10-R372 AA
" 10-R373 AA
" 10-R374 AA
" 10-R376 AA
" 10-R378 AA
" 10-R701 AA
" 10-R702 AA
" 10-R703 AA
" 10-R706 AA
" 10-R713 AA
" 10-R714 AA
" 10-R715 AA
" 10-R716 AA
" 10-R718 AA
" 10-R719 AA
" 10-R720 AA
" 10-R721 AA
" 10-R722 AA
" 10-R724 AA
" 10-R732 AA
" 10-R733 AA
" 10-R736 AA
" 10-R763 AA
" 10-R784 AA
" 10-R903 AA
" 10-R904 AA
" 10-R908 AA
" 10-R956 AA
" 10-RD03 AA
VRS-CY1JB103J 10-R25 AA
" 10-R26 AA
" 10-R57 AA
" 10-R58 AA
" 10-R91 AA
" 10-R92 AA
" 10-RM1 AA
" 10-RM2 AA
" 10-R134 AA
" 10-R135 AA
" 10-R138 AA
" 10-R139 AA
" 10-R146 AA
" 10-R147 AA
" 10-R336 AA
" 10-R365 AA
" 10-R381 AA
" 10-R604 AA
" 10-R605 AA
" 10-R641 AA
" 10-R731 AA
" 10-R761 AA
" 10-R762 AA
" 10-R766 AA
" 10-R767 AA
" 10-R768 AA
" 10-R773 AA
" 10-R777 AA
" 10-R778 AA
" 10-R779 AA
" 10-RD19 AA
" 10-RD31 AA
VRS-CY1JB104J 10-R68 AA
" 10-R117 AA
" 10-R118 AA
" 10-R311 AA
VRS-CY1JB151J 10-R29 AA
" 10-R83 AA
VRS-CY1JB152J 10-R130 AA
" 10-R131 AA
" 10-R380 AA
" 10-R919 AA
" 10-R920 AA
" 10-RD14 AA
" 10-RD26 AA
VRS-CY1JB153J 10-R112 AA
" 10-R614 AA
" 10-R615 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
" 10-R947 AA
" 10-RD20 AA
" 10-RD32 AA
VRS-CY1JB182J 10-R359 AA
VRS-CY1JB183J 10-R121 AA
" 10-R122 AA
VRS-CY1JB221J 10-R28 AA
" 10-R75 AA
" 10-R959 AA
VRS-CY1JB222J 10-R8 AA
" 10-R23 AA
" 10-R24 AA
" 10-R49 AA
" 10-R59 AA
" 10-R61 AA
" 10-R63 AA
" 10-R65 AA
" 10-R71 AA
" 10-R73 AA
" 10-R82 AA
" 10-R85 AA
" 10-R103 AA
" 10-R104 AA
" 10-R379 AA
" 10-R610 AA
" 10-R611 AA
" 10-R616 AA
" 10-R617 AA
" 10-R726 AA
" 10-RD05 AA
" 10-RD15 AA
" 10-RD27 AA
VRS-CY1JB223J 10-R144 AA
" 10-R620 AA
" 10-R621 AA
" 10-R886 AA
" 10-R887 AA
VRS-CY1JB224J 10-R136 AA
" 10-R137 AA
VRS-CY1JB225J 10-R99 AA
VRS-CY1JB271J 10-R98 AA
" 10-RM5 AA
" 10-R353 AA
VRS-CY1JB272J 10-R350 AA
" 10-R785 AA
" 10-RD06 AA
" 10-RD16 AA
" 10-RD28 AA
VRS-CY1JB331J 10-R12 AA
" 10-R619 AA
VRS-CY1JB332J 10-R81 AA
" 10-R105 AA
" 10-R106 AA
" 10-R355 AA
VRS-CY1JB333J 10-R3 AA
" 10-R6 AA
" 10-R97 AA
" 10-R313 AA
" 10-R909 AA
" 10-RD21 AA
VRS-CY1JB391J 10-R30 AA
" 10-R31 AA
" 10-R32 AA
" 10-R33 AA
" 10-R34 AA
" 10-R35 AA
" 10-R36 AA
" 10-R37 AA
" 10-R612 AA
" 10-R613 AA
VRS-CY1JB392J 10-R119 AA
" 10-R120 AA
" 10-R388 AA
" 10-RD17 AA
" 10-RD29 AA
VRS-CY1JB470J 10-R7 AA
VRS-CY1JB472J 10-R10 AA
" 10-R17 AA
" 10-R20 AA
" 10-R21 AA
" 10-R22 AA
" 10-R40 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
28
" 10-R52 AA
" 10-R56 AA
" 10-R79 AA
" 10-R84 AA
" 10-R86 AA
" 10-R87 AA
" 10-R88 AA
" 10-R89 AA
" 10-R93 AA
" 10-R96 AA
" 10-R109 AA
" 10-R110 AA
" 10-R123 AA
" 10-R124 AA
" 10-R126 AA
" 10-R127 AA
" 10-R141 AA
" 10-R148 AA
" 10-R316 AA
" 10-R360 AA
" 10-R593 AA
" 10-R606 AA
" 10-R607 AA
" 10-R775 AA
" 10-R776 AA
" 10-R786 AA
" 10-R791 AA
" 10-R957 AA
VRS-CY1JB473J 10-R107 AA
" 10-R108 AA
" 10-R140 AA
" 10-R143 AA
" 10-R325 AA
" 10-R377 AA
" 10-R395 AA
" 10-R781 AA
" 10-R946 AA
VRS-CY1JB474J 10-R357 AA
VRS-CY1JB561J 10-R905 AA
" 10-R906 AA
VRS-CY1JB562J 10-R54 AA
" 10-R128 AA
" 10-R129 AA
" 10-R351 AA
" 10-R383 AA
" 10-R385 AA
" 10-R770 AA
" 10-RD18 AA
" 10-RD30 AA
VRS-CY1JB563J 10-R38 AA
" 10-R901 AA
" 10-R902 AA
" 10-R907 AA
" 10-R911 AA
" 10-R937 AA
VRS-CY1JB681J 10-R39 AA
" 10-R50 AA
" 10-RM6 AA
" 10-R322 AA
" 10-R727 AA
" 10-R728 AA
" 10-R885 AA
" 10-RD11 AA
VRS-CY1JB682J 10-R14 AA
" 10-R15 AA
" 10-R16 AA
" 10-R55 AA
VRS-CY1JB683J 10-R150 AA
" 10-R323 AA
VRS-CY1JB820J 10-R80 AA
VRS-CY1JB821J 10-R608 AA
" 10-R609 AA
" 10-RD02 AA
" 10-RD12 AA
VRS-CY1JB822J 10-R13 AA
" 10-R643 AA
" 10-R644 AA
" 10-R790 AA
VRS-VV3DA681J 10-R942 AC
" 10-R943 AC
VS2SD601AR/-1 2-Q3 AC
"2-Q4AC
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
"2-Q5AC
VSKRA107S//-1 2-Q607 AB
"2-Q608AB
"2-Q711AB
"2-Q715AB
"2-Q717AB
VSKRC102S//-1 2-Q709 AB
"2-Q710AB
VSKRC104S//-1 2-Q110 AC
"2-Q113AC
"2-Q114AC
"2-Q712AC
"2-Q713AC
"2-Q714AC
"2-Q716AC
VSKTA1266GR-1 2-Q360 AB
VSKTA1271Y/-1 2-Q2 AC
VSKTA1273Y/-1 2-Q706 AE
"2-Q707AE
"2-Q708AE
VSKTA1274Y/-1 2-Q801 AE
VSKTA1504Y/-1 2-Q1 AB
"2-Q109AB
"2-Q112AB
VSKTC2875B/-1 2-Q601 AC
"2-Q602AC
VSKTC3194Y/-1 2-Q302 AD
VSKTC3199GR-1 2-Q841 AB
"2-Q905AB
VSKTC3200GR-1 2-Q101 AC
"2-Q102AC
"2-Q103AC
"2-Q104AC
VSKTC3203Y/-1 2-Q111 AC
"2-Q906AC
"2-Q907AC
VSKTC3875GR-1 2-Q6 AB
"2-Q105AB
"2-Q106AB
"2-Q107AB
"2-Q108AB
"2-Q603AB
"2-Q604AB
"2-Q885AB
"2-Q886AB
"2-Q901AB
"2-Q902AB
"2-Q903AB
"2-Q904AB
VVKNA12MM44-1 11-FL701 AX
[ X ]
XBBSD20P03000 12-703 AA
XBBSD20P04000 14-609 AA
XBSSD26P06000 12-701 AA
XEBSD20P10000 13-803 AA
XEBSD26P10000 14-604 AA
" 15-911 AA
XEBSD30P10000 13-804 AA
" 14-602 AA
XESSD30P10000 14-605 AA
XHBSD30P06000 14-616 AA
XHBSD40P08000 14-608 AA
XJBSD30P10000 14-601 AA
XJBSD30P12000 15-909 AA
XJSSD30P08000 14-606 AA
XMBSF35P16000 15-910 AC
XWHSD32-10080 14-615 AA
[ 9 ]
92LBAG1460C1 17- AB
92LCONE2P5268 11-CNP301 AB
92LCONE2P53253 11-CNP971 AB
92LCONE5P53253 11-CNP603 AB
92LCONE6P53253 11-CNP3 AC
92LCONE6P53254 11-CNP3A AC
92LCONE7P53253 11-CNP4 AC
92LCONE8P53254 11-CNP2 AC
92LCONEAP5267X 11-CNP801 AC
92LCRSTL1425A 8-X351 AF
92LCSPR1431C 14-216 AA
92LFANT1746A 17- AD
92LHPC1LFASY 12-306 BB
92LMCUSN1524A 12-305 AD
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
29
92LMTR1854BASY 11-NM2 AP
" 12-NM2 AP
92LMTR5515CASY 11-NM1 AS
" 12-NM1 AS
92LMTR5529BASY 11-M1 AD
" 11-M2 AD
" 13-M1 AD
" 13-M2 AD
92LNBAND1318A 14-208 AA
92LPWB5534PWRS 18-PWB-B BQ
92LPWB5612CDUS 18-PWB-C BP
92LPWB5813SPKS 18-PWB-G AL
92LPWB6232MANS 18-PWB-A BY
92LSWICH1401AT 11-SW701 AC
" 11-SW702 AC
" 11-SW703 AC
" 11-SW704 AC
" 11-SW705 AC
" 11-SW706 AC
" 11-SW707 AC
" 11-SW712 AC
" 11-SW713 AC
" 11-SW714 AC
" 11-SW715 AC
" 11-SW716 AC
" 11-SW717 AC
" 11-SW718 AC
" 11-SW719 AC
" 11-SW720 AC
" 11-SW721 AC
" 11-SW722 AC
" 11-SW723 AC
" 11-SW725 AC
" 11-SW726 AC
" 11-SW727 AC
" 11-SW728 AC
" 11-SW729 AC
" 11-SW730 AC
" 11-SW731 AC
" 11-SW732 AC
" 11-SW733 AC
" 11-SW734 AC
" 11-SW735 AC
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
30
background
PARTS GUIDE
No. S1506CDG10000
SHARP CORPORATION
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and performance of the set.
CD-G10000/CP-G10000S
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
[1] INTEGRATED CIRCUITS
[2] TRANSISTORS
[3] DIODES
[4] TRANSFORMER
[5] COILS
[6] VARIABLE RESISTORS
[7] THERMISTOR
[8] CAPACITORS
[9] RESISTORS
[10] OTHER CIRCUITRY
PARTS
[11] FRONT SPEAKER BOX
PARTS
[12] SUBWOOFER BOX
PARTS
[13] ACCESSORIES/PACKING
PARTS
[14] P.W.B. ASSEMBLY
(Not Replacement Item)
INDEX
SPEAKER SYSTEM
CP-G10000S
CP-G10000S Speaker System consisting of CP-G10000S
(front
speaker system) and CP-SW10000S (active subwoofer).
MODEL
background
CD-G10000/CP-G10000S
2
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[1] INTEGRATED CIRCUITS
IC501 VHIKIA4558P-1 AC Ope Amp.,KIA4558P
IC502 VHIKIA4558P-1 AC Ope Amp.,KIA4558P
IC801 VHIKIA7812AP1 AF Voltage Regulator,KIA7812AP
IC901 VHISTK41244-1 BF Power Amp.,STK41244
[2] TRANSISTORS
Q401 VSKTC3205Y/-1 AD Silicon,NPN,KTC3205 Y
Q402 VSKTC3203Y/-1 AC Silicon,NPN,KTC3203 Y
Q501 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q901 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q902 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q903 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q904 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q905 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q906 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q907 VSKRC102M//-1 AC Digital,NPN,KRC102 M
Q908 VSKRC102M//-1 AC Digital,NPN,KRC102 M
Q909 VSKRC104M//-1 AC Digital,NPN,KRC104 M
[3] DIODES
D801 VHDD10XB60/-1 AH Silicon,D10XB60
D802 VHDD10XB60/-1 AH Silicon,D10XB60
D803 VHDGD1N4004-1 AB Silicon,GD1N4004
D804 VHDGD1N4004-1 AB Silicon,GD1N4004
D805 VHDGD1N4004-1 AB Silicon,GD1N4004
D806 VHDGD1N4004-1 AB Silicon,GD1N4004
D901 VHD1N4148H/-1 AA Silicon,1N4148H
D902 VHD1N4148H/-1 AA Silicon,1N4148H
D903 VHD1N4148H/-1 AA Silicon,1N4148H
D904 VHDGD1N4004-1 AB Silicon,GD1N4004
D905 VHDGD1N4004-1 AB Silicon,GD1N4004
D906 VHD1N4148H/-1 AA Silicon,1N4148H
D907 VHD1N4148H/-1 AA Silicon,1N4148H
D908 VHD1N4148H/-1 AA Silicon,1N4148H
D910 VHD1N4148H/-1 AA Silicon,1N4148H
D911 VHD1N4148H/-1 AA Silicon,1N4148H
D912 VHD1N4148H/-1 AA Silicon,1N4148H
D913 VHD1N4148H/-1 AA Silicon,1N4148H
LED501 VHPA50ABC2L-1 AK LED,Blue,A50ABC2L
LED502 VHPA50ABC2L-1 AK LED,Blue,A50ABC2L
ZD501 VHEDZ3R9BSB-1 AC Zener,3.9V,DZ3.9BSB
ZD502 VHEDZ3R9BSB-1 AC Zener,3.9V,DZ3.9BSB
ZD503 VHEDZ5R1BSB-1 AC Zener,5.1V,DZ5.1BSB
ZD504 VHEDZ5R1BSB-1 AC Zener,5.1V,DZ5.1BSB
ZD901 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
ZD902 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
ZD903 VHEDZ130BSB-1 AB Zener,13V,DZ13BSB
ZD904 VHEDZ130BSB-1 AB Zener,13V,DZ13BSB
[4] TRANSFORMER
!
PT801 RTRNPA006AWZZ BL Power with CNS804/CNS805/CNS806
[5] COILS
L901 RCILZ0024AWZZ AC 3 µ H,Choke
L902 RCILZ0024AWZZ AC 3 µ H,Choke
[6] VARIABLE RESISTORS
VR501 RVR-GA003AWZZ AK 10 kohm (A) [Crossover Frequency]
VR502 RVR-GA004AWZZ AE 10 kohm (A) [Volume]
[7] THERMISTOR
!
R401 RH-QX0006AWZZ AE Posistor,4.7 ohms
[8] CAPACITORS
C401 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C402 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
C404 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C501 VCKYPA1HB102K AA 0.001 µ F,50V
C506 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C507 VCCSPA1HL101J AA 100 pF,50V
C508 VCQYKA1HM333K AB 0.033 µ F,50V,Mylar
C510 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C511 VCCSPA1HL101J AA 100 pF,50V
C512 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C513 VCCSPA1HL101J AA 100 pF,50V
C514 VCFYFA1HA105J AE 1 µ F,50V,Thin Film
C515 VCFYFA1HA124J AL 0.12 µ F,50V,Thin Film
C516 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C517 VCCSPA1HL101J AA 100 pF,50V
C518 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C519 VCCSPA1HL101J AA 100 pF,50V
C520 VCCSPA1HL101J AA 100 pF,50V
C521 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C522 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
background
CD-G10000/CP-G10000S
3
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C523 VCCSPA1HL101J AA 100 pF,50V
C526 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C529 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C803 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C804 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C805 VCFYDA2AA224J AD 0.22 µ F,100V,Thin Film
C806 VCFYDA2AA224J AD 0.22 µ F,100V,Thin Film
C807 VCEAZA1EW108M AE 1000 µ F,25V,Electrolytic
C808 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C810 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C901 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C902 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C903 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C904 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C905 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C906 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C907 VCCSPA1HL101J AA 100 pF,50V
C908 VCCSPA1HL101J AA 100 pF,50V
C909 VCCSPA1HL3R0C AA 3 pF,50V
C910 VCCSPA1HL3R0C AA 3 pF,50V
C911 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C912 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C913 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C914 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C915 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C916 VCEAZA1HW107M AC 100 µ F,50V,Electrolytic
C917 VCQYKA1HM103K AA 0.01 µ F,50V,Mylar
C918 VCEAZA1HW107M AC 100 µ
F,50V,Electrolytic
C919 VCQYKA1HM103K AA 0.01 µ F,50V,Mylar
C920 RC-EZ0124AWZZ AR 3900 µ F,85V,Electrolytic
C921 RC-EZ0124AWZZ AR 3900 µ F,85V,Electrolytic
C922 RC-EZ0085AWZZ AM 4700 µ F,50V,Electrolytic
C923 RC-EZ0085AWZZ AM 4700 µ F,50V,Electrolytic
C925 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C926 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C927 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C928 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C929 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C930 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C931 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C932 VCEAZA1CW227M AC 220 µ F,16V,Electrolytic
C933 VCEAZA1CW227M AC 220 µ F,16V,Electrolytic
!
C935 RC-KZ002LAWZZ AC 0.0047 µ F,250V,Ceramic
C937 VCEAZA1HW104M AB 0.1 µ F,50V,Electrolytic
[9] RESISTORS
R402 VRD-ST2CD152J AA 1.5 kohms,1/6W
R403 VRD-ST2CD182J AA 1.8 kohms,1/6W
R404 VRD-ST2CD472J AA 4.7 kohms,1/6W
R405 VRD-ST2CD124J AA 120 kohms,1/6W
R409 VRD-RT2HD4R7J AA 4.7 ohms,1/2W
R501 VRD-ST2CD103J AA 10 kohm,1/6W
R502 VRD-ST2CD152J AA 1.5 kohms,1/6W
R507 VRD-ST2CD104J AA 100 kohm,1/6W
R510 VRD-ST2CD272J AA 2.7 kohms,1/6W
R511 VRD-ST2EE102J AA 1 kohm,1/4W
R512 VRD-ST2EE102J AA 1 kohm,1/4W
R513 VRD-ST2CD104J AA 100 kohm,1/6W
R514 VRD-ST2CD272J AA 2.7 kohms,1/6W
R517 VRD-ST2CD102J AA 1 kohm,1/6W
R518 VRD-ST2CD103J AA 10 kohm,1/6W
R519 VRD-ST2EE102J AA 1 kohm,1/4W
R520 VRD-ST2CD102J AA 1 kohm,1/6W
R521 VRD-ST2EE102J AA 1 kohm,1/4W
R522 VRD-ST2CD102J AA 1 kohm,1/6W
R523 VRD-ST2CD222J AA 2.2 kohms,1/6W
R524 VRD-ST2CD102J AA 1 kohm,1/6W
R525 VRD-ST2CD562J AA 5.6 kohms,1/6W
R526 VRD-ST2EE561J AA 560 ohms,1/4W
R527 VRD-ST2EE561J AA 560 ohms,1/4W
R528 VRD-ST2CD124J AA 120 kohms,1/6W
R533 VRD-ST2CD474J AA 470 kohms,1/6W
R535 VRD-ST2CD472J AA 4.7 kohms,1/6W
R536 VRD-ST2CD103J AA 10 kohm,1/6W
R537 VRD-ST2CD103J AA 10 kohm,1/6W
R538 VRD-ST2CD562J AA 5.6 kohms,1/6W
R801 VRD-ST2CD223J AA 22 kohms,1/6W
R901 VRD-ST2CD563J AA 56 kohms,1/6W
R902 VRD-ST2CD563J AA 56 kohms,1/6W
R903 VRD-ST2CD102J AA 1 kohm,1/6W
R904 VRD-ST2CD102J AA 1 kohm,1/6W
R905 VRD-ST2CD561J AA 560 ohms,1/6W
R906 VRD-ST2CD561J AA 560 ohms,1/6W
R907 VRD-ST2CD563J AA 56 kohms,1/6W
R908 VRD-ST2CD563J AA 56 kohms,1/6W
[8] CAPACITORS
background
CD-G10000/CP-G10000S
4
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R909 VRD-ST2CD102J AA 1 kohm,1/6W
R910 VRD-ST2CD102J AA 1 kohm,1/6W
!
R911 VRG-ST2EC101J AB 100 ohm,1/4W,Fusible
!
R912 VRG-ST2EC101J AB 100 ohm,1/4W,Fusible
R913 VRN-CM05NR22J AD 0.22 ohms,5W
R914 VRN-CM05NR22J AD 0.22 ohms,5W
R915 VRN-CM05N0R1J AD 0.1 ohm,5W
R916 VRN-CM05N0R1J AD 0.1 ohm,5W
R917 VRD-ST2CD152J AA 1.5 kohms,1/6W
R918 VRD-ST2CD152J AA 1.5 kohms,1/6W
R919 VRD-ST2CD222J AA 2.2 kohms,1/6W
R920 VRD-ST2CD222J AA 2.2 kohms,1/6W
R921 VRD-RT2HD152J AA 1.5 kohms,1/2W
R922 VRD-RT2HD152J AA 1.5 kohms,1/2W
R923 VRD-ST2EE393J AA 39 kohms,1/4W
R924 VRD-ST2EE393J AA 39 kohms,1/4W
R925 VRD-ST2EE473J AA 47 kohms,1/4W
R926 VRD-ST2EE473J AA 47 kohms,1/4W
R927 VRD-ST2CD563J AA 56 kohms,1/6W
R928 VRD-ST2CD563J AA 56 kohms,1/6W
R929 VRD-ST2CD563J AA 56 kohms,1/6W
R930 VRD-RT2HD100J AA 10 ohm,1/2W
R931 VRD-RT2HD100J AA 10 ohm,1/2W
R932 VRD-RT2HD100J AA 10 ohm,1/2W
R933 VRD-RT2HD100J AA 10 ohm,1/2W
R934 VRS-VV3LA561J AC 560 ohm,3W
R935 VRS-VV3LA561J AC 560 ohm,3W
R936 VRD-ST2CD152J AA 1.5 kohms,1/6W
R937 VRD-ST2CD152J AA 1.5 kohms,1/6W
R938 VRD-ST2CD223J AA 22 kohms,1/6W
R939 VRD-ST2CD473J AA 47 kohms,1/6W
R940 VRD-ST2CD473J AA 47 kohms,1/6W
R941 VRD-ST2CD153J AA 15 kohms,1/6W
R942 VRD-ST2CD333J AA 33 kohms,1/6W
R955 VRD-ST2CD103J AA 10 kohm,1/6W
R957 VRD-ST2CD102J AA 1 kohm,1/6W
R958 VRD-ST2CD473J AA 47 kohms,1/6W
R959 VRD-ST2CD473J AA 47 kohms,1/6W
R960 VRD-ST2CD103J AA 10 kohm,1/6W
[10] OTHER CIRCUITRY PARTS
BI501 QCNWNA106AWPZ AE Connector Ass'y,2/2Pin with CNS501
BI502 QCNWNA105AWPZ AD Connector Ass'y,2/2Pin with CNS502
CNP402 92LCONE2P53253 AB Plug,2Pin
CNP501 92LCONE2P53254 AB Plug,2Pin
CNP502 92LCONE2P53254 AB Plug,2Pin
CNP503 92LCONE2P5268 AB Plug,2Pin
CNP504 92LCONE5P53254 AB Plug,5Pin
CNP505 QCNCM705BAFZZ AA Plug,2Pin
!
CNP801 QCNCM049BAWZZ AC Plug,2Pin
!
CNP802 QCNCM049BAWZZ AC Plug,2Pin
!
CNP803 QCNCM049BAWZZ AC Plug,2Pin
!
CNP804 QCNCM049BAWZZ AC Plug,2Pin
CNP805 QCNCM035BAWZZ AB Plug,2Pin
CNP806 QCNCM050EAWZZ AD Plug,5Pin
CNP901 QCNCM050DAWZZ AC Plug,4Pin
CNP902 92LCONE5P53253 AB Plug,5Pin
CNS402 QCNWN1542AWZZ AC Connector Ass'y,2Pin
CNS503 QCNWNA075AWPZ AF Connector Ass'y,2/2Pin with CNS505
CNS504 QCNWNA077AWPZ AF Connector Ass'y,5/5Pin with CNS902
!
CNS803 QCNWNA076AWPZ AH Connector Ass'y,2/2Pin with CNS802
CNS901 QCNWNA141AWPZ Connector Ass'y,4Pin
!
F801 QFS-D632CAWNI AC Fuse,6.3A/125V
!
F804 QFS-D632CAWNI AC Fuse,6.3A/125V
!
F805 QFS-D632CAWNI AC Fuse,6.3A/125V
!
F806 QFS-D501CAWNI AC Fuse,500mA/125V
LG901 QLUGP0001AWZZ AC Lug Terminal
LG902 QLUGP0001AWZZ AC Lug Terminal
M401 RMOTV0059AWZZ AL Motor,Air Cooling Fan
RL901 RRLYD0016AWZZ AH Relay
SO501 QSOCJA010AWZZ AC Jack,Subwoofer Input
!
SW802 QSW-P0014AWZZ AK Switch,Push Type [Power]
[9] RESISTORS
background
CD-G10000/CP-G10000S
5
[11] FRONT SPEAKER BOX PARTS
BK
SP5,
TWEETER
SP3,
WOOFER
6
SP5,
TWEETER
6
4
SP1,
WOOFER
2
SP3,
WOOFER
4
C2
Capacitor
2.7 µF,
C1,
250 V
Electrolytic
BK
SP1,
WOOFER
2
GY
GY
BK GY
C2
Capacitor
2.7 µF,
C1,
250 V
Electrolytic
SP1, 2
SP3, 4
SP5, 6
910x4
909x2
910x4
905x4
911x2
902
904
901
902
907
903
906
908
background
C D -G 10000/C P -G 10000S
6
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[11] FRONT SPEAKER BOX PARTS
901 CDECQA061AW01 BB Tweeter Ring Ass'y
902 CDECQA063AW01 AZ Woofer Ring Ass'y
903 GBOXSA042AW01 ** Speaker Box Ass'y
904 HPNLSA015AWSA BA Front Panel
905 PCUSGA020AWZZ AB Cushion,Leg
907 QCNWNA147AWZZ AS Lead Wire Ass'y (with Capacitor C1,2)
908 TSPC-A313AWZZ AD Label,Specifications
909 XMBSF30P12000 AA Screw,M3x12mm
910 XMBSF40P16000 AC Screw,M4x16mm
911 XEBSD26P10000 AA Screw,M2.6x10mm
SP1 RSP-ZA039AWZZ BF Woofer
SP2 RSP-ZA039AWZZ BF Woofer
SP3 RSP-ZA039AWZZ BF Woofer
SP4 RSP-ZA039AWZZ BF Woofer
SP5 RSP-ZA040AWZZ AS Tweeter
SP6 RSP-ZA040AWZZ AS Tweeter
background
CD-G10000/CP-G10000S
7
[12] SUBWOOFER BOX PARTS
949x4
Silicon
Grease
PWB-A1
IC901
PWB-A2
PWB-A3
SP1
PWB-B1
PWB-B2
930x4
927x3
923x4
952x4
926x2
955x4
913
913
947x2
929x2
946x8
946x2
946x2
905
946x2
946x2
939x2
948x2
955x2
922
941x2
954x13
945
957
952x4
955x4
953
953
950x8
953x5
921x4
921x2
956x6
937x4
944x4
907x2
936x2
902
925
919x8
917x8
920x2
942x8
901
951x8
SP1
SUBWOOFER
SP1
SUBWOOFER
RD
RD
BK
BK
932x6
932x2
924x4
950x4
933
908
908
911
911
946
918
934
909
930
930
923
923
M401
935
953
953
914
914
944
944
PT801
912
910
931
906
903
904
928
938
930x4
923x4
940x4
927x3
901-1
901-4
901-2
901-3
PWB-B3
942x2
942x2
942x2
LED501
916
PWB-B4
942x2
916
LED502
background
CD-G10000/CP-G10000S
8
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[12] SUBWOOFER BOX PARTS
901 CDECQA064AW01 AU Decoration Bar Ass'y
901- 1 HDECQA064AWSA AL Decoration Cover,Front
901- 2 LHLDZA013AWZZ AE White Reflector
901- 3 HDECQA066AWSA AH Edge Light Panel
901- 4 HDECQA065AWSA AE Decoration Cover,Rear
902 CDUC-A016AW01A Duct Port Ass'y
903 CPNLSA017AW01 BF Front Panel Ass'y
904 GBOXSA039AWSA BY Speaker Box Ass'y
905 GCOVHA011AWSA AV Rear Cover
906 JKNBZA047AWSA AF Knob,Power
907 JKNBZA048AWSA AE Knob,Volume/Crossover Frequency
908 LANGKA017AWFW AE Bracket,Heat Sink Support
909 LANGKA021AWFW AE Bracket,Fan
910 LBSHC0005AWZZ AD Bushing,AC Power Supply Cord
911 LCHSMA009AWFW AK Chassis,Amp.
912 LCHSSA005AWFW AM Chassis,Power Transformer
913 LHLDFA004AWZZ AC Holder,PWB,A
914 LHLDFA005AWZZ AC Holder,PWB,B
916 LHLDZA014AWZZ AC Holder,LED
917 LHLDZ8002AWSA AG Catching Holder
918 NFANP0001AWZZ AD Rotary Fan
919 PCOVQA002AWSA AE Cover
920 PCUSGA025AWZZ AB Cushion,Fan,A
921 PCUSGA028AWZZ AC Cushion,Power Transformer
922 PCUSGA036AWZZ AB Cushion,Fan,B
923 PCUSG0008AWZZ AB Cushion,Gum
924 PCUSG0139AWZZ AG Cushion,Leg
925 PCUSSA003AWZZ AE Cushion,Duct Port
926 PFLT-A008AWZZ AA Felt
927 PFLT-A011AWZZ AA Felt,Amp. Chassis
928 PRDARA054AWFW AY Heat Sink
929 PRDARA044AWFW AE Heat Sink,Sub
930 PSPAS0003AWZZ AC Spacer
!
931 QACCD0032AW00 AC Power Supply Cord with CNS801
!
932 QFSHD0001AWZZ AB Holder,Fuse
933 TSPC-A316AWZZ AD Label,Specifications
934 92LCSPR1431C AA Spring,Ring
935 92LNBAND1318A AA Nylon Band,80mm
936 LX-EZ0010AWFD AA Screw,Special
937 LX-HZ0169AFFD AA Screw,M4x8mm
938 LX-JZ0036AWFD AB Screw,M3x12mm
939 LX-JZ0037AWFD AB Screw,M3x18mm
940 LX-WZ7004AWZZ AB Washer,M3.2xM6x0.3mm
941 XBBSD20P04000 AA Screw,M2x4mm
942 XEBSD26P06000 AA Screw,M2.6x6mm
943 XEBSD26P10000 AA Screw,M2.6x10mm
944 XEBSD30P10000 AA Screw,M3x10mm
945 XEBSF30P10000 AA Screw,M3x10mm
946 XJBSD30P08000 AA Screw,M3x8mm
947 XJBSD30P10000 AA Screw,M3x10mm
948 XJBSD30P14000 AA Screw,M3x14mm
949 XJBSF30P08000 AA Screw,M3x8mm
950 XMBSF40P16000 AC Screw,M4x16mm
951 XMPSF40P40000 AC Screw,M4x40mm
952 XTBSF30P20000 AB Screw,M3x20mm
953 XTBSF40P16000 AA Screw,M4x16mm
954 XTBSF40P20000 AA Screw,M4x20mm
955 XWHSD32-10130 AA Washer,M3.2xM13x1.0mm
956 PSHEZA073AWZZ AB Speacer
957 TLABSA031AWZZ AD UL Label
SP1 RSP-ZA107AWZZ BV Subwoofer
[13] ACCESSORIES/PACKING PARTS
QCNWHA003AWZZ AN Speaker Cord,Front Speaker
SPAKAA030AWZZ AN Packing Add.,Front Speaker
SPAKAA031AWZZ AV Packing Add.,Subwoofer
SPAKCA248AWZZ Packing Case
SSAKHA016AWZZ AH Protection Bag,Front Speaker
SSAKHA017AWZZ AG Polyethylene Bag,Subwoofer
[14] P.W.B. ASSEMBLY (Not Replacement Item)
!
PWB-A 92LPWB6242AMPS — Power/Transformer/Jack (PWB-A1~3)(Combined Ass'y)
!
PWB-B 92LPWB6242CTRS — Volume/Power Switch/LED A/LED B (PWB-B1~4) (Combined Ass'y)
background
CD-G10000/CP-G10000S
9
INDEX
INDEX
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
[ C ]
CDECQA061AW01 11-901 BB
CDECQA063AW01 11-902 AZ
CDECQA064AW01 12-901 AU
CDUC-A016AW01A 12-902
CPNLSA017AW01 12-903 BF
[ G ]
GBOXSA039AWSA 12-904 BY
GBOXSA042AW01 11-903 **
GCOVHA011AWSA 12-905 AV
[ H ]
HDECQA064AWSA 12-901- 1 AL
HDECQA065AWSA 12-901- 4 AE
HDECQA066AWSA 12-901- 3 AH
HPNLSA015AWSA 11-904 BA
[ J ]
JKNBZA047AWSA 12-906 AF
JKNBZA048AWSA 12-907 AE
[ L ]
LANGKA017AWFW 12-908 AE
LANGKA021AWFW 12-909 AE
LBSHC0005AWZZ 12-910 AD
LCHSMA009AWFW 12-911 AK
LCHSSA005AWFW 12-912 AM
LHLDFA004AWZZ 12-913 AC
LHLDFA005AWZZ 12-914 AC
LHLDZ8002AWSA 12-917 AG
LHLDZA013AWZZ 12-901- 2 AE
LHLDZA014AWZZ 12-916 AC
LX-EZ0010AWFD 12-936 AA
LX-HZ0169AFFD 12-937 AA
LX-JZ0036AWFD 12-938 AB
LX-JZ0037AWFD 12-939 AB
LX-WZ7004AWZZ 12-940 AB
[ N ]
NFANP0001AWZZ 12-918 AD
[ P ]
PCOVQA002AWSA 12-919 AE
PCUSG0008AWZZ 12-923 AB
PCUSG0139AWZZ 12-924 AG
PCUSGA020AWZZ 11-905 AB
PCUSGA025AWZZ 12-920 AB
PCUSGA028AWZZ 12-921 AC
PCUSGA036AWZZ 12-922 AB
PCUSSA003AWZZ 12-925 AE
PFLT-A008AWZZ 12-926 AA
PFLT-A011AWZZ 12-927 AA
PRDARA044AWFW 12-929 AE
PRDARA054AWFW 12-928 AY
PSHEZA073AWZZ 12-956
PSPAS0003AWZZ 12-930 AC
[ Q ]
QACCD0032AW00 12-931
QCNCM035BAWZZ 10-CNP805 AB
QCNCM049BAWZZ 10-CNP801 AC
" 10-CNP802 AC
" 10-CNP803 AC
" 10-CNP804 AC
QCNCM050DAWZZ 10-CNP901 AC
QCNCM050EAWZZ 10-CNP806 AD
QCNCM705BAFZZ 10-CNP505 AA
QCNWHA003AWZZ 13- AN
QCNWN1542AWZZ 10-CNS402 AC
QCNWNA075AWPZ 10-CNS503 AF
QCNWNA076AWPZ 10-CNS803 AH
QCNWNA077AWPZ 10-CNS504 AF
QCNWNA105AWPZ 10-BI502 AD
QCNWNA106AWPZ 10-BI501 AE
QCNWNA141AWPZ 10-CNS901
QCNWNA147AWZZ 11-907 AS
QFS-D632CAWNI 10-F801
QFS-D632CAWNI 10-F804
QFS-D632CAWNI 10-F805
QFS-D501CAWNI 10-F806
QFSHD0001AWZZ 12-932 AB
QLUGP0001AWZZ 10-LG901 AC
" 10-LG902 AC
QSOCJA010AWZZ 10-SO501 AC
QSW-P0014AWZZ 10-SW802 AK
[ R ]
RC-EZ0085AWZZ 8-C922 AM
" 8-C923 AM
RC-EZ0124AWZZ 8-C920 AR
" 8-C921 AR
RCILZ0024AWZZ 5-L901 AC
" 5-L902 AC
RC-KZ002LAWZZ 8-C935 AC
RH-QX0006AWZZ 7-R401 AE
RMOTV0059AWZZ 10-M401 AL
RRLYD0016AWZZ 10-RL901 AH
RSP-ZA039AWZZ 11-SP1
" 11-SP2
" 11-SP3
" 11-SP4
RSP-ZA040AWZZ 11-SP5
" 11-SP6
RSP-ZA107AWZZ 12-SP1 BV
RTRNPA006AWZZ 4-PT801 BL
RVR-GA003AWZZ 6-VR501 AK
RVR-GA004AWZZ 6-VR502 AE
[ S ]
SPAKAA030AWZZ 13- AN
SPAKAA031AWZZ 13- AV
SPAKCA248AWZZ 13-
SSAKHA016AWZZ 13- AH
SSAKHA017AWZZ 13- AG
[ T ]
TLABSA031AWZZ 12-957
TSPC-A313AWZZ 11-908 AD
TSPC-A316AWZZ 12-933 AD
[ V ]
VCCSPA1HL101J 8-C507 AA
" 8-C511 AA
" 8-C513 AA
" 8-C517 AA
" 8-C519 AA
" 8-C520 AA
" 8-C523 AA
" 8-C907 AA
" 8-C908 AA
VCCSPA1HL3R0C 8-C909 AA
" 8-C910 AA
VCEAZA1CW107M 8-C402 AC
VCEAZA1CW227M 8-C932 AC
" 8-C933 AC
VCEAZA1EW108M 8-C807 AE
VCEAZA1EW476M 8-C404 AB
" 8-C930 AB
VCEAZA1HW104M 8-C937 AB
VCEAZA1HW105M 8-C901 AB
" 8-C902 AB
VCEAZA1HW106M 8-C401 AB
" 8-C506 AB
" 8-C510 AB
" 8-C512 AB
" 8-C518 AB
" 8-C522 AB
" 8-C526 AB
" 8-C529 AB
" 8-C931 AB
VCEAZA1HW107M 8-C916 AC
" 8-C918 AC
VCEAZA1HW476M 8-C905 AB
" 8-C906 AB
" 8-C925 AB
VCEAZA2AW107M 8-C912 AD
" 8-C913 AD
" 8-C914 AD
" 8-C915 AD
VCFYDA2AA224J 8-C805 AD
" 8-C806 AD
VCFYFA1HA105J 8-C514 AE
VCFYFA1HA124J 8-C515 AL
VCFYFA1HA224J 8-C521 AC
" 8-C926 AC
" 8-C927 AC
" 8-C928 AC
" 8-C929 AC
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
10
VCKYPA1HB102K 8-C501 AA
VCQYKA1HM103K 8-C917 AA
" 8-C919 AA
VCQYKA1HM104K 8-C516 AB
" 8-C803 AB
" 8-C804 AB
" 8-C808 AB
" 8-C810 AB
" 8-C903 AB
" 8-C904 AB
" 8-C911 AB
VCQYKA1HM333K 8-C508 AB
VHD1N4148H/-1 3-D901 AA
" 3-D902 AA
" 3-D903 AA
" 3-D906 AA
" 3-D907 AA
" 3-D908 AA
" 3-D910 AA
" 3-D911 AA
" 3-D912 AA
" 3-D913 AA
VHDD10XB60/-1 3-D801 AH
" 3-D802 AH
VHDGD1N4004-1 3-D803 AB
" 3-D804 AB
" 3-D805 AB
" 3-D806 AB
" 3-D904 AB
" 3-D905 AB
VHEDZ120BSB-1 3-ZD901 AB
" 3-ZD902 AB
VHEDZ130BSB-1 3-ZD903 AB
" 3-ZD904 AB
VHEDZ3R9BSB-1 3-ZD501 AC
" 3-ZD502 AC
VHEDZ5R1BSB-1 3-ZD503 AC
" 3-ZD504 AC
VHIKIA4558P-1 1-IC501 AC
" 1-IC502 AC
VHIKIA7812AP1 1-IC801 AF
VHISTK41244-1 1-IC901 BF
VHPA50ABC2L-1 3-LED501 AK
" 3-LED502 AK
VRD-RT2HD100J 9-R930 AA
" 9-R931 AA
" 9-R932 AA
" 9-R933 AA
VRD-RT2HD152J 9-R921 AA
" 9-R922 AA
VRD-RT2HD4R7J 9-R409 AA
VRD-ST2CD102J 9-R517 AA
" 9-R520 AA
" 9-R522 AA
" 9-R524 AA
" 9-R903 AA
" 9-R904 AA
" 9-R909 AA
" 9-R910 AA
" 9-R957 AA
VRD-ST2CD103J 9-R501 AA
" 9-R518 AA
" 9-R536 AA
" 9-R537 AA
" 9-R955 AA
" 9-R960 AA
VRD-ST2CD104J 9-R507 AA
" 9-R513 AA
VRD-ST2CD124J 9-R405 AA
" 9-R528 AA
VRD-ST2CD152J 9-R402 AA
" 9-R502 AA
" 9-R917 AA
" 9-R918 AA
" 9-R936 AA
" 9-R937 AA
VRD-ST2CD153J 9-R941 AA
VRD-ST2CD182J 9-R403 AA
VRD-ST2CD222J 9-R523 AA
" 9-R919 AA
" 9-R920 AA
VRD-ST2CD223J 9-R801 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
"9-R938AA
VRD-ST2CD272J 9-R510 AA
"9-R514AA
VRD-ST2CD333J 9-R942 AA
VRD-ST2CD472J 9-R404 AA
"9-R535AA
VRD-ST2CD473J 9-R939 AA
"9-R940AA
"9-R958AA
"9-R959AA
VRD-ST2CD474J 9-R533 AA
VRD-ST2CD561J 9-R905 AA
"9-R906AA
VRD-ST2CD562J 9-R525 AA
"9-R538AA
VRD-ST2CD563J 9-R901 AA
"9-R902AA
"9-R907AA
"9-R908AA
"9-R927AA
"9-R928AA
"9-R929AA
VRD-ST2EE102J 9-R511 AA
"9-R512AA
"9-R519AA
"9-R521AA
VRD-ST2EE393J 9-R923 AA
"9-R924AA
VRD-ST2EE473J 9-R925 AA
"9-R926AA
VRD-ST2EE561J 9-R526 AA
"9-R527AA
VRG-ST2EC101J 9-R911 AB
"9-R912AB
VRN-CM05N0R1J 9-R915 AD
"9-R916AD
VRN-CM05NR22J 9-R913 AD
"9-R914AD
VRS-VV3LA561J 9-R934 AC
"9-R935AC
VSKRC102M//-1 2-Q907 AC
"2-Q908AC
VSKRC104M//-1 2-Q909 AC
VSKTC3199GR-1 2-Q501 AB
"2-Q901AB
"2-Q902AB
"2-Q903AB
"2-Q904AB
"2-Q905AB
"2-Q906AB
VSKTC3203Y/-1 2-Q402 AC
VSKTC3205Y/-1 2-Q401 AD
[ X ]
XBBSD20P04000 12-941 AA
XEBSD26P06000 12-942 AA
XEBSD26P10000 11-911 AA
" 12-943 AA
XEBSD30P10000 12-944 AA
XEBSF30P10000 12-945 AA
XJBSD30P08000 12-946 AA
XJBSD30P10000 12-947 AA
XJBSD30P14000 12-948 AA
XJBSF30P08000 12-949 AA
XMBSF30P12000 11-909 AA
XMBSF40P16000 11-910 AC
" 12-950 AC
XMPSF40P40000 12-951 AC
XTBSF30P20000 12-952 AB
XTBSF40P16000 12-953 AA
XTBSF40P20000 12-954 AA
XWHSD32-10130 12-955 AA
[ 9 ]
92LCONE2P5268 10-CNP503 AB
92LCONE2P53253 10-CNP402 AB
92LCONE2P53254 10-CNP501 AB
" 10-CNP502 AB
92LCONE5P53253 10-CNP902 AB
92LCONE5P53254 10-CNP504 AB
92LCSPR1431C 12-934 AA
92LNBAND1318A 12-935 AA
92LPWB6242AMPS 14-PWB-A BX
92LPWB6242CTRS 14-PWB-B AZ
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
background
CD-G10000/CP-G10000S
−− MEMO −−
11
background
CD-G10000/CP-G10000S
−− MEMO −−
12
background
CD-G10000/CP-G10000S
NOTE:
Parts marked with are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER 2. REF. No.
3. PART NO. 4. DESCRIPTION
MARK: SPARE PARTS-DELIVERY SECTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK ........................ Ceramic type
VCT ........................ Semiconductor type
VC MF ............... Cylindrical type (without lead wire)
VC MN ............... Cylindrical type (without lead wire)
VC TV................ Square type (without lead wire)
VC TQ ............... Square type (without lead wire)
VC CY ............... Square type (without lead wire)
VC CZ ............... Square type (without lead wire)
VC J.. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ± 20%.
Resistors
VRD ....................... Carbon-film type
VRS ........................ Carbon-film type
VRN ....................... Metal-film type
VR MF ............... Cylindrical type (without lead wire)
VR MN............... Cylindrical type (without lead wire)
VR TV................ Square type (without lead wire)
VR TQ ............... Square type (without lead wire)
VR CY ............... Square type (without lead wire)
VR CZ ............... Square type (without lead wire)
VR J.. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
CAUTION:FOR CONTINUED
PROTECTION AGAINST FIRE
HAZARD, REPLACE ONLY WITH
SAME TYPE F801,F804,F805 6.3A,
125V / F806 500mA, 125V FUSES
ATTENTION:POUR ASSURER
UNE LONGUE PROTECTION CONTRE
UN INCENDIE, REMPLACER SEULEMENT
PAR UN FUSIBLE DE
TYPE F801,F804,F805 6.3A, 125V
F806 500mA, 125V
background
CD-G10000/CP-G10000S
A0501-210DS HA M
SC
COPYRIGHT 2005 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
©
SHARP CORPORATION
AV Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan

Specifications

Indexed Terms: Speaker System, High-power

Sharp CD-G10000V Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

Product Sharp CD M4000W image
Sharp CD-M4000W Speaker System
2018-12-28 2 docs
No image
Sharper Image 206798 Sharp CD-BH950 Mini Shelf Speaker System
2025-06-08 1 docs
Product Sharp CD M4000W image
Sharp CD-M4000W Speaker System
2018-12-28 2 docs
No image
Sharper Image 206798 Sharp CD-BH950 Mini Shelf Speaker System
2025-06-08 1 docs
