MULTIMEDIA PROJECTOR
User’s Manual
2
Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and
ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and
matrix liquid crystal display (LCD) technology.
This projector is designed compact in size
and weight. It is easy to carry and installed
anywhere you wish to use.
The projector has the Multi-scan system to
conform to almost all computer output signals
quickly (p.30). Up to WUXGA resolution can
be accepted.
- The digital zoom function allows you to
focus on the crucial information during a
presentation (p.37)
- The MIC function and 10W audio output
allows you to make a presentation without
any external audio equipment (p.26).
Brightness of the projection lamp can be
selected (pp.27, 56).
With the Direct Power Off function, you can
disconnect the power cord from the wall outlet
or turn off the breaker even during projection
(p.22).
The Logo function allows you to customize
the screen logo (pp.48-50). You can capture
an image for the screen logo and use it for the
starting-up display or between presentations.
This projector is capable of projecting two
images simultaneously by using either built-in
P in P mode or P by P mode. (pp.28, 52)
Operation menu is available in 22 languages:
English, German, French, Italian, Spanish,
Portuguese, Dutch, Swedish, Finnish, Polish,
Hungarian, Romanian, Czech, Russian,
Turkish, Arabic, Kazakh, Vietnamese,
Chinese, Korean, Japanese and Thai (p.46).
The Security function helps you to ensure
security of the projector. With the Key lock
function, you can lock the operation on the
top control or remote controller (p.57). PIN
code lock function prevents unauthorized use
of the projector (pp.21, 57-58).
Lamp and filter maintenance functions
provide for better and proper maintenance of
the projector.
This projector is loaded with the Wired LAN
network function. You can operate and
manage the projector via network. For details,
refer to the user’s manual of “Network Set-up
and Operation.”
This function enables Auto input, Auto
Keystone correction and Auto PC adjustment
by pressing the AUTO SET button (p.47).
At the time of simple projection on the colored
wall, you can get the close color image to the
color image projected on a white screen by
selecting the similar color to the wall color
from the preset four colors.
The projector provides a switchable interface
terminal. You can use the terminal as
computer input or monitor output conveniently
(p.51).
The Power management mode function
reduces power consumption and maintains
the lamp life (p.53).
This is a printed version of the program
sound or other information displayed on
the screen. You can turn on the feature and
switch the channels. (p.55)
3
Each name of corporations or products in this book is either a registered trademark or a trademark of
its respective corporation.
Features and Design ..............2
.................3
.....................4
................5
Air Circulation 8
Installing the Projector in Proper Position 8
Moving the Projector 8
......................9
........10
Front 10
Back 10
Bottom 10
Rear Terminal 11
Top Control 12

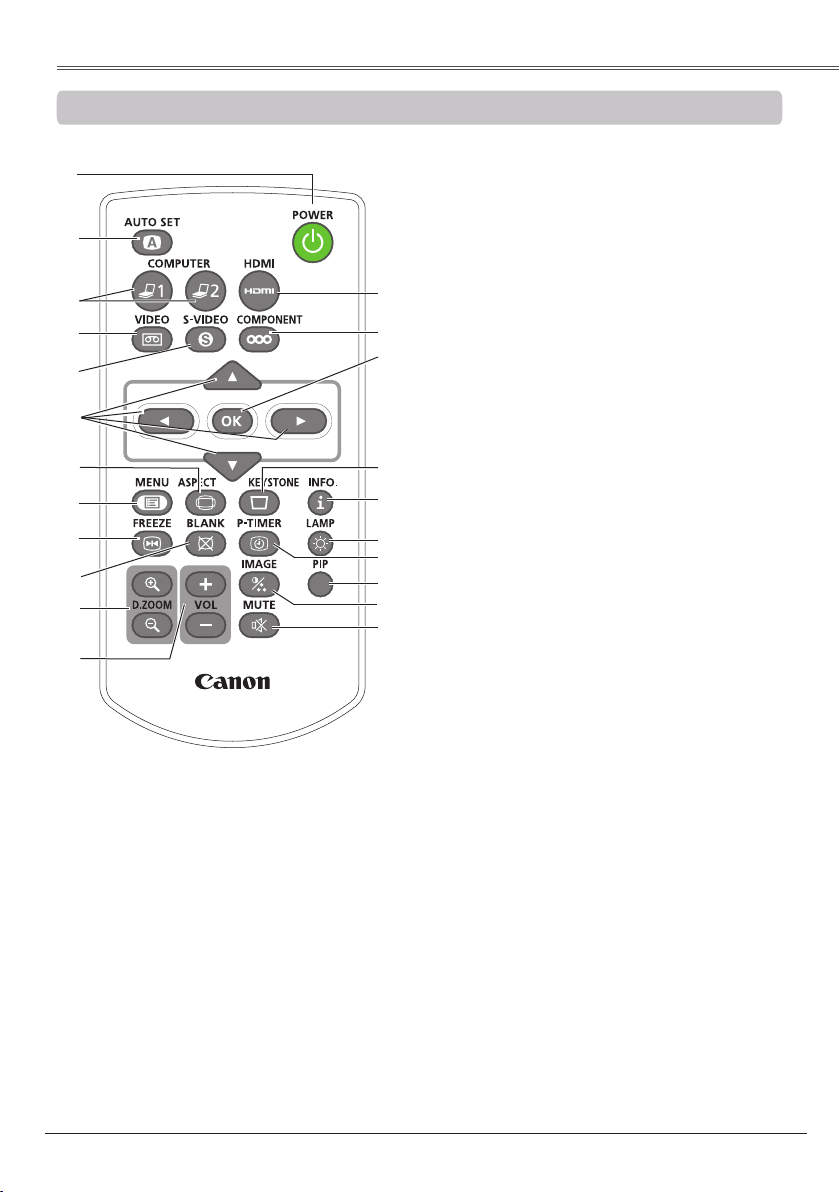

Remote controller 13
Remote controller Battery Installation 14
Remote controller Operating Range 14
Remote Control Code 14
......................15
Positioning the Projector 15
Adjustable Feet 15

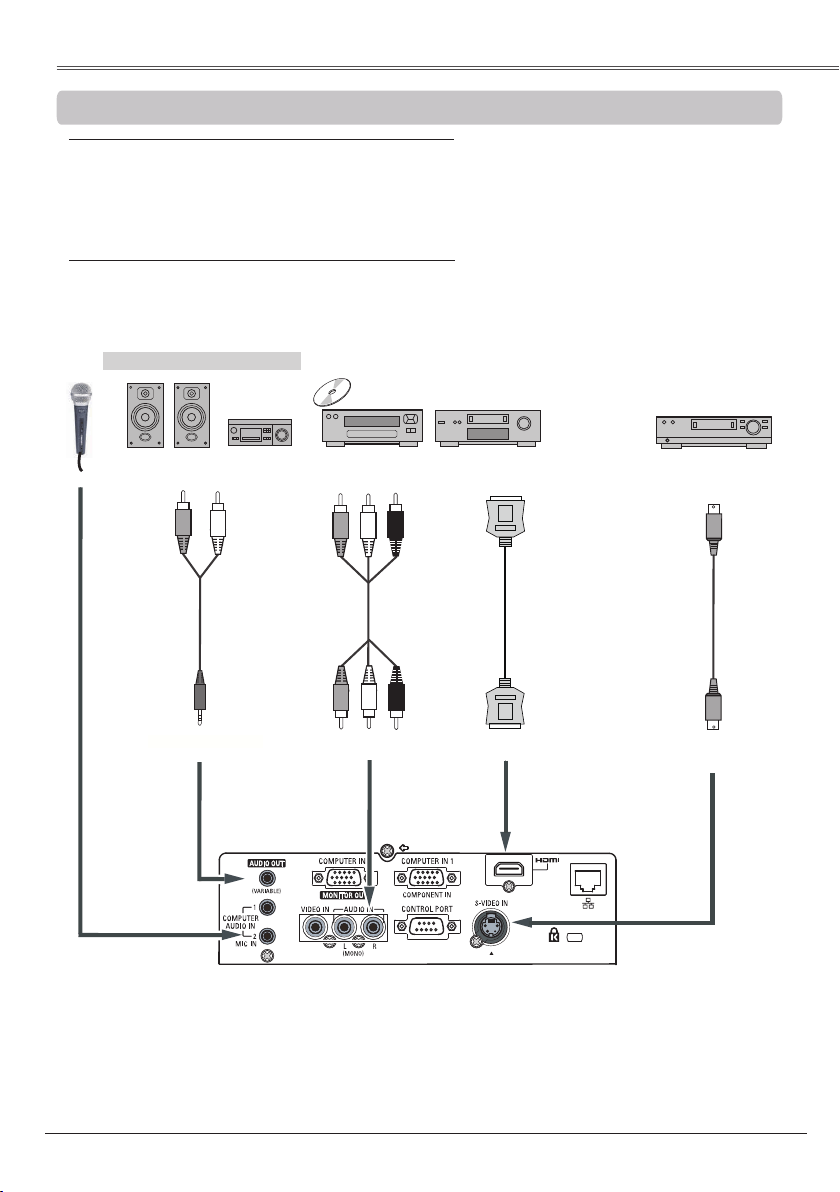

Connecting to a Computer 16
Connecting to VIDEO Equipment 17
Connecting to COMPONENT VIDEO
and SCART Equipment 18
Connecting the AC Power Cord 19
.................20
Turning On the Projector 20
Turning Off the Projector 22
How to Operate the On-Screen Menu 23
Main Menu 24
Zoom and Focus Adjustment 25
Auto Setup Function 25
Keystone Correction 25
Sound Adjustment 26
Remote controller Operation 27
.................29
Input Source Selection (ANALOG PC:
COMPUTER 1/COMPUTER 2) 29
Computer System Selection 30
Auto PC Adjustment 31
Manual PC Adjustment 32

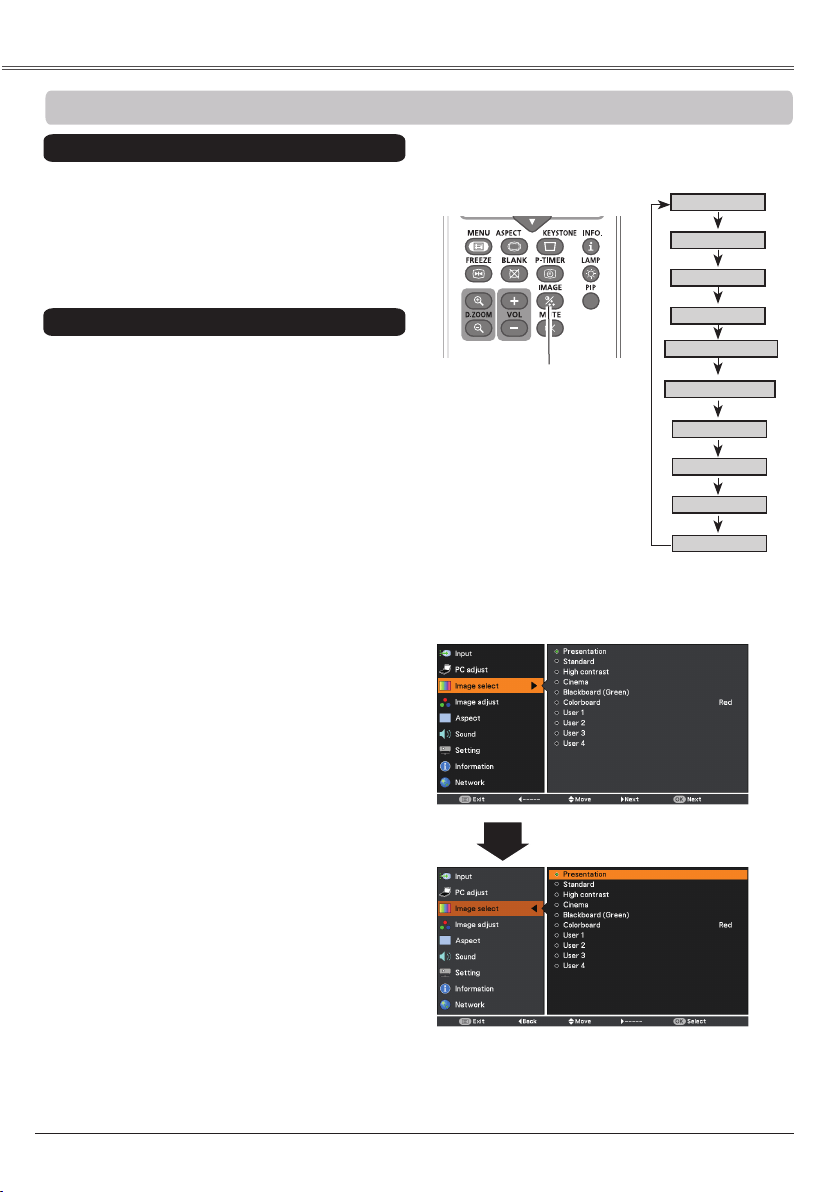

Image Mode Selection 34
Image Adjustment 35
Aspect Setting 36
.....................38
Input Source Selection
(VIDEO, S-VIDEO) 38
Input Source Selection
(COMPONENT, SCART, HDMI) 39

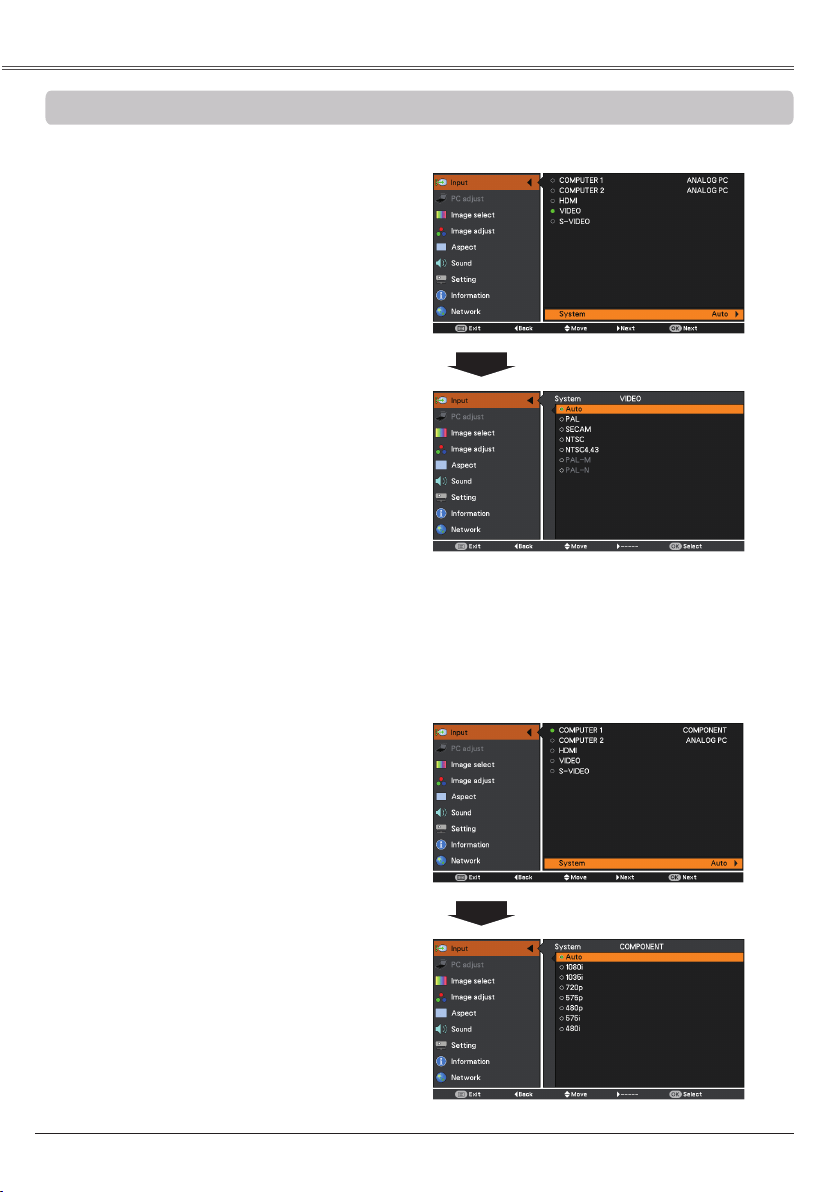

VIDEO System Selection 40
Image Mode Selection 41
Image Adjustment 42
Aspect Setting 44
.........................46
Setting 46
.....................61

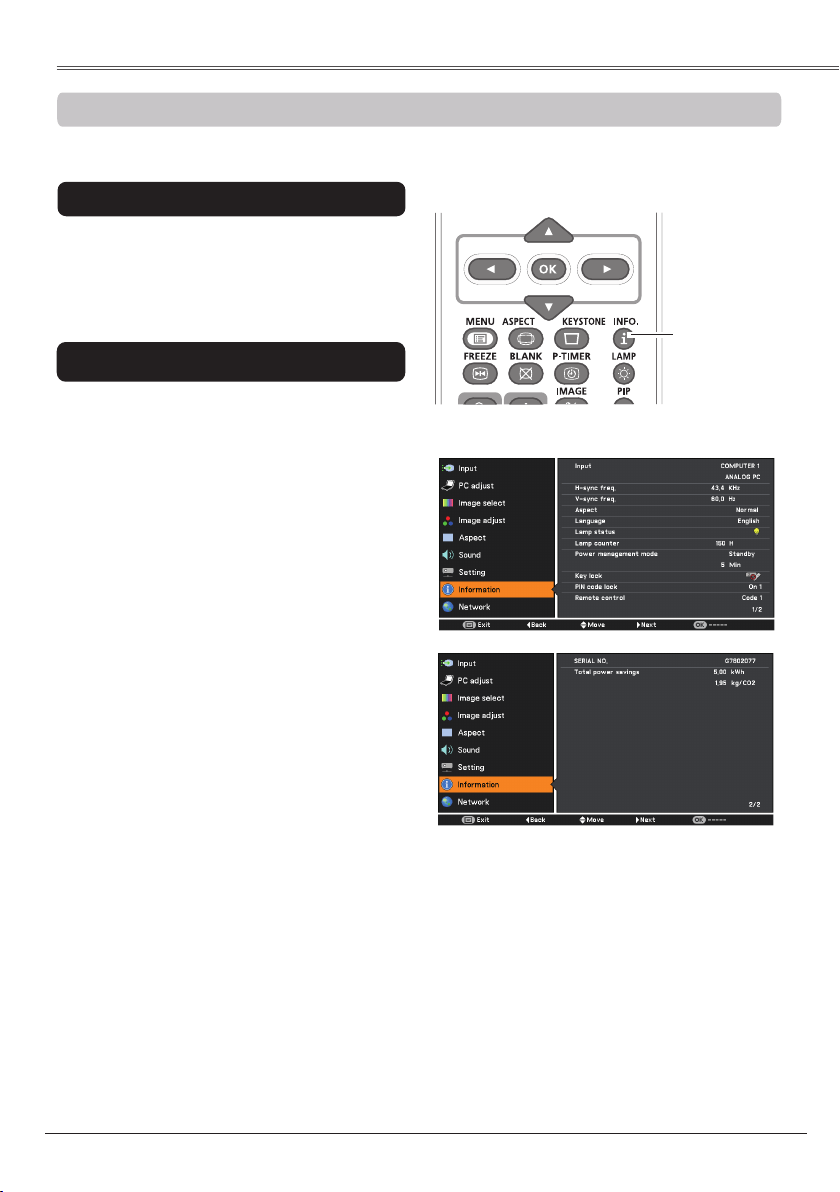

Input Source Information Display 61
........62
WARNING indicator 62

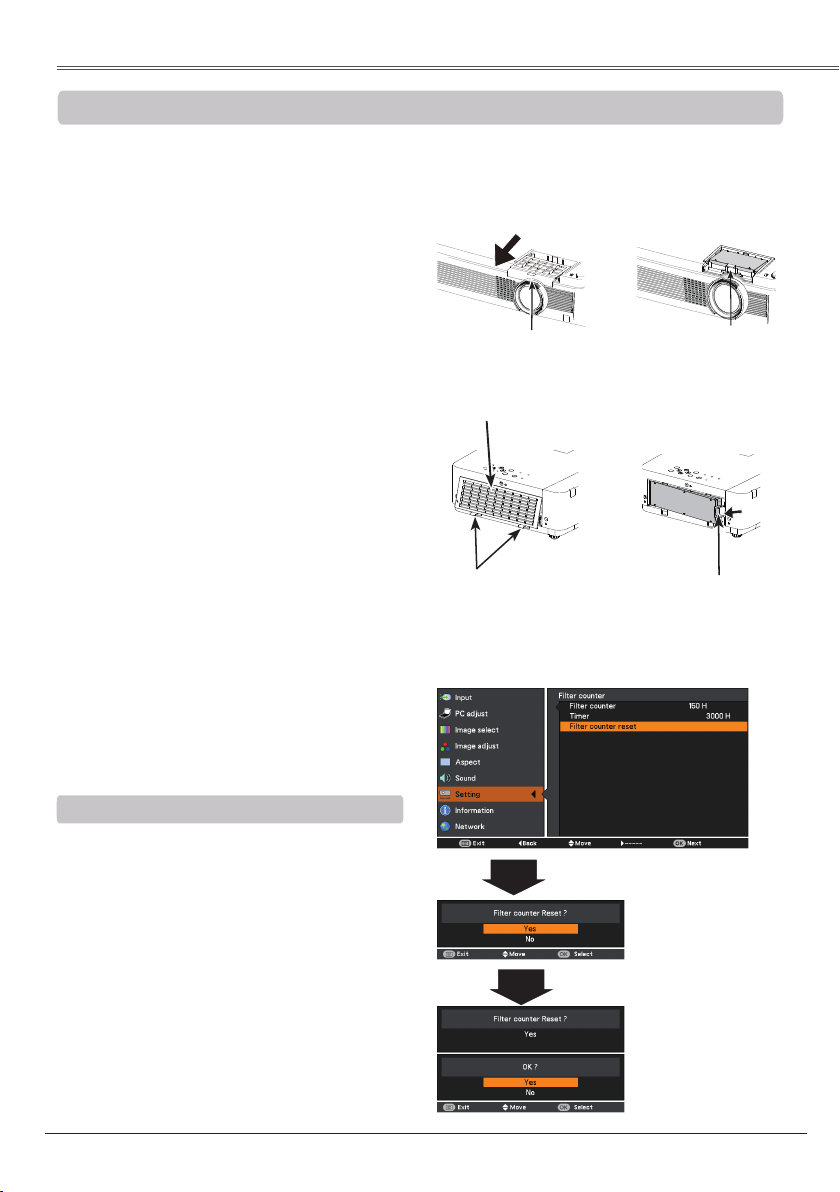

Replacing the Filters 63
Resetting the Filter Counter 63
Attaching the Lens Cap 64
Cleaning the Projection Lens 64
Cleaning the Projector Cabinet 64
Lamp Replacement 65
.......................67
Troubleshooting 67
Menu Tree 70
Indicators and Projector Condition 72
Compatible Computer Specifications 73
Technical Specifications 75
Optional Parts 76
PJ Link Notice 77
Attaching the Filter Cover to the Projector
77
Configurations of Terminals 78
List of Picture in Picture 79
PIN Code Protection 79

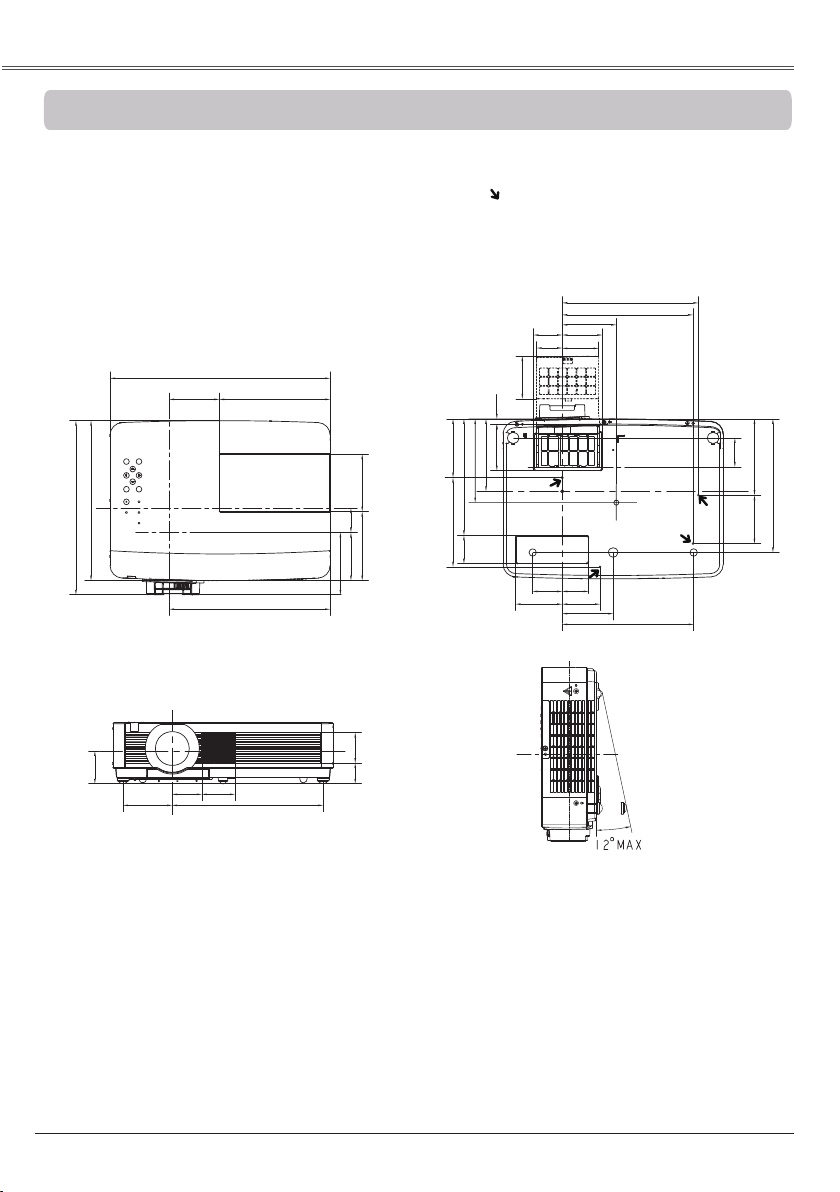

Dimensions 80
4
Before installing and operating this projector, read
this manual thoroughly.
This projector provides many convenient features
and functions.
Operating the projector properly enables you to
manage those features and maintains it in good
condition for many years to come. Improper
operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or
other accidents.
If your projector seems to operate improperly,
read this manual again, check operations and
cable connections and try the solutions in the
“Troubleshooting” section on pages 67-69 of this
manual. If the problem still persists, contact the
dealer where you purchased the projector or the
service center.
bECOME DETERIORATED.
– This projector produces intense light from the
projection lens. Do not stare directly into the
lens, otherwise eye damage could result. Be
especially careful that children do not stare
directly into the beam.
– Install the projector in a proper position.
Improper positioning may reduce the lamp life
and result in severe accident or fire hazard.
– Allowing the proper amount of space on the
top, sides, and rear of the projector cabinet is
critical for proper air circulation and cooling of
the unit. The dimension shown here indicate the
minimum space required.
If the projector is to be built into a compartment
or similarly enclosed, these minimum distances
must be maintained.
– Do not cover the ventilation slot on the projector.
Heat build-up can reduce the service life of your
projector, and can also be dangerous.
– If the projector is unused for an extended time,
unplug the projector from the power outlet.
– Do not project the same image for a long time.
The afterimage may remain on the LCD panels
by the characteristic of panel.
SIDE and TOP REAR
0.7’(20cm)
1.5’(50cm) 3’(1m)
20cm
50cm 1m
1.5’(50cm)
50cm
Not for use in a computer room as defined in
the Standard for the Protection of Electronic
Computer/Data Processing Equipment, ANSI/
NFPA 75.
5
All the safety and operating instructions should
be read before the product is operated.
Read all of the instructions given here and retain
them for later use. Unplug this projector from
AC power supply before cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for
cleaning.
Follow all warnings and instructions marked on
the projector.
For added protection to the projector during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from
the wall outlet. This will prevent damage due to
lightning and power line surges.
Do not expose this unit to rain or use near
water... for example, in a wet basement, near a
swimming pool, etc...
Do not use attachments not recommended by
the manufacturer as they may cause hazards.
Do not place this projector on an unstable cart,
stand, or table. The projector may fall, causing
serious injury to a child or adult, and serious
damage to the projector. Use only with a cart
or stand recommended by the manufacturer, or
sold with the projector. Wall or shelf mounting
should follow the manufacturer’s instructions,
and should use a mounting kit approved by the
manufacturers.
An appliance and cart
combination
should be moved with care.
Quick stops, excessive force, and
uneven surfaces may cause the
appliance and cart combination
to overturn.
Slots and openings in the back and bottom
of the cabinet are provided for ventilation, to
ensure reliable operation of the equipment and
to protect it from overheating.
The openings should never be covered with
cloth or other materials, and the bottom opening
should not be blocked by placing the projector
on a bed, sofa, rug, or other similar surface. This
projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in
installation such as a book case unless proper
ventilation is provided.
Never push objects of any kind into this projector
through cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the projector.
Do not install the projector near the ventilation
duct of air-conditioning equipment.
This projector should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power
supplied, consult your authorized dealer or local
power company.
Do not overload wall outlets and extension cords
as this can result in fire or electric shock. Do not
allow anything to rest on the power cord. Do
not locate this projector where the cord may be
damaged by persons walking on it.
Do not attempt to service this projector yourself
as opening or removing Covers may expose you
to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
Unplug this projector from wall outlet and refer
servicing to qualified service personnel under
the following conditions:
a. When the power cord or plug is damaged or
frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or
water.
d. If the projector does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions as improper adjustment
of other controls may result in damage and
will often require extensive work by a qualified
technician to restore the projector to normal
operation.
e. If the projector has been dropped or the
cabinet has been damaged.
f. When the projector exhibits a distinct change
in performance-this indicates a need for
service.
When replacement parts are required, be sure
the service technician has used replacement
parts specified by the manufacturer that have
the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this
projector, ask the service technician to perform
routine safety checks to determine that the
projector is in safe operating condition.
6
Immediately turn the power off, unplug the
projector, and contact your dealer under the
following conditions, otherwise a fire or an electric
shock may result.
– If smoke comes out from it.
– If it emits a strange odor, or makes a strange
noise.
– If lamp goes out with a loud bang.
– If water or any other liquid gets into it.
– If metal or foreign objects get inside it.
– If it is knocked down or dropped and the cabinet
is broken.
Follow the instructions below when using the
power cable, otherwise a fire, an electric shock, or
injury may result.
– Do not place heavy objects on the power cord
or position the power cord under the projector.
Doing so may damage the power cord.
– Do not run the power cord under a carpet. As it
goes unnoticed, excessive load may be applied
on the cord unintentionally.
– Do not modify, bend forcibly, twist, or pull the
power cord.
– Do not place the power cord near heat
generating equipment or heat it.
– Do not bend, wind, or bind excessively the
power cord when using it.
– Be sure to connect the projector to a grounded
outlet. Failure to do so may result in an electric
shock.
– Do not continue to use a damaged power cord.
If the power cord is damaged, take it to your
dealer and have it replace.
– Use only the supplied power cord.
Follow the instructions below when handling the
power plug or connector, otherwise a fire, an
electric shock, or injury may result.
– Use the projector within the voltage range
specified on the projector (AC 100 V– 240 V).
– Insert the power plug or connector into the
power outlet firmly. Do not use a damaged or
loosen power plug or connector.
– Be sure to hold the power cord plug or
connector when disconnecting it from the power
outlet. If the power cord itself is pulled, it may be
damaged.
– Do not plug or unplug the power cord with wet
hands.
– Disconnect the power cord from the power
outlet before cleaning the projector.
– Do not stick metal objects into the electrical
contacts of the power plug or connector.
Follow the instructions below to install or handle
the projector. Otherwise, a fire, an electric shock,
or injury may result.
– Do not touch the projector, power cord, or
cables when lighting begins.
– Do not use the projector in a bathroom or
shower room.
– Do not expose the projector to rain, snow, or
use near water.
– Do not insert metal objects into the projector
through the air vents.
– Do not place the containers with water on the
projector.
– Do not install in the locations exposed to oily
vapors or smoke (e.g., near a cooking table or
humidifier).
– Before moving the projector, turn the power off
and disconnect the power cord and all cables.
– Do not put spray cans in front of the exhaust
vent. When spray cans are exposed to heat, the
pressure in them will increase and explode.
– Do not open nor remove the cabinet. There are
high voltage components inside the projector.
Contact your dealer for inspection, adjustment,
and service.
– Do not attempt to disassemble the projector
(including expendable parts) or remote
controller.
– Do not look into the lens while the projector
is used. Strong light may hurt your eyes. Be
especially careful that small children do not look
into the lens.
– When an extension cord is necessary, be sure
that the total current load of all equipment
connected to the extension cord does not
exceed the specified rating of the extension
cord.
– Periodically unplug the power cord and remove
the dust that builds up on the power cord or
connector.
Follow the instructions below when handling the
batteries. Failure to do so may cause explosion,
heat generation, a fire, or leakage of the battery
fluid.
– Do not heat or disassemble the batteries, or
throw them into fire.
– Do not attempt to recharge the batteries.
Follow the instructions below when the lamp is
replaced or breaks.
– Always unplug the power cord before replacing
the lamp.
– When the lamp breaks, shards of glass may
scatter in the lamp housing. Contact your dealer
for cleaning or inspecting the projector, or
replacing the lamp.
7
– Remove the batteries when they have been
exhausted or not in use for an extended
period of time.
– Be sure to replace both batteries at the same
time. Do not mix batteries of different types.
– Insert batteries correctly according to the “+”
and “-“ markings.
– If a fluid from a battery leaks and comes in
contact with your skin, rinse the affected skin
thoroughly as soon as possible.
– Do not place heavy objects or step on the
projector. Be especially careful that small
children do not step on the projector. If not,
the projector may drop or break, causing
injury.
– Disconnect the power cord from the power
outlet if the projector is left unused for a long
period of time. Failure to do so may result in a
fire.
– Do not bring your hands to the peripheral part
of the exhaust vent on the cabinet. This area
becomes hot during use. Be especially careful
that small children do not touch the area.
Failure to do so may result in burn.
– Do not put metal objects in front of or near
the exhaust vent. They will become hot while
projector is being used.
– Do not place the projector on top of unstable
or slanted surfaces. The projector may fall
down and cause injury.
– Do not attach the lens cover while the
projector is being used or place any objects in
front of the lens. Failure to do so may result in
a fire.
– A buildup of dust inside the projector can
cause a fire or damage. Consult your dealer
for cleaning.
– When installing the projector to a ceiling,
consult your electrician or dealer. If the
projector is not fixed securely, accidents may
result.
– Never take out the lamp soon after the
projector is used. Let the projector cool for at
least 1 hour before taking out the lamp, as
burns may result.
– If the lamp replacement icon appears or the
LAMP REPLACE indicator lights orange,
immediately replace the lamp with a new one.
Otherwise, the lamp may burst.
– If the lamp burns out, the gas or dust
(containing mercury) inside the lamp may
escape from the air vents. Immediately open
the windows and ventilate the room. If you
inhale the gas or the gas gets into your eyes
or mouth, see a doctor at once.
– Dispose of a lamp containing mercury in the
same manner as fluorescent lamps according
to local regulations.
– This projector is a precision machine. Do
not subject the projector to strong shocks or
vibrations or knock it down. Remove the lens,
close the lens mounting hole with the front
cover, and retract the adjustable feet before
placing the projector into the carrying case.
The projector may be damaged if you place it
in the case without retracting the adjustable
feet.
– Place the projector into the specified case
when transporting it by courier or any other
transportation service. Consult your dealer for
the case.
– Keep space of 1 m or more at the sides of
the projector between the intake/exhaust
vents and walls. Poor ventilation may cause
malfunction.
– Do not install the projector in the locations
with heavy dust, high humidity, oily vapors, or
cigarette smoke.
A buildup of dust on the optical elements such
as lens or mirror may degrade image quality.
– Directly touching the lens may cause poor
image quality.
– If the projector is carried from a cold place
to a warm place or the room temperature is
raised rapidly, condensation may form on the
lens and mirror due to the moisture in the
atmosphere, resulting in a blurred picture.
Wait until condensation evaporates and
normal picture is shown.
– Do not install the projector in the locations
with great difference in temperature. Doing
so may cause malfunction. The ranges of the
operating and storage temperatures are as
shown below:
Operating temperature: 41˚F–95˚F [5˚C–35˚C]
Storage temperature: 10˚F–140˚F (-10˚C-
60˚C)
– Do not install the projector near high-voltage
electric power lines or power sources.
– Do not place the projector on a carpet or bed.
The internal temperature will rise, causing
malfunction.
– To avoid increase in the internal temperature,
do not block the intake/exhaust vents.
– Position the projector at a proper angle.
Incorrect positioning may cause troubles and
accidents. Do not roll the projector more than
20 degrees from the horizontal.
– Do not place any heat-sensitive objects on the
projector.
8
Openings in the cabinet are provided for
ventilation. To ensure reliable operation of the
product and to protect it from overheating, these
openings must not be blocked or covered.
Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable object or spray can
near the projector, hot air is exhausted from the
ventilation holes.
– Keep the exhaust vent at least 3’ (1 m) away
from any objects.
–
Do not touch a peripheral part of the exhaust
vent, especially screws and metallic parts.
These areas will become hot while the
projector is being used.
–
Do not put anything on the cabinet. Objects put
on the cabinet will not only get damaged but
also may cause fire hazard by heat.
–
Make sure that there is no object under the
projector to prevent from covering the bottom
openings.
Cooling fans are provided to cool down the
projector. The fans’ running speed is changed
according to the temperature inside the projector.
When moving the projector, replace the lens cap
and retract adjustable feet to prevent damage to
the lens and cabinet.
When the projector is not in use for an extended
period, put it into the supplied carrying case with
the lens side up.
Do not pitch the projector more
than 40 degrees from above and
below.
Do not point the projector up to
project an image.
Do not point the projector down to
project an image.
Do not put the projector on either
side to project an image.
Install the projector properly. Improper installation
may reduce the lamp life and cause a fire hazard.
Do not roll the projector more
than 20 degrees from side to
side.
20°
20°
– Do not drop or bump the projector, otherwise
damages or malfunctions may result.
– When carrying the projector, use a suitable
carrying case.
– Do not transport the projector by courier or
any other transport service in an unsuitable
transport case. This may cause damage to the
projector. For information about transporting
the projector by courier or any other transport
service, consult your dealer.
– Do not put the projector in a case before the
projector is cooled enough.
Air Intake Vent
Exhaust Vent
(Hot air exhaust)
Exhaust Vent
(Hot air exhaust)
Air intake Vent
The carrying case (supplied) is intended for
protection against dust and scratches on surface
of the cabinet, and it is not designed to protect
an appliance from external forces. Do not
transport the projector by courier or any other
transport service with this case, otherwise the
projector can be damaged. When handling the
projector, do not drop, bump, subject it to strong
forces, or put other things on the cabinet.
40°
40°
Air intake Vent
9
The AC Power Cord supplied with this projector meets the requirement for use in the country you
purchased it.
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that
the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be
unable to insert the plug into the outlet, contact your electrician.
GROUND
Multimedia Projector, Model: LV-8320
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions.
If such changes or modifications should be made, you could be required to stop operation of the
equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
Tel No. (516)328-5600
This Class B digital apparatus complies with Canadian ICES-003.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
10
⑭
⑦
⑩
⑨
⑥
⑪
⑬
⑫
⑧
⑮
①
②
③
④
Do not cover the light beam in front of the lens.
High temperature from light beam may damage
the lens.
⑤
(See page 64 for attaching.)
⑥
⑦
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑫
LAN Connection Terminal is for the Network
function. Refer to the user's manual of
“Network Set-up and Operation”.
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
Do not turn on a projector with lens cap
attached. High temperature from light beam
may damage lens cap and result in fire hazard.

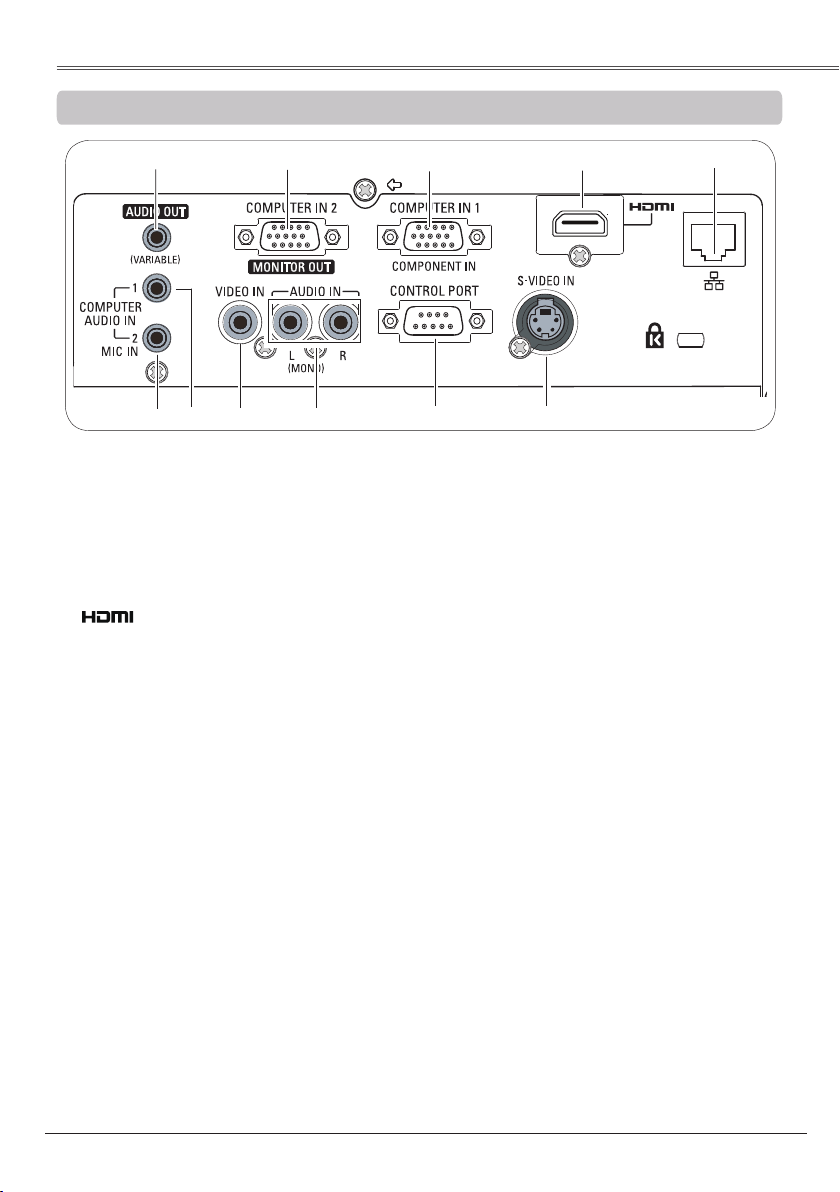

①
⑤ ⑨③② ④⑨
11
③
④ ①⑤
⑥
⑪
⑦
⑨
⑧
⑩
⑥
Connect the S-VIDEO output signal from
video equipment to this jack (p.17).
⑧
Connect the audio output signal from
video equipment connected to ⑥ or ⑨ to
this jack. For a mono audio signal (a single
audio jack), connect it to the L (MONO)
jack (p.17).
⑩
Connect the audio output (stereo) from a
computer or video equipment connected
to ② or ③ to this jack (pp.16, 18).
⑨
Connect the composite video output signal
to this jack (p.17).
③
Connect output signal from a computer, RGB
scart 21-pin video output or component video
output to this terminal (pp.16,18).
⑤
Connect an external audio amplifier to this
jack (pp.16-18).
This terminal outputs sound from AUDIO IN
terminal (⑧, ⑩ or ⑪), or HDMI terminal (2)
(digital audio).
Never plug headphones and earphones into
this jack.
①
Connect the LAN cable (refer to the user’s
manual of "Network Set-up and Operation").
⑦
When controlling the projector with
RS-232C, connect the control equipment
to this connector with the serial control
cable.
④
– Connect computer output to this terminal
(p.16).
– This terminal can be used to output the
incoming analog RGB and Component
signal from COMPUTER IN 1/
COMPONENT IN terminal to the other
monitor (pp.16,18).
⑪
Connect the audio output (stereo) from a
computer or video equipment connected
to ④ to this jack. Or connect the MIC to
the this jack (pp.16, 18).
②
②
Connect the HDMI signal (including sound
signal) from video equipment or from
computer to this terminal (pp.16, 17).
is registered trademarks of HDMI
Licensing, LLC.
12
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑨
Lights yellow when the projection lamp
reaches its end of life (pp.65, 72).
⑧
– Lights red when the projector detects an
abnormal condition.
– Blinks red when the internal temperature of
the projector exceeds the operating range
(pp.62, 72).
④
Turn the projector on or off (pp.20-22).
⑤
– Lights red when the projector is in
stand-by mode.
– Lights green during operations.
– Blinks green in the Power management
mode (p.53).
③
Select an input source (pp.29, 38-39).
⑥
Open or close the On-Screen Menu (p.23).
② ▲▼◄►
–
– Select an item or adjust the value in the
On-Screen Menu (p.23).
– Pan the image in the Digital zoom +/- mode
(p.37).
– Adjust the volume level (Point ◄► buttons)
(p.26).
⑦
Execute the setting of Auto setup (includes
Auto input, Auto PC and Auto Keystone
functions) in the setting menu. (pp.25, 47).
①
– Execute the selected item (p.23).
– Expand or compress the image in the
Digital zoom mode (p.37).
13
To ensure safe operation, please observe the
following precautions:
– Do not bend, drop or expose the remote controller
to moisture or heat.
– For cleaning, use a soft dry cloth. Do not apply
benzene, thinner, spray, or any chemical material.
⑦
⑭
⑩
㉑
④
⑲
②
⑧
⑨
⑬
⑰
⑤
⑥
⑪
⑫
⑳
⑯
③
②
Execute the setting of Auto setup (includes
Auto input, Auto PC and Auto Keystone
functions) in the setting menu. (pp.25, 47)
⑤
Select the S-VIDEO input source. (p.38)
⑥ ▲▼◄►
buttons
– Select an item or adjust the value in the
On-Screen Menu. (p.26)
– Pan the image in the Digital zoom +/-
mode. (p.37)
⑬
Mute the sound. (p.26)
⑦
Select a screen mode. (pp.28, 36-37, 44-45)
⑯
Operate the P-timer function. (pp.28, 54)
⑩
Temporarily turn off the image on the screen.
(p.28)
⑰
Select a lamp mode. (pp.27, 56)
⑲
Correct keystone distortion. (p.25)
⑳
– Execute the selected item. (p.23)
– Zoom in or out the image in Digital zoom
mode. (p.37)
⑧
Open or close the On-Screen Menu. (p.26)
⑨
Freeze the picture on the screen. (p.27)
⑫
Adjust the volume level. (p.26)
①
Turn the projector on or off. (pp.20-22)
⑪ D.ZOOM +/-
Zoom in and out the images. (pp.27, 37)
⑭
Select the image mode. (pp.28, 34, 42)
㉑
Select the COMPONENT input source. (p.39)
④
Select the VIDEO input source. (p.38)
⑱
⑱
Operate the information function. (p.61)
①
⑮
㉒
③
Select the COMPUTER 1 or COMPUTER 2
input source. (pp.29, 39)
⑮
Operate the Picture in Picture function.
(p.27)
㉒
Select the HDMI input source. (p.39)
14
To ensure safe operation, please observe the following precautions :
● Use two (2) AAA type batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid.
● Do not expose the remote controller to moisture or heat.
● Do not drop the remote controller.
● If the battery has leaked on the remote controller, carefully wipe the case clean and install new
batteries.
● Risk of an explosion if battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions or your local disposal rule or guidelines.
Open the battery
compartment lid.
Install new batteries
into the compartment.
Replace the
compartment lid.
For correct polarity
(+ and –), be sure
battery terminals are
in contact with pins in
compartment.
1
2
3
Point the remote controller toward the projector
(Infrared Remote Receiver) when pressing the
buttons. Maximum operating range for the remote
controller is about 16.4'(5 m) and 60 degrees in
front of the projector.
16.4'
(5 m)
30°
Remote controller
30°
The 2 different remote control codes (Code
1–Code 2) are assigned to this projector.
Switching the remote control codes prevents
interference from other remote controllers when
several projectors or video equipment next
to each other are operated at the same time.
Change the remote control code for the projector
first before changing that for the remote controller.
See "Remote control" in the Setting Menu on
page 56.
Press and hold the MENU and IMAGE buttons
for more than five seconds to switch between
the and . The initial code is set to
.
15
For projector positioning, see the figures below. The projector should be set perpendicularly to the
plane of the screen.
• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting
in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.
A:B = 49:1
Screen Size
(W x H) mm
16:10 aspect ratio
30” 100” 150” 200” 300”
646 x 404 2154 x 1346 3231 x 2019 4308 x 2692 6462 x 4039
Zoom (max)
2.4’(0.74 m) 8.3’(2.54 m)
12.5’(3.82 m) 16.8’(5.10 m) 25.2’(7.67 m)
Zoom (min)
4.0’(1.21 m) 13.5’(4.11 m)
20.3’(6.18 m) 27.1’(8.25 m) 40.6’(12.38 m)
12.5' (3.82 m)
8.3' (2.54 m)
2.4' (0.74 m)
25.2' (7.67 m)
16.8' (5.10 m)
40.6' (12.38 m)
62
93
124
186
30
100
150
200
300
Projection angle can be adjusted up to 12.0
degrees with the adjustable feet.
Lift the front of the projector and press the feet
lock latches on both side of the projector.
Release the feet lock latches to lock the
adjustable feet and rotate the adjustable feet to
a proper height and tilt.
Keystone distortion can be adjusted
automatically with the Auto setup function or
manually by using the remote control or the
menu operation (see pages 25, 37, 45).
Adjustable Feet
Feet Lock Latches
16

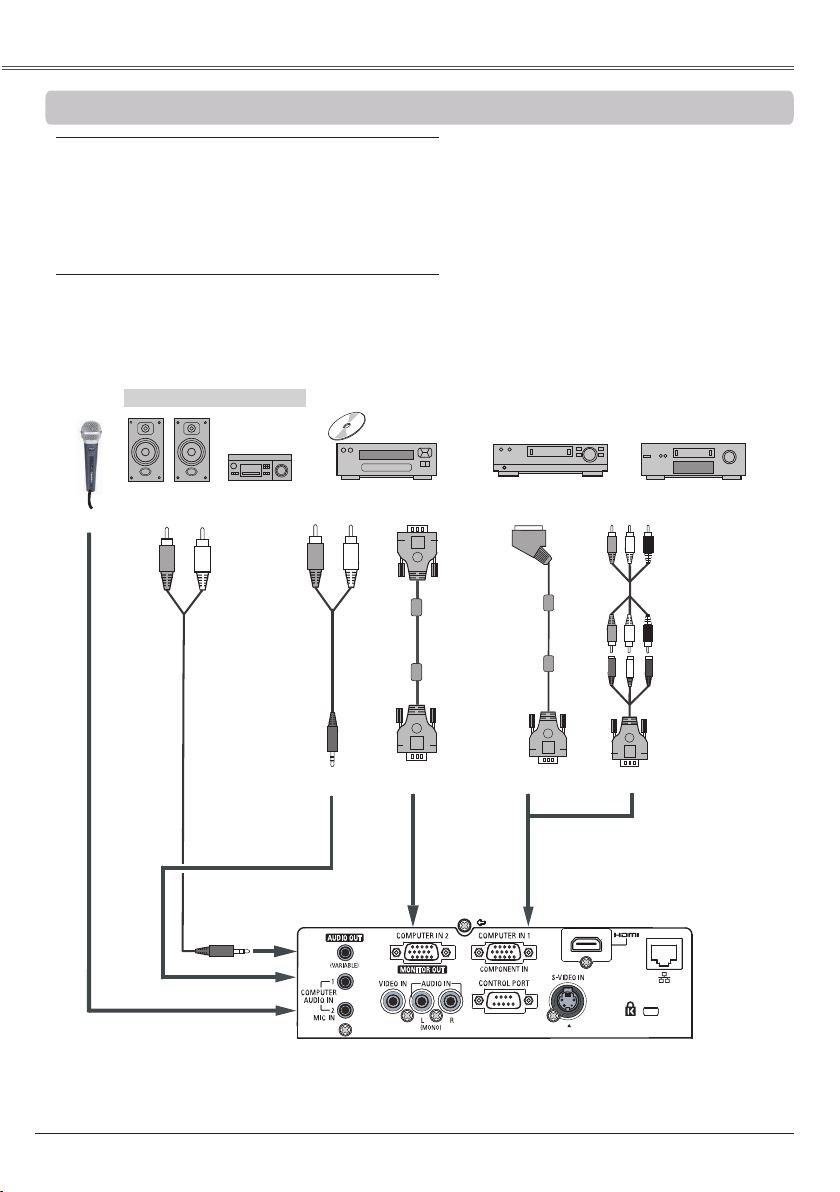

• VGA Cables (Mini D-sub 15 pin) *
• Audio Cables
• HDMI-DVI cable
(*One cable is supplied; other cables are not supplied with the projector.)
• When the MIC function is set to in the Sound menu, the MIC function is disabled. (p. 26)
• When MIC is set to On in Sound Menu, COMPUTER AUDIO IN 1, COMPUTER AUDIO IN 2 / MIC IN and AUDIO
IN(L/R) terminals can be connected at the same time. At this time, COMPUTER AUDIO IN 2 terminal as MIC
input. (p. 26)
• Input sound to the COMPUTER AUDIO IN 1, COMPUTER AUDIO IN 2 / MIC IN terminals when using the
COMPUTER IN 2 / MONITOR OUT and the COMPUTER IN 1/ COMPONENT IN terminal as input.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1 / COMPONENT IN and not
the COMPUTER IN 2/ MONITOR OUT.
External Audio Equipment
Audio cable
(stereo)
Audio cable
(stereo)
Monitor Input
Audio Output
COMPUTER 1/
COMPUTER 2
AUDIO IN (PC or MIC)
AUDIO OUT
(stereo)
Audio Input
VGA
cable
COMPUTER
IN 2
COMPUTER
IN 1 /
COMPONENT IN
VGA
cable
Monitor Output
Monitor Output
VGA
cable
MONITOR
OUT
This terminal
is switchable.
Set up the
terminal as
either Computer
input or Monitor
output.
(See Page 51.)
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
HDMI-
DVI
cable
HDMI
17
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable
• HDMI Cable
(Cables are not supplied with the projector. )
When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-Video cable
Video and
audio cable
Video and Audio Output
S-Video Output
AUDIO IN
Audio Input
AUDIO OUT (stereo)
(R)(L)(Video)
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
HDMI cable
HDMI
18
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 76 for ordering optional cables.
External Audio Equipment
COMPUTER
AUDIO IN 1
Audio cable
(stereo)
Audio
cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart
21-pin Output
Audio Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 1/ COMPONENT IN
• Audio Cables
• Scart-VGA Cable
• VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with this projector.)
Monitor Input
COMPUTER IN 2 /
MONITOR OUTPUT
VGA
cable
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
19
This projector uses nominal input voltages of
100-240 V AC and it automatically selects the
correct input voltage. It is designed to work with
single-phase power systems having a grounded
neutral conductor. To reduce the risk of electrical
shock, do not plug into any other type of power
system.
If you are not sure of the type of power being
supplied, consult your authorized dealer or
service center.
Connect the projector with all peripheral
equipment before turning the projector on.
To the AC outlet.
To power cord
connector on your
projector.
To the AC outlet.
To the AC outlet.
Ground
Ground
The AC outlet must be near this equipment
and must be easily accessible.
Connect the AC power cord
(supplied) to the projector.
:
Unplug the AC power cord when the projector is not in use. When this projector is connected
to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power.
AC power cord must meet requirement of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
20
The preparation display will disappear after 30
seconds.
(See page 56 for Lamp mode status.)
Connect the projector’s AC power cord into
an AC outlet. The POWER indicator lights
red. Open the lens cap.
Press the POWER button on the top control
or on the remote controller. The POWER
indicator lights green and the cooling fans
start to operate. The preparation display
appears on the screen and the countdown
starts.
Complete peripheral connections (with a
computer, VCR, etc.) before turning on the
projector.
The Filter warning and Lamp replacement
icons may appear on the screen depending
on the usage state of the projector.
4
After the countdown, the input source that
was selected the last time and the Lamp
mode status icon (p.56) appear on the
screen.
• When the Logo select function is set to , the
logo will not be shown on the screen (p.48).
• When or is selected in the
Display function, the preparation display will not
be shown on the screen (p.48).
• When the Auto input function is set to On 2, the
input signal will be searched automatically (p.47).
• When is selected in the Display function, the
VIDEO/PC selection window and the input signal
guidance window are not shown on the screen
(p.48).
5

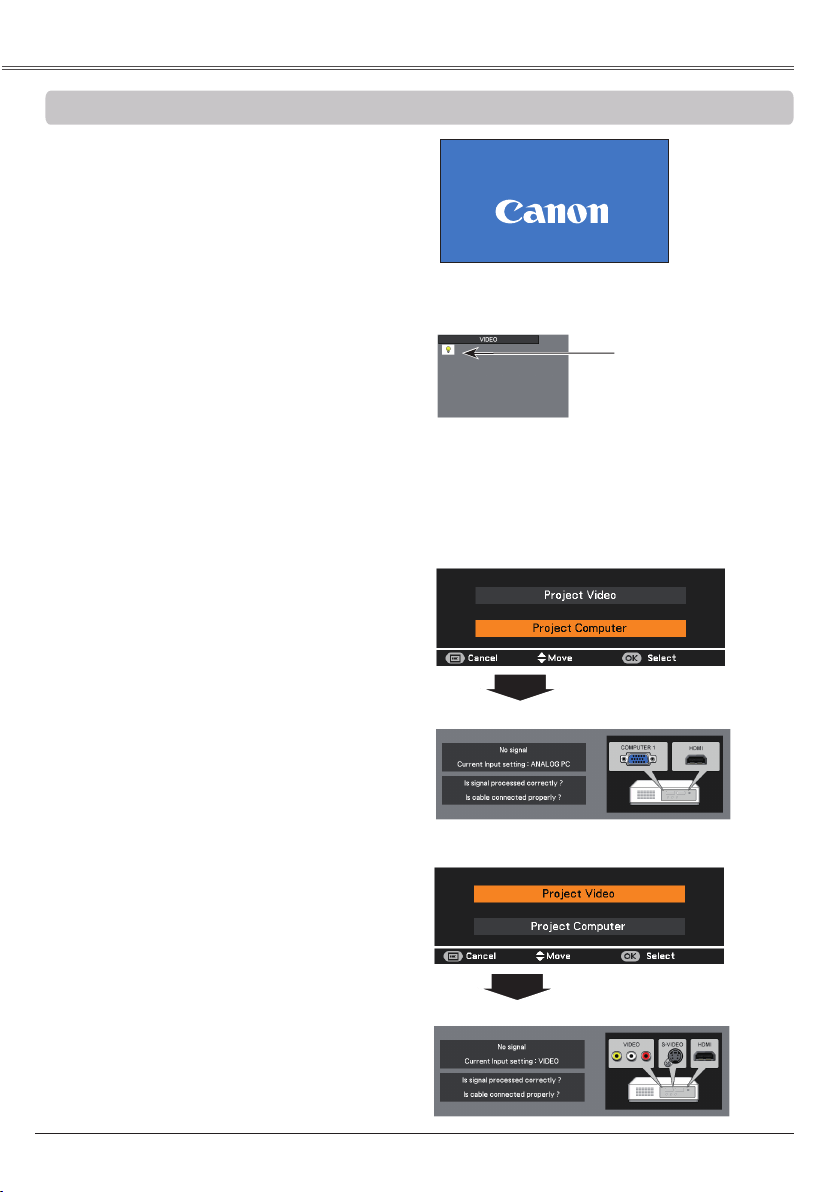

If there is no signal input when start on the
projector, or the current signal is missed
while operating the projector, the VIDEO/
PC selection window will be displayed on
the screen, please move the pointer to input
source desired by pressing the Point ▲▼
buttons and press the OK button. And then
follow the input signal guidance window to
correct the signal and connection.
If the projector is locked with a PIN code,
PIN code input dialog box will appear. Enter
the PIN code as instructed on the next
page.
Lamp mode status
1
2
3
16
21
PIN (Personal Identification Number) code is a
security code that allows the person who knows
it to operate the projector. Setting a PIN code
prevents unauthorized use of the projector.
A PIN code consists of a four-digit number.
Refer to the PIN code lock function in the Setting
Menu on pages 57-58 for locking operation of
the projector with your PIN code.
Use the Point ▲▼ buttons to enter a number.
Press the Point ► button to fix the number and
move the red frame pointer to the next box. The
number changes to . If you fixed an incorrect
number, use the Point ◄ button to move the
pointer to the number you want to correct, and
then enter the correct number.
Repeat this step to complete entering a four-digit
number.
After entering the four-digit number, move the
pointer to “Set”. Press the OK button so that you
can start to operate the projector.
If you entered an incorrect PIN code,
and the number () will turn red for a
moment. Enter the correct PIN code all over
again.
If you forget your PIN code, the projector can no
longer be started. Take special care in setting
a new PIN code. Write down the number as a
reminder.
After the OK icon disappears,
you can operate the projector.
•If the PIN code number is not entered or wrong PIN
code number is entered within three minutes after
the PIN code dialog box appeared, the projector will
be turned off automatically.
•The “1234” is set as the initial PIN code at the
factory.
22
OFF.
disappears after 4 seconds.
Press the POWER button on the top control
or on the remote controller, and
appears on the screen.
Press the POWER button again to turn off
the projector. The POWER indicator starts
to blink red, and the cooling fans keep
running. (You can select the level of fans’
quietness and speed. See “Fan” on page
58.) At this time, you can unplug the AC
power cord even if the fans are still running.
1
2
3
When the projector has cooled down
enough, the POWER indicator stops
blinking and you can turn on the projector.
• When the Direct power on function is set to On,
the projector will be turned on automatically by
connecting the AC power cord to an AC outlet
(p.53).
• The running speed of cooling fans is changed
according to the temperature inside the projector.
• Do not put the projector in a case before the
projector is cooled enough.
• If the WARNING indicator blinks or lights red, see
“WARNING indicator” on page 62.
• While the POWER indicator is blinking, the lamp
is being cooled down and the projector cannot be
turned on. Wait until the POWER indicator stops
blinking to turn on the projector again.
• For assisting the cooling fans’ operation, the
projector is equipped with a large capacitor. While
the projector is operating, the capacitor charges
electricity. When disconnecting the AC plug from
AC outlet, cooling fans start to run 1 minute until
the capacitor is discharged.
• The projector can be turned on after the POWER
indicator turns red. The waiting time to restart
will be shortened when the normal power-
off processing for fan cooling is completed,
compared with the time the AC power cord is
immediately unplugged after the power-off.
When using the Direct Power Off function, you
can not restart the projector immediately after
the power is disconnected. If the external
power supply is suddenly cut off, the fans
stop immediately. The lamp remains high
temperature and needs to be cooled.
You can disconnect the power cord from the
wall outlet or turn off the breaker even during
projection without pressing the POWER
button.
Direct Power Off Function
23
The projector can be adjusted or set via
the On-Screen Menu. The menus have a
hierarchical structure, with a main menu that is
divided into submenus, which are further divided
into other submenus. For each adjustment and
setting procedure, refer to respective sections in
this manual.
Use the Point ▲▼ buttons to highlight or
select a main menu item. Press the Point
► or the OK button to access the submenu
items. (The selected item is highlighted in
orange.)
Use the Point ▲▼ buttons to select the
desired submenu item and press the OK
button to set or access the selected item.
Press the MENU button on the top control
or the remote controller to display the
On-Screen Menu.
1
2
3
►
Use the Point ▲▼◄► buttons to adjust the
setting or switch between each option and
press the OK button to activate it and return
to the submenu.
4
Press the Point ◄ button to return to the
main menu. Press the MENU button to exit
the On-Screen Menu.
5
The currently set item
is marked.
The selected item is
highlighted in orange.
24
Main Menu
For detailed functions of each menu, see “Menu Tree” on pages 70-72.
Main Menu
③
For both of computer and Video sources, used to select an image mode from among ,
, , , and . (pp.34, 41)
④
For Computer source, used to adjust computer image [, , ,
, , ,
Reset and
]. (p.35)
For VIDEO source, used to adjust picture image [, , , Tint, ,
, , , , ,
Reset and
].
(pp.42-43)
②
Select , , , , ,
, , Reset, and to adjust the parameters to
match with the PC input signal format. (pp.31-33)
⑤
For Computer source, used to adjust size of the image [
,
Full,
, , True,
,
., , , Ceiling, Rear,
and Reset]
.
(pp.36-37)
For VIDEO source, used to set size of image [,
Full,
, , , ,
., , Ceiling, Rear,
and Reset
]
.
(pp.44-45)
①
Used to select an input source from COMPUTER 1, COMPUTER 2, HDMI, VIDEO or.
(pp.29, 39)
⑥
Used to adjust the volume or mute the sound or set configurations to the MIC functions (p.26).
⑧
Display the input source information. (p.61)
⑩
The key operation is displayed.
⑦
Used to set the projector’s operating configurations. (pp.46-60)
⑨
See user’s manual of “Network Set-up and Operation”.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
Sub-Menu
25
Rotate the Zoom Ring to zoom in and out.
Rotate the Focus Ring to adjust the focus of
the image.

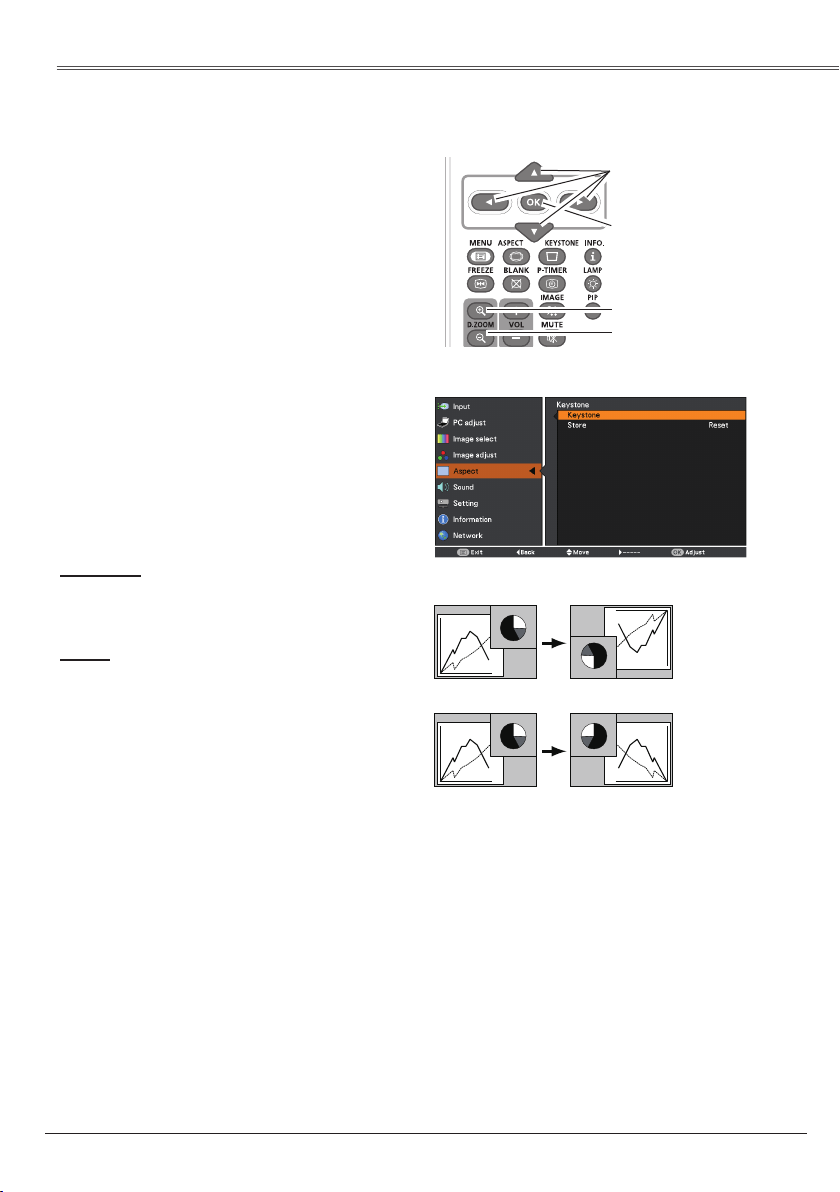

If a projected picture still has keystone distortion
after pressing the AUTO SET button, correct
the image manually as follows:
Press the KEYSTONE button on the remote
controller. The Keystone dialog box appears.
Use the Point ▲▼ buttons to correct keystone
distortion. The keystone adjustment can be
stored (pp.37, 45).
Reduce the upper
width with the Point
▲ button.
Reduce the lower
width with the Point
▼ button.
•The white arrows indicate that there is no
correction.
•A blue arrow indicates the direction of
correction.
•An arrow disappears at the maximum
correction.
•If you press the KEYSTONE button on
the remote controller once more while the
keystone dialog box is being displayed, the
keystone adjustment will be canceled.
•The adjustable range is limited depending
on the input signal.
Auto setup function is provided to automatically execute the setting of Auto setup (includes Auto input,
Auto PC and Auto Keystone functions) in the setting menu by just pressing the AUTO SET button.
Refer to page 47 for the setting of the Auto setup function.
• Auto Keystone corrects vertical distortion only, it
does not correct horizontal distortion.
• Auto Keystone cannot work when Ceiling feature
is set to On in the Setting menu (pp.37, 45).
• Perfect correction of the image distortion cannot
be ensured with the Auto setup function. If
the distortion cannot be corrected properly by
pressing the AUTO SET button, adjust manually
by pressing the KEYSTONE button on the remote
controller or selecting Keystone in the Aspect
menu (pp.37, 45).
• , , and
of some computers cannot
be fully adjusted with the Auto PC Adjustment
function. When the image is not provided properly
with this operation, manual adjustments are
required (pp.32-33).
Focus Ring
Zoom Ring
26
1
2
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select . Press the Point ► button or
the OK button to access the submenu items.
Press the VOLUME+/– buttons on the top control
or on the remote controller to adjust the volume.
The volume dialog box appears on the screen for
a few seconds.
Press the MUTE button on the remote controller
to select On to temporarily turn off the sound. To
turn the sound back on, press the MUTE button
again to select or press the VOLUME +/–
buttons. The Mute function is also effective for the
AUDIO OUT jack.
Press the OK button to switch the mute
function . When the sound is turned
off, On is displayed. Press the VOLUME +/–
buttons again or adjust MIC gain’s volume to
turn the sound back on.
Use the Point ▲▼ buttons to select the
desired submenu item and press OK button to
access the selected item.
Mute
Press the Point ► button to turn up the
volume, press the Point ◄ button to turn down
the volume.
Mute
Menu Operation
Approximate level of
the volume.
Press the MUTE button to set the Mute
function On or . The dialog box
disappears after 4 seconds.
Direct Operation
Use the Point ▲▼ buttons to switch the MIC
function On/and then press the OK button.
When On is selected, the synthesis volume
(MIC and RCA) is output.
MIC
Press the Point ► button to turn up the MIC
mixing gain, press the Point ◄ button to turn
down the MIC mixing gain.
• When is selected in MIC function, the and functions are not available.
• Only when the is set to , can be selected.
• If the MIC function is turned on when connecting PC audio to the COMPUTER AUDIO IN 2 (MIC IN), loud sound
may be output suddenly depending on the setting value of .
When setting the STANDBY MIC OUT function
to On and in Standby mode status, only MIC
input volume can be output.
AUDIO IN
MIC
Setup
RCA L/R
terminal
COMPUTER
AUDIO IN 1
COMPUTER
AUDIO IN 2
(MIC IN)
HDMI
(digital
audio)
MIC Off
Video
audio
PC 1 audio PC 2 audio
HDMI
audio
MIC On
for Video
Video
audio
--- MIC ---
MIC On
for PC 1
--- PC 1 audio MIC ---
MIC On
for PC 2
--- PC 2 audio MIC ---
MIC on
for HDMI
---
PC 1
audio(1)
MIC
HDMI
audio(2)
1 HDMI setup = Computer 2
2 HDMI setup = HDMI
27
Using the remote controller for some frequently used operations is advisable. Just pressing one of the
buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.
Press the COMPUTER 1/2, HDMI, VIDEO,
S-VIDEO and COMPONENT buttons on the
remote controller to select the input source. See
pages 29, 39 for details.
Display the input source information: ,
, , , Language,
, ,
, ,
and and
. (p.61)
Press the D.ZOOM buttons on the remote
controller to enter to the Digital zoom +/– mode.
See page 37 for details.
See the next page for the description of other
buttons.
Press the LAMP button on the remote controller
to select the lamp mode for changing the
brightness on the screen.
Press the FREEZE button on the remote
controller to freeze the picture on the screen,
meanwhile, volume is muted. To cancel the
Freeze function, press the FREEZE button again
or press any other button.
Fig.1 will appear on the screen while the Freeze
function is working.
Fig.1
FREEZE
D.ZOOM
VIDEO
LAMP
.......
Brightness according to the input
signal.
..
Normal brightness
.....70%-80% of the normal brightness.
.....50% of the normal brightness.
HDMI
28
Press the P-TIMER button on the remote
controller to operate the Count up/Count down
function. Refer to p.54 for detail of Setting for
the P-timer function.
To stop the count time, press the P-TIMER
button.
To cancel the P-timer function, press and hold
the P-TIMER button.
Press the IMAGE button on the remote
controller to select a desired image mode of
the screen. See pages 34, 42 for details.
disappears after 4 seconds.
See the previous page for the description of other
buttons.
Select the screen size (See pages 36-37,
44-45 for details).
black out→ the captured image → normal
→
......
Press the BLANK button on the remote
controller to black out the image. To restore
to normal, press the BLANK button again or
press any button. When the projected image
is captured and is set as User in the Logo
selection (p. 48), the screen changes each time
you press the BLANK button as follows.
When use the MUTE button to release the
Blank function, the mute function can not
be operated at the same time.
Turn on or turn off the Picture in Picture function.
29
Choose either or by pressing the
COMPUTER 1 or COMPUTER 2 button on the remote controller. Or you can press the INPUT button
on the top control to choose the desired input source.
Before using these buttons, correct input source should be selected through Menu operation as
described below.
1
2
3
When the Auto input function is set to On 1 or On
2 in the Auto setup function, the input signal will be
searched automatically (p.47).
COMPUTER 1
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼
buttons to select and then press the
Point ► button or the OK button.
Use the Point ▲▼ buttons to select
COMPUTER 1.
When COMPUTER 1 is selected, press
the Point ► button to access the submenu
items. Use the Point ▲▼ buttons to select
the input source and then
press the OK button.
Direct Operation
Menu Operation
OR
Use the Point ▲▼ buttons to select
COMPUTER 2 and then press the OK
button.
30

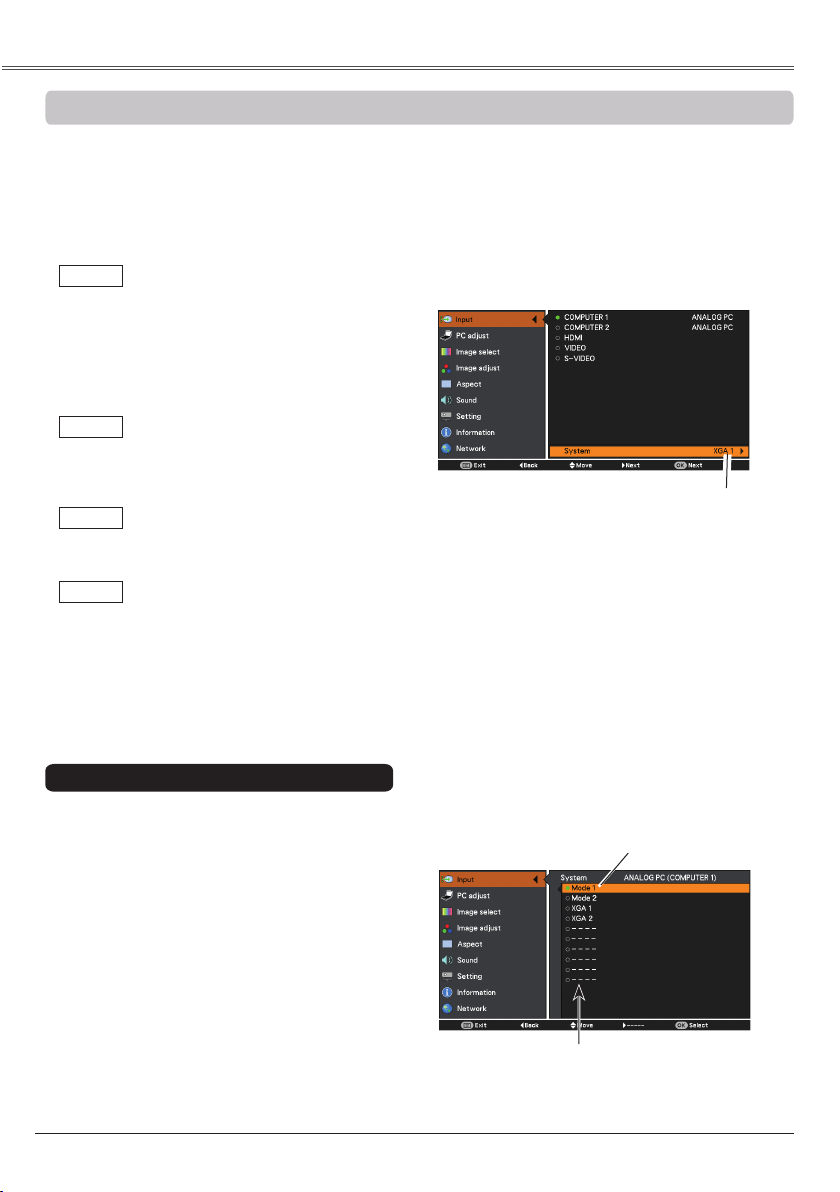

This projector automatically tunes to various types of computers with its Multi-scan system and Auto
PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the
signal format and tunes to project a proper image without any additional settings. (Signal formats
provided in this projector are shown on page 73-74.)
One of the following messages may appear when:
When the projector cannot recognize
the connected signal conforming to
the provided PC systems, is
displayed on the System Menu box
and the Auto PC Adjustment function
works to display proper images. If
the image is not projected properly,
a manual adjustment is required (pp.
32-33).
There is no signal input from the
computer. Check the connection
between your computer and the
projector. (See “Troubleshooting” on
pp. 67-69)
The preset system is manually
adjusted in the PC adjust Menu. The
adjusted data can be stored in
(pp. 32-33).
PC Systems provided in this projector
is chosen. The projector chooses
a proper system provided in the
projector and displays it.
* and are examples.
1
2
PC system can also be selected manually.
Selecting Computer System Manually
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the Point ►
button or the OK button.
Use the Point ▲▼ buttons to select
and then press the Point ► button or the OK
button.
Use the Point ▲▼ buttons to select the
desired system and then press the OK button.
3
Selected system in
the PC System Menu
is displayed.
Systems in this dialog box
can be selected.
Customized
set in the PC
adjust Menu (pp.
32-33).
31
Auto PC Adjustment function is provided to automatically adjust , ,
and to conform to your computer.
The adjusted parameters from the Auto PC
Adjustment can be stored in the projector.
Once the parameters are stored, the setting
can be done just by selecting a in
the PC System Menu (p.30). See also “Store”
on page 33.
• , , and
of some computers cannot be
fully adjusted with the Auto PC Adjustment function.
When the image is not provided properly with this
operation, manual adjustments are required (pp.
32-33).
• The Auto PC Adjustment cannot be operated when
480i, 575i, , , , 1035i or 1080i is
selected in the PC System Menu (p. 30), or when
the signal is coming from the HDMI terminal.
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼
buttons to select and then press
the Point ► button or the OK button.
1
2
Use the Point ▲▼ buttons to select
PC and then press the OK button.
Menu Operation
Use Point ▲▼ buttons to select
PC and press the OK button. Please
appears while the Auto PC
adjustment is in process.
32

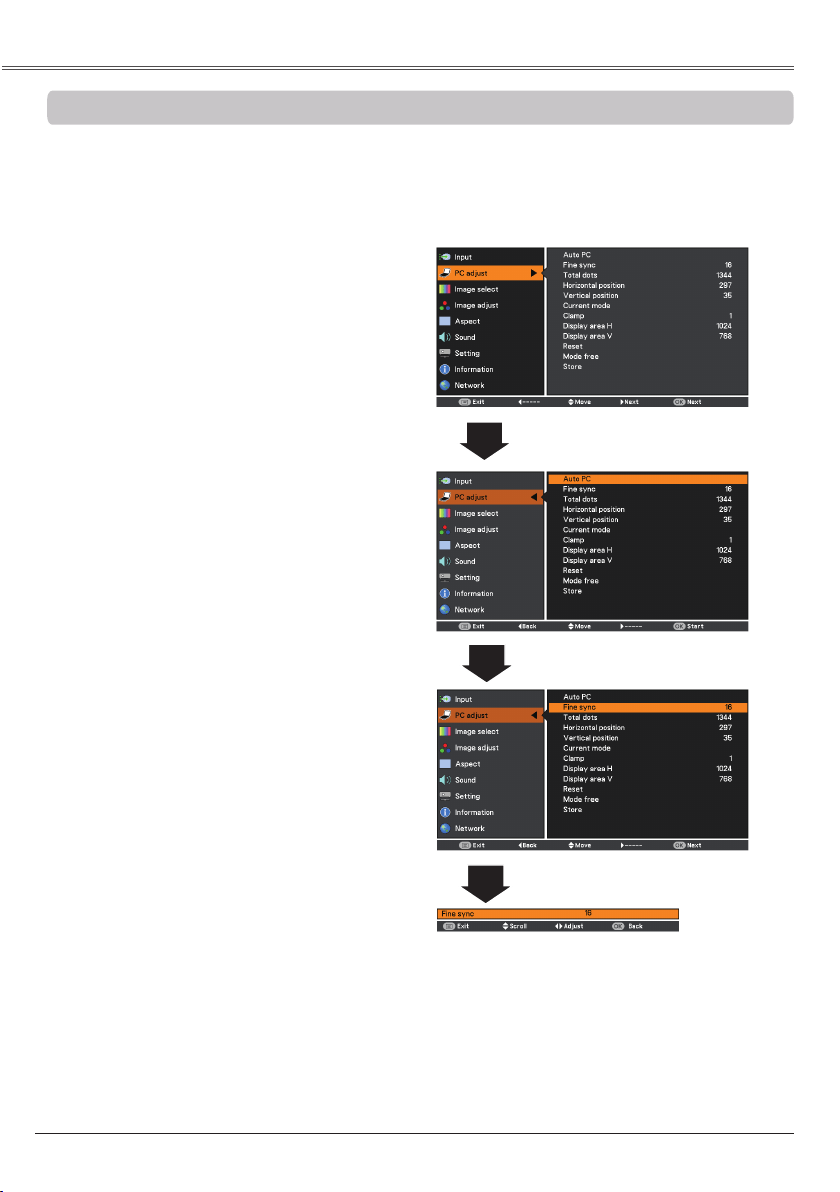

Some computers employ special signal formats which may not be tuned by Multi-scan system of this
projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those
signal formats. The projector has 10 independent memory areas to store those parameters manually
adjusted. It allows you to recall the setting for a specific computer.
1
2
Use the Point ◄► buttons to adjust the value,
eliminating a flicker from the image displayed
(from 0 to 31).
Use the Point ◄► buttons to adjust the
number of total dots in one horizontal period to
match your PC image.
Use the Point ◄► buttons to adjust the
horizontal picture position.
Use the Point ◄► buttons to adjust the
vertical picture position.
Use the Point ◄► buttons to adjust the clamp
level. When the image has dark bars, try this
adjustment.
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the Point
► button or the OK button.
Use the Point ▲▼ buttons to select the
desired item and then press the OK button
to display the adjustment dialog box. Use the
Point ◄► buttons to adjust the setting value.
Use the Point ◄► buttons to adjust the vertical
area displayed by this projector.
Use the Point ◄► buttons to adjust the
horizontal area displayed by this projector.
Press the OK button to show and
of the connected computer.
33
To store the adjusted data, selectand
then press the Point ► button or the OK button.
Move the highlight to one of the Mode 1 to 10 in
which you want to store, and then press the OK
button.
To clear the stored data, select and
then press the Point ► button or the OK button.
Move the highlight to the Mode that you want to
clear and then press the OK button.
• cannot be selected when 480i, 575i, , , , 1035i or 1080i is selected in the
PC System Menu (p.30).
• When input computer signal to the projector,will become available.
Reset
To reset the adjusted data, select Reset and
press the OK button. A confirmation box appears
and then select . All adjustments will return
to their previous figures.
This Mode has stored
parameters.
Values of ,
, ,
H, and .
Vacant
Press the OK button to
store the data.
Press the MENU
button to close this
dialog box.
34
User 1
User 2
User 3
User 4
Select the desired image mode among
, , ,
, , ,
User 1, User 2, User 3 and User 4 by pressing
the IMAGE button on the remote controller.
Picture mode with improved halftone for
graphics.
For the image projected on a blackboard.
This mode helps enhance the image projected
on a blackboard. This is mainly effective on a
green colored board, not truly effective on a
black colored board.
Direct Operation
For viewing pictures in a bright room.
Normal picture mode preset on the projector.
For viewing with the user preset image mode
in the Image Adjust Menu (see page 35).
1
2
Menu Operation
At the time of simple projection on the colored
wall, you can get the close color image to the
color image projected on a white screen by
selecting the similar color to the wall color from
the preset four colors.
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼
buttons to selectand then
press the Point ► button or the OK button.
Use the Point ▲▼ buttons to select the
desired item and then press the OK button.
Picture mode adjusted with fine tone.
35
Reset
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼
buttons to select and then
press the Point ► button or the OK button.
1
2
Use the Point ▲▼ buttons to select the
desired item and then press the OK button
to display the adjustment dialog box. Use
the Point ◄► buttons to adjust the setting
value.
• When White balance Red, or blue is
adjusted, will change to User.
• When or
is selected in Image select, will
change to or .
Press the Point ◄ button to decrease the
contrast, press the Point ►button to increase the
contrast (from 0 to 63).
Press the Point ◄ button to decrease the
brightness, press the Point ►button to increase
the brightness (from 0 to 63).
Press the Point ◄ button to lighten R/G/B tone,
press the Point ► button to deepen R/G/B tone
(from 0 to 63).
Use the Point ◄► buttons to select the desired
Color temp. level (, , Mid, or ).
Use the Point ◄► buttons to adjust the gamma
value to obtain a better balance of contrast (from
0 to 15).
Press the Point ◄ button to decrease the
sharpness of the image, press the Point ►
button to increase the sharpness of the image
(from 0 to 15).
To reset the adjusted data, select Reset
and press the OK button. A confirmation box
appears and then select . All adjustments
will return to their previous figures.
Use the Point ◄►
buttons to adjust the
setting value.
Selected Image mode
To store the adjusted data, select and
press the Point ► or the OK button. Use the
Point ▲▼ buttons to select one from User 1 to
User 4 and press the OK button.
A confirmation box appears and then select .
Stored data can be called up by selecting an
in the Image Mode Selection on page
34.
A confirmation box appears
and then select .
36
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the Point ►
button or the OK button.
Use the Point ▲▼ buttons to select the
desired item and then press the OK button.
This projector has the picture screen resize function, which enables you to customize the image size.
Provide the image to fit the screen size.
True
Provide the image in its original size. When the
original image size is larger or smaller than the
screen size (1280 x 800), the projector enters
to the panning mode automatically. Use the
Point ▲▼◄► buttons to pan the image. When
adjusted, the arrows will turn blue. When reached
to the correction limits, the arrows will disappear.
Full
Provide the full screen image.
• This projector cannot display any resolution
higher than 1920 x 1200. If your computer’s
screen resolution is higher than it, reset the
resolution to the lower before connecting to
the projector.
• The image data in other than 1280 x 800
is modified to fit the screen size in initial
mode.
• True and are disabled
and cannot be displayed when 480i,
575i, , , 1035i or 1080i is
selected in the PC System Menu (p. 30).
• When True is selected in the Screen menu,
can not be selected.
1
2
Provide the last stored aspect screen image.
Provide the image at the 16:9 wide screen ratio.
Adjust the screen scale and position manually with
this function. Press the Point ► button at
. and the Custom adjustment menu is displayed
on the screen, you can use the Point ▲▼ buttons
to choose the item you want to adjust.
...... Adjust the Horizontal/Vertical
screen scale.
H&V ............... When set to On, the aspect
ratio is fixed. The
appears dimmed and becomes
unavailable. Adjust , then
the screen scale is automatically
modified based on the aspect
ratio.
.. Adjust the Horizontal/Vertical
screen position.
....... Save the adjusted scale or
position to all the inputs. Press
the OK button at to
display a confirmation box. To
save the scale or position, press
the OK button at . When
is selected, the saved
scale or position is used.
Reset ............. Reset the all adjusted values.
Press the OK button at Reset to
display a confirmation box. To
reset, press the OK button at .
• When no signal is detected, is set
automatically .
• The adjustable range for and
is limited depending on the input
signal.
Scale the image proportionally to fit the entire
screen. Either side of image may go over the
screen.
37
Select . The On-Screen Menu
disappears and appears. Press the
OK button to expand the image size. Use the
Point ▲▼◄► buttons to pan the image. The
Panning function can work only when the image
is larger than the screen size. A projected image
can be also expanded by pressing the D.ZOOM
or the OK button.
To exit the Digital zoom +/– mode, press any
button except the D.ZOOM , OK and Point
buttons.
Select . The On-Screen Menu
disappears and appears. Press
the OK button to compress image size. The
projected image can be also compressed by
pressing the D.ZOOM – or the OK button.
To return to the previous screen size, select a
screen size from the Screen Size Adjustment
Menu or select an input source from the Input
Source Selection Menu (see page 29) again,
or adjust the screen size with the D.ZOOM
buttons.
• The minimum compression ratio is limited
depending on the input signal, when the Keystone
function is working or when the custom is selected
for the screen size.
• True and are disabled and
cannot be displayed when 480i, 575i,
,1035i or 1080i is selected in the PC System
Menu (p.30).
• cannot be selected when True is
selected.
• The minimum compression ratio is limited at
Normal screen size.
• When the 16:9 function is selected on Screen
aspect menu, 16:9 is not available in the PC and
AV screen (pp.36, 49).
When this function is set to On, the picture
will be top/ bottom and left/right reversed. This
function is used to project the image from a
ceiling-mounted projector.
Ceiling
When this function is set to On, the picture will
be left/right reversed. This function is used to
project the image from rear of the screen.
Rear
To reset the adjusted data, select Reset and
press the OK button. A confirmation box appears
and then select Yes. All adjustments will return
to their previous figures.
Reset
This function is used to adjust keystone
distortion of the projected image. Use the Point
▲▼ buttons to choose the item you want to
adjust.
To correct keystone distortion, press the OK
button.
Keystone appears on the screen. Use the
Point ▲▼ buttons to correct keystone
distortion (p.25).
To store or reset the keystone correction,
press the Point ► button.
.......... Keep the keystone correction
even when the AC power cord is
unplugged.
Reset .......... Release the keystone correction
when the AC power cord is
unplugged.
Ceiling
Rear
This function is used to project the image to a
4:3 or 16:9 projection screen.
....16:10 is the aspect of the
LCD panel. The original
Screen Menu is available.
..... Set to a 16:9 projection
screen.
......Set to a 4:3 projection
screen.
38
Choose VIDEO or by pressing the
INPUT button on the top control, or the VIDEO or
the S-VIDEO button on the remote controller.
Before using these buttons, correct input source
should be selected through menu operation as
described below.
1
2
VIDEO
,
Direct Operation
When the Auto input function is set to On 1 or On
2 in the Auto setup function, the input signal will
be searched automatically (p.47).
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the Point ►
button or the OK button.
Use the Point ▲▼ buttons to select VIDEO
or, and then press the OK button.
VIDEO
Menu Operation
When video input signal is
connected to the S-VIDEO jack,
select .
When video input signal is
connected to the VIDEO jack,
select VIDEO.
VIDEO
39
Choose or
by pressing the COMPONENT or
the COMPUTER 1 button on the remote controller. Choose HDMI by pressing the HDMI button on the
remote controller or you can press the INPUT button on the top control to choose the desired input
source.
Before using these buttons, correct input source should be selected through Menu operation as
described below.
1
2
Use the Point ▲▼ buttons to select
COMPUTER 1 and then press the Point ►
button.
,,
When the input source is coming
from video equipment connected
to the COMPUTER IN 1/
COMPONENT IN terminal with a
COMPONENT-VGA Cable, select
.
When the input source is coming
from video equipment connected
to the COMPUTER IN 1/
COMPONENT IN terminal with a
Scart-VGA Cable, select .
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the Point ►
button or the OK button.
When the Auto input function is set to On 1 or On
2, the input signal will be searched automatically
(p.47).
3
Use the Point ▲▼ buttons to select
or and then press the
OK button.
Direct Operation
Menu Operation
Press the Point ▲▼ buttons
to select or
.
HDMI
When video input signal is
connected to the HDMI jack,
select HDMI.
40
1
2
If the projector cannot reproduce proper video
image, select a specific broadcast signal format
from among PAL, , , ,
and .
The projector automatically detects an incoming
video signal, and adjusts itself to optimize its
performance.
If the projector cannot reproduce proper video
image, select a specific component video signal
format from among 480i, 575i, , , ,
1035i and 1080i.
The projector automatically detects an incoming
video system, and adjusts itself to optimize its
performance. When VIDEO System is or
, select the system manually.
The AV System Menu cannot be selected when
selecting or HDMI.
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the Point ►
button or the OK button.
Use the Point ▲▼ buttons to select VIDEO,
or
and then press the OK button.
3
Use the Point ▲▼ buttons to select
and then press the Point ► button or the OK
button. Use the Point ▲▼ buttons to select
the desired system and then press the OK
button.
41

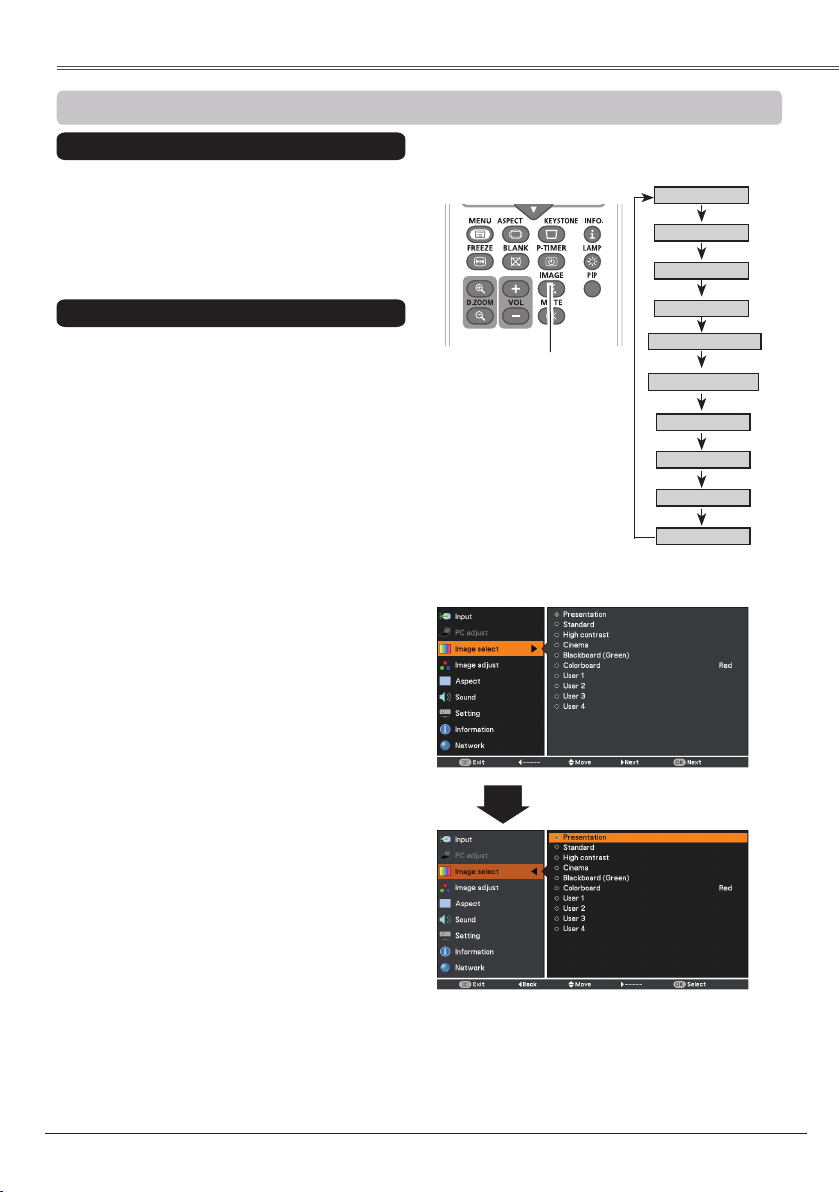

Select the desired image mode among
, , ,
, , ,
User 1, User 2, User 3 and User 4 by pressing
the IMAGE button on the remote controller.
Picture mode with improved halftone for
graphics.
For the image projected on a blackboard.
This mode helps enhance the image projected
on a blackboard. This is mainly effective on a
green colored board, not truly effective on a
black colored board.
Direct Operation
For viewing pictures in a bright room.
Normal picture mode preset on the projector.
For viewing with the user preset image mode in
the Image Adjust Menu (p. 43).
1
2
Menu Operation
At the time of simple projection on the colored
wall, you can get the close color image to the
color image projected on a white screen by
selecting the similar color to the wall color from
the preset four colors.
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼
buttons to selectand then
press the Point ► button or the OK button.
Use the Point ▲▼ buttons to select the
desired item and then press the OK button.
Picture mode adjusted with fine tone.
User 1
User 2
User 3
User 4
42
1
2
Press the Point ◄ button to decrease the
contrast, press the Point ► button to increase
the contrast (from 0 to 63).
Press the Point ◄ button to decrease the
brightness, press the Point ► button to
increase the brightness (from 0 to 63).
Press the Point ◄ button to lighten R/G/B
tone, press the Point ► button to deepen
R/G/B tone (from 0 to 63).
Use the Point ◄► buttons to select the
desired Color temp. level (, , Mid or
).
Press the Point ◄ button decrease the intensity
of the color, press the Point ► button increase
the intensity of the color (from 0 to 63).
Press the Point ◄► buttons to adjust the tint
value to get a proper color balance (from 0 to
63).
Tint
• When the , or blue is adjusted, the Color temp. level will change to User.
• Tint cannot be selected when the video system is PAL, , or (p. 40).
• When oris selected in Image select, will change to
or .
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the
Point ► button or the OK button.
Use the Point ▲▼ buttons to select the
desired item and then press the OK button to
display the adjustment dialog box. Use the
Point ◄► buttons to adjust the setting value.
Selected Image mode
Use the Point ◄► buttons to
adjust the setting value.
Press the Point ◄ button to decrease the
sharpness of the image, press the Point ►
button to increase the sharpness of the image
(from 0 to 15).
Use the Point ◄► buttons to adjust the
gamma value to obtain a better balance of
contrast (from 0 to 15).
43
An interlaced video signal can be displayed in
progressive mode. Select one of the following
options.
........ Disabled.
L 1 ........ For an active picture.
L 2 ........ For a still picture.
..... For watching a lm. With this function,
the projector reproduces pictures
faithful to the original film quality.
Noise interference on the screen can be
reduced. Select one of the following options to
get smoother images.
........ Disabled.
L 1 ........ Lower reduction
L 2 ........ Higher reduction
can not be selected when the input
signal is , or (p.40).
To reset the adjusted data, select Reset and
press the OK button. A confirmation box appears
and then select . All adjustments will return
to their previous figures.
Reset
To store the adjusted data, select and
press the Point ► button or the OK button. Use
the Point ▲▼ buttons to select one from User 1
to User 4 and press the OK button.
A confirmation box appears and then select
. Stored data can be called up by selecting
an in the Image Mode Selection on
page 41.
A confirmation box
appears and then
select .
44
This projector has the picture screen resize function, which enables you to customize the image size.
1
2
Provide the image to fit the screen size while
maintaining the aspect ratio of the input signal.
• When no signal is detected, is set
automatically and the Aspect adjustment menu
disappears.
• The adjustable range for and
is limited depending on the input
signal.
Full
Provide the full screen image.
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼ buttons
to select and then press the Point ►
button or the OK button.
Use the Point ▲▼ buttons to select the
desired item and then press the OK button.
Adjust the screen scale and position manually with
this function.
Press the Point ► button at and
the Custom adjustment menu is displayed on the
screen, you can use the Point ▲▼ buttons to
choose the item you want to adjust.
...... Adjust the Horizontal/Vertical
screen scale.
H&V ............... When set to On, the aspect ratio
is fixed. The appears
dimmed and becomes unavailable.
Adjust , then the screen
scale is automatically modified
based on the aspect ratio.
.. Adjust the Horizontal/Vertical
screen position.
....... Save the adjusted scale or position
to all the inputs. Press the OK
button at to display a
confirmation box. To save the scale
or position, press the OK button at
. When is selected,
the saved scale or position is used.
Reset ............. Reset the all adjusted values.
Press the OK button at Reset to
display a confirmation box. To
reset, press the OK button at .
Provide the last stored aspect screen image.
Provide the image at the 16:9 wide screen ratio.
Pan the horizontal direction of the image and
cut the vertical direction of the image to fit the
screen size (16:9). Only for 4:3 video aspect
ratio signals.
Expand the right and left sides of images
naturally without changing the center areas.
45
This function is used to adjust keystone
distortion of the projected image. Use the Point
▲▼ buttons to choose the item you want to
adjust.
To correct keystone distortion, press the OK
button.
Keystone appears on the screen. Use the
Point ▲▼ buttons to correct keystone
distortion (p. 25).
To store or reset the keystone correction,
press the Point ► button.
.......... Keep the keystone correction
even when the AC power cord is
unplugged.
Reset .......... Release the keystone correction
when the AC power cord is
unplugged.
Ceiling
Rear
When this function is set to On, the picture
will be top/bottom and left/right reversed. This
function is used to project the image from a
ceiling-mounted projector.
Ceiling
When this function is set to On, the picture will
be left/right reversed. This function is used to
project the image from rear of the screen.
Rear
To reset the adjusted data, select Reset and
press the OK button. A confirmation box appears
and then select . All adjustments will return
to their previous figures.
Reset
This function is used to project the image to a
4:3 or 16:9 projection screen.
....
16:10 is the aspect of the
LCD panel. The original
Screen Menu is available.
..... Set to a 16:9 projection
screen.
.
.....
Set to a 4:3 projection
screen.
When the 16:9 function is selected on Screen
aspect menu, 16:9 is not available in the PC and
AV screen (pp.36, 44).
46

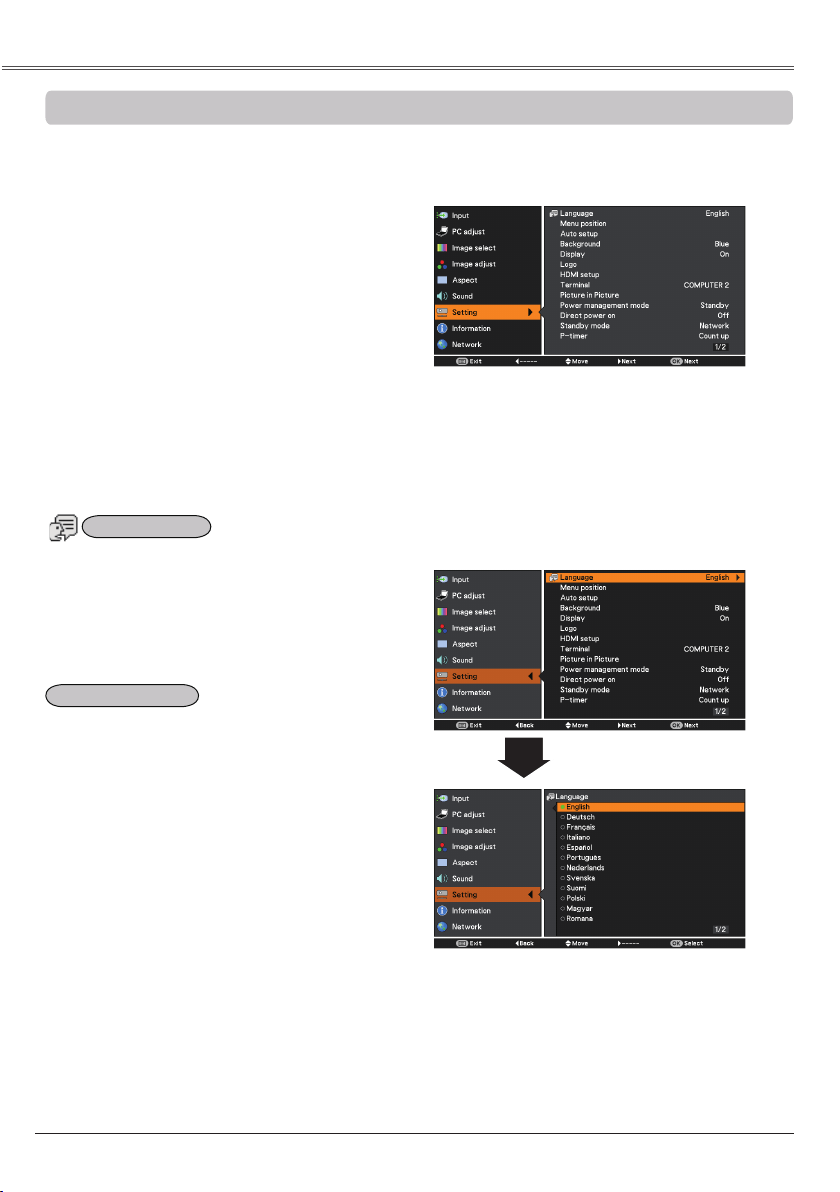

Press the MENU button to display the
On-Screen Menu. Press the Point ▲▼
buttons to select and press the
Point ► button or the OK button to access
the submenu items.
1
2
Use the Point ▲▼ buttons to select the
desired item and then press the Point ►
button or the OK button to access the
selected item.
This projector has a Setting menu that allows you to set up the other various functions described below.
Language
This function is used to change the position of
the On-Screen Menu. Select and
press the OK button.
The Menu position changes each time you press
the OK button as follows.
the center → the bottom left → the bottom right
→ the top left → the top right→.....
3
Use the Point ▲▼ buttons to select the
desired item and then press the OK button.
Language
The language used in the On-Screen Menu
is available in English, German, French,
Italian, Spanish, Portuguese, Dutch, Swedish,
Finnish, Polish, Hungarian, Romanian, Czech,
Russian, Turkish, Arabic, Kazakh, Vietnamese,
Chinese, Korean, Japanese and Thai.
47
• During is in progress, If the MENU
button or the POWER button is pressed,
will stop. If the COMPUTER 1/2 or VIDEO
or COMPONENT or S-VIDEO or HDMI button is
pressed, will stop and go back to the
button's input signal.
• , and can not
be set at the same time.
• corrects vertical distortion only,
not correct horizontal distortion.
• The Auto keystone function can not work when
the Ceiling feature is set On in the Screen menu
(pp. 37, 45).
• Perfect correction of the image distortion can not
be ensured with the Auto setup function. If the
distortion is not corrected properly by pressing the
AUTO SET button, adjust manually by pressing
the KEYSTONE button on the remote controller or
selecting in the Setting menu (pp. 37,
45).
• , , and
of some computers cannot
be fully adjusted with the Auto PC Adjustment
function. When the image is not provided properly
with this operation, manual adjustments are
required (pp. 32-33).
This function detects the input signal
automatically. When a signal is found, the search
will stop. Use the Point ▲▼ buttons to select
one of the following options.
....... Auto input does not work.
On 1..... Auto input works under the following
situation.
– When pressing the AUTO SET
button on the top control or the
remote controller.
On 2......Auto input works under the following
situation.
– When turning on the projector by
pressing the POWER button on the
top control or the remote controller.
– When pressing the AUTO SET button
on the top control or the remote
controller.
– When the current input signal is cut
off.*
* If the Blank or Freeze function is active,
cancel it to activate the Auto input. It is
also unavailable when On-Screen menu is
displayed.
On...............Enables Auto PC Adjustment when
pressing the AUTO SET button
on the top control or the remote
controller.
...............Disables Auto PC Adjustment.
..........
Always works and corrects
keystone distortion according to the
projector's tilt.
Manual......Works only when pressing the
AUTO SET button on the top
control or the remote controller.
.............Disables Auto Keystone.
• While is set to On 1 or On 2, the
status of Input and Lamp are displayed every time
the signal is switched.
• Only the last selected input source can be
detected.
This function enables Auto input, Auto PC and
Auto Keystone adjustment by pressing the AUTO
SET button. Settings for those functions can be
altered as follows:
48

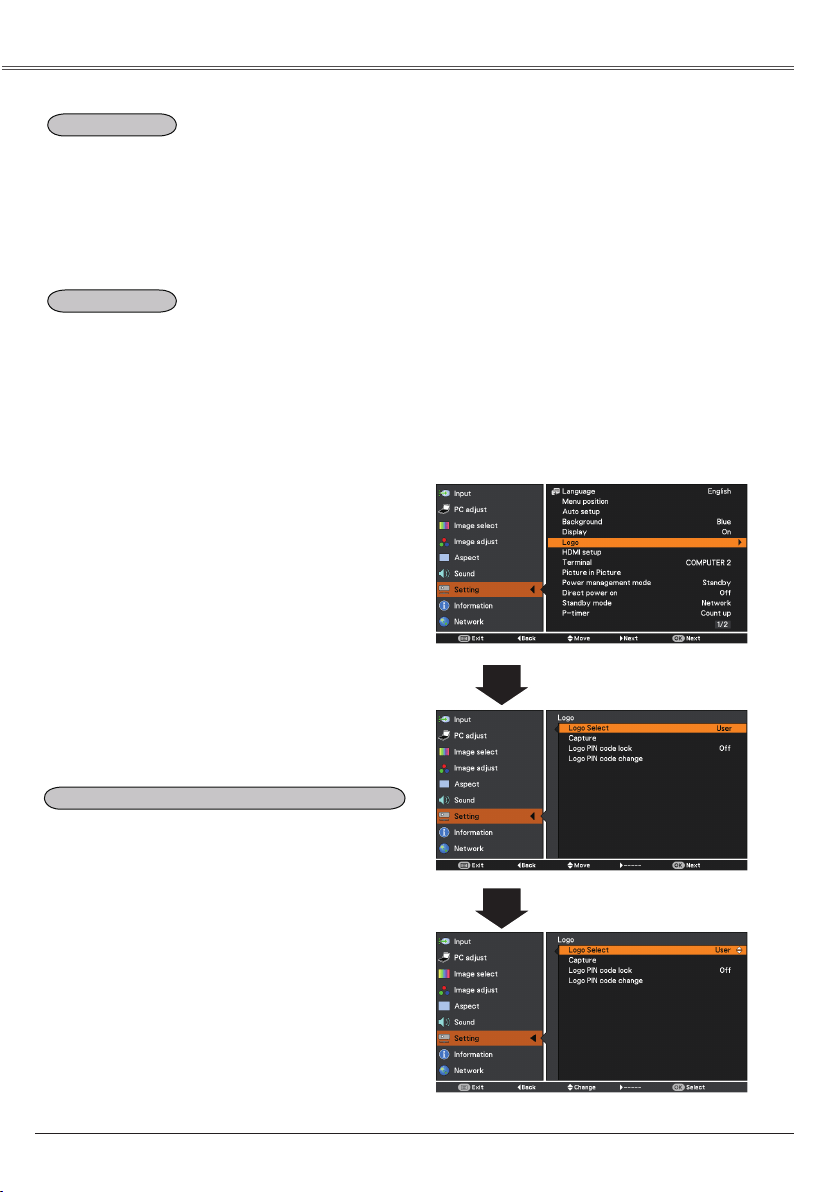

This function decides whether to display
On-Screen Displays.
On ........................ Show all the On-Screen
displays. Use this function
when you want to project
images after the lamp
becomes bright enough. The
factory default setting is in
this option.
... Show the input image
instead of the countdown
when turning on the
projector. Use this function
when you want to project the
image as early as possible
even when the lamp is not
bright enough.
........................ Hide the On-Screen
Displays except:
● On-Screen Menu.
● (p. 22)
● P-Timer display.
● for Power
management (p. 51)
●
● Arrows for the True
function in the Screen
Menu. (p. 36)
Select the background screen for when no input
signal is detected. Press the Point ▲▼ buttons
to switch between each option.
blue........Project a blue background.
User
........
Project an image captured in the Logo
setting.
......
Project a black background.
This function allows you to customize the screen
logo with , ,
and functions.
When On is selected in the Logo PIN code lock
function, and functions
cannot be selected.
This function decides on the starting-up
display from among following options.
User ....... Show the image you captured.
... Show the factory-set logo.
.......... Show the countdown display only.
49
This function enables you to capture an image
being projected to use it for a starting-up display
or interval of presentations.
Select and press the OK button.
A confirmation box appears and select to
capture the projected image.
After capturing the projected image, go to the
Logo select function and set it to User. Then the
captured image will be displayed the next time
you turn on the projector or when you press the
BLANK button (p. 28).
To cancel the capture function, select in the
confirmation box.
• Before capturing an image, select in
the Image select Menu to capture a proper image
(pp. 34 ,41).
• A signal from a computer can be captured up
to WXGA (1280 x 800). A signal from video
equipment can be captured except for ,
1035i, and 1080i.
• When capturing the image that has been adjusted
by the Keystone function, the adjusted data is
automatically reset and the projector captures an
image without keystone correction.
• When Logo PIN code lock function is set to On,
and can not be selected.
• When starting to capture a new image, the
previously stored image is cleared even if you
cancel the capturing.
• When there is no captured image or it is
interrupted while capturing an image, User can
not be selected, you can only switch between
and .
This function prevents an unauthorized person
from changing the screen logo.
.......... The screen logo can be changed
freely from the Logo Menu (p. 48).
On .......... The screen logo cannot be changed
without a Logo PIN code.
If you want to change the
setting, press the OK button and the Logo PIN
code dialog box appears. Enter a Logo PIN code
by following the steps below. The initial
is set to “4321” at the factory.
50
Use the Point ▲▼ buttons to enter a number.
Press the Point ◄► buttons to fix the number
and move the red frame pointer to the next
box. The number changes to . If you fixed an
incorrect number, use the Point ◄► buttons
to move the pointer to the number you want to
correct, and then enter the correct number.
Repeat this step to complete entering a four-digit
number.
After entering the four-digit number, move the
pointer to . Press the OK button so that you
can start to operate the projector.
If you entered an incorrect Logo PIN code,
and the number () will turn red
for a moment. Enter the correct Logo PIN code
all over again.
Logo PIN code can be changed to your desired
four-digit number. Press the OK button to select
. Current
dialog box appears, use the Point ▲▼buttons to
enter the current code. The New logo PIN code
input dialog box appears. Set a new Logo PIN code,
confirmation box appears, choose to set the
new Logo PIN code.
Be sure to note the new Logo PIN code and keep it
on hand. If you lost the number, you could no longer
change the Logo PIN code setting.
Use the Point ▲▼ buttons to switch On or ,
and then press the OK button to make a choice.
After a correct Logo PIN code
is entered, the following dialog
box appears.
If you forget your Logo PIN code and unable to
change it, the Logo PIN code can be reset to the
factory default setting (4321) according to the
following procedures.
When you reset the Logo PIN code, the PIN code
and Key lock will be reset, as well.
1. Unplug the AC Power Cord from the AC outlet.
2. Hold down the OK button on the projector and
connect the AC Power Cord into the outlet again.
Keep holding down the OK button until the POWER
indicator lights. The Logo PIN code returns to the
factory default setting while the Logo PIN code lock
state will remain the same as the previous set
state.
51

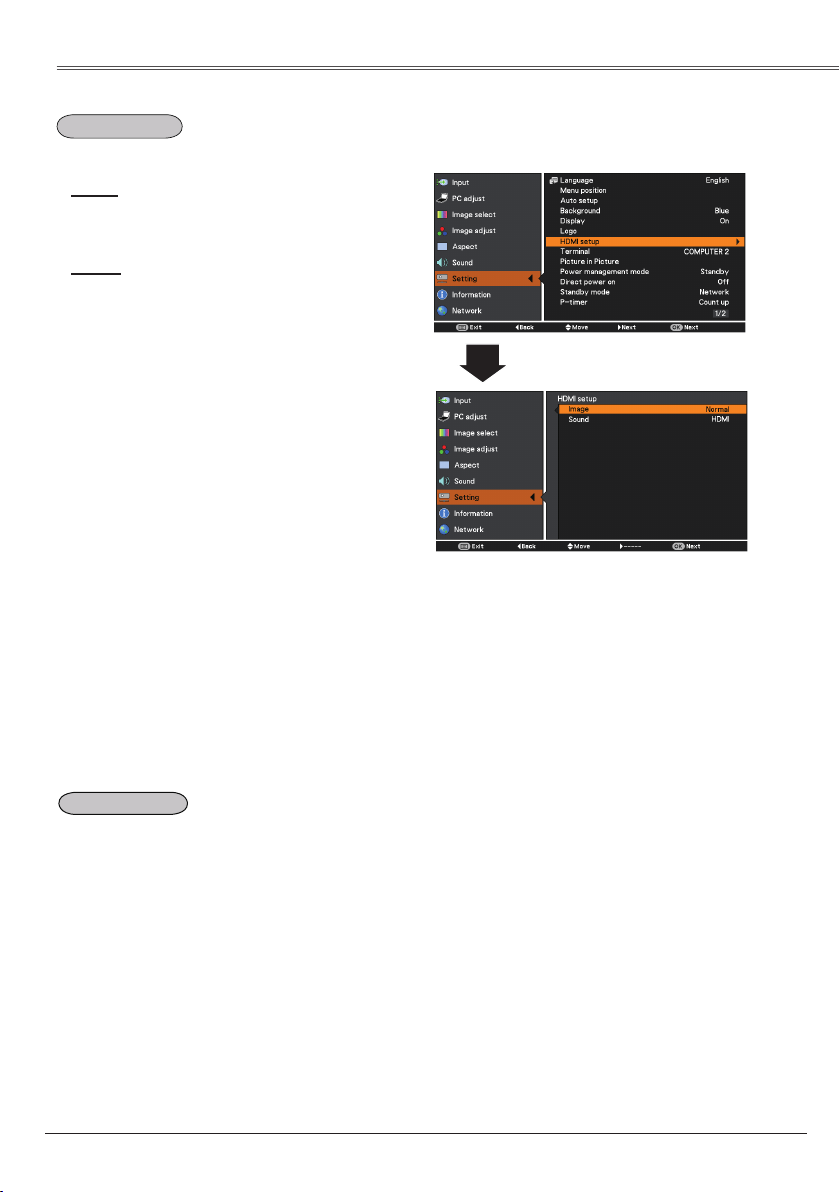

The COMPUTER IN 2/MONITOR OUT terminal
on the back of the projector is switchable for
computer input or monitor output (p.11). Select
COMPUTER 2 or with the Point
▲▼ buttons.
COMPUTER 2 ....... computer input
........... monitor out
Terminal function is not available when
selecting COMPUTER 2 to the input source.
Change the input source to the others
(and so on) so that the Terminal
function will be available. (pp. 27, 29, 39)
This function is only used for HDMI input source.
Select or to match the
video range setting of your HDMI Digital
RGB equipment.
HDMI: When using the HDMI cable, select
HDMI.
Both video and audio are
transferred and you need not to
connect any additional cables for
audio.
COMPUTER 2 : When using the DVI-HDMI
cable, select COMPUTER
2 and connect the audio
cable to COMPUTER IN 2
termimal.
The names for the output setting of Digital RGB
vary from equipment to equipment. For details,
refer to the user’s manual of your Digital RGB
equipment.
When the black parts of the image are
destroyed or stand out, please switch to
or , and then switch the
output type of the HDMI Digital RGB output
equipment.
The input/output terminal [Computer 2] does not
support EDID. Depending on the computer
used, an adjustment of the resolution might be
necessary after connection of the terminal. For
the adjustment of the resolution please refer to
the owner’s manual of the computer.
*
EDID (Extended Display Identification Data):
The display ID of the connected monitor for
transmission of the model name and the setting
value to the computer.
52
Select the Picture in Pictrue mode among P in P,
and .
Provide the images of Main picture and
Sub picture at the ratio of Screen aspect
in the Screen Menu.
Provide the images of Main picture and
Sub picture at the ratio of Screen aspect
in the Screen Menu.
Turn off the Picture in Picture function.
Press the Point ◄► buttons to change
the
Subpicture size among
, Middle and Large.
During Picture in Picture mode, and being
undisplayed On Screen Menu, press the OK
button to select Sub picture. (A red frame will be
displayed on the selected picture.)
When Main picture or Sub picture is selected,
input source can be set by pressing the INPUT
button on the top control or COMPUTER1/2 or
HDMI buttons on the remote controller. Operation
on the On Screen Menu is not necessary.
• The Picture in Picture function is not
available depending on the input signals and
the selected input terminals. Refer to
for details. (p.79)
• When the input signal(s) is/are incompatible,
mark will be displayed on the Main/Sub
.
•
and
works only under P in P mode.
This function is used to project two images
simultaneously by placing a separate small sub
screen within or next to the main screen.
Use the Point ▲▼ buttons to select
and then press the Point ► button or the
OK button to access the submenu.
Only the sound from the source of Main picture
is valid, while the source of Sub picture cannot
output the sound. ( In P in P, the larger picture is
main picture, and the smaller one is sub picture; in
P by P, the left picture is main picture, and the right
one is sub picture.)
Adjust the Subpicture position.
Press the Point ◄► buttons to change
the
Subpicture position.
X
53
Time left before Lamp is off.
For reducing power consumption as well
as maintaining the lamp life, the Power
management mode function turns off the
projection lamp when the projector is not
operated for a certain period.
Select one of the following options:
........ When the lamp has been fully
cooled down, the POWER
indicator changes to green
blinking. In this condition,
the projection lamp will be
turned on if the input signal
is reconnected or any button
on the top control or remote
controller is pressed.
............... When the lamp has been fully
cooled down, the power will
be turned off.
................. Power management mode
function is off.
............ If the input signal is
interrupted and no button
is pressed for more than 30
seconds, the timer display
with appears. It
starts the countdown until the
lamp is turned off. Use the
Point ▲▼ buttons to set the
Timer (1~30 min).
Factory default is .
When this function is set to On, the projector will
be automatically turned on just by connecting
the AC power cord to a wall outlet.
Be sure to turn off the projector properly (see
“Turning Off the Projector” on page 22). If the
projector is turned off in the incorrect sequence, the
Direct power on function will not work properly.
54

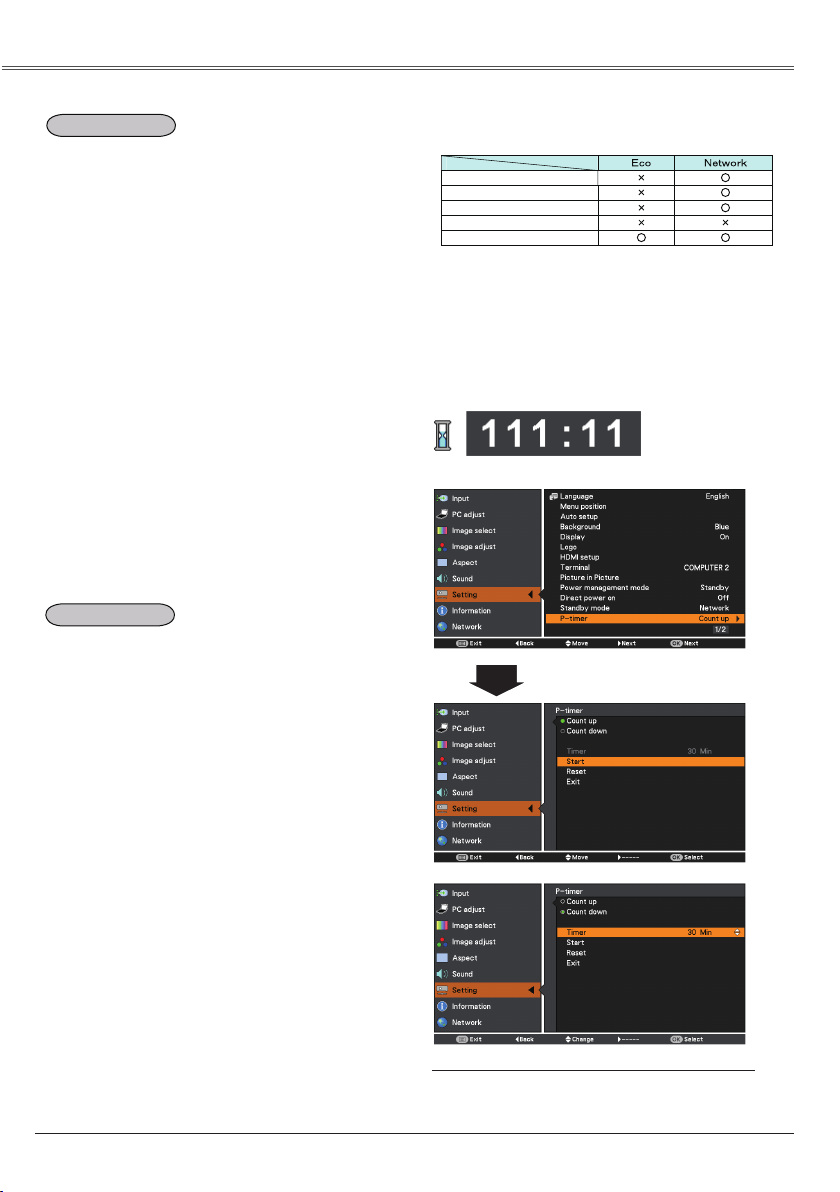

This function is available when operating the
projector via network.
.. Supply the power to the network
function even after turning off the
projector by pressing the POWER
button on the remote controller.
You can turn on/off the projector
via network, modify network
environment, and receive an
e-mail about projector status while
the projector is powered off.
......... Select when you do not use
the projector via network. The
projector’s network function will
stop when turning off the projector.
Refer to the user’s manual of “Network Set-up
and Operation”.
When selecting , the cooling fans may
be running depending on the temperature inside
the projector even if the projector is turned off.
This function allows you to change the setting of
the P-timer and execute it.
Select one of the following options:
....... The P-timer display
appears on the screen and the
count up starts ()
.. The time set in the Timer setting
appears on the screen and the
countdown starts.
............. Use the Point ▲▼ buttons to set
the Timer (). is
available in Count down only.
Factory default value is 10 Min.
............... It executes the count up or count
down function. Press the OK
button at and the indication
changes into Stop. To stop
or , press
the OK button at on the
screen menu, then the indication
changes into Restart. Press the
OK button at Restart to resume
or .
Reset ............. Reset the P-timer values.
Press the OK button at Reset
to return to the following value:
........ "000:00"
... Timer that
you set
................ To exit the P-timer operation.
P-timer display
To stop the P-timer function, press the P-TIMER button.
To cancel the P-timer, press and hold the P-TIMER
button for a few seconds.
X: disabled O: enabled
*1 When is selected, it is only possible to turn on the
projector while using the RS-232C serial port.
*2 When switch the Standby MIC out function On and in
Standby mode status, only MIC volume can be output.
Monitor Out
Audio Out
Direct power on
Serial command
Network
*1
*2
55

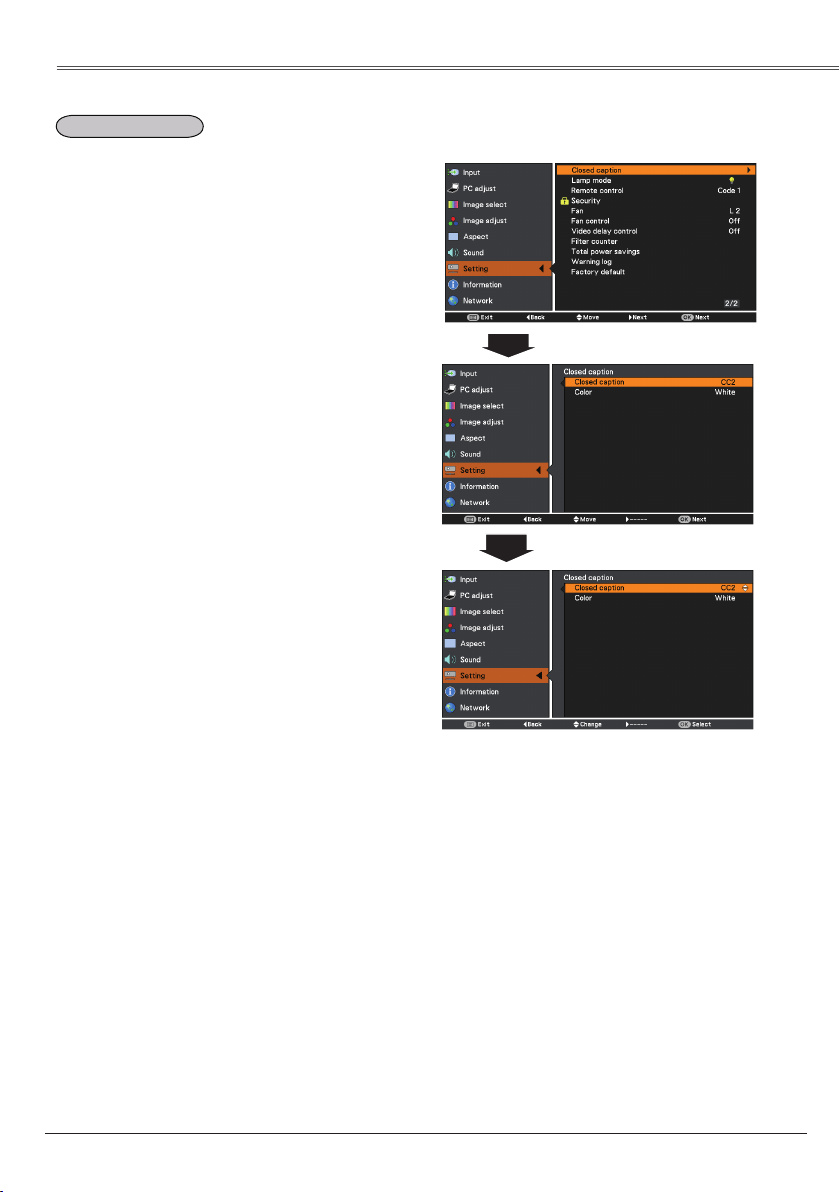

Closed caption is a printed version of the
program sound or other information displayed
on the screen. If the input signal contains closed
captions, you can turn on the feature and switch
the channels. Press the Point ▲▼ buttons to
select , CC1, CC2, CC3 or CC4.
If the Closed caption is not clear, you can
change the text from to .
Press the Point ▲▼ buttons to
select , CC1, CC2, CC3 or CC4,
and then press the OK button.
The Closed caption is available only under the
situation below.
• When the input signal is (for
adjustment only), VIDEO or , and the
system is set to or , the Closed
caption is available.
• If the system is set to , and choose
as the input signal, the Closed caption
function will be available.
will be unavailable when under
other setting conditions.
• The Closed caption function is unavailable when
On-Screen menu and P-timer are displayed.
• The menu items of Closed caption are displayed in
gray while it is not available.
56
This projector provides two different remote
control codes: the factory-set initial code ()
and the secondary code (). This switching
function prevents remote controller interference
when operating several projectors or video
equipment at the same time.
When operating the projector in , both
the projector and the remote controller must be
switched to .
Select either or in this Setting
Menu.
Press and hold both the MENU and IMAGE
buttons together for 5 seconds or more. After
changing the code, make sure the remote
controller operates properly.
• When different codes are set on the projector and on the remote controller, any operation cannot be made. In that
case, switch the code on the remote controller to fit the code on the projector.
• If the batteries are removed from the remote controller for a long period of time, the remote control code will be
reset.
This function allows you to change brightness of
the screen.
• Lamp mode can not be changed for a while after turning on the projector. Lamp needs some time to stabilize after
the power is turned on. Stored lamp mode will be active after the lamp is stabilized.
• If Mode 2 has been selected and the projection lamp exceeds the recommended total hours of use, the
replacement icon will be displayed at the time of power-on. Then the projector will turn off after 3 minutes.
•
The Lamp replacement icon will not appear when the Display function is set to (p.48), during (p.27), or
(p.28).
.......
Brightness according to the input
signal.
..
Normal brightness
.....70%-80% of the normal brightness.
.....50% of the normal brightness.
Select the lamp operation when the total lighting
time of a lamp exceeds the recommended total
hours of use.
The lamp can be turned on even
after exceeding the recommended
total hours of use.
The lamp can be turned on even
after exceeding the recommended
total hours of use. But the projector
turns off automatically after 3
minutes.
57

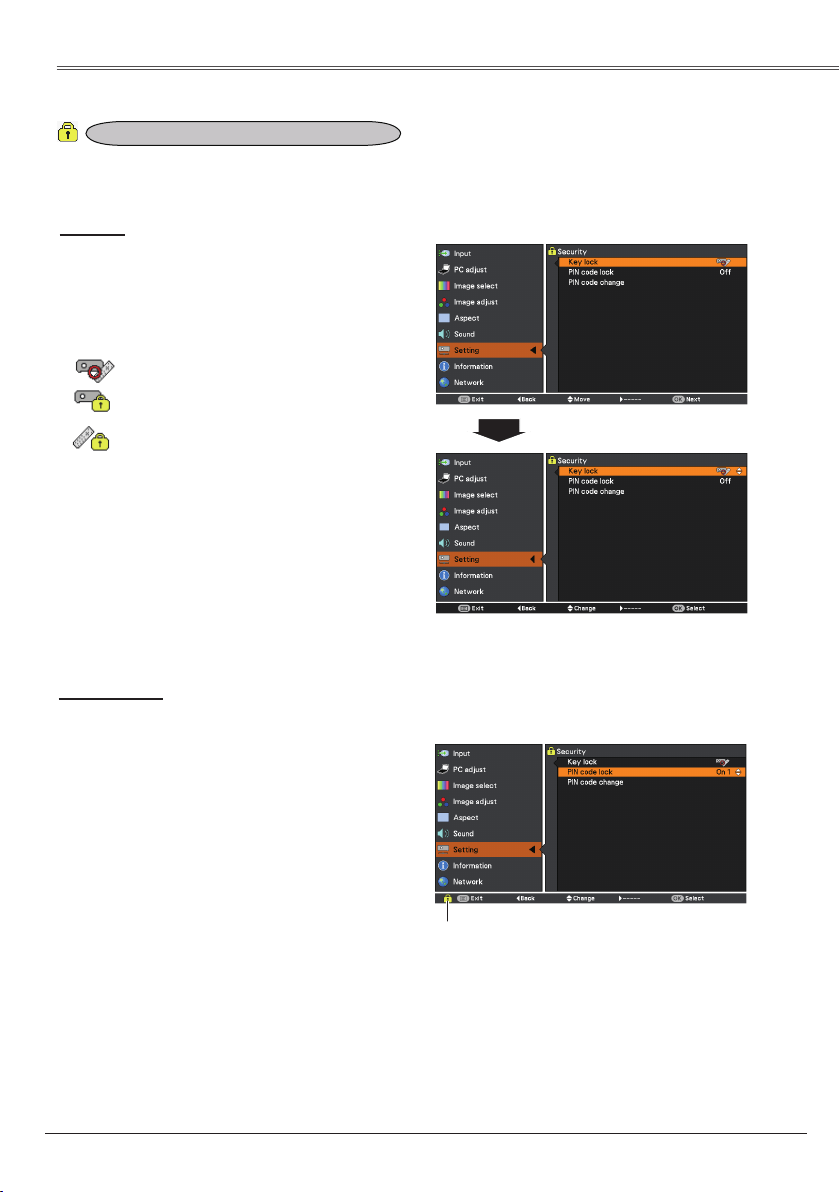

This function locks the top control and remote
controller buttons to prevent operation by
unauthorized persons.
Select and then press the OK button
and select the desired item by pressing the Point
▲▼ buttons.
.... Unlocked.
.... Lock the operation of the top
control. To unlock, use the remote
controller.
.... Lock the operation of the remote
controller. To unlock, use the top
control.
If the top control accidentally becomes locked
and you do not have the remote controller
nearby or there is something wrong with your
remote controller, contact the dealer where you
purchased the projector or the service center.
This function allows you to use the Key lock and
PIN code lock function to set the security for the
projector operation.
This function prevents the projector from being
operated by unauthorized persons and provides
the following setting options for security.
.......... Unlocked.
On 1 ....... Enter the PIN code every time turning
on the projector.
On 2 ....... Enter the PIN code to operate
the projector once the power cord
is disconnected; as long as the
AC power cord is connected, the
projector can be operated without a
PIN code.
Whenever you change the PIN code lock setting
or the PIN code (the four-digit number), you are
required to enter the PIN code. The “1234” is set
as the initial PIN code at the factory.
If you want to change the PIN code lock setting,
press the OK button and the PIN code dialog
box appears.
When the projector is locked with the PIN code,
the Security icon appears on the guide.
When the projector is locked with
the PIN code, the Security icon
appears on the guide.
58
Use the Point ▲▼ buttons to select , On 1 or
On 2, and then press the OK button to make a
choice.
Use the Point ▲▼ buttons to enter a number.
Press the Point ◄ ► buttons to fix the number
and move the red frame pointer to the next box.
The number changes to . If you fixed an incorrect
number, use the Point ◄ ► buttons to move the
pointer to the number you want to correct, and then
enter the correct number.
Repeat this step to complete entering a four-digit
number.
After entering the four-digit number, move the
pointer to . Press the OK button so that you can
change the following PIN code lock setting.
If you entered an incorrect PIN code,
and the number () will turn red for a
moment. Enter the correct PIN code all over again.
The PIN code can be changed to your desired
four-digit number. Press the OK button to select
. Pin code dialog box appears,
use the Point ▲▼ buttons to enter the current
code. The New PIN code input dialog box appears.
Set a new PIN code.
:
If you forget your PIN code and unable to change it,
the PIN code can be reset to the factory default setting
(1234) according to the following procedures.
When you reset the PIN code, the Logo PIN code and
Key lock will be reset, as well.
1. Unplug the AC Power Cord from the AC outlet.
2. Hold down the OK button on the projector and
connect the AC Power Cord into the outlet again.
Keep holding down the OK button until the POWER
indicator lights. The PIN code returns to the factory
default setting while the PIN code lock state will
remain the same as the previous set state.
This function provides the following options in
the cooling fans’ operation when the projector is
turned off (p.22).
L 1 .... Normal operation
L 2 .... Slower, lower-sound and longish-time than
the normal operation (L 1).
Fan
59
Choose the running speed of cooling fans from
the following options according to the ground
elevation under which you use the projector.
................ Normal speed. Set this function to
when using the projector in
non- high altitude environment.
On 1............. Faster than Off mode. Select this
mode when using the projector in
high altitudes (about 1,200 meters
or more above the sea level)
where the fans have less cooling
effect.
On 2............. Faster than On 1 mode. Select
this mode when using the projector
in higher al
titudes than above
where
the fans have lesser cooling effect.
When you want to make a digital processing of a
projected image faster, set this function.
Use the Point ▲▼ buttons, select an item of
or On.
:
and can not be selected
when Video delay control function is set to On.
:
- The fan noise becomes louder in On 1 and On 2.
- Failure to set the running speed of cooling fans
properly may affect the projector life.
This function is used to set a frequency for the
filter replacement.
Use the Point ▲▼ buttons to select Filter
and then press the Point ►button or the
OK button to access the submenu items.
....Show the total accumulated
time of the filter use timer
setting.
.................To set a timer, when the
projector reaches the time,
the Filter warning icon
(Fig.1) appears on the
screen and the total
accumulated time turns red,
indicating that the filter
replacement is necessary.
.. After replacing the filter, be
sure to reset the timer. The
Filter warning icon will not
turn off until the filter counter
is reset. For details about
resetting the timer, refer to
“Resetting the Filter Counter”
on page 63.
Press the OK button to select , and
then use the Point ▲▼ buttons to set the
timer. Select from (
) depending on the
use environment.
Filter warning icon appears on the screen at a
set time (/1000H/2000H/
).
Fig.1 Filter warning icon
• This icon also appears at turning on.
• The Filter warning icon (Fig.1) will not appear when
the Display function is set to (p.48), during
(p.27), or (p.28).
60

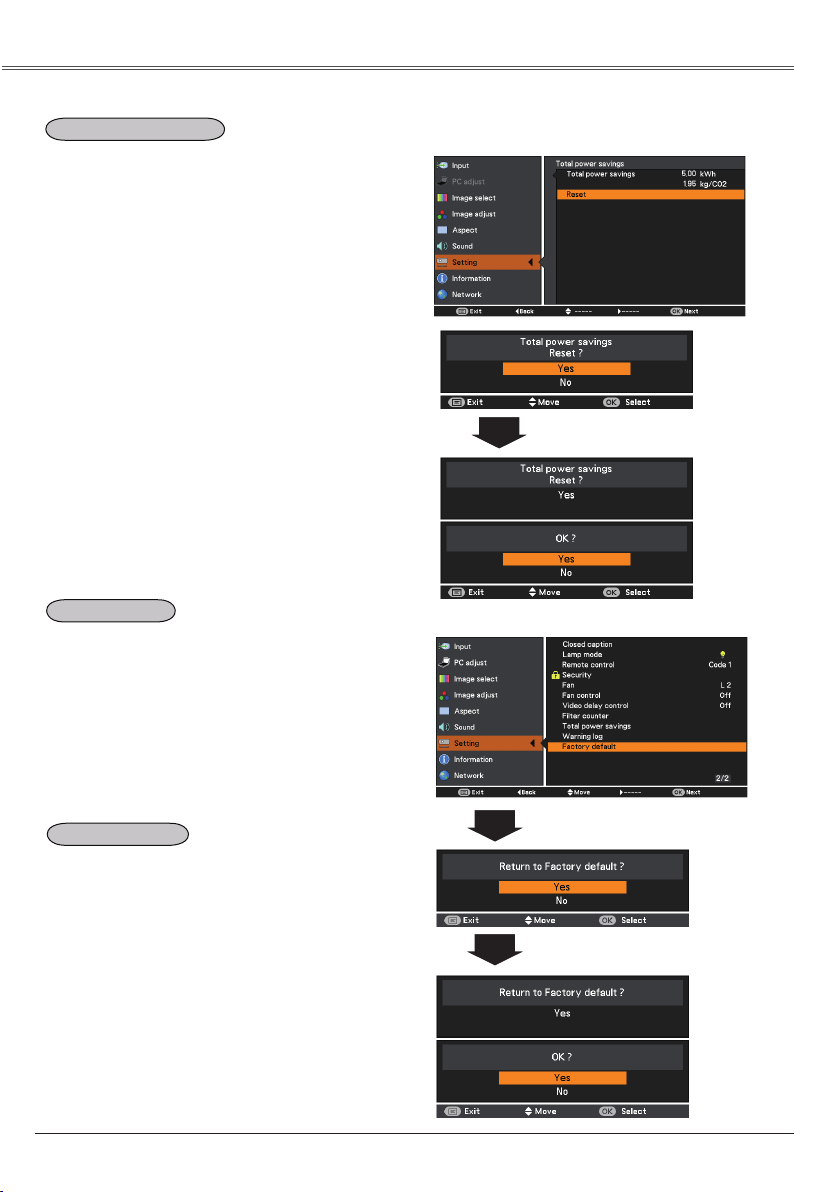

This function returns all setting values except
for the , ,
, and
and to the factory default
settings.
This function records anomalous operations
while the projector is in operation and use it
when diagnosing faults. Up to 10 warning logs
are displayed with the latest warning message at
the top of the list, followed by previous warning
messages in chronological order.
When the Factory default function is executed, all
the warning log records will be deleted.
This function displays the saved amount of
power and the exhausted CO2 of the projector.
......Show the total accumulated power
savings of the projector and display
the total amount of CO2 exhausted
from the projector.
Reset
.........
Reset the figures of the total power
savings and the exhausted CO2.
61
The Information Menu is used for checking the status of the image signal being projected and the
operation of the projector.
The horizontal frequency of the input signal is
displayed in , or when no signal.
The vertical frequency of the input signal is
displayed in , or when no signal.
Numbers of Hz doubles when during Interlace.
The cumulative lamp operating time is displayed.
The information menu changes each time you
press the INFO. button on the remote controller
as follows.
page 1/2 page 2/2 hide page 1/2
• • • •
While the information menu is displayed, press
the Point ◄ ► buttons to display the previous or
next page.
Press the Point ▲▼ buttons to select the
Information. The Information Menu is displayed.
See below for displayed information.
, or , and are displayed.
The selected Screen size is displayed.
The selected input source is displayed.
The selected lamp mode is displayed.
Language
The selected language is displayed.
The selected Key lock icon is displayed.
or On 1 or On 2 is displayed.
The selected remote code is displayed.
Direct Operation
Menu Operation
The serial number of the projector is displayed.
The serial number is used to service the
projector.
The saved amount of power and the exhausted
CO2 are displayed.
62
The WARNING indicator shows the state of the function which protects the projector. Check the state
of the WARNING indicator and the POWER indicator to take proper maintenance.
When the temperature inside the projector
reaches a certain level, the projector will be
automatically shut down to protect the inside of
the projector. The POWER indicator is blinking
while the projector is being cooled down. When
the projector has cooled down enough (to its
normal operating temperature), it can be turned
on again by pressing the POWER button.
When the projector detects an abnormal
condition, it is automatically shut down to protect
the inside of the projector and the WARNING
indicator lights red. In this case, unplug the
AC power cord and reconnect it, and then turn
the projector on once again to verify operation.
If the projector cannot be turned on and the
WARNING indicator still lights red, unplug the
AC power cord and contact the service center.
The WARNING indicator continues to blink even
after the temperature inside the projector returns
to normal. When the projector is turned on again,
the WARNING indicator stops blinking.
– Did you provide appropriate space for the
projector to be ventilated? Check the installing
condition to see if the air vents of the projector
are not blocked.
– Has the projector been installed near an Air-
Conditioning/ Heating Duct or Vent? Move the
installation of the projector away from the duct
or vent.
– Are the filters clean? Replace the filters with
new ones.
WARNING
blinking red
WARNING
lights red
63
When using the projector under dusty or
smoky conditions, dust may accumulate
on a lens, LCD panels, or optical elements
inside the projector degrading the quality of a
projected image. When the symptoms above
are noticed, contact your authorized dealer or
service center for proper cleaning.
Be sure to reset the Filter counter after replacing
the filter.
Press the MENU button to display the
On-Screen Menu. Use the Point ▲▼
buttons to select Setting and then press the
Point ► button or the OK button.
Use the Point ▲▼ buttons to select Filter
and then press the Point ► or the
OK button. Use the Point ▲▼ buttons or the
OK button to select and
then press the OK button.
appears. Select to continue.
appears.
Select , then
another confirmation
box appears.
Select again
to reset the Filter
counter.
Another confirmation dialog box appears,
select to reset the Filter counter.
Turn off the projector and unplug the AC
power cord from the AC outlet.
Turn over the projector and pull out the filter
cover (bottom); pull up the handle and take
out the whole filter (bottom.)
Press up the latches and pull out the filter
cover (side); pull out the handle and take
out the side filter.
1
2
Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter
become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal
heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the
screen, replace the filters immediately. Replace the filters by following the steps below.
Put new filters back into the position. Make
sure that the filters are fully inserted to the
projector.
3
– Do not operate the projector with the
filters removed. Dust may accumulate
on the optical elements degrading
picture quality.
– Do not put anything into the air vents.
Doing so may result in malfunction of
the projector.
– Do not wash the filters with water or
any other liquid matter. Otherwise the
filters may be damaged.
Filter cover (bottom)
Filter cover (side)
Connect the AC power cord to the projector
and turn on the projector.
Latches (press up)
Handle (pull out)
4
Handle (pull up)
1
2
3
64

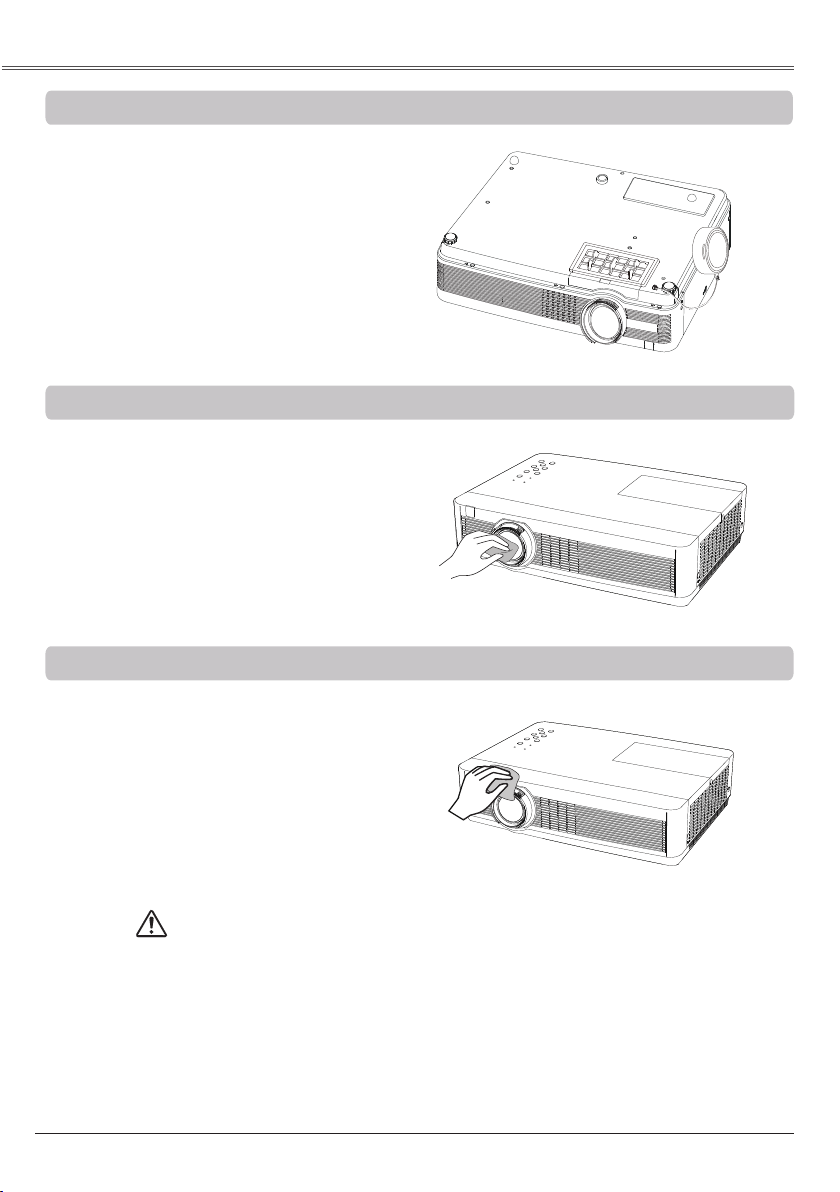

Unplug the AC power cord before cleaning.
Gently wipe the projection lens with a cleaning
cloth that contains a small amount of non-
abrasive camera lens cleaner, or use a lens
cleaning paper or commercially available air
blower to clean the lens.
Avoid using an excessive amount of cleaner.
Abrasive cleaners, solvents, or other harsh
chemicals might scratch the surface of the lens.
Unplug the AC power cord before cleaning.
Gently wipe the projector body with a soft dry
cleaning cloth. When the cabinet is heavily soiled,
use a small amount of mild detergent and finish
with a soft dry cleaning cloth. Avoid using an
excessive amount of cleaner. Abrasive cleaners,
solvents, or other harsh chemicals might scratch
the surface of the cabinet.
When the projector is not in use, put the projector
in an appropriate carrying case to protect it from
dust and scratches.
When moving this projector or while not using it
over an extended period of time, attach the lens
cap.
Attach the lens cap according to the following
procedures.
1
2
Thread the string through the hole on the
lens cap and then tie a knot in the string to
secure it in place.
To pass the other end of the string into the
hole on the bottom of the projector and pull
at it.
Do not use any flammable solvents or air
sprays on the projector and in its vicinity.
The explosion or fire hazard may occur
even after the AC power cord is unplugged
because the temperature inside the projector
is extremely high due to the lamps. In
addition, there is a risk that the internal parts
may be damaged not only by the flammable
air spray but also by the cold air.
65
When the projection lamp of the projector
reaches its end of life, the Lamp replacement
icon appears on the screen and LAMP
REPLACE indicator lights yellow. Replace the
lamp with a new one promptly. The timing when
the LAMP REPLACE indicator should light is
depending on the lamp mode.
For continued safety, replace with a lamp of
the same type. Do not drop a lamp or touch
a glass bulb! The glass can shatter and may
cause injury.
Allow a projector to cool for at least one hour
before you open the Lamp Cover. The inside
of the projector can become very hot.
LAMP
REPLACE
When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp
may be broken.
If replacing the lamp of a projector which has been installed on the ceiling, you should always
assume that the lamp is broken, and you should stand to the side of the lamp cover, not
underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the
lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice
immediately.
• The Lamp replacement icon will not appear when the Display function is set to (p.48), during
(p.27), or (p.28).
• When Mode 2 is selected in the Lamp life control menu, if the projection lamp of the projector reaches its
end of life, the lamp replacement icon appears on the screen, and the projector is turned off automatically
after 3 minutes.
Follow these steps to replace the lamp.
Unplug the AC power cord. Let the
projector cool for at least one hour.
Loosen the three (3) screws that secure
the lamp. Lift the lamp out of the projector
by using the handle.
1
3
Replace the lamp with a new one and
secure the three (3) screws. Make sure
that the lamp is set properly. Close the
lamp cover and secure the screw.
4
Loosen the screw and open the lamp cover.
2
Connect the AC power cord to the
projector and turn on the projector.
5
Lamp
Handles
Screw
Lamp Cover
Screw
Screw
Screw
66
This projector uses a high-pressure lamp which must be handled carefully and
properly.
Improper handling may result in accidents, injury, or create a fire hazard.
● Lamp life may differ from lamp to lamp and according to the environment of use.
There is no guarantee of the same life for each lamp. Some lamps may fail or
terminate their life in a shorter period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP
REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after
the projector has cooled down.
(Follow carefully the instructions in the Lamp Replacement section of this manual.)
Continuous use of the lamp with the LAMP REPLACE indicator lighted may
increase the risk of lamp explosion.
● A Lamp may explode as a result of vibration, shock or degradation as a result of
hours of use as its lifetime draws to an end. Risk of explosion may differ according
to the environment or conditions in which the projector and lamp are being used.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately.
Contact an authorized service center for a checkup of the unit and replacement of the
lamp. Additionally, check carefully to ensure that there are no broken shards or pieces
of glass around the projector or coming out from the cooling air circulation holes. Any
broken shards found should be cleaned up carefully. No one should check the inside of
the projector except those who are authorized trained technicians and who are familiar
with projector service. Inappropriate attempts to service the unit by anyone, especially
those who are not appropriately trained to do so, may result in an accident or injury
caused by pieces of broken glass.
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give
the following information to the dealer.
●
●
67
– Solutions
– Plug the power cord of the projector into the AC outlet.
– See if the POWER indicator lights red.
– Wait until the POWER indicator stops blinking to turn on the
projector again. The projector can be turned on after the
POWER indicator turns red. See page 20.
– Check the WARNING indicator. If the WARNING indicator lights
red, projector cannot be turned on. See page 72.
– Check the projection lamp. See page 65.
– Unlock the Key lock function for the projector. See page 57.
– Make sure or are not chosen at display
function. See page 48.
– Make sure User or are not chosen at Logo (select)
function. See page 48.
– Make sure Auto input function is adjusted properly.
See page 47.
– That is the Lamp replacement icon or the Filter warning icon.
See page 65 or 59.
– Adjust focus of the projector. See page 25.
– Provide proper distance between the projector and the
projection screen. See page 15.
– Check the projection lens to see if it needs cleaning.
See page 64.
– Moving the projector from a cool to warm place may result in
moisture condensation on the projection lens. In such cases,
leave the projector off and wait until condensation evaporates.
– Check the Ceiling/Rear function. See pages 37, 45.
– Check the Ceiling function. See pages 37, 45.
– Check if the or is adjusted properly.
See pages 35, 42.
– Check if is selected properly. See pages 34, 41.
– Check the Lamp mode function. See pages 27, 56.
– Check the LAMP REPLACE indicator. If it lights, the end of lamp
life is approaching. Replace the lamp with a new one promptly.
See page 65.
Before calling your dealer or service center for assistance, check the items below once again.
– Make sure you have properly connected the projector to peripheral equipment as described on
pages 16-18.
– Make sure all equipment is connected to AC outlet and the power is turned on.
– When the projector does not project an image from the connected computer, restart the computer.
68
– Check the connection between your computer or video
equipment and the projector. See pages 16-18.
– See if the input signal is correctly output from your computer.
Some laptop computers may need to change the setting for
monitor output when connecting to a projector. See your
computer’s instruction manual for the setting.
– It takes about 30 seconds to display an image after turning on
the projector. See page 20.
– Check the Input signal, color system, video system or computer
system mode.
– Make sure the temperature is not out of the specified Operating
Temperature (41˚F–95˚F [5˚C–35˚C]).
– When is operating, the image cannot be displayed.
Press the BLANK button or any other button on the
remote controller.
– Check the audio cable connection from audio input source.
– Adjust the audio source.
– Press the VOLUME + button. See page 26.
– Press the MUTE button. See page 26.
– When the AUDIO OUT is plugged-in, the projector's built-in
speaker is not available.
– Is the image projected? You will hear the Computer and VIDEO
sound only when the image is projected.
– Check the Input signal, color system,video system or computer
system mode.
– Make sure the is not selected on Image select
menu. See pages 34, 41.
– Check the Display function. See page 48.
– Check the Input signal. Auto PC adjustment function can not
work when , , , 480i, 575i, 1035i or 1080i is
selected (see page 31), or when the signal is coming from the
HDMI terminal.
– Make sure you selected after adjusting setting. Some
settings can not be stored if not registered with . See
pages 35, 43.
– Power management mode function can not work while
or function is running. See page 51.
– Check the connection and the input signal to see if there is
signal.
–
Make sure is not selected at any function of.
See page 47.
– Make sure On is not selected at the Ceiling function.
See pages 37, 45.
– Make sure the Auto keystone function is not set to Manual.
Press the AUTO SET button on the top control. See
pages 25, 47.
69
– Check menu or menu and adjust them.
See pages 31-32, 36-37.
– PIN code lock is being set. Enter a PIN code (the “1234”
or number you have set). See pages 21, 55-56.
– Check the batteries.
– Make sure no obstruction is between the projector and
remot controller.
– Make sure you are not too far from the projector when
using the remote controller. Maximum operating range
is 16.4'(5 m).
– Make sure the code of the remote controller is conformed to
the projector’s code. See page 56.
–
Unlock the Key lock function for the remote controller function.
See page 57.
– Check the status of the projector with referring to
"Indicators and projector Condition". See page 72.
– Your operation is invalid. Operate correctly.
–
The top control is not available if the top control is locked at
under of Setting section. See page 57.
If problems still persist after following all operating instructions, contact the dealer where you
purchased the projector or the service center. Specify the model number and explain about the
problem. We will advise you how to obtain service.
70
Menu Tree
Volume
Mute On/Off
0-63
ANALOG PC
COMPONENT
ANALOG PC
SCART
VIDEO
COMPUTER 1
COMPUTER 2
MIC
On/Off
MIC GAIN
0-63
STANDBY MIC OUT
On/Off
Presentation
Cinema
Blackboard (Green)
User 1
Standard
Colorboard Red/Blue/Yellow/Green
User 4
High contrast
Input Source Information Display
Language
22 languages provided.
Blue/User/Black
Off /On/Countdown off
Logo select
Standby
On/Off
Code 1–Code 2
Background
Display
Logo
Power management mode
Direct power on
Remote control
Exit
Off
Security
Timer (1–30 Min)
L 1/L 2Fan
Off
User
Capture
Yes/No
Off/On
Logo PIN code change
Logo PIN code lock
Off
Projector
Remote control
Key lock
Default
Off/On 1/On 2
PIN code change
On/Off
Standby mode
Auto PC
Auto keystone
Auto
Manual
Off
Warning log
Yes/NoFactory default
Auto input Off/On 1/On 2Auto setup
Closed caption
Closed caption
Off/CC1/CC2/
CC3/CC4
Color Color/White
Lamp mode
Auto/Normal/
Eco 1/Eco 2
Menu position
COMPUTER 2/Monitor outTerminal
H
Filter counter
Yes/No
Off/1000H/2000H/3000H/
4000H/5000H/6000H
Filter counter
Timer
Filter counter reset
P-timer
Eco/Network
Count up
Count down
Timer
Start/Stop/Restart
Reset
Exit
Off/On 1/On 2Fan control
Video delay control Off/On
PIN code lock
S-VIDEO
Total power savings
HDMI
HDMI setup
Normal/Enhanced
Sound
HDMI/COMPUTER 2
P in P/P by P/ Off
Picture in
Bottom right/Top right/
Top left/Bottom left
Small/Middle/Large
Mode
Subpicture
size
Subpicture
position
Lamp life control Mode1/Mode 2
Lamp mode
Main Program
MAC address
LAN mode select
Network setting
Network information
Network PIN code
IP address
Network factory default
LAN1/LAN2/LAN3
Yes/No
DHCP On/DHCP Off
71
Auto
1080i
1035i
720p
575p
480p
575i
480i
0–63
0–63
Off
(2)
Auto
PAL
SECAM
NTSC
NTSC 4.43
PAL-M
PAL-N
(3)
Contrast
Brightness
Color
Tint
Red
Green
Blue
Sharpness
Reset
Store
Gamma
Progressive
0–63
0–63
0–63
0–15
0–15
User 1
Yes/No
OffNoise reduction
L1
L2
0–63
0–63
User 4
L2
L1
Film
Color temp.
Mid
Low
XLow
User
High
SVGA 1
Mode 1
Mode 2
- - - -
Total dots
Horizontal position
Vertical position
Display area H
Display area V
Reset
Contrast
Brightness
Color temp.
Red
Gamma
Store
0–63
0–63
0–63
0–15
User 1
User 4
Yes/No
* Systems displayed in the System Menu vary depending on an
input signal.
Reset
Yes/No
Sharpness
0–15
Mode 10
Clamp
Green
Blue
0–63
0–63
Store
Mode free
(1)
Mode 1
Scale
H&V
H/V
H/V
Yes/No
Yes/No
On/Off
Auto PC
Fine sync 0–31
Mid
Low
XLow
User
High
Current mode
Mode 1
Mode 10
Normal
Full
Custom
Custom adj.
Zoom
16:9
Common
Position
Reset
Ceiling
Keystone
Reset
Rear
Scale
H&V
H/V
H/V
Yes/No
Yes/No
On/Off
Normal
Full
Digital zoom –
Custom
Digital zoom +
Custom adj.
Zoom
16:9
Common
Position
Reset
True
Ceiling
Keystone
Rear
Reset
Screen aspect Default(16:10)/16:9/4:3
Screen aspect Default(16:10)/16:9/4:3
Natural wide
72
Check the indicators for projector condition.
• • • green • • • red • • • off
• • • blinks green.
When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow.
When this indicator lights yellow, replace the projection lamp with a new one promptly. (p. 65)
The projector is off. (The AC power cord is unplugged.)
The projector is in stand-by mode. Press the POWER button
to turn on the projector.
POWER
green
LAMP
REPLACE
WARNING
red
The projector is preparing for stand-by or the projection lamp
is being cooled down. The projector cannot be turned on
until cooling is completed and the POWER indicator stops
blinking.
The temperature inside the projector is abnormally high. The
projector cannot be turned on. When the projector is cooled
down enough and the temperature returns to normal, the
POWER indicator stops blinking and the projector can be
turned on. (The WARNING indicator keeps blinking.)
The projector detects an abnormal condition and cannot
be turned on. Unplug the AC power cord and plug it again
to turn on the projector. If the projector is turned off again,
unplug the AC power cord and contact the dealer or the
service center for service and checkup. Do not leave the
projector on. It may cause an electric shock or a fire hazard.
The projector is in the Power management mode.
The projector has been cooled down enough and the
temperature returns to normal. When turning on the
projector, the WARNING indicator stops blinking.
The projector is operating normally.
• • • blinks red.
73
Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less
than 140 MHz of Dot Clock.
When selecting these modes, PC adjustment can be limited.
VGA 1 640 x 480 31.47 59.88
VGA 2 720 x 400 31.47 70.09
VGA 3 640 x 400 31.47 70.09
VGA 4 640 x 480 37.86 74.38
VGA 5 640 x 480 37.86 72.81
VGA 6 640 x 480 37.50 75.00
MAC LC13
640 x 480 34.97 66.60
MAC 13 640 x 480 35.00 66.67
MAC 16 832 x 624 49.72 74.55
SXGA 1
1152 x 864
64.20 70.40
SVGA 1 800 x 600 35.156 56.25
SVGA 2 800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600
53.674
85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31
SVGA 11 800 x 600 38.00 60.51
XGA 10 1024 x 768
XGA 11 1024 x 768
XGA 12 1024 x 768
XGA 13 1024 x 768
62.04 77.07
XGA 14 1024 x 768
61.00 75.70
XGA 15 1024 x 768
35.522
86.96
(Interlace)
46.90 58.20
XGA 8 1024 x 768
47.00 58.30
XGA 9
1024 x 768
58.03 72.00
SXGA 4 1280 x 1024
63.48 79.35
36.00
87.17
(Interlace)
63.34 59.98
SXGA 5 1280 x 1024
SXGA 6 1280 x 1024
SXGA 7 1280 x 1024
63.74 60.01
71.69 67.19
SXGA 10 1280 x 960
81.13 76.107
60.00 60.00
XGA 1 1024 x 768
XGA 4 1024 x 768
48.36 60.00
XGA 6 1024 x 768
XGA 7 1024 x 768
56.476 70.07
48.50 60.02
44.00 54.58
SXGA 8 1280 x 1024
SXGA 9 1280 x 1024
63.98 60.02
79.976 75.025
XGA 5 1024 x 768 60.31 74.92
VGA 7 640 x 480 43.269 85.00
575i
768 x 576
15.625
50.00
(Interlace)
480i 640 x 480 15.734
60.00
(Interlace)
SXGA 12 1152 x 900 71.40 75.60
SXGA 11 1152 x 900 61.20 65.20
SVGA 10 800 x 600 32.70 51.09
SXGA 13 1280 x 1024 50.00
86.00
(Interlace)
SXGA 2
1280 x 1024 62.50 58.60
SXGA 3 1280 x 1024 63.90 60.00
XGA 2 1024 x 768 68.677 84.997
XGA 3 1024 x 768 60.023 75.03
SXGA 18 1280 x 1024 46.43
86.70
(Interlace)
SXGA 19
1280 x 1024
63.79 60.18
SXGA 14 1280 x 1024
SXGA 15 1280 x 1024
SXGA 16 1280 x 1024
SXGA 17 1152 x 900
50.00
94.00
(Interlace)
63.37 60.01
76.97 72.00
61.85 66.00
MAC 1280 x 960 75.00 75.08
MAC 1280 x 1024 80.00 75.08
SXGA+ 1
1400 x 1050 63.97 60.19
MAC21 1152 x 870 68.68 75.06
WXGA 2 1360 x 768
WXGA 3
1376 x 768
WXGA 4 1360 x 768
47.70 60.00
48.36 60.00
56.16 72.00
WXGA 1
1366 x 768 48.36
60.00
SXGA+ 2
1400 x 1050
65.35 60.12
SXGA+ 3
1400 x 1050 65.12 59.90
SXGA 20
1280 x 1024 91.146 85.024
480p
640 x 480 31.47 59.88
575p 768 x 575 31.25 50.00
WXGA 7 1280 x 768
WXGA 8 1280 x 768
60.289 74.893
68.633 84.837
WXGA 6
1280 x 768 47.776 59.87
MAC 19 1024 x 768 60.24 75.08
WXGA 10 1280 x 800
41.200 50.000
WXGA 9
1280 x 800 49.600 60.050
WXGA 11 1280 x 800 49.702 59.810
1080i
1920 x 1080 33.75
60.00
(Interlace)
720p 1280 x 720
1035i 1920 x 1035
45.00 60.00
33.75
60.00
(Interlace)
1080i
1920 x 1080 28.125
50.00
(Interlace)
UXGA 4 1600 x 1200 93.75 75.00
UXGA 1 1600 x 1200
UXGA 2 1600 x 1200
UXGA 3 1600 x 1200
75.00 60.00
81.25 65.00
87.5 70.00
720p 1280 x 720 37.50 50.00
WUXGA 2 1920 x 1200
WSXGA+ 1 1680 x 1050
74.038 59.950
65.290 59.954
WUXGA 1
1920 x 1200 74.556
59.885
WXGA+ 2 1440 x 900
74.918 60.000
WXGA+ 1
1440 x 900 55.935 59.887
WXGA 12 1280 x 800 63.98 60.02
The specifications are subject to change without notice.
74
• The specifications are subject to change without notice.
• Depending on your PC settings, the digital signals of your PC may not be projected correctly. In
such a case, confirm your PC settings.
• When you project a DVI signal, connect the cables, turn the projector on, then select the input.
Finally, turn on your PC. Be sure to follow this procedure, otherwise an image may not be projected
on the screen. If an image is not projected correctly, restart your PC.
• Do not disconnect the cable while the projector is running. If the cable has been disconnected and
then reconnected, an image may not be correctly projected.
When the input signal is digital from HDMI terminal, refer to the chart below.
D-VGA 640 x 480 31.47 59.94
D-SVGA 800 x 600 37.879 60.32
D-WXGA 1
1366 x 768
48.36 60.00
D-1035i 1920 x 1035
D-1080i 1920 x 1080
D-1080i 1920 x 1080
33.75
60.00
(Interlace)
33.75
60.00
(Interlace)
28.125
50.00
(Interlace)
D-XGA 1024 x 768 43.363 60.00
D-WXGA 2
1360 x 768 47.7 60.00
D-WXGA 3 1376 x 768 48.36 60.00
D-WXGA 4
1360 x 768
56.160 72.000
D-WXGA 5
1366 x 768 46.500 50.000
D-WXGA 6 1280 x 768 47.776 59.870
D-WXGA 7 1280 x 768 60.289 74.893
D-SXGA1 1280 x 1024 63.98 60.02
D-SXGA2 1280 x 1024 60.276 58.069
D-SXGA3 1280 x 1024 31.65 29.80
D-WXGA 8
1280 x 768
68.633 84.837
D-WXGA 9 1280 x 800 49.572 59.870
D-WXGA 10 1280 x 800 41.200 50.000
D-WXGA 11 1280 x 800 49.702 59.810
D-SXGA+ 1 1400 x 1050 63.97 60.19
D-SXGA+ 2 1400 x 1050 65.350 60.120
D-SXGA+ 3 1400 x 1050 65.120 59.900
D-WSXGA +1
1680 x 1050 65.290 59.954
D-WUXGA 2 1920 x 1200 74.038 59.95
D-WXGA +1
1440 x 900 55.935 59.887
D-480p 640 x 480 31.47 59.88
D-575p 768 x 575 31.25 50.00
D-720p 1280 x 720 37.50 50.00
D-720p 1280 x 720 45.00 60.00
D-WXGA 12 1280 x 800 63.98 60.02
D-1080i 1920 x 1080 ----
D-1080p 1920 x 1080 ----
59.94
59.94
(Interlace)
D-1080p 1920 x 1080 ----
60.00
D-1080p 1920 x 1080 ----
50.00
D-UXGA 1600 x 1200 75.00 60.00
75
Projector Type Multi-media Projector
Dimensions (W x H x D) 13.78" x 3.52" x 10.90"
(350.0 mm X 97.0 mm X 276.9 mm )
(Not including protrusions)
Net Weight 7.51 lbs (3.4 kg)
Feet Adjustment 0˚ to 12˚
LCD Panel System 0.59" TFT Active Matrix type, 3 panels
Panel Resolution 1,280 x 800 dots
Number of Pixels 3,072,000 (1,280 x 800 x 3 panels)
Color System
PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N
SD/HD TV Signal
Component: 480i, 480p, 575i, 575p, 720p, 1035i and 1080i
HDMI: 480p, 575p, 720p, 1080i
and
1080p
Input Scanning Frequency H-sync. 15kHz–100 kHz, V-sync. 50–100 Hz
Projection Image Size (Diagonal) Adjustable from 30” to 300”
Throw Distance 2.4' ~ 25.2' (0.74 m ~ 7.67 m)
Projection Lens F 1.65 ~ 2.33 lens with f 15.47 mm ~ 24.53 mm
with manual zoom and focus
Projection Lamp 245 W
Brightness
3000 lm (Lamp mode in “Normal”, Image mode in “Presentation”)
Contrast ratio
2000:1 (Lamp mode in “Auto”, Image mode in “Presentation”)
Uniformity
85%
Video Input Jack RCA Type x 1
S-video Input Jack Mini DIN 4 pin x 1
Audio Input Jacks RCA Type x 2
Computer 1/Computer 2 Audio Input Jacks Mini Jack (stereo) x 2
Computer In 1/Component Input Terminal Mini D-sub 15 pin x 1
Computer In 2/Monitor Output Terminal Mini D-sub 15 pin x 1
Control Port D-sub 9 pin x 1
Audio Output Jack Mini Jack (stereo) x 1 (variable)
LAN Connection Terminal RJ-45
HDMI HDMI (V.1.3 with Deep Color) x 1
Internal Audio Amp 10 W RMS
Built-in Speaker 1 speaker, ø1.5"(37 mm)
Voltage and Power Consumption AC 100–240 V (3.8-1.8 A Max.), 50/60 Hz
Operating Temperature 41˚F–95˚F (5 ˚C–35 ˚C)
Storage Temperature 14˚F–140˚F (-10˚C–60 ˚C)
Battery AAA Type 1.5V x2
Operating Range 16.4' (5 m)/±30˚
Dimensions 2.0" (W) x 0.7" (H) x 4.3" (D) (52 mm x 18 mm x 110 mm)
Net Weight 2.37 oz (67 g) (including batteries)
76
Model No.
LV-CA32
LV-RC04
LV-CL16
LV-CL18
LV-CL19
The parts listed below are optionally available. When ordering those parts, specify the item name and
Model No. to the sales dealer.
User’s Manual (CD-ROM)
Important Information and Quick Start Guide
AC Power Cord
Remote controller and Batteries
VGA Cable
Lens Cap with String
PIN Code Label
Soft Carrying Case
Filter Cover for Ceiling Mount
Warranty Card
● The specifications are subject to change without notice.
● LCD panels are manufactured to the highest possible standards. Even though 99.99% of
the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the
characteristics of the LCD panels.
77
This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and
Information System Industries Association). This projector supports all commands defined by PJLink
Class 1 and is verified conformance with PJLink Standard Class 1.
For PJ Link password, see the user’s manual of “Network Set-up and Operation.”
PJLink is a registered trademark of JBMIA and pending trademark in some countries.
The supplied filter cover is designed for
preventing dust accumulation on the filter when
mounting the projector on the ceiling.
Filter
Cover
(supplied)
Projector
For attaching the filter cover to the projector,
push the cover as the picture shown. (For
removing the filter cover, push the cover to
the opposite direction.)
Turn over the projector.
1
3
Attach the projector to the ceiling mount in
accordance with the instruction manuals
which come with the ceiling mount.
4
2
Before attaching the filter cover to the
projector, removing the filter cover (bottom)
first. See page 63 for removing.
- Please keep the filter cover (bottom) for later use.
- If the LV-CL16 Projector Attachment is applied, the supplied filter cover is unnecessary.
Projector Input PJLink Input Parameter
COMPUTER 1 ANALOG PC RGB 1 11
COMPONENT VIDEO 2 22
SCART RGB 2 12
COMPUTER 2 ANALOG PC RGB 3 13
HDMI RGB(Digital) DIGITAL 3 33
VIDEO VIDEO VIDEO 1 21
S-VIDEO S-VIDEO VIDEO 5 25
78
5
1
2
34
10
9 678
15
14
13
11
12
Red/Cr Input
Ground (Horiz.sync.)
Green/Y Input
-----
Blue/Cb Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
+5V Power
Horiz. sync. Input/Output (Composite H/V sync.)
Ground (Vert.sync.)
DDC Data
Ground
Vert. sync.
DDC Clock
9
13
10
12
11
14
15
RX –
TX +
TX –
RX +
2
3
4
5
6
7
8
1
-----
-----
-----
-----
-----
R X D
T X D
-----
SG
-----
-----
-----
Serial
1
2
3
4
5
6
7
8
-----9
5
1
2
34
10
9 678
15
14
13
11
12
Red Input/Output
Ground (Horiz.sync.)
Green Input/Output
-----
Blue Input/Output
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
-----
Horiz. sync. Input/Output
Ground (Vert.sync.)
-----
-----
Vert. sync.
-----
9
13
10
12
11
14
15
1 3 5 7 9
11 13 15 17 19
1816141210
8642
TMDS Data 2+ Input
Ground (TMDS Data 1)
Ground (TMDS Data 2)
TMDS Data 1+ Input
TMDS Data 2- Input
TMDS Data 1- Input
TMDS Data 0+ Input
Ground (TMDS Data 0)
1
5
2
4
3
6
7
8
Ground (TMDS Clock)
SCL
TMDS Clock- Input
-----
-----
SDA
Ground (DDC/CEC)
11
15
12
14
13
16
17
TMDS Data 0- Input
TMDS Clock+ Input
9
10
Plug insert detection19
18 +5V Power
79
Put the label below (supplied) on in a
prominent place of the projector's body while it
is locked with a PIN code.
While the projector is locked with the PIN code.
o : Picture in Picture combinations are enabled.
x : Picture in Picture combinations are disabled.
• When the input signal(s) is/are incompatible, mark will be displayed on the Main/Sub
picture.
• Depending on the frequency or signal type of PC/AV input, the display resolution may be
lowered or images may not be displayed on the Main/Sub picture.
<Display resolution is lowered when;>
• Inputting PC analog signals: Between 100-140 MHz
<Images are not displayed and mark appears when;>
• Inputting PC analog signals: More than 140 MHz
• Inputting PC digital signals: More than 100 MHz
• Inputting AV digital signals: 1080p
<Picture in Picture is disabled when;>
• Inputting signal formats: SXGA 20, WUXGA 1, WUXGA 2, WSXGA+1, WXGA+2, UXGA 1,
UXGA 2, UXGA 3, UXGA 4, D-1080p
COMPUTER 1 COMPUTER 2 HDMI VIDEO S-VIDEO
COMPUTER 1
ANALOG PC
COMPONENT SCART ANALOG PC HDMI VIDEO S-VIDEO
ANALOG PC
COMPONENT
SCART
COMPUTER 2 ANALOG PC
HDMI HDMI
VIDEO VIDEO
S-VIDEO S-VIDEO
Main Window
Sub Window
X
80
Unit: mm(inch)
Screw Holes for Ceiling Mount
Screw: M4
Depth: 12.0(0.47)
67.9 (2.67)
212.4 (8.36)
216.5 (8.52)
350 (13.78)
176.3 (6.94)
79.7 (3.14)
254.4 (10.02)
256.0 (10.08)
91.4 (3.60)
109.7 (4.32)
76.6 (3.01)
99.1 (3.90)
38.8 (1.53)
52.3 (2.006)
48.7 (1.92)
240.0 (9.45)
78.0 (3.07)
52.4 (2.06)
47.7 (1.87)
32.9 (1.29)
208.0 (8.19)
86.0 (3.38)
46.0 (1.81)
64.0 (2.52)
40.7 (1.60)
57.9 (2.28)
8.6 (0.34)
93.2 (3.67)
142.0 (5.59)
45.1 (1.78)
185.2 (7.29)
133.1 (5.24)
115.3 (4.54)
73.6 (2.90)
209.0 (8.23)
81.1 (3.19)
74.1 (2.92)
60.0 (2.36)
42.1 (1.66)
47.0 (1.85)
76.9 (3.03)
121.5 (4.78)
46.2 (1.28)
276.9 (10.90)
1
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku,
Tokyo 146-8501, Japan
U.S.A.
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY
11042-1198, U.S.A.
For all inquires concerning this product, call
toll free in the U.S. 1-800-OK-CANON
CANADA
CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T
1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Cote-de-Liesse, Montreal Quebec H4T
1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E
7K7, Canada
For all inquiries concerning this product, call
toll free in Canada 1-800-OK-CANON
EUROPE, AFRICA & MIDDLE EAST
CANON EUROPE LTD.
3 The Square, Stockley Park, Uxbridge,
Middlesex, UB11 1ET United Kingdom
CANON EUROPA N.V.
Bovenkerkerweg 59-61, 1185 XB Amstelveen,
The Netherlands
CANON FRANCE S.A.S
17, quai du President Paul Doumer, 92414
Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate Surrey RH2 8BF,
United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld,
Germany
CANON ITALIA S.p.A.
Via Milano 8 I-20097 San Donato Milanese,
Milano, Italy
CANON Schweiz AG
Geschaftsbereich Wiederverkauf,
Industriestrasse 12, CH-8305 Dietlikon,
Switzerland
CANON GMBH
Zetschegasse 11, A-1230 Wien, Austria
CANON España, S.A.
C/Joaquin Costa, 41, 28002 Madrid, Spain
CANON PORTUGAL S.A.
Rua Alfredo da Silva, 14 Alfragide 2610-016
Amadora, Portugal
CANON Belgium N.V./S.A.
Berkenlaan 3, 1831 Diegem (Mechelen), Belgium
CANON Netherland NV
Neptunusstraat 1, 2132 JA Hoofddorp,
The Netherlands
CANON LUXEMBOURG S.A.
Rue des Joncs 21, L-1818 Howald, Luxembourg
CANON DANMARK A/S
Knud Hoejgaards Vej 1 DK-2860 Soeborg,
Danmark
CANON OY
Huopalahdentie 24 PL 1 00351 Helsinki, Finland
CANON SVENSKA AB
Gustav III:s Boulevard 26 169 88 Solna, Sweden
CANON NORGE as
Hallagerbakken 110, Postboks 33, Holmlia, 1201
Oslo, Norway
CENTRAL & SOUTH AMERICA
CANON LATIN AMERICA, INC.
703 Waterford Way, Ste. 400 Miami, FL 33126,
U.S.A.
ASIA
CANON (China) Co., Ltd.
15F Jinbao Building No.89 Jinbao Street,
Dongcheng District, Beijing 100005, China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive,
Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue, #04-01 Keppel Bay
Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Gangnam Finance Center 17F, 737, Yeoksam-
Dong, Gangnam-gu, Seoul, 135-984, Korea
OCEANIA
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, N.S.W. 2113,
Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive,
Northcote, Auckland, New Zealand
© CANON INC. 2011
KC2PC
