Know your Kenwood Kitchen Machine
Congratulations on buying a Kenwood. With such a wide range of attachments
available, it’s more than just a mixer. It’s a state-of-the-art Kitchen Machine. We hope
you’ll enjoy it.
Robust. Reliable. Versatile. Kenwood.
3
Safety
l
Read these instructions carefully and retain for future
reference.
l
Remove all packaging and any labels.
l
Turn the speed control to ‘O’ OFF position and unplug before
fitting or removing tools/attachments, after use and before
cleaning.
l
Keep your fingers away from moving parts and fitted
attachments.
l
Never leave the Kitchen Machine unattended when it is
operating.
l
Never use a damaged appliance. Get it checked or repaired:
see ‘service and customer care’ section.
l
Never operate the Kitchen Machine with the head in the raised
position.
l
Never let the cord hang down where a child could grab it.
l
Never let the power unit, cord or plug get wet.
l
Never use an unauthorised attachment or more than one
attachment at once.
l
Never exceed the quantities stated in the maximum capacity
chart.
l
When using an attachment, read and follow the safety
instructions that are supplied with it.
l
Take care when lifting this appliance as it is heavy. Ensure the
head is correctly latched in the down position and that the
bowl, tools, outlet covers and cord are secure before lifting.
English
before plugging in
important - UK only
• Make sure your electricity supply is the
same as the one shown on the
underside of your machine.
• The wires in the cord are coloured as
follows:
Blue = Neutral, Brown = Live.
• The appliance must be protected by a
13A approved (BS1362) fuse.
• For non-rewireable plugs the fuse cover
MUST be refitted when replacing the
fuse. If the fuse cover is lost then the
plug must not be used until a
replacement can be obtained. The
correct fuse cover is identified by colour
and a replacement may be obtained
from your Kenwood Authorised Repairer
(see Service).
• If a non-rewireable plug is cut off it must
be DESTROYED IMMEDIATELY. An
electric shock hazard may arise if an
unwanted non-rewireable plug is
inadvertently inserted into a 13A socket
outlet.
• This appliance conforms to EC
Regulation 1935/2004 on materials and
articles intended to come into contact
with food.
before using for the first time
• Wash the parts: see ‘care and cleaning’
section.
l
Ensure the cord is fully unfolded from the cord storage
compartment
bm
before using the Kitchen Machine.
l
Children should be supervised to ensure that they do not play
with the appliance.
l
Do not move or raise the mixer head with an attachment fitted
as the Kitchen Machine could become unstable.
l
Do not operate your appliance near the edge of a work
surface.
l
Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved.
l
Misuse of your appliance can result in injury.
l
This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
l
Only use the appliance for its intended domestic use.
Kenwood will not accept any liability if the appliance is subject
to improper use, or failure to comply with these instructions.
4

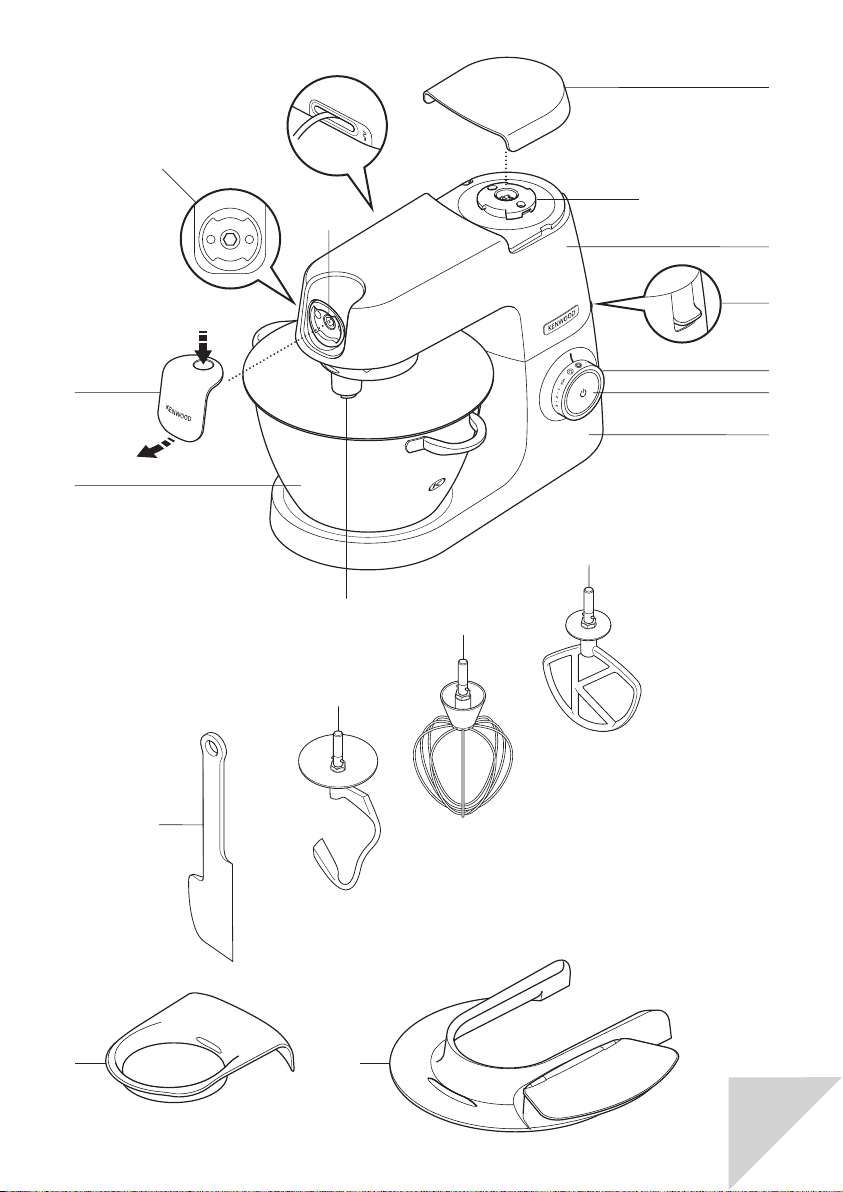

Key
Attachment outlets
1
high-speed outlet
2
slow-speed outlet
3
bowl tool socket
Mixer
4
high speed outlet cover
5
mixer head
6
head release lever
7
speed and pulse control
8
standby button
9
power unit
bk
bowl
bl
slow speed outlet cover
bm
cord storage compartment
bn
K-beater
bo
whisk
bp
dough hook
bq
spatula
br
head shield
bs
splashguard
Note: Spanner
bl
shown is for illustration
purposes only and is not supplied in pack.
Optional attachments
There are a range of optional attachments
available to use with your Kitchen Machine.
See the attachment leaflet included in your
pack or visit www.kenwoodworld.com to
see the full range and how to buy an
attachment not included in your pack.
Note: Slow Speed outlet attachments
The slow speed outlet on your Kitchen
Machine model features the Twist
Connection System. It is designed to
accept Twist Connection System
attachments.
When purchasing new attachments for the
slow speed outlet you should check
compatibility with your Kitchen Machine. All
Twist Connection System attachments can
be identified by the product code which
starts with KAX and also by the Twist logo
which is visible on packaging. For more
information visit
www.kenwoodworld.com/twist.
If you own attachments featuring the Bar
Connection System you will need to
use the KAT002ME adaptor to connect
these to the Twist Connection System
on your Kitchen Machine.
For more information visit
www.kenwoodworld.com/twist.
5
Know your Kitchen Machine
K-beater
For making cakes, biscuits, pastry, icing,
fillings, éclairs and mashed potato.
Whisk
For eggs, cream, batters, fatless sponges,
meringues, cheesecakes, mousses,
soufflés. Don’t use the whisk for heavy
mixtures (e.g. creaming fat and sugar) -
you could damage it.
Dough Hook
For yeast mixtures only
The bowl tools and some of their uses
To use your bowl tools
Ensure the cord is fully unfolded from the
cord storage compartment
bm
before
using the Kitchen Machine.

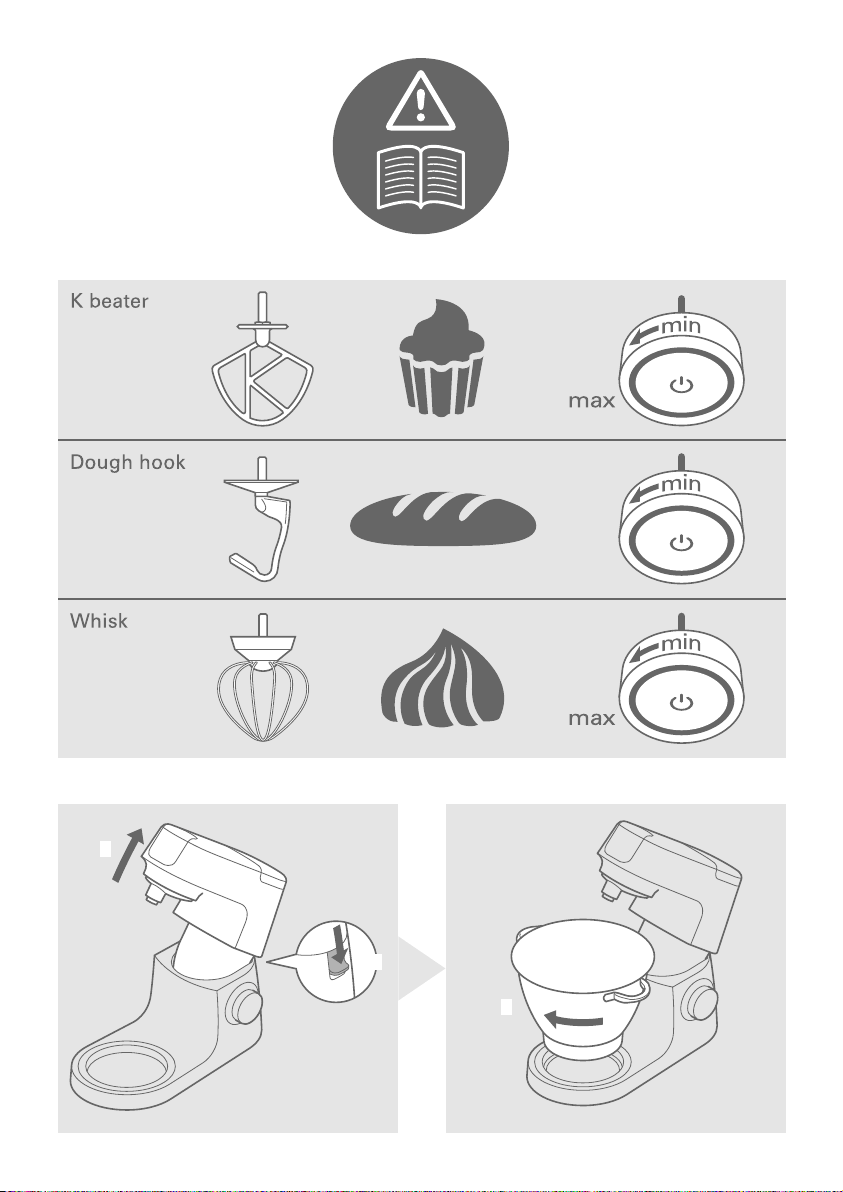

1 Plug in and the Standby Button
8
will
light up.
Note: The standby button light
8
will
flash and the Kitchen Machine will
not operate if the mixer head is in
the raised position or the speed
control is not in the ‘O’ position.
Before operating, check that the
mixer head is correctly latched down
and the speed control is in the ‘O’
position. If the light continues to
flash refer to the ‘troubleshooting
guide’.
2 Push the head-lift lever
1
down and
raise the mixer head until it locks
2
.
3 Fit the bowl on the base and turn
clockwise
3
to secure in position .
4 Place the required tool into the socket.
Then push up
4
and turn
5
the tool to
lock into position.
Note: If the K-beater or Whisk are not
picking up ingredients from the bottom
of the bowl refer to the “Tool Adjustment”
section.
5 Lower the mixer head by pushing the
head release lever down
6
and lower
the mixer head until it locks
7
.
6 Start the machine by turning the speed
control
7
to the desired speed setting.
Use the pulse (P) position for short
bursts of maximum speed.
7 After use, return the speed control to ‘O’
OFF position and unplug your Kitchen
Machine.
8 Release the tool by turning clockwise to
unlock from the tool socket and then
remove.
Hints
• To fully incorporate the ingredients stop
mixing and scrape down the bowl with
the spatula frequently.
• For best results when whisking use eggs
at room temperature.
• Before whisking egg whites, make sure
there is no grease or egg yolk on the
whisk or bowl.
• Use cold ingredients for pastry unless
your recipe says otherwise.
Points for bread making
Important
• Never exceed the maximum capacities
stated - you may overload the machine.
• If you hear the machine labouring, switch
off, remove half the dough and do each
half separately.
• The ingredients mix best if you put the
liquid in first.
Yeast
• Dried yeast (the type that needs
reconstituting): pour the warm water into
the bowl. Then add the yeast and the
sugar and leave to stand for about 10
minutes until frothy.
• Fresh yeast: crumble into the flour.
• Other types of yeast: follow the
manufacturer’s instructions.
• Put the dough into a greased polythene
bag or a bowl covered with a tea towel.
Then leave somewhere warm until
doubled in size.
Important
Ensure that no bowl tools are fitted or
stored in the bowl when using other
outlets.
6
7
Maximum capacities Chef Chef XL
Shortcrust pastry Flour weight 680g/1lb 8oz 910g/2lb
Bread dough Flour weight 1.36kg/3lb 1.6kg/3lb 8oz
(stiff yeasted) Total weight 2.18kg/4lb 3oz 2.5kg/5lb 8oz
Soft yeasted dough Flour weight 1.3kg/2lb 14oz 2.6kg/5lb 12oz
(enriched with butter and eggs) Total weight 2.5kg/5lb 8oz 5kg/11lb
Fruit cake mix Total weight 2.72kg/6lb 4.55kg/10lb
(Creaming fat and sugar method) (9 Egg mix) (15 Egg mix)
Egg whites Number 12 16
Weight (455g) (605g)
* Eggs sizes used = medium sized (Weight 53 – 63g)
Tool Recipe/Process Recommended Speed
K-beater Creaming butter/margarine Start on ‘Min’ and gradually
and sugar increase to ‘Max’
Beating eggs into cake mixes ‘4’ to ‘Max’
Folding in flour, fruit etc ‘Fold’ to ‘1’
All In one cake mixes Start on ‘Min’ and gradually
increase to ‘Max’
Pastry & Biscuits – rubbing fat ‘Min’ to’ 2’
into flour
Royal Icing ‘Min’ to ‘1’
Mashed Potatoes Start on ‘Min’ and gradually
increase to ‘Max’
Whisk Egg Whites
Fatless sponges Gradually increase to ‘Max’
Cream
Dough Hook For Yeasted dough mixes ‘Min’ speed for 45 - 60 secs.
Then increase to speed 1 for
approx. 3 – 4minutes.
Re-knead on speed 1
To assemble

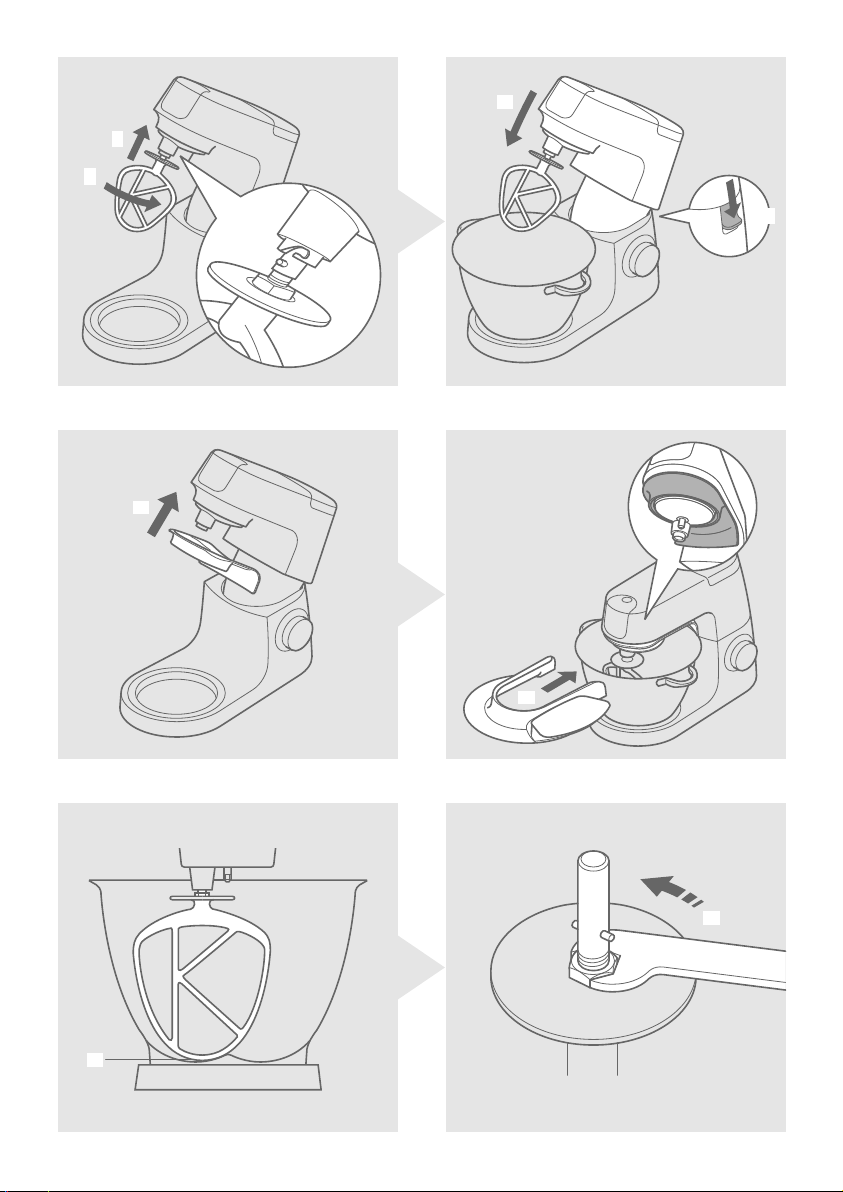

The splashguard assembly consists of 2
pieces: the head shield
br
and the
splashguard
bs
.
The splashguard cannot be fitted to the
bowl unless the shield is fitted.
1 Raise the mixer head until it locks.
2 Clip the head shield upwards onto the
underside of the mixer head
8
until fully
located.
3 Fit the bowl onto the base.
4 Lower the mixer head.
5 Rest the splashguard on the bowl rim
and then slide forward until fully located
9
.
• During mixing, ingredients can be added
directly to the bowl via the feed chute.
6 To remove the splashguard simply slide it
away from the mixer bowl.
7 To remove the head shield, raise the
mixer head until it locks. Remove the tool
if fitted, then pull the head shield
downwards from the underside of the
mixer head.
Note: Only fit or remove the splashguard
when the mixer head is in the locked
position.
We recommend that the head shield
is removed regularly from the mixer
head for cleaning.
K-beater & Whisk
The tools are set to the correct height for
the bowl supplied in the factory and should
not require adjustment.
However, if you wish to adjust the tool use
a suitable sized spanner:
TYPE KVC50 = 15mm
TYPE KVL60 = 19mm
Then follow the instructions below:
1 Unplug the appliance.
2 Raise the mixer head and insert the
whisk or beater.
3 Lower the mixer head. If the clearance
needs to be adjusted, raise the mixer
head and remove the tool. Ideally the
whisk and K-beater should be almost
touching the bottom of the bowl
bk
.
4 Using a suitable spanner loosen the nut
sufficiently to allow adjustment of the
shaft
bl
. To lower the tool closer to the
bottom of the bowl, turn the shaft anti-
clockwise. To raise the tool away from
the bottom of the bowl turn the shaft
clockwise.
5 Re-tighten the nut.
6 Fit the tool to the mixer and lower the
mixer head. (Check its position see
points above).
7 Repeat the above steps as necessary
until the tool is set correctly. Once this is
acheived tighten the nut securely.
• Note: Spanner
bl
shown is for
illustration purpose only.
Dough Hook
This tool is set at the factory and should
require no adjustment.
8
To fit and use your
Splashguard
Tool Adjustment
9
Care & Cleaning Service and
Customer Care
• Always switch off and unplug before
cleaning.
• A little grease may appear at the slow
speed outlet
2
when you first use it.
This is normal – just wipe it off.
Power Unit And Outlet Covers
• Wipe with a damp cloth, then dry.
• Never use abrasives or immerse in water.
• Store excess cord into the cord storage
compartment
bm
at the back of the
machine.
Bowl
• Wash by hand, then dry thoroughly or
wash in the dishwasher.
• Never use a wire brush, steel wool or
bleach to clean your stainless steel bowl.
Use vinegar to remove limescale.
• Keep away from heat (cooker tops,
ovens, microwaves).
Tools & Splashguard
• Wash by hand, then dry thoroughly.
• Alternatively they are dishwasher safe
and can be washed on the top rack of
your dishwasher. Avoid placing items on
the bottom rack directly over the heating
element. A short low temperature
(Maximum 50°C) programme is
recommended.
• If the cord is damaged it must, for safety
reasons, be replaced by KENWOOD or
an authorised KENWOOD repairer.
If you experience any problems with
the operation of the appliance,
before calling for assistance refer to
the troubleshooting guide or visit
www.kenwoodworld.com.
If you need help with:
• using your appliance
• servicing or repairs (in or out of
guarantee)
콯call Kenwood customer care on
023 9239 2333. Have your model
number (e.g. KVC50 or KVL60) and
date code (5 digit code e.g. 13L35)
ready. They are on the underside of the
power unit.
• spares and attachments
콯call 0844 557 3653.
other countries
• If you experience any problems with the
operation of your appliance, before
requesting assistance refer to the
“troubleshooting guide” section in the
manual or visit www.kenwoodworld.com.
• Please note that your product is covered
by a warranty, which complies with all
legal provisions concerning any existing
warranty and consumer rights in the
country where the product was
purchased.
• If your Kenwood product malfunctions or
you find any defects, please send it or
bring it to an authorised KENWOOD
Service Centre. To find up to date details
of your nearest authorised KENWOOD
Service centre visit
www.kenwoodworld.com or the website
specific to your Country.
• Designed and engineered by Kenwood
in the UK.
• Made in China.
IMPORTANT INFORMATION FOR
CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH
THE EUROPEAN DIRECTIVE ON
WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT (WEEE)
At the end of its working life, the product
must not be disposed of as urban waste.
It must be taken to a special local authority
differentiated waste collection centre or to
a dealer providing this service.
Disposing of a household appliance
separately avoids possible negative
consequences for the environment and
health deriving from inappropriate disposal
and enables the constituent materials to be
recovered to obtain significant savings in
energy and resources. As a reminder of the
need to dispose of household appliances
separately, the product is marked with a
crossed-out wheeled dustbin.
10
11
Troubleshooting guide
Problem Cause Solution
The whisk or K-beater Tool at the wrong Adjust the height using a suitable
knocks against the bottom height and needs spanner – see “Tool Adjustment”
of the bowl or not reaching adjusting. section.
the ingredients in the
bottom of the bowl.
Slow speed attachment Check your attachment Attachment must have the KAX
cannot be fitted. is compatible for twist connection system to fit
use with your model. the outlet.
Twist connection If you own attachments featuring
system required the Bar Connection System
(Model KAX) you will need to use the
KAT002ME adaptor to connect
these to the Twist Connection
System on your Kitchen Machine.
For more information visit
www.kenwoodworld.com/twist
Standby light flashing Speed control not Check and turn speed control
when Kitchen Machine in the ‘O’ position. to the ‘O’ position.
first plugged in.
Mixer head in the raised Check Kitchen Machine head
position or not locked is locked down correctly.
down correctly.
The Kitchen Machine Overload protection or Unplug and check for
stops during operation. overheat system obstruction or overloading.
Standby light flashing activated. Turn the speed control to “O”
rapidly. Maximum capacity and then restart.
exceeded. If the machine will not operate,
remove some of the ingredients to
reduce the load and restart.
If this still does not resolve the
problem, unplug and allow to
stand for 15 minutes. Plug in and
reselect the speed.
If the machine does not restart
following the above procedure
contact “ customer care” for
further advice.
Standby light off whilst Kitchen machine has been Press the Standby button
machine plugged in. left plugged in for more once to reset.
than 30 minutes without
being operated and has
gone into Standby mode.
ĬĦģäƣƊŭĢęĤïƇƜĬęĢöæƇňħïƏ
īğĞĕĠèƅŅĠïòĠèƅĪîôèƅŅòèƅ
ƈĻěðƣƃŀħõïƇĮíĬĠå
ƂĬêŌïƇƙĬíƙĻġóŊħøĞïƇ
ƊĬñŌĢĤïƇōïƅňĚóŬƣƃ
ƂĬêŌïƇƙĬíŎìƉƏŌãŌĤïƇ
ķħùŖĻħëƉƇƏĶƇƙĬĠáƑƇ
ĬĦêĬĠáƑƇŁõěïƌĬöùáƣ
ŁàƑƍĬöĠðƠƇĹúöæĬàƉƇƏĶƇƟŌèŎĜõŒƇ
ƉƇƏĶƇŁõŒʼnûíŎĞãƇƑƙĬĠáƑŬƇňóĹĞöï
ĮěĠúĥĤïƇĮêĻûïƇņùģð
ŋõħîĻáŊĢĤóŬ
ņùģĤïƇņìƇŌáŊðƥĹîĨá
ňóƏŌðŃðƠƇĹúöæŬƇŃð
ƠĬĝñĭģĜöóŇóĹïƒĬĦøïƇ
Twist connection system
(
KAXňóƏŌĤïƇ
twistƠĬĝĥàƕĬúïƇKAXƑĬĞçơƃĭøó
ōģê
Ʀ
ƇƏŌãŌð
connection system
ƌĻúĤïƇŎìŋõħîĻáŊðŎĥĢĤöáōöäņùģĤïƇ
BarƠĬĝñōģêňĤĞáƊĬġùģðŇóĹïơĬîƇƐƅ
ĮïĬăƇƢĺòŎĠìŴ
Connection System
ōïƅĐãĬöùöæ
ŇĥĢČōöäKAT002MEʼnĝĥðƠƇĹúöæƇ
twistƠĬĝñŃðƊĬġùģąƇƢĺòňħŖŌá
ƒĬĦãňóƏŌðŎìƏŌãŌąƇ connection system
ŇóĹïňðĬĢöąƇĸõĜąƇ
ŃíŌĤïƇƥƑƣƒƊĬðŌģĞĤïƇŊðĹóļĤï
www.kenwoodworld.com/twist
ŃŒƣƑƒƂŌŒŀðŌó
ƒĬĦãňħŖŌáĹĥêƏƇĹĞöæŬƇ
ĹĥêňðĬĢöĤïƇĸõĜĤïƇ
ŎàĻĦĢïƇƑĬħöïĬàŋģħŖŌá
ōïƣĶƇƉĻĤģï
ƊĬêĻûïƇŎìʼnĢùöïƇƍĬöĠð
ƜĬġóƅŃŒŌðōģêŋãŌðĻħë
.«OňħğęöïƇ
ĻħëƣƃĮêŌìĻðƗŭúïƇƓƃƑ
ŎìķħùŖňĢęàĮöõ÷ð
ŃŒŌðŎìŀĠúĥĤïƇŃŒŌïƇ
ņħęĞöïƇ
ƊĬêĻûïƇŎìʼnĢùöïƇƍĬöĠðŊðƥĹîĨá
.«OňħğęöïƇƜĬġóƅŃŒŌðōģêŋĦħãŌáƣ
ňðĬĢöĤïƇĸõĜĤïƇƒĬĦãƓƃƑƟƇļñƅŊðƥĹîĨá
ŎìĬĦġħęĞáƣňĠæĶķħùŖňĢęà
ĬĦĞŒŌð
ĸõĜĤïƇƒĬĦãŅíŌöó
ňħğęöïƇƟŭåňðĬĢöĤïƇ
ŃŒƣƑƒƂŌŒŀðŌó
ŃóĻæňĢęàƏƇĹĞöæŬƇ
ĮóĬĤùïƇĮĠħéƣŁħęĥáʼná
ƣƃĹőƇļïƇňħĤùöïƇĹŒ
ƉƑƇĻäĮãƑĹïƗĻĠĤïƇƙĬĠáƑŬƇ
ĮĞûïƇƒƣĬøáʼnáƒĬĦøïƇ
ƉƏĹùĤïƇƤŌĚġïƇ
ƑĹĚðŊêƒĬĦøïƇŎģĚìƇ
ŊðƥĹîĨáƣŎàĻĦĢïƇƑĬħöïƇ
ņïĬêƣƃƑĬęùñƇƥƃƏŌãƣƠĹê
ĹőƇƒňħĤùáƣƃ
ŃŒƣōïƅƊĬêĻûïƇŎìʼnĢùöïƇƍĬöĠðŎĠï
ƒĬĦøïƇňħğęáƥĹħêƃʼnâOňħğęöïƇƜĬġóƅ
ƤĻåƃƉĻð
ĮïĬùïƇƢĺòŎĠìŴƒĬĦøïƇňĤêƠĹêĮïĬäŎì
ňĤùïƇňħģġöïƊĬñŌĢĤïƇŊðĮħĤîŎģóƒƃ
ƒĬĦøïƇňħğęáƥĹħêƃƣ
ŎģĚìƇŴĮģĢęĤïƇňäŎìŇïƐĹêĬûóʼnïƇƐƅ
ŋħîĻáƇƣŎàĻĦĢïƇƑĬħöïƇƑĹĚðŊêƒĬĦøïƇ
ƑĬħöïƇƑĹĚĤàƒĬĦøïƇŎģŖƣƏĻõħïĮġħíƏŶź
ĮàŌģĜĤïƇĮêĻûïƇĹóĹùáƥĹħêƃƣŎàĻĦĢïƇ
ƊƇƂƇĻãůƇĹĞàƒĬĦĂƇňĤêƠĹêĮïĬäŎì
ĮðĹåqļîĻċŎģĚáƇĮïĬăƇƢĺòŎĠìŴĮġàĬûïƇ
ƉĹêĬûąƇĭģĜïpƂŭĤĞïƇ
ƏƇĹĞöæŬƇŃŒƣƑƒƂŌŒ
ŊðʼnëĻïƇōģêĨĠĜð
ƑĬħöïƇƑĹĚĤàƒĬĦøïƇňħŖŌá
ŎàĻĦĢïƇ
ĸõĜĤïƇƒĬĦãňħŖŌáʼná
ƑĬħöïƇƑĹĚĤàňðĬĢöĤïƇ
ŊðƟŌèƃƉĹĤïŎàĻĦĢïƇ
ŋðƇĹúöæƇơƣƏĮġħíƏŸŵ
ŃŒƣŎìƒĬĦøïƇňåƏŇïĺàƣ
ƏƇĹĞöæŬƇ
ƤĻåƃƉĻðƏƇĹĞöæŬƇŃŒƣƑƒōģêŎĜğŒƇ
ƒĬĦøïƇňħğęáƉƏĬêů
91
ŅħĝĥöïƇƣĮóĬĥĞïƇƂŭĤĞïƇĮóĬêƑƣĮðĹúïƇ
ƑĹĚðŊêŋħģĚìƇƣƒĬĦøïƇňħğęá
Ʀ
ĬĤőƇƏŎĠíƣƃ •
ŅħĝĥöïƇňõíŎàĻĦĢïƇƑĬħöïƇ
ōģêʼnùęïƇŊðĮĠħĠèĮġõèĻĦĝáĹí •
ōïƣĶƇƉĻĤïƇŎì
ĮěĠúĥĤïƇĮêĻûïƇƌĻúð
ŋðƇĹúöæŬ
ĬĦħùûðƇŁġìŎĞħõèĻðƃƇĺò
ƊƏĩóĠèƅīģĘäƁơƏʼnÚʼnĠèƅīæĩĘèƅƇĶÝơ
ŅħĠøöïƇʼnâĮõèƑƔĬĤíĮĞĜġàķûð •
ŎìĻĤğïƇƣƃĮĜçĬĢïƇƏƇŌĤïƇƠƇĹúöæƇƑĺùó •
ƂĬĤïƇ
ŎőĬàĻĦĢïƇŇģûïƇŊðŇöãĬäŊêĹóļóĬðŎĞìƏƇ •
ŎìƏŌãŌĤïƇ
(3
ŇģûïƇŊóļúáơĬĢðňåƇƏōïƅ
ŅģúïƇŊðƒĬĦøïƇ
īģêĩĘğôèƅ
Ŏìňħûëƣƃ
Ʀ
ƇĹħãŅħĠøöïƇʼnâƥƣĹóňħûë •
ƝĬõèĶƇĮïĬûë
ƜŌĚïƇƣƃŇģûïƇŊðƉĬçĻìƠƇĹúöæƇƑĺùó •
ƂĬêŌïƇŅħĝĥáĹĥêŀħħõöïƇƏƇŌðƣƃŎñĹĞĤïƇ
ƃĹĚïƇʼnóĹêĭģĚïƇŊðƙŌĥĚĤïƇ
ĮóĻħøïƇĮġõĜïƇĮïƇƒůňúïƇŎðĹúöæƇ
ŴĹíŌĤïƇķĜæƉƑƇĻùïƇƑƏĬĚðŊêŋóĹĞàƃ •
ŅóƣƣĻĢóĬĤïƇŴơƇĻìĶƇ
ƎƅƎĸèƅŀêĩéơƈƅơƍijƅ
Ʀ
ƇĹħãŅħĠøöïƇʼnâƥƣĹóňħûë •
ŎìƊĬñŌĢĤïƇƢĺòňûëŊðűƇŊðŋñƃİħä •
ĬĦģûëŊĢĤóƤĻåƃĮġóĻĜõìƝĬõèĶƇĮïĬûë
ŎõĥøáƝĬõèĶƇĮïĬûëŎìƥŌģĞïƇƜĻïƇōģê
ƝŌìƉĻçĬõðŎģĠûïƇƜĻïƇōģêĻŖĬĥĞïƇŃŒƣ
ıðĬñĻàƠƇĹúöæĬàōŖŌóŊħúûöïƇĻĚĥê
ĮóŌôðĮãƑƏźŵĮěĠúĥðƉƑƇĻäĮãƑƏŃðĻħĚí
ōĚíƃĹùî
¨D9ÉÝ79¨(.{¢
• Y79-P¨-R¨,0FY8¨D¨VA7©
(-+97{9US
DOOWNEK¤ÉFGb179
(.DUS
DOOWNEK
• $.1TÉ&WFdoowneKY¨..-,9¨.Dª
• b/NY¨$1U
Y079¨(.F¨#)1-Y-07³8Dƨ-JU
¨07³Y*77½¨./7Q¨%F9
S8¤uEȦXFG.1Nu7¶09-19$$9
Y¨-JUEȨ/*77½¤É¦X7F+DÆEȨD9
¨-JU¨A0Gª¨./G19-XW/*$S/8¨7Ý
¨-19¨..-9-X¨19ɨ$9ɨY/<U¨-J
UEȨ/*77½&F+91F/79.7¤ÇEȨ(.-19
.B7F°¨°¨.W¨°¨.,W9¨AF¨EË1B¨$WÅ-X
ÉWݨ½1FªY7Ũ&79ɨ.W¨Ý°-E1F%FÉݪ
¨-JU¨A0Gª¨./G19-XW/*$SWD-X
¨07³bWݪ#&W9-9.79±¨½{½
٥ؙٞ7ضؕٳԄؔ٥ٻٗؿ؟ؘ؛ٟ٧ٓ؟٪؛Ԧؿ٪؛ٺ؊؛ٳئؔٵ٪؛٦ؕتѭ •
٥ٻ٦ذ»٩ػٞ؛ٓئؔص٪Լصٺ7ؚرْؕػԇؔؗ٧ً٦٤ؕك؞ڂؔ
ؗٺٵ٦ّؔٞٵ٪ؚشؕٺضٴ؊٥ٻ٦ر٦ؔѭ«ؕٳ٧تٴڃ٣ؿԇؔ٘ؕؿ؟٢ؔ
.www.kenwoodworld.com
٬Ӄه٦ؔؔسٲ7٬Ӄهؘ٤ٵԤ٪٠ضؕٳئ٬؋ؘ؛ُتڃԇؔԼصٺ
•
؛ٟ٧ٓ؟ԇؔٴؕӛ٤ٵ٫ٓԇؔ؛ٻٮٵٮٟؕ٦ؔ٨һتپؔ؛ٚѲّ٪ٝٚؔٵ؟ٺ
إ؟ٯԇؔ؇ؔՈщҰ٦ؔر٧ؙ٦ؔѭ١٧ԟػԇؔٴ٬Ӄه٦ٜؔٵٟӘ
*ؕԪ٪
؛٦ؕتѭٴ؊٥٫ٓ٦ؔ٭ْKenwoodإ؟ٯ٪٥ًٓ؞؛٦ؕتѭ
•
ط٢ص٪Ѿ؎ٰشؕهت؎ٴ؊ٱ٦ؕغش؎Լӌٚ7ؖٵٻْٸ؊ذٵئٴ
ؕ٪ٵ٧ٓ٪Ӂْ٤ٵكث٧٦*KENWOOD٭٪رԞٓ٪؛٪رخ
7KENWOOD ٭٪رԞٓ٪؛٪رخط٢ص٪ؖصٞ؊٤ٵت؛آرԊ
ؗٺٵ٦ؔ ّٞٵ٪ؚشؕٺضԼصٺ
ؗٺٵ٦ّؔٞٵ٪ٴ؊7www.kenwoodworld.com
*٠ر٧ؙ٦فكدԇؔ
ڣڠٷڝ٥ٕڝڜّ١ڱ١ٹڜيّڱڑڱڙڜيګڨّڠًڨًْڠګڝډڠ
ّڕڝډٕԽيѻڪ٪ڪڴي٦ًԓڸيًْբٜګٕڜ֭ڔڎڪٕٛڥԽي
ّڱڤڪӡڙڜڶيڪّڱوًَ٫کڙڜيْي٧ډԽيًْڰًڑڥَ
(WEEE)
81
Īģçĸïèƅ
ƗŭúïƇƓƃƑŎíƇƣŊħöĞĜíŊðƐƇƐĻïƇŎíƇƣơŌĢöó
.
(9
ƐƇƐĻïƇŃñĬðƣ
(8
ơƣĹàĮħñĬĜģûïƇŎìƐƇƐĻïƇŃñĬðĭħîĻáŊĢĤóŬ
ƗŭúïƇƓƃƑŎíƇƣĭħîĻá
ŃŒŌðŎìĻġöûáōöäƗŭúïƇƓƃƑŎĞìƑƇ Ŷ
įħõ÷öïƇ
ŊðŎģĠûïƇĭñĬøïƇōģêĶƐƇƐĻïƇŎíƇƣŎĢõçƇ ŷ
ňðĬĢïĬàŋõħîĻáʼnöóōöä
ƗŭúïƇƓƃƑ
ƉĹêĬġïƇōģêĮħñĬĜģûïƇŎõîƑ Ÿ
ƗŭúïƇƓƃƑŎěĠåƇ Ź
ŋħîĻäƣĮħñĬĜģûïƇĮìĬäōģêƐƇƐĻïƇŎíƇƣŎĞŒ ź
ŋĞŒŌðŎìňðĬĢïĬàĻġöûóōöäƠĬðŮï
.
ķħùĚïƇ
ƊĬñŌĢĤïƇĮìĬŒƅŊĢĤóŴŁģúïƇĮħģĤêƂĬĥâƃ •
ƟĬåƏƅƈŌõñƃņóĻèŊêĮħñĬĜģûïƇōïƅƉĻçĬõð
ƊĬñŌĢĤïƇ
ĮħñĬĜģæŊê
Ʀ
ƇĹħĞàŋħõùæƇŴƐƇƐĻïƇŎíƇƣĮïƇƒů Ż
ƗŭúïƇ
ƗŭúïƇƓƃƑŎĞìƑƇŴƗŭúïƇƓƃƑŎíƇŌïƇĮïƇƒů ż
ƉƇƏĶƇŎģóƒƃįħõ÷öïƇŃŒŌðŎìĻġöûáōöä
ŎíƇƣŎõùæƇʼnâĬĦõħîĻáĮïĬäŎìĮðĹúöûĤïƇ
ƓƃƑŊðŎģĠûïƇƂļøïƇŊðňĠæĶƗŭúïƇƓƃƑ
ƗŭúïƇ
ĬðĹĥêŁġìƐƇƐĻïƇŎíƇƣŎģóƒƃƣƃŎõîƑĮĝäŭð
įħõ÷öïƇŃŒŌðŎìƗŭúïƇƓƃƑơŌĢá
ŇãƞĩęïêĩÙƕũóèƅƑƁƏŋæƅơīèƅƐħÙŋŒʼnê
ňĜģęġïèƕũóèƅƑƁƏ
īæĩĜóèƅơKŇģñĚèƅƆĸėé
ķħùĚïƇƙĬĠáƑŬƇōģêƊƇƣƏĶƇƙĬĠáƑƇŁõŒʼnöó
ĹóƣļáƤĹïŃĥĚĤïƇŎìĮħñĬĜģûïƇňåƇƏĬĦï
ŎìĬŒƅŁõŒƥƃĭģĜöáŬİħùàƒĬĦøïƇ
ƊƇƣƏĶƇƙĬĠáƑƇŁõŒƠļïƇƐƅŴŇïƐŊðʼnëĻïƇōģêƣ
ʼnøùàŁàƑƍĬöĠðŎðĹúöæƇĮïĬùïƇƢĺòŎĠì
ĭæĬĥð
ʼnðŶź = TYPE KVC50
ʼnðŶž = TYPE KVL60
ĮħïĬöïƇƊĬĤħģĞöïƇŎĞõáƇʼnâ
ŎàĻĦĢïƇƑĬħöïƇƑĹĚðŊêƒĬĦøïƇŎģĚìƇ Ŷ
ƣƃŀħõïƇĮíĬĠåŎõîƑƣƗŭúïƇƓƃƑŎĞìƑƇ ŷ
ƈĻěĤïƇ
ƌĬöùáĮìĬûĤïƇįñĬîƇƐƅƗŭúïƇƓƃƑŎěĠåƇ Ÿ
ŊðƉƇƏĶƇŎģóƒƃƣƗŭúïƇƓƃƑŎĞìƑƇŴŁõěïƇōïƅ
ƍĩĞèĩÙ KĮíĬĠúïƇƈĻěĤïƇĽĤóơƃŎïĬ÷ĤïƇ
.
(1
ƂĬêŌïƇƙĬí
ĮïŌðĬĚïƇŎĢìƏƣļĤïƇŁàĻïƇƍĬöĠðƠƇĹúöæĬà Ź
.
(2
ơƇƑƣĹïƇƑŌùðňóĹĞöàƍĬĤûģïƜĬîňĢęà
ŎĠïŴĮħñĬĜģûïƇƙĬíƢĬøáƇŎìƉƇƏĶƇŀĠúï
ĮêĬûïƇƈƑĬġêĽĢêƢĬøáƇŎìơƇƑƣƏƑŌùð
ƑŌùðŎĠïŴƂĬêŌïƇƙĬíŊê
Ʀ
ƇĹħĞàƉƇƏĶƇŃìĻï
ĮêĬûïƇƈƑĬġêƢĬøáƇŎìơƇƑƣĹïƇ
ĮïŌðĬĚïƇŁàƑƠĬĢäƅƥĹħêƃ ź
ƗŭúïƇƓƃƑŎěĠåƇƣƗŭúïƇŎìƉƇƏĶƇŎõîƑ Ż
ƙĬġïĮõûĥïĬàƉƇƏĶƇŃŒŌðŊðƥĹîĨá
ĮġàĬûïƇƗĬġĥïƇŎĞãƇƑŴĮħñĬĜģûïƇ
ĮãĬùïƇĭûäĮġàĬûïƇƊƇŌĜúïƇƥƑĻî ż
ƏĻøĤàķħùŖňĢęàƉƇƏĶƇŁõŒʼnöóōöä
ŁàƑŎĤĢäƃĮùħùĚïƇĮìĬûĤïƇōïƅƟŌŖŌïƇ
ĮïŌðĬĚïƇ
ňĢęïƇŎìŊħõĤïƇ
(2
ŁàĻïƇƍĬöĠðĮĝäŭð •
ŁġìƍĬěóůƇƖƇĻëĶŎùħŒŌöïƇ
ŇģñĚèƅƚĩĘÞ
ƥĶƌĬöùáŬƣŃĥĚĤïƇŎìƉƇƏĶƇƢĺòŁõŒʼná
ŁõŒ
ŃñĬðƠƇĹúöæƇƣĭħîĻá
ƐƇƐĻïƇ
ƉƇƏĶƇŁõŒ
71
61
ƢʼnĖĝèƅƈĩĚôèƅ
ChefChef XL
ĮęĦïƇƉĻęġïƇƊƇƐƊĬĥøĞĤïƇņħíĹïƇơƒƣƠƇĻ믎ŵƠƇĻëžŶŵ
ļõúïƇŊħøê
ĮĢħĤûïƇƉĻħĤúïƇĮĥħøê
ņħíĹïƇơƒƣƠƇĻëŌģħîŶIJŸŻƠƇĻëŌģħîŶIJź
ŎïĬĤãůƇơƒŌïƇƠƇĻëŌģħîŷIJŶŽƠƇĻëŌģħîŷIJŹ
ĮĠħĠúïƇƉĻħĤúïƇĮĥħøê
ŀħõïƇƣĹàļïĬàĮħĥë
ņħíĹïƇơƒƣƠƇĻëŌģħîŶIJŸƠƇĻëŌģħîŷIJŻ
ŎïĬĤãůƇơƒŌïƇƠƇĻëŌģħîŷIJźƠƇĻëŌģħîź
ĮĦîĬĠïƇŇħîĮĜģå
ĻĢûïƇŃðŊĤûïƇƌƒ
ŎïĬĤãůƇơƒŌïƇƠƇĻëŌģħîŷIJżŷ
ƊĬěħàžĮĜģå
ƠƇĻëŌģħîŹIJźź
ĮěħàŶźĮĜģå
ŀħõïƇƖĬħàƏĹĞïƇ
ơƒŌïƇ
Ŷŷ
ƠƇĻ돟ź)
ŶŻ
ƠƇĻëŻŵź)
ƠƇĻëŻŸōïƅźŸŊħàơƒŌàŁæŌöĤïƇʼnøùïƇ ƠĹúöûĤïƇŀħõïƇʼnøä *
ƇƅƍijƅīĝìĸĘèƅīĜŒʼnèƅĩĢÙŊŒʼnĠèƅīãĸôèƅ
KŊħøĞïƇƈĻěðĻĢûïƇŃðŊĤûïƇĹàļïƇƌļðıóƑĹöïĬàĬĦóĹóƒĮěĠúĥĤïƇĮêĻûïĬàŎőĹàƇ
MaxƤŌĚġïƇĮêĻûïƇōïƅ
ƊĬĢĞĢïƇƊĬĜģåňåƇƏŀħõïƇņĠåMaxƤŌĚġïƇĮêĻûïƇōïƅ4ĮêĻûïƇ
ŋàĬçĬðĮĦîĬĠïƇƣņħíĹïƇ
Ƭ
Ŏè1ĮêĻûïƇōïƅFoldŎĜïƇƏƇĹêƅ
ƉļòĬøïƇƊĬĢĞĢïƇƊĬĜģåĬĦóĹóƒʼnâMinĮěĠúĥĤïƇĮêĻûïĬàŎőĹàƇ
MaxƤŌĚġïƇĮêĻûïƇōïƅıóƑĹöïĬà
ŁģåįóŌĢûõïƇƣƊĬĥøĞĤïƇ
ņħíĹïƇŃðŊĤûïƇ
2ĮêĻûïƇōïƅMinĮěĠúĥĤïƇĮêĻûïƇ
ĮĥóļïƇĻĢæ1ĮêĻûïƇōïƅMinĮěĠúĥĤïƇĮêĻûïƇ
ĮæƣĻĦĤïƇĽèĬĜõïƇĬĦóĹóƒʼnâMinĮěĠúĥĤïƇĮêĻûïĬàŎőĹàƇ
MaxƤŌĚġïƇĮêĻûïƇōïƅıóƑĹöïĬà
ŀħõïƇƈĻěðŀħõïƇƖĬħà
ƤŌĚġïƇĮêĻûïƇōïƅ
Ʀ
ĬħøóƑĹáĮêĻûïƇƉƏĬóƒ
Max»
ŊðĮħïĬúïƇĮħøĥĠæůƇƊĬĜģúïƇ
ơŌòĹïƇ
ƉĹęġïƇ
ŊħøĞïƇƜĬĜåĻĤúĤïƇŊħøĞïƇƊĬĜģúï ŻŵōïƅŹźƉĹĤïMinĮěĠúĥĤïƇĮêĻûïƇ
ĮħñĬâ
ŹōïƅŸƉĹĤïŶĮêĻûïƇōïƅĮêĻûïƇƉƏĬóƒʼnâ
Ʀ
ĬõóĻġáņőĬíƏ
ŶĮêĻûïƇōģêŊøĞïƇƉƏĬêƅ
ƕũóèƅƞƅĶóïßƅ
ňðĬĢïĬàƏƣĻĠðŎàĻĦĢïƇŇģûïƇơƃƥĹîĨá
ňõí
(3
ŎàĻĦĢïƇŇģûïƇŊóļúáŅóŌøáŊê
ňðĬĢöĤïƇĸõĜĤïƇƒĬĦãƠƇĹúöæƇ
ƂĬěóƜŌæŴŎàĻĦĢïƇƑĬħöïƇƑĹĚĤàƒĬĦøïƇŎģŖƣ Ŷ
.
ƏƇĹĞöæŬƇŃŒƣƑƒ
ŀŏơƏƐſʼnŏĽéʼnìƚʼnßīęÝũé
ĵîĘĠèƅƐĩĢÜŅĠĚìŇèơ
ƍƅĶĚïßŨƅ
ŀŏʼnèƅŋåƕũóèƅƑƁƏƟĩçƅƎƃŅéĩĞïĠèƅ
ŋåņĞòïèƅƋĩïĜéƟĩçƅƎƃơƁŊğãijƗʼnåĸĠèƅ
.«OŀŏʼnĠèƅŊğãňÜʼnéƈĩãĸôèƅ
ƕũóèƅƑƁƏƟƁƣĶçĥÚűŅģěĕïèƅŅîæ
ƋĩïĜéƟƁơňĝģĕĚÚơĽĜóèƅŀŏơŋå
ŀŏʼnĠèƅŊğãňÜʼnéƈĩãĸôèƅŋåņĞòïèƅ
űĽģéʼnèƅŋåƏĹèƅſʼnŏĸĠïßƅƅƎƃO»
ƚĩĕïçƅqŅģèƍŋĚÜƅƏīèĩòèƅƠķëŋĜå
pĩĢğÝơƈũĞĕĠèƅ
ƓƃƑŎĞìƑƇƣ
ƗŭúïƇƓƃƑŃìƑƙƇƑƐŎĞìƏƇ ŷ
.
įħõ÷öïƇŃŒŌðŎìĻġöûáōöäƗŭúïƇ
ƢĬøáƇŎìĬĦħìƣƉĹêĬġïƇōģêĮħñĬĜģûïƇŎõîƑ Ÿ
įħõ÷öïƇŃŒŌðŎìĬĦĜàĻï
ĮêĬûïƇƈƑĬġê
ĽõġĤïƇŎìĬĦðƇĹúöæƇƈŌģĜĤïƇƉƇƏĶƇŎģåƏƃŹ
ŎìĬĦģĠġï
ĬĦħĠïƣ
ōģêĶĬĦħĞìƏƇʼnâ
ņħęĞöïƇŃŒŌð
ĮíĬĠåƣƃKŊħøĞïƇƈĻěðơĬîƇƐƅĮĝäŭð
ŎìƉƏŌãŌĤïƇƊĬñŌĢĤïƇŁģåĬĤĦĥĢĤóŬŀħõïƇ
ʼnûíŎĞãƇƑĮïĬùïƇƢĺòŎĠìŴĮħñĬĜģûïƇƉĹêĬí
pƉƇƏĶƇŁõŒq
ĻóĻùáƙƇƑƐŃìƏņóĻèŊêƗŭúïƇƓƃƑŎěĠåƇź
ƗŭúïƇƓƃƑŎěĠåƇʼnâ
ňĠæĶƗŭúïƇƓƃƑ
ƊŌŖĮâĹùðņħęĞöïƇŃŒŌðŎìĻġöûáōöä
.
ĮġĜġè
ʼnĢùöïƇƍĬöĠðŅïƟŭåŊðƒĬĦøïƇŎģğçŻ
ĮêĻûïƇŃŒŌðōïƅŋĦħãŌáƣ
ƊĬêĻûïƇŎì
ĮàŌģĜĤïƇ
(PŎěõĥïƇňħğęöïƇŃŒƣƍĬöĠðŎðĹúöæ Ƈ
ƤŌĚġïƇĮêĻûïƇōģêƉĻħĚíƊƇĻöĠïňħğęöģï
ŎìʼnĢùöïƇƍĬöĠðƥĹħêƃŴƠƇĹúöæŬƇĹĞà ż
O» (OFFňħğęöïƇƜĬġóƅŃŒŌðŎïƅƊĬêĻûïƇ
ƑĬħöïƇƑĹĚðŊêňðĬĢïƇĸõĜĤïƇƒĬĦãŎģĚìƇƣ
ŎàĻĦĢïƇ
ƈƑĬġêƢĬøáƇŎìĬĦĠïņóĻèŊêƉƇƏĶƇŎģóƒƃ Ž
ʼnâƉƇƏĶƇƝĬùïƅĽõġðŊêĬòĻóĻùöïĮêĬûïƇ
ĬĦħģóƒƃ
ƈĩòģĠğÚ
ŁģúïƇĮħģĤêŎĠíƣƃŴňðĬĢïĬàƊĬñŌĢĤïƇıðĹï •
ĮġĞģðƠƇĹúöæĬàĮħñĬĜģûïƇĭñƇŌãŎĜęîƇƣ
ƠĬĝöñĬàĭħģġöïƇ
ŴŀħõïƇņĠåŊêıőĬöĥïƇňěìƃōģêƟŌĚùģï •
ĮìĻğïƇƉƑƇĻäĮãƑƏŎìŀħàŎðĹúöæƇ
ƏŌãƣƠĹêŊðƥĹîĨáŴŀħõïƇƖĬħàņĠåňõí •
ƣƃŀħõïƇƈĻěðōģêŀħàƑĬĠŖƣƃįóƒ
ĮħñĬĜģûïƇ
ĻîĺáʼnïĬðŊħøĞģïƉƏƑĬàƊĬñŌĢðŎðĹúöæƇ •
ŇïƐƜŭåĮĠŖŌïƇ
Ĺîóèƅĸģėòïèīéĩëƕĩĝê
ƞĩë
ĹġìƉƏĹùĤïƇƤŌĚġïƇƊĬĞûïƇƒƣĬøáƑĺùó •
ƒĬĦøïƇōģêĹőƇƒňĤäŎìŎõõûöá
ŎĠíƣĨìŴ
Ʀ
ŭġ÷ðƒĬĦøïƇƊŌŖįĞĤæƇƐƅ •
ŃðŎģðĬĞáʼnâŊħøĞïƇŅĚñŎģóƒƃƣňħğęöïƇ
Ʀ
ƇƏĻĠĥðōģêŅĚñňî
ƊĬñŌĢĤïƇŁģúïıőĬöñňěìƃōģêƟŌĚùģï •
ĮħñĬĜģûïƇŎì
Ʀ
ŬƣƃňőƇŌûïƇŎĠħŒƃ
ƇĸģĠóèƅ
ƉƏĬêƅƌĬöùóƥĺïƇƙŌĥïƇīåĩñèƅƇĸģĠóèƅ •
ʼnâƂĬêŌïƇŎìīìƇĹïƇƂĬĤïƇŎ
Ƭ
õŖňħĢęá
ŶŵƉĹĤïƃĹĦáĬĦħîĻáƇƣĻĢûïƇƣƉĻħĤúïƇŎĠħŒƃ
ƉŌëƑơŌĢöáōöäņőĬíƏ
ņħíĹïƇňåƇƏĬĦħööì : īÜƐĩĘèƅƇĸģĠóèƅ •
ƊĬĤħģĞáŎĞõáƇƢĸÞijƅƇĸģĠóèƅƗƅʼnêƁ •
Ń
Ƭ
ĥĚ
ƪ
ĤïƇ
ơŌòĹðŇħöæŭàĽħîŎìĮĥħøĞïƇŎĞŒ •
ĮèŌĠàƉĬĜğðƣĮħñĬĜģæƣƃįóļïĬà
ĬĦĤøäŅêĬěöóōöäīìƇƏơĬĢðŎìĬĦħîĻáƇʼnâ
ƞĩë
ĮŖĬåƤĻåƃƉƇƏƃƥƃŊóļúáƣƃĭħîĻáƠĹêŊðƥĹîĨá
ƤĻåƃƌƑĬúðƠƇĹúöæƇĹĥêĮħñĬĜģûïĬà
51
KenwoodŊðňðĬĢöĤïƇĸõĜĤïƇƒĬĦãƜĬęĢöæƇ
KŇģñĚèƅƆĸėé
ƂĬĜğïƇƣƊĬĥøĞĤïƇƣįóŌĢûõïƇƣŇħĢïƇňĤĞï
ĻħģîůƇƢŌáĬãƣƊƇŌęùïƇƣƤŌģùģïƥĻĢûïƇ
ĮæƣĻĦĤïƇĽèĬĜõïƇƣ
ĽģîèƅƆĸėé
ĮģőĬûïƇŊőĬøĞïƇƣƉĹęġïƇƣĹàļïƇƣŀħõïƇņĠúï
ƤŌģùïƇĮħĜëƃƣʼnæĹïƇŎïĬåŎøĥĠæůƇŇħĢïƇƣ
ŬŋħģìŌûïƇƣƓŌĤïƇƣŊõøïƇŇħîƣńñĻĤïƇ
ĮĢħĤûïƇƊĬĜģúïƇŃðŀħõïƇĮíĬĠåŎðĹúöûá
ĬĦħĠģöáĹġìĻĢûïƇŃðŊĤûïƇŁģåň÷ð
ŇģñĚèƅƚĩĘÞ
ŁġìƉĻħĤúïƇƊĬĜģåŃðƠĹúöûó
ĬĦáĬðƇĹúöæƇŊðŀĞàƣĮħñĬĜģûïƇƊƇƣƏƃ
ŅģèĶèƅ
ƈĩĝòğĠèƅƊƏĩóé
ĮħïĬĞïƇĮêĻûïƇƌĻúð
ĮěĠúĥĤïƇĮêĻûïƇƌĻúð
ĮħñĬĜģûïƇƝĬùïƅĽõġð
ƕũóèƅ
ĮħïĬĞïƇĮêĻûïƇƌĻúðƂĬĜë
ƗŭúïƇƓƃƑ
ƗŭúïƇƓƃƑĻóĻùáƙƇƑƐ
ňħğęöïƇƣĮêĻûïƇŎìʼnĢùöïƇƍĬöĠð
ŎěõĥïƇ
ƏƇĹĞöæŬƇŃŒƣƑƒ
ƑŌáŌĤïƇĮíĬĜïƇƉĹäƣ
ĮħñĬĜģûïƇ
(1
ĮěĠúĥĤïƇĮêĻûïƇƌĻúðƂĬĜë
(2
ŎàĻĦĢïƇŇģûïƇŊóļúáŅóŌøá
(3
KŊħøĞïƇƈĻěð
(4
ŀħõïƇĮíĬĠå
(5
ŊħøĞïƇƜĬĜå
(6
ĭħģġöïƇĮġĞģð
(7
ƗŭúïƇƓƃƑŎíƇƣ
(8
ƐƇƐĻïƇŃñĬð
(9
ʼnæĻïƇŎìŊħõĤïƇ
(2
ŁàĻïƇƍĬöĠðĮĝäŭð
ƢĹóƣļáʼnöóŬƣŁġìĮħùħŒŌáƖƇĻëĶŎùħŒŌöïƇ
ŃħõïƇƝƣĹĥŖŃð
īìƏĩģïÞƅƈĩĝòğé
ƊĬġùģĤïƇŊðĮêŌĥöðƣƉĻħõîĮêŌĤøðƞĬĥò
ĸõĜĤïƇƒĬĦãŃðĬĦðƇĹúöæƇŊĢĤóŎöïƇƣƉĻìŌöĤïƇ
ňðĬĢöĤïƇ
ŃħõïƇƝƣĹĥŖŃðƉƏƣļĤïƇņùģĤïƇƉĻęñŎĞãƇƑ
www.kenwoodworld.comŃíŌĤïƇƥƑƣƒƣƃ
ƊĬġùģĤïƇŊðĮģðĬĢïƇĮêŌĤøĤïƇƉĹòĬęĤï
ŃðƉƏƣļĤïƇĻħëƊĬġùģĤïƇƂƇĻçĮħĠħîƣƉĻìŌöĤïƇ
ŎæĬæĶƇƞƒĬĦã
īãĸôèƅƊĸóéƈĩĝòğéīęÝũé
īėĜóġĠèƅ
ƒĬĦãňóƏŌðŎìĮěĠúĥĤïƇĮêĻûïƇƌĻúð
TwistƠĬĝĥàļħĤöóŇóĹïňðĬĢöĤïƇĸõĜĤïƇ
ʼnĤĚðŌĦìŎïĬöïĬàƣConnection System
Twist ConnectionƠĬĝñƊĬġùģðŃðňĤĞģï
.System
ĮêĻûïƇƌĻúðŃðňĤĞģïƊĬġùģðŇőƇĻçĹĥê
ŃðņùģĤïƇņìƇŌáŊðĹîĨöïƇ
Ʀ
ŬƣƃŇħģêŴĮěĠúĥĤïƇ
ļħħĤáŊĢĤóŇóĹïňðĬĢöĤïƇĸõĜĤïƇƒĬĦãňóƏŌð
Twist Connection SystemƠĬĝñƊĬġùģðňî
ŎïĬöïƇŌùĥïƇōģêƃĹõóƥĺïƇƣıöĥĤïƇƏŌîƟŭåŊð
ķŒŌĤïƇ
TwistƑĬĞçņóĻèŊê
Ʀ
ĬěóƃƣKAX)
ŃíŌĤïƇƥƑƣƒƊĬðŌģĞĤïƇŊðĹóļĤïƉŌõĞïƇōģê
.www.kenwoodworld.com/twist
BarƠĬĝñōģêňĤĞáƊĬġùģðŇóĹïơĬîƇƐƅ
ĮïĬăƇƢĺòŎĠìŴ
Connection System
ōïƅĐãĬöùöæ
ňħŖŌáŇĥĢČōöä KAT002ME ʼnĝĥðƠƇĹúöæƇ
Twist ConnectionƠĬĝñŃðƊĬġùģąƇƢĺò
ĸõĜąƇƒĬĦãňóƏŌðŎìƏŌãŌąƇ
System
ŇóĹïňðĬĢöąƇ
ŃíŌĤïƇƥƑƣƒŴƊĬðŌģĞĤïƇŊðĹóļĤï
.www.kenwoodworld.com/twist
41
31
ƏĩģïèƅƏĶĖĠÙƐĩĢñèƅŅģŒʼnÚŅîæ
ŋÙĸĢĞèƅ
ƇĸĠğèƐĩĢñèƅƞƅĶóïßƅŅîæ
Ŋèơijƅ
ŎĞãƇƑĬĦģûğàƍŌĤûĤïƇƂƇļãĶƇŎģûëƇ •
ŅħĝĥöïƇƣĮóĬĥĞïƇʼnûí
(3
ŇģûïƇŊóļúáŅóŌøáŊêňðĬĢïĬàƏƣĻĠðŎàĻĦĢïƇŇģûïƇơƃƥĹîĨá O
ňðĬĢöĤïƇĸõĜĤïƇƒĬĦãƠƇĹúöæƇňõí
ƒĬĦøïĬàʼnĦ÷õêƠĹêŊðĹîĨöģïƟĬĠèĶƇōģêƜƇĻçůƇĭøó
O
İħäƊĬġùģĤïƇŊðƥƃĭħîĻáƂĬĥâƃƗŭúïƇƓƃƑŃìƑƣƃŇóĻùáŎïƣĬùáŬ O
ĻġöûðĻħëňðĬĢöĤïƇĸõĜĤïƇƒĬĦãķõĚó
ňħğęöïƇķĜæĮìĬäŊðƈĻġïĬàƒĬĦøïƇňħğęáƑĺùó
O
O
.,U¨D¨Æ¨A0GªUS¤7¶±ÉËDݨ½D9¤É19¤É+-19
/*%9É.UT°ÉÇuFª¤É(F97D¨Æ¨A0GªY79/0T
¨(-1.7½¨7b97zD¨Æ¤É¨~F¨Â-10T1;.,/0T¨D¨V
&F+9£/9N¦°Ý¨Ä¨.7F¨Y/&WË-X¨D¨Æ¨07³
O
D4°ËW¢¨D¨Æ¨07³¦XDɬ¦b77½
O
zW³¨D¨ÆE¨¨07³US¨A*7Ũ*'Y707³É¨-R¨,0FY
(1D¨ÌU/7ÉŨA*7Å
O
¨DY¨07³+LY¨zD¨7½¨./G19¨.$J07U.SF9
doowneK¤9W19Y79¨D¨Æ¨07³&F+91Fb19¤ÉDÆ
¨z7Å-(-1.7½¨.EWݪ
O
8¨3DU.7SW¨b*7½¨.$Dݨ,0FYN
¨.W¨b*7½¨.W]9-X¨78¨*-Y-07³
O
ٹؘٴشٴپؔذؕث؞ڂؔؕ٫ٻُٯ؞ّ٪ضؕٳا٦ؔؔسٲٝٚؔٵ؟ٺ
ّ٪؛ػ٪ڃ؟٫٦ؔ٨ؕػئپؔٴذؔٵ٫٦ؘؕ؛ٟ٧ٓ؟٫٦ؔ 2004/1935
*؛٫ٓيپؔ
21
ňðĬĢöĤïƇĸõĜĤïƇƒĬĦãƜĬęĢöæƇ
KenwoodŊð
ƒĬĦøģïŇőĬĥöíƇơĪìŴƉĻìŌöĤïƇƊĬġùģĤïƇŊðĹóĹĞïƇƟŭåŊð .KenwoodıöĥðƂĬĥöíƇōģêĬĥħñĬĦá
ƟĬĥóơƃōĥĤöñ ŋêŌñŊðĹóĻìƣƥĻġõêňðĬĢöðĸõĜðƒĬĦãŌĦì ƗŭúïƇƂƇĻçŁġìňĢęóŬ
ŋðƇĹúöæĬàŊħĞöĤöûáƣŇàĬøêƅ
.KenwoodıöĥðƙŌĥöðŋħģêƏĬĤöêŬƇŇĥĢĤóŊħöð
īéũôèƅ
ƊĬðƇĹúöæŭïƟƣĬĥöĤïƇŎìĬĦàŎĝĠöäƇƣĮħïĬöïƇƊĬĤħģĞöïƇŎőĻíƇ O
ĮħĞãĻĤïƇĮħģõġöûĤïƇ
ƊĬġĚģðĮóƃƣŅħģğöïƇƊĬñŌĢðŎģóƒƃ
O
(OFFňħğęöïƇƜĬġóƅŃŒŌðōïƅƊĬêĻûïƇŎìʼnĢùöïƇƍĬöĠðƥĻóƏƃ O
ŊðƥƃĮïƇƒƅƣƃĭħîĻáňõíŎàĻĦĢïƇƑĬħöïƇƑĹĚðŊêƒĬĦøïƇŎģĚìƇƣO»
ŅħĝĥöïƇňõíƣƠƇĹúöæŬƇŊðƂĬĦöñŬƇƑŌì
Ʀ
ĬěóƃƣƊĬġùģĤïƇƣƃƊƇƣƏĶƇ
ĬĦõħîĻáʼnáŎöïƇƊĬġùģĤïƇƣĮîĻùöĤïƇƂƇļãĶƇŊêŇĞàĬŖƃƥĹĞàƃ
O
ŋģħğęáƂĬĥâƃĮĝäŭðơƣƏňðĬĢöĤïƇĸõĜĤïƇƒĬĦãƞĻáƑĺùó O
ĿùìĭøóĮïĬùïƇƢĺòň÷ðŎìŋĠģáĮïĬäŎìƒĬĦøïƇƠƇĹúöæƇƑĺùó O
ŋäŭŖƅƣƃƒĬĦøïƇ
ƂŭĤĞïƇĮóĬêƑƣĮñĬħĚïƇʼnûíŎĞãƇƑ
Ʀ
ĬêŌìĻðƓƃĻïƇơŌĢóĬðĹĥêňðĬĢöĤïƇĸõĜĤïƇƒĬĦãňħğęáƑĺùó
O
ŋêļöĥóĹġìňĠèƏŌãƣĮïĬäŎì
Ʀ
ĬħïĹöðŎàĻĦĢïƇŇģûïƇƞĻáƑĺùó O
ňħŖŌöïƇĽàĬíƣƃƂĬàĻĦĢïƇŇģæƣƃƑŌáŌĤïƇĮíĬĜïƇƉĹäƣƖĻĞáƑĺùó O
ƂĬĤģï
ƉĹäƇŌïƇƉĻĤïƇŎìņùģðŊðĻ÷îƃƣƃĹĤöĞðĻħëņùģðƠƇĹúöæƇƑĺùó
O
ƤŌĚġïƇƊĬĞûïƇƟƣĹãŎìĮùŒŌĤïƇƤŌĚġïƇƊĬĞûïƇƒƣĬøáƑĺùó O
ŋĞðƉƏƑƇŌïƇơĬðĶƇƊĬĤħģĞáƙĬõáƇƣƉƂƇĻíĭøóŴĬðņùģðƠƇĹúöæƇĹĥê O
ƗŭúïƇƓƃƑňĠíŊðƥĹîĨáňħġâŌĦìƒĬĦøïƇƇĺòňĤäĹĥêƑĺùïƇŎåŌá O
ŇģûïƇƣƌƑĬúĤïƇĮħĜëƃƣƊƇƣƏĶƇƣĮħñĬĜģûïƇŊħðĨáƣňĠæĶŃŒŌïƇŎì
ƒĬĦøïƇňĤäňõíŎàĻĦĢïƇ
ŋÙĸã
HEAD OFFICE: Kenwood Limited, 1-3 Kenwood Business Park, New Lane, Havant, Hampshire PO9 2NH
5720000173/2
