Appearance & Design

Product Layout

Control Panel

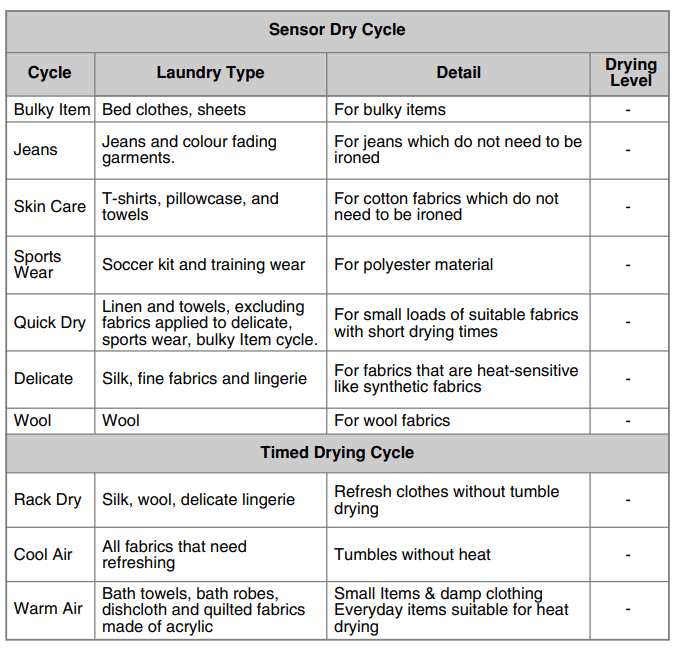

Cycle Selection Table

Operating Your Dryer

Before using your LG dryer

After removing the packaging, please carry out the following checks to ensure the LG dryer is correctly installed and ready for use. (See installation instructions)

1. Check the dryer is well balanced by using a spirit level. If not, adjust the feet of the LG dryer until the machine is balanced.
2. Check the water container, filter, control panel and drum to make sure everything is in place.
3. Set the machine to dry for 5 minutes to warm up the drum.
4. Open the door between loads the first few times you use the machine to allow any odours from the interior of the LG dryer to disperse.

NOTE The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature to ensure that the items will not be damaged.

1. Turn the power on.

First, press the ‘‘Power’’ button. The indicator light above the button will become illuminated indicating that the machine is all set to run.

2. Open the door.

3. Check the filter and water container are clean.

The filter is inside the door rim or in the back of the door. It needs to be cleaned before and after drying. Open the door and check the filter is clean. If not, please clean it referring . Also check if water container need to be emptied for optimum drying results.

4. Place laundry into the drum after sorting.

The clothes should be sorted by fabric type and dryness level and all the strings and belts of clothes should be well tied and fixed before being put into the drum. Push the laundry to the back to keep it away from the door seal. If not, the door seal and clothes may be damaged.

5. Close the door.

Before you close the door, make sure fabrics are placed well inside and that foreign objects, especially flammable ones, are not caught around door.

6. Select the drying cycle you want.

You can choose a cycle by turning the cycle selector knob until the required cycle is indicated. If you press Start/Pause button without choosing a cycle, the dryer will proceed with the Cupboard cycle.

7. Press the start button.

You will hear drum rotating.

8. After the cycle has finished, open the door and remove the laundry.

9. Clean the filter and empty water container.

The filter should be cleaned after each load.

10. Turn off the dryer.

Press the ‘‘Power’’ button.

CAUTION

• Take care if using a vacuum cleaner to clean the filter, as it is easily damaged and torn. If there is a residue build up on the filter, scrub the filter with a brush to remove.
• If you want to open the door while the dryer is operating, please press the Start/Pause button first, wait until the drum completely stops and then open the door.

CAUTION This dryer must not be used for purposes other than those for which it was designed.

Rack Dry (depending on the model )

The dryer rack is placed inside the dryer like the picture. Remove and discard packing material before use. The Rack Dry is designed for use with items that must be dried flat, without tumbling, including sweaters and delicate fabrics.

To use the Rack Dry

1. Open the door.
2. Do not remove the filter.
3. Place dryer rack over the bottom of the dryer door opening. Reset the Rack on the dryer back lodge. Push down on the frame front to secure over filter.
4. Place wet items on top of the rack. Allow space around items for air to circulate. The rack does not move, but the drum will rotate.
5. Close the door.
6. Turn power on and select Rack Dry.

Additional Functions

Power

• Press the Power button to turn power on and off.
• To cancel the Time Delay function, the power button should be pressed.

Additional Programme

• Use these buttons to select the desired options for the selected cycle.

Cycle Selector

• Cycles are available according to the laundry type.
• The lamp will light up to indicate selected cycle.

Options

• This allows you to select additional options and will light when select.

Start/Pause

• This Start/Pause button is used to start dry cycle or pause the dry cycle.
• Press the Start/Pause button to stop the cycle temporarily.
• When in Pause, the power is turned off automatically after 4 minutes.

Time Delay

You can use the Time Delay option to delay the finishing time of drying cycle.

Maximum Time Delay is 19 hours.
Minimum Time Delay is 3 hours.

1. Turn the dryer on.
2. Select a cycle.
3. Set time delay hour(s) by press the button.
4. Press Start/Pause button.

Anti Crease

The Anti Crease option prevents creases that are formed when the laundry is not unloaded promptly at the end of the drying cycle. When Anti Crease is selected, the dryer repeatedly runs and pauses, giving you 2 hours to unload the laundry. If the door is opened during the Anti-Crease option, the option is cancelled.

Favorite

Favorite option allows you to store a customized dry cycle for future use.

1. Turn the dryer on.
2. Select a cycle.
3. Select the option or additional programme. (Anti-Crease, Eco HybridTM etc.)
4. Press and hold Favorite option button for 3 seconds.

The Favorite option is now stored for future use. To reuse the stored cycle, select Favorite option and press the Start/Pause.

Drum Light

Whilst the dryer is running it is possible to see inside the drum if you select the DrumLight function.

• Light on : Door is opened.
• Light off : Door is closed. Off automatically.

Eco HybridTM

This additional program offers the option of either saving energy or time.

• Eco: energy saving option. (Heat Pump only)
• Turbo: time saving option.(Heat Pump + Heater) You will see “ Turbo ” indication on the LED

Option

Hand Iron

This function keeps the garments more moist than the standard Iron dry level.

Damp Dry Beep

This function lets you know when the clothes are ready for ironing

Child Lock ( )

For the safety of your children, press Dry Level button for about 3 seconds. You will see “ ” indication on the LED. You can see “ ” sign on LED window.

• All controls except Child Lock and Power buttons will be disabled.
• Child Lock lasts after the end of cycle.

Buzzer

This is an option to enable you to adjust volume of beeper sound.

Before using the Tag On function

• The Tag On function allows you to conveniently use the LG SmartDiagnosis™ and Cycle Download features to communicate with your appliance right from your own smart phone.
• To use the Tag On function:

1. Download the LG Smart Laundry & DW App to your smart phone.

2. Turn on the NFC (Near Field Communication) function in your smart phone.

• The Tag On function can only be used with most smart phones equipped with the NFC function and based on the Android operating system (OS).

Turning on the NFC function of the phone

1. Enter the "Settings" menu of the smart phone and select "Share & Connect" under "WIRELESS & NETWORKS".

2. Set "NFC" and "Direct Android Beam" to ON and select "NFC".

3. Check "Use Read and Write/P2P receive"

The Tag On guide

Tag On position

• Tag On: Look for the Tag On icon next to the LED screen on the control panel. This is where you position your smart phone when using the Tag On function with the LG SmartDiagnosis™ and Cycle Download features of the LG Smart Laundry & DW App.

• When you use the Tag On function, position your smart phone so that the NFC antenna on the back of your smart phone matches the position of the Tag On icon on the appliance. If you do not know the position of your NFC antenna, move your smart phone very slightly in a circular motion until the application verifies the connection.

• Because of the characteristics of NFC, if the transmission distance is too far, or if there is a metal sticker or a thick case on the phone, transmission will not be good. In some cases, NFC-equipped phones may be unable to transmit successfully.
• Press in the LG Smart Laundry & DW app for a more detailed guide on how to use the Tag On function.

Caring for Your Dryer

Caring for your Dryer is very Important

It’s not difficult to care for your dryer but it is important that you do care for it to get the best out of it.

Clean Filter

Clean filter after each use and check it before each use. It should also be cleaned if the ‘‘Clean Filter’’ light becomes illuminated and the buzzer sounds whilst the dryer is in operation. Cleaning or emptying the filter will reduce drying times and energy consumption and lengthen the dryer life.

1. Open the door.

2. Pull the filter out.

3. Clean the filter by using a vacuum cleaner or rinsing under the tap.

4. Replace the filter.

• Push the filter all the way down to avoid interference with the door.

5. Close the door.

Empty Water Container

Condensed water is collected in the water container.

Empty the water container after every use.

Not doing so will affect the drying performance. If the water container is full, the “Empty Water” lamp glows and the buzzer sounds while the dryer is operating. If this should occur, the water container needs to be emptied within the next hour.

1. Pull out the water container.

2. Empty water container in the sink.

3. Push it back into the dryer.

4. Press the Start/Pause button.

Ventilation Grill and Cool Air Inlet Grill

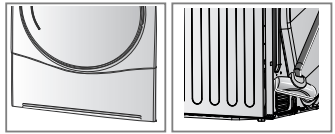

Vacuum the front ventilation grill 3-4 times a year to make sure there is no build up of lint or dirt that may cause improper air flow.

NOTE

• Warm air is exhausted through the ventilation grill.
• Adequate ventilation should be provided to avoid the back flow of gases into the room from units burning other fuels, such as open fires.

Condensed Water Drain-out

Normally, condensed water is pumped up to the water container where water is collected until manually emptied. Water can also be drained out directly to a mains drain, especially when the dryer is stacked on top of a washing machine. With a connecting kit for the mains drain hose, simply change the water path and reroute to the drainage facility as be

1. Take connecting kit out.

2. Separate water container hose from the kit.

3. Connect drain hose to the kit.

Moisture Sensor?

The device senses the moisture level of the laundry during operation, which means it must be cleaned regularly to remove any build up of lime scale on the surface of the sensor. Wipe the sensors inside drum. (as illustrated)

Additional Tips for Smart Use

Woollens

Dry woollens on ‘’wool’’ cycle. Be sure to follow fabric care label "symbols“ first. Wool may not be completely dried from the cycle, so don't repeat drying. Pull woollens to their original shape and dry them flat.

Woven and Loopknit Materials

Some woven and loopknit materials may shrink, depending on quality.

Permanent Press and Synthetics

Do not overload your dryer. Take out permanent press items as soon as the dryer stops to reduce creases.

Baby Clothes and Night Gowns

Always check the manufacturer’s instructions.

Rubber and Plastics

Do not dry any items made from or containing rubber or plastics such as:

a) Aprons, Bibs and Chair Covers

b) Curtains and Table Clothes

c) Bathmats

Fiberglass

Do not dry fiberglass articles in your dryer.Glass particles left in the dryer could be picked up by your clothes the next time you use the dryer and irritate your skin.

Fabric Care Labels

Clothes have their own wash care labels, so drying according to the wash care label is recommended.

Not only that, the laundry must be sorted according to size and type of fabric.

For the best drying performance and most efficient energy usage, do not overload the dryer.

Spare Parts

Spare parts that are required under the terms of warranty are provided free of charge. If the warranty has expired then spare parts must be purchased from the service centre

Disposal of the Dryer

It is requested that you dispose of your dryer safely to protect children and others from possible injury. The door, lid and other protruding parts must be removed and the power cord should be cut off before safe disposal.

Service Contact

If there is a problem with your dryer, first consult the Trouble Shooting Guide. If you cannot find the error and you are unable to resolve the problem, please contact theService Centre.

A Customer Service representative will ask you the following questions:

1. Name, address and postcode
2. Phone number
3. Description of problem
4. Model number and serial number of your dryer
5. Date of Purchase

Accessory Parts

Accessories available for this product ( depending on the model

1. Condensing Drain Hose and Hose Holder (Purchased Separately)

2. Dryer Rack ( Purchased Separately )

3. Stacking Kit ( Purchased Separately)

The stacking kit can be used for washer top plate size 550mm and 600mm for both.

Troubleshooting Guide

Questions	What to do
Dryer won’t run	1. Check dryer is plugged in. 2. Check "Start/Pause" button is pressed. 3. Check door is properly closed. 4. Check room temperature is below 5°C. 5. Check a fuse is blown or the circuit breaker is tripped and replace them. (Caution : electric dryers generally use two fuses or breakers) After emptying the water container and cleaning filter during operation, you must press Start/Pause button, then the dryer will operate again.
It takes a long time to dry	1. Filter should be cleaned after each load. 2. Check water container is emptied. 3. Select correct cycle setting for fabric type. 4. Check air ventilation grille or rear vents of dryer are not obstructed. 5. Check clothes are not excessively wet. 6. Check the dryer is overloaded.
Dryer is operating but “Time Left” in the display doesn’t change.	This is not a malfunction. Drying time is estimated and will recalculate throughout the cycle as it senses the dryness of the load.
	Check filter is clean.
Clothes are covered in fluff	1. Check the filter is clean. 2. Check all the items in the dryer are clean. 3. Check all the laundry has been correctly sorted by fabric type. 4. Check the dryer is not overloaded. 5. Check if there are any paper, tissues or other degradable items amongst the laundry and remove.
The drying time is not consistent	The drying time for a load will vary depending on the heat setting, the size of the load, the type of fabrics, the wetness of the clothes and the condition of the filter.
Water is leaking	Check the water hose or drain hose is properly connected.
The clothes are creased	Check the dryer is not overloaded. Try a shorter drying time and remove items whilst they still retain a slight amount of moisture. Use the anti-crease option.
The garments have shrunk	To avoid shrinkage, please follow the care and use instructions for your garment, as some fabrics shrink naturally when washed and should not be placed in a dryer.
	Please check the filter is in the dryer.

Error Mode

: The door must be closed and Start/Pause button must be pressed for reoperation.If error message continues to occur, unplug the power cord and call the service center for advice.

If error message continues to occur, unplug the power cord and call the service center for advice.

Drum light does not work

Contact the customer service center.

Using Smart Diagnosis™

• Only use this feature when instructed to do so by the call center. The transmission sounds similar to a fax machine, and so has no meaning except to the call center.
• Smart Diagnosis™ cannot be activated if the dryer does not power up. If this happens, then troubleshooting must be done without Smart Diagnosis™. If you experience problems with your dryer, call the customer information center. Follow the call center agent's instructions, and do the following steps when requested:

1. Press the Power button to turn on the dryer. Do not press any other buttons or turn the cycle selector knob.

2. When instructed to do so by the call center, place the mouthpiece of your phone close to the "Smart Diagnosis™" icon and Power button.

3. Press and hold the “ (More)” button for three seconds, while holding the mouthpiece of your phone close to the "Smart Diagnosis™" icon and Power button.

4. Keep the phone in place until the tone transmission has finished. The display will count down the time.

• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.

5. Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you using the information transmitted for analysis at the call to customer information center.
